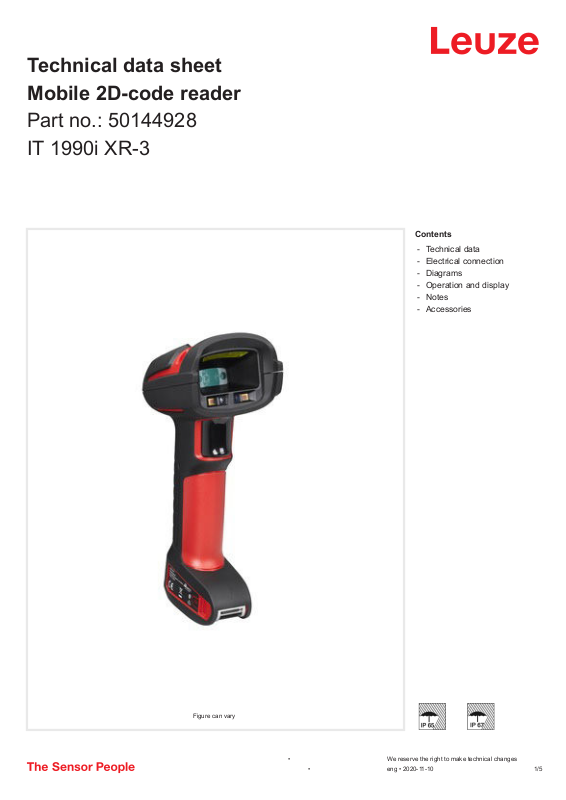

Leuze 50144928 Data Sheet
Technical data sheet
Mobile 2D-code reader
Part no.: 50144928
IT 1990i XR-3
Contents
-
Technical data
-
Electrical connection
-
Diagrams
-
Operation and display
-
Notes
-
Accessories
Figure can vary
• We reserve the right to make technical changes
• eng • 2020-11-10
1 /5
Mobile 2D-code reader • Part no.: 50144928 • IT 1990i XR-3
6
5
Technical data
Basic data
Series IT19xx
Read data
Code types, readable 2/5 Interleaved
Aztec
Codabar
Code 128
Code 39
Code 93
Composite Codes
Data Matrix Code
EAN 128
EAN 8/13
EAN Addendum
GS1 Databar
GS1 Databar Expanded
GS1 Databar Limited
GS1 Databar Omnidirectional
GS1 Databar Stacked
GS1 Databar Truncated
Maxicode
Micro PDF
Micro QR
Others on request
PDF417
QR code
UPC
Optical data
Reading distance 0 ... 2,236 mm
Camera resolution, horizontal 1,280 px
Camera resolution, vertical 800 px
Electrical data
Performance data
Supply voltage U
Power consumption, max. 2.35 W
B
4 ... 5.5 V, DC
Interface
Type PS/2, RS 232, USB
RS 232
Function
Process
USB
Function Process
Connection
Connection 1
Type of connection RJ41
Mechanical data
Dimension (W x H x L) 76 mm x 100 mm x 192 mm
Housing material Plastic
Plastic housing UL 94-V0
Net weight 320 g
Environmental data
Ambient temperature, operation -30 ... 50 °C
Ambient temperature, storage -40 ... 70 °C
Relative humidity (non-condensing) 0 ... 95 %
Drop height 3 m
Measurements relative to Concrete floor
Certifications
Degree of protection IP 65
IP 67
Classification
Customs tariff number 84719000
eCl@ss 8.0 27280103
eCl@ss 9.0 27280103
eCl@ss 10.0 27280103
eCl@ss 11.0 27280103
ETIM 5.0 EC002999
ETIM 6.0 EC002999
Electrical connection
Connection 1
Function Configuration interface
Data interface
Type of connection RJ41
Pin Pin assignment
1 Shield
2 Cable ID
3 GND
4 TxD RS 232 / n.c. USB
