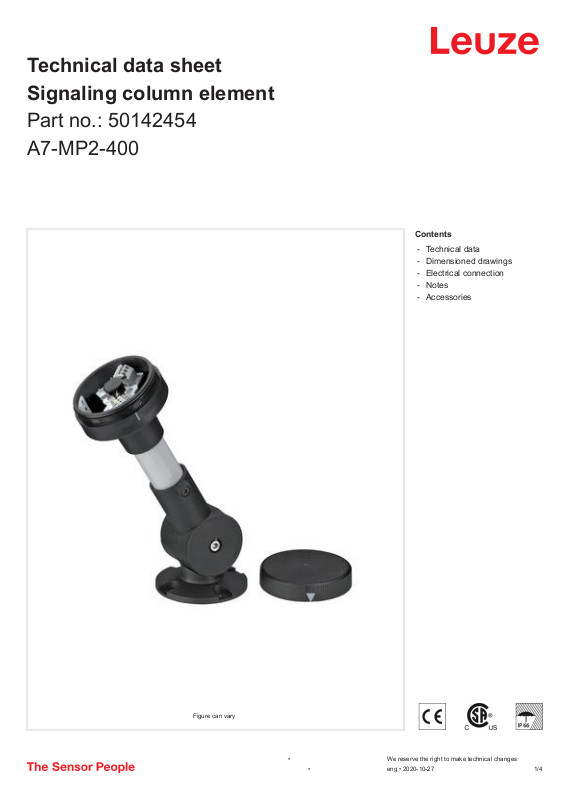

Technical data sheet
Signaling column element
Part no.: 50142454
A7-MP2-400
Contents
-
Technical data
-
Dimensioned drawings
-
Electrical connection
-
Notes
-
Accessories
Figure can vary
• We reserve the right to make technical changes
• eng • 2020-10-27
1 /4
Page 2
Signaling column element • Part no.: 50142454 • A7-MP2-400
Technical data
Basic data
Series A7
Connection
Number of connections 1 Piece(s)
Connection 1
T
ype of connection Terminal
Type of terminal Tension spring technology
Mechanical data
Design Cylindrical
Dimension (Ø x L) 70 mm x 500 mm
Housing material Plastic, Aluminum
Net weight 227 g
Housing color Black
Gray
Design of mounting device Base mounting
Type of fastening, at system Screw type / horizontal
Screw type / vertical
Type of mounting device 180°, adjustable in intervals of 15°
Module holder One side
Number of end caps 1 Piece(s)
Environmental data
Ambient temperature, operation -10 ... 60 °C
Certifications
Degree of protection IP 66, Only when mounted on a housing
with the same degree of protection
Certifications CE
CSA
Classification
Customs tariff number 85318070
eCl@ss 8.0 27371220
eCl@ss 9.0 27371220
eCl@ss 10.0 27371220
eCl@ss 11.0 27371220
ETIM 5.0 EC000232
ETIM 6.0 EC000232
• We reserve the right to make technical changes
• eng • 2020-10-27
2 /4
Page 3
Signaling column element • Part no.: 50142454 • A7-MP2-400
498

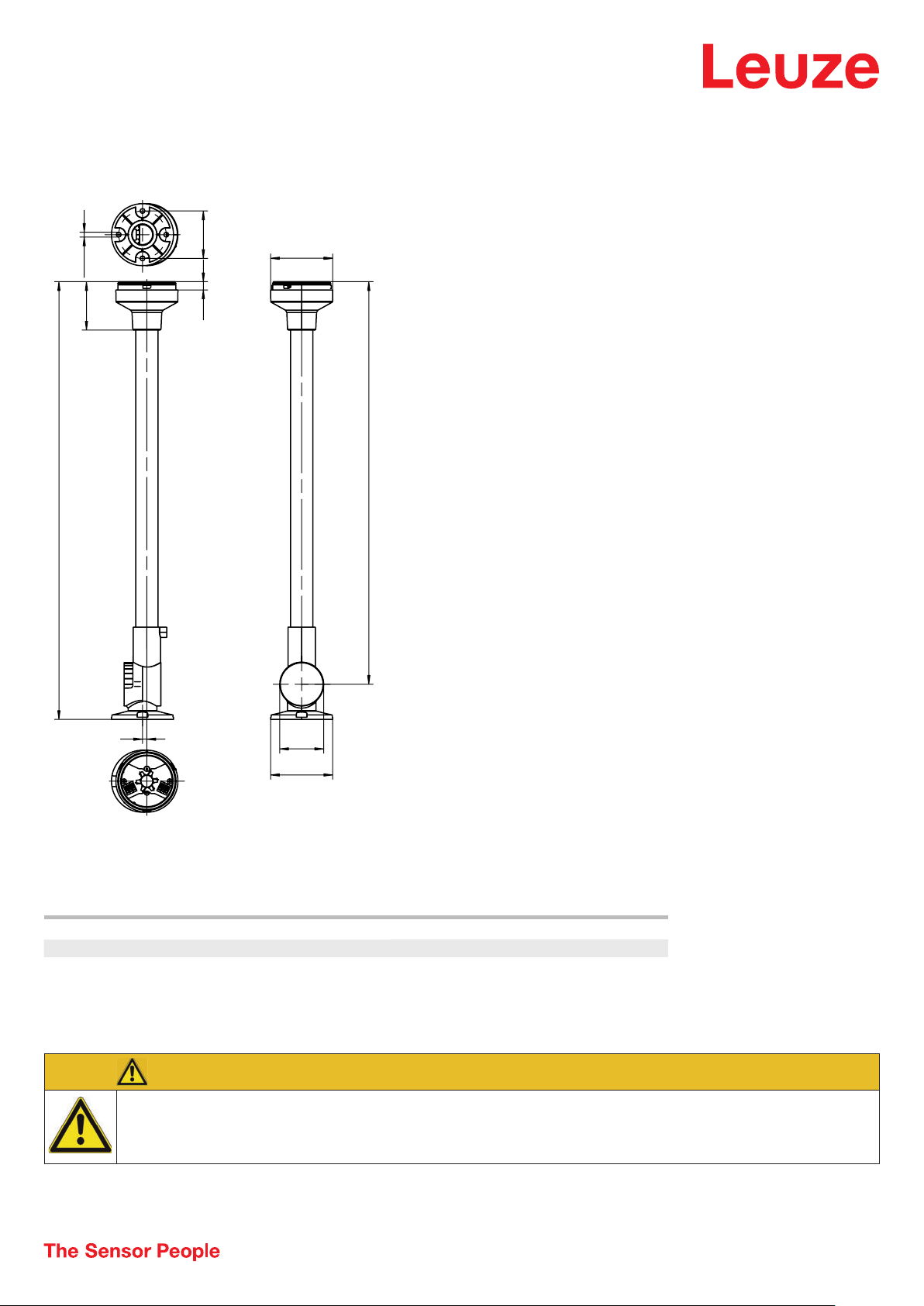

Dimensioned drawings
All dimensions in millimeters
Ø 5,5
55
Ø 54
9,3
Ø 70,6
458
5
Ø 50
Ø 70,6
Electrical connection
Connection 1
Function Voltage supply
Type of connection Terminal
Type of terminal Tension spring technology
Notes
Observe intended use!
ª This product is not a safety sensor and is not intended as personnel protection.
ª The product may only be put into operation by competent persons.
ª Only use the product in accordance with its intended use.
• We reserve the right to make technical changes
• eng • 2020-10-27
3 /4
Page 4
Signaling column element • Part no.: 50142454 • A7-MP2-400

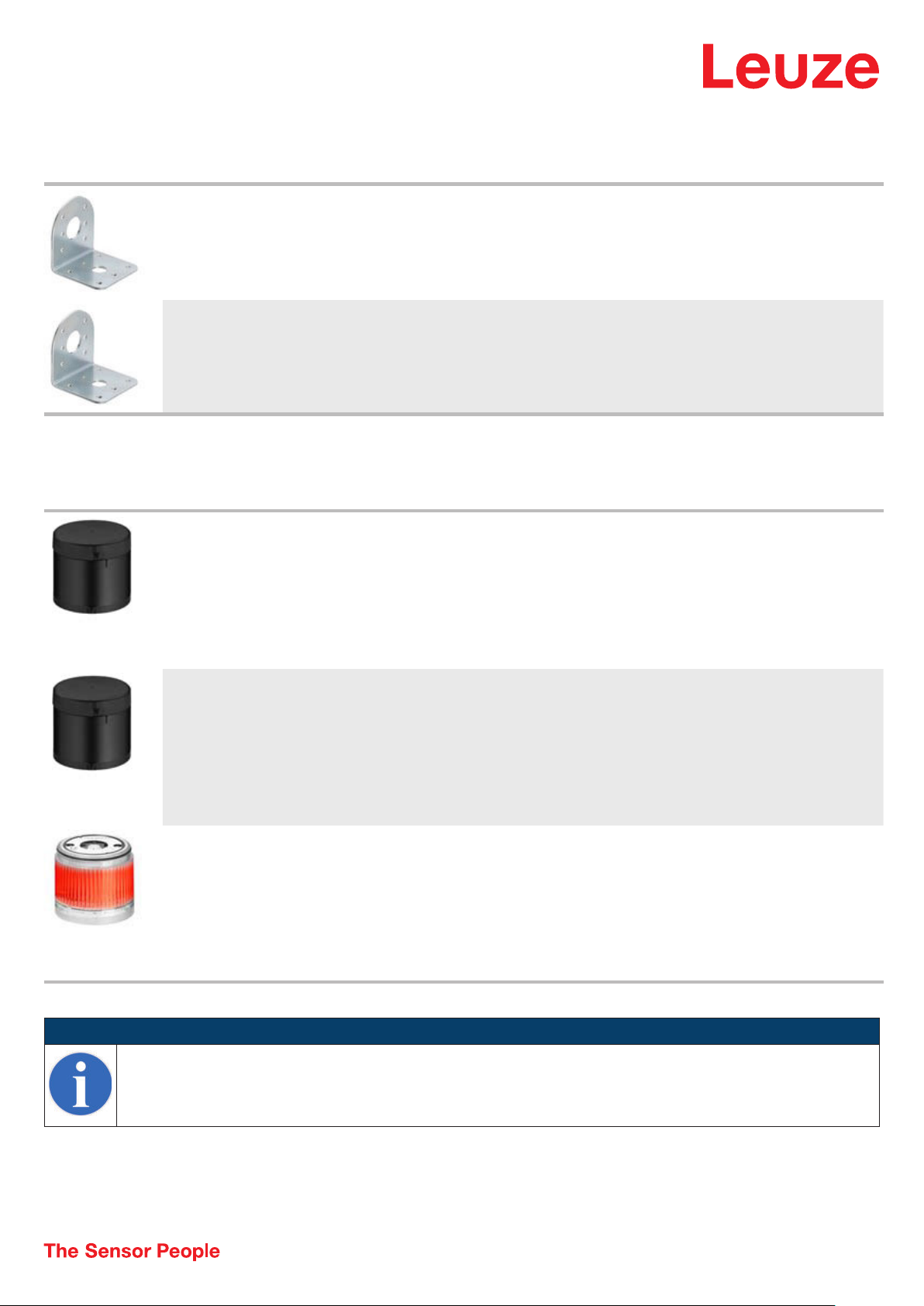

Accessories
Mounting technology - Mounting brackets
Part no. Designation Article Description
General
50142896 A7-MW2 Signaling column
element
50143660 A7-MW2.5 Signaling column
element
Design: L shape
Version: Angle, L-shape
Fastening, at system: Through-hole mounting
Design: L shape
Version: Angle, L-shape
Fastening, at system: Through-hole mounting
Part no. Designation Article Description
50135462 A7-V1-BZ1-M Signaling column
element
50138151 A7-V1-BZ2-S Signaling column
element
50135457 A7-V1-DS-R-T Signaling column
element
Signaling: Acoustic
Current consumption, max.: 70 mA
Design: Cylindrical
Diameter: 70 mm
Fastening: Bayonet system
Operational controls: DIP switch, 225° potentiometer
Ambient temperature: -10 ... 60 °C
Degree of protection: IP 66
Tone type: Continuous or pulse tone
Sound pressure: 100 dB
Number of tones: 8 Piece(s)
Signaling: Acoustic
Current consumption, max.: 20 mA
Design: Cylindrical
Diameter: 70 mm
Fastening: Bayonet system
Operational controls: 225° potentiometer
Ambient temperature: -10 ... 60 °C
Degree of protection: IP 66
Tone type: Continuous tone
Sound pressure: 105 dB
Number of tones: 1 Piece(s)
Signaling: Optical
Current consumption, max.: 50 mA
Design: Cylindrical
Diameter: 70 mm
Fastening: Bayonet system
Illuminant: LED/24V
Signal image: Continuous light
Lens color: Red
Angle of radiation: 360°
Ambient temperature: -10 ... 60 °C
Degree of protection: IP 66
Note
ª A list with all available accessories can be found on the Leuze website in the Download tab of the article detailed page.
