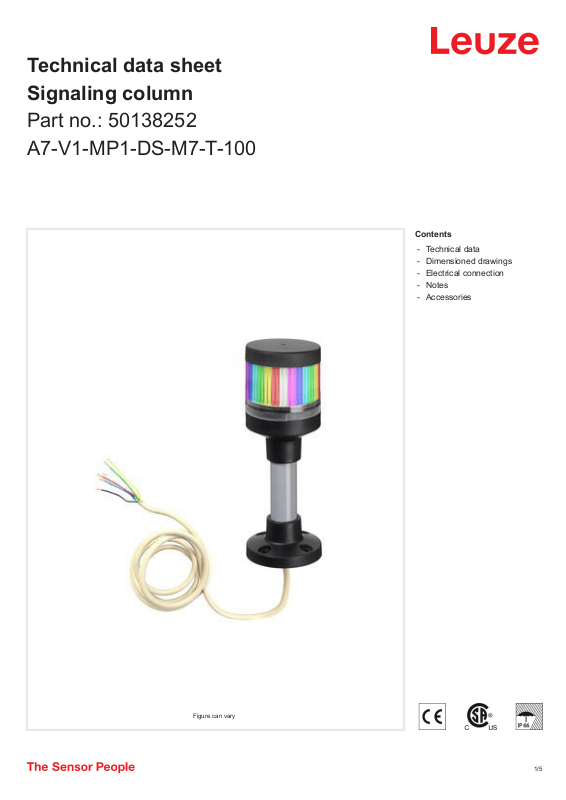

Page 1
Technical data sheet
Signaling column
Part no.: 50138252
A7-V1-MP1-DS-M7-T-100
Contents
-
Technical data
-
Dimensioned drawings
-
Electrical connection
-
Notes
-
Accessories
Figure can vary
1 /5
Page 2
Signaling column • Part no.: 50138252 • A7-V1-MP1-DS-M7-T-100
Technical data
Basic data
Series A7
Type of signaling Optical
Electrical data
Life expectancy > 100,000 h
Performance data
Supply voltage U
Current consumption, max. 70 mA
B
24 V, DC, 10 %
Connection
Number of connections 1 Piece(s)
Connection 1
Function Light color programmable via actuation
Type of connection Cable, soldered to lens / open end
Cable length 1,500 mm
Number of conductors 6 -wire
of wires
Voltage supply
Mechanical data
Design Cylindrical
Dimension (Ø x L) 70 mm x 203 mm
Housing material Metal
Plastic
Net weight 313 g
Housing color Black
Gray
Type of fastening, at system Screw type / horizontal
Type of illuminant LED/24V
Lens modules 1 piece
Display of the lens colors 7 colors can be selected
Signal image Continuous or flashing light
Lens colors Blue
Green
Pink
Red
Turquois
White
Yellow
Angle of radiation 360°
Certifications
Degree of protection IP 66, Only when mounted on a housing
with the same degree of protection
Certifications CE
CSA
Classification
Customs tariff number 85318070
eCl@ss 8.0 27371220
eCl@ss 9.0 27371220
ETIM 5.0 EC000232
ETIM 6.0 EC000232
2 /5
Page 3
Signaling column • Part no.: 50138252 • A7-V1-MP1-DS-M7-T-100
Ø 70,6
203

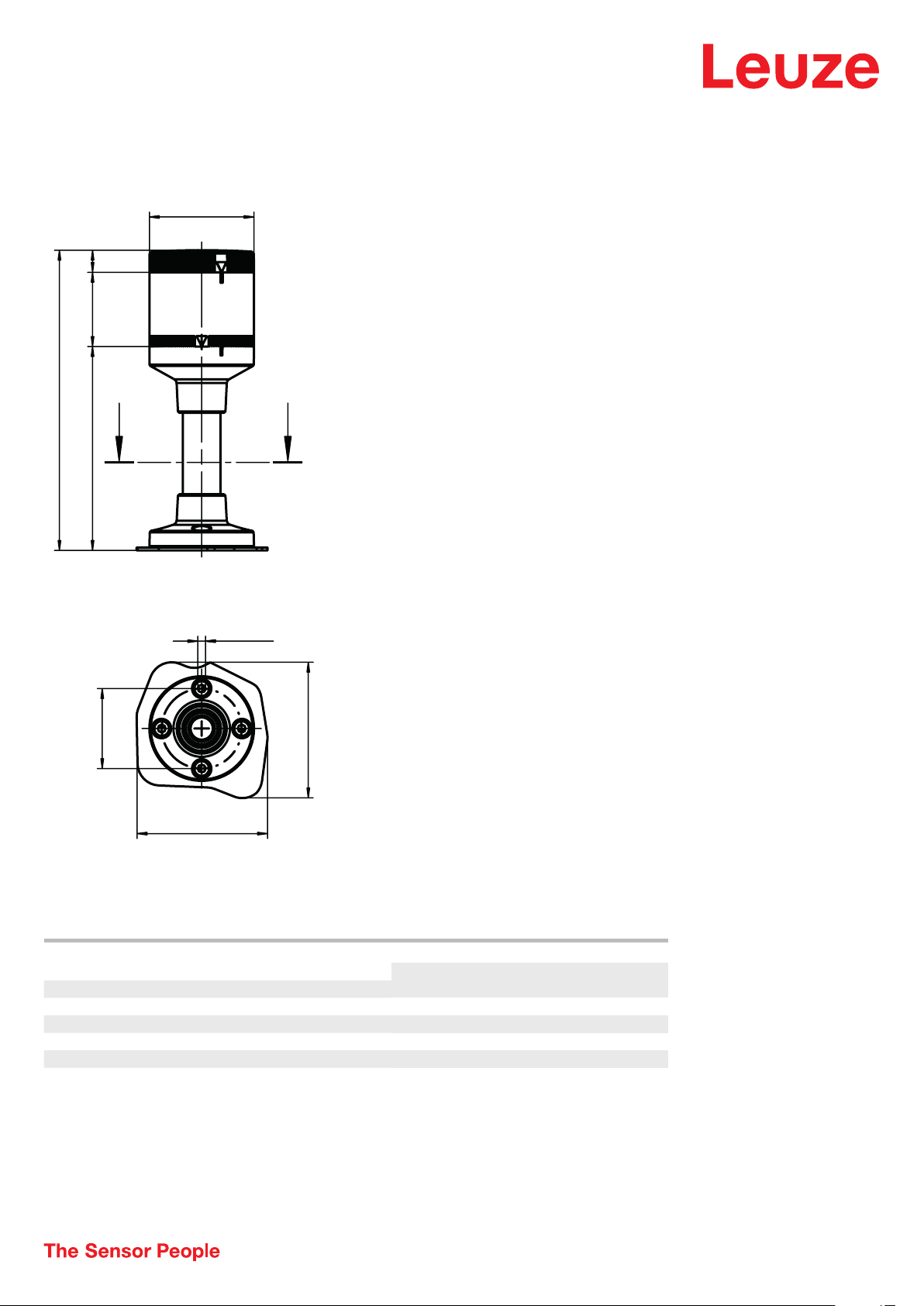

Dimensioned drawings
All dimensions in millimeters
15
50138
Ø 5,2
Ø 54
88
92
Electrical connection
Connection 1
Function Light color programmable via actuation of wires
Voltage supply
Type of connection Cable, soldered to lens / open end
Cable length 1,500 mm
Sheathing material
Cable color
Number of conductors
Wire cross section 0.34 mm²
PVC
Gray
6 -wire
3 /5
Page 4
Signaling column • Part no.: 50138252 • A7-V1-MP1-DS-M7-T-100
Electrical connection
Conductor color Conductor assignment
Black GND
Red Multicolor light color: red
Green Multicolor light color: green
Blue Multicolor light color: blue
BlueRed Multicolor light color: pink
GreenRed Multicolor light color: yellow
BlueGreen Multicolor light color: turquoise
BlueGreenRed Multicolor light color: white
Y
ellow Light color: orange
White Light color: white / buzzer
NOTE Connect all listed wires to obtain the
corresponding light color.
Notes
Observe intended use!
ª This product is not a safety sensor and is not intended as personnel protection.
ª The product may only be put into operation by competent persons.
ª Only use the product in accordance with its intended use.

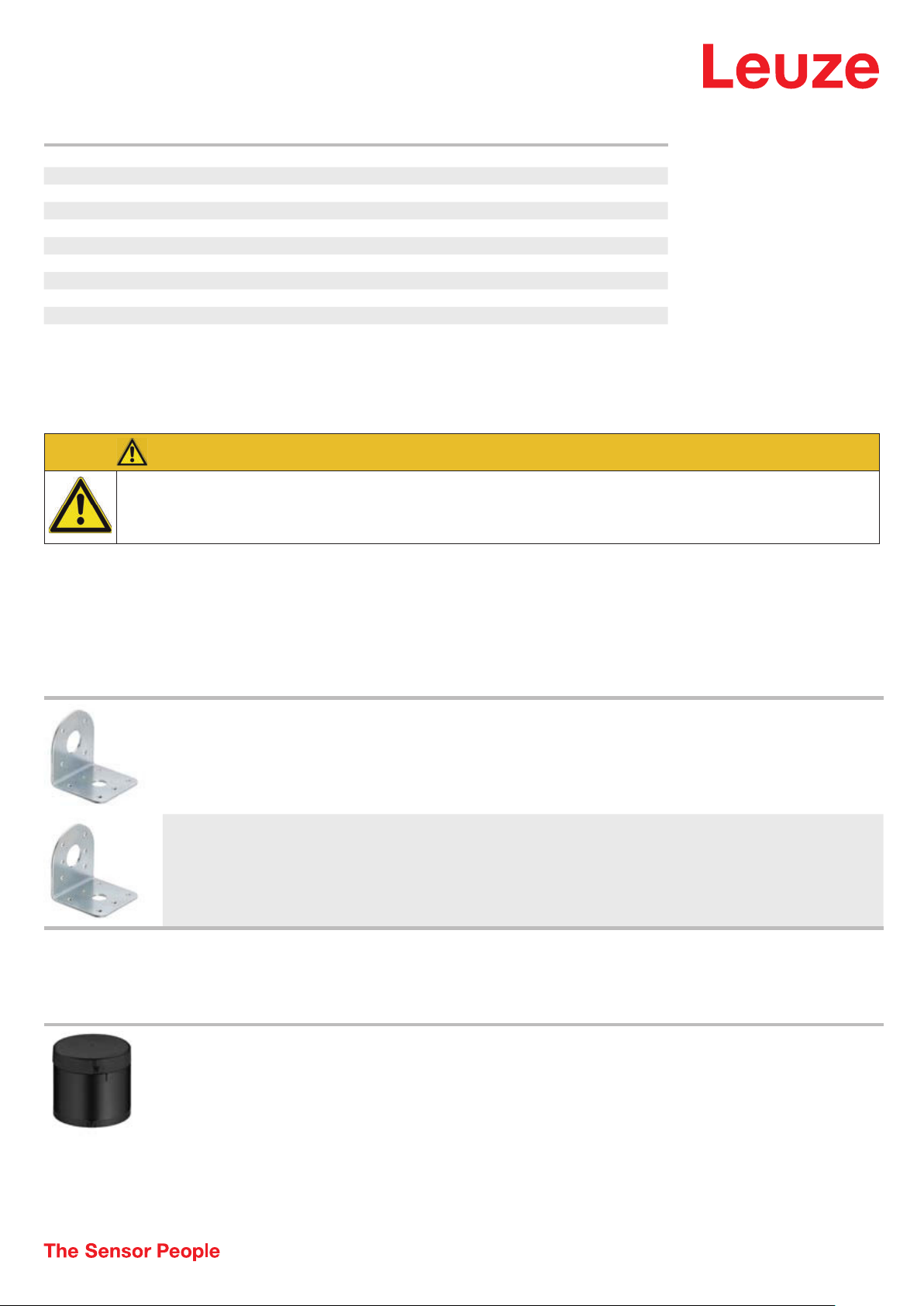

Accessories
Mounting technology - Mounting brackets
Part no. Designation Article Description
50137729 A7-MW1 Signaling column
50142896 A7-MW2 Signaling column
Mounting technology - Other
Part no. Designation Article Description
50135462 A7-V1-BZ1-M Signaling column
element
element
element
Design: Angle, L-shapeL shape
Fastening, at system: Through-hole mounting
Design: Angle, L-shapeL shape
Fastening, at system: Through-hole mounting
Signaling: Acoustic
Current consumption, max.: 70 mA
Design: Cylindrical
Diameter: 70 mm
Fastening: Bayonet system
Operational controls: DIP switch, 225° potentiometer
Ambient temperature: -10 ... 60 °C
Degree of protection: IP 66
Tone type: Continuous or pulse tone
Sound pressure: 100 dB
Number of tones: 8 Piece(s)
4 /5
Page 5
Signaling column • Part no.: 50138252 • A7-V1-MP1-DS-M7-T-100

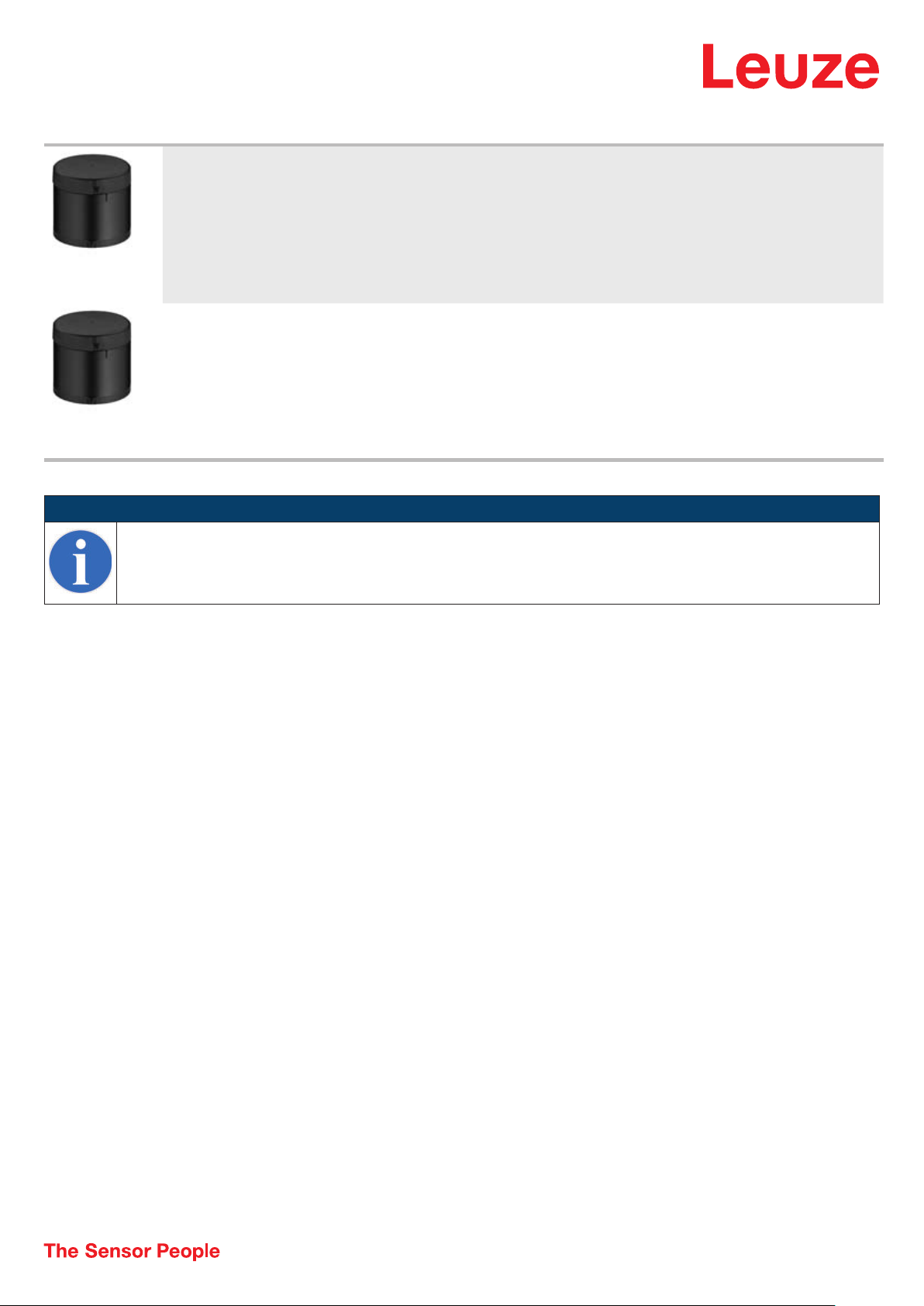

Accessories
Part no. Designation Article Description
50138151 A7-V1-BZ2-S Signaling column
element
50138366 A7-V1-BZ3-S Signaling column
element
Signaling: Acoustic
Current consumption, max.: 20 mA
Design: Cylindrical
Diameter: 70 mm
Fastening: Bayonet system
Operational controls: 225° potentiometer
Ambient temperature: -10 ... 60 °C
Degree of protection: IP 66
Tone type: Continuous tone
Sound pressure: 105 dB
Number of tones: 1 Piece(s)
Signaling: Acoustic
Current consumption, max.: 30 mA
Design: Cylindrical
Diameter: 70 mm
Fastening: Bayonet system
Operational controls: 225° potentiometer
Ambient temperature: -10 ... 60 °C
Degree of protection: IP 66
Tone type: Pulse tone
Sound pressure: 105 dB
Number of tones: 1 Piece(s)
Note
ª A list with all available accessories can be found on the Leuze website in the Download tab of the article detailed page.
5 /5
