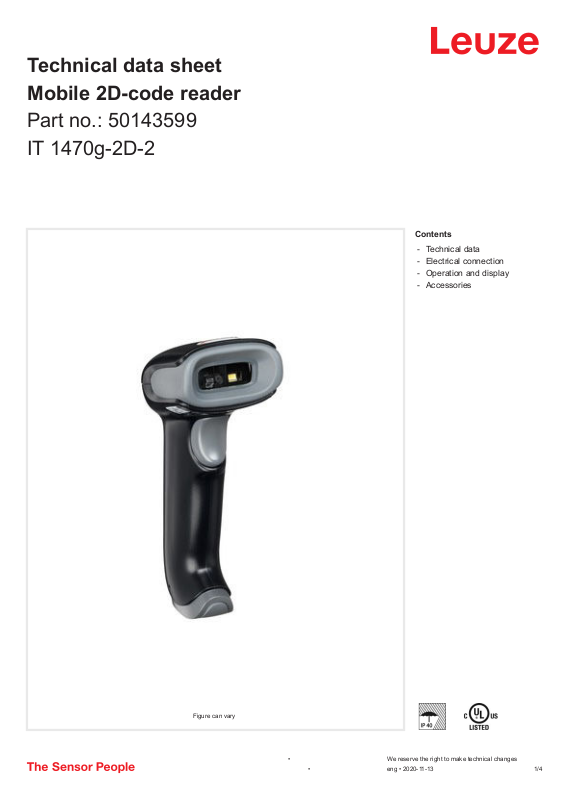

Page 1
Technical data sheet
Mobile 2D-code reader
Part no.: 50143599
IT 1470g-2D-2
Contents
-
T
echnical data
-
Electrical connection
-
Operation and display
-
Accessories

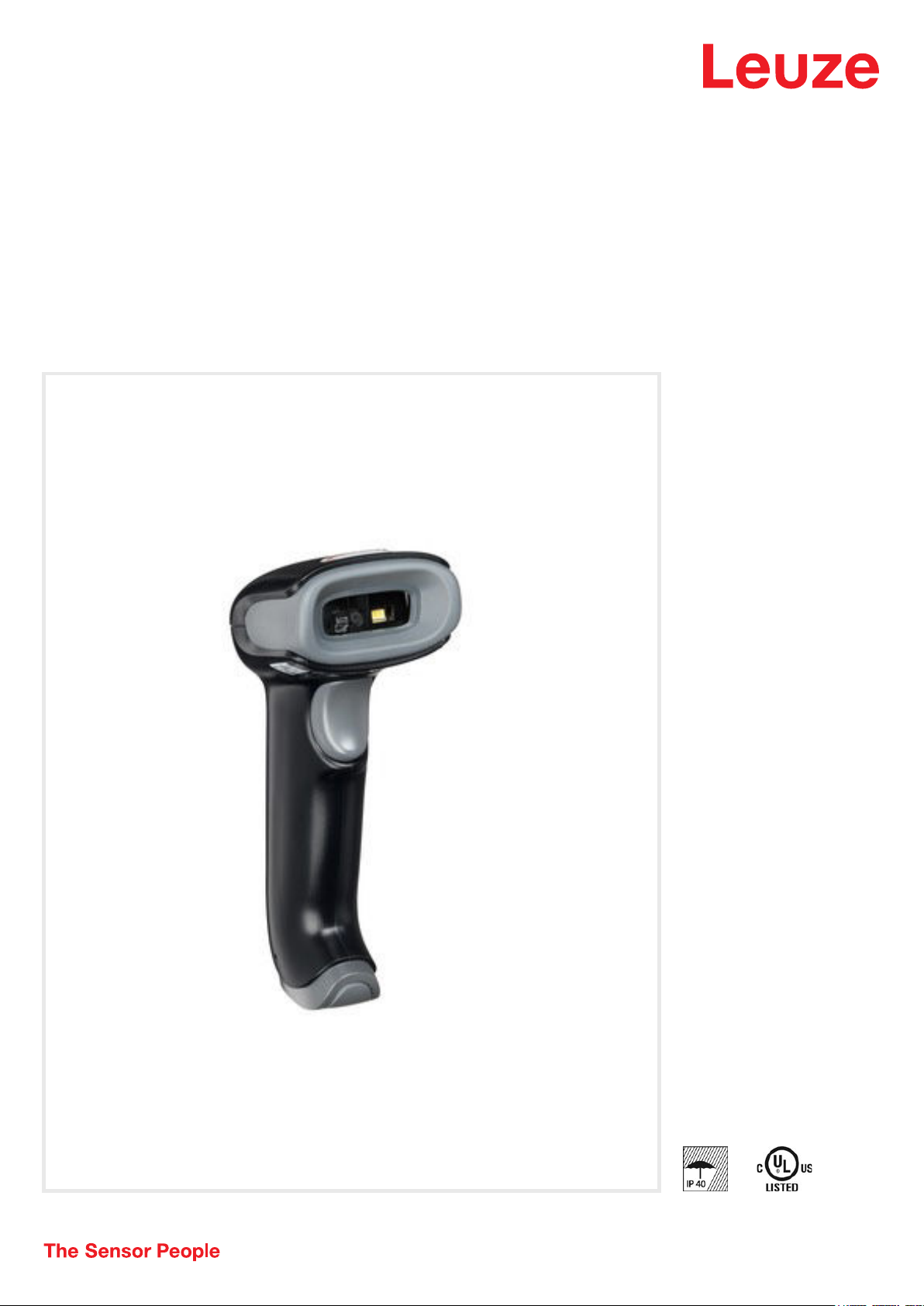

Figure can vary
• We reserve the right to make technical changes
• eng • 2020-11-13
1 /4
Page 2
Mobile 2D-code reader • Part no.: 50143599 • IT 1470g-2D-2
Technical data
Basic data
Series IT147xg
Read data
Code types, readable 2/5 Interleaved
Codabar
Codablock
Code 128
Code 39
Code 93
Data Matrix Code
DotCode
EAN 128
EAN 8/13
EAN Addendum
GS1 Databar
GS1 Databar Expanded
GS1 Databar Limited
GS1 Databar Omnidirectional
GS1 Databar Stacked
GS1 Databar Truncated
PDF417
QR code
UPC
Optical data
Reading distance 5 ... 400 mm
Light source LED
LED group 1
Camera resolution, horizontal 1,040 px
Camera resolution, vertical 720 px
Bar code contrast (PCS) 35 %
Modulus size 0.127 ... 0.508 mm
Electrical data
Performance data
Supply voltage U
Power consumption, max. 2 W
B
5 V, DC
Interface
Type RS 232, USB
RS 232
Function
Process
USB
Function Process
Connection
Connection 1
Type of connection RJ41
Mechanical data
Dimension (W x H x L) 62 mm x 169 mm x 82 mm
Housing material Plastic
Plastic housing UL 94-V0
Net weight 130 g
Environmental data
Ambient temperature, operation 0 ... 50 °C
Ambient temperature, storage -40 ... 60 °C
Relative humidity (non-condensing) 0 ... 95 %
Drop height 1.8 m
Measurements relative to Concrete floor
Certifications
Degree of protection IP 40
Certifications c UL US
Classification
Customs tariff number 85044055
eCl@ss 8.0 27280101
eCl@ss 9.0 27280103
eCl@ss 10.0 27280103
eCl@ss 11.0 27280103
ETIM 5.0 EC002550
ETIM 6.0 EC002999

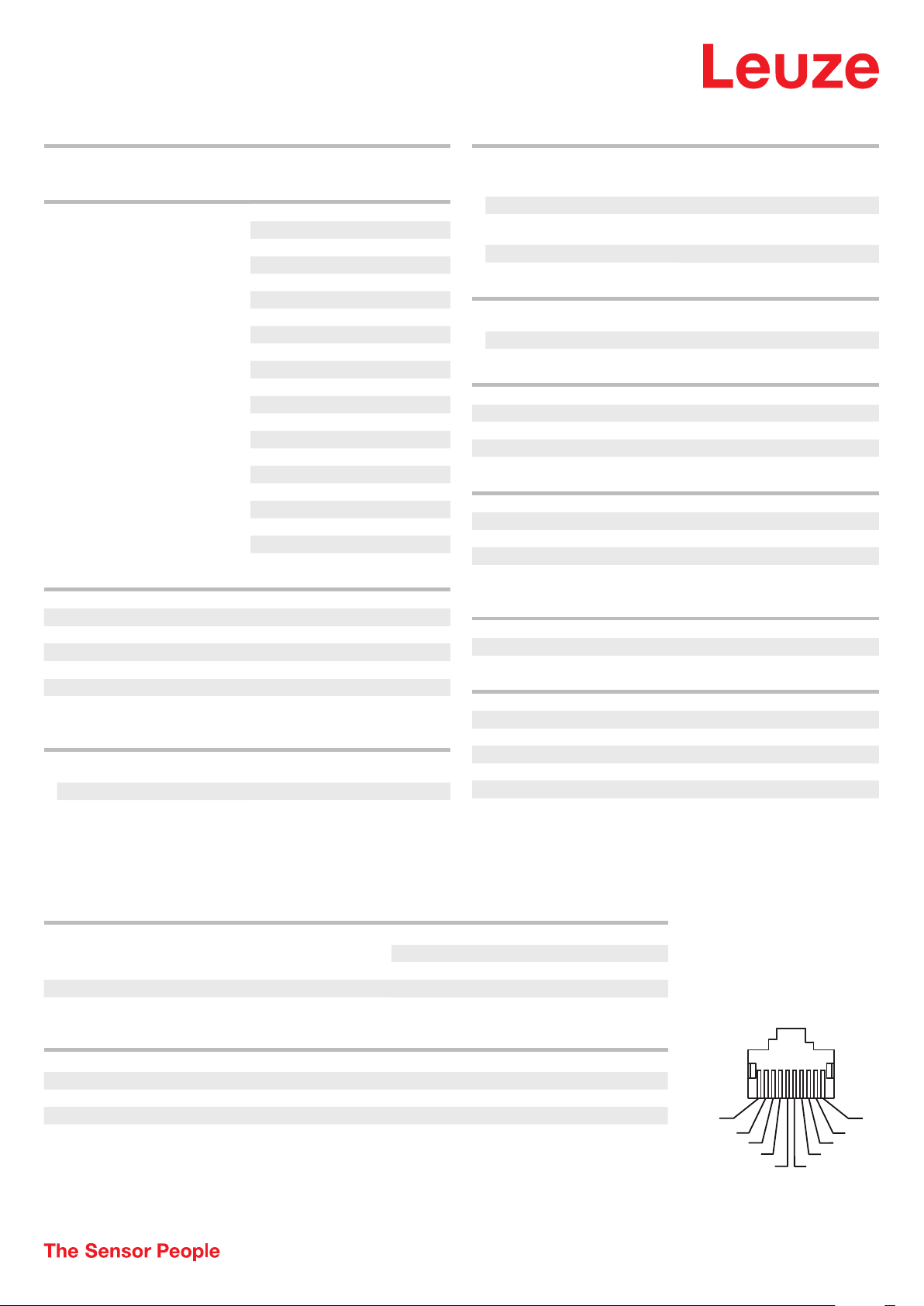

Electrical connection
Connection 1
Function Configuration interface
Data interface
Service interface
T
ype of connection
Pin Pin assignment
1 Shield
2 Cable ID
3 GND
4 TxD RS 232 / n.c. USB
RJ41
• We reserve the right to make technical changes
• eng • 2020-11-13
1
2
3
4
5
6
10
9
8
7
2 /4
Page 3
Mobile 2D-code reader • Part no.: 50143599 • IT 1470g-2D-2
Electrical connection
Pin Pin assignment
5 RxD RS 232 / n.c. USB
6 CTS RS 232 / n.c. USB
7 +5 V DC
8 RTS RS 232 / n.c. USB
9 n.c. RS 232 / Data + USB
10 n.c. RS 232 / Data - USB
Operation and display
LED Display Meaning
1 Green, 1x flashing Reading successful
Red No reading result

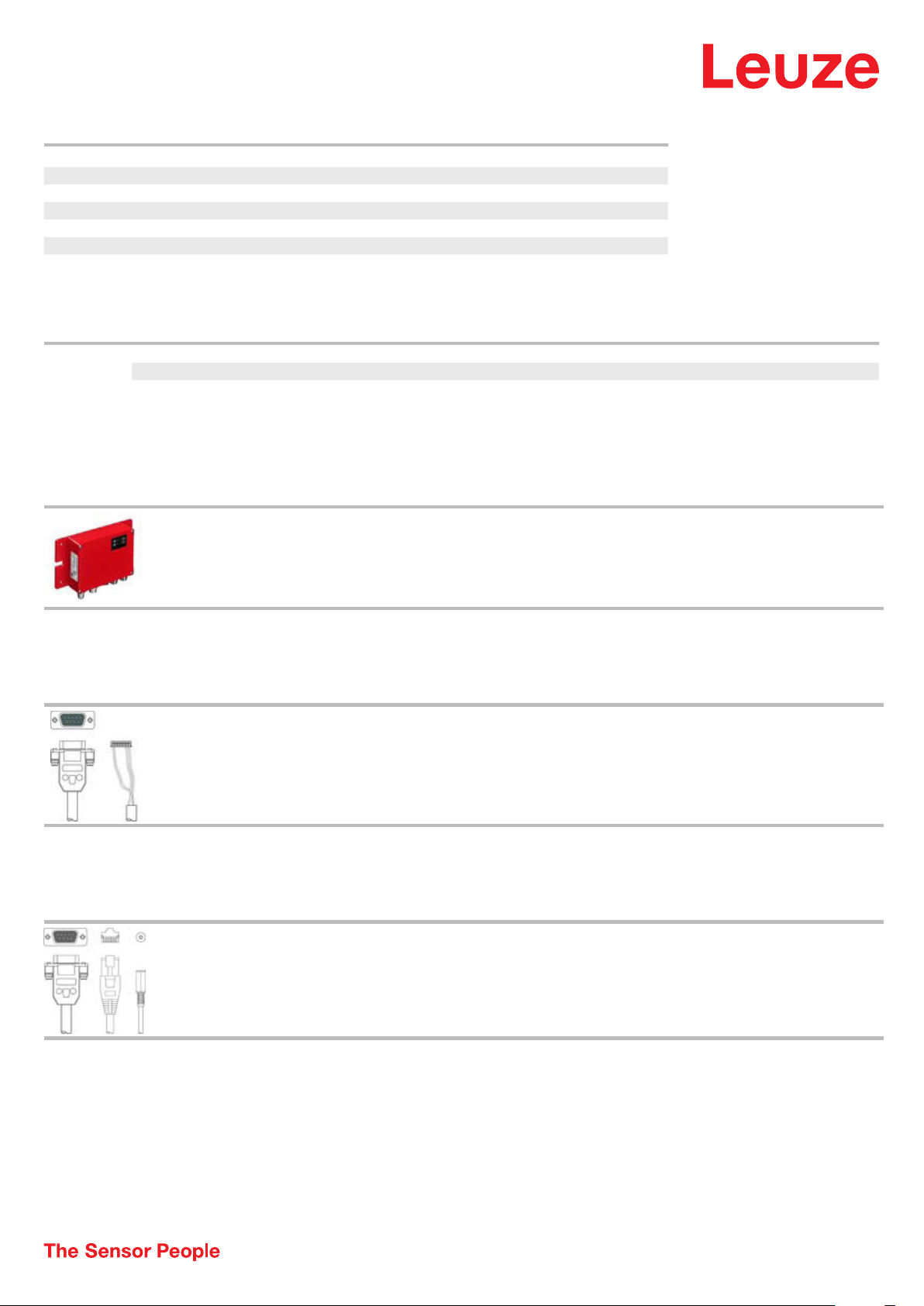

Accessories
Connection technology - Connection unit
Part no. Designation Article Description
50112891 MA 248i Profinet
Connection technology - Interconnection cables
Part no. Designation Article Description
50113397 KB JST-HS-300 Connection cable Suitable for interface: RS 232
Connection technology - Y distribution cables
Part no. Designation Article Description
50114517 KB 232-1 IT190x Interconnection cable Suitable for interface: RS 232, TTL
Gateway
Modular connection
unit
Supply voltage: 18 ... 30 V
Current consumption, max.: 300 mA
Interface: PROFINET, RS 232
Connections: 6 Piece(s)
Degree of protection: IP 65
Connection 1: JST ZHR
Connection 2: Sub-D, Axial, Male, 9 -pin
Shielded: Yes
Cable length: 300 mm
Sheathing material: PUR
Connection 1: Sub-D, Axial, Female, 9 -pin
Connection 2: RJ41
Connection 3: Connector, Pluggable, Axial, Female, 2 -pin
Shielded: Yes
Cable length: 3,000 mm
Sheathing material: PVC
• We reserve the right to make technical changes
• eng • 2020-11-13
3 /4
Page 4
Mobile 2D-code reader • Part no.: 50143599 • IT 1470g-2D-2
Accessories
Mounting technology - Other
Part no. Designation Article Description
50120444 BT Wallholder
HS65x8
Wall mount Design of mounting device: Wall mounting
Fastening, at system: Through-hole mounting
Mounting bracket, at device: insertable
Material: Plastic
Note
ª A list with all available accessories can be found on the Leuze website in the Download tab of the article detailed page.
• We reserve the right to make technical changes
• eng • 2020-11-13
4 /4
