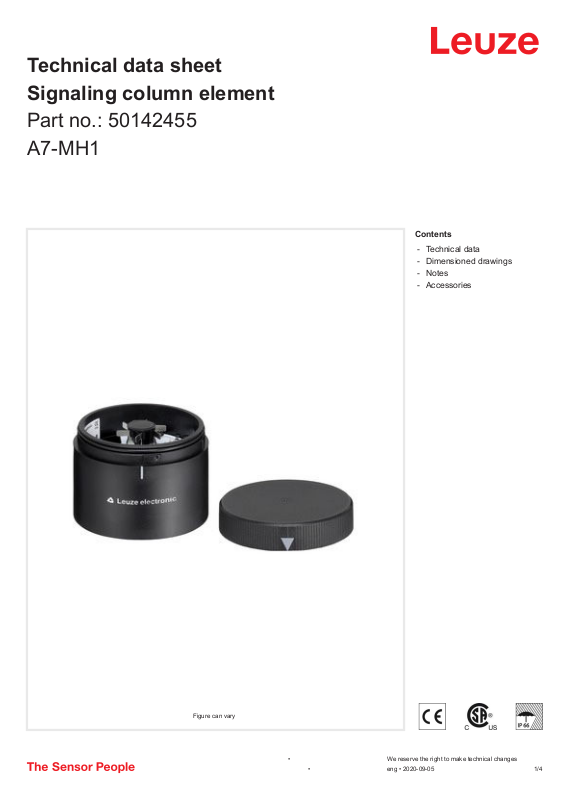

Page 1
Technical data sheet
Signaling column element
Part no.: 50142455
A7-MH1
Contents
-
T
echnical data
-
Dimensioned drawings
-
Notes
-
Accessories
Figure can vary
• We reserve the right to make technical changes
• eng • 2020-09-05
1 /4
Page 2
Signaling column element • Part no.: 50142455 • A7-MH1
Technical data
Basic data
Series A7
Mechanical data
Design Cylindrical
Dimension (Ø x L) 70 mm x 47 mm
Housing material Plastic
Net weight 85 g
Housing color Black
Design of mounting device Horizontal mounting
Type of fastening, at system Screw type / horizontal
Module holder One side
Environmental data
Ambient temperature, operation -10 ... 60 °C
Dimensioned drawings
All dimensions in millimeters
Certifications
Degree of protection IP 66, Only when mounted on a housing
with the same degree of protection
Certifications CSA
Classification
Customs tariff number 85318070
eCl@ss 8.0 27371234
eCl@ss 9.0 27371234
ETIM 5.0 EC001259
ETIM 6.0 EC001259
• We reserve the right to make technical changes
• eng • 2020-09-05
2 /4
Page 3
Signaling column element • Part no.: 50142455 • A7-MH1

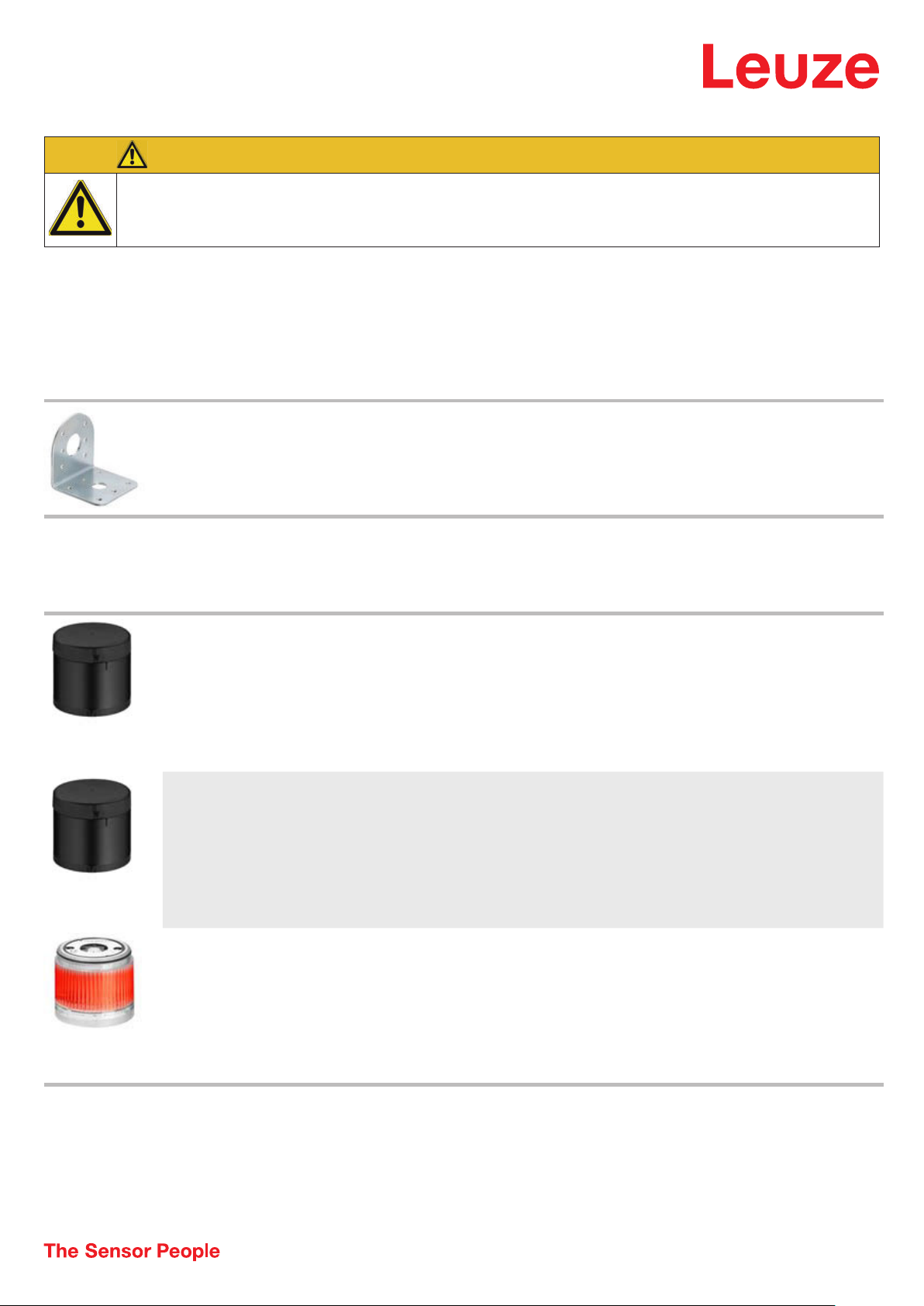

Notes
Observe intended use!
ª This product is not a safety sensor and is not intended as personnel protection.
ª The product may only be put into operation by competent persons.
ª Only use the product in accordance with its intended use.
Accessories
Mounting technology - Mounting brackets
Part no. Designation Article Description
General
50142896 A7-MW2 Signaling column
element
Design: L shape
Version: Angle, L-shape
Fastening, at system: Through-hole mounting
Part no. Designation Article Description
50135462 A7-V1-BZ1-M Signaling column
element
50138151 A7-V1-BZ2-S Signaling column
element
50135457 A7-V1-DS-R-T Signaling column
element
Signaling: Acoustic
Current consumption, max.: 70 mA
Design: Cylindrical
Diameter: 70 mm
Fastening: Bayonet system
Operational controls: DIP switch, 225° potentiometer
Ambient temperature: -10 ... 60 °C
Degree of protection: IP 66
Tone type: Continuous or pulse tone
Sound pressure: 100 dB
Number of tones: 8 Piece(s)
Signaling: Acoustic
Current consumption, max.: 20 mA
Design: Cylindrical
Diameter: 70 mm
Fastening: Bayonet system
Operational controls: 225° potentiometer
Ambient temperature: -10 ... 60 °C
Degree of protection: IP 66
Tone type: Continuous tone
Sound pressure: 105 dB
Number of tones: 1 Piece(s)
Signaling: Optical
Current consumption, max.: 50 mA
Design: Cylindrical
Diameter: 70 mm
Fastening: Bayonet system
Illuminant: LED/24V
Signal image: Continuous light
Lens color: Red
Angle of radiation: 360°
Ambient temperature: -10 ... 60 °C
Degree of protection: IP 66
• We reserve the right to make technical changes
• eng • 2020-09-05
3 /4
Page 4
Signaling column element • Part no.: 50142455 • A7-MH1
Accessories
Note
ª A list with all available accessories can be found on the Leuze website in the Download tab of the article detailed page.
