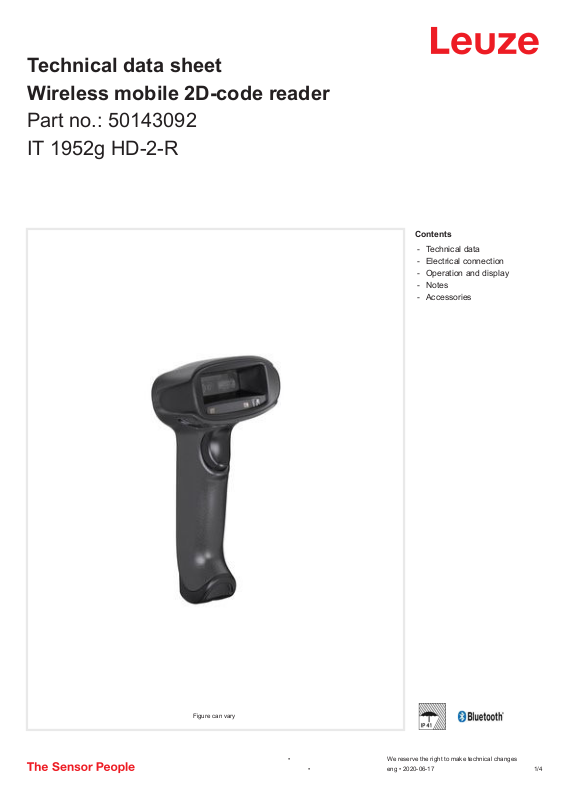

Technical data sheet
Wireless mobile 2D-code reader
Part no.: 50143092
IT 1952g HD-2-R
Contents
-
Technical data
-
Electrical connection
-
Operation and display
-
Notes
-
Accessories
Figure can vary
• We reserve the right to make technical changes
• eng • 2020-06-17
1 /4
Page 2
Wireless mobile 2D-code reader • Part no.: 50143092 • IT 1952g HD-2-R
Technical data
Basic data
Series IT19xx
Read data
Code types, readable 2/5 Interleaved
Aztec
Codabar
Code 128
Code 39
Code 93
Composite Codes
Data Matrix Code
DotCode
EAN 128
EAN 8/13
EAN Addendum
GS1 Databar
GS1 Databar Expanded
GS1 Databar Limited
GS1 Databar Omnidirectional
GS1 Databar Stacked
GS1 Databar Truncated
Maxicode
Micro PDF
Micro QR
Others on request
PDF417
QR code
UPC
Optical data
Reading distance 6 ... 604 mm
Camera resolution, horizontal 1,280 px
Camera resolution, vertical 800 px
Electrical data
Performance data
Supply voltage U
Power consumption, max. 2.5 W
Battery technology LiIon
Battery storage capacity 2.4 A·h
B
4.2 V, DC
Interface
Type PS/2, RS 232, USB
RS 232
Function
Process
USB
Function Process
Connection
Bluetooth range Class 2
Bluetooth version 4.2
Connection 1
T
ype of connection
Bluetooth
Mechanical data
Dimension (W x H x L) 70 mm x 160 mm x 80 mm
Housing material Plastic, UL 94-V0
Net weight 220 g
Environmental data
Ambient temperature, operation 0 ... 50 °C
Ambient temperature, storage -40 ... 70 °C
Relative humidity (non-condensing) 0 ... 95 %
Drop height 1.8 m
Measurements relative to Concrete floor
Certifications
Degree of protection IP 41
Classification
Customs tariff number 84719000
eCl@ss 8.0 27280103
eCl@ss 9.0 27280103
ETIM 5.0 EC002999
ETIM 6.0 EC002999
Electrical connection
Connection 1
Function Configuration interface
Data interface
Type of connection Bluetooth
Operation and display
LED Display Meaning
1 Red, continuous light Low battery level
Green, 1x flashing Reading successful
Red, flashing Communication error
• We reserve the right to make technical changes
• eng • 2020-06-17
2 /4
Page 3
Wireless mobile 2D-code reader • Part no.: 50143092 • IT 1952g HD-2-R
Notes
Observe intended use!
ª This product is not a safety sensor and is not intended as personnel protection.
ª The product may only be put into operation by competent persons.
ª Only use the product in accordance with its intended use.

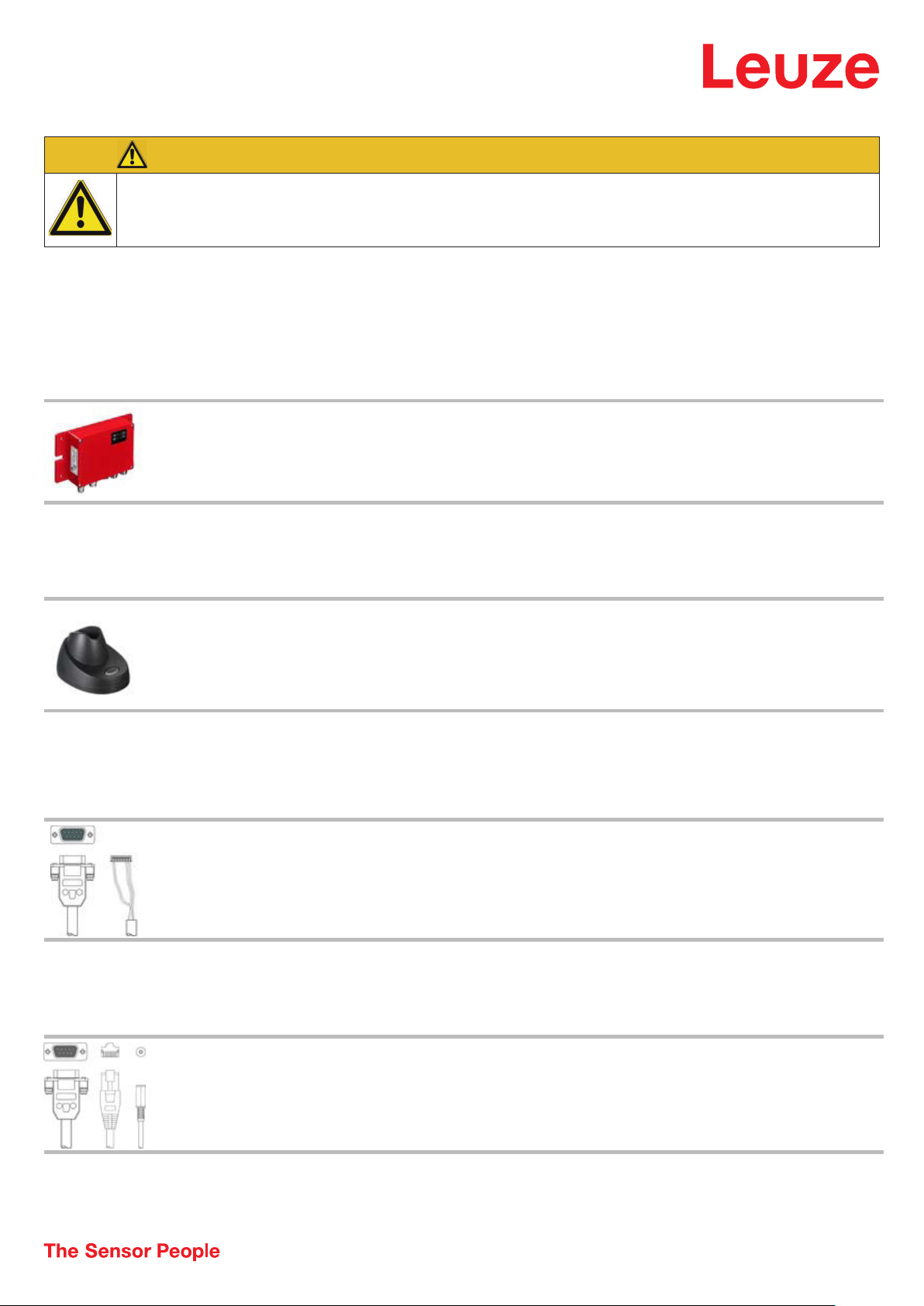

Accessories
Connection technology - Connection unit
Part no. Designation Article Description
50112891 MA 248i Profinet
Connection technology - Base stations
Part no. Designation Article Description
50143593 * Base IT 1952g Base station Interface: PS/2, RS 232, USB
* Necessary accessories, please order separately
Connection technology - Connection cables
Part no. Designation Article Description
50113397 KB JST-HS-300 Connection cable Suitable for interface: RS 232
Gateway
Modular connection
unit
Supply voltage: 18 ... 30 V
Current consumption, max.: 300 mA
Interface: PROFINET, RS 232
Connections: 6 Piece(s)
Degree of protection: IP 65
Bluetooth range: Class 2
Bluetooth version: 2.1
Connection 1: RJ41
Connection 2: Jack socket
Connection 3: Bluetooth
Connection 1: JST ZHR
Connection 2: Sub-D, Axial, Male, 9 -pin
Shielded: Yes
Cable length: 300 mm
Sheathing material: PUR
Connection technology - Interconnection cables
Part no. Designation Article Description
50114517 KB 232-1 IT190x Interconnection cable Suitable for interface: RS 232, TTL
Connection 1: Sub-D, Axial, Female, 9 -pin
Connection 2: RJ41
Connection 3: Connector, Pluggable, Axial, Female, 2 -pin
Shielded: Yes
Cable length: 3,000 mm
Sheathing material: PVC
• We reserve the right to make technical changes
• eng • 2020-06-17
3 /4
Page 4
Wireless mobile 2D-code reader • Part no.: 50143092 • IT 1952g HD-2-R

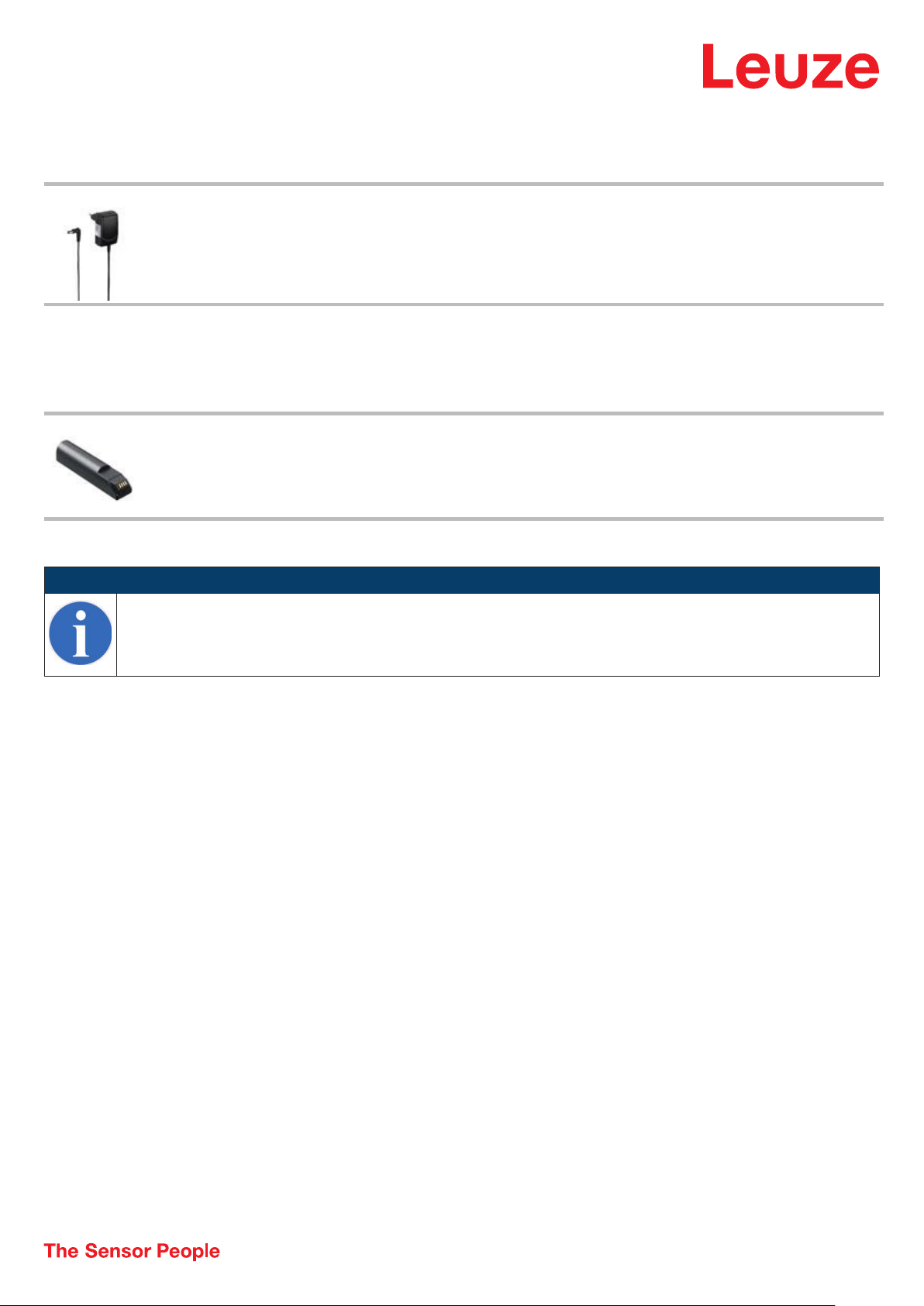

Accessories
Power supply units
Part no. Designation Article Description
50114525 * NT f. IT 1900+Base- EUPower supply unit Type of power supply unit: Plug-in power supply unit
* Necessary accessories, please order separately
Replacement part
Part no. Designation Article Description
50105384 ** Battery IT-series Battery Supply voltage: 3.7 V, DC
** Included in delivery contents
Note
ª A list with all available accessories can be found on the Leuze website in the Download tab of the article detailed page.
Output: 5 V DC, 1 A
Input: 110..240 V AC, 50..60 Hz
Battery technology: LiIon
Battery storage capacity: 2.4 A·h
• We reserve the right to make technical changes
• eng • 2020-06-17
4 /4
