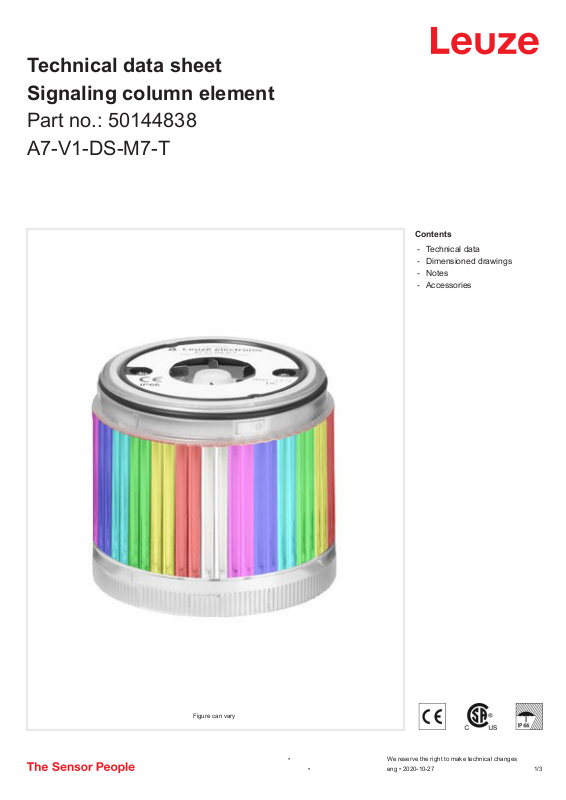

Leuze 50144838 Data Sheet
Technical data sheet
Signaling column element
Part no.: 50144838
A7-V1-DS-M7-T
Contents
-
T
echnical data
-
Dimensioned drawings
-
Notes
-
Accessories
Figure can vary
• We reserve the right to make technical changes
• eng • 2020-10-27
1 /3
Signaling column element • Part no.: 50144838 • A7-V1-DS-M7-T
70.6
Technical data
Basic data
Series A7
Suitable for Signaling column elements of the A7 –
Type of signaling Optical
Advanced Series
Electrical data
Life expectancy > 100,000 h
Performance data
Supply voltage U
Current consumption, max. 70 mA
B
24 V, DC, 10 %
Connection
Notes Protected against accidental inter-
changes: Actuation of the colors is
performed via PINs, thus, the calotte
position can be freely selected (see
operating instructions).
Mechanical data
Design Cylindrical
Dimension (Ø x L) 70 mm x 50 mm
Housing material Plastic
Net weight 109 g
Type of fastening Bayonet system
Type of illuminant LED/24V
Display of the lens colors 7 colors can be selected
Signal image Continuous or flashing light
Angle of radiation 360°
Environmental data
Ambient temperature, operation -10 ... 60 °C
Certifications
Degree of protection IP 66
Certifications CE
CSA
Classification
Customs tariff number 85318070
eCl@ss 8.0 27371220
eCl@ss 9.0 27371220
eCl@ss 10.0 27371220
eCl@ss 11.0 27371220
ETIM 5.0 EC000232
ETIM 6.0 EC000232
Dimensioned drawings
All dimensions in millimeters
7
50
59.3
• We reserve the right to make technical changes
• eng • 2020-10-27
2 /3
