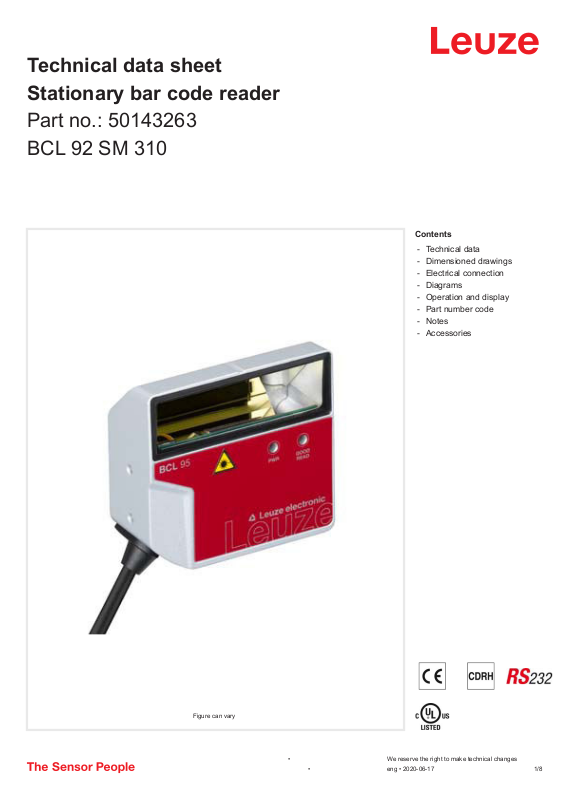

Leuze 50143263 Data Sheet
Technical data sheet
Stationary bar code reader
Part no.: 50143263
BCL 92 SM 310
Contents
-
T
echnical data
-

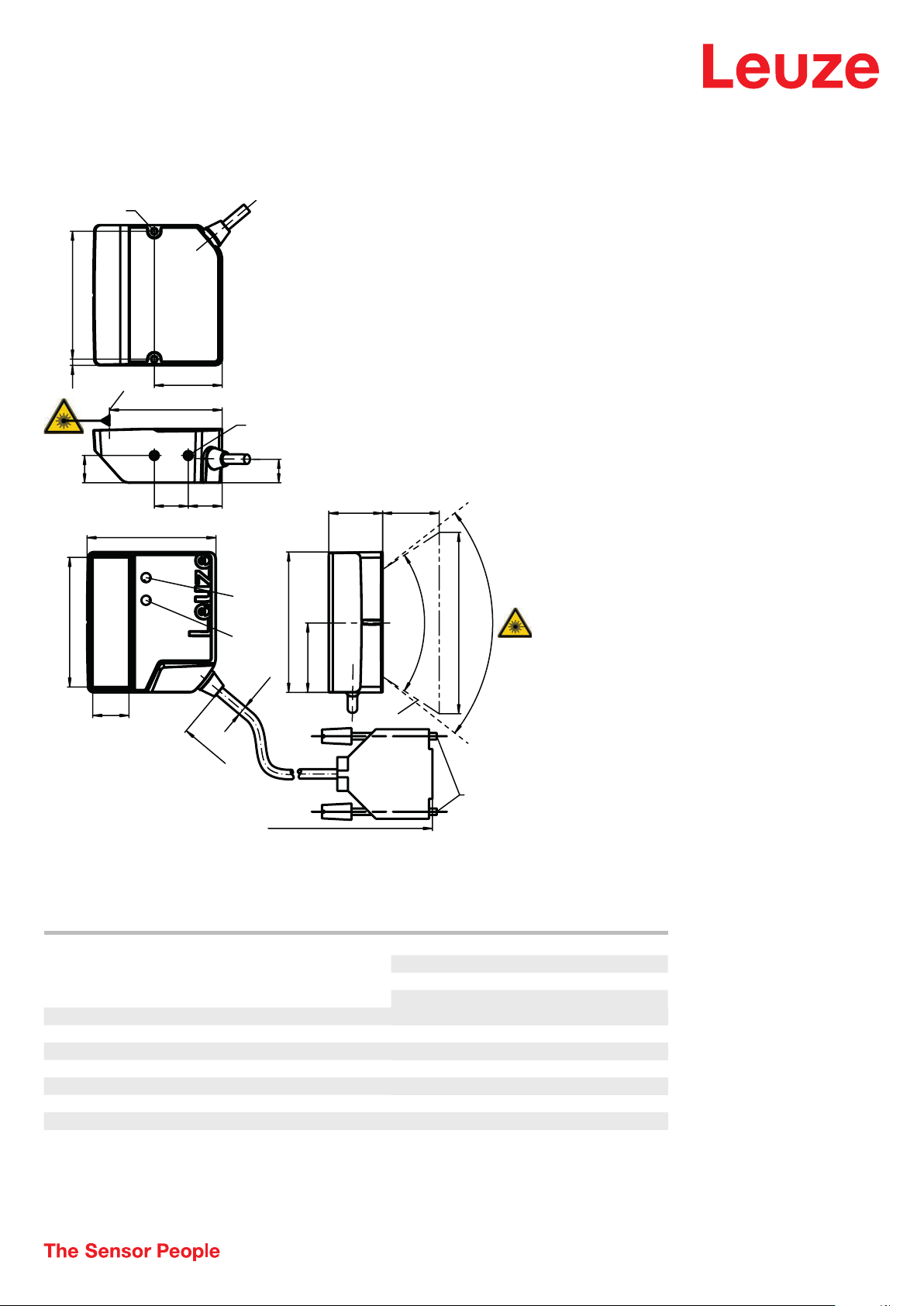

Dimensioned drawings
-

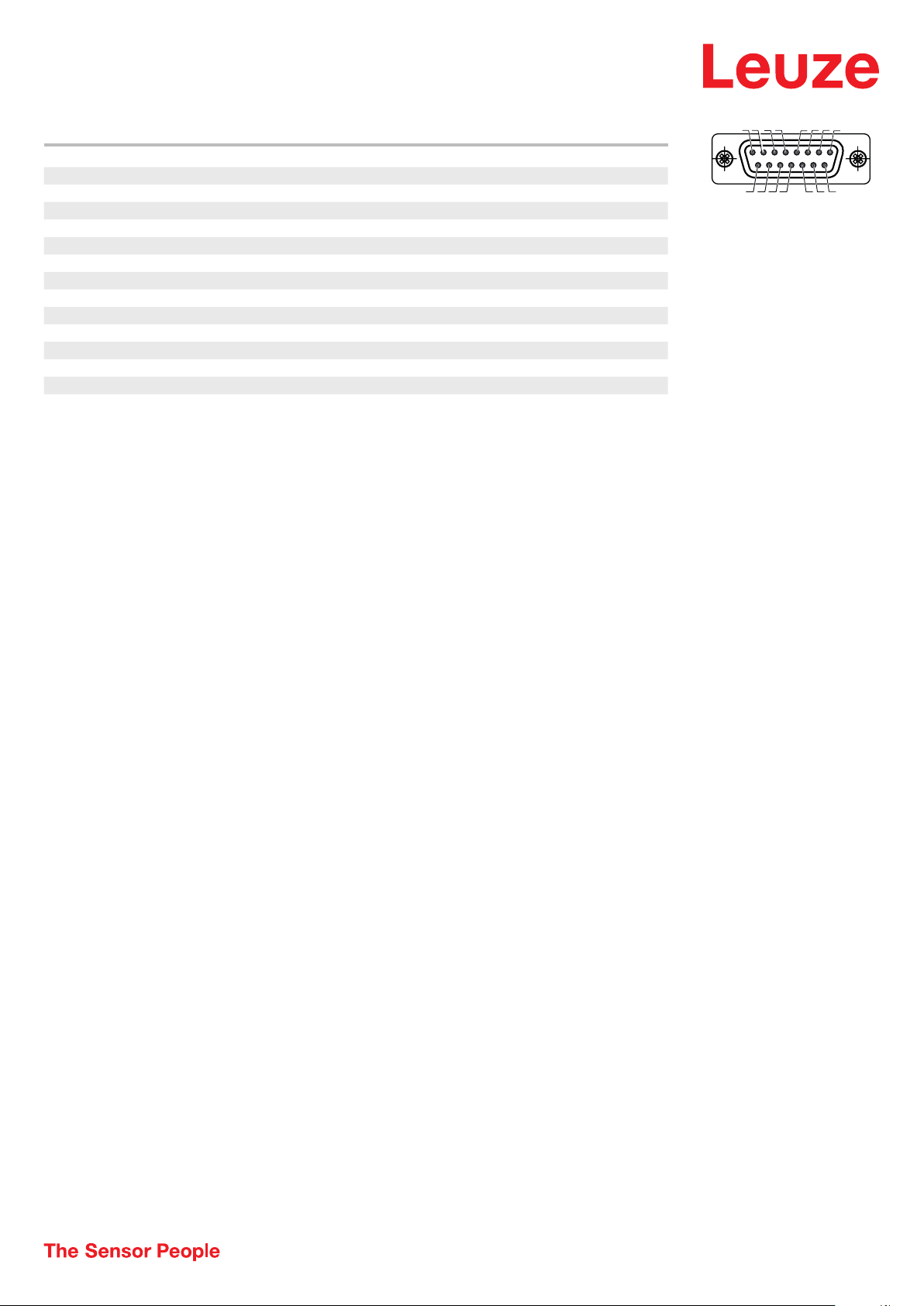

Electrical connection
-

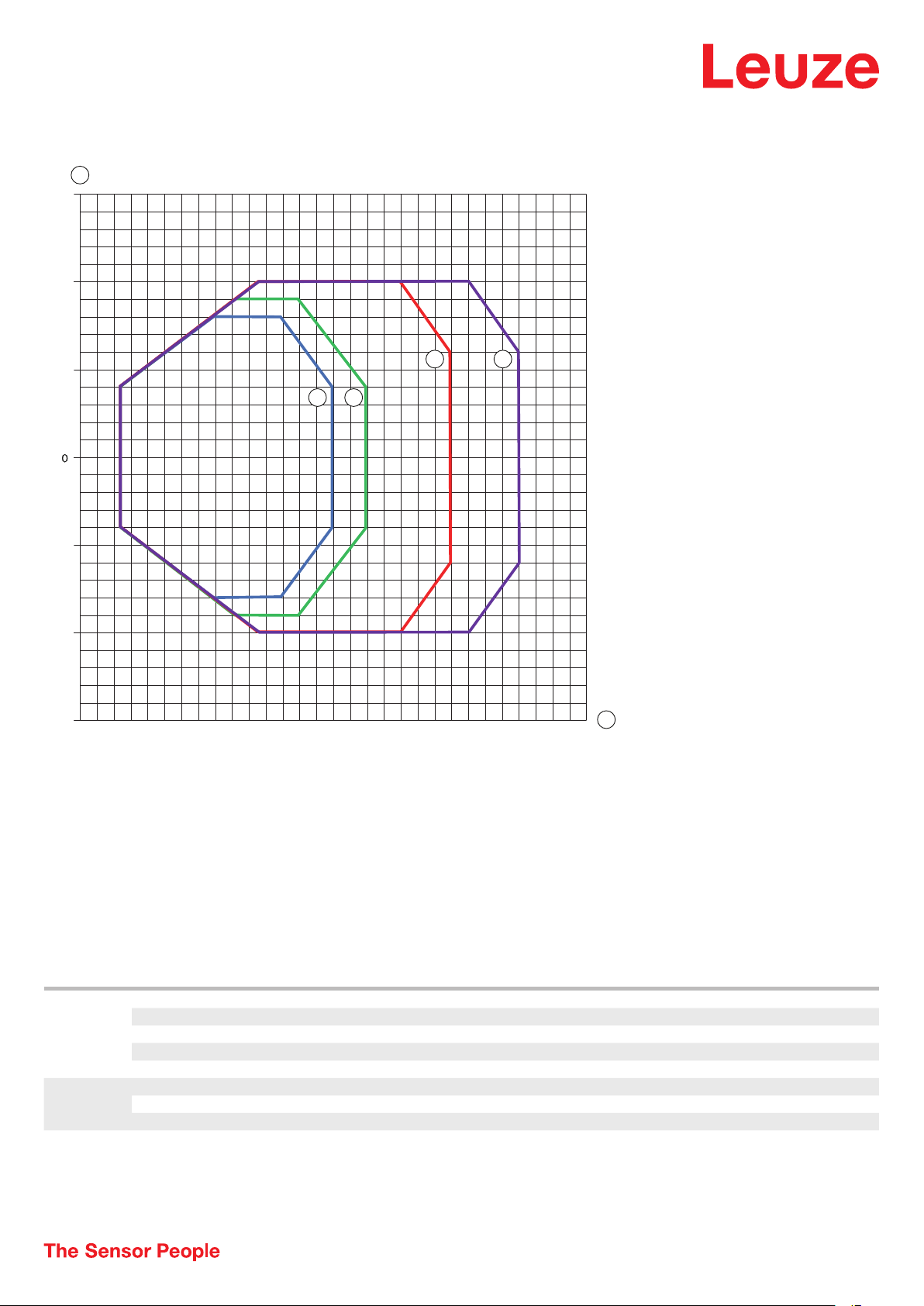

Diagrams
-
Operation and display
-
Part number code
-
Notes
-

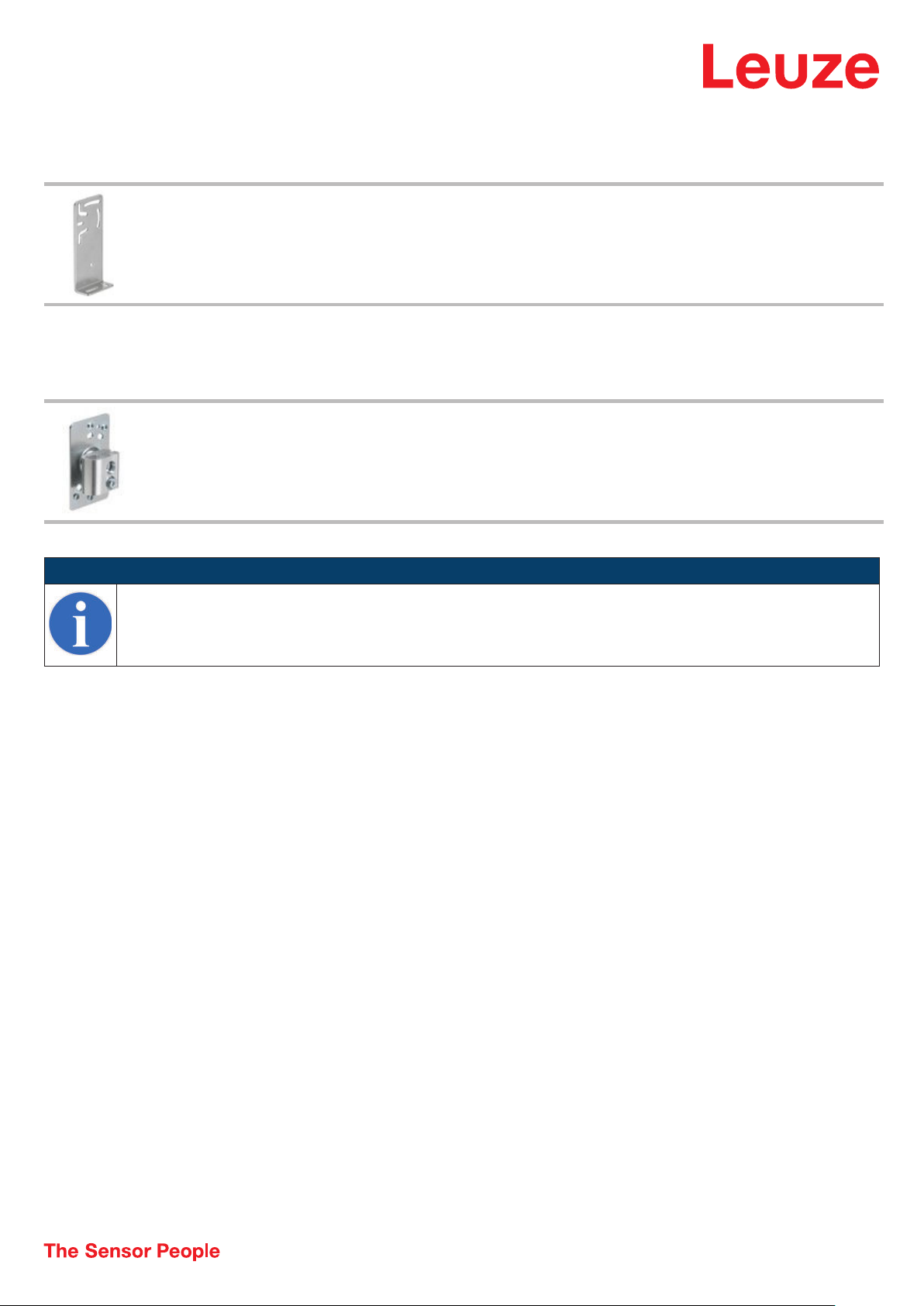

Accessories
Figure can vary
• We reserve the right to make technical changes
• eng • 2020-06-17
1 /8
Stationary bar code reader • Part no.: 50143263 • BCL 92 SM 310
Technical data
Basic data
Series BCL 92
Functions
Functions Alignment mode
AutoConfig
I/O
LED indicator
Multiple read
Output format selectable
Reading gate control
Reference code comparison
Read data
Code types, readable 2/5 Interleaved
Codabar
Code 128
Code 32
Code 39
Code 93
EAN 128
EAN 8/13
EAN Addendum
EAN/UPC
Pharmacode (available upon consultation)
UPC-A
UPC-E
Scanning rate, typical 600 scans/s
Optical data
Reading distance 25 ... 260 mm
Light source Laser, Red
Laser light wavelength 655 nm
Laser class 1, in accordance with IEC 60825-1:2014
Transmitted-signal shape Continuous
Usable opening angle (reading field
opening)
Modulus size 0.165 ... 0.5 mm
Reading method Line scanner
Scanning rate 600 scans/s
Beam deflection Via rotating polygon wheel
Light beam exit Lateral
(EN 60825-1:2014)
66 °
Electrical data
Protective circuit Short circuit protected
Performance data
Supply voltage U
Current consumption, max.
B
10 ... 30 V, DC
250 mA
Inputs
Number of digital switching inputs 2 Piece(s)
Switching inputs
Voltage type
Switching voltage 12 ... 30 V DC +
DC
Outputs
Number of digital switching outputs 2 Piece(s)
Switching outputs
Voltage type DC
Switching voltage 10 ... 30V DC, 20mA
Switching output 1
Switching element Transistor, NPN
Function
configurable
Switching output 2
Switching element Transistor, NPN
Interface
Type RS 232
RS 232
Function Process
Transmission speed 4,800 ... 57,600 Bd
Data format Adjustable
Start bit 1
Data bit 7,8
Stop bit
Parity Adjustable
Transmission protocol Adjustable
Data encoding ASCII
1.2
HEX
Service interface
Type RS 232
RS 232
Function Service
Connection
Number of connections 1 Piece(s)
Connection 1
Function Data interface
Signal IN
Signal OUT
Voltage supply
Type of connection Cable with Sub-D
Cable length 3,000 mm
Sheathing material PVC
Cable color Black
Wire cross section 0.095 mm²
Type Male
No. of pins 15 -pin
Mechanical data
Design Cubic
Dimension (W x H x L) 62 mm x 23.8 mm x 43.5 mm
Housing material Metal, Diecast zinc
Lens cover material Glass
Net weight 210 g
Housing color Red
Silver
Type of fastening Fastening thread
Operation and display
Type of display LED
Number of LEDs 2 Piece(s)
• We reserve the right to make technical changes
• eng • 2020-06-17
2 /8
Stationary bar code reader • Part no.: 50143263 • BCL 92 SM 310
Technical data
Environmental data
Ambient temperature, operation 5 ... 40 °C
Ambient temperature, storage -20 ... 60 °C
Relative humidity (non-condensing) 0 ... 90 %
Extraneous light protection, max. 2,000 lx
Certifications
Degree of protection IP 54
Protection class III
Certifications c UL US
Test procedure for EMC in accordance
with standard
Test procedure for shock in
accordance with standard
Test procedure for vibration in
accordance with standard
EN 61326-1:2013-01
FCC 15-CFR 47 Part 15 (09-07-2015)
Limits Class B
IEC 60068-2-27, test Ea
IEC 60068-2-6, test Fc
Classification
Customs tariff number 84719000
eCl@ss 8.0 27280102
eCl@ss 9.0 27280102
ETIM 5.0 EC002550
ETIM 6.0 EC002550
• We reserve the right to make technical changes
• eng • 2020-06-17
3 /8
