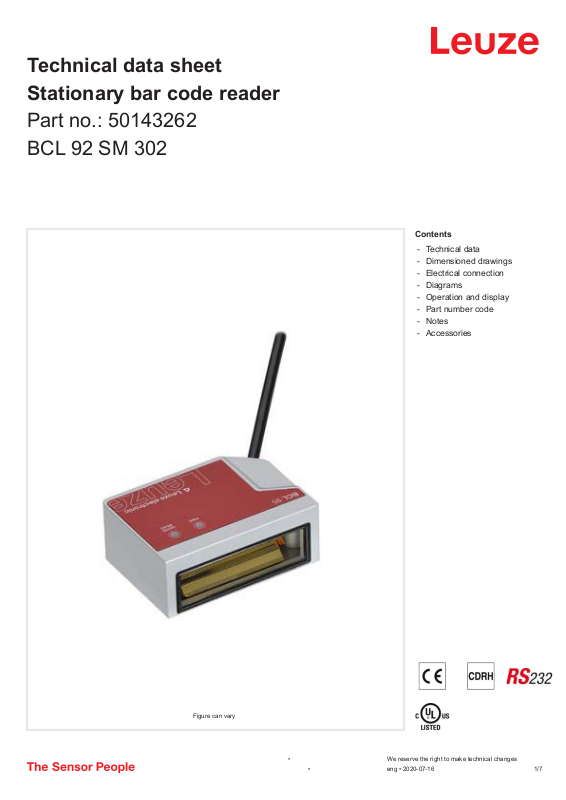

Technical data sheet
Stationary bar code reader
Part no.: 50143262
BCL 92 SM 302
Contents
-
T
echnical data
-
Dimensioned drawings
-
Electrical connection
-
Diagrams
-
Operation and display
-
Part number code
-
Notes
-
Accessories
Figure can vary
• We reserve the right to make technical changes
• eng • 2020-07-16
1 /7
Stationary bar code reader • Part no.: 50143262 • BCL 92 SM 302
Technical data
Basic data
Series BCL 92
Functions
Functions Alignment mode
AutoConfig
I/O
LED indicator
Multiple read
Output format selectable
Reading gate control
Reference code comparison
Read data
Code types, readable 2/5 Interleaved
Codabar
Code 128
Code 32
Code 39
Code 93
EAN 128
EAN 8/13
EAN Addendum
EAN/UPC
Pharmacode (available upon consultation)
UPC-A
UPC-E
Scanning rate, typical 600 scans/s
Optical data
Reading distance 40 ... 275 mm
Light source Laser, Red
Laser light wavelength 655 nm
Laser class 1, in accordance with IEC 60825-1:2014
Transmitted-signal shape Continuous
Usable opening angle (reading field
opening)
Modulus size 0.165 ... 0.5 mm
Reading method Line scanner
Scanning rate 600 scans/s
Beam deflection Via rotating polygon wheel
Light beam exit Front
(EN 60825-1:2014)
66 °
Electrical data
Protective circuit Short circuit protected
Performance data
Supply voltage U
Current consumption, max.
B
10 ... 30 V, DC
250 mA
Inputs
Number of digital switching inputs 2 Piece(s)
Switching inputs
Voltage type
Switching voltage 12 ... 30 V DC +
DC
Outputs
Number of digital switching outputs 2 Piece(s)
Switching outputs
Voltage type DC
Switching voltage 10 ... 30V DC, 20mA
Switching output 1
Switching element Transistor, NPN
Function
configurable
Switching output 2
Switching element Transistor, NPN
Interface
Type RS 232
RS 232
Function Process
Transmission speed 4,800 ... 57,600 Bd
Data format Adjustable
Start bit 1
Data bit 7,8
Stop bit
Parity Adjustable
Transmission protocol Adjustable
Data encoding ASCII
1.2
HEX
Service interface
Type RS 232
RS 232
Function Service
Connection
Number of connections 1 Piece(s)
Connection 1
Function Data interface
Signal IN
Signal OUT
Voltage supply
Type of connection Cable with Sub-D
Cable length 800 mm
Sheathing material PVC
Cable color Black
Wire cross section 0.095 mm²
Type Male
No. of pins 15 -pin
Mechanical data
Design Cubic
Dimension (W x H x L) 62 mm x 23.8 mm x 43.5 mm
Housing material Metal, Diecast zinc
Lens cover material Glass
Net weight 210 g
Housing color Red
Silver
Type of fastening Fastening thread
Operation and display
Type of display LED
Number of LEDs 2 Piece(s)
• We reserve the right to make technical changes
• eng • 2020-07-16
2 /7
Stationary bar code reader • Part no.: 50143262 • BCL 92 SM 302
M3/6deep
80
Technical data
Environmental data
Ambient temperature, operation 5 ... 40 °C
Ambient temperature, storage -20 ... 60 °C
Relative humidity (non-condensing) 0 ... 90 %
Extraneous light protection, max. 2,000 lx
Certifications
Degree of protection IP 54
Protection class III
Certifications c UL US
Test procedure for EMC in accordance
with standard
Test procedure for shock in
accordance with standard
Test procedure for vibration in
accordance with standard
EN 61326-1:2013-01
FCC 15-CFR 47 Part 15 (09-07-2015)
Limits Class B
IEC 60068-2-27, test Ea
IEC 60068-2-6, test Fc
Dimensioned drawings
All dimensions in millimeters
Classification
Customs tariff number 84719000
eCl@ss 8.0 27280102
eCl@ss 9.0 27280102
ETIM 5.0 EC002550
ETIM 6.0 EC002550
88°
66°
A
56,5
2,75
12
30
15 15
43,541
B1
B2
(~1000)
M2,5/4deep
10,4
A
31
Ø 4,2
23,8
14,1
9,6
7,6
51,1
5,4
A Laser beam
B1 Decode LED
B2 Status LED
NOTE For exact positioning of the laser beam in the
application, the scanner must be aligned.
62
UNC 4-40
~1000
• We reserve the right to make technical changes
• eng • 2020-07-16
3 /7
Stationary bar code reader • Part no.: 50143262 • BCL 92 SM 302
21
34567
8

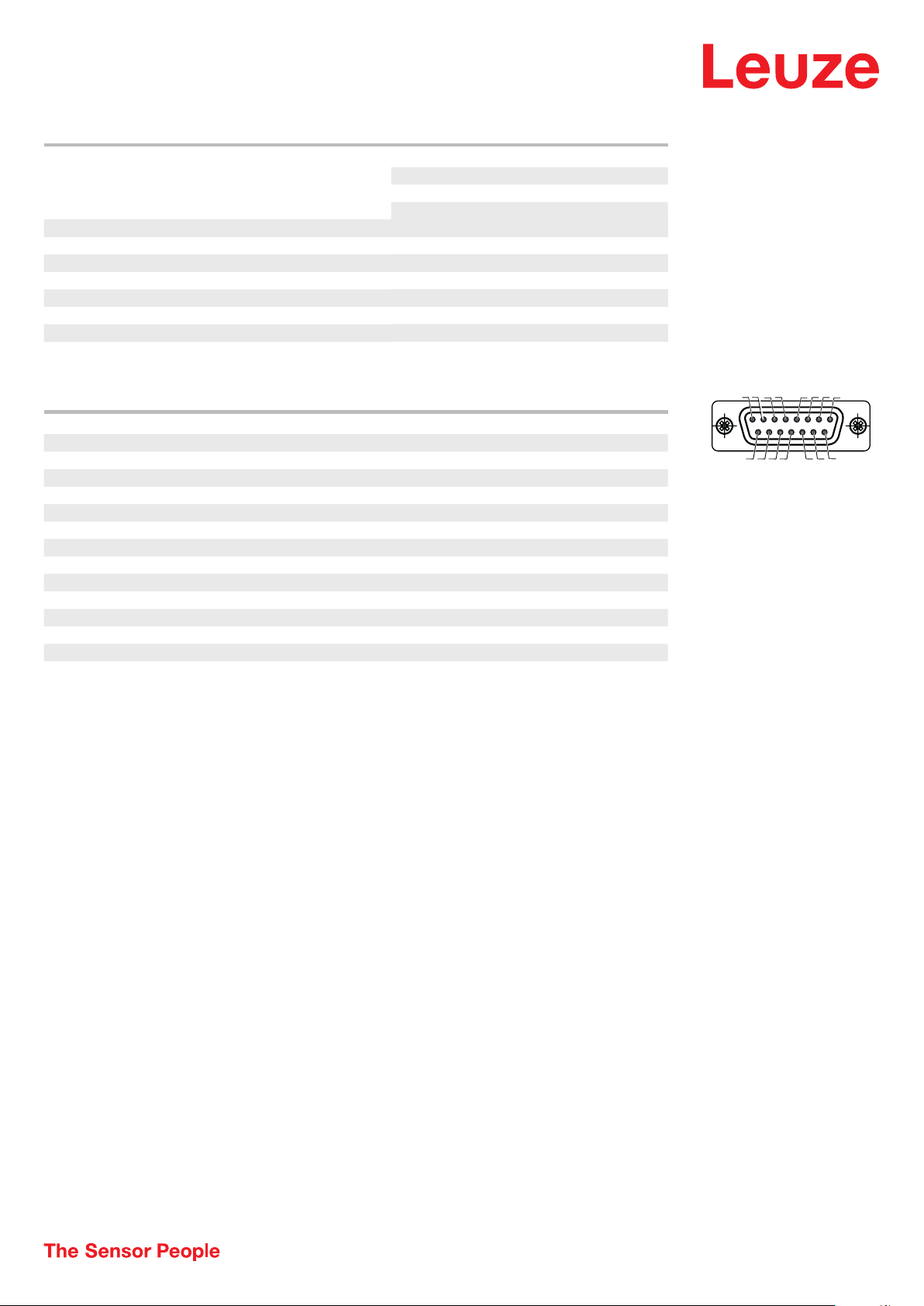

Electrical connection
Connection 1
Function Data interface
Signal IN
Signal OUT
Voltage supply
Type of connection Cable with Sub-D
Cable length 800 mm
Sheathing material PVC
Cable color
Wire cross section 0.095 mm²
Type Male
No. of pins 15 -pin
Connector housing FE/SHIELD
Pin Pin assignment
1 Res.
2 SWIN 1
3 Res.
4 Res.
5 Res.
6 SWOUT
7 Res.
8 VIN
9 SWIN 2
10 SWOUT 1
11 RXD
12 TXD
13 Res.
14 Res.
15 GNDIN
2
Black
91011 12 13 14 15
• We reserve the right to make technical changes
• eng • 2020-07-16
4 /7
Stationary bar code reader • Part no.: 50143262 • BCL 92 SM 302
y
Diagrams

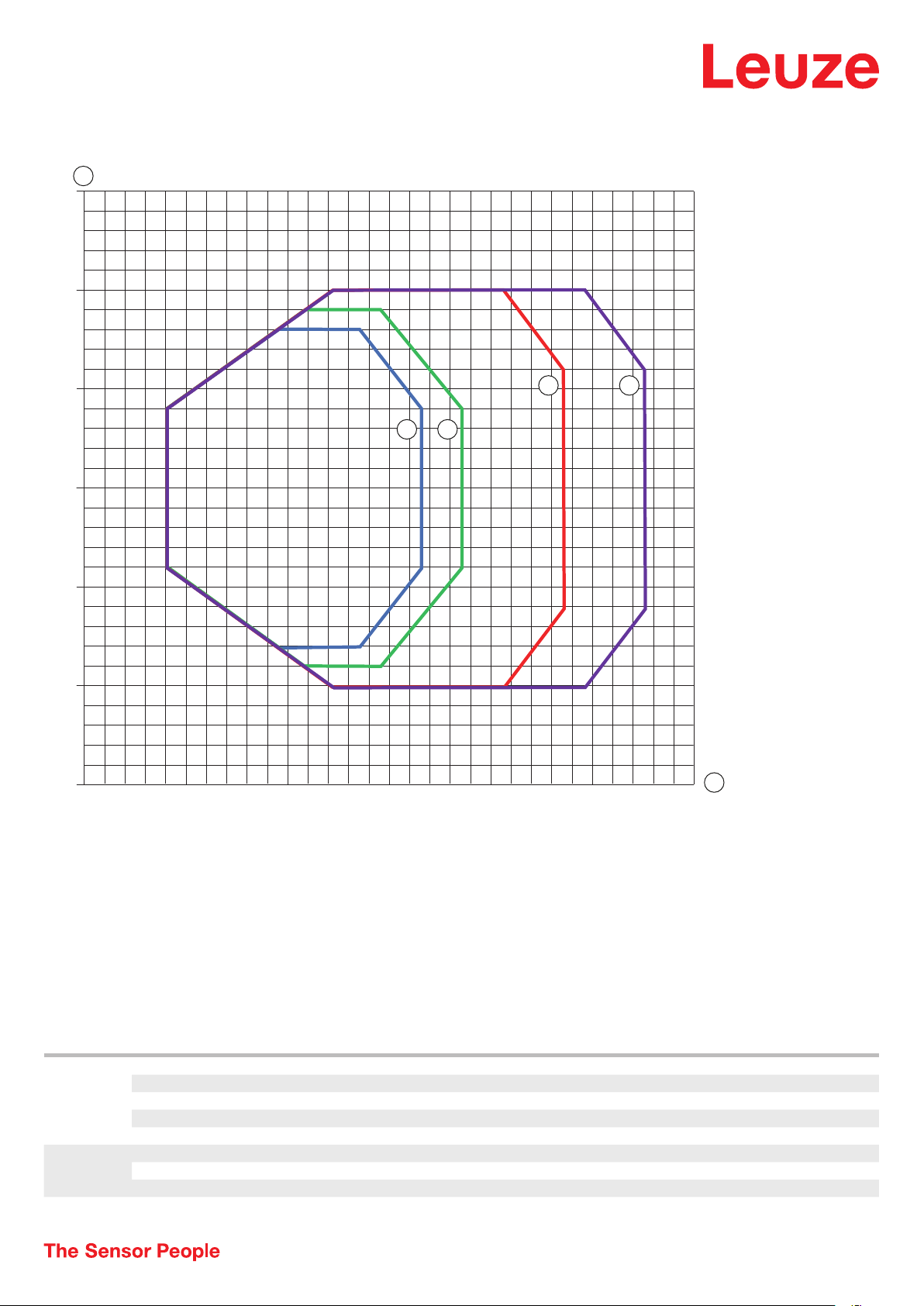

Reading field curve
x Reading field distance [mm]
y Reading field width [mm]
3 4
21
x
1 Resolution M = 0.165 mm (code type: Code
128)
2 Resolution M = 0.2 mm (code type: Code 128)
3 Resolution M = 0.3 mm (code type: 2/5
Interleaved)
Operation and display
LED Display Meaning
1 PWR Green, flashing Initialization
Green, continuous light Operational readiness
Red, flashing Warnings
Red, continuous light Error
Orange, flashing Service operation active
2 GOOD
READ
Green, 200 ms on Reading successful
Red, 200 ms off No reading result
Orange, continuous light Reading gate active
4 Resolution M = 0.5 mm (code type: 2/5
Interleaved)
• We reserve the right to make technical changes
• eng • 2020-07-16
5 /7
Stationary bar code reader • Part no.: 50143262 • BCL 92 SM 302
Part number code
Part designation: BCL XX YZ ABC
BCL Operating principle
XX Series
Y Scanning principle
Z Optics
A Electrical connection
B Cable length
C Beam exit
BCL: bar code reader
92: RS 232
S: line scanner (single line)
M: Medium Density (medium distance)
3: SUB-D 15-pin
8: M12 connector, 12-pin
0: 0.8 m
1: 3.0 m
0: Perpendicular
2: Front
Note
ª A list with all available device types can be found on the Leuze website at
Notes
Observe intended use!
ª This product is not a safety sensor and is not intended as personnel protection.
ª The product may only be put into operation by competent persons.
ª Only use the product in accordance with its intended use.
For UL applications:
ª For UL applications, use is only permitted in Class 2 circuits in accordance with the NEC (National Electric Code).
WARNING! LASER RADIATION – CLASS 1 LASER PRODUCT
The device satisfies the requirements of IEC 60825-1:2014 (EN 60825-1:2014) safety regulations for a product of laser class 1
ª Observe the applicable statutory and local laser protection regulations.
ª The device must not be tampered with and must not be changed in any way.
There are no user-serviceable parts inside the device.
Repairs must only be performed by
• We reserve the right to make technical changes
• eng • 2020-07-16
6 /7
Stationary bar code reader • Part no.: 50143262 • BCL 92 SM 302

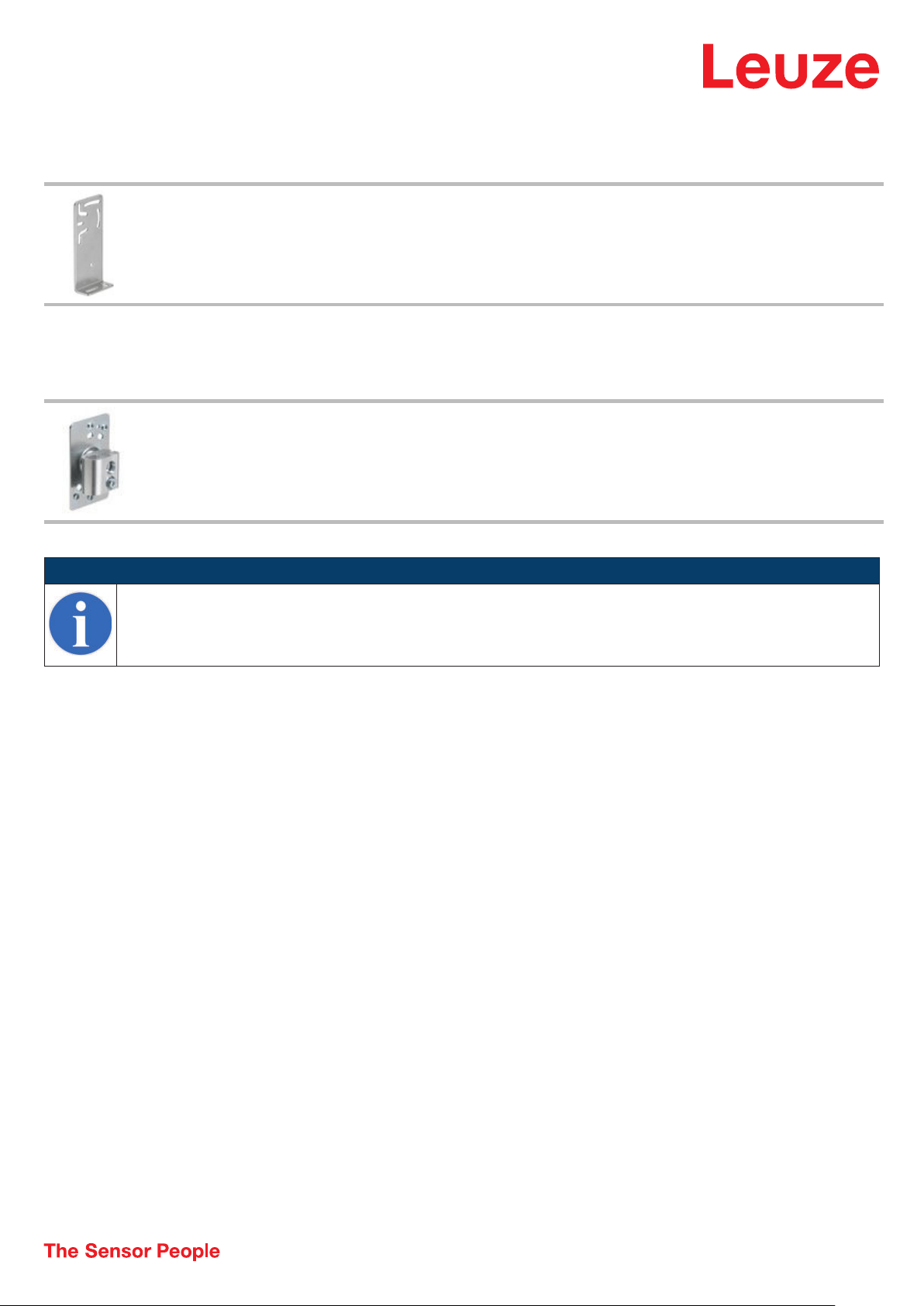

Accessories
Mounting technology - Mounting brackets
Part no. Designation Article Description
50118542 BT 200M.5 Mounting bracket Design of mounting device: Angle, L-shape
Mounting technology - Rod mounts
Part no. Designation Article Description
50119331 BTU 900M-D12 Mounting system Design of mounting device: Mounting system
Note
ª A list with all available accessories can be found on the Leuze website in the Download tab of the article detailed page.
Fastening, at system: Through-hole mounting
Mounting bracket, at device: Screw type, Suited for M3 screws
Type of mounting device: Adjustable
Material: Stainless steel
Fastening, at system: For 12 mm rod, Sheet-metal mounting
Mounting bracket, at device: Screw type
Type of mounting device: Clampable, Swiveling, Turning, 360°
Material: Metal
• We reserve the right to make technical changes
• eng • 2020-07-16
7 /7
