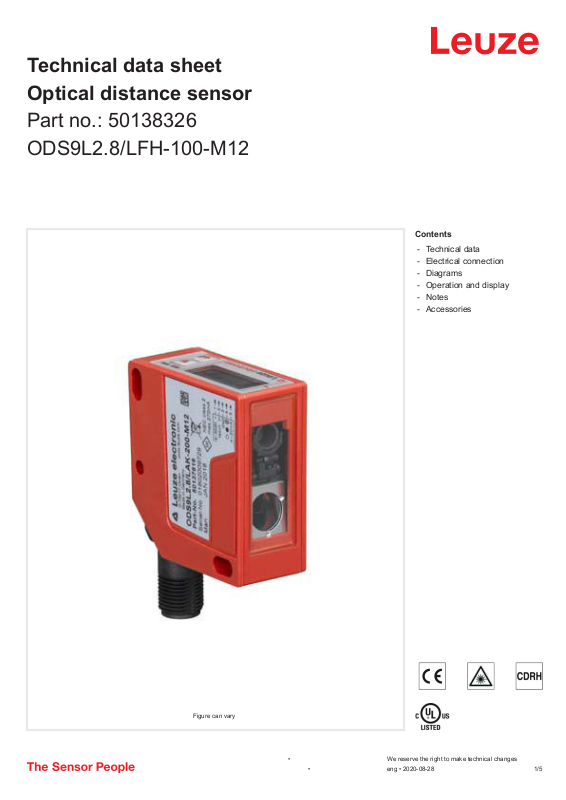

Leuze 50138326 Data Sheet
Technical data sheet
Optical distance sensor
Part no.: 50138326
ODS9L2.8/LFH-100-M12
Contents
-
Technical data
-
Electrical connection
-

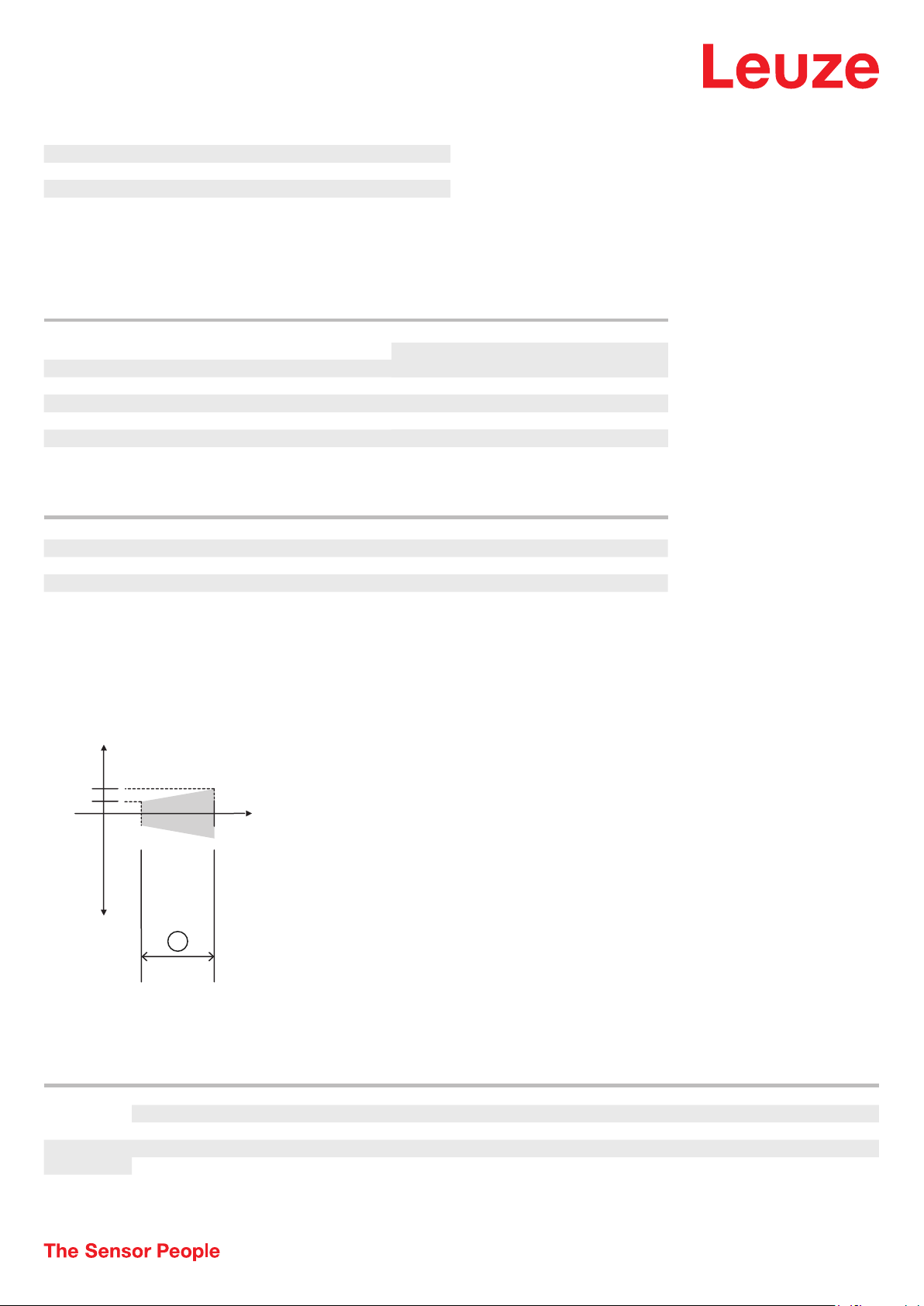

Diagrams
-
Operation and display
-
Notes
-

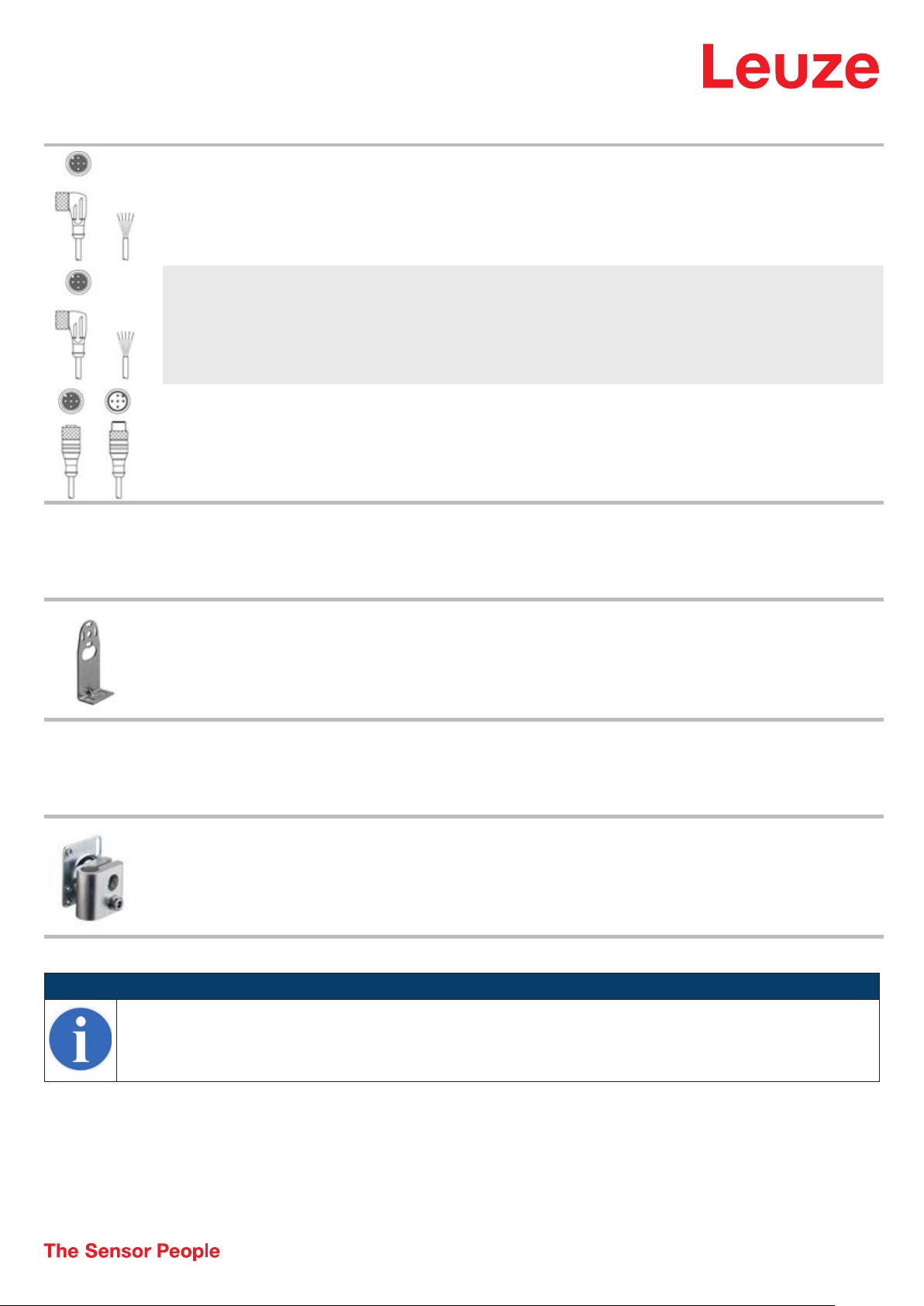

Accessories
Figure can vary
• We reserve the right to make technical changes
• eng • 2020-08-28
1 /5
Optical distance sensor • Part no.: 50138326 • ODS9L2.8/LFH-100-M12
Technical data
Basic data
Series 9
Type of scanning system Against object
Characteristic parameters
MTTF 36 years
Optical data
Beam path Divergent
Light source Laser, Red
Laser light wavelength 655 nm
Laser class 2, IEC / EN 60825-1:2014
Transmitted-signal shape Pulsed
Light spot size [at sensor distance] 1 mm
Type of light spot geometry Round
Measurement data
Measurement range 50 ... 100 mm
Resolution 0.01 mm
Accuracy 0.5 %
Reference value, accuracy Measurement distance
Repeatability 0.25 %
Reference value repeatability Measurement distance
Temperature drift, relative 0.02 %/K
Referencing No
Black/white behavior 0.5 %
Standard measurement object 50 x 50 mm²
Optical distance measurement principle
Triangulation
Electrical data
Protective circuit Polarity reversal protection
Short circuit protected
Transient protection
Performance data
Supply voltage U
Residual ripple 0 ... 15 %, From U
Open-circuit current
B
10 ... 30 V, DC
B
0 ... 180 mA
Outputs
Number of digital switching outputs 1 Piece(s)
Switching outputs
Voltage type DC
Switching voltage
high: ≥(UB-2V)
Switching output 1
Assignment Connection 1, pin 4
Switching element Transistor, Push-pull
Switching principle Light switching (PNP)/dark switching
(NPN)
Timing
Response time 1 ms, Under constant ambient
Readiness delay 300 ms
conditions, 90% diffuse reflection, standard measure mode
RS 232
Function Process
Transmission speed 2,400 ... 230,400 Bd
Start bit 1
Data bit 8
Stop bit
Transmission protocol
Data encoding
1
Adjustable
14 bit HEX
16 bit HEX
24 bit HEX
ASCII
Decimal measurement value
Remote Control (ASCII)
Connection
Number of connections 1 Piece(s)
Connection 1
Function Signal OUT
Voltage supply
Type of connection
Thread size M12
Type Male
Material Plastic
No. of pins 5 -pin
Encoding A-coded
Connector, Turning, 90°
Mechanical data
Design Cubic
Dimension (W x H x L) 21 mm x 50 mm x 50 mm
Housing material Plastic, PC
Lens cover material Glass
Net weight 50 g
Housing color Red
Type of fastening Through-hole mounting
Via optional mounting device
Operation and display
Type of display OLED display
Number of LEDs 2 Piece(s)
Type of configuration Software
Operational controls Control buttons
LC Display
PC software
Environmental data
Ambient temperature, operation -20 ... 50 °C
Ambient temperature, storage -30 ... 70 °C
Certifications
Degree of protection IP 67
Protection class II
Certifications c UL US
Standards applied IEC 60947-5-2
Interface
Type RS 232
• We reserve the right to make technical changes
• eng • 2020-08-28
2 /5
