Leuze 50138251 Data Sheet

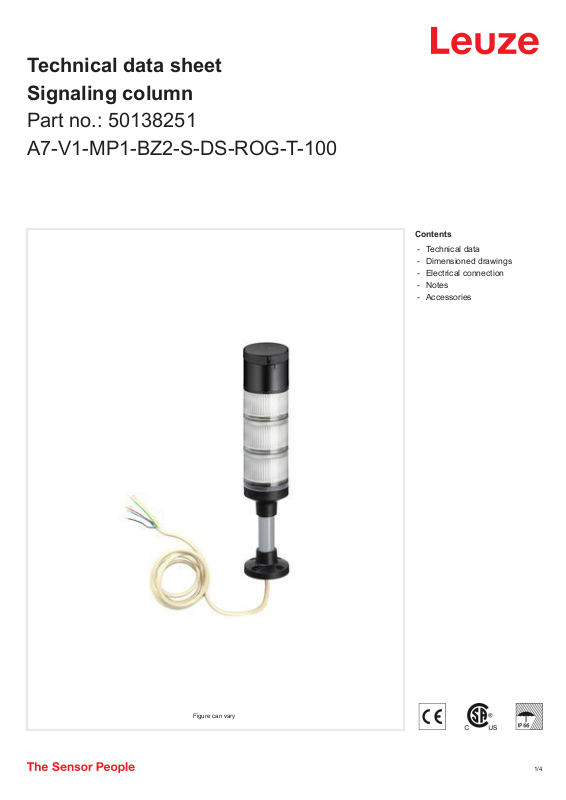

Technical data sheet
Signaling column

Part no.: 50138251
A7-V1-MP1-BZ2-S-DS-ROG-T-100

Contents

-

Technical data

-

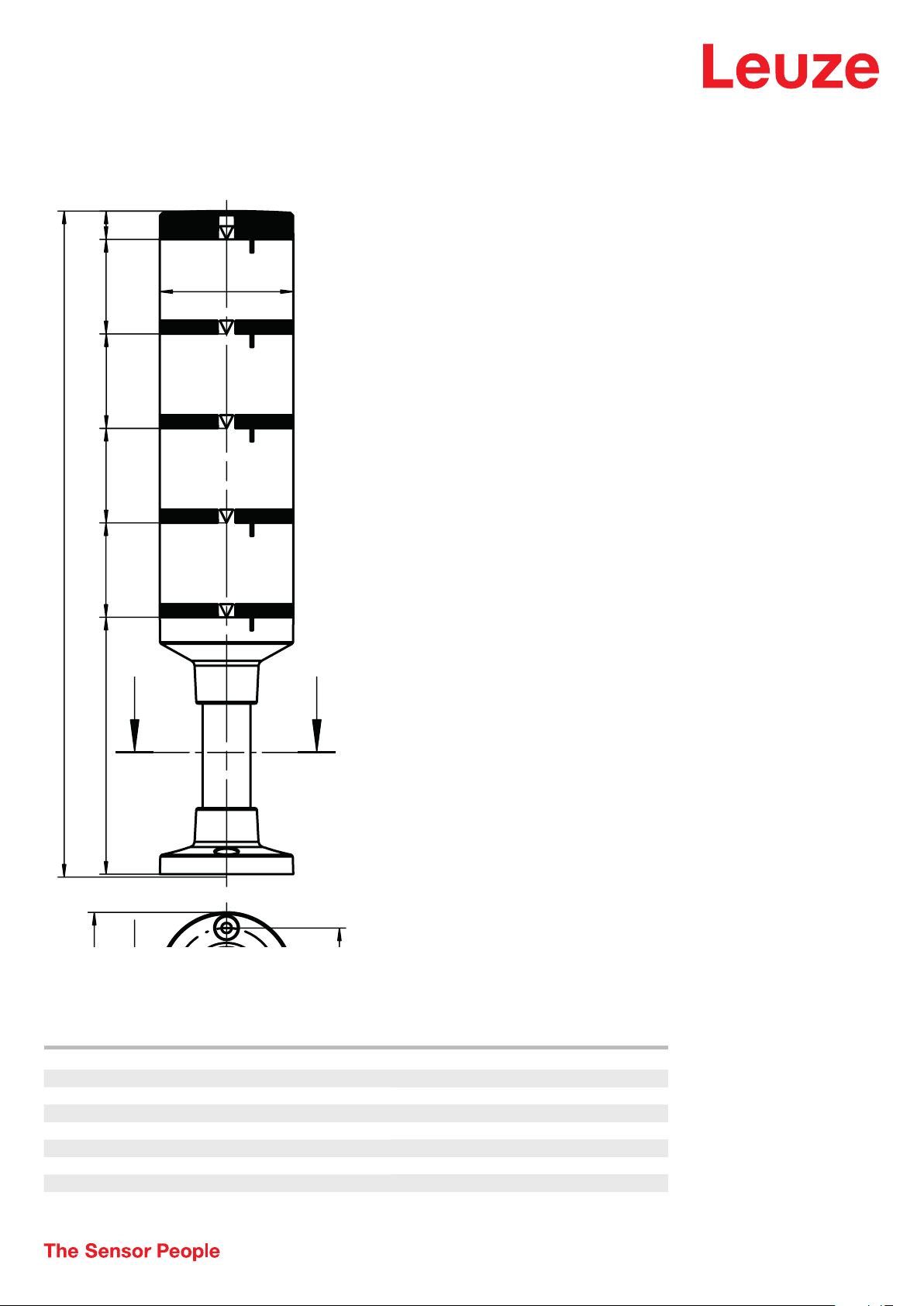

Dimensioned drawings

-

Electrical connection

-

Notes

-

Accessories

Figure can vary

1 /4

Signaling column • Part no.: 50138251 • A7-V1-MP1-BZ2-S-DS-ROG-T-100

Technical data

Basic data

Series A7

Type of signaling Optical and acoustic

Electrical data

Life expectancy > 100,000 h

Performance data

Supply voltage U

Current consumption, max. 160 mA

B

24 V, DC, 10 %

Connection

Number of connections 1 Piece(s)

Connection 1

Function Voltage supply

Type of connection Terminal

Cable length 1,500 mm

Number of conductors 6 -wire

Connection 2

Type of connection Open end

Mechanical data

Design Cylindrical

Dimension (Ø x L) 70 mm x 347 mm

Housing material Metal

Plastic

Net weight 611 g

Housing color Black

Gray

Type of fastening, at system Screw type / horizontal

Type of illuminant LED/24V

Lens modules 4 pieces, ready-made

Signal image Continuous light

Angle of radiation 360°

Sequence of the modules (ascending) Green, orange, red, single sound buzzer

Certifications

Degree of protection IP 66, Only when mounted on a housing

with the same degree of protection

Certifications CE

CSA

Acoustic data

Tone type Continuous tone

Sound pressure 105 dB

Number of tones 1 Piece(s)

Classification

Customs tariff number 85318070

eCl@ss 8.0 27371220

eCl@ss 9.0 27371220

ETIM 5.0 EC000232

ETIM 6.0 EC000232

2 /4
