WS-9075U
Wireless 433 MHz
Radio-controlled Weather Station
Instruction Manual
TABLE OF CONTENTS
Topic |
Page |
Inventory of Contents/Additional Equipment |
3 |
About WWVB |
3 |
Quick Set-Up Guide |
4 |
Detailed Set-Up Guide |
|
Battery installation |
5 |
Program Mode |
|
Program Sequence and Default Settings |
6 |
Function Keys |
6 |
Setting the LCD Contrast |
6 |
Setting the Time Zone |
7 |
Daylight Saving Time Setting |
7 |
Radio-controlled Time Setting On/Off |
8 |
12/24-hour Time Setting |
8 |
Setting the Time |
8-9 |
Setting the Year, Day and Month |
9 |
Setting the Temperature Unit |
9 |
Setting the Forecast Sensitivity |
9 |
Setting the Animation (Weather Icons and Stars) |
10 |
Features |
|
Weather Forecast Icons and Tendency Arrows |
11 |
Outdoor Temperature(s) |
11 |
Indoor Temperature |
11 |
Minimum & Maximum Records (Indoor, Outdoor, & |
12 |
Resetting) |
|
Outdoor Channel Re-learn Mode |
13 |
Moon Phase |
13 |
Time Alarm |
13 |
Adding Remote Temperature/Humidity Sensors |
14 |
(Optional) |
|
Mounting |
15-16 |
Troubleshooting |
16 |
Maintenance & Care |
17 |
Specifications |
17 |
Warranty Information |
18-19 |
2
INVENTORY OF CONTENTS
1.The WS-9075U weather station (Figure 1)
2.One TX6U remote temperature sensor (Figure 2)
3.Mounting hardware
4.Instruction manual and warranty card.

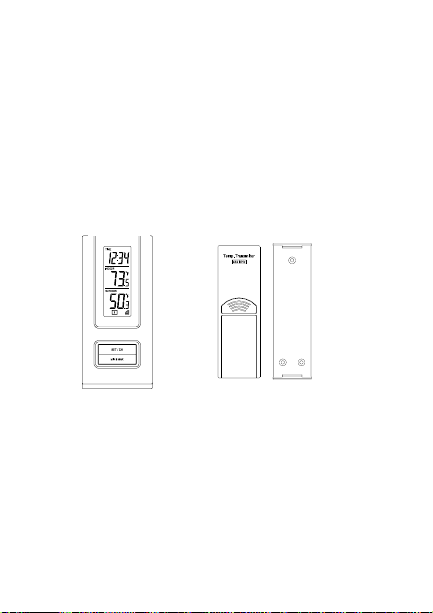

Figure 1
Time and Date LCD
Forecast LCD
Outdoor LCD
Indoor LCD
Moon Phase LCD
*LCD (Liquid Crystal Display)

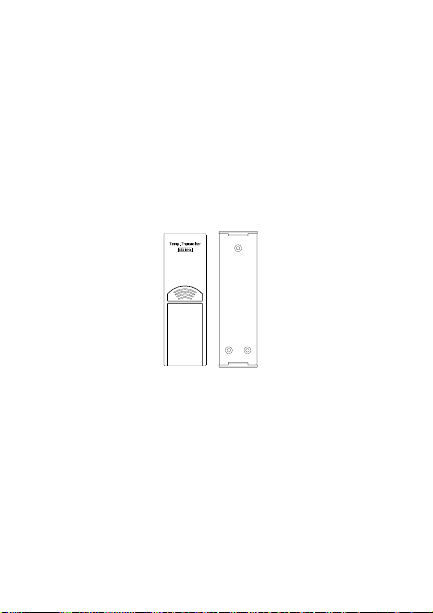

Figure 2
Remote Temperature Sensor |
Wall mounting base |
ADDITIONAL EQUIPMENT (not included)
1.Three fresh AA 1.5V batteries for the indoor weather station.
2.Two fresh AA 1.5V batteries for the remote temperature/humidity sensor.
3.One Philips screwdriver for mounting.
ABOUT WWVB (Radio Controlled Time)
The NIST (National Institute of Standards and Technology—Time and Frequency Division) WWVB radio station is located in Ft. Collins, Colorado, and transmits the exact time and date signal continuously throughout the United States at 60 kHz. The signal can be received up to 2,000 miles away through the internal antenna in the Weather Station. However, due to the nature of the Earth’s Ionosphere, reception is very limited during daylight hours. The weather station will search for a signal every night when reception is best. The WWVB radio station derives its signal from the NIST Atomic clock in Boulder, Colorado. A team of atomic physicists is continually measuring every second, of every day, to an accuracy of ten billionths of a second per day. These physicists have created an international standard, measuring a second as 9,192,631,770 vibrations of a Cesium133 atom in a vacuum. For more information on the atomic clock and WWVB please see the NIST website at http://www.boulder.nist.gov/timefreq/stations/wwvb.htm.
3
QUICK SET-UP GUIDE
Hint: Use good quality Alkaline Batteries and avoid rechargeable batteries.
1.Have the indoor weather station and remote temperature sensor 3 to 5 feet apart.
2.Batteries should be out of both the indoor weather station and remote temperature sensor units for 10 minutes.
3.Place the batteries into the remote temperature sensor first then into the indoor weather station.
4.DO NOT PRESS ANY BUTTONS FOR 15 MINUTES.
In this time the indoor weather station and remote temperature sensor will start to talk to each other and the display will show the indoor temperature/humidity, and outdoor temperature. If the indoor weather station does not display all information after the 15 minutes please retry the set up as stated above. After all information has been displayed for 15 minutes you can place your sensors outdoors and set your time.
Important Notes on Set-up and Operation
•The remote temperature sensor should be placed in a dry, shaded area.
•Fog and mist will not harm your remote temperature sensor but direct rain must be avoided.
•The remote temperature sensor has a range of 330 feet. Any walls that the signal will have to pass through will reduce distance. An outdoor wall or window can have up to 30 feet of resistance and an interior wall can have up to 20 feet of resistance. Your distance plus resistance should not exceed 330 ft. in a straight line.
•The remote temperature sensor transmits a signal every minute. After the batteries have been installed, the indoor weather station will search for the signal for a duration of 4 minutes. If there is no temperature reading in the OUTDOOR LCD after 4 minutes, make sure the units are within range of each other, or repeat the battery installation procedure.
•If a button is pressed before the indoor weather station receives the signal from the remote temperature sensor, you will need to follow the battery installation procedure again.
To complete the set up of your new wireless weather station after the 15 minutes have passed please follow the steps that follow in the Detailed Set-Up Guide.
4
DETAILED SET-UP GUIDE
BATTERY INSTALLATION
A. REMOTE TEMPERATURE SENSOR
1.Remove the mounting bracket. The bracket snaps on and off easily.
2.Remove the battery cover, by sliding the cover down.
3.Observing the correct polarity install 2 AA batteries. The batteries will fit tightly (to avoid start-up problems make sure they do not spring free).
4.Replace the battery cover by sliding upwards. Be sure battery cover is on securely.
B. INDOOR WEATHER STATION
1.Remove the battery cover. To do this, insert a solid object in the space provided at the lower-central position of the battery cover, then push up and pull out on the battery cover.
2.Observe the correct polarity, and install 3 AA batteries.
3.Replace the battery cover.
Note: Immediately after the batteries have been installed, the LCD (Liquid Crystal Display) will flash. Within 15 seconds the indoor temperature, indoor relative humidity, and the weather icons (sun and clouds) will be displayed. If not, remove batteries for 10 seconds and reinstall. If the outdoor temperature is not displayed within
four minutes, remove batteries from both units, wait 30 seconds, and reinstall making sure to install batteries into the remote temperature sensor first. The time will show 12:00 and start searching for the WWVB signal. If it successfully receives the time signal (usually at night), it will display the correct time (default time-zone is Eastern). You will need to adjust the time zone to match your local time.
5
PROGRAM MODE
Programming Note: If 15 seconds are allowed to pass, or the CHANNEL button is pressed during the programming mode, the unit will confirm/set the last information entered—the display will stop flashing and return to normal time-date readings. If you don’t leave the program mode during the programming of sections IV through XI, you can advance to step 4 of the next program setting. If you do leave the program setting (or want to program a specific setting) follow each instructional step to program that setting.
I.PROGRAMMING SEQUENCE AND DEFAULT SETTINGS
The programming sequence and default (factory) settings are as follows:
LCD Contrast |
2 |
Time Zone |
-5 (Eastern) |
Daylight Saving Time |
ON |
Radio-controlled time |
ON |
reception |
|
12/24-hour time |
12 |
Time – Hour |
12 |
Time – Minute |
:00 |
Year |
2003 |
Month |
1 |
Day |
1 |
Temperature |
ºF |
Forecast Sensitivity |
2 |
Animation (Weather Icons |
ON |
and Stars) |
|
II.FUNCTION KEYS
The function keys are operated by pressing the key corresponding to the operation that you want to perform.
II.SETTING THE LCD CONTRAST
1.Press and hold the SET button for 3 seconds.
2.“LCD” will show in the TIME LCD and the number setting will flash.
Note: There are 8 LCD contrast levels to choose from—“Lcd 0” is the lightest, and “Lcd 7” is the darkest.
3.Press and release the MIN/MAX/+ button to select a darker level and the ALARM/- key to select a lighter level.
4.Press and release the SET button to confirm and advance to the Time Zone setting.
6
III.TIME ZONE SETTING
1.The time zone will flash in the DATE LCD.
2.Press and release the MIN/MAX/+ or ALARM/- button to select your time zone.
Note: It is possible to select any time zone from –12 GMT to +12 GMT (for example to see the time in another country).
TIME ZONES
|
GMT |
0 |
|
Atlantic |
-4 |
EST; |
Eastern |
-5 |
CST; |
Central |
-6 |
MST; |
Mountain |
-7 |
PST; |
Pacific |
-8 |
ALA; |
Alaska |
-9 |
HAW |
Hawaii |
-10 |
; |
|
|
3. Press and release the SET button to confirm and advance to the Daylight Saving Time setting.
IV. DAYLIGHT SAVING TIME (DST) SETTING
1.“DST” will appear in the DATE LCD and either “ON” or “OFF” will flash in the TIME LCD.
2.Press and release the MIN/MAX/+ or the ALARM/- key to select DST on or off.
Note: “DST OFF” indicates that the feature is off and the WWVB will not change times automatically. “DST ON” indicates that the feature is on and the WWVB will change times automatically.
Note: Some locations (Arizona and parts of Indiana) do not follow Daylight Saving Time, and should select “DST OFF”.
3.Press and release the SET button to confirm and advance to the radio-controlled time on/off setting.
7
V.RADIO-CONTROLLED TIME ON/OFF SETTING
1.“RCC” will appear in the DATE LCD and “ON” or “OFF” will flash in the TIME LCD.
2.Press and release the MIN/MAX/+ or the ALARM/- key to select radio-controlled time on or off.
3.Press and release the SET button to confirm and advance to the 12/24-hour time setting.
VI. 12 OR 24 HOUR TIME SETTING
1.“12h” or “24h” will flash in the TIME LCD.
2.Press and release the MIN/MAX/+ or the ALARM/- button to select 12 or 24-hour time format.
Note: When in the 12-hour format “P.M.” will appear to the left of the hour in the time LCD between the hours of noon and midnight.
3. Press and release the SET button to confirm and advance to the time setting.
VII. TIME SETTING
There are two methods by which the time and date can be set:
A)Automatically via WWVB reception, or
B)Manually.
A. WWVB (Remote Control Time)
This method requires you to do nothing, except wait for the signal to be received, and to select a time zone. Reception usually takes approximately 10 minutes during optimal conditions. The best conditions for reception is at night, between midnight and 6:00 am—when there is less atmospheric interference. To keep your time as accurate as possible, the indoor weather station conducts a WWVB search every night between these hours, and overrides any manually set time. The WWVB tower icon (appearing in the TIME LCD) will flash when a signal-search is in progress and a signal is being received, and will remain steady when the signal has been received. If the WWVB time has not been received after 15 minutes of battery installation, you may manually set the time or leave the time function alone (reception will occur regardless).
B. MANUAL TIME SETTING
Note: When in the 12-hour format “P.M.” will appear to the left of the hour in the time LCD between the hours of noon and midnight.
Note: Reception of the WWVB signal will automatically set the time. The reception of the signal will override any programmed time.
1.The hours digits will flash in the TIME LCD.
2.Press and release the MIN/MAX/+ button to advance or the ALARM/- key to decrease the hours.
8
3.Press and release the SET button to confirm the hours setting and advance to the minutes setting.
4.The minutes digits will flash in the TIME LCD.
5.Press and release the MIN/MAX/+ button to advance or the ALARM/- key to decrease the minutes.
6.Press and release the SET button to confirm and advance to the year setting.
VIII. SETTING THE YEAR, DAY AND MONTH
Note: Reception of the WWVB signal will also set the date and day. The reception of the signal will override any programmed date and day.
1.The year will flash in the DATE LCD.
2.Press and release the MIN/MAX/+ button to advance the year or the ALARM/- to decrease the year.
3.Press and release the SET button to confirm the year and advance to the month setting.
4.The month will flash in the DATE LCD.
5.Press and release the MIN/MAX/+ button to advance or the ALARM/- key to decrease the month.
6.Press and release the SET button to confirm the month and advance to the day setting.
7.The day of the month will flash in the DATE LCD.
8.Press and release the MIN/MAX/+ button to advance or the ALARM/- key to decrease the day of the month.
9.Press and release the SET button to confirm and advance to the snooze setting.
IX. SELECTING °F OR °C
1.“°F” is the default setting, and should be flashing in the TIME LCD.
2.Press and release the MIN/MAX/+ or the ALARM/- button to shift °F to °C and back.
3.Press and release the SET button to confirm your selection and to advance to the Forecast Sensitivity setting.
X.SETTING THE FORECAST SENSITIVITY
Note: The forecast sensitivity can be adjusted to allow for areas that have a higher or lower sensitivity to changing air pressure (for example coastal areas have more pressure change than areas such as southern Arizona).
The numbers correspond to the amount of air pressure change necessary to trigger a change in the forecast icon. Areas that tend to have more air pressure change would set the sensitivity to 3, while areas that experience lower than normal air pressure change would set the sensitivity to 1.
1.Either “1”, “2” or “3” will flash in the TIME LCD and the forecast icon and tendency arrows will flash in the FORECAST LCD.
2.Press and release the MIN/MAX/+ or the ALARM/- to decrease the forecast sensitivity.
3.Press and release the SET button to confirm the forecast sensitivity and complete the programming.
9
XI. SETTING THE ANIMATION (FORECAST ICONS AND STARS)
1.“ON” or “OFF” will flash in the TIME LCD. If “ON” the forecast icon and tendency arrows will flash in the FORECAST LCD and the stars will flash in the MOON PHASE LCD. If “OFF”, the forecast icon, tendency arrows, and stars will not flash.
2.Press and release the MIN/MAX/+ or the ALARM/- button to select the animation on or off.
3.Press and release the SET button to confirm the animation setting and complete the programming.
FEATURES OF THE WS-9075U
Time Alarm icon |
|
WWVB Radio- |
|
||
(indicates alarm |
|
controlled time |
time set on) |
|
icon (indicates |
|
|
radio-controlled |
|
|
time turned on) |
Forecast |
|
|
|
|
|
Weather |
|
|
Tendency |
||||
icon |
|
|||||
|
Arrow |
|||||
|
|
|
|
|
|
|
Satellite icon (indicates |
|
|
|
|
||
|
|
|
||||
outdoor transmission) |
|
|
||||
Sensor Identification |
|
|
|
|
|
|
|
|
|
|
|
||
number |
|
|
||||
Tide Display |
|
|
|
Star icons |
|
|
|
||
|
|
|
Current moon phase |
|
|
|
|||
|
|
|
|
|
|
|
|
|
display |
10
I.WEATHER FORECAST
The weather forecasting feature is estimated to be 75% accurate and is for the next 12 to 24 hours. The weather forecast is based solely upon the change of air pressure over time. The WS-9075U averages past air-pressure readings to provide an accurate forecast—creating a necessity to disregard all weather forecasting for 12-24 hours after the unit has been set-up, reset, or moved from one altitude to another (i.e. from one floor of a building to another floor). In areas where the weather is not largely affected by the change of air pressure, the sensitivity setting should be set to 1. In areas where the air pressure changes more rapidly (such as coastal areas) the sensitivity setting should be set to 3.
A. WEATHER ICONS
There are 3 possible weather icons that will be displayed in the FORECAST LCD:
Sunny—indicates that the weather is expected to improve (not that the weather will be sunny).
Sun with Clouds—indicates that the weather is expected to be fair (not that the weather will be sunny with clouds).
Clouds with Rain—indicates that the weather is expected to get worse (not that the weather will be rainy).
These icons indicate the expected weather change in the next 12 to 24 hours. The icon does not give an exact prediction of the weather, however it should be viewed as a generalization of the expected weather change (for example a “sunny” icon indicates the weather is expected to improve).
The weather icons change when the unit detects a change in air pressure. The icons change in order, from “sunny” to “partly sunny” to “cloudy” or the reverse. It will not change from “sunny” directly to “rainy”, although it is possible for the change to occur quickly. If the symbols do not change then the weather has not changed, or the change has been slow and gradual.
B. WEATHER TENDENCY ARROWS
Other possible displays in the FORECAST LCD are 2 weather tendency arrows, one that points up and one that points down (on the right side of the LCD). These arrows reflect current changes in the air pressure. An arrow pointing up indicates that the air pressure is increasing and the weather is expected to improve or remain good, an arrow pointing down indicates that the air pressure is decreasing and the weather is expected to become worse or remain poor.
II. OUTDOOR TEMPERATURE
The temperature received from the remote temperature sensor is viewed in the OUTDOOR LCD. When there is more than one remote temperature sensor unit in operation, a “boxed” number will appear to the left side of the temperature. This indicates which remote temperature sensor unit (1, 2, or 3) is currently displaying its data in the OUTDOOR LCD. (This feature is explained in further detail in section VII— Adding Remote Temperature Sensors).
III. INDOOR TEMPERATURE, HUMIDITY, AND COMFORT LEVEL INDICATOR
The current indoor temperature and relative humidity are displayed in the INDOOR LCD.
11
IV. MINIMUM AND MAXIMUM TEMPERATURE AND HUMIDITY RECORDS
The WS-9075U keeps a record of the MINIMUM and MAXIMUM and date of their occurrence, for both the indoor and outdoor modes.
A.VIEWING THE OUTDOOR TEMPERATURE RECORDS
1.Press and release the MIN/MAX/+ button once. “min” temperature appears with the outdoor temperature, indicating that the minimum temperature and the time and date of occurrence are displayed. The minimum record will display for 30 seconds before returning to the normal display mode.
2.Press and release the MIN/MAX/+ button again (once while “min” temperature is still displayed, twice otherwise). “max” appears with the outdoor temperature, indicating that the maximum temperature and the time and date of occurrence are displayed. The maximum record will display for 30 seconds before returning to the normal display mode.
B.VIEWING THE INDOOR TEMPERATURE AND HUMIDITY RECORDS
1.Press and release the MIN/MAX button once. “min” appears with the indoor temperature, indicating that the minimum temperature, and the time and date of occurrence are displayed. The minimum record will display for 30 seconds before returning to the normal display mode.
2.Press and release the MIN/MAX/+ button again (once while “min” temperature is still displayed, twice otherwise). “max” appears with the indoor temperature, indicating that the maximum temperature and the time and date of occurrence are displayed. The maximum record will display for 30 seconds before returning to the normal display mode
3.Press and release the MIN/MAX/+ button again (once while “max” temperature is still displayed, 3 times otherwise). “min” appears with the indoor humidity, indicating that the minimum humidity, and the time and date of occurrence are displayed. The minimum record will display for 30 seconds before returning to the normal display mode.
4.Press and release the MIN/MAX/+ button again (once while “min” humidity is still displayed, 4 times otherwise). “max” appears with the indoor humidity, indicating that the maximum humidity and the time and date of occurrence are displayed. The maximum record will display for 30 seconds before returning to the normal display mode.
5.While “max” is still displayed, press and release the MIN/MAX/+ button again to return to the current data display.
C.RESETTING THE MIMIMUM AND MAXIMUM RECORDS
To reset the OUTDOOR records:
1.Press and release the CHANNEL button to select the channel record you wish to reset
2.Select either “min” or “max” records by pressing and holding the MIN/MAX/+ button for 5 seconds.
3.The MIN/MAX records are now reset and the current time will show in the TIME LCD.
To reset the INDOOR records:
1.Press and release the MIN/MAX/+ button 3 times to select the indoor record you wish to reset
2.Select either “min” or “max” for indoor temperature or humidity by pressing and releasing the MIN/MAX/+ key.
3.Press and hold the MIN/MAX/+ button for 5 seconds.
4.The MIN/MAX records are now reset and will show the current time in the TIME LCD and current indoor temperature or humidity in the INDOOR LCD.
12
V.OUTDOOR CHANNEL RE-LEARN MODE
In case the temperature data in a particular outdoor channel often shows “--.-“ due to low battery level or false reset of a transmitter, that transmitter can be set up again individually and the “lost” channel can be re-learned again by entering the channel re-learn mode.
To do this, after the individual temperature sensor is set:
1.Press and hold the CHANNEL key for 6 seconds until the channel identification number flashes.
2.Press and release the MIN/MAX/+ or the ALARM/- key to select the identification number for the “lost” channel
3.Press and release the CHANNEL key again to confirm the selected channel. The “lost” channel will resume within 2 minutes and all transmitters will work normally again.
V. MOON PHASE
There are 8 moon phases shown on the indoor weather station. Thus, when the moon icon is all white, it is a full moon.
Full Moon |
New Moon |
Waning Gibbous |
Waxing Crescent |
Last Quarter |
First Quarter |
Waning Crescent |
Waxing Gibbous |
The tide information is also indicated on the left side of the Moon Phase information automatically.
VI. |
TIME ALARM |
To set the time alarm:
1.Press and hold the ALARM/- button for 3 seconds.
2.The alarm time will begin to flash in the DATE LCD.
3.Press and release the MIN/MAX/+ button to increase the hour .
Note: When in the 12-hour mode and setting an alarm for a time between noon and midnight, “PM” will appear to the left of the alarm time in the DATE LCD.
4.Press and release the ALARM/- button to select the minutes
5.Press and release the MIN/MAX/+ button to adjust the minutes.
6.Press and release the ALARM/- button to confirm the setting or wait for 15 seconds and the display will automatically return to the normal mode.
To activate the alarm:
1.Press and release the ALARM/+ button to activate the alarm.
2.When the alarm icon is showing in the DATE LCD the alarm is activated.
13
VII. ADDING REMOTE TEMPERATURE SENSORS (OPTIONAL)
The WS-9075U is able to receive signals from 3 different remote temperature sensors. The remote temperature sensor model(s) that you choose will come with their own set of instructions—follow these instructions for a complete guide to setting up. Following are some brief instructions for the basic set-up of remote temperature sensor units with the WS-9075U. These extra sensors can be purchased through the same dealer as this unit, or by contacting La Crosse Technology directly. A TX6U will monitor temperature only, a TX3U will monitor temperature and display the temperature on its LCD, and the TX3UP will monitor the temperature via a probe for use in pools, spas, etc.
Note: When setting up multiple units it is important to remove the batteries from all existing units in operation, then to insert batteries first into all the remote temperature sensor units, and in numeric sequence. Second install batteries into the indoor weather station. Transmission problems will arise if this is not done correctly and if the total time for set-up exceeds 4 minutes.
A. SET-UP OF MULTIPLE UNITS
1.It is necessary to remove the batteries from all units currently in operation.
2.Remove the battery covers to all remote temperature sensor units.
3.Place all remote temperature sensor units in a numeric sequential order.
4.In sequential order, install batteries (follow the same battery installation procedures seen in section I. A) of the Detailed Set-Up Guide).
5.Install batteries into the indoor weather station.
6.Follow the Detailed Set-Up Guide for programming and operating instructions.
B. VIEWING AND OPERATING WITH MULTIPLE REMOTE TEMPERATURE SENSOR UNITS
1.To view the temperature of a different remote temperature sensor unit, press and release the CHANNEL button. A shift from one “boxed” number to the next should be observed in the OUTDOOR LCD.
2.To view the Minimum/Maximum temperature: first select which remote temperature sensor to read data from (indicated by the “boxed” number), then press the MIN/MAX/+ button. To view the readings from different transmitters, follow IV. A. Viewing the Outdoor Temperature Records paragraph above.
3.To reset the Minimum/Maximum readings, select first which remote temperature sensor to read data from. Press the MIN/MAX/+ button to view the outdoor MIN/MAX records. Then follow the steps in IV. C. Resetting the Minimum and Maximum Records paragraph above.
14
Loading...
