User’s Manual

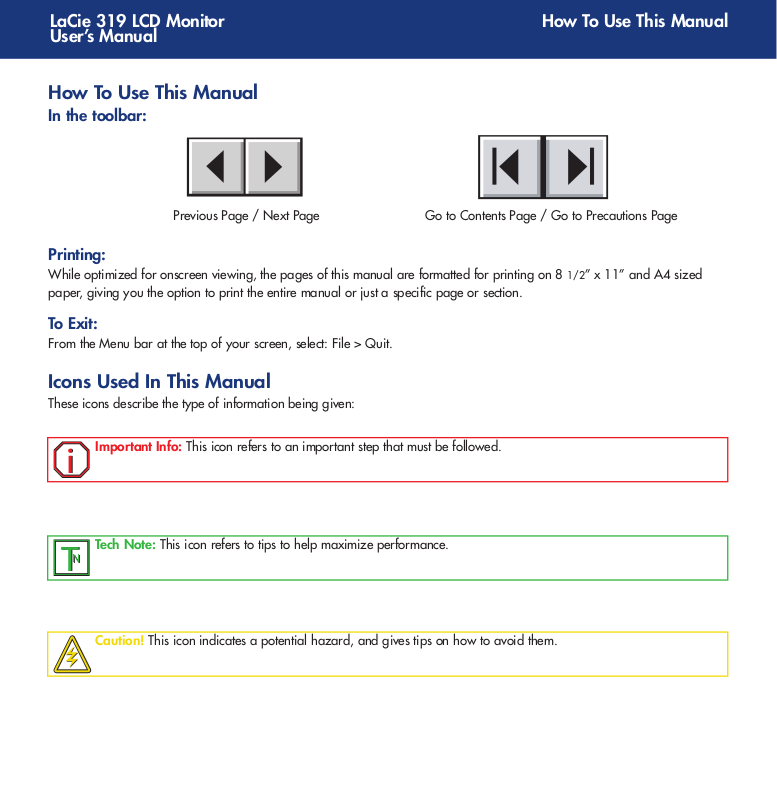

How To Use This Manual

In the toolbar:

How To Use This Manual

Previous Page / Next Page

Printing:

While optimized for onscreen viewing, the pages of this manual are formatted for printing on 8 1/2” x 11” and A4 sized
paper, giving you the option to print the entire manual or just a specific page or section.

To Exit:

From the Menu bar at the top of your screen, select: File > Quit.

Go to Contents Page / Go to Precautions Page

Icons Used In This Manual

These icons describe the type of information being given:

Important Info:

Tech Note:

This icon refers to an important step that must be followed.

This icon refers to tips to help maximize performance.

Caution!

This icon indicates a potential hazard, and gives tips on how to avoid them.

LaCie 319 LCD Monitor

Table of Contents

User’s Manual

Table of Contents

Foreword 3
Precautions 5
Environmental Regulations 8
Specifications 10

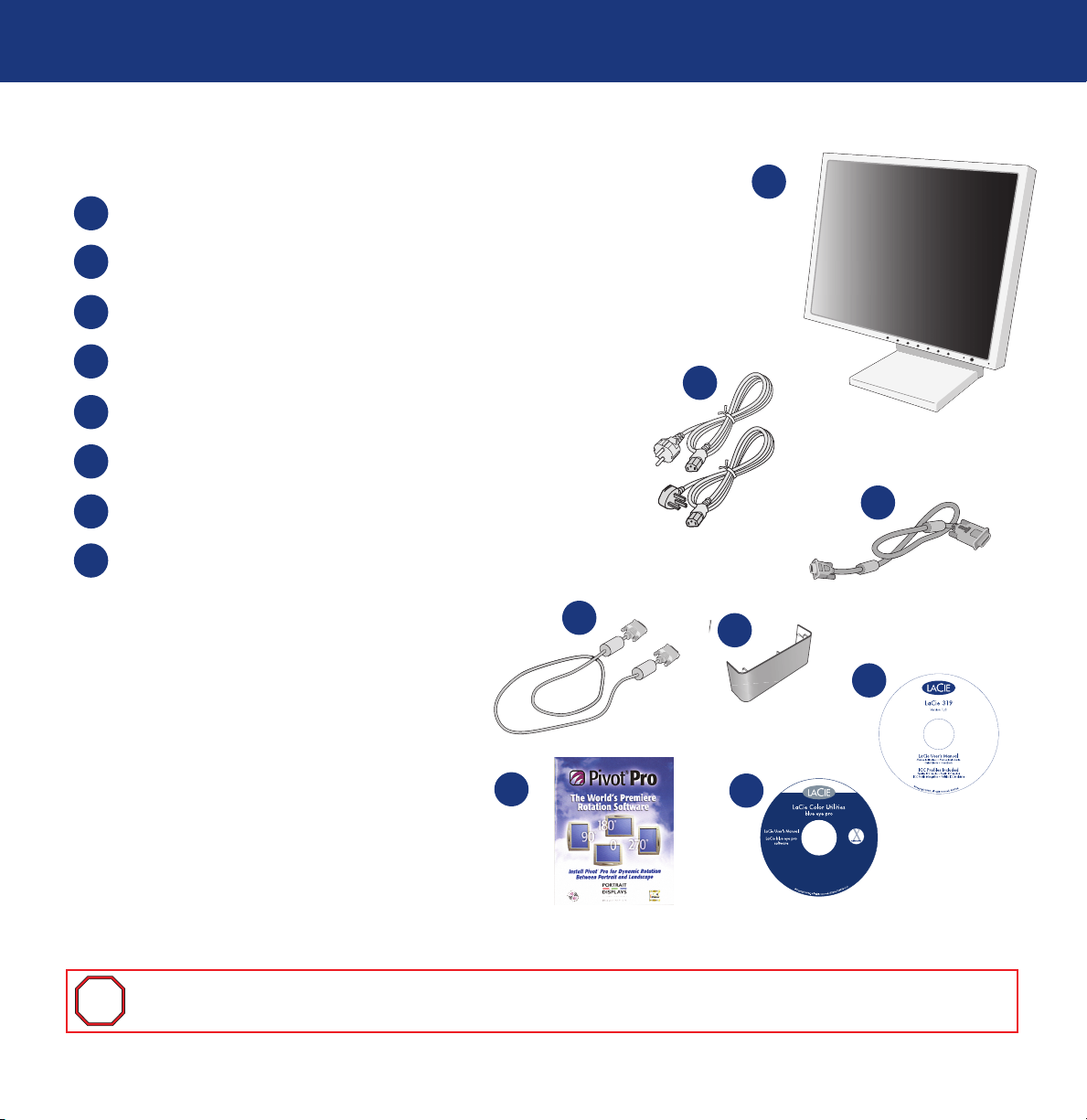

1. Package Contents 11

2. Quick Start 12

3. Setting Up Your LaCie 319 LCD Monitor 14

3.1. Controls 16

4. Troubleshooting 21

5. Contacting Customer Support 23

6. Warranty 24

page 2

LaCie 319 LCD Monitor
User’s Manual

Copyrights

Copyright © 2004/2005 LaCie. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent
of LaCie.

Changes

The material in this document is for information only and subject to change without notice. While reasonable efforts have been made in
the preparation of this document to assure its accuracy, LaCie assumes no liability resulting from errors or omissions in this document, or
from the use of the information contained herein. LaCie reserves the right to make changes or revisions in the product design or the
product manual without reservation and without obligation to notify any person of such revisions and changes.

FCC Statement:

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try and correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.
Use only shielded cables to connect I/O devices to this equipment.

LaCie 319 LCD Monitor

Tested To Comply
With FCC standards

Foreword

page 3

FOR HOME OR OFFICE USE

Caution!

Caution!

interference to the nearby radio and television reception. It is essential that only the supplied power cord be used.

Modifications not authorized by the manufacturer may void the user’s authority to operate this device.

A shielded-type power cord is required in order to meet FCC emission limits and also to prevent

LaCie 319 LCD Monitor

Power supply cordNon shield type, 3-conductor
Length 2.0 m
Plug shape

U.S.A

User’s Manual

Foreword

page 4

Canada Compliance Statement

DOC: This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CAN/CSA C22.2 No. 60950-1.

FCC Information

1. Use the attached specified cables with the LaCie 319 color monitor so as not to interfere with
radio and television reception.
(1) The power supply cord you use must have been approved by and comply with the safety standards of U.S.A. and meet the

following condition.

(2) Please use the supplied shielded video signal cable, 15-pin mini D-SUB to DVI-A cable or DVI-D to DVI-D cable.

Use of other cables and adapters may cause interference with radio and television reception.

2. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult your dealer or an experienced radio/TV technician for help.
If necessary, the user should contact the dealer or an experienced radio/television technician for additional
suggestions. The user may find the following booklet, prepared by the Federal Communications Commission, helpful:
“How to Identify and Resolve Radio-TV Interference Problems.” This booklet is available from the U.S. Government
Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4.

Manufacturer’s Declaration for CE Certification

We, LaCie, solemnly declare that this product conforms to the following European standards:
Class B EN60950, EN55022, EN50082-1, EN61000-3-2
With reference to the following conditions:
73/23/EEC Low Voltage Directive
89/336/EEC EMC Directive

LaCie 319 LCD Monitor
User’s Manual

Precautions

page 5

Recommended use

• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose

you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel.

• Do not spill any liquids into the cabinet or use your monitor near water.

• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage points, which can be

harmful or fatal or may cause electric shock, fire or equipment failure.

• Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.

• Do not place this product on a sloping or unstable surface, as the monitor may fall, causing serious damage.

• Do not place any objects onto the monitor and do not use the monitor outdoors.

• The inside of the fluorescent tube located within the LCD monitor contains mercury. Please follow the bylaws or rules of

your municipality to dispose of the tube properly.

• Do not bend power cord.

• Do not use monitor in high temperatured, humid, dusty, or oily areas.

• Do not cover vent on monitor.

Immediately unplug your monitor from the outlet and refer servicing to qualified personnel under the following conditions:

• When the power supply cord or plug is damaged.

• If liquid has been spilled, or objects have fallen into the monitor.

• If the monitor has been exposed to rain or water.

• If the monitor has been dropped or the cabinet damaged.

• If the monitor does not operate normally by following operating instructions.

• If glass is broken, handle with care.

• If monitor or glass is broken, do not come in contact with the liquid crystal and handle with care.

• Allow adequate ventilation around the monitor so that heat can properly dissipate. Do not block ventilated openings or

place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.

• The power cable connector is the primary means of detaching the system from the power supply. The monitor should be

installed close to a power outlet which is easily accessible.

• Handle with care when transporting. Save packaging for transporting.

• Image Persistence: Please be aware that LCD Technology may experience a phenomenon known as Image Persistence.

Image Persistence occurs when a residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT
monitors, LCD monitors’ image persistence is not permanent, but constant images being displayed for a long period of time
should be avoided. To alleviate image persistence, turn off teh monitor for as long as the previous image was displayed. For
example, if an image was on the monitor for one hour, the monitor should be turned off for one hour to erase the image.

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE

THE FOLLOWING WHEN SETTING UP AND USING

THE LaCie 319 LCD COLOR MONITOR:

LaCie 319 LCD Monitor

WARNING

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM

WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE
POWER CORD FROM THE AC OUTLET.DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PAR TS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause
electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit
has been included. Therefore, it should be read carefully in order to avoid any problems.

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT
USE THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS
THE PRONGS CAN BE FULLY INSERTED.

REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.

Declaration of the Manufacturer

We hereby certify that the colour monitor
MultiSync LCD1980FXi (L193FH) is in
compliance with

Council Directive 73/23/EEC:

– EN 60950-1

Council Directive 89/336/EEC:

– EN 55022
– EN 61000-3-2
– EN 61000-3-3
– EN 55024

and marked with

NEC-Mitsubishi Electric Visual

Systems Corporation

4-13-23, Shibaura,

Minato-Ku

Tokyo 108-0023, Japan

User’s Manual

Caution:

When operating the LaCie 319 LCD Monitor with a 220-240V AC power source in Europe, use the power cord pro­vided with the monitor.
In the UK, a BS approved power cord with a moulded plug has a Black (five Amps) fuse installed for use with this
equipment.
If a power cord is not supplied with this equipment please contact your supplier.
When operating the LaCie 319 LCD Monitor with a 220-240V AC power source in Australia, use the power cord
provided with the monitor. If a power cord is not supplied with this equipment please contact your supplier.
For all other cases, use a power cord that matches the AC voltage of the power outlet and has been approved by
and complies with the safety standard of your particular country.

Precautions

page 6

Declaration

We hereby certify that the color monitor LaCie 319 is in
compliance with

LaCie Group

17, rue Ampère

91349 Massy Cedex

France

LaCie 319 LCD Monitor
User’s Manual

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN

REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE

FOLLOWING WHEN YOU POSITION THE MONITOR:

• For optimum performance, allow 20 minutes for warm-up.

• Adjust the monitor height so that the top of the screen is at or slightly below eye

level.Your eyes should look slightly downward when viewing the middle of the
screen.

• Position your monitor no closer than 40 cm and no further away than 70 cm

from your eyes. The optimal distance is 50 cm.

• Rest your eyes periodically by focusing on an object at least 20 feet away. Blink

often.

• Position the monitor at a 90° angle to windows and other light sources to

minimize glare and reflections. Adjust the monitor tilt so that ceiling lights do not
reflect on your screen.

• If reflected light makes it hard for you to see your screen, use an anti-glare filter.

• Clean the LCD monitor surface with a lint-free, non-abrasive cloth. Avoid using any cleaning solution or glass cleaner!

• Adjust the monitor’s brightness and contrast controls to enhance readability.

• Use a document holder placed close to the screen.

• Position whatever you are looking at most of the time (the screen or reference material) directly in front of you to

minimize turning your head while you are typing.

• Avoid displaying fixed patterns on the monitor for long periods of time to avoid image persistence (after-image

effects).

• Get regular eye checkups.

Ergonomics

To realize the maximum ergonomics benefits, we recommend the following:

• Adjust the Brightness until the background raster disappears.

• Do not position the Contrast control to its maximum setting.

• Use the preset Size and Position controls with standard signals.

• Use the preset Color Setting.

• Use non-interlaced signals with a vertical refresh rate between 60-75 Hz.

• Do not use primary color blue on a dark background, as it is difficult to see and may produce eye fatigue to

insufficient contrast.

Precautions

page 7

LaCie 319 LCD Monitor
User’s Manual

Congratulations! You have just purchased a TCO’99 approved and labeled product! Your choice has
provided you with a product developed for professional use. Your purchase has also contributed to
reducing the burden on the environment andto the further development of environmentally adapted elec­tronics products.

Why do we have environmentally labeled computers?

In many countries, environmental labeling has become an established method for encouraging the adaptation of goods and
services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that
environmentally harmful substances are used both in the products and during the manufacturing. Since it has not been possi­ble for the majority of electronics equipment to be recycled in a satisfactory way, most of these potentially damaging sub­stances sooner or later enter Nature. There are also other characteristics of a computer, such as energy consumption levels,
that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of
conventional electricity generation have a negative effect on the environment (acidic and climate-influencing emissions,
radioactive waste, etc.), it is vital to conserve energy. Electronics equipment in offices consume an enormous amount of
energy since they are often left running continuously.

What does labeling involve?

This product meets the requirements for international and environmental labeling of personal computers. The requirements
cover a wide range of issues, including: environment, ergonomics, usability, emission of electrical and magnetic fields, energy
consumption and electrical and fire safety. The environmental demands concern restrictions on the presence and use of heavy
metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product
must be prepared for recycling and the manufacturer is obliged to have an environmental plan which must be adhered to in
each country where the company implements its operational policy. The energy requirements include a demand that the com­puter and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more
stages. The length of time to reactivate the computer shall be reasonable for the user. Labeled products must meet strict envi­ronmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics
and good usability.

Environmental Requirements
Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn, they delay the spread of
fire. Up to thirty percent of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants
contain bromine or chloride and these are related to another group of environmental toxins, PCBs, which are suspected to
give rise to severe health effects, including reproductive damage in fisheating birds and mammals, due to the bioaccumula­tive* processes. Flame retardants have been found in human blood and researchers fear that disturbances in fetus develop­ment may occur. Plastic components weighing more than 25 grams must not contain flame retardants with organically bound
chlorine and bromine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Environmental Regulations

page 8
