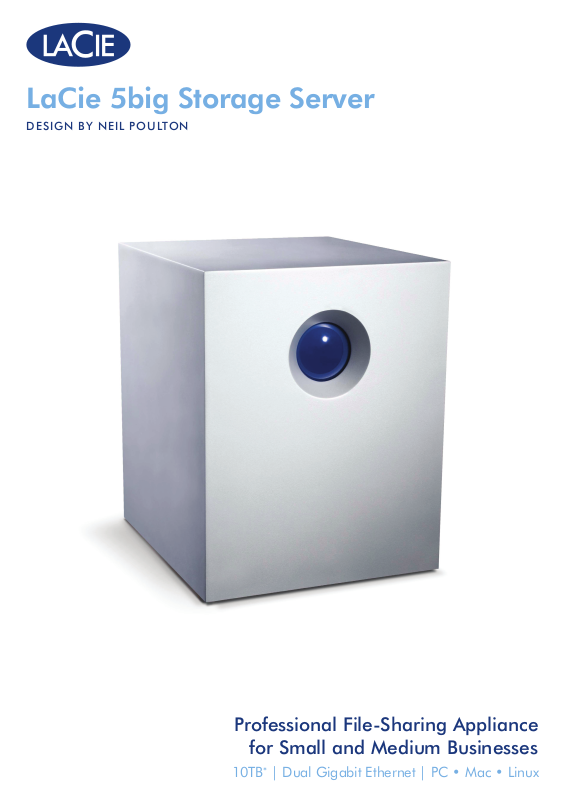

LaCie 5big Storage Server
DESIGN BY NEIL POULTON
Professional File-Sharing Appliance
for Small and Medium Businesses
10TB* | Dual Gigabit Ethernet | PC • Mac • Linux
Page 2
Enterprise-Level Desktop File Server
The 5big Storage Server is a professional desktop fi le-sharing
server for small to medium- sized of ce environments. It is
designed to manage demanding le-sharing activities for 25 to
100 PC, Mac®, or Linux workstations, even though it can manage
more. The 5big Storage Server also offers seamless, transparent
integration into any SMB IT infrastructure thanks to Active
Directory support.
A Vault for Your Data
Thanks to its ve RAID-protected disks, data stored on the
5big Storage Server is accessible even if one disk fails. Support
for RAID levels 0, 1, and 5 gives you the exibility to optimize
storage for speed, data protection, or both. The 5big Storage
Server even supports Microsoft’s Bitlocker® encryption to protect
your data against theft. You can also use the 5big Storage
Server as a backup target for your PCs, Linux workstations, and
even Macs since it is Time Machine® compatible.
Rock-Solid Components
The 5big Storage Server’s all-star system comprises a HyperThreaded Dual Core 64-bit Intel® ATOM™ processor and 2GB
of RAM, which delivers lightning-fast data processing for truly
seamless le serving. Powered by Microsoft Storage Server
2008® Standard Edition, the user interface offers a familiar
environment which can be accessed from any workstation.
Additionally, you can take advantage of its dual Gigabit Ethernet
ports to do link aggregation.
• Up to 10TB* fi le sharing and iSCSI appliance for SMB and branch offi ces
• Powered by a Dual Core 1.6GHz Intel® Atom™ processor
• Includes Windows® Storage Server 2008 Standard Edition
• Compatible with Windows, Mac®, and Linux
• RAID protection, data deduplication, fi le remote replication,
built-in back up engine
• Full support for Mac including AFP, Time Machine®, and Spotlight
• Up to 180MB/s data transfer rate
Minimum System Requirements
• Computer with an Ethernet network adapter
®
• Latest version of Windows XP, Windows Vista
Windows 7 for administration and SMB
connections Mac® OS X 10.4, 10.5, 10.6 /
Linux 2.6 for SMB connections only
• Ethernet switch or router
,
Box Content
• LaCie 5big Storage Server
• Ethernet cable
• External power supply
• DVD-ROM for Server Restore
• CD-ROM for Multi Language Kit
• Getting Started Guide
®
• Drawer key
Page 3
WorkstationWorkstation
WorkstationWorkstation
A
C D
A
B B
C
D D
B
B
D
A
C D
A
B
C
D
B
B
D
Huge, Effi cient, and Scalable Storage
Thanks to its fi ve disks, the 5big Storage Server offers up to
a huge 10TB of capacity. Since disks are hot-swappable, you
can perform maintenance without affecting your work ow.
Additionally, simply connect external hard drives through
USB and eSATA connections to scale up capacity or use the
integrated backup engine to protect the server’s data. The
5big Storage Server also features data deduplication to limit
the ever-rocketing quantity of unstructured data generated by
a high number of users. This function optimizes storage space
by ensuring that only a single instance of a le is stored on the
server.

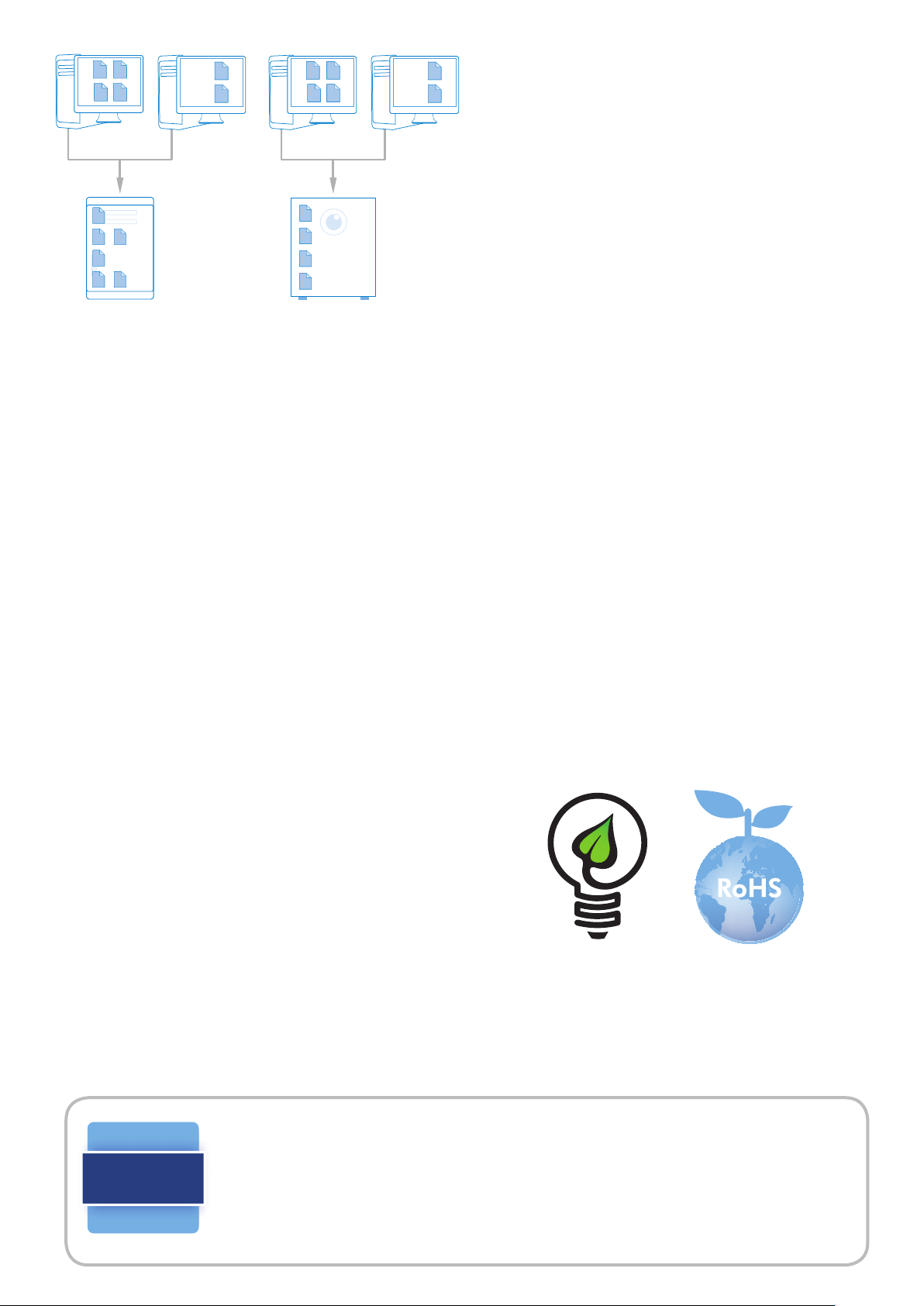

SERVER WITHOUT
DATA DEDUPLICATION
5BIG STORAGE SERVER
WITH DATA DEDUPLICATION
Advanced Sharing and Data Replication
The 5big Storage Server integrates both DFS-N and DFS-R
features for advanced sharing and data replication. DFS-N
aggregates shared folders from multiple servers, creating a single
entry point to your data and simplifying network complexity. In
addition, by automatically replicating data from one le server
to several others, DFS-R makes 5big Storage Server the ideal
solution for branch of ces.
File Serving Anywhere
For a full range of accessibility, the 5big Storage Server supports
major network protocols such as SMB, AFP, NFS, and iSCSI.
Thanks to this compatibility, you can access your data from any
computer on the network (PCs, Macs, or Linux). Additionally,
HTTP and FTP accessibility means that your data can be
accessed from anywhere and shared with your suppliers and
customers. iSCSI support allows you to mount the 5big Storage
Server’s shares as a local disk, bringing performance and
exibility for your business applications.
Environment- and Desktop-Friendly
Despite its high performance, the 5big Storage Server offers
eco-friendly features. Its casing is made from fully recyclable
aluminum, and while R AID systems can consume a lot of power,
the 5big Storage Server power supply is rated at an amazing
level V. Through the Microsoft Storage Server interface, you can
choose low power usage pro les in order to strike a balance
between data availability and power use. Additionally, the LaCie
5big Storage Server houses an ultra-quiet Noctua fan, allowing
you to place the product wherever you choose – including on a
desktop.
Premium 3-Year Warranty
ADVANCE
CARE OPTION
The LaCie 5big Backup Server comes with a 3 Year Limited Warranty. For superior service, it also
comes with an optional Advance Care Option, which can be purchased separately online within 30
days of the purchase date. Under the Advance Care Option, LaCie will immediately swap out the
product without it needing to be returned rst for minimal interruption of your work ow. LaCie covers
all freight costs. Availability depends on the sales area. See www.lacie.com for details.
Page 4

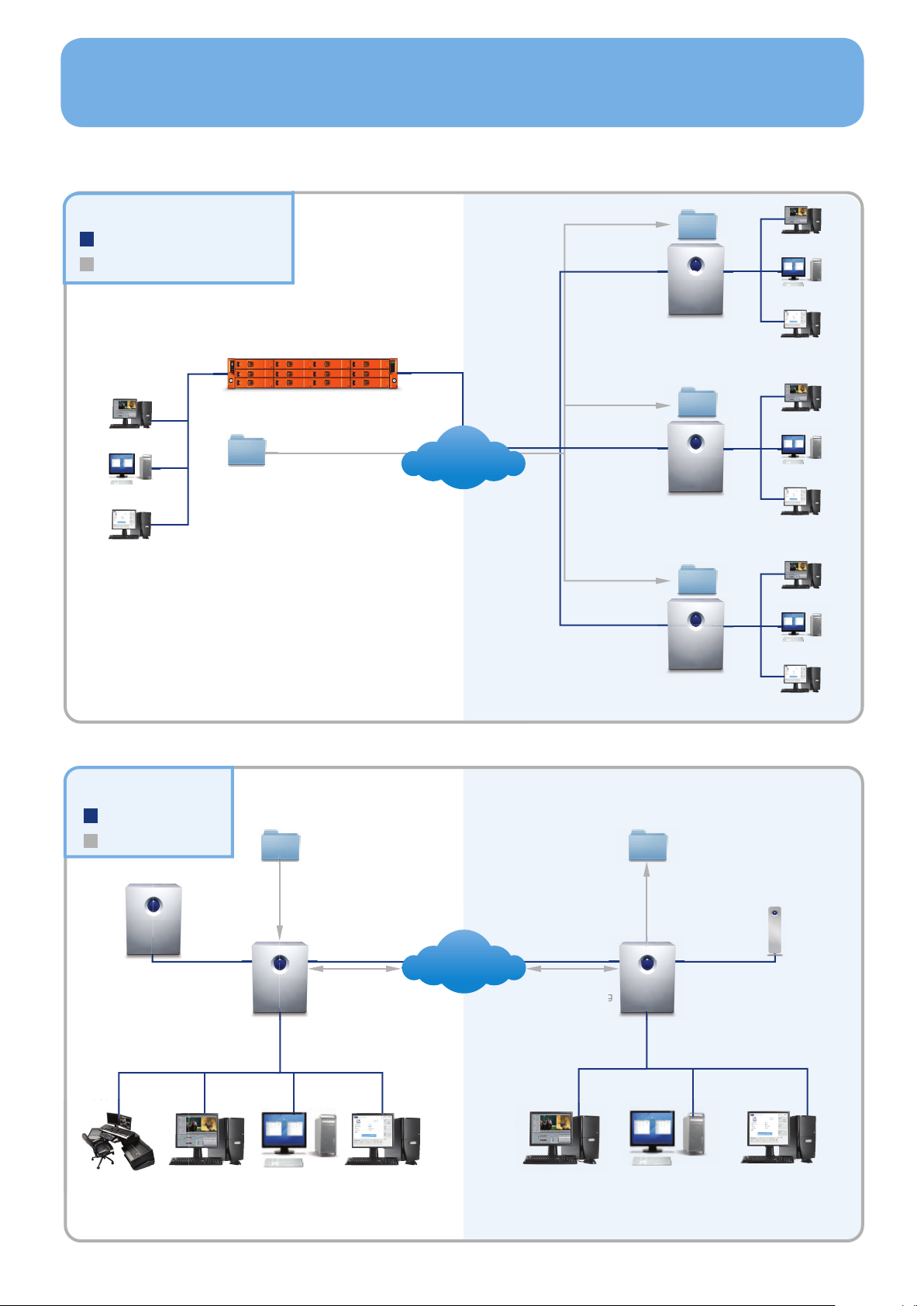

Branch Office Use Case
2
iSCSI
N
St
Network
DFS-R File Replication
12big Storage Server
Linux
Network File
Mac
PC
File Replication
Case Study
WAN
Linux
Mac
PC
Linux
Mac
PC
SMB Use Case
Network
DFS-R File Replication
5 Big
Network 2
NAS to NAS
backup
Folder to
be Replicated
CORPORATE BRANCH
LAN 2
LAN
WAN
5 Big
5
Storage Server
LAN 2
5 Big
Storage Server
Replicated
LAN 1LAN 1
Folder
NAS to DAS
backup
Linux
Mac
PC
D2 network 2
iSCSI
Audio Workstation
NFS AFP SMB
Linux Mac PC
>100 USERS >100 USERS
Linux Mac PC
Page 5
LaCie 5big Storage Server
Item Number 301532 301533
Capacity* 5TB 10TB
Interface 2 x Gigabit Ethernet 10/100/1000 Base-TX
Expansion Ports 1 x eSATA
3 x USB 2.0 (type A)
1 x VGA
RAID Modes Software: RAID 0**, RAID 1/5/5+Spare (hot-swappable)
Independent Multi RAID volumes
Operating System Windows Storage Server 2008 SP2 Standard Edition
Includes Microsoft .NET Framework
Network Services File Server: SMB, FTP, HTTP, AFP, NFS
DHCP, DNS, SMTP, Web, Print, Fax, Application server, Spotlight
Support Telnet, IPv6, iSCSI, IPP, iSNS, SNMP
Remote Network
Transfer Applicatons
Server to Server synchronization (DFS-R)
Background Intelligent Transfer Service
Remote Desktop Services
Administration Native integration with Windows domains (Active Directory)
Remote desktop administration
Public/Private Shares with Quota management
Unlimited number of users
®
Backup Solutions Advanced backup and restore of server running Windows Server 2008
Volume Shadow Copy Service (VSS) and block-level backup technology
Support of optical media and removable media
Special Features Distributed File System (DFS-N & DFS-R)
Time Machine
®
compatible
SharePoint® services***
BitLocker® drive encryption
Enhanced search indexing
Hyper-V™ compatible
BITS server extension
Ofine Files
Native iSCSI target
Single Instance Storage
Environment and Power Advanced power management options
Energy-efcient process with Level 5 power supply
Recyclable: Aluminum, ROHS compliant
Cooling System Ultra-quiet cooling system with self-stabilizing oil-pressure
bearing technology
Dimensions (W x D x H) 173 x 196 x 220 mm / 6.8 x 7.7 x 8.6 in.
Weight 7.62 kg / 16.8 lbs.
LaCie 5big Storage Server Accesories
Accessory Name Item # Description
Spare drive 301364 LaCie spare 1TB 5Big drive with drawer
Spare drive 301457 LaCie spare 1.5TB 5Big drive with drawer
Spare drive 301467 LaCie spare 2TB 5Big drive with drawer
Power supply 714111 LaCie 5Big Backup Server rescue power supply
* EN 1TB (Terabyte) = 1000GB. 1GB = 1,000,000,000 bytes. Total accessible capacity varies
depending upon operating environment (typically 10–15% less).
** Hot-swapping is not available in RAID 0.
*** Available for download from the Microsoft website.
Gigabit recommended to get the best performances
© 2010, LaCie. The LaCie logo is a trademark of LaCie. Other products and brand names
mentioned herein may be trademarks or registered trademarks of their respective owners.
Specications and appearance are given as guidelines and may change without notice.
www.lacie.com
100715
