OWNER'S MANUAL

KWANG YANG MOTOR CO.,LTD.

PEOPLE S

50/125 / 200

4 Stroke

Dear KYMCO Scooter Users:

Thank you for purchasing this KYMCO scooter and welcome to the

family of KYMCO scooter riders. To enjoy safer and more pleasant

riding, become thoroughly familiar with this owner's manual before you

ride the scooter. You safety depends not only on your own alertness

and familiarity with the scooter but also the scooter mechanical

condition. A pre-ride inspection before every outing and regular

maintenance are essential. The quality of each KYMCO scooter is

guaranteed.

Note:

1. The information and specifications stated in this manual are for

reference only and subject to change without notice.

2. When starting the engine, the battery must be installed to

facilitate starting and increase the engine performance.

TABLE OF CONTENTS

1.PRECAUTIONS FOR A SAFE RIDING

2.PARTS

FRAME

ENGINE

LOCATION

NUMBER

NUMBER KEY NUMBER

、

3.OPERATION INSTRUCTIONS

IGNITION SWITCH/STEERING HANDLEBAR LOCK

ELECTRIC STARTER BUTTON HEADLIGHT SWITCH

HEADLIGHT DIMMER SWITCH/PASSING SIGNAL SWITCH

HORN BUTTON/TURN SIGNAL SWITCH

SEAT LOCK/MET-IN BOX

HELMET HOLDER

INSTRUMENTS AND INDICATORS

CELL PHONE SOCKET REAR CUSHION

、

、

4.PRE-RIDE INSPECTION

ADVANCE INSPECTION ENGINE OIL LEVEL INSPECTION/REFILLING

FRONT LUGGAGE BOX

TIRE INSPECTION

、

1
3
6
7
8
8
9

10
11

12
12
13

17

18

18
19

20

TABLE OF CONTENTS

FUEL LEVEL INSPECTION/REFILLING

STEERING HANDLEBAR INSTRUMENT LIGHTS INSPECTION

BRAKE FLUID LEVEL INSPECTION

BRAKE PAD WEAR BRAKE SHOE WEAR

BRAKE LEVER FREE PLAY INSPECTION & ADJUSTMENT

HORN/LIGHT INSPECTION

FRONT/REAR SHOCK ABSORBER INSPECTION BRAKE PERFORMANCE

INSPECTION BACK MIRROR ANGLE CHECK LICENSE PLATE CHECK

REFLECTOR CHECK PREVIOUS ABNORMAL PARTS INSPECTION

LUBRICATION POINT CHECK

、、、

、

、

、

、、

5.ENGINE STARTING METHODS

6.NORMAL RIDING METHOD

7.PRECAUTIONS FOR RIDING

8.HOW TO STOP RIDING

9.EASY MAINTENANCE

AIR CLEANER REPLACEMENT

APPEARANCE CLEANING

CLEANING &

22
23

24

25
26

28

29

30
33

35

39
41

41
43

TABLE OF CONTENTS

BATTERY

FUSE CHANGE

ENGINE OIL CHANGE

TRANSMISSION GEAR OIL

SPARK PLUG INSPECTION

BRAKE FLUID LEVEL INSPECTION/REFILLING RUBBER COVER

INSPECTION FOR WIRE AND CABLE

、

10.IMPORTANT NOTICES

POLLUTION-FREE PERIODIC MAINTENANCE SCHEDULE

SPECIFICATIONS

11.KYMCO CLEAN AIR SYSTEM (FOR EURO 2)

44
46
48

49
50

51

52

53

54

57

1.PRECAUTIONS FOR A SAFE RIDING

(1) CLOTHES

To relax and wear comfortable clothes are the main
points for a safe riding.
To observe traffic laws, keep a cool mind, relax and be
careful will provide you a safe riding.

(1) Wear helmet and fasten it tightly.
(2) Have the clothes well-arranged. Fasten shirt cuffs

and keep them from hooking the brake lever.
(3) Wear low-heeled shoes for a safe riding.
(4) When riding, use both hands to grasp the handlebar.

it is very dangerous to hold the handlebar with one

hand.

CAUTION:

A scooter rider should not wear loose or too long
clothes to avoid danger.
During riding or 10 minutes after the scooter is
stopped, do not touch the exhaust muffler to avoid
scalding.
When parking the scooter, keep it away from dry
lawn or inflammables to avoid danger.

(4)

(2)

(1)

(3)

1

(2) RIDING METHOD

The safety of two-wheel vehicles is influenced by sitting
position. The rider should sit on the central part of the
seat cushion. If the rider sits on the rear part of the seat,
the load of front wheel will decrease. As a result, the
handlebar will swing and cause danger to the rider.

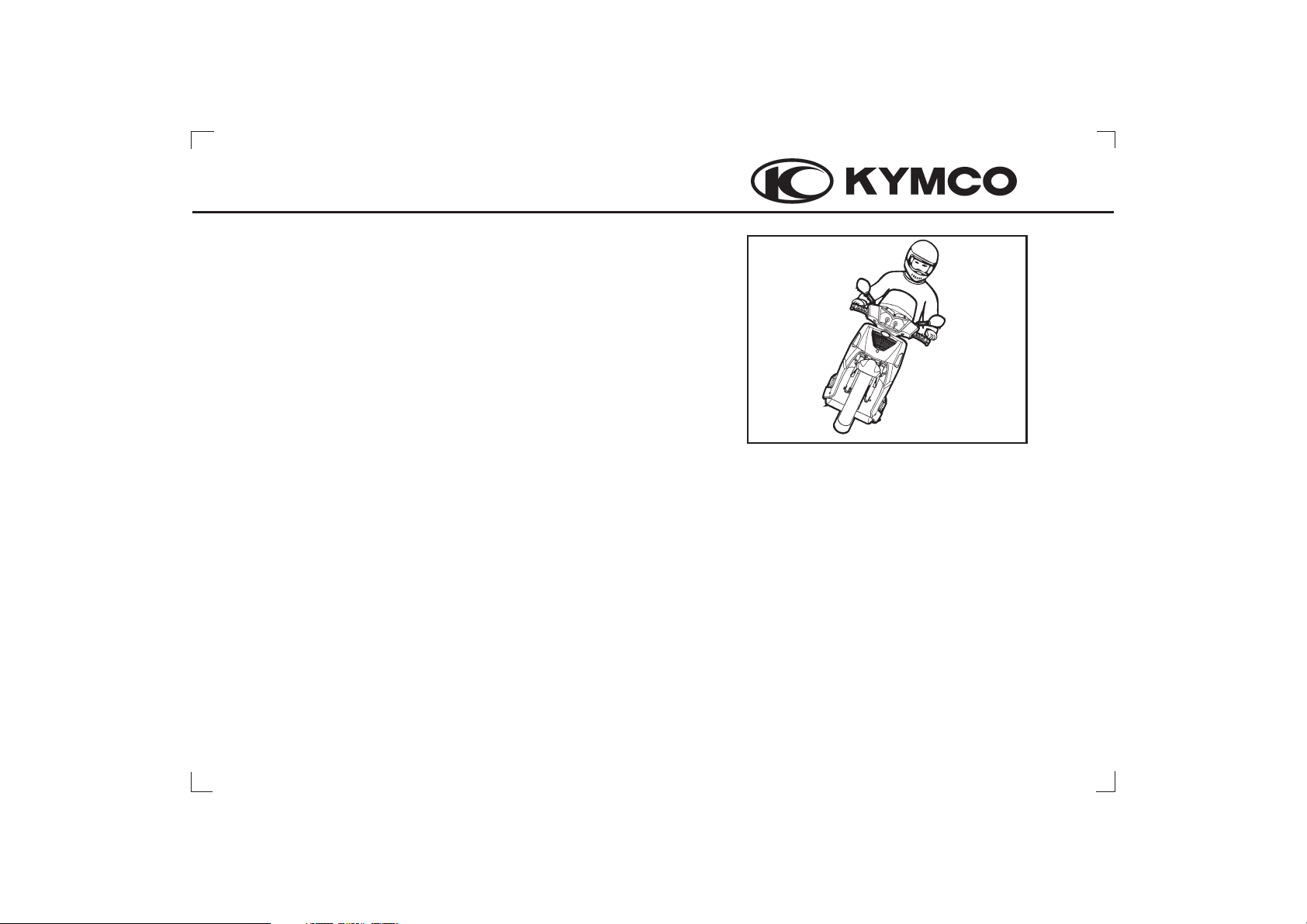

When making a turn, it will be easier for the rider to
steer the scooter by leaning the body inward slightly.
The scooter will lose its balance if the rider fails to
keep his body leaning inward.
When riding on a damaged or macadam road. Slow
down the speed and hold the handlebar tightly.

(3) CARRYING GOODS

Keep a good sitting posture to operate the scooter
properly.
The feel of the handlebar will be different when carrying
goods on the scooter. Overloading may cause the
handlebar to swing. Avoid riding with overload.

(1) Max. Loading capacity of the met-in box is 10kg.
(2) Max. Loading capacity of the rear carrier is 5kg.
(3) Max. Loading capacity of the front luggage box is 1.5kg.

(2)

(1)

(3)

2

2. PARTS LOCATION

(1) Headlight switch (P.9)/

Electric starter button (P.9)

(2) Speedometer (P.13)

(3) Main stand

(4) Ignition switch (P.8)

(5) Helmet holder (P.12)

(6) Battery/Fuse (P.42/P.43)

(7) Muffler

(8) Front luggage box (P.17)

(6)

(5)

(3)(7) (8)

(4)

(2)

(1)

3

(1) Seat lock (P.12)

(2) Fuel fill cap (P.21)

(3) Met-in box (P.12)

(4) Helmet holder (P.12)

(5) Center hook (P.17)

(6) Side stand

Headlight dimmer switch (P.10)/

(7)

Passing signal switch (P.10)/
Turn signal switch (P.11)/
Horn button(P.11)

(8) Kick starter pedal (P.31)

(9) Air cleaner housing (P.39)

(5)

(6)

(1)

(3)(4)(7)

(2)

(8) (9)

4

(1) Headlight

(2)Leftbackmirror

(3) Rear brake lever

(4) Left front turn signal light

(5) Left front cushion

(6) Right front cushion

(7) Right front turn signal light

(8) Front brake lever

(9) Right back mirror

(6)

(7)

(8)

(1)

(2)

(3)

(4)

(9)

(5)

5

FRAME NUMBER

The read frame number, please remove
inner cover
Frame number is the same written in document and
warranty card.
Please write down your frame number in place below.

with a flat head screwdriver.

the cover on

FRAME NUMBER:

6

ENGINE NUMBER

The engine number is stamped on left engine case.
Please write down your engine number in place
below.

ENGINE NUMBER:

KEY NUMBER

The key number (1) will be needed when you order
replacement part. Record the number for your
reference.

KEY NUMBER:

(1)

7

3. OPERATION INSTRUCTIONS

(1) IGNITION SWITCH/STEERING

HANDLEBAR LOCK

:At this position, power is connected to start

engine. The key cannot be taken out.

:At this position, power is cut off and the

stops. The key can be taken out.

:At this position, the steering handlebar is

The key can be taken out.

《》Locking Method

Turn the steering handlebar left to the full and then

and turn the ignition switch key left to the " "
The handlebar can be locked.

《》Unlocking Method

Turn the ignition switch key right to the" " and the " "
is released automatically.

CAUTION:

After locking, turn the handlebar gently to make sure

that it is locked.
Do not turn the ignition switch to the" " position during
riding, otherwise the handlebar will be out of control and
cause accidents.
Don't park your motorcycle at a place to hinder the traffic.

engine

push

position,

the

locked.

8

(2)

(1)

(3)

(2) ELECTRIC STARTER BUTTON " "

To start the engine, first turn on the ignition switch



" "and then push the electric starter button. At
this time, be sure to fully apply the front or rear brake
lever in order to connect the power.

CAUTION:

During engine running, do not push the electric
starter button to avoid engine damage.
Turn the headlight switch off and turn signal
switch off before using the electric starter button.
Release the electric starter button immediately
after the engine is started.

(3) HEADLIGHT SWITCH

At this position, the position light, headlight,
instrument lights and taillight turn off together.
At this position, the position light, instrument lights
and taillight light turn on.
At this position, the position light, headlight,
instrument lights and taillight light all turn on.

* The headlight switch is not included in always lighting

headlight scooter.

9

(4) HEADLIGHT DIMMER SWITCH/PASSING

SIGNAL SWITCH

(1)

(2)

(1)
(2)

Switch to this position for using high beam.
When riding in downtown area or there is a
car coming from the opposite direction, use
low beam to avoid affecting the visibility of
coming cars.

CAUTION:

This indicator light comes on when the long
distance light is turned on.

PASSING

When passing, if there are cars coming

the opposite direction, press and

from
release the

PASSING

headlight will wink

switch and the

to warn the coming

cars.

PASSING

10

(5) HORN BUTTON " "/TURN SIGNAL SWITCH

When the ignition switch key is turned the" "
position, button and it will sound.
Move the turn signal switch to (1) For turning
right. (2) For turning to the left. (3) Push the turn
signal switch button to release it.

(4) Horn Button
The horn and turn signal switch do not work when the
ignition switch is the " "OFF

The turn signal light will not release automatically.
Be sure to reset it after use; otherwise it may
affect the traffic safety.

push the horn

CAUTION:

ON

to the

(2)

(1)

(3)

(4)

11

(6) SEAT LOCK/MET-IN BOX

Unlock the seat and put the helmet in the MET-IN box.

Unlocking Method

《》

Stop the engin and turn the ignition switch to the " "
position. Turn the key left to unlock the seat.

If the engin is running. Keep the ignition switch key at
the " "position and also push it left to unlock the seat.

Handlebar is locked." "Turn the key left to unlock the seat.
To lock the seat, push on it until it lock automatically.
Make sure the seat is secure before riding.

CAUTION:

Never put the key inside the seat cushion to lock the seat.

(7) HELMET BUCKLE

1.Open the seat with the ignition switch key and lift up the
seat.

2.Put the helmet retaining ring into the helmet buckle.

3.Put down the seat and it will lock automatically.

Take out the helmet in the reserve order of the above steps.

CAUTION:

When riding, wear the helmet and do not retain it
on the scooter; the helmet may interfere with safe
operation and result in loss of control.

12

PUSH

(8) INSTRUMENTS AND INDICATORS

(1) FUEL GAUGE: The fuel gauge is to show the volume of

gasoline in the fuel tank. If the fuel gauge pointer is at

the "E" area, the fuel is insufficient. Refill 92# or 95#

nonleaded gasoline as early as possible.

(2) SPEEDOMETER (km/hour): The riding speed is

indicated by km/hour.

(3) SPEEDOMETER (mph): The riding speed is indicated

by mph.

(4) ODOMETER: The total riding mileage is

indicated by kilometer.

(5) CLOCK METER: It displays time which can be adjusted

manually.

(6) ADJUST KEY: They are used to correct time and set the

odometer.

(5)

(6)

(4)

(2)

(3)

(1)

13

(7) TURN SIGNAL INDICATOR LIGHT(LEFT): When the

turn signal switch is operated, this indicator light will

wink.

(8) LOW BEAM INDICATOR LIGHT: This indicator light

comes on when the long distance light is turned on.

(9) HIGH BEAM INDICATOR LIGHT: This indicator light

comes on when the short distance light is turned on.

(10) TURN SIGNAL INDICATOR LIGHT(RIGHT): When

the turn signal switch is operated, this indicator light will

wink.

(7)

(8)

(9)

(10)

14

Operation Instruction for Multi-meter

Button B(mode)

Button A(adjustment)

(2)
Press button B

and hold
until 2 seconds:
shift function to ODO or TRIP

(1)
Press button A

and hold
until 2 seconds:
shift the nuit mph or km/h

(3)
P and hold

ress button B
until 5 seconds:
service mode selection.
After above procedure,
please to press
button until 2 seconds to
turn back mode ODO / TRIP
function.

B

and hold

15

(4)Service Rese:
Press and hold A
and B until 2 seconds
simultaneously to reset to
zero when at service
function.

(5)Trip Rese:
Press and hold A
and B until 2 seconds
simultaneously to reset to
zero when at trip
function.

button

button

(6)Time adjustment:
Press and hold A and
B until 2 seconds
simultaneously to adjust time
when at ODO function.
Then the hour display will
start flashing, press button B
to adjust hour.
Then press button A, the minute display will start
flashing, press button B to adjust minute.
Press the A and B simultaneously to end
the time adjustment.

(7)Engine oil replacement:
At ODO function, the service
indicator would start flashing
when running 2000 km.
After engine oil replacement,
the service function need to
reset.(see item 3 and 4)

button

button

16

(9) CELL PHONE SOCKET

Open the seat then insert the cell phone charger
wire into the socket.

CAUTION:

Please close the protective cover of socket while it
won't be used.
The cell phone socket only supply power. It can't be
cut off the power supply automatically when the
cell phone achieved enough power.
To avoid the cell phone overcharged, please follow all
of the cell phone charger manufacturer's instruments.

(10) REAR CUSHION

To suit scooter behavior to load condition rear
cushion could be adjusted in spring position.
Using the special tool changed the spring position.
When you are adjust rear cushion, the spring position
of rear cushions on the other side must be the same.
It is possible adjust rear cushion in three positions as
follows:

" hard " position

" soft " position

" medium " position

17

4. PRE-RIDE INSPECTION

(1) ADVANCE INSPECTION

Get into a good habit of inspection before riding. For the
sake of safety and to prevent vehicle damage and traffic
accidents, the pre-ride inspection is absolutely required.

CAUTION:

Be sure to perform inspection and maintenance
for your new scooter after it is ridden for 300km.

(2) ENGINE OIL LEVEL INSPECTION/REFILLING

Place the motorcycle on its main stand. Take out the oil
dipstick and wipe it clean.
Directly insert the oil dipstick into the engine oil.
(Don't screw it in.)
Take out the oil dipstick and check the oil level. If it is
close to the lower limit, add engine oil to the upper limit.

CAUTION:

The temperature of engine and exhaust muffler is very
high. When checking the oil level, be careful to avoid
scalding.
Riding with insufficient engine oil will cause breakdown
easily.

18

(3) FRONT LUGGAGE BOX

(Unlocking Method)

Turn the ignition key directly from the " " to the " "
position, then open the luggage box cover
automatically.

(Locking Method)

Push up the luggage box cover and press it up to make
it lock automatically. Then slightly pull down the
luggage box cover to make sure that it is locked.

CAUTION:

Maximal loading capacity of the front luggage box is 1.5kg.

19

(4) TIRE INSPECTION

1.Tire Pressure Check

Check if the tire pressure is normal when the tire is in
contact with level ground.
If there is any abnormal condition, check the tire
pressure with a tire pressure gauge.
Measure the tire pressure under room temperature.

The tire pressure must not overpass 2.50kg/cm

NORMAL PRESSURE(1 Rider / 2 Riders )

Front Wheel

Rear Wheel

1.5/1.75 kgf/cm

2.0/2.25 kgf/cm

2

2

2

20

2. Cracks & damage

Check the tire-contact area for crack or damage.

3. Abnormal wear

Check the tire-contact area for abnormal wear.

4. Foreign objects of metal piece & gravel

Check the tires and tire-contact area for imbedded
objects of metal piece and gravel.

5. Depth of tire groove

If the tire is worn to the wear limit indication mark,
Replace it with a new one.

4.

5.

CAUTION:

Abnormal tire pressure, crack, damage and
abnormal wear will cause unsteady handlebar and
result in tire break.
If the tire has cracks or is worn to the wear limit
indication mark, replace it with a new one.

21

5.

2.

3.

2.

(5) FUEL LEVEL INSPECTION/REFILLING

Check if the fuel is sufficient.

If the fuel gauge pointer is at red grid, refill #92 or #95

nonleaded gasoline as soon as possible.

《》Refilling Method

1.Open the seat with the ignition switch key.(Refer to P8)

2.Turn the tank cap counterclockwise with hand to open the

cap.

3.Use only #92 or #95 nonleaded gasoline.

4.Turn the fuel tank cap clockwise to tighten it.

5.Close the fuel tank cap in the reverse order of opening.

(1)Unlock

(2)Lock

CAUTION:

Be sure to stop the engine before refilling.

The gasoline level shall not exceed the reference plate;

otherwise the fuel will penetrate out.

When refilling, do not add other additives to avoid engine

breakdown.

22

(6) STEERING HANDLEBAR

Visually inspect the steering handlebar for damage.
Apply the front brake and move the handlebar upward
and downward to check for abnormal noise.
Move the steering handlebar upward, downward,
rightward and leftward to check for any loose parts.
Check if the handlebar rotates freely.
If any abnormal condition is found, go to your scooter
dealer or for inspection.

(7) INSTRUMENT LIGHTS INSPECTION

Check the turn signal indicator lights and high beam
indicator light for proper operation.
Check the speedometer for proper operation.
Check the fuel gauge for proper operation.
Check the low oil lever indicator light for proper
operation.

The indicator of speedometer will run from zero to
maxi speed then return to zero when the ignition
switch turn on. It just check the working condition of
speedometer only.

23

(8) BRAKE FLUID LEVEL INSPECTION

Check if the fluid level is below the lower level mark
through the inspection window.

CAUTION:

As the brake pads wear, brake fluid level drops,
automatically compensating for wear. There are
no adjustments to perform, but fluid level and pad
wear must be inspected periodically. The system
must be inspected frequently to ensure there are
no fluid leaks.
If the brake lever travel become excessive and the
brake pads are not worn beyond the recommended
limit, There is probably air in the brake system and
it must be bled. See your authorized KYMCO dealer
for this service.
To prevent damage to the brake system, use only
fluid from a sealed container. Never allow
contaminants (dirt, water, etc.) to enter the brake
fluid reservoir.
Brake fluid can damage paint and plastic, so
handle the fluid with care. When adding brake
fluid, be sure the reservoir is horizontal before
removing the cover to prevent accidental spilling.
Use only DOT 4 brake fluid from a sealed container.

24

(9) BRAKE PAD WEAR

Check the wear indicator mark on each pad.
If either pad is worn to the wear indicator mark, replace both
pads as a set. See your authorized KYMCO dealer for this
service.

(10) BRAKE SHOE WEAR

The rear brake is equipped with a brake wear indicator.
When the brake is applied, an arrow mark (1) attached to
the brake arm moves toward a reference mark (2) on the
brake panel. If the arrow mark aligns with the reference
mark on full application of the brake, the brake shoes
must be replaced. See your authorized KYMCO dealer
for this service.

(2)

(1)

25

(11) BRAKE LEVER FREE PLAY INSPECTION &

ADJUSTMENT

The rear brake lever free play should be adjusted to
10~20mm (0.4~0.8 in) at the tip of the brake lever. If the
free play is incorrect, adjust as follows:
Place the scooter on its main stand.
Turn the adjusting nut in direction (A) to decrease play,
and in direction (B) to increase play.

Turn the adjusting nut on the brake hub in direction (A)
to decrease play, and in direction (B) to increase play.

1~2cm

PASSING

(A)

(B)

26

CAUTION:

Make sure the cut-out on the adjusting nut (2) is
seated on the brake arm pin (1) after making final
free play adjustment.

27

(1)

(2)

(12) HORN/LIGHTS INSPECTION

Turn the ignition switch to the " " position and push
the check if it sounds.

horn button to
Headlight/Taillight Inspection:
Start the engine and turn on the headlight switch to
check if the headlight and taillight are good and check
the light shells for dirt and damage.
Stoplight Inspection:
Apply the front and rear brake levers respectively to
check if the stoplight is good. And also check the stop
light shell for dirt and damage.
Turn Signal Light Inspection:
Operate the turn signal switch to make sure whether
the right/left front and rear turn signal lights can wink
and buzz. Also check the light shells for dirt and damage.
(1)Headlight (2)Taillight/ Stoplight (3)Turn signal light
(4)Horn button

CAUTION:

Replace any dirty or damaged lights with new
ones to avoid danger during riding.

ON

(1)

(2)

(3)

PASSING

28

(13) FRONT/REAR SHOCK ABSORBER INSPECTION

Check the condition of the front/rear shock absorbers
by pressing down on the handlebar and seat several
times.

(14) BRAKE PERFORMANCE INSPECTION

Fully apply the front and rear brake levers and move
the scooter forward to see if the braking effect is
good.

(15) BACK MIRROR ANGLE CHECK

Sit on the scooter uprightly and make a viewing
test of the rear mirror angle.

(16) LICENSE PLATE CHECK

Check the license plate for dirt and damage, then
tighten it.

(17) REFLECTOR CHECK

Check the reflector for dirt and damage.

(18) PREVIOUS ABNORMAL PARTS INSPECTION

Make sure that the previous abnormal parts are
repaired.

(19) LUBRICATION POINT CHECK

Visually check if all motorcycle lubrication points are
lubricated properly.

29

Oil

5. ENGINE STARTING METHODS

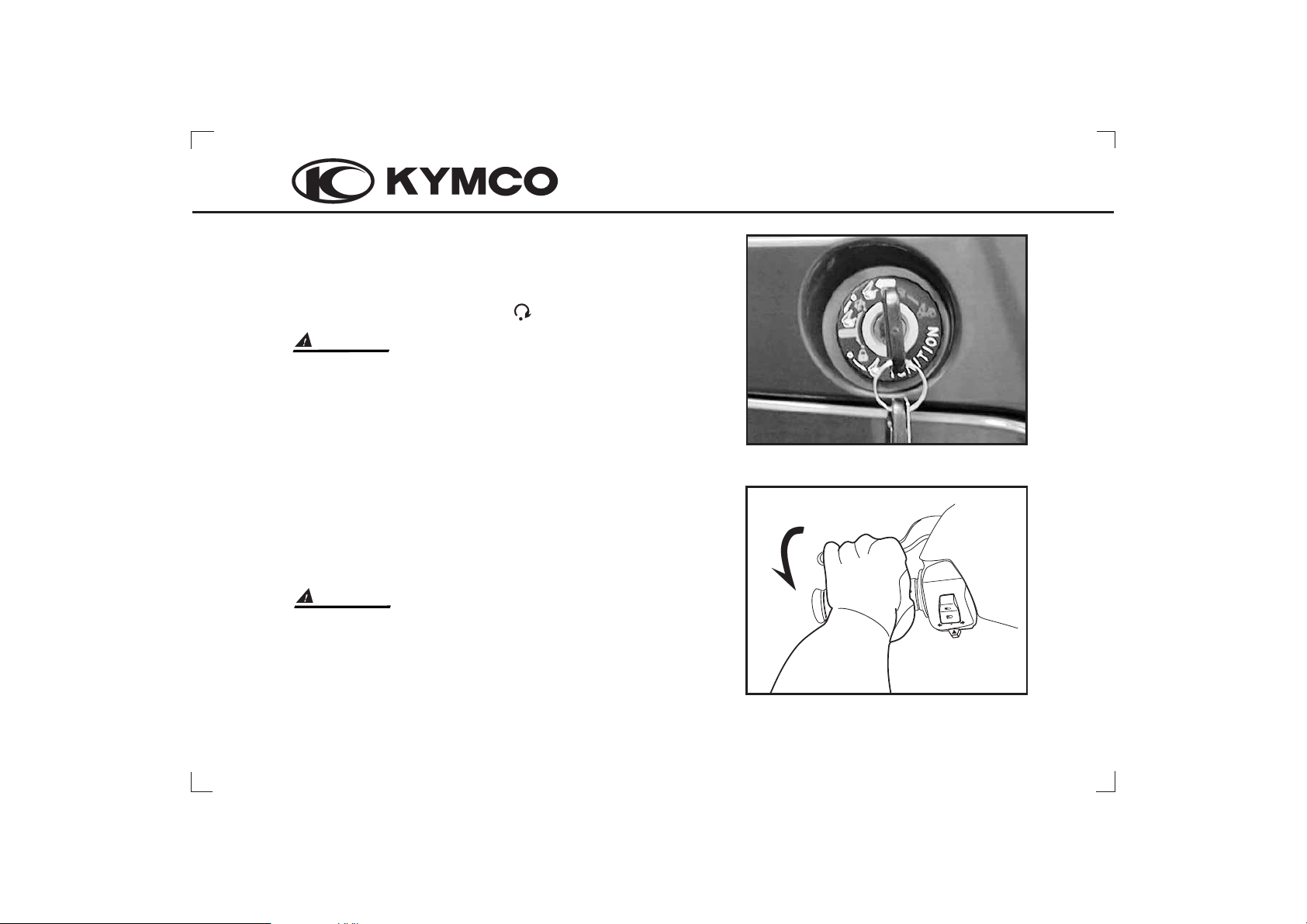

(1) TURN THE IGNITION SWITCH "ON"

Unlock the steering handlebar.
Turn the ignition switch to the " " position.

CAUTION:

Check the gasoline volume and engine oil level
before starting the engine.
Be sure to erect the main stand while starting the
engine and side stand is up.
Before starting the engine, the side stand shall be
kicked up to secure safety.

(2) LOCK THE REAR WHEEL

Apply the brake lever to connect the power for
starting.

CAUTION:

In order to prevent the scooter from rushing out at
high speed, make sure to lock the rear wheel.
If free play of the rear brake lever is incorrect, the
rear wheel cannot be braked and it will cause
danger easily.

PASSING

30

(3) USE THE ELECTRIC STARTER BUTTON

Push the electric starter button without rotating the
throttle grip.
If the engine fails to start after the starter button
is pressed for 3 4 seconds when it is warm, rotate the
throttle grip for 1/8 1/4 turn to facilitate starting.
When the scooter is not used for a long time or the
fuel tank is empty, if the engine is still hard to start after
the fuel tank is refilled with gasoline, slightly turn the
throttle grip and push the starter button for
several times to start the engine.
In order to avoid battery overcharge, do not push the
starter button more than 5 seconds.
If the engine does not start after the starter
button is pushed for 5 seconds, wait for more than 5
seconds and then push the button again.

CAUTION:

Don't push the electric starter button while the
engine is running; otherwise the engine will be
damaged.
When starting the engine, the rear brake lever
must be applied to connect power and the
stoplight will come on when power is connected.

～

～

electric

electric

electric

1/8~1/4

31

(4) START WITH THE KICK PEDAL

1.Place the scooter on its main stand on level ground.

2.Depress the kick pedal with force.
When the engine is cold and does not start after the kick
pedal is depressed for 3 4 times, rotate the throttle grip
for 1/8 1/4 turn to facilitate starting.

～

Warm up the engine for a little while (about 2 3 minutes)
after cold start.
After the engine is started, do not accelerate suddenly
and keep riding at low speed to prolong the engine
service life.

CAUTION:

After the engine is started, the kick pedal must be
returned to its original position.
The exhaust contains poisonous carbon monoxide
which is harmful to human body. Never run the
engine in a closed area.
Turn off all light switches before starting the
scooter

.

～

～

1/8~1/4

32

6. NORMAL RIDING METHOD

(1) STARTING THE ENGINE

Start the engine by referring to the starting methods
specified in Section 5.

CAUTION:

Keep your finger away from the button immediately
after the engine is started to avoid engine damage.
The rear brake lever should be kept at the braking
position before riding.

(2) REBOUND THE MAIN STAND

Keep the rear brake lever at braking position and

push the scooter forward, then the main stand will

rebound automatically.

CAUTION:

After starting the engine and before moving, do not

turn the throttle grip to increase the engine rpm.

33

(3) CORRECT SITTING POSITION

Ride astride on the scooter from the left side and

sit upright. Touch the ground with left foot to avoid

slipping.

CAUTION:

The rider must wear helmet, gloves and goggles.

Do not wear any clothes which will affect riding

safety.

(4) ROTATE THE THROTTLE GRIP

Release the rear brake lever and slowly rotate the
throttle grip, then the scooter will move smoothly.

CAUTION:

After the rear wheel brake lever is released, do not
rotate the throttle grip suddenly to prevent the
scooter from rushing out.
During riding, do not accelerate or decelerate
rapidly and suddenly to save fuel and prolong the
scooter life.

34

7. PRECAUTIONS FOR RIDING

(1) CORRECT RIDING

Before moving, turn on the turn signal light and make
sure whether the rear side is safe.
Do not rush into the car lanes and always keep the
scooter to the right side to avoid danger.

CAUTION:

Moderate riding will prolong the engine service
life. The clutch linings are worn more quickly
when often ridden at low speed.

(2) SPEED CONTROL

The speed is controlled by the throttle grip.

(1) ROTATE:

The speed will become faster. Don't be hasty to
accelerate.
When riding on an ascending road, rotate the throttle
grip gradually to increase the horse power.

(2) RESTORE:

The speed will become slower. Restore the throttle
grip quickly.

CAUTION:

Apply the brake level while restoring the throttle
grip. This will shorten the time required to slow
down.

(2)

(1)

35

(3) PROPER RIDING WILL PROLONG THE

ENGINE

LIFE

For a new scooter, keep the speed below 40km per
hour within the first 1000km of riding.
Avoid sudden acceleration and long-time riding at high
speed.
In hot weather, the engine overheats easily at long-time
idling. Stop the engine in this case.

CAUTION:

Moderate riding will prolong the engine life.

(4) APPLY BOTH FRONT AND REAR BRAKE

LEVELS WHEN BRAKING

First restore the throttle grip to the closed position and
then pull the brake levers tight.
The best way to brake the scooter is to pull the brake
levers "slowly" at the beginning, then pull them tight.

CAUTION:

Apply single brake lever will cause the scooter to slip.
During riding, never brake the scooter suddenly.
It may cause the scooter to slip and could be very
dangerous.

40KM

36

(5) DO NOT MAKE SUDDEN STOP OR SHARP TURN

Sudden stop and sharp turn are the main causes for
slipping and could be very dangerous.
In rainy days the road is slippery. Sudden stop will
cause the scooter to slip. Be careful to avoid
danger.
When approaching a corner or turn, close the throttle
fully, and slow the scooter down by applying both front
and rear brakes at the same time.
After completing the turn, open the throttle gradually to
accelerate the scooter.

37

(6) BE MORE CAREFUL WHILE RIDING IN RAINY

DAYS

A longer braking distance is required in rainy days
than in sunny days. Be sure to slow down and brake
the scooter slowly as soon as possible.
When riding on a descending road, restore the throttle
grip to closed position and slow down by making
intermittent braking.

CAUTION:

A longer braking distance is required in rainy
days. Be sure to slow down and brake the scooter
slowly as soon as possible.

38

8. HOW TO STOP RIDING

(1) WHILE GO NEAR THE PARKING PLACE

Turn on the turn signal light in advance. Watch out
vehicles coming behind or aside and stop the scooter
to the right side slowly.
Restore the throttle grip to closed position and apply
the front and rear brake levels as soon as possible.
At this moment, the stoplight will come on to warn the
vehicles coming behind.

(2) WHILE THE SCOOTER IS COMPLETELY

STOPPED

Return the turn signal switch to its original position.
Turn the ignition switch key to the " " position to
stop the engine.

CAUTION:

During riding, never operate the ignition switch key.
When the ignition switch key is turned to the"OFF"
position, the electric system does not work which
may result in traffic accident. Turn off the ignition
switch key after the scooter is fully stopped.

OFF

39

(3) PARKING

Place the scooter on its main stand on level ground
and do not hinder the traffic.
Stand on the left side and grip the handlebar straight
with left hand and the side rod or rear carrier with
right hand. Then, step down the main stand evenly
with right foot and pull the scooter backward by
force with right hand.

CAUTION:

The scooter may easily fall down if it is parked on
an uneven ground.

(4) HANDLEBAR

After parking, be sure to lock the steering handlebar
and take out the key to prevent pilferage. (Refer to P.9)

CAUTION:

Don't park your scooter at a place to hinder the
traffic.
The temperature of engine and exhaust muffler is
very high. Be careful to avoid scalding.
Park the scooter at a safe place and be sure to take
out the key to prevent pilferage.

40

9. EASY MAINTENANCE

(1) AIR CLEANER CLEANING & REPLACEMENT

1.Remove the air filter case cover by removing the 6

screws.

2.Remove the air cleaner (1).

(1)

41

Clean the air cleaner element with compressed air.
Replace the air cleaner element at very 4000km.
The air cleaner requires more frequent cleaning or
replacing when ridden in unusually dusty areas. When
replacing, refer to P50 Periodic Inspection & Maintenance
Schedule.

CAUTION:

Never use oil or solvent to wash the wet type paper
element.
Be careful not to allow water to enter the air cleaner;
otherwise it may result in hard starting.
If the air cleaner is not installed properly, dust may be
sucked into the cylinder directly to reduce engine
horsepower and affect the engine life.

42

(2) APPEARANCE CLEANING

Often wipe clean the scooter appearance to
prevent accumulated dust affecting the function of
components.

CAUTION:

If a scooter is not used for a long time, check the
operation of each part and replace lubricants
before riding. Ride the scooter only after its
performance is confirmed.
When waxing the scooter, make sure that the
ingredients of the wax will not damage the paint
of the scooter.

43

(3) BATTERY

Battery remove

1. Make sure the ignition switch is OFF.

2. Remove two screws (1).

3. Remove the battery cover (2).

4. Disconnect the negative (-) terminal lead (1) from the
battery first, then disconnect the positive (+) terminal
lead (2).

5. Remove the battery.

(2)

(1)

(1)

(2)

(1)

44

This model adopts the battery which needs no refilling
of distilled water.
When cleaning the terminals, remove the screws
attaching the battery cover on the panel-foot and then
open the battery cover.
When battery terminals are corroded, take out the
battery for cleaning.
After cleaning, apply a thin coat of grease or vaseline

to battery terminals and then install the battery.

CAUTION:

Never open the closed-type battery electrolyte cap.
If the scooter will not be used for a long time, the
battery will discharge electricity by itself. Remove
the battery and put it in a cool place after it is fully
charged to prevent electricity leakage.
If the scooter will not be used for a long time,
remove the negative (-) terminal.
Do not smoke or allow flames or sparks near the
battery while removing and installing it.
Turn off the ignition switch before removal or
installation.
The negative (-) terminal shall be removed first
and the positive (+) terminal shall be installed first.
Tighten the loose terminal nuts securely.

45

Battery Charger

(4) FUSE REPLACEMENT

When frequent fuse failure occurs, it usually indicates a
short circuit or an overload in the electrical system. See
your authorized KYMCO dealer for repair.
(1) Charge system fuse specification: 15A/50cc 7A
(2) Ignition switch fuse specification: 10A/50cc 7A
The spare fuse (3) is on the battery compartment.

CAUTION:

To prevent accidental short-circuiting, turn off the
ignition switch before checking or replacing a fuse.

Fuse replace:

1. Remove the battery cover, by removing the screw.
(See page 44)

2. Open the fuse holders (1) and lift out the fuse with
the clips (2).

3. Slide the old fuse out of the clips and discard it.

(1)

(1)

(2)

(3)

(1)

(2)

46

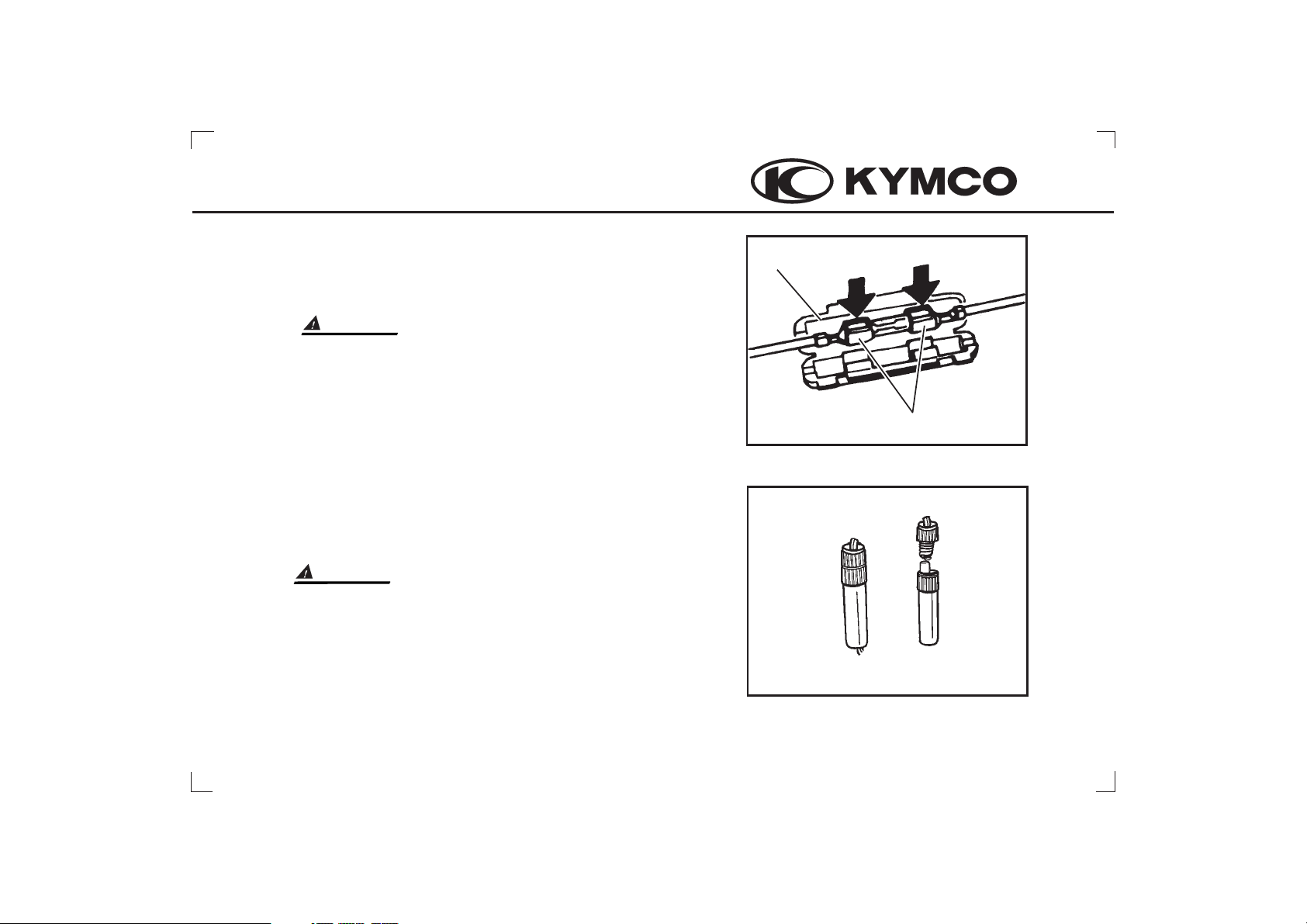

4. Slide the clips (2) onto the ends of the new fuse,
push them back into the fuse holder (1), and close
the fuse holder.
The spare fuse is on the battery compartment.

CAUTION:

Do not pry the clips open to get a fuse out; you
could bend them and cause poor contact with the
new fuse. A loose fuse could cause damage to the
electrical system and even start a fire.
After replacing the fuse, be sure return the fuse
holder to its original location

Rotating its cover opens the fuse box.
Be careful not to excessively pull the connecting
wires because it may cause broken metal contact
points and result in open circuit.

CAUTION:

After a new fuse is installed, check the wire connector
for looseness that is the main cause of trouble.

Never use fuse of unspecified capacity, it may
cause wire overheating and burning out.

(1)

(2)

47

(5) ENGINE OIL CHANGE

1.Place the scooter on its main stand on level ground.

2.Remove the oil dipstick.

3.Remove the drain bolt to drain the oil.

4.Refill fresh engine oil for 0.9 liter. Firmly tighten the oil
dipstick.

5.Warm up the engine and check the oil level again after
the engine is stopped for 20 30 seconds.

Specified Oil: SAE10W40 or equivalece
Capacity/Exchanging Capacity:

0.85/0.7(50cc),1.1L/0.9L(125/200cc)

CAUTION:

When changing the engine oil, also clean the oil
strainer and reinstall it.
Use the specified engine oil.
Change engine oil at first 300km and then change it
at every 2000km.
Engine oil will deteriorate easily and require more
frequent change if the scooter is often ridden in
dusty and cold areas or ridden for short distance.
Do not mix engine oil of different classes or viscosities.
It may cause damage to engine.

～

Drain boltDrain bolt

48

(6) TRANSMISSION GEAR OIL

Transmission oil measurement:

1.Place the scooter on its main stand on level ground.

After the engine stops for 2 3 minutes.

Remove the oil filler bolt (1) and check the oil level (2).

2.
It should be up to the brim of the hole. If the level is
low, add oil to raise it to the proper level.

3.After refilling, securely tighten the bolt (1).

Recommended Gear Oil: SAE #90
Capacity / Exchanging Capacity:

0.12/0.09(50cc), 0.21L / 0.18 L(125/200cc)

Transmission oil replacement

1. Place the scooter on a level place.

2. Place a container under the engine.

3. Remove the oil filler bolt (1) and drain plug (3) to
drain the oil.

4. Reinstall the drain plug and tighten it.

5. Fill the engine with oil and install the oil filler bolt.

6. Start the engine and warm up for a few minutes.

While warming up, check for oil leakage. If oil leakage
is found, stop the engine immediately and check
for the cause.

～

49

(2)

(2)

(1)

(3)

CAUTION:

Add gear oil through the oil check
bolt hole (2).
After refilling, use a rag to wipe
clean.
Excess or insufficient gear oil will
affect the engine performance.
Never use gear oil of different
brand or inferior quality which
may result in engine breakdown.
Change gear oil at first 300km and
then change at every 4000km. Add
specified gear oil whenever it is
necessary.

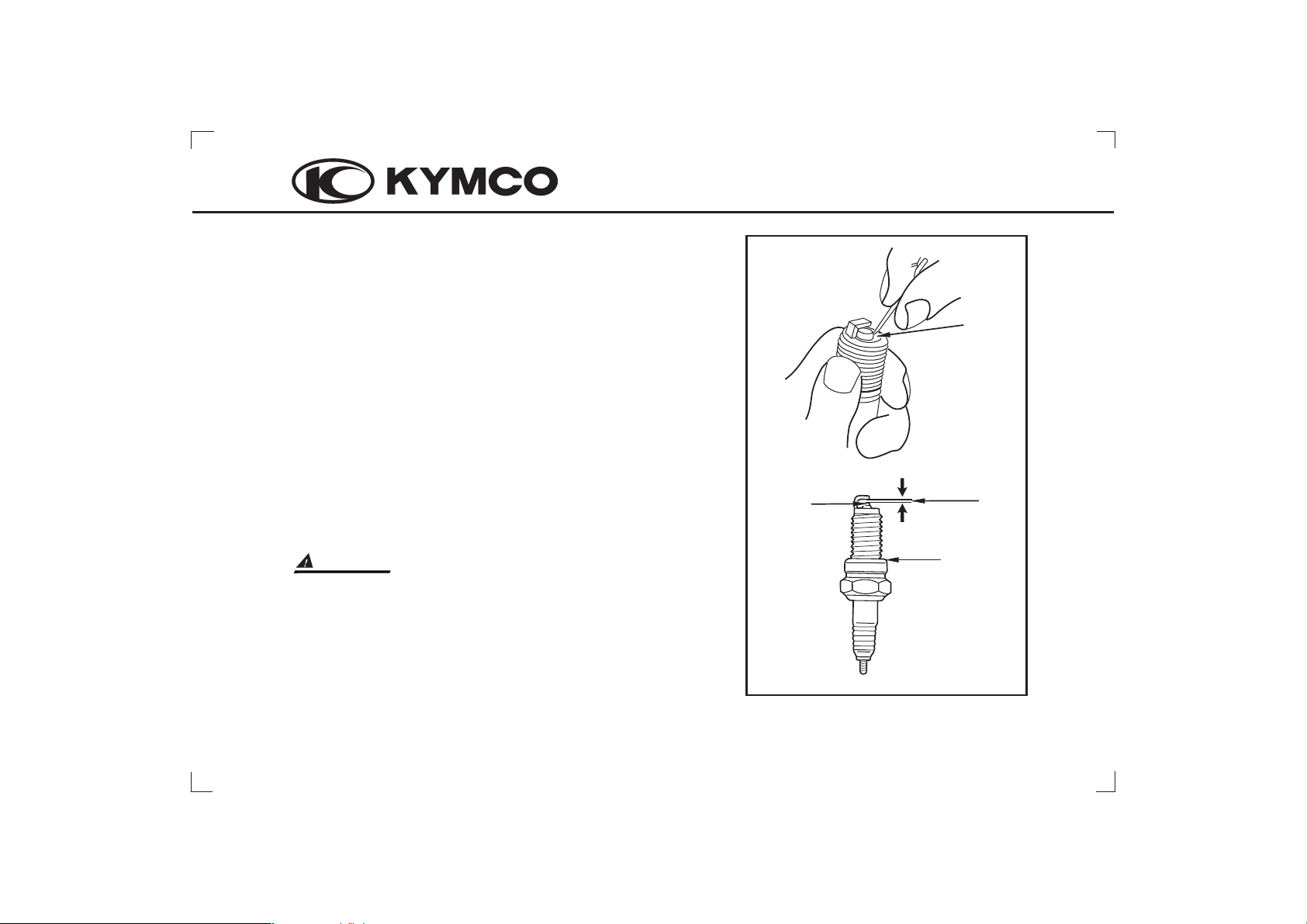

(7) SPARK PLUG INSPECTION

Check the spark plug side electrodes for wear.
Fouling deposits on spark plug electrodes and big gap
may result in weak spark.
Spark Plug Removal:

1.Remove the spark plug with a spark plug remover.

2.The installation sequence is the reverse of removal.

Spark Plug Cleaning:

1.It is better to remove spark plug deposits with a spark

plug cleaner.

2.If a spark plug cleaner is not available, clean with a

wire brush.
The side electrode gap is 0.6 0.7mm.
Specified Spark Plug: NGK-CR7HSA

(1) Decarbonizing Fouling Deposits (2) Gap
(3) Wear (4) Crack/Damage

CAUTION:

Clean the spark plug at every 2000km and replace it
with a new one at every 5000km or when the center
electrode is burned out.
First screw in the spark plug with fingers and then
tighten with a spark plug wrench.
Use unspecified spark plug may damage the engine.

～

(3)

(1)

(2)

(4)

50

(8) BRAKE FLUID LEVEL INSPECTION /REFILLING

Add recommended brake fluid DOT 4 into the tank until
the fluid level reaches the upper limit and then put on
the cover and tighten the screws.
Recommended Brake Fluid: DOT 4

CAUTION:

Do not mix brake fluid of different brands. It may
cause brake failure and is very dangerous. When
refilling brake fluid, use towels to cover and
protect the painted and coated surfaces. (Replace
at 10000km or every year.)

(9) RUBBER COVER INSPECTION FOR WIRE AND

CABLE

The cable cores are protected by the rubber cover
outside the connector. Check the rubber cover
frequently for proper installation.
When washing the scooter, do not flush the rubber
coverdirectlyorbrushit.Useawetragtowipeoffdirt
and dust.

Rubber Cover
Check Points

(2)

(1)

51

10. IMPORTANT NOTICES

(1) WHEN THE ENGINE FAILS TO START OR STOPS

DURING RIDING

Is the gasoline enough?
If the fuel gauge pointer is at the red line, refill #92 or
#95 nonleaded gasoline.
Is the way to start the engine correct?
Is there any other faulty parts?

(2) IN CASE OF BREAKDOWN

For any trouble occurred during riding, go to a KYMCO
distributor or service station for inspection.

CAUTION:

For the sake of safety and to prevent vehicle
damage and save your precious time, the pre-ride
inspection is absolutely required. Please read this
User's Manual carefully and get into a good habit
of inspection before riding.

KYMCO

52

(3) POLLUTION-FREE PERIODIC MAINTENANCE SCHEDULE

In order to have a safe riding, maintain good performance, prolong the scooter service life and
reduce pollution, make sure to perform the periodic inspection and maintenance.

: Inspect and clean, lubricate, refill, repair or replace if necessary.

I

: Adjust : Clean : Replace : Tighten

ACR T

Item

Engine Oil
Engine Oil Strainer
Gear Oil
Cooling Water
Spark Plug

Valve Clearance
Carburetor
Drive Belt
Drive Chain
Air Cleaner
Battery Electrolyte

Fuel Filter Screen
Brake System
Clutch Lever Free Play

Bolts & Nuts
Tire Pressure

Motor Oil Strainer
Engine Oil Pump

The above items are applicable to different models. Perform suitable items for each model.
When exceeding the listed mileage, perform maintenance according to the listed intervals.
The air cleaner requires more frequent cleaning or replacing when ridden in unusually dusty areas.

2Stroke

4Stroke

300

1000

RRRRRRR
CCCC

Replace at every 10000 km or once a year it at every 5000 km.

Clean(C)atevery 2000km and replace(R)atevery 5000 km.

AAA

AAAAAAA
TTT

IIII

Regular Service Mileage (KM)

3000

5000

7000

9000

11000

13000

R

RRR

R

A

I

II

II

AAAAAAA

III

R

RR

IIIII

I
II

R

I

IIIIII

IIIIIII

Daily Preride
Inspection

I

I

I

I

I

53

(4) SPECIFICATIONS (50cc)

Engine Type

Displacement (cc)

Bore x Stroke (mm)

Compression Ratio

Max. Horsepower

(ps/rpm)

Max. Torque
(kg.m/rpm)

Tire Size

Transmission Type Non-stage transmission

Clutch

Ignition Fuse

Starting System

Idle Speed

4-stroke single
cylinder

49.5 720 mm

39.0x41.4

11

3.9/7500

(2.98/7500kw/rpm)

0.39/7000

(3.82/7000 Nm/rpm)

FR:100/80-16 50P
RR:110//70-16 52P

Dry Multi-Disc Clutch Fuel Tank Capacity

C.D.I.

Starting motor &
kick starter

1700 rpm

Overall Length

Overall Width

Overall Height

Dry Weight

Wheel Base

Spark Plug

Fuel Type

Engine Oil Capacity

Gear Oil Type
Capacity/Change

Battery

2010 mm

1300 mm
109 kg

1360 mm

NGK-CR7HSA

#92 or 95 nonleaded
gasoline

1.1 liter

6.8 liter

7A / 7A

SAE 90#

0.12 L/0.09 L

12V6AH

54

(4) SPECIFICATIONS (125cc)

Engine Type

Displacement (cc)

Bore x Stroke (mm)

Compression Ratio

Max. Horsepower

(ps/rpm)

Max. Torque
(kg.m/rpm)

Tire Size

Transmission Type Non-stage transmission

Clutch

Ignition Fuse

Starting System

Idle Speed

4-stroke single
cylinder

125 720 mm

52.4x57.8

9.3

10.3/7500

(7.6/7500kw/rpm)

1.0/5500

(9.8/5500 Nm/rpm)

FR:100/80-16 50P
RR:120//80-16 60P

Dry Multi-Disc Clutch Fuel Tank Capacity

C.D.I.

Starting motor &
kick starter

1700 rpm

Overall Length

Overall Width

Overall Height

Dry Weight

Wheel Base

Spark Plug

Fuel Type

Engine Oil Capacity

Gear Oil Type
Capacity/Change

Battery

2050 mm

1300 mm
116 kg

1350 mm

NGK-CR7HSA

#92 or 95 nonleaded
gasoline

1.1 liter

6.8 liter

10A / 15A

SAE 90#

0.21 L/0.18 L

12V6AH

55

SPECIFICATIONS (200cc)

Engine Type

Displacement (cc)

Bore x Stroke (mm)

Compression Ratio

Max. Horsepower

(ps/rpm)

Max. Torque
(kg.m/rpm)

Tire Size

Transmission Type Non-stage transmission

Clutch

Ignition Fuse

Starting System

Idle Speed

4-stroke single
cylinder

163 720 mm

60x57.8

10

11/7500

(7.8/7500 kw/rpm)

1.25/6500

(12.3/6500 Nm/rpm)

FR:100/80-16 50P
RR:120//80-16 60P

Dry Multi-Disc Clutch Fuel Tank Capacity

C.D.I.

Starting motor &
kick starter

1700 rpm

Overall Length

Overall Width

Overall Height

Dry Weight

Wheel Base

Spark Plug

Fuel Type

Engine Oil Capacity

Gear Oil Type
Capacity/Change

Battery

2050 mm

1300 mm
116 kg

1350 mm

NGK-CR7HSA

#92 or 95 nonleaded
gasoline

1.1 liter

6.8 liter

10A / 15A

SAE 90#

0.21 L/0.18 L

12V6AH

56

11.KYMCO CLEAN AIR SYSTEM (FOR EURO 2)

The KYMCO Clean Air System is a secondary air suction system that helps the exhaust gases to
burn more completely. When the spent fuel charge is released into the exhaust system, it is still
hot enough to burn. The system allows extra air into the exhaust system so that the spent fuel
charge can continue to burn. This continued burning action tends to burn up a great deal of the
normally unburned gases, as well as changing a significant portion of the poisonous carbon
monoxide into harmless carbon dioxide.

Carburetor

Secondary Air

Cleaner

Into Hole

57

Vacuum

Reed Valve

Secondary
Air Cleaner

Air Injection
Cut-off Valve

KWANG YANG MOTOR CO.,LTD.

NO.35 Wan Hsing Street, San Min District

Kaohsiung, Taiwan, Republic of China

Telephone : [phone]

FAX : [phone]

By KWANG YANG Motor Co., Ltd.

First Edition, Jul 2005

All rights reserved. Any reproduction or

unauthorized use without the written permission of

KWANG YANG Motor Co., Ltd.

is expressly prohibited.

4121-LCD2/LCD3/LCD4-U00
