KYMCO People User Manual

1. PRECAUTIONS FOR A SAFE RIDING

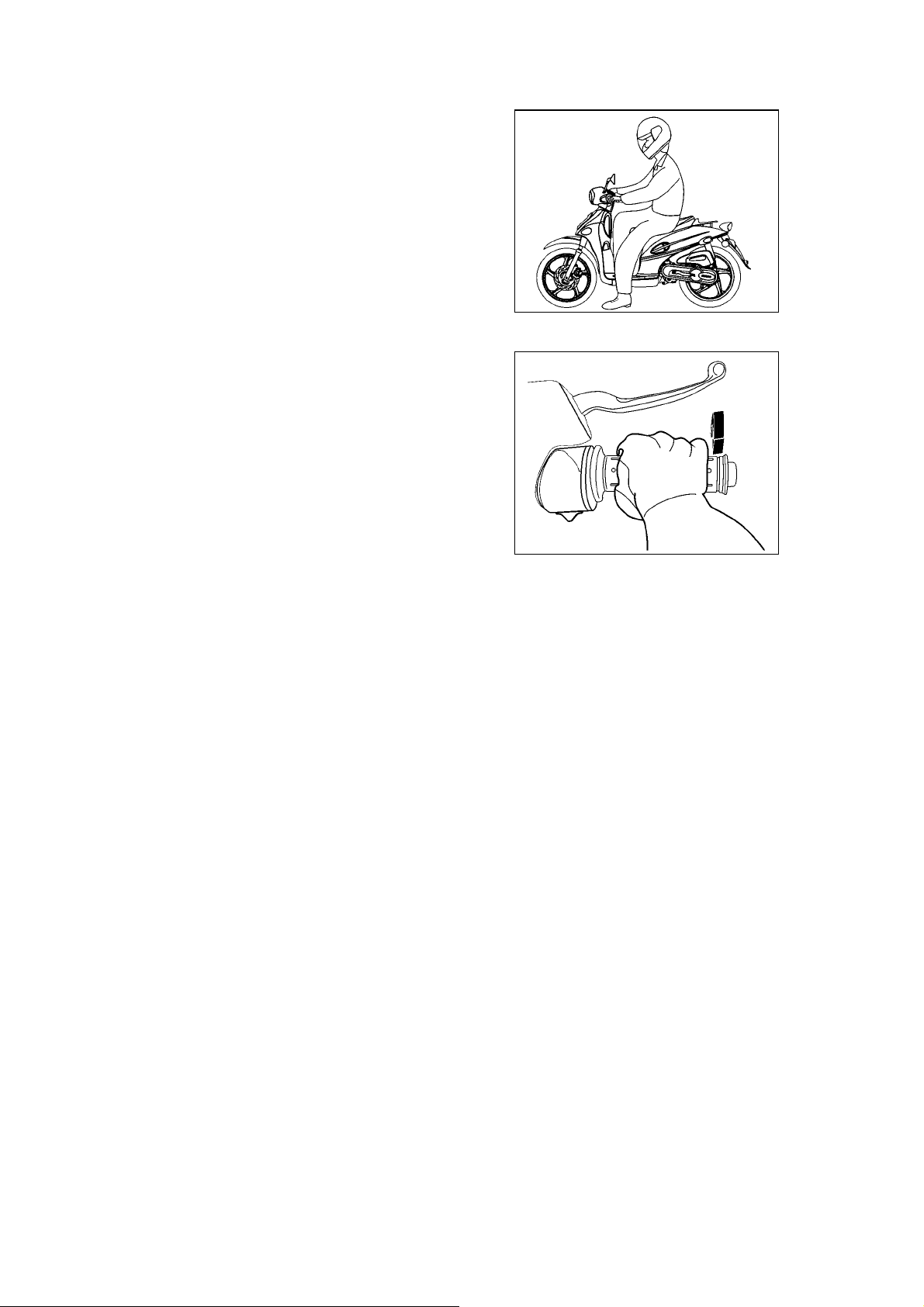

(1) CLOTHES

y To relax and wear comfortable clothes are the

main points for a safe riding.

y To observe traffic laws, keep a cool mind, relax

and be careful will provide you a safe riding.

cWear helmet and fasten it tightly.
dHave the clothes well-arranged. Fasten shirt

cuffs and keep them from hooking the brake
lever.

eWear low-heeled shoes for a safe riding.
fWhen riding, use both hands to grasp the

handlebar. It is very dangerous to hold the
handlebar with one hand.

n CAUTION:

y A motorcycle rider should not wear loose or too

long clothes to avoid danger.

y During riding or 10 minutes after the motorcycle

is stopped, do not touch the exhaust muffler to
avoid scalding.

y When parking the motorcycle, keep it away from

dry lawn or inflammables to avoid danger.

f

d

c

e

- 1 -

(2) RIDING METHOD

y The safety of two-wheel vehicles is influenced by

sitting position. The rider should sit on the central
part of the seat cushion. If the rider sits on the
rear part of the seat, the load of front wheel will
decrease. As a result, the handlebar will swing
and cause danger to the rider.

y When making a turn, it will be easier for the rider

to steer the motorcycle by leaning the body inward
slightly. The m otorcycle will lose its balance if the
rider fails to keep his body leaning inward.

y When riding on a damaged or macadam road.

Slow down the speed and hold the handlebar
tightly.

(3) CARRYING GOODS

y Keep a good sitting posture to operate the

motorcycle properly.

y The feel of the handlebar will be different when

carrying goods on the motorcycle. Overloading
may cause the handlebar to swing. Avoid riding
with overload.

cMax. loading capacity of the met-in box is 10kg.
dMax. loading capacity of the front tool box is

1.5kg.

eMax. loading capacity of the rear carrier is 5kg.

- 2 -

e

c

d

2. ASSEMBL Y PAR TS

/

r

r

Passing Signal
Switch
Turn Signal Switch
Headlight Dimmer
Switch

Helmet Buckle

Battery

L. Front Turn
Signal Light

Frame Serial No.

- 3 -

Seat Lock
Taillight

Stoplight

Air Cleane
Kick Leve

Met-in Box

r

t

/

t

Headlight Switch

Fuel Fille

Taillight
Stoplight

R. Rear Turn
Signal Light

Engine
Serial No.

Exhaus
Muffler

- 4 -

Headligh
Ignition Switch

R. Front Turn
Signal Light

Front T ool Box

3. OPERATION INSTRUCTIONS

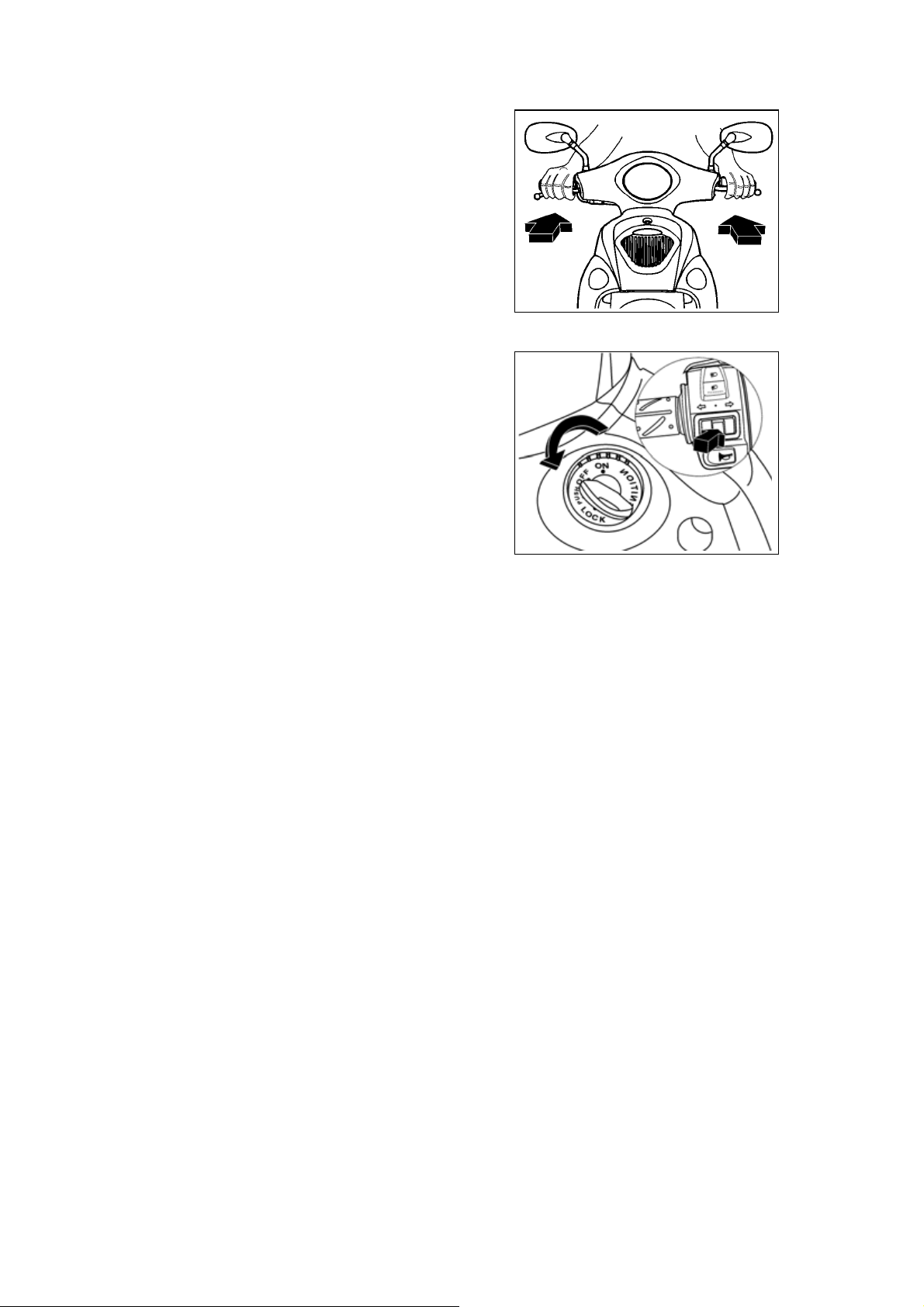

(1) IGNITION SWITCH/STEERING

HANDLEBAR LOCK

c ON

d OFF :At this position, power is cut off and the
e LOCK :At this position, the steering handlebar

《Locking Method》

Turn the steering handlebar left to the full and then
press to turn the ignition switch key to “LOCK”
position and the handlebar is locked.

《Unlocking Method》

Turn the key to “OFF” and the lock is released
automatically.

n CAUTION:

y After locking, turn the handlebar gently to make

sure that it is locked.

y Do not turn the ignition switch to “LOCK”

during riding, or the handlebar will be out of
control and cause accidents.

y Don‘t park your motorcycle at a place to hinder

the traffic.

:At this position, power is connected to

start the engine. The key cannot be
taken out.

engine stops. The key can be taken out.
is locked. The key can be taken out

c

d

e

- 5 -

(2) STARTER BUTTON

y To start the engine, first turn on the ignition

switch and then press the starter button. At this
time, be sure to fully apply the front or rear brake
lever (pedal) in order to connect the power.

n CAUTION:

y During engine running, do not push the starter

button to avoid engine damage.

y Turn the headlight switch and turn signal switch

“OFF” before using the starter button.

y Release the starter button immediately after the

engine is started.

(3) HEADLIGHT SWITCH

z At this position, the position light,

headlight, instrument lights and taillight go

out together.
At this position, the position light, instrument
lights and taillight light together.

 At this position, the position light, headlight,

instrument lights and taillight light together.

- 6 -

(4) HEADLIGHT DIMMER SWITCH/

PASSING SIGNAL SWITCH

c Switch to this position for using high
beam.

d When riding in downtown area or there is
a car coming from the opposite direction,
use low beam to avoid affecting the
visibility of coming cars.

PASSING When passing, continuously press and

e

release the dimmer switch at the
PASSING position and the headlight
will wink to warn the coming cars.

(5) HORN BUTTON/TURN SIGNAL SWITCH

y When the ignition switch is turned “ON”, press

the horn button and the horn will sound. c
turning to the right dÕ For turning to the left

ePush the turn signal switch button to release it.
fHorn Button

y The horn and turn signal switch do not work

when the ignition switch is “OFF”.

n CAUTION:

y The turn signal light will not release

automatically. Be sure to reset it after use;
otherwise it may affect the traffic safety.

- 7 -

Ö For

c

d

e

c

d

e

f

(6) SEAT LOCK/MET-IN BOX

y To open the seat, insert the ignition switch key

into the seat lock and turn it right. Lift up the
seat.

y Max. loading capacity of the met-in box is 10kg.
y To close the seat, put down the seat and press it

down to make it lock automatically. Then slightly
pull up the seat cushion to make sure that it is
locked. c Rear seat bolt

n CAUTION:

y Never put the key under the seat cushion and lock

the seat.

HELMET BUCKLE

(7)

1.Open the seat lock and lift up the seat.

2.Put the helmet retaining ring into the helmet
buckle.

3.Put down the seat and it will lock automatically.

y Take out the helmet in the reserve order of the

above steps.

n CAUTION:

y When riding, wear the helmet and do not retain it

on the motorcycle to avoid damage of coated
parts.

Open

c

Helmet buckle

- 8 -

(8) INSTRUMENTS

c MILEAGE COUNTER: The total riding m ileage

is indicated by kilometer. The figure in black
and white is an unit of 100m.

d MOTOR OIL INDICATOR LIGHT: When the

ignition switch is “ON”, it is normal if the motor
oil indicator light comes on for several seconds
and then goes out. If the light does not go out, it
means that the motor oil is insufficient. Please
refill with the specified motor oil.

e SPEEDOMETER: The riding speed is indicated

by km/hour.

f TURN SIGNAL INDICATOR LIGHT: When

the turn signal switch is operated, this indicator
light will wink.

g HIGH BEAM INDICATOR LIGHT: This

indicator light comes on when the long distance
light is turned on.

h FUEL GAUGE: The fuel gauge is to show the

volume of gasoline in the fuel tank. If the fuel
gauge pointer is at the red area, the fuel is
insufficient. Refill with 92# or 95# nonleaded
gasoline as early as possible.

i ELECTRONIC DISPLAY: It displays time and

date which can be adjusted manually.

n CAUTION:

y Do not add any additives when refilling fuel or

motor oil.

- 9 -

e

f

c

chi

d

fg

4. PRE-RIDE INSPECTION

(1) ADVANCE INSPECTION

y Get into a good habit of inspection before riding.

For the sake of safety and to prevent vehicle
damage and traffic accidents, the pre-ride
inspection is absolutely required.

n CAUTION:

y Be sure to perform inspection and maintenance

for your new motorcycle after it is purchased for
one month or ridden for 300km.

(2) MOTOR OIL LEVEL INSPECTION/

REFILLING

y Place the motorcycle on its main stand.
y Open the seat and turn the motor oil tank cap

counterclockwise to open it.

y Fill the oil tank with the recommended 2-stroke

motor oil and close the motor oil tank cap.

n CAUTION:

y When adding the motor oil, the oil level shall not

exceed the upper limit. Be careful not to allow
foreign matters or dust to enter the oil tank.

y Use of unspecified motor oil may cause poor

performance or engine damage.

- 10 -

(3) BRAKE INSPECTION． Ride the motorcycle

at low speed on a dry road and respectively apply
the front and rear brakes to check the brake
performance.

 The brake lever should have proper free play.
 ”Free play” means the distance from the position of

loose brake to the position of fully applied brake.

Measure the free play at the brake lever end



and check if it is within the specified value of
1~2cm.

(4) TIRE INSPECTION

1. Tire Pressure Check

Check if the tire pressure is normal when the



tire is in contact with level ground.

 If there is any abnormal condition, check the

tire pressure with a tire pressure gauge.

 Measure the tire pressure under room temperature.

Rear Brake

- 11 -

2. CRACKS & DAMAGE



Check the tire-contact area for crack or
damage.

3. Abnormal Wear

 Check the tire-contact area for abnormal wear.

4. FOREIGN OBJECTS OF METAL PIECE &
GRAVEL

 Check the tires and tire-contact area for imbedded

objects of metal piece and gravel.

5. DEPTH OF TIRE GROOVE

 If the tire is worn to the wear limit indication mark,

replace it with a new one.

NORMAL PRESSURE(1 Rider / 2 Riders )

Front Wheel 1.75/1.75 kg/cm²

Rear Wheel 1.75/2.00 kg/cm²

n CAUTION:

y Abnormal tire pressure, crack, damage and

abnormal wear will cause unsteady handlebar and
result in tire break.

y If the tire has cracks or is worn to the wear

limit indication mark, replace it with a new
one.

- 12 -

(5) FUEL LEVEL INSPECTION/REFILLING

y Check if the fuel is sufficient.
y If the fuel gauge pointer is at “E” (red line), refill

with #92 or #95 nonleaded gasoline as soon as
possible.

《Refilling Method》

1.Open the seat with the ignition switch key. (Refer
to P8.).

2.Turn the tank cap counterclockwise with hand to
open the cap.

3.Use only #92 or #95 nonleaded gasoline.

4. Turn the fuel tank cap clockwise to tighten it.

△” mark on the fuel tank cap shall be

The “
aligned with the “

5. Close the fuel tank cap in the reverse order of
opening.

cFuel tank cap dUnlock eLock
fReference plate

n CAUTION:

y Be sure to stop the engine before refilling.
y The gasoline level shall not exceed the reference

plate; otherwise the fuel will penetrate out.

y When refilling, do not add other additives to

avoid engine breakdown.

△” mark on the fuel tank.

d

e

c

- 13 -

(6) STEERING HANDLEBAR

y Visually inspect the steering handlebar for

damage.

y Apply the front brake and move the handlebar

upward and downward to check for abnormal
noise.

y Move the steering handlebar upward, downward,

rightward and leftward to check for any loose
parts.

y Check if the handlebar rotates freely.
y If any abnormal condition is found, go to your

motorcycle dealer for inspection.

(7) INSTRUMENT LIGHTS INSPECTION

y Check the speedometer pointer for proper

operation.

y Check the fuel gauge pointer for proper

operation.

y Check the turn signal indicator lights for proper

operation.

- 14 -

(8) BRAKE LEVER FREE PLAY INSPECTION

cdd

c

& ADJUSTMENT

y Adjust the brake lever free play with the brake

adjusting nuts.

y After adjustment, fully apply the brake levers and

check if the free play is within the specified value
(1～2cm).

c Increase play d Decrease play

n CAUTION:

y After the brake is adjusted, align the groove of

adjusting nut with the pin in order to avoid
accident and danger during riding.

(9) BRAKE SHOE INSPECTION

y When the brake lever is fully applied, if the mark

“

△” on the brake indicator aligns with the

reference mark “
the brake shoe is worn out. Go to our designated
distributors or service stations for brake shoe
replacing.

y Brake shoe service limit: cFront dRear

n CAUTION:

y Brake shoe will be worn more quickly if the

brake lever is always applied lightly during
riding.

- 15 -

△” on the brake panel, it means

(10) HORN/LIGHTS INSPECTION

y Turn the ignition switch “ON” and press the horn

button to check if it sounds.

y Headlight/Taillight Inspection:

Start the engine and turn on the headlight switch
to check if the headlight and taillight are good
and check the light shells for dirt and damage.

y Stoplight Inspection:

Apply the front and rear brake levers respectively
to check if the stoplight is good. And also check
the stoplight shell for dirt and damage.

y Turn Signal Light Inspection:

Operate the turn signal switch to make sure
whether the right/left front and rear turn signal
lights can wink and buzz. Also check the light
shells for dirt and damage.

cHeadlight dTurn signal light eTaillight/
Stoplight fHorn button

n CAUTION:

y Replace any dirty or damaged lights with new

ones to avoid danger during riding.

c

e

d

f

- 16 -

(11)FRONT/REAR SHOCK ABSORBER

INSPECTION

y Check the condition of the front/rear shock

absorbers by pressing down the handlebar and
seat several times.

(12) BRAKE PERFORMANCE INSPECTION

y Fully apply the front and rear brake levers and

move the motorcycle forward to see if the
braking effect is good.

(13) REARVIEW MIRROR ANGLE CHECK

y Sit on the motorcycle uprightly and make a

viewing test of the rearview mirror angle.

(14) LICENSE PLATE CHECK

y Check the license plate for dirt and damage, then

tighten it.

(15) REFLECTOR CHECK

y Check the reflector for dirt and damage.

(16) PREVIOUS ABNORMAL P ARTS

INSPECTION

y Make sure that the previous abnormal parts are

repaired.

(17) LUBRICATION POINT CHECK

y Visually check if all motorcycle lubrication

points are lubricated properly.

- 17 -

5. ENGINE STARTING METHODS

(1) TURN THE IGNITION SWITCH “ON”

y Unlock the steering handlebar.
y Turn the ignition switch “on”

n CAUTION:

y Check the gasoline vo Motor lume and Motor oil

level before starting the engine.

y Be sure to erect the main stand while starting the

engine.

(2) LOCK THE REAR WHEEL

y Apply the rear brake lever to connect the power

for starting.

n CAUTION:

y In order to prevent the motorcycle from rushing

out at high speed, make sure to lock the rear
wheel.

y If the rear brake lever free play is incorrect, the

rear wheel cannot be braked and it will cause
danger easily.

- -

18

(3) USE THE STARTER BUTTON

y Push the starter button without rotating the

throttle grip.

y If the engine fails to start after the starter button

is pressed for 3～4 seconds when it is warm,
rotate the throttle grip for 1/8～1/4 turn to
facilitate starting.

y When the motorcycle is not used for a long time

or the fuel tank is empty, if the engine is still hard
to start after the fuel tank is refilled with gasoline,
slightly turn the throttle grip and press the starter
button for several times to start the engine.

y In order to avoid battery overcharge, do not press

the starter button more than 5 seconds.

y If the engine does not start after the starter button

is pressed for 5 seconds, wait for more than 5
seconds and then press the button again or start
the engine by the kick lever.

n CAUTION:

y Don‘t press the starter button while the engine is

running; otherwise the engine will be damaged.

y When starting the engine, the rear brake lever

must be applied to connect power and the
stoplight will come on when power is
connected.

- -

19

(4) ST ART WITH THE KICK LEVER

1. Place the motorcycle on its main stand on level
ground.

2. Depress the kick lever with force.

y When the engine is cold and does not start after

the kick lever is depressed for 3～4 times, rotate
the throttle grip for 1/8～1/4 turn to facilitate
starting.

y Warm up the engine for a little while (about 2～3

minutes) after cold start.

y After the engine is started, do not accelerate

suddenly and keep riding at low speed to prolong
the engine service life.

n CAUTION:

y After the engine is started, the kick lever must be

returned to its original position.

y The exhaust contains poisonous carbon monoxide

which is harmful to human body. Never run the
engine in a closed area.

y Turn off all light switches before starting the

motorcycle.

- -

20

6. NORMAL RIDING METHOD
(1) STARTING THE ENGINE

y Start the engine by referring to the starting

methods specified in Section 5.

n CAUTION:

y Keep your finger away from the button

immediately after the engine is started to avoid
engine damage.

y The rear brake lever should be kept at the braking

position before riding.

(2) REBOUND THE MAIN STAND

y Keep the rear brake lever at braking position and

push the motorcycle forward, then the main stand
will rebound automatically.

n CAUTION:

y After starting the engine and before moving, do

not turn the throttle grip to increase the engine
rpm.

- -

21

(3) CORRECT SITTING POSITION

y Ride astride on the motorcycle from the left side

and sit upright. Touch the ground with left foot to
avoid slipping.

n CAUTION:

y The rider must wear helmet, gloves and goggles.
y Do not wear any clothes which will affect riding

safety.

(4) ROTATE THE THROTTLE GRIP

y Release the rear brake lever and slowly rotate the

throttle grip, then the motorcycle will move
smoothly.

n CAUTION:

y After the rear wheel brake lever is released, do

not rotate the throttle grip suddenly to prevent the
motorcycle from rushing out.

y During riding, do not accelerate or decelerate

rapidly and suddenly to save fuel and prolong the
motorcycle service life.

- -

22

7. PRECAUTIONS FOR RIDING

(1) CORRECT RIDING

y Before moving, turn on the turn signal light and

make sure whether the rear side is safe.

y Do not rush into the car lanes and always keep

the motorcycle to the right to avoid danger.

n CAUTION:

y Moderate riding will prolong the engine service

life. The clutch linings are worn more quickly
when often ridden at low speed.

(2) SPEED CONTROL

y The speed is controlled by the throttle grip.

c

ROTATE The speed will become faster. Don‘t

be hasty and accelerate slowly.
When riding on an ascending road,
rotate the throttle grip gradually to
increase the horse power.

d RESTORE The speed will become slower.

Restore the throttle grip quickly.

n CAUTION:

y Apply the brake while restoring the throttle grip.

This will shorten the time required to slow down.

c

d

- -

23

(3) PROPER RIDING WILL PROLONG THE

SERVICE LIFE OF ENGINE

y For a new motorcycle, keep the speed below

40km per hour within the first 1000km of riding.

y Avoid sudden acceleration and long-time riding

at high speed.

y In hot weather, the engine overheats easily at

long-time idling. Stop the engine in this case.

n CAUTION:

y Moderate riding will prolong the engine service

life.

(4)

APPLY BOTH FRONT AND REAR
BRAKES WHEN BRAKING

y First restore the throttle grip to the closed

position and then pull the brake levers tight.

y The best way to brake the motorcycle is to pull

the brake levers “slowly” at the very beginning,
then pull them tight.

n CAUTION:

y Apply single brake lever will cause the

motorcycle to slip.

y During riding, never brake the motorcycle

suddenly. It may cause the motorcy cle to slip and
could be very dangerous.

- -

24

(5)DO NOT MAKE SUDDEN STOP OR SHARP

TURN

y Sudden stop and sharp turn are the main causes

for slipping and could be very dangerous.

y In rainy days the road is slippery. Sudden stop

will cause the motorcycle to slip. Be careful to
avoid danger.

(6)BE MORE CAREFUL WHILE RIDING IN

RAINY DAYS

y A longer braking distance is required in rainy

days than in sunny days. Be sure to slow down
and brake the motorcycle slowly as early as
possible.

y When riding on a descending road, restore the

throttle grip to closed position and slow down by
making intermittent braking.

n CAUTION:

y A longer braking distance is required in rainy

days. Be sure to slow down and brake the
motorcycle slowly as early as possible.

- -

25

8. HOW TO STOP RIDING

(1) WHILE GO NEAR THE PARKING PLACE

y Turn on the turn signal light in advance. Watch

out vehicles coming behind or aside and stop the
motorcycle to the right side slowly.

y Restore the throttle grip to closed position and

apply the front and rear brakes as early as
possible.

y At this moment, the stoplight will come on to

warn the vehicles coming behind.

(2) WHILE THE MOTORCYCLE IS

COMPLETELY STOPPED

y Return the turn signal switch to its original

position.

y Turn the ignition switch “OFF” to stop the

engine.

n CAUTION:

y During riding, never operate the ignition switch key.
y When the ignition switch is turned “OFF”, the

electric system does not work which may result
in traffic accident. Operate the switch key after
the motorcycle is fully stopped.

- -

26

(3) PARKING

y Place the motorcycle on its main stand on level

ground and do not hinder the traffic.

y Stand on the left side and grip the handlebar

straight with left hand and the side rod or rear
carrier with right hand. Then, step down the main
stand evenly with right foot and pull the
motorcycle backward by force with right hand.

n CAUTION:

y The motorcycle may easily fall down if it is

parked on an uneven ground.

(4) HANDLEBAR

y After parking, be sure to lock the steering

handlebar and take out the key to prevent
pilferage. (Refer to P5.)

n CAUTION:

y Don‘t park your motorcycle at a place to hinder

the traffic.

y The temperature of engine and exhaust muffler is

very high. Be careful to avoid scalding.

y Park the motorcycle at a safe place and be sure to

take out the key to prevent pilferage.

- -

27

9. EASY MAINTENANCE

(1)AIR CLEANER INSPECTION AND AIR

CLEANER CLEANING & REPLACEMENT

y Take out the air cleaner and visually check if it is

dirty or clogged.

1. Remove the air cleaner cover screws and cover.

2. Remove the air cleaner element.

3. The installation sequence is the reverse of

removal.

y Wash the air cleaner element in detergent oil,

squeeze out and allow to dry. Soak the element in
clean engine oil SAE30# and squeeze out the
excess oil . Then install it and the air cleaner.

y Clean the element at very 2000km and replace if

necessary. The air cleaner requires more frequent
cleaning or replacement when ridden in unusually
dusty areas. When replacing, refer to P36
Periodic Inspection & Maintenance Schedule.

n CAUTION:

y If the air cleaner is not installed properly, dust

may be sucked into the cylinder directly to reduce
engine horsepower and service life. Be careful
not to allow water to enter the air cleaner;
otherwise, it may result in hard starting.

y Never use gasoline or vaporable oil for

washing.

- -

28

(1)

(2)

Squeeze Coal oil

Wash in solvent Soak in oil Squeeze

(2) FUEL SYSTEM

y Fuel and Motor Oil Leakage Inspection
Check the fuel line between the fuel tank and
carburetor for fuel leakage.

cFuel tube connector
dFuel tank

n CAUTION:

y Check and replace any broken or damaged tube

connector to avoid breakdown due to running out
of gasoline or motor oil.

(3) APPEARANCE CLEANING

y Often wipe clean the motorcycle appearance to

prevent accumulated dust affecting the function
of components.

n CAUTION:

y If a motorcycle is not used for a long time, check

the operation of each part and replace lubricants
before riding. Ride the motorcycle only after its
performance is confirmed.

y When waxing the motorcycle, make sure that the

ingredients of the wax will not damage the paint
of the motorcycle.

- -

29

d

c

(4) BATTERY

y This model adopts the battery which needs no

refilling of distilled water.

y When cleaning the terminal terminals, remove the

screws attaching the battery cover on the floor
board and then open the battery cover.

y When battery terminals are corroded, take out the

battery for cleaning.

y After cleaning, apply a thin coat of grease or

Vaseline to battery terminals and then install the
battery.

n CAUTION:

y Never open the closed-type battery electrolyte cap.
y If the motorcycle will not be used for a long time,

the battery will discharge electricity by itself.
Remove the battery and put it in a cool place after
it is fully charged to prevent electricity leakage.

y If the motorcycle will not be used for a long time,

remove the negative (-) terminal.

y Do not smoke or allow flames or sparks near the

battery while removing and installing it.

y Turn off the ignition switch before removal or

installation. The negative (-) terminal shall be
removed first and the positive (+) terminal shall be
installed first.

y Tighten the loose terminal nuts securely.

Battery

- -

30

(5) FUSE CHANGE

y Turn off the main switch and check if the fuse is

burned out.

y When the fuse is burned out, replace with a

specified fuse.

y Check for the cause of breakdown before

replacing.

cBattery Fuse Specification: 15A
dIgnition Switch Fuse Specification: 7A

n CAUTION:

y The fuse box is opened by rotating its cover. Be

careful not to excessively pull the connecting
wires because it may cause broken metal contact
points and result in open circuit.

y After a new fuse is installed, check the wire

connector for looseness that is the main cause of
trouble.

y Never use fuse of unspecified capacity, it may

cause wire overheating and burning out.

y When replacing electric appliances (lights,

instruments), be sure to use the recommended
genuine parts.

y If the cause can not be found, contact our service

station for inspection.

y When washing the motorcycle, avoid flushing it.

c

d

- -

31

(6) TRANSMISSION GEAR OIL

y Check the transmission gear oil tank for leakage.

1.Place the motorcycle on its main stand on level
ground. After the engine stops for 2～3 minutes,
remove the gear oil check bolt to check the oil
level.

2.If the oil level is lower than the check bolt hole
lower edge, add gear oil to the lower edge.

3.After refilling, securely tighten the check bolt.

y Recommended Gear Oil: SAE90#
cGear Oil Filler Oil (Check Bolt Hole)
dDrain Bolt
eOil Level

d

n CAUTION:

y Add gear oil through the oil check bolt hole.
y After refilling, use a rag to wipe clean.
y Excess or insufficient gear oil will affect the

engine performance.

y Never use gear oil of different brand or inferior

quality which may result in engine breakdown.

y Change gear oil at first 300km and then change at

every 5000km. Add specified gear oil whenever it
is necessary.

- -

32

e

c

(7) SPARK PLUG INSPECTION

y Check the spark plug side electrodes for wear.
y Fouling deposits on spark plug electrodes and big

gap may result in weak spark.

y Spark Plug Removal:

1.Remove the spark plug with a spark plug
remover.

2.The installation sequence is the reverse of
removal.

y Spark Plug Cleaning:

1.It is better to remove spark plug deposits with a
spark plug cleaner.

2.If a spark plug cleaner is not available, clean with
a wire brush.

y The side electrode gap is 0.6～0.7mm.
y Specified Spark Plug: BR-8HSA
cDeformation dCracks, Damage eGap, Wear,

Fouling Deposits

n CAUTION:

y Clean the spark plug at every 1000km and

replace it with a new one at every 5000km or
when the center electrode is burned out.

y First screw in the spark plug with fingers and

then tighten with a spark plug wrench.

y Use unspecified spark plug may damage the

engine.

- -

33

c

d

Spark

e

(8) BRAKE FLUID LEVEL INSPECTION

/REFILLING

y Remove the 2 screws from the brake fluid tank

and take off the cover.

y Add recommended brake fluid DOT-3 into the

tank until the fluid level reaches the upper limit
and then put on the cover and tighten the screws.

y Recommended Brake Fluid: DOT-3

n CAUTION:

y Do not mix brake fluid of different brands. It may

cause brake failure and is very dangerous. When
refilling brake fluid, use towels to cover and
protect the painted and coated surfaces. (Replace
at 10000km or every year.)

(9) RUBBER COVER INSPECTION FOR WIRE

AND CABLE

y The cable cores are protected by the rubber cover

outside the connector. Check the rubber cover
frequently for proper installation.

y When washing the motorcycle, do not flush the

rubber cover directly or brush it. Use a wet rag to
wipe off dirt and dust.

cRubber Cover
dCheck Points

- -

34

d

c

10. IMPORTANT NOTICES

(1)W HEN THE ENGINE FAILS TO START OR

STOPS DURING RIDING

y Is the gasoline enough?
y If the fuel gauge pointer is at the red line, refill

with #92 or #95 nonleaded gasoline.

y Is the way to start the engine correct?
y Is there any other faulty parts?

(2) IN CASE OF BREAKDOWN

y For any trouble occurred during riding, go to a

KYMCO distributor or service station for
inspection.

n CAUTION:

y For the sake of safety and to prevent vehicle

damage and save your precious time, the pre-ride
inspection is absolutely required. Please read this
User’s Manual carefully and get into a good habit
of inspection before riding.

- -

35
