KROHNE TT30C-R User Manual

Handbook

Handbook

OPTITEMP TT 30 C/R

OPTITEMP TT 30 C/R

OPTITEMP TT 30 C/ROPTITEMP TT 30 C/R

HandbookHandbook

Intelligent two wire universal transmitter

The documentation is only complete when used in combination with the relevant
documentation for the sensor.

© KROHNE 11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

: IMPRINT :::::::::::::::::::::::::::::::::::::::

OPTITEMP TT 30 C/R

All rights reserved. It is prohibited to reproduce this documentation, or any part thereof, without
the prior written authorisation of KROHNE Messtechnik GmbH.

Subject to change without notice.

Copyright 2012 by
KROHNE Messtechnik GmbH - Ludwig-Krohne-Str. 5 - 47058 Duisburg (Germany)

2

www.krohne.com 11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

OPTITEMP TT 30 C/R

CONTENTS

1 Safety instructions 5

1.1 Intended use ..................................................................................................................... 5

1.2 Certifications .................................................................................................................... 6

1.2.1 EC directive compliance ......................................................................................................... 6

1.2.2 Ex approvals............................................................................................................................ 6

1.3 Safety instructions from the manufacturer ..................................................................... 7

1.3.1 Copyright and data protection ................................................................................................ 7

1.3.2 Disclaimer ............................................................................................................................... 7

1.3.3 Product liability and warranty ................................................................................................ 8

1.3.4 Information concerning the documentation........................................................................... 8

1.3.5 Warnings and symbols used................................................................................................... 9

1.4 Safety instructions for the operator................................................................................. 9

2 Device description 10

2.1 Scope of delivery............................................................................................................. 10

2.2 General description ........................................................................................................10

2.3 Nameplate ...................................................................................................................... 11

2.3.1 In-head transmitter (Non-Ex)............................................................................................... 11

2.3.2 In-head transmitter (Ex) ....................................................................................................... 11

2.3.3 Rail-mount transmitter (Non-Ex) ......................................................................................... 12

2.3.4 Rail-mount transmitter (Ex) ................................................................................................. 13

3 Installation 14

3.1 Notes on installation ......................................................................................................14

3.2 In-head transmitter (Ex and Non-Ex)............................................................................. 14

3.3 Rail mounting kit for in-head transmitters.................................................................... 15

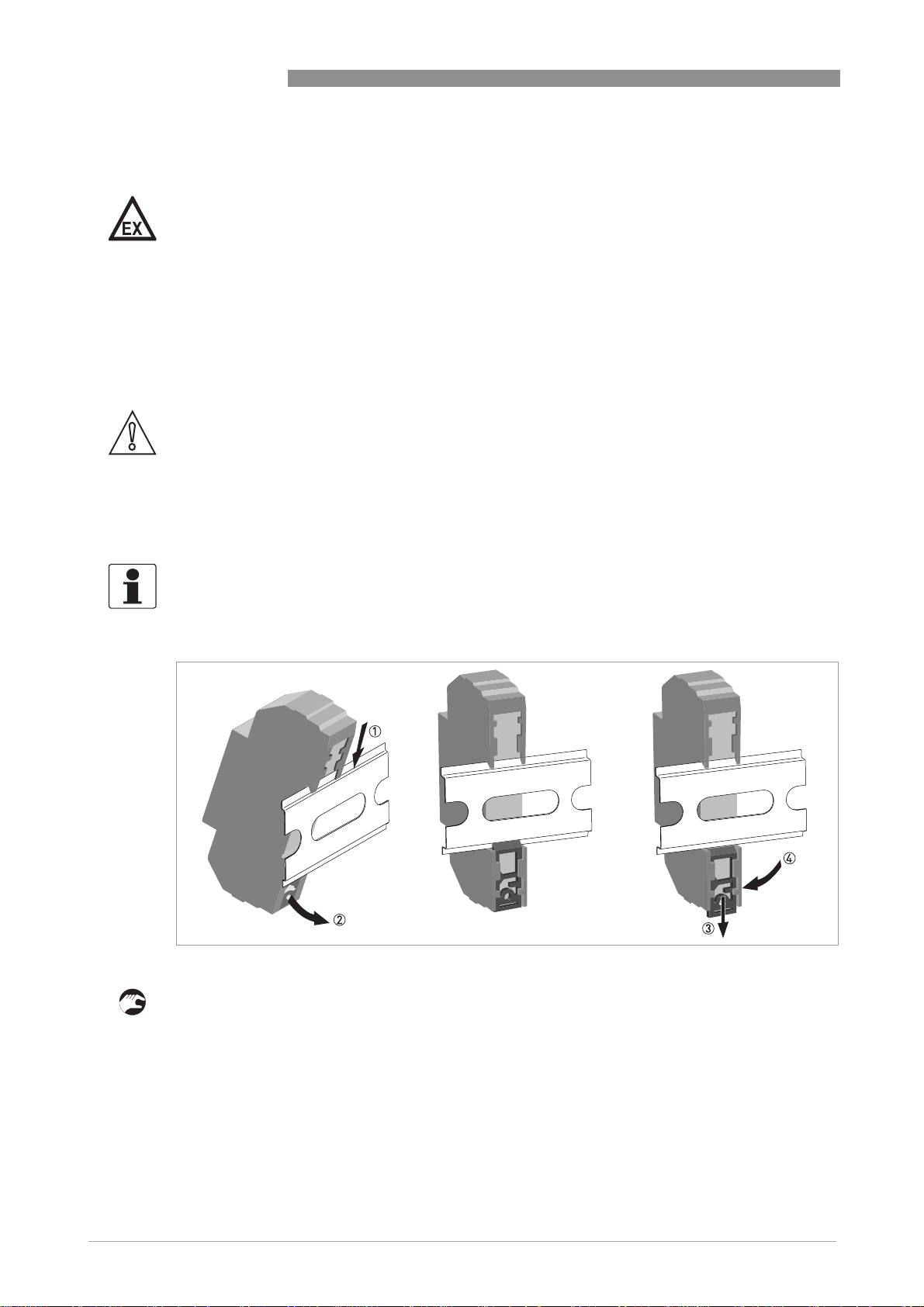

3.4 Rail-mount transmitter (Ex and Non-Ex)....................................................................... 18

4 Electrical connections 19

4.1 Safety instructions.......................................................................................................... 19

4.2 Electrical input connections........................................................................................... 20

4.2.1 In-head transmitter (Ex and Non-Ex) ................................................................................... 20

4.2.2 Rail-mount transmitter (Ex and Non-Ex) ............................................................................. 21

4.3 Electrical connection diagrams ..................................................................................... 22

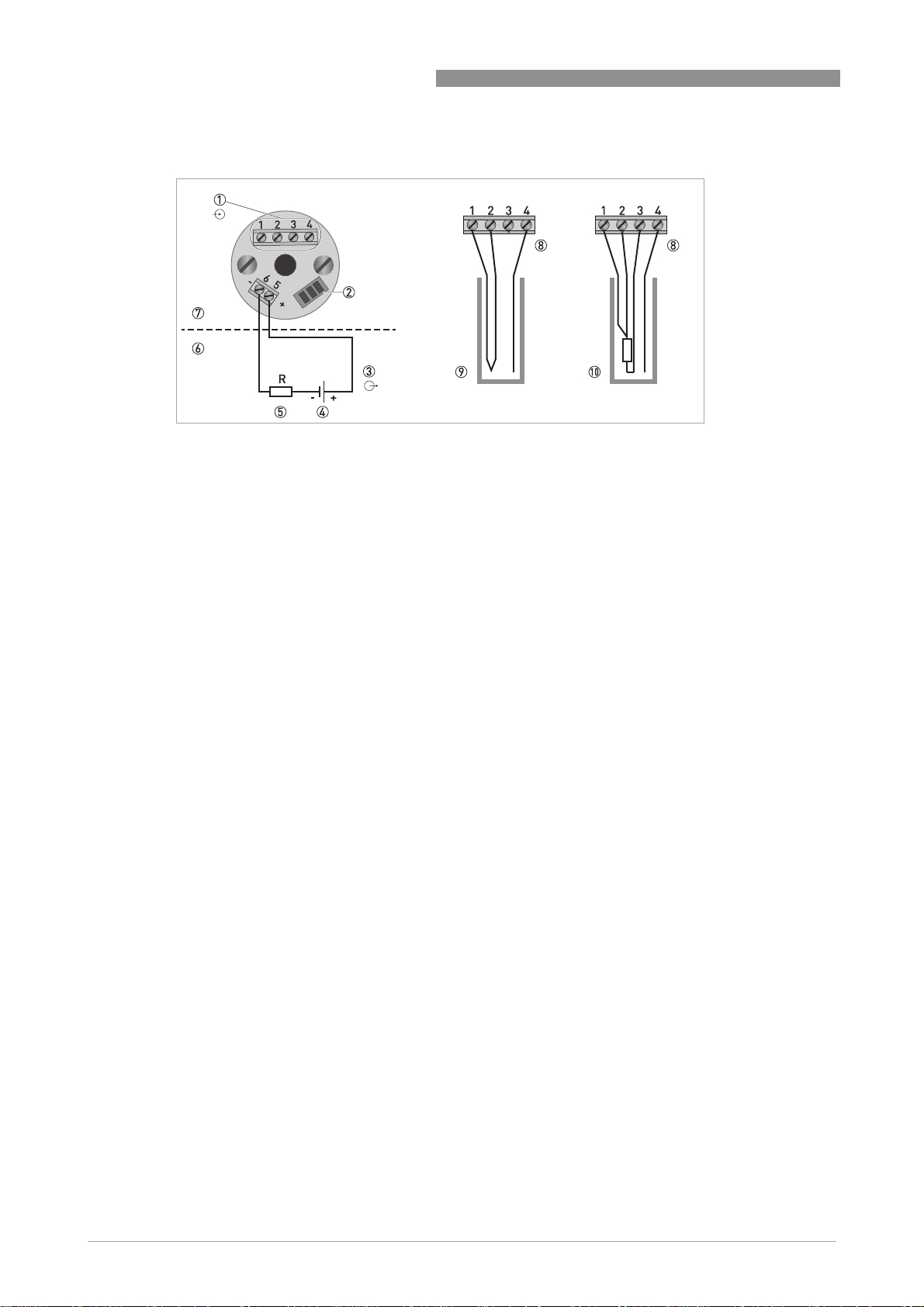

4.3.1 In-head transmitter (Non-Ex)............................................................................................... 22

4.3.2 In-head transmitter (Ex) ....................................................................................................... 23

4.3.3 Rail-mount transmitter (Non-Ex) ......................................................................................... 25

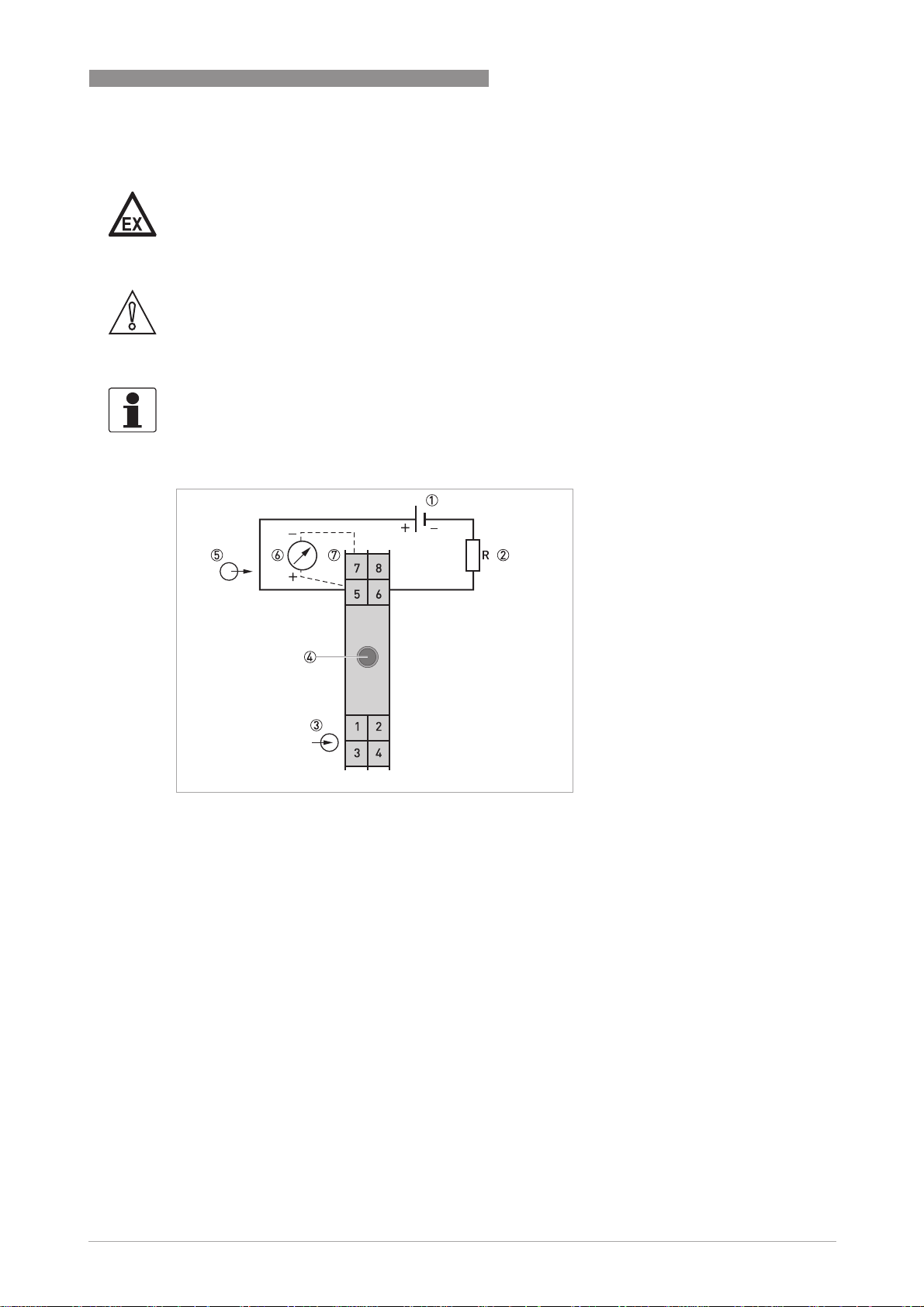

4.3.4 Rail-mount transmitter (Ex) ................................................................................................. 26

5 Operation 27

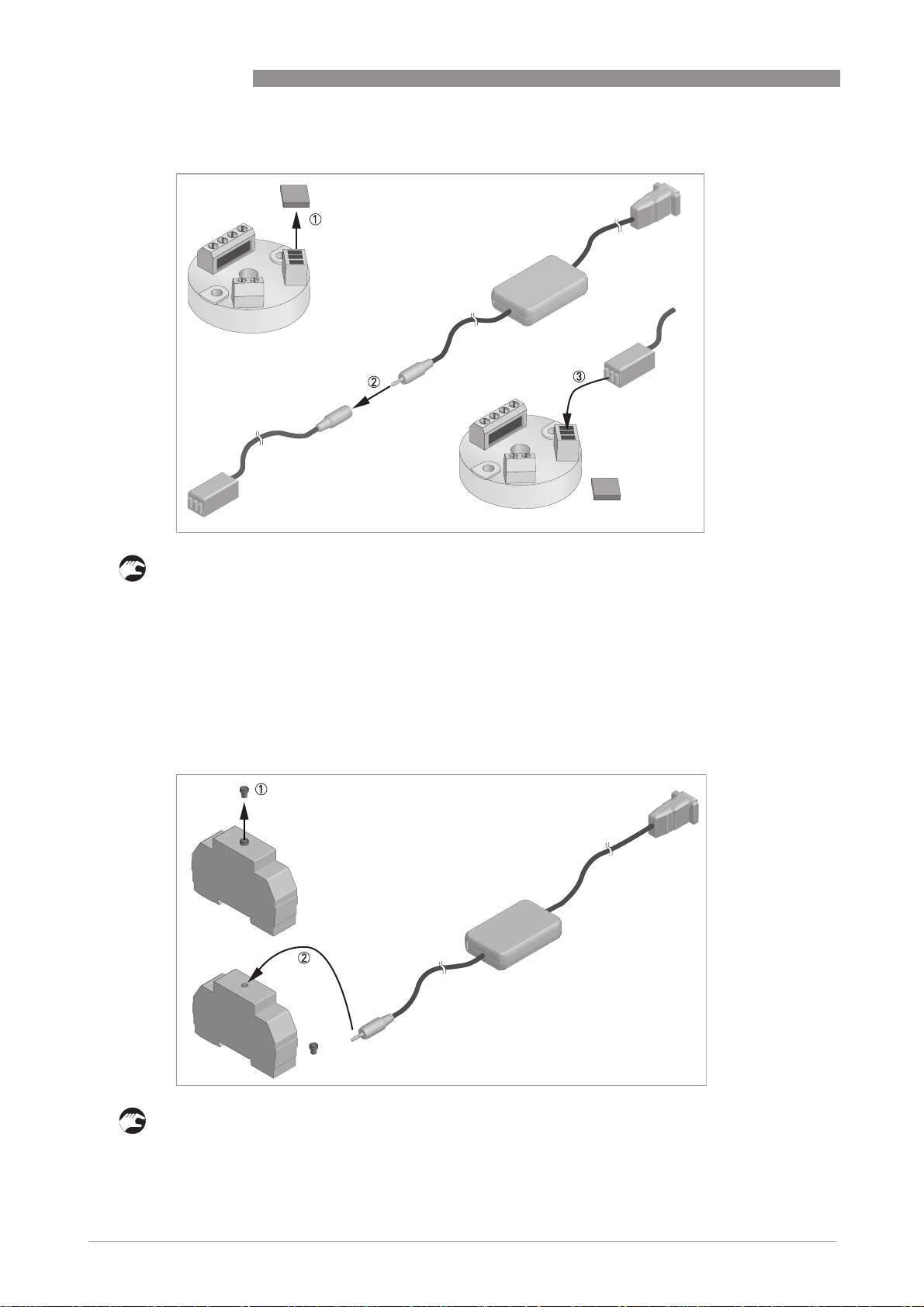

5.1 Configuration with a PC.................................................................................................. 27

5.2 Factory settings for configuration.................................................................................. 29

5.3 SmartSense function...................................................................................................... 30

5.4 Temperature difference measurement ......................................................................... 30

www.krohne.com11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

3

CONTENTS

OPTITEMP TT 30 C/R

5.5 Sensor break monitoring ............................................................................................... 30

6 Service 31

6.1 Accessory parts .............................................................................................................. 31

6.2 Spare parts availability...................................................................................................31

6.3 Availability of services .................................................................................................... 31

6.4 Returning the device to the manufacturer..................................................................... 31

6.4.1 General information.............................................................................................................. 31

6.4.2 Form (for copying) to accompany a returned device............................................................ 33

6.5 Disposal .......................................................................................................................... 33

7 Technical data 34

7.1 Measuring principles...................................................................................................... 34

7.1.1 Resistance thermometer...................................................................................................... 34

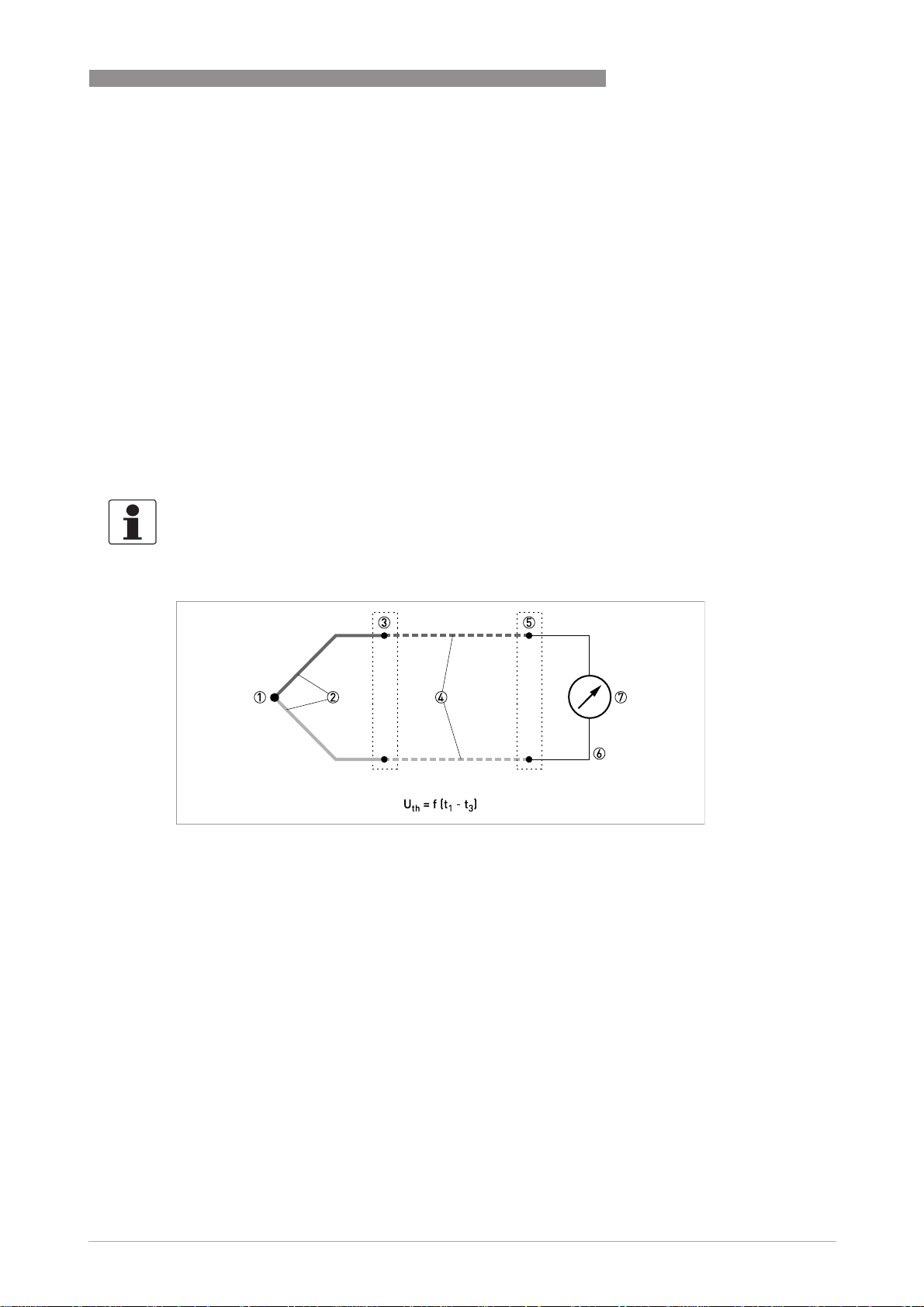

7.1.2 Thermocouples ..................................................................................................................... 35

7.2 Technical data................................................................................................................. 36

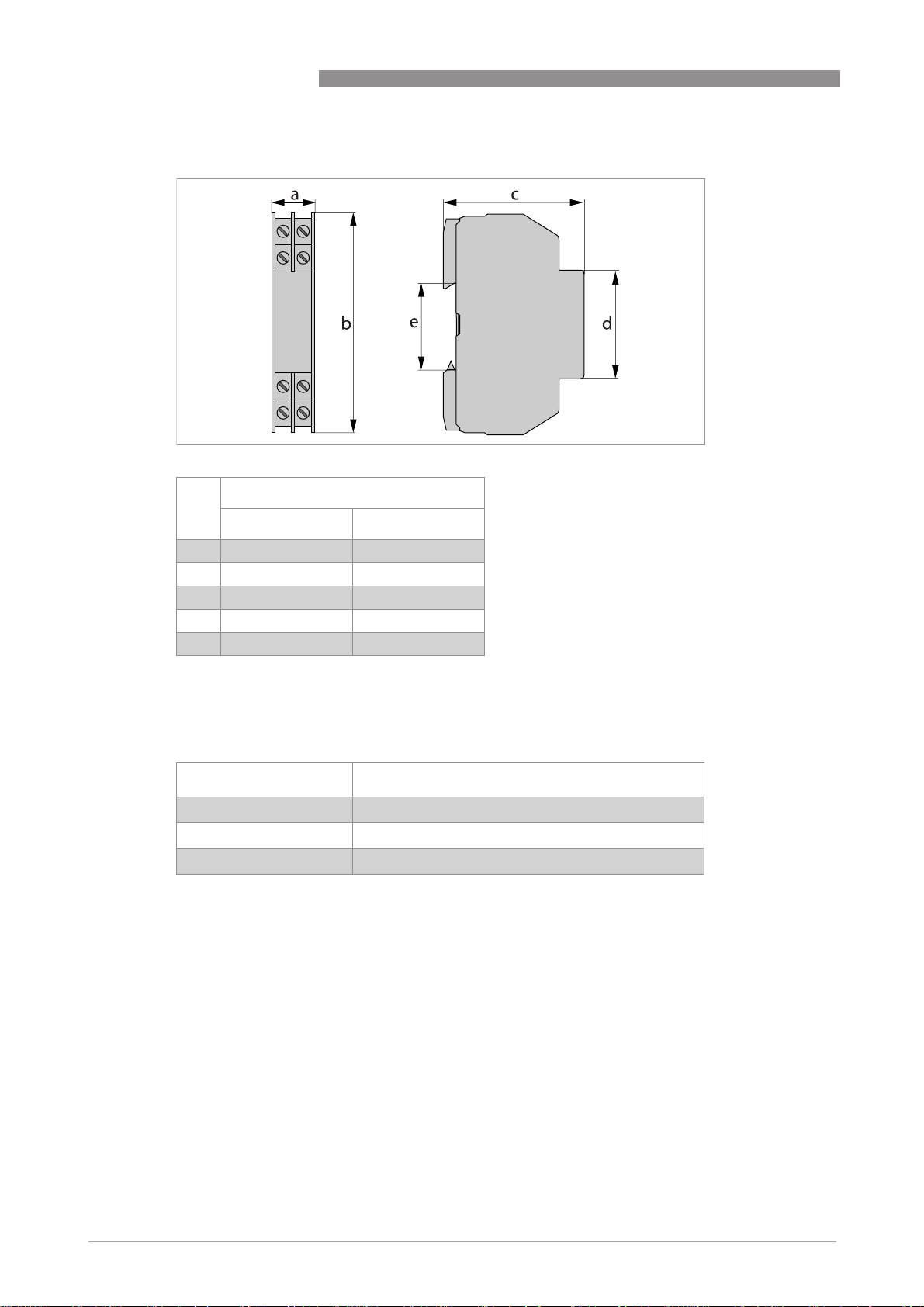

7.3 Dimensions ..................................................................................................................... 41

7.4 Temperature data for potentially explosive areas......................................................... 42

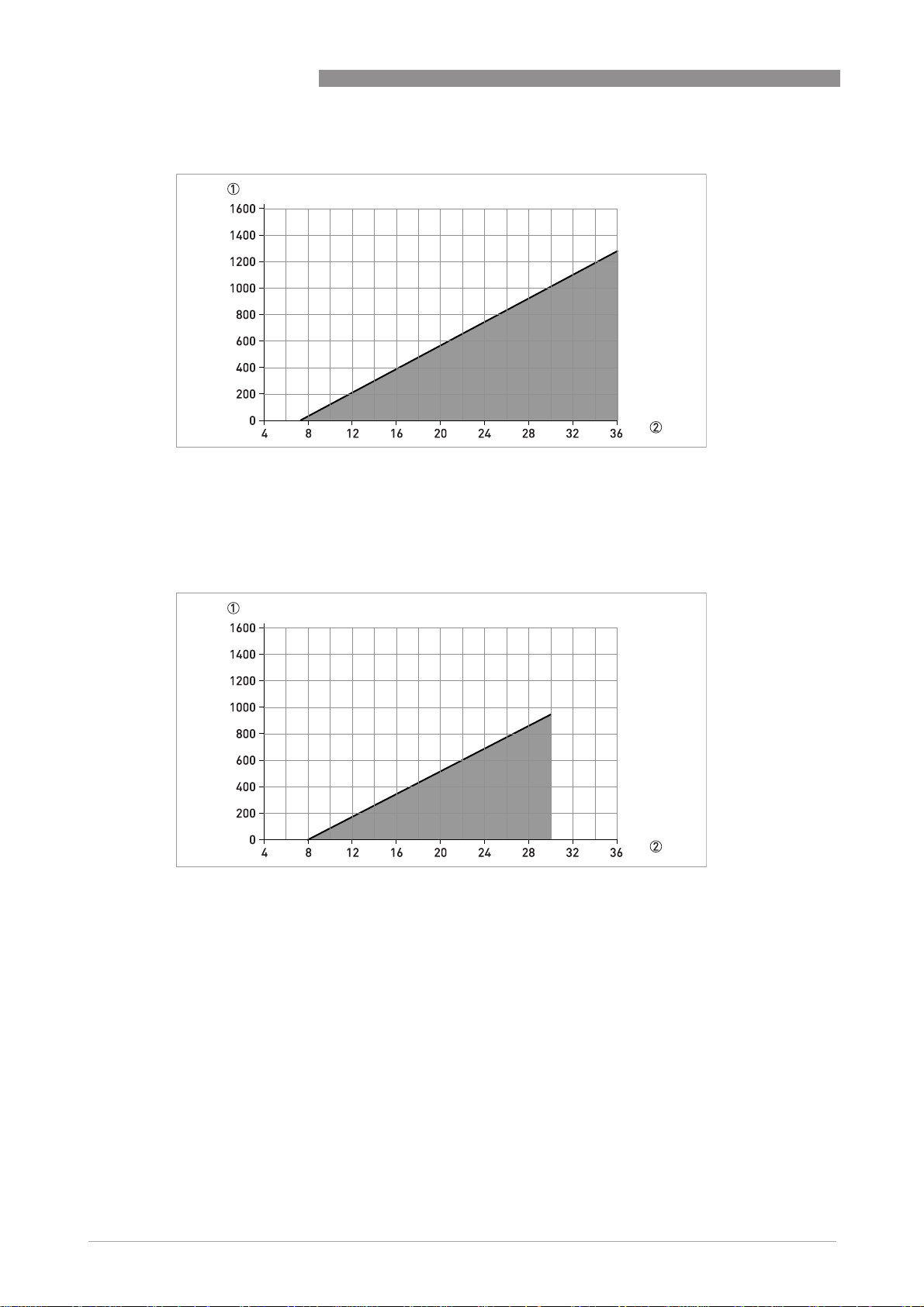

7.5 Output load diagram....................................................................................................... 43

7.6 Electrical data for outputs and inputs of the Ex versions.............................................. 45

7.7 RTD and T/C accuracy table ........................................................................................... 46

4

www.krohne.com 11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

OPTITEMP TT 30 C/R

1.1 Intended use

DANGER!

You may only use transmitters labelled with the "Ex" symbol in potentially explosive areas or
connect them to a sensor located in those areas. Additionally always note the zone(s) for which
the devices have an approval. Otherwise the transmitters might cause an explosion that can
result in fatal injuries.

DANGER!

Responsibility for the correct use of the devices with special regard to suitability, intended use
and the field of application lies solely with the operator. To avoid any kind of incorrect use, also
note the information in the chapter "Device description".

DANGER!

The transmitters do not contain any serviceable parts inside. Any substitution of components
may impair the intrinsic safety of the versions with an Ex approval. Always send defective devices
to the manufacturer or the local distributor for repair or exchange. If this is the case, attach a
clear description of the malfunction for warranty claims.

SAFETY INSTRUCTIONS 1

INFORMATION!

The manufacturer is not liable for any damage resulting from improper use or use for other than
the intended purpose. To avoid any kind of incorrect use, also note the information in the chapter
"Device description"!

The manufacturer has constructed these transmitters for usage in an industrial environment
and for the following measurements:

• Temperature measurements with resistance thermometers

• Temperature measurements with thermocouples

• Temperature difference measurements with resistance thermometers

• Voltage measurements in a range up to 500 mV

• Measurements with potentiometers

www.krohne.com11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

5

1 SAFETY INSTRUCTIONS

1.2 Certifications

1.2.1 EC directive compliance

CE marking

The device fulfils all applicable statutory requirements of the following EC directives:

• EMC Directive 2004/108/EC, harmonized standard EN 61326-1:2006

• Devices for use in hazardous areas: ATEX Directive 94/9/EC, harmonized standards

EN 60079-0:2006, EN 60079-11:2007 and EN 60079-26:2007

• CE Directive 93/68/EEC

The manufacturer certifies successful testing of the product by applying the CE marking.

1.2.2 Ex approvals

OPTITEMP TT 30 C/R

TT 30 C Ex

ATEX II 1 G Ex ia IIC T4/T5/T6

T4: +85°C / +185°F, T5: +65°C / +149°F, T6: +50°C / +122°F

DEMKO 06 ATEX 141332X

TT 30 R Ex

ATEX II (1)G [Ex ia] IIC DEMKO 06 ATEX 141333X

PC connection cable (PC cable)

ATEX II (1)G [Ex ia] IIC DEMKO 06 ATEX 141337X

INFORMATION!

See also "Special conditions for safe use" in the ATEX certificates in the download area of the
manufacturer's website.

6

www.krohne.com 11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

OPTITEMP TT 30 C/R

1.3 Safety instructions from the manufacturer

1.3.1 Copyright and data protection

The contents of this document have been created with great care. Nevertheless, we provide no
guarantee that the contents are correct, complete or up-to-date.

The contents and works in this document are subject to copyright. Contributions from third
parties are identified as such. Reproduction, processing, dissemination and any type of use
beyond what is permitted under copyright requires written authorisation from the respective
author and/or the manufacturer.

The manufacturer tries always to observe the copyrights of others, and to draw on works created
in-house or works in the public domain.

The collection of personal data (such as names, street addresses or e-mail addresses) in the
manufacturer's documents is always on a voluntary basis whenever possible. Whenever
feasible, it is always possible to make use of the offerings and services without providing any
personal data.

SAFETY INSTRUCTIONS 1

We draw your attention to the fact that data transmission over the Internet (e.g. when
communicating by e-mail) may involve gaps in security. It is not possible to protect such data
completely against access by third parties.

We hereby expressly prohibit the use of the contact data published as part of our duty to publish
an imprint for the purpose of sending us any advertising or informational materials that we have
not expressly requested.

1.3.2 Disclaimer

The manufacturer will not be liable for any damage of any kind by using its product, including,
but not limited to direct, indirect or incidental and consequential damages.

This disclaimer does not apply in case the manufacturer has acted on purpose or with gross
negligence. In the event any applicable law does not allow such limitations on implied warranties
or the exclusion of limitation of certain damages, you may, if such law applies to you, not be
subject to some or all of the above disclaimer, exclusions or limitations.

Any product purchased from the manufacturer is warranted in accordance with the relevant
product documentation and our Terms and Conditions of Sale.

The manufacturer reserves the right to alter the content of its documents, including this
disclaimer in any way, at any time, for any reason, without prior notification, and will not be liable
in any way for possible consequences of such changes.

www.krohne.com11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

7

1 SAFETY INSTRUCTIONS

1.3.3 Product liability and warranty

The operator shall bear responsibility for the suitability of the device for the specific purpose.
The manufacturer accepts no liability for the consequences of misuse by the operator. Improper
installation and operation of the devices (systems) will cause the warranty to be void. The
respective "Standard Terms and Conditions" which form the basis for the sales contract shall
also apply.

1.3.4 Information concerning the documentation

To prevent any injury to the user or damage to the device it is essential that you read the
information in this document and observe applicable national standards, safety requirements
and accident prevention regulations.

If this document is not in your native language and if you have any problems understanding the
text, we advise you to contact your local office for assistance. The manufacturer can not accept
responsibility for any damage or injury caused by misunderstanding of the information in this
document.

This document is provided to help you establish operating conditions, which will permit safe and
efficient use of this device. Special considerations and precautions are also described in the
document, which appear in the form of underneath icons.

OPTITEMP TT 30 C/R

8

www.krohne.com 11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

OPTITEMP TT 30 C/R

1.3.5 Warnings and symbols used

Safety warnings are indicated by the following symbols.

DANGER!

This information refers to the immediate danger when working with electricity.

DANGER!

This warning refers to the immediate danger of burns caused by heat or hot surfaces.

DANGER!

This warning refers to the immediate danger when using this device in a hazardous atmosphere.

DANGER!

These warnings must be observed without fail. Even partial disregard of this warning can lead to
serious health problems and even death. There is also the risk of seriously damaging the device
or parts of the operator's plant.

SAFETY INSTRUCTIONS 1

WARNING!

Disregarding this safety warning, even if only in part, poses the risk of serious health problems.
There is also the risk of damaging the device or parts of the operator's plant.

CAUTION!

Disregarding these instructions can result in damage to the device or to parts of the operator's
plant.

INFORMATION!

These instructions contain important information for the handling of the device.

LEGAL NOTICE!

This note contains information on statutory directives and standards.

• HANDLING

HANDLING

HANDLINGHANDLING

This symbol designates all instructions for actions to be carried out by the operator in the
specified sequence.

i RESULT

RESULT

RESULTRESULT
This symbol refers to all important consequences of the previous actions.

1.4 Safety instructions for the operator

WARNING!

In general, devices from the manufacturer may only be installed, commissioned, operated and
maintained by properly trained and authorized personnel.
This document is provided to help you establish operating conditions, which will permit safe and
efficient use of this device.

www.krohne.com11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

9

2 DEVICE DESCRIPTION

2.1 Scope of delivery

The scope of delivery always consists of the transmitter and its documentation.

2.2 General description

TT 30 C

TT 30 C

TT 30 CTT 30 C

The TT 30 C is an intelligent, digital 2-wire universal in-head transmitter for temperature
measurements and other measurement applications in an industrial environment. For further
information about the possible measurements refer to

The in-head transmitter is optionally available in an intrinsically safe version for installation in
potentially explosive areas. These devices wear the "Ex" symbol and have an approval for
mounting into classified hazardous area, Zone 0, 1 and 2.

All in-head versions are intended for installation in a "B connection head" or larger according to
DIN 43729. As an alternative you can also mount the in-head version on a rail according to
DIN EN 50022 with the help of the rail installation kit (for further information refer to

mounting kit for in-head transmitters

transmitter with an Ex approval with sensors in potentially explosive areas, if the transmitter is
installed in the safe area (though this case is very uncommon).

OPTITEMP TT 30 C/R

Intended use

on page 5.

Rail

on page 15). In this way you may operate an in-head

TT 30 R

TT 30 R

TT 30 RTT 30 R

The TT 30 R is an intelligent, digital 2-wire universal rail-mount transmitter with the same
features as the in-head version.

The rail-mount transmitter is optionally available in an intrinsically safe version for installation
into safe area with the input (for sensors) connected to potentially explosive areas. All devices
with an Ex approval wear the "Ex" symbol.

The rail-mount transmitter is intended for installation on a rail according to DIN 50022.

PC configuration

You can configure the devices with the help of a PC and the software "OPTITEMP TempSoft". The
current version of the software is available in the download area of the manufacturer's website.
After PC configuration no further calibration is required.

10

www.krohne.com 11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

OPTITEMP TT 30 C/R

2.3 Nameplate

INFORMATION!

Look at the device nameplate to ensure that the device is delivered according to your order.

The transmitter can be identified by the information on the nameplates.

2.3.1 In-head transmitter (Non-Ex)

Figure 2-1: Nameplate of in-head transmitter (Non-Ex)

1 Product name
2 Part number
3 Year and week of manufacturing / batch number
4 Manufacturer and address
5 Website of manufacturer
6 Space for configuration data sticker
7 CE marking (EC conformity)
8 WEEE dustbin symbol

DEVICE DESCRIPTION 2

2.3.2 In-head transmitter (Ex)

Figure 2-2: Nameplate 1 of in-head transmitter (Ex)

1 Product name
2 Symbol for Ex-approval
3 Part number
4 Year and week of manufacturing / batch number
5 Manufacturer and address
6 Website of manufacturer
7 Space for configuration data sticker
8 CE marking (EC conformity)
9 WEEE dustbin symbol

www.krohne.com11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

11

2 DEVICE DESCRIPTION

Figure 2-3: Nameplate 2 of in-head transmitter (Ex)

1 Product name
2 Symbol for Ex-approval
3 ATEX approval
4 Temperature classes
5 Manufacturer and address
6 Ex-relevant electrical data
7 Supplementary Ex-data

2.3.3 Rail-mount transmitter (Non-Ex)

OPTITEMP TT 30 C/R

12

Figure 2-4: Nameplate of rail-mount transmitter (Non-Ex)

1 Product name
2 Top down: part number, year and week of manufacturing, batch number
3 Space for configuration data sticker
4 Manufacturer and address
5 Website of manufacturer
6 CE marking (EC conformity)
7 WEEE dustbin symbol

www.krohne.com 11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

OPTITEMP TT 30 C/R

2.3.4 Rail-mount transmitter (Ex)

Figure 2-5: Nameplate of rail-mount transmitter (Ex)

1 Product name and symbol for Ex-approval
2 Top down: part number, year and week of manufacturing, batch number
3 Manufacturer and address
4 Space for configuration data sticker
5 Top down: ATEX approval, supplementary Ex-data, maximum ambient temperature
6 Ex-relevant electrical data
7 WEEE dustbin symbol

DEVICE DESCRIPTION 2

www.krohne.com11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

13

3 INSTALLATION

3.1 Notes on installation

INFORMATION!

Inspect the cartons carefully for damages or signs of rough handling. Report damage to the
carrier and to the local office of the manufacturer.

INFORMATION!

Do a check of the packing list to make sure that you have all the elements given in the order.

INFORMATION!

Look at the device nameplate to ensure that the device is delivered according to your order.

3.2 In-head transmitter (Ex and Non-Ex)

DANGER!

Never install or operate the Non-Ex version in potentially explosive areas, it might cause an
explosion that can result in fatal injuries! Only use the Ex version in potentially explosive areas!
Also note the following items which concern the Ex version:

OPTITEMP TT 30 C/R

•

It must be installed in a housing that has the protection category IP20 or better according
to DIN IEC 60529. Additionally the magnesium component of the housing must not exceed 6%
as a higher magnesium component may increase the flammability and the Ex capability.

•

If it is mounted in a housing which is isolated from the ground and can be charged to an
ignition capable level, then the housing must be electrostatically grounded when installed in
hazardous areas.

•

It is approved for potentially explosive areas in zone 0, 1 and 2.

•

It must be supplied by an intrinsically safe power supply unit or a Zener barrier placed
outside of the potentially explosive area.

CAUTION!

The manufacturer has developed the Non-Ex version for an operating temperature range of

°

-40...+85

C / -40...+185°F (the Ex version has the same ambient temperature range). To avoid
destruction or damage of the device, always assure that the operating temperature or the
ambient temperature does not exceed the permissible range and note the following items:

•

If you operate the Ex version in potentially explosive areas, the ambient temperature also
depends on the temperature class. For detailed information refer to the section about the
temperature data for potentially explosive areas on page 42

The thermowell also transfers the process temperature to the transmitter housing. If the

•

.

process temperature is close to or exceeds the maximum temperature of the transmitter,
then the temperature in the transmitter housing can rise above the maximum permissible
temperature!

14

One way to decrease the heat transfer via the thermowell is to install the transmitter farther
away from the heat source. An alternative is to make the thermowell longer. Inversely you can
take similar measures if the temperature is below the specified minimum temperature.

www.krohne.com 11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

OPTITEMP TT 30 C/R

The in-head transmitters (Ex and Non-Ex version) are intended for installation in DIN B
connection heads or larger. The large Ø7 mm / 0.28" center hole facilitates the electrical
connection of the measurement sensor and the installation (for detailed information refer to the
chapter "Dimensions and weights"). The following drawing shows the installation of the in-head
transmitter with the help of the connection head installation kit:

INFORMATION!

The connection head installation kit does not belong to the standard scope of delivery of the
transmitter, you have to order it separately. For more information refer to Accessory parts on
page 31

INSTALLATION 3

.

Figure 3-1: Connection head installation kit

1 M4 screw
2 Spring
3 Lock washer
4 Wires of measuring insert
5 Sheath

3.3 Rail mounting kit for in-head transmitters

DANGER!

To avoid fatal injuries, destruction or damage of the transmitter, always note the relevant
admonitions in the previous section if you install the in-head-transmitter on a rail!

INFORMATION!

The rail mounting kit allows to install the in-head transmitter on a rail according to DIN 50022.
The kit does not belong to the standard scope of delivery, you have to order it separately. For
more information refer to the section about the accessory parts in the chapter "Service".

www.krohne.com11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

15

3 INSTALLATION

Rail mounting kit for in-head transmitters

1 Rail (not included in the kit)
2 Screws
3 Clamp
4 Transmitter (not included in the kit)

OPTITEMP TT 30 C/R

16

www.krohne.com 11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

OPTITEMP TT 30 C/R

Step 1

1 Place the transmitter on the clamp as shown above.
2 Push the transmitter down until it reaches the plate and secure with a screw.

INSTALLATION 3

Step 2

1 Hook one end of the clamp into the rail as shown above.
2 Push the other end of the the kit down until it snaps onto the rail.
3 Release by pushing the hook, shown in the picture, and at the same time lift the clip out of the

rail.

www.krohne.com11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

17

3 INSTALLATION

3.4 Rail-mount transmitter (Ex and Non-Ex)

DANGER!

Never install or operate the Non-Ex version in potentially explosive areas, it might cause an
explosion that can result in fatal injuries! The rail-mounted transmitter TT 30 R Ex must NOT be
mounted in potentially hazardous area BUT might be connected to classified hazardous location!
Also note the following items which concern the Ex version:

•

It is approved for mounting into safe, non-hazardous area with the input connected to
potentially explosive area, zone 0, 1 and 2.

•

It must be supplied by an intrinsically safe power supply unit or a Zener barrier placed
outside of the potentially explosive area.

CAUTION!

The manufacturer has developed the Non-Ex version for an operating temperature range of

°

-20...+70
destruction or damage of the device, always note the following items:

•

C / -4...+158°F (the Ex version has the same ambient temperature range). To avoid

Assure that the operating temperature or the ambient temperature does not exceed the
permissible range.

OPTITEMP TT 30 C/R

INFORMATION!

The rail-mount transmitter is intended for installation on a rail according to DIN 50022.

Figure 3-2: Installation of the rail-mount version

1 Hook the upper groove of the transmitter onto the rail.
2 Press the lower part of the transmitter against the rail.

i When you hear a "click" from the snap fastener, the transmitter is fixed onto the rail

(drawing in the centre).

3 To remove the transmitter, use a small screwdriver to push the snap fastener downwards.
4 Carefully move the lower part of the transmitter in the forward direction and then upwards.

18

www.krohne.com 11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

OPTITEMP TT 30 C/R

4.1 Safety instructions

DANGER!

All work on the electrical connections may only be carried out with the power disconnected.

DANGER!

Observe the national regulations for electrical installations!

CAUTION!

Before you connect and operate a transmitter, always note the following items to avoid an
electric shock:

•

For all work on the electrical connections use an electrostatic safe (i.e. grounded)
workplace! In this way you minimize the risk of electrostatic discharge (ESD).

•

Assure that the all removable covers were closed after any work on the device to protect it
from dirt.

•

Maximum common-mode voltage on the input is restricted to 50 VAC / 75 VDC.

ELECTRICAL CONNECTIONS 4

DANGER!

Never connect or operate a non-Ex version of a transmitter in potentially explosive areas,
otherwise it might cause an explosion that can result in fatal injuries! Before you connect and
operate a transmitter version with an Ex approval, always note the following items to avoid an
explosion which may result in fatal injuries:

•

Connect the Ex version only to Ex approved sensors or sensors that meet the requirements
for "simple apparatus" in EN 60079-11:2007, section 5.7.

•

Observe the corresponding regulations, the declaration of conformity, the type test certificate
of the device and the relevant instructions of this document.

WARNING!

Observe without fail the local occupational health and safety regulations. Any work done on the
electrical components of the measuring device may only be carried out by properly trained
specialists.

INFORMATION!

Look at the device nameplate to ensure that the device is delivered according to your order.

INFORMATION!

The transmitter is protected against polarity reversal. No damage will occur to the device if the
polarity of the supply voltage is switched. The output will then indicate 0 mA.

www.krohne.com11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

19

4 ELECTRICAL CONNECTIONS

4.2 Electrical input connections

CAUTION!

Always establish the electrical connections according to the following diagrams. Otherwise it
can come to destruction or damage of the transmitter.

INFORMATION!

To avoid measuring errors, assure that all cables are connected properly and that the screws
are tightened correctly.

4.2.1 In-head transmitter (Ex and Non-Ex)

DANGER!

"Isolation input/output/PC" as shown in section "Technical data" on page 36

signal isolation. This is not an intrinsically safe galvanic isolation, which can be interpreted as an
isolating barrier. Therefore particular care should be applied when selecting the barriers for the
TT 30 C Ex.

Electrical input connections of the in-head transmitter

OPTITEMP TT 30 C/R

only shows the

Pt100...1000, Ni100, Ni1000, 4-wire connection

Pt100...1000, Ni100, Ni1000, 4-wire connection Pt100...1000, Ni100, Ni1000, 3-wire connection

Pt100...1000, Ni100, Ni1000, 4-wire connectionPt100...1000, Ni100, Ni1000, 4-wire connection

Pt100 "SmartSense", 3-wire connection

Pt100 "SmartSense", 3-wire connection 3 Pt100, temperature difference, T

Pt100 "SmartSense", 3-wire connection Pt100 "SmartSense", 3-wire connection

Potentiometer, 4-wire connection

Potentiometer, 4-wire connection Potentiometer, 3-wire connection

Potentiometer, 4-wire connectionPotentiometer, 4-wire connection

Pt100...1000, Ni100, Ni1000, 3-wire connection

Pt100...1000, Ni100, Ni1000, 3-wire connectionPt100...1000, Ni100, Ni1000, 3-wire connection

Pt100, temperature difference, T

Pt100, temperature difference, TPt100, temperature difference, T

Potentiometer, 3-wire connection

Potentiometer, 3-wire connectionPotentiometer, 3-wire connection

1111>T2

4

20

www.krohne.com 11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

OPTITEMP TT 30 C/R

Thermocouple

Thermocouple Voltage

ThermocoupleThermocouple

1 SmartSense wire
2 Maximum input
3 Not for rail-mount transmitter
4 Differential value > 5 Ω or select "Sensor break = None"

4.2.2 Rail-mount transmitter (Ex and Non-Ex)

DANGER!

"Isolation input/output/PC" as shown in section "Technical data" on page 36

signal isolation. This is not an intrinsically safe galvanic isolation, which can be interpreted as an
isolating barrier. Therefore particular care should be applied when selecting the barriers for the
TT 30 R Ex.

ELECTRICAL CONNECTIONS 4

Voltage

VoltageVoltage

only shows the

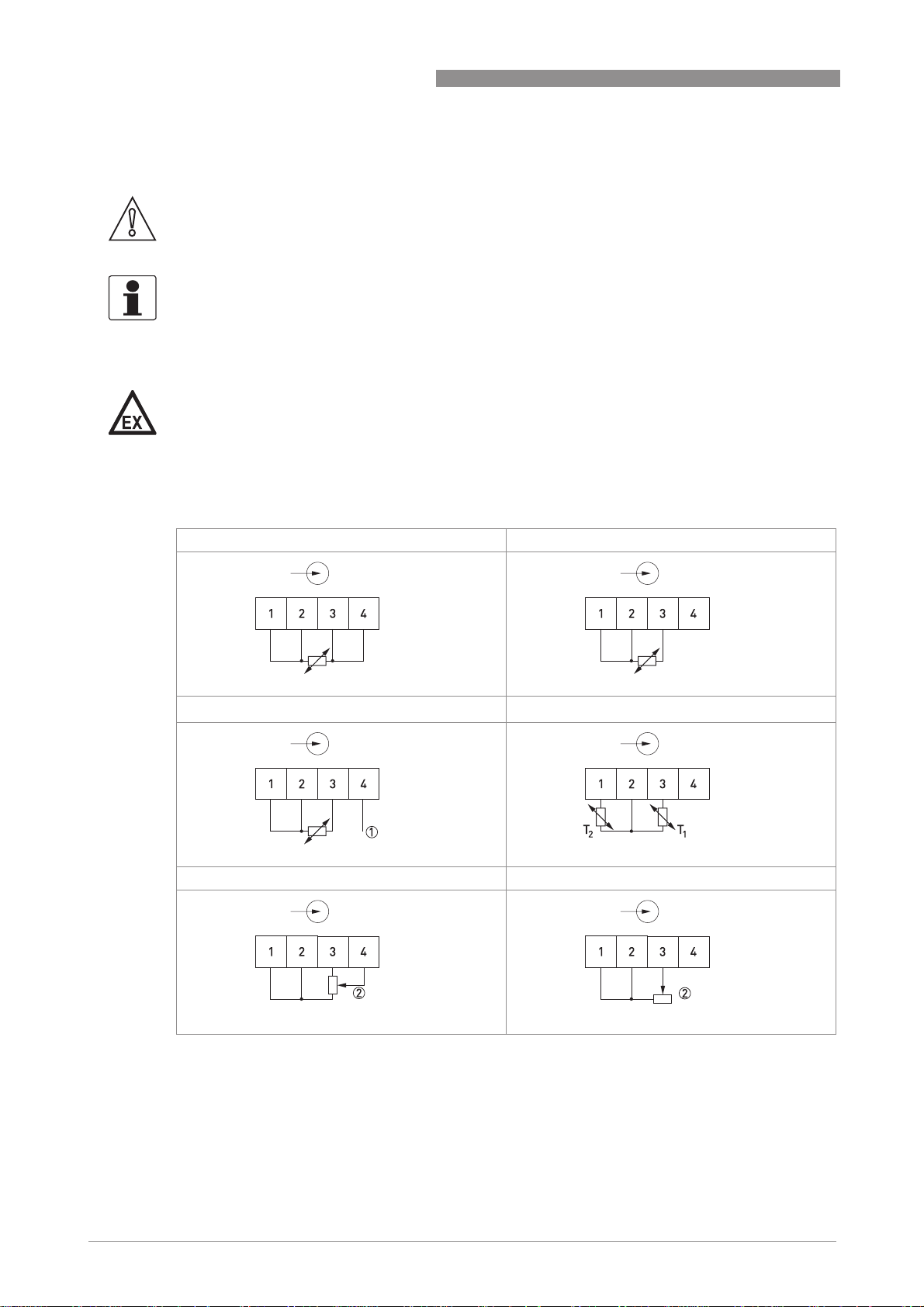

Electrical input connections of the rail-mount transmitter

Pt100...1000, Ni100, Ni1000, 4-wire connection

Pt100...1000, Ni100, Ni1000, 4-wire connection Pt100...1000, Ni100, Ni1000, 3-wire connection

Pt100...1000, Ni100, Ni1000, 4-wire connectionPt100...1000, Ni100, Ni1000, 4-wire connection

Pt100, temperature difference, T

Pt100, temperature difference, T

Pt100, temperature difference, TPt100, temperature difference, T

Potentiometer, 3-wire connection

Potentiometer, 3-wire connection Thermocouple

Potentiometer, 3-wire connectionPotentiometer, 3-wire connection

2 Potentiometer, 4-wire connection

1111>T2

Pt100...1000, Ni100, Ni1000, 3-wire connection

Pt100...1000, Ni100, Ni1000, 3-wire connectionPt100...1000, Ni100, Ni1000, 3-wire connection

Potentiometer, 4-wire connection

Potentiometer, 4-wire connectionPotentiometer, 4-wire connection

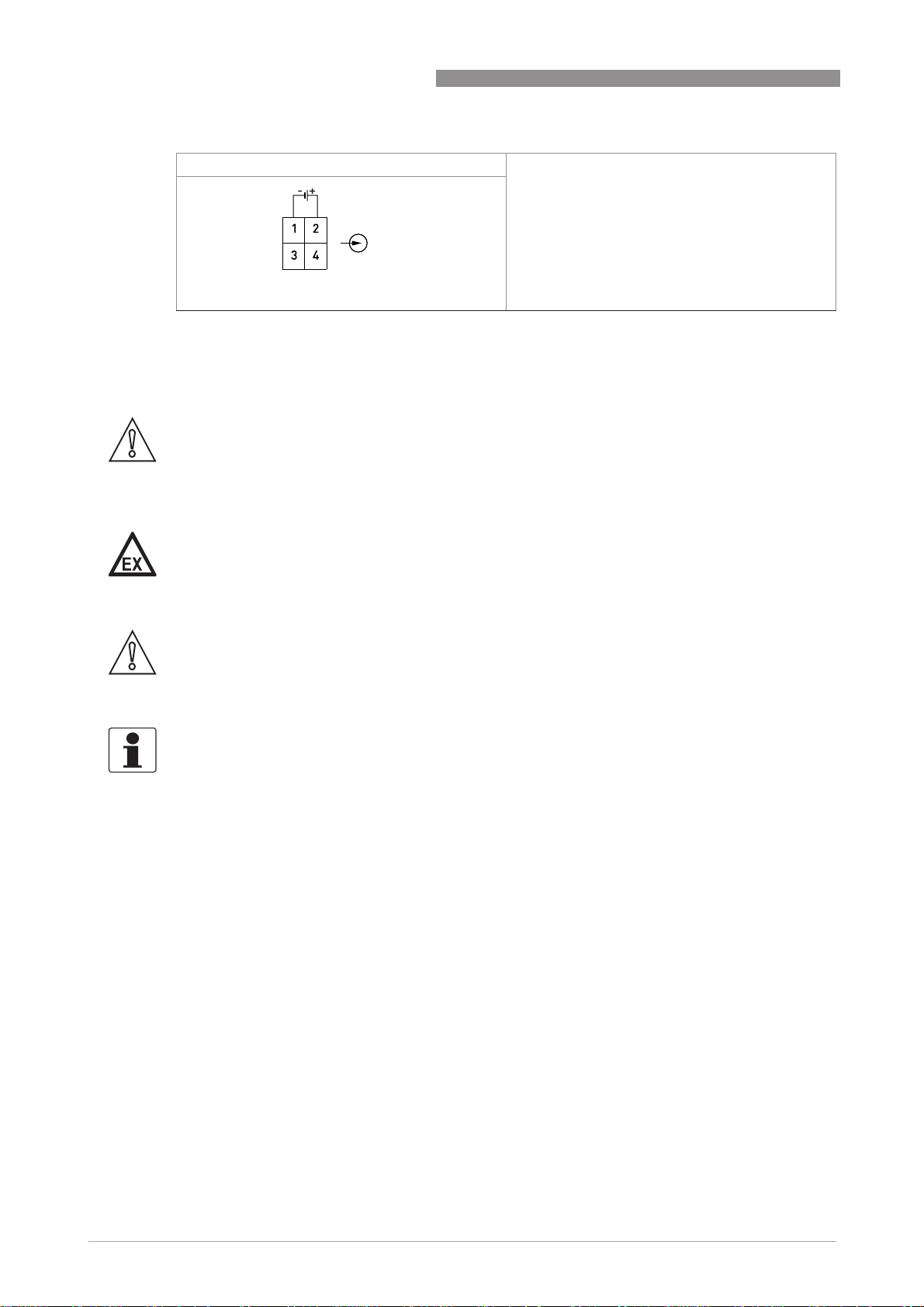

Thermocouple

ThermocoupleThermocouple

www.krohne.com11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

21

4 ELECTRICAL CONNECTIONS

Voltage

Voltage

VoltageVoltage

1 Maximum input
2 Differential value > 5 Ω or select "Sensor break = None"

4.3 Electrical connection diagrams

CAUTION!

Always establish the electrical connections according to the following diagrams. Otherwise it
can come to destruction or damage of the transmitter.

4.3.1 In-head transmitter (Non-Ex)

OPTITEMP TT 30 C/R

DANGER!

Neither operate this transmitter in potentially explosive areas, nor connect it to a sensor located
in a potentially explosive area! Otherwise the transmitter might cause an explosion that can
result in fatal injuries!

CAUTION!

Note that the maximum output load always depends on the power supply. If the maximum output
load is exceeded, then the measured value will become incorrect. For further information refer
to the output load diagrams in the chapter "Technical data".

INFORMATION!

The transmitter has a polarity protection. Connecting the power supply with a wrong polarity will
not damage the transmitter.

22

www.krohne.com 11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

OPTITEMP TT 30 C/R

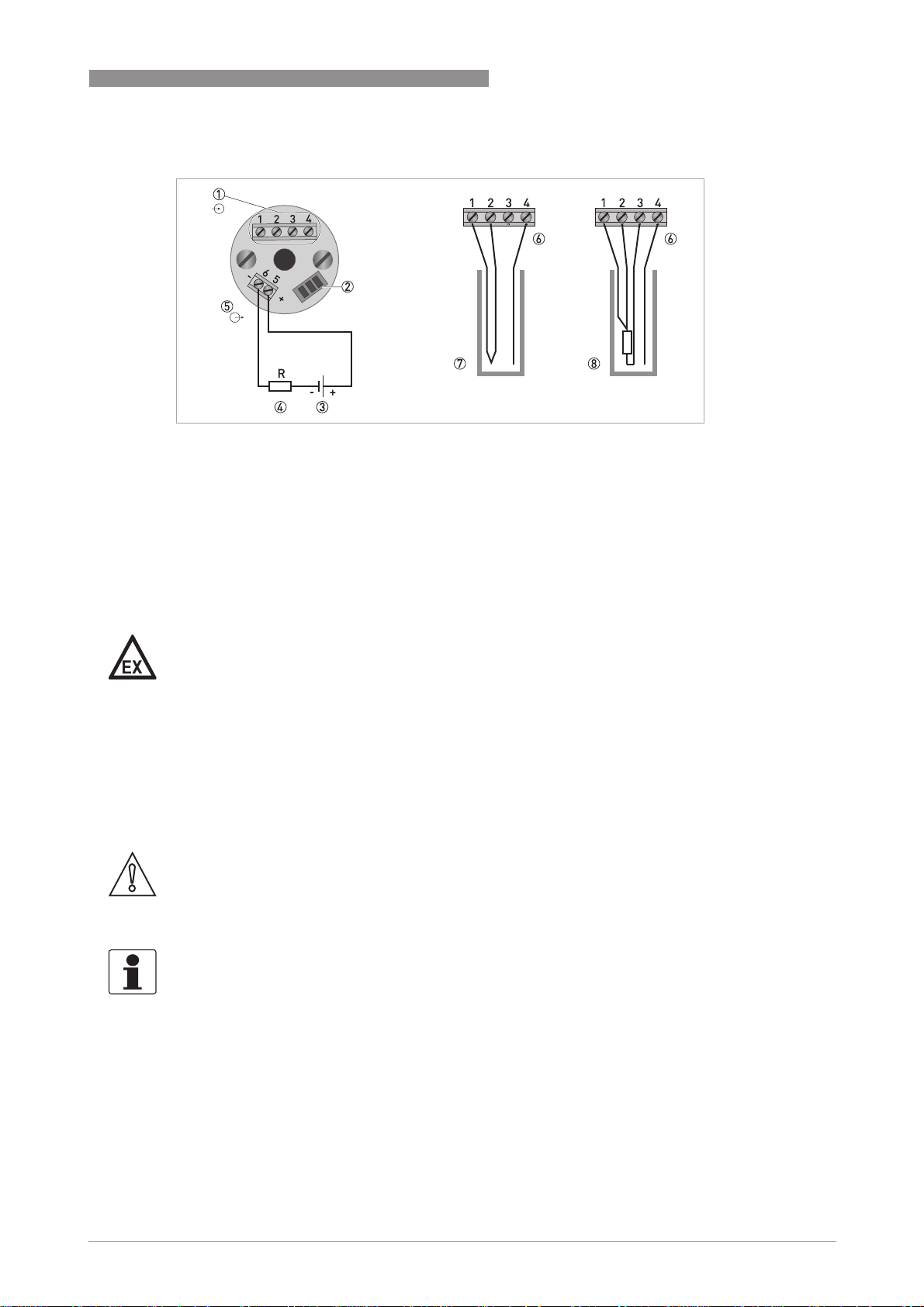

Figure 4-1: Connection diagram of the in-head transmitter (Non-Ex)

1 Input
2 Terminal for PC connection cable (contained in configuration set)
3 Power supply (6.5...36 VDC)
4 Load resistance
5 Output signal (4...20 mA)
6 SmartSense temperature sensor
7 Thermocouple
8 Pt100, 3-wire connection

ELECTRICAL CONNECTIONS 4

4.3.2 In-head transmitter (Ex)

DANGER!

The Ex transmitter can be installed in potentially explosive areas of zone 0, 1 and 2. It may only
be connected to Ex approved sensors or sensors that meet the requirements for "simple
equipment" in EN 60079-11:2007, section 5.7. During operations in potentially explosive areas
always note the relevant safety instructions and especially the following items:

•

The transmitter must be supplied by an intrinsically safe power supply unit or Zener barrier
placed outside of the potentially explosive area.

•

The output parameters of the Ex approved Zener barrier or voltage supply have to be less or
equal than the input parameters of the transmitter (i.e. U

CAUTION!

Note that the maximum output load always depends on the power supply. If the maximum output
load is exceeded, then the measured value will become incorrect. For further information refer
to the output load diagrams in the chapter "Technical data".

INFORMATION!

The transmitter has a polarity protection. Connecting the power supply with a wrong polarity will
not damage the transmitter.

, Ii, Pi, Li, Ci).

i

www.krohne.com11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

23

4 ELECTRICAL CONNECTIONS

Figure 4-2: Connection diagram of the in-head transmitter (Ex)

1 Input
2 Terminal for PC connection cable (contained in configuration set)
3 Output signal (4...20 mA)
4 Intrinsically safe power supply (8...30 VDC)
5 Load resistance
6 Safe area
7 Potentially explosive area
8 SmartSense temperature sensor
9 Thermocouple
10 Pt100, 3-wire connection

OPTITEMP TT 30 C/R

24

www.krohne.com 11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

OPTITEMP TT 30 C/R

4.3.3 Rail-mount transmitter (Non-Ex)

DANGER!

Neither operate this transmitter in potentially explosive areas, nor connect it to a sensor located
in a potentially explosive area! Otherwise the transmitter might cause an explosion that can
result in fatal injuries!

CAUTION!

Note that the maximum output load always depends on the power supply. If the maximum output
load is exceeded, then the measured value will become incorrect. For further information refer
to the output load diagrams in the chapter "Technical data".

INFORMATION!

The transmitter has a polarity protection. Connecting the power supply with a wrong polarity will
not damage the transmitter.

ELECTRICAL CONNECTIONS 4

Figure 4-3: Connection diagram of the rail-mount transmitter (Non-Ex)

1 Power supply (7.5...36 VDC)
2 Load resistance
3 Input
4 Female connector for PC connection cable (contained in configuration set)
5 Output signal (4...20 mA)
6 Measuring device (R

7 Test circuit (mA)

≤ 10 Ω)

I

www.krohne.com11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

25

4 ELECTRICAL CONNECTIONS

4.3.4 Rail-mount transmitter (Ex)

DANGER!

The Ex transmitter can be connected to temperature sensors installed in potentially explosive
areas of zone 0, 1 and 2. It may only be connected to Ex approved sensors or sensors that meet
the requirements for "simple equipment" in EN 60079-11:2007, section 5.7. During operations
with the input signal connected to potentially explosive areas always note the relevant safety
instructions and especially the following items:

•

The transmitter must be supplied by an intrinsically safe power supply unit or Zener barrier
placed outside of the potentially explosive area.

•

The output parameters of the Ex approved Zener barrier or voltage supply have to be less or
equal than the input parameters of the transmitter (i.e. U

CAUTION!

Note that the maximum output load always depends on the power supply. If the maximum output
load is exceeded, then the measured value will become incorrect. For further information refer
to the output load diagrams in the chapter "Technical data".

, Ii, Pi, Li, Ci).

i

OPTITEMP TT 30 C/R

INFORMATION!

The transmitter has a polarity protection. Connecting the power supply with a wrong polarity will
not damage the transmitter.

26

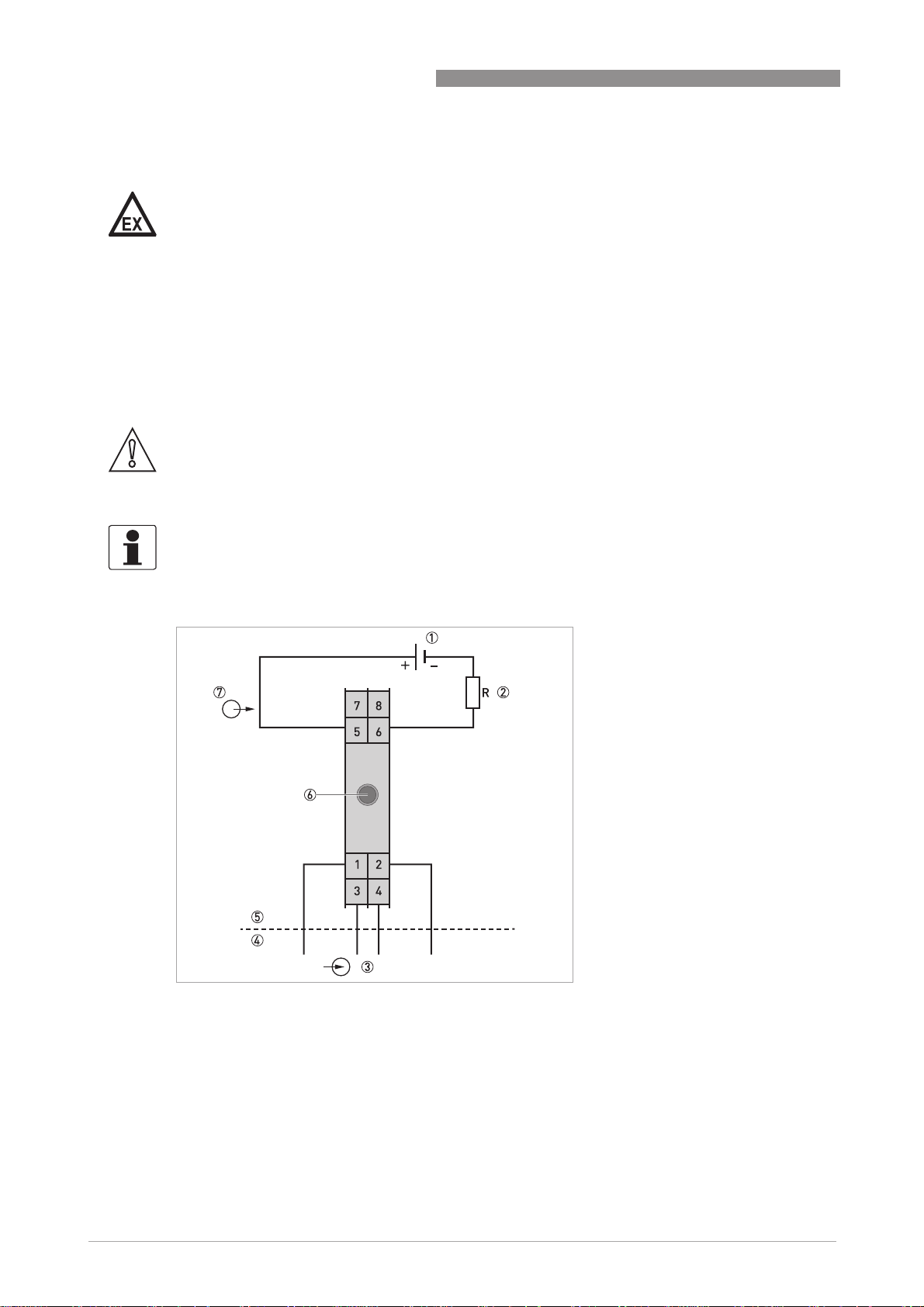

Figure 4-4: Connection diagram of the rail-mount transmitter (Ex)

1 Intrinsically safe power supply (8...30 VDC)
2 Load resistance
3 Input
4 Potentially explosive area
5 Safe area
6 Female connector for PC connection cable (contained in configuration set)
7 Output signal (4...20 mA)

www.krohne.com 11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

OPTITEMP TT 30 C/R

5.1 Configuration with a PC

DANGER!

Never establish a connection between a PC and a transmitter if one of them is within a
potentially explosive area. Otherwise the PC or the transmitter might cause an explosion that
can result in fatal injuries. If you want to configure the transmitter with the help of a PC, assure
that both of them are not in a potentially explosive area.

DANGER!

If you want to configure a transmitter with an Ex approval with the help of a PC, always use an
ATEX certified cable. Never configure the transmitter when in hazardous area or when
connected to a sensor located in hazardous area.

CAUTION!

Only use the manufacturer's configuration kit for PC configuration. Another configuration kit
could destroy or damage the transmitter.

DANGER!

Always put the cover on the transmitter programming connector when not used.
If the transmitter is not properly installed, the programming connector can get energized and
cause electrical shock.

OPERATION 5

The configuration of the transmitters works with a PC and the manufacturer's
PC configuration kit (for further information refer to
PC nor the transmitter (including its sensor) is within a potentially explosive area, you can carry
out the configuration "online" (i.e. the transmitter can remain in operation during the
configuration and you have access to all functions). During configuration, the output is "frozen"
and the transmitter continues to work with the last value. As soon as the configuration has been
completed, the transmitter uses the new parameters.

If you want to configure the transmitter with a PC, the following conditions have to be fulfilled:

• The transmitter must be connected to a power supply. For further information refer to the

chapter "Electrical connection".

• The software "TempSoft" has to be installed on your PC. For further information refer to the

manual "TempSoft". The current version of the software and the manual "TempSoft" are
available in the download area on the manufacturer's website.

• You have available the manufacturer's PC configuration kit which contains a

configuration cable and an adapter cable.

• Maximum common-mode voltage on the input is restricted to 50 VAC / 75 VDC.

To configure the in-head version (Ex and Non-Ex) you just need the configuration cable with the
adapter cable; to configure the rail-mount version, you only need the configuration cable. For
further information refer to the following illustrations:

Accessory parts

on page 31). If wether the

www.krohne.com11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

27

5 OPERATION

PC connection of the in-head version

OPTITEMP TT 30 C/R

• Start your PC and the software "TempSoft".

• Remove the cover from the terminal for the adapter cable (1).

• Connect the adaper cable with the PC configuration cable (2).

• Plug the connector of the adapter cable into the correct terminal (3).

• Plug the connector into the interface of the PC.

i The cable connection has been established, you can start the PC configuration of the

transmitter now.

• After configuration plug the cover on the terminal for the adapter cable again to prevent the

terminal from dirt.

PC connection of the rail-mount version

28

• Start your PC and the software "TempSoft".

• Remove the plug from the female connector for the PC connection cable (1).

• Plug the male connector of the PC configuration cable into the female connector of the

transmitter (2).

www.krohne.com 11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

OPTITEMP TT 30 C/R

• Plug the connector into the interface of the PC.

i The cable connection has been established, you can start the PC configuration of the

transmitter now.

• After configuration plug the cover into the female connector again to prevent the connector

from dirt.

INFORMATION!

After a successful PC configuration the transmitter is ready for operation, a calibration is not
required.

5.2 Factory settings for configuration

The transmitters are delivered either with the following factory settings or configured according
to customers' specifications:

Transmitter Input Output Sensor break

OPERATION 5

In-head version (Non­Ex)

In-head version (Ex) Pt100, 4-

Rail-mount version
(Non-Ex)

Rail-mount version (Ex)

Pt100, 3­wire connection,

0...+600°C/
+32...+1112°F

wire connection,

0...+100°C / +32...+212°F

Pt100, 3­wire connection,

0...+600°C/
+32...+1112°F

4...20 mA On

www.krohne.com11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

29

5 OPERATION

5.3 SmartSense function

The in-head transmitter uses the measuring sensors (needs one additional wire in sensor) to
monitor permanently the isolation resistance of the sensor and of the sensor leads. This function
is called "SmartSense" and it is possible in combination with a sensor of the type Pt100 (3-wire
connection) and with thermoelements. The "SmartSense" function is important because an
isolation resistance which is too low creates an incorrect measuring value and thus a faulty
output.

If the transmitter shows a low isolation resistance, the "SmartSense" function allows to set the
output to a predefined value. You can set the function with the help of the PC configuration
software, in the Input tab, select:
Connection: 3w+Low Isolation for Pt100 or Cold Junction Comp.: Yes+Low Isolation for
thermocouple.

5.4 Temperature difference measurement

The transmitters are able to measure the temperature difference between two 2-wire connected

Pt100 sensors, T1 – T2. T1 must always be equal or greater than T2. Select this function in the

connection window of the input folder.

OPTITEMP TT 30 C/R

For temperature difference measurements you have to deactivate the sensor break function, i.e.
it must have the setting "Sensor break = None". You can set the function with the help of the
PC configuration, for further information refer to

5.5 Sensor break monitoring

The transmitter is able to determine a sensor break/short circuit with the help of a pulse signal.
This signal may interfere with electronic temperature calibrators. To switch off the pulse signal,
you have to choose the setting "Sensor break = None". You can set the function with the help of
the PC configuration, for further information refer to

Configuration with a PC

Configuration with a PC

on page 27.

on page 27.

30

www.krohne.com 11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

OPTITEMP TT 30 C/R

6.1 Accessory parts

Accessory part Order code

Connection head installation kit for in-head version 70ADA00012

Rail mounting kit for in-head version 70ADA00027

Configuration kit including modem, software Consoft and cables for USB
connection (non ATEX version)

Complete PC configuration kit (inclusive ATEX cable and adapter cable for
the configuration of the in-head version)

Separate ATEX cable for PC configuration 70IPRX0002

Separate adapter cable for the configuration of the in-head version 70IPRX0003

6.2 Spare parts availability

The manufacturer adheres to the basic principle that functionally adequate spare parts for each
device or each important accessory part will be kept available for a period of 3 years after
delivery of the last production run for the device.

SERVICE 6

4001107901

70CFG00092

This regulation only applies to spare parts which are subject to wear and tear under normal
operating conditions.

6.3 Availability of services

The manufacturer offers a range of services to support the customer after expiration of the
warranty. These include repair, maintenance, technical support and training.

INFORMATION!

For more precise information, please contact your local sales office.

6.4 Returning the device to the manufacturer

6.4.1 General information

This device has been carefully manufactured and tested. If installed and operated in accordance
with these operating instructions, it will rarely present any problems.

CAUTION!

Should you nevertheless need to return a device for inspection or repair, please pay strict
attention to the following points:

•

Due to statutory regulations on environmental protection and safeguarding the health and
safety of our personnel, manufacturer may only handle, test and repair returned devices that
have been in contact with products without risk to personnel and environment.

•

This means that the manufacturer can only service this device if it is accompanied by the
following certificate (see next section) confirming that the device is safe to handle.

www.krohne.com11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

31

6 SERVICE

CAUTION!

If the device has been operated with toxic, caustic, flammable or water-endangering products,
you are kindly requested:

•

to check and ensure, if necessary by rinsing or neutralising, that all cavities are free from
such dangerous substances,

•

to enclose a certificate with the device confirming that is safe to handle and stating the
product used.

OPTITEMP TT 30 C/R

32

www.krohne.com 11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

OPTITEMP TT 30 C/R

6.4.2 Form (for copying) to accompany a returned device

Company: Address:

Department: Name:

Tel. no.: Fax no.:

Manufacturer's order no. or serial no.:

The device has been operated with the following medium:

SERVICE 6

This medium is: water-hazardous

toxic

caustic

flammable

We checked that all cavities in the device are free from such
substances.

We have flushed out and neutralized all cavities in the
device.

We hereby confirm that there is no risk to persons or the environment through any residual media
contained in the device when it is returned.

Date: Signature:

Stamp:

6.5 Disposal

CAUTION!

Disposal must be carried out in accordance with legislation applicable in your country.

www.krohne.com11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

33

7 TECHNICAL DATA

7.1 Measuring principles

The kind of the measuring principle depends on the measuring insert that you combine with the
transmitter. In matters of the thermometer type the manufacturer offers two different
measuring inserts, either with a resistance thermometer or with a thermocouple. For more
information refer to the handbook of the measuring inserts or the handbook of the industrial
thermometers.

7.1.1 Resistance thermometer

The measuring insert with a resistance thermometer features a temperature-sensitive sensor

made from a platinum RTD, whose value at 0°C / +32°F is 100 Ω. That is where the name "Pt100"

comes from.

It is generally valid that the electric resistance of metals increases according to a mathematical
function as the temperature rises. This effect is taken advantage of by resistance thermometers
to measure temperature. The "Pt100" thermometer features a measuring resistance with
defined characteristics, standardised in IEC 60751. The same is true for the tolerances. The

average temperature coefficient of a Pt100 is 3.85 x 10

+32...+212°F.

OPTITEMP TT 30 C/R

-3K-1

in the range from 0...+100°C/

During operation, a constant current I (≤ 1 mA) flows through the Pt100 RTD, which brings about
a voltage drop U. The resistance R is calculated using Ohm's Law (R=U/I). As the voltage drop U

at 0°C / +32°F is 100 mV, the resulting resistance of the Pt100 thermometer is 100 Ω (100 mV /

1 mA = 100 Ω).

Figure 7-1: Pt100 resistance thermometer in 4-wire connection at 0°C / +32°F, schematic.

1 Pt100 RTD
2 Voltage meter
3 Current source

34

www.krohne.com 11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

OPTITEMP TT 30 C/R

7.1.2 Thermocouples

The thermocouple features two electric conductors made from different metals, connected at
one end. Each free end is connected to a compensation cable which is then connected to a
millivolt meter. This circuitry forms a "thermal circuit". The point at which the two electric
conductors connect is called the measuring point and the point at which the compensation
cables connect to the conductors of the millivolt meter is called the cold junction.

If the measuring point of this thermal circuit is heated up, a small electrical voltage (thermal
voltage) can be measured. If, however, the measuring point and the cold junction are at the same
temperature, no thermoelectric voltage is generated. The degree of thermoelectric voltage, also
known as electromotive force (EMF), depends on the thermocouple material and the extent of
the temperature difference between the measuring point and the cold junction. It can be
measured using the millivolt meter with no auxiliary power.

Simply put, the thermocouple behaves like a battery, the voltage of which also increases as the
temperature rises.

INFORMATION!

The characteristic curves and tolerances of commercially available thermocouples are
standardised in IEC 60584.

TECHNICAL DATA 7

Figure 7-2: Thermocouple measuring circuit, schematic.

1 Measuring point t
2 Thermocouple

3 Transition junction t
4 Compensation cable / extension cable

5 Reference junction t
6 Copper conductor

7 Voltage meter U

(hot junction)

1

2

(cold junction)

3

th

www.krohne.com11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

35

7 TECHNICAL DATA

OPTITEMP TT 30 C/R

7.2 Technical data

INFORMATION!

•

The following data is provided for general applications. If you require data that is more
relevant to your specific application, please contact us or your local sales office.

•

Additional information (certificates, special tools, software,...) and complete product
documentation can be downloaded free of charge from the website (Download Center).

Measuring system

Application range Temperature, resistance or voltage measurements of solids, liquids and gases in an

Design

Versions

Versions

VersionsVersions

TT 30 C In-head transmitter which is optionally available in an intrinsically safe version for

TT 30 R Rail-mount transmitter which is optionally available in an intrinsically safe version

Special features

Special features

Special featuresSpecial features

Sensor error correction This function automatically corrects know sensor errors; the precondition is that

System error correction This function corrects the system error (sensor error + transmitter error); the

Sensor isolation monitoring /
SmartSense (only for TT 30 C)

Customized linearization A customized linearization with 9 linearization points is available for the

Sensor break monitoring This function monitors sensor break and forces the output signal to a user-defined

Controlled output for instrument
calibration

Dampening This function dampens undesired instabilities on the input signal; the dampening

Loop check-up The transmitter works as an accurate current generator.

industrial environment.

installation in potentially explosive areas of zone 0, 1 and 2.

for connection to sensors installed in potentially explosive areas of zone 0, 1 and 2.

you have entered these known sensor errors (e.g. the deviation of a calibrated
sensor from the standard curve).

precondition is that the sensor has been exposed to one (one-point correction) or
two (two-point correction) accurately measured temperatures ("true
temperatures"); after you have entered these true temperature(s), the transmitter
automatically corrects these errors afterwards.

This function continously monitors the isolation resistance of thermocouples and 3­wire connected RTDs as well as the cabling between sensor and transmitter; if the
isolation is too low, the transmitter forces the output to a user-defined level; note
that SmartSense requires an extra lead inside the thermocouple or RTD.

User-definable output: ≤ 3.6 mA, ≥ 21 mA or customized

transmitter. It can be used to create almost any type of linearization curve for RTD,
T/C, resistance and mV inputs (the curve must be monotonic increasing).

level if any sensor lead is broken or disconnected, for RTD input it will also detect
sensor short circuit.
The monitoring is furnished with a pulsed excitation current which eliminates the
voltage drop on the lead wires, the sensor break monitoring can be switched off.

User-definable output: ≤ 3.6 mA, ≥ 21 mA or customized

You can set the transmitter to automatically provide a recurring output current
regardless of the input signal; the total time for the controlled output is adjustable
up to 30 minutes.

time is the time required for the output to reach 90% of its final value after a step
change has been applied to the input (in addition to the update time); it is
ca. 2 seconds.

36

www.krohne.com 11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

OPTITEMP TT 30 C/R

TECHNICAL DATA 7

Measuring accuracy

Accuracy RTD and thermocouple: for detailed information refer to

table

on page 46.

Typically ± 0.1% of input span:

• RTD: Max. of ±0.2 °C / ±0.4 °F or ±0.1%

• Resistance / potentiometer: Max. of ±0.1 Ohm or ±0.1%

• Voltage and thermocouple: Max. of ±20 µV or ±0.1%

Linearity RTD, resistance / potentiometer and voltage: ±0.1%

Thermocouple: ±0.2%

Temperature influence RTD and thermocouple: for detailed information refer to

Cold Junction Compensation
(CJC)

Temperature influence (all
inputs)

Temperature influence CJC
(Thermocouple)

Instrument calibration output 4...20 mA, ±8 µA

Sensor wire resistance influence RTD and resistance / potentiometer, 3-wire connection: negligible, with equal wire

Load influence Negligible

Supply voltage influence Negligible
RFI influence In-head transmitter: typically ±0.1% of input span (0.15...80 MHz, 10 V / 80...1000

Long-term drift Max. ±0.1% of input span per year

table

on page 46.

Resistance and voltage: ±0.01% of span per °C and
±0.006% of span per °F

In-head transmitter:

In-head transmitter:

In-head transmitter:In-head transmitter:

±0.5 °C @ ref conditions (23 °C)
±0.9 °F @ ref conditions (73 °F)

Rail-mount transmitter:

Rail-mount transmitter:

Rail-mount transmitter:Rail-mount transmitter:

±0.5 °C @ ref conditions (23 °C)
±0.9 °F @ ref conditions (73 °F)

Reference temperature: 23°C/ 73°F
Max. of ±0.25% of input span per 25°C or ±0.25°C of input span per 25°C
Max. of ±0.28% of input span per 50°F or ±0.5°F of input span per 50°F

Note that if zero-deflection >100% of input span, you have to add 0.125% of input
span per 25°C or 0.14% of input span per 50°F per 100% zero-deflection.

Reference temperature: 23°C/ 73°F
±0.5°C per 25°C/ ±1.0°F per 50°F

resistance

RTD and resistance / potentiometer, 4-wire connection: negligible

Thermocouple and voltage: negligible

MHz, 10 V/m)
Rail-mount transmitter: typically ±0.2% of input span (0.15...80 MHz, 10 V / 80...1000

MHz, 10 V/m)

RTD and T/C accuracy

RTD and T/C accuracy

Operating conditions

Temperature

Temperature

TemperatureTemperature
In-head transmitter Non-Ex version: -40...+85°C / -40...+185°F (operating and storage temperature)

Ex version: -40...+85°C / -40...+185°F (storage temperature),for detailed information
about the ambient temperatures refer to

areas

on page 42.

Rail-mount transmitter Non-Ex version: -20...+70°C / -4...+158°F (operating and storage temperature)

Ex version: -20...+70°C / -4...+158°F (operating and storage temperature)

Humidity 5...95% relative humidity (non-condensing)

www.krohne.com11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

Temperature data for potentially explosive

37

7 TECHNICAL DATA

Protection category

Protection category

Protection categoryProtection category

In-head transmitter Housing: IP50

Terminals: IP10

Rail-mount transmitter Housing: IP20

Terminals: IP20

OPTITEMP TT 30 C/R

Installation conditions

Mounting In-head transmitter: "B connection head" or larger according to DIN 43729; with the

Weight In-head transmitter (Ex and Non-Ex version): 50 g / 0.11 lb

Dimensions For detailed information refer to

Materials

Housing In-head transmitter: PC + ABS, Polyamide for all versions

Flammability acc. to UL In-head transmitter: V0 (PC + ABS) and V2 (Polyamide)

help of the rail mounting kit you can also fix this transmitters on a DIN rail
according to DIN 50022 / EN 60715 ( refer to

transmitters

Rail-mount transmitter: rail according to DIN 50022 / EN 60715, 35 mm / 1.38".

For detailed information refer to chapter "Installation".

Rail-mount transmitter (Ex and Non-Ex version): 70 g / 0.15 lb

on page 15).

Dimensions

Rail-mount transmitter: PC + Glass fibre for all versions

Rail-mount transmitter: V0 (PC + glass fibre)

Rail mounting kit for in-head

on page 41.

Electrical connections

Power supply

Power supply

Power supplyPower supply

In-head transmitter Non-Ex version: 6.5...36 VDC (2-wire connection)

Ex version: 8...30 VDC (2-wire connection)

Rail-mount transmitter Non-Ex version: 7.5...36 VDC (2-wire connection)

Ex version: 8...30 VDC (2-wire connection)

Current consumption ≤ 21,6 mA

Permissible ripple 4 V p-p at 50/60 Hz

Further data

Further data

Further dataFurther data

Galvanic isolation 1500 VAC, 1 min

All in- and outputs are electrically isolated from each other and from all other
circuits.

Connection

Polarity protection Standard for all versions

Single/stranded wires: max. 1.5 mm2/ AWG 16

38

www.krohne.com 11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

OPTITEMP TT 30 C/R

TECHNICAL DATA 7

Inputs / Outputs

Zero adjustment (all inputs) Any value within the range limits.

Input - RTD

Input - RTD

Input - RTDInput - RTD
Pt100 (IEC 60751, α = 0.00385) -200...+1000°C / -328...+1832°F (3- and 4-wire connection)

Pt100 (ASTM 1137-97,
α = 0.003902)

Pt100 (JIS C1604-1981,
α = 0.003916)

Pt1000 (IEC 60751, α = 0.00385) -200...+200°C / -328...+392°F (3- and 4-wire connection)

D100 (Pt100 according to
JIS1604, α = 0.003916

PtX (10 ≤ X ≤ 1000)
(IEC 60751, α = 0.00385)

Ni100 (DIN 43760) -60...+250°C / -76...+482°F (3- and 4-wire connection)

Ni120 (Edison No. 7)
Ni1000 (DIN 43760) -100...+150°C / -148...+302°F (3- and 4-wire connection)
Cu10 (Edison No. 15) -200...+260°C / -328...+500°F
Minimum span 10°C/ 18°F (Pt100/1000, Ni100/1000)

Sensor current ca. 0.4 mA

Maximum sensor wire resistance 25 Ω /wire

Input - resistance / potentiometer

Input - resistance / potentiometer

Input - resistance / potentiometerInput - resistance / potentiometer

Range (resistance) 0...2000 Ω

Range (potentiometer) 0...2000 Ω (3- and 4-wire connection)

Minimum span 10 Ω

Sensor current ca. 0.4 mA

Customized linearization 9 points

Maximum sensor wire resistance 25 Ω /wire

Input - thermocouples

Input - thermocouples

Input - thermocouplesInput - thermocouples
T/C type C - W5Re-W26Re -10...+2300°C / 14...+4172°F

T/C type B - Pt30Rh-Pt6Rh
(IEC 60584)

T/C type E - NiCr-CuNi
(IEC 60584)

T/C type J - Fe-CuNi (IEC 60584) -200...+1000°C / -328...+1832°F

T/C type K - NiCr-NiAl
(IEC 60584)

T/C type L - Fe-CuNi (DIN 43710) -200...+900°C / -328...1652°F

T/C type N - NiCrSi-NiSiMg
(IEC 60584)

T/C type R - Pt13Rh-Pt
(IEC 60584)

T/C type S - Pt10Rh-Pt
(IEC 60584)

T/C type T - Cu-CuNi (IEC 60584) -200...+400°C / -328...+752°F
T/C type U - Cu-CuNi (DIN 43710) -200...+600°C / -328...+1112°F

Voltage -10...+500 mV

Minimum span 2mV

-200...+1000°C / -328...+1832°F (3- and 4-wire connection)

The upper range depends on the X value (3- and 4-wire connection), max. input
temperature corresponding to 2000 Ω.

0...+1800°C / +32...+3272°F

-200...+1000°C / -328...+1832°F

-200...+1350°C / -328...+2462°F

-270...+1300°C / -454...+2372°F

-50...+1750°C / -58...+3182°F

-50...+1750°C / -58...+3182°F

www.krohne.com11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

39

7 TECHNICAL DATA

Input impedance >10 MΩ

Maximum wire loop resistance 500 Ω (total loop)

Cold Junction Compensation
(CJC)

Input - voltage

Input - voltage

Input - voltageInput - voltage

Range -10...+500 mV

Minimum span 2mV

Customized linearization Up to 9 points

Input impedance >10 MΩ

Maximum wire loop resistance 500 Ω (total loop)

Output

Output

OutputOutput

Output signal 4...20 mA, 20...4 mA or customized; temperature, resistance or voltage linear,

Update time Approx. 1.5 seconds

Selectable dampening time 0 or 2 s (time constant)

NAMUR compliance Current limitations and failure currents acc. to NAMUR NE 43

Configuration

Configuration

ConfigurationConfiguration

TempSoft The PC configuration software, TempSoft, is a versatile and user-friendly tool for

Internal or none (0°C)

customized linearziation possible.

Span: 3.8...20.5 mA (measurement), 3.5...21.6 mA (failure)

Resolution: 5 μA

transmitter configuration, loop check-up and sensor diagnostics.
It runs on Windows 2000, XP, Vista and Windows 7.

OPTITEMP TT 30 C/R

Approvals and certifications

CE The device fulfils the statutory requirements of the EC directives.

Electromagnetic compatibility According to EN 61326-1:2006

Ex approvals

Ex approvals

Ex approvalsEx approvals

Non-Ex version Without

ATEX Intrinsically safe according to ATEX Directive 94/9/EC harmonized standards

Electromagnetic compatibility Directive: 2004/108/EC

Vibration resistance Acc. to IEC 60068-2-6; tested:

Shock resistance Acc. to IEC 60068-2-31, tested for Drop and Topple, IEC 60068-2-31

NAMUR Output limitations and fail currents according to NAMUR recommendations.

The manufacturer certifies that these requirements have been met by applying the
CE marking.

In-head transmitter: EN 60079-0:2006, EN 60079-11:2007 and EN 60079-26:2007.
Rail-mount transmitter: EN 60079-0:2006, EN 60079-11:2007

Harmonized standards according to EN 61326-1:2006

In-head: 10 g, 60...2000 Hz,
Rail: 5 g, 60...500 Hz

40

www.krohne.com 11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

OPTITEMP TT 30 C/R

7.3 Dimensions

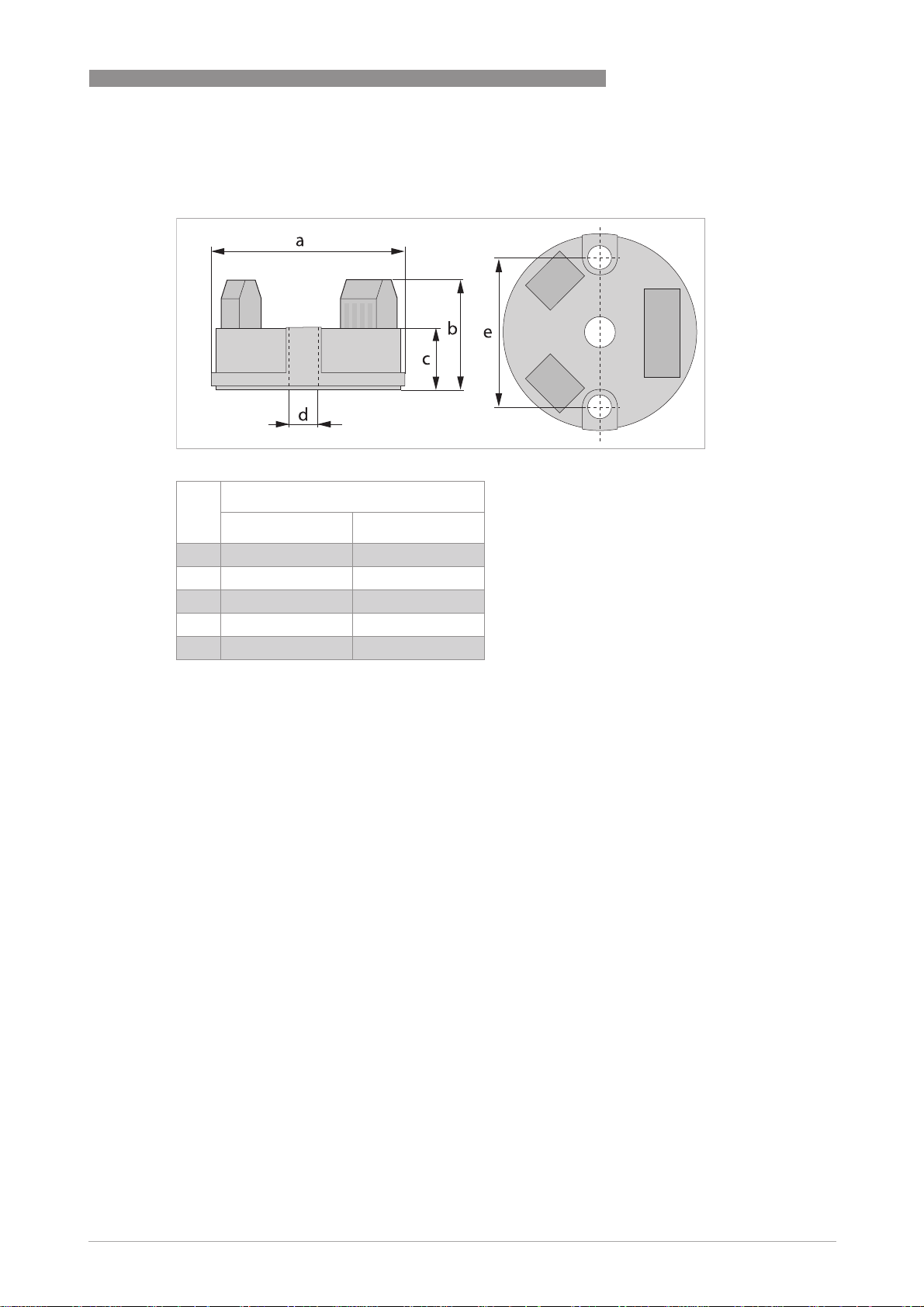

In-head transmitter

TECHNICAL DATA 7

Dimensions

[mm] [inch]

a 44 1.73

b 26 1.02

c 16 0.63

d 7 0.28

e 33 1.30

www.krohne.com11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

41

7 TECHNICAL DATA

Rail-mount transmitter

[mm] [inch]

OPTITEMP TT 30 C/R

Dimensions

a 17.5 0.69

b 90 3.54

c 58 2.28

d 45 1.77

e 35 1.38

7.4 Temperature data for potentially explosive areas

In-head transmitter (Ex version)

Temperature class Ambient temperature T

T6 -40°C ≤ Ta ≤ +50°C / -40°F ≤ Ta ≤ +122°F
T5 -40°C ≤ Ta ≤ +65°C / -40°F ≤ Ta ≤ +149°F
T4 -40°C ≤ Ta ≤ +85°C / -40°F ≤ Ta ≤ +185°F

a

42

www.krohne.com 11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

OPTITEMP TT 30 C/R

7.5 Output load diagram

In-head transmitter (Non-Ex)

TECHNICAL DATA 7

1 Total output load R
2 Supply voltage U [VDC]

Load

[Ω]

Formula for the maximum permissible output load of the in-head version (Non-Ex):
permissible R

[Ω] = (U-6.5)/0.022)

Load

In-head transmitter (Ex)

1 Total output load R
2 Supply voltage U [VDC]

Load

[Ω]

Formula for the maximum permissible output load of the in-head version (Ex):
permissible R

[Ω] = (U-8.0)/0.022)

Load

www.krohne.com11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

43

7 TECHNICAL DATA

Rail-mount transmitter (Non-Ex)

OPTITEMP TT 30 C/R

1 Total output load R
2 Supply voltage U [VDC]

Load

[Ω]

Formula for the maximum permissible output load of the rail-mount version:
permissible R

[Ω] = (U-7.5)/0.022)

Load

Rail-mount transmitter (Ex)

1 Total output load R
2 Supply voltage U [VDC]

Load

[Ω]

44

Formula for the maximum permissible output load of the rail-mount version (Ex):
permissible R

[Ω] = (U-8.0)/0.022)

Load

www.krohne.com 11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

OPTITEMP TT 30 C/R

TECHNICAL DATA 7

7.6 Electrical data for outputs and inputs of the Ex versions

In-head transmitter (Ex version)

Output terminals 5, 6 1 Input terminals 1, 2, 3, 4 2

Max. voltage to
transmitter

Max. current to
transmitter

Max. power to
transmitter

Internal inductance Li~0mH Max. inductance (input

Internal capacitance Ci~1nF Max. capacitance

Ui=30VDC Max. voltage from

transmitter

Ii= 100 mA Max. current from

transmitter

Pi=900mW Max. power from

transmitter

loop)

(input loop)

Rail-mount transmitter (Ex version)

Output terminals 5, 6 1 Input terminals 1, 2, 3, 4 2

Max. voltage to
transmitter

Max. current to
transmitter

Max. power to
transmitter

Internal inductance Li~0mH Max. inductance (input

Internal capacitance Ci~1nF Max. capacitance

1 Current loop
2 Intrinsically safe sensor connection

Ui=30VDC Max. voltage from

transmitter

Ii= 100 mA Max. current from

transmitter

Pi=900mW Max. power from

transmitter

loop)

(input loop)

Uo=30VDC

Io=25mA

Po=188mW

Lo~50mH

Co~66nF

Uo=30VDC

Io=27mA

Not specified

Lo~50mH

Co~52nF

www.krohne.com11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

45

7 TECHNICAL DATA

7.7 RTD and T/C accuracy table

Conformance level 95% (2σ)

CJC = Cold Junction Compensation

Accuracies in °C

OPTITEMP TT 30 C/R

Input type Temp. range

[°C]

Min. span

[°C]

Max. accuracy Max. temp. influence

(dev. from ref. temp.

23°C)

RTD Pt100 -200...+1000 10 Max. of ±0.2°C or ±0.1% of

RTD Pt1000 -200...+200

RTD PtX 3 -200...max.

RTD Ni100 -60...+250

RTD Ni120 -70...+300

RTD Ni1000 -100...+150

RTD Cu10 -200...+260 100

RTD Pt100
(α = 0.003902)

RTD Pt100
(α = 0.003916)

T/C type B 0...+1800 Corresp.

T/C type C -10...+2300

T/C type E -200...+1000

T/C type J

T/C type K -200...+1350

T/C type L -200...+900

T/C type N -270...+1300

T/C type R -50...+1750

T/C type S

T/C type T -200...+400

T/C type U -200...+600

T/C custom -10...+500 mV

1 Linearity error is not included
2 If zero-deflection is > 100% of input span then you have to add 0.005% of input span per °C per 100% zero-deflection!
3 (10 ≤ X ≤ 1000)
4 Linearity error and CJC error is not included
5 Temp. influence CJC is not included; also note that if zero-deflection is > 100% of input span: add 0.005% of input span

per °C per 100% zero-deflection!

input temp
(corresp.
to 2 kΩ)

-200...+1000 10

-200...+1000

to 2 mV

input span 1

±20 μV or ±0.1% of input
span 4

Max. of ±0.01°Cper°C or
±0.01% of input span
per °C 2

±0.01°Cper°C or ±0.01%
of input span per °C 5

46

www.krohne.com 11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

OPTITEMP TT 30 C/R

Accuracies in °F

TECHNICAL DATA 7

Input type Temp. range

[°F]

Min. span

[°F]

Max. accuracy Max. temp. influence

(dev. from ref. temp.

73°C)

RTD Pt100 -328...+1832 18 Max. of ±0.4°C or ±0.1% of

RTD Pt1000 -328...+392

RTD PtX 3 -328...max.

RTD Ni100 -76...+482

RTD Ni120 -94...+572

RTD Ni1000 -148...+302

RTD Cu10 -328...+500 180

RTD Pt100
(α = 0.003902)

RTD Pt100
(α = 0.003916)

T/C type B +32...+3272 Corresp.

T/C type C +14...+4172

T/C type E -328...+1832

T/C type J

T/C type K -328...+2462

T/C type L -328...+1652

T/C type N -454...+2372

T/C type R -58...+3182

T/C type S

T/C type T -328...+752

T/C type U -328...+1112

T/C custom -10...+500 mV

1 Linearity error is not included
2 If zero-deflection is > 100% of input span then you have to add 0.003% of input span per °F per 100% zero-deflection!
3 (10 ≤ X ≤ 1000)
4 Linearity error and CJC error is not included
5 Temp. influence CJC is not included; also note that if zero-deflection is > 100% of input span then you have to

add 0.003% of input span per °F per 100% zero-deflection!

input temp
(corresp.
to 2 kΩ)

-328...+1832 18

to 2 mV

input span 1

±20 μV or ±0.1% of input
span 4

Max. of ±0.01°Fper°F or
±0.006% of input span
per °F 2

±0.01°Fper°F or ±0.006%
of input span per °F 5

www.krohne.com11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en

47

KROHNE product overview

• Electromagnetic flowmeters

• Variable area flowmeters

• Ultrasonic flowmeters

• Mass flowmeters

• Vortex flowmeters

• Flow controllers

• Level meters

• Temperature meters

• Pressure meters

• Analysis products

• Products and systems for the oil & gas industry

• Measuring systems for the marine industry

Head Office KROHNE Messtechnik GmbH
Ludwig-Krohne-Str. 5
47058 Duisburg (Germany)
Tel.:[phone]
Fax:[phone]
[e-mail]

© KROHNE 11/2012 - 4000753302 - MA OPTITEMP TT 30 C/R R02 en - Subject to change without notice.

The current list of all KROHNE contacts and addresses can be found at:
www.krohne.com
