Kodak ESP 9 ALL-IN-ONE PRINTER, ESP 9 User Manual

Download

All-in-One Printer

User Guide

print copy scan fax

Eastman Kodak Company

Rochester, New York 14650

Kodak is a trademark of Eastman Kodak Company.

The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc., and any use of such marks is under license.

P/N 1K3289 B

July 2008

Table of Contents

1. Getting Help 1

Help Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Getting answers to frequently-asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Contacting Kodak Customer Service & Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Support at Kodak.com . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Telephone Customer Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2. Printer Overview 5

All-in-One printer features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Major components of the ESP 9 All-in-One printer . . . . . . . . . . . . . . . . . . . . . . . . . 6

Support for connecting digital memory devices to the printer . . . . . . . . . . 7

Memory card slots. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Memory cards supported . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

USB host port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Control panel layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

LCD display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Using the control panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Adjusting the control panel position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

About the “touch-sense” buttons on the control panel . . . . . . . . . . . . . . . . .11

Using the 4-way navigation buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Using the OK button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Using the Menu button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Using the Zoom buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Using the Start button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Using the Cancel button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Using the number keypad buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Using the on-screen keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Using the All-in-One printer menus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Menu layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Menu structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Status lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

All-in-One printer Home Center software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Home Center for Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Home Center for Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Kodak ESP 9 Printer User Guide i

Table of Contents

3. Setting Up Your Printer 23

Selecting a printer location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Configuring printer settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Configuring basic settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Printer settings options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Configuring network settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Configuring an Ethernet network connection . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Ethernet setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Configuring a wireless network connection . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Configuring basic wireless (WiFi) settings . . . . . . . . . . . . . . . . . . . . . . . . . 27

Network Settings options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

WiFi Setup Wizard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Connecting to a listed network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Connecting to an unlisted network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Setting up an IP address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Viewing Network Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Printing Network Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Setting up the fax. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Telephone service delivery systems and All–in–One fax features . . . . . . 30

Multipurpose (broadband) digital telephone systems . . . . . . . . . . . . . . 30

Standard telephone systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Digital subscriber line (DSL) telephone systems. . . . . . . . . . . . . . . . . . . . 31

Using cordless telephones with the ESP 9 All–in–One fax . . . . . . . . . . . . . . 31

Using voice–messaging services with the ESP 9 All–in–One fax . . . . . . . 31

Using an answering machine with the ESP 9 All–in–One fax . . . . . . . . . . . 32

Connecting the phone and fax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Connecting the printer to a digital telephone service line. . . . . . . . . . . 32

Connecting the printer to a standard telephone line . . . . . . . . . . . . . . . . 33

Connecting the printer to a digital subscriber (DSL) telephone line 34

Specifying Rings to Answer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Setting Fax Auto–Answer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Manually receiving fax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Specifying a distinctive ring for Fax Auto–Answer . . . . . . . . . . . . . . . . . . . . . 36

Fax Settings Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

4. Handling Paper 39

Handling paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Loading the paper trays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Things to keep in mind . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Loading plain paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Loading photo paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Loading envelopes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Loading originals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Loading an original for copying or scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

ii Kodak ESP 9 Printer User Guide

Table of Contents

5. Viewing and Printing Photos 45

Viewing photos. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Configuring photo print settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Print Photos Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Printing photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Printing photos from a PictBridge camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Printing photos from non–PictBridge digital cameras, memory

cards, and USB flash drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Printing tagged images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Printing from a Bluetooth–enabled device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Printing multiple photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Printing panoramic photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Zooming and cropping photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Transferring images to a computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Transferring images to a Windows computer . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Transferring images to a Macintosh computer . . . . . . . . . . . . . . . . . . . . . . . . . 54

6. Copying 55

Simple copying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Adjusting copy settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Copy Document Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Copy Photo Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

7. Scanning 59

Before you start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Simple scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Simple document scans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Simple image scans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Scanning multiple originals simultaneously . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Adjusting scan settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Scan Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

8. Faxing 63

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Fax settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Sending faxes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Dialing a fax number on the control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

Selecting a fax recipient from the Fax Phonebook . . . . . . . . . . . . . . . . . . . . . . 64

Using Quick Dial to select a Fax Phonebook entry . . . . . . . . . . . . . . . . . . . . . 65

Specifying a Quick Dial recipient from the keypad . . . . . . . . . . . . . . . . . . 65

Specifying a Quick Dial recipient from the Send Fax menu . . . . . . . . . 66

Canceling faxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Receiving faxes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Receiving faxes automatically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Manually receiving faxes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Kodak ESP 9 Printer User Guide iii

Table of Contents

9. Maintaining Your Printer 73

Fax Phonebook entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Adding a new Fax Phonebook entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

Editing an existing Fax Phonebook entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Deleting an existing Fax Phonebook entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Preparing a fax for transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Printing a fax cover page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Changing Send Fax settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Send Fax Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Fax reports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Printing a fax report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

General care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Cleaning the scanner glass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Cleaning the scanner lid. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Monitoring and adjusting the printer's performance. . . . . . . . . . . . . . . . . . . . . . . 75

Maintenance Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

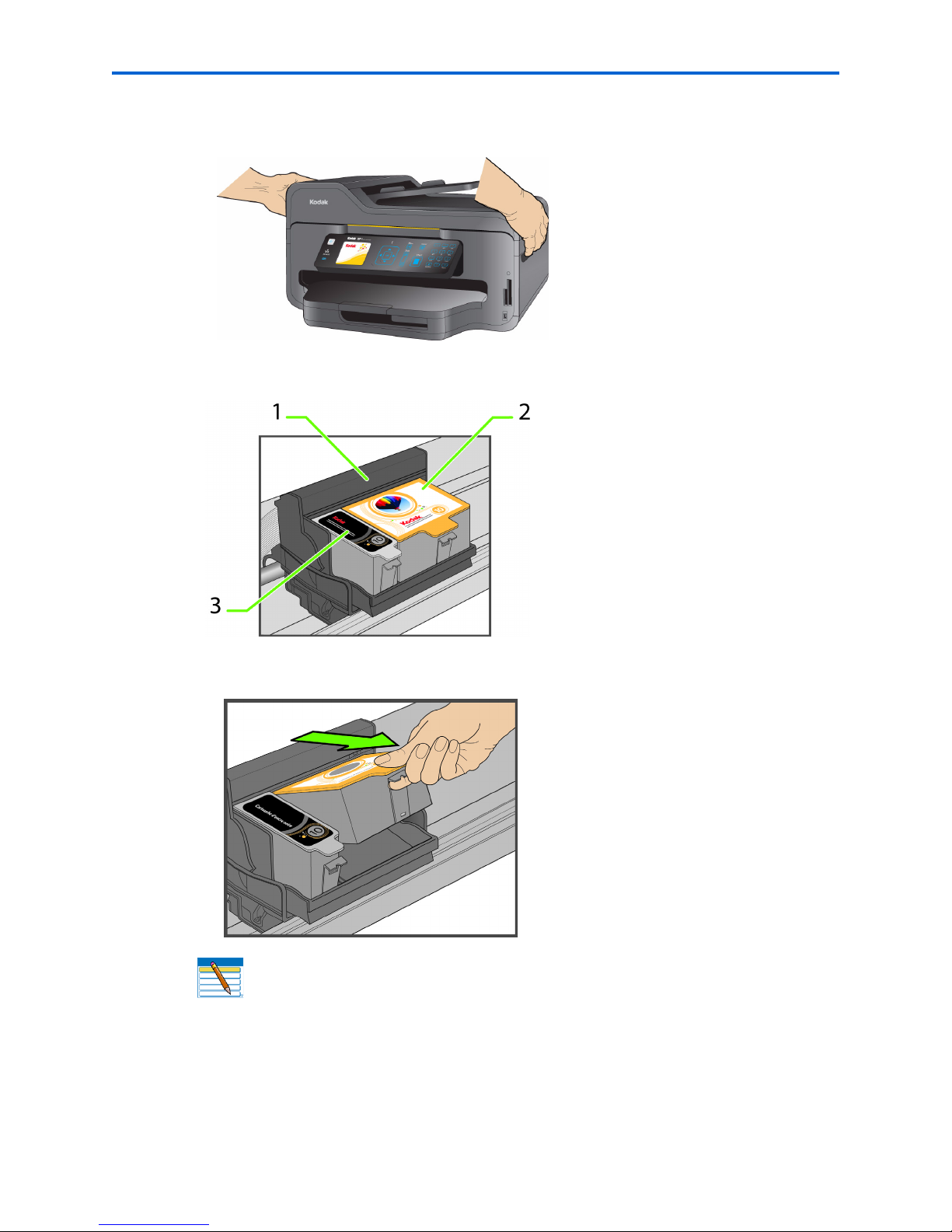

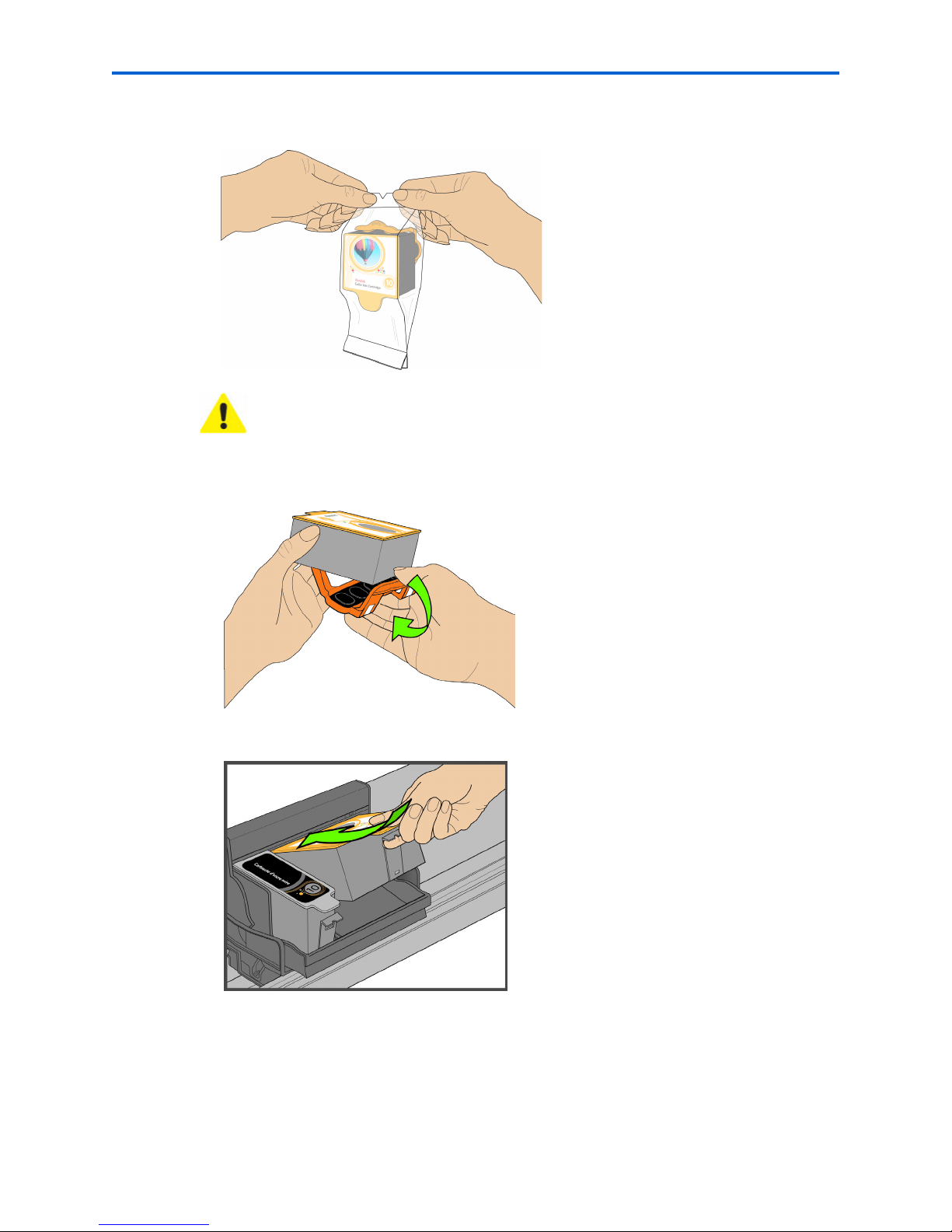

Replacing ink cartridges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

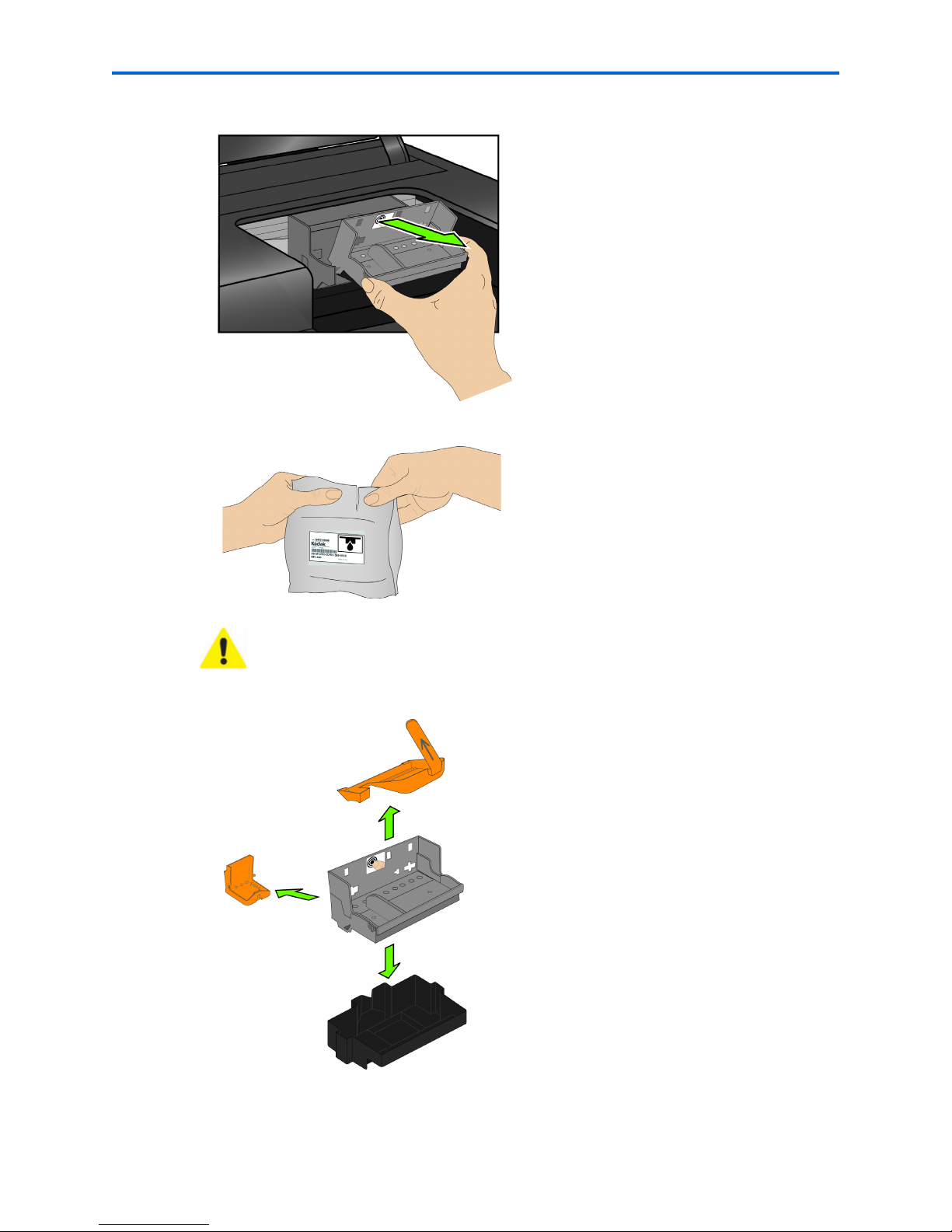

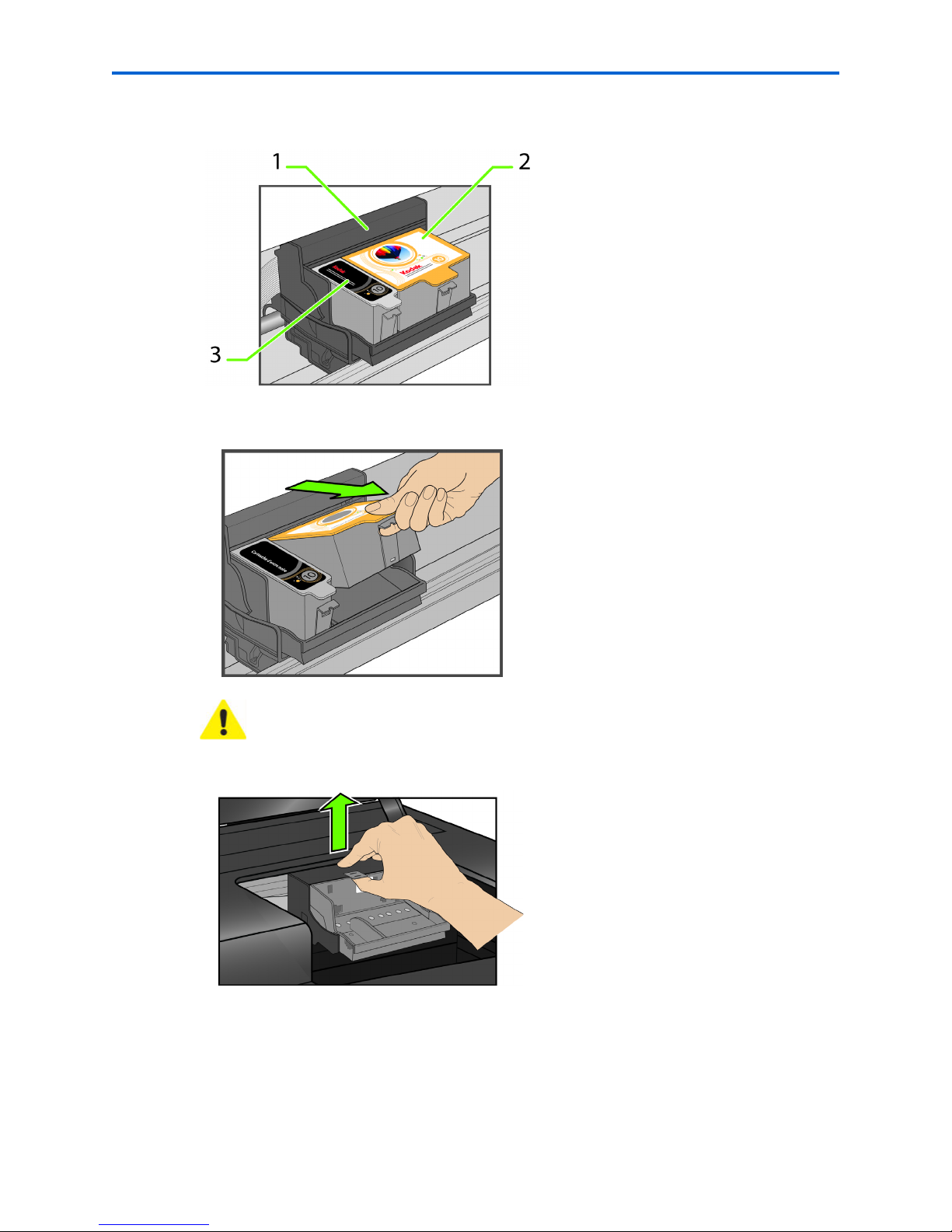

Replacing the printhead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

10. Troubleshooting 83

Troubleshooting “quick start”. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

General troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Printer fails to power on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Device not recognized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

Ink cartridge not recognized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Multiple paper feed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Multiple pictures not scanned properly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

No communication with computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

No paper feed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

One or more of the colors on the calibration sheet is missing . . . . . . . . . 87

Paper jam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88

Printer not responding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88

Transfer pictures failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

User guide on the CD is obsolete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Wrong paper size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89

Macintosh OS X troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90

Non-intel Mac only: black screen or screen freeze occurs when

applying printer settings via the Home Center software

Windows Vista troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90

WIA (Windows Image Acquisition) error: service has

stopped working

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90

Home Center software on Windows works incorrectly following software upgrade

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90

Print troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Envelope printing incorrect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

. . . . . . . . . . . .90

iv Kodak ESP 9 Printer User Guide

Table of Contents

Multiple-page document not printing in first-page first order

(Macintosh only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

PictBridge camera not detected . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Picture cropped . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92

Picture print smudged . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Picture will not print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Poor print quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Print skewed or slanted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Print spotted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94

Print too dark . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94

Print too light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94

Printing slow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Printing stops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

White edges on borderless prints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Copy troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96

Copy cut off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Scan troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96

Scan fails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96

Scanned image blank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Network troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97

Wired network troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Computer unable to detect the All-in-One printer . . . . . . . . . . . . . . . . . . 97

No TCP/IP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98

Printer not found. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99

No IP address with cable modem (without a router) . . . . . . . . . . . . . . 101

Wireless troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

No SSID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Weak signal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Cannot connect to network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Unsupported authentication or encryption type . . . . . . . . . . . . . . . . . . . 104

Invalid WEP Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Invalid WPA Passphrase. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Another device connected to the access point. . . . . . . . . . . . . . . . . . . . . 105

11. Product and Safety Specifications 107

Print Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Photo Printing Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Copy Document Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Copy Photo Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Scanning Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Paper Tray Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Ink Tanks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Connectivity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Software Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Physical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Kodak ESP 9 Printer User Guide v

Table of Contents

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Windows PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Papers Supported . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Paper Types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Paper Sizes for PC and Macintosh computers . . . . . . . . . . . . . . . . . . . . . .112

Safety Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112

Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113

Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113

Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113

Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Regulatory Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

FCC Compliance and Advisory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

FCC and Industry Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115

IC Radiation Exposure Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115

Canadian DOC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115

German Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Waste Electrical and Electronic Equipment Labeling . . . . . . . . . . . . . . . . . . 116

A. Glossary 117

B. If you need to call Customer Support 123

Index 125

vi Kodak ESP 9 Printer User Guide

Getting Help

This user guide helps you learn to operate your All-in-One printer from the control panel. Kodak also provides online help in the Home Center software installed when you set up your printer, and helpful information about common tasks from the LCD display on the printer control panel.

Help Menu

Note: Home Center software must be open on your computer to access its help.

Note: The “Start Here” booklet that came in the printer box provides instructions

for setting up and configuring this All-in-One printer.

You can get instructions for performing the following tasks from the menu displayed on the LCD screen.

Help Menu options

Install Ink Cartridges

Copy a Document

Copy a Photo

Print a Photo

Scan a Document

Scan a Photo

WiFi Setup

To display Help menu information on the LCD screen:

1 From the printer control panel, press

2 Press

3 As needed, press

4 Follow the prompts on the LCD display to view the available information.

 until Help is the highlighted option on the Main menu, and then press OK.

 until the desired option is highlighted, and then press OK.

Menu.

Tip: Press  and as needed to scroll up and down to see all the available

information.

Kodak ESP 9 Printer User Guide 1

Getting Help

Getting answers to frequently-asked questions

See “Troubleshooting” on page 83 for help resolving a number of issues about printing, copying, scanning, and configuring the wireless service on your printer.

Contacting Kodak Customer Service & Support

Kodak provides several resources to help you answer questions about your printer.

Support at Kodak.com

Support Description Internet Address

All-in-One printer support

Software View online tutorials for using Home

Other

Support Center home page www.kodak.com/go/support

Get support for your product (FAQs, troubleshooting information, etc.).

Tip: Print a test page before

contacting Kodak support ( you need to call Customer Support” on page 123).

Purchase a full range of digital camera and printer accessories.

Download latest printer software, firmware, drivers, setup booklet, and user guide for your printer.

Center software (Windows only).

Get information on Kodak EasyShare software.

Get help with the Windows operating system and working with digital images.

Learn ways to use your printer to create fun and memorable projects

see ““If

All-in-One

www.kodak.com

www.kodak.com/go/accessories

www.kodak.com/go/downloads

www.kodak.com/go/howto

www.kodak.com/go/easysharesw

www.kodak.com/go/pcbasics

www.kodak.com/eknec

and then click the Tips & Projects

Center

tab on the page

Locate Telephone Customer Support numbers in various countries

2 Kodak ESP 9 Printer User Guide

www.kodak.com/go/dfiswwcontacts

Telephone Customer Support

Location Phone Number

Argentina 0800 6663736

Australia 1800-793895

Austria 017 956 7357

Belgium 02 713 1445

Brazil 0800-15-0001

Canada 1 800-421-6699

Chile 800 646175

Colombia 01800 9120574

Denmark 3 848 71 30

Finland 0800 1 17056

Chapter 1

France 01-55-1740-77

Germany 069-5007-0035

Greece 00-800-44140775

Ireland 01 407 3054

Italy 02-696-334-52

Mexico 001-888-575-4134

Netherlands 020-3469372

New Zealand 0800-8801755

Norway 23 16 21 33

Peru 0 80053679

Poland 00800-4411625

Portugal 021-415-4125

Spain 91-7497653

Sweden 08 587 704 21

Switzerland 01 838 53 51

United Kingdom 0870-243 0270

United States 1 800 421 6699

Venezuela 0800-1008820

Kodak ESP 9 Printer User Guide 3

Getting Help

4 Kodak ESP 9 Printer User Guide

Printer Overview

The Kodak ESP 9 All-in-One printer allows you to print, copy, scan, and fax images and documents. Although many functions can be operated directly from the control panel, you may also print, store, and manage digital images from a Windows or Macintosh computer connected to the printer via Kodak’s All-in-One printer Home Center software, which installs during the printer setup process. In addition, this printer supports networking, allowing you to access the printer over a wireless (WiFi) or wired (Ethernet) network.

All-in-One printer features

This printer includes:

• A printhead system with two Kodak high-quality pigmented ink cartridges

• An integrated printing accessory that produces two-sided printing from a connected

computer

• A bottom paper tray that supports multiple media, including A4, Letter, Legal, 8x10, 5x7

4x6, 4x7, and 4x12 paper, transparencies, and envelopes

• A top paper tray that supports 4x6, 4x7, and 5x7 photo paper and engages and

disengages automatically

• A scanner capable of scanning up to A4 (length) and Letter-width originals, and Legal

size plain paper through the automatic document feeder

• An automatic document feeder for document copying and fax

• Multi-format memory card support

• A Universal Serial Bus (USB) host port on the front of the printer for connecting a

variety of external devices to the printer, including Picture Transfer Protocol (PTP) enabled digital cameras, USB flash (“thumb”) drives, and Kodak Bluetooth USB 2.0 adapters (“dongles”)

• A client USB device port on the back of the printer, for connecting the printer to host

Windows or Macintosh computers

• Energy-saving low power mode

• Networking capability, including wireless (WiFi) and wired (Ethernet)

• An innovative touch-control panel, light indicators, and a 3-inch LCD display

Kodak ESP 9 Printer User Guide 5

Printer Overview

• One network (Ethernet) port

• A low-fidelity speaker

• A Fax modem

• A telephone jack

Major components of the ESP 9 All-in-One printer

The graphics below show the main components of the printer.The legend describing the parts shown in the images is in the table below.

Number Component name

1 Scanner lid

2 LCD display

3 Top paper tray

4 Bottom paper tray extender

5 Bottom paper tray

6 Paper-width guide

7 Paper output tray

8 USB host port

6 Kodak ESP 9 Printer User Guide

Number Component name

9 Memory card slots

10 Control panel

11 Automatic document feeder (ADF)

12 Power cord connection port

13 USB device ports for connecting printer to the computer or Ethernet

14 Automated two-sided printing accessory

15 Scanner glass

16 Paper output tray extender

17 Rear-access clean-cut area

18 Printer lid

19 Printer lid lifting hand-hold

20 Printhead

Chapter 2

Support for connecting digital memory devices to the printer

Your All-in-One printer allows you to connect both digital camera memory cards and USBconnected devices for previewing and printing. You can also transfer photos and document files to your connected computer.

Caution: Connect only one external memory device to your printer at a time. If

both memory card slots, or any memory card slot and the host USB port have a device connected to them simultaneously, the printer cannot access the photos or documents contained on any of them. If your printer cannot recognize a device you have connected to it, make sure that only one device is connected at a time.

Memory card slots

Although this All-in-One printer has two card slots, insert and use only one memory card

at a time.

Warning: Do NOT remove the memory card while the light blinks, or you may

damage the card.

Kodak ESP 9 Printer User Guide 7

Printer Overview

A blue light, located above the memory card slots, blinks while the card is being accessed and stays lit while the card remains in the slot and the printer is on.

Memory cards supported

The Kodak ESP 9 All-in-One printer supports the following memory cards, used in most digital cameras:

XD xD-Picture Card

MS Memory Stick, Memory Stick Pro and Magic Gate

SD Secure Digital Card, Multi-Media Card

CF Compact Flash type I and type II, including micro drives

SDHC Secure Digital High Capacity cards

Additionally, the printer supports the following memory cards used with Memory Stick and SD/MMC card slot adapters, which you will need to purchase separately:

• Memory Stick Duo and Memory Stick Duo Pro

• miniSD

• MicroSD (TransFlash)

USB host port

This All-in-One printer works with most digital cameras. Using the USB port located on the front of the printer, you can connect one of the following devices to the printer at a time:

• PictBridge camera

• USB portable storage drive

• Kodak Bluetooth dongle

• Digital cameras

Note: This printer can read only one memory card OR one portable USB drive

OR one Kodak Bluetooth dongle at a time.

8 Kodak ESP 9 Printer User Guide

Control panel layout

891011 12

34 5 6

The legend describing the numbered parts of the control panel illustration is in the table below.

Number Name Description

1 On/Off button Powers the printer ON or OFF.

Chapter 2

2 LCD display Displays photos, messages, status, on-screen keyboard,

and menus.

3 Attention light Blinks or flashes when an error occurs.

4 Menu button Displays the menu, and toggles between parameters

screens and preview screens.

5 Cancel button Cancels the current operation and control panel

navigation, and returns you to the menu.

6 Cap-sense number

keypad

Dials a fax telephone number or Quick Dial number; can be used to enter information and Quick Dial setting into the Fax Phonebook, specify quantity for making copies, and entering information used to authenticate access to a network.

7 Wireless (WiFi)

network status light

When lit, signals that a wireless (WiFi) network connection is active. Blinks when searching for an available WiFi network within range, or when the existing signal is too weak to transmit or receive wireless signals.

8 Ethernet network icon Label only. Does not shine.

9 4-way navigation

buttons

Enables you to navigate menus. Also used to pan around and crop a photo when activated by pressing the Zoom+ button.

10 OK button Enables you to complete a menu selection or photo print

command, accept a current zoom setting for cropping a photo, or allows you to continue with the current operation. Also used to select menu items.

11 Zoom buttons Lets you zoom in and out of the photo.

12 Start button Allows you to start the following operations: copy, scan,

print, fax, maintenance tasks, and file transfer.

Kodak ESP 9 Printer User Guide 9

Printer Overview

Color ink level monitor

Black ink level monitor

LCD display

The LCD screen displays photos, messages, instructions, and menu items. Menu navigation is accomplished with the 4-way Navigation buttons on the control panel.

The LCD Start-Up screen displays whenever the printer is ready for operation but is not performing a task. The Start Up screen also displays the current level of black and color ink. .

Note: See “Adjusting the control panel position” on page 11 for instructions on

raising and lowering the control panel so that it is easier to use.

The first time you use your Kodak ESP 9 All-in-One printer and press the (described on page 13) on the control panel, the Main menu displays on the LCD.

The contents displayed in the Main menu include:

Menu button

• Copy Document

• Copy Photo

• View and Print Photos

• Scan

• Send Fax

• Fax Auto–Answer

• Fax Settings

• Network Settings

• Printer Settings

• Maintenance

• Help

To review the tasks you perform when you use the options available on the Main menu, see “Using the All-in-One printer menus” on page 16.

10 Kodak ESP 9 Printer User Guide

Using the control panel

Adjusting the control panel position

The position of the control panel can be adjusted from its default position (flush against the front of the printer) to lifted upward at an angle.

To adjust the control panel position:

1 On the rear side of the control panel, locate the release tab.

Chapter 2

2 Press the front of the control panel and the release tab toward each other with your

thumb and fingers; maintain this position and pull the control panel toward you gently.

3 When you are satisfied with the position of the control panel, let go.

4 To return the control panel to its default position, squeeze the release tab and gently

push the control panel away from you. Let go when the panel is seated against the front panel of the printer.

About the “touch-sense” buttons on the control panel

The ESP 9 All–in–One printer features flat-panel buttons that do not depress when pushed, as in a traditional keyboard or calculator keypad. Each button on the control panel responds to the pressure of your finger and performs a specific action based on the task you are working on.

If this type of interface is unfamiliar to you, it may take a bit of practice getting used to it. You should discover that each button is quite sensitive to touch, and you may find that pressing a key too hard, or accidentally pressing one button several times in a row, may cause errors.

With practice, you will learn the right amount of pressure and the best rate for pressing the keys for using the buttons quickly and easily.

Tip: Make sure that the Printer Sounds option (available in the Printer Settings

menu) is set to ON when learning to use the printer. With sound enabled, the printer gives you audible feedback when you press any button on the control panel.

Kodak ESP 9 Printer User Guide 11

Printer Overview

Preview Yes

Using the 4-way navigation buttons

Note: The OK button is located in the center of the 4-way navigation buttons on

the control panel. Its use is described on page 13.

The 4-way navigation buttons allow you to update the content displayed on the LCD display.

• Pressing highlights the next row down in the visible menu. When the last row in a

menu is highlighted, pressing following page in a multi-page menu, with the top row highlighted; in a one-page menu, this action highlights the top item.

• Pressing  returns you to the previous page in a multi-page menu.

• After you have initiated the process of zooming when a photo is shown on the LCD

display, pressing on page 13)

or pans the focus up or down. (See “Using the Zoom buttons”

causes the visible page to be replaced with the

Tip: When you have selected a photo or document shown on the LCD display to

be printed, pressing have selected more than one item for printing, you can specify a different quantity for each one. The LCD displays the number of copies of each selected item to be printed. Using this feature does not change the number of files stored on your camera or portable USB drive, however.

 or increases or decreases the output quantity. If you

• When there are two or more options for the

setting shown on the selected menu row, the current value is displayed between the

and symbols. Pressing oron the control panel scrolls through the choices.

• When a photo is displayed on the LCD display, after you have pressed the Zoom+

button pressing

Note: The Zoom+ and Zoom- buttons on the control panel are discussed on

page 13.

,  moves the focus in the direction you have used.

12 Kodak ESP 9 Printer User Guide

• When you are viewing a group of photos stored on a portable memory storage device

such as a USB drive, pressing the images.

• Continuing to press any of the 4-way navigation buttons causes them to repeat the

action until you release it.

Using the OK button

Press OK to

• Accept the setting displayed in the selected row in the current menu.

• Accept the preview on the LCD display of something that you want to print, copy, scan

or fax as the content to be produced.

• Select a photo for printing.

Tip: When previewing a group of images from a digital camera, portable USB

drive, or memory card connected to the printer, press and hold of the images not previously selected for printing in the default quantity stored in your printer. (Images already selected will not be affected.) Press and hold

OK again to deselect all images.

Chapter 2

 or the  button allows you to scroll through the

OK to select all

Using the Menu button

Press Menu when:

• You want to set up a new task and anything other than a menu is visible on the LCD

display

• You are viewing an image on the LCD display and want to use Photo Options menu .

• You want to view the parent of the last menu displayed.

Using the Zoom buttons

Press Zoom+ when an image is displayed on the LCD and you want to adjust the area to be printed, copied, or scanned. When this feature is available, the printer displays a prompt to press

Zoom on the image shown on the LCD.

Kodak ESP 9 Printer User Guide 13

Printer Overview

Zoom in

Zoom out

Once you have activated zoom for the selected item, you can then use both the Zoom+ (zoom in) and the

Zoom– (zoom out) buttons.

Using the Start button

Press Start to initiate the task you are working on with the current settings.

Using the Cancel button

Press Cancel when:

• You want to interrupt an operation that has already started.

• You are viewing a menu that you opened by selecting an option on a different menu,

and then decide that you want to view the previous one.

Using the number keypad buttons

The number keypad is used primarily as a resource for sending faxes from the ESP 9 All–in– One printer. It is also used to enter a quantity for making copies.

Use the the number keypad to:

• Dial a fax phone number

14 Kodak ESP 9 Printer User Guide

• Enter the Quick Dial number for an entry in the Fax Phonebook

• Enter the fax telephone number for an entry in the Fax Phonebook

• Enter a quantity for making copies of a document or photo

As on a telephone dial pad, which the number keypad resembles, each key on the ESP 9 number keypad (except for the 1 key and the zero key) is associated with both a numerical value and with either three or four alphabetic characters, with typographic symbols, or with symbols and a space (used to separate two alphanumeric characters).

Tip: Many ESP 9 users find it helpful setting the Printer Sounds option

(available in the Printer Settings menu) to ON when using the number keypad. Because most keys can express more than one alphanumeric character, depending on how many times it is pressed, the audible feedback helps users to press each key at the proper speed. This prevents “jumping” past the desired value, which can happen if a key is pressed too quickly .

Using the on-screen keyboard

Chapter 2

The on-screen keyboard displays in the ESP 9 All-in-One printer LCD for the following tasks performed on the control panel:

• Entering authentication information, such as a security string, for connecting the printer

to a wired (Ethernet) or wireless (WiFi) network, in the Network Settings menu

• Entering or editing your Fax Sender information in the Fax Settings menu

• Entering or editing the fax recipient Name in the Fax Phonebook

To maneuver around the on-screen keyboard, use the 4–way navigation buttons, described on page 12, and the

OK button, described on page 13.

Kodak ESP 9 Printer User Guide 15

Printer Overview

1 2

Using the All-in-One printer menus

Use the menus on the LCD display to select stand-alone tasks (that is, tasks that can be performed without your computer), such as copying documents or photos;, printing photos stored on memory cards, USB drives, Kodak Bluetooth adapter (“dongle”), or digital cameras plugged into the printer; or sending a fax.

Using the appropriate menu, you can also initiate tasks that will be completed on a computer connected to the printer, such as transferring photos from a compatible device connected to the printer (such as a memory card, digital camera, or USB drive to the computer.

Your printer updates the content of the menu dynamically, according to the tasks you perform.

Menu layout

A description of how the menus are displayed in the printer control panel is shown in the illustration and the legend below.

Number Description

The Menu Title displays at the top of the menu. It names the category of available options; for example, Copy Document Options, Print Photo Options, etc.

The text displayed in the Quick instruction section, when displayed below the Menu Title, describes how to activate the selected menu option. For example, “Press OK to continue”; etc.

Any option in a row with a white background has not been selected., To use the option in a white row, you must navigate to it by pressing either the

button on the control panel. See “Using the 4-way navigation buttons” on page 12.

16 Kodak ESP 9 Printer User Guide

 or the

Number Description

Chapter 2

Menu structure

The top-level menu on your All-in-One printer is called the Main menu. When you press

OK on most Main menu items, another menu displays. You can press Start as specified in

the Quick instruction section beneath the menu title (see item 2 in the “Menu layout” illustration and accompanying table, above) to initiate a task.

You can review details about each menu available in your All-in-One printer using the information below:

Main menu option When you press OK:

Copy Document Displays Copy Document

The Current Value content displays between setting only when you have more than one setting available. For example, On/Off; Yes/No; a number representing a quantity; etc..

The option in the row with the golden background is the selected option. Its functionality is enabled when you press the appropriate control panel button. When



or are pressed, the selected menu option changes according to the direction

used. See “Using the 4-way navigation buttons” on page 12.

Options menu

andsymbols indicates the active

To review details about the option:

See “Copy Document Options” on page 56

Copy Photo Displays Copy Photo Options

View and Print Photos Displays Print Photos Options

Scan Displays Scan Options menu See “Scan Options” on page 62

Send Fax Displays Fax Options menu

(must press OK twice to display)

Fax Auto–Answer

Pressing OK sets Fax Auto-Answer On or Off.

Fax Settings Displays Fax Settings menu See “Fax Settings Options ” on

Network Settings Displays Network Settings

Printer Settings Displays Printer Settings

Maintenance Displays Maintenance menu See “Maintenance Options” on

Help Displays Help menu See “Help Menu” on page 1

See “Copy Photo Options” on page 57

See “Print Photos Options” on page 47

See “Using Quick Dial to select a Fax Phonebook entry” on page 65

See “Setting Fax Auto–Answer” on page 36

page 37

See “Network Settings options” on page 27

See “Printer settings options” on page 24

page 76

Kodak ESP 9 Printer User Guide 17

Printer Overview

Status lights

The tables below describe the meaning of each light and condition, and offer tips on what action to take.

On/Off Light

Light Status

Off

Blinks



Most power supplies used with this ESP All-in-One printer are equipped with a status light which illuminates when electricity is appied. If you cannot determine if the power supply is working properly contact Kodak Service & Support for assistance.

Light Status Cause Action/Solution

The printer is turned off. Press On/Off to turn the printer on.

The printer does not have power applied.

The printer is initializing or busy. None. Allow the printer to finish the

The printer is ready. None.

Cause Action/Solution

Ensure that the printer power cord is properly plugged into the back of the printer. Verify that the power supply and or power cord LED is lit.

Check that the power supply is connected to the power cord, and that it is properly connected to the electrical outlet.

initialization process.

Printer Power Cord Light

Off The printer power cord is not

properly connected to the printer.

The electrical power cord is not properly connected to your electrical outlet.

The electrical outlet has no power. Plug a working device into the wall

The problem may lie with the power supply.

On The power supply is supplying power

to the printer.

18 Kodak ESP 9 Printer User Guide

Reconnect the printer power cord plug to the printer.

Reconnect the cord to the electrical outlet. Ensure that the electrical power cord is fully connected to the alternating current (AC) adapter at the end of the printer power cord.

outlet to test it, or have it checked by an electrician.

Check the power supply status light, if available. As needed, visit Kodak.com for additional troubleshooting steps, or contact Kodak Service & Support.

None.

Memory Card Slot Light

Light Status Cause Action/Solution

Chapter 2

Off Either the memory card is not

inserted or is improperly inserted in the card slot.

Blinks The internal card reader is

initializing or communicating with a memory card.

On A memory card is properly inserted

in the card slot.

Attention Light

Light Status Error

Off None.

Blinks (slow)

The LCD display describes the error.

Paper jam. Paper tray empty. Paper carriage stall. Paper size or type mismatch. Change ink cartridge. Ink cartridge not readable. Printhead not calibrated. Unit open, scanner lid open, rear access door open. Too many image sources. Printhead not installed. Unable to read memory card or USB host device.

Remove and reinsert the memory card.

None.

Blinks (fast) Ink cartridge(s) inserted incorrectly.

Ink cartridge(s) not installed.

On Media sensor failure.

Printhead failure. Scanner failure.

Kodak ESP 9 Printer User Guide 19

Printer Overview

Light Status Cause Action/Solution

WiFi Status Light

Off This indicates that the WiFi radio is

turned off and the printer is not connected to a wireless network.

Blinks continuously

Blinks intermittently

The LCD displays an error message

On The WiFi radio is turned on and



If you acknowledge the error message by pressing OK, the light will go off. However, if the WiFi radio is not turned off and the printer cannot establish a connection to an existing WiFi network, the light will resume blinking, and the error message will display again.

The WiFi radio is turned on and the

printer is searching for available wireless networks within range.

The WiFi radio is turned on and:

• The printer cannot find any

available wireless networks within range.

• The WiFi network connection

has been interrupted, or is too weak to send signals to and from the printer.

there is a working connection between the printer and a wireless network.

None.

None, unless you want to stop the connection process. If so, turn the WiFi radio off.

Press OK to turn off the error message on the LCD display and then turn the WiFi radio off.

Run the WiFi Setup Wizard to find and connect to an available wireless network within range.

None.

All-in-One printer Home Center software

Kodak Home Center software is installed on your computer during the setup process. The software functionality for Windows or Macintosh users is described below.

Home Center for Windows

Once installed, Kodak All-in-One printer Home Center software allows you to print, copy, scan, and configure your All-in-One printer from your Windows XP or Vista computer.

To open the Home Center software window on your computer, use the Home Center icon on the Desktop or in the Start Menu.

From the All-in-One printer Home Center main menu, selecting one of the six menu items enables you to:

• Scan pictures and documents

20 Kodak ESP 9 Printer User Guide

• Enhance and copy pictures

• Enhance and print images

• Configure settings for printing, copying, and scanning from the control panel

• Access the Kodak Tips and Projects Center Web site.

• Order supplies from the Kodak Web site.

The functions of the three small icons located in the upper-right corner of the Home Center window are shown below:

Returns you to the main Home Center window

Displays the Status Monitor

Displays a Help panel for the Home Center software.

Home Center for Macintosh

After installing the software on your Macintosh OS X computer, you can select the Home Center from the System Preference's in the Printer List, clicking the use the Home Center icon displayed in your Dock.

Chapter 2

Print & Fax pane by selecting your All-in-One printer

Print Queue button, and clicking the Utility icon. Or, you can

The Home Center window displays three tabs: Select, Setup, and Maintenance.

From the printers.

From the settings:

Select tab, you can select your All-in-One printer from a list of connected

Setup tab, you can configure stand-alone printing, copying, and scanning

• AiO Printer: This option lets you:

• Synchronize your printer’s date and time to the computer.

• Select what quality you prefer for printing on plain (not photo-quality) paper.

• Specify whether a date will be printed on the front of a photo printed from the

All-in-One printer.

• Specify whether the printer automatically applies “scene balance” to digital pictures

it prints.

• Change the name of the printer.

• Scan: This option lets you configure settings for scanning, saving, and specifying the

application(s) used for opening and editing scanned pictures and documents.

Kodak ESP 9 Printer User Guide 21

Printer Overview

From the Maintenance tab, you can:

• Print a test page

• Align the printhead

• Run a printhead nozzle correction

• Clean the printhead

• Click About this Printer to view the printer model number, its Kodak Service Number,

and the version of printer firmware used to operate the printer

From both the

Setup and Maintenance and tabs you can:

• Order Supplies: This option allows you to order supplies online from the Kodak web

site.

• View/Hide Status: This option opens a drawer displaying the configuration status of

your All-in-One printer.

22 Kodak ESP 9 Printer User Guide

Setting Up Your Printer

Use this chapter to set up and start using your Kodak All-in-One printer.

Selecting a printer location

Place your printer on a clean, flat surface in a dry, well-ventilated location, away from direct sunlight. Avoid areas with high levels of dust and debris. Do not expose the printer and paper to ventilation ducts, open doors, or high traffic, as airborne particles can affect picture quality.

Allow enough space on all sides of the printer to comfortably connect and disconnect cables, change ink cartridges, as well as remove and load paper.

To ensure getting good signals from your networked computer(s), minimize obstacles between the network router and the printer (and other wireless devices, such as Bluetooth–enabled camera phones, etc.). The printer will function best with as clear a “line of sight” as possible between it and the router.

In addition, keep the printer away from microwaves, and away from 2.4 GHz wireless telephone handsets.

Configuring printer settings

Printer settings can be adjusted in two ways: via the control panel or the Home Center software that comes with your printer (see Home Center Help for more details).

Configuring basic settings

1 From the control panel, press Menu.

2 Press

3 Press

4 Press

until Printer Settings is selected, and then press OK.

until the parameter you want to configure is selected, and then press OK. To

review the available options and settings, see “Printer settings options” on page 24.

 or  to configure the Date and Time, Tagged Image Printing, Control Panel

Settings

, Language, Country/Region, or Reset All Settings.

Kodak ESP 9 Printer User Guide 23

Setting Up Your Printer

5 Press or as needed to change the default value. The default value is displayed at

the right margin of the setting. When the setting is highlighted, the current value is bracketed between the

andsymbols.

6 Press

OK to save the setting(s).

Printer settings options

Menu Options Options Settings

Date and Time ( below)

Tagged Image Printing

Control Panel Settings Button Sounds

see Note

Year 2007 - 2099

Month January - December

Day 1 - 31

Hour 0 - 12 or 0 - 23

Minute 00 - 59

Off

Time to Low Power

1-4 hours, in .5 hour increments

Language

English (U.S.)

English (International)

Deutsch

Français

Français (Canada)

Italiano

Español

Castellano

Português

Nederlands

24 Kodak ESP 9 Printer User Guide

Menu Options Options Settings

Chapter 3

Country/Region

United States

Canada

Mexico

France

Germany

Italy

Netherlands

Portugal

Spain

United Kingdom

Europe

Australia

New Zealand

Austria

Belgium

Denmark

Finland

Norway

South Africa

Sweden

Switzerland

United Arab Emirates

Reset All Settings

Restoring the factory defaults from the Reset All Settings option will not change the settings for any of the following:

Language; Date and Time

Note: Setting the date and time via the control panel is a separate task from

Fax Phonebook; Country/Region;

stamping the date and time on photo prints. You can also synchronize the printer's date and time using the Home Center software.

Kodak ESP 9 Printer User Guide 25

Setting Up Your Printer

Configuring network settings

You can connect your ESP All-in-One printer to a wired (Ethernet) network or to a wireless (WiFi) network. You may refer to the “Start Here” booklet that came with your printer, or review the following sections as needed.

Configuring an Ethernet network connection

You will need the following items to connect the All–in–One printer printer to a wired (Ethernet) network:

• A functional Ethernet network that includes a router, switch, or hub with an Ethernet

port.

• A CAT-5 (or higher) Ethernet cable

Ethernet setup

1 Plug one end of the Ethernet cable into the Ethernet port located on the back of the All–

in–One printer and the other end into an available port on your Ethernet router or hub.

2 Turn on the printer, if necessary.

3 From the control panel, press

4 Press

5 If you see the setting:

6 Use the

until Network Settings is selected, and then press OK.

Turn WiFi Radio Off, press OK now. This disconnects any existing

wireless (WiFi) network connections.

Manual IP Address to change the IP Address. See your network provider for

assistance.

Menu.

Configuring a wireless network connection

You can connect your printer to a 802.11 wireless (WiFi) network from the All-in-One printer control panel.

26 Kodak ESP 9 Printer User Guide

Configuring basic wireless (WiFi) settings

Note: You will need to know the network name (SSID) of the WiFi network, and

its security string to connect your printer to the network successfully.

Caution: If there is an Ethernet cable plugged in to the Ethernet port on the back

of the printer, unplug it before starting this task.

1 From the control panel, press Menu.

Chapter 3

2 Press

3 If you see the setting displaying the message:

4 As needed, press

until Network Settings is selected, and then press OK.

Turn WiFi Radio On, press OK now.

, , or to view or configure an item, and then press OK.

Network Settings options

If the printer has not been configured to connect to the WiFi network or the printer WiFi radio is turned off, the LCD display displays the options below:

Menu Options Settings / Action

WiFi Setup Wizard

Turn WiFi Radio On / Off

View Network Configuration

Print Network Configuration

Manual IP Address

Press OK to start the Wizard.

Press OK to toggle between the WiFi radio on or off states.

Press OK to view the configuration on the LCD display.

Press OK to print the network configuration.

Press OK to display the Manual IP Address menu.

WiFi Setup Wizard

Review the procedures below and use the one that suits your network setup.

Connecting to a listed network

1 Complete Steps 1 and 2 of “Configuring basic wireless (WiFi) settings” on page 27.

WiFi Setup Wizard is the first option; press OK to select it.

Note: The WiFi radio is turned on automatically when WiFi Setup Wizard is

selected.

3 The printer searches for available WiFi networks within range; then displays the list in

alphabetical order on the LCD. The illustration below shows an example list. The row containing each <Network name> listed also shows the strength of the signal (shown below as xx%) as a percentage between 0 and 100, where 100 is the highest possible strength.

• If more WiFi networks are within range than can be shown on the LCD, the display

includes the

Kodak ESP 9 Printer User Guide 27

(page down) symbol and/or the (page up) symbol on the LCD.

Setting Up Your Printer

As appropriate, press  or  on the control panel until you locate the network you want to use.

The last two options displayed are

networks

Note: In your setup, instead of <Network name> as shown in the illustration

Unlisted network and Rescan for wireless

above, the LCD will show the actual network name (SSID), without the brackets, and the signal strength, displayed as a percentage, of each available WiFi network within range.

4 With the desired network selected, press

OK. You may need network identification

information such as a security string, in order to authenticate your connection.

• If you are looking for a WiFi network that does not broadcast its SSID, see

“Connecting to an unlisted network” below.

Note: If your printer was last connected to an available network on the list, the

network settings are saved and the printer will automatically attempt to reconnect you to that network.

5 If the network requires the entry of a security string, the keyboard will be shown on the

LCD. Press

, , orto select a key. Enter the security string using the correct

upper and lower case characters and numbers as required.

Note: To erase any letters or numbers entered in error, select <BKSP

(backspace).

6 If the network requires a security string, the keyboard will be displayed

7 After completing your entry, select the

DONE key, and then press OK.

Connecting to an unlisted network

WiFi Setup Wizard is the first option; press OK to select it.

2 If you network does not appear in the list and is configured to not broadcast its SSID,

select

Unlisted Network and press OK.

3 Follow the prompts to enter the network name using the keyboard visible on the LCD.

Press

, , orto select a key. Enter the alphanumeric string accurately, using

the correct upper and lower case letters. After completing your entry, select the key, and then press

OK.

DONE

4 Select

28 Kodak ESP 9 Printer User Guide

WEP or WPA/WPA2 as required for your network's security setup, and then press

OK.

5 Enter the security information required using the LCD display keyboard.

• Press , , orto select a key. Select <BKSP to erase any incorrect

characters. Then select

DONE and press OK.

Chapter 3

6 After the confirmation message appears on the LCD, press

Settings menu.

Setting up an IP address

1 From the Network Settings menu, select Manual IP Address and press OK.

2 Select one of the options displayed:

• Dynamic (DHCP)

• Automatic (Private)

• Manual (Static)

Then press

3 Depending on the IP address type specified, you may be prompted to enter an IP

address, a Subnet Mask, a Gateway Address; and a DNS Server address. Press making each entry. See your network provider for more information.

OK to continue.

Viewing Network Configuration

When you select this option, the printer displays the configuration settings for both Ethernet and WiFi networks on the LCD.

OK to display the Network

OK after

Printing Network Configuration

When you select this option, the printer prints current network configuration settings. Settings with no values will be displayed as zeros.

Setting up the fax

Your Kodak ESP 9 All-in-One printer allows you to send and receive faxes, set up quick dials, and other fax options from the control panel.

For more information about sending and receiving faxes using this All-in-One printer, see Chapter 8, “Faxing” on page 63.

Note: If your home or office setup is not described in this section, set up the

All-in-One printer fax connection as you would a regular phone. See “Connecting the printer to a standard telephone line” on page 33.

Warning: Use only the phone cord supplied in the All-in-One printer box to

connect your telephone wall jack and the port labeled printer. Using any other phone cord may prevent you from sending and receiving faxes.

Line-In on the back of the

Kodak ESP 9 Printer User Guide 29

Setting Up Your Printer

Telephone service delivery systems and All–in–One fax features

Before setting up your ESP 9 All–in–One printer for faxing, determine which type of telephone service you use.

If your telephone service is: Review this section first:

Internet Phone (VOIP) telephone service “Multipurpose (broadband) digital

telephone systems” below

Cable telephone delivered by a cable television service

Standard telephone service “Standard telephone systems” on page 30

Digital subscriber line (DSL) telephone service “Digital subscriber line (DSL) telephone

Caution: You should also read the following sections before connecting your

“Multipurpose (broadband) digital telephone systems” below

systems” on page 31

ESP 9 to your telephone system.

• “Using cordless telephones with the ESP 9 All–in–One fax” on page 31

• “Using voice–messaging services with the ESP 9 All–in–One fax” on page 31

• “Using an answering machine with the ESP 9 All–in–One fax” on page 32

Multipurpose (broadband) digital telephone systems

If you use one of the following types of telephone services, you use a multipurpose, or “broadband” digital system:

• Internet telephone (also known as Voice–Over–Internet–Protocol or VOIP)

• Cable telephone

These systems transmit telephone signals across the same cables that transmit Internet or cable television signals.They require the use of computer or cable modems to route telephone traffic to your telephone or fax machine.

By connecting the telephone cable that came with your printer to the computer or cable modem and also to the ESP 9, your printer can successfully send and receive faxes over this type of telephone system.

Standard telephone systems

Sometimes called “Plain Old Telephone Systems” (POTS), this type of telephone service relies on a network of dedicated telephone wiring that cannot be used to transmit any other type of signal.

Your printer needs only the standard telephone cable that came with your printer, connected to both the printer and to the wall telephone jack, in order to send and receive faxes through the standard wall telephone jack.

30 Kodak ESP 9 Printer User Guide

Chapter 3

Digital subscriber line (DSL) telephone systems

A DSL telephone system is a dedicated telephone service that, like multipurpose digital systems, transmits packets of digital data over cables. Unlike multipurpose systems, DSL networks use the wires of a local telephone network to transmit its signals.

To transmit fax signals properly to your printer, you must connect the telephone cable that came with the printer to a cable equipped with a DSL filter, and then connect the filtered cable to the printer and to the wall jack.

Caution: Your telephones will not work without the installation of the DSL filter.

Using cordless telephones with the ESP 9 All–in–One fax

Cordless telephones, which connects to a digital, standard, or DSL telephone system can be used with your All-in-One printer. To do so, you must connect the base station of your telephone; i.e., the cradle which connects your phone to the wall telephone jack or digital modem, to the telephone cable that came with your printer.

Using voice–messaging services with the ESP 9 All–in–One fax

Voice messaging (also called voice mail) services are operated by your telephone company. Voice messaging systems use a centralized, computerized system for recording messages rather than equipment at your telephone. They do not record fax transmissions.

Your printer relies on recognizing fax signals via the cable connecting it to the telephone (or wall jack), and therefore cannot retrieve faxes routed to the voice messaging service.

To automatically retrieve faxes with your printer if you subscribe to voice messaging through your telephone company, you must have one of the following options in place:

• A dedicated phone line that does not have voice mail used exclusively for fax

transmissions.

• If the telephone line connected to your printer accepts calls for two or more phone

numbers, the number used for fax calls must use a distinctive ring not used by any other number sharing this line. See “Specifying a distinctive ring for Fax Auto–Answer” on page 36.

Kodak ESP 9 Printer User Guide 31

Setting Up Your Printer

If neither of these configurations is available to you, you cannot accept faxes on your printer in the Fax Auto–Answer mode. You can accept them manually, though. See “Manually

receiving fax” on page 36.

Using an answering machine with the ESP 9 All–in–One fax

If you use an answering machine to retrieve and record messages from telephone callers when you are not available to pick up the handset, you can set up your telephone to work with both the answering machine and the printer.

However, because answering machines cannot recognize fax calls or record fax signals for conversion later to a fax printout, care must be taken if you plan to accept fax calls automatically.

Before using your printer to accept faxes automatically when you are also using an answering machine, make sure the answering machine is connected correctly to the printer (see the illustrtations that follow). Make sure the answering machine is set to answer calls before the printer. See “Specifying Rings to Answer” on page 35

Connecting the phone and fax

Identify the type of fax connection appropriate for you from the information below, and follow the instructions to configure your printer for sending and receiving faxes.

Type of Fax connections Fax setup procedure

Multipurpose (broadband) digital telephone systems

Standard telephone systems “Connecting the printer to a standard

Digital subscriber line (DSL) telephone systems

“Connecting the printer to a digital telephone service line” below.

telephone line” on page 33.

“Connecting the printer to a digital subscriber (DSL) telephone line” on page 34.

Connecting the printer to a digital telephone service line

If the telephone line you intend to use for faxing through the All-in-One printer is configured to either an Internet phone service or to a cable phone service, connect your printer to the phone as described below:

1 Disconnect the phone cord from the wall jack that connects your modem to the

telephone wall jack and plug it into the port labeled

2 If you use an answering machine:

LINE-In on your printer.

• Connect your answering machine to the EXT-Out port on the back of your All-in-

One printer.

Caution: The answering machine should be set to a fewer number of rings than

the

Rings to Answer setting. This will ensure that the answering machine picks

up first. See “Specifying Rings to Answer” on page 35.

32 Kodak ESP 9 Printer User Guide

Chapter 3

Note: Check with your cable television provider to make sure you can send and

receive faxes over your digital telephone service.

Connecting the printer to a standard telephone line

If you have a dedicated phone line that does not receive any voice calls, connect your printer to the

1 Connect one end of the phone cord supplied with your printer to your telephone wall

jack and the other end to the port labeled

2 When the phone rings your printer is set to answer automatically after the number of

rings set in the

3 If you use an answering machine, connect your answering machine to the plug it into

the port labeled machine to a lower number of rings than the Rings to Answer settings on your All-inOne printer. If you are using a dedicated telephone line to send or receive faxes,

Line-In on the printer as described below.

Line-In.

Rings to Answer setting. See “Specifying Rings to Answer” on page 35.

EXT-Out on your printer. Set the number the of rings on your answering

LINE-In

Kodak ESP 9 Printer User Guide 33

Setting Up Your Printer

port on your printer. Do not connect the answering machine to the EXT-Out port on your printer. .

If you have a separate fax line on that does not receive any voice calls, connect your printer to the phone line as described below.

Connecting the printer to a digital subscriber (DSL) telephone line

If you use a digital subscriber line (DSL), you must connect a DSL filter between the telephone wall jack and your Kodak All–in–One printer. Without the DSL filter for your digital subscriber line, you not be able to send and receive faxes.

1 Obtain a DSL filter from your DSL provider.

2 Connect the one end of the phone cord supplied with your Kodak ESP 9 All–in–One

printer to the open port on the DSL filter, and the other to the printer port labeled

Line-In.When the phone rings your printer is set to answer automatically after the

number of rings set in the

Rings to Answer setting. See “Specifying Rings to Answer”

on page 35.

3 If you use an answering machine, connect your answering machine to the port labeled

EXT-Out on your printer. This provides a direct connection between the printer and

your answering machine.

Caution: When the phone rings, your printer will answer after the number of

rings set in the

Rings to Answer setting. The incoming fax will be received when

the printer detects there is an incoming fax. See “Specifying Rings to Answer” on page 35.

34 Kodak ESP 9 Printer User Guide

4 Connect the DSL filter cord to the telephone wall jack.

Chapter 3

Specifying Rings to Answer

You can specify how many rings should occur before the All–in–One printer automatically answers an incoming call. This setting applies only if the Fax Auto–Answer feature is set to

On.

The

Rings–to–Answer setting is critically important for you if an answering machine

shares the same phone line as your All-in-One printer, because the answering machine must answer the phone first. If this parameter is not set correctly, the answering machine cannot

record any incoming calls.

Note: If you use a voice messaging service instead of an answering machine, this

option is not effective. See “Setting Fax Auto–Answer” and “Specifying a distinctive ring for Fax Auto–Answer” on page 36.

The All–in–One printer monitors every call into the phone line, including calls picked up by the answering machine. If it detects incoming fax tones, it will receive the fax. It ignores any call that does not transmit the fax tones and allows the answering machine to record it.

Set the number of Rings to Answer for the printer to exceed the number rings set for the

answering machine.

Note: This ESP 9 All–in–One printer allows you to specify the Rings–to–Answer

from 1–6 rings. Make sure your answering machine is set to answer calls in fewer rings than your choice for Rings–to–Answer for your printer. For more information, see “Fax Settings Options ” on page 37.

Kodak ESP 9 Printer User Guide 35

Setting Up Your Printer

Setting Fax Auto–Answer

When set to On, the All–in–One printer accepts incoming fax transmissions automatically, based on the number set in

If your fax phone line is configured to work through a computer modem, disable Fax AutoAnswer)

Note: Some phone system features may not be available with pulse dialing, which

is slower than tone dialing. Contact your telephone company if you are unsure as to which setting to use .

Manually receiving fax

If Fax Auto–Answer is set to Off, there are two ways to accept an incoming fax and print it with the All–in–Oneprinter. You can:

• Press the Start button on the All–in–One printer control panel when you pick up the

telephone handset and hear fax tones.

• Using any phone that uses the same telephone line used by the All–in–One printer for

fax, dial the Remote Access Code:

Rings–to–Answer (discussed on page 35).

234.

Tip: Is your All–in–One printer located in a separate room from a telephone with

the same number used by the ESP 9 All-in-One printer? If so, remember to dial

234 when you pick up the phone and hear incoming fax tones.

Specifying a distinctive ring for Fax Auto–Answer

If you have one phone line shared by two or more phone numbers, your telephone service provider may be able to provide distinctive ring patterns for each phone number. For example, if you have designated one number as the number for receiving and sending faxes, you may have a ring pattern different than the pattern used for the phone number used for your personal voice calls or your business voice calls.If you have voice mail on your shared phone line that you use for sending or receiving faxes and do not have access to distinctive ring through your telephone service, you should disable Fax Augo-Answer.

By using the detects the ring pattern specified for incoming faxes, it will automatically answer the call and receive the fax.

If two or more phone numbers are shared, set the Distinctive Ring feature to answer one of the lines and set review how to use Fax Auto–Answer with an answering machine.

Distinctive Ring feature on the ESP 9 All-in-One printer, when the printer

Note: If you use one phone number and one phone line exclusively for faxes, set

Distinctive Ring to Any. For more information about the Fax Settings menu, see

“Fax Settings Options ” on page 37.

Fax Auto–Answer to On. See “Specifying Rings to Answer” on page 35 to

• Also see the note discussing voice messaging services on page 36 if you have this type

of fax setup and subscribe to voice messaging through your telephone company. Configuring fax settings

36 Kodak ESP 9 Printer User Guide

Chapter 3

You can adjust fax settings on the control panel. Windows users can also create a list of frequently used Fax telephone numbers using Home Center software (see Home Center Help for more details, discussed in this guide on page 20).

Both Windows and Macintosh users can set up a list of fax telephone numbers on the control panel by selecting

Send a Fax from the Main menu. Windows users can also set up

and maintain their Fax Phonebooks using Home Center software. For information on setting up and maintaining the Fax Phonebook, see “Fax Phonebook entries” on page 67.

Fax Settings Options

Menu Options Settings / Actions

Edit Phonebook Press OK to view Fax Phonebook options

Fax Sender Information Press OK to view on-screen keyboard and enter information

Fax Auto–Answer

Rings to Answer

Redial if No Answer

Busy Redial Attempts

Disable Call Waiting

Call-Waiting Disable Code *70 is default

Distinctive Ring

Press

or  to change setting

Fax Speaker

Print Fax Confirmation Page

Press

or  to change setting

Print Fax Settings Press OK, then press Start

Press

or  to switch setting between On/Off

Press

or  to change setting from 1–6 rings

Press

or  to switch setting between Yes/No

Press

or  to switch setting from 0-12

Press

or  to switch setting between Yes/No

Any

Single Ring

Double Ring

Triple Ring

Press

or  to switch setting between On/Off

Never

Always

After Failure Only

Print Fax Cover Page Press OK, then press Start

Print Fax Activity Log Press OK, then press Start

Dialing Mode

Error Correction



Some phone system features may not be available with pulse dialing, which is slower than



tone dialing. Contact your telephone company if you are unsure about which setting to use.

Kodak ESP 9 Printer User Guide 37



Press or  to switch setting between Tone/Pulse

or  to switch setting On/Off

Press

Setting Up Your Printer



When the Error Correction mode is enabled, the printer detects errors during transmission. Using this feature, the All-in-One printer will automatically re-transmit the fax. Although the Error Correction mode increases send time on poor phone lines, the fax is transmitted much more reliably.

Note: Error Correction is only applied to black-and-white faxes sent from the All-

in-One printer. This feature does not affect the reliable transmission of faxes being received.

1 From the control panel, press

2 Press

until Fax Settings is selected, and then press OK.

Menu.

3 Press until the option you want to configure is selected, and then press OK.

4 As needed, press

or to set the desired sub-setting, as in configuring your sender

name and telephone numbers.

5 As needed, press

6 Press

OK to save the setting(s).

orto change the setting.

38 Kodak ESP 9 Printer User Guide

Handling Paper

Your Kodak All-in-One printer accepts print stock of various types and sizes, including letter-and legal-size plain paper, photo paper, transparencies, T-shirt transfers, envelopes, cards, and labels. It automatically detects the size and whether or not photo paper is loaded into the paper tray. Kodak photo paper contains barcodes that allow your All-in-One printer to detect the paper type that optimize your photo prints.

The bottom paper tray accepts media from 6 to 9 inches wide, and from 7–14 inches long (see the Note capacity is 40 sheets of 4X6, 4X7, or 5X7 inch paper.

The automatic document feeder (ADF) on the ESP 9 All-in-One printer accepts up to 35 sheets of plain paper.

on page 41); its capacity is 100 sheets of 20 lb. plain paper. The top tray

Warning: The printer cannot sense photo paper loaded in the automatic

document feeder (ADF), and will not feed photo paper into the printer for either copy (document) or fax operations.

Handling paper

Follow the precautions below when handling paper:

• Hold the paper by the edges; avoid placing your fingerprints on it.

• Do not touch the glossy side of photo paper.

• Store paper flat, away from direct sunlight and heat (such as in a car parked in the sun).

Kodak ESP 9 Printer User Guide 39

Handling Paper

Loading the paper trays

Things to keep in mind

• Before you start loading any type of media into the printer, lift the paper output tray.

Lower the paper output tray and gently close the loaded paper tray.

• Pull the paper stop (at the edge of paper output tray) until it is fully extended.

• If the paper you are going to use is less than A4 size, lift the hinged end of the paper

stop toward you until it perpendicular to the paper stop. This prevents the printed paper from sliding off of the paper output tray as it exits the printer.

• If the paper you use is longer than A4 size, including Legal and panoramic photo

paper, make sure that the hinged end of the paper stop lays flat and is NOT pulled up. The longer paper should balance on the paper output tray without sliding off.

Caution: This is crucially important when you are printing two or more

sheets of long paper. Long paper that cannot extend straight to its full length when output from the printer can fold behind the object ahead of it. The curl can result in a job that dissatisfies you, and it can also causes a blockade preventing paper still being printed from exiting the printer properly.

Although a paper curl should not interrupt a job involving just one sheet of long paper, when a sheet’s clean exit from the printer is impeded because the sheet before it is curled by the paper stop, the current sheet also curls upon itself, generally behind rather than atop the sheet that came before. This process repeats until, eventually, the trapped sheets jam the paper inside the printer, which cannot free themselves from the print roller and onto the paper output tray.

40 Kodak ESP 9 Printer User Guide

Loading plain paper

Note: Review “Things to keep in mind” above.

Caution: The automatic document feeder (ADF) on the ESP 9 only accepts plain

paper.

1 Pull the bottom paper tray toward you

Note: To load media that is more than A4 size, such as 4X12 inch panoramic

photo paper or Legal plain paper, you must first extend the lower paper tray to its full length. To do so:

a Remove all paper from the tray, as needed.

b Press and hold the paper tray

Chapter 4

extension-release, located on the inside of the front of the lower paper tray.

c Pull the tray extension toward

you gently until it stops moving easily. DO NOT pull the extension far enough to disengage from the paper tray.

d Let go of the tray release, and then load the paper in the tray.

Tip: To return the lower paper tray to its default size, press and hold the extension-

release and push the tray until the extension stops moving, and then let go.

2 As needed,

squeeze and slide the paper-width guide on the tray to the left so that it does

not block the paper from laying flat.

3 Insert the media into the paper tray, with its near edge against the paper stop, with the

print side down.

4 As needed, squeeze and slide the paper-width guide to align it to the left edge of the

media.

5 Lower the paper output tray.

6 Gently push the tray forward in till it is aligned to the edge of the paper output tray.

Kodak ESP 9 Printer User Guide 41

Handling Paper

Loading photo paper

Note: Review “Things to keep in mind” on page 40.

Caution: The automatic document feeder (ADF on the ESP 9 only accepts plain

paper. If you try to run photo paper through it, the printer displays an error message on the LCD, and the printer will not complete the job.

1 Remove all other paper from the paper tray you plan to use.

2 Insert photo paper into the paper tray print-side down, with the short edge forward. Do

not overload the tray.

3 Slide the paper forward until it stops.

4 Squeeze the paper-width guide and slide it to the right until it just touches the loaded

paper.

5 Lower the paper output tray.

Gently push the tray forward in till it is aligned to the edge of the paper output tray.

Loading envelopes

Warning: Do not load envelopes with cutouts or cellophane windows in this

printer.

Note: Review “Things to keep in mind” on page 40.

1 Remove all other paper from the paper tray you plan to use.

2 Place one or more envelopes along the right edge of the paper tray, with the front side

down and the envelope flaps pointing toward the left side of the tray.

3 Squeeze the paper-width guide and move it to the right until it just touches the loaded

envelope(s).

4 Close the paper tray and lower the paper output tray.

42 Kodak ESP 9 Printer User Guide

Loading originals

Loading an original for copying or scanning

Chapter 4

To copy or scan a document or photo, place your original directly on the scanner glass, print side-down, against the silver arrow on the right-front corner.or in the automatic document feeder (ADF).

Loading an original for faxing

Warning: If photo paper is loaded into the automatic document feeder for copying

or faxing, a paper jam results. Do NOT use the automatic document feeder for scanning.

If the original is more than 11 inches (279 mm) long, you can pull the tray extender all the way out to keep the original flat.

Kodak ESP 9 Printer User Guide 43

Handling Paper

1 Place the original (plain paper only) print side up into the ADF.

2 Align the paper-width guides with the edges of the paper to center the original in the

Note: If you are faxing only one page or if you are Faxing anything printed on

photo paper, you can place the original on the scanner glass. See “Loading an original for copying or scanning” on page 43.

ADF tray.

44 Kodak ESP 9 Printer User Guide

Viewing and Printing Photos

You can print .jpeg (.jpg) photo images directly from PictBridge cameras connected to the front panel of your All-in-One printer. You can print virtually any file type from digital cameras, USB flash (“thumb”) drives, and memory cards connected to the front panel on your All-in-One printer. You can also print files from a PC or Mac computer connected to your All-in-One printer computer.

Note: For assistance on printing from a connected computer to your printer, refer

to the instructions from the software application (such as a word-processing or image-editing program) used to send the file to the printer or review your computer’s operating system instructions.

Caution: Never load photo paper into the automatic document feeder (ADF) on

the ESP 9; the ADF only accepts plain paper. If you load photo paper in the ADF, the printer displays a warning on the LCD, and will not complete the job.

Although your printer is compatible with the Kodak 8-in-1 USB card reader (sold separately) as well as other Kodak USB card readers, it may not compatible with other manufacturers’ card readers.

Warning: Do not remove a storage device (memory card, USB drive, or digital

camera) from the printer while it is being accessed, or you may damage the files on it. Safely remove or disconnect the device.

You can safely remove the storage device when the blue status light located above the memory card slots stops blinking.

Kodak ESP 9 Printer User Guide 45

Viewing and Printing Photos

Viewing photos

Insert one of the following devices into the appropriate opening:

Note: Always use the USB host port, on the front of the printer. To avoid an error,

use only one slot or port at a time.

Device Type Printer Slot

Memory Card Memory Card Reader

Portable Storage Drive USB port

Digital Camera USB port

Kodak Bluetooth dongle USB port

Note: If Tagged Image Printing is enabled on this printer (see “Configuring printer

settings” on page 23), it detects a Digital Print Order Format (DPOF) file when you insert a memory card. The printer LCD display prompts you to verify that you want to print tagged images. See “Printing tagged images ” on page 50.

Most memory cards will work with this printer. When you insert a memory card, connect a camera, or portable flash drive to the printer, the last photo taken is displayed first.

Caution: Do not insert more than one device, such as a USB thumb drive or

memory card, into the printer at a time, or you will get an error message. Also, never remove or disconnect a memory card from its slot unless the blue light near the slot is not blinking.

Note: Photos stored on a PictBridge camera are displayed on the camera’s LCD

only. See “Printing photos from a PictBridge camera ” on page 48, as needed.

Configuring photo print settings

You can change the factory default print settings for your printer using the control panel. Windows users may adjust some settings using Home Center software (see Home Center Help, discussed on page 20, for information on using Home Center).

1 Insert a memory card into the appropriate slot, or plug a USB flash drive or digital

camera to the front panel USB port. The last photo is displayed first.

2 From the control panel, press

3 Press

4 As needed, press

until the option you want to configure is selected, and then press OK.

orto change the setting.

Menu.

5 Press

46 Kodak ESP 9 Printer User Guide

OK to save the setting for the current print job.

6 To save the setting as the default value, select Save as Default and press OK.

Chapter 5

7 As needed, press

then press

OK to return to viewing and selecting photos for printing. Or, press Start to

print the selected photo(s) with the selected settings.

Print Photos Options

Menu Options View Settings / Select Settings

View Photos OK

Transfer All to PC OK

Rotate This Photo OK

Quantity

Tray Selection

Print Size

 or until View Photos is selected in the Print Photos menu, and

or

1- 99

Top Tray

Bottom Tray

3.5x5

4x6

4x7 (High Def)

Quality

Color

Scene Balance

Add Date to Prints

Save as Defaults OK







or

or No

4x12 (Panoramic)

5x7

8x10

8.5x11

(2x3) Wallet

Normal

Best

Draft

Color

Black & White

Off

Yes



Your All-in-One printer automatically adjusts the print output to the best available quality for images printed on photo paper. You need to set Normal or Best only when printing images or documents on plain printer paper.

Kodak ESP 9 Printer User Guide 47

Plain Paper Quality to Draft,

Viewing and Printing Photos



This printer is capable of automatically adjusting scene balance improvements (or the brightness) of photos printed from camera cards and USB connected devices. The default is On.



The default setting does not print the date on the photo print.

Printing photos

Printing photos from a PictBridge camera

You can print photos directly from a PictBridge camera, which controls photo selection and printing.

1 Load the desired paper tray with photo paper, print side down.

2 Connect a PictBridge camera to the USB port located on the front panel of your printer.

3 Use your PictBridge camera to select and print the photos.

Printing photos from non–PictBridge digital cameras, memory cards, and USB flash drives

Caution: This printer does not support portable USB “flash” drives that:

• Require third party access software

• Are encrypted

• Contain multiple partitions.

• Were formatted using any of the following file storage systems:

• New Technology File System (NTFS)

• Mac OS Standard (HFS) or Mac OS Extended (HFS Plus)

The printer can read data stored USB flash drives formatted using only the File Allocation Table (FAT) system.

If a flash drive is plugged into the USB port on the front panel that the printer cannot read, the printer does not display photos, makes an audible sound (“beep”), and displays an error message on the LCD display.

See the first Tip on the following page for a work–around if your flash drive cannot be read by your printer.

48 Kodak ESP 9 Printer User Guide

Chapter 5

Tip: If you would like your printer to print photos stored on a non–FAT

formatted device, or stored as non–.jpeg files, you must first send the files to your computer to be read.

• Windows computers can read NTFS–formatted drives

• Macintosh computers can read HFS– and HFS Plus–formatted drives

• Third–party applications which run on either Windows or Macintosh

computers can read many different image file types

Use your computer to explore the files stored on the flash drive while it is still plugged in. Navigate to and open the file in the computer, or transfer the file(s) to the computer hard drive. Then, print the file from your computer.

1 Connect a digital camera, or portable USB drive to the front panel USB port; or insert a

memory card to the appropriate card reader on the front panel.

The printer displays the photos on the LCD, last photo first.

2 Load the paper tray with photo paper, print side down.

3 On the control panel, press

oruntil a photo you want to print is displayed on the

LCD.

4 Press

OK to select the photo. A check mark displays on the LCD to indicate your action.

(If you change your mind and want to de-select the photo from printing, press

again; the check mark is removed.).

Tip: To select and print all the photos on a memory card or portable USB device

which have not yet been selected, hold down the down the

OK button again for 2 seconds de-selects all the photos.

OK button for 2 seconds. Holding

5 If you are satisfied with the image shown, you can modify the quantity of copies to be

printed by pressing quantity greater than 1 shown, press

6 If you want to specify different print parameters for the photo, press

Print Photos Options menu. A sample of the menu is shown in the illustration

the

 until the number you want is shown on the LCD. To decrease any

 until the number you want displays.

Menu to display

below..

7 Here you can press

displayed between the you want

Kodak ESP 9 Printer User Guide 49

until the parameter you want to adjust is selected. If a value is

and symbols in the row, pressor to select the value

Viewing and Printing Photos

8 Press Start to print the selected photo, or press until View Photos is selected.

9 Press

10 Repeat this process as needed.

oruntil you view another photo you want to print

Note: Each photo is automatically deselected after it has been printed

Printing tagged images

The Digital Print Order Format (DPOF) is an industry-standard file that can be created by some digital cameras. Camera selected photos are photos you tag for printing with your digital camera. When you select photos with your camera, the camera creates a DPOF file that identifies which photos have been tagged for printing. Your Kodak All-in-One printer can read the DPOF file from the memory card so you do not have to re-select the photos to print.

Note: Not all digital cameras support tagging or the creation of tagged image files.

Refer to your camera’s user guide to ensure it supports this functionality.

When you print tagged photos, the selected layout is applied unless your camera allows selection of sizes. If not specified by the DPOF information, the current default print photo size and other settings will be used.

Printing from a Bluetooth–enabled device

Bluetooth wireless technology allows wireless connectivity between compatible electronic devices.Your printer allows you to print .jpeg images from a Bluetooth–enabled device, using an optional Kodak USB Bluetooth 2.0 USB adapter.You can purchase the Kodak Bluetooth adapter from Kodak at www.kodak.com/go/accessories.

The Kodak Bluetooth adapter (shown below) supports connectivity between your All–in– One printer and the following Bluetooth–enabled devices:

• Mobile camera phones

• Personal Digital Assistants (PDAs)

• Digital still cameras

• Computers

The Bluetooth adapter will not work when plugged directly into computers, Kodak printer-docks, other types of Kodak printers or devices made by other manufacturers. This adapter works exclusively with Kodak All-in-One printers.

50 Kodak ESP 9 Printer User Guide

Chapter 5

To enable Bluetooth wireless connectivity, plug the Kodak Bluetooth adapter into the USB port located on the front panel of your printer.

Note: Before you can transmit photos to your printer from a Bluetooth–enabled

device, you must first “pair” the printer and the device so that they can communicate. This “pairing” is performed from your device’s interface. Review the instructions for pairing that came with you Bluetooth–enabled device, as needed.

When the device is searching for other Bluetooth enabled devices to pair with, if your printer is within range of the device (see “Range” below), your printer will appear in the list, with a name starting with rename it, as appropriate.)

If your device prompts you for the printer’s personal identification number (PIN) to authenticate and initiate the connection, enter

Bluetooth devices do not use a Print command. You must use the device’s Send functionality to transmit an image stored on it to the All–in–One printer. Only one file can be sent from the device at a time. Once received, your printer will print the image automatically using the default settings.

ESP. (Your device may allow you to

1111.

Range

When the device and the printer are connected, you can send photos from your Bluetooth device to the printer. Your printer supports connectivity to one Bluetooth device at a time.

For the highest transfer speed, Kodak recommends keeping a maximum distance of 10 meters (32.8 feet) between Bluetooth devices, as they may not work reliably beyond this range.

Printing multiple photos

When you select a print size that is smaller than the paper size, this printer automatically lays out multiple photos using the least amount of space, minimizing paper waste when separating the photos.

Printing panoramic photos

You can print a panoramic photo on 4 x 12 paper, or two panoramic photos on U.S. letter or A4 paper; some cropping will occur.

Kodak ESP 9 Printer User Guide 51

Viewing and Printing Photos

Zooming and cropping photos

Your printer enables you to zoom in or out on a specific area of a photo. When you print the photo, the photo is cropped so only the area bounded by the crop boundaries is printed.

Caution: You cannot use the zoom or crop functions of this printer on photos

located on a PictBridge camera connected to the printer. All changes made to photos stored on PictBridge camera are conducted on the camera.

Note: The changes you make to the photo apply only to viewing and printing the

photo, and will not be saved on the memory card or storage device.

1 Select an image from the display. As needed, see “Printing photos from non–PictBridge

digital cameras, memory cards, and USB flash drives” on page 48.

2 As desired, press

Print Size. Press the

Menu to display the Print Photos Options menu. The first option is

andnavigation buttons on the control panel to change the size

of the output that you want for the image, which will affect the zoom and crop displays. Press

OK when you are satisfied.

3 Press

Zoom + to enable the zoom and crop function. You can enlarge the photo in .25X

increments, up to a 5X magnification. Press

Zoom – to decrease the magnification in

.25X increments, to 1X.

Note: The changes you make to the photo apply only to viewing and printing the

photo; they are not saved on the memory card or storage device.

4 Use the

,

, andnavigation buttons on the control panel to display the part of



the picture you want to print.

5 Press

OK when finished. The photo is displayed with the original view, and a border

(“crop box”) is displayed around the area you want to use.

Tip: You can make more precise zoom and crop adjustments to your photos on

your computer using photo editing software. To send a photo from the All-in-One printer to your computer, see “Transferring images to a computer” below.

6 If you are satisfied with the image shown, press

crop box. If you want to specify additional print parameters for the photo, press to display the illustration below.

52 Kodak ESP 9 Printer User Guide

Start to print the area displayed in the

Print Photos Options menu. A sample of the menu is shown in the

Chapter 5

7 Here you can press until the parameter you want to adjust is selected. If a value is

displayed between the want

andsymbols in the row, pressorto select the value you

8 Press

9 Press oruntil you view another photo you want to print.

10 Repeat this process as needed.

Start to print the selected photo, or press

OK.

Note: If you want to print multiple copies of a photo displayed on the LCD, you can

press

 until the number you want is shown. To decrease any quantity greater

than 1 shown, press

 until the number you want displays.

Transferring images to a computer

You can transfer .jpg, .mov, or .wav files to your Windows or Macintosh computer from a digital camera, memory card, device connected to your printer via a Kodak Bluetooth dongle, and portable (USB) thumb drive connected to this All-in-One printer.

Note: To transfer large files, such as video files, from a memory card to a

computer, Kodak recommends using a card reader attached directly to the computer instead of transferring the file(s) via the All-in-One printer.

Likewise, Kodak recommends transferring large groups of image files (400 or more) stored on a memory card to a computer via a card reader connected to the computer.

until View Photos is selected. Press



Transferring images to a Windows computer

1 Connect the device to the appropriate slot on the front panel of your printer.

2 From the control panel press

display.

3 Press

4 Press

Kodak ESP 9 Printer User Guide 53

until Transfer All to PC is highlighted, and click OK.

Start.

Menu to display the Print Photos menu on the LCD

Viewing and Printing Photos

5 Follow the prompt on the computer.

Transferring images to a Macintosh computer

1 Connect the device to the appropriate slot on the front panel of your printer.

2 From the control panel, press

Menu to display the options on the computer monitor (for

a PictBridge camera) or the printer LCD display (all other devices).

3 Press

4 Press

until Transfer All to PC is highlighted.

OK.

5 When a transfer or connection message appears on the monitor, click

6 Press

Start.

7 Use iPhoto or Image Capture to complete the transfer.

Yes.

54 Kodak ESP 9 Printer User Guide

Copy Document 1

Copying

You can copy both images and documents directly from the control panel of your Kodak ESP All-in-One printer. The printer produces high–quality color or black and–white copies on a variety of paper types, including transparencies.

Note: Before using your All-in-One printer to copy a document or photo for the

first time, review the procedures for loading paper and originals in Chapter 4 on page39.

Simple copying

Note: Copy Document is the first setting on your Kodak All–in–One printer. This

enables you to load a document face–up in the automatic document feeder (ADF) or place a one–page document on the scanner glass, and, if you have no need to change the default quantity, press copying job.

1 Place the original (document or photo) face down at the right front corner of the

scanner glass or face up in the automatic document feeder (ADF).

Start from the Main menu to quickly initiate a

2 From the control panel, press

Copy Document is the first menu option. As

needed, press

4 Modify the quantity of copies to be printed by pressing

number you want is shown between the decrease any quantity greater than 1 shown, press displays.

5 Press

Start to initiate copying the document or photo.

 to select Copy Photo.

Menu.

on the control panel until the

andsymbols displayed in the menu. To

until the number you want

Adjusting copy settings

You can change the default copy document settings for your printer using the control panel. Depending on whether you are copying a photo or a document, select the appropriate option submenu from the main menu.

1 From the control panel, press

Copy Document is the first option. As needed, press  to select Copy Photo.

Kodak ESP 9 Printer User Guide 55

Menu.

Copying

3 Press OK to display the Copy Document Options (or Copy Photo Options) menu. A

sample view from the Copy Photo Options menu is shown in the illustration below. ..

4 You can press

between the

until the option you want to adjust is selected. If a value is displayed

andsymbols in the row, pressorto select the value you want.

5 Any changes you make to the copy settings apply only to the current copy operation

unless you save them as your default settings. To keep the settings as permanent, press

until Save as Defaults is selected; press OK, and then select Yes and press OK to

save the change(s) as the new default settings.

6 Press

Start to initiate copying the document (or photo).

The available copy settings are shown in the table below:

Copy Document Options

Menu Options

Quantity

Copy Size

Photo Paper Quality

Plain Paper Quality

Color

Brightness

Save As Defaults





View Settings /

Select

 or   or 

 or 

Settings

1–99

Same Size

20%–500% Automatic

Normal Best Draft Color Black & White

−3 to +3



Scaling is anchored to the upper left corner of the original.

Same Size

56 Kodak ESP 9 Printer User Guide

The copy is the same size as the original. Cropping occurs if the original is larger than the paper size. The copy will contain white space if the original is smaller than the paper size.

Same Size is the default copy setting.

Chapter 6

Scaling Press theorto set the scaling for your image. The choices are Same

Size

, which is 100%, Fit to Page to enlarge or reduce the image to fit on



Plain paper quality output:

Draft Produces the fastest print speed, but the lowest quality.

the page.

Normal

Best

Copy Photo Options

Menu Options

Quantity

Copy Size

Delivers high-quality output and is the default setting. Normal prints faster than

Best.

Produces the highest quality for all paper and eliminates the banding (striping) effect that sometimes occurs in

Draft and Normal modes. Best

is the slowest print speed. If Kodak photo paper is loaded in the paper tray, this setting is used.

View Settings /

Select

 or 

1–99

4x6

4x7 (High Def)

4x12 (Panoramic)

5x7

8x10

Settings

8.5x11

(Wallet) 2x3

Photo Paper Quality

Plain Paper Quality

Color

Brightness

Preview

Save As Defaults OK



You need to specify a quality only for plain paper. If photo paper is loaded in the paper tray, the printer will output the best available quality using the the settings for plain paper copying, see "



 or 

Automatic

Normal Best Draft

Color

Black & White

−3 to +3

Yes

Automatic

Plain paper quality output

setting. To review

" on page

page 57

Kodak ESP 9 Printer User Guide 57

Copying

58 Kodak ESP 9 Printer User Guide

Scanning

Scanning converts text and images from documents and pictures placed on the scanner glass into electronic data, and then sends the data to your computer. To scan using the ESP 9 All-in-One printer, the printer must be connected to a computer. You can scan to the following destinations:

• Kodak Home Center

• Memory card or USB flash drive connected to the printer using the appropriate opening

on the front panel of the computer

• Third–party scanner software application

• As a file on your computer

Before you start

Before you start scanning with this All-in-One printer, Kodak recommends that you use the Home Center software to configure the default scan settings. This way, you can easily manage the scan in your computer. See “All-in-One printer Home Center software” on page 20 for additional information.

Using the Home Center software, you can adjust the following default settings for scanned photos and documents:

• Applications used for file destination(s).

Caution: If you save a document scan to an application, the scan cannot

be later accessed by optical character recognition (OCR) software. If you want to be able to edit the text of the document after scanning it, save the scanned document as a file.

• File type used to save the scan.

• The default setting for saved documents is .pdf (Portable Document Format).

With third–party .pdf viewer software installed, this type of file can be viewed on Web pages or computers. You may also save a scanned document as .rtf (Rich Text Format). This is a standard file type which can be opened and edited in standard word–processing software applications.

Kodak ESP 9 Printer User Guide 59

Scanning

• The default setting for image files is .jpeg (Joint Photographic Experts Group)

format. This standard file type can be opened and edited in standard image editing software applications, and can be view on Web pages.

• File storage location for saved scans.

• Windows: Document scans are saved by default in the My Documents folder,

and images are saved in the My Pictures folder. They are stored by default in these locations in a folder titled with the current date,

• Macintosh: All scans are saved by default in a folder with the current date in the

Documents folder.

• Rule for naming scan files.

• By default, scans are named “scan1”, “scan2”, etc.

• Default scan resolution and photo enhancement preferences.

• Color or black-and-white (Windows only).

• Print quality for scanning documents.

Before initiating a scan, you can also preview the scan in Home Center, and crop the output as desired. When you are satisfied with the intended results, you can initiate the scan directly from Home Center. See Home Center Help for instructions. To review how to access Home Center help, see “All-in-One printer Home Center software” on page 20.

Simple scanning

Simple document scans

1 Place the original document at the right front corner of the scanner glass.

2 From the control panel, press

3 Press

4 Press

5 Note that the default

6 Press

7 Press

8 When the Scanner dialog window displays on your computer, follow the prompts to

 until Scan is selected. Press OK.

 until Scan To is selected. Note that, if your printer is connected to a local

computer, the default setting is network, all of the available computers are listed in alphabetical order.

 until Scan Destination is selected. As needed, press or to specify which

application on the computer will open the file. Kodak Home Center software appears on the list by default.

Start.

finish the scanning process.

Menu.

USB Connected Computer. If you are connected to a

Scan What setting is Document.

60 Kodak ESP 9 Printer User Guide

Simple image scans

1 Complete Steps 1–4 from “Simple document scans” on page 60.

Chapter 7

2 Press

3 Complete Steps 6–8 from “Simple document scans” on page 60.

 until Scan What is selected. Press to specify Photo.

Caution: Although you can scan a document using the Photo option and save

it as an image (.jpeg) file, you will not be able to edit the text later in your computer. If you want to edit a scanned document later, make sure that you scan it as a Document, not as a Photo.

Scanning multiple originals simultaneously

When the Scan What option is set to Photo in the Home Center software, your All-in-One printer can detect multiple photos placed on the scanner glass. Allow some space on the scanner glass between each item, and use the Home Center software to save each photo as a separate file. Any images on the scanner glass that overlap are interpreted by the software as a single image file.

Caution: Home Center cannot interpret two or more documents, photos, or a

combination of documents and photos, as separate scanned items when the

Scan What option is set to Document.

Adjusting scan settings

You can change the default scan settings for your printer using the control panel. When you change scan settings from the control panel, the settings apply only to the current scan job. To apply scan settings to all future scan jobs, you can save your changes.

1 From the control panel, press

2 Press

3 Press

4 Here you can press

 until Scan is selected.

OK to display the Scan Options menu. A sample of the menu is shown in the

illustration below.

until the option you want to adjust is selected. If a value is

displayed between the you want.

Menu.

and symbols in the row, pressor to select the value

Kodak ESP 9 Printer User Guide 61

Scanning

5 Any changes you make to the scan settings apply only to the current scan operation. To

keep the settings as permanent, press press

OK.

 until Save as Defaults is selected, and then

6 Press

The available scan settings are in the following table:

Scan Options

Scan What

Scan To

Scan Destination

Save As Defaults



If you select Document and save the scan to a File, the scan is saved as a document (.pdf or .rtf) file, even if the original is a photo. If you select scanned as an image file, and cannot be read by optical character recognition (OCR) software.



If your printer is connected to a network, more than one computer name will appear in this list. If your printer is connected to a printer by the USB cable, the computer name in the menu is called



You must create a list of one or more applications using Home Center software for any to display by name in the separate setting in the display. (Kodak Home Center software is displayed by default; you do not need to configure your destinations to include it.)

Start to initiate the scan.

Menu Options







USB Connected Computer.

View Settings /

Select

 or 

Scan Destination settings. Each application will appear as a

Document


Computer

Memory Card

File

[Application Name]

Photo, a text document will be

Settings

In addition, before using a location wher the files will be saved, and with the file naming setting. This will prevent problems later in finding the scan file on your computer.

62 Kodak ESP 9 Printer User Guide

Scan Destination setting of File, familiarize yourself with the

Faxing

Introduction

Your Kodak ESP 9 All-in-One printer allows you to send and receive faxes (including color faxes), assign and use quick dial settings for frequently used fax recipients, and select a number of fax options from the control panel.

Note: On a Windows PC connected to the All-in-One printer, you can create and

manage the Fax Phonebook using Home Center software. See Home Center Help for more information. Home Center software is discussed on page 20.

This feature is not available from Home Center software on a Macintosh.

Caution: Faxing only receives and transmits single-sided documents.

Fax settings

Configuring the ESP 9 to send and receive fax transmissions is discussed in Chapter 3, “Setting Up Your Printer” .

Sending faxes

Your printer provides three ways to send faxes. Use the procedure described below that best meets your needs:

If you want to send a fax to… Use this procedure:

Someone not listed in your Fax Phonebook “Dialing a fax number on the control

An entry listed in your Fax Phonebook “Selecting a fax recipient from the Fax

A Fax Phonebook entry assigned a Quick Dial number

panel” , below.

Phonebook” , below.

“Using Quick Dial to select a Fax Phonebook entry” on page 65.

Kodak ESP 9 Printer User Guide 63

Faxing

Tip: To hear sounds as your printer dials the recipient’s fax number and

transmits fax tones to the recipient’s fax machine, make sure that set to ON in the Fax Settings menu. For more information about available settings, see “If two or more phone numbers are shared, set the Distinctive Ring feature to answer one of the lines and set Fax Auto–Answer to On. See “Specifying Rings to Answer” on page 35 to review how to use Fax Auto–Answer with an answering machine.” .

Dialing a fax number on the control panel

1 Load the original (plain paper only) in the automatic document feeder (ADF) or the

scanner glass. See “Loading an original for faxing” on page 43.

Fax Speaker is

2 From the control panel, press

3 Press

 to select Send Fax.

Menu.

4 Enter a number on the number keypad using the correct fax number for the recipient.

The number displays on the LCD, as shown in the illustration below.

Note: The Send Fax menu will display all Fax Phonebook (fax Number and Quick

Dial

entries) names that match the string of numbers you press on the number

keypad. For example, if you press

123, the LCD displays all entries starting with 123.

5 Press Start to send the fax.

Selecting a fax recipient from the Fax Phonebook

1 Load the original. As appropriate review “Preparing a fax for transmission” on page 69.

2 From the control panel, press

Menu.

3 Press

 to select Send Fax and then press OK.

The list of Fax Phonebook entries displays in the Send Fax menu. The last Fax number selected is shown above the

64 Kodak ESP 9 Printer User Guide

Fax Options... menu. See the example, below.

Chapter 8

4 To use the last fax number used, press Start now. Otherwise, press  until the desired

recipient is selected, and then press

OK.

The Fax phone number of the selected entry displays in the menu header, replacing any previous number. See the illustration below.

5 Press

Start to send the fax.

Using Quick Dial to select a Fax Phonebook entry

By assigning up to ten contacts in your Fax Phonebook with a number between 0 (zero) and 9, the Quick Dial feature in your ESP 9 All-in-One printer allows you to create shortcuts for quickly sending Faxes to them.

Note: To configure a fax recipient as a Quick Dial entry, review “Fax Phonebook

entries” on page 67.

There are two ways to use the Quick Dial feature for sending faxes.

Specifying a Quick Dial recipient from the keypad

1 Load the original. As appropriate review “Preparing a fax for transmission” on page 69.

2 From the control panel, press

3 Press

 to select Send Fax and then press OK.

4 Select the appropriate key on the control panel’s keypad associated with the Quick Dial

entry, and then press

Start. For example, press 8 to specify the entry assigned the Quick

Dial value of “08.” See the illustration below.

Menu.

Kodak ESP 9 Printer User Guide 65

Faxing

The Send Fax menu displays the Fax phone number of the Quick Dial entry on the LCD. The Quick Dial entry is highlighted (selected) on the LCD. See the illustration below.

5 Press

Start to send the fax.

Specifying a Quick Dial recipient from the Send Fax menu

1 Load the original. As appropriate review “Preparing a fax for transmission” on page 69.

2 From the control panel, press

3 Press

 to select Send Fax, and then press OK.

The list of Phonebook and Quick Dial entries displays in the Send Fax menu. The last Fax number used displays in the header, above the

4 To use the last Fax number used, press

recipient is either shown in the display, or is selected.

Menu.

first row, as shown below.

Start now. Otherwise, press  until the desired

5 Use one of the following methods to specify a Quick Dial recipient:

a Press the Quick Dial number on the keypad, and then press

8 to specify the entry assigned the Quick Dial value of “08.” See the

press illustration below.

b Press

66 Kodak ESP 9 Printer User Guide

OK to accept the selected value, and then press Start.

Start. For example,

The Fax number of the recipient display on the LCD, and the row representing the entered Quick Dial entry is selected in the display, as shown in the illustration below.

Canceling faxes

To abort a fax after dialing the number, press Cancel from the control panel.

Chapter 8

Receiving faxes

If you use your All-in-One printer to receive faxes, remember to load the bottom paper tray with paper beforehand.

If you set Fax Auto-Answer

Each fax will be printed once it has been received. A Fax Confirmation page will be printed if setting is enabled. See “Fax reports” on page 71.

Receiving faxes automatically

To receive faxes automatically, see Chapter 3.

Manually receiving faxes

When you hear the phone ring and want to receive a fax, press Start on the control panel.

Note: If the phone used to receive faxes uses a voice-messaging service provided

by your telephone service provider, you may not be able to receive faxes automatically. Review “Setting up the fax” on page 29; contact your telephone company for additional information as needed.

Fax Phonebook entries

Off, you will need to receive faxes manually. See below.

The Fax Phonebook stores information about frequently used fax recipients, including name (or other word or phrase, such as a title, used to identify the recipient), fax phone number, and Quick Dial value.

This section describes managing the Fax Phonebook from the control panel. Windows users can manage the Fax Phonebook from Home Center software; see “All-in-One printer Home Center software” on page 20.

Kodak ESP 9 Printer User Guide 67

Faxing

Adding a new Fax Phonebook entry

1 From the control panel, press Menu.

2 Press

3 Select

4 Select

5 Press

6 If the fax number field fails to display automatically on the LCD, press

7 Using the keypad on the control panel, enter the fax number in the field displayed on the

8 When you are finished entering the fax phone number, press

9 Press

10 Using the LCD on-screen keyboard, enter a name for the recipient.

 to select Send Fax and press OK.

Note: This option is also accessible by selecting Edit Phonebook from the Fax

Settings menu.

Fax Options and press OK.

Edit Phonebook and press OK.

The Edit Phonebook menu displays on the LCD.

 to select Add New Entry and press OK.

OK to select the

Number field in the Edit Phonebook Entry menu.

The number field is highlighted.

LCD and then press

OK.

to select Name and press OK.

• Notice the abc/123 key is highlighted. As needed, press OK to display the ABC/123

key. Toggle between these two keys by pressing

OK as needed.

• Here, press , , orto select a key. Use the BKSP key to erase an incorrect

entry. Select the

11 To assign a Quick Dial number to this name, press

OK.

press

12 Enter a number between 0 and 9 on the keypad on the control panel, and then press

13 Press

14 To continue to add entries to the Fax Phonebook, repeat this procedure.

to select DONE when the entry is complete, and press OK.

Done key when you are finished, and then press OK.

Editing an existing Fax Phonebook entry

1 From the control panel, press Menu.

2 Press

3 Select

4 Select

 to select Send Fax and press OK.

Note: This option is also accessible by selecting Edit Phonebook from the Fax

Settings menu.

Fax Options and press OK.

Edit Phonebook and press OK.

The Edit Phonebook menu displays on the LCD.

to select highlight Quick Dial and

OK.

68 Kodak ESP 9 Printer User Guide

5 Press  to select Edit Entry and press OK.

Chapter 8

6 Press

7 Select the field you want to edit, and press

8 Using the LCD display keyboard or the control panel keypad, edit the entry as needed.

9 Select

10 Select another item to edit; or, press

 to select the desired Phonebook entry and press OK.

OK.

Select

Done on the LCD display keyboard to indicate that you are finished using it.

Done when the entry is complete, and press OK.

Cancel to display the Edit Phonebook menu.

Deleting an existing Fax Phonebook entry

1 From the control panel, press Menu.

2 Press

3 Select

4 Select

5 Press

6 Press

 to select Send Fax and press OK.

Note: This option is also accessible by selecting Edit Phonebook from the Fax

Settings menu.

Fax Options and press OK.

Edit Phonebook and press OK.

 to select Delete Entry and then press OK.

 to select the desired Phonebook entry and press OK.

7 Follow the prompts displayed on the LCD, and press

cancel to go back to select an entry to delete.

8 Select

9 Select another item to delete; or, press

Done when the entry is complete, and press OK.

Preparing a fax for transmission

Before sending a fax, load the original (plain paper only) print side up in the automatic document feeder (ADF). See “Loading an original for faxing” on page 43.

Caution: Never load photo paper into the automatic document feeder (ADF) on

the ESP 9; the ADF only accepts plain paper. If you load photo paper in the ADF, the printer displays a warning on the LCD, and will not send the Fax.

Printing a fax cover page

If you do not create a fax cover sheet using a third-party application (for example, wordprocessing software), you can print one with the ESP 9 All-in-One printer.

1 Before sending your Fax, press

2 Press

 to select Fax. Settings and press OK.

Menu from the control panel.

OK to delete the entry displayed or

Cancel to display the Edit Phonebook menu.

3 Press

Kodak ESP 9 Printer User Guide 69

 to select Print Fax Cover Page and press OK.

Faxing

4 Load 8.5x11 or A4 paper as needed, and then and press Start.

The printer produces a Fax cover sheet, which provides space for entering the following:

• Information about the recipient (company, Fax number, recipient name)

• Information about the sender (company, Fax number, phone number, sender name)

• Number of pages in the Fax, including the cover page

• Message to the recipient

5 Complete the items on the cover sheet as appropriate.

6 Place the Fax Cover Sheet before the first page of the original document used for your

fax transmission.

7 Use one of the following procedures to send the fax:

• “Dialing a fax number on the control panel” on page 64

• “Selecting a fax recipient from the Fax Phonebook” on page 64

• “Using Quick Dial to select a Fax Phonebook entry” on page 65

Changing Send Fax settings

If, before sending your fax, you want to modify any fax settings, you can use the Send Fax Options menu now.

1 From the control panel, press

2 Press

3 Press

4 Press

 to select Send Fax and then press OK.

Fax Options is selected by default.

OK to display the Send Fax Options menu.

 to select an item you want to change.

Menu.

• To change the Resolution, Color or Brightness items, press theor buttons on

the control panel to change the value for the setting; then press

OK.

• If you select Edit Phonebook, press OK. See “Fax Phonebook entries” on page 67 to

review the procedure for adding, editing, or deleting a Fax Phonebook entry. When you are finished, press

Menu to return to the Send Fax Options menu.

• Any changes you make in the Edit Phonebook menu are saved when you complete

each entry.

• Any changes you make to the fax settings apply only to the current fax operation.

5 If you want to save the changes as default settings, press

and then press OK.

6 If you have not created a fax cover page, you can do so before sending your fax. See

“Printing a fax cover page” on page 69. Otherwise, use one of the following procedures to send the fax:

 to select Save as Defaults

• “Dialing a fax number on the control panel” , below

• “Selecting a fax recipient from the Fax Phonebook” on page 64

• “Using Quick Dial to select a Fax Phonebook entry” on page 65

70 Kodak ESP 9 Printer User Guide

Send Fax Options

The available fax settings are shown below:

Chapter 8

Menu Options

Edit Phonebook

Resolution

Color

Brightness

Save As Defaults OK

Fax reports

The following reports are available from the Fax Settings menu:

View Settings /

Select

or

Settings

Add New Entry

Edit Entry

Delete Entry

Standard

Fine


Color

Black & White

-3 to +3

Fax report name Contains: To print:

Print Fax Confirmation Page

Details about faxes, one fax at a time, based on the menu setting.

Set the value for this option to

Always, or After Failure Only in the Fax

Settings menu on the LCD display.

Note: This report cannot be run from

the control panel; it is generated automatically only after sending a fax, and only based on the setting.

Fax Settings Information about the printer and a

summary of the current fax settings for the device. See “Fax Settings Options ” on page 37.

Fax Activity Log Details about the last 30 faxes sent and

received.



The printer also generates a Fax Lost Job report, which contains details about the time, date, and fax number. This option is NOT available as an option in the Fax Settings menu. Rather, if a fax was not received because your printer lost power (for instance, due to an electrical power outage), the printer automatically generates a Fax Lost Job report when power returns to the printer (and it is turned on). This feature allows you to notify the sender(s) about any fax that could not be received due to loss of power, and you can request re–transmission, as appropriate.

Press

OK to select, then press Start.

Press

Never,



Kodak ESP 9 Printer User Guide 71

Faxing

Printing a fax report

1 Load 8.5x11 or A4 paper into the bottom paper tray, as needed.

2 From the control panel, press

3 Press

4 Press

 to select Fax Settings and press OK.

 to select Print Fax Confirmation Page and press OK

Menu.

5 As appropriate, press or to change the Print Fax Confirmation Page setting.

Note: This report cannot be run from the control panel; the ESP 9 will

output this report only after you send a fax, and only based on the setting. If you change this setting, press

OK to save the setting, and then press Cancel

to exit the Fax Settings menu; or, you can continue (see Step 5)

6 Press

 until the desired report (Print Fax Settings or Print Fax Activity Log only) is

selected.

Note: The option to Print Fax Cover Page is also available in the Fax

Settings menu; see “Printing a fax cover page” on page 69.

7 Press

OK to select the option; and then press Start to print the report.

72 Kodak ESP 9 Printer User Guide

Maintaining Your Printer

Your Kodak ESP 9 All-in-One printer requires little maintenance. However, Kodak recommends cleaning the scanner glass and lid backing regularly to remove dust and fingerprints. Fingerprints and other debris on the glass or lid backing could slow down the printer’s performance, and affect the quality and accuracy of scanning.

Service agreements are available in some countries. Contact dealers for Kodak products for more information.

For recycling and or disposal information, contact your local authorities. In the U.S., visit the Electronics Industry Alliance Web site at www.eiae.org

General care

Caution: Always disconnect the power on the this All-in-One printer before

cleaning it. Do not use harsh or abrasive cleaners or organic solvents on the printer or any of its parts.

• To clean the printer, wipe the outside with a clean, dry cloth.

• Keep the surrounding area vacuumed and litter-free.

• Protect the printer from tobacco smoke, dust, sand, other small particles (such as

crumbs), and liquid spills.

• Avoid placing objects on the printer.

• Keep the printer supplies away from direct sunlight and out of high-temperature

environments.

• Do not allow chemicals, such as suntan lotion, to come into contact with the painted

surface of the printer.

• If the printer has been exposed to bad weather or has water inside it, turn it off and let it

dry completely. If this does not solve the problem, contact customer support (see “Contacting Kodak Customer Service & Support” on page 2).

Kodak ESP 9 Printer User Guide 73

Maintaining Your Printer

Cleaning the scanner glass

For good copies and scans, ensure the printer's scanner glass and lid backing are clean; dust the exterior as needed.

Warning: Do not use abrasives, acetone, benzene, or carbon tetrachloride on the

glass, as they can damage it. Do not place or spray liquid directly on the glass. The liquid might seep under the glass and damage the device.

1 Unplug the printer and raise the lid.

2 Clean the glass with a soft cloth or sponge slightly moistened with a nonabrasive glass

cleaner.

3 Dry the glass with a lint-free cloth.

4 When finished cleaning, plug in the printer.

Cleaning the scanner lid

Minor debris can accumulate on the document backing located underneath the scanner lid of the Kodak printer.

Warning: Do not use paper-based wipes, as these might scratch the underside of

the scanner lid. Do not use harsh or abrasive cleaners or organic solvents on the printer or any of its parts.

74 Kodak ESP 9 Printer User Guide

Chapter 9

1 Unplug the printer and raise the lid.

2 Clean the underside with a soft cloth or sponge, slightly moistened with a mild soap and

warm water.

3 Wipe the underside gently to loosen debris. Do not scrub.

4 Dry the underside with a chamois or soft cloth.

5 If further cleaning is needed, repeat the previous steps using isopropyl (rubbing)

alcohol, and wipe the underside thoroughly with a damp cloth to remove any residual alcohol.

6 When finished cleaning, plug in the printer.

Monitoring and adjusting the printer's performance

From the control panel, you can perform many tasks to keep this printer in good working order. For example, you can check the status of the printer’s inkjet nozzle to ensure highquality prints. Kodak recommends that you run a nozzle check if you are experiencing changes in image quality. You can also use the degradation in print quality.

1 Make sure that there are 5

2 Press

3 Press

4 As needed, press

5 Press

6 Follow the prompts on the LCD display to initiate or cancel the task.

Menu to display the main menu.

 until Maintenance is selected.

 until the desired option is selected.

OK.

These available maintenance options are shown in the table below:

–10 sheets of plain paper loaded in the bottom paper tray.

Printhead Alignment function if you see

Kodak ESP 9 Printer User Guide 75

Maintaining Your Printer

Maintenance Options

Check Ink Levels OK

Menu Options Select

Check Paper Levels

Nozzle Check

Printhead Alignment

Clean Printhead

Print Test Page

Format Memory Card

Warning: Formatting will erase all the data on a memory card.

Tip: A printhead alignment and a check of the inkjet nozzle can also be initiated

from the Home Center software.

Windows: Open the Home Center Help panel by clicking Help on the Home

Center window, as needed. Click

Printhead Alignment.

Macintosh: Open Home Center window from the dock, and click Maintenance,

and then click

Nozzle Correction or Printhead Alignment.

Maintenance, and then click Nozzle Check or

Replacing ink cartridges

Your Kodak printer uses separate black and color ink cartridges. The ink levels are shown on the control panel and in the printer software.

Caution: For the best quality prints, store ink cartridges in locations where the

temperature does not exceed 85°F (30°C).

Warning: Use genuine Kodak ink cartridges to ensure best results and avoid

printhead damage not covered under warranty. Third-party ink cartridges may not contain the necessary information to notify you before the ink cartridge is empty.

1 Make sure the printer is turned on.

76 Kodak ESP 9 Printer User Guide

Chapter 9

1 Printhead

2 Color ink cartridge

3 Black ink cartridge

2 Open the printer access door by lifting from the recessed hand-holds on the sides of the

unit

The printhead moves to an accessible position for handling the ink cartridges. The ink cartridges are seated in the printhead.

3 Wait until the printhead stops moving, and then pinch the latch on the old ink cartridge

with your thumb and forefinger and lift it out of the printhead.

Note: You can take your used ink cartridges to most office supply or electronics

stores for safe disposal.

4 Open the box containing the new ink cartridge.

Kodak ESP 9 Printer User Guide 77

Maintaining Your Printer

5 Remove the bagged ink cartridge from the box, tear open the bag at the notch, and

remove the ink cartridge. .

Caution: Insert the ink cartridge immediately to prevent any drying of the ink.

6 Remove the orange cap from the cartridge by grasping the top edge and pulling/

rotating it off the ink cartridge. Discard the orange cap.

7 Insert the ink cartridge into the printhead.

78 Kodak ESP 9 Printer User Guide

Chapter 9

8 Press down on the tab until you hear a click and feel the latch snap into position.

Note: Listen carefully during this step; make sure you hear the ink cartridges click

into place in the printhead. This seats the cartridges properly, and prevents ink from being dispensed incompletely during your print or copy jobs.

9 Close the printer access door. The printhead moves to its ready position and prepares

the new ink cartridge for use (this could take up to a minute).

Replacing the printhead

If your printhead is damaged or broken, you may replace it yourself.

1 Make sure your printer is turned on.

2 Open the printer access door by lifting from the recessed hand-holds on the sides of the

unit.

Kodak ESP 9 Printer User Guide 79

Maintaining Your Printer

1 Printhead

2 Color ink cartridge

3 Black ink cartridge

The printhead moves to an accessible position for handling the ink cartridges. The ink cartridges are seated in the printhead.

3 Pinch the latch on the ink cartridge with your thumb and forefinger and lift it out of the

print head. Remove both ink cartridges.

Caution: Insert the ink cartridges into the newly installed printhead as soon as

possible to prevent any drying of the ink.

4 Unlatch the printhead by lifting the rectangular latch on the top of the printhead.

80 Kodak ESP 9 Printer User Guide

5 Remove the old printhead from the carriage.

6 Remove the new printhead from its bag.

Chapter 9

Caution: Do not touch copper contacts on the printhead, as this may damage it.

7 Remove and discard the black plastic casing and the orange protective cap.

Kodak ESP 9 Printer User Guide 81

Maintaining Your Printer

Listen carefully during this step; make sure you hear the ink cartridges click into place in the printhead. This seats the cartridges properly, and prevents ink from being dispensed incompletely on your print or copy jobs.

8 Place the new printhead into the carriage.

9 Push firmly against the target label on the printhead until you hear it click into place.

10 Reinstall the ink cartridges. As needed, see “Replacing ink cartridges” on page 76.

11 Close the printer access door. The printer should now complete a printhead calibration

to ensure that it is ready to for normal operation.

82 Kodak ESP 9 Printer User Guide

Troubleshooting

Troubleshooting “quick start”

Kodak provides several methods to help you troubleshoot your All-in-One printer issues. Here are some quick tips:

• Turn off your printer and then unplug it. Wait five seconds, and then plug the power

cord back into the printer. Finally, turn the printer back on.

• Confirm that you are using a 2.0 USB cable to connect the printer to your computer. If

you need to buy one, they are available online at www.kodak.com/go/aio local electronics and printer retailer.

• Make sure that you have the most up-to-date All-in-One printer software and Help files

from the Internet. Visit www.kodak.com/go/support

, or from your

to download the latest files.

• View the troubleshooting information found in Kodak Home Center software on your

computer. After opening Home Center, click the question mark (

• Macintosh: The button is located at the lower-left of the Home Center window.

• Windows: The button is located at the upper-right of the Home Center window.

Use the Help window to view troubleshooting topics. (Windows users can also select

Troubleshoot from the Help panel on the main Home Center window.)

• You can also get troubleshooting help at the Kodak Web site. Visit www.kodak.com/

go/support for support for your Kodak printer.

Note: Many issues with degradation in performance or print quality can be

resolved by meeting or exceeding the recommended system requirements. See Chapter 11 on page 83.

General troubleshooting

Printer fails to power on

Probable Cause

The power supply is not properly connected.

?) button:

Kodak ESP 9 Printer User Guide 83

Troubleshooting

Corrective Action

• Make sure the electrical power cord is connected to the alternating current power

• If using a power strip, make sure it is turned on.

• If using a switched power outlet, make sure the switch is on.

• Make sure the power outlet is supplying power.

• Verify the light on the Kodak printer power cord plug is lit.

Probable Cause 2

The USB cable was unplugged from the printer and then reconnected; or, power to the printer is interrupted.

Corrective Action

• Restart the computer

Probable Cause 3

The USB cable is not 2.0 compliant.

adapter, and is plugged into a grounded power outlet or power strip.

Corrective Action

• Replace the USB cable with a USB 2.0 compliant cable.

Note: For optimal quality and performance, use a good-quality high speed USB 2.0

cable. When connecting to the Kodak All-in-One printer, use the USB ports located in the back of the computer. Any USB 2.0 hubs that are used should be selfpowered.

• Restart the computer

If none of the above corrects the problem, contact Kodak support.

Device not recognized

Probable Cause

Any of the following can prevent your Kodak All-in-One printer from reading a connected device (digital camera, USB drive, or memory card).

• The camera is turned OFF.

• The USB connector on a USB drive is not fully inserted into the USB port.

• The memory card is not completely inserted, or is not inserted into the correct card slot.

• The file system on the device is corrupt.

• More than one device is inserted at a time.

• The USB device is not supported.

• The USB cable is faulty.

84 Kodak ESP 9 Printer User Guide

Corrective Action

• Correct any connection problems and try again.

• If the file system is corrupt, reformat it.

• Disconnect the unsupported device.

Note: If the USB drive uses an NTFS or HFS formatting system, the printer may not

be able to read it. Macintosh users may need to transfer these files directly to their computer, and then printing to the printer from there.

Ink cartridge not recognized

Probable Cause 1

The color or black ink cartridge installed was not recognized.

Warning: Generic or non-Kodak ink cartridges may not function with the

All-in-One printer. Kodak recommends using genuine Kodak ink cartridges.

Corrective Action

Chapter 10

Install a genuine Kodak ink cartridge.

Probable Cause 2

One of the ink cartridges needs to be replaced.

Corrective Action

Replace the ink cartridge.

Multiple paper feed

Probable Cause

Multiple sheets of paper were pulled through printer.

Corrective Action

Caution: Kodak Inkjet paper is recommended for your Kodak All-in-One printer.

1 Remove the paper from the paper tray.

2 Carefully “fan” the paper to keep the sheets from sticking together.

3 Reload the paper tray. Do not overfill.

4 Press

Kodak ESP 9 Printer User Guide 85

OK.

Troubleshooting

Multiple pictures not scanned properly

When scanning or copying, the Kodak printer can detect multiple images on the scanner glass, straighten them, and create individual files. If you are having trouble with this feature, check the following:

Probable Cause 1

Your photos are not placed optimally on the scanner glass.

Corrective Action

• Make sure that your photos do not overlap.

• Place photos away from the edges of the scanner glass.

• Some images do not scan well. Light-colored images may not be detected as separate

images.

• You may need to make adjustments to the scanning area using the Preview feature in

the Kodak Home Center.

Probable Cause 2

The scanner glass is dirty.

Corrective Action

Make sure the scanner glass is completely clean or the photos might not scan properly (see “Cleaning the scanner glass” on page 74).

Probable Cause 3

The scanner lid is dirty.

Corrective Action

Clean the scanner lid (see “Cleaning the scanner lid” on page 74).

Probable Cause 4

The

Scan What Document option on the Scan menu was selected, instead of the

Scan What Photo option.

Corrective Action

Scan the photos again in the appropriate format.

No communication with computer

Probable Cause

Your Kodak printer is not connected to your computer.

Corrective Action

• Make sure your printer is plugged in and turned on.

86 Kodak ESP 9 Printer User Guide

• Make sure you are using the proper USB cable (USB 2.0).

• If you are using a USB hub to connect the USB cable to the computer, make sure that it

has power. Use a self-powered (connected to an electrical outlet) USB hub instead of one that uses the computer’s internal power.

• Check the connection from your computer to your printer. Ensure that the square end of

the USB cable is plugged in to the USB port on the back of your printer, and the flat end into a USB port on your computer.

• You may need to disconnect other printers or scanners from your computer.

• After checking connections, restart your computer.

• Make sure your computer meets the minimum system requirements, otherwise

upgrade your system if necessary.

For more information on connecting your printer to your computer, see the Start Here booklet that came with your printer.

No paper feed

Probable Cause

Chapter 10

The paper tray may be empty, or there may be a problem with the paper in the tray.

Caution: Kodak Inkjet paper is recommended for your Kodak All-in-One printer.

Corrective Action

If the tray is empty, load paper into the paper tray, then resume printing. Check for a message from the printer status monitor (Windows) or the printer queue window (Macintosh) on your computer. Check for a problem with the paper in the tray.

To check the paper

1 Inspect the paper and make sure no paper sheets are damaged in any way. Reload with

new paper, if necessary.

2 Carefully “fan” the paper to keep the sheets from sticking together.

3 Reload the paper tray. Do not overfill.

4 Press

OK.

One or more of the colors on the calibration sheet is missing

Probable Cause

The printhead is not installed correctly. If the printhead has been working properly, it may have come loose.

Kodak ESP 9 Printer User Guide 87

Troubleshooting

Corrective Action

If the printhead has come loose:

1 Open the printer access door, and then remove the black and color ink cartridges.

2 Press the printhead release button.

3 Lift the printhead out.

4 Reinsert the printhead and ink cartridges.

Note: See “Replacing the printhead” on page 79 for illustrated instructions for

performing this procedure.

If this does not resolve your printing issue, contact Kodak Service and Support

Paper jam

Probable Cause

The paper did not advance, was not picked up properly from the paper tray, or is lodged inside the printer.

Corrective Action

1 Remove the paper from the tray you used when the jam occurred.

2 Turn off the printer.

3 Open the rear access area and pull the paper out from the rollers without tearing it.

4 Reload the paper tray, but do not overfill it.

Caution: Kodak Inkjet paper is recommended for your Kodak All-in-One printer.

Caution: If the paper tears while removing it, make sure you remove all the torn

pieces. More jams are likely to occur when torn pieces are left in the printer.

5 Turn the printer on.

6 Press

OK.

Printer not responding

Probable Cause

The firmware or software is not in a ready state.

Corrective Action

• Turn the printer off and turn it back on.

• If the problem persists, unplug the power cord from the power supply and plug it back

in.

• If the problem continues to persist, restart your computer.

88 Kodak ESP 9 Printer User Guide

Transfer pictures failure

Problem

Nothing happens when you try to transfer photos to the computer.

Corrective Action

• Remove the memory card or USB device and reinsert it.

• Check the power connection to the computer.

• If you are trying to transfer photos from a memory card and a PictBridge camera is

connected, disconnect the camera.

• Close any unnecessary software applications, and minimize any remaining application

windows. Follow any messages on the screen that may have been hidden by other windows.

• Disconnect then reconnect the USB cable from the printer to the computer.

• Make sure you are using a high-quality USB cable which is communicating with the

computer. (See “No communication with computer” on page 86.)

Chapter 10

• If the pictures are on a USB device, make sure it uses a supported file system (see

“Device not recognized” on page 84).

• Make sure your computer meets the minimum system requirements for using your

printer (see ““General troubleshooting” on page 83). Upgrade your system if necessary.

User guide on the CD is obsolete

Probable Cause

The User Guide has been updated since the software CD was released.

Corrective Action

• Download the most recent version of the User Guide from Kodak.com.

Wrong paper size

Probable Cause

The print size or paper size you selected may be larger or smaller than the paper found in the paper tray.

Corrective Action

1 Replace the paper in the paper tray with the correct size.

2 Press

If the situation continues, contact Kodak support.

Kodak ESP 9 Printer User Guide 89

OK.

Troubleshooting

Macintosh OS X troubleshooting

Non-intel Mac only: black screen or screen freeze occurs when

applying printer settings via the Home Center software

Probable Cause

This error only occurs with non-Intel Macintosh computers running Leopard OS version

10.5. Apple has confirmed that there are problems running the latest version (Leopard) on G5 processors.

Corrective Action

• Upgrade to Macintosh OS 10.5.2.

Windows Vista troubleshooting

WIA (Windows Image Acquisition) error: service has

stopped working

Probable Cause 1

The USB cable is unplugged and reconnected to the printer or when the printer terminated error.

Probable Cause 2

Power is interrupted. This results in the inability to connect a camera and transfer pictures from the camera. Neither the camera nor the printer is visible through the

My PC

Corrective Action

option on the Print Photo Options menu.

Transfer All to

• Restart the computer and printer.

Home Center software on Windows works incorrectly following software upgrade

Probable Cause

Some changes in the Home Center software on Windows systems may have been affected by enabled Security and/or User Account Control settings.

Corrective Action

1 Right-click on the Home Center icon (shortcut) on the Desktop.

2 Select

3 Select the Compatibility tab.

4 Check the box that says “Run the program as an administrator.”

90 Kodak ESP 9 Printer User Guide

Properties.

Print troubleshooting

Use this section to resolve print problems.

Envelope printing incorrect

Probable Cause

The envelopes are not loaded correctly.

Corrective Action

1 Remove the envelopes from the paper tray.

2 Straighten the stack of envelopes against a flat surface. Reload the stack into the paper

tray print side down, with the envelope flap aligned to the left.

3 Squeeze the paper guide and slide it to the right until it touches the edge of the

envelopes.

Multiple-page document not printing in reverse order (Windows only)

Chapter 10

Note: On a Macintosh, Reverse Page Order printing is the default setting. See “To

set a Macintosh to print the first page of a document first:” below

Probable Cause

The print settings on your computer are set to print the first page of your document first.

Corrective Action

Configure the printer to print the document in reverse order, so the pages are in the correct order when printing is complete.

To set a Windows PC to print in reverse order:

1 On the Windows Desktop, click

2 In the Control Panel window, open Printers or Printers and Faxes.

3 In the Windows Explorer window, Right-click on the Kodak All-in-One printer in the

Name column, and then select Printing Preferences.

4 On the Printing Preferences window, select

Start > Settings > Control Panel.

Print last page first on the General tab.

Multiple-page document not printing in first-page first order

(Macintosh only)

Probable Cause

The print settings on your computer are set to print the document in reverse order.

Corrective Action

Configure the printer to print the document first-page first.

Kodak ESP 9 Printer User Guide 91

Troubleshooting

To set a Macintosh to print the first page of a document first:

1 On the File menu, select

2 On the Print dialog, select

3 Select the

Normal Page Order option.

Print.

Paper Handling.

PictBridge camera not detected

Probable Cause

The camera is not communicating with the printer.

Corrective Action

• Make sure the camera is turned on.

• Check the USB connections from the PictBridge camera to the printer.

• If disconnected, reconnect the USB cable from the PictBridge camera to the printer.

• Make sure the connected camera is PictBridge-compatible. See your camera or device

user’s guide for details.

• Check the camera batteries.

Picture cropped

• Change the picture quality setting (or resolution) on your digital camera to 3:2. See your

camera user’s guide for details.

• Adjust cropped photos using the Kodak Home Center software (Windows only) or

other image editing software on your computer.

• If you are printing from an application on your computer, select the proper paper size

from the printer options.

Note: Cropping may vary, depending on the selected picture size and size of the

output paper. from each paper size so a portion will be cropped to fit perfectly on whatever paper size was selected.

Picture print smudged

Probable Cause

Fingerprints are on the glossy side of paper.

Corrective Action

Handle paper by the edges.

Picture will not print

The dimensions of the photo on the camera are slightly different

A selected picture does not print.

92 Kodak ESP 9 Printer User Guide

Kodak ESP 9 ALL-IN-ONE PRINTER, ESP 9 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
