Kodak ESP 7 Supplemental User Guide

Download

Kodak ESP 7 All-in-One Printer

All-in-One Printer

print copy scan

User Guide

Eastman Kodak Company

Rochester, NY 14650

Kodak is a trademark of Eastman Kodak Company.

The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc., and any use of such marks is under license.

P/N 1K 594 3

March 2010

Table of contents

1 Getting Help

Help menu ..........................................................................................................................................................................1

Getting answers to frequently-asked questions......................................................................................................2

Contacting Kodak Customer Service & Support......................................................................................................2

Support at Kodak.com..............................................................................................................................................2

2 Printer Overview

All-in-one printer features.............................................................................................................................................3

Major components of the ESP 7 all-in-one printer..................................................................................................4

Support for connecting digital memory devices to the printer ............................................................................5

Memory card slots ....................................................................................................................................................5

Memory cards supported........................................................................................................................................5

USB host port..............................................................................................................................................................6

Control panel layout........................................................................................................................................................6

LCD screen ..................................................................................................................................................................7

Using the control panel ..................................................................................................................................................8

Adjusting the control panel position ....................................................................................................................8

Using the 4-way navigation buttons ....................................................................................................................9

Using the OK button ...............................................................................................................................................10

Using the Menu button ..........................................................................................................................................10

Using the Zoom buttons........................................................................................................................................10

Using the Start button .............................................................................................................................................11

Using the Cancel button .........................................................................................................................................11

Using the on-screen keyboard .............................................................................................................................. 11

Using the printer menus............................................................................................................................................... 12

Menu layout.............................................................................................................................................................. 12

Menu structure ........................................................................................................................................................ 13

Status lights...............................................................................................................................................................14

Home Center Software ................................................................................................................................................ 17

Home Center for Windows................................................................................................................................... 17

Home Center for Macintosh................................................................................................................................. 18

3 Setting Up Your Printer

Selecting a printer location..........................................................................................................................................19

Configuring printer settings ........................................................................................................................................ 19

Configuring basic settings.....................................................................................................................................19

Printer Settings options.........................................................................................................................................20

Setting your printer as the default......................................................................................................................20

Configuring network settings ..................................................................................................................................... 21

Networking resources ............................................................................................................................................ 21

Configuring an Ethernet network connection .................................................................................................. 21

Configuring a wireless network connection .................................................................................................... 22

What you need to know before you connect ...................................................................................................23

www.kodak.com/go/aiosupport i

Table of contents

Configuring basic wireless (Wi-Fi) settings.....................................................................................................23

Network Settings options..................................................................................................................................... 24

Wi-Fi setup wizard................................................................................................................................................. 24

Scanning for wireless networks ...........................................................................................................................26

Setting up an IP address ........................................................................................................................................27

Verifying network configuration..........................................................................................................................27

Printing network configuration ............................................................................................................................28

Installing your printer on additional computers on the same network .....................................................28

Changing the printer connection type......................................................................................................................29

For Windows ............................................................................................................................................................29

For Macintosh ......................................................................................................................................................... 30

4 Handling Paper

Handling paper...............................................................................................................................................................32

Loading the paper trays ...............................................................................................................................................32

Things to keep in mind...........................................................................................................................................32

Loading plain paper.................................................................................................................................................33

Loading photo paper ............................................................................................................................................. 34

Loading envelopes...................................................................................................................................................35

Loading legal size paper.........................................................................................................................................35

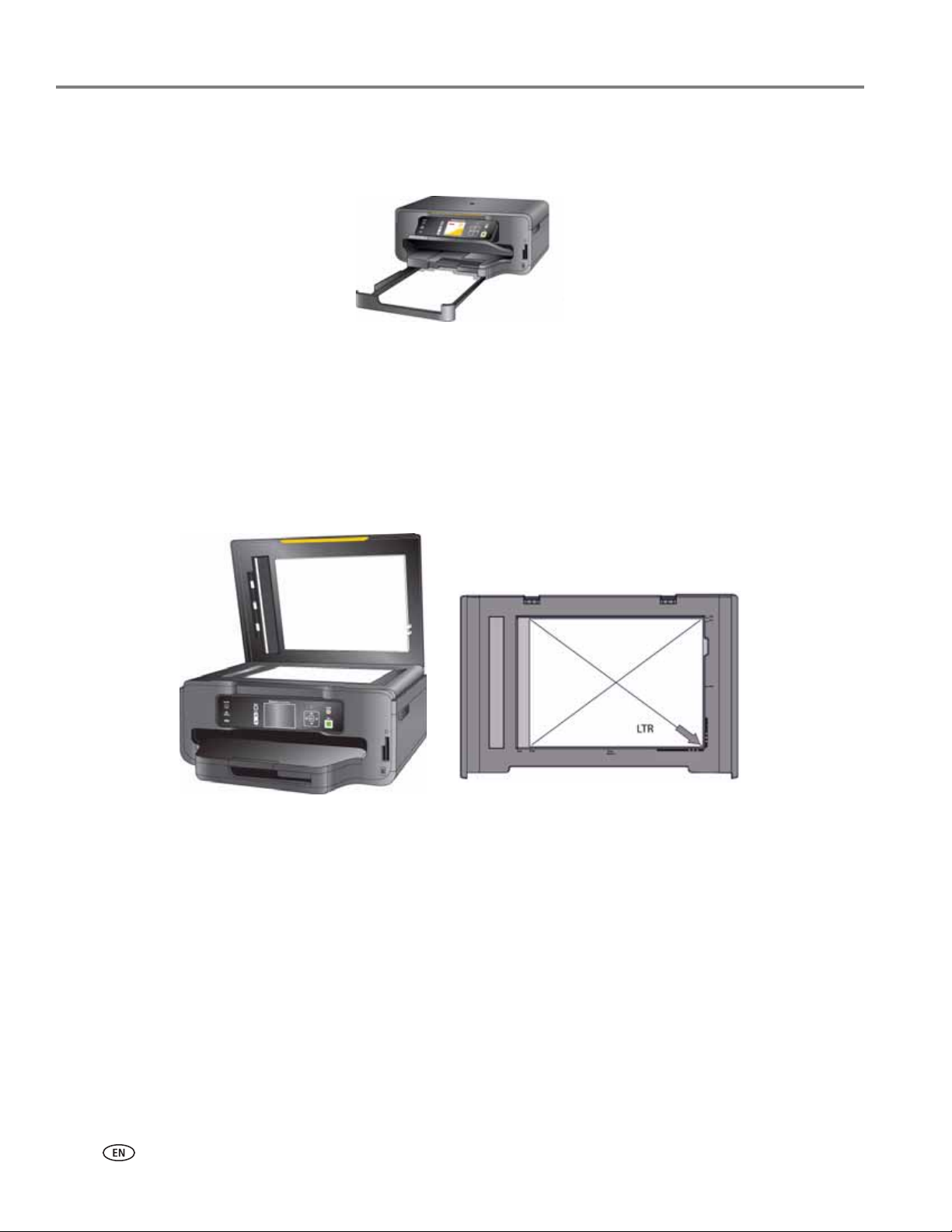

Loading originals............................................................................................................................................................36

Loading an original for copying or scanning.....................................................................................................36

5 Viewing and Printing Photos

Viewing photos ..............................................................................................................................................................37

Configuring photo print settings................................................................................................................................38

Print Photos options ...............................................................................................................................................39

Printing photos ..............................................................................................................................................................40

Printing photos from a PictBridge camera .......................................................................................................40

Printing photos from non–PictBridge digital cameras, memory cards, and USB flash drives............. 40

Printing tagged images ......................................................................................................................................... 42

Printing from a Bluetooth–enabled device....................................................................................................... 42

Printing multiple photos ....................................................................................................................................... 43

Printing panoramic photos................................................................................................................................... 43

Zooming and cropping photos .................................................................................................................................. 44

Transferring images to a computer ................................................................................................................... 45

Transferring images to a Windows computer................................................................................................ 45

Transferring images to a Macintosh computer.............................................................................................. 46

6 Copying

Simple copying .............................................................................................................................................................. 47

Adjusting copy settings .............................................................................................................................................. 47

Copy Document options.......................................................................................................................................48

Copy Photo options ............................................................................................................................................... 49

ii www.kodak.com/go/aiosupport

Table of contents

7 Scanning

Before you start ............................................................................................................................................................. 50

Simple scanning ............................................................................................................................................................. 51

Simple document scans ......................................................................................................................................... 51

Simple image scans................................................................................................................................................. 51

Scanning multiple originals simultaneously .................................................................................................... 52

Adjusting scan settings ............................................................................................................................................... 52

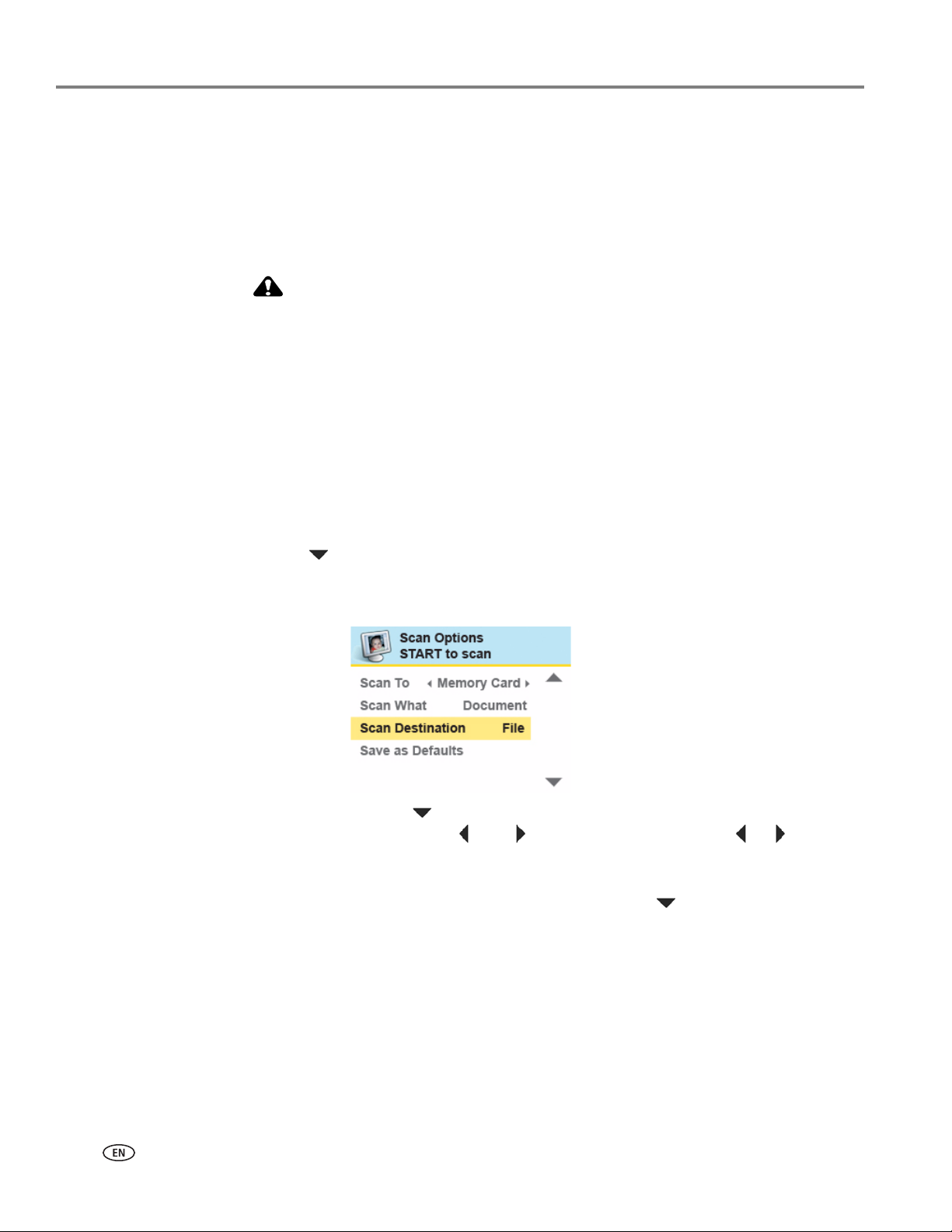

Scan options....................................................................................................................................................................53

8 Maintaining Your Printer

General care ................................................................................................................................................................... 54

Cleaning the scanner glass......................................................................................................................................... 55

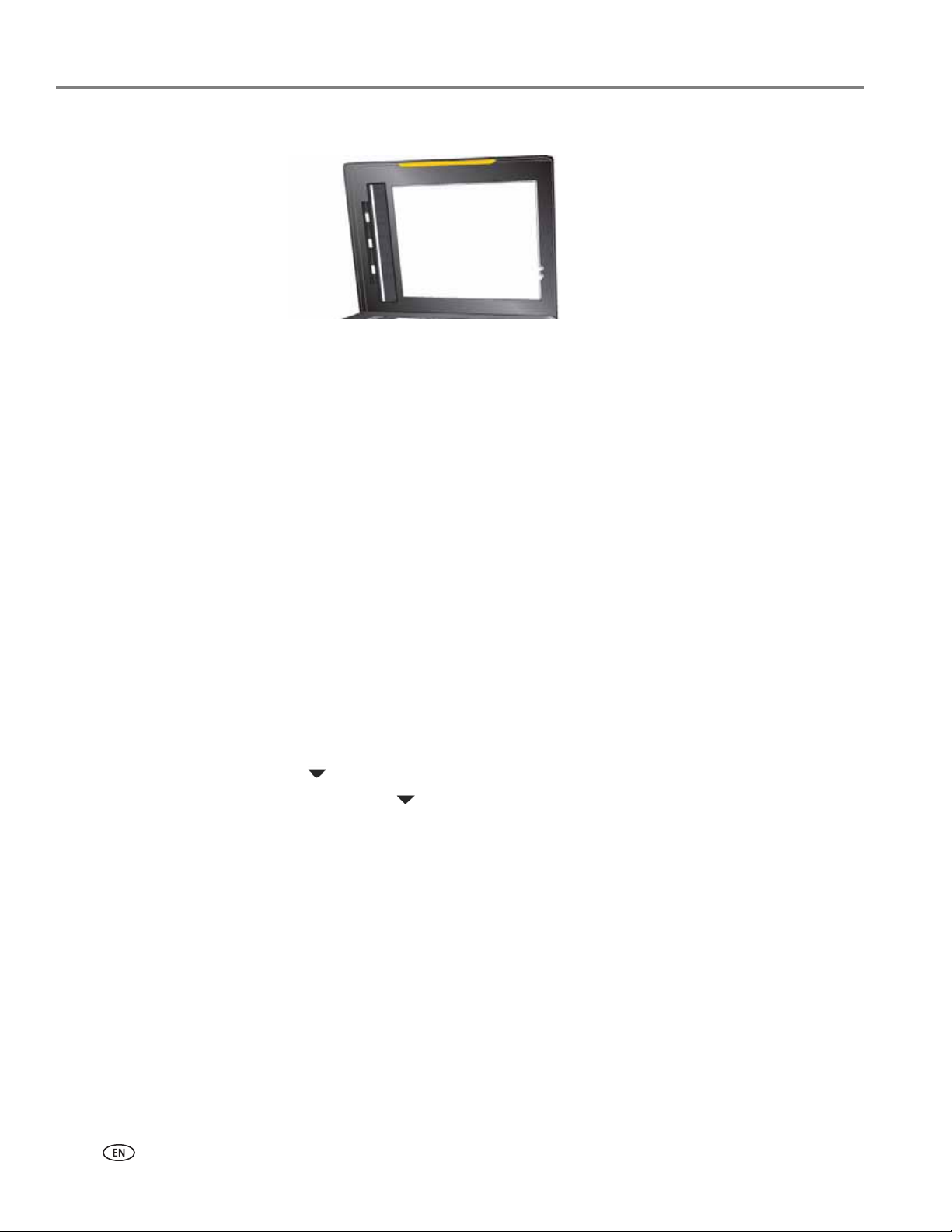

Cleaning the scanner lid.............................................................................................................................................. 55

Monitoring and adjusting the printer's performance .......................................................................................... 56

Maintenance options............................................................................................................................................. 57

Replacing ink cartridges .............................................................................................................................................. 57

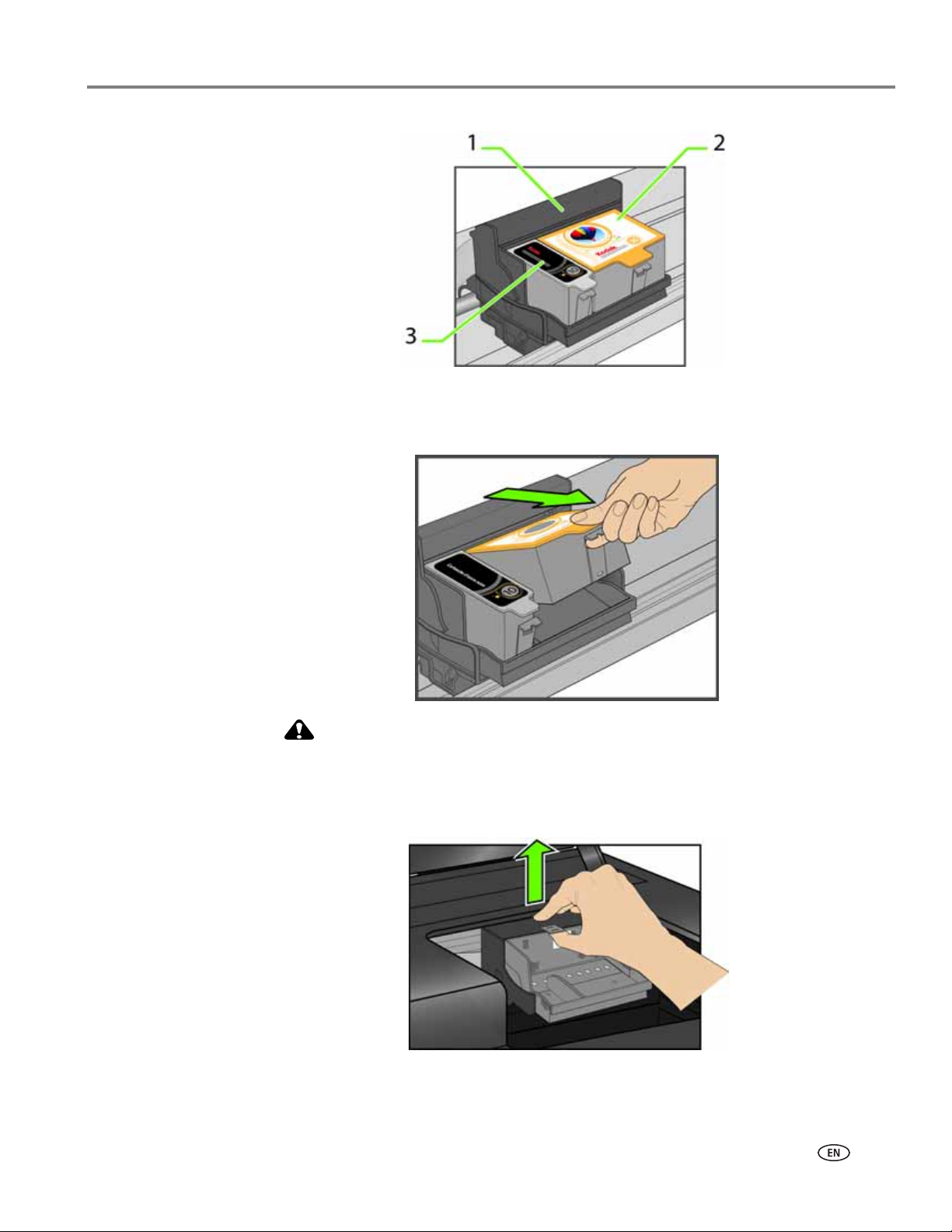

Replacing the printhead ..............................................................................................................................................60

Upgrading the printer software - for Windows .................................................................................................... 65

Upgrading the printer software - for Macintosh .................................................................................................. 66

9 Troubleshooting

Troubleshooting “quick start”.................................................................................................................................... 67

General troubleshooting ............................................................................................................................................. 67

Printer fails to power on........................................................................................................................................ 67

Device not recognized........................................................................................................................................... 68

Ink cartridge not recognized ................................................................................................................................ 69

Multiple paper feed................................................................................................................................................ 69

Multiple pictures not scanned properly............................................................................................................69

No communication with computer .................................................................................................................... 70

No paper feed ........................................................................................................................................................... 71

One or more of the colors on the calibration sheet is missing .................................................................... 71

Paper jam.................................................................................................................................................................. 72

Printer not responding........................................................................................................................................... 72

Transfer pictures failure........................................................................................................................................ 72

User guide on the CD is obsolete ........................................................................................................................73

Wrong paper size ....................................................................................................................................................73

Macintosh OS X troubleshooting........................................................................................................................73

Windows Vista troubleshooting......................................................................................................................... 74

Home Center software on Windows works incorrectly following software upgrade .......................... 74

Print troubleshooting ................................................................................................................................................... 74

Envelope printing incorrect .................................................................................................................................. 74

PictBridge camera not detected.......................................................................................................................... 75

Picture cropped....................................................................................................................................................... 76

Picture print smudged ........................................................................................................................................... 76

www.kodak.com/go/aiosupport iii

Table of contents

Picture will not print................................................................................................................................................76

Poor print quality .....................................................................................................................................................77

Print skewed or slanted .........................................................................................................................................77

Print spotted .............................................................................................................................................................77

Print too dark ............................................................................................................................................................78

Print too light ............................................................................................................................................................78

Printing slow .............................................................................................................................................................78

Printing stops............................................................................................................................................................78

White edges on borderless prints.......................................................................................................................79

Copy troubleshooting...................................................................................................................................................79

Copy cut off...............................................................................................................................................................79

Scan troubleshooting....................................................................................................................................................79

Scan fails....................................................................................................................................................................79

Scanned image blank............................................................................................................................................. 80

Network troubleshooting............................................................................................................................................. 81

Wired network troubleshooting .......................................................................................................................... 81

Wireless troubleshooting......................................................................................................................................85

10 Product Safety Specifications

Print Performance.........................................................................................................................................................90

Photo Printing Features............................................................................................................................................... 90

Copy Document Features............................................................................................................................................ 91

Copy Photo Features .................................................................................................................................................... 91

Scanning Features ......................................................................................................................................................... 91

Paper Tray Features......................................................................................................................................................92

Ink Tanks..........................................................................................................................................................................92

Connectivity....................................................................................................................................................................92

Software Support...........................................................................................................................................................92

Physical Specifications .................................................................................................................................................93

Warranty..........................................................................................................................................................................93

System Requirements...................................................................................................................................................93

Windows PC .............................................................................................................................................................93

Macintosh................................................................................................................................................................. 94

Papers Supported ......................................................................................................................................................... 94

Paper Sizes for PC and Macintosh computers.................................................................................................95

Safety Specifications.................................................................................................................................................... 96

Parts........................................................................................................................................................................... 96

Power......................................................................................................................................................................... 96

Location......................................................................................................................................................................97

Environment..............................................................................................................................................................97

Regulatory Compliance............................................................................................................................................... 98

FCC Compliance and Advisory........................................................................................................................... 98

FCC and Industry Canada .................................................................................................................................... 98

iv www.kodak.com/go/aiosupport

Table of contents

IC Radiation Exposure Statement.......................................................................................................................99

Canadian DOC Statement.................................................................................................................................... 99

European Compliance Statement....................................................................................................................... 99

German Compliance Statement .........................................................................................................................99

Waste Electrical and Electronic Equipment Labeling.................................................................................. 100

Declaration of Conformity......................................................................................................................................... 101

Glossary

Appendix A: If You Need to Call Customer Support

www.kodak.com/go/aiosupport v

Press and as needed to scroll up and down to see all the available information.

Ti p :

Getting Help

Help menu

This user guide helps you learn to operate your all-in-one printer from the control panel. Kodak also provides online help in the Home Center Software installed when you set up your printer, and helpful information about common tasks from the LCD screen on the printer control panel.

NOTE: Home Center Software must be open on your computer to access its help.

NOTE: The “Start Here” booklet that came in the printer box provides instructions

for setting up and configuring your printer.

You can get instructions for performing the following tasks from the menu displayed on the LCD screen.

Help Menu Options

Install Ink Cartridges

Copy a Document

Copy a Photo

Print a Photo

Scan a Document

Scan a Photo

Wi-Fi Setup

WiFi Setup

To display Help menu information on the LCD screen:

1. From the printer control panel, press

2. Press until

OK.

3. As needed, press until the desired option is highlighted, and then press

4. Follow the prompts on the LCD screen to view the available information.

Help is the highlighted option on the Main menu, and then press

Menu.

OK.

www.kodak.com/go/aiosupport 1

Getting Help

Getting answers to frequently-asked questions

See Chapter 9 , Troubleshooting for help resolving a number of issues about printing, copying, scanning, and configuring the wireless service on your printer.

Contacting Kodak Customer Service & Support

Kodak provides several resources to help you answer questions about your printer.

Support at Kodak.com

Support Description Internet Address

All-in-one printer support

Software View online tutorials for using Home

Wi-Fi and Ethernet Get help with Wi-Fi and Ethernet. www.kodak.com/go/inkjetnetworking

Support Center home page www.kodak.com/go/support

Get support for your product (FAQs, troubleshooting information, etc.). Tip: Print a test page before contacting Kodak support (see If You Need to Call

Customer Support, page 106).

Purchase a full range of digital camera and printer accessories.

Download latest printer software, firmware, drivers, setup booklet, and user guide for your printer.

Center Software (Windows only).

Get information on KODAK EASYSHARE Software.

Get help with the Windows operating system and working with digital images.

www.kodak.com/go/faqs

www.kodak.com/go/accessories

www.kodak.com/go/downloads

www.kodak.com/go/howto

www.kodak.com/go/easysharesw

www.kodak.com/go/pcbasics

Other Learn ways to use your printer to

create fun and memorable projects

Locate Telephone Customer Support numbers in various countries

2 www.kodak.com/go/aiosupport

www.kodak.com/eknec

and then click the

Center

www.kodak.com/go/contact

tab on the page

Tips & Projects

Printer Overview

The KODAK ESP 7 All-in-One Printer allows you to print, copy, and scan images and documents. Although many functions can be operated directly from the control panel, you may also print, store, and manage digital images from a Windows or Macintosh computer connected to the printer via Kodak’s Home Center Software, which installs during the printer setup process. In addition, this printer supports networking, allowing you to access the printer over a wireless (Wi-Fi) or wired (Ethernet) network.

All-in-one printer features

This printer includes:

• A printhead system with two Kodak high-quality pigmented ink cartridges

• An integrated printing accessory that produces two-sided printing from a connected computer

• A bottom paper tray that supports multiple media, including A4, Letter, Legal, 8x10, 5x7, 4x6, 4x7, and 4x12 paper, transparencies, and envelopes

• A top paper tray that supports 4x6, 4x7, and 5x7 photo paper and engages and disengages automatically

• A scanner capable of scanning up to A4 (length) and Letter-width originals

• Multi-format memory card support

• A Universal Serial Bus (USB) host port on the front of the printer for connecting a variety of external devices to the printer, including Picture Transfer Protocol (PTP) enabled digital cameras, USB flash (“thumb”) drives, and Kodak Bluetooth USB 2.0 adapters (“dongles”)

• A client USB device port on the back of the printer, for connecting the printer to host Windows or Macintosh computers

• Energy-saving low power mode

• Networking capability, including wireless (Wi-Fi) and wired (Ethernet)

• A control panel with push buttons, light indicators, and a 3-inch LCD screen

• One network (Ethernet) port

www.kodak.com/go/aiosupport 3

Printer Overview

Major components of the ESP 7 all-in-one printer

The graphics below show the main components of the printer.

Number Component Name

1 Scanner lid

2 LCD screen

3 Top paper tray

4 Bottom paper tray extender tab

5 Bottom paper tray

6 Paper-edge guide

7 Paper output tray

8 USB host port

9 Memory card slots

10 Control panel

11 Recessed handle for printer access door

12 Power cord connection port

13 Ports for connecting printer to the computer or Ethernet

14 Two-sided printing accessory

15 Scanner glass

16 Paper output tray extender

17 Rear-access cleanout area

18 Printer access door

19 Printhead

4 www.kodak.com/go/aiosupport

KODAK ESP 7 All-in-One Printer

CAUTION:

Support for connecting digital memory devices to the printer

Your printer allows you to connect both digital camera memory cards and USB-connected devices for previewing and printing. You can also transfer photos and document files to your connected computer.

Connect only one external memory device to your printer at a time. If both memory card slots, or any memory card slot and the host USB port, have a device connected to them simultaneously, the printer cannot access the photos or documents contained on any of them. If your printer cannot recognize a device you have connected to it, make sure that only one device is connected at a time.

Memory card slots

The printer has two card slots; insert and use only one memory card at a time.

A blue light, located above the memory card slots, blinks while the card is being accessed and stays lit while the card remains in the slot and the printer is on.

Memory cards supported

The printer supports the following memory cards, used in most digital cameras:

–

XD xD-Picture Card

–

MS Memory Stick, Memory Stick Pro and Magic Gate

–

SD Secure Digital Card, Multi-Media Card

–

CF Compact Flash type I and type II, including micro drives

–

SDHC Secure Digital High Capacity cards

WARNING: Do NOT remove the memory card while the light blinks, or you

may damage the card.

www.kodak.com/go/aiosupport 5

Printer Overview

USB host port

Additionally, the printer supports the following memory cards used with Memory Stick and SD/MMC card slot adapters, which you will need to purchase separately:

• Memory Stick Duo and Memory Stick Duo Pro

• miniSD

• MicroSD (TransFlash)

This printer works with most digital cameras. Using the USB port located on the front of the printer, you can connect one of the following devices to the printer at a time:

•PictBridge camera

• USB portable storage drive

• Kodak Bluetooth dongle

• Digital cameras

NOTE: This printer can read only one memory card OR one portable USB drive OR

one Kodak Bluetooth dongle at a time.

Control panel layout

The legend describing the numbered parts of the control panel illustration is in the table below.

6 www.kodak.com/go/aiosupport

KODAK ESP 7 All-in-One Printer

Color ink level monitor

Black ink level monitor

Number Name Description

1On/Off button Powers the printer ON or OFF.

2Menu button Displays the menu, and toggles between parameters

screens and preview screens.

3Screen Displays photos, messages, status, and menus.

4 Attention light Blinks or flashes when an error occurs.

5Cancel button Cancels the current operation and control panel

navigation, and returns you to the menu.

6 Wireless network status light When lit, signals that a wireless (Wi-Fi) network

connection is active. If the LED is illuminated, you may not be connected to the network yet. Go to Network Settings, View Network Configuration, and verify that it says it is Network and Connected.

Blinks when searching for an available Wi-Fi network within range, or when the existing signal is too weak to transmit or receive wireless signals.

7 Ethernet network status light When lit, signals that an Ethernet network connection

is active.

8Zoom buttons Let you zoom in and out of a photo.

9 4-way navigation buttons Enable you to navigate menus and photos, and pan

around a zoomed photo.

10 OK button Enables you to complete a menu selection or photo

print command, or allows you to continue with the current operation.

11 Start button Starts the following operations: copy, scan, print, and

transfer.

NOTE: See Adjusting the control panel position, page 8 for instructions on raising

and lowering the control panel so that it is easier to use.

LCD screen

The LCD screen displays photos, messages, instructions, and menu items. Menu navigation is accomplished with the 4-way Navigation buttons on the control panel.

The LCD Start-Up screen displays when the printer is ready for operation but is not performing a task. The screen also displays the current level of black and color ink.

www.kodak.com/go/aiosupport 7

Printer Overview

The first time you use your printer and press the Menu button (described on Using

the control panel, page 8) on the control panel, the Main menu displays on the LCD

screen.

The contents displayed in the Main menu include:

• Copy Document

• Copy Photo

• View and Print Photos

•Scan

•Network Settings

•Printer Settings

• Maintenance

•Help

To review the tasks you perform when you use the options available on the Main menu, see Using the printer menus, page 12.

Using the control panel

Adjusting the control panel position

The position of the control panel can be adjusted from its default position (flush against the front of the printer) to lifted upward at an angle.

To adjust the control panel position:

1. On the rear side of the control panel, locate the release tab.

2. Press the front of the control panel and the release tab toward each other with your thumb and fingers; maintain this position and pull the control panel toward you gently.

3. When you are satisfied with the position of the control panel, let go.

4. To return the control panel to its default position, squeeze the release tab and gently push the control panel away from you. Let go when the panel is seated against the front panel of the printer.

8 www.kodak.com/go/aiosupport

Using the 4-way navigation buttons

When you have selected a photo or document shown on the LCD screen to be printed, pressing or increases or decreases the output quantity. If you have selected more than one item for printing, you can specify a different quantity for each one. The LCD screen displays the number of copies of each selected item to be printed. Using this feature does not change the number of files stored on your camera or portable USB drive, however.

Ti p :

NOTE: The OK button is located in the center of the 4-way navigation buttons on

the control panel. Its use is described in Using the OK button, page 10.

• Pressing highlights the next row down in the visible menu. When the last row in a menu is highlighted, pressing causes the visible page to be replaced with the following page in a multi-page menu, with the top row highlighted; in a one-page menu, this action highlights the top item.

• Pressing returns you to the previous page in a multi-page menu.

• After you have initiated the process of zooming when a photo is shown on the LCD screen, pressing or pans the focus up or down. (See Using the Zoom

buttons, page 10.)

KODAK ESP 7 All-in-One Printer

• When there are two or more options for the setting shown on the selected menu row, the current value is displayed between the and symbols. Pressing

or on the control panel scrolls through the choices.

• When a photo is displayed on the LCD screen, after you have pressed the button pressing , moves the focus in the direction you have used.

NOTE: The

Zoom+ and Zoom- buttons on the control panel are discussed in Using

the Zoom buttons, page 10.

• When you are viewing a group of photos stored on a portable memory storage device such as a USB drive, pressing the or the button allows you to scroll through the images.

• Continuing to press any of the 4-way navigation buttons causes them to repeat the action until you release it.

www.kodak.com/go/aiosupport 9

Zoom+

Printer Overview

When previewing a group of images from a digital camera, portable USB drive, or memory card connected to the printer, press and hold

OK to

select all images not previously selected for printing in the default quantity stored in your printer. (Images already selected will not be affected.) Press and hold

OK again to deselect all images.

Ti p :

Zoom in

Zoom out

Using the OK button

Press OK to:

• Accept the setting displayed in the selected row in the current menu.

• Accept the preview on the LCD screen of something that you want to print, copy,

• Select a photo for printing.

Using the Menu button

or scan.

Press Menu when:

• You want to set up a new task and anything other than a menu is visible on the LCD screen.

• You are viewing an image on the LCD screen and want to use the Photo Options menu.

• You want to view the parent of the last menu displayed.

Using the Zoom buttons

Press Zoom+ when an image is displayed on the LCD screen and you want to adjust the area to be printed, copied, or scanned. When this feature is available, the printer displays a prompt to press

Once you have activated zoom for the selected item, you can then use both the

Zoom+ (zoom in) and the Zoom– (zoom out) buttons.

Zoom on the image shown on the LCD screen.

10 www.kodak.com/go/aiosupport

Using the Start button

Press Start to initiate the print, copy, or scan task you are working on with the current settings.

Using the Cancel button

Press Cancel when:

• You want to interrupt an operation that has already started.

• You are viewing a menu that you opened by selecting an option on a different menu, and then decide that you want to view the previous one.

KODAK ESP 7 All-in-One Printer

Using the on-screen keyboard

The on-screen keyboard displays in the LCD screen for entering authentication information, such as a security string, for connecting the printer to a wired (Ethernet) or wireless (Wi-Fi) network, in the Network Settings menu

To maneuver around the on-screen keyboard, use the 4–way navigation buttons, described in Using the 4-way navigation buttons, page 9, and the OK button, described in Using the OK button, page 10.

www.kodak.com/go/aiosupport 11

Printer Overview

Using the printer menus

Use the menus on the LCD screen to select stand-alone tasks (that is, tasks that can be performed without your computer), such as copying documents or photos; or printing photos stored on memory cards, USB drives, Kodak Bluetooth adapter (“dongle”), or digital cameras plugged into the printer; or sending a fax.

Using the appropriate menu, you can also initiate tasks that will be completed on a computer connected to the printer, such as transferring photos from a compatible device connected to the printer (such as a memory card, digital camera, or USB drive) to the computer.

Your printer updates the content of the menu dynamically, according to the tasks you perform.

Menu layout

A description of how the menus are displayed in the printer control panel is shown in the illustration and the legend below.

12 www.kodak.com/go/aiosupport

KODAK ESP 7 All-in-One Printer

Number Description

1 The Menu Title displays at the top of the menu. It names the

category of available options. For example: Copy Document Options, Print Photo Options, etc.

2 The text displayed in the Quick instruction section, when

displayed below the Menu Title, describes how to activate the selected menu option. For example: Press OK to continue, etc.

3 Any option in a row with a white background has not been

selected. To use the option in a white row, you must navigate to it by pressing either the or the button on the control panel. See Using the 4-way navigation buttons, page 9.

4 The Current Value content displayed between and symbols

indicates the active setting only when you have more than one setting available. For example: On/Off, Yes/No, a number representing a quantity, etc.

5 The option in the row with the golden background is the selected

option. Its functionality is enabled when you press the appropriate control panel button. When or are pressed, the selected menu option changes according to the direction used. See Using

the 4-way navigation buttons, page 9.

Menu structure

The top-level menu on your printer is the Main menu. When you press OK on most Main menu items, another menu displays. You can press Quick instruction section beneath the menu title (see item 2 in the “Menu layout” illustration and accompanying table, above) to initiate a task.

You can review details about each menu available in your printer using the information below:

Main menu option When you press OK: To review details about the option:

Copy Document Displays

Copy Photo Displays

View and Print Photos Displays

Scan Displays

Network Settings Displays

Printer Settings Displays

Maintenance Displays

Help Displays

Copy Document Options menu See Copy Document options, page 48

Copy Photo Options menu See Copy Photo options, page 49

Print Photos Options menu See Print Photos options, page 39

Scan Options menu See Scan options, page 53

Network Settings menu See Network Settings options, page 24

Printer Settings menu See Printer Settings options, page 20

Maintenance menu See Maintenance options, page 57

Help menu See Help menu, page 1

Start as specified in the

www.kodak.com/go/aiosupport 13

Printer Overview

Status lights

The tables below describe the meaning of each light and condition, and offer tips on what action to take.

On/Off Lights

Light Status Cause Action/Solution

Off The printer is turned off. Press On/Off to turn the printer on.

The printer does not have power applied.

Ensure that the printer power cord is properly plugged into the back of the printer.

Verify that the power supply and/or power cord LED is lit.

Check that the power supply is connected to the power cord, and that it is properly connected to the electrical

outlet.

Blinks The printer is initializing or

None. Allow the printer to finish the initialization process.

busy.

On The printer is ready. None.

Most power supplies used with this printer are equipped with a status light which illuminates when electricity is applied. If you cannot determine if the power supply is working properly, contact Kodak Service & Support for assistance.

Printer Power Cord Light

Light Status Cause Action/Solution

Off The printer power cord is not

Reconnect the printer power cord plug to the printer.

properly connected to the printer.

The electrical power cord is not properly connected to your electrical outlet.

Reconnect the cord to the electrical outlet. Ensure that the electrical power cord is fully connected to the alternating current (AC) adapter at the end of the printer power cord.

The electrical outlet has no power. Plug a working device into the wall outlet to test it,

or have it checked by an electrician.

The problem may lie with the power supply.

Check the power supply status light, if available. As needed, visit Kodak.com for additional troubleshooting steps, or contact Kodak Service & Support.

On The power supply is supplying

None.

power to the printer.

14 www.kodak.com/go/aiosupport

Attention Light

Light Status Error

Off None.

KODAK ESP 7 All-in-One Printer

Blinks (slow)

The LCD screen describes the error.

Blinks (slow) Ink cartridge(s) inserted incorrectly.

On Media sensor failure.

Paper jam. Paper tray empty. Paper carriage stall. Paper size or type mismatch. Change ink cartridge. Ink cartridge not readable. Printhead not calibrated. Unit open, scanner lid open, rear access door open. Too many image sources. Printhead not installed. Unable to read memory card or USB host device.

Ink cartridge(s) not installed.

Printhead failure. Scanner failure.

Memory Card Slot Light

Light Status Cause Action/Solution

Off Either the memory card is not inserted or is

improperly inserted in the card slot.

Blinks The internal card reader is initializing or

communicating with a memory card.

On A memory card is properly inserted in the

card slot.

Remove and reinsert the memory card.

None.

www.kodak.com/go/aiosupport 15

Printer Overview

Wi-Fi Status Light

Light Status Cause Action/Solution

Off This indicates that the Wi-Fi radio is

turned off and the printer is not connected to a wireless network.

Blinks continuously

The Wi-Fi radio is turned on and the printer is searching for available wireless networks within range.

Blinks intermittently

The LCD screen displays an error message

The Wi-Fi radio is turned on and:

• The printer cannot find any available

wireless networks within range. or

• The Wi-Fi network connection has been interrupted, or is too weak to send signals to and from the printer.

On The Wi-Fi radio is turned on and there is a

working connection between the printer and a wireless network.

If you acknowledge the error message by pressing OK, the light will go off. However, if the Wi-Fi

radio is not turned off and the printer cannot establish a connection to an existing Wi-Fi network, the light will resume blinking, and the error message will display again.

None.

None, unless you want to stop the connection process. If so, turn the Wi-Fi radio off.

OK to turn off the error message on the

Press LCD screen and then turn the Wi-Fi radio off.

Run the Wi-Fi Setup Wizard to find and connect to an available wireless network within range.

None.

16 www.kodak.com/go/aiosupport

Home Center Software

Home Center Software is installed on your computer during the setup process. The software functionality for Windows or Macintosh users is described below.

Home Center for Windows

Once installed, Home Center Software allows you to print, copy, scan, and configure your printer from your Windows XP or Vista computer.

To open the Home Center Software window on your computer, use the Home Center icon on the Desktop or in the Start Menu.

From the Home Center main menu, selecting one of the six menu items enables you to:

• Scan pictures and documents

• Enhance and copy pictures

• Enhance and print images

• Configure settings for printing, copying, and scanning from the control panel

• Access the Kodak Tips and Projects Center Web site

• Order supplies from the Kodak Web site

KODAK ESP 7 All-in-One Printer

The functions of the three small icons located in the upper-right corner of the Home Center window are shown below:

Returns you to the main Home Center window

Displays the Status Monitor

Displays a Help panel for the Home Center Software

www.kodak.com/go/aiosupport 17

Printer Overview

Home Center for Macintosh

After installing the software on your Macintosh OS X computer, you can select the Home Center from the System Preference's printer in the Printer List, clicking the icon. Or, you can use the Home Center icon displayed in your Dock.

The Home Center window displays three tabs: Select, Setup, and Maintenance.

Print & Fax pane by selecting your

Print Queue button, and clicking the Utility

From the

Select tab, you can select your printer from a list of connected printers.

Setup tab, you can configure stand-alone printing, copying, and scanning

settings:

AiO Printer: This option lets you:

• – Synchronize your printer’s date and time to the computer – Select what quality you prefer for printing on plain (not photo-quality) paper

– Specify whether a date will be printed on the front of a photo printed from the

printer

– Specify whether the printer automatically applies “scene balance” to digital

pictures it prints

– Change the name of the printer

Scan: This option lets you configure settings for scanning, saving, and specifying

• the application(s) used for opening and editing scanned pictures and documents.

From the

Maintenance tab, you can:

•Print a test page

• Align the printhead

• Run a printhead nozzle correction

• Clean the printhead

•Click

About this Printer to view the printer model number, its Kodak Service

Number, and the version of printer firmware used to operate the printer

From both the

Order Supplies: This option allows you to order supplies online from the Kodak

•

Setup and Maintenance tabs you can:

web site.

View/Hid e St a tu s : This option opens a drawer displaying the configuration

• status of your printer.

18 www.kodak.com/go/aiosupport

Setting Up Your Printer

Use this chapter to set up and start using your all-in-one printer.

Selecting a printer location

Place your printer on a clean, flat surface in a dry, well-ventilated location, away from direct sunlight. Avoid areas with high levels of dust and debris. Do not expose the printer and paper to ventilation ducts, open doors, or high traffic, as airborne particles can affect picture quality.

Allow enough space on all sides of the printer to comfortably connect and disconnect cables, change ink cartridges, and remove or load paper.

To ensure getting good signals from your networked computer(s), minimize obstacles between the network router and the printer (and other wireless devices, such as Bluetooth–enabled camera phones, etc). The printer will function best with as clear a “line of sight” as possible between it and the router.

In addition, keep the printer away from microwaves, and away from 2.4 GHz wireless telephone handsets.

Configuring printer settings

Printer settings can be adjusted in two ways: via the control panel or the Home Center Software that comes with your printer (see Home Center Help for more details).

Configuring basic settings

1. From the control panel, press Menu.

2. Press until

3. Press until the parameter you want to configure is selected, and then press

OK. To review the available options and settings, see Printer Settings options,

page 20.

4. Press or to configure the

Panel Settings

5. Press or as needed to change the default value. The default value is displayed at the right margin of the setting. When the setting is highlighted, the current value is bracketed between the and symbols.

6. Press

OK to save the setting(s).

Printer Settings is selected, and then press OK.

, Language, or Reset All Settings.

Date and Time, Tagged Image Printing, Control

www.kodak.com/go/aiosupport 19

Setting Up Your Printer

Printer Settings options

Menu Options Options Settings

Date and Time

Tag ge d I ma ge P ri nt in g On

Control Panel Settings Button Sounds On

Language English (U.S.)

Year 2007 - 2099

Month January - December

Day 1 - 31

Hour 0 - 12 or 0 - 23

Minute 00 - 59

Off

Time to Low Power 1-4 hours, in .5 hour increments

English (International)

Deutsch

Français

Français (Canada)

Italiano

Español

Castellano

Português

Nederlands

NOTE: Restoring the factory defaults from the

change the settings for any of the following: Language, Date and Ti m e .

Setting the date and time via the control panel is a separate task from stamping the date and time on photo prints. You can also synchronize the printer's date and time using the Home Center Software.

Setting your printer as the default

For Windows XP

1. Click Start, point to Settings, and then double-click Printers and Faxes.

2. Right-click the icon for the KODAK ESP 7 All-in-One Printer, and then select

as the Default Printer

Reset All Settings option will not

Set

on the shortcut menu.

20 www.kodak.com/go/aiosupport

For Windows Vista

For Macintosh

KODAK ESP 7 All-in-One Printer

1. Click Start, and then click Control Panel.

2. Click

3. Right-click the icon for the KODAK ESP 7 All-in-One Printer, and then select

Whenever a new printer is installed on the Macintosh operating system, it becomes the default printer. If you have more than one printer connected to your computer, use the following steps to change your default printer.

Hardware and Sound, and then click Printers.

as the Default Printer

on the shortcut menu.

Set

1. Click

2. In the

3. Select the KODAK ESP 7 All-in-One Printer from the list of available printers as

System Preferences.

Hardware section, click Print & Fax.

the default.

Configuring network settings

You can connect your printer to a wired (Ethernet) network or to a wireless (Wi-Fi) network. You may refer to the “Start Here” booklet that came with your printer, or review the following sections as needed.

Networking resources

This section only covers how to set up your printer with your existing network. It presumes you have a working understanding on how your network is configured. Additional resources for related topics, information, and network troubleshooting are available at www.kodak.com/go/inkjetnetworking.

If you are unsure of how your network is configured, please contact your network administrator or your internet service provider for assistance.

Configuring an Ethernet network connection

You will need the following items to connect the printer to a wired (Ethernet) network:

• A functional Ethernet network that includes a router, switch, or hub with an Ethernet port

• A CAT-5 (or higher) Ethernet cable

www.kodak.com/go/aiosupport 21

Setting Up Your Printer

Ethernet setup

1. Plug one end of the Ethernet cable into the Ethernet port located on the back of the printer and the other end into an available port on your Ethernet router or hub.

2. Turn on the printer, if necessary.

3. From the control panel, press

4. Press until

5. Press

OK.

Network Settings is selected.

Menu.

6. Verify the connection.

Configuring a wireless network connection

You can connect your printer to a 802.11 wireless (Wi-Fi) network from the printer control panel.

The wireless (Wi-Fi) network status light on your printer has the following conditions:

LED Status Description

Fully lit When lit, signals that a wireless (Wi-Fi) network connection has

authenticated to the router, but your connection may not be active. You can verify the connection through the Network Settings menu.

Blinking Blinks when

• searching for an available Wi-Fi network within range

• existing signal is too weak to transmit

The LED has a repetitive cycle of blinking, then resting for 15 seconds, followed by blinking again. The Wi-Fi radio will continue to attempt connection to the network until a connection is established.

22 www.kodak.com/go/aiosupport

What you need to know before you connect

CAUTION:

To connect your printer to a wireless network, you will need the following:

• A laptop or desktop computer equipped with a network interface card or wireless networking support, and the Kodak software installed

• A working 802.11 wireless network. Kodak recommends that you use a wireless access point/router that uses Dynamic Host Configuration Protocol (DHCP)

• Internet access (preferably Broadband access such as cable or DSL)

• Your network name (SSID). You can obtain your SSID from the wireless router or the access point using the router’s embedded web server. See the manufacturer’s documentation provided with your wireless system for more information.

• Your WEP key or WPA passphrase. You can obtain your WEP Key or WPA passphrase from the wireless router or the access point using the router’s embedded web server

• Your network security string, if applicable

• Disable your firewall or accept the firewall prompts to allow installation

KODAK ESP 7 All-in-One Printer

If you are unsure about any of the items listed above, please contact your network administrator or your internet provider for assistance.

Configuring basic wireless (Wi-Fi) settings

NOTE: You will need to know the network name (SSID) of the Wi-Fi network, and its

security string to connect your printer to the network successfully. Contact your Internet provider or the person who helped you configure your network to assist you.

If there is an Ethernet cable plugged in to the Ethernet port on the back of the printer, unplug it before starting this task.

1. From the control panel, press

2. Press until

3. If the message states

Wi-Fi Radio

4. As needed, press , , or to view or configure an item, and then press

OK.

Network Settings is selected, and then press OK.

Tur n Wi - Fi Ra dio On, press OK. If the message states Tu rn

Off, move to the next step.

Menu.

www.kodak.com/go/aiosupport 23

Setting Up Your Printer

Network Settings options

If the printer has not been configured to connect to the Wi-Fi network or the printer Wi-Fi radio is turned off, the LCD screen displays the options below:

Wi-Fi Setup Wizard Press OK to start the Wizard.

Tur n Wi - Fi Ra dio On / Of f Press OK to toggle between the Wi-Fi radio on or off

View Network Configuration Press OK to view the configuration on the LCD screen.

Print Network Configuration Press OK to print the network configuration.

Manual IP Address Press OK to display the Manual IP Address menu.

Wi-Fi setup wizard

Review the procedures below and use the one that suits your network setup.

Connecting to a listed network

1. Complete Steps 1 and 2 of Configuring basic wireless (Wi-Fi) settings, page 23.

Wi-Fi Setup Wizard is the first option; press OK to select it.

NOTE: The Wi-Fi radio is turned on automatically when

Menu Options Settings / Action

states.

Wi-Fi Setup Wizard is

selected.

3. The printer searches for available Wi-Fi networks detected, then displays the list in alphabetical order on the LCD screen. The illustration below shows an example list. The row containing each <Network name> listed also shows the strength of the signal (shown below as xx%) as a percentage between 0 and 100, where 100 is the highest possible strength.

• For best performance the signal strength should be at least 50%.

• If more Wi-Fi networks are within range than can be shown on the LCD

screen, the display includes the (page down) symbol and/or the (page up) symbol on the LCD screen. As appropriate, press or on the control panel until you locate the network you want to use.

As appropriate, press or on the control panel until you locate the network you want to use.

The last two options displayed are

networks.

Unlisted network and Rescan for wireless

24 www.kodak.com/go/aiosupport

KODAK ESP 7 All-in-One Printer

NOTE: In your setup, instead of <Network name> as shown in the illustration above,

the LCD will show the actual network name (SSID), without the brackets, and the signal strength, displayed as a percentage, of each available Wi-Fi network within range.

4. With the desired network selected, press

OK. You may need network

identification information, such as a security string, in order to authenticate your connection.

NOTE: You will need to know the network name (SSID) of the Wi-Fi network and its

security string to connect your printer to the network successfully. Contact your Internet provider or the person who helped you configure your network to assist you.

5. If you are looking for a Wi-Fi network that does not broadcast its SSID, see

Connecting to an unlisted network, page 26.

NOTE: If your printer was last connected to an available network on the list, the

network settings are saved and the printer will automatically attempt to reconnect you to that network.

6. If the network requires the entry of a security string, the keyboard will be shown on the LCD. Press , , or to select a key. Press

OK.

7. Enter the security string. The correct upper and lower case characters and numbers are required.

NOTE: To erase any letters or numbers entered in error, select

and press

Key/Passphrase/

Security String

OK.

Description

<BKSP > (backspace)

WEP key 5 or 13 ASCI characters; case-insensitive

or 10 or 26 Hexidecimal digits; case-insensitive

WPA/WPA2 phrase 8-63 printable ASCI characters; case-sensitive

www.kodak.com/go/aiosupport 25

Setting Up Your Printer

8. After completing your entry, select the DONE key, and then press OK.

LED Status Description

Fully lit When lit, signals that a wireless (Wi-Fi) network connection has

Blinking Blinks when

The LED will be continuously lit when you are connected to a wireless network. This does not guarantee you are connected. You must verify that you are connected. See

Verifying network configuration, page 27.

Connecting to an unlisted network

1. Wi-Fi Setup Wizard is the first option; press OK to select it.

2. If you network does not appear in the list and is configured to not broadcast its SSID, select

3. Follow the prompts to enter the network name using the keyboard visible on the LCD screen. Press , , or to select a key. Enter the alphanumeric string accurately, using the same upper and lower case letters as your SSID. After completing your entry, select the

4. Select

WEP or WPA/WPA2 as required for your network's security setup, and

then press

5. Enter the security information required using the LCD screen keyboard.

authenticated to the router, but your connection may not be active. You can verify the connection through the Network Settings menu.

• searching for an available Wi-Fi network within range

• existing signal is too weak to transmit

Unlisted Network and press OK.

DONE key, and then press OK.

OK.

• Press , , or to select a key. Select <

characters. Then select

DONE and press OK.

6. After the confirmation message appears on the LCD screen, press the Network Settings menu.

Scanning for wireless networks

If you don’t see your network in a list or want to change your network:

1. Select

2. Press

26 www.kodak.com/go/aiosupport

Rescan for wireless networks.

OK.

BKSP> to erase any incorrect

OK to display

Setting up an IP address

If you have discovered that you are connected to the access point but you are not connected to the network, you may need to set up your IP address on the printer.

KODAK ESP 7 All-in-One Printer

1. From the Network Settings menu, select

Manual IP Address and press OK.

2. Select one of the options displayed:

Dynamic (DHCP)

•

Automatic (Private)

•

• Manual (Static)

3. Then press OK to continue.

4. Depending on the IP address type specified, you may be prompted to enter an IP address, a Subnet Mask, a Gateway Address; and a DNS Server address. Press

OK after making each entry. See your network provider for more information.

All address entries are made in the following format: 000.000.000.000. Any address or subnet mask that has only 2 characters between stops shall have a leading zero entered in front of that number. For example:

Address or Subnet

Mask Format

149.89.138.149 149.

149.2.40.149 149.

To obtain the IP Address on a Windows operating system:

Printer Entry Format

089.138.149

002.040.149

You must use a computer on your network.

a. Select b. Type

c. Type

Start > Run. cmd. ipconfig and then press Enter. If configured, IP Address, Subnet Mask and

Gateway Address (Default Gateway) are shown.

Tip: Your Gateway Address is usually the router address.

To obtain the IP Address on a Macintosh operating system:

You must use a computer on your network.

a. Open b. Under

System Preferences.

Internet and Network, click Network. Select the Wireless Network. Your IP

address will be shown.

Verifying network configuration

You can verify that you are connected to a network from your printer menu.

1. Press until

2. Press until you select this menu item, the printer displays the configuration settings for both Ethernet and Wi-Fi networks on the LCD screen.

Network Settings is selected, and then press OK.

View Network Configuration is selected, and then press OK. When

www.kodak.com/go/aiosupport 27

Setting Up Your Printer

3. Press until the second page appears.

4. Look for the text

Printing network configuration

When you select this option, a print of your current network configuration settings is generated. Settings with no values will be displayed as zeros.

Connected Network SSID. Your network name should be listed.

1. Press until

2. Press until

Network Settings is selected, and then press OK. Print Network Configuration is selected, and then press OK.

Installing your printer on additional computers on the same network

For Windows

To install the printer on another computer in your network, use the following steps.

1. Install the software that came with your printer on the target computer.

2. Run the KODAK Printer Network Setup Utility. This is located at

Programs > Kodak >Kodak Printer Network Setup Utility

3. Select printer should be detected and driver installations begin. If you have more than one printer connected to your network, select the printer, then click

4. After the driver installation completes, click

The printer will be named KODAK ESP 7-XXXX, where XXXX is a number unique to your printer.

For Macintosh

To install the printer on another computer in your network, use the following steps:

Connect via Network - Wireless / Wi-Fi then click Next to proceed. The

Next to proceed.

Start > All

Next.

1. Install the software that came with your printer on the target computer.

2. Click

3. Click

4. Click the

System Preferences. Print & Fax.

+ sign to add the printer.

5. Select the KODAK ESP 7 All-in-One Printer from the list of available printer(s).

The printer will be named KODAK ESP 7-XXXX, where XXXX is a number unique to your printer.

28 www.kodak.com/go/aiosupport

Changing the printer connection type

You can change the way you connect to your printer at any time.

For Windows

USB to Wi-Fi

To convert the USB connection from a PC to a wireless network connection:

1. Disconnect the printer from the computer.

2. Use the Windows Control Panel to delete the printer from you computer.

3. Configure the wireless network from the printer front panel. See Configuring a

wireless network connection, page 22.

4. Press

5. Press until

6. Select

7. Run the KODAK Printer Network Setup Utility. This is located at

8. Select

9. After the driver installation completes, click

10. The printer will be named KODAK ESP 7-XXXX, where XXXX is a number unique

Menu.

Network Settings is selected, and then press OK.

View Network Configuration and confirm you have an IP address.

Programs > Kodak >Kodak Printer Network Setup Utility

Connect via Network - Wireless / Wi-Fi, then click Next to proceed. The

printer should be detected and driver installations begin. If you have more than one printer connected to your network, select the printer and then click

to your printer.

KODAK ESP 7 All-in-One Printer

Start > All

Next.

Done to proceed.

USB to Ethernet

To convert the USB connection from a PC to an Ethernet connection:

1. Disconnect the printer from the computer.

2. Use the Windows Control Panel to delete the printer from you computer.

3. Connect the printer to the network (LAN port on Router) with an Ethernet cable

4. Run the KODAK Printer Network Setup Utility. This is located at

Programs > Kodak >Kodak Printer Network Setup Utility

5. Select printer should be detected and driver installations begin. If you have more than one printer connected to your network, select the printer and then click

6. After the driver installation completes, click

7. The printer will be named KODAK ESP 7-XXXX, where XXXX is a number unique to your printer.

Connect via Network - Ethernet cable then click Next to proceed. The

Done to proceed.

www.kodak.com/go/aiosupport 29

Start > All

Next.

Setting Up Your Printer

Wi-Fi to Ethernet

Ethernet to Wi-Fi

For Macintosh

To convert the Wi-Fi connection from a PC to an Ethernet connection:

1. Connect the printer to the network (LAN port on the Router) with an Ethernet cable.

To convert the Ethernet connection from a PC to a Wi-Fi connection:

1. Disconnect the Ethernet cable from the printer.

2. Configure the wireless network from the printer front panel. See Configuring a

wireless network connection, page 22.

3. Press

4. Press until

5. Select

Menu.

Network Settings is selected, and then press OK.

View Network Configuration and confirm you have an IP address.

USB to Wi-Fi

USB to Ethernet

To convert the USB connection from a Macintosh to a wireless network connection:

1. Disconnect the printer from the computer.

2. Configure the wireless network from the printer front panel. See Configuring a

wireless network connection, page 22.

3. Press

4. Press until

5. Select

6. Open

Menu.

Network Settings is selected, and then press OK.

View Network Configuration and confirm you have an IP address.

System Preferences and then click Print & Fax. Click + button to view a list

of available printers that can be added. Network printers are labeled “Bonjour” under “Kind”.

7. The printer will be named KODAK ESP 7-XXXX, where XXXX is a number unique to your printer.

8. Select your printer and click

Add.

To convert the USB connection from a Macintosh to an Ethernet connection:

1. Disconnect the printer from the computer.

2. Connect the printer to the network (LAN port on Router) with an Ethernet cable

3. Open

System Preferences and then click Print & Fax. Click + button to view a list

of available printers that can be added. Network printers are labeled “Bonjour” under “Kind”.

4. The printer will be named KODAK ESP 7-XXXX, where XXXX is a number unique to your printer.

30 www.kodak.com/go/aiosupport

Wi-Fi to Ethernet

Ethernet to Wi-Fi

KODAK ESP 7 All-in-One Printer

5. Select your printer and click Add.

To convert the Wi-Fi connection from a Macintosh to an Ethernet connection, connect the printer to the network (LAN port on the Router) with an Ethernet cable.

To convert the Ethernet connection from a Macintosh to a Wi-Fi connection:

1. Disconnect the Ethernet cable from the printer.

2. Configure the wireless network from the printer front panel. See Configuring a

wireless network connection, page 22.

3. Press

4. Press until

5. Select

Menu.

Network Settings is selected, and then press OK.

View Network Configuration and confirm you have an IP address.

www.kodak.com/go/aiosupport 31

Handling Paper

Handling paper

Your printer accepts print stock of various types and sizes, including letter-and legal-size plain paper, photo paper, transparencies, T-shirt transfers, envelopes, cards, and labels. It automatically detects the size and whether or not photo paper is loaded into the paper tray. Kodak photo paper contains bar codes that allow your printer to detect the paper type that optimizes your photo prints.

The bottom paper tray accepts media from 6 to 9 inches wide, and from 7 to 14 inches long (see the Note in Loading plain paper, page 33); its capacity is 100 sheets of 20 lb. plain paper. The top tray capacity is 40 sheets of 4X6, 4X7, or 5X7 inch paper.

Follow the precautions below when handling paper:

• Hold the paper by the edges; avoid placing your fingerprints on it.

• Do not touch the glossy side of photo paper.

• Store paper flat, away from direct sunlight and heat (such as in a car parked in the sun).

Loading the paper trays

Things to keep in mind

• Before you start loading any type of media into the printer, lift the paper output

tray

• Pull the paper stop (at the edge of paper output tray) until it is fully extended.

• If the paper you are going to use is less than A4 size, lift the hinged end of the

paper stop toward you until it perpendicular to the paper stop. This prevents the printed paper from sliding off of the paper output tray as it exits the printer.

32 www.kodak.com/go/aiosupport

CAUTION:

Loading plain paper

To return the lower paper tray to its default size, press and hold the extension-release and push the tray until the extension stops moving, and then let go.

Ti p :

KODAK ESP 7 All-in-One Printer

• If the paper you use is longer than A4 size, including Legal and panoramic photo paper, make sure that the hinged end of the paper stop lays flat and is NOT pulled up. The longer paper should balance on the paper output tray without sliding off.

This is crucially important when you are printing two or more sheets of long paper. Long paper that cannot extend straight to its full length when output from the printer can fold behind the object ahead of it. The curl can result in a job that dissatisfies you, and it can also causes a blockade preventing paper still being printed from exiting the printer properly.

Although a paper curl should not interrupt a job involving just one sheet of long paper, when a sheet’s clean exit from the printer is impeded because the sheet before it is curled by the paper stop, the current sheet also curls upon itself, generally behind rather than atop the sheet that came before. This process repeats until the trapped sheets jam the paper inside the printer.

NOTE: Review Things to keep in mind above.

1. Pull the bottom paper tray toward you.

NOTE: To load media that is more than A4 size, such as 4X12 inch panoramic photo

paper or Legal plain paper, you must first extend the lower paper tray to its full length. To do so:

a. Remove all paper from the tray, as needed. b. Press and hold the paper tray extension-release, located on the inside of the

front of the lower paper tray.

c. Pull the tray extension toward you gently until it stops moving easily. DO NOT

pull the extension far enough to disengage from the paper tray.

d. Let go of the tray release, and then load the paper in the tray.

2. As needed, squeeze and slide the paper edge guide on the tray to the left so that it does not block the paper from laying flat.

www.kodak.com/go/aiosupport 33

Handling Paper

Loading photo paper

3. Insert the media into the paper tray, print side down with its near edge against the paper stop.

4. As needed, squeeze and slide the paper edge guide to align it to the left edge of the media.

5. Lower the paper output tray.

6. Gently push the tray forward until it is aligned with the edge of the paper output tray.

NOTE: Review Things to keep in mind, page 32.

1. Remove all other paper from the paper tray you plan to use.

2. Insert photo paper into the paper tray print-side down, with the short edge forward. Do not overload the tray.

3. Slide the paper forward until it stops.

4. Squeeze the paper edge guide and slide it to the right until it just touches the loaded paper.

5. Lower the paper output tray.

6. Gently push the tray forward until it is aligned with the edge of the paper output tray.

34 www.kodak.com/go/aiosupport

Loading envelopes

CAUTION:

KODAK ESP 7 All-in-One Printer

Do not load envelopes with cutouts or cellophane windows in this printer.

NOTE: Review Things to keep in mind, page 32.

1. Remove all other paper from the paper tray you plan to use.

2. Place one or more envelopes along the right edge of the paper tray, with the front side down and the envelope flaps pointing toward the left side of the tray.

3. Squeeze the paper edge guide and move it to the right until it just touches the loaded envelope(s).

4. Close the paper tray and lower the paper output tray.

Loading legal size paper

1. Remove all other paper from the bottom tray.

2. Press and hold the paper tray extension-release, located on the inside of the front of the bottom paper tray.

3. Pull the tray extension toward you gently until it stops moving easily. DO NOT pull the extension far enough to disengage from the paper tray.

4. Let go of the tray release and then load the paper in the tray.

5. Squeeze the paper edge guide and move it to the right until it just touches the loaded paper.

6. Squeeze the paper edge guide and move it towards the printer until it just touches the loaded paper.

7. Push the paper tray in towards the printer.

www.kodak.com/go/aiosupport 35

Handling Paper

8. Press the bottom paper extender tab on the front left edge of the tray while pushing the paper tray in towards the printer.

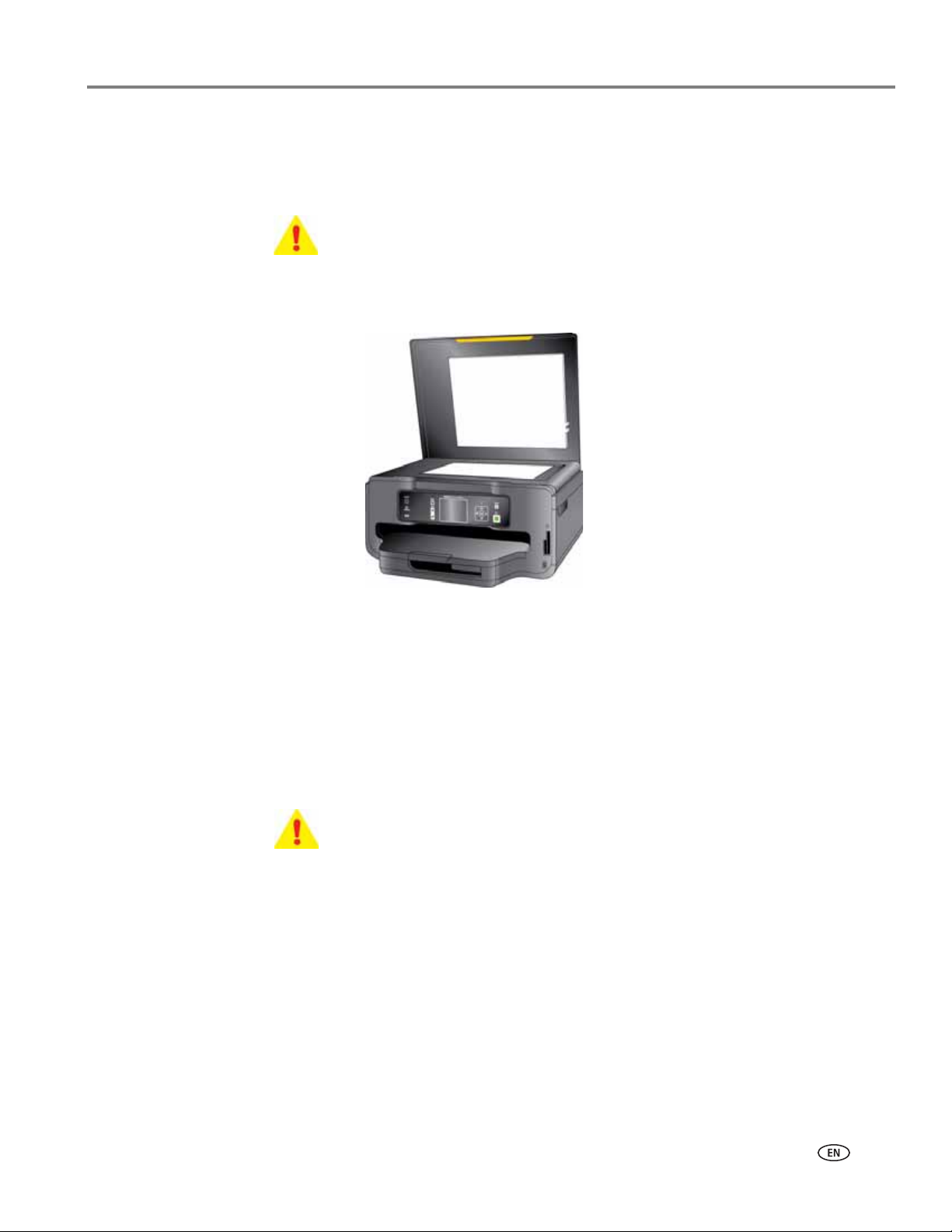

Loading originals

Loading an original for copying or scanning

To copy or scan a document or photo, place your original directly on the scanner glass, print side-down, against the silver arrow on the right-front corner.

36 www.kodak.com/go/aiosupport

Viewing and Printing Photos

You can print JPEG (.jpg) photo images directly from PictBridge cameras connected to the front panel of your printer. You can print virtually any file type from digital cameras, USB flash (“thumb”) drives, and memory cards connected to the front panel on your printer. You can also print files from a PC or MACINTOSH computer connected to your printer.

NOTE: For assistance on printing from a connected computer to your printer, refer

to the instructions from the software application (such as a word-processing or image-editing program) used to send the file to the printer or review your computer’s operating system instructions.

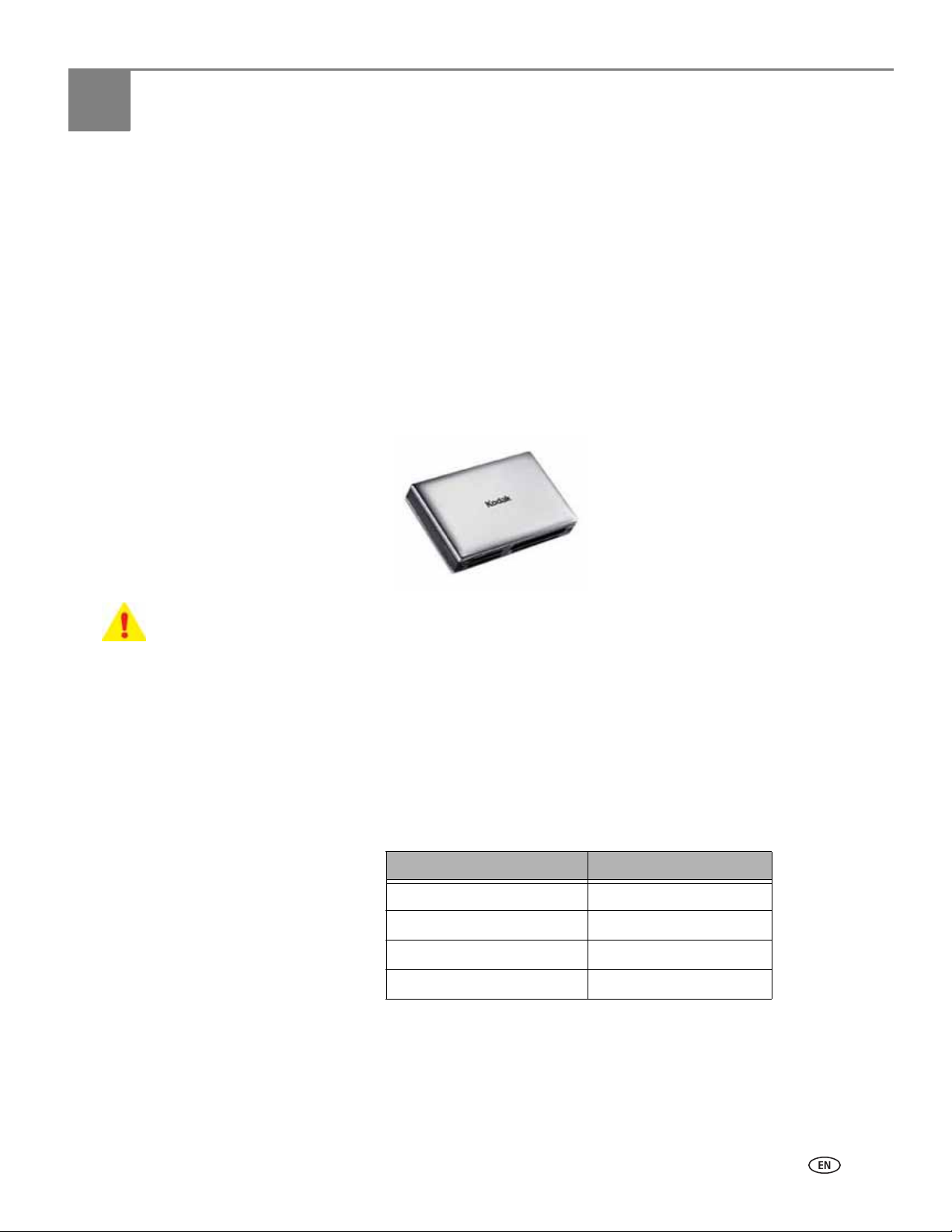

Although your printer is compatible with the Kodak 8-in-1 USB card reader (sold separately) as well as other Kodak USB card readers, it may not be compatible with other manufacturers’ card readers.

WARNING: Do not remove a storage device (memory card, USB drive, or digital camera) from the printer while it is being accessed, or you may damage the files on it. Safely remove or disconnect the device.

You can safely remove the storage device when the blue status light located above the memory card slots stops blinking.

Viewing photos

Insert one of the following devices into the appropriate opening:

NOTE: Always use the USB host port on the front of the printer. To avoid an error,

use only one slot or port at a time.

Device Type Printer Slot

Memory Card Memory Card Reader

Portable Storage Drive USB port

Digital Camera USB port

Kodak Bluetooth dongle USB port

NOTE: If Tagged Image Printing is enabled on this printer (see Configuring printer

settings, page 19), it detects a Digital Print Order Format (DPOF) file when

you insert a memory card. The printer LCD screen prompts you to verify that you want to print tagged images. See Printing tagged images, page 42.

www.kodak.com/go/aiosupport 37

Viewing and Printing Photos

CAUTION:

Most memory cards will work with this printer. When you insert a memory card, or connect a camera or portable flash drive to the printer, the last photo taken is displayed first.

Do not insert more than one device, such as a USB thumb drive or memory card, into the printer at a time, or you will get an error message. Also, never remove or disconnect a memory card from its slot unless the blue light near the slot is not blinking.

NOTE: Photos stored on a PictBridge camera are displayed on the camera’s LCD

screen only. See Printing photos from a PictBridge camera, page 40, as needed.

Configuring photo print settings

You can change the factory default print settings for your printer using the control panel. Windows users may adjust some settings using Home Center software (see Home Center Help, discussed in Home Center Software, page 17, for information on using Home Center).

1. Insert a memory card into the appropriate slot, or plug a USB flash drive or (PTP) digital camera to the front panel USB port. The last photo is displayed first.

2. From the control panel, press

Menu.

3. Press until the option you want to configure is selected, and then press

4. As needed, press or to change the setting.

5. Press

6. To save the setting as the default value, select

7. As needed, press or until

OK to save the setting for the current print job.

Save as Default and press OK.

View Photos is selected in the Print Photos menu,

and then press

Start to print the selected photo(s) with the selected settings.

press

OK to return to viewing and selecting photos for printing. Or,

OK.

38 www.kodak.com/go/aiosupport

Print Photos options

View P h otos O K

Transfer All to PC OK

Rotate This Photo OK

KODAK ESP 7 All-in-One Printer

Menu Options View Settings / Select Settings

Quantity

or 1- 99

Tray Selection or Top Tray

Bottom Tray

Print Size or 3.5x5

4x6

4x7 (High Def)

4x12 (Panoramic)

5x7

8x10

8.5x11

(2x3) Wallet

Quality

or Normal

Best

Draft

Color or Color

Black & White

Scene Balance

or On

Off

Add Date to Prints

or No

Ye s

Save as Defaults OK

Your printer automatically adjusts the print output to the best available quality for

images printed on photo paper. You need to set

Plain Paper Quality to Draft, Normal

or Best only when printing images or documents on plain printer paper.

This printer is capable of automatically adjusting scene balance improvements (or the brightness) of photos printed from camera cards and USB connected devices. The default is

The default setting does not print the date on the photo print.

On.

www.kodak.com/go/aiosupport 39

Viewing and Printing Photos

CAUTION:

Printing photos

Printing photos from a PictBridge camera

You can print photos directly from a PictBridge camera, which controls photo selection and printing.

1. Load the desired paper tray with photo paper, print side down.

2. Connect a PictBridge camera to the USB port located on the front panel of your printer.

3. Use your PictBridge camera to select and print the photos.

Printing photos from non–PictBridge digital cameras, memory cards, and USB flash drives

This printer does not support portable USB “flash” drives that:

• Require third party access software

•Are encrypted

• Contain multiple partitions

• Were formatted using any of the following file storage systems:

• New Technology File System (NTFS)

• Mac OS Standard (HFS) or Mac OS Extended (HFS Plus)

The printer can read data stored on USB flash drives formatted using only the File Allocation Table (FAT) system.

If a flash drive is plugged into the USB port on the front panel that the printer cannot read, the printer does not display photos, makes an audible sound (“beep”), and displays an error message on the LCD screen.

See the first Tip below for a work–around if your flash drive cannot be read by your printer.

Ti p : If you would like your printer to print photos stored on a non–FAT formatted

device, or stored as non–.jpeg files, you must first send the files to your computer to be read.

• Windows computers can read NTFS–formatted drives

• Macintosh computers can read HFS– and HFS Plus–formatted drives

• Third–party applications which run on either Windows or Macintosh

computers can read many different image file types

Use your computer to explore the files stored on the flash drive while it is still plugged in. Navigate to and open the file in the computer, or transfer the file(s) to the computer hard drive. Then, print the file from your computer.

40 www.kodak.com/go/aiosupport

KODAK ESP 7 All-in-One Printer

1. Connect a digital camera or portable USB drive to the front panel USB port, or insert a memory card to the appropriate card reader on the front panel.

The printer displays the photos on the LCD screen, last photo first.

2. Load the paper tray with photo paper, print side down.

3. On the control panel, press or until a photo you want to print is displayed on the LCD screen.

4. Press

OK to select the photo. A check mark displays on the LCD screen to

indicate your action. If you change your mind and want to de-select the photo from printing, press

Ti p : To select and print all the photos on a memory card or portable USB device

which have not yet been selected, hold down the Holding down the

OK again; the check mark is removed.

OK button for 2 seconds.

OK button again for 2 seconds de-selects all the photos.

5. If you are satisfied with the image shown, you can modify the quantity of copies to be printed by pressing until the number you want is shown on the LCD. To decrease any quantity greater than 1 shown, press until the number you want displays.

6. If you want to specify different print parameters for the photo, press display the

Print Photos Options menu. A sample of the menu is shown in the

Menu to

illustration below.

7. Here you can press until the parameter you want to adjust is selected. If a value is displayed between the and symbols in the row, press

or to select the value you want.

8. Press

Start to print the selected photo, or press until Vi ew P ho t os is selected.

9. Press or until you view another photo you want to print.

10. Repeat this process as needed. NOTE: Each photo is automatically deselected after it has been printed.

www.kodak.com/go/aiosupport 41

Viewing and Printing Photos

Printing tagged images

The Digital Print Order Format (DPOF) is an industry-standard file that can be created by some digital cameras. Camera selected photos are photos you tag for printing with your digital camera. When you select photos with your camera, the camera creates a DPOF file that identifies which photos have been tagged for printing. Your printer can read the DPOF file from the memory card so you do not have to re-select the photos to print.

NOTE: Not all digital cameras support tagging or the creation of tagged image

(DPOF) files. Refer to your camera’s user guide to ensure it supports this function.

When you print tagged photos, the selected layout is applied unless your camera allows selection of sizes. If not specified by the DPOF information, the current default print photo size and other settings will be used.

Printing from a Bluetooth–enabled device

Bluetooth wireless technology allows wireless connectivity between compatible electronic devices. Your printer allows you to print .jpg images from a Bluetooth–enabled device, using an optional Kodak USB Bluetooth 2.0 USB adapter. You can purchase the Kodak Bluetooth adapter from Kodak at

www.kodak.com/go/accessories.

The Kodak Bluetooth adapter (shown below) supports connectivity between your printer and the following Bluetooth–enabled devices:

• Mobile camera phones

• Personal Digital Assistants (PDAs)

• Digital still cameras

•Computers

The Bluetooth adapter will not work when plugged directly into computers, Kodak printer-docks, other types of Kodak printers or devices made by other manufacturers. This adapter works exclusively with KODAK All-in-One Printers.

To enable Bluetooth wireless connectivity, plug the Kodak Bluetooth adapter into the USB port located on the front panel of your printer.

42 www.kodak.com/go/aiosupport

Range

KODAK ESP 7 All-in-One Printer

NOTE: Before you can transmit photos to your printer from a Bluetooth–enabled

device, you must first “pair” the printer and the device so that they can communicate. This “pairing” is performed from your device’s interface. Review the instructions for pairing that came with you Bluetooth–enabled device, as needed.

When the device is searching for other Bluetooth-enabled devices to pair with, if your printer is within range of the device (see Range below), your printer will appear in the list, with a name starting with allow you to rename it, as appropriate.)

If your device prompts you for the printer’s personal identification number (PIN) to authenticate and initiate the connection, enter

Bluetooth devices do not use a Print command. You must use the device’s Send function to transmit an image stored on it to the printer. Only one file can be sent from the device at a time. Once received, your printer will print the image automatically using the default settings.

ESP. (Your device may

1111.

When the device and the printer are connected, you can send photos from your Bluetooth device to the printer. Your printer supports connectivity to one Bluetooth device at a time.

For the highest transfer speed, Kodak recommends keeping a maximum distance of 10 meters (32.8 feet) between Bluetooth devices, as they may not work reliably beyond this range.

Printing multiple photos

When you select a print size that is smaller than the paper size, this printer automatically lays out multiple photos using the least amount of space, minimizing paper waste when separating the photos.

Printing panoramic photos

You can print a panoramic photo on 4 x 12 paper, or two panoramic photos on U.S. letter or A4 paper; some cropping will occur.

www.kodak.com/go/aiosupport 43

Viewing and Printing Photos

CAUTION:

Zooming and cropping photos

Your printer enables you to zoom in or out on a specific area of a photo. When you print the photo, the photo is cropped so only the area bounded by the crop boundaries is printed.

You cannot use the zoom or crop functions of this printer on photos located on a PictBridge camera connected to the printer. All changes made to photos stored on a PictBridge camera are conducted on the camera.

NOTE: The changes you make to the photo apply only to viewing and printing the

photo, and will not be saved on the memory card or storage device.

1. Select an image from the display. As needed, see Printing photos from

non–PictBridge digital cameras, memory cards, and USB flash drives, page 40.

2. As desired, press option is Print Size. Press the and navigation buttons on the control panel to change the size of the output that you want for the image, which will affect the zoom and crop displays. Press

3. Press

Zoom + to enable the zoom and crop function. You can enlarge the photo

in .25X increments, up to a 5X magnification. Press magnification in .25X increments, to 1X.

Menu to display the Print Photos Options menu. The first

OK when you are satisfied.

Zoom – to decrease the

NOTE: The changes you make to the photo apply only to viewing and printing the

photo; they are not saved on the memory card or storage device.

4. Use the , , and navigation buttons on the control panel to display the part of the picture you want to print.

5. Press

OK when finished. The photo is displayed with the original view, and a

border (“crop box”) is displayed around the area you want to use.

Ti p : You can make more precise zoom and crop adjustments to your photos on

your computer using photo editing software. To send a photo from the printer to your computer, see Transferring images to a computer below.

44 www.kodak.com/go/aiosupport

KODAK ESP 7 All-in-One Printer

6. If you are satisfied with the image shown, press Start to print the area displayed in the crop box. If you want to specify additional print parameters for the photo,

Menu to display the Print Photos Options menu. A sample of the menu is

press shown in the illustration below.

7. Here you can press until the parameter you want to adjust is selected. If a value is displayed between the and symbols in the row, press or to select the value you want.

8. Press

9. Press or until you view another photo you want to print.

10. Repeat this process as needed. NOTE: If you want to print multiple copies of a photo displayed on the LCD screen,

Start to print the selected photo, or press until Vi ew Photos is selected. OK.

Press

you can press until the number you want is shown. To decrease any quantity greater than 1 shown, press until the number you want displays.

Transferring images to a computer

You can transfer .jpg, .mov, or .wav files to your Windows or Macintosh computer from a digital camera, memory card, device connected to your printer via a Kodak Bluetooth dongle, and portable (USB) thumb drive connected to the printer.

NOTE: To transfer large files, such as video files, from a memory card to a computer,

Kodak recommends using a card reader attached directly to the computer instead of transferring the file(s) via the printer.

Likewise, Kodak recommends transferring large groups of image files (400 or more) stored on a memory card to a computer via a card reader connected to the computer.

Transferring images to a Windows computer

1. Connect the device to the appropriate slot on the front panel of your printer.

2. From the control panel press screen.

3. Press until

Transfer All to PC is highlighted, and click OK.

www.kodak.com/go/aiosupport 45

Menu to display the Print Photos menu on the LCD

Viewing and Printing Photos

4. Press Start.

5. Follow the prompt on the computer.

Transferring images to a Macintosh computer

1. Connect the device to the appropriate slot on the front panel of your printer.

2. From the control panel, press monitor (for a PictBridge camera) or the printer LCD screen (all other devices).

3. Press until

4. Press

5. Press

OK. Start.

6. Use iPhoto or Image Capture to complete the transfer.

Transfer All to PC is highlighted.

Menu to display the options on the computer

46 www.kodak.com/go/aiosupport

Copying

Simple copying

You can copy both images and documents directly from the control panel of your printer. The printer produces high–quality color or black and–white copies on a variety of paper types, including transparencies.

NOTE: Before using your printer to copy a document or photo for the first time,

review the procedures for loading paper and originals in Chapter 4 ,

Handling Paper.

Copy Document is the first setting on your printer. This enables you to place a

one–page document on the scanner glass, and, if you have no need to change the default quantity, press

1. Place the original (document or photo) face down at the right front corner of the scanner glass .

2. From the control panel, press

Copy Document is the first menu option. As needed, press to select Copy

3. .


Start from the Main menu to quickly initiate a copying job.

Menu.

4. Modify the quantity of copies to be printed by pressing on the control panel until the number you want is shown between the and symbols displayed in the menu. To decrease any quantity greater than 1 shown, press until the number you want displays.

5. Press

Start to initiate copying the document or photo.

Adjusting copy settings

You can change the default copy document settings for your printer using the control panel. Depending on whether you are copying a photo or a document, select the appropriate option submenu from the main menu.

1. From the control panel, press

Copy Document is the first option. As needed, press to select Copy Photo.

3. Press

4. You can press until the option you want to adjust is selected. If a value is

5. Any changes you make to the copy settings apply only to the current copy

6. Press

OK to display the Copy Document Options (or Copy Photo Options) menu.

displayed between the and symbols in the row, press or to select the value you want.

operation unless you save them as your default settings. To keep the settings as permanent, press until select

Ye s and press OK to save the change(s) as the new default settings.

Start to initiate copying the document (or photo).

Menu.

Save as Defaults is selected; press OK, and then

The available copy settings are shown in the table below.

www.kodak.com/go/aiosupport 47

Copying

Copy Document options

Menu Options View Settings / Select Settings

Quantity or 1- 99

Copy Size

Photo Paper Quality Automatic

Plain Paper Quality

Color or Color

Brightness or -3 to +3

Save as Defaults OK

Scaling is anchored to the upper left corner of the original.

or Same size

20%–500%

or Normal

Best

Draft

Black & White

Same Size The copy is the same size as the original. Cropping occurs if

the original is larger than the paper size. The copy will contain white space if the original is smaller than the paper size.

Same Size is the default copy setting.

Scaling Press or to set the scaling for your image.

Plain paper quality output:

Draft Produces the fastest print speed, but the lowest quality.

Normal Delivers high-quality output and is the default setting.

Normal prints faster than Best

Best

Produces the highest quality for all paper and eliminates the banding (striping) effect that sometimes occurs in

Normal modes. Best is the slowest print speed. If Kodak

photo paper is loaded in the paper tray, this setting is used.

Draft and

48 www.kodak.com/go/aiosupport

Copy Photo options

Quantity or 1- 99

Copy Size or 4x6

Photo Paper Quality

Plain Paper Quality

KODAK ESP 7 All-in-One Printer

Menu Options View Settings / Select Settings

4x7 (High Def)

4x12 (Panoramic)

5x7

8x10

8.5x11

(Wallet) 2x3

Automatic

or Normal

Best

Draft

Color or Color

Black & White

Brightness or -3 to +3

Preview or No

Ye s

Save as Defaults OK

You need to specify a quality only for plain paper. If photo paper is loaded in the

paper tray, the printer will output the best available quality using the

Automatic

setting. To review the settings for plain paper copying, see “Plain Paper Quality” under Copy Document options, page 48.

www.kodak.com/go/aiosupport 49

CAUTION:

Scanning

Scanning converts text and images from documents and pictures placed on the scanner glass into electronic data, and then sends the data to your computer. To scan using the ESP 7 All-in-One printer, the printer must be connected to a computer. You can scan to the following destinations:

Before you start

Before you start scanning with this All-in-One printer, Kodak recommends that you use the Home Center software to configure the default scan settings. This way, you can easily manage the scan in your computer. See Home Center Software, page 17 for additional information.

Using the Home Center software, you can adjust the following default settings for scanned photos and documents:

•Kodak Home Center

• Memory card or USB flash drive connected to the printer using the appropriate opening on the front panel of the computer

• Third–party scanner software application

• As a file on your computer

• Applications used for file destination(s).

If you save a document scan to an application, the scan cannot be later accessed by optical character recognition (OCR) software. If you want to be able to edit the text of the document after scanning it, save the scanned document as a file.

• File type used to save the scan.

• The default setting for saved documents is .pdf (Portable Document Format).

With third–party .pdf viewer software installed, this type of file can be viewed on Web pages or computers. You may also save a scanned document as .rtf (Rich Text Format). This is a standard file type which can be opened and edited in standard word–processing software applications.

• The default setting for image files is .jpeg (Joint Photographic Experts Group)

format. This standard file type can be opened and edited in standard image editing software applications, and can be viewed on Web pages.

• File storage location for saved scans.

• Windows: Document scans are saved by default in the My Documents folder,

and images are saved in the My Pictures folder. They are stored by default in these locations in a folder titled with the current date.

• Rule for naming scan files.

• By default, scans are named “scan1”, “scan2”, etc.

• Default scan resolution and photo enhancement preferences.

50 www.kodak.com/go/aiosupport

• Color or black-and-white (Windows only).

CAUTION:

• Print quality for scanning documents.

Before initiating a scan, you can also preview the scan in Home Center, and crop the output as desired. When you are satisfied with the intended results, you can initiate the scan directly from Home Center. See Home Center Help for instructions. To review how to access Home Center help, see Home Center Software, page 17.

Scanning with Macintosh computers is accomplished by using the twain driver available with your Kodak software. Scanning is supported with any twain-enabled software application.

Simple scanning

Simple document scans

1. Place the original document at the right front corner of the scanner glass.

2. From the control panel, press

3. Press until

4. Press until

5. Note that the default

6. Press until

7. Pre ss

8. When the Scanner dialog window displays on your computer, follow the

KODAK ESP 7 All-in-One Printer

Menu. Scan is selected. Press OK. Scan To is selected. Note that, if your printer is connected to a

local computer, the default setting is connected to a network, all of the available computers are listed in alphabetical order.

Scan What setting is Document.

Scan Destination is selected. As needed, press or to specify

which application on the computer will open the file. Kodak Home Center software appears on the list by default.

Start.

prompts to finish the scanning process.

USB Connected Computer. If you are

Simple image scans

1. Complete Steps 1–4 from Simple document scans, page 51.

2. Press until

Although you can scan a document using the Photo option and save it as an image (.jpeg) file, you will not be able to edit the text later in your computer. If you want to edit a scanned document later, make sure that you scan it as a Document, not as a Photo.

3. Complete Steps 6–8 from Simple document scans, page 51.

Scan What is selected. Press to specify Photo.

www.kodak.com/go/aiosupport 51

Scanning

CAUTION:

Scanning multiple originals simultaneously

When the Scan What option is set to Photo in the Home Center software, your All-in-One printer can detect multiple photos placed on the scanner glass. Allow some space on the scanner glass between each item, and use the Home Center software to save each photo as a separate file. Any images on the scanner glass that overlap are interpreted by the software as a single image file.

Home Center cannot interpret two or more documents, photos, or a combination of documents and photos, as separate scanned items when the Scan What option is set to Document.

Adjusting scan settings

You can change the default scan settings for your printer using the control panel. When you change scan settings from the control panel, the settings apply only to the current scan job. To apply scan settings to all future scan jobs, you can save your changes.

1. From the control panel, press

2. Press until

3. Press

4. Here you can press until the option you want to adjust is selected. If a value

5. Any changes you make to the scan settings apply only to the current scan

6. Press

OK to display the Scan Options menu. A sample of the menu is shown in

the illustration below.

is displayed between the and symbols in the row, press or to select the value you want.

operation. To keep the settings as permanent, press until selected, and then press

Start to initiate the scan.

Scan is selected.

Menu.

Save as Defaults is

OK.

The available scan settings are in the following table:

52 www.kodak.com/go/aiosupport

Scan options

KODAK ESP 7 All-in-One Printer

The available scan settings are in the following table:

Menu Options Vi ew Set t i ngs /

Select

Scan What

Scan To

Scan Destination

Save As Default OK

If you select Document and save the scan to a File, the scan is saved as a document

or Document


or Computer

Memory Card

or File

[Application Name]

(.pdf or .rtf) file, even if the original is a photo. If you select

Settings

Photo, a text document

will be scanned as an image file, and cannot be read by optical character recognition (OCR) software.

If your printer is connected to a network, more than one computer name will appear in this list. If your printer is connected to a printer by the USB cable, the computer name in the menu is called

You must create a list of one or more applications using Home Center software for

any to display by name in the

USB Connected Computer.

Scan Destination settings. Each application will appear

as a separate setting in the display. (Kodak Home Center software is displayed by default; you do not need to configure your destinations to include it.)

In addition, before using a

Scan Destination setting of File, familiarize yourself with

the location where the files will be saved and with the file naming setting. This will prevent problems later in finding the scan file on your computer.

www.kodak.com/go/aiosupport 53

CAUTION:

Maintaining Your Printer

General care

Your printer requires little maintenance. However, Kodak recommends cleaning the scanner glass and lid backing regularly to remove dust and fingerprints. Fingerprints and other debris on the glass or lid backing could slow down the printer’s performance, and affect the quality and accuracy of scanning.

Service agreements are available in some countries. Contact dealers for Kodak products for more information.

For recycling and or disposal information, contact your local authorities. In the U.S., visit the Electronics Industry Alliance Web site at www.eiae.org.

Always disconnect the power on the printer before cleaning it. Do not use harsh or abrasive cleaners or organic solvents on the printer or any of its parts.

• To clean the printer, wipe the outside with a clean, dry cloth.

• Keep the surrounding area vacuumed and litter-free.

• Protect the printer from tobacco smoke, dust, sand, other small particles (such as crumbs), and liquid spills.

• Avoid placing objects on the printer.

• Keep the printer supplies away from direct sunlight and out of high-temperature environments.

• Do not allow chemicals, such as suntan lotion, to come into contact with the painted surface of the printer.

• If the printer has been exposed to bad weather or has water inside it, turn it off and let it dry completely. If this does not solve the problem, contact customer support (see Contacting Kodak Customer Service & Support, page 2).

54 www.kodak.com/go/aiosupport

Cleaning the scanner glass

For good copies and scans, ensure the printer's scanner glass and lid backing are clean; dust the exterior as needed.

WARNING: Do not use abrasives, acetone, benzene, or carbon tetrachloride

on the glass, as they can damage it. Do not place or spray liquid directly on the glass. The liquid might seep under the glass and damage the device.

1. Unplug the printer and raise the lid.

KODAK ESP 7 All-in-One Printer

2. Clean the glass with a soft cloth or sponge slightly moistened with a nonabrasive glass cleaner.

3. Dry the glass with a lint-free cloth.

4. When finished cleaning, plug in the printer.

Cleaning the scanner lid

Minor debris can accumulate on the document backing located underneath the scanner lid of the Kodak printer.

WARNI NG : Do not use paper-based wipes, as these might scratch the

underside of the scanner lid. Do not use harsh or abrasive cleaners or organic solvents on the printer or any of its parts.

www.kodak.com/go/aiosupport 55

Maintaining Your Printer

1. Unplug the printer and raise the lid.

2. Clean the underside with a soft cloth or sponge, slightly moistened with a mild soap and warm water.

3. Wipe the underside gently to loosen debris. Do not scrub.

4. Dry the underside with a chamois or soft cloth.

5. If further cleaning is needed, repeat the previous steps using isopropyl (rubbing) alcohol, and wipe the underside thoroughly with a damp cloth to remove any residual alcohol.

6. When finished cleaning, plug in the printer.

Monitoring and adjusting the printer's performance

From the control panel, you can perform many tasks to keep this printer in good working order. For example, you can check the status of the printer’s inkjet nozzle to ensure high-quality prints. Kodak recommends that you run a nozzle check if you are experiencing changes in image quality. You can also use the function if you see degradation in print quality.

1. Make sure that there are 5–10 sheets of plain paper loaded in the bottom paper tray.

2. Press

3. Press until

4. As needed, press until the desired option is selected.

5. Press

6. Follow the prompts on the LCD display to initiate or cancel the task.

Menu to display the main menu.

Maintenance is selected.

OK.

Printhead Alignment

56 www.kodak.com/go/aiosupport

Maintenance options

CAUTION:

KODAK ESP 7 All-in-One Printer

Menu Options Select

Check Ink Levels OK

Check Paper Levels OK

Nozzle Check OK

Printhead Alignment OK

Clean Printhead OK

Print Test Page OK

Format Memory Card OK

WARNING: Formatting will erase all the data on a memory card.

TIP: A printhead alignment and a check of the inkjet nozzle can also be initiated

from the Home Center software.

Windows: Open the Home Center Help panel by clicking Help on the Home

Center window, as needed. Click

Printhead Alignment.

Macintosh: Open Home Center window from the dock, and click Maintenance,

and then click

Nozzle Correction or Printhead Alignment.

Maintenance, and then click Nozzle Check or

Replacing ink cartridges

Your printer uses separate black and color ink cartridges. The ink levels are shown on the control panel and in the printer software.

For the best quality prints, store ink cartridges in locations where the temperature does not exceed 85°F (30°C).

WARNING: Use genuine Kodak ink cartridges to ensure best results and avoid

printhead damage not covered under warranty. Third-party ink cartridges may not work with your printer.

1. Make sure the printer is turned on.

2. Open the printer access door by lifting from the recessed hand-holds on the sides of the unit.

www.kodak.com/go/aiosupport 57

Maintaining Your Printer

1 Printhead 2 Color ink cartridge 3 Black ink cartridge

The printhead moves to an accessible position for handling the ink cartridges. The ink cartridges are seated in the printhead.

3. Wait until the printhead stops moving, then pinch the latch on the old ink cartridge with your thumb and forefinger and lift it out of the printhead.

NOTE: You can take your used ink cartridges to most office supply or electronics

stores for safe disposal.

4. Open the box containing the new ink cartridge.

5. Remove the bagged ink cartridge from the box, tear open the bag at the notch, and remove the ink cartridge.

58 www.kodak.com/go/aiosupport

KODAK ESP 7 All-in-One Printer

CAUTION:

Insert the ink cartridge immediately to prevent any drying of the ink.

6. Remove the orange cap from the cartridge by grasping the top edge and pulling/rotating it off the ink cartridge. Discard the orange cap.

7. Insert the ink cartridge into the printhead.

8. Press down on the tab until you hear a click and feel the latch snap into position.

www.kodak.com/go/aiosupport 59

Maintaining Your Printer

NOTE: Listen carefully during this step; make sure you hear the ink cartridges click

into place in the printhead. This seats the cartridges properly, and prevents ink from being dispensed incompletely during your print or copy jobs.

9. Close the printer access door. The printhead moves to its ready position and prepares the new ink cartridge for use (this could take up to a minute).

Replacing the printhead

If your printhead is damaged or broken, you may replace it yourself.

1. Make sure your printer is turned on.

2. Open the printer access door by lifting from the recessed hand-holds on the sides of the unit.

The printhead moves to an accessible position for handling the ink cartridges. The ink cartridges are seated in the printhead.

60 www.kodak.com/go/aiosupport

KODAK ESP 7 All-in-One Printer

CAUTION:

1 Printhead 2 Color ink cartridge 3 Black ink cartridge

3. Pinch the latch on the ink cartridge with your thumb and forefinger and lift it out of the print head. Remove both ink cartridges.

Insert the ink cartridges into the newly installed printhead as soon as possible to prevent any drying of the ink.

4. Unlatch the printhead by lifting the rectangular latch on the top of the printhead.

5. Remove the old printhead from the carriage.

www.kodak.com/go/aiosupport 61

Maintaining Your Printer

CAUTION:

6. Remove the new printhead from its bag.

Do not touch copper contacts on the printhead, as this may damage it.

62 www.kodak.com/go/aiosupport

KODAK ESP 7 All-in-One Printer

7. Remove and discard the black plastic casing and the orange protective cap.

8. Place the new printhead into the carriage.

www.kodak.com/go/aiosupport 63

Maintaining Your Printer

Listen carefully during this step; make sure you hear the ink cartridges click into place in the printhead. This seats the cartridges properly, and prevents ink from being dispensed incompletely on your print or copy jobs.

9. Push firmly against the target label on the printhead until you hear it click into place.

10. Reinstall the ink cartridges. As needed, see Replacing ink cartridges, page 57.

11. Close the printer access door. The printer should now complete a printhead calibration to ensure that it is ready to for normal operation.

64 www.kodak.com/go/aiosupport

Upgrading the printer software - for Windows

You can upgrade the software and firmware for in your printer with the most recent release available. This requires an Internet connection.

NOTE: The firmware cannot be upgraded when your printer is connected via a

network or Wi-Fi. Your printer must be connected to the computer with a USB cable in order to perform a firmware upgrade.

1. If your connection is via Ethernet, disconnect the Ethernet cable. If your connection is via Wi-Fi, press

OK. Select WIFI Radio off.

press

2. Connect the printer to the computer with a USB cable. The computer must be connected to the internet. A pop-up window appears at the bottom right corner of your computer monitor stating “Found New Hardware KODAK ESP 7 AIO,” then changes to “Found New Hardware. Your new hardware is installed and ready to use.”

3. Open the Kodak AiO HomeCenter.

4. Click the

Help button to open the Help Panel.

5. Under the General Links, click will receive a pop-up window or you can click on

6. Click

OK to upgrade. The printer software will begin to load. Do not turn off your

printer while the update is in progress.

7. When the update is complete, click

8. Close the maintenance window. The printer firmware is updated.

9. Next you will update the Home Center software, as well as the printer and scanner drivers.

10. Under the

Web Lin ks on the Help Panel, click on Check for updates.

11. If an update is available, download it to your computer.

12. When the update is complete, disconnect the USB cable and reconnect your printer to the Ethernet or Wi-Fi network.

13. Use the

Windows Control Panel to delete the printer from your computer. The

USB printer is named Kodak ESP7 AiO. This will remove the USB drivers.

Menu. Navigate to Network Settings menu and

Maintenance. If there is an update available, you

OK.

KODAK ESP 7 All-in-One Printer

Firmware Upgrade.

www.kodak.com/go/aiosupport 65

Maintaining Your Printer

Upgrading the printer software - for Macintosh

You can upgrade the software and firmware for in your printer with the most recent release available. This requires an Internet connection.

NOTE: The firmware cannot be upgraded when your printer is connected via a

network or Wi-Fi. Your All-in-One printer must be connected to the computer with a USB cable in order to perform a firmware upgrade.

1. If your connection is via Ethernet, disconnect the Ethernet cable. If your connection is via Wi-Fi, press

OK. Select WIFI Radio off.

press

2. Connect the printer to the computer with a USB cable. The computer must be connected to the internet.

3. Open a browser window and enter the following URL: http://www.kodak.com/go/aiosupport.

4. Select your printer model.

5. Under

6. Select your operating system from the drop down list.

7. Download the software.

8. Double-click on the *.dmg file.

9. Double-click on

10. Follow the onscreen prompts on the installer.

11. Upon completion of the install, click printer and scanner drivers are updated.

12. Next you will update printer firmware.

13. Open a browser window and enter the following URL: http://www.kodak.com/go/aiosupport.

14. Select your printer model.

15. Under

16. Select your operating system from the drop down list.

17. Download the firmware.

18. Double-click on the *.dmg file.

19. Double-click on

20. Upon completion of the install, click

Downloads, select Software Driver and Firmware Downloads.

Install Software.

Downloads, select Software Driver and Firmware Downloads.

Kodak AiO Updater.

Menu. Navigate to Network Settings menu and

Restart. The Home Center Software and the

Quit. The printer firmware is updated.

66 www.kodak.com/go/aiosupport

Troubleshooting

Troubleshooting “quick start”

Kodak provides several methods to help you troubleshoot your All-in-One printer issues. Here are some quick tips:

• Turn off your printer and then unplug it. Wait five seconds, and then plug the power cord back into the printer. Finally, turn the printer back on.

• Confirm that you are using a 2.0 USB cable to connect the printer to your computer. If you need to buy one, they are available online at

www.kodak.com/go/aio, or from your local electronics and printer retailer.

• Make sure that you have the most up-to-date All-in-One printer software and Help files from the Internet. Visit www.kodak.com/go/support to download the latest files.

• View the troubleshooting information found in Kodak Home Center software on your computer. After opening Home Center, click the question mark (?) button:

Macintosh: The button is located at the lower-left of the Home Center

•

window.

•

Windows: The button is located at the upper-right of the Home Center

window.

Use the Help window to view troubleshooting topics. (Windows users can also select

• You can also get troubleshooting help at the Kodak Web site. Visit

www.kodak.com/go/support for support for your Kodak printer.

NOTE: Many issues with degradation in performance or print quality can be

Troubleshoot from the Help panel on the main Home Center window.)

resolved by meeting or exceeding the recommended system requirements. See Chapter 10 , Product Safety Specifications.

General troubleshooting

Printer fails to power on

Probable Cause

The power supply is not properly connected.

Corrective Action

• Make sure the electrical power cord is connected to the alternating current(AC) power adapter, and is plugged into a grounded power outlet or power strip.

• If using a power strip, make sure it is turned on.

• If using a switched power outlet, make sure the switch is on.

• Make sure the power outlet is supplying power.

• Verify the light on the Kodak printer power cord plug is lit.

www.kodak.com/go/aiosupport 67

Troubleshooting

Probable Cause 2

The USB cable was unplugged from the printer and then reconnected; or, power to the printer is interrupted.

Corrective Action

Restart the computer.

Probable Cause 3

The USB cable is not 2.0 compliant.

Corrective Action

• Replace the USB cable with a USB 2.0 compliant cable.

NOTE: For optimal quality and performance, use a good-quality high speed USB 2.0

cable. When connecting to the Kodak All-in-One printer, use the USB ports located in the back of the computer. Any USB 2.0 hubs that are used should be self-powered.

• Restart the computer. If none of the above corrects the problem, contact Kodak support.

Device not recognized

Probable Cause

Any of the following can prevent your Kodak All-in-One printer from reading a connected device (digital camera, USB drive, or memory card).

• The camera is turned OFF.

• The USB connector on a USB drive is not fully inserted into the USB port.

• The memory card is not completely inserted, or is not inserted into the correct

• The file system on the device is corrupt.

• More than one device is inserted at a time.

• The USB device is not supported.

•The USB cable is faulty.

Corrective Action

• Correct any connection problems and try again.

• If the file system is corrupt, reformat it.

• Disconnect the unsupported device.

NOTE: If the USB drive uses an NTFS or HFS formatting system, the printer may not

card slot.

be able to read it. Macintosh users may need to transfer these files directly to their computer, and then print to the printer from there.

68 www.kodak.com/go/aiosupport

Ink cartridge not recognized

CAUTION:

Probable Cause 1

The color or black ink cartridge installed was not recognized.

Corrective Action

Install a genuine Kodak ink cartridge.

Probable Cause 2

One of the ink cartridges needs to be replaced.

Corrective Action

Replace the ink cartridge.

Multiple paper feed

Probable Cause

KODAK ESP 7 All-in-One Printer

WARNING: Generic or non-Kodak ink cartridges may not function with the

All-in-One printer. Kodak recommends using genuine Kodak ink cartridges.

Multiple sheets of paper were pulled through printer.

Corrective Action

Kodak Inkjet paper is recommended for your Kodak All-in-One printer

1. Remove the paper from the paper tray.

2. Carefully “fan” the paper to keep the sheets from sticking together.

3. Reload the paper tray. Do not overfill.

4. Press

OK.

Multiple pictures not scanned properly

When scanning or copying, the Kodak printer can detect multiple images on the scanner glass, straighten them, and create individual files. If you are having trouble with this feature, check the following:

Probable Cause

Your photos are not placed optimally on the scanner glass.

Corrective Action

• Make sure that your photos do not overlap.

• Place photos away from the edges of the scanner glass.

• Some images do not scan well. Light-colored images may not be detected as separate images.

• You may need to make adjustments to the scanning area using the Preview feature in the Kodak Home Center.

www.kodak.com/go/aiosupport 69

Troubleshooting

Probable Cause 2

The scanner glass is dirty.

Corrective Action

Make sure the scanner glass is completely clean or the photos might not scan properly (see Cleaning the scanner glass, page 55).

Probable Cause 3

The scanner lid is dirty.

Corrective Action

Clean the scanner lid (see Cleaning the scanner lid, page 55).

Probable Cause 4

The Scan What Document option on the Scan menu was selected, instead of the

Scan What Photo option.

Corrective Action

Scan the photos again in the appropriate format.

No communication with computer

Probable Cause

Your Kodak printer is not connected to your computer.

Corrective Action

• Make sure your printer is plugged in and turned on.

• Make sure you are using the proper USB cable (USB 2.0).

• If you are using a USB hub to connect the USB cable to the computer, make sure that it has power. Use a self-powered (connected to an electrical outlet) USB hub instead of one that uses the computer’s internal power.

• Check the connection from your computer to your printer. Ensure that the square end of the USB cable is plugged in to the USB port on the back of your printer, and the flat end into a USB port on your computer.

• You may need to disconnect other printers or scanners from your computer.

• After checking connections, restart your computer.

• Make sure your computer meets the minimum system requirements, otherwise upgrade your system if necessary.

For more information on connecting your printer to your computer, see the Start Here booklet that came with your printer.

70 www.kodak.com/go/aiosupport

No paper feed

CAUTION:

KODAK ESP 7 All-in-One Printer

Probable Cause

The paper tray may be empty, or there may be a problem with the paper in the tray.

Kodak Inkjet paper is recommended for your Kodak All-in-One printer.

Corrective Action

If the tray is empty, load paper into the paper tray, then resume printing. Check for a message from the printer status monitor (Windows) or the printer queue window (Macintosh) on your computer. Check for a problem with the paper in the tray.

To check the paper

1. Inspect the paper and make sure no paper sheets are damaged in any way. Reload with new paper, if necessary.

2. Carefully “fan” the paper to keep the sheets from sticking together.

3. Reload the paper tray. Do not overfill.

4. Press

OK.

One or more of the colors on the calibration sheet is missing

Probable Cause

The printhead is not installed correctly. If the printhead has been working properly, it may have come loose.

Corrective Action

If the printhead has come loose:

1. Open the printer access door, and then remove the black and color ink cartridges.

2. Press the printhead release button.

3. Lift the printhead out.

4. Reinsert the printhead and ink cartridges.

NOTE: See Replacing the printhead, page 60for illustrated instructions for

performing this procedure.

If this does not resolve your printing issue, contact Kodak Service and Support.

www.kodak.com/go/aiosupport 71

Troubleshooting

CAUTION:

Paper jam

Probable Cause

The paper did not advance, was not picked up properly from the paper tray, or is lodged inside the printer.

Kodak Inkjet paper is recommended for your Kodak All-in-One printer.

Corrective Action

1. Remove the paper from the tray you used when the jam occurred.

2. Turn off the printer.

3. Open the rear access area and pull the paper out from the rollers without tearing it.

If the paper tears while removing it, make sure you remove all the torn pieces. More jams are likely to occur when torn pieces are left in the printer.

4. Reload the paper tray, but do not overfill it.

5. Turn the printer on.

6. Press

Printer not responding

Probable Cause

The firmware or software is not in a ready state.

Corrective Action

• Turn the printer off and turn it back on.

• If the problem persists, unplug the power cord from the power supply and plug it back in.

• If the problem continues to persist, restart your computer.

Transfer pictures failure

Problem

Nothing happens when you try to transfer photos to the computer.

Corrective Action

OK.

• Remove the memory card or USB device and reinsert it.

• Check the power connection to the computer.

• If you are trying to transfer photos from a memory card and a PictBridge camera is connected, disconnect the camera.

72 www.kodak.com/go/aiosupport

• Close any unnecessary software applications, and minimize any remaining application windows. Follow any messages on the screen that may have been hidden by other windows.

• Disconnect, then reconnect the USB cable from the printer to the computer.

• Make sure you are using a high-quality USB cable which is communicating with the computer. (See No communication with computer, page 70.)

• If the pictures are on a USB device, make sure it uses a supported file system (see Device not recognized, page 68).

• Make sure your computer meets the minimum system requirements for using your printer (see General troubleshooting, page 67). Upgrade your system if necessary.

User guide on the CD is obsolete

Probable Cause

The User Guide has been updated since the software CD was released.

Corrective Action

KODAK ESP 7 All-in-One Printer

• Download the most recent version of the User Guide from Kodak.com.

Wrong paper size

Probable Cause

The print size or paper size you selected may be larger or smaller than the paper found in the paper tray.

Corrective Action

• Replace the paper in the paper tray with the correct size.

•Press

If the situation continues, contact Kodak support.

OK.

Macintosh OS X troubleshooting

Non-intel Mac only: black screen or screen freeze occurs when applying printer settings via the Home Center software

Probable Cause

This error only occurs with non-Intel Macintosh computers running Leopard OS version 10.5. Apple has confirmed that there are problems running the latest version (Leopard) on G5 processors.

Corrective Action

• Upgrade to Macintosh OS 10.5.2.

www.kodak.com/go/aiosupport 73

Troubleshooting

Windows Vista troubleshooting

WIA (Windows Image Acquisition) error: service has stopped working

This results in the inability to connect a camera and transfer pictures from the camera. Neither the camera nor the printer is visible through the

option on the Print Photo Options menu.

Probable Cause 1

The USB cable is unplugged and reconnected to the printer.

Probable Cause 2

A printer-terminated error occurs.

Probable Cause 3

Power is interrupted.

Corrective Action

Restart the computer and printer.

Tran s fer All to My

Home Center software on Windows works incorrectly following software upgrade

Probable Cause

Some changes in the Home Center software on Windows systems may have been affected by enabled Security and/or User Account Control settings.

Corrective Action

1. Right-click on the Home Center icon (shortcut) on the Desktop.

2. Select

3. Select the Compatibility tab.

4. Check the box that says “Run the program as an administrator.”

Properties.

Print troubleshooting

Use this section to resolve print problems.

Envelope printing incorrect

Probable Cause

The envelopes are not loaded correctly.

Corrective Action

1. Remove the envelopes from the paper tray.

2. Straighten the stack of envelopes against a flat surface. Reload the stack into the paper tray print side down, with the envelope flap aligned to the left.

3. Squeeze the paper guide and slide it to the right until it touches the edge of the envelopes.

74 www.kodak.com/go/aiosupport

Multiple-page document not printing in reverse order (Windows only)

NOTE: On a Macintosh, Reverse Page Order printing is the default setting. See To

set a Macintosh to print the first page of a document first: below.

Probable Cause

The print settings on your computer are set to print the first page of your document first.

Corrective Action

Configure the printer to print the document in reverse order, so the pages are in the correct order when printing is complete.

To set a Windows PC to print in reverse order:

1. On the Windows Desktop, click Start > Settings > Control Panel.

2. In the Control Panel window, open Printers or Printers and Faxes.

3. In the Windows Explorer window, right-click on the Kodak All-in-One printer in

Name column, and then select Printing Preferences.

the

4. On the Printing Preferences window, select

Print last page first on the General

tab.

KODAK ESP 7 All-in-One Printer

Multiple-page document not printing in first-page first order (Macintosh only)

Probable Cause

The print settings on your computer are set to print the document in reverse order.

Corrective Action

Configure the printer to print the document first-page first.

To set a Macintosh to print the first page of a document first:

1. On the File menu, select Print.

2. On the Print dialog, select

3. Select the

Normal Page Order option.

Paper Handling.

PictBridge camera not detected

Probable Cause

The camera is not communicating with the printer.

Corrective Action

• Make sure the camera is turned on.

• Check the USB connections from the PictBridge camera to the printer.

• If disconnected, reconnect the USB cable from the PictBridge camera to the printer.

www.kodak.com/go/aiosupport 75

Troubleshooting

• Make sure the connected camera is PictBridge-compatible. See your camera or

• Check the camera batteries.

Picture cropped

• Change the picture quality setting (or resolution) on your digital camera to 3:2.

• Adjust cropped photos using the Kodak Home Center software (Windows only)

• If you are printing from an application on your computer, select the proper paper

NOTE: Cropping may vary, depending on the selected picture size and size of the

Picture print smudged

device user’s guide for details.

See your camera user’s guide for details.

or other image editing software on your computer.

size from the printer options.

output paper. The dimensions of the photo on the camera are slightly different from each paper size so a portion will be cropped to fit perfectly on whatever paper size was selected.

Probable Cause

Fingerprints are on the glossy side of paper.

Corrective Action

Handle paper by the edges.

Picture will not print

A selected picture does not print.

Probable Cause 1

The image file may be corrupt.

Corrective Action

Review the picture on the camera or computer and delete it if necessary.

Probable Cause 2

The image file may not be in JPEG format.

Corrective Action

The Kodak printer can print only JPEG files in stand-alone mode. Connect the printer to a computer and use software to print other image formats.

76 www.kodak.com/go/aiosupport

Poor print quality

CAUTION:

Probable Cause

Low resolution image file or the printer may need maintenance.

Corrective Action

• Align the printhead (see Monitoring and adjusting the printer's performance,

• Perform a nozzle check with the Home Center software.

• Clean the printhead from Home Center, or from the Maintenance menu on the

• If the problem still persists, you may need to replace the printhead (see Replacing

Print skewed or slanted

Probable Cause 1

KODAK ESP 7 All-in-One Printer

page 56

printer control panel. If the printhead is clogged, the printouts should begin to improve with two or three cleanings. Repeat the cleaning cycle until the printout stops improving.

the printhead, page 60

Print spotted

The paper is not properly loaded in the tray.

Kodak Inkjet paper is recommended for your all-in-one printer.

Corrective Action

Realign the paper in the paper tray.

Remove paper and check for wrinkles and tears.

2. Slide the paper-width guide away from the paper.

3. Straighten the stack of paper against a flat surface, and reload it into the paper tray.

4. Slide the paper edge guide up against the edge of the paper.

Probable Cause 2

More than one type or size of paper is loaded.

Corrective Action

Load only one type or size of paper at a time.

Probable Cause

Paper may be dirty.

Corrective Action

Use a dry, lint-free cloth to wipe clean. For excessive dirt or debris, thoroughly clean the paper tray, and load new paper.

NOTE: When you are not using the printer, keep paper tray covers closed to keep dust

and debris from collecting on the paper or inside the printer.

www.kodak.com/go/aiosupport 77

Troubleshooting

CAUTION:

Print too dark

Print too light

• Try taking the picture again with the flash on, or move within the flash range of the

camera. Refer to your camera user’s guide for details.

• Adjust the exposure compensation on your camera, and try taking the picture again.

Refer to your camera user’s guide for details.

• Edit the picture using Kodak Home Center (Windows only) or other image editing

software.

• Make sure the printer is not placed in direct sunlight or is not operating in a

high-temperature environment.

For best results, use Kodak paper and ink cartridges for your Kodak All-in-One printer.

• Make sure the paper is loaded with the print side face down. Reload it if necessary.

• Try taking the picture again with the flash off. Refer to your camera user’s guide for

details.

• Adjust the exposure compensation on your camera and try taking the picture again.

Refer to your camera user’s guide for details.

• Edit the picture on your computer.

Printing slow

Printing stops

NOTE: When printing a large number of prints, printing may slow down to prevent the

printhead from overheating.

• Make sure the printer is not placed in direct sunlight or is not operating in a

high-temperature environment (higher than 95° Fahrenheit or 35° Celsius).

• Close any unnecessary software applications.

• Make sure your computer meets the minimum system requirements. Upgrade your

system if necessary.

Printing stops during mid-print. Paper stops feeding, and status light may blink.

For best results, use Kodak paper and ink cartridges with your printer.

To check the paper:

1. Remove any loose paper from the printer. Check the paper access door in the rear of

the printer.

2. Inspect the paper supplies and reload with new paper if necessary.

78 www.kodak.com/go/aiosupport

3. Carefully “fan” the paper to keep the sheets from sticking together.

4. Reload the paper tray. Do not overload.

5. Press Start to continue.

White edges on borderless prints

Probable Cause 1

White edges can appear when there are slight misalignments between the printer and paper. Some software applications are able to “hide” these small misalignments so that the prints look borderless.

Corrective Action

• Realign the paper in the tray.

• Use the application's Fill Page option, or resize the picture so it is slightly larger than

the paper size.

Probable Cause 2

If the image's proportions or dimensions are not compatible with the selected paper size, the print usually will not be borderless. For example, if a square image is printed on 4 x 6-inch paper, it will often print as a 4 x 4-inch image, with white edges on each side of the print job.

KODAK ESP 7 All-in-One Printer

Corrective Action 2

Crop the image so it is compatible with the selected paper size.

Copy troubleshooting

Copy cut off

Probable Cause

The original is larger than the paper loaded.

Corrective Action

When the original is larger than the paper loaded, reduce copy size to fit the size of the paper loaded.

Scan troubleshooting

Scan fails

Probable Cause 1

Your computer is not turned ON.

Corrective Action

Turn on your computer.

www.kodak.com/go/aiosupport 79

Troubleshooting

Probable Cause 2

Your Kodak printer is not connected to your computer.

Corrective Action

Connect your Kodak printer to your computer with a standard USB cable.

Probable Cause 3

The Kodak Home Center software is not installed.

Corrective Action

Insert the Kodak printer installation CD and install the software.

Probable Cause 4

Your computer system resources may be low.

Corrective Action

• Turn off your computer and the printer, and then turn them back on.

• If the problem still persists, try scanning at a lower resolution.

Probable Cause 5

The memory card to which you are scanning does not have enough free space to save the scanned photo.

Corrective Action

Remove some files from the memory card to free up some space.

Scanned image blank

Probable Cause

Your original is not placed correctly on the scanner glass.

Corrective Action

Place your original face down in the proper corner of the scanner glass.

80 www.kodak.com/go/aiosupport

Network troubleshooting

Wired network troubleshooting

Computer unable to detect the All-in-One printer

Probable Cause 1

Cables are not connected properly.

Corrective Action

Check the following cables to ensure they are properly connected.

• Cables between the hub or router and your computer

• Cables between the All-in-One printer and the hub or router

• Cables to and from your modem or printer Internet connection (if applicable)

Probable Cause 2

Your Local Area Network card (LAN card) is not set up properly.

KODAK ESP 7 All-in-One Printer

Corrective Action

Verify the setup of your LAN card.

To check your LAN card (Windows)

1. Open the Control Panel.

2. Double-click

3. In the

4. Click

5. Make sure your card shows up under Network Adapters.

6. Refer to the documentation that came with your card.

To check your LAN card (Macintosh)

1. Click the Apple icon on the Menu bar.

2. Select

3. In the System Profiler, click

4. Make sure your LAN card appears in the list.

Probable Cause 3

You do not have an active network connection.

Device Manager.

System.

System Properties dialog box, click the Hardware tab.

About This Mac and then click More Info. The System Profiler is displayed.

Network.

Corrective Action

Check to see if you have an active network connection.

www.kodak.com/go/aiosupport 81

Troubleshooting

To see if you have an active network connection

Check the two Ethernet indicator lights on the top and bottom of the RJ-45 Ethernet jack on the back of the printer. The lights indicate the following:

Top light If this light is a solid green, the device is properly

Bottom light This yellow light flashes when data is being sent or

To establish an active network connection

1. Check the cable connections from the All-in-One printer to your gateway, router, or hub to ensure connections are secure.

2. If the connections are secure, turn off the power on the All-in-One printer, and then turn it on again. Press the printer off, and press it again to turn it back on. Also, turn off the power on your router or hub, and then turn it on again.

connected to the network, and communications have been established. If the top light is off, there is no network connection.

received by the device over the network.

On/Off button on the control panel to turn the

No TCP/IP

Printer not found

Probable Cause

Your Local Area Network (LAN) card is not installed properly.

Corrective Action

Make sure your LAN card is installed properly and set up for TCP/IP. See the instructions that came with your LAN card.

Probable Cause

The All-in-One printer is not turned on.

Corrective Action

Tu r n o n t h e p r in t er.

Probable Cause 2

You do not have an active network connection.

Corrective Action

Make sure you have an active network connection.

82 www.kodak.com/go/aiosupport

To make sure your network connection is active

1. If the connections are secure, turn off the power on the All-in-One printer, and then turn it on again. Press the printer off, and press it again to turn it back on. Also, turn off the power on your router or hub, and then turn it on again.

2. Check the cable connections from the printer to your gateway, router, or hub to ensure connections are secure.

3. Make sure the printer is connected to the network with a CAT-5 or better Ethernet cable.

Probable Cause 3

Cables are not connected properly.

Corrective Action

Check the following cables to ensure they are connected properly.

• Cables between the All-in-One printer and the hub or router

• Cables between the hub or router and your computer

• Cables to and from your modem or printer Internet connection (if applicable)

KODAK ESP 7 All-in-One Printer

On/Off button on the control panel to turn the

Probable Cause 4

A firewall, anti-virus, or anti-spyware application is preventing the printer from accessing your computer.

Corrective Action

Many firewall security programs have different levels of firewall security (Block All, High, Medium, Low), and some high levels of protection may prevent certain software applications and/or services from being permitted to operate through the network with enabled firewall security.

Via the firewall security program on your PC, manually allow inbound and outbound application permission through the firewall for the following services required for the wireless All-in-One operations:

Bonjour Service (C:\Program Files\Bonjour\mDNSResponder.exe)

Kodak AiO Network Discovery Service (C:\Program Files\Kodak\Printer\Center\EKDiscovery.exe)

Kodak AiO Device Service (C:\Program Files\Kodak\Printer\Center\KodakSvc.exe)

Kodak AiO Home Center (C:\Program Files\Kodak\Printer\Center\AiOHomeCenter.exe)

Go to www.kodak.com/go/inkjetnetworking for detailed instructions on adding these firewall permissions for the Kodak printer network services for 20 of the top rated firewall security programs on the market. If necessary, visit your firewall Manufacturer’s online help Web site.

www.kodak.com/go/aiosupport 83

Troubleshooting

More advanced network users may also choose to allow inbound and outbound port permission through their firewall for the following ports associated with the wireless printer: Port 5353 (UDP) Port 9322 (TCP)

Probable Cause 5

A Virtual Private Network (VPN) is preventing the printer from accessing your computer.

Corrective Action

Try temporarily disabling the VPN before proceeding with the installation.

NOTE: The All-in-One printer functionality will be limited during VPN sessions.

Probable Cause 6

The Ethernet cable is not plugged into the router, switch, or hub. The cable may also be defective.

Corrective Action

Try reinserting the cables. Or, if necessary, try a different cable.

Probable Cause 7

The All-in-One printer is assigned an AutoIP address instead of DHCP.

Corrective Action

This indicates that the printer is not connected properly to the network. Check the following:

• Make sure all cables are connected properly and securely.

• If the cables are connected properly, your access point, router, or home gateway might not be sending an address. If this is the case, you might need to reset the device.

• Make sure the All-in-One printer is on the correct network.

• Restart your All-in-One printer.

Probable Cause 8

The printer is on the wrong Subnet or gateway.

Corrective Action

Print a network configuration page, and verify that the router and printer are on the same subnet and gateway.

To print the network configuration page

• On the control panel of the printer, press Menu.

• Press until Network Settings is highlighted, and then press OK.

• Press until Print Network Configuration is highlighted, and then press OK.

84 www.kodak.com/go/aiosupport

No IP address with cable modem (without a router)

Probable Cause

If you have a computer with a cable modem, a separate Local Area Network (LAN) for your other computers, and no DHCP or router, you must use AutoIP to assign IP addresses to the other computers and to the printer.

Corrective Action

To obtain an IP address for the computer with the cable modem

Your Internet Service Provider (ISP) assigns either a static or dynamic IP address to the computer with the cable modem.

To assign IP addresses to the remaining computers and the All-in-One printer

Use AutoIP to assign IP addresses to the remaining computers and the printer. Do not assign a static IP address.

Wireless troubleshooting

No SSID

KODAK ESP 7 All-in-One Printer

Probable Cause 1

Your access point is not broadcasting its network name (SSID) because the

Broadcast SSID option is turned off.

Corrective Action

Access the Embedded Web Server and turn on the Broadcast SSID option.

Probable Cause 2

The access point (infrastructure) or computer (ad hoc) is out of range.

Corrective Action

In order to establish a good signal between the printer and access point (infrastructure) or computer (ad hoc), try doing the following things separately or in combination.

• If there is a long distance between your computer or access point and the printer, move them closer together.

• If there are metal objects (such as a metal bookcase or refrigerator) in the transmission path, clear the path between the printer and the computer or access point.

• If a cordless telephone, microwave, or other device that emits radio signals transmitting at 2.4 GHz is nearby, move it farther away to reduce radio interference.

NOTE: Devices like wireless speakers or wireless gaming accessories can emit radio

interference at 2.4 GHz. You can verify this on your wireless desktop or laptop computer by viewing sporadic signal bars in your Wi-Fi status utility.

www.kodak.com/go/aiosupport 85

Troubleshooting

Repositioning your computer away from these sources of signal interference can improve your computer network performance. For example:

Do place the AP/router in a central room.

•

Do not place wireless entertainment devices between the AP/router and

• wireless computer.

Do not place wireless entertainment devices between the AP/router and

• Wi-Fi All-in-One printer.

Probable Cause 3

The SSID is not visible because it is at the bottom of the list.

Corrective Action

Press to scroll to the bottom of the list. Infrastructure entries are listed first and ad hoc entries last.

Probable Cause 4

The access point firmware needs updating.

Corrective Action

Check for firmware updates for your access point on the manufacturer's Web site. Update the firmware on the access point.

Probable Cause 5

Your wireless adapter on your computer is not broadcasting the SSID (ad hoc).

Corrective Action

Verify that the wireless adapter is broadcasting the SSID. Print a network configuration page from the All-in-One printer, and verify that the SSID for the wireless adapter appears on the network configuration page. If the wireless adapter is not broadcasting the SSID, see the documentation that came with your computer.

Probable Cause 6

The firmware for the wireless adapter on your computer needs updating (ad hoc).

Corrective Action

Check for firmware updates for your wireless adapter on the manufacturer's Web site, and then update the firmware.

Probable Cause 7

An Ethernet cable is connected to the printer.

Corrective Action

Unplug the Ethernet cable.

86 www.kodak.com/go/aiosupport

Weak signal

Probable Cause

The access point is too far away or there is interference.

Corrective Action

• If there is a long distance between your computer or access point and the

• If there are metal objects (such as a metal bookcase or refrigerator) in the

• If a cordless telephone, microwave, or other device that emits radio signals

Cannot connect to network

Probable Cause 1

The equipment is not turned on.

KODAK ESP 7 All-in-One Printer

printer, move them closer together.

transmission path, clear the path between the printer and the computer or access point.

transmitting at 2.4 GHz is nearby, move it farther away to reduce radio interference. See NOTE:, page 89.

Corrective Action

Turn on the networked devices, such as the access point for an infrastructure network, or the computer for an ad hoc network. For more information on how to turn on the access point, see the documentation that came with your access point.

Probable Cause 2

The All-in-One printer is not receiving a signal.

Corrective Action

Move the access point and the printer closer together. Then go through setup again.

Probable Cause 3

You have entered the SSID incorrectly.

Corrective Action

Enter the SSID correctly. Remember that the SSID is case-sensitive.

Probable Cause 4

You have entered the WEP key incorrectly.

Corrective Action

Enter the WEP key correctly. Remember that the WEP key is case-sensitive.

Probable Cause 5

The wireless settings on the printer do not match the wireless settings of your access point.

www.kodak.com/go/aiosupport 87

Troubleshooting

Corrective Action

Print a network configuration page to compare the wireless settings of the printer with the wireless settings for your access point. Change either the device or access point settings so that both the printer and the access point have matching wireless settings.

Probable Cause 6

You entered the wrong mode (ad hoc or infrastructure) or security type.

Corrective Action

Enter the correct mode or security type. Print a network configuration page to compare the wireless settings of the printer with the wireless settings for your access point. Change either the device or access point settings so that both the printer and the access point have matching wireless settings.

Probable Cause 7

MAC filtering is enabled on your access point.

Corrective Action

Keep MAC filtering enabled, but change the settings to allow the access point to communicate with the printer.

Unsupported authentication or encryption type

Probable Cause

Your network is configured with an authentication protocol not supported by the Kodak All-in-One printer.

Corrective Action

Open the Embedded Web Server of your access point and change the security settings. Use one of the supported protocol types.

NOTE: Types not supported include WPS, WPA2-Enterprise, LEAP, PEAP,

EAP-MD5, EAP-TLS, and EAP-TTLS.

Invalid WEP Key

Probable Cause 1

An invalid WEP key was entered.

Corrective Action

If you do not know the WEP key, see the documentation that came with your access point/router. The WEP key is stored within the access point. Usually you can find the WEP key by logging on to the Embedded Web Server of your access point through your computer.

Probable Cause 2

88 www.kodak.com/go/aiosupport

The WEP key index setting of your access point does not match the WEP key index setting of the All-in-One printer.

Corrective Action

The printer is looking for a WEP key index of 1. If the WEP key index setting was changed on the access point, open the Embedded Web Server for the printer and update the index setting to match the index setting of your access point. Once you've updated the index setting on the printer, repeat the setup procedure.

NOTE: Some access points provide more than one WEP key. Make sure you use the

Invalid WPA Passphrase

Probable Cause

You have entered the WPA passphrase incorrectly.

Corrective Action

Enter the correct passphrase. Make sure it has between 8 and 63 characters, and matches the passphrase programmed in the access point (case sensitive).

KODAK ESP 7 All-in-One Printer

first WEP key (index 1) when setting up your wireless network.

Another device connected to the access point

Probable Cause

Another device in the vicinity connected to your access point before the All-in-One printer was able to connect.

Corrective Action

Cancel the setup and start over.

www.kodak.com/go/aiosupport 89

Product Safety Specifications

Specifications for your all-in-one printer are described in the tables below.

Print Performance

Black print speed Up to 30 pages per minute on plain paper

Color print speed Up to 29 pages per minute on plain paper

Print technology Continuous-tone thermal ink jet

Print quality modes Draft, Normal, and Best on plain paper

Photo Printing Features

Quantity 1- 99

Print Sizes 2 x 3 inch (5 x 7.6 cm)

Print Performance

Photo quality mode on photo paper

Photo Printing Features

3.5 x 5 inch (9 x 12.7 cm) 4 × 6 inch (10 × 15 cm)

4 × 7 inch (10 × 18 cm)

Panoramic (4 x 12 inch) (10 × 30 cm) 5 × 7 inch (13 × 18 cm)

8 × 10 inch (20 × 25 cm)

US Letter (8.5 x 11 inch) (22 x 28 cm) A4 (21 x 30 cm)

Quality Normal, Best, and Draft

Auto-detect media Auto-detect plain paper, photo paper, and

transparency

Optimize image quality for Kodak Photo Papers with barcode

Image enhancement Kodak Perfect Touch Technology with Home

Center software

Add Dates to Prints Yes, No

Color Black & White or Color

Scene Balance On, Off

90 www.kodak.com/go/aiosupport

Copy Document Features

Color Black & White or Color

Quantity 1 to 99 copies

Copy size Same Size, 20% to 500%

Quality Normal, Best, and Draft

Brightness – 3 to + 3

Copy Photo Features

Color Black & White or Color

Quantity 1 to 99 copies

Copy size 2 x 3 inch (5 x 7.6 cm)

KODAK ESP 7 All-in-One Printer

Copy Document Features

Copy Photo Features

4 × 6 inch (10 × 15 cm)

4 × 7 inch (10 × 18 cm) Panoramic (4 × 12 inch) (10 × 30 cm)

5 × 7 inch (13 × 18 cm)

8 × 10 inch (20 × 25 cm) US Letter (8.5 x 11 inch) (22 x 28 cm)

A4 (21 x 30 cm)

Quality Normal, Best, and Draft

Brightness – 3 to + 3

Scanning Features

Scanner type Contact Image Sensor (CIS) type scanner

Maximum scan size 8.5 × 11.7 in. (21.6 × 29.7 cm)

Functions Segmentation scanning

Scanning Features

Auto-destination

OCR

www.kodak.com/go/aiosupport 91

Product Safety Specifications

Paper Tray Features

Paper capacity: 100 sheets of 20 lb plain paper or 30 sheets of 10 mil

Tray size: top tray 4 x 6 in. to 8.5 × 14 in. (10 x 15 cm to 21.6 × 36 cm)

Tray size: bottom tray 4 x 6 in., 4 x 7 in., 5 x 7 in.

Ink Tanks

Ink handling 2-cartridge, 6-ink system

Ink life 1-year warranty from date of purchase.

Connectivity

Paper Tray

photo paper

Ink Tanks

Connectivity

Protocols supported USB 2.0, USB PTP, Bluetooth® 2.0, PictBridge, DPOF, MIPC

Devices supported Windows and Macintosh computers, USB mass storage devices,

Image formats supported JPEG (EXIF V2.2) (progressive JPEG format not supported)

Number of USB ports One front host port (full speed), one rear device port (high

Software Support

Application support Third-party image management applications or Kodak EasyShare Software

Media support Plain paper, photo paper, envelopes, greeting cards, transparencies, labels,

Scanner support TWAIN and WIA import, including EasyShare Software, segmentation

memory cards (MS, XD, SD, SDHC, and CF), PictBridge-enabled digital still cameras, and Bluetooth® Technology-enabled imaging devices

AVI, MOV and WAV (transfer only)

speed)

Software Support

for photos; optical character reader (OCR) support for documents

t-shirt transfers

scanning
