Kodak DryView 8100 User Manual

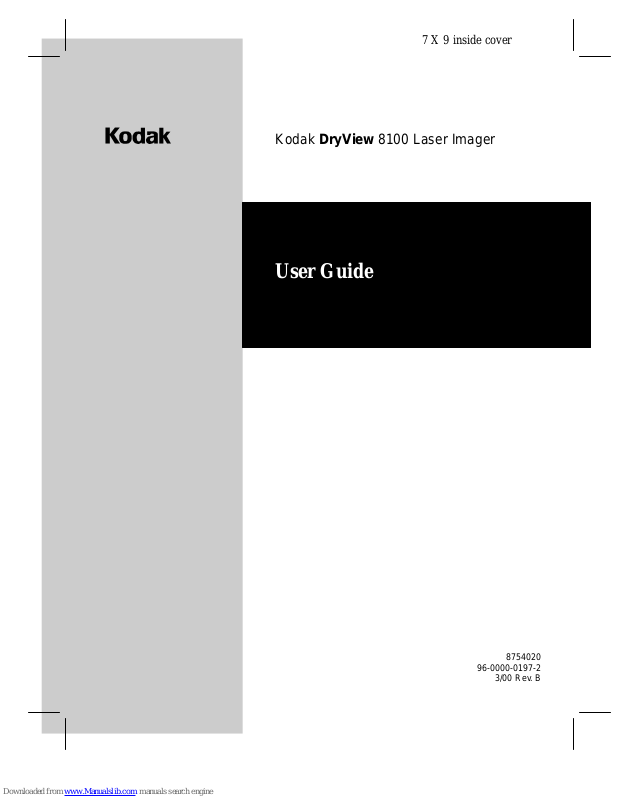

7 X 9 inside cover

Kodak DryView 8100 Laser Imager

User Guide

8754020

96-0000-0197-2

3/00 Rev. B

Safety, EMC, and CE Marking Compliance

Safety, EMC, and CE Marking Compliance

Read and understand all instructions before using.

For a translation of the following warnings, please refer to the applicable safety
addendum listed below:

 DryView 8100 Imager User Guide Safety Addendum (Polish) 74-0500-5507-3
 DryView 8100 Imager User Guide Safety Addendum (Hebrew) 74-0500-5508-1
 DryView 8100 Imager User Guide Safety Addendum (Korean) 74-0500-5509-9

!

WARNING

This equipment is operated with hazardous voltage which can shock,
burn, or cause death.

Remove wall plug before servicing equipment. Never pull on cord to remove from
outlet. Grasp plug and pull to disconnect.

Do not operate equipment with a damaged power cord.
Do not use an extension cord to power this equipment.
Use only the power cord supplied with this equipment.
Position the power cord so it will not be tripped over or pulled.
Connect this equipment to a grounded outlet.

!

WARNING

This equipment contains moving parts that may be accessible to the user. Loose
clothing, jewelry, or long hair may cause minor personal injury or damage to the
equipment. Do not operate equipment with the covers open. Do not operate
equipment with any of the safety interlocks overridden.

!

WARNING

This equipment is not contained in a sealed cabinet. Therefore it must not be used in
locations where it can come in contact with liquids, including bodily fluids.

!

WARNING

For continued protection against fire, replace fuses only with fuses of the same type
and rating.

2000 March Rev. B 8754020

i

DryView 8100 Laser Imager User Guide

Read and understand all instructions before using.

!

CAUTION

Do not use in the presence of flammable anesthetics, oxygen or nitrous oxide. This
equipment does not have a gas sealed electronics enclosure and could ignite any
flammable or explosive gases present in its environment.

!

CAUTION

This equipment is intended to connect to other medical devices. Installation and
service maintenance are to be performed only by qualified service personnel. The
laser in the equipment is not a patient device. Therefore the equipment must be
installed no closer than 1.83 meters from a patient bed or chair.

!

CAUTION

Do not substitute or modify any part of this equipment without approval of Eastman
Kodak Company.

!

CAUTION

This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. Those limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and the receiver.
 Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

ii

8754020 2000 March Rev.B

Safety, EMC, and CE Marking Compliance

Read and understand all instructions before using.

!

CAUTION

General External Cleaning: This equipment may be cleaned with a damp cloth

using water with mild detergent, or commercial electronic equipment cleaner.

2000 March Rev. B 8754020

8100–38L

iii

DryView 8100 Laser Imager User Guide

Read and understand all instructions before using.

!

DANGER

The equipment employs a 50 milliwatt laser. Laser radiation may be present when
the machine operates without the rear cover installed.

Use of controls or adjustments, or performance of procedures other than those
specified herein, may result in eye damage.

The rear cover shall be removed by authorized service personnel only.

DANGER

Bypassing interlocks (other than the Service Interlock above)
will allow the system to run with the laser energized.

Exposure to laser light may result in permanent eye damage.

Class 1 Laser

Laser de catégorie 1

Laser-Klasse 1

Laser di Classe 1

Klass 1 Laser

6E7000 Rev. A

iv

8754020 2000 March Rev.B

Safety, EMC, and CE Marking Compliance

Read and understand all instructions before using.

2000 March Rev. B 8754020

v

DryView 8100 Laser Imager User Guide

This equipment has been tested for and complies with the following Safety and
Emission Standards. Certificates of Compliance and Declarations of Conformity
have been issued as shown below.

Safety:

Canada:
 C22.2 NO 950-95–CAN/CSA Safety for Information Technology Equipment,

Including Electrical Business Equipment

 C22.2 NO 601.1–M90–CAN/CSA Medical Electrical Equipment – Part 1:

General Requirements for Safety

Europe:
 EN60950: Safety of Information Technology Equipment, Including Electrical

Business Equipment (IEC 60950 : 1991, Modified) (Includes Amendment A1 and
A2: 1993)

 EN60601–1–1: Medical electrical equipment – Part 1: General requirements for

safety – Section 1: Collateral standard: Safety requirements for medical electrical
systems

 EN60825–1: Safety of laser products – Part 1: Equipment classification,

requirements and user’s guide

U.S.A.:
 UL 1950: Safety of Information Technology Equipment, Including Electrical

Business Equipment DOD (Bi–National Standard) with UL 2601–1 Medical
Electrical Equipment, Part 1: General Requirements for Safety

 21CFR1040.10 Class I: FDA CDRH Code of Federal Regulations Title 21,

Volume 8, Food and Drugs, Part 1040 Performance Standards For
Light–Emitting Products, Section 10 Laser Products

 FDA Premarket Notification 510(K): Regulatory Requirements For Medical

Devices

Rest of World:

 IEC 950: Safety of information technology equipment
 IEC 60601–1–1: Medical electrical equipment – Part 1: General requirements for

safety – Section 1: Collateral standard: Safety requirements for medical electrical
systems

 IEC 60825–1: Safety of laser products – Part 1: Equipment classification,

requirements and user’s guide

vi

8754020 2000 March Rev.B

Safety, EMC, and CE Marking Compliance

EMC:

Canada:
 CAN/CSA–C108.6–M91 Class A: Limits and Methods of Measurement of

Electromagnetic Disturbance Characteristics of Industrial, Scientific and Medical
(ISM) Radio–Frequency Equipment

Europe:
 EN55022 (CISPR 22) Class B Group 1: Limits and Methods of Measurement of

Radio Interference Characteristics of Information Technology Equipment

 EN61000–3–2 (IEC 1000–3–2): Electromagnetic compatibility (EMC) – Part 3:

Limits – Section 2: Limits for harmonic current emissions (equipment input
current <= 16 per phase)

 EN 61000–4–2 (IEC 1000–4–2): Electromagnetic compatibility (EMC) – Part 4:

Testing and measurement techniques – Section 2: Electrostatic discharge
immunity test. Basic EMC Publication

 EN 61000–4–3 (IEC 1000–4–3): Electromagnetic compatibility (EMC) – Part 4:

Testing and measurement techniques – Section 3: Radiated, radio–frequency,
electromagnetic field immunity test

 EN 61000–4–4 (IEC 1000–4–4): Electromagnetic compatibility (EMC) – Part 4:

Testing and measurement techniques – Section 4: Electrical fast transient/burst
immunity test. Basic EMC Publication

 EN 61000–4–5 (IEC 1000–4–5): Electromagnetic compatibility (EMC) – Part 4:

Testing and measurement techniques – Section 5: Surge immunity test

 EN 61000–4–6 (IEC 1000–4–6): Electromagnetic compatibility (EMC) – Part 4:

Testing and measurement techniques – Section 6: Immunity to conducted
disturbances, induced by radio–frequency fields

 EN 61000–4–11 (IEC 1000–4–11): Electromagnetic compatibility (EMC) – Part 4:

Testing and measuring techniques – Section 11: Voltage dips, short interruptions
and voltage variations immunity tests

U.S.A.:
 FCC Rules and Regulations, Title 47, Part 15, Subpart B, Class B: Radio

frequency devices: Unintentional Radiators

Rest of World:
 CISPR 22 Class B Group 1: Limits and Methods of Measurement of Radio

Interference Characteristics of Information Technology Equipment

2000 March Rev. B 8754020

vii

DryView 8100 Laser Imager User Guide

EU Directives:

 73/23/EEC Council Directive on the Harmonization of the Laws of Member

States Relating to Electrical Equipment Designed for Use within Certain Voltage
Limits

 89/336/EEC Council Directive on the Approximation of the Laws of the Member

States Relating to Electromagnetic Compatibility

 93/42/EEC Council Directive Concerning Medical Devices

CE Marking:

Documents concerning the conformance of this product to Council Directive
93/42/EEC of 14 June 1993 concerning Medical Devices can be obtained from the
Eastman Kodak Health Imaging Systems European Representative at:

Kodak AG
Quality Services
Product Safety
70323 Stuttgart
Germany
Phone: ++49 711 406 2993
Fax: ++49 711 406 3513

DOC:

This Class A digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.

Cet appareil numérique de la Classe A respecte toutes les exigences du Règlement
sur le matérial brouilleur du Canada.

viii

8754020 2000 March Rev.B

T able of Contents

PLEASE NOTE

The information contained herein is based on the experience
and knowledge relating to the subject matter gained by Eastman
Kodak Company prior to publication.

No patent license is granted by this information.
Eastman Kodak Company reserves the right to change this

information without notice and makes no warranty, express or
implied, with respect to this information. Kodak shall not be liable
for any loss or damage, including consequential or special
damages, resulting from the use of this information, even if loss
or damage is caused by Kodak’s negligence or other fault.

Table of Contents

Description Page

Safety, EMC, and CE Marking Compliance i. . . . . . . . . . . .

Introduction 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Introducing the Kodak DryView 8100 Laser Imager 1-1. . .

System Configurations 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . .

DryView 8100 Laser Imager 1-2. . . . . . . . . . . . . . . . . . . .

Dryview 8100 PACS Link Laser Imager 1-2. . . . . . . . . .

Keypad Features 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

How the DryView 8100 Laser Imager Works 1-4. . . . . . . . .

Automatic Image Quality Control 1-4. . . . . . . . . . . . . . . . . . .

Manual Mode of Operation 1-4. . . . . . . . . . . . . . . . . . . . . . . . .

How This Manual is Organized 1-6. . . . . . . . . . . . . . . . . . . . .

Controls and Indicators 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Main Cabinet Controls and Indicators 2-1. . . . . . . . . . . . . . .

Local Panel Functions 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Operation and Maintenance 3-1. . . . . . . . . . . . . . . . . . . . . . . . .

System Power Up 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Methods for Acquiring and Printing Images 3-2. . . . . . . . . .

Methods for Adjusting Image Density and Contrast 3-2. . .

Adjusting Density from the Local Panel 3-3. . . . . . . . . . . . . .

Adjusting Contrast from the Local Panel 3-4. . . . . . . . . . . . .

2000 March Rev. B 8754020

ix

DryView 8100 Laser Imager User Guide

Description Page

Producing a Calibration Test Print 3-4. . . . . . . . . . . . . . . . . . .

Operating in Manual Mode 3-5. . . . . . . . . . . . . . . . . . . . . . . . .

Opening the Front Door Via the Local Panel 3-6. . . . . . . . .

Opening the Front Door Manually 3-7. . . . . . . . . . . . . . . . . . .

Opening and Closing the Upper Hood 3-8. . . . . . . . . . . . . . .

Loading/Unloading Film 3-10. . . . . . . . . . . . . . . . . . . . . . . . . . .

Replacing the Charcoal Filter 3-11. . . . . . . . . . . . . . . . . . . . . .

Using the DryView V2 Keypad 4-1. . . . . . . . . . . . . . . . . . . . . . .

DryView V2 Keypad Controls 4-1. . . . . . . . . . . . . . . . . . . . . .

DryView V2 Keypad – Main Menu 4-2. . . . . . . . . . . . . . . . . .

DryView V2 Keypad – Format Menu 4-3. . . . . . . . . . . . . . . .

DryView V2 Keypad – Imager Menu 4-4. . . . . . . . . . . . . . . .

DryView V2 Keypad – Keypad Menu 4-6. . . . . . . . . . . . . . .

Using the Keypad to Format/Acquire/Print 4-8. . . . . . . . . . .

Selecting Auto Print or Auto Format Mode 4-10. . . . . . . . . . .

Using the Keypad to Adjust Image Density 4-11. . . . . . . . . . .

Using the Keypad to Adjust Image Contrast 4-12. . . . . . . . . .

Using the Keypad to Erase Stored Images 4-13. . . . . . . . . . .

DryView V2 Keypad Error Message Table 4-14. . . . . . . . . . .

Troubleshooting 5-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Operator Troubleshooting 5-1. . . . . . . . . . . . . . . . . . . . . . . . . .

Local Panel Message Types 5-1. . . . . . . . . . . . . . . . . . . . . . .

Status Information 5-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Error Messages or Notices 5-1. . . . . . . . . . . . . . . . . . . . .

Local Panel Status Messages 5-2. . . . . . . . . . . . . . . . . . . . . .

Local Panel Error Messages 5-4. . . . . . . . . . . . . . . . . . . . . . .

Film Drive Problems 5-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Film Pickup Problems in Area 1 5-11. . . . . . . . . . . . . . . . . . . .

Removing Film Jams from Area 2 5-12. . . . . . . . . . . . . . . . . . .

Removing Film Jams from Area 3 5-13. . . . . . . . . . . . . . . . . . .

Removing Film Jams from Area 4 5-14. . . . . . . . . . . . . . . . . . .

x

8754020 2000 March Rev. B

T able of Contents

Description Page

Removing Film Jams from Area 5 5-16. . . . . . . . . . . . . . . . . . .

Manually Closing the Film Cartridge 5-17. . . . . . . . . . . . . . . . .

Calling for Support 5-18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Specifications 6-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Dimensions 6-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Electrical 6-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Operating Environment 6-1. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Environmental Effects 6-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Storage Environment 6-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Film Size 6-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Film Throughput 6-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Host Control 6-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DryView V2 Keypad 6-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Agency Compliance 6-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Technical Information 7-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

General Description 7-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Spectral Sensitivity 7-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Image Quality 7-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Automatic Image Quality Control 7-2. . . . . . . . . . . . . . . . . . .

Less Impact on the Environment 7-3. . . . . . . . . . . . . . . . . . .

Storage and Handling of Undeveloped Film 7-3. . . . . . . . . .

Handling of Developed Film 7-4. . . . . . . . . . . . . . . . . . . . . . . .

Archivability of Developed Film 7-4. . . . . . . . . . . . . . . . . . . . .

Exposure to Moisture 7-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Odor Dissipation 7-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Heat Dissipation 7-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Film Recycling 7-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

IMPORTANT NOTICE TO PURCHASER 7-6. . . . . . . . . . . .

2000 March Rev. B 8754020

xi

DryView 8100 Laser Imager User Guide

BLANK PAGE

xii

8754020 2000 March Rev. B

Introduction

Introduction

Introducing the Kodak DryView 8100 Laser Imager

The DryView 8100 Laser Imager is a continuous tone laser imager with an internal
photothermographic film developer. Heat, rather than photo chemicals, is used to
develop the film. The imager can be connected to and print images from a variety of
medical image source devices such as CT scanners or Ultrasound. It can also be
connected to a DICOM medical image network via the PACS Link 9410 Acquisition
System.

The DryView 8100 Laser Imager uses 14 inch x 17 inch (35 cm x 43 cm) DryView
Laser Imaging Film, which is packaged in 125-sheet Kodak Instant Daylight Load
Film Cartridges.

A DryView V2 Keypad can be used to control the imager, or the system can be
controlled from the host modality. A footswitch is also available, providing an optional
method of acquiring images for printing.

2000 March Rev. B 8754020

Figure 1-1. DryView 8100 Laser Imager

1-1

DryView 8100 Laser Imager User Guide

System Configurations

The DryView 8100 Laser Imager can be used in two system configurations. The key
features of these are described below.

DryView 8100 Laser Imager

 The imager connects directly to up to three image source devices. (The standard

unit has one input, but it can be upgraded for additional inputs.)

 Copper cables are used for connections to the source imaging device and

keypad.

 The operator controls image acquisition and printing from either a keypad or a

console on the host source imaging device.

Dryview 8100 PACS Link Laser Imager

 The imager connects to a DICOM medical image network via a PACS Link

Interface.

 The imager prints images sent from image source devices or archiving stations

connected to the DICOM network.

1-2

8754020 2000 March Rev. B

Keypad Features

The table below lists the features provided by the DryView V2 Keypad.

DryView

Feature

Format Select Yes*
Multiple Copies Setting Yes
Sequential Image Acquire Yes
Random Image Acquire Yes
Sequential Image Erase No
Random Image Erase Yes
Move Acquired Image No
Print Yes
Stop Print No
Density or Dmax Setting Yes**
Contrast Setting Yes**

V2 Keypad

Introduction

Print Density Test Yes**
Print Contrast Test Yes**
Smooth/Sharp Select Yes
Image Polarity Select Yes
Image Framing Select No
Auto-Print Select Yes
Auto-Format Select Yes
Alarm Volume Setting Yes

* Available image formats include:

 From DryView V2 Keypad: 1:1, 2:1, 4:1, 6:1, 9:1, 12:1, 15:1, 16:1, and 20:1.
 From host console: Same as for the DryView V2 Keypad, plus 24:1.

** Can also be set at the imager’s Local Panel.

2000 March Rev. B 8754020

1-3

DryView 8100 Laser Imager User Guide

How the DryView 8100 Laser Imager Works

 Using the keypad or host console, the operator acquires an image from the

image source device. The image is stored on a hard disk in the imager.
 Using the keypad or host console, the operator prints the image.
The following sequence occurs each time the operator issues a print command. The

step numbers refer to the circled numbers in Figure 1-2. The dashed lines in the
illustration indicate the film path.

1. Suction cups lift a single sheet of film out of the supply cartridge and route it into

the film feed rollers.

2. The film feed rollers move the film down to the platen rollers.

3. The platen rollers drive the film into the exposure module platen.

4. A moving laser beam writes the image onto film, which is held stationary in the

platen.

5. The platen rollers reverse direction and move the exposed film up through the

vertical transport area.

6. Transport rollers drive the film onto the processor drum.

7. The heated processor drum develops the film as it passes over the drum.

8. Rollers move the developed film from the processor drum, through the

densitometer (see the next paragraph), and onto the receive tray.

Automatic Image Quality Control

The built-in densitometer is a key element in the Automatic Image Quality Control
(AIQC) process. AIQC allows the imager to automatically adjust processing
parameters to ensure optimum image quality. The imager adjusts these parameters
each time it prints a calibration film. A calibration film is printed whenever:

 The DryView 8100 Laser imager is powered on.

 A calibration film is requested from the Local Panel.

 The imager has not been used for 7 days, and a print is requested.

Manual Mode of Operation

The imager can be operated in a “manual” mode, without AIQC. Use of this mode is
explained in Section 3 of this manual.

1-4

8754020 2000 March Rev. B

Film
Processor
Drum

Introduction

Receive Tray

7

Transport
Rollers

Vertical
Transport
Area

Platen
Rollers

Laser
Beam

6

5

1

2

3

4

8

Densitometer

Film
Supply
Cartridge

Suction
Cups

Film Feed
Rollers

Exposure
Module

2000 March Rev. B 8754020

8100–49C

Figure 1-2. Print Sequence

1-5

DryView 8100 Laser Imager User Guide

How This Manual is Organized

The remainder of this manual is organized as follows:
 Section 2 describes operator controls and indicators on the main cabinet,

including the Local Panel.
 Section 3 provides general procedures for operating and maintaining the system.

(It does not include instructions for using the keypad. These are provided in

Section 4.)
 Section 4 provides instructions for using the DryView V2 Keypad, including:

descriptions of keypad controls, procedures for operating the imager from the

keypad, and keypad error messages.

 Section 5 includes system troubleshooting procedures.
 Section 6 provides system specifications.
 Section 7 includes technical information about DryView 8100 Laser Imaging

Film.

1-6

8754020 2000 March Rev. B

Controls and Indicators

Controls and Indicators

Main Cabinet Controls and Indicators

This section describes the operator controls on the DryView 8100 Laser Imager
cabinet, focusing on the Local Panel. For keypad functions, refer to Section 4.

The numbered descriptions below correspond to the circled numbers in Figure 2-1.

1. Local Panel – Includes a message display, status indicator lights, and
pushbutton controls. The Local Panel is described in greater detail on the
following pages.

2. Power Switch – Controls power to the imager. (On rear of cabinet.)

3. Front Door – Accesses the film cartridge.

4. Upper Hood - Accesses upper assemblies.

5. Receive Tray – Collects developed film.

6. Floppy Disk Drive – Used to update the imager internal software.

4

3

2

1

6

5

Figure 2-1. DRYVIEW 8100 Laser Imager – Controls and Indicators

8100–27C

2000 March Rev. B 8754020

2-1

DryView 8100 Laser Imager User

Local Panel Functions

This paragraph describes the controls and indicators on the Local Panel. Use of
these controls is covered in Section 3. Display window messages are explained in
Section 6.

1. Power Light – Indicates that the imager is powered up.

2. Ready Light – ON: Indicates that the imager is available for printing.

– Blinking:Indicates that the imager is printing.
– OFF: Indicates that the imager is not available for printing.

3. Attention Light – Indicates an error condition that may affect imager operation
(e.g., imager warming or film low). Check the display window for a related
message.

4. Alarm Light – Indicates that an error condition exists (e.g., a film jam or open
door), and imager operation cannot continue until the error has been cleared.
Check the display window for a related message.

5. Display Window – Provides information about the status and function of the
imager and the prints in progress. Refer to Section 5 for descriptions of the
messages displayed in this window.

6.  (Enter) Key – Press to enter a selected value or to return to the status and
error screen.

 After you have changed the contrast or density setting, press  to lock in the

new setting.

 After viewing maintenance information or IP addresses on the message

display, press  to return to the status and error message screen.

7. Maintenance Information Key – Press to display a scrollable list that includes:
 Maintenance information such as total lifetime print count and number of

prints remaining until preventive maintenance is required.

 IP address of the imager.
 Reserved service IP address.

8. Calibrate Key – Press to print a calibration test (step wedge pattern) as the next
film. (The test film will interrupt a multiple-sheet print job.)

2-2

8754020 2000 March Rev. B

Controls and Indicators

Figure 2-2. Local Panel Controls

9. Backlight Key – When system power is applied, the message display backlight
turns on and the Ready, Attention, and Alarm lights are enabled for use.

 Press the Backlight key once
 Press the Backlight key a second time

to turn off the backlight.

to disable the Ready, Attention, and

Alarm lights. The backlight remains off. (This is darkroom mode.)

 Press the Backlight key a third time to return the backlight and the three

indicator lights to their original state (enabled for use).

2000 March Rev. B 8754020

2-3

DryView 8100 Laser Imager User

10. Open Door Key – Press momentarily to open the front door. The film cartridge

first closes to prevent exposing the film. Then the front door is unlatched.
If a film jam at the cartridge prevents the cartridge from closing, error message

P138 (Press Open 5S) will display. This indicates that you must hold down the
Open Door key for 5 seconds to unlatch the door. Since the film cartridge is
open, when you open the door the top sheets of film will be exposed. To
minimize exposure, you should make the room as dark as possible before
opening the door.

!

Caution

Do not leave the imager unattended after pressing the Open Door Key.

11. Test Print Key – Press this key after you press the Contrast or Density key, to

initiate a test print for examination of contrast or density.

12. Density Key – Press this key to display and change the density setting. Use the
 and  keys to adjust the setting up or down (The density range for blue film is
from 1.7 to 3.1. For clear film it is from 1.7 to 3.0.) Then press the Test Print or
Enter key to apply the new setting. (Do not use this key to change density if your
system includes a DryView V2 keypad.)

Note

If your system includes the DryView V2 keypad, density must be set via the
keypad rather than the Local Panel. The values set at the keypad will override
values entered at the Local Panel.

13. Contrast Key – Press this key to display and change the contrast setting. Use
the  and  keys to adjust the setting up or down ( range: -15 to -1 and 1 to 15).
Then press the Test Print or Enter key to apply the new setting.

Note

If your system includes the DryView V2 keypad, contrast must be set via the
keypad rather than the Local Panel. The values set at the keypad will override
values entered at the Local Panel.

14.  Key– Press to move up through item lists or increase a parameter value.

15.  Key – Press to move down through item lists or decrease a parameter value.

2-4

8754020 2000 March Rev. B

Operation and Maintenance

Operation and Maintenance

System Power Up

1. Set the imager Power Switch to ON. (The Local Panel Power light will turn on.)

 The imager performs a series of self-diagnostic tests and begins a warmup

cycle. (The time required for warmup varies based on how long the imager
has been turned off. The maximum warmup time at normal room temperature
is about 25 minutes.)

 After the diagnostic tests and warmup cycle are complete, the Local Panel

displays SO1 Ready and the Ready light turns ON.

!

Caution

On occasion the imager may have to perform file maintenance on its hard disk
after power on. When this occurs, the message P154 Disk Maint displays on
the Local Panel. The process may require several minutes. To avoid longer
delays, NEVER turn off power during disk maintenance. As long as the P154
Disk Maint message is displayed, the system is operating correctly.

2. You can acquire images during the warmup cycle, but the system will not print
until the Ready light turns on.

Power Switch
(Rear Cabinet)

Local
Panel
Power
Light

Ready
Light

Figure 3-1. Power Switch and Local Panel

2000 March Rev. B 8754020

3-1

DryView 8100 Laser Imager User Guide

Methods for Acquiring and Printing Images

The basic operator functions required to acquire and print images on film are the
following:

1. Selecting the number of copies to print.

2. Selecting the format (order) in which the images will be printed on film.

3. Acquiring the images from the host modality and storing them on hard disk in the
imager.

4. Printing the stored images on film.

Other operator functions

include:

1. Erasing images stored on disk (before printing).

2. Stopping a requested print job.

The operator functions listed above can be processed in different ways:
 From a host console, using software programmed specifically for imager control.

(See the host user documentation for operator instructions.)

 From a DryView V2 Keypad. (If your system includes this keypad, see Section 4

for detailed procedures.)

Note

An optional footswitch can be used for acquisition of images from the host
modality.

Methods for Adjusting Image Density and Contrast

These image quality control functions can be performed in two ways:
 From the imager Local Panel, if your system does not include a DryView V2

keypad. (See the instructions on the following pages in this section.)

 From a DryView V2 Keypad. (If your system includes this keypad, see Section 4

for instructions. If it does not include this keypad, the procedures must be
performed from the Local Panel.)

3-2

8754020 2000 March Rev. B

Operation and Maintenance

Adjusting Density from the Local Panel

Note

If your system includes the DryView V2 Keypad, do not use this Local Panel
procedure. Use the keypad procedure described in Section 4. Values set at the
keypad will override any values set in the Local Panel.

1. Press the Density key. The display will show DMAX = x.x. The number x.x is the
value of the maximum density desired.

2. Press the Test Print key. The imager will print a SMPTE test print.

3. Examine the test print. If the maximum density on the test print is not
acceptable, follow the steps below to adjust density.

4. Press the Density key.

5. Press the  key to increase density or the  key to decrease density. The display
will show the new density value. Repeat steps 2 and 3 until you reach an
acceptable maximum density.

Note

If you know the desired Dmax value, you can simply enter the value without
printing a test print. Follow the steps below.

1. Press the Density key.

2. Press the  or  key until the desired value is displayed.

3. Press the  (Enter) key to lock in the new value.

Density

Test
Print

Figure 3-2. Local Panel Controls

2000 March Rev. B 8754020

3-3

DryView 8100 Laser Imager User Guide

Adjusting Contrast from the Local Panel

Note

If your system includes the DryView V2 Keypad, do not use this Local Panel
procedure. Use the keypad procedure described in Section 4. Values set at the
keypad will override any values set in the Local Panel.

After acquiring an image, perform the following steps at the Local Panel.

1. Press the Contrast key.
The display will show CONTRAST = x, where x is a positive number from 1 to 15

if the image is positive, or a negative 1 to 15 if the image is negative.

2. Press the Test Print key.
The imager will print a contrast print. The image you acquired is printed 15 times

on a single film, using contrast values of 1 through 15 if a positive image was
selected. If a negative image was selected, contrast values of negative 1
through 15 are used. Contrast values are printed under each image.

Note

If the size of the acquired image is too large for a 15:1 format, the imager will
print a contrast test of the internal SMPTE image.

3. Examine the contrast print and choose the most desirable contrast value.

4. Press the Contrast key again.

5. Use the  or  key to scroll to the chosen contrast value.

6. Press the  (Enter) key to lock in the new value.

Note

If you know the desired contrast value, you can ignore steps 2, 3, and 4.

Producing a Calibration Test Print

To produce a calibration print (step wedge pattern) as the next film, press the
Calibrate key on the Local Panel. (The system will interrupt a multiple-sheet print job
to produce the calibration print.)

3-4

8754020 2000 March Rev. B

Operation and Maintenance

Operating in Manual Mode

The calibration sheets produced by the imager (and the density patch at the top of
each film) are products of the Automatic Image Quality Control (AIQC) system. This
system ensures that density, contrast and other image quality parameters are
constantly fine-tuned to produce high quality images.

An error code P631 or P632 displayed on the Local Panel indicates that calibration
has failed, that a print has failed to meet the AIQC standard. This occurrence is
usually the result of aging film, and if you load a new film cartridge the error probably
will not recur. If, however, the error does recur with the new film, you will have to call
service to analyze the problem. Until the Field Engineer arrives, you can choose to
run the imager in “manual” mode, without AIQC. To operate in manual mode:

1. Simultaneously press the  Key and the Calibrate Key on the Local Panel. The
message P561 Manual Mode will display.

Note

While manual mode is in effect, the imager will not produce calibration prints
and prints will not include density patches.

2. Run a print and check image quality. As long as image quality is acceptable, you
can continue to run prints until the Field Engineer has repaired the imager
problem. At this point you can resume operating with AIQC in effect.

3. To exit manual mode and enter AIQC mode, press the Calibrate Key on the
Local Panel. (Loading a new film cartridge will return the imager to AIQC mode, if
the new film is within the required operating parameters.)

Note

Manual Mode can be entered only when the P631 or P632 error code has been
displayed.

2000 March Rev. B 8754020

3-5

DryView 8100 Laser Imager User Guide

Opening the Front Door Via the Local Panel

During normal machine operation, you will occasionally need to open the front door
(with power applied) to load and unload film cartridges, or to change the charcoal
filter. Also, if a film jam should occur in the lower part of the imager, you will need to
open the front door to clear the jam.

1. Press and release the Open Door key on the Local Panel (see Figure 3-3). The
imager will close the film cartridge, to avoid exposing film, and then unlatch the
door.

!

Caution

Do not leave the imager unattended when the front door is open.

2. A film jam can prevent the film cartridge from closing. When this occurs, the front
door will not open normally. In this case you can hold down the Open Door key
for 5 seconds to unlatch the door without closing
sheets of film at the top of the cartridge will be exposed. You can minimize film
exposure by making the room as dark as possible.

the film cartridge. Several

Front Door

3-6

Local Panel
Open Door Key

Figure 3-3. Opening the Front Door Via the Local Panel

8754020 2000 March Rev. B

Operation and Maintenance

Opening the Front Door Manually

When power is not applied to the imager, you will of course will not be able to open
the front door via the Local Panel. Use the following “manual” procedure to open the
door.

1. Open the upper hood (see the next page).

2. Insert a thin pencil (or other small instrument) into the slot on the right side of the
processor base (see Figure 3-4).

3. Press down to open the front door.

Front Door

Figure 3-4. Opening the Front Door Manually

Door Open Slot

2000 March Rev. B 8754020

3-7

DryView 8100 Laser Imager User Guide

Opening and Closing the Upper Hood

If a film should jam in the developer area, you will have to lift the upper hood to clear
the jam.

Open the upper hood as follows:

1. Grasp the hood at the recessed slot below the Local Panel (see View A in Figure
Figure 3-5).

!

Caution

Whenever you raise or lower the hood, grasp it only in the area of the
recessed slot below the Local Panel to avoid possibly pinching your fingers.

2. Raise the hood until the prop rod falls into the slot at the end of its travel (see
View B in Figure Figure 3-5).

Close the hood as follows:

1. Raise the hood slightly to lift the prop rod out of its slot, and pull the prop rod
slightly forward from the slot.

!

Caution

Close the hood carefully. Releasing and dropping it could damage the laser.

2. Gently lower the hood to its closed position.

3-8

8754020 2000 March Rev. B

Operation and Maintenance

Hood
Prop Rod

Grasp
Hood
Here

View A

Figure 3-5. Opening and Closing the Upper Hood

2000 March Rev. B 8754020

View B

3-9

DryView 8100 Laser Imager User Guide

Loading/Unloading Film

1. To access the film cartridge, press the Open Door key on the Local Panel. This
will close the film cartridge cover and then unlock the front door.

2. Open the front door to access the film cartridge.

3. To remove the film cartridge, lift the edge of the cartridge slightly, then pull the
cartridge out of the imager.

4. To install the film cartridge, insert it into the cartridge slot as shown in Figure 3-6.

5. Slide the cartridge into the imager.

6. Close the front door.

Film Cartridge is inserted
long edge first

Perforations
to the left

Figure 3-6. Loading and Unloading Film

3-10

8100–30C

8754020 2000 March Rev. B

Operation and Maintenance

Replacing the Charcoal Filter

DryView Laser Imaging Film emits a slight odor while it develops. The charcoal filter

absorbs and neutralizes this odor. As the imager is used, the filter becomes less
effective. When the odor become noticeable you should replace the filter.

1. Open the front door.

2. Push the retaining clip on the top front of the filter back and up
and pull out the old filter.

3. Slide the new filter in all the way to the back stop.

4. Pull the retaining clip forward and down

to lock the filter in position.

5. Close the front door.

(see Figure 3-7)

Pull
Out
Filter

2000 March Rev. B 8754020

Retaining
Clip

Figure 3-7. Replacing the Charcoal Filter

3-11

DryView 8100 Laser Imager User Guide

BLANK PAGE

3-12

8754020 2000 March Rev. B

Using the DryView V2 Keypad

Using the DryView V2 Keypad

DryView V2 Keypad Controls

The numbered descriptions below correspond to the numbered callouts in
Figure 4-1.

1. Touch Screen – Displays a variety of menus used for system configuration and
operation. These menus are described in detail on the following pages.

2. Print Key – Places a print request in the print queue.

3. Store Keys – Used to acquire and store images in specific positions for printing.

LEDs above each button indicate used (red) and available (green) storage
locations.

4. Sequential Store Key – Used to acquire and store images in sequential order,
starting in the top row of a rectangular grid, and working from left to right in each
row.

5. Erase Key – Used to enter Erase Image mode, which allows for random erasure
of any or all stored images.

2000 March Rev. B 8754020

5

Figure 4-1. DryView V2 Keypad

1

2

3

4

4-1

DryView 8100 Laser Imager User Guide

DryView V2 Keypad – Main Menu

The numbered descriptions below correspond to the numbered callouts in Figure 4-2

1. Attention Message Area – Displays system status and error messages.

2. Imager Print Information Area – Displays the total number of prints that have

been completed.

3. Copy Count Set Keys – Increase or decrease the copy count (range: 1 - 99).

4. Format Menu Key – Accesses the Format Menu.

Note

When in Erase Image mode, the Erase All Images key is displayed in place of
the Format Menu key. The Erase All Images key is used to erase all stored
images from the current format.

5. Keypad Menu Key – Used to access the Keypad Menu.

6. Imager Menu Key – Used to access the Imager Menu.

MAIN MENU

Laser Imager Status:

Ready

Printed: 0

6

5

Imager

Menu

Keypad

Menu

Erase Print

Format

Menu

Copies: 1

Figure 4-2. DryView V2 Keypad – Main Menu

1

2

3

4

4-2

8754020 2000 March Rev. B

Using the DryView V2 Keypad

DryView V2 Keypad – Format Menu

The numbered descriptions below correspond to the numbered callouts in
Figure 4-3.

1. Attention Message Area – Displays system status and error messages.

2. CANCEL Key – Used to return to the Main Menu without selecting a format.

3. Format Select Keys – Used to select the desired image format. Keys are

displayed only for those formats that are currently available. These include nine
fixed formats.

FORMAT MENU

Laser Imager Status:

Ready

1

3

Figure 4-3. DryView V2 Keypad – Format Menu

2000 March Rev. B 8754020

2461

12 15 169

2

20 CANCEL

NGLI-16L

4-3

DryView 8100 Laser Imager User Guide

DryView V2 Keypad – Imager Menu

The numbered descriptions below correspond to the numbered callouts in
Figure 4-4.

1. Attention Message Area – Displays system status and error messages.

2. Print Density Test Film Key – Initiates the printing of a density test film

containing a SMPTE test pattern.

3. Density Set Keys – Used to increase or decrease the density setting. If AIQC
(Automatic Image Quality Control) is active, the selected Dmax setting is
displayed (range: 1.70 – 3.10 for blue film, and 1.70 to 3.00 for clear film).

4. Imager Polarity Key – Selects positive or negative image polarity.

5. Return Key – Used to return to the Main Menu.

6. Contrast Set Keys – Used to increase or decrease the contrast setting (range: 1

– 15).

7. Print Contrast Test Film Key – Initiates the printing of a contrast test film. The
last image stored is printed in a 15:1 format, using 15 different contrast settings.

8. Image Processing Key – Selects smooth or sharp image processing. (The
choice depends on the personal preference of the viewer.)

4-4

8754020 2000 March Rev. B

Using the DryView V2 Keypad

IMAGER MENU

Laser Imager Status:

Ready

8

8

1

7

Print
Contrast
Test Film

Contrast: 2 Dmax: 2.7


SMOOTH

Imager

Polarity

NEGATIVE

Print

Density

Test Film

2

3

4

6

6

Return

5

NGLI-17L

Figure 4-4. DryView V2 Keypad – Imager Menu

2000 March Rev. B 8754020

4-5

DryView 8100 Laser Imager User Guide

DryView V2 Keypad – Keypad Menu

The numbered descriptions below correspond to the numbered callouts in
Figure 4-5.

1. Attention Message Area – Displays system status and error messages.

2. Display Brightness Set Keys – Increase or decrease the keypad display

brightness.

3. Alarm Beep Volume Set Keys – Increase or decrease the volume of the keypad
alarm beep.

4. Return Key – Used to return to the Main Menu.

5. Auto Print Key – Sets the Auto Print function to ON or OFF. When set to ON, a

print is automatically queued after the last image is stored (the Print key does
not have to be pressed).

6. Auto Format Key – Sets the Auto Format function to ON or OFF. When set to
ON, a new format is automatically displayed (i.e., the LEDs above the Store keys
change from red to green) after a print is queued.

7. Color Blind Mode Key – Sets the Color Blind feature to ON or OFF. When set to
ON, the red LEDs above the Store keys (which indicate used storage locations)
blink instead of staying on constantly. This allows the red LEDs to be
differentiated from the constant green LEDs (which indicate available storage
locations).

Note

When in Erase Image mode, the red LEDs blink regardless of whether the
Color Blind feature is ON or OFF.

8. Key Beep Volume Set Keys – Set the key beep volume.

9. Reset Local Print Counter Key – Resets the print counter on the Main Menu

Display.

4-6

8754020 2000 March Rev. B

KEYPAD MENU

Laser Imager Status:

Ready

Using the DryView V2 Keypad

1

9

Reset

Local Print

Counter

8

Key Beep
Volume

Display
Brightness

Color

Blind

Mode:

OFF

Alarm Beep
Volume

2

3

5

7

6

Auto

Format:

OFF

Auto

Print:

OFF

Return

4

NGLI-18L

Figure 4-5. DryView V2 Keypad – Keypad Menu

2000 March Rev. B 8754020

4-7

DryView 8100 Laser Imager User Guide

Using the Keypad to Format/Acquire/Print

1. Power up the imager.

2. On the keypad’s Main Menu, press the Copy Count Set keys (see Figure 4-6) to
select the number of copies desired.

3. Press the Format Menu key to access the Format Menu. On that menu, press
the appropriate Format Select key to select the desired format.

4. Press the appropriate Store keys to acquire images.
 When an image has been successfully acquired, the light above the

corresponding Store key changes from green to red.

 The images are stored on a hard disk in the imager. You can acquire up to

the number of images in the format you selected. For example, if you are
using the 6–image format, you can acquire only six images. You must then
print before you can acquire more images.

5. Once all the images have been acquired for a single film, press the Print key to
place a print request in the print queue.

4-8

MAIN MENU

Laser Imager Status:

Ready

Print

Printed: 0

Copies: 1

Store
Keys

Imager

Menu

Keypad

Menu

Erase Print

Format

Menu

Figure 4-6. Formatting/Acquiring/Printing

8754020 2000 March Rev. B

Copy
Count

Format
Menu

Using the DryView V2 Keypad

Note

If the Auto Print function is ON, a print request is automatically placed in the
print queue as soon as the last image in the format has been stored. (See the
next paragraph for instructions for selecting Auto Print.)

6. At this point, you can select a new format and continue acquiring images.
 If the Auto Format function is ON, the red lights above the Format keys will

change to green, indicating that you can start acquiring more images. (See
the next paragraph for instructions for selecting Auto Format.)

 If the Auto Format function is OFF, you cannot acquire more images until you

select a new format or you erase currently stored images using the Erase
Image function (see page 5-13).

2000 March Rev. B 8754020

4-9

DryView 8100 Laser Imager User Guide

Selecting Auto Print or Auto Format Mode

1. On the Main Menu, press the Keypad Menu key to access the Keypad Menu.

2. On the Keypad Menu (see Figure 4-7):

 To select the Auto Print mode, press the Auto Print key so it indicates ON.
 To select Auto Format, press the Auto Format key so it indicates ON.
 Press Return.

KEYPAD MENU

Laser Imager Status:

Ready

Auto Format

Reset

Local Print

Counter

Key Beep
Volume

Auto

Format:

OFF

Display

Brightness

Color

Blind

Mode:

OFF

Auto

Print:

OFF

Alarm Beep
Volume

Return

Figure 4-7. Selecting Auto Print or Auto Format

Auto Print

Return

4-10

8754020 2000 March Rev. B

Using the DryView V2 Keypad

Using the Keypad to Adjust Image Density

Run a SMPTE test print as follows:

1. From the keypad Main Menu, press the Imager Menu key.

2. Press the key labeled Print Density Test Film on the Imager Menu (see
Figure 4-8). The imager will print a SMPTE test print.

3. Examine the test print. If the maximum density on the test print is not
acceptable, proceed as follows:

Note

Density changes set at the DryView V2 keypad will override any density values
set in the Local Panel.

Set desired image density as follows

:

1. Use the Density Set keys to scroll to a new density value. Press the Return key
to lock in the new value.

The display will show Dmax = x.x. The number x.x is the density value.

2. Repeat running test prints and adjusting density until you arrive at an acceptable
maximum density.

3. Press the Return key to return to the Main Menu.

Note

If you know the desired Dmax value, you can simply enter the value without
printing and examining test film.

IMAGER MENU

Laser Imager Status:

Ready

Print Contrast

Test Film

Contrast

Set

Print

Contrast

Test Film

Contrast: 2 Dmax: 2.7


SMOOTH

Imager

Polarity

NEGATIVE

Print
Density
Test Film

Return

Print Density

Test Film

Density

Set

Return

Figure 4-8. Adjusting Image Density and Contrast

2000 March Rev. B 8754020

4-11

DryView 8100 Laser Imager User Guide

Using the Keypad to Adjust Image Contrast

Note

Do not adjust image contrast if you are not satisfied with image density. If a
density adjustment is required, perform it first before proceeding with the
contrast adjustment described below.

Acquire a typical image for the contrast procedure as follow

s:

1. Display an image on the appropriate user’s console.

2. Adjust the window and level controls on the console to achieve the desired
image quality on the display monitor.

3. Press the Format Menu key on the Main Menu of the keypad. Then press any
Format Select key on the Format Menu.

4. Press any lighted Store key or the Sequential Store key on the keypad to
acquire the image.

Note

Contrast changes set at the DryView V2 keypad will override any contrast
values set in the Local Panel.

Select and set desired contrast as follows:

1. From the keypad Main Menu, press the Imager Menu key.

2. Press the key labeled Print Contrast Test Film on the Imager Menu (see Figure
5-8).

The imager will print a contrast print. The image you acquired is printed 15 times
on a single film, using contrast values of 1 through 15, if Image Polarity is Set to
POSITIVE. If Image Polarity is set to NEGATIVE, negative contrast values 1
through 15 are used. The contrast value is printed under each image.

3. Examine the contrast print and choose the most desirable contrast value.

4. Press the Imager Menu key again.

5. Use the Contrast Set keys to scroll to the contrast value you have selected.
Press the Return key to lock in the new contrast value.

The display will show CONTRAST = x, where x is a number from 1 to 15. The
imager will produce prints using positive contrast x, if positive polarity has been
selected via the Imager Polarity key. If negative polarity has been selected, the
contrast value will be negative.

4-12

8754020 2000 March Rev. B

Using the DryView V2 Keypad

6. Press the Return key to lock in the new value.

Note

If you know the desired contrast value, you can ignore steps 2, 3, and 4.

Using the Keypad to Erase Stored Images

Press the Erase key on the keypad to enter the Erase Image mode (see Figure 4-9).
In this mode, any or all stored images can be erased.

 To erase an individual image, press the Store key for that image. Once all the

desired images have been erased, press the Erase key again to exit the Erase
Image mode.

 To erase all

stored images, press the Erase All Images key on the Main Menu.

After erasing the images, the keypad automatically exits the Erase Image mode.

Note

When in Erase Image mode, the Erase All Images key is displayed in place of
the Format Menu key on the Main Menu.

MAIN MENU

Laser Imager Status:

Ready

Erase

Store
Keys

Imager

Menu

Keypad

Menu

Erase Print

Images

Erase

All

Printed: 0

Copies: 1

Erase
All
Images

2000 March Rev. B 8754020

Figure 4-9. Erasing Stored Images

4-13

DryView 8100 Laser Imager User Guide

thi

DryView V2 Keypad Error Message Table

The following table lists all the DryView V2 Keypad error messages. (It does not
include status or action messages.) For each error message, perform the operator
action listed in the table next to the message. If the listed action does not clear the
error message, call for service.

Table 4-1. DryView V2 Keypad Error Messages

Message

Operator Action

Laser Imager Status: Off-line Refer to the message on the Local Panel for a

Printer Feed Error. Remove

Jam

corresponding error number. Then look up this
number in the error message table in Section 6 of

s manual. Follow the instructions for resolving

Supply Magazine Failed

the problem.

to Close

Supply Magazine Failed

to Open

Supply Magazine is Empty The film cartridge is empty. Load a new cartridge.

Supply Magazine is Missing There is no film cartridge in the machine. Load

one.

4-14

8754020 2000 March Rev. B

Troubleshooting

Troubleshooting

Operator Troubleshooting

Operators occasionally have to clear film jams in the imager or correct other simple
problems. If more serious malfunctions occur, operators must call a trained Kodak
service technician (see page 5-18).

To help operators monitor imager operation and identify problems, the imager
displays status and error messages. The following paragraphs describe these error
messages and list corrective actions the operator should take.

Local Panel Message Types

The Local Panel displays two types of messages, as described below.

Status Line
Message Line
Scroll Indicator for Lists

S04 Stopped = 125
P145 Media Type Err

Sheets
remaining
in Cartridge

Note

A scroll icon at the beginning of the message line indicates that more
information (above or below the line) is available. Press the Local Panel  or 
key to display another line of information.

Status Information

Status messages (see Table 5-1) are strictly informational and require no operator
action.

Error Messages or Notices

Error messages (see Table 5-2) indicate an error condition within the imager. In
some cases, error messages can be cleared by operator action, but in many cases a
service call will be required. Notices are brief messages identifying special print
requests (for example, calibration prints).

2000 March Rev. B 8754020

5-1

DryView 8100 Laser Imager User Guide

Note

The DryView 8100 Laser Imager displays a Local Panel message (P550) when
preventive maintenance and cleaning are recommended. Preventive
maintenance and cleaning ensure optimum performance of the imager. This
message will not interfere with normal operation. The intent of the message is
to allow the operator to schedule a convenient time to have preventive
maintenance and cleaning performed by a certified technician.

Note

For DryView V2 Keypad error messages, see Section 4.

Local Panel Status Messages

Table 5-1. Local Panel Status Messages

Status
Code

Local Panel
Message

Explanation

S00 Self Test The imager is performing a start-up self test. Please

wait.
S01 Ready The imager is idle and available for printing images.
S02 Warming=# The imager is warming up. Please wait for Ready

message. (# = the number of minutes remaining until

the imager will be ready to print.) The user can

acquire but not print during the warmup period.
S04 Stopped An error condition has caused the imager to stop.

See error message on line 2 of the display.
S11 Printing The imager is printing an image.
S12 Calibrate The imager is printing a calibration print.

The user can acquire and queue prints but the

calibration film will be printed first.
S13 Contrast The imager is printing a contrast test print.

The user can acquire and queue prints, but the

contrast test film will be printed first.
S14 Density The imager is printing a density test print.

The user can acquire and queue prints, but the

density test film will be printed first.

5-2

8754020 2000 March Rev. B

Troubleshooting

Status
Code

Local Panel
Message

Explanation

S16 Wait 1. The imager is completing films in process before

unlatching the front door or,

2. There is an error condition. See error message on
line 2 of the display.

The user can continue to acquire and queue prints,
but the imager will not print until the condition has
been corrected.

S21 Door Open The front door is open.

The user can continue to acquire and queue prints,
but the imager will not print until the door has been
closed.

S22 Hood Open The upper hood is open.

The user can continue to acquire and queue prints,
but the imager will not print until the hood has been
closed.

S23 Doors Open The front door and upper hood are both open.

The user can continue to acquire and queue prints,
but the imager will not print until the door and hood
have been closed.

S24 Crtg Openg The imager is opening the film cartridge after the

front door has been closed.
The user can acquire and queue prints, but the

imager will not print until the cartridge is fully open.

S25 Crtg Clsng The imager is closing the film cartridge before

unlatching the front door.
The user can continue to acquire and queue prints,

but the imager will not print until the front door is
closed and the cartridge reopened.

2000 March Rev. B 8754020

5-3

DryView 8100 Laser Imager User Guide

Local Panel Error Messages

The following table lists the error messages displayed on the Local Panel. When an
error message is displayed, perform the operator action listed in the table for that
message. If this action does not clear the error message, call for service. When you
make a service call, be prepared to give the error message and message number to
the call taker (see page 5-18).

Note

In the table below the action “Cycle power” means to turn the imager Power
Switch off, wait 5 seconds, and then turn the switch on. If cycling power does
not clear the error, a service call is usually required.

Table 5-2. Local Panel Error Messages

Message

Number

Message

Displayed

Message Details/

Operator Action

P116 Pickup Fail The film pickup arm is unable to pick up film from the

film cartridge. Try printing again. If the error recurs:
See Film Pickup Problems in Area 1 on page

5-11.

P118 Elevator Fail The cartridge elevator did not return to its home

position after the door was closed.
Cycle power.

P119 Feed Err Area 2 Film is stalled in the feed area.

See Removing film Jams from Area 2 on page
5-12.

P121 Printer Error The imager is unable to print due to system

problems.
Cycle power.

P123 Printer Error The imager is unable to print due to system

problems.
Cycle power.

P132 No Crtg There is no film cartridge in the imager.

Load a film cartridge.

P133 Media Low Film cartridge contains less than 20 sheets.

Be ready to load a new film cartridge.

5-4

8754020 2000 March Rev. B

Troubleshooting

Message

Number

Message

Displayed

Message Details/

Operator Action

P134 Crtg Empty The film cartridge is empty.

Insert a new film cartridge.

P137 Open Door Req The front door will not open because the imager is

printing.
Wait until S25 (cartridge closing) is displayed.

P138 Press Open 5S

(This message
alternates with
P177.)

The front door does not unlatch because the film
cartridge would not close or the elevator would not
lower.

Hold down the Open Door key on the Local Panel
for 5 seconds to force the front door open. Clear the
film jam or other error condition and manually close
the film cartridge. The top few sheets in the film
cartridge will be exposed.

P139 Bad Barcode The imager is unable to read the barcode on the

bottom of the film cartridge.
Try a different film cartridge.

P145 Media Type Err A reading of the barcode on the cartridge indicates

that the cartridge contains the wrong type of film.
Replace the cartridge with one containing the correct

type of film.

P146 Media Size Err A reading of the barcode on the cartridge indicates

that the cartridge contains film of the wrong size.
Replace the cartridge with one containing the correct

size film.

P149 Wait FilmModel The system is calculating film descriptive data from

the barcode data on the film cartridge.
Wait until the calculation is complete.

P154 Disk Maint The system is operating normally. A file system

2000 March Rev. B 8754020

problem is being corrected by recovery from a recent
backup. DO NOT cycle power while this message is
displayed. If power is cycled, the recovery will have
to start over from the beginning.

5-5

DryView 8100 Laser Imager User Guide

Message

Number

Message

Displayed

Message Details/

Operator Action

P164 Jam–Area 3 Film is stalled in the exposure area.

See Removing Film Jams from Area 3 on page
5-13.

P165 Jam–Area 3 Film is stalled between the exposure area and the

processor.
See Removing Film Jams from Area 3 on page

5-13.

P169 Jam–Area 3 Film has stalled exiting the exposure area.

See Removing Film Jams from Area 3 on page
5-13.

P176 Crtg Open Err The imager could not open the film cartridge.

Press the Open Door key on the local Panel to open
the front door. Make sure that the cartridge is
installed correctly (not backward). Close the door
and try again. If the error recurs, call for service.

P177 Crtg Close Err

(This message
alternates with

The imager could not close the film cartridge.
See Film Pickup Problems in Area 1 on page

5-11.

P138.)

P202 Override Swtch The Service Override switch is ON. The imager

cannot expose film. (This switch is used only by
service technicians.)

Call for service.

P208 Door Fail Open The front door does not open.

Hold down the Open Door key on the Local Panel
for 5 seconds to force the front door open.

P506 Printer Error The imager is unable to print because of processor

problems.
Cycle power.

P509 Printer Error The imager is unable to print due to a system

problem.
Cycle power.

5-6

8754020 2000 March Rev. B

Troubleshooting

Message

Number

Message

Displayed

Message Details/

Operator Action

P512 Calibrate Req The user has requested a calibration test film or the

imager has initiated an automatic calibration test

film.
P513 Contrast Req The user has requested a contrast test film.
P514 Density Req The user has requested a density test print.
P515 Calibrate Fail The calibration print failed. Request another

calibration.

If the error recurs, cycle power.
P542 Jam–Area 4 Film is stalled in the processor.

See Removing Film Jams from Area 4 on page

5-14.
P543 Jam–Area 5 Film is stalled between the processor and the

densitometer.

See Removing Film Jams from Area 5 on page

5-16.
P544 Jam–Area 5 Film is stalled between the densitometer and the exit

tray.

See Removing Film Jams from Area 5 on page

5-16.
P550 Cleaning

Recmd

The imager is due for cleaning. Schedule a service

call.
P551 Printer Error The imager is unable to print because the processor

heater did not warm up.

Note P number and call for service.
P554 Printer Error The imager is unable to print. The processor heater

is shut down because temperature was too high.

Cycle power.
P561 Manual Mode The imager is operating in “manual” mode, without

Automatic Image Quality Control.
P601

through

P606

2000 March Rev. B 8754020

Printer Error The imager is unable to print due to a system

problem.

Note P number and call for service.

5-7

DryView 8100 Laser Imager User Guide

Message

Number

Message

Displayed

Message Details/

Operator Action

P621 Printer Error The imager has detected that a film parameter file is

missing.
Call for service.

P622 Printer Error The imager is unable to print due to a system

problem.
Request a calibration print via the Local Panel.

P623 Printer Error The imager is unable to print due to a system

problem.
Note P number and call for service.

P624 Calibrate Fail The imager is unable to print because of print

density problems.
Try a new film cartridge. If the problem remains, call

for service. (Manual mode is NOT usable with this
error.)

P631 Calibrate Fail The Dmin specification was not met on a calibration

print.
Try a new film cartridge. If the problem remains, call

for service. Before service arrives, you can choose
to operate in manual mode. (See page 3-5.)

P632 Calibrate Fail The Dmax specification was not met on a calibration

print.
Try a new film cartridge. If the problem remains, call for

service. Before service arrives, you can choose to
operate in manual mode. (See page 3-5.)

P640 Optics Fail The imager is unable to print due to an optics

problem.
Cycle power.

P910 IMS Down The Image Management System is not

communicating.
Cycle power.

P912 IMS XFR Parity A parity error has been detected in the data

transferred from the Image Management System.
Cycle power.

5-8

8754020 2000 March Rev. B

Troubleshooting

Message

Number

Message

Displayed

Message Details/

Operator Action

P913 IMS XFR Count Either too little or too much data has been

transferred from the Image Management System.

Cycle power.
P920 Printer Error The MCS Board failed its power-up self-test.

Cycle power.
P921 Printer Error The Feeder Board failed its power-up self-test.

Cycle power.
P922 Printer Error The Barcode Reader Board failed its power-up

self-test.

Cycle power.
P923 Printer Error The Optics Board failed its power-up self-test.

Cycle power.
P924 Printer Error The Densitometer Board failed its power-up self-test.

Cycle power.

2000 March Rev. B 8754020

5-9

DryView 8100 Laser Imager User Guide

Film Drive Problems

Figure 5-1 shows the path that film travels through the imager after the operator
requests a print. The numbers in the illustration identify key areas on the path from
film pickup to exposure through development and exit onto the film tray:

Area 1 – Film pickup from the cartridge
Area 2 – Film feed into the exposure area
Area 3 – Film feed out of the exposure area
Area 4 – Film feed into the processor
Area 5 – Film feed out of the processor

5-10

Figure 5-1. Film Drive Path

8754020 2000 March Rev. B

Troubleshooting

Film Pickup Problems in Area 1

Area 1 identifies the location where film is removed from the film cartridge and
positioned to be sent by drive rollers toward the exposure area (see Figure 5-2). If
the imager cannot properly pick up a sheet of film and position it for drive, error P116
is declared. P177 (Cartridge Close Error) also relates to Area 1.

Note

When problems occur in Area 1, the film cartridge is left open. When you open
the front door, the top sheets of film in the cartridge will be exposed. Before
opening the door, make the room as dark as possible to minimize exposure.

1. Press and hold in the Open Door key on the Local Panel for 5 seconds to unlock
the front door.

2. Open the front door and check the film pickup area. (There may be a film
cartridge problem.) If you cannot resolve the problem, call for service.

3. Turn the rollback knob counterclockwise to manually close the cartridge lid.

4. Close the front door.

Area 1

2000 March Rev. B 8754020

Rollback
Knob

8100–50L

Figure 5-2. Film Area 1

5-11

DryView 8100 Laser Imager User Guide

Removing Film Jams from Area 2

Area 2 in the imager includes the path between the film pickup assembly and the
exposure platen (see Figure 5-3).

Note

When jams occur in Area 2, the film cartridge is left open. When you open the
front door, the top sheets of film in the cartridge will be exposed. Before
opening the door, make the room as dark as possible to minimize exposure.

1. Press and hold in the Open Door key on the Local Panel for 5 seconds to unlock
the front door.

2. Open the front door and clear the film jam.

3. Turn the rollback knob counterclockwise to manually close the cartridge lid.

4. Close the front door.

Rollback
Knob

Film Pickup
Assembly

5-12

Area 2

Exposure
Platen

8100–116L

Figure 5-3. Jam Area 2

8754020 2000 March Rev. B

Troubleshooting

Removing Film Jams from Area 3

Area 3 includes the exposure platen (see Figure 5-4). Jams in this area occur as film
is entering the platen before exposure, or as film is leaving the platen after
exposure. In rare cases, film may stall in the transport area above the platen.

1. Press the Open Door key on the Local Panel to unlock the front door. (The
status message S25 Crtg Clsng will display, and the imager will close the
cartridge and unlock the front door.)

Note

If the film cartridge does not close, you will have to press and hold the Door
Open key for 5 seconds to unlock the front door. Be aware that when you open

the door, the top sheets of film in the cartridge will be exposed. Before opening
the door, make the room as dark as possible to minimize exposure.

2. Open the front door and clear the jammed film, if it is accessible.

3. If the film is not accessible:
a. Open the platen door by sliding the door latch to the left and pulling out.
b. Clear the film from inside the platen. If film is caught in the feed rollers (see

Figure 5-4), pull the green thumb tab to the right to open the rollers and free
the film.

c. After clearing the jam, close the platen door.

4. Close the front door.

NOTE:
Film could jam in
this area also.

Platen Feed
Rollers

Area 3

Exposure
Platen

Figure 5-4. Jam Area 3

2000 March Rev. B 8754020

Platen Door
Latch

Pull green thumb
tab to the right to
free film jammed
in rollers.

8100–51L

5-13

DryView 8100 Laser Imager User Guide

Removing Film Jams from Area 4

Area 4 includes the film processor.

1. Open the upper hood.

!

Caution

Hot Surface

Drum and rollers inside the processor are hot. Exercise caution when
removing jammed film from the processor.

2. Release the two clamps at the left of the processor and open the drum cover
(see Figure 5-5).

!

Caution

To prevent damage to the surface of the processor drum, do not use any type
of tool to remove jammed film.

Figure 5-5. Opening the Drum Cover

5-14

8754020 2000 March Rev. B

Troubleshooting

3. Clear the jammed film from the processor area. (There may be more than one
sheet.) If film is jammed in the drive rollers (see Figure 5-6), pull the green thumb
tab to the left to open the rollers and free the film.

4. Close the drum cover and secure it with the two clamps.

5. Close the upper hood. (The processor will have to warm to operating
temperature before printing can occur again.)

Processor
Drum

Area 4

Pull green thumb
tab to the left to
free film jammed
in rollers.

2000 March Rev. B 8754020

8100–53L

Figure 5-6. Jam Area 4

5-15

DryView 8100 Laser Imager User Guide

Removing Film Jams from Area 5

Area 5 consists of the components between the processor drum and the film exit
tray (see Figure 5-7). Jams can occur in this area between the drum and the
densitometer, or in the densitometer.

1. Open the upper hood.

!

Caution

Hot Surface

Drum and rollers inside the processor are hot. Exercise caution when working
in the drum area.

2. Clear the jammed film. (There may be more than one sheet.) If film is jammed in
the drive rollers (see Figure 5-7), use the green thumb tab to open the rollers and
free the film.

3. Close the upper hood.

Processor
Drum

Area 5

Exit Tray

Pull green thumb tab in
direction shown to free
film jammed in rollers.

Figure 5-7. Jam Area 5

Densitometer

8100–55L

5-16

8754020 2000 March Rev. B

Troubleshooting

Manually Closing the Film Cartridge

The imager automatically closes the film cartridge when the Door Open key is
pressed. If the imager is unable to close the cartridge, a P177 error displays.

Note

If the front door is opened when the film cartridge is open, the top sheets of film
in the cartridge are exposed. Make the room as dark as possible to minimize
exposure.

1. Press and hold the Open Door key on the Local Panel for 5 seconds to unlock
and open the front door.

2. Clear any films that may be jammed in the film cartridge area.

3. Turn the rollback knob (see Figure 5-8) counterclockwise to close the cartridge.

Rollback
Knob

Figure 5-8. Manually Closing the Film Cartridge

8100–54L

2000 March Rev. B 8754020

5-17

DryView 8100 Laser Imager User Guide

Calling for Support

When you have tried to repair the machine, but realize that you need help, it is time
to call for service. Before you call, have the following information ready:

 Model Number: 8100
 Serial Number: For serial number location, see Figure 5-9.
 Phone for Service: 1-800-328-7754, Option 1

Note

For general information about Kodak Health Imaging Products, call
1-800-328-2910, Option 3.

Figure 5-9. Serial Number Location

5-18

8754020 2000 March Rev. B

Specifications

Dimensions

Height: 1168 mm (46 in.) – Top cover closed

1581 mm (62–1/4 in.) – Top cover open
Width: 635 mm (25 in.)
Depth: 661 mm (26 in.) – Front door closed

1245 mm (49 in.) – Front door open
Weight: 188 kg (414 lbs.)

Electrical

Voltage: 100 V AC " 10%, 50/60 Hz " 3

120 V AC " 10%, 50 Hz " 3

230 V AC " 10%, 50 Hz " 3
Current Draw: Less than 12 Amperes at 100 V AC input

Less than 10 Amperes at 120 V AC input

Specifications

Power Consumption: 700 Watts (maximum)

Operating Environment

Temperature: 15° to 35°C (59° to 95°F)
Humidity: 15% to 85% RH, Noncondensing
Magnetic Field: v 50 Gauss

Environmental Effects

Heat Dissipation: 3000 BTU/Hr (average)
Acoustical Noise: Less than 55 dB at one meter (70 dB momentarily)

Less than 80 dB, non–repetitive tasks such as door

open/close

2000 March Rev. B 8754020

6-1

DryView 8100 Laser Imager User Guide

Storage Environment

Temperature: –35° to 60°C (–31° to 140°F)
Humidity: 10% to 90% RH, Noncondensing

Film Size

The 8100 will process 14 inch by 17 inch DryView Laser Imaging Film.

Film Throughput

55 films per hour (assuming images of 1024 by 1024 pixels and a direct connect
input).

Host Control

RS232 or RS422 connection to imager.

DryView V2 Keypad

 Available image formats include 1:1, 2:1, 4:1, 6:1, 9:1, 12:1, 15:1, 16:1, and

20:1.

 Images can be acquired and stored in random or sequential order.
 Can be located up to 3 meters (10 feet) from imager when connected directly.
 Can be located up to 60 meters (198 feet) from imager if a UKEIB interface

box is used.

Agency Compliance

See the Safety, EMC, and CE Marking Compliance paragraphs at the beginning of
this manual.

6-2

8754020 2000 March Rev. B

T echnical Information

Technical Information

Note

The information in this section relates to the characteristics of DryView Laser
Imaging Film, not to the operation of the DryView 8100 Laser Imager.

General Description

DryView Laser Imaging Film is a high-resolution, infrared-sensitive,

photothermographic film designed specifically for the new family of DryView Laser
Imaging Systems.

This new film delivers the same diagnostic image quality you get with your current
silver halide laser films – but it requires no “wet” chemistry, no “wet” film processors,
and no darkroom procedures. This means there is no need for special plumbing, wet
chemistry disposal procedures, or modifications to your facility. This new film is
packaged in daylight load packages and is available in 14 inch by 17 inch size. It is
available in blue or clear, 7 mil polyester base.

Spectral Sensitivity

DryView Laser Imaging Film is infrared sensitive and has been sensitized to the

infrared laser diode of DryView Laser Imaging Systems. When handled according
to instructions on the film package, safelights are not needed. It is not
recommended, but if you remove undeveloped film from the daylight load package,
you will need a darkroom setting and a green safelight.

DENSITY

2000 March Rev. B 8754020

Sensitometric Characteristics

3.5

3

2.5

2

1.5

1

0.5

0

0 0.5 1 1.5 2 2.5 3

RELATIVE LOG EXPOSURE

7-1

DryView 8100 Laser Imager User Guide

Image Quality

DryView Laser Imaging Film delivers diagnostic-quality, continuous-tone images

along with sharp alphanumerics and optimum contrast. This high-quality silver-based
film provides radiologists with the same diagnostic information they are accustomed
to viewing – including the spatial resolution, contrast, and gray levels. Plus, because
it is a totally dry imaging process, there is no image quality variability due to “wet”
chemistry.

Automatic Image Quality Control

DryView Laser Imaging Film is system-matched for the unique Automatic Image

Quality Control (AIQC) technology. This fully automated system, which is a standard
feature of DryView Laser Imaging Systems, is designed to ensure that contrast,
density, and other image quality parameters meet preset user preferences,
film-to-film, lot-to-lot.

Barcode information on each film cartridge allows the DryView 8100 Laser Imager to
automatically determine film type, the number of sheets remaining, and the film
manufacturing lot. The AIQC uses this information to automatically calibrate the
imager’s electronics and optimize image quality without operator intervention.

The AIQC also reads a special density patch printed on each 14 inch by 17 inch
sheet of DryView Laser Imaging Film as it passes through a built-in densitometer.
Slight density variations are corrected automatically.

7-2

8754020 2000 March Rev. B

T echnical Information

Less Impact on the Environment

Disposal regulations and procedures for “wet” processing chemistry are
time-consuming and expensive. And even with the most exacting procedures, the
potential exists to discharge hazardous materials into the environment.

Tests show that DryView Laser Imaging Film is not considered hazardous to the
environment. As a result, you can develop, recycle, and dispose of films with less
impact on the environment than if you were using wet developed silver halide films.

DryView Laser Imaging Film

Environmental Regulations Comparison

Wet Silver Halide DryView

Developer Fixer Wash Film Film

Product
Regulation

OSHA MSDS
DOT
Use Permits

Disposal *
Regulation

EPA
DOT

Required
Hazardous
Local

Hazardous
Hazardous

Required
Hazardous
Local

Hazardous
Hazardous

Not Required
No Limits
None

No
No

Not Required
No Limits
None

No
No

Provided
No Limits
None

No
No

Note: There is no SUPERFUND liability with DryView Laser Imaging Film.

* State and local laws vary. Consult appropriate regulations or authorities prior to disposal.

Storage and Handling of Undeveloped Film

As with other laser imaging films, to achieve consistent
results up to the expiration date indicated on the film
package, DryView Laser Imaging Film must be stored
in a cool, dry place (41°F/5°C to 77°F/25°C) and
protected from radiation and chemistry fumes.

The film can also withstand short-term temperature spikes (up to 95°F/35°C for
several hours) during transit without any significant effect on film quality or
performance. Transit temperatures above 95°F/35°C will gradually diminish shelf life.
If the Automatic Image Quality Control system (AIQC) encounters film that has been
damaged by improper handling, it will automatically alert system operators before
the film is developed.

2000 March Rev. B 8754020

77°F
41°F

25°C

5°C

TEMP

7-3

DryView 8100 Laser Imager User Guide

Handling of Developed Film

As with other photographic films or data storage materials, the handling of DryView
Laser Imaging Film requires reasonable care. Spills, humidity, and other moisture
typically have no significant effect on developed films. Prolonged exposure to
intense light or excessive heat (130°F/54.4°C for more than 3 hours) may cause
some gradual darkening of images. Leaving films in vehicles in hot climates for
extended periods of time is not recommended.

Under typical working conditions, DryView Laser Imaging Film will maintain
diagnostic quality for over 30 years. For best results, store film in sleeves when not
being reviewed. DryView Laser Imaging Film can be left on a light box for more than
24 hours; in extreme cases in which light boxes are exceptionally hot (120°F/49°C),
we recommend removing them prior to 8 hours of continuous exposure.

Care should be taken when using spotlight viewing for more than 30 seconds,
because temperatures near the light source may exceed 180°F/82.2°C. Use in slide
projectors is not recommended due to the high temperatures generally found in
these devices.

With the new DryView technology, a small amount of final development occurs when
the film exits the DryView Laser Imager and is initially exposed to ambient or view
box lighting. This is virtually undetectable and has no effect on image quality (i.e.,
typically 0.02 change in density). This small density increase is uniform and
permanent upon full exposure of the film under normal handling conditions (i.e.,
room light or view box).

Archivability of Developed Film

DryView Laser Imaging Film is fully archivable for more than 100 years when stored

at American National Standards Institute (ANSI) recommended storage conditions
(77°F/25°C). Developed films may be stored at higher temperatures, but that may
affect archivability. For example, storing films at a constant elevated temperature of
90°F/32.2°C may reduce archivability to 30 years.

Exposure to Moisture

While moisture can damage traditional wet processed silver halide films, DryView
Laser Imaging Films typically withstand humidity, spills, and other forms of water
without any significant effect on image quality or film integrity. If needed, films can be
cleaned with a clean, damp cloth.

7-4

8754020 2000 March Rev. B

T echnical Information

Odor Dissipation

The “wet” chemistry associated with the development of silver halide film creates
strong, unpleasant odors. By eliminating “wet” chemistry, DryView technology
eliminates virtually all of these odors. While some low-level odors are produced
during the development process, they pose no known adverse health risks.
Processing odor levels are further reduced by a non-hazardous, recyclable filter in
DryView Laser Imaging Systems. This filter traps most low-level odors and prevents
them from dissipating into the work environment. To help maintain optimum
performance, the filter requires periodic replacement as specified in the DryView
Laser Imager User’s Manual. Unlike silver halide systems, DryView Laser Imagers
require no special venting.

Heat Dissipation

DryView Laser Imaging Systems use controlled heat to develop DryView Laser

Imaging Films. The heat has virtually no effect on the air temperature of the work
area. The amount of heat dissipated into an area during a day is typically less than
the heat generated by four 100-watt light bulbs.

Film Recycling

According to the Environmental Protection Agency (EPA) standards, DryView Laser
Imaging Film is not considered hazardous – so unlike typical “wet” films, these films
require no special disposal procedures. But they do contain silver and polyester that
may be recovered by using one of several recycling processes.

If you are interested in recycling and silver recovery, Kodak can provide your local
recyclers with the information they need to get started. In some countries, national
contracts have been established with recycling firms. Call your local Kodak sales
representative for more information about these contracts.

2000 March Rev. B 8754020

7-5

DryView 8100 Laser Imager User Guide
