Laundry Chemical Dispensing System
The On-Premise Global laundry chemical dispensing system defines a new level of
versatility and economy for the small laundry market. This exciting new dispenser is
built on the industry leading On-Premise Plus platform with new features such as
increased 30 formula capability, choices from 2 to 8 chemicals, expanded programming
features, and data management capabilities. These enhancements offers the tools for
a small on-premise facilities to be able to manage cleaning costs and efficiently operate
like larger commercial laundries.
Laundry Formula
Remote Control
SIB
Washer Interface Module
LAUNDRY SYSTEMS
On-Premise Global
Dispenser with 1 to 8 Pump option
• Increased 30 wash formula capability
• 2, 3, 4, 5, 6, 7, or 8 chemical capability
• Chemical usage / operator activity reports exported into Excel
• Remotely manage the dispenser using the Knight Reporter hardware/software
• 10 oz/min (300 ml/min) or 20 oz/min (600 ml/min) peristaltic pumps
• For On-Premise washers with up to 175 lb (80 kg) wash load capacity
• Multiple product volumes per wash formula
• Low voltage signal interface module
• Optional built-in flush manifold
• Password protected
• Programming: drain mode, signal mode, relay mode, and soil mode
• Simple, multi-lingual menus (English, Spanish, French, German, Italian)
Page 2
Laundry Chemical Dispenser
Laundry Chemical Dispenser
The OP-Global allows for the standard main case to dispense 2, 3, 4, 5 or 6 chemicals to laundry machines in the 35 lb. to 175 lb.
category. With the additional satellite pump case, the OP Global can expand to dispense up to 7 or 8 chemicals. This is ideal for
facilities with hard water, where you need to add conditioners or additional chemicals.
7 Pump On-Premise Global
Reporter - Data Management
Reporter - Data Management
Connect Via the Internet
Connect Via the Internet
The On-Premise Global now offers data management
capability that was previously only available in larger
chemical dispensers. The data management technology supplies you with critical information to be able to
manage and monitor your chemical dispensing usage
and costs. This will enable you to operate like larger
facilities to maximize overall efficiency and save
chemical, labor and energy costs.
The Reporter hardware and software allows you to program your
dispensers, print full detailed reports, or export reports into Excel from
anywhere in the world, whether in your office or directly from the
dispenser. You have the option to connect to the dispenser through an
IP/TCP connection, phone modem connection, or directly connect to
the dispenser with your laptop for “real time” graphic view of up to the
minute activity on the wash aisle.
* Chemical cost per: shift, month, week, day, and load
* Formula Chemical Volumes
* Product Costs
* Load Start/Stop time
* Load count by formula
* Average time between loads
* Washroom operator errors
* Automatic formula reset
* Remote PC or laptop dispenser programming
* Set-up/Cycle/Summary reports
* Export to Excel
SIB Washer Interface Module
SIB Washer Interface Module
The SIB washer interface module
is designed around the needs of
the technician to provide
maximum versatility and to make
your job fast and easy! The high
voltage signal outputs are
reduced to a safe 12V to make
wiring simple. The SIB allows easy
connection to any style washer.
Page 3
Laundry Formula Remote Control
Laundry Formula Remote Control
The On-Premise Global remote is the new force behind the On-Premise platform, which now offers a whole wide range of new options.
The remote offers all the programming features of the Knight-Trak, Multi-Flow, On-Premise Plus remote, and more. The On-Premise
Global remote is also increasing the formula capability from 8 or 20 to 30 formulas. In addition to the programming features, the new
remote now offers the ability of data management with the On-Premise unit.
2 X 16 character LCD
isplay
d
Heavy/Medium/Light”
“
Soil select modes
Programming controls
Bleach and Soft on-off
buttons

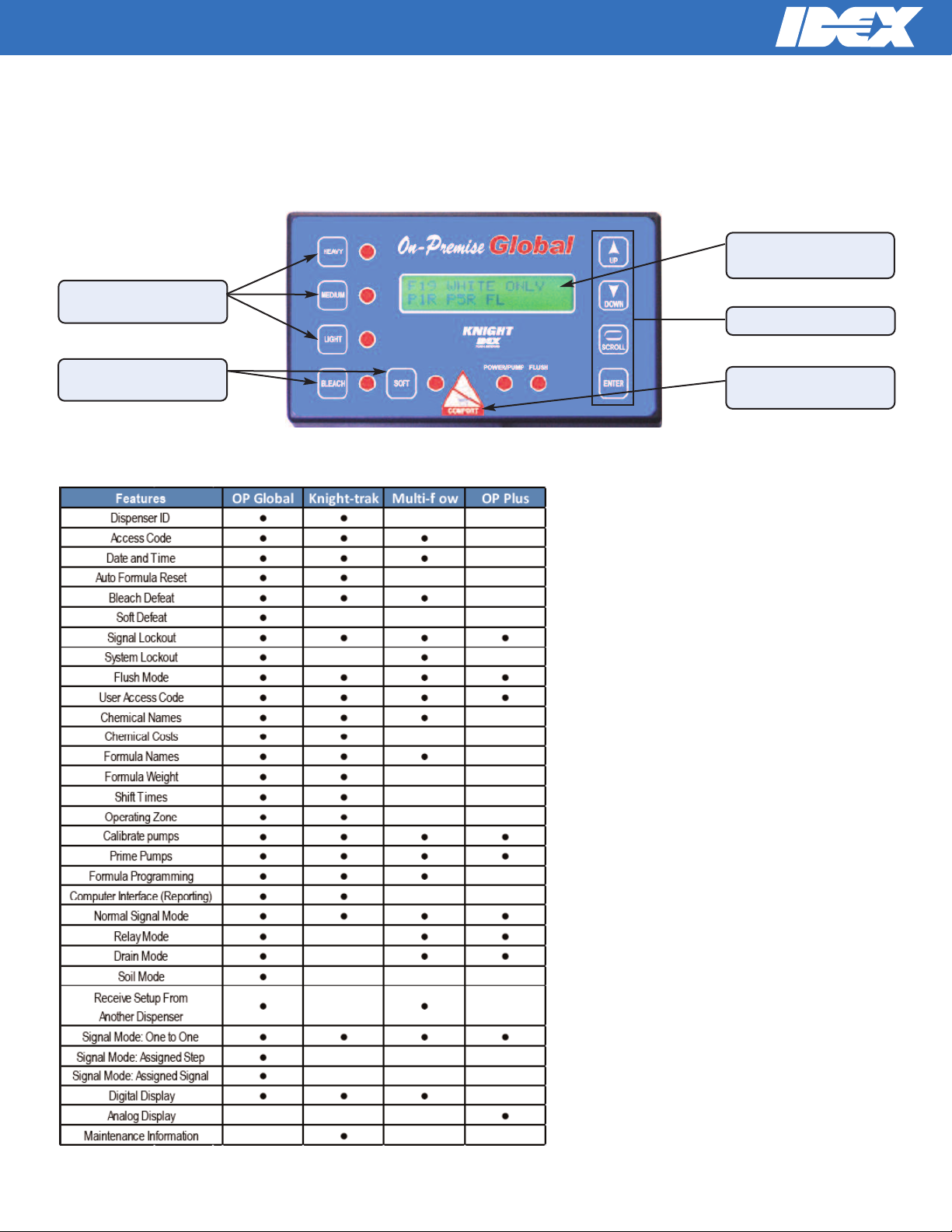

Programming Feature Comparison
Programming Feature Comparison
Reporter inlet for data
management
Features and Benefits
Features and Benefits
Features
• Password protected
• File transfer function (remote to remote)
• 30 wash formula capability
• Multiple product volumes per wash formula
• Programming: drain mode, signal mode,
relay mode, soil mode
• Simple, multi-lingual menus (English, Spanish,
French, German, and Italian)
• Automatic formula select with signal qualifier
• Load count by formula
• Product lock-out function
• Detailed data management report capability
Comprehensive Programming Functions
The OP Global remote offers all the programming
amenities of larger dispensers in an On-Premise dispenser.
Increased 30 Formula Capability
The new versatile On-Premise Global remote offers
multiple programming options including the
standard programming option, with an increased 30
formula capability with unique run and delay times
for each pump. This offers a greater control of
chemical costs with better wash results over a wide
range of soil loads.
New quick Soil Select mode
“Heavy/Medium/Light”
On-Premise Global now offers a quick, simple
formula select depending on the type of laundry
load. This operation allows three different soil
classifications “Light/Medium/Heavy” and the option
of selecting bleach or softener. The soil select
modes allows the operator to simply press the type
of wash and the unit is ready to go.
The Light/Medium/Heavy buttons can also be
individually programmed to become quick favorite
buttons for specific formulas.
Page 4
Copyright
©
Easy Access Case Design
Easy Access Case Design
With the fold down front panel and fold up circuit board lid, the On-Premise Global is one of the most accessible and easy to service
laundry chemical dispensers in the market. The simple cable connections, easy accessible internal wiring, and intuitive programming
control allows you to quickly get and in out of accounts.
Easy access case design
Fold down front panel and lid
mounted circuit board provide
convenient and easy access to
all internal wiring
ulti-Voltage
M
Low Voltage Connection
Terminal (115/208/ 230 VAC)
New 8 Pump Circuit Board
6 or 8 pump board are available.
8 pump board allows the 6
pump main case to add 2 additional pumps with added satellite pump case (7677502)
Proven Peristaltic Pumps
night’s standard peristaltic
K
pump has a long history of
1 to 8 Pumps
300 ml (10 oz.) or
600 ml (20 oz.) pumps
proven proven performance and
longevity. In addition to the
highest quality squeeze tubes,
the OP-Global is a dispenser you
can rely on.
O R D E R I N G I N F O R M A T I O N
On-Premise Global Dispensing Systems
Features Include: Plastic/stainless steel case, water-tight case and cover, 30-formula capability, drain mode, signal mode, relay mode, flush mode,
flow switch input, personalized access code, built-in load counter, washer interface module, variable signal input voltage, split common, automatic
calibration and peristaltic pumps with tri-roller block. Option of 10 oz/min (300 ml/min) pump and/or 200 RPM 20 oz/min (600 ml/min) pump,
115/208/230V 50/60 Hz operation.
Part Number Model Description
8662723 OP-503 Global 3 product dispenser in S.S. case w/ OP Global remote, SIB 6, w/ pumps
8662724 OP-504 Global 4 product dispenser in S.S. case w/ OP Global remote, SIB 6, w/ pumps
8662725 OP-505 Global 5 product dispenser in S.S. case w/ OP Global remote, SIB 6, w/ pumps
8662726 OP-506 Global 6 product dispenser in S.S. case w/ OP Global remote, SIB 6, w/ pumps
8662714 OP-504X Global Four product dispenser in S.S. case w/ OP Global remote, SIB 6, w/o pumps
8662716 OP-506X Global Six product dispenser in S.S. case w/ OP Global remote, SIB 6, w/o pumps
8662718 OP-508X Global Eight product dispenser in S.S. case w/ OP Global remote, SIB 10, 8 pump ready circuit board, w/o pumps
Note: For additional 7th and/or 8th pump, add OP-502 satellite case (7677502)
7677502 OP-502 Two pump satellite S.S. case w/o pumps
Note: One standard system is universal for all voltage ranges and frequencies.
ON-PREMISE GLOBAL PUMP OPTIONS
8155262 KP5110DCX Peristaltic Pump, 10 oz/min (300 ml/min), 100 RPM, 24 VDC
8155362 KP5200DCX Peristaltic Pump, 20 oz/min (600 ml/min), 200 RPM, 24 VDC
Note: Option of 1 to 8 pumps
ON-PREMISE GLOBAL OPTIONS
8053006 OP-4 FM 4 port On-Premise Global case mount flush manifold
8053004 OP-6 FM 6 port On-Premise Global case mount flush manifold
0600405 FS-01 Flow switch kit
7655051 Reporter “Expert” Package for OP Global (Includes: KCI-6000 reporter interface module, PC software for
Windows, network cable, and USB A to B cable
0300996 Cable, USB A to USB A (10 ft.)
