Kia Sedona System 2010, Optima 2009 Quick Reference Guide

Preface

Thank you for purchasing this Audio Navigation System.

This user manual explains how to use the KIA Motor Audio Navigation System. Before using the product, read the contents of this user's manual carefully and use the product safely.

The screens shown in this manual may differ with the actual screens of the product. The design and specification of this product may change without prior notification for product improvement. When transferring the vehicle to another individual, include this user's manual so that the next driver can continue its use.

DOLBY

Manufactured under license from Dolby Laboratories "Dolby" and the double-D symbol are trademarks of Dolby Laboratories

iPod

is a registered trademark of

Apple, Inc.

DTS

Manufactured under license under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380;5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS is a registered trademark and the DTS logos, Symbol and DTS 2.0 Channel are trademarks of DTS, Inc. 1996-2007 DTS, Inc. All Rights Reserved.

PART 1 PRE-OVERVIEW

Introduction 1-2

Important information about this manual

1-2

Precaution for safe usage

1-2

Controller and functions 1-3

Control panel 1-3

Steering wheel remote controller

1-6

Basic Operation and setting 1-7

Turning the power ON 1-7

Turning the power OFF

1-7

Turning the audio ON/OFF

1-7

Adjusting audio volume

1-7

How to operate the screen menu

1-8

Audio Sound setting

1-9

Display setting

1-10

Adjusting the display tilt

1-11

PART 2 AUDIO SYSTEM

Operating the radio 2-2

FM/AM Radio 2-2

SIRIUS Radio

2-5

Operating the CDP 2-9

About CDP 2-9

Inserting/Ejecting Disc

2-13

2-14

MP3

2-17

Operating external devices

2-21

iPod 2-21

USB

2-27

AUX

2-29

PART 3 NAVIGATION SYSTEM

Limitations of the navigation system

3-2

GPS signal reception state 3-2

Vehicle position display

3-3

Route guidance

3-4

Route Re-calculation

3-4

Starting navigation system 3-5

Map Functions

3-5

Current position map screen (without route)

3-5

Switching map mode (north up/heading up)

3-6

Viewing GPS signal state

3-7

Changing the map scale

3-8

Displaying / Hiding POI icons on the map

3-9

Scrolling map

3-10

Table of contents

Setting a destination 3-11

Destination menu screen and function

3-11

Searching destination

3-12

Operating after searching a destination

3-26

Operating after setting a destination

3-27

Starting route guidance 3-27

Route guidance screen

3-27

Selecting other route

3-28

Route guidance 3-29

Route menu screen and functions 3-29

Finishing route guidance

3-29

Route overview

3-30

Changing route option

3-30

Editing waypoints

3-31

Setting detour distance

3-33

Setting avoid streets on route

3-33

Setup and Information 3-34

Setup menu screen and function 3-34

Main setting

3-34

Navigation setting

3-35

My places setting

3-40

System information and update

3-48

Voice guidance volume setting

3-48

Help

3-49

PART 4 APPENDIX

Troubleshooting guide 4-2

Before thinking the product has malfunctioned

4-2

Troubleshooting

4-3

Map legend 4-5

Road color 4-5

POI icons

4-5

Landmark icons

4-7

INDEX 4-8

PRE-OVERVIEW 1-1

PRE-OVERVIEW

PART 1 PRE-OVERVIEW

Introduction

1-2

Important information about this manual

1-2

Precaution for safe usage

1-2

Controller and functions

1-3

Control panel 1-3

Steering wheel remote controller

1-6

Basic Operation and setting

1-7

Turning the power ON 1-7

Turning the power OFF

1-7

Turning the audio ON/OFF

1-7

Adjusting audio volume

1-8

How to operate the screen menu

1-8

Operating typical screen menu

1-8

Inputting letters by using screen keyboard

1-8

Displaying the list

1-8

Selecting an item in a list

1-9

Sorting items from the list

1-9

Audio Sound setting

1-9

FAD/BAL

1-9

BAS/MID/TRE

1-9

Auto Volume Control ON/OFF

1-10

Touch Screen Beep ON/OFF

1-10

Display setting

1-10

Display mode / Map color

1-10

Brightness / Saturation / Hue / Contrast

1-10

Ratio

1-10

Display OFF

1-11

Display ON

1-11

Adjusting the display tilt

1-11

PRE-OVERVIEW 1-3

PRE-OVERVIEW

Power / Volume control knob

Push knob (over 0.8 second) : Turns the

power off.

Push knob (under 0.8 second) : Each time

the knob is pressed, the Audio is turned

on and off.

Tune knob : The range of volume adjust-

ment is between 0 ~ 35.

FM/AM button

Each press will change the bands in the fol-

lowing order: FM1

FM2

AM FM1

SAT button

Each press will change the bands in the fol-

lowing order : SIRIUS1

SIRIUS2 SIR-

IUS3

SIRIUS1

CD/AUX button

Each press will change the bands in the fol-

lowing order : DISC(CD, MP3)

(USB or

iPod)

(AUX) DISC(CD, MP3)

Controller and functions

Control panel

1-4 PRE-OVERVIEW

PART 1 :PRE-OVERVIEW

SEEK/TRACK Up/Down button

SHORT KEY(less than 0.8 second)

- FM/AM Mode : Automatically searches

for the previous or next broadcast

frequency and starts playing.

- SAT Mode : Receives the previous or

next channel.

- CD Mode : Plays the previous or next

track.

- MP3, USB Mode : Plays the previous or

next file.

- iPod Mode : Plays the previous or next

song.

LONG KEY(over 0.8 second)

- FM/AM Mode : Quickly moves through

the frequencies while the button is

pressed. Once released, automatically

searches for broadcasts which can be

received.

- SAT Mode : Quickly moves to the

previous or next channel.

- CD Mode : REW/FF the current playing

track.

- MP3, USB Mode : REW/FF the current

playing file.

- iPod Mode : REW/FF the current playing

song.

TUNE knob

- FM/AM Mode : Turn the knob to search

for the desired frequency. Press the

knob to receive the selected frequency.

- SAT Mode : Turn the knob to search for

the desired channel. Press the knob to

receive the selected channel.

- CD Mode : Turn the knob to search for

the desired track. Press the knob to play

the selected track.

- MP3, USB Mode : Turn the knob to

search for the desired file. Press the

knob to play the selected file.

- iPod Mode : Turn the knob to search for

the desired song. Press the knob to play

the selected song.

MAP VOICE button

Displays the map screen for the current

position.

DEST button

Displays the Destination menu screen.

ROUTE button

Displays the Route menu screen.

SETUP button

Displays the Setup menu screen.

OPEN button

Opens the front panel so that a DISC can be

inserted or ejected from the CDP deck.

The front panel will become closed if a DISC

is inserted or the button is pressed again

while the front panel is opened.

The front panel will automatically become

closed if there are no operations for 10

seconds while the front panel is opened.

PRE-OVERVIEW 1-5

PRE-OVERVIEW

INFORMATION

When closing the front panel, it will close to a

tilt 5 to 10

degrees lower than the tilt set prior

to opening the panel before restoring the

original tilt. This is a normal process which

occurs while the device finds its set values and

is not a malfunction system.

DISC insert indicator LED

Displays that a DISC has been inserted.

RESET button

Resets the system - if software locks-up.

INFORMATION

If pressing the power off knob for over 0.8

second and the system does not shut down,

carefully use a straightened paper clip at the

access hole shown next to the right DISC

indicator LED to reset the software.

The system power will shut-off and restart.

1-6 PRE-OVERVIEW

PART 1 :PRE-OVERVIEW

Mode button

Each time the Mode button is pressed, the

mode will convert in the following order:

FM1

FM2 AM SIRIUS1 SIRIUS2

SIRIUS3 (DISC) (USB or iPod) (AUX)

FM1.

If a not supported DISC has been inserted or

if the corresponding unit has not been

connected, the mode will not be recognized

and automatically switch to the next mode.

Press this button for over 0.8 second to

turn the Audio ON and OFF.

Press this button when the Power is

turned off to turn the power on.

Seek Up/Down key

SHORT KEY(less than 0.8 second)

- FM/AM : Receives the previous or next

preset frequency.

- SIRIUS Mode : Receives the previous or

next preset channel.

- CD Mode : Plays the previous or next

track.

- MP3, USB Mode : Plays the previous or

next file.

- iPod Mode : Plays the previous or next

song.

LONG KEY(Over 0.8 second)

- FM/AM Mode : Quickly moves through

the frequencies while the button is

pressed. Once released, it automatically

searches for broadcasts which can be

received.

- SIRIUS Mode : Quickly moves to the

previous or next channel.

- CD Mode : REW/FF the current playing

track.

- MP3, USB Mode : REW/FF the current

playing file.

- iPod Mode : REW/FF the current playing

song.

Volume Up/Down key

Increases or decreases the speaker volume

within a range between 0 ~ 35.

Steering wheel remote controller

PRE-OVERVIEW 1-7

PRE-OVERVIEW

Basic operation and setting

Turning the Power ON

Turn the ignition key onto ACC or ON. If

the system power had been on when the

ignition was turned off, the system will

turn back on automatically.

If the system power had been off when

the ignition was turned off, the system

will remain off. In this case, press the

knob to turn on the system

power.

INFORMATION

As system booting starts from the point the

door lock is unlocked, the device may complete

booting before the ACC is turned on or the

knob is pressed.

Once system booting is complete, the most

recent operated mode will be displayed.

For example, turning on the system will

display FM1 radio mode if the last operated

mode prior to turning off the system had

been FM1 radio mode.

Turning the power OFF

If the knob is pressed for over 0.8

second, a beep will sound and the system

power will be turned off.

Turning the audio ON/OFF

Press the knob for under 0.8

second with the system power on to turn

the Audio on and off.

INFORMATION

Conducting the following operations while

the AUDIO is off will automatically turn on the

Audio system.

Pressing the audio related buttons

(

, , ).

Inserting a DISC or connecting an external

device.

Adjusting audio volume

Turn the

knob in clockwise

direction to increase the volume and counterclockwise to decrease the volume.

PWR/VOL

CD/AUXSAT

FM/AM

PWR/VOL

1-8 PRE-OVERVIEW

PART 1 : PRE-OVERVIEW

INFORMATION

The range of volume adjustment is

between 0 ~ 35.

Adjustments to the volume cannot be

made while the AUDIO is turned off.

How to operate the screen menu

Operating typical screen menu

If a menu button on the screen is pressed,

the corresponding function will be operated.

The same menu button may perform

different functions depending on the length

of time the button is pressed (under 0.8

seconds or over 0.8 second). For more

information, refer to the specific function

within this user manual.

The current operated button will be

highlighted upon display.

Buttons which cannot be operated under

the current conditions will be displayed in

disabled state. Pressing a disabled button

will not perform any operation.

Inputting letter by using screen

Keyboard

: Displays the English alphabet keypad.

: Displays the French alphabet keypad.

(if available)

: Displays the number and symbol

keypad.

: Deletes the previous inputted letter.

Pressing for over 0.8 second will delete

all content. : The input is completed.

: Restores to previous screen.

The inputted text will not be saved.

Displaying the list

: Even if input is not completed, the

current matching items from the

database will be displayed.

INFORMATION

The number at the upper-right side of the

screen displays the number of current

matches.

List

Delete

0 - 9

ABC

PRE-OVERVIEW 1-9

PRE-OVERVIEW

Selecting an item in a list

: Moves to the next page or

previous page.

: The button will be displayed if

the text is too long to be displayed

in one button. Press the button to move the cursor to

the end of the text. Press the button to

move the cursor to the front of the text.

Sorting items from list

Select the desired sorting method to

reorganize the list in accordance to the

selected method.

Audio Sound setting

Press the button on the control panel

to display the Setup screen.

Press the button to display Sound

Setup screen.

FAD/BAL

The position of the sound can be adjusted by using the up-down and left-right ( ,

, , ) buttons on the left side of the

screen. Press the button to position the

sound in the center of the vehicle.

BAS/MID/TRE

The BAS/MID/TRE can be adjusted by using the left/right buttons ( , ) of each

control.

Center

Sound

SETUP

Auto volume control ON/OFF

Each time the button

is pressed, the Auto Volume Control

function is turned on or off.

INFORMATION

The Auto Volume Control is a function which

automatically adjusts the volume level in

accordance to changes in vehicle speed.

Touch screen Beep ON/OFF

Each time the button is

pressed, the beeping sound that follows

each press on the screen will turn on or off.

Display setting

Press the button on the control panel

to display the Setup menu screen.

Press button to display the Display

Setup screen.

Display mode

Press the button for the desired display mode from

, , and

modes.

The current selected mode is

highlighted.

The display is automatically converted

between Daylight and Night modes in

accordance to the on/off state of the vehicle

taillights.

The bright screen is always maintained

regardless of the on/off state of the vehicle

taillights.

The dark screen is always maintained

regardless of the on/off state of the vehicle

taillights.

Brightness

Use the left/right buttons ( , ) for for

control to make adjustments.

Night

Daylight

Automatic

NightDaylightAutomatic

Display

SETUP

Touch Screen Beep

Auto Volume Control

1-10 PRE-OVERVIEW

PART 1 :PRE-OVERVIEW

PRE-OVERVIEW 1-11

PRE-OVERVIEW

Display OFF

Press the button.

Display ON

Press anywhere on the black screen.

The screen prior to display setting will be

displayed.

Adjusting the display tilt

Press the button on the control panel

to display the Setup menu screen.

Press the

buttons to set the

desired display tilt.

SETUP

Display OFF

PART 2 :AUDIO SYSTEM

PART 2 AUDIO SYSTEM

Operating the radio

2-2

FM/AM Radio 2-2

Listening to the FM/AM radio

2-2

FM/AM screen and functions

2-2

Selecting FM/AM broadcast frequency

2-3

Storing FM/AM presets

2-4

Scanning FM/AM broadcast frequency

2-4

SIRIUS Radio

2-5

Listening to the SIRIUS radio

2-6

SIRIUS screens and functions

2-6

Switching the SIRIUS modes (channel/category)

2-7

Selecting SIRIUS broadcast channel

2-7

Storing SIRIUS presets

2-8

Scanning SIRIUS broadcast channel 2-8

Browsing detailed information about the SIRIUS channel

2-8

Operating the CDP 2-9

About CDP 2-9

Precautions upon handling discs

2-9

For safe and efficient operation

2-9

Supported disc formats

2-10

Disc/content format compatibility

2-11

Inserting/Ejecting disc

2-13

2-14

Listening to CD music

2-14

CD screen and functions

2-14

Selecting the CD track

2-15

REW/FF CD track

2-15

Setting repeat function for CD music

2-15

Setting random function for CD music

2-15

Scanning CD track

2-15

MP3

2-17

MP3 disc related information and precaution

2-17

Listening to MP3 music

2-18

MP3 screen and functions

2-18

Selecting a MP3 file

2-19

REW/FF MP3 file

2-20

Browsing detailed information about the MP3 file

2-20

Setting Random function for MP3 file

2-20

Setting Repeat function for MP3 file

2-20

Scanning MP3 file

2-20

AUDIO SYSTEM 2-1

AUDIO SYSTEM

PART 2 AUDIO SYSTEM

Operating the external devices

2-21

iPod 2-21

Connecting iPod devices

2-21

Listening to music from iPod

2-21

iPod screen and functions

2-22

Selecting music from iPod

2-22

REW/FF iPod music

2-24

Setting Random function for iPod music

2-24

Setting Repeat function for iPod music

2-25

Browsing detailed information about the iPod music

2-25

USB

2-26

USB MP3 related information and precaution

2-26

Precautions upon handling USB

2-26

Connecting the USB devices

2-28

Listening to USB music

2-28

AUX

2-29

Connecting AUX

2-29

Playing AUX

2-29

AUX screen

2-29

Operating the radio

FM/AM Radio

Listening to the FM/AM radio

Press the button on the control

panel. The FM/AM radio band of the most

recent listened station will be displayed.

Press the button to change the

desired radio band.

Each press will change the bands in the

following order: FM1

FM2 AM

FM1

Select the desired broadcast frequency.

[Selecting FM/AM broadcast frequency],

page 2-3.

FM/AM screen and functions

Mode display : Displays the FM1/FM2/

AM modes.

SEEK/SCAN/PRESET SCAN : If SEEK/SCAN

/PRESET SCAN is operating, the switch is

displayed.

Frequency : Displays the current playing

frequency.

STEREO indicator : If the current

frequency is a stereo broadcast, the

indicator is displayed

Program Type name : Displays the

program type name if data is being

broadcasted.

Program Service name : Displays the

program service name if data is being

broadcasted.

Radio Text: Displays the radio text

information if data is being broadcasted.

button : Changes the desired

radio band. Each press will change the

bands in the following order: FM1

FM2 FM1

TUNE Up/Down button

SHORT KEY(less than 0.8 second)

- The frequency is increased or decreased

by 1-step increments (FM : 0.2MHz, AM :

10kHz).

BAND

FM/AM

2-2 AUDIO SYSTEM

PART 2 :AUDIO SYSTEM

AUDIO SYSTEM 2-3

Operating the radio

LONG KEY(over 0.8 second)

- The frequency is rapidly increased or

decreased by 1-step increments (FM :

0.2MHz, AM : 10kHz) and stops operation

upon KEY RELEASE.

SEEK Up/Down button

SHORT KEY(less than 0.8 second)

- Automatically searches for the previous

or next broadcast frequency and starts

playing.

LONG KEY(over 0.8 second)

- Quickly moves through the frequencies

while the button is pressed. Once

released, it automatically searches for

broadcasts which can be received.

Preset buttons : The desired frequency

can be preset and selected.

[Storing FM/AM presets], page 2-4.

button : Turns the Radio Text

information on and off.

INFORMATION

If the is on OFF state, text will not be

displayed even if there is text being

transmitted from the broadcast station. If the is on ON state, the frequency

bar will not be displayed.

Even if the in on ON state, text may not be

displayed if text is not being received from

the broadcast station.

button : Scans all frequencies or

just the preset frequencies for 5 seconds

each.

[Scanning FM/AM broadcast frequency],

page 2-4.

Selecting FM/AM broadcast

frequency

There are 3 ways to select the broadcast

frequency - (a) selecting through presets,

(b) selecting through SEEK, (c) selecting

through manual search.

(a) Selecting a frequency through presets

Press the preset button of the desired

broadcast frequency.

INFORMATION

Press the or buttons for a

short time on the Steering Wheel Remote

controller. The preset frequencies of the

current band will be selected in order.

There are 6 different preset frequencies

each for FM1, FM2, and AM modes.

[Storing

FM/AM

preset], page 2-4.

SEEK SEEK

SCAN

R.Text

2-4 AUDIO SYSTEM

PART 2 :AUDIO SYSTEM

(b) Selecting a Broadcast frequency

through SEEK

Press the

buttons on

the control panel or the or

buttons on FM1, FM2, and AM mode

screens for less than 0.8 second. Once the

SEEK function is operating (SEEK indicator

blinking), the next or previous broadcast

frequency with superior reception will be

searched automatically.

INFORMATION

Press the or buttons on

the control panel or the or

buttons on the steering wheel remote Controller or the or buttons on

FM1, FM2, and AM mode screens for more

than 0.8 second to quickly move to the

nearest desired frequency. Once the button

is released, the next frequency with superior

reception will be searched automatically.

While the SEEK function is operating, pressing

the or buttons on the

control panel again will terminate SEEK

operation and select the current frequency.

manual search

Press the or buttons or turn the

knob on the control panel in

clockwise or counter-clockwise direction. Each click on the tune knob or the or

buttons will increase or decrease the

frequency by 1 step (FM: 0.2 MHz, AM: 10

kHz).

Storing FM/AM preset

Select the desired frequency.

[Selecting FM/AM broadcast frequency],

page 2-3.

Press a preset button for over 0.8 second.

The current frequency will be stored

along with a beep sound.

INFORMATION

Six preset frequencies each for FM1/FM2/AM

modes can be stored using the above

instructions.

Scanning FM/AM broadcast

frequency

Press the button.

SCAN (less than 0.8 second) :

Scans all frequencies and plays only

frequencies with superior reception for 5

seconds each.

PRESET SCAN (over 0.8 second):

Scans the 6 frequencies stored as preset

frequencies in the current band for 5

seconds each.

Press the button again to

continue listening to a frequency. The

scan will be terminated and the current

frequency will continue to be played.

INFORMATION

When scanning has completed an entire

revolution, the scan function will be terminated

automatically and the previous played

frequency will be restored.

SCAN

TUNE

TRACK SEEK

SEEK SEEK

TRACK SEEK

AUDIO SYSTEM 2-5

Operating the radio

SIRIUS radio

Listening to the SIRIUS radio

Press the button on the control

panel. The Sirius radio band screen of the

most recent listened station will be

displayed.

Press the button to change the

desired radio band.

Each press will change the bands in the

following order: SIRIUS1

SIRIUS2

SIRIUS3 SIRIUS1

Select the desired broadcast channel.

[Selecting SIRIUS broadcast channel],

page 2-6.

SIRIUS screen and functions

Mode display: Displays the SIRIUS1/

SIRIUS2/SIRIUS 3 modes.

Channel number: Displays the current

playing channel.

SCAN/PRESET SCAN indicator: If SCAN/

PRESET SCAN is operating, the switch is

displayed.

Category name: Displays the category

name.

Channel name: Displays the channel name.

INFORMATION

The Song title display may be delayed in

accordance to the reception quality of the

Sirius broadcast.

button : Switches between

channel mode and category mode.

[Switching the SIRIUS mode], page 2-6.

, : Moves to the next or

previous category, and automatically

plays the first channel within the

selected category.

, : Moves to the next or previous

channel.

buttons : The desired channel

can be preset and selected.

[Storing SIRIUS presets], page 2-8.

button : Displays the Title,

Artist, Composer, and other information

for the current received channel if the

information exists.

button: Selects the channel by

directly inputting the channel number.

[Selecting SIRIUS broadcast channel],

page 2-6.

Info

Preset

CAT

SAT

2-6 AUDIO SYSTEM

PART 2 :AUDIO SYSTEM

button: Displays the channel or

category list.

[Selecting SIRIUS broadcast channel],

page 2-6.

button: Scans all frequencies or

just the preset frequencies for 5 seconds

each.

[Scanning SIRIUS broadcast channel],

page 2-8.

Switching the SIRIUS mode

(Channel / Category)

Each time the button is pressed,

the mode will switch between channel

mode and category mode.

Category mode will begin operating when

the orange light is turned ON.

Selecting SIRIUS broadcast channel

There are 5 ways to select a broadcast

channel - (a) selecting through presets, (b)

selecting with channel Up/Down, (c)

Selecting a channel through manual search,

(d) selecting through channel/category list,

(e) selecting by directly inputting the

channel number.

(a) Selecting a channel through presets

Press the preset button of the desired

channel.

INFORMATION

Press the or buttons on

the Steering Wheel Remote controller for

less than 0.8 second. The preset channels of

the current band will be selected in order.

There are 6 preset channels each for

SIRIUS1, SIRIUS2, and SIRIUS3.

[Storing SIRIUS presets], page 2-8.

(b) Selecting with Channel Up/Down

Press the or buttons on

the control panel or the or buttons on

SIRIUS1, SIRIUS2, or SIRIUS3 mode screens

for less than 0.8 second.

The previous or next channel will be selected.

INFORMATION

If in Channel mode, the channel is selected

from all channels. If in Category mode, the

previous or next channel of each category is

selected.

Press the or buttons on

the control panel or the or

buttons on the Steering Wheel Remote controller or the or buttons on SIRIUS1,

SIRIUS2, and SIRIUS3 mode screens for more

than 0.8 second to quickly move to the

nearest desired channel. Once the button is

released, the current channel will be selected.

SEEK SEEK

TRACK SEEK

SEEK SEEK

CAT

Scan

List

AUDIO SYSTEM 2-7

Operating the radio

Turn the knob on the control

panel in clockwise or counterclockwise

direction. Each click on the knob

will display the channel information of

the previous or next channel.

The current playing channel will continue

to be played.

INFORMATION

If in Channel mode, the channel is selected

from all channels. If in Category mode, the

first channel of each category is selected.

Press the knob at the desired

channel.

The selected channel will begin playing.

(d) Selecting channel through channel/

category list

Press the button.

If in channel mode, the Channel List

screen will be displayed.

If in category mode, the Category List

screen will be displayed.

Select the desired category button to

display the channel list screen for the

corresponding category.

Select the desired channel button. The

previous screen will be restored and the

selected channel will begin playing.

(e) Selecting channel by directly inputting

the channel number

Press the button.

The Channel Search screen will be

displayed.

Input desired channel number, and press

the button. The previous screen

will be restored and the selected channel

will begin playing.

INFORMATION

To prevent inputting a channel which exceeds

the channel range, numbers which cannot be

inputted are set to disabled state.

Done

List

TUNE

2-8 AUDIO SYSTEM

PART 2 :AUDIO SYSTEM

Storing SIRIUS preset

Select the desired channel.

[Selecting SIRIUS broadcast channel],

page 2-6.

Press the preset button for over 0.8 second.

The frequency will be saved along with

beep sound.

INFORMATION

Six preset frequencies each for SIRIUS1/

SIRIUS2/ SIRIUS3 modes can be stored using

the above instructions.

Scanning SIRIUS broadcast channel

Press the button.

SCAN (under 0.8 second): Scans all

channels for 5 seconds each if in channel

mode. If in category mode, scans all

channels within the current category for 5

seconds each.

PRESET SCAN (over 0.8 second): Scans the

6 preset channels within the current band

for 5 seconds each.

Press the button again to

continue playing the channel.

The scan will be terminated and the

current channel will continue to play.

INFORMATION

Within the Channel List screen, if the

button nxt to each channel name is pressed,

the selected channel will be excluded from

SCAN operation.

When scanning has completed an entire

revolution, the scan function is automatically

terminated and the previous played channel

will be restored.

Channel 0 is the radio ID and contains

information required for SIRIUS Activation.

Browsing detailed information

about the SIRIUS channel

Press the button.

The detailed information (Title, Artist and

Composer) for the current channel will be

displayed.

Press the button.

The detailed information will be turned

off.

Info

Scan

AUDIO SYSTEM 2-9

Operating the CDP

About CDP

Precautions upon handling discs

After using a disc, keep it in the original

case to prevent it from becoming

scratched, which may cause the CD to

make popping sounds.

Do not use heart-shaped discs, octagon-

shaped discs, or any other abnormally

shaped disc. Such discs may be the cause

of malfunctions.

Do not clean discs with chemical solutions

such as record sprays, antistatic sprays,

antistatic liquids, benzene, or thinners.

Such materials may cause the surface of

DISC to be unrecoverable.

Do not expose the disc to direct sunlight

for prolonged periods of time. Such

exposure may lead to disc deformation.

Dust, scratch, and other substances may

cause popping sound while playing as

well as sound and picture deterioration.

Never place paper on either side of the

disc or write on disc surfaces. Sharp

writing utensils and inks used in felt-tip

pens may cause damage to disc surfaces

Clean fingerprints and dust off the signal

surface (coated side) of the disc with a

soft cloth.

Only soft cloths should be used as there

are no grooves for dust to get in as is the

case with LPs.

Copy-protected CDs such as S-type CDs

may not function in the device.

DATA CDs are not supported by the

device. (However, such discs may operate

abnormally.)

For safe and efficient operation

Do not disassemble the CDP for repair

purposes. Contact your place of purchase

in the case of malfunction. (Complete

service assistance will not be provided if

the user disassembles the device.)

Do not use water to clean the device.

Exposure to water may cause damage to

the device.

Be cautious not to introduce foreign

substances into the disc insert slot.

Foreign substances may cause damage

to the interior of the device.

The device may fail to operate properly in

extremely hot or cold temperatures.

Discontinue the use of the device unless

normal temperature is maintained.

(The operational temperature range is: -

~ 65

Steam can be condensed on the

fiberoptic lens due to rain, wet conditions,

or upon operating the heating system.

Skipping may occur to the audio and

video when driving on bumpy roads for

prolonged periods of time or upon severe

shock to the vehicle.

Do not use chemical solvent to clean the

device. Such solvents may cause damage

to the surfaces of the device.

Always use a clean and dry cloth.

2-10 AUDIO SYSTEM

PART 2 :AUDIO SYSTEM

WARNING !

Always give your full attention to driving.

Avoid operating your system in such a way

that you can be distracted driving vehicle

operation.

Supported disc formats

The disc types supported by this device

are as shown below.

Disc format Disc media Disc format

CD CD-DA

CD-R MP3

CD-RW WMA

Multisession-CD DTS-CD

CD CD-ROM

CD-G

CD-EXTRA

CD-TEXT

SACD SACD

SACD(Hybrid)

AUDIO SYSTEM 2-11

Operating the CDP

Disc Size

3inch (7.6 cm)

5inch (12.7cm)

CD-R or CD-RW DISC burned with a bulk

CD without quality guarantees may not

be recognized by the device.

Inserting an abnormal disc may result in

faulty operation or recognition.

Disc/Content format compatibility

Ordinary disc compatibility

This device has been designed/

manufactured to be compatible with

software bearing the following logo marks.

CD-R/RW discs (Audio CD and MP3 CD)

created with CD-writing devices or

personal computers may not properly

function in the device.

This may be caused by damaged recording

method, contamination by dirt and other

foreign substance on the disc surfaces or

play lens, and various other reasons.

Special formats or special features

regarding software

CD-R/RW Compatibility.

This device operates as a CD-ROM

including CD-R and CD-RW DISC written in

CD Audio or MP3 CD Format.

However, other contents may cause

abnormal disc operation such noise or

distorted picture.

The writing of CD-R and CD-RW discs with

this device is not supported.

Although CD-R/RW discs burned as audio

CDs which have not been finalized are not

supported by the device, some information

such as play time may be displayed.

PC-created DISC compatibility.

When recording a disc with a personal

computer, even discs recorded in a

"format compatible" with the formats

described above may not operate on the

device caused by software settings of the

recording application.

In such cases, contact the software

developer.

Additional information regarding

compatibility can be found on the CD-R/

RW software disc box.

DVD-R/W discs are not supported by the

device.

Audio-CD CD-R CD-RW

Disc format Audio format

CD LPCM

MP3 MPEG1, Layer3

MPEG2, Layer3

MPEG2.5

WMA Ver9

2-12 AUDIO SYSTEM

PART 2 :AUDIO SYSTEM

Compressed audio compatibility

This device plays audio files compressed by

MPEG-1 audio stream layer 3(MP3) using 32,

44.1 and 48KHz fixed bit rates. Incompatible

files are not supported.

Variable bit rate files may operate, but the

play time information may not be

properly displayed.

Physical formats of CD : Model 1, Model 2

XA format 1.

This device only supports tracks with file

extension of ".MP3" or ".WMA".

This device does not support multi-

session discs.

This device supports a maximum of 256

folders and maximum 512 files. Folders

and files which exceed this limit will not

be supported.

There are various bit rates which can be

encoded onto a MP3 file.

This device has been designed to be

compatible with various bit rates. Audio

which has been encoded at 128kbps will

sound similar to CD audio sound quality.

Although this device supports low bit rate

MP3 tracks, such tracks may only provide

low quality sound.

For stable operation, the use of files in

95kbps~192kbps bit rate range and

44.1kHz SAMPLING frequency is

recommended.

AUDIO SYSTEM 2-13

Operating the CDP

Inserting/Ejecting Disc

Inserting a Disc

Insert the disc into the slot.

The disc will begin playing automatically

after it has been inserted.

INFORMATION

If the operation mode had been Audio mode

before inserting the disc, the device will

convert to the DISC mode screen and begin

playing. If the operation mode had been

Navigation mode, then Navigation mode

screen will remain and the disc play status will

be displayed through the Audio bar.

Ejecting a Disc

Press the button.

The disc will immediately be stopped and

ejected.

INFORMATION

If the operation mode had been Audio

mode before ejecting the disc, the device

will be converted back to Audio mode.

If the operation mode had been Navigation

mode, then Navigation mode screen will

remain.

If the disc is straddled on the slot without

removing for approximately 10 seconds, the

disc will be re-inserted automatically into

the disc player.

In such a case, the disc will not begin

playing automatically.

2-14 AUDIO SYSTEM

PART 2 :AUDIO SYSTEM

Listening to CD music

Insert the CD or press the

button on the Control panel if the CD is

already inserted.

Select the desired track.

[Selecting the CD track], page 2-15.

CD screen and functions

Mode display: Displays that the current

mode is CD mode.

RANDOM / REPEAT /SCAN indicator: If

RANDOM/REPEAT/SCAN is operating,

the switch is displayed.

Play time: Displays the play time.

Track number: Displays the current

playing track number.

button: Plays or pauses the

current track.

button: REW or FF

[Selecting a CD track], page 2-15

button: Previous or next

track.

[REW/FF CD track], page 2-15.

button : Plays the tracks on the

disc in random order.

[Setting Random function for CD

music] , page 2-15.

button: Repeats the current

playing track.

[Setting Repeat function for CD

music], page 2-15.

button : Scans all tracks on the

disc for 10 seconds each.

[Scanning CD track], page 2-15.

Scan

Repeat

Random

CD/AUX

AUDIO SYSTEM 2-15

Operating the CDP

Selecting the CD track

There are 2 ways to select a CD Track - (a)

selecting through Track Up/Down, (b)

selecting through searching Track.

(a) Selecting through Track Up / Down

Press the or buttons on

the control panel or the or

buttons on the steering wheel remote controller or the or buttons on

the screen for less than 0.8 second.

The next or previous track will begin

playing.

INFORMATION

If the button on the Control panel

or the button on the steering wheel

remote controller or the button on the

screen is pressed shortly while the track has

played for more than 3 seconds, the start of

the current track will begin playing. If the

track has been playing for less than 2 seconds,

the start of the previous track will begin

playing.

(b) Selecting track through search

Turn the knob on the Control

panel in clockwise or counter-clockwise

direction. Each click on the knob

will display the information of the next or

previous track. The current playing track

will continue to be played.

Press the knob at the desired

track.

The searched track will begin playing.

REW/FF CD track

Press and hold the or

buttons on the Control panel or steering wheel Remote controller or the or

buttons for over 0.8 second.

The track will play 20 times faster while

holding the button and return to normal

play when the button is released.

Setting Random function for CD

music

Press the button.

Each press will change the function in the

following order: RANDOM

RANDOM OFF

RANDOM

* RANDOM : plays all tracks in the disc in

random order.

Setting Repeat function for CD

music

Press the button.

Each press will change the function in the

following order: REPEAT

REPEAT OFF

REPEAT

* REPEAT : repeats the current playing track.

Scanning CD track

Press the button. Each press will

change the function in the following

order: SCAN

SCAN OFF SCAN.

* SCAN : Scans all tracks in the disc for 10

seconds each.

Scan

Repeat

Random

TRACK SEEK

TUNE

SEEK

TRACK

SEEK SEEK

TRACK SEEK

2-16 AUDIO SYSTEM

PART 2 :AUDIO SYSTEM

Press the button again to

continue listening to the track.

The scan will be terminated and the

current track will continue to be played.

INFORMATION

When scanning has completed an entire

revolution, the scan function is automatically

terminated and the previous played track will

be restored.

Scan

AUDIO SYSTEM 2-17

Operating the CDP

MP3

MP3 disc related information and

precaution

Information

The MP3 file standards supported by the

device are as follows.

Acceptable standard: MPEG1 AUDIO

LAYER 3

Acceptable sampling frequency: 32, 44.1,

48 (KHz)

Acceptable bit rate: 32, 40, 48, 56, 64, 80,

96, 112, 128, 160, 192, 224, 256, 320

(Kbps)

Recommended bit rate & reference

sampling frequency: 96,128, 192 Kbps

fixed bit rate /44.1KHz

ID3 tag

This device supports ID3v1.0, ID3v1.1,

ID3v2.2, ID3v2.3, and ID3v2.4 ID3 tags.

Supported media

The MP3 media supported by the device

are CD-ROM and USB.

Supported media formats

This device supports ISO9660 LEVEL1 and

LEVEL2. Detailed specification is as below.

Maximum directory layers: 8 layers

Maximum folder length: 64 Bytes, file

name length: 64 Bytes

Supported characters for folder name/ file

standard character set 2350 characters,

Simplified Chinese 4888 characters

Maximum number of folders which can

be stored onto one disc: 256 folders

(including ROOT directory)

Maximum number of files which can be

stored onto one disc: 512 files

Precautions upon burning MP3 files

The use of ISO 9660 LEVEL 2 JOLIET

format is recommended when burning

MP3 files. Burning in other formats may

abnormally display the file names.

It is possible to display up to 32 characters

for file and folder names in case of

UNICODE, and up to 64 characters in case of

ASCII. Although the full length of the file

name can be displayed by using the scroll

function, the full length of folder names

may not be displayed as the scroll function

does not operate when displaying folder

names.

Precaution

Please use an MP3 bit rate which is less than

128 Kbps. The sound quality cannot be

guaranteed for MP3s exceeding 128Kbps.

2-18 AUDIO SYSTEM

PART 2 :AUDIO SYSTEM

Listening to MP3 music

Insert the MP3 disc or press the

button on the Control panel if the MP3

disc is already inserted.

Select the desired file.

[Selecting the MP3 file], page 2-19.

MP3 screen and functions

Mode display: Displays that the current

mode is MP3 disc mode. (MP3 files on

DVD discs are not supported.)

REPEAT/RANDOM/SCAN indicator: If

REPEAT/RANDOM/SCAN is operating,

the switch is displayed.

Play file position : Current playing file /

Total files

Play Time: Displays the play time.

Folder name: Displays the folder name.

File name: Displays the file name.

button: Plays or pauses the

current file.

button: REW or FF

[REW/FF MP3 file], page 2-20.

button: Previous or next

track, [Selecting an MP3 file], page 2-19.

button : Plays all files on the

disc or folder in random order.

[Setting Random function for MP3

file] , page 2-20.

button: Repeats the current

playing folder or file. [Setting Repeat

function for MP3 file], page 2-20.

button : Scans all files on the

disc or folder for 10 seconds each.

[Scanning MP3 file], page 2-20.

button : Displays the MP3

folders and file lists for the disc.

[Selecting an MP3 file], page 2-19.

button : Displays or hides the

detailed file information for the current

playing file.

[Browsing detailed information about

MP3 file], page 2-20.

Info

List

Scan

Repeat

Random

CD/AUX

AUDIO SYSTEM 2-19

Operating the CDP

Selecting an MP3 file

There are 3 ways to select an MP3 file - (a)

selecting through file up/down, (b)

selecting through searching files, (c)

selecting through MP3 list.

(a) Selecting through File Up / Down

Press the or buttons on

the control panel or the or

buttons on the steering wheel

remote controller or the or

buttons on the screen for less than 0.8

second.

The next or previous file will begin playing.

INFORMATION

If the button on the control panel

or the

button

on the steering wheel

remote controller

the

button on the

screen is pressed shortly while the file has

played for more than 3 seconds, the start of

the current file will begin playing. If the file

has been playing for less than 2 seconds, the

start of the previous file will begin playing.

(b) Selecting through search

Turn the knob on the Control

panel in clockwise or counter-clockwise

direction. Each click on the knob

will display the information of the next or

previous file. The current playing file will

continue to be played.

INFORMATION

If the operation of the knob is too

rapid, there may be a delay in displaying the

file information.

Press the knob at the desired file.

The searched file will begin playing.

Press the button. The file list of

the folder for the current playing file will

be displayed.

INFORMATION

If many songs and folders are recorded onto

a DISC, file loading time may be longer and

cause the play list to be improperly displayed

or song search through TUNE operation to

operate improperly. In such cases, wait until

file loading is complete and try again. Within the MP3 list screen, if the

button is pressed while searching for files

within a folder or a page, the current playing

file list will become displayed.

Press the desired menu to return to the

main screen and play the selected file.

New Playing

List

TUNE

SEEK

TRACK

SEEK

TRACK SEEK

2-20 AUDIO SYSTEM

PART 2 :AUDIO SYSTEM

REW/FF MP3 file

Press and hold the or

buttons on the control panel or the

or buttons on the steering

wheel remote controller or the or

buttons for over 0.8 second. The file will

play 20 times faster while holding the

button and return to normal play when the

button is released.

Browsing detailed information

about the MP3 file

Press the button.

The detailed information (Title, Artist,

Album, Genre) for the current playing

MP3 will be displayed.

Press the button. The detailed

information will be turned off.

Setting Random function for MP3

file

Press the button.

* RANDOM (less than 0.8 second) : Plays all

files in the disc in random order

* FOLDER RANDOM (over 0.8 second) :

Plays the files in the current folder in

random order.

Press the button again to

continue listening to the current file. The

random selection will be terminated and

the current file will continue to play.

Setting Repeat function for MP3 file

Press the button.

* REPEAT (less than 0.8 second) : Repeats

the current playing file

* FOLDER REPEAT (over 0.8 second) :

Repeats the files in the current folder

Press the button again to stop

repeating the current file. The repeat

selection will be terminated and the

current file will continue to play once

until the next file starts to play.

Scanning MP3 file

Press the button.

* SCAN (less than 0.8 second) : Scans all files

in the disc and plays for 10 seconds each.

* FOLDER SCAN (over 0.8 second) : Scans all

files in the current folder for 10 seconds

each.

Press the button again to

continue listening to the file. The scan

selection will be terminated and the

current file will continue to play.

INFORMATION

When scanning has completed an entire

revolution, the scan function is automatically

terminated and the previous played file will

be restored.

Scan

Repeat

Random

Info

SEEK SEEK

TRACK SEEK

AUDIO SYSTEM 2-21

Operating the external devices

Operating external devices

iPod

iPod is a registered trademark of Apple, Inc.

Connecting iPod device

Connect the iPod device as shown in the

picture.

The identification of the iPod device, battery

recharge, and other functions provided by

the iPod device can be normally supported

only by using a separated sold iPod

connector cable.

If the USB cable provided upon purchasing

the iPod for charging is used as the

connector cable, the device will be

recognized as a USB and may not properly

operate or display all of the display

information.

Supported iPod devices : iPod 3G, iPod 5G,

5.5G, iPod Mini, iPod Nano 1G, 2G.

If iPod mode cannot be entered due to

identification error, no track, incompatible

protocol version, or other reasons, a pop-up

message "No Media Connected" will be

displayed for 5 seconds and return

automatically to the previous mode. If the

message continues even after reconnecting

the iPod, check to see if there are any

problems with the iPod device.

CAUTION

If a playing iPod is connected to the audio

system, a high-pitched tone may occur for

approximately 1-2 seconds.

Please turn the iPod device to pause/stop

prior to connecting it to the vehicle.

Listening to music from iPod

Connect the iPod or press the

button on the Control panel if the iPod is

already connected.

INFORMATION

Even if the iPod is connected, the 'No Media'

message may be displayed if an error has

occurred. In such a case, reconnect the iPod.

Select the desired song.

[Selecting an iPod song], page 2-22.

INFORMATION

An iPod cable assembly can be purchased at

your local Kia dealer.

CD/AUX

2-22 AUDIO SYSTEM

PART 2 :AUDIO SYSTEM

iPod screen and functions

Mode display: Displays that the current

mode is iPod mode.

RANDOM/REPEAT indicator: If RANDOM/

REPEAT is operating, the switch is

displayed.

Play file position: Current playing file /

Total files

Play Time: Displays the play time.

Category name: Displays the category

name of the playing file.

Title name: Displays the title name of

the playing file.

button: Plays or pauses the

current file.

button: REW or FF.

[REW/FF MP3 file], page2-24.

button: Previous or next

track. [Selcting music from iPod], page 2-22.

button : Plays all music in the

current playing list in random order or

randomly in album unit.

[Setting Random function for iPod

music], page 2-24.

button: Repeats the current

playing music, [Setting Repeat function

for iPod music], page 2-25.

button : Converts to the

category menu screen.

[Selecting music from iPod], page 2-23.

button : Displays or hides the

detailed file information for the current

playing file.

[Browsing detailed information about

the iPod music], page 2-25.

Selecting music from iPod

There are 3 ways to select songs from the

iPod device - (a) selecting song through

Up/Down, (b) selecting song through

sequential search, (c) selecting song

through menu.

(a) Selecting song through Up / Down

Press the or buttons on

the control panel or the or

buttons on the steering wheel remote controller or the or buttons on the

screen for less than 0.8 second. The next or

previous song will begin playing.

INFORMATION

If the button on the control panel

or the button on the steering wheel

remote controller or the button on the

screen is pressed shortly while the song has

played for more than 3 seconds, the start of

the current song will begin playing.

If the song has been playing for less than 2

seconds, the start of the previous song will

begin playing.

SEEK

TRACK

SEEK SEEK

TRACK SEEK

Info

Repeat

Random

AUDIO SYSTEM 2-23

Operating the external devices

(b) Selecting song through search

Turn the knob on the Control

panel in clockwise or counter-clockwise

direction. Each click on the knob

will display the information of the next or

previous song.

The current playing song will continue to

be played.

INFORMATION

If the operation of the knob is too

rapid, there may be a delay in displaying the

song information.

Press the knob at the desired song.

The searched song will begin playing.

Press the button.

The iPod menu screen will be displayed.

Press the button for the desired search

method.

INFORMATION

If the search mode is accessed while playing a

song, the most recent searched step will be

displayed.

The search steps upon initial connection are

listed below.

TUNE

2-24 AUDIO SYSTEM

PART 2 :AUDIO SYSTEM

Press the desired song button to return

to the main screen and play the selected song.

REW/FF iPod music

Press and hold the or

buttons on the control panel or the

or buttons on the steering

wheel remote controller or the or

buttons for over 0.8 second.

The song will play 20 times faster while

holding the button and return to normal play when the button is released.

Setting Random function for iPod

music

Press the button.

* RANDOM (less than 0.8 second) : Plays all

files in the current playing list in random

order.

* ALBUM RABDOM (over 0.8 second) : Plays

the songs in the current playing list

randomly in Album units.

Press the button again to

continue listening to the current song.

The random selection will be terminated

and the current song will continue to

play.

Setting Repeat function for iPod

music

Press the button.

Each press will change the function in the

following order: REPEAT

REPEAT OFF

REPEAT

* REPEAT : Repeats the current playing

song.

Repeat

Random

SEEK SEEK

TRACK SEEK

1 Step 2 Step 3 Step 4 Step

Playlist Playlist Song

Genre Genre Artist Album Song

Artist Artist Album Song

Composer composer Album Song

Album Album Song

Audiobooks Song

Songs Song

Podcasts Program Episode

Song

Episode

Song

AUDIO SYSTEM 2-25

Operating the external devices

Browsing detailed information

about the iPod music

Press the button.

The detailed information (Title, Artist and

Composer) for the current channel will be

displayed.

Press the button.

The detailed information will be turned

off.

Info

2-26 AUDIO SYSTEM

PART 2 :AUDIO SYSTEM

USB

USB MP3 related information and

precaution

Information

The MP3 file standards supported by the

device are as follows.

Acceptable standard: MPEG1 AUDIO

LAYER 3

Acceptable sampling frequency: 32, 44.1,

48 (KHz)

Acceptable bit rate : 32, 40, 48, 56, 64, 80,

96, 112, 128, 160, 192, 224, 256, 320

(Kbps)

Recommended bit rate & reference

sampling frequency: 96,128, 192 Kbps

fixed bit rate /44.1KHz

ID3 tag

This device supports ID3v1.0, ID3v1.1,

ID3v2.2, ID3v2.3, and ID3v2.4 ID3 tags.

Supported media

The MP3 media supported by the device

are CD-ROM and USB.

Supported media formats

This device supports ISO9660 LEVEL1 and

LEVEL2. Detailed specification is as below.

Maximum directory layers: 20 layers

Maximum length of folder name/file

Supported characters for folder name/ file

standard character set 2350 characters,

Simplified Chinese 4888 characters

Maximum number of folders which can

be stored onto one USB: 2000 folders

(including ROOT directory)

Maximum number of files which can be

stored onto one USB: 6000 files

Precautions upon formatting USB &

downloading MP3 files

The device only supports FAT type USB

file system. The device will not play USB

media content if the USB is NTFS type.

Precaution

Please use an MP3 bit rate which is less than

192Kbps and a fixed bit rate.

The sound quality cannot be guaranteed for

MP3s exceeding 192Kbps and operation of

specific functions (limited to FF/REW

functions) may be abnormal with variable

bit rates.

Precautions upon handling USB

When using the external USB device, make

sure to keep the device disconnected and

connect only some time after turning on the

vehicle ignition. The USB device may be

damaged if the USB device already

connected when the ignition is turned on.

(USB device is not an electronic automotive

component)

The external USB device may not operate

if the USB device already connected when

vehicle ignition is turned on or off.

The device will not operate when playing

a format which is not MP3 or WMA file

formats.

Only MP3 files with compression rates

between 8Kbps~320Kbps are supported.

AUDIO SYSTEM 2-27

Operating the external devices

Only WMA files with compression rates

between 8Kbps~320Kbps are supported.

Be cautious of static electricity when

connecting/disconnecting the external

USB device.

Encoded MP3 Players will not be

recognized when connected as the

external device.

When connecting an external USB device,

the device may not properly recognize

the USB when the USB is in some states.

When formatting the external USB device,

the device may not properly be properly

recognize a Byte/Sector selection other

than 512Byte or 2048Byte.

The device will only recognize USB

devices formatted in FAT 12/16/32.

Some USB devices may not operate

properly because of compatibility issues.

Verify that the external device is

supported by the device before starting

use.

Avoid contact between the USB

connector with bodily parts and foreign

substances.

Repeatedly connecting/disconnecting the

USB in a short period of time may cause

damage to the device.

When disconnecting the USB, an

abnormal sound may occur occasionally.

Abruptly disconnecting the external USB

device while the USB is operating may

cause the device to be damaged or function

abnormally.

Make sure to disconnect the USB device

only after the audio power is turned off or

when the audio is operating in a different

mode.

The amount of time required to recognize

the external USB device may differ

depending on the type, size, or file

formats stored on the USB. Such

differences in the required time are not

indications of malfunction.

Please wait for the required period of

time to recognize the device.

The device supports only USB devices

used to play music files.

Do not use the USB I/F to charge batteries

or USB accessories which generate heat.

Such acts may lead to deteriorated

performance or damage to the device.

The device may not recognize the USB

device if separately purchased USB hubs

and extension cables are being used.

Connect the USB directly to the

multimedia terminal of the vehicle.

In the case of high capacity USB devices,

there are instances where the logical drives

are partitioned for user convenience. In

this case, only the USB music in the top-

level logical drive will be possible to play.

When using partitioned drives, save the

desired songs to play on the device only

in the top-level logical drive.

In addition, certain USB devices are

configured with a separate drive used to

install application programs and songs

from such drives may not be possible to

play for the reasons as described above.

2-28 AUDIO SYSTEM

PART 2 :AUDIO SYSTEM

The device may not support normal

operation if MP3 Players, cellular phones,

digital cameras, or other electronic

devices (USB devices not recognized as

portable disk drives) are connected to the

device.

The device may not support normal

operation when using a USB memory

type besides the Metal Cover Type USB

Memory.

The device may not support normal

operation when using formats such as

HDD Type, CF, or SD Memory.

The device will not support files locked by

DRM (Digital Rights Management).

The device many not support normal

operation if the proper connection with

the USB memory fails due to vibrations

caused by the vehicle. (i-stick type, etc.)

Please avoid using USB memory products

which can be used as key chains or

cellular phone accessories as they could

cause damage to the USB jack.

Please make certain only to use plug type

connector products as shown below.

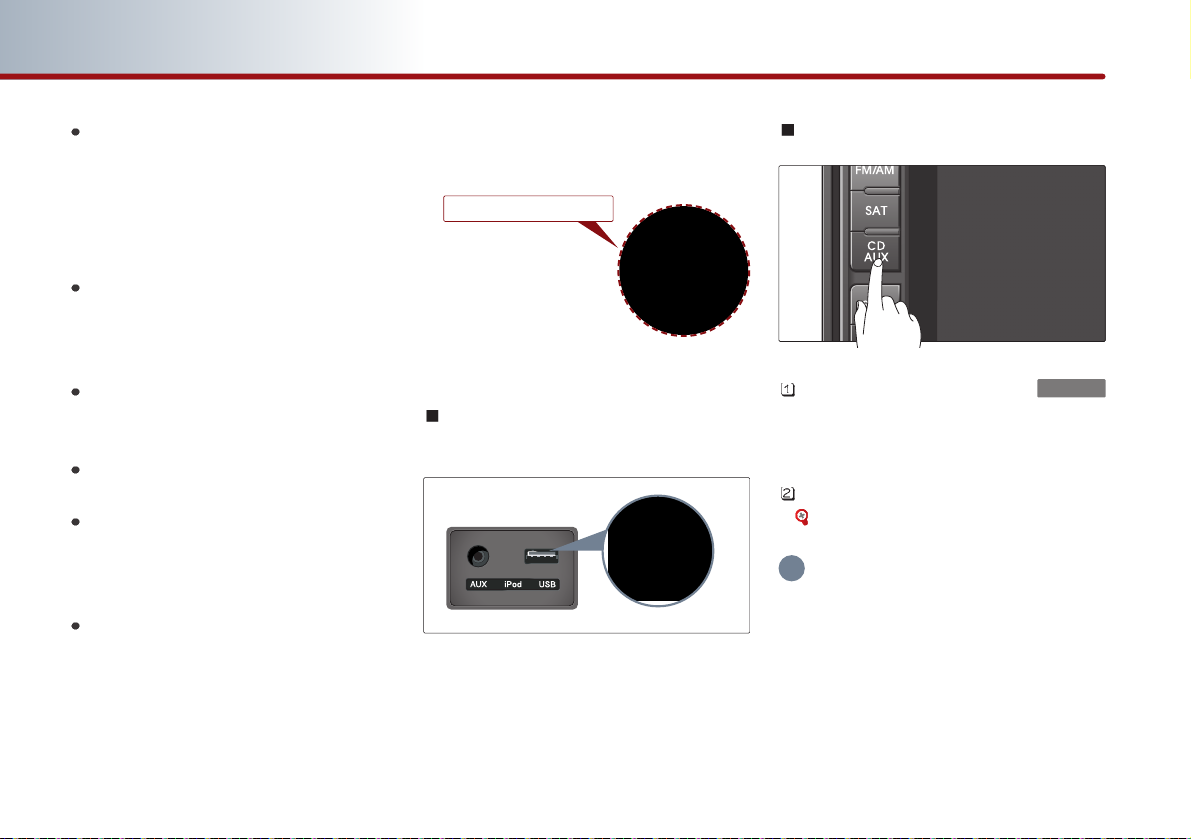

Connecting the USB

Connect the USB as shown in the picture.

Listening to USB music

Connect a USB or press the

button on the Control panel if the USB is

already connected.

Select the desired file.

[Selecting the MP3 file], page 2-19.

INFORMATION

The USB screen and operation method is the

same with MP3 mode. Please refer to the MP3

mode section for more information.

CD/AUX

Plug Type Connector

AUDIO SYSTEM 2-29

Operating the external devices

AUX

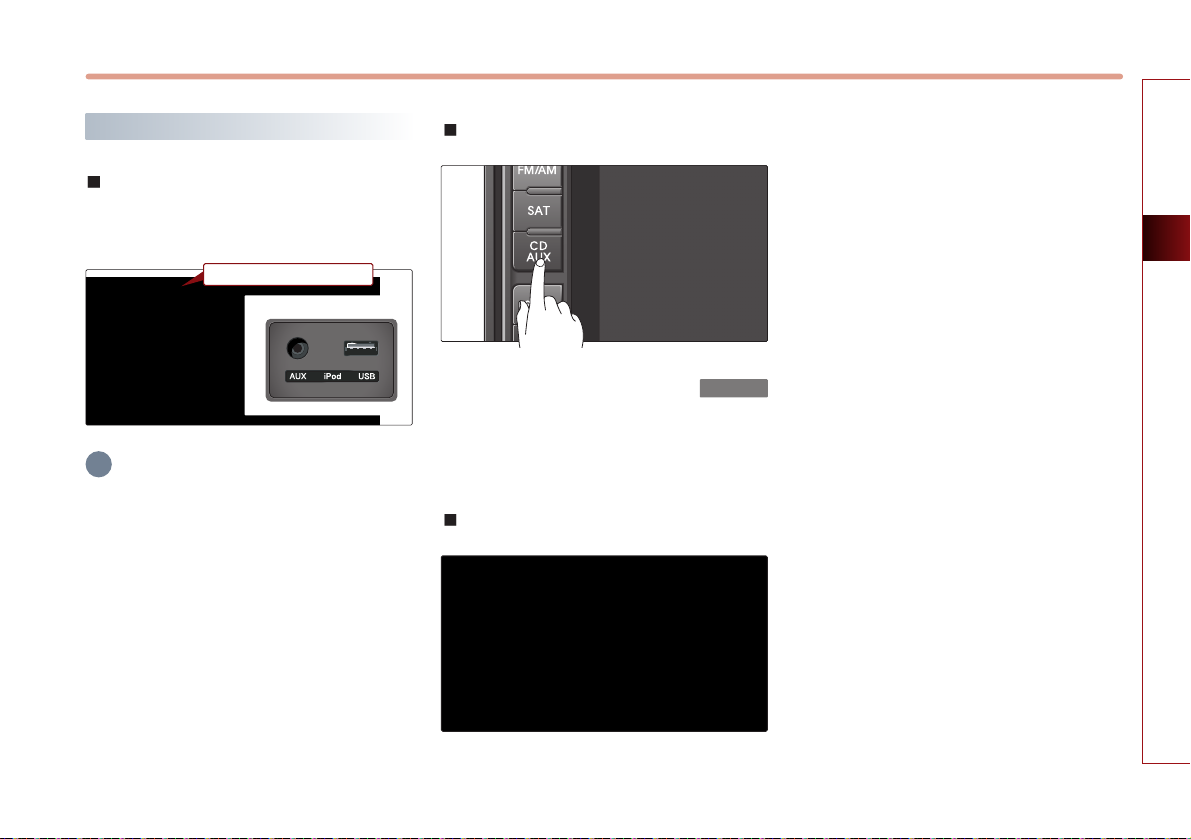

Connecting AUX

Connect the external Audio player as shown

in the picture.

INFORMATION

Connect only by using AUX terminals.

Playing AUX

Connect an AUX or press the

button on the Control panel if the AUX is

already connected.

AUX screen

Audio AUX screen

CD/AUX

External Audio Device

PART 3 :NAVIGATION SYSTEM

PART 3 NAVIGATION SYSTEM

Limitations of the navigation system

3-2

GPS signal reception state 3-2

Vehicle position display

3-3

Route guidance

3-4

Route Re-calculation

3-4

Starting navigation system 3-5

Map Functions

3-5

Current position map screen (without route)

3-5

Switching map mode (north up/heading up)

3-6

Viewing GPS signal state

3-7

Changing the map scale

3-8

Displaying / Hiding POI icons on the map

3-9

Displaying / Hiding QPOI icons

3-9

Displaying /Hiding icons besides QPOI icons

3-9

Scrolling map

3-10

Setting a Destination 3-11

Destination menu screen and function

3-11

Searching a destination

3-12

Searching an address

3-12

Searching a previous destination

3-16

Searching an intersection

3-16

Searching a POI

3-19

Searching from address book

3-23

Searching for emergency facilities

3-24

Searching your home

3-24

Searching favorite places

3-24

Searching from map

3-25

Searching POI by local POI list

3-25

Operating after searching a destination

3-26

Changing destination position

3-26

Setting as destination/waypoint

3-26

Adding to address book

3-26

Operating after setting a destination

3-27

Starting route guidance 3-27

Route guidance screen

3-27

Selecting other route

3-28

Route guidance 3-29

Route menu screen and functions 3-29

Finishing route guidance

3-29

Route overview

3-30

Changing route option

3-30

Editing waypoints

3-31

Adding waypoints

3-31

Deleting waypoints

3-32

Re-ordering waypoints

3-33

Setting detour distance

3-33

Setting avoid streets on route

3-33

NAVIGATION SYSTEM 3-1

NAVIGATION SYSTEM

PART 3 NAVIGATION SYSTEM

Setup and Information 3-34

Setup menu screen and function 3-34

Main setting

3-34

Setting key board for inputting letter

3-35

Initializing system 3-35

Navigation setting

3-35

Setting units (mi/km)

3-35

Setting arrival time and distance display

3-35

Registering avoid area

3-36

Editing avoid area

3-37

Deleting avoid area

3-38

Deleting all avoid area

3-39

Setting QPOI icons

3-39

Setting estimate travel time

3-40

My places setting

3-40

Registering new address in address book

3-40

Editing an address of address book

3-42

Deleting an address of an address book

3-43

Deleting an address book

3-44

Registering Home address

3-45

Deleting Home address

3-46

Registering Favorite place

3-46

Deleting Favorite place

3-47

System information and update

3-48

Voice guidance volume setting

3-48

Voice guidance volume control

3-49

Adaptive volume control ON/OFF

3-49

Help

3-49

3-2 NAVIGATION SYSTEM

PART 3 :NAVIGATION SYSTEM

Limitations of the navigation system

GPS signal reception state

As the GPS satellite frequency is received

/transmitted in straight lines, reception

may not work if hiding devices are placed

on or near the GPS antenna or when

traveling through the following locations.

Tunnels

Basement parking structures

Underneath an overpass

Roads within forested areas

Areas near high rise buildings

Roads within canyons

NAVIGATION SYSTEM 3-3

Limitations of the navigation system

Vehicle position display

If multipass errors occur due to reflections

from buildings or related causes, the

current position mark on the navigation

may differ from the actual position of the

vehicle.

The position of the vehicle on the

navigation may be different from the

actual position if the vehicle is under the

following conditions. If such differences

occur, driving for a short period of time

will automatically correct the position of

the vehicle through map matching or GPS

information (several minutes may be

necessary in certain cases).

When driving on a Y-shaped road with a

narrow angle, the current position may

be displayed in the opposite direction.

If the vehicle is loaded onto a ferry or a

car transport vehicle, the current

position mark may be stalled on the last

position prior to loading.

When driving on a spiral-shaped road.

When driving in mountain regions with

sharp turns or sudden brakes.

When entering a road after having been

in an underground parking structure,

building parking structure, or turntable

with many rotations.

When the tires have recently been

replaced (Especially upon use of spare or

studless tires)

If the battery terminal is removed.

When driving in city streets, the current

position may be displayed on the

opposite side or on an off-road position.

When changing the zoom level from the

maximum zoom in level to a different

zoom level, the current position mark

may be displayed on a different road.

When driving in heavy traffic with frequent

stops in traffic or intersections.

When driving under slippery conditions,

such as heavy sand, snow, etc.

When driving with the tire chain in place.

When using a tire with an incorrect size

specification.

When the tire pressure for the 4 tires are

different.

When the replacement tire is a worn or

used tire (Especially studless tires having

passed a 2nd seasons, etc.)

When driving near high-rise buildings

If a roof carrier has been installed

When driving under high speeds or

having calculated a long-distance route.

Route Guidance

Suitable route guidance may not occur

caused by search conditions or the

driving position.

Guidance to go straight may be given

while driving on a straight road.

Guidance may not be given even when

having turned at an intersection.

There are certain intersections in which

guidance may not occur.

A route guidance signaling for a U-Turn

in a No U-Turn location may occur.

A route guidance signaling entrance into

a no enter zone may occur (No enter

zone, road under construction, etc.).

Guidance may be given to a position

removed from the actual destination if

roads to reach the actual destination do

not exist or are too narrow.

Faulty voice guidance may be given if

the vehicle breaks from the designated

route (ex: if a turn is made at an

intersection while the navigation

provided guidance to go straight).

Map Data may be missing or incorrect

causing route guidance to not be given.

Route Re-calculation

The following phenomena may occur

after conducting route recalculation.

Guidance may be given to a position

differing from the current position when

turning at an intersection.

Route Recalculation may take a longer

period of time when driving under high

speeds.

A route guidance signaling for a U-Turn

in a No U-Turn location may occur.

A route guidance signaling entrance into a

no enter zone may occur (No enter zone,

road under construction, etc).

Guidance may be given to a position

removed from the actual destination if

roads to reach the actual destination do

not exist or are too narrow.

Faulty voice guidance may be given if

the vehicle breaks from the designated

route (ex: if a turn is made at an

intersection while the navigation

provided guidance to go straight)

3-4 NAVIGATION SYSTEM

PART 3 :NAVIGATION SYSTEM

NAVIGATION SYSTEM 3-5

Starting navigation system

Press the Navigation mode button

( , , , ). The

Caution screen will always be displayed

when first entering into Navigation mode.

Read the contents of the caution screen carefully and press the button.

MAP Functions

Current position map screen (without route)

Press the button on the control

panel to display the map of current position

and the neighboring area.

GPS signal state indicator : Displays the

state of GPS signal reception.

[Viewing GPS signal state], page 3-7.

Map scale level indicator : Displays the

current map scale.

[Changing the map scale], page 3-8.

Landmark icons : Landmark icons are

displayed on the map when the map

scale level is set to under 300 ft (100m-

dependent on map data)

[Appendix : Landmark icons], page 4-8.

POI icons : POI icons are displayed on

the map when the map scale level is set

to under 0.5 mi (800m).

[Appendix : POI icons], page 4-6.

Current vehicle position icon : Displays

the current position of the vehicle.

MAP VOICE

Agree

SETUP

ROUTE

DESTMAP VOICE

MAP Functions

North Up / Heading Up switch :

Displays the current map mode, and the

map mode can be switched between

North Up and Heading Up.

[Switching map mode], page 3-6.

POI : Displays or hides the POI icon on

the map.

[Displaying/Hiding POI icons on

map], page 3-9.

Map scale : Increases or decreases the

map scale.

[Changing the map scale], page 3-8.

Switching map mode (North Up / Heading Up)

Each time the compass button is pressed,

the screen will switch in the order shown

below.

Heading Up

North Up Heading Up

INFORMATION

All map screens (map screen after setting

destination & whole route display screen)

except the current position screen will always

be displayed in North Up mode.

North Up : displays the map always facing

the North direction regardless of the

direction which the vehicle is traveling.

The vehicle icon is displayed in the center

position of the map.

Heading Up : displays the map always

facing the direction which the vehicle is

traveling.

The vehicle icon is displayed in the lower

center position of the map.

3-6 NAVIGATION SYSTEM

PART 3 :NAVIGATION SYSTEM

NAVIGATION SYSTEM 3-7

MAP Functions

Viewing GPS signal state

The state of GPS signal reception is

displayed as shown below.

GPS (active) :

GPS reception is satisfactory.

GPS (inactive) :

GPS reception is unsatisfactory.

[System information], page 3-48.

INFORMATION

GPS (Global Position System) : GPS is a

system developed and operated by the

United States which determines the current

location of the user (longitude, Latitude,

etc.) by generally using 4 or more satellites.

This system is used with related GPS

information, various sensors, road map data,

and other related information for the

purposes of navigation.

GPS information may not operate under the

following conditions.

- When buildings, tunnels, or other

obstructions block satellite signals.

- When materials are placed above the GPS

antenna and block satellite signals.

- When the satellite does not transmit

signals (signal transmission is controlled

by the satellite control center in the

United States and may not transmit when

under repair, modification, etc).

- When a digital cellular phone (1.5GHz) is

placed near the GPS antenna.

This system uses GPS information, various

sensors, road map data, and other related

information to display the current position.

Errors may occur if the satellite is

transmitting inaccurate signals or if which

can only two or less satellite signals can be

received.

Errors which occur in such conditions

cannot be corrected.

3-8 NAVIGATION SYSTEM

PART 3 :NAVIGATION SYSTEM

Changing the map scale

Press the or button.

The map scale will be increased or

decreased by one level.

INFORMATION

Each time the or button is pressed,

the scale bar will be displayed.

The scale can be changed by directly pressing

the scale level on the scale bar.

The green color on the scale bar indicates the

current scale level while the orange color

indicates the selected scale level.

Press the or button for over 0.8

second. The scale will continuously change. If the scale range limit is reached, the

or button will be disabled.

For safety reasons, the map scale cannot be

continuously changed or directly changed

by pressing the scale level while driving.

The map scale range is between 1 and 14:

10,240,000 ~ 1 : 5,000.

Level

Actual distance

mi / ft km / m

1 150 ft 50 m

2 300 ft 100 m

3 700 ft 200 m

4 0.25 mi 400 m

5 0.5 mi 400 m

6 1 mi 1.6 km

7 2 mi 3.2 km

8 4 mi 6.4 km

9 8 mi 12 km

10 16 mi 25 km

11 32 mi 50 km

12 64 mi 100 km

13 130 mi 200 km

14 150 mi 400 km

NAVIGATION SYSTEM 3-9

MAP Functions

Displaying / Hiding POI icons on the map

Displaying/Hiding QPOI icons

Press the button. Related menu

buttons will be displayed at the bottom

of the screen.

INFORMATION

The QPOI icons are set to - Gas Station,

- Parking, - Hotel, - Golf Course,

- Bank, - Fast Food (6 icons) by default.

This setting can be changed in SETUP.

[Setting QPOI], page 3-39.

Press the icon buttons to display or hide.

To turn off all POI icons displayed on the map, press the button.

INFORMATION

The current displayed POI icons are

highlighted while the icons not being

displayed are shown as normal buttons.

If there are no POI icons being displayed, the button will be disabled.

POI icons are displayed when the scale is

under 0.5 mi (0.8km).

Displaying / Hiding icons other

than QPOI icons

Press the button.

Related menu buttons will be displayed

at the bottom of the screen.

Press the button.

(a) by category list

Press the desired main category button.

Select the desired sub category menu to

display or hide (Multiple selections are

possible).

Press the selected menu again to cancel

the selection.

Others

POI

ALL OFF

POI

3-10 NAVIGATION SYSTEM

PART 3 :NAVIGATION SYSTEM

If the button is pressed, the

selected menus will be displayed or

hidden on the map screen.

Scrolling map

Press the map area on the map screen. The

selected point will be centered on the

screen and the scroll mark will be displayed.

Information about the marked point and

straight line distance from the current

position will be displayed at the top of the

screen.

INFORMATION

If a map area on the map screen is pressed,

the map will continuously scroll in the

corresponding direction until the pressing is

released.

Show Icon(s)

NAVIGATION SYSTEM 3-11

Setting a Destination

Destination menu screen and functions

Press the button on the control panel

to display the destination menu screen.

Address : Sets the destination through

address search.

[Searching an address], page 3-12.

Intersection : Sets the destination

through intersection search.

[Searching an intersection], page 3-

16.

Address Book : Sets the destination

through address book search.

[Searching from address book], page

3-23 .

Previous Dest : Sets the destination

through the previous destination list.

[Searching a previous destination],

page 3-16 .

POI Search : Sets the destination through

POI Category search.

[Searching a POI], page 3-19 .

Emergency : Sets the destination

through emergency facilities search.

[Searching an emergency facilities],

page 3-24 .

HOME : Sets the stored HOME as the

destination.

[Searching your home], page 3-24 .

Favorite place ~ :

Sets the destination with one of the

stored favorite places.

[Searching a favorite places], page 3-

24 .

Intersection : Sets the destination

through intersection search.

[Searching an intersection], page 3-

16.

DEST

3-12 NAVIGATION SYSTEM

PART 3 :NAVIGATION SYSTEM

Searching a destination

Searching an address

There are 2 ways to set the destination

through address search-(a) by street, (b) by

city.

Press the button.

Press the button to change the

state.

Input the State name and press the

button. If the number of matches

with the input is less than 4 results, then

the state list screen will be displayed

automatically.

If the number of matches is only one

result, then the state will automatically be

changed without having to manually

select the state.

Select the desired state from the list to

change the state.

(a) by street

Press the button.

Street

List

State

Address

DEST

NAVIGATION SYSTEM 3-13

Setting a Destination

Input the House number and Press the

button to complete.

If the House number is not recognized, press the button.

In this case, the range of house numbers

will be displayed during the last step.

Input the Street name and press the

button.

If the number of matches with the input

is less than 4 results, then the street list

screen will be displayed automatically.

If the desired street from the list is

selected, the corresponding position will

be displayed on the map.

INFORMATION

If more than 30 cities exist with the selected

street, then the city input screen will be

displayed.

If less than 30 cities exist, then the city

selection screen will be displayed.

Input the city name and Press the

button to complete.

If the number of matches with the input

is less than 4 results, then the list screen

will be displayed automatically.

Select the desired city from the list.

Done

List

Skip

Done

3-14 NAVIGATION SYSTEM

PART 3 :NAVIGATION SYSTEM

This screen will be displayed if the House

number had not been inputted during

step

and more than 2 house numbers

ranges exist.

Select the desired House number range.

This screen will be displayed if the House

number had not been inputted during

step

and only one house numbers

range exists.

Input the House number and Press the

button to complete.

The corresponding position will be

displayed on the map.

(b) by city

Press the button.

Input the city name and press and press

the button.

If the number of matches with the input

is less than 4 results, then the city list

screen will be displayed automatically.

Select the desired city from the list.

List

City

Done

NAVIGATION SYSTEM 3-15

Setting a Destination

Input the house number and Press the

button to complete.

If the House number is not recognized, press the button.

In this case, the range of house numbers

will be displayed during the last step.

Input the Street name and Press the

button to complete.

If the number of matches with the input is

less than 4 results, then the street list

screen will be displayed automatically.

Select the desired street from the list and

the corresponding position will be

displayed on the map.

This screen will be displayed if the House

number had not been inputted during

step

and more than 2 House numbers

ranges exist.

Select the desired House number range.

This screen will be displayed if the House

number had not been inputted during

step

and only one House number

range exists.

Select the house number range and Press the button to complete. The

corresponding position will be displayed

on the map.

Done

List

Done

3-16 NAVIGATION SYSTEM

PART 3 :NAVIGATION SYSTEM

Searching a Previous Destination

Press the button.

Select the desired previous destination.

The corresponding position will be

displayed on the map.

Searching an Intersection

There are two ways to set the destination

through intersection search-(a) by street, (b)

by city.

Press the button.

Press the button to change the

state.

Input the state name and press the

button. If the number of matches

with the input is less than 4 results, then

the state list screen will be displayed

automatically.

If the number of matches is only one

result, then the state will automatically be

changed without having to manually

select the state.

Select the desired state from the list to

change the state.

List

State

Intersection

DEST

Previous Dest

DEST

NAVIGATION SYSTEM 3-17

Setting a Destination

(a) by street

Press the button.

Input the name of the 1st street and

press the button.

If the number of matches with the input

is less than 4 results, then the street list

screen will be displayed automatically.

Select the desired 1st street from the list.

Input the name of the 2nd street and

press the button.

If the number of matches with the input

is less than 4 results, then the street list

screen will be displayed automatically.

Select the desired 2nd street menu from

the list. The corresponding position will

be displayed on the map.

If the selected 2nd street is within more

than 2 cities, then the city list screen will

be displayed.

Select the desired city menu from the list.

The corresponding position will be

displayed on the map.

List

Street

3-18 NAVIGATION SYSTEM

PART 3 :NAVIGATION SYSTEM

(b) by city

Press the button.

Input the city name and press the

button.

If the number of matches with the input

is less than 4 results, then the city list

screen will be displayed automatically.

Select the desired city name.

Input the name of the 1st street and

press the button.

If the number of matches with the input

is less than 4 results, then the street list

screen will be displayed automatically.

Select the desired 1st street menu from

the list.

Input the name of the 2nd street and

press the button.

If the number of matches with the input

is less than 4 results, then the street list

screen will be displayed automatically.

List

City

NAVIGATION SYSTEM 3-19

Setting a Destination

Select the desired 2nd street menu from

the list.

The corresponding position will be

displayed on the map.

If the selected 2nd street is within more

than 2 cities, then the city list screen will

be displayed. Select the desired city

menu from the list.

The corresponding position will be

displayed on the map.

Searching a POI

There are 3 ways to set the destination

through POI search-(a) by category, (b) by

name, (c) by phone number.

Press the button.

Input the state name and press the

button. If the number of matches

with the input is less than 4 results, then

the state list screen will be displayed

automatically. If the number of matches is

only one result, then the state will

automatically be changed without having

to manually select the state.

Select the desired state from the list to

change the state.

List

State

POI Search

DEST

(a) by category :

searches for facilities nearby the current

position or from the city center.

Press the button.

Press the button to

search for facilities nearby the current position, or press the

button to search for facilities in the city

vicinity.

(a-1) Near current position :

searches for facilities within a 100 mi (160km)

radius of the current position.

Press the desired main category menu.

Press the desired sub category menu.

Select the desired menu button. The

corresponding position will be displayed

on the map.

Near city center

Near current position

Category

List

City

Advanced

List

Name

3-22 NAVIGATION SYSTEM

PART 3 :NAVIGATION SYSTEM

NAVIGATION SYSTEM 3-23

Setting a Destination

Press the button.

Input the phone number and Press the

button to complete.

The corresponding position will be

displayed on the map.

Searching from Address book

Press the button.

Select the desired address book (user)

menu.

INFORMATION

This system provides 5 address books, and all

amount of addresses that those address

books can hold is up to 200."

Select the desired address name from

the list. The corresponding position will

be displayed on the map.

[Registering new address in address

book], page 3-40.

Address book

DEST

Done

Phone #

Searching for Emergency facilities

Press the button.

Select the desired facility category.

Select the desired facility menu.

The corresponding position will be

displayed on the map.

Searching your Home

Press the button.

Press the button. The Home

position will be displayed on the map.

INFORMATION

If the Home address is not registered, then the

button will be displayed in disabled

state.

[Registering home address], page 3-45.

Searching favorite places

Press the button.

Select the desired button from ~ .

The corresponding position will be

displayed on the map.

INFORMATION

If the address of the Favorite place is not registered, then the ~ buttons which

does not have a registered address will be

displayed in disabled state.

[Registering favorite place], page 3-46.

DEST

HOME

DEST

Emergency

DEST

3-24 NAVIGATION SYSTEM

PART 3 :NAVIGATION SYSTEM

NAVIGATION SYSTEM 3-25

Setting a Destination

Searching from MAP

Position the scroll mark at the destination

by scrolling the map on the map screen.

Searching POI by local POI list

Press the button on the map

screen.

Press the button.

Select the desired POI menu.

The corresponding position will be

displayed on the map.

Local POI lists

Others

POI

Operating after searching a destination

Changing destination position :

Changes the position of the destination by

scrolling the map.

[Scrolling map], page 3-10.

Setting as Destination / waypoint :

Sets the position as the destination or

waypoint.

Adding to address book :

Saves the position in the address book.

[Registering address into address book],

page 3-40.

3-26 NAVIGATION SYSTEM

PART 3 :NAVIGATION SYSTEM

NAVIGATION SYSTEM 3-27

Operating after setting a destination

Starting Route Guidance

Press the button. Route

Guidance will start.

Route simulation

If the button is pressed

and held for over 0.8 second, then the

route simulation will start.

If the button on the control

panel is pressed during route simulation,

then the route simulation will be

terminated.

Route guidance screens

Symbol guidance mode : If the

button is pressed, then the following

route guidance screen will be displayed.

Turn-List mode : If the button is

pressed, then the following route

guidance screen will be displayed.

Highway mode : If the button is

pressed, then the following route

guidance screen will be displayed.

Intersection zoom mode : This route

guidance screen is automatically displayed

during guidance at an intersection. Once

guidance at the intersection is complete,

the screen will automatically disappear and

the previous guidance screen will be

restored.

MAP VOICE

Start Guidance

Highway junction mode : This route

guidance screen is automatically

displayed during guidance at highway

junctions.

Once guidance at a highway junction is

complete, this screen will automatically

disappear and the previous guidance

screen will be restored.

Selecting other route

Press the button.

Other routes can be selected by pressing

the or buttons.

Others

3-28 NAVIGATION SYSTEM

PART 3 :NAVIGATION SYSTEM

NAVIGATION SYSTEM 3-29

Route guidance

Route menu screen and functions

Press the button on the control

panel. The ROUTE menu screen will be

displayed.

Cancel Route: Deletes the destination,

waypoints and terminates the route

guidance.

[Finishing route guidance], page 3-29 .

Route Option: The route calculation

method can be changed.

[Changing route option], page 3-30 .

Detour: Searches detour routes.

[Setting detour distance], page 3-33 .

Route view: Displays the whole route

and detailed route information.

[Route overview], page 3-30 .

Edit Waypoint: Waypoints can be

added/deleted and the order can be

changed.

[Editing waypoints], page 3-31 .

Avoid Streets: Searches routes which

avoids the selected streets.

[Setting avoid streets on route], page

3-33.

Finishing route guidance (Delete Destination)

Press the button.

Press the button. The destination

and all waypoints are deleted and the

route guidance is terminated. [Finishing route guidance], page 3-29 .

Yes

Cancel Route

ROUTE

Route overview (View Whole Route screen)

Press the button.

INFORMATION

If the button is pressed,

route guidance screen is displayed.

The detailed route information can be

viewed.

Changing Route option

Press the button.

Press the button for the desired route

guidance method.

Guidance will be restarted after

recalculating the route with the selected

guidance method.

Route Option

ROUTE

Return to Guidance

Turn by turn

Route Overview

ROUTE

3-30 NAVIGATION SYSTEM

PART 3 :NAVIGATION SYSTEM

NAVIGATION SYSTEM 3-31

Route guidance

Editing waypoints

Adding waypoint

There are 2 ways to add waypoints - (a)

searching for POI nearest to the route, (b)

using advanced search.

Press the button.

Press the

button.

(a) Searching POI lists near route

Press the button.

Select the desired category.

Select the desired sub category from the

list.

Select the desired POI from the list.

The corresponding position will be

displayed on the map.

Near POI lists on Route

Press to add new waypoint

Edit Waypoint

ROUTE

Press the button.

Press the button to complete.

Guidance will restart after recalculating

the route.

(b) Using advanced Search

The method for searching waypoints through the button is the

same as the method for searching

destination.

[Searching a destination], page 3-12.

Deleting waypoint

Press the button.

Select the waypoint menu to delete and

press the button.

Press the button.

After deleting, press the button to

complete.

Guidance will restart after recalculating

the route.

Done

Yes

Delete

Edit waypoint

ROUTE

Advanced(more)

Done

Add as Waypoint

3-32 NAVIGATION SYSTEM

PART 3 :NAVIGATION SYSTEM

NAVIGATION SYSTEM 3-33

Route guidance

Re-ordering waypoints

Press the button.

Select the desired waypoint and use the

, buttons to change

the order.

Once re-ordering is complete, press the

button to complete.

Guidance will restart after recalculating

the route.

Setting detour distance

Press the button.

Select the desired detour range.

Guidance will restart after recalculating

the detour route.

Setting avoid streets on route

Press the button.

Select the desired streets to avoid(

avoid, allow) and Press the

button to complete.

Guidance will restarted after recalculating

the route to avoid the selected streets.

Done

Avoid streets

ROUTE

Detour

ROUTE

Done

MOVE MOVE

Edit waypoint

ROUTE

Setup and Information

Setup/Information screen and functions

Press the button on the control

panel to display the setup menu screen.

Main button : Changes to the input

keyboard type, voice command

feedback ON/OFF settings and system

initialization can be made.

[Main setting], page 3-34 .

Navigation button : Navigation related

settings can be set.

[Navigation setting], page 3-35 .

My Places button : The Address book,

Home address, Favorite places, Previous

destination can be edited.

[My places setting], page 3-40 .

System Info button : The system version

information can be viewed and system

upgrades can be conducted.

[System information and update],

page 3-48 .

Voice Setup button : Adjusts the

Navigation guidance volume.

[Voice guidance volume setting],

page 3-48 .

Help button : The help contents can be

viewed.

[Help], page 3-49 .

Main setting

Press the button.

Select the desired changes and press the

button to complete.

Setting keyboard for inputting

letter

Press the desired keyboard type button.

The selection will be highlighted.

Done

Main

SETUP

3-34 NAVIGATION SYSTEM

PART 3 :NAVIGATION SYSTEM

NAVIGATION SYSTEM 3-35

Setup and Information

Initializing system

Press the button.

Press the menu desired for initialization.

Press the button.

Navigation setting

Press the button.

Select the desired changes and press the

button to complete.

Setting units (mi / km)

Select the desired distance unit.

Setting arrival time and distance

display

Select the desired setting button.

Done

Navigation

SETUP

Yes

Factory default

Registering Avoid area

Press the button.

Set the start position of the avoid area

and press the button.

Set the end position of the avoid area

and press the button.

Press the button to complete.

If the Avoid area needs to be renamed,

press the button.

Rename the Avoid area and Press the

button to complete.

Done

Rename

Done

Add new avoid area

Avoid Area

3-36 NAVIGATION SYSTEM

PART 3 :NAVIGATION SYSTEM

NAVIGATION SYSTEM 3-37

Setup and Information

Each time the button is pressed, the

function will switch between avoid ( )or

allow( ).

Press the button to complete the

setting.

Editing avoid area

Press the button.

Select the Avoid area button to edit.

If the Avoid area needs to be renamed,

press the button.

Rename the Avoid area and press the

button to complete.

Done

Rename

Edit avoid area

Avoid Area

Done

Avoid

Each time the button is pressed,

the function will switch between avoid(

)or allow( ).

Press the button once editing is

complete.

Deleting avoid area

Press the button.

Select the button to delete.

Press the button.

Yes

Delete

Avoid area

Edit avoid area

Avoid area

Done

Avoid

3-38 NAVIGATION SYSTEM

PART 3 :NAVIGATION SYSTEM

NAVIGATION SYSTEM 3-39

Setup and Information

Deleting all avoid area

Press the button.

Setting QPOI icons

Press the button.

Select the desired menu to edit.

Select the desired main category.

Select the desired sub category.

Press the button to complete.

Done

Edit QPOI

Yes

Delete all avoid area

Avoid area

Setting estimated travel time

Press the button.

Press the or button on the

Residential, Main street, and Freeway

controls to adjust the speed.

Press the button to set the

speeds to the default settings.

Press the button to complete the

setting.

My places setting

Registering new address in

address book

There are 3 ways to register a new address

in the address book - (a) by DEST menu, (b)

by registering address in address book, (c)

from map scroll.

(a) by DEST menu

Press the button.

Search through the desired method.

The search process is the same as the

method for destination search.

[Searching a destination], page 3-12.

Press the button.

Press the desired address book(user)

button.

Input the name and telephone information

and press the button to complete.

[Editing an address in the address

book], page 3-42.

Done

Add to Address Book

DEST

Done

Default

Travel Speed

3-40 NAVIGATION SYSTEM

PART 3 :NAVIGATION SYSTEM

NAVIGATION SYSTEM 3-41

Setup and Information

(b) by registering in the address book

Press the button.

Press the desired address book (user)

button.

Press the button.

Press the button to search the

address.

[Searching an address], page 3-12.

INFORMATION

Press the button to input

the address of the current position.

Input the name and telephone information

and press the button to complete.

[Editing an address in the address

book], page 3-42.

In the map screen, scroll the map to the

desired position.

Press the button.

Add to Address Book

Done

Store current position

Address

New Address

Address book

My Places

SET UP

Press the desired address book (user)

button.

Input the name and telephone

information and press the button

to complete.

[Editing an address in the address

book], page 3-42.

Editing an address of address

book

Press the button.

Select the desired address book (user)

button .

Select the desired address to edit.

Press the button to input the

address name.

Name

Address book

My places

SETUP

Done

3-42 NAVIGATION SYSTEM

PART 3 :NAVIGATION SYSTEM

NAVIGATION SYSTEM 3-43

Setup and Information

Input the address name and Press the

button to complete.

Press the button to search the

address. The process is the same as the

method for searching an address.

[Searching an address] , page 3-12.

INFORMATION

Press the button to input

the address of the current position.

Press the button to input the

phone number.

Input the phone number and press the

button to complete.

Press the button to complete.

Deleting an address of address

book

Press the button.

Select the desired address book (user)

button.

Address book

My places

SETUP

Done

Phone

Store current position

Address

Done

Select the desired address button to

delete.

Press the button.

Deleting an address book

Press the button.

Press the desired address book (user)

button.

Address book

My places

SETUP

Yes

Delete

3-44 NAVIGATION SYSTEM

PART 3 :NAVIGATION SYSTEM

NAVIGATION SYSTEM 3-45

Setup and Information

Press the button.

Registering home address

Press the button.

INFORMATION

Press the button to

Search the address. The process is the

same as the method for searching an

address.

[Searching an address], page 3-12.

Press the button to complete.

Done

Store current position

Search Address

Home Address

My places

SETUP

Yes

Delete all

Deleting home address

Press the button.

Registering favorite place

Press the button.

Press the number of the Favorite Place to

Favorite Places

My places

SETUP

Yes

Delete

Home Address

My places

SETUP

3-46 NAVIGATION SYSTEM

PART 3 :NAVIGATION SYSTEM

NAVIGATION SYSTEM 3-47

Setup and Information

Press the button.

INFORMATION

Press the button to

Search the address. The process is the

same as the method for searching an

address.

[Searching an address], page 3-12.

Press the button to complete.

Deleting favorite place

Press the button.

Select the desired favorite place button

to delete.

Favorite Places

My places

SETUP

Done

Store current position

Search address

Press the button.

System information and update

Press the button.

Voice guidance volume setting

Press the button.

Voice guidance

SET UP

System Info

SETUP

Yes

Delete

3-48 NAVIGATION SYSTEM

PART 3 :NAVIGATION SYSTEM

NAVIGATION SYSTEM 3-49

Setup and Information

Voice guidance volume control

Set the desired volume level by using the

or buttons and press the

button to verify the volume level.

Press the button when voice

guidance is unnecessary.

Voice guidance can be turned back on by pressing the or buttons or

pressing the button.

Adaptive volume control ON/OFF

Press the desired setting button.

INFORMATION

Adaptive Volume Control

If the speed of the vehicle is over approximately

50 mi/h (80km/h), the volume level can be

increased to a level which is one higher than

the current level. If the speed of the vehicle falls

under 50 mi/h (80km/h), the volume level will

return to its original level.

Help

Press the button.

Press the desired menu button.

The full content of the help section can

be viewed by using the top-down scroll

buttons.

Help

SETUP

MUTE

Listen

MEMO

APPENDIX 4-1

APPENDIX

PART 4 APPENDIX

Troubleshooting guide 4-2

Before thinking the product has malfunctioned

4-2

Troubleshooting

4-3

Map legend 4-5

Road color 4-5

POI icons

4-5

Landmark icons

4-7

INDEX 4-8

4-2 APPENDIX

PART 4 :APPENDIX

Troubleshooting guide

Before thinking the product has malfunctioned

Errors which occur during the operation or installation of the device may be mistaken as a malfunction of the actual device.

If you are having problems with the device, try the suggestions listed below.

If the problems persist, contact your point of purchase or the nearest service center.

Function

Because the LCD is manufactured with technology requiring high point density, a pixel deficiency or lighting may occur within 0.01% of total pixels.

Has the Switch for the vehicle been turned to [ACC] or [ON]?

Has the SYSTEM been turned OFF?

Has the volume been set to a low level?

Has the volume been set on mute?

The display looking somewhat darker after prolonged periods of use is a normal phenomenon with LCD panels. It is not a malfunction.

If the screen is very dark, contact your point of purchase or the nearest service center.

Is the position of FAL/BAL sound controls or volume adjusted to only one side?

Is the external device connected with a standard connector cable?

Is the audio connector jack fully inserted into the AUX.

Some map data may be missing or incorrect.

The TTS(Text To Speech) engine speaks the street name based off of the phonetic spelling. This will continuously be update with the map database.

Problem

There are small red, blue, or green dots on the screen

The sound or image is not working

The video is being displayed but sound is not working

When the power is turned on, the corners of the screen are dark

Sound is working from only one speaker

The external device is not working

Sound does not work in AUX mode terminal

The road is missing

The road name is spoken incorrectly

APPENDIX 4-3

Troubleshooting guide

Possible Cause

The fuse is disconnected.

Solution

Replace with a suitable fuse. If the fuse is disconnected again, please contact your point of purchase or service center.

Problem

The power does not turn on.

Device is not properly connected. Check to see that the device has been properly connected.

The SIRIUS mode is in category. Press the mode button to change to channel mode.

The DISC has not been inserted or has been inserted upside down.

Insert the disc properly so that the sides are facing the correct direction.

The DISC has been contaminated.

The vehicle battery is low.

A disc which is not supported by the device has been inserted.

Wipe dirt and other foreign substances from the DISC.

Charge the battery. If the problem persists, please contact your point of purchase or service center.

Insert a disc which is supported for play by the device.

The CD does not play.

SIRIUS only goes through one category

The brightness level has been set to the lowest level.

Adjust the brightness to a higher level. The video does not

work.

The volume level is set the lowest level.

The connector is not properly connected.

The device is currently fast-forwarding, rewinding, scanning, or playing in slow mode.

Adjust the volume level.

Check the connection state.

The sound will not work when the device is fast-forwarding, rewinding, scanning, or playing in slow mode.

The sound does not work.

Troubleshooting

4-4 APPENDIX

PART 4 :APPENDIX

Possible Cause

The DISC is dirty or scratched.

Vibration is occurring from the position in which the conversion switch has been installed. The color and tone quality of the image is low.

Solution

Wipe off water or dirt from the DISC. Do not use a disc which has been scratched. The sound may be short-circuited and the image distorted if the device begins to vibrate. The device will return to normal operation once the vibration has stopped. Aging of the video display and deterioration in performance may cause certain quality degradations.

Problem

The sound or video quality is low.

The iPod is not recognized even though it has been connected.

There are no titles which can be played. The iPod firmware version has not been properly updated. The iPod device does not recognize downloads.

Use iTunes to download and save MP3 files into the iPod. Use iTunes to update the firmware version and reconnect the iPod with the device. Reset the iPod and reconnect with the device.

The USB does not work.

USB memory is damaged. USB memory has been contaminated.

A separately purchased USB HUB is being used. A USB extension cable is being used.

A USB which is not a Metal Cover Type USB Memory is being used. A HDD type, CF, SD Memory is being used. There are no music files which can be played.

Please use after formatting the USB into FAT 12/16/32 format. Remove any foreign substances on the contact surface of the USB memory and multimedia terminal. Directly connect the USB memory with the multimedia terminal on the vehicle. Directly connect the USB memory with the multimedia terminal on the vehicle. Use a standard USB Memory.

Use a standard USB Memory. Only MP3,WMA file formats are supported. Please use only the supported music file formats.

Kia Sedona System 2010, Optima 2009 Quick Reference Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
