Kia Forte5 2015 Owner's Manual

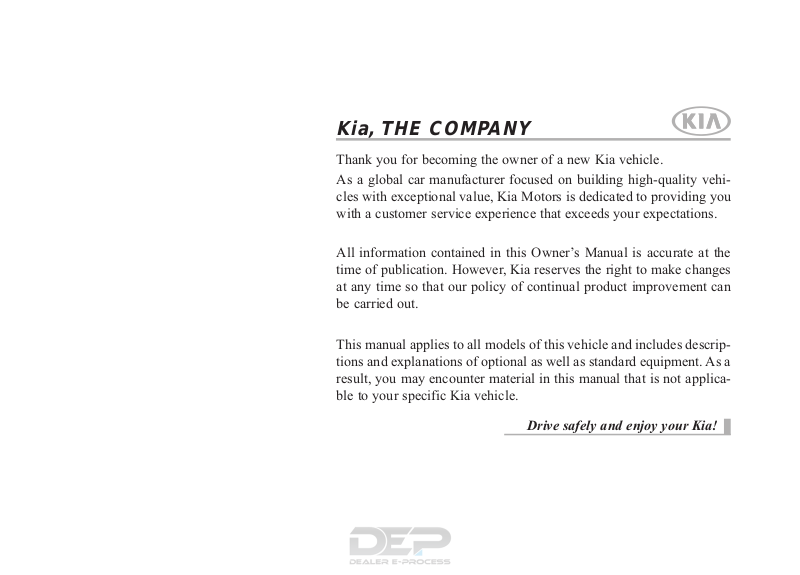

Kia, THE COMPANY

Thank you for becoming the owner of a new Kia vehicle.

As a global car manufacturer focused on building high-quality vehicles with exceptional value, Kia Motors is dedicated to providing you with a customer service experience that exceeds your expectations.

All information contained in this Owner’s Manual is accurate at the time of publication. However, Kia reserves the right to make changes at any time so that our policy of continual product improvement can be carried out.

This manual applies to all models of this vehicle and includes descriptions and explanations of optional as well as standard equipment. As a result, you may encounter material in this manual that is not applicable to your specific Kia vehicle.

Drive safely and enjoy your Kia!

Thank you for choosing a Kia vehicle. When you require service, remember that your Kia dealer

knows your vehicle best. Your dealer has factory-trained technicians, recommended special tools and genuine Kia replacement parts. It is dedicated to your complete customer satisfaction.

Because subsequent owners require this important information as well, this publication should remain with the vehicle if it is sold.

This manual will familiarize you with operational, maintenance and safety information about your new vehicle. It is supplemented by a Warranty and Consumer Information manual that provides important information on all warranties regarding your vehicle.

We urge you to read these publications carefully and follow the recommendations to help assure enjoyable and safe operation of your new vehicle.

Kia offers a great variety of options, components and features for its various models. Therefore, some of the equipment described in this manual, along with the various illustrations, may not be applicable to your particular vehicle.

The information and specifications provided in this manual were accurate at the time of printing. Kia reserves the right to discontinue or change specifications or design at any time without notice and without incurring any obligation. If you have questions, always check with your Kia dealer.

We assure you of our continuing interest in your motoring pleasure and satisfaction in your Kia vehicle.

mechanical, including photocopying, recording, or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Kia Canada Inc..

Printed in Korea

Foreword

Introduction

How to use this manual / Fuel requirements / Vehicle break-in process

Your vehicle at a glance

Exterior overview / Interior overview / Instrument panel overview / Engine compartment

Safety features of your vehicle

Seats / Seat belts / Child restraint system / Air bag

Features of your vehicle

Keys / Door locks / Tailgate / Windows / Hood / Fuel filler lid / Panoramic sunroof / Steering wheel / Mirrors / Instrument cluster / Lighting / Wipers & Washers / Climate control system / Audio system / Etc.

Driving your vehicle

Before driving / Engine start/stop button / Transaxle / Brake system / Cruise control system / Active ECO system / Winter driving / Vehicle load limit / Etc.

What to do in an emergency

Road warning / Emergency while driving / Emergency starting / Engine overheat / Flat tire / Towing / Etc.

Maintenance

Engine compartment / Maintenance service / Engine oil / Engine coolant / Brake fluid / Washer fluid / Parking brake / Air cleaner / Wiper blades / Battery / Tire and wheels / Fuses / Etc.

Specifications & Consumer information Index

table of contents

Introduction

How to use this manual . . . . . . . . . . . . . . . . . . . . . . 1-2

Fuel requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

• Gasoline containing alcohol and methanol. . . . . . . . . 1-3

• Do not use methanol . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

• Fuel Additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Vehicle Break-In Process. . . . . . . . . . . . . . . . . . . . . 1-5

Vehicle Data Collection and

Event Data Recorders . . . . . . . . . . . . . . . . . . . . . . 1-6

Introduction

We want to help you get the greatest possible driving pleasure from your vehicle. Your Owner’s Manual can assist you in many ways.We strongly recommend that you read the entire manual. In order to minimize the chance of death or injury, you must read the WARNING and CAUTION sections in the manual.

Illustrations complement the words in this manual to best explain how to enjoy your vehicle. By reading your manual, you will learn about features, important safety information, and driving tips under various road conditions.

The general layout of the manual is provided in the Table of Contents. Use the index when looking for a specific area or subject; it has an alphabetical listing of all located in the back of this manual.

Sections:This manual has eight sections plus an index. Each section begins with a brief list of contents so you can tell at a glance if that section has the information you want.

You will find various types of safety instructions in this manual. These instructions were prepared to enhance your personal safety.

Carefully read and follow ALL procedures and recommendations provided in these instructions.

✽✽

NOTICE

A NOTICE indicates interesting or helpful information is being provided.

HOW T O USE THIS MANUAL

WARNING

A WARNING indicates a situation in which harm, serious bodily injury or death could result if the warning is ignored.

CAUTION

A CAUTION indicates a situation in which damage to your vehicle could result if the caution is ignored.

Introduction

Your new Kia vehicle is designed to use only unleaded fuel having a pump octane number ((R+M)/2) of 87 (Research Octane Number 91) or higher.

Your new vehicle is designed to obtain maximum performance with UNLEADED FUEL, as well as minimize exhaust emissions and spark plug fouling.

Never add any fuel system cleaning agents to the fuel tank other than what has been specified.(Consult an authorized Kia dealer for details.)

✽✽

NOTICE

Tighten the cap until it clicks one time, otherwise the Check Engine

light will illuminate.

Gasoline containing alcohol and methanol

Gasohol, a mixture of gasoline and ethanol (also known as grain alcohol), and gasoline or gasohol containing methanol (also known as wood alcohol) are being marketed along with or instead of leaded or unleaded gasoline.

Pursuant to EPA regulations, ethanol may be used in your vehicle. Do not use gasohol containing more than 10% ethanol, and do not use gasoline or gasohol containing any methanol. Ethanol provides less energy than gasoline and it attracts water, and it is thus likely to reduce your fuel efficiency and could lower your MPG results. Methanol may cause drivability problems and damage to the fuel system. Discontinue using gasohol of any kind if drivability problems occur. Vehicle damage or drivability problems may not be covered by the manufacturer's warranty if they result from the use of:

1. Gasoline or gasohol containing methanol.

2. Leaded fuel or leaded gasohol.

FUEL REQUIREMENTS

WARNING - Refueling

• Do not "top off" after the nozzle automatically shuts off. Attempts to force more fuel into the tank can cause fuel overflow onto you and the ground causing a risk of fire.

• Always check that the fuel cap is installed securely to prevent fuel spillage, especially in the event of an accident.

Introduction

"E85" fuel is an alternative fuel comprised of 85 percent ethanol and 15 percent gasoline, and is manufactured exclusively for use in Flexible Fuel Vehicles. “E85” is not compatible with your vehicle. Use of “E85” may result in poor engine performance and damage to your vehicle's engine and fuel system. Kia recommends that customers do not use fuel with an ethanol content exceeding 10 percent.

✽✽

NOTICE

Your New Vehicle Limited Warranty does not cover damage to the fuel system or any performance problems caused by the use of “E85” fuel.

Gasoline containing MMT

Some gasoline contains harmful manganese-based fuel additives such as MMT (Methylcyclopentadi- enyl Manganese Tricarbonyl).

Kia does not recommend the use of gasoline containing MMT.

This type of fuel can reduce vehicle performance and affect your emission control system.

The malfunction indicator lamp on the cluster may come on.

Use of MTBE

Kia recommends avoiding fuels containing MTBE (Methyl Tertiary Butyl Ether) over 15.0% vol. (Oxygen Content 2.7% weight) in your vehicle .

Fuel containing MTBE over 15.0% vol. (Oxygen Content 2.7% weight) may reduce vehicle perf ormance and produce vapor lock or hard starting.

Do not use methanol

Fuels containing methanol (wood alcohol) should not be used in your vehicle.This type of fuel can reduce vehicle performance and damage components of the fuel system.

CAUTION

Your New Vehicle Limited Warranty may not co ver damage to the fuel system and any performance problems that are caused by the use of fuels containing methanol or fuels containing MTBE (Methyl Tertiary Butyl Ether) over 15.0% vol. (Oxygen Content 2.7% weight.)

Introduction

Fuel Additives

Kia recommends that you use good quality gasolines treated with detergent additives such as TOP TIER Detergent Gasoline, which helps prevent deposit formation in the engine.These gasolines will help the engine run cleaner and enhance performance of the Emission Control System. For more information on TOP TIER Detergent Gasoline, please go to the website (www.toptiergas.com).

For Customers who do not use TOP TIER Detergent Gasoline regularly, and have problems starting or the engine does not run smoothly, additives that you can buy separately may be added to the gasoline. If TOP TIER Detergent Gasoline is not available, one bottle of additive added to the fuel tank at 12,000 km or every engine oil change is recommended.Additives are available from your authorized Kia dealer along with information on how to use them. Do not mix other additives.

Operation in foreign countries

If you are going to drive your vehicle in another country, be sure to:

• Observe all regulations regarding registration and insurance.

• Determine that acceptable fuel is available.

No special break-in period is needed. By following a f e w simple precautions for the first 1,000 km (600 miles) you may add to the performance, economy and life of your vehicle.

• Do not race the engine.

• While driving, keep your engine speed (rpm, or revolutions per minute) between 2,000 rpm and 4,000 rpm.

• Do not maintain a single speed for long periods of time, either fast or slow. Varying engine speed is needed to properly break-in the engine.

• Avoid hard stops, except in emergencies, to allow the brakes to seat properly.

• Don't tow a trailer during the first 2,000 km (1,200 miles) of operation.

VEHICLE BREAK-IN PROCESS

Introduction

This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an air bag deployment or hitting a road obstacle, data that will assist in understanding how a vehicle's systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record such data as:

* How various systems in your

vehicle were operating;

* Whether or not the driver and

passenger safety belts were buckled/ fastened;

* How far (if at all) the driver was

depressing the accelerator and/or brake pedal; and,

* How fast the vehicle was travel-

ing.

These data can help provide a better understanding of the circumstances in which crashes and injuries occur. NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situation occurs; no data are recorded by the EDR under normal driving conditions and no personal data (e.g., name, gender, age, and crash location) are recorded. However, other parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation.

To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have the special equipment, can read the information if they have access to the vehicle or the EDR.

VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS

Exterior overview I . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Exterior overview II. . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Interior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Instrument panel overview . . . . . . . . . . . . . . . . . . . 2-5

Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Your vehicle at a glance

Exterior overview. . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Interior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Instrument panel overview . . . . . . . . . . . . . . . . . . . 2-5

Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Your vehicle at a glance

EXTERIOR OVERVIEW

1. Hood...................................................4-32

2. Head lamp..........................................4-98

3. Fog lamp..........................................4-101

4.Wheel and tire ....................................7-44

5. Outside rearview mirror......................4-51

6. Front windshield wiper blades...4-102, 7-39

7.Windows.............................................4-27

8. Parking assist system ........................4-89

9. Front removable towing hook.............6-24

OYDNIN3001

■ Front view

❈ The actual shape may differ from the illustration.

Your vehicle at a glance

10. Door locks........................................4-18

11. Fuel filler lid ......................................4-34

12. Rear combination lamp

13. High mounted stop lamp

14.Trunk.................................................4-22

15. Antenna..........................................4-147

16. Parking assist system......................4-89

OYDEIN2002

■ Rear view

❈ The actual shape may differ from the illustration.

Your vehicle at a glance

INTERIOR OVERVIEW

1. Driver position memory system

button..................................................3-8

2. Inside door handle............................4-18

3. Outside rearview mirror folding.........4-53

4. Outside rearview mirror control ........4-52

5. Central door lock switch....................4-19

6. Power window lock switch.................4-31

7. Power window switch........................4-28

8. Instrument panel illumination control

switch................................................4-56

9. Active ECO On/Off switch.................5-40

10. Parking assist system On/Off

button..............................................4-89

11. ESC Off button................................5-27

12. Heated steering wheel On/Off

switch..............................................4-43

13. Steering wheel................................4-41

14.Tilt and telescopic steer ing control

lever................................................4-42

15.Trunk lid open lever.........................4-22

16. Fuel filler lid open lever...................4-34

17. Inner fuse panel..............................7-59

18. Hood release lever..........................4-32

OYDNIN2003

❈ The actual shape may differ from the illustration.

Your vehicle at a glance

INSTRUMENT PANEL OVERVIEW

1. Instrument cluster ................................4-55

2. Lighting control lever...........................4-96

3. Audio remote control buttons............4-148

4. Horn.....................................................4-42

5. Driver's front air bag............................3-45

6. Cruise control button...........................5-35

7.Wiper and washer control lever .........4-101

8. Ignition switch or

Engine start/stop button.................5-5, 5-7

9. Digital clock.......................................4-144

10. Hazard warning flasher .......................6-2

11. Audio ...............................................4-147

12. Climate control system.........4-110, 4-120

13. Shift lever.................................5-13, 5-16

14. Passenger's front air bag ..................3-45

15. Glove box........................................4-135

16. Parking brake....................................5-23

17. Cup holder .......................................4-139

18. LCD display control button................4-57

OYDEIN2004CN

❈ The actual shape may differ from the illustration.

Your vehicle at a glance

ENGINE COMPARTMENT

OYDNMC2041/OYDNMC2067

■■

1.8 / 2.0 Gasoline engine

❈ The actual engine compartment in the vehicle may differ from the illustration.

■■

1.6 Turbo GDI engine

1. Engine oil filler cap ...........................7-29

2. Engine oil dipstick.............................7-29

3. Brake/clutch fluid reservoir ...............7-34

4. Air cleaner.........................................7-36

5. Fuse box...........................................7-58

6. Positive battery terminal ...................7-41

7. Negative battery terminal..................7-41

8.Windshield washer fluid reservoir .....7-35

9. Radiator cap .....................................7-32

10. Engine coolant reservoir.................7-31

Safety features of your vehicle

Seat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

• Front seat adjustment - Manual . . . . . . . . . . . . . . . . . 3-4

• Front seat adjustment - Power. . . . . . . . . . . . . . . . . . . 3-6

• Driver position memory system. . . . . . . . . . . . . . . . . . 3-8

• Headrest (Front seat) . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

• Seatback pocket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12

• Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

• Headrest (Rear seat) . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

• Folding the rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14

Seat belt. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

• Seat belt warning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18

• Seat belt (3-point system) . . . . . . . . . . . . . . . . . . . . . . 3-18

• Pre-tensioner seat belt. . . . . . . . . . . . . . . . . . . . . . . . . 3-22

• Seat belt precautions. . . . . . . . . . . . . . . . . . . . . . . . . . 3-24

• Care of seat belts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-26

Child restraint system . . . . . . . . . . . . . . . . . . . . . . 3-27

• Using a child restraint system . . . . . . . . . . . . . . . . . . 3-28

• Tether anchor system . . . . . . . . . . . . . . . . . . . . . . . . . 3-31

• Lower anchor system . . . . . . . . . . . . . . . . . . . . . . . . . 3-32

Air bag-supplemental restraint system . . . . . . . . 3-34

• Air bag system operation . . . . . . . . . . . . . . . . . . . . . . 3-35

• Do not install a child restraint on a front

passenger’s seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-36

• Air bag warning light . . . . . . . . . . . . . . . . . . . . . . . . . 3-37

• SRS components and functions . . . . . . . . . . . . . . . . . 3-38

• Occupant detection system. . . . . . . . . . . . . . . . . . . . . 3-40

• Driver’s and passenger’s front air bag . . . . . . . . . . . 3-45

• Side air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-48

• Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-49

• Inflation/non-inflation conditions of air bag . . . . . . 3-50

• SRS Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-55

• Air bag warning label . . . . . . . . . . . . . . . . . . . . . . . . . 3-56

Safety features of your vehicle

Driver’s seat

(1) Seat adjustment, forward / back-

ward

(2)

Seatback recliner

(3)

Seat adjustment, height (for driver’s

seat) (4) Lumbar support (for driver’s seat) (5)

Driver position memory system* (6) Headrest (7) Walk-in seat (for 2 Door)

Front passenger’s seat

(8) Seat adjustment, forward / back-

ward (9)

Seatback recliner (10) Headrest (11) Walk-in seat (for 2 Door)

Rear seat

(12) Armrest (13) Headrest (14) Seatback folding lever

(trunk, for 4 Door)*

(14) Seatback folding lever

(for 5 Door)

* : if equipped

SEAT

OYD033001

Manual seat

• 5 Door

• 4 Door

Power seat

Safety features of your vehicle

WARNING - Uprighting

seat

Do not press the release lever on a manual seatback without holding and controlling the seatback. The seatback will spring upright possibly impacting you or other passengers.

WARNING - Loose

objects

Do not place anything in the driver's foot well or under the front seats. Loose objects in the driver's foot area could interfere with the operation of the foot pedals.

WARNING - Driver

responsibility for passengers

The driver must advise the passenger to keep the seatback in an upright position whenever the vehicle is in motion. If a seat is reclined during an accident, the restraint system's ability to restrain will be greatly reduced.

WARNING - Seat cushion

Occupants should never sit on seat cushions. The passenger's hips may slide under the lap portion of the seat belt during an accident or a sudden stop.

1KMN3661

Safety features of your vehicle

Front seat adjustment - manual

Forward and backward

To move the seat forward or backward:

1.Pull the seat slide adjustment

lever up and hold it.

2. Slide the seat to the position you

desire.

3. Release the lever and make sure

the seat is locked in place.

Adjust the seat before driving, and make sure the seat is locked securely by trying to move forward and backward without using the lever. If the seat moves, it is not locked properly.

WARNING - Seat

adjustment

• Do not adjust the seat while wearing seat belts. Moving the seat forward will cause strong pressure on the abdomen.

• Do not place your hand near the seat bottom or seat track while adjusting the seat. Your hand could get caught in the seat mechanism.

WARNING - Driver’s seat

• Never attempt to adjust the seat while the vehicle is moving. This could result in loss of control of your vehicle.

• Do not allow anything to interfere with the normal position of the seatback. Storing items against a seatback or in any other way interfering with proper locking of a seatback could result in a serious or fatal injury in a sudden stop or collision.

• Sit as far back as possible from the steering wheel while still maintaining comfortable control of your vehicle. A distance of at least 10" from your chest to the steering wheel is recommended. Failure to do so could result in air bag inflation injuries to the driver.

OYDDSA2002

Safety features of your vehicle

Seatback angle

To recline the seatback:

1. Lean forward slightly and lift up the seatback recline lever.

2. Carefully lean back on the seat and adjust the seatback of the seat to the position you desire.

3. Release the lever and make sure the seatback is locked in place. (The lever MUST return to its original position for the seatback to lock.)

Seat cushion height (for driver's seat)

To change the height of the seat cushion push the lever upwards or downwards.

• T o lo wer the seat cushion, push the lever down several times.

• To raise the seat cushion, push the lever up several times.

WARNING - Unexpected

seat movement

After adjusting a manual seat, always check that it is loc ked b y shifting your weight to the front and back. Sudden or unexpected movement of the driver's seat could cause you to lose control of the vehicle.

OYDDSA2004

OYDDSA2003

Safety features of your vehicle

Lumbar support (for driver’s seat)

Press the front portion of the switch to increase support, or the rear portion of the switch to decrease support.

Front seat adjustment - power

The front seat can be adjusted by using the control switch located on the outside of the seat cushion. Before driving, adjust the seat to the proper position so as to easily control the steering wheel, pedals and switches on the instrument panel.

WARNING

The power seat is operable with the ignition OFF.

Therefore, children should never be left unatteded in the vehicle.

CAUTION

• The power seat is driven by an electric motor. Stop operating once the adjustment is completed. Excessive operation may damage the electrical equipment.

• When in operation, the power seat consumes a large amount of electrical power. To prevent unnecessary charging system drain, don’t adjust the power seat longer than necessary while the engine is not running.

• Do not operate two or more power seat control switches at the same time. Doing so may result in power seat motor or electrical component malfunction.

OYDDSA2008

Safety features of your vehicle

Forward and backward

Push the control switch forward or backward to move the seat to the desired position. Release the switch once the seat reaches the desired position.

Seatback angle

Push the control switch forward or backward to move the seatback to the desired angle. Release the switch once the seat reaches the desired position.

Seat cushion height (for driver's side)

Pull the front portion of the control switch up to raise or down to lower the front part of the seat cushion. Pull the rear portion of the control switch up to raise or down to lower the rear part of the seat cushion. Release the switch once the seat reaches the desired position.

OYDDSA2006

OYDDSA2007

OYDDSA2005

Safety features of your vehicle

Lumbar support (for driver’s seat, if equipped)

The lumbar support can be adjusted by pressing the lumbar support switch on the side of the driver's seat. Press the front portion of the switch to increase support, or the rear portion of the switch to decrease support.

Driver position memory system (if equipped, for power seat)

A driver position memory system is provided to store and recall the driver seat position with a simple button operation.By saving the desired position into the system memory , diff erent drivers can reposition the driver seat based upon their driving preference. If the battery is disconnected, the desired seat position memory will need to be re-saved.

Storing positions into memory using the buttons on the door

Storing driver’s seat positions

1. Shift the shift lever into P while the ignition switch is ON.

2. Adjust the driver seat to position comfortable for the driver.

3. Press SET button on the control panel.The system will beep once.

4. Press one of the memor y buttons (1 or 2) within 5 seconds after pressing the SET button.The system will beep twice when memory has been successfully stored.

OYDDSA2014OYDDSA2008

WARNING - Driver posi-

tion memory system

Never attempt to operate the driver position memory system while the vehicle is moving.

This could result in loss of control of your vehicle,and an accident causing death, serious injury, or property damage.

Safety features of your vehicle

Recalling positions from memory

1. Shift the shift lever into P while the ignition switch is ON.

2. To recall the position in memory, press the desired memory button (1 or 2). The system will beep once, then the driver seat will automatically adjust to the stored positions.

Adjusting the control switch for the driver seat while the system is recalling the stored position will cause the movement to stop and move in the direction that the control switch is moved.

Easy access function (if equipped)

With the shift lever in the P position, the system will move the driver's seat automatically as follows:

• Without smart key system

- It will move the driver’s seat rearward when the ignition key is removed and front driver’s door is opened.

- It will move the driver’s seat forward when the ignition key is inserted.

• With smart key system

- It will move the driver’s seat rearward when the engine start/stop button is turned to the OFF position and front driver’s door is opened.

- It will move the driver’s seat forward when the engine start/stop button is turned to the ACC or START position.

You can activate or deactivate this feature. Refer to "User settings" in chapter 4.

Headrest (for front seat)

The driver's and front passenger's seats are equipped with a headrest for the occupant's safety and comf ort.

The headrest not only provides comfort for the driver and front passenger, but also helps protect the head and neck in the event of a collision.

OMG038400

Safety features of your vehicle

103

For maximum effectiveness in case of an accident, the headrest should be adjusted so the middle of the headrest is at the same height of the center of gravity of an occupant's head. Generally, the center of gravity of most people's head is similar with the height of the top of their eyes. Also, adjust the headrest as close to your head as possible.

For this reason, the use of a cushion that holds the body away from the seatback is not recommended.

Adjusting the height up and down

To raise the headrest, pull it up to the desired position (1). To lower the headrest, push and hold the release button (2) on the headrest support and lower the headrest to the desired position (3).

Removal and installation

To remove the headrest:

1. Recline the seatback (2) with the recline switch (1).

2. Raise headrest as far as it can go.

WARNING - Headrest

removal/adjustment

• Do not operate the vehicle with the headrests removed. Headrests can provide critical neck and head support in a crash.

• Do not adjust the headrest height while the vehicle is in motion. Driver may lose control of the vehicle.

OYDDSA2009

OYD034102

■ Type B

■ Type A

OYD034100

311

Safety features of your vehicle

3. Press the headrest release button (3) while pulling the headrest up (4).

To reinstall the headrest :

1. Put the headrest poles (2) into the holes while pressing the release button (1).

2. Recline the seatback (4) with the recline switch or lever (3).

3. Adjust the headrest to the appropriate height.

OYD034103

■ Type B

■ Type A

OYD034101

WARNING - Headrest

Removal

NEVER allow anyone to ride in a seat with the headrest removed. Headrests can provide critical neck and head support in a crash.

WARNING - Headrest

Reinstallation

T o reduce the risk of injury to the head or neck, always make sure the head rest is locked into position and adjusted properly after reinstalling.

Safety features of your vehicle

123

Rear seat entry (for 2 door)

The driver and front passenger's seatback should be tilted to enter the rear seat.

By pulling up the walk-in seat lev er (1) on the back of the driver and front passenger’s seatback, the seatback will tilt forward.Then push the seat forward to allow the occupants to enter.

By pulling up the seatback, the seatback will recline and return to the original position.

Seatback pocket

The seatback pocket is provided on the back of the front passenger’s seatback.

W ARNING - Seatback

pocket

Do not put heavy or sharp objects in the seatback pocket. An occupant could contact such objects in a crash. Heavy objects in the front passenger seatback could also interfere with the air bag sensing system.

OYDDCO2051

WARNING

Never attempt to adjust the seat while the vehicle is moving or when the passenger's seat is occupied as the seat may suddenly move and injure the passenger.

OYD033002

313

Safety features of your vehicle

Rear seat adjustment

Headrest (for rear seat)

The rear seat is equipped with headrests in all the seating positions for the occupant's safety and comfort.

The headrest not only provides comfort for passengers, but also helps protect the head and neck in the event of a collision.

Also adjust the headrest as close to your head as possible. For this reason, the use of a cushion that holds the body away from the seatback is not recommended.

Adjusting the height up and down (if equipped)

To raise the headrest, pull it up to the desired position (1). To lower the headrest, push and hold the release button (2) on the headrest support and lower the headrest to the desired position (3).

OYDDSA2012

ONF039401

Safety features of your vehicle

143

Removal and installation

To remove the headrest, raise it as far as it can go then press the release button (1) while pulling the headrest upward (2).

To reinstall the headrest, put the headrest poles (3) into the holes while pressing the release button (1). Then adjust it to the appropriate height and ensure that it locks in position.

Make sure the headrest locks in position after adjusting.

Armrest

To use the armrest, pull it forward from the seatback.

Folding the rear seat

The rear seatbacks may be folded to facilitate carrying long items or to increase the luggage capacity of the vehicle.

WARNING

Never allow passengers to sit on top of the folded down seatback while the vehicle is moving.This is not a proper seating position and no seat belts are available for use. This could result in serious injury or death in case of an accident or sudden stop.

WARNING - Objects

Objects carried on the folded down seatback should not extend higher than the top of the front seatbacks. This could allow cargo to slide forwar d and cause injury or damage during sudden stops.

OYDDSA2013

OYDDSA2019

315

Safety features of your vehicle

To fold the rear seatback

• 4 door, 2door

1. Make sure the rear seat belt webbing is in the guide to prevent the seat belt from being damaged.

2. Set the front seatback to the upright position and if necessary, slide the front seat forward.

3. Lower the rear headrests to the lowest position.

4. Open the tr unk.

4.Pull the lock release lever (1) and fold the rear seatback forward and down firmly.

If the seat belt locks after unfolding the rear seatback, pull out the locked seat belt, release it then pull it out again.

• 5 door

1.Set the front seatback to the upright position and if necessary, slide the front seat forward.

2. Lower the rear headrests to lowest position.

3. Pull the lock release lever (1) and fold the rear seatback forward and down firmly.

OYDDSA2017

OYDDSA2018

OYDDSA2016

OYDDSA3042

Safety features of your vehicle

163

4. To use the rear seat, lift and pull the seatback backward. Pull the seatback firmly until it clicks into place. Make sure the seatback is locked in place. When you return the seatback to its upright position, always be sure it has locked into position by pushing on the top of the seatback.

If you can not see the red line at the folding lever, it means the seatback is locked completely.

To unfold the rear seat

1. To use the rear seat, lift and pull the seatback rearward. Pull the seatback firmly until it clicks into place. Make sure the seatback is locked in place. When you return the seatback to its upright position, always be sure it has locked into position by pushing on the top of the seatback.

2. Return the rear seat belt to the proper position.

3. When the seatback is completely installed, check the seatback folding lever again.

When returning the rear seatbacks to the upright position, remember to return the rear shoulder belts to their proper position.

WARNING

- Cargo

Do not place heavy objects in the rear seats, since they cannot be properly secured and may hit vehicle occupants in a frontal collision.

W ARNING - Rear seatback

When returning the rear seatback from a folded to an upright position, hold the seatback and return it slowly. Ensure that the seatback is completely locked into its upright position by pushing on the top of the seatback. In an accident or sudden stop, the unlocked seatback could allow cargo to move forward with great force and enter the passenger compartment.

317

Safety features of your vehicle

Seat belt restraint system

Seat belts are designed to bear upon the bony structure of the body, and should be worn low across the pelvis, chest and shoulders as applicable. wear ing the lap section of the belt across the abdominal area must be avoided.

Seat belts should be adjusted as firmly as possible, consistent with comfort, to provide the protection for which they have been designed.

A slack belt will greatly reduce the protection afforded to the wearer.

Care should be taken to avoid contamination of the webbing with polishes, oils and chemicals, and particularly battery acid. Cleaning may safely be carried out using mild soap and water. The belt should be replaced if webbing becomes frayed, contaminated or damaged.

• For maximum restraint system pro-

tection, the seat belts must always be used whenever the vehicle is moving. A properly positioned shoulder belt should be positioned midway over your shoulder across your collarbone.

• Never allow children to ride in the

front passenger seat. See child restraint system section for further discussion.

SEAT BELTS

WARNING - Shoulder belt

Never wear the shoulder belt under your arm or behind your back. An improperly positioned shoulder belt cannot protect the occupant in a crash.

WARNING

- Damaged seat belt

Replace the entire seat belt assembly if any part of the webbing or hardware is damaged as you can no longer be sure that a damaged seat belt will provide protection in a crash.

WARNING - Twisted seat

belt

Make sure your seat belt is not twisted when worn. A twisted seat belt may not properly protect you in an accident and could even cut into your body.

WARNING - Seat belt

buckle

Do not allow foreign material (gum, crumbs, coins, etc.) to obstruct the seat belt buckle. This may prevent the seat belt from fastening securely.

Safety features of your vehicle

183

Seat belt warning (for driver’s seat)

The driver's seat belt warning light and chime will activate to the following table when the ignition switch is in "ON" position.

Warning pattern repeats 11 times with an interval of 24 seconds. If the driver's seat belt is buckled, the light will stop within 6 seconds and chime will stop immediately.

The light will stop within 6 seconds and chime will stop immediately.

Seat belt - Driver's 3-point system with emergency locking retractor

To fasten your seat belt:

To fasten your seat belt, pull it out of the retractor and insert the metal tab (1) into the buckle (2). There will be an audible "click" when the tab locks into the buckle.

1GQA2083

B180A01NF-1

Conditions Warning Pattern

Seat Belt

Vehicle

Speed

Light-Blink

Chime-

Sound

Unbuckled 6 seconds

Buckled 6 seconds None

Buckled → Unbuckled

Below 5 km/h

(3 mph)

6 seconds None

5 km/h~ 10 km/h

6 seconds

Above 10 km/h

(6 mph)

6 sec. on / 24 sec. off

(11 times)

Unbuckled

Above 10 km/h

(6 mph)

↓

Below 5 km/h

(3 mph)

6 seconds *

↓

Stop *

319

Safety features of your vehicle

The seat belt automatically adjusts to the proper length only after the lap belt portion is adjusted manually so that it fits snugly around your hips. If you lean forward in a slow, easy motion, the belt will extend and let you move around. If there is a sudden stop or impact, however, the belt will lock into position. It will also lock if you try to lean forward too quickly.

If you are unable to pull out the seat belt from the retractor, firmly pull the belt out and release it. Then you will be able to pull the belt out smoothly.

Height adjustment

You can adjust the height of the shoulder belt anchor to one of the 4 positions for maximum comfort and safety.

The height of the adjusting seat belt should not be too close to your neck. The shoulder portion should be adjusted so that it lies across your chest and midway ov er your shoulder nearest the door and not your neck.

To adjust the height of the seat belt anchor, lower or raise the height adjuster into an appropriate position.

To raise the height adjuster, pull it up (1). To lower it, push it down (3) while pressing the height adjuster button (2).

Release the button to lock the anchor into position. Try sliding the height adjuster to make sure that it has locked into position.

Never position the shoulder belt across your neck or face.

WARNING - Seat belt

replacement

Replace your seat belts after being in an accident. Failure to replace seat belts after an accident could leave you with damaged seat belts that will not provide protection in the event of another collision.

OMG035038

Safety features of your vehicle

203

You should place the lap belt portion as low as possible and snugly across your hips.If the lap belt is located too high on your waist, it may increase the chance of injury in the event of a collision.

The arm closest to the seat belt buckle should be over the belt while the other arm should be under the belt as shown in the illustration.

Seat belts - Front passenger and rear seat 3-point system with combination locking retractor

To fasten your seat belt

Combination retractor type seat belts are installed in the rear seat positions to help accommodate the installation of child restraint systems. Although a combination retractor is also installed in the front passenger seat position, it is strongly recommended that children always be seated in the rear seat. NEVER place an infant restraint system in the front seat of the vehicle.

This type of seat belt combines the features of both an emergency locking retractor seat belt and an automatic locking retractor seat belt. To fasten your seat belt, pull it out of the retractor and insert the metal tab into the buckle. There will be an audible "click" when the tab locks into the buckle. When not securing a child restraint, the seat belt operates in the same way as the driver's seat belt (Emergency Locking Retractor Type).

It automatically adjusts to the proper length only after the lap belt portion of the seat belt is adjusted manually so that it fits snugly around your hips.

When the seat belt is fully extended from the retractor to allow the installation of a child restraint system, the seat belt operation changes to allow the belt to retract, but not to extend (Automatic Locking Retractor Type). Refer to “Using a child restraint system” in this section.

To convert from the automatic locking feature to the emergency locking operation mode, allow the unbuckled seat belt to fully retract.

B200A01NF

321

Safety features of your vehicle

When using the rear center seat belt, the buckle with the “CENTER” mark must be used.

To release the seat belt

The seat belt is released by pressing the release button (1) of the locking buckle. When it is released, the belt should automatically draw back into the retractor.

If this does not happen, check the belt to be sure it is not twisted, then try again.

Shoulder belt extension guide (for 2 door)

You can adjust the position of the shoulder belt extension guide for easier access to the shoulder belt.

Set the belt extension guide to the position (1~3) when using the seat belt.

OYDDSA2021

B210A01NF-1

OUB031053L

Safety features of your vehicle

223

Pre-tensioner seat belt

Your vehicle is equipped with driver's and front passenger's pre-tensioner seat belts.

1. Retractor pre-tensioner

The retractor pre-tensioner, which is a supplement system of the seat belts. The purpose of the retractor pre-tensioner is to tighten the shoulder belt against the occupant's upper body in certain frontal collisions.

2. Emergency Fastening Device (EFD)

The Emergency Fastening Device (EFD) is a supplemental system of the seat belts. The purpose of the EFD is to tighten the lap belt against the occupant's pelvis in certain frontal collisions.

The pre-tensioner seat belts may be activated, when a frontal collision is severe enough, together with the air bags.

When the vehicle stops suddenly, or if the occupant tries to lean forward too quickly, the seat belt retractor may lock into position. In certain frontal collisions (or side collisions), the pre-tensioner may activate and pull the seat belt into tighter contact against the occupant's body.

If the system senses excessive tension on the driver or passenger's seat belt when the pre-tensioner activates, the load limiter inside the retractor pre-tensioner will release some of the pressure on the affected seat belt.

OXMA033101

WARNING

• Do not put anything near the buckle or between you and the seatbelt. This may adversely affect the seat belt or its pre-tensioner system and may increase the risk of personal injury in the event of a collision.

• For your safety, be sure that the belt webbing is not loose or twisted and always sit properly on your seat.

323

Safety features of your vehicle

The seat belt pre-tensioner system consists mainly of the following components.Their locations are shown in the illustration:

1. SRS air bag war ning light

2. Retractor pre-tensioner assembly

3. SRS control module

4.Emergency fastening device (EFD)

To obtain maximum benefit from a pre-tensioner seat belt:

1. The seat belt must be worn correctly and adjusted to the proper position. Please read and follow all of the important information and precautions about your vehicle's occupant safety features - including seat belts and air bags - that are provided in this manual.

2. Be sure you and your passengers always wear seat belts properly.

✽✽

NOTICE

When the pre-tensioner seat belts are activated, a loud noise may be heard and fine dust, which may appear to be smoke, may be visible in the passenger compartment. These are normal operating conditions and are not hazardous.

WARNING - Skin irritation

Wash all exposed skin areas thoroughly after an accident in which the pre-tensioner seat belts were activated. The fine dust from the pre-tensioner activation may cause skin irritation and should not be breathed for prolonged periods.

ODMESA2024

Safety features of your vehicle

243

Because the sensor that activates the SRS air bag is connected with the pre-tensioner seat belt, the SRS air bag warning light ( ) on the instrument panel will illuminate for approximately 6 seconds after the ignition switch has been turned to the ON position, and then it should turn off.

If the pre-tensioner seat belt does not work properly, this warning light will illuminate even if the SRS air bag has not malfunctioned. If the SRS air bag warning light does not illuminate when the ignition switch is turned ON, or if it remains illuminated after illuminating for approximately 6 seconds, or if it illuminates while the vehicle is being driven, please have an authorized Kia dealer inspect the pre-tensioner seat belt or SRS air bag system as soon as possible.

✽✽

NOTICE

Do not attempt to service or repair the pre-tensioner seat belt system in any manner. Do not attempt to inspect or replace the pre-tensioner seat belts yourself. This must be done by an authorized Kia dealer.

Pre-tensioners are designed to operate only one time. After activation, pre-tensioner seat belts must be replaced. If the pre-tensioner must be replaced, contact an authorized Kia dealer.

Seat belt precautions

Infant or small child

You should be aware of the specific requirements in your country. Child and/or infant seats must be properly placed and installed in the rear seat. For more information about the use of these restraints, refer to “Child restraint system” in this section.

WARNING - Hot pre -

tensioner

Do not touch the pre-tensioner seat belt assemblies for several minutes after they have been activated. When the pre-tensioner seat belt mechanism fires during a collision the pretensioner becomes hot and can burn you.

325

Safety features of your vehicle

Larger children

Children who are too large for child restraint systems should always occupy the rear seat and use the available lap/shoulder belts. The lap portion should be fastened snug on the hips and as low as possible. Periodically check belt fit.A child's squirming could put the belt out of position. Children are given the most safety in the event of an accident when they are restrained by a proper restraint system in the rear seat. If a larger child (over age 12) must be seated in the front seat, the child should be securely restrained by the available lap/shoulder belt and the seat should be placed in the rearmost position. Children age 12 and under should be restrained securely in the rear seat. NEVER place a child age 12 and under in the front seat. NEVER place a rear facing child seat in the front seat of a vehicle.

If the shoulder belt portion slightly touches the child’s neck or face, try placing the child closer to the center of the vehicle. If the shoulder belt still touches their face or neck the y need to be returned to a child restraint system.

Restraint of pregnant women

Pregnant women should wear lap/shoulder belt assemblies whenever possible according to specific recommendations by their doctors. The lap portion of the belt should be worn AS SNUGLY AND LOW AS POSSIBLE on the hips, not across the abdomen.

WARNING - Pregnant

women

Pregnant women must never place the lap portion of the seat belt above or on the abdomen where the fetus is located. The force of the seat belt during a collision will crush the fetus.

WARNING - Small chil-

dren

Do not allow small children to ride in the vehicle without an appropriate child restraint system. If the shoulder belt comes in contact with your child's neck or face your child is too small to ride in the vehicle. In a crash the seat belt will inflict injury to your child's neck, throat and face.

Safety features of your vehicle

263

Injured person

A seat belt should be used when an injured person is being transported. When this is necessary, you should consult a physician for recommendations.

One person per belt

Two people (including children) should never attempt to use a single seat belt. This could increase the severity of injuries in case of an accident.

Do not lie down

To reduce the chance of injuries in the event of an accident and to achieve maximum effectiveness of the restraint system, all passengers should be sitting up and the front seats should be in an upright position when the vehicle is moving. A seat belt cannot provide proper protection if the person is lying down in the rear seat or if the front seat is in a reclined position.

Care of seat belts

Seat belt systems should never be disassembled or modified. In addition, care should be taken to assure that seat belts and belt hardware are not damaged by seat hinges, doors or other abuse.

Periodic inspection

All seat belts should be inspected periodically for wear or damage of any kind. Any damaged par ts should be replaced as soon as possible.

Keep belts clean and dry

Seat belts should be kept clean and dry .If belts become dirty, they can be cleaned by using a mild soap solution and warm water. Bleach, dye, strong detergents or abrasives should not be used because they may damage and weaken the fabr ic.

When to replace seat belts

The entire in-use seat belt assembly or assemblies should be replaced if the vehicle has been involved in an accident.This should be done even if no damage is visible. Additional questions concerning seat belt operation should be directed to an authorized Kia dealer.

WARNING - Pinched Seat

belts

Make sure that the webbing and/or buckle does not get caught or pinched in the rear seat when returning the rear seatback to its upright position. A caught or pinched webbing/buckle may become damaged and could fail during a collision or sudden stop.

327

Safety features of your vehicle

CHILD RESTRAINT SYSTEM

Children riding in the car should sit in the rear seat and must always be properly restrained to minimize the risk of injury in an accident, sudden stop or sudden maneuver. According to accident statistics, children are safer when properly restrained in the rear seats than in the front seat. Larger children not in a child restraint should use one of the seat belts provided.You should be aware of the specific requirements in your country. Child and/or infant safety seats must be properly placed and installed in the rear seat.You must use a commercially available child restraint system that meets the requirements of the safety standards of your country. Child restraint systems are designed to be secured in vehicle seats by seat belt, or by a tether anchor and/or LATCH anchors (if equipped).

Children could be injured or killed in a crash if their restraints are not properly secured. For small children and babies, a child seat or infant seat must be used. Before buying a particular child restraint system, make sure it fits your car seat and seat belts, and fits your child.

Follow all the instructions provided by the manufacturer when installing the child restraint system.

When the child restraint system is not in use, store it in the luggage area or fasten it with a seat belt so that it will not be thrown forward in case of a sudden stop or an accident.

WARNING- Restraint

location

Never install a child or infant seat on the front passenger's seat.

A child riding in the front passenger seat can be forcefully struck by an inflating air bag.

WARNING- Hot child

restraint

A child restraint system can become very hot if it is left in a closed vehicle on a sunny da y .Be sure to check the seat cover, buckles and latches before placing a child in the restraint system.

WARNING - Holding

children

Never hold a child in your arms or lap when riding in a vehicle. The violent forces created during a crash will tear the child from your arms and throw the child against the car’s interior.

Always use a child restraint system which is appropriate for your child's height and weight.

WARNING - Seat belt use

Do not use one seat belt for two occupants at the same time. This will eliminate any safety benefit provided by the seat belt to the occupants.

Safety features of your vehicle

283

Using a child restraint system

For small children and babies, the use of a child seat or infant seat is required. This child seat or infant seat should be of appropriate size for the child and should be installed in accordance with the manufacturer's instructions.

For safety reasons, we recommend that the child restraint system be used in the rear seats.

Since all passenger seat belts move freely under normal conditions and only lock under extreme or emergency conditions (emergency lock mode), you must manually change these seat belts to the auto lock mode to secure a child restraint.

If the seat belt does not operate as described in this section, have the system checked immediately by your authorized Kia dealer.

CRS09

OTQ037038

Rear- facing child restraint system

Forward-facing child restraint system

WARNING - Unattended

Children

Never leave children unattended in a vehicle.The vehicle can heat up very quickly, resulting in injuries to the child in the vehicle.

WARNING - Child seat

installation

• Always follow the instructions provided by the child restraint system manufacturer. Child restraint system manufacturers know their products best.

• Failure to observe this manual's instructions regarding child restraint system and the instructions provided with the child restraint system could result in the improper installation of the child restraint system which may reduce the protection to your child in a crash or a sudden stop.

329

Safety features of your vehicle

Placing a passenger seat belt into the auto lock mode

The auto lock mode will help prevent the normal movement of the child in the vehicle from causing the seat belt to loosen and compromise the child restraint system. To secure a child restraint system, use the following procedure.

To install a child restraint system on the outboard or center rear seats, do the following:

1. Place the child restraint system in the seat and route the lap/shoulder belt around or through the restraint, following the restraint manufacturer’s instructions. Be sure the seat belt webbing is not twisted.

2. Fasten the lap/shoulder belt latch into the buckle. Listen for the distinct “click” sound.

Position the release button so that it is easy to access in case of an emergency.

3. Pull the shoulder portion of the seat belt all the way out.When the shoulder portion of the seat belt is fully extended, it will shift the retractor to the “Auto Lock” (child restraint) mode.

E2MS103005

OEN036101

OEN036102

Safety features of your vehicle

303

4. Slowly allow the shoulder portion of the seat belt to retract and listen for an audible “clic king”or “ratcheting” sound. This indicates that the retractor is in the “Auto Lock” mode. If no distinct sound is heard, repeat steps 3 and 4.

5. Remove as much slack from the belt as possible by pushing down on the child restraint system while feeding the shoulder belt back into the retractor.

6. Push and pull on the child restraint system to confirm that the seat belt is holding it firmly in place. If it is not, release the seat belt and repeat steps 2 through 6.

7. Double check that the retractor is in the “Auto Loc k”mode by attempting to pull more of the seat belt out of the retractor. If you cannot, the retractor is in the “A uto Lock”mode.

The lap/shoulder belt automatically returns to the “emergency lock mode” whenever the belt is allowed to retract fully.

Therefore, the preceding seven steps must be followed each time a child restraint is installed.

To remove the child restraint, press the release button on the buckle and then pull the lap/shoulder belt out of the restraint and allow the seat belt to retract fully.

OEN036103 OEN036104

WARNING - Auto lock

mode

Set the retractor to Automatic Lock mode when installing any child restraint system.

If the retractor is not in the Auto Lock mode, the child restraint can move when your vehicle turns or stops suddenly.

331

Safety features of your vehicle

Securing a child restraint seat with tether anchorage system

Child restraint hook holders are located on the package tray (4 Door, 2 Door) or the floor behind the rear seat (5 Door).

This symbol indicates the position of the tether anchor.

1.Route the child restraint seat tether strap over the seatback.

For vehicles with adjustable headrests, route the tether strap under the headrest (remove the headrest and the re-install it) and between the headrest posts, otherwise route the tether strap over the top of the seatback.

OYDESA4022

OYDDSA3043

• 4 Door, 2 Door

• 5 Door

OTF030030N

Safety features of your vehicle

323

2. Connect the tether strap hook to the appropriate child restraint hook holder and tighten to secure the child restraint seat.

Check that the child restraint system is secure by pushing and pulling it in different directions. Incorrectly fitted child restraints may swing, twist, tip or separate causing death or serious injury.

Securing a child restraint seat with child seat lower anchor system

Some child seat manufacturers make child restraint seats that are labeled as LATCH or LATCH-compatible child restraint seats. LATCH stands for "Lower Anchors and Tethers for Children". These seats include two rigid or webbing mounted attachments that connect to two LATCH anchors at specific seating positions in your vehicle.This type of child restraint seat eliminates the need to use seat belts to attach the child seat in the rear seats.

Child restraint symbols are located on the left and right rear seat backs to indicate the position of the lower anchors for child restraints.

WARNING - Tether strap

Never mount more than one child restraint to a single tether or to a single lower anchorage point. The increased load caused by multiple seats may cause the tethers or anchorage points to break.

B230D01NF

OTF030031N

Lower Anchor

Position Indicator

Lower Anchor

WARNING - Unused rear

seatbelts

Always fasten the seatbelts behind the child restraint seat when they are not used to secure the child seat. Failure to do so may result in child strangulation.

333

Safety features of your vehicle

LATCH anchors have been provided in your vehicle.The LATCH anchors are located in the left and right outboard rear seating positions. Their locations are shown in the illustration. There is no LATCH anchor provided for the center rear seating position.

The LATCH anchors are located between the seatback and the seat cushion of the rear seat left and right outboard seating positions.

When you install your child's restraint system using the LATCH anchors buckle the shoulder lap belt, then lock the retractor and pull the belt to remove the slack in the belt so it lies flat against the vehicle seat.

Follow the child seat manufacturer’s instructions to properly install child restraint seats with LATCH or LATCH-compatible attachments.

Once you have installed the LATCH child restraint, assure that the seat is properly attached to the LATCH and tether anchors.

Also, test the child restraint seat before you place the child in it. Tilt the seat from side to side. Also try to tug the seat forward. Check to see if the anchors hold the seat in place.

OTD039037N

WARNING - LATCH lower

anchors

Never attempt to attach a LATCH equipped seat in the center seating position. LATCH lower anchors are only to be used with the left and right rear outboard seating positions. You may damage the anchors or the anchors may fail and break in a collision.

WARNING - Weight for

LATCH system

The recommended weight for the LATCH system is under 65 lb (29.48 kg).

How to calculate the child restraint weight :

Child restraint weight = 65 lb (29.48 kg) - Child weight.

Safety features of your vehicle

343

(1) Driver’s front air bag (2) Passenger’s front air bag (3) Side air bag (4) Curtain air bag

Even in vehicles with air bags, you and your passengers must always wear the safety belts provided in order to minimize the risk and severity of injury in the event of a collision or rollover.

AIR BAG - ADVANCED SUPPLEMENTAL RESTRAINT SYSTEM

OYDESA2024CN

❈ The actual air bags in the vehicle may differ from the illustration.

335

Safety features of your vehicle

How does the air bag system operate

• Air bags are activated (able to

inflate if necessary) only when the ignition switch is turned to the ON or START the appropriate position.

• Air bags inflate instantly in the

event of serious frontal or side collision (if equipped with side air bag or curtain air bag) in order to help protect the occupants from serious physical injury.

• There is no single speed at which

the air bags will inflate. Generally, air bags are designed to

inflate based upon the severity of a collision and its direction. These two factors determine whether the sensors produce an electronic deployment/ inflation signal.

• Air bag deployment depends on a

number of complex factors including vehicle speed, angles of impact and the density and stiffness of the vehicles or objects which your vehicle hits in the collision.Though, factors are not limited to those mentioned above.

• The front air bags will completely inflate and deflate in an instant.

It is virtually impossible for you to see the air bags inflate during an accident.It is much more likely that you will simply see the deflated air bags hanging out of their storage compartments after the collision.

• In order to help provide protection in a severe collision, the air bags must inflate rapidly. The speed of air bag inflation is a consequence of extremely short time in which a collision occurs and the need to get the air bag between the occupant and the vehicle structures before the occupant impacts those structures. This speed of inflation reduces the risk of serious or lifethreatening injuries in a severe collision and is thus a necessary par t of air bag design.

However, air bag inflation can also cause injuries which can include facial abrasions, bruises and broken bones because the inflation speed also causes the air bags to expand with a great deal of force.

• There are even circumstances under which contact with the steering wheel air bag can cause fatal injuries, especially if the occupant is positioned excessively close to the steering wheel.

WARNING - Airbag

Inflation

Sit as far back as possible from the steering wheel while still maintaining comfortable control of the your vehicle. A distance of at least 10" (25cm) from your chest to the steering wheel is recommended. Failure to do so can result in airbag inflation injuries to the driver.

Safety features of your vehicle

363

Noise and smoke

When the air bags inflate, they make a loud noise and they leave smoke and powder in the air inside of the vehicle.This is normal and is a result of the ignition of the air bag inflator. After the air bag inflates, you may feel substantial discomfort in breathing due to the contact of your chest to both the seat belt and the air bag, as well as from breathing the smoke and powder. Open your doors

and/or windows as soon as possible after the impact in order to reduce discomfort and prevent prolonged exposure to smoke and powder.

Though smoke and powder are nontoxic,They may cause irr itation to the skin (eyes,nose and throat, etc). If this is the case, wash and rinse with cold water immediately and consult a doctor if the symptom persists.

Installing a child restraint on a front passenger’s seat is forbidden

Never place a rear-facing child restraint in the front passenger’s seat. If the air bag deploys, it would impact the rear-facing child restraint, causing serious or fatal injury.

In addition, do not place front-facing child restraint in the front passenger’s seat either. If the front passenger air bag inflates, it would cause serious or fatal injuries to the child.

1JBH3051

WARNING

- Hot components

Do not touch the air bag storage area's internal components immediately after air bag inflation.The air bag related par ts in the steering wheel, instrument panel and the roof rails above the front and rear doors are very hot. Hot components can result in burn injuries.

337

Safety features of your vehicle

Air bag warning light

The purpose of the air bag warning light in your instrument panel is to alert you of a potential problem with your air bag - Supplemental Restraint System (SRS).

When the ignition switch is turned ON, the indicator light should illuminate for approximately 6 seconds, then go off.

Have the system checked by an authorized Kia dealer if:

• The light does not turn on briefly when you turn the ignition ON.

• The light stays on after illuminating for approximately 6 seconds.

• The light comes on while the vehicle is in motion.

W7-147

WARNING - Air bag

deployment

When children are seated in the rear outboard seats of a vehicle equipped with side and/or curtain air bags, install the child restraint system as far away from the door side as possible. Inflation of the side and/or curtain air bags could impact the child.

Safety features of your vehicle

383

SRS components and functions

The SRS consists of the following components:

1. Dr iver's front air bag module

2. Passenger's front air bag module

3. Side air bag modules

4. Curtain air bag modules

5. Retractor pre-tensioner assemblies*

6. Air bag war ning light

7. SRS control module (SRSCM)

8. Front impact sensors

9. Side impact sensors

10. PASSENGER AIR BAG “OFF” indicator (Front passenger’s seat only)

11. Occupant detection system (Front passenger’s seat only)

12. Dr iver’s and front passenger’s seat belt buckle sensors

13. Emergency fastening device (EFD)

* : if equipped

The SRSCM continually monitors all SRS components while the ignition switch is ON to determine if a crash impact is severe enough to require air bag deployment or pre-tensioner seat belt deployment.

The SRS air bag warning light on the instrument panel will illuminate for about 6 seconds after the ignition switch is turned to the ON position, after which the air bag warning light should go out.

If any of the following conditions occurs, this indicates a malfunction of the SRS. Have an authorized Kia dealer inspect the air bag system as soon as possible.

• The light does not turn on briefly when you turn the ignition ON.

• The light stays on after illuminating for approximately 6 seconds.

• The light comes on while the vehicle is in motion.

OTF032049N

339

Safety features of your vehicle

The air bag modules are located both in the center of the steering wheel and in the front passenger's panel above the glove box.When the SRSCM detects a sufficiently severe impact to the front of the vehicle, it will automatically deploy the front air bags.

Upon deployment, tear seams molded directly into the pad covers will separate under pressure from the expansion of the air bags. Further opening of the covers then allows full inflation of the air bags.

A fully inflated air bag, in combination with a properly worn seat belt, slows the driver's or the passenger's forward motion, reducing the risk of head and chest injury.

After complete inflation, the air bag immediately starts deflating, enabling the driver to maintain forward visibility and the ability to steer or operate other controls.

B240B01L

Driver’s front air bag (1)

B240B02L

Driver’s front air bag (2)

B240B03L

Driver’s front air bag (3)

Safety features of your vehicle

403

✽✽

NOTICE

Before you replace a fuse or disconnect a battery terminal, turn the ignition switch to the LOCK position and remove the ignition key. Never remove or replace the air bag related fuse(s) when the ignition switch is in the ON position. Failure to heed this warning will cause the SRS air bag warning light to illuminate.

Occupant detection system

Your vehicle is equipped with an occupant detection system in the front passenger's seat.

The occupant detection system is designed to detect the presence of a properly-seated front passenger and determine if the passenger's front air bag should be enabled (may inflate) or not.The driver's front air bag is not affected or controlled by the occupant detection system.

B240B05L

Passenger’s front air bag

WARNING - Air bag

obstructions

Do not install or place any accessories on the steering wheel, instrument panel, or on the front passenger's panel above the glove bo x in a vehicle Such objects may become dangerous projectiles if the air bag deploys.

OYDNSA2037

341

Safety features of your vehicle

Main components of occupant detection system

• A detection device located within the front passenger seat track.

• Electronic system to determine whether passenger air bag systems should be activated or deactivated.

• An indicator light located on the instrument panel which illuminates the words PASSENGER AIR BAG “OFF” indicating the front passenger air bag system is deactivated.

• The instrument panel air bag warning light is interconnected with the occupant detection system.

If the front passenger seat is occupied by a person that the system determines to be of adult size, and he/she sits properly (sitting upright with the seatback in an upright position, centered on the seat cushion with their seat belt on, legs comfortably extended and their feet on the floor), the PASSENGER AIR BAG “OFF” indicator will turn off and the front passenger's air bag will be able to inflate, if necessary, in frontal crashes.

You will find the PASSENGER AIR BAG “OFF” indicator on the center facia panel. This system detects the conditions 1~4 in the following table and activates or deactivates the front passenger air bag based on these conditions.

Always be sure that you and all vehicle occupants are seated and restrained properly (sitting upright with the seat in an upright position, centered on the seat cushion, with the person’s legs comfortably extended, feet on the floor, and wearing the safety belt properly) for the most effective protection by the air bag and the safety belt.

• The ODS (Occupant Detection System) may not function properly if the passenger takes actions which can defeat the detection system. These include:

(1) Failing to sit in an upright position. (2) Leaning against the door or cen-

ter console.

(3) Sitting towards the sides or the

front of the seat.

(4) Putting legs on the dashboard or

resting them on other locations which reduce the passenger

weight on the front seat. (5) Improperly wearing the safety belt. (6) Reclining the seat back.

Safety features of your vehicle

423

WARNING - ODS system

Riding in an improper position adversely affects the occupant detection system (ODS) and may result in the deactivation of front passenger air bag. It is important for the driver to instruct the passenger as to the proper seating instructions as contained in this manual.

(Continued)

Condition and operation in the front passenger occupant detection system

*1) The system judges a person of adult size as an adult.When a smaller adult sits in

the front passenger seat, the system may recognize him/her as a child depending on his/her physique and posture.

*2) Do not allow children to ride in the front passenger seat.When a smaller child than

the same age sits in the front passenger seat, the system may recognize him/her

as an infant depending on his/her physique or posture. *3) Never install a child restraint system on the front passenger seat. *4) The PASSENGER AIR BAG "OFF" indicator may turn on or off when a child above

12 months to 12 years old (with or without child restraint system) sits in the front

passenger seat.This is a normal condition.

Condition detected by the occupant

detection system

1. Adult *

or child age 13 and up*

2. Infant or child restraint system with 12 months old*

3 *4

3. Unoccupied

4. Malfunction in the system

Off

On On

Off

Off Off

Activated

Deactivated Deactivated

Activated

PASSENGER AIR BAG “OFF” indica-

tor light

SRS warning

light

Front passenger

air bag

Indicator/Warning light

Devices

343

Safety features of your vehicle

1KMN3663

1KMN3664

1KMN3665

- Never sit with the hips shifted towards the front of the seat.

- Never lean on the door or center console.

- Never sit on one side of the front passenger seat.

- Never place the feet on the dashboard.

B990A08O

1KMN3662

- Never put a heavy load in the front passenger seat.

- Never excessively recline the front passenger seatback.

OVQ036014N

- Never place the feet on the front passenger seatback.

(Continued)

Safety features of your vehicle

443

When an adult is seated in the front passenger seat, if the PASSENGER AIR BAG “OFF” indicator is on, turn the ignition switch to the LOCK position and ask the passenger to sit properly (sitting upright with the seat back in an upright position, centered on the seat cushion with their seat belt on, legs comfortably extended and their feet on the floor). Restart the engine and have the person remain in that position.This will allow the system to detect the person and to enable the passenger air bag.

If the PASSENGER AIR BAG “OFF” indicator is still on, ask the passenger to move to the rear seat.

✽✽

NOTICE

The PASSENGER AIR BAG “OFF” indicator illuminates for about 4 seconds after the ignition switch is turned to the ON position or after the engine is started. If the front passenger seat is occupied, the occupant detection sensor will then classify the front passenger after several more seconds.

B990A01O

WARNING - “AIR BAG

OFF” light

Do not allow an adult passenger to ride in the front seat when the PASSENGER AIR BAG “OFF” indicator is illuminated, because the air bag will not deploy in the event of a crash.The driver must instruct the passenger to reposition himself in the seat. Failure to properly position yourself may lead to air bag deactivation resulting in air bag non-deployment and in a collision. If the PASSENGER AIR BAG “OFF” indicator remains illuminated after the passenger repositions themselves properly and the car is restarted, it is recommended that passenger move to the rear seat because the passenger's front air bag will not deploy.

345

Safety features of your vehicle

Any child age 12 and under should ride in the rear seat. Children too large for child restraints should use the available lap/shoulder belts. No matter what type of crash, children of all ages are safer when restrained in the rear seat.

✽✽

NOTICE

Do not modify or replace the front passenger seat. Don't place anything on or attach anything such as a blanket, front seat covers or after market seat heater to the front passenger seat. This can adversely affect the occupant detection system.

If the occupant detection system is not working properly, the SRS air bag warning light on the instrument panel will illuminate because the passenger's front air bag is connected with the occupant detection system. If there is a malfunction of the occupant detection system, the PASSENGER AIR BAG “OFF” indicator will not illuminate and the passenger's front air bag will inflate in frontal impact crashes even if there is no occupant in the front passenger's seat.

Driver's and passenger's front air bag

Your vehicle is equipped with an Advanced Supplemental Restraint (Air Bag) System and lap/shoulder belts at both the driver and passenger seating position.

OYDDSA2025

OYDDSA2026

Driver’s front air bag

Passenger’s front air bag

WARNING - Occupant

Detection Interference

Do not place anything in the front seat which will affect the ability of the vehicle to properly c lassify the occupant. This can result in the deactivation of the passenger airbag which increases the risk of injury in accidents.

Safety features of your vehicle

463

The indications of the system's presence are the letters "AIR BAG" embossed on the air bag pad cover in the steering wheel and the passenger's side front panel pad above the glove box.

The SRS consists of air bags installed under the pad covers in the center of the steering wheel and the passenger's side front panel above the glove box.

The purpose of the SRS is to provide the vehicle's driver and/or the front passenger with additional protection than that offered by the seat belt system alone in case of a frontal impact of sufficient severity. The SRS uses sensors to gather information about the driver's seat position, the driver's and front passenger's seat belt usage and impact severity.

The advanced SRS offers the ability to control the air bag inflation with two levels. A first stage level is provided for moderate-severity impacts. A second stage level is provided for more severe impacts.

The passenger’s front air bag is designed to help reduce the injury of children sitting close to the instrument panel in low speed collisions. However, children are safer if they are restraint in the rear seat.

According to the impact severity, seating position and seat belt usage, the SRSCM (SRS Control Module) controls the air bag inflation. Failure to properly wear seat belts can increase the risk or severity of injury in an accident.

Additionally, your vehicle is equipped with an occupant detection system in the front passenger's seat.The occupant detection system detects the presence of a passenger in the front passenger's seat and will turn off the front passenger's air bag under certain conditions. For more detail, see "Occupant detection system" in this section.

Do not place any objects that may cause magnetic fields near the front seat.These may cause a malfunction of the seat track position sensor.

347

Safety features of your vehicle

1JBB3520

1JBA3514

1JBA3522

Side impact

Rear impact

Rollover

Manufacturers are required by government regulations to provide a contact point concerning modifications to the vehicle for persons with disabilities, which modifications may affect the vehicle’s advanced air bag system. However, Kia does not endorse nor will it support any changes to any part or structure of the vehicle that could affect the advanced air bag system, including the occupant detection system.

Advanced air bags are combined with pre-tensioner seat belts to help provide enhanced occupant protection in frontal crashes. Front air bags are not intended to deploy in collisions in which sufficient protection can be provided by the pre-tensioner seat belt alone.

Front air bags are not intended to deploy in side-impact, rear-impact or rollover crashes.In addition, front air bags will not deploy in frontal crashes below the deployment threshold.

WARNING - Replacement/

modifications

The front passenger seat, dashboard or door should not be replaced except by an authorized Kia dealer using original Kia parts designed for this vehicle and model. Any other such replacement or modification could adversely affect the operation of the occupant detection system and your advanced air bags.

WARNING - SRS Wiring

Do not tamper with or disconnect SRS wiring or other components of the SRS system. Doing so could result in injury, due to accidental deployment of the air bags or by rendering the SRS inoperative.

Safety features of your vehicle

483

Side air bag

❈ The actual air bags in the vehicle may differ

from the illustration.

Your vehicle is equipped with a side air bag in each front seat.

The purpose of the air bag is to provide the vehicle's driver and/or the front passenger with additional protection than that offered by the seat belt alone.

The side air bags are designed to deploy only during certain sideimpact collisions, depending on the crash severity, angle, speed and point of impact.The side air bags are not designed to deploy in all side impact situations.

The side air bag is supplemental to the driver's and the passenger's seat belt systems and is not a substitute for them. Therefore your seat belts must be worn at all times while the vehicle is in operation.

For best protection from the side air bag system and to avoid being injured by the deploying side air bag, both front seat occupants should sit in an upright position with the seat belt properly fastened. The driver's hands should be placed on the steering wheel at the 9:00 and 3:00 positions. The passenger's arms and hands should be placed on their laps.

WARNING - Unexpected

deployment

Avoid impact to the side air bag sensor when the ignition switch is ON to prevent unexpected deployment of the side air bag.

OYDDSA2027

OYDDSA2037

Front

WARNING - Deployment

Do not install any accessories including seat covers, on the side or near the side air bag as this may affect the deployment of the side air bags.

349

Safety features of your vehicle

If seat or seat cover is damaged, have the vehicle checked and repaired by an authorized Kia dealer . Inform that your vehicle is equipped with side air bags and an occupant detection system.

Curtain air bag

❈ The actual air bags in the vehicle may differ

from the illustration.

Curtain air bags are located along both sides of the roof rails above the front and rear doors.

They are designed to help protect the heads of the front seat occupants and the rear outboard seat occupants in certain side impact collisions.

The curtain air bags are designed to deploy only during certain side impact collisions, depending on the crash severity, angle, speed and impact. The curtain air bags are not designed to deploy in all side impact situations, collisions from the front or rear of the vehicle or in most rollover situations.

Do not allow the passengers to lean their heads or bodies onto doors, put their arms on the doors, stretch their arms out of the window, or place objects between the doors and passengers when they are seated on seats equipped with side and/or curtain air bags.

✽✽

NOTICE

Never try to open or repair any components of the side curtain air bag system. This should only be done by an authorized Kia dealer.

WARNING - Flying

objects

Do not place any objects (an umbrella, bag, etc.) between the front door and the front seat. Such objects may become dangerous projectiles if the side air bag inflates.

OYDDSA2039

OYDDSA2038

Safety features of your vehicle

503

Why didn’t my air bag go off in a collision? (Inflation and noninflation conditions of the air bag)

There are many types of accidents in which the air bag would not be expected to provide additional protection.

These include rear impacts, second or third collisions in multiple impact accidents, as well as low speed impacts.

Air bag collision sensors

(1) SRS control module (2) Front impact sensor

(3) Side impact sensor

OYDDSA2028/OYDDSA2029/OYDDSA2030/OYDDSA2031

351

Safety features of your vehicle

Problems may arise if the sensor installation angles are changed due to the deformation of the front bumper, body or B pillar where side collision sensors are installed. Have the vehicle checked and repaired by an authorized Kia dealer.

Installing aftermarket bumper guards or replacing a bumper with non-genuine parts may adversely affect your vehicle’ s collision and air bag deplo yment performance.

Air bag inflation conditions

Front air bags

Front air bags are designed to inflate in a frontal collision depending on the intensity, speed or angles of impact of the front collision.

WARNING - Air bag

sensors

• Do not hit or allow any objects to impact the locations where air bag or sensors are installed.

This may cause unexpected air bag deployment, which could result in serious personal injury or death.

• If the installation location or angle of the sensors is altered in any way, the air bags may deploy when they should not or they may not deploy when they should.

Therefore, do not try to perform maintenance on or around the air bag sensors. Have the vehicle checked and repaired by an authorized Kia dealer.

1JBA3513

Safety features of your vehicle

523

❈ The actual air bags in the vehicle may differ

from the illustration.

Side air bags

Side air bags (side and/or curtain air bags) are designed to inflate when an impact is detected by side collision sensors depending on the strength, speed or angles of impact resulting from a side impact collision.

Although the front air bags (driver’s and front passenger’s air bags) are designed to inflate in frontal collisions, they also may inflate in other types of collisions if the front impact sensors detect a sufficient frontal force in another type of impact. Side and curtain air bags are designed to inflate in certain side impact collisions. They may inflate in other type of collisions where a side force is detected by the sensors.

If the vehicle chassis is impacted by bumps or objects on unimproved roads or sidewalks, air bags may deploy. Drive carefully on unimproved roads or on surfaces not designed for vehicle traffic to prevent unintended air bag deployment.

Air bag non-inflation conditions

• In certain low-speed collisions the air bags may not deploy. The air bags are designed not to deploy in such cases because they may not provide benefits beyond the protection of the seat belts in such collisions.

1JBA3516

OYDDSA2040

1JBA3515

353

Safety features of your vehicle

• Air bags are not designed to inflate in rear collisions, because occupants are moved backward by the force of the impact. In this case, inflated air bags would not be able to provide any additional benefit.

• Front air bags may not inflate in side impact collisions, because occupants move to the direction of the collision, and thus in side impacts, front air bag deployment would not provide additional occupant protection.

• In a slant or angled collision, the force of impact may direct the occupants in a direction where the air bags would not be able to provide any additional benefit, and thus the sensors may not deploy any air bags.

OED036100

1JBA35211JBA3516

Safety features of your vehicle

543

• Just before impact, drivers often brake heavily. Such heavy braking lowers the front portion of the vehicle causing it to “ride”under a vehicle with a higher ground clearance. Air bags may not inflate in this "under-ride" situation because deceleration forces that are detected by sensors may be significantly replaced by such “under-ride” collisions.

• Air bags does not inflate in most rollover accidents (even if the vehicle is equipped with side impact air bags and curtain air bags). Airbags may not inflate in rollov er accidents where the air bag system indicates air bag deployment would not provide protection to the occupants.

• Air bags may not inflate if the vehicle collides with objects such as utility poles or trees, where the point of impact is concentrated to one area and the full force of the impact is not delivered to the sensors.

1JBA3517 1JBA3522 1JBA3518

355

Safety features of your vehicle

SRS Care

The SRS is virtually maintenance-free and there are no parts you can safely service by yourself.If the SRS air bag warning light does not illuminate, or continuously remains on, have your vehicle immediately inspected by an authorized Kia dealer.

Any work on the SRS system, such as removing, installing, repairing, or any work on the steering wheel must be performed by an authorized Kia dealer.Improper handling of the SRS system may result in serious personal injury.

For cleaning the air bag pad covers, use only a soft, dry cloth or one which has been moistened with plain water. Solvents or cleaners could adversely affect the air bag covers and proper deployment of the system.

If components of the air bag system must be discarded, or if the vehicle must be scrapped, certain safety precautions must be observed. An authorized Kia dealer knows these precautions and can give you the necessary information. Failure to follow these precautions and procedures could increase the risk of personal injury.

Adding equipment to or modifying your air bag-equipped vehicle

If you modify your vehicle by changing your vehicle's frame , bumper system, front end or side sheet metal or ride height, this may affect the operation of your vehicle's air bag system.

WARNING - Tampering

with SRS

Do not tamper with or disconnect SRS wiring, or other components of the SRS system. Doing so could result in the accidental inflation of the air bags or by rendering the SRS inoperative.

Air bag warning label

Air bag warning labels, some required by the Canada Motor Vehicle Safety Standards (CMVSS), are attached to the sunvisor to alert the driver and passengers of potential risks of the air bag system.

OYDNSA2032

OYDNSA2033

356

Safety features of your vehicle

Features of your vehicle

Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

• Record your key number . . . . . . . . . . . . . . . . . . . . . . . 4-4

• Key operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Smart key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

• Smart key function . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

• Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

Remote keyless entry . . . . . . . . . . . . . . . . . . . . . . . . 4-9

• Remote keyless entry system operations. . . . . . . . . . . 4-9

• Transmitter precautions. . . . . . . . . . . . . . . . . . . . . . . 4-10

• Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11

• Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12

Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . 4-15

• Armed stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

• Theft-alarm stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16

• Disarmed stage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16

Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18

• From outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18

• From inside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18

• Impact sensing door unlock system. . . . . . . . . . . . . . 4-20

• Auto door lock/unlock feature . . . . . . . . . . . . . . . . . . 4-20

• Speed sensing door lock system . . . . . . . . . . . . . . . . . 4-21

• Child-protector rear door lock . . . . . . . . . . . . . . . . . 4-21

Trunk. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22

• Opening the trunk. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22

• Closing the trunk. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23

• Emergency trunk safety release. . . . . . . . . . . . . . . . . 4-23

Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-27

• Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28

Hood. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-32

• Opening the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-32

• Closing the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-32

Fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-34

• Opening the fuel filler lid . . . . . . . . . . . . . . . . . . . . . . 4-34

• Closing the fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . 4-34

Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37

• Sunroof open warning. . . . . . . . . . . . . . . . . . . . . . . . . 4-37

• Sliding the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-38

• Tilting the sunroof. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-39

• Sunshade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-39

• Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 4-40

Steering wheel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-41

• Electronic power steering . . . . . . . . . . . . . . . . . . . . . . 4-41

• Tilt & telescopic steering . . . . . . . . . . . . . . . . . . . . . . 4-42

• Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-42

• Heated steering wheel. . . . . . . . . . . . . . . . . . . . . . . . . 4-43

• FLEX STEER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-43

Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-46

• Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 4-46

• Outside rearview mirror. . . . . . . . . . . . . . . . . . . . . . . 4-51

Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . 4-55

• Instrument Cluster Control . . . . . . . . . . . . . . . . . . . . 4-56

• LCD Display Control . . . . . . . . . . . . . . . . . . . . . . . . . 4-57

• Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-57

• Transaxle Shift Indicator . . . . . . . . . . . . . . . . . . . . . . 4-60

LCD display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-61

• LCD Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-61

• Service Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-62

• User Settings Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-63

• A/V Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-66

• Turn By Turn Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . 4-66

• Warning Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-67

Trip computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-74

• Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-74

• Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-75

• Trip A/B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-76

Warning and indicator lights . . . . . . . . . . . . . . . . 4-78

• Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-78

• Indicator Lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-85

Parking assist system . . . . . . . . . . . . . . . . . . . . . . . 4-89

• Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-89

• Non-operational conditions . . . . . . . . . . . . . . . . . . . . 4-92

• Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-94

Rearview camera . . . . . . . . . . . . . . . . . . . . . . . . . . 4-95

Lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-96

• Battery saver function. . . . . . . . . . . . . . . . . . . . . . . . . 4-96

• Headlamp escort function. . . . . . . . . . . . . . . . . . . . . . 4-96

• Daytime running light. . . . . . . . . . . . . . . . . . . . . . . . . 4-97

• Lighting control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-97

• High - beam operation . . . . . . . . . . . . . . . . . . . . . . . . 4-99

• Turn signals and lane change signals . . . . . . . . . . . 4-100

• Front fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-101

Wipers and washers. . . . . . . . . . . . . . . . . . . . . . . 4-101

• Windshield wipers. . . . . . . . . . . . . . . . . . . . . . . . . . . 4-102

• Windshield washers. . . . . . . . . . . . . . . . . . . . . . . . . . 4-102

Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-104

• Automatict turn off function . . . . . . . . . . . . . . . . . . 4-104

• Map lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-104

• Room lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-105

• Trunk room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-106

• Glove box lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-106

• Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 4-107

Welcome system . . . . . . . . . . . . . . . . . . . . . . . . . . 4-108

• Headlamp welcome . . . . . . . . . . . . . . . . . . . . . . . . . . 4-108

• Interior light. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-108

• Puddle lamp and pocket lamp . . . . . . . . . . . . . . . . . 4-108

Defroster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-109

• Rear window defroster . . . . . . . . . . . . . . . . . . . . . . . 4-109

• Front wiper deicer. . . . . . . . . . . . . . . . . . . . . . . . . . . 4-109

Manual climate control system . . . . . . . . . . . . . . 4-110

• Heating and air conditioning . . . . . . . . . . . . . . . . . . 4-111

• System operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-116

• Climate control air filter. . . . . . . . . . . . . . . . . . . . . . 4-118

• Refrigerant and compressor lubricant . . . . . . . . . . 4-119

Automatic climate control system. . . . . . . . . . . . 4-120

• Automatic heating and air conditioning . . . . . . . . . 4-121

• Manual heating and air conditioning . . . . . . . . . . . 4-122

• System operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-128

Windshield defrosting and defogging. . . . . . . . . 4-130

• Manual climate control system . . . . . . . . . . . . . . . . 4-130

• Automatic climate control system . . . . . . . . . . . . . . 4-131

• Defogging logic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-132

Storage compartment. . . . . . . . . . . . . . . . . . . . . . 4-135

• Center console storage . . . . . . . . . . . . . . . . . . . . . . . 4-135

• Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-135

• Cool box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-136

• Sunglass holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-136

Interior features . . . . . . . . . . . . . . . . . . . . . . . . . . 4-138

• Cigarette lighter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-138

• Ashtray. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-138

• Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-139

• Sliding armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-139

• Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-140

• Seat warmer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-140

• Climate control seat . . . . . . . . . . . . . . . . . . . . . . . . . 4-142

• Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-143

• LCD monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-144

• Clothes hanger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-145

• Floor mat anchor(s). . . . . . . . . . . . . . . . . . . . . . . . . . 4-145

• Navigation system . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-146

Audio system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-147

• Glass antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-147

• Steering wheel audio control . . . . . . . . . . . . . . . . . . 4-148

• Aux, USB and iPod® port. . . . . . . . . . . . . . . . . . . . . 4-149

Features of your vehicle

Record your key number

The key code number is stamped on the key code tag attached to the key

set. Should you lose your keys, this number will enable an authorized Kia dealer to duplicate the keys easily. Remove the key code tag and store it in a saf e place. Also, record the key code number and keep it in a safe and handy place, but not in the vehicle.

Key operations

Type A

Used to start the engine, lock and unlock the doors.

Type B

To unfold the key, press the release button and the key will unfold automatically.

To fold the key, fold the key manually while pressing the release button.

KEYS

■ Type A

OYDDCO2231/OYDECO2231

WARNING - Aftermarket

keys

Use only Kia original parts for the ignition key in your vehicle. If an aftermarket key is used,the ignition switch may not return to ON after START. If this happens, the starter will continue to operate causing possible fire due to excessive current in the wiring.

OYDDCO2001

■ Type B

CAUTION - Key button

operation

Do not fold the key without pressing the release button. This may damage the key.

Features of your vehicle

Type C

To remove the mechanical key, press and hold the release button and remove the mechanical key.

To reinstall the mechanical key, put the key into the hole and push it until a click sound is heard.

OYDDCO2002

■ Type C

WARNING - Ignition key

(Smart key)

Leaving children unattended in a vehicle with the ignition key (smart key) is dangerous even if the key is not in the ignition switch or start button is ACC or ON position.

Children copy adults and they could place the key in the ignition switch or press the start button. The ignition key (smart key) would enable children to operate power windows or other controls, or even make the vehicle move, which could result in serious bodily injury or even death. Never leave the keys in your vehicle with unsupervised children, when the engine is running.

Features of your vehicle

With a smart key, you can lock or unlock a door and even start the engine without inserting the key.

The functions of the buttons on a smart key are similar to the remote keyless entry. (Refer to the "Remote keyless entry" in this chapter.)

Smart key functions

Carrying the smart key, you may lock and unlock the vehicle doors. Also, you may start the engine. Refer to the following, for more details.

Locking

Pressing the button of the front outside door handles with all doors closed and any door unlocked, locks all the doors. The hazard warning lights will blink and the chime will sound once to indicate that all doors are locked.The button will only operate when the smart key is within

0.7~1 m (28~40 in.) from the outside door handle. If you want to make sure that a door has locked or not, you should check the door lock button inside the vehicle or pull the outside door handle.

SMART KEY (IF EQUIPPED)

OYDDCO2007

OYDDCO2008

Features of your vehicle

Even though you press the button, the doors will not lock and the chime will sound for 3 seconds if any of the following occurs:

• The smart key is in the vehicle.

• The ignition switch is in the ACC or

ON position.

• Any door except the trunk is

opened.

Unlocking

Pressing the button of the driver's outside door handle with all doors closed and locked, unlocks the driver's door.The hazard warning lights will blink and the chime will sound twice to indicate that the driver's door is unlocked.

Pressing the button in the front passenger's outside door handle with all doors closed and locked, unlocks all the doors.The hazard warning lights will blink and the chime will sound twice to indicate that all doors are unlocked. The button will only operate when the smart key is within

0.7~1 m (28~40 in.) from the outside door handle.

Start-up

You can start the engine without inserting the key. For detailed information refer to "Starting the engine with a smart key" in section 5.

Smart key precautions

• If you lose your smart key, you will not be able to start the engine.Tow the vehicle, if necessary, and contact an authorized Kia dealer.

• A maximum of 2 smart keys can be registered to a single vehicle. If you lose a smart key, you should immediately take the vehicle and key to your authorized Kia dealer to protect it from potential theft.

• The smart key will not work if any of following occurs:

- The smart key is close to a radio

transmitter such as a radio station or an airpor t which can interfere with normal operation of the smart key.

- The smart key near a mobile two-

way radio system or a cellular phone.

- Another vehicle’s smart key is being

operated close to your vehicle.

When the smart key does not work correctly, open and close the door with the mechanical key. If you have a problem with the smart key, contact an authorized Kia dealer.

Features of your vehicle

• If the smart key is in close proximity to your cell phone or smart phone, the signal from the smart key could be blocked by normal operation of your cell phone or smart phone. This is especially important when the phone is active such as making call, receiving calls, text messaging, and/or sending/receiving emails. Avoid placing the smart key and your cell phone or smart phone in the same pants or jacket pock et and maintain adequate distance between the two devices.

This device complies with Industry Canada Standard RSS-210.

Operation is subject to the following two conditions:

1.This device may not cause harmful interference, and

2.This device must accept any interference received, including interference that may cause undesired operation.

✽✽

NOTICE

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. If the keyless entry system is inoperative due to changes or modifications not expressly approved by the party responsible for compliance, it will not be covered by your manufacturer’s vehicle warranty.

CAUTION - Transmitter

Keep the smart key away from water or any liquid as it can become damaged and not function properly.

Features of your vehicle

REMOTE KEYLESS ENTRY (IF EQUIPPED)

Remote keyless entry system operations

Lock (1)

All doors are locked if the lock button is pressed.If all doors (and trunk) are closed, the hazard warning lights will blink once to indicate that all doors (and trunk) are locked.

Also, if the lock button is pressed once more within 4 seconds, the hazard warning lights will blink and the chime will sound once to confirm that the door is locked.

However, if any door remains open, the hazard warning lights (and/or the chime) will not operate. But if all doors are closed after the lock button is pressed, the hazard warning lights will blink once.

Unlock (2)

The driver's door is unlocked if the unlock button is pressed once. The hazard warning lights will blink (for smart key, the chime also sounds) twice to indicate that the driver's door is unlocked.

All doors are unlocked if the unlock button is pressed once more within 4 seconds. The hazard warning lights will blink (for smart key, the chime also sounds) twice again to indicate that all doors are unlocked. After pressing this button, the doors will lock automatically unless you open any door within 30 seconds.

✽✽

NOTICE

If the keyless entry system is inoperative due to exposure to water or liquids, it will not be covered by your manufacturer's vehicle warranty.

OYDDCO2004

■ Type B

■ Type A

OYDDCO2003

Features of your vehicle

104

Trunk open (3) (if equipped)

The trunk is opened if the button is pressed for more than 1 second.

Once the trunk is opened and then closed, the trunk will lock automatically.

Alarm (4)

The horn sounds and the hazard warning lights blink for about 30 seconds if this button is pressed for more than 0.5 seconds. To stop the horn and lights, press any button on the transmitter.

Transmitter precautions

The transmitter (or smart key) will not work if any of following occurs:

• The ignition key is in the ignition

switch.

• You exceed the operating distance

limit (about 30 m [90 feet]).

• The battery in the transmitter (or

smart key) is weak.

• Other vehicles or objects may be

blocking the signal.

• The weather is extremely cold.

• The transmitter (or smart key) is

close to a radio transmitter such as a radio station or an airport which can interfere with normal operation of the transmitter.

When the transmitter (or smart key) does not work properly, open and close the door with the ignition key. If you have a problem with the transmitter (or smart key), contact an authorized Kia dealer.

• If the transmitter is in close proximity to your cell phone or smart phone, the signal from the transmitter could be blocked by normal operation of your cell phone or smart phone.This is especially important when the phone is active such as making call, receiving calls, text messaging, and/or sending/receiving emails. Avoid placing the transmitter and your cell phone or smart phone in the same pants or jacket pock et and maintain adequate distance between the two devices.

411

Features of your vehicle

This device complies with Industry Canada Standard RSS-210.

Operation is subject to the following two conditions:

1.This device may not cause harmful interference, and

2.This device must accept any interference received, including interference that may cause undesired operation.

✽✽

NOTICE

Battery replacement

A battery should last for several y ears, but if the transmitter or smart key is not working properly, try replacing the battery with a new one. If you are unsure how to use or replace the battery , contact an authorized Kia dealer.

Type A

1. Pr y open the transmitter cover.

2. Replace the battery with a new battery (CR2032). When replacing the battery, make sure the battery position.

3. Install the battery in the reverse order of removal.

Type B

1. Remove the mechanical key.

2. Pr y open the rear cover.

3. Replace the battery with a new battery (CR2032). When replacing the battery, make sure the battery position.

4. Install the battery in the reverse order of removal.

■ Type B, C

OYDDCO2005

■ Type A

OYDDCO2006

Features of your vehicle

124

• The transmitter or smart key is designed to give you years of trouble-free use, however it can malfunction if exposed to moisture or static electricity. If you are unsure how to use or replace the battery, contact an authorized Kia dealer.

• Using the wrong battery can cause the transmitter or smart key to malfunction.Be sure to use the correct battery.

• An inappropriately dis-

posed battery can be harmful to the environment and human health. Dispose the battery according to your local law(s) or regulation.

Immobilizer system

Your vehicle may be equipped with an electronic engine immobilizer system to reduce the risk of unauthorized vehicle use. Your immobilizer system is comprised of a small transponder in the ignition key and electronic devices inside the vehicle. With the immobilizer system, whenever you insert your ignition key into the ignition switch and turn it to ON, it checks and determines and verifies that the ignition key is valid. If the key is determined to be valid, the engine will start. If the key is determined to be invalid, the engine will not start.

OHD046100

CAUTION

- T ransmitter damage

Do not drop, wet or expose the keyless entry system transmitter to heat or sunlight.

IC W ARNING

This device complies with Industry Canada licenceexempt RSS standard(s).

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

413

Features of your vehicle

To deactivate the immobilizer system:

Insert the ignition key into the key cylinder and turn it to the ON position.

To activate the immobilizer system:

Turn the ignition key to the OFF position. The immobilizer system activates automatically. Without a valid ignition key for your vehicle, the engine will not start.

Your Immobilizer password is a customer unique password and should be kept confidential.Do not leav e this number anywhere in your vehicle.

✽✽

NOTICE

Keep each key separately in order to avoid a starting malfunction.

Do not put metal accessories near the ignition switch.

Metal accessories may interrupt the transponder signal and may prevent the engine from being started.

If you need additional keys or lose your keys, consult an authorized Kia dealer.

This device complies with Industry Canada Standard RSS-210.

Operation is subject to the following two conditions:

1.This device may not cause harmful interference, and

2.This device must accept any interference received, including interference that may cause undesired operation.

WARNING

Changes or modifications not expressly appro ved by the party responsible for compliance could void the user's authority to operate the equipment.

CAUTION - Immobilizer

damage

Do not expose your immobilizer system to moisture, static electricity and rough handling. This may damage your immobilizer.

CAUTION - Immobilizer

alterations

Do not change, alter or adjust the immobilizer system because it could cause the immobilizer system to malfunction.

Features of your vehicle

144

Limp home (override) procedure

When you turn the ignition switch to the ON position, if the immobilizer indicator ( ) goes off after blinking 5 times, your transponder equipped in the ignition key is out of order. You cannot start the engine without the limp home procedure.To start the engine, you have to input your password by using the ignition switch. Your password is only available from an authorized Kia dealership. Contact an authorized dealer for more information.

The following procedure is how to input your password of “2345” as an example.

1. Turn the ignition switch to the ON position. The immobilizer indicator ( ) will blink 5 times and go off indicating the beginning of the limp home procedure.

2.Turn the ignition switch to the ACC position.

3.To enter the first digit (in this example “2”), turn the ignition switch to the ON and ACC position twice. Perform the same procedure for the next digits between 3 seconds and 10 seconds (for example, for “3”, turn the ignition ON and ACC 3 times).

4. If all of the digits have been input successfully, you have to start the engine within 30 seconds. If you attempt to start the engine after 30 seconds, the engine will not start and you will have to input your password again.

After performing the limp home procedure, you have to see an authorized Kia dealer immediately to inspect and repair your ignition key or immobilizer system.

415

Features of your vehicle

This system is designed to provide protection from unauthorized entry into the vehicle.This system is operated in three stages: the first is the "Armed" stage, the second is the "Theft-alarm" stage, and the third is the "Disarmed" stage. If triggered, the system provides an audible alarm with blinking of the hazard warning lights.

Armed stage

Park the vehicle and stop the engine. Arm the system as described below.

1. Remove the ignition key from the ignition switch and exit the vehicle.

2. Make sure that all doors (and trunk) and engine hood are closed and latched.

3. • Lock the doors by depressing the

door lock button on the transmitter (or smart key).

After completion of the steps above, the hazard warning lights will blink once to indicate that the system is armed.

If any door, trunk or engine hood remains open, the hazard warning lights won’t operate and theft-alarm will not arm. After this, if all doors, trunk and engine hood are closed, the hazard warning lights blink once.

• Lock the doors by pressing the button of the front outside door handles with the smart key in your possession.

After completion of the steps above, the hazard warning lights will blink once to indicate that the system is armed.

If any door remains open, the hazard warning lights won’t operate and theft-alarm will not arm. Close the door and try again to lock the doors.

If trunk or engine hood remains open, the hazard warning lights won’t operate and theft-alarm will not arm.Close the trunk or engine hood. The hazard warning lights blink once and theft-alarm arms.

THEFT-ALARM SYSTEM (IF EQUIPPED)

Armed

stage

Theft-alarm

stage

Disarmed

stage

Features of your vehicle

164

The theft-alarm system can be activated by an authorized Kia dealer.

If you want this feature, consult an authorized Kia dealer.

Do not arm the system until all passengers have left the vehicle.If the system is armed while a passenger(s) remains in the vehicle, the alarm may be activated when the remaining passenger(s) leaves the vehicle. If any door (or trunk) or engine hood is opened within 30 seconds after the system enters the armed stage, the system will be disarmed to prevent unnecessary alarm.

Theft-alarm stage

The alarm will be activated if any of the following occurs while the system is armed.

• A front or rear door is opened without using the mechanical key or transmitter (or smart key).

• The trunk is opened without using the mechanical key or transmitter (or smart key).

• The engine hood is opened.

The horn will sound and the hazard warning lights will blink continuously for approximately 27 seconds (2times).To turn off the system, unlock the doors with the transmitter (or smart key).

Disarmed stage

The system will be disarmed when:

Transmitter

- The door unlock button is pressed.

- The engine is started. (within 3 seconds)

- The ignition switch is in the "ON" position for 30 seconds or more.

Smart key

- The door unlock button is pressed.

- The button of the front outside door is pressed while carrying the smart key .

- The engine is started. (within 3 seconds)

After the doors are unlocked, the hazard warning lights will blink twice to indicate that the system is disarmed.

After pressing the unlock button, if any door (or trunk) is not opened within 30 seconds, the system will be rearmed.

417

Features of your vehicle

• Avoid trying to start the engine while the alarm is activated. The vehicle starting motor is disabled during the theft-alarm stage.

If the system is not disarmed with the transmitter, insert the key into the ignition switch, turn the ignition switch to the ON position and wait for 30 seconds. Then the system will be disarmed.

• If you lose your keys, consult your authorized Kia dealer.

• If the system is not disarmed with the transmitter, insert the key into the ignition switch and start the engine. Then the system will be disarmed.

• If you lose your keys, consult your authorized Kia dealer.

Features of your vehicle

184

DOOR LOCKS

Operating door locks from outside the vehicle

• Tur n the key toward the rear of the vehicle to unlock and toward the front of the vehicle to lock.

• If you lock/unlock the door with a key, all vehicle doors will lock/unlock automatically. (if equipped with power door locks)

• From the driver’s door, turn the key toward the rear of the vehicle once to unlock the driver’s door and once more within 4 seconds to unlock all doors. (if equipped with power door locks)

• Doors can also be locked and unlocked with the transmitter key (or smart key). (if equipped)

• Once the doors are unlocked, they may be opened by pulling the door handle.

• When closing the door, push the door by hand.Make sure the doors are closed securely.

✽✽

NOTICE

• In cold and wet climates, door lock and door mechanisms may not work properly due to freezing conditions.

• If the door is locked/unlocked multiple times in rapid succession with either the vehicle key or door lock switch, the system may stop operating temporarily in order to protect the circuit and prevent damage to system components.

Operating door locks from inside the vehicle

With the door lock button

• To unlock a door, pull the door lock button (1) to the "Unlock" position. The red mark (2) on the button will be visible.

• To lock a door, push the door lock button (1) to the "Lock" position. If the door is locked properly, the red mark (2) on the door lock button will not show.

• To open a door, pull the door handle (3) outward.

OYDDCO2010

Lock

Unlock

OYDDCO2009

Lock

Unlock

Lock

Unlock

419

Features of your vehicle

• If the inner door handle of the front door is pulled when the door lock button is in the lock position, the button will unlock and the door will open. (if equipped)

• Front doors cannot be locked if the ignition key is in the ignition switch (or if the smart key is in the vehicle) and any front door is opened. (if equipped)

If a power door lock e v er f ails to function while you are in the vehicle, try one or more of the following techniques to exit:

• Operate the door unlock feature repeatedly (both electronic and manual) while simultaneously pulling on the door handle.

• Operate the other door locks and handles, front and rear.

• Lower a front window and use the key to unlock the door from outside .

With central door lock switch (if equipped)

OYDDCO2011

OYD043011

OUB041180N

■ Driver's door (Type B)

■ Driver's door (Type A)

■ Passenger’s door

Features of your vehicle

204

Operate by pressing the central door lock switch.

• Press the switch to the "Lock" position (1), all vehicle doors will lock.

• Press the switch to the "Unlock" position (2), all vehicle doors will unlock.

• If the key is in the ignition switch (or if the smart key is in the vehicle) and any front door is opened, the doors will not lock when the "Lock" position (1) of the central door lock switch is pressed. (if equipped)

Impact sensing door unlock system (if equipped)

All doors will automatically unlock when an impact causes the air bags to deploy.

Auto door lock/unlock feature (if equipped)

• All doors will automatically lock when the transaxle shift lever is shifted out of P (Park).

• All doors will automatically unlock when the transaxle shift lever is shifted into P (Park).

WARNING - Unattended

children / animals

Never leave children or animals unattended in your vehicle.

An enclosed vehicle can become extremely hot, causing death or severe injury to unattended children or animals who cannot escape the vehicle.

WARNING - Doors

The doors should always be fully closed and locked while the vehicle is in motion to prevent accidental opening of the door.

421

Features of your vehicle

Speed sensing door lock system (if equipped)

All doors will be automatically locked after the vehicle speed exceeds 9.3 mph. And all doors will be automatically unlocked when you turn the engine off or when you remove the ignition key. (if equipped)

An authorized Kia dealer can activate or deactivate some auto door lock/ unlock features as follows;

• Auto door unlock by using the driver's door lock button

• Auto door lock/unlock by shifting the transaxle shift lever out of P (Park) or into P (Park)

• Auto door unlock when the ignition key is removed from the ignition switch (for smart key, when the ENGINE START/STOP button is turned to the OFF position)

If you want to activate or deactivate some door lock/unlock feature, consult an authorized Kia dealer.

Child-protector rear door lock

The child safety lock is provided to help prevent children from accidentally opening the rear doors from inside the vehicle. The rear door safety locks should be used whenever children are in the vehicle.

1. Open the rear door.

2. Insert a key (or screwdriver) into the hole and turn it to the lock ( ) position.the child safety lock (1) located on the rear edge of the door to the lock position.When the child safety lock is in the lock position, rear door will not open even when the inner door handle is pulled.

3. Close the rear door. To open the rear door, pull the out-

side door handle (2). Even though the doors may be

unlocked, the rear door will not open by pulling the inner door handle until the rear door child safety lock is unlocked.

OYDDCO2012

Lock

Unlock

WARNING - Rear door

locks

Use the rear door safety locks whenever children are in the vehicle. If a child accidently opens the rear doors while the vehicle is motion,he can fall out.

Features of your vehicle

224

Opening the trunk

• Press the trunk unlock button for more than 1 second on the transmitter (or smart key).

• Press the button on the trunk handle with the smart key in your possession.

Once the trunk is opened and then closed, the trunk locks automatically.

• To open the tr unk from inside the vehicle, pull the trunk lid release lever.

Once the trunk is opened and then closed, the trunk locks automatically.

✽✽

NOTICE

In cold and wet climates, trunk lock and trunk mechanisms may not work properly due to freezing conditions.

TRUNK (4 DOOR, 2 DOOR)

OYDDCO2014

OYDDCO2013

CAUTION

Make certain that you close the trunk before driving your vehicle. Possible damage may occur to attached hardware if the trunk is not closed prior to driving.

WARNING

The trunk swings upward. Make sure no objects or people are near the rear of the vehicle when opening the trunk.

423

Features of your vehicle

Closing the trunk

To close, lower the trunk lid, then press down on it until it locks.To be sure the trunk lid is securely fastened, always check by trying to pull it up again.

Emergency trunk safety release

Your vehicle is equipped with an emergency trunk release lever located inside the trunk. If someone is inadvertently locked in the trunk, moving the handle in the direction of the arrow will release the trunk latch mechanism and open the trunk.

No one should be allowed to occupy the trunk at any time. The tr unk is a very dangerous location in the event of a crash.

Use the release lever for emergencies only. Use extreme caution, especially while the vehicle is in motion.

WARNING

The trunk lid should always be kept completely closed while the vehicle is in motion. If it is left open or ajar, poisonous exhaust gases may enter the car and serious illness or death may result.

OYDDCO2015

Features of your vehicle

244

Opening the tailgate

• The tailgate is locked or unlocked when all doors are locked or unlocked with the transmitter (or smart key) or central door lock switch.

• If unlocked, the tailgate can be opened by pressing the handle and pulling it up.

• When all doors are lock if the tailgate unlock button on the smart key is pressed for more than 1 second, the tailgate is unlocked. Once the tailgate is opened and then closed, the tailgate is locked automatically.

✽✽

NOTICE

In cold and wet climates, tailgate lock and tailgate mechanisms may not work properly due to freezing conditions.

The tailgate swings upward. Make sure no objects or people are near the rear of the vehicle when opening the tailgate.

Closing the tailgate

To close the tailgate, lower and push down the tailgate firmly. Make sure that the tailgate is securely latched.

Make sure your hands, feet and other parts of your body are safely out of the way before closing the tailgate.

TAILGATE (5 DOOR)

CAUTION

Make certain that you close the tailgate before driving your vehicle. Possible damage may occur to the tailgate lift cylinders and attached hardware if the tailgate is not closed prior to driving.

OYDDCO3233OYDDCO3232

425

Features of your vehicle

Emergency tailgate safety release

Your vehicle is equipped with the emergency tailgate safety release lever located on the bottom of the tailgate. When someone is inadvertently locked in the luggage compartment.The tailgate can be opened by doing as follows:

1. Input the machanical key into the hole.

2. Push the machanical key to the right.

3. Push up the tailgate.

WARNING - Exhaust

fumes

If you drive with the tailgate open, you will draw dangerous exhaust fumes into your vehicle which can cause serious injury or death to vehicle occupants.

If you must drive with the tailgate open, keep the air vents and all windows open so that additional outside air comes into the vehicle.

WARNING - Riding in

cargo area

Occupants should never ride in the rear cargo area where no restraints are available.To avoid injury in the event of an accident or sudden stops, occupants should always be properly restrained.

CAUTION

Make sure nothing is near the tailgate latch and striker while closing the tailgate. It may damage the tailgate's latch.

OYDDCO3234

Features of your vehicle

264

WARNING

• For emergencies, be fully aware of the location of the emergency tailgate safety release lever in the vehicle and how to open the tailgate if you are accidentally locked in the luggage compartment.

• No one should be allowed to occupy the luggage compartment of the vehicle at any time. The luggage compartment is a very dangerous location in the event of a crash.

• Use the release lever for emergencies only. Use with extreme caution, especially while the vehicle is in motion.

427

Features of your vehicle

(1) Driver’s door pow er window s witch (2) Front passenger’s door power

window switch

(3) Rear door (left) power window

switch

(4) Rear door (right) power window

switch (5) Window opening and closing (6) Automatic power window down* (7) Power window lock button*

*: if equipped

WINDOWS

OYDDCO2016

Features of your vehicle

284

In cold and wet climates, power windows may not work properly due to freezing conditions.

Power windows

The ignition switch must be in the ON position for power windows to operate. Each door has a power window switch that controls the door’s window. The driver has a power window lock switch which can b loc k the operation of passenger windows.

The power windows can be operated for approximately 30 seconds after the ignition key is remov ed or turned to the ACC or LOCK position.However , if the front doors are opened, the power windows cannot be operated even within the 30 second period.

✽✽

NOTICE

While driving with the rear windows down or with the sunroof (if equipped) in an open (or partially open) position, your vehicle may demonstrate a wind buffeting or pulsation noise. This noise is a normal occurrence and can be reduced or eliminated by taking the following actions. If the noise occurs with one or both of the rear windows down, partially lower both front windows approximately one inch. If you experience the noise with the sunroof open, slightly reduce the size of the sunroof opening.

Window opening and closing (if equipped)

The driver’s door has a master po wer window switch that controls all the windows in the vehicle.

To open or close a window, press down or pull up the front portion of the corresponding switch to the first detent position (5).

OYDDCO2017

429

Features of your vehicle

Auto down window (if equipped) (Driver’s window)

Pressing the power window switch momentarily to the second detent position (6) completely lowers the driver’s window even when the switch is released. To stop the window at the desired position while the window is in operation, momentarily pull up the switch to the opposite direction of the window movement.

Auto up/down window (if equipped)

Pressing or pulling up the power window switch momentarily to the second detent position (6) completely lowers or lifts the window even when the switch is released. To stop the window at the desired position while the window is in operation, pull up or press and release the switch to the opposite direction of the movement.

If the power window is not operated correctly, the automatic power window system must be reset as follo ws:

1.Tur n the ignition switch to the ON

position.

2. Close the window and continue

pulling up on the driver’s power window switch f or at least 1 second after the window is completely closed.

OYDECO2224CN

OYDDCO2018

Kia Forte5 2015 Owner's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
