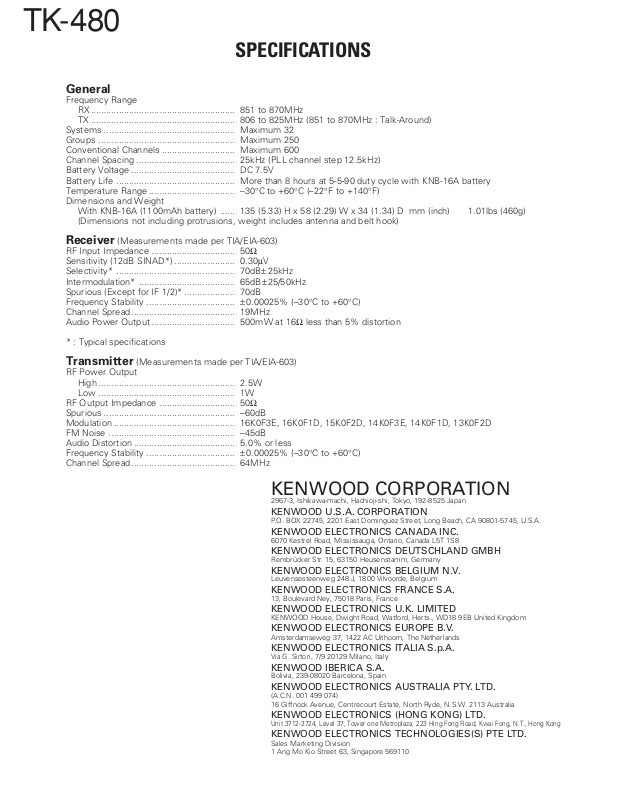

Kenwood TK-480 SPECIFICATIONS

TK-480

General

Frequency Range

RX ......................................................... 851 to 870MHz

TX ......................................................... 806 to 825MHz (851 to 870MHz : Talk-Around)

Systems .................................................... Maximum 32

Groups ...................................................... Maximum 250

Conventional Channels ............................. Maximum 600

Channel Spacing ....................................... 25kHz (PLL channel step 12.5kHz)

Battery Voltage ......................................... DC 7.5V

Battery Life ............................................... More than 8 hours at 5-5-90 duty cycle with KNB-16A battery

Temperature Range .................................. –30°C to +60°C (–22°F to +140°F)

Dimensions and Weight

With KNB-16A (1100mAh battery) ...... 135 (5.33) H x 58 (2.29) W x 34 (1.34) D mm (inch) 1.01lbs (460g)

(Dimensions not including protrusions, weight includes antenna and belt hook)

Receiver (Measurements made per TIA/EIA-603)

RF Input Impedance ................................. 50Ω

Sensitivity (12dB SINAD*) ........................ 0.30µV

Selectivity* ............................................... 70dB± 25kHz

Intermodulation* ...................................... 65dB± 25/50kHz

Spurious (Except for IF 1/2)* .................... 70dB

Frequency Stability ................................... ± 0.00025% (–30°C to +60°C)

Channel Spread......................................... 19MHz

Audio Power Output ................................. 500mW at 16Ω less than 5% distortion

SPECIFICATIONS

* : Typical specifications

Transmitter (Measurements made per TIA/EIA-603)

RF Power Output

High ...................................................... 2.5W

Low ...................................................... 1W

RF Output Impedance .............................. 50Ω

Spurious .................................................... –60dB

Modulation ................................................ 16K0F3E, 16K0F1D, 15K0F2D, 14K0F3E, 14K0F1D, 13K0F2D

FM Noise .................................................. –45dB

Audio Distortion ........................................ 5.0% or less

Frequency Stability ................................... ± 0.00025% (–30°C to +60°C)

Channel Spread......................................... 64MHz
