Kenwood DMX5020DABS User Manual

DMX5020DABS

MONITOR WITH RECEIVER

INSTRUCTION MANUAL

• Updated information (the latest Instruction Manual, system updates, new functions, etc.) is available from <https://www.kenwood.com/cs/ce/>.

Contents

Before Use 4

Precautions ................................................................... 4

How to read this manual ......................................... 4

Basic Operations 5

Functions of the Buttons on the Front Panel ... 5

Turning on the Unit ................................................... 5

Getting Started............................................................ 6

Adjusting the volume ............................................... 7

Touch screen operations ......................................... 7

HOME screen descriptions ...................................... 8

Source selection screen descriptions .................. 8

Source control screen descriptions ...................10

MENU screen ..............................................................11

List screen ...................................................................11

APPS 12

Apple CarPlay Operation .......................................12

Android Auto Operation ........................................13

USB Mirroring Operation .......................................14

USB 15

Connecting a USB device ......................................15

USB Basic Operation ................................................15

Search Operation ......................................................17

DAB 21

DAB Basic Operation ...............................................21

Storing Service in Preset Memory ......................22

Selecting Operation ................................................22

Traffic Information ...................................................23

DAB Setup ...................................................................24

Bluetooth Control 25

Information for using Bluetooth® devices .......25

Bluetooth Setup ........................................................26

Playing Bluetooth Audio Device .........................27

Using Hands-Free Unit ............................................29

Other External Components 33

View Camera ..............................................................33

External audio/video players—AV-IN ...............34

Setting Up 35

Monitor Screen Setup .............................................35

System Setup .............................................................35

User Interface Setup ................................................36

Special Setup .............................................................37

Display Setup .............................................................37

AV Setup ......................................................................38

Radio 18

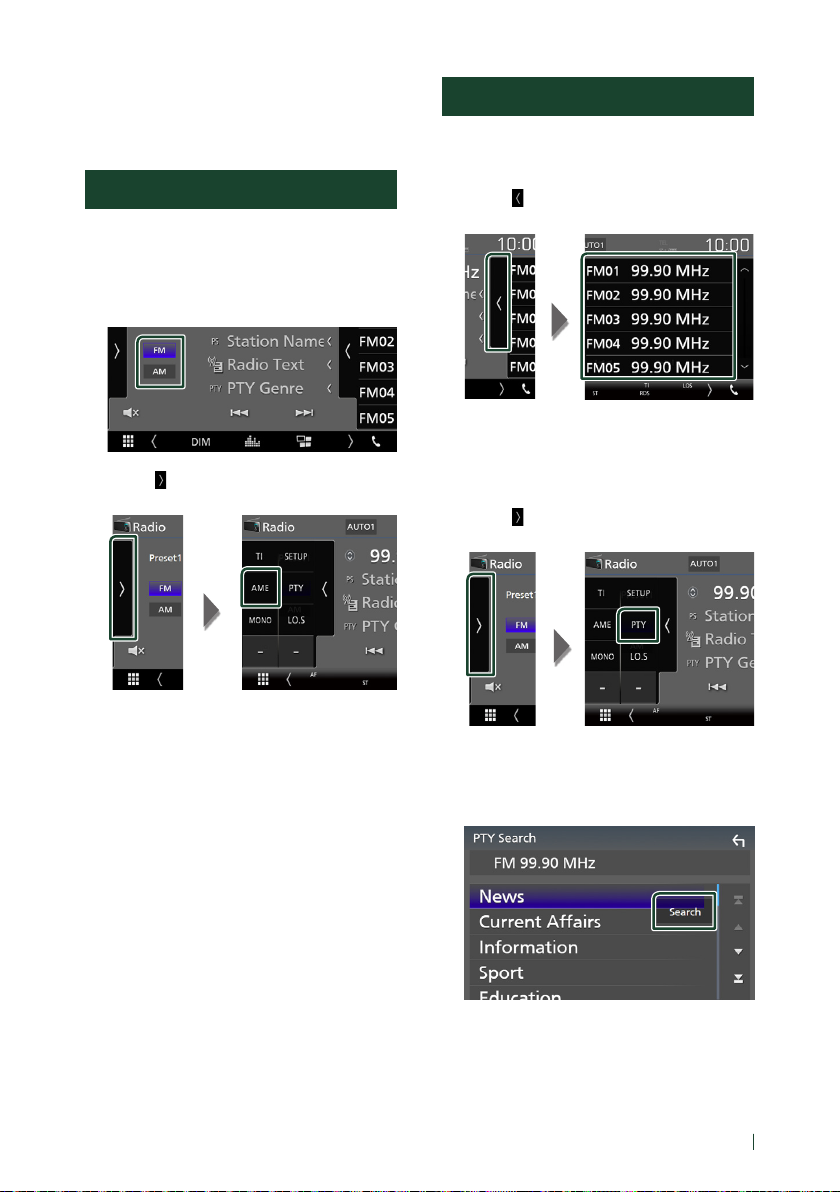

Radio Basic Operation ............................................18

Memory Operation ..................................................19

Selecting Operation ................................................19

Traffic Information ...................................................20

Radio Setup ................................................................20

Controlling Audio 39

Speaker/ X’over setup .............................................39

Controlling General Audio ....................................40

Equalizer Control ......................................................41

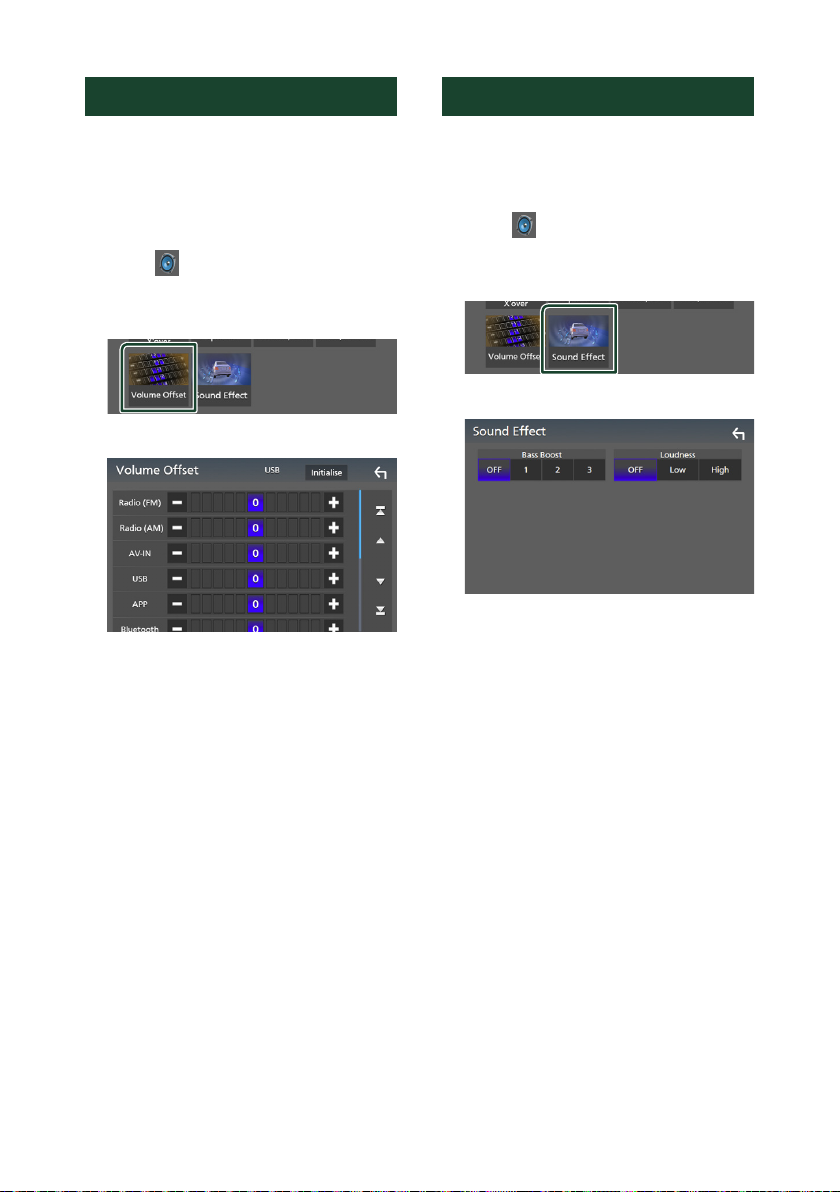

Volume Offset ............................................................42

Sound Effect ...............................................................42

Listening Position/ DTA ..........................................43

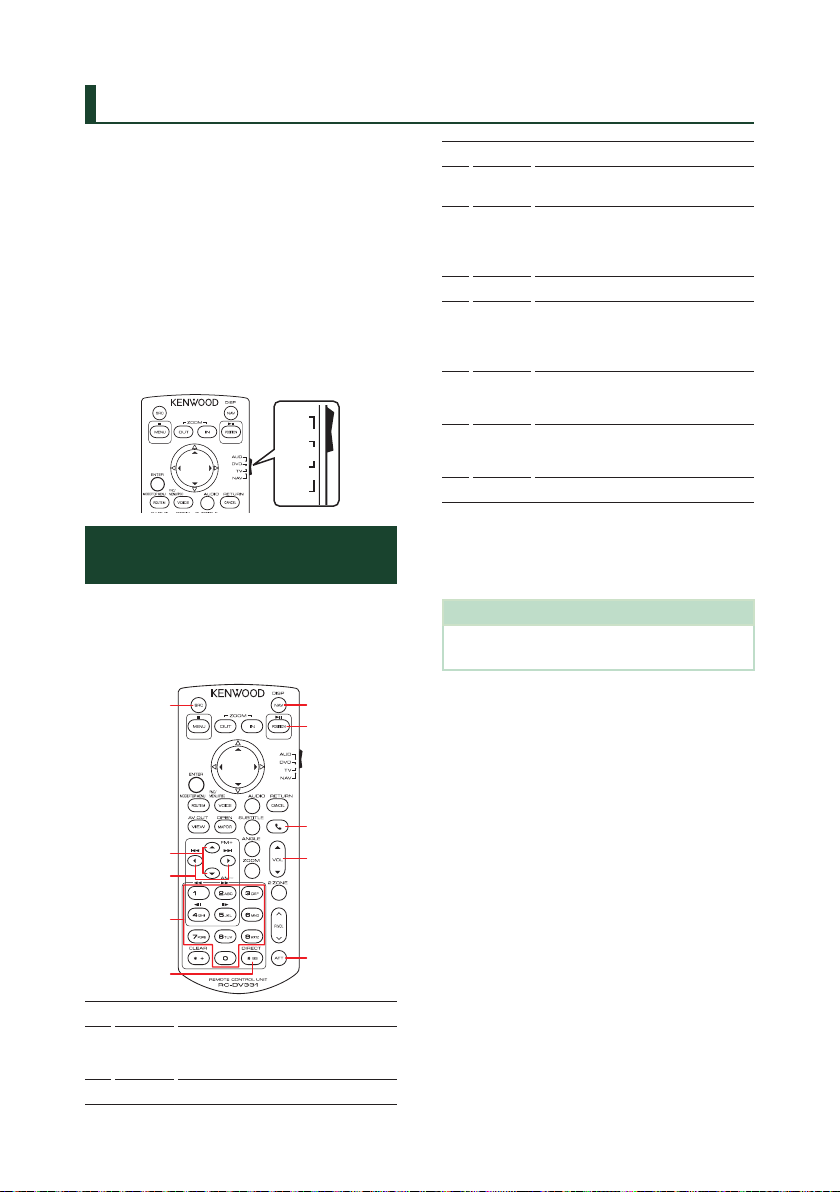

Remote control 44

Functions of the Remote control Buttons .......44

Connection/Installation 45

Before Installation ....................................................45

Installing the unit .....................................................46

Troubleshooting 50

Problems and Solutions .........................................50

Error Messages ..........................................................50

Appendix 51

Playable Media and Files........................................51

Specifications .............................................................52

About this Unit ..........................................................54

3English

Before Use

Precautions

# WARNINGS

Ñ To prevent injury or re, take

the following precautions:

• To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit.

• Do not watch or ﬁx your eyes on the unit’s display when you are driving for any extended period.

• If you experience problems during installation, consult your KENWOOD dealer.

Ñ Precautions on using this unit

• When you purchase optional accessories, check with your KENWOOD dealer to make sure that they work with your model and in your area.

• You can select language to display menus, audio ﬁle tags, etc. See User Interface Setup (P.36).

• The Radio Data System or Radio Broadcast Data System feature won’t work where the service is not supported by any broadcasting station.

Ñ Protecting the monitor

• To protect the monitor from damage, do not operate the monitor using a ball point pen or similar tool with the sharp tip.

Ñ Cleaning the unit

• If the faceplate of this unit is stained, wipe it with a dry soft cloth such as a silicon cloth. If the faceplate is stained badly, wipe the stain oﬀ with a cloth moistened with neutral cleaner, then wipe it again with a clean soft dry cloth.

NOTE

• Applying spray cleaner directly to the unit may

aﬀect its mechanical parts. Wiping the faceplate with a hard cloth or using a volatile liquid such as thinner or alcohol may scratch the surface or erase screened print.

Ñ How To Reset Your Unit

• If the unit or the connected unit fails to operate properly, reset the unit. Press the <Reset> button. The unit returns to factory settings.

Reset button

NOTE

• Disconnect the USB device before pressing the

<Reset> button. Pressing the <Reset> button with the USB device connected can damage the data stored in the USB device. For how to disconnect the USB device, see Disconnect the USB device (P.15).

• When the unit is turned on after reset ting, the

Initial SETUP screen appears. See Initial setup (P.6).

Ñ Caution for Smartphone Users

• Simultaneously running multiple applications on your smartphone while screen sharing places heavy demand on the microprocessor of the phone, potentially aﬀecting communication and performance.

• For best results while pairing with your KENWOOD receiver, please be sure to close any unused applications.

How to read this manual

• The screens and panels shown in this manual are examples used to provide clear explanations of the operations. For this reason, they may be diﬀerent from the actual screens or panels used, or some display patterns may be diﬀerent.

• Indication language: English indications are used for the purpose of explanation. You can select the indication language from the [SETUP] menu. See User Int erface Setu p (P.36).

Basic Operations

Functions of the Buttons on the Front Panel

NOTE

• The panels shown in this guide are examples used to provide clear explanations of the operations. For this reason, they may be diﬀerent from the actual panels.

Name

• Motion

Remote Sensor

• Receives the remote control signal.

[S], [R] ([VOL])

• Adjusts volume. The volume will go up until 15 when you keep pressing [R].

[HOME]

• Displays the HOME screen (P.8).

• Pressing for 1 second turns the power off.

• When the power off, turns the power on.

[MENU]

• Displays the MENU screen.

• Pressing for 1 second turns the screen off.

[VOICE]

• Displays the Voice Recognition screen (P. 30).

Reset

• If the unit or the connected unit fails to operate properly, the unit returns to initial settings when this button is pressed.

Turning on the Unit

Press the [HOME] button.

 The unit is turned on.

● To turn off the unit:

Press the [HOME] button for 1 second.

NOTE

• If it is your ﬁrst time turning the unit on af ter installation, it will be necessary to perform Initial setup (P. 6).

5English

Basic Operations

Getting Started

Initial setup

Perform this setup when you use this unit ﬁrst time.

Set each item as follows.

■ [Language]

Select the language used for the control screen and setting items. Default is “[British English(en)]”.

1Touch [Language]. 2Touch [Language]. 3Select the desired language. 4Touch [

■ [Clock]

Adjusts clock. For detailed operation, see Calendar/clock

settings (P.6).

■ [Display]

Set the image on the screen.

1Touch [Display]. 2Touch [Background]. 3Select the image. 4Touch [

For detailed operation, see Display Setup (P. 37).

■ [Camera]

Set the parameters for the camera.

1Touch [Camera]. 2Set each item and touch [

For detailed operation, see Camera Setup (P. 33).

■ [DEMO]

Set the demonstration mode. Default is “ON”. 1Touch [DEMO] and set [ON] or [OFF].

Touch [Finish].

NOTE

• These settings can be set from the SETUP menu. See Set ting Up (P.35).

Calendar/clock settings

Press the [MENU] button.

 MENU screen appears.

Touch [ ].

 SETUP Menu screen appears.

Basic Operations

Touch [User Interface].

 User Interface screen appears.

Touch [Clock Adjust].

Adjust the date, then adjust the time.

Touch [Set].

NOTE

• Deactivate [RDS CT] before adjusting the clock. See Radi o Setup (P.20).

Adjusting the volume

To adjust the volume (0 to 40), Press [R] to increase, and press [S] to decrease. Holding [R] increases the volume continuously

to level 15.

Touch screen operations

To perform operations on the screen, you need to touch, touch and hold, ﬂick or swipe to select an item, display setting menu screen or to change the page, etc.

● Touch

Touch the screen gently to select an item on the screen.

● Touch and hold

Touch the screen and keep your ﬁnger in place until the display changes or a message is displayed.

● Flick

Slide your ﬁnger quickly to the left or right on the screen to change the page.

You can scroll the list screen by ﬂicking the screen up/ down.

● Swipe

Slide your ﬁnger up or down on the screen to scroll the screen.

7English

Basic Operations

HOME screen descriptions

Most functions can be performed from the HOME screen.

• Displays the control screen of current source.

• Current source information

• Displays the source selection screen. (P.9)

• Short-cut playback source icons (P. 9)

Display the HOME screen

Press the [HOME] button.

Source selection screen descriptions

You can display all playback sources and options on the source selection screen.

2 3

• Changes the playback source.

For playback sources, see Select the playback source (P.9).

• Returns to previous screen.

• Displays the SETUP Menu screen. (P. 35)

 HOME screen appears.

Basic Operations

Select the playback source

Touch [ ] on the HOME screen.

From the screen, you can select the following sources and functions.

• Switches to the DAB broadcast. (P. 18)

• Switches to the Apple CarPlay screen from the connected iPhone. (P. 12)

• Switches to the Android Auto screen from the connected Android smartphone.

(P. 13)

It is necessary to connect Android smartphone compatible with Android Auto and to set [Mode] to [Android Auto]. (P. 14)

• Displays the Hands Free screen. (P. 29) When neither Apple CarPlay, Android Auto, nor a Bluetooth Hands-Free phone is connected, displays "[Disconnected]" message in the TEL screen. When connecting as Apple CarPlay or Android Auto, it works as a phone provided in Apple CarPlay or Android Auto.

• Switches to the USB Mirroring screen from the connected Android smartphone.

(P. 14)

It is necessary to connect Android smartphone with “Mirroring OA for KENWOOD” application installed and to set [Mode] to [Mirroring for Android™].

(P. 14)

• Switches to the Radio broadcast. (P.18)

To select the playback source on the HOME screen

The 4 items displayed on the source selection screen as the large icons are shown on the HOME screen.

You can change items displayed on this area by customizing the source selection screen.

(P.10)

Put the unit in standby

Touch [ ] on the HOME screen.

Touch [STANDBY].

• Plays a Bluetooth audio player. (P. 25)

• Plays files on a USB device. (P. 15)

• Switches to an external component connected to the AV-IN input terminal.

(P. 34)

• Puts the unit in standby. (P. 9)

9English

Basic Operations

Customize Short-cut buttons on HOME screen

You can arrange the position of the source icons as you like.

Touch [ ] on the HOME screen.

Touch and hold the icon which you want

to move to go into the customizing mode.

Drag it where you want to move.

Source control screen descriptions

There are some functions which can be operated from most screens.

Indicators

Secondary screen

]/[ ] : The Secondary screen changes every

• [ time you touch it. You can also change the Secondary screen by ﬂicking lef t or right on the screen.

• Indicators: Displays the current source condition and so on.

– [MUTE]: The mute function is ac tive. – [LOUD]: The loudness control function is on.

• Sub menu

– [ ]: Operation when the icon is touched:

The ﬁrst touch darkens the screen, the second touch darkens the screen fur ther, and the third touch restores the screen to its original brightness.

– [

]: Displays the Graphic Equalizer screen.

(P.41)

– [

]: Displays the APP (Apple CarPlay/ Android

Auto) screen (P.12 ).

[Û]

Touch to display the Hands Free screen.

(P. 29)

When connecting as Apple CarPlay or Android Auto, it works as a phone provided in Apple CarPlay or Android Auto.

2 3 4

Sub menu

[ ]/[ ]

Connected Bluetooth device information.

All sources icon

Displays all sources.

Basic Operations

MENU screen

Press the [MENU] button.

 MENU screen appears.

Touch to display the MENU screen.

The contents of the menu are as follows.

• Displays the SETUP Menu screen. (P. 35)

• Displays the APP (Apple CarPlay/ Android Auto) screen. (P. 12)

• Displays the Screen Adjustment screen.

(P. 35)

• Displays the view camera. (P.33)

• Displays the source selection screen.

(P. 9)

• Turns the display off. (P. 11)

• Displays the Audio Control Menu screen.

(P. 39)

• Close the MENU screen.

Turn o the screen

Select [ ] on the MENU screen.

List screen

There are some common function keys in the list screens of most sources.

61 2

3 4 5

Displays list type selection window.

Displays music/movie ﬁle list.

Text scroll

Scrolls the displayed text.

etc.

Keys with various functions are displayed here.

] : Plays all tracks in the folder containing

• [ the current track.

• [

] [ ] : Moves to the upper hierarchy.

[ ] / [ ] / [ ] / [ ] Page scroll

You can change the page to display more items by pressing [

]/[ ] : Displays the top or bottom page.

• [

Return

Returns to previous screen.

NOTE

• Buttons which cannot be activated from the list screen are not displayed.

]/[ ].

● To turn on the screen

Touch the display.

11English

APPS

Apple CarPlay Operation

Apple CarPlay is a smarter, safer way to use your iPhone in the car. Apple CarPlay takes the things you want to do with iPhone while driving and displays them on the screen of the product. You can get directions, make calls, send and receive messages, and listen to the music from iPhone while driving. You can also use Siri voice control to make it easier to operate iPhone.

For details about Apple CarPlay, visit

https://www.apple.com/ios/carplay/.

Compatible iPhone devices

You can use Apple CarPlay with the following iPhone models.

• iPhone 11 Pro Max

• iPhone 11 Pro

• iPhone 11

• iPhone XR

• iPhone XS Max

• iPhone XS

• iPhone X

• iPhone 8 Plus

• iPhone 8

• iPhone 7 Plus

• iPhone 7

• iPhone SE

• iPhone 6s Plus

• iPhone 6s

• iPhone 6 Plus

• iPhone 6

• iPhone 5s

• iPhone 5c

• iPhone 5

Ñ Preparation

[ ]

• Displays the home screen of Apple CarPlay.

• Touch and hold to activates Siri.

Application buttons

Starts the application.

[HOME]

Exits the Apple CarPlay screen and displays the Home screen.

To exit the Apple CarPlay screen

1 Press the [HOME] button.

Ñ Use Siri

You can activate Siri.

1 Press the [VOICE] button.

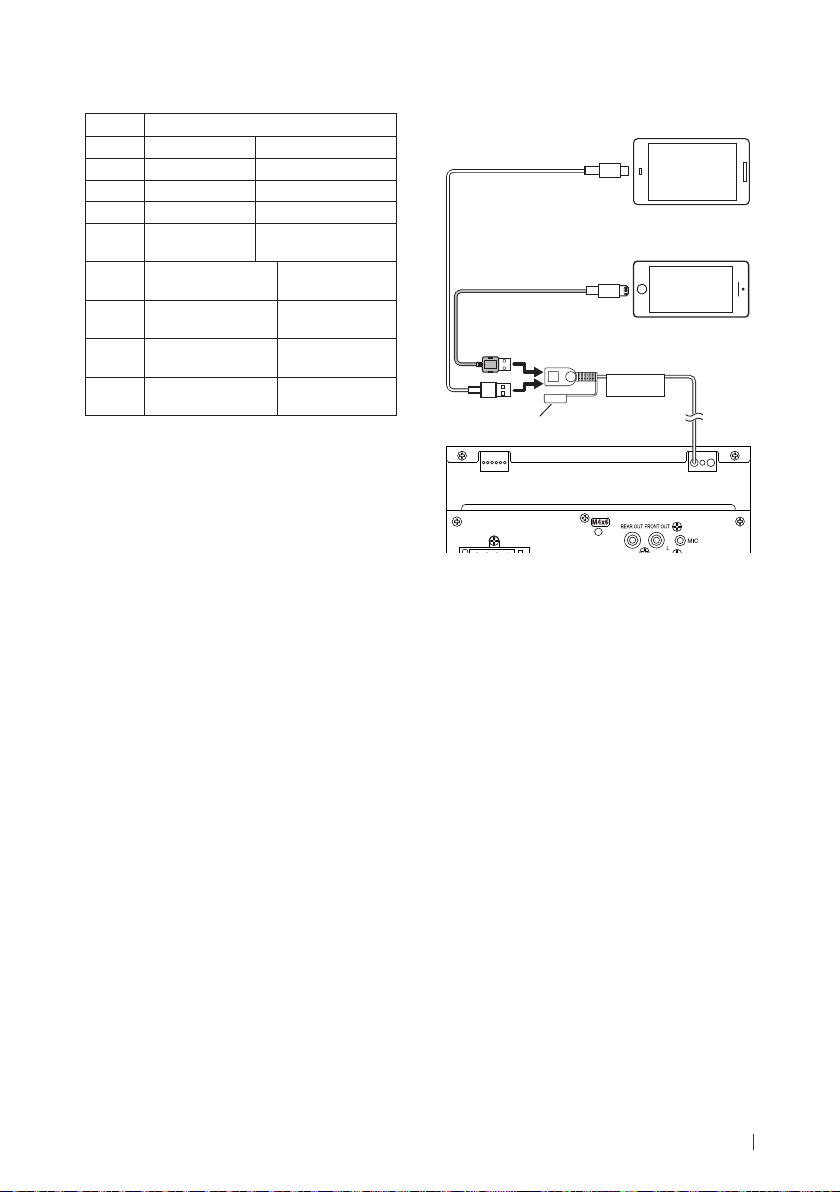

1 Connect iPhone using KCA-iP103 via USB

terminal. (P. 49)

When iPhone compatible with Apple CarPlay is connected to the USB terminal, the Bluetooth smartphone currently connected is disconnected.

2 Unlock your iPhone.

Ñ Operation buttons and

available Apps on the home screen of Apple CarPlay

You can use the Apps of the connected iPhone. The items displayed and the language used on

the screen diﬀer among the connected devices. To enter Apple CarPlay mode, touch

[Apple CarPlay] icon in the source selection screen. (P.9)

2 Talk to Siri.

Ñ Switch to the Apple CarPlay

screen while listening to another source

1 Press the [HOME] button.

 HOME screen appears.

2 Touch [Apple CarPlay].

NOTE

• If sound is output using Apple CarPlay when the Apple CarPlay screen is displayed, the source is switched to Apple CarPlay.

APPS

Android Auto™ Operation

Android Auto enables you to use functions of your Android smartphone convenient for driving. You can easily access route guidance, make calls, listen to music, and access convenient functions on the Android smartphone while driving.

For details about Android Auto, visit

https://www.android.com/auto/ and https://support.google.com/androidauto.

Compatible Android smartphone

You can use Android Auto with Android smartphone of Android version 5.0 or later.

NOTE

• Android Auto may not be available on all devices and is not available in all countries or regions.

Ñ Preparation

1 Connect an Android smartphone via USB

terminal. (P. 49)

To use the hands-free function, connect the Android smartphone via Bluetooth.

When an Android smartphone compatible with Android Auto is connected to the USB terminal, the device is connected via Bluetooth automatically, and the Bluetooth smartphone currently connected is disconnected.

2 Unlock your Android smartphone.

NOTE

• To use the Android Auto, It is necessary to set [Mode] to [Android Auto]. (P.14)

To enter Android Auto mode, touch [Android Auto] icon in the source selection screen. (P.9)

Application/information buttons

Starts the application or displays information.

To exit the Android Auto screen

1 Press the [HOME] button.

Ñ Using voice control

1 Press the [VOICE] button.

To cancel

1 Press the [VOICE] button.

Ñ Switch to the Android Auto

screen while listening to another source

1 Press the [HOME] button.

 HOME screen appears.

2 Touch [Android Auto].

Ñ Operation buttons and

available Apps on the Android Auto screen

You can perform the operations of the Apps of the connected Android smartphone.

The items displayed on the screen diﬀer among the connected Android smartphone.

NOTE

• If sound is output using Android Auto when the Android Auto screen is displayed, the source is switched to Android Auto.

13English

APPS

USB Mirroring Operation (Android only)

You can display and control the App on the unit while your smartphone is connected to the USB terminal.

Ñ Preparation

1 Download Mirroring App from the Google

Play.

Install the latest version of the Mirroring application “Mirroring OA for KENWOOD” on your Android.

2 Pair your smartphone with the unit via

Bluetooth.

See Register from the Bluetooth device (P. 26) and Connect the Bluetooth device

(P. 27).

Ñ Select a Device Mode

1 Press the [MENU] button.

 MENU screen appears.

2 Touch [ ].

 SETUP screen appears.

3 Touch [Device].

Ñ Compatible Android

smartphone

• Android version 7.0 or later

• Linux Kernel version 3.5 or later

• Bluetooth support

NOTE

• This unit may not work for some Android smartphone's.

Ñ Connecting an Android

smartphone

1 Connect an Android smartphone via the

USB terminal.

2 Launch Mirroring App on your Android

Smartphone.

Touch [OK] to start Mirroring App. Touch [Start now] to start capturing your

Android screen.

3 Start to enjoy Mirroring.

Ñ Mirroring OA Operation

1 Operate your smartphone to activate

Mirroring App, then connect to this unit.

2 Press the [HOME] button.

4 Touch [Mode]. 5 Touch [Mirroring for Android™].

3 Touch [ ] . 4 Touch USB Mirroring.

• You can display the same screen of the Android smartphone on the monitor of the unit.

USB

Connecting a USB device

1 Connect the USB device with the USB

cable. (P. 48)

2 Press the [HOME] button. 3 Touch [ ]. 4 Touch [USB]. (P. 9)

Ñ Disconnect the USB device

1 Press the [HOME] button. 2 Touch [ ]. 3 Touch a source other than [USB]. 4 Detach the USB device.

Ñ Usable USB device

You can use a mass-storage-class USB device on this unit.

The word “USB device” appearing in this manual indicates a ﬂash memory device.

● About file system

The ﬁle system should be the one of the following.

• FAT16 • FAT32 • exFAT

NOTE

• Install the USB device in the place where it will not aﬀect safe driving.

• You cannot connect a USB device via a USB hub and Multi Card Reader.

• Take backups of the audio ﬁles used with this unit. The ﬁles can be erased depending on the operating conditions of the USB device. We shall have no compensation for any damage arising from any erased data.

USB Basic Operation

Most functions can be controlled from the source control screen and playback screen.

Control screen

Open the drawer

[ ] / [ ]

] : Repeats the current track/folder. Each

• [ time you touch the key, repeat mode switches in the following sequence; File repeat ([ all ([

] : Randomly plays all tracks in current

• [ folder. Each time you touch the key, random mode switches in the following sequence; File random ([

Track information

Displays the information of the current ﬁle. Only a ﬁle name and a folder name are

displayed if there is no tag information.

]), Folder repeat ([ ]), Repeat

])

]), Random oﬀ ([ ])

15English

USB

Operation keys

• [1] : Searches track/ﬁle. For details on search

operation, see Search Operation (P.17).

• [E] [F] : Searches the previous/next track/

ﬁle. Touch and hold to fast forward or fast backward.

• [D]H] : Plays or pauses.

• [

] : Touch to mute or not to mute.

Function panel

Touch on the left side of the screen to display the function panel. Touch again to close the panel.

• [

] [ ] : Searches previous/next folder.

• [ASPECT](Only during video playback): Select screen mode. [Full] : Changes the aspect ratio of video and

displays fully on the screen.

[Normal] : Display with 4:3 ratio. [Auto] : Displays video fully on vertical or

horizontal with no ratio change.

Content list

Touch on the right side of the screen to display the Content list. Touch again to close the list.

Displays the playing list. When you touch a track/ﬁle name on the list, playback will start.

Indicator Items

• [VIDEO]: Identiﬁes the video ﬁle.

• [MUSIC]: Identiﬁes the music ﬁle.

Artwork/ Play mode indicator/ Playing

time

The jacket of the currently playing ﬁle is displayed.

• [D], [B], etc.: Current play mode indicator The meanings of each icon are as follows; [D] (play), [B] (fast forward), [A] (fast backward), [H] (pause).

Video screen

Searching file area (Video file only)

Touch to search the next/previous ﬁle.

Key display area (Video file only)

Touch to display the control screen.

USB

Search Operation

You can search music or video ﬁles by the following operations.

1 Touch [1]. 2 Touch [S].

3 Select the list type.

NOTE

• For operations in the list screen, see L ist screen

(P.11).

Ñ Category search

You can search a ﬁle by selecting category.

1 Touch [Category List]. 2 Select whether you search by audio files

]

[

3 Touch the desired category.

Ñ Link search

You can search a ﬁle of same artist /album/genre as the current track.

1 Touch [Link Search]. 2 Touch the desired tag type. You can select

from artist, album and genre.

 The list corresponding to your selection

appears.

3 Touch desired item from the content list.

Ñ Folder search

You can search a ﬁle according to hierarchy.

1 Touch [Folder List].

 The list corresponding to your selection

appears.

4 Touch to select desired item in the list.

Repeat this step until you find the desired file.

2 Touch the desired folder.

When you touch a folder its contents are displayed.

3 Touch to select desired item in the list.

Repeat this step until you find the desired file.

17English

Radio

Radio Basic Operation

Most functions can be controlled from the source control screen.

To enter Radio source, touch [Radio] icon in the source selection screen. (P. 9)

Control screen

1 2

5 6 3

Open the drawer

Information display

Displays the information of the current station: Frequency

Touching [ Content A and Content B.

– Content A: PS name, Radio Text, PTY Genre – Content B: Radio Text plus, Title Artist

[Preset#]: Preset number

Seek mode

Switches the seek mode in the following sequence; [AUTO1], [AUTO2], [MANUAL].

• [AUTO1]: Tunes in a station with good reception automatically.

• [AUTO2]: Tunes in stations in memory one after another.

• [MANUAL]: Switches to the next frequency manually.

] allows you to switch between

Operation keys

• [E] [F] : Tunes in a station. The method of

frequency switching can be changed (see in table).

• [

] : Touch to mute or not to mute.

Preset list

• Touch on the right side of the screen to display the Preset list. Touch again to close the list.

• Recalls the memorized station.

• When touched for 2 seconds, stores the current receiving station in memory.

Function panel

Touch on the left side of the screen to display the function panel. Touch again to close the panel.

• [TI] (FM only): Sets the traﬃc information mode on. For details, see Trac Information (P. 20).

• [SETUP (FM only): Displays the Radio SETUP

screen. For details, see Radio Setup (P.20).

• [AME]: Presets stations automatically. For details, see Auto memory (P.19).

• [PTY] (FM only): Searches a program by setting program type. For details, see Search by program type (P.19).

• [MONO] (FM only): Select the Monaural reception.

• [LO.S] (FM only): Turns the Local Seek function on or oﬀ.

[FM] [AM]

Switches the band.

Indicator Items

• [ST]: A stereo broadcast is being received.

• [MONO]: The forced monaural function is on.

• [AF]: The AF search function is on.

• [LOS]: The Local Seek function is on.

• [RDS]: Indicates the state of the Radio Data System station when the AF function is on.

White: Radio Data System is being received. Orange: Radio Data System is not being

received.

+ 42 hidden pages
