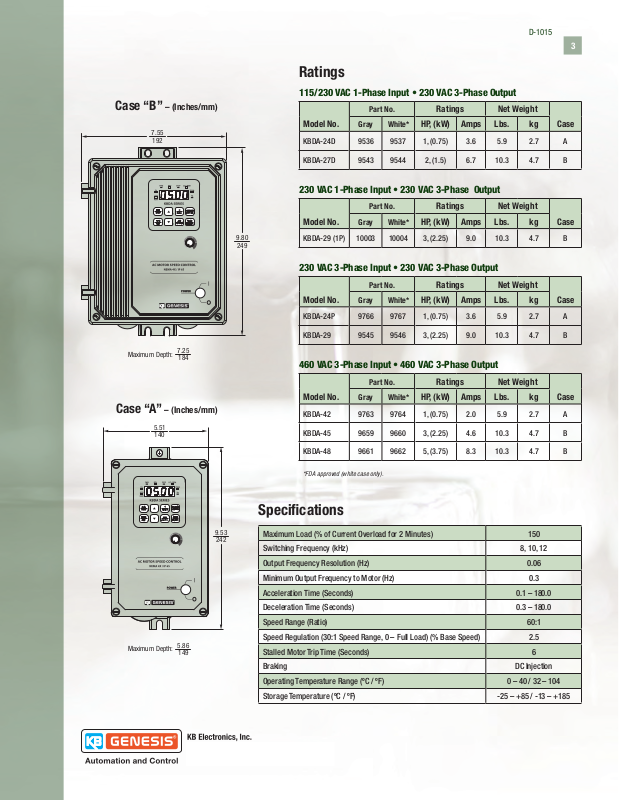

KB Electronics KBDA Catalog Page
3
Case “B” – (Inches/mm)
7.55
192
9.80
249
D-1015
Ratings
115/230 VAC 1-Phase Input • 230 VAC 3-Phase Output
Part No. Ratings Net Weight
Model No.
KBDA-24D 9536 9537 1, (0.75) 3.6 5.9 2.7 A
KBDA-27D 9543 9544 2, (1.5) 6.7 10.3 4.7 B
230 VAC 1-Phase Input • 230 VAC 3-Phase Output
Model No.
KBDA-29 (1P) 10003 10004 3, (2.25) 9.0 10.3 4.7 B
230 VAC 3-Phase Input • 230 VAC 3-Phase Output
Model No.
KBDA-24P 9766 9767 1, (0.75) 3.6 5.9 2.7 A
Gray White* HP, (kW) Amps Lbs. kg
Part No. Ratings Net Weight
Gray White* HP, (kW) Amps Lbs. kg
Part No. Ratings Net Weight
Gray White* HP, (kW) Amps Lbs. kg
Case
Case
Case
Maximum Depth:
7.25
184
Case “A” – (Inches/mm)
5.51
140
Maximum Depth:
5.86
149
9.53
242
KBDA-29 9545 9546 3, (2.25) 9.0 10.3 4.7 B
460 VAC 3-Phase Input • 460 VAC 3-Phase Output
Part No. Ratings Net Weight
Model No.
KBDA-42 9763 9764 1, (0.75) 2.0 5.9 2.7 A
KBDA-45 9659 9660 3, (2.25) 4.6 10.3 4.7 B
KBDA-48 9661 9662 5, (3.75) 8.3 10.3 4.7 B
*FDA approved (white case only).
Gray White* HP, (kW) Amps Lbs. kg
Specifications
Maximum Load (% of Current Overload for 2 Minutes) 150
Switching Frequency (kHz) 8, 10, 12
Output Frequency Resolution (Hz) 0.06
Minimum Output Frequency to Motor (Hz) 0.3
Acceleration Time (Seconds) 0.1 – 180.0
Deceleration Time (Seconds) 0.3 – 180.0
Speed Range (Ratio) 60:1
Speed Regulation (30:1 Speed Range, 0 – Full Load) (% Base Speed) 2.5
Stalled Motor Trip Time (Seconds) 6
Braking DC Injection
Operating Temperature Range (ºC / ºF) 0 – 40 / 32 – 104
Storage Temperature (ºC / ºF) -25 – +85 / -13 – +185
Case
