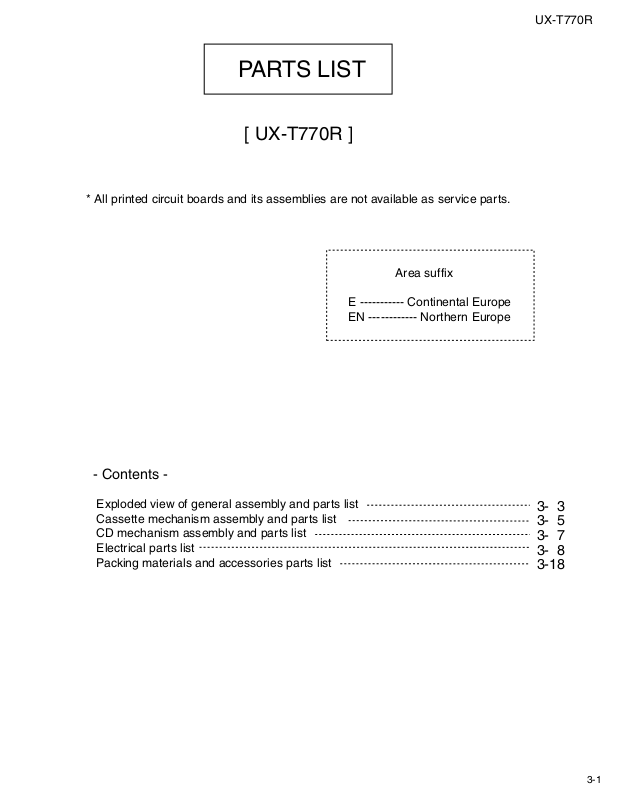

PARTS LIST
[ UX-T770R ]
* All printed circuit boards and its assemblies are not available as service parts.
Area suffix
E ----------- Continental Europe
EN ------------ Northern Europe
UX-T770R
- Contents -
Exploded view of general assembly and parts list
Cassette mechanism assembly and parts list
CD mechanism assembly and parts list
Electrical parts list

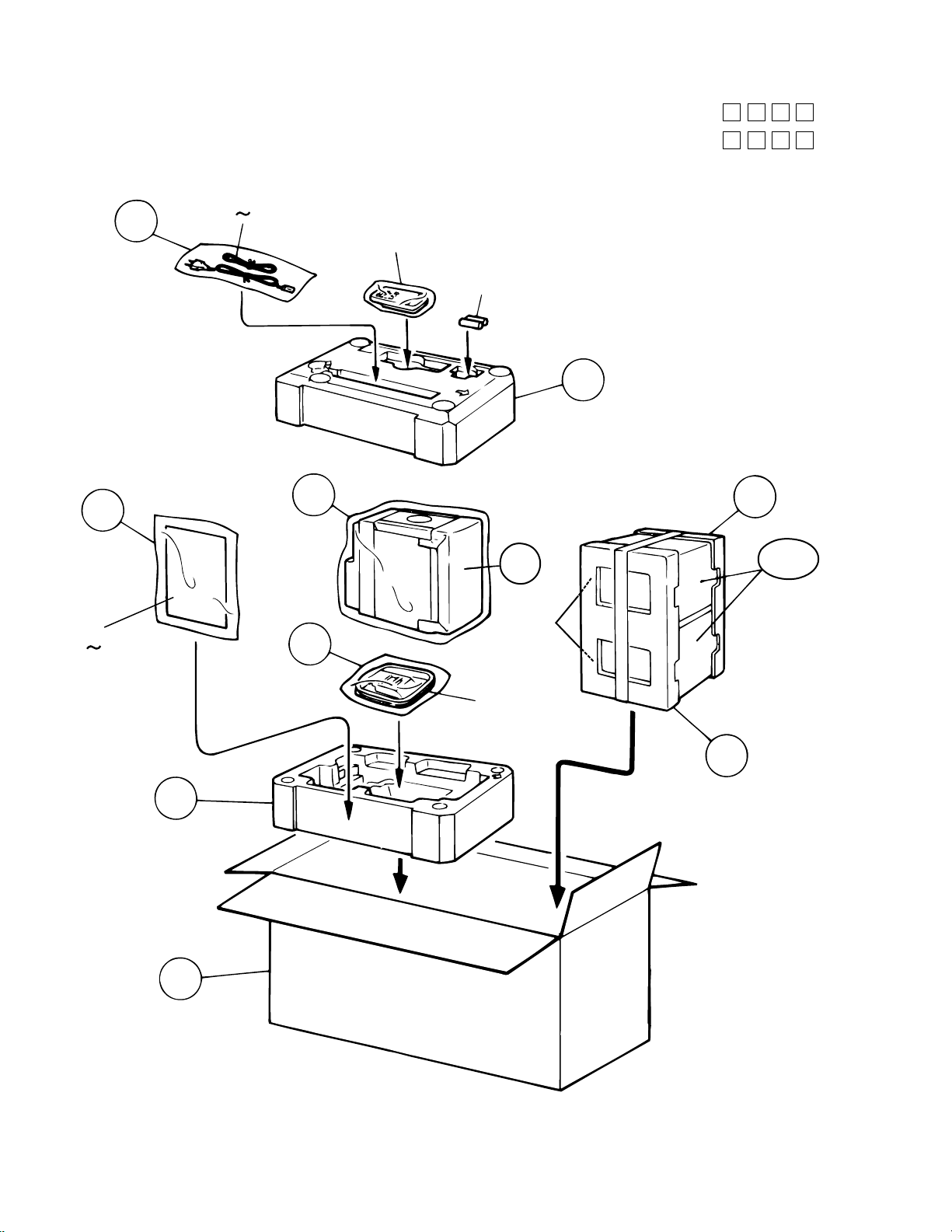

Packing materials and accessories parts list
3- 3
3- 5
3- 7
3- 8
3-18
3-1
UX-T770R
< MEMO >
3-2
Exploded View of General Assembly and Parts List
UX-T770R
Block No. M1MM
43
77
80
79
79
80
79
79
81
53
66
67
53
5
65
71
70
4
69
68
3
2
72
64
61
63
89
CD servo
control board
72
k
60
f
d
93
62
54
57
55
55
58
58
2
59
72
c
Operating
switch
board
6
11
9
4
7
10
8
58
3
f
86
53
k
17
52
51
56
9
54
5
10
g
Function
board
58
90
8
76
17
16
13
12
78
82
Power amplifier
board
j
c
b
88
g
47
LCD system
light board
LCD system
CPU board
i
d
l
74
94
73
91
96
50
41
49
a
i
b
92
85
84
87
j
45
45
81
46
44
42
Power
supply
board
41
28
28
14
15
1
29
75
25
75
24
26
27
20
72
31
1
32
30
18
27
33
19
23
21
35
22
AB CD E F G
34
37
38
37
39
39
Head amplifier
& mechanism
control board
36
40
83
97
a
Tuner board
l
48
95
3-3
UX-T770R
)
)
)
)
)
)
)
Parts list (General assembly)
Item Parts number Parts name Area
A
1 VJG1473-025 FRONT PANEL 1
2 VXP3867-005 PUSH BUTTON(A
3 VXP5352-005 PUSH BUTTON(B
4 VXP5353-005 PUSH BUTTON(C
5 VXP5358-006 SNOOZE BUTTON 1
6 VJK4493-001SC LENS(STANDBY
7 VJK4504-001 REMOCON LENS 1
8 QYSBSF2608Z T.SCREW 2 FOR F.P+PWB
9 QYSBSF3008Z SCREW 2 BUTTON+PWB
10 QYSBSF2608Z T.SCREW 2 FOR F.P+BUTTON
11 VXL4453-005 MULTI JOG DIAL 1
12 VYH3982-001 LAMP CASE 1
13 VYTT704-001 LCD FILTER 1
14 VJT4241-002 LCD LENS 1
15 E406971-002SM JVC MARK 1
16 VYH8160-005 BUTTON COVER 1
17 VKW5306-001 COMP.SPRING 2
18 VYH3983-001 DOOR HOLDER 1
19 VYH8149-001 EJECT LEVER 1
20 VXQ4125-005 EJECT KNOB 1
21 QYSBSF2608Z T.SCREW 1 FOR E.LVR+E.KNOB
22 VKZ4323-002 SCREW 2 D.HOLDER+E.LEVER
23 VKW3002-274 TENSION SPRING 1 FOF E.LEVER
24 VYH7347-001 EJECT ARM 1
25 VKZ4341-001 SPECIAL SCREW 1 FOR EJECT ARM
26 VKW4938-001 TORTION SPRING 1 FOR EJECT ARM
27 QYSBSF3008Z SCREW 2 F.P+D.HOLDER
28 VKY4180-001 CASSETTE SPRING 2
29 VYH5601-001 GEAR 1
30 VKW5295-001 DOOR SPRING 1
31 LV20361-002A CASSETTE DOOR 1
32 LV40937-002A DOOR LENS 1
33 --------------- CASSETTE MECHA 1
34 VKL7850-203 EJECT SAFTY(R
35 VKW5258-003 TORSION SPRING 1
36 VMA4723-001 SHIELD 1
37 QYSBSF3010Z SCREW 2 F.PANEL+MECHA
38 VYH8183-001 BRACKET 1 FOR CASSETTE DOOR
39 QYSBST3008Z T.SCREW 2 DOOR HOL+MECHA
40 VYH1263-001 BOTTOM CHASSIS 1
41 QYSBST4006Z T.SCREW 4 CHASSIS+TRANS
42 VYH3984-001 JACK HOLDER 1
43 QYSBSF3010Z SCREW 1 PWB+JACK HOL
44 VYH8153-001 RADIATION 1
45 QYSBST3012Z T.SCREW 4 RADI+IC
46 QYSBST3006Z T.SCREW 1 RADI+CHASSIS
47 QYSBST3006Z T.SCREW 1 MAIN PWB+CHASSIS
48 QYSBST3006Z T.SCREW 1 TUNER PWB+CHASSIS
Q'ty Description
1
1
1
1
1
Block No. M1MM
Parts list (General assembly)
Item Parts number Parts name Area
A
50 VMA4720-001 BARRIER 1
51 --------------- CD MECHA 1
52 VJD5410-306 PICK COVER 1
53 QYSDSF2006M SCREW 4 CD MECHA+P.COVER
54 FMYH4003-001J INSULATOR 2
55 FMYH4003-002J INSULATOR 2
56 VYH8089-001SC CD MECHA HOLDER 1
57 VYH8089-002SC CD MECHA HOLDER 1
58 QYSBSF3010Z SCREW 4 CD CASE+M.HOLDER
59 VMA4692-002SC SHIELD 1
60 VJD1216-003 CD CASE 1
61 VYH4769-002SS GEAR 1
62 VKW5276-001 CD DOOR SPRING 1
63 VYH8152-001 LOCK LEVER 1
64 VXP5354-006 CD EJECT KNOB 1
65 VJT2385-007 CD DOOR 1
66 VJT3392-002 CD LENS 1
67 VJT4245-005 CD ORNAMENT 1
68 VYH3726-002SS CLAMPER 1
69 VYH7313-003 MAGNET 1
70 VYH7677-201 YOKE 1
71 QYSDSF2606Z SCREW 1 FOR CLAMPER
72 QYSBSF3010Z SCREW 4 CD PWB+CD CASE
73 VMA4721-002 SHIELD 1
74 GN30006-001A SPACER 1
75 QYSSST3008Z SCREW 2 CHASSIS+F.PANEL
76 VJD2488-008 SIDE PANEL(L
77 VJD2489-008 SIDE PANEL(R
78 VJG1477-025 REAR PANEL 1
79 QYSBSF3010Z SCREW 5 JACK+R.P
80 QYSBSF3010Z SCREW 2 R.P+CD CASE
81 QYSSST3008Z SCREW 2 FOR R.P+CHASSIS
82 GN30035-001A RATING LABEL 1
83 VTP66J2-12L POWER TRANS
A
84 QMF51E2-R40-J1 FUSE
A
85 QMF51E2-5R0-J1 FUSE
A
86 SA-Y-6-06-PH-06 CONNECTOR 1
87 SC-J-2-10-EH-02 SC-EH WIRE 1
88 VWSB02-104K4K FLAT WIRE 1
89 QUQ910-1507AJ FFC WIRE 1
90 QUQB12-0508CJ FFC WIRE 1
91 QUQB12-0914CJ FFC WIRE 1
92 QUQB12-1020CJ FFC WIRE 1
93 QUQB12-0716CJ FFC WIRE 1
94 QUQB12-1106DJ FFC WIRE 1
95 QUQB12-1020CJ FFC WIRE 1
96 VYH3987-001SC IC HOLDER 1
97 QUQB12-0412CJ FFC WIRE 1
Q'ty Description
1
1
1 T 901
1 F 901
1 F 903
Block No. M1MM
3-4
Cassette mechanism assembly and parts list
Block No.
8
10
Grease
= EM-30L
=UD-24
=UD-24H2
=LEN-320M
=JC-888B
=MOBIL-1
33
SLC-S11YPM
7
2
3
12
11
22
2
9
4
3
UX-T770R
2
M
M
5
M
10
26
6
1
28
1
The lower side
23
5
18
Cassette switch
board
29
24
17
20
19
21
16
30
25
32
31
0.1
0.15 mm
8.7
32
31
34
27
Head amplifier &
Mechanism control board
34
3-5
UX-T770R
)
)
)
)
Parts list (Cassette mechanism)
Item Parts number Parts name Area
A
1 VKS1165-00J CHASSIS B.ASS'Y 1
2 VKS2274-002 REEL GEAR 2
3 VKW5286-002 B.T. SPRING 2
4 VKS5559-001 PLAY IDLE GEAR 1
5 VKS5597-00B BLIND 1
6 VKW5296-001 EARTH SPRING 1
7 SLC-RP1SVM HEAD MOUNT ASSY 1
8 VKY3149-002 CASSETTE SP. 1
9 VKM3906-002 PLAY SW.LEVER 1
10 VKS1166-003 CONTROL CAM 1
11 VKW5279-001 HEAD BASE SP(R
12 VKW5280-001 HEAD BASE SP(L
16 VKS5603-00G MAIN PULLEY ASY 1
17 VKS3785-001MM FR ARM 1
18 VKW5284-002 SWING SPRING 1
19 VKS2278-003 TRIGGER ARM 1
20 VKW5301-001 FR SPRING 1
21 VKW5266-001 ELEVATOR SPRING 1
22 WDL214025 WASHER 1
23 QYSBSF2005Z T.SCREW 1
24 VKS3786-00G CLUTCH ASS'Y 1
25 VKF3205-00B F.WHEEL ASSY(R
26 WDL183425 SLIT WASHER 1
27 VKF3207-00B F.WHEEL ASSY(L
28 WDL173525-6 SLIT WASHER 1
29 VKZ3174-00A DC SOLENOID 1
30 LV42234-001A CAPSTAN BELT 1
31 MSI-5U2LWA D.C.MOTOR ASS'Y 1
32 VKR4761-001 MOTOR PULLEY 1
33 QYSPSP2604Z SCREW 2
34 QYSBSF2608Z T.SCREW 3 FOR P.W.B.
Q'ty Description
1
1
1
1
Block No. M2MM
3-6
CD mechanism assembly and parts list
)
Grease & Bond
= EBS0006-013B
= 1401B
Block No.
UX-T770R
3
M
M
M
0.1mm
+
-
19.4
12
Turn table hight
Parts list (CD mechanism)
Item Parts number Parts name Area
A
1 E102501-331SC MECHA BASE ASSY 1
2 OPTIMA-7B C.D PICK 1
3 E407782-003SC C.D SHAFT 1
4 HQN300031-001PK CD RACK GEAR 1
5 E307745-332SC MECHA GEAR(3
6 QYSDSP2003N SCREW 4
7 E406750-332SC PINION 1
8 EPB-001PK T.TABLE ASSY 1
9 E406784-001 FEED MOTOR 1
10 QAR0130-001 SP MOTOR 1
11 EMW10190-001 CIR BOARD 1
12 QGA2001F1-06 6P PLUG ASSY 1 FOR P011
13 QSW0506-001 LEAF SW 1 FOR S001
14 E75832-221 SPECIAL SCREW 1 FOR M.CB
15 QYSDSF2606Z SCREW 1
Q'ty Description
1
Block No. M3MM
EXL-M7GB
3-7
UX-T770R
Electrical parts list (Main board)
Item
A
C 901 QFLC1HJ-104Z M CAPACITOR
A
C 902 QFLC1HJ-104Z M CAPACITOR
A
C 903 QFLC1HJ-104Z M CAPACITOR
A
C 904 QFLC1HJ-104Z M CAPACITOR
A
CN301 QGB1214J1-20S CONNECTOR
CN302 QGB1214J1-06S CONNECTOR
CN303 QGF1205C1-10 CONNECTOR
CN304 QGF1201C3-07 CONNECTOR
CN801 QGB2016J1-03 CONNECTOR
CN802 QGF1201F3-05 CONNECTOR
CN901 QGA2501C4-02 CONNECTOR
C1000 QDXB1CM-332Y C CAPACITOR
A
C1001 QCBB1HK-331Y C CAPACITOR 330PF 10% 50V
C1002 QDX31EM-104Z C CAPACITOR
C1003 QDX31EM-104Z C CAPACITOR
C1006 QETC1CM-106Z E CAPACITOR 10MF 20% 16V
C1007 QCBB1HK-221Y C CAPACITOR 220PF 10% 50V
C1010 QCBB1HK-221Y C CAPACITOR 220PF 10% 50V
C1021 QFN31HJ-823Z M CAPACITOR 0.082MF 5% 50V
C1022 QFN31HJ-823Z M CAPACITOR 0.082MF 5% 50V
C1025 QETC1CM-226Z E CAPACITOR 22MF 20% 16V
C1026 QFVJ1HJ-334Z M CAPACITOR 0.33MF 5% 50V
C1041 QDGB1HK-102Y C CAPACITOR
C1050 QCSB1HJ-300Y C CAPACITOR 30PF 5% 50V
C1051 QCSB1HJ-100Y C CAPACITOR 10PF 5% 50V
C1053 QETC1CM-106Z E CAPACITOR 10MF 20% 16V
C1054 QFN31HJ-392Z M CAPACITOR 3900PF 5% 50V
C1055 QETC1EM-475Z-JB E CAPACITOR 4.7MF 20% 25V
C1056 QETC1CM-106Z E CAPACITOR 10MF 20% 16V
C1070 QETC1EM-475Z-JB E CAPACITOR 4.7MF 20% 25V
C1082 QFLC1HJ-563Z TF CAPACITOR 0.056MF 5% 50V
C1083 QFLC1HJ-563Z TF CAPACITOR 0.056MF 5% 50V
C1084 QFN31HJ-472Z M CAPACITOR 4700PF 5% 50V
C2000 QDXB1CM-332Y C CAPACITOR
C2001 QCBB1HK-331Y C CAPACITOR 330PF 10% 50V
C2002 QDX31EM-104Z C CAPACITOR
C2003 QDX31EM-104Z C CAPACITOR
C2006 QETC1CM-106Z E CAPACITOR 10MF 20% 16V
C2007 QCBB1HK-221Y C CAPACITOR 220PF 10% 50V
C2010 QCBB1HK-221Y C CAPACITOR 220PF 10% 50V
C2021 QFN31HJ-823Z M CAPACITOR 0.082MF 5% 50V
C2022 QFN31HJ-823Z M CAPACITOR 0.082MF 5% 50V
C2025 QETC1CM-226Z E CAPACITOR 22MF 20% 16V
C2026 QFVJ1HJ-334Z M CAPACITOR 0.33MF 5% 50V
C2041 QDGB1HK-102Y C CAPACITOR
C2050 QCSB1HJ-300Y C CAPACITOR 30PF 5% 50V
C2051 QCSB1HJ-100Y C CAPACITOR 10PF 5% 50V
C2053 QETC1CM-106Z E CAPACITOR 10MF 20% 16V
C2054 QFN31HJ-392Z M CAPACITOR 3900PF 5% 50V
C2055 QETC1EM-475Z-JB E CAPACITOR 4.7MF 20% 25V
C2056 QETC1CM-106Z E CAPACITOR 10MF 20% 16V
C2070 QETC1EM-475Z-JB E CAPACITOR 4.7MF 20% 25V
C2082 QFLC1HJ-563Z TF CAPACITOR 0.056MF 5% 50V
C2083 QFLC1HJ-563Z TF CAPACITOR 0.056MF 5% 50V
C2084 QFN31HJ-472Z M CAPACITOR 4700PF 5% 50V
C3001 QETM1EM-688 E CAPACITOR
A
C3002 QFLC1HJ-104Z M CAPACITOR 0.1MF 5% 50V
C3003 QETC1CM-107Z-JB E CAPACITOR 100MF 20% 16V
C3004 QETC1AM-337Z-JB E CAPACITOR 330MF 20% 10V
C3005 QETC1AM-336Z-JB E CAPACITOR 33MF 20% 10V
C3006 QETC1HM-225Z-JB E CAPACITOR 2.2MF 20% 50V
C3010 QETC1HM-684Z E CAPACITOR 0.68MF 20% 50V
C3011 QDYB1CM-103Y C CAPACITOR
Parts number Parts name Area
0.1MF 5% 50V
0.1MF 5% 50V
0.1MF 5% 50V
0.1MF 5% 50V
6800MF 20% 25V
Block No. 01
Remarks
Item
A
C3021 QETC1CM-476Z-JB E CAPACITOR 47MF 20% 16V
C3022 QETC1AM-476Z-JB E CAPACITOR 47MF 20% 10V
C3031 QETC1HM-105Z-JB E CAPACITOR 1.0MF 20% 50V
C3032 QETC1HM-105Z-JB E CAPACITOR 1.0MF 20% 50V
C3033 QFLC1HJ-563Z TF CAPACITOR 0.056MF 5% 50V
C3034 QFLC1HJ-563Z TF CAPACITOR 0.056MF 5% 50V
C3035 QETC1HM-105Z-JB E CAPACITOR 1.0MF 20% 50V
C3036 QETC1CM-106Z-JB E CAPACITOR 10MF 20% 16V
C3037 QETC1CM-106Z-JB E CAPACITOR 10MF 20% 16V
C3038 QCBB1HK-151Y C CAPACITOR 150PF 10% 50V
C3041 QETC1EM-106Z-JB CAPACITOR 10MF 20% 25V
C3051 QETC1CM-476Z-JB E CAPACITOR 47MF 20% 16V
C3052 QETC1CM-476Z-JB E CAPACITOR 47MF 20% 16V
C3070 QERF1HM-105Z E CAPACITOR 1.0MF 20% 50V
C3081 QETC1CM-227Z-JB E CAPACITOR 220MF 20% 16V
C3083 QETC1HM-474Z-JB E CAPACITOR 0.47MF 20% 50V
C3084 QETC1HM-474Z-JB E CAPACITOR 0.47MF 20% 50V
C3085 QETC1HM-474Z-JB E CAPACITOR 0.47MF 20% 50V
C3086 QETC1EM-106Z-JB E CAPACITOR 10MF 20% 25V
C3087 QETC1HM-224Z-JB E CAPACITOR 0.22MF 20% 50V
C8011 QDYB1CM-103Y C CAPACITOR
C8012 QDYB1CM-103Y C CAPACITOR
C9001 QETC1CM-226Z-JB E CAPACITOR 22MF 20% 16V
C9003 QDYB1CM-103Y C CAPACITOR
C9004 QCBB1HK-221Y C CAPACITOR 220PF 10% 50V
C9201 QETC1CM-476Z-JB E CAPACITOR 47MF 20% 16V
C9202 QDYB1CM-103Y C CAPACITOR
C9203 QETC1CM-106Z-JB E CAPACITOR 10MF 20% 16V
C9301 QETC1AM-107Z-JB E CAPACITOR 100MF 20% 10V
C9302 QETC1HM-475Z-JB E CAPACITOR 4.7MF 20% 50V
C9501 QETC1AM-477Z-JB E CAPACITOR 470MF 20% 10V
D 901 6A10E2 SI DIODE
A
D 902 6A10E2 SI DIODE
A
D 903 6A10E2 SI DIODE
A
D 904 6A10E2 SI DIODE
A
D 905 6A10E2 SI DIODE
A
D3021 MTZJ4.3B-T2 ZENER DIODE
D3031 1SS254-T2 SI DIODE
D3032 1SS254-T2 SI DIODE
D3033 1SS254-T2 SI DIODE
D3034 1SS254-T2 SI DIODE
D3070 MTZJ6.8B-T2 ZENER DIODE
D8101 L-34ID-T12 LED
D9001 1SS254-T2 SI DIODE
D9002 MTZJ8.2C-T2 ZENER DIODE
D9003 MTZJ10A-T2 ZENER DIODE
D9201 MTZJ4.3B-T2 ZENER DIODE
D9301 MTZJ3.9B-T2 ZENER DIODE
D9302 1SS254-T2 SI DIODE
D9303 1SS254-T2 SI DIODE
D9501 1SS254-T2 SI DIODE
IC 31 LA4705NA IC
A
IC 32 BA15218N IC
IC 35 BA15218N IC
IC 38 BH3852S IC
J 901 QNC0001-001 AC INRET
A
J 902 QNA0016-001 DC JACK
A
JS801 QSW0547-001 ROTARY ENCODER
J3001 QNN0090-001 PIN JACK
J3002 QNB0035-001 SPK TERMINAL
J3003 QNS0072-001 HEADPHONE JACK
K9401 QQR0786-001Z INDUCTOR
L 901 QQR1145-001 LINE FILTER
A
Parts number Parts name Area
Remarks
3-8
UX-T770R
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Electrical parts list (Main board)
Item
A
L1001 QQL231K-470Y INDUCTOR
L1002 QQR0868-001Z INDUCTOR
L1003 QQR0797-001 INDUCTOR
L2001 QQL231K-470Y INDUCTOR
L2002 QQR0868-001Z INDUCTOR
L2003 QQR0797-001 INDUCTOR
L3001 QQL231K-470Y INDUCTOR
L3070 QQR0868-001Z INDUCTOR
A
A
R1001 QRE141J-2R2Y C RESISTOR 2.2 5% 1/4W
R1002 QRE141J-2R2Y C RESISTOR 2.2 5% 1/4W
R1003 QRE141J-151Y C RESISTOR 150 5% 1/4W
R1004 QRE141J-471Y C RESISTOR 470 5% 1/4W
R1010 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R1011 QRE141J-224Y C RESISTOR 220K 5% 1/4W
R1012 QRE141J-623Y C RESISTOR 62K 5% 1/4W
R1013 QRE141J-153Y C RESISTOR 15K 5% 1/4W
R1014 QRE141J-272Y C RESISTOR 2.7K 5% 1/4W
R1015 QRE141J-153Y C RESISTOR 15K 5% 1/4W
R1022 QRE141J-224Y C RESISTOR 220K 5% 1/4W
R1023 QRE141J-182Y C RESISTOR 1.8K 5% 1/4W
R1024 QRE141J-202Y C RESISTOR 2.0K 5% 1/4W
R1026 QRE141J-153Y C RESISTOR 15K 5% 1/4W
R1027 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R1028 QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R1029 QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R1031 QRE141J-223Y C RESISTOR 22K 5% 1/4W
R1032 QRE141J-223Y C RESISTOR 22K 5% 1/4W
R1033 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R1041 QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R1051 QRE141J-154Y C RESISTOR 150K 5% 1/4W
R1052 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R1054 QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R1055 QRE141J-332Y C RESISTOR 3.3K 5% 1/4W
R1056 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R1057 QRE141J-124Y C RESISTOR 120K 5% 1/4W
R1070 QRE141J-183Y C RESISTOR 18K 5% 1/4W
R1071 QRE141J-153Y C RESISTOR 15K 5% 1/4W
R1072 QRE141J-272Y C RESISTOR 2.7K 5% 1/4W
R1073 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R1074 QRE141J-152Y C RESISTOR 1.5K 5% 1/4W
Parts number Parts name Area
1010 2SD2144S/VW/-T TRANSISTOR
1031 KTC3199/GL/-T TRANSISTOR
1041 KTC3203/OY/-T TRANSISTOR
1070 KTC3199/GL/-T TRANSISTOR
2010 2SD2144S/VW/-T TRANSISTOR
2031 KTC3199/GL/-T TRANSISTOR
2041 KTC3203/OY/-T TRANSISTOR
2070 KTC3199/GL/-T TRANSISTOR
3010 KTC3199/GL/-T TRANSISTOR
3041 KRA101M-T TRANSISTOR
3070 KRA101M-T TRANSISTOR
9001 2SB1565/EF/ TRANSISTOR
9002 KTC3199/GL/-T TRANSISTOR
9003 KTA1267/YG/-T TRANSISTOR
9004 KRC114M-T TRANSISTOR
9005 KRA114M-T TRANSISTOR
9006 KTC3199/GL/-T TRANSISTOR
9007 KTC3199/GL/-T TRANSISTOR
9201 2SA1359/OY/ TRANSISTOR
9202 KTC3199/GL/-T TRANSISTOR
9301 KTA1267/YG/-T TRANSISTOR
9302 KTC3199/GL/-T TRANSISTOR
9501 KTC3203/OY/-T TRANSISTOR
Block No. 01
Remarks
Item
A
R1082 QRE141J-302Y C RESISTOR 3.0K 5% 1/4W
R1083 QRE141J-182Y C RESISTOR 1.8K 5% 1/4W
R1091 QRE141J-333Y C RESISTOR 33K 5% 1/4W
R1093 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R2001 QRE141J-2R2Y C RESISTOR 2.2 5% 1/4W
R2002 QRE141J-2R2Y C RESISTOR 2.2 5% 1/4W
R2003 QRE141J-151Y C RESISTOR 150 5% 1/4W
R2004 QRE141J-471Y C RESISTOR 470 5% 1/4W
R2010 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R2011 QRE141J-224Y C RESISTOR 220K 5% 1/4W
R2012 QRE141J-623Y C RESISTOR 62K 5% 1/4W
R2013 QRE141J-153Y C RESISTOR 15K 5% 1/4W
R2014 QRE141J-272Y C RESISTOR 2.7K 5% 1/4W
R2015 QRE141J-153Y C RESISTOR 15K 5% 1/4W
R2022 QRE141J-224Y C RESISTOR 220K 5% 1/4W
R2023 QRE141J-182Y C RESISTOR 1.8K 5% 1/4W
R2024 QRE141J-202Y C RESISTOR 2.0K 5% 1/4W
R2026 QRE141J-153Y C RESISTOR 15K 5% 1/4W
R2027 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R2028 QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R2029 QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R2031 QRE141J-223Y C RESISTOR 22K 5% 1/4W
R2032 QRE141J-223Y C RESISTOR 22K 5% 1/4W
R2033 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R2041 QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R2051 QRE141J-154Y C RESISTOR 150K 5% 1/4W
R2052 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R2054 QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R2055 QRE141J-332Y C RESISTOR 3.3K 5% 1/4W
R2056 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R2057 QRE141J-124Y C RESISTOR 120K 5% 1/4W
R2070 QRE141J-183Y C RESISTOR 18K 5% 1/4W
R2071 QRE141J-153Y C RESISTOR 15K 5% 1/4W
R2072 QRE141J-272Y C RESISTOR 2.7K 5% 1/4W
R2073 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R2074 QRE141J-152Y C RESISTOR 1.5K 5% 1/4W
R2082 QRE141J-302Y C RESISTOR 3.0K 5% 1/4W
R2083 QRE141J-182Y C RESISTOR 1.8K 5% 1/4W
R2091 QRE141J-333Y C RESISTOR 33K 5% 1/4W
R2093 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R3001 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R3010 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R3021 QRE141J-101Y C RESISTOR 100 5% 1/4W
R3022 QRE141J-152Y C RESISTOR 1.5K 5% 1/4W
R3031 QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R3032 QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R3033 QRE141J-124Y C RESISTOR 120K 5% 1/4W
R3034 QRE141J-154Y C RESISTOR 150K 5% 1/4W
R3035 QRE141J-223Y C RESISTOR 22K 5% 1/4W
R3036 QRE141J-513Y C RESISTOR 51K 5% 1/4W
R3051 QRE141J-101Y C RESISTOR 100 5% 1/4W
R3052 QRE141J-473Y C RESISTOR 47K 5% 1/4W
R3053 QRE141J-473Y C RESISTOR 47K 5% 1/4W
R3081 QRE141J-101Y C RESISTOR 100 5% 1/4W
R3082 QRE141J-124Y C RESISTOR 120K 5% 1/4W
R3083 QRE141J-154Y C RESISTOR 150K 5% 1/4W
R3084 QRE141J-124Y C RESISTOR 120K 5% 1/4W
R8001 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R8002 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R8003 QRE141J-122Y C RESISTOR 1.2K 5% 1/4W
R8005 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R8011 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R8012 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
Parts number Parts name Area
Remarks
3-9
UX-T770R
Electrical parts list (Main board)
Item
A
R8013 QRE141J-122Y C RESISTOR 1.2K 5% 1/4W
R8014 QRE141J-152Y C RESISTOR 1.5K 5% 1/4W
R8015 QRE141J-222Y C RESISTOR 2.2K 5% 1/4W
R8016 QRE141J-272Y C RESISTOR 2.7K 5% 1/4W
R8017 QRE141J-392Y C RESISTOR 3.9K 5% 1/4W
R8018 QRE141J-562Y C RESISTOR 5.6K 5% 1/4W
R8019 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R8101 QRE141J-271Y C RESISTOR 270 5% 1/4W
R9001 QRE141J-1R0Y C RESISTOR 1.0 5% 1/4W
R9002 QRE141J-1R0Y C RESISTOR 1.0 5% 1/4W
R9003 QRE141J-1R0Y C RESISTOR 1.0 5% 1/4W
R9004 QRE141J-471Y C RESISTOR 470 5% 1/4W
R9005 QRE141J-152Y C RESISTOR 1.5K 5% 1/4W
R9006 QRE141J-242Y C RESISTOR 2.4K 5% 1/4W
R9007 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R9008 QRE141J-682Y C RESISTOR 6.8K 5% 1/4W
R9009 QRE141J-331Y C RESISTOR 330 5% 1/4W
R9010 QRE141J-331Y C RESISTOR 330 5% 1/4W
R9011 QRE141J-331Y C RESISTOR 330 5% 1/4W
R9012 QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R9013 QRE141J-471Y C RESISTOR 470 5% 1/4W
R9014 QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R9016 QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R9017 QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R9018 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R9019 QRE141J-391Y C RESISTOR 390 5% 1/4W
R9021 QRE141J-331Y C RESISTOR 330 5% 1/4W
R9102 QRZ9006-5R6X F RESISTOR
A
R9201 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R9202 QRE141J-103Y C RESISTOR 10K 5% 1/4W
R9203 QRE141J-221Y C RESISTOR 220 5% 1/4W
R9301 QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R9302 QRE141J-333Y C RESISTOR 33K 5% 1/4W
R9303 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R9304 QRE141J-390Y C RESISTOR 39 5% 1/4W
R9401 QRZ9006-4R7X F RESISTOR
A
R9501 QRE141J-221Y C RESISTOR 220 5% 1/4W
S8001 QSW0622-001Z TACT SWITCH POWER
S8002 QSW0622-001Z TACT SWITCH AUX
S8003 QSW0622-001Z TACT SWITCH VOLUME+
S8004 QSW0622-001Z TACT SWITCH VOLUME-
S8011 QSW0622-001Z TACT SWITCH TUNER
S8012 QSW0622-001Z TACT SWITCH UP
S8013 QSW0622-001Z TACT SWITCH STOP
S8014 QSW0622-001Z TACT SWITCH TAPE
S8015 QSW0622-001Z TACT SWITCH CD
S8016 QSW0622-001Z TACT SWITCH DOWN
S8017 QSW0622-001Z TACT SWITCH CLOCK
S8018 QSW0622-001Z TACT SWITCH REC
S8019 QSW0622-001Z TACT SWITCH SBASS
S8020 QSW0622-001Z TACT SWITCH SNOOSE
S8061 QSW0122-001 PUSH SWITCH CD DOOR
Z 901 QNG0003-001Z FUSE CLIP
Z 903 QNG0003-001Z FUSE CLIP
Z 911 QNG0003-001Z FUSE CLIP
Z 913 QNG0003-001Z FUSE CLIP
Parts number Parts name Area
5.6 1/0W
4.7 1/0W
Block No. 01
Remarks
3-10
UX-T770R
Q
Q
Electrical parts list (CD servo control board)
Item
A
C 604 QEK61AM-107Z-JB E CAPACITOR 100MF 20% 10V
C 605 QETC1EM-106Z-JB CAPACITOR 10MF 20% 25V
C 606 QDGB1HK-102Y C CAPACITOR
C 607 QDGB1HK-102Y C CAPACITOR
C 608 QETC1HM-105Z-JB E CAPACITOR 1.0MF 20% 50V
C 609 QCBB1HK-101Y C CAPACITOR 100PF 10% 50V
C 610 QFN31HJ-273Z M CAPACITOR 0.027MF 5% 50V
C 611 QDXB1CM-472Y C CAPACITOR
C 612 QDYB1CM-103Y C CAPACITOR
C 613 QCBB1HK-331Y C CAPACITOR 330PF 10% 50V
C 614 QFLC1HJ-104Z M CAPACITOR 0.1MF 5% 50V
C 615 QDVB1EZ-223Y C CAPACITOR
C 616 QDVB1EZ-223Y C CAPACITOR
C 617 QDVB1EZ-223Y C CAPACITOR
C 618 QDXB1CM-222Y C CAPACITOR
C 619 QCBB1HK-271Y C CAPACITOR 270PF 10% 50V
C 620 QCBB1HK-181Y C CAPACITOR 180PF 10% 50V
C 622 QETC1AM-476Z-JB E CAPACITOR 47MF 20% 10V
C 623 QFLC1HJ-104Z M CAPACITOR 0.1MF 5% 50V
C 624 QDVB1EZ-223Y C CAPACITOR
C 628 QDX31EM-473Z C CAPACITOR
C 629 QETC1AM-107Z-JB E CAPACITOR 100MF 20% 10V
C 631 QETC1AM-477Z-JB E CAPACITOR 470MF 20% 10V
C 632 QEK61AM-107Z-JB E CAPACITOR 100MF 20% 10V
C 633 QCBB1HK-101Y C CAPACITOR 100PF 10% 50V
C 634 QCBB1HK-101Y C CAPACITOR 100PF 10% 50V
C 635 QCBB1HK-101Y C CAPACITOR 100PF 10% 50V
C 636 QCBB1HK-101Y C CAPACITOR 100PF 10% 50V
C 637 QDYB1CM-822Y C CAPACITOR
C 651 QCSB1HJ-120Y C CAPACITOR 12PF 5% 50V
C 652 QCSB1HJ-150Y C CAPACITOR 15PF 5% 50V
C 653 QDVB1EZ-223Y C CAPACITOR
C 655 QDX31EM-473Z C CAPACITOR
C 661 QCBB1HK-471Y C CAPACITOR 470PF 10% 50V
C 662 QDVB1EZ-223Y C CAPACITOR
C 663 QFN31HJ-223Z M CAPACITOR 0.022MF 5% 50V
C 664 QDVB1EZ-223Y C CAPACITOR
C 665 QFVJ1HJ-104Z MF CAPACITOR 0.1MF 5% 50V
C 671 QDXB1CM-152Y C CAPACITOR
C 672 QDXB1CM-152Y C CAPACITOR
C 673 QETC1CM-227Z E CAPACITOR 220MF 20% 16V
C 674 QDVB1EZ-223Y C CAPACITOR
C 675 QDGB1HK-102Y C CAPACITOR
C 676 QDGB1HK-102Y C CAPACITOR
C 691 QCBB1HK-151Y C CAPACITOR 150PF 10% 50V
C 692 QCBB1HK-151Y C CAPACITOR 150PF 10% 50V
C 693 QCBB1HK-151Y C CAPACITOR 150PF 10% 50V
CN601 QGF1008F1-15 21-41 CONNECTOR
CN603 QGF1201F3-07 CONNECTOR
CN604 QGF1201F3-11 CONNECTOR
CN605 QGA2501F1-03 CONNECTOR
D 661 1SS254-T2 SI DIODE
IC601 AN8806SB IC
IC602 BA6897FP IC
IC603 MN35510 IC
R 601 QRE141J-113Y C RESISTOR 11K 5% 1/4W
R 603 QRE141J-125Y C RESISTOR 1.2M 5% 1/4W
R 605 QRE141J-274Y C RESISTOR 270K 5% 1/4W
R 606 QRE141J-154Y C RESISTOR 150K 5% 1/4W
R 607 QRE141J-273Y C RESISTOR 27K 5% 1/4W
R 609 QRE141J-104Y C RESISTOR 100K 5% 1/4W
Parts number Parts name Area
601 2SA952/LK/-T TRANSISTOR
631 2SA952/LK/-T TRANSISTOR
Block No. 02
Remarks
Item
A
R 610 QRE141J-154Y C RESISTOR 150K 5% 1/4W
R 612 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R 613 QRE141J-121Y C RESISTOR 120 5% 1/4W
R 614 QRE141J-100Y C RESISTOR 10 5% 1/4W
R 615 QRE141J-120Y C RESISTOR 12 5% 1/4W
R 616 QRE141J-910Y C RESISTOR 91 5% 1/4W
R 621 QRE141J-330Y C RESISTOR 33 5% 1/4W
R 622 QRE141J-330Y C RESISTOR 33 5% 1/4W
R 623 QRE141J-330Y C RESISTOR 33 5% 1/4W
R 631 QRE141J-331Y C RESISTOR 330 5% 1/4W
R 632 QRE141J-101Y C RESISTOR 100 5% 1/4W
R 633 QRE141J-273Y C RESISTOR 27K 5% 1/4W
R 634 QRE141J-222Y C RESISTOR 2.2K 5% 1/4W
R 641 QRE141J-563Y C RESISTOR 56K 5% 1/4W
R 642 QRE141J-123Y C RESISTOR 12K 5% 1/4W
R 643 QRE141J-822Y C RESISTOR 8.2K 5% 1/4W
R 644 QRE141J-223Y C RESISTOR 22K 5% 1/4W
R 645 QRE141J-223Y C RESISTOR 22K 5% 1/4W
R 646 QRE141J-222Y C RESISTOR 2.2K 5% 1/4W
R 647 QRE141J-472Y C RESISTOR 4.7K 5% 1/4W
R 651 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R 652 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R 653 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R 654 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R 655 QRE141J-471Y C RESISTOR 470 5% 1/4W
R 659 QRE141J-471Y C RESISTOR 470 5% 1/4W
R 661 QRE141J-683Y C RESISTOR 68K 5% 1/4W
R 662 QRE141J-155Y C RESISTOR 1.5M 5% 1/4W
R 663 QRE141J-124Y C RESISTOR 120K 5% 1/4W
R 664 QRE141J-471Y C RESISTOR 470 5% 1/4W
R 666 QRE141J-220Y C RESISTOR 22 5% 1/4W
R 671 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R 672 QRE141J-102Y C RESISTOR 1.0K 5% 1/4W
R 681 QRE141J-474Y C RESISTOR 470K 5% 1/4W
X 651 QAX0378-001 RESONATOR 16.9344MHZ
Parts number Parts name Area
Remarks
3-11
UX-T770R
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Electrical parts list (LCD system&CPU board)
Item
A
BL701 QLL0045-001 P.LAMP
BL702 QLL0045-001 P.LAMP
CN701 QGF1201F3-10 CONNECTOR
CN702 QGF1201F3-04 CONNECTOR
CN711 QGB1214K1-20S CONNECTOR
CN712 QGB1214K1-06S CONNECTOR
CN731 QGF1201C3-09 CONNECTOR
CN766 QGF1201F3-11 CONNECTOR
CN781 QGB2016K1-03 CONNECTOR
CN782 QGF1201C3-05 FFC CONNECTOR
C7001 NCS21HJ-180X C CAPACITOR
C7002 NCS21HJ-180X C CAPACITOR
C7003 NCB21HK-102X C CAPACITOR
C7004 NCS21HJ-360X C CAPACITOR
C7005 NCS21HJ-390X C CAPACITOR
C7006 NCS21HJ-200X C CAPACITOR
C7007 NCS21HJ-220X C CAPACITOR
C7008 NCB21HK-102X C CAPACITOR
C7009 NCB21HK-102X C CAPACITOR
C7011 QERF1AM-107Z E CAPACITOR 100MF 20% 10V
C7012 NCB21HK-103X C CAPACITOR
C7013 QFLC1HJ-104Z M CAPACITOR 0.1MF 5% 50V
C7014 QERF1CM-106Z E CAPACITOR 10MF 20% 16V
C7021 QERF1CM-476Z E CAPACITOR 47MF 20% 16V
C7022 NCB21HK-102X C CAPACITOR
C7031 QETB0JM-228 E CAPACITOR 2200MF 20% 6.3V
C7051 QER61HM-684Z E CAPACITOR 0.68MF 20% 50V
C7052 QERF1HM-225Z E CAPACITOR 2.2MF 20% 50V
C7081 NCB21EK-104X C CAPACITOR
C7601 NCS21HJ-151X C CAPACITOR
C7602 NCS21HJ-151X C CAPACITOR
C7619 NCS21HJ-271X C CAPACITOR
C7620 NCS21HJ-271X C CAPACITOR
C7621 NCS21HJ-271X C CAPACITOR
C7622 NCS21HJ-271X C CAPACITOR
C7633 NCB21HK-102X C CAPACITOR
C7641 NCS21HJ-151X C CAPACITOR
C7644 QERF1HM-105Z E CAPACITOR 1.0MF 20% 50V
C7646 QERF1HM-105Z E CAPACITOR 1.0MF 20% 50V
C7701 NCS21HJ-151X C CAPACITOR
C7702 NCS21HJ-151X C CAPACITOR
C7705 NCS21HJ-331X C CAPACITOR
C7723 NCB21HK-102X C CAPACITOR
C7724 NCB21HK-102X C CAPACITOR
C7734 NCB21HK-102X C CAPACITOR
C7744 QERF1HM-225Z E CAPACITOR 2.2MF 20% 50V
C7745 QERF1HM-335Z E CAPACITOR 3.3MF 20% 50V
C7746 QERF1HM-225Z E CAPACITOR 2.2MF 20% 50V
C7802 NCB21HK-103X C CAPACITOR
C7803 NCB21HK-102X C CAPACITOR
C7810 NCB21HK-103X C CAPACITOR
DI701 QLD0042-001 LCD
D7001 1SS254-T2 SI DIODE
D7011 MTZJ8.2B-T2 DIODE
A
D7012 1SS254-T2 SI DIODE
A
D7031 1SS254-T2 SI DIODE
D7032 1SS254-T2 SI DIODE
D7051 1SS254-T2 SI DIODE
D7061 MTZJ5.1C-T2 ZENER DIODE
D7091 1SS254-T2 SI DIODE
D7703 1SS254-T2 SI DIODE
D7704 1SS254-T2 SI DIODE
IC701 UPD78064GF-149 IC
Parts number Parts name Area
Block No. 03
Remarks
Item
A
IC702 PIC-21043SP REMOKON SENSOR
IC703 KIA78S06P IC
A
K7001 QQR0786-001Z INDUCTOR
K7002 QQR0786-001Z INDUCTOR
K7003 QQR0786-001Z INDUCTOR
K7004 QQR0786-001Z INDUCTOR
L7002 QQL01BK-100Z INDUCTOR
L7003 QQL01BK-100Z INDUCTOR
L7005 QQL231K-4R7Y INDUCTOR
L7701 QQL231K-4R7Y INDUCTOR
L7702 QQL231K-4R7Y INDUCTOR
R7005 NRSA02J-822X MG RESISTOR
R7006 NRSA02J-822X MG RESISTOR
R7031 NRSA02J-331X MG RESISTOR
R7032 NRSA02J-103X MG RESISTOR
R7033 NRSA02J-102X MG RESISTOR
R7051 NRSA02J-103X MG RESISTOR
R7052 NRSA02J-103X MG RESISTOR
R7061 NRSA02J-333X MG RESISTOR
R7062 NRSA02J-473X MG RESISTOR
R7063 NRSA02J-104X MG RESISTOR
R7081 NRSA02J-104X MG RESISTOR
R7082 NRSA02J-104X MG RESISTOR
R7083 NRSA02J-104X MG RESISTOR
R7084 NRSA02J-273X MG RESISTOR
R7093 NRSA02J-153X MG RESISTOR
R7095 NRSA02J-333X MG RESISTOR
R7096 NRSA02J-102X MG RESISTOR
R7429 NRSA02J-913X MG RESISTOR
R7528 NRSA02J-223X MG RESISTOR
R7529 NRSA02J-473X MG RESISTOR
R7530 NRSA02J-103X MG RESISTOR
R7544 NRSA02J-114X MG RESISTOR
R7545 NRSA02J-114X MG RESISTOR
R7602 NRSA02J-102X MG RESISTOR
R7603 NRSA02J-103X MG RESISTOR
R7615 NRSA02J-103X MG RESISTOR
R7619 NRSA02J-122X MG RESISTOR
R7620 NRSA02J-102X MG RESISTOR
R7621 NRSA02J-122X MG RESISTOR
R7622 NRSA02J-102X MG RESISTOR
R7625 NRSA02J-823X MG RESISTOR
R7628 NRSA02J-823X MG RESISTOR
R7629 NRSA02J-103X MG RESISTOR
R7630 NRSA02J-563X MG RESISTOR
R7631 NRSA02J-104X MG RESISTOR
R7632 NRSA02J-103X MG RESISTOR
R7633 NRSA02J-103X MG RESISTOR
R7634 NRSA02J-103X MG RESISTOR
R7635 NRSA02J-104X MG RESISTOR
R7639 NRSA02J-222X MG RESISTOR
R7641 NRSA02J-102X MG RESISTOR
R7642 NRSA02J-102X MG RESISTOR
Parts number Parts name Area
7001 2SC2668/O/-T TRANSISTOR
7002 2SC2668/O/-T TRANSISTOR
7031 2SA1037AK/RS/-X TRANSISTOR
7051 DTC114TKA-X TRANSISTOR
7061 2SC2412K/R/-X TRANSISTOR
7091 2SC2412K/R/-X TRANSISTOR
7092 2SA1037AK/RS/-X TRANSISTOR
7601 DTC144TKA-X TRANSISTOR
7602 DTC144TKA-X TRANSISTOR
7603 2SC2412K/R/-X TRANSISTOR
Remarks
3-12
UX-T770R
Electrical parts list (LCD system&CPU board)
Item
A
R7643 NRSA02J-103X MG RESISTOR
R7644 NRSA02J-683X MG RESISTOR
R7646 NRSA02J-683X MG RESISTOR
R7647 NRSA02J-104X MG RESISTOR
R7648 NRSA02J-394X MG RESISTOR
R7649 NRSA02J-823X MG RESISTOR
R7701 NRSA02J-103X MG RESISTOR
R7702 NRSA02J-103X MG RESISTOR
R7703 NRSA02J-102X MG RESISTOR
R7704 NRSA02J-103X MG RESISTOR
R7705 NRSA02J-102X MG RESISTOR
R7711 NRSA02J-222X MG RESISTOR
R7712 NRSA02J-102X MG RESISTOR
R7713 NRSA02J-222X MG RESISTOR
R7714 NRSA02J-102X MG RESISTOR
R7715 NRSA02J-222X MG RESISTOR
R7716 NRSA02J-472X MG RESISTOR
R7717 NRSA02J-472X MG RESISTOR
R7718 NRSA02J-222X MG RESISTOR
R7719 NRSA02J-102X MG RESISTOR
R7720 NRSA02J-102X MG RESISTOR
R7721 NRSA02J-102X MG RESISTOR
R7722 NRSA02J-102X MG RESISTOR
R7723 NRSA02J-222X MG RESISTOR
R7724 NRSA02J-222X MG RESISTOR
R7725 NRSA02J-222X MG RESISTOR
R7726 NRSA02J-222X MG RESISTOR
R7728 NRSA02J-222X MG RESISTOR
R7729 NRSA02J-222X MG RESISTOR
R7730 NRSA02J-222X MG RESISTOR
R7731 NRSA02J-222X MG RESISTOR
R7732 NRSA02J-222X MG RESISTOR
R7733 NRSA02J-222X MG RESISTOR
R7734 NRSA02J-222X MG RESISTOR
R7735 NRSA02J-222X MG RESISTOR
R7738 NRSA02J-222X MG RESISTOR
R7739 NRSA02J-222X MG RESISTOR
R7741 NRSA02J-222X MG RESISTOR
R7742 NRSA02J-222X MG RESISTOR
R7743 NRSA02J-222X MG RESISTOR
R7744 NRSA02J-563X MG RESISTOR
R7745 NRSA02J-473X MG RESISTOR
R7746 NRSA02J-333X MG RESISTOR
R7747 NRSA02J-222X MG RESISTOR
R7748 NRSA02J-153X MG RESISTOR
R7749 NRSA02J-123X MG RESISTOR
R7750 NRSA02J-222X MG RESISTOR
R7799 NRSA02J-102X MG RESISTOR
X7001 QAX0401-001 CRYSTAL
X7002 QAX0410-001 CERA LOCK
Parts number Parts name Area
Block No. 03
Remarks
3-13
UX-T770R
Q
Q
Q
Q
Q
Q
Q
Q
Electrical parts list (Tuner board)
Item
A
C 1 NCB21HK-223X C CAPACITOR
C 2 NCB21HK-103X C CAPACITOR
C 3 NCB21EK-473X C CAPACITOR
C 4 NCB21HK-103X C CAPACITOR
C 5 QEK61CM-106Z-JB E CAPACITOR 10MF 20% 16V
C 6 NCB21HK-102X C CAPACITOR
C 7 NCS21HJ-102X C CAPACITOR
C 8 NCS21HJ-150X C CAPACITOR
C 9 NCB21HK-102X C CAPACITOR
C 11 NCB21HK-103X C CAPACITOR
C 12 NDC21HJ-150X C CAPACITOR
C 13 NCB21EK-473X C CAPACITOR
C 14 NCB21HK-103X C CAPACITOR
C 15 NCB21HK-102X C CAPACITOR
C 16 NCB21HK-102X C CAPACITOR
C 18 NCB21HK-103X C CAPACITOR
C 19 NCB21HK-122X C CAPACITOR
C 21 NCB21EK-473X C CAPACITOR
C 30 QEK61CM-476Z-JB E CAPACITOR 47MF 20% 16V
C 31 NCS21HJ-390X C CAPACITOR
C 32 NCB21HK-102X C CAPACITOR
C 33 QEK61AM-107Z-JB E CAPACITOR 100MF 20% 10V
C 34 NCS21HJ-150X C CAPACITOR
C 35 NCB21HK-102X C CAPACITOR
C 36 QEK61CM-106Z-JB E CAPACITOR 10MF 20% 16V
C 37 NCB21EK-473X C CAPACITOR
C 39 NCB21EK-473X C CAPACITOR
C 40 NCB21HK-103X C CAPACITOR
C 41 QEK61HM-104Z-JB E CAPACITOR 0.1MF 20% 50V
C 42 QEK61HM-474Z-JB E CAPACITOR 0.47MF 20% 50V
C 43 QEK61HM-335Z-JB E CAPACITOR 3.3MF 20% 50V
C 44 NCS21HJ-221X C CAPACITOR
C 45 QEK61CM-106Z-JB E CAPACITOR 10MF 20% 16V
C 46 NCB21HK-223X C CAPACITOR
C 47 NCB21HK-103X C CAPACITOR
C 49 NCB21HK-183X C CAPACITOR
C 50 NCB21HK-183X C CAPACITOR
C 51 QEK61HM-105Z-JB E CAPACITOR 1.0MF 20% 50V
C 52 QEK61HM-105Z-JB E CAPACITOR 1.0MF 20% 50V
C 53 NCB21HK-681X C CAPACITOR
C 55 NCS21HJ-120X C CAPACITOR
C 60 QEK61AM-107Z-JB E CAPACITOR 100MF 20% 10V
C 61 NCS21HJ-120X C CAPACITOR
C 62 NCS21HJ-120X C CAPACITOR
C 63 NCB21EK-473X C CAPACITOR
C 65 NCB21HK-102X C CAPACITOR
C 66 NCS21HJ-151X C CAPACITOR
C 67 NCS21HJ-151X C CAPACITOR
C 68 NCS21HJ-101X C CAPACITOR
C 69 QEK61HM-225Z-JB E CAPACITOR 2.2MF 20% 50V
C 70 NCB21HK-392X C CAPACITOR
C 71 QEK61HM-335Z-JB E CAPACITOR 3.3MF 20% 50V
C 72 NCB21HK-102X C CAPACITOR
C 80 NCS21HJ-820X C CAPACITOR
C 81 NCS21HJ-470X C CAPACITOR
C 82 QEK61CM-106Z-JB E CAPACITOR 10MF 20% 16V
C 83 NCB21EK-473X C CAPACITOR
C 84 QEK61HM-225Z-JB E CAPACITOR 2.2MF 20% 50V
C 85 NCB21HK-331X C CAPACITOR
C 86 NCB21HK-561X C CAPACITOR
C 89 NCB21HK-102X C CAPACITOR
C 90 NCB21HK-103X C CAPACITOR
C 91 NCB21HK-103X C CAPACITOR
Parts number Parts name Area
Block No. 04
Remarks
Item
A
C 92 NCB21HK-103X C CAPACITOR
C 93 NCB21HK-103X C CAPACITOR
C 94 NCB21HK-102X C CAPACITOR
CF 1 QAX0420-001 C FILTER
CF 2 QAX0421-001 C FILTER
CF 3 QAX0418-001Z C FILTER
CF 4 QAX0409-001 CERA LOCK
CN 1 QGF1201F3-10 CONNECTOR
CN 2 QGF1201F3-04 CONNECTOR
D 1 1SS254-T2 SI DIODE
D 2 1SS254-T2 SI DIODE
D 3 1SS254-T2 SI DIODE
D 4 1SS254-T2 SI DIODE
IC 1 TA2057N IC
IC 2 LC72136N IC
IC 4 BU1923 IC
J 1 QNB0014-001 ANT TERMINAL
L 1 QQR0871-001 COIL BLOCK
L 4 QQL231K-221Y INDUCTOR
L 5 QQL231K-101Y INDUCTOR
L 10 QQR0794-001 TRAP COIL 114KHZ TRAP
L 11 QQL231K-2R7Y INDUCTOR
R 1 NRSA02J-102X MG RESISTOR
R 2 NRSA02J-820X MG RESISTOR
R 3 NRSA02J-560X MG RESISTOR
R 10 NRSA02J-152X MG RESISTOR
R 12 NRSA02J-102X MG RESISTOR
R 13 NRSA02J-104X MG RESISTOR
R 15 NRSA02J-103X MG RESISTOR
R 16 NRSA02J-103X MG RESISTOR
R 20 NRSA02J-331X MG RESISTOR
R 21 NRSA02J-224X MG RESISTOR
R 22 NRSA02J-331X MG RESISTOR
R 23 NRSA02J-100X MG RESISTOR
R 24 NRSA02J-271X MG RESISTOR
R 25 NRSA02J-473X MG RESISTOR
R 26 NRSA02J-153X MG RESISTOR
R 27 NRSA02J-223X MG RESISTOR
R 29 NRSA02J-473X MG RESISTOR
R 30 NRSA02J-103X MG RESISTOR
R 31 NRSA02J-103X MG RESISTOR
R 34 NRSA02J-333X MG RESISTOR
R 35 NRSA02J-333X MG RESISTOR
R 36 NRSA02J-103X MG RESISTOR
R 37 NRSA02J-472X MG RESISTOR
R 38 NRSA02J-392X MG RESISTOR
R 39 NRSA02J-392X MG RESISTOR
R 42 NRSA02J-102X MG RESISTOR
R 43 NRSA02J-102X MG RESISTOR
R 44 NRSA02J-102X MG RESISTOR
R 45 NRSA02J-102X MG RESISTOR
R 46 NRSA02J-473X MG RESISTOR
R 48 NRSA02J-102X MG RESISTOR
R 52 NRSA02J-472X MG RESISTOR
R 54 NRSA02J-472X MG RESISTOR
Parts number Parts name Area
1 2SC2668/O/-T TRANSISTOR
2 DTA114YKA-X TRANSISTOR
3 KTC3199/GL/-T TRANSISTOR
4 KTC3199/GL/-T TRANSISTOR
6 DTA114YKA-X TRANSISTOR
7 2SA1037K/R/-X TRANSISTOR
8 2SA1037K/R/-X TRANSISTOR
14 2SA1037K/R/-X TRANSISTOR
Remarks
3-14
UX-T770R
Electrical parts list (Tuner board)
Item
A
R 55 NRSA02J-182X MG RESISTOR
R 56 NRSA02J-332X MG RESISTOR
R 57 NRSA02J-102X MG RESISTOR
R 60 NRSA02J-102X MG RESISTOR
R 61 NRSA02J-102X MG RESISTOR
R 65 NRSA02J-222X MG RESISTOR
R 66 NRSA02J-222X MG RESISTOR
R 68 NRSA02J-223X MG RESISTOR
R 69 NRSA02J-103X MG RESISTOR
R 74 NRSA02J-332X MG RESISTOR
R 75 NRSA02J-103X MG RESISTOR
R 76 NRSA02J-102X MG RESISTOR
R 80 NRSA02J-222X MG RESISTOR
R 82 NRSA02J-102X MG RESISTOR
R 83 NRSA02J-102X MG RESISTOR
R 84 NRSA02J-103X MG RESISTOR
T 1 QQR0793-001 IFT
TU 1 QAU0034-001 FRONT END
X 1 QAX0402-001 CRYSTAL
X 2 QAX0263-001Z CRYSTAL
Parts number Parts name Area
Block No. 04
Remarks
3-15
UX-T770R
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Electrical parts list
(Head anplifier&Mechanisn control board)
Item
A
C 101 NCS21HJ-821X C CAPACITOR
C 102 NCS21HJ-221X C CAPACITOR
C 103 QEKJ0JM-227Z E CAPACITOR 220MF 20% 6.3V
C 104 NCB21HK-333X C CAPACITOR
C 105 NCB21HK-222X C CAPACITOR
C 106 QEK41CM-106 E CAPACITOR 10MF 20% 16V
C 107 NCS21HJ-561X C CAPACITOR
C 108 QEK41EM-475 E CAPACITOR 4.7MF 20% 25V
C 109 QEK41EM-475 E CAPACITOR 4.7MF 20% 25V
C 110 NCB21HK-682X C CAPACITOR
C 111 NCB21HK-122X C CAPACITOR
C 112 NCB21EK-683X C CAPACITOR
C 113 NCB21HK-222X C CAPACITOR
C 121 NCS21HJ-331X C CAPACITOR
C 201 NCS21HJ-821X C CAPACITOR
C 202 NCS21HJ-221X C CAPACITOR
C 203 QEKJ0JM-227Z E CAPACITOR 220MF 20% 6.3V
C 204 NCB21HK-333X C CAPACITOR
C 205 NCB21HK-222X C CAPACITOR
C 206 QEK41CM-106 E CAPACITOR 10MF 20% 16V
C 207 NCS21HJ-561X C CAPACITOR
C 208 QEK41EM-475 E CAPACITOR 4.7MF 20% 25V
C 209 QEK41EM-475 E CAPACITOR 4.7MF 20% 25V
C 210 NCB21HK-682X C CAPACITOR
C 211 NCB21HK-122X C CAPACITOR
C 212 NCB21EK-683X C CAPACITOR
C 213 NCB21HK-222X C CAPACITOR
C 221 NCS21HJ-331X C CAPACITOR
C 301 QEKJ1AM-107Z E CAPACITOR 100MF 20% 10V
C 302 NCB21HK-393X C CAPACITOR
C 303 QEKJ0JM-227Z E CAPACITOR 220MF 20% 6.3V
C 304 QEKJ1CM-226Z E CAPACITOR 22MF 20% 16V
C 305 QEKJ1CM-226Z E CAPACITOR 22MF 20% 16V
C 306 QEK41CM-476 E CAPACITOR 47MF 20% 16V
C 307 NCB21HK-103X C CAPACITOR
C 308 NCB21HK-562X C CAPACITOR
C 309 NCB21HK-562X C CAPACITOR
C 310 NCB21HK-223X C CAPACITOR
C 311 NCB21HK-682X C CAPACITOR
C 313 QEKJ1AM-107Z E CAPACITOR 100MF 20% 10V
C 314 QCZ0205-155Z ML C CAPACITOR 1.5MF
C 315 QCZ0205-155Z ML C CAPACITOR 1.5MF
C 316 QFG32AJ-103Z PP CAPACITOR .010MF 5% 100V
C 318 NCB21HK-103X C CAPACITOR
C 319 QFG32AJ-821Z PP CAPACITOR 820PF 5% 100V
C 321 NCB21HK-103X C CAPACITOR
C 322 QFG32AJ-152Z PP CAPACITOR 1500PF 5% 100V
C 331 QEK41CM-476 E CAPACITOR 47MF 20% 16V
C 351 QEK41CM-106 E CAPACITOR 10MF 20% 16V
C 371 QEK41EM-475 E CAPACITOR 4.7MF 20% 25V
C 374 QEKJ1AM-107Z E CAPACITOR 100MF 20% 10V
C 375 QEKJ1AM-107Z E CAPACITOR 100MF 20% 10V
C 376 NCB21HK-103X C CAPACITOR
CN 31 QGF1201F3-06 CONNECTOR PRI/HEAD
CN 32 QGB2011M1-10 B TO B CONNECTO PRI/MECHA
CN 33 QGF1205F1-09 CONNECTOR PRI/MICON
CN 34 QGF1201F3-10 CONNECTOR PRI/AMP
D 301 MA152WA-X DIODE
D 309 MA704A-X S.K.DIODE
D 375 MA3051/M/-X ZENER DIODE
FW 31 QUM024-06A2Z3 PARA RIBON WIRE
IC 31 BA3126N IC HEAD SW
IC 32 AN7317 IC PB&REC
Parts number Parts name Area
Block No. 05
Remarks
Item
A
IC 33 BU4094BCF-X IC
L 301 QQR0620-001 OSC COIL(BIAS)
L 303 QQL01BK-100Z INDUCTOR
R 101 NRSA63J-220X MG RESISTOR
R 102 NRSA63J-182X MG RESISTOR
R 103 NRSA63J-242X MG RESISTOR
R 104 NRSA63J-122X MG RESISTOR
R 105 NRSA63J-104X MG RESISTOR
R 106 NRSA63J-332X MG RESISTOR
R 107 NRSA63J-123X MG RESISTOR
R 108 NRSA63J-562X MG RESISTOR
R 109 NRSA63J-122X MG RESISTOR
R 110 NRSA63J-472X MG RESISTOR
R 111 NRSA63J-333X MG RESISTOR
R 112 NRSA63J-222X MG RESISTOR
R 113 NRSA63J-472X MG RESISTOR
R 114 NRSA63J-272X MG RESISTOR
R 116 NRSA63J-102X MG RESISTOR
R 121 NRSA63J-102X MG RESISTOR
R 201 NRSA63J-220X MG RESISTOR
R 202 NRSA63J-182X MG RESISTOR
R 203 NRSA63J-242X MG RESISTOR
R 204 NRSA63J-122X MG RESISTOR
R 205 NRSA63J-104X MG RESISTOR
R 206 NRSA63J-332X MG RESISTOR
R 207 NRSA63J-123X MG RESISTOR
R 208 NRSA63J-562X MG RESISTOR
R 209 NRSA63J-122X MG RESISTOR
R 210 NRSA63J-472X MG RESISTOR
R 211 NRSA63J-333X MG RESISTOR
R 212 NRSA63J-222X MG RESISTOR
R 213 NRSA63J-472X MG RESISTOR
R 214 NRSA63J-272X MG RESISTOR
R 216 NRSA63J-102X MG RESISTOR
R 221 NRSA63J-102X MG RESISTOR
R 301 NRS181J-221X MG RESISTOR
R 303 NRSA63J-393X MG RESISTOR
R 304 NRS181J-101X MG RESISTOR
R 305 NRSA63J-222X MG RESISTOR
R 306 NRSA63J-222X MG RESISTOR
R 310 NRS181J-560X MG RESISTOR 1/8W
R 311 NRS181J-560X MG RESISTOR 1/8W
R 313 NRSA63J-3R3X MG RESISTOR
R 314 NRSA63J-223X MG RESISTOR
Parts number Parts name Area
101 DTC114TKA-X TRANSISTOR
102 DTC114TKA-X TRANSISTOR REC EQ CONT.
201 DTC114TKA-X TRANSISTOR
202 DTC114TKA-X TRANSISTOR REC EQ CONT.
301 DTA144EKA-X TRANSISTOR REC EQ CONT.
302 2SC2001/K/-T TRANSISTOR
303 2SC2001/K/-T TRANSISTOR
304 2SC2001/LK/-T TRANSISTOR
305 2SC2001/LK/-T TRANSISTOR
306 2SC2412K/RS/-X CHIP TRANSISTOR
307 2SC2412K/RS/-X CHIP TRANSISTOR
308 2SC2412K/RS/-X CHIP TRANSISTOR
309 2SC2412K/RS/-X CHIP TRANSISTOR
321 DTC144EKA-X TRANSISTOR
323 2SC2412K/RS/-X CHIP TRANSISTOR
371 2SA952/LK/-T TRANSISTOR MOTER+B
372 DTC124EKA-X TRANSISTOR
375 2SB562/C/-T TRANSISTOR SOLENOID DRIVE
376 2SC2412K/RS/-X CHIP TRANSISTOR
Remarks
3-16
Electrical parts list
(Head anplifier&Mechanisn control board)
Item
A
R 315 NRSA63J-100X MG RESISTOR
R 316 NRSA63J-223X MG RESISTOR
R 317 NRSA63J-100X MG RESISTOR
R 319 NRSA63J-152X MG RESISTOR
R 322 NRSA63J-152X MG RESISTOR
R 327 NRSA63J-474X MG RESISTOR
R 332 NRSA63J-123X MG RESISTOR
R 333 NRSA63J-123X MG RESISTOR
R 335 NRSA63J-152X MG RESISTOR
R 336 NRSA63J-472X MG RESISTOR
R 337 NRSA63J-332X MG RESISTOR
R 338 NRSA63J-392X MG RESISTOR
R 339 NRSA63J-222X MG RESISTOR
R 340 NRS181J-391X MG RESISTOR
R 341 NRSA63J-123X MG RESISTOR
R 342 NRSA63J-203X MG RESISTOR
R 343 NRSA63J-183X MG RESISTOR
R 351 NRSA63J-683X MG RESISTOR
R 352 NRSA63J-912X MG RESISTOR
R 371 NRSA63J-123X MG RESISTOR
R 372 NRSA63J-102X MG RESISTOR
R 375 NRSA02J-151X MG RESISTOR 1/8W
R 376 NRSA63J-472X MG RESISTOR
VR 31 QVP0008-503Z SEMI.V.RESISTOR BIAS ADJ
VR 32 QVP0008-503Z SEMI.V.RESISTOR BIAS ADJ
VR 37 QVP0008-103Z SEMI.V.RESISTOR TAPE SPEED ADJ
Parts number Parts name Area
Block No. 05
Remarks
UX-T770R
Electrical parts list (Cassette switch board)
Item
A
CN 1 QGB2011L1-10 B TO B CONNECTO
D 1 1SR139-400-T2 SI DIODE
IC 1 SG-105F3-BB,C PHOTO SENSER
P 1 QNZ0104-001 POST PIN
SW 1 QSW0832-001 LEAF SWITCH R.REC
SW 2 QSW0832-001 LEAF SWITCH TAPE
SW 4 QSW0832-001 LEAF SWITCH 70U
SW 5 QSW0832-001 LEAF SWITCH F.REC
SW 6 QSW0859-001 DETECT SWITCH
Parts number Parts name Area
Block No. 06
Remarks
3-17
UX-T770R
Packing materials and accessories parts list
Block No.
Block No.
M
M
4
M
M
5
M
M
P4
P3
A1 A3
A4 A5
P1
P5
A7
A8
P2
A10
P7
P9
P10
A9
P8
P6
A6
P9
3-18
A
Parts list(Packing)
M4MM
)
)
A
A
Parts list (Accessories)
M5MM
GER,FRE
SPA,ITA,SWE,FIN,DAN
UX-T770R
Block No.
Item Parts number Parts name Area
P 1 QPC04504515P POLY BAG 1 SET
P 2 VPK3001-012SC SHEET 1
P 3 VPE3026-004 POLY BAG 1 INSTRUCTIONS
P 4 QPA01202505 POLY BAG 1 CORD
P 5 QPA01702503P POLY BAG 1 AM LOOP ANT
P 6 GN10006-001A CARTON 1
P 7 VPH1709-001 CUSHION(UPPER
P 8 VPH1709-002 CUSHION(BOTTOM
P 9 T55-KF-01-01 PACKING PAD 2
P 10 T55-KO-00-01 POLY BAG 2 SPEAKER BOX
Item Parts number Parts name Area
A 1 GNT0011-001A INSTRUCTIONS 1
A 2 GNT0011-002A INSTRUCTIONS E1 DUT
GNT0011-003A INSTRUCTIONS EN1
A 3 BT-54008-2 WARRANTY CARD 1
A 4 QMPL080-183-JC POWER CORD 1
A 5 EWP503-001C ANT.WIRE 1
A 6 QAL0014-001 AM LOOP ANT 1
A 7 VGR0063-301 REMOCON UNIT 1
A 8 --------------- BATTERY 2
A 9 UXT770R-SPBOX SPEAKER BOX 2
A 10 T55-BK-00-01 SARAN BOARD 2
Q'ty Description
1
1
Block No.
Q'ty Description
3-19
Loading...
