JVC UX-GD6M User Manual

Download

MICRO COMPONENT SYSTEM

UX-GD6S UX-GD6M

—Consists of CA-UXGD6S and SP-UXGD6S

—Consists of CA-UXGD6M and SP-UXGD6M

SUPER VIDEO

INSTRUCTIONS

GVT0149-002A

[UW, US, UN, UG, UX]

Warnings, Cautions and Others

CAUTION— (STANDBY/ON) button!

Disconnect the mains plug to shut the power off completely (all lamps and indications go off). The (STANDBY/ON) button in any position does not disconnect the mains line.

• When the unit is on standby, the STANDBY/ON lamp lights in red.

• When the unit is turned on, the STANDBY/ON lamp lights in green.

The power can be remote controlled.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

CAUTION:

serviceable parts inside the unit; leave all servicing to qualified service personnel.

CAUTION:

and interlock failed or defeated. Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED

INSIDE THE UNIT.

Do not open the top cover. There are no user

Visible and invisible laser radiation when open

CAUTION

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

• Do not place any naked flame sources, such as lighted candles, on the apparatus.

• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

Caution: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:

1. Front: No obstructions and open spacing.

2. Sides/ Top/ Back: No obstructions should be placed in the areas shown by the dimensions below.

3. Bottom: Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of 10 cm or more.

Front view Side view

15 cm

SP-UXGD6S SP-UXGD6M

15 cm

1 cm

CA-UXGD6S CA-UXGD6M

1 cm

SP-UXGD6S SP-UXGD6M

15 cm

SP-UXGD6S SP-UXGD6M

10 cm

15 cm

CA-UXGD6S CA-UXGD6M

G-1

Introduction

Precautions

Installation

• Install the System in a location with adequate ventilation to prevent internal heat buildup in the System.

DO NOT install the System in a location near heat sources, or in a place subject to direct sunlight, excessive dust or vibration.

• Install in a place which is level, dry and neither too hot nor too cold—between 5°C and 35°C.

• Leave sufficient distance between the System and the TV.

• Keep the speakers away from the TV to avoid interference with TV.

Power sources

• When unplugging the System from the wall outlet, always pull on the plug, not the AC power cord.

DO NOT handle the AC power cord with wet hands.

Moisture condensation

Moisture may condense on the lenses inside the System in the following cases:

• After starting to heat the room

• In a damp room

• If the System is brought directly from a cold to a warm place.

Should this occur, the System may malfunction. In this case, leave the System turned on for a few hours until the moisture evaporates, unplug the AC power cord, then plug it in again.

Internal heat

• Make sure there is good ventilation around the unit. Poor ventilation could overheat and damage the unit.

DO NOT block the ventilation openings or holes. If they are blocked by a newspaper or cloth, etc., the heat may not be able to get out.

Others

• Should any metallic object or liquid fall into the System, unplug the AC power cord and consult your dealer before operating any further.

DO NOT disassemble the System since there are no user serviceable parts inside.

• If you are not going to operate the System for an extended period of time, unplug the AC power cord from the wall outlet.

If anything goes wrong, unplug the AC power cord and consult your dealer.

Contents

Connections ..............................................................3

Display Indicators....................................................6

Daily Operations—Playback ..................................7

Daily Operations—Sound & Other Adjustments

Adjusting the Volume ....................................................... 12

Adjusting the Sound.......................................................... 12

Creating 3-dimentional Sound Field—3D Phonic ............ 13

Presetting Automatic DVD Video Sound

Increase Level ............................................................... 13

Changing the Scanning Mode .......................................... 13

Changing the Display Brightness...................................... 14

Changing the Picture Tone................................................ 14

Adjusting the Audio Input Level ...................................... 14

Setting the Clock............................................................... 15

Turning Off the Power Automatically .............................. 15

Unique DVD/VCD Operations .............................16

Selecting the Audio Track................................................. 16

Selecting the Subtitle Language........................................ 17

Selecting the View Angle ................................................. 17

Selecting the Browsable Still Pictures .............................. 17

Playing Back Bonus Group............................................... 17

Making Dialogues Clear—Clear Voice ............................ 18

Special Effect Playback .................................................... 18

Advanced Disc Operations....................................19

Programming the Playing Order—Program Play ............. 19

Playing at Random—Random Play .................................. 20

Playing Repeatedly ........................................................... 21

Prohibiting Disc Ejection—Child Lock............................ 21

On-Screen Disc Operations................................... 22

Advanced Tape Operations ..................................28

Recording on a Tape ......................................................... 28

Synchronized Disc Recording........................................... 29

Enjoying Karaoke..................................................30

Singing Along (Karaoke) .................................................. 30

Microphone Mixing .......................................................... 31

Timer Operations...................................................32

Setup Menu Operations ........................................34

Additional Information .........................................36

Operating JVC’s TVs Using the Remote Control............. 42

Specifications .................................................................... 43

Parts Index ............................................................44

.....12

Playable Disc Types

DIGITAL VIDEO

INFO

SUPER VIDEO

COMPACT

DIGITAL AUDIO

• CD-R/RW: Recorded in the Audio CD, Video CD, SVCD, MP3, and JPEG formats.

• DVD-R: Recorded in the DVD Video format.

• DVD-RW/RAM: Recorded in the DVD Video Recording (VR) format.

In addition to the above discs, this system can play back audio data recorded on CD Text, CD-G (CD Graphics), and CD-Extra.

• The following discs cannot be played back: DVD+R, DVD+RW, CD-I (CD-I Ready), CD-ROM, Photo CD, etc. Playing back these discs will generate noise and damage the speakers.

• In this manual, “file” and “track” are interchangeably used for MP3/JPEG operations.

About color system

This System accommodates the NTSC and PAL system and can play back discs recorded in either the NTSC or the PAL system.

• To change the color system, see page 4.

Note on Region Code

DVD players and DVDs have their own Region Code numbers. This System can play back only DVDs with an appropriate Region Code number.

• For details, see “Specifications” on page 43.

EX.:

(For Central and South American countries)

IMPORTANT: Before playing a disc, make sure of the following...

• Turn on the TV and select an appropriate input mode on the TV to view the pictures or on-screen displays.

• For disc playback, you can change the initial setting to your preference. See “Setup Menu Operations” on page 34.

If “ ” appears on the TV screen when you press a button,

the disc cannot accept the operation you have

tried to do.

How to Read This Manual

• Button and control operations are explained as listed in the table below.

•

Some related tips and notes are explained later in the sections “Learning More about This System” and “Troubleshooting,” but not in the same section explaining the operations ( indicates that the content has some information).

Indicates that you press the button

repeatedly

selected.

Indicates that you press one of the buttons.

Indicates that you

sec.

for a specified period.

Indicates that you turn the control toward the specified direction(s).

Remote ONLY

Indicates that this operation is only possible using the remote control.

Indicates that this operation is only possible

Main Unit

ONLY

using the main unit.

INFO

briefly.

briefly and

until an option you want is

press and hold

the button

Audio formats

The System can play back the following digital audio formats.

•

LPCM

(Linear PCM),

DTS

(Digital Theater Systems),

DIGITAL

MLP

(Dolby Digital),

(Meridian Lossless

Packing) When playing a multi-channel encoded DVDs, the System properly converts these multi-channel signals into 2 channels, and emits the downmixed sound from the speakers.

•

To enjoy the powerful sound of these multi-channel

encoded DVDs,

connect a proper decoder or an amplifier with a proper built-in decoder to the DVD OPTICAL DIGITAL OUT terminal on the rear.

“DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation registered in the US, Japan and other countries.

Caution for DualDisc playback

The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

Connections

ANTENNA

SUB

WOOFER

OUT

DVD OPTICAL DIGITAL OUT

SPEAKERS

COMPONENT

VIDEO OUT

(

)

COAXIAL

LOOP

RIGHT

SPEAKER IMPEDANCE 6

–

LEFT

AM EXT

PCM

STREAM

NTSC

VIDEO

OUT

SELECT

PAL

220V- 230V

VIDEO

S-VIDEO

127V

Do not connect the AC power cord until all other connections have been made.

• Connect VIDEO OUT/COMPONENT directly to the video input of your TV. Connecting VIDEO OUT/COMPONENT to a TV via a VCR may interfere with your viewing when playing back a copy-protected disc. Your viewing may be interfered when connecting VIDEO OUT/COMPONENT to an integrated TV/VCR system.

Supplied accessories

Check to be sure that you have all the following items.

• FM antenna (x1)

• AM loop antenna (x1)

• Composite video cord (x1)

• Remote control (x1)

• Batteries (x2)

• AC plug adapter (x1) (Except for the Middle East) If any item is missing, consult your dealer immediately.

~ From AM/FM antenna

See page 4.

Ÿ From the input of TV/monitor

See page 4.

! From the digital input of digital audio

component such as CD recorder

See page 5.

⁄ From the powered subwoofer

See page 5.

@ From the speakers

See page 5.

¤ From a wall outlet

Plug the AC power cord only after all connections are complete.

• If the wall outlet does not match the AC plug, use the supplied AC plug adapter (except for the Middle East).

AM/FM antenna

To assemble the AM loop antenna

To connect AM/FM antenna

AM loop antenna (supplied)

TV/monitor

Connect the COMPONENT, S-VIDEO, or VIDEO jacks which you want to use.

Red

COMPONENT

Blue

Green

Component video cord (not supplied)

• To select progressive scanning mode (see page 13), use COMPONENT jacks.

VIDEO OUT

S-VIDEO

VIDEO

S-video cord (not supplied)

ANTENNA

)

(

COAXIAL

EXT

LOOP

FM antenna (supplied)

Extend it so that you can obtain the best reception.

For better AM/FM reception

AM loop antenna (supplied)

Keep it connected.

Vinyl-covered wire (not supplied)

Extend it horizontally.

FM outdoor antenna (not supplied)

ANTENNA

EXT

(

COAXIAL

LOOP

)

• Disconnect the supplied FM antenna, and connect to an outdoor FM antenna using a 75

Ω

wire with coaxial type

connector (IEC or DIN45325).

Composite video cord (supplied)

Selecting the Video Output Selector

You can select the video output to match it to the color system of your TV.

VIDEO

OUT

NTSC: PAL:

For an NTSC TV. For a PAL TV.

SELECT

NTSC

PAL

• When using a multi-color system TV, either position will work.

Digital audio component

STREAM

PCM

DVD OPTICAL DIGITAL OUT

Protective cap

• Set “DIGITAL AUDIO OUTPUT” in the “AUDIO” menu correctly according to the connected digital audio equipment (see page 35). If setting is incorrect, loud noise may be generated causing damage to the speakers.

To connect the powered subwoofer

⁄

From the powered subwoofer

(not supplied)

Speakers

SUB-

WOOFER

OUT

• When connecting the speaker cords, match the polarity of the speaker terminals: red color to (+) and black color to (–).

When connecting auxiliary equipment (AUX)

Stereo mini plug

(not supplied)

Before plugging in the System

Set the correct voltage for your area with the voltage selector on the rear. Use a screwdriver to set the voltage selector to the same voltage as where you are plugging in the unit. (See also the back cover page.)

VOLTAGE

SELECTOR

110V

127V

220V230V

Preparing the remote control

From right speaker

Red

Black

From left speaker

• DO NOT connect more than one speaker to each terminal.

• DO NOT push or pull the speakers as this will damage the foot spacers at the bottom of the speakers.

R6(SUM-3)/AA(15F)

• Dispose of batteries in the proper manner, according to federal, state, and local regulations.

DO NOT recharge, short, disassemble or heat the battery or dispose of it in a fire.

When using the remote control

Point the top of the remote control toward the remote sensor as directly as possible. If you operate it from a diagonal position, the operating range (approx. 5 m) may be shorter.

Display Indicators

The indications on the display teach you a lot of things while you are operating the System. Before operating the System, be familiar with when and how the indicator illuminates on the display.

13245 6

MONO

MP3

PL PG

1ALL RANDOM PROGRAM

3DPHONIC B.S.P. BONUS RESUME

FM reception indicators

• MONO: lights while receiving an FM stereo station in monaural.

• ST (stereo): lights while an FM stereo station with sufﬁcient signal strength is tuned in.

Main display

• While listening to radio: Band (or preset number) and station frequency appear.

• While selecting “AUX”: “AUX” appears.

• While playing a disc: Current status appears.

• While playing a tape: “TAPE” appears.

SOUND TURBO indicator

• Lights when Sound Turbo II is activated.

AHB PRO indicator

• Lights when Active Hyper Bass Pro is activated.

A(auto). STANDBY indicator

• Lights when Auto Standby is activated.

• Flashes when disc playback stops with Auto Standby activated.

Timer indicators

•: lights when Daily Timer stands by or is being preset.

• 1/2/3: lights when a Daily Timer (1, 2, or 3) stands by; ﬂashes while being preset or working.

• REC: lights when the Recording Timer stands by; ﬂashes while being preset or working.

MP3 indicator

• Lights when an MP3 track is detected.

PG/PL indicators

• PG: lights when a DVD-VR formatted disc is called up.

• PL: lights when Play List recorded on the DVD-VR formatted disc is called up.

SOUNDTURBO

AHB PRO

A.STANDBY 12 3

REC

SLEEP

REC

PROGRESSIVE

Disc operation indicators

t yp97 8 iu

• RANDOM: lights when Random Play is activated.

•PROGRAM: lights when Program Play is activated.

•

(repeat)1 –: lights when Disc Repeat is activated. –: lights when One Track/Chapter/Step repeat is

ALL:

ALL

activated.

–: lights when any Repeat other than the above is

activated.

3D PHONIC indicator

• Lights when 3D Phonic is activated.

(Clear Voice) indicator

• Lights when Clear Voice is activated.

B.S.P. (Browsable Still Picture) indicator

• Lights when

Browsable

Still Pictures are detected while

playing a DVD Audio.

BONUS indicator

• Lights when detected

PROGRESSIVE indicator

a DVD Audio with a bonus group is

• Lights when the progressive scanning mode is selected.

RESUME indicator

• Lights when Resume is activated (see page 35).

REC indicator

• Lights while recording.

Tape operation indicators

•2 3 (tape direction): – Lights to indicate the current tape running direction. – Flashes slowly during playback and recording. – Flashes quickly while rewinding a tape.

• (reverse mode): –: tape play continues endlessly. –: tape automatically reverses once. –: tape play stops at the end of one side.

SLEEP

indicator

• Lights when the Sleep Timer is activated.

10 keys

ENTER

TOP MENU/PG

1/¡

SHIFT

Daily Operations

In this manual, the operation using the remote control is mainly explained; however, you can use the buttons and controls on the main unit if they have the same (or

RETURN

SET MENU/PL

,, ,

FM/PLAY MODE

GROUP/TITLE SKIP

4/¢

similar) name and marks.

Turn on the power.

The STANDBY/ON lamp on the main unit lights in green.

• Without pressing AUDIO, the System turns on by pressing one of the source buttons in the next step.

Select the source.

Playback automatically starts if the selected source is ready.

• If you select “AUX,” start playback source on the external component.

Adjust the volume.

Operate the target source as explained later.

To turn off (stand by) the unit

—Playback

The STANDBY/ON lamp on the main unit lights in red.

•A small amount of power is always consumed even while on standby.

VOLUME

TV VOLUME

DVD/CD

For private listening

Connect a pair of headphones to the PHONES jack on the main unit. The sound will no longer come out of the speakers.

connecting or putting the headphones.

• Disconnecting the headphones will activate the

Be sure to turn down the volume before

speakers again.

DO NOT turn off (stand by) the System with the volume set to an extremely high level; otherwise, the sudden blast of sound can damage your hearing, speakers and/or headphones when you turn on the System or start playback.

Listening to the Radio

To set the AM tuner interval spacing

INFO

Main Unit

ONLY

Before operating the tuner, it is required to select the appropriate AM space interval used for your area.

Select the AM band.

FM/AM

FM AM

To select the band (FM or AM)

Remote control:

FM AM

AUX

Main unit:

FM/AM

To tune in to a station

While FM or AM is selected...

Remote control: Main unit:

Turn off the power.

Select the appropriate AM space interval for your area.

• You can only use the button and the control on the front panel.

DOWN

AM 9KHZ

(9 kHz interval)

While holding...

AM 10KHZ

(10 kHz interval)

While holding...

2 sec.

GROUP/TITLE SKIP

DOWN

2 sec.

Frequency starts changing on the display. When a station (frequency) with sufficient signal strength is tuned in, the frequency stops changing.

• When you repeatedly press the button, the frequency changes step by step.

To stop searching manually,

If the received FM station is hard to listen

REV.MODE

FM/PLAY MODE

press either button.

Remote ONLY

The MONO indicator lights on the display. Reception will improve though stereo effect is lost—Monaural reception.

To restore the stereo effect,

press the button again (the

MONO indicator goes off).

Remote

To preset the stations

ONLY

You can preset 30 FM and 15 AM stations.

Tune in to a station you want to preset.

• You can also store the monaural reception mode for FM preset stations if selected.

INFO

Activate the preset number entry mode.

CANCEL

SET

• Finish the following process while the indication on the display is flashing.

Select a preset number for the station you store.

DIMMER

VFP

3D PHONIC

PAG E

SLEEP

SCAN MODE

A.STANDBY

DVD LEVEL

RETURN

Examples:

To select preset number 5, press

5. To select preset number 15, press +10, then 5. To select preset number 30, press +10, +10, then 10.

Playing Back a Tape

To insert a tape

You can play back type I tapes.

Push Insert Close

With the tape side facing outside

To start:

To stop:

• You can also use the ¡

Store the station.

CANCEL

SET

To tune in to a preset station

Select the band (FM or AM).

or 1

button.

Remote ONLY

FM AM

AUX

Select a preset number for the station you store.

DIMMER

VFP

3D PHONIC

PAG E

SLEEP

SCAN MODE

A.STANDBY

DVD LEVEL

RETURN

• You can also use the ¡

button.

To rewind tape:

GROUP/TITLE SKIP

Rewind the tape to the right.

Rewind the tape to the left.

To change the tape running direction

3 (forward play)

2 (reverse play)

To reverse the tape automatically

REV. MODE

FM/PLAY MODE

(at the same time)

Tape is played from the forward side to the reverse side. When the reverse side is played back, playback stops.

Tape is automatically reversed, and playback repeats until you stop it.

Tape will not be reversed. When the current side of the tape reaches its end, playback stops.

Playing Back a Disc

INFO

Before operating a disc, be familiar how a disc is recorded.

• DVD Video comprises of “ “

Chapters

“

Groups

comprise of only “

,” DVD Audio/MP3/JPEG comprise of

” which includes “

Tracks

Titles

” which includes

Tracks

.”

,” and CD/SVCD/VCD

• For MP3/JPEG playback, see also page 25.

To insert a disc

You can insert a disc while playing another source.

• When using an 8 cm disc, place it on the inner circle of the disc tray.

To close the disc tray,

• If you press DVD/CD 3 and playback starts (depending on how the disc is programmed internally).

To start: To pause: To stop:

press 0

again.

, disc tray closes automatically

On-screen guide icons

• During DVD Video playback, the following icons may appear on the TV:

At the beginning of a scene containing multiangle views.

At the beginning of a scene containing multiaudio sounds.

At the beginning of a scene containing multisubtitles.

• The following icons will be also shown on the TV to indicate your current operation.

, , , , ,

• To deactivate the on-screen guide icons, see “ON SCREEN GUIDE” on page 35.

Remote

To select a title/group

While playing a disc...

ONLY

GROUP/TITLE SKIP

DVD/CD

To release, press DVD/CD 3

•

While playing DVD/SVCD/VCD/MP3:

This System can

store the stop point, and when you start playback again by pressing DVD/CD 3

(even while on standby), it starts from the position where you have stopped—Resume Play. (“RESUME” appears on the display when you stop playback.)

To stop completely while Resume is activated,

press 7

twice. (To cancel Resume, see “RESUME” on page 35.)

• When operating the System, the on-screen guide icon (see the following table) appears on the TV.

(at the same time)

• Group name appears for MP3 discs.

To select a chapter/track

While playing a disc...

GROUP/TITLE SKIP

• First time you press 4

can go back to the beginning of the current chapter/track.

Remote

To locate a particular portion

ONLY

While playing a disc...

SLOW

x2 x5

x10 x20 x60

–

• Search speed changes as illustrated above except for MP3 discs. For MP3 discs, search speed and the indications on the monitor are different.

• No sound comes out if searching is carried out while showing the moving picture.

, you

To return to normal playback,

press DVD/CD 3

Remote

To locate an item directly

ONLY

You can select a title/chapter/track directly and start playback.

• For DVD Video, you can select

playback playback

DIMMER

3D PHONIC

, while you can select .

SLEEP

VFP

SCAN MODE

PAG E

A.STANDBY

DVD LEVEL

RETURN

a title before starting

a chapter after starting

Examples:

To select number 5, press 5. To select number 15, press +10, then 5. To select number 30, press +10, +10, then 10.

For SVCD/VCD with PBC:

While playing a disc with PBC, “PBC” appears on the display. When disc menu appears on the TV, select an item on the menu. Playback of the selected item starts.

DIMMER

VFP

3D PHONIC

PAG E

SLEEP

SCAN MODE

A.STANDBY

DVD LEVEL

RETURN

Examples:

To select number 5, press 5. To select number 15, press +10, then 5. To select number 30, press +10, +10, then 10.

Remote

To play back using the disc menu

For DVD Video/DVD Audio:

Show the disc menu.

TOP MENU/PG MENU/PL

KARAOKE ECHO

Select an item on the disc menu.

TV CH

ONLY

ENTER

• With some discs, you can also select items by entering the number using the 10 keys.

To move to the next or previous page of the current menu:

GROUP/TITLE SKIP

Moves to the next page.

Moves to the previous page.

To return to the previous menu:

RETURN

(at the same time)

To cancel PBC

Stop playback.

DIMMER

VFP

3D PHONIC

PAG E

SLEEP

SCAN MODE

A.STANDBY

DVD LEVEL

RETURN

Select a track.

Playback starts with the selected track.

To reactivate PBC,

“ON”), then press DVD/CD 3

press 7

(twice if Resume is turned

Daily Operations

VOLUME

TV VOLUME

—Sound & Other Adjustments

Remote control

SCAN MODE

DIMMER

VFP

3D PHONIC

ENTER

AHB PRO

BASS/TREBLE

SHIFT

CLOCK/

TIMER

SLEEP

A.STANDBY

DVD LEVEL DISPLAY SET

,, ,

SOUND TURBO

VOLUME +/–

FADE MUTING

Adjusting the Volume

You can adjust the volume level from level 0 (VOL MIN) to level 40 (VOL MAX).

Remote control:

To drop the volume in a moment

FADE

MUTING

To restore the volume,

adjust the volume level.

Adjusting the Sound

To reinforce the heavy sound

This boosts the low and high frequency sound—Sound Turbo II.

SOUND

TURBO

Main unit:

INFO

TURBO ON

VOLUME

Remote

ONLY

press again, or

Main unit

SOUND TURBO

VOLUME +/–

TURBO OFF

• When Sound Turbo II is turned on, AHB Pro is automatically turned on, and cannot be turned off. (AHB PRO indicator does not lights even though the function is turned on.)

To reinforce the bass sound

The richness and fullness of the bass sound is clearly maintained regardless of how you set the volume—Active Hyper Bass Pro.

AHB PRO

AHB ON

AHB OFF

To adjust the tone

Remote

ONLY

INFO

You can adjust the bass and treble level from –3 to +3.

To adjust the bass

BASS/

TREBLE

BASS

TRE

Canceled

VOLUME

TV VOLUME

To adjust the treble

BASS/

TREBLE

BASS

TRE

Canceled

VOLUME

TV VOLUME

Creating 3-dimentional Sound Field

Remote

—3D Phonic

While playing a disc...

3D PHONIC

• The selected mode can only be shown on the TV.

ACTION

DRAMA

THEATER

ONLY

3D PHONIC

(at the same time)

ACTION

OFF

3D PHONIC

DRAMA

THEATER

Suitable for action movies and sports programs.

Creates natural and warm sound. Enjoy movies in a relaxed mood.

Enjoy sound effects like in a major theater.

Presetting Automatic DVD Video Sound Increase Level

The DVD Video sound is sometimes recorded at a lower level than for other discs and sources. You can set the increase level for the currently loaded DVD Video, so you do not have to adjust the volume when you change the source.

• This also functions for DVD-VR formatted discs.

DVD LEVEL

(at the same time)

NORMAL

MIDDLE

HIGH

Original recording level.

Output level is increased (less than “HIGH”).

Output level is increased (more than “MIDDLE”).

• Once the current DVD is ejected, this setting is canceled and set automatically to “NORMAL.”

Changing the Scanning Mode

This System supports progressive scanning.

• If you connect a progressive TV through the COMPONENT jacks, you can enjoy a high quality picture from the built-in DVD player by selecting “PROGRE.”

SCAN MODE

(at the same time)

NORMAL MIDDLE

PROGRE

HIGH

Remote ONLY

INTER

INFO

PROGRE

INTER

Progressive scanning. For a progressive TV.

• The PROGRESSIVE indicator lights.

Interlaced scanning. For a conventional TV.

Changing the Display Brightness

You can dim the display window.

DIMMER

(at the same time)

DIM1

DIM OFF

(Canceled)

Remote ONLY

DIM2

AUTO DIM

To adjust the picture tone

Select “USER1” or “USER2.”

• Follow steps 1 and 2 explained on the left column.

Select a parameter you want to adjust.

TV CH

ENTER

TV CH

DIM1

DIM2

AUTO DIM

Dims the display.

Erases the display illumination.

Erases the display illumination when disc playback starts.*

• The display illuminates when playback stops.

* “AUTO DIM” does not work for CD/MP3.

Remote

Changing the Picture Tone

ONLY

• While showing a playback picture on the TV, you can select the preset picture tone, or adjust it and store your own taste.

To select a preset picture tone

While playing, display VFP setting screen.

VFP

(at the same time)

Select a preset picture tone.

NORMAL

CINEMA

USER1/USER2

To erase the screen,

Normally select this.

Suitable for a movie source.

You can adjust parameters and can store the settings.

press VFP again while holding SHIFT.

NORMAL CINEMA

USER2 USER1

NORMAL

GAMMA

BRIGHTNESS

CONTRAST

SATURATION

TINT

SHARPNESS

On the TV

GAMMA

Adjust if the neutral color is bright or dark (–3 to +3).

BRIGHTNESS

Adjust if the entire picture is bright or dark (–8 to +8).

CONTRAST

Adjust if the far and near positions are unnatural (–7 to +7).

SATURATION

Adjust if the picture is whitish or blackish (–7 to +7).

TINT

Adjust if the human skin color is unnatural (–7 to +7).

SHARPNESS

Adjust if the picture is indistinct (–8 to +8).

Adjust the parameter.

TV CH

ENTER

TV CH

Repeat steps 2 to 3 to adjust other parameters.

To erase the screen,

Adjusting the Audio Input Level

press VFP again while holding SHIFT.

Remote

ONLY

If the sound from the component connected to the AUX jack is too loud or is not loud enough when changing from another source to “AUX,” you can change the audio input level through the AUX jack (without changing the volume level).

While the “AUX” is selected as a source...

2 sec.

CANCEL

SET

AUX LVL1

AUX LVL2

AUX LVL1

AUX LVL2

Select this when the sound is too loud (initial setting).

Select this when the sound is not loud enough.

Setting the Clock

Remote ONLY

INFO

Turning Off the Power Automatically

Remote ONLY

Without setting the built-in clock, you cannot use Timers (see page 32) and Sleep Timer.

• To correct a misentry during the process, press CANCEL (while holding SHIFT) or CLOCK/TIMER. You can return to the previous step.

Activate the clock setting mode.

CLOCK/

TIMER

• If you have already adjusted the clock before, press the button repeatedly until the clock setting mode is selected.

Set the time.

• Adjust the hour, then the minute.

CANCEL

SET

Now the built-in clock starts working.

To check the current clock time during play

TV/VIDEO

DISPLAY

Clock

Source information

Auto Standby

A.STANDBY

(at the same time)

When Auto Standby is in use, the A.STANDBY indicator lights on the display. When disc play stops, the A.STANDBY indicator starts flashing. If no operation is done for about 3 minutes while the indicator is flashing, the System turns off (stands by) automatically.

Canceled

Sleep Timer

You can set the shut-off time so that you can go to bed without turning it off yourself.

Specify the time (in minutes).

SLEEP

(at the same time)

10 20 30 60 90 120

Canceled

150

• While playing a DVD and MP3, you cannot check the clock time (other disc information appears).

Wait until the set time goes off.

To check the time remaining until the shut-off time,

press

SLEEP while holding SHIFT.

• If you press the button repeatedly, you can change the shutoff time.

Remote control

10 keys

PAGE

Unique DVD/VCD Operations

Selecting the Audio Track

For DVD Video:

audio languages, you can select the language to listen to.

For DVD Audio:

audio channels, you can select the audio channel to listen to.

For DVD-VR and Karaoke SVCD/VCD:

back a track, you can select the audio channel to play.

• You can also select the audio track using the on-screen bar (see page 22).

While playing back a chapter containing

While playing back a track containing

AUDIO

Remote ONLY

When playing

INFO

,, ,

DVD/CD 3

SLOW /

AUDIO

ZOOM SHIFT

ENTER

SUBTITLE

ANGLE

While playing a DVD Video...

Ex.:

3/3

JAPANESE

3/3

JAPANESE

1/3

ENGLISH

1/3

ENGLISH

FRENCH

2/3

FRENCH

2/3

While playing a DVD Audio...

Ex.:

1/3

2/3

3/3

While playing a DVD-VR, or Karaoke SVCD/VCD...

AUDIO

SVCD

ST1 ST2 L1

R2 L2 R1

DVD-VR/VCD

ST L R

ST1/ST2 ST

L1/L2/L

R1/R2/R

To listen to normal stereo (2 channel) playback.

To listen to the left audio channel.

To listen to the right audio channel.

• SVCD can have 4 audio channels. Karaoke SVCD usually uses these 4 channels to record two 2-channel recordings (ST1/ST2).

Selecting the Subtitle Language

Remote ONLY

Selecting the View Angle

Remote ONLY

For DVD Video:

While playing back a chapter containing subtitles in different languages, you can select the subtitle language to display on the TV.

For SVCD:

While playing, you can select the subtitles even

if no subtitles are recorded on the disc.

• You can also select the subtitle language using the on-

screen bar (see page 22).

While playing a DVD Video...

1/3

SUBTITLE

1/3

ENGLISH

TV CH

Ex.:

1/3 2/3

ENGLISH FRENCH JAPANESE

1/3

2/3

FRENCH JAPANESEENGLISH

While playing an SVCD video...

SUBTITLE

3/3

JAPANESE

3/3

For DVD Video only:

While playing back a chapter containing multi-view angles, you can view the same scene from different angles.

• You can also select the multi-view angles using the on-

screen bar (see page 22).

While playing...

ANGLE

Ex.:

1/3

2/3

Selecting the Browsable Still Pictures

For DVD Audio only:

While playing back a track linked to

3/3

Remote ONLY

browsable still pictures (B.S.P.), you can select the still picture (turn the page) to be shown on the TV screen.

• If a track is linked to browsable still pictures (B.S.P.), they

are usually shown in turn automatically during playback.

• You can also select the page using the on-screen bar (see

page 22).

Each time you press

PAG E

the button, the still picture changes one after another (if available).

(at the same time)

Remote

Playing Back Bonus Group

For DVD Audio only:

Some DVD Audios have a special

ONLY

group called “bonus group” whose contents are not open to the public.

• To play back a bonus group, you have to enter the specific

“key number” (a kind of password) for the bonus group. The way of getting the key number depends on the disc.

Select the bonus group.

• The bonus group is usually recorded as the last group (for example, if a disc contains 4 groups including a bonus group, “group 4” is the bonus group).

• For how to select the group, see “To select a title/group” on page 10.

Enter the key number.

DIMMER

SLEEP

VFP

SCAN MODE

3D PHONIC

A.STANDBY

DVD LEVEL

ENTER

Slow-motion playback

While playing...

Still picture playback starts.

Follow the interactive instructions shown on the

screen.

To cancel the key number entry,

Making Dialogues Clear—Clear Voice

press 7

Remote ONLY

When you play back a disc, you can use this function—Clear Voice. You can make the singer’s voices or dialogues of the movie clear.

• This function only works for center-channel encoded multi-channel disc, and when 3D Phonic is activated.

(On)

Off

(at the same time)

Special Effect Playback

Remote ONLY

INFO

Still picture playback

To start still picture playback:

While playing...

To resume normal playback:

DVD/CD

Select slow motion speed.

Forward slow motion starts.

SLOW

1/32 1/16 1/8 1/4 1/2

Reverse slow motion*starts.

1/32 1/16 1/8 1/4 1/2

–

*Only available for DVD-Video.

To resume normal playback,

press DVD/CD 3

To replay the previous scenes

Remote ONLY

(One-Touch Replay)

• This function is only used while playing DVD Video/ DVD-VR.

While playing back...

The playback position moves back about 10 seconds before the current position (only within the same title).

Remote

Zoom

While playing back...

ZOOM

ONLY

ZOOM 1 ZOOM 2 ZOOM 3 ZOOM 4

ZOOM OFF

ZOOM 5ZOOM 6

Frame-by-frame playback

While playing...

Still picture playback starts.

Advance the still picture frame by frame.

To resume normal playback,

press DVD/CD 3

Move the zoomed-in position.

TV CH

To cancel Zoom,

press ZOOM repeatedly until “ZOOM

OFF” appears on the TV.

Advanced Disc Operations

Remote

ONLY

INFO

Remote control

10 keys

DVD/CD 3

SHIFT

CANCEL

REPEAT REPEAT A-B

FM/PLAY MODE

4/¢ 7

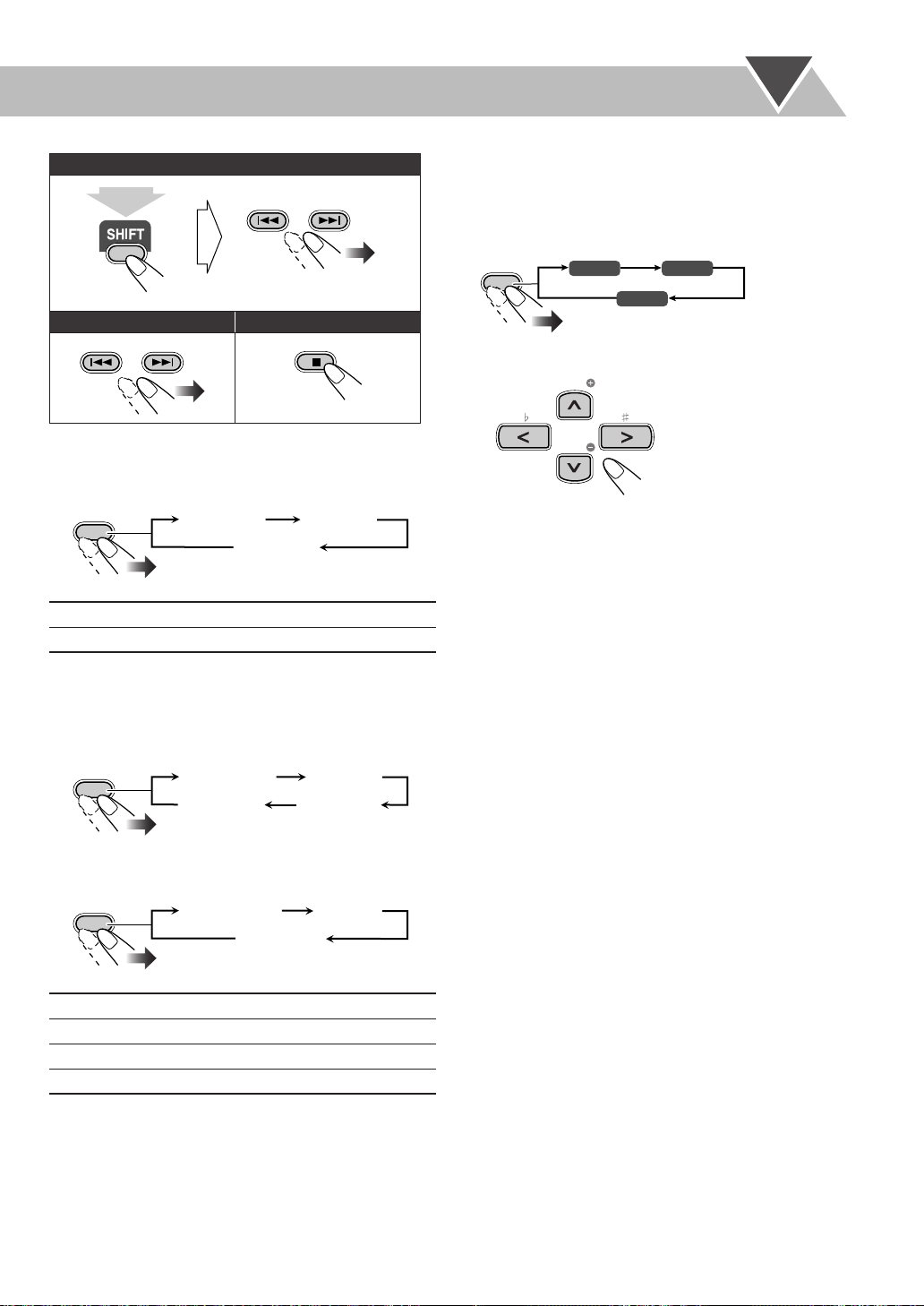

Programming the Playing Order— Program Play

You can arrange the playing order of the chapters or tracks (up to 99) before you start playback.

• Program play cannot be used for DVD-VR/JPEG discs.

Before starting playback, activate Program Play.

REV.MODE

FM/PLAY MODE

PROGRAM

PROGRAM RANDOM

Canceled

On the display

PROGRAM

No Group/Title Track/Chapter

2 3 4 5 6 7 8 9 10

USE NUMERIC KEYS TO PROGRAM TRACKS. USE CANCEL TO DELETE THE PROGRAM.

Main unit

DVD/CD #

, 7,

On the TV

Select chapters or tracks you want for Program Play.

• For DVD Video/DVD Audio/MP3:

Select a title or group number.

Select a chapter or track number.

Repeat the above steps 1

and 2

• For SVCD/VCD/CD:

Select tracks.

To enter the numbers directly:

DIMMER

VFP

3D PHONIC

PAG E

SLEEP

SCAN MODE

A.STANDBY

DVD LEVEL

Examples:

To enter number 5, press 5.

To enter number 15, press +10, then 5.

To enter number 30, press +10,

+10, then 10.

RETURN

Start playback.

GROUP/TITLE SKIP

DVD/CD

To skip a step:

Playback starts in the order you have programmed.

To pause: To stop:

To release, press DVD/CD 3

Remote

Playing at Random—Random Play

ONLY

You can play all chapters or tracks at random.

• Random Play cannot be used for DVD-VR and some DVDs.

Before starting playback, activate Random Play.

REV. MODE

FM/PLAY MODE

PROGRAM RANDOM

Canceled

To check the programmed contents

Before or after playback...

TV CH

In the reverse order.

TV CH

In the programmed order.

• You can also use 4

or ¢

to check the programmed

contents.

To modify the program

Before or after playback...

To erase the last step:

CANCEL

(at the same time)

To erase the entire program:

To add steps in the program:

Repeat step 2.

SET

RANDOM

Start playback.

Playback starts in random order.

DVD/CD

Random Play ends when the entire disc has been played.

To skip a chapter/

To pause: To stop:

track:

To release, press DVD/CD 3

To exit from Random Play

Before or after playback...

REV. MODE

FM/PLAY MODE

PROGRAM RANDOM

Canceled

To exit from Program Play

Before or after playback...

REV. MODE

FM/PLAY MODE

PROGRAM RANDOM

Canceled

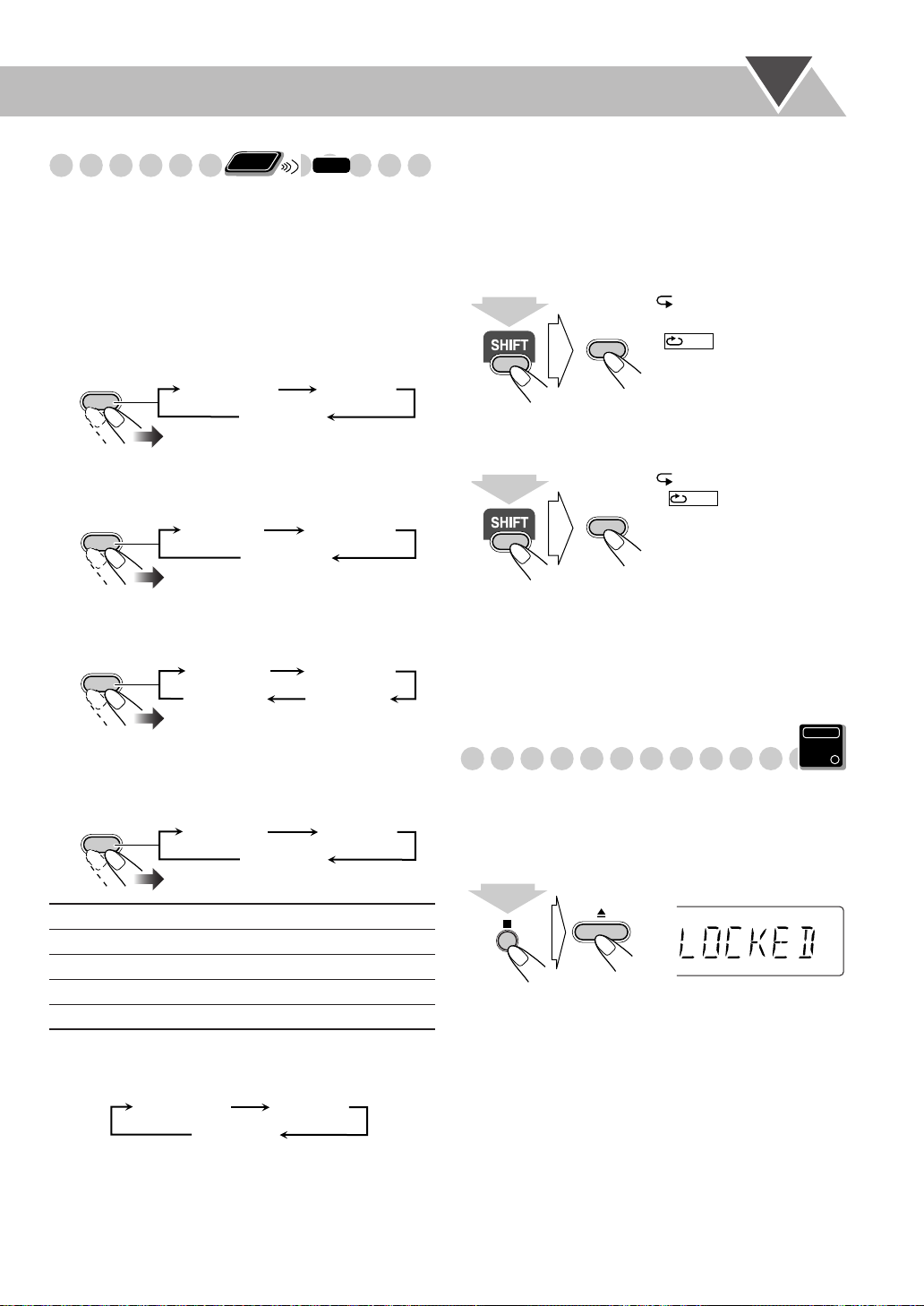

Playing Repeatedly

A-

A-B

ONLY

INFO

Remote

• You can also select the repeat mode using the on-screen bar (see pages 23 and 24).

• For JPEG/DVD-VR discs, see page 27.

Repeat Play

You can repeat playback.

• For DVD Video:

While playing...

REPEAT A-B

REPEAT

REP CHAP REP TTL

• For DVD Audio:

While playing or before playback...

REPEAT A-B

REPEAT

REP TRK REP GRP

• For MP3:

While playing or before playback...

REPEAT A-B

REPEAT

REP TRK REP GRP

REP OFF

(Canceled)

• For CD/SVCD/VCD:

While playing (without PBC for SVCD/VCD) or before playback...

REPEAT A-B

REPEAT

REP TRK

REP OFF

(Canceled)

REP OFF

(Canceled)

REP OFF

(Canceled)

REP ALL

A-B Repeat

You can repeat playback of a desired portion by specifying the beginning (point A) and the ending (point B).

• A-B Repeat cannot be used for MP3 and for some DVDs.

While playing (without PBC for SVCD/VCD), select the start point (A).

REPEAT A-B

REPEAT

(at the same time)

Select the end point (B).

REPEAT A-B

REPEAT

(at the same time)

To cancel A-B Repeat,

press REPEAT A-B again while

holding SHIFT.

• A-B Repeat will also be canceled when you stop play or skip the chapter or track.

Prohibiting Disc Ejection—Child Lock

You can lock the disc tray so that no one can eject the loaded disc.

• This is possible while the System is on standby.

While the disc tray is closed...

starts flashing on the

display.

• appears on the TV if the TV is turned on.

stops flashing.

• appears on the TV.

• You can search for the end point using the ¡

button.

Main Unit

ONLY

REP CHAP

REP TTL

REP TRK

REP GRP

REP ALL

* Repeats the current chapter.

Repeats the current title.

* Repeats the current track.

Repeats the current group.

Repeats the disc or program.

*During Program Play and Random Play, “REP STEP”

appears instead of these indications, and repeat modes change as follows for all the discs.

REP STEP REP ALL

REP OFF

(Canceled)

(at the same time)

To cancel the prohibition,

repeat the same procedure.

“UNLOCKED” appears on the display.

On-Screen Disc Operations

TITLE

CHAP

GROUP 1

TOTAL

1:25:58

TIME

OFF

CHAP.

TRACK

1/3

PAGE 1 / 5

Remote control

TOP MENU/PG

,, ,

DVD/CD 3

ZOOM

On-screen bars

DVD Video

OFF

Dolby D 3/2.1ch

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

DVD Audio

DVD-AUDIO

TIME

SVCD

LPCM 2/0.0ch

OFF

TRACK

SVCD

TIME

OFF

TIME OFF ST1

VCD

TIME

OFF

TIME OFF ST

TITLE 2

TITLE

GROUP 14

TITLE

1/3

TITLE

1/3

1/ 3

1/3

-/ 4

CHAP 3

CHAP

TRACK 23

PAGE

TRACK 3

CHAP

TRACK 3

CHAP

TIME 0:00:58

TOTAL

1/3 1/3

TIME 0:00:58

1/ 3

TIME 0:00:58

TOTAL

1/3 1/3

TIME 0:00:58

TOTAL

1/3 1/3

10 keys

MENU/PL

ENTER

ON SCREEN

REPEAT

4/¢

1:25:58

On-screen Bar Information

You can check the disc information (except for MP3/JPEG disc) and use some functions through the on-screen bar.

Disc type

Playback information

Indication Meanings

Dolby D Audio format 3/2.1ch Channel number

Current title

Current chapter

Current group

TRACK

Operation modes

Indication Meanings

/ Forward/Reverse search

/ Forward/Reverse slow-motion

Function icons (on the pull-down menu)

Indication Meanings

Current track

Time indications

Playback

Pause

Stop

Select to change the time indication.

Select to repeat playback.

Select for time search.

Select for chapter search.

Select for track search.

Select to change the audio language or channel (see also page 16).

Select to change subtitle language (see also page 17).

Select to change the view angle (see also page 17).

Select to change the page (see also page 17).

TIME

OFF

TIME OFF

TITLE

TIME 0:00:58

TRACK 3

TOTAL

CHAP

1/3 1/3

1/3

1:25:58

Remote

TIME

Operations Using the On-screen Bar

ONLY

Ex.: Selecting a subtitle (French) for DVD Video

While a disc is selected as the source...

Display the entire on-screen bar.

ON SCREEN

Dolby D

DVD-VIDEO

3/2.1ch

Dolby D

DVD-VIDEO

3/2.1ch

TIME

OFF

TIME OFF CHAP. 1/31/ 3 1/1

TITLE

TITLE 2

1/3

CHAP

CHAP 3

TOTAL

1/3 1/3

Goes off

Select (highlight) the item you want.

TIME 0:00:58

1:25:58

INFO

For detailed operations of the following functions, see also “Operations Using the On-screen Bar” on the left.

To change the time information

You can change the time information in the on-screen bar and the display window on the main unit.

1 While playing, display the on-screen bar with the pull-

down menu.

OFF

Dolby D 3/2.1ch

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

TITLE 2

TITLE

CHAP

1/3

2 Make sure is selected (highlighted). 3 Change the time indication.

ENTER

TIME 0:00:58

CHAP 3

TOTAL

1:25:58

1/3 1/3

REM 0:11:23

TOTAL 1:01:58T.REM 0:35:24

TV CH

ENTER

OFF

Dolby D 3/2.1ch

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

Display the pop-up window.

ENTER

Select the desired option in the pop-up window.

Finish the setting.

TITLE 2

CHAP

TITLE

1/3

CHAP 3

TITLE 2

CHAP

1/3

1/31/ 3 1/1

CHAP 3

TITLE 2

CHAP

ITLE

1/3

1/32/ 3 1/1

Pop-up window goes off.

CHAP 3

1/3 1/3

TOTAL 1:01:58

TOTAL

1/3 1/3

ENGLISH

TOTAL 1:01:58

TOTAL

1/3 1/3

FRENCH

TIME 0:00:58

TOTAL

To erase the on-screen bar

ON SCREEN

1:25:58

TIME

Elapsed playing time of the current chapter/track.

REM

Remaining time of the current chapter/ track.

TOTAL

T.REM

Elapsed disc time.

Remaining disc time.

To erase the on-screen bar

ON SCREEN

Repeat Play

• See also page 21.

1 While playing a disc (without PBC for SVCD/VCD),

display the entire on-screen bar.

• Repeat Play can be selected before starting playback, except for DVD Video/DVD-VR.

2 Select . 3 Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

OFF

Dolby D 3/2.1ch

TITLE 2

TITLE

TOTAL 1:01:58

CHAP 3

TOTAL

1/3 1/3

1:25:58

CHAP

1/3

4 Select the repeat mode you want.

ENTER

A-B

TITLE*

GROUP

ALL

Repeats a desired portion (see below).

Repeats the current title.

Repeats the current group.

Repeats the disc (except for DVD) or program.

CHAPTER

TRACK

OFF

** Repeats the current chapter.

** Repeats the current track.

Cancels Repeat Play.

* While playing a DVD-VR disc, “PG” appears, and

while playing a Program list, “PL” appears.

** During Program Play and Random Play, “STEP”

appears.

5 Finish the setting.

ENTER

A-B Repeat

• See also page 21.

1 While playing, display the entire on-screen bar. 2 Select . 3 Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

4 Select “A-B.”

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

OFF

Dolby D 3/2.1ch

OFF

Dolby D 3/2.1ch

A–B

TITLE 2

TITLE

TITLE 2

TITLE

TOTAL 1:01:58

CHAP 3

TOTAL

1/3 1/3

TOTAL 1:01:58

TOTAL

1/3 1/3

1:25:58

CHAP

1/3

CHAP 3

CHAP

1/3

Time Search

You can move to a particular point by specifying the elapsed playing time from the beginning.

1 While playing (without PBC for SVCD/VCD), display

the entire on-screen bar.

• Time Search can be used before starting playback, except for DVD Video/DVD-VR.

2 Select . 3 Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

Dolby D 3/2.1ch

OFF

TIME _ : _ _ : _ _

TITLE 2

TITLE

CHAP

1/3

4 Enter the time.

You can specify the time in hours/minutes/seconds.

DIMMER

VFP

3D PHONIC

SLEEP

SCAN MODE

A.STANDBY

DVD LEVEL

Examples:

To move to a point of 1 (hours): 02 (minutes): 00 (seconds), press 1, 0, 2, 0, then

To move to a point of 54

(minutes): 00 (seconds), press 0, 5, 4, 0, then 0.

• It is always required to enter the hour digit (even “0” hour), but it is not required to enter trailing zeros (the last two digits in the examples above).

•

To correct a misentry,

press Cursor < to erase the last

entry.

5 Finish the setting.

The System starts playing the disc from the selected playing time.

CHAP 3

1/3 1/3

TIME 0:00:58

TOTAL

1:25:58

5 Select the start point (A).

ENTER

DVD-VIDEO

TIME

TIME A- CHAP. 1/3

6 Select the end point (B).

ENTER

A-B Repeat starts. The selected portion plays repeatedly.

• Before pressing ENTER, you can search for the end point using the

button.

To cancel A-B Repeat,

repeat steps 1 to 3, and select “OFF”

in step 4.

Dolby D 3/2.1ch

TITLE 2

TITLE

Chapter/Track Search

1/3

You can search for the chapter (DVD Video/DVD-VR) or track (DVD Audio) number to play.

1 While playing, display the entire on-screen bar. 2 Select

CHAP.

TRACK

3 Display the pop-up window.

DVD-VIDEO

TIME

TIME OFF CHAP. 1/31/ 3 1/1

Dolby D 3/2.1ch

TITLE 2

TITLE

CHAPTER _

CHAP

1/3

CHAP 3

1/3 1/3

TOTAL 1:01:58

TOTAL

1:25:58

4 Enter the desired chapter/track number.

DIMMER

VFP

3D PHONIC

•

To correct a misentry, press the 10 keys until the

SLEEP

SCAN MODE

A.STANDBY

DVD LEVEL

Examples:

To select chapter/track 5, press

5. To select chapter/track 15, press 1, then 5. To select chapter/track 30, press 3, then 0.

desired number shown in the pop-up window.

5 Finish the setting.

ENTER

The System starts playing the searched chapter or track.

Browsable Still Pictures

For DVD Audio only:

browsable still pictures (B.S.P.), you can select the still picture (turn the page) to be shown on the TV.

• If a track is linked to browsable still pictures (B.S.P.), they are usually shown in turn automatically during playback.

1 While playing a DVD Audio, display the entire on-

screen bar.

2 Select .

PAGE 1 / 5

3 Display the pop-up window.

OFF

LPCM 2/0.0ch

DVD-AUDIO

TIME

4 Select a still picture you want.

DVD-AUDIO

TIME

LPCM 2/0.0ch

OFF

5 Finish the setting.

ENTER

While playing back a track linked to

TIME 0:00:58

GROUP 14

TRACK

GROUP 14

TRACK

TRACK 23

1/ 3

TRACK 23

1/ 3

PAGE

1/ 5

TIME 0:00:58

3/ 5

Remote

Operations on the

Screen

INFO

Control

ONLY

You can search for and play the desired items through the control screen.

Control screen for MP3/JPEG disc

The control screen automatically appears on the TV screen when you load an MP3 or a JPEG disc.

Ex.: When the MP3 disc is loaded.

Group : 2 / 3

Spring

Summer

Fall Winter

Tr ack Information

Title Rain Artist

Album

TIME : 00:00:14REPEAT TRACK

Tr ack : 6 / 14 (Total 41)

Cloudy.mp3 Fair.mp3 Fog.mp3 Hail.mp3 Indian summer.mp3

Rain.mp3

Shower.mp3 Snow.mp3 Thunder.mp3 Typhoon.mp3 Wind.mp3 Winter sky.mp3

Current group number/total group number

Current group

Group list

Track information (ID3 Tag Version 1.0: only for MP3)

Current track

Repeat Play setting

Elapsed playing time of the current track (only for MP3)

Operation mode icon

Current track number/total number of tracks in the current group (total number of tracks on the loaded disc)

Highlight bar

Track list

• If files of different types (MP3 and JPEG) are recorded on a disc, select the file type to play (see page 34).

7 8

Control screen for DVD-RW/RAM in DVD-VR

format

The control screen is superimposed on the TV screen when you call up Program List (PG) or Play List (PL).

To select playback type

To select the Program List:

TOP MENU/PG

KARAOK

To erase the list, press the same button again.

Ex.: When Program List is selected.

ORIGINAL PROGRAM

No Date Ch Time Title

1 03/12/04 12:15L 2 09/12/04 23:05 3 18/12/04 08:17 4 20/12/04 07:47 5 25/12/04 19:38 Mr. Lawrence 6 28/12/04 14:20

12 3 4 5 6

Ex.: When Play List is selected.

PLAY LIST

No Date Chap Length Title

1 03/12/04 002 0:23:24 Nebula G. 2 15/12/04 004 1:04:39 3 24/12/04 013 0:41:26 4 27/12/04 017 0:09:08

Listed number

Recording date

Recording channels

Recording time

Title

Highlight bar (current selection)

Chapters included

Playback time

To select the Play List:

MENU/PL

ECHO

L L L L L

La fleur The last struggle free flyer BOOM!

Satisfy U

CDJ Secret Garden S. Walker

67 81 2

To move the highlight bar between group list and track list (for MP3/JPEG):

Moves the bar to the track list.

Moves the bar to the group list.

To select an item in the list:

TV CH

Move the highlight bar to a desired item.

• If you move the highlight bar

TV CH

while playing back an MP3 disc, the selected track starts playback automatically.

To start playback

For JPEG:

ENTER

The selected track (still picture) is displayed until you change it.

Slide-show playback starts.

DVD/CD

Each track (still picture) is shown on the screen for about 3 seconds, then changes one after another.

For the other discs:

ENTER

Playback starts with the selected track.

• Pressing DVD/CD 3

also starts

playback.

• Once you start playing back a JPEG track, the control screen goes off.

• To cancel slide-show, and display the current still picture, press 8

To select a group (for MP3/JPEG):

GROUP/TITLE SKIP

(at the same time)

To skip a track: To stop playback:

GROUP/TITLE SKIP

To zoom in the still picture (for JPEG)

• You cannot zoom in the still picture during slide-show.

While playing back a still picture...

• During slide-show, press 8

to display the still picture,

then...

ZOOM

Move the zoomed-in position.

ZOOM 1 ZOOM 2

ZOOM OFF

TV CH

To repeat slide-show for JPEG

While playing or before playback...

REPEAT A-B

REPEAT

REP GRP

REP ALL

REP GRP REP ALL

REP OFF

(Canceled)

Repeats the current group.

Repeats the disc.

• For Repeat Play of the other disc types, see page 21.

To repeat playback for DVD-VR

While playing an original program...

REPEAT A-B

REPEAT

REP CHAP REP PG

REP OFF

(Canceled)

REP ALL

While playing a Program List...

REPEAT A-B

REPEAT

REP CHAP REP PL

REP OFF

(Canceled)

TV CH

To cancel Zoom,

press ZOOM repeatedly until “ZOOM

OFF” appears on the TV.

REP CHAP

REP PG

REP PL

REP ALL

Repeats the current chapter.

Repeats the current program.

Repeats the current Program List.

Repeats all programs.

Advanced Tape Operations

INFO

Remote control

TAPE 2 3

DVD/CD

SHIFT

FM/AM /AUX

REV. MODE

IMPORTANT

It may be unlawful to record or play back copyrighted material without the consent of the copyright owner.

Recording on a Tape

You can use type I tapes for recording.

• To play a tape, see page 9.

Insert a recordable cassette.

Push Insert

With the tape side facing outside

Check the tape running direction and Reverse Mode settings on the display.

Current source

Tape direction indicator

Main unit

REC

DVD/CD

TAPE @ #

Reverse mode indicator

To change the direction

3 (forward)

PUSH OPEN 0

To change the Reverse mode if necessary

AUX

FM/AM

()

2 (reverse)

REV. MODE

FM/PLAY MODE

(at the same time)

To record on both sides.

•

When using Reverse Mode, start recording in the forward (

To record on only one side.

) direction.

Select and start playing the source—“FM,” “AM,” “DVD/CD,” or “AUX.”

• When recording a disc, you can also use “Synchronized Disc Recording” (see below).

Start recording.

To stop recording:

Synchronized Disc Recording

You can start and stop both disc play and tape recording at the same time.

REC

On the main unit

INFO

To record the entire disc

Load a disc and insert a recordable cassette.

• If the current playing source is not the disc player, press DVD/CD 3

Check the tape running direction and Reverse Mode settings on the display.

• See step 2 of “Recording on a Tape” on page 28.

Start recording.

REC

, then 7

The System automatically creates 4-second blanks between the tunes recorded on the tapes.

To record Program Play or Random Play

1 Select Program Play (and make a program) or Random

Play, but do not start playback.

2 Press REC to start recording.

• When disc play stops, recording stops automatically.

To record only your favorite track

You can specify tracks to be recorded on the tape while listening to a disc (except for DVD Video/DVD-VR).

Start playing a disc.

DVD/CD

While a track you want to record on the tape is playing...

REC

On the main unit

Repeat steps 2 and 3 to record other tracks you want.

• You can exchange the discs if necessary.

To protect your recording

Cassettes have two small tabs on the back to protect from unexpected erasure or re-recording.

To protect your recording,

The disc player returns to the beginning of that track and the track is recorded on the tape. After recording the track, the disc player and cassette deck automatically stop.

remove these tabs.

On the main unit

• When either disc play* or recording ends, both disc player and the cassette deck stop at the same time.

* For DVD Video: When a title is finished playing.

To record a “Live” disc

It will not be desirable to put 4-second blank portions between the tunes recorded on the tape. To record the entire disc without any interruption recorded, pause the disc play (press DVD/CD 3 before pressing REC.

, then 8

)

To re-record on a protected tape,

adhesive tape.

cover the holes with

Enjoying Karaoke

Remote control

KARAOKE

TAPE 2 3

DVD/CD

AUDIO

SHIFT

ECHO

FM/AM /AUX

IMPORTANT

Always set MIC VOLUME to MIN when connecting or disconnecting the microphone.

DO NOT keep the microphone connected while they are not in use.

Singing Along (Karaoke)

INFO

You can enjoy singing along (Karaoke) while playing a disc.

To sing along using the Karaoke discs

You can enjoy Karaoke using the Karaoke disc (except Karaoke CD).

• By pressing REC, you can record your singing-along.

Turn MIC VOLUME to MIN.

VOLUME

MAXMIN

Connect the microphone (not supplied) to the MIC

jack.

VOLUMEMIC

Main unit

MIC jack MIC VOLUME

REC

DVD/CD

TAPE @ #

VOLUME

AUX

FM/AM

MAXMIN

Insert and start playing a Karaoke disc. Select an audio track.

AUDIO

• For details, see “Selecting the Audio Track” on page 16.

Sing into the microphone.

5 6

Adjust the MIC VOLUME and VOLUME.

VOLUME

MAXMIN

VOLUME

To adjust the Key (disc playback only)

Activate Vocal Cancel.

Activate Key Control.

TOP MENU/PG

KARAOKE

KEYCON

V-CANCEL

OFF

(Canceled)

(at the same time)

Adjust the Key

To raise the key.

To lower the

(at the same time)

key.

• Key Control cannot be activated for DVD Audio/DVDVR.

To deactivate Key Control,

press KARAOKE (while

holding SHIFT) to select “OFF.”

To apply echo to your voice

MENU/PL

ECHO

(at the same time)

ECHO ON

ECHO OFF

(Canceled)

TOP MENU/PG

KARAOKE

KEYCON

V-CANCEL

OFF

(Canceled)

(at the same time)

Sing into the microphone.

5 6

Adjust the MIC VOLUME and VOLUME.

VOLUME

MAXMIN

VOLUME

• You can apply echo to your voice.

To deactivate Vocal Cancel,

select “OFF” in step 4.

Microphone Mixing

You can enjoy microphone mixing while playing any source.

• By pressing REC, you can record your singing-along (except when the playing source is “TAPE”).

Turn MIC VOLUME to MIN.

VOLUME

MAXMIN

To sing along using the stereo discs —Vocal Cancel

You can enjoy Karaoke while playing a stereo disc. Vocal Cancel reduces the lead vocal of any disc except DVD Audio and DVD-VR.

Turn MIC VOLUME to MIN.

VOLUME

MAXMIN

Connect the microphone (not supplied) to the MIC jack.

Insert and start playing a stereo disc.

DVD/CD

Connect the microphone (not supplied) to the MIC

jack.

Start playing the source—“FM,” “AM,” “DVD/CD,” “TAPE,” or “AUX.”

Sing into the microphone. Adjust the MIC VOLUME and VOLUME.

VOLUME

MAXMIN

VOLUME

• You can apply echo to your voice. While playing a disc, you can also adjust Key Control and apply echo.

To use the microphone only,

select “AUX” in step 3, but do

not start playback.

Timer Operations

Remote

ONLY

Remote control

CANCEL

SET

AUDIO

CLOCK/ TIMER

Setting the Timer

INFO

Using Daily Timer, you can wake up with your favorite song. On the other hand, with Recording Timer, you can make a tape of a radio broadcast automatically.

• You can store three Daily Timer settings and one Recording Timer setting; however, you can activate only one of Daily Timers and Recording Timer at the same time.

• To exit from the timer setting, press CLOCK/TIMER as required.

• To correct a misentry during the process, press CANCEL. You can return to the previous step.

Select one of the timer setting modes you want to set—

Daily 1 ON time, Daily 2 ON time, Daily 3 ON time, or Recording Timer ON time.

CLOCK/

TIMER

Ex. When Daily Timer 1 setting mode is selected

Daily 1 Timer Daily 2 Timer Daily 3 Timer

DAILY 1*

ON (Time) ON (Time) ON (Time)

Canceled

DAILY 2*DAILY 3

Clock setting

(see page 15)

ON (Time)

Recording Timer

REC TMR

* Daily Timer initial settings when shipped from the

factory

• DAILY 1:ON Time (6:00)/OFF Time (8:00)/ Source (TUNER FM 1)/Volume level (– –)

• DAILY 2:ON Time (12:00)/OFF Time (14:00)/ Source (TUNER FM 1)/Volume level (– –)

• DAILY 3:ON Time (18:00)/OFF Time (20:00)/ Source (TUNER FM 1)/Volume level (– –)

Make the timer setting as you want.

Repeat the following operations until you finish setting in the following order—

CANCEL

SET

For Daily Timers:

Set the hour then the minute for on-time.

Set the hour then the minute for off-time.

Select the playback source—“TUNER FM,” “TUNER AM,” “TAPE,” “DISC,” or “AUX.”

For “TUNER FM” and “TUNER AM”: Select a preset channel. For “DISC”: Select the title/group number (GR), then the chapter/track number (TR).

Select the volume level.

• You can select the volume level (“1” to “40” and “VOL – –”). If you select “VOL – –,” the volume is set to the last level when the unit has been turned off.

Once settings are complete, the Timer setting information appears in sequence.

For Recording Timer:

Set the hour then the minute for on-time.

Set the hour then the minute for off-time.

Select the playback source—“TUNER FM,” “TUNER AM,” or “AUX.”

For “TUNER FM” and “TUNER AM”: Select a preset channel.

Once settings are complete, the Timer setting information appears in sequence.

Turn off the unit (on standby) if you have set the timer

with the System turned on.

How Recording Timer actually works

When Recording Timer has been set, Timer ( ) indicator and the REC indicator are lit on the display. Recording Timer works only once.

When the on-time comes

The System turns on, tunes in to the specified station or changes the source to “AUX”, and starts recording.

When the off-time comes

The System stops recording, and turns off (stands by).

• The timer setting remains in memory until you change it.

To turn off the Timer after its setting is done

Since Daily Timer is activated at the same time everyday, you may need to cancel it on some particular days.

• Recording Timer can also be canceled temporarily.

1 Select the Timer you want to cancel.

CLOCK/

TIMER

Daily 1 Timer Daily 2 Timer Daily 3 Timer

DAILY 1

ON (Time) ON (Time) ON (Time)

Canceled

DAILY 2 DAILY 3

Clock setting

(see page 15)

ON (Time)

Recording Timer

REC TMR

How Daily Timer actually works

Once the Daily Timer has been set, the timer ( ) indicator and timer number indicator (1/2/3) are lit on the display. Daily Timer is activated at the same time everyday until the timer is turned off manually (see the next column) or another timer is activated.

When the on-time comes

The System turns on, starts playing the specified source (except “AUX”), and sets the volume level to the preset level.

• While Daily Timer is working, the timer ( ) indicator and timer number indicator (1/2/3) flash on the display.

When the off-time comes

The System stops playback, and turns off (stands by) automatically.

• The timer setting remains in memory until you change it.

Ex.To cancel Daily

Timer 1

2 Turn off the selected Timer.

CANCEL

SET

(at the same time)

To turn on the Timer 1 Select the Timer (DAILY 1/2/3, and REC TMR) you

want to activate.

CLOCK/

TIMER

Daily 1 Timer Daily 2 Timer Daily 3 Timer

DAILY 1

ON (Time) ON (Time) ON (Time)

Canceled

DAILY 2 DAILY 3

Clock setting

(see page 15)

ON (Time)

Recording Timer

REC TMR

2 Activate the selected Timer.

CANCEL

SET

Ex. When Daily Timer 1 (DAILY 1) is

activated

3 Wait until the indication goes off.

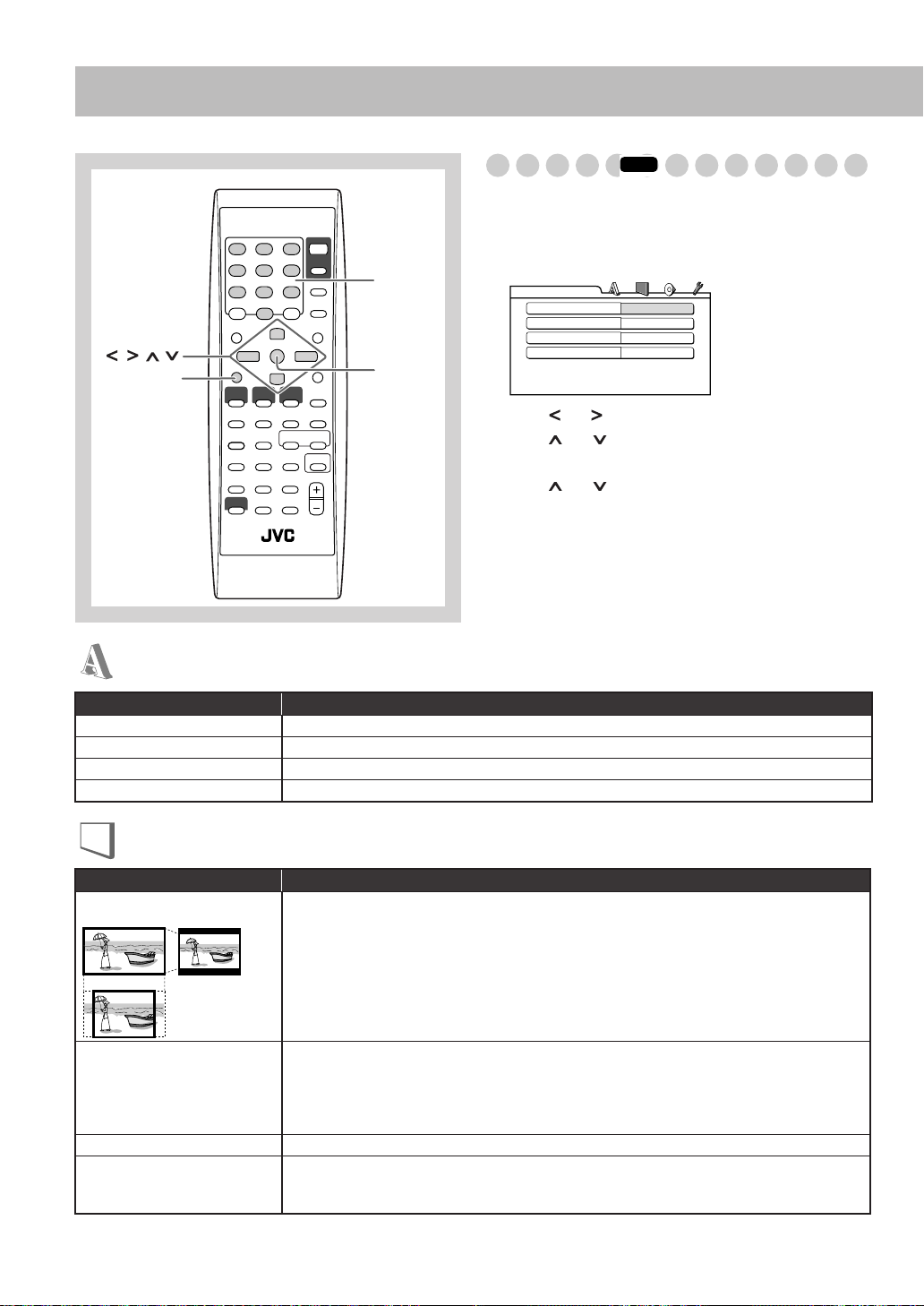

Setup Menu Operations

Remote Control

,, ,

SET UP

LANGUAGE menu

10 keys

ENTER

Initial settings

INFO

Some items in the menus cannot be changed during playback.

Press SET UP.

LANGUAGE

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

Press ( Press (

Press ENTER.

4 5

Press (

ENGLISH

)to select the menu.

or )

to move to select the item.

or )

to select the options, then press

ENTER.

• For settings of the LANGUAGE menu, see also “Language Code List” on page 41.

To erase a preference display

Press SET UP.

Item Contents

MENU LANGUAGE

AUDIO LANGUAGE

SUBTITLE

ON SCREEN LANGUAGE

PICTURE menu

Item Contents

MONITOR TYPE

16:9 4:3 LB

4:3 PS

PICTURE SOURCE

SCREEN SAVER

FILE TYPE

You can select the initial menu language of DVD Video.

You can select the initial audio language of DVD Video.

You can select the initial subtitle language of DVD Video.

You can select “ENGLISH,” “CHINESE,” or “SPANISH” as the on-screen language.

You can select the monitor type to match your TV when you play back DVD Video discs recorded for wide-screen televisions.

16:9 [MULTI] (Wide television screen): 4:3 [MULTI] LB (Letter box conversion):

picture to fit the width of the TV screen keeping the aspect ratio.

4:3 [MULTI] PS (Pan Scan conversion):

filling the screen vertically and the left and right sides of the picture are cut off.

• For multi-color system TVs, select the [MULTI] option.

You can obtain optimal picture quality by selecting the source type of the disc contents.

AUTO:

Normally, select this option. The System recognizes the picture type (film or video source) of

the current disc according to the disc information.

FILM:

For a film source disc.

VIDEO:

You can set the screen saver function to ON or

You can select the file type to play.

AUDIO: STILL PICTURE:

For a video source disc.

To play MP3 files.

To play JPEG files.

For a wide-screen (16:9) TV.

For a conventional (4:3) TV. Displays a wide-screen

For a conventional (4:3) TV. The picture is zoomed up for

OFF.

AUDIO menu

Item

DIGITAL AUDIO OUTPUT

DOWN MIX

D.RANGE COMPRESSION

OTHERS menu

Item

RESUME

ON SCREEN GUIDE

Contents

Set this item correctly when using the DVD OPTICAL DIGITAL OUT terminal on the rear.

PCM ONLY: DOLBY DIGITAL/PCM:

in Dolby Digital decoder.

STREAM/PCM:

This setting is effective for digital audio output if “DIGITAL AUDIO OUTPUT” is set to “PCM ONLY.”

DOLBY SURROUND: STEREO:

Set this item to listen to DVD Video recorded in Dolby Digital format at low or middle volume.

AUTO: ON:

Select this if the sound level of DVD Video is lower than the one of TV program to make the

sound at a lower volume clear.

When connecting to audio equipment which can decode only linear PCM signals.

When connecting to a Dolby Digital decoder or an amplifier with a built-

When connecting to a DTS decoder or an amplifier with a built-in DTS decoder.

Select this when connecting to a surround decoder.

Select this when connecting to a stereo receiver, MD player, TV, etc.

You can enjoy powerful playback sound.

Contents

You can select the Resume.

ON:

The System resumes playback from the position where playback has been stopped if the disc is

still in the disc tray.

OFF:

Resume is deactivated.

Activate (ON) or deactivate (

OFF

) the on-screen guide.

Additional Information

Learning More about This System

Introduction

Playable Disc Types:

• If you play back an NTSC disc with this setting set to “PAL,” you can watch the playback pictures (the disc will be reproduced using “PAL 60” format), but the TV screen may roll over upward and downward rapidly.

• If you play back a PAL disc with this setting set to “NTSC,” you can watch the playback pictures, but the following symptoms may occur: – The items on the disc menu will be blurred, and be shown

slightly shifted when highlighted.

– The aspect ratio of the picture may differ from the original

aspect ratio.

– The picture movement is not smooth.

Connections

• Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord. Also, keep the antennas away from metallic parts of the System, connecting cords, and the AC power cord. This could cause poor reception.

• Use only speakers with the same speaker impedance as indicated by the speaker terminals on the rear of the System.

• The speakers are magnetically shielded to avoid color distortions on TVs. However, if not installed properly, it may cause color distortions. So, pay attention to the following when installing the speakers. – When placing the speakers near a TV set, turn off the

TV’s main power switch or unplug it before installing the speakers. Then wait at least 30 minutes before turning on the TV’s main power switch again.

– Some TVs may still be affected even though you have

followed the above instruction. If this happens, move the speakers away from the TV.

(see pages 1 to 2)

(see pages 3 to 5)

Daily Operations—Playback

Listening to the Radio:

• If you store a new station into an occupied preset number, the previously stored station in that number will be erased.

• When you unplug the AC power cord or if a power failure occurs, the preset stations will be erased in a few days. If this happens, preset the stations again.

Playing Back a Tape:

• It is not recommended to use the C-120 or longer tapes. These tapes easily jams in the pinch rollers and the capstans, and may cause characteristic deterioration.

Playing Back a Disc:

• On some DVD, SVCD, or VCD discs, the actual operations may be different from what is explained in this manual, due to the programming and disc structure; such differences are not a malfunction of this System.

• Some DVD Audios prohibit downmix. When you play back such a disc, “LR ONLY” appears on the display and the System plays back the left front and right front signals.

• When playing back a DVD Audio disc recorded in MLP (Meridian Lossless Packing; a lossless audio compression system that can completely recreate the PCM signal), the signals are recognized as the linear PCM signals, however, no indicator lights up on the display.

• For MP3 playback... – MP3 discs are required a longer readout time than regular

CDs. (It depends on the complexity of the group/file configuration.)

– Some MP3 files cannot be played back and will be

skipped. This results from their recording processes and conditions.

– When making MP3 discs, use ISO 9660 Level 1 or Level

2 for the disc format.

– This System can play back MP3 files with the extension

code <.mp3> (regardless of the letter case—upper/ lower).

– It is recommended that you make each MP3 file at a

sampling rate of 44.1 kHz and at bit rate of 128 kbps. This System cannot play back files made at bit rate of less than 64 kbps.

(see pages 7 to 11)

Daily Operations—Sound & Other Adjustments

(see pages 12 to 15)

Adjusting the Sound:

• This function also affects the sound through the headphones.

Presetting Automatic DVD Video Sound Increase Level:

• This also functions for DVD-VR formatted discs.

Changing the Scanning Mode:

• You cannot change the scanning mode to progressive in the following cases: – When your TV does not support the progressive video

input.

– When you have not connected your TV to the system

using a component video cord.

Setting the Clock:

• “0:00” will flash on the display until you set the clock.

• The clock may gain or lose 1 to 2 minutes per month. If this happens, reset the clock.

Unique DVD/VCD Operations

Selecting the Audio Track:

• On some DVD Videos, you cannot change audio languages while playing back.

Special Effect Playback:

• During slow-motion playback, no sound will be reproduced.

• While zoomed in, the picture may look coarse.

Advanced Disc Operations

Programming the Playing Order—Program Play:

• While programming steps... Your entry will be ignored if you have tried to program an item number that does not exist on the disc (for example, selecting track 14 on a disc that only has 12 tracks).

Playing Repeatedly:

• A-B Repeat can be used within the same title while playing a DVD Video, and within the same track for the other discs.

(see pages 16 to 18)

(see pages 19 to 21)

On-Screen Disc Operations

Operations Using the On-screen Bar:

• For DVD-RW/RAM in the VR format, “PG” or “PL” appears instead of “TITLE” on the on-screen bar.

Operations on the Control Screen:

• For JPEG files playback... – It is recommended that you record a file at 640 x 480

resolution. (If a file has been recorded at a resolution of more than 640 x 480, it will take a long time to be shown.)

– This System can play only baseline JPEG files*.

Progressive JPEG files* or lossless JPEG files* cannot be played. * Baseline JPEG format: Used for digital cameras,

Progressive JPEG format: Used for web. Lossless JPEG format: An old type and rarely used

• This System can play back JPEG files with the extension code <.jpg> or <.jpeg> (regardless of the letter case— upper/lower).

• This System may not play back JPEG files properly if they are recorded on the devices other than digital still camera.

• During slide-show playback, zoom cannot be operated.

• For DVD-VR playback... – When making a disc, use the UDF-Bridge format. – For details about DVD-VR format and play list, refer to

the manual of the recording equipment.

– If you use a DVD-RAM with a cartridge, take the disc

out of the cartridge before inserting.

– You cannot use reverse slow motion, Program Play, and

Random Play.

(see pages 22 to 27)

web, etc.

now.

Advanced Tape Operations

(see pages 28 to 29)

Recording on a Tape:

• The recording level is automatically set correctly. Thus, you can adjust the sound you are actually listening to without affecting the recording level.

• There is leader tape which cannot be recorded onto at the start and end of cassette tapes. Thus, when recording CDs or radio broadcasts, wind the leader tape first to ensure that the recording will be made without any music part lost.

• If you start recording with no cassette inserted, “NO REC” appears on the display. If a protected tape has been inserted, “NO REC” appears.

• When using Reverse Mode for recording, start recording in the forward ( when only one side (reverse) of the tape is recorded.

• You can also change Reverse Mode setting ( and ) after starting recording.

• You cannot open or close the disc tray while recording a disc.

) direction first; otherwise, recording will stop

Synchronized Disc Recording:

• When the tape reaches its end in the forward direction ( 3 during recording with Reverse Mode set to , the last tune will be re-recorded at the beginning of the reverse side.

Enjoying Karaoke

(see pages 30 to 31)

)

Singing Along (Karaoke):

• Karaoke mode setting (Key Control and Vocal Cancel) can be used only when the source is disc player (DVD/CD).

• Karaoke mode setting is automatically canceled when the source is changed.

• Karaoke mode setting is also applied to the optical digital output signals.

• When Vocal Cancel is activated, 3D Phonic will be canceled temporarily.

• On some music disc, Vocal Cancel does not provide the correct effect.

Timer Operations

(see pages 32 to 33)

Setting the Timer:

• When using an external component—“AUX” for the playback source, set the timer built in the component at the same time.

• Before turning off the power, do not forget to prepare the required materials—a disc or tape for playback and a recordable tape for recording.

• If you do not specify the preset station or track number correctly while setting a timer, the currently selected station or the first track will be played when timer is activated.

• When you unplug the AC power cord or if a power failure occurs, the timer will be canceled. You need to set the clock first, then the timer again.

• If you set DVD Video as the source, Daily Timer will not work correctly.

Timer Priority:

• If you set the Sleep Timer after Daily Timer starts playing the selected source, Daily Timer is canceled.

• If you set the Sleep Timer after Recording Timer starts recording, Recording Timer is canceled, but recording continues until Sleep Timer shuts off the power.

Setup Menu Operations

(see pages 34 to 35)

General:

• If the upper and lower parts of the menu are cut off, adjust the picture size control of the TV.

LANGUAGE menu:

• When the language you have selected for MENU LANGUAGE, AUDIO LANGUAGE, or SUBTITLE is not recorded on a disc, the original language is used as the initial language.

PICTURE menu—MONITOR TYPE:

• Even if “4:3 [MULTI] PS” is selected, the screen size may become 4:3 letter box while playing a disc. This depends on how the discs are recorded.

• When you select “16:9 [MULTI]” for a picture whose aspect ratio is 4:3, the picture slightly changes due to the process for converting the picture width.

OTHERS menu—ON SCREEN GUIDE:

• The setup menu and on-screen bar will be displayed (and recorded) even though this function is set to “OFF.” Subtitles and the information for zoom-in always appear on the display regardless of this setting.

Maintenance

To get the best performance of the System, keep your discs, tapes, and mechanism clean.

Handling discs

• Remove the disc from its case by holding it at the edge while pressing the center hole lightly.

• Do not touch the shiny surface of the disc, or bend the disc.

• Put the disc back in its case after use to prevent warping.

• Be careful not to scratch the surface of the disc when placing it back in its case.

• Avoid exposure to direct sunlight, temperature extremes, and moisture.

To clean the disc:

Wipe the disc with a soft cloth in a straight line from center to edge.

Handling cassette tapes

• If the tape is loose in its cassette, take up the slack by inserting a pencil in one of the reels and rotate it. – If the tape is loose, it may get stretched, cut, or caught in the

cassette.

• Be careful not to touch the tape surface.

• Avoid the following places to store the tape—in dusty places, in direct sunlight or heat, in moist areas, on a TV or speaker, or near a magnet.

To keep the best recording and playback sound quality:

• Use a cotton swab moistened with alcohol to clean the heads, capstans, and pinch rollers.

• Use a head demagnetizer (available at electronics and audio shops) to demagnetize the heads (when the System turned off).

Cleaning the System

• Stains should be wiped off with a soft cloth. If the System is heavily stained, wipe it with a cloth soaked in waterdiluted neutral detergent and wrung well, then wipe clean with a dry cloth.

• Since the System may deteriorate in quality, become damaged or get its paint peeled off, be careful about the following: – DO NOT wipe it with a hard cloth. – DO NOT wipe it strong. – DO NOT wipe it with thinner or benzine. – DO NOT apply any volatile substance such as

insecticides to it.

– DO NOT allow any rubber or plastic to remain in contact

for a long time.

To remove the speaker grilles

Speaker grille

Holes

Projection

(Illustration above is of UX-GD6S)

Troubleshooting

General:

Adjustments or settings are suddenly canceled before you finish.

]

There is a time limit. Repeat procedure again.

Operations are disabled.

]

The built-in microprocessor may malfunction due to external electrical interference. Unplug the AC power cord and then plug it back in.

Unable to operate the System from the remote control.

]

The path between the remote control and the remote sensor on the System is blocked.

]

The batteries are exhausted.

No sound is heard.

]

Speaker connections are incorrect or loose.

]

Headphones are connected.

No picture appears on the screen.

]

The video cord connections are incorrect or loose.

No picture is displayed on the TV screen, the picture is blurred, or the picture is divided into two parts.

]

The System is connected to a TV which does not support progressive video input.

]

Incorrect color system is selected (see page 4).

The left and right edges of the picture are missing on the screen.

]

Select “4:3 LB” for “MONITOR TYPE” (see page 34).

Radio Operations:

Hard to listen to broadcasts because of noise.

]

Antennas connections are incorrect or loose.

]

The AM loop antenna is too close to the System.

]

The FM antenna is not properly extended and positioned.

Disc Operations:

The disc does not play.

]

You have inserted a disc whose Region Code is not correct. (“REGION ERR” appears on the display.)

]

The disc is placed upside down. Place the disc with the label side up.

ID3 Tag on an MP3 disc cannot be shown.

]

There are two types of ID3 Tag—Version 1 and Version 2. This System can only show ID3 Tag Version 1.

Groups and tracks are not played back as you expect.

]

The playing order is determined when the disc was recorded. It depends on the writing application.

MP3 or JPEG files are not played back.

]

The inserted disc may include both type of tracks (MP3 ﬁles and JPEG ﬁles). In this case, you can only play back the ﬁles selected by the “FILE TYPE” setting (see page 34).

]

You have changed the “FILE TYPE” setting after you inserted a disc. In this case, reload the disc.

“NO AUDIO” appears.

]

This System cannot play back illegally produced DVD Audio discs.

“LR ONLY” appears.

]

Some DVD Audio discs prohibit downmixed output. When you play back such a disc, this System plays back the left front and right front signals only.

The disc sound is discontinuous.

]

The disc is scratched or dirty.

No subtitle appears on the display though you have selected the initial subtitle language.

]

Some DVDs are programmed to always display no subtitle initially. If this happens, press SUBTITLE after starting play (see page 17).

Audio language is different from the one you have selected as the initial audio language.

]

Some DVDs are programmed to always use the original language initially. If this happens, press AUDIO after starting play (see page 16).

The disc tray does not open or close.

]

The AC power cord is not plugged in.

]

Child Lock is in use. “LOCKED” appears in the display window (see page 21).

Tape Operations:

The cassette holder cannot be opened.

Power supply from the AC power cord has been cut off

]

while the tape was running. Turn on the System.

Recordings:

Impossible to record.

Small tabs on the back of the cassette are removed. Cover

]

the holes with adhesive tape.

Timer Operations:

Daily Timer does not work.

]

The System has been turned on when the on-time comes. Timer starts working only when the System is turned off.

Daily Timer does not start playback.

]

The disc loaded is a DVD video. Change the disc.

]

Title/group number and chapter/track number are not entered while setting the Daily Timer. Do not skip these steps when you want to play a disc using Daily Timer.

Language Code List

Afar

Abkhazian

Afrikaans

Ameharic

Arabic

Assamese

Aymara

Azerbaijani

Bashkir

Byelorussian

Bulgarian

Bihari

Bislama

Bengali, Bangla

Tibetan

Breton

Catalan

Corsican

Czech

Welsh

Danish

Bhutani

Greek

Esperanto

Estonian

Basque

Persian

Finnish

Fiji

Faroese

Frisian

Irish

Scots Gaelic

Galician

Guarani

Gujarati

Hausa

Hindi

Croatian

Hungarian

Armenian

Interlingua

Interlingue

Inupiak

Indonesian

Icelandic

Hebrew

Yiddish

Javanese

Georgian

Kazakh

Greenlandic

Cambodian

Kannada

Korean (KOR)

Kashmiri

Kurdish

Kirghiz

Latin

Lingala

Laothian

Lithuanian

Latvian, Lettish

Malagasy

Maori

Macedonian

Malayalam

Mongolian

Moldavian

Marathi

Malay (MAY)

Maltese

Burmese

Nauru

Nepali

Dutch

Norwegian

Occitan

(Afan) Oromo

OR Oriya

PA Panjabi

PL Polish

PS Pashto, Pushto

PT Portuguese

QU Quechua

RM Rhaeto-Romance

RN Kirundi

RO Rumanian

RU Russian

RW Kinyarwanda

SA Sanskrit

SD Sindhi

SG Sangho

SH Serbo-Croatian

SI Singhalese

SK Slovak

SL Slovenian

SM Samoan

SN Shona

SO Somali

SQ Albanian

SR Serbian

SS Siswati

ST Sesotho

SU Sundanese

SV Swedish

SW Swahili

TA Tamil

TE Telugu

TG Tajik

TH Thai

TI Tigrinya

TK Turkmen

TL Tagalog

TN Setswana

TO Tonga

TR Turkish

TS Tsonga

TT Tatar

TW Twi

UK Ukrainian

UR Urdu

UZ Uzbek

VI Vietnamese

VO Volapuk

WO Wolof

XH Xhosa

YO Yoruba

ZU Zulu

OPTICAL DIGITAL OUTPUT Signals

DIGITAL AUDIO

OUTPUT Playback disc STREAM/PCM DOLBY DIGITAL/PCM PCM ONLY DVD Video

with 48 kHz, 16/20/24 bit Linear PCM

with 96 kHz, Linear PCM 48 kHz, 16 bit Linear PCM

with Dolby Digital Dolby Digital bitstream 48 kHz, 16 bit Linear PCM

with DTS DTS bitstream 48 kHz, 16 bit Linear PCM

DVD Audio

DVD-RW/RAM/ROM in DVD-VR format

SVCD, VCD, CD CD with DTS MP3 disc

*1While playing some DVDs, digital signals may be emitted at 20 bits or 24 bits (at their original bit rate) through the DVD OPTICAL

DIGITAL OUT terminal if the discs are not copy-protected.

*2While playing some DVD Audio discs, digital signals may not be emitted through the DVD OPTICAL DIGITAL OUT terminal if the

discs are processed with CPPM (Content Protection for Prerecorded Media).

with 48/96/192 kHz, 16/20/24 bit Linear PCM

with 44.1/88.2/176.4 kHz, 16/20/24 bit Linear PCM

with Dolby Digital Dolby Digital bitstream 48 kHz, 16 bit Linear PCM

with DTS DTS bitstream 48 kHz, 16 bit Linear PCM

with 48 kHz, 16/20/24 bit Linear PCM

with Dolby Digital Dolby Digital bitstream 48 kHz, 16 bit Linear PCM

44.1 kHz, 16 bit Linear PCM/48 kHz, 16 bit Linear PCM

DTS bitstream 44.1 kHz, 16 bit Linear PCM

32/44.1/48 kHz, 16 bit Linear PCM

Output Signals

48 kHz, 16 bit Linear PCM*

48 kHz, 16 bit Linear PCM

44.1 kHz, 16 bit Linear PCM

48 kHz, 16 bit Linear PCM*

Operating JVC’s TVs Using the Remote Control

Remote control

TV/VIDEO

TV CH /

TV VOLUME

SHIFT

+/–

You can use the remote control to operate JVC’s TVs.

Turn on/off TV.

While holding SHIFT, press...

TV CH /

TV VOLUME

TV/VIDEO

Change the channels.

Adjust the volume.

Change the input mode.

Specifications

Amplifier section

CA-UXGD6S (for UX-GD6S)/CA-UXGD6M (for UX-GD6M)

Output Power:

100 W (50 W + 50 W) at 6 Ω (10% THD)

Audio Input AUX: 400 mV/50 kΩ (at “AUX LVL1”)

200 mV/50 kΩ (at “AUX LVL2”)

Digital output: DVD OPTICAL DIGITAL OUT:

–21 dBm to –15 dBm (660 nm ±30 nm) Video output: Color system: NTSC or PAL (interlaced/progressive) VIDEO (composite): 1 V(p-p)/75 S-VIDEO: Y (luminance) 1 V(p-p)/75

Ω Ω

C (chrominance, burst)

NTSC 0.286 V(p-p)/75 PAL 0.3 V(p-p)/75

COMPONENT: (Y) 1 V(p-p)/75

) 0.7 V(p-p)/75

B/PR

Speaker impedance: 6 Ω – 16

Ω Ω Ω Ω Ω

Tuner section

FM tuning range: 87.50 MHz – 108.00 MHz AM (MW) tuning range:

531 kHz – 1 710 kHz (at 9 kHz intervals)

530 kHz – 1 710 kHz (at 10 kHz intervals)

For Saudi Arabia only:

531 kHz – 1 602 kHz (at 9 kHz intervals)

530 kHz – 1 600 kHz (at 10 kHz intervals)

Tape section

Frequency response: 60 Hz – 14 000 Hz Wow and flutter: 0.15 % (WRMS)

Disc player section

Region codes:

Middle East: 2 South East Asia: 3 Central and South America: 4

Playable disc:

DVD Video/DVD Audio CD/VCD/SVCD CD-R/CD-RW (CD/SVCD/VCD/MP3/ JPEG format) DVD-R (DVD Video format) DVD-RW/DVD-ROM/DVD-RAM (DVD-

VR format) Dynamic range: 80 dB Horizontal resolution: 500 lines Wow and flutter: Immeasurable

General

Power requirement:

AC 110 V/AC 127V/AC 220 V – AC 230 V

(adjustable with the voltage selector), 50 Hz/60 Hz

Power consumption: 95 W (at operation)

4 W (on standby)

Dimensions (approx.): 170 mm x 240 mm x 361 mm

(W/H/D)

Mass (approx.): 5.6 kg

Speakers

SP-UXGD6S (for UX-GD6S)

Speaker units: Tweeter: 4 cm cone x 1

Woofer: 13.5 cm cone x 1 Impedance: 6 Dimensions (approx.): 165 mm x 283.5 mm x 249 mm

(W/H/D)

Mass (approx.): 2.8 kg each

SP-UXGD6M (for UX-GD6M)

Speaker units: Tweeter: 4 cm cone x 1

Woofer: 12 cm cone x 1 Impedance: 6 Dimensions (approx.): 145 mm x 240 mm x 201 mm

(W/H/D)

Mass (approx.): 2.2 kg each

Supplied Accessories

See page 3.

• Manufactured under license from Dolby Laboratories. “Dolby”,

“Pro Logic”, “MLP lossless”, and the double-D symbol are trademarks of Dolby Laboratories.

• “DTS” and “DTS 2.0+ Digital Out” are trademarks of Digital

Theater Systems, Inc.

• This product incorporates copyright protection technology that is

protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse

engineering or disassembly is prohibited. “CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.”

Ω

Remote control

Button Page

AUDIO TV

¡¡¡¡ / 11

¢¢¢¢ / 44 88

10 keys 3D PHONIC AHB PRO ANGLE AUDIO A.STANDBY BASS/TREBLE CANCEL CLOCK/TIMER DIMMER DISPLAY DVD LEVEL DVD/CD 33 ECHO FADE MUTING FM/PLAY MODE FM/AM/AUX GROUP/TITLE SKIP KARAOKE MENU/PL ON SCREEN PAGE REPEAT REPEAT A-B RETURN SCAN MODE SET SET UP SHIFT SLEEP SLOW 9999 /(( SOUND TURBO II SUBTITLE TAPE 222233 TOP MENU/PG TV CH 9999 /(( TV VOLUME + /– TV/VIDEO VFP VOLUME + /– ZOOM

/ ENTER

(Clear Voice)

(One-Touch Replay)

((

f g r y n t p 7 c p 1 6 m o i d . k s 3 j h e / Q b x n 9 / z 8 v v l 4 k q a 2 y , u w 9 p P j 5 P ;

7 42 10, 11, 18, 20, 27 9, 10 8, 9, 11, 20, 27 10, 18, 20, 26 11, 18, 23, 32, 34 18 18 31 9, 11, 18, 19, 24, 25 13 12 17 16 15 13 20, 32 15, 32 14 15 13 7, 10, 26 31 12 8, 19, 20 8 10 31 11, 26 23 17 21 21 11 13 9, 15 34 10, 11, 13, 14, 15, 17 15 18 12 17 9 11, 26 42 42 42 14 7, 13 18, 27

Main unit

Button Page

& STANDBY/ON lamp

77 88

88 00

Cassette holder AUX AUX jack Display FM/AM

DVD/CD ## MIC jack MIC VOLUME

TAPE @@@@## PHONES REC Remote sensor SOUND TURBO II UP ¢¢¢¢ /DOWN 44 VOLUME + /–

8 ^ 4 $ = # & 2 7 6 1

5 0 ~ 3 ! 9% @

7 10, 21 10, 18, 20, 26 10, 21 9 7 5 6 8 7, 10, 26 30 30 9 7 28, 29 5 12 8, 10, 20 12

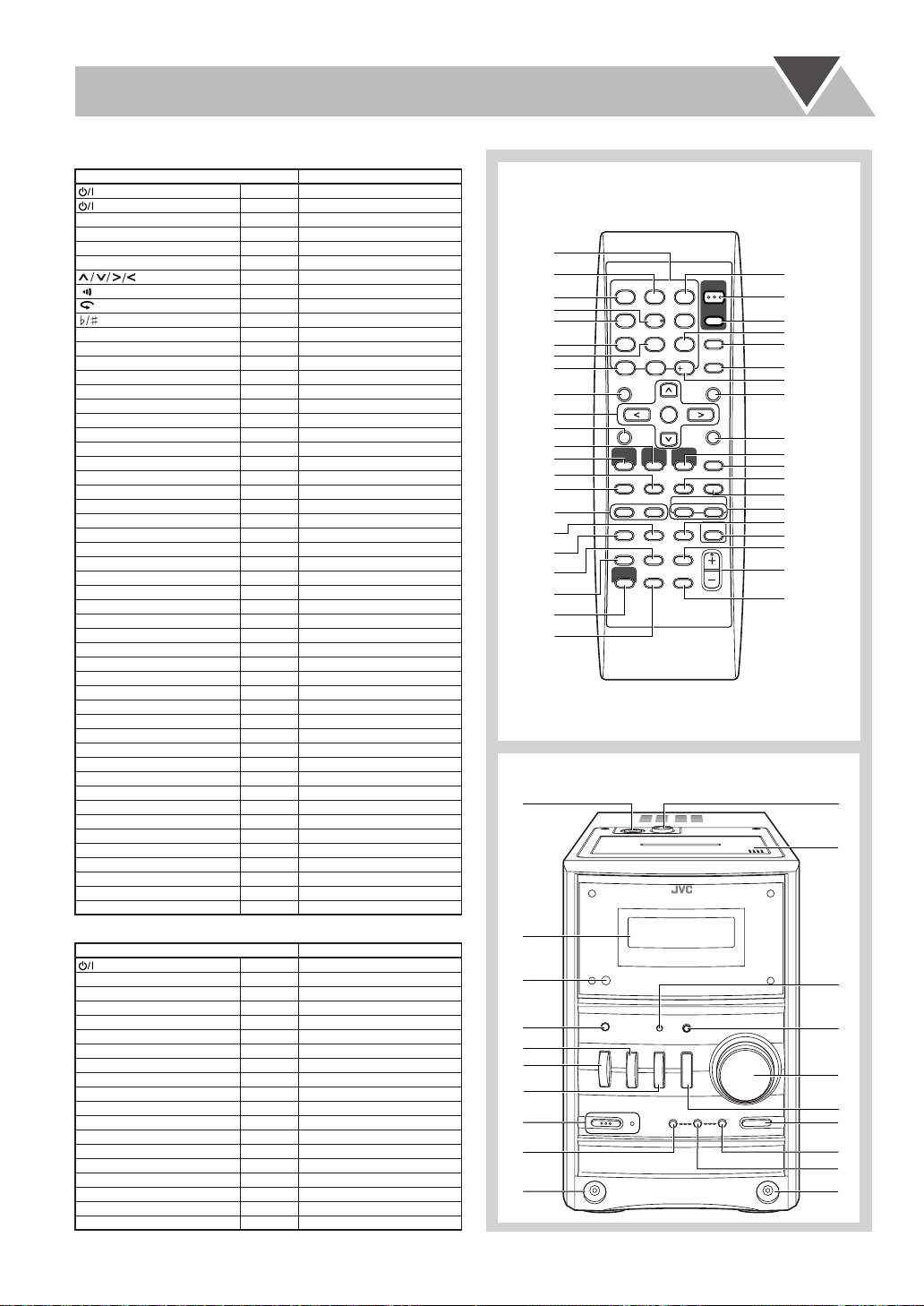

Parts Index

Remote control

1 2 3

4 5

6 7 8

9 p

q w e r t

y u

i o ; a

This remote control can also operate JVC’s TVs (see page 42).

Main unit

4 5

10 0

f g

h j

k l /

z x c v b n m , .

# $

% ^

MEMO

Mains (AC) Line Instruction (not applicable for Europe, U.S.A., Canada, Australia, and U.K.)

ANTENNA

EXT

LOOP

)

(

COAXIAL

COMPONENT

SUB

WOOFER

OUT

STREAM

VOLTAGE

SELECTOR

PCM

DVD OPTICAL

DIGITAL OUT

VIDEO OUT

UX-GD6S/UX-GD6M MICRO COMPONENT SYSTEM

S-VIDEO

VIDEO

OUT

SELECT

NTSC

PAL

RIGHT

SPEAKERS

VIDEO

LEFT

SPEAKER IMPEDANCE

110V

127V

220V230V

CAUTION for mains (AC) line

BEFORE PLUGGING IN, do check that your mains (AC) line voltage corresponds with the position of the voltage selector switch provided on the outside of this equipment and, if different, reset the voltage selector switch, to prevent from a damage or risk of fire/electric shock.

127V

220V- 230V

0305AIMMDWJEM

JVC UX-GD6M User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
