JVC RX-8040B User Manual

AUDIO/VIDEO CONTROL RECEIVER

RX-8040B

INSTRUCTIONS

For Customer Use:

Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No.

Serial No.

LVT1198-001A

[J]

Warnings, Cautions and Others/

For the main unit / Pour l’appareil principal

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY INSERT ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQUAU FOND

Mises en garde, précautions et indications diverses

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

ATTENTION

Afin d’éviter tout risque d’électrocution, d’incendie, etc.:

1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir le coffret de l’appareil.

2. Ne pas exposer l’appareil à la pluie ni à l’humidité.

Caution–– STANDBY/ON button!

Disconnect the mains plug to shut the power off completely. The

STANDBY/ON button in any position does not disconnect

the mains line. The power can be remote controlled.

Attention––Commutateur STANDBY/ON!

Déconnecter la fiche de secteur pour couper complètement le courant. Le commutateur STANDBY/ON ne coupe jamais

complètement la ligne de secteur, quelle que soit sa position. Le courant peut être télécommandé.

For U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

For the remote control:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the manufacturer for compliance could void the user’s authority to operate the equipment.

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

For Canada/pour Le Canada

THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B LIMITS FOR RADIO NOISE EMISSIONS FROM DIGITAL APPARATUS AS SET OUT IN THE INTERFERENCE-CAUSING EQUIPMENT STANDARD ENTITLED “DIGITAL APPARATUS,” ICES-003 OF THE DEPARTMENT OF COMMUNICATIONS. CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE BRUITS RADIOELECTRIQUES APPLICABLES AUX APPAREILS NUMERIQUES DE CLASSE B PRESCRITES DANS LA NORME SUR LE MATERIEL BROUILLEUR; “APPAREILS NUMERIQUES”, NMB-003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS.

For the remote control / Pour la télécommande

This device complies with RSS-210 of Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the divice.

Cet appareil est conforme au règlement CNR-210 de l’industrie du Canada. L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes: (1) il ne doit pas produire de brouillage et (2) l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.

G-1

Introduction

We would like to thank you for purchasing one of our JVC products.

Before operating this unit, read this manual carefully and thoroughly to obtain the best possible performance

from your unit, and retain this manual for future reference.

Features

CC (Compression Compensative) Converter

CC Converter eliminates jitter and ripples, achieving a drastic reduction in digital distortion by processing the digital music data in 24 bit-quantization and by expanding the sampling frequency to 128 kHz (for fs 32 kHz signals)/176.4 kHz (for fs 44.1 kHz signals)/192 kHz (for fs 48 kHz signals). By using the CC Converter, you can obtain a natural sound field from any source. (See page 23 for details.)

K2 Technology

K2 Technology has been designed to enable natural audio reproduction, achieving a drastic reduction in digital distortion and creating original sound ambience with high precision.

Compatible with various audio formats including Dolby Pro Logic IIx

This receiver allows you to enjoy audio formats such as Dolby Digital EX, Dolby Pro Logic IIx, DTS-ES, DTS Neo:6, and DTS 96/24.

• This receiver is also compatible with Dual Mono signals recorded in Dolby Digital and DTS discs.

DAP (Digital Acoustic Processor)

Sound field simulation technology allows precise ambience recreation of existing theaters and halls. Thanks to the highperformance DSP (Digital Signal Processor) and high-capacity memory, you can enjoy multi-channel surround sound by playing 2-channel or multi-channel software according to the speaker setting.

Multi-channel headphone virtual surround sound—3D Headphone mode

The built-in headphone virtual surround system is compatible with multi-channel software like Dolby Digital, DTS, etc. Thanks to the signal processing algorithms used by the high-performance DSP, you can enjoy a natural surround sound through the headphones.

Multi-room operations

You can connect two pairs of front speakers to this receiver, and use them to listen to different sources in different rooms (Zone 1 and Zone 2) at the same time.

COMPU LINK/AV COMPU LINK remote control systems

These functions allow you to operate other JVC’s audio/video components from this receiver.

Precautions

General

• Be sure your hands are dry.

• Turn the power off to all components.

• Read the manuals supplied with the components you are going to connect.

Power sources

• When unplugging the receiver from the wall outlet, always pull the plug, not the AC power cord.

• Do not handle the AC power cord with wet hands.

• If you are not going to operate the receiver for an extended period of time, unplug the AC power cord from the wall outlet.

Multi-room operations

• Do not use the remote control outdoors or install the speakers outdoors.

• When operating the receiver from a place where you cannot see the receiver (for example, when controlling the receiver installed in the living room from the kitchen), pay attention to the following not to surprise other people: – Be careful not to turn up the volume too high when controlling

the receiver without listening to the playback sound.

– Be careful not to surprise other people with a sudden sound

coming out of the receiver when turning it on. (A sudden stop of the sound may also surprise other people.)

• If the receiver operates by itself or malfunctions, the following causes should be considered: – Interference to RF communication between the receiver and the

remote control from outside.

– The remote control is operated unintentionally. For example, a

book is placed on the remote control, possibly, depressing some of its buttons.

• If your neighbour uses the same or similar RF remote control system, the receiver may happen to receive the RF signals sent from such an RF remote control system, which could cause your receiver to be operated unintentionally. If this happens, stop using the RF rod antenna and the remote control, and consult your JVC dealer or the nearest JVC Service Center.

Location

• Install the receiver in a location that is level and protected from moisture and dust.

• The temperature around the receiver must be between –5˚C and 35˚C (23˚F and 95˚F).

Ventilation

High power amplifiers built in this receiver will generate heat inside the cabinet. For safety, observe the following carefully.

• Make sure there is good ventilation around the receiver. Poor ventilation could overheat and damage the receiver.

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

Others

• Do not insert any metal object into the receiver.

• Should any metallic object or liquid fall onto the unit, unplug the unit and consult your dealer before operating any further.

• Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases shall be placed on the apparatus.

• Do not disassemble the receiver or remove screws, covers, or cabinet.

If anything goes wrong, unplug the AC power cord and consult your JVC dealer.

Parts Identification ...................................... 3

Getting Started ........................................... 7

Checking the Supplied Accessories ........................................... 7

Connecting the FM and AM Antennas ....................................... 7

Connecting the Speakers and Subwoofer ................................... 8

Connecting Audio/Video Components ..................................... 10

7 Analog connections .......................................................... 10

7 Digital connections ........................................................... 14

Connecting the RF Rod Antenna and IR Signal Transmitter ... 14

Connecting the Power Cord ..................................................... 15

Putting Batteries in the Remote Control .................................. 15

Multi-room Operations ............................... 16

Required Connections for Zone 2 ............................................ 16

Basic Operating Procedure for Zone 1 ..................................... 17

Basic Operating Procedure for Zone 2 ..................................... 18

Zone 1 (Main Room) Operations .................. 19

Turning the Power On and Off (Standby) ................................ 19

Canceling the Zone 1 Operations ............................................. 19

Selecting the Zone 1 Source to Play ........................................ 20

Adjusting the Zone 1 Volume................................................... 21

Activating the Zone 1 Front Speakers ...................................... 21

Turning On and Off the Subwoofer Sound .............................. 22

Selecting the Analog or Digital Input Mode ............................ 22

Setting the Dynamic Range ...................................................... 23

Attenuating the Input Signal .................................................... 23

Turning Analog Direct On and Off .......................................... 23

Making Sounds Natural............................................................ 23

Changing the Source Name ...................................................... 24

Reinforcing the Bass ................................................................ 24

Muting the Zone 1 Sound ......................................................... 24

Changing the Display Brightness ............................................. 24

Using the Sleep Timer .............................................................. 25

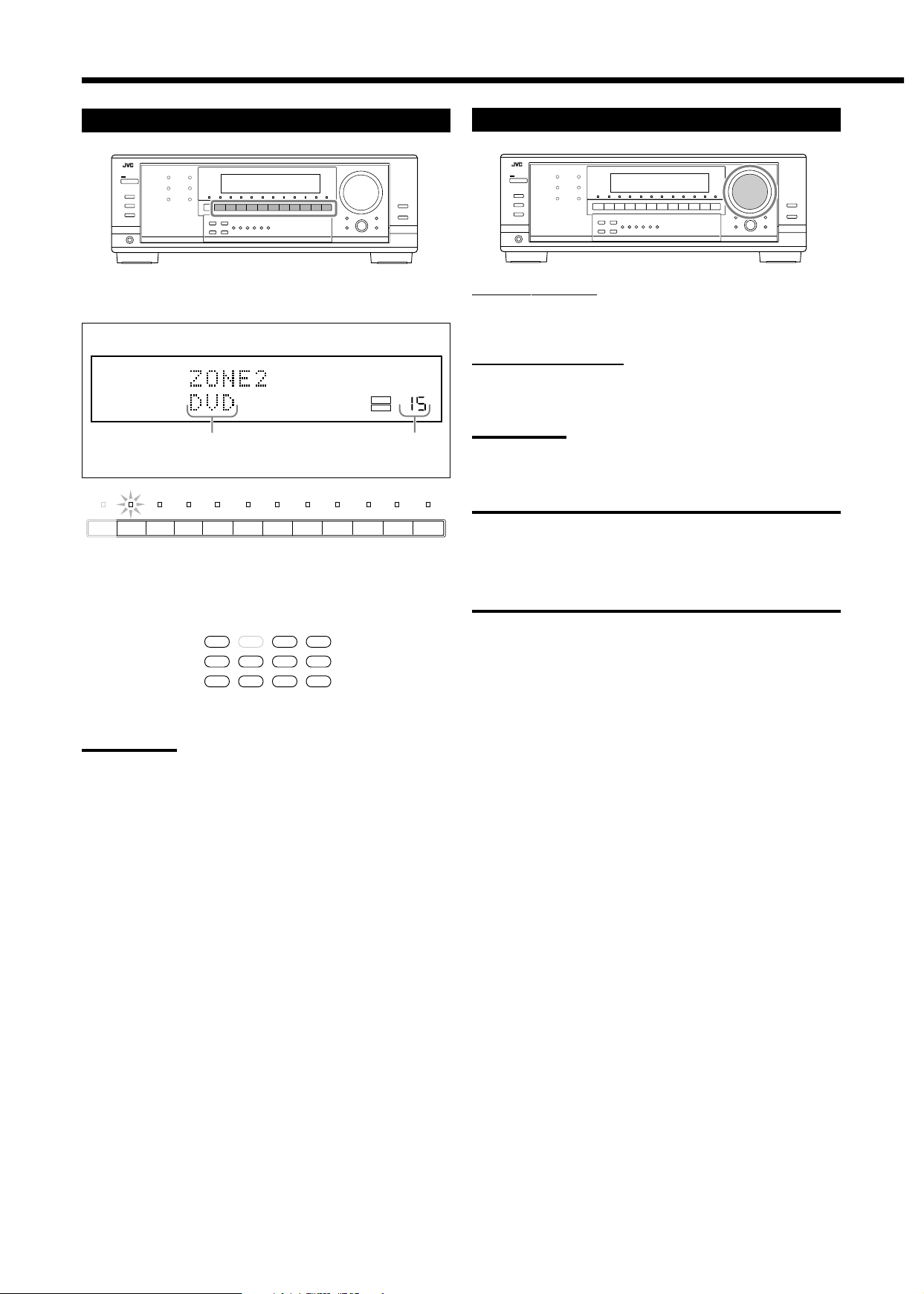

Zone 2 (Sub-room) Operations .................... 26

Turning the Power On and Off (Standby)

and Selecting the Zone 2 Operations ................................. 26

Canceling the Zone 2 Operations ............................................. 27

Selecting the Zone 2 Source to Play ........................................ 28

Adjusting the Zone 2 Volume................................................... 28

Activating the Zone 2 Front Speakers ...................................... 29

Muting the Zone 2 Sound ......................................................... 29

Receiving Radio Broadcasts ........................ 30

Tuning in to Stations Manually ................................................ 30

Using Preset Tuning ................................................................. 31

Selecting the FM Reception Mode ........................................... 31

Basic Settings ........................................... 32

Quick Speaker Setup ................................................................ 32

Basic Setting Items ................................................................... 33

Basic Procedure ........................................................................ 34

Setting the speakers ........................................................... 34

Setting the speaker distance ............................................... 35

Setting the bass sounds ...................................................... 35

Selecting the main or sub-channel ..................................... 36

Setting the digital input terminals ...................................... 37

Setting the component video input .................................... 38

Setting the Zone 2/Speakers 2 ........................................... 38

Memorizing the volume level for each source ................... 38

Adjusting Sound ........................................ 39

Basic Adjustment Items ............................................................ 39

Basic Procedure ........................................................................ 40

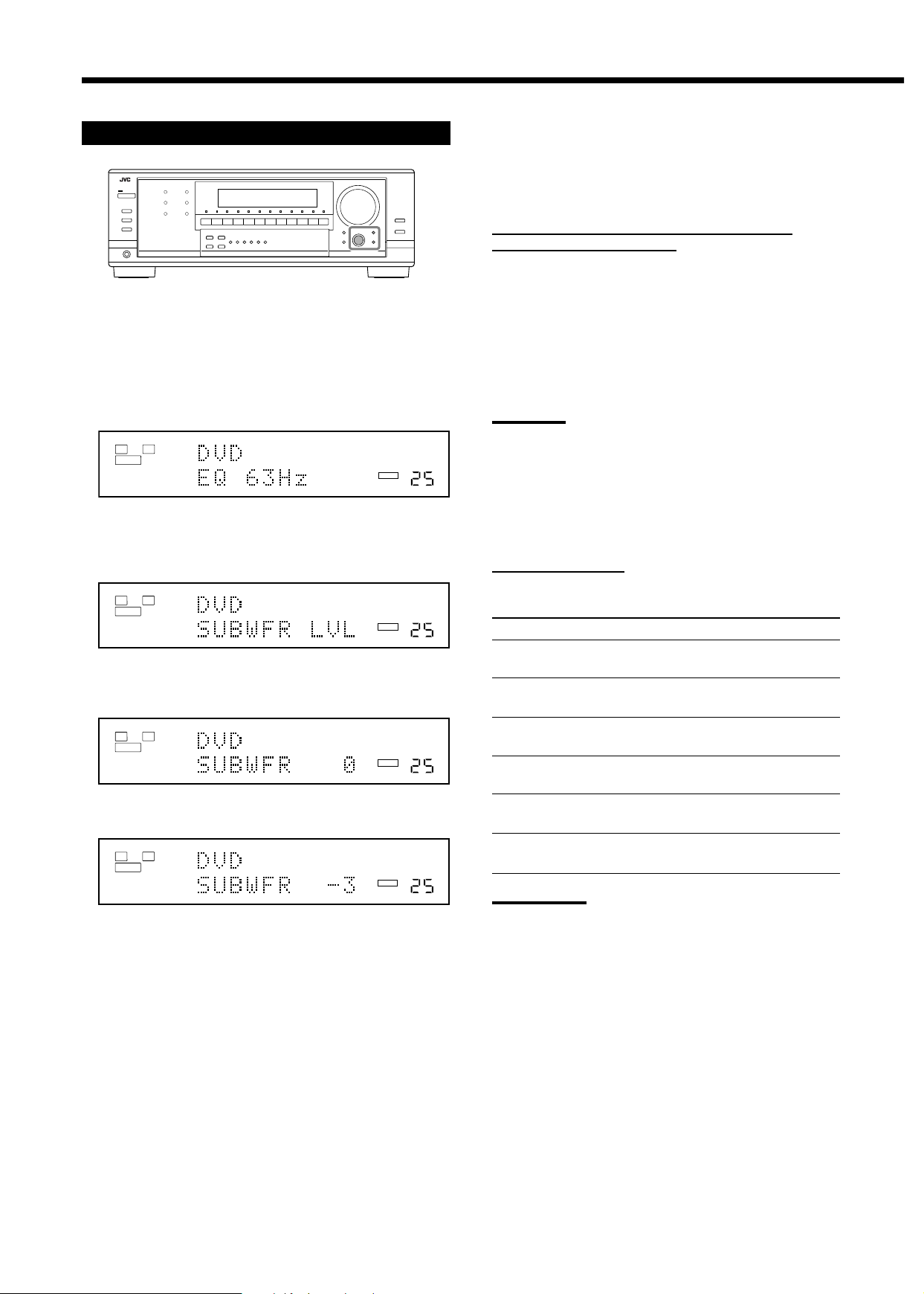

Adjusting the equalization patterns .................................... 40

Adjusting the speaker output levels ................................... 40

Adjusting the sound parameters

for the Surround and DSP modes ................................ 41

Using the Surround Modes ..........................

Reproducing Theater Ambience ................................................ 42

Introducing the Surround Modes ............................................. 42

Activating the Surround Modes ............................................... 44

7 Activating the Surround modes ........................................ 44

7 Activating the EX/ES/PLIIx setting .................................. 45

Surround Modes Applicable to the Various Software .............. 46

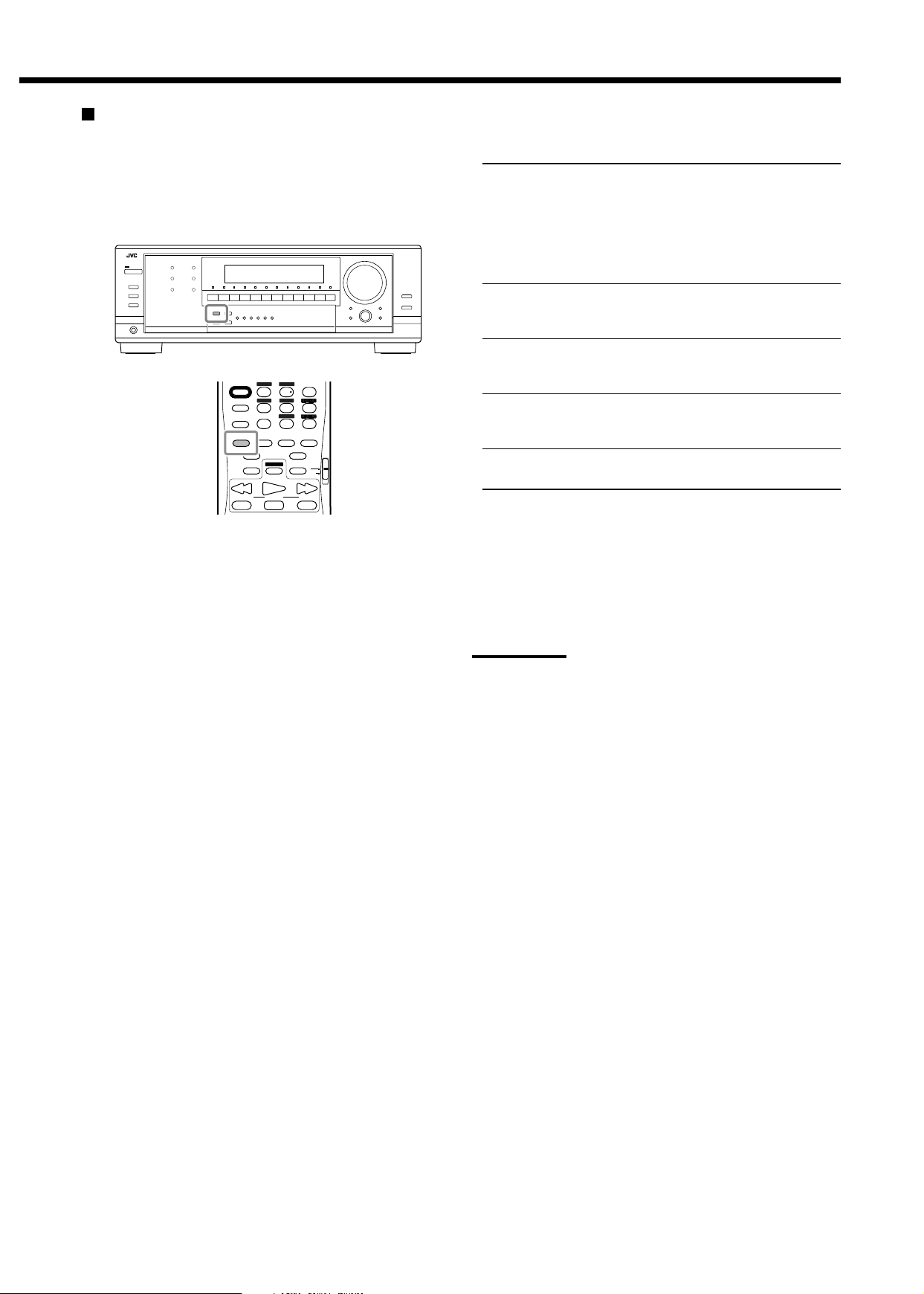

Using the DSP Modes ................................ 48

Reproducing the Sound Field ................................................... 48

Introducing the DSP Modes ..................................................... 48

Activating the DSP Modes ....................................................... 49

Using the DVD MULTI Playback Mode .......... 50

Activating the DVD MULTI Playback Mode .......................... 50

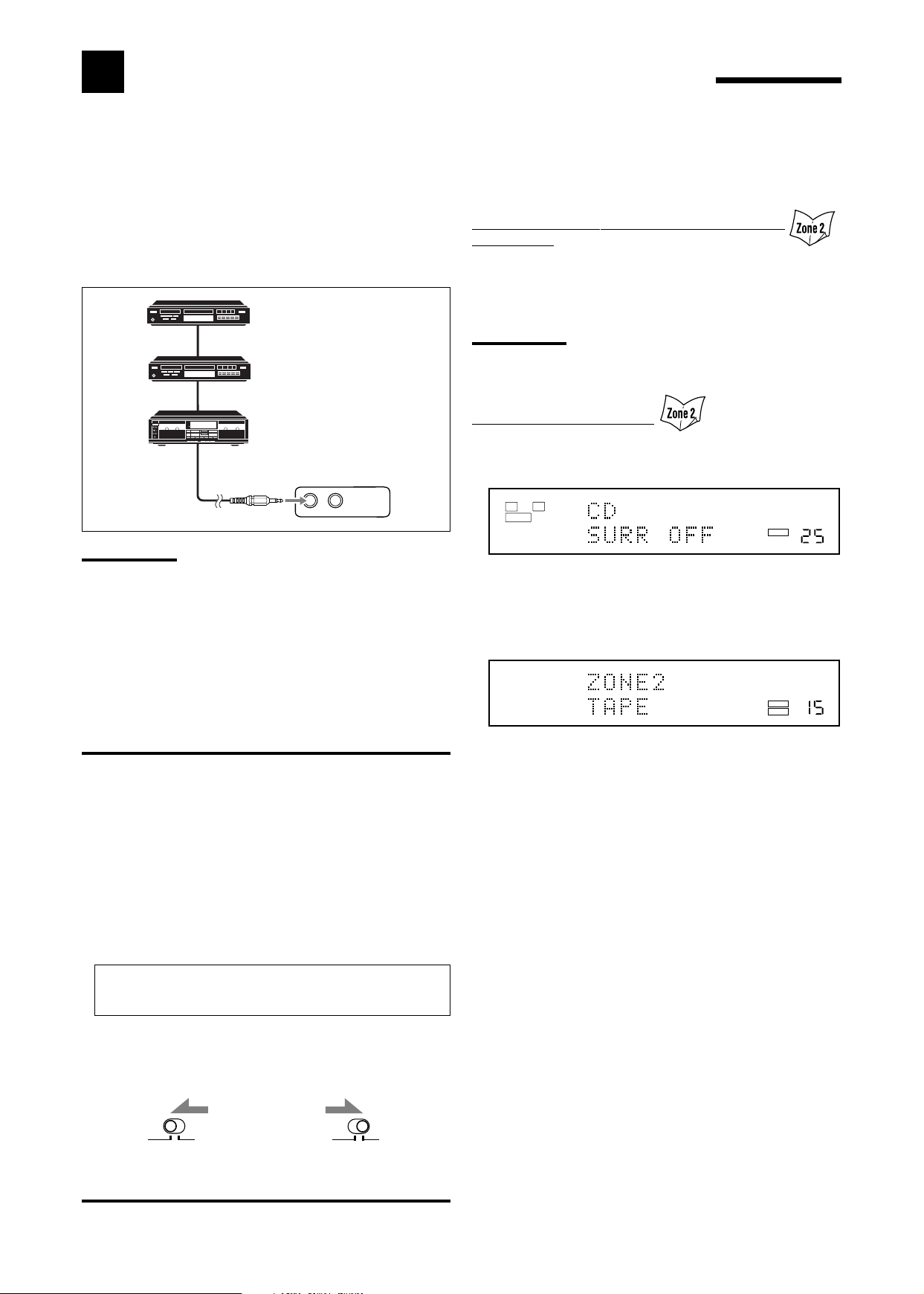

COMPU LINK Remote Control System ......... 51

AV COMPU LINK Remote Control System .... 53

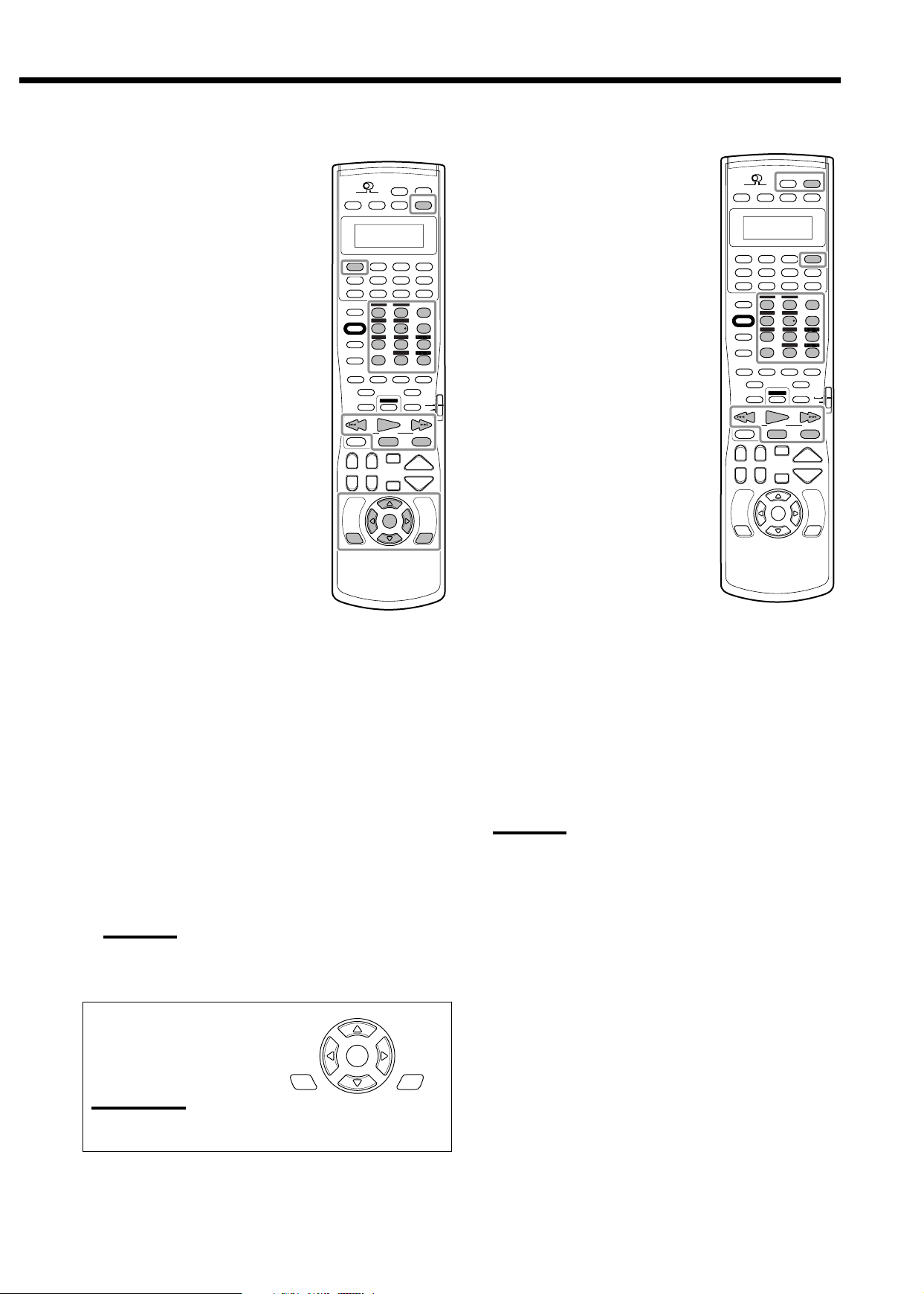

Operating JVC’s Audio/Video Components ... 56

Operating Audio Components .................................................. 56

Operating Video Components .................................................. 58

Operating Other Manufacturers’

Equipment ............................................ 59

Remote

NOT

This mark indicates that ONLY the remote control CAN be used for the operation explained.

This mark indicates that the remote control CANNOT be used for the operation explained. Use the buttons and controls on the front panel.

Troubleshooting ......................................... 63

Specifications ............................................ 65

Indicates the functions YOU CAN ALSO USE when the receiver is ready for Zone 2 operations.

Parts Identification

Remote Control

ZONE 1

ON/OFF ON/OFF

3 4

DVD

6 7

8 9

p q

VCR 1 VCR 2

ANALOG/DIGITAL

SOUND

BASS BOOST

MIDNIGHT

MODE

EX/ES/PLIIx

CC CONVERTER

w e

DOWN UP

REC

TV VOL

TOP

Remote’s display window

ZONE 1 ZONE 2

AUDIO POWER

STANDBY

ZONE 2

TV/CATV/DBS DVD

POWER POWER

ZONE 1 ZONE 2

DVD MULTI

PHONO

TAPE/MD

FMVIDEOTV/DBS

123

456

TEST

RETURN

FM MODE

DSP SURR / DSPSURROUND

ANALOG DIRECT

SLEEP DIMMER

/ REW

PLAY

TUNING

STOP PAUSE

TV/VIDEO

CHANNEL

MUTING

ENTER

RM-SRX8040J

REMOTE CONTROL

A/V CONTROL RECEIVER

CDR

EFFECT

LIVENESS

100

OFF

FF/

VOLUME

100

CATV/

Refer to the pages in parentheses for details.

1 ZONE 1/ZONE 2 selector 2 ZONE 1 ON/OFF button (19, 52, 55, 56)

y u

i o

3 ZONE 2 ON/OFF button (27, 52, 55, 56) 4 Display window 5 Source selection buttons

(17, 18, 20 – 22, 28, 30, 31, 50, 56 – 61)

DVD, DVD MULTI, PHONO, CD, VCR 1, VCR 2, TAPE/MD, CDR, TV/DBS, VIDEO, FM, AM

6 ANALOG/DIGITAL button (22, 56) 7 SOUND button (41, 56) 8 BASS BOOST button (24, 56) 9 MIDNIGHT MODE button (23, 56) p EX/ES/PLIIx button (45, 56) q SURROUND button (44, 47, 56)

;

w CC CONVERTER button (23, 56) e SLEEP button (25, 56) r CONTROL button (56 – 58)

DBS

a s

Operating buttons for audio/video components (57, 58, 60, 61)

4/REW, PLAY, FF/¢, ¶ REC, STOP, PAUSE

Operating buttons for tuner (30, 56)

TUNING UP/DOWN

TV VOL (volume) +/– buttons (58, 59) CHANNEL +/– buttons (58 – 60) TV/VIDEO button (58, 59)

t Operating buttons for DVD player (58, 61)

TOP MENU, MENU, ENTER, #, @, %, ﬁ

y AUDIO POWER ON button (17 – 19, 27, 52, 55, 56, 61) u AUDIO POWER STANDBY button (19, 27, 52, 55, 56) i DVD POWER button (53, 58, 60, 61) o TV/CATV/DBS POWER button (58 – 60) ; 10 keys for selecting preset channels (31, 56)

10 keys for operating audio/video components (56 – 61) Sound and DSP effects adjustment buttons (41, 56)

a SURR/DSP OFF button (44, 49, 56) s DSP button (48, 49, 56) d ANALOG DIRECT button (23, 56) f TV-CATV/DBS operation mode selector (58 – 60) g DIMMER button (24, 56) h VOLUME +/– buttons (17, 18, 21, 24, 28, 29, 56) j MUTING button (24, 29, 56)

Remote’s display window

1 ZONE 1 indicator

Lights up when you press a button on the remote control, with the ZONE 1/ZONE 2 selector set to “ZONE 1.” This remote control can be used only for Zone 1 operations.

2 ZONE 2 indicator

Lights up when you press a button on the remote control, with the ZONE 1/ZONE 2 selector set to “ZONE 2.” This remote control can be used only for Zone 2 operations.

3 Signal transmission indicator

Lights up when transmitting the remote control signals.

4 Remote control main display

Remote control operation mode such as “DVD,” “CD,” “SOUND,” etc. appear. When the remote control operation mode is changed, the mode appears on this display for about 2 hours.

Front Panel

STANDBY

STANDBY/ON

SPEAKERS ON/OFF

2 / ZONE 2

SUBWOOFER OUT ON/OFF

PHONES

w e

ZONE 1 ON/OFF

ZONE 2 ON/OFF

ZONE 2

CONTROL

5 73 8 9 p q

SURROUND

DSP

SURROUND / DSP

OFF

EX / ES / PL x

INPUT

ANALOG

INPUT ATT

DVDDVD MULTI AMFMTAPE/MDCDRCDPHONO

MIDNIGHT

MODE

FM/AM TUNING FM/AM PRESET FM MODE MEMORY

INPUT

DIGITAL

TUNER CONTROL

TV SOUND

VIDEOVCR 2VCR 1

/DBS

PUSH– OPEN

VIDEO L—AUDIO—R

S-VIDEODIGITAL

VIDEO

SETTING ADJUST

QUICK SPEAKER

SETUP

y u

MASTER VOLUME

MULTI JOG

PUSH SET

CC CONVERTER

ANALOG DIRECT

EXIT

i o ;

a s d f g h

How to open the front door

Display

2 3 4 5 6 97

Inside the front door

Press down on PUSH-OPEN.

0 - = ~ ! @

DUAL DIGITAL

ANALOG 96/24 MULTI

SUBWFR

LS RS

LFE

AUTO

LINEAR PCM

DIGITAL

TUNED STEREO

PRO LOGIC

NEO:6

D. EQ

DSP

AUTO MUTING

3D - PHONIC

# $ % ^ & * (

ONE TOUCH OPERATION

VIRTUAL SB

MIDNIGHT MODE

HEADPHONE SPEAKERS 1 2 ZONE 2

INPUT ATT

ZONE 1

ZONE 2

SLEEP

B. BOOST

VOLUME

+) ¡

Refer to the pages in parentheses for details.

Front Panel

1 STANDBY/ON button and STANDBY lamp (17 – 19,

26, 27, 52, 55)

2 SPEAKERS ON/OFF 1 button (17, 21)

SPEAKERS ON/OFF 2/ZONE 2 button (17, 29)

3 ZONE 1 ON/OFF button (19, 25, 38, 52, 55)

ZONE 2 ON/OFF button (18, 26, 27, 52, 55) ZONE 2 CONTROL button (18, 25 – 27, 38)

4 DSP button (48, 49) 5 SURROUND button (44, 47) 6 SURROUND/DSP OFF button (44, 49) 7 Remote sensor 8 Display 9 Source selection buttons and source indication lamps

(17, 18, 20 – 22, 24, 28, 30, 31, 50)

DVD MULTI, DVD, VCR 1, VCR 2, VIDEO, TV SOUND/DBS, PHONO, CD, CDR, TAPE/MD, FM, AM

p MASTER VOLUME control (17, 18, 21, 24, 28, 29) q CC CONVERTER button and lamp (23) w SUBWOOFER OUT ON/OFF button (22) e PHONES jack (21) r Front door t SETTING button (34) y QUICK SPEAKER SETUP button (32) u MULTI JOG control (32, 34, 40)

PUSH SET button (32, 34, 40)

i EXIT button (34, 40) o ADJUST button (40) ; ANALOG DIRECT button and lamp (23) a EX/ES/PLIIx button (45) s INPUT ANALOG button (22)

INPUT ATT button (23)

d MIDNIGHT MODE button (23) f INPUT DIGITAL button (22) g TUNER CONTROL buttons

FM/AM TUNING 5 / ∞ buttons (30) FM/AM PRESET 5 / ∞ buttons (31) FM MODE button (31) MEMORY button (31)

h VIDEO input jacks (11)

DIGITAL optical terminal, S-VIDEO jack, VIDEO jack, AUDIO L/R jacks

Display

1 DUAL indicator (43) 2 ANALOG indicator (22) 3 DIGITAL AUTO indicator (22) 4 96/24 indicator (43) 5 MULTI indicator (50) 6 NEO:6 indicator (43) 7 TUNED indicator (30) 8 STEREO indicator (30, 31)

PRO LOGIC indicator (42)

PRO LOGIC II indicator (42)

0 AUTO MUTING indicator (31)

- VIRTUAL SB (surround back) indicator (43, 47) = ONE TOUCH OPERATION indicator (38) ~ SLEEP indicator (25) ! MIDNIGHT MODE indicator (23) @ B. BOOST (bass boost) indicator (24) # Speaker and signal indicators (20) $ Digital signal format indicators (22, 42, 43) % Main display ^ D.EQ (digital equalization) indicator (40) & DSP indicator (21, 47, 48) * 3D-PHONIC indicator (43, 47, 48) ( HEADPHONE indicator (21, 47, 48) ) ZONE 1/ZONE 2 indicators (17 – 19, 26, 27, 51, 52, 54, 55) _ INPUT ATT (attenuator) indicator (23) + VOLUME level indicator (17 – 19, 21, 24, 26, 29) ¡ SPEAKERS 1/2/ZONE 2 indicators (19, 21, 26, 29)

Rear Panel

DIGITAL IN

DVD

DIGITAL 1 (DVD)

(REC)

DIGITAL 2 (CD)

TAPE

(PLAY)

DIGITAL 3 (TV)

(REC)

DIGITAL 4 (CDR)

CDR

(PLAY)

PCM/ DOLBY DIGITAL

PHONO

/ DTS

DIGITAL OUT

ZONE 2

PRE OUT

w e

SUBWOOFER CENTER

SURR

OUT

/ MD

OUT

RIGHT LEFT

3456 p

FRONT

TV SOUND

/ DBS

VCR 1

VCR 2

MONITOR

(REC)

(PLAY)

(REC)

(PLAY)

VIDEO

S-VIDEO

DVD

OUT

ANTENNA

AM EXT

FM 75

COAXIAL

1 SPEAKER

See Instruction Manual For Connection

AUDIO

Refer to the pages in parentheses for details.

1 DIGITAL IN terminals (14)

Coaxial: DIGITAL 1 (DVD) Optical: DIGITAL 2 (CD), DIGITAL 3 (TV),

DIGITAL 4 (CDR)

2 AUDIO input/output jacks (10 – 13, 50)

Input: DVD IN, TV SOUND/DBS IN, VCR 1 IN

(PLAY), VCR 2 IN (PLAY), CD IN, TAPE/MD IN (PLAY), CDR IN (PLAY), PHONO IN

Output: VCR 1 OUT (REC), VCR 2 OUT (REC),

TAPE/MD OUT (REC), CDR OUT (REC)

3 S-VIDEO and VIDEO (composite) input/output jacks

(12, 13, 50)

Input: DVD IN, TV SOUND/DBS IN,

VCR 1 IN (PLAY), VCR 2 IN (PLAY)

Output: VCR 1 OUT (REC), VCR 2 OUT (REC),

MONITOR OUT

4 ANTENNA terminals (7)

SURR CENTER

SURR BACK

LOOP

CAUTION : SPEAKER IMPEDANCE

–

2 SPEAKERS

SURROUND BACK SPEAKERS

PREOUT

SUBWOOFER

FRONT

MONITOR

OUT

816

LEFT

RIGHT

SURROUND SPEAKERS

COMPONENT VIDEO

CENTER

SPEAKER

DVD

DBS

(VCR1)

RIGHT

FRONT1 SPEAKERS

IR OUT

LEFT

uytr

RF REMOTE

ANTENNA

COMPULINK-4

(SYNCHRO)

COMPULINK-

RIGHT

FRONT2 / ZONE2 SPEAKERS

LEFT

CAUTION : SPEAKER IMPEDANCE

FRONT1 OR FRONT2 :

FRONT1 AND FRONT2 :

–

ZONE2 :

5 PREOUT jacks (8, 9) 6 COMPONENT VIDEO input/output jacks (12, 13, 50)

Input: DVD IN, DBS (VCR 1) IN Output: MONITOR OUT

7 COMPULINK-4 (SYNCHRO) jacks (51) 8 RF REMOTE ANTENNA terminal and IR OUT terminal

(14, 15, 53)

9 AV COMPULINK-III jacks (53) p AC power cord (15) q DIGITAL OUT (PCM/DOLBY DIGITAL/DTS) terminal

(14)

w Earth (ground) terminal (10) e ZONE 2 PREOUT jacks (16) r SURROUND BACK SPEAKERS terminals (8) t SURROUND SPEAKERS terminals (8) y CENTER SPEAKER terminals (8) u FRONT1 SPEAKERS terminals (8) i FRONT2/ZONE2 SPEAKERS terminals (8, 16)

Getting Started

This section explains how to connect audio/video components and speakers to the receiver, and how to connect the power supply.

Do not connect the AC power cord until all other connections have been made.

Checking the Supplied Accessories

Check to be sure you have all of the following items, which are supplied for the receiver. The number in parentheses indicates the quantity of pieces supplied.

• Remote Control (1)

• Batteries (2)

• AM Loop Antenna (1)

• FM Antenna (1)

• RF Rod Antenna (1)

• IR Signal Transmitter (1)

• Double-sided Adhesive Tape (1)

If anything is missing, contact your dealer immediately.

Connecting the FM and AM Antennas

FM antenna connections

FM 75

AXIAL

Extend the supplied FM antenna horizontally.

FM 75

COAXIAL

AM antenna connections

Assemble the supplied AM loop antenna as follows:

Snap the tabs on the loop into the slots of the base to assemble the AM loop antenna.

Turn the loop until you have the best reception.

AM Loop Antenna (supplied)

AM EXT

FM 75

COAXIAL

ANTENNA

LOOP

ANTENNA

FM Antenna (supplied)

AM EXT

LOOP

Outdoor FM Antenna Cable (not supplied)

FM 75

COAXIAL

Connect the supplied FM antenna as temporary measure to the FM 75 Ω COAXIAL terminal—A

If reception is poor, connect the outdoor FM antenna (not supplied)—B

1. Disconnect the supplied FM antenna.

2. Connect a 75 Ω coaxial cable (with the standard type connector).

Outdoor single vinyl-covered wire (not supplied)

Notes:

• If the AM loop antenna wire is covered with vinyl, remove the vinyl by twisting it as illustrated.

• Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord. This could cause poor reception.

• If reception is poor, connect an outdoor single vinyl-covered wire (not supplied) to the AM EXT terminal. (Keep the AM loop antenna connected.)

Connecting the Speakers and Subwoofer

SURR BACK

SURR CENTER

FRONT

SUBWOOFER

PREOUT

Speaker connections

You can connect the following speakers:

• Two pairs of front speakers.

• One pair of surround speakers.

• One pair of surround back speakers.

• One center speaker.

• One powered subwoofer.

CAUTION:

• Use only the speakers of the SPEAKER IMPEDANCE indicated by the speaker terminals. – When using only one pair of front speakers in Zone 1:

Connect the speakers with an impedance of 8 Ω to 16 Ω, and set the “FRONT SPEAKER2” (see page 38) to “FRONT SPK2:SPK2”.

– When using two pairs of front speakers separately in Zone 1

and Zone 2:

Connect the speakers with an impedance of 8 Ω to 16 Ω, and set the “FRONT SPEAKER2” (see page 38) to “FRONT SPK2:ZONE2”.

– When using two pairs of front speakers only in Zone 1:

Connect the speakers with an impedance of 16 Ω to 32 Ω, and set the “FRONT SPEAKER2” (see page 38) to “FRONT SPK2:SPK2”.

• Do not connect more than one speaker to each speaker terminal.

For each speaker (except for a subwoofer), connect the (+) and (–) terminals on the rear panel to the (+) and (–) terminals marked on the speakers.

IGHT

T 1 S

PEAKERS

RIGH

LEFT

ONT 1 SPEAK

RIG

FRON

T 1 SPE

LEFT

ERS

LEFT

AKERS

1. Cut, twist, and remove the insulation at the end of each speaker signal cable (not supplied).

2. Turn the knob counterclockwise.

3. Insert the speaker signal cable.

4. Turn the knob clockwise.

IMPORTANT:

After connecting the speakers, set the speaker installation information properly. You can use Quick Speaker Setup for it (see page 32).

• To obtain the best possible Surround/DSP effect, see “Setting the

Speakers” on page 34.

Surround speakers

Surround back speakers

Right / Left

Center speaker

CAUTION : SPEAKER IMPEDANCE

1 SPEAKER

See Instruction Manual For Connection

When using only one surround back speaker, connect the speaker

as follows:

–

2 SPEAKERS

SURROUND BACK SPEAKERS

816

RIGHT

LEFT

SURROUND SPEAKERS

CAUTION : SPEAKER IMPEDANCE

Front speakers 1

Right / Left

Front speakers 2

Right / Left

CAUTION : SPEAKER IMPEDANCE

FRONT1 OR FRONT2 :

FRONT1 AND FRONT2 :

–

CENTER

SPEAKER

RIGHT

LEFT

FRONT1 SPEAKERS

RIGHT

FRONT2 / ZONE2 SPEAKERS

LEFT

Connecting the subwoofer

You can enhance the bass by connecting a subwoofer. Connect the input jack of a powered subwoofer to the rear panel, using a cable with RCA pin plugs (not supplied).

ZONE2 :

Surround back

speaker

1 SPEAKER

See Instruction Manual For Connection

–

2 SPEAKERS

SURROUND BACK SPEAKERS

Powered Subwoofer

Zone 1 speaker layout

Ideal speaker layout varies depending on the conditions of your listening room. The diagram below is a recommended typical example.

Subwoofer

Enhance your audio system

You can use this receiver as the pre-amplifier (control amplifier) when you connect power amplifiers to the PREOUT jacks on the rear panel, using cables with RCA pin plugs (not supplied).

• Connect the white plug to the audio left jack, and the red plug to

the audio right jack.

Left front speaker(s)

(L)

Left surround speaker (LS)

CAUTION:

Do not place the center speaker on the TV. If you do so, the center speaker may cause various troubles to the TV (for example, color unevenness). Moreover, it may hurt you by its falling from the TV.

Center speaker

(C)

Right front speaker(s)

Right surround

speaker (RS)

Surround back speakers (SB)

(R)

Placing speakers

Front speakers (L/R) and center speaker (C)

• Place these speakers at the same height from the floor, at or near ear level.

• Array across the front of the viewing area.

Surround speakers (LS/RS) and surround back speakers (SB)

• Place these speakers at a position which is 60 cm to 90 cm (2 ft to 3 ft) higher than the listener’s ears.

• Point these speakers directly across the listening area, but not at the listener’s ears.

Subwoofer

• You can place it wherever you like since bass sound is nondirectional. Normally place it in front of you.

Subwoofer

Left front speaker

Power amplifier

Left surround

speaker

Power amplifier

SURR BACK

SURR CENTER

Power amplifier

Center speaker

PREOUT

SUBWOOFER

Right front speaker

FRONT

Right surround

speaker

LS RS

SB*

* When only one speaker is connected for

the surround back speaker.

Note:

Ideal speaker layout requires that all speakers be placed at the same distance from the listener. However, since in some places it may be difficult to fulfil this requirement, this receiver can adjust the delay time so that the sounds through all the speakers reach the listener with the same timing. (See page 35.)

Surround back speakers

When using only one surround back speaker, connect the speaker

as follows:

Power amplifier

SURR BACK

Surround back speaker

Connecting Audio/Video Components

When connecting individual components, refer also to the manuals supplied with them.

Analog connections

If your audio components have digital audio output terminal, connecting them using the digital cords explained in “Digital connections” (see page 14).

Audio component connections

Use the cables with RCA pin plugs (not supplied).

• Connect the white plug to the audio left jack, and the red plug to

the audio right jack.

If your audio components have a COMPULINK jack

See also page 51 for detailed information about the connection and the COMPULINK remote control system.

CAUTION:

If you connect a sound-enhancing device such as a graphic equalizer between the source components and this receiver, the sound output through this receiver may be distorted.

CD player

To audio output

CD recorder

CD player

Right / Left

Turntable

Right / Left

PHONO

Turntable

If a ground cable is provided for your turntable, connect the cable to the screw marked (H) on the

To audio output

rear panel.

Note:

This connection is for the turntable with an MM (moving-magnet) type cartridge. Any turntables incorporating a small-output cartridge such as an MC (moving-coil) type must be connected to this receiver through a commercial head amplifier or step-up transformer. Direct connection may result in insufficient volume.

To audio input

CD recorder

To audio output

Right / Left

OUT

(REC)

CDR

(PLAY)

Cassette deck

You can connect either a cassette deck or an MD recorder to the TAPE/MD jacks. When connecting an MD recorder, see below.

Cassette deck

To audio input To audio output

Right / Left

OUT

(REC)

TAPE

/ MD

(PLAY)

MD recorder

You can connect either an MD recorder or a cassette deck to the TAPE/MD jacks. When connecting a cassette deck, see above.

Video component connections

Use the cables with RCA pin plugs (not supplied). Connect the white plug to the audio left jack, the red plug to the audio right jack, and the yellow plug to the video jack.

• If your video components have S-video (Y/C-separation) and/or component video (Y, P

B, PR) terminals, connect them using an S-

video cable (not supplied) or component video cable (not supplied). By using these jacks, you can get better picture quality in the order:

Component video > S-video > Composite video

• If your video components have digital audio output terminal, connect them using the digital cords explained in “Digital connections” (see page 14).

If your video components have an AV COMPULINK jack

See also page 53 for detailed information about the connection and the AV COMPULINK remote control system.

IMPORTANT:

This receiver is equipped with the following video jacks—composite video, S-video and component video jacks. You can use any of the three to connect a video component. However, the video signals from one type of these input jacks are

transmitted only through the video output jacks of the same type.

Therefore, if a recording video component and a playing video component are connected to the receiver through the video jacks of different type, you cannot record the picture. In addition, if the TV and a playing video component are connected to the receiver through the video jacks of different type, you cannot view the playback picture on the TV.

MD recorder

To audio input

To audio output

Right / Left

OUT

(REC)

TAPE

/ MD

(PLAY)

Note:

When connecting an MD recorder to the TAPE/MD jacks, change the source name to “MD,” which will appear on the display when it is selected as the source. See page 24 for details.

Video camera

The VIDEO input jacks on the front panel (inside the front door) are convenient when connecting and disconnecting the component frequently.

To audio output

To composite video output

To S-video output

S-VIDEODIGITAL

VIDEO L—AUDIO—R

VIDEO

To optical digital output

Video camera

Note:

When using the digital input terminal, select the digital input mode correctly. For details, see “Selecting the Analog or Digital Input Mode” on page 22.

VCR(s)

You can connect two VCRs—one to the VCR 1 jacks and the other to the VCR 2 jacks.

• If your VCR has an AV COMPU LINK jack, connect it to the VCR 1 jacks so that you can use the AV COMPU LINK remote control system.

Å To audio input ı To audio output Ç To S-video output Î To composite video output ‰ To S-video input Ï To composite video input Ì To component video output

A B

VCR

DBS

(VCR1)

Right / Left

VCR 1

VCR 2

OUT

(REC)

(PLAY)

OUT

(REC)

(PLAY)

TV and/or DBS tuner

MONITOR

OUT

Right / Left

TV SOUND

DBS

When connecting

the TV to the AUDIO jacks (TV SOUND/DBS IN), DO NOT connect the TV’s video

output to these video input jacks.

MONITOR

OUT

Connect the TV to appropriate MONITOR OUT jacks to view the playback picture from any other connected video components.

Å To audio output ı To component video input Ç To S-video input Î To composite video input

Note:

When connecting a VCR to component video input jacks, make the component video input setting (VIDEO IN VCR1) correctly. See page 38 for details.

DBS

(VCR1)

Right / Left

DBS

DBS tuner

TV SOUND

DBS

Å To audio output ı To component video output Ç To S-video output Î To composite video output

Notes:

• When connecting a DBS tuner to the TV SOUND/DBS IN jacks, change the source name to “DBS,” which will appear on the display when it is selected as the source. Otherwise, you cannot view any picture from DBS tuner. See page 24 for details.

• When connecting a DBS tuner to component video input jacks, make the component video input setting (VIDEO IN DBS) correctly. See page 38 for details.

DVD player

To enjoy Dolby Digital and DTS multi-channel software (including Dual Mono software), connect the DVD player through the digital or analog discrete (DVD MULTI) terminals.

• When you connect a DVD player with stereo output jacks:

COMPONENT VIDEO

DVD

SUBWOOFER CENTER

DVD

SURR

AUDIO

RIGHT LEFT

DVD

FRONT

VIDEO

S-VIDEO

DVD player

DVD

Å To component video output ı To S-video output Ç To composite video output Î To left/right front channel audio output (or to audio-

mixed output if necessary)

Note:

When connecting a DVD player to the component video input jacks, make the component video input setting (VIDEO IN DVD) correctly. See page 38 for details.

• When you connect a DVD player with its analog discrete

output (5.1-channel reproduction) jacks:

This connection is the best connection method for enjoying DVD Audio sounds.

• When a DVD Audio disc is played back, the original highquality sounds can be reproduced only using this connection.

COMPONENT VIDEO

DVD

SUBWOOFER CENTER

DVD

SURR

AUDIO

RIGHT

LEFT

DVD

FRONT

VIDEO

S-VIDEO

DVD player

DVD

E F G

Å To component video output ı To subwoofer output Ç To center channel audio output Î To S-video output ‰ To composite video output Ï To left/right front channel audio output Ì To left/right surround channel audio output

Note:

When connecting a DVD player to the component video input jacks, make the component video input setting (VIDEO IN DVD) correctly. See page 38 for details.

Digital connections

This receiver is equipped with four DIGITAL IN terminals on the rear panel—one digital coaxial terminal and three digital optical terminals—and one DIGITAL OUT (optical) terminal on the rear panel. Another digital optical input terminal is located on the front panel (see page 11).

IMPORTANT:

• When connecting video components using the digital terminals, you also need to connect it to the video jacks on the rear panel. Otherwise, you cannot view any playback picture.

• After connecting the components using the DIGITAL IN terminals, set the following correctly if necessary. – Set the digital input (DIGITAL IN) terminal setting correctly. For details,

see “Setting the digital input terminals” on pages 37.

– Select the digital input mode correctly. For details, see “Selecting

the Analog or Digital Input Mode” on page 22.

Digital input terminals

You can connect any digital components having coaxial or optical digital output terminal.

Digital coaxial cable (not supplied) between digital coaxial terminals

Digital output terminal

You can connect any digital components which have an optical digital input terminal.

Digital optical cable (not supplied) between digital optical terminals

When the digital recording equipment such as a CD recorder has a digital optical input terminal, connecting it to the DIGITAL OUT terminal enables you to perform digital-to-digital recording.

PCM/ DOLBY DIGITAL / DTS

DIGITAL OUT

Note:

The digital signal format transmitted through the DIGITAL OUT terminal is the same as that of the input signal. This means that when the DTS signals are input, the DTS signals are transmitted.

Connecting the RF Rod Antenna and IR Signal Transmitter

Digital optical cable (not supplied) between digital optical terminals

When the component has a digital

DIGITAL IN

coaxial output terminal, connect it to the DIGITAL 1 (DVD) terminal, using a digital coaxial cable (not supplied).

DIGITAL 1 (DVD)

When the component has a digital optical output terminal, connect it to the DIGITAL 2 (CD), DIGITAL 3 (TV) or

DIGITAL 2 (CD)

DIGITAL 4 (CDR) terminal, using a digital optical cable (not supplied).

DIGITAL 3 (TV)

Before connecting a digital optical cable, unplug the protective plug.

DIGITAL 4 (CDR)

Notes:

• When shipped from the factory, the DIGITAL IN terminals have

been set for use with the following components: – DIGITAL 1 (coaxial): For DVD player – DIGITAL 2 (optical): For CD player – DIGITAL 3 (optical): For digital TV broadcast tuner – DIGITAL 4 (optical): For CD recorder

• When you want to operate a CD player, a CD recorder, and/or an

MD recorder using the COMPULINK remote control system (see page 51), connect the target components with both digital and analog connections (see pages 10 and 11).

• When you want to operate a DVD player, a VCR, and/or a TV using

the AV COMPULINK remote control system (see page 53), connect the target components with both digital and analog connections (see pages 12 and 13).

The combination of the RF rod antenna and the IR signal transmitter allows you to use the multi-room function more conveniently. The remote control supplied with this receiver can transmit both RF and IR signal at the same time. This receiver catches the RF signals emitted from the remote control, and converts them into IR signals, then transmits the converted signals to the remote sensors on the other components through the IR signal transmitter. This means that you can control not only this receiver but also other components from Zone 2.

Setting up the RF rod antenna

The remote control supplied with this receiver can transmit RF (Radio Frequency) signals as well as IR (infrared) signals. The RF rod antenna can receive the RF signals emitted from the remote control. So, with the RF rod antenna connected, you can operate the receiver at a distance of up to 15 m (50 feet) using RF signals sent from this receiver (more than twice as far as when using IR signals). Moreover, RF signals can go through walls and other objects in the house so you need not aim at the receiver directly. However, if the antenna cannot receive signals stably, you cannot operate the receiver correctly.

• Without the RF rod antenna connected, you can operate the receiver with the remote control, aiming the remote control directly at the remote sensor on the receiver.

IR OUT

RF REMOTE

ANTENNA

IR OUT

RF REMOTE

ANTENNA

1. Insert the RF rod antenna onto the RF REMOTE

ANTENNA terminal.

2. Rotate the fixing nut to attach the RF rod

antenna firmly.

Notes:

• The signal-reachable distance may differ depending on the operating conditions and circumstances. To improve transmitting conditions, change the distance to the receiver and the direction to transmit while operating the remote control.

• To avoid a failure in the reception from the remote control, keep the connecting cables and the IR signal transmitter’s cable away from the RF rod antenna.

Setting up the IR signal transmitter

The IR signal transmitter can retransmit the IR signals. The transmitter allows you to use the AV COMPULINK remote control system, and to operate other manufacturers’ components without aiming the remote control directly at the remote sensors on the target components. In addition, the IR signal transmitter reduces the possibility of malfunction.

• The IR signal transmitter may not operate the target components depending on the operating conditions and circumstances— including the aiming angle and direction of the IR signal transmitter at the remote sensors of the target components. If this occurs, changing its aiming angle and direction at the remote sensors may solve the problem.

Connecting the Power Cord

Before plugging the receiver into an AC outlet, make sure that all connections have been made.

Plug the power cord into an AC outlet.

Keep the power cord away from the connecting cables and the antenna. The power cord may cause noise or screen interference.

Note:

The preset settings such as preset channels and sound adjustment may be erased in a few days in the following cases:

– When you unplug the power cord. – When a power failure occurs.

CAUTIONS:

• Do not touch the power cord with wet hands.

• Do not pull on the power cord to unplug the cord. When unplugging the cord, always grasp the plug so as not to damage the cord.

1. Find a place where you can attach the IR signal transmitter.

• Place the transmitter where the signal can reach the remote

sensor of the target components in a direct line of sight.

• If the cord length of the IR signal transmitter is not long

enough, use an extension cord (not supplied).

2. Attach the double-sided adhesive tape (supplied) to the IR signal transmitter.

IR Signal Transmitter

Double-sided Adhesive Tape

3. Connect the plug of the transmitter to the IR OUT terminal of the receiver and attach the transmitter.

Target component(s)

At an angle of

approx. 60°

Less than 3 m (10 feet)

IR OUT

RF REMOTE

ANTENNA

Putting Batteries in the Remote Control

Before using the remote control, insert the two supplied batteries first.

R6(SUM3) /AA(15F)

1. On the back of the remote control, remove the battery cover.

2. Insert the batteries.

• Make sure to match the polarity: (+) to (+) and (–) to (–).

3. Replace the cover.

If the remote control cannot transmit signals or operate the receiver correctly, replace the batteries. Use two R6(SUM3)/AA(15F) type (alkaline) dry-cell batteries.

Notes:

• When you aim the remote control directly at the remote sensor on

the receiver, you can operate the receiver at a distance of up to 7 m (23 feet).

• After replacing the batteries, set the manufacturers’ codes again

(see pages from 59 to 62).

Signal-emitting angle of the transmitter

Horizontally: 60˚

30° 30°

Vertically: 60˚

15° 45°

CAUTIONS:

Follow these precautions to avoid leaking or cracking cells:

• Place batteries in the remote control so they match the polarity:

(+) to (+) and (–) to (–).

• Use the correct type of batteries. Batteries that look similar may

differ in voltage.

• Always replace both batteries at the same time.

• Do not expose batteries to heat or flame.

Multi-room Operations

Before operating this receiver any further, be familiar with this multi-room function. This function enables you to listen to different sources in two different places (we call these two places “Zone 1 (main room)” and “Zone 2 (sub-room)” by using this receiver.

This section explains only the required speaker connections, the concept, and basic operations of the multi-room function. For more detailed operations, see the respective pages in this manual.

Required Connections for Zone 2

Connect front speakers by using one of the methods described below (either Connection Å or Connection ı).

Zone 2 layout

Left front speaker

Connection Å

Connect the input jacks of another amplifier to the ZONE 2 PREOUT jacks on the rear panel, using a cable with RCA pin plugs (not supplied).

Power amplifier

ZONE 2

PRE OUT

Merit:

This connection DOES allow you to always use the Surround/DSP mode using the center, surround, and surround back speakers (see pages 42 to 49) for the Zone 1 source.

Demerit:

This connection DOES require another amplifier.

To use the Zone 2 front speakers connected through the ZONE 2 PREOUT jacks

Turn on and operate the other amplifier connected to the ZONE 2 PREOUT jacks correctly.

Right front speaker

Connection ı

CAUTION : SPEAKER IMPEDANCE

FRONT1 OR FRONT2 :

ZONE2 :

FRONT1 AND FRONT2 :

–

RIGHT

FRONT1 SPEAKERS

LEFT

RIGHT

FRONT2 / ZONE2 SPEAKERS

LEFT

Merit:

This connection DOES NOT require another amplifier.

Demerits:

• When the Zone 2 speakers are activated, this connection DOES NOT allow you to use the Surround/DSP modes using the center, surround, and surround back speakers (see pages 42 to 49) and the DVD MULTI playback mode (see page 50) for the Zone 1 source.

• When the Surround/DSP modes using the center, surround, and surround back speakers, or when the DVD MULTI playback mode is activated for the Zone 1 source, this connection DOES NOT allow you to use the Zone 2 speakers.

Note:

Usage of long audio cables/long speaker signal cables will deteriorate the signals and degrade the sound quality.

To use the Zone 2 front speakers connected to the FRONT2/ ZONE2 SPEAKERS terminals

See “Setting the Zone 2/Speakers 2 Usage” on page 38, and “Activating the Zone 2 Front Speakers” on page 29.

Note:

Usage of long speaker signal cables will deteriorate the signals and degrade the sound quality.

Basic Operating Procedure for Zone 1

On the remote control:

On the front panel:

1. Press STANDBY/ON.

The STANDBY lamp goes off, and the ZONE 1 indicator lights up on the display. The buttons and controls on the unit work for Zone 1 operations.

• For more details, see “Turning the Power On and Off (Standby)” on page 19.

The last Zone 1 source appears.

The ZONE 1 indicator lights up.

ANALOG

LINEAR PCM

The last Surround/DSP mode appears.

SPEAKERS 1

ZONE 1

The volume level appears.

VOLUME

1. Set ZONE 1/ZONE 2 selector to ZONE 1.

Now the buttons on the remote control work for Zone 1 operations.

2. Press AUDIO POWER ON.

The STANDBY lamp goes off on the front panel, and the ZONE 1 indicator lights up on the unit’s display.

• For more details, see “Turning the Power On and Off (Standby)” on page 19.

2. Press one of the source selection buttons to select a source and start playback.

The sound comes out of the Zone 1 speakers.

• For more details, see “Selecting the Zone 1 Source to Play” on

page 20.

3. If no sound comes out of the front speakers, press SPEAKERS ON/OFF 1 and/or SPEAKERS ON/ OFF 2/ZONE2 which you want to use.

The selected front speaker indicator(s) light(s) up on the display.

• For more details, see “Activating the Zone 1 Front Speakers”

on page 21.

4. Turn MASTER VOLUME to adjust the volume level of the sound through the Zone 1 speakers.

• For more details, see “Adjusting the Zone 1 Volume” on page

21.

3. Press one of the source selection buttons to select a source and starts playback.

The sound comes out of the Zone 1 front speakers.

• For more details, see “Selecting the Zone 1 Source to Play” on

page 20.

• If no sound comes out of the front speakers, press SPEAKERS

ON/OFF 1 and/or SPEAKERS ON/OFF 2/ZONE2 on the front panel. The selected front speaker indicator(s) light(s) up on the unit’s display. For more details, see “Activating the Zone 1 Front Speakers” on page 21.

4. Press VOLUME +/– to adjust the volume level through the Zone 1 speakers.

• For more details, see “Adjusting the Zone 1 Volume” on page

21.

Basic Operating Procedure for Zone 2

The sources and functions available for Zone 2 operations are limited.

For more details on Zone 2 operations, see “Zone 2 (Sub-room) Operations” on pages 26 to 29.

On the front panel:

On the remote control:

When operating the receiver using the remote control, the unit’s display always shows the Zone 1 source information though you are operating it for the Zone 2 source.

2 3

1. Press STANDBY/ON.

The STANDBY lamp goes off, and the ZONE 1 indicator lights up on the display. The buttons and controls on the unit work for Zone 1 operations.

2. Press ZONE 2 ON/OFF to activate ZONE 2.

The ZONE 2 indicator lights up.

• For more details, see “Turning the Power On and Off (Standby) and Selecting the Zone 2 Operations” on page 26.

3. Press ZONE 2 CONTROL so that “ZONE2” and the previously selected Zone 2 source name appear on the display.

Now the buttons and controls on the unit work for Zone 2 operations.

“ZONE2” appears.

LINEAR PCM

The last Zone 2 source appears.

SPEAKERS

1 ZONE 2

VOLUME

ZONE 1

ZONE 2

The Zone 2 volume level appears.

4. Press one of the source selection buttons (except DVD MULTI) to select a source and start playback.

The sound comes out of the Zone 2 front speakers.

• For more details, see “Selecting the Zone 2 Source to Play” on

page 28.

• If no sound comes out of the Zone 2 front speakers, see

“Activating the Zone 2 Front Speakers” on page 29.

Note:

When “TV” has been assigned as the source to the TV SOUND/DBS button, it does not work. To change the source name, see “Changing the Source Name” on page 24.

1. Set ZONE 1/ZONE 2 selector to ZONE 2.

Now the buttons on the remote control work for Zone 2 operations.

2. Press AUDIO POWER ON.

The STANDBY lamp on the front panel goes off, and the ZONE 2 indicator lights up on the unit’s display.

3. Press one of the source selection buttons (except DVD MULTI) to select and play a source.

The sound comes out of the Zone 2 front speakers.

• For more details, see “Selecting the Zone 2 Source to Play” on

page 28.

• If no sound comes out of the Zone 2 front speakers, see

“Activating the Zone 2 Front Speakers” on page 29.

Note:

When “TV” has been assigned as the source to the TV/DBS button, it does not work. To change the source name, see “Changing the Source Name” on page 24.

4. Press VOLUME +/– to adjust the volume level of the sound through the Zone 2 front speakers.

• For more details, see “Adjusting the Zone 2 Volume” on page

28.

5. Turn MASTER VOLUME to adjust the volume level of the sound through the Zone 2 front speakers.

• For more details, see “Adjusting the Zone 2 Volume” on page

28.

Zone 1 (Main Room) Operations

ZONE 2

ZONE 1

This section explains only the operations commonly used when you play any sound source in Zone 1 (main room). See pages 26 to 29 for the Zone 2 (sub-room) operations.

• Before performing Zone 1 operations, it is recommended to finish the basic settings on pages 32 to 38.

IMPORTANT:

Check the following before or while using the buttons and controls.

For Zone 1 operations:

The ZONE 1 indicator lights up on the unit’s display.

• When using the unit:

– “ZONE2” is not shown in the unit’s main display.

• When using the remote control:

– Set the ZONE 1/ZONE 2 selector to ZONE 1. – Check the indication shown on the remote’s display when you

press a button—this indicates the remote control operation mode together with multi-room operation mode (either for ZONE 1 or ZONE 2) for about two hours.

AUDIO POWER

STANDBY

TV/CATV/DBS DVD

POWER POWER

ZONE 1

ZONE 2

ZONE 1

ZONE 2

ON/OFF ON/OFF

ZONE 1

Ex. When you press DVD with ZONE 1/ZONE 2 selector set

to ZONE 1.

Turning the Power On and Off (Standby)

On the front panel:

On the remote control:

AUDIO POWER

STANDBY

ZONE 1

ZONE 2

ZONE 1

To turn on the power, press AUDIO POWER ON. The STANDBY lamp goes off, and the ZONE 1 indicator lights up on the unit’s display. The currently selected SPEAKERS 1 and/or 2 indicator(s) also light(s) up on the unit’s display.

• If neither the SPEAKERS 1 nor 2 indicator is lit, see “Activating the Zone 1 Front Speakers” on page 21.

To turn off the power (into standby mode),

press AUDIO POWER STANDBY. The STANDBY lamp lights up.

Notes:

• A small amount of power is consumed in standby mode. To turn the

power off completely, unplug the AC power cord.

• If you have turned off the receiver with the volume level set at more

than level “30,” the volume level will be automatically set at level “30” next time you turn on the receiver.

• Before you turn off the receiver in Zone 1, make sure that no one is

listening to any source in Zone 2 (the ZONE 2 indicator is lit on the display) since the Zone 2 sound will also be turned off unexpectedly.

To turn on the power, press STANDBY/ON. The STANDBY lamp goes off, and the ZONE 1 indicator lights up on the display.

The last Zone 1 source appears.

The ZONE 1 indicator lights up.

ANALOG

LINEAR PCM

The last Surround/DSP mode appears.

SPEAKERS

VOLUME

ZONE 1

The volume level appears.

The currently selected SPEAKERS 1 and/or 2 indicator(s) also light(s) up on the display.

• If neither the SPEAKERS 1 nor 2 indicator is lit on the display, see “Activating the Zone 1 Front Speakers” on page 21.

To turn off the power (into standby mode),

press

STANDBY/ON again.

The STANDBY lamp lights up.

Canceling the Zone 1 Operations

To stop Zone 1 operations and sounds from the Zone 1 speakers,

press ZONE 1 ON/OFF on the unit or the remote control so that the ZONE 1 indicator goes off from the display.

The currently selected front speakers indicator(s) also go(es) off from the display (no sound will be heard in Zone 1).

To use this receiver for Zone 1 operations again, press ZONE 1 ON/OFF again (the ZONE 1 indicator lights up). The front speakers indicator(s) previously selected light(s) up. Now the buttons and controls on the unit work for Zone 1 operations.

Note:

If “TURN ON ZONE1 OR ZONE2” appears on the display, press ZONE 1 ON/OFF or ZONE 2 ON/OFF to listen to the sound in Zone 1 or in Zone 2; Otherwise, the receiver will turn off after about 1 minute.

Selecting the Zone 1 Source to Play

Speaker and signal indicators on the display

By checking the following indicators, you can easily confirm which speakers you are activating and which signals are coming into this receiver.

Press one of the source selection buttons.

• When you have connected digital source components using the digital terminals, change the input mode for these components to the digital input mode (see page 22).

Ex. When VCR 1 is selected as the source.

Selected source name

ANALOG

LINEAR PCM

SPEAKERS 1

ZONE 1

VOLUME

The current Surround/DSP mode appears.

TV SOUND

DVDDVD MULTI AMFMTAPE/MDCDRCDPHONO

VIDEOVCR 2VCR 1

/DBS

On the front panel

• The lamp on the selected source lights up (ex. when VCR 1 is selected as the source).

DVD

DVD MULTI

VCR 1 VCR 2

PHONO

TAPE/MD

FMVIDEOTV/DBS

CDR

On the remote

Notes:

• When connecting an MD recorder (to the TAPE/MD IN jacks), and a

DBS tuner (to the TV SOUND/DBS IN jacks), change the source names shown on the display. For details, see “Changing the Source Name” on page 24.

• When you press one of the audio source selection buttons

(PHONO, CD, TAPE/MD, CDR, FM or AM) on the remote control, the receiver automatically turns on. If you turn on the receiver with the ZONE 1/ZONE 2 selector set to ZONE 2, press ZONE 1 ON/OFF to activate Zone 1 operations. – While Zone 1 is deactivated, press one of the audio source

selection buttons on the remote control with the ZONE 1/ZONE 2 selector set to ZONE 1 to activate Zone 1 operations.

• When you select DVD MULTI, you can enjoy analog discrete output

sound (5.1-channel surround reproduction) from the external component. – You may need to select analog discrete output mode on the

external component.

– When using the headphones, you can listen to the front channel

sounds (left and right) only.

– The Surround modes (see page 42) and DSP modes (see page

48) cannot be applied to DVD MULTI playback mode.

Speaker indicators

LCR

SUBWFR

LFE

SLS RS

Signal indicators

LCR

LFE

SLS

What speaker indicators light depends on the speaker setting (For details, see “Setting the speakers” on page 34.)

• The frames of “L,” “C,” “R,” “LS,” “RS,” and “SB” light up, when the corresponding speakers are set to “LARGE” or “SMALL” and when the speaker is required for the Surround/DSP mode currently selected.

• When “SUB WOOFER” is set to “YES,”

SUBWFR

lights up (see

page 34).

• All three frames on the row of “SB” are not used at the same time. When “SBACK OUT” is set to “2SPK,” the left and the right ones are used. When it is set to “1SPK,” the middle one is used (see page 34).

The signal indicators light up to show the incoming signals.

L:•When digital input is selected: Lights up when the left

channel signal comes in.

• When analog input is selected: Always lights up.

R:•When digital input is selected: Lights up when the right

channel signal comes in.

• When analog input is selected: Always lights up.

C: Lights up when the center channel signal comes in. LFE: Lights up when the LFE channel signal comes in. LS: Lights up when the left surround channel signal comes in. RS: Lights up when the right surround channel signal comes in. S: Lights up when the monaural surround channel signal

comes in.

SB: Lights up when the surround back channel signal comes in.

Note:

When DVD MULTI is selected as the source, “L,” “C,” “R,” “LFE,” “LS,” and “RS” light up.

How to understand the speaker and signal indicator illumination

LCR

Ex. No sound comes out of the

center speaker and surround

SUBWFR

LFE

back speakers though center channel and surround back

LS RS

channel signals are coming into this receiver.

Selecting different sources for picture and

LINEAR PCM

ANALOG

VOLUME

SPEAKERS

1 2

ZONE 1

sound

While watching pictures from a video source (DVD player, VCR, or DBS tuner), you can listen to sound of an audio source.

• Once you have selected a video source, pictures of the selected source are sent to the TV until you select another video source.

Press one of the audio source selection buttons—PHONO, CD, TAPE/MD, CDR, FM, AM—while viewing the picture from a video component such as the VCR or DVD player, etc.

DVD

On the front panel

DVD MULTI

VCR 1 VCR 2

AMFMTAPE/MDCDRCDPHONO

On the remote

PHONO

TAPE/MD

FMVIDEOTV/DBS

CDR

Adjusting the Zone 1 Volume

On the front panel:

To increase the volume, turn MASTER VOLUME clockwise. To decrease the volume, turn it counterclockwise.

On the remote control:

To increase the volume, press VOLUME +. To decrease the volume, press VOLUME –.

Notes:

• The volume level can be adjusted within the range of “0” (minimum)

to “70” (maximum).

• If you set “ONE TOUCH OPE” (One Touch Operation) to “ON” (see

page 38), you do not have to adjust the volume level each time you change the source. It is automatically set to the stored level.

• If you have turned off the receiver with the volume level set at more

than level “30,” the volume level will be automatically set at level “30” next time you turn on the receiver.

To use the speakers connected to the FRONT1 SPEAKERS terminals, press SPEAKERS ON/OFF 1 so that the SPEAKERS 1

indicator lights up on the display.

• Make sure that the SPEAKERS 2 indicator is not lit.

To use the speakers connected to the FRONT2/ZONE2 SPEAKERS terminals, press SPEAKERS ON/OFF 2/ZONE 2 so

that the SPEAKERS 2 indicator lights up on the display.

• Make sure that the SPEAKERS 1 indicator is not lit.

To use both sets of the speakers connected to the FRONT1 SPEAKERS and FRONT2/ZONE2 SPEAKERS terminals, press

SPEAKERS ON/OFF 1 and SPEAKERS ON/OFF 2/ZONE 2 so that the SPEAKERS 1/2 indicators light up on the display.

Ex. When both sets of the speakers selected.

Note:

When you select “DVD MULTI” as the source or any one of the Surround/DSP mode which activates the center and/or surround speaker(s), you can use only one set of the speakers.

To use neither set of the speakers connected to the FRONT1 SPEAKERS and FRONT2/ZONE2 SPEAKERS terminals, press

SPEAKERS ON/OFF 1 and SPEAKERS ON/OFF 2/ZONE 2 so that the SPEAKERS 1/2 indicators go off from the display.

• Activating the speakers turns on the Surround and DSP modes previously selected.

Listening with headphones only:

Connect headphones to the PHONES jack, and deactivate both sets of the front speakers so that “HEADPHONE” appears and the HEADPHONE indicator lights up on the display.

• You can listen to left and right channel sound with headphones.

• Make sure that all the speaker indicators are not lit.

CAUTIONS:

• Always set the volume to the minimum before starting any source. If the volume is set at a high level, the sudden blast of sound energy can permanently damage your hearing and/or ruin your speakers.

• Be careful not to turn up the volume too high when controlling the receiver without listening to the playback sound. For example, when adjusting the volume level in Zone 2 from Zone 1.

You can enjoy the sound effects through the headphones when Surround or DSP mode is activated—3D Headphone (3D H PHONE) mode.

• “3D H PHONE” appears and the DSP and HEADPHONE indicators light up on the display. (For details, see pages 47 and 48.)

Note:

3D Headphone (3D H PHONE) mode is not valid for DVD MULTI playback mode.

Activating the Zone 1 Front Speakers

Remote

NOT

When shipped from the factory, both pairs of the front speakers have been set to be used in Zone 1.

• To use the speakers connected to the FRONT2/ZONE2

CAUTION:

Be sure to turn down the volume:

• Before connecting or putting on headphones, as its high volume can

damage both the headphones and your hearing.

• Before turning on the speakers again, as its high volume may come

out of the speakers.

SPEAKERS terminals, set the speaker usage correctly. (See “Setting the Zone 2/Speakers 2 usage” on page 38.)

When you have connected two pairs of front speakers and placed them in Zone 1, you can select which to use.

Turning On and Off the

DIGITAL

SUBWFR

LS RS

LFE

DIGITAL

AUTO

DGTL AUTO DGTL D.D

DGTL DTS

(Dolby Digital)

(Digital)

VOLUME

SPEAKERS 1

ZONE 1

Subwoofer Sound

Remote

NOT

You can cancel the subwoofer sound output even though you have connected a subwoofer and have set “SUB WOOFER” to “YES” (see page 34).

Press SUBWOOFER OUT ON/OFF to cancel the subwoofer sound output.

Each time you press the button, subwoofer sound output is deactivated (“SUBWFR OFF”) and activated (“SUBWFR ON”) alternately.

• When subwoofer output is canceled, the

SUBWFR

indicator goes off. Bass sounds (and LFE signals) will be emitted through the front speakers (except for DVD MULTI playback mode).

• When subwoofer sound output is activated, subwoofer output level can be adjusted (see pages 40 and 41).

Notes:

• The SUBWOOFER OUT ON/OFF button does not work when you

set “SMALL” for the front speakers on the Speaker size setting (see page 34) or using Quick Speaker Setup (see page 32).

• You cannot activate the subwoofer output when you have set “SUB

WOOFER” to “NO” (see pages 32 and 34).

• When you change the “SUB WOOFER” setting from “NO” to “YES”

(see page 34), subwoofer output is automatically activated.

Selecting the Analog or Digital Input Mode

When you have connected digital source components using the digital terminals (see pages 11 and 14), change the input mode for these components to the digital input mode.

2. Press INPUT DIGITAL to select “DGTL AUTO.”

• When using the remote control, press ANALOG/DIGITAL. Each time you press the button, the analog (ANALOG) and digital (DGTL AUTO) input modes alternate.

The DIGITAL AUTO indicator lights up on the display.

DIGITAL

SUBWFR

LS RS

• When selecting “DGTL AUTO,” the following indicators show the digital signal format of the incoming signal.

No indicator lights up when the receiver cannot recognize the digital signal format of the incoming signals.

Note:

For the details of digital signal formats, see pages 42 and 43.

When playing software encoded with Dolby Digital or DTS, the following symptoms may occur:

• Sound does not come out at the beginning of playback.

• Noise comes out while searching for or skipping chapters or tracks.

In this case, press INPUT DIGITAL repeatedly to select “DGTL D.D” or “DGTL DTS” while “DGTL AUTO” still remains on the display.

• Each time you press INPUT DIGITAL, the input mode changes as follows:

AUTO

LFE

DIGITAL

LINEAR PCM

SPEAKERS 1

VOLUME

ZONE 1

: Lights up when Linear PCM signals come

in.

: Lights up when Dolby Digital signals

come in.

: Lights up when DTS signals come in.

Remote

NOT

Before you start, remember...

• The digital input terminal setting should be properly done for the sources you want to select the digital input mode (see “Setting the digital input terminals” on page 37).

• The digital input can be used for the Zone 1 sources. The analog input is always selected as the Zone 2 source without respect to this setting.

1. Press one of the source selection buttons (DVD,

VCR 1, TV SOUND/DBS, VIDEO, CD, CDR, or TAPE/MD*) for which you want to change the input mode.

If “TAPE” has been assigned to the TAPE/MD button, it does not work in this step. To change the source name, see “Changing the Source Name” on page 24.

When “DGTL D.D” or “DGTL DTS” is selected, the AUTO

indicator goes off, and the corresponding digital signal format indicator lights up on the display.

• If the incoming signal does not match the selected digital signal format, the frame of the selected indicator will flash.

Note:

When you turn off the power or select another source, “DGTL D.D” and “DGTL DTS” settings are canceled and the digital input mode is automatically reset to “DGTL AUTO.”

To select the analog input mode again

Press INPUT ANALOG (or press ANALOG/DIGITAL on the remote control repeatedly until “ANALOG” appears on the display). The ANALOG indicator lights up.

+ 54 hidden pages

JVC RX-8040B User Manual

Table of Contents

Remote Control

Front Panel

Rear Panel

Digital connections

Required Connections for Zone 2

Basic Operating Procedure for Zone 1

Basic Operating Procedure for Zone 2

Activating the Zone 1 Front Speakers
