JVC RX-772VBK User Manual

For Customer Use:

Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No. Serial No.

AUDIO/VIDEO CONTROL RECEIVER

RX-772VBK

RM-SR772U REMOTE CONTROL

VCR

AUDIO



TV/CATV

POWER

SLEEP

/SAT POWER

VIDEO TAPEVCR

SOUND

FM/AM PHONOCD

ONE TOUCH

CNTRDELAY

OPERATION

213

CD

TEST REAR

DISC

546

CD

TRACK

SOUND

SEA MODE SURR MODE

CONTROL

+10

FM MODE/MUTE

100+

RETURN

AUDIO/TV /VCR

VOLUME

CATV /SAT

CHANNEL

MUTE

FF / ¢

PLAY

4 / REW

PAUSE

STOP

REC

TV VOLUME

TV/VIDEO

CONTROL

TAPE VCR

MENU

EXIT

STANDBY

POWER

RX-772V AUDIO/VIDEO CONTROL RECEIVER

ONE TOUCH OPERATION

–+

MASTER VOLUME

VIDEO VCR TV SOUND FM AM CD PHONO TAPE

SURROUND MODE

SURROUND

ADJUST

SETTING

SEA Graphic Equalizer

INSTRUCTIONS

SOURCE

SEA MODE

SEA

MEMORY

ADJUST

MEMORYTUNER

PHONESSPEAKERS

_ON —OFF

LET0052-001A

[J]

Warnings, Cautions and Others

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.  The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

Caution –– POWER switch!

Disconnect the mains plug to shut the power off completely. The POWER switch in any position does not disconnect the mains line. The power can be remote controlled.

Caution –– SPEAKER LOAD SELECTOR switch!

Match the position of SPEAKER LOAD SELECTOR switch on the back panel to the impedance of the speaker connected, to protect from overheating.

G-1

Once you have found the best Surround settings for your listening room, note them in the table below for future reference (even though the receiver memorizes the settings until you change them).

For actual setting procedures, see pages 24 to 30.

Surround Mode Hall Surround Dolby Pro Logic Dolby 3ch Logic Center Mode WIDE WIDE

NORMAL NORMAL PHANTOM OFF OFF

Delay Time DELAY 1 DELAY 1

DELAY 2 DELAY 2 DELAY 3 DELAY 3 DELAY 4 DELAY 4

Center Speaker Level Rear Speaker Level Center Tone SOFT2 SOFT2

SOFT1 SOFT1 FLAT FLAT SHARP1 SHARP1 SHARP2 SHARP2

G-2

Table of Contents

Getting Started........................................................................................................................... 2

Before Installation.................................................................................................................... 2

Checking the Supplied Accessories ......................................................................................... 2

Switches, Buttons and Controls ............................................................................................... 3

Connecting the FM and AM Antennas .................................................................................... 5

Connecting the Speakers .......................................................................................................... 6

Connecting Audio/Video Components .................................................................................... 8

Connecting the Power Cord ................................................................................................... 10

Putting Batteries in the Remote Control ................................................................................ 10

Basic Operations...................................................................................................................... 11

Turning the Power On and Off .............................................................................................. 11

Selecting the Source to Play................................................................................................... 11

Adjusting the Volume ............................................................................................................ 12

Selecting the Front Speakers.................................................................................................. 12

Muting the Sound ................................................................................................................... 13

Recording a Source ................................................................................................................ 13

Basic Settings ........................................................................................................................... 14

Adjusting the Front Speaker Output Balance ........................................................................ 14

Listening at Low Volume (Loudness) ................................................................................... 14

Using the Sleep Timer............................................................................................................ 15

Selecting the Center Speaker Size ......................................................................................... 16

Using Visual Confirmation .................................................................................................... 17

One Touch Operation.............................................................................................................. 18

About the One Touch Operation ............................................................................................ 18

Using the One Touch Operation ............................................................................................ 18

Receiving Radio Broadcasts ................................................................................................... 19

Tuning in Stations Manually.................................................................................................. 19

Using Preset Tuning............................................................................................................... 19

Selecting the FM Reception Mode......................................................................................... 20

Assigning Names to Preset Stations....................................................................................... 21

Using the SEA Modes.............................................................................................................. 22

Selecting Your Favorite SEA Mode ...................................................................................... 22

Creating Your Own SEA Mode ............................................................................................. 23

Using the Surround Processor................................................................................................ 24

Using JVC’s Hall Surround ................................................................................................... 24

Speaker arrangements for Dolby Surround............................................................................ 26

Preparing for Dolby Surround................................................................................................ 27

Using Dolby Surround ........................................................................................................... 30

Using the On-Screen Display to Control the Receiver ......................................................... 31

COMPU LINK Remote Control System ............................................................................... 35

AV COMPU LINK Remote Control System ........................................................................ 36

Page 1

Using the Remote Control for Operating JVC’s Audio/Video Components ..................... 38

Operating Other Manufactures’ VCR, TV, CATV Converter, and Satellite Tuners ...... 40

Troubleshooting....................................................................................................................... 46

Specifications............................................................................................................................ 47

This mark indicates that you can also use the menu function to do the

same operations. Actual operations using the menu function are explained on the pages indicated next to the marks.

Getting Started

This section explains how to connect audio/video components and speakers to the receiver, and how to connect the power supply.

Before Installation

General

• Be sure your hands are dry.

• Turn the power off to all components.

• Read the manuals supplied with the components you are going to connect.

Locations

• Install the receiver in a location that is level and protected from moisture.

• The temperature around the receiver must be between 23˚ and 95˚ F (–5˚ and 35˚ C).

• Make sure there is good ventilation around the receiver. Poor ventilation could cause overheating and damage the receiver.

Handling the receiver

• Do not insert any metal object into the receiver.

• Do not disassemble the receiver or remove screws, covers, or cabinet.

• Do not expose the receiver to rain or moisture.

Checking the Supplied Accessories

Check to be sure you have all of the following items, which are supplied with the receiver. The number in the parenthesis indicates the quantity of the pieces supplied.

• Remote Control (1)

• Batteries (2)

• AM Loop Antenna (1)

• FM Antenna (1)

If anything is missing, contact your dealer immediately.

Page 2

Switches, Buttons and Controls

Become familiar with the main switches and controls on your receiver before use.

RX-772V AUDIO/VIDEO CONTROL RECEIVER

STANDBY

POWER

345

ONE TOUCH OPERATION

–+

Refer to the pages in parentheses for details.

Front Panel

1 Remote sensor (10) 2 Display (11) 3 ONE TOUCH OPERATION button and lamp (18) 4 MASTER VOLUME control (12) 5 SURROUND MODE button and lamp (24, 27) 6 SOURCE button and lamps (11) 7 SEA MODE button and lamp (22) 8 MEMORY button for SEA adjustments (23) 9 POWER button and STANDBY lamp (11) p SURROUND ADJUST button and lamp (25, 27) q SETTING button and lamp (14 to 17) w Control % / ﬁ / @ / # buttons e SPEAKERS 1/2 buttons (12) r TUNER button and lamp (19) t PHONES jack (13) y MEMORY button for presetting channels (19) u SEA ADJUST button and lamp (23)

MASTER VOLUME

VIDEO VCR TV SOUND FM AM CD PHONO TAPE

SURROUND MODE

SURROUND

ADJUST

SETTING

SEA Graphic Equalizer

qwertyu9

SOURCE

ADJUST

_ON —OFF

SEA

SEA MODE

MEMORY

MEMORYTUNER

PHONESSPEAKERS

IMPORTANT

ﬁﬁ

To use Control

% /

ﬁ /

ﬁﬁ

@ /

# buttons (w) on the front

panel:

What these buttons actually do depends on which function you are trying to adjust. Before using these buttons, select the function by pressing one of the function selecting buttons (5, 6, 7, p, q, r, u), and being sure its lamp is lit.

However, pressing MENU (c on the remote control) overrides

ﬁﬁ

the selected function and causes Control

ﬁﬁ

to act like

% /

ﬁ /

ﬁﬁ

@ /

# buttons (v) of the ON SCREEN

% /

ﬁ /

ﬁﬁ

@ /

# button

CONTROL section of the remote control (though a lamp for the selected function remains lit).

ﬁﬁ

To return the Control

% /

ﬁ /

ﬁﬁ

@ /

# buttons to their usual

behavior under the selected function, press the function button again.

Page 3

Remote Control

;

a s

RM-SR772U REMOTE CONTROL

VCR

TV/CATV

POWER

/SAT POWER

VIDEO TAPEVCR

SOUND

FM/AM PHONOCD

ONE TOUCH

OPERATION

CD

TEST REAR

DISC

CD

TRACK

/P 9

SOUND

SEA MODE SURR MODE

CONTROL

RETURN

AUDIO/TV /VCR

VOLUME

CATV /SAT

MUTE

4 /

TV/VIDEO

MENU

EXIT

REC

REW

CHANNEL

PLAY

STOP

CONTROL

TAPE VCR

AUDIO



POWER

SLEEP

CNTRDELAY

213 546 87

+10

FM MODE/MUTE

100+

FF / ¢

PAUSE

TV VOLUME

Remote Control Unit

i TV/CATV/SAT POWER and VCR POWER buttons (39) o Source selecting buttons (12) ; ONE TOUCH OPERATION button (18) a CD DISC button (38) s CD TRACK button (38) d SOUND CONTROL button (22, 25, 29) f Remote control mode selector (AUDIO/TV/VCR, CATV/SAT)

(11)

g MUTE button (13) h MENU EXIT button (31) j SLEEP button (15) k AUDIO POWER button (11) l • 10 keys for selecting preset channel (20)

• 10 keys for adjusting sound (22, 25, 29)

• Operating buttons for audio/video components (38, 40)

/ VOLUME buttons (+/–) (12) z CHANNEL buttons (+/–) (39) x Operating buttons for audio/video components (38, 40) c MENU button (31) v % / ﬁ / @ / # buttons of the ON SCREEN CONTROL section

(31)

IMPORTANT

When using the remote control:

Check to see if its remote control mode selector (f) is set to the correct position.

To operate an audio system, TV, and VCR, set it to the “AUDIO/TV/VCR” position. To operate a CATV converter and satellite tuner, set it to the “CATV/SAT” position.

ﬁﬁ

About

% /

ﬁ /

ﬁﬁ

@ /

# buttons (

v) of the ON SCREEN CONTROL section on the remote control:

If you press these buttons, the menu function starts operating. So, make sure you are showing the on-screen display on the TV before pressing these buttons.

Page 4

Connecting the FM and AM Antennas

FM Antenna Connections

LOOP

AM

ANTENNA

FM

GND

AM

EXT



FM Antenna

13/16 in.

(20 mm)

Outside FM Antenna Wire

Extend the FM wire antenna horizontally.

If reception is poor, connect the outside antenna. Before attaching a 75-ohm coaxial cable (the kind with a round wire going to an outside antenna), disconnect the supplied FM antenna.

7/16 in.

(10 mm)

How to strip the 75-ohm coaxial cable and connect it to the FM terminals

Strip back the outside covering of the 75-ohm coaxial cable to expose the braided metallic mesh about 13/16 inches (20 mm).

2. Pull the mesh back and twist it into a single connector, as shown in the illustration above.

3. Strip the insulation about 7/16 inches (10 mm) back from the central wire.

4. Insert the twisted mesh and the central wire to the FM terminals, as shown in the illustration above.

AM Antenna Connections

ANTENNA

AM

LOOP

Note:

Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord. This could cause poor reception.

FM



GND

AM

EXT

AM Loop Antenna

Turn the loop until you have the best reception.

Snap the tabs on the loop into the slots of

the base to assemble the AM loop.

Outdoor Single Vinyl-covered Wire

If reception is poor, connect an outdoor single vinyl-covered wire to the AM EXT terminal. (Keep the AM loop antenna connected.)

Page 5

Connecting the Speakers

Connecting the front speakers

You can connect the following speakers:

• Two pairs of front speakers to produce normal stereo sound.

• One pair of rear speakers to enjoy the surround effect.

• One center speaker to produce more effective surround effect (to emphasize human voices).

• One subwoofer to enhance the bass.

For each speaker (except for subwoofer), connect the black (–) and red (+) terminals on the rear panel to the black (–) and red (+) terminals marked on the speakers. For connecting a subwoofer, see page 7.

CAUTION:

Use speakers with the SPEAKER IMPEDANCE indicated by the speaker terminals.

Cut, twist and remove the insulation at the end of each speaker signal cable first, and then, connect the front speakers to the FRONT SPEAKERS terminals by using the cables. You can connect two pairs of front speakers (one pair to the FRONT SPEAKERS 1 terminals, and another pair to the FRONT SPEAKERS 2 terminals).

SPEAKER

LOAD

SELECTOR

FRONT SPEAKERS

SPEAKER

IMPEDANCE

/ OHMS

4 ~ 6 8 ~ 16

2 Insert the speaker

signal cable.

SPEAKER

LOAD

SELECTOR

LOW

HIGH

RIGHT

LOW

HIGH

RIGHT LEFT

–+–

1 Turn the knob

counterclockwise.

RIGHT

Notes:

• To obtain the best possible output power from the receiver, and to prevent the receiver from being overheated, the receiver has the SPEAKER LOAD SELECTOR which should be set to match the impedance of the connected speakers. Set this selector according to the indications by the FRONT SPEAKERS terminals.

• When you connect two pairs of the speakers to the FRONT SPEAKERS terminals, use the speakers having the impedance within the same range.

Right SpeakerLeft Speaker

3 Turn the knob

clockwise.

RIGHT

Page 6

Connecting the rear and center speakers

SUBWOOFER

OUT

Cut, twist and remove the insulation at the end of each speaker signal cable first, and then, connect rear speakers to the REAR SPEAKERS terminals and a center speaker to the CENTER SPEAKER terminals by using the cables.

Open the terminal and then insert the speaker signal cable.

Center speaker

Left rear speaker

Notes:

• You can register the center speaker size after you finish its connection. If you register it, you do not have

• When you connect rear speakers, make sure that both left and right speakers are connected; otherwise, no

Connecting the subwoofer speaker

You can enhance the bass by connecting a subwoofer. Connect the input jack of a powered subwoofer to the SUBWOOFER OUT jack on the rear panel, using a cable with RCA pin plugs.

SPEAKERS

RIGHT LEFT

REAR

Close the terminal.

Right rear speaker

CENTER

SPEAKER

to set the center speaker mode when setting the surround mode. (If you do not use a center speaker, register that information.) See page 16.

sound will come out of the rear speakers.

Page 7

Powered subwoofer

Connecting Audio/Video Components

You can connect the following audio/video components to this receiver using cables with RCA pin plugs (not supplied). Refer also to the manuals supplied with your components. If you want to connect a component not listed in the table below, refer to the manual supplied with it.

Audio Components Video Components

• Turntable • TV

• CD player • VCR

• Cassette deck • Video disc player

Note:

• If you connect a sound-enhancing device such as a graphic equalizer between the source components and this receiver, the sound output through this receiver may be distorted.

• Any turntables incorporating a small-output cartridge such as an MC (moving-coil type) must be connected to this receiver through a commercial head amplifier or step-up transformer. Direct connection may result in insufficient volume.

Audio component connections

Turntable

If an earth cable is provided for your turntable, connect the cable to the screw marked GND on the rear panel.

CD player

Cassette deck

To audio output

GND

To audio output

To audio input

To audio output

AUDIO

RIGHT LEFT

PHONO

OUT

(REC)

VCR

IN

(PLAY)

VIDEO

TV

SOUND

OUT

(REC)

TAPE

IN

(PLAY)

VCR

VIDEO

MONITOR

OUT

VIDEO

OUT

(REC)

IN

(PLAY)

If your audio components have a COMPU LINK-3 terminal

The COMPU LINK remote control system allows you to control other JVC audio components from the receiver or vice versa. Connect your audio components and the receiver with the cable (monaural mini-plug supplied with those components) as well as the connection above. For detailed information about the connection and the COMPU LINK-3 remote control system, see page 35.

Note:

The COMPU LINK-3 remote control system is the upgraded version of the COMPU LINK-1 and COMPU LINK-2. Even if your component has the COMPU LINK-1 or COMPU LINK-2 jacks, you can still connect it in the COMPU LINK-3 remote control system, but some functions may not work correctly.

Page 8

Video component connections

VCR

VHS

To audio output

Video disc player

GND

AUDIO

RIGHT LEFT

PHONO

To video input

To audio input To audio output

To video output

OUT

(REC)

VCR

IN

(PLAY)

VIDEO

TV

SOUND

OUT

(REC)

TAPE

IN

(PLAY)

VCR

VIDEO

MONITOR

OUT

VIDEO

OUT

(REC)

IN

(PLAY)

To video input (See note below.)

To audio output

Note:

When connecting a JVC TV:

• If you use the AV COMPU LINK remote control system to operate the TV, connect the receiver to the Video Input 2 jack on the TV.

• If you do not use the AV COMPU LINK remote control system to operate TV, connect the receiver to the Video Input 1 jack on the TV.

If your video components have an AV COMPU LINK terminal

The AV COMPU LINK remote control system allows you to control other JVC video components from the receiver or vice versa. For detailed information about the connection and the AV COMPU LINK remote control system, see page

36.

Notes:

• The AV COMPU LINK remote control system cannot control the video components connected to the VIDEO jacks on the receiver, but can control only the VCR connected to the VCR jacks.

• Some VCRs use the AV COMPU LINK jacks for the SWAP editing. However, you cannot use both the AV COMPU LINK remote control and the SWAP editing at the same time. For the SWAP editing, see the manual supplied with the VCR.

Page 9

Connecting the Power Cord

Before plugging the receiver into an AC outlet, make sure that all connections have been made. When the power cord is connected, the STANDBY lamp above the POWER button lights up.

Keep the power cord away from the connecting cables for the TV, VCR, and antenna. The power cord may cause noise or screen interference. We recommend that you use a coaxial cable to connect the antenna, since it is well-shielded against interference.

Notes:

• A small amount of power is always consumed even in standby mode. To switch off the power completely, unplug the power cord from the AC outlet.

• If the power cord is unplugged or a power failure occurs, preset settings will be erased in a few days.

CAUTIONS:

• Do not touch the power cord with wet hands.

• Do not pull on the power cord to unplug the cord. When unplugging the cord, always grasp

the plug so as not to damage the cord.

Putting Batteries in the Remote Control

Before using the remote control, put two supplied batteries first. When using the remote control, aim the remote control directly at the remote sensor on the receiver.

1. On the back of the remote control, remove the cover as illustrated.

2. Insert batteries. Make sure to observe the proper polarity: (+) to (+) and (–) to (–).

3. Replace the cover in.

R03 (UM-4)/AAA (24F)

If the range or effectiveness of the remote control decreases, replace the batteries. Use two R03 (UM-4)/AAA (24F) type dry-cell batteries.

CAUTIONS:

Follow these precautions to avoid leaking or cracking cells:

• Place batteries in the remote control so they match the polarity indicated: (+) to (+) and (–)

to (–).

• Use the correct type of batteries. Batteries that look similar may differ in voltage.

• Always replace both batteries at the same time.

• Do not expose batteries to heat or flame.

Page 10

AUDIO/TV /VCR

CATV /SAT

Basic Operations

Turning the Power On and Off

The following operations are commonly used when you play any sound source.

IMPORTANT

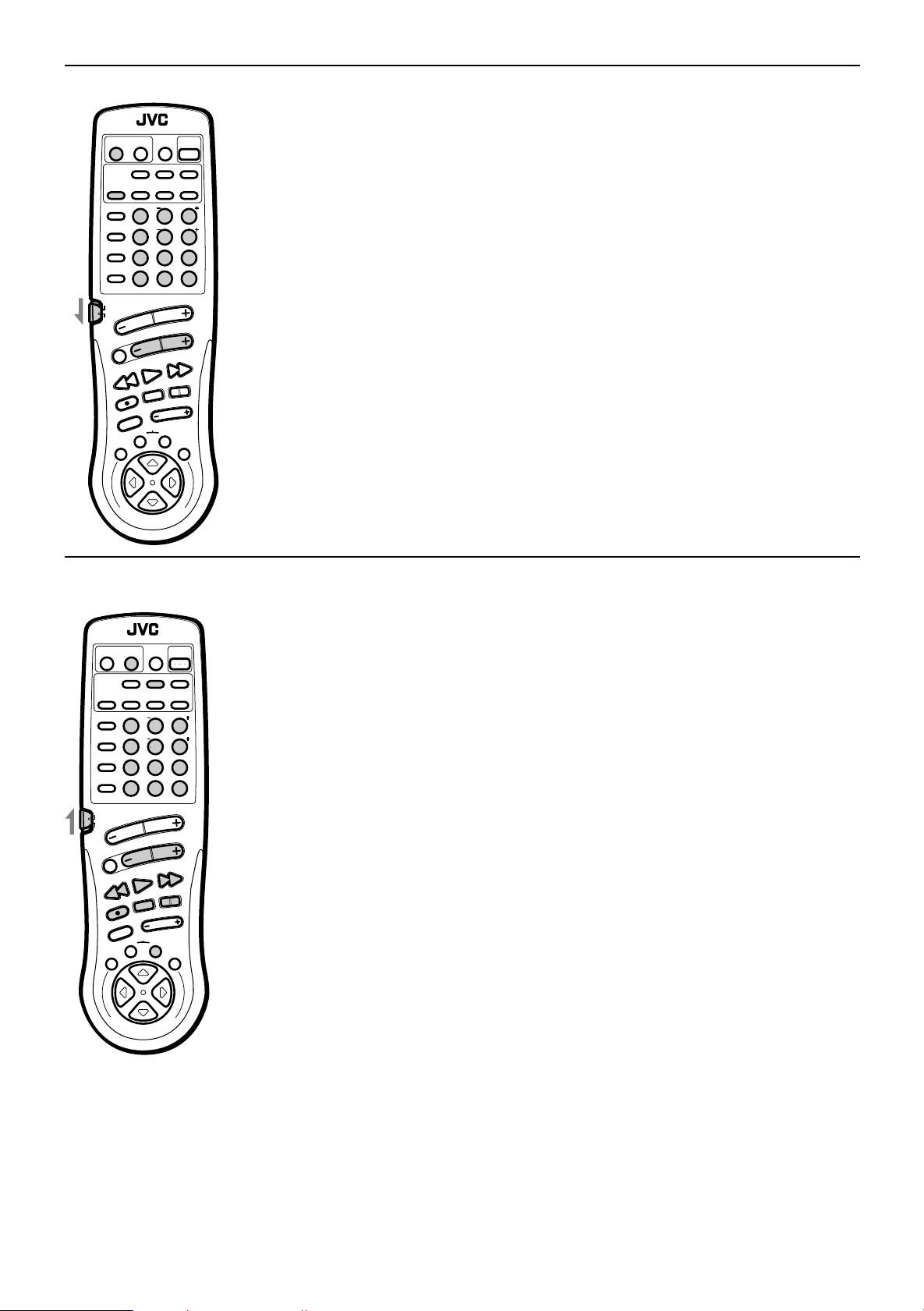

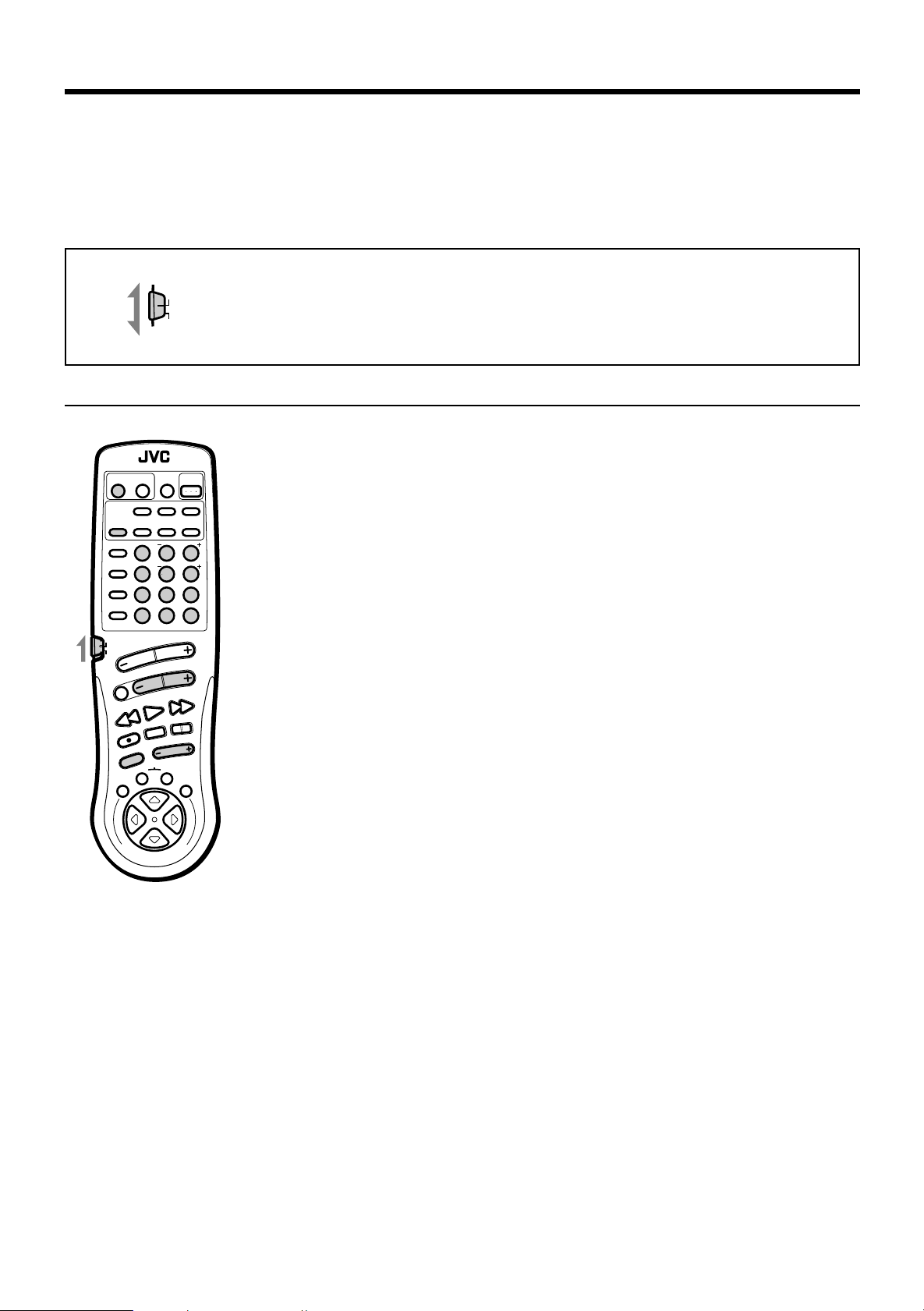

When using the Remote Control, check to see if its remote control mode selector is set to the correct position:

To operate an audio system, TV, and VCR, set it to the “AUDIO/TV/VCR” position. To operate a CATV converter and satellite tuner, set it to the “CATV/SAT” position.

STANDBY

POWER

STANDBY

POWER

Front panel

AUDIO

POWER

Remote Control

Selecting the Source to Play

On the front panel: To turn on the power, press POWER.

The STANDBY lamp goes off. The name of the current source (or station frequency) appears on the display.

Current source name appears

Volume level is also shown here whenever the power

100 1k 10k

VOLUME

is on.

To turn off the power, press POWER again. The STANDBY lamp lights up.

From the remote control: To turn on the power, press AUDIO POWER.

The STANDBY lamp goes off. The name of the current source appears on the display.

To turn off the power, press AUDIO POWER again. The STANDBY lamp lights up.

See also page 32.

SETTING

Front panel

Note:

The loudness function affects the front speaker sounds only.

On the front panel only:

ﬁﬁ

1. Press SETTING so that the Control

% /

ﬁ /

@ /

# buttons work for setting the loudness

ﬁﬁ

function.

The lamp next to the button lights up.

2. Press Control

3. Press Control

ﬁﬁ

% /

ﬁ until “LOUDNESS” appears on the display.

ﬁﬁ

@ /

# to set the loudness function to “ON” or “OFF.”

• Select “ON ” to activate the loudness function. The LOUDNESS indicator lights up on the display.

• Select “OFF” to cancel it. The indicator goes off.

Page 14

Using the Sleep Timer

SETTING

Front panel

See also page 32.

Using the Sleep Timer, you can fall asleep to music and know the receiver will turn off by itself rather than play all night.

On the front panel:

ﬁﬁ

1. Press SETTING so that the Control

% /

ﬁ /

@ /

# buttons work for setting the Sleep Timer

ﬁﬁ

The lamp next to the button lights up.

2. Press Control

3. Press Control

ﬁﬁ

% /

ﬁ until “<SLEEP>” appears on the display.

ﬁﬁ

@ /

# to set the shut-off time.

Each time you press the button, the shut-off time on the display changes as follows: The SLEEP indicator lights up on the display.

2010 30 40 50 60 70 80

(Canceled)

When the shut-off time comes

The receiver turns off automatically.

To check or change the time remaining until the shut-off time

1. Press SETTING, if necessary, so that the Control % / ﬁ / @ / # buttons work for setting the Sleep Timer.

2. Press Control % / ﬁ, if necessary, until “<SLEEP>” appears on the display.

3. Press Control @ / # once. The remaining time until the shut-off time appears in minutes.

• To change the shut-off time, press Control @ / # repeatedly.

SLEEP

Remote Control

To cancel the Sleep Timer

Press Control @ / # repeatedly in step 3 above until “0” appears on the display. (The SLEEP indicator goes off.) Turning off the power also cancels the Sleep Timer.

From the remote control: Press SLEEP repeatedly.

The SLEEP indicator lights up and the shut-off time appears on the display. Each time you press the button, the shut-off time on the display changes as follows:

2010 30 40 50 60 70 80

(Canceled)

To check or change the time remaining until the shut-off time

Press SLEEP once. The remaining time until the shut-off time appears in minutes.

• To change the shut-off time, press SLEEP repeatedly.

To cancel the Sleep Timer

Press SLEEP repeatedly until “0” appears on the display. (The SLEEP indicator goes off.) Turning off the power also cancels the Sleep Timer.

Page 15

Selecting the Center Speaker Size

You can register the information on the center speaker after all connections are completed. If you do this registration first, you do not have to adjust the center speaker mode when you want to activate the Dolby surround. However, to register the information, first you have to set the surround mode either to “PROLOGIC” or “3CHLOGIC.” (You cannot select the center speaker size when the surround mode is “SURR OFF” or “HALL.”)

See also page 32.

SURROUND MODE

SETTING

On the front panel only:

1. Press SURROUND MODE so that the Control

ﬁﬁ

% /

ﬁ buttons work for selecting the surround

ﬁﬁ

mode.

The lamp next to the button lights up.

2. Press Control

ﬁﬁ

% /

ﬁ until “PROLOGIC” or “3CHLOGIC” whichever you want appears on the

ﬁﬁ

display.

The PRO LOGIC or 3CH LOGIC indicator (as well as the SURROUND indicator) also lights up.

ﬁﬁ

3. Press SETTING so that the Control

% /

ﬁ /

@ /

# buttons work for selecting the center speaker

ﬁﬁ

size.

The lamp next to the button lights up.

4. Press Control

5. Press Control

ﬁﬁ

% /

ﬁ until “CNTR SPK” (Center Speaker) appears on the display.

ﬁﬁ

@ /

# to select the appropriate item about your center speaker.

Each time you press the button, the display changes to show the following:

LARGE SMALL NO

LARGE: Select this mode when the size of the center speaker is the same as that of the

front speakers.

SMALL: Select this mode when the size of the center speaker is smaller than that of the

front speakers.

NO: Select this mode when you do not use a center speaker.

(You cannot select this mode when “3CHLOGIC” is selected for the surround mode.)

Front panel

Note:

This center speaker size setting is so related to the center mode setting for the surround mode that changing this setting affects and changes the center mode to a relevant mode, and vice versa. For example;

• If you select “LARGE,” the center mode is automatically set to “WIDE,” and vice versa.

• If you select “SMALL,” the center mode is automatically set to “NORMAL,” and vice versa.

• If you select “NO,” the center mode is automatically set to “PHANTOM” for Pro Logic, and vice versa.

Page 16

Using Visual Confirmation

SETTING

See also page 32.

When you operate the receiver, you can see what you are doing, by showing it on the TV screen. To use this function, you need to connect the TV to the MONITOR OUT jack on the rear panel (see page 9), and set the TV’s input mode to the proper position to which the receiver is connected. When the TV’s input mode is for TV, you cannot see the on-screen display.

On the front panel only:

ﬁﬁ

1. Press SETTING so that the Control

% /

ﬁ /

@ /

# buttons work for setting Visual

ﬁﬁ

Confirmation.

The lamp next to the button lights up.

2. Press Control

3. Press Control

ﬁﬁ

% /

ﬁ until “VCONFIRM” appears on the display.

ﬁﬁ

@ /

# to set Visual Confirmation to “ON” or “OFF.”

• Select “ON ” to activate Visual Confirmation.

The VISUAL CONFIRMATION indicator lights up on the display.

• Select “OFF” to cancel it.

The indicator goes off.

Front panel

EXAMPLES:

When changing the source:

The SOURCE menu appears on the TV screen for about 5 seconds.

When adjusting the front speaker output balance:

The SETTING menu appears on the TV screen for about 5 seconds.

Page 17

When selecting your favorite SEA mode:

The SEA MODE menu appears on the TV screen for about 5 seconds.

One Touch Operation

This receiver can memorize the optimum sound settings for each playing source.

About the One Touch Operation

JVC’s One Touch Operation function is used to assign and store different sound settings for each different playing source. By using this function, you don’t have to change the settings every time you change the source. The stored settings for the newly selected source are automatically recalled.

The following can be stored for each source:

• Volume level (see page 12)

• Balance (see page 14)

• Loudness (see page 14)

• SEA modes (see page 22)

• Surround mode settings (see page 24)

Note:

If the source is FM or AM, the One Touch Operation function works only when the preset channels from 1 — 20 are tuned in. You can assign a different setting for each preset channel.

Using the One Touch Operation

ONE TOUCH OPERATION

Front panel

ONE TOUCH

OPERATION

Remote control

To store the sound settings

1. Press ONE TOUCH OPERATION.

The ONE TOUCH OPERATION lamp lights up, then the previously memorized settings are recalled and appear on the display in turn.

2. Adjust the sound using the functions listed above.

The newly adjusted settings are memorized.

To recall the sound settings

With the ONE TOUCH OPERATION lamp lit, the settings for the currently selected source is recalled, and appears on the display when the source is selected.

To cancel the One Touch Operation function

Press ONE TOUCH OPERATION so that the lamp goes off. (Even though the One Touch Operation function is canceled, the recalled sound effects remain active.)

Page 18

Receiving Radio Broadcasts

You can browse through all the stations or use the preset function to go immediately to a particular station.

Tuning in Stations Manually

See also page 33.

MEMORYTUNER

Front panel

Using Preset Tuning

On the front panel only:

ﬁﬁ

1. Press TUNER so that the Control

% /

ﬁ /

@ /

# buttons work for tuner settings.

ﬁﬁ

The lamp next to the button lights up.

2. Press Control

3. Press Control

ﬁﬁ

% /

ﬁ until “<FM AM>” appears on the display.

ﬁﬁ

@ /

# to select the band.

Each time you press the button, the band alternates between FM and AM.

4. Press Control

5. Press Control

ﬁﬁ

% /

ﬁ until “–TUNING+” appears on the display.

ﬁﬁ

@ /

# until you find the frequency you want.

• Pressing Control @ decreases the frequency.

• Pressing Control # increases the frequency.

Notes:

• When you hold down Control @ / # in step 5, the frequency keeps changing until you press the button again

or a station is tuned in.

• When a station of sufficient signal strength is tuned in, the TUNED indicator lights up on the display.

When an FM stereo program is received, the STEREO indicator also lights up.

See also page 33.

Once a station is assigned to a channel number, the station can be quickly tuned. You can preset up to 40 stations at random.

To store the preset stations

MEMORYTUNER

Front panel

On the front panel only:

1. Tune in the station you want to preset (see above).

If you want to store the FM reception mode for this station, select the FM reception mode you want. See page 20 for details.

2. Press MEMORY (next to the TUNER button).

“CH-” appears and the channel number position starts flashing on the display for about 5 seconds.

3. Press Control

ﬁﬁ

% /

ﬁ to select a channel number while the channel number position is flashing.

ﬁﬁ

• Pressing Control % increases the number.

• Pressing Control ﬁ decreases the number.

Note:

You can use the 10 keys on the remote control to select the preset number. When using the 10 keys, be sure that they are activated for tuner, not for the CD and others. (See page 38.)

4. Press MEMORY (next the TUNER button) again while the selected channel number is flashing on the display.

The selected channel number stops flashing. The station is assigned to the selected channel number.

5. Repeat steps 1 to 4 until you store all the stations you want.

To cancel a stored preset station

Storing a new station on a used number erases the previously stored one.

Page 19

To tune in a preset station

MEMORYTUNER

Front panel

FM/AM

CAUTION:

Preset stations may be erased when power is cut off to the receiver, as when it is unplugged from the AC outlet or a power failure occurs. If the preset stations are lost, simply set the stations again.

On the front panel:

ﬁﬁ

1. Press TUNER so that the Control

% /

ﬁ /

@ /

# buttons work for tuner settings.

ﬁﬁ

The lamp next to the button lights up.

2. Press Control

3. Press Control

ﬁﬁ

% /

ﬁ until “–PRESET+” appears on the display.

ﬁﬁ

@ /

# to select a preset channel.

Each time you press the button, the preset channels changes.

• Pressing Control @ changes preset channels in decreasing order.

• Pressing Control # changes preset channels in increasing order.

From the remote control:

1. Press FM/AM.

Each time you press the button, the band alternates between FM and AM.

2. Press 10 keys to select a preset channel number.

• For channel number 5, press 5.

CNTRDELAY

213

TEST REAR

• For channel number 15, press +10 then 5.

• For channel number 20, press +10 then 10.

• For channel number 30, press +10, +10, then 10.

546 87/P9

SEA MODE SURR MODE

FM MODE/MUTE

+10

100+

RETURN

Note:

When you use the 10 keys on the remote control, be sure that they are activated for tuner, not for the CD and others. (See page 38.)

Remote Control

Selecting the FM Reception Mode

You can change the FM reception mode while listening an FM broadcast.

MEMORYTUNER

You can also store the FM reception mode for each preset station. (See page 19.)

On the front panel:

1. Press TUNER so that the Control

The lamp next to the button lights up.

2. Press Control

3. Press Control

• Normally select “AUTO.”

• When an FM stereo broadcast is hard to receive or noisy, select “MONO.”

ﬁﬁ

% /

ﬁﬁ

% /

ﬁ until “FM MODE” appears on the display.

ﬁﬁ

@ /

# to select either “AUTO” or “MONO.”

ﬁ /

@ /

# buttons work for tuner settings.

ﬁﬁ

See also page 33.

Front panel

FM MODE/MUTE

Remote Control

AUTO: When a program is broadcast in stereo, you will hear stereo sound; when in

monaural, you will hear monaural sounds. This mode is also useful to suppress static noise between stations. The MUTE AUTO indicator lights up on the display.

MONO: Reception will be improved although you will lose the stereo effect. In this

mode, you will hear noise while tuning into the stations. The MUTE AUTO indicator goes off on the display.

From the remote control: Press FM MODE/MUTE.

Each time you press the button, “AUTO” and “MONO” is alternately selected, and appears on the display.

Note:

When using the FM MODE/MUTE button, be sure that the 10 keys are activated for tuner, not for the CD and others. (See page 38.)

Page 20

Assigning Names to Preset Stations

SURROUND PRO LOGIC

VISUAL CONFIRMATION

CH–

100 1k 10k

SURROUND PRO LOGIC

VISUAL CONFIRMATION

CH–

100 1k 10k

SURROUND PRO LOGIC

VISUAL CONFIRMATION

CH–

100 1k 10k

SURROUND PRO LOGIC

VISUAL CONFIRMATION

CH–

100 1k 10k

CBADEGFHIJKLMNO

SRQTUWVX

Z01234P

87695

You can assign a name of up to five characters to each preset station (from preset channel number 1 to 20). When a preset station is tuned in, its assigned name will appear on the display.

On the front panel only:

1. Tune in a preset station (preset channel number 1 to 20).

See page 20 for details.

See also page 33.

MEMORYTUNER

2. Press MEMORY (next to the TUNER button).

The preset channel number starts flashing.

Note:

If you press Control

/ ﬁ while the preset channel number is flashing, you can change the preset channel number.

3. Press Control

# (or

@) until the first character

position starts flashing.

4. Press Control

ﬁﬁ

% /

ﬁ to select a character.

ﬁﬁ

You can use the characters listed below.

5. When a character you want appears, press

Control

# (or

@).

The next (or previous) character position starts flashing.

6. Repeat steps 4 and 5 to enter up to five characters.

MEMORYTUNER

7. Press MEMORY (next to the TUNER button) again, while the last selected character is flashing, after you have assigned a name.

To erase the input characters

Front panel

Insert blanks using the same procedure described above.

Available characters

Blank

Page 21

Using the SEA Modes

SEA MODE

COUNTRY

JAZZ

ROCK MUSICAL MOVIE

USERMODESEA OFF

COUNTRY

JAZZ

ROCK MUSICAL MOVIE

USERMODESEA OFF

The SEA (Sound Effect Amplifier) modes give you control of the way your music sounds.

Note:

The SEA modes cannot be used for recording.

Selecting Your Favorite SEA Mode

On the front panel:

1. Press SEA MODE so that the Control

The lamp next to the button lights up.

2. Press Control

Each time you press the button, the SEA mode changes as follows:

Note:

When the SEA mode is turned on, the SEA indicator lights up on the display.

ROCK: Gives a heavy sound. Both high and low frequencies are boosted.

Front panel

MUSICAL: Enhance the mid-frequency range, which the human voice is mostly made up of. MOVIE: Adds breadth to sounds so you feel like you are in a movie theater. COUNTRY: Enhances the high-frequency range so that instruments such the violin and banjo

JAZZ: Gives a feeling of a live atmosphere. Good for acoustic music. USERMODE: Your original SEA adjustment (see page 23). SEA OFF: No SEA mode is applied (see below).

ﬁﬁ

% /

ﬁ buttons work for selecting the SEA mode.

ﬁﬁ

% /

ﬁ until the mode you want appears on the display.

ﬁﬁ

are emphasized.

See also page 33.

SOUND

CONTROL

SEA MODE

RETURN

Remote Control

To cancel the SEA mode, press Control % / ﬁ until “SEA OFF” appears in step 2 above. The SEA indicator goes off from the display.

From the remote control:

1. Press the SOUND CONTROL.

Pressing this button activates the 10 keys for adjusting the sounds.

2. Press the SEA MODE button repeatedly until the SEA mode you want appears on the display.

Each time you press the button, the SEA mode changes as follows:

Note:

When the SEA mode is turned on, the SEA indicator lights up on the display.

To cancel the SEA mode, press SEA MODE until “SEA OFF” appears in step 2 above. The SEA indicator goes off from the display.

Page 22

Creating Your Own SEA Mode

SEA

MEMORY

ADJUST

See also page 33.

You can adjust and store your own SEA adjustment into memory (USERMODE).

On the front panel only:

If you do not want to store your adjustment, but rather want to adjust the SEA temporarily, skip step 3 below.

ﬁﬁ

1. Press SEA ADJUST so that the Control

% /

ﬁ /

@ /

# buttons work for the SEA adjustment.

ﬁﬁ

The lamp next to the button lights up.

2. Adjust the SEA frequency and its level.

• Press Control @ / # to select the frequency range to adjust.

• Press Control % / ﬁ to adjust the level.

100 1k 10k

SEA

MEMORY

ADJUST

Front panel

3. Press MEMORY (next to the SEA ADJUST button).

Your adjustment is stored into USERMODE.

To recall your own SEA adjustment

See page 22.

To erase a stored adjustment

Storing a new adjustment into USERMODE erases the previously stored one.

Page 23

Using the Surround Processor

SURROUND MODE

The built-in surround processor provides three types of surround programs — Dolby Pro Logic, Dolby 3Channel Logic, and JVC’s Hall Surround.

What is surround?

The sound heard in a concert hall or a movie theater consists of direct sound and indirect sound: early reflections and reflections from behind. The reflected sounds are always delayed by the distances of the ceiling and walls from the listener. These reflections are some of the most important elements of the acoustic surround.

Reflections from behind

Early reflections

Direct sound

On JVC’s Hall Surround

In order to reproduce a more realistic sound field in your listening room while playing an ordinary stereo source, JVC’s Hall Surround has been designed to give you clear vocals and to create the feeling of a concert hall. The sound is reproduced through the front speakers and rear speakers.

On Dolby Surround

Dolby Surround has been also developed to reproduce the important elements of the acoustic surround at home. To watch the soundtracks of video software bearing the mark

DOLBY SURROUND

information as found in Dolby Stereo films, the receiver can provide you with 2 Dolby Surround programs (Dolby Pro Logic and Dolby 3ch Logic). Dolby Pro Logic: Select this mode when the optional rear speakers are connected (as well as a center speaker). Dolby 3ch Logic: Select this mode when a center speaker is connected without rear speakers.

* which includes the same encoded surround

* Manufactured under license from Dolby Laboratories Licensing

Corporation. Additionally licensed under Canadian patent number 1,037,877. “Dolby,” the double-D symbol, and “Pro Logic” are trademarks of Dolby Laboratories Licensing Corporation.

Using JVC’s Hall Surround

You need to connect one set of rear speakers to obtain the full effect. Once you have adjusted the Hall Surround, the receiver memorizes the settings.

On the front panel:

1. Press SURROUND MODE so that the Control modes.

The lamp next to the button lights up.

2. Press Control

The HALL and SURROUND indicators also light up on the display. Each time you press the button, the surround modes change as follows (the indicator of the selected surround mode also lights up on the display):

Front panel

ﬁﬁ

% /

ﬁ until “HALL” appears on the display.

ﬁﬁ

PROLOGIC 3CHLOGIC

Notes:

• The surround processor has no effect on monaural sources.

• The surround processor cannot be used for recording.

ﬁﬁ

% /

ﬁ buttons work for selecting the surround

ﬁﬁ

HALL



SURR OFF

(Surround Off)

See also page 34.

Once you have set the Dolby Surround adjustments you can use the same adjustments every time you want to enjoy Dolby Surround. The receiver memorizes two sets of Dolby Surround adjustments; one for Pro Logic and the other for 3ch Logic.

On the front panel:

1. Press SURROUND MODE so that the Control

ﬁﬁ

% /

ﬁ buttons work for selecting the surround

ﬁﬁ

modes.

The lamp next to the button lights up.

2. Press Control

ﬁﬁ

% /

ﬁ until “PROLOGIC” or “3CHLOGIC” whichever you want appears on the

ﬁﬁ

display.

PROLOGIC 3CHLOGIC



SURR OFF

HALL

(Surround Off)

3. Select and play a sound source which was processed with Dolby Surround and is labeled with

DOLBY SURROUND

mark.

SOUND

CONTROL

SURR MODE

+10

100+

Remote Control

To cancel Dolby Surround, press Control % / ﬁ until “SURR OFF” appears in step 2 above. The indicator of the selected mode and the SURROUND indicator go off.

From the remote control:

1. Press SOUND CONTROL.

The remote control is activated for adjusting the sound.

2. If necessary, press SURR MODE until “PROLOGIC” or “3CHLOGIC” whichever you want appears on the display.

PROLOGIC 3CHLOGIC

HALL

SURR OFF

(Surround Off)

3. Select and play a sound source which was processed with Dolby Surround and is labeled with

DOLBY SURROUND

To cancel Dolby Surround, press SURR MODE until “SURR OFF” appears in step 2 above. The indicator of the selected mode and the SURROUND indicator go off.

mark.

Page 30

Using the On-Screen Display to Control the Receiver

MENU

EXIT

TAPE VCR

CONTROL

You can use the menu function on the TV screen to control the receiver. To use this function, you need to connect the TV to the MONITOR OUT jack on the rear panel (see page 9), and set the TV’s input mode to the appropriate position to which the receiver is connected. When the TV’s input mode is for TV, you cannot see the on-screen display.

IMPORTANT:

When you use the menu functions, make sure that you have connected a TV and operate the menu function while watching the on-screen displays on the TV.

Basic Procedures

From the remote control:

Menu function buttons

1. Press MENU.

The MAIN MENU appears on the TV screen.

• If you press % / ﬁ / @ / #, a sub-menu you can adjust at that time appears on the TV screen instead of the MAIN MENU.

2. Press

ﬁﬁ

% /

ﬁ to move

ﬁﬁ

to the sub-menu you want to set, then press

The sub-menu you want appears.

ﬁﬁ

3. If necessary, press

% /

ﬁ /

@ /

# to set or adjust the item you want on the selected sub-

ﬁﬁ

menu.

When a item is selected, the item will be highlighted.

@ /

# .

Note:

MAIN MENU

Moving press

to an item does not mean that you have selected it. If the item is not highlighted,

/ # to highlight it.

4. When you finish, press MENU EXIT.

The menu disappears from the TV.

To go back to the MAIN MENU any time during the process

Press MENU again.

Shows the buttons you can use on the current menu. In this case, press % / ﬁ to move

up and down, and @ / # to select the item.

(The menus are shown on the TV for about one minute.)

Selecting the Source to Play (Also see page 11)

1. Press MENU.

The MAIN MENU appears on the TV.

2. Press

ﬁﬁ

% /

ﬁ to move

ﬁﬁ

to “SOURCE,” then press

The SOURCE menu appears.

3. Press

ﬁﬁ

% /

ﬁ to move to the source you want to play.

ﬁﬁ

4. When you finish, press MENU EXIT.

The menu disappears from the TV.

@ /

SOURCE menu

Adjusting the Front Speaker Output Balance (Also see page 14)

1. Press MENU.

The MAIN MENU appears on the TV.

2. Press

The SETTING menu appears.

3. Press

4. Press

5. When you finish, press MENU EXIT.

The menu disappears from the TV.

Page 31

ﬁﬁ

% /

ﬁ to move

ﬁﬁ

% /

ﬁ to move

ﬁﬁ

@ /

# repeatedly to adjust the balance.

to “SETTING,” then press

to “BAL.” (Balance).

@ /

SETTING menu

Shows the buttons you can use on the current menu. In this case, press % / ﬁ to move

up and down, and @ / #

to adjust or set the item.

Listening at Low Volume (Loudness) (Also see page 14)

1. Press MENU.

The MAIN MENU appears on the TV.

2. Press

The SETTING menu appears.

3. Press

4. Press

5. When you finish, press MENU EXIT.

The menu disappears from the TV.

ﬁﬁ

% /

ﬁ to move

ﬁﬁ

% /

ﬁ to move

ﬁﬁ

@ /

# to set the loudness function to “ON” or “OFF.”

to “SETTING,” then press

to “LOUDNESS.”

@ /

Using the Sleep Timer (Also see page 15)

1. Press MENU.

The MAIN MENU appears on the TV.

2. Press

The SETTING menu appears.

3. Press

4. Press

ﬁﬁ

% /

ﬁ to move to “SETTING,” then press

ﬁﬁ

% /

ﬁ to move

ﬁﬁ

@ /

# to set the shut-off time.

to “SLEEP TIMER.”

@ /

SETTING menu

5. When you finish, press MENU EXIT.

The menu disappears from the TV.

Selecting the Center Speaker Size (Also see page 16)

Note:

When the surround mode is Hall or off, you cannot select the center speaker size.

1. Press MENU.

The MAIN MENU appears on the TV.

2. Press

The SETTING menu appears.

3. Press

4. Press

5. When you finish, press MENU EXIT.

The menu disappears from the TV.

ﬁﬁ

% /

ﬁ to move

ﬁﬁ

% /

ﬁ to move

ﬁﬁ

@ /

# repeatedly until the appropriate center speaker size is selected.

to “SETTING,” then press

to “CENTER SPK” (Center Speaker).

@ /

Using Visual Confirmation (Also see page 17)

1. Press MENU.

The MAIN MENU appears on the TV.

2. Press

The SETTING menu appears.

ﬁﬁ

% /

ﬁ to move

ﬁﬁ

to “SETTING,” then press

@ /

SETTING menu

3. Press

4. Press

5. When you finish, press MENU EXIT.

The menu disappears from the TV.

ﬁﬁ

% /

ﬁ to move

ﬁﬁ

@ /

# to set Visual Confirmation to “ON” or “OFF.”

to “VISUAL CONFIRM.” (Visual Confirmation).

Page 32

Operating the Tuner

1. Press MENU.

The MAIN MENU appears on the TV.

2. Press

The TUNER menu appears.

3. Press

On the TUNER menu, you can do the following: “CH.”: Select a preset channel station. (See page 20)

“BAND”: Select the band. (See page 19) “TUNING”: Tune in a station manually. (See page 19) “FM MODE”: Select the FM reception mode. (See page 20)

4. When you finish, press MENU EXIT.

The menu disappears from the TV.

ﬁﬁ

% /

ﬁ to move

ﬁﬁ

% /

ﬁ to move

ﬁﬁ

to “TUNER,” then press

to the item you want to set or adjust, then press

If you want to assign a name to a preset channel, see page 21.

@ /

Selecting Your Favorite SEA Mode (Also see page 22)

1. Press MENU.

The MAIN MENU appears on the TV.

2. Press

The SEA MODE menu appears.

ﬁﬁ

% /

ﬁ to move

ﬁﬁ

to “SEA,” then press

@ /

TUNER menu

If you have assigned the name to this preset station, it appears here.

SEA MODE menu

3. Press

4. When you finish, press MENU EXIT.

The menu disappears from the TV.

ﬁﬁ

% /

ﬁ to move

ﬁﬁ

to the SEA mode you want.

Creating Your Own SEA Mode (Also see page 23)

1. Press MENU.

The MAIN MENU appears on the TV.

2. Press

The SEA ADJUST menu appears.

3. Press

@ / #: Select the frequency ranges. % / ﬁ: Adjust the frequency levels.

4. Press MEMORY (next to the SEA ADJUST button).

5. When you finish, press MENU EXIT.

The menu disappears from the TV.

ﬁﬁ

% /

ﬁ to move

ﬁﬁ

% /

ﬁ /

ﬁﬁ

to “SEA ADJUST” then press

@ /

# to adjust the SEA mode as you want.

@ /

SEA ADJUST menu

Page 33

Selecting the Surround Modes (Also see pages 24)

1. Press MENU.

The MAIN MENU appears on the TV.

2. Press

The SURROUND MODE menu appears.

3. Press

If you want to adjust the selected mode, go to the following steps.

4. Press MENU.

The MAIN MENU appears on the TV again.

5. Press

The adjustment menu for the mode you have selected in step 3 appears.

6. Press

On these adjustment menus, you can do the following:

ﬁﬁ

% /

ﬁ to move

ﬁﬁ

% /

ﬁ to move

ﬁﬁ

% /

ﬁ to move to “SURROUND ADJUST,” then press

ﬁﬁ

% /

ﬁ to move

ﬁﬁ

to “SURROUND,” then press

to one of the surround modes.

to the item you want to set or adjust, then press

@ /

SURROUND MODE menu

For HALL:

“REAR”: Adjust the rear speaker output level. “DELAY”: Adjust the delay time of the rear speaker sound.

For Dolby Pro Logic:

“CENTER MODE”: Select the center mode. “TEST”: Output a test tone. “CENTER”: Adjust the center speaker output level. “REAR”: Adjust the rear speaker output level. “DELAY”: Adjust the delay time of the rear speaker sound. “CENTER TONE”: Select the center tone.

For Dolby 3ch Logic:

“CENTER MODE”: Select the center mode. “TEST”: Output a test tone. “CENTER”: Adjust the center speaker output level. “CENTER TONE”: Select the center tone.

7. When you finish, press MENU EXIT.

The menu disappears from the TV.

HALL adjustment menu

PRO LOGIC adjustment menu

3CH LOGIC adjustment menu

Page 34

COMPU LINK Remote Control System

The COMPU LINK remote control system allows you to operate JVC audio components through the remote sensor on the receiver. To use this remote control system, you need to connect JVC audio components through the COMPU LINK3 (SYNCHRO) jacks (see below) in addition to the connections using cables with RCA pin plugs (see page

8).

CD player

Cassette deck

COMPU LINK – 3

(SYNCHRO)

Turntable

Notes:

• If your audio component has two COMPU LINK-3 (SYNCHRO) jacks, you can use either one. If it has only one COMPU LINK-3 (SYNCHRO) jack, connect it so that it is the last item in the series of components. (For example, the turntable or CD player in the diagram above.)

• Refer also to the manuals supplied with your audio components.

This remote control system allows you to use four functions listed below.

7 Remote Control through the Remote Sensor on the Receiver

You can control the connected audio components through the remote sensor on the receiver using this remote control. For details, see pages 38 and 39.

Note:

Aim the remote control directly at the remote sensor on the receiver.

7 Automatic Source Selection

When you press the play (

3) button on a connected component or on its own remote control, the receiver

automatically turns on and changes the source to the component. On the other hand, if you select a new source on the receiver or the remote control, the selected component begins playing immediately. In both cases, the previously selected source continues playing without sound for a few seconds.

7 Automatic Power On/Off (only possible with the COMPU LINK-3 connection)

Both the CD player and cassette deck turn on and off along with the receiver. When you turn on the receiver, the CD player or cassette deck will turn on automatically, depending on which component has been previously selected. When you turn off the receiver, both the CD player and cassette deck will turn off.

7 Synchronized Recording

Synchronized recording means the cassette deck starts recording as soon as a CD or a record begins playing.

To use synchronized recording, follow these steps:

1 Put a tape in the cassette deck, and a disc in the CD player (or a record on the turntable). 2 Press the record (¶) button and the pause (8) button on the cassette deck at the same time.

This puts the cassette deck into recording pause.

Note:

If you do not press the record (¶) button and pause (8) button at the same time, the synchronized recording feature will not operate.

3 Press the play (3) button on the CD player or on the turntable.

The source changes on the receiver, and as soon as play starts, the cassette deck starts recording. When the play ends, the cassette deck enters recording pause, and stops about 4 seconds later.

Notes:

• During synchronized recording, the selected source cannot be changed.

• If your CD player is playing in program mode, a 4-second blank is recorded between tracks so that the music scan feature of your cassette deck can be used on the recorded tape.

• If the power of any component is shut off during synchronized recording, the COMPU LINK remote control system may not operate properly. In this case, you must start again from the beginning.

Page 35

AV COMPU LINK Remote Control System

The AV COMPU LINK remote control system allows you to operate JVC video components (TV and VCR) through the receiver.

CONNECTIONS:

To use this remote control system, you need to connect the video components you want to operate, following the procedures below.

CAUTION:

The AV COMPU LINK remote control system cannot control the video components connected to the VIDEO jacks on the receiver. Use only VCR jacks for the VCR jacks.

1. Connect your VCR and TV as follows, using the cables with the monaural mini-plugs (not

supplied).

VCR

VHS

AV

COMPU LINK

2. Connect the VCR and TV as follows.

• When using an S-VHS VCR, connect it as follows: See also page 9.

AUDIO

OUT

(REC)

VCR

IN

(PLAY)

VCR

MONITOR

OUT

VIDEO

OUT

(REC)

DO NOT connect the

IN

(PLAY)

VCR IN (PLAY) jack.

To video input 2 jack (using video cable)

AV

COMPU LINK

S-VHS VCR

S-VHS

To video input 1 S-video jack (using S-video cable)

AV

COMPU LINK

RECEIVER/

AMP

• When using a VHS VCR, connect it as follows: See also page 9.

AUDIO

OUT

(REC)

VCR

IN

(PLAY)

VCR

MONITOR

OUT

OUT

(REC)

IN

(PLAY)

To video input 2 jack (using video cable)

VIDEO

3. When turning on the TV for the first time after the AV COMPU LINK connection, turn the TV

volume to the minimum using the TV volume control on the TV.

VHS VCR

VHS

Page 36

FUNCTIONS:

This remote control system allows you to use four functions listed below.

Note:

Refer also to the manuals supplied with your video components.

7 Remote Control of the TV through the Remote Sensor on the Receiver

You can control the TV through the remote sensor on the receiver using this remote control. For details, see page 39.

Note:

Aim the remote control directly at the remote sensor on the receiver when operating the TV. (However, to operate the VCR, always aim the remote control directly at the remote sensor on the VCR.)

7 One-Touch Video Play

Simply by inserting a video cassette without its safety tab into the VCR, you can enjoy the video playback without setting other switches manually. The receiver automatically turns on and changes the source to “VCR.” The TV automatically turns on and changes the input mode to the position you can view the VCR playback. When you insert a video cassette with its safety tab, press the play ( control. So, you can get the same result.

Note:

When you connect an S-VHS VCR as described on page 36, you cannot see the on-screen displays (such as Visual Confirmation and Menus) since the AV COMPU LINK Remote Control System automatically changes the TV input mode to “Video input 1” when you operate the S-VHS VCR. If you do not mind stopping watching the picture, you can then show the on-screen displays after changing the TV input mode to the position (Video input 2) the receiver is connected to.

3) button on the VCR or on the remote

7 Automatic Selection of TV’s Input Mode

• When you select “TV SOUND” as the source to play on the receiver, the TV automatically changes the input mode to the TV tuner so that you can watch TV.

• When you select “VIDEO” as the source to play on the receiver, the TV automatically changes the input mode to the Video Input 2 so that you can watch the playback picture.

• When you select “VCR” as the source to play on the receiver, the TV automatically changes the input mode to the correct position (either Video Input 1 or 2) so that you can watch the playback picture.

Note:

When you select “TV SOUND” as the source on the receiver, you cannot see the on-screen displays (such as Visual Confirmation and the menu function) since the AV COMPU LINK remote control system automatically changes the TV’ input mode to the TV tuner. If you do not mind stopping listening to the TV sounds, you can then show the on-screen displays after changing the TV input mode to the position (Video input 2) the receiver is connected to.

7 Automatic Power On/Off

The TV and VCR turn on and off along with the receiver. When you turn on the receiver;

• If the previously selected source is “VCR,” the TV and VCR will turn on automatically.

• If the previously selected source is “VIDEO” or “TV SOUND,” only the TV will turn on automatically.

When you turn off the receiver, the TV and VCR will turn off.

Note:

If you turn off the receiver while recording on the VCR, the VCR will not turn off, but continue recording.

Page 37

Using the Remote Control for Operating JVC’s Audio/Video Components

You can operate JVC’s audio and video components with this receiver’s remote control, since control signals for JVC components are preset in the remote control.

Notes:

• If you use the buttons on the front panel or the menu function to choose a source, the remote control will not operate that source. To operate a source with the remote control, the source must be selected using buttons on the remote control.

• Check to see if its remote control mode selector is set to the correct position. To operate audio system, TVs, and VCRs, set it to the “AUDIO/TV/VCR” position.

• Refer also to the manuals supplied with your components.

IMPORTANT:

To operate JVC’s audio components using this remote control:

• You need to connect JVC audio components through the COMPU LINK-3 (SYNCHRO) jacks (see page 35) in addition to the connections using cables with RCA pin plugs (see page 8).

• Aim the remote control directly at the remote sensor on the receiver.

RM-SR772U REMOTE CONTROL

VCR

TV/CATV

POWER

/SAT POWER

VIDEO TAPEVCR

SOUND

FM/AM PHONOCD

ONE TOUCH OPERATION

CD

TEST REAR

DISC

CD

TRACK

/P 9

SOUND

SEA MODE SURR MODE

CONTROL

RETURN

AUDIO/TV /VCR

VOLUME

CATV /SAT

CHANNEL

MUTE

PLAY

REW

4 /

STOP

REC

TV/VIDEO

CONTROL

TAPE VCR

MENU

EXIT

AUDIO



POWER

SLEEP

CNTRDELAY

213 546 87

+10

FM MODE/MUTE

100+

FF / ¢

PAUSE

TV VOLUME

Tuner

After pressing FM/AM (with the remote control mode selector set to the “AUDIO/TV/VCR” position), you can perform the following operations:

FM/AM: Alternates between FM and AM. 1 — 10, +10: Selects a preset channel number directly.

For channel number 5, press 5. For channel number 15, press +10, then 5. For channel number 20, press +10, then 10.

FM MODE/MUTE: Changes the FM reception mode.

Sound control section (Amplifier)

After pressing SOUND CONTROL (with the remote control mode selector set to the “AUDIO/TV/VCR” position), you can perform the following operations:

SEA MODE: Changes the SEA modes. SURR MODE: Changes the surround modes. CNTR +/–: Changes the center speaker output level for the surround modes. REAR +/–: Changes the left/right rear speaker output level for surround modes. DELAY: Changes the delay time for surround modes. TEST: Checks the speaker output level for surround modes.

Note:

After adjusting sounds, press the corresponding source selecting button (FM/AM, CD, CD TRACK, CD DISC, VCR or TV SOUND) to operate your target source by using 10 keys; otherwise, 10 keys cannot be used for operating your target source.

CD player

After pressing CD or CD TRACK (with the remote control mode selector set to the “AUDIO/TV/VCR” position), you can perform the following operations on a CD player:

PLAY: Starts playing.

4: Returns to the beginning of the current (or previous) track.

44 ¢¢

¢: Skips to the beginning of the next track.

¢¢

STOP: Stops playing. PAUSE: Pauses playing. To release it, press PLAY. 1 — 10, +10: Selects a track number directly.

To select track number 5, press 5. For track number 15, press +10, then 5. For track number 20, press +10, then 10. For track number 30, press +10, +10, then 10.

Note:

You can use either the CD button or the CD TRACK button to activate the buttons listed above. If you press CD, the playing source also changes to “CD.” On the other hand, if you press CD TRACK, the playing source does not change to “CD.”

CD player-changer

After pressing CD DISC (with the remote control mode selector set to the “AUDIO/TV/VCR” position), you can perform the following operations on a CD player-changer:

PLAY: Starts playing.

4: Returns to the beginning of the current (or previous) track.

44 ¢¢

¢: Skips to the beginning of the next track.

¢¢

STOP: Stops playing. PAUSE: Pauses playing. To release it, press the PLAY button. 1 — 6, 7/P: Select the number of a disc installed in a CD player-changer.

After pressing CD TRACK: 1 — 10, +10: Selects a track number directly.

To select track number 5, press 5. For track number 15, press +10, then 5. For track number 20, press +10, then 10. For track number 30, press +10, +10, then 10.

Page 38

Turntable

After pressing PHONO (with the remote control mode selector set to the “AUDIO/TV/VCR” position), you can perform the following operations on a turntable:

PLAY: Starts playing. STOP: Stops playing.

Cassette deck

After pressing TAPE or TAPE CONTROL (with the remote control mode selector set to the “AUDIO/TV/ VCR” position), you can perform the following operations on a cassette deck:

PLAY: Starts playing. REW: First rewinds the tape from right to left. FF: First rewinds the tape from left to right. STOP: Stops operations. PAUSE: Pauses playing or recording temporarily. To release it, press the PLAY button.

¶¶

REC

¶: Press this button with the PLAY button to start recording.

¶¶

Press this button with the PAUSE button to enter recording pause (standby).

Note:

You can use either the TAPE button or the TAPE CONTROL button to activate the buttons listed above. If you press TAPE, the playing source also changes to “TAPE.” On the other hand, if you press TAPE CONTROL, the playing source does not change to “TAPE.”

IMPORTANT:

To operate JVC’s video components using this remote control:

• You need to connect JVC video components through the AV COMPU LINK jacks (see page 36) in addition to the connections using cables with RCA pin plugs (see pages 9 and 36).

• When operating the VCR, aim the remote control directly at the remote sensor on the VCR.

• When operating the TV, aim the remote control directly at the remote sensor on the receiver.

RM-SR772U REMOTE CONTROL

VCR

TV/CATV

POWER

/SAT POWER

VIDEO TAPEVCR

SOUND

FM/AM PHONOCD

ONE TOUCH OPERATION

CD

TEST REAR

DISC

CD

TRACK

/P 9

SOUND

SEA MODE SURR MODE

CONTROL

RETURN

AUDIO/TV /VCR

VOLUME

CATV /SAT

CHANNEL

MUTE

PLAY

REW

4 /

STOP

REC

TV/VIDEO

CONTROL

TAPE VCR

MENU

EXIT

AUDIO



POWER

SLEEP

CNTRDELAY

213 546 87

+10

FM MODE/MUTE

100+

FF / ¢

PAUSE

TV VOLUME

VCR

After pressing VCR or VCR CONTROL (with the remote control mode selector set to the “AUDIO/TV/VCR” position), you can perform the following operations on the VCR:

PLAY: Starts playing. REW: Rewinds a tape. FF: Fast winds a tape. STOP: Stops operations. PAUSE: Pauses playing or recording temporarily. To release it, press the PLAY button.

¶¶

REC

¶: Press this button with the PLAY button to start recording.

¶¶

Press this button with the PAUSE button to enter recording pause (standby).

CHANNEL +/–: Changes the channels on the VCR. 1 – 9, 0: Selects the channels on the VCR.

Notes:

• You can use either the VCR button or the VCR CONTROL button to activate the buttons listed above. If you press VCR, the playing source also changes to “VCR.” On the other hand, if you press VCR CONTROL, the playing source does not change to “VCR.”

• You can also turn the VCR on and off by pressing VCR POWER on the remote control.

After pressing TV SOUND (with the remote control mode selector set to the “AUDIO/TV/VCR” position), you can perform the following operations on a TV:

CHANNEL +/–: Changes the channels. TV VOLUME +/–: Adjusts the volume. 1 – 9, 0, 100+: Selects the channels. TV/VIDEO: Sets the input mode (either TV or VIDEO). RETURN: Alternates between the previously selected channel and the current channel.

Note:

You can also turn the TV on and off by pressing TV/CATV/SAT POWER on the remote control.

Page 39

Operating Other Manufacturers’ VCR, TV, CATV Converter, and Satellite Tuners

AUDIO/TV /VCR

CATV /SAT

This remote control supplied with the receiver can transmit control signals for other manufacturers’ VCRs, TVs and CATV converters. By changing the transmittable signals from preset ones to the other manufacturers’, you can operate the other manufacturer’s components using this remote control.

When operating the other manufacturers’ components, refer also to the manuals supplied with them. To operate these components with the remote control, first you need to set the manufacturer’s code each for VCR, TV, CATV converters, and satellite tuner.

IMPORTANT

When using the Remote Control, check to see if its remote control mode selector is set to the correct position:

To operate an audio system, TV, and VCR, set it to the “AUDIO/TV/VCR” position. To operate a CATV converter and satellite tuner, set it to the “CATV/SAT” position.

To change the transmittable signals for operating another manufacturer’s TV

1. Set the remote control mode selector to the “AUDIO/TV/VCR” position.

RM-SR772U REMOTE CONTROL

VCR

AUDIO

TV/CATV

/SAT POWER

SOUND

ONE TOUCH OPERATION

CD

DISC

CD

TRACK

SOUND

CONTROL

AUDIO/TV /VCR

CATV /SAT

MUTE

4 /

TV/VIDEO

MENU

EXIT



POWER

SLEEP

VIDEO TAPEVCR

FM/AM PHONOCD

213

TEST REAR

546 87/P9

SEA MODE SURR MODE

FM MODE/MUTE

RETURN

VOLUME

CHANNEL

FF / ¢

PLAY

REW

PAUSE

STOP

REC

TV VOLUME

CONTROL

TAPE VCR

POWER

2. Press and hold TV/CATV/SAT POWER.

3. Press TV SOUND.

CNTRDELAY

4. Enter the manufacturer’s code (three digits) using buttons 1 – 9, and 0.

See the lists on page 42 to find the code.

5. Release TV/CATV/SAT POWER.

+10

100+

The following buttons can be used for operating the TV (with the remote control mode selector set to the “AUDIO/TV/VCR” position):

TV/CATV/SAT POWER: Turns on and off TV.

After pressing TV SOUND you can perform the following operations on the TV:

CHANNEL +/–: Changes the channels. TV VOLUME +/–: Adjusts the volume. 1 – 10, 0, +10: Selects the TV channels.

+10 button will function as the ENTER button if your TV requires pressing

TV/VIDEO: Sets the input mode (either TV or VIDEO).

ENTER after selecting a channel number.

Note:

Refer also to the manual supplied with your TV.

6. Try to operate your TV by pressing TV/CATV/SAT POWER.

When your TV turns on or off, you have entered the correct code.

7. If there are more than one code listed for your brand of TV, try each one until the correct one is

entered.

Page 40

To change the transmittable signals for operating a CATV converter or satellite tuner

1. Set the remote control mode selector to the “CATV/SAT” position.

RM-SR772U REMOTE CONTROL

VCR

TV/CATV

POWER

/SAT POWER

VIDEO TAPEVCR

SOUND

FM/AM PHONOCD

ONE TOUCH

OPERATION

CD

TEST REAR

DISC

CD

TRACK

SOUND

SEA MODE SURR MODE

CONTROL

RETURN

AUDIO/TV /VCR

VOLUME

CATV /SAT

CHANNEL

MUTE

PLAY

REW

4 /

STOP

REC

TV/VIDEO

CONTROL

TAPE VCR

MENU

EXIT

AUDIO



POWER

SLEEP

CNTRDELAY

213 546 87/P9

+10

FM MODE/MUTE

100+

FF / ¢

PAUSE

TV VOLUME

2. Press and hold TV/CATV/SAT POWER.

3. Press TV SOUND.

4. Enter the manufacturer’s code (three digits) using buttons 1 – 9, and 0.

See the lists on page 43 to find the code.

5. Release TV/CATV/SAT POWER.

After setting the remote control mode selector to the “CATV/SAT” position, you can perform the following operations on the CATV converter or on the satellite tuner:

TV/CATV/SAT POWER: Turns on and off the CATV converter or satellite tuner. CHANNEL +/–: Changes the channels. 1 – 10, 0, +10: Selects the channels.

+10 button will function as the ENTER button if your CATV converter or satellite tuner requires pressing ENTER after selecting a channel number.

Note:

Refer also to the manual supplied with your CATV converter or satellite tuner.

6. Try to operate your CATV converter or satellite tuner by pressing TV/CATV/SAT POWER.

When your CATV converter or satellite tuner turns on or off, you have entered the correct code.

7. If there are more than one code listed for your brand of CATV converter or satellite tuner, try

each one until the correct one is entered.

To change the transmittable signals for operating another manufacturer’s VCR

1. Set the remote control mode selector to the “AUDIO/TV/VCR” position.

RM-SR772U REMOTE CONTROL

VCR

TV/CATV

POWER

/SAT POWER

VIDEO TAPEVCR

SOUND

FM/AM PHONOCD

ONE TOUCH

OPERATION

CD

TEST REAR

DISC

CD

TRACK

SOUND

SEA MODE SURR MODE

CONTROL

FM MODE/MUTE

RETURN

AUDIO/TV /VCR

VOLUME

CATV /SAT

CHANNEL

MUTE

PLAY

REW

4 /

STOP

REC

TV/VIDEO

CONTROL

TAPE VCR

MENU

EXIT

AUDIO



POWER

SLEEP

CNTRDELAY

213 546 87

+10

100+

FF / ¢

PAUSE

TV VOLUME

2. Press and hold VCR POWER.

3. Press VCR.

4. Enter the manufacturer’s code (three digits) using buttons 1 – 9, and 0.

See the lists on page 44 to find the code.

5. Release VCR POWER.

The following buttons can be used for operating the VCR:

VCR POWER: Turns on and off VCR.

After pressing VCR or VCR CONTROL (with the remote control mode selector set to the “AUDIO/TV/ VCR” position), you can perform the following operations on the VCR:

CHANNEL +/–: Changes the channels on the VCR. 1 – 10, 0, +10: Selects the channels on the VCR.

+10 button will function as the ENTER button if your VCR requires pressing ENTER after selecting a channel number.

PLAY: Starts playback. STOP: Stops operations. PAUSE: Pauses. REW: Rewinds a tape. FF: Fast winds a tape.

¶¶

REC

¶: Starts recording or enters recording pause.

¶¶

Notes:

• Refer also to the manual supplied with your VCR.

Page 41

6. Try to operate your VCR by pressing VCR POWER.

When your VCR turns on or off, you have entered the correct code.

7. If there are more than one code listed for your brand of VCR, try each one until the correct one is entered.

Manufacturers’ codes for TV

Admiral 093 Adventura 046 Aiko 092 Akai 030 Alleron 179 Ambassador 177 Anam 180 Anam National 055 AOC 019, 030 Audiovox 180 Belcor 019 Bell & Howell 016, 154 Bradford 180 Brockwood 019 Candle 030, 046, 056 Carnivale 030 Carver 054 Celebrity 000 Citizen 030, 039, 046, 056, 060, 092, 280 Concerto 056 Contec 180 Craig 180 Crown 039, 180 Curtis Mathes 030, 039, 060, 154 CXC 180 Daewoo 019, 039, 092, 451 Daytron 019 Dumont 017, 019 Electroband 000 Emerson 019, 039, 154, 177, 178, 179, 180, 236,

280, 282, 463 Envision 030 Fisher 154, 159 Fujitsu 179 Funai 171, 179, 180 Futuretech 180 GE 021, 047, 051, 055, 135, 178, 282, 451 Gibralter 017, 019, 030 GoldStar 019, 030, 039, 056, 178 Grunpy 179, 180 Hallmark 178 Harvard 180 Hitachi 056, 145, 151 Infinity 054 Janeil 046 JBL 054 JCB 000 JVC 053, 069, 160, 169 KEC 180 Kenwood 019, 030 Kloss 046 KTV 030, 039, 180, 280 Logik 016 Luxman 056 LXI 047, 054, 154, 156, 178 Magnavox 020, 030, 054, 187

Majestic 016 Marantz 030, 054 Matsushita 250 Megatron 145, 178 Memorex 016, 056, 150, 154, 178 MGA 019, 030, 150, 178 Midland 017, 039, 047, 051, 135 Minutz 021 Mitsubishi 019, 093, 150, 178 Motorola 055, 093 MTC 019, 030, 056, 060 Multitech 180 NAD 156, 166, 178 NEC 019, 030, 056 Nikko 030, 092, 178 Noshi 018 NTC 092 Onwa 180 Optimus 154, 166, 250 Optonica 093, 165 Orion 236 Panasonic 051, 055, 250 Penney 018, 019, 021, 030, 039, 047, 051, 060,

135, 149, 156, 178 Philco 019, 020, 030, 054 Philips 054 Pilot 019, 030, 039 Pioneer 166 Portland 019, 039, 092 Prism 051 Proscan 047 Proton 178 Pulsar 017, 019 Quasar 051, 055, 165, 250 Radio Shack 019, 030, 039, 047, 056, 154, 165, 178,

180 RCA 018, 019, 047, 090, 135 Realistic 019, 030, 039, 056, 154, 165, 178, 180 Runco 017, 030 Sampo 030, 039 Samsung 019, 030, 039, 056, 060, 178 Samsux 039 Sanyo 154, 159 Scimitsu 019 Scotch 178 Scott 019, 178, 179, 180, 236 Sears 047, 054, 056, 149, 154, 156, 159, 171,

178, 179 Sharp 039, 093, 165 Shogun 019 Signature 016 Simpson 187 Sony 000 Soundesign 178, 179, 180 Squareview 171 SSS 019, 180

Page 42

Starlite 180 Supre-Macy 046 Supreme 000 Sylvania 020, 030, 054 Symphonic 171 Tandy 093 Tatung 055 Technics 051, 250 Technol Ace 179 Techwood 051, 056 Teknika 016, 019, 039, 054, 056, 060, 092, 150,

179, 180 TMK 056, 177, 178 Toshiba 060, 149, 154, 156 Totevision 039 Vector Research 030 Victor 053 Vidikron 054 Vidtech 019, 178 Viking 046 Wards 016, 019, 020, 021, 030, 054, 056, 165,

178, 179 Yamaha 019, 030 Zenith 016, 017

Manufacturers’ codes for CATV converters

ABC 003, 007, 008, 011, 013, 014, 017 Archer 153, 797 Century 153 Citizen 153 Comtronics 040 Contec 019 Everquest 015, 040 Focus 400 Garrard 153 Gemini 015 General Instrument 011, 276 GoldStar 040, 144 Hamlin 009, 020, 259, 273 Hitachi 011 Hytex 007 Jasco 153 Jerrold 003, 011, 012, 014, 015, 276 Memorex 000 Novaplex 618 Oak 007, 019 Panasonic 000, 021, 107 Paragon 000 Philips 153 Pioneer 144, 533 Popular Mechanics 400 Prelude 770 Pulsar 000 Radio Shack 797 RCA 021 Recoton 400 Regal 020, 259, 273 Rembrandt 011 Runco 000 Samsung 040, 144 Scientific Atlanta 008, 017, 277 Signal 015, 040 Signature 011 SL Marx 040 Sprucer 021 Starcom 003, 015 Stargate 015, 040, 770 Starquest 015 Teleview 040 Tocom 012, 013 Toshiba 000 Tusa 015 Unika 153 United Artists 007 United Cable 003 Universal 153 Zenith 000 Zentek 400

Page 43

Manufacturers’ codes for satellite tuner

AlphaStar 772 Echostar 775 General Instrument 361 HTS 775 Hughes Network Systems Jerrold 361 Panasonic 701 Primestar 361 RCA 566 Sony 639

Manufacturers’ codes for VCR

Admiral 048 Adventura 000 Aiko 278 Aiwa 000 Akai 041 American High 035 Asha 240 Audiovox 037 Beaumark 240 Bell & Howell 104 Broksonic 121, 184, 211 Calix 037 Canon 035 Capehart 020 Carver 081 CCE 072, 278 Citizen 037, 278 Colt 072 Craig 037, 047, 072, 240 Curtis Mathes 035, 041, 060 Cybernex 240 Daewoo 020, 045, 278 Daytron 020 Dynatech 000 Electrohome 037 Electrophonic 037 Emerex 032 Emerson 000, 002, 037, 043, 121, 184, 211, 212,

Fisher 047, 054, 104 Fuji 033, 035 Funai 000 Garrard 000 GE 035, 060 GoldStar 037, 038 Gradiente 000 Harley Davidson 000 Harman/Kardon 038 Harwood 072 Headquarter 046

749

278, 479

HI-Q 047 Hitachi 041, 042, 105 Jensen 041 JVC 008, 041, 067 KEC 037, 278 Kenwood 038, 041, 067 KLH 072 Kodak 035, 037 Lloyd 000 Logik 072 LXI 037 Magnavox 035, 039, 081, 149 Magnin 240 Marantz 035, 081 Marta 037 Matsushita 035, 162 MEI 035 Memorex 000, 035, 037, 039, 046, 047, 048, 104,

240 MGA 043 MGN Technology 240 Minolta 042, 105 Mitsubishi 043, 067 Motorola 035, 048 MTC 000, 240 Multitech 000, 072 NEC 038, 041, 067, 104 Nikko 037 Nikon 034 Noblex 240 Olympus 035 Optimus 037, 048, 104, 162 Optonica 062 Orion 479 Panasonic 035, 162, 225 Penney 035, 037, 038, 042, 054, 240 Pentax 042, 105 Philco 035 Philips 035, 062, 081 Pilot 037 Pioneer 067 Portland 020 Profitronic 240 Protec 072 Pulsar 039 Quarter 046 Quartz 046 Quasar 035, 162 Radio Shack 000, 037 Radix 037 Randex 037 RCA 042, 060, 105, 149 Realistic 000, 035, 037, 046, 047, 048, 062, 104 Ricoh 034 Runco 039 Samsung 045, 240

Page 44

Sanky 039, 048 Sansui 041, 067 Sanyo 046, 047, 104, 240 Scott 043, 045, 121, 184, 211, 212 Sears 035, 037, 042, 046, 047, 054, 104, 105 Sharp 048, 062 Shintom 072 Shogun 240 Singer 072 Sony 032, 033, 034, 035 STS 042 Sylvania 000, 035, 043, 081 Symphonic 000 Tatung 041 Teac 000, 041 Technics 035, 162 Teknika 000, 035, 037 TMK 240 Toshiba 043, 045, 212 Totevision 037, 240 Unitech 240 Vector 045 Vector Research 038 Video Concepts 045 Videosonic 240 Wards 000, 035, 042, 047, 048, 060, 062, 072,

149, 212, 240 XR-1000 000, 035, 072 Yamaha 038 Zenith 033, 034, 039

Manufacturers’ codes listed on page 42 to 45 are subject to change without notice. If they are changed, this remote control cannot operate the equipment.

Page 45

Troubleshooting

Use this chart to help you solve daily operational problems. If there is any problem you cannot solve, contact your JVC service center.

PROBLEM

The display does not light up.

No sound from speakers.

Sound from one speaker only.

Continuous hiss or buzzing during FM reception.

POSSIBLE CAUSE

The power cord is not plugged in.

Speaker signal cables are not connected.

The SPEAKERS 1 and 2 buttons are not set correctly.

An incorrect source is selected.

Mute is activated.

Speaker signal cables are not connected properly.

The balance is set to one extreme.

Incoming signal is too weak.

The station is too far away.

An incorrect antenna is used.

SOLUTION

Plug the power cord into an AC outlet.

Check speaker wiring and reconnect if necessary.

Press SPEAKERS 1 and 2 correctly.

Select the correct source.

Press MUTE to cancel the mute.

Check speaker wiring and reconnect if necessary.

Adjust the balance properly.

Connect an outside FM antenna or contact your dealer.

Select a new station.

Check with your dealer to be sure you have a correct antenna.

Occasional cracking noise during FM reception.

No colors on the on-screen display.

Howling during record playing.

Remote control does not work.

Antennas are not connected properly.

Ignition noise from automobiles.

The color system of the connected TV is not NTSC.

Your turntable is too close to speakers.

The remote control mode selector is not set correctly.

There is an obstruction in front of the remote control sensor on the receiver.

Batteries are weak.

Check connections.

Move the antenna farther from automobile traffic.

Connect an NTSC TV.

Move speakers away from the turntable.

Set the selector correctly either to the “AUDIO/TV/VCR” position or to “CATV/SAT” position.

Remove the obstruction.

Replace batteries.

Page 46

Specifications

Amplifier

Output Power At Stereo operation 110 watts per channel, min. RMS, both

channels driven into 8 ohms, 20 Hz to 20 kHz with no more than 0.06 % total harmonic distortion.

At Surround operation Front Channels 110 watts per channel, min. RMS, driven into 8 ohms at 1 kHz

with no more than 0.8 % total harmonic distortion.

Center channel 110 watts, min. RMS, driven into 8 ohms at 1 kHz, with no more

than 0.8 % total harmonic distortion.

Rear channels 110 watts, min. RMS, driven into 8 ohms at 1 kHz, with no more

than 0.8 % total harmonic distortion.

Total Harmonic Distortion 0.06 %* at 110 watts output

(8 ohms, 1 kHz) (* Measured by JVC Audio Analysis System)

Audio Input Sensitivity/ PHONO (MM) 2.5 mV/47 k ohms

Impedance (1 kHz) CD, TAPE, TV SOUND, VCR, 230 mV/47 k ohms

VIDEO

Audio Output Level TAPE, VCR 230 mV

Signal-to-Noise Ratio PHONO 70 dB/78 dB (at REC OUT)

(’66 IHF/’78 IHF) CD, TAPE, TV SOUND, VCR, 87 dB/80 dB

VIDEO

Frequency Response (8 ohms) PHONO 20 Hz to 20 kHz (±1 dB)

CD, TAPE, TV SOUND, VCR, 20 Hz to 20 kHz (±1 dB) VIDEO

RIAA Phono Equalization ±0.5 dB (20 Hz to 20 kHz)

Loudness Control +6 ±1 dB at 100 Hz

(Volume Control at –40 dB) +4 ±1 dB at 10 kHz

S.E.A. Center Frequencies 100 Hz, 1 kHz, 10 kHz

Control Range ±10 dB ±2 dB

Video

Video Input Sensitivity/Impedance VCR, VIDEO 1 Vp-p/75 ohms

Video Output Level VCR, MONITOR OUT 1 Vp-p/75 ohms

Synchronization Negative

Signal-to-Noise Ratio 45 dB

On-Screen Color System NTSC

Page 47

FM tuner (IHF)

Tuning Range 87.5 MHz to 108.0 MHz

Usable Sensitivity Monaural 10.8 dBf (0.95 µV/75 ohms)

50 dB Quieting Sensitivity Monaural 16.3 dBf (1.8 µV/75 ohms)

Stereo 38.3 dBf (22.5 µV/75 ohms)

Signal-to-Noise Ratio Monaural 80 dB at 85 dBf

(IHF-A weighted) Stereo 73 dB at 85 dBf

Total Harmonic Distortion Monaural 0.15 % at 1 kHz

Stereo 0.2 % at 1 kHz

Stereo Separation at REC OUT 40 dB at 1 kHz

Capture Ratio 1.5 dB (10 mV)

Alternate Channel Selectivity 60 dB: (±400 kHz)

Frequency Response 30 Hz to 15 kHz: (+0.5 dB, –3 dB)

AM tuner

Tuning Range 530 kHz to 1,710 kHz

Usable Sensitivity Loop antenna 300 µV/m

External antenna 30 µV

Signal-to-Noise Ratio 50 dB (100 mV/m)

General

Power Requirements AC 120V , 60 Hz

Power Consumption 300 watts/400 VA

Dimensions (W x H x D) 17

Mass 22.3 lbs (10.1 kg)

Designs & specifications are subject to change without notice.

2 watts (in standby mode)

/16 x 6 3/16 x 16 1/4 inches

(435 x 156.5 x 412 mm)

Page 48

QUALITY SERVICE

HOW TO LOCATE YOUR JVC SERVICE CENTER

TOLL FREE : 1-800-537-5722

Dear customer: In order to receive the most satisfaction from your purchase, read the instruction booklet before operating the unit. In the event that repair is necessary, or for the address nearest your location, please refer to the factory service center list below or within the Continental United States, Call 1-800-537—5722 for your authorized servicer. Remember to retain you Bill of Sale for Warranty Service.

—JVC

JVC SERVICE & ENGINEERING

COMPANY OF AMERICA

DIVISION OF US JVC CORP.

FACTORY SERVICE CENTER LOCATIONS

107 Little Falls Road

Fairfield, NJ 07004-2105

(201) 808-9279

5665 Corporate Avenue

Cypress, CA 90630-0024

(714) 229-8011

230 Eliot Street

Ashland, MA 0172-2377

(508) 881-5923

Sophisticated electronic products may require occasional service. Just as quality is a keyword in the engineering and production of

the wide array of JVC products, service is the key to maintaining the high level of performance for which JVC is world famous. The

JVC service and engineering organization stands behind our products.

1500 Lakes Parkway Lawrenceville, GA 30243-5357 (404) 339-2522

2969 Mapunapuna Place Honolulu, HI 96819-2040 (808) 833-5828

14505 Commerce Way Miami Lakes, FL 33016-1512 (305) 362-6252

NATIONAL HEADQUARTERS

JVC SERVICE & ENGINEERING COMPANY OF AMERICA

DIVISION OF US JVC CORP.

107 Little Falls Road

Fairfield, NJ 07004-2105

If you ship the product • • •

Pack your JVC unit in the original carton or one of equivalent

size and strength. Enclose, with the unit, a letter stating the

problem or symptom that exists and also a copy of the receipt

or bill of sale you received when you purchased your JVC unit.

Print your home return address on the outside and the inside

of the carton. Send to the appropriate JVC Factory Service

Center as listed above.

To prevent electrical shock, do not open the cabinet. No user serviceable parts inside. Refer servicing to qualified service personnel.

705 Enterprise Street Aurora, IL 60504-8149 (708) 851-7855

10700 Hammerly, Suite 110 Houston, TX 77043 (713) 935-9331

890 Dubuque Avenue South San Francisco, CA 94080-1804 (415) 871-2666

Don’t service it yourself.

CAUTION

ACCESSORIES

To purchase accessories for your JVC product, you may contact your local JVC Dealer.

Or from the 48 Continental United States call toll free : 800-882-2345

(0694)

G-3

LIMITED WARRANTY AUDIO-2

JVC COMPANY OF AMERICA warrants this product and all parts thereof, except as set forth below ONLY TO THE ORIGINAL PURCHASER AT RETAIL to be FREE FROM DEFECTIVE MATERIAL AND WORKMANSHIP from the date of original retail purchase for the period as shown below. (“The Warranty Period.”)

PARTS LABOR

THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY(50) UNITED STATES, THE DISTRICT OF COLUMBIA AND IN COMMONWEALTH OF PUERTO RICO.

WHAT WE WILL DO:

If this product is found to be defective, JVC will repair or replace defective parts at no charge to the original owner. Such repair and replacement services shall be rendered by JVC during normal business hours at JVC authorized service centers. Parts used for replacement are warranted only for the remainder of the Warranty Period. All products and parts thereof may be brought to a JVC authorized service center on a carry-in basis except for Television sets having a screen size 25 inches and above which are covered on an in-home basis.

WHAT YOU MUST DO FOR WARRANTY SERVICE:

Return your product to a JVC authorized service center with a copy of your bill of sale. For your nearest JVC authorized service center, please call toll free: (800)537-5722. If service is not available locally, box the product carefully, preferably in the original carton, and ship, insured, with a copy of your bill of sale plus and letter of explanation of the problem to the nearest JVC Factory Service Center, the name and location of which will be given to you by the toll-free number. If you have any questions concerning your JVC Product, please contact our Customer Relations Department.

WHAT IS NOT COVERED:

This limited warranty provided by JVC does not cover:

1. Products which have been subject to abuse, accident, alteration, modification, tampering, negligence, misuse, faulty

installation, lack of reasonable care, or if repaired or serviced by anyone other than a service facility authorized by JVC to render such service, or if affixed to any attachment not provided with the products, or if the model or serial number has been altered, tampered with, defaced or removed;

2. Initial installation and installation and removal for repair;

3. Operational adjustments covered in the Owner’s Manual, normal maintenance, video and audio head cleaning;

4. Damage that occurs in shipment, due to act of God, and cosmetic damage;

2 YRS 2 YRS

5. Signal reception problems and failures due to line power surge;

6. Video Pick-up Tubes/CCD Image Sensor, Cartridge, Stylus(Needle) are covered for 90 days from the date of purchase;

7. Accessories;

8. Batteries (except the Rechargeable Batteries are covered for 90 days from the date of purchase); There are no express warranties except as listed above.

THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MARCHANTABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN.

JVC SHALL NOT BE LIABLE FOR THE LOSS OF USE THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, WHETHER DIRECT, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, WITHOUT LIMITATION, DAMAGE TO TAPES, RECORDS OR DISCS) RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE WARRANTY PERIOD SET FORTH ABOVE.

Some states do not allow the exclusion of incidental or consequential damages or limitations on how long an implied warranty last, so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

JVC COMPANY OF AMERICA 41 Slater Drive

DIVISION OF US JVC CORP. Elmwood Park, New Jersey 07407

REFURBISHED PRODUCTS CARRY A SEPARATE WARRANTY, THIS WARRANTY DOES NOT APPLY. FOR DETAILS OF REFURBISHED PRODUCT WARRANTY, PLEASE REFER TO THE REFURBISHED PRODUCT WARRANTY INFORMATION PACKAGED WITH EACH REFURBISHED PRODUCT.

For customer use:

Enter below the Model No. and Serial No. which is located either on the rear, bottom or side of the cabinet. Retain this

information for future reference.

Model No.: Serial No.: Purchase date: Name of dealer:

G-4

VICTOR COMPANY OF JAPAN, LIMITED

JVC

0497OFYOTKJEM

JVC RX-772VBK User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
