JVC RX-7000RBK User Manual

AUDIO/VIDEO CONTROL RECEIVER

AUDIO/VIDEO-RECEIVER MIT STEUEREINHEIT AMPLI/TUNER DE COMMANDE AUDIO/VIDEO GEINTEGREERDE AUDIO/VIDEO-VERSTERKER RECEPTOR DE CONTROL DE AUDIO/VÍDEO RICEVITORE DI CONTROLLO AUDIO/VIDEO

RX-7000RBK

TV/CATV/DBS

DVD DVD MUILTI CD TAPE/MD

TV/DBS PHONO FM/AM

VCR

ANALOG/DIGITAL

SURROUND

CENTER

ON/OFF

123

TEST REAR-L

SURROUND

MODE

456

ENTERENTER

CD-DISC

EFFECT REAR-R

/P 89

SOUND

SEA MODE

SUBWOOFER

RETURN

SET

EXIT

CHANNEL VOLUMETV VOL

TV/VIDEO

TAPE/MD

VCR

CONTROL

PLAY

/REW

PTY SEARCH

PTY PTY

STOP PAUSE

REC

RM-SRX7000R REMOTE CONTROL

VCR

SLEEP

MENUMENU

+10

100+FM MODE

AUDIO/

TV/VCR

CATV/DBS

TEXT DISPLAY

MUTING

FF/

RX-7000R AUDIO/VIDEO CONTROL RECEIVER

STANDBY

STANDBY/ON

PHONES

COMPULINK

Remote

ENHANCED COMPULINK CONTROL SYSTEM

SPEAKERS

SURROUND ON/OFF

EON

PTY SEARCH

DSP MODE

BALANCE/SURROUND

ADJUST

TA/NEWS/INFO

DISPLAY MODE

SEA MODE

ANALOG/DIGITAL

SEA ADJUST SETTING

THEATER LIVE CLUB DANCE CLUB HALL PAVILION

INPUT

FM/AM TUNING TUNER PRESET

TUNER/SEA MEMORY FM MODE

SOUND SELECT

BASS BOOST ONE TOUCH OPERATION

SOURCE NAME

INPUT ATT.

MULTI JOG

DIGITAL

DVD

TV SOUND/DBS PHONO

SOURCE SELECTOR

TAPE/MDVCR

–

MASTER VOLUME

DIGITAL

INSTRUCTIONS

BEDIENUNGSANLEITUNG

MANUEL D’INSTRUCTIONS

GEBRUIKSAANWIJZING

MANUAL DE INSTRUCCIONES

ISTRUZIONI

For Customer Use:

Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No. Serial No.

LVT0396-005A

[E]

Warnings, Cautions and Others/Warnung, Achtung und sonstige Hinweise/ Mises en garde, précautions et indications diverses/Waarschuwingen, voorzorgen en andere mededelingen/Avisos, precauciones y otras notas/ Avvertenze e precauzioni da osservare

IMPORTANT for the U.K. DO NOT cut off the mains plug from this equipment. If the plug

fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.

BE SURE to replace the fuse only with an identical approved type, as originally fitted.

If nonetheless the mains plug is cut off ensure to remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply.

If this product is not supplied fitted with a mains plug then follow the instructions given below:

IMPORTANT. DO NOT make any connection to the terminal which is marked

with the letter E or by the safety earth symbol or coloured green or green-and-yellow.

The wires in the mains lead on this product are coloured in accordance with the following code:

Blue : Neutral Brown : Live

As these colours may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IF IN DOUBT - CONSULT A COMPETENT ELECTRICIAN.

Per I’ltalia:

“Si dichiara che il questo prodotto di marca JVC è conforme alle prescrizioni del Decreto Ministeriale n.548 del 28/08/95 pubblicato sulla Gazzetta Ufficiale della Repubblica Italiana n.301 del 28/12/95.”

Caution –– STANDBY/ON switch!

Disconnect the mains plug to shut the power off completely. The STANDBY/ON switch in any position does not disconnect the mains line. The power can be remote controlled.

Achtung –– STANDBY/ON -Schalter!

Den Netzstecker aus der Steckdose ziehen, um die Stromversorgung vollkommen zu unterbrechen. Der Schalter STANDBY/ON unterbrichet in keiner Stellung die Stromversorgung vollkommen. Die Stromversorgung kann mit der Fernbedienung ein- und ausgeschaltet werden.

Attention –– Commutateur STANDBY/ON !

Déconnecter la fiche de secteur pour couper complètement le courant. Le commutateur STANDBY/ON ne coupe jamais complètement la ligne de secteur, quelle que soit sa position. Le courant peut être télécommandé.

Voorzichtig –– STANDBY/ON schakelaar!

Om de stroomtoevoer geheel uit te schakelen, trekt u de stekker uit het stopkontakt. Anders zal er altijd een geringe hoeveelheid stroom naar het apparaat lopen, ongeacht de stand van de STANDBY/ON schakelaar. U kunt het apparaat ook met de afstandsbediening aanen uitschakelen.

Precaución –– Interruptor STANDBY/ON !

Desconectar el cable de alimentación para desactivar la alimentación totalmente. Cualquier que sea la posición de ajuste del interruptor STANDBY/ON , la alimentación no es cortada completamente. La alimentación puede ser controlada remotamente.

Attenzione –– L’interruttore STANDBY/ON !

Disinserire la spina del cavo di alimentazione dalla presa della rete elettrica per staccare completamente l’alimentazione. L’interruttore STANDBY/ON in nessuna posizione stacca la linea di alimentazione elettrica principale. È possibile il controllo remoto dell’alimentazione.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

ACHTUNG

Zur Verhinderung von elektrischen Schlägen, Brandgefahr, usw:

1. Keine Schrauben lösen oder Abdeckungen enternen und nicht das Gehäuse öffnen.

2. Dieses Gerät weder Regen noch Feuchtigkeit aussetzen.

ATTENTION

Afin d’éviter tout risque d’électrocution, d’incendie, etc.:

1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir le coffret de l’appareil.

2. Ne pas exposer l’appareil à la pluie ni à l’humidité.

G-1

VOORZICHTIG

Ter vermindering van gevaar voor brand, elektrische schokken, enz.:

1. Verwijder geen schroeven, panelen of de behuizing.

2. Stel dit toestel niet bloot aan regen of vocht.

PRECAUCIÓN

Para reducir riesgos de choques eléctricos, incendio, etc.:

1. No extraiga los tornillos, los cubiertas ni la caja.

2. No exponga este aparato a la lluvia o a la humedad.

ATTENZIONE

Per ridurre il rischio di scosse elettriche, incendi, ecc...

1. Non togliere viti, coperchi o la scatola.

2. Non esporre l’apparecchio alla piogggia e all’umidità.

Caution: Proper Ventilation

To avoide risk of electric shock and fire and to protect from damage. Locate the apparatus as follows: Front: No obstructions open spacing. Sides: No obstructions in 10 cm from the sides. Top: No obstructions in 10 cm from the top. Back: No obstructions in 15 cm from the back Bottom: No obstructions, place on the level surface. In addition, maintain the best possible air circulation as illustrated.

Achtung: Angemessene Ventilation

Stellen Sie das Gerät zur Verhütung von elektrischem Schlag und Feuer und zum Schutz gegen Beschädigung wie folgt auf: Vorderseite: Offener Platz ohne Hindernisse. Seiten: Keine Hindernisse innerhalb 10 cm von den Seiten. Oberseite: Keine Hindernisse innerhalb 10 cm von der Oberseite. Rückseite: Keine Hindernisse innerhalb 15 cm von der Rückseite. Unterseite: Keine Hindernisse. Auf eine ebene Oberfläche stellen. Zusätzlich die bestmögliche Luftzirkulation wie gezeigt erhalten.

Attention: V entilation Correcte

Pour éviter les chocs électriques, l’incendie et tout autre dégât. Disposer l’appareil en tenant compte des impératifs suivants Avant: Rien ne doit gêner le dégagement Flancs: Laisser 10 cm de dégagement latéral Dessus: Laisser 10 cm de dégagement supérieur Arrière: Laisser 15 cm de dégagement arrière Dessous: Rien ne doit obstruer par dessous; poser l’appareil sur

une surface plate. Veiller également à ce que l’air circule le mieux possible comme illustré.

Voorzichtig: Zorg Voor Goede Ventilatie

Om gevaar voor brand of een elektrische schok te voorkomen, dient u bij opstelling van het apparaat op de volgende punten te letten: Voorkant: Voldoende ruimte vrij houden. Zijkanten: Minstens 10 cm aan weerszijden vrij houden. Bovenkant: Niets bovenop plaatsen; 10 cm speling geven. Achterkant: Minstens 15 cm ruimte achteraan vrij houden. Onderkant: Opstellen op een egaal horizontaal oppervlak. Bovendien moet er rondom voldoende luchtdoorstroming zijn, zoals in de afbeelding aangegeven.

Precaución: Ventilación Adecuada

Para evitar el riesgo de choque eléctrico e incendio y para proteger el aparato contra daños. Ubique el aparato de la siguiente manera: Frente: Espacio abierto sin obstrucciones Lados: 10 cm sin obstrucciones a los lados Parte superior: 10 cm sin obstrucciones en la parte superior Parte trasera: 15 cm sin obstrucciones en la parte trasera Fondo: Sin obstrucciones, colóquelo sobre una superficie

nivelada Además, mantenga la mejor circulación de aire posible como se ilustra.

Attenzione: Problemi di Ventilazione

Per evitare il rischio di folgorazioni ed incendi e proteggere l’unità da danni, installarla nel modo seguente. Davanti: Nessun ostacolo, spazio libero Lati: Nessun ostacolo per almeno 10 cm Sopra: Nessun ostacolo per almeno 10 cm Retro: Nessun ostacolo per almeno 15 cm Fondo: Libero ed in piano Inoltre, mantenere il più possibile la circolazione dell’aria.

English

Deutsch

Français

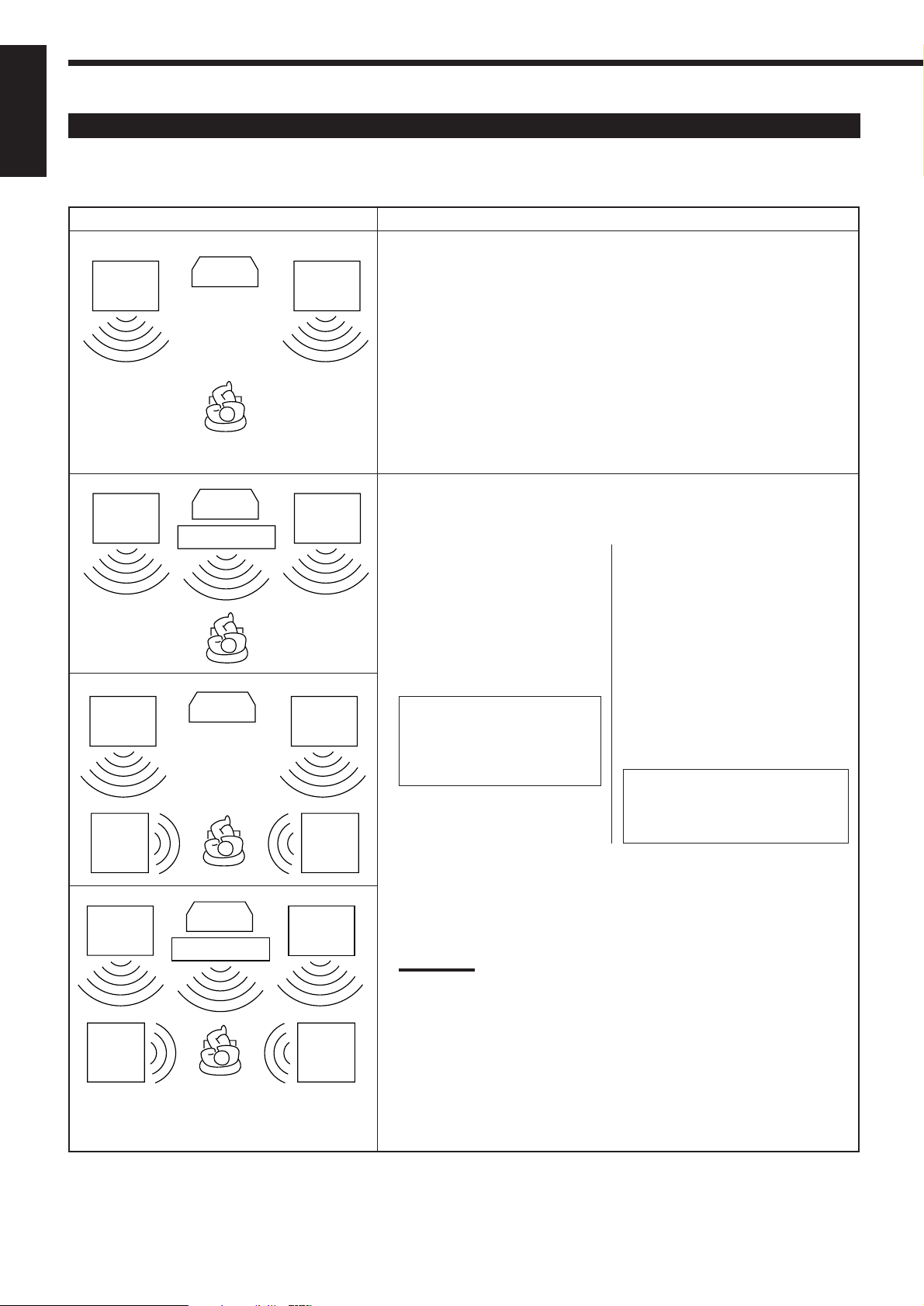

Wall or obstructions Wand oder Hindernisse Mur, ou obstruction Wand of meubilair Pared u obstrucciones Parete o ostacol

Spacing 15 cm or more Abstand von 15 cm oder mehr Dégagement de 15 cm ou plus Minstens 15 cm tussenruimte Espacio de 15 cm o más 15 cm di distanza o più

RX-7000RBK

Floor Boden Plancher Vloer Piso Pavimento

Front Vorderseite Avant Voorkant Frente Davanti

Stand height 15 cm or more Standhöhe 15 cm oder mehr Hauteur du socle: 15 cm ou plus Standard op minstens 15 cm van de vloer Allura del soporte 15 cm o más Altezza del tavolino 15 cm p plù

Nederlands

Español

Italiano

G-2

Parts Identification ...................................... 2

English

Getting Started ........................................... 3

Before Installation ...................................................................... 3

Checking the Supplied Accessories ........................................... 3

Connecting the FM and AM (MW/LW) Antennas..................... 3

Connecting the Speakers ............................................................ 4

Connecting Audio/Video Components....................................... 5

Connecting the Power Cord ....................................................... 9

Putting Batteries in the Remote Control .................................... 9

Basic Operations ....................................... 10

Turning the Power On and Off (Standby) ................................ 10

Selecting the Source to Play..................................................... 10

Adjusting the Volume ............................................................... 11

Selecting the Front Speakers .................................................... 11

Muting the Sound ..................................................................... 12

Reinforcing the Bass ................................................................ 12

Attenuating the Input Signal .................................................... 12

Adjusting the Subwoofer Output Level.................................... 12

Basic Settings ........................................... 13

Recording a Source .................................................................. 13

Adjusting the Front Speaker Output Balance........................... 13

Changing the Source Name...................................................... 13

Setting the Subwoofer Information .......................................... 13

Setting the Speakers for the DSP Modes ................................. 14

Digital Input (DIGITAL IN) Terminal Setting ......................... 16

Selecting the Analog or Digital Input Mode ............................ 16

Showing the Text Information on the Display ......................... 17

Storing the Basic Settings and Adjustments — One Touch

Operation ........................................................................... 18

Using the Sleep Timer.............................................................. 18

Receiving Radio Broadcasts ........................ 19

Using the DSP Modes ................................ 25

Available DSP Modes According to the Speak er Arrangement .. 27

Adjusting the 3D-PHONIC Modes .......................................... 28

Adjusting the DAP Modes ....................................................... 28

Adjusting the Surround Modes ................................................ 29

Activating the DSP Modes....................................................... 31

Using the DVD MULTI Playback Mode .......... 33

Activating the DVD MULTI Playback Mode .......................... 33

Using the On-Screen Menus ........................ 34

Selecting the Source to Play..................................................... 34

Selecting Different Sources for Picture and Sound.................. 34

Activating the DSP Modes....................................................... 34

Selecting the Analog or Digital Input Mode ............................ 34

Adjusting the Front Speaker Output Balance........................... 35

Reinforcing the Bass ................................................................ 35

Attenuating the Input Signal .................................................... 35

Adjusting the Subwoofer Output Level.................................... 35

Adjusting the DSP Modes ........................................................ 35

Activating the DVD MULTI Playback Mode .......................... 36

Selecting Your Favorite SEA Mode ......................................... 36

Creating Your Own SEA Mode ................................................ 36

Setting the Basic Setting Items ................................................ 37

Operating the Tuner.................................................................. 37

Storing the Preset Stations ....................................................... 38

Assigning Names to Preset Stations......................................... 38

COMPU LINK Remote Control System ......... 39

TEXT COMPU LINK Remote Control System .. 40

Showing the Disc Information on the TV Screen .................... 41

Searching for a Disc (Only for the CD player) ........................ 42

Entering the Disc Information.................................................. 43

Tuning in Stations Manually .................................................... 19

Using Preset T uning ................................................................. 19

Selecting the FM Reception Mode........................................... 20

Assigning Names to Preset Stations......................................... 20

Using the RDS (Radio Data System) to Receive FM Stations ... 21

Searching for a Program by PTY Codes .................................. 21

Switching to a Broadcast Program of Your Choice

Temporarily ........................................................................ 23

Using the SEA Modes ................................ 24

Selecting Your Fav orite SEA Mode ........................................... 24

Creating Your Own SEA Mode ................................................ 24

Operating JVC’s Audio/Video Components ... 45

Operating Audio Components .................................................. 45

Operating Video Components .................................................. 47

Operating Other Manufacturers’ Video

Equipment ............................................ 48

Troubleshooting ......................................... 54

Specifications ............................................ 55

Parts Identification

Become familiar with the buttons and controls on the receiver before use. Refer to the pages in parentheses for details.

12 3 4 567 8 9 p

English

3 4

5 6

STANDBY

STANDBY/ON

PHONES

COMPULINK

Remote

ENHANCED COMPULINK CONTROL SYSTEM

DVD DVD MUILTI CD TAPE/MD

TV/DBS PHONO FM/AM

VCR

SURROUND

ON/OFF

123

TEST REAR-L

SURROUND

MODE

456

CD-DISC

EFFECT REAR-R

SOUND

SEA MODE

RETURN

EXIT

CHANNEL VOLUMETV VOL

TV/VIDEO

VCR

/REW

PTY PTY

REC

DISPLAY MODE

RM-SRX7000R REMOTE CONTROL

RX-7000R AUDIO/VIDEO CONTROL RECEIVER

SURROUND ON/OFF

EON

PTY SEARCH

DSP MODE

SPEAKERS

TV/CATV/DBS

VCR

ANALOG/DIGITAL

SLEEP

CENTER

MENUMENU

ENTERENTER

SUBWOOFER

+10

FM MODE

100+

AUDIO/ TV/VCR

CATV/DBS

SET

TEXT

DISPLAY

BALANCE/SURROUND

ADJUST

p q

TAPE/MD

CONTROL

PLAY

PTY SEARCH

STOP PAUSE

MUTING

FF/

TA/NEWS/INFO

DISPLAY MODE

INPUT

ANALOG/DIGITAL

SEA MODE

SEA ADJUST SETTING

FM/AM TUNING TUNER PRESET

TUNER/SEA MEMORY

SOUND SELECT

BASS BOOSTONE TOUCH OPERATION

SOURCE NAME

INPUT ATT.

FM MODE

MULTI JOG

Remote Control

1 TV/CATV/DBS button (47 – 49) 2 Source selecting buttons (10)

DVD, D VD MULTI, CD, T APE/MD, TV/DBS, PHONO, FM/AM, VCR

3 SURROUND ON/OFF button (29, 31) 4 SURROUND MODE button (28, 29) 5 CD-DISC button (46) 6 SOUND button (24, 28, 33) 7 On-screen operation buttons (34, 41)

MENU, SET, EXIT, %, ﬁ, @, #

8 TV VOL +/– buttons (47, 48) 9 • RDS operation buttons (21 – 23)

PTY SEARCH, PTY –/+, DISPLAY MODE

• Operating buttons for audio/video components (45 – 49)

p AUDIO buttons (10)

q VCR button (47, 49) w SLEEP button (18) e ANALOG/DIGITAL button (17) r • 10 keys for selecting preset channel (20)

• 10 keys for adjusting sound (24, 28 – 31, 33)

• 10 keys for operating audio/video components

(45 – 49)

t Remote control mode selector (10, 45, 48) y TEXT DISPLAY button (41) u CHANNEL +/– buttons (47 – 49) i VOLUME +/– buttons (11) o MUTING button (12)

DIGITAL

DVD

TV SOUND/DBS PHONO

TAPE/MD VCR

SOURCE SELECTOR

–

MASTER VOLUME

fdsa;oiuytrewq

Front Panel

1 STANDBY/ON button and STANDBY

lamp (10)

2 Remote sensor (9) 3 SURROUND ON/OFF button and lamp (30, 31) 4 SEA MODE button (24) 5 INPUT ANALOG/DIGITAL button (16) 6 FM/AM TUNING button (19)* 7 FM MODE button (20) 8 Display (10) 9 Source lamps (10) p MASTER VOLUME control (11) q PHONES jack (12) w SPEAKERS 1/2 buttons and lamps (11) e RDS operation buttons (21 – 23)

EON, TA/NEWS/INFO, PTY SEARCH, DISPLAY MODE

r DSP MODE button (28) t BALANCE/SURROUND ADJUST button

(12, 13, 28)*

y SEA ADJUST button (24)* u SETTING button (13 – 17)* i TUNER/SEA MEMORY button (19, 20, 24) o SOUND SELECT/INPUT ATT. button

(11, 12)

; BASS BOOST/SOURCE NAME button

(12, 13)

a ONE TOUCH OPERATION button and lamp

(18)

s TUNER PRESET button (20)* d MULTI JOG control

What this control actually does depends on which function you are trying to adjust. Before using this control, select the function by pressing one of the buttons marked with *.

f SOURCE SELECTOR control (10)

Getting Started

This section explains how to connect audio/video components and speakers to the receiver, and how to connect the power supply.

English

Before Installation

General

• Be sure your hands are dry.

• Turn the power off to all components.

• Read the manuals supplied with the components you are going to connect.

Locations

• Install the receiver in a location that is level and protected from moisture.

• The temperature around the receiver must be between –5˚C and 35˚ C (23˚F and 95˚ F).

• Make sure there is good ventilation around the receiver. Poor ventilation could cause overheating and damage the receiver.

Handling the receiver

• Do not insert any metal object into the receiver.

• Do not disassemble the receiver or remove screws, covers, or cabinet.

• Do not expose the receiver to rain or moisture.

Connecting the FM and AM (MW/LW) Antennas

FM Antenna Connections

ANTENNA

LOOP

FM 75 COAXIAL

FM 75

AM EXT

FM Antenna

Extend the supplied FM antenna horizontally.

LOOP

ANTENNA

FM 75

AM EXT

Checking the Supplied Accessories

Check to be sure you have all of the following items, which are supplied with the receiver. The number in the parentheses indicates quantity of the pieces supplied.

• Remote Control (1)

• Batteries (2)

• AM (MW/LW) Loop Antenna (1)

• FM Antenna (1)

If anything is missing, contact your dealer immediately.

LOOP

EXT

Outdoor FM Antenna Cable

A. Using the Supplied FM Antenna

The FM antenna provided can be connected to the FM 75 Ω COAXIAL terminal as temporary measure.

B. Using the Standard Type Connector (Not Supplied)

A standard type connector (IEC or DIN45325) should be connected to the FM 75 Ω COAXIAL terminal.

Note:

If reception is poor, connect the outdoor antenna. Before attaching a 75 going to an outdoor antenna), disconnect the supplied FM antenna.

Ω

coaxial cable (the kind with a round wire

AM (MW/LW) Antenna Connections

–+–

RIGHT LEFT

FRONT SPEAKERS

ANTENNA

FM 75 COAXIAL

Snap the tabs on the loop into the slots of the base to assemble the AM (MW/LW) loop.

Basic connecting procedure

English

LOOP

EXT

AM (MW/LW) Loop Antenna

Outdoor single vinyl-covered wire

Turn the loop until you have the best reception.

Notes:

• Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord. This could cause poor reception.

• If reception is poor, connect an outdoor single vinyl-covered wire to the AM EXT terminal. (Keep the AM (MW/LW) loop antenna connected.)

1 Cut, twist and remove the insulation at the end of

each speaker signal cable (not supplied).

2 Turn the knob counterclockwise.

3 Insert the speaker signal cable.

4 Turn the knob clockwise.

Connecting the front speakers

You can connect two pairs of front speakers (one pair to the FRONT SPEAKERS 1 terminals, and another pair to the FRONT SPEAKERS 2 terminals).

Right speaker

FRONT SPEAKERS 1

Left speaker

Connecting the Speakers

You can connect the following speakers:

• Two pairs of front speakers to produce normal stereo sound.

• One pair of rear speakers to enjoy the surround effect.

• One center speaker to produce more effective surround effect (to

emphasize human voices).

• One subwoofer to enhance the bass.

IMPORTANT:

After connecting the speakers listed above, set the speaker setting information properly to obtain the best possible DSP effect. For details, see page 14.

For each speaker (except for a subwoofer), connect the (–) and (+) terminals on the rear panel to the (–) and (+) terminals marked on the speakers. For connecting a subwoofer, see page 5.

CAUTION:

Use speakers with the SPEAKER IMPEDANCE indicated by the speaker terminals.

Right speaker

FRONT SPEAKERS 2

Left speaker

About the speaker impedance

English

The required speaker impedance of the front speakers does differ depending on whether both the FRONT SPEAKERS 1 and FRONT SPEAKERS 2 terminals are used or only one of them is used.

CASE 1 When you connect only one set of front speakers

Front

speaker

Use front speakers with 4 Ω – 16 Ω impedance.

CASE 2 When you connect two sets of front speakers

Front

speaker

Front

speaker

Front

speaker

Front

Connecting the subwoofer speaker

You can enhance the bass by connecting a subwoofer. Connect the input jack of a powered subwoofer to the SUBWOOFER OUT jack on the rear panel, using a cable with RCA pin plugs (not supplied).

SUBWOOFER

OUT

Powered subwoofer

Connecting Audio/Video Components

You can connect the following audio/video components to this receiver. Refer also to the manuals supplied with your components.

Audio Components Video Components

• Turntable • DVD player*

• CD player* • TV*

• Cassette deck • DBS tuner* or MD recorder* • VCR

You can connect these components using the methods described in “Analog connections” (below) or in “Digital connections” (see page 8).

Analog connections

Audio component connections

Use the cables with RCA pin plugs (not supplied). Connect the white plug to the audio left jack, and the red plug to the audio right jack.

Use front speakers 8 Ω – 16 Ω impedance.

Connecting the rear and center speakers

Connect rear speakers to the REAR SPEAKERS terminals and a center speaker to the CENTER SPEAKER terminals.

Left rear

speaker

Center

speaker

Right rear

speaker

CENTER

SPEAKER

–

REAR

SPEAKERS

RIGHT LEFT

–

CAUTION:

If you connect a sound-enhancing device such as a graphic equalizer between the source components and this receiver, the sound output through this receiver may be distorted.

Turntable

If an earth cable is provided for your turntable, connect the cable to the screw marked (H) on the rear panel.

Turntable

RIGHT LEFT

To audio output

AUDIO

PHONO

OUT

(REC)

TAPE

/MD

(PLAY)

Note:

Any turntables incorporating a small-output cartridge such as an MC (moving-coil type) must be connected to this receiver through a commercial head amplifier or step-up transformer. Direct connection may result in insufficient volume.

CD player

To audio output

Cassette deck or MD recorder

Cassette deck

To audio input

RIGHT LEFT

MD recorder

To audio output

AUDIO

PHONO

OUT

(REC)

TAPE

/MD

(PLAY)

RIGHT LEFT

AUDIO

PHONO

OUT

(REC)

TAPE

/MD

(PLAY)

To audio output

Video component connections

Use the cables with RCA pin plugs (not supplied). Connect the white plug to the audio left jack, the red plug to the audio right jack, and the yellow plug to the video jack. If your video components have S-video (Y/C-separation) terminals, connect them using S-video cables (not supplied). Connecting these video components through the S-video input/output terminals will give you better picture playback (or recording) quality.

IMPORTANT:

This receiver is equipped with both the composite video and S-video input/output terminals for connecting video components. You do not have to connect both the composite video and S-video terminals. However, remember that the video signals from the composite

video input terminals are output only through the composite video output terminals, while the ones from the S-video input terminals are output only through the S-video output terminals.

Therefore, if a recording video component and a playing video component are connected to the receiver through the different video terminals, you cannot record the picture from the playing component on the recording component. In addition, if the TV and a playing video component are connected to the receiver through the different video terminals, you cannot view the playback picture from the playing component on the TV.

VCR

S-VHS (or VHS) VCR

English

Note:

You can connect either a cassette deck or an MD recorder to the TAPE/MD jacks. When connecting an MD recorder to the TAPE/MD jacks, change the source name, which will be shown on the display when selected as the source, to “MD.” See page 13 for details.

If your audio components have a COMPU LINK-3 or TEXT COMPU LINK jack

• See also page 39 for detailed information about the connection and the COMPU LINK-3 remote control system.

• See also page 40 for detailed information about the connection and the TEXT COMPU LINK remote control system.

AUDIO

DVD

TV SOUND

/DBS

OUT

(REC)

VCR

(PLAY)

VIDEO S-VIDEORIGHT LEFT

Å To left/right channel audio output ı To left/right channel audio input Ç To S-video output Î To composite video output ‰ To composite video input Ï To S-video input

VIDEO

English

DVD

VIDEO

VIDEO S-VIDEORIGHT LEFT

AUDIO

DVD

TV and/or DBS tuner

When connecting the TV, DO NOT connect the TV’s video outputs to these video input terminals.

RIGHT

AUDIO

DVD

To audio output

TV SOUND

/DBS

OUT

(REC)

VCR

(PLAY)

MONITOR

OUT

DVD player

• When you connect the DVD player with stereo output jacks:

DVD player

VIDEO

VIDEO S-VIDEORIGHT LEFT

Å To front left/right channel audio output (or to audio mixed

output if necessary)

ı To S-video output Ç To composite video output

Connect the TV to the MONITOR OUT jack to view the playback picture from the other connected video components.

To composite video input

To S-video input

Note:

Use a TV of the PAL- or multi-color system.

RIGHT

AUDIO

DVD

VIDEO

VIDEO S-VIDEORIGHT LEFT

To audio output

TV SOUND

/DBS

OUT

(REC)

DBS tuner

DBS

To composite video output

(PLAY)

OUT

(REC) VCR 2

To S-video output

Note:

When connecting the DBS tuner to the TV SOUND/DBS jacks, change the source name, which will be shown on the display when selected as the source, to “DBS.” See page 13 for details.

• When you connect the DVD player with its analog discrete output (5.1 CH reproduction) jacks:

SUB

WOOFER

AUDIO

CENTER

DVD

DVD player

DVD

TV SOUND

/DBS

OUT

(REC) VCR

(PLAY)

VIDEO

VIDEO S-VIDEORIGHT LEFT

Å To center channel audio output ı To subwoofer audio output Ç To S-video output Î To front left/right channel audio output ‰ To rear left/right channel audio output Ï To composite video output

Digital connections

This receiver is equipped with three DIGITAL IN terminals — one digital coaxial terminal and two digital optical terminals, and one DIGITAL OUT terminal. You can connect any digital equipment such as —

• DBS tuner,

• Digital TV broadcast tuner,

• DVD player,

• CD player,

• and MD recorder.

IMPORTANT:

• When connecting the DVD player, digital TV broadcast tuner or DBS tuner using the digital terminals, you also need to connect it to the video jack (either composite video terminal or S-video terminal) on the rear. Without connecting it to the video jack, you can view no playback picture.

• After connecting the components using the DIGITAL IN terminals, set the following correctly if necessary. –Set the digital input (DIGITAL IN) terminal setting correctly. For

details, see “Digital Input (DIGITAL IN) Terminal Setting” on page

16.

– Select the digital input mode correctly. For details, see “Selecting

the Analog or Digital Input Mode” on page 16.

Notes:

• When shipped from the factory, the DIGITAL IN terminals have been set for use with the following components. – DIGITAL 1 (coaxial): For DVD player – DIGITAL 2 (optical): For CD player – DIGITAL 3 (optical): For digital TV broadcast tuner

• When you want to operate the CD player or MD recorder using the COMPU LINK remote control system, connect the target component also as described in “Analog connections” (see page 6).

• When you want to operate the DVD player using the AV COMPU LINK remote control system, connect the DVD player also as described in “Analog connections” (see page 7).

Digital output terminal

MD recorder, etc.

Digital optical cable (not supplied) between digital optical terminals

English

Digital input terminals

DBS tuner

DBS

CD player

Digital coaxial cable (not supplied) between digital coaxial terminals

Digital optical cable (not supplied) between digital optical terminals

When the component has a digital coaxial output terminal, connect it to the DIGITAL 1 (DVD) terminal, using the digital coaxial cable (not supplied).

When the component has a digital optical output terminal, connect it to the DIGITAL 2 (CD), or DIGITAL 3 (TV) terminal, using the digital optical cable (not supplied).

DVD player

DVD

MD recorder

PCM / DOLBY DIGITAL

DIGITAL 1 (DVD)

DIGITAL 2 (CD)

DIGITAL IN

MPEG/ DTS

When the digital recording equipment such as an MD recorder has a digital optical input terminal, connecting it to the DIGITAL OUT terminal enables you to perform digital-to-digital recording.

DIGITAL OUT

PCM/DOLBY DIGITAL/MPEG/DTS

Before connecting a digital optical cable, unplug the protective plug.

DIGITAL 3 (TV)

English

Connecting the Power Cord

Before plugging the receiver into an AC outlet, make sure that all connections have been made.

Plug the power cord into an AC outlet.

Putting Batteries in the Remote Control

Before using the remote control, put two supplied batteries first. When using the remote control, aim the remote control directly at the remote sensor on the receiver.

Keep the power cord away from the connecting cables and the antenna. The power cord may cause noise or screen interference. We recommend that you use a coaxial cable to connect the antenna, since it is well-shielded against interference.

Note:

The preset settings such as preset channels and sound adjustment may be erased in a few days in the following cases:

– When you unplug the power cord. – When a power failure occurs.

CAUTIONS:

• Do not touch the power cord with wet hands.

• Do not pull on the power cord to unplug the cord. When unplugging the cord, always grasp the plug so as not to damage the cord.

R6P(SUM-3)/AA(15F)

1. On the back of the remote control, remove the battery cover.

2. Insert batteries. Make sure to match the polarity: (+) to (+).

3. Replace the cover.

If the range or effectiveness of the remote control decreases, replace the batteries. Use two R6P(SUM-3)/AA(15F) type dry-cell batteries.

CAUTION:

Follow these precautions to avoid leaking or cracking cells:

• Place batteries in the remote control so they match the polarity: (+)

to (+).

• Use the correct type of batteries. Batteries that look similar may

differ in voltage.

• Always replace both batteries at the same time.

• Do not expose batteries to heat or flame.

Basic Operations

The following operations are commonly used when you play any sound source.

IMPORTANT:

When using the remote control, check to see if its remote control mode selector is set to the correct position: To operate this receiver, set it to “AUDIO/TV/ VCR.”

AUDIO/ TV/VCR

CATV/DBS

Turning the Power On and Off (Standby)

On the front panel:

To turn on the power, press STANDBY/ON . The STANDBY lamp goes off. The name of the current source (or station frequency) appears on the display.

Current source name appears

Current volume level is shown here

To turn off the power (into standby mode),

press STANDBY/ON

again. The STANDBY lamp lights up. A small amount of power is consumed in standby mode. To turn the power off completely, unplug the AC power cord.

From the remote control:

To turn on the power, press AUDIO . The STANDBY lamp goes off. The name of the current source (or station frequency) appears on the display.

To turn off the power (into standby mode),

press AUDIO

The STANDBY lamp lights up.

STANDBY

STANDBY/ON

STANDBY

STANDBY/ON

From the remote control:

Press one of the source selecting buttons.

DVD DVD MUILTI CD TAPE/MD

TV/DBS PHONO FM/AM

VCR

Selected source name appears

DVD Select the DVD player. DVD MUL TI Select the DVD player for viewing the digital video

disc using the analog discrete output mode (5.1CH reproduction) on the DVD player.

To enjoy the DVD MULTI playback, see page 33.

CD* Select the CD player. TAPE/MD * Select the cassette deck (or the MD recorder). TV/DBS Select TV sounds (or the DBS tuner). PHONO* Select the turntable. FM/AM* Select an FM or AM (MW/LW) broadcast.

• Each time you press the button, the band alternates between FM and AM (MW/LW).

VCR Select the video component connected to the VCR

jacks.

Notes:

• When connecting an MD recorder (to the TAPE/MD jacks), and a DBS tuner (to the TV SOUND/DBS jacks), change the source name shown on the display. For details, see page 13.

• When you press one of the source selecting buttons on the remote control marked above with an asterisk (*), the receiver automatically turns on.

English

Selecting the Source to Play

On the front panel:

Turn SOURCE SELECTOR until the source name you want appears on the display.

• As you turn the selector, the source changes as follows:

CD O PHONO O TAPE (or MD) O FM O AM O DVD O DVD MULTI O TV SOUND (or DBS) O VCR O (back to the beginning)

The selected source lamp also lights up.

• The DVD lamp lights up both for “DVD” and “DVD MULTI.”

SOURCE SELECTOR

DVD

TV SOUND/DBS PHONO

TAPE/MDVCR

Signal and speaker indicators on the display

• The signal indicators light up to indicate the incoming channel

English

signals. – Only the indicators for the incoming signals light up.

• The frame of the signal indicator (except for “LFE” and “S”)

lights up if the corresponding speaker is set to “LARGE” or “SMALL” (for subwoofer, “YES”). – The frames of “L” and “R” indicators always light up.

LFESUBWFR

L:•When digital input is selected: Lights up when the left

channel signal comes in.

• When analog input is selected: Always lights up.

R:•When digital input is selected: Lights up when the right

channel signal comes in.

• When analog input is selected: Always lights up.

C: Lights up when the center channel signal comes in. LS: Lights up when the left rear channel signal comes in. RS: Lights up when the right rear channel signal comes in. S: Lights up when the monaural rear channel signal comes in. LFE: Lights up when the LFE channel signal comes in.

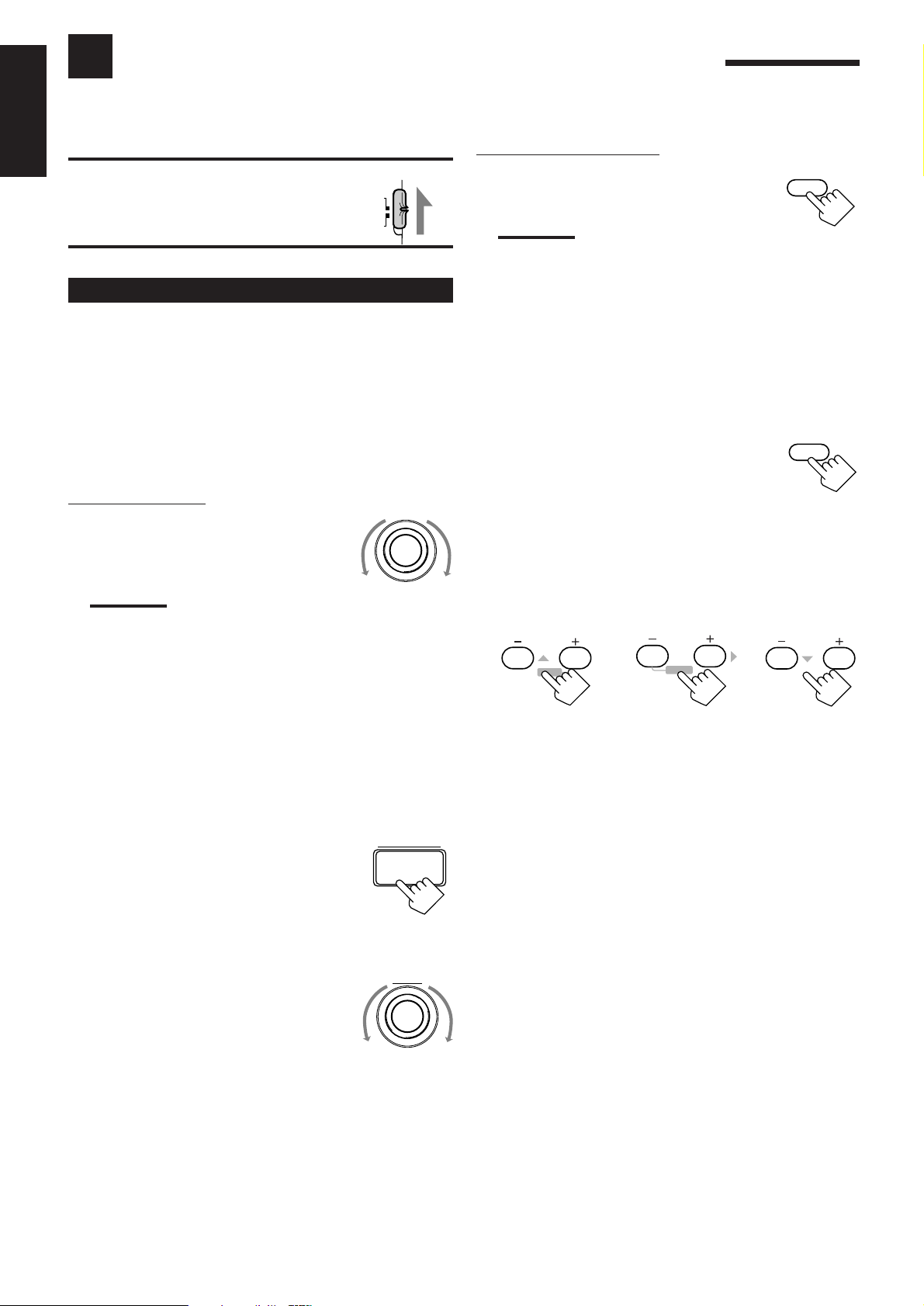

Adjusting the Volume

On the front panel:

To increase the volume, turn MASTER VOLUME clockwise. To decrease the volume, turn it counterclockwise.

• When you turn MASTER VOLUME rapidly, the volume level also changes rapidly.

• When you turn MASTER VOLUME slowly, the volume level also chang es slowly.

From the remote control:

To increase the volume, press VOLUME +. To decrease the volume, press VOLUME –.

CAUTION:

Always set the volume to the minimum before starting any source. If the volume is set at its high level, the sudden blast of sound energy can permanently damage your hearing and/or ruin your speakers.

Note:

The volume level can be adjusted within the range of “0” (minimum) to “90” (maximum).

MASTER VOLUME

–

VOLUME

Notes:

• When “SUBWOOFER” is set to “YES,”

• When you select “DVD MULTI,” all the signal indicators except “S” light up.

SUBWFR

lights up.

Selecting different sources for picture and sound

You can watch picture from a video component while listening to sound from another component.

On the front panel:

1. Press SOUND SELECT (INPUT

SOUND SELECT

ATT.) briefly while viewing the picture from a video component

INPUT ATT.

such as the VCR or DVD player, etc.

“SOUND SELECT” appears on the display.

2. Turn SOURCE SELECTOR to

SOURCE SELECTOR

select the sound (except the TV sound), while the indication of the above step is still on the display.

From the remote control:

Press one of the audio source selecting buttons (CD, TAPE/MD, PHONO, FM/AM, TV/DBS*), while viewing the picture from a video component such as the VCR or DVD player, etc.

Selecting the Front Speakers

On the front panel ONLY:

When you have connected two pairs of the front speakers, you can select which to use.

Press SPEAKERS 1 or SPEAKERS 2 to select the speaker to use.

• Each time you press the button, the lamp on the respective button turns on and off. When the lamp on either button lights up, the respective speakers are activated.

Note:

If you use any of the DSP modes other than the 3D-PHONIC modes with both front speakers activated, the speakers connected to the FRONT SPEAKERS 2 terminals are deactivated.

SPEAKERS

Notes:

• Once you have selected a video source, pictures of the selected source are sent to the TV until you select another video source.

The TV/DBS button only works for selecting “DBS” as the source but not for selecting “TV SOUND.” When you use the DBS tuner, change the source name correctly (see page 13).

Listening only with headphones

You can listen with the headphones without deactivating both pairs of speakers; however, if you want to use the HEADPHONE mode (see below), you must turn off both pairs of speakers.

1. Connect a pair of headphones to the PHONES jack on the front

panel.

2. Press SPEAKERS 1 and/or 2 so that no lamps on the buttons are

turned on. This cancels the surround mode or DSP mode currently selected, and activates the HEADPHONE mode (see below).

• The HEAD PHONE indicator lights up on the display.

HEADPHONE mode:

This mode can reproduce the LFE channel signals, mixing them with the front channel signals. So you will not miss the subwoofer sounds even if you listen to a source using the headphones.

Notes:

• While in the HEADPHONE mode, you cannot use any other DSP modes (see page 25.)

• Activating the speaker cancels the HEADPHONE mode and turns on the DSP mode previously selected.

CAUTION:

Be sure to turn down the volume before connecting or putting on headphones, as high volume can damage both the headphones and your hearing.

Attenuating the Input Signal

When the input level of the playing source is too high, the sounds will be distorted. If this happens, you need to attenuate the input signal level to prevent the sound distortion.

On the front panel ONLY:

Press and hold INPUT ATT. (SOUND

SOUND SELECT

SELECT) so that the ATT indicator lights up on the display.

INPUT ATT.

• Each time you press and hold the button, the Input Attenuator mode turns on (“INPUT ATT ON”) or off (“INPUT NORMAL”).

Notes:

• This function is available only for the sources connected using the

analog terminals.

• This function takes effect when the DSP mode is in use.

• When selecting “DVD MULTI” as the source, this effect does not

work.

Adjusting the Subwoofer Output Level

You can adjust the subwoofer output level if you have selected “YES” for the “SUBWOOFER” (see page 13). Once it has been adjusted, the receiver memorizes the adjustment.

English

Muting the Sound

From the remote control ONLY:

Press MUTING to mute the sound through all speakers and headphones connected.

MUTING

“MUTING” appears on the display and the volume turns off (the volume level indicator goes off).

To restore the sound, press MUTING again so that “OFF” appears on the display.

• Turning MASTER VOLUME on the front panel or pressing VOLUME +/– on the remote control also restores the sound.

Reinforcing the Bass

You can boost the bass level.

On the front panel ONLY:

Press BASS BOOST (SOURCE NAME) briefly to select the bass boost function.

• Each time you press the button, the bass boost function turns on (“BASSBOOST ON”) and off (“BASSBOOST OFF”). – Select “BASSBOOST ON” to activate the bass boost function.

The BASS BOOST indicator lights up on the display.

– Select “BASSBOOST OFF” to cancel it. The indicator goes off.

BASS BOOST

SOURCE NAME

Before you start, remember...

• There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

• When the front speakers are all deactivated, the subwoofer level cannot be adjusted.

On the front panel:

1. Press (BALANCE/) SURROUND

BALANCE/SURROUND

ADJUST

ADJUST repeatedly until “SUBWFR LEVEL” appears on the display.

The display changes to show the current setting.

MULTI JOG

2. Turn MULTI JOG to adjust the

subwoofer output level (–10 dB to +10 dB).

From the remote control:

SOUND

1. Press SOUND.

The 10 keys are activated for sound adjustments.

2. Press SUBWOOFER –/+ to adjust

the subwoofer output level (–10 dB to +10 dB).

SUBWOOFER

+10

100+FM MODE

Note:

This function affects the front speaker sounds only.

Basic Settings

Some of the following settings are required after connecting and positioning your speakers in your listening room, while others will make operations easier.

English

IMPORTANT:

When using the remote control, check to see if its remote control mode selector is set to the correct position: To operate this receiver, set it to “AUDIO/TV/ VCR”

AUDIO/ TV/VCR

CATV/DBS

Changing the Source Name

When you have connected an MD recorder to the TAPE/MD jacks or the DBS tuner to the TV SOUND/DBS jacks on the rear panel, change the source name which will be shown on the display when you select the MD recorder or DBS tuner as the source.

Recording a Source

For analog-to-analog recording

You can record any analog source through the receiver to —

• the cassette deck (or MD recorder) connected to the TAPE/MD jacks,

• and the VCR connected to the VCR jacks

— at the same time.

For digital-to-digital recording

You can record the currently selected digital input through the receiver to a digital recording device connected to the DIGITAL OUT terminal.

Notes:

• Analog-to-digital and digital-to-analog recordings are not possible.

• The output volume level, bass boost (see page 12), SEA modes

(see page 24), and DSP modes (see page 25) cannot affect the recording.

• The test tone signal (see pages 29 and 30) does not come out

through the DIGITAL OUT terminal.

Adjusting the Front Speaker Output Balance

If the sounds you hear from the front right and left speakers are unequal, you can adjust the speaker output balance.

Before you start, remember...

• There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

On the front panel ONLY:

1. When changing the source name

SOURCE SELECTOR

from “TAPE” to “MD”:

• Turn SOURCE SELECTOR until “TAPE” appears.

When changing the source name from “TV SOUND” to “DBS”:

• Turn SOURCE SELECTOR until “TV SOUND” appears.

2. Press and hold SOURCE NAME (BASS BOOST) until “ASSGN. MD” or “ASSGN. DBS” appears

BASS BOOST

SOURCE NAME

on the display.

To change the source name to “TAPE” or “TV SOUND,” repeat

the same procedure above — in step 1, select “MD” or “DBS” then press and hold SOURCE NAME (BASS BOOST).

Note:

Without changing the source name, you can still use the connected components. However, there may be some inconvenience. – “TAPE” or “TV SOUND” will appear on the display when you select

the MD recorder or DBS tuner. – You cannot use the digital input (see page 16) for the MD recorder. – You cannot use the COMPU LINK remote control system (see page

39) to operate the MD recorder.

Setting the Subwoofer Information

On the front panel ONLY:

1. Press BALANCE (/SURROUND) ADJUST repeatedly until “L/R BALANCE” appears on the display.

The display changes to show the current setting.

2. Turn MULTI JOG to adjust the balance.

• Turning it clockwise decreases the left

channel output.

• Turning it counterclockwise decreases the

right channel output.

BALANCE/SURROUND

ADJUST

MULTI JOG

Before you start, remember...

• There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

On the front panel ONLY:

1. Press SETTING repeatedly until

SETTING

“SUBWOOFER” appears on the display.

The display changes to show the current setting.

MULTI JOG

2. Turn MULTI JOG to register

whether you have connected a subwoofer or not.

• As you turn it, the subwoofer setting alternates between “YES” and “NO.”

YES: Select this when a subwoofer is used.

lights up on the display (see page 11).

NO: Select this when no subwoofer is used.

SUBWFR

Setting the Speakers for the DSP Modes

To obtain the best possible surround sound of the DSP modes, you have to register the information about the speakers arrangement after all connections are completed.

Before you start, remember...

• There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

Center Delay Time Setting

Register the delay time of the sound from the center speaker, comparing to that of the sound from the front speakers. If the distance from your listening point to the center speaker is equal to that to the front speakers, select 0 msec. As the distance to the center speaker becomes shorter, increase the delay time.

• 1 msec increase (or decrease) in delay time corresponds to 30 cm

/16 inches) decrease (or increase) in distance.

(11

• When shipped from the factory, delay time is set to 0 msec.

English

Front, Center, and Rear Speaker Setting

• When you change your speakers, you need to register the information about the speakers again.

On the front panel ONLY:

1. Press SETTING repeatedly until

SETTING

“FRONT SPK” (Front Speaker), “CENTER SPK” (Center Speaker) or “REAR SPK” (Rear Speaker) appears on the display.

The display changes to show the current setting.

MULTI JOG

2. Turn MULTI JOG to select the

appropriate item about the speaker selected in the above step.

• As you turn it, the display changes to show the following:

LARGE SMALL NONE

LARGE: Select this when the speaker size is relatively large. SMALL: Select this when the speaker size is relatively small. NONE: Select this when you have not connected a speaker.

(Not selectable for the front speakers)

3. Repeat steps 1 and 2 to select the appropriate

items for the other speakers.

Notes:

• Keep the following comment in mind as reference when adjusting.

– If the size of the cone speaker unit built in your speaker is greater

than 12 cm (4 3/4 inches), select “LARGE,” and if it is smaller than 12 cm (4 3/4 inches), select “SMALL.”

• If you have selected “NO” for the subwoofer setting, you can only

select “LARGE” for the front speaker setting.

• If you have selected “SMALL” for the front speaker setting, you

cannot select “LARGE” for the center and rear speaker settings.

On the front panel ONLY:

1. Press SETTING repeatedly until

SETTING

“CENTER DELAY” appears on the display.

The display changes to show the current setting.

MULTI JOG

2. Turn MULTI JOG to select the delay time of the center speaker output.

• Turn it clockwise to increase the delay time from 0 msec (“C.

DELAY: 0ms”) to 5 msec (“C. DELAY: 5ms”).

• Turn it counterclockwise to decrease the delay time from 5

msec (“C. DELAY: 5ms”) to 0 msec (“C. DELAY: 0ms”).

Notes:

• Center delay time setting is not valid for the DVD MULTI playback

mode.

• You cannot adjust the center delay time when you have set

“CENTER SPK” to “NONE”.

Rear Delay Time Setting

Register the delay time of the sound from the rear speakers, comparing to that of the sound from the front speakers. If the distance from your listening point to the rear speakers is equal to that to the front speakers, select 0 msec. As the distance to the rear speakers becomes shorter, increase the delay time.

• 1 msec increase (or decrease) in delay time corresponds to 30 cm

/16 inches) decrease (or increase) in distance.

(11

• Rear delay time for Dolby Digital, DTS Digital Surround, and

MPEG Multichannel is to be set to 5 msec.

• When shipped from the factory, delay time is set to 5 msec.

On the front panel ONLY:

1. Press SETTING repeatedly until

SETTING

“REAR DELAY” appears on the display.

The display changes to show the current setting.

MULTI JOG

2. Turn MULTI JOG to select the delay time of the rear speaker output.

• Turn it clockwise to increase the delay time from 0 msec (“R.

DELAY: 0ms”) to 15 msec (“R. DELAY: 15ms”).

• Turn it counterclockwise to decrease the delay time from 15

msec (“R. DELAY: 15ms”) to 0 msec (“R. DELAY: 0ms”).

Notes:

• Rear delay time setting is not valid for the DVD MULTI playback

mode.

• You cannot adjust the rear delay time when you have set “REAR

SPK” to “NONE”.

Crossover Frequency Setting

English

Small speakers cannot reproduce the bass sound very well. So, if you have used a small speaker for any of the front, center, or rear channels, this receiver automatically reallocates the bass elements, originally assigned to the channel for which you have connected the small speaker, to another channel (for which you have connected the large speaker). To use this function properly, you need to set the crossover frequency level according to the size of the small speaker connected.

• If you have selected “LARGE” for all speakers (see page 14), this function is set to “OFF” and can not be adjusted.

On the front panel ONLY:

1. Press SETTING repeatedly until

“CROSSOVER FRQ” (Crossover Frequency) appears on the display.

The display changes to show the current setting.

2. Turn MULTI JOG to select the

crossover frequency level according to the size of the small speaker connected.

• As you turn it, the display changes to show the following:

80Hz 100Hz 120Hz

• Use the following comments as reference when adjusting.

80Hz: Select this when the cone speaker unit built in the

speaker is about 12 cm (4

100Hz: Select this when the cone speaker unit built in the

speaker is about 10 cm (3

120Hz: Select this when the cone speaker unit built in the

speaker is about 8 cm (3 3/16 inches).

Note:

Crossover frequency setting is not valid for the DVD MULTI playback mode, 3D-PHONIC mode and HEADPHONE mode.

/4 inches).

/16 inches).

Low Frequency Effect Attenuator Setting

If the bass sound is distorted while playing back a source using Dolby Digital, DTS Digital Surround, or MPEG Multichannel, follow the procedure below.

On the front panel ONLY:

1. Press SETTING repeatedly until

“LFE ATT” (Low Frequency Effect Attenuator) appears on the display.

The display changes to show the current setting.

SETTING

MULTI JOG

SETTING

2. Turn MULTI JOG to select the

MULTI JOG

low frequency effect attenuator level.

• As you turn it, the display changes to show the following:

0dB 10dB

0dB: Normally select this. 10dB: Select this when the bass sound is distorted.

Note:

Low frequency effect attenuator setting is not valid for the DVD MULTI playback mode.

Dynamic Range Compression Setting

You can compress the dynamic range (difference between maximum sound and minimum sound) of the reproduced sound. This is useful when enjoying surround sound at night.

• This function takes effect only when playing back a source using Dolby Digital.

On the front panel ONLY:

1. Press SETTING repeatedly until

SETTING

“D. RANGE COMP.” (Dynamic Range Compression) appears on the display.

The display changes to show the current setting.

2. Turn MULTI JOG to select the

MULTI JOG

appropriate item about the compression level.

• As you turn it, the display changes to show the following:

OFF MID MAX

OFF: Select this when you want to enjoy surround with its

full dynamic range. (No effect applied)

MID: Select this when you want to reduce the dynamic

range a little. (Factory setting)

MAX: Select this when you want to apply the compression

effect fully. (Useful at night)

Note:

Dynamic Range Compression setting is not valid for the DTS Digital Surround, MPEG Multichannel and DVD MULTI playback mode.

Digital Input (DIGITAL IN) Terminal Setting

Selecting the Analog or Digital Input Mode

English

When you use the digital input terminals, you have to register what components are connected to which terminals (DIGITAL IN 1/2/3).

Before you start, remember...

• There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

On the front panel ONLY:

1. Press SETTING repeatedly until

SETTING

“DIGITAL IN” appears on the display.

The display changes to show the current setting.

DIGITAL 2 terminal setting

DIGITAL 1 terminal setting

DIGITAL 3 terminal setting

MULTI JOG

2. Turn MULTI JOG to select the

appropriate digital terminal setting.

• As you turn it, the display changes to show the following:

1 DVD 2 CD 3 TV (or DBS*) “ 1 DVD 2 CD 3 MD “ 1 DVD 2 MD 3 TV (or DBS*) “ 1 CD 2 DVD 3 TV (or DBS*) “ 1 CD 2 DVD 3 MD “ 1 CD 2 MD 3 TV (or DBS*) “ 1 TV (or DBS*) 2 CD 3 DVD “ 1 TV (or DBS*) 2 CD 3 MD “ 1 TV (or DBS*) 2 DVD 3 MD “ 1 MD 2 CD 3 TV (or DBS*) “ 1 MD 2 CD 3 DVD “ 1 MD 2 DVD 3 TV (or DBS*) “ (back to the beginning)

If you have changed the source name from “TV SOUND” to

“DBS,” “DBS” appears.

Note:

When shipped from the factory, the DIGITAL IN terminals can be used as the digital input for the following components.

• DIGITAL 1 (coaxial): For DVD player

• DIGITAL 2 (optical): For CD player

• DIGITAL 3 (optical): For digital TV broadcast tuner

When you have connected some digital source components using the digital terminals (see page 8), you need to change the input mode for these components to the appropriate digital input mode correctly — AUTO/PCM, DOLBY DIGITAL, DTS or MPEG.

Before you start, remember...

• The digital input (DIGITAL IN) terminal setting should be correctly done for the sources you want to select the digital input mode for. Without setting this digital input terminal

correctly, you cannot change the input mode from analog input to digital input even if you follow the procedure below.

On the front panel:

1. Turn SOURCE SELECTOR until

SOURCE SELECTOR

the source (CD, MD, TV SOUND, DBS, or DVD)* for which you want to change the input mode appears on the display.

Note:

Among the sources listed above, you can select the digital input only for the sources which you have selected the digital input terminals for. (See “Digital Input (DIGITAL IN) Terminal Setting.”)

2. Press INPUT ANALOG/DIGITAL

repeatedly until the digital input

INPUT

ANALOG/DIGITAL

mode you want appears on the display.

• Each time you press the button, the input mode changes as follows:

ANALOG

MPEG

(Digital)

Normally select “AUTO/PCM,” so the receiver automatically detects the incoming digital signal format. (The DIGITAL AUTO indicator lights up on the display.)

– When the receiver can recognize the digital signal format

coming into the receiver, the frame of the digital signal

indicator for the detected signal lights up automatically.

– When the receiver cannot recognize the incoming signal

format correctly, the frame of the digital signal indicator

flashes. If this happens, select the same digital input mode with the incoming digital signal — “DOLBY DIGITAL”, “DTS” or “MPEG.”

To change the input mode back to analog input, select “ANALOG.”

DTS

(Digital)

AUTO/PCM

(Digital)

DOLBY DIGITAL

(Digital)

From the remote control:

English

1. Press the source selecting button (CD, T APE/MD, TV/DBS, or DVD)* f or which y ou want to

DVD DVD MUILTI CD TAPE/MD

TV/DBS PHONO FM/AM

VCR

change the input mode.

Note:

Among the sources listed above, you can select the digital input only for the sources which you have selected the digital input terminals for. (See “Digital Input (DIGITAL IN) Terminal Setting.”)

2. Press ANALOG/DIGITAL to

ANALOG/DIGITAL

change the input mode.

• Each time you press the button, the

input mode changes as follows:

ANALOG

MPEG

(Digital)

DTS

(Digital)

Notes:

• Noise may come out of the speakers while searching or skipping a

multi-sound source encoded with Dolby Digital, DTS Digital Surround or MPEG Multichannel. If this happens, select “DOLBY DIGITAL”, “DTS” or “MPEG” for digital input mode.

• When you change the source, the digital input mode will be

automatically reset to “AUTO/PCM.”

AUTO/PCM

(Digital)

DOLBY DIGITAL

(Digital)

Showing the Text Information on the Display

When you have connected an MD recorder or CD player equipped with TEXT COMPU LINK remote control system (see page 40), you can show the text information, such as disc title or track title, on the display of this receiver. To show it on the display, follow the procedure below.

Before you start, remember...

• There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

On the front panel ONLY:

1. Press SETTING repeatedly until

SETTING

“FL DISPLAY” appears on the display.

The display changes to show the current setting.

2. Turn MULTI JOG to select either

MULTI JOG

the source name or the text information to be shown on the display.

• As you turn it, the display changes to show the following:

NORMAL TEXT

NORMAL: Source name appears during play. TEXT: Text information appears during play.

Note:

Though you have selected “TEXT,” the source name such as “CD” or “MD” appears if a playing disc has no text information.

Storing the Basic Settings and

2010 30 40 50 60 70 80 90

(Canceled)

Adjustments — One Touch Operation

JVC’s One Touch Operation function is used to assign and store different sound settings for each different playing source. By using this function, you do not have to change the settings every time you change the source. The stored settings for the newly selected source are automatically recalled. The following can be stored for each source:

• Volume level (see page 11)

• Bass boost (see page 12)

• Input attenuator mode (see page 12)

• Subwoofer output level (see page 12)

• Balance (see page 13)

• SEA modes (see page 24)

• DSP modes – 3D-PHONIC mode settings (see page 28) – DAP mode settings (see page 28) – Surround mode settings (see page 29)

• DVD MULTI playback mode settings (see page 33)

On the front panel ONLY:

To store the sound settings

1. Press ONE TOUCH OPERATION.

The ONE TOUCH OPERATION lamp lights up, then the previously memorized settings are recalled.

ONE TOUCH OPERATION

Using the Sleep Timer

Using the Sleep Timer, you can fall asleep to music and know the receiver will turn off by itself rather than play all night.

From the remote control ONLY:

Press SLEEP repeatedly.

The SLEEP indicator lights up on the display, and the shut-off time changes as follows (in minutes):

When the shut-off time comes

The receiver turns off automatically.

To check or change the time remaining until the shut-off time

Press SLEEP once. The remaining time until the shut-off time appears in minutes.

• To change the shut-off time, press SLEEP repeatedly.

To cancel the Sleep Timer

Press SLEEP repeatedly until “SLEEP 00min.” appears on the display. (The SLEEP indicator goes off.)

• Turning off the power also cancels the Sleep Timer.

SLEEP

English

2. Adjust the sound using the functions listed above.

The newly adjusted settings are memorized.

To recall the sound settings

With the ONE TOUCH OPERATION lamp lit, the settings for the currently selected source are recalled when the source is selected.

To cancel the One Touch Operation function

Press ONE TOUCH OPERATION so that the lamp goes off. (Even though the One Touch Operation function is canceled, the recalled sound effects remain active.)

Notes:

• If the source is FM or AM (MW/LW), you can assign a different

setting for each band.

• The DSP modes and DVD MULTI playback mode cannot be used at

the same time.

Receiving Radio Broadcasts

You can browse through all the stations or use the preset function to go immediately to a particular station.

IMPORTANT:

English

When using the remote control, check to see if its remote control mode selector is set to the correct position: To operate this receiver, set it to “AUDIO/TV/ VCR”.

Tuning in Stations Manually

On the front panel ONLY:

1. Turn SOURCE SELECTOR to

select the band (FM or AM — MW/LW).

The last received station of the selected band is tuned in.

2. Press FM/AM TUNING.

3. Turn MULTI JOG until you find

the frequency you want.

• Turning it clockwise increases the frequency.

• Turning it counterclockwise decreases the frequency.

• When you turn MULTI JOG quickly, the frequency keeps changing until a station is tuned in.

AUDIO/ TV/VCR

CATV/DBS

SOURCE SELECTOR

FM/AM TUNING

MULTI JOG

Using Preset Tuning

Once a station is assigned to a channel number, the station can be quickly tuned. You can preset up to 30 FM and 15 AM (MW/LW) stations.

To store the preset stations

Before you start, remember...

• There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

On the front panel ONLY:

1. Tune in the station you want to preset (see

“Tuning in Stations Manually”).

• If you want to store the FM reception mode for this station, select the FM reception mode you want. See “Selecting the FM Reception Mode” on page 20.

2. Press TUNER (/SEA) MEMORY.

“CH-” appears and the channel number position starts flashing on the display for about 10 seconds.

TUNER/SEA MEMORY

Note:

When a station of sufficient signal strength is tuned in, the TUNED indicator lights up on the display. When an FM stereo program is received, the STEREO indicator also lights up.

3. Turn MULTI JOG to select a

MULTI JOG

channel number while the channel number position is flashing.

Note:

You can use the 10 keys on the remote control to select the preset number. When using the 10 keys, be sure that they are activated for the tuner, not for the CD and others. (See page 45.)

4. Press TUNER (/SEA) MEMORY

TUNER/SEA MEMORY

again while the selected channel number is flashing on the display.

The selected channel number stops flashing. The station is assigned to the selected channel number.

5. Repeat steps 1 to 4 until you store all the stations you want.

To erase a stored preset station

Storing a new station on a used number erases the previously stored one.

To tune in a preset station

On the front panel:

1. Turn SOURCE SELECTOR to

SOURCE SELECTOR

select the band (FM or AM — MW/LW).

The last received station of the selected band is tuned in.

TUNER PRESET

2. Press TUNER PRESET .

3. Turn MULTI JOG until you find the channel you want.

• Turning it clockwise increases the channel

numbers.

• Turning it counterclockwise decreases the

channel numbers.

From the remote control:

1. Press FM/AM.

• Each time you press the button, the band

alternates between FM and AM (MW/LW).

2. Press the 10 keys to select a preset

CNTR TONE

channel number.

• For channel number 5, press 5.

• For channel number 15, press +10 then 5.

• For channel number 20, press +10 then 10.

• For channel number 30, press +10, +10,

then 10.

Note:

When you use the 10 keys on the remote control, be sure that they are activated for the tuner, not for the CD and others. (See page 45.)

SEA MODE

RETURN

MULTI JOG

FM/AM

SUBWOOFER

FM MODE

CENTER

ENTER

+10

100+

123

TEST REAR-L

456

EFFECT REAR-R

/P 89

Note:

When using the FM MODE button on the remote control, be sure that the 10 keys are activated for the tuner, not for the CD and others. (See page 45.)

Assigning Names to Preset Stations

You can assign a name of up to four characters to each preset station. When a preset station is tuned in, its assigned name will appear on the display.

Before you start, remember...

• There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

• You can use the following characters: Space (_), A – Z, and 0 – 9.

On the front panel ONLY:

1. Tune in a preset station.

See the left.

2. Press TUNER (/SEA) MEMORY.

TUNER/SEA MEMORY

The preset channel number starts flashing for about 10 seconds.

• If you turn MULTI JOG while the preset channel number is flashing, you can change the preset channel number.

3. Press TUNER PRESET, while the

TUNER PRESET

preset channel number is flashing.

The first character position starts flashing.

English

Selecting the FM Reception Mode

When an FM stereo broadcast is hard to receive or noisy

You can change the FM reception mode while receiving an FM broadcast.

• You can store the FM reception mode for each preset station.

Press FM MODE on the front panel or on the remote control.

• Each time you pr ess the button, the FM reception mode alternates between “AUTO MUTING” and “MONO.”

FM MODE

On the front panel

AUTO MUTING:When a program is broadcasted in stereo,

you will hear stereo sound; when in monaural, you will hear monaural sounds. This mode is also useful to suppress static noise between stations. The AUTO MUTING indicator lights up on the display.

MONO: Reception will be improved although you will lose the

stereo effect. In this mode, you will hear noise while tuning into the stations. The AUTO MUTING indicator goes off on the display.

SUBWOOFER

FM MODE

On the remote control

4. Turn MULTI JOG to select the first character, while the first character position is flashing.

5. Press TUNER PRESET, while a character you want is flashing.

The next character position starts flashing.

6. Repeat steps 4 and 5 to enter up to four characters.

7. Press TUNER (/SEA) MEMORY

TUNER/SEA MEMORY

while the last selected character is flashing after you have assigned a name.

To erase the input characters

Insert spaces using the same procedure described above.

MULTI JOG

TUNER PRESET

English

Receive FM Stations

RDS allows FM stations to send an additional signal along with their regular program signals. For example, the stations send their station names, as well as information about what type of program they broadcast, such as sports or music, etc.

When tuned to an FM station which provides the RDS service, the RDS indicator lights up on the display.

With the receiver, you can receive the following types of RDS signals.

Using the RDS (Radio Data System) to

You can also show the RDS information on the TV screen.

To use this function, you need to connect the TV to the MONITOR OUT jack on the rear panel (see page 7), and set the TV’s input mode to the proper position to which the receiver is connected.

• When the TV’s input mode is incorrect; for example, a different

video input or TV tuner mode is selected, you cannot show the RDS information on the TV screen.

Press TEXT DISPLAY while listening to an FM station.

TEXT

DISPLAY

The following information appears on the TV screen.

PS (Program Service): Shows commonly known station names PTY (Program Type): Shows types of broadcast programs RT (Radio Text): Shows text messages the station sends EON (Enhanced Other Network): See page 23.

Notes:

• RDS is not available for AM (MW/LW) broadcasts.

• RDS may not operate correctly if the station tuned is not transmitting RDS signal properly or if the signal strength is weak.

What information can RDS signals provide?

You can see the RDS signals the station sends on the display.

To show the RDS signals Press DISPLAY MODE while listening to an FM station.

DISPLAY MODE

STOP

DISPLAY MODE

On the front panel

On the remote

• Each time you press the button, the display changes to show you

the following information:

PS PTY

RTFrequency

PS (Program Service):

While searching, “PS” appears and then the station names will be displayed. “NO PS” appears if no signal is sent.

PTY (Program Type):

While searching, “PTY” appears and then the type of the broadcast program will be displayed. “NO PTY” appears if no signal is sent.

RT (Radio Text):

While searching, “RT” appears and then text messages the station sends will be displayed. “NO RT” appears if no signal is sent.

Frequency:

Station frequency (non-RDS service)

Notes:

• When pressing DISPLAY MODE on the remote control, make sure that you have selected FM station using the remote control. If not, the DISPLAY MODE button does not work for tuner operation. (Pressing FM/AM activates the remote control for tuner operation.)

• If searching finishes at once, “PS,” “PTY,” and “RT” will not appear on the display.

Selected station Program service Program type Radio text

To erase the RDS information, press EXIT.

EXIT

Note:

The on-screen display will disappear in the following case: – if no operation is done for about 10 minutes. – if you do any operation other than explained in this section.

Searching for a Program by PTY Codes

One of the advantages of the RDS service is that you can locate a particular kind of program from the preset channels (see page 19) by specifying the PTY codes.

To search for a program using the PTY codes

Before you start, remember...

• The PTY Search is only applicable to preset stations.

• To stop searching any time during the process, press PTY SEARCH while searching.

• There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

• When pressing the buttons on the remote control, make sure that you have selected the FM station using the remote control. If not, the RDS operation buttons do not work for RDS operation. (Pressing FM/AM activates the remote control for RDS operation.)

FM/AM

/REW

PTY

On the front panel:

1. Press PTY SEARCH while

PLAY

PTY SEARCH

STOP

DISPLAY MODE

PTY SEARCH

FF/

PTY

listening to an FM station.

“PTY SELECT” flashes on the display.

2. Turn MULTI JOG until the PTY

MULTI JOG

code you want appears on the display, while “PTY SELECT” is flashing.

The display gives you the PTY codes described to the right.

3. Press PTY SEARCH again, while

PTY SEARCH

the PTY code selected in the previous step is still on the display.

While searching, “SEARCH” and the selected PTY code alternate on the display. The receiver searches 30 preset FM stations, stops when it finds the one you have selected, and tunes in that station.

To continue searching after the first stop

Press PTY SEARCH again while the indications on the display are flashing. If no program is found, “NOTFOUND” appears on the display.

From the remote control:

1. Press PTY SEARCH while listening to an FM station.

“PTY SELECT” flashes on the display.

2. Press and hold PTY –/+ until the PTY code you want appears on the display, while “PTY SELECT” is flashing.

The display gives you the PTY codes

PLAY

PTY SEARCH

/REW

PTY

FF/

PTY

PTY SEARCH

described to the right.

3. Press PTY SEARCH again, while the PTY code selected in the previous step is still on the display.

To continue searching after the first stop

Press PTY SEARCH again while the indications on the display are flashing. If no program is found, “NOTFOUND” appears on the display.

PLAY

PTY SEARCH

PTY codes

None

Alarm !

TEST

Documemt

Folk M (Music)

Oldies

Nation M (Music)

Country

Jazz

Leisure

Travel

Phone In

Religion

Social

Children

Finance

Weather

When an emergency broadcast (Alarm ! signal) is sent from an FM station:

The receiver automatically tunes in the station except in the following cases:

• When you are listening to non-RDS stations (all AM — MW/LW and some FM stations).

• When the receiver is in standby mode.

While receiving an emergency broadcast, “Alarm !” appears on the display.

News

Affairs

Info (Information)

Sport

Educate (Education)

Drama

Culture

Science

Varied

Pop M (Music)

Rock M (Music)

Easy M (Music)

Light M (Music)

Classics

Other M (Music)

English

The TEST signal is used for equipment test — whether it can receive the Alarm ! signal correctly.

The TEST signal makes the receiver work in the same way as the Alarm ! signal does. If the TEST signal is received, the receiver automatically switches to the station broadcasting the TEST signal. While receiving the test signal, “TEST” appears on the display.

English

Your Choice Temporarily

Switching to a Broadcast Program of

CASE 2

If there is a station broadcasting the program you have selected

Another convenient RDS service is called “EON (Enhanced Other Network).” The EON indicator lights up while receiving a station with the EON code. This allows the receiver to switch temporarily to a broadcast program of your choice (NEWS, TA, and/or INFO) from a different station except in the following cases:

• When you are listening to non-RDS stations (all AM — MW/LW and some FM stations).

• When the last received FM station is a non-RDS station.

• When the receiver is in standby mode.

Before you start, remember...

• The EON function is only applicable to preset stations.

On the front panel ONLY:

1. Press EON so that the last selected

EON

program type appears on the display.

The receiver enters EON standby mode. When the receiver is in EON standby mode, the receiver is ready to receive the EON data (TA/NEWS/INFO) you select.

2. Press TA/NEWS/INFO until the

TA/NEWS/INFO

program type you want appears on the display.

• Each time you press the button, the display changes to show the following:

NEWS/INFO

NEWS

TA: Traffic Announcement in your area. NEWS: News. INFO: Program the purpose of which is to impart advice in

the widest sense.

CASE 1

The receiver continues playing the current source (all sources except AM — MW/LW).

If there is no station broadcasting the program you have selected

INFO

TA/INFO

TA/NEWS/INFO

TA/NEWS

‘

When a station starts broadcasting the program you have selected, the receiver automatically switches to the station. The indicator of received PTY code starts flashing.

‘

The receiver changes the source (all sources except AM — MW/LW), and tunes in the station. The indicator of received PTY code starts flashing.

‘

When the program is over, the receiver goes back to the previously selected source, but still remains in EON standby mode. The indicator of received PTY code stops flashing and remains lit.

CASE 3

The receiver continues to receive the station, but the indicator of received PTY code starts flashing.

If the FM station you are listening to is broadcasting the program you have selected

‘

When the program is over, the indicator of received PTY code stops flashing and remains lit, but the receiver remains in EON standby mode.

To stop listening to the program selected by EON

Press EON so that the program type (TA/NEWS/INFO) indicator goes off from the display. The receiver enters EON off mode and goes back to the previously selected source.

• Each time you press EON, the EON mode alternates between standby mode and off mode.

Notes:

• EON data sent from some stations may not be compatible with this

receiver.

• In EON standby mode, if you change the source to AM (MW/LW) or

if you carry out synchronized recording (see page 39), EON standby mode is canceled temporarily. The receiver goes back to EON standby mode again when you have finished that operation.

• While listening to a program tuned in by the EON function, you

cannot use source selecting buttons and PTY SEARCH button.

• While listening to a program tuned in by the EON function, you

cannot perform the on-screen operations (pages 34 and 41).

CAUTION:

When the source alternates intermittently between the station tuned in by the EON function and the currently selected source, press EON to cancel the EON function. If you do not press the button, the currently tuned station is received finally, and the indication of the EON program type flashing on the display disappears.

When the program is over, the receiver goes back to the previously selected source, but still remains in EON standby mode. The indicator of received PTY code stops flashing and remains lit.

Using the SEA Modes

The SEA (Sound Effect Amplifier) modes give you control of the way your music sounds.

IMPORTANT:

When using the remote control, check to see if its remote control mode selector is set to the correct position: To operate this receiver, set it to “AUDIO/TV/ VCR”.

AUDIO/ TV/VCR

CATV/DBS

Selecting Your Favorite SEA Mode

On the front panel:

Press SEA MODE repeatedly until the SEA mode you want appears on the display.

• Each time you press the button, the SEA mode changes as follows:

SEA ROCK

SEA ROCK: Gives a heavy sound. Both high and low

SEA MUSICAL: Enhances the mid-frequency range, which

SEA MOVIE: Adds breadth to sounds so you feel like

SEA COUNTRY: Enhances the high-frequency range so that

SEA JAZZ: Gives a feeling of a live atmosphere.

SEA USERMODE: Your original SEA adjustment (see the

SEA OFF: No SEA mode is applied (see below).

SEA MUSICAL SEA MOVIE

SEA USERMODESEA OFF

frequencies are boosted.

the human voice is mostly made up of.

you are in a movie theater.

instruments such the violin and banjo are emphasized.

Good for acoustic music.

right).

SEA JAZZ

Notes:

• The SEA modes cannot be used for recording.

• When the SEA mode is turned on, the SEA indicator lights up on

the display.

• When the SEA mode is used with the DAP mode (see page 28),

sounds may be distorted. If this happens, turn off the DAP mode or decrease the effect level of the DAP mode.

SEA MODE

SEA COUNTRY

Creating Your Own SEA Mode

You can adjust and store your own SEA adjustment into memory (SEA USERMODE).

Before you start, remember...

• There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

On the front panel ONLY:

If you do not want to store your adjustment, but rather want to adjust the SEA temporarily, skip step 4 below.

1. Press SEA ADJUST repeatedly

SEA ADJUST

until the frequency range (100 Hz, 1 kHz or 10 kHz) you want appears on the display.

2. Turn MULTI JOG to adjust the

MULTI JOG

SEA level of the selected frequency range.

• Turning it clockwise increases the level.

• Turning it counterclockwise decreases the level.

3. Repeat steps 1 and 2 to adjust other frequency

ranges if necessary.

4. Press (TUNER/) SEA MEMORY.

Your adjustment is stored into the SEA USERMODE.

TUNER/SEA MEMORY

English

To cancel the SEA mode

Press SEA MODE repeatedly until “SEA OFF” appears. The SEA indicator goes off from the display.

From the remote control:

1. Press SOUND.

The 10 keys are activated for sound adjustments.

SOUND

2. Press SEA MODE repeatedly until the SEA mode you want appears on the display.

To cancel the SEA mode

Press SEA MODE repeatedly until “SEA OFF” appears in step 2 above. The SEA indicator goes off from the display.

SEA MODE

RETURN

To recall your own SEA adjustment

Press SEA MODE repeatedly until “SEA USERMODE” appears.

To erase a stored adjustment

Storing a new adjustment into SEA USERMODE erases the previously stored one.

Using the DSP Modes

The built-in Surround Processor provides three types of the DSP (Digital Signal Processor) mode — 3D-PHONIC mode, DAP (Digital Acoustic Processor) mode and Surround mode.

English

3D-PHONIC modes

The 3D-PHONIC mode gives you such a nearly surround effect as is reproduced through the Dolby Surround decoder, which is widely used to reproduce sounds with a feeling of movement like those experienced in movie theaters. The 3D-PHONIC mode is the result of research on sound localization technology carried out at JVC for many years. This mode can be used when the front speakers are

connected to this receiver (without respect to the rear/center speaker connection).

3D ACTION: Best for action and war movies — where the

action is fast and explosive.

3D THEA TER: Reproduces the sound field of a large theater. This

mode can be selected when only front speakers are connected to this receiver and “REAR SPK” and “CENTER SPK” are set to “NONE” (see page 14).

DAP modes

The sound heard in a concert hall or club consists of direct sound and indirect sound — early reflections and reflections from behind. Direct sounds reach the listener directly without any reflection. On the other hand, indirect sounds are delayed by the distances of the ceiling and walls. These direct sounds and indirect sounds are the most important elements of the acoustic surround effects. The DAP mode can create these important elements, and gives you a real “being there” feeling. This mode can be used when the front

speakers are connected to this receiver (without respect to the rear/center speaker connection).

You can select one of the following to your preference while playing an analog or linear PCM source.

LIVE CLUB: Gives the feeling of a live music club with a low

ceiling.

DANCE CLUB:Gives a throbbing bass beat. HALL: Gives clear vocal and the feeling of a concert hall. PAVILION: Gives the spacious feeling of a pavilion with a high

ceiling.

Early reflections

Direct sounds

Reflections from behind

Surround modes

With this receiver, you can use four types of the Surround mode.

Following modes cannot be used when only the front speakers are connected to this receiver (without the rear speakers or center speaker).

JVC Theater Surround

In order to reproduce a more realistic sound field in your listening room while playing soundtracks of software encoded with Dolby Surround (bearing the mark

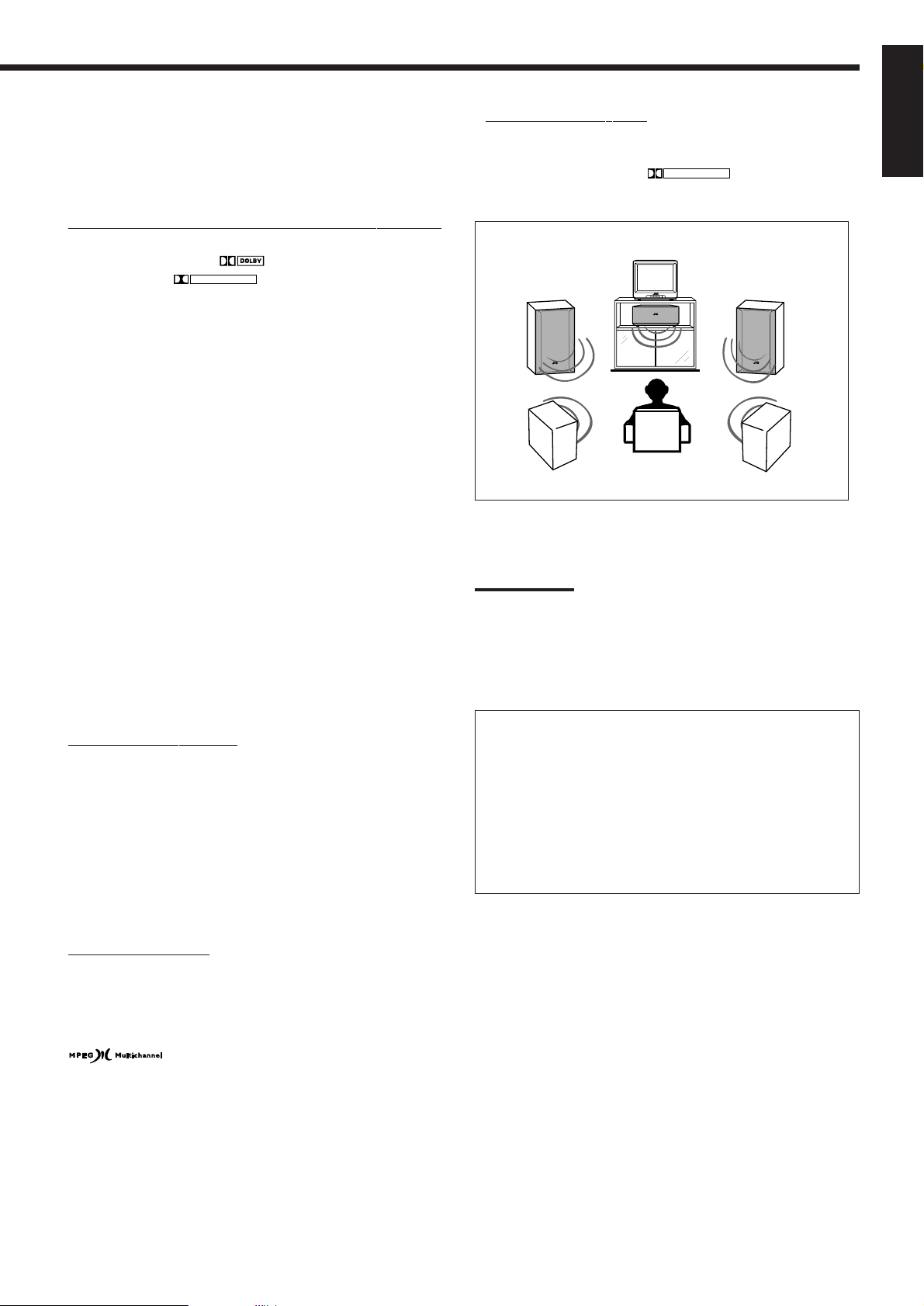

DOLBY SURROUND

) you can use JVC

Theater Surround.

English

Dolby Surround (Dolby Digital and Dolby Pro Logic)

Used to watch the soundtracks of software encoded with Dolby Digital (bearing the mark (bearing the mark

DOLBY SURROUND

DIGITAL

) or with Dolby Surround

). Dolby Surround encoding format records the left front channel, right front channel, center channel, and rear channel (total 4 channels) signals into 2 channels. The Dolby Pro Logic decoder built in this receiver decode these 2 channel signals into original 4 channel signals — matrix-based multichannel reproduction, and allows you to enjoy the realistic stereo sounds in your listening room. On the other hand, Dolby Digital encoding method (so called a discrete 5.1 channel digital audio format) records and compresses the left front channel, right front channel, center channel, left rear channel, right rear channel, and LFE channel (total 6 channels, but LFE channel is counted as 0.1 channel, therefore called 5.1 channels) signals digitally. Each channel is completely independent from other channel signals to avoid interference, therefore, you can obtain much better sound quality with much stereo and surround effects. The Dolby Digital decoder built in this receiver can create much more realistic sound field in your listening room. You may feel as if you were in a real theater. In addition, Dolby Digital enables stereo rear sounds, and sets the cutoff frequency of the rear treble at 20 kHz, comparing to 7 kHz for Dolby Pro Logic. These facts enhance the sound movement and being-there feelings much more than Dolby Pro Logic.

• To enjoy the software encoded with Dolby Digital, you must

connect the source component using the digital terminal on the rear of this receiver. (See page 8.)

DTS Digital Surround

DTS Digital Surround is another discrete 5.1 channel digital audio format available on CD, LD, and DVD software. Comparing to Dolby Digital, audio compression rate is relatively low. This fact allows DTS Digital Surround format to have more data recorded than Dolby Digital even using the same media, and to add breadth and depth to the reproduced sounds. As a result, DTS Digital Surround features natural, solid and clear sound.

• To enjoy the software encoded with DTS Digital Surround, you

must connect the source component using the digital terminal on the rear of this receiver. (See page 8.)

Notes:

• The DSP modes have no effect on monaural sources.

• When you select “DVD MULTI” as the source to play, you cannot select or adjust the DSP modes.

• The

Ÿ PRO LOGIC

decoder built in this receiver is activated.

indicator lights up when the Dolby Pro Logic

DVD MULTI Playback Mode

This receiver provides the DVD MULTI playback mode for reproducing the analog discrete 5.1 channel output mode of the DVD player or other equipment. You can adjust the DVD MULTI playback mode while playing back a video software such as a DVD using the analog discrete

5.1 channel output mode.

• For the DVD MULTI playback mode connection, see page 7.

• For details on the DVD MULTI playback mode, see page 33.

MPEG Multichannel

MPEG Multichannel is another discrete 5.1 channel digital audio format available on DVD software, and uses encoding method called MPEG2-Audio. (MPEG stands for “Motion Picture Expert Group” and has been originally developed for compressing video signals.) To watch the soundtracks of video software bearing the mark

, the receiver can provide you with MPEG Multichannel decoder. MPEG Multichannel is automatically selected according to software played back and the speaker arrangement you have done.

• To enjoy the software encoded with MPEG Multichannel, you

must connect the source component using the digital terminal on the rear of this receiver. (See page 8.)

Manufactured under license from Dolby Laboratories. “Dolby,” “Pro Logic,” and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. ©1992–1997 Dolby Laboratories, Inc. All rights reserved.

Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942 and other world-wide patents issues and pending. “DTS” and “DTS Digital Surround” are trademarks of Digital Theater Systems, Inc. ©1996 Digital Theater Systems, Inc. All rights reserved.

English

Available DSP Modes According to the Speaker Arrangement

Available DSP modes will vary depending on how many speakers are used with this receiver.

Make sure that you have set the speaker information correctly (see page 14).

Front

speaker

Front

speaker

Front

speaker

Rear

speaker

Front

speaker

Rear

speaker

Speaker arrangements

Center speaker

Front

speaker

Front

speaker

Front

speaker

Rear

speaker

Front

speaker

Rear

speaker

Available DSP modes

Each time you press DSP MODE on the front panel or SURROUND MODE on the remote control, the DSP modes change as follows:

• 3D THEATER

• LIVE CLUB

• DANCE CLUB

• HALL

• PAVILION

• 3D ACTION

• DSP OFF (DSP mode is canceled)

Each time you press DSP MODE on the front panel or SURROUND MODE on the remote control, the DSP modes change as follows:

By pressing DSP MODE:

• THEATER

• LIVE CLUB

• DANCE CLUB

• HALL

• PAVILION

• 3D ACTION

• DSP OFF (DSP mode is canceled)

By pressing SURROUND MODE:

• DOLBY/DTS/MPEG SURROUND (DOLBY PRO LOGIC, DOLBY DIGITAL*, DTS SURROUND**, or MPEG SURROUND***)

• THEATER

• LIVE CLUB

• DANCE CLUB

• HALL

To activate the Surround mode, press SURROUND ON/

OFF button so that the lamp on

• PAVILION

• 3D ACTION

• DSP OFF (DSP mode is canceled)

the button lights up.

To activate the Surround mode, you can also use the

SURROUND ON/OFF button.

Activated automatically only when “AUTO/PCM” is selected as the digital input and playback source is encoded with Dolby Digital.

Activated automatically only when “AUTO/PCM” is selected as the digital input and playback source is encoded with DTS Digital Surround.

***

Activated automatically only when “AUTO/PCM” is selected as the digital input and playback source is encoded with MPEG Multichannel.

Notes:

• If Surround mode is canceled while playing back a multichannel source such as Dolby Digital, DTS Digital Surround and MPEG Multichannel, all channel signals are mixed with left and right front channels and are output through the front speakers.

• While playing back a multichannel source such as Dolby Digital, DTS Digital Surround and MPEG Multichannel, Theater Surround, DAP modes, and 3DPHONIC modes cannot be used. On the other hands, if you select a Dolby Digital, DTS Digital Surround and MPEG Multichannel as the source to play while using any of Theater Surround, DAP modes, and 3D-PHONIC modes, the currently selected mode will be canceled and Dolby Digital, DTS Digital Surround or MPEG multichannel mode will be activated.

IMPORTANT:

When using the remote control, check to see if its remote control mode selector is set to the correct position: To operate this receiver, set it to “AUDIO/TV/ VCR”.

AUDIO/ TV/VCR

CATV/DBS

3. Press EFFECT to select an effect level you want.

• Each time you press the button, the effect

level changes as follows:

DSP EFFECT 1 DSP EFFECT 2 DSP EFFECT 3

DSP EFFECT 4DSP EFFECT 5

EFFECT

English

Adjusting the 3D-PHONIC Modes

Once you have adjusted the 3D-PHONIC modes, the adjustment is memorized for each 3D-PHONIC mode.

Before you start, remember...

• Make sure that you have set the speaker information correctly (see page 14).

• There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

On the front panel:

1. Press DSP MODE repeatedly until

“3D ACTION” or “3D

DSP MODE

THEATER” appears on the display.

The 3D-PHONIC, DSP and Ÿ PRO LOGIC indicators also light up on the display.

2. Adjust the effect level.

1) Press (BALANCE/) SURROUND

BALANCE/SURROUND

ADJUST

ADJUST repeatedly until “DSP EFFECT” appears on the display.

The display changes to show the current setting.

2) Turn MULTI JOG to select the effect

MULTI JOG

level.

• As you turn it, the effect level changes as follows:

DSP EFFECT 1 DSP EFFECT 2 DSP EFFECT 3

DSP EFFECT 4DSP EFFECT 5

As the number increases, the selected 3D-PHONIC mode becomes stronger.

From the remote control:

1. Press SURROUND MODE repeatedly until “3D ACTION” or

SURROUND

MODE

“3D THEATER” appears on the display.

The 3D-PHONIC, DSP, and Ÿ PRO LOGIC indicators also light up on the display.

As the number increases, the selected 3D-PHONIC mode becomes stronger.

Adjusting the DAP Modes

Once you have adjusted the DAP modes, the adjustment is memorized for each DAP mode.

Before you start, remember...

• Make sure that you have set the speaker information correctly (see page 14).

• There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

• You cannot adjust the rear speaker output level when you have set “REAR SPK” to “NONE.” See page 14.

• When the DAP mode is used with the SEA mode (see page 24), sounds may be distorted. If this happens, turn off the SEA mode.

On the front panel:

1. Press DSP MODE repeatedly until

DSP MODE

the DAP mode — LIVE CLUB, DANCE CLUB, HALL, or PAVILION — appears on the display.

The DSP indicator also lights up on the display.

• When you have set “REAR SPK” to “NONE,” the 3DPHONIC indicator also lights up.

2. Adjust the speaker output levels.

1) Press (BALANCE/) SURROUND

ADJUST repeatedly until one of the indications appears on the display.

“REAR L LEVEL”:

To adjust the left rear speaker level.

“REAR R LEVEL”:

To adjust the right rear speaker level.

2) Turn MULTI JOG to adjust the

selected speaker output level (from –10 dB to +10 dB).

3) Repeat 1) and 2) to adjust the other

speaker output level.

BALANCE/SURROUND

ADJUST

MULTI JOG

2. Press SOUND.

The 10 keys are activated for sound adjustments.

SOUND

3. Adjust the effect level.

English

1) Press (BALANCE/) SURROUND ADJUST repeatedly until “DSP EFFECT” appears on the display.

The display changes to show the current setting.

2) Turn MULTI JOG to select the effect level.

• As you turn it, the effect level changes

as follows:

DSP EFFECT 1 DSP EFFECT 2 DSP EFFECT 3

As the number increases, the selected DAP mode becomes stronger.

BALANCE/SURROUND

ADJUST

Adjusting the Surround Modes

Once you have adjusted the Surround modes, the adjustment is memorized for each Surround mode.

MULTI JOG

Dolby/DTS/MPEG Surround adjustments

Before you start, remember...

• Make sure that you have set the speaker information correctly (see page 14).

• There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

• You cannot adjust the rear speaker output levels when you have set

DSP EFFECT 4DSP EFFECT 5

“REAR SPK” to “NONE.” See page 14.

• You cannot adjust the center speaker output level when you have set “CENTER SPK” to “NONE.” See page 14.

From the remote control:

1. Press SURROUND MODE repeatedly until the DAP mode — LIVE CLUB, DANCE CLUB, HALL, or PAVILION — appears on the display.

The DSP indicator also lights up on the display.

• When you have set “REAR SPK” to “NONE,” the 3D-

PHONIC indicator also lights up.

2. Press SOUND.

The 10 keys are activated for sound adjustments.

3. Adjust the speaker output levels.

• To adjust the left rear speaker level, press

REAR•L –/+ (from –10 dB to +10 dB).

• To adjust the right rear speaker level, press

REAR•R –/+ (from –10 dB to +10 dB).

From the remote control:

SURROUND

MODE

SOUND

1. Press SURROUND ON/OFF to

2. Press SOUND.

REAR•L

ENTERENTER

REAR•R

3. Press TEST to check the speaker

SURROUND

activate an appropriate surround

ON/OFF

mode — PRO LOGIC, DOLBY DIGITAL, DTS SURROUND, or MPEG SURROUND.

• Each time you press the button, the Surround mode turns on and off alternately

• When “PRO LOGIC” is selected, the Ÿ PRO LOGIC indicator lights up on the display.

Note:

You can also press SURROUND MODE to activate an appropriate Surround mode.

SOUND

The 10 keys are activated for sound adjustments.

output balance.

“TEST TONE L” starts flashing on the display, and a test tone comes out of the speakers in the following order:

TEST

4. Press EFFECT to select an effect level you want.

• Each time you press the button, the effect

level changes as follows:

DSP EFFECT 1 DSP EFFECT 2 DSP EFFECT 3

DSP EFFECT 4DSP EFFECT 5

As the number increases, the selected DAP mode becomes stronger.

EFFECT

TEST TONE L

(Left front speaker)

TEST TONE LS

(Left rear speaker)

TEST TONE C

(Center speaker)

TEST TONE R

(Right front speaker)

TEST TONE RS

(Right rear speaker)

Notes:

• You can adjust the speaker output levels without outputting the test tone.

• No test tone comes out of the center speaker when “CENTER SPK” is set to “NONE” (see page 14).

• No test tone comes out of the rear speakers when “REAR SPK”

is set to “NONE” (see page 14).

• If the TV is turned on and the proper video input is selected on

the TV, the test tone screen will appear on the TV.

4. Adjust the speaker output levels.

• To adjust the center speaker level, press CENTER –/+ (from –10 dB to +10 dB).

• To adjust the left rear speaker level, press REAR•L –/+ (from –10 dB to +10 dB).

• To adjust the right rear speaker level, press REAR•R –/+ (from –10 dB to +10 dB).

CENTER

MENUMENU

REAR•L

ENTERENTER

REAR•R

JVC Theater Surround adjustments

Before you start, remember...

• Make sure that you have set the speaker information correctly (see page 14).

• There is a time limit in doing the following steps. If the setting is canceled before you finish, start from step 1 again.

• You cannot adjust the rear speaker output levels when you have set “REAR SPK” to “NONE.” See page 14.

• You cannot adjust the center speaker output level when you have set “CENTER SPK” to “NONE.” See page 14.

English

5. Press TEST again to stop the test tone.

TEST

On the front panel:

You can also use the buttons on the front panel to adjust the Surround modes. However, no test tone is available when using the buttons on the front panel. So, make adjustments while listening to the sound of the source played back.

1. Press SURROUND ON/OFF to

SURROUND ON/OFF

activate an appropriate Surround mode — PRO LOGIC, DOLBY DIGITAL, DTS SURROUND or MPEG SURROUND.

• Each time you press the button, the Surround mode turns on and off alternately.

• When “PRO LOGIC” is selected, the Ÿ PRO LOGIC indicator lights up on the display.

2. Adjust the speaker output levels.

1) Press (BALANCE/) SURROUND

ADJUST repeatedly until one of the indications appears on the display.

“CENTER LEVEL”: To adjust the center speaker level. “REAR L LEVEL”: To adjust the left rear speaker level. “REAR R LEVEL”: To adjust the right rear speaker level.

2) Turn MULTI JOG to adjust the

selected speaker output level (from –10 dB to +10 dB).

3) Repeat 1) and 2) to adjust the other

speaker output levels.

BALANCE/SURROUND

ADJUST

MULTI JOG

From the remote control:

1. Press SURROUND MODE

SURROUND

MODE

repeatedly until “THEATER” appears on the display.

• The Ÿ PRO LOGIC and DSP indicators also light up on the display.

SOUND

2. Press SOUND.

The 10 keys are activated for sound adjustments.

3. Press TEST to check the speaker

TEST

output balance.

“TEST TONE L” starts flashing on the display, and a test tone comes out of the speakers in the following order:

TEST TONE L

(Left front speaker)

TEST TONE LS

(Left rear speaker)

TEST TONE C

(Center speaker)

TEST TONE R

(Right front speaker)

TEST TONE RS

(Right rear speaker)

Notes:

• You can adjust the speaker output levels without outputting the

test tone.

• No test tone comes out of the center speaker when “CENTER

SPK” is set to “NONE” (see page 14).

• No test tone comes out of the rear speakers when “REAR SPK”

is set to “NONE” (see page 14).

• If the TV is turned on and the proper video input is selected on

the TV, the test tone screen will appear on the TV.

4. Adjust the speaker output levels.

• To adjust the center speaker level, press CENTER –/+ (from –10 dB to +10 dB).

• To adjust the left rear speaker level, press REAR•L –/+ (from –10 dB to +10 dB).

• To adjust the right rear speaker level, press REAR•R –/+ (from –10 dB to +10 dB).

CENTER

MENUMENU

REAR•L

ENTERENTER

REAR•R

5. Press TEST again to stop the test tone.

English

6. Press EFFECT to select an effect level you want.

• Each time you press the button, the effect

level changes as follows:

TEST

EFFECT

Activating the DSP Modes

You can use only one DSP mode at a time. When a DSP mode is activated, another DSP mode is canceled if in use.

For Dolby Pro Logic, Dolby Digital, DTS Digital Surround and MPEG Multichannel

DSP EFFECT 1 DSP EFFECT 2 DSP EFFECT 3

DSP EFFECT 4DSP EFFECT 5

As the number increases, JVC Theater Surround becomes stronger.

On the front panel:

1. Press DSP MODE repeatedly until

DSP MODE

“THEATER” appears on the display.

The Ÿ PRO LOGIC and DSP indicators also light up on the display.

2. Adjust the speaker output levels.

1) Press (BALANCE/) SURROUND

ADJUST repeatedly until one of the indications appears on the display.

“CENTER LEVEL”: To adjust the center speaker level. “REAR L LEVEL”: To adjust the left rear speaker level. “REAR R LEVEL”: To adjust the right rear speaker level.

2) Turn MULTI JOG to adjust the

selected speaker output level (from –10 dB to +10 dB).

3) Repeat 1) and 2) to adjust the other

speaker output levels.

BALANCE/SURROUND

ADJUST

MULTI JOG

1. Press SURROUND ON/OFF so that the lamp on the front panel button lights up.

• Each time you press the button, the Dolby/DTS/MPEG

Surround turns on and off alternately.

SURROUND ON/OFF

SURROUND

ON/OFF

On the front panel

On the remote control

2. Select and play a sound source.

• To enjoy Dolby Pro Logic, play back a software encoded with

Dolby Surround and labeled with

DOLBY SURROUND

• To enjoy Dolby Digital, play back a software encoded with

Dolby Digital and labeled with

DIGITAL

• To enjoy DTS Digital Surround, play back a software encoded

with DTS Digital Surround and labeled with mark.

• To enjoy MPEG Multichannel, play back a software encoded

with MPEG Multichannel and labeled with mark.

To cancel the Dolby/DTS/MPEG Surround mode

Press SURROUND ON/OFF again so that the lamp on the front panel button goes off. (“SURROUND OFF” appears on the display.)

SURROUND ON/OFF

On the front panel On the remote control

SURROUND

ON/OFF

mark.

3. Adjust the effect level.

1) Press (BALANCE/) SURROUND

BALANCE/SURROUND

ADJUST repeatedly until “DSP EFFECT” appears on the display.

The display changes to show the current setting.

2) Turn MULTI JOG to select the effect level.

As you turn it, the effect level changes as follows:

DSP EFFECT 1 DSP EFFECT 2 DSP EFFECT 3

DSP EFFECT 4DSP EFFECT 5

As the number increases, JVC Theater Surround becomes stronger.

ADJUST

MULTI JOG

For the other DSP modes

On the front panel:

1. Press DSP MODE repeatedly until

DSP MODE

the mode you want appears on the display.

• Each time you press the button, the DSP

modes change. (See page 27 for more details.)

2. Select and play a sound source.

• To enjoy 3D-PHONIC and JVC Theater Surround, play back a

software encoded with Dolby Surround and labeled with

DOLBY SURROUND

mark.

––––––––––––––– MEMO –––––––––––––––

Use this column to write down your DSP mode adjustments for your future reference.

English

To cancel the DSP mode

Press DSP MODE repeatedly until “DSP OFF” appears on the display.

From the remote control:

1. Press SURROUND MODE repeatedly until the DSP mode you

DSP MODE

SURROUND

MODE

want appears on the display.

• Each time you press the button, the DSP

modes change.

2. Select and play a sound source.

• To enjoy 3D-PHONIC and JVC Theater Surround, play back a

software encoded with Dolby Surround and labeled with

DOLBY SURROUND

To cancel the DSP mode

Press SURROUND MODE repeatedly until “DSP OFF” appears on the display.

Note:

While playing back MPEG Multichannel or Dolby Digital source through a digital input terminal, you can neither select nor adjust any DSP mode. If any DSP mode is in use, it is temporarily canceled, and normal stereo sounds are reproduced. To enjoy the MPEG Multichannel and Dolby Digital source with DSP mode, change the input mode from the digital input to the analog input (see page 16.)

mark.

SURROUND

MODE

Using the DVD MULTI Playback Mode

This receiver provides the DVD MULTI playback mode for reproducing the analog discrete output mode of the DVD player. Before playing back a DVD, refer also to the manual supplied with the DVD player.

English

IMPORTANT:

When using the remote control, check to see if its remote control mode selector is set to the correct position: To operate this receiver, set it to “AUDIO/TV/ VCR”.

AUDIO/ TV/VCR

CATV/DBS

Activating the DVD MULTI Playback Mode

You can adjust the DVD MULTI playback mode while playing back a DVD using the analog discrete output mode on the DVD player. Once you have made adjustments, the receiver memorizes the adjustments until you change them. You also need to set the DVD player to the analog discrete output mode.

Before you start, remember...

• There is a time limit in doing the following steps. If the setting is

canceled before you finish, start from step 1 again.

From the remote control:

1. Press DVD MULTI so that “DVD MULTI” appears on the display.

Note:

When you select “DVD MULTI” as the source to play, the DSP mode is canceled temporarily, and the SURROUND ON/OFF and SURROUND MODE buttons do not work.

2. Select the analog discrete output mode on the DVD player, and start playing a DVD.

• Refer to the manual supplied with the DVD player.

If you need to make any adjustment, go to the following steps.

3. Press SOUND.

The 10 keys are activated for adjusting the sound.

DVD MUILTI

SOUND

On the front panel:

1. Turn SOURCE SELECTOR until

SOURCE SELECTOR

“DVD MULTI” appears on the display.

Note:

When you select “DVD MULTI” as the source to play, the DSP mode is canceled temporarily, and the SURROUND ON/OFF and DSP MODE buttons do not work.

2. Select the analog discrete output mode on the DVD player, and start playing a DVD.

• Refer to the manual supplied with the DVD player.

If you need to make any adjustment, go to the following steps.

3. Adjust the speaker output levels.

1) Press (BALANCE/) SURROUND

ADJUST repeatedly until one of the indications appears on the display.

“CENTER LEVEL”:

To adjust the center speaker level.

“REAR L LEVEL”:

To adjust the left rear speaker level.

“REAR R LEVEL”:

To adjust the right rear speaker level.

2) Turn MULTI JOG to adjust the

selected speaker output level (from –10 dB to +10 dB).

3) Repeat 1) and 2) to adjust the other

speaker output levels.

BALANCE/SURROUND

ADJUST

MULTI JOG

4. Adjust the speaker output levels.

• To adjust the center speaker level, press CENTER –/+ (from –10 dB to +10 dB).

• To adjust the left rear speaker level, press REAR•L –/+ (from –10 dB to +10 dB).

• To adjust the right rear speaker level, press REAR•R –/+ (from –10 dB to +10 dB).

CENTER

MENUMENU

REAR•L

ENTER

REAR•R

Using the On-Screen Menus

MAIN MENU

SOURCE :PHONO VISUAL :VCR MODE :OFF  SOUND CONTROL TUNER CONTROL SETTING    VOLUME : 20

:OPERATE

MAIN MENU

SOURCE :CD

 VISUAL :VCR  MODE :OFF INPUT :ANALOG SOUND CONTROL TUNER CONTROL SETTING    VOLUME : 20

:OPERATE

MAIN MENU

SOURCE :VCR  VISUAL :VCR

 MODE :PRO LOGIC  SOUND CONTROL TUNER CONTROL SETTING    VOLUME : 20

:OPERATE

You can use the Menus on the TV screen to control the receiver. To use this function, you need to connect the TV to the MONITOR OUT jack on the rear panel (see page 7), and set the TV’s input mode to the proper position to which the receiver is connected.

• When the TV’s input mode is incorrect; for example, a different video input or TV tuner mode is selected, you cannot show the Menus on the TV screen.

English

On-Screen Operation buttons (on the remote control)

TV/CATV/DBS

ANALOG/DIGITAL

CENTER

123

TEST REAR-L

456

ENTER

EFFECT REAR-R

SEA MODE

SUBWOOFER

RETURN

FM MODE

SET

CHANNEL VOLUMETV VOL

TAPE/MD

VCR

CONTROL

PLAY

PTY SEARCH

STOP PAUSE

DISPLAY MODE

VCR

SLEEP

+10

100+

AUDIO/

TV/VCR

CATV/DBS

TEXT

DISPLAY

MUTING

FF/

SET

EXIT

DVD DVD MUILTI CD TAPE/MD

TV/DBS PHONO FM/AM

VCR

SURROUND

ON/OFF

SURROUND

MODE

CD-DISC

SOUND

EXIT

TV/VIDEO

/REW

PTY PTY REC

RM-SRX7000R REMOTE CONTROL

Selecting Different Sources for Picture and

Sound (Also see page 11)

1. Press MENU.

The MAIN MENU appears on the TV.

• Pressing one of the % / ﬁ / @ / # buttons also displays the MAIN MENU.

2. Press % / ﬁ to move to “VISU AL.”

3. Press @ / # to select a different video source.

4. When you finish, press EXIT.

The menu disappears from the TV.

Activating the DSP Modes (Also see page 31)

1. Press MENU.

The MAIN MENU appears on the TV.

• Pressing one of the % / ﬁ / @ / # buttons also displays the

MAIN MENU.

2. Press % / ﬁ to move to “MODE.”

Selecting the Source to Play (Also see page 10)

1. Press MENU.

The MAIN MENU appears on the TV.

• Pressing one of the % / ﬁ / @ / # buttons also displays the MAIN MENU.

MAIN MENU

SOURCE :CD VISUAL :VCR MODE :OFF INPUT :ANALOG SOUND CONTROL TUNER CONTROL SETTING    VOLUME : 20



:OPERATE

Shows the buttons you can use on the current menu. In this case, use % / ﬁ to move up and down, and @ / # to select, adjust or set the item.

Notes:

• “INPUT” appears only when the digital input (DIGITAL IN) terminal setting has been correctly done for the digital source currently selected. (See page 16.)

• If your TV is not of the PAL-or multi-color system, the TV screen will be distorted.

• The on-screen display will disappear if no operation is done for about 1 minute.

2. Press % / ﬁ to move to “SOURCE.”

3. Press @ / # to select the source.

4. When you finish, press EXIT.

The menu disappears from the TV.

3. Press @ / # to select the DSP mode you want to use.

4. When you finish, press EXIT.

The menu disappears from the TV.

Selecting the Analog or Digital Input Mode

(Also see page 16)

This selection is only possible when the digital input (DIGITAL IN) terminal setting has been correctly done for the digital source currently selected.

1. Press MENU.

The MAIN MENU appears on the TV.

• Pressing one of the % / ﬁ / @ / # buttons also displays the

MAIN MENU.

2. Press % / ﬁ to move to “INPUT.”

3. Press @ / # to select the digital or analog input you want.

For details, see page 16.

4. When you finish, press EXIT.

The menu disappears from the TV.

Adjusting the Front Speaker Output Balance

SOUND CONTROL

SURROUND LEVEL SEA  BAL.:R-21 BASS BOOST : OFF INPUT ATT : NORMAL SUBWFR LEVEL: 0



:OPERATE



MAIN MENU

SOURCE :VCR  VISUAL :VCR  MODE :THEATER  SOUND CONTROL TUNER CONTROL SETTING    VOLUME : 20

:OPERATE

SURROUND LEVEL

:OPERATE

TEST TONE : OFF CENTER LEVEL: 0

dB

REAR L LEVEL: +6

dB REAR R LEVEL: 4dB DSP EFFECT : 3

SOUND CONTROL

SURROUND LEVEL SEA  BAL.:R-21 BASS BOOST : OFF INPUT ATT : NORMAL SUBWFR LEVEL: 0



:ENTER



English

(Also see page 13)

1. Press MENU.

The MAIN MENU appears on the TV.

• Pressing one of the % / ﬁ / @ / # buttons also displays the MAIN MENU.

Adjusting the Subwoofer Output Level

(Also see page 12)

1. Press MENU.

The MAIN MENU appears on the TV.

• Pressing one of the % / ﬁ / @ / # buttons also displays the MAIN MENU.

2. Press % / ﬁ to move to “SOUND CONTROL,” then press @ / #.

The SOUND CONTROL menu appears.

3. Press % / ﬁ to move to “BAL.” (Balance).

4. Press @ / # to adjust the balance.

5. When you finish, press EXIT repeatedly until the menu disappears from the TV.

Reinforcing the Bass

(Also see page 12)

1. Press MENU.

The MAIN MENU appears on the TV.

• Pressing one of the % / ﬁ / @ / # buttons also displays the

MAIN MENU.

2. Press % / ﬁ to move to “SOUND CONTROL,” then press @ / #.

The SOUND CONTROL menu appears.

3. Press % / ﬁ to move to “BASS BOOST.”

4. Press @ / # to turn the bass boost function “ON” or “OFF.”

5. When you finish, press EXIT repeatedly until the menu disappears from the TV.

Attenuating the Input Signal

(Also see page 12)

1. Press MENU.

The MAIN MENU appears on the TV.

• Pressing one of the % / ﬁ / @ / # buttons also displays the

MAIN MENU.

2. Press % / ﬁ to move to “SOUND CONTROL,” then press @ / #.

The SOUND CONTROL menu appears.

3. Press % / ﬁ to move to “INPUT ATT. ”

4. Press @ / # to turn the Input Attenuator mode “ATT ON” or “NORMAL.”

5. When you finish, press EXIT repeatedly until the menu disappears from the TV.

SOUND CONTROL



SURROUND LEVEL SEA  BAL.:R-21 BASS BOOST : OFF INPUT ATT : NORMAL SUBWFR LEVEL: 0



SOUND CONTROL



SURROUND LEVEL SEA  BAL.:R-21 BASS BOOST : OFF INPUT ATT : NORMAL SUBWFR LEVEL: 0



SOUND CONTROL



SURROUND LEVEL SEA  BAL.:R-21 BASS BOOST : OFF INPUT ATT : NORMAL SUBWFR LEVEL: 0



:OPERATE



:OPERATE



:OPERATE

2. Press % / ﬁ to move to “SOUND CONTROL,” then press @ / #.

The SOUND CONTROL menu appears.

3. Press % / ﬁ to move to “SUBWFR LEVEL.”

4. Press @ / # to adjust the subwoofer output level.

5. When you finish, press EXIT repeatedly until the menu disappears from the TV.

Adjusting the DSP Modes

(Also see pages 28 – 31)

1. Press MENU.

The MAIN MENU appears on the TV.

• Pressing one of the % / ﬁ / @ / # buttons also displays the

MAIN MENU.

2. Press % / ﬁ to move to “MODE.”

3. Press @ / # to select the DSP mode you want to adjust.

• In this example,

“THEATER” is selected.

4. Press % / ﬁ to move to “SOUND CONTROL,” then press @ / #.

The SOUND CONTROL menu appears.

5. Press % / ﬁ to move to “SURROUND LEVEL,” then press @ / #.

The SURROUND LEVEL menu appears.

6. Press % / ﬁ to move to the item you want to set or adjust, then press @ / #.

On these adjustment menus, you can do the following:

For 3D-PHONIC (3D ACTION, 3D THEATER):

“DSP EFFECT”: Select the effect level.

For DAP

SEA

SEA MODE :ROCK SEA ADJUST          

:OPERATE

100 10kHz1k

For Dolby Pro Logic:

For Dolby Digital, DTS Digital Surround and MPEG Multichannel:

For JVC Theater Surround:

(LIVE CLUB, DANCE CLUB, HALL, PAVILION):

“REAR L LEVEL”: Adjust the left rear speaker output

level.*

“REAR R LEVEL”: Adjust the right rear speaker output

level.*

“DSP EFFECT”: Select the effect level.

“TEST TONE”: Output a test tone. “CENTER LEVEL”: Adjust the center speaker output

level.**

“REAR L LEVEL”: Adjust the left rear speaker output

level.*

“REAR R LEVEL”: Adjust the right rear speaker output

level.*

“TEST TONE”: Output a test tone. “CENTER LEVEL”: Adjust the center speaker output

level.**

“REAR L LEVEL”: Adjust the left rear speaker output

level.*

“REAR R LEVEL”: Adjust the right rear speaker output

level.*

“TEST TONE”: Output a test tone. “CENTER LEVEL”: Adjust the center speaker output

level.**

“REAR L LEVEL”: Adjust the left rear speaker output

level.*

“REAR R LEVEL”: Adjust the right rear speaker output

level.*

“DSP EFFECT”: Select the effect level.

6. Press % / ﬁ to move to the item you want to set or adjust, then press @ / #.

On this adjustment menu, you can do the following:

“CENTER LEVEL”:Adjust the center speaker output level. “REAR L LEVEL”: Adjust the left rear speaker output

level.

“REAR R LEVEL”: Adjust the right rear speaker output

level.

7. When you finish, press EXIT repeatedly until the menu disappears from the TV.

Selecting Your Favorite SEA Mode

(Also see page 24)

1. Press MENU.

The MAIN MENU appears on the TV.

• Pressing one of the % / ﬁ / @ / # buttons also displays the

MAIN MENU.

2. Press % / ﬁ to move to “SOUND CONTROL,” then press @ / #.

The SOUND CONTROL menu appears.

3. Press % / ﬁ to move to “SEA,” then pr ess @ / #.

The SEA menu appears.

4. Press % / ﬁ to move

to “SEA MODE.”

English

Notes:

Not displayed when “REAR SPK” is set to “NONE” (see page

14).

Not displayed when “CENTER SPK” is set to “NONE” (see page 14).

7. When you finish, press EXIT repeatedly until the menu disappears from the TV.

Activating the DVD MULTI Playback Mode

(Also see page 33)

1. Press MENU.

The MAIN MENU appears on the TV.

• Pressing one of the % / ﬁ / @ / # buttons also displays the

MAIN MENU.

2. Press % / ﬁ to move to “SOURCE.”

3. Press @ / # to select “DVD MULTI.”

4. Press % / ﬁ to move CONTROL,” then press @ / #.

The SOUND CONTROL menu appears.

5. Press % / ﬁ to move to “SURROUND LEVEL,” then press @ / #.

The SURROUND LEVEL menu appears.

to “SOUND

SURROUND LEVEL

CENTER LEVEL: 0 REAR L LEVEL: +6 REAR R LEVEL: 4

dB dB dB

:OPERATE

5. Press @ / # to select the SEA mode you want.

6. When you finish, press EXIT repeatedly until the menu disappears from the TV.

Creating Your Own SEA Mode

(Also see page 24)

1. Press MENU.

The MAIN MENU appears on the TV.

• Pressing one of the % / ﬁ / @ / # buttons also displays the

MAIN MENU.

2. Press % / ﬁ to move to “SOUND CONTROL,” then press @ / #.

The SOUND CONTROL menu appears.

3. Press % / ﬁ to move to “SEA,” then press @ / #.

The SEA menu appears.

4. Press % / ﬁ to move

English

to “SEA ADJUST.”

SEA ADJUST SEA USERMODE

The SEA ADJUST menu appears.

5. Press % / ﬁ / @ / # to

100 10kHz1k

adjust the SEA mode as you want.

@ / # : Select the frequency ranges. % / ﬁ : Adjust the frequency levels.

6. Press SET to store the setting into the SEA USERMODE.

• If you press EXIT, without pressing SET in this step, you can

return to the SEA menu. (The adjustment you have made is active but not stored.)

7. When you finish, press EXIT repeatedly until the menu disappears from the TV.

Setting the Basic Setting Items (Also see

pages 13 – 17)

1. Press MENU.

The MAIN MENU appears on the TV.

• Pressing one of the % / ﬁ / @ / # buttons also displays the

MAIN MENU.

2. Press % / ﬁ to move to “SETTING,” then press @ / #.

The SETTING 1 or SETTING 2 menu appears.

SETTING 1

SUBWOOFER : NO FRONT SPK : LARGE CENTER SPK : SMALL REAR SPK : LARGE CNTR DELAY : 3msec REAR DELAY : 5msec CROSSOVER :100



3. Press % / ﬁ to move to the item you want to set or adjust, then press @ / #.

• To go to the SETTING 2

menu, move to “NEXT PAGE,” then press @ / #.

• To go back to the SETTING

1 menu, move “PREVIOUS PAGE,” then press @ / #.

On the SETTING 1 and 2 menus, you can do the following:

“SUBWOOFER”: Set the subwoofer information (see

“FRONT SPK”: Set the front speaker information (see

“CENTER SPK”: Set the center speaker information (see

“REAR SPK”: Set the rear speaker information (see

“CNTR DELAY”: Adjust the delay time of the center

“REAR DELAY”: Adjust the delay time of the rear

“CROSSOVER”: Set the crossover frequency

SETTING 2

LFE ATT. : 0 COMP. : MID DIGITAL 1 : DVD DIGITAL 2 : CD DIGITAL 3 : TV FL DISP. : NORMAL



page 13).

page 14).

speaker output (see page 14).*

speaker output (see page 14).**

(see page 15).

SET

:MEMORY



:ENTER

dB

:ENTER

“LFE ATT.”: Set the low frequency effect attenuator

level (see page 15).

“COMP.”: Set the dynamic range compression

(see page 15).

“DIGITAL 1/2/3”: Set the digital input terminals

(see page 16).

“FL DISP.”: Shows the disc text information on the

display (see page 17).

Notes:

Not adjustable when “CENTER SPK” is set to “NONE” (see page 14).

Not adjustable when “REAR SPK” is set to “NONE” (see page

14).

4. When you finish, press EXIT repeatedly until the menu disappears from the TV.

Operating the Tuner (Also see pages 19 and 20)

1. Press MENU.

The MAIN MENU appears on the TV.

• Pressing one of the % / ﬁ / @ / # buttons also displays the

MAIN MENU.

2. Press % / ﬁ to move to “TUNER CONTROL,” then press @ / #.

The TUNER CONTROL



menu appears.

TUNER CONTROL

 PRESET CH : 1 BAND :FM FREQUENCY : 87.50 FM MODE :AUTO MUTING



PRESET MEMORY



MHz

:OPERATE

3. Press % / ﬁ to move to the item you want to set or adjust, then press @ / #.

On the TUNER CONTROL menu, you can do the following:

“PRESET CH”: Select a preset channel station. “BAND”: Select the band. “FREQUENCY”: Tune in a station manually. “FM MODE”: Select the FM reception mode.* “PRESET MEMORY”: See “Storing the Preset Stations” on

the next page.

Note:

Not displayed when an AM (MW/LW) station is selected.

4. When you finish, press EXIT repeatedly until the menu disappears from the TV.

Storing the Preset Stations (Also see page 19)

1. Press MENU.

The MAIN MENU appears on the TV.

• Pressing one of the % / ﬁ / @ / # buttons also displays the MAIN MENU.

2. Press % / ﬁ to move to “TUNER CONTROL,” then press @ / #.

The TUNER CONTROL menu appears.

3. Tune into a station on the TUNER CONTROL menu, referring to “Operating the Tuner” on the previous page.

4. Press % / ﬁ to move to “PRESET MEMORY,” then press @ / #.

The PRESET MEMORY menu appears.

PRESET MEMORY

FM 87.50  PRESET CH : CH 1 PRESET NAME: WABC

MHz

:AUTO MUTING



:MEMORY

SET

:OPERATE



5. Press @ / # to select a preset station number you want.

6. Press SET to store the setting.

7. When you finish, press EXIT repeatedly until the menu disappears from the TV.

Assigning Names to Preset Stations

(Also see page 20)

1. Press MENU.

The MAIN MENU appears on the TV.

• Pressing one of the % / ﬁ / @ / # buttons also displays the

MAIN MENU.

2. Press % / ﬁ to move to “TUNER CONTROL,” then press @ / #.

The TUNER CONTROL menu appears.

6. Press % / ﬁ to move to “PRESET NAME,” then press SET.

The character entry screen appears.

7. Press % / ﬁ / @ / # to move

in front of a

PRESET MEMORY

FM 87.50  PRESET CH : CH 1 PRESET NAME:  A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 1 2 3 4 5 6 7 8 9 0

SPACE

MHz

:AUTO MUTING



SET

character you want.

You can also select the following:

: To enter space

: To erase the character

: To go back to the previous character position or go

to the next character position



8. Press SET to enter the selected character.

9. Repeat steps 7 and 8 to enter up to four characters.

PRESET MEMORY

FM 87.50  PRESET CH : CH 1 PRESET NAME: ABCD A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 1 2 3 4 5 6 7 8 9 0

SPACE

MHz

:AUTO MUTING



SET

10.Press % / ﬁ / @ / # to move NAME,” then press SET to store the setting.

The TUNER CONTROL menu appears again.

to “PRESET

TUNER CONTROL

 PRESET CH : 1 ABCD BAND :FM FREQUENCY : 87.50 FM MODE :AUTO MUTING



PRESET MEMORY

11.When you finish, press EXIT repeatedly until the menu disappears from the TV.



CANCEL :ENTER :OPERATE



CANCEL

:MEMORY :OPERATE



MHz

:ENTER



English

3. Press % / ﬁ to move to “PRESET CH.”

4. Press @ / # to select a preset station.

5. Press % / ﬁ to move to “PRESET MEMORY,” then press @ / #.

The PRESET MEMORY menu appears.

PRESET MEMORY

FM 87.50  PRESET CH : CH 1 PRESET NAME: WABC

MHz

:AUTO MUTING



:MEMORY

SET

:OPERATE

You can show the RDS information on the TV screen.

For details, see page 21.



COMPU LINK Remote Control System

The COMPU LINK remote control system allows you to operate JVC audio components through the remote sensor on the receiver.

English

To use this remote control system, you need to connect JVC audio components through the COMPU LINK-3 (SYNCHRO) jacks (see below) in addition to the connections using cables with RCA pin plugs (see pages 5 and 6).

• Make sure that the AC power cords of these components are

unplugged before connection. Plug the AC power cords only after all connections are complete.

CD player

Cassette deck

MD recorder

COMPU LINK – 3

(SYNCHRO)

Turntable

Notes:

• If your audio component has two COMPU LINK-3 (SYNCHRO)

jacks, you can use either one. If it has only one COMPU LINK-3 (SYNCHRO) jack, connect it so that it is the last item in the series of components. (For example, the turntable or CD player in the diagram above.)

• To operate the cassette deck or MD recorder using the COMPU

LINK remote control system, set the source name correctly. (See page 13.)

• Refer also to the manuals supplied with your audio components.

This remote control system allows you to use four functions listed below.

Remote Control through the Remote Sensor on the Receiver

You can control the connected audio components through the remote sensor on the receiver using this remote control. Aim the remote control directly at the remote sensor on the receiver. For details, see pages 45 and 46.

Automatic Power On/Off (Standby): only possible with the COMPU LINK-3 connection

Both the CD player and cassette deck (or MD recorder) turn on and off (standby) along with the receiver. When you turn on the receiver, the CD player or cassette deck (or MD recorder) will turn on automatically, depending on which component has been previously selected. When you turn off the receiver, both the CD player and cassette deck (or MD recorder) will turn off (standby).

Synchronized Recording

Synchronized recording means the cassette deck (or MD recorder) starts recording as soon as a CD or a record begins playing.

To use synchronized recording, follow these steps:

1. Put a tape in the cassette deck (or an MD in the MD recorder), and a disc in the CD player (or a record on the turntable).

2. Press the record (¶) button and the pause (8) button on the cassette deck (or MD recorder) at the same time.

This puts the cassette deck (or MD recorder) into recording pause. If you do not press the record (¶) button and pause (8) button at the same time, the synchronized recording feature will not operate.

3. Press the play (3) button on the CD player or on the turntable.

The source changes on the receiver, and as soon as play starts, the cassette deck (or MD recorder) starts recording. When the play ends, the cassette deck (or MD recorder) enters recording pause, and stops about 4 seconds later.

Notes:

• During synchronized recording, the selected source cannot be

changed.

• If the power of any component is shut off during synchronized

recording, the COMPU LINK remote control system may not operate properly. In this case, you must start again from the beginning.

Automatic Source Selection

When you press the play ( on its own remote control, the receiver automatically turns on and changes the source to the component. On the other hand, if you select a new source on the receiver or on the remote control, the selected component begins playing immediately. In both cases, the previously selected source continues playing without sound for a few seconds.

3) button on a connected component or

TEXT COMPU LINK Remote Control System

The TEXT COMPU LINK remote control system has been newly developed to deal with the disc information recorded in the CD Text with the TEXT COMPU LINK remote control system through the receiver.

and MDs. Using these information in the discs, you can operate the CD player or MD recorder equipped

English

CONNECTIONS:

To use this remote control system, you need to connect the CD player and/or MD recorder you want to operate, following the procedures below.

1. If you have already plugged your CD player, MD recorder, and this receiver into the AC outlets, unplug their AC power cords first.

2. Connect your CD player, MD recorder, and this receiver as follows, through the COMPU LINK-3 (SYNCHRO) jacks and TEXT COMPU LINK jacks.

1) COMPU LINK-3 (SYNCHRO) jacks: Use the cables with

the monaural mini-plugs (not supplied with this receiver).

CD player

MD recorder

COMPU LINK – 3

(SYNCHRO)

2) TEXT COMPU LINK jacks: Use the cables with the

stereo mini-plugs (not supplied with this receiver).

CD player

MD recorder

TEXT

COMPU LINK

3. Connect your CD player, MD recorder and this receiver, using the cables with RCA pin plugs (see pages 5 and 6).

4. Plug the AC power cords of these components above into the AC outlets.

5. When turning on these components for the first time, turn on the connected components first, then turn on this receiver.

FUNCTIONS:

This remote control system allows you to use the functions listed below.

Displaying the Disc Information on the TV screen

Disc information such as its performer and disc title (and track titles only when a CD Text is selected) is shown on the TV screen.

Disc Search: Only for CD Player

This remote control system can allow you to search discs by the performer, disc title, and music genre. With this disc search, you can easily find the disc you want to play.

Disc Title Input:

If your CD player or MD recorder has the disc memory function, you can input the following information about the normal audio CDs or MDs on the TV screen.

• For CDs: Performer, disc title, and music genre

• For MDs: Disc title and song titles

What is a CD Text?

In a CD Text, some information about the disc (its disc title, performer, composer, arranger, etc.) is recorded.

Notes:

• If your audio component has two COMPU LINK-3 (SYNCHRO) jacks, you can use either one. If it has only one COMPU LINK-3 (SYNCHRO) jack, connect it so that it is the last item in the series of components. (For example, the CD player in the diagram to the left.)

• If your audio component has two TEXT COMPU LINK jacks, you can use either one. If it has only one TEXT COMPU LINK jack, connect it so that it is the last item in the series of components. (For example, the CD player in the diagram to the left.)

• “TEXT COMPULINK SOURCE NOT CONNECTED” appears on the display in the following cases:

–When the connections explained to the left are not correctly done. –When you try to use the TEXT COMPU LINK function a few

seconds after you turn on the connected equipment. This is not a malfunction of the units.

• Refer also to the manuals supplied with your CD player or MD recorder.

IMPORTANT:

If you turn on the receiver before turning on the other components after connecting the components, the TEXT COMPU LINK remote control system does not work correctly. If this happens:

1. Turn off all the components including this receiver.

2. Turn on the connected components.

3. Turn on this receiver.

English

OPERATIONS

To use this remote control system, you need to connect the TV to the MONITOR OUT jack on the rear panel (see page 7), and set the TV’s input mode to the proper position to which the receiver is connected. Make sure you have connected the CD player or

MD recorder equipped with the TEXT COMPU LINK remote control system. If not, you cannot use the following functions.

On-Screen Operation buttons (on the remote control)

TV/CATV/DBS

ANALOG/DIGITAL

CENTER

123

TEST REAR-L

456

ENTER

EFFECT REAR-R

SEA MODE

SUBWOOFER

RETURN

FM MODE

SET

CHANNEL VOLUMETV VOL

TAPE/MD

VCR

CONTROL

FF/

PLAY

PTY SEARCH

STOP PAUSE

DISPLAY MODE

VCR

SLEEP

+10

100+

AUDIO/ TV/VCR

CATV/DBS

TEXT

DISPLAY

MUTING

EXIT

SET

DISPLAY

DVD DVD MUILTI CD TAPE/MD

TV/DBS PHONO FM/AM

VCR

SURROUND

ON/OFF

SURROUND

MODE

CD-DISC

SOUND

EXIT

TV/VIDEO

/REW

PTY PTY

REC

RM-SRX7000R REMOTE CONTROL

TEXT

1 Source name: CD or MD 2 Select or , then press SET to change the disc. 3 Track numbers and track titles.

• The current playing (selected) track is indicated in yellow.

• When you move

to a track number , you can

change the track information by pressing @ / #. Each time you press the button, track information alternates between its track title and its performer. (You can also start playing the track by pressing SET.)

4 Select this (move

in front), then press SET to go to

the DISC SEARCH screen (see page 42).

5 Select this (move

in front), then press SET to go to

the TITLE INPUT screen (see page 43).

6 This appears only when a CD Text is selected. 7 Disc information such as the disc title, performer, and

music genre. When this is selected (

in front), you can change the disc information by pressing @ / #. Each time you press the button, disc information (see “Note on 7”) changes.

8 Select

or , then press SET to change the track.

9 Usable buttons and their functions for the current

selection. Indication here will be changed according to what is currently selected (

in front) on the screen. See “Note

on 9.”

Note on 7:

The following information will appear on the display:

• For CD Texts — Disc title, Performer, Genre, Song writer, Composer, Arranger, Message Only recorded information will be shown. If there is no data, “NO DATA” will appear.

• For MDs — Disc title If there is no data, “NO DATA” will appear.

Showing the Disc Information on the TV

Screen

Press TEXT DISPLAY while “CD” or “MD” is selected as the source.

The Disc Information screen appears on the TV.



4 5

Note on 9:

For example, the SET button will be used to start play (PLAY), to go to the next screen (ENTER), and to determine the selection (ENTER).

To exit from the Disc information screen:

Press EXIT.

Notes:

• The on-screen display will disappear in the following cases: – if no operation is done for about 10 minutes.

– if you do any operation other than explained in this section.

• To control the MD recorder using the TEXT COMPU LINK remote control system, you have to change the source name shown on the display from “TAPE” to “MD.” (See page 13.)

• Some special characters and marks cannot be displayed correctly.



Searching for a Disc (Only for the CD player)

Search for a disc by its performer:

1. Press TEXT DISPLAY while “CD” is selected as the source.

The Disc Information screen appears on the TV.

2. Press % / ﬁ to move

to “SEARCH,” then

press SET.

The DISC SEARCH screen appears .

3. Press % / ﬁ to move

to “PERFORMER”,

then press SET.

The PERFORMER SEARCH screen appears.



4. Press % / ﬁ / @ / # to move in front of the first character of the performer you want to search, then press SET.

To correct the incorrect entry, press % / ﬁ / @ / # to move

in front of the correct character, then press SET.

Note:

Symbols such as @, # or $ cannot be available for search.

5. Press SET again.

Disc search starts, then the SEARCH RESULT screen, showing the performers, appears.



Search for a disc by its disc title:

1. Press TEXT DISPLAY while “CD” is selected as the source.

The Disc Information screen appears on the TV.

2. Press % / ﬁ to move

to “SEARCH,” then

press SET.

The DISC SEARCH screen appears.

3. Press % / ﬁ to move

to “DISC TITLE,

then press SET.

The DISC TITLE SEARCH screen appears.

4. Press % / ﬁ / @ / # to move in front of the first character of the disc title you want to search, then press SET.

To correct the incorrect entry, press % / ﬁ / @ / # to move

in front of the correct character, then press SET.

Note:

Symbols such as @, # or $ cannot be available for search.

5. Press SET again.

Disc search starts, then the SEARCH RESULT screen, showing the disc titles, appears.



English

6. On the SEARCH RESULT screen, you can do the following:

• Changing the indication of the disc information: Press % /

ﬁ to move

you press @ / #, the disc information alternates between its performer and its disc title.

• Starting a disc play and going to the Disc Information

screen (see page 41): Press % / ﬁ to move disc, then press SET.

• Showing unseen disc information (if more than 5 discs are

listed as a result of the search): Press % / ﬁ until they appear.

• Going back to the PERFORMER SEARCH screen: Press

EXIT.

to a searched disc, then press @ / #. Each time

to a searched

• Changing the indication of the disc information: Press % /

ﬁ to move you press @ / #, the disc information alternates between its disc title and its performer.

• Starting a disc play and going to the Disc Information screen (see page 41): Press % / ﬁ to move to a searched disc, then press SET.

• Showing unseen disc information (if more than 5 discs are listed as a result of the search): Press % / ﬁ until they appear.

• Going back to the DISC TITLE SEARCH screen: Press EXIT .

to a searched disc, then press @ / #. Each time

Search for a disc by its genre:

English

1. Press TEXT DISPLAY while “CD” is selected as the source.

The Disc Information screen appears on the TV.

2. Press % / ﬁ to move

to “SEARCH,”

then press SET.

The DISC SEARCH screen appears.

Entering the Disc Information

For the CD Player with the disc memory function:

You can use the disc memory function through this receiver. The disc information (its performer, disc title, and music genre) of normal audio CDs will be stored into the memory built in the CD player. For the disc memory function, refer to the manual supplied with your CD player.

• The performer, disc title, and music genre information are usually recorded in a CD Text. However, if a CD Text has no genre information recorded in the disc itself, you can input its music genre by yourself.

3. Press % / ﬁ to move to “GENRE”, then

press SET.

The GENRE SEARCH screen appears.



4. Press % / ﬁ to move to the genre you want to

search, then press SET.

To show the unseen genres, press % / ﬁ until they appear.

Disc search starts, then the SEARCH RESULT screen, showing the disc titles, appears.



5. On the SEARCH

RESULT screen, you can do the following:

• Changing the indication of the disc information: Press % /

ﬁ to move

time you press @ / #, the disc information alternates between its disc title and its performer.

• Starting a disc play and going to the Disc Information screen (see page 41): Press % / ﬁ to move to a searched disc, then press SET.

• Showing unseen disc information (if more than 5 discs are listed as a result of the search): Press % / ﬁ until they appear.

• Going back to the GENRE SEARCH screen: Press EXIT.

to a searched disc, then press @ / #. Each

Note:

You can enter the TITLE INPUT screens for a CD Text and input its titles. However, you cannot store the titles you have input for a CD Text.

Example: Entering the following information for Disc 1

Performer: “MICHAEL” Disc title: “MY FAVORITE”

1. Press TEXT DISPLAY while “CD” is selected as the source.

The Disc Information screen appears on the TV.

2. Press % / ﬁ to move

to “TITLE INPUT,”



then press SET.

The TITLE INPUT: PERFORMER screen appears.

3. Press % / ﬁ / @ / # to move in front of a character you want, then press SET to enter the character.

• If the current CD is a CD Text, go to step 5 without entering the

performer.

To use the lower case letters, press % / ﬁ / @ / # to move

to , then press SET.

To use the upper case letters again, press % / ﬁ / @ / # to move to , then press SET.

4. Repeat step 3 until you



finish putting a performer name (up to



32 characters).

To insert a space, press % / ﬁ

/ @ / # to move

, then press SET.

To correct an incorrect character:

1) Press % / ﬁ / @ / # to move to + or =, then press SET until the incorrect character is selected.

2) Press % / ﬁ / @ / # to move to , then press SET to erase the character.

3) Press % / ﬁ / @ / # to move in front of the correct character, then press SET to enter the correct character.

For the MD recorder:

You can write the disc information (disc title and song titles) into the disc. You can only write the song title for the song currently selected.

• If you have the CD-MD combination deck, you can also enter the disc information (its performer, disc title, and its music genre) of normal audio CDs into the memory built in the CD-MD combination deck. (To do this, follow the procedure of “For the CD Player with the disc memory function” on the page 43.)

• If you change the disc or song title with more than 32 characters, the characters following the 32nd will be erased from the title.

1. Press TEXT DISPLAY while “MD” is selected as

the source.

The Disc Information screen appears on the TV.

English

5. Press % / ﬁ / @ / # to move MICHAEL (in this

to “DISC 1:



example),” then press SET.

The TITLE INPUT: DISC TITLE screen appears.

6. Enter the disc title, referring to steps 3 and

• If the current CD is a CD

Text, go to the next step without entering the disc title.



7. Press % / ﬁ / @ / # to move MY FAVORITE (in this

to “DISC 1:



example),” then press SET.

The TITLE INPUT: DISC 1 GENRE screen appears.

8. Press % / ﬁ to move to the genre you want, then press SET.

The Disc Information screen appears again.

To show the unseen genres, press % / ﬁ until they appear.

2. Press % / ﬁ to move to “TITLE INPUT,”

then press SET.

The DISC TITLE INPUT screen appears.

3. Enter the title, referring

to steps 3 and 4 of “For the CD Player with the disc memory function” on page 43.

• You can enter up to 32 characters for the disc title.

4. Press % / ﬁ / @ / # to move

to the disc title you have just entered, then press SET.

The disc title is stored into the memory, and the SONG TITLE INPUT screen for the currently selected song appears.

• You can enter a song title for the song currently selected

(indicated in yellow on the TV screen).

5. Enter the song title, referring to steps 3 and 4 of “For the CD Player with the disc memory function” on page 43.

• You can enter up to 32 characters for the song title.

6. Press % / ﬁ / @ / # to move to the song title you have just entered, then press SET.

The song title is stored into the memory, and the Disc Information screen appears again.

Operating JVC’s Audio/Video Components

You can operate JVC’s audio and video components with this receiver’s remote control, since control signals for JVC components are preset in the remote control.

English

Operating Audio Components

IMPORTANT:

To operate JVC’s audio components using this remote control:

• You need to connect JVC audio components through the COMPU LINK-3 (SYNCHRO) jacks (see page 39) in addition to the connections using cables with RCA pin plugs (see pages 5 and 6).

• Aim the remote control directly at the remote sensor on the receiver.

• If you use the buttons on the front panel or the menu function to choose a source, the remote control will not operate that source. To operate a source with the remote control, the source must be selected using source selecting buttons on the remote control.

• To operate the cassette deck or MD recorder using the COMPU LINK remote control system, set the source name correctly. (See page 13.)

• Refer also to the manuals supplied with your components.

TV/CATV/DBS

DVD DVD MUILTI CD TAPE/MD

TV/DBS PHONO FM/AM

VCR

SURROUND

ON/OFF

TEST REAR-L

SURROUND

MODE

CD-DISC

EFFECT REAR-R

SOUND

SEA MODE

RETURN

EXIT

CHANNEL VOLUMETV VOL

VCR

TV/VIDEO

/REW

PTY PTY

REC

DISPLAY MODE

VCR

ANALOG/DIGITAL

SLEEP

CENTER

123

MENUMENU

456

ENTERENTER

SUBWOOFER

+10

FM MODE

100+

AUDIO/ TV/VCR

CATV/DBS

SET

TEXT

DISPLAY

TAPE/MD

MUTING

CONTROL

FF/

PLAY

PTY SEARCH

STOP PAUSE

AUDIO/ TV/VCR

CATV/DBS

Check to see if the remote control mode selector is set to the correct position.

To operate the audio system, TVs, VCRs, and DVD players, set it to

“AUDIO/TV/VCR.”

Tuner

You can always perform the following operations (with the remote control mode selector set to “AUDIO/TV/VCR”):

FM/AM: Alternates between FM and AM (MW/LW).

After pressing FM/AM (with the remote control mode selector set to “AUDIO/TV/VCR”), you can perform the following operations:

1 – 10, +10: Selects a preset channel number directly.

For channel number 5, press 5. For channel number 15, press +10, then 5. For channel number 20, press +10, then 10.

FM MODE: Changes the FM reception mode. PTY SEARCH: Searches for a program by PTY codes. PTY – / +: Selects the PTY codes. DISPLA Y MODE: Shows the RDS signals.

Sound control section (Amplifier)

You can always perform the following operations (with the remote control mode selector set to “AUDIO/TV/VCR”):

SURROUND ON/OFF: Turns on or off the Surround modes —

Dolby Pro Logic, Dolby Digital, DTS Digital Surround and MPEG Multichannel.

SURROUND MODE: Selects the DSP modes.

After pressing SOUND (with the remote control mode selector set to “AUDIO/TV/VCR”), you can perform the following operations:

SEA MODE: Changes the SEA modes. SUBWOOFER – / +: Adjusts the subwoofer output level. CENTER – / +: Adjusts the center speaker output level. REAR•L – / +: Adjusts the left rear speaker output level. REAR•R – / +: Adjusts the right rear speaker output level. EFFECT: Selects the effect level. TEST: Turns on or off the test tone output.

Note:

After adjusting sounds, press the corresponding source selecting button or CD-DISC to operate your target source by using the 10 keys; otherwise, the 10 keys cannot be used for operating your target source.

RM-SRX7000R REMOTE CONTROL

CD player

After pressing CD (with the remote control mode selector set to “AUDIO/TV/VCR”), you can perform the following operations on the CD player:

PLA Y: Starts playing.

4: Returns to the beginning of the current (or

previous) track.

¢¢

¢: Skips to the beginning of the next track.

¢¢

STOP: Stops playing. P AUSE: Pauses playing. To release it, press PLAY. 1 – 10, +10: Selects a track number directly.

For track number 5, press 5. For track number 15, press +10, then 5. For track number 20, press +10, then 10. For track number 30, press +10, +10, then 10.

CD player-changer

After pressing CD-DISC (with the remote control mode selector set to “AUDIO/TV/VCR”), you can perform the following operations on a CD player-changer:

Cassette deck

After pressing TAPE/MD or TAPE/MD CONTROL (with the remote control mode selector set to “AUDIO/TV/VCR”), you can perform the following operations on a cassette deck:

English

PLA Y: Starts playing.

4: Returns to the beginning of the current (or previous)

track.

¢¢

¢: Skips to the beginning of the next track.

¢¢

STOP: Stops playing. P AUSE: Pauses playing. To release it, press PLAY. 1 – 6, 7/P: Selects the number of a disc installed in a CD

player-changer.

After pressing CD (with the remote control mode selector set to “AUDIO/TV/VCR”), you can perform the following operations on the CD player-changer:

1 – 10, +10: Selects a track number directly.

For track number 5, press 5. For track number 15, press +10, then 5. For track number 20, press +10, then 10. For track number 30, press +10, +10, then 10.

Turntable

After pressing PHONO (with the remote control mode selector set to “AUDIO/TV/VCR”), you can perform the following operations on a turntable:

PLAY : Starts playing. STOP: Stops operations.

PLA Y: Starts playing.

1: Fast winds the tape from right to left.

11 ¡¡

¡: Fast winds the tape from left to right.

¡¡

STOP: Stops operations. P AUSE: Pauses playing. To release it, press PLAY.

¶ REC: Press this button with the PLAY button to start

recording.

Press this button with the PAUSE button to enter

recording pause.

MD recorder

After pressing TAPE/MD or TAPE/MD CONTROL (with the remote control mode selector set to “AUDIO/TV/VCR”), you can perform the following operations on the MD recorder:

PLA Y: Starts playing. 4: Returns to the beginning of the current (or previous)

track.

¢: Skips to the beginning of the next track.

STOP: Stops playing. P AUSE: Pauses playing. To release it, press PLAY.

¶ REC: Press this button with the PLAY button to start

recording.

Press this button with the PAUSE button to enter

recording pause.

Note:

You can use either TAPE/MD button or the TAPE/MD CONTROL button to activate the buttons listed above. If you press TAPE/MD, the playing source also changes. On the other hand, if you press TAPE/ MD CONTROL, the playing source does not change.

Operating Video Components

English

IMPORTANT:

To operate JVC’s video components using this remote control:

• Aim the remote control directly at the remote sensor on the VCR, DVD player or TV, not on the receiver.

• Some JVC VCRs can accept two types of the control signals — remote code “A” and “B.” Before using this remote control, make sure that the remote control code of the target VCR is set to code “A.”

TV/CATV/DBS

DVD DVD MUILTI CD TAPE/MD

TV/DBS PHONO FM/AM

VCR

SURROUND

ON/OFF

TEST REAR-L

SURROUND

MODE

CD-DISC

EFFECT REAR-R

SOUND

SEA MODE

RETURN

EXIT

CHANNEL VOLUMETV VOL

VCR

TV/VIDEO

/REW

PTY PTY

REC

DISPLAY MODE

RM-SRX7000R REMOTE CONTROL

VCR

ANALOG/DIGITAL

SLEEP

CENTER

123

MENUMENU

456

ENTERENTER

SUBWOOFER

+10

FM MODE

100+

AUDIO/ TV/VCR

CATV/DBS

SET

TEXT

DISPLAY

TAPE/MD

MUTING

CONTROL

FF/

PLAY

PTY SEARCH

STOP PAUSE

AUDIO/ TV/VCR

CATV/DBS

Check to see if the remote control mode selector is set to the correct position.

To operate the audio system, TVs, VCRs, and DVD players, set it to

“AUDIO/TV/VCR.”

VCR

You can always perform the following operations (with the remote control mode selector set to “AUDIO/TV/VCR”):

VCR

: Turns on or off the VCR.

After pressing VCR or VCR CONTROL (with the remote control mode selector set to “AUDIO/TV/VCR”), you can perform the following operations on the VCR:

1 – 9, 0: Selects the TV channels on VCR. PLAY : Starts playing.

1: Rewinds a tape. ¡: Fast winds a tape.

STOP: Stops operations. PAUSE: Pauses playing. To release it, press PLAY.

¶ REC: Press this button with the PLAY button to start

recording. Press this button with the PAUSE button to enter recording pause.

CHANNEL +/–: Changes the TV channels on the VCR.

Note:

You can use either VCR button or the VCR CONTROL button to activate the buttons listed above. If you press VCR, the playing source also changes. On the other hand, if you press VCR CONTROL, the playing source does not change.

DVD player

After pressing DVD or DVD MULTI (with the remote control mode selector set to “AUDIO/TV/VCR”), you can perform the following operations on a DVD player:

PLA Y: Starts playing.

4: Returns to the beginning of the current (or previous) track. ¢: Skips to the beginning of the next track.

STOP: Stops playing. P AUSE: Stops playing temporarily. To release it, press PLAY.

After pressing DVD or DVD MULTI, these buttons can be used for the DVD menu operations.

Note:

For detailed menu operations, refer to the instructions supplied with the discs or the DVD player.

TEST REAR-L

456

CENTER

MENUMENU

ENTERENTER

REAR-R

You can always perform the following operations (with the remote control mode selector set to “AUDIO/TV/VCR”):

TV/CATV/DBS : Turns on or off the TV. TV VOL +/–: Adjusts the volume. TV/VIDEO: Sets the input mode (either TV or VIDEO).

After pressing TV/DBS (with the remote control mode selector set to “AUDIO/TV/VCR”), you can perform the following operations on a TV:

CHANNEL +/–: Changes the channels. 1 – 9, 0, 100+: Selects the channels. RETURN: Alternates between the previously selected

channel and the current channel.

Operating Other Manufacturers’ Video Equipment

This remote control supplied with the receiver can transmit control signals for other manufacturers’ VCRs, TVs, CATV converters and DBS tuners. By changing the transmittable signals from preset ones to the other manufacturers’, you can operate the other manufacturer’s components using this remote control.

When operating the other manufacturers’ components, refer also to the manuals supplied with them. To operate these components with the remote control, first you need to set the manufacturer’s code each for VCR, TV, CATV converters and DBS tuners.

TV/CATV/DBS

ANALOG/DIGITAL

CENTER

SUBWOOFER

FM MODE

SET

TAPE/MD

CONTROL

PLAY

PTY SEARCH

STOP PAUSE

VCR

SLEEP

ENTER

+10

FF/

100+

AUDIO/ TV/VCR

CATV/DBS

TEXT

DISPLAY

MUTING

AUDIO/ TV/VCR

CATV/DBS

Check to see if the remote control mode selector is set to the correct position.

To operate the audio system, TVs, and VCRs,

set it to “AUDIO/TV/VCR.”

To operate the CATV converter and DBS tuner,

set it to “CATV/DBS.”

DVD DVD MUILTI CD TAPE/MD

TV/DBS PHONO FM/AM

VCR

SURROUND

ON/OFF

123

TEST REAR-L

SURROUND

MODE

456

CD-DISC

EFFECT REAR-R

SOUND

SEA MODE

RETURN

EXIT

CHANNEL VOLUMETV VOL

VCR

TV/VIDEO

/REW

PTY PTY REC

DISPLAY MODE

RM-SRX7000R REMOTE CONTROL

To change the transmittable signals for operating another manufacturer’s TV

1. Set the remote control mode to “AUDIO/TV/ VCR.”

2. Press and hold TV/CATV/DBS .

3. Press TV/DBS.

4. Enter manufacturer’s code (three digits) using buttons 1 – 9, and 0.

See the list on pages 50 and 51 to find the code. Examples: For a JVC product, press 0, 3, then 6.

For a Hitachi product, press 0, 3, then 2.

5. Release TV/CA TV/DBS .

The following buttons can be used for operating the TV (with the remote control mode selector set to “AUDIO/TV/VCR”):

TV/CATV/DBS

: Turns on and off the TV. TV VOL +/–: Adjusts the volume. TV/VIDEO: Sets the input mode (either TV

or VIDEO).

After pressing TV/DBS (with the remote control mode selector set to “AUDIO/TV/VCR”), you can perform the following operations on a TV:

CHANNEL +/–: Changes the channels. 1 – 10, 0, 100+ (+10): Selects the channels.

The 100+ (+10) button will function as the ENTER button if your TV requires pressing ENTER after selecting a channel number.

Note:

Refer to the manual supplied with your TV.

6. Try to operate your TV by pressing TV/CATV/ DBS

When your TV turns on or off, you have entered the correct code.

If there are more than one code listed for your brand of TV,

try each one until the correct one is entered.

English

To change the transmittable signals for operating a CATV converter or a DBS tuner

English

To change the transmittable signals for operating another manufacturer’s VCR

1. Set the remote control mode to “CATV/DBS.”

2. Press and hold TV/CATV/DBS

3. Press TV/DBS.

4. Enter manufacturer’s code (three digits) using buttons 1 – 9, and 0.

See the list on pages 51 and 52 to find the code. Examples: For a British Telecom product, press 0, 0, then 3.

For a Zenith product, press 0, 0, then 0.

5. Release TV/CA TV/DBS .

After setting the remote control mode selector to “CATV/DBS,” you can perform the following operations on the CATV convertor or on the DBS tuner:

TV/CATV/DBS : Turns on and off the CATV converter

or the DBS tuner.

CHANNEL +/–: Changes the channels. 1 – 10, 0, 100+ (+10): Selects the channels.

The 100+ (+10) button will function as the ENTER button if your equipment requires pressing ENTER after selecting a channel number.

Note:

Refer to the manual supplied with your CATV converter or DBS tuner.

6. Try to operate your CATV converter or DBS tuner by pressing TV/CATV/DBS

When your CATV converter or DBS tuner turns on or off, you have entered the correct code.

If there are more than one code listed for your brand of CATV converter or DBS tuner, try each one until the correct

one is entered.

1. Set the remote control mode to “AUDIO/TV/ VCR.”

2. Press and hold VCR

3. Press VCR.

4. Enter manufacturer’s code (three digits) using buttons 1 – 9, and 0.

See the list on pages 52 and 53 to find the code. Examples: For a JVC product, press 0, 0, then 8.

For an NEC product, press 0, 3, then 8.

5. Release VCR .

The following button can be used for operating the VCR (with the remote control mode selector set to “AUDIO/TV/VCR”):

VCR : Turns on and off the VCR. After pressing VCR or VCR CONTROL (with the remote

control mode selector set to “AUDIO/TV/VCR”), you can perform the following operations on the VCR:

CHANNEL +/–: Changes the TV channels on the VCR. 1 – 10, 0, 100+ (+10): Selects the TV channels.

The 100+ (+10) button will function as the ENTER button if your VCR requires pressing ENTER after selecting a channel number.

PLAY: Starts playback.

1: Rewinds a video tape. ¡: Fast winds a video tape.

STOP: Stops operation. PAUSE: Pauses.

¶ REC: Starts recording or enters recording

pause.

Notes:

• Refer to the manual supplied with your VCR.

• You can use either VCR button or the VCR CONTROL button to

activate the buttons listed above. If you press VCR, the playing source also changes. On the other hand, if you press VCR CONTROL, the playing source does not change.

6. Try to operate your VCR by pressing VCR .

When your VCR turns on or off, you have entered the correct code.

If there are more than one code listed for your brand of VCR, try each one until the correct one is entered.

Manufacturers’ codes for TV

Acura 009 Admiral 087, 163, 213 Adyson 032, 217 AGB 516 Akai 208, 361, 516 Akura 218, 264, 369 Alba 009, 036, 037, 211, 218, 235, 371 Allorgan 294 Amplivision 217, 400 Amstrad 009, 037, 171, 177, 354, 362, 369, 371,

412, 433, 516 Anitech 009, 068, 076 Arcam 216, 217 ASA 087 Asberg 076 Asuka 218 Atlantic 206 Audiosonic 037, 109 Autovox 076, 087, 206, 336 Baird 343, 557 Bang & Olufsen 087 Barco 380 Basic Line 009, 218 Baur 010, 037, 349, 361, 505, 512, 535, 554 Beko 370, 486 Beon 037 Binatone 217 Blaupunkt 191, 195, 200, 213, 327, 328, 535, 554 Blue Sky 218 Blue Star 282 Bondstec 247 Boots 217 BPL 282 Brandt 109, 196, 198, 205, 333, 335 Brionvega 087, 362 Britannia 216 Bruns 087 BSR 294 BTC 218 Bush 009, 036, 037, 211, 218, 282, 294, 349,

355, 371, 374, 519 Carrefour 036 Cascade 009 Cathay 037 Centurion 037 Century 087, 213 CGE 074, 076, 084, 247, 306 Cimline 009 Clarivox 037 Clatronic 076, 247, 370 Clayton 385 Condor 320, 370 Contec 009, 036, 216 Continental Edison 196, 198, 205, 333, 399 Crosley 074, 076, 084, 087, 213 Crown 009, 037, 076, 370, 418, 579 Crystal 431 CS Electrinics 216 CTC 247 Cybertron 218 Daewoo 009, 037, 374, 499 Dainichi 215, 218 Dansai 037 Dayton 009 De Graaf 208, 227, 548 Decca 037, 072, 249, 516 Dixi 009, 037 Dual 336, 352, 519 Dual Tec 217 Dumont 070, 087 Elbe 259 Elin 037, 548 Elite 218, 320 Elta 009 Emerson 087, 213, 361 Erres 012, 037 Europhon 516

Expert 206 Ferguson 005, 037, 073, 109, 190, 238, 287, 335,

343 Fidelity 216, 361, 372 Finlandia 208, 346, 359 Finlux 037, 070, 072, 087, 105, 179, 346, 411,

516 Firstline 009, 216, 217, 247, 294, 321 Fisher 208, 217, 303, 370 Flint 455 Formenti 037, 087, 213, 320 Frontech 163, 247, 264, 431, 448 Fujitsu 072, 206 Funai 179, 264, 294, 303 GEC 037, 043, 072, 205, 217, 516, 557 Geloso 009, 213 Genexxa 163, 218 Goldstar 037, 109, 217, 290 Goodmans 036, 037, 072, 179, 217, 235, 257, 317,

343, 371, 374, 499 Gorenje 370 GPM 218 Graetz 163, 361, 557 Granada 037, 072, 146, 201, 208, 217, 339, 359,

516 Grandin 282 Grundig 070, 191, 195, 205, 487, 535, 554 Hanseatic 037, 320, 361, 556 Hantarex 516 Harwood 257 HCM 009, 282, 412 Hinari 009, 036, 037, 179, 218 Hisawa 282, 400, 455 Hitachi 032, 036, 043, 044, 105, 109, 163, 196,

198, 217, 225, 227, 306, 349, 481, 548,

557 Huanyu 216, 374 Hypson 037, 264, 282 ICE 217, 264, 371 ICeS 218 Imperial 074, 076, 084, 247, 370, 418 Indiana 037 Ingelen 163, 557 Inno Hit 072, 516 Interbuy 068 Interfunk 037, 163, 247, 361, 512, 557 Intervision 037, 068, 102, 217, 264 Isukai 218 ITS 371 ITT 163, 361, 548, 557 JVC 036, 053, 094, 190, 192, 371, 800 Kaisui 009, 216, 217, 218, 282 Kapsch 163, 206, 557 Kathrein 556 Kendo 037, 235, 362 Kingsley 216 Kneissel 259, 435 Korpel 037 Korting 087 Koyoda 009 Leyco 037, 072, 264, 294 Liesenk & Tter 037 Lloytron 032 Loewe 075, 087, 512 Luma 206 Luxor 349, 361 M Electronic 009, 037, 068, 105, 109, 163, 217, 287,

346, 374, 480 Magnadyne 087, 102, 247, 516 Magnafon 076, 102, 213, 516 Manesth 217, 235, 264, 320 Marantz 037, 556 Marelli 087 Mark 037 Matsui 009, 011, 035, 036, 037, 072, 177, 208,

211, 217, 235, 294, 354, 355, 371, 443,

487, 516, 579

English

McMichael 043 Mediator 012, 037

English

Memorex 009 Memphis 337 Metz 087, 213, 367, 535 Minerva 070, 487, 535, 554 Minoka 369, 412 Mitsubishi 036, 087, 108, 150, 201, 354, 512, 535 Mivar 216, 290, 291, 292, 516 Motion 076 MTC 349, 512 Multitech 009, 076, 102, 216 Neckermann 037, 087, 191, 213, 349, 505, 554, 556 NEI 037, 337, 431 Nesco 179 Nikkai 032, 035, 037, 072, 216, 218, 264, 337 Nobliko 076, 102 Nokia 361, 480, 548 Nordmende 109, 196, 198, 213, 287, 343 Oceanic 163, 215, 361 Onwa 433 Orion 037, 177, 235, 294, 320, 321, 355, 443,

Osaki 032, 072, 217, 218, 257, 264, 412 Oso 218 Osume 032, 072, 157 Otake 317 Otto Versand 010, 036, 037, 191, 213, 217, 320, 343,

Palladilum 370, 418 Panama 217, 264 Panasonic 100, 126, 163, 213, 214, 226, 250, 340

Pathe Cinema 213, 216, 238, 320 Pathe Marconi 196, 198, 205, 333 Pausa 009 Perdio 320 Phase 032 Philco 074, 076, 084, 087, 213, 247 Philips 012, 037, 043, 087, 323, 374, 554, 556 Phoenix 087 Phonola 012, 037, 087 Pioneer 109, 163, 287 Prandoni Prince 516 Profex 009 ,076, 361 Proline 321 Protech 009, 037, 102, 217, 247, 264, 337, 418,

Pye 012 Quelle 010, 011, 037, 070, 074, 084, 200, 213,

Questa 036 R-Line 037 Radiola 012, 037, 323 Radiomarelli 087, 516 Rank Arena 036 RBM 070, 089 Rediffusion 201, 361 Revox 037 Rex 163, 206, 259, 264 RFT 087 Roadstar 009, 218, 264, 418 Saba 075, 087, 109, 163, 196, 198, 205, 213,

Saccs 238 Saikou 257 Saisho 009, 011, 177, 211, 235, 264, 354, 431,

Salora 163, 349, 359, 361, 548 Sambers 076, 102, 213, 516 Samsung 009, 037, 090, 217, 264, 290, 370, 488,

Sandra 216 Sanyo 011, 036, 072, 146, 157, 208, 213, 339 Schaub Lorenz 361, 557 SBR 012, 037, 043 Schneider 037, 218, 247, 303, 323, 336, 352, 371,

516

349, 505, 512, 535, 554, 556

367, 557

431

306, 327, 328, 361, 505, 512, 535, 554

287, 335, 343, 557

516

556

394

SEG 036, 076, 217, 264 SEI 087, 102, 177, 213, 294 Sei-Sinudyne 010, 516 Seleco 163, 206, 259, 362, 411 Sentra 035 Sharp 036, 093 Shorai 294 Siarem 087, 102, 213, 516 Siemens 037, 157, 191, 195, 200, 213, 327, 328,

Silver 036 Singer 087 Sinudyne 087, 102, 177, 213, 235, 294 Solavox 032, 163 Sonitron 208 Sonoko 009, 037 Sonolor 163, 208, 215 Sontec 037 Sony 010, 011, 036, 505 Soundwave 037, 418 Standard 009, 217, 218 Stern 163, 206, 259 Sunkai 294, 321, 355 Susumu 218 Sysline 037 Tandy 072, 163, 217, 218 Tashiko 036, 043, 217, 359 Tatung 037, 072, 217, 249, 516 Tec 217, 247 Technema 320 Technics 250 Technol Ace 179 Teleavia 205, 333, 343 Telefunken 005, 074, 084, 101, 109, 213, 262, 306,

Telemeister 320 Teletech 009 Teleton 206, 217, 349 Tensai 218, 294, 317, 320 Texet 216, 218 Thomson 109, 196, 198, 205, 287, 333, 343, 349,

Thorn 035, 037, 072, 074, 084, 190, 192, 343, Tomashi 282

Toshiba 035, 036, 070, 089, 243, 508, 553 Triumph 177, 243, 516 Uher 206, 303, 320 Ultra 192 Ultravox 102 Universum 037, 105, 264, 346, 370, 421, 492, 535 Vestel 037 Videosat 247 Videotechnic 217 Vision 320 Voxson 087, 163 Waltham 217 Watson 037, 320 Watt Radio 102 Wega 036, 087 White Westinghouse Yoko 037, 217, 264, 431 Zanussi 206

Manufacturers’ codes for DBS tuner

Akai 515 Alba 362, 421, 455, 515, 613 Aldes 288 Amstrad 080, 252, 345, 461, 501, 509, 689 Ankaro 220, 288, 369, 519 Anttron 183, 421 Armstrong 243 AST 351 Astra 108 Astro 173, 501, 520 Avalon 396 Axis 369, 530 BT 515, 668

535, 554

335, 343, 471, 498, 625

399 361, 499, 505, 512, 535, 553

037, 216, 320

Beko 189 Best 369 Blaupunkt 173 Boca 243, 513 Brain Wave 332 Bush 067, 522 Cambridge 344, 515 Channel Master 362 CNT 520 Commlink 288 Connexions 396 Conrad 607 Crown 243 Cyrus 200 DDC 362 DNT 200, 396 Echostar 396, 713 Emanon 421 Ferguson 067, 183, 189, 336 Fidelity 252 Finlux 108, 344, 397, 455 Freecom 421 Fuba 369, 396, 421 G-Sat 183 Galaxis 288 Gooding 571 Goodmans 189 Grundig 173, 189, 328, 571, 750 Hinari 183 Hirschmann 173, 397, 501, 502, 573 Hitachi 455 Houston 668 Huth 220, 243, 288, 346 IRTE 609 Intervision 592 ITT 108 Johansson 332 JVC 515, 571 Kathrein 092, 173, 200, 442, 504, 622, 658 Kreiselmeyer 173 Kyostar 421 La Sat 513, 520, 607 Lenco 421 Lennox 592 Lupus 369 Luxor 108, 573 Manhattan 455, 520, 592 Marantz 200 Maspro 092, 328, 336, 750 Matsui 344, 571 Mediamarkt 243 Minerva 571 Mintec 578 Morgan’s 243, 513 Navex 332 Neuhaus 501 Newhaus 220 Nikko 360, 713 Nokia 108, 328, 397, 455, 573 Nordmende 362 Orbitech 501 Orion 522 Oxford 344 Pace 067, 183, 328, 336, 455, 795 Palladium 571 Palsat 501 Panda 455 Philips 200, 292, 328, 455, 571, 750 Phonotrend 288, 592 Promax 455 Prosat 288 Quadral 362, 519, 628 Radiola 200 Radix 396 RFT 200, 220, 288 Saba 336, 520 Sabre 455 Salora 108

SAT 351, 461 Satcom 346, 605 Satec 183, 328 Satmaster 346 SatPartner 332, 421, 502, 520 Schwaiger 183, 504 Seemann 396, 530, 578, 626 SEG 369, 421 Siemens 173 Skymaster 288, 519, 605, 628 SM Electronic 713 Sony 704 Sunstar 513 Tantec 336, 455 TechniSat 501 Techniland 346 Telefunken 421 Teleka 243, 613 Telesat 605 Thomson 455 Tonna 346, 668 Triad 351 Triasat 501 Unitor 332 Universum 173, 571 Ventana 200 Vortec 421 Vtech 351 Winersat 332 Wisi 173, 351, 396, 455 Zehnder 520

Manufacturers’ codes for CATV converters

Brigminghan Cable Communications British Telecom 003, 105 Decsat 423 Filmnet 443 France Telecom 451 Jerrold 003, 276 MNet 443 PVP Stereo Visual Matrix 003 Salora 382 Scientific Atlanta 008, 277 Tele+1 443 United Cable 003 Westminster 105 Zenith 000

Manufacturers’ codes for VCR

Aiwa 000, 307, 348, 352 Akai 041, 049, 053, 106, 281, 288, 315 Akiba 072 Akura 271 Alba 020, 072, 209, 278, 295, 315, 333, 334,

352 Ambassador 020 Amstrad 000, 278, 325, 332 Anitech 072 ASA 037, 081 Asuka 037 Baird 000, 041, 104, 107 Basic Line 020, 072, 278 Blaupunkt 003, 006, 016, 034, 154, 162, 195, 226,

227, 403 Brandt 187, 320, 321 Brandt Electronic 041 Brionvega 344 Bush 072, 209, 278, 333, 334, 352 Catron 020 CGE 000 Cimline 072 Clatronic 020 Combitech 352

276

English

Condor 020 Crown 020, 072, 278

English

Cyrus 081 Daewoo 020, 278 Dansai 072 De Graaf 042, 166 Decca 000, 081 Denon 042 Dual 041 Dumont 000, 081, 104, 105 Elbe 038 Elcatech 072 ESC 240, 278 Ferguson 041, 084, 098, 107, 320, 321 Fidelity 000 Finlandia 081, 104 Finlux 000, 042, 081, 104, 105 Firstline 037, 043, 045, 072, 209 Fisher 046, 047, 054, 104 Frontech 020 Funai 000 GEC 081 General 020 GoldHand 072 GoldStar 037, 225 Goodmans 000, 020, 037, 072, 278, 403 Graetz 005, 041, 104, 240, 344 Granada 046, 081, 104 Grandin 000, 037, 072 Grundig 003, 006, 007, 016, 072, 081, 195, 207,

Hanseatic 037 HCM 072 Hinari 004, 072, 208, 240, 352 Hitachi 000, 004, 041, 042, 105, 166, 235, 240 Hypson 072 Imperial 000 Ingersol 004 Interfunk 081 ITT 005, 041, 046, 104, 106, 240, 344, 384 ITV 037, 278 JVC 008, 041, 067, 084, 206, 207, 384, 486 Kaisui 072 Kendo 106, 209 Kenwood 041 Korpel 072 Lenco 278 Leyco 072 Loewe 004, 006, 037, 081 Logik 004, 240 Luxor 043, 046, 048, 104, 106 M Electronic 000 Manesth 045, 072 Marantz 003, 006, 081, 295 Matsui 004, 036, 088, 208, 209, 295, 348, 352 Melectronic 038 Memorex 000, 037, 046, 104 Memphis 072 Metz 003, 006, 037, 162, 195, 227, 347 Minerva 006, 016, 195 Mitsubishi 043, 067, 081 Multitech 000, 072 Murphy 000 NEC 038, 041, 067 Neckermann 081, 344 Nesco 072 Nokia 041, 046, 104, 106, 240, 344 Nordmende 041, 297, 320, 321, 384 Oceanic 000, 041 Okano 315, 348 Orion 004, 036, 088, 208, 209, 295, 333, 334,

Osaki 000, 037, 072 Otto Versand 081 Palladium 006, 037, 041, 072 Panasonic 162, 226, 227 Pathe Cinema 036

226, 347, 349, 403

348, 352

Pathe Marconi 041 Pentax 042, 105 Perdio 000 Philco 038 Philips 081, 384, 403 Phonola 081 Pioneer 067, 081, 235 Portland 020 Profex 322 Profitronic 240 Proline 000 Pye 081 Quartz 046 Quelle 081, 344 Radiola 081 Rex 041, 384 RFT 403 Roadstar 037, 072, 240, 278 Saba 041, 206, 207, 297, 320, 321, 384 Saisho 004, 036, 088, 208, 209 Salora 043, 046, 106 Samsung 240, 432 Sansui 041, 067, 271 Sanyo 046, 104 Saville 352 SBR 081 Schaub Lorenz 000, 005, 041, 104, 344 Schneider 000, 072, 081 SEG 240, 322 SEI 004, 081 Seleco 041 Sentra 020 Sharp 048 Shintom 072, 104 Shorai 004 Siemens 003, 006, 016, 037, 054, 081, 104, 195 Silva 037 Singer 045 Sinudyne 004, 081 Solavox 020 Sonolor 046 Sontec 037 Sony 011, 032, 033, 034 Sunkai 348 Sunstar 000 Suntronic 000 Tashiko 000 Tatung 000, 041, 081 Tec 020 Technics 162, 226 Teleavia 041 Telefunken 041, 187, 320, 321, 384 Tenosal 072 Tensai 000, 322 Thomson 041, 320, 384 Thorn 036, 041, 084, 104 Toshiba 041, 043, 045, 081, 384 Towada 322 Triumph 208 Uher 240, 344 Ultravox 049, 344 Universum 000, 006, 016, 037, 049, 081, 106, 195,

240, 325

White Westinghouse 344 Yamishi 072 Yokan 072 Yoko 020, 240

Manufacturers’ codes listed on pages 50 to 53 are subject to change without notice. If they are changed, this remote control cannot operate the equipment.

Troubleshooting

Use this chart to help you solve daily operational problems. If there is any problem you cannot solve, contact your JVC service center.

PROBLEM

POSSIBLE CAUSE

SOLUTION

English

The display does not light up.

No sound from speakers.

Sound from one speaker only.

Continuous hiss or buzzing during FM reception.

Occasional cracking noise during FM reception.

The power cord is not plugged in.

Speaker signal cables are not connected.

The SPEAKERS 1 and 2 buttons are not set correctly.

An incorrect source is selected.

Muting is activated.

Speaker signal cables are not connected properly.

The balance is set to one extreme.

Incoming signal is too weak.

The station is too far away.

An incorrect antenna is used.

Antennas are not connected properly.

Ignition noise from automobiles.

Plug the power cord into an AC outlet.

Check speaker wiring and reconnect if necessary.

Press SPEAKERS 1 and 2 correctly.

Select the correct source.

Press MUTING to cancel the mute.

Check speaker wiring and reconnect if necessary.

Adjust the balance properly (see page 13).

Connect an outdoor FM antenna or contact your dealer.

Select a new station.

Check with your dealer to be sure you have the correct antenna.

Check connections.

Move the antenna farther from automobile traffic.

No colors on the on-screen display.

Howling during record playing.

“OVERLOAD” starts flashing on the display.

Remote control does not work.

The color system of the connected TV is not PAL.

Your turntable is too close to speakers.

Speakers are overloaded because of high volume.

Speakers are overloaded because of short circuit of speaker terminals.

The remote control mode selector is not set correctly.

There is an obstruction in front of the remote sensor on the receiver.

Batteries are weak.

Connect PAL- or multi-color system TV.

Move speakers away from the turntable.

1. Press STANDBY/ON panel to turn off the receiver.

2. Stop the playback source.

3. Turn on the receiver again, and adjust the volume.

Press STANDBY/ON then check the speaker wiring. If “OVERLOAD” does not disappear, unplug the AC power cord, then plug it back again. If speaker wiring is not short-circuited, contact your dealer.

Set the selector correctly either to “AUDIO/ TV/VCR” or to “CATV/DBS.”

Remove the obstruction.

Replace batteries.

on the front

on the front panel,

Amplifier

English

Audio

Audio Input Sensitivity/Impedance (1 kHz): PHONO (MM): 2.5 mV/47 kΩ

Specifications

Output Power

At Stereo operation: Front channels: 100 W per channel, min. RMS, both channels driven into 4 Ω, at

1 kHz with no more than 0.9% total harmonic distortion. (IEC268-3/DIN)

At Surround operation: Front channels: 100 W per channel, min. RMS, driven into 4 Ω at 1 kHz, with no

more than 0.8% total harmonic distortion.

Center channel: 100 W, min. RMS, driven into 4 Ω at 1 kHz, with no more than

0.8% total harmonic distortion.

Rear channels: 100 W per channel, min. RMS, driven into 4 Ω at 1 kHz, with no

more than 0.8% total harmonic distortion.

Total Harmonic Distortion (8 Ω): 0.02% at 50 W output (at 1 kHz)

CD, TAPE/MD, TV SOUND/DBS, VCR, DVD: 200 mV/47 kΩ

Audio Input (DIGITAL IN)* : Coaxial: DIGITAL 1 (DVD): 0.5 V(p-p)/75 Ω

Optical: DIGITAL 2 (CD), DIGITAL 3 (TV): –21 dBm to –15 dBm (660 nm ±30 nm) * Corresponding to Linear PCM, Dolby Digital, DTS Digital Surround and MPEG

Multichannel (with sampling frequency — 32 kHz, 44.1 kHz, 48 kHz).

Audio Output Level: TAPE/MD, VCR: 200 mV

Digital output: Optical: DIGITAL OUTPUT

Signal wave length: 660 nm Output level: –21 dBm to –15 dBm

Video

Signal-to-Noise Ratio (’66 IHF/DIN): PHONO: 70 dB/66 dB (at REC OUT)

CD, TAPE/MD, TV SOUND/DBS, VCR, DVD: 87 dB/67 dB

Frequency Response (8 Ω): PHONO: 20 Hz to 20 kHz (±1 dB)

CD, TAPE/MD, TV SOUND/DBS, VCR, DVD: 20 Hz to 20 kHz (±1 dB)

RIAA Phono Equalization: ±1.0 dB (20 Hz to 20 kHz)

Bass Boost: +6 dB ±1.0 dB at 100 Hz (Volume Control at –30 dB)

SEA: Center frequencies: 100 Hz, 1 kHz, 10 kHz

Control range: ±10 dB ±2 dB

Video Input Sensitivity/Impedance:

Composite video: TV SOUND/DBS, VCR, DVD: 1 V(p-p)/75 Ω

S-video: TV SOUND/DBS, VCR, DVD: (Y: luminance): 1 V(p-p)/75 Ω

(C: chrominance, burst): 0.286 V(p-p)/75 Ω

Video Output Level:

Composite video: VCR, MONITOR OUT: 1 V(p-p)/75 Ω

S-video: VCR, MONITOR OUT: (Y: luminance): 1 V(p-p)/75 Ω

(C: chrominance, burst): 0.286 V(p-p)/75 Ω

Synchronization: Negative

Signal-to-Noise Ratio: 45 dB

On-Screen Color System: PAL

FM tuner (IHF)

Tuning Range: 87.50 MHz to 108.00 MHz

Usable Sensitivity: Monaural: 17.0 dBf (1.95 µV/75 Ω)

50 dB Quieting Sensitivity: Monaural: 21.3 dBf (3.2 µV/75 Ω)

Stereo: 41.3 dBf (31.5 µV/75 Ω)

Signal-to-Noise Ratio (IHF-A weighted): Monaural: 78 dB at 85 dBf

Stereo: 73 dB at 85 dBf

Total Harmonic Distortion: Monaural: 0.4% at 1 kHz

Stereo: 0.6% at 1 kHz

Stereo Separation at REC OUT: 35 dB at 1 kHz

Alternate Channel Selectivity: 60 dB: (±400 kHz)

Frequency Response: 30 Hz to 15 kHz: (+0.5 dB, –3 dB)

AM (MW/LW) tuner

Tuning Range: MW: 522 kHz to 1 629 kHz

LW: 144 kHz to 288 kHz

Usable Sensitivity: Loop antenna: 400 µV/m

Signal-to-Noise Ratio: 50 dB (100 mV/m)

General

Power Requirements: AC 230 V , 50 Hz

Power Consumption: 210 W (at operation)

2 W (in standby mode)

Dimensions (W x H x D): 435 mm x 157 mm x 412.5 mm

Mass: 11.3 kg (25.0 lbs)

/16 in. x 6 3/16 in. x 16 1/4 in.)

(17

English

Designs & specifications are subject to change without notice.
