JVC RX-6500VBK Instruction Manual
AUDIO/VIDEO CONTROL RECEIVER
RX-6500VBK
POWER
VCR
AUDIO
TV
CATV/ SAT
TV SOUND/ DBS
VCR
DVD
CD
TAPE/MD FM/AM
REC PAUSE
SURROUND
SURROUND
MODE
SUBWOOFER
1
5
EFFECT
9
TV/ VIDEO
MUTING
RM-SRX6500J REMOTE CONTROL
ANALOG/DIGITAL
3
8
7
CATV CH
2
REAR•L
6
TEST
0
TV CH TV VOL VOLUME
VCR CH
RETURN
SLEEP
PHONO
CATV
CONTROL
SOUND
CD - DISC
CNTR
3
4
REAR•R
/P
7
8
MENU
ENTER
+10
10
100+
RX-6500V AUDIO/VIDEO CONTROL RECEIVER
STANDBY
POWER
SPEAKERS
PHONES
12
— OFF_ ON
DVDCDTV SOUND/DBS
SOURCE NAME
TAPE/MD
SOURCE NAME
THEATER LIVE CLUB DANCE CLUB HALL PAVILLION
ONE TOUCH OPERATION/
VCR
INPUT ATT.
PHONO
FM/AM
DSP. MODE MULTI CURSOR
SURROUND
ON
ANALOG/DIGITAL
DIGITAL AUTO
DIGITAL
ADJUST
SETTING
MEMORY
MASTER VOLUME
–+
DIGITAL
INSTRUCTIONS
For Customer Use:
Enter below the Model No. and Serial
No. which are located either on the rear,
bottom or side of the cabinet. Retain this
information for future reference.
Model No.
Serial No.
LVT0382-001A
[J]
RX-6000VBK/RX-6008VBK[J]/
RX-6500VBK[J]
Errata Sheet
Please notice the following modifications when reading Instructions.
Page 18.
Incorrect
Notes:
• If “REAR SPK” and “CENTER SPK” are set to “NONE,”
— you can select only “HEAD PHONE” or “OFF” for the DSP mode.
— you cannot select Surround mode.
• No sounds come out of the center speaker, even if it is connected.
Correct
Notes:
• If “REAR SPK” and “CENTER SPK” are set to “NONE,” you cannot
select Surround mode.
• No sounds come out of the center speaker, even if it is connected.
• When “REAR SPK” and “CENTER SPK” are set to “NONE,” the
same effect as used for the 3D-PHONIC is applied to any DAP
mode to maintain the surround elements with only two front
speakers.
Page 20.
On page 20, in the DSP mode cycle it is written that "3D ACTION" will be selected after "HEAD PHONE,"
but the order has been changed so that "3D ACTION" will be selected before "HEAD PHONE."
LV 41818-001A
Warnings, Cautions and Others
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1. Do not remove screws, covers or cabinet.
2. Do not expose this appliance to rain or moisture.
Caution –– POWER switch!
Disconnect the mains plug to shut the power off completely. The
POWER switch in any position does not disconnect the mains line.
The power can be remote controlled.
For U.S.A.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Caution: Proper Ventilation
To avoide risk of electric shock and fire and to protect from damage.
Locate the apparatus as follows:
Front: No obstructions open spacing.
Sides: No obstructions in 10 cm from the sides.
Top: No obstructions in 10 cm from the top.
Back: No obstructions in 15 cm from the back
Bottom: Place on the level surface.
In addition, maintain the best possible air circulation as illustrated.
Wall or obstructions
Spacing 15 cm or more
Front
RX-6500V
Stand height 15 cm or more
Floor
G-1
Table of Contents
Parts Identification...................................... 2
Getting Started........................................... 3
Before Installation ...................................................................... 3
Checking the Supplied Accessories ........................................... 3
Connecting the FM and AM Antennas....................................... 3
Connecting the Speakers ............................................................ 4
Connecting Audio/Video Components....................................... 5
Connecting the Power Cord ....................................................... 7
Putting Batteries in the Remote Control .................................... 7
Basic Operations ......................................... 8
Turning the Power On and Off (Standby) .................................. 8
Selecting the Source to Play....................................................... 8
Adjusting the Volume ................................................................. 9
Selecting the Front Speakers ...................................................... 9
Muting the Sound ....................................................................... 9
Adjusting the Subwoofer Output Level.................................... 10
Attenuating the Input Signal .................................................... 10
Reinforcing the Bass ................................................................ 10
Adjusting the Tone ................................................................... 10
Basic Settings........................................... 11
Recording a Source .................................................................. 11
Adjusting the Front Speaker Output Balance........................... 11
Changing the Source Name...................................................... 11
Setting the Speakers for the DSP Modes ................................. 12
Digital Input (DIGITAL IN) Terminal Setting ......................... 14
Selecting the Analog or Digital Input Mode ............................ 14
Storing the Basic Settings and Adjustments
— One Touch Operation .................................................... 15
Using the Sleep Timer.............................................................. 15
Using the DSP Modes ................................ 18
Available DSP Modes According to the Speaker Arrangement .. 20
Adjusting the 3D-PHONIC Modes .......................................... 21
Adjusting the DAP Modes and Headphones mode.................. 21
Adjusting the Surround Modes ................................................ 22
Activating the DSP Modes ....................................................... 25
COMPU LINK Remote Control System ......... 26
AV COMPU LINK Remote Control System .... 27
Operating JVC’s Audio/Video Components ... 29
Operating Other Manufacturers’ Video
Equipment ................................................ 31
Troubleshooting......................................... 33
Specifications............................................ 34
English
Receiving Radio Broadcasts ........................ 16
Tuning in Stations Manually .................................................... 16
Using Preset Tuning ................................................................. 16
Selecting the FM Reception Mode........................................... 17
1
Parts Identification
ON
RX-6500V AUDIO/VIDEO CONTROL RECEIVER
STANDBY
PHONES
SPEAKERS
12
ADJUST
SETTING
MEMORY
DVD
CD TAPE/MD
VCR
PHONO
THEATER LIVE CLUB DANCE CLUB HALL PAVILLION
DIGITAL AUTO
SOURCE NAME
SOURCE NAME
ONE TOUCH OPERATION/
INPUT ATT.
DSP. MODE MULTI CURSOR
ANALOG/DIGITAL
SURROUND
FM/AM
MASTER VOLUME
–+
— OFF_ ON
POWER
DIGITAL
Ÿ
!
⁄ @#‹$›
%
fi
*
‡
&
fl
~
¤
^
TV SOUND/DBS
Become familiar with the buttons and controls on the receiver before use.
Refer to the pages in parentheses for details.
English
Front Panel
~
POWER
VCR
~
Ÿ
!
⁄
@
¤
#
‹
$
CATV/SAT
TV
TV SOUND/ DBS
DVD
ANALOG/DIGITAL
CD
TAPE/MD FM/AM
REC PAUSE
SURROUND
SURROUND
CATV CH VCR CH
MODE
SUBWOOFER
2
1
REAR•L
5
6
TESTEFFECT
0
9
TV/ VIDEO
TV CH TV VOL VOLUME
MUTING
AUDIO
VCR
SLEEP
PHONO
3
8
CATV
CONTROL
7
SOUND
CD - DISC
CNTR
3
4
REAR•R
/P
7
8
MENU
ENTER
10
+10
100+RETURN
fi
^
fl
&
‡
*
°
›
%
R/M-SRX6500J REMOTE CONTROL
IMPORTANT:
To use the MULTI CURSOR buttons (w) on the front panel:
What these buttons actually do depends on which function you are trying to adjust. Before using these buttons, select the function by
pressing one of the buttons marked with *.
(
POWER button and STANDBY lamp (8)
Ÿ
SOURCE NAME (TV SOUND/DBS) button
(11)
!
Display (8)
⁄
ONE TOUCH OPERA TION/INPUT ATT.
button (15)
@
DSP MODE button (21)
¤
SURROUND button and lamp (25)
#
Remote sensor (7)
‹
ADJUST button (10) *
$
SETTING button (12 – 14) *
›
MASTER VOLUME control (9)
%
MEMORY button (16)
fi
MULTI CURSOR buttons
^
ANALOG/DIGITAL button and DIGITAL
AUTO lamp (14)
fl
Source selecting buttons (8)
DVD, TV SOUND/DBS, VCR, CD, TAPE/MD,
PHONO, FM/AM *
&
SOURCE NAME (TAPE/MD) button
(8, 11, 14)
‡
SPEAKERS 1/2 buttons (9)
*
PHONES jack (9)

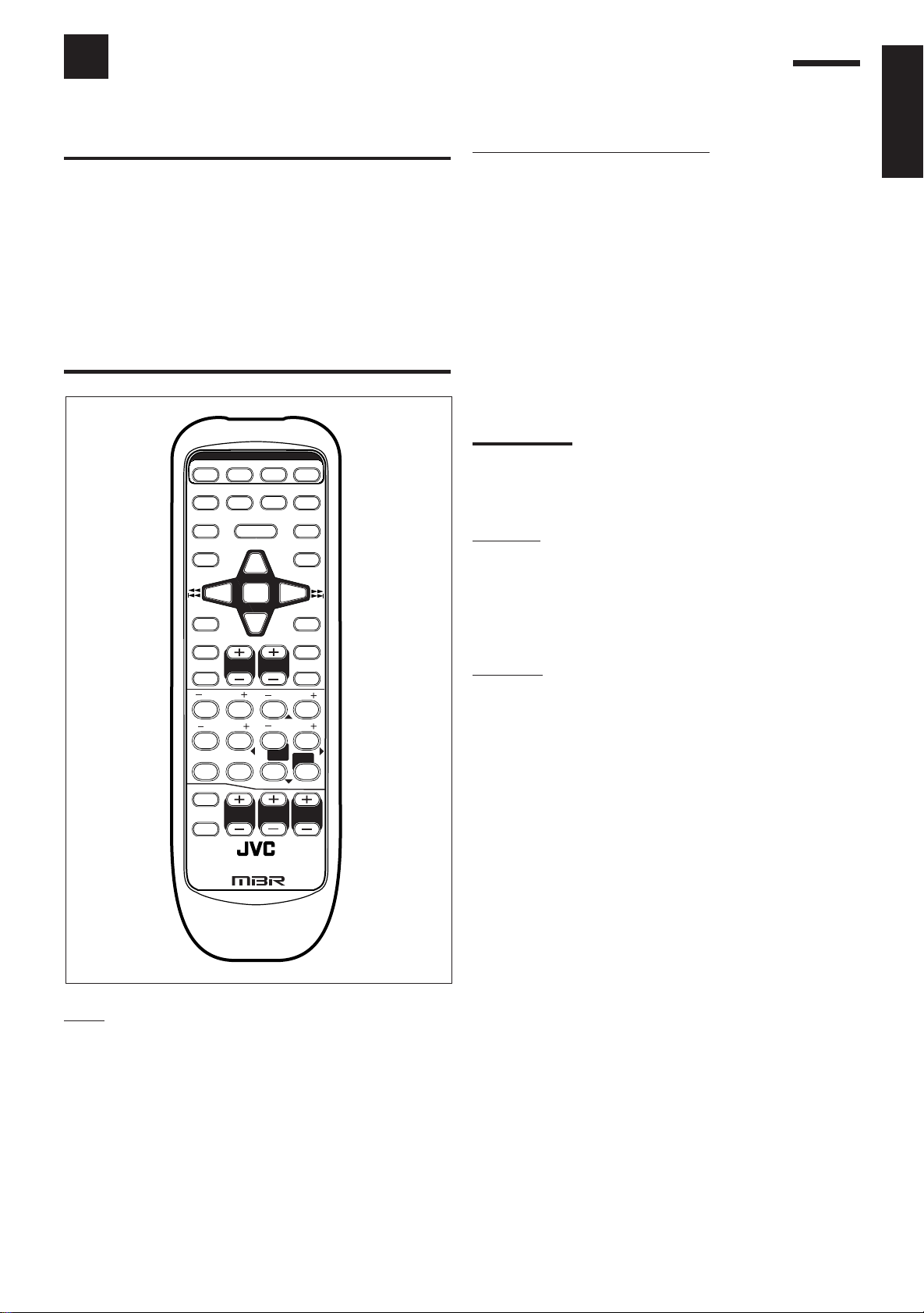

Remote Control
~
POWER buttons (8, 30)
CA TV/SAT, TV , VCR, A UDIO
Ÿ
Source selecting buttons (8)
DVD, TV SOUND/DBS, VCR, CD, PHONO,
TAPE/MD, FM/AM
!
Operating buttons for audio/video components
(29, 30)
⁄
REC PAUSE button (30)
@
SURROUND button (25)
¤
CATV CH +/– buttons (31)
#
SURROUND MODE button (21)
‹
• 10 keys for selecting preset channel (17)
• 10 keys for adjusting sound (22 – 24, 29)
• 10 keys for operating audio/video components
(29, 30)
$
TV/VIDEO button (30)
›
MUTING button (9)
%
TV CH +/– buttons (30)
fi
SLEEP button (15)
^
ANALOG/DIGITAL button (14)
fl
CATV CONTROL (31)
&
SOUND button (21)
‡
VCR CH +/– buttons (30)
*
CD-DISC button (29)
°
VOLUME +/– buttons (9)
(
TV VOL +/– buttons (30)
2
Getting Started
This section explains how to connect audio/video components and speakers to the receiver, and how to connect the
power supply.
Before Installation
General
• Be sure your hands are dry.
• Turn the power off to all components.
• Read the manuals supplied with the components you are going to
connect.
Locations
• Install the receiver in a location that is level and protected from
moisture.
• The temperature around the receiver must be between –5˚C and
35˚C (23˚F and 95˚F).
• Make sure there is good ventilation around the receiver. Poor
ventilation could cause overheating and damage the receiver.
Handling the receiver
• Do not insert any metal object into the receiver.
• Do not disassemble the receiver or remove screws, covers, or
cabinet.
• Do not expose the receiver to rain or moisture.
Connecting the FM and AM
Antennas
FM Antenna Connections
ANTENNA
A
ANTENNA
FM 75
COAXIAL
AM
LOOP
AM
EXT
FM Antenna
Extend the supplied FM antenna horizontally.
FM 75
COAXIAL
B
ANTENNA
AM
EXT
FM 75
COAXIAL
AM
LOOP
English
Checking the Supplied Accessories
Check to be sure you have all of the following items, which are
supplied with the receiver.
The number in the parentheses indicates the quantity of the pieces
supplied.
• Remote Control (1)
• Batteries (2)
• AM Loop Antenna (1)
• FM Antenna (1)
If anything is missing, contact your dealer immediately.
AM
EXT
AM
LOOP
Outdoor FM Antenna Cable
A. Using a Supplied FM Antenna
The FM antenna provided can be connected to the FM 75Ω
COAXIAL terminal as temporary measure.
B. Using a Standard Type Connector (Not Supplied)
A standard type connector should be connected to the FM 75Ω
COAXIAL terminal.
Note:
If reception is poor, connect an outdoor antenna.
Before attaching a 75
to an outdoor antenna), disconnect the supplied FM antenna.
Ω
coaxial cable (the kind with a round wire going
3
+
+
–
2
1
2
1
–
FRONT SPEAKERS
LEFTRIGHT
AM Antenna Connections
English
ANTENNA
FM 75
COAXIAL
Snap the tabs on the loop frame
into the slots of the base to
assemble the AM loop.
Basic connecting procedure
1
2
1
34
1
1
AM
LOOP
AM
EXT
1
AM Loop Antenna
2
3
Outdoor single vinyl-covered wire
(not supplied)
Turn the loop antenna until you have the best reception.
Notes:
• Make sure the antenna conductors do not touch any other
terminals, connecting cords and power cord. This could cause poor
reception.
• If reception is poor, connect an outdoor single vinyl-covered wire to
the AM EXT terminal. (Keep the AM loop antenna connected.)
RIGHT
RIGHT
RIGHT
1 Cut, twist and remove the insulation at the end of
each speaker signal cable (not supplied).
2 Turn the knob counterclockwise.
3 Insert the speaker signal cable.
4 Turn the knob clockwise.
Connecting the front speakers
You can connect two pairs of front speakers (one pair to the FRONT
SPEAKERS 1 terminals, and another pair to the FRONT
SPEAKERS 2 terminals).
FRONT SPEAKERS 1 Left speakerRight speaker
Connecting the Speakers
You can connect the following speakers:
• Two pairs of front speakers to produce normal stereo sound.
• One pair of rear speakers to enjoy the surround effect.
• One center speaker to produce more effective surround effect (to
emphasize human voices).
• One subwoofer to enhance the bass.
IMPORTANT:
After connecting the speakers listed above, set the speaker
setting information properly to obtain the best possible DSP
effect. For details, see page 12.
For each speaker (except for a subwoofer), connect the (–) and (+)
terminals on the rear panel to the (–) and (+) terminals marked on
the speakers. For connecting a subwoofer, see page 5.
CAUTION:
Use speakers with the SPEAKER IMPEDANCE indicated by the
speaker terminals.
FRONT SPEAKERS 2
Left speakerRight speaker
Connecting the rear and center speakers
Connect rear speakers to the REAR SPEAKERS terminals and a
center speaker to the CENTER SPEAKER terminals.
CENTER
Center speaker
Left rear
speaker
SPEAKER
Right rear
speaker
RIGHT LEFT
SPEAKERS
REAR
4
Connecting the subwoofer speaker
You can enhance the bass by connecting a subwoofer.
Connect the input jack of a powered subwoofer to the
SUBWOOFER OUT jack on the rear panel, using a cable with RCA
pin plugs (not supplied).
SUBWOOFER
OUT
Powered subwoofer
Connecting Audio/Video Components
You can connect the following audio/video components to this
receiver. Refer also to the manuals supplied with your components.
Audio Components Video Components
• CD player* • DVD player*
• Turntable • TV
• Cassette deck • DBS tuner*
or MD recorder* • VCR
*
You can connect these components using the methods described
in “Analog connections” (below) or in “Digital connections” (see
page 7).
Turntable
FM 75
COAXIAL
AM
LOOP
PHONO
CD
TV SOUND
/DBS
OUT
(REC)
VCR
IN
(PLAY)
OUT
(REC)
TAPE
/MD
IN
(PLAY)
RIGHT LEFT
AUDIO
Turntable
To audio
output
ANTENNA
AM
EXT
If an earth cable is provided for
your turntable, connect the cable
to the terminal marked (H) of the
ANTENNA terminals on the rear
panel.
Note:
Any turntables incorporating a small-output cartridge such as an MC
(moving-coil type) must be connected to this receiver through a
commercial head amplifier or step-up transformer. Direct connection
may result in insufficient volume.
Cassette deck or MD recorder
Cassette deck
To audio input
PHONO
To audio output
English
Analog connections
Audio component connections
Use the cables with RCA pin plugs (not supplied).
Connect the white plug to the audio left jack, and the red plug to the
audio right jack.
CAUTION:
If you connect a sound-enhancing device such as a graphic equalizer
between the source components and this receiver, the sound output
through this receiver may be distorted.
CD player
PHONO
CD player
CD
TV SOUND
To audio output
/DBS
(REC)
(PLAY)
(REC)
TAPE
(PLAY)
OUT
VCR
IN
OUT
/MD
IN
RIGHT LEFT
AUDIO
CD
TV SOUND
/DBS
OUT
(REC)
VCR
IN
(PLAY)
OUT
(REC)
TAPE
/MD
IN
(PLAY)
RIGHT LEFT
AUDIO
To audio outputTo audio input
MD recorder
Note:
You can connect either a cassette deck or an MD recorder to the
TAPE/MD jacks. When connecting an MD recorder to the TAPE/MD
jacks, change the source name, which will be shown on the display
when selected as the source, to “M D.” See page 11 for details.
If your audio components have a COMPU LINK-3 terminal
See also page 26 for detailed information about the connection and
the COMPU LINK-3 remote control system.
5
Video component connections
English
Use the cables with RCA pin plugs (not supplied).
Connect the white plug to the audio left jack, the red plug to the
audio right jack, and the yellow plug to the video jack.
IMPORT ANT:
This receiver is equipped with both the composite video and S-video input
terminals for connecting video components.
Y ou do not have to connect both the composite video and S-video terminals.
However, remember that the video signals from the composite video
input terminal are output only through the composite video output
terminals, while the ones from the S-video input terminal are output
only through the S-video output terminal.
Therefore, if a recording video component and a playing video component
are connected to the receiver through the different video terminals, you
cannot record the picture from the playing component on the recording
component. In addition, if the TV and a playing video component are
connected to the receiver through the different video terminals, you cannot
view the playback picture from the playing component on the TV.
DVD player
A
DVD player
DVD
TV and/or DBS tuner
When connecting the TV to the TV SOUND/DBS jacks, DO NOT
connect the TV’s video output to the video input terminal.
To audio
output
TV
C
B
RIGHT
TV SOUND
PHONO
/DBS
OUT
(REC)
VCR
(PLAY)
OUT
(REC)
TAPE
/MD
(PLAY)
CD
IN
IN
RIGHT LEFT
AUDIO
DIGITAL OUT
PCM / DOLBY DIGITAL
/ DTS
RIGHT
VIDEO
VIDEO
DVD
DBS
OUT
(REC)
VCR
IN
(PLAY)
MONITOR
OUT
LEFT
AUDIO
S-VIDEO
DVD
To composite video input
To S-video input (for better
playback picture quality)
AUDIO
VIDEO
DVD
DBS
OUT
(REC)
VCR
IN
(PLAY)
MONITOR
OUT
LEFT
DVD
S-VIDEO
RIGHT
VIDEO
Å To front left/right channel audio output (or to audio mixed
output if necessary)
ı To composite video output
Ç To S-video output (for better playback picture quality)
VCR
C
A
PHONO
CD
TV SOUND
/DBS
OUT
(REC)
VCR
IN
(PLAY)
OUT
(REC)
TAPE
/MD
IN
(PLAY)
B
RIGHT LEFT
AUDIO
DIGITAL 1
(DVD)
DIGITAL 2 (CD)
DIGITAL 3(DBS)
PCM / DOLBY DIGITAL
/ DTS
DIGITAL IN
DIGITAL OUT
PCM / DOLBY DIGITAL
/ DTS
VCR
RIGHT
VIDEO
VIDEO
DVD
DBS
OUT
(REC)
VCR
IN
(PLAY)
MONITOR
OUT
LEFT
AUDIO
S-VIDEO
DVD
E
DF
Å To left/right channel audio output
ı To left/right channel audio input
Ç To composite video output
Î To composite video input
‰ To S-video output (for better playback picture quality)
Ï To S-video input (for better picture recording quality)
Connect the TV to the MONITOR
OUT jack to view the playback
picture from the other connected
video components.
To audio
output
PHONO
CD
TV SOUND
/DBS
OUT
(REC)
VCR
IN
(PLAY)
OUT
(REC)
TAPE
/MD
IN
(PLAY)
RIGHT LEFT
DBS
AUDIO
PCM / DOLBY DIGITAL
DIGITAL OUT
/ DTS
RIGHT
VIDEO
VIDEO
DVD
DBS
OUT
(REC)
VCR
IN
(PLAY)
MONITOR
OUT
LEFT
AUDIO
S-VIDEO
DVD
DBS tuner
To composite video output
Note:
When connecting the DBS tuner to the TV SOUND/DBS jacks,
change the source name, which will be shown on the display when
selected as the source, to “DBS.” See page 11 for details.
If your audio components have an AV COMPU LINK terminal
See also page 27 for detailed information about the connection and
the AV COMPU LINK remote control system.
6
Digital connections
This receiver is equipped with one DIGITAL OUT terminal and
three DIGITAL IN terminals — one digital coaxial terminal and two
digital optical terminal.
You can connect any digital equipment such as DBS tuner, DVD
player, CD player, and MD recorder to one of the digital terminals
using a digital coaxial cable (not supplied) or digital optical cable
(not supplied).
IMPORTANT:
• When connecting the DVD player or the DBS tuner using the digital
terminal, you also need to connect it to the video jack on the rear.
Without connecting it to the video jack, you can view no playback
picture.
• After connecting the components using the DIGITAL IN terminals,
set the following correctly if necessary.
– Set the digital input (DIGITAL IN) terminal setting correctly. For
details, see “Digital Input (DIGITAL IN) Terminal Setting” on page
14.
– Select the digital input mode correctly. For details, see “Selecting
the Analog or Digital Input Mode” on page 14.
DVD player, etc
Connecting the Power Cord
English
Before plugging the receiver into an AC outlet, make sure that all
connections have been made.
Plug the power cord into an AC outlet.
Keep the power cord away from the
connecting cables and the antenna. The
power cord may cause noise or screen
interference. We recommend that you use a coaxial cable to connect
the antenna, since it is well-shielded against interference.
Note:
The preset settings such as preset channels and sound adjustment
may be erased in a few days in the following cases:
– When you unplug the power cord.
– When a power failure occurs.
CAUTIONS:
• Do not touch the power cord with wet hands.
• Do not pull on the power cord to unplug the cord. When unplugging
the cord, always grasp the plug so as not to damage the cord.
When the component has a digital
DVD
coaxial output terminal, connect it to
the DIGITAL 1 (DVD) terminal, using a
digital coaxial cable (not supplied).
DIGITAL 1
When the component has a digital
(DVD)
optical output terminal, connect it to
the DIGITAL 2 (CD) or DIGITAL 3
(DBS), using a digital optical cable
(not supplied).
Before connecting a digital
optical cable, unplug the
DIGITAL 2 (CD)
DIGITAL 3 (DBS)
PCM / DOLBY DIGITAL
/ DTS
DIGITAL IN
protective plug.
MD recorder, etc
When the digital recording
equipment such as an MD recorder
has a digital optical input terminal,
connecting it to the DIGITAL OUT
DIGITAL OUT
terminal enables you digital-todigital recording.
PCM / DOLBY DIGITAL
/ DTS
Notes:
• When shipped from the factory, the DIGITAL IN terminals has been
set for use with the following components.
– DIGITAL 1 (coaxial): For DVD player
– DIGITAL 2 (optical): For CD player
– DIGITAL 3 (optical): For DBS tuner
• When you want to operate the CD player or MD recorder using the
COMPU LINK remote control system, connect the target
component also as described in “Analog connections” (see page 5).
• When you want to operate the DVD player using the AV COMPU
LINK remote control system, connect the DVD player also as
described in “Analog connections” (see page 5).
Putting Batteries in the Remote Control
Before using the remote control, put two supplied batteries first.
When using the remote control, aim the remote control directly at
the remote sensor on the receiver.
1
2
3
1. On the back of the remote control, remove the
battery cover.
2. Insert batteries. Make sure to match the polarity:
(+) to (+) and (–) to (–).
3. Replace the cover.
If the range or effectiveness of the remote control decreases, replace
the batteries. Use two R6P(SUM-3)/AA(15F) type dry-cell batteries.
CAUTION:
Follow these precautions to avoid leaking or cracking cells:
• Place batteries in the remote control so they match the polarity: (+)
to (+) and (–) to (–).
• Use the correct type of batteries. Batteries that look similar may
differ in voltage.
• Always replace both batteries at the same time.
• Do not expose batteries to heat or flame.
7
Basic Operations
The following operations are commonly used when you play any sound source.
English
Turning the Power On and Off (Standby)
On the front panel:
To turn on the power, press POWER.
The STANDBY lamp goes off. The name of the
current source (or station frequency) appears on
the display.
Current source name appears
Current volume level is shown here
To turn off the power (into standby mode),
press POWER again.
The STANDBY lamp lights up. A small amount
of power is consumed in standby mode. To turn
the power off completely, unplug the AC power
cord.
From the remote control:
To turn on the power, press AUDIO POWER.
The STANDBY lamp goes off. The name of the
current source (or station frequency) appears on
the display.
To turn off the power (into standby mode),
press AUDIO POWER again.
The STANDBY lamp lights up.
Selecting the Source to Play
Press one of the source selecting buttons.
On the front panel:
STANDBY
POWER
POWER
AUDIO
STANDBY
Selected source name appears
DVD Select the DVD player for viewing the stereo
digital video disc.
TV SOUND/DBS Select the TV sound (or the DBS tuner).
VCR Select the video component connected to the
VCR jacks.
CD * Select the CD player.
TAPE/MD * Select the cassette deck (or the MD recorder).
PHONO * Select the turntable.
FM/AM * Select an FM or AM broadcast.
• Each time you press the button, the band
alternates between FM and AM.
Notes:
• When connecting an MD recorder (to the TAPE/MD jacks) or a DBS
tuner (to the TV SOUND/DBS jacks), change the source name that
appears on the display. See page 11 for details.
• When you press one of the source selecting buttons on the remote
control marked above with an asterisk (*), the receiver
automatically turns on.
Signal and speaker indicators on the display
• The signal indicators light up to indicate the incoming channel
signals.
– Only the indicators for the incoming signals light up. (When
analog input is selected, “L” and “R” always light up.)
• The frame of the signal indicator (except for “LFE”: See notes
below) lights up if the corresponding speaker is set to “LARGE”
or “SMALL” (for subwoofer, “YES”).
DVD
CD
TV SOUND/DBS
SOURCE NAME
TAPE/MD
SOURCE NAME
From the remote control:
TV SOUND/ DBS
DVD
CD
TAPE/MD FM/AM
VCR
8
VCR
PHONO
PHONO
FM/AM
C
L
LS
R
LFESUBWFR
S
RS
L: Light up when the left front channel signal comes in.
The frame of this signal indicator always lights up.
R: Light up when the right front channel signal comes in.
The frame of this signal indicator always lights up.
C: Light up when the center channel signal comes in.
LS: Light up when the left rear channel signal comes in.
RS: Light up when the right rear channel signal comes in.
S: Light up when the monaural rear channel signal comes in.
LFE: Light up when the LFE channel signal comes in.
Notes:
• When the
• When “SUBWOOFER” is set to “YES,” (See page 15)
lights up.
LFE
channel signal comes in, “LFE” lights up.
SUBWFR
Selecting different sources for picture and sound
You can watch picture from a video component while listening to
sound from another component. Press one of the audio source
selecting buttons (CD, TAPE/MD, PHONO, FM/AM, TV
SOUND*), while viewing the picture from a video component such
as the VCR or DVD player, etc.
On the front panel:
TV SOUND/DBS
CD
SOURCE NAME
TAPE/MD PHONO
SOURCE NAME
FM/AM
From the remote control:
TV SOUND/ DBS
Selecting the Front Speakers
On the front panel ONLY:
When you have connected two pairs of the front
speakers, you can select which to use. Pressing
SPEAKERS 1 or SPEAKERS 2 activates the
respective set of speakers.
• To use the speakers connected to the FRONT SPEAKERS 1
terminals, press SPEAKERS 1 to set it in the _ ON position, and
press SPEAKERS 2 to set it in the — OFF position.
• To use the speakers connected to the FRONT SPEAKERS 2
terminals, press SPEAKERS 2 to set it in the _ ON position, and
press SPEAKERS 1 to set it in the — OFF position.
• To use both sets of the speakers, press SPEAKERS 1 and
SPEAKERS 2 to set them in the _ ON position.
• To use neither set of the speakers, press SPEAKERS 1 and
SPEAKERS 2 to set them in the — OFF position.
SPEAKERS
12
_ ON — OFF
English
CD
TAPE/MD FM/AM
PHONO
Notes:
• Once you have selected a video source, pictures of the selected
source are sent to the TV until you select another video source.
*
Except when your TV is connected through the AV COMPU LINK
remote control system (see page 27).
Adjusting the Volume
On the front panel:
To increase the volume, turn MASTER
VOLUME clockwise.
To decrease the volume, turn it
counterclockwise.
• When you turn MASTER VOLUME rapidly,
the volume level also changes rapidly.
• When you turn MASTER VOLUME slowly,
the volume level also changes slowly.
From the remote control:
To increase the volume, press VOLUME +.
To decrease the volume, press VOLUME –.
CAUTION:
Always set the volume to the minimum before starting any source. If
the volume is set at its high level, the sudden blast of sound energy
can permanently damage your hearing and/or ruin your speakers.
MASTER VOLUME
–
VOLUME
Note:
When only one set of the speakers is connected to either the FRONT
SPEAKERS 1 or 2 terminals, do not activate both pairs of the
speakers. If you do, no sound comes out of the front speakers.
Listening only with headphones
1. Connect a pair of headphones to the PHONES jack on the front
panel.
2. Press SPEAKERS 1 and SPEAKERS 2 to set them in the —
OFF position.
CAUTION:
Be sure to turn down the volume before connecting or putting on the
headphones, as high volume can damage both the headphones and
your hearing.
+
Note:
You cannot shut off the sound through the other speakers using the
SPEAKERS 1 and 2 buttons.
Muting the Sound
From the remote control ONLY:
Press MUTING to mute the sound through all
speakers and headphones connected.
“MUTING” appears on the display and the
volume turns off (the volume level indicator goes
off).
MUTING
Note:
The volume level can be adjusted within the range of “0” (minimum) to
“80” (maximum).
To restore the sound, press MUTING again so that “OFF” appears
on the display.
• Turning MASTER VOLUME or pressing VOLUME +/– also
restores the sound.
9
Adjusting the Subwoofer Output Level
English
You can adjust the subwoofer output level if you have selected
“YES” for the “SUBWOOFER” (see page 15).
Once it has been adjusted, the receiver memorizes the adjustment.
Before y ou start, remember...
• There is a time limit in doing the following steps. If the setting is
canceled before you finish, start from step 1 again.
On the front panel:
1. Press ADJUST repeatedly until
“SUBWFR LEVEL” appears on
the display.
• Once you have pressed ADJUST, MULTI CURSOR % / fi
can be also used for selecting “SUBWFR LEVEL.”
• The display changes to show the current setting.
2. Press MULTI CURSOR @ / # to
adjust the subwoofer output level
(–10 dB to +10 dB).
ADJUST
MULTI CURSOR
Reinforcing the Bass
With this Bass Boost function, you can boost the bass level.
Before y ou start, remember...
• There is a time limit in doing the following steps. If the setting is
canceled before you finish, start from step 1 again.
On the front panel ONLY:
1. Press ADJUST repeatedly until
ADJUST
“BASSBOOST” (with the current
setting) appears on the display.
• Once you have pressed ADJUST, MULTI CURSOR % / fi
also can be used for selecting “BASSBOOST.”
2. Press MULTI CURSOR @ / # to
MULTI CURSOR
switch this function “ON” or
“OFF.”
• When this function is switched “ON,” the
BASS BOOST indicator on the display
lights up.
From the remote control:
SOUND
1. Press SOUND.
The 10 keys are activated for sound adjustments.
2. Press SUBWOOFER –/+ to adjust
the subwoofer output level (–10 dB
SUBWOOFER
1
2
to +10 dB).
Attenuating the Input Signal
When the input level of the playing source is too high, the sounds
will be distorted. If this happens, you need to attenuate the input
signal level to prevent the sound distortion.
On the front panel ONLY:
Press and hold INPUT ATT. (ONE TOUCH
OPERRATION) so that the ATT indicator
lights up on the display.
• Each time you press and hold the button, the
Input Attenuator mode turns on (“INPUT ATT
ON”) or off (“INPUT NORMAL”).
Notes:
• This function is available only for the sources connected using the
analog terminals.
• This function does not take effect when digital input is selected.
ONE TOUCH OPERATION/
INPUT ATT .
Note:
The Bass Boost function affects the front speaker sounds only.

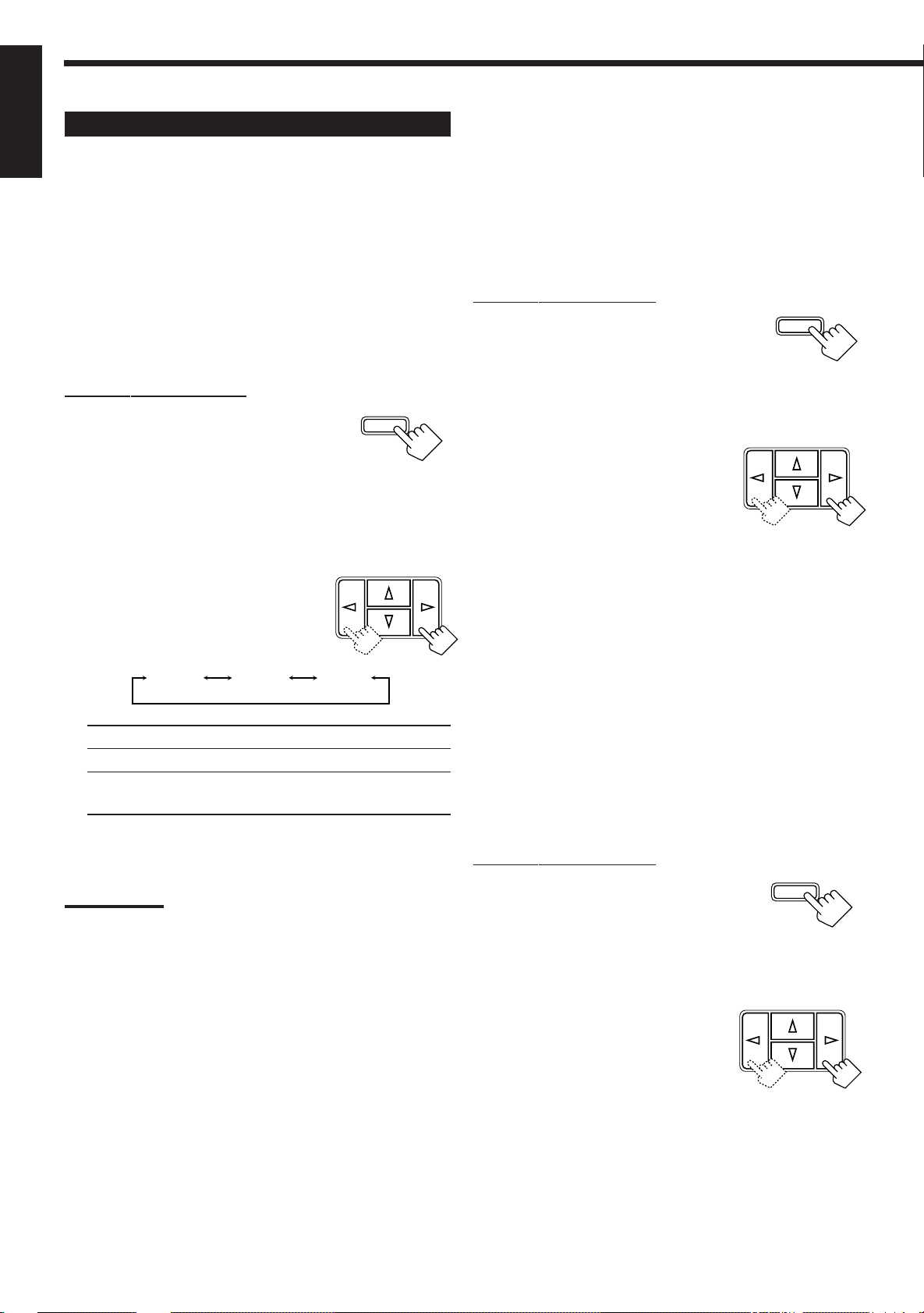

Adjusting the Tone
You can adjust the treble and bass sounds as you like.
Before y ou start, remember...
• There is a time limit in doing the following steps. If the setting is
canceled before you finish, start from step 1 again.
On the front panel ONLY:
1. Press ADJUST repeatedly until
ADJUST
“BASS” or “TREBLE” appears on
the display.
• Once you have pressed ADJUST, MULTI CURSOR % / fi
can be also used for selecting “BASS” or “TREBLE.”
• Select “BASS” to adjust the bass sound level.
• Select “TREBLE” to adjust the treble sound level.
2. Press MULTI CURSOL @ / # to
MULTI CURSOR
adjust the bass or treble sound
level within the range of –10 to
+10.
• Each time you press the button, the sound
level changes by ± 2 steps.
10
Loading...
