JVC RX-6012RSL, RX-6010RBK User Manual

AUDIO/VIDEO CONTROL RECEIVER

RX-6010RBK / RX-6012RSL

SLEEP

VCR

SURROUND

– SUBWOOFER +TEST

SURROUND

EFFECT

– CENTER +

MODE

– REAR•L + – VCR CH +

SOUND

7/P

CD-DISC

TV/VIDEO

– REAR•R +

DVD

TV SOUND

VCR

TAPE/CDR

TV VOL

VOLUME

–

PTY SEARCH

TV CH

–

DISPLAY

PTY –

RM-SRX6010R

REMOTE CONTROL

A/V CONTROL RECEIVER

AUDIO

ANALOG/DIGITAL

FM/AM

MUTING

+10

ENTER

+ PTY

PHONES

STANDBY

STANDBY/ON

FM/AM TUNING

DIGITAL

SURROUND

SURROUND ON/OFF

DSP MODE

FM/AM PRESET FM MODE

DIGITAL

INPUT ATT

SPEAKERS ON/OFF

MEMORY

INPUT DIGITALINPUT ANALOG

AUDIO/VIDEO CONTROL RECEIVER

DVD VCR TV SOUND

CD TAPE/CDR

SOURCE NAME

FM/AM

ADJUST

DOWN UP

CONTROL

EON

PTY SEARCH TA/NEWS/INFO

DISPLAY MODE

MASTER VOLUME

SETTING

DIGITAL

INSTRUCTIONS

For Customer Use:

Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference.

Model No. Serial No.

LVT0578-005A

[B]

Warnings, Cautions and Others

IMPORTANT for the U.K. DO NOT cut off the mains plug from this equipment. If the plug

fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.

BE SURE to replace the fuse only with an identical approved type, as originally fitted.

If nonetheless the mains plug is cut off ensure to remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply.

If this product is not supplied fitted with a mains plug then follow the instructions given below:

IMPORTANT. DO NOT make any connection to the terminal which is marked

with the letter E or by the safety earth symbol or coloured green or green-and-yellow.

The wires in the mains lead on this product are coloured in accordance with the following code:

Blue : Neutral Brown : Live

As these colours may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IF IN DOUBT - CONSULT A COMPETENT ELECTRICIAN.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1. Do not remove screws, covers or cabinet.

2. Do not expose this appliance to rain or moisture.

Caution –– switch!

Disconnect the mains plug to shut the power off completely. The switch in any position does not disconnect the mains line. The power can be remote controlled.

CAUTION

• Do not block the ventilation openings or holes. (If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

• Do not place any naked flame sources, such as lighted candles, on the apparatus.

• When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

• Do not use this apparatus in a bathroom or places with water. Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups, etc.) on top of this apparatus.

G-1

SAFETY INSTRUCTIONS

“SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT”

This equipment has been designed and manufactured to meet international safety standards b ut, like any electrical equipment, care m ust be taken if you are to obtain the best results and safety is to be assured.

Do read the operating instructions before you attempt to use the equipment. Do ensure that all electrical connections (including the mains plug, extension leads and interconnections between pieces of equipment) are

properly made and in accordance with the manufacturer’s instructions. Switch off and withdraw the mains plug when making or changing connections.

Do consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment. Do be careful with glass panels or doors on equipment.

DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in any wa y–s witch off, withdr aw the mains plug and consult your dealer.

DON’T remove any fixed cover as this may expose dangerous voltages. DON’T leave equipment s witched on when it is unattended unless it is specifically stated that it is designed for unattended operation or has

a standby mode. Switch off using the switch on the equipment and make sure that your family know how to do this.

Special arrangements may need to be made for infirm or handicapped people. DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements of traffic saf ety . It is illegal to watch

television whilst driving. DON’T listen to headphones at high volume as such use can permanently damage your hearing. DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings. Overheating will cause damage and shorten the life of the equipment. DON’T use makeshift stands and NEVER fix legs with wood screws — to ensure complete safety always fit the manufacturer’s approved

stand or legs with the fixings provided according to the instructions. DON’T allow electrical equipment to be exposed to rain or moisture. ABOVE ALL

— NEVER let anyone, especially children, push anything into holes, slots or any other opening in the case -this could result in a fatal

electrical shock.;

— NEVER guess or take chances with electrical equipment of any kind — it is better to be safe than sorry!

Caution: Proper Ventilation

To avoid risk of electric shock and fire and to protect from damage. Locate the apparatus as follows: Front: No obstructions open spacing. Sides: No obstructions in 10 cm from the sides. Top: No obstructions in 10 cm from the top. Back: No obstructions in 15 cm from the back Bottom: No obstructions, place on the level surface. In addition, maintain the best possible air circulation as illustrated.

Wall or obstructions

Spacing 15 cm or more

RX-6010RBK/ RX-6012RSL

Front

Stand height 15 cm or more

Floor

G-2

Parts Identification ...................................... 2

Getting Started ........................................... 3

Before Installation ...................................................................... 3

Checking the Supplied Accessories ........................................... 3

Connecting the FM and AM (MW/LW) Antennas..................... 3

Connecting the Speakers ............................................................ 4

Connecting Audio/Video Components....................................... 5

Connecting the Power Cord ....................................................... 7

Putting Batteries in the Remote Control .................................... 7

Basic Operations ......................................... 8

Turning the Power On and Off (Standby) .................................. 8

Selecting the Source to Play....................................................... 8

Adjusting the Volume ................................................................. 9

Listening Only with Headphones............................................... 9

Muting the Sound ....................................................................... 9

Adjusting the Subwoofer Output Level.................................... 10

Attenuating the Input Signal .................................................... 10

Adjusting the Tone ................................................................... 10

Basic Settings ........................................... 11

Recording a Source .................................................................. 11

Adjusting the Front Speaker Output Balance........................... 11

Setting the Subwoofer Information .......................................... 11

Changing the Source Name...................................................... 11

Setting the Speakers for the DSP Modes ................................. 12

Digital Input (DIGITAL IN) Terminal Setting ......................... 14

Selecting the Analog or Digital Input Mode ............................ 14

Storing the Basic Settings and Adjustments............................. 15

Using the Sleep Timer.............................................................. 15

Receiving Radio Broadcasts ........................ 16

Tuning in Stations Manually .................................................... 16

Using Preset Tuning ................................................................. 16

Selecting the FM Reception Mode........................................... 17

Using the RDS (Radio Data System) to Receive FM Stations ..

Searching for a Program by PTY Codes .................................. 18

Switching to a Broadcast Program of

Your Choice Temporarily................................................... 19

Using the DSP Modes ................................ 21

What are the DSP Modes? ....................................................... 21

Reproducing the Sound Field................................................... 22

Available DSP Modes According to the Speak er Arrangement .. 23

Adjusting the Surround Modes ................................................ 24

Adjusting the DAP Modes ....................................................... 26

Activating the DSP Modes....................................................... 27

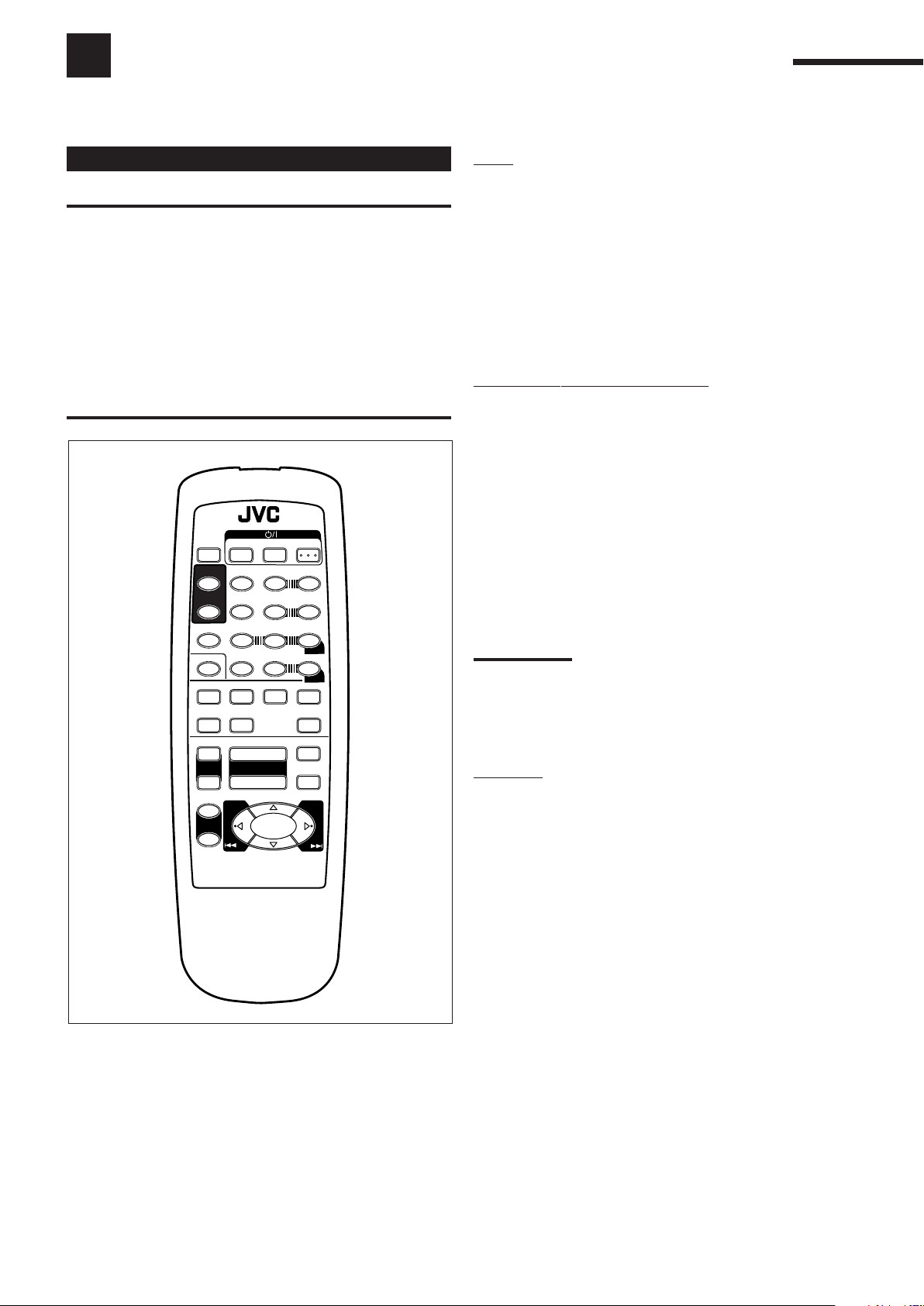

COMPU LINK Remote Control System ......... 28

Operating JVC’s Audio/Video Components ... 29

Operating Audio Components .................................................. 29

Operating Video Components .................................................. 30

Troubleshooting ......................................... 31

Specifications ............................................ 32

Parts Identification

Become familiar with the buttons and controls on the receiver before use. Refer to the pages in parentheses for details.

12345 6 78

FM/AM TUNING

DIGITAL

SURROUND

SURROUND ON/OFF

DSP MODE

FM/AM PRESET FM MODE

MEMORY

DIGITAL

INPUT ATT

SPEAKERS ON/OFF

STANDBY

STANDBY/ON

PHONES

pq ewr

SLEEP

VCR

AUDIO

5 6

7 8

SURROUND

MODE

SOUND

TV/VIDEO CD-DISC

DVD

TV VOL

–

TV CH

–

A/V CONTROL RECEIVER

– SUBWOOFER +TEST

EFFECT

– CENTER +

– REAR•L + – VCR CH +

7/P

– REAR•R +

TV SOUND

VCR

TAPE/CDR

VOLUME

–

PTY SEARCH

PTY –

DISPLAY

RM-SRX6010R

REMOTE CONTROL

+10

ENTER

ANALOG/DIGITAL

FM/AM

MUTING

+ PTY

AUDIO/VIDEO CONTROL RECEIVER

EON

INPUT DIGITALINPUT ANALOG

tyi

DVD VCR TV SOUND

CD TAPE/CDR

SOURCE NAME

FM/AM

Remote Control

1 (standby/on) buttons (8, 30)

TV, VCR, AUDIO

2 SLEEP button (15) 3 SURROUND button (24, 27, 29) 4 SURROUND MODE button

(25 – 27, 29)

5 SOUND button (10, 24 – 26, 29) 6 TV/VIDEO button (30)

7 CD-DISC button (30) 8 Source selecting buttons (8, 9, 15)

DVD, TV SOUND, VCR, CD,

TAPE/CDR, FM/AM

9 TV VOL +/– buttons (30) p TV CH +/– buttons (30) q • 10 keys for selecting preset channels

(17)

• 10 keys for adjusting sound (24 – 26, 29)

• 10 keys for operating audio/video components (29, 30)

w ANALOG/DIGITAL button (15) e MUTING button (9) r VOLUME +/– buttons (9) t • RDS operation buttons (18, 19)

PTY SEARCH, PTY +/–, DISPLAY

• Operating buttons for audio/video components (29, 30)

ADJUST SETTING

CONTROL

DOWN UP

Front Panel

1 STANDBY/ON button and

STANDBY lamp (8)

2 FM/AM TUNING 5/∞ buttons (16) 3 FM/AM PRESET 5/∞ buttons (16, 17) 4 FM MODE button (17) 5 MEMORY button (16) 6 Display (8) 7 ADJUST button (10, 11, 24 – 26) 8 Remote sensor (7) 9 RDS operation buttons (18, 19)

EON, PTY SEARCH, TA/NEWS/INFO, DISPLAY MODE

p PHONES jack (9) q SURROUND ON/OFF button (24, 27) w DSP MODE button (25 – 27) e SPEAKERS ON/OFF button (9) r INPUT ANALOG button (15)

INPUT ATT button (10)

t INPUT DIGITAL button (14) y Source selecting buttons (8, 9, 14)

DVD, VCR, TV SOUND, CD, TAPE/CDR, FM/AM

u SOURCE NAME button (11)

TAPE/CDR button also functions as

the SOURCE NAME button.

i CONTROL UP 5/DOWN ∞ buttons o SETTING button (11 – 14) ; MASTER VOLUME control (9)

TA/NEWS/INFO

;

DISPLAY MODEPTY SEARCH

MASTER VOLUME

Getting Started

This section explains how to connect audio/video components and speakers to the receiver, and how to connect the power supply.

Before Installation

General

• Be sure your hands are dry.

• Turn the power off to all components.

• Read the manuals supplied with the components you are going to connect.

Locations

• Install the receiver in a location that is level and protected from moisture.

• The temperature around the receiver must be between –5˚C and 35˚C (23˚F and 95˚F).

• Make sure there is good ventilation around the receiver. Poor ventilation could cause overheating and damage the receiver.

Handling the receiver

• Do not insert any metal object into the receiver.

• Do not disassemble the receiver or remove screws, covers, or cabinet.

• Do not expose the receiver to rain or moisture.

Checking the Supplied Accessories

Check to be sure you have all of the following items, which are supplied with the receiver. The number in the parentheses indicates the quantity of the pieces supplied.

• Remote Control (1)

• Batteries (2)

• AM (MW/LW) Loop Antenna (1)

• FM Antenna (1)

If anything is missing, contact your dealer immediately.

Connecting the FM and AM (MW/LW) Antennas

FM Antenna Connections

LOOP

ANTENNA

FM 75

COAXIAL

AM EXT

FM Antenna

LOOP

ANTENNA

Extend the supplied FM antenna horizontally.

FM 75

COAXIAL

Outdoor FM Antenna Cable

EXT

A. Using the Supplied FM Antenna

The FM antenna provided can be connected to the FM 75 Ω COAXIAL terminal as temporary measure.

B. Using the Standard Type Connector (Not Supplied)

A standard type connector (IEC or DIN45325) should be connected to the FM 75 Ω COAXIAL terminal.

Note:

If reception is poor, connect an outdoor antenna. Before attaching a 75 going to an outdoor antenna), disconnect the supplied FM antenna.

Ω

coaxial cable (the kind with a round wire

ANTENNA

LOOP

FM 75

COAXIAL

AM EXT

AM (MW/LW) Antenna Connections

Basic connecting procedure

ANTENNA

FM 75

COAXIAL

LOOP

AM EXT

Snap the tabs on the loop into the slots of the base to assemble the AM (MW/L W) loop.

AM (MW/LW) Loop Antenna

Outdoor single vinyl-covered wire (not supplied)

Turn the loop until you have the best reception.

1 Cut, twist and remove the insulation at the end of

each speaker signal cable (not supplied).

2 Open the terminal and then insert the speaker

signal cable.

3 Close the terminal.

Connecting the front speakers

Connect front speakers to the FRONT SPEAKERS terminals.

FRONT

SPEAKERS

RIGHT LEFT

Left speaker Right speaker

Notes:

• If the AM (MW/LW) loop antenna wire is covered with

vinyl, remove the vinyl by twisting it as shown in the diagram.

• Make sure the antenna conductors do not touch any

other terminals, connecting cords and power cord. This could cause poor reception.

• If reception is poor, connect an outdoor single vinyl-covered wire to

the AM EXT terminal. (Keep the AM (MW/LW) loop antenna connected.)

Connecting the Speakers

You can connect the following speakers:

• One pair of front speakers to produce normal stereo sound.

• One pair of rear speakers to enjoy the surround effect.

• One center speaker to produce more effective surround effect (to emphasize human voices).

• One subwoofer to enhance the bass.

IMPORTANT:

After connecting the speakers listed above, set the speaker setting information properly to obtain the best possible DSP effect. For details, see page 12.

For each speaker (except for a subwoofer), connect the (+) and (–) terminals on the rear panel to the (+) and (–) terminals marked on the speakers. For connecting a subwoofer, see page 5.

Connecting the rear and center speakers

Connect rear speakers to the REAR SPEAKERS terminals and a center speaker to the CENTER SPEAKER terminals.

REAR

SPEAKERS

RIGHT LEFT

Center speaker

Left rear

speaker

Right rear

speaker

CENTER

SPEAKER

CAUTION:

Use speakers with the SPEAKER IMPEDANCE indicated by the speaker terminals.

Connecting the subwoofer speaker

You can enhance the bass by connecting a subwoofer. Connect the input jack of a powered subwoofer to the SUBWOOFER OUT jack on the rear panel, using a cable with RCA pin plugs (not supplied).

SUBWOOFER

Powered subwoofer

OUT

Connecting Audio/Video Components

You can connect the following audio/video components to this receiver. Refer also to the manuals supplied with your components.

Audio Components Video Components

• CD player* • DVD player*

• Cassette deck • TV* or CD recorder* • VCR

You can connect these components using the methods described in “Analog connections” (below) or in “Digital connections” (see page

7).

Cassette deck or CD recorder

Cassette deck

To audio input

PHONO

OUT

(REC)

TAPE

CDR

(PLAY)

OUT

(REC)

VCR

(PLAY)

TV SOUND

CD recorder

To audio output

RIGHT LEFT

AUDIO

To audio outputTo audio input

Analog connections

Audio component connections

Use the cables with RCA pin plugs (not supplied). Connect the white plug to the audio left jack, and the red plug to the audio right jack.

CAUTION:

If you connect a sound-enhancing device such as a graphic equalizer between the source components and this receiver, the sound output through this receiver may be distorted.

CD player

OUT

(REC)

To audio output

TAPE

CDR

(PLAY)

OUT

(REC)

VCR

(PLAY)

Note:

You can connect either a cassette deck or a CD recorder to the TAPE/ CDR jacks. When connecting a CD recorder to the TAPE/CDR jacks, change the source name, which will be shown on the display when selected as the source, to “CDR.” See page 11 for details.

If your audio components have a COMPU LINK jack

See also page 28 for detailed information about the connection and the COMPU LINK remote control system.

TV SOUND

RIGHT LEFT

AUDIO

Video component connections

Use the cables with RCA pin plugs (not supplied). Connect the white plug to the audio left jack, the red plug to the audio right jack, and the yellow plug to the video jack.

To audio output

OUT

(REC)

TAPE

CDR

(PLAY)

OUT

(REC)

VCR

(PLAY)

TV SOUND

RIGHT LEFT

AUDIO

MONITOR

OUT

DVD

OUT

(REC)

VCR

(PLAY)

VIDEO

To video input

Connect the TV to the MONITOR OUT jack to view the playback picture from the other connected video components.

DVD player



RIGHT

DVD player

DVD

MONITOR

OUT

LEFT

DVD

OUT

(REC)

VCR

(PLAY)

VIDEO

DVD

AUDIO

Å To front left/right channel audio output (or to audio mixed

output if necessary)

ı To video output

Note:

To enjoy the software encoded with Dolby Digital or DTS Digital Surround, you must connect the DVD player using the digital terminal on the rear of this receiver. (See “Digital connections” on page 7.)

VCR

OUT

(REC)

TAPE

CDR

(PLAY)

OUT

(REC)

VCR

(PLAY)

TV SOUND

RIGHT LEFT

AUDIO

MONITOR

Å To left/right channel audio output ı To left/right channel audio input Ç To video output Î To video input

OUT

DVD

OUT

(REC)

VCR

(PLAY)

VIDEO

Digital connections

This receiver is equipped with two DIGITAL IN terminals — one digital coaxial terminal and one digital optical terminal. You can connect any component to one of the digital terminals using a digital coaxial cable (not supplied) or digital optical cable (not supplied).

IMPORTANT:

• When connecting the DVD player or digital TV broadcast tuner using the digital terminal, you also need to connect it to the video jack on the rear. Without connecting it to the video jack, you can view no playback picture.

• After connecting the components using the DIGITAL IN terminals, set the following correctly if necessary. – Set the digital input (DIGITAL IN) terminal setting correctly. For

details, see “Digital Input (DIGITAL IN) Terminal Setting” on page

14.

– Select the digital input mode correctly. For details, see “Selecting

the Analog or Digital Input Mode” on page 14.

Digital TV

DVD player

DVD

CD player CD recorder

Connecting the Power Cord

Before plugging the receiver into an AC outlet, make sure that all connections have been made.

Plug the power cord into an AC outlet.

Keep the power cord away from the connecting cables and the antenna. The power cord may cause noise or screen interference. We recommend that you use a coaxial cable to connect the antenna, since it is well-shielded against interference.

Note:

The preset settings such as preset channels and sound adjustment may be erased in a few days in the following cases:

–When you unplug the power cord. –When a power failure occurs.

CAUTIONS:

• Do not touch the power cord with wet hands.

• Do not pull on the power cord to unplug the cord. When unplugging the cord, always grasp the plug so as not to damage the cord.

Putting Batteries in the Remote Control

Before using the remote control, put two supplied batteries first. When using the remote control, aim the remote control directly at the remote sensor on the receiver.

When the component has a digital coaxial output terminal, connect it to the DIGITAL 1 (DVD) terminal, using the digital coaxial cable (not supplied).

DIGITAL 1

When the component has a digital

(DVD)

optical output terminal, connect it to the DIGITAL 2 (CD) terminal, using the digital optical cable (not supplied).

DIGITAL 2 ( CD )

Before connecting a digital optical cable, unplug the

DIGITAL IN

protective plug.

Notes:

• When shipped from the factory, the DIGITAL IN terminals have been set for use with the following components. – DIGITAL 1 (coaxial): For DVD player – DIGITAL 2 (optical): For CD player

• When you want to operate the CD player or CD recorder using the COMPU LINK remote control system, connect the target component also as described in “Analog connections” (see page 5).

1. On the back of the remote control, remove the battery cover.

2. Insert batteries. Make sure to match the polarity: (+) to (+) and (–) to (–).

3. Replace the cover.

If the range or effectiveness of the remote control decreases, replace the batteries. Use two R6P(SUM-3)/AA(15F) type dry-cell batteries.

CAUTION:

Follow these precautions to avoid leaking or cracking cells:

• Place batteries in the remote control so they match the polarity: (+)

to (+) and (–) to (–).

• Use the correct type of batteries. Batteries that look similar may

differ in voltage.

• Always replace both batteries at the same time.

• Do not expose batteries to heat or flame.

Basic Operations

The following operations are commonly used when you play any sound source.

Turning the Power On and Off (Standby)

On the front panel:

To turn on the power, press STANDBY/ON

. The STANDBY lamp goes off. The name of the current source (or station frequency) appears on the display.

Current source name appears

SPK

ANALOG

Current volume level is shown here

To turn off the power (into standby mode),

press STANDBY/ON

again. The STANDBY lamp lights up. A small amount of power is consumed in standby mode. To turn the power off completely, unplug the AC power cord.

From the remote control:

To turn on the power, press AUDIO in the

(standby/on) section. The STANDBY lamp goes off. The name of the current source (or station frequency) appears on the display.

STANDBY

STANDBY/ON

VOLUME

STANDBY

STANDBY/ON

AUDIO

Selected source name appears

DIGITAL AUT O

ANALOG

LINEAR PCM

DIGITAL

SPK

PRO LOGIC DSP H.PHONE AUTO MUTING TUNED STEREO TA NEWS INFO

S.WFR

LFE

LS RS

CH-

INPUT ATT EON RDS SLEEP

VOLUME

DVD Select the DVD player. TV SOUND Select the TV sound. VCR Select the video component connected to the

VCR jacks.

CD * Select the CD player. TAPE/CDR * Select the cassette deck (or the CD recorder). FM/AM * Select an FM or AM (MW/LW) broadcast.

• Each time you press the button, the band alternates between FM and AM (MW/LW).

Notes:

• When connecting a CD recorder (to the TAPE/CDR jacks), change the source name that appears on the display. See page 11 for details.

• When you have connected some digital source components using the digital terminals (see page 7), you need to select the digital input mode.

• When you press one of the source selecting buttons on the remote control marked above with an asterisk (*), the receiver automatically turns on.

To turn off the power (into standby mode),

press AUDIO in the

(standby/on) section again. The STANDBY lamp lights up.

Selecting the Source to Play

Press one of the source selecting buttons.

On the front panel:

DVD VCR TV SOUND

CD TAPE/CDR

SOURCE NAME

From the remote control:

DVD

TV SOUND

VCR

TAPE/CDR

FM/AM

Signal and speaker indicators on the display

The signal indicators light up in the following cases:

• Only the indicators for the incoming signals light up.

• When analog input is selected, “L” and “R” always light up.

The speaker indicators light up only —:

• When the corresponding speaker is activated.

AND

• When the corresponding speaker is required for the DSP mode selected currently.

Signal indicators light up in red:

RCL

S.WFR

LS RSS

LFE

Speaker indicators light up in white:

RCL

S.WFR

LS RSS

LFE

L:•When digital input is selected: Lights up when the left

channel signal comes in.

• When analog input is selected: Always lights up.

R:•When digital input is selected: Lights up when the right

channel signal comes in.

• When analog input is selected: Always lights up.

C: Lights up when the center channel signal comes in. LS: Lights up when the left rear channel signal comes in. RS: Lights up when the right rear channel signal comes in. S: Lights up when the monaural rear channel signal comes in. LFE: Lights up when the LFE channel signal comes in.

Note:

When “SUBWOOFER” is set to “YES” (see page 11),

S.WFR

lights up.

+ 25 hidden pages

JVC RX-6012RSL, RX-6010RBK User Manual

Warnings, Cautions and Others

SAFETY INSTRUCTIONS

Table of Contents

Parts Identification

Getting Started

Basic Operations
