JVC RX-6012R User Manual
AUDIO/VIDEO CONTROL RECEIVER
RX-6010RBK / RX-6012RSL
TV
SLEEP
VCR
SURROUND
– SUBWOOFER +TEST
1
SURROUND
EFFECT
– CENTER +
MODE
54
5
– REAR•L + – VCR CH +
SOUND
7/P
CD-DISC
TV/VIDEO
– REAR•R +
10
DVD
TV SOUND
VCR
CD
TAPE/CDR
+
+
TV VOL
VOLUME
–
–
£
PTY SEARCH
1
+
TV CH
–
7
DISPLAY
PTY –
RM-SRX6010R
REMOTE CONTROL
A/V CONTROL RECEIVER
AUDIO
5
5
ANALOG/DIGITAL
FM/AM
MUTING
32
6
5
98
MENU
+10
ENTER
8
1
+ PTY
PHONES
STANDBY
STANDBY/ON
FM/AM TUNING
DIGITAL
SURROUND
SURROUND ON/OFF
DSP MODE
FM/AM PRESET FM MODE
DIGITAL
INPUT ATT
SPEAKERS ON/OFF
MEMORY
INPUT DIGITALINPUT ANALOG
AUDIO/VIDEO CONTROL RECEIVER
DVD VCR TV SOUND
CD TAPE/CDR
SOURCE NAME
FM/AM
ADJUST
DOWN UP
CONTROL
EON
PTY SEARCH TA/NEWS/INFO
DISPLAY MODE
MASTER VOLUME
SETTING
DIGITAL
INSTRUCTIONS
For Customer Use:
Enter below the Model No. and Serial
No. which are located either on the rear,
bottom or side of the cabinet. Retain this
information for future reference.
Model No.
Serial No.
LVT0578-005A
[B]
Warnings, Cautions and Others
IMPORTANT for the U.K.
DO NOT cut off the mains plug from this equipment. If the plug
fitted is not suitable for the power points in your home or the
cable is too short to reach a power point, then obtain an
appropriate safety approved extension lead or consult your
dealer.
BE SURE to replace the fuse only with an identical approved
type, as originally fitted.
If nonetheless the mains plug is cut off ensure to remove the
fuse and dispose of the plug immediately, to avoid a possible
shock hazard by inadvertent connection to the mains supply.
If this product is not supplied fitted with a mains plug then follow
the instructions given below:
IMPORTANT.
DO NOT make any connection to the terminal which is marked
with the letter E or by the safety earth symbol or coloured green
or green-and-yellow.
The wires in the mains lead on this product are coloured in
accordance with the following code:
Blue : Neutral
Brown : Live
As these colours may not correspond with the coloured
markings identifying the terminals in your plug proceed as
follows:
The wire which is coloured blue must be connected to the
terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red.
IF IN DOUBT - CONSULT A COMPETENT ELECTRICIAN.
CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1. Do not remove screws, covers or cabinet.
2. Do not expose this appliance to rain or moisture.
Caution –– switch!
Disconnect the mains plug to shut the power off completely.
The switch in any position does not disconnect the mains
line. The power can be remote controlled.
CAUTION
• Do not block the ventilation openings or holes.
(If the ventilation openings or holes are blocked by a
newspaper or cloth, etc., the heat may not be able to get
out.)
• Do not place any naked flame sources, such as lighted
candles, on the apparatus.
• When discarding batteries, environmental problems must
be considered and local rules or laws governing the
disposal of these batteries must be followed strictly.
• Do not use this apparatus in a bathroom or places with
water. Also do not place any containers filled with water or
liquids (such as cosmetics or medicines, flower vases,
potted plants, cups, etc.) on top of this apparatus.
G-1
SAFETY INSTRUCTIONS
“SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT”
This equipment has been designed and manufactured to meet international safety standards b ut, like any electrical equipment, care m ust be
taken if you are to obtain the best results and safety is to be assured.
Do read the operating instructions before you attempt to use the equipment.
Do ensure that all electrical connections (including the mains plug, extension leads and interconnections between pieces of equipment) are
properly made and in accordance with the manufacturer’s instructions. Switch off and withdraw the mains plug when making or changing
connections.
Do consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.
Do be careful with glass panels or doors on equipment.
DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is damaged in any wa y–s witch off, withdr aw
the mains plug and consult your dealer.
DON’T remove any fixed cover as this may expose dangerous voltages.
DON’T leave equipment s witched on when it is unattended unless it is specifically stated that it is designed for unattended operation or has
a standby mode.
Switch off using the switch on the equipment and make sure that your family know how to do this.
Special arrangements may need to be made for infirm or handicapped people.
DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements of traffic saf ety . It is illegal to watch
television whilst driving.
DON’T listen to headphones at high volume as such use can permanently damage your hearing.
DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings.
Overheating will cause damage and shorten the life of the equipment.
DON’T use makeshift stands and NEVER fix legs with wood screws — to ensure complete safety always fit the manufacturer’s approved
stand or legs with the fixings provided according to the instructions.
DON’T allow electrical equipment to be exposed to rain or moisture.
ABOVE ALL
— NEVER let anyone, especially children, push anything into holes, slots or any other opening in the case -this could result in a fatal
electrical shock.;
— NEVER guess or take chances with electrical equipment of any kind — it is better to be safe than sorry!
Caution: Proper Ventilation
To avoid risk of electric shock and fire and to protect from damage.
Locate the apparatus as follows:
Front: No obstructions open spacing.
Sides: No obstructions in 10 cm from the sides.
Top: No obstructions in 10 cm from the top.
Back: No obstructions in 15 cm from the back
Bottom: No obstructions, place on the level surface.
In addition, maintain the best possible air circulation as illustrated.
Wall or obstructions
Spacing 15 cm or more
RX-6010RBK/
RX-6012RSL
Front
Stand height 15 cm or more
Floor
G-2
Table of Contents
Parts Identification ...................................... 2
Getting Started ........................................... 3
Before Installation ...................................................................... 3
Checking the Supplied Accessories ........................................... 3
Connecting the FM and AM (MW/LW) Antennas..................... 3
Connecting the Speakers ............................................................ 4
Connecting Audio/Video Components....................................... 5
Connecting the Power Cord ....................................................... 7
Putting Batteries in the Remote Control .................................... 7
Basic Operations ......................................... 8
Turning the Power On and Off (Standby) .................................. 8
Selecting the Source to Play....................................................... 8
Adjusting the Volume ................................................................. 9
Listening Only with Headphones............................................... 9
Muting the Sound ....................................................................... 9
Adjusting the Subwoofer Output Level.................................... 10
Attenuating the Input Signal .................................................... 10
Adjusting the Tone ................................................................... 10
Basic Settings ........................................... 11
Recording a Source .................................................................. 11
Adjusting the Front Speaker Output Balance........................... 11
Setting the Subwoofer Information .......................................... 11
Changing the Source Name...................................................... 11
Setting the Speakers for the DSP Modes ................................. 12
Digital Input (DIGITAL IN) Terminal Setting ......................... 14
Selecting the Analog or Digital Input Mode ............................ 14
Storing the Basic Settings and Adjustments............................. 15
Using the Sleep Timer.............................................................. 15
Receiving Radio Broadcasts ........................ 16
Tuning in Stations Manually .................................................... 16
Using Preset Tuning ................................................................. 16
Selecting the FM Reception Mode........................................... 17
Using the RDS (Radio Data System) to Receive FM Stations ..
Searching for a Program by PTY Codes .................................. 18
Switching to a Broadcast Program of
Your Choice Temporarily................................................... 19
18
Using the DSP Modes ................................ 21
What are the DSP Modes? ....................................................... 21
Reproducing the Sound Field................................................... 22
Available DSP Modes According to the Speak er Arrangement .. 23
Adjusting the Surround Modes ................................................ 24
Adjusting the DAP Modes ....................................................... 26
Activating the DSP Modes....................................................... 27
1
COMPU LINK Remote Control System ......... 28
Operating JVC’s Audio/Video Components ... 29
Operating Audio Components .................................................. 29
Operating Video Components .................................................. 30
Troubleshooting ......................................... 31
Specifications ............................................ 32
Parts Identification
Become familiar with the buttons and controls on the receiver before use.
Refer to the pages in parentheses for details.
12345 6 78
FM/AM TUNING
DIGITAL
SURROUND
SURROUND ON/OFF
DSP MODE
FM/AM PRESET FM MODE
MEMORY
DIGITAL
INPUT ATT
SPEAKERS ON/OFF
STANDBY
STANDBY/ON
PHONES
pq ewr
1
SLEEP
TV
VCR
AUDIO
2
3
4
5
6
7
8
9
p
SURROUND
SURROUND
MODE
SOUND
TV/VIDEO CD-DISC
DVD
CD
+
TV VOL
–
+
+
TV CH
–
A/V CONTROL RECEIVER
– SUBWOOFER +TEST
1
EFFECT
– CENTER +
54
5
– REAR•L + – VCR CH +
7/P
– REAR•R +
10
TV SOUND
VCR
TAPE/CDR
+
VOLUME
–
–
£
PTY SEARCH
1
7
PTY –
DISPLAY
RM-SRX6010R
REMOTE CONTROL
32
5
6
98
5
MENU
+10
ENTER
ANALOG/DIGITAL
FM/AM
MUTING
8
+ PTY
5
1
9
AUDIO/VIDEO CONTROL RECEIVER
EON
INPUT DIGITALINPUT ANALOG
tyi
DVD VCR TV SOUND
CD TAPE/CDR
SOURCE NAME
FM/AM
u

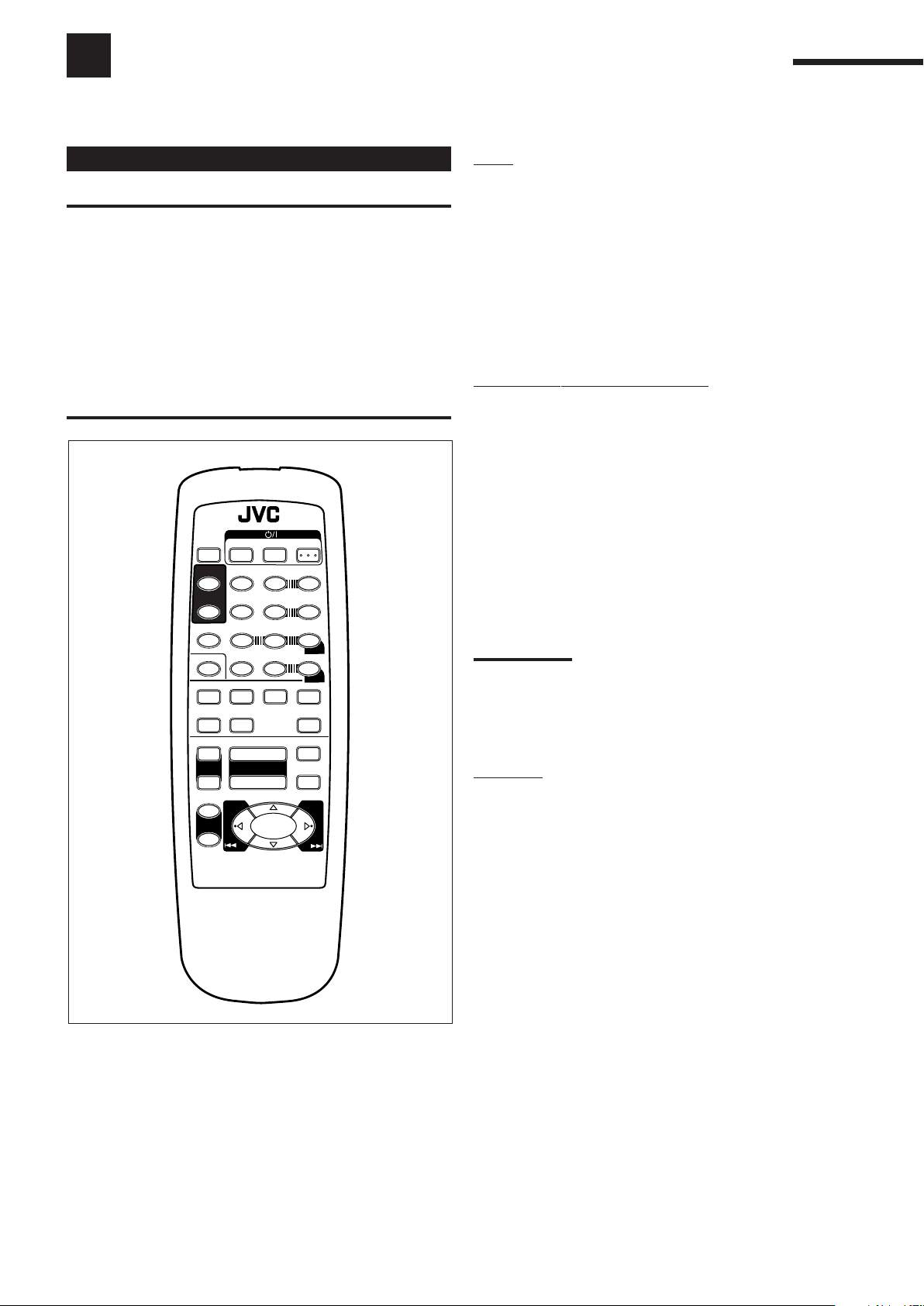

Remote Control
1 (standby/on) buttons (8, 30)
TV, VCR, AUDIO
2 SLEEP button (15)
3 SURROUND button (24, 27, 29)
4 SURROUND MODE button
(25 – 27, 29)
5 SOUND button (10, 24 – 26, 29)
6 TV/VIDEO button (30)
q
7 CD-DISC button (30)
8 Source selecting buttons (8, 9, 15)
DVD, TV SOUND, VCR, CD,
w
e
r
t
TAPE/CDR, FM/AM
9 TV VOL +/– buttons (30)
p TV CH +/– buttons (30)
q • 10 keys for selecting preset channels
(17)
• 10 keys for adjusting sound
(24 – 26, 29)
• 10 keys for operating audio/video
components (29, 30)
w ANALOG/DIGITAL button (15)
e MUTING button (9)
r VOLUME +/– buttons (9)
t • RDS operation buttons (18, 19)
PTY SEARCH, PTY +/–, DISPLAY
• Operating buttons for audio/video
components (29, 30)
ADJUST SETTING
CONTROL
DOWN UP
o
Front Panel
1 STANDBY/ON button and
STANDBY lamp (8)
2 FM/AM TUNING 5/∞ buttons (16)
3 FM/AM PRESET 5/∞ buttons (16, 17)
4 FM MODE button (17)
5 MEMORY button (16)
6 Display (8)
7 ADJUST button (10, 11, 24 – 26)
8 Remote sensor (7)
9 RDS operation buttons (18, 19)
EON, PTY SEARCH,
TA/NEWS/INFO, DISPLAY MODE
p PHONES jack (9)
q SURROUND ON/OFF button (24, 27)
w DSP MODE button (25 – 27)
e SPEAKERS ON/OFF button (9)
r INPUT ANALOG button (15)
INPUT ATT button (10)
t INPUT DIGITAL button (14)
y Source selecting buttons (8, 9, 14)
DVD, VCR, TV SOUND, CD,
TAPE/CDR, FM/AM
u SOURCE NAME button (11)
TAPE/CDR button also functions as
*
the SOURCE NAME button.
i CONTROL UP 5/DOWN ∞ buttons
o SETTING button (11 – 14)
; MASTER VOLUME control (9)
TA/NEWS/INFO
;
DISPLAY MODEPTY SEARCH
MASTER VOLUME
2
Getting Started
This section explains how to connect audio/video components and speakers to the receiver, and how to connect the
power supply.
Before Installation
General
• Be sure your hands are dry.
• Turn the power off to all components.
• Read the manuals supplied with the components you are going to
connect.
Locations
• Install the receiver in a location that is level and protected from
moisture.
• The temperature around the receiver must be between –5˚C and
35˚C (23˚F and 95˚F).
• Make sure there is good ventilation around the receiver. Poor
ventilation could cause overheating and damage the receiver.
Handling the receiver
• Do not insert any metal object into the receiver.
• Do not disassemble the receiver or remove screws, covers, or
cabinet.
• Do not expose the receiver to rain or moisture.
Checking the Supplied Accessories
Check to be sure you have all of the following items, which are
supplied with the receiver.
The number in the parentheses indicates the quantity of the pieces
supplied.
• Remote Control (1)
• Batteries (2)
• AM (MW/LW) Loop Antenna (1)
• FM Antenna (1)
If anything is missing, contact your dealer immediately.
Connecting the FM and AM (MW/LW)
Antennas
FM Antenna Connections
A
AM
LOOP
ANTENNA
FM 75
COAXIAL
AM
EXT
FM Antenna
AM
LOOP
ANTENNA
Extend the supplied FM antenna horizontally.
FM 75
COAXIAL
Outdoor FM Antenna Cable
AM
EXT
A. Using the Supplied FM Antenna
The FM antenna provided can be connected to the FM 75 Ω
COAXIAL terminal as temporary measure.
B. Using the Standard Type Connector (Not Supplied)
A standard type connector (IEC or DIN45325) should be
connected to the FM 75 Ω COAXIAL terminal.
Note:
If reception is poor, connect an outdoor antenna.
Before attaching a 75
going to an outdoor antenna), disconnect the supplied FM antenna.
Ω
coaxial cable (the kind with a round wire
B
ANTENNA
AM
LOOP
FM 75
COAXIAL
AM
EXT
3
AM (MW/LW) Antenna Connections
Basic connecting procedure
ANTENNA
FM 75
COAXIAL
AM
LOOP
AM
EXT
1
Snap the tabs on the loop into the
slots of the base to assemble the
AM (MW/L W) loop.
AM (MW/LW) Loop Antenna
2
3
Outdoor single vinyl-covered wire (not supplied)
Turn the loop until you have the best reception.
1
2
3
1 Cut, twist and remove the insulation at the end of
each speaker signal cable (not supplied).
2 Open the terminal and then insert the speaker
signal cable.
3 Close the terminal.
Connecting the front speakers
Connect front speakers to the FRONT SPEAKERS terminals.
FRONT
SPEAKERS
RIGHT LEFT
Left speaker Right speaker
Notes:
• If the AM (MW/LW) loop antenna wire is covered with
vinyl, remove the vinyl by twisting it as shown in the
diagram.
• Make sure the antenna conductors do not touch any
other terminals, connecting cords and power cord. This could
cause poor reception.
• If reception is poor, connect an outdoor single vinyl-covered wire to
the AM EXT terminal. (Keep the AM (MW/LW) loop antenna
connected.)
Connecting the Speakers
You can connect the following speakers:
• One pair of front speakers to produce normal stereo sound.
• One pair of rear speakers to enjoy the surround effect.
• One center speaker to produce more effective surround effect (to
emphasize human voices).
• One subwoofer to enhance the bass.
IMPORTANT:
After connecting the speakers listed above, set the speaker
setting information properly to obtain the best possible DSP
effect. For details, see page 12.
For each speaker (except for a subwoofer), connect the (+) and (–)
terminals on the rear panel to the (+) and (–) terminals marked on
the speakers. For connecting a subwoofer, see page 5.
Connecting the rear and center speakers
Connect rear speakers to the REAR SPEAKERS terminals and a
center speaker to the CENTER SPEAKER terminals.
REAR
SPEAKERS
RIGHT LEFT
Center speaker
Left rear
speaker
Right rear
speaker
CENTER
SPEAKER
CAUTION:
Use speakers with the SPEAKER IMPEDANCE indicated by the
speaker terminals.
4
Connecting the subwoofer speaker
You can enhance the bass by connecting a subwoofer.
Connect the input jack of a powered subwoofer to the
SUBWOOFER OUT jack on the rear panel, using a cable with RCA
pin plugs (not supplied).
SUBWOOFER
Powered subwoofer
OUT
Connecting Audio/Video Components
You can connect the following audio/video components to this
receiver. Refer also to the manuals supplied with your components.
Audio Components Video Components
• CD player* • DVD player*
• Cassette deck • TV*
or CD recorder* • VCR
*
You can connect these components using the methods described in
“Analog connections” (below) or in “Digital connections” (see page
7).
Cassette deck or CD recorder
Cassette deck
To audio input
PHONO
CD
CD
OUT
(REC)
TAPE
CDR
IN
(PLAY)
OUT
(REC)
VCR
IN
(PLAY)
TV SOUND
CD recorder
To audio output
RIGHT LEFT
AUDIO
To audio outputTo audio input
Analog connections
Audio component connections
Use the cables with RCA pin plugs (not supplied).
Connect the white plug to the audio left jack, and the red plug to the
audio right jack.
CAUTION:
If you connect a sound-enhancing device such as a graphic equalizer
between the source components and this receiver, the sound output
through this receiver may be distorted.
CD player
CD player
CD
OUT
(REC)
To audio output
TAPE
CDR
IN
(PLAY)
OUT
(REC)
VCR
IN
(PLAY)
Note:
You can connect either a cassette deck or a CD recorder to the TAPE/
CDR jacks. When connecting a CD recorder to the TAPE/CDR jacks,
change the source name, which will be shown on the display when
selected as the source, to “CDR.” See page 11 for details.
If your audio components have a COMPU LINK jack
See also page 28 for detailed information about the connection and
the COMPU LINK remote control system.
5
TV SOUND
RIGHT LEFT
AUDIO
Video component connections
Use the cables with RCA pin plugs (not supplied).
Connect the white plug to the audio left jack, the red plug to the
audio right jack, and the yellow plug to the video jack.
TV
CD
TV
To audio
output
OUT
(REC)
TAPE
CDR
IN
(PLAY)
OUT
(REC)
VCR
IN
(PLAY)
TV SOUND
RIGHT LEFT
AUDIO
MONITOR
OUT
DVD
OUT
(REC)
VCR
IN
(PLAY)
VIDEO
To video input
Connect the TV to the MONITOR
OUT jack to view the playback
picture from the other connected
video components.
DVD player
B
RIGHT
DVD player
DVD
MONITOR
OUT
LEFT
DVD
OUT
(REC)
VCR
IN
(PLAY)
VIDEO
A
DVD
AUDIO
Å To front left/right channel audio output (or to audio mixed
output if necessary)
ı To video output
Note:
To enjoy the software encoded with Dolby Digital or DTS Digital
Surround, you must connect the DVD player using the digital terminal
on the rear of this receiver. (See “Digital connections” on page 7.)
VCR
A
VCR
B
CD
OUT
(REC)
TAPE
CDR
IN
(PLAY)
OUT
(REC)
VCR
IN
(PLAY)
TV SOUND
RIGHT LEFT
AUDIO
MONITOR
Å To left/right channel audio output
ı To left/right channel audio input
Ç To video output
Î To video input
OUT
DVD
OUT
(REC)
VCR
IN
(PLAY)
C
D
VIDEO
6
Digital connections
This receiver is equipped with two DIGITAL IN terminals — one
digital coaxial terminal and one digital optical terminal.
You can connect any component to one of the digital terminals using
a digital coaxial cable (not supplied) or digital optical cable (not
supplied).
IMPORTANT:
• When connecting the DVD player or digital TV broadcast tuner
using the digital terminal, you also need to connect it to the video
jack on the rear. Without connecting it to the video jack, you can
view no playback picture.
• After connecting the components using the DIGITAL IN terminals,
set the following correctly if necessary.
– Set the digital input (DIGITAL IN) terminal setting correctly. For
details, see “Digital Input (DIGITAL IN) Terminal Setting” on page
14.
– Select the digital input mode correctly. For details, see “Selecting
the Analog or Digital Input Mode” on page 14.
Digital TV
DVD player
DVD
CD player CD recorder
Connecting the Power Cord
Before plugging the receiver into an AC outlet, make sure that all
connections have been made.
Plug the power cord into an AC outlet.
Keep the power cord away from the connecting cables and the
antenna. The power cord may cause noise or screen interference. We
recommend that you use a coaxial cable to connect the antenna,
since it is well-shielded against interference.
Note:
The preset settings such as preset channels and sound adjustment
may be erased in a few days in the following cases:
–When you unplug the power cord.
–When a power failure occurs.
CAUTIONS:
• Do not touch the power cord with wet hands.
• Do not pull on the power cord to unplug the cord. When unplugging
the cord, always grasp the plug so as not to damage the cord.
Putting Batteries in the Remote Control
Before using the remote control, put two supplied batteries first.
When using the remote control, aim the remote control directly at
the remote sensor on the receiver.
When the component has a digital
coaxial output terminal, connect it to the
DIGITAL 1 (DVD) terminal, using the
digital coaxial cable (not supplied).
DIGITAL 1
When the component has a digital
(DVD)
optical output terminal, connect it to the
DIGITAL 2 (CD) terminal, using the
digital optical cable (not supplied).
DIGITAL 2 ( CD )
Before connecting a digital
optical cable, unplug the
DIGITAL IN
protective plug.
Notes:
• When shipped from the factory, the DIGITAL IN terminals have
been set for use with the following components.
– DIGITAL 1 (coaxial): For DVD player
– DIGITAL 2 (optical): For CD player
• When you want to operate the CD player or CD recorder using the
COMPU LINK remote control system, connect the target
component also as described in “Analog connections” (see page 5).
1
2
3
1. On the back of the remote control, remove the
battery cover.
2. Insert batteries. Make sure to match the polarity:
(+) to (+) and (–) to (–).
3. Replace the cover.
If the range or effectiveness of the remote control decreases, replace
the batteries. Use two R6P(SUM-3)/AA(15F) type dry-cell batteries.
CAUTION:
Follow these precautions to avoid leaking or cracking cells:
• Place batteries in the remote control so they match the polarity: (+)
to (+) and (–) to (–).
• Use the correct type of batteries. Batteries that look similar may
differ in voltage.
• Always replace both batteries at the same time.
• Do not expose batteries to heat or flame.
7
Basic Operations
The following operations are commonly used when you play any sound source.
Turning the Power On and Off (Standby)
On the front panel:
To turn on the power, press
STANDBY/ON
.
The STANDBY lamp goes off. The name of
the current source (or station frequency)
appears on the display.
Current source name appears
SPK
L
ANALOG
R
Current volume level is shown here
To turn off the power (into standby mode),
press STANDBY/ON
again.
The STANDBY lamp lights up. A small
amount of power is consumed in standby
mode. To turn the power off completely,
unplug the AC power cord.
From the remote control:
To turn on the power, press AUDIO in the
(standby/on) section.
The STANDBY lamp goes off. The name of the
current source (or station frequency) appears on
the display.
STANDBY
STANDBY/ON
VOLUME
STANDBY
STANDBY/ON
AUDIO
Selected source name appears
DIGITAL AUT O
ANALOG
LINEAR PCM
DIGITAL
SPK
LC
R
PRO LOGIC DSP H.PHONE AUTO MUTING TUNED STEREO TA NEWS INFO
S.WFR
LFE
LS RS
S
CH-
INPUT ATT EON RDS SLEEP
VOLUME
DVD Select the DVD player.
TV SOUND Select the TV sound.
VCR Select the video component connected to the
VCR jacks.
CD * Select the CD player.
TAPE/CDR * Select the cassette deck (or the CD recorder).
FM/AM * Select an FM or AM (MW/LW) broadcast.
• Each time you press the button, the band
alternates between FM and AM (MW/LW).
Notes:
• When connecting a CD recorder (to the TAPE/CDR jacks), change
the source name that appears on the display. See page 11 for
details.
• When you have connected some digital source components using
the digital terminals (see page 7), you need to select the digital
input mode.
• When you press one of the source selecting buttons on the remote
control marked above with an asterisk (*), the receiver
automatically turns on.
To turn off the power (into standby mode),
press AUDIO in the
(standby/on) section
again.
The STANDBY lamp lights up.
Selecting the Source to Play
Press one of the source selecting buttons.
On the front panel:
DVD VCR TV SOUND
CD TAPE/CDR
SOURCE NAME
From the remote control:
DVD
TV SOUND
VCR
CD
TAPE/CDR
FM/AM
FM/AM
Signal and speaker indicators on the display
The signal indicators light up in the following cases:
• Only the indicators for the incoming signals light up.
• When analog input is selected, “L” and “R” always light up.
The speaker indicators light up only —:
• When the corresponding speaker is activated.
AND
• When the corresponding speaker is required for the DSP mode
selected currently.
Signal indicators light up in
red:
RCL
S.WFR
LS RSS
LFE
Speaker indicators light up
in white:
RCL
S.WFR
LS RSS
LFE
L:•When digital input is selected: Lights up when the left
channel signal comes in.
• When analog input is selected: Always lights up.
R:•When digital input is selected: Lights up when the right
channel signal comes in.
• When analog input is selected: Always lights up.
C: Lights up when the center channel signal comes in.
LS: Lights up when the left rear channel signal comes in.
RS: Lights up when the right rear channel signal comes in.
S: Lights up when the monaural rear channel signal comes in.
LFE: Lights up when the LFE channel signal comes in.
Note:
When “SUBWOOFER” is set to “YES” (see page 11),
S.WFR
lights up.
8
Loading...
