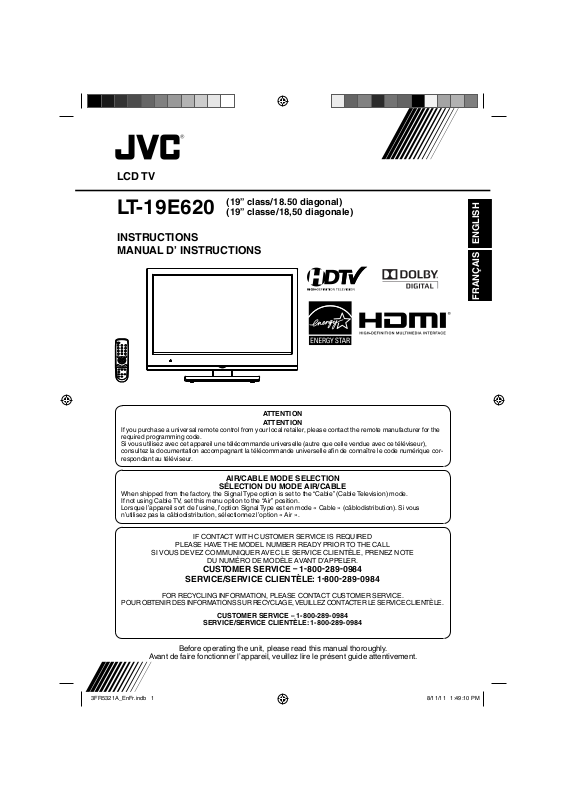

JVC LT-19E620 User Guide

LCD TV

LT-19E620

(19” classe/18,50 diagonale)

INSTRUCTIONS
MANUAL D’ INSTRUCTIONS

ATTENTION

(19” class/18.50 diagonal)

If you purchase a universal remote control from your local retailer, please contact the remote manufacturer for the
required programming code.
Si vous utilisez avec cet appareil une télécommande universelle (autre que celle vendue avec ce téléviseur),
consultez la documentation accompagnant la télécommande universelle afin de connaître le code numérique cor­respondant au téléviseur.

AIR/CABLE MODE SELECTION

When shipped from the factory, the Signal Type option is set to the “Cable” (Cable Television) mode.
If not using Cable TV, set this menu option to the “Air” position.
Lorsque l’appareil sort de l’usine, l’option Signal Type est en mode « Cable » (câblodistribution). Si vous
n’utilisez pas la câblodistribution, sélectionnez l’option « Air ».

SÉLECTION DU MODE AIR/CABLE

ATTENTION

FRANÇAIS ENGLISH

IF CONTACT WITH CUSTOMER SERVICE IS REQUIRED

PLEASE HAVE THE MODEL NUMBER READY PRIOR TO THE CALL

SI VOUS DEVEZ COMMUNIQUER AVEC LE SERVICE CLIENTÈLE, PRENEZ NOTE

DU NUMÉRO DE MODÈLE AVANT D’APPELER.

CUSTOMER SERVICE – 1-800-289-0984

SERVICE/SERVICE CLIENTÈLE: 1-800-289-0984

POUR OBTENIR DES INFORMATIONS SUR RECYCLAGE, VEUILLEZ CONTACTER LE SERVICE CLIENTÈLE.

FOR RECYCLING INFORMATION, PLEASE CONTACT CUSTOMER SERVICE.

CUSTOMER SERVICE – 1-800-289-0984

SERVICE/SERVICE CLIENTÈLE: 1-800-289-0984

Before operating the unit, please read this manual thoroughly.

Avant de faire fonctionner l’appareil, veuillez lire le présent guide attentivement.

ENGLISH

The lightning flash with arrowhead
symbol, within an equilateral triangle
is intended to alert the user to the
presence of uninsulated dangerous
voltage within the product's enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock.

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.

The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN

OR MOISTURE.
TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OPEN FLAMES AWAY
FROM THIS PRODUCT AT TIMES.

CAUTION: TO PREVENT ELECTRIC SHOCK. DO NOT USE THIS POLARIZED PLUG WITH AN

EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE
FULLY INSERTED TO PREVENT BLADE EXPOSURE.

WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device,

However, there is no guarantee that interference will not occur in a particular installation. If

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with the

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.

this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

-

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Rules could void the user's authority to operate this equipment.

Location of the required marking

The rating sheet and the safety caution are
on the rear of the unit.

Important Note:

In the spaces below, enter the model and serial number
of your television (located at the rear of the television
cabinet). Staple your sales receipt or invoice to the inside
cover of this guide. Keep this user’s guide in a convenient
place for future reference. Keep the carton and original
packaging for future use.

Serial Number:

Model Number:

2

15) Apparatus should not be exposed to dripping or splashing, and objects filled with liquids, such as
vases, should not be placed on the apparatus.

16) An outside antenna system should not be located in the vicinity of overhead power lines or other
electric light or power circuits, or where it can fall into such power lines or circuits. When installing an
outside antenna system, extreme care should be taken to keep from touching such power lines or
circuits, as contact with them might be fatal.

17) Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock.

18) Do not push objects through any openings in this unit, as they may touch dangerous voltage points
or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid into
the unit.

19) If an outside antenna or cable system

EXAMPLE OF ANTENNA GROUNDING AS PER THE NATIONAL ELECTRICAL CODE

is connected to the unit, be sure the
antenna or cable system is grounded
to provide some protection against
voltage surges and built-up static
charges, Section 810 of the National
Electrical Code, ANSI/NFPA 70, provides
information with respect to proper
grounding of the mast and supporting
structure, grounding of the lead-in
wire to an antenna discharge unit, size
of grounding conductors, location of

GROUND

ELECTRIC SERVICE

EQUIPMENT

NEC-NATIONAL ELECTRICAL CODE
S2898A

CLAMP

ANTENNA LEAD IN WIRE

ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)

GROUNDING CONDUCTORS
(NEC SECTION 810-21)

GROUND CLAMPS
POWER SERVICE GROUNDING

ELECTRODE SYSTEM
(NEC ART 250, PART H)

antenna discharge unit, connection to
grounding electrodes, and requirements for the grounding electrode.

ENGLISH

3

IMPORTANT SAFETY INSTRUCTIONS

20) When replacement parts are required, be sure the service technician uses replacement parts
specified by the manufacturer or those that have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock or other hazards.

21) Upon completion of any service or repairs to this unit, ask the service technician to perform safety
checks to determine that the unit is in proper operating condition.

22) When you connect the product to other equipment, turn off the power and unplug all of the
equipment from the wall outlet. Failure to do so may cause an electric shock and serious personal
injury. Read the owner's manual of the other equipment carefully and follow the instructions when
making any connections.

23) Sudden high volume sound may cause hearing or speaker damage. When you use headphones,
(if the unit is equipped with a headphone jack) keep the volume at a moderate level. If you use
headphones continuously with high volume sound, it may cause hearing damage.

24) Do not allow the product to output distorted sound for an extended period of time. It may cause
speaker overheating and fire.

25) This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the
NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground
shall be connected to the grounding system of the building, as close to the point of cable entry as
practical.

26) The socket-outlet must be installed near the unit and easily accessible.

CHILD SAFETY:
It Makes A Difference How and Where You Use Your Flat Panel Display

Congratulations on your purchase! As you enjoy your new product, please keep these safety tips in mind:

THE ISSUE

The home theater entertainment experience is a growing trend and larger flat panel displays are popular
purchases. However, flat panel displays are not always supported on the proper stands or installed
according to the manufacturer’s recommendations.
Flat panel displays that are inappropriately situated on dressers, bookcases, shelves, desks, speakers,
chests or carts may fall over and cause injury.

THIS MANUFACTURER CARES!

The consumer electronics industry is committed to making home entertainment enjoyable and safe.

TUNE INTO SAFETY

One size does NOT fit all. Follow the manufacturer’s recommendations for the safe installation and use of
your flat panel display.
Carefully read and understand all enclosed instructions for proper use of this product.
Don’t allow children to climb on or play with furniture and television sets.
Don’t place flat panel displays on furniture that can easily be used as steps, such as a chest of drawers.
Remember that children can become excited while watching a program, especially on a “larger than life” flat
panel display. Care should be taken to place or install the display where it cannot be pushed, pulled over, or
knocked down.
Care should be taken to route all cords and cables connected to the flat panel display so that they cannot be
pulled or grabbed by curious children.

WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT YOUR FLAT PANEL DISPLAY, ALWAYS:

Use a mount that has been recommended by the display manufacturer and/or listed by an independent
laboratory (such as UL, CSA, ETL).
Follow all instructions supplied by the display and wall mount manufacturers.
If you have any doubts about your ability to safely install your flat panel display, contact your retailer about
professional installation.
Make sure that the wall where you are mounting the display is appropriate to support the weight of the unit/
product and wall mount. If you are unsure, contact a professional installer.
A minimum of two people are required for installation. Flat panel displays can be heavy.

4

IMPORTANT SAFETY INSTRUCTIONS

CONDENSATION

Moisture will form in the operating section of the unit if the unit is brought from cool surroundings into a warm
room or if the temperature of the room rises suddenly. When this happens, unit's performance will be impaired.
To prevent this, let the unit stand in its new surroundings for about an hour before switching it on, or make sure
that the room temperature rises gradually.
Condensation may also form during the summer if the unit is exposed to the breeze from an air conditioner. In
such cases, change the location of the unit.

HOW TO HANDLE THE LCD PANEL

•

Do not press hard or jolt the LCD panel. It may cause the LCD panel glass to break and injury may occur.

•

If the LCD panel is broken, make absolutely sure that you do not touch the liquid in the panel. This may cause
skin inflammation.
If the liquid gets in your mouth, immediately gargle and consult with your doctor. Also, if the liquid gets in your
eyes or touches your skin, consult with your doctor after rinsing for at least 15 minutes or longer in clean water.

Possible Adverse Effects on LCD Panel: If a fixed (non-moving) pattern remains on the LCD Panel for
long periods of time, the image can become permanently engrained in the LCD Panel and cause subtle but
permanent ghost images. This type of damage is NOT COVERED BY YOUR WARRANTY. Never leave your
LCD Panel on for long periods of time while it is displaying the following formats or images:

•

Fixed Images, such as stock tickers, video game patterns, TV station logos, and websites.

•

Special Formats that do not use the entire screen. For example, viewing letterbox style (16:9) media on
a normal (4:3) display (black bars at top and bottom of screen); or viewing normal style (4:3) media on a
widescreen (16:9) display (black bars on left and right sides of screen).

The following symptoms are not signs of malfunction but technical limitation. Therefore we disclaim any
responsibility for these symptoms.

LCD Panels are manufactured using an extremely high level of precision technology, however sometimes

•
parts of the screen may be missing picture elements or have luminous spots.
This is not a sign of a malfunction.
Do not install the LCD Panel near electronic equipment that produces electromagnetic waves. Some

•
equipment placed too near this unit may cause interference.
Effect on infrared devices – There may be interference while using infrared devices such as infrared cordless

•
headphones.

ENGLISH

SAFETY PRECAUTIONS

The unit emits heat when in operation. Do not place any covers or blankets on the unit, this may cause overheating.
Do not block ventilation holes, or set up near radiators. Do not place in direct sunshine. When placing on a shelf leave 10 cm
(4 inches) free space around the entire unit.

10cm

10cm

M4 × 10

Notes when mounting the LCD TV on a wall

If the unit is to be mounted on the wall, contact the retailer where

•
you purchased the LCD TV for advice, and have the equipment
professionally installed. Incomplete or improper installation may
cause injury to you, and/or damage to the LCD TV.
Bracket holes: To attach a wall mounting bracket (not supplied) attach

•
where indicated in the drawing right.
This manufacturer recommends professional installation.

•
Utilize an appropriate bracket and fasteners, sufficient to

•
accommodate the size and weight of the unit.
Assure the wall to which the unit is to be mounted will safely support

•
the size and weight of the unit, using the bracket and fasteners you
have selected.
Keep cords and cables connected to this flat panel display out of

•
reach of children.
To hang the television on a wall, remove these screws and then

•
remove a stand. Before performing work spread cushioning over the
base area to lay the TV on.

100mm

100mm

Bracket holes

Screws

5

How to attach the stand

NOTE:

• Unplug the AC cord from the AC INPUT terminal.

• Before beginning this process, assure that the TV is laid on a clean, safe, and cushioned surface to avoid
any damage to the unit.

• Do not touch or press the TV-screen, glass might break under pressure.

Place the TV on its front onto a table.
Align the stand’s bottom-plate (supplied) as seen here.
It will fi t in only one direction.
Hold the unit and attach the stand slowly, as shown in fi gure 1.

LCD PANEL SIDE

Figure 1

Figure 2

Finally secure the bottom-plate with 2 screws (supplied) as indicated by the arrows in figure 2.

•

Be sure to follow the instructions. Insufficient tightening or incorrect installation of the stand will not support
your unit correctly, and could result in damage or injury from tip-over.

How to remove the stand

When you transport this product, remove the stand and pack fl at against the back of the unit in the carton. To
remove the stand, perform these steps in reverse order.

For wall mounting, the base must be removed. To disconnect the base/stand remove the 3 screws from the back
(see page 5).

6

Features

LED Backlight System - It realize thin profile, low power consumption, eco-friendly Hg-less design and high

•

contrast picture.

Integrated Digital Tuner - You can view digital broadcasts without using a Digital TV Set-Top Box.

•

Closed Caption Decoder With Full Text Mode - Displays text captions or full screen text on the screen for

•

hearing impaired viewers.

Picture Adjustments Using The Remote Control - The On-Screen display allows precise remote control

•

adjustment of BRIGHTNESS, CONTRAST, COLOR, TINT and SHARPNESS.

Programmable TV Sleep Timer - Operable from the remote control, the LCD TV can be programmed for up

•

to 120 minutes to turn off automatically.

V-Chip - The V-Chip function can read the rating of a broadcast program or movie content if the program is

•

encoded with this information. V-Chip will allow you to set a restriction level.

Digital Audio Jack (Coaxial) - When a component with a built-in Dolby Digital decoder is connected, Dolby

•

Digital sound can produce the effect of being in a movie theater or a concert hall.

HDMI/Component Video Jacks - A VCR, DVD player, satellite receiver or other audio/video component can

•

be connected to this unit.

On-Screen 3 Languages Display - You can select one of 3 languages, English, French or Spanish for on-

•

screen programming.

Power source

TO USE AC POWER

Connect the AC cord plug into this unit’s AC INPUT jack.

1.

Connect the AC cord into an AC outlet.

2.

ENGLISH

Wider Hole
and Blade

AC 120V, 60Hz

AC cord (supplied)

NOTE:

•

Please make sure to insert the cord securely at both the LCD TV and the wall outlet.

•

The AC cord has a polarized type AC line plug. If the supplied AC cord does not match your AC outlet, contact
a qualified electrician.

WARNING:

•

DO NOT CONNECT THIS UNIT TO THE POWER USING ANY DEVICE OTHER THAN THE SUPPLIED AC
CORD. THIS COULD CAUSE FIRE, ELECTRICAL SHOCK, OR DAMAGE.

•

DO NOT USE WITH A VOLTAGE OTHER THAN THE POWER VOLTAGE SPECIFIED. THIS COULD CAUSE
FIRE, ELECTRICAL SHOCK, OR DAMAGE.

CAUTION:

•

WHEN THIS UNIT IS NOT USED FOR A LONG TIME, (E.G., AWAY ON A TRIP) IN THE INTEREST OF
SAFETY, BE SURE TO UNPLUG IT FROM THE AC OUTLET.

•

DO NOT PLUG/UNPLUG THE AC CORD WHEN YOUR HANDS ARE WET. THIS MAY CAUSE ELECTRICAL
SHOCK.

•

IF YOU NEED TO REPLACE THE SUPPLIED AC ADAPTER OR AC CORD, THE SPECIFIED ONE IS
RECOMMENDED. CONTACT CUSTOMER SERVICE AT 1-800-289-0984.

AC outlet

7

Contents

Before using your unit

IMPORTANT SAFETY INSTRUCTIONS ...........3

SAFETY PRECAUTIONS .................................5

How to attach the stand ....................................6

How to remove the stand .................................. 6

Features ............................................................7

Power source ....................................................7

Contents ...........................................................8

Logos & Licenses .............................................8

Parts and functions ...........................................9

Remote control ...............................................10

Antenna connections ......................................11

Cable TV connections .....................................11

Connections to other equipment .....................12

TV operation

Starting setup .................................................15

TV operation ...................................................15

Quick guide for menu operation ......................16

Convenience functions ...................................17

Memorizing channels ......................................18

Checking the digital signal strength ................19

Labeling channels ...........................................19

Labeling video inputs ......................................19

Setting the V-Chip ...........................................20

Closed Caption ............................................... 21

CC advanced ..................................................21

Setting the picture size .................................... 22

Time Shift .......................................................23

Additional information

Reception disturbances .................................. 24

Troubleshooting .............................................. 25

Specifications ................................................26

limited WARRANTY ........................................ 27

Logos & Licenses

8

Manufactured under license from Dolby Laboratories. Dolby and the
double-D symbol are trademarks of Dolby Laboratories.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.

Parts and functions

Right sideFront

INPUT/ENTER button
MENU button

CH (CHANNEL)

VOL (VOLUME) +/– buttons

POWER button

/ buttons

ENGLISH

Remote sensor

Rear

AC INPUT jack

Power indicator
Red: Standby
Blue: On

PC/DVI AUDIO IN jack

DIGITAL AUDIO COAXIAL OUT jack

PC MONITOR IN jack

Left side

Press MENU button to display the menu
screen.

CH (CHANNEL)
(VOLUME) +/– buttons and INPUT/
ENTER button can be used to select the

desired setting during the menu screen
operations.

USB input

HDMI/DVI IN jack

ANT. (RF) IN jack

COMPONENT IN jacks

VIDEO IN jacks
(VIDEO/AUDIO (L(MONO)/R))

HEADPHONE jack

/ buttons,

VOL

9

Remote control

1

2

3
4

5

6
7
8
9

1.POWER Button - Used to turn the power on/off to

the LCD TV.

2.Direct Channel Selection Buttons (0-9) - Allows

direct access to any channel of the LCD TV.

3.– Button -This button is used when selecting

digital channels. Also can display the current
channel number when viewing the program.

4.SLEEP Button - To set the LCD TV to turn off
after a preset amount of time, use the SLEEP
button on the remote control.

5.CH (CHANNEL)
Buttons - Used to operate the menu functions of the

LCD TV, and to change the channels of the LCD TV.

Before using the remote control, batteries must first be installed.

/ / CURSOR /

HOW TO INSTALL BATTERIES

1. Open the battery compartment cover.

2. Install two “AAA” batteries (supplied).

3. Replace the battery compartment cover.

If this symbol is shown, it is only valid in the
European union.

10

10

11
12

13

14
15
16

17

6.MENU Button - Use to display the On-Screen

menu function.

7.AUDIO Button - Change soundtrack language.

8.INPUT SELECT Button - Use to change the

external input.

SCREEN SIZE Button - Used to change the picture size.

9.

10.RECALL Button - This button allows you to go

back to the previous channel selected by just
pressing the RECALL button. Press this button
again to return to the channel you were watching.

11.MUTING Button - To turn off the sound, press this

button once. The LCD TV will be silenced and the
symbol “Muting” will appear on the screen. The
muting feature can be released by pressing the

MUTING button again or one of the VOL (VOLUME)
+ or – buttons.

12.

VOL (VOLUME) + / – / CURSOR

- Used to operate the menu functions of the LCD

TV. Press the
to decrease the sound level.

13.ENTER Button - Use to enter or select

information for On-Screen operations.

14.EXIT Button - Press to remove setup menu.

15.CCD Button - Used to display the Closed Caption

menu screen.

16.DISPLAY Button - When you press this button,

the current information will be displayed on a
screen. To remove the display from the screen,
press this button again.

17.Time Shift control Buttons - See page 23.

Use two “AAA” size batteries. The batteries may last
approximately one year depending on how much the
remote control is used. For best performance, it is
recommended that batteries should be replaced on a
yearly basis, or when the remote operation becomes
erratic. Do not mix old and new batteries or different
types.

BATTERY PRECAUTIONS

These precautions should be followed when using
batteries in this device:

•

Use only the size and type of batteries specified.

•

Be sure to follow the correct polarity when
installing the batteries as indicated in the battery
compartment. Reversed batteries may cause
damage to the device.

•

Do not mix different types of batteries together (e.g.
Alkaline and Carbon-zinc) or old batteries with fresh
ones.

•

If the device is not to be used for a long period of
time, remove the batteries to prevent damage or
injury from possible battery leakage.

•

Do not try to recharge batteries not intended to be
recharged; they can overheat and rupture. (Follow
battery manufacturer’s directions.)

button to increase, or the button

/ Buttons

Antenna connections

If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your
antenna system. If you are using a Cable TV service, see “Cable TV connections”.

Combination VHF/UHF Antenna (Single 75 ohm cable)

Antenna

Jack

75 ohm
Coaxial
Cable

Connect the 75 ohm cable from the combination
VHF/UHF antenna to the Antenna Jack.

Cable TV connections

This TV has an extended tuning range and can tune most cable channels without using a Cable TV
Converter box. Some cable companies offer “premium pay channels” where the signal is scrambled.
Descrambling these signals for normal viewing requires the use of a descrambler device which is
generally provided by the Cable TV company.

For subscribers to basic Cable TV service

75 ohm

Antenna

Jack

Coaxial
Cable

For subscribers to scrambled Cable TV service

If you subscribe to a Cable TV service which requires the use of a Converter/Descrambler box, connect
the incoming 75 ohm Coaxial Cable to the Converter/Descrambler box. Using another 75 ohm Coaxial
Cable, connect the output jack of the Converter/Descrambler box to the Antenna Jack on the TV. Follow the
connections shown below. Set the TV to the output channel of the Converter/Descrambler box (usually channel
3 or 4) and use the Converter/Descrambler box to select channels.

For basic Cable TV service not requiring a Converter/
Descrambler box, connect the 75 ohm Coaxial Cable directly
to the Antenna Jack on the back of the TV.

ENGLISH

Incoming
75 ohm
Cable TV
Cable

Converter/

Descrambler

75 ohm Cable to TV

Antenna

Jack

For subscribers to unscrambled Cable TV service with scrambled premium channels

If you subscribe to a Cable TV service in which basic channels are unscrambled and premium channels require
the use of a Converter/Descrambler box, you may wish to use a signal Splitter and an A/B Switch box (available
from the Cable TV company or an electronics supply store). Follow the connections shown below. With the
switch in the “B” position, you can directly tune any nonscrambled channels on your TV. With the switch in the
“A” position, tune your TV to the output of the Converter/Descrambler box (usually channel 3 or 4) and use the
Converter/Descrambler box to tune scrambled channels.

Incoming
75 ohm
Cable TV
Cable

Splitter

Converter/

Descrambler

A/B Switch

75 ohm Cable to TV

A

B

Antenna

Jack

11

Connections to other equipment

The exact arrangement you use to interconnect various video and audio components to this unit is dependent
on the model and features of each component. Check the Owner’s Manual provided with each component for
the location of video and audio inputs and outputs.

To connect the LCD TV to a VCR

Left of the unit

To VIDEO/AUDIO IN

To Video/Audio OUT

Video/Audio cord (not supplied)

To connect the LCD TV to a DVD player with Component Video Input

You can enjoy a high quality picture by connecting the unit’s COMPONENT VIDEO OUT jacks of your DVD
player with the component video cables (not supplied).

VCR

Left of the unit

To Component OUT

Y

B

P

PR

DVD

To AUDIO IN

To COMPONENT IN

Y

Component video cord

P

B

PR

(not supplied)

Audio cord

(not supplied)

NOTE:

Component Video input of the unit are for use with a device which output 480i/1080i interlaced signals and

•

To Audio OUT

480p/720p progressive signals.

To connect the LCD TV to a camcorder, or a game console

To playback from a camcorder, connect the camcorder to the unit as shown.
This unit can also be used as a display device for many video games. However, due to the wide variety of
signals generated by these devices and subsequent hook-up variations required, they have not all been
included in the suggested connection diagrams. You’ll need to consult each component’s Owner’s Manual for
additional information.

Left of the unit

To VIDEO/AUDIO IN

Video/Audio cord (not supplied)

To Video/Audio OUT

GAME CONSOLE

or

12

Connections to other equipment (continued)

Using an AV Amplifier with built-in digital surround

If you are using an AV Amplifier with built-in digital surround sound, you can enjoy various audio systems including
Dolby Digital Surround audio that sounds just like the movie.

Connect an AV amplifier with built-in Dolby Digital decoder, etc. as shown below.

Rear of the unit

To DIGITAL AUDIO

COAXIAL OUT

Coaxial digital cable

(not supplied)

To Coaxial

Digital Audio Input

AV Amplifier with built-in digital surround
decoder as listed above

Front

Speaker

(Left)

TV

Surround
Speaker (Left)

Subwoofer

Center Speaker

Front
Speaker
(Right)

Surround
Speaker
(Right)

NOTE:

When you are viewing digital broadcast, this unit will not work in conjunction with DTS audio or MPEG audio.

•
There will be no sound output if connected to an AV amplifier with a built-in DTS decoder or MPEG decoder.
Digital Audio Output terminal does not output the sounds from devices connected by HDMI.

•

To connect the LCD TV to a PC (Personal Computer)

BEFORE YOU CONNECT THIS TV TO YOUR PC, CHANGE THE ADJUSTMENT OF YOUR PC’S
RESOLUTION AND REFRESH RATE (60 HZ).

Connect one end of a (male to male) VGA cable to the video cord of the computer and the other end to the
connector PC MONITOR IN on the rear of the
case of a Multimedia computer, connect the audio cord to the audio output of your Multimedia computer and to
the AUDIO IN connector of the PC/DVI AUDIO IN jack of the TV. You can also connect the PC with HDMI cable.
If you use HDMI cable, you don’t have to connect the audio cord. If you use DVI-to-HDMI cable, please connect
audio cord as same way as VGA cable.
Press INPUT SELECT on the remote control to select PC mode.
Switch on the computer. The TV can operate as the computer monitor.

TV

. Attach the connectors firmly with the screws on the plug.

In

VGA

ENGLISH

Rear and left of the unit

Monitor Display modes

Mode Resolution Refresh rate
VGA 640x480 60/ 72/ 75 Hz

VGA 720x400 70Hz
SVGA 800x600 56/ 60/ 72/ 75 Hz
XGA 1024x768 60/ 70/ 75 Hz

To PC/DVI
AUDIO IN

To PC
MONITOR
IN

VGA cable (not supplied)

To HDMI/DVI IN

HDMI cable (not supplied)

WXGA 1280x768 60Hz
WXGA 1360x768 60Hz

To return to normal mode

Press INPUT SELECT again.

Audio cord (not supplied)

NOTE:

The on-screen displays will have a different appearance in PC mode than in TV mode.

•
If there is no video signal from the PC when the unit is in PC mode, “No signal” will appear on the TV-screen.

•

13

Connections to other equipment (continued)

To connect a HDMI or a DVI device to the unit

The HDMI/DVI input receives digital audio and uncompressed video from a HDMI device or uncompressed
digital video from a DVI device.
When you connect to a DVI device with a HDMI-to-DVI adapter cable, it transfers only video signal. Separate
analog audio cords required.

Rear and left of the unit

To PC/DVI AUDIO IN

NOTE:

When using HDMI/DVI IN to connect your HDMI or DVI devices, you must select the corresponding

•
audio input source (HDMI or DVI) on the menu screen (see page 17). Otherwise you will only see the
image with no sound.

Audio cord (not supplied)

HDMI - to - DVI adapter cable

(HDMI type A connector)

To HDMI/DVI IN

(not supplied)

HDMI cable (type A connector)

(not supplied)

To DVI output

DVI device

or

To HDMI output

HDMI device

14

Starting setup

The Auto Setup menu appears the first time you
turn on the TV, and assists you to specify the
Air/Cable setting, and program your channels
automatically.

IMPORTANT: Make sure that the antenna or cable
TV system connection is made!

1

To turn on the TV, press POWER (POWER
indicator on the front of the unit changes blue.
It may take approx. 10 seconds for a picture to
appear on screen.). The Auto Setup function
begins.

Auto Setup

E-POP Demo Off
Signal Type Cable
Automatic Search Start

Press or to select “E-POP Demo”, then

2

3
4

5

NOTE:

If you press EXIT in the process of “Auto Setup”,

•

the Auto Setup stops and changes to the normal
screen.

When you make a menu selection, your changes

•

occur immediately. You do not have to press EXIT to
see your changes.

or to select “On” or “Off”.

press
On: A TV feature introduction will pop up at the

bottom of the screen.

Off: Turn off the E-POP Demo feature.
Press or to select “Signal Type”, then press

or to select “Cable” or “Air”.

Press or to select “Automatic Search”,
then press

“Auto Setup” will begin. After the Auto Setup
is completed, the TV channel appears on the
screen.

Depending on the reception condition, it may

•
take up to 30 minutes to complete memorizing
digital cable channels. Please allow the
process to complete without interruption.

or ENTER.

TV operation

1

To turn on the TV, press POWER.
(POWER indicator on the front of the unit
changes blue. It may take approx. 10 seconds for
a picture to appear on screen.)

Adjust the volume level by pressing VOL + or – .

2

The volume level will be indicated on the screen
by green bars. As the volume level increases, so
do the number of bars. If the volume decreases,
the number of green bars also decreases.

Set the Signal Type option to the appropriate

3

position (see “Air/Cable selection” on page 18).
Press the Direct Channel Selection (0-9, –)

4

buttons to select the channel.
(If you press only channel number, channel
selection will be delayed for a few seconds.)

TO SELECT ANALOG CHANNELS

1-9: Press 1-9 as needed. Example, to

10-99: Press the 2 digits in order. Example,

100-135: Press the 3 digits in order. Example, to

TO SELECT DIGITAL CHANNELS

Press the first 1-3 digits, then press the – button,
followed by the remaining number.
Example, to select channel 15-1, press 1, 5, –, 1,
then press ENTER.

•

•

The same program may be available on either

•

VHF/UHF/CABLE CHANNELS

VHF
2-13

UHF

14-69

NOTE:

If a channel with no broadcast is selected, the

•
sound will automatically be muted.
It may take a few seconds for a digital channel

•
picture to appear on screen after being selected.

To select the video input source

To view a signal from another device connected to
your LCD TV, such as a VCR player, press INPUT

SELECT, then press
Number buttons (0-4), then press ENTER. You can

select TV, Video, Component, HDMI or PC depending
on which input jacks you used to connect your
devices.

0.TV

1.Video

2.Component

3.HDMI

4.PC

[0-4]:Select

select channel 2, press 2, then press
ENTER.

to select channel 12, press 1, 2, then
press ENTER.

select channel 120, press 1, 2, 0, then
press ENTER.

If a channel is selected with only audio content,
“Audio only” will be displayed on the screen.
If a channel is selected with a weak digital
signal, “Digital channel signal strength is low”
will be displayed on the screen.

an analog channel or a digital channel. You may
choose to watch either format.
If a channel is selected to which you have not
subscribed,
be displayed on the screen.

Air Cable

Input Select

“Digital channel is encrypted” will

VHF
2-13

STD/HRC/IRC
14-36 (A) (W)
37-59 (AA) (WW)
60-85 (AAA) (ZZZ)
86-94 (86) (94)
95-99 (A-5) (A-1)
100-135 (100) (135)
01 (4A)

or or corresponding

CH /

Press and release CH / . The channel
automatically stops at the next channel set into
memory.
For proper operation, before selecting channels, they
should be set into the memory. See “Memorizing
channels” on page 18.

ENGLISH

15

DISPLAY

Press DISPLAY to display the current information on
the screen.

When the TV receives a digital signal, the digital
information will appear.

62-1 HDTV_Moving_Picture...

CH-1 TV-MA

Digital Air

No Program Information is available

USB Memory Information

: --:--:--

Play Time

Message : Now Live View

USB Memory is unplugged

Full

1080i

Sleep Timer

Off

English

Channel number• Station name•

Broadcast program name

Channel label (if preset)•

•
V-Chip rating• Signal type•
Sleep timer• Audio language•
Program guide• Picture size•
Resolution• Time Shift display•

When the TV receives an analog signal, the analog
information will appear.

14

Analog Cable

Mono

Full
480i

G

Sleep Timer

Off

Channel number• Channel label (if preset)•
V-Chip rating• Signal type•
Sleep timer• Picture size•
Audio information

• Resolution•
(Stereo, SAP or Mono)

Press DISPLAY again to clear the call display.

NOTE:

•

After a few seconds, DISPLAY screen will return to
normal TV operation automatically.

RECALL

This button allows you to go back to the last channel
selected by pressing RECALL. Press RECALL again to
return to the last channel you were watching.

MUTING

Press MUTING to switch off the sound. The TV’s
sound will be silenced and “Muting” will appear on
the screen. The sound can be switched back on by
pressing this button again or the VOL + or –.

SLEEP

To set the TV to turn off after a preset amount of time,
press SLEEP on the remote control. The clock will
count up 10 minutes for each press of the SLEEP
button (Off, 0h 10m, 0h 20m, ..., 2h 0m). After the sleep
time is programmed, the display will appear briefly
every ten minutes to remind you that the sleep timer
is operating. To confirm the sleep timer setting, press
SLEEP and the remaining time will be displayed for a
few seconds. To cancel the sleep timer, press SLEEP
repeatedly until the display turns to Off.

Quick guide for menu operation

Call menu and for example: Select Language.

Press INPUT SELECT to select TV mode.

1

Press MENU. The TV menu screen will appear.

2

3
4

5

NOTE:

•

Main Menu


Audio

CH

Channel

Lock

Setup

>>

ENTER :Set:Select

Press or to select “Setup”, then press or
ENTER.

Press or to select “Language”, then press

or to select the desired language.

…on the following pages the menu can be called
in the same way as here.

Press EXIT to return to the normal screen.

If no buttons are pressed for more than about 60
seconds, the menu screen will return to normal
operation automatically.

16

Convenience functions

You can change the default settings by pressing the MENU button on your remote, then select the one of the icons at the left
of the menu - follow the On-Screen prompts to set your preferences.

Icon Selected Items Setup hint

Picture Picture

Audio

Channel Add / Delete See page 18.

Lock See page 20.
Setup Closed Caption See page 21.

Preference

Picture Setting Brightness /Contrast /

DBC On/Off

Picture Size See page 22.
Film Mode On/Off
PC Setting Hor Position /

DNR On/Off DNR (Digital Noise Reduction) can reduce the roughness of the picture.
Equalizer Mode

Audio Setting Bass/Treble You can adjust the sound quality to your preference. (Flat mode only)

MTS Stereo / SAP / Mono The multi-channel TV sound (MTS) feature provides high-fidelity

Surround On/Off The dynamic presence and sound created offers a thoroughly

Auto Volume On/Off Volume level can be adjusted automatically by the sound level.
Audio Language

HDMI Audio HDMI When you connect the HDMI device to the TV, select this setting.

DTV Signal See page 19.
Auto Ch Memory See page 18.
Ch Label See page 19.

Language

Video Label See page 19.
On Timer Off / 0h30m / 1h00m

Auto Shut Off*

Auto Setup See page 15.
Power On/Off

Sound
Power On LED
PC Standby On/Off

Reset

NOTE:

* If there is no input signal in the PC mode, after 1 minute Auto Shut Off will be activated. In PC mode the

“PC Standby” setting takes precedence.

Sports Bright and dynamic picture (factory-set)
Standard Standard picture quality (factory-set)
Movie Movie-like picture setting (factory-set)
Memory Your personal preferences (set by you; see “Picture Setting”)

Sharpness / Color / Tint
Color Temperature Bluish (Cool) / Neutral (Standard) / Reddish (Warm)
Backlight The Backlight feature adjusts the screen brightness for improved

Ver Position
Clock
Phase
Auto Adjust To adjust the all PC settings automatically.

Standard/Music/Movie/
News/Memory/Flat

Equalizer Setting 100Hz/250Hz/500Hz/1kHz/2kHz/4kHz/10kHz (Not available in Flat mode)
Balance You can adjust the sound quality to your preference.

DVI When you connect the DVI device to the TV with analog audio cords,

/ 1h30m / 2h00m /
3h00m⋅⋅⋅12h00m

On/Off If the Auto Shut Off feature is On, a station being viewed stops

On/Off When you turn on/off the TV, sound will output from TV.

On/Off

You can adjust the picture quality to your preference.

picture clarity.
Use this feature to change the Black level automatically according to the

brightness of an image. The Black level will become dark in a dark scene.

A smoother motion may be obtained by setting the Film Mode to “On” (480i only).
To adjust the horizontal / vertical position of the image on the PC monitor

screen. Each video standard will require a different value for this setting.
To minimize any vertical bars or stripes visible on the screen background.
This must be adjusted after the frequency has been set optimize picture quality.

You can adjust the Equalizer Mode to your preference.

stereo sound. MTS also can transmit a second audio program (SAP)
containing a second language or other audio information.
When the TV receives a stereo or SAP broadcast, the word “Stereo” or
“SAP” displays on-screen every time you press DISPLAY.

enjoyable listening experience.

When two or more audio languages are included in a digital signal, you can select
one of the audio languages. (This function is available only for digital broadcast.)

select this setting.

You can choose from three different languages (English, Français (French) and
Español (Spanish)) for the on-screen displays.
Select the language you prefer first, then proceed with the other menu options.

You can set the On Timer to automatically turn on the TV. To cancel the
On Timer select “Off ”.

broadcasting and the TV is not operated, the TV will automatically shut
itself off after 15 minutes.

When you turn on the TV, Power indicator on the front of the TV will light.
If the PC Standby feature is On. In PC mode, if no signal is received or

no operation performed for 1 minute, the TV will turn to standby mode
automatically (LED light will flash red). When an input signal is received
or an operation performed on the PC, the TV will return to the On mode.

The Reset function returns your Picture/Audio settings to the factory settings.
“Picture Size”, “MTS” , “Audio Language” and “HDMI Audio” cannot be
reset by this function.

ENGLISH

17
