SERVICE MANUAL

MA606<Rev.002>20154SERVICE MANUAL

KD-X120EE, KD-X120EU, KD-X120U,
KD-X120UT, KD-X125EE, KD-X220E,
KD-X220EN, KD-X220EY, KD-X220J,
KD-X220U, KD-X220UR, KD-X220UT

DIGITAL MEDIA RECEIVER

Mounting sleeve
(GE20342-001A)

Remote control unit
(RM-RK52M)

COPYRIGHT © 2015 JVC KENWOOD Corporation

DC cord
(QAM1329-001)

Carrying case
(GE40521-001A)

COPYRIGHT © 2015 JVC KENWOOD Corporation

DC cord
(QAM13xx-00x)

Hook
(GE40646-001A) x2

Lead free solder used in the board (material: Sn-Ag-Cu, melting point: 219 Centigrade)

Lead free solder used in the board (material: Sn-Cu, melting point: 230 Centigrade)

Trim Plate
(GE20363-001A)

DETACHABLE PANEL

Model Parts number

KD-X120EE
KD-X120EU
KD-X120U
KD-X120UT
KD-X125EE
KD-X220E
KD-X220EN
KD-X220EY
KD-X220J
KD-X220U
KD-X220UR
KD-X220UT

CP-X120EED
CP-X120EUD
CP-X120UD
CP-X120UD
CP-X125EED
CP-X220ED
CP-X220ED
CP-X220ED
CP-X220JD
CP-X220UD

­CP-X220UD

No.MA606<Rev.002>

2015/4

SPECIFICATION

For US

TUNER

FM Frequency Range 87.9 MHz - 107.9 MHz (200 kHz step)

87.5 MHz - 108.0 MHz (50 kHz step)

Channel Space Selection 50 kHz/200 kHz

Usable Sensitivity (S/N = 26 dB) 8.2 dBf (0.71 µV/75 Ω)
Quieting Sensitivity(DIN S/N = 46 dB) 17.2 dBf (2.0 µV/75 Ω)

Frequency Response (±3 dB) 30 Hz - 15 kHz

Signal-to-Noise Ratio (MONO) 64 dB

Stereo Separation (1 kHz) 40 dB

AM Frequency Range 530 kHz - 1 700 kHz (10 kHz step)

531 kHz - 1 611 kHz (9 kHz step)

Channel Space Selection 9 kHz/10 kHz

Usable Sensitivity (S/N = 20 dB) 29 dBµ (28.2 µV)

USB

USB Standard USB 1.1, USB 2.0 (Full speed)

Compatible Devices Mass storage class

File System FAT12/ 16/ 32

Maximum Supply Current DC 5 V 1 A

D/A Converter 24 Bit

Frequency Response (±1 dB) 20 Hz - 20 kHz

Signal-to-Noise Ratio (1 kHz) 105 dB

Dynamic Range 88 dB

Channel Separation 90 dB

MP3 Decode Compliant with MPEG-1/2 Audio Layer-3

WMA Decode Compliant with Windows Media Audio

AAC Decode AAC-LC ".m4a" files

WAV Decode RIFF waveform Audio Format (Linear PCM only)

FLAC Decode FLAC files

Auxiliary

Frequency Response (±3 dB) 20 Hz - 20 kHz

Input Maximum Voltage 1 000 mV

Input Impedance 30 kΩ

Audio

Maximum Output Power 50 W × 4 or 50 W × 2 + 50 W × 1 (Subwoofer = 4 Ω)
Full Bandwidth Power(at less than 1 % THD) 22 W × 4
Speaker Impedance 4 Ω - 8 Ω
Preout Level/Load (USB) 2 500 mV/10 kΩ
Preout Impedance ≤ 600 Ω

General

Operating Voltage (10.5 V - 16 V allowable) 14.4 V

Maximum Current Consumption 10A

Operating Temperature Range 0°C to + 40°C
Installation Size (W × H × D) 182 mm × 53 mm × 108 mm (7-3/16" × 2-1/8" × 4-5/16")

Weight 0.58 kg (1.3 lbs)

• Subject to change without notice.

(No.MA606<Rev.002>)2/20

SPECIFICATION

For Europe

TUNER

FM Frequency Range (KD-X220) FM: 87.5 MHz - 108.0 MHz (50 kHz step)

Frequency Range (KD-X125/KD/X120) FM: 87.5 MHz - 108.0 MHz (50 kHz step)

FM-LO: 65.0 MHz - 74.0 MHz (30 kHz step)

Usable Sensitivity (S/N = 26 dB) 0.71 µV/75 Ω
Quieting Sensitivity(DIN S/N = 46 dB) 2.0 µV/75 Ω

Frequency Response (±3 dB) 30 Hz - 15 kHz

Signal-to-Noise Ratio (MONO) 64 dB

Stereo Separation (1 kHz) 40 dB

AM Frequency Range MW 531 kHz - 1 611 kHz (9 kHz step)

LW 153 kHz - 279 kHz (9 kHz step)

Usable Sensitivity (S/N = 20 dB) MW:28.2 µV

SW:50 µV

USB

USB Standard USB 1.1, USB 2.0 (Full speed)

Compatible Devices Mass storage class

File System FAT12/ 16/ 32

Maximum Supply Current DC 5 V 1 A

D/A Converter 24 Bit

Frequency Response (±1 dB) 20 Hz - 20 kHz

Signal-to-Noise Ratio (1 kHz) 105 dB

Dynamic Range 88 dB

Channel Separation 90 dB

MP3 Decode Compliant with MPEG-1/2 Audio Layer-3

WMA Decode Compliant with Windows Media Audio

AAC Decode AAC-LC ".m4a" files

WAV Decode RIFF waveform Audio Format (Linear PCM only)

FLAC Decode FLAC files

Auxiliary

Frequency Response (±3 dB) 20 Hz - 20 kHz

Input Maximum Voltage 1 000 mV

Input Impedance 30 kΩ

Audio

Maximum Output Power 50 W × 4 or 50 W × 2 + 50 W × 1 (Subwoofer = 4 Ω)
Full Bandwidth Power(at less than 1 % THD) 22 W × 4
Speaker Impedance 4 Ω - 8 Ω
Preout Level/Load (USB) 2 500 mV/10 kΩ
Preout Impedance ≤ 600 Ω

General

Operating Voltage (10.5 V - 16 V allowable) 14.4 V

Maximum Current Consumption 10A

Operating Temperature Range 0°C to + 40°C
Installation Size (W × H × D) 182 mm × 53 mm × 108 mm

Weight 0.58 kg

• Subject to change without notice.

(No.MA606<Rev.002>)3/20

SPECIFICATION

For ASIA

TUNER

FM Frequency Range 87.5 MHz - 108.0 MHz (50 kHz step)

Usable Sensitivity (S/N = 26 dB) 8.2 dBf (0.71 µV/75 Ω)
Quieting Sensitivity(DIN S/N = 46 dB) 17.2 dBf (2.0 µV/75 Ω)

Frequency Response (±3 dB) 30 Hz - 15 kHz

Signal-to-Noise Ratio (MONO) 64 dB

Stereo Separation (1 kHz) 40 dB

AM Frequency Range Band 1 (MW): 531 kHz - 1 611 kHz (9 kHz step)

Band 2 (SW1): 2 940 kHz - 7 735 kHz (5 kHz step)
Band 3 (SW2): 9 500 kHz - 10 135 kHz /11 580 kHz - 18 135 kHz (5 kHz
step)

Channel Space Selection Band 1: 9 kHz

Band 2/3: 5 kHz

Usable Sensitivity (S/N = 20 dB) MW: 29 dBµ (28.2 µV)

SW: 30 dBµ (32 µV)

USB

USB Standard USB 1.1, USB 2.0 (Full speed)

Compatible Devices Mass storage class

File System FAT12/ 16/ 32

Maximum Supply Current DC 5 V 1 A

D/A Converter 24 Bit

Frequency Response (±1 dB) 20 Hz - 20 kHz

Signal-to-Noise Ratio (1 kHz) 105 dB

Dynamic Range 88 dB

Channel Separation 90 dB

MP3 Decode Compliant with MPEG-1/2 Audio Layer-3

WMA Decode Compliant with Windows Media Audio

AAC Decode AAC-LC ".m4a" files

WAV Decode RIFF waveform Audio Format (Linear PCM only)

FLAC Decode FLAC files

Auxiliary

Frequency Response (±3 dB) 20 Hz - 20 kHz

Input Maximum Voltage 1 000 mV

Input Impedance 30 kΩ

Audio

Maximum Output Power 50 W × 4 or 50 W × 2 + 50 W × 1 (Subwoofer = 4 Ω)
Full Bandwidth Power(at less than 1 % THD) 22 W × 4
Speaker Impedance 4 Ω - 8 Ω
Preout Level/Load (USB) 2 500 mV/10 kΩ
Preout Impedance ≤ 600 Ω

General

Operating Voltage (10.5 V - 16 V allowable) 14.4 V

Maximum Current Consumption 10A

Operating Temperature Range 0°C to + 40°C
Installation Size (W × H × D) 182 mm × 53 mm × 108 mm

Weight 0.58 kg

• Subject to change without notice.

(No.MA606<Rev.002>)4/20

SECTION 1

PRECAUTION

1.1 Safety Precautions

(1) This design of this product contains special hardware and

many circuits and components specially for safety purpos­es. For continued protection, no changes should be made
to the original design unless authorized in writing by the
manufacturer. Replacement parts must be identical to
those used in the original circuits. Services should be per­formed by qualified personnel only.

(2) Alterations of the design or circuitry of the product should

not be made. Any design alterations of the product should
not be made. Any design alterations or additions will void
the manufacturers warranty and will further relieve the
manufacture of responsibility for personal injury or property
damage resulting therefrom.

(3) Many electrical and mechanical parts in the products have

special safety-related characteristics. These characteris­tics are often not evident from visual inspection nor can the
protection afforded by them necessarily be obtained by us­ing replacement components rated for higher voltage, watt­age, etc. Replacement parts which have these special
safety characteristics are identified in the Parts List of Ser­vice Manual. Electrical components having such features
are identified by shading on the schematics and by ( ) on
the Parts List in the Service Manual. The use of a substitute
replacement which does not have the same safety charac­teristics as the recommended replacement parts shown in
the Parts List of Service Manual may create shock, fire, or
other hazards.

(4) The leads in the products are routed and dressed with ties,

clamps, tubings, barriers and the like to be separated from
live parts, high temperature parts, moving parts and/or
sharp edges for the prevention of electric shock and fire
hazard. When service is required, the original lead routing
and dress should be observed, and it should be confirmed
that they have been returned to normal, after reassem­bling.

1.2 Warning

(1) This equipment has been designed and manufactured to

meet international safety standards.

(2) It is the legal responsibility of the repairer to ensure that

these safety standards are maintained.

(3) Repairs must be made in accordance with the relevant

safety standards.

(4) It is essential that safety critical components are replaced

by approved parts.

(5) If mains voltage selector is provided, check setting for local

voltage.

1.4 Critical parts for safety

In regard with component parts appearing on the silk-screen
printed side (parts side) of the PWB diagrams, the parts that are
printed over with black such as the resistor ( ), diode ( )
and ICP ( ) or identified by the " " mark nearby are critical
for safety. When replacing them, be sure to use the parts of the
same type and rating as specified by the manufacturer.
(This regulation dose not Except the J and C version)

1.5 Remote control

The Lithium battery is in danger of explosion if replaced incor­rectly. Replace it only with the same or equivalent type.

1.6 Preventing static electricity

Electrostatic discharge (ESD), which occurs when static electric­ity stored in the body, fabric, etc. is discharged, can destroy the
semi conductors. Take care to prevent this when performing re­pairs.

1.6.1 Grounding to prevent damage by static electricity

Static electricity in the work area can destroy the semi conduc­tors.
Be careful to use proper grounding in the area where repairs are
being performed.

(1) Ground the workbench

Ground the workbench by laying conductive material (such
as a conductive sheet) or an iron plate over it before plac­ing the unit on it.

(2) Ground yourself

Use an anti-static wrist strap to release any static electricity
built up in your body.

(caption)
Anti-static wrist strap

1M

Conductive material
(conductive sheet) or iron plate

1.3 Caution

Burrs formed during molding may be left over on some parts
of the chassis.
Therefore, pay attention to such burrs in the case of pre­forming repair of this system.

(No.MA606<Rev.002>)5/20

SECTION 2

SPECIFIC SERVICE INSTRUCTIONS

2.1 How to repair a fuse pattern

2.1.1 Purpose of fuse pattern

In order to prevent serious damage on the circuit, fuse pattern is prepared on the GND line of RCA Terminal. This damage may
take due to improper part replacement with a external equipment via RCA line.

2.1.2 Repair Procedure

(1) Check the shorted circuit at the meltdown point.

Need to clean up if the shorted circuit or carbonization happen at the fuse pattern.
(2) Add following part on the fuse pattern.
(3) Check output level.

Meltdown point

Part Number Part Name SPEC

F53-0513-08 PATTERN FUSE 4A

2.1.3 After finished repair

Due to improper part replacement, this meltdown occurs.
Thus please notice following information when the unit is returned to your customer.
Things to be checked before installing the unit.

(1) Check the GND line of external amplifier or other equipment which must connect properly.
(2) Check whether the GND line is not short-circuited with the battery terminal. (do not short-circuit these lines)

2.2 MICROCOMPUTER’S TERMINAL DESCRIPTION

IC701 (R5S726A0D216FP) on MAIN PWB ASSY

Pin No. Pin Name I/O Application

1 LCD_INH O Display On/Off Control L: Display OFF/

2 DAB_COM_ON O Enable DAB micon (For DAB model) H: ON/L: OFF

2 NC O No Use (for non DAB model)

3 PVcc - Power supply for I/O circuits

4 DZF I Zero Input Detect L: Mute OFF/H: Mute ON

5Vss -GND

6 PANEL_PON O Supply Control to Panel L: ON/H: OFF

7 DC_ERR2 I Detect DC Clip (for ST Power Amp IC) L: DC Error ON/

8 PWIC_MUTE O Muting Output for Power Amp IC L: Mute ON/H: Mute OFF

9 LCD_CE O LCD Driver IC Chip Enable Output (for LCD Model)

10 Vss - GND

11 LCD_CLK O LCD CLK Output

12 Vcc - Power supply

13 RGB_CLK O I2C Clock Output for RGB Driver (For RGB Model)

Processing/Operation/

Description

H: Display ON

H: DC Error OFF

(No.MA606<Rev.002>)6/20

Pin No. Pin Name I/O Application

13 PCB_TEST_MODE

_RX

14 LCD_DATA_SYS O LCD DATA Output (for LCD Model)

14 LCD/

RGB_DATA_SYS

14 PCB_TEST_MODE

_TX

15 USB_PON O Enable Output for High Side Switch L: HisideSW OFF/

16 PVcc - Power supply for I/O circuits

17 BT_DATA_BT I BT Data Input (For BT model only)

17 NC O No Use (for non BT model)

18 Vss - GND

19 BT_DATA_SYS O BT Data Output (For BT model only)

19 NC O No Use (for non BT model)

20 Vcc - Power supply

21 PWIC_STBY O Output to Power On Power Amp IC L: Standby/H: Play

22 SXM_DATA_SXM I SXM Data Input (For SXM model only)

22 NC O No Use (for non SXM model)

23 SXM_DATA_SYS O SXM Data Output (For SXM model only)

23 NC O No Use (for non SXM model)

24 DEBUG_1A O For Debug

24 DAB_COM_CLK O Clock to DAB (for DAB model only)

24 HD_SPICLK O Clock to HD Decoder (for HD model only)

25 DEBUG_1B O For Debug

25 DAB_REQ_SYS O Command Request from main micon to DAB micon (for DAB model)

25 HD_REQ_SYS O Command Request from SYS-com to HD (for HD model)

26 DEBUG_1C O For Debug

26 DAB_DATA__SYS O DAB Data Output (for DAB model only)

26 HD_DATA_SYS O HD Data Output (for DAB model only)

27 DAB_DATA_DAB I DAB Data Input (for DAB model only)

27 HD_DATA_HD I HD Data Input (for HD model only)

27 NC O No Use (for non DAB / HD model)

28 PVcc - Power supply for I/O circuits

29 FREQ_SEL O Frequency Select Pulse: Power On/

30 Vss - GND

31 ENC2 I Volume Encoder Pulse Input 2

32 ENC1 I Volume Encoder Pulse Input 1

33 REMO I Remocon Input L (Pulse): Remote control

34 LCD_DATA_LCD I LCD DATA Intput (for LCD Model)

35 MRC_DATA_MRC I Marine REMO Data Input UART 57.6kHz (For MARINE model)

35 DEBUG_2A O For Debug

36 PVcc - Power supply for I/O circuits

37 NC O System Clock Output to External Devices (for LCD Model)

I PCB Test Mode RX

O LCD and RGB DATA Output (for RGB Model)

O PCB Test Mode TX

No Use

Processing/Operation/

Description

H: HisideSW ON

L: Power Off

data/H: Standby

(No.MA606<Rev.002>)7/20

Pin No. Pin Name I/O Application

38 Vss - GND

39 RESET I Reset Input

40 Vss - GND

41 PLLVcc - Power supply for PLL

42 PAN_DET I Panel Detection input L: Panel Attached/

43 Vcc - Power supply

44 EXTAL I High Speed Clock 12MHz

45 XTAL O High Speed Clock 12MHz

46 Vss - GND

47 Vss - GND

48 PVcc - Power supply for I/O circuits

49 D-0 I/O USB Data- 0

50 D+0 I/O USB Data+ 0

51 ASEMD I ASE Mode Select Pin

52 NC I No Use

53 BT_MUTE I BT Mute L: Mute OFF/H: Mute ON

53 NC I No Use (for non BT model)

54 STAGE2 I Model Selecting Input 2

54 STEERING_REMO2I OE Remote In 2 (for DOP models)

Processing/Operation/

Description

H: Panel Detached

55 STAGE1 I Model Selecting Input 1

55 STEERING_REMO1I OE Remote In 1 (for DOP models)

56 TEL_MUTE I Tel Mute Detection Input (for JVC Model)

56 LINE_MUTE I Line Mute Detection Input (For KWD Model)

56 No Use I No Use (for non support Tel mute model)

57 DC_ERR1 I Detect DC Offset Error from EVOL IC L: DC Error ON/

H: DC Error OFF

58 Avss - GND

59 Avcc - Power Supply

60 Avref - Reference Power Supply

61 TRST I Debugging Interface. Reset Input.

62 ASEBRKAK/ASE-

BRK

63 TDO O Debugging Interface. Serial Output for Instructions and Data

64 TDI I Debugging Interface. Serial Input for Instructions and Data

65 TMS I Debugging Interface. Test Mode Select Signal Input.

66 TCK I Debugging Interface. Test Clock Input.

67 AUDIO_X2 O Audio Clock 16.9MHz (for External DAC)

68 AUDIO_X1 I Audio Clock 16.9MHz (for External DAC)

69 PVcc - Power supply for I/O circuits

70 SPBCLK O FLASH SPI Multi I/O Bus Clock output

71 Vss - GND

72 SPBSSL O FLASH SPI Multi I/O Bus Slave Select Output

73 SPBIO0 I/O FLASH SPI Multi I/O Bus I/O Data 0

74 SPBIO1 I/O FLASH SPI Multi I/O Bus I/O Data 1

I/O Emulator Break Mode Acknoledge/Break Input

(No.MA606<Rev.002>)8/20

Pin No. Pin Name I/O Application

75 SPBIO2 I/O FLASH SPI Multi I/O Bus I/O Data 2

76 Vss - GND

77 SPBIO3 I/O FLASH SPI Multi I/O Bus I/O Data 3

78 Vcc - Power supply

79 MD_CLK I Clock Mode Set (Power ON Reset)

EXTAL Pin Input Clock Ranges from 10 to 12 MHz

80 MD_BOOT I BOOT Mode Set L: Boot mode 0/

81 AUDIO_XOUT O DAC Audio Clock Output 16.9MHz

82 PVcc - Power supply for I/O circuits

83 DAB_PON O Control 3..3V power for DAB Module (for DAB model only) H: ON/L: OFF

83 HD_PON O Control 3.3V power for HD module (for HD model only) HD source= H: ON/

83 NC O No Use (for non DAB/non HD model)

84 Vss - GND

85 MUTE O Muting Output for Evol & Line Out L: Mute ON/H: Mute OFF

86 Vcc - Power supply

87 BT_RST O BT Reset Output (For BT model) L: Reset ON/

87 NC O No Use (for non BT model)

88 DCDC6V_PON O Enable Output for DC-DC Regulator

89 SXM_PWR O Power Supply for SXM (For SXM model only) L: PWR Off/H: PWR On

89 NC O No Use (for non SXM model)

90 DAB_REQ_DAB I Command Request from DAB micon to main micon

90 NC O No Use (for non DAB model)

91 EVOL_SCL I/O I2C Clock 391kHz for E-Vol

91 EP_SCL I/O I2C Clock 391kHz for E2PROM

91 TU_SCL I/O I2C Clock 391kHz for Tuner

92 EVOL_SDA I/O I2C Data for E-Vol

92 EP_SDA I/O I2C Data for E2PROM

92 TU_SDA I/O I2C Data for Tuner

93 IPOD_SCL O iPod Authentication IC I2C Clock Clock speed 23kHz

93 NC O No Use (For non-iPod Model)

94 IPOD_SDA O iPod Authentication IC I2C Data

94 NC O No Use (For non-iPod Model)

95 REG_SCL O I2C Clock for Regulator IC

96 REG_SDA O I2C Data for Regulator IC

97 NC O No Use

98 DIM_IN I Dimmer Control Input (for JVC Model) L: Dimmer Detect ON/

98 NC O No Use (For KWD Model) keep L output setting

99 REG_FLG I Power Detection L: Detect OFF/

100 Vss - GND

101 PVcc - Power supply for I/O circuits

102 MRC_REQ_MRC I Command Request from Marine REMO to SYS-com

(For MARINE model)

Processing/Operation/

Description

H: Boot mode 1

Other source= L: OFF

H: Reset OFF

H: Dimmer Detect OFF

H: Detect ON

(No.MA606<Rev.002>)9/20

Pin No. Pin Name I/O Application

102 NC O No Use (for non Marine model)

103 SSISCK O DAC Audio Serial Data Clock 44.1kHz

104 SSIWS1 O DAC L/R Clock 44.1kHz

105 MRC_PON O Enable Marine REMO Power Supply (For MARINE model)

105 DEBUG 2C O For Debug H: Power On / L: Power Off

106 SSITx O Servo DSP Data Output

107 Vss - GND

108 DAC_CCLK O DAC Control Data Clock

109 Vcc - Power supply

110 DAC_CDTI O DAC control Data Input

111 TU_RST O HELIO/CAYMAN (HD) Reset L: Reset ON/

111 NC O No Use (For non DAB/HD model)

112 PVcc - Power supply for I/O circuits

113 MRC_DATA_SYS O Marine REMO Data Output UART 57.6kHz (For MARINE model)

113 NC O No Use (for non Marine model)

114 Vss - GND

115 DAC_CS O DAC Chip Select

116 BEEP O Output for Beep Tone Generator H (Pulse): BEEP/L: OFF

117 MRC_REQ_SYS O Command Request from SYS-com to Marine REMO

(For MARINE model)

117 NC O No Use (for non Marine model)

118 PCB_TEST_MODE I PCB Test Mode Switch L: Normal Mode/H: Check

118 WDT O Watch Dog Timer output L: Normal Mode /

119 MRC_EN O Marine REMO Data Select (For MARINE model)

119 DEBUG_2B O For Debug

119 Field Test 2 O RDS data log output (standby for field test)

120 Field Test 1 O RDS data log output (standby for field test)

120 FDAC_RST O DAC reset L: DAC reset/

Processing/Operation/

Description

H: Reset OFF

Mode (After Reset soft­ware need to check the
pin input. If detect high it
should enter Serial Num­ber mode)

H: Reset by WDT

H: DAC reset off

(No.MA606<Rev.002>)10/20

SECTION 3

DISASSEMBLY

3.1 Main body

3.1.1 Removing the MAIN PWB (See Fig.1 to 4)

(1) Disengage the 8 hooks a, and remove the FRONT CHAS-

SIS ASSY.

(See Fig.

1)

aa

a

a

aa

FRONT CHASSIS ASSY

Fig.1

(2)

Remove the 3 screws A . (See Fig.

2)

A

A

Fig.2
(3) Remove the 2 screws B. (See Fig.3)
(4) Disengage the 1 hook b, and remove the BOTTOM

COVER with MAIN PWB.
(See Fig.3)

BOTTOM COVER

A

3.1.2 Removing the SWITCH PWB (See Fig.5)

(1) Remove the VOLUME KNOB.
(2) Remove the 4 screws D.
(3) Disengage the 11 hooks d, and remove the REAR

COVER.

(4) Remove the SWITCH PWB.

a

D

d d d d

d

D

d

a

d

d ddd

D

REAR COVER

Fig.5

D

B

Fig.3
(5) Disengage the 1 hook c, and remove the MAIN PWB.

(See Fig.4)

MAIN PWB

c

Fig.4

b

B

(No.MA606<Rev.002>)11/20

SECTION 4

ADJUSTMENT

4.1 Outline

4.1.1 Panel

ACCENT SEARCHVOL

RETURN

A symbol "" in the key column indicates that the key should be pressed and held for 1 second or longer.

4.1.2 Test Modes

These test modes are available in normal production ROM.
Transition to Test Mode shall be available during DC Error detection.

Test Mode Mode Source Operation

Production Test Mode - All Press and hold [DISP] key and [SOURCE] key and reset.

Service Test Mode Normal Mode /

Production Mode

Service Information Clear Mode - All Press and hold [RETURN] key and [SOURCE] key and reset.

DC Error Information Mode - All Press and hold [DISP] key and [] key and reset.

DOP Test Mode Normal Mode All Pressing and holding [SELECT] key, press [DISP] key for 7 sec-

Bluetooth Device Name Select
Mode

Tunisia Area /
Tuner Span Change Mode

4.1.3 Release from Test Mode

These actions will release the Test Mode and transit back to Normal Mode

Method Remarks

Reset All Modes

Momentarily voltage drop All Modes

ACC OFF All Modes

POWER OFF All Modes

Panel Detach All Modes

Normal Mode BT Audio Pressing and holding [ACCENT] key, press [DISP] key for 3 sec-

Normal Mode All Pressing and holding [VOL] key, press [RETURN] key for 3 sec-

All Pressing and holding [DISP] key, press [] key for 7 seconds.

(Starting to press [DISP] key and [] key at the same time can not
be entered into the mode)

onds.
(Starting to press [SELECT] key and [DISP] key at the same time
can not be entered into the mode)

onds.
(Starting to press [ACCENT] key and [DISP] key at the same time
can not be entered into the mode)

onds.

(No.MA606<Rev.002>)12/20

4.2 Production Test Mode

Press and hold [1] key and [3] key and reset.

4.2.1 Test Mode Defaults

During Production Test Mode, the following settings defer from the Normal Mode.
The settings will change immediately after mode activation.

Difference in action Setting value

Period to prohibit TEL/LINE MUTE function (Normal Mode: 10 secs) 1 second

Writing-in to E2PROM when DC error is detected Prohibited

"DEMO" item in Setup Menu OFF

Power supply during ACC OFF (Back Up On) MUTE terminal turns OFF after 2 seconds

"BEEP" item in Setup Menu ON

Volume range 0 to 44

Source change interval timer 0 seconds

When detected the 0 bit mute Mute off

Various setting item Setting value

Default Volume 15

"BASS BOOST" OFF

"LOUDNESS" OFF

"TEL MUTING" ON

Initial Source FM (Mechaless Models) /

CD (Non-Mechaless Models)

Language English

EQ FLAT

Fader / Balance Center

Digital Track Expander / Sound Reconstruction Set OFF

"VOL ADJUST" / "VOLUME OFFSET" 0

DEMO Mode Setting OFF

4.2.2 Mode structure

The following table shows the test modes that can be accessed from the different sources in Production Test Mode.

Source Test mode

Tuner TUNER Test Mode

USB USB Test Mode

4.2.3 Mode content

Syscon shall display the following information after entering Production Test Mode.

Display content Details

All lights on (BOTH LCD & LED including dual color switchable)
Set should not be able to power on if sub clock is not functioning.
The display is released when another operation is executed.

4.2.4 Special Operation by Key Input

Behaviour Details

Volume Adjustment to 44
Only during Normal display
(Invalid during Menu)

4.2.5 How to transit to Version Display Mode

Item Operation Display content Details

Transit to Display
Mode

RETURN

Pressing and holding [DISP] key, press [] key for 0.5 seconds.
(Starting to press [DISP] key and [] key at the same time can not be entered into
the mode)

Transit to Version Display Mode
(Default status: All Lights ON)

(No.MA606<Rev.002>)13/20

4.2.6 Version Display Mode

Item Operation Display content Details

All Lights ON/

All lights ON

TEST

Syscom version
display

Stage Setting ##: Stage Setting for current hardware

Y–SS##@@@

TSAGE :21 ##

## = File Number
@@@ = Syscon Version Number

Serial No. Display (8 digits)

Serial No. display

SN 00000000

Display to support ASCII characters
********: Blank
@@@@@@@@: EEPROM Read Error

DISP

(Toggle)

## = Blank: Verifying
OK: IC mounted
NG: IC not mounted

iPod IC Mount
Verification Status
Display
(USB models
only)

iPod ##

**: Non iPod support model

In addition, upon entering this mode, P-CON is
turned ON.

When a result is OK, P-CON is turned off.
Upon exit, P-CON remains OFF.
When a result is NG, P-CON is kept ON condition.
Upon exit, P-CON remains ON.

Pre-out Switch
(1 Pre-out / 2 Pre-

EQ

L/O SU B.W

Switch Pre-out with toggle

out model only)

Mode release

SOURCE
Transition

Mode release RETURN

Return to Normal mode

Return to Normal mode

4.2.7 Tuner Test Mode Specification

The following display shall be indicated according to the TUNER status.

Status Display content Details

TUNER IC
Communication Error

RDS/RBDS Specified
data reception

TUN CON NG

DRS STTE

Communication to TUNER IC not available
(indicated unless the mode is in Clock Display Mode).

Turn OFF P-CON forcibly if PS=RDS TEST is received.
P-CON recovers with Power OFF/ON.

Item Operation Display content Details

Display TUNER IC version

TUNER IC display EQ

TA2********

'AT2 ********' is eg "AtomIC2 57V1B101" indicating
"AtomIC2 TEF6657V1B 1.01"

*Not applicable and no function for HD and DAB models

(No.MA606<Rev.002>)14/20

4.2.8 USB Test Mode Specification

Applicable for iPod model only.

Status Display content Details

## = Blank: Verifying
NG: IC not mounted
**: Non iPod support model

Upon source change to USB source or USB
device plug in:

Verifying: Show "iPod: ##"
NG: Always show "iPod: NG" even during "NO
DEVICE" or playback.

**: Always show "iPod: **" even during "NO
iPod IC Mount Verification Status
Display

iPod ##

DEVICE"

OK: Change back to nomal display ("NO DE-

VICE / normal playback display).

In addition, upon enter to this mode, P-CON is

turned ON.

When a judgment result is OK, P-CON is

turned off.

Upon exit, P-CON still remain OFF.

When a judgment result is NG, P-CON is kept

ON condition.

Upon exit, P-CON still remain ON.

4.3 Service Test Mode

In the STANDBY source, while pressing and holding [2] key, press [6] key for 7 seconds.
(Starting to press [2] key and [6] key at the same time can not be entered into the mode)

4.3.1 Default status immediately after the mode activation

It shall be same as the normal activation.

4.3.2 Mode content

Syscon shall display the following information after entering this mode.

Display content Details

RSVT TES

Display is released when an operation is executed.

4.3.3 Common operation mode for only STANDBY sources

Item Operation Display content Details

Syscom version
display

6

Y–SS##@@@

## = File Number
@@@ = Syscon Version Number

00 to 50 are displayed in "XX".

Power ON
duration display

OPNTM HX0X

2

OPNTM XXXXX

For less than 1 hour, the display is indicated per 10
minutes.

00001 to 10922 are displayed in "XXXXX".
MAX 10922 (hours)

(No.MA606<Rev.002>)15/20

4.4 Service Information Clear Mode

Press and hold [2] key and [5] key and reset.

4.4.1 Default status immediately after the mode activation

It shall be same as normal activation.

4.4.2 Mode content

After entering this mode, Syscon shall clear the information stored for service and output the result to the display.
Cleared information changes will take place only after reset.

Display Display content Details

Data Clear in

IIINTALIZE

Data Clearing in Progress.

Progress

Data Clear OK Data cleared successfully.

Data Clear NG Data cleared with error, clear the data.

TDA A CLR OK

TDA A CLR NG

Display Blinks (250ms interval)

The following table shows the data that is cleared.

Information to Clear Details Storage area

Service information

DC error information

CD EJECT number of times display E2PROM

Forced Power OFF information display E2PROM

DC error 1 display (wrong connection & other detection information in detecting duration) E2PROM

DC error 2 display (capacitor leakage detection number information) E2PROM

Tuner Area Setting E2PROM

Tuner information

Preset Frequency E2PROM

Preset PI code E2PROM

Tagging information Token data memory index E2PROM

4.5 DC Error Information Mode

Press and hold [3] key and [6] key and reset.

4.5.1 Default status immediately after the mode activation

It shall be same as normal activation.

4.5.2 Mode content

Syscon shall display the following information after entering this mode.

Display content Details

DC ERR

DC OK

When DC error is detected

When DC error is not detected

Item Operation Display content Details

DC 1 ER R

DC ERR1display 

DC1 OK

When wrong connection & DC error in other detec­tion duration is detected.

When wrong connection & DC error in other detec­tion duration is not detected.

Clear detection information when wrong connection

DC ERR1 clear 

DC1 OK

& DC error in other detection duration is displayed.
(Clear data flash)

Display detecting number of times in capacitor leak-

DC ERR2 display 

DC2 4

age detection duration.
#: 0 to 4

Clear number of times for detection information in

DC ERR2 clear 

DC 2 0

capacitor leakage detection duration. (Clear data
flash)

(No.MA606<Rev.002>)16/20

4.6 DOP Test Mode

Pressing and holding [SELECT] key, press [DISP] key for 7 seconds.

4.6.1 DOP Mode Common Setting

Common settings for all car makers are as follows:

Demo: No demo animation
Remove all DEMO related items

Power on animation: Show carmaker's name
Only opening animation will show "Car maker's name"
Setup menu: Delete Demo

Color setting for RGB model: Refer to manufacturer preference below:

4.6.2 EEPROM DOP Read Error Display

In the case of an EEPROM read error or EEPROM DOP read error, the unit will behave accordingly.

(1) No Power on animation
(2) No Demo animation
(3) Demo removed in setup menu
(4) Color settings set to default
(5) Serial number display replaced by "SN @@@@@@@@"

4.6.3 Mode content

1) Enter DOP Mode. Pressing and holding [SELECT] key, press [DISP] key for 7 seconds.

Display content Details

PMODEDO

2) Select manufacturer setting.
Note: RGB color save as USER color. DEFAULT color set to USER.
The order is priority. Lower Priority brand need to press and hold(2 secs)
: press and hold (2 second) on button mentioned as follow

Display content Operation Display content Color

No Demo 1

Toyota 2

Honda 3

Ford 4

Suzuki 5

Hyundai 6

Mitsubishi 

FIAT 

Iveco DISP

Alfa Romeo 1

KIA 2

Volkswagen 3

Chevrolet 4

Peugeot 5

Nissan 6

Isuzu 

Skoda 

Daihatsu DISP

Default RETURN

JVC

TOYOTA

HONDA

FORD

SUZUKI

HYUNDA I

MI TSUBISHI

FIAT

IVECO

ALFA ROMEO

KIA

VOL KSWAGEN

CHE VRO L E T

PEUGEOT

NISSAN

ISUZU

SKODA

DAIHATSU

DEFAUL T

(same as Daihatsu)

Blue

Lime

Blue

Greenish Blue

Yellow Amber

Blue

Apple

White

White

Red

Blue

White

Red

Green

Orange

Red

Yellowish Green

Yellow Amber

(Same as Suzuki)

Return to default JVC normal setting.

7

25

5

3

16

7

14

User

User

13

7

User

13

24

16

13

User (R=22, G=31, B=0)

15

(No.MA606<Rev.002>)17/20

4.7 Tuner Span Change Mode

Pressing and holding [VOL] key, press [RETURN] key for 3 seconds.

4.7.1 Default status immediately after the mode activation

It shall be same as normal activation.
After selection of the setting item, the receiver should exit this mode and return to the display before entering this mode.
This setting will be stored in EEPROM.

4.7.2 Mode content

Syscon shall display the following information after entering this mode.

Item Operation Display content Details

Tuner Span
Change Mode

VOL +/-

(*1)

Tuner Span
Change Mode

VOL +/-

(*2)

Release Mode VOL

ARE A AS I A

AREA TUNISIA

AREA EUROPE

AREA TUNISIA

Default setting for Asia models.
Change to 'Asia' area type.

Change to 'Tunisia' area type.

Default setting for Europe models.
Change to 'Europe' area type.

Change to 'Tunisia' area type.

Depending on display pattern in normal mode.

*1: Only applicable for Asia ('U') models
*2: Only applicable for Europe ('E') models

(No.MA606<Rev.002>)18/20

4.8 DC Offset error description

A

4.8.1 DC Offset detection circuit design

• Purpose:
To prevent breakdown, when occur DC offset between speak­er output "+" and "-".

• Target:
Detect DC offset, then stop the Power Amp operation and shift
to specified condition.

4.8.2 Possible causes of DC offset at speaker output lines

(1) Mis-connection for Speaker output for example touch to car

body or battery line.
(2) Current leak of coupling capacitor for Power IC input.
(3) Current leak of AC-GND capacitor for Power IC AC-GND.
(4) Capacitor shorted of above parts due to foreign object.

C-tc

E-Vol

Win_TC

Win_In

DC Error

C-in

C-in

R3

C-in

C-in

C-ac2C-ac1

Sw5V

R2

R1

C3

R4

Audio Pwr Amp

In 1

In 2

In 3

In 4

AcGnd

Offset Detect
Out

Micon

ADC In

4.8.5 Manipulate after detect DC Offset

• If detected error 10 consecutive times, and 10th error occurred
in "Mis-connect detection period", judge as "Mis-connect".

• If detected error 10 consecutive times, and 10th error occurred
in "Capacitor leak detection period", judge as "Capacitor leak ".

• If detected error 10 consecutive times, and 10th error occurred
in "Other detection period" and detected another 10 errors con­secutively, then judge as "Other".

• If judge as "Mis-connect".

- turn off speaker output.

- display "MISWIRING", check wiring connection then reset.

- key access disable except button of Eject, Reset and service

mode

- record error in EEPROM "DC1 ERR"

- the product is able to be recovered by Reset button.

• If judge as "Capacitor leak ".

- turn off speaker output.

- display "WIRING", check wiring connection then reset.

- key access disable except button of Eject, Reset and service

mode

- record error in EEPROM "DC2 #" (# means counter number)

- the product can be recovered by pressing the Reset button

before the capacitor leak error counter reach "DC2 4".
After that, only clear the counter back to "0" can recover the
product.

• If judge as "Other" (manipulation same as mis-connect)

SECTION 5

TROUBLESHOOTING

4.8.3 Type of checking

4.8.3.1 To detect DC Offset Error

• Mis-connection

- Short any one speaker out line to GND or Vcc

• Capacitor leak

- Parallel 330kΩ to either any one of coupling cap or AC-GND

capacitor (to simulate current leakage of capacitor)

- Shorted either any one of coupling capacitor or AC-GND ca­pacitor.

4.8.4 Detection Timing chart

PWIC_STBY

PWIC_MUTE

UD_MUTE

2.0sec or more

Missconnect
detection period

1.5sec or more

0.8sec

0.7sec or more

1.0sec

Capacitor leak

detection period

Other (miss detection etc.)

detection period

50ms

or more

5.1 How to cancel DC offset error

Check to be sure the terminals of the speaker leads are covered
with insulating tape properly, then reset the product.
If an error message does not disappear even after a reset, there
is a need for internal repair.

5.2 How to clear DC offset error recorded in EEPROM

Refer to “4.5 DC Error Information Mode”.

(No.MA606<Rev.002>)19/20

JVC KENWOOD Corporation

CE Segment 2967-3, Ishikawa-machi, Hachioji-shi, Tokyo, 192-8525, Japan

(No.MA606<Rev.002>)

Printed in Japan

VSE

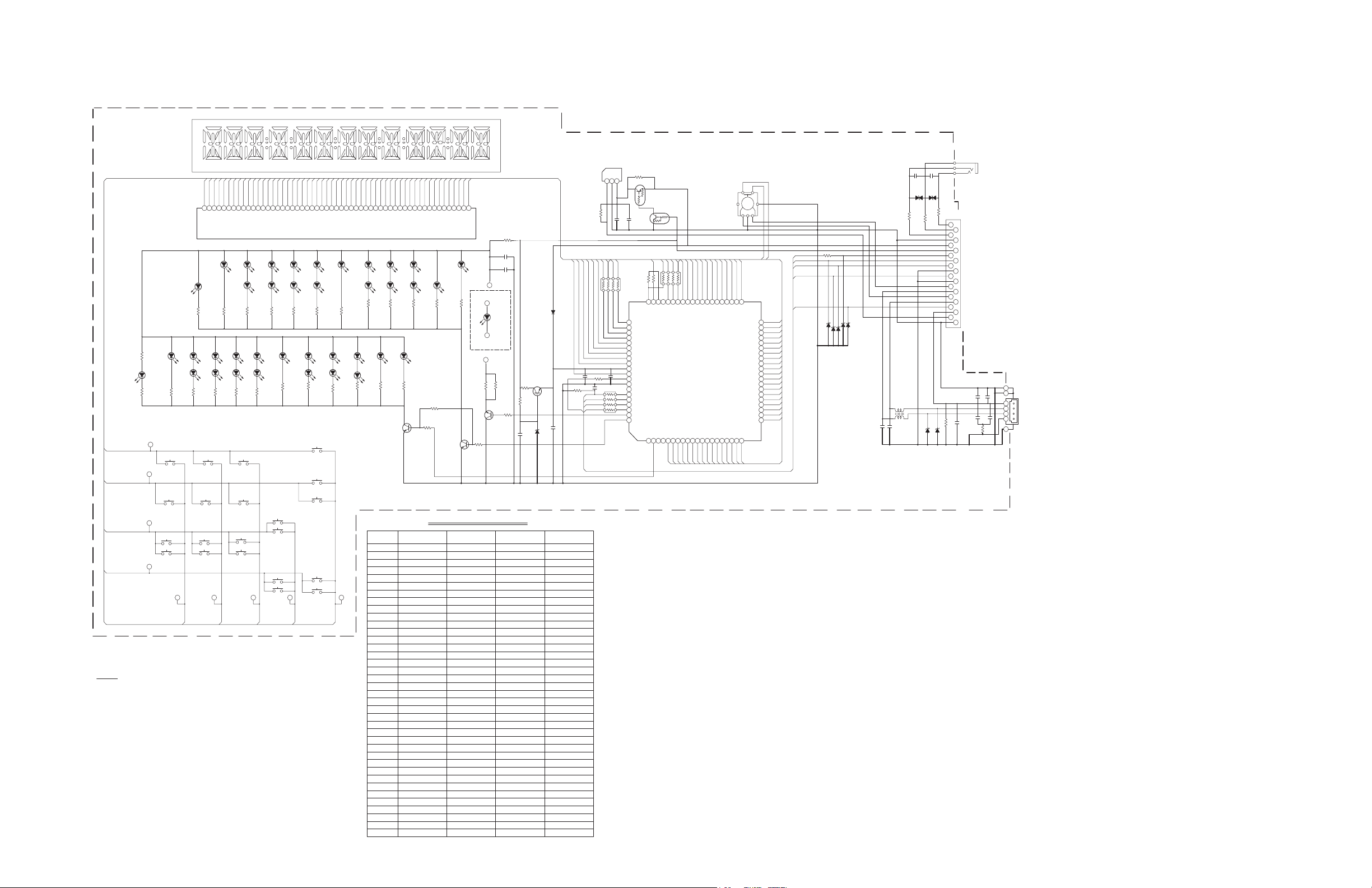

SCHEMATIC DIAGRAMS

22

DIGITAL MEDIA RECEIVER

KD-X120EE KD-X120EU KD-X120U
KD-X120UT KD-X125EE KD-X220E
KD-X220EN KD-X220EY KD-X220J
KD-X220U KD-X220UR KD-X220UT

(No.MA606<Rev.002>)1/

■ PRECAUTIONS ON SCHEMATIC DIAGRAMS

z Due to the improvement in performance, some part numbers shown in the circuit diagrams

may not agree with those indicated in the Parts List.

z The parts numbers, values and rated voltage etc. in the Schematic Diagrams are for

reference only.

z Since the circuit diagrams are standard ones, the circuits and circuit constants may be

subject to change for improvement without any notice.

■ PRECAUTIONS ON PARTS LIST

z

The parts identified by the symbol are critical for safety. Whenever replacing these parts, be sure to
use specified ones to secure the safety.

z

The parts not indicated in this Parts List and those which are filled with lines --- in the Parts No.
columns will not be supplied.

z

P.W. BOARD Ass'y will not be supplied, but those which are filled with the Parts No. in the Parts No.
columns will be supplied.

z

When ordering chips, screws etc., place bulk orders (unit of tens) whenever possible to improve
shipping efficiency.

z

There are cases where the actual implemented parts in the sets and the service parts are different.
When ordering parts, make sure to refer to the Parts List.

■

PRECAUTIONS ON SERVICE

Certain parts of the power circuits and the GNDs differ according to the models. Care must be
taken for the following points as the differences are indicated separately in the LIVE GND ( ) and

the ISOLATED (NEUTRAL) GND ( ).

1. Do not touch the LIVE GND, or do not touch the LIVE GND and the ISOLATED (NEUTRAL)
GND at the same time. It may cause an electric shock.
Before pulling out the chassis or other parts, make sure to pull out the power cord from the
wall outlet first.

2. Do not short circuit between the LIVE GND and ISOLATED (NEUTRAL) GND, or never
measure the LIVE GND and ISOLATED (NEUTRAL) GND at the same time using measuring
instruments (oscilloscope, etc.). It may blow fuses or damage other parts.

■ DEVIATION TOLERANCE RANGE󲩷

DEVIATION TOLERANCE RANGE

F G J K M N R H Z P

± 1% ± 2% ± 5% ±10% ±20% ±30%

+30%

-10%

+50%

-10%

+80%

-20%

+100%

-0%

22

(No.MA606<Rev.002>)2/

Q931

SW_3.3V

Q471Q470

1

6

RGULATOR

2

IC901

HSW

IC891

DC-DC

8

IC861

EEPROM

IC841

RESET

IC831

FLASH

IC821

MICON

PVCC

IC701

TUNER

IC601

DAC

IC555

IC481

Transceiver

RS-485

IC480

iPod

IC441

POWER_AMP

IC301

EVOL

IC161

REMOCON

IC90

(3 Zone only)

RGB Driver IC

IC2

LCD Driver

IC1

PANEL CONNECTOR

CN701

PANEL CONNECTOR

CN1

BLOCK DIAGRAM-1 (SIGNAL BLOCK)

AUX

USB

J80

J60

KEY MATRIX

F_AUXG

F_AUXR

F_AUXL

D-0

D+0

F_AUXG

F_AUXR

F_AUXL

D-0

D+0

KS6

KS3

KS2

KS1

KI5

KI4

KI3

KI2

KI1

LCD

ED1

COM4

COM3

COM2

COM1

S1 TO S51

P3

P2

P1

P4

P3

P2

P1

RGB

LCD_RGB_DATA_OUT

LCD_DATA_OUT /

RGB_CLK

KS1

KI4

LCD_DATA_IN

LCD_RGB_DATA_OUT

LCD_DATA_OUT /

LCD_INH

LCD_CE

LCD_CLK

ENC2

ENC1

REMO

ENCODER

Single Color

LED

RGB LEDs

EN1

SWR

for MRN_REQ_M)

(Use IRQ or FR6 pin

BT MODULE

For SXI

For MARINE CONTROL

MIC+

MIC-

MRC_EN_SYS

MRC_REQ_SYS

AOUT_L

AOUT_R

RESET

TX

RX

DCERR2

MRC_DA_MRC
MRC_DA_SYS

MRC_REQ_MRC

MRC_PON

FREQ_SEL

DZF

DAC_CDTI

DAC_CLK

DAC_CS

DAC_RST

DAC_LRCK

DAC_SDTI

DAC_BCK

DAC_MCK

LINE_MUTE

RESET

FLAG_REG

PWIC_MUTE

PWIC_STBY

BEEP

MUTE

MUTE

OE_REMOTE

REMOTE

OE

REMOTE

ANT

OFFSET

DC_ERR1

ENC2
PAN_DET

ENC1

REMO

LCD_CE

LCD_CLK

LCD_DATIN

LCD_DATOUT

PON_PANEL

M_DA_SXM

SXM_DA_M

REMO

TEL_MUTE

DIM_IN

BEEP

PWIC_STBY

PWIC_MUTE

RESET

PON_MRN
M_REQ_MRN
MRN_REQ_M

M_EN_MRN

M_DA_MRN

MRN_DA_M

SCL_EV_EP_TU

SDA_EV_EP_TU

SDA_IPOD

SCL_IPOD

SPBSSL

SPBCLK

SPBIO3

SPBIO2

SPBIO1

SPBIO0

E-MUTE

SWL

RROUT/SWR

FROUT

RLOUT/SWL

FLOUT

RROUT
FROUT

RLOUT

FLOUT

SXM_PWR

TEL_MUTE

DIM

MUTE

LINE_MUTE
E_MUTE

SXM_PWR
SXM_TXD
SXM_RXD

SXI

J470

TU_R

TU_L

USB_L
USB_R

SXI_G
SXI_R
SXI_L

&

CONTROL

MOSFET

MUTE

TEL_MUTE

DIMMER

RESET

Mute_Circuit

JACK

ANT

J600

J321

SW

PANEL3.3V

AUX_G

AUX_L

AUX_R

D-0

D+0

PON_USB

CTL
TU3.3V

SCL_EV

SDA_EV

SCL_EET

SDA_EET

SDA_REG
SCL_REG

FLAG_REG

RR-

RR+

RL-

RL+

FR-

FR+

FL-

FL+

GND

DC_P.CORD

CN990

EXT

ACC

ANT

BT_DA_SYS

BT_DA_BT

BT_DA_BT

BT_DA_SYS

BT_R
BT_L

DCERR2

SXM_PWR

MIC

created date:2015-04-22No.MA606

22

(No.MA606<Rev.002>)3/

Q931

SW_3.3V

SW

PANEL3.3V

Q701

Q471

Q470

0.35A

11

0.45A

15

0.25A
4

1.3A
5

0.3A
3

13

7

8

1

6

REGULATOR

2

IC901

HSW

IC891

1

DC-DC

8

IC861

1.25V_LDO

IC851

EEPROM

IC841

RESET

IC831

FLASH

IC821

PLLVCC

VCC

MICON

PVCC

IC701

TUNER

IC601

DAC

IC555

IC481

Transceiver

RS-485

IC480

iPod

IC411

POWER_AMP

IC301

EVOL

IC161

REMOCON

IC90

(3 Zone only)

RGB Driver IC

IC2

LCD Driver

IC1

SWITCH PWB

MAIN PWB

BLOCK DIAGRAM-2 (SUPPLY BLOCK)

USB_5V

USB_5V

LCD

ED1

5V

PANEL_3.3V

ILM_10.5V

AUX

USB

J80

J60

RESET
SWITCH
(2 DIN)

KEY MATRIX

Regulator

5V

ILM_10.5V

PANEL_3.3V

ENCODER

Single Color LED

RGB LED

EN1

AND

Gate
SW

3.3V

BT MODULE

For SXI

For MARINE CONTROL

MIC-

2

VCC

8

DGND

DGND

7

MIC+

1

AGND

AGND

6

TEL_MUTE

DIMMER

Mute_Circuit

JACK

ANT

J600 J321

PANEL CONNECTOR

PANEL CONNECTOR

CN1

CN701

VDD

VCC

3.3V

VDDA_RF

VDDA_IFADC

VDDD

BU3.3V

9

SXI

J470

GND2

GND2

TU3.3V

AU9/12V

CD5V

5.2V

ILM10.5V

GND

V6IN

DC_P.CORD

CN990

VCC2

VCC1

EXT

ACC

ANT

VCC

&

CONTROL

MOSFET

AU9

MIC

-

+

created date:2015-04-22No.MA606

22

(No.MA606<Rev.002>)4/

AM MODE

ALL RESISTORS ARE 1/10W 5% METAL GLAZE RESISTOR.
ALL CAPACITORS ARE 50V OR 25V CERAMIC CAPACITOR.

1. VOLTAGES ARE DC-MEASURED WITH A DIGITAL VOLT METER WITHOUT INPUT SIGNAL

3. COMPONENTS REFERENCE WITH "?" INDICATE NOT USE.

2. UNLESS OTHERWISE SPECIFIED.

ALL RESISTANCE VALUES ARE IN OHM.

NOTES

CONDITION---FM MODE. ( )USB MODE.

3.3V

0V

0V

0V

3.3V

3.3V

1.5V

1.5V

1.5V

0V

0V

0V

1.5V

1.5V

2.9V
0V

3.3V

3.3V

NO USE

NO USE

(0.1V)

(3.0V)

0V

0V

3.3V

0V

0V

3.3V

3.3V

(1.7V)

0V

(3.1V)

(4.9V)

0V

0V

1.0V

0.9V

2.5V

1.5V

1.2V

1.5V

1.2V

1.5V

1.2V

0V

0V

3.3V

0V

(1.7V)

(3.3V)

0V

(1.7V)

3.3V

0V

0V

3.3V

0V

3.0V

5.0V

2.5V

2.5V

0V

(1.7V)

2.5V

0V

0V

(1.7V)

5.0V

0V

(3.3V)

(1.7V)

3.3V

3.3V

3.3V

0V

0V

0V

14.0V
0V

10.5V

8.5V

5.0V

6.0V

3.3V

3.3V

5.1V

3.3V

3.3V

3.3V

0V

14.3V

14.0V

14.1V

0V

5.1V

0.8V

4.8V

1.6V

9.6V

3.3V
0V

0V

3.3V

3.3V

3.3V

0V

3.3V 3.3V

3.3V

3.3V

3.3V

NO USE

3.3V

3.3V

3.3V

MAIN PWB:J7J-0022-**

3.0V0V

0V

1.5V

3.3V

0V0V0V

0V

0V

0V

0V

0V

3.3V

0V

3.3V

3.3V
0V

0V0V0V

0V

2.8V

1.5V

0V

3.3V

3.3V

3.3V

3.3V

LTA024EEB-X

22K

22K

LTC024EEB-X

47K

10K LTA014YEB-X

4.7K

LTC043TEB-X

22K

22K

0V

3.3V

(ATS10A)

FZB10BT-100

F901

FUSE 10A

0V

0V

1.25V

0V

0V

0V

0V

0V

3.3V

0V

0V

3.3V

0V

3.3V

0V

1.25V0V3.3V0V3.3V0V1.25V

0V

0V

3.3V0V3.3V

3.3V

3.3V0V0V

0V

3.3V

0.1V

0V

3.3V

3.3V

3.3V

0V

1.25V

0V

1.25V

1.9V

1.9V

0V

0V

3.3V

0V

0V

3.3V

0V

0V

*

*

1.5V

3.3V

0V

3.3V

3.3V

1.6V

0V

3.3V

3.3V

3.3V

3.2V

0V0V0V

1.25V

0V

3.3V

3.3V

0V

0V

1.25V

2.0V

0V

0.2V

3.3V

3.2V

0V

0V

3.3V

3.3V

0V

0V

0V

0V

0V

3.3V

1.25V

0V

3.3V

0V

3.3V

3.3V

3.3V

3.3V

3.3V

0V

3.3V

5.1V

5.1V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

0V

4.0V

4.0V

4.0V

4.0V

4.0V

4.0V

4.0V

8.4V

3.3V

3.0V

3.0V

3.3V

3.3V

0V

3.2V

0V

7.1V

3.6V

7.1V

14.4V

7.1V

0V

7.1V

7.0V

6.9V

6.9V

6.9V

0V

6.9V

7.1V

7.1V

0V

7.1V

14.4V

7.1V

3.2V

7.1V0V3.2V

0V

0V

3.3V

3.0V

3.0V

0V

0V

0V

0V

DEBUGGING

BT_DATA_BT

DC_ERR1

LCD_DATA_SYS

SXI_AL

EET_SDA

EET_SCL

BT_DATA_SYS
BT_RST

BT.L

BT.R

RESET

TU.R

FREQ_SEL

SXM_DATA_SXM

ENC2

ENC1

FLOUT

DIM_IN

SXM_PWR

MUTE

MIC_N

MIC_P

TU.L

FR+

FL-

TEL_MUTE

DIM_IN
REG_FLG

BT_RST

LCD_DATA_LCD

PAN_DET

REMO

D-

ENC1

D+

ENC2

LCD_CLK

LCD_CE

P3.3V

SXI_AG

AUX-R

AUX-G

AUX-L

SXI_AR

MIC_N

SXI_AR

SXI_AL

SXM_DATA_SYS

DZF

SPBIO0

SPBCLK

SPBIO3

SPBSSL

SPBIO1

SPBIO2

IPOD_SDA

IPOD_SCL

FR-

RESET

FL+

RL+

FR+

RL-

RR-

RR+

FL-

REMO

REG_FLG

REG_SCL

TEL_MUTE

RESET

USB_PON

D-

REMO

RR-

MIC_P

REG_SCL

EET_SDA

EET_SCL

LCD_INH

SXM_PWR

REG_SDA

BT.R

RL+

RL-

FR-

RR+

FL+

DAC_CS

DAC_CDTI

DAC_CLK

DAC_LRCK

DAC_SDTI

DAC_BCK

DAC_MCK

AUX-G

AUX-R

BT.L

LCD_DATA_LCD

BT_DATA_BT

BT_DATA_SYS

RLOUT

RROUT

FROUT

LCD_INH

PANEL_PON

DAC_MCK

DAC_SDTI

DAC_LRCK

USB.R

USB.L

DZF

DAC_CDTI

DAC_CLK

DAC_CS

DAC_RST

PANEL_PON

DAC_RST

REG_FLG

RR/SUBR

RL/SUBL

RROUT

RLOUT

FROUT

MUTE

USB_PON

LCD_DATA_SYS

REG_SDA

DAC_BCK

DC_ERR1

OFFSET

FLOUT

USB.R

PWIC_STBY

EET_SCL

EET_SDA

E_MUTE

FREQ_SEL

BEEP

SXM_DATA_SXM

DC_ERR2

SXM_DATA_SYS

PAN_DET

PWIC_MUTE

SPBCLK

LCD_CE

LCD_CLK

D+

IPOD_SCL

SPBSSL

IPOD_SDA

SPBIO0

SPBIO1

SPBIO2

SPBIO3

RL/SUBL

EET_SDA

SXI_AG

USB.L

AUX-L

OFFSET

EET_SCL

RR/SUBR

FLOUT

E_MUTE

RLOUT

TU.R

FROUT

RROUT

E_MUTE

TU.L

PWIC_MUTE

DC_ERR2

PWIC_STBY

BEEP

GND3

GND2

GND5

GND1

GND4

!

!

!

sure to use the specified one.

When replacing those parts make

Parts are safety assurance parts.!

!

!

!

!

!

!

!

16.9344MHz

NAX1224-001X

X540

12MHz

NAX1243-001X

X701

9.216MHz

L7J-0014-00

X600

F0K-0014-00

VA600

V

?VA601

DAC5

TL03

IP1

TL46

DIST

TL45

AR

TL53

CLD/GND

LCDDAO

LCLK

CE

USBG

AL

TL52

AG

P33

TL07

GND

LDI

V10.5

D-

INH

5V

TL15

VOL2

REM2

D+

PDET

TL18

VOL1

FMIN

TU.L

TL51

TU.R

TL50

SXI.L

TL56

S10

S6

S2

R

L

G

SXI.R

TL57

AC

TL44

RL

FR

FL

SUBR

SUBL

RR

TMUTE

SDA

SCL

DIMMER_IN

TU33

TL09

VCC2

ANT

TL10

ACC

ILM

TL02

EXT

TL11

V61

TL14

AUD

TL04

FLG

TL17

VDD

TL05

VCC1

GND2

MEM

TL01

BUP

REM

TL20

OE

TL21

A.ANT

TL19

RTS2

TL28

RTS1

TL27

DB2A

DB1C

DB1B

DB1A

V1.25

TL06

DAC.R

TL55

DAC.L

TL54

RXM

TL42

TXM

TL41

DB2B

TM

TL43

IP3

TL48

IP2

TL47

IP4

TL49

TDO

TL33

TRST

TL37

TDI

TL34

ASEMD

TL38

ASEBRK

TL39

TMS

TL35

TCK

TL36

CS

TL31

GND2

TL25

ERR1

HOLD

TL26

CLK

TL22

GND1

TL24

VDD

TL32

WP

TL29

DO

TL23

DI

TL30

SW33

TL08

HSSIN

TL12

BT_TX

MICN

BT_RX

A9V

BT_RST

BT_R

AGND

BT_L

DGND

VDD5V

MICP

43

2 1

QSW0648-001Z

S830

1.6k

R701

1/4W

0

R816

2.2k

R302

22k

R273

330

R271

4.7k

R702

12k

R757

20k

R759

1.6k

R705

47k

R1003

?R1002

?R1001

?R1000

?R706

?R477

?R478

2.2k

R715

?R232
?R231

2.2k

R713

100

R611

16k

R700

33k

R1069

2.2k

R710

15k

R729

15k

R727

47k

R723

47k

R721

1.6k

R703

1.6k

R704

1.6k

R707

270

R841

270

R840

47k

R749

100

R755

100

R781

0

R304

100

R754

100

R753

100

R776

100

R777

100

R778

100

R779

4.7k

R766

6.8k

R747

6.8k

R746

4.7k

R765

100

*R410

100

*R411

4.7k

*R412

4.7k

*R413

4.7k

*R414

2.2k

R745

47k

R743

47k

R744

1M

R720

47k

R739

47k

R741

47k

R742

47k

R740

?R373

22k

R360

68k

R370

47k

R730

10k

R372

22

R726

22

R728

2.2k

R725

1M

R724

*R403

?R891

1/4W

4.7k

R390

?R866

100

R760

1.6kR719

1k

R400

0

R431

0

R432

?R230

1/4W

47k

R978

?R243

1k

R714

1k

R712

1/4W

6.8k

R979

_0.5%
10

R1051

100k

R270

?R1052

?R476

1/4W

270

R1004

0

R1082

?R223

1/4W

6.8k

R980

?R470

100

R601

1k

R600

?R227

82

R602

?R226

1/4W

270

R1005

1/4W

270

R1006

?R233

?R225

1/4W

0

R1434

1M

R603

4.7

R605

?R164

?R162

?R228

1M

R604

?R606

?R607

?R609

?R608

?R610

?R13

100

R830

47k

R822

20

R861

39k

R864

0

R612

*R733

*R734

*R732

*R735

1/4W

0

R1076

10

R1404

100k

R717

33k

R361

0

R1429

?R401

22k

R362

4.7k

R364

0

R1419

2.2k

R716

180

R260

?R482

?R221

4.7k

R363

?R1079

0

R1091

0

R1170

?R380

?R222

180

R250

10k

R930

_0.5%
39k

R867

_0.5%
18k

R868

100

R756

?R320

?R340

?R483

1/4W

0

R1061

?R330

?R350

22k

R261

22k

R251

?R321

?R341

1/4W

0

R1428

?R331

220

R574

180

R573

220

R572

91

R571

62

R758

160

R752

200

R751

200

R750

0

R1073

1k

R1070

?R351

330

R262

1/4W

0

*R381

_0.5%
68k

R865

?R253

?R224

330

R252

?R229

1/4W

0

R1075

?R343

?R353

?R1055

?R471

?R239

10k

R171

?R240

?R323

?R333

?R970

?R932

?R931

47k

R821

_0.5%
20k

R890

3.3k

R819

47k

R105

47k

R104

1k

R588

1k

R598

0

R869

0

R589

0

R599

?R179

?R178

100

R168

100

R169

0

R167

1/4W

0

R170

?R402

100k

R365

1/4W

270

R862

?R475

?R474

910

R722

?R473

?R472

?R1022

0

R1060

0

R1071

1/4W

5.1

R303

?R1072

0

R307

470

R100

2.2k

R711

12k

R371

1/4W

47k

R820

1/4W

2.2k

R892

1/4W

47k

R969

0

R103

0

R102

0

R101

?R1090

LTC043TEB-X

Q260

LTC043TEB-X

Q250

?Q471

?Q340

?Q330

?Q350

?Q320

LTA024EEB-X

Q273

LTA014YEB-X

Q701

LTA024EEB-X

Q270

LTC024EEB-X

Q272

?Q930

?Q470

LSCR523UBFS8

Q360

?Q220

LSAR523UBFS8

Q271

?Q931

PFUSE1

?L608

QQR1927-001

L990

10u

L860

4.7u

L591

4.7u

L600

4.7u

L861

?L223

?L220

4.7u

L609

4.7u

L850

0.12u

L606

0.22u

L605

4.7u

L601

0.47u

L602

1.0u

L604

0.1u

L603

0.15u

L607

?L221

NQR0715-001X

L610

NQR0713-001X

L758

NQR0713-001X

L709

NQR0713-001XL822

NQR0713-001XL823

NQR0713-001XL820

NQR0713-001X

L824

NQR0713-001XL821

LB73G0BK-006

L827

*L825

*L826

LB73G0BK-006

L701

NQR0715-001X

L611

?L780

?L222

2221

F_AUXL

20

F_AUXG

19

F_AUXR

18

GND

17

Panel_3.3V

16

ILM10.5

15

LCD/RGB_DATOUT

14

LCD_CE

13

LCD_DATIN

12

RGB_CLK/USB_GND

11

LCD_CLK

10

USB_GND

9

ENC2

8

D+

7

ENC1

6

D-

5

LCD_INH/USB5V

4

USB5V

3

REMO

2

PAN_DET

1

CN701

QGZ2006J1-20

18 17

MEMORY

16

ILUMINATION

15

TEL/NAVI MUTE

14

OE REMOTE

13

REAR RIGHT (+)

12

REAR RIGHT (-)

11

REAR LEFT (-)

10

REAR LEFT (+)

9

FRONT LEFT (+)

8

FRONT LEFT (-)

7

FRONT RIGHT (-)

6

FRONT RIGHT (+)

5NC4

REMOTE/P-CON

3

ACC

2

GND

1

QNZ0607-001

CN990

1211

T10

10T99T88

T7

7T66T55T44

T3

3T22T11

?J470

T8

SUB-L

T7

FRONT-L

T6

(REAR-L)

T5 T4

SUB-R

T3

FRONT-R

T2

(REAR-R)

T1

/REAR-R

/REAR-L

QNN0874-001

J321

321

?J220

DAC_RST/FIELD TEST 1120

MRC_DATA_EN/DEBUG_2B/FIELD TEST 2119

PCB_TEST_MODE118

MRC_REQ_SYS117

BEEP116

DAC_CS115

Vss114

MRC_DATA_SYS113

PVcc112

TU_RST111

DAC_CDTI110

Vcc109

DAC_CCLK108

Vss107

SSITX106

MRC_PON105

SSIWS1104

SSISCK103

MRC_REQ_MRC102

PVcc101

Vss100

REG_FLG99

DIM_IN98

NC97

REG_SDA96

REG_SCL95

IPOD_SDA94

IPOD_SCL93

EV_EP_TU_SDA92

EV_EP_TU_SCL91

NC

90

SXM_PWR

89

DCDC6V_PON

88

BT_RST

87

Vcc

86

MUTE

85

Vss

84NC83

PVcc

82

AUDIO_XOUT

81

MD_BOOT

80

MD_CLK

79

Vcc

78

SPBIO3

77

Vss

76

SPBIO275SPBIO174SPBIO0

73

SPBSSL

72

Vss

71

SPBCLK

70

PVcc

69

AUDIO_X168AUDIO_X2

67

TCK

66

TMS

65

TD164TD0

63

ASEBRKAK/ASEBRK

62

TRST

61

AVref 60
AVcc 59
AVss 58

DC_ERR1 57

TEL_MUTE/LINE_MUTE 56

Stage1/STR_REMO1 55
Stage2/STR_REMO2 54

BT_MUTE 53

NC 52

ASEMD 51

D+O 50
D-O 49

PVcc 48

Vss 47
Vss 46

XTAL 45

EXTAL 44

Vcc 43

PAN_DET 42

PLLVcc 41

Vss 40

RESET 39

Vss 38
NC 37

PVcc 36

MRC_DATA_MRC/DEBUG_2A 35

LCD_DATA_LCD 34

REMO 33

ENC1 32
ENC2 31

Vss30FREQ_SEL29PVcc28NC27DEBUG_1C26DEBUG_1B25DEBUG_1A24SXM_DATA_SYS

23

SXM_DATA_SXM

22

PWIC_STBY21Vcc20BT_DATA_SYS

19

Vss18BT DATA_BT17PVcc16USB_PON15LCD_DATA_SYS/PCB_TEST_MODE_TX

14

PCB_TEST_MODE_RX13Vcc12LCD_CLK11Vss10LCD_CE9PWIC_MUTE8DC_ERR27PANEL_PON6Vss5DZF4PVcc3NC2LCD_INH

1

R5S726A0D216FP

IC701

GND

33

XTAL_IN 32

VSS 31

DAC_L 30

SDA

24

VSSD_IO

23

I2S_SD_016

DR_I_DATA15

DAC_R 29

GPIO_0 28

GPIO_1 27

GPIO_2 26

SCL 25

VDDD

22

VSSD

21

I.C.

20

I2S_SD_1

19

I2S_BCK

18

I2S_WS

17

DR_Q_DATA14

DR_BCK13

DR_WS12

DR_BL11

AM_LNA_CAP10

AM_IN_P9

VSSA_RF

8

VDDA_RF

7

FM_IN_P

6

FM_IN_M

5

FM_CAP

4

VBGP

3

VSSA_IFADC

2

VDDA_IFADC

1

TEF6657HN-X

IC601

SE1R1SE1L2SE2R3SE2L4SE3R5SE3L6QD1R7QD1G8QD1L9QD2R10QD2G11QD2G12QD2L13CREF

14

GND

15

OUTSWL

16

OUTSWR

17

OUTLF

18

OUTLR

19

OUTRR

20

OUTRF

21

WINTC

22

MUTE

23

VCC

24

SCL

25

SDA

26

DCERR

27

WININ

28

TDA7718C_9

IC161

TAB1

1

OFFDET

2

PWGND1

3

OUT2-

4

STBY

5

OUT2+

6

VCC1

7

OUT1-

8

PWGND2

9

OUT1+

10

SVR

11

IN1

12

IN2

13

SGND

14

IN4

15

IN3

16

ACGND

17

OUT3+

18

PWGND3

19

OUT3-

20

VCC2

21

OUT4+

22

MUTE

23

OUT4-

24

PWGND4

25

CD

26

TAB2

27

JCV8034

IC301

MCLK

1

BICK

2

SDTI

3

LRCK

4

RSTN

5

CSN

6

CCLK

7

CDTI

8

NC

9

AOUTR

10

AOUTL

11

VCOM

12

VSS

13

AVDD

14

DVDD

15

DZF

16

AK4387ET

IC555

FLG

14

EXT

1

ANT

2

ILM

3

AUDIO

4

CD

5

ACCIN

6

VCC2

7

VCC1

8

GND

9

SCL

10

VDD

11

SDA

12

V6IN

13

SW33V

15

LV5685PV-H

IC901

9

VCC

8

RST

7

SCL

6

NC5

5

NC4

4

NC3

3

SDA

2

GND

1

MFI337S3959-X

*IC411

PG

1

IN

2

SW

3

GND

4

BST

5

EN/SYNC

6

VCC

7

FB

8

MP9942GJ

IC861

CS

1

DO[IO1]

2

WP[IO2]

3

GND

4

DI[IO0]

5

CLK

6

HOLD[IO3]

7

VCC

8

W25Q16DVSSIG-X

IC821

A0

1

A1

2

A2

3

GND

4

SDA

5

SCL

6

WP

7

VCC

8

BR24T02FJ-W-X

IC841

OUT

6

ILIM

5

FLAG

4

EN

3

GND

2

IN

1

NCP380HSNAJAA-X

IC891

VOUT

5

NC

4

STBY

3

GND

2

VIN

1

BU1CTD3WG-W

IC851

VOUT

4

CT

3

VDD

2

GND

1

BU4228F-W

IC831

EEPROM

HSS_USB

RESET

LDO_1.25V

FLASH

(NO USE)

REAR_MIC

E'VOLUME

(NO USE)

FRONT_PREOUT

(NO USE)

REAR_PREOUT

ANT_CONT

EXT_REMO

SWITCHABLE

REAR/SUB_PREOUT

SW3.3V

DC_DC_CONVERTER

TEL/NAVI_MUTE

AUTO_DIMMER

(NO USE)

BT_MODULE

*POWER_CORD

(NO USE)

SIRIUS/XM/SXI

IPOD_CP_CIRCUIT

PREOUT/P.IC_MUTE

24BIT_DAC

TUNER

BAW56-TP-X

D270

BAW56-TP-X

D271

BAW56-TP-X

D370

?D472

?D1060

?D474

?D475

RSB6.8SM-X

D100

RSB6.8SM-X

D101

?D473

?D1061

?D471

?D222

?D470

DZ2J068M

D360

?D1402

?D1401

?D224

?D223

DZ2J051M

D401

1N5401-BPC04

D990

DB22306

D861

DA2J101

D273

?D381

RB521SM-30-X

D400

?D601

SK34A-L-X

D902

SK34A-L-X

D903

?D602

?D272

?D380

MBRX130

D390

MBRX130

D391

T1111
T1010
T99
T88
T77
T66
T55
T44
T33
T22
T11

?CN228

QEZ0982-476Z

16V
47u

C304

CD04ET1C102M

16V

1000u

C990

CD04AS1C220M_7

16V
22u

C172

CD04AV1C100M_7

16V
10u

C165

CD04AR1C471M_9

16V

470u

C905

CD04AS0J101M_7

6.3V

100u

C852

?C890

CD04AS0J101M_7

6.3V

100u

C907

QEZ0850-157Z

6.3V

150u

C868

CD04AV1V4R7M_7

35V

4.7u

C163

CD04AV1V4R7M_7

35V

4.7u

C164

6.3V

4.7u

C313

0.1u

C877

0.1u

C891

0.1u

C892

?C913

0.1u

C931

0.1u

C1000

?C1001

0.1u

C1090

0.1u

C832

6.3V

10u

C602

1000p

C605

9p

C606

1p

C607

1000p

C608

12p

C610

1p

C611

?C221

?C227

0.1u

C864

0.1

C860

0.1u

C831

?C613

33p

C615

1000p

C616

16V

0.22u

C617

?C623

9p

C707

4700p

C711

4700p

C820

?C822

6800p

C830

16V

0.047u

C840

16V

0.47u

C850

?C851

16V

0.22u

C869

0.1u

C718

16V

0.22u

C863

0.1u

C717

0.1u

C716

0.1

C713

0.1

C712

0.1u

C710

0.1u

C709

0.1u

C706

0.1u

C705

0.1u

C704

0.1u

C703

?C341

?C321

16V4.7u

C251

?C331

0.1u

C702

?C226

16V

4.7u

C261

16V

4.7u

C911

?C351

?C308

?C310

0.1

C701

0.1u

C700

?C307

?C309

?C622

82p

C303

?C619

82p

C305

82p

C306

16V

0.22u

C317

16V0.22u

C316

16V

0.22u

C319

16V

0.22u

C318

?C380

0.22u

C390

16V
1u

C391

16V
1u

C392

4700p

C725

4700p

C724

?C894

0.01u

C1055

0.1u

C618

0.1u

C1072

0.01u

C361

9p

C708

0.1u

C609

22p

C614

?C1075

?C1020

?C1021

?C222

?C223

?C224

16V

1u

C105

0.1u

C909

6.3V

10u

C601

0.01u

C612

?C350

?C330

?C250

?C260

?C320

?C340

?C620

?C621

1500p

C598

?C1052

5p

C1051

0.1u

C867

0.1u

C603

0.1u

C576

?C225

4700p

C101

4700p

C102

6.3V

10u

C572

470p

C821

25V

10u

C861

25V

10u

C862

25V
10u

C865

?C866

0.1u

C575

1500p

C599

1500p

C604

0.1u

C571

?C220

15p

C870

12p

C722

12p

C721

470p

C727

0.01u

C1096

1000p

C588

?C472

470p

C1074

?C1077

?C1078

16V

0.47u

C854

?C853

0.1

*C410

1000p

C589

470p

*C1013

470p

*C1017

470p

*C1010

470p

*C1015

470p

*C1012

470p

*C1014

470p

*C1011

470p

*C1016

0.1u

C370

16V

1u

C103

0.1u

C166

?C726

0.01u

C630

0.1u

C100

16V1u

C104

10V
1u

C167

?C471

?C470

0.1u

C573

10V
1u

C168

10V
1u

C169

16V
1u

C171

470p

C1089

0.1u

*C627

6.3V

10u

C624

10V
1u

C161

10V
1u

C162

470p

C1002

0.01u

C1069

?C170

10V

1u

C177

0.1u

C626

0.01u

C1071

CK730AV1C105K_9

16V

1.0u

C314

470p

C1073

4700p

C1084

470p

C1082

4700p

C1095

0.01u

C1098

16V

10u

C574

10V

10u

C912

16V

0.47u

*VA1400

10V
1u

C311

16V

0.47u

*C1040

0.01u

C1091

0.01u

C1064

?C1097

4700p

C723

?C906

120p

C1094

?C600

1u

C1056

0.01u

C1070

?C1068

0.01u

C1050

0.1u

C1057

10V
1u

C930

10V
1u

C360

?C473

?C474

?C475

470p

C1085

10V
1u

C904

16V

1u

C908

16V
1u

C920

QNB0356-001

J600

MAIN PWB ASSY-1 (XJ1-049x-xx) Except KD-X220UR

CN1

Except KD-X220UR

(XJ6-031x-xx)

To SWITCH PWB ASSY-1

ANT

created date:2015-04-22No.MA606

22

(No.MA606<Rev.002>)5/

0-21,0-222-71,2-72,2-73XJ1-049

partName@3-81partName@0-21partName@2-72partName@2-71

0-10 0-23,0-24 3-82
partName@0-10

Symbol Number

3-81

partName@0-22 partName@3-82

2-74

3-81

partName@3-82

2-72 0-212-710-10 0-22

partName@3-81partName@2-72 partName@0-21partName@2-71

3-82

partName@0-10 partName@0-22

XJ1-049

partName@3-81partName@2-72 partName@0-21partName@2-71partName@0-10 partName@0-22 partName@3-82

RK73GB2A223J_9

-

0.57V

1.82V

-

NQR0269-030X

-

QAM1345-003

-

-

-

-

-

-

-

RK73GB2A393J_9

-

RK73GB2A273J_9

­RK73GB2A101J_9

-

RK73GB2A223J_9

-

3-82

-

RK73GB2A822J_9

-

-

-

-

RK73GB2A223J_9

-

0V

1.82V

-

NQR0269-030X

-

QAM1345-003

-

-

-

-

-

-

-

-

-

RK73GB2A273J_9

­RK73GB2A101J_9

-

RK73GB2A223J_9

-

3-81

-

RK73GB2A473J_9

-

-

-

-

-

-

CK73GBB1C474K_9

CK73GBB1H471K_9

-

1.48V

-

-

-

CK73GBB1H471K_9

-

LB73G0CA-002_9

-CK73GXR1H104K_9

RK73GB2A273J_9

RK73GB2A822J_9

-

-

-

RK73GB2A473J_9

-

CK73GBB1C474K_9

2-72

LB73G0CK-001_9

CK73GBB1H471K_9

RK73GB2A822J_9

-

CK73GXR1H104K_9

MFI337S3959-X

CK73GXR1H104K_9

-

QAM1345-003

CK73GBB1C474K_9

-

MFI337S3959-X

-

RK73EB2E473J_9

LB73G0CK-001_9

-

-

-

-

RK73GB2A223J_9

RK73GB2A223J_9

LB73G0CA-002_9

0.57V

-

CK73GBB1H471K_9

R734

-

RK73GB2A273J_9

C1016

RK73GB2A473J_9

MFI337S3959-X

-

1.48V

C1017

-

-

C1011

2-71

RK73GB2A393J_9

0V

-

-

RK73GB2A223J_9

LB73G0CK-001_9

LB73G0CA-002_9

RK73GB2A303J_9

-

RK73GB2A303J_9

RK73EB2E000J_9

-

-

-

LB73G0CK-001_9

-

-

RK73GB2A822J_9

L826

-

-

C1013

R381

R732

0.57V

RK73GB2A472J_9

XJ1-049

QAM1329-001

-

C1014 CK73GBB1H471K_9

RK73GB2A472J_9

RK73GB2A303J_9

RK73GB2A101J_9

0V

VA1400

RK73GB2A393J_9

RK73GB2A472J_9

QAM1329-001

RK73GB2A101J_9

0V

LB73G0CK-001_9

0-21

IC411

RK73GB2A393J_9

QAM1329-001

pin54 STAGE 2

0.57V

RK73GB2A472J_9

0.57V

CK73GBB1H471K_9

-

CK73GBB1H471K_9

STAGE VOLTAGE

RK73GB2A101J_9

0-22

QAM1329-001

RK73GB2A101J_9

CK73GXR1H104K_9

LB73G0CA-002_9

POWER_CORD

RK73EB2E000J_9

RK73GB2A393J_9

CK73GBB1H471K_9

CK73GBB1H471K_9

R412

R733

RK73GB2A822J_9

CK73GBB1H471K_9

RK73GB2A472J_9

R403

CK73GBB1H471K_9

CK73GBB1H471K_9

R414

-

-

LB73G0CA-002_9

0-10

-

CK73GBB1H471K_9

-

-

0V

reference

DIFFERENT TABLE

-

CK73GBB1H471K_9

RK73GB2A472J_9

C627

C1012

-

pin55 STAGE 1

R410

RK73GB2A303J_9

RK73GB2A472J_9

-

-RK73GB2A101J_9

RK73GB2A101J_9

R413

RK73GB2A472J_9

C1040

C1015

-

RK73GB2A473J_9

-

CK73GBB1H471K_9

C1010

CK73GBB1C474K_9

-

CK73GBB1H471K_9

-

L825

R735

-

-

CK73GXR1H104K_9

R411

-

RK73GB2A472J_9

-

C410

MAIN PWB ASSY-2 (XJ1-049x-xx) Except KD-X220UR

created date:2015-04-22No.MA606

22

(No.MA606<Rev.002>)6/

ALL CAPACITORS ARE 50V OR 25V CERAMIC CAPACITOR.

( )USB MODE.

1. VOLTAGES ARE DC-MEASURED WITH A DIGITAL VOLT METER WITHOUT INPUT SIGNAL

3. COMPONENTS REFERENCE WITH "?" INDICATE NOT USE.

ALL RESISTANCE VALUES ARE IN OHM.

2. UNLESS OTHERWISE SPECIFIED.

NOTES

AM MODE

ALL RESISTORS ARE 1/10W 5% METAL GLAZE RESISTOR.

CONDITION---FM MODE.

(ATS10A)

3.3V

0.9V

2.9V

0V

1.5V

2.9V

0V

3.3V

3.3V0V1.5V

1.5V

0V

0V

1.5V

1.5V

3.3V

3.3V

NO USE

NO USE

(0.1V)

(3.0V)

0V

0V

3.3V

0V

0V

3.3V

3.3V

(1.7V)

0V

(3.1V)

(4.9V)

0V

0V

1.0V

2.5V

1.5V

1.2V

1.5V

1.2V

1.5V

1.2V

0V

0V

3.3V

0V

(1.7V)

(3.3V)

0V

(1.7V)

3.3V

0V

0V

3.3V

0V

3.0V

5.0V

2.5V

2.5V

0V

(1.7V)

2.5V

0V

0V

(1.7V)

5.0V

0V

(3.3V)

(1.7V)

3.3V

3.3V

3.3V

0V

0V

0V

14.0V

10.5V

8.5V

5.0V

6.0V

3.3V

3.3V

5.1V

3.3V

3.3V

3.3V

0V

14.3V

14.0V

14.1V

0V

5.1V

0.8V

4.8V

1.6V

9.6V

3.3V
0V

0V

3.3V

3.3V

3.3V

0V

3.3V 3.3V

3.3V

3.3V

3.3V

NO USE

3.3V

3.3V

3.3V

MAIN PWB:J7J-0022-**

3.0V0V

0V

1.5V

3.3V

0V

0V

0V

0V

0V

0V

0V

0V

3.3V

0V

3.3V

3.3V
0V

0V0V0V

0V

2.8V

1.5V

0V

3.3V

3.3V

3.3V

3.3V

LTA024EEB-X

22K

22K

LTC024EEB-X

47K

10K LTA014YEB-X

4.7K

LTC043TEB-X

22K

22K

0V

3.3V

FZB10BT-100

F901
FUSE 10A

0V

0V

1.25V

0V

0V

0V

0V

0V

0V

0V

3.3V

0V

0V

3.3V

0V

3.3V

0V

1.25V0V3.3V0V3.3V0V1.25V

0V

0V

3.3V0V3.3V

3.3V

3.3V0V0V

0V

3.3V

0.1V

0V

3.3V

3.3V

3.3V

0V

1.25V

0V

1.25V

1.9V

1.9V

0V

0V

3.3V

0V

0V

3.3V

0V

0V

0V

2.27V

1.5V

3.3V

0V

3.3V

3.3V

1.6V

0V

3.3V

3.3V

3.3V

3.2V

0V0V0V

1.25V

0V

3.3V

3.3V

0V

0V

1.25V

2.0V

0V

0.2V

3.3V

3.2V

0V

0V

3.3V

3.3V

0V

0V

0V

0V

0V

3.3V

1.25V

0V

3.3V

0V

3.3V

3.3V

3.3V

3.3V

3.3V

0V

3.3V

5.1V

5.1V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

3.3V

0V

4.0V

4.0V

4.0V

4.0V

4.0V

4.0V

4.0V

8.4V

3.3V

3.0V

3.0V

3.3V

3.3V

0V

3.2V

0V

7.1V

3.6V

7.1V

14.4V

7.1V

0V

7.1V

7.0V

6.9V

6.9V

6.9V

0V

6.9V

7.1V

7.1V

0V

7.1V

14.4V

7.1V

3.2V

7.1V0V3.2V

0V

3.3V

3.0V

3.0V

0V

0V

0V

0V

DEBUGGING

USB_PON

AUX-R

AUX-G

AUX-L

SXI_AR

SXI_AG

RL/SUBL

RR/SUBR

FLOUT

RLOUT

RROUT

FROUT

FREQ_SEL

ENC2

ENC1

BT_DATA_BT

DC_ERR1

LCD_DATA_SYS

SXI_AL

EET_SDA

EET_SCL

BT_DATA_SYS
BT_RST

BT.L

BT.R

RESET

TU.R

SXM_DATA_SXM

FLOUT

DIM_IN

SXM_PWR

MUTE

MIC_N

MIC_P

TU.L

FR+

FL-

TEL_MUTE

DIM_IN
REG_FLG

BT_RST

LCD_DATA_LCD

PAN_DET

REMO

D-

ENC1

D+

ENC2

LCD_CLK

LCD_CE

P3.3V

MIC_N

SXI_AR

SXI_AL

SXM_DATA_SYS

DZF

SPBIO0

SPBCLK

SPBIO3

SPBSSL

SPBIO1

SPBIO2

IPOD_SDA

IPOD_SCL

FR-

RESET

FL+

RL+

FR+

RL-

RR-

RR+

FL-

REMO

REG_FLG

REG_SCL

TEL_MUTE

RESET

D-

REMO

RR-

MIC_P

REG_SCL

EET_SDA

EET_SCL

LCD_INH

SXM_PWR

REG_SDA

BT.R

RL+

RL-

FR-

RR+

FL+

DAC_CS

DAC_CDTI

DAC_CLK

DAC_LRCK

DAC_SDTI

DAC_BCK

DAC_MCK

AUX-G

AUX-R

BT.L

LCD_DATA_LCD

BT_DATA_BT

BT_DATA_SYS

RLOUT

RROUT

FROUT

LCD_INH

PANEL_PON

DAC_MCK

DAC_SDTI

DAC_LRCK

USB.R

USB.L

DZF

DAC_CDTI

DAC_CLK

DAC_CS

DAC_RST

PANEL_PON

DAC_RST

REG_FLG

RR/SUBR

RL/SUBL

RROUT

RLOUT

FROUT

MUTE

USB_PON

LCD_DATA_SYS

REG_SDA

DAC_BCK

DC_ERR1

OFFSET

FLOUT

USB.R

PWIC_STBY

EET_SCL

EET_SDA

E_MUTE

FREQ_SEL

BEEP

SXM_DATA_SXM

DC_ERR2

SXM_DATA_SYS

PAN_DET

PWIC_MUTE

SPBCLK

LCD_CE

LCD_CLK

D+

IPOD_SCL

SPBSSL

IPOD_SDA

SPBIO0

SPBIO1

SPBIO2

SPBIO3

EET_SDA

SXI_AG

USB.L

AUX-L

OFFSET

EET_SCL

E_MUTE

TU.R

E_MUTE

TU.L

PWIC_MUTE

DC_ERR2

PWIC_STBY

BEEP

GND4

GND1

GND2

GND5

GND3

sure to use the specified one.

When replacing those parts make

Parts are safety assurance parts.!

!

!

!

!

!

!

!

!

!

!

12MHz

NAX1243-001X

X701

16.9344MHz

NAX1224-001X

X540

9.216MHz

L7J-0014-00

X600

F0K-0014-00

VA600

V

?VA601

DIST

TL45

CLD/GND

LCDDAO

LCLK

CE

USBG

AL

TL52

AG

P33

TL07

SW33

TL08

GND

LDI

V10.5

D­INH

5V

TL15

VOL2

REM2

D+

PDET

TL18

VOL1

FMIN

TU.L

TL51

TU.R

TL50

SXI.L

TL56

S10

S6

S2

R

L

G

SXI.R

TL57

AC

TL44

RL

FR

FL

SUBR

SUBL

RR

TMUTE

DIMMER_IN

TU33

TL09

VCC2

ANT

TL10

ACC

ILM

TL02

EXT

TL11

DAC5

TL03

V61

TL14

AUD

TL04

FLG

TL17

VDD

TL05

VCC1

GND2

MEM

TL01

BUP

REM

TL20

OE

TL21

SDA

SCL

A.ANT

TL19

RTS2

TL28

RTS1

TL27

DB2A

DB1C

DB1B

DB1A

V1.25

TL06

RXM

TL42

TXM

TL41

DB2B

TM

TL43

IP3

TL48

IP1

TL46

IP2

TL47

AR

TL53

IP4

TL49

VDD

TL32

TDO

TL33

TRST

TL37

TDI

TL34

DAC.R

TL55

DAC.L

TL54

ASEMD

TL38

ASEBRK

TL39

TMS

TL35

TCK

TL36

CS

TL31

GND2

TL25

ERR1

HOLD

TL26

CLK

TL22

GND1

TL24

MICP

WP

TL29

DO

TL23

DI

TL30

HSSIN

TL12

BT_TX

MICN

BT_RX

A9V

BT_RST

BT_R

AGND

BT_L

DGND

VDD5V

43

2 1

QSW0648-001Z

S830

10k

C727

10

R1404

?R781

0

R1071

?R221

?R222

100k

R717

33k

R361

0

R1060

?R239

1/4W

0

R816

?R1022

?R240

_0.5%
20k

R890

22k

R360

4.7k

R363

4.7k

R364

22k

R362

0

?R401

?R894

0

R432

0

R612

?R891

?R866

39k

R864

20

R861

?R232
?R231

47k

R822

100

R611

16k

R700

33k

R1069

2.2k

R710

100

R830

?R13

4.7

R605

?R610

?R225
?R226

?R608

?R227

?R609

?R223

?R1052

?R607

100

R410

100

R411

4.7k

R412

4.7k

R413

4.7k

R414

_0.5%
10

R1051

1/4W

270

R862

?R606

1k

R712

1k

R714

1.6k

R719

100

R760

1M

R724

?R381

1M

R604

2.2k

R725

1M

R603

22

R728

22

R726

47k

R730

?R373

47k

R740

82

R602

47k

R742

47k

R741

1k

R600

?R230

?R470

?R243

47k

R739

1M

R720

47k

R744

47k

R743

?R476

1/4W

270

R1004

2.2k

R745

4.7k

R765

1/4W

6.8k

R980

100

R601

1/4W

6.8k

R979

6.8k

R746

6.8k

R747

4.7k

R766

1/4W

270

R1005

1/4W

270

R1006

?R233

100

R779

1/4W

0

R1434

100

R778

100

R777

?R164

?R162

?R228

100

R776

100

R753

100

R754

100

R755

47k

R749

270

R840

270

R841

1/4W

47k

R978

1k

R400

1/4W

4.7k

R390

?R372

1.6k

R707

1.6k

R704

1.6k

R703

1.6k

R701

4.7k

R702

0

R1429

12k

R757

20k

R759

1.6k

R705

47k

R1003

?R1002

?R1001

?R1000

?R1072

?R706

?R477

0

R1170

?R478

33k

R735

47k

R733

15k

R734

?R732

30k

R403

?R402

2.2k

R715

2.2k

R713

15k

R729

15k

R727

1/4W

0

R1076

1/4W

0

R1428

?R229

0

R1419

?R370

0

R304

?R482

2.2k

R302

?R224

?R1079

0

R1091

22k

R273

?R380

330

R271

47k

R723

10k

R930

_0.5%
39k

R867

_0.5%
18k

R868

100

R756

47k

R721

2.2k

R716

?R483

1/4W

0

R1061

180

R260

180

R250

?R320

?R340

?R330

?R350

22k

R261

220

R574

180

R573

220

R572

91

R571

62

R758

160

R752

200

R751

200

R750

0

R1073

1k

R1070

22k

R251

?R321

0

R1075

_0.5%
68k

R865

100k

R270

?R253

?R341

?R331

?R351

?R1055

?R471

0

R101

0

R102

10k

R171

330

R262

330

R252

?R970

?R343

?R353

47k

R821

0

R431

?R323

?R333

?R932

?R931

3.3k

R819

0

R869

47k

R105

47k

R104

1k

R588

1k

R598

0

R589

0

R599

?R179

?R178

100k

R365

?R1090

100

R168

100

R169

910

R722

0

R167

1/4W

0

R170

?R475

?R474

?R473

1/4W

5.1

R303

?R472

0

R307

470

R100

2.2k

R711

?R371

1/4W

47k

R820

1/4W

2.2k

R892

1/4W

47k

R969

0

R103

?Q471

?Q340

LTC043TEB-X

Q260

?Q350

LTC043TEB-X

Q250

?Q330

?Q320

LTA014YEB-X

Q701

LTA024EEB-X

Q270

LTA024EEB-X

Q273

?Q930

?Q470

LTC024EEB-X

Q272

?Q220

LSCR523UBFS8

Q360

?Q931

LSAR523UBFS8

Q271

PFUSE1

?L608

10u

L860

QQR1927-001

L990

?L223

4.7u

L609

?L220

4.7u

L591

4.7u

L600

4.7u

L850

4.7u

L861

150n

L607

1.0u

L604

220n

L605

0.1u

L603

470n

L602

4.7u

L601

120n

L606

?L222

NQR0713-001X

L824

NQR0713-001X

L758

LB73G0BK-006

L701

LB73G0CK-001

L826

NQR0713-001X

L821

LB73G0BK-006

L827

NQR0715-001X

L610

NQR0715-001X

L611

?L221

?L780

NQR0713-001X

L820

NQR0713-001X

L823

LB73G0CA-002

L825

NQR0713-001X

L822

NQR0713-001X

L709

2221

F_AUXL

20

F_AUXG

19

F_AUXR

18

GND

17

Panel_3.3V

16

ILM10.5

15

LCD/RGB_DATOUT

14

LCD_CE

13

LCD_DATIN

12

RGB_CLK/USB_GND

11

LCD_CLK

10

USB_GND

9

ENC2

8

D+

7

ENC1

6

D-

5

LCD_INH/USB5V

4

USB5V

3

REMO

2

PAN_DET

1

CN701

QGZ2006J1-20

18 17

MEMORY

16

ILUMINATION

15

TEL/NAVI MUTE

14

OE REMOTE

13

REAR RIGHT (+)

12

REAR RIGHT (-)

11

REAR LEFT (-)

10

REAR LEFT (+)

9

FRONT LEFT (+)

8

FRONT LEFT (-)

7

FRONT RIGHT (-)

6

FRONT RIGHT (+)

5NC4

REMOTE/P-CON

3

ACC

2

GND

1

QNZ0607-001

CN990

1211

T10

10T99T88

T7

7T66T55T44

T3

3T22T11

?J470

T8

SUB-L

T7

FRONT-L

T6

(REAR-L)

T5 T4

SUB-R

T3

FRONT-R

T2

(REAR-R)

T1

/REAR-R

/REAR-L

QNN0874-001

J321

321

?J220

DAC_RST/FIELD TEST 1120

MRC_DATA_EN/DEBUG_2B/FIELD TEST 2119

PCB_TEST_MODE118

MRC_REQ_SYS117

BEEP116

DAC_CS115

Vss114

MRC_DATA_SYS113

PVcc112

TU_RST111

DAC_CDTI110

Vcc109

DAC_CCLK108

Vss107

SSITX106

MRC_PON105

SSIWS1104

SSISCK103

MRC_REQ_MRC102

PVcc101

Vss100

REG_FLG99

DIM_IN98

NC97

REG_SDA96

REG_SCL95

IPOD_SDA94

IPOD_SCL93

EV_EP_TU_SDA92

EV_EP_TU_SCL91

NC

90

SXM_PWR

89

DCDC6V_PON

88

BT_RST

87

Vcc

86

MUTE

85

Vss

84NC83

PVcc

82

AUDIO_XOUT

81

MD_BOOT

80

MD_CLK

79

Vcc

78

SPBIO3

77

Vss

76

SPBIO275SPBIO174SPBIO0

73

SPBSSL

72

Vss

71

SPBCLK

70

PVcc

69

AUDIO_X168AUDIO_X2

67

TCK

66

TMS

65

TD164TD0

63

ASEBRKAK/ASEBRK

62

TRST

61

AVref 60
AVcc 59
AVss 58

DC_ERR1 57

TEL_MUTE/LINE_MUTE 56

Stage1/STR_REMO1 55
Stage2/STR_REMO2 54

BT_MUTE 53

NC 52

ASEMD 51

D+O 50

D-O 49

PVcc 48

Vss 47
Vss 46

XTAL 45

EXTAL 44

Vcc 43

PAN_DET 42

PLLVcc 41

Vss 40

RESET 39

Vss 38
NC 37

PVcc 36

MRC_DATA_MRC/DEBUG_2A 35

LCD_DATA_LCD 34

REMO 33

ENC1 32
ENC2 31

Vss30FREQ_SEL29PVcc28NC27DEBUG_1C26DEBUG_1B25DEBUG_1A24SXM_DATA_SYS

23

SXM_DATA_SXM

22

PWIC_STBY21Vcc20BT_DATA_SYS19Vss18BT DATA_BT17PVcc16USB_PON15LCD_DATA_SYS/PCB_TEST_MODE_TX

14

PCB_TEST_MODE_RX

13

Vcc12LCD_CLK11Vss10LCD_CE9PWIC_MUTE8DC_ERR27PANEL_PON6Vss5DZF4PVcc3NC2LCD_INH

1

R5S726A0D216FP

IC701

GND

33

XTAL_IN 32

VSS 31

DAC_L 30

SDA

24

VSSD_IO

23

I2S_SD_016

DR_I_DATA15

DAC_R 29

GPIO_0 28

GPIO_1 27

GPIO_2 26

SCL 25

VDDD

22

VSSD

21

I.C.

20

I2S_SD_1

19

I2S_BCK

18

I2S_WS

17

DR_Q_DATA14

DR_BCK13

DR_WS12

DR_BL11

AM_LNA_CAP10

AM_IN_P9

VSSA_RF

8

VDDA_RF

7

FM_IN_P

6

FM_IN_M

5

FM_CAP

4

VBGP

3

VSSA_IFADC

2

VDDA_IFADC

1

TEF6657HN-X

IC601

SE1R1SE1L2SE2R3SE2L4SE3R5SE3L6QD1R7QD1G8QD1L9QD2R10QD2G11QD2G12QD2L13CREF

14

GND

15

OUTSWL

16

OUTSWR

17

OUTLF

18

OUTLR

19

OUTRR

20

OUTRF

21

WINTC

22

MUTE

23

VCC

24

SCL

25

SDA

26

DCERR

27

WININ

28

TDA7718C

IC161

TAB1

1

OFFDET

2

PWGND1

3

OUT2-

4

STBY

5

OUT2+

6

VCC1

7

OUT1-

8

PWGND2

9

OUT1+

10

SVR

11

IN1

12

IN2

13

SGND

14

IN4

15

IN3

16

ACGND

17

OUT3+

18

PWGND3

19

OUT3-

20

VCC2

21

OUT4+

22

MUTE

23

OUT4-

24

PWGND4

25

CD

26

TAB2

27

JCV8034

IC301

MCLK

1

BICK

2

SDTI

3

LRCK

4

RSTN

5

CSN

6

CCLK

7

CDTI

8

NC

9

AOUTR

10

AOUTL

11

VCOM

12

VSS

13

AVDD

14

DVDD

15

DZF

16

AK4387ET

IC555

FLG

14

EXT

1

ANT

2

ILM

3

AUDIO

4

CD

5

ACCIN

6

VCC2

7

VCC1

8

GND

9

SCL

10

VDD

11

SDA

12

V6IN

13

SW33V

15

LV5685PV-H

IC901

9

VCCVCC

8

RSTRST

7

SCLSCL

6

NC5NC5

5

NC4NC4

4

NC3NC3

3

SDASDA

2

GND

1

MFI337S3959-X

IC411

CS

1

DO[IO1]

2

WP[IO2]

3

GND

4

DI[IO0]

5

CLK

6

HOLD[IO3]

7

VCC

8

W25Q16DVSSIG-X

IC821

A0

1

A1

2

A2

3

GND

4

SDA

5

SCL

6

WP

7

VCC

8

BR24T02FJ-W-X

IC841

PG

1

IN

2

SW

3

GND

4

BST

5

EN/SYNC

6

VCC

7

FB

8

MP9942GJ

IC861

OUT

6

ILIM

5

FLAG

4

EN

3

GND

2

IN

1

NCP380HSNAJAA-X

IC891

VOUT

5

NC

4

STBY

3

GND

2

VIN

1

BU1CTD3WG-W

IC851

VOUT

4

CT

3

VDD

2

GND

1

BU4228F-W

IC831

AUTO_DIMMER

EXT_REMO

(NO USE)

ANT_CONT

(NO USE)

TEL/NAVI_MUTE

(NO USE)

REAR_PREOUT

(NO USE)

FRONT_PREOUT

DC_DC_CONVERTER

E'VOLUME

(NO USE)

REAR_MIC

FLASH

(NO USE)

BT_MODULE

LDO_1.25V

RESET

EEPROM

SWITCHABLE

REAR/SUB_PREOUT

HSS_USB

SW3.3V

IPOD_CP_CIRCUIT

24BIT_DAC

(NO USE)

SIRIUS/XM/SXI

TUNER

PREOUT/P.IC_MUTE

QAM1378-001

POWER_CORD

BAW56-TP-X

D271

?D370

BAW56-TP-X

D270

?D1060

?D1061

?D474

RSB6.8SM-X

D100

?D475

?D472

?D473

RSB6.8SM-X

D101

?D224

DZ2J068M

D360

?D1401

?D1402

?D222

DZ2J051M

D401

?D471

?D470

?D223

RB521SM-30-X

D400

?D381

MBRX130

D391

?D272

MBRX130

D390

DA2J101

D273

DB22306

D861

?D380

1N5401-BPC04

D990

?D601

?D602

SK34A-L-X

D903

SK34A-L-X

D902

T1111
T1010
T99
T88
T77
T66
T55
T44
T33
T22
T11

?CN228

16V

1000u

C990

6.3V

100u

C852

16V
10u

C165

16V
47u

C304

16V

470u

C905

6.3V

100u

C907

6.3V

150u

C868

?C890

35V

4.7u

C163

35V

4.7u

C164

16V

22u

C172

0.1

C860

0.1u

C864

0.1u

C877

0.1u

C891

0.1u

C892

?C913

0.1u

C931

0.1u

C1000

?C1001

0.1u

C1090

0.1u

C832

?C620

?C621

1500p

C598

1500p

C599

1500p

C604

1000p

C588

1000p

C589

?C221

?C227

0.1u

C831

0.1u

C718

0.1u

C717

0.1u

C573

?C600

6.3V

10u

C601

0.1u

C716

1000p

C605

9p

C606

1p

C607

1000p

C608

12p

C610

1p

C611

?C613

33p

C615

1000p

C616

16V

0.22u

C617

?C623

9p

C707

4700p

C711

4700p

C820

?C822

6800p

C830

16V

0.047u

C840

16V

0.47u

C850

16V

0.22u

C869

0.1

C713

16V

0.22u

C863

0.1

C712

0.1u

C710

0.1u

C709

0.1u

C706

0.1u

C705

0.1u

C704

0.1u

C703

0.1u

C702

0.1

C701

0.1u

C700

?C622

?C226

16V

4.7u

C911

?C619

0.1u

C618

0.1u

C609

0.1u

C603

0.01u

C612

0.1u

C576

0.1u

C575

0.1u

C571

?C472

?C370

0.1u

C166

0.1u

C100

16V1u

C104

10V
1u

C167

10V
1u

C168

10V
1u

C169

16V
1u

C171

10V

1u

C161

10V
1u

C162

?C170

4700p

C725

4700p

C724

?C894

0.01u

C1055

10V

1u

C177

0.1u

C1072

10V
1u

C311

9p

C708

?C906

22p

C614

?C1075

?C1020

?C1021

?C222

?C223

?C224

?C350

?C330

?C250

?C260

?C320

?C340

16V

1u

C105

0.1u

C909

6.3V

10u

C602

16V

1.0u

C314

16V

0.47u

C854

?C851

?C853

10V
1u

C360

?C473

470p

C1085

0.1u

C1057

0.01u

C1050

?C1068

0.01u

C1070

1u

C1056

120p

C1094

?C1097

0.01u

C1064

0.01u

C1091

?C1040

?C474

?VA1400

10V

10u

C912

16V

10u

C574

0.01u

C1098

4700p

C1095

470p

C1082

4700p

C1084

470p

C1073

0.01u

C1071

0.01u

C1069

470p

C1002

?C475

10V
1u

C904

6.3V

10u

C624

?C627

470p

C1089

16V
1u

C908

16V
1u

C920

?C470

?C471

10V
1u

C930

6.3V

4.7u

C313

?C341

?C321

0.01u

C630

?C726

16V4.7u

C251

16V

1u

C103

470p

C1016

470p

C1011

470p

C1014

470p

C1012

470p

C1015

470p

C1010

470p

C1017

470p

C1013

0.1

C410

?C1078

?C1077

470p

C1074

?C331

16V

4.7u

C261

0.01u

C1096

?C351

?C308

?C310

0.1u

C626

?C307

25V

10u

C862

?C1052

5p

C1051

0.1u

C867

?C309

82p

C303

?C225

4700p

C101

4700p

C102

6.3V

10u

C572

82p

C305

?C893

470p

C821

25V

10u

C861

4700p

C723

82p

C306

12p

C721

16V

0.22u

C317

25V
10u

C865

?C866

16V0.22u

C316

16V

0.22u

C319

?C220

12p

C722

16V

0.22u

C318

?C380

0.22u

C390

16V
1u

C391

15p

C870

16V
1u

C392

0.01u

C361

QNB0356-001

J600

MAIN PWB ASSY (XJ1-0503-20) KD-X220UR

CN1

KD-X220UR

(XJ6-031x-xx)

To SWITCH PWB ASSY

ANT

created date:2015-04-22No.MA606

22

(No.MA606<Rev.002>)7/

KD-R661MA9

KD-R461MA9

KD-X220E SERIES
KD-X320BTSJ

KD-X220U SERIES

KD-X220J

KD-X120U SERIES
KD-X120EU

KD-X320BTU SERIES
KD-X320BTE SERIES

KD-X125EE

KD-X120EE

KD-R461E SERIES

KD-R466U SERIES

KD-R461U SERIES

KD-R460J

KD-R464ED SERIES

KD-R462E SERIES

KD-SR41J

KD-R467EE

KD-R469E SERIES
KD-R463EU

KD-SR81BTJ

KD-R864ED SERIES

KD-R862BTE SERIES

KD-R861BTE SERIES

KD-R862BTU SERIES

KD-R860BTJ

KD-AR865BTSJ

KD-SR61J

KD-R661E SERIES

KD-R661U SERIES

KD-R660J

MODEL LIST:

5.6V

9.4v

5.0V

F_AUXG

J7J-0033-00

0V

0V

0V

0V

0.7V

0.6V

0.6V

1.7V

1.7V

3.3V

0V

3.2V

0V

0V

0V

0V

2.5V

2.5V

2.5V

2.5V

2.5V

5.0V

2.5V

0V

1.8V

0V

2.0V

0.2V

3.3V

4.8V

4.0V

4.0V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.8V

2.8V

2.8V

2.8V

2.8V

2.8V

3. COMPONENTS WITH ? IN FRONT INDICATE NOT USE.

PAN_DET

LCD_INH

LCD_CLK

LCD_DATA_LCD

LCD_CE

ALL RESISTORS ARE 1/10W +5% METAL GLAZE RESISTOR.

ALL E.CAPACITORS ARE SHOWN IN THE FORM OF CAPACITANCE(uF)/RATED VOLTAGE(V)

1. VOLTAGES ARE DC-MEASURED WITH A DIGITAL VOLT METER WITHOUT INPUT SIGNAL
UNLESS OTHERWISE SPECIFIED.

NOTES

ALL CAPACITANCE VALUES ARE IN uF(P=pF)

ALL CAPACITORS ARE 50V OR 25V CERAMIC CAPACITOR.

2.

ALL RESISTANCE VALUES ARE IN OHM.

Duo

SWITCH PWB: J7J-0113-00

LCD_DATA_SYS

EJECT

DISP/SETUP

EASY EQ

PWR/SRC

1

FORWARD

FOLDER DOWN

IPOD/USB/PHONE

3/ FOLDER UP

4/RNDM

6

BACKWARD

2/

5/RPT

BACK/SEARCH

single

USB_GND

USB_GND

GND

F_AUXR

USB5V
REMO

ENC2

ENC1

ILM_10.5

LCD_DATOUT

F_AUXL

KS3

KI3

KI4

KI2

KI1

KS6

KI5

KS2

PANEL_3.3V

KS1

D-

D+

LCD_CLK

LCD_DATIN

LCD_CE

LCD_INH

KS6

LCD_DATOUTLCD_DATIN

COM4

COM3

COM2

COM1

S51

S50

S49

S48

S47

S46

S45

S44

S43

S42

S41

S40

S39

S37

S38

S36

S35

S34

S33

S32

S31

S30

S29

S28

S27

S26

S25

S24

S23

S22

S21

S20

S19

S18

S17

S16

S15

S14

S13

S12

S11

S10

S9S8S7S6S5S4S3S2S1

LCD_INH
LCD_CE
LCD_CLK

KS1

KS2

KS3

KI1

S49

KS1

KI4

S51

S50

COM4

COM3

COM2

COM1

S37

S38

S39

S40

S41

S42

S43

S44

S45

S46

S47

S48

S1S2S3S4S5S6S7S8S9

S10

S11

S12

S13

S14

S15

S16

KI5

KI4

KI3

KI2

S36
S35
S34
S33
S32
S31
S30
S29
S28
S27
S26
S25
S24
S23
S22
S21
S20
S19
S18
S17

TL2-2

TL1-2

TL1-1

TL3 TL4 TL5

TL6

TL7

TL8

TL9

TL10

TL11

TL2-1

S1A

S13S12

S4

S6

S3

S9

S15

S7

S2A

S1

S5

S2

S11A

S11

S5A

S6A

S8

S14

S4AS3A

1/16W100

RA2

1/16W100

RA1

1/16W

100

RA3

*R81

1/4W220

R80

1/8W4.7

R62

1/8W100

R60

1/8W100

R61

1/4W100

R1

0

*R1009

1/8W

*R18

1/8W

*R41

1/8W

*R37

1/8W

*R32

1/8W

*R38

1/8W

*R39

1/8W

*R40

1/8W

*R35

5601/8W

*R34

1/8W

*R36

1/8W

*R33

1/8W

*R31

1/8W

*R19

1/8W

*R30

1/8W

*R29

1/8W

*R28

1/8W

*R27

1/8W

*R26

1/8W

*R25

1/8W

*R24

1/8W

*R23

1/8W

*R22

1/8W

*R21

1/8W

*R20

1/4W

0

R1000

62k

*R91

1k

?R56

1/8W560

R55

0

*R1006

0

*R1010

100

R4

47k

?R2

470

R3

4.3k

*R51

4.3k

R50

4.3k

*R53

1k

R6

1/4W

0

R7

1/4W

330

R5

?Q90

C

B

E

?Q91

LSCR523EBFS8

Q1

2SC4097P/R/

*Q51

LSCR523EBFS8

Q50

2SC4097P/R/

*Q53

NQR0704-001X
FL80

7 6

5 4

3 21

T9K-0007-00

S20

15

8

5

18

11

214

717

10 420

13 1

616

9 319

12

CN1
QGZ2006K1-20X

7 65

VCC

4

D-

3

D+

2

GND

1

E5J-0069-00

J80

3
2
1

QNS0279-001

J60

S2/P2/G280

S1/P1/G179

SDI78

SCL77

SCE76

INHB75

OSC/S6974

VSS73

SDO72

S6871

VDD70

S6769

COM468

COM367

COM266

COM165

KI5/S6664

KI4/S6563

KI3/S6462

KI2/S6361

KI1/S62

60

KS6/S6159KS5/S6058KS4/S5957KS3/S5856KS2/S5755KS1/S56

54

S5553S5452S5351S5250S5149S5048S4947S4846S4745S4644S4543S4442S43

41

S42 40
S41 39
S40 38
S39 37
S38 36
S37 35
S36 34
S35 33
S34 32
S33 31
S32 30
S31 29
S30 28
S29 27
S28 26
S27 25
S26 24
S25 23
S24 22
S23 21

S2220S2119S2018S1917S1816S1715S1614S1513S1412S1311S1210S119S108S97S86S75S6/P6/G64S5/P5/G53S4/P4/G42S3/P3/G3

1

BU97520AKV-M

IC1

VCC3GND2OUT

1

SIR8630B6T

*IC90

555453525150494847464544434241401 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 39383736353433

*ED1

VOL

*D31

BACK

*D28

3

*D66

FWD

*D54

1

*D64

EQ

*D40

EQ

*D70

VOL

*D63

4

*D67

DISP

*D59

VOL

*D61

FWD

*D55

5

*D68

2

*D65

BACK

*D58

BWD

*D57

SOURCE

*D71

EJECT

*D52

FWD

*D24

DISP

*D29

VOL

*D30

BWD

*D56

VOL

*D60

6

*D69

SOURCE

*D41

4

*D37

2

*D35

5

*D38

VOL

*D33

FWD

*D25

1

*D343*D36

EJECT

*D22

6

*D39

BWD

*D27

BWD

*D26

ACCENT

*D50

ACCENT

*D20

BACKLIGHT

LUWJNSH.PC//0

D49

?D11 ?D10

DZ2J056M

D1

?D93

?D90

?D94

DZ2J051M

D81

DZ2J051M

D80

DZ2J056M

*D91

DZ2J056M

*D92

MBRX130

D2

1u

C1

?C2

1u

?C4

1u

C5

10u

C6

27p

C80

27p

C81

10u

C82

4700p

C84

470p

C83

1u

*C91

?C90

4700p

*C85

470p

*C86

4700p

*C7

1000p

C60

1000p

C61

470p

C3

SWITCH PWB ASSY-1 (XJ6-031x-xx) Except KD-X220UR

CN701

Except KD-X220UR

(XJ1-049x-xx)

To MAIN PWB ASSY-1

AUX

USB

created date:2015-04-22No.MA606

22

(No.MA606<Rev.002>)8/

-

-

-

-

SML-D12V8WT

-

reference

2SC4097P/R/

-

-

-

RK73FB2B681J

-

2SC4097P/R/

-

-

-

-

D63

RK73GB2A000J

R37

-

SML-D12V8WT

-

-

D36

-

-

R39

DZ2J056M

SML-D12P8WT

-

RK73FB2B821J

-

-

QSMR-C13SBCMN

-

RK73FB2B821J

RK73FB2B821J

-

SML-D12P8WT

-

-

-

-

RK73FB2B821J

-

-

-

-

-

QSMR-C13SBCMN

-

-

-

-

R1006

SML-D12V8WT

CK73GXR1A105K

-

-

R26

-

RK73GB2A432J

CK73GXR1A105K

-

RK73FB2B621J

-

-

C86

RK73FB2B122J

2SC4097P/R/

-

-

-

-

B3H-0006-00

QSMR-C13SBCMN

D30

D37

CK73GBB1H472K

-

QSMR-C13SBCMN

RK73FB2B821J

-

QSMR-C13SBCMN

-

-

-

R28

SML-D12V8WT

RK73FB2B621J

-

SML-D12V8WT

-

-

RK73GB2A432J

-

RK73FB2B821J

QSMR-C13SBCMN

D57

QSMR-C13SBCMN

-

QSMR-C13SBCMN

RK73FB2B561J

-

-

RK73FB2B821J

-

RK73FB2B621J

RK73FB2B122J

SIR8630B6T

SML-D12V8WT

SML-D12P8WT

SML-D12V8WT

D92

-

-

RK73FB2B122J

-

-

-

-

RK73GB2A432J

RK73FB2B621J

2SC4097P/R/

-

R31

QSMR-C13SBCMN

SIR8630B6T

-

-

-

RK73FB2B621J

-

SML-D12V8WT

RK73FB2B681J

-

-

RK73FB2B621J

D38

C91

R25

-

RK73FB2B821J

-

SML-D12V8WT

-

SML-D12V8WT

SML-D12V8WT

-

RK73FB2B751J

-

-

D22

BT BLUE REMO

QSMR-C13SBCMN

SML-D12P8WT

-

-

-

-

CK73GBB1H472K

-

SML-D12V8WT

RK73FB2B821J

ED1

-

2SC4097P/R/

SML-311DT/JK/X

-

R19

-

-

-

SML-D12V8WT

-

-

-

RK73FB2B621J

R38

-

SML-D12V8WT

2SC4097P/R/

DZ2J056M

SML-D12V8WT

SML-D12P8WT

--

-

RK73FB2B621J

B3H-0006-00

CK73GBB1H472K

-

SML-311DT/JK/X

-

SML-311DT/JK/X

D35

-

-

QSMR-C13SBCMN

-

DZ2J056M

R18

RK73GB2A432J

-

-

-

DZ2J056M

SML-D12P8WT

SML-D12V8WT

SML-D12V8WT

RK73FB2B621J

-

SML-311DT/JK/X

CK73GBB1H472K

SML-D12P8WT

-

-

SML-D12V8WT

SML-D12V8WT

RK73FB2B621J

D59

SML-D12P8WT

SML-311DT/JK/X

SML-D12V8WT

RK73FB2B621J

-

-

RK73GB2A000J

DZ2J056M

XJ6-0310-11

-

-

-

SML-311DT/JK/X

-

RK73GB2A000J

RK73FB2B561J

-

-

RK73FB2B621J

SML-D12V8WT

D29

SML-D12P8WT

SML-D12V8WT

RK73FB2B751J

-

RK73FB2B821J

-

-

B3H-0006-00

-

B3H-0006-00

-

C7

-

-

R53

-

-

RK73FB2B561J

-

Q51

SML-D12V8WT

-

-

RK73FB2B821J

-

RK73FB2B821J

-

-

-

SML-D12V8WT

-

DZ2J056M

-

SML-D12P8WT

D65

-

-

-

QSMR-C13SBCMN

SML-D12V8WT

RK73FB2B821J

RK73FB2B621J

-

SML-D12V8WT

-

DMR G/A-O WO REMO

RK73FB2B821J

-

RK73FB2B621J

QSMR-C13SBCMN

-

-

-

-

-

-

-

SML-D12P8WT

RK73FB2B122J

RK73FB2B821J

-

QSMR-C13SBCMN

-

-

-

D26

-

-

CK73GBB1H472K

-

RK73FB2B821J

QSMR-C13SBCMN

SML-D12V8WT

RK73GB2A432J

D31

-

D39

SML-D12P8WT

-

RK73GB2A000J

-

RK73FB2B821J

RK73FB2B561J

-

SML-D12V8WT

-

2SC4097P/R/

*

QSMR-C13SBCMN

RK73GB2A432J

RK73FB2B821J

RK73FB2B122J

QSMR-C13SBCMN

-

-

-

R21

SML-D12V8WT

-

RK73FB2B681J

RK73FB2B621J

QSMR-C13SBCMN

-

RK73FB2B621J

RK73FB2B122J

-

RK73FB2B122J

-

CK73GBB1H472K

-

D27

-

D69

SML-311DT/JK/X

SML-D12V8WT

-

-

RK73GB2A432J

QSMR-C13SBCMN

-

-

SML-311DT/JK/X

SML-D12P8WT

-

DZ2J056M

SML-D12V8WT

RK73FB2B621J

-

-

-

SML-311DT/JK/X

SML-D12P8WT

-

QSMR-C13SBCMN

-

-

-

RK73FB2B561J

-

-

D60

SML-D12P8WT

RK73FB2B561J

SML-D12V8WT

RK73EB2E000J

-

R51

-

-

RK73FB2B122J

-

R35

RK73FB2B821J

RK73FB2B122J

R27

R41

-

SML-D12P8WT

2SC4097P/R/

-

D40

-

-

SML-D12V8WT

B3H-0006-00

-

R24

RK73FB2B821J

-

QSMR-C13SBCMN

2SC4097P/R/

D34

QSMR-C13SBCMN

SIR8630B6T

QSMR-C13SBCMN

SML-311DT/JK/X

DMR RED REMO

RK73FB2B821J

QSMR-C13SBCMN

-

SML-311DT/JK/X

SML-D12V8WT

-

SML-D12V8WT

D66

IC90

SML-D12V8WT

RK73FB2B621J

SML-D12V8WT

QSMR-C13SBCMN

-

-

RK73FB2B621J

-

-

-

-

-

RK73FB2B621J

QSMR-C13SBCMN

R22

-

RK73FB2B821J

SML-D12V8WT

RK73FB2B821J

-

R32

SML-D12V8WT

SML-D12V8WT

-

BT RED REMO

R29

SML-D12V8WT

-

DZ2J056M

-

SML-D12V8WT

RK73GB2A432J

SML-D12V8WT

RK73FB2B821J

RK73FB2B821J

B3H-0006-00

-

-

SML-D12V8WT

-

-

RK73FB2B621J

-

-

QSMR-C13SBCMN

-

SML-D12P8WT-

RK73FB2B821J

D25

SML-D12V8WT

-

-

-

-

RK73FB2B621J

RK73FB2B821J

RK73GB2A000J

--

-

-

-

-

R36

SML-D12V8WT

SML-D12P8WT

-

SML-D12V8WT

RK73FB2B561J

RK73FB2B821J

-

-

-

-

-

-

-

QSMR-C13SBCMN

D91

SML-D12V8WT

-

SML-D12P8WT

-

-

-

RK73FB2B621J

R33

RK73FB2B122J

-

RK73FB2B122J

D54

SML-D12V8WT

-

-

-

SML-D12V8WT

-

-

QSMR-C13SBCMN

R1010

SML-D12V8WT

RK73FB2B561J

CK73GBB1H472K

-

QSMR-C13SBCMN

SML-D12V8WT

-

-

-

SML-D12V8WT

-

SML-D12V8WT

-

-

SML-D12P8WT

QSMR-C13SBCMN

RK73FB2B621J

-

RK73FB2B621J

SML-311DT/JK/X

-

RK73FB2B122J

D56

QSMR-C13SBCMN

SML-311DT/JK/X

-

-

-

-

-

SML-311DT/JK/X

2SC4097P/R/

-

--

SML-D12P8WT

SML-311DT/JK/X

RK73FB2B821J

-

DZ2J056M

SML-D12P8WT

SML-311DT/JK/X

QSMR-C13SBCMN

-

SML-D12V8WT

-

-

RK73FB2B122J

SML-D12V8WT

SML-311DT/JK/X

QSMR-C13SBCMN

SML-D12V8WT

-

RK73FB2B821J

SML-D12V8WT

-

RK73FB2B621J

RK73FB2B821J

QSMR-C13SBCMN

RK73FB2B821J

RK73FB2B621J

SML-D12V8WT

RK73FB2B821J RK73FB2B122J

SML-D12V8WT

RK73FB2B561J

-

-

-

RK73FB2B821J

SML-D12V8WT

-

-

R40

SML-D12V8WT

-

RK73FB2B621J

SML-D12P8WT

-

-

QSMR-C13SBCMN

-

QSMR-C13SBCMN

SML-D12P8WT

RK73FB2B621J

-

SML-D12P8WT

SML-D12V8WT

-

SML-D12V8WT

SML-D12V8WT

-

RK73EB2E000J

SML-D12V8WT

-

SML-D12P8WT

SML-D12P8WT

-

-

D24

-

-

-

QSMR-C13SBCMN

QSMR-C13SBCMN

RK73FB2B821J

SML-D12V8WT

-

RK73GB2A000J

-

-

R91

-

-

SML-D12V8WT

RK73FB2B621J

-

-

-

SML-D12P8WT

SML-D12V8WT

QSMR-C13SBCMN

B3H-0006-00

QSMR-C13SBCMN

QSMR-C13SBCMN

SML-D12V8WT

SML-311WT/JK/X

DZ2J056M

-

QSMR-C13SBCMN

-

-

-

SML-D12V8WT

SML-D12V8WT

-

D28

-

RK73FB2B821J

-

DZ2J056M

SML-D12V8WT

QSMR-C13SBCMN

RK73FB2B751J

-

SML-D12V8WT

-

QSMR-C13SBCMN

-

QSMR-C13SBCMN

-

R1009

RK73FB2B821J

SML-D12V8WT

-

D71

-

-

-

BT RED WO REMO

D64

CK73GBB1H471K

R34

DMR-BT BLUE REMO

SML-D12P8WT

RK73FB2B621J

-

SML-D12V8WT

B3H-0006-00

-

RK73FB2B821J

RK73GB2A432J

-

XJ6-0310-10

B3H-0006-00

CK73GBB1H472K

-

RK73EB2E000J

SML-D12V8WT

-

D68

-

SML-311DT/JK/X

RK73EB2E000JR81

D70

SIR8630B6T

QSMR-C13SBCMN

CK73GBB1H471K

SML-D12V8WT

-

QSMR-C13SBCMN

-

D52

SML-D12P8WT

CK73GBB1H471K

-

CK73GBB1H471K

D50

R30

RK73FB2B681J

-

-

-

RK73FB2B122J

SML-D12V8WT

2SC4097P/R/

-

XJ6-0313-82

RK73FB2B122J

-

CK73GXR1A105K

SML-D12V8WT

-

-

DMR GREEN WO REMO

SML-D12P8WT

QSMR-C13SBCMN

RK73FB2B821J

-

-

XJ6-0312-72

RK73FB2B621J

QSMR-C13SBCMN

-

RK73FB2B621J

D67

XJ6-0313-81

R23

-

-

QSMR-C13SBCMN

-

-

-

-

DMR-BT RED WO REMO

SML-D12V8WT

-

DIFFERENCE TABLE FOR PWB #J7J-0033-00

RK73FB2B821J

R20

-

RK73FB2B561J

- -

-

RK73FB2B821J

SML-D12V8WT

-

RK73FB2B821J

XJ6-0312-75

RK73FB2B561J

RK73FB2B821J

SML-D12V8WT

-

-

SML-D12V8WT

RK73FB2B821J

-

-

RK73FB2B751J

SML-D12V8WT

SML-D12P8WT

RK73FB2B621J

DMR RED WO REMO

XJ6-0312-71

-

-

-

-

-

RK73FB2B821J

XJ6-0310-12

D61

SML-D12V8WT

XJ6-0312-74

-

-

RK73GB2A000J

-

-

-

-

RK73FB2B621J

-

RK73FB2B821J

-

RK73EB2E000J

-

RK73FB2B821J

-

-

-

-

B3H-0009-00

-

XJ6-0312-73

SML-D12V8WT

CK73GXR1A105K

-

-

-

-

D33

RK73FB2B122J

RK73FB2B821J

SML-D12V8WT

C85

-

RK73GB2A432J

CK73GBB1H471K

RK73FB2B821J

-

-

-

DZ2J056M

D20

RK73EB2E000J

RK73FB2B821J

-

SML-D12P8WT

RK73GB2A432J

SML-D12V8WT

QSMR-C13SBCMN

-

SML-D12P8WT

QSMR-C13SBCMN

SML-D12V8WT

D55

SML-D12V8WT

D58

SML-D12P8WT

-

­RK73FB2B561J

- -

SML-D12V8WT

-

CK73GBB1H471K

RK73FB2B122J

-

BT BLUE WO REMO

-

-

SML-D12V8WTD41

RK73FB2B122J

SML-D12P8WT

QSMR-C13SBCMN

QSMR-C13SBCMN

RK73FB2B821J

-

-

Q53

-

-

-

-

SWITCH PWB ASSY-2 (XJ6-031x-xx) Except KD-X220UR

created date:2015-04-22No.MA606

22

(No.MA606<Rev.002>)9/

SML-D12V8WT

SML-D12V8WT

RK73FB2B122J

RK73FB2B621J

RK73FB2B821J

QSMR-C13SBCMN

RK73FB2B122J RK73FB2B821J

RK73FB2B621J

SML-D12V8WT

DZ2J056M

SML-D12V8WT

RK73FB2B821J

RK73FB2B122J

SML-D12V8WT

SML-D12V8WT

R23

RK73FB2B621J

D35

reference

-

XJ6-0393-20

D92

QSMR-C13SBCMN

QSMR-C13SBCMN

RK73FB2B821J

R27

R26

SML-D12V8WT

QSMR-C13SBCMN

QSMR-C13SBCMNQSMR-C13SBCMN

RK73FB2B821J

QSMR-C13SBCMN

QSMR-C13SBCMN

-

QSMR-C13SBCMN

CK73GBB1H471K

SML-D12V8WT

XJ6-0393-21

RK73FB2B122J

SML-D12V8WT

RK73FB2B821J

CK73GBB1H472K
CK73GBB1H471K

SML-D12V8WT

SML-D12V8WT

XJ6-0363-20

RK73FB2B821J

R29

C86

RK73FB2B821J

RK73FB2B821J

D22

QSMR-C13SBCMN

QSMR-C13SBCMN

D37

-

RK73FB2B122J

D24

-

SML-D12V8WT

R20

QSMR-C13SBCMN

RK73FB2B821J

QSMR-C13SBCMN

D33

D38

D30

D41

-

SML-D12V8WT

QSMR-C13SBCMN

SML-D12V8WT

QSMR-C13SBCMN

R19

RK73FB2B122J

RK73FB2B621J

D20

RK73FB2B821J

-

-

SML-D12V8WT

SML-D12V8WT

R25

SML-D12V8WT

B3H-0006-00

QSMR-C13SBCMN

RK73FB2B821J

QSMR-C13SBCMN SML-D12V8WT

-

USB-BT BLUE REMO

RK73FB2B821J

QSMR-C13SBCMN

SML-D12V8WT

SML-D12V8WT

SML-D12V8WT

D91

SML-D12V8WT

CK73GBB1H472K

SML-D12V8WT

QSMR-C13SBCMN

CK73GBB1H471K

QSMR-C13SBCMN

RK73FB2B621JR24

-

RK73FB2B821J

D31

RK73EB2E000J

R22

- CK73GBB1H471K

SML-D12V8WT

RK73FB2B122J

SML-D12V8WT

-

RK73FB2B621J

XJ6-0393-22

SML-D12V8WT

R30

RK73FB2B821J

QSMR-C13SBCMN

D34

USB RED REMO

B3H-0009-00

SML-D12V8WT

SML-D12V8WT

D39

SML-D12V8WT

-

RK73FB2B821J

*

C7

SML-D12V8WT

B3H-0006-00

RK73FB2B621J

RK73FB2B122J

RK73FB2B621J

QSMR-C13SBCMN

QSMR-C13SBCMN

RK73FB2B821J

SML-D12V8WT

-

QSMR-C13SBCMN

DZ2J056M

QSMR-C13SBCMN

RK73FB2B621J

RK73FB2B821J

D28

QSMR-C13SBCMN

D25

RK73FB2B821J

R28

D36

SML-D12V8WT

B3H-0006-00

QSMR-C13SBCMN

RK73FB2B621J

R81

DMR ENTRY RED REMO

D26

RK73FB2B621J

-

RK73FB2B621J

QSMR-C13SBCMN

-

DZ2J056M

QSMR-C13SBCMN

QSMR-C13SBCMN

RK73FB2B621J

RK73FB2B821J

R21

QSMR-C13SBCMN

RK73FB2B621J

RK73FB2B821J

C85

DMR-BT BLUE REMO

DZ2J056M

QSMR-C13SBCMN

SML-D12V8WT

RK73FB2B821JRK73FB2B122J

QSMR-C13SBCMN

QSMR-C13SBCMN

SML-D12V8WT

SML-D12V8WT

SML-D12V8WT

SML-D12V8WT

RK73EB2E000J

D40

QSMR-C13SBCMN

DIFFERENCE TABLE

RK73FB2B821J

QSMR-C13SBCMN

-

QSMR-C13SBCMN

D29

D27

ED1

3. COMPONENTS WITH ? IN FRONT INDICATE NOT USE.

2.

ALL RESISTANCE VALUES ARE IN OHM.

1. VOLTAGES ARE DC-MEASURED WITH A DIGITAL VOLT METER WITHOUT INPUT SIGNAL
UNLESS OTHERWISE SPECIFIED.

NOTES

ALL RESISTORS ARE 1/10W +5% METAL GLAZE RESISTOR.

ALL CAPACITANCE VALUES ARE IN uF(P=pF)

ALL CAPACITORS ARE 50V OR 25V CERAMIC CAPACITOR.

ALL E.CAPACITORS ARE SHOWN IN THE FORM OF CAPACITANCE(uF)/RATED VOLTAGE(V)

5.6V

9.4v

5.0V

F_AUXG

J7J-0033-**

0V

0V

0V

0.7V

0.6V

1.7V

3.3V

0V

3.2V

0V

0V

0V

0V

2.5V

2.5V

2.5V

2.5V

2.5V

5.0V

2.5V

0V

1.8V

0V

2.0V

0.2V

3.3V

4.8V

4.0V

4.0V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.5V

2.8V

2.8V

2.8V

2.8V

2.8V

2.8V

PAN_DET

LCD_INH

LCD_CLK

LCD_DATA_LCD

LCD_CE

Duo

SWITCH PWB: J7J-0113-**

LCD_DATA_SYS

EJECT

DISP/SETUP

EASY EQ

PWR/SRC

1

FORWARD

FOLDER DOWN

IPOD/USB/PHONE

3/ FOLDER UP

4/RNDM

6

BACKWARD

2/

5/RPT

BACK/SEARCH

single

USB_GND

USB_GND

GND

F_AUXR

USB5V
REMO

ENC2

ENC1

ILM_10.5

LCD_DATOUT

F_AUXL

KS3

KI3

KI4

KI2

KI1

KS6

KI5

KS2

PANEL_3.3V

KS1

D-

D+

LCD_CLK

LCD_DATIN

LCD_CE

LCD_INH

KS6

LCD_DATOUTLCD_DATIN

COM4

COM3

COM2

COM1

S51

S50

S49

S48

S47

S46

S45

S44

S43

S42

S41

S40

S39

S37

S38

S36

S35

S34

S33

S32

S31

S30

S29

S28

S27

S26

S25

S24

S23

S22

S21

S20

S19

S18

S17

S16

S15

S14

S13

S12

S11

S10

S9S8S7S6S5S4S3S2S1

LCD_INH
LCD_CE
LCD_CLK

KS1

KS2

KS3

KI1

S49

KS1

KI4

S51

S50

COM4

COM3

COM2

COM1

S37

S38

S39

S40

S41

S42

S43

S44

S45

S46

S47

S48

S1S2S3S4S5S6S7S8S9

S10

S11

S12

S13

S14

S15

S16

KI5

KI4

KI3

KI2

S36
S35
S34
S33
S32
S31
S30
S29
S28
S27
S26
S25
S24
S23
S22
S21
S20
S19
S18
S17

TL2-2

TL1-2

TL1-1

TL3 TL4 TL5

TL6

TL7

TL8

TL9

TL10

TL11

TL2-1

S1A

S13S12

S4

S6

S3

S9

S15

S7

S2A

S1

S5

S2

S11A

S11

S5A

S6A

S8

S14

S4AS3A

RK74GB1J101J

1/16W100

RA2

RK74GB1J101J

1/16W100

RA1

RK74GB1J101J

1/16W

100

RA3

1/10W 0

*R81

1/4W220

R80

1/8W4.7

R62

1/8W100

R60

1/8W100

R61

1/4W100

R1

0

?R1009

1/8W750

?R18

1/8W750

?R41

1/8W750

?R37

1/8W750

?R32

1/8W560

?R38

1/8W560

?R39

1/8W560

?R40

1/8W560

?R35

1/8W560

?R34

1/8W560

?R36

1/8W560

?R33

1/8W560

?R31

8201/8W

*R19

8201/8W

*R30

6201/8W

*R29

6201/8W

*R28

6201/8W

*R27

8201/8W

*R26

6201/8W

*R25

6201/8W

*R24

620

1/8W

*R23

6201/8W

*R22

8201/8W

*R21

820

1/8W

*R20

1/4W

0

R1000

1/10W

?R91

1k

?R56

1/8W560

R55

0

R1006

1/10W0

?R1010

100

R4

47k

?R2

470

R3

4.3k

4.3k

R51

4.3k

R50

4.3k

?R53

1k

R6

1/4W

0

R7

1/4W

330

R5

?Q90

C

B

E

?Q91

LSCR523EBFS8

Q1

2SC4097P/R/

Q51

LSCR523EBFS8

Q50

?Q53

NQR0704-001X
FL80

7 6

5 4

3 21

T9K-0007-00

S20

15

8

5

18

11

214

717

10 420

13 1

616

9 319

12

CN1
QGZ2006K1-20X

7 65

VCC

4

D-

3

D+

2

GND

1

QNZ1076-001

J80

3
2
1

QNS0279-001

J60

S2/P2/G280

S1/P1/G179

SDI78

SCL77

SCE76

INHB75

OSC/S6974

VSS73

SDO72

S6871

VDD70

S6769

COM468

COM367

COM266

COM165

KI5/S6664

KI4/S6563

KI3/S6462

KI2/S6361

KI1/S62

60

KS6/S6159KS5/S6058KS4/S5957KS3/S5856KS2/S5755KS1/S56

54

S5553S5452S5351S5250S5149S5048S4947S4846S4745S4644S4543S4442S43

41

S42 40
S41 39
S40 38
S39 37
S38 36
S37 35
S36 34
S35 33
S34 32
S33 31
S32 30
S31 29
S30 28
S29 27
S28 26
S27 25
S26 24
S25 23
S24 22
S23 21

S2220S2119S2018S1917S1816S1715S1614S1513S1412S1311S1210S119S108S97S86S75S6/P6/G64S5/P5/G53S4/P4/G42S3/P3/G3

1

BU97520AKV-M

IC1

VCC3GND2OUT

1

SIR8630B6T

IC90

555453525150494847464544434241401 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 39383736353433

*ED1

VOL

*D31

BACK

*D28

?D66?D54 ?D64

EQ

*D40

?D70?D63

?D67

?D59 ?D61?D55

?D68

?D65

?D58

?D57

?D71?D52

FWD

*D24

DISP

*D29

VOL

*D30

?D56 ?D60

?D69

SOURCE

*D41

4

*D37

2

*D35

5

*D38

VOL

*D33

FWD

*D25

1

*D343*D36

EJECT

*D22

6

*D39

BWD

*D27

BWD

*D26

?D50

ACCENT

*D20

BACKLIGHT

LUWJNSH.PC//0

D49

?D11 ?D10

DZ2J056M

D1

?D93

?D90

?D94

DZ2J051M

D81

DZ2J051M

D80

DZ2J056M

*D91

DZ2J056M

*D92

MBRX130

D2

1u

C1

?C2

1u

?C4

1u

C5

10u

C6

27p

C80

27p

C81

10u

C82

4700p

C84

470p

470p

C83

1u

C91

?C90

4700p

*C85

470p

*C86

1u

470p

*C7

1000p

C60

1000p

C61

470p

C3

SWITCH PWB ASSY (XJ6-0393-21) KD-X220UR

CN701

KD-X220UR

(XJ1-0503-20)

To MAIN PWB ASSY

AUX

USB

created date:2015-04-22No.MA606

22

(No.MA606<Rev.002>)10/

MAIN PWB ASSY XJ1-049x-xx (J7J-0022-10) Except KD-X220UR

(Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade))

(Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade))

1

1

1

1

1

1

1

1

1

1

1

1

A

B

C

1

C

B

A

1

1

J7J-0022-10

XJ1-041

XJ1-049

XJ1-050

1

1

1

1

1

1

1

1

1

1

R1069

W427

Q471

Q470

R1079

C1074

R1091

R1082

C226

R240

R224

R239

D222

Q220

W533

R431

R1430

C1096

R1428

R1425

CN228

R1077

C1070

R1432

R1075

C1057

R1074

R1419

R1426

R1170

R1416

R1415

R1414

R1410

D473

D474
D475

R1408

CN701

W405

W404

W403

W402

W401

R1052

C1052

R229

R228

C222

R223

R221

J220

C221

C227

C220

R222

L223

C224

C223

L220

R816

C854

R241

R777

R776

R775

R179

R178

R233

R979

R969

R980

R978

C877

R371

R380

C341

C351

C331

C321

C251
C261

C308C307

C310

C309

C614

IC601

R607

R611

C621

C612

X600

C618C616

L607

R609

R601

C626

C613

R608

C623

C619

C610

C615

C620

D601

R610

R605

C609

L608

C622

R13

C611

C603

L606

D602

C602

L605

C604

R606

J600

C617

R757

R759

R756

R755

R753

R754

R779

R778

L785

R572

R573

R571

R574

R765
R766

R103

R102

R101

R719

R760

R482

C627

R230

R272

C624

C1056

C1064

D1061

D1060

R483

C1066

C1079

C1078

D472

R1404

R1405

R781

C318
C319

C317
C316

C727

L611

R746

R747

R700

X540

C721

R720R710

C722

R752

R751

C576

L591

C574

C575

C573

C572

C571

C598

R589

C589

R598

C588

C599

R599

R588

IC555

R1007

C908

C172

L610

C630

R1073

R1072

D391

D390

C909

C1094

L709

L822

L823

L820

L824

L821

R1070

R1022

R1411

D861

R171

C1098

C1021

C1020

Q271

R970

C869

L861

R865

C860

R867

C868

C864

C1097

R864

C865

R868

C861

C863

L860

C866

R869

IC861

R861

R866

C862

R862

C870

C1077

C1076

R471R745

C1068

R1002

R1001

R1000

R705

R353

D224

R243

R1093

C920

IC901

R401

C821

Q273

C723

C725

C724

D223

R1071

D272

R472

D273

C1001

L701

C225

R365

Q360

C360

C361

R360

R361

R717

L827

L825

Q260

L826

Q701

D400

D401

C905

C930

C390

C171

C1050

C904

IC821

C830

R930

C867

R750

D271

D270

D370

L1000

Q270

Q330

Q350

Q320

Q340

Q250

IC851

IC161

C100

R470

R476

R721

R253

R164

R100

R703

R704
R707

R722

R370

R473

R723

R819

R744

R821

R105

R739

R820

R733

R734

R1090

R706

R373

R732

R743

R273

R740

R822

R735

R741

R730

R104

R702

R414

R413

R412

R323

R343

R271

R333

R262

R252

R840

R841

R402

R251

R351

R261

R932

R321

R331

R341

R302

R716

R167

R725

R726

R728

R340

R260

R320

R350

R250

R330

R727

R729

R724

R270

R713
R715

R372

R714

R712

R931

R400

R168

R410

R477

R1003

R478

R411

R169

R701

R474

R475

R162

R1060

R403

R390

R711

R381

R170

R307

D380

D381

Q930

Q272

C380

C1090

C710

C820

C410

C1015

C1000

C1017

C832

C711

C1016

C1014

C166

C831

C931

C370

C822

C101 C102

C840

C850

C105

C104

C103

C475

C473

C474

C170

C177

C167

C161

C169

C162

C168

C311

C391

C392

C304

C907

C330

C340

C350

C250

C320

C260

C707

C708

Q931

D990

IC841

IC831

IC301

IC411

X701

C852

C165

C890

C163

C164

C990

J321

CN990

J470

L990

S830

IC701

D101

D100

C1095

R432

C726

J601

R1434

W422

W420

L780

MARK

UL

W

K

created date:2015-04-22No.MA606

22

(No.MA606<Rev.002>)11/

How to repair a fuse pattern.

Refer to "2.1 How to repair a fuse pattern".

1

1111

1

SXI.R

SXI.L

AR

AL

TU.L

TU.R

IP4

IP3

IP2 IP1

DIST

AC

TM

RXM

TXM

ASEBRK

ASEMD

TRST

TCK

TMS

TDI

TDO

VDD

CS

DI

WP

RST2 RST1

HOLD

GND2

GND1

DO

CLK

OE

REM

A.ANT

PDET

FLG

V6I

HSSIN

EXT

ANT

C1080

R1080

C1073

C1072

C1071

R1055

C1055

R1429

R1424

R1076

C1075

R1421

R1417

C894

CN701

R1407

R1406

FMIN

R1051

C1051

R231

R232

J220

R227

L221

VDD5V

BT_RST

MICP

L222

R226

DGND

AGND

BT_L

BT_R

A9V

R225

MICN

USB_5V

D+

CE

V10.5

D-

AG

GND

5V/INH

C1040

USBG

VOL1

D471

D470

C470

R603

C608

SCL

C605

L602

L601

L604

C600

VA600

R602

R600

C607

L603

C601

C1091

SDA

L600

C606

R604

J600

D903

VA601

C1003

R1006

R1005

C1084

VA1400

C1085

C1089

R1018

C1018

C1088

C1065

L609

C1067

R1004

D1401

DIMMER_IN

C851

R758

L758

C912

C913

C172

C1093

C911

R1061

C868

DB1C

DB1B

DB1A

D1402

R612

C853

C1092

D902

IC901

C1069

R362

D360

R364

R363

C905

R890

IC891

L850

C314

R891

R742

R304

R749

R892

R830

R303

C718

C1012

C472

C717

C1002

C701

C706

C1010

C700

C709

C703

C716

C1011

C892

C704

C702

C891

C1013

C713

C712

C705

C471

C906

C313

C304

C907

C303

C305

C306

D990

IC301

C852

C165

C890

DAC.R

C163

C164

DAC.L

C990

J321

CN990

J470

L990

S830

FL

RR

SUBL

J601

TU33

SW33

P33

V1.25

VDD

AUD

ERR1

DAC5

TMUTE

SUBR

ILM

BUP

MEM

RL

C1082

MAIN PWB ASSY XJ1-049x-xx (J7J-0022-10) Except KD-X220UR

(Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade))

(Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade))

created date:2015-04-22No.MA606

22

(No.MA606<Rev.002>)12/

MAIN PWB ASSY XJ1-0503-20 (J7J-0022-20) KD-X220UR

(Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade))

(Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade))

1

1

1

1

1

1

1

1

1

1

1

1

A

B

C

1

C

B

A

XJ1-096

XJ1-093

J7J-0022-20

1

1

XJ1-041

XJ1-049

XJ1-050

1

1

1

1

1

1

1

1

1

1

R1069

W427

Q471

Q470

R1079

C1074

R1091

R1082

C226

R240

R224

R239

D222

Q220

W533

R431

R1430

C1096

R1428

R1425

CN228

R1077

C1070

R1432

R1075

C1057

R1074

R1419

R1426

R1170

R1416

R1415

R1414

R1410

D473

D474
D475

R1408

CN701

W405

W404

W403

W402

W401

R1052

C1052

R229

R228

C222

R223

R221

J220

C221

C227

C220

R222

L223

C224

C223

L220

R816

C854

R241

R777

R776

R775

R179

R178

R233

R979

R969

R980

R978

C877

R371

R380

C341

C351

C331

C321

C251
C261

C308C307

C310

C309

C614

IC601

R607

R611

C621

C612

X600

C618C616

L607

R609

R601

C626

C613

R608

C623

C619

C610

C615

C620

D601

R610

R605

C609

L608

C622

R13

C611

C603

L606

D602

C602

L605

C604

R606

J600

C617

R757

R759

R756

R755

R753

R754

R779

R778

L785

R572

R573

R571

R574

R765
R766

R103

R102

R101

R719

R760

R482

C627

R230

R272

C624

C1056

C1064

D1061

D1060

R483

C1066

C1079

C1078

D472

R1404

R1405

R781

C318
C319

C317
C316

C727

L611

R746

R747

R700

X540

C721

R720R710

C722

R752

R751

C576

L591

C574

C575

C573

C572

C571

C598

R589

C589

R598

C588

C599

R599

R588

IC555

R1007

C908

C172

L610

C630

R1073

R1072

D391

D390

C909

C1094

L709

L822

L823

L820

L824

L821

R1070

R1022

R1411

D861

R171

C1098

C1021

C1020

Q271

R970

C869

L861

R865

C860

R867

C868

C864

C1097

R864

C865

R868

C861

C863

L860

C866

R869

IC861

R861

R866

C862

R862

C870

C1077

C1076

R471R745

C1068

R1002

R1001

R1000

R705

R353

D224

R243

R1093

C920

IC901

R401

C821

Q273

C723

C725

C724

D223

R1071

D272

R472

D273

C1001

L701

C225

R365

Q360

C360

C361

R360

R361

R717

L827

L825

Q260

L826

Q701

D400

D401

C905

C930

C390

C171

C1050

C904

IC821

C830

R930

C867

R750

D271

D270

D370

L1000

Q270

Q330

Q350

Q320

Q340

Q250

IC851

IC161

C100

R470

R476

R721

R253

R164

R100

R703

R704
R707

R722

R370

R473

R723

R819

R744

R821

R105

R739

R820

R733

R734

R1090

R706

R373

R732

R743

R273

R740

R822

R735

R741

R730

R104

R702

R414

R413

R412

R323

R343

R271

R333

R262

R252

R840

R841

R402

R251

R351

R261

R932

R321

R331

R341

R302

R716

R167

R725

R726

R728

R340

R260

R320

R350

R250

R330

R727

R729

R724

R270

R713
R715

R372

R714

R712

R931

R400

R168

R410

R477

R1003

R478

R411

R169

R701

R474

R475

R162

R1060

R403

R390

R711

R381

R170

R307

D380

D381

Q930

Q272

C380

C1090

C710

C820

C410

C1015

C1000

C1017

C832

C711

C1016

C1014

C166

C831

C931

C370

C822

C101 C102

C840

C850

C105

C104

C103

C475

C473

C474

C170

C177

C167

C161

C169

C162

C168

C311

C391

C392

C304

C907

C330

C340

C350

C250

C320

C260

C707

C708

Q931

D990

IC841

IC831

IC301

IC411

X701

C852

C165

C890

C163

C164

C990

J321

CN990

J470

L990

S830

IC701

D101

D100

C1095

R432

C726

J601

R1434

W422

W420

L780

MARK

UL

W

K

created date:2015-04-22No.MA606

22

(No.MA606<Rev.002>)13/

How to repair a fuse pattern.

Refer to "2.1 How to repair a fuse pattern".

1

1111

1

SXI.R

SXI.L

AR

AL

TU.L

TU.R

IP4

IP3

IP2 IP1

DIST

AC

TM

RXM

TXM

ASEBRK

ASEMD

TRST

TCK

TMS

TDI

TDO

VDD

CS

DI

WP

RST2 RST1

HOLD

GND2

GND1

DO

CLK

OE

REM

A.ANT

PDET

FLG

V6I

HSSIN

EXT

ANT

C1080

R1080

C1073

C1072

C1071

R1055

C1055

R1429

R1424

R1076

C1075

R1421

R1417

C894

CN701

R1407

R1406

FMIN

R1051

C1051

R231

R232

J220

R227

L221

VDD5V

BT_RST

MICP

L222

R226

DGND

AGND

BT_L

BT_R

A9V

R225

MICN

USB_5V

D+

CE

V10.5

D-

AG

GND

5V/INH

C1040

USBG

VOL1

D471

D470

C470

R603

C608

SCL

C605

L602

L601

L604

C600

VA600

R602

R600

C607

L603

C601

C1091

SDA

L600

C606

R604

J600

D903

R894

C893

VA601

C1003

R1006

R1005

C1084

VA1400

C1085

C1089

R1018

C1018

C1088

C1065

L609

C1067

R1004

D1401

DIMMER_IN

C851

R758

L758

C912

C913

C172

C1093

C911

R1061

C868

DB1C

DB1B

DB1A

D1402

R612

C853

C1092

D902

IC901

C1069

R362

D360

R364

R363

C905

R890

IC891

L850

C314

C1099

R742

R304

R749

R892

R830

R303

C718

C1012

C472

C717

C1002

C701

C706

C1010

C700

C709

C703

C716

C1011

C892

C704

C702

C891

C1013

C713

C712

C705

C471

C906

C313

C304

C907

C303

C305

C306

D990

IC301

C852

C165

C890

DAC.R

C163

C164

DAC.L

C990

J321

CN990

J470

L990

S830

FL

RR

SUBL

J601

TU33

SW33

P33

V1.25

VDD

AUD

ERR1

DAC5

TMUTE

SUBR

ILM

BUP

MEM

RL

C1082

MAIN PWB ASSY XJ1-0503-20 (J7J-0022-20) KD-X220UR

(Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade))

(Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade))

created date:2015-04-22No.MA606

22

(No.MA606<Rev.002>)14/

SWITCH PWB ASSY-1 XJ6-031x-xx (J7J-0033-00) Except KD-X220UR

(Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade))

(Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade))

S2A

ED1

S3A

S11A

S5A

S6A

S4A

S1A

R1010

D60

D56

D30

D29

D22

D20

D52

D71

D50

D57

D58

D65

D68

D55

D61

D59

D67

D69

D63

D70D64

D54

D66

S20

D28

D31

D36

D39

D27

D26

D24

D34

D25

D33

D38

D35

J60

IC90

S14 S15S12

S3

S9

S11

S7

S13

S8

S4

S5

S6

S1

S2

J80

D37D41 D40

created date:2015-04-22No.MA606

22

(No.MA606<Rev.002>)15/

1

XJ6-040

XJ6-039

XJ6-031

J7J-0033-00

1

A/2

R64

R63

D11

D10

R56

C7

R1000

R81

KS6

KS3

KS2

KS1

KI5

W

K

MARK

UL

R55

R1006

CN1

KI4

R18

D94

D93

D92

D91

D90

R19

Q53

R53

R30

R29 R28

R27

R26

R25

R24

R23

R22

KI3

R91

KI2

R21

R20

R35

R37

R32

R31

R40 R39

R33

R38

R34

R36

R41

S20

Q51

RA1

RA3

RA2

R51

R2

R3

R50

KI1

C86

R80

R6

R4

R1

R62

R61

R60

R5

R1005

R7

C60

C61

C83 C84

C3

C2

C6

C82

C81

C80

C90

C91

J60

Q91

Q90

C1

C5

C4

C85

C87

R1009

IC90

J80

FL80

L1

L2

D2

D3

Q50

Q1

D1

D80

D81

IC1

SWITCH PWB ASSY-1 XJ6-031x-xx (J7J-0033-00) Except KD-X220UR

(Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade))

(Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade))

created date:2015-04-22No.MA606

22

(No.MA606<Rev.002>)16/

SWITCH PWB ASSY-2 XJ6-031x-xx (J7J-0033-00) Except KD-X220UR

(Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade))

(Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade))

XJ6-040

D49

created date:2015-04-22No.MA606

22

(No.MA606<Rev.002>)17/

XJ6-039

XJ6-031

J7J-0033-00

B/2

MARK

UL

SWITCH PWB ASSY-2 XJ6-031x-xx (J7J-0033-00) Except KD-X220UR

(Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade))

(Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade))

created date:2015-04-22No.MA606

22

(No.MA606<Rev.002>)18/

SWITCH PWB ASSY-1 XJ6-0393-21 (J7J-0033-00) KD-X220UR

(Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade))

(Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade))

S2A

ED1

S3A

S11A

S5A

S6A

S4A

S1A

R1010

D60

D56

D30

D29

D22

D20

D52

D71

D50

D57

D58

D65

D68

D55

D61

D59

D67

D69

D63

D70D64

D54

D66

S20

D28

D31

D36

D39

D27

D26

D24

D34

D25

D33

D38

D35

J60

IC90

S14 S15S12

S3

S9

S11

S7

S13

S8

S4

S5

S6

S1

S2

J80

D37D41 D40

created date:2015-04-22No.MA606

22

(No.MA606<Rev.002>)19/

1

XJ6-040

XJ6-039

XJ6-031

J7J-0033-00

1

A/2

R64

R63

D11

D10

R56

C7

R1000

R81

KS6

KS3

KS2

KS1

KI5

W

K

MARK

UL

R55

R1006

CN1

KI4

R18

D94

D93

D92

D91

D90

R19

Q53

R53

R30

R29 R28

R27

R26

R25

R24

R23

R22

KI3

R91

KI2

R21

R20

R35

R37

R32

R31

R40 R39

R33

R38

R34

R36

R41

S20

Q51

RA1

RA3

RA2

R51

R2

R3

R50

KI1

C86

R80

R6

R4

R1

R62

R61

R60

R5

R1005

R7

C60

C61

C83 C84

C3

C2

C6

C82

C81

C80

C90

C91

J60

Q91

Q90

C1

C5

C4

C85

C87

R1009

IC90

J80

FL80

L1

L2

D2

D3

Q50

Q1

D1

D80

D81

IC1

SWITCH PWB ASSY-1 XJ6-0393-21 (J7J-0033-00) KD-X220UR

(Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade))

(Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade))

created date:2015-04-22No.MA606

22

(No.MA606<Rev.002>)20/

SWITCH PWB ASSY-2 XJ6-0393-21 (J7J-0033-00) KD-X220UR

(Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade))

(Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade))

XJ6-040

D49

created date:2015-04-22No.MA606

22

(No.MA606<Rev.002>)21/

XJ6-039

XJ6-031

J7J-0033-00

B/2

MARK

UL

SWITCH PWB ASSY-2 XJ6-0393-21 (J7J-0033-00) KD-X220UR

(Lead free solder used in the board (material : Sn-Cu, melting point : 230 Centigrade))

(Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade))

created date:2015-04-22No.MA606

22

(No.MA606<Rev.002>)22/

PARTS LIST

20

DIGITAL MEDIA RECEIVER

KD-X120EE KD-X120EU KD-X120U
KD-X120UT KD-X125EE KD-X220E
KD-X220EN KD-X220EY KD-X220J
KD-X220U KD-X220UR KD-X220UT

(No.MA606<Rev.002>)1/

■ PRECAUTIONS ON SCHEMATIC DIAGRAMS

z Due to the improvement in performance, some part numbers shown in the circuit diagrams

may not agree with those indicated in the Parts List.

z The parts numbers, values and rated voltage etc. in the Schematic Diagrams are for

reference only.

z Since the circuit diagrams are standard ones, the circuits and circuit constants may be

subject to change for improvement without any notice.

■ PRECAUTIONS ON PARTS LIST

z

The parts identified by the symbol are critical for safety. Whenever replacing these parts, be sure to
use specified ones to secure the safety.

z

The parts not indicated in this Parts List and those which are filled with lines --- in the Parts No.
columns will not be supplied.

z

P.W. BOARD Ass'y will not be supplied, but those which are filled with the Parts No. in the Parts No.
columns will be supplied.

z

When ordering chips, screws etc., place bulk orders (unit of tens) whenever possible to improve
shipping efficiency.

z

There are cases where the actual implemented parts in the sets and the service parts are different.
When ordering parts, make sure to refer to the Parts List.

■

PRECAUTIONS ON SERVICE

Certain parts of the power circuits and the GNDs differ according to the models. Care must be
taken for the following points as the differences are indicated separately in the LIVE GND ( ) and

the ISOLATED (NEUTRAL) GND ( ).

1. Do not touch the LIVE GND, or do not touch the LIVE GND and the ISOLATED (NEUTRAL)
GND at the same time. It may cause an electric shock.
Before pulling out the chassis or other parts, make sure to pull out the power cord from the
wall outlet first.

2. Do not short circuit between the LIVE GND and ISOLATED (NEUTRAL) GND, or never
measure the LIVE GND and ISOLATED (NEUTRAL) GND at the same time using measuring
instruments (oscilloscope, etc.). It may blow fuses or damage other parts.

■ DEVIATION TOLERANCE RANGE󲩷

DEVIATION TOLERANCE RANGE

F G J K M N R H Z P

± 1% ± 2% ± 5% ±10% ±20% ±30%

+30%

-10%

+50%

-10%

+80%

-20%

+100%

-0%

20

(No.MA606<Rev.002>)2/

RC1

PA1

LCD1

H

G

F901

F

E

DC2

DC1

D

C

C

C

B

B

A

A

A

A

503

502

501

356

355

354

353

273

269

268

267

266

265

264

262

258

256

254

253

252

251

218

217

216

215

213

,

,

,

702

771

770

x2

701

x2

x2

(MAIN)

712

711

772

719

(SWITCH)

Parts with the exploded numbers larger than 700 are not supplied.

Block No.M1MM

EXPLODED VIEW

created date:2015-04-22No.MA606

20

(No.MA606<Rev.002>)3/

MODEL MARK MODEL MARK MODEL MARK MODEL MARK

20

KD-X120EE A KD-X120EU B KD-X120U C KD-X120UT D
KD-X125EE E KD-X220E F KD-X220EN G KD-X220EY H
KD-X220J I KD-X220U J KD-X220UR K KD-X220UT L

Safe Symbol No. Parts No. Parts Name Description QTY Local

EXPLODED VIEW <M1MM>

DC1 QAM1329-001 DC DORD 1 B,C,D,I,J,L
DC2 QAM1345-003 DC DORD 1 A,E,F,G,H
DC2 QAM1378-001 DC DORD 1 K

! F901 FZB10BT-100 BLADE FUSE 1

LCD1 B3H-0006-00 LCD 1
PA1 A6D-0021-00 PANEL 1 A,B,C,D,E,F,G,H,I,J,

PA1 A6D-0021-04 PANEL 1 K
RC1 RM-RK52M REMOTE CONTROL UNI 1 C,D,I,J,K,L

A QYSDSF2008ZA TAP SCREW M2 x 8mm 4
B GE40377-002A SPECIAL SCREW 2
C QYSDST2606ZA TAP SCREW M2.6 x 6mm 3
D QYSDST2610ZA TAP SCREW M2.6 x 10mm 1
E QYSDST2608ZA TAP SCREW M2.6 x 8mm 2
F GE40377-005A SPECIAL SCREW 2
G QYSDSG3006ZA TAP SCREW M3 x 6mm 1 A,B,C,D,E,F,G,H,I,J,

G QYSPSG3008ZA TAP SCREW M3 x 8mm 1 K
H QYSDSF2608ZA TAP SCREW M2.6 x 8mm 1
213 A2C-0006-00 SUB PANEL 1 A,E,F,G,H,I
213 A2C-0006-01 SUB PANEL 1 B,C,D,J,L
213 A2C-0006-02 SUB PANEL 1 K

215 GE35609-001A LOCK LEVER 1
216 GE40514-004A TORSION SPRING 1
217 GE35611-001A RELEASE LEVER 1
218 GE30999-014A COMP.SPRING 1
251 F0G-0011-00 COVER USB DOOR 1 A,B,C,D,E,F,G,H,I,J,

251 F0G-0011-01 COVER USB DOOR 1 K
252 B1A-0014-02 FRONT GLASS 1 A
252 B1A-0014-01 FRONT GLASS 1 B,C,D
252 B1A-0014-03 FRONT GLASS 1 E
252 B1A-0014-06 FRONT GLASS 1 F,G,H
252 B1A-0014-04 FRONT GLASS 1 I
252 B1A-0014-05 FRONT GLASS 1 J,L
252 B1A-0014-0A FRONT GLASS 1 K
253 K2F-0012-00 PUSH KNOB SEARCH BTN 1 A,B,C,D,E,F,G,H,I,J,

253 K2F-0012-01 PUSH KNOB SEARCH BTN 1 K
254 K2F-0014-00 PUSH KNOB FN BTN 1 A,B,C,D,E
254 K2F-0014-01 PUSH KNOB FN BTN 1 F,G,H,I,J,L
254 K2F-0014-04 PUSH KNOB FN BTN 1 K
256 K2E-0008-00 PUSH KNOB SRC BTN 1 A,B,C,D,E,F,G,H,I,J,

256 K2E-0008-01 PUSH KNOB SRC BTN 1 K
258 K2F-0013-00 PUSH KNOB PRESET BTN 1 A,B,C,D,E,F,G,H,I,J,
258 K2F-0013-01 PUSH KNOB PRESET BTN 1 K

262 K2E-0009-00 PUSH KNOB DETACH BTN 1 A,B,C,D,E,F,G,H,I,J,
262 K2E-0009-02 PUSH KNOB DETACH BTN 1 K

264 GE30999-012A COMP.SPRING 1
265 K2K-0102-03 KNOB VOL KNOB 1 A,B,C,D,E
265 K2K-0102-00 KNOB VOL KNOB 1 F,G,H,I,J,L
265 K2K-0102-05 KNOB VOL KNOB 1 K
266 GE40127-006A KNOB SPRING 1
267 B1K-0015-00 LIGHTING BOARD LIGHT GUIDE 1 A,B,C,D,E,F,G,H,I,J,

267 B1K-0015-01 LIGHTING BOARD LIGHT GUIDE 1 K
268 E2K-0010-00 CONDUCT RUBBER 1
269 A4G-0010-00 REAR COVER 1 A,B,C,D,E,F,G,H,I,J,

269 A4G-0010-01 REAR COVER 1 K
273 E2K-0013-00 CONDUCT RUBBER 1
353 GE40646-001A HOOK 2
354 GE20342-001A MOUNTING SLEEVE 1
355 GE20363-001A TRIM PLATE 1
356 GE40521-001A CARRYING CASE 1 A,C,D,E,J,K
501 B5A-0118-06 INST.MANUAL ENG FRE RUS PER TUR ARA 1 B

501 B5A-0116-02 INST.MANUAL CHI(TAIWAN) 1 C,D,J,L
501 B5A-0118-02 INST.MANUAL GER 1 F,G,H
501 B5A-0115-00 INST.MANUAL ENG FRE SPA 1 I
501 B5A-0196-00 INST.MANUAL POR(LATIN AMERICA) 1 K
502 B5A-0118-05 INST.MANUAL RUS UKR 1 A,E,H
502 B5A-0116-01 INST.MANUAL RUS PER THA ARA 1 C,J
502 B5A-0116-03 INST.MANUAL KOR 1 D,L
502 B5A-0118-00 INST.MANUAL ENG FRE 1 F,G
503 B5A-0116-00 INST.MANUAL ENG 1 C,J
503 B5A-0118-01 INST.MANUAL SPA ITA POR DUR GRE 1 F
503 B5A-0118-03 INST.MANUAL DAN SWE FIN 1 G
503 B5A-0118-04 INST.MANUAL POL HUN CZE ROM BUL 1 H

T

L

L

L

L

L

L

L

L

L

(No.MA606<Rev.002>)4/

MODEL MARK MODEL MARK MODEL MARK MODEL MARK

20

KD-X120EE A KD-X120EU B KD-X120U C KD-X120UT D
KD-X125EE E KD-X220E F KD-X220EN G KD-X220EY H
KD-X220J I KD-X220U J KD-X220UR K KD-X220UT L

Safe Symbol No. Parts No. Parts Name Description QTY Local

MAIN PWB ASSY (XJ1-049x-xx) <01>

IC161 TDA7718C ANALOG IC 1 A,B,C,D,E,F,G,H,I,J,

! IC301 JCV8034 IC 1 A,B,C,D,E,F,G,H,I,J,

IC411 MFI337S3959-X IC 1 F,G,H,I,J,L

IC555 AK4387ET ANALOG IC 1 A,B,C,D,E,F,G,H,I,J,
! IC601 TEF6657HN-X IC 1 A,B,C,D,E,F,G,H,I,J,
! IC701 R5S726A0D216FP IC 1 A,B,C,D,E,F,G,H,I,J,
! IC821 W3F-0026-00 IC 1 A,B,C,D,E,F,G,H,I,J,

IC831 BU4228F-W IC 1 A,B,C,D,E,F,G,H,I,J,

IC841 BR24T02FJ-W-X IC 1 A,B,C,D,E,F,G,H,I,J,

IC851 BU1CTD3WG-W IC 1 A,B,C,D,E,F,G,H,I,J,

IC861 MP9942GJ ANALOG IC 1 A,B,C,D,E,F,G,H,I,J,

IC891 NCP380HSNAJAA-X IC 1 A,B,C,D,E,F,G,H,I,J,
! IC901 LV5685PV-H ANALOG IC 1 A,B,C,D,E,F,G,H,I,J,

Q250 LTC043TEB-X DIGI TRANSISTOR 1 A,B,C,D,E,F,G,H,I,J,

Q260 LTC043TEB-X DIGI TRANSISTOR 1 A,B,C,D,E,F,G,H,I,J,

Q270 LTA024EEB-X DIGI TRANSISTOR 1 A,B,C,D,E,F,G,H,I,J,

Q271 LSAR523UBFS8 TRANSISTOR 1 A,B,C,D,E,F,G,H,I,J,

Q272 LTC024EEB-X DIGI TRANSISTOR 1 A,B,C,D,E,F,G,H,I,J,

Q273 LTA024EEB-X DIGI TRANSISTOR 1 A,B,C,D,E,F,G,H,I,J,

Q360 LSCR523UBFS8 TRANSISTOR 1 A,B,C,D,E,F,G,H,I,J,

Q701 LTA014YEB-X DIGI TRANSISTOR 1 A,B,C,D,E,F,G,H,I,J,

D100 RSB6.8SM-X BP Z DIODE 1 A,B,C,D,E,F,G,H,I,J,

D101 RSB6.8SM-X BP Z DIODE 1 A,B,C,D,E,F,G,H,I,J,

D270 BAW56-TP-X SI DIODE 1 A,B,C,D,E,F,G,H,I,J,

D271 BAW56-TP-X SI DIODE 1 A,B,C,D,E,F,G,H,I,J,

D273 DA2J101 DIODE 1 A,B,C,D,E,F,G,H,I,J,

D360 DZ2J068M ZENER DIODE 1 A,B,C,D,E,F,G,H,I,J,

D370 BAW56-TP-X SI DIODE 1 A,B,C,D,E,F,G,H,I,J,

D390 MBRX130 SCHOTTKY DIODE 1 A,B,C,D,E,F,G,H,I,J,

D391 MBRX130 SCHOTTKY DIODE 1 A,B,C,D,E,F,G,H,I,J,

D400 RB521SM-30-X SB DIODE 1 A,B,C,D,E,F,G,H,I,J,

D401 DZ2J051M ZENER DIODE 1 A,B,C,D,E,F,G,H,I,J,

D861 DB22306 SCHOTTKY DIODE 1 A,B,C,D,E,F,G,H,I,J,

D902 SK34A-L-X SB DIODE 1 A,B,C,D,E,F,G,H,I,J,

D903 SK34A-L-X SB DIODE 1 A,B,C,D,E,F,G,H,I,J,
! D990 1N5401-BPC04 SI DIODE 1 A,B,C,D,E,F,G,H,I,J,

C100 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C101 CK73GBB1H472K C CAPACITOR 4700pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C102 CK73GBB1H472K C CAPACITOR 4700pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C103 CK73GXR1C105K C CAPACITOR 1uF 16V K 1 A,B,C,D,E,F,G,H,I,J,

C104 CK73GXR1C105K C CAPACITOR 1uF 16V K 1 A,B,C,D,E,F,G,H,I,J,

C105 CK73GXR1C105K C CAPACITOR 1uF 16V K 1 A,B,C,D,E,F,G,H,I,J,

C161 CK73GXR1A105K C CAPACITOR 1uF 10V K 1 A,B,C,D,E,F,G,H,I,J,
! C162 CK73GXR1A105K C CAPACITOR 1uF 10V K 1 A,B,C,D,E,F,G,H,I,J,

C163 CD04AV1V4R7M E CAPACITOR 4.7uF 35V M 1 A,B,C,D,E,F,G,H,I,J,

C164 CD04AV1V4R7M E CAPACITOR 4.7uF 35V M 1 A,B,C,D,E,F,G,H,I,J,

C165 CD04AV1C100M E CAPACITOR 10uF 16V M 1 A,B,C,D,E,F,G,H,I,J,

L
L

L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L

L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L

L
L
L
L
L
L

(No.MA606<Rev.002>)5/

MODEL MARK MODEL MARK MODEL MARK MODEL MARK

20

KD-X120EE A KD-X120EU B KD-X120U C KD-X120UT D
KD-X125EE E KD-X220E F KD-X220EN G KD-X220EY H
KD-X220J I KD-X220U J KD-X220UR K KD-X220UT L

Safe Symbol No. Parts No. Parts Name Description QTY Local

C166 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C167 CK73GXR1A105K C CAPACITOR 1uF 10V K 1 A,B,C,D,E,F,G,H,I,J,

C168 CK73GXR1A105K C CAPACITOR 1uF 10V K 1 A,B,C,D,E,F,G,H,I,J,

C169 CK73GXR1A105K C CAPACITOR 1uF 10V K 1 A,B,C,D,E,F,G,H,I,J,

C171 CK73GXR1C105K C CAPACITOR 1uF 16V K 1 A,B,C,D,E,F,G,H,I,J,

C172 CD04AS1C220M E CAPACITOR 22uF 16V M 1 A,B,C,D,E,F,G,H,I,J,

C177 CK73GXR1A105K C CAPACITOR 1uF 10V K 1 A,B,C,D,E,F,G,H,I,J,

C251 CK73EBB1C475K C CAPACITOR 4.7uF 16V K 1 A,B,C,D,E,F,G,H,I,J,

C261 CK73EBB1C475K C CAPACITOR 4.7uF 16V K 1 A,B,C,D,E,F,G,H,I,J,

C303 CC73GCH1H820J C CAPACITOR 82pF 50V J 1 A,B,C,D,E,F,G,H,I,J,

C304 QEZ0982-476Z E CAPACITOR 47uF 1 A,B,C,D,E,F,G,H,I,J,

C305 CC73GCH1H820J C CAPACITOR 82pF 50V J 1 A,B,C,D,E,F,G,H,I,J,

C306 CC73GCH1H820J C CAPACITOR 82pF 50V J 1 A,B,C,D,E,F,G,H,I,J,

C311 CK73GXR1A105K C CAPACITOR 1uF 10V K 1 A,B,C,D,E,F,G,H,I,J,

C313 CK73GXR0J475K C CAPACITOR 4.7uF 6.3V K 1 A,B,C,D,E,F,G,H,I,J,

C314 CK730AV1C105K C CAPACITOR 1uF 16V K 1 A,B,C,D,E,F,G,H,I,J,

C316 CK73GBB1C224K C CAPACITOR 0.22uF 16V K 1 A,B,C,D,E,F,G,H,I,J,

C317 CK73GBB1C224K C CAPACITOR 0.22uF 16V K 1 A,B,C,D,E,F,G,H,I,J,

C318 CK73GBB1C224K C CAPACITOR 0.22uF 16V K 1 A,B,C,D,E,F,G,H,I,J,

C319 CK73GBB1C224K C CAPACITOR 0.22uF 16V K 1 A,B,C,D,E,F,G,H,I,J,

C360 CK73GXR1A105K C CAPACITOR 1uF 10V K 1 A,B,C,D,E,F,G,H,I,J,

C361 CK73GBB1H103K C CAPACITOR 0.01uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C370 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C390 CK73FBB1H224K C CAPACITOR 0.22uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C391 CK73FBB1C105K C CAPACITOR 1uF 16V K 1 A,B,C,D,E,F,G,H,I,J,

C392 CK73FBB1C105K C CAPACITOR 1uF 16V K 1 A,B,C,D,E,F,G,H,I,J,

C410 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 F,G,H,I,J,L

C571 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C572 CK73FXR0J106K C CAPACITOR 10uF 6.3V K 1 A,B,C,D,E,F,G,H,I,J,

C573 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C574 CK73FXR1C106K C CAPACITOR 10uF 16V K 1 A,B,C,D,E,F,G,H,I,J,

C575 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C576 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C588 CK73GBB1H102K C CAPACITOR 1000pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C589 CK73GBB1H102K C CAPACITOR 1000pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C598 CK73GBB1H152K C CAPACITOR 1500pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C599 CK73GBB1H152K C CAPACITOR 1500pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C601 CK73FXR0J106K C CAPACITOR 10uF 6.3V K 1 A,B,C,D,E,F,G,H,I,J,

C602 CK73FXR0J106K C CAPACITOR 10uF 6.3V K 1 A,B,C,D,E,F,G,H,I,J,

C603 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C604 CK73GBB1H152K C CAPACITOR 1500pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C605 CC73GCH1H102J C CAPACITOR 1000pF 50V J 1 A,B,C,D,E,F,G,H,I,J,

C606 CC73GCH1H090D C CAPACITOR 9pF 50V D 1 A,B,C,D,E,F,G,H,I,J,
! C607 CC73GCH1H010C C CAPACITOR 1pF 50V C 1 A,B,C,D,E,F,G,H,I,J,

C608 CC73GCH1H102J C CAPACITOR 1000pF 50V J 1 A,B,C,D,E,F,G,H,I,J,

C609 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C610 CC73GCH1H120J C CAPACITOR 12pF 50V J 1 A,B,C,D,E,F,G,H,I,J,

L
L
L
L
L
L
L
L
L
L
L
L
L
L

L
L
L
L
L
L
L
L
L
L
L
L
L

L
L
L
L
L
L

L
L
L
L
L
L
L
L
L
L
L
L
L
L

(No.MA606<Rev.002>)6/

MODEL MARK MODEL MARK MODEL MARK MODEL MARK

20

KD-X120EE A KD-X120EU B KD-X120U C KD-X120UT D
KD-X125EE E KD-X220E F KD-X220EN G KD-X220EY H
KD-X220J I KD-X220U J KD-X220UR K KD-X220UT L

Safe Symbol No. Parts No. Parts Name Description QTY Local

! C611 CC73GCH1H010C C CAPACITOR 1pF 50V C 1 A,B,C,D,E,F,G,H,I,J,

C612 CK73GBB1H103K C CAPACITOR 0.01uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C614 CC73GCH1H220J C CAPACITOR 22pF 50V J 1 A,B,C,D,E,F,G,H,I,J,

C615 CC73GCH1H330J C CAPACITOR 33pF 50V J 1 A,B,C,D,E,F,G,H,I,J,

C616 CC73GCH1H102J C CAPACITOR 1000pF 50V J 1 A,B,C,D,E,F,G,H,I,J,

C617 CK73GBB1C224K C CAPACITOR 0.22uF 16V K 1 A,B,C,D,E,F,G,H,I,J,

C618 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C624 CK73FXR0J106K C CAPACITOR 10uF 6.3V K 1 A,B,C,D,E,F,G,H,I,J,

C626 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C627 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 C,D,J,L

C630 CK73GBB1H103K C CAPACITOR 0.01uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C700 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C701 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C702 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C703 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C704 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C705 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C706 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C707 CC73GCH1H090D C CAPACITOR 9pF 50V D 1 A,B,C,D,E,F,G,H,I,J,

C708 CC73GCH1H090D C CAPACITOR 9pF 50V D 1 A,B,C,D,E,F,G,H,I,J,

C709 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C710 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C711 CK73GBB1H472K C CAPACITOR 4700pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C712 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C713 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C716 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C717 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C718 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C721 CC73GCH1H120J C CAPACITOR 12pF 50V J 1 A,B,C,D,E,F,G,H,I,J,

C722 CC73GCH1H120J C CAPACITOR 12pF 50V J 1 A,B,C,D,E,F,G,H,I,J,

C723 CK73GBB1H472K C CAPACITOR 4700pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C724 CK73GBB1H472K C CAPACITOR 4700pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C725 CK73GBB1H472K C CAPACITOR 4700pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C727 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C820 CK73GBB1H472K C CAPACITOR 4700pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C821 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C830 CK73GBB1H682K C CAPACITOR 6800pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C831 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C832 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C840 CK73GBB1C473K C CAPACITOR 0.047uF 16V K 1 A,B,C,D,E,F,G,H,I,J,

C850 CK73GBB1C474K C CAPACITOR 0.47uF 16V K 1 A,B,C,D,E,F,G,H,I,J,

C852 CD04AS0J101M E CAPACITOR 100uF 6.3V M 1 A,B,C,D,E,F,G,H,I,J,

C854 CK73GBB1C474K C CAPACITOR 0.47uF 16V K 1 A,B,C,D,E,F,G,H,I,J,

C860 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C861 CK73EXR1E106K C CAPACITOR 10uF 25V K 1 A,B,C,D,E,F,G,H,I,J,

C862 CK73EXR1E106K C CAPACITOR 10uF 25V K 1 A,B,C,D,E,F,G,H,I,J,

C863 CK73GBB1C224K C CAPACITOR 0.22uF 16V K 1 A,B,C,D,E,F,G,H,I,J,

L
L
L
L
L
L

L
L
L

L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L

L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L

L

(No.MA606<Rev.002>)7/

MODEL MARK MODEL MARK MODEL MARK MODEL MARK

20

KD-X120EE A KD-X120EU B KD-X120U C KD-X120UT D
KD-X125EE E KD-X220E F KD-X220EN G KD-X220EY H
KD-X220J I KD-X220U J KD-X220UR K KD-X220UT L

Safe Symbol No. Parts No. Parts Name Description QTY Local

C864 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C865 CK73EXR1E106K C CAPACITOR 10uF 25V K 1 A,B,C,D,E,F,G,H,I,J,

C867 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C868 QEZ0850-157Z E CAPACITOR 150uF 1 A,B,C,D,E,F,G,H,I,J,

C869 CK73GBB1C224K C CAPACITOR 0.22uF 16V K 1 A,B,C,D,E,F,G,H,I,J,

C870 CC73GCH1H150J C CAPACITOR 15pF 50V J 1 A,B,C,D,E,F,G,H,I,J,

C877 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C891 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C892 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C904 CK73GXR1A105K C CAPACITOR 1uF 10V K 1 A,B,C,D,E,F,G,H,I,J,

C905 CD04AR1C471M E CAPACITOR 470uF 16V M 1 A,B,C,D,E,F,G,H,I,J,

C907 CD04AS0J101M E CAPACITOR 100uF 6.3V M 1 A,B,C,D,E,F,G,H,I,J,

C908 CK73GXR1C105K C CAPACITOR 1uF 16V K 1 A,B,C,D,E,F,G,H,I,J,

C909 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C911 CK73EBB1C475K C CAPACITOR 4.7uF 16V K 1 A,B,C,D,E,F,G,H,I,J,

C912 CK73EXR1A106K C CAPACITOR 10uF 10V K 1 A,B,C,D,E,F,G,H,I,J,

C920 CK73GXR1C105K C CAPACITOR 1uF 16V K 1 A,B,C,D,E,F,G,H,I,J,

C930 CK73GXR1A105K C CAPACITOR 1uF 10V K 1 A,B,C,D,E,F,G,H,I,J,

C931 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C990 CD04ET1C102M E CAPACITOR 1 A,B,C,D,E,F,G,H,I,J,

C1000 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C1002 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C1010 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 C,D,J,L

C1011 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 C,D,J,L

C1012 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 C,D,J,L

C1013 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 C,D,J,L

C1014 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 C,D,J,L

C1015 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 C,D,J,L

C1016 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 C,D,J,L

C1017 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 C,D,J,L

C1040 CK73GBB1C474K C CAPACITOR 0.47uF 16V K 1 C,D,J,L

C1050 CK73GBB1H103K C CAPACITOR 0.01uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C1051 CC73GCH1H050C C CAPACITOR 5pF 50V C 1 A,B,C,D,E,F,G,H,I,J,

C1055 CK73GBB1H103K C CAPACITOR 0.01uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C1056 CK73GXR1A105K C CAPACITOR 1uF 10V K 1 A,B,C,D,E,F,G,H,I,J,

C1057 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C1064 CK73GBB1H103K C CAPACITOR 0.01uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C1069 CK73GBB1H103K C CAPACITOR 0.01uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C1070 CK73GBB1H103K C CAPACITOR 0.01uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C1071 CK73GBB1H103K C CAPACITOR 0.01uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C1072 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C1073 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C1074 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C1082 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C1084 CK73GBB1H472K C CAPACITOR 4700pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C1085 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C1089 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C1090 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C1091 CK73GBB1H103K C CAPACITOR 0.01uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C1094 CC73GCH1H121J C CAPACITOR 120pF 50V J 1 A,B,C,D,E,F,G,H,I,J,

C1095 CK73GBB1H472K C CAPACITOR 4700pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C1096 CK73GBB1H103K C CAPACITOR 0.01uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L

L
L
L

L
L
L
L
L
L
L
L

L
L
L
L
L
L
L
L
L
L
L
L

(No.MA606<Rev.002>)8/

MODEL MARK MODEL MARK MODEL MARK MODEL MARK

20

KD-X120EE A KD-X120EU B KD-X120U C KD-X120UT D
KD-X125EE E KD-X220E F KD-X220EN G KD-X220EY H
KD-X220J I KD-X220U J KD-X220UR K KD-X220UT L

Safe Symbol No. Parts No. Parts Name Description QTY Local

C1098 CK73GBB1H103K C CAPACITOR 0.01uF 50V K 1 A,B,C,D,E,F,G,H,I,J,

R100 RK73GB2A471J MG RESISTOR 470Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R101 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R102 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R103 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R104 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R105 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R167 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R168 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R169 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R170 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R171 RK73GB2A103J MG RESISTOR 10kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R250 RK73GB2A181J MG RESISTOR 180Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R251 RK73GB2A223J MG RESISTOR 22kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R252 RK73GB2A331J MG RESISTOR 330Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R260 RK73GB2A181J MG RESISTOR 180Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R261 RK73GB2A223J MG RESISTOR 22kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R262 RK73GB2A331J MG RESISTOR 330Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R270 RK73GB2A104J MG RESISTOR 100kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R271 RK73GB2A331J MG RESISTOR 330Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R273 RK73GB2A223J MG RESISTOR 22kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R302 RK73GB2A222J MG RESISTOR 2.2kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R303 RK73EB2E5R1J MG RESISTOR 5.1Ω 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R304 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R307 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R360 RK73GB2A223J MG RESISTOR 22kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R361 RK73GB2A333J MG RESISTOR 33kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R362 RK73GB2A223J MG RESISTOR 22kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R363 RK73GB2A472J MG RESISTOR 4.7kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R364 RK73GB2A472J MG RESISTOR 4.7kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R365 RK73GB2A104J MG RESISTOR 100kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R370 RK73GB2A683J MG RESISTOR 68kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R371 RK73GB2A123J MG RESISTOR 12kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R372 RK73GB2A103J MG RESISTOR 10kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R381 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 C,D,J,L

R390 RK73EB2E472J MG RESISTOR 4.7kΩ 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R400 RK73GB2A102J MG RESISTOR 1kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R403 RK73GB2A223J MG RESISTOR 22kΩ 1/10W J 1 A,E,F,G,H

R403 RK73GB2A303J MG RESISTOR 30kΩ 1/10W J 1 B,C,D,I,J,L

R410 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 F,G,H,I,J,L

R411 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 F,G,H,I,J,L

R412 RK73GB2A472J MG RESISTOR 4.7kΩ 1/10W J 1 F,G,H,I,J,L

R413 RK73GB2A472J MG RESISTOR 4.7kΩ 1/10W J 1 F,G,H,I,J,L

R414 RK73GB2A472J MG RESISTOR 4.7kΩ 1/10W J 1 F,G,H,I,J,L

R431 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R432 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R571 RK73GB2A910J MG RESISTOR 91Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R572 RK73GB2A221J MG RESISTOR 220Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R573 RK73GB2A181J MG RESISTOR 180Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R574 RK73GB2A221J MG RESISTOR 220Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

L
L
L
L
L
L
L
L

L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L

L
L
L
L
L
L
L

L
L

L
L
L

L
L
L

(No.MA606<Rev.002>)9/

MODEL MARK MODEL MARK MODEL MARK MODEL MARK

20

KD-X120EE A KD-X120EU B KD-X120U C KD-X120UT D
KD-X125EE E KD-X220E F KD-X220EN G KD-X220EY H
KD-X220J I KD-X220U J KD-X220UR K KD-X220UT L

Safe Symbol No. Parts No. Parts Name Description QTY Local

R588 RK73GB2A102J MG RESISTOR 1kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R589 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R598 RK73GB2A102J MG RESISTOR 1kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R599 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R600 RK73GB2A102J MG RESISTOR 1kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R601 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R602 RK73GB2A820J MG RESISTOR 82Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R603 RK73GB2A105J MG RESISTOR 1MΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R604 RK73GB2A105J MG RESISTOR 1MΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R605 RK73GB2A4R7J MG RESISTOR 4.7Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R611 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R612 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R700 RK73GB2A163J MG RESISTOR 16kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R701 RK73GB2A162J MG RESISTOR 1.6kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R702 RK73GB2A472J MG RESISTOR 4.7kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R703 RK73GB2A162J MG RESISTOR 1.6kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R704 RK73GB2A162J MG RESISTOR 1.6kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R705 RK73GB2A162J MG RESISTOR 1.6kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R707 RK73GB2A162J MG RESISTOR 1.6kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R710 RK73GB2A222J MG RESISTOR 2.2kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R711 RK73GB2A222J MG RESISTOR 2.2kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R712 RK73GB2A102J MG RESISTOR 1kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R713 RK73GB2A222J MG RESISTOR 2.2kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R714 RK73GB2A102J MG RESISTOR 1kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R715 RK73GB2A222J MG RESISTOR 2.2kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R716 RK73GB2A222J MG RESISTOR 2.2kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R717 RK73GB2A104J MG RESISTOR 100kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R719 RK73GB2A162J MG RESISTOR 1.6kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R720 RK73GB2A105J MG RESISTOR 1MΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R721 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R722 RK73GB2A911J MG RESISTOR 910Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R723 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R724 RK73GB2A105J MG RESISTOR 1MΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R725 RK73GB2A222J MG RESISTOR 2.2kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R726 RK73GB2A220J MG RESISTOR 22Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R727 RK73GB2A153J MG RESISTOR 15kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R728 RK73GB2A220J MG RESISTOR 22Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R729 RK73GB2A153J MG RESISTOR 15kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R730 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R732 RK73GB2A393J MG RESISTOR 39kΩ 1/10W J 1 E,F,G,H,J,L

R733 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 A,B,C,D,I

R733 RK73GB2A822J MG RESISTOR 8.2kΩ 1/10W J 1 E,F,G,H,J,L

R734 RK73GB2A223J MG RESISTOR 22kΩ 1/10W J 1 A,E

R734 RK73GB2A273J MG RESISTOR 27kΩ 1/10W J 1 B,F,G,H

R734 RK73GB2A393J MG RESISTOR 39kΩ 1/10W J 1 C,D,J,L

R735 RK73GB2A273J MG RESISTOR 27kΩ 1/10W J 1 A,E

R735 RK73GB2A223J MG RESISTOR 22kΩ 1/10W J 1 B,F,G,H

R735 RK73GB2A822J MG RESISTOR 8.2kΩ 1/10W J 1 C,D,J,L

R735 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 I

R739 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R740 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R741 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L

L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L

L
L

L
L
L

(No.MA606<Rev.002>)10/

MODEL MARK MODEL MARK MODEL MARK MODEL MARK

20

KD-X120EE A KD-X120EU B KD-X120U C KD-X120UT D
KD-X125EE E KD-X220E F KD-X220EN G KD-X220EY H
KD-X220J I KD-X220U J KD-X220UR K KD-X220UT L

Safe Symbol No. Parts No. Parts Name Description QTY Local

R742 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R743 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R744 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R745 RK73GB2A222J MG RESISTOR 2.2kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R746 RK73GB2A682J MG RESISTOR 6.8kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R747 RK73GB2A682J MG RESISTOR 6.8kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R749 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R750 RK73GB2A201J MG RESISTOR 200Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R751 RK73GB2A201J MG RESISTOR 200Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R752 RK73GB2A161J MG RESISTOR 160Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R753 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R754 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R755 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R756 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R757 RK73GB2A123J MG RESISTOR 12kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R758 RK73GB2A620J MG RESISTOR 62Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R759 RK73GB2A203J MG RESISTOR 20kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R760 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R765 RK73GB2A472J MG RESISTOR 4.7kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R766 RK73GB2A472J MG RESISTOR 4.7kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R776 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R777 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R778 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R779 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R781 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R816 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R819 RK73GB2A332J MG RESISTOR 3.3kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R820 RK73EB2E473J MG RESISTOR 47kΩ 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R821 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R822 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R830 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R840 RK73GB2A271J MG RESISTOR 270Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R841 RK73GB2A271J MG RESISTOR 270Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R861 RK73GB2A200J MG RESISTOR 20Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R862 RK73EB2E271J MG RESISTOR 270Ω 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R864 RK73GB2A393J MG RESISTOR 39kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R865 RK73GH2A683D MG RESISTOR 68kΩ 1/10W D 1 A,B,C,D,E,F,G,H,I,J,

R867 RK73GH2A393D MG RESISTOR 39kΩ 1/10W D 1 A,B,C,D,E,F,G,H,I,J,

R868 RK73GH2A183D MG RESISTOR 18kΩ 1/10W D 1 A,B,C,D,E,F,G,H,I,J,

R869 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R890 RK73GH2A203D MG RESISTOR 20kΩ 1/10W D 1 A,B,C,D,E,F,G,H,I,J,

R892 RK73EB2E222J MG RESISTOR 2.2kΩ 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R930 RK73GB2A103J MG RESISTOR 10kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R969 RK73EB2E473J MG RESISTOR 47kΩ 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R978 RK73EB2E473J MG RESISTOR 47kΩ 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R979 RK73EB2E682J MG RESISTOR 6.8kΩ 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R980 RK73EB2E682J MG RESISTOR 6.8kΩ 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

L
L
L
L
L

L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L

L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L

L

(No.MA606<Rev.002>)11/

MODEL MARK MODEL MARK MODEL MARK MODEL MARK

20

KD-X120EE A KD-X120EU B KD-X120U C KD-X120UT D
KD-X125EE E KD-X220E F KD-X220EN G KD-X220EY H
KD-X220J I KD-X220U J KD-X220UR K KD-X220UT L

Safe Symbol No. Parts No. Parts Name Description QTY Local

R1003 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R1004 RK73EB2E271J MG RESISTOR 270Ω 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R1005 RK73EB2E271J MG RESISTOR 270Ω 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R1006 RK73EB2E271J MG RESISTOR 270Ω 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R1051 RK73GH2A100D MG RESISTOR 10Ω 1/10W D 1 A,B,C,D,E,F,G,H,I,J,

R1060 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R1061 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R1069 RK73GB2A333J MG RESISTOR 33kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R1070 RK73GB2A102J MG RESISTOR 1kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R1071 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R1073 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R1074 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R1075 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R1076 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R1077 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R1082 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R1091 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R1170 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R1404 RK73GB2A100J MG RESISTOR 10Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R1405 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R1406 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R1407 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R1408 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R1414 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R1415 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R1416 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R1417 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R1419 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R1421 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R1425 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R1426 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R1428 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R1429 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R1430 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R1432 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R1434 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

L591 LR73Z0AD4R7M CHIP INDUCTOR 4.7uH 1 A,B,C,D,E,F,G,H,I,J,

L600 LR73Z0AD4R7M CHIP INDUCTOR 4.7uH 1 A,B,C,D,E,F,G,H,I,J,

L601 LK73G0BE4R7K M.CHIP INDUCTOR 1 A,B,C,D,E,F,G,H,I,J,

L602 LK73G0BER47K M.CHIP INDUCTOR 1 A,B,C,D,E,F,G,H,I,J,

L603 NQLM93K-R10X INDUCTOR 0.1uH K 1 A,B,C,D,E,F,G,H,I,J,

L604 LK73G0BE1R0K M.CHIP INDUCTOR 1 A,B,C,D,E,F,G,H,I,J,

L605 LK73G0BER22K M.CHIP INDUCTOR 1 A,B,C,D,E,F,G,H,I,J,

L606 LK73G0BER12K M.CHIP INDUCTOR 1 A,B,C,D,E,F,G,H,I,J,

L607 LK73G0BER15K M.CHIP INDUCTOR 1 A,B,C,D,E,F,G,H,I,J,

L609 LR73Z0AD4R7M CHIP INDUCTOR 4.7uH 1 A,B,C,D,E,F,G,H,I,J,

L610 NQR0715-001X FERRITE BEADS 1 A,B,C,D,E,F,G,H,I,J,

L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L

L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L

L
L
L
L
L
L
L
L

(No.MA606<Rev.002>)12/

MODEL MARK MODEL MARK MODEL MARK MODEL MARK

20

KD-X120EE A KD-X120EU B KD-X120U C KD-X120UT D
KD-X125EE E KD-X220E F KD-X220EN G KD-X220EY H
KD-X220J I KD-X220U J KD-X220UR K KD-X220UT L

Safe Symbol No. Parts No. Parts Name Description QTY Local

L611 NQR0715-001X FERRITE BEADS 1 A,B,C,D,E,F,G,H,I,J,

L701 LB73G0BK-006 CHIP FERRITE 1 A,B,C,D,E,F,G,H,I,J,

L709 NQR0713-001X FERRITE BEADS 1 A,B,C,D,E,F,G,H,I,J,

L758 NQR0713-001X FERRITE BEADS 1 A,B,C,D,E,F,G,H,I,J,

L820 NQR0713-001X FERRITE BEADS 1 A,B,C,D,E,F,G,H,I,J,

L821 NQR0713-001X FERRITE BEADS 1 A,B,C,D,E,F,G,H,I,J,

L822 NQR0713-001X FERRITE BEADS 1 A,B,C,D,E,F,G,H,I,J,

L823 NQR0713-001X FERRITE BEADS 1 A,B,C,D,E,F,G,H,I,J,

L824 NQR0713-001X FERRITE BEADS 1 A,B,C,D,E,F,G,H,I,J,

L825 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 A,E

L825 LB73G0CA-002 CHIP FERRITE 1 B,C,D,F,G,H,I,J,L

L826 NQR0269-030X FERRITE BEADS 1 A,E

L826 LB73G0CK-001 CHIP FERRITE 1 B,C,D,F,G,H,I,J,L

L827 LB73G0BK-006 CHIP FERRITE 1 A,B,C,D,E,F,G,H,I,J,

L850 LR73Z0AD4R7M CHIP INDUCTOR 4.7uH 1 A,B,C,D,E,F,G,H,I,J,

L860 NQLN9EM-100X INDUCTOR 10uH M 1 A,B,C,D,E,F,G,H,I,J,

L861 LK73Z0AK4R7M M.CHIP INDUCTOR 4.7uH 1 A,B,C,D,E,F,G,H,I,J,

L990 QQR1927-001 CHOKE COIL 1 A,B,C,D,E,F,G,H,I,J,

CN701 QGZ2006J1-20 DETACHABLE CONN (1-20) 1 A,B,C,D,E,F,G,H,I,J,

CN990 QNZ0607-001 CAR CONNECTOR 1 A,B,C,D,E,F,G,H,I,J,

J321 QNN0874-001 PIN JACK 1 A,B,C,D,E,F,G,H,I,J,

J600 QNB0356-001 ANT TERMINAL 1 A,B,C,D,E,F,G,H,I,J,

S830 QSW0648-001Z TACT SWITCH 1 A,B,C,D,E,F,G,H,I,J,

VA600 F0K-0014-00 SURGE ABSORBER 1 A,B,C,D,E,F,G,H,I,J,

VA1400 CK73GBB1C474K C CAPACITOR 0.47uF 16V K 1 C,D,J,L

X540 NAX1224-001X CRYSTAL 1 A,B,C,D,E,F,G,H,I,J,

X600 L7J-0014-00 QUARTZ CRYSTAL 1 A,B,C,D,E,F,G,H,I,J,

X701 NAX1243-001X CRYSTAL 1 A,B,C,D,E,F,G,H,I,J,

L
L
L
L
L
L
L
L
L
L

L
L
L
L
L
L
L
L
L
L
L

L
L
L

MAIN PWB ASSY (XJ1-0503-20) <03>

IC161 TDA7718C ANALOG IC 1 K
! IC301 JCV8034 IC 1 K

IC411 MFI337S3959-X IC 1 K

IC555 AK4387ET ANALOG IC 1 K
! IC601 TEF6657HN-X IC 1 K
! IC701 R5S726A0D216FP IC 1 K
! IC821 W3F-0026-00 ROM IC 1 K

IC831 BU4228F-W IC 1 K

IC841 BR24T02FJ-W-X IC 1 K

IC851 BU1CTD3WG-W IC 1 K

IC861 MP9942GJ ANALOG IC 1 K

IC891 NCP380HSNAJAA-X IC 1 K
! IC901 LV5685PV-H ANALOG IC 1 K

Q250 LTC043TEB-X DIGI TRANSISTOR 1 K

Q260 LTC043TEB-X DIGI TRANSISTOR 1 K

Q270 LTA024EEB-X DIGI TRANSISTOR 1 K

Q271 LSAR523UBFS8 TRANSISTOR 1 K

Q272 LTC024EEB-X DIGI TRANSISTOR 1 K

Q273 LTA024EEB-X DIGI TRANSISTOR 1 K

Q360 LSCR523UBFS8 TRANSISTOR 1 K

Q701 LTA014YEB-X DIGI TRANSISTOR 1 K

D100 RSB6.8SM-X BP Z DIODE 1 K

D101 RSB6.8SM-X BP Z DIODE 1 K

D270 BAW56-TP-X SI DIODE 1 K

D271 BAW56-TP-X SI DIODE 1 K

D273 DA2J101 DIODE 1 K

D360 DZ2J068M ZENER DIODE 1 K

D390 MBRX130 SCHOTTKY DIODE 1 K

D391 MBRX130 SCHOTTKY DIODE 1 K

D400 RB521SM-30-X SB DIODE 1 K

D401 DZ2J051M ZENER DIODE 1 K

D861 DB22306 SCHOTTKY DIODE 1 K

D902 SK34A-L-X SB DIODE 1 K

D903 SK34A-L-X SB DIODE 1 K
! D990 1N5401-BPC04 SI DIODE 1 K

C100 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C101 CK73GBB1H472K C CAPACITOR 4700pF 50V K 1 K

C102 CK73GBB1H472K C CAPACITOR 4700pF 50V K 1 K

C103 CK73GXR1C105K C CAPACITOR 1uF 16V K 1 K

C104 CK73GXR1C105K C CAPACITOR 1uF 16V K 1 K

(No.MA606<Rev.002>)13/

MODEL MARK MODEL MARK MODEL MARK MODEL MARK

20

KD-X120EE A KD-X120EU B KD-X120U C KD-X120UT D
KD-X125EE E KD-X220E F KD-X220EN G KD-X220EY H
KD-X220J I KD-X220U J KD-X220UR K KD-X220UT L

Safe Symbol No. Parts No. Parts Name Description QTY Local

C105 CK73GXR1C105K C CAPACITOR 1uF 16V K 1 K

C161 CK73GXR1A105K C CAPACITOR 1uF 10V K 1 K
! C162 CK73GXR1A105K C CAPACITOR 1uF 10V K 1 K

C163 CD04AV1V4R7M E CAPACITOR 4.7uF 35V M 1 K

C164 CD04AV1V4R7M E CAPACITOR 4.7uF 35V M 1 K

C165 CD04AV1C100M E CAPACITOR 10uF 16V M 1 K

C166 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C167 CK73GXR1A105K C CAPACITOR 1uF 10V K 1 K

C168 CK73GXR1A105K C CAPACITOR 1uF 10V K 1 K

C169 CK73GXR1A105K C CAPACITOR 1uF 10V K 1 K

C171 CK73GXR1C105K C CAPACITOR 1uF 16V K 1 K

C172 CD04AS1C220M E CAPACITOR 22uF 16V M 1 K

C177 CK73GXR1A105K C CAPACITOR 1uF 10V K 1 K

C251 CK73EBB1C475K C CAPACITOR 4.7uF 16V K 1 K

C261 CK73EBB1C475K C CAPACITOR 4.7uF 16V K 1 K

C303 CC73GCH1H820J C CAPACITOR 82pF 50V J 1 K

C304 QEZ0982-476Z E CAPACITOR 47uF 1 K

C305 CC73GCH1H820J C CAPACITOR 82pF 50V J 1 K

C306 CC73GCH1H820J C CAPACITOR 82pF 50V J 1 K

C311 CK73GXR1A105K C CAPACITOR 1uF 10V K 1 K

C313 CK73GXR0J475K C CAPACITOR 4.7uF 6.3V K 1 K

C314 CK730AV1C105K C CAPACITOR 1uF 16V K 1 K

C316 CK73GBB1C224K C CAPACITOR 0.22uF 16V K 1 K

C317 CK73GBB1C224K C CAPACITOR 0.22uF 16V K 1 K

C318 CK73GBB1C224K C CAPACITOR 0.22uF 16V K 1 K

C319 CK73GBB1C224K C CAPACITOR 0.22uF 16V K 1 K

C360 CK73GXR1A105K C CAPACITOR 1uF 10V K 1 K

C361 CK73GBB1H103K C CAPACITOR 0.01uF 50V K 1 K

C390 CK73FBB1H224K C CAPACITOR 0.22uF 50V K 1 K

C391 CK73FBB1C105K C CAPACITOR 1uF 16V K 1 K

C392 CK73FBB1C105K C CAPACITOR 1uF 16V K 1 K

C410 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C571 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C572 CK73FXR0J106K C CAPACITOR 10uF 6.3V K 1 K

C573 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C574 CK73FXR1C106K C CAPACITOR 10uF 16V K 1 K

C575 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C576 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C588 CK73GBB1H102K C CAPACITOR 1000pF 50V K 1 K

C589 CK73GBB1H102K C CAPACITOR 1000pF 50V K 1 K

C598 CK73GBB1H152K C CAPACITOR 1500pF 50V K 1 K

C599 CK73GBB1H152K C CAPACITOR 1500pF 50V K 1 K

C601 CK73FXR0J106K C CAPACITOR 10uF 6.3V K 1 K

C602 CK73FXR0J106K C CAPACITOR 10uF 6.3V K 1 K

C603 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C604 CK73GBB1H152K C CAPACITOR 1500pF 50V K 1 K

C605 CC73GCH1H102J C CAPACITOR 1000pF 50V J 1 K

C606 CC73GCH1H090D C CAPACITOR 9pF 50V D 1 K
! C607 CC73GCH1H010C C CAPACITOR 1pF 50V C 1 K

C608 CC73GCH1H102J C CAPACITOR 1000pF 50V J 1 K

C609 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C610 CC73GCH1H120J C CAPACITOR 12pF 50V J 1 K
! C611 CC73GCH1H010C C CAPACITOR 1pF 50V C 1 K

C612 CK73GBB1H103K C CAPACITOR 0.01uF 50V K 1 K

C614 CC73GCH1H220J C CAPACITOR 22pF 50V J 1 K

C615 CC73GCH1H330J C CAPACITOR 33pF 50V J 1 K

C616 CC73GCH1H102J C CAPACITOR 1000pF 50V J 1 K

C617 CK73GBB1C224K C CAPACITOR 0.22uF 16V K 1 K

C618 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C624 CK73FXR0J106K C CAPACITOR 10uF 6.3V K 1 K

C626 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C630 CK73GBB1H103K C CAPACITOR 0.01uF 50V K 1 K

C700 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C701 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C702 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C703 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C704 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C705 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C706 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C707 CC73GCH1H090D C CAPACITOR 9pF 50V D 1 K

C708 CC73GCH1H090D C CAPACITOR 9pF 50V D 1 K

C709 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C710 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C711 CK73GBB1H472K C CAPACITOR 4700pF 50V K 1 K

C712 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C713 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C716 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C717 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C718 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C721 CC73GCH1H120J C CAPACITOR 12pF 50V J 1 K

C722 CC73GCH1H120J C CAPACITOR 12pF 50V J 1 K

C723 CK73GBB1H472K C CAPACITOR 4700pF 50V K 1 K

C724 CK73GBB1H472K C CAPACITOR 4700pF 50V K 1 K

C725 CK73GBB1H472K C CAPACITOR 4700pF 50V K 1 K

C727 RK73GB2A103J MG RESISTOR 10kΩ 1/10W J 1 K

C820 CK73GBB1H472K C CAPACITOR 4700pF 50V K 1 K

C821 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 K

C830 CK73GBB1H682K C CAPACITOR 6800pF 50V K 1 K

(No.MA606<Rev.002>)14/

MODEL MARK MODEL MARK MODEL MARK MODEL MARK

20

KD-X120EE A KD-X120EU B KD-X120U C KD-X120UT D
KD-X125EE E KD-X220E F KD-X220EN G KD-X220EY H
KD-X220J I KD-X220U J KD-X220UR K KD-X220UT L

Safe Symbol No. Parts No. Parts Name Description QTY Local

C831 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C832 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C840 CK73GBB1C473K C CAPACITOR 0.047uF 16V K 1 K

C850 CK73GBB1C474K C CAPACITOR 0.47uF 16V K 1 K

C852 CD04AS0J101M E CAPACITOR 100uF 6.3V M 1 K

C854 CK73GBB1C474K C CAPACITOR 0.47uF 16V K 1 K

C860 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C861 CK73EXR1E106K C CAPACITOR 10uF 25V K 1 K

C862 CK73EXR1E106K C CAPACITOR 10uF 25V K 1 K

C863 CK73GBB1C224K C CAPACITOR 0.22uF 16V K 1 K

C864 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C865 CK73EXR1E106K C CAPACITOR 10uF 25V K 1 K

C867 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C868 QEZ0850-157Z E CAPACITOR 150uF 1 K

C869 CK73GBB1C224K C CAPACITOR 0.22uF 16V K 1 K

C870 CC73GCH1H150J C CAPACITOR 15pF 50V J 1 K

C877 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C891 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C892 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C904 CK73GXR1A105K C CAPACITOR 1uF 10V K 1 K

C905 CD04AR1C471M E CAPACITOR 470uF 16V M 1 K

C907 CD04AS0J101M E CAPACITOR 100uF 6.3V M 1 K

C908 CK73GXR1C105K C CAPACITOR 1uF 16V K 1 K

C909 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C911 CK73EBB1C475K C CAPACITOR 4.7uF 16V K 1 K

C912 CK73EXR1A106K C CAPACITOR 10uF 10V K 1 K

C920 CK73GXR1C105K C CAPACITOR 1uF 16V K 1 K

C930 CK73GXR1A105K C CAPACITOR 1uF 10V K 1 K

C931 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C990 CD04ET1C102M E CAPACITOR 1 K

C1000 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C1002 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 K

C1010 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 K

C1011 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 K

C1012 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 K

C1013 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 K

C1014 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 K

C1015 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 K

C1016 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 K

C1017 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 K

C1050 CK73GBB1H103K C CAPACITOR 0.01uF 50V K 1 K

C1051 CC73GCH1H050C C CAPACITOR 5pF 50V C 1 K

C1055 CK73GBB1H103K C CAPACITOR 0.01uF 50V K 1 K

C1056 CK73GXR1A105K C CAPACITOR 1uF 10V K 1 K

C1057 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C1064 CK73GBB1H103K C CAPACITOR 0.01uF 50V K 1 K

C1069 CK73GBB1H103K C CAPACITOR 0.01uF 50V K 1 K

C1070 CK73GBB1H103K C CAPACITOR 0.01uF 50V K 1 K

C1071 CK73GBB1H103K C CAPACITOR 0.01uF 50V K 1 K

C1072 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C1073 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 K

C1074 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 K

C1082 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 K

C1084 CK73GBB1H472K C CAPACITOR 4700pF 50V K 1 K

C1085 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 K

C1089 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 K

C1090 CK73GXR1H104K C CAPACITOR 0.1uF 50V K 1 K

C1091 CK73GBB1H103K C CAPACITOR 0.01uF 50V K 1 K

C1094 CC73GCH1H121J C CAPACITOR 120pF 50V J 1 K

C1095 CK73GBB1H472K C CAPACITOR 4700pF 50V K 1 K

C1096 CK73GBB1H103K C CAPACITOR 0.01uF 50V K 1 K

C1098 CK73GBB1H103K C CAPACITOR 0.01uF 50V K 1 K

R100 RK73GB2A471J MG RESISTOR 470Ω 1/10W J 1 K

R101 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 K

R102 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 K

R103 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 K

R104 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 K

R105 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 K

R167 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 K

R168 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 K

R169 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 K

R170 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 K

R171 RK73GB2A103J MG RESISTOR 10kΩ 1/10W J 1 K

R250 RK73GB2A181J MG RESISTOR 180Ω 1/10W J 1 K

R251 RK73GB2A223J MG RESISTOR 22kΩ 1/10W J 1 K

R252 RK73GB2A331J MG RESISTOR 330Ω 1/10W J 1 K

R260 RK73GB2A181J MG RESISTOR 180Ω 1/10W J 1 K

R261 RK73GB2A223J MG RESISTOR 22kΩ 1/10W J 1 K

R262 RK73GB2A331J MG RESISTOR 330Ω 1/10W J 1 K

R270 RK73GB2A104J MG RESISTOR 100kΩ 1/10W J 1 K

R271 RK73GB2A331J MG RESISTOR 330Ω 1/10W J 1 K

R273 RK73GB2A223J MG RESISTOR 22kΩ 1/10W J 1 K

R302 RK73GB2A222J MG RESISTOR 2.2kΩ 1/10W J 1 K

R303 RK73EB2E5R1J MG RESISTOR 5.1Ω 1/4W J 1 K

R304 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 K

R307 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 K

R360 RK73GB2A223J MG RESISTOR 22kΩ 1/10W J 1 K

R361 RK73GB2A333J MG RESISTOR 33kΩ 1/10W J 1 K

R362 RK73GB2A223J MG RESISTOR 22kΩ 1/10W J 1 K

R363 RK73GB2A472J MG RESISTOR 4.7kΩ 1/10W J 1 K

(No.MA606<Rev.002>)15/

MODEL MARK MODEL MARK MODEL MARK MODEL MARK

20

KD-X120EE A KD-X120EU B KD-X120U C KD-X120UT D
KD-X125EE E KD-X220E F KD-X220EN G KD-X220EY H
KD-X220J I KD-X220U J KD-X220UR K KD-X220UT L

Safe Symbol No. Parts No. Parts Name Description QTY Local

R364 RK73GB2A472J MG RESISTOR 4.7kΩ 1/10W J 1 K

R365 RK73GB2A104J MG RESISTOR 100kΩ 1/10W J 1 K

R390 RK73EB2E472J MG RESISTOR 4.7kΩ 1/4W J 1 K

R400 RK73GB2A102J MG RESISTOR 1kΩ 1/10W J 1 K

R403 RK73GB2A303J MG RESISTOR 30kΩ 1/10W J 1 K

R410 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 K

R411 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 K

R412 RK73GB2A472J MG RESISTOR 4.7kΩ 1/10W J 1 K

R413 RK73GB2A472J MG RESISTOR 4.7kΩ 1/10W J 1 K

R414 RK73GB2A472J MG RESISTOR 4.7kΩ 1/10W J 1 K

R431 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 K

R432 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 K

R571 RK73GB2A910J MG RESISTOR 91Ω 1/10W J 1 K

R572 RK73GB2A221J MG RESISTOR 220Ω 1/10W J 1 K

R573 RK73GB2A181J MG RESISTOR 180Ω 1/10W J 1 K

R574 RK73GB2A221J MG RESISTOR 220Ω 1/10W J 1 K

R588 RK73GB2A102J MG RESISTOR 1kΩ 1/10W J 1 K

R589 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 K

R598 RK73GB2A102J MG RESISTOR 1kΩ 1/10W J 1 K

R599 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 K

R600 RK73GB2A102J MG RESISTOR 1kΩ 1/10W J 1 K

R601 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 K

R602 RK73GB2A820J MG RESISTOR 82Ω 1/10W J 1 K

R603 RK73GB2A105J MG RESISTOR 1MΩ 1/10W J 1 K

R604 RK73GB2A105J MG RESISTOR 1MΩ 1/10W J 1 K

R605 RK73GB2A4R7J MG RESISTOR 4.7Ω 1/10W J 1 K

R611 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 K

R612 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 K

R700 RK73GB2A163J MG RESISTOR 16kΩ 1/10W J 1 K

R701 RK73GB2A162J MG RESISTOR 1.6kΩ 1/10W J 1 K

R702 RK73GB2A472J MG RESISTOR 4.7kΩ 1/10W J 1 K

R703 RK73GB2A162J MG RESISTOR 1.6kΩ 1/10W J 1 K

R704 RK73GB2A162J MG RESISTOR 1.6kΩ 1/10W J 1 K

R705 RK73GB2A162J MG RESISTOR 1.6kΩ 1/10W J 1 K

R707 RK73GB2A162J MG RESISTOR 1.6kΩ 1/10W J 1 K

R710 RK73GB2A222J MG RESISTOR 2.2kΩ 1/10W J 1 K

R711 RK73GB2A222J MG RESISTOR 2.2kΩ 1/10W J 1 K

R712 RK73GB2A102J MG RESISTOR 1kΩ 1/10W J 1 K

R713 RK73GB2A222J MG RESISTOR 2.2kΩ 1/10W J 1 K

R714 RK73GB2A102J MG RESISTOR 1kΩ 1/10W J 1 K

R715 RK73GB2A222J MG RESISTOR 2.2kΩ 1/10W J 1 K

R716 RK73GB2A222J MG RESISTOR 2.2kΩ 1/10W J 1 K

R717 RK73GB2A104J MG RESISTOR 100kΩ 1/10W J 1 K

R719 RK73GB2A162J MG RESISTOR 1.6kΩ 1/10W J 1 K

R720 RK73GB2A105J MG RESISTOR 1MΩ 1/10W J 1 K

R721 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 K

R722 RK73GB2A911J MG RESISTOR 910Ω 1/10W J 1 K

R723 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 K

R724 RK73GB2A105J MG RESISTOR 1MΩ 1/10W J 1 K

R725 RK73GB2A222J MG RESISTOR 2.2kΩ 1/10W J 1 K

R726 RK73GB2A220J MG RESISTOR 22Ω 1/10W J 1 K

R727 RK73GB2A153J MG RESISTOR 15kΩ 1/10W J 1 K

R728 RK73GB2A220J MG RESISTOR 22Ω 1/10W J 1 K

R729 RK73GB2A153J MG RESISTOR 15kΩ 1/10W J 1 K

R730 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 K

R733 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 K

R734 RK73GB2A153J MG RESISTOR 15kΩ 1/10W J 1 K

R735 RK73GB2A333J MG RESISTOR 33kΩ 1/10W J 1 K

R739 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 K

R740 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 K

R741 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 K

R742 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 K

R743 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 K

R744 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 K

R745 RK73GB2A222J MG RESISTOR 2.2kΩ 1/10W J 1 K

R746 RK73GB2A682J MG RESISTOR 6.8kΩ 1/10W J 1 K

R747 RK73GB2A682J MG RESISTOR 6.8kΩ 1/10W J 1 K

R749 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 K

R750 RK73GB2A201J MG RESISTOR 200Ω 1/10W J 1 K

R751 RK73GB2A201J MG RESISTOR 200Ω 1/10W J 1 K

R752 RK73GB2A161J MG RESISTOR 160Ω 1/10W J 1 K

R753 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 K

R754 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 K

R755 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 K

R756 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 K

R757 RK73GB2A123J MG RESISTOR 12kΩ 1/10W J 1 K

R758 RK73GB2A620J MG RESISTOR 62Ω 1/10W J 1 K

R759 RK73GB2A203J MG RESISTOR 20kΩ 1/10W J 1 K

R760 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 K

R765 RK73GB2A472J MG RESISTOR 4.7kΩ 1/10W J 1 K

R766 RK73GB2A472J MG RESISTOR 4.7kΩ 1/10W J 1 K

R776 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 K

R777 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 K

R778 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 K

R779 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 K

R816 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 K

R819 RK73GB2A332J MG RESISTOR 3.3kΩ 1/10W J 1 K

R820 RK73EB2E473J MG RESISTOR 47kΩ 1/4W J 1 K

(No.MA606<Rev.002>)16/

MODEL MARK MODEL MARK MODEL MARK MODEL MARK

20

KD-X120EE A KD-X120EU B KD-X120U C KD-X120UT D
KD-X125EE E KD-X220E F KD-X220EN G KD-X220EY H
KD-X220J I KD-X220U J KD-X220UR K KD-X220UT L

Safe Symbol No. Parts No. Parts Name Description QTY Local

R821 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 K

R822 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 K

R830 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 K

R840 RK73GB2A271J MG RESISTOR 270Ω 1/10W J 1 K

R841 RK73GB2A271J MG RESISTOR 270Ω 1/10W J 1 K

R861 RK73GB2A200J MG RESISTOR 20Ω 1/10W J 1 K

R862 RK73EB2E271J MG RESISTOR 270Ω 1/4W J 1 K

R864 RK73GB2A393J MG RESISTOR 39kΩ 1/10W J 1 K

R865 RK73GH2A683D MG RESISTOR 68kΩ 1/10W D 1 K

R867 RK73GH2A393D MG RESISTOR 39kΩ 1/10W D 1 K

R868 RK73GH2A183D MG RESISTOR 18kΩ 1/10W D 1 K

R869 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 K

R890 RK73GH2A203D MG RESISTOR 20kΩ 1/10W D 1 K

R892 RK73EB2E222J MG RESISTOR 2.2kΩ 1/4W J 1 K

R930 RK73GB2A103J MG RESISTOR 10kΩ 1/10W J 1 K

R969 RK73EB2E473J MG RESISTOR 47kΩ 1/4W J 1 K

R978 RK73EB2E473J MG RESISTOR 47kΩ 1/4W J 1 K

R979 RK73EB2E682J MG RESISTOR 6.8kΩ 1/4W J 1 K

R980 RK73EB2E682J MG RESISTOR 6.8kΩ 1/4W J 1 K

R1003 RK73GB2A473J MG RESISTOR 47kΩ 1/10W J 1 K

R1004 RK73EB2E271J MG RESISTOR 270Ω 1/4W J 1 K

R1005 RK73EB2E271J MG RESISTOR 270Ω 1/4W J 1 K

R1006 RK73EB2E271J MG RESISTOR 270Ω 1/4W J 1 K

R1051 RK73GH2A100D MG RESISTOR 10Ω 1/10W D 1 K

R1060 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 K

R1061 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 K

R1069 RK73GB2A333J MG RESISTOR 33kΩ 1/10W J 1 K

R1070 RK73GB2A102J MG RESISTOR 1kΩ 1/10W J 1 K

R1071 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 K

R1073 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 K

R1074 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 K

R1075 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 K

R1076 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 K

R1077 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 K

R1082 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 K

R1091 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 K

R1170 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 K

R1404 RK73GB2A100J MG RESISTOR 10Ω 1/10W J 1 K

R1405 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 K

R1406 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 K

R1407 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 K

R1408 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 K

R1414 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 K

R1415 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 K

R1416 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 K

R1417 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 K

R1419 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 K

R1421 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 K

R1425 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 K

R1426 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 K

R1428 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 K

R1429 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 K

R1430 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 K

R1432 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 K

R1434 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 K

L591 LR73Z0AD4R7M CHIP INDUCTOR 4.7uH 1 K

L600 LR73Z0AD4R7M CHIP INDUCTOR 4.7uH 1 K

L601 LK73G0BE4R7K M.CHIP INDUCTOR 1 K

L602 LK73G0BER47K M.CHIP INDUCTOR 1 K

L603 NQLM93K-R10X INDUCTOR 0.1uH K 1 K

L604 LK73G0BE1R0K M.CHIP INDUCTOR 1 K

L605 LK73G0BER22K M.CHIP INDUCTOR 1 K

L606 LK73G0BER12K M.CHIP INDUCTOR 1 K

L607 LK73G0BER15K M.CHIP INDUCTOR 1 K

L609 LR73Z0AD4R7M CHIP INDUCTOR 4.7uH 1 K

L610 NQR0715-001X FERRITE BEADS 1 K

L611 NQR0715-001X FERRITE BEADS 1 K

L701 LB73G0BK-006 CHIP FERRITE 1 K

L709 NQR0713-001X FERRITE BEADS 1 K

L758 NQR0713-001X FERRITE BEADS 1 K

L820 NQR0713-001X FERRITE BEADS 1 K

L821 NQR0713-001X FERRITE BEADS 1 K

L822 NQR0713-001X FERRITE BEADS 1 K

L823 NQR0713-001X FERRITE BEADS 1 K

L824 NQR0713-001X FERRITE BEADS 1 K

L825 LB73G0CA-002 CHIP FERRITE 1 K

L826 LB73G0CK-001 CHIP FERRITE 1 K

L827 LB73G0BK-006 CHIP FERRITE 1 K

L850 LR73Z0AD4R7M CHIP INDUCTOR 4.7uH 1 K

L860 NQLN9EM-100X INDUCTOR 10uH M 1 K

L861 LK73Z0AK4R7M M.CHIP INDUCTOR 4.7uH 1 K

L990 QQR1927-001 CHOKE COIL 1 K

CN701 QGZ2006J1-20 DETACHABLE CONN (1-20) 1 K

CN990 QNZ0607-001 CAR CONNECTOR 1 K

J321 QNN0874-001 PIN JACK 1 K

J600 QNB0356-001 ANT TERMINAL 1 K

S830 QSW0648-001Z TACT SWITCH 1 K

VA600 F0K-0014-00 SURGE ABSORBER 1 K

X540 NAX1224-001X CRYSTAL 1 K

X600 L7J-0014-00 QUARTZ CRYSTAL 1 K

(No.MA606<Rev.002>)17/

MODEL MARK MODEL MARK MODEL MARK MODEL MARK

20

KD-X120EE A KD-X120EU B KD-X120U C KD-X120UT D
KD-X125EE E KD-X220E F KD-X220EN G KD-X220EY H
KD-X220J I KD-X220U J KD-X220UR K KD-X220UT L

Safe Symbol No. Parts No. Parts Name Description QTY Local

X701 NAX1243-001X CRYSTAL 1 K

SWITCH PWB ASSY (XJ6-031x-xx) <02>

IC1 BU97520AKV-M MOS IC 1 A,B,C,D,E,F,G,H,I,J,

IC90 SIR8630B6T IR DETECT UNIT 1 B,C,D,I,J,L

Q1 LSCR523EBFS8 TRANSISTOR 1 A,B,C,D,E,F,G,H,I,J,

Q50 LSCR523EBFS8 TRANSISTOR 1 A,B,C,D,E,F,G,H,I,J,

Q51 2SC4097P/R/ TRANSISTOR 1 B,C,D,E,F,G,H,I,J,L

Q53 2SC4097P/R/ TRANSISTOR 1 A,E

D1 DZ2J056M ZENER DIODE 1 A,B,C,D,E,F,G,H,I,J,

D2 MBRX130 SCHOTTKY DIODE 1 A,B,C,D,E,F,G,H,I,J,

D20 SML-D12V8WT LED 1 B,C,D,F,G,H,I,J,L

D20 SML-311DT/JK/-X LED 1 E

D24 SML-D12V8WT LED 1 B,C,D,F,G,H,I,J,L

D24 SML-311DT/JK/-X LED 1 E

D25 SML-D12V8WT LED 1 B,C,D,F,G,H,I,J,L

D25 SML-311DT/JK/-X LED 1 E

D26 SML-D12V8WT LED 1 B,C,D,F,G,H,I,J,L

D26 SML-311DT/JK/-X LED 1 E

D27 SML-D12V8WT LED 1 B,C,D,F,G,H,I,J,L

D27 SML-311DT/JK/-X LED 1 E

D28 SML-D12V8WT LED 1 B,C,D,F,G,H,I,J,L

D28 SML-311DT/JK/-X LED 1 E

D29 SML-D12V8WT LED 1 B,C,D,F,G,H,I,J,L

D29 SML-311DT/JK/-X LED 1 E

D30 SML-D12V8WT LED 1 B,C,D,F,G,H,I,J,L

D30 SML-311DT/JK/-X LED 1 E

D31 SML-D12V8WT LED 1 B,C,D,F,G,H,I,J,L

D31 SML-311DT/JK/-X LED 1 E

D33 SML-D12V8WT LED 1 B,C,D,F,G,H,I,J,L

D33 SML-311DT/JK/-X LED 1 E

D34 SML-D12V8WT LED 1 B,C,D,F,G,H,I,J,L

D34 SML-311DT/JK/-X LED 1 E

D35 SML-D12V8WT LED 1 B,C,D,F,G,H,I,J,L

D35 SML-311DT/JK/-X LED 1 E

D36 SML-D12V8WT LED 1 B,C,D,F,G,H,I,J,L

D36 SML-311DT/JK/-X LED 1 E

D37 SML-D12V8WT LED 1 B,C,D,F,G,H,I,J,L

D37 SML-311DT/JK/-X LED 1 E

D38 SML-D12V8WT LED 1 B,C,D,F,G,H,I,J,L

D38 SML-311DT/JK/-X LED 1 E

D39 SML-D12V8WT LED 1 B,C,D,F,G,H,I,J,L

D39 SML-311DT/JK/-X LED 1 E

D40 SML-D12V8WT LED 1 B,C,D,F,G,H,I,J,L

D40 SML-311DT/JK/-X LED 1 E

D41 SML-D12V8WT LED 1 B,C,D,F,G,H,I,J,L

D41 SML-311DT/JK/-X LED 1 E

D49 LUWJNSH.PC//0 LED 1 A,B,C,D,E,F,G,H,I,J,

D50 SML-D12P8WT LED 1 A,E

D54 SML-D12P8WT LED 1 A,E

D55 SML-D12P8WT LED 1 A,E

D56 SML-D12P8WT LED 1 A,E

D57 SML-D12P8WT LED 1 A,E

D58 SML-D12P8WT LED 1 A,E

D59 SML-D12P8WT LED 1 A,E

D60 SML-D12P8WT LED 1 A,E

D61 SML-D12P8WT LED 1 A,E

D63 SML-D12P8WT LED 1 A,E

D64 SML-D12P8WT LED 1 A,E

D65 SML-D12P8WT LED 1 A,E

D66 SML-D12P8WT LED 1 A,E

D67 SML-D12P8WT LED 1 A,E

D68 SML-D12P8WT LED 1 A,E

D69 SML-D12P8WT LED 1 A,E

D70 SML-D12P8WT LED 1 A,E

D71 SML-D12P8WT LED 1 A,E

D80 DZ2J051M ZENER DIODE 1 A,B,C,D,E,F,G,H,I,J,

D81 DZ2J051M ZENER DIODE 1 A,B,C,D,E,F,G,H,I,J,

D91 DZ2J056M ZENER DIODE 1 A,B,C,D,E,F,G,H,I,J,

D92 DZ2J056M ZENER DIODE 1 A,B,C,D,E,F,G,H,I,J,

C1 CK73GXR1C105K C CAPACITOR 1uF 16V K 1 A,B,C,D,E,F,G,H,I,J,

C3 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C5 CK73GXR1C105K C CAPACITOR 1uF 16V K 1 A,B,C,D,E,F,G,H,I,J,

C6 CK73EXR1C106K C CAPACITOR 10uF 16V K 1 A,B,C,D,E,F,G,H,I,J,

C7 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C60 CK73GBB1H102K C CAPACITOR 1000pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C61 CK73GBB1H102K C CAPACITOR 1000pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

L

L
L

L
L

L

L
L
L
L
L
L
L
L
L
L

(No.MA606<Rev.002>)18/

MODEL MARK MODEL MARK MODEL MARK MODEL MARK

20

KD-X120EE A KD-X120EU B KD-X120U C KD-X120UT D
KD-X125EE E KD-X220E F KD-X220EN G KD-X220EY H
KD-X220J I KD-X220U J KD-X220UR K KD-X220UT L

Safe Symbol No. Parts No. Parts Name Description QTY Local

C80 CC73GCH1H270J C CAPACITOR 27pF 50V J 1 A,B,C,D,E,F,G,H,I,J,

C81 CC73GCH1H270J C CAPACITOR 27pF 50V J 1 A,B,C,D,E,F,G,H,I,J,

C82 CK73EXR1C106K C CAPACITOR 10uF 16V K 1 A,B,C,D,E,F,G,H,I,J,

C83 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C84 CK73GBB1H472K C CAPACITOR 4700pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C85 CK73GBB1H472K C CAPACITOR 4700pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C86 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 A,B,C,D,E,F,G,H,I,J,

C91 CK73GXR1A105K C CAPACITOR 1uF 10V K 1 B,C,D,I,J,L

R1 RK73EB2E101J MG RESISTOR 100Ω 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R3 RK73GB2A471J MG RESISTOR 470Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R4 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R5 RK73EB2E331J MG RESISTOR 330Ω 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R6 RK73GB2A102J MG RESISTOR 1kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R7 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R18 RK73FB2B751J MG RESISTOR 750Ω 1/8W J 1 A,E

R19 RK73FB2B821J MG RESISTOR 820Ω 1/8W J 1 B,C,D,E,F,G,H,I,J,L

R20 RK73FB2B821J MG RESISTOR 820Ω 1/8W J 1 B,C,D,E,F,G,H,I,J,L

R22 RK73FB2B621J MG RESISTOR 620Ω 1/8W J 1 B,C,D,E,F,G,H,I,J,L

R23 RK73FB2B621J MG RESISTOR 620Ω 1/8W J 1 B,C,D,E,F,G,H,I,J,L

R24 RK73FB2B621J MG RESISTOR 620Ω 1/8W J 1 B,C,D,E,F,G,H,I,J,L

R25 RK73FB2B621J MG RESISTOR 620Ω 1/8W J 1 B,C,D,E,F,G,H,I,J,L

R26 RK73FB2B821J MG RESISTOR 820Ω 1/8W J 1 B,C,D,E,F,G,H,I,J,L

R27 RK73FB2B621J MG RESISTOR 620Ω 1/8W J 1 B,C,D,E,F,G,H,I,J,L

R28 RK73FB2B621J MG RESISTOR 620Ω 1/8W J 1 B,C,D,E,F,G,H,I,J,L

R29 RK73FB2B621J MG RESISTOR 620Ω 1/8W J 1 B,C,D,E,F,G,H,I,J,L

R30 RK73FB2B821J MG RESISTOR 820Ω 1/8W J 1 B,C,D,E,F,G,H,I,J,L

R31 RK73FB2B681J MG RESISTOR 680Ω 1/8W J 1 A,E

R33 RK73FB2B561J MG RESISTOR 560Ω 1/8W J 1 A,E

R34 RK73FB2B561J MG RESISTOR 560Ω 1/8W J 1 A,E

R35 RK73FB2B751J MG RESISTOR 750Ω 1/8W J 1 A,E

R36 RK73FB2B561J MG RESISTOR 560Ω 1/8W J 1 A,E

R37 RK73FB2B821J MG RESISTOR 820Ω 1/8W J 1 A,E

R38 RK73FB2B561J MG RESISTOR 560Ω 1/8W J 1 A,E

R39 RK73FB2B561J MG RESISTOR 560Ω 1/8W J 1 A,E

R40 RK73FB2B561J MG RESISTOR 560Ω 1/8W J 1 A,E

R41 RK73FB2B681J MG RESISTOR 680Ω 1/8W J 1 A,E

R50 RK73GB2A432J MG RESISTOR 4.3kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R51 RK73GB2A432J MG RESISTOR 4.3kΩ 1/10W J 1 A,B,C,D,E,F,G,H,I,J,

R53 RK73GB2A432J MG RESISTOR 4.3kΩ 1/10W J 1 E

R55 RK73FB2B561J MG RESISTOR 560Ω 1/8W J 1 A,B,C,D,E,F,G,H,I,J,

R60 RK73FB2B101J MG RESISTOR 100Ω 1/8W J 1 A,B,C,D,E,F,G,H,I,J,

R61 RK73FB2B101J MG RESISTOR 100Ω 1/8W J 1 A,B,C,D,E,F,G,H,I,J,

R62 RK73FB2B4R7J MG RESISTOR 4.7Ω 1/8W J 1 A,B,C,D,E,F,G,H,I,J,

R80 RK73EB2E221J MG RESISTOR 220Ω 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R81 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R1000 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 A,B,C,D,E,F,G,H,I,J,

R1006 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 B,C,D,I,J,L

R1009 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 A

R1010 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 A,E

RA1 RK74GB1J101J NET RESISTOR 100Ω 1/16W J 1 A,B,C,D,E,F,G,H,I,J,

RA2 RK74GB1J101J NET RESISTOR 100Ω 1/16W J 1 A,B,C,D,E,F,G,H,I,J,

RA3 RK74GB1J101J NET RESISTOR 100Ω 1/16W J 1 A,B,C,D,E,F,G,H,I,J,

CN1 QGZ2006K1-20X DETACHABLE CONN (1-20) 1 A,B,C,D,E,F,G,H,I,J,

FL80 NQR0704-001X CHOKE COIL 1 A,B,C,D,E,F,G,H,I,J,

J60 QNS0279-001 3.5 JACK 1 A,B,C,D,E,F,G,H,I,J,

J80 QNZ1076-001 USB CONNECTOR 1 A,B,C,D,E,F,G,H,I,J,

S20 T9K-0007-00 ROTARY ENCODER 1 A,B,C,D,E,F,G,H,I,J,

L
L
L
L
L
L
L

L

L
L
L
L
L
L

L
L

L
L
L
L
L
L
L

L
L
L
L
L
L
L
L

SWITCH PWB ASSY (XJ6-0393-21) <04>

IC1 BU97520AKV-M MOS IC 1 K

IC90 SIR8630B6T IR DETECT UNIT 1 K

Q1 LSCR523EBFS8 TRANSISTOR 1 K

(No.MA606<Rev.002>)19/

MODEL MARK MODEL MARK MODEL MARK MODEL MARK

20

KD-X120EE A KD-X120EU B KD-X120U C KD-X120UT D
KD-X125EE E KD-X220E F KD-X220EN G KD-X220EY H
KD-X220J I KD-X220U J KD-X220UR K KD-X220UT L

Safe Symbol No. Parts No. Parts Name Description QTY Local

Q50 LSCR523EBFS8 TRANSISTOR 1 K

Q51 2SC4097P/R/ TRANSISTOR 1 K

D1 DZ2J056M ZENER DIODE 1 K

D2 MBRX130 SCHOTTKY DIODE 1 K

D20 SML-D12V8WT LED 1 K

D24 SML-D12V8WT LED 1 K

D25 SML-D12V8WT LED 1 K

D26 SML-D12V8WT LED 1 K

D27 SML-D12V8WT LED 1 K

D28 SML-D12V8WT LED 1 K

D29 SML-D12V8WT LED 1 K

D30 SML-D12V8WT LED 1 K

D31 SML-D12V8WT LED 1 K

D33 SML-D12V8WT LED 1 K

D34 SML-D12V8WT LED 1 K

D35 SML-D12V8WT LED 1 K

D36 SML-D12V8WT LED 1 K

D37 SML-D12V8WT LED 1 K

D38 SML-D12V8WT LED 1 K

D39 SML-D12V8WT LED 1 K

D40 SML-D12V8WT LED 1 K

D41 SML-D12V8WT LED 1 K

D49 LUWJNSH.PC//0 LED 1 K

D80 DZ2J051M ZENER DIODE 1 K

D81 DZ2J051M ZENER DIODE 1 K

D91 DZ2J056M ZENER DIODE 1 K

D92 DZ2J056M ZENER DIODE 1 K

C1 CK73GXR1C105K C CAPACITOR 1uF 16V K 1 K

C3 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 K

C5 CK73GXR1C105K C CAPACITOR 1uF 16V K 1 K

C6 CK73EXR1C106K C CAPACITOR 10uF 16V K 1 K

C7 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 K

C60 CK73GBB1H102K C CAPACITOR 1000pF 50V K 1 K

C61 CK73GBB1H102K C CAPACITOR 1000pF 50V K 1 K

C80 CC73GCH1H270J C CAPACITOR 27pF 50V J 1 K

C81 CC73GCH1H270J C CAPACITOR 27pF 50V J 1 K

C82 CK73EXR1C106K C CAPACITOR 10uF 16V K 1 K

C83 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 K

C84 CK73GBB1H472K C CAPACITOR 4700pF 50V K 1 K

C85 CK73GBB1H472K C CAPACITOR 4700pF 50V K 1 K

C86 CK73GBB1H471K C CAPACITOR 470pF 50V K 1 K

C91 CK73GXR1A105K C CAPACITOR 1uF 10V K 1 K

R1 RK73EB2E101J MG RESISTOR 100Ω 1/4W J 1 K

R3 RK73GB2A471J MG RESISTOR 470Ω 1/10W J 1 K

R4 RK73GB2A101J MG RESISTOR 100Ω 1/10W J 1 K

R5 RK73EB2E331J MG RESISTOR 330Ω 1/4W J 1 K

R6 RK73GB2A102J MG RESISTOR 1kΩ 1/10W J 1 K

R7 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 K

R19 RK73FB2B821J MG RESISTOR 820Ω 1/8W J 1 K

R20 RK73FB2B821J MG RESISTOR 820Ω 1/8W J 1 K

R22 RK73FB2B621J MG RESISTOR 620Ω 1/8W J 1 K

R23 RK73FB2B621J MG RESISTOR 620Ω 1/8W J 1 K

R24 RK73FB2B621J MG RESISTOR 620Ω 1/8W J 1 K

R25 RK73FB2B621J MG RESISTOR 620Ω 1/8W J 1 K

R26 RK73FB2B821J MG RESISTOR 820Ω 1/8W J 1 K

R27 RK73FB2B621J MG RESISTOR 620Ω 1/8W J 1 K

R28 RK73FB2B621J MG RESISTOR 620Ω 1/8W J 1 K

R29 RK73FB2B621J MG RESISTOR 620Ω 1/8W J 1 K

R30 RK73FB2B821J MG RESISTOR 820Ω 1/8W J 1 K

R50 RK73GB2A432J MG RESISTOR 4.3kΩ 1/10W J 1 K

R51 RK73GB2A432J MG RESISTOR 4.3kΩ 1/10W J 1 K

R55 RK73FB2B561J MG RESISTOR 560Ω 1/8W J 1 K

R60 RK73FB2B101J MG RESISTOR 100Ω 1/8W J 1 K

R61 RK73FB2B101J MG RESISTOR 100Ω 1/8W J 1 K

R62 RK73FB2B4R7J MG RESISTOR 4.7Ω 1/8W J 1 K

R80 RK73EB2E221J MG RESISTOR 220Ω 1/4W J 1 K

R81 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 K

R1000 RK73EB2E000J MG RESISTOR 0Ω 1/4W J 1 K

R1006 RK73GB2A000J MG RESISTOR 0Ω 1/10W J 1 K

RA1 RK74GB1J101J NET RESISTOR 100Ω 1/16W J 1 K

RA2 RK74GB1J101J NET RESISTOR 100Ω 1/16W J 1 K

RA3 RK74GB1J101J NET RESISTOR 100Ω 1/16W J 1 K

CN1 QGZ2006K1-20X DETACHABLE CONN (1-20) 1 K

FL80 NQR0704-001X CHOKE COIL 1 K

J60 QNS0279-001 3.5 JACK 1 K

J80 E5J-0069-00 USB TERMINAL 1 K

S20 T9K-0007-00 ROTARY ENCODER 1 K

(No.MA606<Rev.002>)20/
