CD RECEIVER

CD-RECEIVER RECEPTEUR CD CD-RECEIVER

KD-LH2000R

Detachable

SOUND

SOURCE

VOL

This unit is equipped with the display demonstration. To cancel it, see page 8. Dieses Gerät ist mit einer Demonstrationsfunktion für das Display ausgestattet. Auf

Seite 8 wird beschrieben, wie Sie diese Demonstrationsfunktion deaktivieren können.

Cet appareil est équipé d’une démonstration des affichages. Pour l’annuler, référez-

vous à la page 8.

Dit toestel heeft een display-demonstratiefunctie. Zie bladzijde 8 voor het annuleren

van deze functie.

2000

ENGLISH

DEUTSCH

FRANÇAIS

NEDERLANDS

For installation and connections, refer to the separate manual. Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch. Pour l’installation et les raccordements, se référer au manuel séparé. Bijzonderheden over de installatie en aansluiting van het apparaat vindt u in de desbetreffende handleiding.

INSTRUCTIONS

BEDIENUNGSANLEITUNG

MANUEL D’INSTRUCTIONS

GEBRUIKSAANWIJZING

LVT0921-001A

[E/EX]

Position And Reproduction Of Labels

Bottom panel of the main unit

ENGLISH

Name/Rating plate

Caution:

This product contains a laser component of higher laser class than Class 1.

CAUTION: Invisible laser radiation when open and interlock failed or defeated. AVOID DIRECT EXPOSURE TO BEAM. (e)

How to reset your unit

After detaching the control panel, press the reset button on the panel holder using a ball-point pen or similar tool. This will reset the built-in microcomputer.

ADVARSEL: Usynlig laserstråling ved åbning, når sikkerhedsafbrydere er ude af funktion. Undgåudsættelse for stråling. (d)

VARNING: Osynlig laserstrålning när denna del är öppnad och spärren är urkopplad. Betrakta ej strålen. (s)

VARO : Avattaessa ja suojalukitus ohitettaessa olet alttiina näkymättömälle lasersäteilylle. Älä katso säteeseen. (f)

IMPORTANT FOR LASER PRODUCTS

Precautions:

1.CLASS 1 LASER PRODUCT

2.CAUTION: Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

3.CAUTION: Do not open the top cover. There are no user-serviceable parts inside. Leave all servicing to qualified service personnel.

4.CAUTION: This CD player uses invisible laser radiation and is equipped with safety switches to prevent radiation emission when unloading CDs. It is dangerous to defeat the safety switches.

5.CAUTION: Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Note:

Your preset adjustments—such as preset channels or sound adjustments—will also be erased.

How to use the MODE (M) button:

If you press MODE (M), the unit goes into functions mode and the number buttons work as different function buttons.

To use these buttons as number buttons again after pressing MODE (M), wait for 5 seconds without pressing any number button until the functions mode is cleared.

• Pressing MODE (M) again also clears the functions mode.

Thank you for purchasing a JVC product. Please read all instructions carefully before operation,

to ensure your complete understanding and to obtain the best possible performance from the unit.

How to reset your unit ............................... 2

How to use the MODE (M) button ............ 2

LOCATION OF THE BUTTONS............ 4

Control panel ........................................... 4

Remote controller .................................... 5

Preparing the remote controller ................. 6

BASIC OPERATIONS ...................... 7

Turning on the power ................................ 7

Changing the display pattern .................... 8

Cancelling the display demonstration ...... 8

RADIO OPERATIONS...................... 9

Listening to the radio ................................ 9

Storing stations in memory ....................... 11

Tuning in to a preset station ..................... 12

Changing the display pattern .................... 13

RDS OPERATIONS ........................ 14

What you can do with RDS ...................... 14

Other convenient RDS functions and

adjustments ........................................... 18

CD OPERATIONS .......................... 20

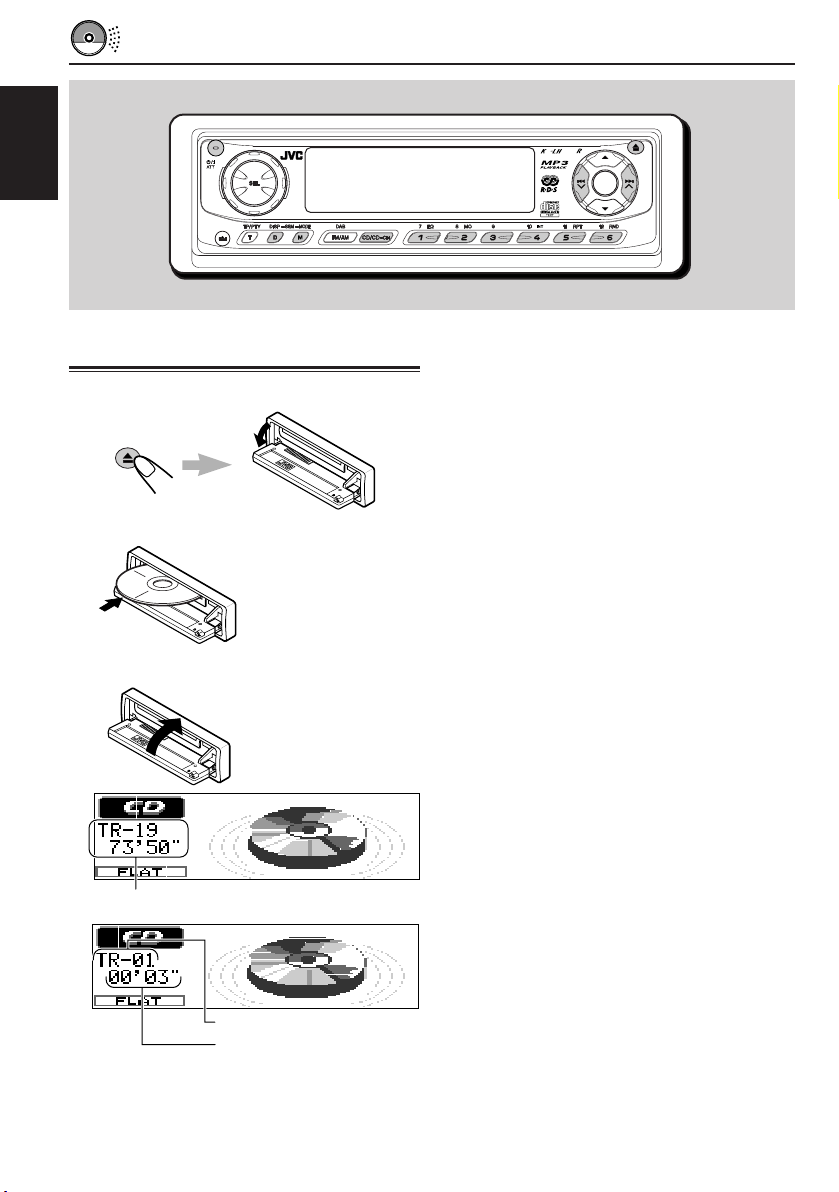

Playing a CD ............................................ 20

Locating a track or a particular portion

on a CD ................................................. 21

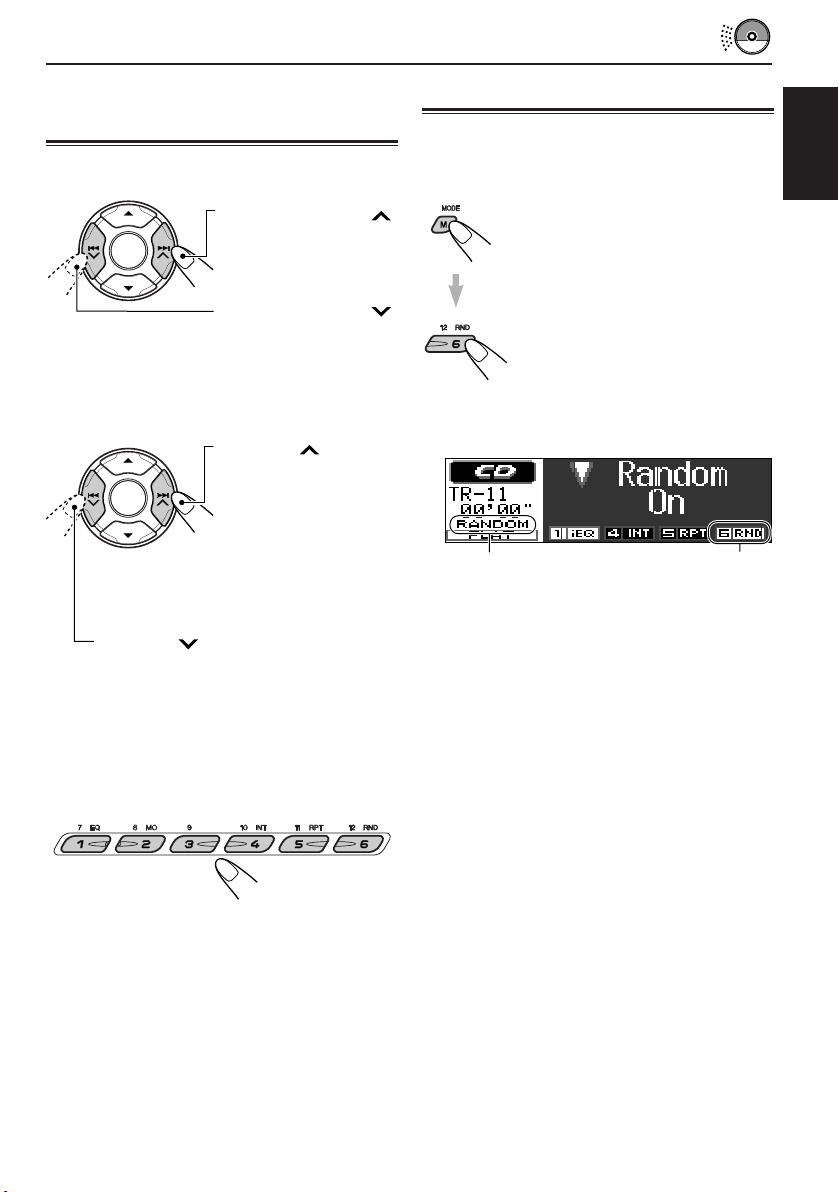

Selecting CD playback modes ................. 21

Prohibiting CD ejection ............................. 22

Changing the display pattern .................... 23

MP3 INTRODUCTION ..................... 24

What is MP3? .......................................... 24

How are MP3 files recorded and

played back? ......................................... 24

MP3 OPERATIONS ........................ 26

Playing an MP3 disc ................................. 26

Locating a file or particular portion

on an MP3 disc ..................................... 27

Selecting a directory ................................. 27

Selecting MP3 playback modes ............... 28

Changing the display pattern .................... 30

SOUND ADJUSTMENTS .................. 31

Adjusting the sound ................................. 31

Selecting preset sound modes

(iEQ: i-equalizer) ................................... 32

Storing your own sound adjustments ....... 32

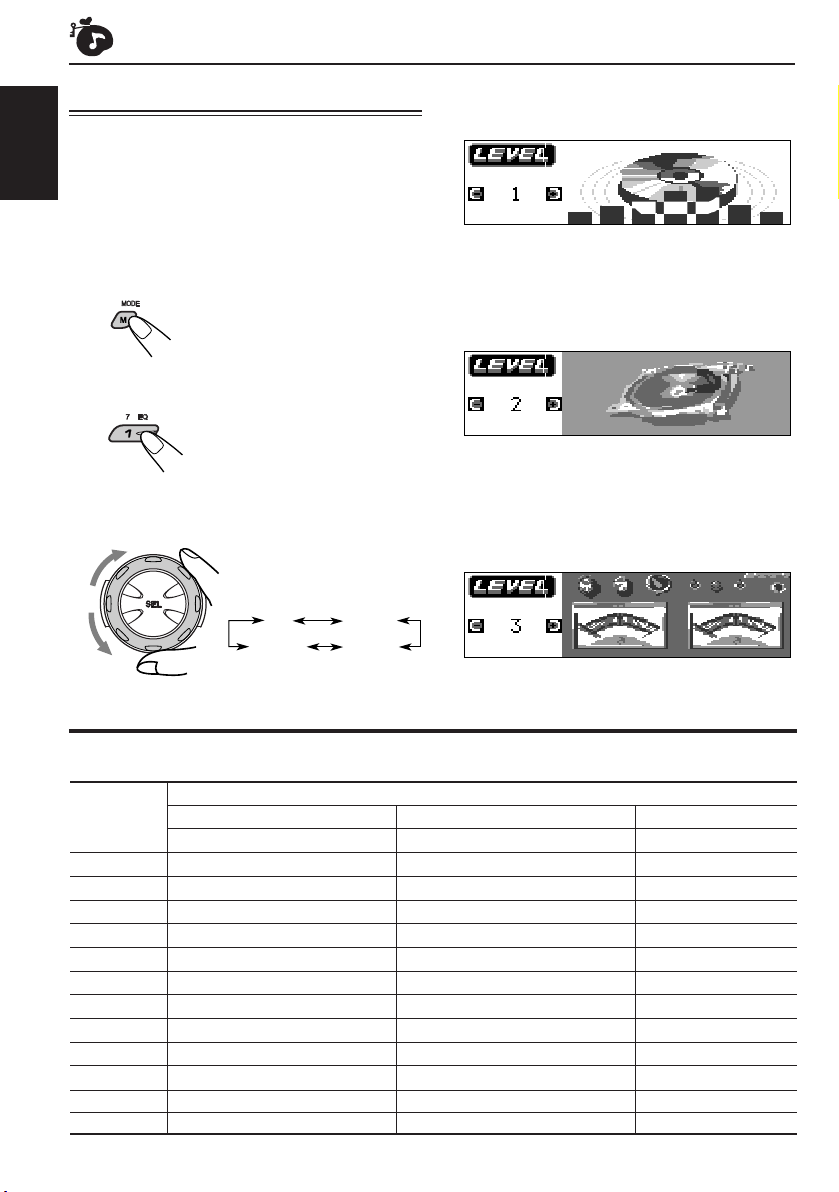

Activating the level meter.......................... 34

OTHER MAIN FUNCTIONS ............... 35

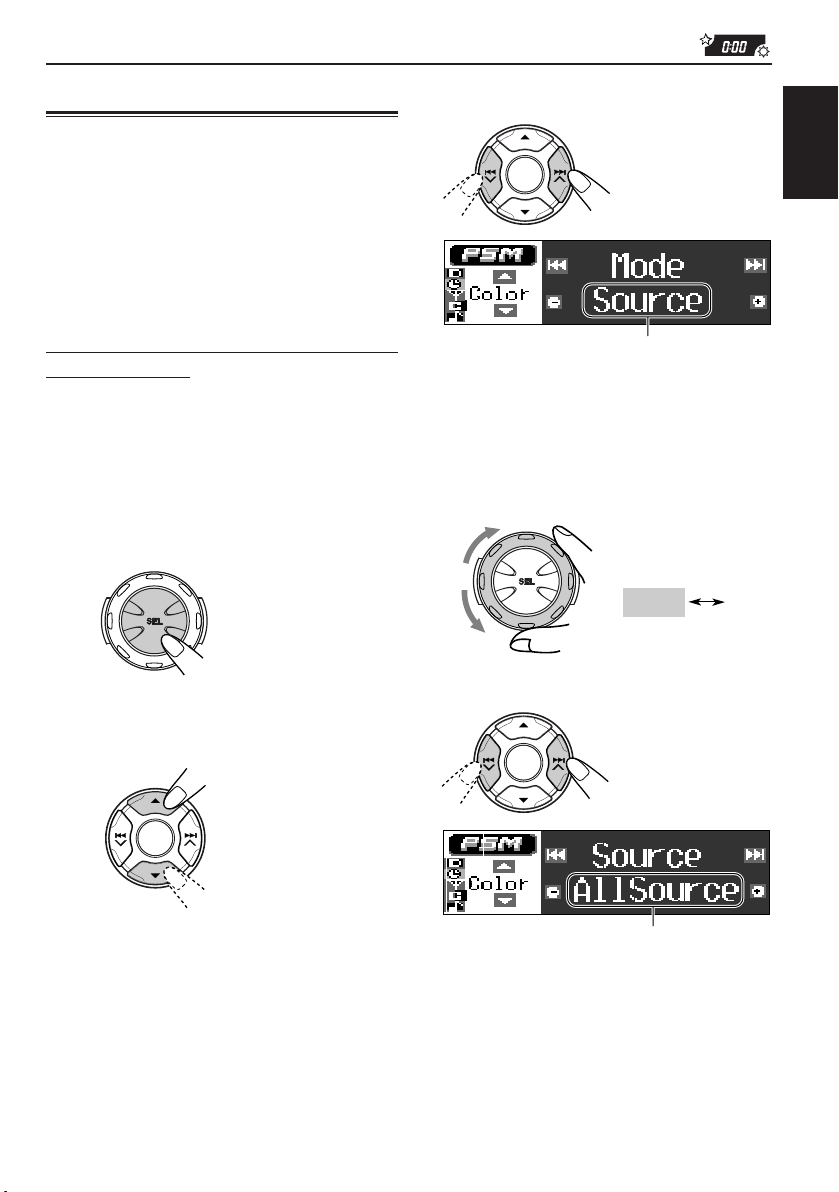

Changing the general settings (PSM) ...... 35

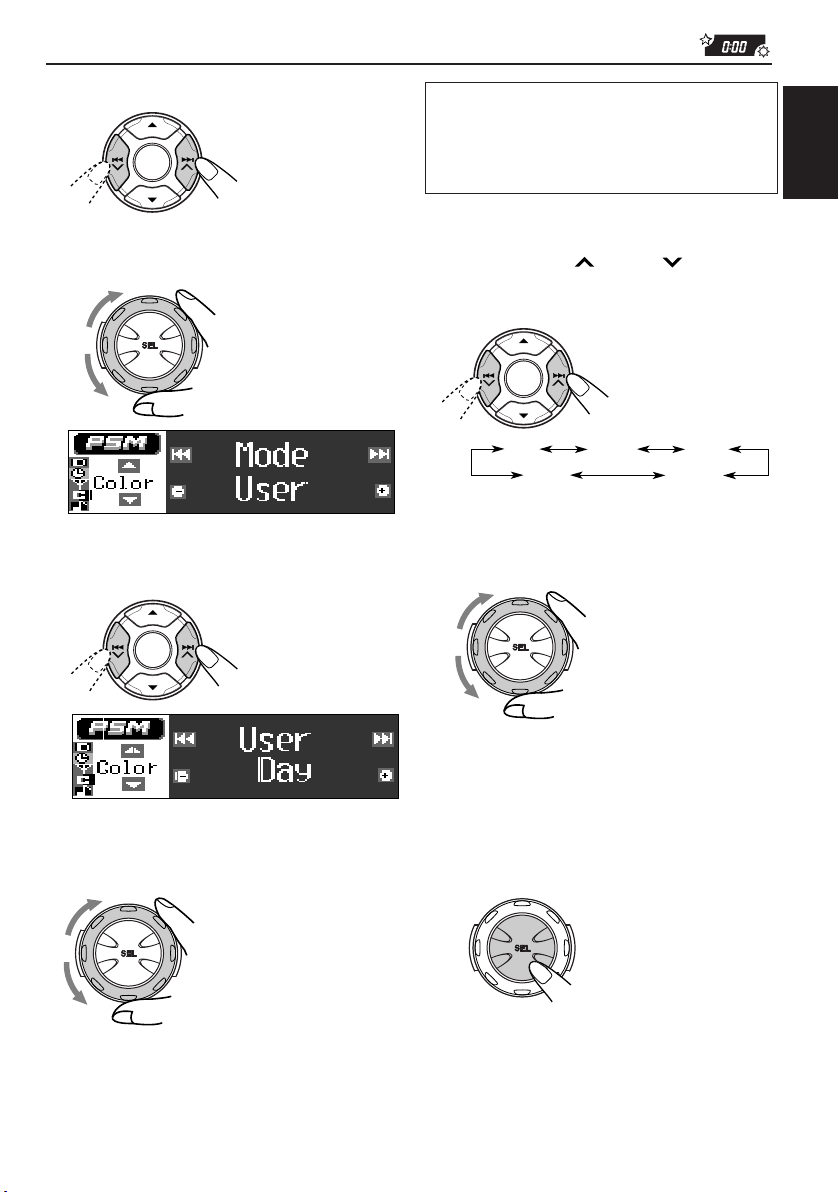

Changing the display color ....................... 39

Assigning names to the sources .............. 42

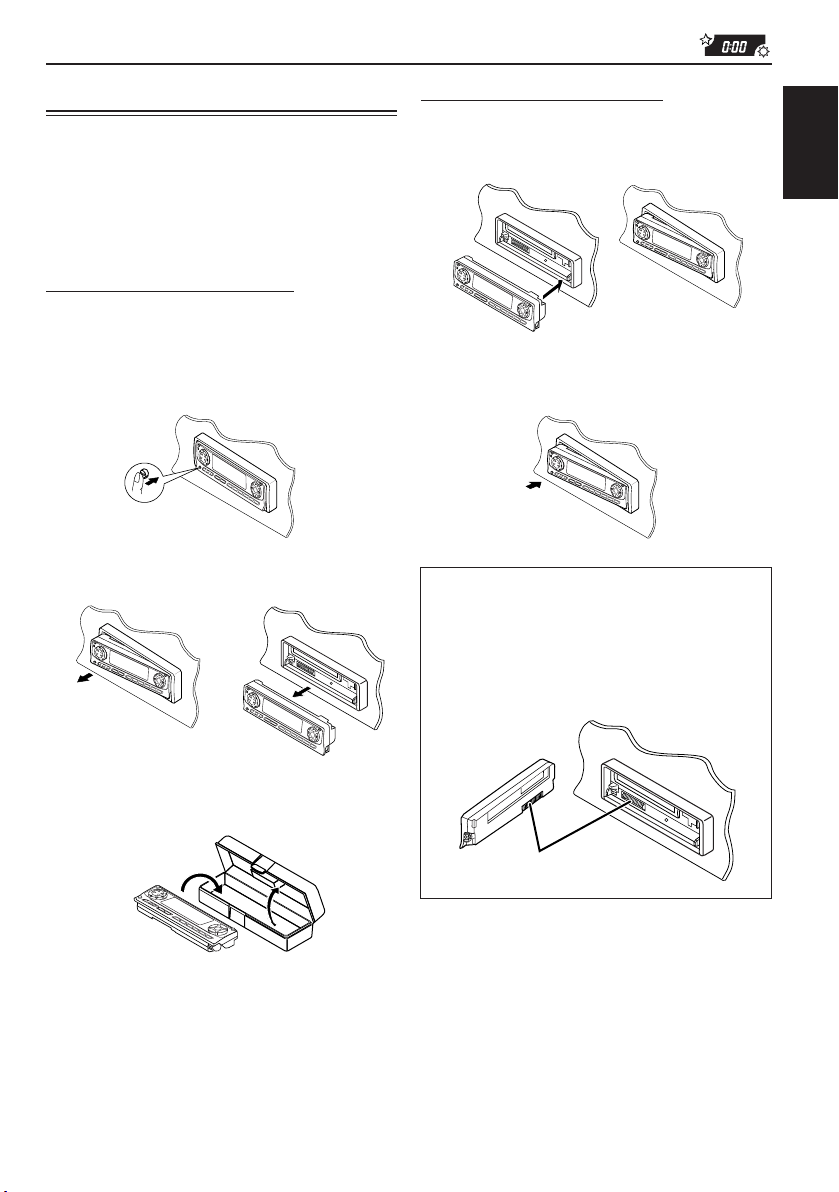

Detaching the control panel ...................... 43

CD CHANGER OPERATIONS ............. 44

Playing CDs ............................................. 44

Locating a track or a particular portion

on a CD ................................................. 45

Selecting a disc ....................................... 45

Selecting CD playback modes ................. 46

EXTERNAL COMPONENT OPERATIONS ... 48

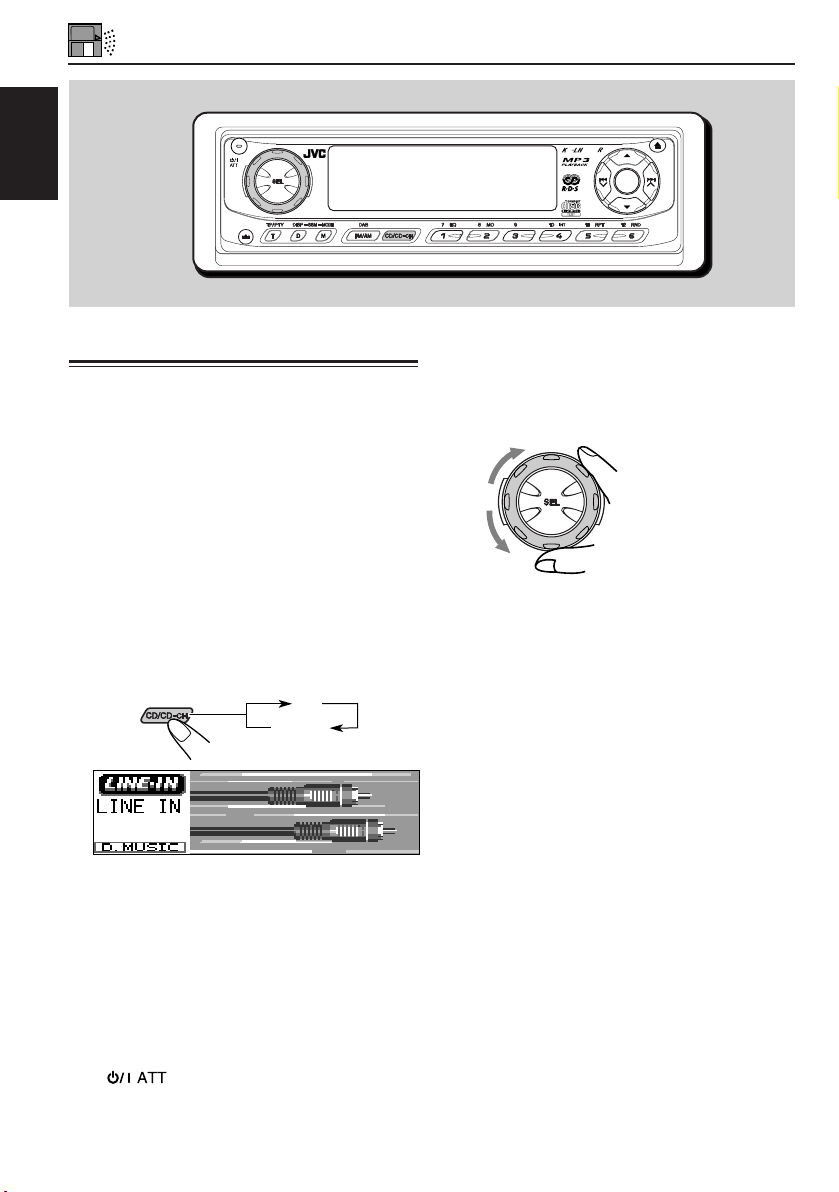

Playing an external component ................ 48

DAB TUNER OPERATIONS ............... 49

Tuning in to an ensemble and

one of the services ................................. 49

Storing DAB services in memory .............. 50

Tuning in to a preset DAB service ............ 51

What you can do more with DAB ............. 52

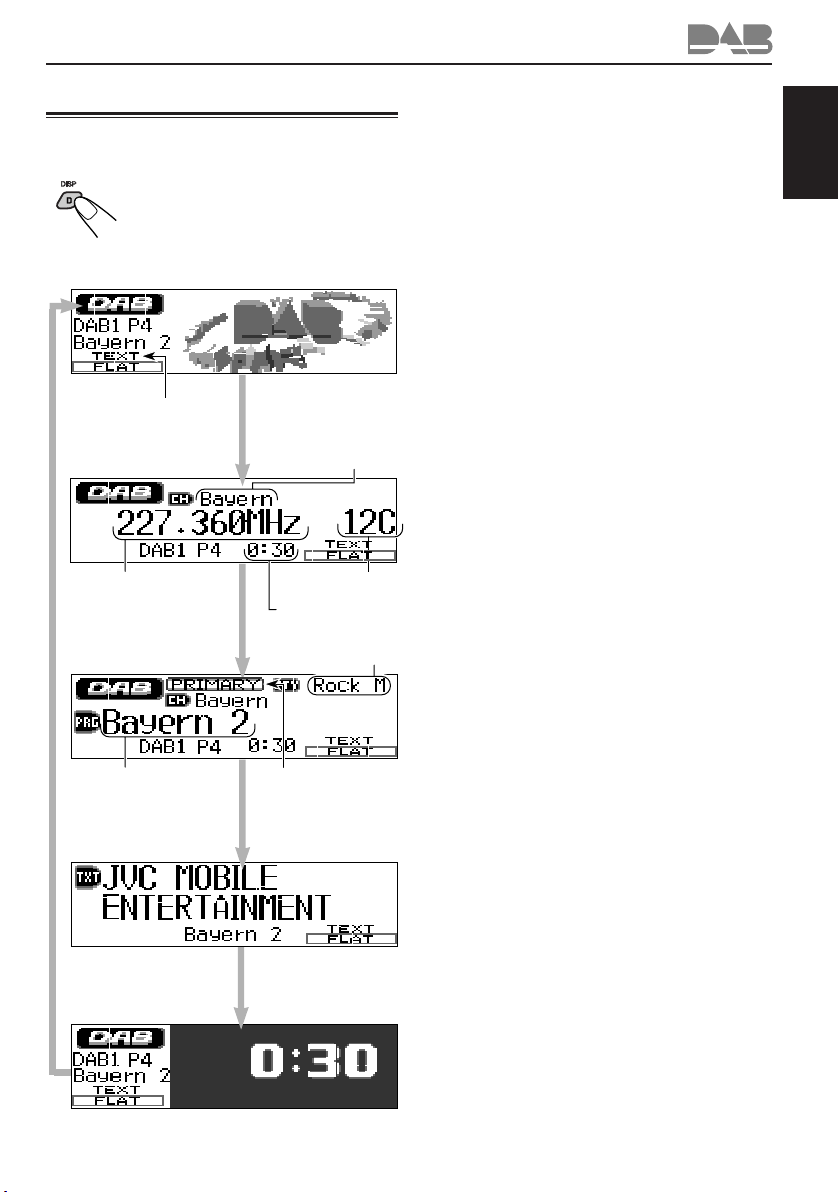

Changing the display pattern .................... 53

TROUBLESHOOTING...................... 54

MAINTENANCE ............................ 56

Handling discs ......................................... 56

SPECIFICATIONS .......................... 57

ENGLISH

CAUTION:

If the temperature inside the car is below 0˚C, the movement of source animation and text scroll will be halted on the display to prevent the display from being blurred.When the temperature increases, and the operating temperature is resumed, these functions will start working again.

Note:

For security reasons, a numbered ID card is provided with this unit, and the same ID number is imprinted on the unit’s chassis. Keep the card in a safe place, as it will help the authorities to identify your unit if stolen.

BEFORE USE

For safety....

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

Control panel

ENGLISH

LOCATION OF THE BUTTONS

1 2 3 4 5

1 (standby/on/attenuator) button 2 SEL (select) button 3 Control dial 4 Display window 5 Number buttons 6 Remote sensor 7 4 /¢ buttons 8 5 (up) button 9 0 (eject) button p ∞ (down) button q (control panel release) button w TP/PTY (T) (traffic programme/programme

type) button

6 7

2000

uytrewq

i ;o a

e DISP (D) (display) button

• Also functions as SSM buttons when pressed together with MODE (M) button.

r MODE (M) button

• Also functions as SSM buttons when pressed together with DISP (D) (display) button.

t FM/AM DAB button y CD/CD-CH button u EQ (equalizer) button i MO (monaural) button

o INT (intro) button ; RPT (repeat) button a RND (random) button

9 p

Remote controller

ATT

SOURCE

SOUND

3 • Selects the preset stations while listening to

the radio (or the DAB tuner). Each time you press the button, the preset station (or service) number increases, and the selected station(or service) is tuned in.

• Skips to the previous disc while listening to the CD changer. Each time you press the button, the disc number decreases, and the selected disc starts playing.

• Skips to the first file of the previous directory

while listening to an MP3 disc. Each time you press the button, you can move to the previous directory and start playing the first file.

ENGLISH

VOL

1 • Turns on the unit if pressed when the unit is

turned off.

• Turns off the unit if pressed and held for a few seconds.

• Drops the volume level in a moment if pressed briefly. Press again to resume the volume.

2 • Selects the band while listening to the radio

(or the DAB tuner). Each time you press the button, the band changes.

• Skips to the next disc while listening to the CD changer. Each time you press the button, the disc number increases, and the selected disc starts playing.

• Skips to the first file of the next directory

while listening to an MP3 disc. Each time you press the button, you can move to the next directory and start playing the first file.

4 Functions the same as the control dial on the

main unit.

NOTE:

These buttons do not function for the preferred setting mode adjustment.

5 Selects the sound (iEQ) mode.

Each time you press the button, the sound (iEQ) mode changes.

6 Selects the source.

Each time you press the button, the source changes.

7 • Searches for stations while listening to the

radio.

• Selects services while listening to the DAB tuner if pressed briefly.

• Searches for ensembles while listening to the DAB tuner if pressed for more than 1 second.

• Fast-forwards or reverses the track/file if pressed and held while listening to a disc.

• Skips to the beginning of the next track/file or goes back to the beginning of the current (or previous) tracks/files if pressed briefly while listening to a disc.

Preparing the remote controller

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the main unit. Make sure there is no

ENGLISH

obstacle in between.

3. Return the battery holder.

Insert again the battery holder pushing it until you hear a clicking sound.

Remote sensor

2000

• Do not expose the remote sensor to strong light (direct sunlight or artificial lighting).

Installing the battery

When the controllable range or effectiveness of the remote controller decreases, replace the battery.

1. Remove the battery holder.

1) Push out the battery holder in the direction indicated by the arrow using a ball-point pen or a similar tool.

2) Remove the battery holder.

(back side)

2. Place the battery.

Slide the battery into the holder with the + side facing upwards so that the battery is fixed in the holder.

(back side)

WARNING:

• Store the battery in a place where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.

• Do not recharge, short, disassemble or heat the battery or dispose of it in a fire. Doing any of these things may cause the battery to give off heat, crack or start a fire.

• Do not leave the battery with other metallic materials. Doing this may cause the battery to give off heat, crack or start a fire.

• When throwing away or saving the battery, wrap it in tape and insulate; otherwise, the battery may start to give off heat, crack or start a fire.

• Do not poke the battery with tweezers or similar tools. Doing this may cause the battery to give off heat, crack or start a fire.

Lithium coin battery (product number: CR2025)

CAUTION:

DO NOT leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time. Otherwise, it may be damaged.

BASIC OPERATIONS

2000

ENGLISH

Turning on the power

Turn on the power.

Note on One-Touch Operation:

When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power.

Select the source.

To operate the tuner (FM or AM),

see pages 9 – 19.

To play a CD,

see pages 20 – 23 .

To play an MP3 disc,

see pages 26 – 30.

To operate the CD changer,

see pages 44 – 47.

To operate the external component

(Line In), see page 48.

To operate the DAB tuner,

see pages 49 – 53.

CAUTION on Volume Setting:

Discs produce very little noise compared with other sources. If the volume level is adjusted for the tuner, for example, the speakers may be damaged by the sudden increase in the output level. Therefore, lower the volume before playing a disc and adjust it as required during playback.

Adjust the volume.

To increase the volume.

To decrease the volume.

Volume level appears

Adjust the sound as you want. (See pages 31 – 34.)

To drop the volume in a moment

Press briefly while listening to any source. “ATT ” starts flashing on the display, and the volume level will drop in a moment. To resume the previous volume level, press the button briefly again.

• If you turn the control dial, you can also restore the sound.

To turn off the power

Press for more than one second.

• If you turn off the power while listening to a disc, CD play will start from where playback

has been stopped previously, next time you turn on the power.

Note:

When you use this unit for the first time, set the built-in clock correctly, see page 35.

Changing the display pattern

You can change the display pattern. The number of the selectable display patterns varies according to the playback sources.

ENGLISH

However, the unit basically provides three main display patterns for each source, and once one of these three patterns is selected, the same pattern is used for all the sources.

Press DISP (D).

Each time you press the button, the display patterns change as follows:

EX.: When playing a CD

Large animation display

Small animation displays*

Clock time display

Cancelling the display demonstration

When shipped from the factory, display demonstration (MovieDemo) has been activated, and starts automatically when no operations are done for about 20 seconds.

• It is recommended to cancel the demonstration before you use the unit for the first time.

To cancel the display demonstration, follow the procedure below:

Press and hold SEL (select) for more than 2 seconds so that “MovieDemo” appears on the display. (see pages 36 and 37.)

Select “Off.”

* Small animation displays are used for showing

not only the source’s main information (illustrated on this page as examples), but also showing some other information. For details, see each related section.(For the DAB tuner, small animation display will show no animation.)

In this manual, the illustrations of the display are mainly of the large animation display (initial setting). If you have changed the display patterns or some PSM items, the actual displays you see will be different.

Note:

While playing a source, you can also show the level meter on the display. For details, see “Activating the level meter” on page 34.

Press SEL (select) to finish the setting.

To activate the display demonstration, repeat

the same procedure and select “Interval” or “All Time” in step 2.

• For more details, see “To set the movie demo— MovieDemo” on page 37.

RADIO OPERATIONS

Listening to the radio

You can use either automatic searching or manual searching to tune in to a particular station.

Searching for a station automatically: Auto search

Select the band (FM1 – 3, AM).

FM1 FM2 FM3 AM

2000

Start searching for a station.

ENGLISH

Press ¢ to search for stations of higher frequencies.

Press 4 to search for stations of lower frequencies.

Last received station of the selected band is tuned in.

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

Ex.: When the band is FM

When a station is received, searching stops.

To stop searching before a station is received,

press the same button you have pressed for searching.

Searching for a station manually: Manual search

Select the band (FM1 – 3, AM).

ENGLISH

When an FM stereo broadcast is hard to receive:

1 Press MODE (M) to enter the

functions mode while listening to an FM stereo broadcast. “Mode” appears on the display.

FM1 FM2 FM3 AM

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

Press and hold ¢ or 4 until “Manual Search” starts flashing on the display.

Tune in to a station you want while “Manual Search” is flashing.

Press ¢ to tune in to stations of higher frequencies.

Press 4 to tune in to stations of lower frequencies.

• If you release your finger from the button, the manual mode will automatically turn off after 5 seconds.

• If you hold down the button, the frequency keeps changing (in 50 kHz intervals for FM and 9 kHz intervals for AM—MW/LW) until you release the button.

2 Press MO (monaural), while

“Mode” is still on the display, so that the MO indicator is highlighted on the display. Each time you press MO, “Mono On” and “Mono Off” alternately appears.

MONO indicator

“STEREO” is lit when receiving an FM broadcast in stereo.

When the MONO indicator is lit on the display, the sound you hear becomes monaural but the reception will be improved.

If the sound quality decreases and the stereo effect is lost while listening to an FM station

In some areas, adjacent stations may interfere with each other. If this interference occurs, this unit can automatically reduce this interference noise (the initial setting when shipped from the factory). However, in this case, the sound quality will be degraded and the stereo effect will be also lost. If you do not want to degrade the sound quality and to lose the stereo effect, rather than to eliminate the interference noise, see “To change the FM tuner selectivity—IF Filter” on page 38.

MO indicator

Storing stations in memory

You can use one of the following two methods to store broadcasting stations in memory.

• Automatic preset of FM stations: SSM (Strongstation Sequential Memory)

• Manual preset of both FM and AM stations

FM station automatic preset: SSM

You can preset 6 local FM stations in each FM band (FM1, FM2 and FM3).

Select the FM band (FM1 – 3) you want to store FM stations into.

Each time you press the button, the band changes as follows:

FM1 FM2 FM3 AM

Press and hold both buttons for more than 2 seconds.

Manual preset

You can preset up to 6 stations in each band (FM1, FM2, FM3 and AM) manually.

Ex.: Storing an FM station of 88.3 MHz into the

preset number 1 of the FM1 band.

Select the band (FM1 – 3, AM) you want to store stations into (in this example, FM1).

Each time you press the button, the band changes as follows:

FM1 FM2 FM3 AM

Tune in to a station (in this example, of 88.3 MHz).

Press ¢ to tune in to stations of higher frequencies.

Press 4 to tune in to stations of lower frequencies.

ENGLISH

“–SSM–” appears, then disappears when automatic preset is over.

Local FM stations with the strongest signals are searched and stored automatically in the band number you have selected (FM1, FM2 or FM3). These stations are preset in the number buttons — No.1 (lowest frequency) to No.6 (highest frequency). When automatic preset is over, the station stored in number button 1 will be automatically tuned in.

Press and hold the number button (in this example, 1) for more than 2 seconds.

The display pattern automatically changes to the small animation display and the preset number flashes (then the previous display pattern resumes).

CONTINUED ON THE NEXT PAGE

Repeat the above procedure to store other stations into other preset numbers.

Note:

ENGLISH

A previously preset station is erased when a new station is stored in the same preset number.

Tuning in to a preset station

You can easily tune in to a preset station. Remember that you must store stations first. If you have not stored them yet, see “Storing stations in memory” on page 11.

Selecting a preset station directly

Select the band (FM1 – 3, AM).

FM1 FM2 FM3 AM

Select the number (1 – 6) for the preset station you want.

Selecting a preset station using the preset station list

If you forget what stations are stored in what preset numbers, you can check the preset station list, then select your desired station on the list.

Select the band (FM1 – 3, AM).

FM1 FM2 FM3 AM

Press and hold 5 (up) or ∞ (down) until the preset station list for the current band (FM1, FM2, FM3, or AM) appears on the display.

Notes:

• If one of FM band preset station lists (FM1, FM2, or FM3) is shown on the display, you can show the other lists by pressing 5 or ∞.

• If a preset station is an FM RDS station with PS signal, PS name will be shown instead of the station frequency.

Select the number (1 – 6) for the preset station you want.

Changing the display pattern

By pressing DISP (D), you can change the information shown on the display.

Each time you press the button, the display patterns change as follows:

ENGLISH

• When receiving an AM or FM non-RDS station

Large animation display

Small animation display

Clock time display

• When receiving an FM RDS station (see the following pages)

Large animation display

PS name

Small animation displays

PTY code appears

Clock time display

RDS OPERATIONS

What you can do with RDS

RDS (Radio Data System) allows FM stations to send an additional signal along with their regular

ENGLISH

programme signals. For example, the stations send their station names, as well as information about what type of programme they broadcast, such as sports or music, etc. Another advantage of RDS function is called “Enhanced Other Networks.” By using the Enhanced Other Networks data sent from a station, you can tune in to a different station of a different network broadcasting your favourite programme or traffic announcement while listening to another programme or to another source such as CD.

By receiving the RDS data, this unit can do the following:

• Tracing the same programme automatically (Network-Tracking Reception)

• Standby Reception of TA (Traffic Announcement) or your favourite programme

• PTY (Programme Type) search

• Programme search

• And some other functions

Tracing the same programme automatically (Network-Tracking Reception)

When driving in an area where FM reception is not good, the tuner built in this unit automatically tunes in to another RDS station, broadcasting the same programme with stronger signals. So, you can continue to listen to the same programme in its finest reception, no matter where you drive. Two types of the RDS data are used to make Network-Tracking Reception work correctly— PI (Programme Identification) and AF (Alternative Frequency). Without receiving these data correctly from the RDS station you are listening to, NetworkTracking Reception will not operate.

The same programme can be received on different frequencies.

Programme 1 broadcasting on frequency A

Programme 1 broadcasting on frequency B

Programme 1 broadcasting on frequency C

Programme 1 broadcasting on frequency E

Programme 1 broadcasting on frequency D

To use Network-Tracking Reception

You can select the different modes of networktracking reception to continue listening to the same programme in its finest reception. When shipped from the factory, “AF” is selected.

• AF: Network-Tracking Reception is activated with Regionalization set to “off.” With this setting, the unit switches to another station within the same network when the receiving signals from the current station become weak. (In this mode, the programme may differ from the one currently received.) The AF indicator lights up but the REG indicator does not.

• AF Reg: Network-Tracking Reception is activated with Regionalization set to “on.” With this setting, the unit switches to another station, within the same network, broadcasting the same programme when the receiving signals from the current station become weak. Both the AF indicator and the REG indicator light up.

• Off: Network-Tracking Reception is deactivated. Neither the AF indicator nor the REG indicator lights up.

AF indicator

Note:

If a DAB tuner is connected and Alternative Reception (for DAB services) is activated, Network-Tracking Reception is also activated (“AF”) automatically. On the other hand, Network-Tracking Reception cannot be deactivated without deactivating Alternative Reception. (See page 52.)

Press and hold SEL

REG indicator

(select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 36 and 37.)

Press 5 (up) or ∞ (down) repeatedly until “Tuner” is selected as the PSM category (it is shown on the left side of the display).

Select “AF-Regn’l (alternative frequency/ regionalization reception).”

Select the desired mode—“AF,” “AF Reg” or “Off.”

Finish the setting.

Using TA Standby Reception

TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from the current source (another FM station or CD and other connected components).

• TA Standby Reception will not work if you are listening

to an AM station.

TP indicator

Press TP/PTY (T) to activate TA Standby Reception. 7 When the current source is FM, the TP

indicator either lights up or flashes.

• If the TP indicator lights up, TA Standby Reception is activated. If a station starts broadcasting a traffic announcement, “Traffic Flash” appears on the display, and this unit automatically tunes in to the station. The volume changes to the preset TA volume level (see page 18) and the traffic announcement can be heard.

• If the TP indicator flashes, TA Standby Reception is not yet activated since the station being received does not provide the signals used for TA Standby Reception. To activate TA Standby Reception, you need to tune in to another station providing these signals. Press ¢ or 4 to search for such a station. When a station providing these signals is tuned in, the TP indicator stops flashing and remains lit. Now TA Standby Reception is activated.

7 When the current source is other than FM,

the TP indicator lights up. If a station starts broadcasting a traffic announcement, “Traffic Flash” appears on the display, and this unit automatically changes the source and tunes in to the station.

To deactivate the TA Standby Reception, press TP/PTY (T) again.

ENGLISH

Using PTY Standby Reception

PTY Standby Reception allows the unit to switch temporarily to your favourite programme (PTY: Programme Type) from the current source (another

ENGLISH

FM station, CD or other connected components).

• PTY Standby Reception will not work if you are

listening to an AM station.

You can select your favourite programme type for PTY Standby Reception. When shipped from the factory, PTY Standby Reception is turned off. (“Off” is selected for PTY Standby Reception.)

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 36 and 37.)

Press 5 (up) or ∞ (down) repeatedly until “Tuner” is selected as the PSM category (it is shown on the left side of the display).

Select “PTY Stnby (standby).”

Select one of the twenty-nine PTY codes. (See page 19.)

Selected code name appears on the display and is stored into memory.

Finish the setting.

PTY indicator

7 When the current source is FM, the PTY

indicator either lights up or flashes.

• If the PTY indicator lights up, PTY Standby Reception is activated. If a station starts broadcasting the selected PTY programme, this unit automatically tunes in to the station.

• If the PTY indicator flashes, PTY Standby Reception is not yet activated since the station being received does not provide the signals used for PTY Standby Reception. To activate PTY Standby Reception, you need to tune in to another station providing these signals. Press ¢ or 4 to search for such a station. When a station providing these signals is tuned in, the PTY indicator stops flashing and remains lit. Now PTY Standby Reception is activated.

7 When the current source is other than

FM, the PTY indicator lights up.

If a station starts broadcasting the selected PTY programme, this unit automatically changes the source and tunes in to the station.

To deactivate the PTY Standby Reception,

select “Off” in step 4 by turning the control dial. The PTY indicator disappears.

Searching for your favorite programme

You can search for any one of the PTY codes. In addition, you can store your 6 favourite programme types in the number buttons. When shipped from the factory, the following 6 programme types have been stored in the number buttons (1 to 6).

To search for your favorite programme type

Press and hold TP/PTY (T) for more than 2 seconds while listening to an FM station.

ENGLISH

POP M

Classics

Rock M Easy M

Affairs

Varied

To store your favorite programme types

Press and hold TP/PTY (T) for more than 2 seconds while listening to an FM station.

The last selected PTY code appears.

Select one of the twenty-nine PTY codes. (See page 19.)

Selected code name appears on the display.

Press and hold the number button for more than 2 seconds to store the PTY code selected into the preset number you want.

Preset number flashes for a while, and the selected PTY code is stored into the preset number.

The last selected PTY code appears.

Select one of the PTY codes.

Ex.: When “ROCK M” is selected

How to use the 5 (up) or ∞ (down) button

By pressing 5 or ∞ repeatedly, you can show the list of your preset PTY codes and all twenty-nine PTY codes (six PTY codes at a time). First, the list of your stored PTY codes appears, then all twenty-nine PTY codes (six PTY codes at a time) appears in sequence. Press the number button to select your desired PTY code on the list currently shown on the display.

Press and hold TP/PTY (T) for more than 2 seconds.

CONTINUED ON THE NEXT PAGE

Start PTY search for your favorite programme.

ENGLISH

• If there is a station broadcasting a programme of the same PTY code as you selected, that station is tuned in.

• If there is no station broadcasting a programme of the same PTY code as you selected, the station will not change.

Note:

In some areas, the PTY search will not work correctly.

Other convenient RDS functions and adjustments

Setting the TA volume level

You can preset the volume level for TA Standby Reception. When a traffic programme is received, the volume level automatically changes to the preset level.

• See also “Changing the general settings (PSM)” on page 35.

1 Press and hold SEL (select) for more than 2

seconds so that one of the PSM items appears on the display.

2 Press 5 (up) or ∞ (down) repeatedly until “Tuner”

is selected as the PSM category (it is shown on the left side of the display).

3 Press ¢ or 4 to select “TA Volume.” 4 Turn the control dial to set to the desired volume.

You can set it from “Volume 0” to “Volume 50.”

5 Press SEL (select) to finish the setting.

Automatic selection of the station when using the number buttons

Usually when you press the number button, the preset station is tuned in. However, when the preset station is an RDS station, something different will happen. If the signals from that preset station are not sufficient for good reception, this unit, using the AF data, tunes in to another frequency broadcasting the same programme as the original preset station is broadcasting. (Programme search)

• The unit takes some time to tune in to another station using Programme search.

To activate programme search, follow the procedure below.

• See also “Changing the general settings (PSM)” on page 35.

1 Press and hold SEL (select) for more than 2

seconds so that one of the PSM items appears on the display.

2 Press 5 (up) or ∞ (down) repeatedly until “Tuner”

is selected as the PSM category (it is shown on the left side of the display).

3 Press ¢ or 4 to select

“P(Programme)-Search.”

4 Turn the control dial clockwise to select “On.”

Now programme search is activated.

5 Press SEL (select) to finish the setting.

To cancel programme search, repeat the same

procedure and select “Off” in step 4 by turning the control dial counterclockwise.

Automatic clock adjustment

When shipped from the factory, the clock built in this unit is set to be readjusted automatically using the CT (Clock Time) data in the RDS signal. If you do not want to use automatic clock adjustment, follow the procedure below.

• See also “Changing the general settings (PSM)” on page 35.

1 Press and hold SEL (select) for more than 2

seconds so that one of the PSM items appears on the display.

2 Press 5 (up) or ∞ (down) repeatedly until “Clock”

is selected as the PSM category (it is shown on the left side of the display).

3 Press ¢ or 4 to select “Auto Adj

(adjustment).”

4 Turn the control dial counterclockwise to select

“Off.” Now automatic clock adjustment is canceled.

5 Press SEL (select) to finish the setting.

PTY codes

News: News Affairs: Topical programmes expanding on

current news or affairs

Info: Programmes which impart advice

on a wide variety of topics Sport: Sport events Educate: Educational programmes Drama: Radio plays Culture: Programmes on national or

regional culture Science: Programmes on natural science

and technology Varied: Other programmes like comedies

or ceremonies POP M: Pop music Rock M: Rock music Easy M: Easy-listening music Light M: Light music Classics: Classical music Other M: Other music Weather: Weather information Finance: Reports on commerce, trading, the

Stock Market, etc. Children: Entertainment programmes for

children

To reactivate clock adjustment, repeat the same procedure and select “On” in step 4 by turning the control dial clockwise.

Note:

You must stay tuned to the same station for more than 2 minutes after setting “Auto Adj” to “On.” Otherwise, the clock time will not be adjusted. (This is because the unit takes up to 2 minutes to capture the CT data in the RDS signal.)

Social: Programmes on social activities Religion: Programmes dealing with any

aspect of belief or faith, or the nature of existence or ethics

Phone In: Programmes where people can

express their views either by phone or in a public forum

Travel: Programmes about travel

destinations, package tours, and travel ideas and opportunities

Leisure: Programmes concerned with

recreational activities such as

gardening, cooking, fishing, etc. Jazz: Jazz music Country: Country music Nation M: Current popular music from another

nation or region, in that country’s

language Oldies: Classic pop music Folk M: Folk music Document: Programmes dealing with factual

matters, presented in an

investigative style

ENGLISH

CD OPERATIONS

2000

Playing a CD

Open the control panel.

Insert a disc into the loading slot.

The unit turns on, draws a disc and starts playback automatically.

Close the control panel by hand.

The opening display then source name

display appears first....

Total track number/Total playing time

Notes:

• When a disc is already in the loading slot, selecting “CD” as the source starts CD play.

• When a disc is inserted upside down, the disc

automatically ejects (if the control panel is open). If the control panel is closed, “Please Eject” appears.

• If you change the source, CD play also stops (without ejecting the disc). Next time you select “CD” as the source, CD play starts from where playback has been stopped previously.

To stop play and eject the disc

Press 0. CD play stops, the control panel opens, then the disc automatically ejects from the loading slot. If you change the source, the CD play also stops (without ejecting the disc this time).

Notes:

• If the ejected disc is not removed for about 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust. (CD play will not start this time.)

• You can eject the disc even when the unit is turned off.

Current track

Elapsed playing time

All tracks will be played repeatedly until you stop playback.

Locating a track or a particular portion on a CD

To fast-forward or reverse the track

Press and hold ¢ , while playing a disc, to fast-forward the track.

Selecting CD playback modes

To play back tracks at random (Random Play)

You can play back all tracks on the disc at random.

1 Press MODE (M) to enter the

functions mode while playing a disc. “Mode” appears on the display.

ENGLISH

Press and hold 4 , while playing a disc, to reverse the track.

To go to the next or previous tracks

Press ¢ briefly, while playing a disc, to go ahead to the beginning of the next track. Each time you press the button consecutively, the beginning of the next tracks is located and played back.

Press 4 briefly, while playing a disc, to go back to the beginning of the current track. Each time you press the button consecutively, the beginning of the previous tracks is located and played back.

To go to a particular track directly

2 Press RND (random), while

“Mode” is still on the display, so that the RND indicator is highlighted on the display. Each time you press RND, “Random On” or “Random Off” alternately appears.

RANDOM indicator

When Random Play is turned on, the RANDOM indicator lights up on the display and a track randomly selected starts playing.

RND indicator is highlighted when “Random On” is selected.

Press the number button corresponding to the track number to start its playback.

• To select a track number from 1 – 6: Press 1 (7) – 6 (12) briefly.

• To select a track number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than 1 second.

To play back tracks repeatedly (Repeat Play)

You can play back the current track repeatedly.

1 Press MODE (M) to enter the

ENGLISH

functions mode while playing a disc. “Mode” appears on the display.

2 Press RPT (repeat), while

“Mode” is still on the display, so that the RPT indicator is highlighted on the display. Each time you press RPT, “Repeat On” or “Repeat Off” alternately appears.

To play back only intros (Intro Scan)

You can play back the first 15 seconds of each track sequentially.

1 Press MODE (M) to enter the

functions mode while playing a disc. “Mode” appears on the display.

2 Press INT (intro), while “Mode”

is still on the display, so that the INT indicator is highlighted on the display.

Each time you press INT, “Intro On” or “Intro Off” alternately appears.

REPEAT indicator

When Repeat Play is turned on, the REPEAT indicator lights up on the display.

RPT indicator is highlighted when “Repeat On” is selected.

INTRO indicator

When Intro Scan is turned on, the INTRO indicator lights up on the display.

INT indicator is highlighted when “Intro On” is selected.

Prohibiting CD ejection

You can prohibit CD ejection and can lock a disc in the loading slot.

While pressing CD/CD-CH, press and hold

“No Eject” flashes on the display for about 5 seconds, and the disc is locked and cannot be ejected.

To cancel the prohibition and unlock the disc,

press again for more than 2 seconds, while pressing CD/CD-CH. “Eject OK” flashes on the display for about 5 seconds, and the disc is unlocked.

for more than 2 seconds.

Changing the display pattern

By pressing DISP (D), you can change the information shown on the display.

Each time you press the button, the display patterns change as follows:

ENGLISH

Large animation display

iEQ mode (see page 32)

Clock time display

Small animation display 1

Small animation display 2

Small animation display 3

Small animation display 4

Clock time

Notes:

• When the disc title/performer is shown, the DISC indicator lights up. When the track title is shown, the TR indicator lights up.

• If the information cannot be shown at a time, it will scroll on the display. Some characters or symbols will not be shown (will be blanked or substituted) on the display.

• If no name is assigned to the audio CD, “NO NAME” will appear. To assign a name to a conventional CD, see page 42.

• If no disc title/performer or no track title is recorded for the CD Text, “NO NAME” will appear.

MP3 INTRODUCTION

What is MP3?

MP3 is an abbreviation of Motion Picture Experts Group (or MPEG) Audio Layer 3. MP3 is simply a file format with a data compression ratio of 1:10

ENGLISH

(128 Kbps*). That means, by using MP3 format, one CD-R or CD-RW can contain 10 times as much data volume as a regular CD can.

Bit rate is the average number of bits that one second of audio data will consume. The unit used is Kbps (1000 bits/second). To get a better audio quality, choose a higher bit rate. The most popular bit rate for encoding is 128 Kbps.

This unit is incorporated with an MP3 decoder. You can play back MP3 files (tracks) recorded on CD-Rs, CD-RWs, and CD-ROMs.

Compatible with ID3v1

Extra information data such as album title, performer name, song title, recording year, music genre and a brief comment can be stored within an MP3 file.

This unit can show ID3v1 tags (album name, performer name and song title) on the display. (See page 57.)

• Some characters cannot be shown correctly.

• This unit is not compatible with ID3v2.

Other Main Features in this unit:

• Maximum number of directories/files: 289

• Available characters for directory/file names: A–Z, 0–9, _ (underscore)

• Maximum number of characters for file name

(ISO 9660 Level 1): 12 (inclusive of

separation mark—“.” and extension code—“mp3”)

(ISO 9660 Level 2): 31 (inclusive of

separation mark—“.” and extension code—“mp3”)

(Joliet): 64 (inclusive of

separation mark—“.” and extension code—“mp3”)

• Maximum number of characters for directory

name: 64

(Total)

Precautions when recording MP3 files on a CD-R or CD-RW

This unit can only read MP3 files that are recorded in the format that is compliant with ISO 9660 Level 1, Level 2 or Joliet.

How are MP3 files recorded and played back?

MP3 “files (tracks)” can be recorded in “directories (folders)”—in PC terminology.

During recording, the files and directories can be arranged in a way similar to arranging files and directories/folders of computer data. “Root” is similar to the root of a tree. Every file and directory can be linked to and be accessed from the root.

Playback order, file search order, and directory search order of the MP3 files recorded on a disc are determined by the writing (or encoding) application; therefore, playback order may be different from the one you have intended while recording the directories and the files.

The illustration on the next page shows an example of how MP3 files are recorded on a CD-R or CD-RW, how they are played back, and how they are searched for on this unit.

Notes:

• The unit can read a CD-ROM containing MP3 files. However, if non-MP3 files are recorded together with MP3 files, this unit will take a longer time to scan the disc. It may also cause the unit to malfunction.

• The unit cannot read or play an MP3 file without the extension code—mp3.

• This player is not compatible with the data encoded with Layer1 and Layer 2 formats.

• The unit is not compatible with Playlist**.

** A playlist is a simple text file, used on a PC, which enables

users to make their own playback order without physically rearranging the files.

MP3 directory/file configuration

Level 1

Level 2

Level 3

1 2

Hierarchy

Level 4

Level 5

Level 6

ROOT

3 4

: Root

5 6

ROOT

ENGLISH

05 09

1110 2120

06 07

1312

15 1614

2322 24

: Directories

: MP3 files

Note:

There is no limit on the number of the hierarchy levels (nested directories). However, it is recommended to limit the numbers of

hierarchy levels up to 8 for stable operations.

MP3 playback/search order

• The numbers in circles below the MP3 files ( ) indicate the playback order and search order of the MP3 files. Normally this unit plays back MP3 files in the recorded order.

• The numbers inside the directories indicate the playback order and search order of the directories on an MP3 disc. Normally this unit plays back MP3 files in the directories in the recorded order.

ENGLISH

MP3 OPERATIONS

2000

Refer also to “CD OPERATIONS” on pages 20 to 23.

Playing an MP3 disc

Open the control panel.

Insert an MP3 disc into the loading slot.

The unit draws the disc. Playback starts automatically from the first file of the first directory once disc check is completed.

Close the control panel by hand.

The display changes to show the following:

EX.:When the disc contains 13 directories and

125 MP3 files.

Current file (track)

Elapsed playing time

All the files (tracks) on the disc will be played repeatedly until you stop playback.

Notes:

• MP3 discs require a longer readout time. (It differs due to the complexity of the directory/file configuration.)

• If you change the source or turn the power off, MP3 playback stops (without ejecting the disc). Next time you select disc play as the source or turn the power on, MP3 playback starts from where playback has been stopped previously.

To stop play and eject the disc

Press 0. Playback stops, the control panel moves down, and the disc automatically ejects from the loading slot.

Selecting a directory

You can select a directory or skip to another directory easily.

ENGLISH

Locating a file or particular portion on an MP3 disc

To fast-forward or reverse the file

Press and hold ¢ while playing an MP3 disc, to fast-forward the file.

Press and hold 4 while playing an MP3 disc, to reverse the file.

Note:

During this operation, you can only hear intermittent sounds. (The elapsed playing time also changes intermittently on the display.)

To skip to the next or previous files

Press ¢ briefly while playing, to skip ahead to the beginning of the next file. Each time you press the button consecutively, the beginning of the next files is located and played back. (See “MP3 playback/search order” on page 25.)

Press 4 briefly, while playing, to skip back to the beginning of the current file. Each time you press the button consecutively, the beginning of the previous files is located and played back. (See “MP3 playback/search order” on page 25.)

To go to a particular directory directly

IMPORTANT:

To directly select the directories using the number button(s), it is required that directories are assigned 2 digit numbers at the beginning of their directory names. (This can only be done during the recording of CD-Rs or CD-RWs.) Ex.: If directory name is “01 ABC”

= press 1 to go to Directory 01 ABC.

If directory name is “1 ABC,” pressing 1 does not work.

If directory name is “12 ABC”

= press and hold 6 (12) to go to

Directory 12 ABC.

Press the number button corresponding to the directory number to start playing the first file in the selected directory.

• To select a directory number from 01 – 06: Press 1 (7) – 6 (12) briefly.

• To select a directory number from 07 – 12: Press and hold 1 (7) – 6 (12) for more than 1 second.

Notes:

• If “MP3” flashes on the display after you have selected a directory, it means that the directory does not contain any MP3 files.

• You cannot directly select a directory with a number greater than 12.

To select a particular file in a directory, press

¢ or 4 after selecting the directory.

To skip to the next directory

Press 5 (up) briefly while playing an MP3 disc. Each time you press the button

ENGLISH

consecutively, the next directory is located (and the first file in the directory starts playing, if recorded). (See

“MP3 playback/search order” on page 25.)

To skip to the previous directory

Press ∞ (down) briefly while playing an MP3 disc. Each time you press the button consecutively, the previous directory is located (and the first file in the directory starts playing, if recorded). (See

“MP3 playback/search order” on page 25.)

Note:

If the directory does not contain any MP3 files, it is skipped.

Find a directory you want to play.

Each time you press 5 or ∞, the directory name lists change.

Select the number (1 – 6) for the directory you want.

The first file in the selected directory starts playing.

Selecting MP3 playback modes

To select a directory on the list shown on the display

You can show the lists of directory names on the display (six names at a time), and can select a directory on the lists.

Press and hold 5 or ∞ so that the first list of the directory names (directory no.1 to no.6) appears on the display.

Note:

When a directory does not contain any MP3 files, it may take time to show the lists.

To play back files at random (Random Play)

You can play back all files on the MP3 disc at random.

1 Press MODE (M) to enter the

functions mode while playing an MP3 disc.

“Mode” appears on the display.

2 Press RND (random), while

“Mode” is still on the display, so that the RND indicator is highlighted on the display.

Each time you press RND, the random play mode changes as follows:

Random 1 Random 2

Random Off

RANDOM indicator

Ex.: When you select “Random 1.”

Mode

Random Highlighted All files of the current

Random Flashes All files on the disc.

When Random Play is turned on, the RANDOM indicator lights up or flashes on the display.

RND Indicator

1 directory, then the files of

(See the following table.)

Plays at randam

the next directory and so on.

RND indicator

Mode

Repeat Highlighted The current file (or

Repeat Flashes All files of the current

When Repeat Play is turned on, the REPEAT indicator lights up or flashes on the display.

RPT Indicator

1 specified file).

2 directory (or specified

Plays repeatedly

directory).

To play back only intros (Intro Scan)

You can play back the first 15 seconds of each file sequentially.

1 Press MODE (M) to enter the

functions mode while playing an MP3 disc.

“Mode” appears on the display.

ENGLISH

To play back files repeatedly (Repeat Play)

You can play back the current file or all the files in the current directory repeatedly.

1 Press MODE (M) to enter the

functions mode while playing an MP3 disc.

“Mode” appears on the display.

2 Press RPT (repeat) while “Mode”

is still on the display, so that the RPT indicator is highlighted on the display. Each time you press RPT, the repeat play mode changes as follows.

Repeat 1 Repeat 2

Repeat Off

REPEAT indicator

Ex.: When you select “Repeat 1.”

RPT indicator (See the following table.)

2 Press INT (intro), while “Mode” is

still on the display, so that the INT indicator is highlighted on the display. Each time you press INT, the intro scan mode changes as follows:

Intro 1 Intro 2

Intro Off

INTRO indicator

Ex.: When you select “Intro 1.”

Mode

Intro Highlighted Of all files on the disc.

Intro Flashes Of the first file of all

When Intro Scan is turned on, the INTRO indicator lights up or flashes on the display.

INT Indicator

2 directories.

INT indicator (See the following table.)

Plays the beginings

Changing the display pattern

By pressing DISP (D), you can change the information shown on the display.

ENGLISH

Each time you press the button, the display patterns change as follows :

Large animation display

iEQ mode (see page 32)

Clock time display

The above diagram shows the examples of the display when “ID3 Tag” is set to “Off.”

Small animation display1

Small animation display 2

Small animation display 3

Small animation display 4

Clock time

Notes:

• When the directory name is shown, the “Dir” indicator ( ) lights up. When the file name is shown, the

“File” indicator ( ) lights up.

• If the information cannot be shown at a time, it will scroll on the display.

Some characters or symbols cannot be shown (blanked or substituted) on the display.

• If “ID3 Tag” is set to “On” (see page 38) if a disc has an ID3 tag, ID3 tag information will appear on the display. The album name/performer appears on the display instead of the directory name, while track title appears instead of the file name.

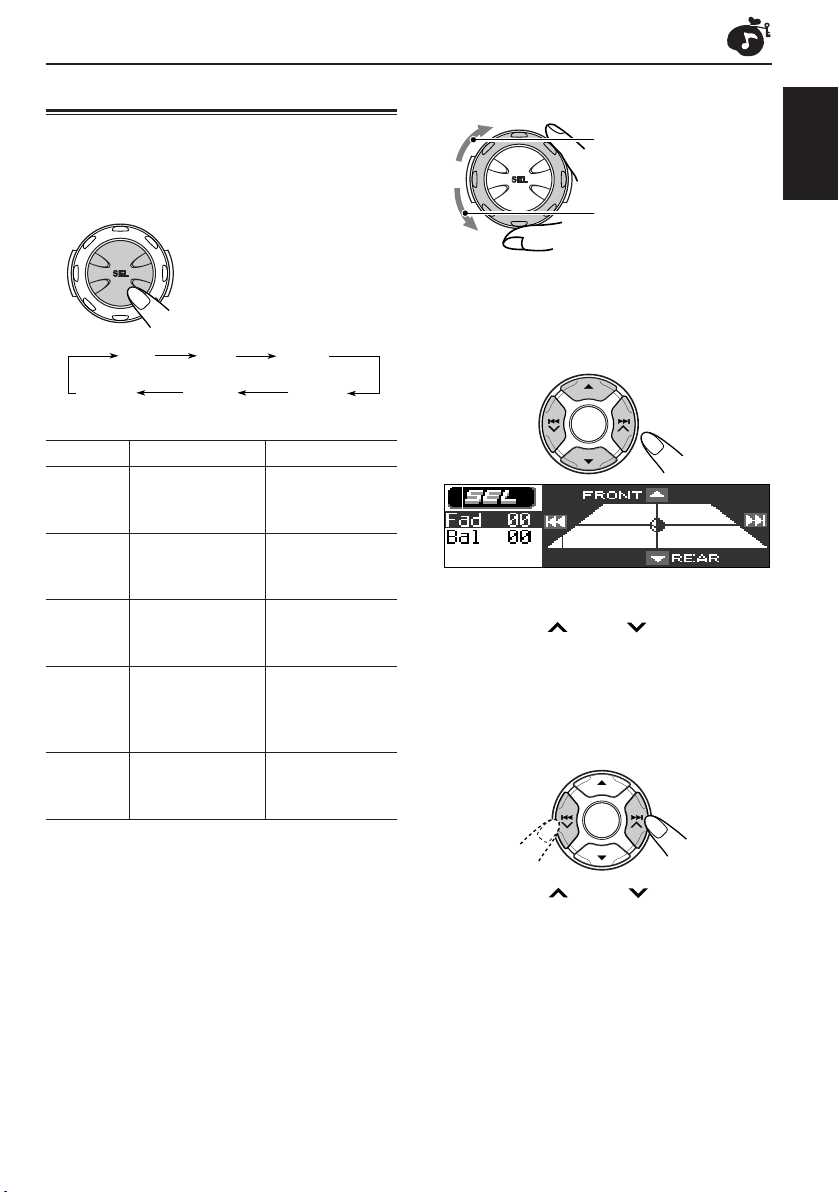

SOUND ADJUSTMENTS

Adjusting the sound

You can adjust the sound characteristics to your preference.

Select the item you want to adjust.

Each time you press the button, the adjustable items change as follows:

Fad

(Fader)

(Canceled)

Indication To do: Range

Fad*

Bal Adjust the left L06 (Left only)

S. Bass*2Adjust the bass. 00 (min.)

Sub Out*3Adjust the 00 (min.)

Vol Adj*4Adjust and store –12 (min.)

Adjust the front R06 (Rear only) and rear speaker | balance. F06 (Front only)

and right speaker | balance. R06 (Right only)

subwoofer output | level and cutoff 12 (max.) frequency level. Low/Mid/High

the input level | of each source. +12(max.)

Bal

(Balance)

Vol Adj

(Volume Adjustment)

S.Bass

(Super Bass)

Sub Out

(Subwoofer Output)

08 (max.)

Adjust the level.

To increase the level.

To decrease the level.

While adjusting fader and balance —Fad, Bal:

You can make these two adjustments at the same time, by referring to the indication on the display.

• Press 5 (up) or ∞ (down) to adjust the

fader.

• Press ¢ or 4 to adjust the

balance.

While adjusting subwoofer output —Sub Out:

You can also set an appropriate cutoff frequency level according to the subwoofer connected:

ENGLISH

*1If you are using a two-speaker system, set the fader

level to “00.”

*2The richness and fullness of the bass sound is

clearly maintained regardless of how low you set the volume.

*3This takes effect only when a subwoofer is

connected.

*4By adjusting the input level to match it to the FM

sound level, you will not need to adjust the volume level each time you change the source. This adjustment is memorized for each source except FM.

• Press ¢ or 4 to select “Low,”

“Mid,” or “High.”

Low: Frequencies higher than 50 Hz are

cut off to the subwoofer.

Mid: Frequencies higher than 80 Hz are

cut off to the subwoofer.

High: Frequencies higher than 115 Hz are

cut off to the subwoofer.

Selecting preset sound modes (iEQ: i-equalizer)

Storing your own sound adjustments

You can select a preset sound mode suitable to

ENGLISH

the music genre.

• There is a time limit in doing the following

procedure. If the setting is canceled before you finish, start from step 1 again.

Press MODE (M).

“Mode” appears on the display.

Press EQ (equalizer) while “Mode” is still on the display.

The last selected sound mode is called up.

Ex.: If you have selected “Flat” previously

Select the sound mode you want.

As you turn the control dial, the sound modes change as follows:

You can adjust the sound modes to your preference and store your own adjustments in memory (User 1, User 2 and User 3).

• There is a time limit in doing the following procedure. If the setting is canceled before you finish, start from step 1 again.

Press MODE (M).

“Mode” appears on the display.

Press EQ (equalizer) while “Mode” is still on the display.

Select the sound mode you want to adjust.

Flat O Hard Rock O R&B*O Pop O Jazz O Dance Music O Country O Reggae O Classic O User 1 O User 2 O User 3 O (back to the beginning)

* Rhythm and Blues

To cancel the sound mode, select “Flat” in step 3.

Note:

For details about the preset settings of each sound mode, see page 34.

Ex.: If you have selected “R & B”

Enter the sound adjustment mode.

The following sound mode adjustment screen appears on the display.

Make adjustments as you like, referring to the table “Sound adjustment items.”

Buttons used for adjustments

1) Press ¢ or 4 to select

the frequency band—Low, Mid, or High.

2) Turn the control dial to select the center frequency for the selected band.

3) Press 5 (up) or ∞ (down) to adjust the level of the selected band.

4) Press SEL (select) to enter the Q level (band width) adjustment mode for the selected band.

5) Turn the control dial to adjust the Q level for the selected band.

6) Repeat steps 1) to 5) to adjust the other frequency bands.

Exit from the sound adjustment mode.

The confirmation message appears—whether you want to store the adjustment.

Select one of the user sound modes (User 1, User 2, User 3).

Store the adjustment in the selected user sound mode.

Ex.:When you have selected “User1”

Sound adjustment items

Selectable values

Band

Center

frequency

(band width)

Level

Low Mid High

50 Hz 700 Hz 8 kHz 80 Hz 1 kHz 12 kHz 120 Hz 2 kHz

Q1 (min.) Q1 (min.)

| | (Fixed)

Q4 (max.) Q2 (max.)

–06 (min.) –06 (min.) –06 (min.)

|| |

+06 (max.) +06 (max.) +06 (max.)

ENGLISH

If you want to cancel the adjustments,

press any button other than SEL (select).

Activating the level meter

You can show the level meters on the display while playing any source. This unit is equipped with three level meter patterns.

ENGLISH

• There is a time limit in doing the following procedure. If the setting is canceled before you finish, start from step 1 again.

Level Meter 1:

The audio level meter fluctuates vertically.

Press MODE (M).

“Mode” appears on the display.

Press EQ (equalizer)

twice

while

Level Meter 2:

The speaker on the display vibrates as input audio level changes.

“Mode” is still on the display.

The last selected level meter appears on the display.

Level Meter 3:

Select the level meter pattern you want.

As you turn the control dial, the level meters change as follows:

Off

Level 1

Level 3 Level 2

The list below shows the preset value settings for each sound mode (see also page 32).

Sound modes

Flat 50 Hz Q1 +00 700 Hz Q1 +00 8 kHz +00

Hard Rock 80 Hz Q2 +03 700 Hz Q1 +00 8 kHz +02 R & B 80 Hz Q3 +03 2 kHz Q2 +01 12 kHz +03

Pop 120 Hz Q1 +02 2 kHz Q2 +01 12 kHz +02

Jazz 80 Hz Q1 +03 1 kHz Q1 +01 8 kHz +03

Dance Music Country 50 Hz Q4 +02 700 Hz Q1 +00 12 kHz +02

Reggae 80 Hz Q1 +03 2 kHz Q2 +02 12 kHz +02

Classic 120 Hz Q1 +03 1 kHz Q1 +00 8 kHz +02

User 1 50 Hz Q1 +00 700 Hz Q1 +00 8 kHz +00 User 2 50 Hz Q1 +00 700 Hz Q1 +00 8 kHz +00 User 3 50 Hz Q1 +00 700 Hz Q1 +00 8 kHz +00

C.Freq. Q (Width) Level C.Freq. Q (Width) Level C.Freq. Level

50 Hz Q2 +04 700 Hz Q1 –02 8 kHz +01

Low Mid High

The left and right audio level meters appear.

• If the small animation display is selected, only one audio level meter can be shown.

Preset values

OTHER MAIN FUNCTIONS

Changing the general settings (PSM)

You can change the items listed on the next page by using the PSM (Preferred Setting Mode) control.

• The PSM items are grouped into five categories—“Disp (display),” “Clock,” “Tuner,” “Color,” and “Audio.”

Basic Procedure

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (See pages 36 and 37.)

Press 5 (up) or ∞ (down) repeatedly until your desired PSM category appears on the left side of the display.

Select the PSM item you want to adjust.

Adjust the PSM item selected.

Repeat steps 2 to 4 to adjust the other PSM items if necessary.

Finish the setting.

To set clock—Clock Hr, Clock Min, 24H/12H

You can set the clock using the PSM control.

• You can select either 12-hour system or 24hour system.

1 Press and hold SEL (select) for more than 2

seconds so that one of the PSM items appears on the display.

2 Press 5 (up) or ∞ (down) repeatedly until “Clock”

is selected as the PSM category (it is shown on the left side of the display).

3 Press ¢ or 4 to select “Clock Hr

(hour).”

4 Turn the control dial to adjust the hour. 5 Press ¢ or 4 to select “Clock Min

(minute).”

6 Turn the control dial to adjust the minute. 7 Press ¢ or 4 to select “24H/12H.” 8 Turn the control dial to select either “24Hours”

or “12Hours.”

9 Press SEL (select) to finish the setting.

ENGLISH

Preferred Setting Mode (PSM) items

The PSM items are grouped into five categories—“Disp (display),” “Clock,” “Tuner,” “Color,” and “Audio.” To select a desired item, first select the category where the desired item is listed.

ENGLISH

Indications Selectable values

MovieDemo Movie demo Interval 8, 37

SRC Anime On Off On 37

Source animation

Scroll Scroll mode Once 37

Dimmer Dimmer mode Auto 37

Contrast Contrast 1 —10 5 38

Disp (display)

LCD Type Display type Positive 38

Interval

Once

Auto

Positive

All Time

Auto

Off

Negative

Auto

Factory-preset

settings

Off

Font Type Font type 1 2 1 38

ID3 Tag ID3 Tag display On Off On 38

Clock Hr Hour adjustment 0 —12 (24) 0 (0:00) 35

Clock Min Minute adjustment 00 —59 00 (0:00) 35

24H/12H 24/12-hour time display 12Hours 24Hours 24Hours 35

Clock

Auto Adj Automatic clock setting On Off On 19

PTY Stnby PTY standby Off 16

AF-Regn’l AF 15

Alternate frequency/

Off

Regionalization reception

29 programme types

(see page 19)

Off

AF Reg

See

page

TA Volume Volume 0 — Volume 50 Volume 20 18

Traffic announcement volume

P-Search Programme search On Off Off 18

Tuner

IF Filter Auto Wide Auto 38

Intermediate frequency filter

DAB AF*

Alternative frequency

On Off On 52

*1Displayed only when “DAB AF” is set to “Off.” *2Displayed only when the DAB tuner is connected.

Indications

Mode Color mode Source 39

Source*3Source color selection See page 39 for details AllSource 39

AllSource*

User*

Color

Red*5Red 0 — +11

Green*5Green 0 — +11

Blue*5Blue 0 — +11

Beep Key-touch tone On Off On 38

Ext Input*6External component Changer Line In Changer 38

Audio

Telephone Telephone muting Off 38

(Selected source) See page 39 for details Every 39

User color selection Day Night Day 41

Selectable values

Source

Off

Muting 2

User

Muting 1

Factory-preset

settings

Day:+7 / Night:+5

See

page

ENGLISH

*3Displayed only when “Mode” is set to “Source.” *4What appears actually here—source name—varies

according to the “Source” setting.

To set the movie demo—MovieDemo

When shipped from the factory, the movie demo has been activated (“Interval” is selected).

• Interval: If no operation is done for about 20 seconds, the movie demo and playback source indication alternately appears on the display.

• All Time: If no operation is done for about 20 seconds, the movie demo automatically starts.

• Off: Cancels the movie demo.

To set the source animation on the display— SRC Anime

When changing the source, the display shows the source animation. If you do not want this animation, you can turn it off.

• On: The source animation appears just after you change the source.

• Off: Cancels the source animation.

To select the scroll mode for disc information and the DAB text—Scroll

You can select the scroll mode for disc information and for the DAB radio text (DLS: Dynamic Label Segment).

*5Displayed only when “Mode” is set to “User.” *6Displayed only when one of the following sources

is selected – FM, AM and CD.

• Once: While showing the disc information: scrolls the disc information only once. While showing the DAB text: scrolls

• Auto: While showing the disc information:

• Off: While showing the disc information:

the detailed DAB text only once.

repeats the scroll (in 5-second intervals). While showing the DAB text: scrolls the detailed DAB text.

cancels scroll mode. While showing the DAB text: shows only headline if any.

To select the dimmer mode—Dimmer

When you turn on the car headlights, the display automatically dims (Auto Dimmer). When shipped from the factory, Auto Dimmer mode is activated.

• Auto: Activates Auto Dimmer.

• Off: Cancels Auto Dimmer.

• On: Always dims the display.

Note:

Auto Dimmer equipped for this unit may not work correctly on some vehicles, particularly on those having a control dial for dimming. In this case, set the dimmer mode to “On” or “Off.”

CONTINUED ON THE NEXT PAGE

To adjust the display contrast level— Contrast

You can adjust the display contrast level among 1 (dark) to 10 (bright).

ENGLISH

To select the display illumination pattern—LCD Type

You can select the display illumination patterns according to your preference.

• Auto: Positive pattern will be selected during the day time (while the headlights are turned off); on the other hand, negative pattern will be used during the night time (while the headlights are turned on.)

• Positive: Positive (normal) pattern of the display.

• Negative: Negative pattern of the display.

To select the font on the display—Font Type

You can change the font types used on the display. Select either “1” or “2” according to your preference.

To turn the tag display on or off—ID3 Tag

An MP3 file can contain file information called “ID3 Tag” where its album name, performer, track title, etc. are recorded. There are two versions–ID3v1 (ID3 Tag version 1) and ID3v2 (ID3 Tag version 2). This unit is compatible only with ID3v1.

• On: Turns on the ID3 tag display while playing

MP3 files. * If an MP3 file does not have ID3 tags,

directory name and file name appear.

Note:

If you change the setting from“Off” to “On” while playing an MP3 file, the tag display will be activated when the next file starts playing.

• Off: Turns off the ID3 tag display while playing

MP3 files. (Only the directory name and file name can be shown.)

To change the FM tuner selectivity— IF Filter

In some areas, adjacent stations may interfere with each other. If this interference occurs, noise may be heard.

• Auto: When this type of interference occurs, this unit automatically increases the tuner selectivity so that interference noise will be reduced. (But the stereo effect will also be lost.)

• Wide: Subject to the interference from adjacent stations, but sound quality will not be degraded and the stereo effect will not be lost.

To turn on/off the key-touch tone—Beep

You can deactivate the key-touch tone if you do not want it to beep each time you press a button.

• On: Activates the key-touch tone.

• Off: Deactivates the key-touch tone.

To select the external component to use— Ext Input

You can connect the external component to the CD changer jack on the rear using the Line Input Adaptor KS-U57 (not supplied). To use the external component as the playback source through this unit, you need to select which component—CD changer or external component

—to use.

• Changer: To use the CD changer.

• Line In: To use the external component other

than CD changer.

Note:

For connecting the Line Input Adaptor KS-U57 and the external component, refer to the Installation/Connection Manual (separate volume).

To select the telephone muting—Telephone

This mode is used when a cellular phone system is connected. Depending on the phone system used, select either “Muting 1” or “Muting 2,” whichever mutes the sounds from this unit. When shipped from the factory, this mode is deactivated.

• Muting 1: Selects this if this setting can mute

the sounds.

• Muting 2: Selects this if this setting can mute

the sounds.

• Off: Cancels the telephone muting.

Changing the display color

You can set the display color using the PSM control. By selecting “Source” as the “Mode”

(color mode) setting, you can select your favorite

color for each source (or for all sources).

Note:

When selecting “User” as the “Mode” setting, you can adjust and store your own colors as you like. See page 40.

Select “Mode.”

ENGLISH

Setting the desired color for each source—Source

Once you have set the color for each source (or for all sources), the display illuminates in the selected color when the source is selected.

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (See pages 36 and 37.)

Press 5 (up) or ∞ (down) repeatedly until “Color” appears as the PSM category on the left side of the display.

Currently selected setting for “Mode”

Select “Source” as the “Mode” (color mode) setting.

As you turn the control dial, the “Mode” settings alternate between “Source” and “User.”

Source User

Enter the source selecting mode.

Currently selected setting for “Source”

CONTINUED ON THE NEXT PAGE

Select the source that you want to set the display color for.

As you turn the control dial, the source names change as follows:

ENGLISH

Repeat steps 5 to 8 to select the color for each source (except when selecting “AllSource” in step 6).

Finish the setting.

DAB

Changer (Line In)

AllSource CD

*1When you select “AllSource,” you can use the

same color for all sources.

*2Selected only when these components are

connected.

Enter the color selecting mode.

Select the display color.

As you turn the control dial, the colors change as follows:

Every*1 O Aqua O Sky O Sea O Leaves O Grass O Rose O Cherry O Orange O Honey O Violet O Grape O

Snow O User

O (back to the beginning)

Selecting or adjusting your own color— User

You can adjust and store your own colors—“Day” and “Night,” and select one of them as the display color for any desired source.

• Day: Can be used as your user color during

• Night: Can be used as your user color during

the day time (while the headlights are turned off).

the night time (while the headlights are turned on.)

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (See pages 36 and 37.)

Press 5 (up) or ∞ (down) repeatedly until “Color” appears as the PSM category on the left side of the display.

*1 When you select “Every,” the color changes

every two seconds (changing to every color listed above except “User.”)

*2 When you select “User,” one of the original

colors—“Day” or “Night” can be selected depending on the “User” setting.

Select “Mode.”

Select “User” as the “Mode” (color mode) setting.

• If you want to select the user color, but do not need to adjust the color, go to step 9 to finish the setting.

• If you want to adjust the user color, go to the next step.

Adjust the user color.

1) Press ¢

one of three primary colors— “Red” “Green,” and “Blue.”

or 4 to select

ENGLISH

Select “User.”

Select either “Day” or “Night” as your user color.

As you turn the control dial, the user color alternates between “Day” and “Night.”

Red Green

User

(Back to step 5 above)

2) Turn the control dial to adjust the selected primary color.

You can adjust within the range of 0 to +11.

3) Repeat steps 1) and 2) to adjust the other primary colors.

Repeat steps 6 and 7 to adjust the other user color—“Day” or “Night.”

Finish the setting.

Note:

To use the color adjusted in this procedure, select

“User” in the step 8 (“Select the display color”) of “Setting the desired color for each source —Source.”

(See page 40.)

Blue

Mode

(Back to step 3 above)

Assigning names to the sources

You can assign names to discs (both in this unit and in the CD changer) and the external component.

ENGLISH

After assigning a name, it will appear on the display when you select the source.

Select a character.

• About the available characters, see page 57.

Sources Maximum number of

CDs* up to 32 characters

External component up to 8 characters

* You cannot assign a name to a CD Text or an MP3 disc.

Select a source you want to assign a

characters

(up to 40 discs)

name to.

When you select a source, the power automatically comes on.

Press and hold SEL (select) for more than 2 seconds while pressing DISP (D).

Ex.: When you select CD as the source

Select the character set you want while the first character position is flashing.

Each time you press the button, the character set changes as follows:

A – Z

(capital)

Accented letters

(small)

a – z

(small)

1 – 0 & Symbols

(numbers)

Accented letters

(capital)

Move the cursor to the next (or previous) character position.

Repeat steps 3 to 5 until you finish entering the name.

Finish the procedure while the last selected character is flashing.

To erase the entered characters

Insert spaces using the same procedure described above. (About the available characters,

see page 57.)

Notes:

• When you try to assign a name to the 41st disc, you cannot enter the text entry mode (and will hear a beep sound if “Beep” has been set to “On”:see page 38). (In this case, delete unwanted names before assignment.)

• When the CD changer is connected, you can assign names to discs in the CD changer. These names can also be shown on the display if you insert the discs in this unit.

Detaching the control panel

You can detach the control panel when leaving the car. When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder.

Detaching the control panel

Before detaching the control panel, be sure to turn off the power.

Unlock the control panel.

Pull the control panel out of the unit.

Attaching the control panel

Insert the right side of the control panel into the groove on the panel holder.

Press the left side of the control panel to fix it to the panel holder.

Note on cleaning the connectors:

If you frequently detach the control panel, the connectors will deteriorate. To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

ENGLISH

Put the detached control panel into the provided case.

Connectors

ENGLISH

CD CHANGER OPERATIONS

”

2000

We recommend that you use one of the CH-X series with your unit. If you have another JVC CD automatic changer, consult your JVC IN-CAR ENTERTAINMENT dealer for connections.

• For example, if your CD automatic changer is one of the KD-MK series, you need a cord (KS-U15K) for connecting it to this unit.

Before operating your CD automatic changer:

• Refer also to the Instructions supplied with your CD changer.

• If no discs are in the magazine of the CD changer or the discs are inserted upside down, “No Disc” will flash on the display. If this happens, remove the magazine and set the discs correctly.

• If “Reset 1” – “Reset 8” flashes on the display, something is wrong with the connection between this unit and the CD changer. If this happens, check the connection and make sure the cords are connected firmly. Then, press the reset button of the CD changer.

Playing CDs

Select the CD automatic changer (CD-CH).

CD-CH*

* If you have changed the “Ext Input” setting to

“Line In” (see page 38), you cannot select the

CD changer.

Playback starts from the first track of the first disc. All tracks of all discs are played back.

Current disc and track no.

Elapsed playing time

Note on One-Touch Operation:

When you press CD/CD-CH, the power automatically turns on. You do not have to press to turn on the power.

To change the information shown on the display

Press DISP (D) repeatedly. For details, see “Changing the display patten” on page 23.

Note:

If you change the source or turn off the unit, CD play also stops. Next time you select “CD-CH” as the source, CD play starts from where playback has been stopped previously.

Locating a track or a particular portion on a CD

To fast-forward or reverse the track

Press and hold ¢ , while playing a disc, to fast-forward the track.

Press and hold 4 , while playing a disc, to reverse the track.

To go to the next track or the previous tracks

Press ¢ while playing a disc, to go ahead to the beginning of the next track. Each time you press the button consecutively, the beginning of the next tracks is located and played back.

Press 4 briefly, while playing a disc, to go back to the beginning of the current track. Each time you press the button consecutively, the beginning of the previous tracks is located and played back.

briefly,

Selecting a disc

To go to a particular disc directly

Press the number button corresponding to the disc number to start its playback (while the CD changer is playing).

• To select a disc number from 1 – 6: Press 1 (7) – 6 (12) briefly.

• To select a disc number from 7 – 12: Press and hold 1 (7) – 6 (12) for more than 1 second.

To go to the next discs or the previous discs

Press 5 (up), while playing a disc, to go to the next disc. Each time you press the button consecutively, the first track of the next disc is located and played back.

Press ∞ (down) while playing a disc, to go back to the previous disc. Each time you press the button consecutively, the first track of the previous disc is located and played back.

ENGLISH

To select a disc using the disc lists

If you forget what discs are loaded in the CD changer, you can show the disc title list and select a disc on the list shown on the display.

• The display can show only six disc names at a

ENGLISH

time.

While playing a CD, press and hold 5 (up) or ∞ (down) until a disc name list appears on the display.

Note:

If a disc has an assigned disc name, it will be shown on the display. However, if the disc has not been played before, its disc number will appear.

Press 5 or ∞ to show the other disc name list, if necessary.

Selecting CD playback modes

To play back tracks at random (Random Play)

You can play back the tracks at random.

1 Press MODE (M) to enter the

functions mode while playing a disc. “Mode” appears on the display.

2 Press RND (random), while

“Mode” is still on the display, so that the RND indicator is highlighted on the display. Each time you press RND, the random play mode changes as follows:

Random 1 Random 2

Random Off

RANDOM indicator

Ex.: When you select “Random 1.”

Mode

Random Highlighted All tracks of the current

Random Flashes All tracks of all discs

RND Indicator

1 disc, then the tracks of

2 inserted in the magazine.

(See the following table.)

Plays at random

the next disc and so on.

RND indicator

Select the number (1 – 6) for the disc you want to play.

When Random Play is turned on, the RANDOM indicator lights up or flashes on the display.

To play back tracks repeatedly (Repeat Play)

You can play back the current track or the tracks on the current disc repeatedly.

To play back only intros (Intro Scan)

You can play back the first 15 seconds of each track sequentially.

1 Press MODE (M) to enter the

functions mode while playing a disc. “Mode” appears on the display.

2 Press RPT (repeat), while “Mode”

is still on the display, so that the RPT indicator is highlighted on the display. Each time you press RPT, the repeat play mode changes as follows:

Repeat 1 Repeat 2

Repeat Off

REPEAT indicator

Ex.: When you select “Repeat 1.”

Mode

Repeat Highlighted The current track

Repeat Flashes All tracks of the current

When Repeat Play is turned on, the REPEAT indicator lights up or flashes on the display.

RPT Indicator

1 (or specified track).

2 disc (or specified disc).

RPT indicator (See the following table.)

Plays repeatedly

1 Press MODE (M) to enter the

functions mode while playing a disc. “Mode” appears on the display.

2 Press INT (intro), while “Mode” is

still on the display, so that the INT indicator is highlighted on the display. Each time you press INT, the intro scan mode changes as follows:

Intro 1 Intro 2

Intro Off

INTRO indicator

Ex.: When you select “Intro 1.”

Mode

Intro Flashes Of the first track on each

When Intro Scan is turned on, the INTRO indicator lights up or flashes on the display.

INT Indicator

Intro Highlighted Of all tracks on

1 all inserted discs.

2 inserted disc.

INT indicator (See the following table.)

Plays the beginnings

ENGLISH

EXTERNAL COMPONENT OPERATIONS

2000

Aux input

Playing an external component

You can connect the external component to the CD changer jack on the rear using the Line Input Adaptor KS-U57 (not supplied).

Preparations:

• For connecting the Line Input Adaptor KS-U57 and the external component, refer to the Installation/ Connection Manual (separate volume).

• Before operating the external component using the following procedure, select the external input correctly. (See “To select the external component to use—Ext Input” on page 38.)

Select the external component (Line In).

Line In

* If “Line In” does not appear on the display,

see page 38 and select the external input (“Line In”).

* Displayed only when one of the following

sources is selected—FM, AM and CD.

Turn on the connected component and start playing the source.

Adjust the volume.

Adjust the sound as you want. (See pages 31 – 34.)

Note on One-Touch Operation:

When you press CD/CD-CH, the power automatically comes on. You do not have to press

to turn on the power.

DAB TUNER OPERATIONS

FM/AMDAB

2000

ENGLISH

We recommend that you use DAB (Digital Audio Broadcasting) tuner KT-DB1500 with your unit. If you have another DAB tuner, consult your JVC IN-CAR ENTERTAINMENT dealer.

• Refer also to the Instructions supplied with your DAB tuner.

What is DAB system?

DAB is one of the digital radio broadcasting systems available today. It can deliver CD quality sound without any annoying interference and signal distortion. Furthermore, it can carry text, pictures and data. In contrast to FM broadcast, where each programme is transmitted on its own frequency, DAB combines several programmes (called “services”) to form one “ensemble.” In addition, each “service”—called “primary service”—can also be divided into its components (called “secondary service”).

With the DAB tuner connected with this unit, you can enjoy these DAB services.

Note:

When reception switches between DAB and FM, the listening volume level may increase or decrease inconveniently. This change in the volume level results from unequal audio injection levels at broadcaster site, but not from the malfunction of this unit. To prevent this inconvenience, you can adjust the DAB input level (see page 31).

Tuning in to an ensemble and one of the services

A typical ensemble has 6 or more programmes (services) broadcast at the same time. After tuning in to an ensemble, you can select a service you want to listen to.

Before you start....

Press FM/AM DAB briefly if CD, CD changer or external component is the current source.

Select the DAB tuner.

Each time you press and hold the button, the DAB tuner and the FM/AM tuner are alternately selected.

Last received service of the selected band is tuned in.

Select the DAB band (DAB1, DAB2 or DAB3).

Each time you press the button, the DAB band changes as follows:

DAB1 DAB2 DAB3

Note:

This receiver has three DAB bands (DAB1, DAB2, DAB3). You can use any one of them to tune in to an ensemble.

Start searching for an ensemble.

Press ¢ to search for

ENGLISH

When an ensemble is received, searching stops.

To stop searching before an ensemble is received, press the same button you have

pressed for searching.

Select a service (either primary or

ensembles of higher frequencies.

Press 4 to search for ensembles of lower frequencies.

secondary) you want to listen to.

Press 5 (up) to select the next service. (If a primary service has some secondary services, they are selected before the next primary service is selected.)

To restore the FM/AM tuner

Press and hold FM/AM DAB again.

Storing DAB services in memory

You can preset up to 6 DAB services in each DAB band (DAB1, DAB2 and DAB3) manually.

Select the DAB tuner.

Each time you press and hold the button, the DAB tuner and the FM/AM tuner are alternately selected.

FM/AMDAB

Select the DAB band (DAB1, DAB2 or DAB3) you want.

Each time you press the button, the DAB band changes as follows:

DAB1 DAB2 DAB3

Press ∞ (down) to select the previous service (either primary or secondary).

To tune in to a particular ensemble without searching:

1 Press and hold FM/AM DAB to select DAB

tuner as the source.

2 Press FM/AM DAB repeatedly to select the

DAB band (DAB1, DAB2 or DAB3).

3 Press and hold ¢ or 4 for more

than 1 second.

4 Press ¢ or 4 repeatedly until the

ensemble you want is reached.

• If you hold down the button, the frequency keeps changing until you release the button.

5 Press 5 (up) or ∞ (down) to select a service

(either primary or secondary) you want to listen to.

Tune in to an ensemble you want.

Select a service of the ensemble you want.

Press 5 (up) to select the next service.

Press ∞ (down) to select the previous service.

FM/AMDAB

Press and hold the number button (in this example, 1) you want to store the selected service into for more than 2 seconds.

The display pattern automatically changes to the non-animation display and the preset number flashes (then the previous display pattern resumes).

Repeat the above procedure to store other DAB services into other preset numbers.

Notes:

• You can only preset primary DAB services. If you store a secondary service, its primary service will be stored instead.

• A previously preset DAB service is erased when a new DAB service is stored in the same preset number.

Tuning in to a preset DAB service

You can easily tune in to a preset DAB service. Remember that you must store services first. If you have not stored them yet, see page 50.

Selecting a preset service directly

Select the DAB tuner.

Each time you press and hold the button, the DAB tuner and the FM/AM tuner are alternately selected.

Select the DAB band (DAB1, DAB2 or DAB3) you want.

Each time you press the button, the DAB band changes as follows:

DAB1 DAB2 DAB3

Select the number (1 – 6) for the preset DAB service (primary) you want.

ENGLISH

Note:

If the selected primary service has some secondary services, pressing the same number button repeatedly will tune in to the secondary services.

Selecting a preset service using the preset service list

If you forget what services are stored in what preset number, you can check the preset service

ENGLISH

list, then select your desired service on the list.

Select the DAB tuner.

Each time you press and hold the button, the DAB tuner and the FM/AM tuner are alternately selected.

FM/AMDAB

Select the DAB band (DAB1, DAB2 or DAB3) you want.

Each time you press the button, the DAB band changes as follows:

DAB1 DAB2 DAB3

Press and hold 5 (up) or ∞ (down) until the preset service list for the current band (DAB1, DAB2, or DAB3) appears on the display.

If necessary, press 5 (up) or ∞ (down) until the preset service list you want (DAB1, DAB2, or DAB3) appears on the display.

Select the number (1 – 6) for the preset service you want.

What you can do more with DAB

Tracing the same program automatically (Alternative Reception)

You can keep listening to the same program.

• While receiving a DAB service:

When driving in an area where a service cannot be received, this unit automatically tunes in to another ensemble or FM RDS station, broadcasting the same program.

• While receiving an FM RDS station:

When driving in an area where a DAB service is broadcasting the same program as the FM RDS station is broadcasting, this unit automatically tunes in to the DAB service.

To use Alternative Reception

When shipped from the factory, Alternative Reception is activated.

• See also “Changing the general settings (PSM)” on page 35.

1 Press and hold SEL (select) for more than 2

seconds so that one of the PSM items appears on the display.

2 Press 5 (up) or ∞ (down) repeatedly until “Tuner”

is selected as the PSM category (it is shown on the left side of the display).

3 Press ¢ or 4 to select “DAB AF”

(alternative frequency).

4 Turn the control dial to select the desired

mode.

• On: Traces the program among DAB

services and FM RDS stations — Alternative Reception. The AF indicator lights up on the display (see page 14).

• Off: Deactivates Alternative Reception.

Note:

When Alternative Reception (for DAB services) is activated, Network-Tracking Reception (for RDS stations: see page 14) is also activated automatically. On the other hand, Network-Tracking Reception cannot be deactivated without deactivating Alternative Reception.

5 Press SEL (select) to finish the setting.

Changing the display pattern

By pressing DISP (D), you can change the information shown on the display.

Display patten 1 (Large animation display)

Each time you press the button, the display patterns change as follows:

Text indicator*

ENGLISH

*1 TEXT indicator: implies the current service received

is providing DLS (Dynamic Label Segment—DAB radio text information).

*2 Primary/Secondary indicators: implies the current

service received is either primary or secondary service.

Display pattern 2

Frequency

Display pattern 3

Service name

Display pattern 4*

Display pattern 5 (Clock time display)

Ensemble name

*3 Each service can have several PTY codes. If a

service have several PTY codes, they will be shown in turn.

*4Dynamic Label Segment (DLS) will be displayed.

See “To select the display mode for disc information and the DAB text—Scroll” on page 37.

Channel no.

Clock time

PTY code*

Primary/Secondary indicators*

TROUBLESHOOTING

What appears to be trouble is not always serious. Check the following points before calling a service center.

ENGLISH

• Sound is sometimes

• Sound cannot be heard

• CD cannot be played back.

• CD-R/CD-RW cannot be

• Tracks on the CD-R/CD-RW

General Playback

•“No Disc” flashes on the

• Disc cannot be ejected.

• This unit does not work at

Symptoms

interrupted.

from the speakers.

played back.

cannot be skipped.

display .

all.

Causes

You are driving on rough roads.

Disc is scratched.

Connections are incorrect.

The volume level is set to the minimum level.

Connections are incorrect.

Disc is inserted upside down.

CD-R/CD-RW is not finalized.

No disc in the loading slot.

Disc is inserted incorrectly.

Disc is locked.

The built-in microcomputer may have functioned incorrectly due to noise, etc.

Remedies

Stop playback while driving on rough roads.

Change the disc.

Check the cords and connections.

Adjust it to the optimum level.

Check the cords and connections.

Insert the disc correctly.

• Insert a finalized CD-R/CD-RW.

• Finalize the CD-R/CD-RW with the component which you used for recording.

(See page 56.)

Insert a disc into the loading slot.

Insert the disc correctly.

Unlock the disc (See page 22.)

Press the reset button on the panel holder using a ball-point pen after detaching the control panel. (The clock setting and preset stations stored in memory are erased.) (See page 2.)

•

“Panel Connect Error”

appears on the display.

• SSM (Strong-station Sequential Memory) automatic preset does not work.

FM/AM

• Static noise while listening to the radio.

The control panel is not attached correctly and firmly.

Signals are too weak.

The antenna is not connected firmly.

Remove the control panel, wipe the connectors, then attach it again. (See page 43.)

Store stations manually.

Connect the antenna firmly.

Symptoms

Causes

Remedies

• “No Disc” flashes on the

display .

•“Reset 8” flashes on the display .

•“Reset 1” – “Reset 7”

flashes on the display.

• Disc cannot be played back.

• Files skip, or 00’00” appears

and playback stops.

• Noise is generated.

• A longer readout time is

required (“File Check” keeps flashing on the display).

No disc in the magazine.

This unit is not connected to a CD changer correctly.

MP3 files do not have the extension code—mp3 in their file names.

MP3 files are not recorded in the format compliant with ISO 9660 Level 1, ISO 9660 Level 2, or Joliet.

Files are encoded in Layer 1 or Layer 2 format.

The file played back is not an MP3 file (although it has the extension code—mp3).

Readout time varies due to the complexity of the directory/file configuration.

Insert a disc.

Connect this unit and the CD changer correctly and press the reset button of the CD changer.

Press the reset button of the CD changer.

Add the extension code—mp3 to their file names.

Change the disc. (Record MP3 files using a compliant application.)

Insert a disc that contains files encoded in Layer 3 format.

Skip to another file or change the disc. (Do not add the extension code—mp3 to non-MP3 files.)

Do not use too many hierarchies and directories. Also, do not record any other types of audio tracks together with MP3 files.

ENGLISH

CD Changer

• Files cannot be played back

as you have intended them to play.

• Elapsed playing time is not

correct.

•“MP3” flashes on the display.

• “No Files” appears on the

display for a while, then

“Please Eject” appears.

• Correct characters are not

displayed. (e.g. album name)

Playback order is determined when the files are recorded.

This sometimes occurs during play. This is caused by how the files are recorded on the disc.

There are no MP3 files in the current directory.

There are no MP3 files in this disc.

This unit can only display alphabets (capital: A–Z, small: a–z), numbers, and a limited number of symbols.

MP3 Playback

Select another directory.

Insert a disc that contains MP3 files.

MAINTENANCE

Handling discs

This unit has been designed to play back CDs, CD-Rs, CD-RWs, CD Texts, and MP3 discs.

ENGLISH

How to handle discs

When removing a disc from its case, press down the center holder of the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs into the cases after use.

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

About mistracking:

Mistracking may result from driving on extremely rough roads. This does not damage the unit and the disc, but will be annoying. We recommend that you stop disc playback while driving on such rough roads.

Center holder

Moisture condensation

Moisture may condense on the lens inside the unit in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car.

Should this occur, the unit may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates.

When playing a CD-R or CD-RW

You can play back your original CD-Rs or CD-RWs recorded in audio CD format or in MP3 format.

However, they may not be played back depending on their characteristics or recording conditions.

• User-edited CD-Rs (Recordable) and CD-RWs (Rewritable) can be played back only if they are already “finalized.”

• Before playing back CD-Rs or CD-RWs, read their instructions or cautions carefully.

• Some CD-Rs or CD-RWs may not be played back on this unit because of their disc characteristics, damage or stain on them, or if the player’s lens is dirty.

• CD-Rs or CD-RWs are susceptible to high temperatures or high humidity; so do not leave them inside your car.

• CD-RWs may require a longer readout time. (This is caused by the fact that the reflectance of CD-RWs is lower than for regular CDs.)

CAUTIONS:

• Do not insert 8 cm discs (single CDs) into the loading slot. (Such discs cannot be ejected.)

• Do not insert any disc of unusual shape—like a heart or flower; otherwise, it will cause a malfunction.

• Do not expose discs to direct sunlight or any heat source or place them in a place subject to high temperature and humidity. Do not leave them in a car.

• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

SPECIFICATIONS

AUDIO AMPLIFIER SECTION

Maximum Power Output:

Front: 50 W per channel Rear: 50 W per channel

Continuous Power Output (RMS):

Front: 19 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than

0.8% total harmonic distortion.

Rear: 19 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than

0.8% total harmonic distortion. Load Impedance: 4 Ω (4 Ω to 8 Ω allowance) Equalizer Control Range:

Low: ±06 (50 Hz, 80 Hz, 120 Hz) Mid: ±06 (700 Hz, 1 kHz, 2 kHz)

High: ±06 (8 kHz, 12 kHz) Frequency Response: 40 Hz to 20 000 Hz Signal-to-Noise Ratio: 70 dB Line-Out Level/Impedance: 2.0 V/20 kΩ load Output Impedance: 1 kΩ

TUNER SECTION

Frequency Range:

FM: 87.5 MHz to 108.0 MHz

AM: (MW) 522 kHz to 1 620 kHz

(LW) 144 kHz to 279 kHz

[FM Tuner]

Usable Sensitivity: 11.3 dBf (1.0 µV/75 Ω) 50 dB Quieting Sensitivity: 16.3 dBf (1.8 µV/75 Ω) Alternate Channel Selectivity (400 kHz): 65 dB Frequency Response: 40 Hz to 15 000 Hz Stereo Separation: 30 dB Capture Ratio: 1.5 dB

[MW Tuner]

Sensitivity: 20 µV Selectivity: 35 dB

[LW Tuner]

Sensitivity: 50 µV

GENERAL

Power Requirement:

Operating Voltage: DC 14.4 V

Grounding System: Negative ground Allowable Operating Temperature: 0°C to +40°C Dimensions (W × H × D):

Installation Size: 182 mm × 52 mm × 150 mm Panel Size: 188 mm × 58 mm × 14 mm Mass: 1.4 kg (excluding accessories)

Design and specifications are subject to change without notice.

Available characters

You can use the following characters to assign names to CDs, and external components (see page 42). In addition, these characters are

used to display the information such as RDS, ID3v1 tags, DAB, and so on.

Numbers and symbols

Accented letters

Capital

(11 V to 16 V allowance)

Small

ENGLISH

CD PLAYER SECTION

Type: Compact disc player Signal Detection System: Non-contact optical

pickup (semiconductor laser) Number of channels: 2 channels (stereo) Frequency Response: 5 Hz to 20 000 Hz Dynamic Range: 96 dB Signal-to-Noise Ratio: 98 dB Wow and Flutter: Less than measurable limit MP3 recording format: MPEG 1/2 Audio Layer 3 Max. Bit Rate: 320 Kbps

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Haben Sie PROBLEME mit dem Betrieb?

Bitte setzen Sie Ihr Gerät zurück

Siehe Seite Zurücksetzen des Geräts

Vous avez des PROBLÈMES de fonctionnement?

Réinitialisez votre appareil

Référez-vous à la page intitulée Comment réinitialiser votre appareil

Hebt u PROBLEMEN met de bediening?

Stel het apparaat terug

Zie de pagina met de paragraaf Het apparaat terugstellen

EN, GE, FR, NL

VICTOR COMPANY OF JAPAN, LIMITED

JVC

0302MNMMDWJEIN

JVC KD-LH2000R User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

KD-LH2000R

How to reset your unit

How to use the MODE (M) button:

CONTENTS

Control panel

LOCATION OF THE BUTTONS

Remote controller

Preparing the remote controller

BASIC OPERATIONS

Turning on the power

Changing the display pattern

Cancelling the display demonstration

RADIO OPERATIONS

Listening to the radio

Storing stations in memory

Tuning in to a preset station

Changing the display pattern

RDS OPERATIONS

What you can do with RDS

Other convenient RDS functions and adjustments

CD OPERATIONS

Playing a CD

Locating a track or a particular portion on a CD

Selecting CD playback modes

Prohibiting CD ejection

Changing the display pattern

MP3 INTRODUCTION

What is MP3?

How are MP3 files recorded and played back?

MP3 OPERATIONS

Playing an MP3 disc

Selecting a directory

Locating a file or particular portion on an MP3 disc

Selecting MP3 playback modes

Changing the display pattern

SOUND ADJUSTMENTS

Adjusting the sound

Selecting preset sound modes (iEQ: i-equalizer)

Storing your own sound adjustments

Activating the level meter

OTHER MAIN FUNCTIONS

Changing the general settings (PSM)

Changing the display color

Assigning names to the sources

Detaching the control panel

CD CHANGER OPERATIONS

Playing CDs

Locating a track or a particular portion on a CD

Selecting a disc

Selecting CD playback modes

EXTERNAL COMPONENT OPERATIONS

Playing an external component

DAB TUNER OPERATIONS

Tuning in to an ensemble and one of the services

Storing DAB services in memory

Tuning in to a preset DAB service

What you can do more with DAB

Changing the display pattern

TROUBLESHOOTING

MAINTENANCE

Handling discs

SPECIFICATIONS
