Disassembly method

Removing the front panel unit

(See Fig.1)

1.

Press the release switch and remove the front panel
unit in the direction of the arrow.

KD-LH2000R

Front panel unit

Removing the bottom cover

(See Fig.2,3)

1.

Turn the body upside down.

2.

Insert a screwdriver to the two joints a and two joints
b on both sides of the body and the joint c on the
back of the body, then detach the bottom cover from
the body.

CAUTION:

When disengaging the joint c using a
screwdriver, do not damage or break the
board.

Removing the front chassis (See Fig.4,5)

Prior to performing the following procedure, remove
the bottom cover.

1.

Remove the two screws A attaching the front
chassis.

Joint a

Joint c

Bottom cover

Fig.1

Bottom cover

Joint b

Fig. 2

Joint b

2.

Remove the two screws B on each side of the body.

3.

Release the two joints d and the two joints e on the
sides. remove the front chassis toward the front.

Joint d

Joint e

B

Joint d

Front chassis

Fig. 5

Joint e

Joint a

A

Joint c

Fig. 3

Front chassis

Fig.4

1-5

KD-LH2000R

Removing the heat sink (See Fig.6)

1.

Remove the four screws C attaching the heat sink
on the left side of the body, and remove the heat
sink.

Removing the rear panel (See Fig.7 )

C

C

Heat sink

Fig. 6

C

Prior to performing the following procedure, remove
the front chassis, the heat sink and bottom cover.

1.

Remove the six screws D attaching the rear panel
and one screw E attaching the pine jack on the back
of the body.

D

Rear panel

Removing the main amplifier board assembly

(See Fig.8)

Prior to performing the following procedure, remove
the front chassis, the heat sink, bottom cover and the
rear panel.

D

Fig. 7

E

D

D

1.

Remove the two screws F attaching the main
amplifier board assembly on the top cover.

2.

Disconnect connector CN601 on the main amplifier
board assembly from the cassette mechanism
assembly.

1-6

F

Main board assembly

F

CN601

Fig. 8

KD-LH2000R

Removing the MP3 board

(See Fig.9)

Prior to performing the following procedure, remove
the top cover.

1.

Disconnect the wire from connector CN601on the
MP3 board.

2.

Remove the five screws G and the MP3 board,
releasing the joint f and g.

G

f

MP3 board

g

CN601

G

Fig.9

Removing the CD mechanism assembly

(See Fig.10)

Prior to performing the following procedure, remove
the front chassis, the heat sink, bottom cover and the
main amplifier board assembly.

1.

Remove the three screws H attaching the cassette
mechanism assembly from the top cover.

Top cover

H

H

H

CD mechanism assembly

Fig. 10

1-7

KD-LH2000R

Removing the (LCD & key) control switch

board (See Fig.11

Prior to performing the following procedure, remove
the front panel assembly.

1.

Remove the four screws I attaching the rear cover
on the back of the front panel assembly.

2.

Unjoint the nine joints h with the front panel and the
rear cover.

3.

Remove the control switch board on the back of the
front panel.

~ 13)

I

I

Fig. 11

I

I

Front panel

Joint h

LCD & Key control board

Joint h

Rear cover

Joint h

Joint h

Fig. 12

1-8

Fig. 13

< CD mechanism section >

Removing the top cover

(See Fig.1 and 2)

1.

Remove the two screws A on each side of the body.

2.

Lift the front side of the top cover and move the
cover backward to release the two joints a.

Removing the connector board

(See Fig.3 to 5)

Top cover

A

KD-LH2000R

A

Joints a

CAUTION:

1.

Remove the screw B fixing the connector board.

2.

Solder the short-circuit point on the connector board.
Disconnect the flexible wire from the pickup.

3.

Move the connector board in the direction of the
arrow to release the two joints b.

4.

Unsolder the wire on the connector board if
necessary.

CAUTION:

Before disconnecting the flexible wire
from the pickup, solder the short-circuit
point on the pickup. No observance of
this instruction may cause damage of
the pickup.

Unsolder the short-circuit point after
reassembling.

A

Fig.1

Joints a

Top cover

Fig.2

DET switch

B

Flexible wire

Frame

Connector board

B

Connector board

Joints b

Flexible wire

Short-circuit

Fig.3

Fig.4Fig.5

Pickup

Short-circuit point

(Soldering)

Pickup

1-9

KD-LH2000R

Removing the DET switch

(See Fig.3 and 6)

1.

Extend the two tabs c of the feed sw. holder and pull
out the switch.

2.

Unsolder the DET switch wire if necessary.

Removing the chassis unit

(See Fig.7 and 8)

Prior to performing the following procedure, remove
the top cover and the connector board.

B

Connector board

Joints b

Short-circuit

Fig.3

DET switch

Pickup

1.

Remove the two suspension springs (L) and (R)
attaching the chassis unit to the frame.

CAUTION:

The shape of the suspension spring (L)
and (R) are different. Handle them with
care.

CAUTION:

When reassembling, make sure that the
three shafts on the underside of the
chassis unit are inserted to the dampers
certainly.

Chassis unit

Suspension spring (R)

Suspension spring (L)

Frame

DET switch

Chassis unit

Tab c

Feed sw. holder

Tab c

Fig.6

Shaft

1-10

Suspension spring (R)

Suspension spring (L)

Shafts

Damper

Damper

Damper

Frame

Fig.8Fig.7

Removing the clamper assembly

(See Fig.9 and 10)

KD-LH2000R

Prior to performing the following procedure, remove
the top cover.

1.

Remove the clamper arm spring.

2.

Move the clamper assembly in the direction of the
arrow to release the two joints d.

Removing the loading / feed motor
assembly (See Fig.11 and 12)

Prior to performing the following procedure, remove
the top cover, the connector board and the chassis
unit.

1.

Remove the screw C and move the loading / feed
motor assembly in the direction of the arrow to
remove it from the chassis rivet assembly.

Clamper arm
spring

Joint d

Joint d

Clamper assembly

Fig.9

Clamper arm spring

Chassis rivet
assembly

Joint d

Clamper assembly

Joint d

2.

Disconnect the wire from the loading / feed motor
assembly if necessary.

CAUTION:

When reassembling, connect the wire
from the loading / feed motor assembly
to the flame as shown in Fig.11.

Chassis rivet assembly

Fig.10

Loading / feed motor assembly

C

Loading / feed motor assembly

Fig.12Fig.11

1-11

KD-LH2000R

Removing the pickup unit

(See Fig.13 to 17)

Prior to performing the following procedure, remove
the top cover, the connector board and the chassis
unit.

1.

Remove the screw D and pull out the pu. shaft
holder from the shaft.

2.

Remove the screw E attaching the feed sw. holder.

3.

Move the part e of the pickup unit upward with the
shaft and the feed sw. holder, then release the joint f
of the feed sw. holder in the direction of the arrow.
The joint g of the pickup unit and the feed rack is
released, and the feed sw. holder comes off.

4.

Remove the shaft from the pickup unit.

5.

Remove the screw F attaching the feed rack to the
pickup unit.

Reattaching the pickup unit

(See Fig.13 to 16)

Joint f

Shaft

D

Joint e

Pu. shaft holder

Feed sw. holder

Pickup unit

Fig.13

Pickup unit

E

Joint f

Joint e

1.

Reattach the feed rack to the pickup unit using the
screw F.

2.

Reattach the feed sw. holder to the feed rack while
setting the joint tab g to the slot of the feed rack and
setting the part f of the feed rack to the switch of the
feed sw. holder correctly.

3.

As the feed sw. holder is temporarily attached to the
pickup unit, set to the gear of the joint g and to the
bending part of the chassis (joint h) at a time.

CAUTION:

4.

Reattach the feed sw. holder using the screw E.

5.

Reattach the shaft to the pickup unit. Reattach the
pu. shaft holder to the shaft using the screw D.

Make sure that the part i on the underside
of the feed rack is certainly inserted to the
slot j of the change lock lever.

F

Feed rack

Feed rack

E

Joint g

Feed sw. holder

Part i

Pickup unit

Slot j

Joint g

Feed sw. holder

Fig.14

Shaft

Joint f

Joint h

Fig.15

D

Pu. shaft holder

Pickup unit

1-12

Pickup unit

Feed rack

Joint f

Feed sw. holder

Fig.17Fig.16

Removing the trigger arm

(See Fig.18 and 19)

Prior to performing the following procedure, remove
the top cover, the connector board and the clamper
unit.

1.

Turn the trigger arm in the direction of the arrow to
release the joint k and pull out upward.

KD-LH2000R

Joint k

Trigger arm

CAUTION:

When reassembling, insert the part l and

m of the trigger arm into the part n and
o at the slot of the chassis rivet

assembly respectively and join the joint
k at a time.

Chassis rivet assembly

Chassis rivet assembly

Trigger arm

Fig.18

Part n

Part o

Part l

Part m

Fig.19

Removing the top plate assembly

(See Fig.20)

Prior to performing the following procedure, remove
the top cover, the connector board, the chassis unit,
and the clamper assembly.

1.

Remove the screw H.

2.

Move the top plate assembly in the direction of the
arrow to release the two joints p.

3.

Unsolder the wire marked q if necessary.

H

Top plate assembly

Joints p

q

Fig.20

1-13

KD-LH2000R

Removing the select arm (L) / select lock
arm (See Fig.21 and 22)

Prior to performing the following procedure, remove
the top plate assembly.

1.

Bring up the select arm (L) to release from the link
plate (joint r) and turn in the direction of the arrow to
release the joint s.

2.

Unsolder the wire of the select arm (L) marked q if
necessary.

3.

Turn the select lock arm in the direction of the arrow
to release the two joints t.

The select lock arm spring comes off the select lock
arm at the same time.

Reassembling the select arm (L) / select
lock arm (See Fig.23 to 25)

Select arm (R)

Joint z

Link plate spring

Top plate

Joint a'

Joint y

Link plate

Joint z

Joint s

Fig.21

Select lock arm

Select lock arm

Joint b'

Joint r

Select arm (L)

Select lock arm

q

Top plate

Hook u

Select lock
arm spring

Joints t

REFERENCE:

1.

Reattach the select lock arm spring to the top plate

Reverse the above removing procedure.

and set the shorter end of the select lock arm spring
to the hook u on the top plate.

2.

Set the other longer end of the select lock arm spring
to the boss v on the underside of the select lock arm,
and join the select lock arm to the slots (joint t). Turn
the select lock arm as shown in the figure.

3.

Reattach the select arm (L) while setting the part r to
the first peak of the link plate gear, and join the joint
s.

CAUTION:

When reattaching the select arm (L),
check if the points w and x are correctly
fitted and if each part operates properly.

Joint r

Link plate

Link plate

Select lock arm spring

Boss v

Select arm (R)

Joint a'

Fig.22

Hook u

Joint t

Joint t

Select lock arm

Fig.23

Link plate spring

Select arm (L)

Joint b'

1-14

Joint r

Fig.25Fig.24

Joint s

Select
lock arm

Point x

KD-LH2000R

Removing the select arm (R) / link plate

(See Fig.21 and 22)

Prior to performing the following procedure, remove
the top plate assembly.

1.

Bring up the select arm (R) to release from the link
plate (joint y) and turn as shown in the figure to
release the two joints z and joint a’.

2.

Move the link plate in the direction of the arrow to
release the joint b’. Remove the link plate spring at
the same time.

REFERENCE:

Before removing the link plate, remove
the select arm (L).

Reattaching the Select arm (R) / link
plate (See Fig.25 and 26)

REFERENCE:

Reverse the above removing procedure.

Select arm (R)

Joint z

Link plate spring

Top plate

Joint a'

Part y

Link plate

Joint z

Joint s

Fig.21

Select lock arm

Select lock arm

Joint b'

Joint r

Select arm (L)

Select lock arm

q

Top plate

Hook u

Select lock
arm spring

1.

Reattach the link plate spring.

2.

Reattach the link plate to the link plate spring while
joining them at joint b’.

3.

Reattach the part y of the select arm (R) to the first
peak of the link plate while joining the two joints z
with the slots. Then turn the select arm (R) as shown
in the figure. The top plate is joined to the joint a’.

CAUTION:

When reattaching the select arm (R),
check if the part c’ is correctly fitted and
if each part operates properly.

Select arm (R)

Joint z

Link plate

Link plate spring

Joint a'

Part y

Part y

Fig.22

Joint b'

Joint z

Fig.25

Joints t

Select arm (L)

Select
lock arm

Point x

Fig.26

Link plate

1-15

KD-LH2000R

Removing the loading roller assembly

(See Fig.27 to 29)

Prior to performing the following procedure, remove
the clamper assembly and the top plate assembly.

1.

Push inward the loading roller assembly on the gear
side and detach it upward from the slot of the joint d’
of the lock arm rivet assembly.

Detach the loading roller assembly from the slot of
the joint e’ of the lock arm rivet assembly.

The roller guide comes off the gear section of the
loading roller assembly.

Remove the roller guide and the washer from the
shaft of the loading roller assembly.

2.

Remove the screw I attaching the lock arm rivet
assembly.

3.

Push the shaft at the joint f’ of the lock arm rivet
assembly inward to release the lock arm rivet
assembly from the slot of the slide plate. Extend the
lock arm rivet assembly outward and release the
joint g’ from the boss of the chassis rivet assembly.
The roller guide springs on both sides come off.

Roller guide

Washer

Loading roller assembly

Roller guide

Joint e'

Roller guide spring

Roller guide spring

Joint d'

Loading roller assembly

Roller guide spring

Lock arm rivet assembly

Fig.27

Loading roller assembly

Roller guide
spring

CAUTION:

When reassembling, reattach the left
and right roller guide springs to the lock
arm rivet assembly before reattaching
the lock arm rivet assembly to the
chassis rivet assembly. Make sure to fit
the part h’ of the roller guide spring (L)
inside of the roller guide (Refer to
Fig.30).

Roller guide

Washer

Roller shaft assembly

Joint h'

Loading roller assembly

Roller guide
spring

Fig.28-1

Fig.28-2

Chassis rivet assembly

Boss

Slide plate

Roller guide spring

I

1-16

Frame

Loading roller

Roller guide spring

Lock arm rivet assembly

Joint f'

Part g'

Fig.29Fig.30

KD-LH2000R

Removing the loading gear (5), (6) and
(7) (See Fig.31 and 32)

Prior to performing the following procedure, remove
the top cover, the chassis unit and the top plate
assembly.

1.

Remove the screw J attaching the loading gear
bracket. The loading gear (6) and (7) come off the
loading gear bracket.

2.

Pull out the loading gear (5).

Loading gear bracket

J

Loading gear (6)

Loading gear (5)

Loading gear (3)

Fig.31

J

Loading gear bracket

Loading gear (5)

Loading gear (6)

Loading gear (7)

Fig.32

1-17

KD-LH2000R

Removing the gears (See Fig.33 to 36)

Prior to performing the following procedure, remove
the top cover, the chassis unit, the top plate
assembly and the pickup unit.

1.

Pull out the feed gear.

Slot j'

Slide plate

2.

Move the loading plate assembly in the direction of
the arrow to release the slide plate from the two slots
j’ of the chassis rivet assembly.

3.

Detach the loading plate assembly upward from the
chassis rivet assembly while releasing the joint k’.
Remove the slide hook and the loading plate spring
from the loading plate assembly.

4.

Pull out the loading gear (2) and remove the change
lock lever.

5.

Remove the E-washer and the washer attaching the
changer gear (2).

6.

The changer gear (2), the changer gear spring and
the adjusting washer come off.

7.

Remove the loading gear (1).

8.

Move the hang plate rivet assembly in the direction
of the arrow to release from the three shafts of the
chassis rivet assembly upward.

9.

Detach the loading gear plate rivet assembly from
the shaft of the chassis rivet assembly upward while
releasing the joint l’.

Feed gear

Change plate
rivet assembly

Shafts

E-washer

Loading plate assembly

Joint k'
Slot j'

Fig.33

Joint l'

Loading gear (4)

Loading gear plate
rivet assembly

Loading gear (2)

Loading gear (1)

Change gear (2)

10.

Pull out the loading gear (4).

Loading plate assembly

Loading plate spring

Slot j'

Chassis rivet assembly

Joint k'

Slide hook

Slide plate

Slot j'

E-washer

Washer

Loading gear (2)

Loading plate spring

Adjusting washer

Change plate
rivet assembly

Chassis rivet assembly

Fig.34

Loading gear (1)

Loading gear (2)

Change lock lever

Loading gear (4)

Loading gear plate rivet assembly

Fig.36Fig.35

1-18

KD-LH2000R

Removing the turn table / spindle motor

(See Fig.37 and 38)

Prior to performing the following procedure, remove
the top cover, the connector assembly and the
chassis / clamper assembly.

1.

Remove the two screws K attaching the spindle
motor assembly through the slot of the turn table on
top of the body.

2.

Unsolder the wire on the connector board if
necessary.

K

Turn table

Fig.37

K

Turn table

Spindle motor

Fig.38

1-19

KD-LH2000R

Adjustment method

Test instruments required for adjustment

1. Digital oscilloscope (100MHz)

2. AM Standard signal generator

3. FM Standard signal generator

4. Stereo modulator

5. Electric voltmeter

6. Digital tester

7. Tracking offset meter

8. Test Disc JVC :CTS-1000

9. Extension cable for check
EXTSH002-22P 1

Standard measuring conditions
Power supply voltage : DC14.4V(11V~16V allwance)
Load impedance : 4 (4 to 8 allowance)
Line-out Level / Impedance:

2.0V / 20 k load

How to connect the extension cable for adjusting

Standard volume position
Balance and Bass &Treble volume : lndication"0"
S.BASS : O
EQ : FLAT
Frequency Band
FM 87.5MHz ~ 108.0MHz
AM (MW) 522kHz ~ 1620 kHz
(LW) 144kHz ~ 279 kHz

Dummy load
Exclusive dummy load should be used for AM,and FM. For
FM dummy load,there is a loss of 6dB between SSG output
and antenna input.The loss of 6dB need not be considered
since direct reading of figures are applied in this working
standard.

Extension cables
EXTSH002-22P

CN601

Doing such as cardboard puts finishing
between the main body and mechanism.

fixes with rubber band.

1-20

Flow of functional operation unit TOC read

Power ON

When the pickup correctly moves

v

to the inner area of the disc

Set Function CD

KD-LH2000R

When the laser diode correctly

emits

Microprocessor
commands

FMO
TC94A14FA" 40"

FEED MOTOR
+TERMINAL
IC681

REST SW

When correctly focused

FEO
TA2157" 15"

Focus Servo Loop ONo

$83

$82

$81

3.3V
Hi-Z
0V

6V
4V
2V

OFF
ON

Pickup feed to the inner area

2.2V

RF signal eye-patternn
remains closed

RF signal eye-pattern
opens

Disc inserted

YES

Laser emitted

Focus search

Disc rotates

Tracking loop closed

TOC read out

YES

Microprocessor
commands

SEL
TC94A14FA"38"

LD
CN601"8"

"No disc"
display

When the disc correctly rotates

Microprocessor
commands

DMO
TC94A14FA"41"

Spindle
motor(-)
IC681"7"

$84 $86 $ A200

Acceleration Servo CLV

Rough
Servo

0.5 Sec 0.5 Sec

$84

3.3V
0V

2V
0V

3.3V

2.2V
0V

6V

3.2
2V

Jump to the first track

Play

Tracking Servo Loop ON

RF signal

Rough Servo Modev

CLV Servo Mode
(Program Area)

CLV Servo Mode
(Lead-In Area;
Digital :0)

1-21

KD-LH2000R

Feed section

Is the voltage output at
IC621 pin "40" 3.3V or 0V?

YES

Is 4V present at both
sides of the feed motor?

YES

NO YES NO

NO

Is the wiring for IC621

(56)~(64) correct?

NO

Is 6V or 2V present at

IC681 "4" and "5"?

NO

Is 3.3V present at IC681

pin "20"?

Check the vicinity of

IC621.

YES

Check the feed motor

connection wiring.

YES

Check CD 8V

and 5V.

Check the feed motor.

Focus section

When the lens is

moving:

4V

Does the S-search

waveform appear at

IC681 pins "10" and "11"?

Spindle section

Is the disk rotated?

YES

Does the RF signal

appear at TP1?

YES

Is the RF waveform at TP1

distorted?

YES

Proceed to the Tracking

section

Check IC681.

NO

YES

NO

NO

NO

Check the circuits in
the vicinity of IC681
pins "10","11"and"14".

Check the pickup and

its connections

Is 4V present at IC681

pins "6" and "7"?

Check the spindle motor

and its wiring

Check the circuits in the

vicinity of IC601 "19"~

"24" or the pickup

YES

YES

NO

Is 3.3V present at IC621

pins "41" ?

Check the vicinity of

IC681.

NO

YES

Check IC621 and

IC601.

Tracking section

1-22

When the disc is rotated

at first:

Approx. 1.2V

Is the tracking error signal

output at IC601 "11"?

YES

Check IC621.

YES YES

Check the circuit in the

vicinity of IC601 pins

"2"~"12".

Check the pickup and

its connections

Maintenance of laser pickup

(1) Cleaning the pickup lens
Before you replace the pickup,please try to
clean the lens with a alcohol soaked cotton
swab.

(2) Life of the laser diode
When the life of the laser diode has expired.
the following symptoms will appear..
(1) The level of RF output (EFM output:amplitude
of eye patterrn) will be low.

KD-LH2000R

Is RF output

1.3 0.4Vp-p?

YES

O.K

(3) Semi-fixed resistor on the APC PC board
The semi-fixed resistor on the APC printed
circuit board which is attached to the pickup
is used to adjust the laser power.Since this.
adjustment should be performed to match the
characteristics of the whole optical block,
do not touch the semi-fixed resistor..
If the laser power is lower than the specified
value, the laser diode is almost worn out, and
the laser pickup should be replaced.
If the semi-fixed resistor is adjusted while
the pickup is functioning normally, the laser
pickup may be damaged due to excessive current.

NO

Replace it.

Replacement of laser pickup

Turn of the power switch and, disconnect the
power cord.

Replace the pickup with a normal one.(Refer
to "Pickup Removal" on the previous page)

Plug the power cord in, and turn the power on.
At this time, check that the laser emits for
about 3seconds and the objective lens moves
up and down.
Note: Do not observe the laser beam directly..

Play a disc.

Check the eye-pattern at TP1.

Finish.

1-23

KD-LH2000R

Description of major ICs

UPD784215AGC179 (IC701) : CPU

1.

Pin

layout

75 ~ 51

76

~

100

1 ~ 25

50

~

26

2. Pin function

Pin NO. Symbol Function

1~7

8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

41~43

44
45
46
47
48

49~52

53

NC

ANT CONT

VDD

X2
X1

VSS

XT2
XT1

RESET

NC

BUS-INT

PS2

CD-REQ

RDS-SCK

RDS DA

KEY DATA

AVDD

AVREF0

VOL1
VOL2
KEY1
KEY2

NC

MRC

SQ
SM

AVSS

NC

STAGE3

AVREF
BUS-SI

BUS-SO

BUS-SCK

BUS-I/O

NC

BUZZER

E2PROM-DI

E2PROM-DO

E2PROM-CLK

OPEN

NC

SD/ST

I/O

-

­Antenna remote control

O

Maicon power supply

I
I

O

GND

I
I

O

SYSTEM RESET

I

-

­J-BUS INT

I

Power save2, H means STOP mode

I

CD REQ INPUT

I

RDS clock input

I

RDS data input

I

KEY DATA

I

A/D converter power supply

I

A/D reference voltage

O

Volume encoder pulse input 1

I

Volume encoder pulse input 2

I

Handle remocon input 1

I

Handle remocon input 2

I

-

­MRC input

I

S.Quality level input

I

S.METER input

I

GND

I

-

­Feature selection H:2000 L:1000

I
I

J-BUS data input

I

J-BUS data output

O

J-BUS clock input / output

I/O

J-BUS I/O selection output:H, input:L

O

-

­Buzzer output

O

I2C data input

I

I2C data output

O

I2C clock output

O

DOOR OPEN SW

I

-

­Station detector or streo indica tor i nput ;

I

H means a station is there. L means the program is stereo.

1-24

KD-LH2000R

Pin NO. Symbol Function

54~56

57
58
59
60
61
62
63
64
65
66
67
68
69

70
71

72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90

91~93

94

95~98

99

100

NC

DISP SCK

DISP DA
DISP CE

NC

DETACH

AFCK

SEEK/STOP

CF SEL

FM/AM
PLL-CE
PLL-DO

PLL-CLK

PLL-DI

TEL-MUTING

DIM-OUT

VSS

DIM-IN

PS1

POWER

NC

MUTING

CD MUTING

CD RESET

NC

VDD

NC

VOL-DA

VOL-CLK

NC

SUB MUTING

LPF 1

LPF 2
STAGE2
STAGE1

NC

TEST

NC

DISC SEL

NC

I/O

-

­DISPLAY SCK

O

DISPLAY DATA

O

DISPLAY CE

O

-

­Detach detect input ; H m eans detaching

I

AF check output

O

Auto seek and stop selecting output ; H mea ns seek i ng, L means receiving.

O

Wide & Narrow

O

FM, AM band selecti ng output ; H = FM,L= AM

O

CE output for PLL IC

O

Data output for PLL IC

O

Clock output for PLL IC

O

Data input from PLL IC

I

Telphone muting detection input ;

I

Active level can be selected H or L in PSM
Dimmer detector output

O

GND

I

Dimmer detector input L=dimmer on

I

POWER SAVE1 L= ACC off

I

POWER ON/OFF control output H=power on

O

-

­Muting output L=muting on

O

CD MUTE INPUT L=MUTE ON

I

CD RESETCONTROL OUT H=RESET ON

O

-

­Maicon power supply

I

-

­Data output for e-vol IC

O

Clock output for e-vol IC

O

-

­Muting control output for subwoofer

O

LPF CONTROL 1

O

LPF CONTROL 2

O

Feature selection H:R or Do L:J or U

I

Feature selection H:R or U L:J or Do

I

-

­For rewriting flash memory

I/O

-

­8cmCD SELECT L=NO USE H=USE

O

-

-

1-25

KD-LH2000R

UPD784225GK-626 (IC501) : CPU

1.Pin layout
80 ~ 61

1 ~ 20

21 ~ 40

2.Pin function

Pin

Symbol

no.

1

TEMP

2

GND

3

GND

4

AVSS

5

ADCONT

6

NC

7

AVREF1

8

EPROMDI

9

EPROMDO

10

EPROMCK

11

LCDCE/SO

12

LCDDA/SI

13

LCDCK

14

/BUSIO

15

BUSIO

16

BUSSI

17

BUSSO

18

BUSSCK

19

BUSOUT

20

CDON

21

CDREQ

22

CDMUTE

23

NC

24

DSPRESET

25

CCE

26

BUCK

27

BUS3

28

BUS2

29

BUS1

30

BUS0

31

2XPLAY

32

RWSEL

33

VSS1

34

LOAD

35

LD/FE

36

MP3DI

37

MP3DO

38

MP3CK

39

MP3RESET

40

MPSSTB

60 ~ 41

I/O

Connect to TEMP detecter

I 41

Connect to GND

-

Connect to GND

-

Connect to GND

-

No use

-

No use

-

Analog reference voltage

-

Data input terminal from EEPROM

I

Data output terminal from EEPROM

O

Clock signal I/O terminal with EEPROM

I/O

No use

-

No use

-

No use

-

J-BUS data I/O terminal

I/O

J-BUS data I/O terminal

I/O

J-BUS data input

I

J-BUS data output

O

J-BUS clock I/O

I/O

No use

-

The CD power supply control signal output.At CD:H

O

CD request

I

CD Mute

O

No use

-

DSP reset

O

CE output for data communication with CDLSI

O

Clock output for data communication with CDLSI

O

Data communication input output port 3 with CDLSI

I/O

Data communication input output port 2 with CDLSI

I/O

Data communication input output port 1 with CDLSI

I/O

Data communication input output port 0 with CDLSI

I/O

No use

-

CD RW select

I

Connect to GND

-

Loading signal

O

LDFLE switching signal

O

MP3 data input

I

MP3 data output

O

MP3 data clock

O

MP3 data reset

O

MP3 data standby

I

Function Function

Pin
no.

42
43
44
45
46
47
48
49
50
51
52
53
54
55

TEST MODE

56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80

Symbol

NC
NC
NC

DACML
DACMC
DACMD

DACCS

NC
NC
NC
NC

DISCSEL

DACSEL

NC

MP3SEL

8VDET

REST

SW2

RESET

SW1

B.DET

P.DET

BUSINT

MP3REQ

NC
VSS0
VDD1

X2

X1
VPP
XT2
XT1

VDD0
AVDD

IOP

KEY0
KEY1
KEY2
KEY3

I/O

Non use

-

Non use

-

Non use

-

DAC mode control latch

O

DAC mode control clock

O

DAC mode control data

O

DA convertor chip select

I

No use

-

No use

-

No use

-

No use

-

Initial setting

O

DA convertor select

O

No use

-

Connect to GND

-

MP3/CD-DA switch SW L:CD H:MP3

O

8V detection

I

System reset signal input

I

Detection switch of CD mechanism

I

Reset detection terminal
Detection switch of CD mechanism

I

Panel switch detection

I

Power switch detection

I

J-BUS signal interrupt input

I

MP3 request

O

No use

-

Connect to ground

-

Reference voltage terminal

-

No use

-

Connect to X'tal osc.

I

Test terminal

I

Non use

-

Connect to ground

-

Connect to ground

-

Reference voltage terminal

-

Laser signal input output

I/O

Key control signal input 0

I

Key control signal input 0

I

Key control signal input 0

I

Key control signal input 0

I

1-26

2.Pin functions (2/2)

KD-LH2000R

Pin No.

47

48~51

52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80

Symbol

DAC CS

-

DISC SEL

DAC SEL

-

TEST MODE

MP3 SEL

8V DET

REST

SW2

RESET

SW1
B.DET
P.DET

BUS INT

MP3 REQ

­VSS0
VDD1

X2

X1
VPP
XT2
XT1

VDD0
AVDD

IOP
KEY0
KEY1
KEY2

KET3

I/O

O

­I
I

­I
I
I
I
I
I
I
I
I
I
I

-

-

-

O

I

-

O

I

-

­I
I
I
I
I

Function
DAC chip select terminal
No use
8cm disc correspondence mode select terminal (respondance:L)
DAC select mode input terminal

­LCD/AD key/Remocon invalid select mode input terminal L:invalid
MP3 select mode input terminal
CD mechanism power supply detection terminal (L:8V on)
CD mechanism rest switch input terminal
CD mechanism SW2 input terminal
Riset signal input terminal
CD mechanism SW1 input terminal
Backup power supply detection input terminal (H:Stop mode)
Main power off detection input terminal (H:HALT mode)
JVC BUS communication start squeeze input terminal
CD MP3 request signal input terminal

­Connect to GND
Connect to 3.3V
Oscillator (6MHz)
Oscillator (6MHz)
Connect to GND
Open
Connect to GND
Connect to 3.3V
Connect to ADCONT
Pickup IOP measurement input terminal
Key input 0 (8bit A/D input) terminal
Key input 1 (8bit A/D input) terminal
Key input 2 (8bit A/D input) terminal
Key input 3 (8bit A/D input) terminal

1-27

KD-LH2000R

BR24C01AFV-W (IC502) : EEPROM

1.Pin layout

2.Block diagram

1

A0

A1

2

Vcc WPIN SCL

SDA

A0 A1 A2 GND

1kbit EEPROM ARRAY

7bit

ADDRESS
DECODER

SLAVE/WORD

7bit

ADDRESS REGISTER

8bit

DATA
REGISTER

8

7

Vcc

WPIN

A2

3

GND

4

3.Pin function

Pin name I/O

Vcc

GND

A0,A1,A2

SCL

SDA

CONTROL LOGIC

HIGH VOLTA GE GEN.

-

­IN
IN

IN / OUT

START

STOP

ACK

Vcc LEVEL DETECT

Function

Power supply
Ground (0v)
Slave address set
Serial clock input

Slave and word address,
serial data input, serial data output *1

SCL

6

SDA

5

1-28

WPIN

*1 An open drain output requires a pull-up resister.

IN

Write protect input

HA13164A (IC901) : Regulator

1.Terminal layout

EXT

ANT

ACC

VDD

SW5V

ACC5V

ANT.CTRL

MEMORY

123456789101112131415

BATT.DET9VCTRL

CD8VAJILMI

KD-LH2000R

GND

2.Block diagram

ANT OUT

C3

0.1u

EXT OUT

C4

0.1u

ANT CTRL

CTRL

CD OUT

C5

0.1u

AUDIO OUT

C6

10u

11

12

10

BATT.DET OUT

9

COMPOUT

6

VDD OUT

4

SW5VOUT

5

14

UNIT R:

+B

ACC

ILMOUT

R1

C7

0.1u

C8

0.1u

C1

100u

VCC ACC

8

2

1

7

Surge Protector

BIAS TSD

15

3

TAB

note1) TAB (header of IC)

connected to GND

ILM AJGND GND

13

C2

0.1u

C:F

3.Pin function

Pin No. Symbol Function

1
2

EXT
ANT

Output voltage is VCC-1 V when M or H level applied to CTRL pin.
Output voltage is VCC-1 V when M or H level to CTRL pin and H level

to ANT-CTRL.
3
4
5
6
7
8
9

10
11
12
13
14
15

ACC
VDD
SW5V
COMP
ANT CTRL
MEMORY
BATT DET
9V
CTRL
CD8V
AJ
ILMI
GND

Connected to ACC.

Regular 5.7V.

Output voltage is 5V when M or H level applied to CTRL pin.

Output for ACC detector.

L:ANT output OFF , H:ANT output ON

Connected to VCC.

Low battery detect.

Output voltage is 9V when M or H level applied to CTRL pin.

L:BIAS OFF, M:BIAS ON, H:CD ON

Output voltage is 8V when H level applied to CTRL pin.

Adjustment pin for ILM output voltage.

Output voltage is 10V when M or H level applied to CTRL pin.

Connected to GND.

1-29

KD-LH2000R

HD74HC126FP-X (IC781) : Buffer

1.Terminal layout

1C

1

1A

2

1Y

3

2C

4

2A

5

2Y

6

GND

7

2.Block diagram

Input

VU

14

4C

13

4A

12

4Y

11

3C

10

3A

9

3Y

8

Vcc Vcc

1A
2A
3A
4A
1C
2C
3C

See Function Table

4C

3.Pin function

Output

1Y

2Y

Output

2Y

Output

3Y

Output

4Y

Input

C
L
H
H

A
X
L
H

Output

Y
Z
H
L

Note) H:High level

L:Low level
X:Irrelevant
Z:Off(High-impedance)
State a 3-state input

1k

S1

CL

1k

Sample as Load Circuit 1
Sample as Load Circuit 1

Sample as Load Circuit 1

1-30

Note) CL includes probe and jig capacitance

HD74HCT126T : (IC503) Buffer

KD-LH2000R

1.Terminal layout

Vcc
14

1

1C

2.Block diagram

4C
13

2

1A

3

1Y

1A

4A
12

4Y
11

4

2C

3C
10

5

2A

3A
9

6

2Y

3Y
8

7

GND

3.Pin function

INPUT

C
L
H
H

H : High level
L : Low level
X : Irrelevant

Off (Hhigh-impedance)state of a 3-stage

Z :

output

OUTPUT

A
X
L
H

Y
Z
H
L

1C

2A

2C

3A

3C

4A

1Y

2Y

3Y

4C

4Y

1-31

KD-LH2000R

IC-PST9322U-X (IC803) : Regulator

1. Pin layout

2. Block diagram

NC 1

GND 2

3. Pin function
Pin No.

1
2
3
4

Symbol

GND

VOUT

Vcc

4 Vcc

3 VOUT

Function

NC

Non connect
GND terminal
Reset signal output terminal
Vcc terminal/Voltage detect terminal

Vcc 4

NC 1

3 VOUT

2 GND

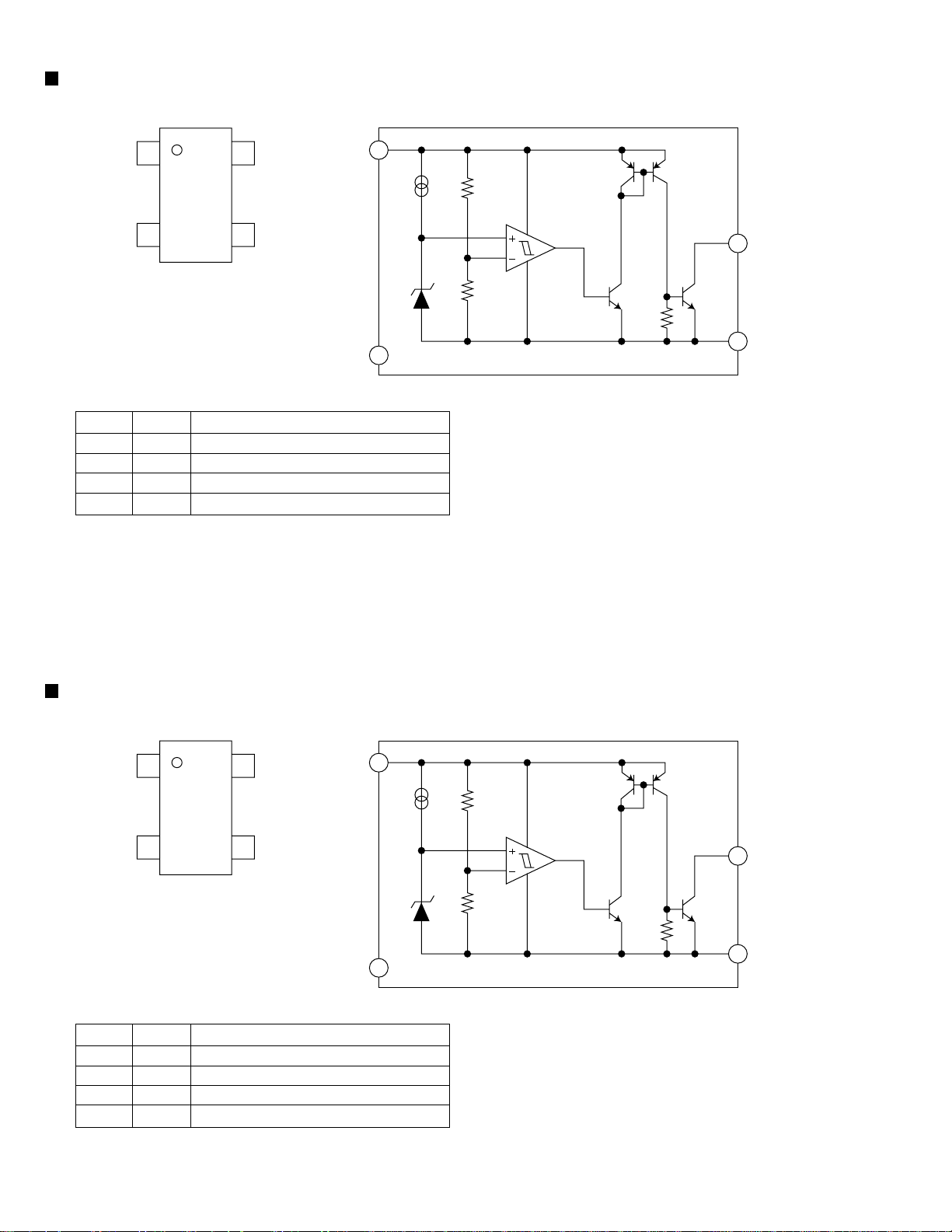

IC-PST9333U-X (IC702) : Regulator

1. Pin layout

NC 1

GND 2

3. Pin function
Pin No.

1
2
3
4

Symbol

GND

VOUT

Vcc

4 Vcc

3 VOUT

Function

NC

Non connect
GND terminal
Reset signal output terminal
Vcc terminal/Voltage detect terminal

Vcc 4

NC 1

2. Block diagram

3 VOUT

2 GND

1-32

M61508FP-X (IC111) : E. volume

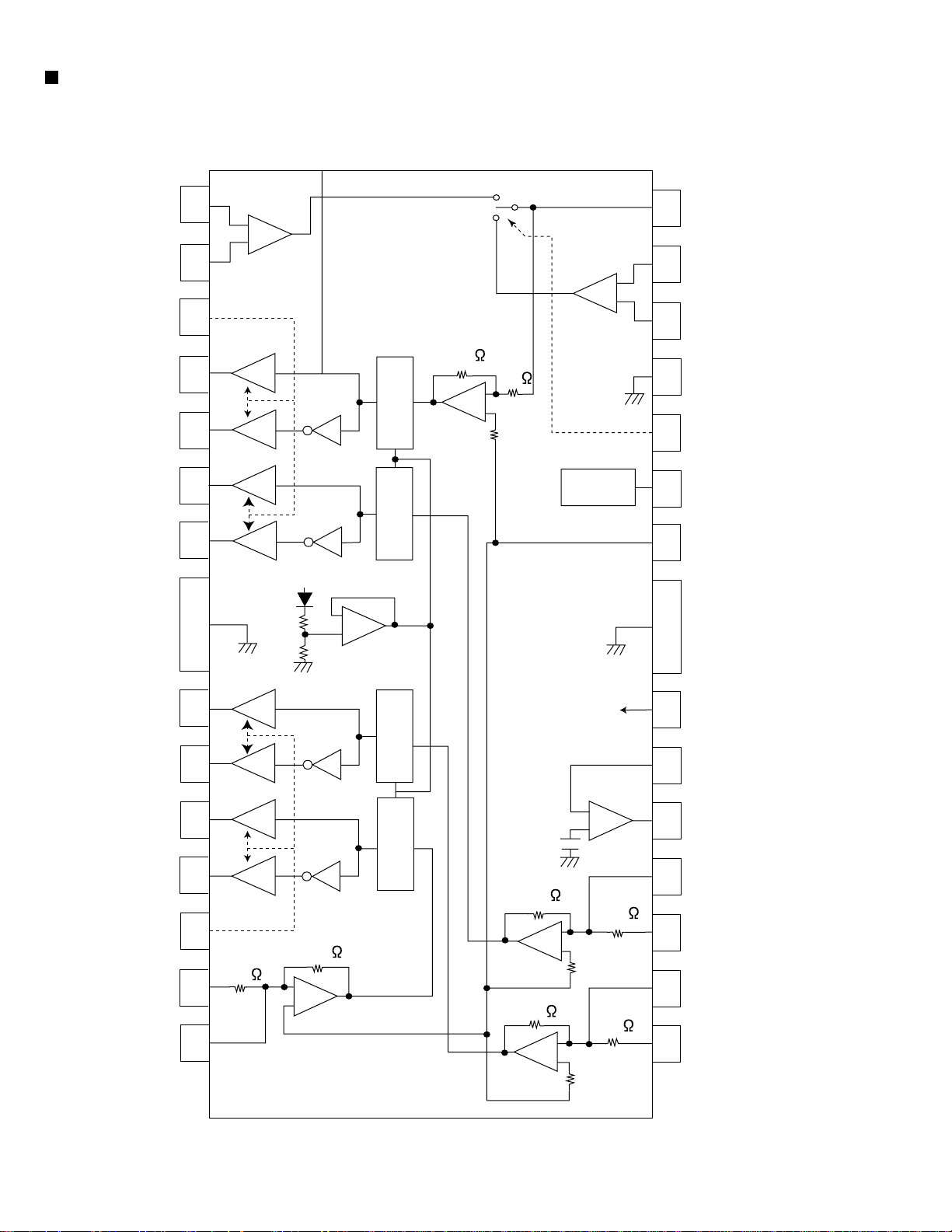

1. Pin layout & Block diagram

VCC
(Analog)

2. Pin function

Pin No.

1
2
3

DEFP IN1

DEFN IN1
4
5
6
7
8
9

DEFN OUT1

SEL OUT1
10
11
12
13
14
15

TONE OUT1

FADER IN1

REAR OUT1

FRONT OUT1

NonFader OUT1
16
17
18
19

VDDOUT1

VDDOUT2
20
21
22

NonFader OUT2
23
24
25
26

FRONT OUT2

REAR OUT2

FADER IN2

TONE OUT2
27
28
29

SEL OUT2

DEFN OUT2
30
31
32
33
34
35

DEFN IN2
DEFP IN2

36

REF

Symbol Function

REF

Grand for IC signal
Differential motion amp. Positive terminal

Differential motion amp. Negative terminal
INA1
INB1
INC1
IND1

Input terminal of input selector switch channel 1

Input terminal of input selector switch channel 1

Input terminal of input selector switch channel 1

Input terminal of input selector switch channel 1

Differential output terminal (-)

Input selector output terminal

VOL IN1

Volume 1 input terminal

Tone output terminal

Volume 2 input terminal

Fader volume control (Rear) output terminal

Fader volume control (Front) output terminal

Non fader volume output terminal
GND

DATA

GND terminal

Control data input terminal

Test terminal

Test terminal

CLOCK

VDD

Clock input terminal for serial data transport

Power supply terminal for digital

Non fader volume control output terminal

Fader volume (Front) output terminal

Fader volume (Rear) output terminal

Volume 2 input terminal

Tone output terminal

VOL IN2

Volume 1 input terminal

Input selector output terminal

IND2
INC2
INB2
INA2

VCC

Input terminal of input selector switch channel 2

Input terminal of input selector switch channel 2

Input terminal of input selector switch channel 2

Input terminal of input selector switch channel 2

Power supply terminal

50K

27282930313233343536

LOUDNESS

+

3BAND TONE CONTROL

(BASS/MID/TREBLE)

ZERO CROSS
DETECTOR

ZERO CROSS
DETECTOR

LOUDNESS

+

3BAND TONE CONTROL

(BASS/MID/TREBLE)

A
B

B
A

2526

Zero detect
Select SW

121110987654321

24 23 22 21 20 19

VDO

(Digital)

Soft select

12dB

I/F

12dB

TIMER
DETECTOR

GND

13 14 15 16 17

KD-LH2000R

18

1-33

KD-LH2000R

LA6579H-X (IC681) : 4-Channel bridge driver

1. Pin layout & Block diagram

VIN1-A

VIN1+A

VCCP1

1

­+

2

3

VIN1_SW
[H]: OP-AMP_A
[L]: OP-AMP_B

[H]

[L]

28

VIN1

27

VIN1-B

-

+

26

VIN1+B

VO1+

VO1-

VO2+

VO2-

GND

VO3+

VO3-

VO4+

4

5

6

7

FR

8

9

10

Power system
GND

Level shift

33k

11k

-

Signal system
power supply

25

S-GND

+

24

VIN1-SW

Level shift

­+

Level shift

Level shift

All outputs ON/OFF

H : ON

L : OFF

3.3VREG
(External:PTP Tr)

MUTE

Power system GND

Signal system
power supply

23

MUTE

22

VREFIN

FR

21

20

GND

VCCS

3.3VREG

+

-

19

REGIN

1-34

VO4-

VCCP2

VIN4

VIN4G

11

12

13

14

11k

33k

­+

33k

33k

18

VIN2G

11k

-

17

VIN2

+

16

VIN3G

11k

-

15

VIN3

+

3.Pin function

Pin No. Symbol Function

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

VIN1-A
VIN1+A
VCCP1
VO1+
VO1­VO2+
VO2­VO3+
VO3­VO4+
VO4­VCCP2
VIN4
VIN4G
VIN3
VIN3G
VIN2
VIN2G
REGIN

3.3VREG
VCCS
VREFIN
MUTE
VIN1_SW
S_GND
VIN1+B
VIN1-B
VIN1

CH1 input AMP_inverted input
CH1 input AMP_non-inverted input
CH1 and CH2 power stage power supply
Output pin(+)for channel 1
CH1 output pin (-) for channel 1
Output pin(+)for channel 2
Output pin(-)for channel 2
Output pin(+)for channel 3
Output pin(-)for channel 3
Output pin(+)for channel 4
Output pin(-)for channel 4
CH3 and CH4 power stage powr supply
Input pin for channel 4
Input pin for channel 4(for gain adjustment)
Input pin for channel 3
Input pin for channel 3(for gain adjustment)
Input pin for channel 2
Input pin for channel 2(for gain adjustment)
External PNP transistor, base connection

3.3VREG output pin, external PNP transistor,collector connection
Signal system GND
Reference voltage application pin
Output ON/OFF pin
CH1 input OP AMP_changeover pin
Signal system GND
CH1 AMP_B non-inverted input pin
CH1 AMP_B inverted input pin
CH1 input pin, input OP_AMP output pin

KD-LH2000R

NJU7241F33-X (IC804,IC504) : Voltage regulator

PIN FUNCTION

1

5

2

3

4

1. GND

IN

2. V

3. V

OUT

4. +NC

5. STB

1-35

KD-LH2000R

MN102H60KCC (IC801) : CPU

1.

Pin

layout

75 ~ 51

76

~

100

1 ~ 25

50

~

26

2. Pin function

Pin NO. Name Function

1
2
3
4
5
6
7
8

9
10
11
12

13~16

17
18
19
20
21
22
23
24
25

26~33

34

35~42

43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

RES

RE
NC
NC
NC

CS0
SWLED7
SWLED4
SWLED5
SWLED6

NC

/WORD

A0~A3

VDD

NC

VSS

XI

XO

VDD

OSCI
OSCO
MODE

A4~A11

AVDD

A12~A19

AGND

ANA

Thermal

STOP

WDOUT

PON

RD

LCDCLK

WR
COLOR1
COLOR2

AVDD

RS
CS

COLOR3

VOL1
VOL2

SWLED3

I/O

LED reset input terminal

O

Redoinabl output terminal for enhancing memory

O

No connected

O

No connected

O

No connected

O

Chip selection 0 output terminal for enhancing memory

O

Output for SW_LED Flushing 7 (LED for cross key cover )

O

Output for SW_LED Flushing 4 (LED for [PRESET4-6] key)

O

Output for SW_LED Flushing 5 (LED for [SEEKUP]+[SEEKDOWN] key)

O

Output for SW_LED Flushing 6 (LED for [DISKUP]+[DISKDOWN] key)

O

No connected

O

Setting of width of bus of enhancing memory (H : 8bit)

I

Enhancing memory output terminal 0~3

O

Power supply terminal

­Base clock output terminal

O

GND

­Connects with GND

I

Opening

O

Power supply terminal

­Crystal connection terminal (12.5MHz)

I

Crystal connection terminal (12.5MHz)

O

Mode set input terminal, pull-up (H : Memory extension mode)

I

Enhancing memory output terminal 4~11

O

Analog power supply terminal

­Enhancing memory output terminal 12~19

O

Analog, standard power supply terminal, connects with GND

­Audio level input for speana

I

Temperature fuse input

I

Stop state output terminal (At stop "H")

O

Watch dock timer overflow output terminal (At overflow "H")

O

Power supply on output terminal

O

LCD redostororb output terminal

O

LCD clock output for driver (180MHz)

O

LCD raitostororb output terminal

O

PWM output for color LED 1

O

PWM output for color LED 2

O

Analog, standard power supply terminal, connects with GND

­LCD resist selection output terminal

O

LCD chip selection output terminal

O

PWM output for color LED 3

O

Rotary encoder input 1

I

Rotary encoder input 2

I

Output for SW_LED Flushing 3 (LED for [PRESET1-3] key)

O

1-36

KD-LH2000R

Pin NO. Name Function

61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83

84~91

92

93~100

AGND

KEYO
KEY1
KEY2
KEY3

VDD
SWLED0
SWLED1
SWLED2

DISPCLK

DISPDATA

KEYDATA

SIFDA
SIFCK

GND

DISPCE

GND

PSAVE2

REMOTE

KEY_IN
ADSEP

RST

VDD

D0~D7

VSS

LCDDB0~LCDDB7

I/O

Analog terminal GND

­KEY0 input AD terminal

I

KEY1 input AD terminal

I

KEY2 input AD terminal

I

KEY3 input AD terminal

I

­Output for SW_LED Flushing 0 (LED for [VOL] key)

O

Output for SW_LED Flushing 1 (LED for [MODE]+[DISP]+[EQ] key)

O

Output for SW_LED Flushing 2 (LED for [CD / CD-CH]+[FM / AM] key)

O

Clock input for serial communications

I

Display data input (Cereal)

I

Key code data output (Cereal)

O

Onboard cereal writing data I/O terminal, Pull-up

I/O

Onboard cereal writing clock input terminal, Pull-up

I
I

Tippinabl input for serial communications

I

O

POWER SAVE 2 (Memory power supply OFF) detection input

I

Remote control input by codes terminal

I

Key interrupt input

I

Address data separation / common mode set terminal (H : Separation mode)

I

Reset input terminal ("L" resets by the input)

I

Power supply terminal

­Enhancing memory input terminal 0~7

I

GND

­LCD data bus I/O terminal 0~7

I/O

BU4066BCFV (IC131) : Quad analog switch

1.Pin layout & Block diagram
VDD CONT1 CONT4 IN4 IN3OUT4 OUT3

14 13 12 11 810 9

1234 756

IN1 OUT1 OUT2 IN2 VssCONT2 CONT3

1-37

KD-LH2000R

TA2157FN-X(IC601):RF amp

1.Terminal layout

2.Block diagram

24 ~ 13

1 ~ 12

13

14

15

16

17

18

19

20

21

10pF

20k

20k

40k30k

20k 20k

15k

50 A

12k

12k

BOTTOM

PEAK

20k

20k

20k

PEAK

1.3V

40k

40k

240k

15pF

240k

15pF

50k

2k

20k

50k

14k

K

1

15k

x0.5
x2

x0.5
x2

1k

2k

1.75k

10pF

12

11

10

9

8

7

6

5

4

1-38

22

23

24

PIN SEL

VCTRLPIN

VCC

HiZ

GND

3k

3k

(APC SW)

APC ON

APC ON

APC OFF
(LDO=H)

180k

40pF

TEB

(TE BAL)

-50%

0%

+50%

180k

40pF

60k

60k

94k
22k

94k

22k

RFGC

(AGC Gian)

+12dB

+6dB

0dB

3

2

1

TEB

(TE BAL)

Normal mode

(0dB)

Normal mode

(0dB)

CD-RW mode

(+12dB)

3.Pin function

Pin No. Symbol I/O Function

1

VCC

2

FNI

3

FPI

4

TPI

5

TNI

6

MDI

7

LDO

8

SEL

-

3.3V power supply pin

I

Main-beam amp input pin

I

Main-beam amp input pin

I

Sub-beam amp input pin

I

Sub-beam amp input pin

I

Monitor photo diode amp input pin

O

Laser diode amp output pin

I

APC circuit ON/OFF control signal, laser diode (LDO) control signal input
or bottom/peak detection frequency change pin.

KD-LH2000R

TA2175FN-X

9

10
11

12
13

TEB

TEN
TEO

RFDC
GVSW

SEL
GND

Hiz
VCC

I

Tracking error balance adjustment signal input pin
Adjusts TE signal balance by eliminating carrier component from PWM
signal (3-state output,PWM carrier = 88.2kHz) output from TC94A14F/FA
TEBC pin using RC-LPF and inputting DC.
TEBC input voltage:GND~VCC

I

Tracking error signal generation amp negative-phase input pin

O

Tracking error signal generation amp output pin.
Combining TEO signal RFRP signal with TC94A14F/FA configures tracking
search system.

O

RF signal peak detection output pin

I

AGC/FE/TE amp gain change pin

GVSW Mode
GND

Hiz
VCC

APC
circuit

OFF Connected VCC through 1k resistor
ON
ON

Control signal output
Control signal output

CD-RW
Normal

LDO

14
15

16
17

18
19
20

21
22
23
24

VRO
FEO

FEN
RFRP

REIS
RFGO
RFGC

AGCIN
RFO
RFI
GND

O

Reference voltage (VRO) output pin
VRO=1/2VCC When VCC=3.3V

O

Focus error signal generation amp output pin

I

Focus error signal generation amp negative-phase input pin

O

Signal amp output pin for track count
Combining RFRP signal and TEO signal with TC94A14F/FA configures
tracking search system.

I

O

RF signal amplitude adjustment amp output pin

I

RF amplitude adjustment control signal input pin
Adjusts RF signal amplitude by eliminating carrier component from PWM
signal (3-state output,PWM carrier=88.2kHz)output fromTC94A14F/14FA
RFGC pin using RC-LPF and inputting DC.
RFGC input voltage:GND~VCC

I

RF signal amplitude adjustment amp input pin

O

RF signal generation amp output pin

I

RF signal generation amp input pin

-

GND pin

1-39

KD-LH2000R

TA8273H(IC951):Power AMP

1.Block diagram

INRF

0.22 F

AC CONT1

INRR

0.22 F

+

Vcc 1/2 Vcc 3/4

2200 F 0.022 F

6 20

+

11

-

+

+

-

9

7

OUT RF+

OUT RF-

1

Protective

circuit

+

-

+

12

+

-

GND

8

OUTRR+

5

OUTRR-

3

GND

2

ST BY

REF

47 F

INLF

AC CONT2

PRE GND

INLR

+5V
ST ON

+

0.22 F

+

0.22 F

4

Stand by

Switch

Mute

10

+

Ripple

Filter

Mute

22

circuit

3.3 F

+

15

-

+

-

17

19

10K

+

OUTLF+

OUTLF-

Low Level
Mute ON

25

18

21

23

GND

OUTLR+

OUT LR-

13

14

Protective

circuit

-

+

+

-

1-40

ON TIME

22 F

Muting &

16

+

ON Time Control

Circuit

GND

24

2.Terminal layout

GND

GND

OUT1-

STBY

OUT1+

VP1

OUT2-

GND

OUT2+

SVRR

IN2

IN1

SGND

IN4

IN3

AC-GND

OUT3+

GND

OUT3-

VP2

OUT4+

MUTE

OUT4-

GND

KD-LH2000R

HSO

3.Pin function

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

SymbolPin No. Function

GND
GND
OUT1­STBY
OUT1+
VP1
OUT2­GND
OUT2+
SVRR
IN2
IN1
SGND
IN4
IN3
AUX
OUT3+
GND
OUT3­VP2
OUT4+
MUTE
OUT4­GND
HSO

Header of IC
Power GND
Outpur(-) for Rear Rch
Stand by input
Output (+) for Rear Rch
Power input
Output (-) for Front Rch
Power GND
Output (+) for Front Rch
Ripple filter
Front Rch input
Rear Rch input
Signal GND
Rear Lch input
Front Lch input
Power on time control
Output (+) for Front Lch
Power GND
Output (-) for Front Lch
Power input
Output (+) for Rear Lch
Muting control input
Output (-) for Rear Lch
Power GND
Header of IC

TA8273H

1-41

KD-LH2000R

TC94A14FA (IC621) : D.SURVO & DSP

1.Terminal layout & block diagram

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

48 47 46 45 44 43 42 41 40 39

Clock

generator

Micro-

controller

interface

1-bit
DAC

Audio out

circuit

Address

circuit

circuit

Correction

Digital
output

16 k

RAM

PWM

Servo

control

ROM
RAM

CLV servo

Synchronous

guarantee

EFM

decoder

Sub code

decoder

38 37 36 35 34 33

D/A

A/D

Digital equalizer

automatic

adjustment circuit

Data

slicer

VCO

PLL

TMAX

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

64

2.Pin function

Pin

Symbol I/O Description

No

1

BCK

2

LRCK

O

Bit clock output pin.32fs,48fs,or 64fs selectable by command.

O

L/R channel clock output pin."L" for L channel and "H" for R channel. Output polarity
can be inverted by command.

3

AOUT

4

DOUT

5

IPF

O

Audio data output pin. MSB-first or LSB-first selectable by command.

O

Digital data output pin.Outputs up to double-speed playback.

O

Correction flag output pin. When set to "H", AOUT output cannot be corrected by C2

correction processing.
6
7
8
9

10
11
12
13
14
15

V

DD3

V

SS3

SBOK

CLCK

DATA
SFSY
SBSY

HSO
UHSO
PV

DD3

-

Digital 3.3V power supply voltage pin.

-

Digital GND pin.

O

Sub code Q data CRCC result output pin. "H" level when result is OK.

O

Sub code P-W data read I/O pin. I/O polarity selectable by command.

O

Sub code P-W data output pin.

O

Playback frame sync signal output pin.

O

Sub code block sync signal output pin. "H" level at S1 when sub code sync is detected.

I/O

General-purpose input / output pins.
Input port at reset.

-

PLL-only 3.3V power supply voltage pin.

17

161514131211101 2 3 4 5 6 7 8 9

1-42

Pin

Symbol I/O Description

No

16
17

PDO

TMAX

EFM and PLCK phase difference signal output pin.

O

TMAX detection result output pin.

O

KD-LH2000R

TC94A14FA

18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38

39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64

LPFN
LPFO

PVREF

VCOF

AVSS3

SLCO

RFI

AVDD3

RFCT

RFZI

RFRP

FEI

SBAD

TEI
TEZI
FOO
TRO

VREF

RFGC

TEBC

SEL

AVDD3

FMO

DMO
VSS3
VDD3

TESIN

XVSS3

XI

XO

XVDD3

DVSS3R

RO

DVDD3

DVR

LO

DVSS3L

ZDET
VSS5
BUS0
BUS1
BUS2
BUS3
BUCK

/CCE

/RST
VDD5

TMAX Detection Result

Longer than fixed period
Within fixed period
Shorter than fixed period

Inverted input pin for PLL LPF amp.

I

Output pin for PLL LPF amp.

O

PLL-only VREF pin.

­VCO filter pin.

O

Analog GND pin.

­DAC output pin for data slice level generation.

O

RF signal input pin. Zin selectable by command.

I

Analog 3.3V power supply voltage pin.

­RFRP signal center level input pin.

I

RFRP signal zero-cross input pin.

I

RF ripple signal input pin.

I

Focus error signal input pin.

I

Sub-beam adder signal input pin.

I

Tracking error input pin. Inputs when tracking servo is on.

I

Tracking error signal zero-cross input pin.

I

Focus equalizer output pin.

O

Tracking equalizer output pin.

O

Analog reference power supply voltage pin.

­RF amplitude adjustment control signal output pin.

O

Tracking balance control signal output pin.

O

APC circuit ON/OFF signal output pin. At laser on, high impedance with UHS="L",

O

TMAX Output

DD3

"PV

"
"HiZ"
"AV

SS3

"

H output with UHS="H".
Analog 3.3V power supply voltage pin.

­Feed equalizer output pin.

O

Disc equalizer output pin.

O

Digital GND pin.

­Digital 3.3V power supply voltage pin.

­Test input pin. Normally, fixed to "L".

I

System clock oscillator GND pin.

­System clock oscillator input pin.

I

System clock oscillator output pin.

O

System clock oscillator 3.3V power supply voltage pin.

­DA converter GND pin.

­R-channel data forward output pin.

O

DA converter 3.3V power supply pin.

­Reference voltage pin.

­L-channel data forward output pin.

O

DA converter GND pin.

­1 bit DA converter zero detection flag output pin.

O

Microcontroller interface GND pin.

­Microcontroller interface data I/O pins.

I/O

Microcontroller interface clock input pin.

I

Microcontroller interface chip enable signal input pin.At "L", BUS0 to BUS3 are active.

I

Reset signal input pin. At reset, "L".

I

Microcontroller interface 5V power supply pin.

-

1-43

KD-LH2000R

TC94A02F-005 (IC652) : MP3 DEC

AD11

AD12

32

31

33

AD10

CKS

30

TESTP

29

VSSR

28

VRAR

27

RO

26

VDAR

25

24

VDAL

LO

23

VRAL

22

VSSL

21

VSS

20

STANDBY

19

VDD

18

/OE

17

16

/CE

AD9

VDDT

AD8

AD7

AD6

REQ

VSS

AD13

DAC

34

Bus

register

C-Pointer

register

Y-Pointer

register

X-Pointer

Switch

register

35

36

37

General

Output Port

38

39

40

41

Flag

2sets

Address Calc.

ERAM

2k word

*3

CROM

4k word

DAC

AY

AX

MX MY MZ

X0 X1 X2

Y0 Y1 Y2

MAC ALU

A3

A2

A0 A1

round & limit

round & limit

Audio.I/F

15

AD5

14

LRCKI

13

BCKI

12

SDI

AD4

11

AD3

10

9

SDo

87

VDDT

AD14

/WR

AD16

AD15

IO0

IO1

VSS

VSSX

AD2

6

/MICK

543

MIDIo

AD1

AD0

MIMD

2

/RESET

1

42

YRAM

4k word

43

Timer

44

4546

47

48

Interrupt

Control

SRAM I/F

49

IO2

I-Bus

Generator

50

IO3

Timing

51

IO4

XRAM

4k word

52

VDD

53

IO5

X-Bus

Start

Prog.

54

IO6

Y-Bus

DIT

55

IO7

56

VSSP

PRAM

256word

57

PDO

Control

Program

PROM

4k*2+2k

VC0

58

VCOI

=10kword

59

VDDP

40bit

Decoder

Instruction

General Input Port

60

61

CK0

VDDX

Microcom.I/F

62

63

XI

64

XO

1-44

KD-LH2000R

3.Pin function(1/2)
Pin No. Symbol

1

/RESET

2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

MIMD

AD0
AD1

MIDIO

/MICK

AD2

VDDT

SDO

AD3
AD4

SDI

BCKI

LRCKI

AD5

CE

OE

VDD

STANBY

VSS
VSSL
VRAL

LO

VDAL

VDAR

RO
VRAR
VSSR

TESTP

CKS
AD12
AD11
AD10

AD9

VDDT

AD8

AD7

AD6

REQ

VSS
AD13
AD14

WR
AD16
AD15

IO0

IO1

VSS

IO2

IO3

I/O

O
O

I/O

O
O

O
O

O
O
O

O

O

O
O
O
O

O
O
O
O

O
O
O
O

O
I/O
I/O

I/O
I/O

Function

Hard reset input terminal(H:Normal operation L: Reset)

I

Micon I/F mode select input terminal

I

External SRAM address output 0 terminal
External SRAM address output 1 terminal
Micon I/F data input/output terminal
Micon I/F clock input terminal

I

External SRAM address output 2 terminal
Digital power supply (3.3V)

­Data output terminal

External SRAM address output 3 terminal
External SRAM address output 4 terminal
Data input terminal 0

I

Bit clock input terminal A

I

LR clock input terminal A

I

External SRAM address output 5 terminal
External SRAM chip enable terminal
External SRAM output enable terminal
Digital power supply (2.5V)

­Standby mode control terminal

I

Digital GND

­DAC Lch GND

­DAC Lch reference voltage terminal

­DAC Lch output terminal

DAC Rch power supply terminal(2.5V)

­DAC Lch power supply terminal(2.5V)

­DAC Rch output terminal

DAC Rch reference voltage terminal

­DAC Rch GND

­Test terminal

I

VCO select terminal

I

External SRAM address output 12 terminal
External SRAM address output 11 terminal
External SRAM address output 10 terminal
External SRAM address output 9 terminal
Digital power supply terminal (3.3V)

­External SRAM address output 8 terminal

External SRAM address output 7 terminal
External SRAM address output 6 terminal
Squeeze request terminal to host
Digital GND

­External SRAM address output 13 terminal

External SRAM address output 14 terminal
External SRAM write signal
External SRAM address output 16 terminal
External SRAM address output 15 terminal
External SRAM data input/output 0 terminal
External SRAM data input/output 1 terminal
Digital GND

­External SRAM data input/output 2 terminal

External SRAM data input/output 3 terminal

TC94A02F-005

1-45

KD-LH2000R

3.Pin function(2/2)
Pin No. Symbol

51
52
53
54
55
56
57
58
59
60
61
62
63
64

IO4

VDD

IO5
IO6
IO7

VSSP

PDO

VCOI

VDDP

CKO

VDDX

XI

XO

VSSX

I/O

I/O
I/O

I/O
I/O

O

O

O

Function

External SRAM data input/output 4 terminal
Digital power supply (2.5V) terminal

­External SRAM data input/output 5 terminal
External SRAM data input/output 6 terminal
External SRAM data input/output 7 terminal
VCO GND

­PLL phase error detection signal output terminal
VCO control voltage input terminal

I

VCO power supply

-

16.934 MHz clock output terminal
Power supply (2.5V) terminal for oscillator

­Connection terminal for oscillator(input)

I

Connection terminal for oscillator(output)
GND for oscillator

-

TC94A02F-005

LP61L1024S-12-X (IC653) : SRAM

1. Pin layout

V

NC
A16
A14
A12

I/O1
I/O2
I/O3

Vss

1
2
3
4
5

A7

6

A6

7

A5

8

A4

9

A3

10

A2

11

A1

12

A0

13
14
15
16

32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17

DD

A15
CS2
WE
A13
A8
A9
A11
OE
A10
CS1
I/O8
I/O7
I/O6
I/O5
I/O4

2. Block diagram

V

DD

Vss

A0

DECODER

A16

CS2
CS1

CONTROL

OE

WE

3. Pin function
SYMBOL

A0 - A16
I/O1 - I/O8
CS1, CS2
WE
OE
V

DD

Vss
NC

CORE

ARRAY

DATA I/O

I/O1

I/O8

DESCRIPTION
Address Input
Data Input/Output
Chip Select Inputs
Write Enable Input
Output Enable Input
Power Supply
Ground
No Connection

1-46

MX23L8103-90 (IC802) : ROM

1.

Pin

layout

48

A15
A14
A13
A12
A11
A10

WE

RESET

RY/BY

A18
A17

NC
NC

NC
NC

1
2
3
4
5
6
7

A9

8

A8

9
10
11
12
13
14
15
16
17
18

A7

19

A6

20

A5

21

A4

22

A3

23

A2

24

A1

A16

47

BYTE

46

GND

45

Q15/A-1

44

Q7

43

Q14

42

Q6

41

Q13

40

Q5

39

Q12

38

Q4

37

VCC

36

Q11

35

Q3

34

Q10

33

Q2

32

Q9

31

Q1

30

Q8

29

Q0

28

OE

27

GND

26

CE
A0

25

2. Block diagram

CE

OE

WE

RESET

A0-A18

CONTROL
INPUT

LOGIC

ADDRESS

LATCH

AND

BUFFER

PROGRAM/ERASE
HIGH VOLTAGE

X-DECODER

MX29LV800T/B

FLASH
ARRAY

Y-DECODER

Y-PASS GATE

SENSE

AMPLIFIER

SOURCE

PGM
DATA

HV

ARRAY

HV

KD-LH2000R

WRITE

STATE

MACHINE

(WSM)

STATE
REGISTER

COMMAND

DATA
DECODER

COMMAND

DATA LATCH

3. Pin function

Pin NO. Name Function

1~8

9, 10

11
12

13, 14

15
16, 17
18~25

26

27

28

29

30

31

32

33

A15~A8

NC
WE

RESET

NC

RY / BY

A18, A17

A7~A0

CE

GND

OE

Q0
Q8
Q1
Q9
Q2

Address input
Write enable input

Hardware reset pin
Ready / busy output

Address input
Address input
Chip enable input
Ground pin
Output enable input
Data input / output
Data input / output
Data input / output
Data input / output
Data input / output

PROGRAM

DATA LATCH

Q0-Q15/A-1

I/O BUFFER

Pin NO. Name Function

34
35
36
37
38
39
40
41
42
43
44

45
46

47
48

Q10

Q3
Q11
VCC

Q4
Q12

Q5
Q13

Q6
Q14

Q7

Q15 / A-1

GND

BYTE

A16

Data input / output
Data input / output
Data input / output
Data input / output
Data input / output
Data input / output
Data input / output
Data input / output
Data input / output
Data input / output
Data input / output

Q15 (Word mode) /
LSB addr (Byte mode)

Ground pin
Word / byte selction input
Address input

1-47

KD-LH2000R

PCM1716E (IC571) : D/A converter

1. Pin layout

2. Block diagram

BCK

LBCK

DATA

ML/llS
MC/DM1
MD/DM0

CS/WO

MODE

MUTE

RST

3. Pin function

Pin

Symbol Function

No.

1

LRCK

2

DATA

3

BCK

4

CLKO
5
6
7
8
9

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

XTI

XTO

DGND

VDD

VDD2R

AGND2R

EXTR

NC
VOUTR
AGND1

Vcc1

VOUTL

NC

EXTL

AGND2L

Vcc2L
ZERO

RST

CS/IWO

MODE

MUTE
MD/DM0
MC/DM1

ML/IIS

28 15

114

Serial

Input

I/F

Mode

Control

I/F

Mult-level

8X Oversampling

Digital Filter

with

Function Controller

SCK

BPZ-Cont

Crystal OSC

XTI XTO CLKO Vcc1 VccAGND1 DGND

Delta-Sigma

Modulator

Power Supply

Vcc2L

DAC

DAC

AGND2L

Vcc2R

AGND2R

Open drain

Low-pass

Filter

Low-pass

Filter

I/O

I

LRCK clock input

I

Serial audio data input

I

Bit clock input for serial audio data

O

Buffered output of system clock

I

Oscillator input / External clock input

O

Oscillator output

-

Digital ground

-

Digital power +5V

-

Analog power +5V

-

Analog ground

O

Rch common pin of analog output amp

-

Non connection

O

Rch analog voltage output of audio signal

-

Analog ground

-

Analog power +5V

O

Lch analog voltage output of audio signal

-

Non connection

O

Lch common pin of analog output amp

-

Analog ground

-

Analog power +5V

O

Zero data flag

I

Reset

I

Chip select / Input format selection

I

Mode control select

I

Mute control

I

Mode control, Data / De-emphasis selection 1

I

Mode control, BCK / De-emphasis selection 2

I

Mode control, WDCK / Input format selection

VoutL

EXTL

VoutR

EXTR

ZERO

1-48

NJM2360M (IC921) : DC-DC convertor

1.

Pin

layout

2. Block diagram

KD-LH2000R

1. Cs

1
2
3
4

8
7
6
5

2. Es

T

3. C

4. GND

5. INV

6. Vcc

7. S

I

8. C

D

IN

HN58X2432FPI (IC703) : EEPROM

1.Terminal layout

Switch
collector

Switch
emitter

Timing
capacitor

GND

2.Pin function

1

Q

1

QS

Q

2

R

2

Ipk

COSC

T

3

COMP

V

REF

4

1.25V

+

-

Driver

8

collector

Ipk sense

7

+

6

V

Comparator

5

reversal input

A0
A1
A2

GND

1
2
3
4

3.Block diagram

A0, A1, A2

V

CC

V

SS

WP

SCL

SDA

8

VDD

7

WPIN

6

SCL
SDA

5

Control

logic

Pin name
A0 to A2
SCL Serial clock
SDA Serial data
WPIN
VDD
CND

Address generator

Device address

Write protect
Power supply
Ground

High voltage generator

X decoderY decoder

Y-serect & Sense amp.

Function

input

input/output

Memory array

Serial-parallel converter

1-49

KD-LH2000R

SAA6579T-X(IC51):RDS detecter

1.Pin layout

QUAL

SCOUT

2.Block diagram

DATA

Vref

MUX

GND

CIN

1
2
3
4

dd

V

5
6
7
8

16
15
14
13
12
11
10

CLK
T57
OSCO
OSCI
V

dd

GND
TEST
MODE

9

121413

3.Pin function

4

8

7

CLOCKED
COMPARATOR

5

3

REFERENCE
VOLT AGE

Pin No.

1
2
3
4

ANTI­ALIASING
FILTER

6 11

Symbol

VP1

QUAL
DATA
Vref
MUX

57 kHz
BAND PASS
(8th ORDER)

COSTAS LOOP
VARIABLE AND
FIXED DIVIDER

CLOCK
REGERATION
AND SYNC

RECONSTRUCTION
FILTER

TEST LOGIC AND OUTPUT
SELECTOR SWITCH

OSCILLATOR
AND
DIVIDER

BIPHASE
SYMBOL
DECODER

910

Description

Quality indication output
RDS data output
Reference voltage output (0.5VDDA)
Multiolex signal input

QUALITY BIT
GENERATOR

DIFFERENTIAL
DECODER

1

2

15

15

1-50

5
6
7
8

9
10
11
12
13
14
15
16

Vdd
GND
CIN
SCOUT
MODE
TEST
GND
Vdd
OSCI
OSCO
T57
CLK

+5V supply voltage for analog part
Ground for analog part (0V)
Sub carrier input to comparator
Sub carrier output of reconstruction filter
Oscillator mode / test control input
Test enable input
Ground for digital part (0V)
+5V supply voltage for digital part
Oscillator input
Oscillator output
57 kHz clock signal output
RDS clock output

RPM6938-SV4 (IC805) : Remote sensor

1.Block diagram

KD-LH2000R

AGC

AMP

I/V
conversion

PD

magnetic shield

BPF

fo
trimming
circuit

Detector

NJU7241F25 (IC651) : Regulator

1.Pin layout 2.Block diagram

GND 1

VIN 2

5 STB

VIN 2

Vcc

Comp

Vcc

22k

Rout

GND

Short protect

3 VOUT

VOUT 3

4 NC

STB 5

GND 1

NJM4565V (IC132,IC151,IC251,IC572) : Dual ope amp

1.Terminal layout & Pin function

1

1

8

A

2

+

-

7

B

3

+

-

4

6

5

AOUTPUT

2

A-INPUT

3

A+INPUT

4

V

5

B+INPUT

6

B-INPUT

7

B OUTPUT

8

V

Vref

1 GND

1-51

Block diagram

KD-LH2000R

J1 ANT

TU1

FM/AM

5

TUNER

CD section

TU,L

TU,R

DET OUT

CD MECHA

IC571

PICK UP

LOADING &
FEED MOTOR

SPINDLE
MOTOR

4

REST SW

SW1/SW2

VA,VB,VE,VF

LD,MD

IC601

LOAD/FEED
TRACKING
SPINDLE
FOCUS

IC601

RF AMP

REST,SW1,SW2

FMO
FOO
DMO
TRO

IC681

CD DRIVER

RF,RFGC,RFRP,FE
TE,RFDC,TEB,SEL

IC502

EPROM

IC503

JBUS

JBINT,JBSO

JBSI,JBCK

CDON,LD/FE,LORD

SCL
SDA

D/A CONVERTER

IC621

D.SERVO&DSP

BUS0-BUS3
BUCK,CCE
DSPRST

IC501

SUB CPU

MP3RST,MP3CK,MP3DA

REQ,STANDBY

CDMUTE,CDREQ,CDRESET,PDET

XI

ML
MC
MD

IC653

SRAM

3

VOUTL

VOUTR

CLKO,SDO

AD0-AD16
IO0-IO7

CE,OE,WR

DECORDER

IC572

CD LPF

LRCK
DATA
BCK

IC652

MP3

CDL

CDR

CN501

CN601

IC51
RDS

RDSDA
RDSCK

FM/AM
CF
PLLCE
PLLDA
PLLCK
PLLDI
MRC
SD/ST
S.METER

IC111

E.VOL

VOL.CLK

VOL.DA

NONF.L

NONF.R

FRONTL

FRONTR

REARL

REARR

CH.L

CH.R

CONVERTOR

Main amp section

IC131

ANA. SW

IC132

LPF

IC151

LINE AMP

IC251

LINE AMP

IC921

DC-DC

SUB OUT

FRONTL

FRONTR

REARL

REARR

IC951

POWER AMP

LINE
OUT

SUB

WOOFER

OUT

CN131 J121

LCD &
LCD DRIVER

2

DB0-DB7

RD
WR
RS
CS
RES
OSC

LED

D406-D422
D432-D434

CL1-CL3

LED0-LED7

IC802

ROM

RE
D0-D7
A0-A19

DISPSCK

DISPDATA

DISPCE

KEYDATA

IC701

MAIN CPU

SDA
SCL

BUSINT
BUSI/O
SI/SO
BUSSCK
BUSSO

IC781

J-BUS

IC901

REGURATOR

to

each

block

D451-D453

SCK

IC805

REMOCON

IC801

SI/SO

REMOCON

CN701

DISP CPU

KEY

KEY0-KEY2

S802-S818

1

EN801

ENCODER

VOL1,VOL2

CN801

IC703

EEPROM

CN902
CD-CH

MAIN P.W.B

FRONTL

FRONTR

REARL

REARR

CN901

SPK
BATT

SW P.W.B

LCD driver section

A B C D E F G

2-2

Standard schematic diagrams

Receiver & System control section

KD-LH2000RKD-LH2000R

R121

R141

0 0.0068

1SS355

CRS03

D951

C140

UN2211

0.1

C913

820

R122

820

R221

820

R222

820

R145

15k

R144

5.6k

47k

R142

R143

100k

R951

2.2k

27k

R952

Q951

R953

1k

CRS03

2.2/50

100k

D905

C912

R913

QNZ0112-001

Q121

2SD1048 2SD1048

2SD1048

Q222

C142

2.2/50
10k

10k

C141

0.082

R125

R126

D121

MA152WA

IC132

NJM4565V

47k

R146

22/16

RR-

C956C957C958C959

RR+

C951

FR-

FR+

FL+

FL-

2.2/50

RL+

C955

RL-

2200/16

1N5404-TU-15

L901

QQR0703-001

R910

2.2k

R911

CN901

1k

0.1

C911

2.2k

R912

10k

10k

R226

R225

R147 R148

820 180

Q133

2SC2412K

0.10.10.10.1

C901

D901

CD SIGNAL

CHANGER SIGNAL

TUNER SIGNAL

FRONT SIGNAL

TU1

QAU0203-002

C131

C124

C121

C120

0.047

1/50

10/6.3

5

R5

22

R6

22

4

FM/AM

SM

SQ

CN601
QGB2027M4-22S

UN2211

R22

R21

470

0.47/50

C21

3

C755

0.010.01

C753

Q753

UN2211

2

6.8k

CN701

QNZ0007-002

R778

1

UDZS6.2B

D711

2SB815

R7

47k

Q2

10k

Q21
2SC2412K

0.01

C752

6.8k

R779

UDZS6.2B

D712

J1

QNB0100-002

L1

10u

1SS355

1SS355

0.01

0.047

D1D2C3

C2

C1

Q3

2SB815

39k

C10

R9

47k

Q1

R8

4.7k

R10

R24

10k

C22

0.1
Q22

2SC2412K

R23

10k

0.0047

R27

C23

R25

2.2k

Q750

UN2211

R992

0

R993

0

L753

47u

C751

0.01

Q752

Q751

UN2213

UN2211

S701

QSW0451-001

R791

Q703

UN2211

6.8k

R780

SBRST
SBT
SBD

UDZS6.2B

UDZS6.2B

UDZS6.2B

UDZS6.2B

S702

D713

D714

D715

D716

0.047

R4

R3

10

D3

C27

MA152WK

3.3K

47k

R26

C24

0.01

330P

UN2211

Q754

CD-L

CD-R

CDREQ

CD8V

R773

R792

C25

GND

PS

OPEN

47k

47k

VDD5V
DISPCK
DISPDA
DISPCE

LEVEL
DETACH

R774

47k

UN2211

C711

0.1

KEY

Q702

UN2211

39k

47k

QSW0451-001

47/16

0.1/50

Q24
2SD601A

R28

47k

Q23

SI/SO

ACC5V

CF

47/16

0.015

0.015

100/10

C4

C6

C101

C201

47k

Q25

UN2111

R29

4.7k

0.1

C26 R1

SEEK

SCK

PON

R754

MUTE

R301

R303

47k

VOLDA

R755
R756

VOLCK

R757

SUBM
LPF1

R758
R759

LPF2

R761
R763

R767

10k

R982

UPD784215AGC179

R775

2.2k

560

560

S703

R798

R797D718

QSW0534-001

SML-310LT

D719

SML-310LT

MRC

PLLDI

PLLCK

PLLDA

PLLCE

C102
C202

C7

100/10

R2

27

Q27Q26

SD/ST

1k
1k

1k
1k

1k
1k
1k
47k
47k

47k

IC701

47/6.3

C713

4.7/25

4.7/25

R101

10k

R201

10k

27k

820P

Q101 Q201

R102

C103

2SD601A 2SD601A

R103

560P

C53

UN2111UN2111

AFCK

PON

ILL

ACC5V

0

10k1k1k

R751

R750

R749

1SS355

R777

47k

R776

2.2k

D701

0.01

C714

IC702

IC-PST9333U

R203

4.7k

0.01

47/6.3

C57

C56

1k

R748

R304

47k

0.022

C52

C55

R11

TEL

DIM

R747

0.1

C701

2.2/50

C51

R54

2.2k

C54

47P

10k

PLLDI

PLLCK

2.2k

2.2k

2.2k

R746

R745

R744

220/10

X701 X702

QAX0617-001Z

C702

C703

4.7k

R51

1k

IC51

SAA6579T

R52

1k

X51

R53

QAX0263-001Z

82P

CF

FM/AM

SEEK

PLLDA

PLLCE

1k

2.2k1k1k1k1k

R981

R743

R742

R741

820

R708

R709

C705

C704

27P

8P

100

AFCK

DETACH

R740

R739

10k

R711

R710

10M

47k

27P

27k

R202

RDSDA

RDSSCK

R217

C212

CD-R

2.2k
R211

CH-R

3.3k

820P

C203

R111

CH-L

3.3k
R117

CD-L

2.2k

10k

R118

GND

SD/ST

DISPCE

DISPDA

DISPCK

3.9k

3.9k

3.9k

1k

R737

R736

R735

R734

1k

1k1k1k

1k

R302

R715

R716

R717

R713

BUSINT

RDSSCK

RDSDA

CDREQ

PS

100k

R714

QAX0401-001

Q701
UN2213

C706

22P

4.7/25

C204

1/50

C211

4.7/25

IC111

M61508FP

4.7/25

C111
C104

1/50

C112

4.7/25

10k

47k

47k

R218

R112

R212

220/10

C718

0.22/50

CRS03

D111

C194

LEVEL

R733

R730

R729

R728
R727
R726
R725

R793

R724
R723
R722

R720
R719

1/50

C795

220/10

C719

BZ795

10/16

100/10

C118

C117

D193 C193

1SS355 0.047

270k

1SS355

R197

D192

OPEN

1k

10k 270

10k 270

1k
1k
1k
1k

47k

SM

1k
1k

SQ

1k

MRC

4.7k

4.7k

R795

3.3k

Q795

QAN0009-001Z

UN2211

C213

C214

2.2/50

2.2/50

2.2/50

2.2/50

C113

C114

R194

12k
Q191
2SD601A

R192

180k

C191

1/50

R195

390

BUZZER

MUTE

BUSI/O
BUSSCK

BUSSO
SI/SO

C709

VDD5V

C717

KEY

14V

R781
R782
R783

BUZZER

47k

22k

22/16

1k

R191

R193

R196

C192

IC703

HN58X2432FPI

R732

C710

0.047

R731

470P

220/10

0.01

C708

C707

C716

C715

100p

0.047

BUSSO

SI/SO

22k

100k

R784

47k

100

D191

MA152WK

L701

47u

L702

47u

220/10

BUSI/O

R785

VOLCK

VOLDA

C119

1/50

10k

C216
C215

ILL
TEL

D702

D704

D703

IC781

HD74HC126FP

4.7/25

4.7/25

47k

47k

R213

R214

47k

47k

R113

R114

C115

4.7/25
C116

4.7/25

R115

220k

R215

220k

UN2113

1SS355

1SS355

1SS355

Q942

Q941
UN2111

C942

D941

D942

UDZ11B

1SS355

100/6.3

Q903

2SB709A

PS

R786

100k

R787

330

R788

100

C781

0.047

LPF2

10k

10k

C132

R216

C941

47/16

47k 15k

R909 R908

SCK

BUSINT

BUSSCK

47k 22k

R790 R789

0.033

R116

C133

0.027

C134

0.027

Q132

UN2211

LPF1

SUBM

C252

4.7/25

R252

22k

47/6.347/6.3

UDZS5.1B

R251

C253C153

D251

C251

4.7/25

C151

4.7/25
22k

1k 1k 22k

R151

R153 R253

22k

UDZS5.1B

C152

4.7/25

R921
R922
R923
R924

UN2211

R152

D151

47k

R917

Q905

ACC5V

14V

22
22
22

R925

22

180

L921

150u

D921

CRS03

0.047
C923

100/16

C924

Q131
UN2211

R131R132R133

CD8V

1M1M47k

R916

IC901

BU4066BCFV

1k

10/16

C910

C922

2700P

IC131

R254 R256

100k 10k

R155 R157

100k 10k

D906

MA152WA

HA13164A

0.01

47k

220/10

R906

C907

C908

IC921

R926

47k

10/16

R154 R156

100k 10k

0.1

C906

100/10

C921

NJM2360AM

R927

4.7k

C135

C137

0.0056

C136

1M 1M

R135 R134

0.012

47k

R136

R257R255

C257
1/50

10k100k

C255
100P

IC251IC151

NJM4565VNJM4565V

C256

C254

1/50

100P

C160

100/10

C156
C154
100P

1/50

C155
100P

C157
1/50

47k

R915

Q904

2SD601A

R914

10k

C914

10/16

R905

10k

R903

5.6k

22/16

100/10

0.01

C905

C904

PON

CH-L

GND

CH-R

27k

R928

1k

R904

C903

Q902

C902

22/16

UN2211

R182

100

100k100k

R181R281

0.047

C181

R282

100

R137

Q901
UN2111

R139R138

C138

100P

100P

C258

C259

100P

100P

C158

C159

DIM

SI/SO

CN902
QNZ0095-001

R140

2.2/50

C139

D904

9.1k4.7k

R901R902

SCK

10k10k

100k

100k

10/16

47/16

R123

180

R124

180

Q122

Q221
2SD1048
R223

180

R224

180

J121

100P

0.047

QNN0490-001

C123

C122

0.047

MA152WA

C952

0.047

C953
10/16

C954

0.47/50

100P

C143

C144

R149

4.7k

CN131

MA152WK
D131

QGA2006C1-04

IC951
TA8273H

RR-

RR+

RL+

FL+

FR+

FR-

RL-

FL-

C961

0.022

C962

0.022

C963

0.022

C964

0.022

C965

0.022

C966

0.022

C967

0.022

C968

0.022

D221

Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.

REAR SIGNAL

2-3

HA B C D E F G

Mecha control circuit section

KD-LH2000R

RWSEL

RF

R613

C611

68P

1k

R612R614

C610

2k15k

RFGC

R610R611

10010k

0.1

C609

5P

C608

FE

RFRP

C606

C607R630

0.01

47/6.3

0.1

56k

R609

5

IC601

TA2157FN

R601

VB
VA
VF
VE
MD

C612

0.01

C613

0.01

CN601

QGF0526F1-22X

LD

VA

IOP

VF

4

R615

150

FOCUS-

FOCUS+
TRACKING+
TRACKING-

SPINDLE+
SPINDLE-

REST

LOAD/FEED+
LOAD/FEED-

3

C614

0.01

VE

VREF

VB

MD
LD

SW2
SW1

BUS0
BUS1
BUS2
BUS3
BUCK
CCE
DSPRST

L623

47u

82k

R602

82k

R603

330k

R604

330k

C603

100/6.3

22

22

R605

R606

47/6.3

0.01

C601

C602

L622

47u

C643

0.01

4.7k

4.7k

4.7k

4.7k

10k

IC621

R638

R639

R640

TC94A14FA

R641

R642

0.33

47/6.3

0.01

C644

C645

C646

Q601

10k

R616

2SB1132/QR/

C604

0.01

0.01

47/6.3

100P

C640

C641

C642

1M

R637

474747

R621

R622

R623

BCK

LRCK

DATA

R607

82k

SEL

TEB

RFDC

TE

C605

R608

820

0.0068

FOO

TRO

FMO

DMO

C639

47/6.3

100

100

R635

R636

0.01

L621

C621

C637

VREF

C638

0.01

R631

47u

0.047

C636

0.047

C632

470P

C631

470P

R634
R633
R632

100

100

R624

5.6k

C622

47/6.3

0
0
0

R629 C629

R626
R625

C623

0.047

0.047

0.047

C633

C635

C634

SEL
TEB

RFGC

C630

TE

0.033

RFDC

FE

RFRP

0.033

10k

C627

0.01

RF

C626

0.0027

C625

0.01

R628

C624

2.2M

0.015

10k

R627

470k
47k

47P

C628

47/6.3

1000P

1000P

C598

C597

47u

L652

DACML

DACMC

DACMD

DACCS

0.1

DSPRST

C579

10/16

C580

R572

R573

47k

47k

IC571

PCM1716E

47NAX0375-001X

R574

X571

C573

10/16

0.1

C574

C575

LRCK

SDO

BCK

10P

C571

C662

0R0

R668

470k

470k

470k

470k

470k

IC652

R673

IO2
IO3
IO4

IO5
IO6
IO7

C665

R675

0.33
C664

C666

C667

C668

47/6.3

C669

TC94A02F-005

R672

R671

R670

R669

R674

330

0.027
100P

0.01

R677

0.01

IC651

NJU7241F25

L651

C651

C652

0.01

47/6.3

47/6.3

10P

C572

100P

R667

470k

R666

470k

R665

470k

R664

470k

C663

0.1

330

1M

R653 R658
R652
R651

47u

C653

47/6.3

C510

1000P

0.1

C578

C577

47/6.3

47u

47u

0.1

L571

L572

C576

IO0

IO1

AD13

AD14WRAD16

AD15

470k 470k
470k
100k

0.1

MP3RST

C654

0.01

C655

MP3DA

MP3CK

AD0

AD1

AD2

R581

20k

100P 100P

C582 C581

R582

20k

4700

R654

AD3

SDO

C585

4.7/35

820P820P

C583C584

C586

4.7/35

C661

0.01

AD9

AD8

AD7

AD6

AD10

R661
R662
R663

0

R659

R655

R656

R657

CE

AD5

AD4

DATA

BCK

LRCK

L501

R585

30k

C589

C587

4.7/35

120P

R583

12k

10k10k

C592

47/6.3

R592

IC572

NJM4565V

47k 47k

C588

R584

12k

120P

R586

30k

470k
470k

C660

470k

100P

C659

0.1

AD11
AD12

C658

0.1

C657

0.1

C656

0.1

OE

470k

R660

470k

47u

R588 R587

C590

4.7/35

C593

47/16

W24L010AJ-12

AD16
AD14
AD12
AD7
AD6
AD5
AD4
AD3
AD2
AD1
AD0
IO0
IO1
IO2

47/6.3

R590

C591

Q571

UN2111

Q572
UN2211

C594

C673

100P

C672

0.1

C671

47/6.3

IC653

CD.L-CH

10k 10k

R591 R589

9V

CD.R-CH

ON5V

CDON

AGND

100P

1000P

0.047

4.7

C596

C595

R593

AD15

WR

AD13

AD8
AD9

47u

AD11

OE

AD10

L653

CE
IO7
IO6
IO5
IO4
IO3

SW1

R538

VREF

2

C688

0.047

LOAD/FEED+
LOAD/FEED­SPINDLE+
SPINDLE-

C687

0.047

C686

0.047

TRACKING­TRACKING+
FOCUS+
FOCUS-

C685

0.047

0

R687

30k

1

22k

R688

R689

LOAD

R681

6.8k

IC681

LA6579H

R686

8.2k

C684

47/16

2SB1184/QR/

R682

6.8k

R683

FMO

4.7k

LD/FE

CDON

R684

DMO

15k

R685

33k

FOO

10/6.3

C682
10/16

Q681

C689

47/16

0

B681

D682

1SR154-400

C503

0.01

100/6.3

C504

C505

27P 0

C506

22P

R545

C507
470P

IOPTRO

C690

IC502

BR24C01AFV-W

0.1

C683

R537

C502

0.01

R540

47k

P.DET

NAX0430-001X

X501

10k

C508

UN2111

0.01

47k

CDRESET

R536

47k

R535
R534
R533
C509

Q501

R539

1k

R541

1k

R542

100

R543

R546

100k

R547

4.7k

R548

4.7k

R549

4.7k

R550

4.7k

R501

A B C D E F G

1k
47k
47k
47k

0.01

8.2k

TH501

NAD0022-103X

R502

270

SW2

REST

100k

47k

47k

8VDET

47k

R530

R531

C501

0.01

DISCSEL

R527

R528

100

R567

10k

270

/BUSIO

R503

R504

D505

R525

100

R524

100

R523

100

R522

100

1k

R544

BUSIO

BUSSI

BUSSO

BUSSCK

CDON

D504

1SS355

1SS355

DACCS

D503

D502

1SS355

1SS355

R521
R520
R519
R518

R516
R515

R514

R513
R512
R511
R510
R509
R508
R507

R506
R505

IC501

UPD784225GK-626

DACMD

DACMC

DACML

100
100

MP3RSTB.DET

100

4.7k
R517

100

100

100

1k

RWSEL

BUS0

100

BUS1

100
100

BUS2

100

BUS3
BUCK

100
100

CCE

100

DSPRST

1k

1k

D501

MP3CK

MP3DA

LD/FE

LOAD

CDMUTE

CDREQ

C513

1SS355

C512

100/6.3

C511

R561
R568

BUSSO

R563

C551

0.01

BUSSI

R569

BUSIO

R570

/BUSIO

R553

BUSSCK

R554

IC504

0.01

0.1

100k
1k

6.8k

IC503

1k

1k

18k

33k

NJU7241F33

L502

R562

3.9k

HD74HCT126T

R551

100

R560

0

R559

100

R555

R552

R558

100k

100k

8VDET

47u

R556

0

R557

100k

D506
CRS03-W

Q502
UN2211

100k

CD.L-CH
AGND

CD.R-CH
9V
ON5V

DISCSEL
CDMUTE
CDREQ
CDRESET
B.DET
P.DET
BUSSI/SO
BUSCLK

CD8V

GND

CN501

QGB2027L1-22X

CD SIGNAL

2-4

KD-LH2000RKD-LH2000R

LCD driver & Operation switch section

5

D451D452D453

NSCM315CNSCM315CNSCM315C

0.047

4

CN802

C818

QGF0523F1-40W

0.047

C820

0.047

C817

R867

2.2M

0.047

0.047

0.047

0.047

0.047

C819

0.047
R3

D431

UDZS6.2B

Q424

2SD601A

Q425

2SD601A

390

390

390

560

OSC

R447

R445

R446

R444

CL3

RES

CS
RS
WR
RD

DB0
DB1
DB2
DB3
DB4
DB5
DB6
DB7

15V

0.047

C816

A2

A3A4A5A6A7

47k

R873

CS0

A1

B3

G3

D430

D429

UDZS6.2B

UDZS6.2B

Q420

2SD601A

Q421

Q423

560

R443

RE

2SD601A

2SD601A

Q422

2SD601A

390

390

390

560

R439

R440

R441

R442

A8

D0

CL1

CL2

A18

A19

RST

D2

C821
C822
C823
C824

3

C459

G2

D428

UDZS6.2B

Q418

2SD601A

Q417

Q419

2SD601A

390

390

390

560

560

R438

R436

R437

R434

R435

CL3

A9

A10

A11

A12

A13

A0

D7A0D6A1D5A2D4A3D3

0.047

0.047

0.047

C458

C457

C456

B2

D427

D426

UDZS6.2B

UDZS6.2B

Q414

2SD601A

Q415

2SD601A

2SD601A

Q416

2SD601A

390

390

390

560

R432

R433

CL2

A14

A15

A16

A17

390

R430

R431

R429

CL1

IC802

MX23L8103-90

10/6.3

470P

0.047

C813

C815

C814

0.047

0.047

0.047

C455

C454

C453

B2

G2R2G3B3R3

D424

D425

UDZS6.2B

UDZS6.2B

Q411

Q413

390

R428

4.7/6.3

C812

2SD601A

390

R427

Q412

2SD601A

CL3

IC-PST9322U

2.2k

R866

560

R426

IC803

2SD601A

Q410

2SD601A

390

560

560

R423

R424

R425

CL2

47k

R865

0.047

0.047

C452

C451

R846

10k

DISPCE

10V

PSAVE2
REMOTE
KEYIN

R847

C810

RST

D423

UDZS6.2B

Q409

2SD601A

390

390

R421

R422

RST

0.047

1SS355

C811

D803

0.047

R471

D0

Q408

2SD601A

CL1

R472

D1

R473

D2

R474

D3

R475

D4

R476

D5

R477

D6

R478

D7

R815

DB0

R814

DB1

R813

DB2

R812

DB3

R811

DB4

R810

DB5

R809

DB6

R808

DB7

R845
R844
R843
R842
R841

47k

330
330
330
330
330
330
330
330

330
330
330
330
330
330
330
330

IC801

1k

MN102H60KCC

R848

SBRST

47k

SBD

SBT

47k

KEYDA

DISPCK

1.5k

1.5k

1.5k

DISPDA

1k

1k

10k

10k

10k

R835

R836

R837

R838

R839

330

330

330

R479

R801

R803

CS0

RES

KEY2

KEY1

KEY0

LED0D1LED1

LED2

10k

10k

10k

10k

R834

R831

R832

R833

330

330

330

R804

R849

R850

LED6

LED5

LED4

CS

RS

WR

CL1

CL2

CL3

VOL1

VOL2

LED3

330

330

100k

1k

1k

R826

R827

R828

R818

R819

330

330

R851

R852

10/6.3

0.047

C801

C802

R830

47k
47k

R829

C809

4.7/6.3

C808

4.7/6.3

C807

100k

R825

R817

470 100k

R805 R824

4.7/6.3

330

R823
R816
R821

R822

R820
R894
R893
R871
R864
R863
R862
R861

R860
R859
R858
R857
R856
R855
R854
R853

R807

X801
NAX0552-001X

0.047

C806

47k

NAD0022-103X

TH801

330

OSC

330

RD

8.2k

1k

ANA

330

A19

330

A18

330

A17

330

A16

330

A15

330

A14

330

A13

330

A12

C805

330

470P

A11

330

A10

330

A9

330

A8

330

A7

330

A6

330
330

2SD601A

A5
A4

PSAVE2

S806 S805 S804 S803 S802

R886 R885 R884

820 560 390

S812 S811 S810 S809 S808 S807

R889R890R891 R888

390560820 270

Q801
2SB709A

R868

47k

Q802
2SB709A

R869

47k

R892

Q803

R874

100k

C825

10/6.3

470k

IC804

L801

47u

R879R880R881

270390560

R883 R882

270 300

D801

MA152WK

R872

NJU7241F33

C827

0.047

R878

KEY0

300

KEY1

R887

KEY2

300

S813S814S815S816S817S818

KEYIN

R870

470k

PS2

47k

VDD5V

C828

C826

10/6.3

10/6.3

470

470

680

R419

R420

R450

R451

D433

SML-310LT

D434

SML-310LT

Q407

UN2211

Q427

UN2211 680

LED6

LED3R2LED2

EN801

QSW0793-001 RPM6938-SV4

VOL2

VOL1

680

470

470

R416

R417

R418

D418

D420D421D422

CL-190UB

SML-310LTSML-310LTSML-310LT

D419

CL-190UB

Q406

UN2211

LED1

R876 R877

33k

R875

REMOTE

6801k1k

680

R412

R413

R414

R415

D413D414

D415D416

SML-310LTSML-310LT

SML-310LTSML-310LT

D417

SML-310LT

Q403

Q404

Q405

UN2211

UN2211

LED0RELED6

IC805

0 47

C829

470

470

470

680

R408

R409

R410

R411

D411D412

SML-310LTSML-310LT

D409D410

SML-310LTSML-310LT

Q402

UN2211

UN2211

LED5

LED4

4.7/6.3

1.2k

1k

680

680

470

R407

D406D407D408

Q401

UN2211

1k

1.2k

UDZS6.2B

UDZS6.2B

SBRST
SBT
SBD
PS2
15V

ACC5V
VDD5V
DISPCK
DISPDA
DISPCE
KEYDA
ANA

UDZS6.2B

CN801

QNZ0006-001

D811

D810

D809

UDZS6.2B

UDZS6.2B

UDZS6.2B

UDZS6.2B

UDZS6.2B

D808

D804

D805

D806

D807

R403

R402

R405

R406

R401

R404

D403

SML-310LTSML-310LTSML-310LT

SML-310LT

MA152WK

D401

D404D405

SML-310LTSML-310LT

D402

SML-310LT

ACC5V

2

1

2-5

HA B C D E F G

KD-LH2000R

Exploded view of general assembly and parts list

11

67

10

70

A

B

68

59

Main board

12

23

21 31

28

15

30

25

34

29

32

17

27

20

18

24

26

12

16

22

33

8

14

19

55

54

15

7

56

54

54

82

C

83

11

65

11

10

4

72

71

69

64

6

66

13

A

Block No.

77

81

51

40

57

42

58

M

79

50

75

1

78

84

M

80

M

74

C

76

3-2

5

9

43

41

37

44

39

35

2

2

49

38

36

9

53

2

52

63

3

1

9

2

45

48

2

47

KD-LH2000R

Parts list (General assembly)

Item

A

1 ------------

2 QYSDST2004Z

3 VYSH101-009

4 GE10043-001A

5 GE40135-001A

6 GE30568-002A

7 GE30393-001A

8 FSMA3005-001

9 QYSDST2604Z

10 FSKZ4005-001

11 QYSDST2606Z

12 QYSDST2606Z

13 QYSDST2612Z

14 QYSDSF2006M

15 QYSDST2004M

16 GE10049-003A

17 GE30381-001A

18 VKZ4777-001

19 GE30378-001A

20 FSKS3015-001

21 VKS3798-002

22 GE30379-001A

23 VKS3794-003

24 VKS3795-002

25 VKS5563-001

26 VKZ4786-002

27 FSKW4012-001

28 GE40144-001A

29 VKW5262-001

30 QYSDSF2006M

31 VKW5263-002

32 VKZ4777-001

33 FSKW4013-002

34 GE40140-001A

35 GE10044-010A

36 GE30384-009A

37 GE20129-001A

38 GE30537-001A

39 GE20124-001A

40 GE30388-001A

41 GE30541-001A

42 GE30536-001A

43 GE30542-001A

44 GE40138-001A

45 GE40132-001A

47 GE30539-001A

48 FSYH4036-032

49 GE30387-001A

Parts number Parts name Area

CD MECHA

SCREW

SPACER

TOP CHASSIS

EARTH PLATE

HEAT SINK

BOTTOM COVER

INSULATOR

SCREW

SCREW

SCREW

SCREW

SCREW

SCREW

SCREW

FRONT CHASSIS

LIGHT LENS

MINI SCREW

OPEN LEVER

LOCK LEVER(O.L)

RELEASE LEVER

LOCK LEVER(TOP)

LOCK LEVER(L)

LOCK LEVER(R)

GEAR

OIL DAMPER

T.SPRING

T.SPRING

T.SPRING

SCREW

T.SPRING

MINI SCREW

T.SPRING

BLIND

FRONT PANEL

FINDER ASS'Y

PRESET BUTTON

POWER BUTTON

D.FUNC BUTTON

NAV UP BUT

NAV DN BUT

NAV(L)BUT

NAV(R)BUT

NAV GUIDE

VOL KNOB

SEL BUTTON

SHEET

RIM LENS

Q'ty

1

5

C.M.PWB+CD MECHA

1

1

1

1

1

1

3

CHASSIS+CD MECHA

2

CHASSIS+SIDE HEA

3

CHASSIS+REAR BKT

2

CHASSIS+MAIN PWB

2

SIDE PANEL+IC BKT

2

F.CHASSIS+CONEC

2

1

1

1

L.LENS+F.CHASSIS

1

1

1

1

1

1

1

1

1

FOR L.LEVER(TOP)

1

FOR RELEASE LEVER

1

FOR L.LEVER(R)

1

DAMPER+L.LEVER(R)

1

FOR L.LEVER(L)

1

LOCK LEVER(O.L)

1

FOR OPEN LEVER

1

1

1

1

1-6(2COLOR)

1

1/2/3/4/5/6

1

SND+D.FUNCT

1

1

1

1

1

1

1

1

FOR SEL BUTTON

1

Block No. M1MM

Description

3-3

KD-LH2000R

Parts list (General assembly)

Item

A

50 GE30538-002A

51 VKW3001-330

52 GE30547-001A

53 VKW3001-330

54 VKZ4777-001

55 GE10045-001A

56 FSYH4036-035

57 FSYH4036-069

58 LV33446-001A

59 GE40101-001A

63 QUQ105-2207AE

64 QMFZ047-150-T

65 GE30382-004A

66 GE40136-001A

67 GE40124-001A

68 QAM0419-001

69 QYSDST2606Z

70 QYSDST2606Z

71 QYSDST2606Z

72 QYSDSF2606Z

74 QLD0232-001

75 LV42850-001A

76 LV33403-003A

77 LV33404-001A

78 LV42884-001A

79 LV42995-001A

80 LV42894-001A

81 LV42955-002A

82 LV43084-001A

83 LV40848-034A

84 LV40846-036A

Parts number Parts name Area

LV42955-001A

Q'ty

EJECT BUTTON

COMP.SPRING

DETACH BUTTON

COMP.SPRING

MINI SCREW

REAR COVER

SHEET

SHEET

NAME PLATE

PIN CAP

FFC WIRE

FUSE

REAR BRACKET

IC BRACKET

REG BRACKET

SUB-CABLE

SCREW

SCREW

SCREW

SCREW

LCD MODULE

LCD LENS

LCD CASE

LIGHTING CASE

LCD FILTER

LCD FILTER

BRIGHT SHEET

LENS SHEET

LENS SHEET

DOUBLE FACE

SPACER(P) 1

SPACER(F)

Description

1

1

FOR EJECT BUTTON

1

1

FOR DETACH BUTTON

4

FRONT+REAR

1

1

FOR REAR COVER

2

1

2

1

CD MECHA-PWB

1

1

1

1

1

1

REAR BKT+REG.BKT

1

REAR BKT+ANT JACK

1

REAR BKT+CD IN JACK

1

REAR BKT+PIN JACK

1

1

1

1

1

1

1

1

1

1

1

Block No. M1MM

E

EX

3-4

CD mechanism assembly and parts list

KD-LH2000R

Grease

TNG-87
GP-501MK
CFD-005H

31

C

22

112

24

61

26

36

29

Block No.

M

M

B

M

TN-2001-1003

111

74

72

35

116

34

33

111

25

73

85

15

A

19

B

21

62

D

75

112

114

11

38

30

A

23

13

32

2

111

37

27

101

93

76

94

122

100

84

73

95

38

74

100

a

14

75

94

96

77

123

97

81

32

a

113

99

28

115

D

111

91

90

89

111

93

71

C

B

92

82

18

20

87

125

88

3

12

121

16

17

124

83

86

111

3

98

83

4

1

3-5

KD-LH2000R

Parts list (CD mechanism)

Item

A

1 30320101T

2 30320102T

3 30320109T

4 30320110T

11 303205501T

12 303205503T

13 303205301T

14 303205304T

15 30320502T

16 30320503T

17 30320505T

18 30320506T

19 30320507T

20 30320509T

21 30320510T

22 30320511T

23 30320513T

24 30320514T

25 30320518T

26 30320519T

27 30320520T

28 30320521T

29 30320522T

30 30320525T

31 30320526T

32 30320527T

33 30320529T

34 30320530T

35 30320531T

36 30320523T

37 30320524T

38 30320528T

61 69011614T

62 64180406T

71 303210302T

72 30321002T

73 30321003T

74 30321005T

75 30321009T

76 30321011T

77 19501403T

81 303211301T

82 303211501T

83 303211302T

84 303211502T

85 303211303T

86 30321101T

87 30321102T

Parts number Parts name Area

FRAME

TOP COVER

DAMPER F

DAMPER R

CHASSIS RIVET A

CHANGE P.RVT A

CLAMPER ASS'Y

SPINDLE MOTOR A

CLAMPER ARM

CHANGE GEAR SPG

CHANGE GEAR 2

FEED GEAR

FEED RACK

CHANGE LOCK RAR

FEED SW HOLDER

PU SHAFT HOLDER

CLAMPER SUB SPG

FD SUB HOLDER

TOP PLATE

SELECT LOCK ARM

TRIGGER ARM

SLIDE HOOK

PU SHAFT

CLAMPER ARM SPG

SELECT L ARM SP

SUSPENSION SPG

SELECT ARM R

LINK PLATE

LINK PLATE SPG

CUSHION F

CUSHION R

SUSPENSION SPGL

PICKUP OPT-725

DET SW ESE22

CONN PWB ASS'Y

MODE SW

LOAD MOTOR WIRE

MODE SW WIRE

SL WIRE

WIRE HOLDER

WIRE CLAMPER

ROLLER SHAFT AS

L GEAR PLATE RV

LOADING PLATE A

LOCK ARM RV ASS

L/F MOTOR ASS'Y

LOADING GEAR 1

LOADING GEAR 2

Q'ty

1

1

2

1

1

1

1

1

MDN1AL3RHCS

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

2

1

1

1

1

2

2

1

1

ESE22MH56

1

MP3 CONN

1

MMS000690ZMB0

1

1

1

1

1

1

1

1

1

1

FF030PK-10180

1

1

Block No. MBMM

Description

3-6

KD-LH2000R

Parts list (CD mechanism)

Item

A

88 30321103T

89 30321104T

90 30321105T

91 30321106T

92 30321107T

93 30321111T

94 30321114T

95 30321116T

96 30321117T

97 30321118T

98 30321125T

99 30321131T

100 30321133T

101 18211223T

111 9P0420031T

112 9P0420041T

113 9B0320041T

114 9C0117183T

115 9C0120203T

116 9C0317503T

121 9W0130170T

122 9W0513060T

123 9W0710070T

124 9E0100152T

125 9W0113020T

Parts number Parts name Area

LOADING GEAR 3

LOADING GEAR 4

LOADING GEAR 5

LOADING GEAR 6

LOADING GEAR 7

ROLLER GUIDE

ROLLER GUIDE SP

DISC STOPPER AR

DISC ST ARM SPG

LD GEAR BRACKET

L SIDE PLATE

LOAD PLATE SPG

LDG ROLLER

COLLAR SCREW

SCREW M2X3

SCREW(M2 X 4)

SCREW(M2 X 4)

SCREW

SCREW

SCREW

PW 3.5X8X0.3

HL WASHER

L WASHER

E RING

PW 2.1X4X0.13

Q'ty

1

1

1

1

1

2

2

1

1

1

1

1

2

1

6

2

1

2

1

1

1

1

1

1

1

Block No. MBMM

Description

TAP 2X3

TAP 2X4

BIND 2X4

SCR M1.7X1.8

SCR M2X2

T SCR M1.5X5

HLW1.85X5X0.13

LW3.1X6X0.1

S 1.5

3-7

KD-LH2000R

Electrical parts list (Main board)

Item

A

BZ795 QAN0002-001Z BUZZER

C 1 NCB31EK-473X C CAPACITOR

C 2 NCB31HK-103X C CAPACITOR

C 3 QERF1CM-476Z E CAPACITOR 47MF 20% 16V

C 4 QERF1CM-476Z E CAPACITOR 47MF 20% 16V

C 6 QERF1AM-107Z E CAPACITOR 100MF 20% 10V

C 7 QERF1AM-107Z E CAPACITOR 100MF 20% 10V

C 10 NCB31EK-473X C CAPACITOR

C 21 QERF1HM-474Z E CAPACITOR .47MF 20% 50V

C 22 NCB31CK-104X C CAPACITOR

C 23 NCB31HK-472X C CAPACITOR

C 24 NCB31HK-103X C CAPACITOR

C 25 NCS31HJ-331X C CAPACITOR

C 26 NCB31CK-104X C CAPACITOR

C 27 QERF1HM-104Z E CAPACITOR .10MF 20% 50V

C 51 QERF1HM-225Z E CAPACITOR 2.2MF 20% 50V

C 52 NCB31EK-223X C CAPACITOR

C 53 NCS31HJ-561X C CAPACITOR

C 54 NCS31HJ-820X C CAPACITOR

C 55 NCS31HJ-470X C CAPACIOTR

C 56 QERF0JM-476Z E CAPACITOR 47MF 20% 6.3V

C 57 NCB31HK-103X C CAPACITOR

C 101 NCB31EK-153X C CAPACITOR

C 102 QERF1EM-475Z E CAPACITOR 4.7MF 20% 25V

C 103 NCS31HJ-821X C CAPACITOR

C 104 QERF1HM-105Z E CAPACITOR 1.0MF 20% 50V

C 111 QERF1EM-475Z E CAPACITOR 4.7MF 20% 25V

C 112 QERF1EM-475Z E CAPACITOR 4.7MF 20% 25V

C 113 QERF1HM-225Z E CAPACITOR 2.2MF 20% 50V

C 114 QERF1HM-225Z E CAPACITOR 2.2MF 20% 50V

C 115 QERF1EM-475Z E CAPACITOR 4.7MF 20% 25V

C 116 QERF1EM-475Z E CAPACITOR 4.7MF 20% 25V

C 117 QERF1AM-107Z E CAPACITOR 100MF 20% 10V

C 118 QERF1CM-106Z E CAPACITOR 10MF 20% 16V

C 119 QERF1HM-105Z E CAPACITOR 1.0MF 20% 50V

C 120 QERF1HM-105Z E CAPACITOR 1.0MF 20% 50V

C 121 NCB31EK-473X C CAPACITOR

C 122 NCB31EK-473X C CAPACITOR

C 123 NCS31HJ-101X C CAPACITOR

C 124 NBE20JM-106X TS E CAP SVB20J

C 131 QERF1CM-106Z E CAPACITOR 10MF 20% 16V

C 132 NCB31EK-333X C CAPACITOR

C 133 NCB31EK-273X C CAPACITOR

C 134 NCB31EK-273X C CAPACITOR

C 135 NCB31HK-562X C CAPACITOR

C 136 NCB31EK-123X C CAPACITOR

C 137 QERF1CM-476Z E CAPACITOR 47MF 20% 16V

C 138 QERF1CM-106Z E CAPACITOR 10MF 20% 16V

C 139 QERF1HM-225Z E CAPACITOR 2.2MF 20% 50V

C 140 NCB31HK-682X C CAPACITOR

C 141 NCB31EK-823X C CAPACITOR

C 142 QERF1HM-225Z E CAPACITOR 2.2MF 20% 50V

C 143 NCB31EK-473X C CAPACITOR

C 144 NCS31HJ-101X C CAPACITOR

C 151 QERF1EM-475Z E CAPACITOR 4.7MF 20% 25V

C 152 QERF1EM-475Z E CAPACITOR 4.7MF 20% 25V

C 153 QERF0JM-476Z E CAPACITOR 47MF 20% 6.3V

C 154 NCS31HJ-101X C CAPACITOR

C 155 NCS31HJ-101X C CAPACITOR

C 156 QERF1HM-105Z E CAPACITOR 1.0MF 20% 50V

C 157 QERF1HM-105Z E CAPACITOR 1.0MF 20% 50V

C 158 NCS31HJ-101X C CAPACITOR

C 159 NCS31HJ-101X C CAPACITOR

Parts number Parts name Ar

Block No. 01

Remarks

Item

A

C 160 QERF1AM-107Z E CAPACITOR 100MF 20% 10V

C 181 NCB31EK-473X C CAPACITOR

C 191 QERF1HM-105Z E CAPACITOR 1.0MF 20% 50V

C 192 QERF1CM-226Z E CAPACITOR 22MF 20% 16V

C 193 NCB31EK-473X C CAPACITOR

C 194 QERF1HM-224Z E CAPACITOR .22MF 20% 50V

C 201 NCB31EK-153X C CAPACITOR

C 202 QERF1EM-475Z E CAPACITOR 4.7MF 20% 25V

C 203 NCS31HJ-821X C CAPACITOR

C 204 QERF1HM-105Z E CAPACITOR 1.0MF 20% 50V

C 211 QERF1EM-475Z E CAPACITOR 4.7MF 20% 25V

C 212 QERF1EM-475Z E CAPACITOR 4.7MF 20% 25V

C 213 QERF1HM-225Z E CAPACITOR 2.2MF 20% 50V

C 214 QERF1HM-225Z E CAPACITOR 2.2MF 20% 50V

C 215 QERF1EM-475Z E CAPACITOR 4.7MF 20% 25V

C 216 QERF1EM-475Z E CAPACITOR 4.7MF 20% 25V

C 251 QERF1EM-475Z E CAPACITOR 4.7MF 20% 25V

C 252 QERF1EM-475Z E CAPACITOR 4.7MF 20% 25V

C 253 QERF0JM-476Z E CAPACITOR 47MF 20% 6.3V

C 254 NCS31HJ-101X C CAPACITOR

C 255 NCS31HJ-101X C CAPACITOR

C 256 QERF1HM-105Z E CAPACITOR 1.0MF 20% 50V

C 257 QERF1HM-105Z E CAPACITOR 1.0MF 20% 50V

C 258 NCS31HJ-101X C CAPACITOR

C 259 NCS31HJ-101X C CAPACITOR

C 701 NCB31CK-104X C CAPACITOR

C 702 QERF1AM-227Z E CAPACITOR 220MF 20% 10V

C 703 NCS31HJ-8R0X C CAPACITOR

C 704 NCS31HJ-270X C CAPACITOR

C 705 NCS31HJ-270X C CAPACITOR

C 706 NCS31HJ-220X C CAPACITOR

C 707 NCB31HK-103X C CAPACITOR

C 708 QERF1AM-227Z E CAPACITOR 220MF 20% 10V

C 709 NCS31HJ-471X C CAPACITOR

C 710 NCB31EK-473X C CAPACITOR

C 711 NCB31CK-104X C CAPACITOR

C 713 QERF0JM-476Z E CAPACITOR 47MF 20% 6.3V

C 714 NCB31HK-103X C CAPACITOR

C 715 QERF1AM-227Z E CAPACITOR 220MF 20% 10V

C 716 NCB31EK-473X C CAPACITOR

C 717 NCS31HJ-101X C CAPACITOR

C 718 QERF1AM-227Z E CAPACITOR 220MF 20% 10V

C 719 QERF1AM-227Z E CAPACITOR 220MF 20% 10V

C 751 NCB31HK-103X C CAPACITOR

C 752 NCB31HK-103X C CAPACITOR

C 753 NCB31HK-103X C CAPACITOR

C 755 NCB31HK-103X C CAPACITOR

C 781 NCB31EK-473X C CAPACITOR

C 795 QERF1HM-105Z E CAPACITOR 1.0MF 20% 50V

C 901 QEZ0338-228 E CAPACITOR 2200MF

C 902 QERF1CM-226Z E CAPACITOR 22MF 20% 16V

C 903 QERF1CM-226Z E CAPACITOR 22MF 20% 16V

C 904 NCB31HK-103X C CAPACITOR

C 905 QERF1AM-107Z E CAPACITOR 100MF 20% 10V

C 906 NCB31CK-104X C CAPACITOR

C 907 NCB31HK-103X C CAPACITOR

C 908 QERF1AM-227Z E CAPACITOR 220MF 20% 10V

C 910 QERF1CM-106Z E CAPACITOR 10MF 20% 16V

C 911 NCB31CK-104X C CAPACITOR

C 912 QERF1HM-225Z E CAPACITOR 2.2MF 20% 50V

C 913 NCB31CK-104X C CAPACITOR

C 914 QERF1CM-106Z E CAPACITOR 10MF 20% 16V

C 921 QERF1AM-107Z E CAPACITOR 100MF 20% 10V

Parts number Parts name Ar

Remarks

3-8

KD-LH2000R

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Electrical parts list (Main board)

Item

A

C 922 NCB31HK-272X C CAPACITOR

C 923 QERF1CM-107Z E CAPACITOR 100MF 20% 16V

C 924 NCB31EK-473X C CAPACITOR

C 941 QERF1CM-476Z E CAPACITOR 47MF 20% 16V

C 942 QERF0JM-107Z E CAPACITOR 100MF 20% 6.3V

C 951 QERF1CM-226Z E CAPACITOR 22MF 20% 16V

C 952 NCB31EK-473X C CAPACITOR

C 953 QERF1CM-106Z E CAPACITOR 10MF 20% 16V

C 954 QERF1HM-474Z E CAPACITOR .47MF 20% 50V

C 955 QERF1HM-225Z E CAPACITOR 2.2MF 20% 50V

C 956 NCB31CK-104X C CAPACITOR

C 957 NCB31CK-104X C CAPACITOR

C 958 NCB31CK-104X C CAPACITOR

C 959 NCB31CK-104X C CAPACITOR

C 961 NCB31EK-223X C CAPACITOR

C 962 NCB31EK-223X C CAPACITOR

C 963 NCB31EK-223X C CAPACITOR

C 964 NCB31EK-223X C CAPACITOR

C 965 NCB31EK-223X C CAPACITOR

C 966 NCB31EK-223X C CAPACITOR

C 967 NCB31EK-223X C CAPACITOR

C 968 NCB31EK-223X C CAPACITOR

CN131 QGA2006C1-04 CONNECTOR

CN601 QGB2027M4-22S CONNECTOR

CN701 QNZ0007-002 CAR CONNECTOR

CN702 QGF0501F1-06X CONNECTOR

CN901 QNZ0112-001 CAR CONNECTOR

CN902 QNZ0095-001 CONNECTOR

D 1 1SS355-X DIODE

D 2 1SS355-X DIODE

D 3 MA152WK-X S I DIODE

D 111 CRS03-W SB DIODE

D 121 MA152WA-X DIODE

D 131 MA152WK-X SI DIODE

D 151 UDZS5.1B-X ZENER DIODE

D 191 MA152WK-X SI DIODE

D 192 1SS355-X DIO DE

D 193 1SS355-X DIO DE

D 221 MA152WA-X DIODE

D 251 UDZS5.1B-X ZENER DIODE

D 701 1SS355-X DIO DE

D 702 1SS355-X DIO DE

D 703 1SS355-X DIO DE

D 704 1SS355-X DIO DE

D 711 UDZS6.2B-X SI DIODE

D 712 UDZS6.2B-X SI DIODE

D 713 UDZS6.2B-X SI DIODE

D 714 UDZS6.2B-X SI DIODE

D 715 UDZS6.2B-X SI DIODE

D 716 UDZS6.2B-X SI DIODE

D 718 SML-310LT/MN/-X LED

D 719 SML-310LT/MN/-X LED

D 901 1N5404-TU-15 DIODE

D 904 CRS03-W SB DIODE

D 905 CRS03-W SB DIODE

D 906 MA152WA-X DIODE

D 921 CRS03-W SB DIODE

D 941 UDZ11B-X ZENER DIODE

D 942 1SS355-X DIO DE

D 951 1SS355-X DIO DE

IC 51 SAA6579T-X IC

IC111 M61508FP-X IC

IC131 BU4066BCFV-X IC

Parts number Parts name Ar

Block No. 01

Remarks

Item

A

IC132 NJM4565V-X IC

IC151 NJM4565V-X IC

IC251 NJM4565V-X IC

IC701 UPD784215AGC179 IC

IC702 IC-PST9333U-X IC

IC703 HN58X2432FPI-X IC(EEPROM)

IC781 HD74HC126FP-X IC

IC901 HA13164A IC

IC921 NJM2360AM-X IC

IC951 TA8273H IC

J 1 QNB0100-002 ANT TERMINAL

J 121 QNN0490-001 PIN JACK

L 1 NQL114K-100X INDUCTOR

L 701 NQL114K-470X INDUCTOR

L 702 NQL114K-470X INDUCTOR

L 753 NQL114K-470X INDUCTOR

L 901 QQR0703-001 CHOKE COIL

L 921 NQLZ007-151X INDUCTOR

R 1 NRSA63J-473X MG RESISTOR

R 2 NRSA63J-270X MG RESISTOR

R 3 NRSA63J-100X MG RESISTOR

R 4 NRSA63J-393X MG RESISTOR

R 5 NRSA63J-220X MG RESISTOR

R 6 NRSA63J-220X MG RESISTOR

R 7 NRSA63J-473X MG RESISTOR

R 8 NRSA63J-472X MG RESISTOR

Parts number Parts name Ar

1 2SB815/7/-X TRANSISTOR

2 UN2211-X TRANSISTOR

3 2SB815/7/-X TRANSISTOR

21 2SC2412K/RS/-X CHI P TRANSISTOR

22 2SC2412K/RS/-X CHI P TRANSISTOR

23 UN2211-X TRANSISTOR

24 2SD601A/QR/-X TRANSISTOR

25 UN2111-X TRANSISTOR

26 UN2111-X TRANSISTOR

27 UN2111-X TRANSISTOR

101 2SD601A/QR/-X TRANSISTOR

121 2SD1048/6-7/-X TRAN SISTOR

122 2SD1048/6-7/-X TRAN SISTOR

131 UN2211-X TRANSISTOR

132 UN2211-X TRANSISTOR

133 2SC2412K/RS/-X CHIP TRANSISTOR

191 2SD601A/QR/-X TRANSISTOR

201 2SD601A/QR/-X TRANSISTOR

221 2SD1048/6-7/-X TRAN SISTOR

222 2SD1048/6-7/-X TRAN SISTOR

701 UN2213-X TRANSISTOR

702 UN2211-X TRANSISTOR

703 UN2211-X TRANSISTOR

750 UN2211-X TRANSISTOR

751 UN2211-X TRANSISTOR

752 UN2213-X TRANSISTOR

753 UN2211-X TRANSISTOR

754 UN2211-X TRANSISTOR

795 UN2211-X TRANSISTOR

901 UN2111-X TRANSISTOR

902 UN2211-X TRANSISTOR

903 2SB709A/QR/-X TRANSISTOR

904 2SD601A/QR/-X TRANSISTOR

905 UN2211-X TRANSISTOR

941 UN2111-X TRANSISTOR

942 UN2113-X TRANSISTOR

951 UN2211-X TRANSISTOR

Remarks

3-9

KD-LH2000R

Electrical parts list (Main board)

Item

A

R 9 NRSA63J-473X MG RESISTOR

R 10 NRSA63J-332X MG RESISTOR

R 11 NRSA63J-103X MG RESISTOR

R 21 NRSA63J-471X MG RESISTOR

R 22 NRSA63J-103X MG RESISTOR

R 23 NRSA63J-103X MG RESISTOR

R 24 NRSA63J-103X MG RESISTOR

R 25 NRSA63J-222X MG RESISTOR

R 26 NRSA63J-473X MG RESISTOR

R 27 NRSA63J-393X MG RESISTOR

R 28 NRSA63J-473X MG RESISTOR

R 29 NRSA63J-472X MG RESISTOR

R 51 NRSA63J-102X MG RESISTOR

R 52 NRSA63J-102X MG RESISTOR

R 53 NRSA63J-101X MG RESISTOR

R 54 NRSA63J-222X MG RESISTOR

R 101 NRSA63J-103X MG RESISTOR

R 102 NRSA63J-273X MG RESISTOR

R 103 NRSA63J-472X MG RESISTOR

R 111 NRSA63J-332X MG RESISTOR

R 112 NRSA63J-473X MG RESISTOR

R 113 NRSA63J-473X MG RESISTOR

R 114 NRSA63J-473X MG RESISTOR

R 115 NRSA63J-224X MG RESISTOR

R 116 NRSA63J-103X MG RESISTOR

R 117 NRSA63J-222X MG RESISTOR

R 118 NRSA63J-103X MG RESISTOR

R 121 NRSA63J-821X MG RESISTOR

R 122 NRSA63J-821X MG RESISTOR

R 123 NRSA63J-181X MG RESISTOR

R 124 NRSA63J-181X MG RESISTOR

R 125 NRSA63J-103X MG RESISTOR

R 126 NRSA63J-103X MG RESISTOR

R 131 NRSA63J-105X MG RESISTOR

R 132 NRSA63J-105X MG RESISTOR

R 133 NRSA63J-473X MG RESISTOR

R 134 NRSA63J-105X MG RESISTOR

R 135 NRSA63J-105X MG RESISTOR

R 136 NRSA63J-473X MG RESISTOR

R 137 NRSA63J-104X MG RESISTOR

R 138 NRSA63J-103X MG RESISTOR

R 139 NRSA63J-103X MG RESISTOR

R 140 NRSA63J-104X MG RESISTOR

R 141 NRSA63J-0R0X MG RESISTOR

R 142 NRSA63J-473X MG RESISTOR

R 143 NRSA63J-104X MG RESISTOR

R 144 NRSA63J-562X MG RESISTOR

R 145 NRSA63J-153X MG RESISTOR

R 146 NRSA63J-473X MG RESISTOR

R 147 NRSA63J-821X MG RESISTOR

R 148 NRSA63J-181X MG RESISTOR

R 149 NRSA63J-472X MG RESISTOR

R 151 NRSA63J-223X MG RESISTOR

R 152 NRSA63J-223X MG RESISTOR

R 153 NRSA63J-102X MG RESISTOR

R 154 NRSA63J-104X MG RESISTOR

R 155 NRSA63J-104X MG RESISTOR

R 156 NRSA63J-103X MG RESISTOR

R 157 NRSA63J-103X MG RESISTOR

R 181 NRSA63J-104X MG RESISTOR

R 182 NRSA63J-101X MG RESISTOR

R 191 NRSA63J-473X MG RESISTOR

R 192 NRSA63J-184X MG RESISTOR

Parts number Parts name Ar

Block No. 01

Remarks

Item

A

R 193 NRSA63J-223X MG RESISTOR

R 194 NRSA63J-123X MG RESISTOR

R 195 NRSA63J-391X MG RESISTOR

R 196 NRSA63J-102X MG RESISTOR

R 197 NRSA63J-274X MG RESISTOR

R 201 NRSA63J-103X MG RESISTOR

R 202 NRSA63J-273X MG RESISTOR

R 203 NRSA63J-472X MG RESISTOR

R 211 NRSA63J-332X MG RESISTOR

R 212 NRSA63J-473X MG RESISTOR

R 213 NRSA63J-473X MG RESISTOR

R 214 NRSA63J-473X MG RESISTOR

R 215 NRSA63J-224X MG RESISTOR

R 216 NRSA63J-103X MG RESISTOR

R 217 NRSA63J-222X MG RESISTOR

R 218 NRSA63J-103X MG RESISTOR

R 221 NRSA63J-821X MG RESISTOR

R 222 NRSA63J-821X MG RESISTOR

R 223 NRSA63J-181X MG RESISTOR

R 224 NRSA63J-181X MG RESISTOR

R 225 NRSA63J-103X MG RESISTOR

R 226 NRSA63J-103X MG RESISTOR

R 251 NRSA63J-223X MG RESISTOR

R 252 NRSA63J-223X MG RESISTOR

R 253 NRSA63J-102X MG RESISTOR

R 254 NRSA63J-104X MG RESISTOR

R 255 NRSA63J-104X MG RESISTOR

R 256 NRSA63J-103X MG RESISTOR

R 257 NRSA63J-103X MG RESISTOR

R 281 NRSA63J-104X MG RESISTOR

R 282 NRSA63J-101X MG RESISTOR

R 301 NRSA63J-102X MG RESISTOR

R 302 NRSA63J-102X MG RESISTOR

R 303 NRSA63J-473X MG RESISTOR

R 304 NRSA63J-473X MG RESISTOR

R 708 NRSA63J-821X MG RESISTOR

R 709 NRSA63J-473X MG RESISTOR

R 710 NRSA63J-106X MG RESISTOR

R 711 NRSA63J-103X MG RESISTOR

R 713 NRSA63J-102X MG RESISTOR

R 714 NRSA63J-104X MG RESISTOR

R 715 NRSA63J-102X MG RESISTOR

R 716 NRSA63J-102X MG RESISTOR

R 717 NRSA63J-102X MG RESISTOR

R 719 NRSA63J-472X MG RESISTOR

R 720 NRSA63J-472X MG RESISTOR

R 722 NRSA63J-102X MG RESISTOR

R 723 NRSA63J-102X MG RESISTOR

R 724 NRSA63J-102X MG RESISTOR

R 725 NRSA63J-102X MG RESISTOR

R 726 NRSA63J-102X MG RESISTOR

R 727 NRSA63J-102X MG RESISTOR

R 728 NRSA63J-102X MG RESISTOR

R 729 NRSA63J-103X MG RESISTOR

R 730 NRSA63J-103X MG RESISTOR

R 731 NRSA63J-271X MG RESISTOR

R 732 NRSA63J-271X MG RESISTOR

R 733 NRSA63J-102X MG RESISTOR

R 734 NRSA63J-102X MG RESISTOR

R 735 NRSA63J-392X MG RESISTOR

R 736 NRSA63J-392X MG RESISTOR

R 737 NRSA63J-392X MG RESISTOR

R 739 NRSA63J-102X MG RESISTOR

Parts number Parts name Ar

Remarks

3-10

KD-LH2000R

Electrical parts list (Main board)

Item

A

R 740 NRSA63J-102X MG RESISTOR

R 741 NRSA63J-102X MG RESISTOR

R 742 NRSA63J-102X MG RESISTOR

R 743 NRSA63J-222X MG RESISTOR

R 744 NRSA63J-222X MG RESISTOR

R 745 NRSA63J-222X MG RESISTOR

R 746 NRSA63J-222X MG RESISTOR

R 747 NRSA63J-102X MG RESISTOR

R 748 NRSA63J-102X MG RESISTOR

R 749 NRSA63J-102X MG RESISTOR

R 750 NRSA63J-103X MG RESISTOR

R 751 NRSA63J-0R0X MG RESISTOR

R 754 NRSA63J-102X MG RESISTOR

R 755 NRSA63J-102X MG RESISTOR

R 756 NRSA63J-102X MG RESISTOR

R 757 NRSA63J-102X MG RESISTOR

R 758 NRSA63J-102X MG RESISTOR

R 759 NRSA63J-102X MG RESISTOR

R 761 NRSA63J-473X MG RESISTOR

R 763 NRSA63J-473X MG RESISTOR

R 767 NRSA63J-103X MG RESISTOR

R 773 NRSA63J-473X MG RESISTOR

R 774 NRSA63J-473X MG RESISTOR

R 775 NRSA63J-222X MG RESISTOR

R 776 NRSA63J-222X MG RESISTOR

R 777 NRSA63J-473X MG RESISTOR

R 778 NRSA63J-682X MG RESISTOR

R 779 NRSA63J-682X MG RESISTOR

R 780 NRSA63J-682X MG RESISTOR

R 781 NRSA63J-223X MG RESISTOR

R 782 NRSA63J-104X MG RESISTOR

R 783 NRSA63J-473X MG RESISTOR

R 784 NRSA63J-101X MG RESISTOR

R 785 NRSA63J-103X MG RESISTOR

R 786 NRSA63J-104X MG RESISTOR

R 787 NRSA63J-331X MG RESISTOR

R 788 NRSA63J-101X MG RESISTOR

R 789 NRSA63J-223X MG RESISTOR

R 790 NRSA63J-473X MG RESISTOR

R 791 NRSA63J-473X MG RESISTOR

R 792 NRSA63J-473X MG RESISTOR

R 793 NRSA63J-473X MG RESISTOR

R 795 NRSA63J-332X MG RESISTOR

R 797 NRSA63J-561X MG RESISTOR

R 798 NRSA63J-561X MG RESISTOR

R 901 NRSA63J-912X MG RESISTOR

R 902 NRSA63J-472X MG RESISTOR

R 903 NRSA63J-562X MG RESISTOR

R 904 NRSA63J-102X MG RESISTOR

R 905 NRSA63J-103X MG RESISTOR

R 906 NRSA63J-473X MG RESISTOR

R 908 NRSA63J-153X MG RESISTOR

R 909 NRSA63J-473X MG RESISTOR

R 910 QRE142J-102X C RESISTOR 1.0K 5% 1/4W

R 911 NRSA63J-222X MG RESISTOR

R 912 NRSA63J-222X MG RESISTOR

R 913 NRSA63J-104X MG RESISTOR

R 914 NRSA63J-103X MG RESISTOR

R 915 NRSA63J-473X MG RESISTOR

R 916 NRSA63J-102X MG RESISTOR

R 917 NRSA63J-473X MG RESISTOR

R 921 NRSA63J-220X MG RESISTOR

R 922 NRSA63J-220X MG RESISTOR

Parts number Parts name Ar

Block No. 01

Remarks

Item

A

R 923 NRSA63J-220X MG RESISTOR

R 924 NRSA63J-220X MG RESISTOR

R 925 NRSA63J-181X MG RESISTOR

R 926 NRSA63D-473X MG RESIST OR

R 927 NRSA63D-472X MG RESIST OR

R 928 NRSA63D-273X MG RESIST OR

R 951 NRSA63J-222X MG RESISTOR

R 952 NRSA63J-273X MG RESISTOR

R 953 NRSA63J-102X MG RESISTOR

R 981 NRSA63J-102X MG RESISTOR

R 982 NRSA63J-473X MG RESISTOR

R 992 NRSA63J-0R0X MG RESISTOR

R 993 NRSA63J-0R0X MG RESISTOR

R 997 NRSA63J-0R0X MG RESISTOR

R 998 NRSA63J-0R0X MG RESISTOR

R 999 NRSA63J-0R0X MG RESISTOR

S 701 QSW0451-001 DETECT SWITCH

S 702 QSW0451-001 DETECT SWITCH

S 703 QSW0534-001 TACT SWITCH

TU 1 QAU0203-002 T UNER

X 51 QAX0263-001Z CRYSTAL

X 701 QAX0617-001Z CRYSTAL

X 702 QAX0401-001 CRYSTAL

Parts number Parts name Ar

Remarks

3-11

KD-LH2000R

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Q

Electrical parts list (Front board)

Item

A

C 451 NCB31EK-473X C CAPACITOR

C 452 NCB31EK-473X C CAPACITOR

C 453 NCB31EK-473X C CAPACITOR

C 454 NCB31EK-473X C CAPACITOR

C 455 NCB31EK-473X C CAPACITOR

C 456 NCB31EK-473X C CAPACITOR

C 457 NCB31EK-473X C CAPACITOR

C 458 NCB31EK-473X C CAPACITOR

C 459 NCB31CK-473X C CAPACITOR

C 801 NBE20JM-106X TS E CAP SVB20J

C 802 NCB31EK-473X C CAPACITOR

C 805 NCS31HJ-471X C CAPACITOR

C 806 NCB31EK-473X C CAPACITOR

C 807 NBE20JM-475X TS E CAPACITOR

C 808 NBE20JM-475X TS E CAPACITOR

C 809 NBE20JM-475X TS E CAPACITOR

C 810 NCB31EK-473X C CAPACITOR

C 811 NCB31EK-473X C CAPACITOR

C 812 NBE20JM-475X TS E CAPACITOR

C 813 NBE20JM-106X TS E CAP SVB20J

C 814 NCB31EK-473X C CAPACITOR

C 815 NCS31HJ-471X C CAPACITOR

C 816 NCB31EK-473X C CAPACITOR

C 817 NCB31EK-473X C CAPACITOR

C 818 NCB31EK-473X C CAPACITOR

C 819 NCB31EK-473X C CAPACITOR

C 820 NCB31EK-473X C CAPACITOR

C 821 NCB31EK-473X C CAPACITOR

C 822 NCB31EK-473X C CAPACITOR

C 823 NCB31EK-473X C CAPACITOR

C 824 NCB31EK-473X C CAPACITOR

C 825 NBE20JM-106X TS E CAP SVB20J

C 826 NBE20JM-106X TS E CAP SVB20J

C 827 NCB31EK-473X C CAPACITOR

C 828 NBE20JM-106X TS E CAP SVB20J

C 829 NBE20JM-475X TS E CAPACITOR

CN801 QNZ0006-001 CAR CONNECTOR

CN802 QGF0523F1-40W FFC C ONNECTOR

D 401 MA152WK-X SI DIODE

D 402 SML-310LT/MN/-X LED

D 403 SML-310LT/MN/-X LED

D 404 SML-310LT/MN/-X LED

D 405 SML-310LT/MN/-X LED

D 406 SML-310LT/MN/-X LED

D 407 SML-310LT/MN/-X LED

D 408 SML-310LT/MN/-X LED

D 409 SML-310LT/MN/-X LED

D 410 SML-310LT/MN/-X LED

D 411 SML-310LT/MN/-X LED

D 412 SML-310LT/MN/-X LED

D 413 SML-310LT/MN/-X LED

D 414 SML-310LT/MN/-X LED

D 415 SML-310LT/MN/-X LED

D 416 SML-310LT/MN/-X LED

D 417 SML-310LT/MN/-X LED

D 418 CL-190UB-X-X LED

D 419 CL-190UB-X-X LED

D 420 SML-310LT/MN/-X LED

D 421 SML-310LT/MN/-X LED

D 422 SML-310LT/MN/-X LED

D 423 UDZS6.2B-X SI DIODE

D 424 UDZS6.2B-X SI DIODE

D 425 UDZS6.2B-X SI DIODE

Parts number Parts name Ar

Block No. 02

Remarks

Item

A

D 426 UDZS6.2B-X SI DIODE

D 427 UDZS6.2B-X SI DIODE

D 428 UDZS6.2B-X SI DIODE

D 429 UDZS6.2B-X SI DIODE

D 430 UDZS6.2B-X SI DIODE

D 431 UDZS6.2B-X SI DIODE

D 433 SML-310LT/MN/-X LED

D 434 SML-310LT/MN/-X LED

D 451 NSCM315C-W LED

D 452 NSCM315C-W LED

D 453 NSCM315C-W LED

D 801 MA152WK-X SI DIODE

D 803 1SS355-X DIODE

D 804 UDZS6.2B-X SI DIODE

D 805 UDZS6.2B-X SI DIODE

D 806 UDZS6.2B-X SI DIODE

D 807 UDZS6.2B-X SI DIODE

D 808 UDZS6.2B-X SI DIODE

D 809 UDZS6.2B-X SI DIODE

D 810 UDZS6.2B-X SI DIODE

D 811 UDZS6.2B-X SI DIODE

EN801 QSW0863-002 ROTARY ENCODER

IC801 MN102H60KCC IC

IC802 MX23L8103-90-M1 IC

IC803 IC-PST9322U-X IC

IC804 NJU7241F33-X IC

IC805 RPM6938-SV4 IC

L 801 NQL114K-470X INDUCTOR

R 401 NRSA63J-102X MG RESISTOR

R 402 NRSA63J-102X MG RESISTOR

R 403 NRSA63J-122X MG RESISTOR

R 404 NRSA63J-122X MG RESISTOR

R 405 NRSA63J-681X MG RESISTOR

R 406 NRSA63J-681X MG RESISTOR

Parts number Parts name Ar

401 UN2211-X TRANSISTOR

402 UN2211-X TRANSISTOR

403 UN2211-X TRANSISTOR

404 UN2211-X TRANSISTOR

405 UN2211-X TRANSISTOR

406 UN2211-X TRANSISTOR

407 UN2211-X TRANSISTOR

408 2SD601A/QR/-X TRANSISTOR

409 2SD601A/QR/-X TRANSISTOR

410 2SD601A/QR/-X TRANSISTOR

411 2SD601A/QR/-X TRANSISTOR

412 2SD601A/QR/-X TRANSISTOR

413 2SD601A/QR/-X TRANSISTOR

414 2SD601A/QR/-X TRANSISTOR

415 2SD601A/QR/-X TRANSISTOR

416 2SD601A/QR/-X TRANSISTOR

417 2SD601A/QR/-X TRANSISTOR

418 2SD601A/QR/-X TRANSISTOR

419 2SD601A/QR/-X TRANSISTOR

420 2SD601A/QR/-X TRANSISTOR

421 2SD601A/QR/-X TRANSISTOR

422 2SD601A/QR/-X TRANSISTOR

423 2SD601A/QR/-X TRANSISTOR

424 2SD601A/QR/-X TRANSISTOR

425 2SD601A/QR/-X TRANSISTOR

427 UN2211-X TRANSISTOR

801 2SB709A/QR/-X TRANSISTOR

802 2SB709A/QR/-X TRANSISTOR

803 2SD601A/QR/-X TRANSISTOR

Remarks

3-12

KD-LH2000R

Electrical parts list (Front board)

Item

A

R 407 NRSA63J-471X MG RESISTOR

R 408 NRSA63J-471X MG RESISTOR

R 409 NRSA63J-471X MG RESISTOR

R 410 NRSA63J-471X MG RESISTOR

R 411 NRSA63J-681X MG RESISTOR

R 412 NRSA63J-681X MG RESISTOR

R 413 NRSA63J-102X MG RESISTOR

R 414 NRSA63J-102X MG RESISTOR

R 415 NRSA63J-681X MG RESISTOR

R 416 NRSA63J-681X MG RESISTOR

R 417 NRSA63J-471X MG RESISTOR

R 418 NRSA63J-471X MG RESISTOR

R 419 NRSA63J-471X MG RESISTOR

R 420 NRSA63J-471X MG RESISTOR

R 421 NRSA63J-391X MG RESISTOR

R 422 NRSA63J-391X MG RESISTOR

R 423 NRSA63J-391X MG RESISTOR

R 424 NRSA63J-561X MG RESISTOR

R 425 NRSA63J-561X MG RESISTOR

R 426 NRSA63J-561X MG RESISTOR

R 427 NRSA63J-391X MG RESISTOR

R 428 NRSA63J-391X MG RESISTOR

R 429 NRSA63J-391X MG RESISTOR

R 430 NRSA63J-391X MG RESISTOR

R 431 NRSA63J-391X MG RESISTOR

R 432 NRSA63J-391X MG RESISTOR

R 433 NRSA63J-561X MG RESISTOR

R 434 NRSA63J-561X MG RESISTOR

R 435 NRSA63J-561X MG RESISTOR

R 436 NRSA63J-391X MG RESISTOR

R 437 NRSA63J-391X MG RESISTOR

R 438 NRSA63J-391X MG RESISTOR

R 439 NRSA63J-391X MG RESISTOR

R 440 NRSA63J-391X MG RESISTOR

R 441 NRSA63J-391X MG RESISTOR

R 442 NRSA63J-561X MG RESISTOR

R 443 NRSA63J-561X MG RESISTOR

R 444 NRSA63J-561X MG RESISTOR

R 445 NRSA63J-391X MG RESISTOR

R 446 NRSA63J-391X MG RESISTOR

R 447 NRSA63J-391X MG RESISTOR

R 450 NRSA63J-681X MG RESISTOR

R 451 NRSA63J-681X MG RESISTOR

R 471 NRSA63J-331X MG RESISTOR

R 472 NRSA63J-331X MG RESISTOR

R 473 NRSA63J-331X MG RESISTOR

R 474 NRSA63J-331X MG RESISTOR

R 475 NRSA63J-331X MG RESISTOR

R 476 NRSA63J-331X MG RESISTOR

R 477 NRSA63J-331X MG RESISTOR

R 478 NRSA63J-331X MG RESISTOR

R 479 NRSA63J-331X MG RESISTOR

R 801 NRSA63J-331X MG RESISTOR

R 803 NRSA63J-331X MG RESISTOR

R 804 NRSA63J-331X MG RESISTOR

R 805 NRSA63J-471X MG RESISTOR

R 807 NRSA63J-473X MG RESISTOR

R 808 NRSA63J-331X MG RESISTOR

R 809 NRSA63J-331X MG RESISTOR

R 810 NRSA63J-331X MG RESISTOR

R 811 NRSA63J-331X MG RESISTOR

R 812 NRSA63J-331X MG RESISTOR

R 813 NRSA63J-331X MG RESISTOR

Parts number Parts name Ar

Block No. 02

Remarks

Item

A

R 814 NRSA63J-331X MG RESISTOR

R 815 NRSA63J-331X MG RESISTOR

R 816 NRSA63J-331X MG RESISTOR

R 817 NRSA63J-331X MG RESISTOR

R 818 NRSA63J-331X MG RESISTOR

R 819 NRSA63J-331X MG RESISTOR

R 820 NRSA63J-331X MG RESISTOR

R 821 NRSA63J-822X MG RESISTOR

R 822 NRSA63J-102X MG RESISTOR

R 823 NRSA63J-331X MG RESISTOR

R 824 NRSA63J-104X MG RESISTOR

R 825 NRSA63J-104X MG RESISTOR

R 826 NRSA63J-104X MG RESISTOR

R 827 NRSA63J-102X MG RESISTOR

R 828 NRSA63J-102X MG RESISTOR

R 829 NRSA63J-473X MG RESISTOR

R 830 NRSA63J-473X MG RESISTOR

R 831 NRSA63J-103X MG RESISTOR

R 832 NRSA63J-103X MG RESISTOR

R 833 NRSA63J-103X MG RESISTOR

R 834 NRSA63J-103X MG RESISTOR

R 835 NRSA63J-103X MG RESISTOR

R 836 NRSA63J-103X MG RESISTOR

R 837 NRSA63J-103X MG RESISTOR

R 838 NRSA63J-102X MG RESISTOR

R 839 NRSA63J-102X MG RESISTOR

R 841 NRSA63J-152X MG RESISTOR

R 842 NRSA63J-152X MG RESISTOR

R 843 NRSA63J-152X MG RESISTOR

R 844 NRSA63J-473X MG RESISTOR

R 845 NRSA63J-473X MG RESISTOR

R 846 NRSA63J-103X MG RESISTOR

R 847 NRSA63J-473X MG RESISTOR

R 848 NRSA63J-102X MG RESISTOR

R 849 NRSA63J-331X MG RESISTOR

R 850 NRSA63J-331X MG RESISTOR

R 851 NRSA63J-331X MG RESISTOR

R 852 NRSA63J-331X MG RESISTOR

R 853 NRSA63J-331X MG RESISTOR

R 854 NRSA63J-331X MG RESISTOR

R 855 NRSA63J-331X MG RESISTOR

R 856 NRSA63J-331X MG RESISTOR

R 857 NRSA63J-331X MG RESISTOR

R 858 NRSA63J-331X MG RESISTOR

R 859 NRSA63J-331X MG RESISTOR

R 860 NRSA63J-331X MG RESISTOR

R 861 NRSA63J-331X MG RESISTOR

R 862 NRSA63J-331X MG RESISTOR

R 863 NRSA63J-331X MG RESISTOR

R 864 NRSA63J-331X MG RESISTOR

R 865 NRSA63J-473X MG RESISTOR

R 866 NRSA63J-222X MG RESISTOR

R 867 NRSA63J-225X MG RESISTOR

R 868 NRSA63J-473X MG RESISTOR

R 869 NRSA63J-473X MG RESISTOR

R 870 NRSA63J-474X MG RESISTOR

R 871 NRSA63J-331X MG RESISTOR

R 872 NRSA63J-473X MG RESISTOR

R 873 NRSA63J-473X MG RESISTOR

R 874 NRSA63J-104X MG RESISTOR

R 875 NRSA63J-333X MG RESISTOR

R 876 NRSA63J-0R0X MG RESISTOR

R 877 NRSA63J-470X MG RESISTOR

Parts number Parts name Ar

Remarks

3-13

KD-LH2000R

ea

Electrical parts list (Front board)

Item

A

R 878 NRSA63J-301X MG RESISTOR

R 879 NRSA63J-271X MG RESISTOR

R 880 NRSA63J-391X MG RESISTOR

R 881 NRSA63J-561X MG RESISTOR

R 882 NRSA63J-301X MG RESISTOR

R 883 NRSA63J-271X MG RESISTOR

R 884 NRSA63J-391X MG RESISTOR

R 885 NRSA63J-561X MG RESISTOR

R 886 NRSA63J-821X MG RESISTOR

R 887 NRSA63J-301X MG RESISTOR

R 888 NRSA63J-271X MG RESISTOR

R 889 NRSA63J-391X MG RESISTOR

R 890 NRSA63J-561X MG RESISTOR

R 891 NRSA63J-821X MG RESISTOR

R 892 NRSA63J-474X MG RESISTOR

R 893 NRSA63J-331X MG RESISTOR

R 894 NRSA63J-331X MG RESISTOR

S 802 NSW0066-001X TACT SWITC H

S 803 NSW0066-001X TACT SWITC H

S 804 NSW0066-001X TACT SWITC H

S 805 NSW0066-001X TACT SWITC H

S 806 NSW0066-001X TACT SWITC H

S 807 NSW0066-001X TACT SWITC H

S 808 NSW0066-001X TACT SWITC H

S 809 NSW0066-001X TACT SWITC H

S 810 NSW0066-001X TACT SWITC H

S 811 NSW0066-001X TACT SWITC H

S 812 NSW0066-001X TACT SWITC H

S 813 NSW0066-001X TACT SWITC H

S 814 NSW0066-001X TACT SWITC H

S 815 NSW0066-001X TACT SWITC H

S 816 NSW0066-001X TACT SWITC H

S 817 NSW0066-001X TACT SWITC H

S 818 NSW0066-001X TACT SWITC H

TH801 NAD0022-103X N THERMISTOR

X 801 NAX0552-001X RESON ATOR

Parts number Parts name Ar

Block No. 02

Remarks

3-14

KD-LH2000R

Electrical parts list (Mecha control board)

Item

A

C 501 NCB31HK-103X C CAPACITOR

C 502 NCB31HK-103X C CAPACITOR

C 503 NCB31HK-103X C CAPACITOR

C 504 NEAD0JM-107X E CAPACITOR

C 505 NDC31HJ-270X C-CAPACITOR

C 506 NDC31HJ-220X C CAPACITOR

C 507 NCS31HJ-471X C CAPACITOR

C 508 NCB31HK-103X C CAPACITOR

C 509 NCB31HK-103X C CAPACITOR

C 510 NCS31HJ-102X C CAPACITOR

C 511 NCB31CK-104X C CAPACITOR

C 512 NEAD0JM-107X E CAPACITOR

C 513 NCB31HK-103X C CAPACITOR

C 551 NCB31HK-103X C CAPACITOR

C 571 NDC31HJ-100X C CAPACITOR

C 572 NDC31HJ-100X C CAPACITOR

C 573 NCB31CK-104X C CAPACITOR

C 574 NEAD1CM-106X E CAPACITOR

C 575 NEAD0JM-476X E CAPACITOR

C 576 NCB31CK-104X C CAPACITOR

C 577 NCB31CK-104X C CAPACITOR

C 578 NEAD0JM-476X E CAPACITOR

C 579 NEAD1CM-106X E CAPACITOR

C 580 NCB31CK-104X C CAPACITOR

C 581 NCS31HJ-101X C CAPACITOR

C 582 NCS31HJ-101X C CAPACITOR

C 583 NCS31HJ-821X C CAPACITOR

C 584 NCS31HJ-821X C CAPACITOR

C 585 NEAD1VM-475X E CAPACITOR

C 586 NEAD1VM-475X E CAPACITOR

C 587 NCS31HJ-121X C CAPACITOR

C 588 NCS31HJ-121X C CAPACITOR

C 589 NEAD1VM-475X E CAPACITOR

C 590 NEAD1VM-475X E CAPACITOR

C 591 NEAD0JM-476X E CAPACITOR

C 592 NEAD0JM-476X E CAPACITOR

C 593 NEAD1CM-476X E CAPACITOR

C 594 NCS31HJ-102X C CAPACITOR

C 595 NCB31CK-473X C CAPACITOR

C 596 NCS31HJ-101X C CAPACITOR

C 597 NCS31HJ-102X C CAPACITOR

C 598 NCS31HJ-102X C CAPACITOR

C 601 NEAD0JM-476X E CAPACITOR

C 602 NCB31HK-103X C CAPACITOR

C 603 NEAD0JM-107X E CAPACITOR

C 604 NCB31HK-103X C CAPACITOR

C 605 NCB31HK-682X C CAPACITOR

C 606 NEAD0JM-476X E CAPACITOR

C 607 NCB31HK-103X C CAPACITOR

C 608 NCB31CK-104X C CAPACITOR

C 609 NCB31CK-104X C CAPACITOR

C 610 NDC31HJ-5R0X C CAPACITOR

C 611 NCS31HJ-680X C CAPACITOR

C 612 NCB31HK-103X C CAPACITOR

C 613 NCB31HK-103X C CAPACITOR

C 614 NCB31HK-103X C CAPACITOR

C 621 NCB31HK-103X C CAPACITOR

C 622 NEAD0JM-476X E CAPACITOR

C 623 NCS31HJ-470X C CAPACITOR

C 624 NCB31HK-153X C CAPACITOR

C 625 NCB31HK-103X C CAPACITOR

C 626 NCB31HK-272X C CAPACITOR

C 627 NCB31HK-103X C CAPACITOR

Parts number Parts name Ar

Block No. 03

Remarks

Item

A

C 628 NEAD0JM-476X E CAPACITOR

C 629 NCB31EK-333X C CAPACITOR

C 630 NCB31EK-333X C CAPACITOR

C 631 NCS31HJ-471X C CAPACITOR

C 632 NCS31HJ-471X C CAPACITOR

C 633 NCB31CK-473X C CAPACITOR

C 634 NCB31CK-473X C CAPACITOR

C 635 NCB31CK-473X C CAPACITOR

C 636 NCB31CK-473X C CAPACITOR

C 637 NCB31CK-473X C CAPACITOR

C 638 NCB31HK-103X C CAPACITOR

C 639 NEAD0JM-476X E CAPACITOR

C 640 NCB31HK-103X C CAPACITOR

C 641 NEAD0JM-476X E CAPACITOR

C 642 NCS31HJ-101X C CAPACITOR

C 643 NCB31HK-103X C CAPACITOR

C 644 NCB31AK-334X C CAPACITOR

C 645 NEAD0JM-476X E CAPACITOR

C 646 NCB31HK-103X C CAPACITOR

C 651 NEAD0JM-476X E CAPACITOR

C 652 NCB31HK-103X C CAPACITOR

C 653 NEAD0JM-476X E CAPACITOR

C 654 NCB31CK-104X C CAPACITOR

C 655 NCB31HK-103X C CAPACITOR

C 656 NCB31CK-104X C CAPACITOR

C 657 NCB31CK-104X C CAPACITOR

C 658 NCB31CK-104X C CAPACITOR

C 659 NCB31CK-104X C CAPACITOR

C 660 NCS31HJ-101X C CAPACITOR

C 661 NCB31HK-103X C CAPACITOR

C 662 NCS31HJ-101X C CAPACITOR

C 663 NCB31CK-104X C CAPACITOR

C 664 NCB31EK-273X C CAPACITOR

C 665 NCB31AK-334X C CAPACITOR

C 666 NCS31HJ-101X C CAPACITOR

C 667 NCB31HK-103X C CAPACITOR

C 668 NEAD0JM-476X E CAPACITOR

C 669 NCB31HK-103X C CAPACITOR

C 671 NEAD0JM-476X E CAPACITOR

C 672 NCB31CK-104X C CAPACITOR

C 673 NCS31HJ-101X C CAPACITOR

C 682 NEAD1CM-106X E CAPACITOR

C 683 NCB31CK-104X C CAPACITOR

C 684 NEAD1CM-476X E CAPACITOR

C 685 NCB31CK-473X C CAPACITOR

C 686 NCB31CK-473X C CAPACITOR

C 687 NCB31CK-473X C CAPACITOR

C 688 NCB31CK-473X C CAPACITOR

C 689 NEAD1CM-476X E CAPACITOR

C 690 NBE20JM-106X TS E CAP SVB20J

CN501 QGB2027L1-22X CONNECTOR

CN502 QGF0501F1-08X CONNECTOR

CN601 QGF0526F1-22X FPC CONNE

D 501 1SS355-X DIODE

D 502 1SS355-X DIODE

D 503 1SS355-X DIODE

D 504 1SS355-X DIODE

D 505 1SS355-X DIODE

D 506 CRS03-W SB DIODE

D 682 1SR154-400-X DIODE

IC501 UPD784225GK-626 IC

IC502 BR24C01AFV-W-X IC

IC503 HD74HCT126T-X IC

Parts number Parts name Ar

Remarks

3-15

KD-LH2000R

Q

Q

Q

Q

Q

Q

Electrical parts list (Mecha control board)

Item

A

IC504 NJU7241F33-X IC

IC571 PCM1716E-X IC

IC572 NJM4565V-X IC

IC601 TA2157FN-X IC

IC621 TC94A14FA IC

IC651 NJU7241F25-X IC

IC652 TC94A02F-005 IC

IC653 LP61L1024S-12-X IC

IC681 LA6579H-X IC

L 501 NQL114K-470X IND UCTOR

L 502 NQL114K-470X IND UCTOR

L 571 NQL114K-470X IND UCTOR

L 572 NQL114K-470X IND UCTOR

L 621 NQL114K-470X IND UCTOR

L 622 NQL114K-470X IND UCTOR

L 623 NQL114K-470X IND UCTOR

L 651 NQL114K-470X IND UCTOR

L 652 NQL114K-470X IND UCTOR

L 653 NQL114K-470X IND UCTOR

R 501 NRSA63J-822X MG RESISTOR

R 502 NRSA63J-271X MG RESISTOR

R 503 NRSA63J-103X MG RESISTOR

R 504 NRSA63J-271X MG RESISTOR

R 505 NRSA63J-102X MG RESISTOR

R 506 NRSA63J-102X MG RESISTOR

R 507 NRSA63J-101X MG RESISTOR

R 508 NRSA63J-101X MG RESISTOR

R 509 NRSA63J-101X MG RESISTOR

R 510 NRSA63J-101X MG RESISTOR

R 511 NRSA63J-101X MG RESISTOR

R 512 NRSA63J-101X MG RESISTOR

R 513 NRSA63J-101X MG RESISTOR

R 514 NRSA63J-102X MG RESISTOR

R 515 NRSA63J-101X MG RESISTOR

R 516 NRSA63J-101X MG RESISTOR

R 517 NRSA63J-101X MG RESISTOR

R 518 NRSA63J-472X MG RESISTOR

R 519 NRSA63J-101X MG RESISTOR

R 520 NRSA63J-101X MG RESISTOR

R 521 NRSA63J-101X MG RESISTOR

R 522 NRSA63J-101X MG RESISTOR

R 523 NRSA63J-101X MG RESISTOR

R 524 NRSA63J-101X MG RESISTOR

R 525 NRSA63J-101X MG RESISTOR

R 527 NRSA63J-104X MG RESISTOR

R 528 NRSA63J-473X MG RESISTOR

R 530 NRSA63J-473X MG RESISTOR

R 531 NRSA63J-473X MG RESISTOR

R 533 NRSA63J-473X MG RESISTOR

R 534 NRSA63J-473X MG RESISTOR

R 535 NRSA63J-473X MG RESISTOR

R 536 NRSA63J-102X MG RESISTOR

R 537 NRSA63J-473X MG RESISTOR

R 538 NRSA63J-473X MG RESISTOR

R 539 NRSA63J-102X MG RESISTOR

R 540 NRSA63J-473X MG RESISTOR

R 541 NRSA63J-102X MG RESISTOR

Parts number Parts name Ar

501 UN2111-X TRANSISTOR

502 UN2211-X TRANSISTOR

571 UN2111-X TRANSISTOR

572 UN2211-X TRANSISTOR

601 2SB1132/QR/-X TRAN SISTOR

681 2SB1184/QR/-X TRAN SISTOR

Block No. 03

Remarks

Item

A

R 542 NRSA63J-101X MG RESISTOR

R 543 NRSA63J-0R0X MG RESISTOR

R 544 NRSA63J-102X MG RESISTOR

R 545 NRSA63J-103X MG RESISTOR

R 546 NRSA63J-104X MG RESISTOR

R 547 NRSA63J-472X MG RESISTOR

R 548 NRSA63J-472X MG RESISTOR

R 549 NRSA63J-472X MG RESISTOR

R 550 NRSA63J-472X MG RESISTOR

R 551 NRSA63J-104X MG RESISTOR

R 552 NRSA63J-104X MG RESISTOR

R 553 NRSA63J-183X MG RESISTOR

R 554 NRSA63J-333X MG RESISTOR

R 555 NRSA63J-101X MG RESISTOR

R 556 NRSA63J-0R0X MG RESISTOR

R 557 NRSA63J-104X MG RESISTOR

R 558 NRSA63J-104X MG RESISTOR

R 559 NRSA63J-0R0X MG RESISTOR

R 560 NRSA63J-101X MG RESISTOR

R 561 NRSA63J-104X MG RESISTOR

R 562 NRSA63J-392X MG RESISTOR

R 563 NRSA63J-682X MG RESISTOR

R 567 NRSA63J-101X MG RESISTOR

R 568 NRSA63J-102X MG RESISTOR

R 569 NRSA63J-102X MG RESISTOR

R 570 NRSA63J-102X MG RESISTOR

R 572 NRSA63J-473X MG RESISTOR

R 573 NRSA63J-473X MG RESISTOR

R 574 NRSA63J-470X MG RESISTOR

R 581 NRSA63J-203X MG RESISTOR

R 582 NRSA63J-203X MG RESISTOR

R 583 NRSA63J-123X MG RESISTOR

R 584 NRSA63J-123X MG RESISTOR

R 585 NRSA63J-303X MG RESISTOR

R 586 NRSA63J-303X MG RESISTOR

R 587 NRSA63J-473X MG RESISTOR

R 588 NRSA63J-473X MG RESISTOR

R 589 NRSA63J-103X MG RESISTOR

R 590 NRSA63J-103X MG RESISTOR

R 591 NRSA63J-103X MG RESISTOR

R 592 NRSA63J-103X MG RESISTOR

R 593 NRSA63J-4R7X MG RESISTOR

R 601 NRSA63J-823X MG RESISTOR

R 602 NRSA63J-823X MG RESISTOR

R 603 NRSA63J-334X MG RESISTOR

R 604 NRSA63J-334X MG RESISTOR

R 605 NRSA63J-220X MG RESISTOR

R 606 NRSA63J-220X MG RESISTOR

R 607 NRSA63J-823X MG RESISTOR

R 608 NRSA63J-821X MG RESISTOR

R 609 NRSA63J-563X MG RESISTOR

R 610 NRSA63J-101X MG RESISTOR

R 611 NRSA63J-103X MG RESISTOR

R 612 NRSA63J-202X MG RESISTOR

R 613 NRSA63J-102X MG RESISTOR

R 614 NRSA63J-153X MG RESISTOR

R 615 NRSA63J-151X MG RESISTOR

R 616 NRSA63J-103X MG RESISTOR

R 621 NRSA63J-470X MG RESISTOR

R 622 NRSA63J-470X MG RESISTOR

R 623 NRSA63J-470X MG RESISTOR

R 624 NRSA63J-562X MG RESISTOR

R 625 NRSA63J-473X MG RESISTOR

Parts number Parts name Ar

Remarks

3-16

KD-LH2000R

ea

Electrical parts list (Mecha control board)

Item

A

R 626 NRSA63J-474X MG RESISTOR

R 627 NRSA63J-103X MG RESISTOR

R 628 NRSA63J-225X MG RESISTOR

R 629 NRSA63J-103X MG RESISTOR

R 630 NRSA63J-101X MG RESISTOR

R 631 NRSA63J-101X MG RESISTOR

R 632 NRSA63J-0R0X MG RESISTOR

R 633 NRSA63J-0R0X MG RESISTOR

R 634 NRSA63J-0R0X MG RESISTOR

R 635 NRSA63J-101X MG RESISTOR

R 636 NRSA63J-101X MG RESISTOR

R 637 NRSA63J-105X MG RESISTOR

R 638 NRSA63J-472X MG RESISTOR

R 639 NRSA63J-472X MG RESISTOR

R 640 NRSA63J-472X MG RESISTOR

R 641 NRSA63J-472X MG RESISTOR

R 642 NRSA63J-103X MG RESISTOR

R 651 NRSA63J-104X MG RESISTOR

R 652 NRSA63J-474X MG RESISTOR

R 653 NRSA63J-474X MG RESISTOR

R 654 NRSA63J-470X MG RESISTOR

R 655 NRSA63J-0R0X MG RESISTOR

R 656 NRSA63J-0R0X MG RESISTOR

R 657 NRSA63J-0R0X MG RESISTOR

R 658 NRSA63J-474X MG RESISTOR

R 659 NRSA63J-474X MG RESISTOR

R 660 NRSA63J-474X MG RESISTOR

R 661 NRSA63J-474X MG RESISTOR

R 662 NRSA63J-474X MG RESISTOR

R 663 NRSA63J-474X MG RESISTOR

R 664 NRSA63J-474X MG RESISTOR

R 665 NRSA63J-474X MG RESISTOR

R 666 NRSA63J-474X MG RESISTOR

R 667 NRSA63J-474X MG RESISTOR

R 668 NRSA63J-0R0X MG RESISTOR

R 669 NRSA63J-474X MG RESISTOR

R 670 NRSA63J-474X MG RESISTOR

R 671 NRSA63J-474X MG RESISTOR

R 672 NRSA63J-474X MG RESISTOR

R 673 NRSA63J-474X MG RESISTOR

R 674 NRSA63J-331X MG RESISTOR

R 675 NRSA63J-331X MG RESISTOR

R 677 NRSA63J-105X MG RESISTOR

R 681 NRSA63J-682X MG RESISTOR

R 682 NRSA63J-682X MG RESISTOR

R 683 NRSA63J-472X MG RESISTOR

R 684 NRSA63J-153X MG RESISTOR

R 685 NRSA63J-333X MG RESISTOR

R 686 NRSA63J-822X MG RESISTOR

R 687 NRSA63J-0R0X MG RESISTOR

R 688 NRSA63J-303X MG RESISTOR

R 689 NRSA63J-223X MG RESISTOR

TH501 NAD0022-103X N THERMISTO R

X 501 NAX0430-001X CRYSTAL

X 571 NAX0375-001X CRYSTAL

Parts number Parts name Ar

Block No. 03

Remarks

3-17

KD-LH2000R

Packing materials and accessories parts list

P1

A1.A3.A7.

P7

Block No.

Block No.

P8

M

M

3

M

M

5

M

M

P8

A2.A4.A6

P1

P6

A17

A5

P2

KIT:

A8~A12

P5

A18

A19

A16

A13

A14

P4

3-18

P3

A15

KD-LH2000R

Parts list (Packing)

Item

A

P 1 FSPG4002-001

P 2 QPA00801205

P 3 FSYH4036-068

P 4 QPA01003003

P 5 QPA01003003

P 6 VPE3005-064

P 7 LV33450-001A

P 8 GE10036-001A

Parts number Parts name Area

Parts list (Accessories)

Item

A

A 1 LVT0921-001A

A 2 LVT0921-002A

A 3 LVT0857-003A

A 4 LVT0857-004A

A 5 LV40978-001A

A 6 BT-54013-3

A 7 LVT0770-002B

A 8 VKZ4027-202

A 9 VKH4871-001SS

A 10 VKZ4328-001

A 11 WNS5000Z

A 12 GE40130-001A

A 13 RM-RK50

A 14 -----------

A 15 FSJB3001-30C

A 16 LV43135-002A

A 17 GE20126-001A

A 18 GE20127-005A

A 19 QAM0176-002

KIT KSFX480K-SCREW1

Parts number Parts name Area

Q'ty

POLY BAG

POLY BAG

SHEET

POLY BAG

POLY BAG

POLY BAG

PACKING CASE

ESP CUSHION

Q'ty

INST BOOK

INST BOOK

INST MANUAL

INST MANUAL

CAUTION SHEET

W.CARD

MP3 MANUAL

PLUG NUT

MOUNT BOLT

LOCK NUT 1

WASHER

HOOK 2

REMOCON

LI BATTERY

HARD CASE

CAUTION SHEET

MOUNTING SLEEVE

TRIM PLATE 1

CAR CABLE

SCREW PARTS KIT 1

Description

2

FOR INST BOOK

1

FOR SCREW KIT

1

1

FOR HARD CASE

1

FOR CAR CABLE

1

FOR SET

1

2

Description

1

ENG, GER, FRE, DUT

1

SPA, ITA, SWE, RUS

1

ENG, GER, FRE, DUT

1

SPA, ITA, SWE, RUS

1

1

1

1

1

1

1

1

1

1

1

1

A8~A12

Block No. M3MM

Block No. M5MM

E

E

3-19
