Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best
possible performance from the unit.
INFORMATION (For U.S.A.)
ENGLISH
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.
Caution:
Changes or modifications not approved by JVC could void the user’s authority to operate the equipment.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.
3. CAUTION: (For U.S.A.) Visible and/or invisible class II laser radiation when open. Do not stare into beam.
(For Canada) Visible and/or invisible class 1M laser radiation when open. Do not view directly with
optical instruments.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.
[European Union only]
2
How to reset your unit
• Your preset adjustments will also be erased (except
the registered Bluetooth device, see page 14).
How to forcibly eject a disc
How to use the M MODE and SEL buttons
If you use M MODE or SEL (select), the display and some controls (such as the number buttons,
4/¢ buttons, 5/ buttons, and the
control dial) enter the corresponding control mode.
Ex.: When you press number button 1 after
pressing M MODE, to operate the FM tuner.
ENGLISH
“Please Eject” appears on the display.
• Be careful not to drop the disc when it ejects.
• If this does not work, reset your unit.
For safety...
• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.
• Stop the car before performing any complicated operations.
Temperature inside the car...
If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.
Works as time countdown indicator.
To use these controls for original functions again, wait for 15 seconds (or 30 seconds for Bluetooth sources) without pressing any of these buttons until the control is cleared.
• Pressing M MODE again also restores original functions. However, pressing SEL makes the unit enters a different mode.
3
Detaching the control panel
ENGLISH
Attaching the control panel
CAUTION:
The lever comes out if you pressed the 0 button while the panel is detached. If this happens, push the lever back into lock position before attaching the panel.
Lever
Caution:
If the temperature inside the car is below 0°C (32°F), the movement of animation and text scroll will be halted on the display to prevent the display from being blurred. appears on the display. When the temperature increases, and the operating temperature is resumed, these functions will start working again.
Warning:
If you need to operate the unit while driving, be sure to look around carefully or you may be involved in a traffic accident.
Caution on volume setting:
Digital devices (CD/USB) produce very little noise compared with other sources. Lower the volume before playing these digital sources to avoid damaging the speakers by sudden increase of the output level.
This unit is equipped with the steering wheel remote control function.
• See the Installation/Connection Manual (separate volume) for connection.
4
CONTENTS
INTRODUCTIONS
Preparation ....................................................................................................... 6
OPERATIONS
Basic operations ................................................................................................. 7
• Using the control panel ................................................................................. 7
• Using the remote controller (RM-RK50) .......................................................... 8
Listening to the radio .......................................................................................... 9
Disc operations ................................................................................................... 11
Using the Bluetooth
• Using the Bluetooth cellular phone ................................................................ 16
• Using the Bluetooth audio player ................................................................... 19
EXTERNAL DEVICES
Listening to the USB device .................................................................................. 20
Listening to the CD changer ................................................................................. 21
Listening to the satellite radio ............................................................................. 23
Listening to the iPod / D. player ........................................................................... 26
Listening to the other external components .......................................................... 28
SETTINGS
Selecting a preset sound mode ............................................................................. 29
General settings — PSM ...................................................................................... 31
Bluetooth settings .............................................................................................. 36
Assigning titles ................................................................................................... 37
® devices ............................................................................... 13
ENGLISH
REFERENCES
Maintenance ...................................................................................................... 38
More about this unit ........................................................................................... 39
Troubleshooting ................................................................................................. 42
Specifications ..................................................................................................... 48
5
Preparation

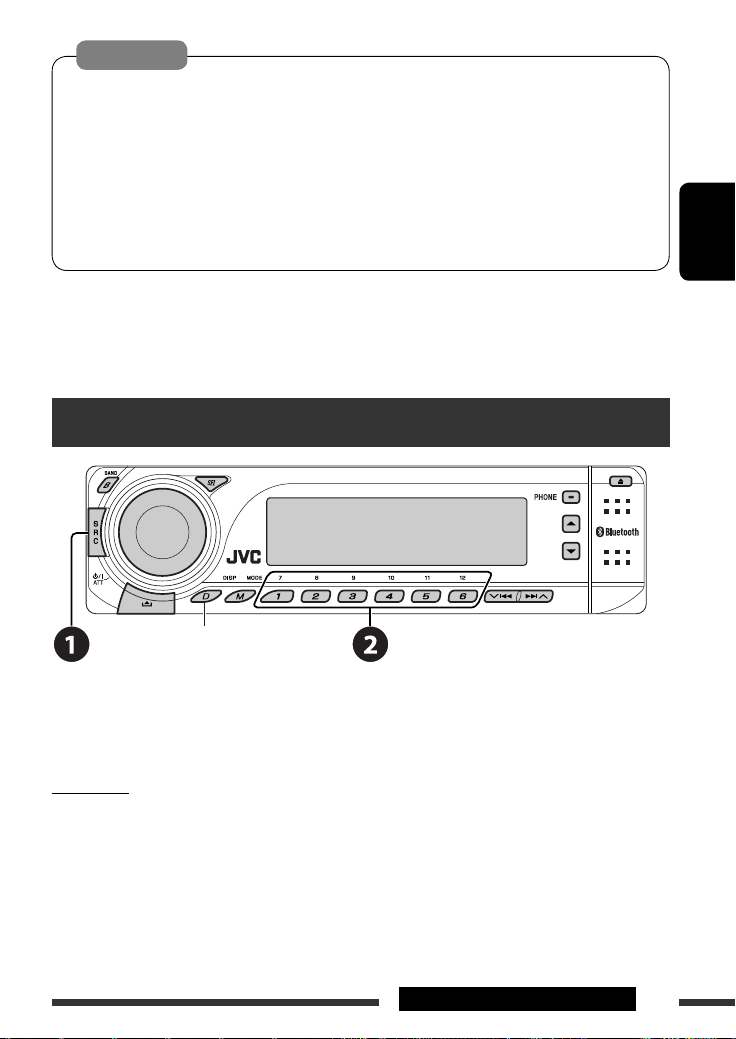

Cancel the display demonstration and set the clock
• See also pages 31 and 32.
ENGLISH
When the power is turned off: Check the current clock time When the power is turned on: Change the display information and pattern
~ Turn on the power. Ÿ Enter the PSM settings. ! ] ⁄ Cancel the display demonstrations
Select “Demo,” then “Off.”
Set the clock
Select “Clock Hr” (hour), then adjust the hour. Select “Clock Min” (minute), then adjust the minute. Select “24H/12H,” then “24Hours” or “12Hours.”
@ Finish the procedure.

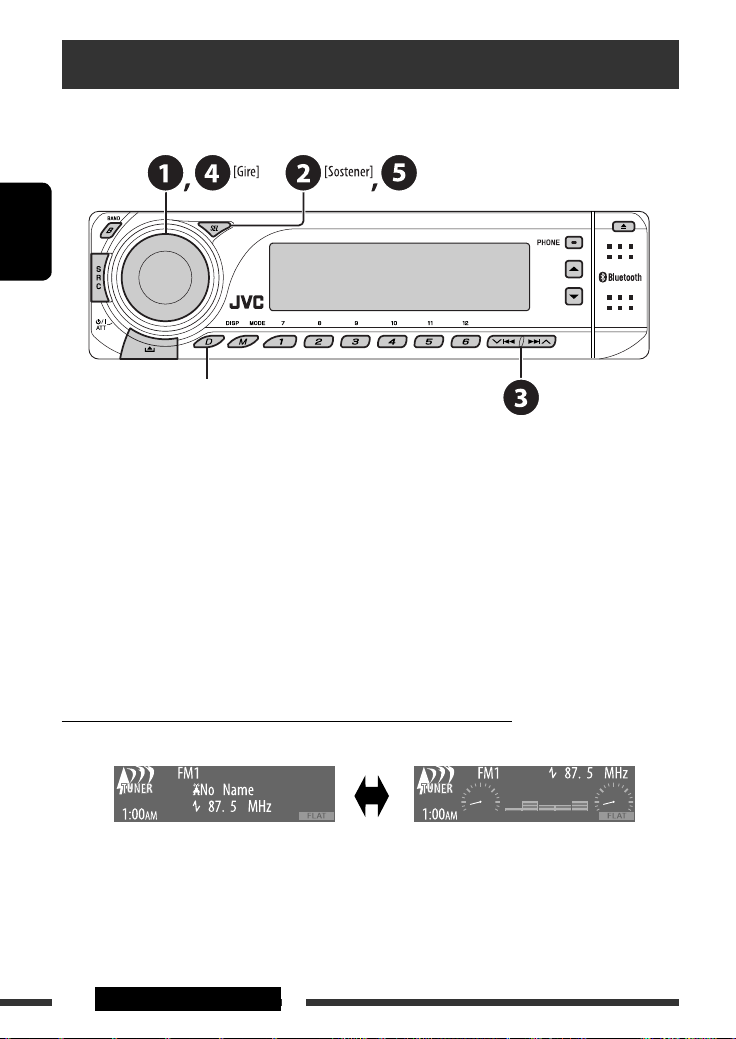

Changing the display information and pattern
Ex.: When tuner is selected as the source
Source operation display Audio level meter display
6 INTRODUCTIONS
(see “LevelMeter” on page 32)
Basic operations

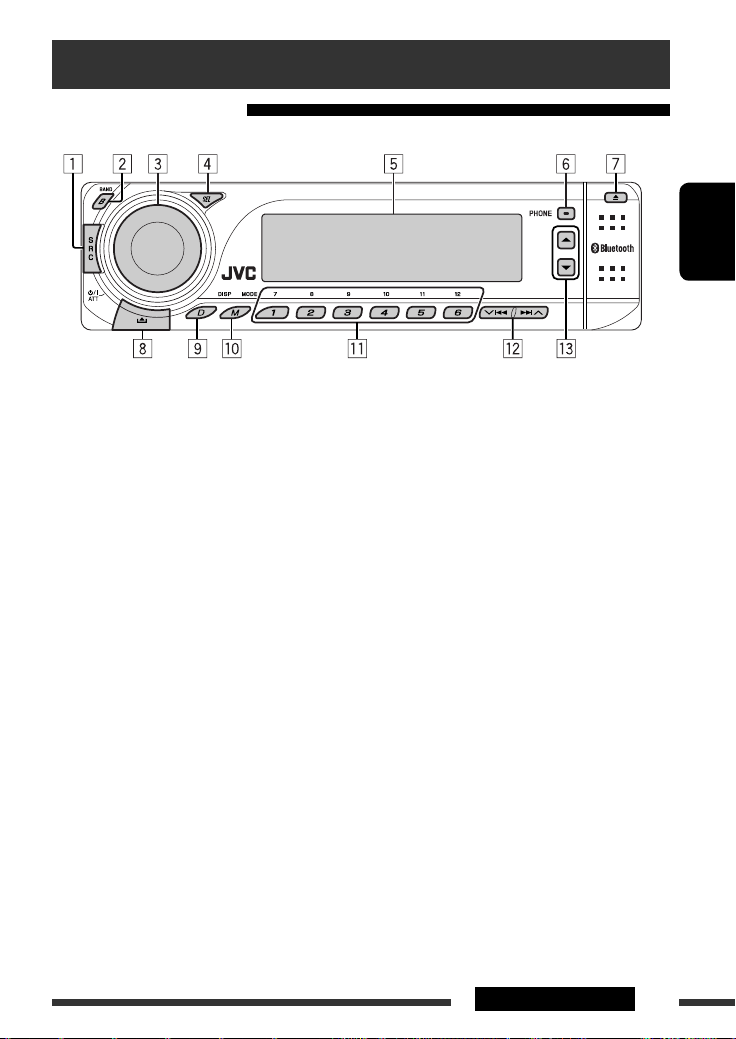

Using the control panel
ENGLISH
1 Select the source.
TUNER = SIRIUS */XM * = CD * = USB *
=CD-CH */iPod */D.PLAYER * (or EXT IN) =
Bluetooth Phone = Bluetooth Audio =
(back to the beginning)
* You cannot select these sources if they are not
ready or not connected.
2 Select the bands.
3 • Turn on the power.
• Turn off the power [Hold].
• Attenuate the sound (if the power is on).
• Volume control [Turn].
4 • Select/adjust the sound mode.
• Enter the PSM settings [Hold].
5 Display window
6 • Display ”Dial Menu.”
• Display “Redial” list [Hold].
7 Eject disc.
8 Detach the panel.
9 Change the display information and pattern.
p • Enter functions mode.
• Activate Voice Dialing [Hold].
qTUNER/SIRIUS/XM: Select preset station/
channel.
CD/USB/CD-CH: Select folder/track/disc (for CD changer).
Bluetooth Phone: Select preset phone number.
wTUNER/SIRIUS/XM: Search for station/channel.
CD/USB/CD-CH: Select track.
iPod/D.PLAYER: Select track.
Bluetooth Audio: Reverse skip/forward skip.
eTUNER: Select preset station.
SIRIUS/XM: Select category.
CD/USB/CD-CH: Select folder.
iPod/D.PLAYER: Enter the main menu/Pause or stop playback/Confirm selection.
Bluetooth Phone/Audio: Select a registered device.
7OPERATIONS
Using the remote controller (RM-RK50)
Installing the lithium coin battery (CR2025)
ENGLISH
Before using the remote controller:
• Aim the remote controller directly at the remote sensor on the unit.
• DO NOT expose the remote sensor to bright light (direct sunlight or artificial lighting).
Remote sensor
Warning: To prevent accidents and damage
• Do not install any battery other than CR2025 or its equivalent.
• Do not leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time.
• Store the battery in a place where children cannot reach.
• Do not recharge, short, disassemble, heat the battery, or dispose of it in a fire.
• Do not leave the battery with other metallic materials.
• Do not poke the battery with tweezers or similar tools.
• Wrap the battery with tape and insulate when throwing away or saving it.
For USA-California Only: This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material—special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate
1 • Turns the power on if pressed briefly or
attenuates the sound when the power is on.
• Turns the power off if pressed and held.
2 • Changes the FM/AM bands with 5 U.
• Changes the preset stations with D .
• Changes the folder of the MP3/WMA/AAC/WAV.
• While playing an MP3 disc on an MP3-compatible CD changer:
– Changes the disc if pressed briefly. – Changes the folder if pressed and held.
• While listening to the satellite (SIRIUS or XM) radio:
– Changes the categories.
• While listening to an Apple iPod or a JVC D. player:
– Pauses/stops or resumes playback with D . – Enters the main menu with 5 U. (Now 5 U/D /2 R/F 3 work as the menu
selecting buttons.)* * 5 U : Returns to the previous menu. D ∞ : Confirms the selection.
8
3 Adjusts the volume level.
4 Selects the sound mode (iEQ: intelligent equalizer).
5 Selects the source.
6 For Bluetooth cellular phone:
– Answers calls if pressed briefly. – Rejects calls if pressed and held.
Listening to the radio
Select preset station.
Change the display information* and pattern
7 • Searches for stations if pressed briefly.
• Fast-forwards or reverses the track if pressed and held.
• Changes the tracks if pressed briefly.
• While listening to an iPod or a D. player (in menu selecting mode):
– Selects an item if pressed briefly. (Then, press
to confirm the selection.)
D
– Skips 10 items at a time if pressed and held.
• Reverse skip/forward skip for Bluetooth audio.
ENGLISH
~ Select “TUNER.” Ÿ Select the bands.
! Search for a station to listen—Auto Search.
Manual Search: Hold either one of the buttons until “Manual Search” appears on the display, then press it
repeatedly.
• When receiving an FM stereo broadcast with sufficient signal strength, lights up on the display.
* If no title is assigned to a station, “No Name” appears. To assign a title to a station, see page 37.
Continued on the next page
9OPERATIONS
When an FM stereo broadcast is hard to receive
1
ENGLISH
2
Reception improves, but stereo effect will be lost.
lights up on the display.
3 Exit from the setting.
FM station automatic presetting — SSM (Strong-station Sequential Memory)
You can preset up to six stations for each band.
1
2
Manual presetting
Ex.: Storing FM station of 92.5 MHz into preset number
4 of the FM1 band.
Using the number buttons
1
2
3
Using the Preset Station list
• When appears on the display, you can move back to the previous display by pressing number button 3.
1 Follow steps 1 and 2 of “Using the
number buttons” above.
• By holding 5 / , the Preset Station List will appear (go to step 4).
2
3
4
Local FM stations with the strongest signals are
searched and stored automatically in the FM band.
10
3
Display the Preset Station List.
4 Select the preset number you want to
store into.
• You can move to the lists of the other FM bands by pressing number button 5 ( ) or 6 ( ) repeatedly.
5 Store the station.
Disc operations
Listening to the preset station on the Preset Station List
1 Display the Preset Station List, then
select the preset station you want to listen to.
2 Change to the selected station.
Open the control panel and insert the disc.
Playback starts automatically.
ENGLISH
Change the display information and pattern
To stop play and eject the disc
• Press SRC to listen to another playback source.
Prohibiting disc ejection
To cancel the prohibition, repeat the same procedure.
Continued on the next page
11OPERATIONS
Pressing (or holding) the following buttons allows you to...
Button MP3/WMA/AAC file Audio CD/CD Text
ENGLISH
Press: Select track Hold: Reverse/fast-forward track
1
Select folder
*
Press: Select track Hold: Reverse/fast-forward track
3
Locate particular track directly
(Number buttons) *
Locate particular folder directly *
2
*1 Holding either one of the buttons can display the Folder List (see page 13). *2 Press to select number 1 to 6; hold to select number 7 to 12. *3 It is required that folders be assigned with 2-digit numbers at the beginning of their folder names—01, 02, 03, and
so on.
After pressing , press the following buttons to...
Button MP3/WMA/AAC file Audio CD/CD Text
Skip 10 tracks (within the same folder) Skip 10 tracks
Intro Track:
Plays the beginning 15 seconds of all
tracks
Intro Track:
Plays the beginning 15 seconds of all
tracks
Intro Folder:
Plays the beginning 15 seconds of the
first tracks of all folders
Repeat Track:
Repeat current track
Repeat Track:
Repeat current track
Repeat Folder:
Repeat current folder
Random Folder:
Randomly play all tracks of current
Random Disc:
Randomly play all tracks
folder, then tracks of next folders
Random Disc:
Randomly play all tracks
• You can also cancel the playback mode by selecting “Off ” or press number button 4 (
).
12
Selecting a folder/track on the list (only for MP3/WMA/AAC file)
• When appears on the display, you can move
back to the previous display by pressing number button 3.
Using the Bluetooth ® devices
ENGLISH
1
2
Select “LIST.”
3 Select the list type.
4 Select an item.
EX.: When “File” is selected in
step 3
• You can move to the other lists by pressing number button 5 ( ) or 6 ( ) repeatedly.
5 Change to the selected item.
• If File List is selected • If Folder List is
selected
Bluetooth is a short-range wireless radio communication technology for the mobile device such as mobile phones, portable PCs, and other devices. The bluetooth devices can be connected without cables and communicate each other.
• The serial number is printed on the label placed on the bottom of the unit.
• Refer to the list (included in the box) to see the countries where you may use the Bluetooth® function.
Bluetooth profile
This unit supports the following Bluetooth profiles; HSP (Headset Profile) HFP (Hands-Free Profile) A2DP (Advanced Audio Distribution Profile) AVRCP (Audio/Video Remote Control Profile) SPP (Serial Port Profile) OPP (Object Push Profile)
Features
You can operate Bluetooth devices through the unit as follows:
• Receiving a call
• Making a call—from Phonebook, from call history (Redial/Missed Call/Received Call), by dialing number, by preset numbers, by voice command
• Receiving a text message
• Playback a Bluetooth audio player
• The list disappears and playback starts.
• Refer also to the instructions supplied with the Bluetooth device.
• Refer also to the Installation/Connection Manual for connecting the microphone unit.
Continued on the next page
13OPERATIONS
Registering a Bluetooth device
To use a Bluetooth device through the unit (“Bluetooth Phone” and “Bluetooth Audio”) for the first time, you need to establish Bluetooth wireless connection between the unit and the device by using the Bluetooth
ENGLISH
menu.
• Once the connection is established, it is registered in the unit even if you reset your unit. Up to five devices can be registered in total.
• Only one device can be connected at a time for each source (“Bluetooth Phone” and “Bluetooth Audio”).
• To use the Bluetooth function, you need to turn on Bluetooth function of the device.
2 Select “New.”
• The registered device and “New Device” (when a new device can be registered) appear in turn.
3 Enter setting menu.
4 Select “Open.”
Registration (Pairing) methods
Use either of the following items in the Bluetooth menu to register and establish the connection with a device.
• Select “Bluetooth Phone” or “Bluetooth Audio” as the source to operate the Bluetooth menu.
Open Make the unit ready to establish a new
Bluetooth connection. Connection is established by operating the Bluetooth device.
Search Make the unit ready to establish a new
Bluetooth connection. Connection is established by operating the unit.
• When back to the previous display by pressing number button 3.
appears on the display, you can move
Registering using “Open”
Preparation
Operate the device to turn on its Bluetooth function.
1 Select “Bluetooth Phone” or “Bluetooth
Audio.”
5 Enter a PIN (Personal Identification
Number) code to the unit.
• You can enter any number you like (1-digit to 16-digit number). [Initial: 0000]
• To enter a PIN code less than 4-digit, press number button 5 ( ) to delete the initial PIN code.
* Some devices have their own PIN code. Enter the
specified PIN code to the unit.
1 Move to the next (or previous) number
position.
2 Select a number.
3 Repeat steps 1 and 2 until you finish
entering a PIN code.
4 Confirm the entry.
“Open...” flashes on the display.
14
6 Use the Bluetooth device to search and
connect.
On the device to be connected, enter the same
PIN code you have just entered for this unit. “Connected (and device name)” appears on the display.
Now connection is established and you can use the
device through the unit.
The device remains registered even after you disconnect the device. Use “Connect“ (or activate “Auto Connect”) to connect the same device from next time. (See the right column and page 36.)
Connecting a special device
Perform steps 13 on page 14, then...
1 Select “Special Device.”
The unit displays the list of the preset devices.
ENGLISH
2 Select a device you want to connect.
3 Use “Open” or “Search” to connect.
Searching for available devices
Perform steps 13 on page 14, then...
1 Select “Search.”
The unit searches and displays the list of the
available devices.
• If no available device is detected, “Device not found” appears.
2 Select a device you want to connect.
3 Enter the specific PIN code of the device to
the unit.
• Refer to the instructions supplied with the device to check the PIN code.
4 Use the Bluetooth device to connect.
Now connection is established and you can use the
device through the unit.
Connecting/disconnecting a registered device
1 Select “Bluetooth Phone” or “Bluetooth
Audio.”
2 Select a registered device you want to
connect/disconnect.
3 Enter setting menu.
4 Select “Connect” or “Disconnect” to connect/
disconnect the selected device.
You can set the unit to connect a Bluetooth device automatically when the unit is turned on. (See “Auto Connect” on page 36.)
Continued on the next page
15OPERATIONS
Deleting a registered device
1 Select “Bluetooth Phone” or “Bluetooth
Audio.”
ENGLISH
4 Select “Delete.”
2 Select a registered device you want to delete.
3 Enter setting menu.
Using the Bluetooth cellular phone
Adjust the volume level for “Bluetooth Phone.”
~ Select “Bluetooth Phone.” Ÿ Enter Bluetooth menu. ! Establish the connection with a
device, then make a call (or settings using the Bluetooth menu). (See also pages 14, 18, and 36.)
5 Delete the selection.
• Press number button 3 to select “No” or return to step 4.
Display “Dial Menu.”
Enter redial list [Hold].
When a call comes in....
The source is automatically changed to “Bluetooth Phone.”
When “Auto Answer” is activated....
The unit answers the incoming calls automatically, see page 36.
• When “Auto Answer” is deactivated, press any
button (except /control dial) to answer the incoming call.
16
To end the call
Hold any button (except /control dial).
• You can adjust the microphone volume level (see page 36).
Answering a waiting call
If your cellular phone is equipped with the call waiting function, you can put the current call on hold and answer the waiting call. Press any button (except
/control dial).
• To restore the on-hold call, press any button (except
/control dial) again.
• When you end one call, you can connect to the other.
3 Select the item you want.
ENGLISH
Unread : Messages you have not read.
Read : Meassges you have read.
Unsent : Messages you have not sent.
Sent : Messages you have sent.
4 Select the message you want to read.
When a text message comes in....
If the cellular phone is compatible with text message and “Message Info” is set to “Auto” (see page 36), the unit rings and “MSG” appears on the display to inform you the arrival of the message.
When ”Message Info” is set to ”Auto”... To read the message
While “MSG” is displayed...
The source is changed to “Bluetooth Phone.”
To read the message later
The message is stored into “Message Menu” \ “Unread.”
When “Message Info” is set to “Manual”...
1
2 Select ”Message Menu.”
• Press 5 / to scroll to the next/previous page of the message.
• Hold D DISP to change the font size.
5 Exit from the setting.
or
Available characters for the text message
The receiver can show only Roman alphabet (A–Z, a–z) and the following special characters for the text message. Other characters will not be shown correctly on the display.
АБВГДЕЖЗИЙКЛ МНОПĐСТУФХЦШ ЩЪЫЬЭЮЯабвгд ежзийклмн опр стуфхцшщъыьэ юя0123456789 !“#$%&‘()*Ч+
–/÷=<>,.:;?@
[]{}\|^~_`¡¢
£¤¥¦§¨©ª«»¬®
¯°±
1/41/23
/4 ¿
23
´µ¶· ¸1º
17OPERATIONS
Making a call
You can make a call using one of the Dial Menu items.
• When appears on the display, you can move back to the previous display by pressing number button 3.
ENGLISH
1 Select “Bluetooth Phone.”
2 Enter setting menu.
* Displays only when your cellular phone is
equipped with these functions.
– If not displayed, please try to transfer the
phone book memory of the cellular phone to this unit. (Refer to the instruction manual supplied with your cellular phone.)
– With some cellular phones, the phone book
memory is transferred automatically.
5 Select the name/phone number you want to
call.
How to enter phone number
3 Select ”Dial Menu.”
4 Select the method to make a call.
Redial * : Shows the list of the phone numbers you have dialed. Go to the following step.
Received Calls * : Shows the list of the received calls. Go to the following step.
Phonebook * : Shows the phone book of the connected cellular phone. Go to the following step.
Missed Calls * : Shows the list of the missed calls. Go to the following step.
Phone Number : Shows the phone number entry screen. See “How to enter phone number” on the right column.
Voice Dialling (Only accessible when the connected cellular phone has the voice recognition system): Speak the name you want to call.
18
Select a number.
Move the entry position.
Confirm the entry.
Quick-step for making a call
You can use the following buttons regardless of the current source.
To redial
Shows the list of phone numbers you have called. Then select the number and press again.
To activate Voice Dialling
You can make a call by your voice.
Speak the name you want to call.
• Pronounce the name slowly and clearly.
Presetting the phone numbers
You can preset up to six phone numbers.
• When back to the previous display by pressing number button 3.
appears on the display, you can move
2 Select a phone number.
• You can also enter a new phone number (see also “How to enter phone number” on page 18) to store.
ENGLISH
1 Display the phone number you want to
preset by using one of the ”Dial Menu” items.
3 Select a preset number to store.
To call a preset number
Using the Bluetooth audio player
Enter setting menu (Device list)
Start playback *
Select “Bluetooth Audio.”
~
If playback did not start automatically, operate the Bluetooth audio player to start playback.
• Refer also to pages 15 and 16 for connecting/disconnecting/deleting a registered device.
* Operation may be different according to the connected phone.
Stop playback *
Reverse skip/forward skip
Bluetooth Information: If you wish to receive more information about Bluetooth, visit our JVC web site.
19OPERATIONS
Listening to the USB device
You can connect a USB mass storage class device such as a USB memory, Digital Audio Player *1, portable HDD, etc. to the unit.
*1 You can connect both MTP (Media Transfer Protocol) devices and USB mass storage class devices.
ENGLISH
1
This unit can play MP3/WMA/WMA-DRM10 *
*1 See page 40. *2 This unit can play back AAC files encoded using iTunes. This unit cannot play back AAC files purchased from iTunes
Store.
Ex.: Connecting a USB memory
All tracks will be played repeatedly until you change the source or detach the USB device.
• You cannot connect a computer to the USB ( ) terminal of the unit.
/AAC *2/WAV tracks stored in a USB device.
USB cable from the rear of the unit.
If a USB device has been attached...
Playback starts from where it has
been stopped previously.
• If a different USB device is currently attached, playback starts from the beginning.
20
Change the display information and pattern
To stop play and detach the USB device
Straightly pull it out from the USB input terminal.
• Press SRC to listen to another playback source.
Cautions:
• Avoid using the USB device if it might hinder your safety driving.
• Do not pull out and attach the USB device repeatedly while “File Check” is flashing on the display.
• Do not start the car engine if a USB device is connected.
• Stop play back before disconnecting a USB device.
• This unit may not be able to play the files depending on the type of USB device.
• You cannot connect a computer to the USB input terminal of the unit.
• Make sure all important data has been backed up to avoid losing the data.
• Do not leave a USB device in the car, expose to direct sunlight, or high temperature to avoid deformation or cause damages to the device.
You can operate the USB device in the same way you operate the files on a disc. (See pages 12 – 13.)
• You can listen to WAV files by following the MP3/WMA/AAC files operations listed on pages 12 – 13.
Listening to the CD changer
ENGLISH
Change the display information and pattern
It is recommended to use a JVC MP3-compatible CD changer with your unit. You can connect a CD changer to the CD changer jack on the rear of the unit. See also page 28.
• You can only play conventional CDs (including CD Text) and MP3 discs.
Preparation
Make sure “Changer” is selected for the external input setting, see page 34.
~ Select “CD-CH.” Ÿ Select a disc to start playing.
Press: For selecting disc number 1 – 6. Hold: For selecting disc number 7 – 12.
Continued on the next page
21EXTERNAL DEVICES
Pressing (or holding) the following buttons allows you to...
Button
Press: Select track
ENGLISH
* Holding either one of the buttons can display the Disc List (see page 13).
After pressing
Button
• You can also cancel the playback mode by selecting “Off” or press number button 4 (
Hold: Reverse/fast-forward track
Select folder
*
, press the following buttons to...
Skip 10 tracks (within the same folder) Skip 10 tracks
Intro Track: Plays the beginning
15 seconds of all tracks of the current disc
Intro Folder: Plays the beginning
15 seconds of the first tracks of all folders
Intro Disc: Plays the beginning 15 seconds
of the first tracks of all the inserted discs
Repeat Track: Repeat current track Repeat Folder: Repeat current folder Repeat Disc: Repeat current disc
Random Folder: Randomly play all tracks
of current folder, then tracks of next folders
Random Disc: Randomly play all tracks Random All: Randomly play all tracks of
the inserted disc
Press: Select track Hold: Reverse/fast-forward track
Intro Track: Plays the beginning
Intro Disc: Plays the beginning 15 seconds
Repeat Track: Repeat current track Repeat Disc: Repeat current disc
Random Disc: Randomly play all track Random All: Randomly play all tracks of
15 seconds of all tracks of the current disc
of the first tracks of all the inserted discs
the inserted disc
).
To select a disc/folder/track on the list, see ”Selecting a folder/track on the list (only for MP3/WMA/AAC file)” on page 13. Select ”Disc” on step 3 to display the Disc List of the CD changer.
22
Listening to the satellite radio
Before operating, connect either one of the following (separately purchased) to the CD changer jack on the rear of this unit. See also page 28.
JVC SIRIUS radio DLP—Down Link Processor, for
listening to the SIRIUS Satellite radio.
XMDirect Universal Tuner Box—Using a JVC
Smart Digital Adapter (XMDJVC100: not supplied), for listening to the XM Satellite radio.
• Refer also to the Instructions supplied with your
SIRIUS Satellite radio or XM Satellite radio.
GCI (Global Control Information) update
• If channels are updated after subscription, updating
starts automatically. The following appears and no sound can be heard: – For SIRIUS Satellite radio: ”Channels Updating
XX%* Completed”
– For XM Satellite radio: “UPDATING”
• Update takes a few minutes to complete.
• During update, you cannot operate your satellite
radio.
* Changes every 20% of update is completion (ex. 20%,
40%, 60%)
Activate your SIRIUS subscription after connection
1
3 Check your SIRIUS ID, see page 33.
4 Contact SIRIUS on the internet at
<http://activate.siriusradio.com/> to activate your subscription, or you can call SIRIUS toll-free at 1-888-539-SIRIUS (7474).
“Subscription Updated Press Any Key to Continue”
appears on the display once subscription has been completed.
Activate your XM subscription after connection
• Only Channel 0, 1, and 247 are available before activation.
1
2
XMDirect Universal Tuner Box starts updating
all the XM channels. “Channel 1” is tuned in automatically.
3 Check your XM Satellite radio ID labelled on
the casing of the XMDirect Universal Tuner Box, or tune in to “Channel 0” (see page 24).
ENGLISH
2
JVC DLP starts updating all the SIRIUS channels.
Once completed, JVC DLP tunes in to the preset
channel, CH184.
4 Contact XM Satellite radio on the internet
at <http://xmradio.com/activation/> to activate your subscription, or you can call 1-800-XM-RADIO (1-800-967-2346).
Once completed, the unit tunes in to one of the
available channels (Channel 4 or higher).
Continued on the next page
23EXTERNAL DEVICES
Select preset channel.
ENGLISH
Change the display information and pattern
~ Select “SIRIUS” or “XM.” Ÿ Select the bands.
SIRIUS:
XM:
! Select a category. Select a channel to listen.
• Holding the button changes the channels rapidly.
• SIRIUS: If you select “ALL” in step !, you can tune in to all the channels of all categories.
• XM: If you do not select a channel within 15 seconds, category selected in step ! is canceled. You can select
all channels of all categories now (including non-categorised channels).
• While searching, invalid and unsubscribed channels are skipped.
Checking the XM Satellite radio ID
While selecting “XM1,” “XM2,” or “XM3,” select “Channel 0.”
The display shows “RADIO ID” and the 8-digit (alphanumeric) ID number.
To cancel the ID number display, select any channel other than “Channel 0.”
24
Storing stations in memory
You can preset six stations for each band.
• When appears on the display, you can move back to the previous display by pressing number button 3.
• When / appears on the display, you can move to the other lists by pressing number button 5 or 6 repeatedly.
Ex.: Storing a SIRIUS channel into preset number 4 of
the SR1 band.
1 Tune in to a channel you want to listen
to.
• By holding BAND button, the Preset Channel List will appear (go to step 5).
2
3
Select “List.”
4 Select “Preset.”
6 Store the channel.
ENGLISH
Listening to a user channel
1 Display the Preset Channel list, then
select the preset number you want to listen to.
2 Change to the selected channel.
Selecting a category/channel on the list
• When appears on the display, you can move back to the previous display by pressing number button 3.
• When / appears on the display, you can move to the other lists by pressing number button 5 or 6 repeatedly.
5 Select a preset number you want to store
into.
Ex.: When listening to the SIRIUS Satellite radio.
1 To select a category
1 Follow steps 2 to 4 on left column.
• In step 4, select “Category.”
The first channel of the selected category is tuned in.
• Holding 5 / can also show the Category List while listening to a channel.
Continued on the next page
25EXTERNAL DEVICES
2 Select a category.
ENGLISH
To select a channel
1 Follow steps 2 to 4 on page 25.
• In step 4, select “Channel.”
2 Change to the selected item.
To change the display information while listening to a channel
2 Select a channel.
Category name and channel name = Artist/ composer* name and song/program name = Audio level meter = (back to the beginning)
* Only for SIRIUS Satellite radio.
Listening to the iPod / D. player
Change the display information and pattern
Before operating, connect either one of the following (separately purchased) to the CD changer jack on the rear of the unit. See also page 28.
Interface adapter for iPod—KS-PD100 for controlling an iPod.
D. player interface adapter—KS-PD500 for controlling a D. player.
Preparation
Make sure “Changer” is selected for the external input setting, see page 34.
~ Select “iPod” or “D. PLAYER.” Ÿ Select a song to start playing.
26
Selecting a track from the menu
1 Enter the main menu.
This mode will be canceled if no
operations are done for about 5 seconds.
2 Select the desired menu.
For iPod: Playlists Ô Artists Ô Albums Ô Songs
Ô Genres Ô Composers Ô (back to the
beginning)
For D. player: Playlist Ô Artist Ô Album Ô Genre Ô
Ô (back to the beginning)
Track
After pressing , press the following buttons to...
Repeat One: Functions the same as “Repeat One” of the iPod or “Repeat Mode =
One” of the D. player.
Repeat All: Functions the same as “Repeat All” of the iPod or “Repeat Mode =
All” of the D. player.
Random Album*: Functions the same as “Shuffle Albums” of the iPod. Random Song: Functions the same as “Shuffle Songs” of the iPod or “Random Play
= On” of the D. player.
3 Confirm the selection.
• To move back to the previous menu, press 5.
• If a track is selected, playback starts automatically.
• Holding a time.
4/¢ can skip 10 items at
Pause/stop playback
• To resume playback, press the button again.
Press: Select tracks Hold: Reverse/fast-forward
track
ENGLISH
• You can also cancel the playback mode by selecting “Off” or press number button 4 (
* iPod: Functions only if you select “All Albums” in “Albums” of the main “MENU.”
).
27EXTERNAL DEVICES
Listening to the other external components
ENGLISH
Change the display information and pattern
You can connect an external component to the CD changer jack on the rear of this unit using the following adapters: – Line Input Adapter, KS-U57 – AUX Input Adapter, KS-U58
Preparation
Make sure “Ext In” is selected for the external input setting, see page 34.
~ Select “EXT IN.” Ÿ Turn on the connected component and start playing the source. ! Adjust the volume. Adjust the sound as you want (see pages 29 – 31).
Concept diagram of the external device connection
For connection, see Installation/Connection manual (separate volume).
Unit
CD changer jack
: Adapter (separately
purchased)
(see page 34 of the ”Ext Input” setting)
(see page 34 of the ”Ext Input” setting)
USB device, [20]
SIRIUS Satellite radio (JVC DLP), [23]
XM Satellite radio, [23]
JVC CD changer, [21]
Apple iPod, [26]
JVC D. player, [26]
MD player, etc., [28]
MD player, etc., [28]
SIRIUS Satellite radio (JVC PnP)
28 EXTERNAL DEVICES
Selecting a preset sound mode
: To display the rest
You can select a preset sound mode suitable to the music genre.
• When appears on the display, you can move back to the previous display by pressing number button 3.
~ Enter setting menu. Ÿ Select “EQ.” ! Select a sound mode.
FLAT (no sound mode is applied), H.ROCK (Hard Rock), R & B (Rhythm & Blues), POP, JAZZ, DANCE, COUNTRY,
REGGAE, CLASSIC, USER 1, USER 2, USER 3
Exit from the setting.
The list below shows the preset value setting for each sound mode:
Preset values
Sound modes
Level FREQ Q Level FREQ Q Level FREQ Q
FLAT 00 60 Hz Q1.25 00 1 kHz Q1.25 00 10 kHz
H.ROCK +03 100 Hz Q1.0 00 1 kHz Q1.25 +02 10 kHz
R & B +03 80 Hz Q1.25 +01 1 kHz Q1.25 +03 15 kHz
POP +02 100 Hz Q1.25 +01 1 kHz Q1.25 +02 10 kHz
JAZZ +03 80 Hz Q1.25 00 1 kHz Q1.25 +03 10 kHz
DANCE +04 60 Hz Q1.0 –02 1 kHz Q1.0 +01 10 kHz
COUNTRY +02 60 Hz Q1.0 00 1 kHz Q1.0 +02 12.5kHz
REGGAE +03 60 Hz Q1.25 +02 1 kHz Q1.25 +02 12.5kHz
CLASSIC +01 80 Hz Q1.25 00 1 kHz Q1.25 +03 10 kHz
FREQ: Frequency; Q: Band width
Low Mid High
Fix
ENGLISH
Continued on the next page
29SETTINGS
Adjusting the sound
You can adjust the sound characteristics to your preference.
• When appears on the display, you can move back to the previous display by pressing number
ENGLISH
button 3.
• Before making an adjustment, select a source you want to adjust.
D Loudness, [Off or On]
Turn the control dial to select “Off” or “On.” When “On” is selected, low and high frequencies sound are boosted to produce a well-balanced sound at low volume level.
1
2
• For “EQ” setting, see the following.
3 Adjust the selected setting item.
A Fad/Bal (Fader/Balance)
1 Press number button 1 ( ) to move
to the “Fad/Bal” adjustment display.
2 Adjust the speaker output balance by
pressing:
5 / : between the front and rear
speakers. [F06 to R06]
4/¢ : between the left and
right speakers. [L06 to R06]
B Subwoofer
1 Press number button 1 ( ) to move
to the “Subwoofer” adjustment display.
2 Use 4/¢ to select a cutoff
frequency to the subwoofer.
• 80Hz: Frequencies higher than 80 Hz are cut off.
• 120Hz: Frequencies higher than 120 Hz are cut off.
• 160Hz: Frequencies higher than 160 Hz are cut off.
3 Turn the control dial to adjust the
subwoofer output level. [0 to 8]
C VolAdjust, [–5 to +5]
Turn the control dial to adjust the input level of each source (except FM). Adjust to match the input level of the FM sound level.
4 Exit from the setting.
Storing your own sound modes
You can adjust the sound modes and store your own adjustments in memory.
• When appears on the display, you can move back to the previous display by pressing number button 3.
1 Follow steps 1 and 2 on the left column.
• In step 2, select “EQ.”
2 Select a sound mode.
To display the rest
3 Select a frequency range.
4 Adjust the sound elements of the
selected frequency range.
1 Use 5 / to adjust the level. 2 Press number button 2 ( ), then turn
the control dial to select the frequency.
3 Press number button 2 ( ), then turn
the control dial to select the band width.
30
Sound
elements
Level –06 to
FREQ (Frequency)
Q (Band width) Q1.0
Range/selectable items
Low Mid High
–06 to
+06
60 Hz 80 Hz 100 Hz 200 Hz
Q1.25 Q1.5 Q2.0
+06
500 Hz 1 kHz
1.5kHz
2.5kHz
Q0.5 Q0.75 Q1.0 Q1.25
–06 to +06
10 kHz
12.5kHz 15 kHz
17.5kHz
Fix
5 Repeat steps 3 and 4 to adjust other
frequency ranges.
General settings — PSM
6 Store the adjustments.
ENGLISH
You can change PSM (Preferred Setting Mode) items listed in the table on pages 32 – 34.
1 Enter the PSM settings.
2 Select a PSM category.
To display the rest
3 Select a PSM item.
By pressing either one of the buttons repeatedly,
you can also move to the item of the other categories.
4 Select or adjust the selected PSM item.
5 Repeat steps 2 to 4 to adjust other PSM
items if necessary.
6 Exit from the setting.
Continued on the next page
31SETTINGS
Category Indication Item
Setting, [reference page]
( : Initial)
ENGLISH
MOVIE
Demo
Display demonstration
LevelMeter
Audio level meter
On
Off
Meter 1
Meter 2
: Display demonstration will be activated automatically if no
operation is done for about 20 seconds, [6].
: Cancels.
: Select the different level meter patterns.
• Press D DISP to show the selected level meter.
Meter 3
Clock Disp *
Clock display
1
On
: Clock time is shown on the display at all times when the
power is turned off.
Off
: Cancels; pressing D DISP will show the clock time for about
5 seconds when the power is turned off, [6].
Clock Hr
Hour adjustment
1 – 12AM/ 1 – 12PM
: Initial: 1 (1:00AM), [6].
(0 – 23)
Clock Min
00 – 59 : Initial: 00 (1:00AM), [6].
Minute adjustment
24H/12H
Time display mode
Clock Adj *
Clock adjustment
CLOCK
Time Zone *
Time zone
12Hours
: See also page 6 for setting.
24Hours
2
Auto
: The built-in clock is automatically adjusted using the clock
data provided via the satellite radio channel.
2, *3
Off
Alaska,
Pacific,
: Cancels.
: Select your residential area from one of the following time
zones for clock adjustment.
Mountain, Central, Eastern, Atlantic, Newfound
2, *3
DST *
Daylight savings time
1
*
If the power supply is not interrupted by turning off the ignition key of your car, it is recommended to select “Off” to
On
Off
: Activates daylight savings time if your residential area is
subject to DST.
: Cancels.
save the car’s battery.
*2 Displayed only when SIRIUS Satellite radio or XM Satellite radio is connected. *3 Adjustable only when “Clock Adj” is set to “Auto.” Press number button 1 ( ) to show the setting display.
32
Category Indication Item
Setting, [reference page]
( : Initial)
4
Scroll *
Scroll
Once
Auto
Off
: Scrolls the track information once. : Repeats scrolling (at 5-second intervals). : Cancels. (Holding D DISP can scroll the display regardless of
the setting.)
Dimmer
Dimmer
Auto
Off
On
Time Set
: Dims the display when you turn on the headlights. : Cancels. : Dims the display and button illumination. : Set the timer for dimmer, [34]. Any hour – Any hour
5
From – To *
Contrast
DISPLAY
Contrast
LCD Type
Display type
Font Type
Font type
Tag
Tag display
IF Band
Intermediate frequency band
: Initial: 6PM – 7AM.
1 – 10
Initial: 5
Auto
: Adjust the display contrast to make the display indications
clear and legible.
: Positive pattern will be selected during the day time *
while negative pattern will be used during the night time *6.
Positive
Negative
1
: Positive pattern of the display. : Negative pattern of the display.
: Select the font type used on the display.
2
On
Off
Auto
: Shows the tag while playing MP3/WMA/AAC/WAV tracks. : Cancels.
: Increases the tuner selectivity to reduce interference noises
between adjacent stations. (Stereo effect may be lost.)
Wide
: Subject to interference noises from adjacent stations, but
sound quality will not be degraded and the stereo effect will remain.
AreaChange
Tuner channel
TUNER
interval
US
EU
: When using in North/Central/South America. AM/FM
intervals are set to 10 kHz/200 kHz.
: When using in any other areas. AM/FM intervals are set to
9 kHz/50 kHz (100 kHz during auto search).
SA
: When using in South American countries where FM interval
is 100 kHz. AM interval is set to 10 kHz.
7
Sirius ID *
SIRIUS ID
4
*
Some characters or symbols will not be shown correctly (or will be blanked) on the display.
: The 12-digit SIRIUS identification number appears on the
display, [23].
*5 Adjustable only when “Dimmer” is set to “Time Set.” *6 Depends on the “Dimmer” setting. *7 Displayed only when SIRIUS Satellite radio is connected.
6
;
Continued on the next page
33SETTINGS
ENGLISH
Category Indication Item
( : Initial)
Ext Input *
External input
ENGLISH
Beep
Key-touch tone
AUDIO
Amp Gain
Amplifier gain control
Color Sel
Color selection
Color Set
Color setting
COLOR
Red Green Blue
8
*
Displayed only when one of the following sources is selected—TUNER, SIRIUS, XM, CD, USB, Bluetooth Phone, or
Bluetooth Audio.
*9 Depends on the “Dimmer” setting.
8
Changer
Ext In
On
Off
High PWR
Low PWR
Initial: All Source
Day Color NightColor 00 – 11 00 – 11 00 – 11
Setting, [reference page]
: To use a JVC CD changer, [21], or an Apple iPod/a JVC
D. player, [26].
: To use any other external component, [28].
: Activates the key-touch tone. : Deactivates the key-touch tone.
: Volume 00 – Volume 50 : Volume 00 – Volume 30 (Select if the maximum power of
each speaker is less than 50 W to prevent damaging the speaker.)
: Select your favorite display color for each source (or for all
sources), [35].
: Create your own colors, and select them for the display
color, [35]. : User color during the day time * : User color during the night time *9. : Initial: Day Color: +07, NightColor: +05 : Initial: Day Color: +07, NightColor: +05 : Initial: Day Color: +07, NightColor: +05
9
.
Setting the time for dimmer
• When appears on the display, you can move back to the previous display by pressing number button 3.
3 Adjust the dimmer time.
1 Turn the control dial to set the dimmer time. 2 Press ¢ to select “To.” Then, turn the
control dial to set the dimmer end time.
1 Follow steps 1 to 3 on page 31.
• In step 2, select “DISPLAY.”
• In step 3, select “Dimmer.”
4 Exit from the setting.
2 Select “Time Set.”
34
Changing the display color
You can select your favorite display color for each source (or all sources).
• When appears on the display, you can move back to the previous display by pressing number button 3.
*5 The user-edited colors—“Day Color” and
“NightColor” will be applied (see below for details).
5 Repeat steps 3 and 4 to select the color
for each source (except when selecting “All Source” in step 3).
ENGLISH
Setting the display color
1 Follow steps 1 to 3 on page 31.
• In step 2, select “COLOR.”
• In step 3, select “Color Sel.”
2
3 Select a source.
All Source *1 Ô CD Ô Changer (or Ext In *2)
3
Ô USB * Ô iPod *
BT Audio Ô (back to the beginning)
*
*2 Depends on the “Ext Input” setting, see page 34. *3 Displayed only when the target component is
Ô FM Ô AM Ô SIRIUS *3/XM *3
3
/D.PLAYER *3 Ô BT Phone Ô
1
When you select “All Source,” you can use the
same color for all the sources.
connected.
4 Select a color.
6 Exit from the setting.
Creating your own color—User Color
You can create your own colors—“Day Color” or “NightColor.”
1 Follow steps 1 to 3 on page 31.
• In step 2, select “COLOR.”
• In step 3, select “Color Set.”
2 Select “Day Color” or “NightColor.”
3 Select a primary color.
4 Adjust the level (+00 to +11) of the
selected primary color.
Every *4 Ô Aqua Ô Sky Ô Sea Ô Leaves
Ô Grass Ô Apple Ô Rose Ô Amber Ô
Honey Ô Violet Ô Grape Ô Pale Ô User *5 Ô (back to the beginning)
4
*
The color changes every 2 seconds.
5 Repeat steps 3 and 4 to adjust other
primary colors.
6 Exit from the setting.
35SETTINGS
Bluetooth settings
You can change the settings listed on the right column according to your preference.
ENGLISH

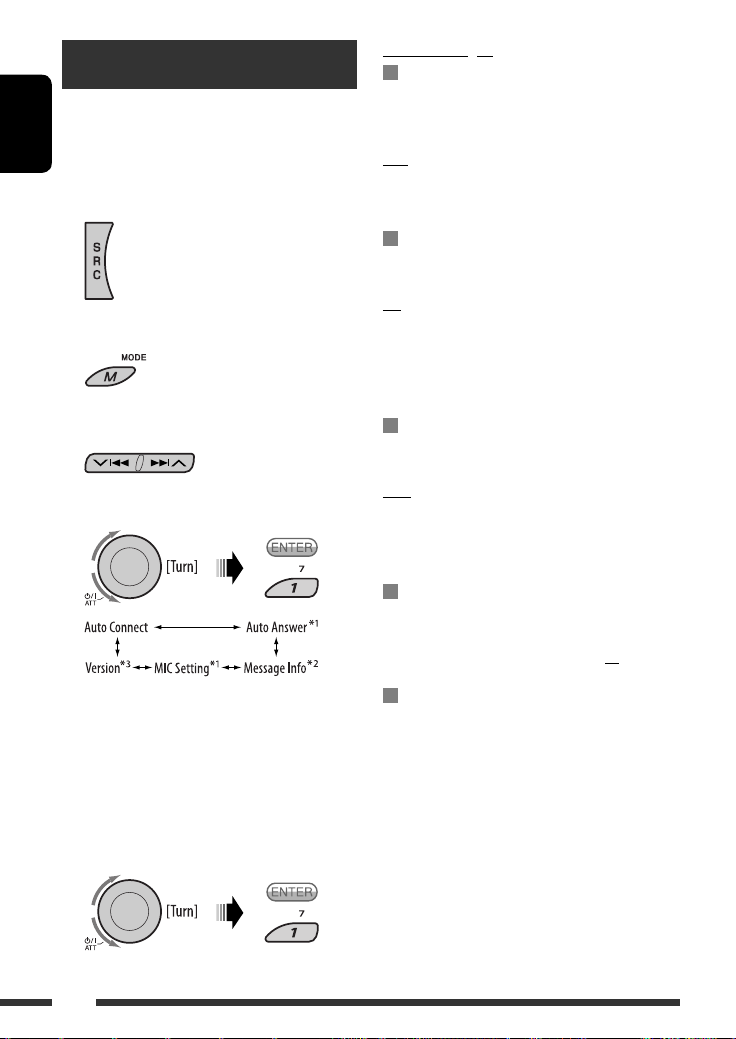

1 Select “Bluetooth Phone” or
“Bluetooth Audio.”
2 Enter the Bluetooth menu.
Setting menu ( : Initial)
Auto Connect
When the unit is turned on, the connection is
established automatically with....
Off: No Bluetooth device. Last: The last connected Bluetooth device. Order: The available registered Bluetooth device
found at first.
Auto Answer
Only for the device being connected for “Bluetooth Phone.” Off: The unit does not answer the calls
automatically. Answer the calls manually.
On: The unit answers the incoming calls
automatically.
Reject: The unit rejects all incoming calls.
3 Select “Setting.”
4 Select a setting item.
*1 Appears only when a Bluetooth phone is
connected.
*2 Appears only when a Bluetooth phone is
connected and it is compatible with text message.
*3 Bluetooth Audio: Shows only “Version.”
5 Change the setting accordingly.
36
Message Info
Only for the device being connected for “Bluetooth Phone.” Auto: The unit informs you of the arrival of a
message by ringing and displaying “MSG.”
Manual: The unit does not inform you of the arrival of
a message.
MIC setting
Only for the device being connected for “Bluetooth Phone.” Adjust the microphone volume, [Level 01/02/03].
Version
The Bluetooth software and hardware versions are shown.
Assigning titles
ENGLISH
You can assign titles to station frequencies and external components (EXT IN).
Sources
FM/AM tuner Up to 10 characters (up to 30
External components (“EXT IN”)
Maximum number of characters
station frequencies including both FM and AM)
Up to 8 characters
~ Select the sources.
• For FM/AM tuner: Tune into a station.
• For external components: Select “EXT IN” (see
page 28).
Ÿ Show the title entry screen. ! Assign a title.
1 Press number button 4 ( ) repeatedly
to select a character set.
2 Turn the control dial to select a character. 3 Use 4/¢ to move to the next
(or previous) character position.
4 Repeat steps 1 to 3 until you finish
entering the title.
Store the title.
To erase the entire title
In step ! on the left...
Available characters
Upper case
Lower case
Numbers and symbols
37SETTINGS
Maintenance
How to clean the connectors
Frequent detachment will deteriorate the connectors.
ENGLISH
To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.
Connector
Moisture condensation
Moisture may condense on the lens inside the unit in the following cases:
• After starting the heater in the car.
• If it becomes very humid inside the car. Should this occur, the unit may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates.
To keep discs clean
A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.
• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.
To play new discs
New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.
Do not use the following discs:
Warped disc
Sticker
Sticker residue
How to handle discs
When removing a disc from its case, press down the center holder
of the case and lift the disc out, holding it by the edges.
• Always hold the disc by the edges. Do not touch its recording surface.
When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).
• Make sure to store discs into the cases after use.
Center holder
38
Stick-on label
Unusual shape
Single CD— 8 cm (3-3/16”) disc
More about this unit
General
Turning on the power
• By pressing SRC on the unit, you can also turn on the power. If the source is ready, playback also starts.
Turning off the power
• If you turn off the power while listening to a disc, disc play will start from where playback has been stopped previously, next time you turn on the power.
FM/AM
Storing stations in memory
• During SSM search... – Received stations are preset in No. 1 (lowest
frequency) to No. 6 (highest frequency).
– When SSM is over, the station stored in No. 1 will
be automatically tuned in.
• When storing stations, the previously preset stations are erased and stations are stored newly.
Disc/USB
Caution for DualDisc playback
• The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.
General
• This unit has been designed to reproduce CDs/CD Texts, and CD-Rs (Recordable)/CD-RWs (Rewritable) in audio CD (CD-DA), MP3/WMA/AAC formats.
• When a disc is inserted upside down, “Please Eject” appears on the display. Press 0 to eject the disc.
• While fast-forwarding or reversing on an MP3/WMA/ AAC disc, you can only hear intermittent sounds.
• In this manual, words “track” and “file” are interchangeably used.
• File/folder list may not appear correctly if too many hierarchies and folders are used.
• If the ejected disc is not removed within 15 seconds, the disc is automatically inserted again into the
loading slot to protect it from dust. Playback starts
automatically.
• After ejecting a disc or removing a USB device, “No Disc” or “No USB” appears and you cannot operate some of the buttons. Insert another disc, reattach a USB device, or press SRC to select another playback source.
• This unit cannot play back the following files:
– MP3 files encoded with MP3i and MP3 PRO format. – MP3 files encoded in an inappropriate format. – MP3 files encoded with Layer 1/2. – WMA files encoded with lossless, professional, and
voice format.
– WMA files which are not based upon Windows
Media® Audio. – WMA files copy-protected with DRM. – AAC files created by any other application than
iTunes. – AAC files encoded with Apple lossless format. – Files which have the data such as AIFF, ATRAC3,
etc.
Playing a CD-R or CD-RW
• Use only “finalized” CD-Rs or CD-RWs.
• This unit can play back only files of the same type
which are first detected if a disc includes both audio CD (CD-DA) files and MP3/WMA/AAC files.
• This unit can play back multi-session discs; however,
unclosed sessions will be skipped while playing.
• Some CD-Rs or CD-RWs may not play back on this
unit because of their disc characteristics, or for the
following reasons: – Discs are dirty or scratched. – Moisture condensation occurs on the lens inside
the unit. – The pickup lens inside the unit is dirty. – CD-R/CD-RW on which the files are written with
“Packet Write” method. – There are improper recording conditions (missing
data, etc.) or media conditions (stained, scratched,
warped, etc.).
• CD-RWs may require a longer readout time since the
reflectance of CD-RWs is lower than that of regular CDs.
Continued on the next page
39REFERENCES
ENGLISH
• Do not use the following CD-Rs or CD-RWs: – Discs with stickers, labels, or a protective seal stuck
to the surface.
– Discs on which labels can be directly printed by an
ink jet printer.
Using these discs under high temperatures or high
ENGLISH
humidities may cause malfunctions or damage to the unit.
Playing an MP3/WMA/AAC disc
• This unit can play back MP3/WMA/AAC files with the extension code <.mp3>, <.wma>, or <.m4a> (regardless of the letter case—upper/lower).
• This unit can show the names of albums, artists (performer), and ID3 Tag (Version 1.0, 1.1, 2.2, 2.3, or
2.4) for MP3 files and show WMA/AAC Tag.
• This unit can display only one-byte characters. No other characters can be correctly displayed.
• This unit can play back MP3/WMA/AAC files meeting the conditions below:
– Bit rate of MP3: 32 kbps — 320 kbps – Sampling frequency of MP3: 48 kHz, 44.1 kHz, 32 kHz (for MPEG-1) 24 kHz, 22.05 kHz, 16 kHz (for MPEG-2) – Bit rate of WMA: 32 kbps — 192 kbps – Bit rate of AAC: 16 kbps — 320 kbps – Sampling frequency of AAC: 48 kHz, 44.1 kHz – Disc format: ISO 9660 Level 1/Level 2, Romeo,
Joliet, Windows long file name
• The maximum number of characters for file/folder names vary among the disc format used (includes 4 extension characters—<.mp3>, <.wma>, or <.m4a>).
– ISO 9660 Level 1: up to 12 characters – ISO 9660 Level 2: up to 31 characters – Romeo*: up to 128 (60) characters – Joliet*: up to 64 (30) characters – Windows long file name*: up to 128 (60)
characters
* The parenthetic figure is the maximum number of
characters for file/folder names in case the total number of files and folders is 271 or more.
• This unit can recognize a total of 512 files, of 200 folders, and of 8 hierarchies.
• This unit can play back files recorded in VBR (variable bit rate).
Files recorded in VBR have a discrepancy in elapsed
time display, and do not show the actual elapsed time. Especially, after performing the search function, this difference becomes noticeable.
• The search function works but search speed is not constant.
Playing MP3/WMA/AAC/WAV tracks from a USB device
• Connecting a USB device automatically changes the source to “USB.”
• While playing from a USB device, the playback order may differ from other players.
• This unit may be unable to play back some USB devices or some files due to their characteristics or recording conditions.
• Depending on the shape of the USB devices and connection ports, some USB devices may not be attached properly or the connection might be loose.
• When connecting a USB mass storage class device, refer also to its instructions.
• Connect one USB mass storage class device to the unit at a time. Do not use a USB hub.
• You can connect two types of USB device to this unit—MTP device and Mass storage class device.
If you connect an MTP device featuring “USB digital
media streaming” to this unit (except JVC D. Player XA-HD500), you can play back the WMA-DRM10 (Digital Right Management) files purchased through the music distributing web sites, through this unit.
• This unit is compatible with the USB Full-Speed.
• If the connected USB device does not have the correct files, “No File” appears.
• This unit can show ID3 Tag (Version 1.0, 1.1, 2.2, 2.3, or 2.4) for MP3 and WMA/AAC/WAV Tag.
• This unit can play back MP3/WMA/AAC/WAV files meeting the conditions below:
MP3: – Bit rate: 8 kbps — 320 kbps – Sampling frequency: 48 kHz, 44.1 kHz, 32 kHz (for MPEG-1) 24 kHz, 22.05 kHz, 16 kHz (for MPEG-2)
40
WMA: – Bit rate: 5 kbps — 320 kbps – Sampling frequency: 8 kHz — 48 kHz – Channel: Mono/stereo AAC: – Bit rate: 16 kbps — 320 kbps – Sampling frequency: 48 kHz, 44.1 kHz – Channel: 1 ch/2 ch WAV: – Bit rate: Linear PCM at 705 kbps and 1 411 kbps – Sampling frequency: 44.1 kHz – Channel: 1 ch/2 ch
• This unit can play back MP3 files recorded in VBR (variable bit rate).
• The maximum number of characters for folder and file names is 25 characters; 128 characters for MP3/ WMA/WAV Tag.
• This unit can recognize a total of 50 000 files and 5 000 folders (999 files per folder). However, the display can shows until 9 999 folders/files.
• The unit cannot recognize a USB mass storage class device whose rating is other than 5 V and does not exceed 500 mA.
• This unit may not recognized a USB device connected through a USB card reader.
• This unit may not play back files in a USB device properly when using a USB extension cord.
• This unit cannot assure proper functions or supply power to all types of USB devices.
Bluetooth operations
General
• While driving, do not perform complicated operation such as dialing the numbers, using phone book, read text message, etc.
When you perform these operations, stop your car in
a safe place.
• Some Bluetooth devices may not be connected to this unit depending on the Bluetooth version of the device.
• This unit may not work for some Bluetooth devices.
• Connecting condition may vary depending on the circumstances around you.
• When the unit is turned off, the device is disconnected.
Icons for phone types
These icons indicate the phone type of number entries in the Phonebook.
: Cellular phone : Phone only
: Household phone : Phone/audio
: Office : Audio only
: General : Unknown
: Other than above
These icons indicate the type of connected phone/ audio devices:
Warning messages for Bluetooth operations
Connection Error
Error Try the operation again. If “Error”
Device not found
Loading... The unit is updating the phone book,
Please Wait...
The device is registered but the connection has failed. Use “Connect” to connect the device again. (See page
15.)
appears again, check if the device supports the function you have tried.
No available Bluetooth device is detected by “Search.”
call history (redial, missed, received), and/or text message.
The unit is preparing to use the Bluetooth function. If the message does not disappear, turn off and turn on the unit, then connect the device again (or reset the unit).
ENGLISH
Continued on the next page
41REFERENCES
Satellite radio operations
• You can also connect the JVC SIRIUS radio PnP (Plug and Play), using the JVC SIRIUS radio adapter, KS-U100K (not supplied) to the CD changer jack on the rear.
ENGLISH
By turning on/off the power of the unit, you can turn
on/off the JVC PnP. However, you cannot control it from this unit.
• To know more about SIRIUS Satellite radio or to sign up, visit <http://www.sirius.com>.
• For the latest channel listings and programming information, or to sign up for XM Satellite radio, visit <http://www.xmradio.com>.
iPod or D. player
• When you turn on this unit, the iPod or D. player is charged through this unit.
• While the iPod or D. player is connected, all operations from the iPod or D. player are disabled. Perform all operations from this unit.
• The text information may not be displayed correctly.
• If the text information includes more than 16 characters, it scrolls on the display. This unit can display up to 40 characters.
Troubleshooting
Notice:
When operating an iPod or a D. player, some operations may not be performed correctly or as intended. In this case, visit the following JVC web site: For iPod users: <http://www.jvc.co.jp/english/
car/support/ks-pd100/index.html>
For D. player users: <http://www.jvc.co.jp/
english/car/support/ks-pd500/index.html>
General settings—PSM
• “Auto” setting for “Dimmer” may not work correctly on some vehicles, particularly on those having a control dial for dimming.
In this case, change the “Dimmer” setting to any
other than “Auto.”
• If “LCD Type” is set to “Auto,” the display pattern will change to the “Positive” or “Negative” pattern depending on the “Dimmer” setting.
• If you change the “Amp Gain” setting from “High PWR” to “Low PWR” while the volume level is set higher than “Volume 30,” the unit automatically changes the volume level to “Volume 30.”
What appears to be trouble is not always serious. Check the following points before calling a service center.
Symptom Remedy/Cause
• Sound cannot be heard from the speakers. • Adjust the volume to the optimum level.
• Check the cords and connections.
• The unit does not work at all. Reset the unit (see page 3).
General
• “Connect Error” appears on the display. Remove the control panel, wipe the connector, then attach it again (see page 4).
• SSM automatic presetting does not work. Store stations manually.
• Static noise while listening to the radio. Connect the antenna firmly.
FM/AM
42
Symptom Remedy/Cause
• Disc cannot be played back. Insert the disc correctly.
• CD-R/CD-RW cannot be played back.
• Tracks on the CD-R/CD-RW cannot be skipped.
• Disc can neither be played back nor ejected. • Unlock the disc (see page 11).
• Disc cannot be recognized (“No Disc,” “Loading Error,” or “Eject Error” flashes).
Discs in general
• Disc sound is sometimes interrupted. • Stop playback while driving on rough roads.
• “Please Eject” appears on the display. This occurs sometimes due to over-heating. Eject the disc
• Disc cannot be played back. • Use a disc with MP3/WMA/AAC tracks recorded in the
• Noise is generated. Skip to another track or change the disc. (Do not add
• A longer readout time is required (“File Check” keeps flashing on the display).
• Tracks do not play back in the order you have intended them to play.
MP3/WMA/AAC
• Elapsed playing time is not correct. This occurs sometimes during play. This is caused by how
• “Please Eject” appears on the display. Insert a disc that contains MP3/WMA/AAC tracks.
• “Not Support” appears on the display and track skips.
• Correct characters are not displayed (e.g. album name).
• Insert a finalized CD-R/CD-RW.
• Finalize the CD-R/CD-RW with the component which you used for recording.
• Eject the disc forcibly (see page 3).
Eject the disc forcibly (see page 3).
• Change the disc.
• Check the cords and connections.
or change to another playback source.
format compliant with ISO 9660 Level 1, Level 2, Romeo, or Joliet.
• Add the extension code <.mp3>, <.wma>, <.m4a> to the file names.
the extension code <.mp3>, <.wma>, or <.m4a> to non-MP3/WMA/AAC tracks.)
Do not use too many hierarchies and folders.
Playback order is determined when files are recorded.
the tracks are recorded on the disc.
Skip to the next track encoded in an appropriate format or to the next non-copy-protected WMA track.
This unit can only display letters (capital: A – Z, small: a – z), numbers, and a limited number of symbols (see page 37).
ENGLISH
Continued on the next page
43REFERENCES
Symptom Remedy/Cause
• Noise is generated. • The track played back is not a playable file format (MP3/ WMA/AAC/WAV). Skip to another file.
• Do not add the extension code <.mp3>, <.wma>,
ENGLISH
• Tracks cannot play back as you have intended
them to play.
• “File Check” keeps flashing on the display. • Readout time varies depending on the USB device.
• “No Files” flashes on the display.
• “No USB” appears on the display.
USB device
• “Not Support” appears on the display and track
skips.
• “Read Failed” appear on the display, then
returns to the previous source.
• Correct characters are not displayed (e.g.
album name).
• While playing a track, sound is sometimes
interrupted.
• The sound is interrupted or skipped during
playback of a USB device.
<.m4a> or <.wav> to non-MP3/WMA/AAC/WAV tracks.
Playback order may differs from the one played back using other players.
• Do not use too many hierarchy, folders and empty folders.*
• Turn off the power then on again.
• Do not pull out or connect the USB device repeatedly while “File Check” is displayed on the display.
* Folder that is phisically empty or folder that contains data
but does not contain valid MP3/WMA/AAC/WAV track.
Connect a USB device that contains tracks encoded in an appropriate format.
The track is unplayable.
The connected USB device may be malfunctioning, or may not have been formatted correctly. The files included in the USB device are corrupted.
For available characters, see page 37.
The tracks have not been properly copied into the USB device. Copy tracks again into the USB device, and try again.
• Turn off, then turn on the unit.
• (When the sound is not yet restored,) connect the device again.
44
Symptom Remedy/Cause
• Bluetooth device does not detect the unit. The unit can be connected with one Bluetooth cellular phone and one Bluetooth audio device at a time. While connecting a device, this unit cannot be detected from another device. Disconnect currently connected device and search again.
• The unit does not detect the Bluetooth device. • Check the Bluetooth setting of the device.
• Search from the Bluetooth device. After the device
detects the unit, select “Open...” on the unit to connect the device. (See page 14.)
• The unit does not make pairing with the
Bluetooth device.
Bluetooth
• Echo or noise occurs. Adjust the microphone unit position.
• Phone sound quality is poor. • Reduce the distance between the unit and the Bluetooth
• The sound is interrupted or skipped during
playback of a Bluetooth audio device.
• The connected audio device cannot be
controlled.
• Enter the same PIN code for both the unit and target
device. If the PIN code of the device is not indicated on its instructions, try “0000” or “1234.”
• Select the device name from “Special Device,” then try to
connect again. (See page 15.)
• Try to pair/connect from the Bluetooth device.
• Check if your Bluetooth device support the respective
profile. (See page 13.)
audio device.
• Move the car to a place where you can get a better signal
reception.
• Reduce the distance between the unit and the Bluetooth
audio device.
• Disconnect the device connected for “Bluetooth Phone.”
• Turn off, then turn on the unit.
• (When the sound is not yet restored,) connect the device
again.
Check whether the connected audio device supports AVRCP (Audio Video Remote Control Profile).
ENGLISH
Continued on the next page
45REFERENCES
Symptom Remedy/Cause
• “No Disc” appears on the display. Insert a disc into the magazine.
• “No Magazine” appears on the display. Insert the magazine.
• “Reset 08” appears on the display. Connect this unit and the CD changer correctly and press
ENGLISH
CD changer
• “Reset 01” – “Reset 07” appears on the display.
• The CD changer does not work at all. Reset the unit (see page 3).
• “CALL 1-888-539-SIRIUS TO SUBSCRIBE” scrolls on the display while listening to the SIRIUS Satellite radio.
• No sound can be heard. “Channel Updating XX%* Completed” appears on the display.
• Either “No Signal” scrolls or “NO SIGNAL” appears on the display.
• Either “No Antenna” scrolls or “CHECK ANTENNA” appears on the display.
• “Invalid Channel” appears on the display for about 5 seconds, then returns to the previous display while listening to the SIRIUS Satellite radio.
• “No Name” appears or scrolls on the display while listening to the SIRIUS Satellite radio.
• “---” appears on the display while listening to
Satellite radio
the XM Satellite radio.
• “---” appears on the display for about 2 seconds, then returns to the previous channel while listening to the XM Satellite radio.
• “OFF AIR” appears on the display while listening to the XM Satellite radio.
• “LOADING” appears on the display while listening to the XM Satellite radio.
• “Reset 08” appears on the display. The unit is loading the channel information and audio. Text
• Satellite radio does not work at all. Reconnect this unit and the satellite radio correctly, then
* Changes every 20% of update is completion, (ex. 20%, 40%, 60%).
the reset button of the CD changer.
Press the reset button of the CD changer.
Starts subscribing SIRIUS Satellite radio (see page 23).
The unit is updating the channel information and it takes a few minutes to complete.
Move to an area where signals are stronger.
Connect the antenna firmly.
No broadcast on the selected channel. Select another channel or continue listening to the previous channel.
No text information for the selected channel.
Selected channel is no longer available or is unauthorized. Select another channel or continue listening to the previous channel.
Selected channel is not broadcasting at this time.
Select another channel or continue listening to the previous channel.
information are temporarily unavailable.
reset the unit.
46
Symptom Remedy/Cause
• The iPod or D. player does not turn on or does not work.
• The sound is distorted. Deactivate the equalizer either on this unit or the iPod/
• “Disconnect” appears on the display. • Check the connecting cable and its connection.
• Playback stops. The headphones are disconnected during playback. Restart
• No sound can be heard when connecting an iPod nano.
• No sound can be heard.
iPod/D. player
• “Error 01” appears on the display when connecting a D. player.
• “No File” or “No Track” appears on the display. No tracks are stored. Import tracks to the iPod or D. player.
• “Reset 01” – “Reset 07” appears on the display.
• “Reset 08” appears on the display. Check the connection between the adapter and this unit.
• The iPod’s or D. player’s controls do not work after disconnecting from this unit.
• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
• “SIRIUS” and the SIRIUS dog logo are registered trademarks of SIRIUS Satellite Radio Inc.
• XM and its corresponding logos are registered trademarks of XM Satellite Radio Inc.
• “SAT Radio,” the SAT Radio logo and all related marks are trademarks of SIRIUS Satellite Radio Inc., and XM Satellite Radio, Inc.
• iPod is a trademark of Apple Inc., registered in the U.S. and other countries.
• The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Victor Company of Japan, Limited (JVC) is under license. Other trademarks and trade names are those of their respective owners.
• Check the connecting cable and its connection.
• Update the firmware version.
• Charge the battery.
D. player.
• Charge the battery.
the playback operation (see page 26).
• Disconnect the headphones from the iPod nano.
• Update the firmware version of the iPod nano.
Disconnect the adapter from the D. player. Then, connect it again.
Disconnect the adapter from both the unit and iPod/ D. player. Then, connect it again.
Reset the iPod or D. player.
ENGLISH
47REFERENCES
Specifications
Power Output: 20 W RMS × 4 Channels at 4 Ω and ≤ 1%
ENGLISH
Signal to Noise Ratio: 80 dBA (reference: 1 W into 4 Ω)
Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)
Tone Control Range: Low: ±12 dB (60 Hz, 80 Hz, 100 Hz, 200 Hz)
Frequency Response: 40 Hz to 20 000 Hz
Line-Out Level/Impedance: 2.5 V/20 kΩ load (full scale)
AUDIO AMPLIFIER SECTION
Output Impedance: 1 kΩ
Subwoofer-Out Level/Impedance: 4.0 V/20 kΩ load (full scale)
Other Terminal: CD changer, Steering wheel remote input, MIC, USB input terminal,
THD+N
Mid: ±12 dB (500 Hz, 1 kHz, 1.5 kHz, 2.5 kHz)
High: ±12 dB (10 kHz, 12.5 kHz, 15 kHz, 17.5 kHz)
Antenna input
Frequency Range: FM: with channel interval set to 100 kHz
or 200 kHz:
with channel interval set to 50 kHz: 87.5 MHz to 108.0 MHz
AM: with channel interval set to 10 kHz: 530 kHz to 1 710 kHz
with channel interval set to 9 kHz: 531 kHz to 1 602 kHz
FM Tuner: Usable Sensitivity: 11.3 dBf (1.0 μV/75 Ω)
50 dB Quieting Sensitivity: 16.3 dBf (1.8 μV/75 Ω)
TUNER SECTION
AM Tuner: Sensitivity: 20 μV
Alternate Channel Selectivity (400 kHz): 65 dB
Frequency Response: 40 Hz to 15 000 Hz
Stereo Separation: 30 dB
Selectivity: 35 dB
87.5 MHz to 107.9 MHz
48
Type: Compact disc player
Signal Detection System: Non-contact optical pickup (semiconductor laser)
Number of Channels: 2 channels (stereo)
Frequency Response: 5 Hz to 20 000 Hz
Dynamic Range/Signal-to-Noise Ratio: 96 dB/98 dB
Wow and Flutter: Less than measurable limit
CD PLAYER SECTION
MP3 Decoding Format: (MPEG1/2 Audio Layer 3) Max. Bit Rate: 320 kbps
WMA (Windows Media® Audio) Decoding Format: Max. Bit Rate: 192 kbps
AAC (Advanced Audio Coding) Decoding Format: Max. Bit Rate: 320 kbps
USB Standards: USB 1.1
Data Transfer Rate Full Speed:
Low Speed:
Compatible Device: Mass storage class
Compatible File System: FAT 32/16/12
USB DEVICE
Playable Audio Format: MP3/WMA/AAC/WAV
Max. Current: Less than 500 mA/5 V
Version: Bluetooth 1.2 certified
Output Power: +4 dBm Max. (Power class 2)
Service Area: 10 m
Profile: HSP (Headset Profile), HFP (Hands-Free Profile), A2DP (Advanced
BLUETOOTH
Audio Distribution Profile), AVRCP (Audio/Visual Remote Control Profile), SPP (Serial Port Profile), OPP (Object Push Profile)
Maximum 12 Mbps Maximum 1.5 Mbps
ENGLISH
Power Requirement: Operating Voltage: DC 14.4 V (11 V to 16 V allowance)
Grounding System: Negative ground
Allowable Operating Temperature: 0°C to +40°C (32°F to 104°F)
Dimensions (W × H × D): (approx.)
GENERAL
Mass:
Design and specifications are subject to change without notice.
If a kit is necessary for your car, consult your telephone directory for the nearest car audio speciality shop.
Installation Size: 182 mm × 52 mm × 158 mm
(7-3/16” × 2-1/16” × 6-1/4”)
Panel Size: 188 mm × 58 mm × 12 mm
(7-7/16” × 2-5/16” × 1/2”)
1.4 kg (3.1 lbs) (excluding accessories)
49REFERENCES
Muchas gracias por la compra de un producto JVC.
Como primer paso, por favor lea detenidamente este manual para comprender a fondo todas las instrucciones y
obtener un máximo disfrute de esta unidad.
IMPORTANTE (EE.UU.)
Este equipo se ha sometido a todo tipo de pruebas y cumple con las normas establecidas para dispositivos de Clase B, de conformidad con la Parte 15 de las reglas de la FCC (Comisión Federal de Comunicaciones). Estas reglas están diseñadas para asegurar una protección razonable contra este tipo de interferencias en las instalaciones residenciales. Este equipo genera y utiliza energía de radiofrecuencia. Si no se instala y utiliza debidamente, es decir, conforme a las instrucciones, podrían producirse interferencias en radiocomunicaciones. Sin embargo, no se garantiza que estas interferencias no se produzcan en una instalación determinada. Si
ESPAÑOL
este equipo ocasiona interferencias en la recepción de radio o televisión, lo cual puede comprobarse mediante la conexión o desconexión del equipo, el problema podrá corregirse mediante una o una combinación de las siguientes medidas: – Reoriente la antena receptora o cámbiela de lugar. – Aumente la separación entre el equipo y el aparato receptor. – Enchufe el equipo a una toma de corriente situada en un circuito distinto del aparato receptor. – Consulte a su distribuidor o a un técnico experto en radio/televisión.
Precaución:
Los cambios o modificaciones no aprobados por JVC pueden anular la autoridad del usuario para operar el equipo.
IMPORTANTE PARA PRODUCTOS LÁSER
1. PRODUCTO LÁSER CLASE 1
2. PRECAUCIÓN: No abra la tapa superior. En el interior de la unidad no hay piezas que pueda reparar el usuario;
encargue el servicio a personal técnico cualificado.
3. PRECAUCIÓN: (EE.UU.) Radiación láser de clase II visible y/o invisible, cuando está abierto. No mire
fijamente el haz.
(Para Canadá) Radiación láser de clase 1M visible y/o invisible cuando ésta abierto. No mirar
directamente con instrumental óptico.
4. REPRODUCCIÓN DE LA ETIQUETA: ETIQUETA DE PRECAUCIÓN, COLOCADA EN EL EXTERIOR DE LA UNIDAD.
[Sólo Unión Europea]
2
Cómo reposicionar su unidad
• También se borrarán los ajustes preestablecidos
realizados por usted (excepto el dispositivo Bluetooth registrado, véase página 14).
Cómo expulsar el disco por la fuerza
Cómo usar los botones M MODE y SEL
Si utiliza M MODE (modo) o SEL (seleccionar), la pantalla y algunos controles (como por ejemplo, botones numéricos, botones 4/¢ , botones 5/, y el control giratorio) acceden al modo de control correspondiente.
Ej.: Cuando usted pulsa el botón numérico 1
después de pulsar M MODE, para operar el sintonizador de FM.
ESPAÑOL
Aparece “Please Eject” en la pantalla.
• Tenga cuidado de no dejar caer el disco al ser
expulsado.
Si esto no funciona, intente reposicionar su receptor.
Para fines de seguridad...
• No aumente demasiado el nivel de volumen pues es muy peligroso conducir si no se escuchan los sonidos exteriores.
• Detenga el automóvil antes de efectuar cualquier operación complicada.
Temperatura dentro del automóvil...
Si ha dejado el automóvil estacionado durante largo tiempo en un sitio cálido o frío, no opere la unidad hasta que se normalice la temperatura del habitáculo.
Funciona como indicador de cuenta atrás del tiempo.
Para volver a utilizar estos controles para sus funciones originales, espere 15 segundos (o 30 segundos para fuentes Bluetooth) sin pulsar ninguno de estos botones hasta que se cancele el control.
• Pulse M MODE otra vez para restablecer las funciones originales. Sin embargo, la pulsación de SEL hace que la unidad acceda a un modo diferente.
3
Desmontaje del panel de control
Precaución:
Si la temperatura del habitáculo es inferior a 0°C (32°F), el movimiento de animación y el desplazamiento del texto serán detenidos en la pantalla para evitar que la imagen visualizada aparezca borrosa. aparece en la pantalla. Estas funciones se vuelven a activar cuando la temperatura aumenta y se restablece la temperatura de funcionamiento.
ESPAÑOL
Fijación del panel de control
AVISO:
La palanca sale al pulsar el botón 0 con el panel desmontado. En tal caso, vuelva a colocar la palanca en la posición de bloqueo antes de fijar el panel.
Palanca
El receptor está equipado con la función de control remoto en el volante de dirección.
• Para la conexión, consulte el Manual de instalación /conexión (volumen separado).
Advertencia:
Si necesita operar la unidad mientras conduce, asegúrese de mirar atentamente a su alrededor pues de lo contrario, se podría producir un accidente de tráfico.
Precaución sobre el ajuste de volumen:
Los dispositivos digitales (CD/USB) producen muy poco ruido al compararse con otras fuentes. Baje el volumen antes de reproducir estas fuentes digitales para evitar daños en los altavoces resultantes de un repentino aumento del nivel de salida.
4
CONTENIDO
INTRODUCCIÓN
Preparativos ...................................................................................................... 6
OPERACIONES
Operaciones básicas ............................................................................................ 7
• Uso del panel de control ................................................................................ 7
• Uso del control remoto (RM-RK50) .................................................................. 8
Para escuchar la radio ......................................................................................... 9
Operaciones de los discos .................................................................................... 11
Uso de dispositivos Bluetooth
• Usar el teléfono celular Bluetooth .................................................................. 16
• Uso del reproductor de audio Bluetooth .......................................................... 19
DISPOSITIVOS EXTERNOS
Escuchando el dispositivo USB ............................................................................. 20
Escuchando el cambiador de CD ........................................................................... 21
Para escuchar la radio satelital ............................................................................ 23
Escuchando el iPod / reproductor D. ..................................................................... 26
Escuchando otros componentes externos .............................................................. 28
AJUSTES
Selección de un modo de sonido preajustado ........................................................ 29
Configuraciones generales — PSM ....................................................................... 31
Ajustes Bluetooth ............................................................................................... 36
Asignación de títulos ........................................................................................... 37
® ............................................................................ 13
ESPAÑOL
REFERENCIAS
Mantenimiento .................................................................................................. 38
Más sobre este receptor ....................................................................................... 39
Localización de averías ........................................................................................ 42
Especificaciones ................................................................................................. 48
5
Preparativos
Cancele la demostración en pantalla y ponga el reloj en hora
• Consulte también las páginas 31 y 32.
ESPAÑOL
Al apagar la unidad: Verifique la hora actual Al encender la unidad: Cambio de la información en pantalla y del patrón de visualización
~ Encienda la unidad. Ÿ Introduzca los ajustes PSM. ! ] ⁄ Cancele las demostraciones en pantalla
Seleccione “Demo” y, a continuación, “Off”.
Ponga el reloj en hora
Seleccione “Clock Hr” (hora) y, seguidamente ajuste la hora. Seleccione “Clock Min” (minutos) y, seguidamente ajuste los minutos. Seleccione “24H/12H” y, a continuación, “24Hours” o “12Hours”.
@ Finalice el procedimiento.
Cambio de la información en pantalla y de los patrones de visualización
Ej.: Cuando se selecciona el sintonizador como fuente
Pantalla de operación de fuente Visualización del medidor de nivel de audio
(véase “LevelMeter” en la página 32)
6 INTRODUCCIÓN
Operaciones básicas
Uso del panel de control
ESPAÑOL
1 Seleccione la fuente.
TUNER = SIRIUS */XM * = CD * = USB *
=CD-CH */iPod */D.PLAYER * (o EXT IN) =
Bluetooth Phone = Bluetooth Audio =
(vuelta al comienzo)
* No podrá seleccionar estas fuentes si no están
preparadas o conectadas.
2 Selecciona las bandas.
3 • Enciende el sistema.
• Apaga el sistema [Sostener].
• Atenúa el sonido (si el sistema está encendido).
• Control de volumen [Gire].
4 • Selecciona/ajusta el modo de sonido.
• Introduzca los ajustes PSM [Sostener].
5 Ventanilla de visualización
6 • Visualiza “Dial Menu”.
• Visualiza lista “Redial” [Sostener].
7 Expulsa el disco.
8 Desmonta el panel.
9 Cambio de la información en pantalla y del patrón
de visualización
p • Entra al modo de funciones.
• Activa Voice Dialing (marcación por voz) [Sostener].
qTUNER/SIRIUS/XM: Selecciona la emisora/canal
preajustado.
CD/USB/CD-CH: Selecciona la carpeta/pista/ disco (para cambiador de CD).
Bluetooth Phone: Selecciona el número telefónico preajustado.
wTUNER/SIRIUS/XM: Busca la emisora/canal.
CD/USB/CD-CH: Seleccionar la pista.
iPod/D.PLAYER: Seleccionar la pista.
Bluetooth Audio: Salto hacia atrás/salto hacia adelante.
eTUNER: Selecciona la emisora preajustada.
SIRIUS/XM: Seleccione una categoría.
CD/USB/CD-CH: Seleccionar la carpeta.
iPod/D.PLAYER: Ingresa el menú principal/Pone la reproducción en pausa o la para/Confirma la selección.
Bluetooth Phone/Audio: Selecciona un dispositivo registrado.
7OPERACIONES
Uso del control remoto (RM-RK50)
Instalación de la pila botón de litio (CR2025)
ESPAÑOL
Antes de utilizar el control remoto:
• Apunte el control remoto directamente hacia el sensor remoto del receptor.
• NO exponga el sensor remoto a una luz brillante (luz solar directa o iluminación artificial).
Sensor remoto
Advertencia: Para evitar daños y accidentes
• No instale ninguna otra pila distinta de CR2025 o su equivalente.
• No deje el control remoto en un lugar expuesto a la luz directa del sol (como los cubretableros) durante un tiempo prolongado.
• Guarde la pila fuera del alcance de los niños.
• Evite recargar, cortocircuitar, desarmar, calentar la pila, o arrojarla al fuego.
• No deje la pila con otros objetos metálicos.
• No toque la pila con pinzas u otras herramientas similares.
• Enrolle la pila con una cinta y aíslela antes de desecharla o guardarla.
Sólo para EE.UU.-California: Este producto contiene una batería de litio CR de tipo botón que contiene perclorato (puede requerirse una manipulación especial). Visite www.dtsc.ca.gov/hazardouswaste/ perchlorate
1 • La unidad se enciende al pulsarlo brevemente o
el sonido se atenúa cuando está encendida.
• La unidad se apaga si lo pulsa y mantiene pulsado.
2 • Cambia las bandas FM/AM mediante 5 U.
Cambia las emisoras preajustadas mediante D ∞.
• Cambia la carpeta de MP3/WMA/AAC/WAV.
• Mientras se reproduce un disco MP3 en un cambiador de CD compatible con MP3:
– Cambia el disco si lo pulsa brevemente. – Cambia la carpeta si lo pulsa y mantiene
pulsado.
• Mientras escucha la radio satelital (SIRIUS o XM):
– Cambia las categorías.
• Mientras escucha un Apple iPod o un reproductor D. JVC:
– Pone en pausa/detiene o reanuda la
reproducción mediante D . – Acceda al menú principal mediante 5 U. (Ahora, 5 U/D /2 R/F 3 funcionan como
botones selectores de menús).* * 5 U : Vuelve al menú anterior. D ∞ : Confirma la selección.
8
3 Ajusta el nivel de volumen.
4 Selección del modo de sonido (iEQ: ecualizador
inteligente).
5 Seleccione la fuente.
6 Para teléfono celular Bluetooth:
– Contesta las llamadas si lo pulsa brevemente. – Rechaza las llamadas si lo pulsa y mantiene
pulsado.
Para escuchar la radio
Selecciona la emisora preajustada.
Cambio de la información* en pantalla y del patrón de visualización
7 • Efectúa la búsqueda de emisoras si lo pulsa
brevemente.
• Efectúa el avance rápido o el retroceso de la pista si lo pulsa y mantiene pulsado.
• Cambia las pistas si lo pulsa brevemente.
• Mientras escucha un iPod o un reproductor D. (en el modo de selección de menú):
– Selecciona una opción si lo pulsa brevemente.
(Seguidamente, pulse D selección).
– Salta 10 opciones simultáneamente si lo pulsa
y mantiene pulsado.
• Salto hacia atrás/salto hacia adelante para Bluetooth audio.
para confirmar la
ESPAÑOL
~ Seleccione “TUNER”. Ÿ Selecciona las bandas.
! Efectúa la búsqueda de una emisora—Búsqueda automática.
Búsqueda manual: Mantenga pulsado uno de los botones hasta que “Manual Search” aparezca en la pantalla y,
a continuación, púlselo repetidamente.
• Cuando se recibe una radiodifusión en FM estéreo con una seńal suficientemente fuerte, se enciende en la pantalla.
* Si no se le ha asignado título a la emisora, aparecerá “No Name”. Para asignar un título a una emisora, consulte la
página 37.
Continúa en la página siguiente
9OPERACIONES
Cuando una radiodifusión en FM estéreo sea difícil de recibir
1
2
Preajuste manual
Ej.: Almacenando una emisora FM de 92,5 MHz en el
número de preajuste 4 de la banda FM1.
Uso de los botones numéricos
1
ESPAÑOL
Se consigue mejorar la recepción, pero se pierde el
efecto estereofónico.
se enciende en la pantalla.
3 Salga del ajuste.
Preajuste automático de emisoras FM —SSM (Memoria secuencial de las emisoras más fuertes)
Se pueden preajustar hasta seis emisoras para cada banda.
1
2
3
2
3
Uso de la lista de emisoras preajustadas
• Cuando aparezca en la pantalla, podrá volver a la visualización anterior pulsando el botón numérico 3.
1 Siga los pasos 1 y 2 de “Uso de
los botones numéricos” descrito anteriormente.
• Sostenga 5 / , y aparecerá la lista de emisoras preajustadas (vaya al paso 4).
2
3
Visualice la lista de emisoras
preajustadas.
4
Las emisoras FM locales con las señales más
intensas serán exploradas y almacenadas automáticamente en la banda FM.
10
4 Seleccione el número de preajuste en
que desea almacenar.
• Podrá desplazarse a las listas de otras bandas FM pulsando repetidamente el botón numérico 5 ( ) o 6 ( ).
Para escuchar la emisora preajustada de la Lista de Emisoras Preajustadas
1 Visualice la lista de emisoras
preajustadas y, a continuación, seleccione la emisora que desea escuchar.
5 Almacene la emisora.
2 Cambie a la emisora seleccionada.
Operaciones de los discos
Cambio de la información en pantalla y del patrón de visualización
Para detener la reproducción y expulsar el disco
• Pulse SRC para escuchar otra fuente de reproducción.
Prohibición de la expulsión del disco
ESPAÑOL
Abra el panel de control e inserte el disco.
La reproducción se inicia automáticamente.
Para cancelar la prohibición, repita el mismo procedimiento.
Continúa en la página siguiente
11OPERACIONES
Pulsando (o sosteniendo) los siguientes botones usted podrá...
Botón Archivo MP3/WMA/AAC CD de audio/CD Text
Pulse: Seleccionar la pista Sostener: Retroceso/avance rápido de pista
1
*
Seleccionar la carpeta
Pulse: Seleccionar la pista Sostener: Retroceso/avance rápido de pista
ESPAÑOL
(Botones numéricos) *
Localizar directamente una carpeta
3
específica *
2
Localizar directamente una pista específica
*1 Manteniendo pulsado uno de los botones se podrá visualizar la lista de carpetas (consulte la página 13). *2 Pulse para seleccionar número 1 a 6; mantenga pulsado para seleccionar número 7 a 12. *3 Es necesario haber asignado a las carpetas un número de 2 dígitos que preceda a sus respectivos nombres—01, 02,
03, y así sucesivamente.
Tras pulsar , pulse los siguientes botones para...
Botón Archivo MP3/WMA/AAC CD de audio/CD Text
Saltar 10 pistas (dentro de la misma
Saltar 10 pistas
carpeta)
Intro Track:
Reproduce los primeros 15 segundos de
todas las pistas
Intro Track:
Reproduce los primeros 15 segundos de
todas las pistas
Intro Folder:
Reproduce los primeros 15 segundos de
las primeras pistas de todas las carpetas
Repeat Track:
Repetir la pista actual
Repeat Track:
Repetir la pista actual
Repeat Folder:
Repetir la carpeta actual
Random Folder:
Repetir aleatoriamente todas las pistas
de la carpeta actual y luego las pistas de
Random Disc:
Reproducir aleatoriamente todas las
pistas
las siguientes carpetas
Random Disc:
Reproducir aleatoriamente todas las
pistas
El modo de reproducción también se puede cancelar seleccionando “Off ” o pulsando el botón numérico 4 ( ).
12
Selección de una carpeta/pista de la lista (sólo para el archivo MP3/WMA/ AAC)
• Cuando aparezca en la pantalla, podrá
volver a la visualización anterior pulsando el botón numérico 3.
Uso de dispositivos Bluetooth ®
1
2
Seleccione “LIST”.
3 Seleccione el tipo de lista.
4 Seleccione una opción.
Ej.: Cuando se selecciona “File”
en el paso 3
• Podrá desplazarse a otras listas pulsando repetidamente el botón numérico 5 ( ) o 6 ( ).
5 Cambie al ítem seleccionado.
• Si se selecciona Lista de archivos
• La lista desaparece y se inicia la reproducción.
• Si se selecciona Lista de carpetas
Bluetooth es una tecnología de radiocomunicación inalámbrica de alcance corto para dispositivos móviles, como por ejemplo, teléfonos móviles, PCs portátiles, y otros dispositivos. Los dispositivos Bluetooth se pueden comunicar entre sí mediante conexión sin cables.
• El número de serie se encuentra impreso en la etiqueta provista sobre la parte inferior de la unidad.
• Consulte la lista (incluida en la caja) para comprobar cuáles son los países en que se puede utilizar la función Bluetooth®.
Perfil de Bluetooth
Esta unidad es compatible con los perfiles Bluetooth siguientes; HSP (Headset Profile—Perfil Auricular) HFP (Hands-Free Profile—Perfil manos libres) A2DP (Advanced Audio Distribution Profile—Perfil
Avanzado de Distribución de Audio)
AVRCP (Audio/Video Remote Control Profile—Perfil
de Control Remoto de Audio/Video)
SPP (Serial Port Profile—Perfil de Puerto Serie) OPP (Object Push Profile—Perfil de carga de objetos)
Características
Puede accionar los dispositivos Bluetooth a través de la unidad, de la manera siguiente:
• Recibiendo una llamada
• Realizando una llamada—desde la guía telefónica, desde el historial de llamadas (Remarcación/llamada perdida/llamada recibida), mediante marcación del número, mediante números preajustados, mediante comando por voz
• Recepción de un mensaje de texto
• Reproducir con un reproductor de audio Bluetooth
• Consulte también las instrucciones suministradas con el dispositivo Bluetooth.
• Para conectar la unidad de micrófono, consulte también el Manual de Instalación/Conexión.
Continúa en la página siguiente
13OPERACIONES
ESPAÑOL
Registrando un dispositivo Bluetooth
Para utilizar por primera vez un dispositivo Bluetooth a través de la unidad (“Bluetooth Phone” y “Bluetooth Audio”), usted deberá establecer una conexión Bluetooth inalámbrica entra la unidad y el dispositivo utilizando el menú Bluetooth.
• Una vez establecida la conexión, ésta quedará registrada en la unidad aunque la reposicione. Se podrá registrar hasta un máximo de cinco dispositivos en total.
ESPAÑOL
• Solamente se puede conectar un dispositivo a la vez para cada fuente (“Bluetooth Phone” y “Bluetooth Audio”).
• Para utilizar la función Bluetooth, deberá activar la función Bluetooth del dispositivo.
Métodos de registro (Apareamiento)
Utilice uno de los siguientes elementos en el menú Bluetooth para registrar y establecer la conexión con un dispositivo.
• Seleccione “Bluetooth Phone” o “Bluetooth Audio” como fuente para operar el menú Bluetooth.
Open Prepare la unidad para poder establecer
Search Prepare la unidad para poder establecer
una nueva conexión Bluetooth. La conexión se establece haciendo funcionar el dispositivo Bluetooth.
una nueva conexión Bluetooth. La conexión se establece haciendo funcionar esta unidad.
2 Seleccione “New”.
• El dispositivo registrado y “New Device” (cuando se puede registrar un dispositivo nuevo) aparecen alternativamente.
3 Ingresa al menú de ajustes.
4 Seleccione “Open”.
5 Ingrese un código PIN (Número de
identificación personal) en la unidad.
• Puede introducir cualquier número que desee
(número de 1 a 16 dígitos). [Inicial: 0000]
• Para ingresar un código PIN de menos de 4 dígitos, pulse el botón numérico 5 ( ) y borre el código PIN inicial.
* Algunos dispositivos tienen su propio código PIN:
Introduzca el código PIN específico en la unidad.
1 Muévase a la posición del número
siguiente (o anterior).
2 Selecciona un número.
• Cuando aparezca volver a la visualización anterior pulsando el botón numérico 3.
en la pantalla, podrá
Registrar usando “Open”
Preparativos
Opere el dispositivo para activar su función Bluetooth.
1 Seleccione “Bluetooth Phone” o
“Bluetooth Audio”.
14
3 Repita los pasos 1 y 2 hasta terminar
de introducir un código PIN.
4 Confirme la entrada.
“Open...” parpadea en la pantalla.
6 Utilice el dispositivo Bluetooth para
efectuar la búsqueda y conexión.
En el dispositivo que se desea conectar, ingrese
el mismo código PIN que el ingresado para esta unidad. Aparece “Connected (y el nombre del dispositivo)” en la pantalla.
Ahora la conexión ha quedado establecida y usted
puede usar el dispositivo a través de la unidad.
El dispositivo permanece registrado aún después de desconectarlo. Utilice “Connect” (o active “Auto Connect”) para que se conecte el mismo dispositivo a partir de la próxima vez. (Véase la columna derecha y la página 36.)
Conexión de un dispositivo especial
Efectúe los pasos 13 de la página 14 y luego...
1 Seleccione “Special Device”.
La unidad visualiza la lista de dispositivos
preajustados
2 Seleccione un dispositivo que desea conectar.
ESPAÑOL
3 Utilice “Open” o “Search” para la conexión.
Búsqueda de dispositivos disponibles
Efectúe los pasos 13 de la página 14 y luego...
1 Seleccione “Search”.
La unidad efectúa la búsqueda de los dispositivos
disponibles y los visualiza en una lista.
• Si no hay ningún dispositivo disponible, aparecerá “Device not found”.
2 Seleccione un dispositivo que desea conectar.
3 Ingrese en la unidad el código PIN específico
del dispositivo.
• Para comprobar cuál es el código PIN, consulte las instrucciones suministradas con el dispositivo.
4 Utilice el dispositivo Bluetooth que se ha
conectado.
Ahora la conexión ha quedado establecida y usted
puede usar el dispositivo a través de la unidad.
Conexión/desconexión de un dispositivo registrado
1 Seleccione “Bluetooth Phone” o
“Bluetooth Audio”.
2 Seleccione el dispositivo registrado que
desea conectar/desconectar.
3 Ingresa al menú de ajustes.
4 Seleccione “Connect” o “Disconnect”
para conectar/desconectar el dispositivo seleccionado.
Puede configurar para que se conecte automáticamente un dispositivo Bluetooth al encender la unidad. (Vea “Auto Connect” en la página 36).
Continúa en la página siguiente
15OPERACIONES
Borrar un dispositivo registrado
1 Seleccione “Bluetooth Phone” o
“Bluetooth Audio”.
4 Seleccione “Delete”.
2 Seleccione el dispositivo registrado que
desea borrar.
ESPAÑOL
3 Ingresa al menú de ajustes.
Usar el teléfono celular Bluetooth
Ajuste el nivel de volumen para “Bluetooth Phone”.
~ Seleccione “Bluetooth Phone”. Ÿ Acceda al menú Bluetooth. ! Establezca la conexión con un
dispositivo y luego haga una llamada (o los ajustes mediante Bluetooth menu). (Consulte también las páginas 14, 18 y 36).
5 Borra la selección.
• Pulse el botón numérico 3 para seleccionar “No” o vuelva al paso 4.
Visualice el “Dial Menu”.
Acceda a la lista de remarcación [Sostener].
Cuando entra una llamada...
La fuente será cambiada automáticamente a “Bluetooth Phone”.
Cuando “Auto Answer” está activado....
La unidad contesta automáticamente las llamadas entrantes, consulte la página 36.
• Cuando se ha desactivado “Auto Answer”, pulse
cualquier botón (excepto /control giratorio) para contestar la llamada entrante.
16
Para finalizar una llamada
Sostenga cualquier botón (excepto /control giratorio).
• Podrá ajustar el nivel de volumen del micrófono (consulte la página 36).
Cómo contestar una llamada en espera
Si su teléfono celular cuenta con la función de espera de llamada, puede poner la llamada en curso en retención, y contestar la llamada en espera. Pulse cualquier botón (excepto
/control
giratorio).
• Para restablecer la llamada en retención, pulse de nuevo cualquier botón (excepto /control giratorio).
• Al finalizar una llamada podrá conectar a la otra.
Cuando entra un mensaje de texto...
Si el teléfono celular es compatible con el mensaje de texto y “Message Info” está ajustado a “Auto” (consulte la página 36), la unidad emite un pitido audible y aparece “MSG” en la pantalla para informarle la llegada del mensaje.
Cuando se ajusta “Message Info” a “Auto”... Para leer el mensaje
Mientras se visualiza “MSG”...
La fuente será cambiada a “Bluetooth Phone”.
Para leer el mensaje más tarde
3 Seleccione la opción que desea.
Unread : Mensajes no leídos.
Read : Mensajes leídos.
Unsent : Mensajes no enviados.
Sent : Mensajes enviados.
4 Seleccione el mensaje que desea leer.
• Pulse 5 / para desplazarse a la página siguiente/anterior del mensaje.
• Mantenga pulsado D DISP para cambiar el tamaño de fuente.
5 Salga del ajuste.
o
Caracteres disponibles para el Mensaje de texto
El receptor puede mostrar sólo letras del alfabeto romano (A–Z, a–z) además de los siguientes caracteres especiales para el Mensaje de texto. Otros caracteres no serán mostrados correctamente en la pantalla.
ESPAÑOL
El mensaje queda almacenado en “Message Menu” \ “Unread”.
Cuando se ajusta “Message Info” a “Manual”...
1
2 Seleccione ”Message Menu”.
АБВГДЕЖЗИЙКЛ
МНОПĐСТУФХЦШ ЩЪЫЬЭЮЯабвгд ежзийклмн опр стуфхцшщъыьэ юя0123456789
!“#$%&‘()*×+ –/÷=<>,.:;?@
[]{}\|^~_`¡¢ £¤¥¦§¨©ª«»¬®
¯°±
1/41/23
/4 ¿
23
´µ¶· ¸1º
17OPERACIONES
Cómo hacer una llamada
Puede hacer una llamada utilizando una de las opciones de Dial Menu.
• Cuando aparezca en la pantalla, podrá volver a la visualización anterior pulsando el botón numérico 3.
1 Seleccione “Bluetooth Phone”.
* Se visualiza solamente cuando su teléfono
celular está equipado con estas funciones.
– Si no se visualiza, por favor intente transferir
la memoria de la guía telefónica del teléfono celular a esta unidad. (Consulte el manual de instrucciones suministrado con su teléfono celular).
– Con algunos teléfonos celulares, la
memoria de la guía telefónica se transfiere automáticamente.
ESPAÑOL
2 Ingresa al menú de ajustes.
3 Seleccione “Dial Menu”.
4 Seleccione el método para hacer la
llamada.
Redial * : Muestra la lista de los números telefónicos a los que ha llamado. Vaya al paso siguiente.
Received Calls * : Muestra la lista de las llamadas recibidas. Vaya al paso siguiente.
Phonebook * : Muestra la guía telefónica del teléfono celular conectado. Vaya al paso siguiente.
Missed Calls * : Muestra la lista de las llamadas perdidas. Vaya al paso siguiente.
Phone Number : Muestra la pantalla de entrada de número telefónico. Consulte “Cómo ingresar un número telefónico” en la columna derecha.
Voice Dialling (Sólo cuando el teléfono celular conectado dispone del sistema de reconocimiento de voz): Diga el nombre que desea llamar.
18
5 Seleccione el nombre/número telefónico que
desea llamar.
Cómo ingresar un número telefónico
Seleccione un número.
Mueva la posición de entrada.
Confirme la entrada.
Método rápido de hacer una llamada
Puede utilizar los botones siguientes, independientemente de la fuente actual.
Para volver a marcar
Muestra la lista de los números telefónicos a los que ha llamado. Luego seleccione el número y vuélvalo a pulsar.
Para activar la marcación por voz
Puede realizar llamadas por voz.
Diga el nombre que desea llamar.
• Pronuncie el nombre clara y lentamente.
Memorización de los números telefónicos
Puede memorizar hasta seis números telefónicos.
• Cuando aparezca volver a la visualización anterior pulsando el botón numérico 3.
en la pantalla, podrá
1 Visualice el número telefónico que desea
preajustar utilizando una de las opciones de “Dial Menu”.
Uso del reproductor de audio Bluetooth
2 Seleccione un número telefónico.
También puede ingresar un número telefónico nuevo (véase también “Cómo ingresar un número telefónico” en la página 18) para guardarlo.
3 Seleccione el número telefónico que
desea guardar.
Para llamar un número preajustado
ESPAÑOL
Ingresa al menú de ajustes (Lista de dispositivos)
Inicia la reproducción*
~
Seleccione “Bluetooth Audio”.
Si la reproducción no se inicia automáticamente, opere el reproductor Bluetooth audio para iniciar la
reproducción.
• Para conectar/desconectar/borrar un dispositivo registrado, consulte también las páginas 15 y 16.
* La operación puede diferir según el teléfono conectado.
Información Bluetooth: Si desea obtener más información sobre Bluetooth, visite el sitio web de JVC.
Detiene la reproducción*
Salto hacia atrás/salto hacia adelante
19OPERACIONES
Escuchando el dispositivo USB
Puede conectar a la unidad un dispositivo de clase de almacenamiento masivo USB tal como una memoria USB, un reproductor de audio digital *1, un HDD (disco duro) portátil, etc.
*1 Puede conectar tanto dispositivos MTP (Media Transfer Protocol) como dispositivos de clase de almacenamiento
masivo USB.
1
La unidad puede reproducir pistas MP3/WMA/WMA-DRM10 * dispositivo USB.
*1 Consulte la página 40. *2 Esta unidad puede reproducir archivos AAC codificados con iTunes. Esta unidad no puede reproducir archivos AAC
ESPAÑOL
comprados en iTunes Store.
Ej.: Conexión de una memoria USB
Cable USB desde la parte trasera de la unidad.
/AAC *2/WAV almacenadas en un
Todas las pistas se reproducen repetidamente hasta que usted cambie la fuente o extraiga el dispositivo USB.
• No es posible conectar un computador al terminal ( ) USB de la unidad.
Si se ha conectado un dispositivo USB...
La reproducción se inicia desde el
punto de detención anterior.
• Si se conecta un dispositivo USB diferente, la reproducción se iniciará desde el comienzo.
Cambio de la información en pantalla y del patrón de visualización
Para detener la reproducción y desmontar el dispositivo USB
Extráigalo de la unidad en sentido recto desde el terminal de entrada USB.
• Pulse SRC para escuchar otra fuente de reproducción.
20
Precauciones:
• Evite usar el dispositivo USB si puede amenazar la seguridad de conducción.
• No extraiga ni conecte repetidamente el dispositivo USB mientras parpadee “File Check” en la pantalla.
• No ponga en marcha el motor del coche si hay un dispositivo USB conectado.
• Detenga la reproducción antes de desconectar un dispositivo USB.
• Dependiendo del tipo de dispositivo USB, puede suceder que esta unidad no pueda reproducir los archivos.
• No es posible conectar un computador al terminal de entrada USB de la unidad.
• Para evitar el borrado accidental, asegúrese de sacar copia de respaldo de todos los datos importantes.
• No deje el dispositivo USB en el coche expuesto a la luz directa del sol o a altas temperaturas pues se podrá producir deformación o daños en el dispositivo.
Puede accionar el dispositivo USB tal como lo hace con los archivos de un disco. (Consulte las páginas 12 – 13).
• Puede escuchar archivos WAV realizando las operaciones de los archivos MP3/WMA/AAC descritas en las páginas
12 – 13.
Escuchando el cambiador de CD
ESPAÑOL
Cambio de la información en pantalla y del patrón de visualización
Se recomienda usar un cambiador de CD- compatible con MP3 JVC con este receptor. Puede conectar un cambiador de CD al jack del cambiador de CD en la parte trasera de la unidad. Consulte también la página 28.
• Solamente se podrán reproducir discos CD (incluyendo CD Text) y MP3 convencionales.
Preparativos
Asegúrese de que se ha seleccionado “Changer” para el ajuste de entrada externa, consulte la página 34.
~ Seleccione “CD-CH”. Ÿ Seleccione un disco para iniciar la reproducción.
Pulse: Para seleccionar el número de disco 1 – 6. Sostener: Para seleccionar el número de disco 7 – 12.
Continúa en la página siguiente
21DISPOSITIVOS EXTERNOS
Pulsando (o sosteniendo) los siguientes botones usted podrá...
Botón
Pulse: Seleccionar la pista Sostener: Retroceso/avance rápido de pista
Seleccionar la carpeta
*
* Manteniendo pulsado uno de los botones se podrá visualizar la lista de discos (consulte la página 13).
ESPAÑOL
Tras pulsar
Botón
, pulse los siguientes botones para...
Saltar 10 pistas (dentro de la misma carpeta)
Intro Track: Reproduce los 15 segundos
iniciales de todas las pistas del disco actual
Intro Folder: Reproduce los primeros 15
segundos de las primeras pistas de todas las carpetas
Intro Disc: Reproduce los 15 segundos
iniciales de las primeras pistas de todas los discos insertados
Repeat Track: Repetir la pista actual Repeat Folder: Repetir la carpeta actual Repeat Disc: Repite el disco actual
Pulse: Seleccionar la pista Sostener: Retroceso/avance rápido de pista
Saltar 10 pistas
Intro Track: Reproduce los 15 segundos
iniciales de todas las pistas del disco actual
Intro Disc: Reproduce los 15 segundos
iniciales de las primeras pistas de todas los discos insertados
Repeat Track: Repetir la pista actual Repeat Disc: Repite el disco actual
Random Folder: Repetir aleatoriamente
todas las pistas de la carpeta actual y luego las pistas de las siguientes carpetas
Random Disc: Reproducir aleatoriamente
todas las pistas
Random All: Reproduce aleatoriamente
todas las pistas del disco insertado
El modo de reproducción también se puede cancelar seleccionando “Off” o pulsando el botón numérico 4 ( ).
Para seleccionar un disco/carpeta/pista de la lista, consulte ”Selección de una carpeta/pista de la lista (sólo para el archivo MP3/WMA/AAC)” en la página 13. Seleccione ”Disc” en el paso 3 para visualizar la lista de discos del cambiador de CD.
Random Disc: Reproduce aleatoriamente
todas las pistas
Random All: Reproduce aleatoriamente
todas las pistas del disco insertado
22
Para escuchar la radio satelital
Antes de la operación, conecte cualquiera de las dos unidades siguientes (adquiridas separadamente) al jack del cambiador de CD de la parte trasera de esta unidad. Consulte también la página 28.
SIRIUS radio DLP (Down Link Processor) de JVC,
para escuchar la radio satelital SIRIUS.
XMDirect Universal Tuner Box—Usando
un Smart Digital Adapter JVC (XMDJVC100: no suministrado), para escuchar la radio XM Satellite.
• Consulte también las instrucciones que se
suministran con la radio satelital SIRIUS o XM.
Actualización de GCI (“Global Control Information”)
Si los canales han sido actualizados después de la suscripción, la actualización se inicia automáticamente. Aparecerá lo siguiente y no se podrá escuchar el sonido:
– Para la radio satelital SIRIUS: “Channels Updating
XX%* Completed” (Actualización de canales XX%* finalizada)
– Para la radio satelital XM: “UPDATING”
• La actualización tarda algunos minutos en finalizar.
• Durante la actualización no podrá utilizar la radio
satelital.
* Cambia cada vez que finaliza 20% de actualización
(p.ej. 20%, 40%, 60%)
Active la suscripción de SIRIUS después de la conexión
1
2
El DLP JVC comienza a actualizar todos los canales
SIRIUS.
Una vez que termine, el DLP JVC sintoniza el canal
preajustado, CH184.
3 Verifique su SIRIUS ID, consulte la página 33.
4 Póngase en contacto con SIRIUS por Internet
en <http://activate.siriusradio.com/> para activar su suscripción, o haga una llamada gratuita a SIRIUS marcando 1-888-539-SIRIUS (7474).
Al finalizar la subscripción, “Subscription Updated
Press Any Key to Continue” (Subscripción actualizada pulsar cualquier tecla para continuar) aparece en la pantalla.
Active la suscripción de XM después de la conexión
• Antes de la activación sólo están disponibles los canales 0, 1 y 247.
1
2
El Sintonizador universal XMDirect comienza a
actualizar todos los canales XM. El “Channel 1” se sintoniza automáticamente.
3 Consulte el número de identificación de la
radio satelital XM que aparece en la etiqueta de la carcasa del Sintonizador universal XMDirect o sintonice el "Channel 0” (consulte la página 24).
4 Para activar su suscripción, visite el sitio web
de la radio satelital XM en <http://xmradio. com/activation/> o llame al 1-800-XM-RADIO (1-800-967-2346).
Una vez que termine, la unidad sintoniza uno de
los canales disponibles (Canal 4 o superior).
Continúa en la página siguiente
23DISPOSITIVOS EXTERNOS
ESPAÑOL
Seleccione un canal de preajuste.
ESPAÑOL
Cambio de la información en pantalla y del patrón de visualización
~ Seleccione “SIRIUS” o “XM”. Ÿ Selecciona las bandas.
SIRIUS: XM:
! Seleccione una categoría. Seleccione el canal de audición.
• Al mantener pulsado el botón, los canales se cambian rápidamente.
• SIRIUS: Si selecciona “ALL” en el paso !, podrá sintonizar todos los canales de todas las categorías.
• XM: Si no selecciona un canal en el lapso de 15 segundos, se cancelará la categoría seleccionada en el paso !. Ahora podrá seleccionar todos los canales de todas las categorías (incluyendo canales no categorizados).
• Durante la búsqueda, se omiten los canales no válidos y aquellos a los que no está suscrito.
Para consultar el número de identificación de la radio satelital XM
Mientras selecciona “XM1”, “XM2” o “XM3”, seleccione “Channel 0”.
En la pantalla se exhiben “RADIO ID” y el número de identificación de 8 dígitos (alfanuméricos).
Para cancelar la visualización del número de identificación seleccione un canal diferente al “Channel 0”.
24
Cómo almacenar emisoras en la memoria
Se pueden preajustar seis emisoras para cada banda.
• Cuando aparezca en la pantalla, podrá volver a la visualización anterior pulsando el botón numérico 3.
• Cuando aparece podrá desplazarse a otras listas pulsando repetidamente el botón numérico 5 o 6.
Ej.: Cómo memorizar un canal SIRIUS en el número 4
de la banda SR1.
/ en la pantalla,
1 Sintonice el canal que desea escuchar.
• Si mantiene pulsado el botón BAND, aparecerá la lista de canales preajustados (vaya al paso 5).
2
6 Almacene el canal.
Cómo escuchar un canal de usuario
1 Visualice la lista de canales preajustados
y, a continuación, seleccione el número de preajuste que desea escuchar.
2 Cambie al canal seleccionado.
ESPAÑOL
3 Seleccione “List”.
4 Seleccione “Preset”.
5 Seleccione el número de preajuste en
que desea almacenar.
Seleccionando una categoría/canal en la lista
• Cuando aparezca en la pantalla, podrá volver a la visualización anterior pulsando el botón numérico 3.
• Cuando aparece / en la pantalla, podrá desplazarse a otras listas pulsando repetidamente el botón numérico 5 o 6.
Ej.: Para escuchar la radio por satélite SIRIUS.
1 Para seleccionar una categoría
1 Realice los pasos 2 a 4 de la columna
izquierda.
• En el paso 4, seleccione “Category”.
Se sintoniza el primer canal de la categoría seleccionada.
• Manteniendo pulsado 5 / también se podrá mostrar la lista de categorías mientras escucha un canal.
Continúa en la página siguiente
25DISPOSITIVOS EXTERNOS
2 Seleccione una categoría.
Para seleccionar un canal
1 Siga los pasos 2 a 4 de la página 25.
• En el paso 4, seleccione “Channel”.
ESPAÑOL
2 Seleccione un canal.
Escuchando el iPod / reproductor D.
2 Cambie al ítem seleccionado.
Para cambiar la información en pantalla mientras escucha un canal
Nombre de la categoría y nombre del canal = Nombre del artista/compositor* y nombre de la canción/programa = Medidor de nivel de audio = (vuelta al comienzo)
* Sólo para la radio satelital SIRIUS.
Cambio de la información en pantalla y del patrón de visualización
Antes de la operación, conecte cualquiera de las dos unidades siguientes (adquiridas separadamente) al jack del cambiador de CD de la parte trasera de esta unidad. Consulte también la página 28.
Adaptador de interfaz para iPod—KS-PD100 para controlar un iPod.
Adaptador de interfaz del reproductor D.—KS-PD500 para controlar un reproductor D.
Preparativos
Asegúrese de que se ha seleccionado “Changer” para el ajuste de entrada externa, consulte la página 34.
~ Seleccione “iPod” o “D. PLAYER”. Ÿ Seleccione una canción para iniciar la reproducción.
26
Seleccionar una pista en el menú
1 Ingrese al menú principal.
Este modo se cancelará si no se
efectúa ninguna operación durante unos 5 segundos.
2 Seleccione el menú deseado.
Para iPod: Playlists Ô Artists Ô Albums Ô Songs
Ô Genres Ô Composers Ô (vuelta al
comienzo)
Para el reproductor D.: Playlist Ô Artist Ô Album Ô Genre Ô
Ô (vuelta al comienzo)
Track
Tras pulsar , pulse los siguientes botones para...
Repeat One: Funciona de igual manera que “Repetir Una” del iPod o “Modo
Repetición = Una” del reproductor D.
Repeat All: Funciona de igual manera que “Repetir Todas” del iPod o “Modo
Repetición = Todos” del reproductor D.
Random Album*: Funciona de igual manera que “Aleatorio Álbumes” del iPod. Random Song: Funciona de igual manera que “Aleatorio Canciones” del iPod o
“Reprod. Aleatoria = Sí” del reproductor D.
3 Confirme la selección.
• Para retroceder al menú anterior, pulse 5.
• Si se selecciona una pista, la reproducción se inicia automáticamente.
• Si mantiene pulsado pueden saltar 10 opciones simultáneamente.
4/¢ se
Pone la reproducción en pausa/parada
• Para reanudar la reproducción, presione el botón otra vez.
Pulse: Selecciona las pistas Sostener: Retroceso/avance
rápido de pista
ESPAÑOL
El modo de reproducción también se puede cancelar seleccionando “Off” o pulsando el botón numérico 4 ( ).
* iPod: Funciona sólo si se selecciona “All Albums” en “Albums” del “MENU” principal.
27DISPOSITIVOS EXTERNOS
Escuchando otros componentes externos
ESPAÑOL
Cambio de la información en pantalla y del patrón de visualización
Puede conectar un componente externo al jack del cambiador de CD de la parte trasera esta unidad, utilizando los siguientes adaptadores: – Adaptador de entrada de línea, KS-U57 – Adaptador de entrada AUX, KS-U58
Preparativos
Asegúrese de que se ha seleccionado “Ext In” para el ajuste de entrada externa, consulte la página 34.
~ Seleccione “EXT IN”. Ÿ Encienda el componente conectado y comience a reproducir la fuente. ! Ajuste el volumen. Ajuste el sonido según se desee (consulte las páginas 29 a 31).
Diagrama conceptual para la conexión del dispositivo externo
Para la conexión, consulte el Manual de instalación/conexión (volumen separado).
Unidad
Jack del cambiador de CD
(consulte la página 34 del ajuste “Ext Input”)
: Adaptador (adquirido
por separado)
(consulte la página 34 del ajuste “Ext Input”)
Dispositivo USB, [20]
Radio por satélite SIRIUS (JVC DLP), [23]
radio XM Satellite, [23]
Cambiador de CD JVC, [21]
Apple iPod, [26]
Reproductor D. JVC, [26]
Reproductor MD, etc., [28]
Reproductor MD, etc., [28]
Radio por satélite SIRIUS (JVC PnP)
28 DISPOSITIVOS EXTERNOS
Selección de un modo de sonido preajustado
: Para visualizar el resto
Podrá seleccionar un modo de sonido preajustado adecuado al género musical.
• Cuando aparezca en la pantalla, podrá volver a la visualización anterior pulsando el botón numérico 3.
~ Ingresa al menú de ajustes. Ÿ Seleccione “EQ”. ! Seleccione un modo de sonido.
FLAT (No se aplica modo de sonido), H.ROCK (Hard Rock), R & B (Rhythm & Blues), POP, JAZZ, DANCE,
COUNTRY, REGGAE, CLASSIC, USER 1, USER 2, USER 3
Salga del ajuste.
En la lista de abajo se muestran los valores de preajuste para cada modo de sonido.
Modos de sonido
FLAT 00 60 Hz Q1.25 00 1 kHz Q1.25 00 10 kHz
H.ROCK +03 100 Hz Q1.0 00 1 kHz Q1.25 +02 10 kHz
R & B +03 80 Hz Q1.25 +01 1 kHz Q1.25 +03 15 kHz
POP +02 100 Hz Q1.25 +01 1 kHz Q1.25 +02 10 kHz
JAZZ +03 80 Hz Q1.25 00 1 kHz Q1.25 +03 10 kHz
DANCE +04 60 Hz Q1.0 –02 1 kHz Q1.0 +01 10 kHz
COUNTRY +02 60 Hz Q1.0 00 1 kHz Q1.0 +02 12.5kHz
REGGAE +03 60 Hz Q1.25 +02 1 kHz Q1.25 +02 12.5kHz
CLASSIC +01 80 Hz Q1.25 00 1 kHz Q1.25 +03 10 kHz
FREQ: Frecuencias; Q: Ancho de banda
Low (Bajo) Mid (Mid) High (Alto)
Nivel FREQ Q Nivel FREQ Q Nivel FREQ Q
Valores preajustados
Fix (Fijo)
ESPAÑOL
Continúa en la página siguiente
29AJUSTES
Cómo ajustar el sonido
Usted puede ajustar las características de sonido según sus preferencias.
• Cuando aparezca en la pantalla, podrá volver a la visualización anterior pulsando el botón numérico 3.
1
2
ESPAÑOL
• Antes de realizar un ajuste, seleccione la fuente que desea ajustar.
D Loudness, [Off u On]
Haga girar el control giratorio para seleccionar “Off” u “On”. Cuando se selecciona “On”, se refuerza el sonido de las frecuencias bajas y altas para producir un sonido bien balanceado a bajos niveles de volumen.
4 Salga del ajuste.
• Para el ajuste “EQ”, vea lo siguiente.
3 Configure la opción de ajuste
seleccionada.
A Fad/Bal (Fader/Balance)
1 Pulse el botón numérico 1 ( ) para
desplazarse a la pantalla de ajuste “Fad/ Bal”.
2 Ajuste el balance de salida de los
altavoces pulsando:
5 / : entre los altavoces delanteros y
traseros. [F06 a R06]
4/¢ : entre los altavoces
izquierdo y derecho. [L06 a R06]
B Subwoofer
1 Pulse el botón numérico 1 ( )
para desplazarse a la pantalla de ajuste “Subwoofer”.
2 Utilice 4/¢ para
seleccionar una frecuencia de corte para el subwoofer.
• 80Hz: Se suprimen las frecuencias superiores a los 80 Hz.
• 120Hz: Se suprimen las frecuencias superiores a los 120 Hz.
• 160Hz: Se suprimen las frecuencias superiores a los 160 Hz.
3 Gire el control giratorio para ajustar el
nivel de salida del subwoofer. [0 a 8]
C VolAdjust, [–5 a +5]
Gire el control giratorio para ajustar el nivel de entrada de cada fuente (excepto FM). Ajuste para que corresponda con el nivel de entrada del nivel de sonido FM.
30
Cómo almacenar sus propios modos de sonido
Podrá ajustar los modos de sonido a su gusto y almacenar sus propios ajustes en la memoria.
• Cuando aparezca en la pantalla, podrá volver a la visualización anterior pulsando el botón numérico 3.
1 Siga los pasos 1 y 3 de la columna izquierda.
• En el paso 2, seleccione “EQ”.
2 Seleccione un modo de sonido.
Para visualizar el resto
3 Seleccione una gama de frecuencias.
4 Ajuste los elementos de sonido de la
gama de frecuencias seleccionada.
1 Utilice 5 / para ajustar el nivel. 2 Pulse el botón numérico 2 ( ) y, a
continuación, gire el control giratorio para seleccionar la frecuencia.
3 Pulse el botón numérico 2 ( ) y, a
continuación, gire el control giratorio para seleccionar el ancho de banda.
Elementos de
sonido
Nivel –06 a
FREQ (Frecuencia)
Q (Ancho de banda)
Gama/Ítems seleccionables
Low
(Bajo)
+06
60 Hz 80 Hz 100 Hz 200 Hz
Q1.0 Q1.25 Q1.5 Q2.0
Mid
(Mid)
–06 a +06
500 Hz 1 kHz
1.5kHz
2.5kHz
Q0.5 Q0.75 Q1.0 Q1.25
High
(Alto)
–06 a +06
10 kHz
12.5kHz 15 kHz
17.5kHz
Fix (Fijo)
6 Almacene los ajustes.
5 Repita los pasos 3 y 4 para ajustar otras
gamas de frecuencia.
Configuraciones generales — PSM
ESPAÑOL
Podrá cambiar las opciones de PSM (Modo de ajustes preferidos) listadas en la tabla de las páginas 32 – 34.
1 Introduzca los ajustes PSM.
2 Seleccione una categoría de PSM.
Para visualizar el resto
3 Seleccione una opción de PSM.
También podrá desplazarse al ítem de otras
categorías pulsando repetidamente uno u otro botón.
4 Seleccione o ajuste la opción de PSM
seleccionada.
5 Repita los pasos 2 a 4 para ajustar
las otras opciones de PSM, si fuera necesario.
6 Salga del ajuste.
Continúa en la página siguiente
31AJUSTES
Categoría Indicación Opción
Ajuste, [página de referencia]
( : Inicial)
MOVIE
ESPAÑOL
Demo
Demostración en pantalla
LevelMeter
Medidor de nivel de audio
Clock Disp *
Indicación del reloj
On
: La demostración en pantalla se activará automáticamente
si no se efectúa ninguna operación durante unos 20 segundos, [6].
Off
Meter 1
Meter 2
Meter 3
1
On
: Se cancela.
: Seleccione los diferentes patrones del medidor de nivel.
• Pulse D DISP para que se muestre el medidor de nivel seleccionado.
: El reloj siempre mostrará la hora en la pantalla cuando la
unidad esté apagada.
Off
: Se cancela; al pulsar D DISP el reloj mostrará la hora por unos
5 segundos cuando la unidad esté apagada, [6].
Clock Hr
Ajuste de la hora
1 – 12AM/ 1 – 12PM
: Inicial: 1 (1:00AM), [6].
(0 – 23)
Clock Min
00 – 59 : Inicial: 00 (1:00AM), [6].
Ajuste de los minutos
24H/12H
Modo de
12Hours
24Hours
: Para el ajuste, consulte también la página 6.
visualización de la hora
Clock Adj *
CLOCK
Ajuste del reloj
Auto
: El reloj incorporado se ajustará automáticamente gracias a
los datos de reloj suministrados mediante el canal de radio
2
satelital.
Time Zone *
Zona horaria
2, *3
Off
Alaska,
Pacific,
: Se cancela.
: Para el ajuste del reloj, seleccione su área residencial entre
una de las siguientes zonas horarias.
Mountain, Central, Eastern, Atlantic, Newfound
2, *3
DST *
Hora de verano
1
*
Si la alimentación no se interrumpe al desconectar la llave de encendido de su automóvil, se recomienda seleccionar
On
Off
: El horario de ahorro de luz diurna se activa si su zona
residencial está sujeta a DST.
: Se cancela.
“Off” para economizar batería del automóvil.
*2 Sólo aparece cuando está conectada la radio satelital SIRIUS o XM. *3 Solamente se puede ajustar cuando “Clock Adj” está ajustado a “Auto”. Pulse el botón numérico 1 ( ) para
mostrar la pantalla de ajuste.
32
Categoría Indicación Opción
Ajuste, [página de referencia]
( : Inicial)
4
Scroll *
Desplazamiento
Once
Auto
Off
: La información de la pista se desplaza una sola vez. : El desplazamiento se repite (a intervalos de 5 segundos). : Se cancela. (Si mantiene pulsado D DISP se podrá efectuar
el desplazamiento, independientemente del ajuste).
Dimmer
Atenuador de luminosidad
Auto
Off
On
Time Set
: Al encender los faros, la pantalla se oscurece. : Se cancela. : La iluminación de la pantalla y de los botones se oscurece. : Programe el temporizador para el atenuador de luz, [34]. Cualquier hora – Cualquier hora
5
: Inicial: 6PM – 7AM.
1 – 10
Inicial: 5
Auto
: Ajusta el contraste de la pantalla para que las indicaciones
en pantalla aparezcan claras y legibles.
: Se seleccionarán patrones positivos durante las horas del
6
día *
; mientras que se seleccionarán patrones negativos
DISPLAY
From–To * Contrast
Contraste
LCD Type
Tipo de pantalla
durante la noche *6.
Font Type
Tipo de fuente
Tag
Visualización de etiqueta
IF Band
Banda de frecuencia intermedia
Positive
Negative
1
2
On
Off
Auto
Wide
: Patrón positivo de la pantalla. : Patrón negativo de la pantalla.
: Seleccione el tipo de fuente que desea utilizar en la
pantalla.
: Se visualiza la etiqueta mientras se reproducen pistas MP3/
WMA/AAC/WAV.
: Se cancela
: Aumenta la selectividad del sintonizador para reducir
las interferencias entre emisoras adyacentes. (El efecto estereofónico puede perderse).
: Sujeto a interferencias de las emisoras adyacentes, pero
la calidad del sonido no se degrada y se conserva el efecto estereofónico.
TUNER
AreaChange
Intervalo entre canales del sintonizador
US
EU
: Cuando se utiliza en América del Norte/Central/Sur. Los
intervalos de AM/FM están ajustados a 10 kHz/200 kHz.
: Cuando se utiliza en cualesquier otras áreas. Los intervalos
de AM/FM están ajustados a 9 kHz/50 kHz (100 kHz durante la búsqueda automática).
SA
: Cuando se utiliza en los países de América del Sur donde
el intervalo de FM es 100 kHz. El intervalo de AM está ajustado a 10 kHz.
7
Sirius ID *
SIRIUS ID
4
Algunos caracteres o símbolos no serán mostrados correctamente (o aparecerán en blanco) sobre la pantalla.
*
: Aparece en la pantalla el número de identificación SIRIUS
de 12 dígitos, [23].
*5 Se puede ajustar sólo cuando “Dimmer” está ajustado a “Time Set”. *6 Depende del ajuste de “Dimmer”. *7 Sólo aparece cuando está conectada la radio satelital SIRIUS.
Continúa en la página siguiente
ESPAÑOL
33AJUSTES
Categoría Indicación Opción
( : Inicial)
Ext Input *
Entrada externa
Beep
Tono de pulsación de teclas
AUDIO
Amp Gain
ESPAÑOL
8
Se visualiza sólo cuando se ha seleccionado una de las siguientes fuentes—TUNER, SIRIUS, XM, CD, USB, Bluetooth
*
*9 Depende del ajuste de “Dimmer”.
Control de ganancia del amplificador
Color Sel
Selección del color
Color Set
Ajuste de color
COLOR
Red (Rojo) Green (Verde) Blue (Azul)
Phone, o Bluetooth Audio.
8
Changer
Ext In
On
Off
High PWR
Low PWR
Inicial: All Source
Day Color NightColor 00 – 11 00 – 11 00 – 11
Ajuste, [página de referencia]
: Para usar un cambiador de CD JVC, [21] o un Apple iPod/un
reproductor D. JVC D., [26].
: Para usar cualquier otro componente externo, [28].
: El tono de pulsación de teclas se activa. : El tono de pulsación de teclas se desactiva.
: Volume 00 – Volume 50 : Volume 00 – Volume 30 (Selecciónelo si la potencia
máxima de cada altavoz es de menos de 50 W, con el fin de evitar posibles daños en el altavoz).
: Seleccione su color de visualización favorito para cada
fuente (o para todas las fuentes), [35]
: Cree sus propios colores, y selecciónelos para el color de
visualización, [35].
: Color de usuario durant elas horas del día * : Color de usuario durante las horas de la noche * : Inicial: Day Color: +07, NightColor: +05 : Inicial: Day Color: +07, NightColor: +05 : Inicial: Day Color: +07, NightColor: +05
9
Programe el tiempo del atenuador de luminosidad
• Cuando aparezca en la pantalla, podrá volver a la visualización anterior pulsando el botón numérico 3.
1 Siga los pasos 1 a 3 de la página 31.
• En el paso 2, seleccione “DISPLAY”.
• En el paso 3, seleccione “Dimmer”.
3 Ajuste el tiempo del atenuador de luz.
1 Gire el control giratorio para ajustar el tiempo
del atenuador de luminosidad.
2 Pulse ¢ para seleccionar “To”.
Seguidamente, gire el control giratorio para ajustar el tiempo de fin del atenuador de luminosidad.
.
9
.
2 Seleccione “Time Set”.
34
4 Salga del ajuste.
Cambiando el color de la pantalla
Puede seleccionar su color de visualización preferido para cada fuente (o todas las fuentes).
• Cuando aparezca en la pantalla, podrá volver a la visualización anterior pulsando el botón numérico
3.
*5 Se aplicarán los colores editados por el
usuario—“Day Color” y “NightColor” (para los detalles, véase debajo).
5 Repita los pasos 3 y 4 para seleccionar el
color para cada fuente (excepto cuando se selecciona “All Source” en el paso 3).
Ajustando el color de la pantalla
1 Siga los pasos 1 a 3 de la página 31.
• En el paso 2, seleccione “COLOR”.
• En el paso 3, seleccione “Color Sel”.
2
3 Seleccione una fuente.
All Source *1 Ô CD Ô Changer (o Ext In *2)
3
Ô USB * Ô iPod *
BT Audio Ô (vuelta al comienzo)
*
*2 Depende del ajuste “Ext Input” consulte la página
*3 Se visualiza sólo cuando está conectado el
Ô FM Ô AM Ô SIRIUS *3/XM *3
3
/D.PLAYER *3 Ô BT Phone Ô
1
Cuando selecciona “All Source”, se podrá usar el
mismo color para todas las fuentes.
34.
componente de destino.
4 Seleccione un color.
6 Salga del ajuste.
ESPAÑOL
Creando sus propios colores—User Color
Podrá crear sus propios colores—“Day Color” (color de día) o “NightColor” (color de noche).
1 Siga los pasos 1 a 3 de la página 31.
• En el paso 2, seleccione “COLOR”.
• En el paso 3, seleccione “Color Set”.
2 Seleccione “Day Color” o “NightColor”.
3 Seleccione un color primario.
4 Ajuste el nivel (+00 a +11) del color
primario seleccionado.
Every *4 Ô Aqua Ô Sky Ô Sea Ô Leaves
Ô Grass Ô Apple Ô Rose Ô Amber Ô
Honey Ô Violet Ô Grape Ô Pale Ô User *5 Ô (vuelta al comienzo)
4
*
El color cambia cada 2 segundos.
5 Repita los pasos 3 y 4 para ajustar los
otros colores primarios.
6 Salga del ajuste.
35AJUSTES
Ajustes Bluetooth
Los ajustes listados en la columna derecha se pueden cambiar según sus preferencias.
1 Seleccione “Bluetooth Phone” o
“Bluetooth Audio”.
Menú de ajustes ( : Inicial)
Auto Connect
Al encender la unidad, la conexión se establece
automáticamente con....
Off : Ningún dispositivo Bluetooth. Last: El dispositivo Bluetooth conectado en último
término.
Order: El dispositivo Bluetooth registrado
disponible encontrado en primer lugar.
ESPAÑOL
2 Acceda al menú Bluetooth.
3 Seleccione “Setting”.
4 Seleccione una opción de ajuste.
*1 Aparece sólo cuando se ha conectado un teléfono
Bluetooth.
*2 Aparece sólo cuando se ha conectado un teléfono
Bluetooth que sea compatible con el mensaje de texto.
*3 Bluetooth Audio: Sólo se muestra “Version”.
5 Cambie el ajuste de conformidad.
Auto Answer
Sólo para el dispositivo conectado para “Bluetooth Phone”. Off : La unidad no contesta las llamadas
automáticamente. Contesta la llamada manualmente.
On : La unidad contesta automáticamente las
llamadas entrantes.
Reject: La unidad rechaza todas las llamadas
entrantes.
Message Info
Sólo para el dispositivo conectado para “Bluetooth Phone”. Auto: La unidad le informa la llegada de un
mensaje emitiendo un pitido audible y visualizando “MSG”.
Manual: La unidad no le informa la llegada de un
mensaje.
MIC setting
Sólo para el dispositivo conectado para “Bluetooth Phone”. Ajusta el volumen del micrófono, [Level 01/02/03].
Version
Se muestra la versión del software y hardware Bluetooth.
36
Asignación de títulos
ESPAÑOL
Puede asignar títulos a las frecuencias de las emisoras y a los componentes externos (EXT IN).
Fuentes
Sintonizador FM/AM Hasta 10 caracteres (hasta
Componentes externos (“EXT IN”)
Número máximo de caracteres
30 frecuencias de emisoras, incluyendo FM y AM)
Hasta 8 caracteres
~ Seleccione las fuentes.
• Para el sintonizador FM/AM: Sintonice una
emisora.
• Para el componente externo: Seleccione “EXT
IN” (consulte la página 28).
Ÿ
Muestre la pantalla de entrada de título.
! Asigne un título.
1 Pulse repetidamente el botón numérico 4
( ) para seleccionar un conjunto de caracteres.
2 Gire el control giratorio para seleccionar un
carácter.
3 Utilice 4/¢ para desplazarse a
la posición del carácter siguiente (o anterior).
4 Repita los pasos 1 a 3 hasta que termine
de introducir el título.
Guarde el título.
Para borrar el título entero
En el paso ! de la izquierda...
Caracteres disponibles
Mayúsculas
Minúsculas
Números y símbolos
37AJUSTES
Mantenimiento
Cómo limpiar los conectores
Un desmontaje frecuente producirá el deterioro de los conectores. Para reducir esta posibilidad al mínimo, limpie periódicamente los conectores con un palillo de algodón, teniendo cuidado de no dañar los conectores.
Para mantener los discos limpios
Un disco sucio podría no reproducirse correctamente. Si se llegara a ensuciar un disco, límpielo con un lienzo suave, en línea recta desde el centro hacia el borde.
• No utilice ningún tipo de solvente (por ejemplo, limpiador de discos convencional, pulverizadores, diluyente, bencina, etc.) para limpiar los discos.
ESPAÑOL
Conector
Condensación de humedad
Podría condensarse humedad en el lente del interior de la unidad, en los siguientes casos:
• Después de encender el calefactor del automóvil.
• Si hay mucha humedad en el habitáculo. Si se produce condensación, la unidad podría no funcionar correctamente. En este caso, saque el disco y deje el receptor encendido durante algunas horas hasta que se evapore la humedad.
Cómo manejar los discos
Cuando saque un disco de su estuche, presione el sujetador
central del estuche y extraiga el disco hacia arriba, agarrándolo por los bordes.
• Siempre sujete el disco por sus bordes. No toque la superficie de grabación.
Cuando guarde un disco en su estuche, insértelo suavemente alrededor del sujetador central (con la superficie impresa hacia arriba).
• Asegúrese de guardar los discos en sus estuches después del uso.
Sujetador central
Para reproducir discos nuevos
Los discos nuevos podrían presentar ciertas irregularidades en sus bordes interior y exterior. Si intenta utilizar un disco en tales condiciones, el receptor podría rechazar el disco. Elimine las irregularidades raspando los bordes con un lápiz o bolígrafo, etc.
No utilice los siguientes discos:
Disco alabeado
Pegatina
Restos de pegatina
Rótulo autoadhesivo
Forma irregular
CD simple— disco de 8 cm (3-3/16 pulgada)
38
Más sobre este receptor
General
Conexión de la alimentación
• También es posible conectar la alimentación pulsando SRC en el receptor. Si está preparada la fuente, también se iniciará la reproducción.
Apagado de la unidad
Si apaga la unidad mientras está escuchando un disco, la reproducción del disco se iniciará desde donde la detuvo la próxima vez que encienda la unidad.
FM/AM
Cómo almacenar emisoras en la memoria
• Durante la búsqueda SSM... – Las emisoras recibidas quedan preajustadas en
los botones No 1 (frecuencia más baja) a No 6 (frecuencia más alta).
– Cuando finalice el SSM, se sintonizará
automáticamente la emisora almacenada en el botón No 1.
• Cuando se almacenan las emisoras, las emisoras preaustadas anteriores se borran y se memorizan las emisoras nuevas.
Disco/USB
Precaución sobre la reproducción de DualDisc
• El lado no DVD de un “DualDisc” no es compatible con la norma “Compact Disc Digital Audio”. Por consiguiente, no se recomienda usar el lado no DVD de un DualDisc en este producto.
General
• Este receptor ha sido diseñado para reproducir discos CDs/CD Texts, y CD-Rs (Grabables)/CD-RWs (Reescribibles) en formato de audio CD (CD-DA), MP3/WMA/AAC.
• Cuando se inserta un disco al revés, aparecerá “Please Eject” en la pantalla. Pulse 0 para sacar el disco.
• Durante el avance rápido o el retroceso de un disco MP3/WMA/AAC, podrá escuchar sólo sonidos intermitentes.
• En este manual, las palabras “pista” y “archivo” se utilizan indistintamente.
• La lista de carpetas/archivos puede no aparecer correctamente cuando se utilizan demasiadas jerarquías y carpetas.
• Si no saca el disco expulsado en el lapso de 15 segundos, será reinsertado automáticamente en la ranura de carga para protegerlo contra el polvo. La reproducción se inicia automáticamente.
• Después de expulsar un disco o de retirar un dispositivo USB, aparece “No Disc” o “No USB” y algunos botones quedan inoperantes. Inserte otro disco, reinstale un dispositivo USB, o pulse SRC para seleccionar otra fuente de reproducción. Este receptor no puede reproducir los siguientes archivos:
– Archivos MP3 codificados con formato MP3i y MP3
PRO.
– Archivos MP3 codificados en un formato
inapropiado. – Archivos MP3 codificados con Layer 1/2. – Archivos WMA codificados con formatos sin
pérdida, profesional, y de voz. –
Archivos WMA no basados en Windows Media® Audio. – Archivos formateados WMA protegidos contra
copia por DRM. – Archivos AAC creados por cualquier otra aplicación
distinta de iTunes. – Archivos AAC codificados con el formato Apple
Lossless. – Archivos que disponen de datos tales como AIFF,
ATRAC3, etc.
Reproducción de un CD-R o CD-RW
• Utilice sólo CD-Rs o CD-RWs “finalizados”.
• Si un disco incluye tanto archivos CD de audio (CD-
DA) como archivos MP3/WMA/AAC, esta unidad sólo podrá reproducir los archivos del mismo tipo que fueron detectados en primer término.
• Este receptor puede reproducir discos multisesión;
no obstante, las sesiones no cerradas serán omitidas durante la reproducción.
• Puede suceder que algunos discos CD-Rs o CD-RWs
no se puedan reproducir en esta unidad debido a las características propias de los mismos, o por uno de los
siguientes motivos: – Los discos están sucios o rayados. – Ha ocurrido condensación de humedad en la lente
del interior del receptor.
Suciedad en el lente captor del interior del receptor.
– CD-R/CD-RW con archivos escritos mediante el
método “Packet Write”.
– Las condiciones inadecuadas de grabación (datos
faltantes, etc.), o del medio (manchas, arañazos, alabeo, etc.).
• Los CD-RWs pueden requerir un tiempo de lectura
mayor debido a que la reflectancia de los CD-RWs es
menor que la de los CDs regulares.
Continúa en la página siguiente
39REFERENCIAS
ESPAÑOL
• No utilice los CD-Rs o CD-RWs siguientes: – Discos con pegatinas, etiquetas o un sello de
protección adheridos a la superficie.
– Discos en los cuales las etiquetas pueden
imprimirse directamente mediante una impresora de chorro de tinta.
El uso de estos discos a temperaturas o humedad
elevadas podría producir fallos de funcionamiento o daños a la unidad.
Reproducción de discos MP3/WMA/AAC
• Este receptor puede reproducir solamente archivos MP3/WMA/AAC con el código de extensión <.mp3>,
ESPAÑOL
<.wma> o <.m4a> (sin distinción de caja— mayúsculas/minúsculas).
• Esta unidad puede mostrar los nombres de los álbumes, artistas (ejecutantes), y etiqueta ID3 (Versión 1,0, 1,1, 2,2, 2,3, ó 2,4)) para archivos MP3 y mostrar la etiqueta WMA/AAC.
• Esta unidad puede manejar solamente caracteres de un byte. Otros caracteres no serán visualizados correctamente.
• Este receptor puede reproducir archivos MP3/WMA/ AAC que cumplan con las siguientes condiciones:
– Velocidad de bits de MP3: 32 kbps — 320 kbps – Frecuencia de muestreo de MP3: 48 kHz, 44,1 kHz, 32 kHz (para MPEG-1) 24 kHz, 22,05 kHz, 16 kHz (para MPEG-2) – Velocidad de bits de WMA: 32 kbps — 192 kbps – Velocidad de bits de AAC: 16 kbps — 320 kbps – Frecuencia de muestreo de AAC: 48 kHz, 44,1 kHz – Formato del disco: ISO 9660 Level 1/Level 2,
Romeo, Joliet, nombre de archivo largo de Windows
• El número máximo de caracteres para los nombres de archivo/carpeta varía según el formato de disco usado (incluye extensión de 4 caracteres—<.mp3>, <.wma> o <.m4a>).
– ISO 9660 Level 1: hasta 12 caracteres – ISO 9660 Level 2: hasta 31 caracteres – Romeo*: hasta 128 (60) caracteres – Joliet*: hasta 64 (30) caracteres – Nombre de archivo largo de Windows*: hasta 128
(60) caracteres
* La cifra entre paréntesis corresponde al número
máximo de caracteres para los nombres de archivo/ carpeta en el caso de que el número total de archivos y carpetas sea de 271 o más.
• Esta unidad puede reconocer un total de 512 archivos, 200 carpetas, y 8 jerarquías.
40
• Este receptor puede reproducir archivos grabados en VBR (velocidad variable de bits).
Los archivos grabados en VBR presentan una
discrepancia en la visualización del tiempo transcurrido, y no muestran el tiempo transcurrido real. Especialmente, esta diferencia se vuelve más notable después de efectuar la función de búsqueda.
• La función de búsqueda funciona pero la velocidad de búsqueda no es constante.
Reproducción de pistas MP3/WMA/AAC/WAV desde un dispositivo USB
• La conexión de un dispositivo USB hace que la fuente cambie automáticamente a “USB”.
• Mientras se reproduce desde un dispositivo USB, el orden de reproducción puede ser diferente de otros reproductores.
• Puede suceder que esta unidad no pueda reproducir algunos dispositivos USB o algunos archivos debido a sus características o a las condiciones de grabación.
• Dependiendo la forma de los dispositivos USB y de los puertos de conexión, puede suceder que algunos de ellos no puedan conectarse correctamente o que haya flojedad en la conexión.
• Cuando conecte un dispositivo de clase de almacenamiento masivo USB, consulte también sus correspondientes instrucciones.
• Conecte a la unidad un solo dispositivo de clase de almacenamiento masivo USB por vez. No utilice un hub USB.
• Puede conectar dos tipos de dispositivos USB a esta unidad—dispositivo MTP y dispositivo de clase de almacenamiento masivo.
Si conecta a esta unidad un dispositivo MTP que
cuenta con “USB digital media streaming” (excepto el reproductor D. XA-HD500 de JVC) podrá reproducir, a través de la misma, archivos WMA-DRM10 (Gestión de derechos digitales) adquiridos a través de sitios web de distribución musical.
• Esta unidad es compatible con USB Full-Speed.
• Si el dispositivo USB conectado no contiene archivos apropiados, aparecerá “No File”.
• Esta unidad puede mostrar la etiqueta ID3 (Versión 1,0, 1,1, 2,2, 2,3, ó 2,4) para MP3 y la etiqueta WMA/ AAC/WAV.
Este receptor puede reproducir archivos MP3/WMA/ AAC/WAV que cumplan con las siguientes condiciones:
MP3: – Velocidad de bit: 8 kbps — 320 kbps – Frecuencia de muestreo: 48 kHz, 44,1 kHz, 32 kHz (para MPEG-1) 24 kHz, 22,05 kHz, 16 kHz (para MPEG-2)
WMA: – Velocidad de bit: 5 kbps — 320 kbps – Frecuencia de muestreo: 8 kHz — 48 kHz – Canal: Mono/estéreo AAC: – Velocidad de bit: 16 kbps — 320 kbps – Frecuencia de muestreo: 48 kHz, 44,1 kHz – Canal: 1 ch/2 ch WAV:
Velocidad de bit: PCM lineal a 705 kbps y 1 411 kbps
– – Frecuencia de muestreo: 44,1 kHz – Canal: 1 ch/2 ch
• Esta unidad puede reproducir archivos MP3 grabados en VBR (velocidad de bit variable).
• El número máximo de caracteres para los nombres de carpetas y de archivos es de 25; y de 128 caracteres para la etiqueta MP3/WMA/WAV.
• Esta unidad puede reconocer un total de 50 000 archivos y 5 000 carpetas (999 archivos por carpeta). No obstante, la pantalla puede mostrar hasta 9 999 carpetas/archivos.
• La unidad no puede reconocer ningún dispositivo de clase de almacenamiento masivo USB con un régimen distinto de 5 V y que no exceda de 500 mA.
• Puede suceder que esta unidad no pueda reconocer un dispositivo USB conectado a través de un lector de tarjetas USB.
• Puede suceder que esta unidad no pueda reproducir correctamente archivos en un dispositivo USB cuando se utilice un cable prolongador USB.
• Esta unidad no puede asegurar un correcto funcionamiento o suministro de alimentación a todos los tipos de dispositivos USB.
Operaciones Bluetooth
General
• Absténgase de realizar actividades complicadas mientras conduce, como por ejemplo, marcar números, utilizar la guía telefónica, leer mensajes de texto, etc.
Cuando tenga que realizar tales actividades, detenga
el coche en un lugar seguro.
• Dependiendo de la versión de Bluetooth, puede suceder que algunos dispositivos Bluetooth no se puedan conectar a esta unidad.
• Esta unidad podría no funcionar con algunos dispositivos Bluetooth.
• Las condiciones de conexión pueden variar según las circunstancias.
• El dispositivo se desconecta al apagar la unidad.
Iconos para los tipos de teléfonos
Estos iconos indican el tipo de entradas de números telefónicos de Phonebook (Guía telefónica).
: Teléfono celular : Sólo Teléfono
: Teléfono del
hogar
: Oficina : Sólo audio
: General : Desconocido
: Excepto lo de
arriba
Estos iconos indican el tipo de teléfono/dispositivos de audio conectados:
: Teléfono/audio
Mensajes de advertencia para las operaciones Bluetooth
Connection Error
Error Intente la operación otra vez. Si aparece
Device not found
Loading... La unidad está actualizando la guía
Please Wait...
El dispositivo está registrado pero ha fallado la conexión. Utilice “Connect” para volver a conectar el dispositivo. (Consulte la página 15.)
“Error” otra vez, revise si el dispositivo admite la función que ha intentado realizar.
No se ha detectado ningún dispositivo Bluetooth disponible mediante “Search”.
telefónica, el historial de llamadas (remarcación, llamadas perdidas, recibidas) y/o mensaje de texto.
La unidad se está preparando para usar la función Bluetooth. Si el mensaje no desaparece, apague y encienda la unidad y, a continuación, vuelva a conectar el dispositivo (o reinicialice la unidad).
Continúa en la página siguiente
41REFERENCIAS
ESPAÑOL
Operaciones de la radio satelital
• También puede conectar la radio SIRIUS PnP (Plug and Play) de JVC con el adaptador de radio SIRIUS KS-U100K de JVC (no suministrado) a la toma del cambiador de CD, situada en la parte trasera.
Al apagar o encender el receptor, también se apaga o
enciende la radio PnP de JVC. Sin embargo, no podrá controlarse desde este receptor.
• Para obtener más información sobre la radio satelital SIRIUS o para suscribirse, visite el sitio web<http:// www.sirius.com>.
• Para obtener las listas de canales y la información sobre los programas más recientes, o para suscribirse
ESPAÑOL
a la radio satelital XM, visite el sitio web <http:// www.xmradio.com>.
iPod o reproductor D.
• Al encender esta unidad, el iPod o el reproductor D. se carga a través de esta unidad.
• Todas las operaciones realizadas por el iPod o el reproductor D. se inhabilitarán mientras se encuentre conectado el iPod o el reproductor D. Realice todas las operaciones desde esta unidad.
• La información de texto podría no visualizarse correctamente.
• Si la información de texto incluye más de 16 caracteres, será desplazada en la pantalla. Esta unidad puede visualizar hasta un máximo de 40 caracteres.
Localización de averías
Nota:
Cuando opere un iPod o un reproductor D., algunas operaciones podrían no ejecutarse correctamente o en la forma intentada. En tal caso, visite el siguiente sitio web de JVC: Para usuarios de iPod: <http://www.jvc.co.jp/
english/car/support/ks-pd100/index.html>
Para los usuarios del reproductor D.: <http://
www.jvc.co.jp/english/car/support/ ks-pd500/index.html>
Configuraciones generales — PSM
• En algunos vehículos, puede suceder que el ajuste “Auto” para “Dimmer” no se efectúe correctamente, especialmente en aquellos que disponen de un control giratorio para la atenuación de luz.
En este caso, cambie el ajuste “Dimmer” a cualquier
otra opción distinta de “Auto”.
• Si “LCD Type” se ajusta a “Auto”, el patrón de la pantalla cambiará a patrón “Positive” o “Negative”, dependiendo del ajuste “Dimmer”.
• Si usted cambia la configuración “Amp Gain” de “High PWR” a “Low PWR” mientras el nivel de volumen está ajustado a más de “Volume 30”, el receptor cambiará automáticamente el nivel de volumen a “Volume 30”.
Lo que aparenta ser una avería podría resolverse fácilmente. Verifique los siguientes puntos antes de llamar al centro de servicio.
Síntoma Soluciones/Causas
• No se puede escuchar elsonido a través de los altavoces.
• El receptor no funciona en absoluto. Reinicialice el receptor (consulte la página 3).
General
• Aparece “Connect Error” en la pantalla. Retire el panel de control, limpie el conector, y vuélvalo a
• El preajuste automático SSM no funciona. Almacene manualmente las emisoras.
• Ruidos estáticos mientras se escucha la radio. Conecte firmemente la antena.
FM/AM
• Ajuste el volumen al nivel óptimo.
• Inspeccione los cables y las conexiones.
instalar (consulte la página 4 ).
42
Síntoma Soluciones/Causas
• No se puede reproducir el disco. Inserte correctamente el disco.
• No se puede reproducir el CD-R/CD-RW.
• No se pueden saltar las pistas del CD-R/CD-RW.
• No es posible reproducir ni expulsar el disco. • Desbloquee el disco (consulte la página 11).
• El disco no puede ser reconocido (parpadea “No Disc”, “Loading Error” o “Eject Error”).
Discos en general
• Algunas veces el sonido del disco se interrumpe.
• Aparece “Please Eject” en la pantalla. Esto sucede a veces debido a recalentamiento. Expulse el
• No se puede reproducir el disco. • Utilice un disco con pistas MP3/WMA/AAC grabadas en
• Se generan ruidos. Salte a otra pista o cambie el disco. (No añada el código de
• Se requiere mayor tiempo de lectura (“File Check” permanece parpadeando en la pantalla).
• Las pistas no se reproducen en el orden de reproducción intentado por usted.
MP3/WMA/AAC
• El tiempo de reproducción transcurrido no escorrecto.
• Aparece “Please Eject” en la pantalla. Inserte un disco que contenga pistas MP3/WMA/AAC.
• Aparece “Not Support” en la pantalla y se omiten las pistas.
• No se visualizan los caracteres correctos (por ej.: nombre del álbum).
• Inserte un CD-R/CD-RW finalizado.
• Finalice el CD-R/CD-RW con el componente utilizado para la grabación.
• Efectúe la expulsión forzada del disco (consulte la página
3).
Efectúe la expulsión forzada del disco (consulte la página 3).
• Detenga la reproducción mientras conduce por caminos accidentados.
• Cambie el disco.
• Inspeccione los cables y las conexiones.
disco o cambie a otra fuente de reproducción.
un formato compatible con ISO 9660 Nivel 1, Nivel 2, Romeo o Joliet.
• Añada el código de extensión <.mp3>, <.wma>, <.m4a> a los nombres de archivos.
extensión <.mp3>, <.wma> o <.m4a> a pistas que no sean MP3/WMA/AAC).
No utilice demasiadas jerarquías y carpetas.
Se ha determinado el orden de reproducción durante la grabación de los archivos.
Esto sucede a veces durante la reproducción. Esto depende de cómo fueron grabadas las pistas en el disco.
Vaya a la siguiente pista codificada en un formato apropiado o a la siguiente pista WMA no protegida contra la copia.
Esta unidad sólo puede visualizar letras (mayúsculas: A – Z, minúsculas: a – z), números, y un número limitado de símbolos (consulte la pagina 37).
ESPAÑOL
Continúa en la página siguiente
43REFERENCIAS
Síntoma Soluciones/Causas
• Se generan ruidos. • La pista reproducida no es de un formato de archivo reproducible (MP3/WMA/AAC/WAV). Salte a otro archivo.
• No añada el código de extensión <.mp3>, <.wma>, <.m4a> o <.wav> a pistas que no sean MP3/WMA/ AAC/WAV.
• Las pistas no se reproducen de la manera intentada por usted.
• “File Check” permanece parpadeando en la
ESPAÑOL
pantalla.
• “No Files” parpadea en la pantalla.
• Aparece “No USB” en la pantalla.
Dispositivo USB
• Aparece “Not Support” en la pantalla y se omiten las pistas.
• Aparece “Read Failed” en la pantalla y, a continuación, vuelve a la fuente anterior.
• No se visualizan los caracteres correctos (por ej.: nombre del álbum).
• El sonido se interrumpe algunas veces mientras se reproduce una pista.
• El sonido se interrumpe u omite durante la reproducción de un dispositivo USB.
El orden de reproducción puede ser diferente del orden empleado con otros reproductores.
• El tiempo de lectura varía según el dispositivo USB.
• No utilice demasiadas jerarquías, carpetas y carpetas vacías.*
• Apague la unidad y vuélvala a encender.
• No extraiga ni conecte repetidamente el dispositivo USB mientras “File Check” esté visualizado en la pantalla.
* Carpeta que está físicamente vacía o que contiene datos,
pero que no contiene pistas MP3/WMA/AAC/WAV válidas.
Conecte un dispositivo USB que contenga pistas codificadas en el formato apropiado.
La pista no se puede reproducir.
El dispositivo USB conectado puede estar defectuoso, o incorrectamente formateado. Los archivos incluidos en el dispositivo USB están dañados.
Para los caracteres disponibles, consulte la página 37.
Las pistas no han sido correctamente copiadas en el dispositivo USB. Copie otra vez las pistas en el dispositivo USB, e intente de nuevo.
• Apague la unidad y vuélvala a encender.
• (Cuando el sonido no se haya restaurado), vuelva a conectar el dispositivo.
44
Síntoma Soluciones/Causas
• El dispositivo Bluetooth no detecta la unidad. La unidad sólo se puede conectar con un teléfono celular Bluetooth y un dispositivo de audio Bluetooth por vez. Mientras se está conectando un dispositivo, esta unidad no puede ser detectada por otro dispositivo. Desconecte el dispositivo conectado actualmente y repita la búsqueda.
• El dispositivo Bluetooth no es detectado por la
unidad.
• La unidad no puede realizar apareamiento con
el dispositivo Bluetooth.
Bluetooth
• Hay eco o ruidos. Ajuste la posición de la unidad del micrófono.
• La calidad del sonido telefónico es mala. • Reduzca la distancia entre la unidad y el dispositivo de
• El sonido se interrumpe u omite durante
la reproducción de un dispositivo de audio Bluetooth.
• No se puede controlar el dispositivo de audio
conectado.
• Verifique el ajuste Bluetooth del dispositivo.
• Efectúe la búsqueda desde el dispositivo Bluetooth.
Después que el dispositivo detecte la unidad, seleccione “Open...” en la unidad para conectarlo. (Consulte la página 14.)
• Ingrese el mismo código PIN para la unidad y el
dispositivo objetivo. Si el código PIN del dispositivo no se encuentra indicado en sus instrucciones, intente con “0000” o “1234”.
• Seleccione el nombre del dispositivo en “Special Device”
y, a continuación, intente la conexión otra vez. (Consulte la página 15.)
• Intente aparear/conectar desde el dispositivo Bluetooth.
• Compruebe que su dispositivo Bluetooth sea compatible
con el perfil respectivo. (Consulte la página 13.)
audio Bluetooth.
• Mueva el coche a un lugar donde pueda mejorar la
recepción de la señal.
• Reduzca la distancia entre la unidad y el dispositivo de
audio Bluetooth.
• Desconecte el dispositivo conectado para “Bluetooth
Phone”.
• Apague la unidad y vuélvala a encender.
• (Cuando el sonido no se haya restaurado), vuelva a
conectar el dispositivo.
Revise si el dispositivo de audio conectado es compatible con AVRCP (Perfil de control remoto de audio vídeo).
ESPAÑOL
Continúa en la página siguiente
45REFERENCIAS
Síntoma Soluciones/Causas
• Aparece “No Disc” en la pantalla. Inserte el disco en el cargador.
• Aparece “No Magazine” en la pantalla. Inserte el cargador.
• Aparece “Reset 08” en la pantalla. Conecte correctamente este receptor y el cambiador de CD
• Aparece “Reset 01” – “Reset 07” en la
Cambiador de CD
pantalla.
• El cambiador de CD no funciona en absoluto. Reinicialice el receptor (consulte la página 3).
• El texto “CALL 1-888-539-SIRIUS TO
ESPAÑOL
SUBSCRIBE” (llame al 1-888-539-SIRIUS para suscribirse) se desplaza por la pantalla mientras escucha la radio SIRIUS.
• El sonido no se escucha. Aparece “Channel Updating XX%* Completed” en la pantalla.
• El texto “No Signal” se desplaza o “NO SIGNAL” aparece en la pantalla.
• El texto “No Antenna” se desplaza o “CHECK ANTENNA” aparece en la pantalla.
• Aparece “Invalid Channel” en la pantalla durante unos 5 segundos y, a continuación, vuelve a aparecer la visualización anterior mientras se escucha la radio SIRIUS Satellite.
• “No Name” aparece o se desplaza en la pantalla mientras se escucha la radio por satélite SIRIUS.
• La señal “---” aparece en la pantalla mientras
Radio satelital
escucha la radio satelital XM.
• La señal “---” aparece en la pantalla durante 2 segundos y después vuelve al canal anterior mientras escucha la radio satelital XM.
• La señal “OFF AIR” aparece en la pantalla mientras escucha la radio satelital XM.
• La señal “LOADING” aparece en la pantalla mientras escucha la radio satelital XM.
• Aparece “Reset 08” en la pantalla. El receptor está cargando la información del canal y
• La radio satelital no funciona. Vuelva a conectar correctamente esta unidad y la radio por
* Cambia cada vez que finaliza 20% de actualización (p.ej. 20%, 40%, 60%).
y pulse el botón de reinicialización del cambiador de CD. Pulse el botón de reinicialización del cambiador de CD.
Se inicia la suscripción a la radio satelital SIRIUS (consulte la página 23).
El receptor está actualizando la información de canal y tarda algunos minutos en finalizar.
Muévase hacia un área donde las señales sean más fuertes.
Conecte firmemente la antena.
No hay transmisión en el canal seleccionado. Seleccione otro canal o continúe escuchando el canal anterior.
No hay información de texto para el canal seleccionado.
El canal seleccionado ya no está disponible o no está autorizado. Seleccione otro canal o continúe escuchando el canal anterior.
El canal seleccionado no está emitiendo en ese momento.
Seleccione otro canal o continúe escuchando el canal anterior.
el audio. La información de texto no está disponible temporalmente.
satélite y, a continuación, reinicialice la unidad.
46
Síntoma Soluciones/Causas
• El iPod o el reproductor D. no se enciende o no funciona.
• El sonido está distorsionado. Desactive el ecualizador en esta unidad o en el iPod/
• Aparece “Disconnect” en la pantalla. • Verifique el cable de conexión y su conexión.
• La reproducción se detiene. Los auriculares están desconectados durante la
• No se escucha ningún sonido al conectar un iPod nano.
• El sonido no se escucha.
• Aparece “Error 01” en la pantalla al conectar
iPod/Reproductor D.
un reproductor D.
• Aparece “No File” o “No Track” en la pantalla. No hay pistas almacenadas. Importe pistas al iPod o
• Aparece “Reset 01” – “Reset 07” en la pantalla.
• Aparece “Reset 08” en la pantalla. Verifique la conexión entre el adaptador y esta unidad.
• Los controles del iPod o del reproductor D. no funcionarán después de desconectarlo de esta unidad.
• Verifique el cable de conexión y su conexión.
• Actualice la versión de firmware.
• Cargue la pila.
reproductor D.
• Cargue la pila.
reproducción. Vuelva a iniciar la operación de reproducción (consulte la página 26).
• Desconecte los auriculares del iPod nano.
• Actualice la versión de firmware del iPod nano. Desconecte el adaptador del reproductor D. Seguidamente,
vuélvalo a conectar.
reproductor D. Desconecte el adaptador de la unidad y del iPod/
reproductor D. Seguidamente, vuélvalo a conectar.
Reinicialice el iPod o el reproductor D.
ESPAÑOL
• Microsoft y Windows Media son marcas registradas o bien marcas comerciales de Microsoft Corporation en los Estados Unidos y/u otros países.
• “SIRIUS” y el logo del perro de SIRIUS son marcas comerciales registradas de SIRIUS Satellite Radio Inc.
• XM y los logos correspondientes son marcas comerciales registradas de XM Satellite Radio Inc.
• “SAT Radio”, el logo de SAT Radio y todas las demás marcas relacionadas son marcas comerciales de SIRIUS Satellite Radio Inc. y de XM Satellite Radio, Inc.
• iPod es una marca comercial de Apple Inc., registrada en los EE.UU. y otros países.
• La marca Bluetooth y sus logotipos son propiedad de Bluetooth SIG, Inc., y cualquier uso de los mismos por Victor Company of Japan, Limited (JVC) se realiza bajo licencia. Otras marcas y nombres comerciales son de sus respectivos propietarios.
47REFERENCIAS
Especificaciones
Salida de potencia: 20 W RMS × 4 canales a 4 Ω y ≤ 1% THD+N
Relación señal a ruido: 80 dBA (referencia: 1 W en 4 Ω)
Impedancia de carga: 4 Ω (tolerancia de 4 Ω a 8 Ω)
Gama de control de tono: Baja: ±12 dB (60 Hz, 80 Hz, 100 Hz, 200 Hz)
ESPAÑOL
Respuesta de frecuencias: 40 Hz a 20 000 Hz
Nivel/impedancia salida línea: 2,5 V/20 kΩ de carga (plena escala)
Impedancia de salida: 1 kΩ
SECCIÓN DEL AMPLIFICADOR DE AUDIO
Nivel/impedancia salida subwoofer: 4,0 V/20 kΩ de carga (plena escala)
Otro terminal: Cambiador de CD, Entrada remota en el volante de dirección, MIC, terminal de
Mediana: ±12 dB (500 Hz, 1 kHz, 1,5 kHz, 2,5 kHz)
Alta: ±12 dB (10 kHz, 12,5 kHz, 15 kHz, 17,5 kHz)
entrada USB, entrada de antena
Gama de frecuencias: FM: con el intervalo entre canales
ajustado a 100 kHz o 200 kHz:
con el intervalo entre canales ajustado a 50 kHz:
AM: con el intervalo entre canales
ajustado a 10 kHz:
con el intervalo entre canales ajustado a 9 kHz:
Sintonizador de FM: Sensibilidad útil: 11,3 dBf (1,0 μV/75 Ω)
50 dB sensibilidad de silenciamiento: 16,3 dBf (1,8 μV/75 Ω)
SECCIÓN DEL SINTONIZADOR
Sintonizador de AM: Sensibilidad: 20 μV
Selectividad de canal alternativo (400 kHz): 65 dB
Respuesta de frecuencias: 40 Hz a 15 000 Hz
Separación estereofónica: 30 dB
Selectividad: 35 dB
87,5 MHz a 107,9 MHz
87,5 MHz a 108,0 MHz
530 kHz a 1 710 kHz
531 kHz a 1 602 kHz
48
Tipo: Reproductor de discos compactos Sistema de detección de señal: Captor óptico sin contacto (láser semiconductor) Número de canales: 2 canales (estereofónicos) Respuesta de frecuencias: 5 Hz a 20 000 Hz Rango dinámico/Relación señal a ruido: 96 dB/98 dB Lloro y trémolo: Inferior al límite medible Formato de decodificación MP3: (MPEG1/2 Audio Layer 3) Formato de decodificación WMA (Windows Media® Audio):
SECCIÓN DEL REPRODUCTOR DE CD
Formato de Decodificación AAC (Codificación Audio Avanzada):
Normas USB: USB 1,1 Velocidad de transferencia de
datos Dispositivo compatible: Clase de almacenamiento masivo Sistema de archivo compatible: FAT 32/16/12
DISPOSITIVO USB
Formato de audio reproducible: MP3/WMA/AAC/WAV Corriente máx.: Menos de 500 mA/5 V
Versión: Bluetooth 1,2 certified Potencia de salida: Máx. +4 dBm (Clase de potencia 2) Área de servicio: 10 m Perfil: HSP (Headset Profile—Perfil Auricular), HFP (Hands-Free Profile—
BLUETOOTH
Toda velocidad: Baja velocidad:
Perfil manos libres), A2DP (Advanced Audio Distribution Profile— Perfil Avanzado de Distribución de Audio), AVRCP (Audio/Video Remote Control Profile—Perfil de Control Remoto de Audio/Video), SPP (Serial Port Profile—Perfil de Puerto Serie), OPP (Object Push Profile—Perfil de carga de objetos)
Máx. velocidad de bits: 320 kbps Máx. velocidad de bits: 192 kbps Máx. velocidad de bits: 320 kbps
Máximo 12 Mbps Máximo 1,5 Mbps
ESPAÑOL
Requisitos de potencia: Voltaje de
Sistema de puesta a tierra: Negativo a masa Temperatura de funcionamiento admisible: 0°C a +40°C (32°F a 104°F) Dimensiones (An × Al × Pr):
(aprox.)
GENERAL
Peso: 1,4 kg (3,1 lbs) (excluyendo accesorios)
El diseño y las especificaciones se encuentran sujetos a cambios sin previo aviso.
Si necesita un kit para su automóvil, consulte su directorio telefónico para buscar la tienda especializada en car audio más cercana.
funcionamiento:
Tamaño de instalación:
Tamaño del panel:
14,4 V CC (tolerancia de 11 V a 16 V)
182 mm × 52 mm × 158 mm (7-3/16 pulgada × 2-1/16 pulgada × 6-1/4 pulgada)
188 mm × 58 mm × 12 mm (7-7/16 pulgada × 2-5/16 pulgada × 1/2 pulgada)
49REFERENCIAS
Merci pour avoir acheté un produit JVC.
Veuillez lire attentivement toutes les instructions avant d’utiliser l’appareil afin de bien comprendre son
fonctionnement et d’obtenir les meilleures performances possibles.
FRANÇAIS
Précautions:
Tout changement ou modification non approuvés par JVC peut annuler l’autorité de l’utilisateur d’utiliser l’appareil.
IMPORTANT POUR PRODUITS LASER
1. PRODUIT LASER CLASSE 1
2. ATTENTION: N’ouvrez pas le couvercle supérieur. Il n’y a aucune pièce réparable par l’utilisateur à l’intérieur de l’appareil; confiez toute réparation à un personnel qualifié.
3. ATTENTION: (Pour les Etats-Unis) Radiation laser de classe II visibles et/ou invisible si l’appareil est ouvert. Ne
regardez pas le rayon.
(Pour le Canada) Rayonnement laser visible et/ou invisible de classe 1 M une fois ouvert. Ne
pas regarder directement avec des instruments optiques.
4. REPRODUCTION DE L’ÉTIQUETTE: ÉTIQUETTE DE PRÉCAUTION PLACÉE À L’EXTÉRIEUR DE L’APPAREIL.
[Union européenne seulement]
2
Comment réinitialiser votre appareil
Comment utiliser les touches M MODE et SEL
Si vous utilisez M MODE ou SEL (sélection), l’affichage et certaines commandes (telles que les touches numériques, les touches 4/¢ les
5/ et la molette de commande) entrent
touches dans le mode de commande correspondant.
• Vous ajustements préréglés sont aussi effacés (sauf
le périphérique Bluetooth enregistré, voir page 14).
Comment forcer l’éjection d’un disque
“Please Eject” apparaît sur l’affichage.
• Faites attention de ne pas faire tomber le disque
quand il est éjecté.
• Si cela ne fonctionne pas, essayez de réinitialiser
l’autoradio.
Pour sécurité...
• N’augmentez pas trop le volume car cela bloquerait les sons de l’extérieur rendant la conduite dangereuse.
• Arrêtez la voiture avant de réaliser toute opération compliquée.
Ex.: Quand vous appuyez sur la touche numérique
1 après avoir appuyez sur M MODE, pour commander le tuner FM.
FRANÇAIS
Fonctionne comme indicateur de compte à rebours.
Pour utiliser de nouveau ces commandes pour les fonctions originales, attendez 15 secondes (ou 30 secondes pour les sources Bluetooth) sans appuyer sur aucune touche jusqu’à ce que la commande soit annulée.
• Appuyez de nouveau sur M MODE pour rétablir les fonctions originales. Cependant, appuyer sur SEL fait entrer l’appareil dans un mode différent.
Température à l’intérieur de la voiture...
Si votre voiture est restée garée pendant longtemps dans un climat chaud ou froid, attendez que la température à l’intérieur de la voiture redevienne normale avant d’utiliser l’appareil.
3
Retrait du panneau de commande
Attention:
Si la température à l’intérieur de la voiture est inférieure à 0°C (32°F), le mouvement des animations et le défilement des textes sur l’affichage sont interrompus pour éviter que l’affichage devienne flou. apparaît sur l’affichage. Quand la température augmente et atteint de nouveau la température de fonctionnement, ces fonctions sont de nouveau accessibles.
Fixation du panneau de commande
FRANÇAIS
ATTENTION:
Le levier sort si vous vous appuyez sur la touche
0 pendant que le panneau est détaché. Si cela se
produit, poussez le levier pour le remettre dans la position de verrouillage avant d’attacher le panneau.
L’autoradio est muni d’une fonction de télécommande de volant.
• Référez-vous au Manuel d’installation/ raccordement (volume séparé) pour les connexion.
Levier
Avertissement:
Si vous souhaitez opérer l’appareil pendant que vous conduisez, assurez-vous de bien regarder autour de vous afin de ne pas causer un accident de la circulation.
Précautions sur le réglage du volume:
Les appareils numériques (CD/USB) produisent très peut de bruit par rapport aux autres sources. Réduisez le volume avant de reproduire ces sources numériques afin d’éviter d’endommager les enceintes par la soudaine augmentation du niveau de sortie.
4
Loading...
