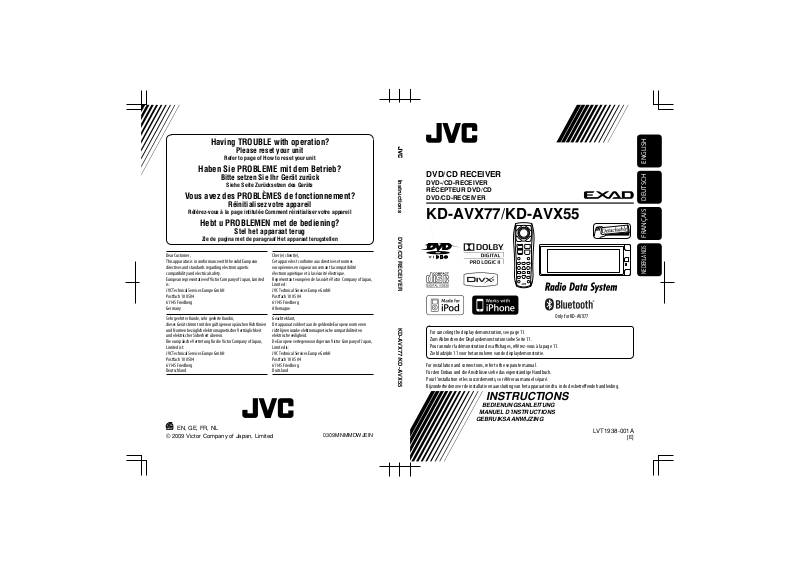

Page 1

DVD/CD RECEIVER

DVD-/CD-RECEIVER RÉCEPTEUR DVD/CD DVD/CD-RECEIVER

KD-AVX77/KD-AVX55

Only for KD-AVX77

For canceling the display demonstration, see page 11. Zum Abbrechen der Displaydemonstration siehe Seite 11. Pour annuler la démonstration des affichages, référez-vous à la page 11. Zie bladzijde 11 voor het annuleren van de displaydemonstratie.

ENGLISH

DEUTSCHFRANÇAIS

NEDERLANDS

For installation and connections, refer to the separate manual. Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch. Pour l’installation et les raccordements, se référer au manuel séparé. Bijzonderheden over de installatie en aansluiting van het apparaat vindt u in de desbetreffende handleiding.

INSTRUCTIONS

BEDIENUNGSANLEITUNG

MANUEL D’INSTRUCTIONS

GEBRUIKSAANWIJZING

LVT1938-001A

[E]

Page 2

Declaration of Conformity with regard to the R&TTE Directive 1999/5/EC

0984

English: Español:

Hereby, JVC, declares that this KD-AVX77 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/ EC.

Deutsch: Ελληνική:

Hiermit erklärt JVC, dass sich das Gerät KD-AVX77 in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/ EG befindet. (BMWi)

Hiermit erklärt JVC die Italiano: Übereinstimmung des Gerätes

KD-AVX77 mit den grundlegenden Anforderungen und den anderen relevanten Festlegungen der Richtlinie 1999/5/EG befindet. (Wien)

Français: Malti:

Par la présente JVC déclare que l’appareil KD-AVX77 est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.

Nederlands: Português:

Hierbij verklaart JVC dat het toestel KD-AVX77 in overeenstemming is

met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.

Dansk: Suomi:

Undertegnede JVC erklærer herved, at følgende udstyr KD-AVX77 overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.

Por medio de la presente JVC declara que el KD-AVX77 cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.

ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ JVC ΔΗΛΩΝΕΙ ΟΤΙ KD-AVX77 ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.

Con la presente JVC dichiara che questo KD-AVX77 è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.

Hawnhekk, JVC, jiddikjara li dan KD-AVX77 jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/ EC.

JVC declara que este KD-AVX77 está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.

JVC vakuuttaa täten että KD-AVX77 tyyppinen laite on direktiivin 1999/5/ EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.

Page 3

Svenska: Lietuviu:

Härmed intygar JVC att denna KD-AVX77 står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.

Íslenska: Magyar:

Hér með lýsir JVC yfir því að KD-AVX77 er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC.

Norsk: Polski:

JVC erklærer herved at utstyret KD-AVX77 er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF.

Cesky: Slovensko:

JVC tímto prohlašuje, že tento KD-AVX77 je ve shodě se základními požadavky a dalšími príslušnými ustanoveními směrnice 1999/5/ES.

Eesti: Slovensky:

Käesolevaga kinnitab JVC seadme KD-AVX77 vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.

Latviski:

Ar šo JVC deklarē, ka KD-AVX77 atbilst Direktīvas 1999/5/EK būtiskājam prasībām un citiem ar to saistītajiem noteikumiem.

Šiuo JVC deklaruoja, kad šis KD-AVX77 atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.

Alulírott, JVC nyilatkozom, hogy a KD-AVX77 megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.

Niniejszym JVC oświadcza, że KD-AVX77 jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.

JVC izjavlja, da je ta KD-AVX77 v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ ES.

JVC týmto vyhlasuje, že KD-AVX77 spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.

Page 4

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best

possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

ENGLISH

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

Information for Users on Disposal of Old Equipment and Batteries

[European Union only]

These symbols indicate that the product and the battery with this symbol should not be disposed as general household waste at its end-of-life. If you wish to dispose of this product and the battery, please do so in accordance with applicable national legislation or other rules in your country and municipality. By disposing of this product correctly, you will help to conserve natural resources and will help prevent potential negative effects on the environment and human health.

Notice:

The sign Pb below the symbol for batteries indicates that this battery contains lead.

Products

Battery

WARNINGS: (To prevent accidents and damage)

• DO NOT install any unit or wire any cable in a location where; – it may obstruct the steering wheel and gearshift

lever operations.

– it may obstruct the operation of safety devices

such as air bags.

– it may obstruct visibility.

• DO NOT operate the unit while driving.

If you need to operate the unit while driving, be sure

to look around carefully.

• The driver must not watch the monitor while driving.

• The driver must not put on the headphones while driving.

• Excessive sound pressure from earphones or headphones can cause hearing loss when you listen through earphones or headphones using Dual Zone.

Cautions on the monitor:

• The monitor built in this unit has been produced with high precision, but it may have some ineffective dots. This is inevitable and is not malfunction.

• Do not expose the monitor to direct sunlight.

• Do not operate the touch panel using a ball-point pen or similar tool with the sharp tip.

Touch the buttons on the touch panel with your finger

directly (if you are wearing a glove, take it off).

• When the temperature is very cold or very hot... – Chemical changes occur inside, causing

malfunction.

– Pictures may not appear clearly or may move

slowly. Pictures may not be synchronized with the sound or picture quality may decline in such environments.

• Afterimage may occur if displaying a certain image on the monitor for a long time. This is not malfunction. Turn off the unit or display another image.

Page 5

How to read this manual:

• < > indicates the variable screens/menus/ operations/settings that appear on the touch panel.

• [ ] indicates the buttons on the touch panel.

• ( page number) indicates the reference page number of the related topics/operations/ settings.

• Operation index: To locate easily the desired operations/functions. (

• Indication language: English indications are used for the purpose of explanation. You can select the indication language in <Language>. (

15)

• Illustrations: Illustrations of KD-AVX77 are mainly used for explanation.

73)

How to reset your unit

• Your preset adjustments will also be erased (except the

registered Bluetooth devices for KD-AVX77, 32)

To forcibly eject a disc, 36.

For safety...

• Do not raise the volume level too much, as this will make driving dangerous by blocking outside sounds, and may cause hearing loss.

• Stop the car before performing any complicated operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

For security reasons, a numbered ID card is provided with this unit, and the same ID number is imprinted on the unit’s chassis. Keep the card in a safe place, as it will help the authorities to identify your unit if stolen.

CONTENTS

How to read this manual .............................. 3

How to reset your unit ................................. 3

INTRODUCTIONS

Playable disc type ........................................ 4

Basic operations ........................................... 5

• Using the monitor panel/touch panel ......... 5

• Using the remote controller (RM-RK252) .... 8

Preparation .................................................. 11

AV MENU

AV Menu understanding .............................. 12

OPERATIONS

Listening to the radio ................................... 33

Disc operations ............................................. 36

• Operation buttons and information on the

touch panel ................................................. 37

• Operations using the remote controller

(RM-RK252) ................................................ 39

• Using divided screens—Dual Display ......... 43

Dual Zone operations ................................... 43

USB operations ............................................ 47

EXTERNAL DEVICES

Using the Bluetooth® devices

(KD-AVX77 only) ....................................... 48

• Connecting a new Bluetooth device ........... 48

• Using the Bluetooth cellular phone ............ 49

• Using the Bluetooth audio player ............... 50

Listening to the iPod/iPhone devices ........... 51

• When connected with the USB cable .......... 51

• When connected with the interface adapter ... 52

Listening to the CD changer ......................... 53

Listening to the DAB tuner ........................... 54

Using other external components ................ 56

• AV-INPUT .................................................... 56

• EXT-INPUT .................................................. 57

REFERENCES

Maintenance ................................................ 58

More about this unit .................................... 59

Troubleshooting ........................................... 66

Specifications ............................................... 71

Operation index ........................................... 73

ENGLISH

Page 6

Playable disc type

Disc type Recording format, file type, etc Playable

DVD

ENGLISH

• DTS sound cannot be reproduced or emitted from

DVD-Video * Region Code: 2 Ex.:

this unit.

DVD-Audio/DVD-ROM

DVD Recordable/Rewritable (DVD-R/-RW *2, +R/+RW *3)

• DVD Video: UDF bridge

• DVD-VR

• DivX/MPEG1/MPEG2/JPEG/ MP3/WMA/WAV/AAC: ISO 9660 level 1, level 2, Romeo, Joliet

DVD-Video

DVD-VR*

DivX/MPEG1/MPEG2

JPEG

MP3/WMA/WAV/AAC*

MPEG4/DVD+VR/DVD-RAM

DualDisc DVD side

Non-DVD side

CD/VCD Audio CD/CD Text (CD-DA)

VCD (Video CD)

DTS-CD/SVCD (Super Video CD)/CD-ROM/ CD-I (CD-I Ready)

CD Recordable/Rewritable (CD-R/-RW)

• ISO 9660 level 1, level 2, Romeo, Joliet

CD-DA

VCD (Video CD)

DivX/MPEG1/MPEG2

JPEG

MP3/WMA/WAV/AAC*

MPEG4

*1 If you insert a DVD Video disc of an incorrect Region Code, “Region code error” appears on the screen. *2 DVD-R recorded in multi-border format is also playable (except for dual layer discs). DVD-RW dual layer discs are not

playable.

*3 It is possible to play back finalized +R/+RW (Video format only) discs. “DVD” is selected as its disc type when a

+R/+RW disc is loaded. +RW double layer discs are not playable.

*4 This unit cannot play back contents protected with CPRM (Content Protection for Recordable Media). *5 This unit can play back AAC files encoded using iTunes.

Caution for DualDisc playback

The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

Page 7

Basic operations

SRC

KEY

QUICK MENU

Using the monitor panel/touch panel

Touch panel (see the following pages). Most of the operations are explained using the touch panel unless mentioned otherwise.

SRC

01 02 0:01:20

Track Title Artist Name Disc Title

MP3 FLAT

ENGLISH

Monitor panel

15:45

USB cable from the rear of the unit, (

1 Displays AV Menu. ( 12) 2 Displays Source Menu.* 3 Bluetooth indicator (KD-AVX77 only) 4 • Turns on the power.

( 7)

• Attenuates the sound (if the power is on).

• Turns off the power. (Hold)

• Switches the conversation media while talking with a Bluetooth cellular phone. (KD-AVX77 only, 49)

5 Remote sensor 6 Resets the unit. ( 3) 7 Detaches the monitor panel. 8 • Adjusts the volume.

• Adjusts the volume of the incoming calls. *

(KD-AVX77 only)

9 • Displays Open/Tilt screen. ( 6)

• Ejects the disc and displays Open/Tilt screen. (Hold)

47, 51)

p Displays Quick Menu. ( 7) q Changes the buttons shown on the touch panel.

( 6)

*1 Available sources depend on the external components

you have connected, media you have attached, and the < > (input) settings you have made. ( 19)

*2 This adjustment does not affect the volume level of

the other sources.

Attaching the monitor panel

5INTRODUCTIONS

Page 8

While a picture is played back on the screen, the buttons and information on the touch panel are turned off about 10 seconds after the last operation.

• You can select the way the buttons and information are turned off in <Monitor/Sensor>. (

ENGLISH

The buttons and information turn on again: – When your hand moves

closer to the touch panel (depending on the <Monitor/Sensor> setting,

– When you press – For KD-AVX77: When a call/SMS comes in for

Bluetooth cellular phone.

• The buttons and information may turn on in other cases than the above.

Caution on volume setting:

Digital devices (CD/USB) produce very little noise compared with other sources. Lower the volume before playing these digital sources to avoid damaging the speakers by sudden increase of the output level.

You can also adjust the volume by moving your finger as illustrated on any part of the touch panel.

20). button on the monitor panel.

20)

Buttons on the touch panel

Each time you touch [KEY], the buttons shown on the touch panel are changed. Ex.: When “

• Available buttons vary among the sources.

• The background picture can be changed on the

TUNER

” is selected as the source

Operation buttons

<Wall Paper> setting. (

Source buttons

13)

Open/Tilt screen

When you drag your finger on the touch panel, it functions in the same way as touching [5 / ∞ / 4 / ¢].

• Touch the panel firmly when moving or

dragging your finger.

[Open]/ [Eject]

[Close] Closes the monitor panel.

[Tilt] Tilts the monitor panel.

[

• Shaded items cannot be used.

Opens the monitor panel./ Ejects the disc.

Closes this screen.

]

Page 9

Source Menu

You can select a source on Source Menu.

Current source

Returns to the previous screen.

Quick Menu

You can easily access some frequently used functions by using Quick Menu.

• Available icons vary among the sources.

KD-AVX77 only

Displays <PTy Search> menu. ( 34)

Activates/deactivates Announcement Standby Reception. ( 25)

Activates/deactivates TA Standby Reception. ( 18)

Changes <IF Band Width> setting. ( 18)

Changes the control of iPod/iPhone device for “iPod USB.” ( 16)

Enables to capture the current playback picture. ( 13)

Displays <Dial Menu>. ( 29)

ENGLISH

Displays <Monitor/Sensor> menu. ( 20)

Changes the sound mode. ( 23)

Turns on or off the surround. ( 21)

Turns on or off Track/Chapter Repeat. ( 26)

Changes <Aspect> setting. ( 15)

Activates/deactivates PTY Standby Reception. ( 25)

7INTRODUCTIONS

Page 10

Using the remote controller (RM-RK252)

Installing the batteries

ENGLISH

R03/LR03/AAA

Insert the batteries into the remote controller by matching the polarity (+ and –) correctly.

Caution:

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• Battery shall not be exposed to excessive heat such as sunshine, fire, or the like.

If the effectiveness of the remote controller decreases, replace the batteries.

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the unit.

• DO NOT expose the remote sensor to bright light (direct sunlight or artificial lighting).

The unit is equipped with the steering wheel remote control function.

• See the Installation/Connection Manual (separate

volume) for connection.

• Operations may differ depending on the types of

the steering wheel remote control.

Page 11

1 button*

• Turns on the power.

• Attenuates the sound when the power is on.

• Turns off the power. (Hold)

2 5/∞ buttons

•

TUNER

: Selects the preset stations.

•

DAB

: Selects the services.

•

DISC/USB/CD-CH

: – DVD-Video: Selects the title. – DVD-VR: Selects the program/playlist. – DivX/MPEG1/MPEG2/MP3/WMA/WAV/AAC:

Selects the folders if included.

•

iPod USB

•

iPod

(connected with KS-PD100):

: Selects previous/next item.*

–5 : Enters the main menu (then 5 / ∞ /

/ work as menu selecting

buttons).

5 : Returns to the previous menu. ∞ : Confirms the selection.

∞ : Pauses or resumes playback.

–

•

Bluetooth

: Selects group/folder.

4 / ¢ buttons

•

TUNER/DAB

– Searches for stations/ensembles

automatically.

– Searches for stations/ensembles manually.

(Hold)

•

DISC/USB/iPod USB/CD-CH

: – Reverse skip/forward skip. – Reverse search/forward search. (Hold)

•

iPod

(connected with KS-PD100): – Reverse skip/forward skip. – Reverse search/forward search. (Hold) In menu selecting mode: – Selects an item. (Then, press ∞ to confirm the

selection.)

– Skips 10 items at a time. (Hold)

•

Bluetooth

*3: – Reverse skip/forward skip. – Reverse search/forward search. (Hold)

3 VOL (volume) + / – buttons*

• Adjusts the volume level.

• Adjusts the volume of the incoming calls.*

2nd VOL (volume) + / – buttons

• Adjusts the volume level through the 2nd AUDIO OUT plug when pressed with SHIFT button.

4 ASPECT button*

• Changes the aspect ratio of the playback pictures.

5 PHONE button*

1 *3

• Displays the last opened menu in <Dial Menu>.

• Displays <Redial>. (Hold)

• Answers incoming calls.

6 SETUP button*

• Functions as a number button only.

7 TOP M (menu) button*

• DVD-Video: Shows the disc menu.

• DVD-VR: Shows the Original Program screen.

• VCD: Resumes PBC playback.

8 OSD (on-screen display) button

• Shows the on-screen bar.

• Does not function as “ “.

*1 When Dual Zone is activated, these buttons cannot be

used.

*2 May not function depending on how you select the

current track/video.

*3 KD-AVX77 only *4 Functions as number buttons when pressed with

SHIFT button.

–

DISC/USB

: Enters chapter/title/program/playlist/ folder/track number after entering search mode by pressing SHIFT and DIRECT. ( 40)

–

TUNER/DAB

: (Number 1 to 6) : Enters preset

station/service number.

ENGLISH

Continued on the next page

9INTRODUCTIONS

Page 12

9 SHIFT button

• Functions with other buttons.

p DISP (display) button*

• Closes the menu screen if currently opened.

•

DISC/USB/iPod USB

ENGLISH

and information on the touch panel when a

: Displays the buttons

picture/jacket picture/artwork is shown.

DAB

•

q 1 / ¡ buttons

•

: Displays DLS (Dynamic Label Segment).

DISC/USB

– Reverse search/forward search. (not available

for JPEG)

– DVD-Video: Slow motion playback (during

pause).

– DVD-VR/VCD: Forward slow motion playback

(during pause).

•

iPod USB

: Reverse search/forward search.

w SOURCE button*

• Selects the source.

e 3 (play) / 8 (pause) button

•

DISC/USB/iPod USB

playback.

• Answers incoming calls.*

•

Bluetooth

r (end call) button*

: Starts playback.*

: Starts/pauses

• Ends the call. BAND button

•

TUNER/DAB

: Selects the bands.

7 (stop) button

•

DISC/USB

•

Bluetooth

t RETURN button*

: Stops playback.

: Pauses playback.*

• VCD: Returns to the PBC menu.

• DVD-Video/DVD-VR/DivX/MPEG1/MPEG2/JPEG/ VCD: Cancels the pop-up menu on the on-screen bar.

y MENU button*

• DVD-Video: Shows the disc menu.

• DVD-VR: Shows the Playlist screen.

• VCD: Resumes PBC playback.

u % / ﬁ buttons*

• DVD-Video: Makes selection/settings.

CD-CH

• @ / # buttons*

: Changes discs in the magazine.

• DVD-Video: Makes selection/settings.

• DivX/MPEG1/MPEG2: Skips back or forward by about 5 minutes.

ENT (enter) button*

• Confirms selection.

i DUAL button

• Activates or deactivates Dual Zone.

• Does not function as “#.“

o DIRECT button

•

DISC/USB

: Enters direct search mode for chapter/title/program/playlist/folder/track when pressed with SHIFT button. ( 40)

CLR (clear) button

•

DISC/USB

: Erases the misentry when pressed with SHIFT button.

SURROUND button*

•

DISC/USB

: Changes the surround mode.

*1, *3, *4 9

Page 13

Preparation

Canceling the display demonstration and setting the clock

~ Turn on the power.

Ÿ Display AV Menu.

! Select <AV Setup>.

⁄ Cancel the demonstration.

Touch <Interval> to show the setting

Select <Off>, then touch < >.

@ Set the clock.

Select < > (clock).

Adjust the hour.

ENGLISH

items.

Change the item to set (1), then adjust the

¤ Finish the procedure.

minute (2).

11INTRODUCTIONS

Page 14

AV Menu understanding

You can use the AV Menu for most of the operations and settings. The available menu items shown on the touch panel depends on the selected source.

ENGLISH

The following steps are one of the fundamental procedures.

• You can perform the operations/make the settings by following these steps unless mentioned otherwise.

~ Turn on the power.

Ÿ Display AV Menu.

• AV Setup:

• Disc Surround:

• Equalizer:

• Sound:

• Mode:

• List:

• Dual Zone:

Only for KD-AVX77

• Bluetooth:

13 – 20

21, 22

25, 26

27, 28

43 – 46

29 – 32

! Touch the desired icon/item to

perform the desired operations/ settings.

• Some of the settings do not open the subsetting screen, but just selecting an option will change the setting.

• Non-available items will be shaded.

Moves to the preceding/ succeeding menu page.

Returns to the previous screen.

Skips to the next category in <AV Setup>:

Indicates the next hierarchy

level/setting item exists.

Closes the AV Menu

screen.

Page 15

Menu item Selectable setting/item

Demonstration

Wall Paper You can select the background picture of the screen.

Capture

(KD-AVX77 only)

Display

♦

Off

♦

: Cancels. : Activates the demonstration on the screen. To stop it

temporarily, touch the screen.

♦

Interval

: Activates the demonstration at 20 second intervals.

For KD-AVX77:

♦

Ring, Plain, Road, Night, User Capture 1, User Capture 2, User Capture 3,

User Capture 4

For KD-AVX55:

♦

Ring, Plain

You can capture an image shown on the screen and use it as the background picture.

♦

Normal

♦

Zoom

: Captures an image without enlargement. : Captures an image enlarged to the width of the screen.

While a picture is played back or paused...

1 Select <Normal> or <Zoom>.

• When you select <Zoom>, tap the screen repeatedly until your desired portion is displayed.

2 Capture the image.

Initial: Underlined

ENGLISH

[ ]: Captures the image. [ ]: Cancels.

3 Select one of the numbers (<1> – <4>) to store the image for <User

Capture 1> – <User Capture 4> in <Wall Paper> above.

“Please Wait...” appears. The captured image is stored and selected as the background picture.

Continued on the next page

13AV MENU

Page 16

Menu item Selectable setting/item

Wallpaper Color You can select the color of the background picture.

Text Color You can select the text color.

ENGLISH

Scroll

Tag Display

Dimmer

Dimmer Time Set Sets the Dimmer On(

Display

Dimmer Level You can select the brightness for dimmer.

Bright You can adjust the brightness of the screen.

Picture Adjust *

Connection to the car light control switch is required. (See the Installation/Connection Manual.)

* *2 Adjustable only when the source is “

“

AV-IN

.”

*3 When the source is “

♦

Blue, Black, Orange, Red, Green, Yellow

♦

White, Black, Red, Green, Blue, Yellow, Orange, Purple

♦

Off Once Auto

Off On

: Cancels. : Scrolls the displayed information once. : Repeats scrolling (at 5-second intervals).

: Cancels. : Shows the Tag data while playing MP3/WMA/WAV/AAC

tracks.

♦

Off

♦

Auto

♦

Dimmer Time Set

: Cancels. : Activates dimmer. : Dims the monitor when you turn on the headlights. * : Activates the Dimmer Time setting (see below).

)/Off( ) times.

♦

01 (bright), 02 (middle), 03 (dark)

♦

–15 to +15; Initial 00

You can adjust the following to make the screen clear and legible for watching the playback picture. The setting will be stored—one for “ for “

iPod USB/AV-IN

.” Touch [5] or [∞] to select an item, then touch [+] or [–] to adjust. (–15 to +15; Initial 00)

♦

Bright

♦

Contrast

♦

Color

♦

Tint *

DISC/USB/iPod USB

AV-IN

” and the incoming signal is PAL, you cannot adjust this setting.

: Adjust if the picture is too bright or too dark. : Adjust the contrast. : Adjust the color of the picture—lighter or darker. : Adjust the tint if the human skin color is unnatural.

” (the media must contain pictures or movies) or

DISC/USB

” and the other

Page 17

Menu item Selectable setting/item

Aspect *

You can change the aspect ratio of the picture.

Aspect ratio of the incoming signal

4:3 16:9

♦

16:9 Full Suitable for 16:9 picture.

♦

Ultra Full Stretches the picture displayed in <16:9

Full> to the width of the screen.

♦

Cinema

Suitable for Cinemascope-size picture.

Scope

♦

Ultra

Cinema Sc.

Stretches the picture displayed in <Cinema Scope> to the width of the screen.

♦

Zoom Suitable for 4:3 Letterbox picture.

Display

♦

Auto Aspect ratio is automatically selected to match the incoming signals.

Language *

Key Position Select the position of the buttons on the touch panel.

Dual Display

Time Set

Time Format Select either 12-hour system or 24-hour system.

OSD Clock

Clock

Clock Adjust Select <Auto> to adjust the clock automatically using the clock time (CT) data

Not adjustable when no picture is shown.

* *5 Turn off the power and on again so that your setting takes effect.

Select the indication language shown on the screen.

♦

English, Español, Français, Deutsch, Italiano, Nederlands, Svenska,

Dansk, Руccĸий, Português

• The characters you can enter for assigning the titles also change according to the language selected. ( 63)

♦

Left, Right

♦

Off

♦

Initial 0:00 (

♦

12 Hours, 24 Hours

♦

Off

♦

: Cancels. : Activates Dual Display. ( 43, 46, 56)

11)

: Cancels. : The clock time is displayed on the playback picture.

from an FM Radio Data System station.

♦

Off, Auto

ENGLISH

15AV MENU

Page 18

ENGLISH

Menu item Selectable setting/item

6, *7

Select the initial disc menu language; Initial English ( 64)

Select the initial audio language; Initial English ( 64)

Select the initial subtitle language or erase the subtitle <Off>; Initial English ( 64)

Select the monitor type to watch a wide screen picture on the external monitor.

♦

16:9

: Select when the aspect ratio of the external

monitor is 16:9.

♦

4:3 Letterbox,

4:3 Pan Scan

: Select when the aspect ratio of the external

monitor is 4:3.

Menu Language *

Audio Language *

Subtitle *

Monitor Type *

OSD Position *

File Type *

6, *7

Disc

DivX Regist. (Registration) *

Artwork For “

iPod Control *

Select the position of the on-screen bar. ( 42)

• The on-screen bar is not displayed fully under some <Aspect> settings. (

15)

♦

: Higher position. : Lower position.

Select the playback file type when a disc/USB contains different types of files. You can store this setting separately for each source— “

DISC/USB

♦

Audio

♦

Still Picture

♦

Video

♦

Audio&Video

.”

: Plays back audio files. : Plays back JPEG files. : Plays back DivX/MPEG1/MPEG2 files. : Plays back audio files and DivX/MPEG1/MPEG2

files.

This unit has its own Registration Code. Once you have played back a file with which the Registration Code recorded, this unit’s Registration Code is overwritten for copyright protection.

DISC/USB

For “

iPod USB

”: “Jacket picture” is shown on the screen.*7 ( 37)

”: The Artwork is shown on the screen under “HEAD

MODE.”*8 ( 51)

♦

Off

♦

Changes the controlling unit for “

♦

Head

♦

iPod

: Cancels. : Activates “Jacket picture” or Artwork display.

iPod USB

.” ( 51) : Controls the iPod/iPhone through this unit. : Controls the iPod/iPhone through the iPod/

iPhone.

Page 19

Menu item Selectable setting/item

D. (Dynamic) Range Compres. (Compression) *

Speaker Size *

Disc

Speaker Level *

You can enjoy a powerful sound at a low volume level while playing Dolby Digital software on a disc.

♦

Auto

: Select to apply the effect to multi-channel encoded

software.

♦

6, *7

You can adjust the speaker size setting.

♦

Front speakers: Small, Large

♦

Center speaker: None, Small, Large

♦

Rear speakers: None, Small, Large

♦

Subwoofer: On, Off

: Select to always use this function.

• Speaker size: <Large> for 13 cm diameter or more; <Small> for 13 cm or less.

• Front speakers and rear speakers: left and right speakers cannot be adjusted separately.

Regardless of the setting above...

• No sound comes out of the subwoofer while playing Dolby Pro Logic II Movie or Music if the front speaker is set to <Large>.

• No sound comes out of the center speaker when surround is deactivated. ( 21)

You can adjust the output level of the activated speakers (above), monitoring the test tone.

ENGLISH

1 Front speakers 2 Center speaker 3 Rear speakers 4 Subwoofer

Adjust the output level of each speaker in the range of –10dB to +10dB; Initial 00dB

• Touch [TEST] to turn on the test tone. To stop, touch [CANCEL].

• Subwoofer level setting takes effect only when surround is activated. ( 21)

Selectable only for “

DISC/USB

.”

*7 Playback stops when you change the setting. *8 It takes 5 seconds or more to display Artwork and no operations are available while loading it. *9 Selectable only for “

iPod USB

.”

Continued on the next page

17AV MENU

Page 20

Menu item Selectable setting/item

Speaker Distance *6You can adjust the output timing of the activated speakers (above).

ENGLISH

Disc

Adjust the speaker distance from the listening position in the range of 15 cm/ 6 inch to 600 cm/240 inch in 15 cm/6 inch step; Initial 120 cm/48 inch (for

center speaker), 150 cm/60 inch (for front and rear speakers).

• Touch [cm/inch] to change the measuring unit—cm and inch.

IF Band Width

AF Regional

Tuner

TA Standby

TA Volume You can adjust the preset TA volume level.

* *10 Depends on the amplifier gain control. ( 24)

♦

Auto

♦

Wide

You can change the Network-Tracking Reception setting. ( When the received signals from the current station become weak...

♦

Off

♦

AF Regional

♦

Off

♦

When the unit switches to Traffic Announcement (TA), the volume changes to the preset TA volume level if the current volume level is lower than the preset level. (

♦

00 to 30 or 50*10, Initial 15

35)

: Increases the tuner selectivity to reduce interference

noises between adjacent stations. (Stereo effect may be lost.)

: Subject to the interference from adjacent stations, but

sound quality will not be degraded and the stereo effect will remain.

35)

: Cancels—not selectable when <DAB AF> is set to

<On>.

: Switches to another station broadcasting the same

programme. The REG indicator lights up.

: Switches to another station. The programme may differ

from the one currently received (the AF indicator lights up). (

35)

: Cancels. : Activates TA Standby Reception. ( 35)

Page 21

Menu item Selectable setting/item

Program Search

DAB AF *

Tuner

AV Input *

You can turn on and off the Programme Search. (

♦

Off

♦

: Cancels. : Activates the Programme Search.

You can turn on and off the Alternative Frequency Reception. ( 55)

♦

Off

♦

: Cancels. : Activates the Alternative Frequency Reception.

You can determine the use of LINE IN and VIDEO IN plugs. ( 56)

♦

Off

: Select when no component is connected (“

not displayed on Source Menu).

♦

iPod(Off)

: Select when connecting the iPod/iPhone using the USB

Audio and Video cable for iPod/iPhone. ( 51)

♦

Audio&Video

: Select when connecting an AV component such as a

VCR.

♦

Input

External Input *

Audio

♦

Camera *

♦

Navigation

For connecting an external component to the CD changer jack on the rear.

: Select when connecting an audio component such as a

13, *14

portable audio player. : Select when connecting a rear view camera. : Select when connecting a Navigation System.

• For connecting the DAB tuner, this setting is not required. The DAB tuner is automatically detected.

♦

Changer/iPod *

♦

External

Selectable only when DAB tuner is connected. ( 54)

* *12 Not selectable when “

AV-IN

” is selected as the source.

: CD changer, ( : Any other than the above, ( 57).

*13 The REVERSE GEAR SIGNAL lead connection is required. See Installation/Connection Manual. The rear view through

the camera appears on the screen in <16:9 FULL> aspect ratio (regardless of the aspect ratio setting) when you shift the gear to the reverse (R) position. When you shift the gear to another position other than the reverse (R) position, the rear view screen is cleared.

*14 While the pictures through the camera are shown on the monitor, no message will be displayed. *15 Not selectable when the component connected to the CD changer jack is selected as the source. *16 The name of the component detected through the CD changer jack is shown.

35)

53), iPod, ( 52).

AV-IN

” is

ENGLISH

19AV MENU

Page 22

ENGLISH

Other

Menu item Selectable setting/item

Beep

Telephone Muting *

Monitor/Sensor You can turn off the buttons and information shown on the touch panel or turn

♦

Off

♦

Off

♦

Muting1,

Muting2

: Cancels. : Activates the key-touch tone.

: Cancels. : Select either one which mutes the sounds while using

the cellular phone.

off the touch panel when no operation is done for about 10 seconds. (

Normal/ Motion

While a picture is played back

on the screen

Buttons and information light up when your hand moves closer to the touch panel.

Others

Buttons and information always light.

Normal/Touch Buttons and information light up

when you touch the touch panel.

WallPaper/ Motion

WallPaper/ Touch

Buttons and information light up when your hand moves closer to the touch panel.

Buttons and information light up when you touch the touch panel.

Off/Motion The touch panel lights up when your hand moves closer to it.

Off/Touch The touch panel lights up when you touch it.

Motion Sensitiv.

(Sensitivity)

Change the sensitivity of the sensor for <Monitor/Sensor> (above).

♦

Mid, High

Initialize Initialize all settings you have made in AV Menu. Hold [Enter] to initialize the

settings, then reset the unit. (

Connection to the cellular phone system is required. See Installation/Connection Manual.

Page 23

You can enjoy multi-channel surround playback through the front, center, surround speakers.

MULTI:

For multi-channel encoded sources such as Dolby Digital. (When activated, “MULTI” is shown on the screen.)

Dolby Pro Logic II (Movie/Music):

For 2 channel sources except for DivX/MPEG1/MPEG2 discs.

• After connecting the center speaker, make sure to activate the center speaker; otherwise, no sound comes out of the center speaker. (

• You cannot activate this function in the following cases: – When “

iPod USB

– When Dual Zone is in use.

17)

” is selected as the source.

Turning on the surround

1 Select <Disc Surround> on AV Menu.

2 Turn on the surround.

Turn on the surround (1), then touch

<Auto> to show the surround modes (2).

3 Select a surround mode.

<Auto>:

• When multi-channel digital signals come in, “MULTI” surround is activated.

• When 2-channel or 2.1-channel signals* come in, 4-channel stereo is activated.

<Through>:

All incoming channel signals are sent to the

corresponding speakers.

<Dolby PLII Movie>:

Activates Dolby Pro Logic II Movie.

<Dolby PLII Music>:

Activates Dolby Pro Logic II Music. You can

adjust <Panorama> and <Center Width> settings. ( 22)

* Except signals of DivX/MPEG1/MPEG2 discs.

ENGLISH

Continued on the next page

21AV MENU

Page 24

On the remote:

ENGLISH

Changing the <Dolby PLII Music> setting

In step 3 on page 21...

1 Select <Dolby PLII Music>.

2 Select desired settings.

<Panorama>: Select <On> to add wraparound sound effect. <Center Width>*:

Adjust the center image so it may be heard

only from the center speaker, only from the left/right front speaker as a “phantom” center image, or various combination of these speakers. As the number increases, the “phantom” effect becomes stronger (normally set to <04>).

* Adjustable when the center speaker is

activated. ( 17)

3 Finish the procedure.

• You cannot change the <Dolby PLII Music> settings using the remote controller.

Page 25

Select a preset sound mode suitable to the music genre.

♦

Flat (Initial), Hard Rock, R&B, Pop, Jazz, Dance, Country, Reggae, Classic, User1, User2, User3

• (For “

DISC/USB

VCD, or MP3/WMA/WAV/AAC files and <Auto> is selected for <Surround Mode>. ( 21)

”) While surround is activated, you can use Equalizer in the following case: the source is CD-DA,

Preset equalizing values

ENGLISH

Sound mode

Flat 00 00 00 00 00 00 00 Dance +04 +02 00 –02 –01 +01 +01

Hard Rock +03 +03 +01 00 00 +02 +01 Country +02 +01 00 00 00 +01 +02

R&B +03 +02 +02 00 +01 +01 +03 Reggae +03 00 00 +01 +02 +02 +03

Pop 00 +02 00 00 +01 +01 +02 Classic +02 +03 +01 00 00 +02 00

Jazz +03 +02 +01 +01 +01 +03 +02 User1/2/3 00 00 00 00 00 00 00

60.0 Hz

150.0 Hz

400.0 Hz

1.0 kHz

2.5 kHz

6.3 kHz

15.0 kHz

Sound mode

60.0 Hz

150.0 Hz

400.0 Hz

1.0 kHz

2.5 kHz

6.3 kHz

Storing your own adjustments

You can store your adjustments into <User1>, <User2>, and <User3>.

1 Select <Equalizer> on AV Menu.

2 Make the setting, then store.

Moves to the other 6 sound modes.

Touch [2] or [3] to select a frequency level

to adjust.

Touch [5] or [∞] to adjust.

15.0 kHz

Ex.: When storing into <User1>.

Moving each bar directly also makes adjustments.

23AV MENU

Page 26

Initial: Underlined

Menu item Selectable setting/item

Fader/Balance Fader:

ENGLISH

Adjust the front and rear speaker output balance. Balance: Adjust the left and right speaker output balance.

Volume Adjust *

Subwoofer Level

High Pass Filter

Crossover Select the crossover frequency between the front/rear speakers and the

Amplifier Gain *

Rear Speaker *

*1 For “

DISC/USB

”: You can make the adjustments separately depending on the audio format—Dolby digital and

the others.

*2 The volume level automatically changes to “30” if you change to <Low Power> with the volume level set higher

than “30.”

This setting takes effect only when Dual Zone is activated. ( 43)

♦

F06 to R06; Initial 00 (fader)

♦

L06 to R06; Initial 00 (balance) [5/∞]: Adjusts fader. [2/3]: Adjusts balance. [ ]: Resets the adjustments.

• When using a two-speaker system, set the fader to the center (00).

Adjust and store the auto-adjustment volume level for each source, comparing to the FM volume level. The volume level will automatically increase or decrease when you change the source.

• <Fix> appears when an FM broadcast is selected as the source.

♦

–12 to +12; Initial 00

You can adjust the output level of the subwoofer when it is activated.(

♦

–06 to +08; Initial 00

♦

Through

♦

: Select when the subwoofer is not connected. : Select when the subwoofer is connected.

subwoofer.

♦

80Hz, 120Hz, 150Hz

You can change the maximum volume level of this unit.

♦

Off

♦

Low Power

: Deactivates the built-in amplifier. : VOL 00 to 30 (Select this if the maximum power of the

speakers is less than 50 W.)

♦

High Power

: VOL 00 to 50

You can activate/deactivate the rear speakers.

♦

Off, On

Dragging also makes adjustments.

17)

Page 27

Initial: Underlined

Selectable items when the source is:

•

TUNER

•

: Mono, SSM, PTy Standby, PTy Code

DAB

DISC, USB, CD-CH, iPod, Bluetooth iPod USB AV-IN, EXT-IN

: D. (Dynamic) Range Control, Announce Standby, Announce

Code, PTy Standby, PTy Code

Repeat, Random

: Repeat, Random, AudioBooks : Title Entry

Menu item Selectable setting/item

Mono When an FM stereo broadcast is hard to receive, activate monaural mode for better

reception.

♦

SSM (Strong-station Sequential Memory)

Off

♦

You can automatically preset 6 stations for each FM band.

• Local FM stations with the strongest signals are searched and stored automatically in the FM band.

: Restores the stereo effect. : Activates monaural mode to improve FM reception, but stereo effect

will be lost. The MONO indicator lights up.

(Hold)

ENGLISH

PTy Standby

PTy Code

D. (Dynamic) Range Control

Announce Standby

Announce Code

KD-AVX77 only

You can turn on and off the PTY Standby Reception. ( 35)

♦

Off

♦

Selects the PTY code for the PTY Standby Reception. (

: Cancels. : Activates the PTY Standby Reception.

34, 35)

Some DAB services provide Dynamic Range Control (DRC) signals together with their regular programme signals. DRC will reinforce the low level sounds to improve your listening.

♦

Off : Cancels.

♦

DRC1, DRC2, DRC3

: As the number increases, the effect becomes stronger.

You can turn on and off the Announce Standby Reception. ( 55)

♦

Off

♦

Selects the announcement type for the Announce Standby Reception. (

♦

Transport News, Warning, News, Weather, Event, Special Event, Radio Info,

: Cancels. : Activates the Announce Standby Reception.

55)

Sports News, Financial News

Continued on the next page

25AV MENU

Page 28

Menu item Selectable setting/item

Repeat Available items depend on the types of loaded disc and playback file.

ENGLISH

Random Available items depend on the types of loaded disc and playback file.

AudioBooks *

Title Entry You can assign titles (up to 16 characters) to “

♦

Chapter

♦

Title

♦

Program

: Repeats current chapter. : Repeats current title. : Repeats current program (For DVD-VR, not available during Playlist

playback).

♦

Disc

♦

Folder/Group*

♦

Track

♦

One

♦

All

♦

Off

♦

Folder/Group*

: Repeats all tracks of the current disc.

: Repeats all tracks of the current folder/group. : Repeats current track. (For VCD: When PBC is not in use.) : Functions the same as “Repeat One” of the iPod/iPhone. : Functions the same as “Repeat All” of the iPod/iPhone. : Cancels.

: Randomly plays all tracks of the current folder/group, then tracks

of the next folders/groups.

♦

Disc/USB

♦

All

♦

Song

♦

Album

♦

Off

You can select the playback speed of the audiobook sound file in your iPod/iPhone.

♦

Normal

♦

Faster

♦

Slower

: Randomly plays all tracks. (For VCD: When PBC is not in use.) : Randomly plays all tracks of all loaded discs. : Functions the same as “Shuffle Songs” *3 of the iPod/iPhone. : Functions the same as “Shuffle Albums” of the iPod/iPhone. : Cancels.

: Plays at normal speed. : Plays faster. : Plays slower.

AV-IN

” and “

characters, 63.)

EXT-IN

.” (For available

[5/∞]: Changes the character one by one. [2/3]: Moves the cursor. [SPACE]: Enters a space. [CHANGE]: Changes the character set. [STORE]: Confirms the entry. [CLEAR]: Erases all entered characters.

*2 KD-AVX77 only *3 You can activate <Shuffle Songs> in <Search Mode> menu. ( 28) *4 Not selectable when connecting the iPod with the interface adapter. ( 52)

Page 29

Source Operation/setting

TUNER/DAB • Storing a preset station/service manually

1 Touch [BAND], then [ / ] to tune in to the station/service you want to preset. 2 Touch [ ], then [List]. 3 Select a preset number.

Ex.: When storing an FM station

(Hold)

ENGLISH

The station selected in step 1 is now stored in preset number 4.

Touch to select the band.

• Selecting a preset station/service on the list

Ex.: When selecting an FM preset station

DISC/USB Selecting a track on the list

If a disc/device includes folders, you can display the Folder/Track (File) Lists, then start playback.

Touch/drag to browse the Lists.

1 Current folder list

number/total folder list number

2 Current track list

number/total track list number of the current folder

Continued on the next page

27AV MENU

Page 30

Source Operation/setting

iPod USB Selecting a track/video from <Search Mode>*

ENGLISH

♦

Music

♦

Videos

♦

Shuffle Songs

CD-CH Selecting a disc on the list

: Playlists, Artists, Albums, Songs, Podcasts, Genres,

Composers, Audiobooks

: Video Playlists, Movies, Music Videos, TV Shows, Video

Podcasts

: Starts playback.

Touch/drag to browse the List.

1 Current track list

number/total track list number of the current folder

• If currently played MP3 disc is selected, Folder List appears. Track List also appears by selecting the current folder. ( 27) Select a track to start playback.

You can enter <Search Mode> menu when “HEAD MODE” is selected.

Available search modes depend on the type of your iPod/iPhone.

For Dual Zone operations, 43.

Page 31

(KD-AVX77 only)

• Firstly, use <New Pairing> in <Device Menu> to register and establish the connection with a device.

Menu item Selectable setting/item

Dial Menu *1*

Only for the device connected for Bluetooth phone.

* *2 You can display the last opened menu in <Dial Menu> by pressing on the remote controller. You can display <Redial> by holding on the remote controller. *3 You can also activate it by holding [ ].

Select a calling method, then select the desired item to call.

♦

Redial

♦

Received Calls

♦

Phonebook

♦

Preset Calls

♦

Phone Number

: Shows the list of the phone numbers you have dialed. : Shows the list of the received calls. : Shows the phone book copied from a cellular phone. ( 31) : Shows the list of the preset numbers. ( 50) : Shows the phone number entry screen.

[BS]: Erases the last character. [Dial]: Calls the entered number. [Preset]: Goes to <Preset Memory>. You can preset the entered number by selecting

a preset number.

♦

Voice Dialing*

: Available only when the connected cellular phone has the

voice recognition system = Speak the name you want to call.

To delete the phone numbers/names

1 Touch [Delete] when <Redial>, <Received Calls>, or <Phonebook> in <Dial Menu> is displayed. 2 Select the phone number/name you want to delete.

• Touch [All] to delete all the numbers/names in the selected item.

3 Touch [Yes] to confirm deleting.

• To cancel, touch [No].

ENGLISH

Continued on the next page

29AV MENU

Page 32

Menu item Selectable setting/item

ENGLISH

Phone Connect*4/ Audio Connect*

Phone Disconnect* Audio Disconnect*

Delete Pairing Only for the registered devices.

New Pairing Preparation:

Only for the registered devices.

Select a device from among the registered devices, establish the connection with it.

Only for the device being connected.

Disconnect the current device before connecting another device.

Touch [Yes] to confirm deleting the registered devices.

• Operate the Bluetooth device to turn on its Bluetooth function.

1 Enter a PIN (Personal Identification Number) *

• You can enter any number you like (1-digit to 16-digit number).

Device Menu

[BS]: Erases the last character. [Enter]: Confirms the entry.

2 Operate the Bluetooth device to connect while “Open...” is displayed on

the screen. Enter the same PIN code (as entered in the above step) on the device to be connected.

Now connection is established and you can use the device through the unit.

• The device remains registered even after you disconnect the device. Use <Phone Connect>/<Audio Connect> (or activate <Auto Connect>,

31) to connect the same device from next time.

When a device is not connected to the unit, <Phone Connect> and <Audio Connect> appear. When a device

has already been connected to the unit, <Phone Disconnect> and <Audio Disconnect> appear.

Page 33

Menu item Selectable setting/item

Auto Connect When the unit is turned on, the connection is established automatically

with...

♦

Off

♦

Last

Auto Answer

SMS Notify

♦

Off

♦

Reject

♦

Off

♦

Add Phonebook You can copy the phone book memory of a cellular phone into the unit.

1 Enter a PIN (Personal Identification Number) .*

Settings

• You can enter any number you like (1-digit to 16-digit number).

[BS]: Erases the last character. [Enter]: Confirms the entry.

2 Operate the target cellular phone.

Enter the same PIN code (as entered in the above step) on the cellular

phone then transfer the phone book memory to the unit. (Refer to the instruction manual supplied with your cellular phone.)

3 Touch [ ] to finish the procedure.

• If you try to copy a 101st phone book entry, “Phonebook Full” appears on the monitor. Delete unwanted names before copying. (

Some devices have their own PIN code. Enter the specified PIN code to the unit.

: No Bluetooth device. : The last connected Bluetooth device.

: The unit does not answer the calls automatically.

Answer the calls manually. : The unit answers the incoming calls automatically. : The unit rejects all incoming calls.

: The unit does not inform you of the arrival of a

message. : The unit informs you of the arrival of a message by

ringing and displaying “Receiving Message.”

ENGLISH

29)

Continued on the next page

31AV MENU

Page 34

Menu item Selectable setting/item

MIC Setting Adjust the volume of the microphone connected to the unit.

Phone Volume Adjust the phone volume.

ENGLISH

Initialize You can initialize all settings you have made in <Bluetooth>.

Settings

Information The following information is shown:

Depends on the amplifier gain control. ( 24)

*7 If you wish to receive more information about Bluetooth, visit the following JVC web site:

<http://www.jvc.co.jp/english/car/> (English website only)

♦

01/02/03

♦

00 to 30 or 50*6, Initial 15

♦

Yes

♦

Name

♦

Address

♦

Version

♦

Phone Device/Audio Device

: Cancels. : Initializes the settings.

: The unit name : The Mac address of the unit : The Bluetooth software/hardware versions*

: The connected device names

Page 35

Listening to the radio

ENGLISH

~ Touch [SRC], then select “TUNER.” Ÿ Touch [BAND]. ! Touch [ ] or [ ] to search for a

station—Auto Search.

• Manual Search: Hold either [ ]or [ ] until “Manual Search” appears on the screen, then touch it repeatedly.

• The ST indicator lights up when receiving an FM stereo broadcast with sufficient signal strength.

A Band B Preset number C Sound mode D PS (station name) for FM Radio Data System.

E PTY code for FM Radio Data System F Tuner/Standby Reception indicators

Selecting a preset station

• To preset stations into memory, 25, 27.

Directly from the touch panel

• You can also select a preset station using the remote controller (

You can display the Preset List by holding [5 / ∞].

If no PS signal is coming in, “No Name” appears.

( 34)

9, 10) and from the Preset List ( 27).

• To improve the FM reception, 25.

• To use convenient functions for FM Radio Data System stations, 34.

33OPERATIONS

Page 36

The following features are available only for FM Radio Data System stations.

Searching for FM Radio Data System programme—PTY Search

You can search for your favorite programmes being broadcast by selecting the PTY code for your favorite programmes.

ENGLISH

1 Display <PTy Search> menu.

2 Select a PTY code.

• You can select a PTY from 29 PTY codes.

PTY Search starts. If there is a station broadcasting a programme

of the same PTY code as you have selected, that station is tuned in.

Available PTY codes:

News, Current Affairs, Information, Sport, Education, Drama, Cultures, Science, Varied Speech, Pop Music, Rock Music, Easy Listening, Light Classics M, Serious Classics, Other Music, Weather & Metr, Finance, Children’s Progs, Social Affairs, Religion, Phone In, Travel & Touring, Leisure & Hobby, Jazz Music, Country Music, National Music, Oldies Music, Folk Music, Documentary

Moves to the other 6 PTY codes.

Page 37

Activating/deactivating TA/

PTY Standby Reception

TA Standby Reception Indicator

To activate, touch [QUICK MENU], then

The unit will temporarily switch to Traffic Announcement (TA) if available, from any source other than AM.

• The volume changes to the preset

TA volume level if the current level is lower than the preset level. (

Not yet activated. Tune in to another station providing the Radio Data System signals.

To deactivate, touch [QUICK MENU],

then

Lights up

18)

Flashes

Goes off

Tracing the same programme

—Network-Tracking Reception

When driving in an area where FM reception is not sufficient enough, this unit automatically tunes in to another FM Radio Data System station of the same network, possibly broadcasting the same programme with stronger signals.

Programme A broadcasting on different frequency areas (01 – 05)

ENGLISH

PTY Standby Reception Indicator

To activate, touch [QUICK MENU], then

The unit will temporarily switch to your favorite PTY programme from any source other than AM.

Not yet activated. Tune in to another station providing the Radio Data System signals.

To deactivate, touch [QUICK MENU], then .

• When a DAB tuner is connected, TA Standby/PTY

Standby Reception also works for the DAB tuner and searches for the services.

To change the PTY code for PTY Standby Reception,

25.

PTY

Lights up

Flashes

Goes off

When shipped from the factory, Network-Tracking Reception is activated.

To change the Network-Tracking Reception setting, see <AF Regional>. (

• When the DAB tuner is connected, refer also to “Tracing the same programme—Alternative Frequency Reception (DAB AF).” (

18)

55)

Automatic station selection—

Programme Search

Usually when you select preset stations, the preset station is tuned in. If the signals from the preset FM Radio Data System station are not sufficient for good reception, this unit, using the AF data, tunes in to another station broadcasting the same programme as the original preset station is broadcasting. To activate this function, select <On> for <Program Search>.( 19)

• The unit takes some time to tune in to another station using programme search.

35OPERATIONS

Page 38

Disc operations

The disc type is automatically detected, then playback starts (for some discs, the top menu of the disc appears).

If a disc does not have any disc menu, all tracks on it will be played repeatedly until you change the source or eject the disc.

ENGLISH

” appears on the screen, the unit cannot accept the operation you have tried to do.

If “

• In some cases, without showing “ ,” operations will not be accepted.

~ Open the monitor panel.

• By holding [ ], you can open the monitor panel and eject the disc.

Ÿ Insert a disc.

Monitor panel closes automatically.

• If not, touch [Close].

Playback starts automatically.

Caution:

Do not place your finger behind the monitor panel.

Label side

How to forcibly eject a disc

(Hold)

• Be careful not to drop the disc when it ejects.

• If this does not work, reset your unit. ( 3)

(Hold)

Prohibiting disc ejection

You can lock a disc in the loading slot.

(Hold)

To cancel the prohibition, repeat the same procedure to select <EJECT OK?>.

Page 39

Operation buttons and information on the touch panel

Operation buttons and information are shown on the touch panel.

• While watching playback pictures, you can display the buttons and information by touching the touch panel or moving your hand nearby. ( 20)

Ex.: While playing a DVD Video

• While MP3/WMA/AAC file is played, “Jacket picture” is shown if the file has the tag data including “Jacket picture.” ( 16)

ENGLISH

1 [5 / ∞]

• DVD Video/DVD-VR: Selects title/program/ playlist.

• DivX/MPEG1/MPEG2/JPEG/MP3/WMA/WAV/ AAC:

– Selects folder – Displays Folder/Track List (Hold)

2 Disc type—DVD, VCD, CD

3 Video or image format/playback mode—VIDEO,

DivX, MPEG, JPEG, VR-PRG (program), VR-PLAY (playlist), PBC

4 Audio format—Dolby Digital, LPCM, MP3, WMA,

WAV, AAC

5 Surround/sound mode ( 21, 23)

6 [4 / ¢]

• DVD Video/DVD-VR: Selects chapter.

• DivX/MPEG1/MPEG2/JPEG/VCD/CD/MP3/WMA/ WAV/AAC: Selects track.

• DVD Video/DVD-VR/DivX/MPEG1/MPEG2/VCD/ CD/MP3/WMA/WAV/AAC: Reverse/forward search* (Hold)

7 [6]

Starts playback/pauses

8 [7]

Stops playback

9 Disc/track information

• DVD Video/DVD-VR: Sampling frequency/Bit rate/Recorded signal channel no.

• DivX/MPEG1/MPEG2/JPEG: Folder name/file name

• CD Text: Current track title/artist name/album title

– “No Name” appears for conventional CDs or if

not recorded

• MP3/WMA/WAV/AAC: Current folder name/ current file name, or tag data (current track title/ artist name/album title) if it is recorded

p Playback mode ( 26)

q • DVD Video: Title no./Chapter no./Playing time

• DVD-VR: Program no. (or Playlist no.)/Chapter no./Playing time

• DivX/MPEG1/MPEG2/MP3/WMA/WAV/AAC: Folder no./Track no./Playing time

• JPEG: Folder no./Track no.

• VCD/CD: Track no./Playing time

* Search speed varies depending on the type of disc or

file. ( 39, 40)

• To select the playback mode, 26.

• To select tracks from the list, 27.

37OPERATIONS

Page 40

Changing the operation buttons

You can change the operation buttons while watching the playback pictures on the screen.

• If no operation is done for about 10 seconds, the operation buttons disappear (except when a disc menu is displayed).

ENGLISH

Source buttons

[ ]: [ [SRC]:

[

5 / ∞]:

4 / ¢]:

Displays AV Menu.

Displays Source Menu.

• Reverse/forward skip

• Reverse/forward search (Hold)

[

6]: Starts playback/pauses.

[ 7 ]: Stops playback.

[QUICK MENU]:

Displays Quick Menu. (

Source buttons:

Changes the source.

For DVD menu operation

[TOP MENU]:

Displays the disc menu

5 / ∞ / 2 / 3]:

[

Selects the menu items.

[MENU]: Displays the disc menu

[

Confirms the selection

Returns to the previous menu

Returns to A

For DVD playback

]: Changes the audio language, audio

[

stream, or audio channel

[

]: Changes or turns off the subtitle

language

[ ]: Changes the view angle

Page 41

Operations using the remote controller (RM-RK252)

Button

Stop play Stop play

Start play/Pause (if pressed during play) • DivX/MPEG1/MPEG2: Start play/Pause (if

pressed during play)

• JPEG: Start play (Slide show: Each file is shown for a few seconds.)

Show the current file until you change it if

pressed during slide show.

• Reverse/forward chapter search *1 (No sound

can be heard.)

• Slow motion *2 during pause (No sound can

be heard.)

– DVD-VR: Reverse slow motion does not work.

• Select chapter (during play or pause)

• Reverse/fast forward chapter search *3 (No

sound can be heard.) (Hold)

• DVD-Video: Select title (during play or pause)

• DVD-VR: Select program Select playlist (during play or pause)

—

Select aspect ratio Select aspect ratio

• DivX/MPEG1/MPEG2: Reverse/forward track

search *4 (No sound can be heard.)

• DivX/MPEG1/MPEG2: – Select track – Reverse/fast forward track search *5 (No

sound can be heard.) (Hold)

• JPEG: Select file

Select folder

DivX/MPEG1/MPEG2: Skip back or forward the scenes by about 5 minutes

ENGLISH

Search speed:

*2 Slow motion speed: *3 Search speed: *4 Search speed: *5 Search speed:

Continued on the next page

39OPERATIONS

Page 42

Button

Stop play Stop play Stop play

ENGLISH

Start play/Pause (if pressed during play)

• Reverse/forward track search

(No sound can be heard.)*

Start play/Pause (if pressed during play)

Reverse/forward track search *1Reverse/forward track search *

• Forward slow motion *2

during pause. (No sound can be heard.)

– Reverse slow motion does not

work.

• Select track

• Reverse/fast forward track

search *3 (No sound can be

• Select track

• Reverse/fast forward track

search *3 (Hold)

heard.) (Hold)

Select folder

—

1, *2, *3

Select aspect ratio

——

Searching for an item directly

1 While holding SHIFT, press DIRECT repeatedly to select the desired search mode.

DVD-Video:

DVD-VR:

Start play/Pause (if pressed during play)

• Select track

• Reverse/fast forward track

search *3 (Hold)

—

DivX/MPEG1/MPEG2:

JPEG:

MP3/WMA/WAV/AAC:

VCD/CD:

2 While holding SHIFT, press the number buttons (0 – 9) to enter the desired number. 3 Press ENT (enter) to confirm.

Page 43

• For DivX/MPEG1/MPEG2/JPEG/MP3/WMA/WAV/AAC, track is searched within the same folder.

• For DVD-VR, program/playlist search is possible during Original program playback (PG)/Playlist playback (PL).

• To erase a misentry, press CLR (clear) while holding SHIFT.

Using menu driven features

• DVD Video

1 Press TOP M/MENU to enter the menu screen. 2 Press % / ﬁ / @ / # to select an item you want to

start play.

3 Press ENT (enter) to confirm.

• DVD-VR

1 Press TOP M to enter the Original Program.

Press MENU to enter the Playlist.

2 Press % / ﬁ / @ / # to select an item you want to

start play.

3 Press ENT (enter) to confirm.

• Original Program/Playlist screen, 59.

• VCD

1 While holding SHIFT, press DIRECT to enter the

search mode.

2 While holding SHIFT, press the number buttons (0

– 9) to enter the desired number.

3 Press ENT (enter) to confirm.

• To return to the previous screen, press RETURN.

Canceling the PBC playback (VCD)

1 Press , then press DIRECT while holding SHIFT. 2 While holding SHIFT, press the number buttons

(0 – 9) to enter the desired number.

3 Press ENT (enter) to confirm.

• To resume PBC, press TOP M/MENU.

Operations using the

on-screen bar

(DVD-Video/DVD-VR/DivX/MPEG1/MPEG2/

JPEG/VCD)

These operations are possible on the monitor using the remote controller.

1 Show the on-screen bar. ( 42)

(twice)

• The on-screen bar is not displayed fully under some <Aspect> settings. (

2 Select an item.

3 Make a selection.

If pop-up menu appears...

• To cancel pop-up menu, press RETURN.

• For entering time/numbers, see the following.

Entering time/numbers

Press % / ﬁ to change the number, then press @ / # to move to the next entry.

• Each time you press % / ﬁ, the number increases/ decreases by one value.

• After entering the numbers, press ENT (enter).

• It is not required to enter the zero and tailing zeros (the last two digits in the example below).

Ex.: Time search DVD: _:_ _:_ _ (Ex.: 1:02:00) Press % once, then # twice to go to the third entry, % twice, then press ENT (enter).

15)

ENGLISH

Removing the on-screen bar

41OPERATIONS

Page 44

On-screen bar

Ex.: DVD-Video

ENGLISH

Information

Operation

1 Disc type 2 • DVD-Video: Audio signal format type and

channel

• VCD: PBC

3 Playback mode *

DVD-Video: T. RPT: Title repeat C. RPT: Chapter repeat DVD-VR: C. RPT: Chapter repeat PG. RPT: Program repeat DivX/MPEG1/MPEG2: T. RPT: Track repeat F. RPT: Folder repeat A. RND: All (Disc) random F. RND: Folder random JPEG: F. RPT: Folder repeat VCD *2: T. RPT: Track repeat A. RND: All (Disc) random

4 Playback information

Current title/chapter

5 Time indication

Current program/chapter

Current playlist/chapter

Current track

Current folder/track

Current folder/file

Elapsed playing time of the disc

(For DVD-Video, elapsed playing time of the current title/program/ playlist.)

DVD-Video/DVD-VR: Remaining

title/program/playlist time

VCD: Remaining disc time

Elapsed playing time of the current

chapter/track *

Remaining time of the current

chapter/track *

6 Playback status

Play Forward/reverse search Forward/reverse slow-motion Pause Stop

7 Operation icons

Change time indication (see 5) Time Search (Enter the elapsed

playing time of the current title/ program/playlist or of the disc.)

Title Search (by its number)

Repeat play * Random play *

Chapter Search (by its number)

Track Search (by its number)

Change the audio language, audio

stream, or audio channel

Change or turn off the subtitle

language

Change the view angle

*1 For repeat play/random play, 26. *2 While PBC is not in use. *3 Not applicable for DVD-VR.

Page 45

Using divided screens—Dual Display

A playback picture and the navigation screen/rear view screen can be displayed at the same time.

Preparation:

Make sure the following settings.

• <On> is selected for <Dual Display>. ( 15)

• <Navigation> or <Camera> is selected for <AV Input>. ( 19)

ENGLISH

While watching a playback picture on the screen, the navigation or rear view*

• You can swap the position of the screens in <Key Position>. ( 15)

To deactivate, select <Off> for <Dual Display>.

Only when the signal comes in

screen is displayed at the same time.

Playback picture

Navigation screen or

rear view screen

Dual Zone operations

You can enjoy disc playback on the external monitor connected to the VIDEO OUT and 2nd AUDIO OUT plugs, while listening to any source other than “

• When Dual Zone is in use, you can only operate the DVD/CD player using the remote controller.

~ Select <Dual Zone> on AV Menu.

Ÿ Activate Dual Zone.

<Off>:

Deactivates Dual Zone.

<On>:

Activates Dual Zone without Headphone

Surround. The DUAL ZONE ON indicator lights up.

<On/Surround On>:

Activates Dual Zone with Headphone

Surround*2. The DUAL ZONE SR ON indicator lights up.

USB

” through the speakers.

*2 JVC original headphone virtual surround system.

This surround will also work for the main source “

DISC

” if <On/Surround On> is selected. This surround does not work for DivX/MPEG1/MPEG2 discs.

Continued on the next page

43OPERATIONS

Page 46

On the remote:

ENGLISH

Adjust the volume through the 2nd AUDIO OUT plug.

• The volume level is shown on the connected external monitor.

3 Operate the DVD/CD player.

To select a different source (main source) to listen to through the speakers

Touch [SRC], then select a source.

• By using the touch panel, you can operate the newly selected source without affecting Dual Zone (Disc) operations.

• You cannot select “USB” for the main source.

Operations using the control

screen

For discs except DVD and VCD: While Dual Zone is on, these operations are possible on the external monitor using the remote controller. The control screen automatically appears when you insert a disc. (For DivX/MPEG1/MPEG2/JPEG; while not playing.)

Ex.: MP3/WMA

1 Current folder (highlighted bar) 2 Current folder no./total folder no. 3 Folder list

* If tag data includes “Jacket Picture” (baseline

JPEG), it will be displayed. If you press OSD, the playback mode selection window appears. (

45)

4 Selected playback mode ( 45) 5 Elapsed playing time of the current track (not

displayed for JPEG)

6 Operation status 7 Current track no./total number of tracks in the

current folder (total number of tracks on the disc)

8 Track information (only for MP3/WMA/WAV/AAC) 9 Track list p Current track (highlighted)

To select a folder or track

1 Select “Folder” column or “Track” column

on the control screen.

2 Select a folder or track.

• If necessary, press 6 to start playback.

Page 47

Ex.: CD Text

Selecting playback modes

You can also change the playback modes using the playback mode selection window.

• For JPEG, Random cannot be selected.

Except for JPEG: Select a playback mode.

3 Select your desired option.

ENGLISH

1 The playback mode selection window: appears

when OSD is pressed (see the right).

2 Selected playback mode (see the right). 3 Elapsed playing time of the current track 4 Operation status 5 Current track number/total number of tracks on the

disc

6 Track information 7 Track list 8 Current track (highlighted bar)

To select a track

• If necessary, press 6 to start playback.

Selectable playback mode

• DivX/MPEG1/MPEG2/JPEG: ( 42)

• MP3/WMA/WAV/AAC: – T. RPT: Track repeat – F. RPT: Folder repeat – F. RND: Folder random – A. RND: All (Disc) random

• CD: – T. RPT: Track repeat – A. RND: All (Disc) random

45OPERATIONS

Page 48

Operations using the list

screen

For discs other than DVD, VCD, and CD While Dual Zone is on, these operations are possible on the external monitor using the remote controller.

ENGLISH

While playback is stopped...

1 Display the list screen.

Using Dual Display

While Dual Zone is on, the main source (other than “

USB

”) and “

DISC

” can be displayed at the same

time.

• Dual Display works while watching a playback picture

on the external monitor.

Preparation:

Make sure <On> is selected for <Dual Display>. (

15)

2 Select a folder on the list.

3 Select a track on the list.

• To go back to the folder list, press RETURN.

1 Current folder number/total folder number 2 Current track number/total number of tracks in the

current folder

3 Current page/total number of the pages included

in the list

4 Current folder/track (highlighted bar)

Playback picture

(“

DISC

”)

To deactivate, select <Off> for <Dual Display>.

Main source

Page 49

USB operations

You can connect a USB mass storage class device such as a USB memory, Digital Audio Player, portable HDD, etc. to the unit.

• You can also connect the iPod/iPhone to the USB terminal of the unit. For details of the operations, 51.

USB cable from the rear of the unit

USB

The source changes to “

” and playback starts.

ENGLISH

This unit can play JPEG/MPEG1/MPEG2 *1/MP3/WMA/ WAV/AAC *2 files stored in USB mass storage class device.

• You can operate the USB device in the same way you operate the files on discs. ( 37 – 43)

• You cannot select “

• All tracks in the USB device will be played repeatedly until you change the source.

*1 Except for MPEG2 files recorded by JVC Everio

camcorder (extension code <.mod>).

*2 This unit can play back AAC files encoded using

iTunes. This unit cannot play back FairPlay-encrypted files.

USB

” when Dual Zone is in use.

Cautions:

• Avoid using the USB device if it might hinder your safety driving.

• Do not pull out and attach the USB device repeatedly while “Now Reading” is shown on the screen.

• Do not start the car engine if a USB device is connected.

• Stop playback before disconnecting a USB device.

• Electrostatic shock at connecting a USB device may cause abnormal playback of the device. In this case, disconnect the USB device then reset this unit and the USB device.

• This unit may not be able to play the files depending on the type of USB device.

• Operation and power supply may not work as intended for some USB devices.

• You cannot connect a computer to the USB ( ) terminal of the unit.

• Make sure all important data has been backed up to avoid losing the data.

• Do not leave a USB device in the car, expose to direct sunlight, or high temperature to avoid deformation or cause damages to the device.

• Some USB devices may not work immediately after you turn on the power.

• For more details about USB operations, 61.

47OPERATIONS

Page 50

Using the Bluetooth® devices (KD-AVX77 only)

ENGLISH

Bluetooth is a short-range wireless radio communication technology for the mobile device such as mobile phones, portable PCs, and other devices. The Bluetooth devices can be connected without cables and communicate with each other.

• Refer to the list (included in the box) to see the countries where you may use the Bluetooth® function.

Bluetooth profile

This unit supports the following Bluetooth profiles;

• HFP (Hands-Free Profile) 1.5

• OPP (Object Push Profile) 1.1

• A2DP (Advanced Audio Distribution Profile) 1.2

• AVRCP (Audio/Video Remote Control Profile) 1.3

Connecting a new Bluetooth device

Connecting a Bluetooth device for the first time

When you connect a Bluetooth device to the unit for the first time, make pairing between the unit and the device. Pairing allows Bluetooth devices to communicate each other. To make pairing, you may need to enter the PIN (Personal Identification Number) code of your Bluetooth device you want to connect.

• Once the connection is established, it is registered in the unit even if you reset the unit. Up to 5 devices can be registered in total.

• Only one device for Bluetooth phone and one for Bluetooth audio can be connected at a time.

• To use the Bluetooth function, you need to turn on Bluetooth function of the device.

Use <New Pairing> in <Bluetooth> menu to register and establish the connection with a new device. ( 30)

To connect/disconnect/delete a device, 30.

Bluetooth Information:

If you wish to receive more information about Bluetooth, visit the following JVC web site: <http://www.jvc.co.jp/english/car/> (English website only)

Page 51

Using the Bluetooth cellular phone

To make a call, use <Dial Menu>. ( 29)

When a call comes in...

The source is changed to “

When <Auto Answer> is activated...

The unit answers the incoming call automatically.

31)

(

When <Auto Answer> is deactivated... To answer the incoming call

Touch the message displayed on the touch panel.

To end the call

Hold the message displayed on the touch panel.

• You can adjust the microphone volume, 32.

Answering a waiting call

If your cellular phone is equipped with the call waiting function, you can put the current call on hold and answer the waiting call. Touch any button on the touch panel (except volume +/– buttons).

• To restore the on-hold call, touch any button on the touch panel (except volume +/– buttons) again.

• When you end one call, you can connect to the other.

Bluetooth

Name and phone number (if acquired)

” automatically.

Switching conversation media (the unit/ cellular phone)

During a phone call conversation...

ENGLISH

Each time you press the button, the conversation media alternates between the unit ( ) and cellular phone ( ).

Then, continue your conversation using the selected media.

When an SMS comes in...

If the cellular phone is compatible with SMS (Short Message Service), the unit tells you a message has been received. ( 31)

To read a received message, operate the cellular phone after stopping the car in a safe place.

• You cannot read, edit, or send a message through the unit.

Continued on the next page

49EXTERNAL DEVICES

Page 52

Presetting the phone numbers

You can preset up to 6 phone numbers.

1 Display <Redial>, <Received Calls>,

<Phonebook>, or <Phone Number>.

( 29)

ENGLISH

2 Select a telephone number to store.

3 Select a preset number.

Now “Tom” is stored into preset no. 1.

To call a preset number, 29.

Using the Bluetooth audio player

(Hold)

~ Touch [SRC], then select “Bluetooth.” Ÿ Touch [ 6 ] to start playback.

[6]: Starts playback.

5 / ∞]: Selects group/folder.

[

4 / ¢]:

[

7]:

• Some Bluetooth devices may not be controlled by the buttons.

• Reverse/forward skip

• Reverse /forward search (Hold) Pauses.

A Sound mode B Connected device type indication C Status of the device: Signal strength/Battery remainder

(only when the information comes from the device)

D Track no./Playing time (only for devices that support the

function)

E Tag data* (current track title/artist name/album title) if it

is recorded (only for devices that support the function)

* “No Name” appears when the Tag data is not recorded

or when the device does not support the function.

• To connect a new device, 30.

• To select the playback mode, 26.

Page 53

Listening to the iPod/iPhone devices

You can connect the iPod/iPhone using the following cable or adapter:

To Cable/adapter To operate

Listen to the music

Watch the video USB Audio and Video cable for iPod/iPhone, KS-U30

• When watching the video on the external monitor, connect a monitor compatible with both NTSC and PAL.

When connected with the USB cable

The operations explained below are under “HEAD MODE.”

USB 2.0 cable (accessory of the iPod/iPhone) to the USB cable from the rear of the unit.

Interface Adapter for iPod, KS-PD100 (not supplied) to the CD changer jack on the rear of the unit.

(not supplied) to the USB cable from the rear of the

unit.*

See “When connected with the USB cable” below.

See “When connected with the interface adapter” (

See “When connected with the USB cable” below.

52).

• The Artwork of the song is shown if the song has an Artwork data. ( 16)

ENGLISH

~ Touch [SRC], then select “iPod .”

Playback starts automatically.

• When you connect the iPod/iPhone to the USB terminal, “ source and playback starts automatically.

• To change the controlling unit, touch [QUICK MENU] then .

– HEAD MODE: Controls through this unit. – iPod MODE*

iPod USB

” is selected as the

: Controls through the

connected iPod/iPhone.

Ÿ Touch [4] or [¢] to select a track/

video.

• You cannot resume playback for video sources.

• To select track/video from <Search Mode>, 28.

• To select the playback mode, 26.

• To change the play speed of the audiobooks,

• You can also change the controlling unit in <iPod Control>. ( 16)

[6]: Starts playback/pauses.

[

5 / ∞]: • Moves to the previous/next item of

[

4 / ¢]: • Reverse/forward skip *

A The controlling unit for playback ( 16 ) B Sound mode

*1 Make sure <iPod(Off)> is selected for <AV Input>

when using KS-U30 to connect. ( 19, 62)

*2 [5 / ∞] may not function depending on how you

select the current track/video.

*3 [4 / ¢] functions otherwise under “iPod MODE.”

26.

a category. *

• Enters <Search Mode> menu. (Hold) ( 28 )

• Reverse /forward search (Hold)

51EXTERNAL DEVICES

Page 54

When connected with the interface adapter

ENGLISH

Preparation:

Make sure <iPod> is selected for <External Input>. (

19)

~ Touch [SRC], then select “iPod.”

Playback starts automatically.

Ÿ Touch [4] or [¢] to select a track.

Selecting a track from the player’s

1 Touch [ ] to enter the player’s menu.

The SEARCH indicator lights up.

• This mode will be canceled if no operations are done for about 5 seconds.

2 Touch [4] or [¢] to select the desired

item.

• Skips 10 items at a time if there are more than 10 items. (Hold)

Playlists Ô Artists Ô Albums Ô Songs Ô Genres Ô Composers Ô (back to the beginning)

[

6]: Starts playback/pauses.

[

4 / ¢]: • Reverse/forward skip

Enters player’s menu.

• Reverse /forward search (Hold)

4 Repeat steps 2 and 3 to select a track.

• When a track is selected finally, playback starts.

• To return to the previous menu, touch [ ].

To select the playback mode, 26.

3 Touch [6] to confirm the selection.

Page 55

Listening to the CD changer

It is recommended to use a JVC MP3-compatible CD changer with your unit.

• You can play only CDs (CD-DA) and MP3 discs.

Preparation:

Make sure <Changer> is selected for <External Input>. (

Ex.: While playing an MP3 disc

19)

ENGLISH

~ Touch [SRC], then select “CD-CH.” Ÿ Touch [ ]. ! Touch [List]. ⁄ Select a disc to start playing.

[4 / ¢]: • Reverse/forward skip

• Reverse /forward search (Hold)

(MP3 only)

5 / ∞]: • Selects folder.

[

• Displays Disc List. (Hold)

A Disc no. B Sound mode C Folder no./Track no./Playing time D Current folder name/current file name, or tag data

(current track title/artist name/album title) if it is recorded

• To select the playback mode, 26.

• To select an MP3 track from the Folder/Track List,

27.

53EXTERNAL DEVICES

Page 56

Listening to the DAB tuner

ENGLISH

~ Touch [SRC], then select “DAB.” Ÿ Touch [BAND].

! Touch [ ] or [ ] to search for an

ensemble—Auto Search.

• Manual Search: Hold either [ ] or [ ] until “Manual Search” appears on the screen, then touch it repeatedly.

⁄ Touch [FUNC] to select [ ], then touch

[

5] or [∞] to select a service (either

primary or secondary) to listen to.

[FUNC]: Changes items to select with [5 / ∞].

– : Services

– : Preset services ( 27)

Touch to display DLS.

A Band B Preset number C Sound mode D Service label/Emsemble label E PTY code F DAB indicators

*1 If no signal is received, “No DAB Signal” appears. *2 While tuning in a service with DLS (Dynamic Label

Segment), the TEXT indicator lights up.

• You can also display DLS by pressing DISP button on the remote controller.

• To improve your listening when surrounding sounds are noisy, try to adjust <D. Range Control>. ( 25)

• To activate/deactivate TA/PTY Standby Reception, 35. (Operations are exactly the same as the ones for FM Radio Data System stations.)

• To search for your favorite programmes, 34.

/Standby Reception indicators

Page 57

Activating/deactivating

Announcement Standby Reception

Announcement Standby Reception allows the unit to switch temporarily to your favorite service (announcement type).

Announcement Standby Reception Indicator

To activate, touch [QUICK MENU], then

The unit will temporarily switch to your favorite service from any source other than FM/AM.

Not yet activated. Tune in to another service providing the related signals.

To deactivate, touch [QUICK MENU], then .

To change the announcement type for Announcement Standby Reception, 25.

ANN

Lights up

Flashes

Goes off

Tracing the same

programme—Alternative Frequency Reception (DAB AF)

• While receiving a DAB service:

When driving in an area where a service cannot

be received, this unit automatically tunes in to another ensemble or FM Radio Data System station broadcasting the same programme.

• While receiving an FM Radio Data System station:

When driving in an area where a DAB service is

broadcasting the same programme as the FM Radio Data System station, this unit automatically tunes in to the DAB service.

When shipped from the factory, Alternative Frequency Reception is activated.

To deactivate the Alternative Frequency Reception, select <Off> for <DAB AF>. (

19)

ENGLISH

55EXTERNAL DEVICES

Page 58

Using other external components

AV-INPUT

You can connect an external component to the LINE IN/VIDEO IN plugs.

ENGLISH

• When watching the video on the external monitor, connect a monitor compatible with both NTSC and PAL.

~ Touch [SRC], then select “AV-IN.”

A Sound mode B Assigned title (

26)

Ÿ Turn on the connected component and

start playing the source.

While watching the playback picture: If no operation is done for about 10 seconds, the operation buttons disappear. ( 20)

Navigation screen

You can also connect a Navigation System to the VIDEO IN plug so that you can watch the navigation screen. It is always displayed regardless of the selected source.

Preparation: Make sure <Navigation> is selected for <AV Input>. ( 19)

• The aspect ratio of the navigation screen is fixed to <16:9 Full> regardless of the <Aspect> setting. ( 15)

To display another screen

Using Dual Display, the navigation screen and playback picture can be displayed at the same time.

Select <On> for <Dual Display> ( 15), then play back a disc. ( 43)

When <Navigation> is selected for <AV Input> ( 19)

• You can use the source “ an audio source connected to the LINE IN plugs.

AV-IN

” for listening to

Page 59

EXT-INPUT

You can connect an external component to the CD changer jack on the rear using the Line Input Adapter, KS-U57 (not supplied) or AUX Input Adapter, KS-U58 (not supplied).

ENGLISH

A Sound mode B Assigned title (

Preparation: Make sure <External> is selected for <External Input>. ( 19)

26)

~ Touch [SRC], then select “EXT-IN.” Ÿ Turn on the connected component and

start playing the source.

57EXTERNAL DEVICES

Page 60

Maintenance

Caution on cleaning the unit

Do not use any

ENGLISH

solvent (for example, thinner, benzine, etc.), detergent, or insecticide. This may damage the monitor or the unit.

Recommended cleaning method:

Gently wipe the panel with a soft, dry cloth.

How to clean the connector

Frequent detachment will deteriorate the connectors. To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Connectors

Moisture condensation

Moisture may condense on the lens inside the unit in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car. Should this occur, the unit may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates.

How to handle discs

When removing a disc from its case, press down the

center holder of the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc in its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs in their cases after use.

Center holder

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

• Do not use any solvents (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

Do not use the following discs:

Single CD (8 cm disc) Warped disc

Sticker and sticker residue Stick-on label

Unusual shape

Transparent or semi-

transparent parts on its

recording area

C-thru Disc (semi-

transparent disc)

Page 61

More about this unit

Tuner (FM only)

Storing stations in memory

• When SSM is over, received stations are preset in no. 1 (lowest frequency) to no. 6 (highest frequency).

Disc

General

• In this manual, words “track” and “file” are interchangeably used.

• This unit can only play back audio CD (CD-DA) files if different type of audio files (MP3/WMA/WAV/AAC) are recorded on the same disc.

• This unit can display only one-byte characters. No other characters can be correctly displayed.

Inserting a disc

• When a disc is inserted upside down or has no playable files, “Cannot play this disc Check the disc” appears on the screen. Eject the disc.

Ejecting a disc

• If “No Disc“ appears after removing a disc, insert a disc or select another playback source.

• If the ejected disc is not removed within 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust.

Playing DVD-VR

• When selecting an item from the Playlist, the item is automatically played back repeatedly. To change to another item, select it from the Playlist.

• For details about DVD-VR format and playlist, refer to the instructions supplied with the recording equipment.

Original Program/Playlist screen

• Original Program

• Playlist

ENGLISH

Playing Recordable/Rewritable discs

• This unit can recognize a total of 5 000 files and 250 folders (a maximum of 999 files per folder).

• Use only “finalized” discs.

• This unit can play back multi-session discs; however, unclosed sessions will be skipped while playing.

• This unit can recognize a total of 25 characters for file/folder names.

• Some discs or files may not be played back due to their characteristics or recording conditions.

1 Original Program/Playlist number 2 Recording date 3 Recording source (TV station, the input terminal of

the recording equipment, etc.)

4 Start time of recording 5 Title of the program/playlist * 6 Highlight bar (current selection) 7 Creating date of playlist 8 Total number of chapters included in the playlist 9 Playback time

* The title of the original program or playlist may not be

displayed depending on the recording equipment.

59REFERENCES

Page 62

File playback

Playing DivX files

• This unit can play back DivX files with the extension code <.divx>, <.div>, or <.avi> (regardless of the letter case—upper/lower).

ENGLISH

• Audio stream should conform to MP3 or Dolby Digital.

• The file encoded in the interlaced scanning mode may not be played back correctly.

• The maximum bit rate for video signals (average) is 4 Mbps.

Playing MPEG1/MPEG2 files

• This unit can play back MPEG1/MPEG2 files with the extension code <.mpg>, <.mpeg>, or <.mod>*.

* <.mod> is an extension code used for the MPEG2 files

recorded by JVC Everio camcorders. The MPEG2 files with the <.mod> extension code cannot be played back when stored on a USB mass storage class device.

• The stream format should conform to MPEG system/ program stream.

The file format should be MP@ML (Main Profile at

Main Level)/SP@ML (Simple Profile at Main Level)/ MP@LL (Main Profile at Low Level).

• Audio streams should conform to MPEG1 Audio Layer-2 or Dolby Digital.

• The maximum bit rate for video signals (average) is 4 Mbps.

Playing JPEG files

• This unit can play back JPEG files with the extension code <.jpg>, or <.jpeg>.

• This unit can play back JPEG files that are at 32 x 32 to 8 192 x 7 680 resolution. It may take time to display the file depending on its resolution.

• This unit can play back baseline JPEG files. Progressive JPEG files or lossless JPEG files cannot be played.

Playing MP3/WMA/WAV/AAC files

• This unit can play back files with the extension code <.mp3>, <.wma>, <.wav>, or <.m4a> (regardless of the letter case—upper/lower).

• This unit can play back the files meeting the conditions below:

– Bit rate: MP3/WMA: 32 kbps — 320 kbps AAC: 16 kbps — 320 kbps – Sampling frequency: 48 kHz, 44.1 kHz, 32 kHz (for MPEG1) 24 kHz, 22.05 kHz, 16 kHz (for MPEG2) 48 kHz, 44.1 kHz, 32 kHz, 22.05 kHz (for WMA)

44.1 kHz (for WAV)

48 kHz, 44.1 kHz (for AAC)

• This unit can show ID3 Tag Version

1.0/1.1/2.2/2.3/2.4 (for MP3).

• This unit can also show WAV/WMA Tag.

• This unit can play back files recorded in VBR (variable bit rate).

• Files recorded in VBR have a discrepancy in elapsed time indication.

Page 63

• This unit cannot play back the following files: – MP3 files encoded with MP3i and MP3 PRO format. – MP3 files encoded with Layer 1/2. – WMA files encoded with lossless, professional, and

voice format.

– WMA files which are not based upon Windows

Media® Audio. – WMA files copy-protected with DRM. – AAC files encoded by using any other application

than iTunes. – AAC files copy-protected with FairPlay (except

those stored on an iPod/iPhone). – Files which have the data such as AIFF, ATRAC3,

etc.

Enjoying surround sounds

• If <Surround> is set to <On>, “MULTI” surround

playback automatically starts for multi-channel encoded discs regardless of the <Surround Mode> setting.

• You cannot activate surround for MPEG multi-channel

DVD Video, DivX 2-channel and MPEG 2-channel sources. If <Surround> is set to <On>, stereo sounds are emitted only through the front speakers. “FRONT 2ch” appears on the source information screen.

• When “FIX” appears on the source information

screen, no sound comes out of the subwoofer.

• When <Auto> is selected, downsampling is

performed for DVD Video (LPCM only) and DVD-VR (LPCM only).

USB

• If “No USB Device“ appears after removing a device, reattach a device or select another playback source.

• When the USB device has no playable files, or has not been formatted correctly, “Cannot play this device Check the device” appears on the screen.

• This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 500 mA.

• While playing from a USB device, the playback order may differ from other players.

• This unit may be unable to play back some USB devices or some files due to their characteristics or recording conditions.

• USB devices equipped with special functions such as data security functions cannot be used with the unit.

• Do not use a USB device with 2 or more partitions.

• Depending on the shape of the USB devices and connection ports, some USB devices may not be attached properly or the connection might be loose.

• When connecting a USB device, refer also to its instructions.

• Connect only one USB device to the unit at a time. Do not use a USB hub.

• This unit may not recognize a memory card inserted into a USB card reader.

• When connecting with a USB cable, use the USB 2.0 cable.

• This unit may not play back files in a USB device properly when using a USB extension cord.

• This unit cannot assure proper functions or supply power to all types of the devices.

• This unit can recognize a total of 5 000 files and 250 folders (a maximum of 999 files per folder).

• This unit can recognize a total of 25 characters for file/folder names.

• For MPEG1/MPEG2 files: The maximum bit rate for video signals (average) is 2 Mbps.

ENGLISH

61REFERENCES

Page 64

Bluetooth operations (KD-AVX77

only)

General

• While driving, do not perform complicated operation such as dialing the numbers, using phone book, etc.

ENGLISH

When you perform these operations, stop your car in a safe place.

• Some Bluetooth devices may not be connected to this unit depending on the Bluetooth version of the device.

• This unit may not work for some Bluetooth devices.

• Connecting condition may vary depending on circumstances around you.

• When the unit is turned off, the device is disconnected.

Warning messages for Bluetooth operations

• Connection Error:

The device is registered but the connection has failed.

Use <Phone Connect> or <Audio Connect> to connect the device again. ( 30)

• Error:

Try the operation again. If “Error” appears again,

check if the device supports the function you have tried.

• Please Wait...:

The unit is preparing to use the Bluetooth function. If

the message does not disappear, turn off and turn on the unit, then connect the device again (or reset the unit).

Icons for phone types

• These icons indicate the phone type set on the device.

: Cellular phone

: Household phone

: Office

: General

: Other than above

iPod/iPhone operations

• You can control the following types of iPod/iPhone: (A) Connected with the USB cable: – iPod with video (5th Generation) *1, *2, * – iPod classic *1, * – iPod nano *2, * – iPod nano (2nd Generation) *

– iPod nano (3rd Generation) *1, * – iPod nano (4th Generation) *1, * – iPod touch *1, *

– iPod touch (2nd Generation)*1, * – iPhone/iPhone 3G*1, *

(B) Connected with the interface adapter: – iPod with Click Wheel (4th Generation) – iPod mini – iPod photo – iPod with video (5th Generation) – iPod classic – iPod nano – iPod nano (2nd Generation) – iPod nano (3rd Generation) – iPod nano (4th Generation) *

*1 To watch the video with its audio, connect the iPod/

iPhone using USB Audio and Video cable (KS-U30, not supplied).

*2 “iPod MODE” is available, 51. *3 To listen to the sound in “iPod MODE,” connect the

iPod/iPhone using USB Audio and Video cable (KSU30, not supplied).

*4 It is not possible to charge the battery through this

unit.

• If the iPod/iPhone does not play correctly, update your iPod/iPhone software to the latest version. For details about updating your iPod/iPhone, visit <http://www.apple.com>.

• When you turn on this unit, the iPod/iPhone is charged through the unit.

• The text information may not be displayed correctly.

• The text information scrolls on the monitor. This unit can display up to 40 characters when using the interface adapter and up to 128 characters when using the USB 2.0 cable or USB Audio and Video cable.

Page 65

Notice:

When operating an iPod/iPhone, some operations may not be performed correctly or as intended. In this case, visit the following JVC web site: <http://www.jvc. co.jp/english/car/> (English website only)

For the USB connection:

When <Artwork> is set to <On>: Do not press any buttons during the first 5 seconds or more of playing back any track containing an Artwork*. It takes 5 seconds or more to display an Artwork and no operations are available while loading it.

* The picture displayed on the screen of the iPod/iPhone

while playing back a track

Characters you can enter for titles

In addition to the roman alphabet (A – Z, a – z), you can use the following characters to assign titles. (

26)

• When <Руccĸий> is selected for <Language>. ( 15)

Upper and lower cases

ENGLISH

JVC bears no responsibility for any loss of data in an iPod/iPhone and USB mass storage class device while using this unit.

CD changer

• If you select a folder, which does not include any music files, on the list ( Select another folder including music files.

28), you will hear a beep.

DAB tuner

• Only the primary DAB service can be preset even when you store a secondary service.

Menu settings

• If you change the <Amplifier Gain> setting from <High Power> to <Low Power> while the volume level is set higher than “30,” the unit automatically changes the volume level to “30.”

• After you change any of <Menu Language/Audio Language/Subtitle> settings, turn off then on the power, and re-insert the disc (or insert another disc) so that your setting takes effect.

• When you select <16:9> for a picture whose aspect ratio is 4:3, the picture slightly changes due to the process for converting the picture width.

• Even if <4:3 Pan Scan> is selected, the screen size may become <4:3 Letterbox> for some discs.

Numbers and symbols

• When any language other than <Руccĸий> is selected for <Language>. (

Upper and lower cases

Numbers and symbols

15)

63REFERENCES

Page 66

Language codes (for DVD/DivX language selection)

Code Language Code Language Code Language Code Language Code Language

AA Afar FA Persian KK Kazakh NO Norwegian ST Sesotho

AB Abkhazian FI Finnish KL Greenlandic OC Occitan SU Sundanese

ENGLISH

AF Afrikaans FJ Fiji KM Cambodian OM (Afan) Oromo SW Swahili

AM Ameharic FO Faroese KN Kannada OR Oriya TA Tamil

AR Arabic FY Frisian KO Korean (KOR) PA Panjabi TE Telugu

AS Assamese GA Irish KS Kashmiri PL Polish TG Tajik

AY Aymara GD Scots Gaelic KU Kurdish PS Pashto, Pushto TH Thai

AZ Azerbaijani GL Galician KY Kirghiz QU Quechua TI Tigrinya

BA Bashkir GN Guarani LA Latin RM

BE Byelorussian GU Gujarati LN Lingala RN Kirundi TL Tagalog

BG Bulgarian HA Hausa LO Laothian RO Rumanian TN Setswana

BH Bihari HI Hindi LT Lithuanian RW Kinyarwanda TO Tonga

BI Bislama HR Croatian LV

Bengali, Bangla

BO Tibetan HY Armenian MI Maori SG Sangho TT Tatar

BR Breton IA Interlingua MK Macedonian SH Serbo-Croatian TW Twi

CA Catalan IE Interlingue ML Malayalam SI Singhalese UK Ukrainian

CO Corsican IK Inupiak MN Mongolian SK Slovak UR Urdu

CS Czech IN Indonesian MO Moldavian SL Slovenian UZ Uzbek

CY Welsh IS Icelandic MR Marathi SM Samoan VI Vietnamese

DZ Bhutani IW Hebrew MS Malay (MAY) SN Shona VO Volapuk

EL Greek JA Japanese MT Maltese SO Somali WO Wolof

EO Esperanto JI Yiddish MY Burmese SQ Albanian XH Xhosa

ET Estonian JW Javanese NA Nauru SR Serbian YO Yoruba

EU Basque KA Georgian NE Nepali SS Siswati ZU Zulu

HU Hungarian MG Malagasy SD Sindhi TS Tsonga

Latvian, Lettish

Rhaeto-Romance

SA Sanskrit TR Turkish

TK Turkmen

Page 67

About sounds reproduced through the rear terminals

• Speaker out/analog discrete output—LINE OUT (FRONT/REAR)/CENTER OUT/SUBWOOFER OUT: Multi-channel signals are emitted for a multi-channel encoded software. (When Dual Zone is activated, the same signal emitted through 2nd AUDIO OUT plugs are emitted for the main source “

• 2nd AUDIO OUT: 2-channel signal is emitted when Dual Zone is activated. When playing a multi-channel encoded disc, multi-channel signals are downmixed.

• Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

• “DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation registered in the US, Japan and other countries.

• DivX® is a registered trademark of DivX, Inc., and is used under license.

• Plays DivX® video

• ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified or DivX Ultra Certified device that plays DivX video.

• ABOUT DIVX VIDEO-ON-DEMAND: This DivX® Certified device must be registered in order to play DivX Video-onDemand (VOD) content. First generate the DivX VOD registration code for your device and submit it during the registration process. [Important: DivX VOD content is protected by a DivX DRM (Digital Rights Management) system that restricts playback to registered DivX Certified devices. If you try to play DivX VOD content not authorized for your device, the message “Authorization Error” will be displayed and your content will not play.] Learn more at www.divx.com/vod.

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

• The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Victor Company of Japan, Limited (JVC) is under license. Other trademarks and trade names are those of their respective owners.

• “Made for iPod” means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards.

• “Works with iPhone” means that an electronic accessory has been designed to connect specifically to iPhone and has been certified by the developer to meet Apple performance standards.

• Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

• iPod and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.

• iPhone is a trademark of Apple Inc.

• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

DISC

.”)

ENGLISH

65REFERENCES

Page 68

Troubleshooting

What appears to be trouble is not always serious. Check the following points before calling a service center.

• For operations with the external components, refer also to the instructions supplied with the adapters used for the connections (as well as the instructions supplied with the external components).

ENGLISH

• Messages (enclosed in “ ”) in the tables below are shown in the language selected on <Language>. ( 15) Messages described here are in the language of this manual.

Symptom Remedy/Cause

• No sound comes out of the speakers. • Adjust the volume to the optimum level.

• Check the cords and connections.

• DTS sound cannot be reproduced through any terminals (Speaker out/LINE OUT).

• No sound comes out of the center speaker.

• The screen is not clear and legible. Sunshine from the windshield may cause this symptom.

• “Mecha Error Push Reset” appears on the screen, and the panel does not move.

• “No Signal” appears. • Change the source.

General

•

button on the monitor panel

does not work.

• The unit does not work at all.

• The remote controller does not work.

• The touch panel does not respond properly.

• <Monitor/Sensor> does not work properly.

• Center speaker is not activated. ( the unit, make sure to activate the speaker again.

• Center speaker is used only for surround playback. No sound comes out for stereo playback.

Adjust <Bright>. (

Reset the unit. (

• Start the playback on the external component connected to VIDEO IN plug.

• Check the cords and connections.

• Signal input is too weak.

When the monitor panel is open, the button does not function.

Reset the unit. (

Deactivate Dual Zone. ( the remote controller only functions for operating the DVD/CD player.)

• Keep your hands and the touch panel clean and dry.

• Eliminate static electricity and do not place conductors or any materials generating static electricity near the unit.

• Leave the unit until the temperature becomes stable in the car.

• A rubber mat on the floor may cause this symptom. In this case, do not use the rubber mat.

14)

17) Once you have reset

43) (While Dual Zone is activated,

Page 69

Symptom Remedy/Cause

• SSM automatic presetting does not work.

Tuner

• Static noise while listening to the radio.

• Disc can be neither recognized nor played back.

• Disc cannot be ejected.

• Recordable/Rewritable discs cannot be played back.

• Tracks on the Recordable/Rewritable discs cannot be skipped.

• Playback does not start. • Insert the disc correctly again.

• The playback picture is not clear and legible.

• Sound and pictures are sometimes interrupted or distorted.

Disc in general

• No playback picture is shown and “Parking Brake” appears on the screen, even when the parking brake is engaged.

• No picture appears on the external monitor.

• “Eject Error” or “Loading Error” appears on the screen.

• “Region code error” appears on the screen when you insert a DVD Video.

Store stations manually. (

Connect the aerial firmly.

Eject the disc forcibly. (

Unlock the disc. (

• Insert a finalized disc.

• Finalize the discs with the component which you used for recording.

• The format of files is not supported by the unit.

Adjust items in <Picture Adjust> menu. (

• Stop playback while driving on rough roads.

• Change the disc.

Parking brake lead is not connected properly. See Installation/Connection Manual.

• Connect the video cord correctly.

• Select the correct input on the external monitor.

• Change the source.

• Change the disc.

Region code is not correct. (

36)

27)

ENGLISH

36)

14)

67REFERENCES

Page 70

Symptom Remedy/Cause

• Disc cannot be played back. • Change the disc.

ENGLISH

• Noise is generated. The track played back is not a playable file format. Skip to another

• Tracks are not played back as you have intended them to play.

• Elapsed playing time is not correct. This sometimes occurs during playback. This is caused by how the

• “Not Support” appears on the screen

DivX/MPEG1/MPEG2/MP3/WMA/WAV/AAC

and track skips.

• Noise is generated. The track played back is not a playable file format. Skip to another

• Tracks cannot play back as you have intended them to play.

• “Now Reading...” keeps flashing on the screen.

USB

• Correct characters are not displayed (e.g. album name).

• While playing a track, sound is sometimes interrupted.

• Bluetooth device does not detect the unit.

• The unit does not make pairing with the Bluetooth device.

• Echo or noise occurs. Adjust the microphone position.

Bluetooth (KD-AVX77 only)

• Record the tracks using a compliant application on the appropriate discs. ( 4)

• Add appropriate extension codes to the file names.

file.

Playback order may differ from the one played back using other players.

tracks are recorded.

The track is unplayable.

file.

Playback order may differ from the one played back using other players.

• Readout time varies depending on the USB device.

• Do not use too many hierarchy and folders.

• Turn off the power and on again.

For available characters, 63.

The tracks are not properly copied into the USB device. Copy tracks again, and try again.

• Search from the Bluetooth device again.

• Reset the unit. While “Open...” is shown on the screen, search from the Bluetooth device again.

• Enter the same PIN code for both the unit and target device. If the PIN code of the device is not indicated on its instructions, try “0000” or “1234.”

Page 71

Symptom

• Phone sound quality is poor. • Reduce the distance between the unit and the Bluetooth cellular phone.

• Move the car to place where you can get a better signal reception.

• The sound is interrupted or skipped while using a Bluetooth audio player.

• The connected audio player cannot be controlled.

• The unit does not response when you

Bluetooth (KD-AVX77 only)

tried to copy the phone book to the unit.

• “No Audio Device” appears on the screen.

• “No Voice Device” appears on the screen.

• The iPod/iPhone does not turn on or does not work.

• Sound is distorted. Deactivate the equalizer either on this unit or the iPod/iPhone.

• Playback stops. The headphones are disconnected during playback. Restart

iPod/iPhone

• “Cannot play this device Check the device” appears on the screen.

• No operations are available when playing back a track containing Artwork.

• “Restricted Device” appears on the screen.

• Reduce the distance between the unit and the Bluetooth audio player.

• Disconnect the device connected for Bluetooth phone.

• Turn off, then turn on the unit.

• (When the sound is not yet restored) connect the player again.

Check whether the connected audio player supports AVRCP (Audio Video Remote Control Profile).

You may have tried to copy the same entries (as stored) to the unit.

Connect this unit and the Bluetooth audio player correctly.

The connected cellular phone does not have the voice recognition system.

• Check the connecting cable and its connection.

• Update the firmware version.

• Charge the battery of the iPod/iPhone.

• Check whether “HEAD MODE” or “iPod MODE” is correctly selected. (

• Reset the iPod/iPhone.

playback.

No tracks are stored. Import tracks to the iPod/iPhone.

Operate the unit after the Artwork is loaded. (

Check whether the connected iPod/iPhone is compatible with this unit. (

62)

Remedy/Cause

16, 51)

16, 63)

ENGLISH

Continued on the next page

69REFERENCES

Page 72

ENGLISH

iPod

CD changer

DAB tuner

AV-IN

Symptom Remedy/Cause

• “Disconnect” appears on the screen. Check the connection.

• “Reset01” – “Reset07” appears on the screen.

• “Reset08” appears on the screen. Check the connection between the adapter and this

• The control of iPod does not work

Only when connecting with

the interface adapter

after disconnecting from this unit.

• “No Disc” appears on the screen. Insert a disc into the magazine.

• “No Magazine” appears on the screen. Insert the magazine.

• “Cannot play this disc Check the disc” appears on the screen.

• “Reset08” appears on the screen. Connect this unit and the CD changer correctly and press

• “Reset01” – “Reset07” appears on the screen. Press the reset button of the CD changer.

• The CD changer does not work at all.

• “No DAB Signal” appears on the screen. Move to an area with stronger signals.

• “Reset 08” appears on the screen. Connect this unit and the DAB tuner correctly, then reset

• The DAB tuner does not work at all. Connect this unit and the DAB tuner correctly, then reset

• “Antenna Power NG” appears on the screen. Check the cords and connections.

• No picture appears on the screen. • Turn on the video component if it is not on.

• Playback picture is not clear and legible.

Disconnect the adapter from both this unit and iPod. Then, connect them again.

unit.

Reset the iPod.

Current disc does not include playable files. Replace the disc with one including playable files.

the reset button of the CD changer.

Reset the unit. (

the unit. (

• Connect the video component correctly.

Adjust items in <Picture Adjust> menu. (

14)

Page 73

Specifications

Maximum Power Output Front/Rear 50 W per channel

Continuous Power Output (RMS)

Load Impedance 4  (4  to 8  allowance)

Equalizer Control Range Frequencies 60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.5 kHz,

Signal-to-Noise Ratio 70 dB

Audio Output Level

AMPLIFIER

LINE OUT (FRONT, REAR), CENTER OUT, SUBWOOFER OUT

Color System NTSC/PAL*

Video Output (composite) 1 Vp-p/75 

Other Terminals Input LINE IN, VIDEO IN, USB input, Aerial input

Frequency Range FM 87.5 MHz to 108.0 MHz

FM Tuner Usable Sensitivity 9.3 dBf (0.8 μV/75 )

FM/AM TUNER

MW Tuner Sensitivity/Selectivity 20 μV/40 dB

LW Tuner Sensitivity 50 μV

Signal Detection System Non-contact optical pickup (semiconductor laser)

Frequency Response DVD, fs=48 kHz 16 Hz to 22 000 Hz

DVD/CD

Dynamic Range 93 dB

Signal-to-Noise Ratio 95 dB

Wow and Flutter Less than measurable limit

* From the VIDEO OUT plug, normally NTSC signal is emitted. (PAL signals are converted into NTSC.) PAL signal may be

emitted without conversion depending on the incoming signal type.

Front/Rear 20 W per channel into 4 , 40 Hz to

20 000 Hz at no more than 0.8% total harmonic distortion

6.3 kHz, 15 kHz

Level ±10 dB

Line-Out Level/Impedance 5 V/20 k load (full scale)

Output Impedance 1 kΩ

Output 2nd AUDIO OUT

Others CD changer, OE REMOTE, MIC IN

AM (MW) 522 kHz to 1 620 kHz

(LW) 144 kHz to 279 kHz

50 dB Quieting Sensitivity 16.3 dBf (1.8 μV/75 )

Alternate Channel Selectivity (400 kHz)

Frequency Response 40 Hz to 15 000 Hz

Stereo Separation 40 dB

DVD, fs=96 kHz 16 Hz to 44 000 Hz

VCD/CD 16 Hz to 20 000 Hz

65 dB

ENGLISH

71REFERENCES

Page 74

USB Standards USB 2.0 Full Speed

Data Transfer Rate Full Speed Maximum 12 Mbps

USB

Compatible Device Mass storage class

Compatible File System FAT 32/16/12

ENGLISH

Max. Current DC 5 V

Version Bluetooth 1.2 certified

Output Power +4 dBm Max. (Power class 2)

Service Area Within 10 m

Profile HFP (Hands-Free Profile) 1.5

BLUETOOTH (KD-AVX77 only)

Screen Size 5.4 inch wide liquid crystal display

Number of Pixel 576 000 pixels: 800 (horizontal) × 3 (RGB) × 240 (vertical)

Drive Method TFT (Thin Film Transistor) active matrix format

MONITOR

Color System PAL/NTSC

Aspect Ratio 3.32:1 (Super wide)

Power Requirement Operating Voltage DC 14.4 V (11 V to 16 V allowance)

Grounding System Negative ground

Allowable Storage Temperature –10°C to +60°C

Allowable Operating Temperature 0°C to +40°C

GENERAL

Dimensions (W × H × D) Installation Size (approx.) 182 mm × 52 mm × 160 mm

Mass (approx.) 2.2 kg (excluding the accessories)

Design and specifications are subject to change without notice.

Low Speed Maximum 1.5 Mbps

500 mA

OPP (Object Push Profile) 1.1 A2DP (Advanced Audio Distribution Profile) 1.2 AVRCP (Audio/Video Remote Control Profile) 1.3

Panel Size (approx.) 188 mm × 58 mm × 12 mm

Page 75

Operation index

General

AV Menu ................................................... 12 – 32

Capture (KD-AVX77 only) .............................13

Clock .............................................................11, 15

Detach/attach the monitor panel ...............5

Demonstration ..........................................11, 13

Quick Menu .........................................................7

Remote controller ............................... 8, 39, 40

Reset ..................................................................3, 5

Source .................................................................... 7

Touch panel ..................................................... 5, 6

Volume ..............................................................5, 6

Tuner

Auto/manual search .......................................33

DAB tuner ...........................................................54

Improve FM reception ...................................25

Listen to the radio ...........................................33

Preset stations ........................................... 27, 33

Radio Data System ..........................................34

Store stations

(automatically/manually) ...................25, 27

Disc

Disc Surround ...................................................21

Display information ........................................37

Dual Display ........................................15, 43, 46

Dual Zone operation ......................................43

Eject ................................................................. 6, 36

Lock/unlock disc ..............................................36

Open/close ................................................... 6, 36

OSD ...............................................................41, 42

PBC playback ....................................................41

Playable disc type ............................................. 4

Repeat/random play ......................................26

Search/skip ...................................37, 38, 39, 40

Select a title/program/playlist ......37, 39, 59

Select a track/folder ..................27, 37, 39, 40

Start/stop/pause/resume

playback .....................................37, 38, 39, 40

USB

Attach/detach ...................................................47

Repeat/random play ......................................26

Select a track/folder .........................27, 39, 40

Bluetooth (KD-AVX77 only)

Answer/end call ........................................31, 49

Connect/disconnect/delete .................30, 48

Make a call .........................................................29

Play back an audio player ............................50

Preset phone number .................................... 50

iPod

Audiobooks .......................................................26

Connecting method .......................................51

Controlling unit ......................................... 16, 51

Repeat/random play ......................................26

Select a track/video .......................... 28, 51, 52

Start/pause playback ..............................51, 52

Supported iPod/iPhone ................................62

CD changer

Repeat/random play ......................................26

Select a track/folder/disc .......................28, 53

Start playback ...................................................53

External component

AV-INPUT .....................................................19, 56

EXT-INPUT ...................................................19, 57

Dual Display ...............................................15, 56

ENGLISH

73REFERENCES

Page 76

Bitte lesen Sie alle Bedienungsanweisungen vor dem Betrieb gründlich durch, um richtiges Verständnis des Geräts zu

Herzlichen Glückwunsch zum Kauf dieses JVC-Produkts.

gewährleisten und die beste Leistung mit dem Gerät zu erzielen.

WICHTIGER HINWEIS FÜR LASER-PRODUKTE

1. LASER-PRODUKT DER KLASSE 1

2. ACHTUNG: Die obere Abdeckung

nicht öffnen. Das Gerät enthält keine Teile, die vom Benutzer gewartet werden können. Wartungen nur von qualifziertem Fachpersonal durchführen lassen.

3. ACHTUNG: Sichtbare und/oder unsichtbare Laserstrahlung der Klasse 1M bei offenen Abdeckungen. Nicht direkt

DEUTSCH

mit optischen Instrumenten betrachten.

4. ANBRINGEN DES ETIKETTS: WARNHINWEIS-ETIKETT, AUSSEN AM GERÄT ANGEBRACHT.

Benutzerinformationen zur Entsorgung alter Geräte und Batterien

[Nur Europäische Union]

Diese Symbole zeigen an, dass das damit gekennzeichnete Produkt bzw. die Batterie nicht als normaler Haushaltsabfall entsorgt werden sollen. Wenn Sie dieses Produkt und die Batterie entsorgen möchten, halten Sie sich dabei bitte an die entsprechenden Landesgesetze und andere Regelungen in Ihrem Land bzw. Ihrer Gemeinde. Die korrekte Entsorgung dieses Produkts dient dem Umweltschutz und verhindert mögliche Schäden für die Umwelt und die menschliche Gesundheit.

Hinweis:

Das Zeichen Pb unterhalb des Batteriesymbols gibt an, dass diese Batterie Blei enthält.

Produkte

Batterie

WARNUNGEN: (Um Unfälle und Schäden zu vermeiden)

• Installieren Sie keine Komponenten und verdrahten Sie Kabel NICHT an den folgenden Orten; – die Handhabung von Lenkrad und Schalthebel

kann behindert werden.

– die Funktion von Sicherheitseinrichtungen wie

etwa Airbags kann behindert werden.

– die Sicht kann behindert werden.

• NICHT das Gerät beim Fahren bedienen.

Wenn Sie das Gerät beim Fahren bedienen müssen,

dürfen Sie nicht den Blick von der Straße nehmen.

• Der Fahrer darf während der Fahrt auf keinen Fall auf den Monitor sehen.

• Der Fahrer darf während der Fahrt keine Kopfhörer tragen.

• Zu starker Schalldruck von Ohrhörern oder Kopfhörern Kopfhörern kann zu Gehörverlust beim Hören über Ohrhörer oder Kopfhörer mit Doppelzone führen.

Achtungshinweise am Monitor:

• Das in diesem Receiver eingebaute Displayfenster wurde mit hoher Präzision hergestellt, aber es lässt sich nicht ausschließen, dass fehlerhafte Bildpunkte vorhanden sind. Dies ist unvermeidbar und keine Fehlfunktion.

• Setzen Sie den Monitor keiner direkten Sonneneinstrahlung aus.

• Drücken Sie keinesfalls mit einem Kugelschreiber oder ähnlich spitz zulaufenden Gegenstand auf den Sensorschirm.

Berühren Sie die Sensordisplay-Symbole direkt mit dem

Finger (immer ohne Handschuhe).

• Bei extrem niedrigen oder hohen Temperaturen... – Chemische Veränderungen im Geräteinneren

führen zu Fehlfunktionen.

–

Unter Umständen ist die Bildwiedergabe verschwommen oder verlangsamt. Unter solchen Umständen sind Bild- und Tonwiedergabe asynchron oder die Bildqualität beeinträchtigt.

• Wenn Bilder längere Zeit auf dem Monitor angezeigt werden, können Nachbilder auftreten. Das ist keine Fehlfunktion. Schalten Sie das Gerät aus oder lassen Sie ein anderes Bild anzeigen.

Page 77

Wie Sie diese Anleitung lesen:

• < > zeigt die variablen Bildschirmbilder/ Menüs/Vorgänge/Einstellungen an, die auf dem Sensordisplay erscheinen.

• [ ] zeigt die Tasten am Sensordisplay an.

• ( Seitennummer) zeigt die Bezugsseitennummer der zugehörigen Themen/ Bedienvorgänge/Einstellungen an.

•

Bedienungsindex: Zum leichten Aufsuchen der

gewünschten Bedienungen/Funktionen. ( 73)

• Anzeigesprache: Englischsprachige Anzeigen werden zur Erklärung verwendet. Sie können die Anzeigesprache in <Language> auswählen.

15)

(

• Abbildungen: In den Abbildungen dieser Anleitung wird im Wesentlichen das Modell KD-AVX77 zur Erklärung dargestellt.

Zurücksetzen des Geräts

• Ihre aktuellen Voreinstellungen werden ebenfalls

gelöscht (mit Ausnahme der registrierten BluetoothGeräte für KD-AVX77, 32)

Zum zwangsweisen Ausschieben einer Disc, 36.

Zur Sicherheit...

• Stellen Sie die Lautstärke nicht zu hoch ein, da dadurch das Fahren gefährlich werden kann, indem Außengeräusche blockiert werden; außerdem besteht die Gefahr von Gehörschäden.

• Stoppen Sie das Fahrzeug, bevor Sie komplizierte Vorgänge ausführen.

Temperatur im Fahrzeug...

Wenn ein Fahrzeug längere Zeit in heißem oder kaltem Wetter geparkt wurde, warten Sie, bis sich die Temperatur im Innenraum normalisiert hat, bevor Sie das Gerät betreiben.

Aus Sicherheitsgründen wird eine nummerierte ID-Karte mit diesem Receiver mitgeliefert, und die gleiche IDNummer ist auf dem Chassis des Receivers aufgedruckt. Die Karte muss an sicherer Stelle aufbewahrt werden, da sie den Behörden bei der Identifikation des Geräts im Falle eines Diebstahls helfen kann

INHALT

Wie Sie diese Anleitung lesen ...................... 3

Zurücksetzen des Geräts ............................... 3

EINLEITUNGEN

Abspielbarer Disktyp .................................... 4

Grundlegende Bedienung ............................ 5

• Verwendung von Bedienfeld/Sensordisplay

................................................................... 5

• Verwendung der Fernbedienung

(RM-RK252) ................................................ 8

Vorbereitung ................................................ 11

AV-MENÜ

Verstehen des AV-Menüs ............................. 12

BEDIENUNG

Rundfunkempfang ....................................... 33

Disc-Bedienungen ........................................ 36

• Bedientasten und Information am

Sensordisplay ............................................. 37

• Bedienverfahren mit der Fernbedienung

(RM-RK252) ................................................ 39

• Verwendung geteilter Bildschirmbilder

—Dual Display ........................................... 43

Dual-Zonen-Betrieb ..................................... 43

USB-Vorgänge ............................................. 47

EXTERNE GERÄTE

Verwendung von Bluetooth ® -Geräten

(nur KD-AVX77) ........................................ 48

• Anschließen eines neuen

Bluetooth-Geräts ........................................ 48

• Verwendung des Bluetooth-Handys ........... 49

•

Verwendung des Bluetooth-Audioplayers

Von iPod/iPhone/Geräten hören .................. 51

• Bei Anschluss mit dem USB-Kabel .............. 51

•

Bei Anschluss mit dem Schnittstellenadapter

Hören vom CD-Wechsler .............................. 53

DAB-Tuner-Empfang .................................... 54

Verwenden anderer externer

Komponenten .............................................. 56

• AV-INPUT .................................................... 56

• EXT-INPUT .................................................. 57

ZUR BEZUGNAHME

Wartung ...................................................... 58

Weitere Informationen zu Ihrem Receiver ... 59

Störungssuche ............................................. 66

Technische Daten ......................................... 71

Bedienungsindex ......................................... 73

... 50

... 52

DEUTSCH

Page 78

Abspielbarer Disktyp

Disc-Typ Aufnahmeformat, Dateityp usw. Abspielbar

DVD

• DTS-Klang kann nicht von diesem Gerät reproduziert oder

DVD-Video * Regionalcode: 2 Beisp.:

ausgegeben werden.

DVD-Audio/DVD-ROM

DVD Recordable/Rewritable

DEUTSCH

(DVD-R/-RW *2, +R/+RW *3)

• DVD-Video: UDF-Bridge

• DVD-VR

• DivX/MPEG1/MPEG2/JPEG/ MP3/WMA/WAV/AAC: ISO 9660 level 1, level 2, Romeo, Joliet

DVD-Video DVD-VR* DivX/MPEG1/MPEG2 JPEG MP3/WMA/WAV/AAC* MPEG4/DVD+VR/DVD-RAM

DualDisc DVD Seite

Nicht-DVD-Seite

CD/VCD Audio-CD/CD-Text (CD-DA)

VCD (Video-CD) DTS-CD/SVCD (Super Video CD)/CD-ROM/

CD-I (CD-I Ready)

CD Recordable/Rewritable (CD-R/-RW)

• ISO 9660 level 1, level 2, Romeo, Joliet

CD-DA VCD (Video-CD) DivX/MPEG1/MPEG2 JPEG MP3/WMA/WAV/AAC* MPEG4

*1 Wenn Sie eine DVD-Videodisc mit einem unzulässige Regionalcode einlegen, erscheint die Meldung „Region code

error“ auf dem Bildschirm.

*2 Im „Multi-Border“-Format bespielte DVD-R ist ebenfalls abspielbar (ausgenommen für Dual-Layer-Discs). Dual-

Layer-DVD-RW-Discs können nicht abgespielt werden.

*3 Es ist möglich, finalisierte +R/+RW-Discs (nur Videoformat) abzuspielen. „DVD“ wird als Disc-Typ gewählt, wenn

eine +R/+RW-Disc eingelegt wird. +RW-Doppel-Layer-Discs können nicht abgespielt werden.

*4 Diese Einheit kann nicht mit CPRM (Content Protection for Recordable Media) geschützte Inhalte abspielen. *5 Diese Einheit kann AAC-Dateien abspielen, welche mit iTunes codiert sind.

Achtung bei DualDisc-Wiedergabe

Die Nicht-DVD-Seite einer „DualDisc“ entspricht nicht dem „Compact Disc Digital Audio“-Standard. Deshalb wird die Verwendung der Nicht-DVD-Seite einer DualDisc auf diesem Produkt nicht empfohlen.

Page 79

Grundlegende Bedienung

Verwendung von Bedienfeld/Sensordisplay

Sensordisplay (siehe folgende Seiten). Die meisten Bedienvorgänge werden anhand des Sensordisplays erklärt, wenn nicht anders angegeben.

Monitorfeld

SRCSRC

USB-Kabel von der Rückseite der Einheit, (

1 Zeigt AV Menü an. ( 12) 2 Zeigt das Quellemenü an.* 3 Bluetooth-Anzeige (nur KD-AVX77) 4 • Einschalten.

( 7)

• Dämpft den Klang (in eingeschaltetem Zustand).

• Schaltet die Stromversorgung aus. (Gedrückthalten)

• Schaltet das Konversationsmedium bei einem Gespräch mit einem Bluetooth-Handy um. (nur KD-AVX77, 49)

5 Fernbedienungssensor 6 Setzt das Gerät zurück. ( 3) 7 Zum Abnehmen des Monitorfelds. 8 • Stellt die Lautstärke ein.

• Stellt die Lautstärke der ankommenden Rufe ein. *2 (nur KD-AVX77)

9 • Zeigt Open/Tilt-Bildschirm an. ( 6)

• Schiebt die Disc aus und zeigt den Bildschirm Open/Tilt an. (Gedrückthalten)

MP3

01 02 0:01:20

Track Title Artist Name Disc Title

FLAT

15:45

QUICK MENU

KEY

47, 51)

p Zeigt das Quick Menu an. ( 7) q Ändert die am Sensordisplay gezeigten Tasten.

( 6)

*1 Verfügbare Quellen hängen von der angeschlossenen

externen Komponente, den angeschlossenen Datenträgern und den vorgenommenen Einstellungen für < > (Eingang) ab. ( 19)

*2 Diese Einstellung hat keine Auswirkung auf den

Lautstärkepegel der anderen Quellen.

Zum Anbringen des Monitorfelds

DEUTSCH

5EINLEITUNGEN

Page 80

Während ein Bild auf dem Bildschirm angezeigt wird, werden die Bedientasten und Informationen auf dem Sensordisplay etwa 10 Sekunden nach der letzten Bedienung ausgeschaltet.

• Sie können die Art wählen, in der die Bedientasten

und Informationen in <Monitor/Sensor> ausgeschaltet werden. (

Die Bedientasten und Informationen werden wieder eingeschaltet: – Wenn Sie die Hand näher an

das Sensordisplay bringen (je nach Einstellung von

DEUTSCH

<Monitor/Sensor>,

20). – Wenn Sie die Tasten am Monitorfeld drücken. – Für KD-AVX77: Wenn ein Anruf/eine SMS empfangen

wird (bei einem Bluetooth-Handy).

• Die Tasten und Informationen können in anderen

Fällen als dem obigen einschalten.

20)

Achtung bei der Lautstärkeeinstellung:

Digitale Geräte (CD/USB) erzeugen im Vergleich mit anderen Tonträgern sehr geringes Rauschen. Senken Sie die Lautstärke vor dem Abspielen solcher digitalen Quellen, um Beschädigung der Lautsprecher durch plötzliche Tonspitzen zu vermeiden.

Sie können die Lautstärke auch einstellen, indem Sie einfach Ihren Finger weiter auf jedem Teil des Sensordisplays bewegen, wie gezeigt.

Tasten am Sensordisplay

Bei jedem Berühren von [KEY] werden die im Sensordisplay gezeigten Bedienungstasten geändert. Beisp.: Wenn „ ist

• Verfügbare Tasten sind je nach Quelle unterschiedlich.

• Das Hintergrundbild kann mit der Einstellung von <Wall Paper> geändert werden. (

TUNER

Bedientasten

“ als Wiedergabequelle gewählt

Quelle-Tasten

13)

Open/Tilt-Bildschirmbild

Wenn Sie ihren Finger auf dem Sensordisplay verschieben, funktioniert dieses in der gleichen Weise wie beim Berühren von [5 / ∞ / 4 / ¢].

• Berühren Sie das Sensordisplay fest beim

Bewegen oder Ziehen des Fingers.

[Open]/ [Eject]

[Close] Schließt das Monitorfeld. [Tilt] Neigt das Monitorfeld.

[

• Schraffierte Gegenstände können nicht verwendet werden.

Öffnet das Monitorfeld./ Zum Auswerfen der Disc.

Schließt dieses Bildschirmbild.

]

Page 81

Source Menu

Sie können eine Quelle auf dem Source Menu wählen.

Aktuelle Quelle

Schaltet zum vorhergehenden Bildschirmbild zurück.

Quick Menu

Sie können leicht auf einige häufig verwendete Funktionen über Quick Menu zugreifen.

• Verfügbare Symbole sind je nach Quelle unterschiedlich.

Nur KD-AVX77

Zeigt das Menü <PTy Search> an. ( 34)

Aktiviert/Deaktiviert den AnsagenStandbyempfang. ( 25)

Aktiviert/deaktiviert den TA-StandbyEmpfang. ( 18)

Ändert <IF Band Width>Einstellung. ( 18)

Ändert die Steuerung des iPod/ iPhone-Geräts zu „iPod USB“. ( 16)

Erlaubt Festhalten des aktuellen Wiedergabebildes. ( 13)

Zeigt <Dial Menu> an. ( 29)

DEUTSCH

Zeigt <Monitor/Sensor>-Menü. ( 20)

Wechselt den Klangmodus. ( 23)

Schaltet den Surround ein oder aus. ( 21)

Schaltet Track/Kapitel-Wiederholung ein oder aus. ( 26)

Ändert <Aspect>-Einstellung. ( 15)

Aktiviert/deaktiviert den PTY-Standby-Empfang. ( 25)

7EINLEITUNGEN

Page 82

Verwendung der Fernbedienung (RM-RK252)

Batterien einsetzen

R03/LR03/AAA

DEUTSCH

Legen Sie Batterien in die Fernbedienung unter Beachtung der richtigen Polung (+ und –) ein.

Achtung:

• Explosionsgefahr bei falsch eingesetzter Batterie. Nur mit dem gleichen oder einem gleichwertigen Typ ersetzen.

• Batterien dürfen nicht sehr starker Hitze wie durch Sonnenlicht, Feuer o.ä. ausgesetzt werden.

Wenn die Wirkung der Fernbedienung abnimmt, müssen die Batterien ausgewechselt werden.

Vor der Verwendung der Fernbedienung:

• Richten Sie die Fernbedienung direkt auf den Fernbedienungssensor am Gerät.

• Setzen Sie den Fernbedienungssensor KEINEM intensiven Licht (direkte Sonneneinstrahlung oder künstliches Licht) aus.

Der Receiver ist mit LenkradFernbedienungsfunktion ausgestattet.

• Siehe Einbau/Anschlußanleitung (getrennter Band) zum Anschluss.

• Die Bedienvorgänge können je nach Typ der Lenkrad-Fernbedienung unterschiedlich sein.

Page 83

1 -Taste*

• Einschalten.

• Dämpft den Ton, wenn eingeschaltet.

• Schaltet die Stromversorgung aus. (Gedrückthalten)

2 5/∞ -Taste

•

TUNER

: Wählt die Festsender.

•

DAB

: Wählt die Dienste.

•

DISC/USB/CD-CH

: – DVD-Video: Zur Auswahl des Titels. – DVD-VR: Wählt Programm/Playlist. – DivX/MPEG1/MPEG2/MP3/WMA/WAV/AAC:

Wählt die Ordner falls enthalten.

•

iPod USB:

Gegenstand.*

iPod

Wählt den vorherigen/nächsten

(angeschlossen an KS-PD100):

–5 : Ruft das Hauptmenü auf (und dann

5 / ∞ / / fungieren als

Menüwahltasten).

5 : Schaltet zum vorherigen Menü zurück. ∞ : Bestätigt die Auswahl.

–∞ : Zum Pausieren oder Fortsetzen der

Wiedergabe.

•

Bluetooth:

Wählt die/den Gruppe/Ordner.

4 / ¢ -Tasten

•

TUNER/DAB

– Zum automatischen Suchen nach Sendern/

Ensembles.

– Zum manuellen Suchen nach Sendern/

Ensembles. (Gedrückthalten)

•

DISC/USB/iPod USB/CD-CH

: – Sprung rückwärts/Sprung vorwärts. – Reverse-/Vorwärts-Suche. (Gedrückthalten)

•

iPod

(angeschlossen an KS-PD100): – Sprung rückwärts/Sprung vorwärts. – Reverse-/Vorwärts-Suche. (Gedrückthalten) Im Menüauswahlmodus: – Wählen Sie einen Gegenstand. (Dann drücken

Sie ∞ zum Bestätigen der Wahl.)

– Überspringt 10 Gegenstände auf einmal.

(Gedrückthalten)

•

Bluetooth

*3: – Sprung rückwärts/Sprung vorwärts. – Reverse-/Vorwärts-Suche. (Gedrückthalten)

3 VOL (Lautstärke) + / – -Tasten*

• Zum Einstellen des Lautstärkepegels.

• Stellt die Lautstärke der ankommenden Rufe ein.*

2nd VOL (Lautstärke) + / – -Tasten

• Stellt den Lautstärkepegel über den Anschluss 2nd AUDIO OUT ein, wenn zusammen mit der SHIFT-Taste gedrückt.

4 ASPECT -Taste*

• Ändert das Seitenverhältnis der Wiedergabebilder.

5 PHONE-Taste*

1 *3

• Zeigt das zuletzt geöffnete Menü in <Dial Menu> an.

• Zeigt <Redial> an. (Gedrückthalten)

• Nimmt ankommende Rufe entgegen.

6 SETUP-Taste*

• Fungiert nur als Zifferntaste.

7 TOP M (Menü)-Taste*

• DVD-Video: Zeigt das Disc-Menü.

• DVD-VR: Zeigt das OriginalprogrammSchirmbild.

• VCD: Setzt die PBC-Wiedergabe fort.

8 OSD (Bildschirmanzeige)-Taste

• Zeigt den On-Screen-Balken.

• Fungiert nicht als „ “.

*1 Wenn Doppelzone aktiviert ist, können diese Tasten

nicht verwendet werden.

*2 Fungiert möglicherweise nicht, je nachdem wie Sie

den aktuellen Track/Video gewählt haben.

*3 Nur KD-AVX77 *4 Fungiert als Zifferntaste, wenn zusammen mit der

SHIFT-Taste gedrückt.

–

DISC/USB

: Gibt die Kapitel/Titel/Programm/ Playliste/Ordner/Track-Nummer nach der Eingabe des Suchmodus durch Drücken von SHIFT und DIRECT ein. ( 40)

–

TUNER/DAB

: (Zifferntasten 1 - 6): Schaltet auf

Festsender/Dienstnummer.

Fortsetzung auf nächster Seite

DEUTSCH

9EINLEITUNGEN

Page 84

9 SHIFT-Taste

• Fungiert mit anderen Tasten.

p DISP (Display) -Tasten*

• Schließt den Menübildschirm, falls aktuell geöffnet.

•

DISC/USB/iPod USB

: Zeigt die Tasten und Informationen auf dem Sensordisplay an, wenn ein Bild/Jacket Picture/Cover gezeigt wird.

DAB

•

q 1 / ¡ -Tasten

DEUTSCH

•

: Zeigt DLS (Dynamic Label Segment) an.

DISC/USB

– Reverse-/Vorwärts-Suche. (nicht bei JPEG

verfügbar)

– DVD-Video: Zeitlupen-Wiedergabe (im

Pausebetrieb).

– DVD-VR/VCD: Zeitlupenwiedergabe vorwärts

(im Pausebetrieb).

•

iPod USB

: Reverse-/Vorwärts-Suche.

w SOURCE-Taste*

• Wählt die Quelle.

e 3 (Wiedergabe) / 8 (Pause)-Taste

•

DISC/USB/iPod USB

: Zum Starten/Pausieren der Wiedergabe.

• Nimmt ankommende Rufe entgegen.*

•

Bluetooth

r (Rufen beenden) Taste*

: Startet die Wiedergabe.*

• Beendet den Ruf. BAND -Taste

•

TUNER/DAB

: Wählt die Frequenzbänder.

7 (Stopp)-Taste

•

DISC/USB

•

Bluetooth

t RETURN-Taste*

: Stoppt die Wiedergabe.

: Pausiert die Wiedergabe.*

• VCD: Schaltet zum PBC-Menü zurück.

• DVD-Video/DVD-VR/DivX/MPEG1/MPEG2/JPEG/

VCD: Hebt das Pop-up-Menü auf dem On-ScreenBalken auf.

y MENU-Taste*

• DVD-Video: Zeigt das Disc-Menü.

• DVD-VR: Zeigt das Playlist-Schirmbild.

• VCD: Setzt die PBC-Wiedergabe fort.

u % / ﬁ Tasten*

• DVD-Video: Nimmt Wahlen/Einstellungen vor.

CD-CH

• @ / # -Tasten*

: Wechselt die Discs im Magazin.

• DVD-Video: Nimmt Wahlen/Einstellungen vor.

• DivX/MPEG1/MPEG2: Springt um etwa 5 Minuten vor oder zurück.

ENT (Eingabe) Taste*

• Bestätigt die Auswahl.

i DUAL-Taste

• Aktiviert oder deaktiviert die Doppelzone.

• Fungiert nicht als „#“.

o DIRECT -Taste

•

DISC/USB

: Schaltet auf den direkten Suchmodus für Kapitel/Titel/Programm/ Playliste/Ordner/Track, wenn mit der SHIFTTaste gedrückt. ( 40)

CLR (Löschen) Taste

•

DISC/USB

zugleich mit der SHIFT-Taste gedrückt.

SURROUND-Taste*

•

DISC/USB

: Löscht die Fehleingabe, wenn

: Ändert den Surround-Modus.

*1, *3, *4 9

Page 85

Vorbereitung

Beenden der Display-Demonstration und Einstellen der Uhrzeit

~ Das Gerät einschalten.

Ÿ Zeigen Sie das AV-Menü an.

! Wählen Sie <AV Setup>.

⁄ Brechen Sie die Demonstration ab.

Berühren Sie <Interval> zur Anzeige der

Einstellpunkte.

Wählen Sie <Off> und berühren Sie dann

< >.

@ Stellen Sie die Uhr ein.

Wählen Sie < > (Uhr).

DEUTSCH

Stellen Sie die Uhrzeit ein.

Stellen Sie den Einstellgegenstand (1) um,

und stellen Sie dann die Minute (2) ein.

¤ Beenden Sie den Vorgang.

11EINLEITUNGEN

Page 86

Verstehen des AV-Menüs

Sie können das AV-Menü für die meisten Bedienungen und Einstellungen verwenden. Die verfügbaren Menügegenstände im Sensordisplay hängen von der gewählten Quelle ab.

Die folgenden Schritte gehören zu den grundlegenden Verfahren.

• Sie können die Bedienungen/Einstellungen entsprechend diesen Schritten ausführen, wenn nicht anders angegeben.

~ Das Gerät einschalten.

DEUTSCH

Ÿ Zeigen Sie das AV-Menü an.

• AV Setup:

• Disc Surround:

• Equalizer:

• Sound:

• Mode:

• List:

• Dual Zone:

Nur für KD-AVX77

• Bluetooth:

13 – 20

21, 22

25, 26

27, 28

43 – 46

29 – 32

! Berühren Sie das gewünschte

Symbol/den Gegenstand, um die gewünschten Bedienungen/ Einstellungen vorzunehmen.

• Manche der Einstellungen öffnen nicht die weiterführenden Bildschirmbilder, aber durch Wählen einer Option wird die Einstellung geändert.

• Nicht verfügbare Gegenstände werden ausgegraut dargestellt.

Geht zur vorhergehenden/ nachfolgenden Menüseite.

Schaltet zum vorhergehenden Bildschirmbild zurück.

Springt zur nächsten Kategorie in <AV Setup>:

Zeigt die nächste vorhandene

Hierarchieebene/den

Schließt das AV-Menü-

Gegenstand an.

Bildschirmbild.

Page 87

Anfänglich: Unterstrichen

Menügegenstand Wählbare Einstellung/Gegenstand

Demonstration (Demonstration)

Wall Paper (Hintergrund)

Capture (Gefangennahme)

(nur KD-AVX77)

Display

♦

Off

♦

: Hebt auf. : Aktiviert die Demonstration auf dem Bildschirm. Zum

zeitweiligen Unterbrechen berühren Sie den Bildschirm.

♦

Interval

: Aktiviert die Demonstration in 20-Sekunden-Intervallen.

Sie können das Bildschirm-Hintergrundbild auswählen. Für KD-AVX77:

♦

Ring, Plain, Road, Night, User Capture 1, User Capture 2, User Capture 3,

User Capture 4

Für KD-AVX55:

♦

Ring, Plain

Sie können ein auf dem Bildschirm gezeigtes Bild festhalten und als Hintergrundbild verwenden.

♦

Normal

♦

Zoom

: Hält ein Bild ohne Vergrößerung fest. : Hält ein auf Bildschirmbreite vergrößertes Bild fest.

Bei Standbildwiedergabe oder Pause...

1 Wählen Sie <Normal> oder <Zoom>.

• Wenn Sie <Zoom> wählen, tippen Sie den Bildschirm wiederholt an, bis

der gewünschte Teil angezeigt wird.

2 Halten Sie das Bild fest.

DEUTSCH

[ ]: Hält das Bild fest. [ ]: Hebt auf.

3 Wählen Sie eine der Zahlen (<1> – <4>) zum Speichern des Bildes für

<User Capture 1> – <User Capture 4> in <Wall Paper> oben.

„Please Wait...“ erscheint. Das festgehaltene Bild wird gespeichert und als Hintergrundbild gewählt.

Fortsetzung auf nächster Seite

13AV-MENÜ

Page 88

Menügegenstand Wählbare Einstellung/Gegenstand

Wallpaper Color (Hintergrundfarbe)

Text Color (Textfarbe)

Scroll (Scroll)

DEUTSCH

Tag Display (Tag-Anzeige)

Dimmer (Dimmer)

Dimmer Time Set (Dimmer-Zeit Set)

Display

Dimmer Level (Dimmer-Pegel)

Bright (Helligkeit) Sie können die Helligkeit des Bildschirms einstellen.

Picture Adjust (Bild Einstellung) *

Verbindung zum Autobeleuchtungssteuerung-Schalter, wenn erforderlich. (Siehe Einbau/Anschlußanleitung.)

* *2 Nur einstellbar, wenn die Quelle „

oder bei „

AV-IN

“.

*3 Wenn die Quelle „

Sie können die Farbe des Hintergrundbildes auswählen.

♦

Blue, Black, Orange, Red, Green, Yellow

Sie können die Textfabe auswählen.

♦

White, Black, Red, Green, Blue, Yellow, Orange, Purple

♦

Off Once Auto

Off On

: Hebt auf. : Scrollt die angezeigte Information einmal. : Wiederholt das Scrollen (in 5-Sekunden-Intervallen).

: Hebt auf. : Zeigt die Markierung bei der Wiedergabe von MP3/WMA/

WAV/AAC-Tracks.

♦

Off

♦

Auto

♦

Dimmer Time Set

Stellt die Zeiten für Abblendung Ein (

: Hebt auf. : Aktiviert Abblendfunktion. : Blendet den Monitor beim Einschalten der

Autoscheinwerfer ab. *

: Aktiviert die Abblendzeiteinstellung (siehe unten).

)/Aus( ) ein.

Sie können die Helligkeit für die Abblendfunktion auswählen.

♦

01 (hell), 02 (mittel), 03 (dunkel)

♦

–15 bis +15; Anfänglich 00

Sie können folgendes einstellen, um den Bildschirm zur Betrachtung des

Wiedergabebildes klar und lesbar zu machen. Die Einstellung wird gespeichert – eine für „

DISC/USB

“ und eine andere für „

iPod USB/AV-IN

Berühren Sie [5] oder [∞] zur Wahl eines Gegenstands, und berühren Sie dann [+] oder [-] zum Einstellen. (–15 bis +15; Anfänglich 00)

♦

Bright

: Passen Sie diesen Wert an, wenn das Bild zu hell oder zu

dunkel ist.

♦

Contrast

♦

Color

♦

Tint *

: Stellen Sie den Kontrast ein. : Einstellung der Bildfarbe—heller oder dunkler. : Passen Sie die Tönung an, wenn die menschliche

Hautfarbe unnatürlich erscheint.

DISC/USB/iPod USB

AV-IN

“ und das anliegende Signal PAL ist, können Sie diese Einstellung nicht anpassen.

“ ist, (der Datenträger muss Bilder oder Videos enthalten)

“.

Page 89

Menügegenstand Wählbare Einstellung/Gegenstand

Aspect (Seitenverhältnis) *

♦

16:9 Full Geeignet für 16:9-Bild.

♦

Ultra Full Streckt das in <16:9 Full> angezeigte

♦

Cinema

Scope

♦

Ultra

Cinema Sc.

♦

Zoom Geeignet für 4:3-Letterbox-Bild.

Display

♦

Auto Das Bildseitenverhältnis wird automatisch entsprechend den angelegten Signalen

Language (Sprache) *

Key Position (Tastenposition)

Dual Display (Dual Display)

Time Set (Zeiteinstellung)

Time Format (Zeit-Format)

OSD Clock (OSD Uhr)

Uhr

Clock Adjust (Uhr Einstellen)

*4 Nicht einstellbar, wenn kein Bild gezeigt wird. *5 Schalten Sie die Stromversorgung aus und dann wieder ein, damit die Einstellung wirksam wird.

Sie können das Bildseitenverhältnis derdes Bildes wechseln.

Bildseitenverhältnis des eingehenden

Signals

4:3 16:9

Bild auf volle Bildschirmbreite. Geeignet für Cinemascope-Format-Bild.

Streckt das in <Cinema Scope> angezeigte Bild auf volle Bildschirmbreite.

gewählt.

Wählen Sie die Anzeigesprache des Bildschirms.

♦

English, Español, Français, Deutsch, Italiano, Nederlands, Svenska,

Dansk, Руccĸий, Português

• Die Zeichen, die Sie zum Zuweisen von Titeln eingeben können, ändern sich auch je nach der ausgewählten Sprache. ( 63)

Wählen Sie die Position der Tasten am Sensordisplay.

♦

Left, Right

♦

Off

♦

Anfänglich 0:00 (

: Hebt auf. : Aktiviert das Dual Display. ( 43, 46, 56)

11)

Wählen Sie entweder das 12-Stunden-System oder das 24-Stunden-System.

♦

12 Hours, 24 Hours

♦

Off

♦

: Hebt auf. : Die Uhrzeit wird auf dem Wiedergabebild angezeigt.

Wählen Sie <Auto> für automatische Uhreinstellung mit den Uhrzeitdaten (CT) von einem UKW-Radio-Data-System-Sender.

♦

Off, Auto

DEUTSCH

15AV-MENÜ

Page 90

Menügegenstand Wählbare Einstellung/Gegenstand

Menu Language (Menüsprache) *

Audio Language (Audio Sprache) *

Subtitle (Untertitel) *

Monitor Type

DEUTSCH

(Monitor-Typ) *

6, *7

Wählen Sie die anfängliche Disc-Menüsprache aus; Anfänglich English ( 64)

Wählen Sie die anfängliche Audiosprache; Anfänglich English ( 64)

6, *7

Wählen Sie die anfängliche Untertitelsprache oder löschen Sie Untertitel <Off>; Anfänglich English ( 64)

Wählen Sie den Monitortyp zum Betrachten eines Breitbilds auf dem externen Monitor.

♦

16:9

: Wählen Sie dies, wenn das Bildseitenverhältnis

des externen Monitors 16:9 ist.

♦

4:3 Letterbox,

4:3 Pan Scan

: Wählen Sie dies, wenn das Bildseitenverhältnis

des externen Monitors 4:3 ist.

OSD Position (OSD Position) *

File Type (Dateityp) *

Disc

DivX Regist. (Registration) (DivX Reg.) *

6, *7

Artwork (Cover)

iPod Control (iPod Steuerung) *

Wählen Sie die Position des On-screen-Balkens. ( 42)

• Der On-Screen-Balken wird bei manchen Einstellungen von <Aspect>

nicht vollständig angezeigt. ( 15)

♦

6, *7

Wählen Sie den Wiedergabedateityp, wenn eine Disc/ein USB

: Höhere Position. : Niedrigere Position.

unterschiedliche Dateitypen enthält. Sie können diese Einstellung getrennt für jede Quelle speichern—„

♦

Audio

♦

Still Picture

♦

Video

♦

Audio&Video

DISC/USB

“.

: Wiedergabe von Audio-Dateien. : Wiedergabe von JPEG-Dateien. : Wiedergabe von DivX/MPEG1/MPEG2-Dateien. : Hierdurch werden Audio-Dateien, DivX-, MPEG1-

und MPEG2-Dateien wiedergegeben.

Dieses Gerät hat seinen eigenen Registrierungscode. Wenn Sie eine Datei abgespielt haben, in der der Registrierungscode aufgezeichnet ist, wird der Registrierungscode im Gerät zum Urheberrechtsschutz überschrieben.

Für „

DISC/USB

Für „

iPod USB

“: „Jacket picture“ erscheint im Bildschirm.*7 ( 37)

“: Das Cover wird im Bildschirm unter „HEAD MODE“

gezeigt. *8 ( 51)

♦

Off

♦

Ändert die Steuereinheit für „

♦

Head

♦

iPod

: Hebt auf. : Aktiviert „Jacket picture“ oder die Cover-Anzeige.

iPod USB

“. ( 51) : Steuert das iPod/iPhone über diese Einheit. : Steuert das iPod/iPhone über das iPod/iPhone.

Page 91

Menügegenstand Wählbare Einstellung/Gegenstand

D. (Dynamic) Range Compres. (Compression) (D.RangeCompres.) *

Speaker Size (Lautspr.

6, *7

Größe) *

Disc

Speaker Level (Lautspr. Pegel) *

Sie können einen kraftvollen Klang auch bei niedriger Lautstärke genießen, wenn Sie mit Dolby Digital Software auf einer Disc aufgenommenes Material hören.

♦

Auto

♦

: Wählen Sie dies zum Anlegen des Effekts an mehrkanalig

codiertes Material.

: Wählen Sie dies, um diese Funktion immer zu verwenden.

Sie können die Lautsprechergrößeneinstellung anpassen.

♦

Vordere Lautsprecher: Small, Large

♦

Centerlautsprecher: None, Small, Large

♦

Hintere Lautsprecher: None, Small, Large

♦

Subwoofer: On, Off

• Lautsprechergröße: <Large> für 13 cm Durchmesser oder mehr; <Small> für

13 cm oder weniger.

• Vordere und hintere Lautsprecher: Linke und rechte Lautsprecher können nicht separat eingestellt werden.

Ungeachtet der obigen Einstellung...

• Kein Ton kommt vom Subwoofer bei der Wiedergabe von Dolby Pro Logic II Movie oder Music, wenn der vordere Lautsprecher auf <Large> gestellt ist.

• Es kommt kein Ton vom Centerlautsprecher, wenn Surround deaktiviert ist. ( 21)

Sie können den Ausgangspegel der aktivierten Lautsprechers einstellen (oben),

unter Überwachung des Testtons.

Vordere Lautsprecher

Centerlautsprecher

Hintere Lautsprecher

4 Subwoofer

DEUTSCH

Stellen Sie den Ausgangspegel jedes Lautsprechers im Bereich von –10dB bis +10dB ein; Anfänglich 00dB

• Berühren Sie [TEST], um den Testton einzuschalten. Zum Stoppen berühren Sie [CANCEL].

• Subwoofer-Einstellung wird nur wirksam, wenn Surround aktiviert ist. ( 21)

Wählbar nur für „

DISC/USB

“.

*7 Die Wiedergabe stoppt, wenn die Einstellung geändert wird. *8 Es dauert 5 Sekunden oder mehr, bis Cover angezeigt wird, und während des Ladevorgangs stehen keine

Bedienungen zur Verfügung.

*9 Wählbar nur für „

iPod USB

“.

Fortsetzung auf nächster Seite

17AV-MENÜ

Page 92

Menügegenstand Wählbare Einstellung/Gegenstand

Speaker Distance (Lautspr. Abstand) *6

Sie können die Ausgabezeitgabe der aktivierten Lautsprecher (oben) einstellen.

Disc

DEUTSCH

Stellen Sie den Lautsprecherabstand von der Hörposition im Bereich von 15 cm/ 6 inch bis 600 cm/240 inch in Schritten von 15 cm/6 Zoll ein. Anfänglich 120 cm/48 inch (für Center-Lautsprecher), 150 cm/60 inch (für vordere und

hintere Lautsprecher).

• Berühren Sie [cm/inch], um die Messeinheit umzuschalten—cm und inch.

IF Band Width

♦

Auto

(ZF-Bandbreite)

♦

Wide

AF Regional (AF Regional)

Tuner

TA Standby (TA Standby)

TA Volume (TA-Lautstärke)

Es ist möglich, die Netzwerk-Tracking-Empfang-Einstellung zu ändern. ( Wenn die vom aktuellen Sender empfangenen Signale schwach werden...

♦

Off

♦

AF Regional

♦

Off

♦

Sie können den voreingestellten TA-Lautstärkepegel einstellen. Wenn das Gerät auf die Verkehrsansage (TA) umschaltet, wechselt die Lautstärke auf den voreingestellten TA-Lautstärkepegel um, wenn der aktuelle Pegel niedriger als der vorgegebene Pegel ist. (

♦

00 bis 30 oder 50*10, Anfänglich 15

* *10 Je nach Verstärker-Verstärkungsgradeinstellung. ( 24)

: Steigert die Tuner-Empfindlichkeit, um Störgeräusche

zwischen benachbarten Sendern zu verringern. (StereoEffekt kann verlorengehen.)

: Ist Interferenzen von benachbarten Sendern ausgesetzt,

aber die Klangqualität wird nicht verringert, und der Stereoeffekt bleibt erhalten.

35)

: Hebt auf—nicht wählbar, wenn<DAB AF> auf <On>

gestellt ist.

: Schaltet auf eine andere Frequenz mit demselben

Programm um. Die REG-Anzeige leuchtet auf.

: Schaltet auf einen anderen Sender um. Das Programm

kann sich von dem aktuell gewählten unterscheiden (AFAnzeige leuchtet auf). ( 35)

: Hebt auf. : Zum Aktivieren des TA-Standbyempfangs. ( 35)

35)

Page 93

Menügegenstand Wählbare Einstellung/Gegenstand

Program Search (Programmsuche)

DAB AF (DAB AF) *

Tuner

AV Input (AV Eingang) *

Es ist möglich, die Programmsuche zu aktivieren und deaktivieren. (

♦

Off

♦

Es ist möglich, den Alternativfrequenzempfang zu aktivieren und deaktivieren. (

55)

♦

Off

♦

Sie können die Verwendung der LINE IN- und VIDEO IN-Stecker einstellen.

( 56)

♦

Off

♦

iPod (Off)

: Hebt auf. : Aktiviert die Programmsuche.

: Hebt auf. : Activiert den Alternativfrequenzempfang.

: Wählen, wenn keine Komponente angeschlossen ist

(„

AV-IN

“ wird nicht im Quellschirmbild angezeigt).

: Wählen, wenn der iPod/iPhone mittels des USB-Audio-

und Videokabels für iPod/iPhone angeschlossen wird. ( 51)

♦

Audio&Video

: Wählen, wenn Sie eine AV-Komponente wie einen

Videorecorder anschließen.

♦

Eingang

Audio

♦

Camera *

♦

Navigation

: Zu wählen, wenn Sie eine Audio-Komponente wie

13, *14

einen tragbaren Audio-Player anschließen. : Zu wählen, wenn Sie eine Rückfahrkamera anschließen. : Wählen, wenn ein Navigationssystem angeschlossen

wird.

External Input (Externer Eingang) *

Zum Anschließen einer externen Komponente an der CD-Wechslerbuchse an der

Rückseite.

• Zum Anschließen des DAB-Tuners ist diese Einstellung nicht erforderlich. Der DAB-Tuner wird automatisch erkannt.

♦

Changer/iPod *

♦

External

Nur wählbar, wenn DAB-Tuner angeschlossen ist. ( 54)

* *12 Nicht wählbar, wenn „

AV-IN

“ als Quelle gewählt ist.

: CD-Wechsler, (

53), iPod, ( 52).

: Jegliche anderen als die obigen, ( 57).

*13 Die Rückwärtsgangsignal-Leitungsverbindung ist erforderlich. Siehe Einbau/Anschlußanleitung. Die Rückfahrsicht

über die Kamera erscheint auf dem Bildschirm (ungeachtet der Bildformat-Einstellung) im Bildformat <16:9 FULL>, wenn Sie den Rückwärtsgang (R) einlegen. Wenn Sie einen anderen Gang als Rückwärtsgang (R) einlegen, wird das Rückfahrschirmbild ausgeschaltet.

*14 Während die Bilder von der Kamera im Monitor gezeigt werden, erscheint keine Meldung. *15 Nicht wählbar, wenn die an die CD-Wechslerbuchse angeschlossene Komponente als Quelle gewählt ist. *16 Der Name der Komponente, die an der CD-Wechsler-Buchse erkannt wird, erscheint.

35)

DEUTSCH

19AV-MENÜ

Page 94

Menügegenstand Wählbare Einstellung/Gegenstand

Beep (Piep)

Telephone Muting (Tel- Stummschalt) *

Monitor/Sensor (Monitor/Sensor)

DEUTSCH

Sonstige

♦

Off

♦

Off

♦

Muting1,

Muting2

: Hebt auf. : Aktiviert den Tastenbeührungston.

: Hebt auf. : Eine Einstellung wählen, bei der der Ton bei

Verwendung des Mobiltelefons stummgeschaltet ist.

Sie können die im Sensordisplay gezeigten Tasten und Informationen ausschalten oder die das Sensordisplay vollständig ausschalten, wenn ca. 10 Sekunden lang keine Bedienung erfolgt. (

Bei Standbildwiedergabe auf

dem Bildschirm

Normal/ Motion

Tasten und Informationen leuchten auf, wenn sich Ihre Hand näher an das Sensordisplay bewegt.

Normal/Touch Tasten und Informationen

leuchten auf, wenn Sie das Sensordisplay berühren.

WallPaper/ Motion

WallPaper/ Touch

Tasten und Informationen leuchten auf, wenn sich Ihre Hand näher an das Sensordisplay bewegt.

Tasten und Informationen leuchten auf, wenn Sie das Sensordisplay berühren.

Off/Motion Das Sensordisplay leuchtet auf, wenn sich Ihre Hand näher

daran bewegt.

Off/Touch Das Sensordisplay leuchtet auf, wenn Sie es berühren.

Sonstige

Tasten und Informationen leuchten immer.

Motion Sensitiv.

(Sensitivity)

Ändern Sie die Einstellung des Sensors für <Monitor/Sensor> (oben).

♦

Mid, High

(Motion Empfind.) Initialize

(Initialisierung)

Initialisieren Sie alle Einstellungen, die im AV-Menü vorgenommen wurden. Halten Sie [Enter] zum Initialisieren der Einstellungen gedrückt, und setzen Sie die Einheit zurück. ( 3)

Anschluss an ein Mobiltelefonsystem ist erforderlich. Siehe Einbau/Anschlußanleitung.

Page 95

Sie können Mehrkanal-Surround-Wiedergabe über die vorderen und mittleren Surroundlautsprecher genießen.

MULTI:

Für mehrkanalig codierte Quellen wie Dolby Digital. (Wenn aktiviert erscheint „MULTI“ im Bildschirm.)

Dolby Pro Logic II (Movie/Music):

Für 2-Kanal-Quellen ausgenommen für DivX/MPEG1/MPEG2-Discs.

• Nach dem Anschließen des Center-Lautsprechers stellen Sie sicher, den Center-Lautsprecher zu aktivieren; andernfalls kommt kein Ton vom Center-Lautsprecher. (

• Sie können diese Funktion in den folgenden Fällen nicht aktivieren: – Wenn „

iPod USB

“ als Wiedergabequelle gewählt ist.

– Wenn Doppelzone verwendet wird.

17)

Zum Einschalten von Surround

1 Wählen Sie <Disc Surround> im AV-

Menü.

2 Schalten Sie Surround ein.

Schalten Sie Surround (1) ein, und berühren

Sie dann <Auto>, um die Surroundmodi

(2) zu zeigen.

3 Wählen Sie einen Surround-Modus.

<Auto>:

• Wenn Mehrkanal-Digitalsignale anliegen, wird „MULTI“-Surround aktiviert.

• Wenn 2-Kanal- oder 2.1-Kanal-Signale* anliegen, wird 4-Kanal-Stereo aktiviert.

<Through>:

Alle anliegenden Signale werden zu den

entsprechenden Lautsprechern geleitet.

<Dolby PLII Movie>:

Aktivieren Sie Dolby Pro Logic II Movie.

<Dolby PLII Music>:

Aktivieren Sie Dolby Pro Logic II Music. Sie

können die Einstellungen von <Panorama> und <Center Width> anpassen. ( 22)

* Ausgenommen Signale von DivX/MPEG1/MPEG2-Discs.

DEUTSCH

Fortsetzung auf nächster Seite

21AV-MENÜ

Page 96

An der Fernbedienung:

Zum Ändern der <Dolby PLII Music>-Einstellung

Im Schritt 3 auf Seite 21...

1 Wählen Sie <Dolby PLII Music>.

DEUTSCH

2 Wählen Sie die gewünschten

Einstellungen.

<Panorama>:

Wählen Sie <On> für den „wraparound“

(Rundum)-Klangeffekt.

<Center Width>*: Stellen Sie das Klangbild des Mittelkanals so

ein, dass es nur über den Mittellautsprecher, nur über den linken/rechten Frontlautsprecher als „Phantom“-Klangbild bzw. über unterschiedliche Kombinationen dieser Lautsprecher hörbar ist. Je höher die Nummer, desto stärker der „Phantomeffekt“ (normalerweise stellen Sie auf <04> ein).

* Einstellbar, wenn der Center-Lautsprecher

aktiviert ist. ( 17)

3 Beenden Sie den Vorgang.

• Sie können nicht die Einstellungen für

<Dolby PL II Music> mit der Fernbedienung ändern.

Page 97

Wählen Sie einen Vorwahl-Klangmodus, der dem Musikgenre entspricht.

♦

Flat (Anfänglich), Hard Rock, R&B, Pop, Jazz, Dance, Country, Reggae, Classic, User1, User2, User3

• (Für „

DISC/USB

Quelle ist CD-DA, VCD oder MP3/WMA/WAV/AAC-Dateien und <Auto> ist für <Surround Mode> gewählt.

21)

(

“) Während Surround aktiviert ist, können Sie Equalizer in den folgenden Fällen verwenden. die

Vorgabe-Equalizerwerte

Klangmodus

Flat 00 00 00 00 00 00 00 Dance +04 +02 00 –02 –01 +01 +01 Hard Rock +03 +03 +01 00 00 +02 +01 Country +02 +01 00 00 00 +01 +02 R&B +03 +02 +02 00 +01 +01 +03 Reggae +03 00 00 +01 +02 +02 +03 Pop 00 +02 00 00 +01 +01 +02 Classic +02 +03 +01 00 00 +02 00 Jazz +03 +02 +01 +01 +01 +03 +02 User1/2/3 00 00 00 00 00 00 00

60,0 Hz

150,0 Hz

400,0 Hz

1,0 kHz

2,5 kHz

6,3 kHz

15,0 kHz

Klangmodus

60,0 Hz

150,0 Hz

400,0 Hz

1,0 kHz

2,5 kHz

6,3 kHz

Speichern Ihrer eigenen Einstellungen

Sie können Ihre Einstellungen unter <User1>, <User2> und <User3> speichern.

1 Wählen Sie <Equalizer> im AV-Menü.

2 Nehmen Sie die Einstellung vor und

speichern Sie sie.

Geht zu den anderen 6 Klangmodi weiter.

Berühren Sie [2] oder [3] zur Wahl eines

einzustellen gewünschten Frequenzpegels.

Berühren Sie [5] oder [∞] zum Anpassen.

15,0 kHz

DEUTSCH

Beisp.: Beim Speichern in <User1>.

Durch direktes Bewegen jedes Balkens werden ebenfalls Einstellungen vorgenommen.

23AV-MENÜ

Page 98

Anfänglich: Unterstrichen

Menügegenstand Wählbare Einstellung/Gegenstand

Fader/Balance (Fader/Balance) Fader:

Stellen Sie die Balance für die Lautsprecherausgabe auf

♦

den vorderen und hinteren Lautsprechern ein.

DEUTSCH

Balance: Stellen Sie die Balance für die Lautsprecherausgabe auf den linken und rechten Lautsprechern ein.

Volume Adjust (Lautst. Einstlg.) *

F06 bis R06; Anfänglich 00 (Fader)

♦

L06 bis R06; Anfänglich 00 (Balance) [5/∞]: Stellt den Fader ein. [2/3]: Stellt die Balance ein. [ ]: Setzt die Einstellungen zurück.

• Wenn Sie eine Anlage mit zwei Lautsprechern verwenden, stellen Sie den Fader

auf Mittenstellung (00).

Stellen Sie die Auto-Lautstärkepegel für jede Quelle ein und speichern Sie die Einstellungen unter Vergleich mit dem UKW-Pegel. Der Lautstärkepegel wird automatisch angehoben oder abgesenkt, wenn Sie die Quelle ändern.

• <Fix> erscheint wenn eine UKW-Sendung als Wiedergabequelle gewählt ist.

♦

–12 bis +12; Anfänglich 00

Subwoofer Level (Subwoofer Niveau)

High Pass Filter (Hochpassfilter)

Crossover (Übergangsfreq.)

Amplifier Gain (Verstärkungsgrad) *

Sie können den Ausgangspegel des Subwoofers einstellen, wenn er aktiviert ist.

17)

(

♦

–06 bis +08; Anfänglich 00

♦

Through

: Wählen Sie dies, wenn der Subwoofer nicht angeschlossen

ist.

♦

: Wählen Sie dies, wenn der Subwoofer angeschlossen ist.

Wählen Sie die Übergangsfrequenz zwischen vorderen/hinteren Lautsprechern und dem Subwoofer ein.

♦

80Hz, 120Hz, 150Hz

Verstärker-Verstärkungsgradregelung Sie können den maximalen Lautstärkepegel

auf diesem Receiver einstellen.

♦

Off

♦

Low Power

: Deaktiviert den eingebauten Verstärker. : VOL 00 bis 30 (Wählen Sie dies, wenn die Maximalleistung

des Lautsprechers weniger als 50 W beträgt.)

♦

Rear Speaker (Lautspr. Hinten) *

Bei „

DISC/USB

High Power

Sie können die hinteren Lautsprecher aktivieren/deaktivieren.

♦

Off, On

“: Sie können die Einstellungen getrennt vornehmen, je nach dem Audioformat—Dolby digital

: VOL 00 bis 50

und weitere.

*2 Der Lautstärkepegel wird automatisch auf „30“ umgestellt, wenn Sie auf <Low Power> stellen, während der

Lautstärkepegel höher als „30“ gestellt ist.

*3 Diese Einstellung wird nur wirksam, wenn Doppelzone aktiviert ist. ( 43)

Durch Ziehen werden ebenfalls Einstellungen vorgenommen.

Page 99

Wählbare Gegenstände bei den Quellen:

•

TUNER

•

: Mono, SSM, PTy Standby, PTy Code

DAB

DISC, USB, CD-CH, iPod, Bluetooth iPod USB AV-IN, EXT-IN

Anfänglich: Unterstrichen

: D.(Dynamic) Range Control, Announce Standby, Announce

Code, PTy Standby, PTy Code

Repeat, Random

: Repeat, Random, AudioBooks : Title Entry

Menügegenstand Wählbare Einstellung/Gegenstand

Mono (Mono) Wenn Sie Schwierigkeiten haben, eine UKW-Sendung in Stereo zu empfangen, schalten

Sie für besseren Empfang auf Mono um.

♦

SSM (Strong-station Sequential Memory)

(SSM)

PTy Standby (PTy Standby)

Pty Code (Pty-Code) D.(Dynamic) Range

Control (D-Bereichsreg.)

Announce Standby (Ansage Standby)

Announce Code (Ansage-Code)

Nur KD-AVX77

Off

♦

Sie können für jedes UKW-Frequenzband automatisch bis zu 6 Sender voreinstellen.

• Die lokalen UKW-Sender im ausgewählten Frequenzband mit den stärksten Signalen werden automatisch als Festsender gespeichert.

Es ist möglich, den PTY-Standbyempfang zu aktivieren und deaktivieren. ( 35)

♦

Off

♦

Wählt einen PTY-Code für PTY-Standbyempfang. ( Manche DAB-Dienste bieten Dynamikumfang-Steuersignale (DRC) zusammen mit ihren

regulären Programmsignalen. DRC hebt die leisen Klänge für besseres Hören an.

♦

Off : Hebt auf.

♦

DRC1, DRC2, DRC3

Es ist möglich, den Announce Standby-Empfang zu aktivieren und deaktivieren. ( 55)

♦

Off

♦

Wählt den Ansagetyp für den Announce Standby-Empfang. (

♦

Transport News, Warning, News, Weather, Event, Special Event, Radio Info, Sports News, Financial News

: Stellt den Stereoeffekt wieder her. : Aktiviert den Mono-Modus zum Verbessern des UKW-Empfangs, aber

der Stereoeffekt geht verloren. Die MONO-Anzeige leuchtet auf.

(Gedrückthalten)

: Hebt auf. : Aktiviert den PTY- Standbyempfang.

34, 35)

: Je höher die Stufe, desto stärker der Effekt.

: Hebt auf. : Aktiviert den Announce Standby-Empfang.

55)

DEUTSCH

Fortsetzung auf nächster Seite

25AV-MENÜ

Page 100

Menügegenstand Wählbare Einstellung/Gegenstand

Repeat (Wiederholung)

DEUTSCH

Random (Zufall) Verfügbare Gegenstände hängen vom Typ der eingelegten Disc und der Wiedergabedatei

AudioBooks (Hörbücher) *

Title Entry (Titel-Eingabe)

Verfügbare Gegenstände hängen vom Typ der eingelegten Disc und der Wiedergabedatei ab.

♦

Chapter

♦

Title

♦

Program

: Aktuelles Kapitel wiederholen. : Aktuellen Titel wiederholen. : Wiederholt das aktuelle Programm (bei DVD-VR nicht verfügbar

für Playlist-Wiedergabe).

♦

Disc

♦

Folder/Group*

♦

Track

: Wiederholt alle Tracks auf der aktuellen Disc.

: Wiederholt alle Tracks des/der aktuellen Ordners/Gruppe. : Aktuellen Track wiederholen. (Bei VCD: Wenn PBC nicht aktiviert

ist.)

♦

One

♦

All

♦

Off

ab.

♦

Folder/Group*

: Hat die gleiche Funktion wie „Repeat One“ am iPod/iPhone. : Hat die gleiche Funktion wie „Repeat All“ am iPod/iPhone. : Hebt auf.

: Spielt alle Tracks des/deer aktuellen Ordners/Gruppe ab, und

dann die Tracks der nächsten Ordner/Gruppen.

♦

Disc/USB

: Alle Tracks in zufälliger Reihenfolge abspielen. (Bei VCD: Wenn

PBC nicht aktiviert ist.)

♦

All

♦

Song

♦

Album

♦

Off

Sie können die Wiedergabegeschwindigkeit der „Audiobook“-Tondatei in Ihrem iPod/

iPhone wählen.

♦

Normal

♦

Faster

♦

Slower

Sie können Titel (bis zu 16 Zeichen) zu „ verfügbare Zeichen,

: Spielt in zufälliger Reihenfolge alle Tracks aller eingelegten Discs. : Hat die gleiche Funktion wie „Shuffle Songs“ *3 am iPod/iPhone. : Hat die gleiche Funktion wie „Shuffle Albums“ am iPod/iPhone. : Hebt auf.

: Die Wiedergabe geschieht mit Normalgeschwindigkeit. : Spielt schneller ab. : Spielt langsamer ab.

AV-IN

“ und „

EXT-IN

“ zuweisen. (Für

63.)

[5/∞]: Ändert die Zeichen einzeln. [2/3]: Verschiebt den Cursor. [SPACE]: Gibt eine Leerstelle ein. [CHANGE]: Ändert den Zeichensatz. [STORE]: Bestätigt die Eingabe. [CLEAR]: Löscht alle eingegebenen Zeichen.

Nur KD-AVX77

Sie können <Shuffle Songs> in Menü <Search Mode> aktivieren. ( 28)

* *4 Nicht wählbar bei Anschluss des iPod mit dem Schnittstellenadapter. ( 52)

JVC KD-AVX77 User Manual [en, de, fr]

Specifications and Main Features

Frequently Asked Questions

User Manual

How to reset your unit

Playable disc type

Basic operations

Preparation

AV Menu understanding

Listening to the radio

33OPERATIONS

Disc operations

Dual Zone operations

USB operations

Using the Bluetooth® devices (KD-AVX77 only)

Listening to the iPod/iPhone devices

Listening to the CD changer

Listening to the DAB tuner

Using other external components

Maintenance

More about this unit

Troubleshooting

Specifications

Operation index
