JVC KD-AVX40 User Manual

DVD/CD RECEIVER

RECEPTOR CON DVD/CD RÉCEPTEUR DVD/CD

KD-AVX40

For canceling the display demonstration, see page 7. Para cancelar la demonstración en pantalla, consulte la página 7. Pour annuler la démonstration des affichages, référez-vous à la page 7.

ENGLISHFRANÇAIS ESPAÑOL

For installation and connections, refer to the separate manual. Para la instalación y las conexiones, refiérase al manual separado. Pour l’installation et les raccordements, se référer au manuel séparé.

INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’INSTRUCTIONS

For customer Use:

Enter below the Model No. and Serial No. which are located on the top or bottom of the cabinet. Retain this information for future reference.

Model No.

Serial No.

LVT1939-001A

[J]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best

possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

ENGLISH

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: (For U.S.A.) Visible and/or invisible class II laser radiation when open. Do not stare into beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

(For Canada) Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.

INFORMATION (For U.S.A.)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment

and receiver.

– Connect the equipment into an outlet on a

circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV

technician for help.

Caution

Changes or modifications not approved by JVC could void the user’s authority to operate the equipment.

[European Union only]

WARNINGS: To prevent accidents and damage

• DO NOT install any unit or wire any cable in a location where; – it may obstruct the steering wheel and

gearshift lever operations.

– it may obstruct the operation of safety devices

such as air bags.

– it may obstruct visibility.

• DO NOT operate the unit while driving.

If you need to operate the unit while driving, be

sure to look around carefully.

• The driver must not watch the monitor while driving.

Cautions on the monitor:

• The monitor built in this unit has been produced with high precision, but it may have some ineffective dots. This is inevitable and is not malfunction.

• Do not expose the monitor to direct sunlight.

• When the temperature is very cold or very hot... – Chemical changes occur inside, causing

malfunction.

– Pictures may not appear clearly or may move

slowly. Pictures may not be synchronized with the sound or picture quality may decline in such environments.

How to reset your unit

• Your preset adjustments (except for the registered Bluetooth devices) will also be erased.

How to forcibly eject a disc

[Hold]

• Be careful not to drop the disc when it ejects.

• If this does not work, reset the unit.

For safety...

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Contents

How to reset your unit .......................... 3

How to forcibly eject a disc .................... 3

INTRODUCTION

Playable disc type ................................. 4

Before operations ................................. 5

OPERATIONS

Basic operations—AV menu .................. 6

Basic operations—Control panel ........... 8

Basic operations—

Remote controller (RM-RK252) ........... 10

Listening to the radio ........................... 12

Disc operations ..................................... 15

USB operations ..................................... 28

Bluetooth® operations—

Cellular phone/audio player .............. 30

EXTERNAL DEVICES

Listening to the iPod/iPhone ................. 37

Listening to the CD changer ................... 40

Listening to the satellite radio .............. 42

Listening to

the HD Radio™ Broadcast ................... 45

Listening to other external

components ...................................... 47

SETTINGS

Sound equalization ............................... 49

Assigning titles to the sources ............... 50

Menu items .......................................... 51

REFERENCES

Maintenance ........................................ 59

More about this unit ............................. 60

Troubleshooting ................................... 67

Specifications ....................................... 72

ENGLISH

Playable disc type

Disc type Recording format, file type, etc. Playable

DVD

ENGLISH

• DTS sound cannot be reproduced.

DVD Recordable/Rewritable (DVD-R/-RW*2, +R/+RW*3)

• DVD Video: UDF bridge

• DVD-VR

• MPEG1/MPEG2/JPEG/MP3/WMA/WAV: Compliant to ISO 9660 level 1, level 2, Romeo, Joliet

DualDisc DVD side

CD/VCD Audio CD/CD Text (CD-DA)

CD Recordable/Rewritable (CD-R/-RW)

• Compliant to ISO 9660 level 1, level 2, Romeo, Joliet

*1 If you insert a DVD Video disc of an incorrect Region Code, “Region code error” appears on the monitor. *2 DVD-R recorded in multi-border format is also playable (except for dual layer discs). DVD-RW dual layer discs are not

playable.

*3 It is possible to play back finalized +R/+RW (Video format only) discs. “DVD” is selected as its disc type when a

+R/+RW disc is loaded. +RW double layer discs are not playable.

DVD Video (Region Code: 1)*

DVD Audio/DVD-ROM

DVD Video

DVD-VR

MPEG1/MPEG2

JPEG

MP3/WMA/WAV

AAC/MPEG4/DivX/DVD+VR/DVD-RAM

Non-DVD side

VCD (Video CD)

DTS-CD/SVCD (Super Video CD)/CD-ROM/ CD-I (CD-I Ready)

CD-DA

MP3/WMA/WAV

JPEG

MPEG1/MPEG2

AAC/MPEG4/DivX

Caution for DualDisc playback

The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

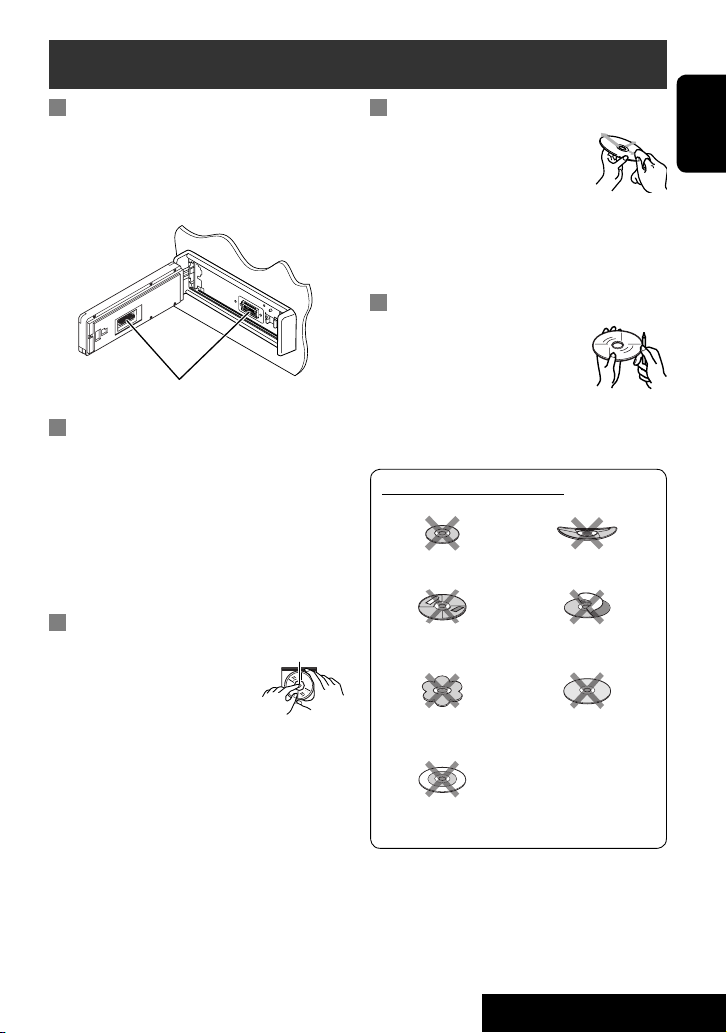

Before operations

ENGLISH

Touch pad controls

The lights of the touch pad controls and monitor are turned off when no operation is done for about 10 seconds. The lights are turned on in the following cases: – When you move your hand close

to the touch pad controls.*

– When your finger touches the

touch pad controls.*

– When you use the remote

controller. – When a call/Text message comes in. – When the signal from the rear view camera comes in.

* Depending on the setting. To change the setting, ☞

page 55.

The lights are always turned on in the following cases: – While <AV Menu> is displayed. – While <Source Menu> is displayed. – While the control panel is open. – When <Illumination> is set to <Normal>.

(☞ page 55)

Monitor

How to operate the unit by the touch pad controls

You can operate the unit by touching the appropriate part of the touch pad controls.

• To adjust the volume, move your finger on the touch pad knob as illustrated below to display the animation on the monitor, then touch 5 or ∞ repeatedly. – You can also adjust the volume by just continuing

to move your finger on the touch pad knobs as illustrated below.

• When you slide your finger on the touch pad knob as illustrated below, it functions in the same way as touching 5 / ∞ / 4 / ¢.

• Operations are explained mainly using the touch pad controls and buttons of the unit; however, the buttons on the remote controller can work in the same way if they have the same names or marks.

• In the explanation, the screen names are highlighted. For example, <AV Menu>.

INTRODUCTION

Basic operations— AV menu

You can use the menus to set up various settings from <AV Menu>. For details of each menu and setting, see “Menu items.” (☞ pages 51 to 58)

ENGLISH

AV Setup

~ Turn on the power.

The lights of the touch pad controls and monitor are turned on.

⁄ Select an item.

Ÿ Enter <AV Menu>.

Time countdown indicator

Current setting of the selected item

@ Enter the next screen.

AV Setup

Current selected icon name

• Non-available items will be shaded.

Setup icons

• To return to the previous screen:

! Select an icon to enter the setup screen.

• Repeat steps ⁄ and @ to set the sub-item if

needed.

¤ Finish the procedure.

Important

Indication language: English indications are used for the purpose of explanation. You can select the indication

language from the <AV Menu>. (☞ page 52)

Canceling the display demonstration and setting the clock

AV Menu

Enter

AV Setup

Return to <AV Setup> by touching 4

repeatedly.

ENGLISH

OPERATIONS

Basic operations — Control panel

ENGLISH

1 Selects sources.* “Tuner” or “HD Radio” = “Satellite Radio

(SIRIUS/XM)” = “Disc” = “USB” or ”USB iPod” = “Changer,” ”iPod,” or ”External Input” = “Bluetooth” = “AV Input”

• You can also select sources by touching

5 / ∞ / 4 / ¢ after holding SRC for entering <Source Menu>.

2 Ejects the disc. 3 • Enters or exits <AV Menu>.

• Activates Voice Dialling [Hold].

• While talking: Adjusts the volume of the

microphone connected to the unit.

4 • “Tuner” and “HD Radio”: Searches for stations.

• “Satellite Radio”: Selects channels.

• “Disc,” “USB,” “USB iPod,” “Changer,” “iPod,” and

“Bluetooth”: Reverse skip/forward skip

• On menus:

– Enters the previous/next screen. – Selects items.

5 Tilts the control panel. (☞ page 9) 6 Adjusts the volume level. (☞ page 5)

7*2 • “Tuner”: Selects preset stations.

• “HD Radio”: Selects multicast channels.

• “Satellite Radio”: Selects categories.

• “Disc,” “USB,” and “Changer”: Selects titles/ folders.

• “USB iPod”: Selects the next/previous items.

• “iPod”: Enters the player’s menu and pauses playback.

• “Bluetooth”: Selects group/folder.

• On menus: Selects items.

8 • “Disc,” “USB,” “USB iPod,” and “Changer”: Starts

and pauses playback.

• “Bluetooth”: Starts playback.

• On menus: Enters the next screen or exits the

displayed screen.

9 Changes the display information. (☞ page 9) p • “Tuner,” “HD Radio,” and “Satellite Radio”:

Selects the bands.

• “Disc” and “USB”: Stops playback.

• “Bluetooth”: Pauses playback.

q • Turns on the power.

• Turns off the power [Hold].

• Attenuates the sound (when the power is on).

w Remote sensor e Resets the unit.

• Use only when the internal system malfunctions.

r Detaches the control panel (To attach, ☞ page 9).

*1 You cannot select these sources if they are not ready. *2 By holding 5 / ∞, you can display the list accessible

for the selected source.

To tilt the control panel Touch TILT repeatedly.

To attach the control panel

Changing the display information

Available display information varies among the playback sources.

Each time you touch DISP, the display changes to show the various information.

Ex.: When the playback source is a DVD video disc.

Playback picture screen (only for video sources)

Source information screen

ENGLISH

Back to the beginning

Playback picture and the source information screen

• When the source is “USB iPod,” the Artwork of the song is shown if the

song has an Artwork data. (☞ page 53)

• While MP3/WMA file is played, “Jacket picture” is shown if the file has the tag data including “Jacket picture.”

Navigation screen

• This screen is displayed when <Navigation> is selected for <AV Input>. (☞ pages 47 and 54)

OPERATIONS

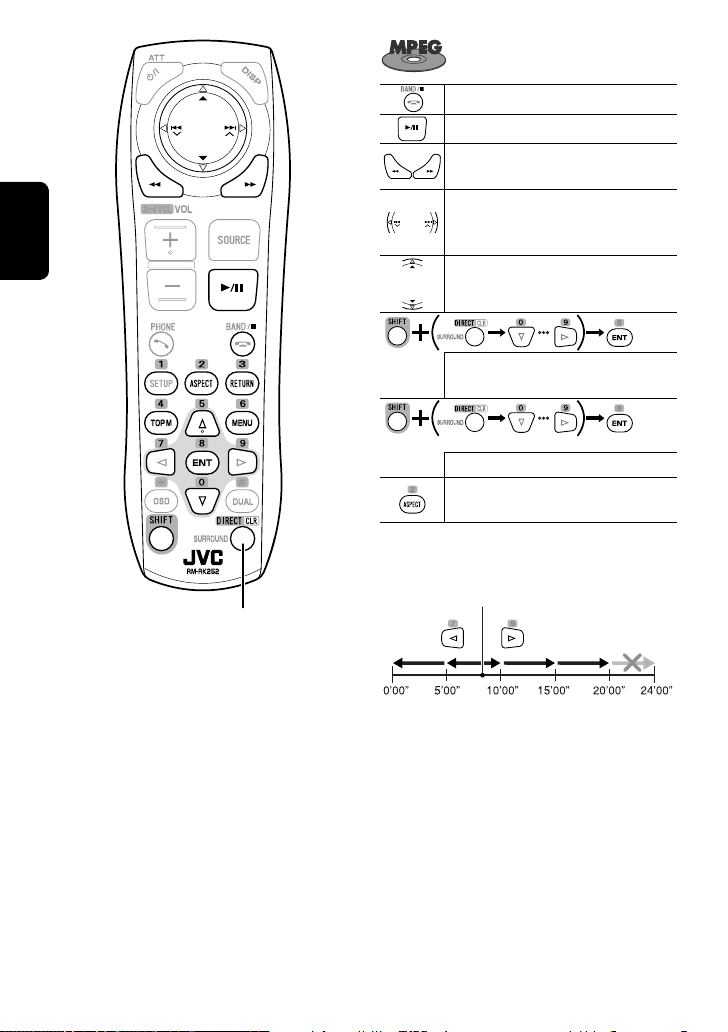

Basic operations — Remote controller (RM-RK252)

Installing the battery

ENGLISH

Insert the batteries into the remote controller by matching the polarity (+ and –) correctly.

R03/LR03/AAA

Caution:

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

If the range or effectiveness of the remote controller decreases, replace both batteries.

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the unit.

• DO NOT expose the remote sensor to bright light (direct sunlight or artificial lighting).

The unit is equipped with the steering wheel remote control function.

• See the Installation/Connection Manual (separate volume) for connection.

Main elements and features

1 • Turns on the power.

• Turns off the power [Hold].

• Attenuates the sound (when the power is on).

2 “Disc,” “USB,” and “USB iPod”: Reverse search 3 • Adjusts the volume level.

• Does not function as “2nd VOL.” 4 • Answers incoming calls.

• Enters <Redial> [Hold].

• You can enter <Dial Menu> by pressing the

button then touching 6 on the unit.

5 • DVD: Displays the disc menu.

• VCD: Resumes PBC playback (☞ page 23).

• DVD-VR: Displays the Original Program screen.

6 • Enters numbers (while holding SHIFT). (☞ pages

14, 20 to 24, 35, and 44)

• Selects the preset phone number (while holding SHIFT).

• “Tuner,” “HD Radio,” and “Satellite Radio”: Selects the preset stations (while holding SHIFT).

7 Displays the on-screen bar. 8 Functions with other buttons (see 6 and o). 9 Displays the display information. p “Tuner”:

• 5 / ∞: Selects preset stations.

•

/ : Searches for stations. – Auto Search – Manual Search [Hold]

“HD Radio”:

• 5 / ∞: Selects multicast channels.

• 4 / ¢: Searches for stations.

– Auto Search – Manual Search [Hold]

“Satellite Radio”:

• 5 / ∞: Selects categories.

• 4 / ¢:

– Selects channels. – Selects channels rapidly. [Hold]

“Disc” and “Changer”:

• 5 / ∞:

– DVD: Selects the title. – DVD-VR: Selects the program/play list. – Other discs (except VCD/CD): Selects the

folders.

• 4 / ¢:

– Reverse skip/forward skip – Reverse search/forward search [Hold]

“USB”:

• 5 / ∞: Selects the folders.

• 4 / ¢:

– Reverse skip/forward skip – Reverse search/forward search [Hold]

“USB iPod”:

• 5 / ∞: Selects previous/next item.

• 4 / ¢:

– Reverse skip/forward skip – Reverse search/forward search [Hold]

“iPod”:

• ∞: Pauses or resumes playback.

• 5: Enters the main menu (then 5 / ∞ / 4 /

¢ work as the menu selecting buttons).*

• 4 / ¢:

– Reverse skip/forward skip – Reverse search/forward search [Hold]

In menu selecting mode:

– Selects an item. (Then, press ∞ to confirm the

selection.)

– Skips 10 items at a time [Hold].

“Bluetooth”:

• 5 / ∞: Selects group/folder.

• 4 / ¢:

– Reverse skip/forward skip – Reverse search/forward search [Hold]

q “Disc,” “USB,” and “USB iPod”: Forward search w Selects the source. e • “Disc,” “USB,” and “USB iPod”: Starts and pauses

playback.

• “Bluetooth”: Starts and pauses playback.

• Answers incoming calls.

r Changes the aspect ratio of the playback pictures. t • “Tuner,” “HD Radio,” and “Satellite Radio”:

Selects the bands.

• “Disc” and “USB”: Stops playback.

• “Bluetooth”: Pauses playback.

• Ends the call.

y VCD: Returns to the PBC menu. u • DVD Video: Displays the disc menu.

• VCD: Resumes PBC playback. (☞ page 23)

• DVD-VR: Displays the Play List screen. i • Makes selection/settings.

• @ / #: Skips back or forward by 5 minutes for

MPEG1/MPEG2.

• % / ﬁ: Changes discs for “Changer.” o • “Disc” and “USB”: Switches the number entry

mode (while holding SHIFT).

• Erases the misentry after entering a wrong number (while holding SHIFT).

• Does not function as “SURROUND.”

Does not function as “SETUP.”

* *2 Does not function as “DUAL.” *3 5 : Returns to the previous menu.

∞ : Confirms the selection.

ENGLISH

OPERATIONS

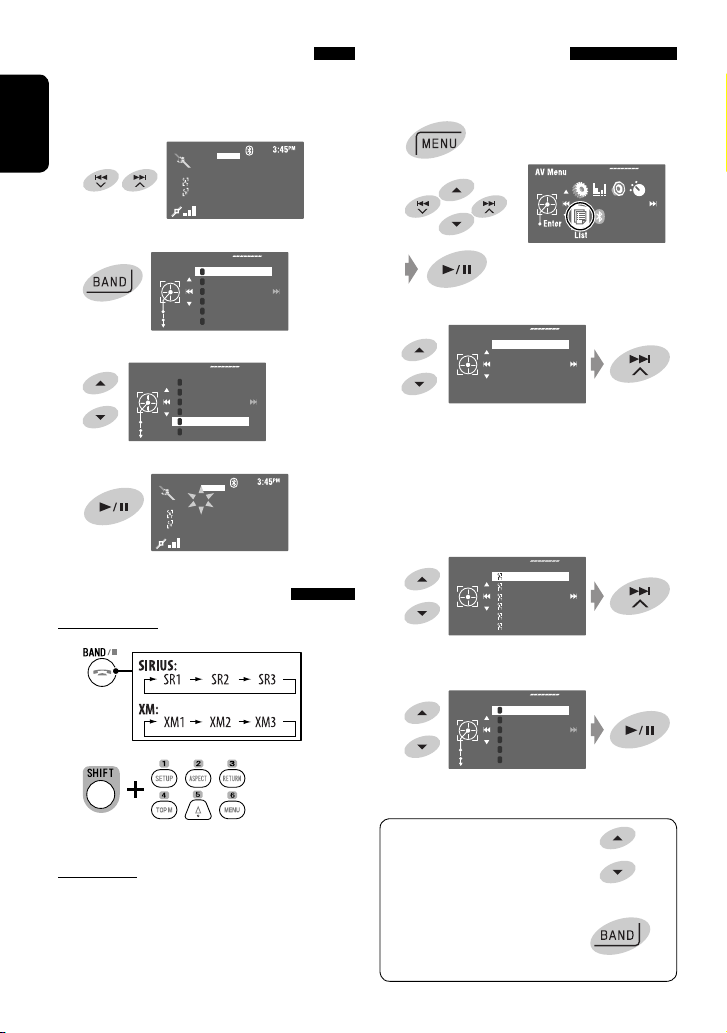

Listening to the radio

ENGLISH

A Band B Sound mode ( C Preset no. D Frequency E Assigned station name ( F FM reception indicator

☞ page 49)

~ Select “Tuner.” Ÿ Select the band.

☞ page 50)

! Search for a station—Auto Search.

• Manual Search: Hold either or until “Manual Search” appears on the monitor, then touch it repeatedly.

• The ST indicator lights up when receiving an FM stereo broadcast with sufficient signal strength.

When an FM stereo broadcast is hard to receive

FM station automatic presetting —SSM (Strong-station Sequential Memory)

This function works only for FM bands. You can preset six stations for each band.

Local FM stations with the strongest signals are searched and stored automatically in the FM band.

ENGLISH

Reception improves, but the stereo effect will be lost.

• The MO indicator lights up.

To restore the stereo effect, select <Off> in step 4.

• When an HD Radio tuner box is connected (☞ page

45), you can also search and store the AM station automatically.

OPERATIONS

Manual presetting

Ex.: Storing the FM station of 92.5 MHz into preset

number 4 of the FM1 band.

ENGLISH

Tune in to a station you want to preset.

Selecting preset stations

On the remote:

[Hold]

The Preset List appears.

• For FM: Each time you hold 5 / ∞ , you can

change the bands.

4 Select a preset number.

5 Store the station.

[Hold]

The station selected in step 2 is now stored in preset number 4.

The Preset List can also be accessed through

<AV Menu> = <List>.

On the unit:

To select directly

To select from the Preset List

[Hold]

• For FM: Each time you hold 5 / ∞ , you can

change the bands.

3 Select the preset number.

The Preset List can also be accessed through

<AV Menu> = <List>.

Disc operations

The disc type is automatically detected, and playback starts automatically (for some discs: automatic start depends on its internal program). If a disc does not have any disc menu, all tracks in it will be played repeatedly until you change the source or eject the disc.

If “ ” appears on the monitor, the unit cannot accept the operation you have tried to do.

• In some cases, without showing “ ,” operations will not be accepted.

~ Open the front panel.

Label side

When playing back a multi-channel encoded disc, the multi-channel signals are downmixed.

• You can fully enjoy multi-channel sound by connecting an amplifier or a decoder compatible with these

multi-channel sources. (☞ also page 65)

Ÿ Insert the disc.

Playback starts automatically.

Caution:

Do not place your finger behind the control panel.

Caution on volume setting:

Discs and connected USB devices produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.

ENGLISH

0: Ejects the disc. 3/8: Starts and pauses playback.

BAND: Stops playback.

OPERATIONS

ENGLISH

4 ¢: Touch: Selects chapter.

Hold: Reverse/forward search*

5 ∞: Selects title.

DISP:

Touch if necessary (☞ page 9).

4 ¢: Touch: Selects chapter.

Hold: Reverse/forward search*

5 ∞: Selects program no./Play List no.

DISP:

Touch if necessary (☞ page 9).

4 ¢: Touch: Selects track.

Hold: Reverse/forward search for

MPEG*

5 ∞: Touch: Selects folder.

Hold: Displays Folder List.

DISP:

Touch if necessary (☞ page 9).

A Disc type

B Audio format C Sound mode ( D Title no./Chapter no./Playing time E Playback mode (

A Audio format B VR-PRG: Original program

VR-PL: Play List

C Sound mode ( D Program no. (or Play List no.)/Chapter no./Playing time

A Sound mode (☞ page 49) B For MPEG: Folder no./Track no./Playing time

For JPEG: Folder no./File no.

C Current folder name/current file name

☞ page 49)

☞ pages 18)

☞ page 49)

*1 Search speed: x2 ] x10 *2 Search speed: ¡1 ] ¡2

ENGLISH

4 ¢: Touch: Selects track.

Hold: Reverse/forward search*

DISP:

Touch if necessary (☞ page 9).

4 ¢: Touch: Selects track.

Hold: Reverse/forward search*

4 ¢: Touch: Selects track.

Hold: Reverse/forward search*

5 ∞: Touch: Selects folder.

Hold: Displays Folder List.

A PBC indicator lights up when PBC is in use.

B Sound mode ( C Track no./Playing time

A Sound mode (☞ page 49) B Track no./Playing time C Track title/Artist Name/Disc title

A Audio format (MP3/WMA/WAV) B Sound mode ( C Folder no./Track no./Playing time D Current folder name/current file name

☞ page 49)

*1 Search speed: x2 ] x10 *2 “No Name” appears for conventional CDs. *3 Tag data will be shown instead of folder/file names

when they are recorded and <Tag Display> is set to <On>. (☞ page 51)

OPERATIONS

Selecting playback modes

You can use Repeat or Random playback mode.

Ex.: To select Track Repeat

ENGLISH

Disc type Repeat Random

Chapter: Repeats current chapter.

Title: Repeats current title.

Chapter: Repeats current chapter.

Program: Repeats current program (not available

for Playlist playback).

Track: Repeats current track (for VCD: PBC not

in use).

When one of the playback modes is selected, the corresponding indicator lights up on the source information screen.

To cancel, select <Off> in step 4.

Disc (All): Randomly plays all tracks (for

—

VCD: PBC not in use).

Track: Repeats current track. Folder: Randomly plays all tracks of

current folder, then tracks of next folders.

Folder: Repeats all tracks of the current folder. Disc (All): Randomly plays all tracks.

Track: Repeats current track. Folder: Randomly plays all tracks of

current folder, then tracks of next folders.

Folder: Repeats all tracks of the current folder. Disc (All): Randomly plays all tracks.

Folder: Repeats all tracks of the current folder.

—

Selecting tracks on the list

If a disc includes folders, you can display the Folder/ Track (File) Lists, then start playback.

1 Enter <Folder List>.

Prohibiting disc ejection

You can lock a disc in the loading slot.

ENGLISH

[Hold]

• Hold the button to display the next/previous folders.

2 Select a folder.

3 Select a file.

The Folder List can also be accessed through

<AV Menu> = <List>.

~ Hold the buttons at the same time.

[Hold]

Ÿ Activate the prohibition.

“No Eject” appears.

To cancel the prohibition, repeat the same procedure to select <EJECT OK?>.

OPERATIONS

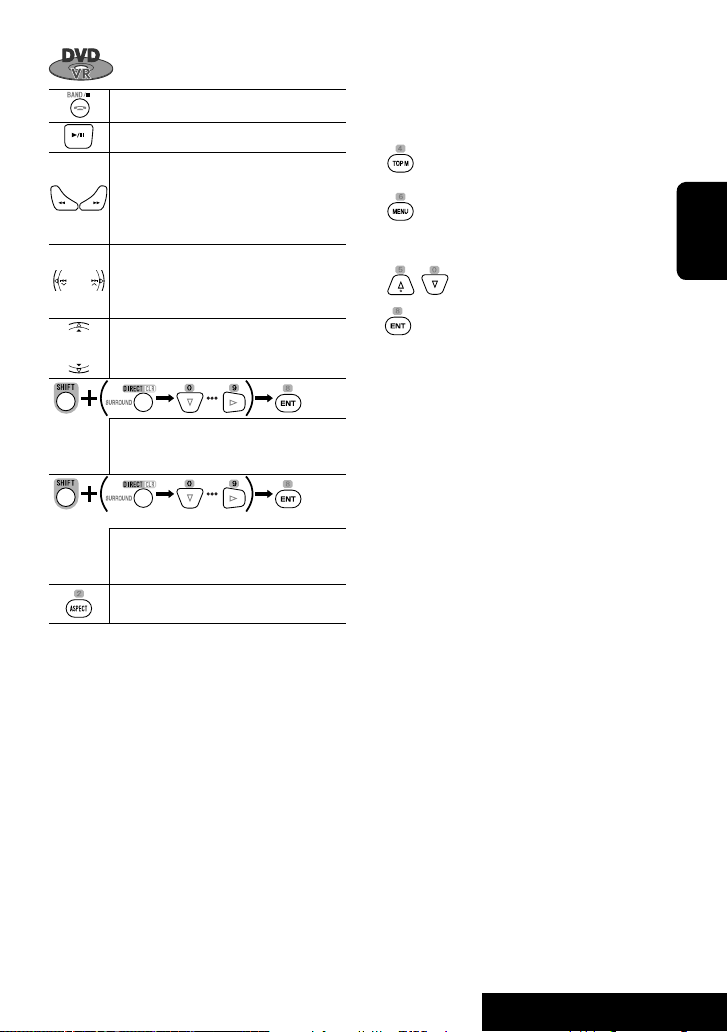

Operations using the remote controller—RM-RK252

ENGLISH

Also functions as CLR (clear): Erases a misentry if pressed while holding SHIFT.

Stops playback.

Starts or pauses playback.

• Reverse/forward search*1 (No sound can be heard.)

• Slow motion*2 during pause. (No sound can be heard.)

• Selects chapter (during playback or pause).

• Reverse/forward search*

Selects title (during playback or pause).

• Selects chapter.

• Selects title (when not playing).

[Twice]

Selects title (during playback or pause).

Changes the aspect ratio of the playback pictures.

Using menu driven features

2. Select an item you want to start playback.

[Hold]

Stops playback.

Starts or pauses playback.

• Reverse/forward search*1 (No sound can be heard.)

• Forward slow motion

during pause.

(No sound can be heard.)

• Reverse slow motion does not work.

• Select chapter (during playback or pause).

• Reverse/forward search*3 [Hold]

• Selects program.

• Selects Play List (during playback or pause).

• Selects chapter.

• Selects program (when not playing).

[Twice]

Selects program/Play List (during playback or pause).

Changes the aspect ratio of the playback pictures.

Using Original Program/Play List screens (☞ page 24)

1. For Original Programs:

ENGLISH

For Play List:

2. Select the item you want to start playback.

*1 Search speed: x2 ] x5 ] x10 ] x20 ] x60 *2 Slow motion speed: 1/32 ] 1/16 ] 1/8 ] 1/4

] 1/2

*3 Search speed: x2 ] x10

OPERATIONS

ENGLISH

Also functions as CLR (clear): Erases a misentry if pressed while holding SHIFT.

Stops playback.

Starts or pauses playback.

Reverse/forward search*1 (No sound can be heard.)

• Selects track.

• Reverse/forward search* sound can be heard.)

Selects folder.

Selects track (within the same folder).

[Twice]

Selects folder.

Changes the aspect ratio of the playback pictures.

While playing...

Back/advance the scenes by 5 minutes.

Current playback position

1st press

1st press 2nd press

[Hold] (No

3rd press2nd press

Stops playback.

Starts or pauses playback. (Slide show: each track is shown for a few seconds.) Shows the current file until you change it if pressed during Slide show.

Selects track.

Selects folder.

Stops playback.

Starts or pauses playback.

• Reverse/forward search*

• Forward slow motion*4 during pause. (No sound can be heard.)

• Reverse slow motion does not work.

• Selects track.

• Reverse/forward search*

[Hold] (No

sound can be heard.)

ENGLISH

Selects file (within the same folder).

[Twice]

Selects folder.

Changes the aspect ratio of the playback pictures.

Selects track.

Changes the aspect ratio of the playback pictures.

During PBC playback...

Selects an item on the menu.

Returns to the previous menu.

To cancel PBC playback 1

2 Start the desired track.

• To resume PBC:

*1 Search speed: ¡1 ] ¡2 ] ¡3 *2 Search speed: ¡1 ] ¡2 *3 Search speed: x2 ] x5 ] x10 ] x20 ] x60 *4 Slow motion speed: 1/32 ] 1/16 ] 1/8 ] 1/4

] 1/2

*5 Search speed: x2 ] x10

OPERATIONS

ENGLISH

Stops playback.

Starts or pauses playback.

Reverse/forward search*

• Selects track.

• Reverse/forward search*

[Hold]

Selects folder.

Selects track (within the same folder).

[Twice]

Selects folder.

Stops playback.

Starts or pauses playback.

Reverse/forward search*

• Selects track.

• Reverse/forward search*2 [Hold]

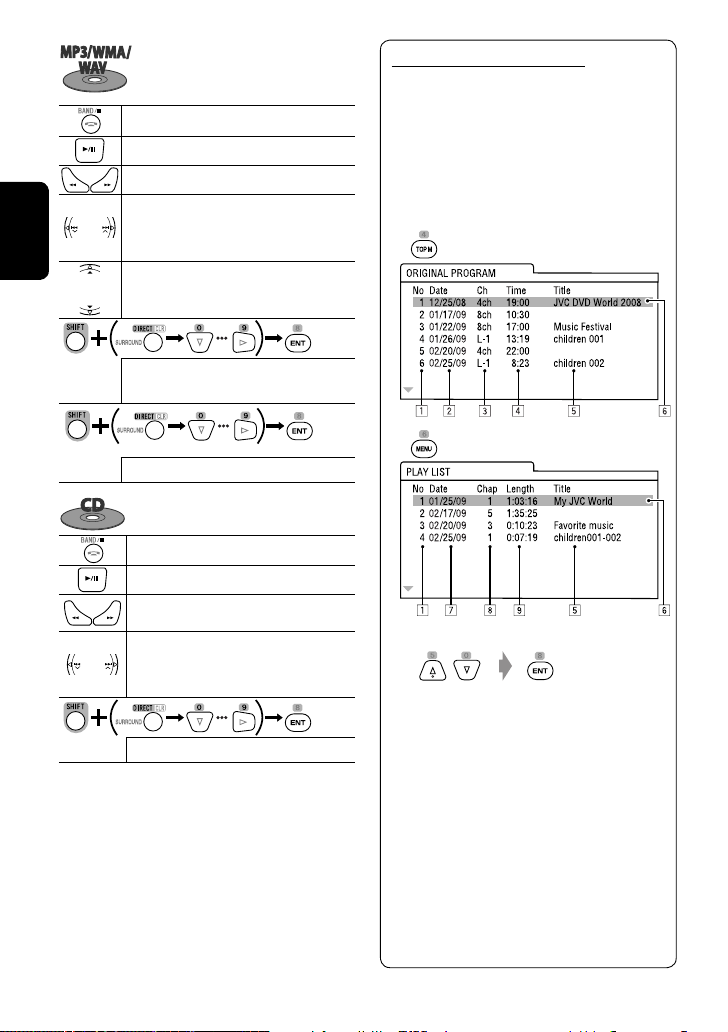

List screen for DVD-VR

You can use the Original Program and Play List screen anytime while playing DVD-VR with its data recorded.

• These screens can be displayed on the built-in monitor and the external monitor.

1 Display the Original Program/Play List

screen.

2 Select the item you want.

Selects track.

Search speed: x2 ] x5 ] x10 ] x20 ] x60

* *2 Search speed: x2 ] x10

1 Program/Play List number 2 Recording date 3 Recording source (TV station, the input

terminal of the recording equipment, etc.)

4 Start time of recording 5 Title of the program/Play List* 6 Highlighted bar (current selection) 7 Creating date of Play Lists 8 Total number of chapters 9 Playback time

The title of the original program or Play List may

not be displayed depending on the recording equipment.

Disc information shown on the external monitor

The following screens appear only on the external monitor when you insert a disc. (For MPEG1/MPEG2/JPEG; while not playing.)

ENGLISH

Ex.: MP3/WMA

1 Current folder (highlighted bar) 2 Current folder no./total folder no. 3 Folder list

* If tag data includes “Jacket Picture” (baseline JPEG), it

will be displayed.

4 Selected playback mode (☞ page 18) 5 Elapsed playing time of the current track (not

displayed for JPEG)

6 Operation status 7 Current track no./total number of tracks in the

current folder (total number of tracks on the disc)

8 Track information (only for MP3/WMA/WAV) 9 Track list p Current track (highlighted)

Ex.: CD Text

1 Selected playback mode (☞ page 18) 2 Elapsed playing time of the current track 3 Operation status 4 Current track number/total number of tracks on

the disc

5 Track information 6 Track list 7 Current track (highlighted bar)

OPERATIONS

Operations using the on-screen bar (DVD/VCD/MPEG1/MPEG2/JPEG)

These operations are possible on the monitor using the remote controller.

~ Display the on-screen bar. (☞ page 27)

ENGLISH

Ÿ Select an item.

! Make a selection.

• When a pop-up menu appears...

• For entering time/numbers... To move the entry position:

To select a number:

To remove the pop-up menu:

Repeat steps Ÿ and ! to set other items if needed.

To remove the on-screen bar

On-screen bar

Information

Operation

Above example is of DVD Video. Items shown on the bar vary depending on the disc type.

ENGLISH

1 Disc type 2 • DVD: Audio signal format

• VCD: PBC

3 Playback mode*

DVD Video C. RPT: Chapter repeat

T. RPT: Title repeat

DVD-VR C. RPT: Chapter repeat

PG. RPT: Program repeat

MPEG1/ MPEG2

T. RPT: Track repeat

F. RPT: Folder repeat

F. RND: Folder random

A. RND: All (disc) random

JPEG F. RPT: Folder repeat

VCD T. RPT: Track repeat

A. RND: All (Disc) random

4 Playback information

Current title/chapter

Current program/chapter

Current play list/chapter

Current track

Current folder/track

Current folder/file

5 Time indication

Elapsed playing time of the disc

• Remaining title time (for DVD)

• Remaining disc time (for others)

Elapsed playing time of the current chapter/track*

Remaining time of the current chapter/ track*

6 Playback status

Play

Reverse/forward search

Reverse/forward slow-motion

Pause

Stop

7 Operation icons

Change time indication (see 5)

Time Search (Specify a certain scene by entering the time.)

Title Search (by its number)

Chapter Search (by its number)

Track Search (by its number)

Repeat play*

Random play*

Change the audio language, audio channel or audio stream

Change the subtitle language

Change the view angle

☞ page 18

* *2 Not applicable for DVD-VR.

OPERATIONS

USB operations

You can connect a USB mass storage class device such as a USB memory, Digital Audio Player, portable HDD, etc. to the unit.

• You can also connect the iPod/iPhone to the USB terminal of the unit. For details of the operations, ☞ pages 37

ENGLISH

and 38.

USB cable from the rear of the unit.

• You cannot connect a computer to the USB ( ) terminal of the unit.

4 ¢: Touch: Selects track

Hold: Reverse/forward search

5 ∞: Touch: Selects folder

Hold: Displays Folder List

3 / 8: Starts/pauses playback.

DISP:

BAND: Stops playback.

Touch if necessary. (☞ page 9)

~ Connect a USB device.

“USB” is selected as the source and playback starts automatically.

This unit can play JPEG/MPEG1/MPEG2*/MP3/WMA/ WAV files stored on a USB mass storage class device.

• You can operate the USB device in the same way you

operate the files on discs. (☞ pages 18 to 27)

• All tracks on the USB device will be played repeatedly until you change the source.

* Except for MPEG2 files recorded by JVC Everio camcorder

(extension code <.mod>).

Caution:

• Avoid using the USB device if it might hinder your safety driving.

• Do not pull out and attach the USB device repeatedly while “Now Reading...” is flashing on the monitor.

• Do not start the car engine if a USB device is connected.

• Stop playback before disconnecting a USB device.

• Make sure all important data has been backed up to avoid losing the data.

• Electrostatic shock at connecting a USB device may cause abnormal playback of the device. In this case, disconnect the USB device then reset this unit and the USB device.

• Do not leave a USB device in the car, expose to direct sunlight, or high temperature to avoid deformation or cause damages to the device.

• For more details about USB operations, ☞ page 61.

Selecting playback modes

You can use Repeat or Random playback mode. Ex.: To select Track Repeat

ENGLISH

When one of the playback modes is selected, the corresponding indicator lights up on the source information screen.

To cancel, select <Off> in step 4.

File type Repeat Random

Track: Repeats current track. Folder: Randomly plays all tracks of current

folder, then tracks of next folders.

Folder: Repeats all tracks of the current

folder.

Track: Repeats current track. Folder: Randomly plays all tracks of current

Folder: Repeats all tracks of the current

folder.

Folder: Repeats all tracks of the current

folder.

USB (All): Randomly plays all tracks.

folder, then tracks of next folders.

USB (All): Randomly plays all tracks.

—

OPERATIONS

Bluetooth® operations — Cellular phone/audio player

Connecting a Bluetooth device

ENGLISH

Bluetooth is a short-range wireless radio communication technology for the mobile device such as mobile phones, portable PCs, and other devices. The Bluetooth devices can be connected without cables and communicate with each other.

• Refer to the list (included in the box) to see the countries where you may use the Bluetooth® function.

Bluetooth profile

This unit supports the following Bluetooth profiles; HFP (Hands-Free Profile) 1.5 OPP (Object Push Profile) 1.1 A2DP (Advanced Audio Distribution Profile) 1.2 AVRCP (Audio/Video Remote Control Profile) 1.3

for the first time

Pairing and PIN Code

When you connect a Bluetooth device to the unit for the first time, make pairing between the unit and the device. Pairing allows Bluetooth devices to communicate each other. To make pairing, you may need to enter the PIN (Personal Identification Number) code of your Bluetooth device you want to connect.

• Once the connection is established, it is registered in the unit even if you reset the unit. Up to five devices can be registered in total.

• Only one device for Bluetooth phone and one for Bluetooth audio can be connected at a time.

• To use the Bluetooth function, you need to turn on Bluetooth function of the device.

Features

You can operate Bluetooth devices through the unit as follows:

• Receiving a call

• Making a call—from phone book, from call history (Redial and Received Call), by dialing number, by preset numbers, by voice command

• Receiving the Text message

• Playing back a Bluetooth audio player

Refer also to the instructions supplied with the Bluetooth device.

• The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Victor Company of Japan, Limited (JVC) is under license. Other trademarks and trade names are those of their respective owners.

Preparation: Operate the device to turn on its Bluetooth function.

Registration (Pairing) method

The device remains registered even after you disconnect the device. Use <Phone Connect> (or activate <Auto Connect>) to connect the same device from next time on. (☞ pages 57 and 58)

Enter a PIN (Personal Identification Number)*

code to the unit.

• You can enter any number you like (1-digit to 16-digit number).

* Some devices have their own PIN code. Enter the

specified PIN code to the unit.

• To delete an unwanted digit, select a blank.

starts flashing.

6 Operate the target Bluetooth device. (While

“Open...” is displayed on the monitor.)

Enter the same PIN code (as entered in the above step) on the device to be connected.

Now connection is established and you can use the device through the unit.

Connecting/disconnecting a registered device

Select the desired setting.

• For connecting: Select<Phone Connect>/ <Audio Connect> then go to the next step.*

• For disconnecting: Select <Phone Disconnect>/ <Audio Disconnect>.

5 Select the registered device you want to

connect.

ENGLISH

turns blue and the following icon appears when the

connection is established.

Appears when the Bluetooth phone is connected.

Appears when the Bluetooth audio player is connected.

Appears when the Bluetooth phone and the Bluetooth audio player are connected.

You can set the unit to connect a Bluetooth device automatically when the unit is turned on. (☞ page

58)

* When a device has already connected to the unit,

<Phone Connect> and <Audio Connect> do not appear.

OPERATIONS

Deleting a registered device

Making a call

You can make hands-free calls.

ENGLISH

Select the registered device you want to delete.

Preparation: Connect the provided microphone to the unit. (☞ “Installation/Connection Manual”)

The sound comes out of the speakers.

4 Select the method to make a call.

Displays only when the dialed or received number has

been made through the unit.

For copying, ☞ page 34.

For presetting, ☞ page 35.

Redial*

Shows the list of phone numbers you have dialed. = Go to the following step.

Received Calls*

Shows the list of the received calls. = Go to the following step.

Phonebook*

Shows the phone book copied from a cellular phone. = Go to the following step.

Preset Calls*

Shows the list of preset numbers. = Go to the following step.

Phone Number

Shows the phone number entry screen. = “How to enter a phone number” ☞ page 34

Voice Dialing

(Only when the connected cellular phone has the voice recognition system) = Speak the name you want to call. (Refer to the instruction manual supplied with your cellular phone.)

• To cancel, hold SRC or any control.

5 Select the name/phone number/preset number

you want to call.

You can also enter <Dial Menu> by pressing on the remote controller then touching 6 on the unit.

When a call comes in...

Name and phone number (if acquired)

The source is automatically changed to “Bluetooth.”

When <Auto Answer> is activated...

The unit answers the incoming calls automatically. (☞ page 58)

• When <Auto Answer> is deactivated, press SRC or touch any control to answer the incoming call.

To end the call or reject an incoming call Hold SRC or any control.

Answering a waiting call

If your cellular phone is equipped with the call waiting function, you can put the current call on hold and answer the waiting call. Press SRC or touch any control.

• To restore the on-hold call, press SRC or touch any control again.

• When you end one call, you can connect to the other.

ENGLISH

• When the sound is stopped or interrupted during the use of a Bluetooth device, turn off, then turn on the unit. – If the sound is not yet restored, connect the

device again. (☞ “Connecting/disconnecting a registered device” on page 31)

• While talking, you can enter <MIC Setting> to adjust the microphone volume level by touching MENU. (☞ page 58)

When a Text message comes in...

If the cellular phone is compatible with Text message and <SMS Notify> is set to <On> (☞ page 58), the unit rings and “Receiving Message” appears on the monitor to inform you of the arrival of the message.

OPERATIONS

How to enter a phone number

Select a number. Move the entry position.

ENGLISH

• To delete the last digit, select a blank.

• To erase all digits, hold DISP.

To copy the phone book

You can copy the phone book memory of a cellular phone into the unit.

How to delete the phone numbers/names

• Make sure that the Bluetooth phone is connected.

1 Display the list of phone numbers/names using

<Redial>, <Received Calls>, or <Phonebook> in <Dial Menu>.

• Follow steps 1 to 4 of “Making a call” on pages 32 and 33.

2 Select the phone number/name you want to

delete.

[Hold]

No: Cancels.

One: Deletes the selected phone number/name.

All: Deletes the phone numbers/names listed

in step 1.

Enter a PIN* code to the unit.

• You can enter any number you like (1-digit to 16-digit number).

* Some cellular phones have their own PIN code.

Enter the specified PIN code to the unit.

• To delete an unwanted digit, select a blank.

6 Operate the target cellular phone.

Enter the same PIN code (as entered in the above step) on the cellular phone then transfer the phone book memory to the unit. (Refer to the instruction manual supplied with your cellular phone.)

7 Finish the procedure.

• If you try to copy a 101st phone book entry, “Phonebook Full” appears on the monitor. Delete unwanted names before copying (☞ page 34).

Presetting the phone numbers

You can preset up to six phone numbers.

1 Display the phone number you want to

preset by using <Redial>, <Received Calls>, <Phonebook>, or <Phone Number>.

To call a preset number

On the remote:

ENGLISH

On the unit:

See ”Making a call.” (☞ pages 32 and 33) In step 4...

1 Select <Preset Calls>.

The Preset Calls List appears.

2 Select the preset number.

Switching conversation media (the unit/cellular phone)

During a phone call conversation...

[Hold]

Select a preset number.

4 Store the phone number.

The phone number selected in step 1 is now stored in preset number 5.

Then, continue your conversation using the other media.

You can use the following buttons on the remote controller for the Bluetooth phone operations. For details, ☞ pages 10 and 11.

OPERATIONS

Using the Bluetooth audio player

• Operations and display indications differ depending on their availability on the connected audio player.

ENGLISH

4 ¢: Touch: Reverse/forward skip

Hold: Reverse/forward search

5 ∞: Selects group/folder. 6: Starts/pauses playback.

BAND: Pauses playback.

A Sound mode (☞ page 49) B

☞ page 31

C Status of the device

Signal strength/Battery remainder

D Track no./Playing time E Indicates the button pressed. (Only for devices that

support the function)

• It may be different from the operation status.

F Track title/Artist Name/Album title

* Appears only when the information comes from the

device.

~ Select “Bluetooth.” Ÿ Start playback.

• See pages 30 and 31 for connecting a new device.

• See page 31 for connecting/disconnecting a registered device.

• See page 32 for deleting a registered device.

• When the sound is stopped or interrupted during the use of a Bluetooth device, turn off, then turn on the unit. – If the sound is not yet restored, connect the

device again. (☞ “Connecting/disconnecting a registered device” on page 31)

Selecting playback modes

You can use Repeat or Random playback mode.

1 Enter <AV Menu> = <Mode>. 2 Select <Repeat> or <Random>. 3 Select a playback mode.

Repeat: Off: Cancels.

Track: Repeats current track. Group: Repeats all tracks of the

current group/folder.

All: Repeats all tracks.

Random: Off: Cancels.

Group: Randomly plays all tracks of

current group/folder, then tracks of next groups/folders. All: Randomly plays all tracks.

When one of the playback modes is selected, the corresponding indicator lights up on the source information screen.

To cancel, select <Off> in step 3.

You can use the following buttons on the remote controller for the Bluetooth audio operations. For details, ☞ pages 10 and 11.

Bluetooth Information:

If you wish to receive more information about Bluetooth, visit the following JVC web site: <http://www.jvc.co.jp/english/car/> (English website only)

Listening to the iPod/iPhone

You can connect the iPod/iPhone using the following cable or adapter:

Cable/adapter To operate

To listen to the music USB 2.0 cable (accessory of the

iPod/iPhone)

Interface Adapter for iPod— KS-PD100 (not supplied)

To watch the video USB Audio and Video cable for iPod/

iPhone—KS-U30 (not supplied)

When connected with the USB cable

☞ “When connected with the USB cable” below.

☞ “When connected with the interface adapter”

on page 39.

☞ “When connected with the USB cable” below.

• Make sure <iPod (Off)> is selected for

ENGLISH

<AV Input>. (☞ page 54)

A Source name B Sound mode ( C Track or video no./Playing time

6: Starts/pauses playback. 5 ∞: Moves to the previous/next item of a

DISP:

5 / ∞ may not function depending on how you

select the current track/video.

☞ page 49)

category (ex.: another album, artist, playlist,

etc.).*

Touch if necessary. (☞ page 9)

~ Select “USB iPod.”

Playback starts automatically.

• When you connect the iPod/iPhone to the USB terminal, “USB iPod” is selected as the source and playback starts automatically.

Ÿ Select a track/video

Touch: Selects track/video. Hold: Reverse/forward search

*2 You cannot resume playback for video sources.

You can display artwork on the monitor. (☞ pages 53 and 63)

Selecting a track/video from <Search Mode>

1 Enter <Search Mode>.

[Hold]

Continued on the next page

EXTERNAL DEVICES

2 Select <Music> or <Videos>.

ENGLISH

3 Select an item.

EX.: When <Music> is selected in step 2.

• Repeat the procedure to select the desired track/video.

4 Confirm the selection.

<Search Mode> can also be accessed through <AV Menu> = <List>.

Selecting playback modes

You can use Repeat or Random playback mode.

Ex.: To select Track Repeat

Repeat: One: Functions the same as “Repeat

One” of the iPod/iPhone. All: Functions the same as “Repeat All” of the iPod/iPhone.

Random: Song: Functions the same as “Shuffle

Songs” of the iPod/iPhone.* Album: Functions the same as “Shuffle Albums” of the iPod/iPhone.

When playback modes are selected, the corresponding indicators light up on the source information screen.

To cancel, select <Off> in step 4.

* You can also activate the playback mode through

<Search Mode>.

To activate, select <Shuffle Songs> then touch 6 in

step 2 in the left column.

Changing the play speed of the audiobooks

You can change the play speed of the audiobooks.

Follow steps 1 to 3 in the left column. In step 3...

Select the desired speed.

When connected with the interface adapter

ENGLISH

∞: Pauses playback

– To resume, touch again

A Source name B Sound mode ( C Track no./Playing time

Preparation:

When operating through the CD changer jack, make sure <iPod> is selected for the external input setting. (☞ page 55)

☞ page 49)

~ Select ”iPod.”

Playback starts automatically.

Ÿ Select a track.

Touch: Selects track. Hold: Reverse/forward search

Selecting a track from the player’s menu

1 Enter the player’s menu.

• This mode will be canceled if no operations are done for about 5 seconds.

The SEARCH indicator lights up.

2 Select the desired item.

Touch: Select an item Hold: Skip 10 items at a time

<Playlists> Ô <Artists> Ô <Albums> Ô <Songs> Ô <Genres> Ô <Composers> Ô (back to the beginning)

3 Confirm the selection.

4 Repeat steps 2 and 3 to select a track.

• When a track is selected finally, playback starts.

• To return to the previous menu, touch 5.

Selecting playback modes

Operations are exactly the same as explained on page

38.*

* “AudioBooks” is not displayed in step 3.

EXTERNAL DEVICES

Listening to the CD changer

ENGLISH

4 ¢: Touch: Selects track.

Hold: Reverse/forward search

5 ∞: Touch: Selects folder (MP3 only).

Hold: Displays Disc List.

A MP3 indicator (MP3 only) B Sound mode ( C Disc no./Folder no./Track no./Playing time D Current track title/Artist name/Disc title

“No Name” appears for conventional CDs.

It is recommended to use a JVC MP3-compatible CD changer with your unit.

• You can play only CDs (CD-DA) and MP3 discs.

☞ page 49)

Preparation:

Make sure <Changer> is selected for the external input setting. (☞ page 55)

~ Select “Changer.” Ÿ Enter <Disc List>.

[Hold]

• Each time you hold the button, you can display the other list of the remaining discs.

! Select a disc to start playing.

While playing an MP3 disc, you can select and start playing a track in the disc using the Lists:

<Disc List> (select the current disc) = <Folder List> = <File List> then start playing a

track you want.

[Hold]

Each List can also be accessed through <AV Menu> = <List> = <Disc List> = <Folder List> =

<File List>.

Selecting playback modes

You can use Repeat or Random playback mode. Ex.: To select Track Repeat

Disc type Repeat Random

Track: Repeats current track. Disc: Randomly plays all tracks of the current

Disc: Repeats all tracks of the current

disc.

Track: Repeats current track. Folder: Randomly plays all tracks of current folder,

Folder: Repeats all tracks of the current

folder.

Disc: Repeats all tracks of the current

disc.

When one of the playback modes is selected, the corresponding indicator lights up on the source information screen.

To cancel, select <Off> in step 4.

disc.

All: Randomly plays all tracks of all loaded

discs.

then tracks of next folders.

Disc: Randomly plays all tracks of the current

disc.

All: Randomly plays all tracks of all loaded

discs.

ENGLISH

You can use the following buttons on the remote controller to operate the CD changer. For details, ☞ pages 10 and 11.

MP3 only

EXTERNAL DEVICES

Listening to the satellite radio

Before operating, connect either one of the following (separately purchased) to the CD changer jack on the rear of this unit.

• JVC SIRIUS Satellite Radio System, SC-C1 and KS-SRA100, PnP, SC-VDOC1 and KS-SRA100, for listening to the

ENGLISH

SIRIUS Satellite Radio.

• XM Satellite Radio System, JVC Smart Digital Adapter–XMDJVC100, CNP2000UC and CNPJVC1 for listening to the XM Satellite Radio.

For SIRIUS Radio

Activate your subscription after connection:

1 Turn on the power.

2 Select “Satellite Radio.”

The SIRIUS Satellite radio starts updating all the SIRIUS channels. (☞ “GCI update” column below.)

• Once completed, SIRIUS Satellite radio tunes in to the preset channel, CH184.

3 Check your SIRIUS ID, ☞ page 54. 4 Contact SIRIUS on the internet at <http://

activate.siriusradio.com/> to activate your subscription, or you can call SIRIUS toll-free at 1-888-539-SIRIUS (7474).

“Subscription updated Press any key to continue” appears on the monitor once subscription has been completed.

For XM Radio

Activate your subscription after connection:

• Only Channel 0, 1, and 247 are available before activation.

1 Turn on the power.

2 Select “Satellite Radio.”

XM Tuner* starts updating all the XM channels. “Channel 1” is tuned in automatically. (☞ “GCI update” column below.)

3 Check your XM Satellite radio ID labelled

on the casing of the XM Tuner, or tune in to “Channel 0” (☞ page 43).

4 Contact XM Satellite radio on the internet at

<http://xmradio.com/activation/> to activate your subscription, or you can call 1-800-XMRADIO (1-800-967-2346).

Once completed, the unit tunes in to one of the available channels (Channel 4 or higher).

* XM Tuner: XMDirect ™ Tuner Box or XMDirect2 Tuner

System

GCI (Global Control Information) update:

• If channels are updated after subscription, updating starts automatically, and no sound can be heard. For SIRIUS: “Channel is updating XX% completed” appears. For XM: “UPDATING” appears.

• Update takes a few minutes to complete.

• Do not touch any touch pad control, press any button, or perform any operation until updating is completed.

SAT

XM1 P1 01ch

Category Name Channel Name

FLAT

ENGLISH

DISP: Touch to display the program

information—artist name/song name (/composer name: only for SIRIUS Satellite radio).

For SIRIUS Radio

~ Select “Satellite Radio.” Ÿ Select the band.

! Select a category.

• To select a channel from all categories, select <All>.

⁄ Select a channel to listen.

• Holding either or changes the channels rapidly.

• While searching, invalid and unsubscribed channels are skipped.

A Sound mode (☞ page 49) B SIRIUS/XM Band C Preset no. D Channel no. E Category name F Channel name G Signal strength

For XM Radio

~ Select “Satellite Radio.” Ÿ Select the band.

! Select a category.

• To select a channel from all categories (including non-categorized channels), skip this step.

• If you do not select a channel within 15 seconds, the category selected is canceled. You can select a channel from all categories now.

⁄ Select a channel to listen.

• Holding either or changes the channels rapidly.

• While searching, invalid and unsubscribed channels are skipped.

Checking the XM Satellite radio ID

Select Channel “0.”

The 8-digit (alphanumeric) ID number is displayed on the monitor. To cancel the ID number display, select any channel other than channel “0.”

EXTERNAL DEVICES

Storing channels in memory

You can preset six channels for each band. Ex.: Storing a channel into preset number 5

1 Tune in to a channel you want to preset.

ENGLISH

SAT

XM1 38ch

Rock XM Music Club

FLAT

Selecting on the lists

You can select a channel using one of the following lists—Preset List/Category List/Channel List.

2 Display the Preset List.

XM1

Channel Name

The City

40 at 40

Hank's Place

Enter

[Hold]

Store

Audio Visions

Preview

3 Select a preset number.

XM1

Channel Name

The City

40 at 40

Hank's Place

Enter

Audio Visions

Preview

Store

4 Store the channel.

SAT

FLAT

XM1 P5 38ch

Rock

[Hold]

XM Music Club

Selecting preset channels

On the remote:

Select a desired list.

List

Preset List

Category List Channel List

• Preset List: Displays your preset channels. ☞ step 5

• Category List: Displays the categories. ☞ step 4

• Channel List: Displays all channels within the selected category. ☞ step 5

4 Select a desired category.

Category List

DECADES

COUNTRY HITS ROCK URBAN JAZZ & BLUES

5 Select a desired channel.

EX.: When <Preset List> is selected in step 3.

XM1

Channel Name

The City

40 at 40

Hank's Place

Enter

Audio Visions

Preview

Store

On the unit:

See “Selecting on the lists” in the right column.

• Category List can also be accessed by...

[Hold]

• Preset List can also be accessed by...

[Hold]

Listening to the HD Radio™ Broadcast

Before operating, connect HD Radio tuner box, KT-HD300 (separately purchased) to the CD changer jack on the rear of the unit.

What is HD Radio Technology?

HD Radio Technology can deliver high-quality digital sound—AM digital will have FM-like quality (in stereo) and FM digital will have CD-like quality—with static-free and clear reception. Furthermore, stations can offer text and data, such as artist names and song titles.

• When the HD Radio tuner box is connected, it can also receive conventional analog broadcasts.

• Many HD Radio stations also offer more than one channel of programming. This service is called multicasting.

• To find HD Radio stations in your area, visit www.hdradio.com <http://www.hdradio.com/>.

ENGLISH

HD Radio

5 ∞: Selects multicast channels.

DISP: Touch to display the program

information—song name/artist name/album title.

A Flashes first then lights up when a digital audio broadcast

is tuned in.

B Station Call Sign* C Program type D Signal strength E HD Radio reception indicators ( F DX/Local indicator (

* When an HD Radio multicast channel is received, the

first four letters of Call Sign and channel number are displayed.

☞ page 46)

FLAT

FM1 P1 87.5 MHz

WXYZ-FM

ROCK

AUTO

Refer also to page 12 for basic radio operations.

When receiving HD Radio multicast channels...

Select your desired channel.

“LINKING” appears while linking to a multicast channel.

Searching for HD Radio stations only:

The “HD SEARCH” indicator appears.

EXTERNAL DEVICES

Changing HD Radio reception mode

While receiving an HD Radio broadcast, the unit tunes to digital or analog audio automatically due to the receiving condition.

ENGLISH

Tuning in to stations with sufficient signal strength

This function works only for FM bands. Once you have activated this function (selected <Local>), it always works when searching for FM stations.

Mode

Blend Hold

Exit

Mono DX/Local SSM

Blend Hold

Auto

Analog Digital

Auto

Analog: Tuning to analog audio only Digital: Tuning to digital audio only Auto: Switch between digital and analog

audio automatically

• If no sound can be heard from the selected setting, change the setting to <ANALOG> or <DIGITAL>.

• The setting automatically changes to <AUTO> if you tuned in to or change to another station, or if you turned off the power.

• This setting cannot take effect for the conventional FM/AM stations.

• If the radio station forces the reception mode to digital, the DIGITAL indicator flashes.

Mode

DX/Local

Exit

Mono

DX/Local

SSM Blend Hold

Local

Only stations with sufficient signal strength will be detected.

• The DX indicator goes off, then the LO indicator lights up.

• During SSM search (☞ page 13), this function cancels temporarily.

Listening to other external components

AV-INPUT

You can connect an external component to the LINE IN/VIDEO IN plugs.

DISP:

Touch if necessary. (☞ page 9)

A Sound mode (☞ page 49) B Assigned title (

☞ page 50)

Preparation:

Make sure the appropriate <AV Input> setting is selected for the connected component. (☞ page 54)

Navigation screen

When you connect a Navigation System to the unit, you can view the navigation screen regardless of the source.

Preparation:

Make sure <Navigation> is selected for <AV Input>. (☞ page 54)

ENGLISH

~ Select “AV Input.” Ÿ Turn on the connected component and

start playing the source.

To watch the navigation screen, touch DISP repeatedly. (☞ page 9)

• The aspect ratio of the navigation screen is fixed to <Full> regardless of the <Aspect> setting. (☞ page 52)

• When you do not connect the Navigation System but connect an audio component to LINE IN plugs, you can use “AV Input” for listening to the audio source.

EXTERNAL DEVICES

EXT-INPUT

You can connect an external component to the CD changer jack on the rear using the Line Input Adapter—KS-U57 (not supplied) or AUX Input Adapter—KS-U58 (not supplied).

ENGLISH

A Sound mode (☞ page 49) B Assigned title (

Preparation:

Make sure <External Input> is selected for <External Input>. (☞ page 55)

☞ page 50)

~ Select “External Input.” Ÿ Turn on the connected component and start playing the source.

Sound equalization

ENGLISH

Selecting a sound mode

Select a sound mode.

You can select one of the following sound modes:

• For preset equalizing values of each sound

mode, ☞ page 66.

Storing your own adjustments

You can store your adjustments into <User1>, <User2>, and <User3>.

1 Follow steps ~ and Ÿ on the left. 2 Select the item you want to adjust.

3 Adjust each setting.

4 Select <User1>, <User2>, or <User3> then

store the setting.

SETTINGS

Assigning titles to the sources

ENGLISH

You can assign titles as follows.

FM/AM stations*

“AV Input” “External Input”

• If you try to assign a title to a 31st station, “Name Full” flashes on the monitor. Delete unwanted titles before assignment.

* You cannot assign titles to the HD Radio stations.

Ex.: Assigning title to “AV Input”

Up to 16 characters—up to 30 stations

Up to 16 characters

~ Select “AV Input.”

• For FM/AM stations: Select the band, then tune into a station.

⁄ Assign a title.

1 Select a character, then move the entering

position.

• To change the character set, touch DISP.

(For available characters, ☞ page 64.)

• To erase the whole characters, hold DISP.

2 Repeat step 1 until you finish entering the

title.

@ Finish the procedure.

Menu items

Menu operations

For details of the menu operations, ☞ page 6.

AV Setup

ENGLISH

Display

Equalizer

Sound

AV Setup

• The display indications may change according to change of the specifications.

Mode

List

Bluetooth

AV Setup

Menu items Selectable settings, [reference page]

Demonstration Off: Cancels.

On: Activates the demonstration on the monitor.

Wall Paper You can select the background picture of the monitor.

Silk, Metal, Stars, Plain

Color You can select the background color of the monitor.

Blue, Light-Blue, Red, Orange, Yellow, Green, Purple, Dark-Blue, Dark-Green, Brown, Light-Brown, Black

Scroll Off: Cancels.

Display

Tag Display Off: Cancels.

Once: Scrolls the source information once. Auto: Repeats scrolling (5-second intervals).

• Holding DISP (on the unit) scrolls the information regardless of this setting.

On: Shows the Tag data while playing MP3/WMA/WAV tracks.

Clock

Disc Setup 1

Disc Setup 2

Tuner

Input

Others

Initial: Underlined

Continued on the next page

SETTINGS

Menu items Selectable settings, [reference page]

Dimmer Off: Cancels.

On: Activates dimmer. Auto: Dims the monitor when you turn on the headlights.*

ENGLISH

Time Set: Touch ¢ to display the time setting screen, then set the Dimmer On/Off times.

Bright You can adjust brightness of the monitor.

–15 (darkest) to +15 (brightest); Initial 00

Picture Adjust*

You can adjust the following to make the monitor clear and legible for watching the playback picture. The setting will be stored for “Disc/USB” and “AV Input.”

–15 to +15; Initial 0 Bright: Adjust if the picture is too bright or too dark. Contrast: Adjust the contrast. Color: Adjust the color of the picture—lighter or darker. Tint: Adjust the tint if the human skin color is unnatural.

Aspect*

You can change the aspect ratio of the picture.

Display

Full:

For 16:9 original pictures

Auto: • For “Disc”: Aspect ratio is automatically

Regular:

Language*

Time Set Time Format 12 Hours, 24 Hours OSD Clock Off: Cancels.

Clock

Clock Adjust*

For 4:3 original pictures

Select the indication language shown on the monitor.

English, Español, Français, Deutsch, Italiano, Nederlands, Svenska, Dansk, Руccĸий, Português

• The characters you can enter for assigning the titles also change

according to the language selected, ☞ [64]

Initial 1:00 AM, ☞ [7]

On: Displays the clock time while playing back a video source. Off: Cancels.

Auto: The built-in clock is automatically adjusted using the clock time

data provided via the satellite radio channel.

Aspect ratio of incoming signal

4:3 16:9

selected to match to the incoming signals.

• For other video sources: Aspect ratio is fixed at <Regular>.

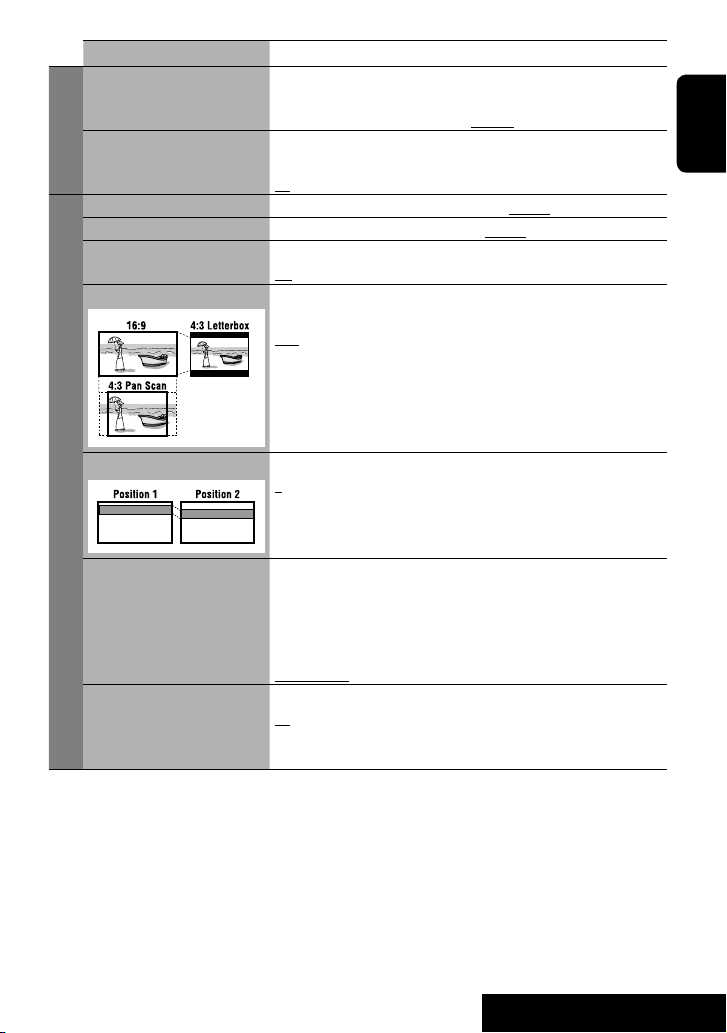

Menu items Selectable settings, [reference page]

Time Zone*5*

Select your residential area from one of the following time zones for clock adjustment.

Alaska, Pacific, Mountain, Central, Eastern, Atlantic, Newfoundland

5*6

DST*

Clock

(Daylight Saving Time) Activates this if your residential area is subject to DST.

Off: Cancels.

On: Activates daylight saving time. Menu Language Audio Language

Select the initial disc menu language; Initial English (☞ also page 66).

Select the initial audio language; Initial English (☞ also page 66).

Subtitle Select the initial subtitle language or erase the subtitle (<Off>); Initial

Off (☞ also page 66). Monitor Type Select the monitor type to watch a wide screen picture on the external

monitor.

16:9:

Select when the aspect ratio of the external monitor is 16:9.

4:3 Letterbox/4:3 Pan Scan:

Select when the aspect ratio of the external monitor is 4:3. Refer to

OSD Position

the illustrations on the left to see how the pictures are shown on the

monitor.

Select the position of the on-screen bar, ☞ [27].

1: Higher position

2: Lower position

Disc Setup 1*

File Type Select playback file type when a disc/USB contains different types of files.

You can store this setting separately for each source —“Disc” and “USB.”

Audio: Plays back audio files.

Still Picture: Plays back JPEG files.

Video: Plays back MPEG1/MPEG2 files.

Audio&Video: Plays back audio files and MPEG1/MPEG2 files. iPod Artwork Off: Cancels.

On: Activates artwork display. To display artwork, touch DISP repeatedly.

☞ [9]

• Refer also to page 63.

ENGLISH

The ILLUMINATION CONTROL lead connection is required. (☞ “Installation/Connection Manual”)

*2 Adjustable only when the source is a disc or USB containing pictures or movies, or “AV Input.” *3 Not adjustable for audio sources. *4 After you change the indication language setting, turn off then on the power so that your setting takes effect. *5 Appears only when SIRIUS Satellite Radio or XM Satellite Radio is connected. *6 Set <Clock Adjust> to <Auto> then touch ¢ to display these setting items. *7 Selectable only for “Disc” and “USB.” (Playback stops when you select one of the items.)

SETTINGS

Menu items Selectable settings, [reference page]

D. Audio Output Select the signal format emitted through the DIGITAL OUT (optical)

terminal. (☞ also page 65) PCM Only: Select this when connecting an amplifier or a decoder

ENGLISH

incompatible with Dolby Digital or MPEG Audio, or when connecting to a recording device. Dolby Digital: Select this when connecting an amplifier or a decoder

compatible with Dolby Digital. Stream: Select this when connecting an amplifier or a decoder compatible with Dolby Digital or MPEG Audio.

Down Mix When playing back a multi-channel disc, this setting affects the signals

Disc Setup 2*

reproduced through the LINE OUT (REAR) terminals. Dolby Surround: Select this to enjoy multi-channel surround audio by connecting an amplifier compatible with Dolby Surround.

Stereo: Normally select this.

D. (Dynamic) Range Compres.

(Compression)

You can enjoy a powerful sound at a low volume level while playing Dolby Digital software.

Auto: Select to apply the effect to multi-channel encoded software. On: Select to always use this function.

IF Band Width Auto: Increases the tuner selectivity to reduce interference noises

between adjacent stations. (Stereo effect may be lost.) Wide: Subject to the interference from adjacent stations, but sound quality will not be degraded and the stereo effect will remain.

Area Setting US: When using in North/Central/South America. FM/AM intervals are

Tuner

set to 200 kHz/10 kHz. Europe: When using in any other areas. FM/AM intervals are set to 50 kHz (100 kHz during auto search)/9 kHz. South America: When using in South American countries where FM interval is 100 kHz. AM interval is set to 10 kHz.

Sirius ID* AV Input*

Your SIRIUS identification number appears on the monitor. You can determine the use of LINE IN and VIDEO IN plugs.

Off: Select when no component is connected (“AV Input” is skipped while selecting the source). iPod (Off): Select when connecting the iPod/iPhone using the USB Audio and Video cable for iPod/iPhone. ☞ [37]

Input

Audio&Video: Select when connecting an AV component such as a VCR. Audio: Select when connecting an audio component such as a portable

audio player.

Camera*4: Select when connecting the rear view camera. Navigation: Select when connecting a Navigation System. ☞ [47]

Menu items Selectable settings, [reference page]

External Input*

Input

For connecting an external component to the CD changer jack on the

rear.

Changer/iPod*

: CD changer or iPod ☞ [39, 40]

External Input: Any other than the above. ☞ [48]

• For connecting KS-SRA100/XMDJVC100, this setting is not required. It is automatically detected.

Beep Off: Cancels.

On: Activates the key-touch tone.

Telephone Muting*

Off: Cancels. Muting1, Muting2: Select either one which mutes the sounds while

using the cellular phone.

Illumination You can turn off the touch pad controls and monitor lights while turning

on the unit. ☞ [5]

Touch pad controls Monitor

Normal: Always lights.

Others

Proximity/Motion: Lights up when your hand

moves close to the controls.

Always lights.

Proxi/Motion-LCD: Light up when your hand moves close to the

controls.

Touch Pad: Lights up when your finger

Always lights.

touches the controls.

Touch Pad-LCD: Light up when your finger touches the controls.

Initialize

Initialize all settings you have made in <AV Menu>. Hold 6, then reset the unit. ☞ [3]

ENGLISH

Selectable only for “Disc” and “USB.” (Playback stops when you select one of the items.)

Appears only when a SIRIUS Satellite Radio is connected.

Not selectable when “AV Input” is selected as the source.

* *4 The REVERSE GEAR SIGNAL lead connection is required ☞ “Installation/Connection Manual.” The rear view through

the camera appears on the monitor in “Full” aspect ratio (regardless of the aspect ratio setting) when you shift the gear to the reverse (R) position.

*5 Not selectable when the component connected to the CD changer jack is selected as the source.

The name of the component detected through the CD changer jack is shown.

*7 The TEL MUTING lead connection is required. ☞ “Installation/Connection Manual.“

SETTINGS

Equalizer

Flat/Hard Rock/R&B/Pop/Jazz/Dance/Country/Reggae/Classic/User1/User2/User3, ☞ [49]

ENGLISH

Sound

Menu items Selectable settings, [reference page] Fader/Balance Adjust fader—speaker output balance between the front and rear speakers.

Adjusts fader

Adjust balance

Volume Adjust Adjust and store auto-adjustment volume level for each source, comparing to

Subwoofer Level Adjust the subwoofer output level.

High Pass Filter Through: Select when the subwoofer is not connected.

Crossover Adjust the crossover frequency between the front/rear speakers and the

Amplifier Gain You can change the maximum volume level of this unit.

• Upmost—front only

• Downmost—rear only When using a two-speaker system, set the fader to the center (00). Adjust balance—speaker output balance between the left and right speakers.

• Leftmost—left only

• Rightmost—right only

the FM volume level. The volume level will automatically increase or decrease when you change the source. –12 to +12; Initial 00

• For digital sources: You can make the adjustments separately depending on the audio format—Dolby Digital and the others.

–06 to +08; Initial 00

On: Select when the subwoofer is connected.

subwoofer.

80Hz, 120Hz, 150Hz

Off: Deactivates the built-in amplifier. Low Power: Select this if the maximum power of the speakers is less than

50 W.

High Power

Mode*

Menu items Selectable settings, [reference page] Mono SSM DX/Local* Blend Hold* Title Entry

Only for FM bands. (Off, On), ☞ [13] Only for FM bands of “Tuner” and FM/AM bands of “HD Radio.” ☞ [13, 45] Only for FM bands of “HD Radio.” (DX, Local), ☞ [46] Only for “HD Radio.” ☞ [46] Only for FM/AM stations of “Tuner,” “AV Input,” and “External Input.” ☞ [50]

Repeat/Random Only for “Disc,” “USB,” “USB iPod,” “Changer,” “iPod,” and “Bluetooth.”

☞ [18, 29, 36, 38, 39, 41]

AudioBooks

Only for “USB iPod.” (Normal, Faster, Slower) ☞ [38]

List

The accessible lists differ depending on the source. ☞ [14, 19, 37, 40, 44]

Bluetooth

Menu items Selectable settings, [reference page]

Redial/Received Calls/

Select one of the call methods, ☞ [33]

Phonebook/Preset Calls/ Phone Number/Voice Dialing

Dial Menu*

Phone Connect/Audio Connect Only for the registered devices.

Establish the connection with the registered device, ☞ [31]

Phone Disconnect/ Audio Disconnect

Device Menu

Only for the device being connected. Disconnect the current device before connecting another device, ☞ [31]

ENGLISH

Items listed under <Mode> vary among the playback sources.

*2 Appears only when an HD Radio tuner box is connected. *3 Only for the device connected for Bluetooth phone.

Continued on the next page

SETTINGS

Menu items Selectable settings, [reference page]

Delete Pairing Only for the registered devices.

Delete the registered devices, ☞ [32]

ENGLISH

Device Menu

New Pairing

Enter the PIN code to establish the connection, ☞ [31] Once the connection is established, it is registered in the unit. You can connect the unit and the device by using <Phone Connect>/ <Audio Connect> from the next time on, ☞ [57]

Auto Connect When the unit is turned on, the connection is established automatically

with...

Off: No Bluetooth device. Last: The last connected Bluetooth device.

Auto Answer Off: The unit does not answer the calls automatically. Answer the calls

manually.

On: The unit answers the incoming calls automatically. Reject: The unit refuses all incoming calls.

SMS Notify Off: The unit does not inform you of the arrival of a message.

On: The unit informs you of the arrival of a message by ringing and

displaying “Receiving Message.”

Add Phonebook Copy the phone book memory of a cellular phone into the unit. You can

MIC Setting Adjust the volume of the microphone connected to the unit.

Settings

01, 02, 03

Phone Volume Adjust the phone volume.

00 to 30 or 50*

Initialize

Initialize all settings you have made in <Bluetooth>.

, Initial 15

Yes: Initializes the settings. No: Cancels.

Information The following information is shown:

Name: The unit name Address: The Mac address of the unit Version: The Bluetooth software/hardware versions* Phone Device/Audio Device: The connected device names

Depends on the amplifier gain control. (☞ page 56)

* *2 If you wish to receive more information about Bluetooth, visit the following JVC web site:

<http://www.jvc.co.jp/english/car/> (English website only)

When operating the Bluetooth device, refer also to the instructions supplied with the device.

Maintenance

How to clean the connector

Frequent detachment will deteriorate the connectors. To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Connectors

Moisture condensation

Moisture may condense on the lens inside the unit in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car. Should this occur, the unit may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates.

How to handle discs

When removing a disc from its case, press down the center holder of the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs into the cases after use.

Center holder

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

Do not use the following discs:

Single CD—8 cm (3-3/16") disc Warped disc

Stick-on labelSticker and sticker residue

Unusual shape

Transparent or semi-transparent

parts on its recording area

C-thru Disc (semi-transparent disc)

ENGLISH

REFERENCES

More about this unit

General

Turning on the power

ENGLISH

• By pressing SRC (source) on the unit, you can also turn on the power. If the source is ready, playback starts.

Tuner (FM only)

Storing stations in memory

• When SSM is over, received stations are preset in No. 1 (lowest frequency) to No. 6 (highest frequency).

Disc

General

• In this manual, words “track” and “file” are interchangeably used.

• This unit can only play back audio CD (CD-DA) files if different type of audio files (MP3/WMA/WAV) are recorded in the same disc.

• This unit can display only one-byte characters. No other characters can be correctly displayed.

Inserting a disc

• When a disc is inserted upside down or has no playable files, “Cannot play this disc Check the disc” appears on the monitor. Eject the disc.

Ejecting a disc

• If the ejected disc is not removed within 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust.

Changing the source

• If you change the source, playback also stops without ejecting the disc.

Next time you select “Disc” for the playback source,

disc play starts from where it stopped previously.

Playing Recordable/Rewritable discs

• This unit can recognize a total of 5 000 files and 250 folders (a maximum of 999 files per folder).

• Use only “finalized” discs.

• This unit can play back multi-session discs; however, unclosed sessions will be skipped while playing.

• This unit can recognize a total 25 characters for file/ folder names.

• Some discs or files may not be played back due to their characteristics or recording conditions.

Playing DVD-VR

• For details about DVD-VR format and play list, refer to the instructions supplied with the recording equipment.

File playback

Playing MPEG1/MPEG2 files

• This unit can play back MPEG1/MPEG2 files with the extension code <.mpg>, <.mpeg>, or <.mod>*.

* <.mod> is an extension code used for the MPEG2

files recorded by JVC Everio camcorders. The MPEG2 files with the <.mod> extension code cannot be played back when stored on a USB mass storage class device.

• The stream format should conform to MPEG system/ program stream.

• The file format should be MP@ML (Main Profile at Main Level)/SP@ML (Simple Profile at Main Level)/ MP@LL (Main Profile at Low Level).

• Audio streams should conform to MPEG1 Audio Layer-2 or Dolby Digital.

• The maximum bit rate for video signals (average) is 4 Mbps.

Playing JPEG files

• This unit can play back JPEG files with the extension code <.jpg>, or <.jpeg>.

• This unit can play back JPEG files that are at 32 x 32 to 8 192 x 7 680 resolution. It may take time to display the file depending on its resolution.

• This unit can play back baseline JPEG files. Progressive JPEG files or lossless JPEG files cannot be played.

Playing MP3/WMA/WAV files

• This unit can play back files with the extension code <.mp3>, <.wma>, or <.wav> (regardless of the letter case—upper/lower).

• This unit can play back the files meeting the conditions below: – Bit rate: MP3/WMA: 32 kbps — 320 kbps – Sampling frequency: 48 kHz, 44.1 kHz, 32 kHz (for MPEG1) 24 kHz, 22.05 kHz, 16 kHz (for MPEG2) 48 kHz, 44.1 kHz, 32 kHz, 22.05 kHz (for WMA)

44.1 kHz (for WAV)

• This unit can show ID3 Tag Version

1.0/1.1/2.2/2.3/2.4 (for MP3). This unit can also show WAV/WMA Tag.

• This unit can play back files recorded in VBR (variable bit rate).

Files recorded in VBR have a discrepancy in elapsed

time indication.

• This unit cannot play back the following files: – MP3 files encoded with MP3i and MP3 PRO

format. – MP3 files encoded with Layer 1/2. – WMA files encoded with lossless, professional,

and voice format. – WMA files which are not based upon Windows

Media® Audio. – WMA files copy-protected with DRM. – Files which have the data such as AIFF, ATRAC3,

etc.

USB

• If “No USB device“ appears after removing a device, reattach a device or select another playback source.

• When the USB device has no playable files, or has not been formatted correctly, “Cannot play this device Check the device” appears on the monitor.

• The unit cannot recognize a USB device whose rating is other than 5 V and exceeds 500 mA.

• While playing from a USB device, the playback order may differ from other players.

• This unit may be unable to play back some USB devices or some files due to their characteristics or recording conditions.

• USB devices equipped with special functions such as data security functions cannot be used with the unit.

• Do not use a USB device with 2 or more partitions.

• Depending on the shape of the USB devices and connection ports, some USB devices may not be attached properly or the connection might be loose.

• When connecting a USB device, refer also to its instructions.

• Connect only one USB device to the unit at a time. Do not use a USB hub.

• This unit may not recognize a memory card inserted into the USB card reader.

• When connecting with a USB cable, use the USB 2.0 cable.

• This unit may not play back files in a USB device properly when using a USB extension cord.

• This unit cannot assure proper functions or supply power to all types of the devices.

• This unit can recognize a total of 5 000 files and 250 folders (a maximum of 999 files per folder).

• This unit can recognize a total of 25 characters for file/folder names.

• For MPEG1/2 files: The maximum bit rate for video signals (average) is 2 Mbps.

ENGLISH

REFERENCES

Bluetooth operations

General

• While driving, do not perform complicated operation such as dialing the numbers, using phone book, etc. When you perform these operations, stop your car in

ENGLISH

a safe place.

• Some Bluetooth devices may not be connected to this unit depending on the Bluetooth version of the device.

• This unit may not work for some Bluetooth devices.

• Connecting condition may vary depending on circumstances around you.

• When the unit is turned off, the device is disconnected.

Warning messages for Bluetooth operations

Connection Error:

The device is registered but the connection has failed. Use <Phone Connect>/<Audio Connect> to connect the device again. (☞ page 31)

Error:

Try the operation again. If “Error” appears again, check if the device supports the function you have tried.

Please Wait...:

The unit is preparing to use the Bluetooth function. If the message does not disappear, turn off and turn on the unit, then connect the device again (or reset the unit).

Icons for phone types

• These icons indicate the phone type set on the device.

Cellular phone

Household phone

Office

General

Other than above

iPod/iPhone operations

• You can control the following types of iPods/iPhones: (A) Connected with the USB cable:

– iPod with video (5th Generation)* – iPod classic*

– iPod nano – iPod nano (2nd Generation) – iPod nano (3rd Generation)* – iPod nano (4th Generation)* – iPod Touch* – iPod Touch (2nd Generation)* – iPhone/iPhone 3G*

(B) Connected with the interface adapter:

– iPod with Click Wheel (4th Generation) – iPod with video (5th Generation) – iPod classic – iPod mini – iPod photo – iPod nano – iPod nano (2nd Generation) – iPod nano (3rd Generation) – iPod nano (4th Generation)*

*1 To watch the video with its audio, connect the

iPod/iPhone using USB Audio and Video cable (not supplied).

*2 It is not possible to charge the battery through this

unit.

• If the iPod/iPhone does not play correctly, update your iPod/iPhone software to the latest version. For details about updating your iPod/iPhone, visit <http://www.apple.com>.

• When you turn on this unit, the iPod/iPhone is charged through the unit.

• While the iPod/iPhone is connected, all operations from the iPod/iPhone are disable. Perform all operations from this unit.

• The text information may not be displayed correctly.

• The text information scrolls on the monitor. This unit can display up to 40 characters when using the interface adapter and up to 128 characters when using the USB 2.0 cable or USB Audio and Video cable.

Notice:

When operating an iPod/iPhone, some operations may not be performed correctly or as intended. In this case, visit the following JVC web site: <http:// www.jvc.co.jp/english/car/> (English website only)

Satellite radio operations

• To know more about SIRIUS Satellite radio or to sign up, visit <http://www.sirius.com>.

• For the latest channel listings and programming information, or to sign up for XM Satellite radio, visit <http://www.xmradio.com>.

ENGLISH

For the USB connection:

When <iPod Artwork> is set to <On>: Do not press any keys during the first 5 seconds or more of playing back any track containing artwork*. It takes 5 seconds or more to display artwork and no operations are available while loading it.

* The picture displayed on the iPod’s/iPhone’s screen

while playing back a track.

HD Radio reception

• During SSM search... – All stations including conventional FM/AM

stations are searched and stored for the selected band.

Menu items

• If you change the <Amplifier Gain> setting from <High Power> to <Low Power> while the volume level is set higher than “30,” the unit automatically changes the volume level to “30.”

• After you change any of <Menu Language/Audio Language/Subtitle> settings, turn off then on the power, and re-insert the disc (or insert another disc) so that your setting takes effect.

• When you select <16:9> for a picture whose aspect ratio is 4:3, the picture slightly changes due to the process for converting the picture width.

• Even if <4:3 Pan Scan> is selected, the screen size may become <4:3 Letterbox> for some discs.

JVC bears no responsibility for any loss of data in an iPod/iPhone and USB mass storage class device while using this unit.

REFERENCES

Characters you can enter for titles

In addition to the roman alphabet (A – Z, a – z), you can use the following characters to assign titles. (☞ page 50)

• When <Руccĸий> is selected for <Language>. (☞

ENGLISH

page 52)

Upper and lower cases

Numbers and symbols

• When any language other than <Руccĸий> is

selected for <Language>. (☞ page 52)

Upper and lower cases

• “DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation registered in the US, Japan and other countries.

• Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

• iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

• iPhone is a trademark of Apple Inc.

• “Made for iPod” means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards.

• “Works with iPhone” means that an electronic accessory has been designed to connect specifically to iPhone and has been certified by the developer to meet Apple performance standards.

• Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

• “SIRIUS” and the SIRIUS dog logo are registered trademarks of SIRIUS Satellite Radio Inc.

• XM and its corresponding logos are registered trademarks of XM Satellite Radio Inc.

• “SAT Radio”, the SAT Radio logo and all related marks are trademarks of SIRIUS Satellite Radio Inc., and XM Satellite Radio, Inc.

• HD Radio™ and the HD Radio Ready logo are proprietary trademarks of iBiquity Digital Corp.

Numbers and symbols

Sound signals emitted through the rear terminals

Through the analog terminals (Speaker out/LINE OUT)

2-channel signal is emitted. When playing multi-channel encoded disc, multi-channel signals are downmixed.

• DTS sound cannot be reproduced.

Through the DIGITAL OUT (optical) terminal

Digital signals (Linear PCM, Dolby Digital and MPEG Audio) are emitted.

• To reproduce the multi-channel sounds such as Dolby Digital and MPEG Audio, connect an amplifier or a decoder

compatible with these multi-channel sources to this terminal, and set <D. Audio Output> correctly. (☞ page 54)

• DTS sound cannot be emitted.

ENGLISH

<D. Audio Output>

Playback disc

DVD 48 kHz, 16/20/24 bits Linear

PCM

96 kHz, Linear PCM 48 kHz, 16 bits stereo Linear PCM

with Dolby Digital 48 kHz, 16 bits

with MPEG Audio 48 kHz, 16 bits stereo Linear PCM

Audio CD, Video CD 44.1 kHz, 16 bits stereo Linear PCM /

MPEG with Dolby Digital 48 kHz, 16 bits

with MPEG Audio 32/44.1/48 kHz, 16 bits Linear PCM

MP3/WMA 32/44.1/48 kHz, 16 bits Linear PCM

WAV 44.1 kHz, 16 bits Linear PCM

* Digital signals may be emitted at 20 or 24 bits (at their original bit rate) through the DIGITAL OUT terminal if the discs

are not copy-protected.

stereo Linear PCM

Output signals

48 kHz, 16 bits stereo Linear PCM*

Dolby Digital bitstream

MPEG bitstream

48 kHz, 16 bits stereo Linear PCM

Dolby Digital bitstream

REFERENCES

Preset equalizing values

Frequency

Sound mode

Flat 00 00 00 00 00 00 00 Hard Rock +03 +03 +01 00 00 +02 +01

ENGLISH

R&B +03 +02 +02 00 +01 +01 +03 Pop 00 +02 00 00 +01 +01 +02 Jazz +03 +02 +01 +01 +01 +03 +02 Dance +04 +02 00 –02 –01 +01 +01 Country +02 +01 00 00 00 +01 +02 Reggae +03 00 00 +01 +02 +02 +03 Classic +02 +03 +01 00 00 +02 00 User1/2/3 00 00 00 00 00 00 00

60.0 Hz 150.0 Hz 400.0 Hz 1.0kHz 2.5kHz 6.3kHz 15.0kHz

Language codes (for DVD language selection)

Code Language Code Language Code Language Code Language Code Language

AA Afar FA Persian KK Kazakh NO Norwegian ST Sesotho AB Abkhazian FI Finnish KL Greenlandic OC Occitan SU Sundanese AF Afrikaans FJ Fiji KM Cambodian OM (Afan) Oromo SW Swahili AM Ameharic FO Faroese KN Kannada OR Oriya TA Tamil AR Arabic FY Frisian KO Korean (KOR) PA Panjabi TE Telugu AS Assamese GA Irish KS Kashmiri PL Polish TG Tajik AY Aymara GD Scots Gaelic KU Kurdish PS Pashto, Pushto TH Thai AZ Azerbaijani GL Galician KY Kirghiz QU Quechua TI Tigrinya BA Bashkir GN Guarani LA Latin RM Rhaeto-

Romance BE Byelorussian GU Gujarati LN Lingala RN Kirundi TL Tagalog BG Bulgarian HA Hausa LO Laothian RO Rumanian TN Setswana BH Bihari HI Hindi LT Lithuanian RW Kinyarwanda TO Tonga BI Bislama HR Croatian LV Latvian, Lettish SA Sanskrit TR Turkish BN Bengali, Bangla HU Hungarian MG Malagasy SD Sindhi TS Tsonga BO Tibetan HY Armenian MI Maori SG Sangho TT Tatar BR Breton IA Interlingua MK Macedonian SH Serbo-Croatian TW Twi CA Catalan IE Interlingue ML Malayalam SI Singhalese UK Ukrainian CO Corsican IK Inupiak MN Mongolian SK Slovak UR Urdu CS Czech IN Indonesian MO Moldavian SL Slovenian UZ Uzbek CY Welsh IS Icelandic MR Marathi SM Samoan VI Vietnamese DZ Bhutani IW Hebrew MS Malay (MAY) SN Shona VO Volapuk EL Greek JA Japanese MT Maltese SO Somali WO Wolof EO Esperanto JI Yiddish MY Burmese SQ Albanian XH Xhosa ET Estonian JW Javanese NA Nauru SR Serbian YO Yoruba EU Basque KA Georgian NE Nepali SS Siswati ZU Zulu

TK Turkmen

Troubleshooting

What appears to be trouble is not always serious. Check the following points before calling a service center.

• For operations with the external components, refer also to the instructions supplied with the adapters used for the connections (as well as the instructions supplied with the external components).

• Messages (enclosed in “ ”) in the tables below are shown in the language selected on <Language>. (☞ page 52) Messages described here are in the language of this manual.

Symptoms Remedies/Causes

• No sound comes out of the speakers. • Adjust the volume to the optimum level.

• Check the cords and connections.

• The monitor is not clear and legible. Sunshine from the windscreen may cause this symptom.

Adjust <Bright>. (☞ page 52)

• The unit does not work at all.

• “No Signal” appears. • Change the source.

• “Mecha Error Push Reset” appears on the

General

monitor, and the control panel does not move.

• The touch pad controls do not respond properly.

• <Illumination> function does not work properly.

• SSM automatic presetting does not work.

• Static noise while listening to the radio. Connect the antenna firmly.

FM/AM

• Disc can be neither recognized nor played .

• Disc cannot be ejected.

• Recordable/Rewritable discs cannot be played back.

Disc playback

• Tracks on the Recordable/Rewritable discs cannot be skipped.

Reset the unit. (☞ page 3)

• Start the playback on the external component connected to VIDEO IN plug.

• Check the cords and connections.

• Signal input is too weak.

Reset the unit. (☞ page 3)

• Keep your hands and controls clean and dry.

• Eliminate static electricity and do not place magnetic items near the unit.

• Leave the unit until the temperature becomes stable in the car.

• A rubber mat on the floor may cause this symptom. In this case, do not use the rubber mat.

Store stations manually. (☞ page 14)

Eject the disc forcibly. (☞ page 3)

Unlock the disc. (☞ page 19)

• Insert a finalized disc.

• Finalize the discs with the component which you used for recording.

ENGLISH

Continued on the next page

REFERENCES

Symptoms Remedies/Causes

• Playback does not start. • Insert the disc correctly again.

• Region code of the DVD is not correct. (☞ page 4)

• The format of files is not supported by the unit.

• The playback picture is not clear and legible.

ENGLISH

• Sound and pictures are sometimes interrupted or distorted.

• No playback picture appears on the monitor. Parking brake lead is not connected properly.

Disc playback

• No picture appears on the external monitor. • Connect the video cord correctly.

• “Eject Error” or “Loading Error” appears on the monitor.

• Disc cannot be played back. • Change the disc.

• Noise is generated. The track played back is not a playable file format. Skip to

• Tracks are not played back as you have intended them to play.

File playback

• Elapsed playing time is not correct. This sometimes occurs during playback. This is caused by

• “Not Support” appears on the monitor and track skips.

• Noise is generated. • The track played back is not a playable file format (MP3/

• Tracks cannot play back as you have intended

USB playback

them to play.

Adjust items in <Picture Adjust>. (☞ page 52)

• Stop playback while driving on rough roads.

• Change the disc.

(☞ “Installation/Connection Manual”)

• Select the correct input on the external monitor. Changing the source by pressing SRC will solve this error.

• Record the tracks using a compliant application in the

appropriate discs. (☞ page 4)

• Add appropriate extension codes to the file names.

another file. Playback order may differ from the one played back using

other players.

how the tracks are recorded. The track is unplayable.

WMA/WAV). Skip to another file.

• Do not add the extension code <.mp3>, <.wma>, or <.wav> to non-MP3/WMA/WAV tracks.

Playback order may differ from the one played back using other players.

Symptoms Remedies/Causes

• “Now Reading...” keeps flashing on the monitor.

USB playback

• Correct characters are not displayed (e.g. album name).

• While playing a track, sound is sometimes interrupted.

• Bluetooth device does not detect the unit. • Search from the Bluetooth device again.

• The unit does not make pairing with the Bluetooth device.

• Phone sound quality is poor. • Reduce the distance between the unit and the Bluetooth

• The sound is interrupted or skipped while using a Bluetooth audio player.

Bluetooth

• The connected audio player cannot be controlled.

• The unit does not response when you tried to copy the phone book to the unit.

• “No Audio Device” appears on the monitor. Connect this unit and the Bluetooth audio player correctly.

• “No Voice Device” appears on the monitor. The connected cellular phone does not have the voice

• Readout time varies depending on the USB device.

• Do not use too many hierarchy, folders and empty folders.*

* Folder that is physically empty or folder that contains

data but does not contain valid MP3/WMA/WAV track.

• Turn off the power then on again.

• Do not pull out or connect the USB device repeatedly while “Now Reading...” is displayed on the monitor.

For available characters, ☞ page 64.

The tracks have not been properly copied into the USB device. Copy tracks again into the USB device, and try again.

• Reset the unit. When “Open...” appears on the monitor, search from the Bluetooth device again.

• Enter the same PIN code for both the unit and target device. If the PIN code of the device is not indicated on its manuals, try “0000” or “1234.”

cellular phone.

• Move the car to place where you can get a better signal reception.

• Reduce the distance between the unit and the Bluetooth audio player.

• Disconnect the device connected for Bluetooth phone.

• Turn off, then turn on the unit.

• (When the sound is not yet restored,) connect the device again.

Check whether the connected audio player supports AVRCP (Audio/Video Remote Control Profile).

You may have tried to copy the same entries (as stored) to the unit. Touch BAND to exit.

recognition system.

ENGLISH

REFERENCES

Symptoms Remedies/Causes

• The iPod/iPhone does not turn on or does not work.

• The sound is distorted. Deactivate the equalizer either on this unit or the iPod/

ENGLISH

• “Disconnect” appears on the monitor. Check the connecting cable and its connection.

• Playback stops. The headphones are disconnected during playback. Restart

• “No Files” appears on the monitor. No tracks are stored. Import tracks to the iPod/iPhone.

• “Reset 01” – “Reset 07” appears on the monitor.

• “Reset 08” appears on the monitor. Check the connection between the adapter and this unit.

iPod/iPhone playback

• The iPod’s/iPhone’s controls do not work after disconnecting from this unit.

• “Restricted Device” appears on the monitor. Check whether the connected iPod/iPhone is compatible

• No operations are available while playing back a track containing artwork.

• “No Disc” appears on the monitor. Insert a disc into the magazine.

• “No Magazine” appears on the monitor. Insert the magazine.

• “Cannot play this disc Check the disc” appears on the monitor.

• “Reset 08” appears on the monitor. Connect this unit and the CD changer correctly and press

CD changer

• “Reset 01” – “Reset 07” appears on the monitor.

• The CD changer does not work at all.

• “CALL 1-888-539-SIRIUS TO SUBSCRIBE” appears on the monitor.

• “Acquiring Signal” or “NO SIGNAL” appears on the monitor.

• “No Antenna” or “CHECK ANTENNA” appears

Satellite radio

on the monitor.

• Check the connecting cable and its connection.

• Charge the battery of the iPod/iPhone.

• Reset the iPod/iPhone.

iPhone.

playback.

Disconnect the adapter from both this unit and iPod. Then, connect them again.

Reset the iPod/iPhone.

with this unit. (☞ page 62) Operate the unit after the artwork is loaded. (☞ page 63)

Disc does not include playable files. Replace the disc with playable files.

the reset button of the CD changer. Press the reset button of the CD changer.

Reset the unit. (☞ page 3) Starts subscribing SIRIUS Satellite radio. (☞ page 42)

Move to an area with stronger signals.

Connect the antenna firmly.

Symptoms Remedies/Causes

• “Invalid Channel” appears on the monitor for about 5 seconds, then returns to the previous display when listening to the SIRIUS Satellite radio.

• “CHANNEL–––” appears on the display for about 2 seconds, then returns to the previous channel while listening to the XM Satellite radio.

• “No Name” or “–––” appears on the monitor. No text information for the selected channel.

• “Channel is Updating XX% completed” or “UPDATING” appears on the monitor and no sound can be heard.

Satellite radio

• “OFF AIR” appears on the monitor while listening to the XM Satellite radio.

• “LOADING” appears on the monitor while listening to the XM Satellite radio.

• “Reset08” flashes on the monitor. Reconnect this unit and the Satellite radio correctly and

• Satellite radio does not work at all. Reconnect the Satellite radio after a few seconds.

• Sound quality changes when receiving HD Radio stations.

• No sound can be heard. • <Analog> is selected when receiving all digital

HD Radio reception

• “Reset 8” appears on the display. Reconnect this unit and the HD Radio tuner box correctly,

• No picture appears on the monitor. • Turn on the video component if it is not on.

AV-IN

• The playback picture is not clear and legible.

No broadcast on the selected channel. Select another channel or continue listening to the previous channel.

Selected channel is no longer available or is unauthorized. Select another channel or continue listening to the previous channel.

The receiver is updating the channel information and it takes a few minutes to complete.

Selected channel is not broadcasting at this time. Select another channel or continue listening to the previous channel.

The unit is loading the channel information and audio. Text information is temporarily unavailable.

reset the unit.

Fix the reception mode either to <Digital> or <Analog> (☞ page 46).

broadcast of HD Radio station. Select <Digital> or <Auto> (☞ page 46).

• <Digital> is selected when receiving weak digital signals or receiving conventional radio broadcast. Select <Analog> or <Auto> (☞ page 46).

then reset the unit.

• This unit is not connected to the video component correctly. Connect it correctly.

Adjust items in <Picture Adjust>. (☞ page 52)

ENGLISH

REFERENCES

Specifications

Power Output: 20 W RMS × 4 Channels at 4 Ω and

ENGLISH

Signal-to-Noise Ratio: 80 dBA (reference: 1 W into 4 Ω)

Load Impedance: 4  (4  to 8  allowance) Equalizer Control Range: Frequencies: 60.0 Hz, 150.0 Hz, 400.0 Hz, 1.0kHz,

Audio Output Level LINE OUT (REAR)/

AMPLIFIER

SUBWOOFER: Color System: NTSC Video Output (composite): 1 Vp-p/75  Other Terminals: Input: LINE IN, VIDEO IN, USB input terminal,

Frequency Range: FM (with channel interval set to

FM Tuner: Usable Sensitivity: 9.3 dBf (0.8 μV/75 )

FM/AM TUNER

AM Tuner: Sensitivity/Selectivity: 20 μV/40 dB Signal Detection System: Non-contact optical pickup (semiconductor laser) Frequency Response: DVD, fs=48/96 kHz: 16 Hz to 22 000 Hz

Dynamic Range: 93 dB

DVD/CD

Signal-to-Noise Ratio: 95 dB Wow and Flutter: Less than measurable limit

≤ 1% THD+N

2.5kHz, 6.3kHz, 15.0kHz Level: ±10 dB Line-Out Level/Impedance: 2.5 V/20 k load (full scale) Output Impedance: 1 k

Antenna input Output: VIDEO OUT, DIGITAL OUT Others: CD changer, OE REMOTE, MIC IN

87.5 MHz to 107.9 MHz

100 kHz or 200 kHz): FM (with channel interval set to

50 kHz): AM (with channel interval set to

10 kHz): AM (with channel interval set to

9 kHz):

50 dB Quieting Sensitivity: 16.3 dBf (1.8 μV/75 ) Alternate Channel Selectivity

(400 kHz): Frequency Response: 40 Hz to 15 000 Hz Stereo Separation: 40 dB

VCD/CD: 16 Hz to 20 000 Hz

87.5 MHz to 108.0 MHz

530 kHz to 1 710 kHz

531 kHz to 1 602 kHz

65 dB

Screen Size: 3.5 inch wide liquid crystal display Number of Pixel: 211 200 pixels: 960 (horizontal) × 220 (vertical) Drive Method: TFT (Thin Film Transistor) active matrix format Color System: PAL/NTSC

MONITOR

Aspect Ratio: 16:9 (wide) Allowable Storage Temperature: –10°C to +60°C (14°F to 140°F) Allowable Operating Temperature: 0°C to +40°C (32°F to 104°F) USB Standards: USB 2.0 Full Speed Data Transfer Rate: Full Speed: Maximum 12 Mbps

USB

Compatible Device: Mass storage class Compatible File System: FAT 32/16/12 Max. Current: DC 5 V 500 mA Version: Bluetooth 1.2 certified Output Power: +4 dBm Max. (Power class 2) Service Area: Within 10 m (10.9 yd) Profile: HFP (Hands-Free Profile) 1.5

BLUETOOTH

Power Requirements: Operating Voltage: DC 14.4 V (11 V to 16 V allowance) Grounding System: Negative ground Allowable Operating Temperature: 0°C to +40°C (32°F to 104°F) Dimensions (W × H × D): Installation Size (approx.): 182 mm × 52 mm × 160 mm

GENERAL

Mass (approx.): 2.2 kg (4.9 lbs) (excluding accessories)

Low Speed: Maximum 1.5 Mbps

OPP (Object Push Profile) 1.1 A2DP (Advanced Audio Distribution Profile) 1.2 AVRCP (Audio/Video Remote Control Profile) 1.3

(7-3/16” × 2-1/16” × 6-5/16”)

Panel Size (approx.): 188 mm × 58 mm × 12 mm

(7-7/16” × 2-5/16” × 1/2”)

ENGLISH

Design and specifications are subject to change without notice.

If a kit is necessary for your car, consult your telephone directory for the nearest car audio speciality shop.

REFERENCES

Muchas gracias por la compra de un producto JVC.

Como primer paso, por favor lea detenidamente este manual para comprender a fondo todas las instrucciones y

obtener un máximo disfrute de esta unidad.

IMPORTANTE PARA PRODUCTOS LÁSER

1. PRODUCTO LÁSER CLASE 1

2. PRECAUCIÓN: No abra la tapa superior. En el interior de la unidad no hay piezas que pueda reparar el usuario;

encargue el servicio a personal técnico cualificado.

3. PRECAUCIÓN: (EE.UU.) Radiación láser de clase II visible y/o invisible, cuando está abierto. No mire fijamente el

ESPAÑOL

4. REPRODUCCIÓN DE LA ETIQUETA: ETIQUETA DE PRECAUCIÓN, COLOCADA EN EL EXTERIOR DE LA UNIDAD.

haz. (Para Canadá) Radiación láser de clase 1M visible y/o invisible cuando ésta abierto. No mirar directamente con instrumental óptico.

IMPORTANTE (EE.UU.)

Este equipo se ha sometido a todo tipo de pruebas y cumple con las normas establecidas para dispositivos de Clase B, de conformidad con la Parte 15 de las reglas de la FCC (Comisión Federal de Comunicaciones). Estas reglas están diseñadas para asegurar una protección razonable contra este tipo de interferencias en las instalaciones residenciales. Este equipo genera y utiliza energía de radiofrecuencia. Si no se instala y utiliza debidamente, es decir, conforme a las instrucciones, podrían producirse interferencias en radiocomunicaciones. Sin embargo, no se garantiza que estas interferencias no se produzcan en una instalación determinada. Si este equipo ocasiona interferencias en la recepción de radio o televisión, lo cual puede comprobarse mediante la conexión o desconexión del equipo, el problema podrá corregirse mediante una o una combinación de las siguientes medidas: – Reoriente la antena receptora o cámbiela de lugar. – Aumente la separación entre el equipo y el aparato

receptor.

– Enchufe el equipo a una toma de corriente situada en

un circuito distinto del aparato receptor.

– Consulte a su distribuidor o a un técnico experto en

radio/televisión.

Precaución

Los cambios o modificaciones no aprobados por JVC pueden anular la autoridad del usuario para operar el equipo.

[Sólo Unión Europea]

ADVERTENCIAS: Para evitar daños y accidentes

• NO instale ningún receptor o tienda ningún cable en una ubicación donde; – puede obstaculizar las maniobras del volante

de dirección y de la palanca de cambios.

– puede obstaculizar la operación de los

dispositivos de seguridad, como por ejemplo, bolsas de aire.

– donde pueda obstruir la visibilidad.

• NO opere la unidad mientras maneja.

Si es necesario operar la unidad mientras maneja,

asegúrese de mirar atentamente en todas las direcciones.

• El conductor no debe mirar el monitor mientras conduce.

Precauciones sobre el monitor:

• El monitor incorporado a esta unidad ha sido fabricado con tecnología de alta precisión, pero puede contener algunos puntos inefectivos. Estos es inevitable y no es ningún signo de anomalía.

• No exponga el monitor a la luz directa del sol.

• Cuando la temperatura sea muy baja o muy alta... – Ocurren cambios químicos en el interior,

produciendo un mal funcionamiento.

– Puede suceder que las imágenes no aparezcan

claramente o que se muevan con lentitud. En tales entornos, puede suceder que las imágenes no estén sincronizadas con el sonido, o que la calidad del sonido se deteriore.

Cómo reposicionar su unidad

• También se borrarán los ajustes preestablecidos realizados por usted (excepto aquellos para los dispositivos Bluetooth registrados).

Cómo expulsar el disco por la fuerza

[Sostener]

•

Tenga cuidado de no dejar caer el disco al ser expulsado.

• Si esto no funciona, reinicialice la unidad.

Para fines de seguridad...

• No aumente demasiado el nivel de volumen pues es muy peligroso conducir si no se escuchan los sonidos exteriores.

• Detenga el automóvil antes de efectuar cualquier operación complicada.

Temperatura dentro del automóvil...

Si ha dejado el automóvil estacionado durante largo tiempo en un sitio cálido o frío, no opere la unidad hasta que se normalice la temperatura del habitáculo.

Este producto incorpora tecnología de protección de los derechos de autor que está protegida por patentes de EE.UU. y otros derechos de propiedad intelectual. La utilización de esta tecnología de protección de los derechos de autor debe ser autorizada por Macrovision y está destinada únicamente para uso doméstico y otras formas limitadas de visionado, a menos que Macrovision lo autorice expresamente. Está prohibida la ingeniería inversa o desmontaje del aparato.

Contenido

Cómo reposicionar su unidad ................. 3

Cómo expulsar el disco por la fuerza ....... 3

INTRODUCCIÓN

Tipo de disco reproducible ..................... 4

Antes de las operaciones ....................... 5

OPERACIONES

Operaciones básicas—Menú AV ............. 6

Operaciones básicas—

Panel de control ................................ 8

Operaciones básicas—

Control remoto (RM-RK252) ............... 10

Para escuchar la radio ........................... 12

Operaciones de los discos ...................... 15

Operaciones de USB .............................. 28

Operaciones Bluetooth®—

teléfono celular/reproductor de

audio ............................................... 30

DISPOSITIVOS EXTERNOS

Para escuchar el iPod/iPhone ................. 37

Escuchando el cambiador de CD ............. 40

Para escuchar la radio satelital .............. 42

Para escuchar la transmisión

HD Radio™ ........................................ 45

Escuchado otros componentes

externos ........................................... 47

AJUSTES

Ecualización de sonido .......................... 49

Asignación de títulos a la fuente ............ 50

Opciones del menú ............................... 51

REFERENCIAS

Mantenimiento .................................... 59

Más sobre este receptor ........................ 60

Localización de averías .......................... 67

Especificaciones .................................... 72

ESPAÑOL

Tipo de disco reproducible

Tipo de disco

DVD

• El sonido DTS no se puede reproducir.

DVD Grabable/reescribible

ESPAÑOL

(DVD-R/RW*2, +R/+RW*3)

• DVD Vídeo: Puente UDF

• DVD-VR

• MPEG1/MPEG2/JPEG/MP3/WMA/WAV: Compatible con ISO 9660 Nivel 1, Nivel 2, Romeo, Joliet

DualDisc Lado DVD

CD/VCD CD de audio/CD Text (CD-DA)

CD Grabable/reescribible (CD-R/-RW)

• Compatible con ISO 9660 Nivel 1, Nivel 2, Romeo, Joliet

*1 Si inserta un disco DVD Vídeo con un código de región incorrecto aparecerá “Region code error” en el monitor. *2 Un DVD-R grabado en formato de múltiples bordes también es reproducible (excepto los discos de doble capa). Los

discos DVD-RW de doble capa no se pueden reproducir.

*3 Es posible reproducir discos finalizados +R/+RW (sólo formato de vídeo). “DVD” se selecciona como tipo de disco

cuando se carga un disco +R/+RW. Los discos +RW de doble capa no se pueden reproducir.

Formato de grabación, tipo de archivo, etc.

DVD Vídeo (Códigos regionales: 1)*

DVD Audio/DVD-ROM DVD Vídeo DVD-VR MPEG1/MPEG2 JPEG MP3/WMA/WAV AAC/MPEG4/DivX/DVD+VR/DVD-RAM

Lado no-DVD

VCD (Vídeo CD) DTS-CD/SVCD (Super Video CD)/CD-ROM/

CD-I (CD-I Ready) CD-DA MP3/WMA/WAV JPEG MPEG1/MPEG2 AAC/MPEG4/DivX

Reproducible

Precaución sobre la reproducción de DualDisc

El lado no DVD de un “DualDisc” no es compatible con la norma “Compact Disc Digital Audio”. Por consiguiente, no se recomienda usar el lado no DVD de un DualDisc en este producto.

Antes de las operaciones

Controles de la almohadilla táctil Monitor

Las luces de los controles de la almohadilla táctil y del monitor se apagan tras un período de inactividad de aproximadamente 10 segundos. Las luces se encienden en los casos siguientes: – Cuando mueve su mano cerca de

los controles de la almohadilla táctil.*

– Cuando su dedo toca los controles

de la almohadilla táctil.*

– Cuando se utiliza el control remoto. – Cuando entra una llamada/mensaje de texto. – Cuando se recibe una señal de la cámara de

retrovisión.

* Depende del ajuste. Para cambiar el ajuste, ☞ página

55.

ESPAÑOL

Cómo controlar la unidad mediante los controles de la almohadilla táctil.

Puede controlar la unidad tocando la parte apropiada de los controles de la almohadilla táctil.

• Para ajustar el volumen, mueva su dedo sobre la perilla de la almohadilla táctil tal como se muestra en la siguiente ilustración para que aparezca la animación en el monitor y, a continuación, toque repetidamente 5 o ∞. – El volumen también se puede ajustar con sólo

continuar moviendo el dedo sobre las perillas de la almohadilla táctil, tal y como se muestra en la siguiente ilustración.

Las luces siempre se encienden en los casos siguientes: – Mientras se visualiza la pantalla <AV Menu>. – Mientras se visualiza la pantalla

<Source Menu>.

– Mientras el panel de control está abierto. – Cuando <Illumination> está ajustado a

<Normal>. (☞ página 55)

• Las operaciones se explican utilizando principalmente los controles de la almohadilla táctil y los botones de la unidad; sin embargo, los botones del control remoto pueden funcionar de la misma manera si tienen los mismos nombres o marcas.

• En las explicaciones, los nombres de la pantalla aparecen resaltados. Por ejemplo, <AV Menu>.

• Al deslizar su dedo sobre la perilla de la almohadilla táctil tal como se muestra en la siguiente ilustración, funcionará de la misma manera que cuando se toca 5 / ∞ / 4 / ¢.

INTRODUCCIÓN

Operaciones básicas—Menú AV

Puede utilizar los menús para configurar diversos ajustes desde <AV Menu>. Para obtener detalles sobre cada menú y ajuste, consulte “Opciones del menú”. (☞ páginas 51 a 58)

ESPAÑOL

AV Setup

~ Encienda la unidad.

Las luces de los controles de la almohadilla táctil y del monitor se encienden.

⁄ Seleccione una opción.

Ÿ Acceda al <AV Menu>.

Indicador de cuenta atrás del tiempo

Ajuste actual de la opción seleccionada

@ Visualice la siguiente pantalla.

AV Setup

Nombre del icono actualmente seleccionado

• Las opciones no disponibles aparecen sombreadas.

! Seleccione una opción para ingresar la

pantalla de menú.

Iconos de configuración

• Para volver a las pantallas anteriores:

• Repita los pasos ⁄ y @ para ajustar la opción secundaria, si es necesario.

¤ Finalice el procedimiento.

Importante

Idioma para las indicaciones: Se utilizan indicaciones en inglés para las explicaciones. Podrá seleccionar el

idioma de indicación desde <AV Menu>. (☞ página 52)

Cancelación de la demostración en pantalla y puesta en hora del reloj

AV Menu

Enter

AV Setup

Vuelve a <AV Setup> tocando 4

repetidamente.

ESPAÑOL

OPERACIONES

Operaciones básicas—Panel de control

ESPAÑOL

1 Selecciona las fuentes.* “Tuner” o “HD Radio” = “Satellite Radio

(SIRIUS/XM)” = “Disc” = “USB” o ”USB iPod” = “Changer”, ”iPod”, o ”External Input” = “Bluetooth” = “AV Input”

• También puede seleccionar las fuentes tocando

5 / ∞ / 4 / ¢ y luego SRC para ingresar

<Source Menu>.

2 Expulsa el disco. 3 • Ingresa o sale de <AV Menu>.

• Activa Marcación por voz [Sostener].

• Mientras habla: Ajusta el volumen del micrófono conectado a la unidad.

4 • “Tuner” y “HD Radio”: Efectúa la búsqueda de

emisoras.

• “Satellite Radio”: Selecciona los canales.

• “Disc”, “USB”, “USB iPod”, “Changer”, “iPod” y “Bluetooth”: Salto hacia atrás/salto hacia adelante

• En los menús: – Ingresa la pantalla anterior/siguiente. – Selecciona las opciones.

5 Inclina el panel de control. (☞ página 9) 6 Ajusta el nivel de volumen. (☞ página 5)

7*2 • “Tuner”: Selecciona emisoras preajustadas.

•

“HD Radio”: Selecciona los canales multidifusión.

• “Satellite Radio”: Selecciona las categorías.

• “Disc”, “USB”, y “Changer”: Selecciona títulos/ carpetas.

• “USB iPod”: Selecciona los elementos siguientes/anteriores.

• “iPod”: Accede al menú del reproductor y pone la reproducción en pausa.

• “Bluetooth”: Selecciona el grupo/carpeta.

• En los menús: Selecciona las opciones.

8 • “Disc”, “USB”, “USB iPod” y “Changer”: Inicia y

pone la reproducción en pausa.

• “Bluetooth”: Inicie la reproducción.

• En los menús: Ingresa la pantalla siguiente o sale

de la pantalla visualizada.

9 Cambia la información en pantalla. (☞ página 9) p • “Tuner”, “HD Radio”, y “Satellite Radio”:

Selecciona las bandas.

• “Disc”, y “USB”: Detiene la reproducción.

• “Bluetooth”: Pone la reproducción en pausa.

q • Encienda la unidad.

• Apaga la unidad [Sostener].

• Atenúa el sonido (al conectar la alimentación).

w Sensor remoto e Reinicializa la unidad.

• Se utiliza sólo debido a un malfuncionamiento

interno del sistema.

r Separa el panel de control (Para fijarlo, ☞ página

9).

*1 Podrá seleccionar algunas fuentes si no están

preparadas.

*2 Manteniendo pulsado 5 / ∞, podrá visualizar la

lista accesible para la fuente seleccionada.

Para inclinar el panel de control Toque TILT repetidamente.

Para fijar el panel de control

Cambio de la información en pantalla

La información en pantalla disponible varía según las fuentes de reproducción.

Cada vez que toca DISP, la pantalla cambia para mostrarle diversas informaciones.

Ej.: Cuando la fuente de reproducción es un disco DVD video.

Pantalla de la imagen de reproducción (sólo para fuentes de video)

Pantalla de información de fuente

ESPAÑOL

Vuelta al comienzo

Imagen de reproducción y pantalla de información de fuente

• Cuando la fuente sea “USB iPod”, se mostrará la ilustración de la canción si ésta dispone de datos de ilustración. (☞ página 53)

• Mientras se reproduce un archivo MP3/WMA, aparecerá “Jacket picture” si el archivo cuenta con datos de etiqueta que incluyan “Jacket picture”.

Pantalla de navegación

• Esta pantalla se visualiza cuando se selecciona <Navigation> para <AV Input>. (☞ páginas 47 y 54)

OPERACIONES

Operaciones básicas — Control remoto (RM-RK252)

Instalación de la pila

R03/LR03/AAA

ESPAÑOL

Instale las pilas en el control remoto haciendo coincidir correctamente las polaridades (+ y –).

Precaución:

• Peligro de explosión si se instala la pila de manera incorrecta. Cámbiela solamente por una del mismo tipo o de un tipo equivalente.

• No deje las pilas expuestas a altas temperaturas, como, por ejemplo, a la luz del sol, al fuego u otras condiciones similares.

Si disminuye la efectividad o el radio de acción del control remoto, cambie ambas pilas.

Antes de utilizar el control remoto:

• Apunte el control remoto directamente hacia el sensor remoto del receptor.

• NO exponga el sensor remoto a una luz brillante (luz solar directa o iluminación artificial).

El receptor está equipado con la función de control remoto en el volante de dirección.

• Para la conexión, consulte el Manual de instalación/conexión (volumen separado).

Elementos principales y funciones

1 • Enciende la unidad.

• Apaga la unidad [Sostener].

• Atenúa el sonido (al conectar la alimentación).

2 “Disc”, “USB” y “USB iPod”: Búsqueda regresiva 3 • Ajusta el nivel de volumen.

• No funciona como “2nd VOL”. 4 • Contesta las llamadas entrantes.

• Ingresa <Redial> [Sostener].

• Puede acceder a <Dial Menu> pulsando el botón y luego tocando 6 en la unidad.

5 • DVD: Visualiza el menú de disco.

• VCD: Reanuda la reproducción de PBC (☞ página

23).

• DVD-VR: Muestra la pantalla Original Program (programa original).

6 • Introduzca los números (mientras sostiene

SHIFT). (☞ páginas 14, 20 a 24, 35, y 44)

• Selecciona el número telefónico preajustado (mientras sostiene SHIFT).

• “Tuner”, “HD Radio” y “Satellite Radio”: Selecciona las emisoras preajustadas (mientras sostiene SHIFT).

7 Visualiza la barra en pantalla. 8 Funciona con otros botones (consulte 6 y o). 9 Visualiza la información en pantalla. p “Tuner”:

• 5 / ∞: Selecciona las emisoras preajustadas.

•

/ : Efectúa la búsqueda de emisoras.

– Búsqueda automática – Búsqueda manual [Sostener]

“HD Radio”:

• 5 / ∞: Selecciona los canales multidifusión.

• 4 / ¢: Efectúa la búsqueda de emisoras. – Búsqueda automática – Búsqueda manual [Sostener]

“Satellite Radio”:

• 5 / ∞: Selecciona las categorías.

• 4 / ¢: – Selecciona los canales. – Selecciona los canales rápidamente.

[Sostener]

“Disc”, y “Changer”:

• 5 / ∞: – DVD: Selecciona el título. – DVD-VR: Selecciona el programa/lista de

reproducción.

– Otros discos (excepto VCD/CD): Selecciona las

carpetas.

• 4 / ¢: – Salto hacia atrás/salto hacia adelante – Búsqueda hacia atrás/búsqueda hacia

adelante [Sostener]

“USB”:

• 5 / ∞: Selecciona las carpetas.

• 4 / ¢: – Salto hacia atrás/salto hacia adelante – Búsqueda hacia atrás/búsqueda hacia

adelante [Sostener]

“USB iPod”:

• 5 / ∞: Selecciona el elemento anterior/ siguiente.

• 4 / ¢: – Salto hacia atrás/salto hacia adelante – Búsqueda hacia atrás/búsqueda hacia

adelante [Sostener]

“iPod”:

• ∞: Pone en pausa o reanuda la reproducción.

• 5: Entra al menú principal (seguidamente, 5 / ∞ / 4 / ¢ funcionan como botones selectores de menú).*

• 4 / ¢: – Salto hacia atrás/salto hacia adelante – Búsqueda hacia atrás/búsqueda hacia

adelante [Sostener]

En el modo de selección de menú:

– Selecciona una opción. (Seguidamente, pulse

∞ para confirmar la selección).

– Salta 10 elementos a la vez [Sostener].

“Bluetooth”:

• 5 / ∞: Selecciona el grupo/carpeta.

• 4 / ¢: – Salto hacia atrás/salto hacia adelante – Búsqueda hacia atrás/búsqueda hacia

adelante [Sostener]

q “Disc”, “USB” y “USB iPod”: Búsqueda progresiva w Selecciona la fuente. e • “Disc”, “USB”, y “USB iPod”: Inicia y pone la

reproducción en pausa.

• “Bluetooth”: Inicia y pone la reproducción en pausa.

• Contesta las llamadas entrantes.

r Cambia la relación de aspecto de las imágenes

reproducidas.

t • “Tuner”,“HD Radio”, y “Satellite Radio”:

Selecciona las bandas.

• “Disc”, y “USB”: Detiene la reproducción.

• “Bluetooth”: Pone la reproducción en pausa.

• Finaliza la llamada.

y VCD: Vuelve al menú PBC. u • DVD Vídeo: Visualiza el menú de disco.

• VCD: Reanuda la reproducción de PBC. (☞ página 23)

• DVD-VR: Muestra la pantalla Play List (lista de reproducción).

i • Efectúa la selección/los ajustes.

• @ / #: Salta 5 minutos hacia atrás o adelante para MPEG1/MPEG2.

• % / ﬁ: Cambia los discos para “Changer”.

o • “Disc”, y “USB”: Cambia el modo de entrada de

número (mientras sostiene SHIFT).

• Borra la entrada errónea luego de ingresar un número incorrecto (mientras sostiene SHIFT).

• No funciona como “SURROUND”.

No funciona como “SETUP”.

* *2 No funciona como “DUAL”. *3 5 : Vuelva al menú anterior.

∞ : Confirma la selección.

OPERACIONES

ESPAÑOL

Para escuchar la radio

ESPAÑOL

A Banda B Modo de sonido ( C N° de preajuste D Frecuencia E Nombre asignado a la emisora ( F Indicador de recepción de FM

☞ página 49)

~ Seleccione “Tuner”. Ÿ Selecciona la banda.

☞ página 50)

! Búsqueda de una emisora—Búsqueda

automática.

• Búsqueda manual: Mantenga pulsado o hasta que “Manual Search” (Búsqueda

manual) aparezca en la pantalla y, a continuación, tóquelo repetidamente.

• El indicador ST se enciende al recibir una

radiodifusión FM estéreo con una intensidad de señal suficientemente potente.

Cuando una radiodifusión en FM estéreo sea difícil de recibir

Preajuste automático de emisoras FM —SSM (Memoria secuencial de las emisoras más fuertes)

Esta función funciona sólo para las bandas FM. Se pueden preajustar seis emisoras para cada banda.

Se consigue mejorar la recepción, pero se pierde el efecto estereofónico.

• El indicador MO se enciende.

Para restablecer el efecto estéreo, seleccione <Off> en el paso 4.

Las emisoras FM locales con las señales más intensas serán exploradas y almacenadas automáticamente en la banda FM.

• Cuando se ha conectado un sintonizador HD Radio (☞ página 45), la búsqueda y el almacenamiento de la emisora AM también puede efectuarse automáticamente.

ESPAÑOL

OPERACIONES

Preajuste manual

Ej.: Almacenando una emisora FM de 92.5 MHz en el

número de preajuste 4 de la banda FM1.

Sintonice la emisora que desea preajustar.

Selección de las emisoras preajustadas

En el control remoto:

ESPAÑOL

[Sostener]

Aparece la lista de preajustes.

• Para FM: Cada vez que sostiene 5 / ∞, se cambiarán las bandas.

4 Seleccione un número de preajuste.

5 Almacene la emisora.

[Sostener]

La emisora seleccionada en el paso 2 ha sido almacenada en el número de preajuste 4.

También se podrá acceder a la lista de preajustes a través de <AV Menu> = <List>.

En la unidad:

Para seleccionar directamente

Para seleccionar de la lista de preajustes

[Sostener]

• Para FM: Cada vez que sostiene 5 / ∞, se cambiarán las bandas.

3 Seleccione el número de preajuste.

También se podrá acceder a la lista de preajustes a través de <AV Menu> = <List>.

Operaciones de los discos

El tipo de disco se detecta automáticamente, y la reproducción se inicia automáticamente (para algunos discos: el inicio automático depende de su programa interno). Si el disco no dispone de ningún menú de disco, todas las pistas del mismo serán reproducidas repetidamente hasta que usted cambie la fuente o expulse el disco.

Si aparece “ ” en el monitor, significa que la unidad no puede aceptar la operación intentada.

• En algunos casos, puede suceder que no se acepte la operación aunque no se visualice “ ”.

~ Abra el panel frontal.

Lado de la etiqueta

Cuando se reproduce un disco codificado multicanal, se mezclan las señales multicanal.

• Puede disfrutar plenamente del sonido multicanal conectando un amplificador o decodificador compatible con estas fuentes multicanal. (☞ también página 65)

Ÿ Inserta el disco.

La reproducción se inicia automáticamente.

Precaución:

No ponga su dedo detrás del panel de control.

Precaución sobre el ajuste de volumen:

Los discos y los dispositivos USB conectados producen muy poco ruido al compararse con otras fuentes. Antes de reproducir un disco, baje el volumen para evitar daños a los altavoces debido a un repentino aumento del nivel de salida.

ESPAÑOL

0: Expulsa el disco. 3/8: Inicia y pone la reproducción en

pausa.

BAND: Detiene la reproducción.

OPERACIONES

4 ¢: Toque: Selecciona un capítulo.

Sostener: Búsqueda hacia atrás/

ESPAÑOL

adelante*

5 ∞: Selecciona un título. DISP:

Toque si es necesario (☞ página 9).

A Tipo de disco B Formato de audio C Modo de sonido ( D Nº de título/Nº de capítulo/tiempo de reproducción E Modo de reproducción (

☞ página 49)

☞ páginas 18)

4 ¢: Toque: Selecciona un capítulo.

Sostener: Búsqueda hacia atrás/

adelante*

5 ∞: Selecciona Nº de programa/Nº de lista

de reproducción.

DISP:

Toque si es necesario (☞ página 9).

4 ¢: Toque: Selecciona la pista.

Sostener: Búsqueda hacia atrás/ adelante para MPEG *

5 ∞: Toque: Selecciona la carpeta.

Sostener: Visualiza la lista de carpetas.

DISP:

Toque si es necesario (☞ página 9).

A Formato de audio B VR-PRG: Programa original

VR-PL: Lista de reproducción

C Modo de sonido ( D Nº de programa (o Nº de lista de reproducción)/Nº de

capítulo/Tiempo de reproducción

A Modo de sonido (☞ página 49) B Para MPEG: Nº de carpeta/Nº de pista/tiempo de

reproducción Para JPEG: Nº de carpeta/Nº de archivo

C Nombre de la carpeta actual/nombre del archivo actual

*1 Velocidad de búsqueda: x2 ] x10

Velocidad de búsqueda: ¡1 ] ¡2

☞ página 49)

4 ¢: Toque: Selecciona la pista.

Sostener: Búsqueda hacia atrás/

adelante*

DISP:

Toque si es necesario (☞ página 9).

A El indicador PBC se enciende mientras se está usando PBC. B Modo de sonido ( C Nº de pista/tiempo de reproducción

☞ página 49)

ESPAÑOL

4 ¢: Toque: Selecciona la pista.

Sostener: Búsqueda hacia atrás/

adelante*

4 ¢: Toque: Selecciona la pista.

Sostener: Búsqueda hacia atrás/

adelante*

5 ∞: Toque: Selecciona la carpeta.

Sostener: Visualiza la lista de carpetas.

A Modo de sonido (☞ página 49) B Nº de pista/tiempo de reproducción C Título de pista/nombre del artista/título de disco

A Formato de audio (MP3/WMA/WAV) B Modo de sonido ( C Nº de carpeta/Nº de pista/tiempo de reproducción D Nombre de la carpeta actual/nombre del archivo actual

☞ página 49)

*1 Velocidad de búsqueda: x2 ] x10 *2 Aparece “No Name” para los CDs convencionales. *3 Aparecerán los datos de etiqueta en lugar de los

nombres de carpetas/archivos cuando estén grabados y con <Tag Display> ajustado a <On>. (☞ página

51)

OPERACIONES

Selección de los modos de reproducción

Solamente puede usar el modo de reproducción repetida o aleatoria.

Ej.: Para seleccionar repetición de pista

ESPAÑOL

Tipo de disco Repeat Random

Chapter: Repite el capítulo actual. Title: Repite el título actual. Chapter: Repite el capítulo actual. Program: Repite el programa actual (no

disponible para la reproducción de la lista de reproducción).

Track: Repetir la pista actual (para VCD: PBC

no está en uso).

Track: Repetir la pista actual. Folder: Reproduce aleatoriamente

Folder: Se repiten todas las pistas de la carpeta

actual.

Track: Repetir la pista actual. Folder: Reproduce aleatoriamente

Folder: Se repiten todas las pistas de la carpeta

actual.

Folder: Se repiten todas las pistas de la carpeta

actual.

Al seleccionar uno de los modos de reproducción, el indicador correspondiente se enciende en la pantalla de información de fuente.

Para cancelar, seleccione <Off> en el paso 4.

Disc (All): Se reproducen aleatoriamente

Disc (All): Reproducir aleatoriamente

—

todas las pistas (para VCD: PBC no está en uso).

todas las pistas de la carpeta actual y luego las pistas de las siguientes carpetas.

todas las pistas.

todas las pistas de la carpeta actual y luego las pistas de las siguientes carpetas.

todas las pistas.

—

Selección de pistas en la lista

Si un disco incluye carpetas, podrá visualizar las listas de carpetas/pistas (archivo) y luego iniciar la reproducción.

1 Ingrese <Folder List>.

[Sostener]

• Mantenga pulsado el botón para visualizar las carpetas siguientes/anteriores.

2 Selecciona una carpeta.

Prohibición de la expulsión del disco

Podrá bloquear un disco en la ranura de carga.

~ Sostenga los botones simultáneamente.

[Sostener]

Ÿ Active la prohibición.

Aparecerá “No Eject”.

ESPAÑOL

3 Seleccione un archivo.

También se podrá acceder a la lista de carpetas a través de <AV Menu> = <List>.

Para cancelar la prohibición, repita el mismo procedimiento que para seleccionar <EJECT OK?>.

OPERACIONES

Operaciones utilizando el control remoto—RM-RK252

Detiene la reproducción.

Inicia o pone la reproducción en pausa.

• Búsqueda hacia atrás/adelante*1 (El

sonido no se escucha.)

• Cámara lenta*2 durante la pausa. (El

ESPAÑOL

También funciona como CLR (eliminar): Borra una entrada incorrecta si lo pulsa mientras mantiene pulsado SHIFT.

Usando las funciones de control por menú

sonido no se escucha.)

• Selecciona un capítulo (durante la reproducción o la pausa).

• Búsqueda hacia atrás adelante*

[Sostener]

Selecciona un título (durante la reproducción o la pausa).

• Selecciona un capítulo.

• Selecciona título (cuando no se está reproduciendo).

[Dos veces]

Selecciona un título (durante la reproducción o la pausa).

Cambia la relación de aspecto de las imágenes reproducidas.

2. Seleccione una opción deseada para iniciar la

reproducción.

Detiene la reproducción.

Inicia o pone la reproducción en pausa.

• Búsqueda hacia atrás/adelante*1 (El sonido no se escucha.)

• Cámara lenta hacia adelante

durante

la pausa. (El sonido no se escucha.)

•

La cámara lenta hacia atrás no funciona.

• Seleccionar un capítulo (durante la reproducción o la pausa).

• Búsqueda hacia atrás/adelante*3

[Sostener]

• Selecciona un programa.

• Selecciona la lista de reproducción (durante la reproducción o la pausa).

• Selecciona un capítulo.

• Selecciona un programa (cuando no se está reproduciendo).

[Dos veces]

Selecciona un programa/lista de reproducción (durante la reproducción o la pausa).

Cambia la relación de aspecto de las imágenes reproducidas.

Uso de las pantallas programa original/lista de reproducción (☞ página 24)

1. Para programas originales:

Para la lista de reproducción:

2. Seleccione la opción deseada para iniciar la reproducción.

*1 Velocidad de búsqueda: x2 ] x5 ] x10 ] x20 ]

x60

*2 Velocidad a cámara lenta: 1/32 ] 1/16 ] 1/8 ]

1/4 ] 1/2

*3 Velocidad de búsqueda: x2 ] x10

ESPAÑOL

OPERACIONES

ESPAÑOL

También funciona como CLR (eliminar): Borra una entrada incorrecta si lo pulsa mientras mantiene pulsado SHIFT.

Detiene la reproducción.

Inicia o pone la reproducción en pausa. Búsqueda hacia atrás/adelante*1 (El

sonido no se escucha.)

• Selecciona la pista.

• Búsqueda hacia atrás/adelante*

[Sostener] (El sonido no se escucha.)

Selecciona la carpeta.

Selecciona la pista (dentro de la misma carpeta).

[Dos veces]

Selecciona la carpeta. Cambia la relación de aspecto de las

imágenes reproducidas.

Mientras se está reproduciendo...

Retrocede/avanza las escenas 5 minutos.

Posición de reproducción actual

1ª pulsación

3ª pulsación2ª pulsación

2ª pulsación

Detiene la reproducción. Inicia o pone la reproducción en pausa.

(Slide show: se muestra cada pista durante unos segundos.) Muestra el archivo actual hasta que lo cambie, si lo pulsa durante la presentación de diapositivas.

Selecciona la pista.

Selecciona la carpeta.

Selecciona el archivo (dentro de la misma carpeta).

Detiene la reproducción.

Inicia o pone la reproducción en pausa.

• Búsqueda hacia atrás/adelante*

• Cámara lenta hacia adelante*4 durante

la pausa. (El sonido no se escucha.)

• La cámara lenta hacia atrás no funciona.

• Selecciona la pista.

• Búsqueda hacia atrás/adelante*5

[Sostener]

(El sonido no se escucha.)

Selecciona la pista. Cambia la relación de aspecto de las

imágenes reproducidas.

ESPAÑOL

[Dos veces]

Selecciona la carpeta. Cambia la relación de aspecto de las

imágenes reproducidas.

Durante la reproducción PBC...

Selecciona una opción en el menú.

Vuelve al menú anterior.

Para cancelar la reproducción PBC 1

2 Inicie la pista deseada.

• Para reanudar PBC:

*1 Velocidad de búsqueda: ¡1 ] ¡2 ] ¡3 *2 Velocidad de búsqueda: ¡1 ] ¡2 *3 Velocidad de búsqueda: x2 ] x5 ] x10 ] x20 ]

x60

*4 Velocidad a cámara lenta: 1/32 ] 1/16 ] 1/8 ]

1/4 ] 1/2

*5 Velocidad de búsqueda: x2 ] x10

OPERACIONES

Detiene la reproducción.

Inicia o pone la reproducción en pausa.

Búsqueda hacia atrás/adelante*

• Selecciona la pista.

• Búsqueda hacia atrás adelante*

[Sostener]

ESPAÑOL

Selecciona la carpeta.

Selecciona la pista (dentro de la misma carpeta).

[Dos veces]

Selecciona la carpeta.

Detiene la reproducción.

Inicia o pone la reproducción en pausa.

Búsqueda hacia atrás/adelante*

• Selecciona la pista.

• Búsqueda hacia atrás adelante*2

[Sostener]

Selecciona la pista.

Velocidad de búsqueda: x2 ] x5 ] x10 ] x20 ]

x60

*2 Velocidad de búsqueda: x2 ] x10

Pantalla de lista para DVD-VR

Puede usar la pantalla de Programa original y Lista de reproducción en cualquier momento mientras se reproduce un DVD-VR con sus datos grabados.

• Estas pantallas se pueden visualizar en el monitor

incorporado y el monitor externo.

1 Visualiza la pantalla Programa original/

Lista de reproducción.

2 Seleccione la opción que desea.

1 Número de programa/Lista de reproducción 2 Fecha de grabación 3 Fuente de grabación (emisora de TV, el

terminal de entrada del equipo de grabación, etc.)

4 Hora de inicio de la grabación 5 Título del programa/lista de reproducción* 6 Barra resaltada (selección actual) 7 Creando la fecha de las listas de reproducción 8 Número total de capítulos 9 Tiempo de reproducción

Dependiendo del equipo de grabación, puede

suceder que no se visualice el título del programa original o la lista de reproducción.

Información del disco mostrado en el monitor externo

Las pantallas siguientes aparecen en el monitor al insertar un disco. (Para MPEG1/MPEG2/JPEG; mientras no se esté reproduciendo).

Ej.: MP3/WMA

1 Carpeta actual (barra resaltada) 2 Nº de carpeta actual/Nº total de carpetas 3 Lista de carpetas

* Si los datos de etiqueta incluyen “Jacket Picture”

(línea de base JPEG), aparecerá visualizada.

4 Modo de reproducción seleccionado (☞ página

18)

5 Tiempo de reproducción transcurrido de la pista

actual (no se visualiza para JPEG)

6 Estado de operación 7 Nº de pista actual/número total de pistas en

la carpeta actual (número total de pistas en el disco)

8 Información de pista (sólo para MP3/WMA/WAV) 9 Lista de pistas p Pista actual (resaltado)

Ej.: CD Text

ESPAÑOL

1 Modo de reproducción seleccionado (☞ página

18)

2 Tiempo de reproducción transcurrido de la pista

actual

3 Estado de operación 4 Número de la pista actual/número total de pistas

del disco

5 Información de la pista 6 Lista de pistas 7 Pista actual (barra resaltada)

OPERACIONES

Operaciones usando la barra en pantalla (DVD/VCD/MPEG1/MPEG2/ JPEG)

Estas operaciones se pueden realizar en el monitor usando el control remoto.

~ Visualice la barra en pantalla. (☞ página

27)

ESPAÑOL

Ÿ Seleccione una opción.

! Efectúe una selección.

• Cuando aparezca un menú emergente...

• Para ingresar tiempos/números... Para mover la posición de entrada:

Para seleccionar un número:

Para borrar el menú emergente:

Repita los pasos Ÿ y ! para ajustar otras opciones, si es necesario.

Para borrar la barra en pantalla

Barras en pantalla

Información

Funcionamiento

El ejemplo de arriba es de un DVD Vídeo. Las opciones mostradas en la barra varían según el tipo de disco.

1 Tipo de disco 2 • DVD: Formato de señal de audio

• VCD: PBC

3 Modo de reproducción*

DVD Vídeo C. RPT: Repetición de capítulo

T. RPT: Repetición de título

DVD-VR C. RPT: Repetición de capítulo

PG. RPT: Repetición de programa

MPEG1/ MPEG2

T. RPT: Repetición de pista F. RPT: Repetición de carpeta F. RND: Aleatoria de carpetas

A. RND: Aleatoria Todos (Discos) JPEG F. RPT: Repetición de carpeta VCD T. RPT: Repetición de pista

A. RND: Aleatoria Todos (Discos)

4 Información sobre reproducción

Título/capítulo actual

Programa/capítulo actual

Lista de reproducción/capítulo actual

Pista actual Carpeta/pista actual Carpeta/archivo actual

5 Indicación de la hora

Tiempo de reproducción transcurrido del disco

• Tiempo estante del título (para DVD)

• Tiempo restante del disco (para los otros)

Tiempo de reproducción transcurrido del capítulo/pista actual *

Tiempo restante del capítulo/pista

actual *

6 Estado de reproducción

Reproducción Búsqueda hacia atrás/adelante Cámara lenta hacia atrás/adelante Pausa Parada

7 Iconos de operación

Cambia la indicación del tiempo (véase 5)

Búsqueda por tiempo (Especificar una cierta escena ingresando el tiempo.)

Búsqueda de título (por su número) Búsqueda de capítulo (por su número) Búsqueda de pista (por su número) Reproducción repetida *

Reproducción aleatoria * Cambia el idioma de audio, el canal de

audio, o el flujo de audio Cambia el idioma de los subtítulos Cambia el ángulo de visión

ESPAÑOL

☞ página 18

*2 No aplicable para DVD-VR.

OPERACIONES

Operaciones de USB

Puede conectar a la unidad un dispositivo de clase de almacenamiento masivo USB tal como una memoria USB, un reproductor de audio digital, un HDD (disco duro) portátil, etc.

• También puede conectar un iPod/iPhone al terminal USB de la unidad. Para obtener detalles de las operaciones, ☞ páginas 37 y 38.

ESPAÑOL

Cable USB desde la parte trasera de la unidad.

• No es posible conectar un computador al terminal ( ) USB de la unidad.

4 ¢: Toque: Selecciona la pista

Sostener: Búsqueda hacia atrás/ adelante

5 ∞: Toque: Selecciona la carpeta

Sostener: Visualiza la lista de carpetas

3 / 8: Inicia/pausa la reproducción. DISP: BAND: Detiene la reproducción.

Toque, si es necesario. (☞ página 9)

~ Conecte un dispositivo USB.

Se selecciona “USB” como fuente y la reproducción se inicia automáticamente.

Esta unidad puede reproducir archivos JPEG/MPEG1/ MPEG2*/MP3/WMA/WAV almacenados en un dispositivo de clase de almacenamiento masivo USB.

• Puede accionar el dispositivo USB tal como lo hace con los archivos de los discos. (☞ páginas 18 a 27)

• Todas las pistas del dispositivo USB se reproducirán de forma repetida hasta que se cambie la fuente.

* Excepto archivos MPEG2 grabados mediante la cámara

JVC Everio (código de extensión <.mod>).

JVC KD-AVX40 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

How to reset your unit

How to forcibly eject a disc

Playable disc type

Before operations

Basic operations— AV menu

Basic operations — Control panel

Basic operations — Remote controller (RM-RK252)

Listening to the radio

Disc operations

USB operations

Bluetooth® operations — Cellular phone/audio player

Listening to the iPod/iPhone

EXTERNAL DEVICES

Listening to the CD changer

Listening to the satellite radio

Listening to other external components

Sound equalization

SETTINGS

Assigning titles to the sources

Menu items

Maintenance

REFERENCES

More about this unit

Troubleshooting

Specifications
