JVC KD-AVX33 User Manual

DVD/CD RECEIVER

RECEPTOR CON DVD/CD RÉCEPTEUR DVD/CD

KD-ADV38/KD-AVX33

ENGLISH

ESPAÑOL

For canceling the display demonstration, see page 5. Para cancelar la demonstración en pantalla, consulte la página 5. Pour annuler la démonstration des affichages, référez-vous à la page 5.

For installation and connections, refer to the separate manual. Para la instalación y las conexiones, refiérase al manual separado. Pour l’installation et les raccordements, se référer au manuel séparé.

INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’INSTRUCTIONS

KD-ADV38

KD-AVX33

For customer Use:

Enter below the Model No. and Serial No. which are located on the top or bottom of the cabinet. Retain this information for future reference.

Model No. Serial No.

LVT1658-001A

FRANÇAIS

[J]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best

possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to

ENGLISH

qualified service personnel.

3. CAUTION: (For U.S.A.) Visible and/or invisible class II laser radiation when open. Do not stare into beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

(For Canada) Visible and/or invisible class 1M laser radiation when open. Do not view directly with

optical instruments.

INFORMATION (For U.S.A.)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment

and receiver.

– Connect the equipment into an outlet on a

circuit different from that to which the receiver is connected.

– Consult the dealer or an experienced radio/TV

technician for help.

Caution

Changes or modifications not approved by JVC could void the user’s authority to operate the equipment.

[European Union only]

WARNINGS: To prevent accidents and damage

• DO NOT install any unit and wire any cable in locations where;

– it may obstruct the steering wheel and

gearshift lever operations.

– it may obstruct the operation of safety devices

such as air bags.

– it may obstruct visibility.

• DO NOT operate the unit while driving.

If you need to operate the unit while driving, be

sure to look around carefully.

• The driver must not watch the monitor while driving.

• The driver must not put on the headphones while driving.

Cautions on the monitor:

• The monitor built in this unit has been produced with high precision, but it may have some ineffective dots. This is inevitable and is not malfunction.

• Do not expose the monitor to direct sunlight.

• When the temperature is very cold or very hot.

– Chemical changes occur inside, causing

malfunction.

– Pictures may not appear clearly or may move

slowly. Pictures may not be synchronized with the sound or picture quality may decline in such environments.

How to reset your unit

Contents

INTRODUCTION

Playable disc type ............................ 4

Before operating the unit ................ 5

ENGLISH

• Your preset adjustments (except for the registered

Bluetooth devices) will also be erased.

How to forcibly eject a disc

NO EJECT?

EMERGENCY EJECT?

NO EJECT?

EMERGENCY EJECT?

• If this does not work, reset the unit.

For safety...

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

OPERATIONS

Basic operations—Control panel ...... 7

Basic operations—

Remote controller (RM-RK251) ...... 8

Listening to the radio ...................... 10

Disc operations ................................ 13

Dual Zone operations ....................... 26

USB operations ................................ 29

Bluetooth® operations—

Cellular phone/audio player .......... 31

EXTERNAL DEVICES

Listening to the CD changer .............. 38

Listening to the satellite radio ......... 40

Listening to the iPod/D. player ......... 43

Listening to other external

components ................................. 44

SETTINGS

Sound equalization .......................... 46

Assigning titles to the sources .......... 47

Menu operations ............................. 48

REFERENCES

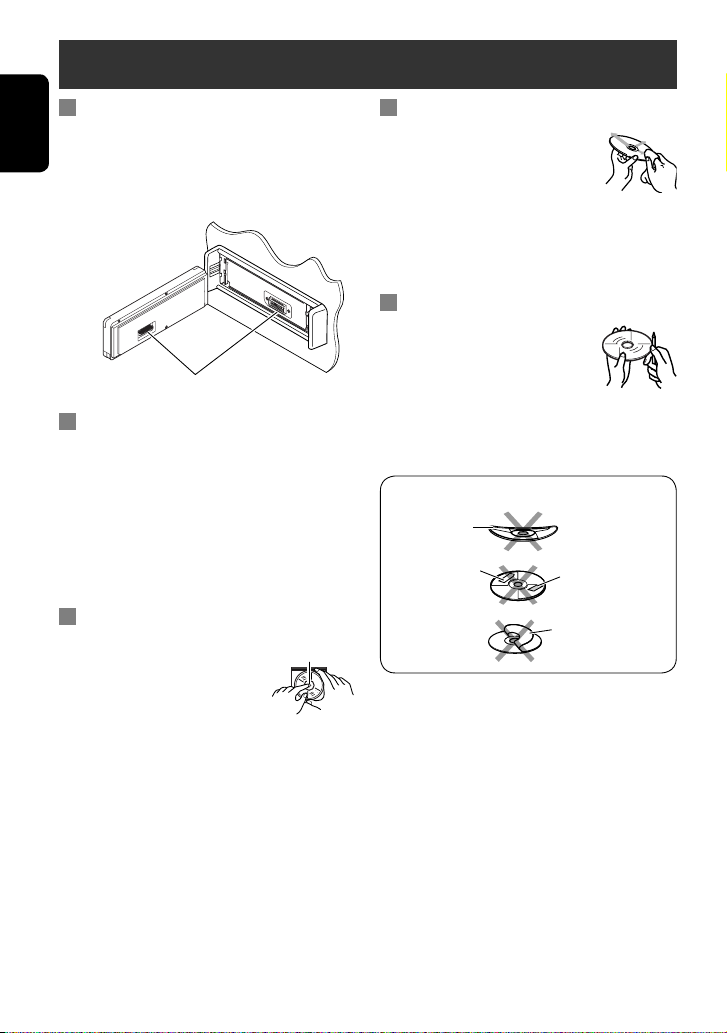

Maintenance ................................... 58

More about this unit ........................ 59

Troubleshooting .............................. 65

Specifications .................................. 70

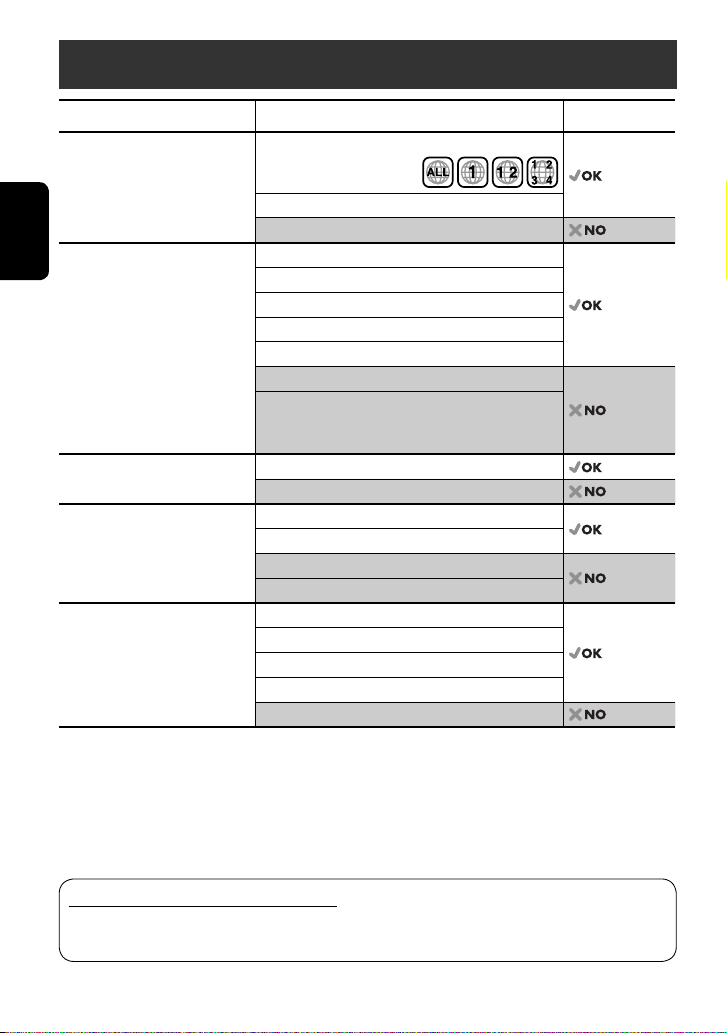

Playable disc type

Disc type Recording format, file type, etc. Playable

DVD DVD Video (Region Code: 1)*

ENGLISH

DVD Audio

DVD-ROM

DVD Recordable/Rewritable (DVD-R*2/-RW, +R/+RW*3)

• DVD Video: UDF bridge

• DVD-VR

• DivX/MPEG1/MPEG2/JPEG/MP3/ WMA/WAV/AAC: Compliant to ISO 9660 level 1, level 2, Romeo, Joliet

DVD Video

DVD-VR (non-CPRM only)

DivX/MPEG1/MPEG2

JPEG

MP3/WMA/WAV/AAC*

MPEG4

DVD+VR

• DVD-RAM cannot be played.

Dual Disc DVD side

Non-DVD side

CD/VCD Audio CD/CD Text (CD-DA)/DTS-CD

VCD (Video CD)

CD-ROM

CD-I (CD-I Ready)

CD Recordable/Rewritable (CD-R/-RW)

• Compliant to ISO 9660 level 1, level 2, Romeo, Joliet

CD-DA

MP3/WMA/WAV/AAC*

JPEG

DivX/MPEG1/MPEG2

MPEG4

*1 If you insert a DVD Video disc of an incorrect Region Code, “Region code error” appears on the monitor. *2 DVD-R recorded in multi-border format is also playable (except for dual layer discs). *3 It is possible to play back finalized +R/+RW (Video format only) discs. However, the use of +R double layer disc is not recommended. *4 This unit can play back AAC files encoded using iTunes.

Caution for DualDisc playback

The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

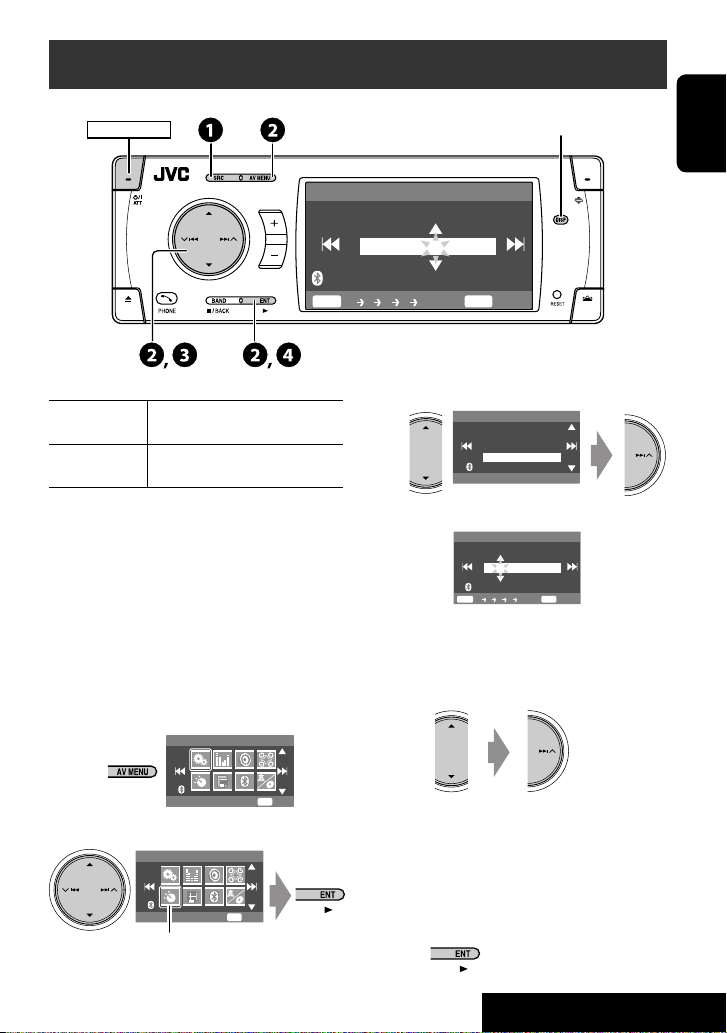

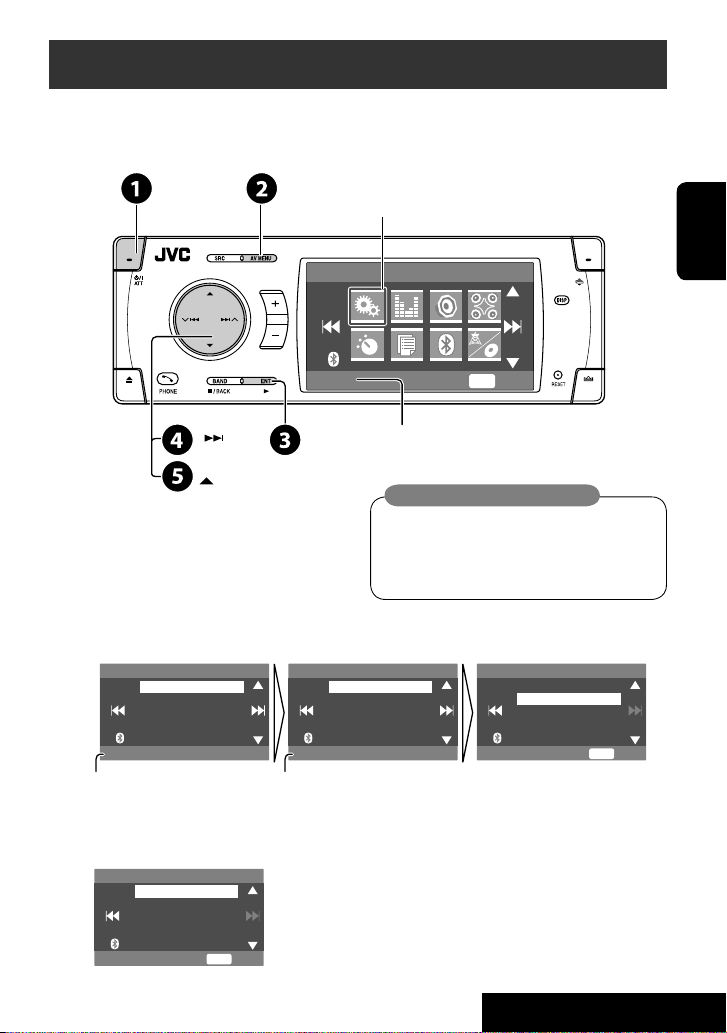

Before operating the unit

Cancel the display demonstration and set the clock. (☞ also pages 49 and 50)

• Operations are explained mainly using the buttons on the unit; however, the buttons on the remote controller can work in the same way if they have the same names or marks.

Setup menu icon

AV Menu

ENT

Setup

Currently selected menu

Enter

Indication language:

In this manual, English indications are used

~ Turn on the power. Ÿ Display <AV Menu>.

for purpose of explanation. You can select the indication language on the monitor. (☞ page 50)

! Enter the <Setup> menu. ⁄ Select <Display> ] <Demonstration>, then activate the <Demonstration> screen.

Setup Display Demonstration

Display

Clock Disc Setup 1 Disc Setup 2 Tuner

Demonstration

Currently selected submenu Current setting

Demonstration

Wall Paper Scroll Tag Display Dimmer

Off

ENT

Exit

ENGLISH

@ Cancel the display demonstrations.

Select <Off>.

Demonstration

Off

ENT

Exit

Continued on the next page

INTRODUCTION

ENGLISH

(twice)

Clock

Time Set

12Hours/24Hours OSD Clock

1:00AM

¤ Return to the <Setup> menu. # Select <Clock> ]<Time Set>, then

activate the <Time Set> screen.

‹ Set the clock time.

Time Set

Hours

1 : 00AM

ENT

Exit

Time Set

Minutes

3 : 45PM

ENT

Exit

$ Return to the <Clock> menu. › Select <12Hours/24Hours>. % Activate the <12Hours/24Hours>

screen.

ﬁ Select either the 12-hour or 24-hour

system.

12Hours/24Hours

12 Hours

24 Hours

ENT

Exit

^ Return to the <Clock> menu. ﬂ Select <OSD Clock>. & Activate the <OSD Clock> screen. ‡ Select the <OSD Clock> setting.

• Off: The clock time is not displayed while playing back a video source.

• On: The clock time is displayed while playing back a video source.

* Finish the procedure.

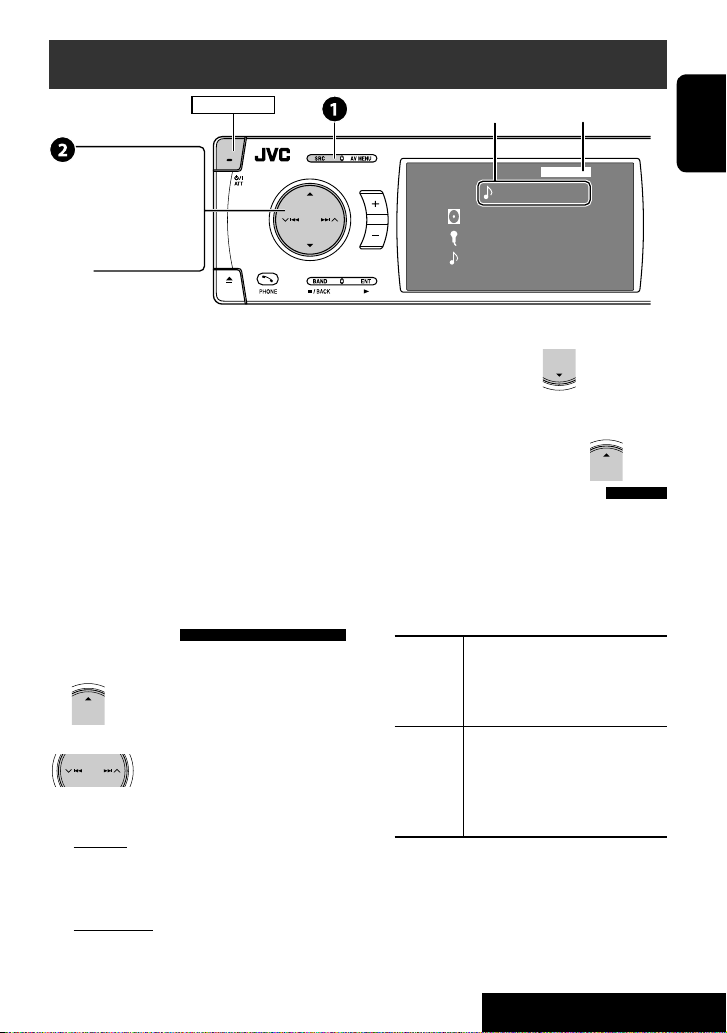

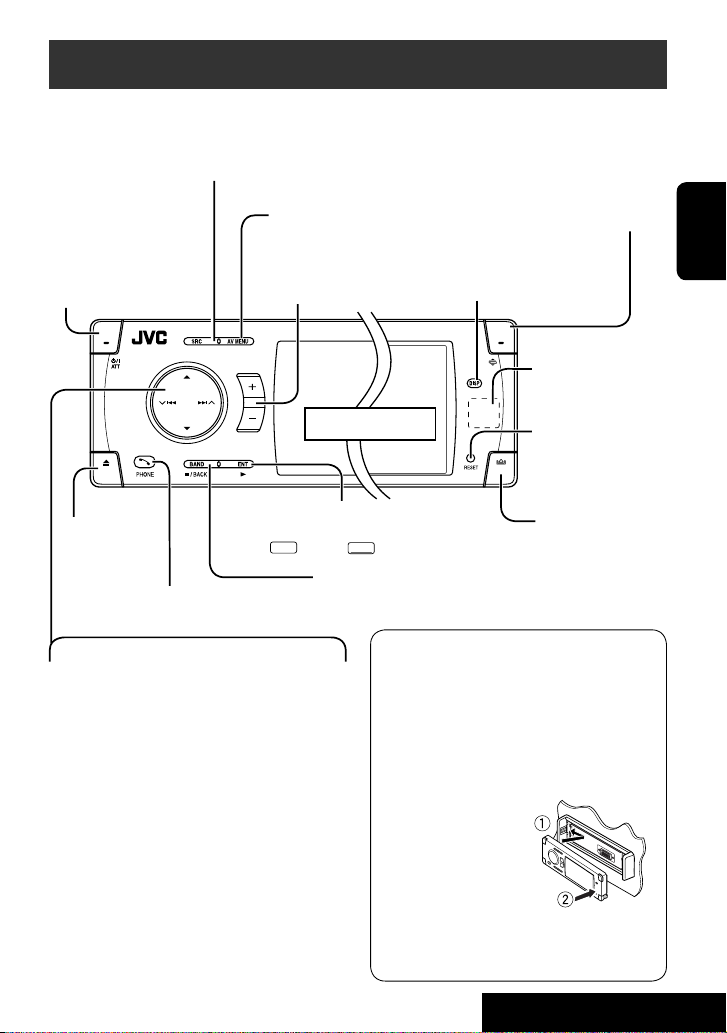

Basic operations — Control panel

Select the source. TUNER = SAT (SIRIUS/XM) = DISC (DVD/VCD/CD) = USB =CD-CH, iPod, D.PLAYER, or EXT-IN

=Bluetooth Phone =Bluetooth Audio = AV-IN =(back to the beginning)

• You cannot select these sources if they are not ready.

Change the control panel

• Turn on the power.

• Turn off the power [Hold].

• Attenuate the sound (if the power is on).

• Display or erase <AV Menu>*

• Activate Voice Dialing [Hold].

Adjust the volume.

tilt (Tilt1 – Tilt4).

Change the display information.

Remote sensor

ENGLISH

• DISC/USB: Start playback.

Eject the disc.

• On menus: Enter (

ENT

:[Hold]).

• TUNER/SAT: Select the bands.

• Display <Dial Menu>.

• Display <Redial> list [Hold].

• DISC/USB: Stop playback.

• On menus: Back.

4 / ¢

• TUNER: Search for stations.

• SAT: Select channels.

• DISC/USB: Select chapters/tracks.

• On menus: Go to previous/next step.

• iPod/D.PLAYER: Select tracks.

• Bluetooth Audio: Reverse skip/forward skip.

5 / ∞*

• TUNER: Select preset stations.

• SAT: Select categories.

• DISC/USB: Select titles/folders.

• On menus: Select items.

• iPod/D.PLAYER: Enter player’s menu/pause or stop playback.

• Bluetooth: Select a device.

Display window

ENT

:[Press]/

<AV Menu> screens

You can use the menus to set up various settings. The <AV Menu> screen consists of the following sub-menus—Setup/Equalizer/Sound/Disc Surround/Mode/List/Bluetooth/Dual Zone.

• For details, see pages 48 to 57.

*2 To attach the control

panel

By holding 5 / ∞, you can display the list

accessible for the selected source.

Reset the unit.

• Use only when the internal system malfunctions.

Detach the control

panel*

OPERATIONS

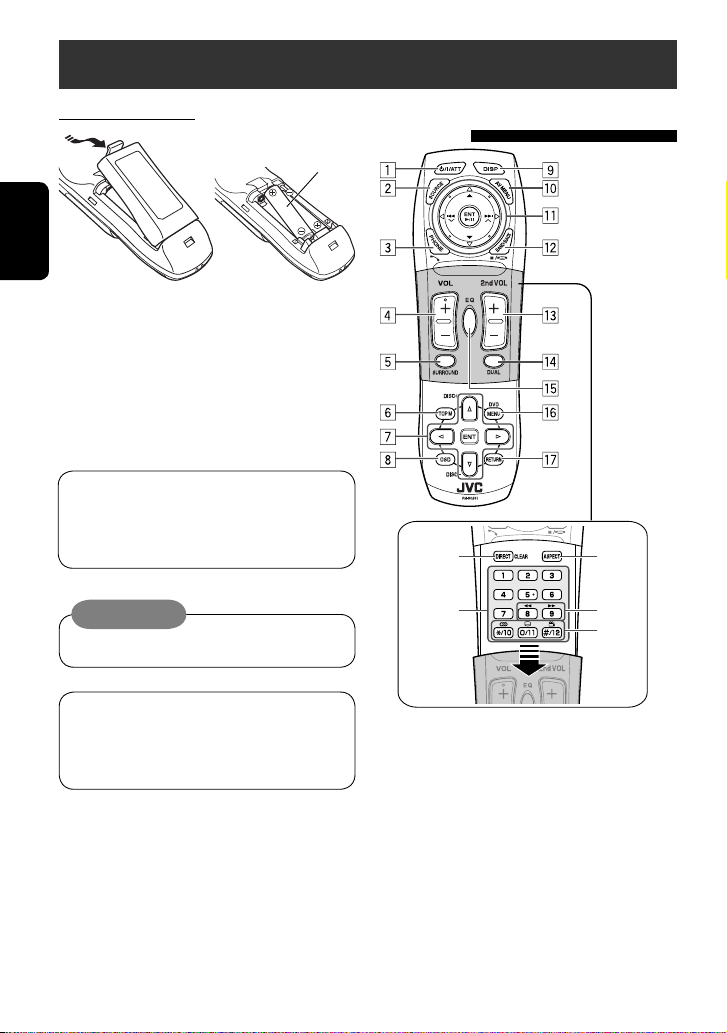

Basic operations — Remote controller (RM-RK251)

Installing the battery

ENGLISH

If the range or effectiveness of the remote controller decreases, replace both batteries.

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the unit.

• DO NOT expose the remote sensor to bright light (direct sunlight or artificial lighting).

The unit is equipped with the steering wheel remote control function.

• See the Installation/Connection Manual (separate

volume) for connection.

Caution:

• Do not expose batteries to heat or flame.

R03/LR03/AAA

Main elements and features

;

a s

IMPORTANT:

If Dual Zone is activated (☞ page 26), the remote controller functions only for operating the DVD/CD player.

1*1 • Turns on the power.

• Attenuates the sound if the power is on.

• Turns off the power if pressed and held (while the power is on).

2*1 Selects the source. 3*1 • Displays <Dial Menu>.

• Displays <Redial> list if pressed and held.

• Answers incoming calls.

4*1*2 Adjusts the volume level. 5*1*2 Selects surround mode.

6 • DVD/DivX 6: Shows the disc menu.

• VCD: Resumes PBC playback (☞ page 21).

• DVD-VR: Shows the Original Program screen.

7 • Makes selection/settings.

• ~: Skips back or forward by 5 minutes for

DivX/MPEG1/MPEG2.

• DISC +/– buttons: Changes discs for “CD-CH.”

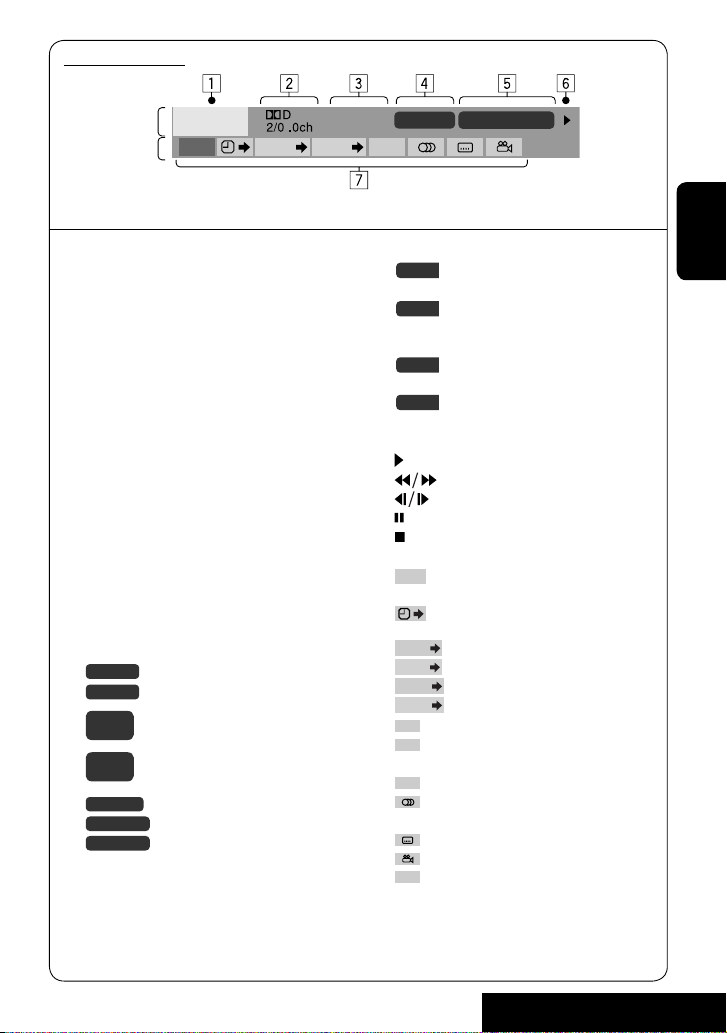

8 Shows the on-screen bar.

Changes the display information.

p Display or erase <AV Menu>. q For disc/USB operations:

• 6: Plays/pauses.

• 5 / ∞ DVD: Selects the title/group. DVD-VR: Selects the program/play list. USB/other discs (except VCD/CD): Selects the

folders.

• 4 / ¢:

– Press briefly: reverse skip/forward skip – Press and hold: reverse search/forward search

For FM/AM operations:

• 5 / ∞: Selects the preset stations.

• 4 / ¢: Functions to search for stations.

– Press briefly: Auto Search – Press and hold: Manual Search

For satellite radio operations:

• 5 / ∞: Selects a category.

• 4 / ¢:

– Selects a channel rapidly if pressed and held. – Selects a channel if pressed.

For Apple iPod/JVC D. player operations:

• ∞: Pauses/stops or resumes playback.

• 5: Enters the main menu (then 5 / ∞ / 4 / ¢ work as the menu selecting

buttons).*

• 4 / ¢ (in menu selecting mode)

– Selects an item if pressed briefly. (Then, press

∞ to confirm the selection.)

– Skips 10 items at a time if pressed and held.

For Bluetooth operations:

• 5 / ∞: Selects a registered device.

• 4 / ¢: reverse skip/forward skip (for audio operation)

• 6: Answers incoming calls (for “Bluetooth Phone”). Plays/Pauses (for “Bluetooth Audio”).

On menus:

• 5 / ∞: Select items.

• 4 / ¢: Goes to previous/next step.

w TUNER/SAT: Selects the bands. DISC/USB: Stop playback. Bluetooth Phone: Ends the call. Bluetooth Audio: Plays/pauses. On menus: Back.

Adjusts the volume level through the 2nd AUDIO

OUT plug. (☞ page 26)

Activates or deactivates Dual Zone.

t*1*2 Selects the sound mode. y • DVD Video/DivX 6: Shows the disc menu.

• VCD: Resumes PBC playback. (☞ page 21)

• DVD-VR: Shows the Play List screen.

u RETURN button

• For VCD: Returns to the PBC menu.

i DISC/USB: Switches number entry mode.

• Also functions as CLEAR button to erase the misentry after entering the wrong number.

o Enter numbers. (☞ pages 12, 19 to 21, 36 and

42)

• CD changer: Selects the disc directly.

• Tuner: Selects the preset stations.

;*1 Changes the aspect ratio of the playback pictures. a Reverse search/forward search for disc/USB

operations

s • DVD Video: Selects audio language (

subtitles (

), angle ( ).

• DVD Audio: Selects audio stream ( ).

• DVD-VR: Turn on/off subtitles ( ) and selects audio channel( ).

• DivX: Selects audio language ( ), subtitles (

• VCD: Selects audio channel ( ).

*1 If Dual Zone is activated, these buttons cannot be

used.

*2 These buttons can be used only when the slide cover is

closed.

*3 5 : Returns to the previous menu. ∞ : Confirms the selection.

OPERATIONS

ENGLISH

Listening to the radio

POWER]ON

Preset No.Band

ENGLISH

FLAT

DXMO

Tuner indicators

3: 45PM

Assigned station name (☞ page 47). If no name is assigned, “No Name” appears.

Select “TUNER.”

TUNER

FM1 Preset1

ABC Radio

87.5 MHz

Ÿ Select the bands.

! Search for a station—Auto Search.

• Manual Search: Hold either 4 or ¢ until “Manual Search” appears on the display, then press it

repeatedly.

• The ST indicator lights up when receiving an FM stereo broadcast with sufficient signal strength.

When an FM stereo broadcast is hard to receive

AV Menu

Setup

AV Menu

ENT

Enter

Mono

Off

Reception improves, but stereo effect will be lost.

• The MO indicator lights up.

To restore stereo effect, select <Off > in step 4.

☞ page 46

ENT

Exit

Mode

Mode menu icon

Mode

Mono

DX/Local SSM Title Entry

Off

ENT

Enter

Tuning in to stations with sufficient signal strength

This function works only for FM bands. Once you have activated this function (selected <Local>), it always works when searching for FM stations.

Mode menu icon

AV Menu

Setup

AV Menu

Mode

DX/Local

Mono

DX/Local

SSM Title Entry

Local

ENT

Enter

ENT

Enter

FM station automatic presetting —SSM (Strong-station Sequential Memory)

This function works only for FM bands. You can preset six stations for each band.

AV Menu

Setup

AV Menu

Mode

Local FM stations with the strongest signals are searched and stored automatically in the FM band.

Mode menu icon

Mode

Mono DX/Local

SSM

Title Entry

ENT

Enter

ENT

Enter

ENT

Start

ENGLISH

ENT

Exit

Only stations with sufficient signal strength will be detected.

• The DX indicator goes off, then the LO indicator lights up.

OPERATIONS

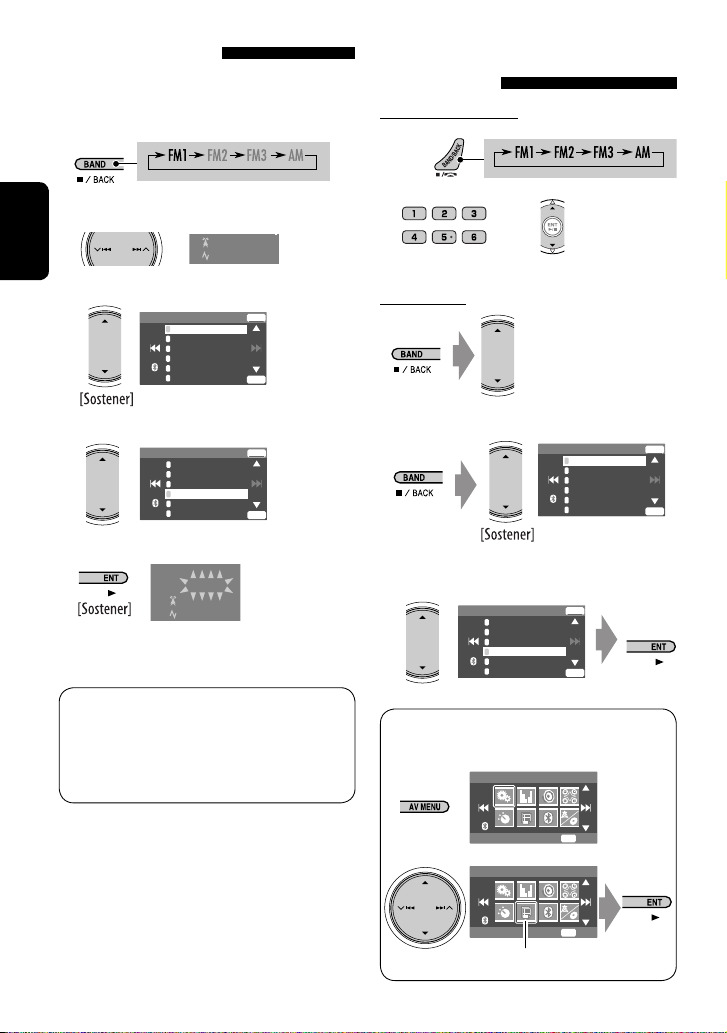

Manual presetting

Ex.: Storing FM station of 92.5 MHz into preset

number 4 of the FM1 band.

ENGLISH

2 Tune in to a station you want to preset.

No Name

92.5 MHz

FM1 Store

87.5

89.9

97.9

105.9

108.0

107.9

Preset List appears.*

Select a preset number.

FM1 Store

87.5

89.9

97.9

105.9

108.0

107.9

The station selected in step 2 is now stored in preset number 4.

TUNER

FM1 Preset4

No Name

92.5 MHz

ENT

Selecting preset stations

On the remote:

On the unit:

FM1 Store

87.5

89.9

97.9

92.5

108.0

107.9

• Each time you hold the button, you can change the FM bands.

1 2 3 4 5 6

87.5

89.9

97.9

92.5

108.0

107.9

ENT

* Each time you hold the button, you can change

the FM bands.

• Preset List can also be accessed through <AV

Menu> = <List>. (☞ right )

• Preset List can also be accessed through <AV

Menu> = <List>.

AV Menu

Setup

AV Menu

List

ENT

List menu icon

Enter

Disc operations

The disc type is automatically detected, and playback starts automatically (for some discs: automatic start depends on its internal program).

If a disc does not have any disc menu, all tracks in it will be played repeatedly until you change the source or eject the disc.

” appears on the monitor, the unit cannot accept the operation you have tried to do.

If “

• In some cases, without showing “ ,” operations will not be accepted.

Insert the disc.

Playback starts automatically.

Label side

Caution:

Do not place your finger behind the control panel.

Caution on volume setting:

Discs and connected USB devices produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.

ENGLISH

0: Eject the disc.

7: Stop playback.

DISP: Press if no playback picture appears, but disc information

screen (

☞ pages 14 to 16) is displayed.

DISC

Now Reading ...

3: Start playback if necessary.

3: 45PM

OPERATIONS

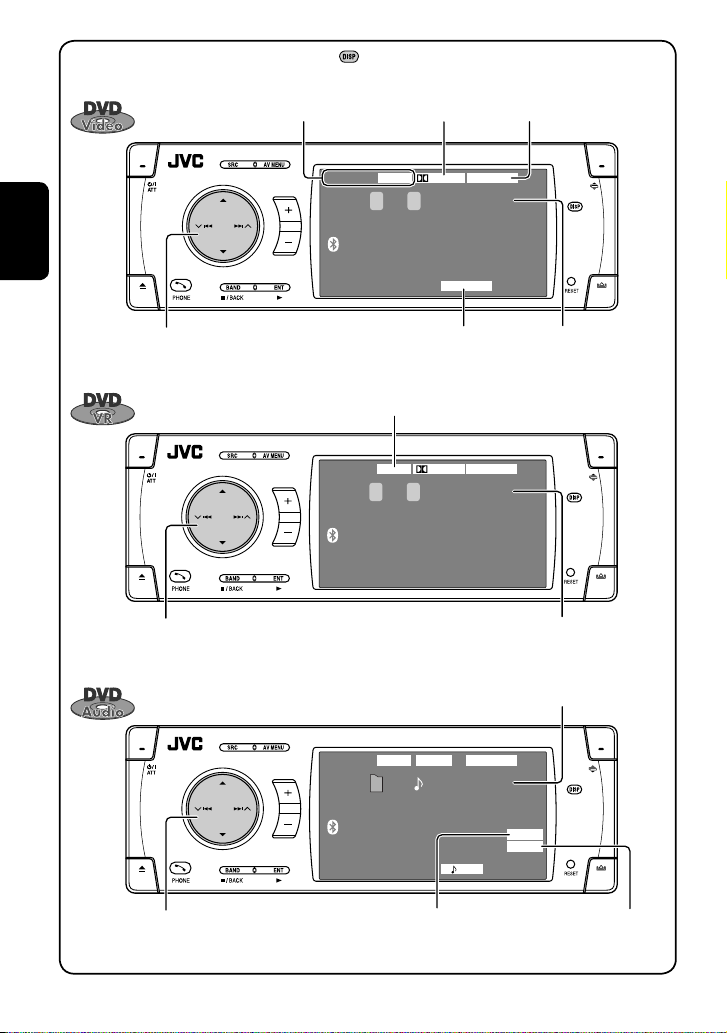

While playing the following discs, press .

• Each time you press the button, playback picture and disc information screens appear alternately.

Disc type

Audio format

Surround mode

ENGLISH

MULTI

DVD

DIGITALVIDEO

T 01 C 02 0:45:38

CHAP. RPT

3: 45PM

4 ¢ Press: Select chapter Hold: Reverse/forward search

5 ∞ Select title

4 ¢ Press: Select chapter

Hold: Reverse/forward search 5 ∞ Select program no./Play List no.

VR-PR: Original program VR-PL: Play List

DVD

P 01 C 02 0:45:38

AUDIO

DVD

G 01 02 0:45:38

Playback mode

Title no./Chapter no./Playing time

FLATDIGITALVR-PR

3: 45PM

Program no.(or Play List no.)/Chapter no./ Playing time

Group no./Track no./Playing time

MULTIMLP

BONUS

B.S.P

RPT

3: 45PM

4 ¢ Press: Select track Hold: Reverse/forward search 5 ∞ Select group

BONUS indicator (

☞ page 22)

B.S.P indicator (

☞ page 22)

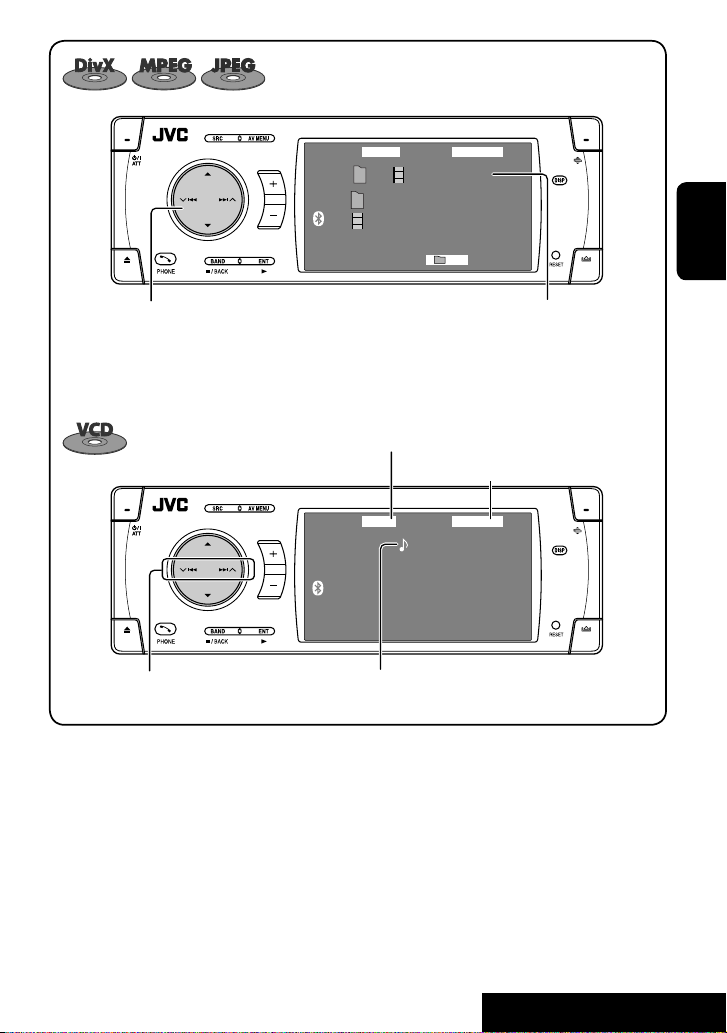

DVD

DivX

T 01 C 02 0:45:38

Current Folder Name Current File Name.avi

FRONT 2CH

RPT

ENGLISH

3: 45PM

4 ¢ Press: Select track Hold: Reverse/forward search for DivX/MPEG 5 ∞ Press: Select folder Hold: Display Folder List

4 ¢ Press: Select track Hold: Reverse/forward search

*1 Search speed: x2 ] x10. *2 Search speed: ¡1 ] ¡2.

PBC indicator lights up when PBC is in use.

VCD

02 0:45:38

Track no./Playing time

For DivX/MPEG: Folder no./Track no./Playing time For JPEG: Folder no./File no.

☞ page 46

FLATPBC

3: 45PM

OPERATIONS

☞ page 46

ENGLISH

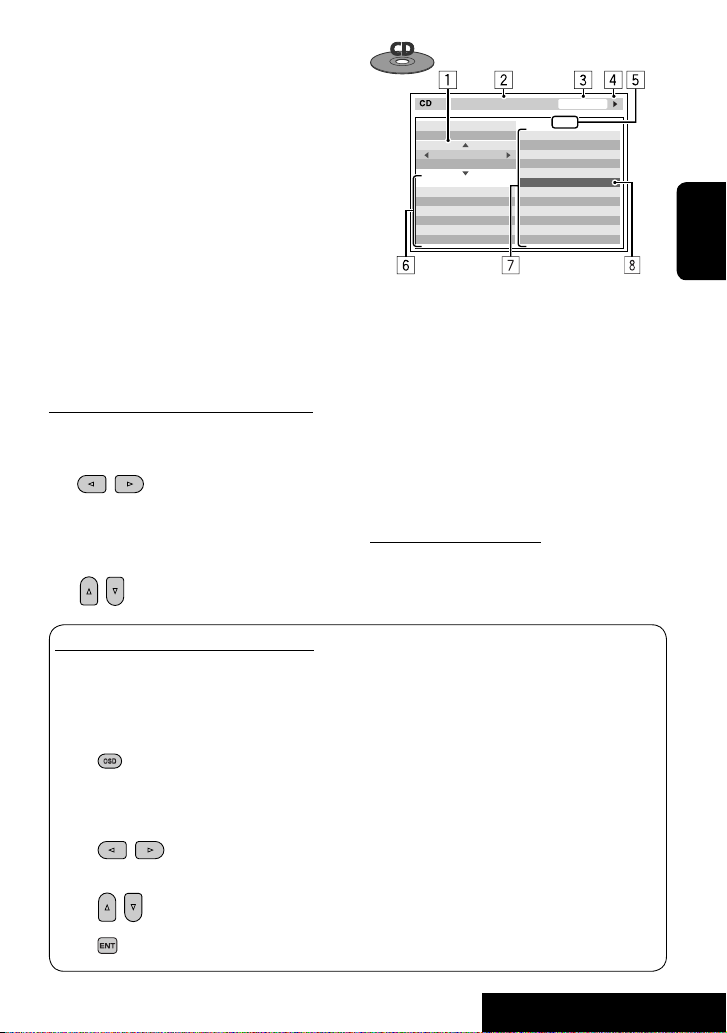

4 ¢ Press: Select track Hold: Reverse/forward search

4 ¢ Press: Select track Hold: Reverse/forward search 5 ∞ Press: Select folder Hold: Display Folder List

02 0:45:38 Disc Title Artist Name Current Track Title

(only for CD Text)

Audio format (MP3/WMA/WAV/AAC)

T 01 02 0:45:38

FLAT

RPT

3: 45PM

Track no./Playing timeDisc title/Artist Name/Track title

☞ page 46

MP3

FLAT

Current Folder Name Current File Name.mp3

RPT

3: 45PM

Folder no./Track no./Playing time

Tag data will be shown instead of folder/file names when they are recorded and < <

On>. (☞ page 49)

Tag Display> is set to

*1 Search speed: x2 ] x10. *3 “No Name” appears for conventional CDs.

Selecting playback modes

You can use only one of the following playback modes—Intro/Repeat/Random. Ex. To select Track Repeat

AV Menu

Mode

Off

All Off Intro

Repeat

Random

ENGLISH

Setup

AV Menu

ENT

Enter

Repeat

Off

Track

Folder

ENT

Set

When one of the playback modes is selected,

ENT

Mode

Mode menu icon

Enter

the corresponding indicator lights up on the disc

information screen. To cancel, select <All Off> in step 3 or <Off> in step 4.

Disc type Intro Repeat Random

Chapter: Repeats current

—

chapter

Title: Repeats current title

— Track: Repeats current track —

Chapter: Repeats current

chapter

—

Program: Repeats current

program (not available for Playlist playback)

Track: Plays the first 15

seconds of each track (for VCD: PBC not in use)

Track: Plays the first 15

seconds of each track

Folder: Plays the first 15

seconds of the first track of each folder

Track: Repeats current track

(for VCD: PBC not in use)

Track: Repeats current track Folder: Repeats all tracks of

the current folder

Disc (All): Randomly plays all

tracks (for VCD: PBC not in use)

Folder: Randomly plays all

tracks of current folder, then tracks of next folders

Disc (All): Randomly plays all

tracks

Track: Repeats current track

—

Folder: Repeats current folder

—

Folder: Repeats current folder

—

OPERATIONS

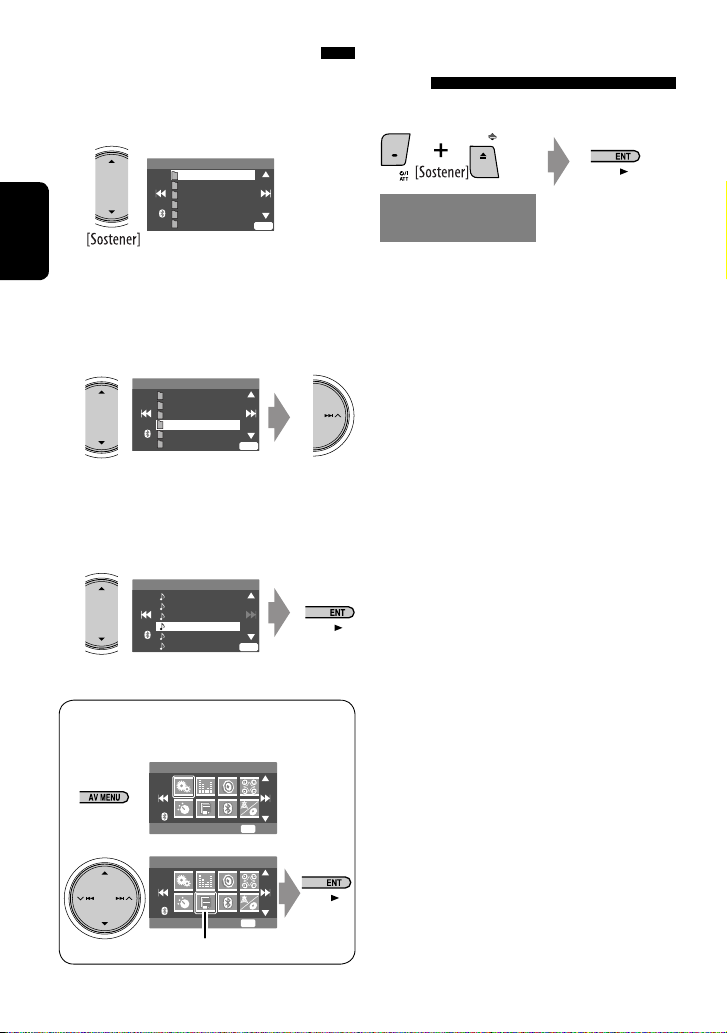

Selecting tracks on the list

If a disc includes folders, you can display the Folder/ Track (File) Lists, then start playback.

ENGLISH

Folder List

Off

My Best

Cinema Pops My Best2 Favorite Song Cinema2

ENT

Prohibiting disc ejection

You can lock a disc in the loading slot.

NO EJECT?

EMERGENCY EJECT?

“No Eject” appears.

Folder List appears.

• Hold the button to see the next/previous folders.

2 Select a folder, then activate the Track List.

Folder List

My Best Cinema Pops

My Best2

Favorite Song Cinema2

Off

ENT

Track List of the selected folder appears.

3 Select a track, and start playing.

File List

Song011.mp3 Song012.mp3 Song013.mp3

Song014.mp3

Song015.mp3 Song016.mp3

Off

• Folder List can also be accessed through <AV

Menu> = <List>.

AV Menu

Setup

AV Menu

List

List menu icon

ENT

Enter

ENT

Enter

To cancel the prohibition, repeat the same procedure to select “EJECT OK?”.

Operations using the remote controller—RM-RK251

: Stop playback.

: Start playback/Pause (if pressed during playback).

: Reverse/forward search.*2 (No sound can be heard.)

(Slow motion*3 during pause. No sound can be heard.)

: Press: Select chapter (during playback or pause).

Hold: Reverse/forward search.*

: Select title (during playback or pause).

ENGLISH

*1 Erases the misentry of the

number.

*2 Search speed: x2 ] x5 ]

x10 ] x20 ] x60

*3 Slow motion speed: 1/32 ]

1/16 ] 1/8 ] 1/4 ] 1/2

*4 Search speed: x2 ] x10

= = :

Select chapter. Select title (when not playing).

(twice) = = :

Select title (during playback or pause).

Using menu driven features

1 2 Select an item you want

to start playback.

: Select aspect ratio.

: Select audio language.

: Select subtitle language.

: Select view angle.

: Stop playback.

: Start playback/Pause (if pressed during playback).

: Reverse/forward search.*

: Press: Select track.

Hold: Reverse/forward search.*

: Select group.

Using menu driven

= = :

Select track.

(twice) = = :

Select group.

features

1 2 Select an item you want

to start playback.

: Select aspect ratio.

: Select audio stream.

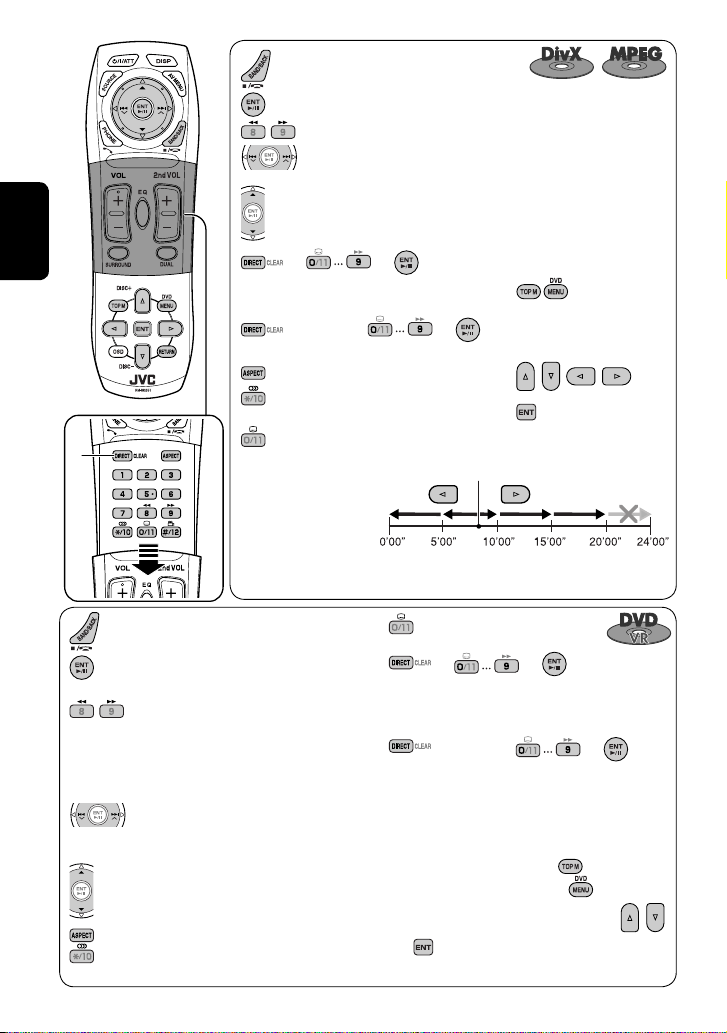

OPERATIONS

: Stop playback.

: Start playback/Pause (if pressed during playback).

ENGLISH

Hold: Reverse/forward search.*3 (No sound can be heard.)

: Select folder.

Select track (within the same folder).

Select folder.

: Select aspect ratio.

: Select audio language. (DivX only) : Select subtitle language. (DivX only)

: Stop playback.

: Start playback/Pause (if pressed during

playback).

: Reverse/forward search.*4 (No sound

can be heard.)

(Slow motion*5 during pause. No sound

can be heard.)

Reverse slow motion does not work.

: Press: Select chapter (during playback

or pause).

Hold: Reverse/forward search.*

Select program.

: Select play list (during playback or

pause).

: Select aspect ratio.

While playing...

Back/advance the scenes by 5 minutes.

: Reverse/forward search.*2 (No sound can be heard.)

: Press: Select track.

= = :

(twice) = = :

For DivX6: Using menu driven features

1 2 Select an item you want to

start playback.

Current playback position

2nd press

1st press

2nd press

: Select audio channel

(ST: stereo, L: left, R: Right).

: Turn on/off subtitle.

= = :

Select chapter. Select program (when not playing).

(twice) = = :

Select program/play list (during playback or

pause).

Using Original Program/Play List screens

(☞ page 28) 1 For Original Programs: For Play List: 2 Select an item you want to start playback.

(Hide screen)

3rd press

: Stop playback.

: Start playback. (Slide show: each file is

shown for a few seconds.)

Shows the current file until you change

it if pressed during Slide show.

: Select track.

: Stop playback.

: Start playback/Pause (if

pressed during playback).

: Reverse/forward search.*

: Press: Select track.

Hold: Reverse/forward search.*

ENGLISH

: Select folder.

: Select aspect ratio.

= = :

Select track (within the same folder).

(twice) = = :

Select folder.

: Stop playback.

: Start playback/Pause (if pressed during

playback).

: Reverse/forward search.*

(Forward slow motion*5 during pause. No

sound can be heard.)

Reverse slow motion does not work.

: Press: Select track.

Hold: Reverse/forward search.*6 (No

sound can be heard.)

: Select aspect ratio.

: Select audio channel (ST: stereo, L: left, R:

Right).

: Stop playback.

: Start playback/Pause (if pressed during

playback).

: Reverse/forward search.*

: Press: Select track.

Hold: Reverse/forward search.*

= = : Select track.

: Select folder.

= = :

Select track (within the same folder).

(twice) = = :

Select folder.

= = :

Select track.

During PBC playback...

= = :

Select an item on the menu. To return to the previous menu, press

To cancel PBC playback

2 Start the desired track.

= =

• To resume PBC, press / .

*1 Erases the misentry of the number. *2 Search speed: ¡1 ] ¡2 ] ¡3 *3 Search speed: ¡1 ] ¡2 *4 Search speed: x2 ] x5 ] x10 ] x20 ] x60 *5 Slow motion speed: 1/32 ] 1/16 ] 1/8 ]

1/4 ] 1/2

*6 Search speed: x2 ] x10

OPERATIONS

Playing back a bonus group

If a DVD Audio including a “bonus group” is detected, the BONUS indicator lights up on the disc information screen.

ENGLISH

To play a bonus group...

1 Select the bonus group.

• The bonus group is usually recorded as the last group.

2 Enter the key number.

: Move the entry position

: Select a number

• “key number” (a kind of password) for the bonus group is not open to public. The way of getting the key number depends on the disc.

3 Follow the interactive instructions shown on

the monitor.

Selecting browsable still picture

When a disc including browsable still pictures is detected, the B.S.P indicator lights up on the disc information screen.

Enjoying surround sounds

You can enjoy multi-channel surround playback through the front, center, surround speakers.

• After connecting the center speaker, make

sure to activate the center speaker; otherwise, no sound comes out of the center speaker (☞

page 52).

• All surround mode can also be used for “USB.”

MULTI: For multi-channel encoded sources such as

Dolby Digital* activated, “MULTI” is shown on the source information screen.)

Dolby Pro Logic II (Movie/Music): For 2 channel

sources except for DivX/MPEG 1/MPEG2 discs.

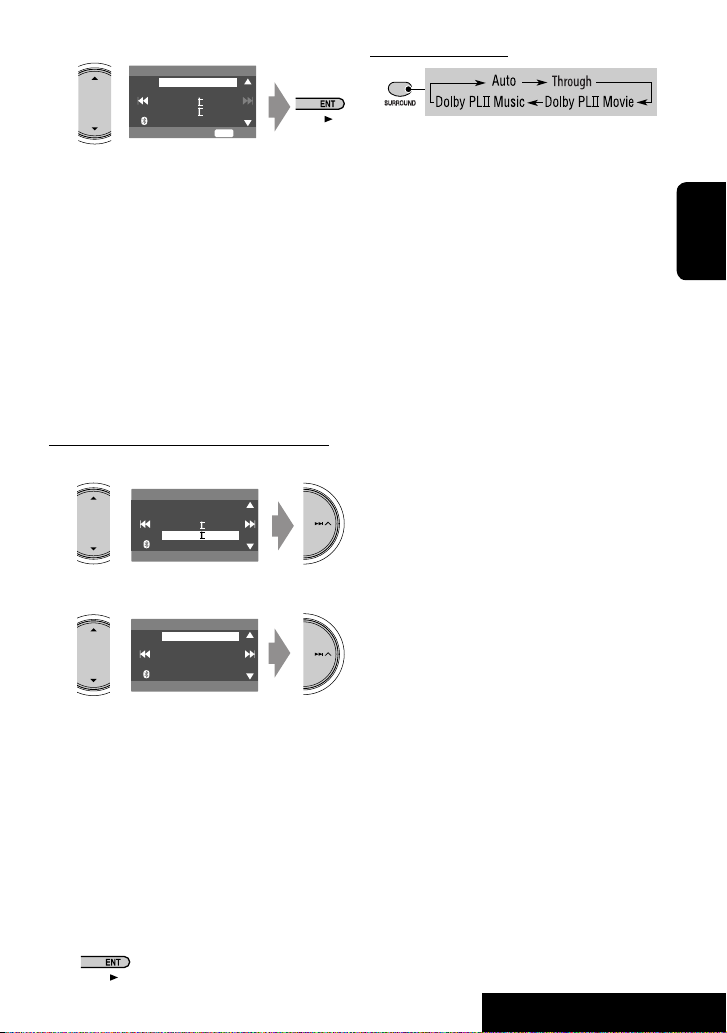

To turn on the surround

, DTS*2, and DVD Audio. (When

AV Menu

ENT

Setup

Disc Surround menu icon

AV Menu

Disc Surround

Enter

ENT

Enter

When disc shows the BSP selecting icons such as @ or # on the screen...

1 Select an item you want to display.

Disc Surround

Surround Off

Surround On

Auto

• Surround Off: Deactivates surround.

• Surround On: Activates surround = go to the

following steps.

Surround On

Auto

Through Dolby PLII Movie Dolby PLII Music

ENT

Set

• Auto: When multi-channel digital signals come in, “MULTI” surround is activated.

When 2-channel or 2.1-channel signals come in,

“4CH STEREO” is activated.

• Through: All incoming channel signals are sent to the corresponding speakers.

• Dolby PLII Movie: Activates Dolby Pro Logic II Movie.

• Dolby PLII Music: Activates Dolby Pro Logic II Music. You can adjust <Panorama> and <Center Width> settings. (☞ below)

To change the <Dolby PLII Music> setting

in step 4 above...

Surround On

Auto Through Dolby PLII Movie

Dolby PLII Music

Panorama

On the remote controller:

• You cannot change the <Dolby PLII Music> settings using the remote controller.

*1 Manufactured under license from Dolby Laboratories.

Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

*2 “DTS” and “DTS Digital Surround” are registered

trademarks of DTS, Inc.

ENGLISH

Dolby PLII Music

Panorama

CenterWidth

• Panorama: Select <On> to add wraparound sound effect.

• Center Width: Adjust the center image so it may be heard only from the center speaker, only form the left/right front speaker as a “phantom” center image, or various combination of these speakers. As the number increases, the “phantom” effect becomes stronger (normally select <4>).

OPERATIONS

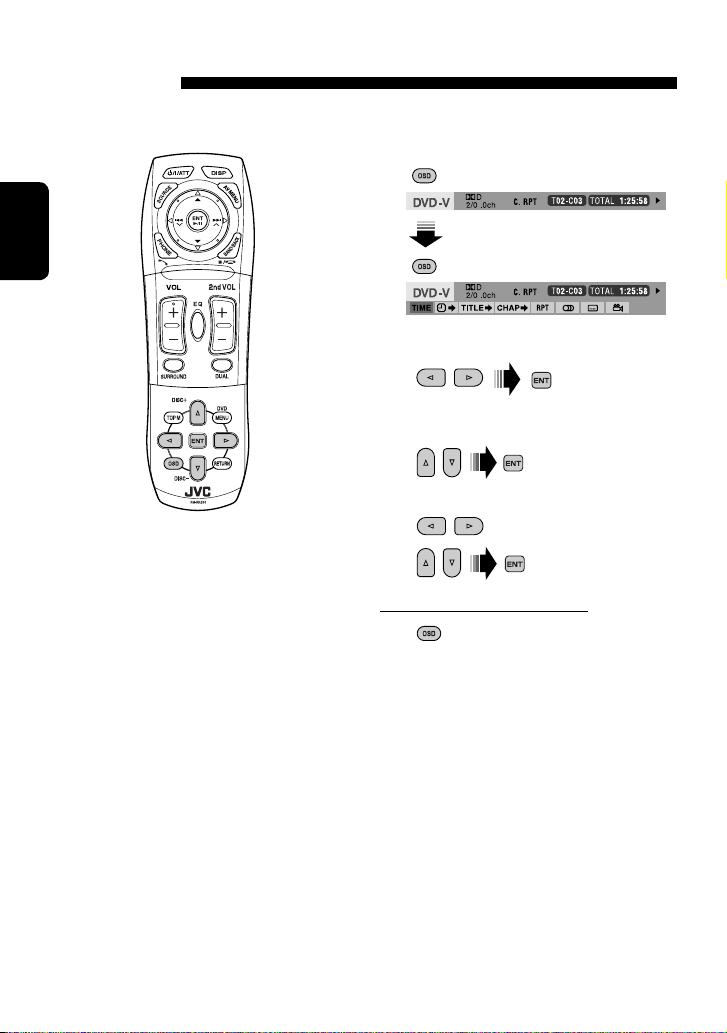

Operations using the on-screen bar (DVD/VCD/DivX/MPEG1/MPEG2/ JPEG)

These operations are possible on the monitor using the remote controller.

ENGLISH

1 Display the on-screen bar. (☞ page 25)

2 Select an item.

3 Make a selection.

If a pop-up menu appears...

• For entering time/numbers...

To remove the on-screen bar

: Move the entry position

: Select a number

On-screen bar

Information

Operation

DVD -V

TIME TITLE CHAP

T02-C03 TOTAL 1:25:58

C. RPT

RPT

Above example is of DVD Video. Items shown on the bar vary due to the disc type.

1 Disc type 2 • DVD: Audio signal format

• VCD: PBC

3 Playback mode*

DVD Video: T. RPT: Title repeat C. RPT: Chapter repeat DVD Audio: T. RPT: Track repeat DVD-VR: C. RPT: Chapter repeat PG. RPT: Program repeat DivX/MPEG: T. RPT: Track repeat F. RPT: Folder repeat JPEG: F. RPT: Folder repeat VCD: T. INT: Track intro T. RPT: Track repeat A. RND: All random 4 Playback information

Current title/chapter

T02-C03

Current group/track

G02-T03 PG-001

C-002

Current program/chapter

PL-003

C-004

Current playlist/chapter

TRACK 01

Current track

Current folder/track

F001-T001 F002-F002

Current folder/file (JPEG)

5 Time indication

Elapsed playing time of the disc

TOTAL

Remaining title time (for DVD)

T. REM

Remaining disc time (for others)

TIME

Elapsed playing time of the current

chapter/track*

REM

Remaining time of the current

chapter/track*

6 Playback status

Play

Reverse/forward search

Reverse/forward slow-motion Pause Stop

7 Operation icons

Change time indication (see 5)

TIME

Time Search (Specify a certain scene

by entering time.)

TITLE

Title Search (by its number)

CHAP

Chapter Search (by its number)

GROUP

Group Search (by its number)

TRACK

Track Search (by its number)

RPT

Repeat play*

INT

Intro play*

RND

Random play*

Change the audio language, audio

channel or audio stream Change the subtitle language Change the view angle

PAGE

Change the browsable still pictures

(pages)

ENGLISH

*1 ☞ page 17 *2 Not applicable for DVD-VR.

OPERATIONS

Dual Zone operations

You can enjoy a disc playback on the external monitor connected to the VIDEO OUT and 2nd AUDIO OUT plugs, while listening to any other source than “USB” through

ENGLISH

the speakers.

• When Dual Zone is in use, you can only operate the DVD/CD player using the remote controller.

AV Menu

Setup

AV Menu

Dual Zone

Dual Zone menu icon

Dual Zone

Off On

On/Surround On

ENT

Enter

ENT

Enter

ENT

Set

• Off: Deactivates Dual Zone.

• On (DUAL): Activates Dual Zone without applying Headphone Surround*1.

• On/Surround On (DUAL-S): Activates Dual Zone and applies Headphone Surround.

When Dual Zone is activated, the main source is changed to “DISC.”

DVD

T 01 C 02 0:45:38

FLATDIGITALVIDEO

DUAL-S

Ex. When “On/Surround On” is selected.

To select a different source (main source) to listen through the speakers:

Press SRC (source) on the control panel.

• By using the buttons on the control panel, you can operate the newly selected main source without affecting Dual Zone (DISC) operations.

• You cannot select “USB” for the main source.

On the remote controller:

2 Adjust the volume through the 2nd AUDIO

OUT plug.

3 Operate the DVD/CD player.

*1 JVC original headphone virtual surround system. This

surround will also work for the main source “DISC” if “On/Surround On” is selected as the sub-source. This surround does not work for DivX/MPEG1/MPEG2 discs.

*2 Displayed being shaded if Headphone Surround is not

applied.

Operations using the control screen

For discs except DVD and VCD:

While Dual Zone is on, these operations are possible on the external monitor using the remote controller. The control screen automatically appears when you insert a disc. (For DivX/MPEG1/MPEG2/JPEG; while not playing.)

TIME 00:00:14T. RPT

Track : 6 / 14 (Total 41)

Cloudy.mp3 Fair.mp3 Fog.mp3 Hail.wma Indian summer.mp3 Rain.mp3

Shower.mp3

Snow.mp3 Thunder.wma Typhoon.mp3 Wind.mp3 Winter sky.mp3

Folder : 2 / 3

01 Music

02 Music

03 Music

Track Information Album Weather Artist Robert M. Smith Title Rain

Ex.: MP3/WMA

1 Current folder (highlighted bar) 2 Current folder number/total folder number 3 Folder list

* If tag data includes “Jacket Picture” (baseline JPEG), it

will be displayed. If you press OSD, the playback mode selection window appears. (☞ below)

4 Selected playback mode (☞ below) 5 Elapsed playing time of the current track (not

displayed for JPEG)

6 Operation status 7 Current track number/total number of tracks in the

current folder (total number of tracks on the disc)

8 Track information (only for MP3/WMA/WAV/AAC) 9 Track list p Current track (highlighted)

To select a folder or track

1 Select “Folder” column or “Track” column on

the control screen.

2 Select a folder or track.

• If necessary, press ENT to start playback.

TIME 00:14

Track : 6 / 14

Cloudy Fair Fog Hail Indian summer

Rain

Shower Snow Thunder Typhoon Wind Winter sky

MODE

REPEAT

TRACK

Track Information

Album Four seasons Artist Robert M. Smith Title Rain

T. RPT

Ex.: CD Text

1 Playback mode selection window: appears when

OSD is pressed (☞ below).

2 Selected playback mode (☞ below) 3 Elapsed playing time of the current track 4 Operation status 5 Current track number/total number of tracks on the

disc

6 Track information 7 Track list 8 Current track (highlighted bar)

To select a track

• If necessary, press ENT to start playback.

ENGLISH

Selecting playback modes

You can also change the playback modes using the playback mode selection window.

• For CD/MP3/WMA/WAV/AAC: Intro/Repeat/ Random

• For DivX/MPEG1/MPEG2/JPEG: Repeat

Only for CD/MP3/WMA/WAV/AAC: Select a

playback mode.

3 Select your desired option.

Selected playback mode

DivX/MPEG1/MPEG2/JPEG: ☞ page 25 MP3/WMA/WAV/AAC: T. INT: Track intro F. INT: Folder intro T. RPT: Track repeat F. RPT: Folder repeat F. RND: Folder random A. RND: All random CD: T. INT: Track intro T. RPT: Track repeat A. RND: All random

OPERATIONS

Operations using the list screen

For discs except DVD, VCD, and CD

While Dual Zone is on, these operations are possible on the external monitor using the remote controller.

ENGLISH

While not playing...

1 Display the list screen.

Folder : 144/240 Track 144/198 Page : 4/7 fol120

fol121 fol122 fol123 fol124 fol125 fol126 fol127 fol128 fol129

fol130 fol131 fol132 fol133 fol134 fol135 fol136 fol137 fol138 fol139

fol140 fol141 fol142

fol143

fol144 fol145 fol146 fol147 fol148 fol149

fol150 fol151 fol152 fol153 fol154 fol155 fol156 fol157 fol158 fol159

List screen for DVD-VR

You can use Original Program and Play List screen anytime while playing DVD-VR with its data recorded.

1 Display the Original Program/Play List

screen.

ORIGINAL PROGRAM

No Date Ch ime itle

1 07/04/25 4ch 19:00 JVC DVD World 2004 2 07/05/25 8ch 10:30 3 07/05/22 8ch 17:00 Music Festival 4 07/05/26 L-1 13:19 children 001 5 07/06/20 4ch 22:00 6 07/06/25 L-1 8:23 children 002

2 Select a folder on the list.

Folder : 144/240 Track 144/198 Page : 4/5 file0121.mp3

file0122.mp3 file0123.wma file0124.mp3 file0125.mp3 file0126.wma file0127.wma file0128.mp3 file0129.mp3 file0130.wma

file0131.mp3 file0132.mp3 file0133.mp3 file0134.mp3 file0135.wma file0136.mp3 file0137.wma file0138.mp3 file0139.wma file0140.wma

file0141.wma file0142.mp3 file0143.wma

file0144.mp3

file0145.mp3 file0146.mp3 file0147.mp3 file0148.wma file0149.wma file0150.wma

file0151.wma file0152.mp3 file0153.wma file0154.mp3 file0155.wma file0156.wma file0157.wma file0158.wma file0159.mp3 file0160.wma

3 Select a track on the list.

• To go back to the folder list, press

1 Current folder number/total folder number 2 Current track number/total number of tracks in the

current folder

3 Current page/total number of the pages included

in the list

4 Current folder/track (highlighted bar)

PLAY LIST

No Date Chap Length Title

1 07/05/25 001 1:03:16 My JVC World 2 07/06/17 005 1:35:25 3 07/06/20 003 0:10:23 Favorite music 4 07/06/25 001 0:07:19 children001-002

2 Select an item you want.

1 Program/Play list number 2 Recording date 3 Recording source (TV station, the input terminal

of the recording equipment, etc.)

4 Start time of recording 5 Title of the program/play list* 6 Highlighted bar (current selection) 7 Creating date of play lists 8 Total number of chapters 9 Playback time

* The title of the original program or play list may

not be displayed depending on the recording equipment.

USB operations

You can connect a USB mass storage class device such as a USB memory, Digital Audio player*1, portable HDD, etc. to the unit.

~ Connect a USB device.

USB cable from the rear of the unit.

• You cannot connect a computer to the USB ( ) terminal of the unit.

Ÿ Select “USB”.

4 ¢ Press: Select track Hold: Reverse/forward search 5 ∞ Press: Select folder Hold: Display Folder List

DISP: Press if no playback picture appears , but disc

information screen (

USB

Now Reading ...

☞ pages 14 to 16) is displayed.

ENGLISH

7: Stop playback

This unit can play DivX/JPEG/MPEG1/MPEG2*2/MP3/ WMA/WAV/AAC*3 files stored in a USB mass storage class device.

• You can operate the USB device in the same way you

operate the files on discs. (☞ page 17 to 25)

• You cannot select “USB”when Dual Zone is in use.

• All tracks in the USB device will be played repeatedly until you change the source.

3: Start playback if necessary.

3: 45PM

*1 Except for JVC D. Player XA-HD500. *2 Except for MPEG2 files recorded by JVC Everio

camcorder (extension code <.mod>).

*3 This unit can play back AAC files encoded using

iTunes. This unit cannot play back AAC files purchased from the iTunes Store.

OPERATIONS

Caution:

• Avoid using the USB device if it might hinder your safety driving.

• Do not pull out and attach the USB device repeatedly while “Now Reading...” is flashing on the monitor.

• Do not start the car engine if a USB device is connected.

• Stop playback before disconnecting a USB device.

ENGLISH

• Make sure all important data has been backed up to avoid losing the data.

• Do not leave a USB device in the car, expose to direct sunlight, or high temperature to avoid deformation or cause damages to the device.

Selecting playback modes

You can use only one of the following playback modes—Intro/Repeat/Random. Ex. To select Track Repeat

AV Menu

ENT

Setup

Enter

AV Menu

ENT

Mode

Mode menu icon

Enter

Mode

Off

All Off Intro

Repeat

Random

Repeat

Off

Track

Folder

ENT

Set

When one of the playback modes is selected, the corresponding indicator lights up on the information screen.

To cancel, select <All Off> in step 3 or <Off> in step 4.

File type Intro Repeat Random

Track: Plays the first 15

seconds of each track

Folder: Plays the first 15

seconds of the first track of each folder

Track: Repeats current track Folder: Repeats all tracks of

the current folder

Folder: Randomly plays all

tracks of current folder, then tracks of next folders

USB (All): Randomly plays all

tracks

Track: Repeats current track

—

Folder: Repeats current folder

—

Bluetooth® operations — Cellular phone/audio player

Connecting a Bluetooth device for the first time

Bluetooth is a short-range wireless radio communication technology for the mobile device such as mobile phones, portable PCs, and other devices. The bluetooth devices can be connected without cables and communicate each other.

• The serial number is printed on the label placed on the bottom of the unit.

• Refer to the list (included in the box) to see the countries where you may use the Bluetooth® function.

Bluetooth profile

This unit supports the following Bluetooth profiles; HSP (Headset Profile) HFP (Hands-Free Profile) A2DP (Advanced Audio Distribution Profile) AVRCP (Audio/Video Remote Control Profile) SPP (Serial Port Profile) OPP (Object Push Profile)

Features

You can operate Bluetooth devices through the unit as follows:

• Receiving a call

• Making a call—from phone book, from call history (Redial/Missed Call/Received Call), by dialing number, by preset numbers, by voice command

• Receiving the Text Message

• Play back a Bluetooth audio player

Refer also to the instructions supplied with the Bluetooth device.

• The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Victor Company of Japan, Limited (JVC) is under license. Other trademarks and trade names are those of their respective owners.

Pairing and PIN Code

When you connect a Bluetooth device to the unit for the first time, make pairing between the unit and the device. Pairing allows Bluetooth devices to communicate each other. To make pairing, you may need to enter the PIN (Personal Identification Number) code of your Bluetooth device you want to connect.

• Once the connection is established, it is registered in the unit even if you reset the unit. Up to five devices can be registered in total.

• Only one device can be connected at a time for each source (“Bluetooth Phone” and “Bluetooth Audio”).

• To use the Bluetooth function, you need to turn on Bluetooth function of the device.

Preparation: Operate the device to turn on its Bluetooth function.

Registration (Pairing) methods Use either of the following items in the <Bluetooth> menu to register and establish the connection with a device.

• Select “Bluetooth Phone” or “Bluetooth Audio” as the source to operate the <Bluetooth> menu.

<Open> Make the unit ready to establish

a new Bluetooth connection. Connection is established by operating the Bluetooth device.

<Search> Make the unit ready to establish

a new Bluetooth connection. Connection is established by operating the unit.

ENGLISH

Continued on the next page

OPERATIONS

Registering using <Open>

1 Select “Bluetooth Phone” or “Bluetooth

Audio.”

ENGLISH

Bluetooth Phone

NEW DEVICE

Select “NEW DEVICE” by pressing 5 / ∞.

AV Menu

Setup

FLAT

3: 45PM

ENT

Enter

AV Menu

ENT

Bluetooth

Enter

Bluetooth menu icon

NEW DEVICE

Dial Menu Message

Open

Search Special Device

Enter a PIN (Personal Identification

Number)* code to the unit.

• You can enter any number you like (1-digit to 16-digit number).

* Some devices have their own PIN code. Enter the

specified PIN code to the unit.

PIN Code

1234

• To delete an unwanted digit, select blank space.

7 Operate the target Bluetooth device. (While

“Open...” is flashing on the screen.) Enter the same PIN code (as entered in the above step) on the device to be connected.

Now connection is established and you can use the device through the unit.

The device remains registered even after you disconnect the device. Use <Connect> (or activate <Auto Connect>) to connect the same device from next time. (☞ pages 56 and 57)

Searching for available devices

Perform steps 1 to 3 on the left, then...

NEW DEVICE

Dial Menu Message

Open

Special Device

The unit searches for available devices and displays the list of them. (If no available device is detected, “Device Unfound” appears.)

2 Select a device you want to connect.

3 Enter the specific PIN code of the device to

the unit.

• Refer to the instructions supplied with the device to check the PIN code.

ENT

Enter

4 Use the Bluetooth device to connect.

Now connection is established and you can use the device through the unit.

Connecting a special device

Perform steps 1 to 3 of “Registering using <Open>” on page 32, then...

NEW DEVICE

Dial Menu Message

Open Search

Special Device

Deleting a registered device

1 Select “Bluetooth Phone” or “Bluetooth

Audio,” then select a registered device you want to delete.

ENGLISH

The unit displays the list of the preset devices.

Select a device you want to connect.

3 Use <Open> (or <Search>) to connect.

Connecting/disconnecting a registered device

1 Select “Bluetooth Phone” or “Bluetooth

Audio,” then select a registered device you want to connect/disconnect.

2 Perform steps 2 and 3 of “Registering using

<Open>” on page 32, then...

• Select <Connect> to connect the selected device.

• Select <Disconnect> to disconnect the selected device.

2 Perform steps 2 and 3 of “Registering using

<Open>” on page 32, then...

• Select <Delete Pair>, then <Yes>.

You can set the unit to connect a Bluetooth device automatically when the unit is turned on. (☞ page

57)

OPERATIONS

Using the Bluetooth cellular phone

POWER]ON

ENGLISH

Adjust the volume

Turns Blue when the Bluetooth device is connected.

Bluetooth Phone

Connected Device Name

page 46

FLAT

3: 45PM

☞

Connected device name

Press: Display < Answer incoming call Hold: Display <

Dial Menu>

Redial> list

~ Select “Bluetooth Phone.” Ÿ Enter the <Bluetooth> menu. ! Establish the connection with a device,

then make a call (or settings using the <Bluetooth> menu).

☞ pages 32, 48, 56, and 57

When the sound is stopped or interrupted during the use of a Bluetooth device, try the following

remedies.

• Turn off, then turn on the unit.

• (When the sound is not yet restored,) connect the

device again. (☞ “Connecting/disconnecting a registered device” on page 33)

When a call comes in...

Name and phone number (if acquired)

The source is automatically changed to “Bluetooth Phone”.

When <Auto Answer> is activated...

The unit answers the incoming calls automatically. (☞ page 57)

• When <Auto Answer> is deactivated, press any button (except ATT or +/–) to answer the incoming call.

Status of the device* Signal strength/Battery remainder

*1 You can adjust the volume level for “Bluetooth Phone”

without affecting the volume level for other sources.

*2 Appears only when the information comes from the

device.

*3 Each time you press 5 ∞, the registered device

name (and “NEW DEVICE” when a new device can be registered) appear in turn.

*4 When a cellular phone with audio function is

connected, appears.

You can adjust the microphone volume level. (☞ page

57)

To end the call or reject an incoming call

Hold any button (except ATT or +/–).

Answering a waiting call

If your cellular phone is equipped with the call waiting function, you can put the current call on hold and answer the waiting call. Press any button (except ATT and +/–).

• To restore the on-hold call, press any button (except ATT and +/–) again.

• When you end one call, you can connect to the

other.

When a Text message comes in...

If the cellular phone is compatible with Text message and <Message Info> is set to <Auto> (☞ page 57), the unit rings and “Receiving Message” appears on the monitor to inform you of the arrival of the message.

• You cannot edit or send a message through the unit.

When <Message Info> is set to <Auto>... To read the message

While “Receiving Message” is displayed...

Making a call

1 Display the <Dial Menu>.

P902i

Redial

Received Calls Phonebook Missed Calls Phone number

Annie

2 Select the method to make a call.

P902i

Redial Received Calls

Phonebook

Missed Calls Phone number

Annie

ENGLISH

• The source is changed to “Bluetooth Phone.”

To read the message later

• The message is stored into <Message> =

<Unread>. (☞ page 56)

When <Message Info> is set to <Manual>

Access the message list to read a message. (☞ page 56)

• Redial* : Shows the list of the phone numbers

you have dialed = go to the following step.

• Received Calls* : Shows the list of the received

calls = go to the following step.

• Phonebook* : Shows the phone book of the

connected cellular phone = go to the following step.

• Missed Calls* : Shows the list of the missed

calls.= go to the following step.

• Phone Number : Shows the phone number

entry screen = “How to enter phone number” (☞ page 36).

• Voice Dialing (Only when the connected cellular phone has the voice recognition system): Speak the name you want to call.

* Displays only when your cellular phone is

equipped with these functions.

– If not displayed, please try to transfer the

phone book memory of the cellular phone to this unit. (Refer to the instruction manual supplied with your cellular phone.)

– With some cellular phones, the phone book

memory is transferred automatically.

3 Select the name/phone number you want to

call.

OPERATIONS

How to enter phone number

On the remote:

On the unit:

ENGLISH

Select a number.

Move the entry position.

Presetting the phone numbers

You can preset up to six phone numbers.

1 Display the phone number you want to

preset by using one of <Dial Menu> items.

ENT

Jack

12312341234 09898765432

09845671234

Ex.: “Jack” is selected from the phone book

Store

ENT

Dial

• To delete an unwanted digit, select blank space.

Dialling ...

Jack 09845671234

<Dial Menu> can be also accessed through <AV Menu> = <Bluetooth> = <Dial Menu>.

AV Menu

ENT

Setup

AV Menu

Bluetooth

Enter

ENT

Enter

Bluetooth menu icon

Direct operations to redial / Voice Dialing

You can use the following functions regardless of the current source.

To redial

To activate Voice Dialing

You can make a call by your voice.

Speak the name you want to call.

Preset Memory list appears.

Preset Memory

11122223333

22233336666

44455556666

11133334444

99988887777

55566668888

ENT

2 Select a preset number.

Preset Memory

11122223333

22233336666

44455556666

11133334444

99988887777

55566668888

ENT

The phone number selected in step 1 is now stored in preset number 4.

To call a preset number

On the remote:

On the unit:

Preset List

11122223333

22233336666

44455556666

09845671234

99988887777

55566668888

Preset List

11122223333

22233336666

44455556666

09845671234

99988887777

55566668888

ENT

• Preset List can also be accessed through <AV

Menu> = <List>.

AV Menu

You can use the following buttons on the remote controller for the Bluetooth phone operations. For details, ☞ pages 8 and 9.

ENT

Setup

AV Menu

List

List menu icon

Enter

ENT

Enter

Using the Bluetooth audio player

Reverse/forward skip

POWER]ON

Pause

Turns Blue when the Bluetooth device is connected.

Bluetooth Audio

Connected device name

Status of the device* Signal strength/Battery remainder

~ Select “Bluetooth Audio.” Ÿ Start playback.

• See pages 31 to 33 for connecting a new device.

• See page 33 for connecting/disconnecting a registered device.

• See page 33 for deleting a registered device.

When the sound is stopped or interrupted during the use of a Bluetooth device, try the following

remedies.

• Turn off, then turn on the unit.

• (When the sound is not yet restored,) connect the device again. (☞ “Connecting/disconnecting a registered device” on page 33)

Bluetooth Information:

If you wish to receive more information about Bluetooth, visit our JVC web site.

FLAT

☞ page 46

3: 45PM

*1 Each time you press 5 ∞, the registered device

names (and “NEW DEVICE” when a new device can be registered) appear in turn. You cannot select “New Device” when a Bluetooth audio player is connected.

*2 Appears only when the information comes from the

device.

*3 Indicates the button pressed. It may be different from

the operation status.

*4 When a cellular phone with audio function is

connected, appears.

You can use the following buttons on the remote controller for the Bluetooth audio operations. For details, ☞ pages 8 and 9.

OPERATIONS

ENGLISH

Listening to the CD changer

POWER]ON

ENGLISH

4 ¢ Press: Select track Hold: Reverse/forward search 5 ∞ Press: Select folder (MP3 only) Hold: Display Disc List

It is recommended to use a JVC MP3-compatible CD changer with your unit.

• You can play only CDs (CD-DA) and MP3 discs.

Preparation:

Make sure <Changer> is selected for the external input setting. (☞ page 53)

~ Select “CD-CH.” Ÿ Display the Disc List.

Disc List

MP3 DISC

DISC 02 DISC 03 DISC 04 DISC 05 DISC 06

Off

ENT

Disc no./Track no./Playing time

CD-CH

FLAT

01 01 0:02:38

Disc Title Artist Name Current Track Title

“No Name” appears for conventional CDs

• While playing an MP3 disc, you can select and start playing a track in the disc using the Lists: Disc List (select the current disc) = Folder List = File List, then start playing a track you want.

Disc List

Off

Folder List

Off

3: 45PM

MP3 DISC

DISC 02 DISC 03 DISC 04 DISC 05 DISC 06

My Best

Cinema Pops My Best2 Favorite Song Cinema2

ENT

• Each time you hold the button, you can display the other list of the remaining discs.

! Select a disc to start playing.

Disc List

MP3 DISC DISC 02 DISC 03

DISC 04

DISC 05 DISC 06

Off

ENT

File List

Off

Song011.mp3 Song012.mp3 Song013.mp3

Song014.mp3

Song015.mp3 Song016.mp3

ENT

Selecting playback modes

You can use only one of the following playback modes—Intro/Repeat/Random. Ex. To select Track Repeat

AV Menu

Mode

Off

All Off Intro

Repeat

Random

ENGLISH

Setup

Mode menu icon

AV Menu

Mode

ENT

Enter

ENT

Enter

Repeat

Off

Track

Disc

ENT

Set

When one of the playback modes is selected, the corresponding indicator lights up on the monitor.

To cancel, select <All Off> in step 3 or <Off> in step 4.

Disc type Intro Repeat Random

Track: Plays the first 15

seconds of each track

Disc: Plays the first 15 seconds

of the first track of all

Track: Repeats current track Disc: Repeats all tracks of the

current disc

Disc: Randomly plays all tracks

of the current disc

All: Randomly plays all tracks

of all loaded discs

loaded discs

Track: Plays the first 15

seconds of each track

Folder: Plays the first 15

seconds of the first track of each folder

Disc: Plays the first 15 seconds

of the first track of all

Track: Repeats current track Folder: Repeats all tracks of

the current folder

Disc: Repeats all tracks of the

current disc

Folder: Randomly plays all

tracks of current folder, then tracks of next folders

Disc: Randomly plays all tracks

of the current disc

All: Randomly plays all tracks

of all loaded discs

loaded discs

To use <Mode> menu

To use <List> menu

☞ above.

☞ page 38.

Disc List = Folder List = File List

You can use the following buttons on the remote controller to operate the CD changer.

or : Select disc

Press: Select folder (MP3 only)

Press: Select track

Hold: Reverse/forward search

EXTERNAL DEVICES

Listening to the satellite radio

Before operating, connect either one of the following (separately purchased) to the CD changer jack on the rear of this unit.

• JVC SIRIUS radio DLP—Down Link Processor, for listening to the SIRIUS Satellite radio.

ENGLISH

• XMDirectTM Universal Tuner Box—With a JVC Smart Digital Adapter (XMDJVC100: not supplied), for listening to the XM Satellite radio.

For SIRIUS Radio

Activate your subscription after connection:

1 Turn on the power.

2 Select “SAT” for the source.

JVC DLP starts updating all the SIRIUS channels. (☞ “GCI update” column below.)

• Once completed, JVC DLP tunes in to the preset channel, CH184.

3 Check your SIRIUS ID, see page 53.

4 Contact SIRIUS on the internet at <http://

activate.siriusradio.com/> to activate your subscription, or you can call SIRIUS toll-free at 1-888-539-SIRIUS (7474).

“Subscription Updated Press Any Key to Continue” appears on the monitor once subscription has been completed.

GCI (Global Control Information) update:

• If channels are updated after subscription, updating starts automatically, and no sound can be heard. For SIRIUS: “Channel is Updating XX% completed” appears. For XM: “UPDATING” appears.

• Update takes a few minutes to complete.

• Do not press any button or perform any operation until updating is completed.

For XM Radio

Activate your subscription after connection:

1 Turn on the power.

2 Select “SAT” for the source.

XMDirectTM Universal Tuner Box starts updating all the XM channels. “Channel 1” is tuned in automatically. (☞ “GCI update” column below.)

3 Check your XM Satellite radio ID labelled on

the casing of the XMDirectTM Universal Tuner Box, or tune in to “Channel 0” (see page 41).

4 Contact XM Satellite radio on the internet

at <http://xmradio.com/activation/> to activate your subscription, or you can call 1800-XM-RADIO (1-800-967-2346).

Once completed, the unit tunes in to one of the available channels (Channel 4 or higher).

POWER]ON

DISP: Switches the display to program information—artist name/song name (/composer

name: only for SIRIUS Satellite radio).

SIRIUS/XM Band

Preset no.

☞ page 46

Channel no.

SAT

XM1 Preset1 01ch

Category Name Channel Name

Signal strength

For SIRIUS Radio

~ Select “SAT.” Ÿ Select the bands.

! Select a category.

• To select a channel from all categories, select “All.”

⁄ Make a channel to listen.

• Holding either 4 or ¢ changes the channels rapidly.

• While searching, invalid and unsubscribed channels are skipped.

• “SIRIUS” and the SIRIUS dog logo are registered trademarks of SIRIUS Satellite Radio Inc.

• XM and its corresponding logos are registered trademarks of XM Satellite Radio Inc.

• “SAT Radio”, the SAT Radio logo and all related marks are trademarks of SIRIUS Satellite Radio Inc., and XM Satellite Radio, Inc.

FLAT

3: 45PM

Category name

Channel name

For XM Radio

~ Select “SAT.” Ÿ Select the bands.

! Select a category.

• To select a channel from all categories (including non-categorised channels), skip this step.

• If you do not select a channel within 15 seconds, the category selected is canceled. You can select a channel from all categories now.

⁄ Select a channel to listen.

• Holding either 4 or ¢ changes the channels rapidly.

• While searching, invalid and unsubscribed channels are skipped.

Checking the XM Satellite radio ID

Select Channel “0.”

The 8-digit (alphanumeric) ID number is displayed on the monitor. To cancel the ID number display, select any channel other than channel “0.”

ENGLISH

EXTERNAL DEVICES

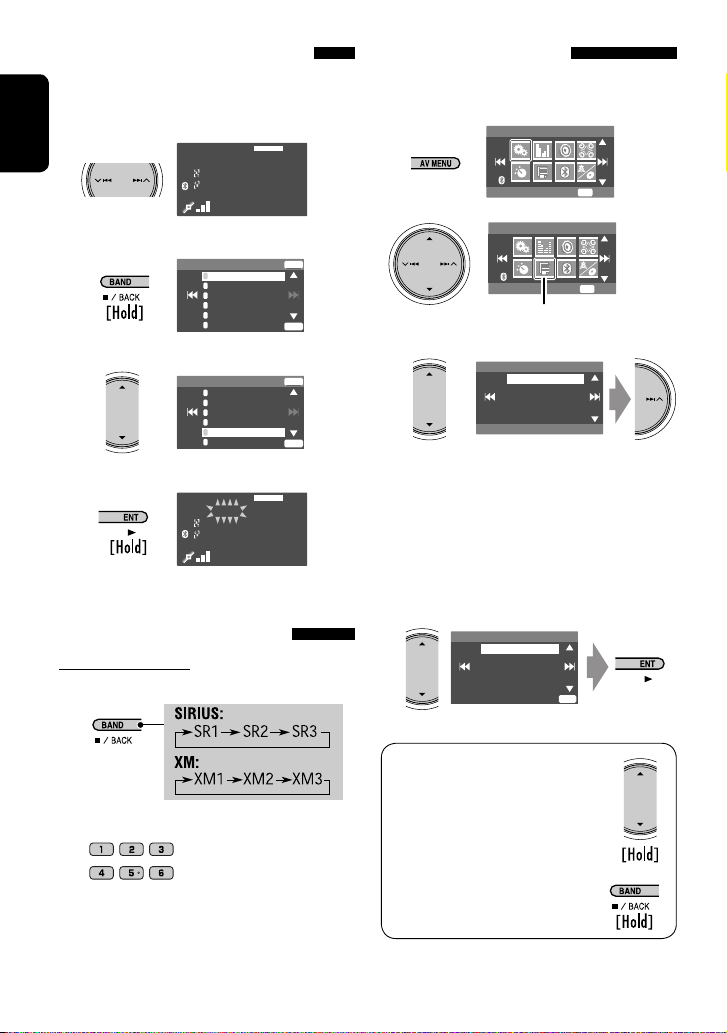

Storing channels in memory

You can preset six channels for each band. Ex.: Storing a channel into preset number 5

1 Tune in to a channel you want.

ENGLISH

SAT

XM1 3Bch

Rock

XM Music Club

2 Display the Preset List.

XM1 Store

Channel Name

The City

40 at 40

Hank’s Place

Audio Visions

Preview

3 Select a preset number.

XM1 Store

Channel Name

The City

40 at 40

Hank’s Place

Audio Visions

Preview

SAT

XM1 Preset4 3Bch

Rock XM Music Club

Selecting preset channels

On the remote only:

Selecting on the lists

You can select a channel using one of the following lists—Preset list/Category list/Channel list.

FLAT

3: 45PM

ENT

List menu icon

3 Select a desired list.

ENT

FLAT

3: 45PM

• Preset List: Displays your preset channels.

• Category List: Displays the categories.

• Channel List: Displays all channels within the selected category.

4 Select a desired channel.

• When selecting <Category List> in step 3, select a category, then a channel within the selected category.

AV Menu

Setup

List

Category List

The Beach

The Heart 20 on 20 MIXX XM Special X 40 to 40

AV Menu

List

Preset List

Category List Channel List

ENT

Enter

ENT

Enter

ENT

• Category List can also be accessed by...

• Preset List can also be accessed by...

Listening to the iPod/D. player

POWER]ON

4 ¢:

Press: Select track Hold: Reverse/forward search

5 ∞ 5 : Enter player’s menu ∞ : Pause/stop playback

• To resume, press again.

It is required to connect the interface adapter (KSPD100 for Apple iPod or KS-PD500 for JVC D. player) to the CD changer jack on the rear.

Preparation:

Make sure <iPod> or <D. Player> is selected for the external input setting. (☞ page 53)

~ Select “iPod” or “D. PLAYER.”

Playback starts automatically.

Ÿ Select a track.

Selecting a track from the player’s menu

1 Enter the player’s menu.

• This mode will be canceled if no operations are done for about 5 seconds.

2 Select the desired item.

Press: Select an item Hold: Skip 10 items at a time

For iPod: Playlists Ô Artists Ô Albums Ô Songs

Ô Genres Ô Composers Ô (back to the beginning)

For D. player: Playlist Ô Artist Ô Album Ô Genre Ô Track Ô (back to the beginning)

Track no./Playing time

D.PLAYER

01 0:45:38 Album Name Artist Name Track Title

☞ page 46

FLAT

3: 45PM

3 Confirm the selection.

4 Repeat steps 2 and 3 to select a track.

• When a track is selected finally, playback starts.

• To return to the previous menu...

Selecting playback modes

1 Display <AV Menu>, then select <Mode>

menu icon.

2 Enter <Mode>, then select <Repeat> or

<Random>.

3 Select an appropriate option.

Repeat One: Functions the same as “Repeat

One” or “Repeat Mode = One.” All: Functions the same as “Repeat All” or “Repeat Mode = All.”

Random Album: Functions the same as

“Shuffle Albums” of the iPod. Song/On: Functions the same as “Shuffle Songs” or “Random Play = On.”

• When the playback modes are selected, the corresponding indicators light up on the monitor.

To cancel, select <All Off> in step 2 or <Off> in step 3.

• iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

EXTERNAL DEVICES

ENGLISH

Listening to other external components

AV-INPUT

You can connect an external component to the LINE IN/VIDEO IN plugs.

ENGLISH

• You can also connect a Navigation System to the VIDEO IN plug so that you can watch the navigation screen (Make sure <Navigation> is selected for <AV Input>). (☞ page 53)

POWER]ON

Assigned title (

☞ page 47) ☞ page 46

AV-IN

AV-INPUT

Press if no playback picture appears, but source information (this) screen is displayed.

FLAT

3: 45PM

~ Select “AV-IN.” Ÿ Turn on the connected component and start playing the source.

• If you select <Camera Mirror> or <Navigation> for <AV Input> (☞ page 53), some status messages

such as volume level change will not appear on the monitor while viewing the picture.

When <Navigation> is selected for <AV Input>...

• You can use the source “AV-IN” for listening to an audio source connected to the LINE IN plugs.

• While selecting other source, you can watch the navigation screen without changing the source. To watch the navigation screen, press DISP repeatedly.

EXT-INPUT

You can connect an external component to the CD changer jack on the rear using the Line Input Adapter—KS-U57 (not supplied) or AUX Input Adapter—KS-U58 (not supplied).

POWER]ON

Assigned title (☞ page 47) ☞ page 46

ENGLISH

EXT-IN

EXT-INPUT

Preparation: Make sure <External Input> is selected for the external input setting. (☞ page 53)

FLAT

3: 45PM

~ Select “EXT-IN.” Ÿ Turn on the connected component and start playing the source.

EXTERNAL DEVICES

Sound equalization

ENGLISH

POWER]ON

Selecting sound mode

AV Menu

Setup

Equalizer menu icon

AV Menu

Equalizer

! Select a sound mode.

Equalizer

Flat Hard Rock

R&B

Pop Jazz

Edit

+03

ENT

60.0 Hz

Store

Storing your own adjustment

You can store your adjustment into User1, User2, and User3.

1 Repeat steps ~ and Ÿ, then in step !...

ENT

Enter

ENT

Enter

Equalizer

Edit

Flat Hard Rock

R&B

Pop Jazz

60.0 Hz

ENT

Exit

+03

ENT

Store

2 Adjust.

ENT

Exit

• For preset equalizing values of each sound mode,

☞ page 63.

• For multi-channel source, the sound mode is

temporarily canceled.

3 Store.

User Store

User1 User2

User3

ENT

Store

Assigning titles to the sources

POWER]ON

Title Entry

Press: Change character set Hold: Erase title

ENGLISH

Station Name

ABC Radio

You can assign titles as follows.

FM/AM stations Up to 16 characters—up to 30

stations

AV-IN

Up to 16 characters

EXT-IN

• If you try to assign a title to a 31st station, “Name Full” flashes on the monitor. Delete unwanted titles before assignment.

~ Select the source.

• For FM/AM stations: Select the band, then tune into a station.

• For “AV-IN”/“EXT-IN”: Select the source.

Ÿ Display the title entry screen.

AV Menu

Setup

ENT

Enter

DISP

A a 0 Á á

! Assign a title.

ENT

Store

Mode

Mono DX/Local SSM

Title Entry

Ex. When you select FM as the source

Title Entry

Station Name

ABC

DISP

A a 0 Á á

ENT

Store

1 Select a character, then move the entering

position.

• To change the character set, press DISP.

(For available characters, ☞ page 64.)

2 Repeat step 1 until you finish entering the

title.

Mode

Mode menu icon

ENT

Enter

⁄ Finish the procedure.

SETTINGS

Menu operations

POWER]ON

ENGLISH

Ex. Changing the <High Pass Filter> setting

AV Menu

Setup

ENT

Non-available items will be displayed being shaded.

Sound menu icon

AV Menu

Sound

ENT

Enter

Setup Equalizer Sound

AV Menu

Setup

Mode List Bluetooth

Sound

Through

• For some items, repeat this steps to set the sub-items.

⁄

High Pass Filter

ENT

Enter

Fader/Balance Volume Adjust Subwoofer

High Pass Filter

Crossover

Through

Disc Surround

Dual Zone

ENT

Exit

Menu items

AV Menu

Setup

• The display indications may change according to change of the specifications.

Setup

Equalizer

Sound

Disc Surround

ENT

Enter

Mode

List

Bluetooth

Dual Zone

Display

Clock

Disc Setup 1

Disc Setup 2

Tuner

Input

Others

Setup

Menu items Selectable settings, [reference page]

Initial: Underlined

Demonstration Off : Cancels.

On : Activates the demonstration on the monitor.

Wall Paper You can select the background picture of the monitor.

Future-Blue

Future-Green, Wave-Blue, Wave-Green, Wave-Pink, Metal-A, Metal-B, Ball-A, Ball-B, Ball-C, Dolphin, Simple-Red, Simple-Purple, Simple-Blue, Simple-Gray

Scroll Off : Cancels.

Once : Scrolls the disc information once. Auto : Repeats scrolling (5-second intervals).

• Holding DISP (on the unit) scrolls the information regardless of this

setting.

Tag Display Off : Cancels.

On : Shows the Tag data while playing MP3/WMA/WAV/AAC tracks.

Dimmer Off : Cancels.

Display

On : Activates dimmer. Auto : Dims the monitor when you turn on the headlights.* Time Set : Press ENT (or ¢) to display the time setting screen, then

set the Dimmer On/Off times.

Bright You can adjust brightness of the monitor.

–15 (darkest) to +15 (brightest); Initial 00

Picture Adjust*

You can adjust the following to make the monitor clear and legible for watching the playback picture. The setting will be stored for “DISC/USB,” and “AV-IN.”

–15 to +15; Initial 0 Bright : Adjust if the picture is too bright or too dark. Contrast : Adjust the contrast. Color : Adjust the color of the picture—lighter or darker. Tint : Adjust the tint if the human skin color is unnatural.

The ILLUMINATION CONTROL lead connection is required. (☞ Installation/Connection Manual)

Adjustable only when the source is a disc or USB containing pictures or movies, or “AV-IN.”

ENGLISH

Continued on the next page

SETTINGS

Menu items Selectable settings, [reference page]

Aspect*

You can change the aspect ratio of the picture.

Aspect ratio of incoming signal

ENGLISH

4:3 16:9

Full :

For 16:9 original pictures

Auto : • For “DISC”: Aspect ratio is automatically

Display

selected to match to the incoming signals.

• For the other video sources: Aspect ratio is fixed to <Regular>.

Regular :

For 4:3 original pictures

Language*

Select the indication language shown on the monitor.

English, Spanish, French, German, Italian, Dutch, Swedish, Danish, Russian

Time Set

12Hours/24Hours

OSD Clock

Clock Adjust*

Initial 1:00AM ☞ [6]

12 Hours, 24 Hours ☞ [6]

Off, On, ☞ [6]

Off : Cancels. Auto : The built-in clock is automatically adjusted using the clock time

data provided via the satellite radio channel.

Clock

Time Zone*

5 *6

Select your residential area from one of the following time zones for clock adjustment.

Alaska, Pacific, Mountain, Central, Eastern, Atlantic, Newfoundland

5 *6

DST* Time)

(Daylight Saving

Activates this if your residential area is subject to DST.

Off : Cancels. On : Activates daylight saving time.

Not adjustable for audio sources.

After you change the indication language setting, turn off then on the power so that your setting takes effect.

Appears only when SIRIUS Satellite Radio or XM Satellite Radio is connected.

*6 Set <Clock Adjust> to <Auto>, then press ENT (or ¢) to display these setting items.

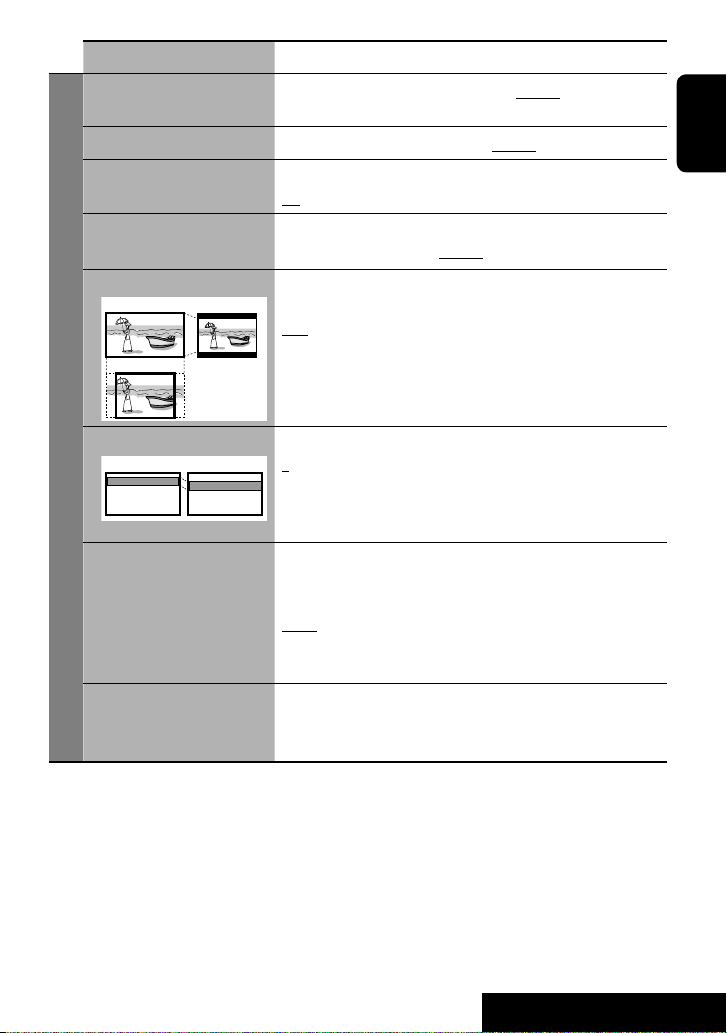

Menu items Selectable settings, [reference page]

Menu Language

Select the initial disc menu language; Initial English (☞ also page

64).

Audio Language

Select the initial audio language; Initial English (☞ also page 64).

Subtitle Select the initial subtitle language or erase the subtitle (<Off>); Initial

Off (☞ also page 64).

OSD Language Select the on-screen language used for the external monitor connected

to the VIDEO OUT plug; Initial English.

Monitor Type Select the monitor type to watch a wide screen picture on the external

16:9 4:3 Letterbox

monitor.

16:9 : Select when the aspect ratio of the external monitor is 16:9. 4:3 Letterbox/4:3 Pan Scan : Select when the aspect ratio of the

4:3 Pan Scan

external monitor is 4:3. Refer to the illustrations on the left to see how the pictures are shown on the monitor.

ENGLISH

OSD Position

Disc Setup 1*

Position 1 Position 2

Select the position of the on-screen bar, ☞ [25].

1 : Higher position 2 : Lower position

File Type Select playback file type when a disc/USB contains different types of

files. You can store this setting separately for each source —“DISC/ USB.”

Audio : Plays back audio files. Still Picture : Plays back JPEG files. Video : Plays back DivX/MPEG1/MPEG2 files.

DivX Regist. (Registration) This unit has its own Registration Code. Once you have played back a

file with which the Registration Code recorded, this unit’s Registration Code is overwritten for copyright protection.

Selectable only for “DISC” and “USB.” (Playback stops when you select one of the items.)

Continued on the next page

SETTINGS

Menu items Selectable settings, [reference page]

D. (Dynamic) Range Compres. (Compression)*

You can enjoy a powerful sound at a low volume level while playing Dolby Digital software. Auto : Select to apply the effect to multi-channel encoded software.

ENGLISH

Speaker Size*

Select the speaker

On : Select to always use this function.

You can adjust the speaker size setting.

• Front SPK : Small, Large

• Center SPK : None, Small, Large

• Rear SPK : None, Small, Large

• Subwoofer : On, Off

Adjust the speaker size

• Speaker size : <Large> for 13 cm (5-1/4 inch) diameter or more; <Small> for 13 cm (5-1/4 inch) or less.

• Front speakers and rear speakers cannot be adjusted separately the left and right.

Regardless of the setting above...

• No sound comes out of the subwoofer while playing Dolby Pro Logic II Movie or Music if the front speaker is set to <Large>.

• No sound comes out of the center speaker when surround is deactivated.

Speaker Level You can adjust the output level of the activated speakers

Disc Setup 2

Select the speaker

(☞ <Speaker Size> above), monitoring the test tone.

Front Lch/Center Ch/Front Rch/Rear Rch/Subwoofer*

: adjust the output level of each speaker in the range of –10dB to +10dB; Initial 0dB.

Adjust the speaker level

• Press and hold ENT to turn on and off the test tone.

Speaker Distance*

Select the speaker

You can adjust the speaker output timing. Front Lch/Center Ch/Front Rch/Rear Rch/Rear Lch : adjust the

speaker distance from the listening position in the range of 15cm/6 inches to 600 cm/240 inches in 15 cm/6 inch step; Initial 120 cm/48 inch (for center speaker), 150 cm/60 inch (for

Adjust the speaker

other speakers).

distance

/Rear Lch

• Press and hold DISP to change the measuring unit—cm and inch.

Selectable only for “DISC” and “USB.” (Playback stops when you select one of the items.)

* *8 This subwoofer level setting takes effect only when surround is activated. (☞ also page 22, 23) *9 This setting does not take effect for MPEG1/MPEG2 and DivX with MP3 audio track.

Menu items Selectable settings, [reference page]

IF Band Width Auto : Increases the tuner selectivity to reduce interference noises

between adjacent stations. (Stereo effect may be lost.)

Wide : Subject to the interference from adjacent stations, but sound

quality will not be degraded and the stereo effect will remain.

Area Setting US : When using in North/Central/South America. FM/AM intervals are

Tuner

set to 200 kHz/10 kHz.

Europe : When using in any other areas. FM/AM intervals are set to 50

kHz (100 kHz during auto search)/9 kHz.

South America : When using in South American countries where FM

interval is 100 kHz. AM interval is set to 10 kHz.

SIRIUS ID*

Your SIRIUS identification number appears on the monitor.

AV Input You can determine the use of LINE IN and VIDEO IN plugs.

Off : Select when no component is connected (“AV-IN” is skipped while

selecting the source).

Audio&Video : Select when connecting an AV component such as a

VCR.

Audio : Select when connecting an audio component such as a digital

audio player.

Camera*11: Select when connecting the rear view camera. Camera Mirror*11: The mirror image of the rear view is displayed on

the monitor. (The monitor on the unit only; the normal rear view

Input

appears on the external monitor.)

Navigation : Select when connecting a Navigation System. ☞ [44]

External Input*

For connecting an external component to the CD changer jack on the rear.

Changer/iPod/D. Player*13: CD changer, iPod, or D. player

☞ [38, 43]

External Input : Any other than the above. ☞ [45]

• For connecting JVC DLP/XMDJVC100, this setting is not required. It is automatically detected.

Appears only when SIRIUS Satellite Radio is connected.

* *11 Reverse lamp lead connection is required. See Installation/Connection Manual (separate volume). The rear view

through the camera appears on the monitor in “Full” aspect ratio (regardless of the aspect ratio setting) when you shift the gear to the reverse (R) position.

Not selectable when the component connected to the CD changer jack is selected as the source.

The name of the component detected through the CD changer jack is shown.

ENGLISH

SETTINGS

Beep Off : Cancels.

On : Activates the key-touch tone.

Telephone Muting*

ENGLISH

Others

Off : Cancels. Muting1, Muting2 : Select either one which mutes the sounds while

using the cellular phone.

Initialize Initialize all settings you have made in <AV Menu>. Press ENT, then

reset the unit. (☞ page 3)

The TEL MUTING lead connection is required. See Installation/Connection Manual (separate volume).

Equalizer

Flat/Hard Rock/R&B/Pop/Jazz/Dance/Country/Reggae/Classic/User1/User2/User3, ☞ [46]

Sound

Menu items Selectable settings, [reference page]

Fader/Balance Adjust fader—speaker output balance between the front and rear speakers.

Adjusts fader

Adjust balance

• Upmost—front only

• Downmost—rear only When using a two-speaker system, set the fader to the center (00). Adjust balance—speaker output balance between the left and right speakers.

• Leftmost—left only

• Rightmost—right only

Volume Adjust Adjust and store auto-adjustment volume level for each source, comparing to

the FM volume level. The volume level will automatically increase or decrease when you change the source.

–12 to +12; Initial 00

Subwoofer*

Adjust the settings below in the submenu: Phase : Subwoofer phase. Select either <Normal> or <Reverse>, which

reproduces a better sound.

Level : Subwoofer output level. Level: –06 to +08; Initial 00

High Pass Filter Through : Select when the subwoofer is not connected.

On : Select when the subwoofer is connected.

This subwoofer level setting takes effect only when surround is deactivated. (☞ also page 22, 23)

Menu items Selectable settings, [reference page]

Crossover Adjust the crossover frequency between the front/rear speakers and the

subwoofer.

80Hz, 120Hz, 150Hz

Amplifier Gain You can change the maximum volume level of this unit.

Off : Deactivates the built-in amplifier. Low Power : VOL 00 to 30 (Select this if the maximum power of the speakers

is less than 50 W.)

High Power : VOL 00 to 50

Rear Speaker*

You can activate/deactivate the rear speakers. Off, On

This setting takes effect only when Dual Zone is activated. (☞ also page 26)

ENGLISH

Disc Surround*

Menu items Selectable settings, [reference page]

Surround Off Select to deactivate the surround function.

Surround On

Select to activate the surround function. ☞ [22, 23] Auto, Through, Dolby PLII Movie, Dolby PLII Music

• When you select Dolby PLII Music, you can adjust <Panorama> and <Center Width>.*

*17 Selectable only for “DISC” and “USB.”

This setting takes effect only when the center speaker is activated.

Mode*

Menu items Selectable settings, [reference page]

Mono

DX/Local

SSM

Title Entry

Only for FM. (Off, On), ☞ [10]

Only for FM. (DX, Local), ☞ [11]

Only for FM. ☞ [11]

Only for FM/AM stations, AV-IN and EXT-IN. ☞ [47]

All Off/Intro/Repeat/Random Only for disc/USB playback and iPod/D. player.

☞ [17, 30, 39, 43]

Items listed under <Mode> vary among the playback sources.

SETTINGS

List

The accessible lists differ depending on the sources. ☞ [12, 18, 37, 39]

ENGLISH

Bluetooth*

Menu items Selectable settings, [reference page]

Dial Menu Only for the device connected for “Bluetooth Phone.”

Select the method to make a call. ☞ [35]

Message Only for the device connected for “Bluetooth Phone.”*

You can read a message from the following message histories.

Unread : Messages you have not read. Read : Messages you have read. Unsent : Messages you have not sent. Sent : Messages you have sent.

• The number of messages in each history is also shown on the monitor.

Open

☞ [32]

Special Device Only for “NEW DEVICE.”

Shows the list of Bluetooth devices which require some special procedure to establish Bluetooth connection. Select a device you want to connect.

• After selecting the device, use <Open> or <Search> (☞ page 32) for

connection.

• Once the connection is established, it is registered in the unit. You can

connect the unit and the device by using <Connect> (☞below) from the next time.

Connect Only for the registered devices.

After selecting a device from among the registered devices (☞ page 33, 37), establish the connection with it.

Disconnect Only for the device being connected.

Disconnect the current device before connecting another device.

Delete Pair Only for the registered devices.

Delete the registered devices.

Selectable only for “Bluetooth Phone” or “Bluetooth Audio.” Select a device (or “NEW DEVICE”) before operating the

menu.

*21 Selectable only when the device is compatible with Text Message.

When operating the Bluetooth device, refer also to the instructions supplied with the device.

Menu items Selectable settings, [reference page]

Auto Connect*

When the unit is turned on, the connection is established automatically with...

Off : No Bluetooth device. Last : The last connected Bluetooth device. Order : The available registered Bluetooth device found at first.

Auto Answer*

Off : The unit does not answer the calls automatically. Answer the calls

manually.

On : The unit answers the incoming calls automatically. Reject : The unit rejects all incoming calls.

Settings

Message Info*

Auto : The unit informs you of the arrival of a message by ringing and

displaying “Receiving Message.” To read the message, press ENT (☞ page 35).

Manual : The unit does not inform you the arrival of a message.

MIC Setting*

Adjust microphone volume connected to the unit.

01, 02, 03

Version*

Selectable only for “Bluetooth Phone.”

* *23 Only for the device being connected for “Bluetooth Phone.” Not selectable for “NEW DEVICE”.

If you wish to receive more information about Bluetooth, visit our JVC web site.

The Bluetooth software and hardware versions are shown.

Dual Zone

Off, On, On/Surround On, ☞ [26]

ENGLISH

SETTINGS

Maintenance

How to clean the connector

Frequent detachment will deteriorate the connectors.

ENGLISH

To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Connector

Moisture condensation

Moisture may condense on the lens inside the unit in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car. Should this occur, the unit may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates.

How to handle discs

When removing a disc from its case, press down the center holder

of the case and lift the disc out, holding it by the edges.

• Always hold the disc by the edges. Do not touch its recording surface.

When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).

• Make sure to store discs into the cases after use.

Center holder

To keep discs clean

A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.

• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.

To play new discs

New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc. To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

Do not use the following discs:

Warped disc

Sticker

Sticker residue

Stick-on label

More about this unit

General

Turning on the power

• By pressing SRC (source) on the unit, you can also turn on the power. If the source is ready, playback starts.

FM/AM

Storing stations in memory

• When SSM is over, received stations are preset in No.1 (lowest frequency) to No. 6 (highest frequency).

Disc

General

• In this manual, words “track” and “file” are interchangeably used.

• This unit can also play back 8 cm (3-3/16”) discs.

• This unit can only play back audio CD (CD-DA) files if different type of audio files (MP3/WMA/WAV/AAC) are recorded in the same disc.

• This unit can display only one-byte characters. No other characters can be correctly displayed.

Inserting a disc

• When a disc is inserted upside down or has no playable files, “Cannot play this disc Check the disc” appears on the monitor. Eject the disc.

Ejecting a disc

• If the ejected disc is not removed within 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust. (Disc playback starts.)

Changing the source

• If you change the source, playback also stops without ejecting the disc.

Next time you select “DISC” for the playback source,

disc play starts from where it stopped previously.

Playing Recordable/Rewritable discs

• This unit can recognize a total of 5 000 files and 250 folders (a maximum of 999 files per folder).

• Use only “finalized” discs.

• This unit can play back multi-session discs; however, unclosed sessions will be skipped while playing.

• This unit can recognize a total 25 characters for file/ folder names.

• Some discs or files may not be played back due to their characteristics or recording conditions.

Playing DVD Audio

• Some DVD Audios prohibit downmix. When you play back such a disc, “LR ONLY” appears on the display and the unit plays back the left front and right front signals.

• “MULTI CH” appears on the monitor after a beep when you try to play a multi-channel disc with Surround turned <Off>.

Playing DVD-VR

• This unit cannot play back CPRM (Content Protection for Recordable Media) protected files.

• For details about DVD-VR format and play list, refer to the instructions supplied with the recording equipment.

File playback

Playing DivX files

• This unit can play back DivX files with the extension code <.divx>, <.div>, <.avi> (regardless of the letter case—upper/lower).

• This unit supports the DivX files whose resolution is 720 x 576 pixels or less.

• This unit supports DivX 6.x, 5.x, 4.x, and 3.11.

• Audio stream should conform to MP3 or Dolby Digital.

• The file encoded in the interlaced scanning mode may not be played back correctly.

• The maximum bit rate for video signals (average) is as follows: – DVD: 4 Mbps – USB: 2 Mbps

REFERENCES

ENGLISH

Playing MPEG1/MPEG2 files

• This unit can play back MPEG1/MPEG2 files with the extension code <.mpg>, <.mpeg>, or <.mod>*. * <.mod> is an extension code used for the

MPEG2 files recorded by JVC Everio camcorders.

ENGLISH

• The stream format should conform to MPEG system/ program stream.

• The file format should be MP@ML (Main Profile at Main Level)/SP@ML (Simple Profile at Main Level)/ MP@LL (Main Profile at Low Level).

• Audio streams should conform to MPEG1 Audio Layer-2 or Dolby Digital.

• The maximum bit rate for video signals (average) is as follows: – DVD: 4 Mbps – USB: 2 Mbps

Playing JPEG files

• This unit can play back JPEG files with the extension code <.jpg>, or <.jpeg>.

• It is recommended that you record a file at 640 x 480 resolution.

• This unit can play back baseline JPEG files. Progressive JPEG files or lossless JPEG files cannot be played.

Playing MP3/WMA/WAV/AAC files

• This unit can play back files with the extension code <.mp3>, <.wma>, <.wav>, or <.m4a> (regardless of the letter case—upper/lower).

• This unit can play back the files meeting the conditions below: – Bit rate: MP3/WMA: 32 kbps — 320 kbps AAC: 16 kbps — 320 kbps – Sampling frequency: 48 kHz, 44.1 kHz, 32 kHz (for MPEG1) 24 kHz, 22.05 kHz, 16 kHz (for MPEG2) 48 kHz, 44.1 kHz, 32 kHz, 22.05 kHz (for WMA)

44.1 kHz (for WAV) 48 kHz, 44.1 kHz (for AAC)

• This unit can show ID3 Tag Version

1.0/1.1/2.2/2.3/2.4 (for MP3). This unit can also show WAV/WMA/AAC Tag.

• This unit can play back files recorded in VBR (variable bit rate).

Files recorded in VBR have a discrepancy in elapsed

time indication.

• This unit cannot play back the following files: – MP3 files encoded with MP3i and MP3 PRO

format. – MP3 files encoded with Layer 1/2. – WMA files encoded with lossless, professional,

and voice format. – WMA files which are not based upon Windows

Media® Audio. – WMA/AAC files copy-protected with DRM. – AAC files purchased from the iTunes store. – Files which have the data such as AIFF, ATRAC3,

etc.

Enjoying surround sounds

• If <Surround On> is selected, “MULTI” surround playback automatically starts for multi-channel encoded discs regardless of the <Surround On> setting.

• You cannot activate surround for MPEG multi-channel DVD Video, DivX 2-channel and MPEG 2-channel sources. If <Surround On> is selected, stereo sounds are emitted only through the front speakers. “FRONT 2CH” appears on the source information screen.

• When “FIX” appears on the source information screen, no sound comes out of the subwoofer.

• When <AUTO> is selected, downsampling is performed for DVD Video (LPCM only), DVD-VR (LPCM only), and DVD Audio with fs=88.2 kHz/96 kHz and higher.

USB

• If “No USB Device“ appears after removing a device, reattach a device or select another playback source.

• When the USB device has no playable files, or has not been formatted correctly, “Cannot play this device Check the device” appears on the monitor.

• The unit cannot recognize a USB device whose rating is other than 5 V and does not exceed 500 mA.

• While playing from a USB device, the playback order may differ from other players.

• This unit may be unable to play back some USB devices or some files due to their characteristics or recording conditions.

• Depending on the shape of the USB devices and connection ports, some USB devices may not be attached properly or the connection might be loose.

• When connecting a USB device, refer also to its instructions.

• Connect only one USB device to the unit at a time. Do not use a USB hub.

• This unit may not recognize a USB device connected through a USB card reader.

• This unit may not play back files in a USB device properly when using a USB extension cord.

• This unit cannot assure proper functions or supply power to all types of the devices.

• This unit can recognize a total of 5 000 files and 250 folders (a maximum of 999 files per folder).

• This unit can recognize a total 25 characters for file/ folder names.

Bluetooth operations

General

• While driving, do not perform complicated operation such as dialling the numbers, using phone book, etc. When you perform these operations, stop your car in a safe place.

• Some Bluetooth devices may not be connected to this unit depending on the Bluetooth version of the device.

• This unit may not work for some Bluetooth devices.

• Connecting condition may vary depending on circumstances around you.

• When the unit is turned off, the device is disconnected.

Warning messages for Bluetooth operations

• Connection Error : The device is registered but the connection has failed. Use <Connect> to connect the device again. (☞ page 33)

• Error : Try the operation again. If “Error” appears again, check if the device supports the function you have tried.

• Device Unfound : No available Bluetooth device is detected by <Search>.

• Loading : The unit is updating the phone book and/ or Text Message.

• Please Wait... : The unit is preparing to use the Bluetooth function. If the message does not disappear, turn off and turn on the unit, then connect the device again (or reset the unit).

ENGLISH

Icons for phone types

• These icons indicate the phone type set on the device.

: Cellular phone

: Household phone

: Office

: General

: Other than above

REFERENCES

Satellite radio operations

• You can also connect the JVC SIRIUS radio PnP (Plug and Play), using the JVC SIRIUS radio adapter, KSU100K (not supplied) to the CD changer jack on the rear. (Select “EXT-IN” as the source.)

ENGLISH

By turning on/off the power of the unit, you can turn

on/off the JVC PnP. However, you cannot control it from this unit.

• To know more about SIRIUS Satellite radio or to sign up, visit <http://www.sirius.com>.

• For the latest channel listings and programming information, or to sign up for XM Satellite radio, visit <http://www.xmradio.com>.

iPod/D. player operations

• When you turn on this unit, the iPod or D. player is charged through the adapter connected to this unit.

• The text information may not be displayed correctly. This unit can display up to 40 characters.

Notice:

When operating an iPod or a D. player, some operations may not be performed correctly or as intended. In this case, visit the following JVC web site: For iPod users: <http://www.jvc.co.jp/english/car/ support/ks-pd100/index.html> For D. player users: <http://www.jvc.co.jp/ english/car/support/ks-pd500/index.html>

Menu settings

• If you change the <Amplifier Gain> setting from <High Power> to <Low Power> while the volume level is set higher than “30,” the unit automatically changes the volume level to “VOL 30.”

• After you change any of <Menu Language/Audio Language/Subtitle> settings, turn off then on the power, and re-insert the disc (or insert another disc) so that your setting takes effect.

• When you select <16:9> for a picture whose aspect ratio is 4:3, the picture slightly changes due to the process for converting the picture width.

• Even if <4:3 Pan Scan> is selected, the screen size may become <4:3 Letterbox> for some discs.

Sound

mode

Flat 00 00 00 00 00 00 00

Hard Rock +03 +03 +01 00 00 +02 +01

R&B +03 +02 +02 00 +01 +01 +03

Pop 00 +02 00 00 +01 +01 +02

Jazz +03 +02 +01 +01 +01 +03 +02

Dance +04 +02 00 –02 –01 +01 +01

Country +02 +01 00 00 00 +01 +02

Reggae +03 00 00 +01 +02 +02 +03

Classic +02 +03 +01 00 00 +02 00

User 1/2/3 00 00 00 00 00 00 00

Preset equalizing values

60 Hz

150 Hz

400 Hz

1 kHz

2.5 kHz

6.3 kHz

About sounds reproduced through the rear terminals

• Speaker out/analog discrete output—LINE OUT (FRONT/REAR)/CENTER OUT/SUBWOOFER: Multi-channel signals are emitted for a multichannel encoded software. (When Dual Zone is activated, the same signal emitted through 2nd AUDIO OUT plugs are emitted for the main source “DISC.”)

• 2nd AUDIO OUT: 2-channel signal is emitted when Dual Zone is activated. When playing a multi-channel encoded disc, multi-channel signals are downmixed (except for some DVD Audio).

• “DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation registered in the US, Japan and other countries.

15 kHz

• DivX, DivX Ultra Certified, and associated logos are trademarks of DivX, inc. and are used under license.

• Official DivX® Ultra Certified product

• Plays all versions of DivX® video (including DivX® 6) with enhanced playback of DivX® media files and the DivX® Media Format

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

• iPod and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.

ENGLISH

REFERENCES

Language codes (for DVD/DivX language selection)

Code Language Code Language Code Language Code Language Code Language

AA Afar FA Persian KL Greenlandic OC Occitan ST Sesotho AB Abkhazian FI Finnish KM Cambodian OM (Afan) Oromo SU Sundanese AF Afrikaans FJ Fiji KN Kannada OR Oriya SW Swahili

ENGLISH

AM Ameharic FO Faroese KO Korean (KOR) PA Panjabi TA Tamil AR Arabic FY Frisian KS Kashmiri PL Polish TE Telugu AS Assamese GA Irish KU Kurdish PS Pashto, Pushto TG Tajik AY Aymara GD Scots Gaelic KY Kirghiz PT Portuguese TH Thai AZ Azerbaijani GL Galician LA Latin QU Quechua TI Tigrinya BA Bashkir GN Guarani LN Lingala RM Rhaeto-Romance TK Turkmen BE Byelorussian GU Gujarati LO Laothian RN Kirundi TL Tagalog BG Bulgarian HA Hausa LT Lithuanian RO Rumanian TN Setswana BH Bihari HI Hindi LV Latvian, Lettish RW Kinyarwanda TO Tonga BI Bislama HR Croatian MG Malagasy SA Sanskrit TR Turkish BN Bengali, Bangla HU Hungarian MI Maori SD Sindhi TS Tsonga BO Tibetan HY Armenian MK Macedonian SG Sangho TT Tatar BR Breton IA Interlingua ML Malayalam SH Serbo-Croatian TW Twi CA Catalan IE Interlingue MN Mongolian SI Singhalese UK Ukrainian CO Corsican IK Inupiak MO Moldavian SK Slovak UR Urdu CS Czech IN Indonesian MR Marathi SL Slovenian UZ Uzbek CY Welsh IS Icelandic MS Malay (MAY) SM Samoan VI Vietnamese DZ Bhutani IW Hebrew MT Maltese SN Shona VO Volapuk EL Greek JI Yiddish MY Burmese SO Somali WO Wolof EO Esperanto JW Javanese NA Nauru SQ Albanian XH Xhosa ET Estonian KA Georgian NE Nepali SR Serbian YO Yoruba EU Basque KK Kazakh NO Norwegian SS Siswati ZU Zulu

Characters shown on the monitor

In addition to the roman alphabet (A – Z, a – z), the following characters will be used to show the various information on the monitor.

• You can also use the following

characters to assign titles (☞ page

47)

Numbers and symbols

Upper and lower cases

Troubleshooting

What appears to be trouble is not always serious. Check the following points before calling a service center.

Symptoms Remedies/Causes

• No sound comes out of the center speaker.

• The monitor is not clear and legible. Sunshine from the windshield may cause this symptom.

• The unit does not work at all.

• The remote controller does not work.

General

• “No Signal” appears. • Change the source.

• “Mecha Error Push Reset” appears on the monitor, and the panel does not move.

• SSM automatic presetting does not work.

• Static noise while listening to the radio. Connect the antenna firmly.

FM/AM

• Disc can be neither recognized nor played .

• Disc cannot be ejected.

• Recordable/Rewritable discs cannot be played back.

• Tracks on the Recordable/Rewritable discs cannot be skipped.

• Playback does not start. • Insert the disc correctly again.

Disc playback

• The playback picture is not clear and legible.

• Sound and pictures are sometimes interrupted or distorted.

• Center speaker is not activated. (☞ page 52) Once you have reset the unit, make sure to activate the

speaker again.

• Center speaker is used only for surround playback. No sound comes out for stereo playback.

Adjust <Bright>. (☞ page 49)

Reset the unit. (☞ page 3)

Deactivate Dual Zone. (☞ page 26) (While Dual Zone is activated, the remote controller only functions for operating the DVD/CD player.)

• Start the playback on the external component connected to VIDEO IN plug.

• Check the cords and connections.

• Signal input is too weak.

Reset the unit. (☞ page 3)

Store stations manually. (☞ page 12)

Eject the disc forcibly. (☞ page 3)

Unlock the disc. (☞ page 18)

• Insert a finalized disc.

• Finalize the discs with the component which you used for recording.

• Region code of the DVD is not correct. (☞ page 4)

• The format of files is not supported by the unit.

Adjust items in <Picture Adjust>. (☞ page 49)

• Stop playback while driving on rough roads.

• Change the disc.

ENGLISH

REFERENCES

Symptoms Remedies/Causes

• No playback picture appears on the monitor. Parking brake lead is not connected properly.

(☞ Installation/Connection Manual)

• No picture appears on the external monitor. • Connect the video cord correctly.

ENGLISH

Disc playback

• “Eject Error” or “Loading Error” appears on the monitor.

• Select the correct input on the external monitor.

Changing the source by pressing SOURCE will solve this error.

• Disc cannot be played back. • Change the disc.

• Record the tracks using a compliant application in the

appropriate discs. (☞ page 4)

• Add appropriate extension codes to the file names.

• Noise is generated. The track played back is not a playable file format. Skip to

another file.

• Tracks are not played back as you have intended them to play.

File playback

Playback order may differs from the one played back using other players.

• Elapsed playing time is not correct. This sometimes occurs during playback. This is caused by

how the tracks are recorded.

• “Not Support” appears on the monitor and

Track is unplayable.

track is skipped.

• Noise is generated. • The track played back is not a playable file format (MP3/ WMA/WAV/AAC). Skip to another file.

• Do not add the extension code <.mp3>, <.wma>, <.wav>or <.m4a> to non-MP3/WMA/WAV/AAC tracks.

• Tracks cannot play back as you have intended them to play.

• “Now Reading” keeps flashing on the monitor.

Playback order may differs from the one played back using other players.

• Readout time varies depending on the USB device.

• Do not use too many hierarchy, folders and empty folders.*

Folder that is physically empty or folder that contains

data but does not contain valid MP3/WMA/WAV/AAC

USB playback

track.

• Turn off the power then on again.

• Do not pull out or connect the USB device repeatedly while “Now Reading” is displayed on the monitor.

• Correct characters are not displayed (e.g.

For available characters, ☞ page 64.

album name).

• While playing a track, sound is sometimes interrupted.

The tracks have not been properly copied into the USB device. Copy tracks again into the USB device, and try again.

Symptoms Remedies/Causes

• Bluetooth device does not detect the unit. This unit can be connected with one Bluetooth cellular phone and one Bluetooth audio device at a time. While connecting a device, this unit cannot be detected from another device. Disconnect currently connected device and search again.

• The unit does not detect the Bluetooth

device.

• The unit does not make pairing with the

Bluetooth device.

• Echo or noise occurs. Adjust the microphone unit position.

• Phone sound quality is poor. • Reduce the distance between the unit and the Bluetooth

Bluetooth

• The sound is interrupted or skipped during playback of a Bluetooth audio device.

• “New Device” cannot be selected for “Bluetooth Audio.”

• The connected audio device cannot be controlled.

• “No Disc” appears on the monitor. Insert a disc into the magazine.

• “No Magazine” appears on the monitor. Insert the magazine.

• “Cannot play this disc Check the disc” appears on the monitor.

• “Reset 08” appears on the monitor. Connect this unit and the CD changer correctly and press

CD changer

• “Reset 01” – “Reset 07” appears on the monitor.

• The CD changer does not work at all.

• Check the Bluetooth setting of the device.

• Search from the Bluetooth device. After the device detects the unit, select <Open> on the unit to connect the device. (☞ page 32)

• Enter the same PIN code for both the unit and target device. If the PIN code of the device is not indicated on its instructions, try “0000” or “1234.”

• Select the device name from <Special Device>, then try to connect again. (☞ page 33)

audio device.

• Move the car to place where you can get a better signal reception.

• Reduce the distance between the unit and the Bluetooth audio device.

• Disconnect the device connected for “Bluetooth Phone.”

• Turn off, then turn on the unit.

• (When the sound is not yet restored,) connect the device again.

Bluetooth audio device is being connected. To select “New Device,” disconnect it. (☞ page 33)

Check whether the connected audio device supports AVRCP (Audio Video Remote Control Profile).

Disc does not include playable files. Replace the disc with playable files.

the reset button of the CD changer.

Press the reset button of the CD changer.

Reset the unit. (☞ page 3)

ENGLISH

REFERENCES

Symptoms Remedies/Causes

• “CALL 1-888-539-SIRIUS TO SUBSCRIBE” appears on the monitor.

• “No Signal” or “NO SIGNAL” appears on the

ENGLISH

monitor.

• “No Antenna” or “CHECK ANTENNA” appears on the monitor.

• “Invalid Channel” appears on the monitor for about 5 seconds, then returns to the previous display when listening to the SIRIUS Satellite radio.

• “CHANNEL–––” appears on the display for about 2 seconds, then returns to the previous channel while listening to the XM Satellite radio.

• “No Name” or “–––” appears on the

Satellite radio

monitor.

• “Channel is Updating XX% completed” or “UPDATING” appears on the monitor and no sound can be heard.

• “OFF AIR” appears on the monitor while listening to the XM Satellite radio.

• “LOADING” appears on the monitor while listening to the XM Satellite radio.

• “Reset08” flashes on the monitor. Reconnect this unit and the Satellite radio correctly and

• Satellite radio does not work at all. Reconnect the Satellite radio after a few seconds.

Starts subscribing SIRIUS Satellite radio. (☞ page 40)

Move to an area with stronger signals.

Connect the antenna firmly.

No broadcast on the selected channel. Select another channel or continue listening to the previous channel.

Selected channel is no longer available or is unauthorized. Select another channel or continue listening to the previous channel.

No text information for the selected channel.

The receiver is updating the channel information and it takes a few minutes to complete.

Selected channel is not broadcasting at this time. Select another channel or continue listening to the previous channel.

The unit is loading the channel information and audio. Text information is temporarily unavailable.

reset the unit.

Symptoms Remedies/Causes

• The iPod/D. player does not turn on or does not work.

• The sound is distorted. Deactivate the equalizer either on this unit or the iPod/

• “Disconnect” appears on the monitor. Check the connecting cable and its connection.

• For iPod: Playback stops. The headphones are disconnected during playback. Restart

• No sound can be heard.

• “Error 01” appears on the monitor when connecting a D. player.

• “No Files” or “No Track” appears on the

iPod/D. player playback

monitor.

• “Reset 01” – “Reset 07” appears on the monitor.

• “Reset 08” appears on the monitor. Check the connection between the adapter and this unit.

• The iPod’s or D. player’s controls do not work after disconnecting from this unit.

• No picture appears on the monitor. • Turn on the video component if it is not on.

AV-IN

• The playback picture is not clear and legible.

• Check the connecting cable and its connection.

• Charge the battery.

• For D. player: Update the firmware version.

D. player.

playback.

Disconnect the D. player from the adapter. Then, connect them again.

No tracks are stored. Import tracks to the iPod or D. player.

Disconnect the adapter from both this unit and iPod/ D. player. Then, connect them again.

Reset the iPod or D. player.

• This unit is not connected to the video component correctly. Connect it correctly.

Adjust items in <Picture Adjust>. (☞ page 49)

ENGLISH

REFERENCES

Specifications

Power Output: 20 W RMS × 4 Channels at 4 Ω and

≤ 1% THD+N

Signal-to-Noise Ratio: 80 dBA (reference: 1 W into 4 Ω)

ENGLISH

Load Impedance: 4 Ω (4 Ω to 8 Ω allowance) Equalizer Control Range: Frequencies: 60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.5 kHz,

6.3 kHz, 15 kHz

Level: ±10 dB

Audio Output Level

LINE OUT (FRONT/ REAR)/CENTER OUT/

AMPLIFIER

SUBWOOFER: Color System: NTSC Video Output (composite): 1 Vp-p/75 Ω Other Terminals: Input: LINE IN, VIDEO IN, MIC IN, USB input

Frequency Range: FM (with channel interval set to 100

FM Tuner: Usable Sensitivity: 11.3 dBf (1.0 μV/75 Ω)

FM/AM TUNER

AM Tuner: Sensitivity/Selectivity: 20 μV/35 dB Signal Detection System: Non-contact optical pickup (semiconductor laser) Frequency Response: DVD, fs=48 kHz: 16 Hz to 22 000 Hz

DVD/CD

Dynamic Range: 93 dB Signal-to-Noise Ratio: 95 dB Wow and Flutter: Less than measurable limit

Line-Out Level/Impedance: 5.0 V/20 kΩ load (full scale) Output Impedance: 1 kΩ

terminal, Antenna input Output: 2nd AUDIO OUT, VIDEO OUT Others: CD changer, OE REMOTE

87.5 MHz to 107.9 MHz

kHz or 200 kHz): FM (with channel interval set to 50

kHz): AM (with channel interval set to 10

kHz): AM (with channel interval set to 9 kHz): 531 kHz to 1 602 kHz

50 dB Quieting Sensitivity: 16.3 dBf (1.8 μV/75 Ω) Alternate Channel Selectivity (400 kHz): 65 dB Frequency Response: 40 Hz to 15 000 Hz Stereo Separation: 35 dB

DVD, fs=192 kHz: 16 Hz to 88 000 Hz VCD/CD: 16 Hz to 20 000 Hz

87.5 MHz to 108.0 MHz

530 kHz to 1 710 kHz

Screen Size: 3.5 inch wide liquid crystal display

Number of Pixel: 211 200 pixels: 960 (horizontal) × 220 (vertical)

Drive Method: TFT (Thin Film Transistor) active matrix format

Color System: PAL/NTSC

MONITOR

Aspect Ratio: 16:9 (wide)

Allowable Storage Temperature: –10°C to +60°C (14°F to 140°F)

Allowable Operating Temperature: 0°C to +40°C (32°F to 104°F)

USB Standards: USB 1.1

Data Transfer Rate: Full Speed: Maximum 12 Mbytes

Low Speed: Maximum 1.5 Mbytes

USB

Compatible Device: Mass storage class

Compatible File System: FAT 32/16/12

Max. Current: Less than 500 mA/5 V

Version: Bluetooth 1.2 certified

Output Power: +4 dBm Max. (Power class 2)

Service Area: Within 10 m (10.9 yd)

Profile: HSP (Headset Profile)

BLUETOOTH

Power Requirement: Operating Voltage: DC 14.4 V (11 V to 16 V allowance)

Grounding System: Negative ground

Allowable Operating Temperature: 0°C to +40°C (32°F to 104°F)

Dimensions (W × H × D): Installation Size (approx.): 182 mm × 52 mm × 160 mm

GENERAL

Mass (approx.): 2.1 kg (4.7 lbs) (excluding accessories)

HFP (Hands-Free Profile) A2DP (Advanced Audio Distribution Profile) AVRCP (Audio/Video Remote Control Profile) SPP (Serial Port Profile) OPP (Object Push Profile)

(7-3/16” × 2-1/16” × 6-5/16”)

Panel Size (approx.): 188 mm × 58 mm × 12 mm

(7-7/16” × 2-5/16” × 1/2”)

ENGLISH

Design and specifications are subject to change without notice.

If a kit is necessary for your car, consult your telephone directory for the nearest car audio speciality shop.

REFERENCES

Como primer paso, por favor lea detenidamente este manual para comprender a fondo todas las instrucciones y

Muchas gracias por la compra de un producto JVC.

obtener un máximo disfrute de esta unidad.

IMPORTANTE PARA PRODUCTOS LÁSER

1. PRODUCTO LÁSER CLASE 1

2. PRECAUCIÓN: No abra la tapa superior. En el interior de la unidad no hay piezas que pueda reparar el usuario;

encargue el servicio a personal técnico cualificado.

3. PRECAUCIÓN: (EE.UU.) Radiación láser de clase II visible y/o invisible, cuando está abierto. No mire fijamente

(Para Canadá) Radiación láser de clase 1M visible y/o invisible cuando ésta abierto. No mirar

4. REPRODUCCIÓN DE LA ETIQUETA: ETIQUETA DE PRECAUCIÓN, COLOCADA EN EL EXTERIOR DE LA UNIDAD.

el haz.

directamente con instrumental óptico.

ESPAÑOL

IMPORTANTE (EE.UU.)

Este equipo se ha sometido a todo tipo de pruebas y cumple con las normas establecidas para dispositivos de Clase B, de conformidad con la Parte 15 de las reglas de la FCC (Comisión Federal de Comunicaciones). Estas reglas están diseñadas para asegurar una protección razonable contra este tipo de interferencias en las instalaciones residenciales. Este equipo genera y utiliza energía de radiofrecuencia. Si no se instala y utiliza debidamente, es decir, conforme a las instrucciones, podrían producirse interferencias en radiocomunicaciones. Sin embargo, no se garantiza que estas interferencias no se produzcan en una instalación determinada. Si este equipo ocasiona interferencias en la recepción de radio o televisión, lo cual puede comprobarse mediante la conexión o desconexión del equipo, el problema podrá corregirse mediante una o una combinación de las siguientes medidas: – Reoriente la antena receptora o cámbiela de lugar. – Aumente la separación entre el equipo y el aparato

receptor.

– Enchufe el equipo a una toma de corriente situada en

un circuito distinto del aparato receptor.

– Consulte a su distribuidor o a un técnico experto en

radio/televisión.

Precaución

Los cambios o modificaciones no aprobados por JVC pueden anular la autoridad del usuario para operar el equipo.

[Sólo Unión Europea]

ADVERTENCIAS: Para evitar daños y accidentes

• NO instale ninguna unidad ni tienda cables en los lugares donde;

– puede obstaculizar las maniobras del volante

de dirección y de la palanca de cambios.

– puede obstaculizar la operación de los

dispositivos de seguridad, como por ejemplo, bolsas de aire.

– Donde pueda obstruir la visibilidad.

• NO opere la unidad mientras maneja.

Si es necesario operar la unidad mientras maneja,

asegúrese de mirar atentamente en todas las direcciones.

• El conductor no debe mirar el monitor mientras conduce.

• El conductor no deberá ponerse los auriculares mientras conduce.

Precauciones sobre el monitor:

• El monitor incorporado a esta unidad ha sido fabricado con tecnología de alta precisión, pero puede contener algunos puntos inefectivos. Estos es inevitable y no es ningún signo de anomalía.

• No exponga el monitor a la luz directa del sol.

• Cuando la temperatura sea muy baja o muy alta.

– Ocurren cambios químicos en el interior,

produciendo un mal funcionamiento.

– Puede suceder que las imágenes no aparezcan

claramente o que se muevan con lentitud. En tales entornos, puede suceder que las imágenes no estén sincronizadas con el sonido, o que la calidad del sonido se deteriore.

Cómo reposicionar su unidad

Contenido

INTRODUCCIÓN

Tipo de disco reproducible ................ 4

Antes de utilizar la unidad ................ 5

• También se borrarán los ajustes preestablecidos

realizados por usted (excepto aquellos para los dispositivos Bluetooth registrados).

Cómo expulsar el disco por la fuerza

NO EJECT?

EMERGENCY EJECT?

NO EJECT?

EMERGENCY EJECT?

• Si esto no funciona, reinicialice la unidad.

Para fines de seguridad...

• No aumente demasiado el nivel de volumen pues es muy peligroso conducir si no se escuchan los sonidos exteriores.

• Detenga el automóvil antes de efectuar cualquier operación complicada.

Temperatura dentro del automóvil...

Si ha dejado el automóvil estacionado durante largo tiempo en un sitio cálido o frío, no opere la unidad hasta que se normalice la temperatura del habitáculo.

Este producto incorpora tecnología de protección de los derechos de autor que está protegida por patentes de EE.UU. y otros derechos de propiedad intelectual. La utilización de esta tecnología de protección de los derechos de autor debe ser autorizada por Macrovision y está destinada únicamente para uso doméstico y otras formas limitadas de visionado, a menos que Macrovision lo autorice expresamente. Está prohibida la ingeniería inversa o desmontaje del aparato.

OPERACIONES

Operaciones básicas—

Panel de control ........................... 7

Operaciones básicas—

Control remoto (RM-RK251) ........... 8

Para escuchar la radio ...................... 10

Operaciones de los discos ................. 13

Operaciones de Zona Dual ................ 26

Operaciones de USB ......................... 29

Operaciones Bluetooth®—

Teléfono celular/reproductor

de audio ....................................... 31

DISPOSITIVOS EXTERNOS

Escuchando el cambiador de CD ........ 38

Para escuchar la radio satelital ......... 40

Escuchando el iPod/reproductor D. ... 43

Escuchado otros componentes

externos ...................................... 44

AJUSTES

Ecualización de sonido ..................... 46

Asignación de títulos a la fuente ....... 47

Operaciones de los menús ................ 48

REFERENCIAS

Mantenimiento ............................... 58

Más sobre este receptor ................... 59

Localización de averías ..................... 65

Especificaciones ............................... 70

ESPAÑOL

Tipo de disco reproducible

Tipo de disco Formato de grabación, tipo de archivo, etc. Reproducible

DVD DVD Vídeo (Códigos regionales: 1)*

DVD Audio

DVD-ROM

DVD Grabable/reescribible

ESPAÑOL

(DVD-R*2/-RW, +R/+RW*3)

• DVD Vídeo: Puente UDF

• DVD-VR

• DivX/MPEG1/MPEG2/JPEG/MP3/ WMA/WAV/AAC: Compatible con ISO 9660 Nivel 1, Nivel 2, Romeo, Joliet

DVD Vídeo

DVD-VR (sólo sin CPRM)

DivX/MPEG1/MPEG2

JPEG MP3/WMA/WAV/AAC*

MPEG4

DVD+VR

• Los discos DVD-RAM no se pueden reproducir.

Dual Disc Lado DVD

Lado no-DVD

CD/VCD Audio CD/CD Text (CD-DA)/DTS-CD

VCD (Vídeo CD)

CD-ROM

CD-I (CD-I Ready)

CD Grabable/reescribible (CD-R/-RW)

• Compatible con ISO 9660 Nivel 1, Nivel 2, Romeo, Joliet

CD-DA MP3/WMA/WAV/AAC*

JPEG

DivX/MPEG1/MPEG2

MPEG4

*1 Si inserta un disco DVD Vídeo con un código de región incorrecto aparecerá “Region code error” en el monitor. *2 También es posible reproducir un DVD-R grabado en formato “multi-border” (excepto discos de doble capa). *3 Es posible reproducir discos finalizados +R/+RW (sólo formato de vídeo). Sin embargo, no se recomienda usar discos

+R de doble capa.

*4 Esta unidad puede reproducir archivos AAC codificados con iTunes.

Precaución sobre la reproducción de DualDisc

El lado no DVD de un “DualDisc” no es compatible con la norma “Compact Disc Digital Audio”. Por consiguiente, no se recomienda usar el lado no DVD de un DualDisc en este producto.

Antes de utilizar la unidad

Cancele la demostración en pantalla y ponga el reloj en hora. (☞ también las páginas 49 y 50)

• Las operaciones se explican utilizando principalmente los botones de la unidad; sin embargo, los botones del control remoto pueden funcionar de la misma manera si tienen los mismos nombres o marcas.

Icono del menú de configuración

AV Menu

ENT

Setup

Menú actualmente seleccionado

Enter

Idioma para las indicaciones:

~ Encienda la unidad. Ÿ Visualice el <AV Menu>. ! Acceda al menú <Setup>.

En este manual, se utilizan indicaciones en inglés para las explicaciones. Podrá seleccionar el idioma de indicación que desea en el monitor. (☞ página 50)

⁄ Seleccione <Display> ] <Demonstration> y, a continuación, active la pantalla

<Demonstration>.

Setup Display Demonstration

Display

Clock Disc Setup 1 Disc Setup 2 Tuner

Demonstration

Submenú actualmente seleccionado Ajuste actual

Demonstration

Wall Paper Scroll Tag Display Dimmer

Off

ENT

@ Cancele las demostraciones en pantalla.

Seleccione <Off>.

Demonstration

Off

ESPAÑOL

Exit

ENT

Exit

Continúa en la página siguiente

INTRODUCCIÓN

ESPAÑOL

(dos veces)

Clock

Time Set

12Hours/24Hours OSD Clock

1:00AM

¤ Vuelva al menú <Setup>. # Seleccione <Clock> ]<Time Set> y, a

continuación, active la pantalla <Time Set>.

‹ Ponga el reloj en hora.

Time Set

Hours

1 : 00AM

ENT

Exit

Time Set

Minutes

3 : 45PM

ENT

Exit

$ Vuelva al menú <Clock>. › Seleccione <12Hours/24Hours>. % Active la pantalla <12Hours/

24Hours>.

ﬁ Seleccione sistema de 12 horas o bien

sistema de 24 horas.

12Hours/24Hours

12 Hours

24 Hours

ENT

Exit

^ Vuelva al menú <Clock>. ﬂ Seleccione <OSD Clock>. & Active la pantalla <OSD Clock>. ‡ Seleccione el ajuste <OSD Clock>.

• Off: La hora del reloj no se visualiza mientras

se reproduce una fuente de vídeo.

• On: La hora del reloj se visualiza mientras se

reproduce una fuente de vídeo.

* Finalice el procedimiento.

Operaciones básicas — Panel de control

Seleccione la fuente. TUNER = SAT (SIRIUS/XM) = DISC (DVD/VCD/CD) = USB =CD-CH, iPod, D.PLAYER, o EXT-IN

= Bluetooth Phone =Bluetooth Audio = AV-IN =(vuelta al comienzo)

• Podrá seleccionar algunas fuentes si no están preparadas.

• Encienda la unidad.

• Apaga el sistema [Sostener].

• Atenúa el sonido (si el sistema está encendido).

• Visualiza o borra <AV Menu>*

• Activa Voice Dialing (marcación por

voz) [Sostener].

Ajuste el volumen.

Cambia la información en pantalla.

Cambia la inclinación del panel de control (Tilt1 – Tilt4).

Sensor remoto

ESPAÑOL

Ventanilla de visualización

• DISC/USB: Inicia la reproducción.

Saque el disco.

• En los menús: Ingresar

ENT

: [Pulse]/

(

• TUNER/SAT: Selecciona las bandas.

• Visualice el <Dial Menu>.

• Visualiza lista <Redial> [Sostener]].

• DISC/USB: Pare la reproducción.

• En los menús: Atrás.

4 / ¢

• TUNER: Efectúa la búsqueda de emisoras.

• SAT: Selecciona los canales.

• DISC/USB: Selecciona los capítulos/pistas.

• En los menús: Pasa al paso anterior/siguiente.

• iPod/D.PLAYER: Selecciona las pistas.

• Bluetooth Audio: Salto hacia atrás/salto hacia adelante.

5 / ∞*

• TUNER: Selecciona las emisoras preajustadas.

• SAT: Selecciona las categorías.

• DISC/USB: Selecciona títulos/carpetas.

• En los menús: Selecciona las opciones.

• iPod/D.PLAYER: Ingresa al menú del reproductor/pone en pausa o detiene la reproducción.

• Bluetooth: Selecciona un dispositivo.

Reinicialice la unidad.

• Se utiliza sólo debido a un malfuncionamiento interno del sistema.

Desmonte el panel

ENT

: [Sostener])

Pantallas <AV Menu>

de control*

Puede utilizar los menús para configurar los diversos ajustes. La pantalla <AV Menu> se compone de los siguientes submenús—Setup/Equalizer/Sound/

Disc Surround/Mode/List/Bluetooth/Dual Zone.

• Para los detalles, consulte las páginas 48 a 57.

*2 Para fijar el panel

de control

*3 Manteniendo pulsado 5 / ∞, podrá visualizar

la lista accesible para la fuente seleccionada.

OPERACIONES

Operaciones básicas — Control remoto (RM-RK251)

Instalación de la pila

R03/LR03/AAA

ESPAÑOL

Si disminuye la efectividad o el radio de acción del control remoto, cambie ambas pilas.

Antes de utilizar el control remoto:

• Apunte el control remoto directamente hacia el sensor remoto del receptor.

• NO exponga el sensor remoto a una luz brillante (luz solar directa o iluminación artificial).

El receptor está equipado con la función de control remoto en el volante de dirección.

• Para la conexión, consulte el Manual de

instalación/conexión (volumen separado).

Precaución:

• No exponga las pilas al calor o las llamas.

Elementos principales y funciones

;

a s

IMPORTANTE:

Si se activa la Zona Dual (☞ página 26), el control remoto funcionará sólo para controlar el reproductor DVD/CD.

1*1 • Enciende la unidad.

• Atenúa el sonido si el sistema está encendido.

• Desconecta la alimentación si lo pulsa y mantiene pulsado (mientras la alimentación está conectada).

2*1 Seleccione la fuente. 3*1 • Visualiza <Dial Menu>.

• Visualiza la lista <Redial> si lo pulsa y mantiene pulsado.

• Contesta las llamadas entrantes.

4*1*2 Ajusta el nivel de volumen. 5*1*2 Selecciona el modo Surround.

6 • DVD/DivX 6: Muestra el número de disco.

• VCD: Reanuda la reproducción de PBC (☞ página 21).

• DVD-VR: Muestra la pantalla Original Program (programa original).

7 • Efectúa la selección/los ajustes.

• ~: Salta 5 minutos hacia atrás o adelante para DivX/MPEG1/MPEG2.

•

Botones DISC +/–: Cambia los discos para “CDCH”.

8 Muestra la barra en pantalla. 9*1 Cambia la información en pantalla. p Visualiza o borra <AV Menu>. q Para operaciones de disco/USB:

• 6: Reproducción/pausa.

• 5 / ∞

DVD: Selecciona el título/grupo. DVD-VR: Selecciona el programa/lista de

reproducción.

USB/otros discos (excepto VCD/CD): Selecciona

las carpetas.

• 4 / ¢:

– Pulse brevemente: salto hacia atrás/salto

hacia adelante

– Pulse y mantenga pulsado: búsqueda hacia

atrás/búsqueda hacia adelante

Para operaciones de FM/AM:

• 5 / ∞: Selecciona las emisoras preajustadas.

• 4 / ¢: Funciona para la búsqueda de emisoras.

– Pulse brevemente: Búsqueda automática – Pulse y mantenga pulsado: Búsqueda manual

Para las operaciones de la radio satelital:

• 5 / ∞: Seleccione una categoría.

• 4 / ¢:

– Selecciona rápidamente un canal si lo pulsa y

mantiene pulsado.

– Selecciona un canal al pulsarlo.

Para las operaciones de Apple iPod/

reproductor D. de JVC:

• ∞: Pone en pausa/detiene o reanuda la reproducción.

• 5: Entra al menú principal (seguidamente 5 / ∞ / 4 / ¢ funcionan como botones selectores de menú).*

• 4 / ¢

(en el modo de selección de menú)

– Selecciona una opción si lo pulsa brevemente.

(Seguidamente, pulse ∞ para confirmar la selección).

– Salta 10 opciones simultáneamente si lo pulsa

y mantiene pulsado.

Para operaciones Bluetooth:

• 5 / ∞: Selecciona un dispositivo registrado.

• 4 / ¢: salto hacia atrás/salto hacia adelante (para operación de audio).

• 6:

Contesta las llamadas entrantes (para

“Bluetooth Phone”).

Reproduce/pone en pausa (para “Bluetooth

Audio”).

En los menús:

• 5 / ∞: Selecciona las opciones.

• 4 / ¢: Pasa al paso anterior/siguiente.

w TUNER/SAT: Selecciona las bandas. DISC/USB: Pare la reproducción.

Bluetooth Phone

: Finaliza la llamada. Bluetooth Audio: Reproducción/pausa. En los menús: Atrás.

e*2 Ajusta el volumen a través de la clavija 2nd

AUDIO OUT. (☞ página 26)

Activa o desactiva la Zona Dual.

1*2

Selecciona el modo de sonido.

t* y • DVD Vídeo/DivX 6: Muestra el número de disco.

• VCD: Reanuda la reproducción de PBC. (☞ página 21)

• DVD-VR: Muestra la pantalla Play List (lista de reproducción).

u Botón RETURN

• Para VCD: Vuelve al menú PBC.

DISC/USB: Cambia el modo de entrada de número.

• Funciona también como botón CLEAR para borrar la entrada errónea después de introducir el número incorrecto.

Introduce números. (☞ páginas 12, 19 a 21, 36 y 42)

•

Cambiador de CD: Selecciona el disco directamente.

• Sintonizador: Selecciona las emisoras preajustadas.

;*1 Cambia la relación de aspecto de las imágenes

reproducidas.

a Búsqueda hacia atrás/búsqueda hacia adelante

para las operaciones de disco/USB

s • DVD Vídeo: Selecciona idioma de audio (

subtítulos ( ), ángulo ( ).

•

DVD Audio: Selecciona el flujo de audio ( ).

• DVD-VR: Activa/desactiva subtítulos ( ) y selecciona el canal de audio ( ).

• DivX: Selecciona idioma de audio ( ), subtítulos ( ).

• VCD: Selecciona el canal de audio ( ).

*1 Estos botones no se pueden utilizar si está activada la

Zona dual.

*2 Estos botones se pueden usar solamente cuando la

cubierta deslizante está cerrada.

*3 5 : Vuelve al menú anterior. ∞ : Confirma la selección.

OPERACIONES

ESPAÑOL

Para escuchar la radio

POWER]ON

N° de preajusteBanda

TUNER

FM1 Preset1

FLAT

ABC Radio

87.5 MHz

ESPAÑOL

DXMO

3: 45PM

Indicadores del sintonizador

Seleccione “TUNER”.

Ÿ Seleccione las bandas.

! Búsqueda de una emisora—Búsqueda automática.

• Búsqueda manual: Sostenga 4 o ¢ hasta que aparezca “Manual Search” en la pantalla y, a continuación, presiónelo repetidamente.

• El indicador ST se enciende al recibir una radiodifusión FM estéreo con una intensidad de señal suficientemente potente.

Cuando una radiodifusión en FM estéreo sea difícil de recibir

Icono del menú de modo

AV Menu

Setup

AV Menu

Mode

Off

Mono

DX/Local SSM Title Entry

ENT

Enter

ENT

Enter

Mono

Off

Se consigue mejorar la recepción, pero se pierde el efecto estereofónico.

• El indicador MO se enciende.

Para restablecer el efecto estéreo, seleccione

<Off> en el paso 4.

☞ página

Nombre asignado a la emisora (☞ página 47). Si no hay ningún nombre asignado, aparecerá “No Name”.

ENT

Exit

Para sintonizar emisoras con un señal suficientemente fuerte

Esta función funciona sólo para las bandas FM. Una vez activada (se selecciona <Local>), esta función siempre funcionará al efectuar la búsqueda de emisoras FM.

AV Menu

Preajuste automático de emisoras FM —SSM (Memoria secuencial de las emisoras más fuertes)

Esta función funciona sólo para las bandas FM. Se pueden preajustar seis emisoras para cada banda.

AV Menu

ENT

Setup

Enter

AV Menu

ENT

Mode

Icono del menú de modo

Mode

DX/Local

Mono

DX/Local

SSM Title Entry

Local

Se detectan solamente las emisoras con una señal suficientemente fuerte.

• El indicador DX se apaga y el indicador LO se enciende.

Enter

ENT

Exit

Setup

AV Menu

Mode

ENT

Icono del menú de modo

Mode

Mono DX/Local

SSM

Title Entry

ENT

Start

Las emisoras FM locales con las señales más intensas serán exploradas y almacenadas automáticamente en la banda FM.

ESPAÑOL

Enter

OPERACIONES

Preajuste manual

Ej.: Almacenando una emisora FM de 92,5 MHz en el

número de preajuste 4 de la banda FM1.

2 Sintonice la emisora que desea preajustar.

No Name

ESPAÑOL

Seleccione un número de preajuste.

92.5 MHz

FM1 Store

87.5

89.9

97.9

105.9

108.0

107.9

ENT

Aparece la lista de preajustes.*

FM1 Store

87.5

89.9

97.9

105.9

108.0

107.9

ENT

Selección de emisoras preajustadas

En el control remoto:

En la unidad:

FM1 Store

87.5

89.9

97.9

92.5

108.0

107.9

ENT

TUNER

FM1 Preset4

No Name

92.5 MHz

La emisora seleccionada en el paso 2 ha sido almacenada en el número de preajuste 4.

* Cada vez que sostiene el botón, podrá cambiar las

bandas FM.

• También se podrá acceder a la lista de preajustes a través de <AV Menu> = <List>. (☞ derecha)

• Cada vez que sostiene el botón, podrá cambiar las bandas FM.

FM1 Store

87.5

89.9

97.9

92.5

108.0

107.9

ENT

• También se podrá acceder a la lista de preajustes a través de <AV Menu> = <List>.

AV Menu

ENT

Setup

AV Menu

List

Enter

ENT

Enter

Icono del menú de lista

Operaciones de los discos

El tipo de disco se detecta automáticamente, y la reproducción se inicia automáticamente (para algunos discos: el inicio automático depende de su programa interno).

Si el disco no dispone de ningún menú de disco, todas las pistas del mismo serán reproducidas repetidamente hasta que usted cambie la fuente o expulse el disco.

Si aparece “

• En algunos casos, puede suceder que no se acepte la operación aunque no se visualice “ ”.

Inserta el disco.

La reproducción se inicia automáticamente.

” en el monitor, significa que la unidad no puede aceptar la operación intentada.

Lado de la etiqueta

Precaución:

No ponga su dedo detrás del panel de control.

Precaución sobre el ajuste de volumen:

Los discos y los dispositivos USB conectados producen muy poco ruido al compararse con otras fuentes. Antes de reproducir un disco, baje el volumen para evitar daños a los altavoces debido a un repentino aumento del nivel de salida.

DISP: Púlselo si la imagen reproducida no aparece, pero sí se

visualiza la pantalla de información del disco (

DISC

Now Reading ...

ESPAÑOL

☞ páginas 14 a 16).

7: Pare la reproducción.

0: Expulsa el disco.

3: Inicie la reproducción, si es necesario.

3: 45PM

OPERACIONES

Mientras se reproducen los siguientes discos, pulse .

• Cada vez que presiona el botón, la imagen reproducida y la información del disco aparecen alternativamente.

Tipo de disco

DVD

Formato de audio

DIGITALVIDEO

Modo Surround

MULTI

T 01 C 02 0:45:38

ESPAÑOL

4 ¢ Pulse : Seleccionar un capítulo Sostener: Búsqueda hacia atrás/adelante 5 ∞ Selecciona el título

VR-PR: Programa original VR-PL: Lista de reproducción

DVD

4 ¢ Pulse : Seleccionar un capítulo Sostener: Búsqueda hacia atrás/adelante 5 ∞ Selecciona Nº de programa/Nº de lista de

reproducción

DVD

CHAP. RPT

3: 45PM

Modo de

reproducción

Nº de título/Nº de capítulo/tiempo de reproducción

FLATDIGITALVR-PR

P 01 C 02 0:45:38

3: 45PM

Nº de programa (o Nº de lista de

reproducción)/Nº de capítulo/tiempo de

reproducción

Nº de grupo/Nº de pista/tiempo de reproducción

AUDIO

MULTIMLP

G 01 02 0:45:38

BONUS

B.S.P

RPT

3: 45PM

4 ¢ Pulse : Seleccionar la pista Sostener: Búsqueda hacia atrás/adelante 5 ∞ Selecciona el grupo

Indicador BONUS (

☞ página 22)

Indicador B.S.P (

☞ página 22)

DVD

DivX

T 01 C 02 0:45:38

Current Folder Name Current File Name.avi

FRONT 2CH

RPT

3: 45PM

ESPAÑOL

4 ¢ Pulse : Seleccionar la pista Sostener: Búsqueda hacia atrás/adelante

para DivX/MPEG

5 ∞ Pulse: Selecciona la carpeta Sostener: Visualiza la lista de carpetas

4 ¢ Pulse : Seleccionar la pista Sostener: Búsqueda hacia atrás/adelante

*1 Velocidad de búsqueda: x2 ] x10. *2 Velocidad de búsqueda: ¡1 ] ¡2.

Para DivX/MPEG: Nº de carpeta/Nº de pista/ tiempo de reproducción Para JPEG: Nº de carpeta/Nº de archivo

El indicador PBC se enciende mientras se está usando PBC.

VCD

02 0:45:38

Nº de pista/tiempo de reproducción

☞ página 46

FLATPBC

3: 45PM

OPERACIONES

☞ página 46

ESPAÑOL

4 ¢ Pulse : Seleccionar la pista Sostener: Búsqueda hacia atrás/

adelante

4 ¢ Pulse : Seleccionar la pista Sostener: Búsqueda hacia atrás/

adelante

5 ∞ Pulse: Selecciona la carpeta Sostener: Visualiza la lista de carpetas

FLAT

02 0:45:38 Disc Title Artist Name Current Track Title

RPT

3: 45PM

Título de disco/nombre del artista/título de pista (sólo para

CD Text)

Nº de pista/tiempo de reproducción

Formato de audio (MP3/WMA/WAV/AAC)

MP3

☞ página 46

FLAT

T 01 02 0:45:38

Current Folder Name Current File Name.mp3

RPT

3: 45PM

Nº de carpeta/Nº de pista/tiempo de reproducción

Aparecerán los datos de etiqueta en lugar de los nombres de carpetas/archivos cuando estén grabados y con <

Tag

Display> ajustado a <On>. (☞ página 49)

*1 Velocidad de búsqueda: x2 ] x10. *3 Aparece “No Name” para los CDs convencionales.

Selección de los modos de reproducción

Podrá utilizar solamente uno de los siguientes modos de reproducción—Introducciones musicales/repetida/ aleatoria. Ej.: Para seleccionar repetición de pista

Tipo de

disco

AV Menu

Setup

AV Menu

Mode

Icono del menú de modo

ENT

Intro Repeat Random

Enter

Chapter: Repite el capítulo

—

Title: Repetir el título actual

—

Track: Repetir la pista actual

Chapter: Repite el capítulo

—

Track: Se reproducen los

Program:

Track: Repetir la pista actual

primeros15 segundos de cada pista (para VCD: PBC no se utiliza)

Track: Se reproducen los

primeros15 segundos

Track: Repetir la pista actual Folder: Se repiten todas las

de cada pista

Folder: Se reproducen los

primeros 15 segundos de la primera pista de cada carpeta

Track: Repetir la pista actual

—

Folder: Repita la carpeta actual

Para cancelar, seleccione <All Off> en el paso 3 u <Off> en el paso 4.

actual

Repite el programa actual (no disponible para la reproducción de la lista de reproducción)

(para VCD: PBC no se utiliza)

pistas de la carpeta actual

Mode

All Off Intro

Repeat

Random

Off

Repeat

Off

Track

Folder

ENT

Set

Al seleccionar uno de los modos de reproducción, el indicador correspondiente se enciende en la pantalla de información del disco.

—

Disc (All): Se reproducen

aleatoriamente todas las pistas (para VCD: PBC no se utiliza)

Folder: Reproduce

aleatoriamente todas las pistas de la carpeta actual y luego las pistas de las siguientes carpetas

Disc (All): Se reproducen

aleatoriamente todas las pistas

—

ESPAÑOL

—

Folder: Repita la carpeta actual

—

OPERACIONES

Selección de pistas en la lista

Si un disco incluye carpetas, podrá visualizar las listas de carpetas/pistas (archivo) y luego iniciar la reproducción.

ESPAÑOL

Aparece la lista de carpetas.

• Mantenga pulsado el botón para ver las carpetas

2 Seleccione una carpeta y, a continuación,

active la lista de pistas.

Aparece la lista de pistas de la carpeta seleccionada.

3 Seleccione una pista y, a continuación, inicie

la reproducción.

Folder List

My Best

Cinema Pops My Best2 Favorite Song Cinema2

Off

siguientes/anteriores.

Folder List

My Best Cinema Pops

My Best2

Favorite Song Cinema2

Off

File List

Song011.mp3 Song012.mp3 Song013.mp3

Song014.mp3

Song015.mp3 Song016.mp3

Off

ENT

Prohibición de la expulsión del disco

Podrá bloquear un disco en la ranura de carga.

NO EJECT?

EMERGENCY EJECT?

Aparecerá “No Eject”.

Para cancelar la prohibición, repita el mismo procedimiento que para seleccionar “EJECT OK?”.

• También se podrá acceder a la lista de carpetas a

través de <AV Menu> = <List>.

AV Menu

ENT

Setup

AV Menu

List

Icono del menú de lista

Enter

ENT

Enter

Operaciones utilizando el control remoto—RM-RK251

: Pare la reproducción.

*1 Borra la entrada errónea del

número.

*2 Velocidad de búsqueda: x2 ]

x5 ] x10 ] x20 ] x60

*3 Velocidad a cámara lenta: 1/32

] 1/16 ] 1/8 ] 1/4 ] 1/2

*4 Velocidad de búsqueda: x2 ]

x10

: Inicia la reproducción/Pausa (si lo pulsa durante la

(Cámara lenta*

Sostener: Búsqueda hacia atrás/adelante.*

: Selecciona un título (durante la reproducción o la pausa).

Seleccionar un capítulo. Seleccionar un título (cuando no se está

reproduciendo).

Seleccionar un título (durante la reproducción o la pausa).

: : : :

Sostener: Búsqueda hacia atrás/adelante.*

Selecciona la pista.

Selecciona un grupo.

reproducción).

: Búsqueda hacia atrás/adelante.*2 (El sonido no se escucha.)

durante la pausa. El sonido no se escucha.)

: Pulse: Selecciona un capítulo (dentro del mismo título,

durante la reproducción o la pausa).

= = :

Usando las funciones de control por menú

1 2 Selecciona una opción

(dos veces) = = :

Selecciona una relación de aspecto. Seleccionar el idioma de audio.

Selecciona el idioma de los subtítulos. Seleccionar el ángulo de visión.

: Pare la reproducción.

: Inicia la reproducción/Pausa (si lo pulsa durante la

reproducción).

: Búsqueda hacia atrás/adelante.*

: Pulse: Selecciona la pista.

: Selecciona un grupo.

= = :

(dos veces) = = :

Usando las funciones de control por menú

1 2 Seleccione el ítem que

: Selecciona una relación de aspecto. : Seleccionar el

flujo

de audio.

deseada para iniciar la reproducción.

desea reproducir.

ESPAÑOL

OPERACIONES

ESPAÑOL

: Pare la reproducción.

: Inicia la reproducción/Pausa (si lo pulsa durante la reproducción).

: Búsqueda hacia atrás/adelante.*2 (El sonido no se escucha.)

: Pulse: Selecciona la pista.

Sostener: Búsqueda hacia atrás/adelante.*

(El sonido no se

escucha.)

: Selecciona la carpeta.

Para DivX6: Usando las

= = :

Seleccionar la pista (dentro de la misma

carpeta).

(dos veces) = = :

Selecciona la carpeta.

funciones de control por menú

1 2 Selecciona una opción

deseada para iniciar la reproducción.

: Selecciona una relación de aspecto.

: Seleccionar el idioma de audio. (soló

DivX)

: Selecciona el idioma de los subtítulos. (soló DivX)

Mientras se está

Posición de reproducción actual

reproduciendo...

Retrocede/avanza las escenas 5 minutos.

2ª pulsación

1ª pulsación

2ª pulsación

3ª pulsación

: Pare la reproducción.

: Inicia la reproducción/pausa (si lo pulsa

durante la reproducción).

: Búsqueda hacia atrás/adelante.*4 (El

sonido no se escucha.)

(Cámara lenta*5 durante la pausa. El sonido

no se escucha.)

La cámara lenta hacia atrás no funciona.

: Pulse: Seleccionar un capítulo (durante la

reproducción o la pausa).

Sostener: Búsqueda hacia atrás/adelante.* Selecciona el programa.

: Selecciona la lista de reproducción (durante

la reproducción o la pausa). : Selecciona una relación de aspecto. : Selecciona el canal de audio (ST: estéreo,

L: izquierdo, R: derecho).

: Activa/desactiva los

subtítulos.

= = :

Seleccionar un capítulo. Selecciona el programa (cuando no se está

reproduciendo).

(dos veces) = = :

Selecciona un programa/lista de reproducción

(durante la reproducción o la pausa).

Uso de las pantallas Programa original/Lista de reproducción

(☞ página 28) 1 Para programas originales: Para la lista de reproducción: 2 Selecciona una opción deseada para

iniciar la reproducción.

3 (Pantalla oculta)

: Pare la reproducción.

: Inicia la reproducción. (Slide show: se

muestra cada archivo durante unos segundos).

Muestra el archivo actual hasta que

lo cambie, si lo pulsa durante la presentación de diapositivas.

: Selecciona la pista.

: Pare la reproducción.

: Inicia la reproducción/

pausa (si lo pulsa durante la reproducción).

: Búsqueda hacia atrás/adelante.*

: Pulse: Selecciona la pista.

Sostener: Búsqueda hacia atrás/

adelante.*

: Selecciona la carpeta.

: Selecciona una relación de aspecto.

= = :

Seleccionar la pista (dentro de la misma

carpeta).

(dos veces) = = :

Selecciona la carpeta.

: Pare la reproducción.

: Inicia la reproducción/pausa (si lo pulsa

durante la reproducción).

: Búsqueda hacia atrás/adelante.*

(Cámara lenta hacia adelante*5 durante la

pausa. El sonido no se escucha.)

La cámara lenta hacia atrás no funciona.

: Pulse: Selecciona la pista.

Sostener: Búsqueda hacia atrás/

adelante.*6 (El sonido no se escucha).

: Selecciona una relación de aspecto. : Selecciona el canal de audio (ST: estéreo,

L: izquierdo, R: derecho).

: Pare la reproducción.

: Inicia la reproducción/pausa (si lo pulsa

durante la reproducción).

: Búsqueda hacia atrás/adelante.*

: Pulse: Selecciona la pista.

Sostener: Búsqueda hacia atrás/adelante.*

= = : Seleccionar la pista.

: Selecciona la carpeta.

= = :

Seleccionar la pista (dentro de la misma

carpeta).

(dos veces) = = :

Selecciona la carpeta.

= = :

Selecciona la pista.

Durante la reproducción PBC...

= = :

Seleccione una opción en el menú. Para volver al menú anterior, pulse

Para cancelar la reproducción PBC

2 Inicie la pista deseada.

= =

• Para reanudar PBC, pulse / .

*1 Borra la entrada errónea del número. *2 Velocidad de búsqueda: ¡1 ] ¡2 ]

¡3

*3 Velocidad de búsqueda: ¡1 ] ¡2 *4 Velocidad de búsqueda: x2 ] x5 ] x10 ]

x20 ] x60

*5 Velocidad a cámara lenta: 1/32 ] 1/16 ]

1/8 ] 1/4 ] 1/2

*6 Velocidad de búsqueda: x2 ] x10

ESPAÑOL

OPERACIONES

Reproducción de un grupo de bonificación

Si se detecta un DVD Audio que incluya un “grupo de bonificación”, el indicador BONUS se enciende en la pantalla de información del disco.

Para reproducir un grupo de bonificación...

1 Seleccione el grupo de bonificación.

• El grupo de bonificación se encuentra grabado normalmente como último grupo.

ESPAÑOL

2 Introduzca el número clave.

: Mueva la posición de entrada

: Seleccione un número

Cómo disfrutar de sonidos Surround

Puede disfrutar de una reproducción Surround multicanal a través de los altavoces delanteros, central, surround.

• Asegúrese de activar el altavoz central después

de conectarlo; de lo contrario, no saldrá sonido a través del mismo (☞ página 52).

• El modo All surround también se puede usar para “USB”.

MULTI: Para fuentes codificadas multicanal, como por

ejemplo, Dolby Digital* (Al activarse, aparece “MULTI” en la pantalla de información de fuente).

Dolby Pro Logic II (Movie/Music): Para fuentes de 2

canales excepto discos DivX/MPEG 1/MPEG2.

, DTS*2, y DVD Audio.

• El “número clave” (una especie de contraseña) para el grupo de bonificación no se da a conocer al público. La forma de obtener el número clave depende del disco.

3 Siga las instrucciones interactivas que

aparecen en el monitor.

Selección de imágenes fijas buscables

Cuando se detecta un disco que incluye imágenes fijas buscables, se encenderá el indicador B.S.P en la pantalla de información del disco.

Cuando un disco muestre iconos de selección de BSP, como por ejemplo, @ o # en la pantalla...

1 Seleccione la opción que desea visualizar.

Para activar el efecto surround

AV Menu

Setup

Icono del menú Disc Surround

AV Menu

Disc Surround

ENT

Disc Surround

Surround Off

Surround On

Auto

• Surround Off: Surround se desactiva.

• Surround On: Surround se activa = vaya a los

siguientes pasos.

Enter

Surround On

Auto

Through Dolby PLII Movie Dolby PLII Music

ENT

Set

• Auto: Cuando se introducen señales digitales multicanal, se activa surround “MULTI”.

Cuando se introducen señales de 2 canales o 2,1

canales, se activa “4CH STEREO”.

• Through: Todas las señales de canal entrantes se envían a los altavoces correspondientes.

• Dolby PLII Movie: Dolby Pro Logic II Movie se activa.

• Dolby PLII Music: Dolby Pro Logic II Music se activa. Puede realizar los ajustes de <Panorama> y <Center Width>. (☞ debajo).

Para cambiar el ajuste <Dolby PLII Music>

en el paso 4 de arriba...

Surround On

Auto Through Dolby PLII Movie

Dolby PLII Music

Panorama

En el control remoto:

• Los ajustes <Dolby PL II Music> no se pueden cambiar usando el control remoto.

Fabricado bajo licencia de Dolby Laboratories. Dolby,

Pro Logic y el símbolo de la doble D son marcas comerciales de Dolby Laboratories.

*2 “DTS” y “DTS Digital Surround” son marcas

registradas de DTS, Inc.

ESPAÑOL

Dolby PLII Music

Panorama

CenterWidth

• Panorama: Seleccione <On> para añadir efecto de sonido envolvente.

• Center Width: Ajuste la imagen central de manera que pueda escucharse sólo del altavoz central, sólo por los altavoces delanteros izquierdo/derecho como una imagen “fantasma”, o de diversas combinaciones de estos altavoces. Conforme aumenta el número, el efecto “fantasma” se intensifica (normalmente seleccione <4>).

OPERACIONES

Operaciones usando la barra en pantalla (DVD/VCD/DivX/MPEG1/ MPEG2/JPEG)

Estas operaciones se pueden realizar en el monitor usando el control remoto.

1 Visualice la barra en pantalla. (☞ página 25)

ESPAÑOL

2 Seleccione una opción.

3 Efectúe una selección.

Si aparece un menú emergente...

• Para ingresar tiempos/números...

Para borrar la barra en pantalla

: Mueva la posición de entrada

: Seleccione un número

Barras en pantalla

Información

Funcionamiento

DVD -V

TIME TITLE CHAP

T02-C03 TOTAL 1:25:58

C. RPT

RPT

El ejemplo de arriba es de un DVD Vídeo. Las opciones mostradas en la barra varían según el tipo de disco.

1 Tipo de disco 2 • DVD: Formato de señal de audio

• VCD: PBC

3 Modo de reproducción*

DVD Vídeo: T. RPT: Repetición de título C. RPT: Repetición de capítulo DVD Audio: T. RPT: Repetición de pista DVD-VR: C. RPT: Repetición de capítulo PG. RPT: Repetición de programa DivX/MPEG: T. RPT: Repetición de pista F. RPT: Repetición de carpeta JPEG: F. RPT: Repetición de carpeta VCD: T. INT: Introducción de pista T. RPT: Repetición de pista A. RND: Todo aleatorio 4 Información sobre reproducción

Título/capítulo actual

T02-C03

Grupo/pista actual

G02-T03

PG-001

Programa/capítulo actual

C-002

PL-003

Lista de reproducción/

C-004

TRACK 01

F001-T001

F002-F002

capítulo actual

Pista actual

Carpeta/pista actual Carpeta/archivo actual (JPEG)

5 Indicación de la hora

Tiempo de reproducción

TOTAL

transcurrido del disco

T. REM

Tiempo estante del título (para DVD)

Tiempo restante del disco (para los

otros)

TIME

Tiempo de reproducción transcurrido del capítulo/pista actual*

REM

Tiempo restante del capítulo/pista

actual*

6 Estado de reproducción

Reproducción

Búsqueda hacia atrás/adelante

Cámara lenta hacia atrás/adelante Poner en pausa Parada

7 Iconos de operación

Cambia la indicación del tiempo (véase

TIME

5 )

Búsqueda por tiempo (especificar una

cierta escena ingresando el tiempo)

TITLE

Búsqueda de título (por su número)

CHAP

Búsqueda de capítulo (por su número)

GROUP

Búsqueda de grupo (por su número)

TRACK

Búsqueda de pista (por su número)

RPT

Reproducción repetida*

INT

Reproducción de introducciones

musicales*

RND

Reproducción aleatoria*

Cambia el idioma de audio, el canal de

audio, o el flujo de audio

Cambia el idioma de los subtítulos

Cambia el ángulo de visión

PAGE

Cambia las imágenes fijas buscables

(páginas)

ESPAÑOL

*1 ☞ página 17 *2 No aplicable para DVD-VR.

OPERACIONES

Operaciones de Zona Dual

Mientras escucha cualquier otra fuente distinta de “USB” a través de los altavoces, podrá disfrutar de la reproducción del disco en el monitor externo conectado a las clavijas VIDEO OUT y 2nd AUDIO OUT.

• Mientras se está usando la Zona Dual, sólo podrá operar el reproductor DVD/CD utilizando el control remoto.

ESPAÑOL

AV Menu

Setup

AV Menu

Dual Zone

ENT

Icono del menú Zona dual

Dual Zone

Off On

On/Surround On

ENT

Enter

Set

• Off: Desactive la Zona Dual.

• On (DUAL): La Zona Dual se activa sin aplicar Headphone Surround*1.

• On/Surround On (DUAL-S): La Zona Dual se activa y se aplica Headphone Surround.

Al activar la Zona Dual, la fuente principal cambia a “DISC”.

FLATDIGITALVIDEO

DUAL-S

DVD

T 01 C 02 0:45:38

Ej.: Cuando se selecciona “On/Surround On”.

Para seleccionar una fuente distinta (fuente principal) y escuchar a través de los altavoces:

Pulse SRC (fuente) en el panel de control.

• Utilizando los botones del panel del panel de control podrá operar la fuente principal recién seleccionada sin afectar las operaciones de la Zona Dual (DISC).

• No se puede seleccionar “USB” para la fuente

principal.

En el control remoto:

2 Ajuste el volumen a través de la clavija 2nd

AUDIO OUT.

3 Opere el reproductor DVD/CD.

*1 Sistema virtual Surround para auriculares original

de JVC. Este Surround también será efectivo para la fuente principal “DISC” si se ha seleccionado “On/ Surround On” para la fuente secundaria. Este efecto surround no se activa para los discos DivX/MPEG1/ MPEG2.

*2 La indicación aparece sombreada si no se aplica

Headphone Surround.

Operaciones utilizando la pantalla de control

Para discos que no sean DVD y VCD:

Mientras esté activada la Zona Dual, estas operaciones se pueden realizar en el monitor externo utilizando el control remoto. La pantalla de control aparece automáticamente al insertar un disco. (Para DivX/MPEG1/MPEG2/JPEG; mientras no se esté reproduciendo).

TIME 00:00:14T. RPT

Track : 6 / 14 (Total 41)

Cloudy.mp3 Fair.mp3 Fog.mp3 Hail.wma Indian summer.mp3 Rain.mp3

Shower.mp3

Snow.mp3 Thunder.wma Typhoon.mp3 Wind.mp3 Winter sky.mp3

Folder : 2 / 3

01 Music

02 Music

03 Music

Track Information Album Weather Artist Robert M. Smith Title Rain

Ej.: MP3/WMA

1 Carpeta actual (barra resaltada) 2

Número de carpeta actual/número total de carpetas

3 Lista de carpetas

* Si los datos de etiqueta incluyen “Jacket Picture”

(línea de base JPEG), aparecerá visualizada. Si pulsa OSD, aparecerá la ventana de selección del modo de reproducción. (☞ debajo)

4 Modo de reproducción seleccionado (☞ debajo) 5 Tiempo de reproducción transcurrido de la pista

actual (no se visualiza para JPEG)

6 Estado de operación 7 Número de la pista actual/número total de pistas

de la carpeta actual (número total de pistas del disco)

8 Información de pista (sólo para MP3/WMA/WAV/

AAC)

9 Lista de pistas p Pista actual (resaltado)

Para seleccionar una carpeta o una pista

1 Seleccione la columna “Folder” o la columna

“Track” en la pantalla de control.

2 Seleccione una carpeta o una pista.

• Si es necesario, pulse ENT para iniciar la reproducción.

TIME 00:14

Track : 6 / 14

Cloudy Fair Fog Hail Indian summer

Rain

Shower Snow Thunder Typhoon Wind Winter sky

MODE

REPEAT

TRACK

Track Information

Album Four seasons Artist Robert M. Smith Title Rain

T. RPT

Ej.: CD Text

1 Ventana de selección del modo de reproducción:

aparece cuando se pulsa OSD (☞ debajo).

2 Modo de reproducción seleccionado (☞ debajo) 3 Tiempo de reproducción transcurrido de la pista

actual

4 Estado de operación 5 Número de la pista actual/número total de pistas

del disco

6 Información de la pista 7 Lista de pistas 8 Pista actual (barra resaltada)

Para seleccionar una pista

• Si es necesario, pulse ENT para iniciar la reproducción.

ESPAÑOL

Selección de los modos de reproducción

También puede cambiar los modos de reproducción.

• Para CD/MP3/WMA/WAV/AAC: Introducciones musicales/repetida/aleatoria

• Para DivX/MPEG1/MPEG2/JPEG: Repetida

2 Sólo para CD/MP3/WMA/WAV/AAC:

Seleccione un modo de reproducción.

3 Seleccione la opción deseada.

Modo de reproducción seleccionado

DivX/MPEG1/MPEG2/JPEG: ☞ página 25 MP3/WMA/WAV/AAC: T. INT: Introducción de pista F. INT: Introducción de carpeta T. RPT: Repetición de pista F. RPT: Repetición de carpeta F. RND: Aleatoria de carpeta A. RND: Todo aleatorio CD: T. INT: Introducción de pista T. RPT: Repetición de pista A. RND: Todo aleatorio

OPERACIONES

Operaciones utilizando la pantalla de lista

Para discos, excepto DVD, VCD y CD

Mientras esté activada la Zona Dual, estas operaciones se pueden realizar en el monitor externo utilizando el control remoto.

Mientras no se está reproduciendo...

1 Visualiza la pantalla de lista.

ESPAÑOL

2 Seleccione una carpeta en la lista.

Folder : 144/240 Track 144/198 Page : 4/7 fol120

fol121 fol122 fol123 fol124 fol125 fol126 fol127 fol128 fol129

fol130 fol131 fol132 fol133 fol134 fol135 fol136 fol137 fol138 fol139

fol140 fol141 fol142

fol143

fol144 fol145 fol146 fol147 fol148 fol149

fol150 fol151 fol152 fol153 fol154 fol155 fol156 fol157 fol158 fol159

Pantalla de lista para DVD-VR

Puede usar la pantalla de Programa original y Lista de reproducción en cualquier momento mientras se reproduce un DVD-VR con sus datos grabados.

1 Visualiza la pantalla Programa original/

Lista de reproducción.

ORIGINAL PROGRAM

No Date Ch ime itle

1 07/04/25 4ch 19:00 JVC DVD World 2004 2 07/05/25 8ch 10:30 3 07/05/22 8ch 17:00 Music Festival 4 07/05/26 L-1 13:19 children 001 5 07/06/20 4ch 22:00 6 07/06/25 L-1 8:23 children 002

PLAY LIST

No Date Chap Length Title

1 07/05/25 001 1:03:16 My JVC World 2 07/06/17 005 1:35:25 3 07/06/20 003 0:10:23 Favorite music 4 07/06/25 001 0:07:19 children001-002

Folder : 144/240 Track 144/198 Page : 4/5 file0121.mp3

file0122.mp3 file0123.wma file0124.mp3 file0125.mp3 file0126.wma file0127.wma file0128.mp3 file0129.mp3 file0130.wma

file0131.mp3 file0132.mp3 file0133.mp3 file0134.mp3 file0135.wma file0136.mp3 file0137.wma file0138.mp3 file0139.wma file0140.wma

file0141.wma file0142.mp3 file0143.wma

file0144.mp3

file0145.mp3 file0146.mp3 file0147.mp3 file0148.wma file0149.wma file0150.wma

file0151.wma file0152.mp3 file0153.wma file0154.mp3 file0155.wma file0156.wma file0157.wma file0158.wma file0159.mp3 file0160.wma

3 Seleccione una pista de la lista.

• Para volver a la lista de carpetas, pulse .

Número de carpeta actual/número total de carpetas

1 2 Número de la pista actual/número total de pistas

de la carpeta actual

3 Página actual/número total de páginas incluidas en

la lista

4 Carpeta/pista actual (barra resaltada)

2 Seleccione la opción que desea.

1 Número de programa/Lista de reproducción 2 Fecha de grabación 3 Fuente de grabación (emisora de TV, el terminal

de entrada del equipo de grabación, etc.)

4 Hora de inicio de la grabación 5 Título del programa/lista de reproducción* 6 Barra resaltada (selección actual) 7 Creando la fecha de las listas de reproducción 8 Número total de capítulos 9 Tiempo de reproducción

* Dependiendo del equipo de grabación, puede

suceder que no se visualice el título del programa original o la lista de reproducción.

Operaciones de USB

Puede conectar a la unidad un dispositivo de clase de almacenamiento masivo USB tal como una memoria USB, un reproductor de audio digital*

~ Conecte un dispositivo USB.

, un HDD (disco duro) portátil, etc.

Cable USB desde la parte trasera de la unidad.

• No se puede conectar un ordenador al terminal USB ( ) de la unidad.

Ÿ Seleccione “USB”.

4 ¢ Pulse: Seleccionar la pista Sostener: Búsqueda hacia atrás/adelante. 5 ∞ Pulse: Selecciona la carpeta Sostener: Visualiza la lista de carpetas

USB

Now Reading ...

DISP: Púlselo si la imagen reproducida no aparece,

pero sí se visualiza la pantalla de información del disco (

☞ páginas 14 a 16).

ESPAÑOL

7: Pare la reproducción

Esta unidad puede reproducir archivos DivX/ JPEG/MPEG1/MPEG2*2/MP3/WMA/WAV/AAC*3 almacenados en un dispositivo de clase de almacenamiento masivo USB.

•

Puede accionar el dispositivo USB de la misma manera que los archivos de los discos. (☞ página 17 a 25)

• No se puede seleccionar “USB” cuando se está usando la Zona Dual.

• Todas las pistas del dispositivo USB se reproducirán repetidamente hasta que usted cambie la fuente.

3: Inicie la reproducción, si es necesario.

3: 45PM

*1 Excepto para el reproductor D. de JVC XA-HD500. *2 Excepto archivos MPEG2 grabados mediante la

cámara JVC Everio (código de extensión <.mod>).

*3 Esta unidad puede reproducir archivos AAC

codificados con iTunes. Esta unidad no puede reproducir archivos AAC comprados en iTunes Store.

OPERACIONES

Precaución:

• Evite usar el dispositivo USB si puede amenazar la seguridad de conducción.

• No extraiga ni conecte repetidamente el dispositivo USB mientras “Now Reading...” esté parpadeando en la pantalla del monitor.

• No ponga en marcha el motor del coche si hay un dispositivo USB conectado.

• Detenga la reproducción antes de desconectar un dispositivo USB.

• Para evitar el borrado accidental, asegúrese de sacar copia de respaldo de todos los datos importantes.

• No deje el dispositivo USB en el coche expuesto a la luz directa del sol o a altas temperaturas pues se podrá producir deformación o daños en el dispositivo.

ESPAÑOL

Selección de los modos de reproducción

Podrá utilizar solamente uno de los siguientes modos de reproducción—Introducciones musicales/repetida/ aleatoria. Ej.: Para seleccionar repetición de pista

Tipo de

archivo

AV Menu

Setup

AV Menu

Mode

Icono del menú de modo

ENT

Intro Repeat Random

Enter

Track: Se reproducen los

primeros15 segundos de cada pista

Folder: Se reproducen los

primeros 15 segundos de la primera pista de cada carpeta

—

Mode

Off

All Off Intro

Repeat

Random

Repeat

Off

Track

Folder

ENT

Al seleccionar uno de los modos de reproducción, el indicador correspondiente se enciende en la pantalla de información.

Para cancelar, seleccione <All Off> en el paso 3 u <Off> en el paso 4.

Track: Repetir la pista actual Folder: Se repiten todas las

pistas de la carpeta actual

Track: Repetir la pista actual Folder: Repita la carpeta actual

Folder: Reproduce

USB (All): Se reproducen

Set

aleatoriamente todas las pistas de la carpeta actual y luego las pistas de las siguientes carpetas

aleatoriamente todas las pistas

—

Folder: Repita la carpeta actual

—

JVC KD-AVX33 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Playable disc type

Before operating the unit

Basic operations — Control panel

OPERATIONS

Basic operations — Remote controller (RM-RK251)

Listening to the radio

Disc operations

USB operations

Bluetooth® operations — Cellular phone/audio player

Listening to the CD changer

Listening to the satellite radio

Listening to the iPod/D. player

Listening to other external components

Sound equalization

Assigning titles to the sources

Menu operations

Maintenance

More about this unit

Troubleshooting

Specifications
