ENGLISH

DVD/CD RECEIVER

ПРИЕМНИК ДЛЯ ВОСПРОИЗВЕДЕНИЯ ДИСКОВ DVD И КОМПАКТ-ДИСКОВ

РУCCKИЙ

KD-AVX2

EXTRA MONITOR CONTROL

MODE MENU

ASPECT

T/P

/ BACK

ENTBAND

For canceling the display demonstration, see page 10.

Информацию об отмене демонстрации функций дисплея см. на стр. 10.

For installation and connections, refer to the separate manual.

Указания по установке и выполнению соединений приводятся в отдельной инструкции.

DVD / RECEIVER CONTROL

ZOOM

ATT

+10

SOURCE

–100

DUAL

VOL

RM-RK240

–10

ASPECT

123

DISC

456

ENTER

7809

–

DISC

SETUP

+100

DIRECT

OSD

MENUTOP M

RETURN

SURROUND

SRC

BAND

2nd VOL

SHIFT

В соответствии с Законом Российской Федерации “О защите прав

KD-AVX2

DISP

потре бителей” срок службы (годности) данного товара “по истечении которого он может представлять опасность для жизни, здоровья потребителя, причинять вред его имуществу или окружающей среде” составляет семь (7) лет со дня производства. Этот срок является временем, в течение которого потребитель данного товара может безопасно им пользоваться при условии соблюдения ин струк ции по эксплуатации данного товара, проводя необходимое обслуживание, включающее замену расходных материалов и/или соответствующее ремонтное обеспечение в специализированном сервисном центре.

Дополнительные косметические материалы к данному товару, поставляе мые вместе с ним, могут храниться в течение двух (2) лет со дня его производства.

Срок службы (годности), кроме срока хранения дополнительных космети ческих материалов, упомянутых в предыдущих двух пунктах, не затрагивает никаких других прав потребителя, в частности, гарантийного свидетельства JVC, которое он может получить в соответствии с законом о правах потребителя или других законов, связанных с ним.

INSTRUCTIONS

ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ

LVT1455-005A

[EE]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to

obtain the best possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave

ENGLISH

all servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated.

Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

For safety....

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

How to reset your unit

This will reset the microcomputer. Your preset adjustments will also be erased.

How to forcibly eject a disc

If a disc cannot be recognized by the receiver or cannot be ejected, ejects the disc as follows.

“NO EJECT?” (or “EJECT OK?”) and “EMERGENCY EJECT?” appear on the monitor. Press 5 / ∞ repeatedly to select “EMERGENCY EJECT?”, then press ENT.

• If this does not work, reset your receiver.

• Be careful not to drop the disc when it ejects.

WARNINGS:

• DO NOT install any receiver in locations where; – it may obstruct the steering wheel and

gearshift lever operations, as this may result in a traffic accident.

– it may obstruct the operation of safety

devices such as air bags, as this may result in a fatal accident.

– it may obstruct visibility.

• DO NOT operate any receiver while manipulating the steering wheel, as this may result in a traffic accident.

• The driver must not watch the monitor while driving. If the driver watches the monitor while driving, it may lead to carelessness and cause an accident.

• The driver must not put on the headphones while driving. It is dangerous to shut off the outside sounds while driving.

• If you need to operate the receiver while driving, be sure to look ahead carefully or you may be involved in a traffic accident.

• If the parking brake is not engaged, “Parking Brake” flashes on the monitor, and no playback picture will be shown. – This warning appears only when the

parking brake wire is connected to the parking brake system built in the car (refer to the Installation/Connection Manual).

Cautions on the monitor:

• The monitor built in this receiver has been produced with high precision, but it may have some ineffective dots. This is inevitable and is not malfunction.

• Do not expose the monitor to direct sunlight.

Characters shown on the monitor

In addition to the roman alphabet (A – Z, a – z), the following characters will be used to show the various information on the monitor.

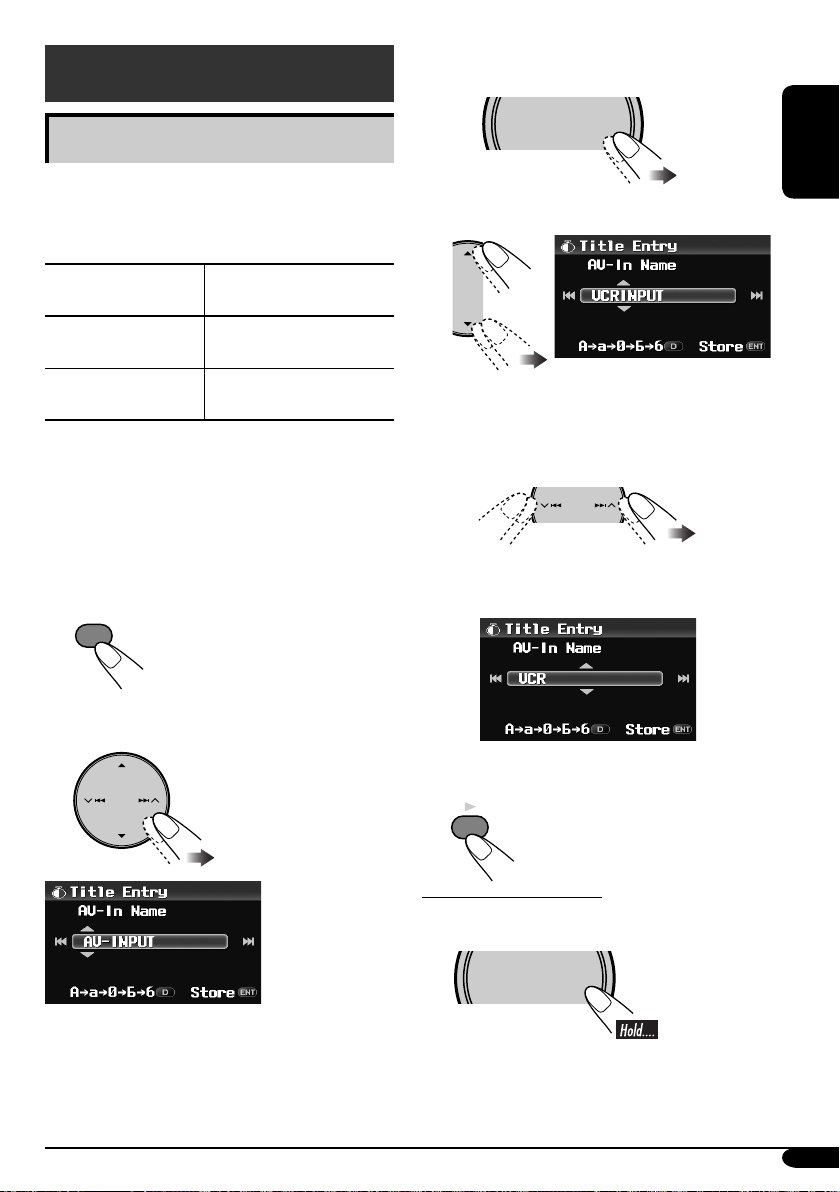

• You can also use the following characters to assign titles (see page 45).

Upper case (Cyrillic alphabet)

Lower case (Cyrillic alphabet)

ENGLISH

Caution on volume setting:

Discs produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.

Numbers and symbols

Introduction—Playable discs

Discs you can play

You can play back the following discs—12 cm and 8 cm —on this receiver:

ENGLISH

• DVD Video: Recorded in PAL color system

with Region Code “5” (see below).

– DVD-R/DVD-RW recorded in the DVD-

Video format can also be played.

• DVD Audio

• Video CD (VCD)/audio CD

• MP3/WMA/WAV/JPEG/MPEG1,2/DivX:

Recorded either in CD-R/CD-RW or DVDR/DVD-RW/+R/+RW/DVD-ROM.

– CD-R/CD-RW: Compliant with ISO 9660

Level 1, ISO 9660 Level 2, Romeo, and Joliet.

– DVD-R/DVD-RW/+R/+RW/DVD-ROM:

Compliant with UDF-Bridge Format*

• It is possible to play back finalized +R/+RW (DVD Video format only) discs. However the use of +R double layer disc on this unit is not recommended.

• DVD-R recorded in multi-border format is also playable (except for dual layer discs).

On some discs, the actual operations may be different from what is explained in this manual.

Discs cannot be played back

DVD-ROM (data), DVD-RAM, DVD-R/DVDRW recorded in the DVD-VR format, CDROM, CD-I (CD-I Ready), Photo CD, etc.

• Playing back these discs will generate noise and damage the speakers.

Caution for DualDisc playback

• The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of NonDVD side of a DualDisc on this product may not be recommended.

A hybrid file system used to provide

compatibility with ISO 9660 for accessing any type of files on the disc. (UDF stands for Universal Disk Format.)

“DVD Logo” is a trademark of DVD Format/ Logo Licensing Corporation registered in the US, Japan and other countries.

Note on Region Code:

DVD players and DVD Video discs have their own Region Code numbers. This receiver can only play back DVD discs whose Region Code numbers include “5”.

Examples:

If you insert a DVD Video disc of an incorrect Region Code

“Region Error” appears on the monitor on the unit and the disc ejects. “REGION CODE ERROR” also appears on the external monitor.

How to read this manual

The following methods are used to make the explanations simple and easy-to-understand:

• Some related tips and notes are explained in “More about this receiver” (see pages 58 – 62).

• Button operations are mainly explained with the illustrations as follows:

Press briefly.

Press repeatedly.

Press either one.

Press and hold until your desired response begins.

Press and hold both

buttons at the same time.

Control panel ............................... 6

Remote controller — RM-RK240

Getting started ............................. 10

Radio operations .......................... 12

FM RDS operations ........................ 15

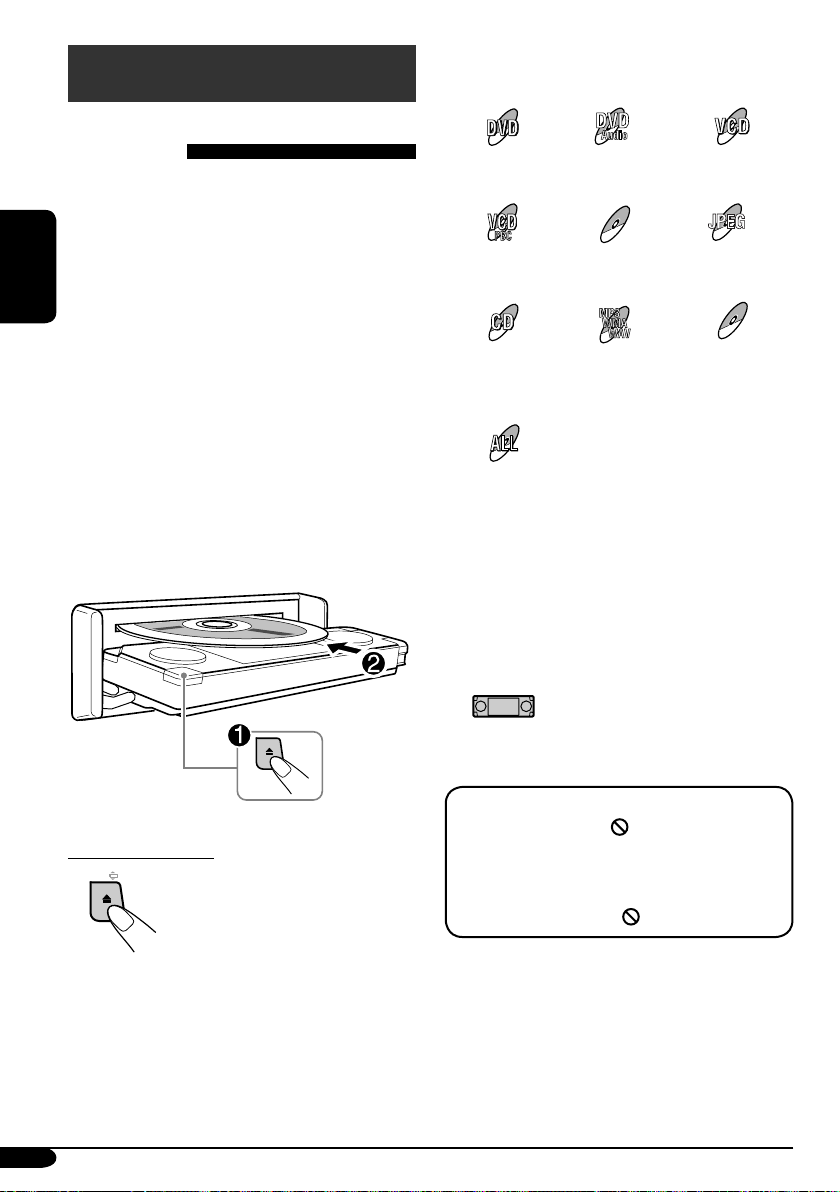

Disc operations ............................. 18

Unique disc functions .................... 23

Disc surround playback ................. 25

On-Screen disc operations ............. 27

Other disc operations .................... 31

Dual Zone operations .................... 33

AV Menu settings .......................... 34

Other main functions .................... 45

CD changer operations .................. 46

DAB tuner operations

....................... 48

External component operations iPod®/D. player operations

Maintenance ................................ 56

Language codes ............................ 57

More about this receiver ............... 58

Troubleshooting ........................... 63

Specifications ............................... 67

....... 7

......... 53

................ 54

ENGLISH

Control panel

ENGLISH

Monitor indications

Parts identification

Ex.: Source screen on JPEG playback

SRC

DISP

KD-AVX2

1 (standby/on attenuator) button 2 • +/– (volume +/–) button

• SRC (source) button

• DISP (D: display) button

3 Remote Sensor 4 Monitor 5 • 5 (up) / ∞ (down) buttons

•

4/¢ buttons

6 MENU button 7 ASPECT (A) button 8 T/P button 9 • 0 (eject) button

•

(angle) button

p Reset button q • BAND button

• BACK button

• 7 (stop) button

/ BACK

ASPECT

ENTBAND

T/P

w • ENT (enter) button

• 3 (play) button e

(control panel release) button

Monitor indications

r Source indicator t Main display y Clock display

Also indicates volume level when adjusting

volume.

u Status indicators i Alert information area

Also indicates volume level bar when

adjusting volume.

How to detach/attach the control panel

Detaching...

Attaching...

How to change the control panel angle

ENGLISH

Angle 1 Angle 2

Caution: Do not insert your finger behind the control panel.

Remote controller — RM-RK240

Installing the lithium coin battery

(CR2025)

Angle 3

Angle 4

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the receiver. Make sure there is no obstacle in between.

Remote sensor

• Do not expose the remote sensor to strong light (direct sunlight or artificial lighting).

Warning:

• Do not install any battery other than CR2025 or its equivalent; otherwise, it may explode.

• Store the battery in a place where children

ENGLISH

cannot reach to avoid risk of accidents.

• To prevent the battery from over-heating, cracking, or starting a fire:

– Do not recharge, short, disassemble, or

heat the battery or dispose of it in a fire.

– Do not leave the battery with other

metallic materials.

– Do not poke the battery with tweezers or

similar tools.

– Wrap the battery with tape and insulate

when throwing away or saving it.

The receiver is equipped with the steering wheel remote control function.

• See the Installation/Connection Manual (separate volume) for connection.

Main elements and features

EXTRA MONITOR CONTROL

MODE MENU

ASPECT

DVD / RECEIVER CONTROL

ATT

SOURCE

BAND

DUAL

VOL

2nd VOL

SHIFT

RM-RK240

ZOOM

+10

–100

ASPECT

123

456

7 809

SETUP

DISC

ENTER

DISC

+100

DIRECT

–10

OSD

MENUTOP M

–

RETURN

SURROUND

IMPORTANT:

If Dual Zone is activated (see page 33), the remote controller only functions for operating the DVD/CD player.

MONITOR CONTROL

1 Monitor control buttons*

• (standby/on), MODE, ASPECT, MENU,

and .

DVD/RECEIVER CONTROL

(standby/on attenuator) button

• Turns on and off the power and also attenuates the sound.

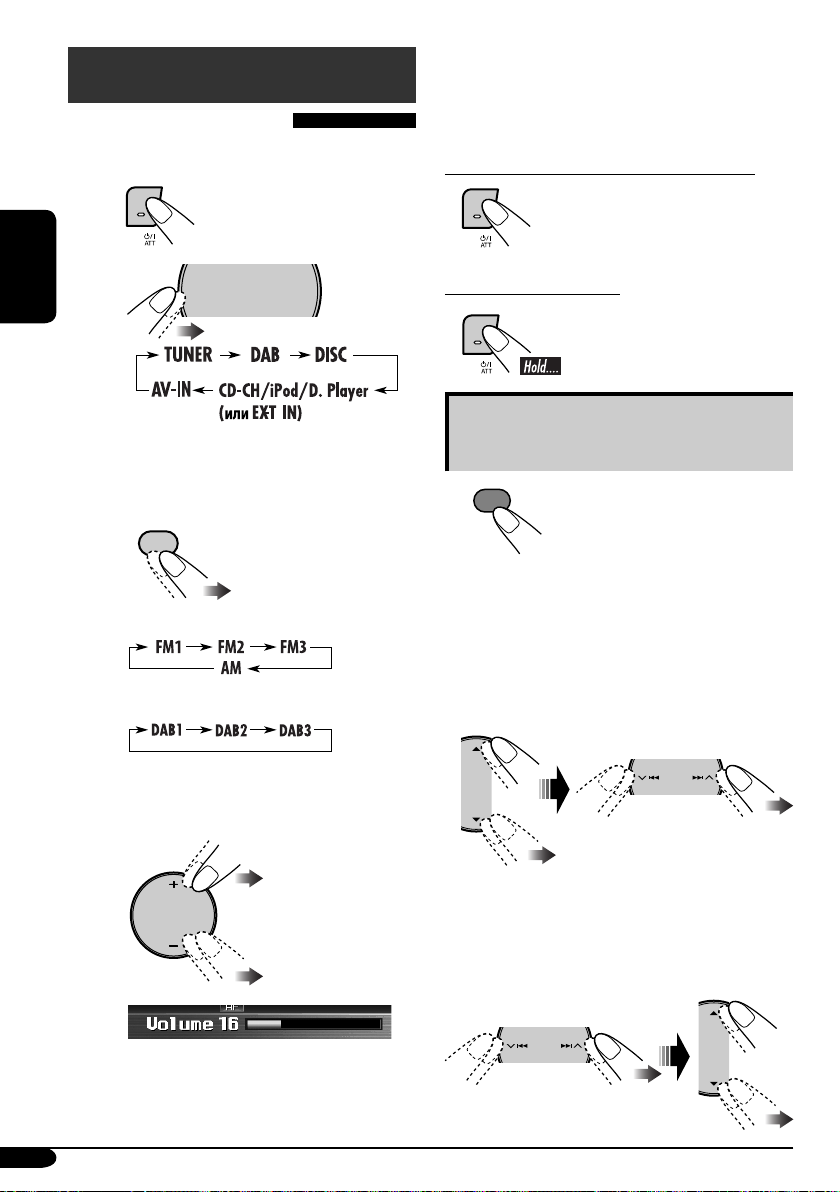

3 SOURCE button

• Selects the source.

4 BAND button

• Selects the FM/AM/DAB bands.

5 ASPECT button

• Change the aspect of the monitor on the unit when playing back DVD, VCD, etc.

6 DUAL button

• Activate and deactivate Dual Zone.

7 VOL + / – buttons

• Adjusts the volume level.

• Also function as 2nd VOL +/– buttons when pressed with SHIFT button.

8 TOP M (menu) button*

• Display the DVD, DVD Audio, DivX, and

VCD*

disc menu.

9 SHIFT button p Basic disc operation buttons*

7 (stop), 3 (play), 8 (pause)

• 3 (play) also function as ZOOM button when pressed with SHIFT button.

q Advanced disc operation/tuner operation

buttons*

For advanced disc operations:

• 5 / ∞

– Select the titles (for DVD), groups (for

DVD Audio), or folders (for MP3/ WMA/WAV/JPEG/MPEG/DivX).

• 4 / ¢ (reverse skip/forward skip)

• 1 / ¡ (reverse search/forward search)*

* Not used as the SETUP button for this model.

For FM/AM tune r operations:

• 5 / ∞ – Changes the preset stations.

• 4 / ¢ – Functions to search for stations. Press briefly: auto search Press and hold: manual search

For DAB tuner operations:

• 5 / ∞ – Changes the preset channels.

• 4 / ¢ – Changes the services if pressed briefly. – Changes the channels if pressed and

held.

For iPod/D. player operations:

• 5 / ∞ ∞: Pauses/stops or resumes playback. 5: Enters the main menu of iPod/D.

player. (Now 5 / ∞/4 / ¢ work as the menu selection buttons)*

• 4 / ¢ (in menu selecting mode) – Selects an item if pressed briefly. (Then, press ∞ to confirm the

selection.)

– Skips 10 items at a time if pressed and

held.

w OSD button

• Display the on-screen bar.

• Also function as the DIRECT button when pressed with SHIFT button.

– You can directly select titles (for DVD),

groups (for DVD Audio) or folders (for MP3/WMA/WAV/MPEG/DivX) using the number buttons (see the right column and page 22).

e MENU button*

• Display the DVD, DivX, and VCD*2 disc menu. (Not functions for the DVD Audio disc.)

r Menu operation buttons*

• Cursor (% , ﬁ , @ , #) and ENTER

• % / ﬁ : Also function as DISC+/– buttons

when the source is “CD-CH”.

t RETURN button*

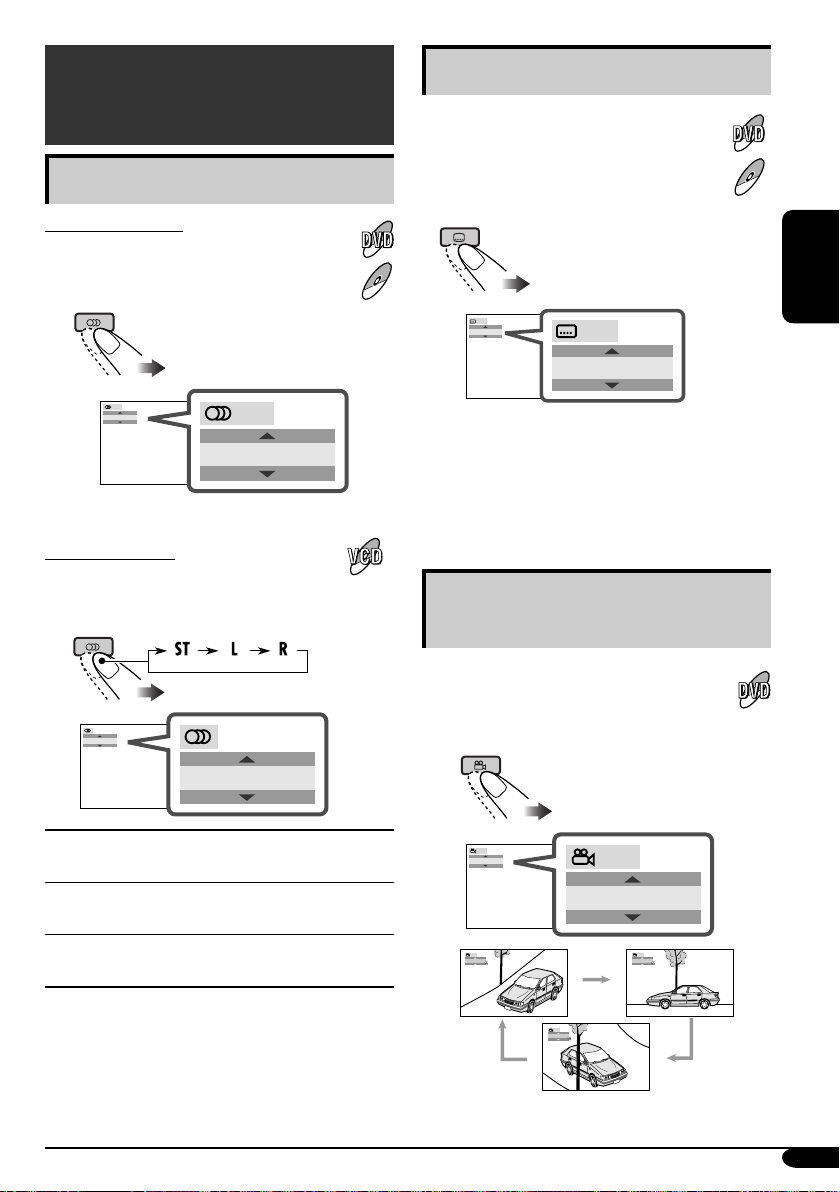

y Special function buttons

• DVD/VCD/DivX:

• DVD/DivX:

• DVD:

•

(angle)

Also function as the SURROUND

(audio)

(subtitle)

button when pressed with SHIFT button.

– You can change the surround mode (see

page 26).

Controllable only if your monitor is one of the

JVC monitors — KV-MR9010 or KV-MH6510.

 ese buttons function as the number buttons when pressed with SHIFT button.

Only when PBC is not in use.

Not used for CD changer operations.

 ese buttons function as the +10/–10 and +100/–100 buttons when pressed with SHIFT button.

Not used for JPEG operations. No sound can be heard (DVD/VCD/MPEG/DivX).

5: Returns to the previous menu.

∞: Con rms the selection.

How to select a number

To select a number from 0 – 9:

To select a number greater than 9:

ENGLISH

• +100/–100 buttons used for searching track number greater than 99 (not available for CD/VCD/DVD/DVD audio).

Getting started

Basic operations

@ Adjust the equalizer as you want.

(See pages 42.)

~ Turn on the power.

ENGLISH

You cannot select some sources if they are not ready.

For FM/AM tuner

For DAB tuner

/ BACK

BAND

SRC

To drop the volume in a moment (ATT)

To restore the sound,

press it again.

DISP

To turn off the power

Canceling demonstration and setting the clock

Select “Setup”, then,

1 Select “Display”, “Demonstration”, then

“Off” to cancel demonstration.

2 Select “Clock”, “Time Set”, and go to the

next step to set the clock.

⁄ Adjust the volume.

SRC

3 Set the hour and minute.

1 Select “Hour”, then adjust the hour. 2 Select “Minute”, then adjust the minute.

Volume level indicator

4 Finish the procedure.

• See the example on “Basic procedure of AV Menu operation” below to change the clock

ENT

from 24 hours to 12 hours.

Basic procedure of AV Menu operation

You can adjust various settings of the unit from AV Menu.

• To call up AV Menu...

Displays remaining time to continue the menu operation

Current menu

Selected sub menu

Ex.: To change the clock from 24 hours to 12 hours, after pressing MENU...

ENGLISH

Select “Setup”,

Selected item of the sub menu currently selected

Sub menus

• To select an menu item and proceed to the sub menu...

Selects a sub menu or a menu item

Proceeds to the selected sub menu

Back to previous menu

• To go back to the previous screen and adjust other items...

/ BACK

BAND

“Clock”,

“12Hours / 24Hours”,

then “12Hours”.

ENT

• To cancel menu operations and return to the source screen, press DISP (D).

• See pages 34 – 44 for information of the sub menus and menu items.

Radio operations

ENGLISH

/ BACK

BAND

SRC

DISP

TUNER (FM1/2/3,AM)

When an FM stereo broadcast is hard to receive

2 Select “Mode”, “Mono”, then “On”.

Selected band appears.

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

! Start searching for a station.

When a station is received, searching stops. To stop searching, press the same button again.

To tune in to a station manually

In step ! above....

3 Finish the procedure.

ENT

Lights up when monaural mode is activated.

Reception improves, but stereo effect will be lost.

To restore the stereo effect, repeat the same procedure to set “Mono” to “Off”. The MO indicator goes off.

2 Select the desired station frequencies.

To tune in strong-signal FM station only

Storing stations in memory

You can preset six stations for each band.

2 Select “Mode”, “DX / Local”, then “Local”.

3 Finish the procedure.

ENT

Lights up when “Local” mode is activated.

Only stations with sufficient signal strength will be detected.

To tune in to all receivable stations, repeat the same procedure to set “DX / Local” to “DX”. The LO indicator goes off and the DX indicator lights up.

FM station automatic presetting —

SSM (Strong-station Sequential Memory)

After selecting the FM band (FM1 – FM3) you want...

2 Select “Mode”, then “SSM”.

ENT

“SSM” is shown until automatic presetting is over.

Local FM stations with the strongest signals are searched and stored automatically in the FM band.

ENGLISH

Manual presetting

After tuning in the station you want to preset...

Listening to a preset station

SRC

DISP

ENGLISH

2 Select “List”, then a preset number

(1–6) you want store the station into.

EX.: Storing 92.5 MHz into preset number 4 of FM1

• You can also display the list by pressing and

holding 5/∞ buttons.

ENT

TUNER (FM1/2/3,AM)

/ BACK

BAND

4 Select a preset number (1–6) you

want.

ENT

• You can change the preset list between

FM1/2/3 by pressing and holding 5/∞ buttons (or by pressing 5/∞ buttons repeatedly) when selecting any of the FM bands.

Stored preset number flashes for a while.

How to exit from menus or lists

SRC

Menu or list operations are canceled and the screen returns to the source screen.

DISP

When using the remote controller...

FM RDS operations

Searching for your favorite FM RDS

programme

You can tune in to a station broadcasting your favorite programme by searching for a PTY code.

T/P

2 Select one of the twenty-nine PTY

codes.

ENT

The preset programmes appears at first. Press 5 / ∞ repeatedly to select other programmes.

If there is a station broadcasting a programme of the same PTY code as you have selected, that station is tuned in.

•

Press and hold 5 / ∞ to move the list rapidly.

•

To store your favorite programme, see page 16.

PTY codes

News (News), Affairs (Current Affairs), Info (Information), Sport (Sport), Educate (Education), Drama (Drama), Culture (Cultures), Science (Science), Varied (Varied Speech), Pop M (Pop Music), Rock M (Rock Music), Easy M (Easy Listening), Light M (Light Classics M), Classics (Serious Classics), Other M (Other Music), Weather (Weather & Metr), Finance (Finance), Children (Children’s Progs), Social (Social Affairs), Religion (Religion), Phone In (Phone In), Travel (Travel & Touring), Leisure (Leisure & Hobby), Jazz (Jazz Music), Country (Country Music), Nation M (National Music), Oldies (Oldies Music), Folk M (Folk Music), Document (Documentary)

•

The code names in the parentheses appear on the list screen.

What you can do with RDS

RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals. By receiving the RDS data, this receiver can do the following:

•

Programme Type (PTY) Search column

• Temporarily switches to Traffic Announcement—TA Standby Reception. (see page 16)

•

Temporarily switches to your favorite programme—PTY Standby Reception. (See pages 17 and 44.)

•

Tracing the same programme automatically —Network-Tracking Reception (See

page 17

• Programme Search (See page 40.)

(See

the left

ENGLISH

Storing your favorite programmes

Using the standby receptions

You can store six favorite programme types.

ENGLISH

T/P

2 Select a PTY code you want to store.

4 Select a preset number (1–6) you

want.

TA Standby Reception

TA Standby Reception allows the receiver to switch temporarily to Traffic Announcement (TA) from any source other than AM.

• The volume changes to the preset TA volume

level (see page 40).

• If the DAB tuner is connected, Standby

Reception also works to search for a DAB service.

To activate TA Standby Reception

either lights up or

T/P

• If

lights up, TA Standby Reception is

activated.

• If

flashes, TA Standby Reception is not yet activated. (This occurs when you are listening to an FM station without the RDS signals required for TA Standby Reception.)

To activate TA Standby Reception, tune in to

another station (or DAB service) providing these signals. lit.

flashes.

will stop flashing and remain

5 Finish the procedure.

ENT

To deactivate the TA Standby Reception

goes off.

T/P

Stored programme name flashes for a while.

PTY Standby Reception

PTY Standby Reception allows the receiver to switch temporarily to your favorite PTY programme from any source other than AM.

• If the DAB tuner is connected, Standby Reception also works to search for a DAB service.

To activate and select your favorite PTY code for PTY Standby Reception,

2 Select “Mode”, “PTY Standby”, then the

PTY code below “Off”.

PTY code list appears.

3 Select a PTY code you want.

ENT

Tracking the same programme—

Network-Tracking Reception

When driving in an area where FM reception is not sufficient enough, this receiver automatically tunes in to another FM RDS station of the same network, possibly broadcasting the same programme with stronger signals (see the illustration below).

When shipped from the factory, NetworkTracking Reception is activated ( when the power is turned on for the first time).

To change the Network-Tracking Reception setting, see “AF-Regional” on page 40.

Programme A broadcasting on different frequency areas (01 – 05)

lights up

ENGLISH

either lights up or flashes.

• If

To activate PTY Standby Reception, tune in to another station (or DAB service) providing these signals. The PTY indicator will stop flashing and remain lit.

To deactivate the PTY Standby Reception,

select “Off” on “PTY Standby” in the “Mode” menu.

lights up, PTY Standby Reception is

activated.

flashes, PTY Standby Reception is not

yet activated.

goes off.

Disc operations

MPEG

JPEG

DivX

The following marks are used to indicate the playable discs...

Playing a disc in the receiver

The disc type is automatically detected, and playback starts automatically (for DVD Video/

ENGLISH

Audio: automatic start depends on its internal program).

If the current disc is an audio CD, CD Text, MP3/WMA/WAV, JPEG, MPEG, DivX, or VCD without PBC, all tracks will be played repeatedly until you change the source or eject the disc.

• If a title list or disc menu appears while playing a DVD Video/Audio or VCD with PBC, see “Disc menu operations” on page 24.

To eject a disc

DVD

Audio

DVD Video DVD Audio Video CD with/without

PBC

Video CD with PBC

only

Audio CD/

CD Text

All discs listed here

MPEG disc JPEG disc

MP3

WMA

WAV

MP3/WMA/WAV

disc

DivX disc

Before performing any operations, make sure the following...

• The operations explained on pages 20 – 25 are mainly of the remote controller.

–

shows functions which you can

also use on the unit.

If “

” appears on the monitor when pressing a button, the receiver cannot accept an operation you have tried to do.

• In some cases, without showing “

”,

operations will not be accepted.

• When inserting a DVD video/DVD Audio disc:

Video/picture playback starts automatically

on the monitor when the parking brake is applied.

• The screen such as below appears when

pressing DISP (D).

When an DVD is playing back

Format indication Surround/Sound indication

Elapsed playing time

Current chapter number Current title number

When a DVD Audio disc is playing back

Current group/ track numbers

Bonus group indicator

• When inserting an MP3/WMA/WAV/JPEG/ MPEG/DivX disc*

After showing the total folder and file

number...

Ex.: When an WAV file is detected

Current folder/track

When playing back a JPEG/MPEG/DivX disc,

Format indication

number

Current track name

Elapsed playing time*3 Current folder name

press DISP (D) to display the screen. (Picture/ video playback is automatically starts when the parking brake is applied.)

Does not appear for JPEG disc.

ENGLISH

B.S.P. (browsable still pictures) indicator

• To return to playback, press DISP (D) again.

• When inserting a VCD: VCD playback starts automatically on the

monitor when the parking brake is applied.

• The screen such as below appears when pressing DISP (D).

PBC indicator*1

Elapsed playing time

Current track number

Appears when the PBC function is in use.

• To return to playback , press DISP (D) again.

• When inserting a CD Text/audio CD:

After showing the total track number and total

playing time...

Current track number

Elapsed playing time

Disc title/performer and track title are

displayed when playing a CD Text.

Basic operations

MPEG

DivX

Operations Monitor indication and/or next operation

To stop playback When you start playback again, playback

ENGLISH

/ BACK

BAND

To stop play temporarily Playback is paused.

starts from where it has been stopped (Resume play).

A still picture appears.

A Frame by frame playback

B Slow motion playback

• No sound comes out during Slow Motion Playback.

• When playing a VCD, Reverse Slow Motion Playback is prohibited.

ENT

To resume normal play:

To replay the previous scenes—One Touch Replay

The playback position moves back about 10 seconds before the current position.

• This function works only within the same title.

ENT

• For some DVDs, this function does not work.

• During play, on-screen guide icons appear on the monitor for a while (see page 62).

To go to the next or previous chapters/tracks

JPEG

MPEG

DivX

• For DVD: During play or pause

To locate a particular title/chapter/track directly

• For DVD Video/DVD Audio: During play or pause—select a chapter/ track.

During stop—select a title/track.

• For MP3/WMA/WAV/JPEG/MPEG: Select a track within the same folder.

ENGLISH

To fast-forward or reverse the chapter/track

While playing back...

MP3

DVD

WMA

Audio

* The search speed changes to x2 ] x10

(¡ (1) 1/2 for MPEG/DivX), but the information shown on the monitor is only for DVD/VCD/MPEG/DivX.

To forward or reverse search the chapter/track

While playing back...

The information shown is only for DVD/VCD:

MP3

WMA

DVD

Audio

Select the number corresponding to the item you want (see page 9).

To locate a title/group/folder

MP3

WMA

DVD

Audio

* The search speed of an MPEG/DivX file is 3

steps – ¡ (1) 1/2/3.

• To resume normal speed

MPEG

DivX

To locate a particular title/

JPEG

MPEG

DivX

group/folder

DVD

Audio

ENGLISH

Within 10 seconds, press the number buttons (see page 9).

IMPORTANT:

• For MP3/WMA/WAV discs: It is required that folders are assigned with 2-digit number at the beginning of their folder names—01, 02, 03, and so on.

To adjust the screen shape on the unit

ASPECT

DVD

Audio

MP3

WMA

To skip to the next or previous

scene

You can skip the scene back and forward by 5 minutes.

Ex.: when you are playing a 24-minute MPEG

file and the elapsed playing time is 8’24”...

Current playback position

• The first pressing of the buttons skips the scene to the nearest multiple-of-5 playing time (except current playing time).

• This function does not work when remaining time to skip forward or back is under 5 minutes.

• See “Aspect” on page 36 for the detail.

Unique disc functions

DivX

Selecting audio languages

For DVD and DivX:

You can select the language to listen to if the disc has multiple audio languages.

Selecting subtitles

You can select the language of the subtitle to be shown on the monitor.

• You can set the initial subtitle language using the AV Menu (see page 37).

1/3

ENGLISH

1/3

ENGLISH

1/3

ENGLISH

1/3

ENGLISH

Ex.: When the disc has 3 options

For VCD:

You can select the audio channel to play. (This is convenient when playing a Karaoke VCD.)

To listen to normal stereo (left/right)

ST:

playback.

To listen to the L (left) audio channel.

To listen to the R (right) audio channel.

ENGLISH

Ex.: When the disc has 3 options

• For some DVDs and VCDs, changing the subtitle language, audio language (or audio channel) without using the disc menu is prohibited.

Selecting multi-angle views

You can view the same scene at different angles if the disc has multi-angle views.

1/3

Ex.: When the disc has 3 multi-angle views

Disc menu operations

JPEG

MPEG

DivX

Menu-driven playback is possible while playing back a disc with menu-driven features or a VCD with the PBC (PlayBack Control).

ENGLISH

While playing a DVD/DivX

DVD/DivX DVD Audio

A title list or disc menu will appear on the monitor.

2 Select the item you want on the menu.

DVD

Audio

Canceling the PBC playback

2 Select a track to start normal playback using

the number buttons (see page 9).

To resume the PBC function

Zoom in

DVD

Audio

Selected item starts playback.

• On some discs, you can also select items by their numbers.

While playing a VCD

• When a list of items is displayed on the monitor.

• To select a number greater than 9, see “How to select a number” on page 9.

To return to the previous menus

ZOOM 1 ZOOM 2 ZOOM 3 ZOOM 4

ZOOM OFF

For JPEG disc (effective only when pausing):

ZOOM 1 ZOOM 2

ZOOM OFF

ZOOM 5ZOOM 6

2 Move the zoomed-in position.

• For JPEG files: You cannot move the zoomed-in position

when the entire picture is still displayed on the monitor.

To cancel zoom, select “ZOOM OFF” in step 1.

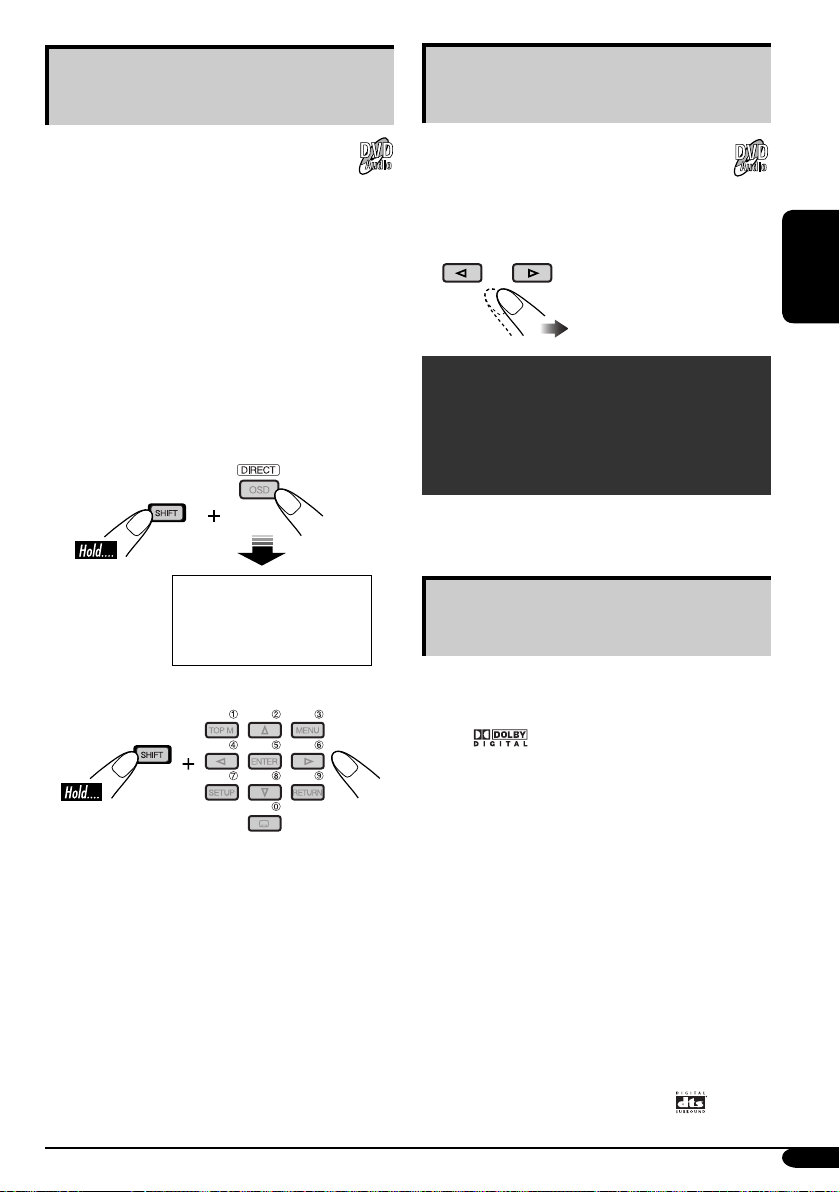

Playing back a bonus group

Selecting Browsable still pictures

Some DVD Audio discs have a special group called “bonus group” whose contents are not open to the public.

• To play back a bonus group, you have to enter the specific “key number” (a kind of password) for the bonus group. The way of getting the key number depends on the disc.

DVD

Audio

1 Select the bonus group.

• The bonus group is usually recorded as the last group (for example, if a disc contains four groups including a bonus group, “group 4” is the bonus group).

Within 10 seconds, press the number buttons (see page 9).

2 Enter the key number.

3 Follow the interactive instructions

shown on the monitor.

• The entered key number is cleared when the disc is ejected. Repeat steps 1 to 3 above to play back the bonus group again.

While playing back a track linked to browsable still pictures (B.S.P.), you can select (turn the page) the still picture to be shown on the monitor.

• If a track is linked to B.S.P., they are usually shown in turn automatically during playback.

DVD

Audio

Disc surround playback

You can enjoy multichannel surround playback of the disc on the unit.

Available surround format

Dolby Digital*1: used to reproduce multichannel soundtracks of the software encoded with Dolby Digital (

Dolby Pro Logic II: Dolby Pro Logic II is a multichannel playback format to decode all 2 channel sources—stereo source and Dolby Surround encoded source—into 5.1 channels. Dolby Pro Logic II has two modes—Movie mode and Music mode:

• Pro Logic II Movie

Suitable for playing any Dolby Surround

encoded software.

• Pro Logic II Music

Suitable for playing any 2-channel stereo

software.

DTS (Digital Theater Systems)*

reproduce multichannel soundtracks of the software encoded with DTS Digital Surround (

: used to

ENGLISH

Continued on the next page

*1: Manufactured under license from Dolby

Laboratories. Dolby, Pro Logic, MLP Lossless, and the double-D symbol are the trademarks of Dolby Laboratories.

*2: “DTS” and “DTS Digital Surround” are

registered trademarks of Digital Theater

ENGLISH

Systems, Inc.

Selecting the surround mode

The unit is set up, by default, to select the optimal surround mode for the digital multichannel disc in the initial setting. You can also choose the surround mode for the 2 channel disc.

When DISC is selected as the source...

2 Select “Disc Surround”.

*1 No sound comes out of the rear speakers

and the subwoofer when the FRONT 2CH indicator appears on the monitor.

*2 No sound comes out of the subwoofer when

the FIX indicator appears on the monitor.

*3 Activates no surround function when the

source is a CD (except for DTS CD)/VCD / MP3/WMA/WAV. Select “Dolby PLII Movie” or “Dolby PLII Music” manually to activate

the surround function. *4 Not selectable in the cases below: – the disc has 2.1 or more channels of sound

tracks (except for MPEG-encoded tracks). – the disc is an MPEG/DivX disc. *5 No sound comes out of the subwoofer when

the front speaker size is set to “Large” (see page 38).

*6 When you select “Dolby PLII Music”, you

can adjust the following items: “Panorama” and “Center Width” . Adjusting “Panorama” to “On” adds “wraparound” sound effect; Activating “Center Width” adjusts the center image so it may be heard only from the center speaker, only from the left/right front speakers as a “phantom” center image, or various combinations of these speakers. As the number increases, the “phantom” effect becomes stronger (normally select “4”).

3 Select the surround setting you want.

ENT

Surround Oﬀ : Deactivate the surround function.

Surround On*

• Auto*

selected automatically when multichannel digital signals are detected.

• Dolby PLII Movie*

Logic II Movie.

• Dolby PLII Music*

Pro Logic II Music.

1*2

: the optimum surround mode is

4*5

: Activate Dolby Pro

4*5*6

: Activate Dolby

• No sound comes out from the center speaker

when the surround function is not activated.

• Equalizer settings (page 42) become

ineffective and unadjustable while the surround function is activated.

• No sound may come out from some speakers

depending on the Speaker Size settings (page

38) or the type of the disc played back.

• When Dual Zone is activated, the surround

settings become ineffective and unadjustable. No sound comes from the center speaker.

On the remote controller:

SURROUND

On-Screen disc operations

JPEG

MPEG

DivX

Operations using the on-screen bar

You can check the disc information and use some functions through the on-screen bar.

On-screen bar

Information

Operation

1 Disc type 2 • DVD Video/DVD Audio: Audio signal format type

• VCD: PBC

3 Playback mode

DVD -V

TIME TITLE CHAP

C. RPT

DVD: T. RPT: Title repeat C. RPT: Chapter repeat DVD Audio: T. RPT: Track repeat VCD: T. RPT: Track repeat D. RND: Disc random T. INT: Track intro Plays the beginning 15 seconds of

the current track JPEG: T. RPT: Track repeat MPEG/DivX: T. RPT: Track repeat F. RPT: Folder repeat

4 Playback information

5 Time indication

Current title/chapter

T02-C03

Current group/track

G02-T03

TRACK 01

F001-T001

TOTAL

T. REM

Current track

Current folder/track

Elapsed playing time of the disc Remaining disc time (for VCD)/

remaining title time (for DVD)

TIME

Elapsed playing time of the current

chapter/track

T02-C03 TOTAL 1:25:58

RPT

REM

6 Playback status

Play Forward/reverse search Forward/reverse slow-motion Pause Stop

7 Operation icons

TIME

Time Search (Enter the elapsed playing

TITLE

GROUP

CHAP

TRACK

Change the audio language or audio

Change the subtitle language Change the view angle

RPT

INT

RND

* See also page 31.

DVD

Audio

Remaining time of the current

chapter/track

Change time indication (see 5)

time of the current title or of the disc.) Title Search (by its number) Group Search (by its number) Chapter Search (by its number)

Track Search (by its number)

channel

Repeat play* Intro play* Random play*

ENGLISH

Basic on-screen bar operations

1 Display the on-screen bar.

ENGLISH

(twice)

T02-C03 TOTAL 1:25:58

DVD -V

TIME TITLE CHAP

2 Select an item.

3 Make a selection.

• If pop-up menu appears....

C. RPT

RPT

To search for a particular point by playing time

1 Select . 2 Enter the elapsed playing time of the

current title or of the disc.

Ex.: • To enter 1 (hours): 02 (minutes): 00

(seconds), press 1, 0, 2, 0, then 0.

• To enter 54 (minutes): 00 (seconds), press 0, 5, 4, 0, then 0.

• It is always required to enter the hour digit (even “0” hour), but it is not required to enter trailing zeros (the last two digits in the examples above).

• To correct a misentry, press....

• You can also specify the elapsed playing time by using % / ﬁ / @ / #.

3 Finish the procedure.

or press the number buttons

(see page 9).

To erase the on-screen bar

To search for a particular title/group/chapter/ track

1 Select

TITLE (GROUP

2 Enter the number.

• To correct a misentry, press the number button until the correct number is entered.

3 Finish the procedure.

CHAP

TRACK

Basic control screen operations

JPEG

MPEG

DivX

JPEG

MPEG

DivX

JPEG

DivX

MPEG

You can search for and play the desired items through the control screen when using the external monitor.

• The control screen automatically appears on the monitor when you insert a disc (external monitor only).

• JPEG/MPEG/DivX control screen appears only when playback stops.

MP3

Control screen

Folder : 2 / 3

01 Music

02 Music

03 Music

Track Information Album Weather Artist Robert M. Smith Title Rain

WMA

TIME 00:00:14T. RPT

Track : 5 / 14 (Total 41)

Cloudy.mp3 Fair.mp3 Fog.mp3 Hail.wma Indian summer.mp3

Rain.mp3

Shower.mp3 Snow.mp3

Thunder.wma Typhoon.mp3 Wind.mp3 Winter sky.mp3

8 Track information (Not appears on JPEG/

MPEG/DivX playback)

9 Track (file) list p Current track (file) (highlighted bar)

To select a folder or track

MP3

WMA

While Dual Zone (see page 33) is on....

1 Select “Folder” column or “Track” column

on the control screen.

2 Select a folder or track.

To select a track

ENGLISH

Ex.: MP3 playback

1 Current folder (Not appears on CD

playback)

2 Current folder number/total folder number

(Not appears on CD playback)

3 Folder list (Not appears on CD playback) 4 Selected playback mode 5 Elapsed playing time of the current track

(Not appears on JPEG playback)

6 Operation mode icon ‰ (play), 7 (stop), 8 (pause), ¡ (fast-

forward), 1 (reverse)

7 CD: Current track number/total number of

tracks on the disc

Others: Current track (file) number/total

number of tracks (files) in the current folder (total number of tracks/files on the disc)

To change the playback mode

MP3

WMA

While Dual Zone (see page 33) is

on....

2 Select a playback mode (see page 31) you

want.

List screen operations

JPEG

MPEG

DivX

You can display the folder list/track list before starting play when using the external monitor and Dual Zone function (see page 33). On this

ENGLISH

list, you can confirm the contents and start playing a disc.

Folder/track list screens

MP3

WMA

While Dual Zone is on and the disc play stops...

1 Display the folder list.

Each time you press the button, the list screen comes on and goes off.

2 Select a folder on the list.

Folder list

Folder : 153/240 Track 154/198 Page : 4/6 fol130

fol131 fol132 fol133 fol134 fol135 fol136 fol137 fol138 fol139

fol140 fol141 fol142 fol143 fol144 fol145 fol146 fol147 fol148 fol149

fol150 fol151 fol152

fol153

fol154 fol155 fol156 fol157 fol158 fol159

fol160 fol161 fol162 fol163 fol164 fol165 fol166 fol167 fol168 fol169

Track list

Folder : 153/240 Track 154/198 Page : 4/6 file0131.mp3

file0132.mp3 file0133.wma file0134.mp3 file0135.mp3 file0136.wma file0137.wma file0138.mp3 file0139.mp3 file0140.wma

file0141.mp3 file0142.mp3 file0143.mp3 file0144.mp3 file0145.wma file0146.mp3 file0147.wma file0148.mp3 file0149.wma file0150.wma

file0151.wma file0152.mp3 file0153.wma

file0154.mp3

file0155.mp3 file0156.mp3 file0157.mp3 file0158.wma file0159.wma file0160.wma

Ex.: Track list for MP3/WMA

file0161.wma file0162.mp3 file0163.wma file0164.mp3 file0165.wma file0166.wma file0167.wma file0168.wma file0169.mp3 file0170.wma

1 Current folder number/total folder number 2 Current track number/total number of

tracks in the current folder

3 Current page/total number of the pages

included in the list

4 Current folder/track (highlighted bar)

The track list of the selected folder appears.

To go back to the folder list

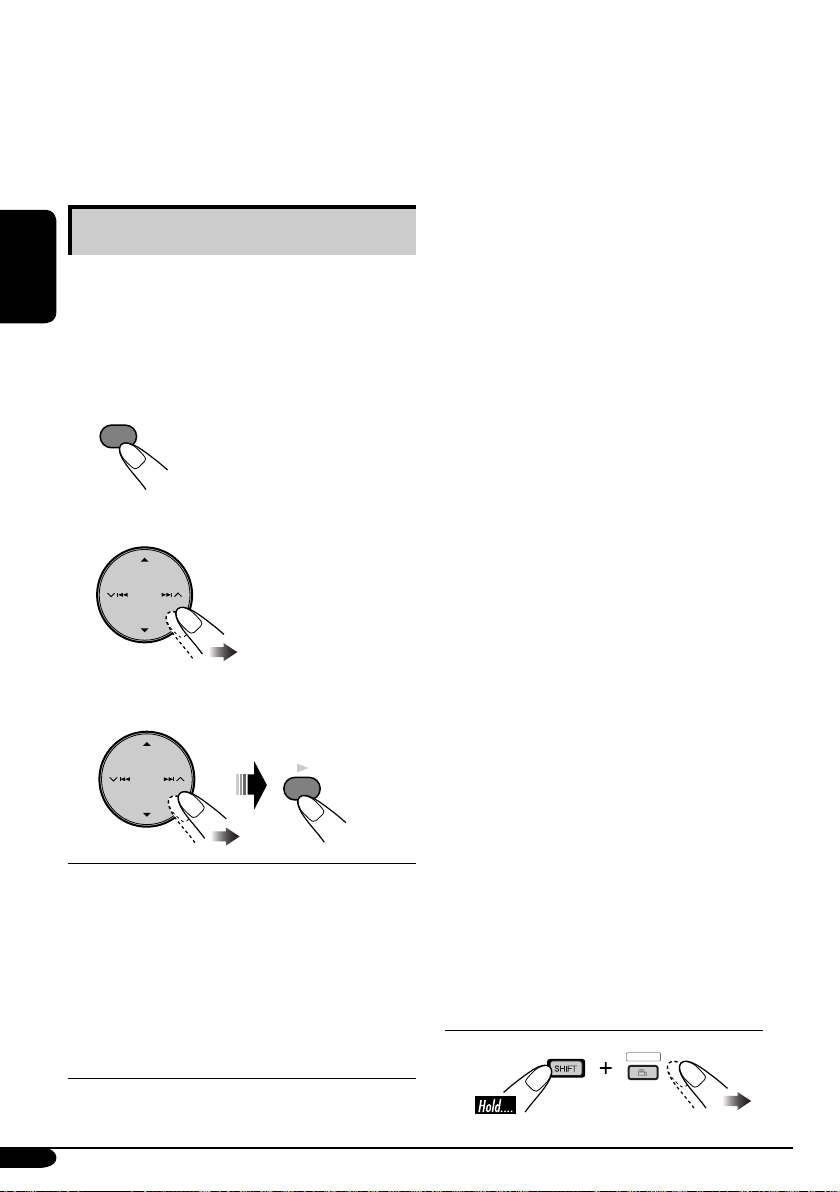

3 Select a track on the list.

+ 105 hidden pages

Jvc KD-AVX2 User Manual [ru]

Introduction—Playable discs

Contents

Control panel

Parts identification

Remote controller — RM-RK240

Main elements and features

Getting started

Basic operations

Canceling demonstration and setting the clock

Radio operations

Storing stations in memory

Listening to a preset station

FM RDS operations

Storing your favorite programmes

Using the standby receptions

Disc operations

Playing a disc in the receiver

Basic operations

Unique disc functions

Selecting audio languages

Selecting subtitles

Selecting multi-angle views

Disc menu operations

Zoom in

Playing back a bonus group

Selecting Browsable still pictures

Disc surround playback

Available surround format

Selecting the surround mode

On-Screen disc operations

Operations using the on-screen bar

Basic on-screen bar operations

Basic control screen operations

List screen operations
