Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to

obtain the best possible performance from the unit.

ENGLISH

INFORMATION (For U.S.A.)

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

– Consult the dealer or an experienced radio/TV technician for help.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION : Do not open the top cover. There are no user serviceable parts inside the unit; leave

all servicing to qualified service personnel.

3. CAUTION : Visible and invisible laser radiation when open and interlock failed or defeated.

Avoid direct exposure to beam.

Warning:

If you need to operate the receiver while
driving, be sure to look ahead carefully or
you may be involved in a traffic accident.

How to reset your unit

This will reset the microcomputer. Your
preset adjustments will also be erased.

2

How to forcibly eject a disc

If a disc cannot be recognized by the
receiver or cannot be ejected, ejects the disc
as follows.

If this does not work, try to reset your
receiver.

Contents

How to reset your unit ........................... 2

How to forcibly eject a disc................... 2

How to read this manual........................ 4

How to use the MODE button ............... 4

Control panel

—

KD-AR760/KD-G710 .............. 5

Parts identification................................. 5

Remote controller — RM-RK50

Main elements and features ................... 6

... 6

Getting started....................... 7

Basic operations.................................. 7

Canceling the display demonstrations ... 8

Setting the clock .................................... 8

Radio operations ................... 9

Listening to the radio........................... 9

Storing stations in memory.................... 10

Listening to a preset station ................... 10

Disc operations ...................... 11

Playing a disc in the receiver ............... 11

Playing discs in the CD changer ........... 12

Other main functions ............................. 14

Changing the display information ......... 15

Selecting the playback modes................ 16

Sound adjustments ................ 17

Selecting preset sound modes

(iEQ: intelligent equalizer) ................ 17

Adjusting the sound ............................... 18

Storing your own sound adjustments..... 19

General settings — PSM ......... 20

Basic procedure ..................................... 20

Other main functions ............. 23

Assigning titles to the sources ............... 23

Changing the control panel angle .......... 24

Detaching the control panel................... 24

External component operations

... 25

Playing an external component ............ 25

SIRIUS® radio operations

............ 26

Listening to the SIRIUS® radio.............. 27

Storing channels in memory .................. 28

Listening to a preset channel ................. 28

Maintenance .......................... 29

More about this receiver ........ 30

Troubleshooting ..................... 32

Specifications ......................... 35

ENGLISH

Caution on volume setting:

Discs produce very little noise compared
with other sources. Lower the volume
before playing a disc to avoid damaging
the speakers by the sudden increase of the
output level.

*For safety....

• Do not raise the volume level too much, as
this will block outside sounds, making driving
dangerous.

• Stop the car before performing any
complicated operations.

Caution:

Do not insert your
finger behind the
control panel.

*Temperature inside the car....

If you have parked the car for a long time in
hot or cold weather, wait until the temperature
in the car becomes normal before operating the
unit.

3

How to read this manual

The following methods are used to made the
explanations simple and easy-to-understand:

• Some related tips and notes are explained in

ENGLISH

“More about this receiver” (see page 30).

• Button operations are mainly explained with
the illustrations as follows:

Press briefly.

Press repeatedly.

How to use the MODE button

If you press MODE, the receiver goes into
functions mode, then the number buttons and
5/∞ buttons work as different function buttons.

Ex.: When number button 2 works as

MO (monaural) button.

Press either one.

Press and hold until
your desired response
begins.

Press and hold both
buttons at the same
time.

The following marks are used to indicate...

: Built-in CD player operations.

: External CD changer operations.

Time countdown indicator

To use these buttons for original functions
again after pressing MODE, wait for

5 seconds without pressing any of these buttons
until the functions mode is cleared.

• Pressing MODE again also clears the
functions mode.

4

Control panel — KD-AR760/KD-G710

Parts identification

Display window

1 (standby/on attenuator) button
2 DISP (display) button
3 SEL (select) button
4 Control dial
5 Display window
6

(angle) button

7 0 (eject) button
8 5 (up) button / +10 button

∞ (down) button / –10 button

9 MODE button
p Remote sensor

• DO NOT expose the remote sensor to
strong light (direct sunlight or artificial
lighting).

q SOURCE button
w BAND button
e Reset button
r EQ (equalizer) button
t MO (monaural) button
y SSM (Strong-station Sequential Memory)

button

u INT (intro) button
i RPT (repeat) button
o RND (random) button
; Number buttons
a 4
s

/ ¢ buttons

(control panel release) button

Display window

d Disc information indicators—TAG (ID3

Tag),

f MP3 indicator
g CH (CD changer) indicator

• Lights up only when CD-CH is selected

h CD indicator
j LINE indicator —Only for KD-AR760
k WMA indicator
l Main display
/ Equalizer pattern indicator

Audio level indicator

z EQ (equalizer) indicator
x Band indicators—FM1, FM2, FM3, AM
c Tuner reception indicators—ST (stereo),

MO (monaural)

v Playback mode / item indicators—

INT (intro), RPT (repeat)

b TRACK indicator
n Source / clock display
m LOUD (loudness) indicator
, Audio level indicator / Volume level

indicator

(track/file), (folder)

for the playback source.

(folder), (disc), RND (random),

ENGLISH

5

Remote controller — RM-RK50

Installing the lithium coin battery

(CR2025)

ENGLISH

• When operating, aim the remote controller
directly at the remote sensor on the
receiver. Make sure there is no obstacle in
between.

Warning:

• Store the battery in a place where children
cannot reach to avoid risk of accident.

• To prevent the battery from over-heating,
cracking, or starting a fire:

– Do not recharge, short, disassemble, or

heat the battery or dispose of it in a fire.

– Do not leave the battery with other

metallic materials.

– Do not poke the battery with tweezers or

similar tools.

– Wrap the battery with tape and insulate

when throwing away or saving it.

Caution:

Main elements and features

1 (standby/on/attenuator) button

• Turns on and off the power and also
attenuates the sound.

2 5 U (up) / D (down) ∞ buttons

• 5 U: Changes the FM/AM bands.

• D ∞: Changes the preset stations.

• Changes the folder on the MP3/WMA
discs.

• While playing an MP3 disc on an
MP3-compatible CD changer:

– Changes the disc if pressed briefly.
– Changes the folder if pressed and held.

• While listening to the SIRIUS radio:

– Changes the categories.
3 VOL – / VOL + buttons

• Adjusts the volume level.

4 SOUND button

• Selects the sound mode (iEQ: intelligent
equalizer).

5 SOURCE button

• Selects the source.

6 2 R (reverse) / F (forward) 3 buttons

• Searches for stations if pressed briefly.

• Fast-forwards or reverses the track if
pressed and held.

• Changes the tracks on the disc.

• While listening to the SIRIUS radio:

– Changes the channels if pressed briefly.
– Changes the channels rapidly if pressed

and held.

6

Getting started

Basic operations

ENGLISH

~

Ÿ

You cannot select some sources if they
are not ready.

* Only for KD-AR760.

! • For FM/AM tuner only

• For SIRIUS

®

radio only

⁄

Volume level appears.

Volume level indicator

@ Adjust the sound as you want.

(See pages 17 – 19.)

To drop the volume in a moment (ATT)

To restore the sound,

press it again.

To turn off the power

7

Canceling the display

demonstrations

ENGLISH

If no operations are done for about 20 seconds,
display demonstration starts.

[Initial: DEMO ON] —see page 20.

Setting the clock

1

1

2

3

4

Finish the procedure.

2 Set the hour and minute.

1 Select “CLOCK HOUR,” then

adjust the hour.

2 Select “CLOCK MINUTE,” then

adjust the minute.

3 Finish the procedure.

To check the current clock time when the
power is turned off

To activate the display demonstration

In step 3 above...

8

Radio operations

Listening to the radio

ENGLISH

~

Ÿ

Selected band appears.

Lights up when receiving an FM stereo
broadcast with sufficient signal strength.

! Start searching for a station.

When a station is received, searching
stops.
To stop searching, press the same
button again.

To tune in to a station manually

In step Ÿ on the left...
1

2 Select the desired station frequencies.

When an FM stereo broadcast is hard to
receive

1

2

Lights up when monaural mode is activated.

Reception improves, but stereo effect will
be lost.

To restore the stereo effect, repeat the same
procedure so that the MO indicator goes off.

9

Storing stations in memory

2

You can preset six stations for each band.

ENGLISH

FM station automatic presetting —

SSM (Strong-station Sequential
Memory)

1

2 Select the FM band (FM1 – FM3)

you want to store into.

3

4

“SSM” appears, then disappears when
automatic presetting is over.

3

4 Preset number flashes

for a while.

Listening to a preset station

1

2

Local FM stations with the strongest signals are
searched and stored automatically in the FM
band.

Manual presetting

Ex.: Storing FM station of 92.5 MHz into the

preset number 4 of the FM1 band.

1

10

3 Select the preset station (1 – 6) you

want.

or

Disc operations

Playing a disc in the receiver

All tracks will be played
repeatedly until you stop
playback.

* The receiver draws the

disc, then the control
panel goes back to
previous position (see
page 24).

ENGLISH

About MP3 and WMA discs

MP3 and WMA (Windows Media® Audio)
“tracks” (words “file” and “track” are used
interchangeably) are recorded in “folders.”

• When inserting an MP3 or a WMA disc:

Total folder
number

*

When playback starts, disc information will

automatically appear (see page 15).

*

Either the MP3 or WMA indicator lights up
depending on the detected file.

Total file
number

• When inserting an audio CD or a CD Text
disc:

Total playing time
of the inserted disc

CD Text: Disc title/performer =
Track title appear automatically.

Elapsed playing
time

Total track number
of the inserted disc

Current track
number

To stop play and eject the disc

11

ENGLISH

Playing discs in the CD changer

About the CD changer

It is recommended to use the JVC MP3­compatible CD changer with your receiver.

• You can also connect other CH-X series
CD changers (except CH-X99 and
CH-X100). However, they are not
compatible with MP3 discs, so you cannot
play back MP3 discs.

• You cannot use the KD-MK series CD
changers with this receiver.

• Disc text information recorded in the CD
Text can be displayed when a JVC CD
Text compatible CD changer is connected.

Before operating your CD changer:

• Refer also to the Instructions supplied
with your CD changer.

• You cannot control and play any WMA
disc in the CD changer.

~

If you have changed “EXTERNAL

*

IN” setting to “EXTERNAL IN” (see
page 22), you cannot select the CD
changer.

Ÿ Select a disc.

For disc number from 01 – 06:

For disc number from 07 – 12:

12

• When the current disc is an MP3 disc:

To fast-forward or reverse the track

Selected disc number

Folder name*

Selected folder number

When playback starts, disc information will

automatically appear (see page 15).

* “ROOT” appears if no folder is included in

the disc.

• When the current disc is an audio CD or a
CD Text disc:

Fast-forwards.

Reverses.

To go to the next or previous tracks

To the following
tracks.

To the beginning of the current track, then
the previous tracks.

To go to the next or previous folders

For MP3 discs:

For WMA discs:

To next folders.

ENGLISH

Selected disc number

CD Text: Disc title/performer =
Track title appear automatically.

Elapsed playing
time

Current track
number

To previous folders.

13

To locate a particular track (for CD) or
folder (for MP3 or WMA discs) directly

ENGLISH

To select a number from 01 – 06:

To select a number from 07 – 12:

• To use folder search on MP3/WMA discs, it
is required that folders are assigned with 2
digit numbers at the beginning of their folder
names—01, 02, 03, and so on.

• To select a particular track in a folder
(for MP3 or WMA disc) after selecting a
folder:

2

First time you press +10 or –10 button, the
track skips to the nearest higher or lower
track with a track number of multiple ten
(ex. 10th, 20th, 30th).
Then each time you press the button, you
can skip 10 tracks.

• After the last track, the first track will be
selected and vice versa.

3

Prohibiting disc ejection

You can lock a disc in the loading slot.

Other main functions

Skipping a track quickly during play

• For MP3 or WMA disc, you can skip a track
within the same folder.

Ex.: To select track 32 while playing track 6

1

14

To cancel the prohibition, repeat the same
procedure.

Changing the display information

While playing an audio CD or a CD Text ( / )

*1 If the current disc is an audio CD, “NO NAME” appears. To assign a title to an audio CD,

see page 23.

While playing an MP3 ( / ) or WMA ( ) disc

• When “TAG DISPLAY” is set to “TAG DISP ON” (see page 22)

ENGLISH

2

If an MP3/WMA file does not have ID3 tags, folder name and file name appear. In this

*

case, the TAG indicator will not light up.

• When “TAG DISPLAY” is set to “TAG DISP OFF”

15

Selecting the playback modes

You can use only one of the following playback modes at a time.

ENGLISH

1

2 Select your desired playback mode.

Repeat play

Mode Plays repeatedly

TRK RPT: The current track.

• RPT lights up.
FLDR RPT*

•
DISC RPT*

•

1

: All tracks of the current folder.

and RPT light up.

2

: All tracks of the current disc.

and RPT light up.

RPT OFF: Cancels repeat play.

Ex.: When “TRK RPT” is selected while

playing an MP3 disc in the receiver

Random play

Mode Plays at random

FLDR RND*1: All tracks of the current folder, then

tracks of the next folder and so on.

•

and RND light up.

DISC RND: All tracks of the current disc.

•
MAG RND*

and RND light up.

2

: All tracks of the inserted discs.

• RND lights up.

Ex.: When “DISC RND” is selected while

playing an MP3 disc in the receiver

Intro scan

RND OFF: Cancels random play.

Mode Plays at the beginnings

TRK INT: All tracks of the current disc.

• INT lights up.
FLDR INT*

1

: The first track of every folder of the

current disc.

•
DISC INT*

•

Ex.: When “TRK INT” is selected while

playing an MP3 disc in the receiver

1

*

Only while playing an MP3 ( / ) or WMA ( ) disc.

2

Only while playing discs in the CD changer ( ).

*

INT OFF: Cancels intro scan.

and INT light up.

2

: The first tracks of the inserted discs.

and INT light up.

16

Sound adjustments

Selecting preset sound modes (iEQ: intelligent equalizer)

ENGLISH

You can select a preset sound mode suitable to
the music genre.

~

Ÿ

!

FLAT (no sound mode is applied) “
HARD ROCK “ R&B “ POP “
JAZZ “ DANCE MUSIC “
COUNTRY “ REGGAE “
CLASSIC “ USER 1 “ USER 2 “
USER 3 “ (back to the beginning)

Indication pattern changes
for each sound mode.

To select the sound mode directly

Ex.: When “HARD ROCK” is selected

17

Adjusting the sound

You can adjust the sound characteristics to your
preference.

ENGLISH

1

* Only for KD-AR760.

2

Indication pattern changes as you
adjust the fader or balance.

Ex.: When “FAD” is selected

Indication To do: Range

FAD*1
(fader)

BAL
(balance)

LOUD
(loudness)

WOOFER*

3

VOL*
(volume)

*1 If you are using a two-speaker system, set

the fader level to “00.”

2

*

Only for KD-AR760: This takes effect only

when a subwoofer is connected.

3

*

Normally the control dial works as the

volume control. So you do not have to select
“VOL” to adjust the volume level.

4

*

Depending on the amplifier gain control

setting. (See page 22 for details.)

Adjust the front
and rear speaker
balance.

Adjust the left
and right speaker
balance.

Boost low and
high frequencies
to produce a well­balanced sound at
low volume level.

2

Adjust the
subwoofer output
level.

Adjust the
volume.

R06 (Rear
only)
to
F06 (Front
only)

L06 (Left
only)
to
R06 (Right
only)

LOUD ON

LOUD
OFF

00 (min.)
to
08 (max.)

00 (min.)
to
30 or 50
(max.)*

4

18

Storing your own sound

adjustments

* By pressing 4

directly move as follows:

or ¢, you can

You can adjust the sound modes and store your
own adjustments in memory.

1

2

3

Ex.: When “JAZZ” is selected

4 Select the sound elements to adjust.

5 Adjust the selected sound elements.

Indication

LEVEL –06

(min.) to
+06
(max.)

FREQ. 60Hz

80Hz
100Hz
120Hz

WIDTH 1 (min.)

to
4 (max.)

Preset values

LOW MID HI

–06
(min.) to
+06
(max.)

1 (min.)
to
2 (max.)

–06
(min.) to
+06
(max.)

8kHz
10kHz
12kHz
15kHz

6 Repeat steps 4 and 5 to set (or

adjust) the other sound elements.

ENGLISH

LOW LEVEL* = LOW FREQ =
LOW WIDTH = MID LEVEL* =
MID WIDTH = HI (high) LEVEL* =
HI (high) FREQ = (back to the

beginning)

• LEVEL (LOW, MID, HI):

Adjust the enhancement level.

• FREQ (LOW, HI):

Select the center frequency to adjust.

• WIDTH (LOW, MID):

Select the band width level.

7 Select one of the user sound modes

(USER 1, USER 2, USER 3).

8 Store the adjustments.

19

General settings — PSM

Basic procedure

3 Adjust the PSM item selected.

You can change PSM (Preferred Setting Mode)
items listed (except for SID) in the table that

ENGLISH

follows.

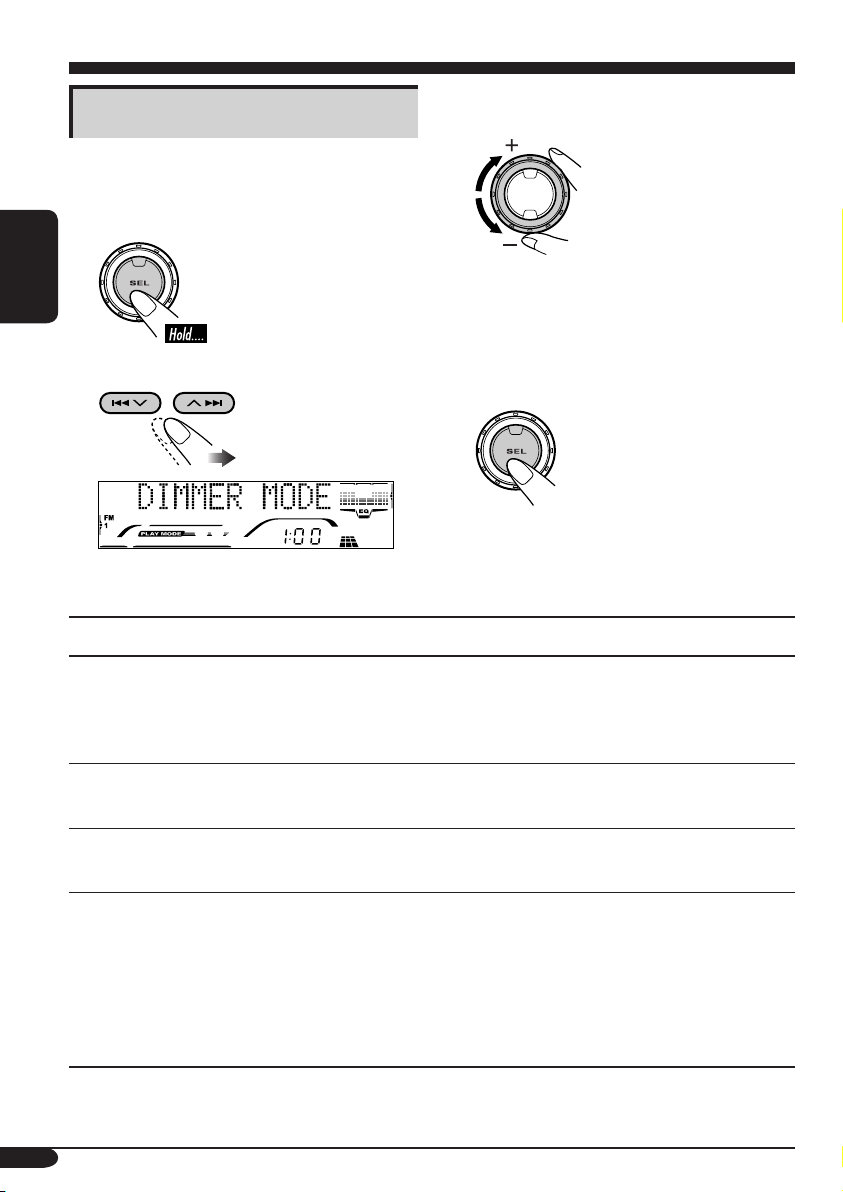

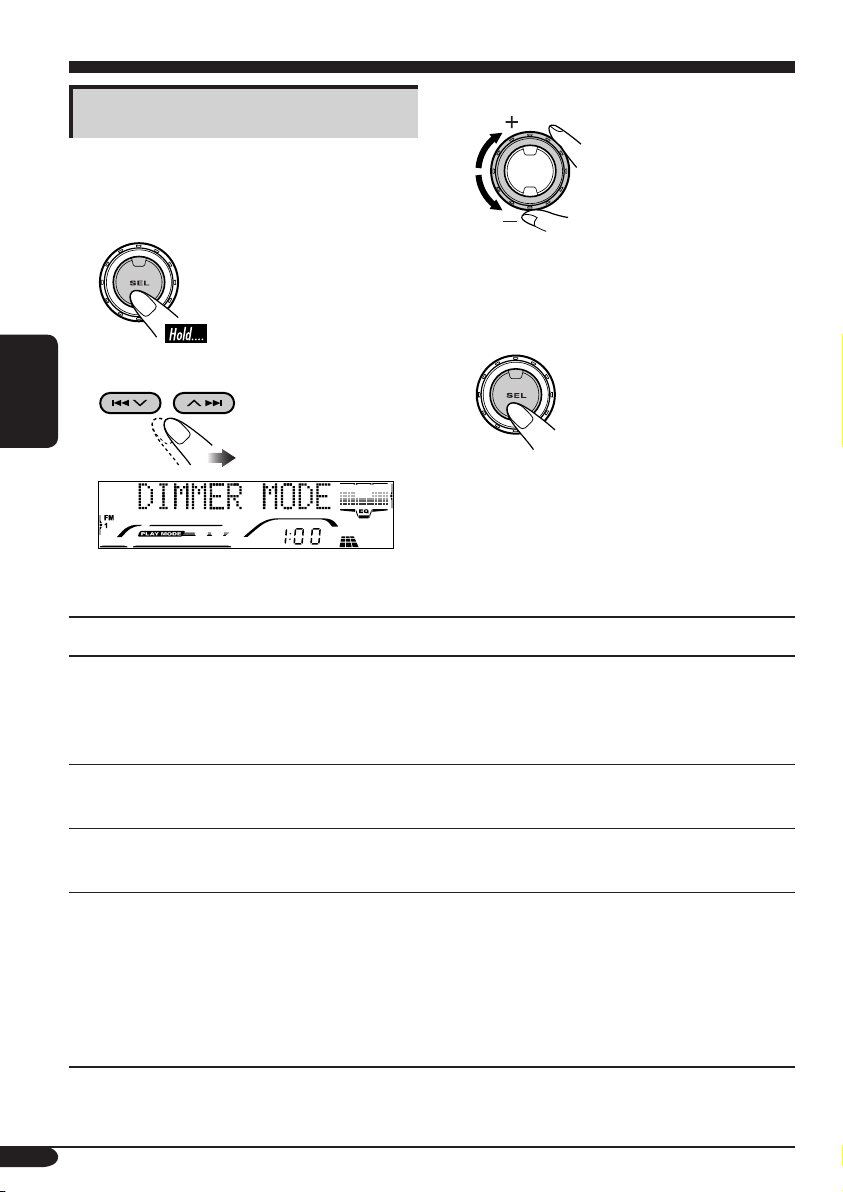

1

2 Select a PSM item.

Ex.: When you select “DIMMER MODE”

Indications Selectable settings, [reference page]

DEMO MODE

Display demonstration

DEMO ON: [Initial]; Display demonstration will be activated

DEMO OFF: Cancels.

4 Repeat steps 2 and 3 to adjust the

other PSM items if necessary.

5 Finish the procedure.

automatically if no operation is done for about
20 seconds, [8].

CLOCK HOUR

Hour adjustment

CLOCK MINUTE

Minute adjustment

CLOCK DISP

Clock display

20

1 – 12, [8]

[Initial: 1 (1:00)]

00 – 59, [8]

[Initial: 00 (1:00)]

CLK DISP ON: [Initial]; Clock display is shown on the lower part

of the display.

CLK DISP OFF: Current source indication (ex. station band, disc

number, etc.) is shown on the lower part of the
display.

• Pressing DISP repeatedly will show the other information for about
5 seconds.

Indications Selectable settings, [reference page]

CLOCK ADJUST*

1

Clock adjustment

T-ZONE*

1, *2

Time zone

1, *2

DST*
Daylight savings time

1

SID*
SIRIUS® ID

LEVELMETER
Level/audio meter

DIMMER MODE
Dimmer

AUTO: [Initial]; The built-in clock will be adjusted automatically

using the clock data provided via the SIRIUS® radio
channel.

OFF: Cancels.

Select your residential area from one of the following time zone for
clock adjustment.

EASTERN [Initial] “ ATLAN TIC “ NEWFOUND “
ALASKA “ PACIF IC “ MOUNTAIN “ CENTRAL “

(back to the beginning)

Activates this if your residential area is subject to DST.

ON: [Initial]; Activates daylight savings time.
OFF: Cancels.

The 12-digits SIRIUS identification number scrolls on the display
after 5 seconds, [26].

• Press SEL to resume the previous display.

LEVEL 1[Initial]/LEVEL 2: Display the audio level meter with

different illumination pattern.

EQ & LEVEL: Display the equalizer pattern and the audio level

meter.

SILENT: Display the equalizer pattern and volume level

meter.

DIMMER AUTO: [Initial]; Dims the display when you turn on the

headlights.

DIMMER ON: Activates dimmer.
DIMMER OFF: Cancels.

ENGLISH

TELEPHONE*

3

Telephone muting

CONTRAST
Display contrast

MUTING 1/MUTING 2: Select either one which mutes the sounds

while using the cellular phone.

• If CD or CD changer is selected as the source, playback pauses
during telephone muting.

MUTING OFF: [Initial]; Cancels.

01 – 10: Adjust the display contrast to make the display indications

clear and legible.

[Initial: 08]

To be continued...

21

Indications Selectable settings, [reference page]

SCROLL MODE*
Scroll

ENGLISH

WOOFER FREQ*
Subwoofer cutoff

frequency

LINE ADJ*

3

Line input level

EXTERNAL IN*
External input

TAG DISPLAY

Tag display

AMP.GAIN

Amplifier gain control

4

SCROLL ONCE: [Initial]; Scrolls the disc information once.
SCROLL AUTO:

Repeats scrolling (5-second interval in between).

SCROLL OFF: Cancels.

• Pressing DISP for more than one second can scrolls the display
regardless of the setting.

3

FREQ 55 Hz: Frequencies lower than 55 Hz are send to the

subwoofer.

FREQ 85 Hz: [Initial]; Frequencies lower than 85 Hz are send to

the subwoofer.

FREQ 115 Hz: Frequencies lower than 115 Hz are send to the

subwoofer.

VOL 0 0 – VOL 05: Adjust the line input level properly when an

external component is connected to the LINE
IN plugs.

[Initial: VOL 00]

5

CHANGER: [Initial]; To use a JVC CD changer, [12].
EXTERNAL IN: To use another external component (other than

SIRIUS DLP), [25].

TAG DISP ON: [Initial]; Shows the ID3 tag while playing

MP3/WMA tracks, [15].

TAG D I S P OFF : Cancels.

You can change the maximum volume level of this receiver.
LOW POWER : VOL 00 – VOL 30 (Select this if the maximum

power of the speaker is less than 50 W to prevent
them from damaging the speaker.)

HIGH POWER: [Initial]; VOL 00 – VOL 50

3

OFF*

: Deactivates the built-in amplifier.

AREA

Tuner channel interval

1

Displayed only when SIRIUS radio is connected.

*

2

*

Displayed only when “CLOCK ADJUST” is set to “AUTO.”

3

*

Only for KD-AR760.

4

*

Some characters or symbols will not be shown (and will be blanked) or substituted on the
display.

5

*

Displayed only when one of the following sources is selected —FM, AM, CD, or LINE IN (only
for KD-AR760).

22

AREA EU:

Select this when using the receiver in an area other than
North and South America. (FM: 50 kHz—manual tuning,
100 kHz—auto search; AM: 9 kHz)

AREA US: [Initial]; Select this when using the receiver in North or

South America. (FM: 200 kHz; AM: 10 kHz)

Other main functions

Assigning titles to the sources

You can assign names to station frequencies,
CDs (both in this receiver and in the CD
changer), and external component (Line Input—
only for KD-AR760).

Sources

Station
frequencies

CDs/CD-CH*

External
component
(Line Input)*

1

You cannot assign a name to a CD Text or

*

an MP3/WMA disc.

2

*

Only for KD-AR760.

1

2

1 Select the sources.

• For station frequencies: Select tuner.

• For a CD in this receiver: Insert a CD.

• For CDs in the CD changer: Select
“CD-CH,” then select a disc number.

Maximum number of

characters

Up to 9 characters (up
to 30 station frequencies
including both FM and AM)

Up to 32 characters (up to
30 discs)

Up to 12 characters

3 Assign a title.

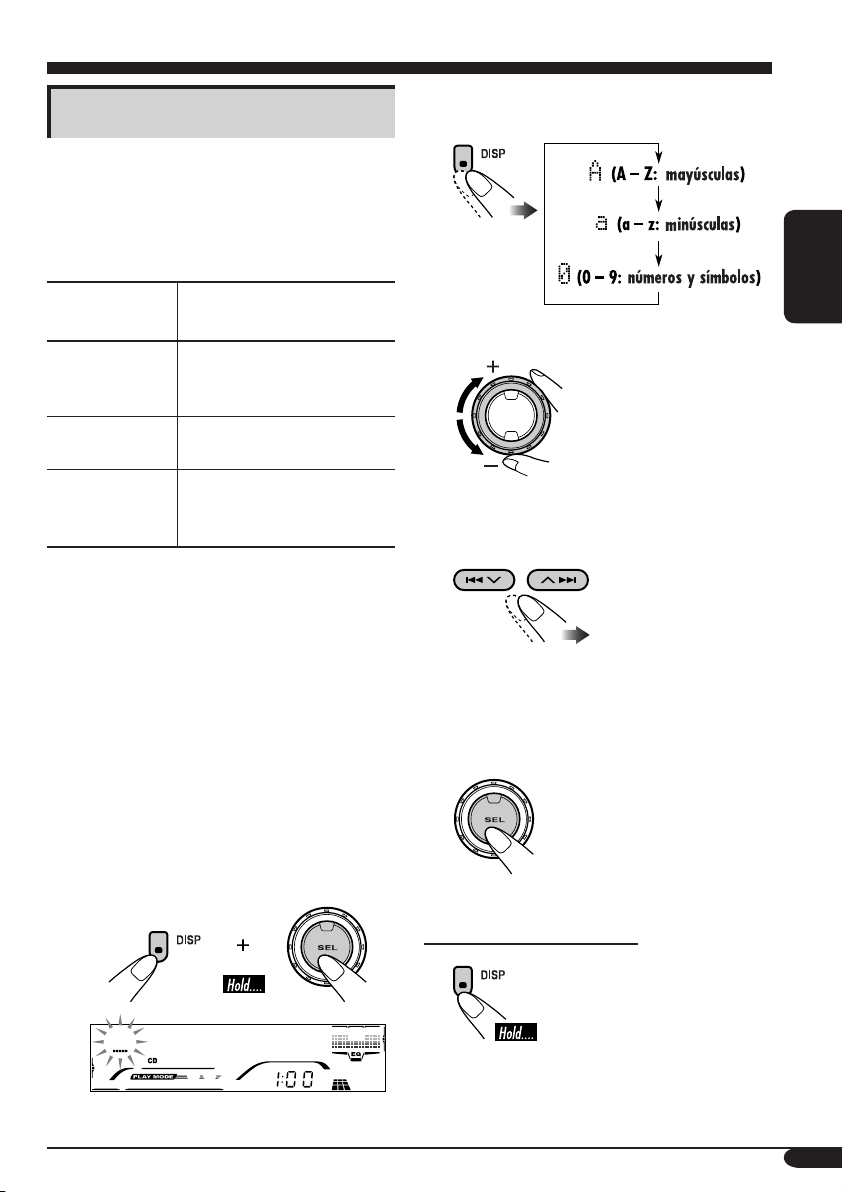

1 Select a character set.

ENGLISH

2 Select a character.

For available characters,

see page 29.

3 Move to the next (or previous)

character postion.

4 Repeat steps 1 to 3 until you

finish entering the title.

4 Finish the procedure.

2 Enter the disc title assignment mode.

Ex.: When you select CD as the source

To erase the entire title

23

Changing the control panel angle

ENGLISH

Detaching the control panel

When detaching or attaching the control panel,
be careful not to damage the connectors on
the back of the control panel and on the panel
holder.

The control panel changes its angle as follows:

Caution:

Do not insert your
finger behind the
control panel.

Detaching the control panel

Before detaching the control panel, be sure to
turn off the power.

Attaching the control panel

24

External component operations

Playing an external component

For KD-AR760:

You can connect an external component to the
LINE IN plugs on the rear.

For KD -AR760/KD-G710:

You can connect an external component to the
CD changer jack on the rear using the Line
Input Adapter KS-U57 (not supplied).
Before operating the external component, select
the external input correctly (see page 22).

• For connection, see Installation/Connection
Manual (separate volume).

Ÿ Turn on the connected component

and start playing the source.

! Adjust the volume.

ENGLISH

~

• If “EXTERNAL” does not appear, see
page 22 and select the external input
(“EXTERNAL IN”).

⁄ Adjust the sound as you want.

(See pages 17 – 19.)

25

SIRIUS® radio operations

About SIRIUS radio

SIRIUS is a satellite radio that can deliver
digital-quality sound.
SIRIUS has 65 music channels which are all

ENGLISH

commercial-free and 50 channels of sports,
news, and entertainment programs.

You can enjoy and control the SIRIUS
radio digital entertainment channels
from the receiver by connecting the JVC
SIRIUS radio DLP—Down Link Processor
(optionally purchased) to the CD changer
jack on the rear.

• You can also connect the JVC SIRIUS
radio PnP (Plug and Play), KT-SR1000 or
KT-SR2000, using the JVC SIRIUS radio
adapter, KS-U100K (not supplied). By
turning on the power of the receiver, you
can turn on/off the JVC PnP. However,
you cannot control it from this receiver.

GCI (Global Control Information) update:

• If channels are updated after subscription,
updating starts automatically.

“UPDATING” flashes and no sound can

be heard.

• Update takes a few minutes to complete.

• During update, you cannot operate your
SIRIUS radio.

Before operating your SIRIUS radio:

• For connection, see Installation/
Connection Manual (separate volume).

• Refer also to the Instructions supplied
with your SIRIUS radio.

Before you can listen to JVC DLP, activate
your SIRIUS subscription after connection:

1

2

JVC DLP starts updating all the SIRIUS

channels.

“UPDATING” flashes on the display for a

few minutes. No sound can be heard during
update.

Once completed, JVC DLP tunes in to the

preset channel, CH184.

3 Check your SIRIUS ID, see page 21.

4 Contact SIRIUS on the internet at

<http://activate.siriusradio.com/> to activate
your subscription, or you can call SIRIUS
toll-free at 1-888-539-SIRIUS (7474).

“SUB UPDT PRESS ANY KEY” scrolls

on the display once subscription has been
completed.

26

Listening to the SIRIUS® radio

ENGLISH

~

Ÿ

! Select a category.

You can tune in to all the channels of
every category by selecting “ALL.”
Selecting a particular category
(SPORTS, ENTERTAINMENT, etc.)
allows you to enjoy only the channels
from the selected category.

⁄ Select a channel for listening.

Press and hold these buttons change the
channels rapidly.

• When changing the category or channel,
invalid and unsubscribed channels are skipped
automatically.

27

Storing channels in memory

You can preset six channels for each band.

ENGLISH

Ex.: Storing a channel into preset number 4.

1 Perform steps ~ to ⁄ on page 27, to

tune in to a channel you want.

2

Preset number flashes

for a while.

Listening to a preset channel

1

To change the display information while
listening to a channel

2

3 Select the preset channel (1 – 6) you

want.

28

Maintenance

How to clean the connectors

Frequent detachment will deteriorate the
connectors.
To minimize this possibility, periodically wipe
the connectors with a cotton swab or cloth
moistened with alcohol, being careful not to
damage the connectors.

Connector

Moisture condensation

Moisture may condense on the lens inside the
CD player in the following cases:

• After starting the heater in the car.

• If it becomes very humid inside the car.

Should this occur, the CD player may
malfunction. In this case, eject the disc and
leave the receiver turned on for a few hours
until the moisture evaporates.

To keep discs clean

A dirty disc may not play correctly.
If a disc does become dirty, wipe
it with a soft cloth in a straight line
from center to edge.

• Do not use any solvent (for
example, conventional record cleaner, spray,
thinner, benzine, etc.) to clean discs.

To play new discs

New discs may have some rough
spots around the inner and outer
edges. If such a disc is used, this
receiver may reject the disc.
To remove these rough spots, rub the edges
with a pencil or ball-point pen, etc.

Available character

Capital letters

Small letters

ENGLISH

How to handle discs

When removing a disc from
its case, press down the center

holder of the case and lift the
disc out, holding it by the
edges.

• Always hold the disc by the edges. Do not
touch its recording surface.

When storing a disc into its case, gently insert
the disc around the center holder (with the
printed surface facing up).

• Make sure to store discs into the cases after
use.

Do not use the following discs:

Wrap disc

Center holder

Sticker

Number and symbols

Sticker
residue

Disc

Stick-on
label

29

More about this receiver

Basic operations

Turning off the power

• If you turn off the power while listening to a
disc, disc play will start from where playback

ENGLISH

has been stopped previously, next time you
turn on the power.

Selecting the sources

• When no disc is loaded in the receiver, “CD”
cannot be selected.

• Without connecting to the SIRIUS radio or
CD changer, “SIRIUS” or “CD-CH” cannot
be selected.

Tuner operations

Storing stations in memory

• During SSM search...

– All previously stored stations are erased and

stations are stored newly.

– Received stations are preset in No. 1 (lowest

frequency) to No. 6 (highest frequency).

– When SSM is over, the station stored in

No. 1 will be automatically tuned in.

• When storing a station manually, a previously
preset station is erased when a new station is
stored in the same preset number.

Disc operations

General

• This receiver has been designed to reproduce
CDs/CD Texts, and CD-Rs (Recordable)/
CD-RWs (Rewritable) in audio CD (CD-DA),
MP3 and WMA format.

• When a disc has been loaded, selecting “CD”
for the playback source starts disc play.

Playing a disc

• While fast-forwarding or reversing on an MP3
or WMA disc, you can only hear intermittent
sounds.

Playing a CD-R or CD-RW

• Use only “finalized” CD-Rs or CD-RWs.

• This receiver can play back only the files of
the same type which is first detected if a disc
includes both audio CD (CD-DA) files and
MP3/WMA files.

• This receiver can play back multi-session
discs; however, unclosed sessions will be
skipped while playing.

• Some CD-Rs or CD-RWs may not play
back on this receiver because of their disc
characteristics, and for the following causes:

– Discs are dirty or scratched.
– Moisture condensation occurs on the lens

inside the receiver.
– The pickup lens inside the receiver is dirty.
– CD-R/CD-RW on which the files are

written with “Packet Write” method.
– There are improper recording conditions

(missing data, etc.) or media conditions

(stain, scratch, warp, etc.).

• CD-RWs may require a longer readout time

since the reflectance of CD-RWs is lower
than that of regular CDs.

• Do not use the following CD-Rs or CD-RWs:
– Discs with stickers, labels, or protective seal

stuck to the surface.
– Discs on which labels can be directly

printed by an ink jet printer.
Using these discs under high temperatures

or high humidity may cause malfunctions or
damage to discs.

Inserting a disc

• When a disc is inserted upside down, the
control panel moves down, and the disc
automatically ejects from the loading slot.

• Do not insert 8 cm discs (single CD) and
unusual shape discs (heart, flower, etc.) into
the loading slot.

30

Playing an MP3/WMA disc

• This receiver can play back MP3/WMA files
with the extension code <.mp3> or <.wma>
(regardless of the letter case—upper/lower).

• This receiver can show the names of albums,
artists (performer), and ID3 Tag (Version 1.0,

1.1, 2.2, 2.3, or 2.4) for MP3 files and for
WMA files.
