JVC HR-S9850EK, HR-S9850MS, HR-S9850EU Schematics

SECTION 4

123

2.5

(5.0)

1.8

PB and REC modes
(Voltage of PB and REC modes
are the same)

PB mode

REC mode

CHARTS AND DIAGRAMS

NOTES OF SCHEMA TIC DIAGRAM

Safety precautions
The Components identified by the symbol are

critical for safety . For continued safety, replace safety
critical components only with manufacturer's recom­mended parts.

1. Units of components on the schematic diagram

Unless otherwise specified.

1) All resistance values are in ohm, 1/6 W, 1/8 W (refer to
parts list).
Chip resistors are 1/16 W.

K or k: k

2) All capacitance values are in µF, (P: PF).

3) All inductance values are in µH, (m: mH).

4) All diodes are 1SS133, MA165 or 1N4148M (refer to parts
list).

2. Indications of control voltage

AUX : Active at high
AUX or AUX(L) : Active at low

3. Interpreting Connector indications

(1000 ), M: M (1000k )

1
2

Removable connector

3

1
2

Wire soldered directly on board

3

4) Indication on schematic diagram
Voltage Indications for REC and PB mode on the sche­matic diagram are as shown below.

Note: If the voltages are not indicated on the schematic

diagram, refer to the voltage charts.

5. Waveform measurement

1) Video circuits
REC : Colour bar signal in SP mode, normal VHS mode
PB : Alignment tape, colour bar SP mode, normal VHS

mode

2) Audio circuits
REC : 1KHz, –8 dBs sine wave signal in SP mode, normal

VHS mode

PB : REC then playback it

3) Movie Camera circuits
Measured using a correctly illuminated gray scale or colour
bar test chatrs in the E-E mode

4) Indication on schematic diagram
Waveform indications on the schematic diagram are as
shown below.

24

22201816

Measurement point

1
2
3

1

2

3

4

4. Voltage measurement

1) Video circuits
REC : Colour bar signal in SP mode, normal VHS mode
PB : Alignment tape, colour bar SP mode, normal VHS

mode

— : Unmeasurable or unnecessary to measure

2) Audio circuits
REC : 1KHz, –8 dBs sine wave signal in SP mode, Nor-

mal VHS mode

PB : REC then playback it

3) Movie Camera circuits
Measured using a correctly illuminated gray scale or colour
bar test charts in the E-E mode

Non-removable Board connector

Board to Board

Connected pattern on board
The arrows indicate signal path

C329

C330

0.1/50

R344
47K

R343
18K

0.1/50
C331

11/10

R345
10K

5) Waveform indications

Waveform number

WF25

REC/PB 1.2 Vp-p

50 mV/2 msec/DIV

Oscilloscope Volts and Time/Division, Probe 10 : 1

Mode : REC or PB modes

WF25

R346
15K

ALC OUT

Waveform number

Waveform name or
measurement point

Level : 1.2 Vp-p

4-1

6. Signal path Symbols

The arrows indicate the signal path as follows.

Playback signal path
Playback and recording signal path
Recording signal path

(including E-E signal path)
Capstan servo path

CIRCUIT BOARD NOTES

1. Foil and Component sides

1) Foil side (B side) :
Parts on the foil side seen from foil face (pattern face)
are indicated.

2) Component side (A side) :
Parts on the component side seen from component face
(parts face) indicated.

Drum servo path

(Example)

R-Y

Playback R-Y signal path

Y

Recording Y signal path

7. Indication of the parts for adjustments

The parts for the adjustments are surrounded with the circle as
shown below.

8. Indication of the parts not mounted on the circuit board

“OPEN” is indicated by the parts not mounted on the circuit
board.

R216

OPEN

2. Parts location guides

Parts location are indicated by guide scale on the circuit board.

REF No. LOCATION

Category: IC

Horizontal “A” zone
Vertical “6” zone

(A : Component side)

(D : Discrete component)

B : Foil side

C : Chip component

IC

IC101 B C 6A

Note:

For general information in service manual, please refer
to the Service Manual of GENERAL INFORMA TION Edi­tion 4 No. 82054D (January 1994).

4-2

4.1 BOARD INTERCONNECTIONS

ONLY USED FOR HR-S9850MS

#

8

7

#

P/S CONVERTER
(Page 4-29)

CN3502

5

NC

EE(L)

GND

GND88GND

S-P[H]/P-S(L)

SW12V

SW12V05FORCE(L)

PS_SECAM(H)

CN3501

#

CN513

SW5V(2)
SW5V(2)
TO PS C
GND
FROM PS C
GND
TO PS Y
GND
FROM PS Y

CN512

BIAS FOR C OUT

BIAS FOR C OUT

V FROM OSD

GND

#

GND

C OUT

15

Y OUT

GND

GND

GND

REAR2 Y IN

REAR2 C IN

REAR1 C IN

S-SUB
(Page 4-21)

S.DATA FR OSD

J925

SAT.CTL

S.CLK TO OSD

CS OSD SUB

S.DATA TO OSD

J926

R.PAUSE

TXD

RXD

GND

LANC I/O

/BS REC CTL

GND

GND

GND

GND

GND

GND

REAR1 Y IN

#

05

Fsc

GND

SW5V(2)

C TO DIGI

CN1201
/////

///////

2D DIGITAL
3D DIGITAL
(Page 4-15)

GND

EE[L]

V/Y TO DIGI

Y FROM DIGI

/

C FROM DIGI

KILLER DET

OPEN

NCNCNC

I2C CLK A/V

I2C DATA A/VNCNC

///

/

CN911

#

AV1 IN/OUT

/

V FROM OSD

BIAS FOR C OUT

BIAS FOR C OUT

J901

C OUT

AV2/DECODER

Y OUT

J902

REAR2 C IN

GND

CN916

AFC IN

REAR1 Y IN

REAR1 C IN

06

#

AFC GND

DET OUT[M-N]

TERMINAL

(Page 4-17)

REAR2 Y IN

DET OUT

DET GND

BIT GND

BIT OUT

S-OUT

DET IN

DET GND

OPEN

J903

BIT GND

BIT IN

J912

(R)
AUDIO OUT

CN912

#

J913

(L)

#

1

CN3402

9

RXD

LANC I/O

TXD

GND

CS OSD SUB

S.CLK TO OSD

S.DATA TO OSD

NAVIGATION

(Page 4-23)

S.DATA FR OSD

AC INPUT

4

3

96

89

87

85 SHUTTLE/PLAY

2

76
74

58
57

55
46
41

38 ADV.JOG
37
36

32

28

19 NAVIGATION

15 S-SUB
14

1

12

06

03 MAIN

NO NAME

GR

CNR
SECAM
P/S CONVERTER

BS
HEAD PHONE

DRUM MOTOR
CAP MDA

LOADING MOTOR
AUDIO ERASE
U.DRUM

JOG
JACK

REC SAFETY

SW/DISPLAY

DEMOD

A/C HEAD

TERMINAL
2D DIGITAL

BS-IF

OUT IN

B1A[A15V]

B3[A5V]

B1B[A15V]

B2[S5V]

KEYED IN

B4[S5V]

DET[MUSE]

TU[S12V]
DET[JSB]

BIT DET
B7[A5V]

DET IN

C/N OUT

BIT IN
MUTE

V OUT

B5[S5V]

BIT OUT

#

AL

AR

SCL
SDA

76
BS

#

96

GR

CN6202
BIT IN

BIT GND

DET IN

DET GND

BIT OUT

BIT GND
DET OUT
DET GND

AFC IN

AFC GND

DET OUT[M-N]

CN6201

CN6203

CN1902

OPEN

NC(GND)
AUDIO IN
CH SW
MOD B(SW5V)
CONV.CTL[H]
VIDEO IN
NC(GND)
(RF AGC)
(BT)
TU CE
PLL CLK
PLL DATA

MB(SW5V)
LOCK(L)
TU(30V)
IF OUT
IF IN
NC
NC
AUDIO OUT
(SIF OUT)
AFT
VIDEO OUT
NC(OPEN)

#

CN6103

BS VIDEO
GND
BS AUDIO(L)

GND
BS AUDIOR

#

CN6102

NC
EE[L]
GND
GND
GND
S-P[H]
SW12V
SW12V
FORCE[L]
PS SECAM[H]

#

CN1901
GR VIDEO
GND
TU VIDEO
GND
I2C DATA
I2C CLK
NC
NC
GR ON[H]
SW12V
AL6V

OPEN

# DIFFERENCE TABLE

S-SUB DIGI. NAVI. S-P.

"VR1200/02,/58"
VR1200/39
HR-S9850EU/EK
HR-S9850MS
HR-J880EU/EK
HR-J880MS
"VR1070/55,/75"
"VR820/55,/75"

"VR1070/50,/61"
VR820/77
HR-VFG1

PLEASE SEE EACH SCHEMATIC DIAGRAM

3D-2M
3D-2M

3D-4M

2D
2D

2D

2D

RF OUT RF IN

26
27
28
29
30
31
32
33
34
35
36
37

39
40
41
42
43
44
45
46
47
48
49

TUNER
(Page 4-11)

/AL17V
/BS P.CTL[H]
/AL6V
/SW12V
/GND
/I2C DATA
/I2C CLK
/BIT IN[H]
/ANT CTL[H]
/BS ANT

OPEN

(PAL/MS)(NTSC)

BB(AL5V)
AUDIO IN
MOD SDA
MOD B(AL5V)
MOD SCL
VIDEO IN
TU(30V)
RF AGC
NC
AS
SCL
SDA

MB(SW5V)
LOCK(L)
TU(30V)
TP
IF OUT
SW 1
SW 2
AUDIO OUT
SIF OUT
AFT
VIDEO OUT

#

CN511

CN502

ONLY USED FOR HR-S9850MS

REC

GND

AUDIO ERASE

GND

CTL HEAD(-)

CTL HEAD(+)

PB

CN2001

CN1

12

A/C HEAD

CTLR/P

A.E

: Used
: Not used

BS GR SECAM JACK JOG A.JOG

DEC OUT[R]

DEC OUT[L]

LINE OUT[R]

P.MUTE[L]

S.CLK

STB

EDS[H]

SAT CTL

SYNC DET[H]

CHARA DATA

EE[L]

Fsc

SW5V

SW5V

GND

I2C DATA A/V

I2C CLK A/V

GND

V.PULSE

PB COLOR

SECAM PB.COLOR

MAIN ALC DET

P.MUTE[L]

Y TO SUB

C TO DIGI

Y/V TO DIGI

Y FROM DIGI

C FROM DIGI

WIDE DET

FRONT Y IN

FRONT C IN

FRONT V IN

GND

GND

REAR2 V IN

V TO OSD

CHARA DATA

Y TO AV

V FROM AV

REC COLOR

CN6701

3D / 2D

03

CN501

#

14

CN1501

US / JPN
NC

I2C
I2C
TU
DEMOD DEMOD
DEMOD DEMOD

SW9V SW9V
GND GND
COMP COMP

Fsc

GND

SW5V(2)

C TO DIGI

CN1401

MAIN
(VIDEO/AUDIO

(SYSCON
(SW. REG
(TUNER
(CONNECTION

DEMOD
(Page 4-19)

OPEN

JUST

_CLK

LED

_DATA

BIL

_CLK

_SEL

TU

_MUTE _MUTE
_(R) _(R)
_(L) _(L)

V/Y TO DIGI

EE[L]

CN6701
/ PAL/MS

/ARC/KR

NC
I2C

_DATA

I2C

_CLK

TU_A

__MUTE

DEMOD

_(R)

DEMOD

_(L)

SW5V
GND
COMP
SIF

Y FROM DIGI

GND

C FROM DIGI

KILLER DET

I2C CLK A/V

I2C DATA A/V

V. P. CTL

Page 4-5)
Page 4-7)

Page 4-9)
Page 4-11)
Page 4-13)

V. REF

D. FF

TRICK[H]

SLOW_PULSE

CN914

CN904

#

#

OSD CS

CN302

CN301

SD FR SYS

SD TO SYS

#

#

CN301

PB COLOR
V TO SECAM
SW5V
C.SYNC
GND

#

CN302

fsc
SECAM(H)
EE(L)
REC_COLOR
PB_FM
SECAM_DET

EDS CS

88

2Fsc

(Page 4-27)

CN915

CN905

SECAM

I2C DATA2/SW1

I2C CLK2

P50 I/O

GND

GND

GND

SCR[H]

CH+12V

SW12V

GND

RF VIDEO

LI 5V

LINE VIDEO1

CN913

CN903

V TO OSD

LINE VIDEO2

TU VIDEO

SW5V

CN917

CN907

CN2051

LINE OUT[L]

A.IN2[R]

A.IN2[L]

A.IN1[R]

46

AUDIO ERASE

CN2052

(Page 4-5)

A/E VCC
GND
A BIAS
A/E

A.IN1[L]

GND

PAUSE/COMPU_I/O

S.CASS[H]

GND

AL5V

CV IN

SUB BUSY

SUB RESET

SUB CS

S.CLK

SD FR SYS

SD TO SYS

CN5001

LIVE

NEUTRAL

PS SECAM[H]

VSC CLK

VSC DATA

CN3401

CN7103

#

ONLY USED FOR HR-S9850MS

CN2002

GND

F.E

FULL ERASE

CN3001

DRUM_12V

CON1

58

FULL ERASE HEAD

DRUM MOTOR

M

H.P.

GND(M)

MAIN

CN6102

5-8pin

10pin

10pin

D.PG

DRUM_CTL_V

MAIN

CN901

JACK

CN7192

OPEN

F.Y IN

F.C IN

GND

LDM1

LSB

LSA

LSC

GND(C)

GND(M)

NC

CAP FG

SW5V

CAP REV(L)

CAP CTL V

EP/LP CH1

EP/LP CH1

EP/LP CH2

D.FG

EP/LP CH2

SP CH1

CN1

SP CH1

SP CH2

SP CH2

COMMON

FMA CH1

FLY. E

FMA CH2

FLY. E

CN3003

57

41

U.DRUM

LP/EP

JACK

CN7191

11pin
11pin
7-11pin
7-11pin

11pin

CH1

SW/DISP

CN7191

3-7pin
3-7pin

3-7pin
3-7pin
3-7pin
3-7pin

LP/EP

SP SP

CH2

CH1 CH2

FMA FMA
CH1 CH2

FLY. E

M12V/M17V

CAP MDA

M

CN3004

ROTAR Y

ENCODER

GND(C)

55

LOADING MOTOR

CN3002

M

#

LDM2

36

#

CN7192

FRONT C IN

FRONT Y IN

#

CN7191

F.AUDIO[L]

F.AUDIO[R]

FRONT VIDEO

FRONT Y IN

FRONT C IN

JACK
(Page 4-26)

GND

CN901

#

#

CN902

F.AUDIO[L]

GND

GND

F.AUDIO[R]

FRONT VIDEO

OPEN

GND

GND

GND

GND

CN3011

REC_SAFE

AL5V

S_CLK

S_DATA_TOSYS

S_DATA_FRSYS

STB

RC IN

GND

B.U GND

DC3.5V[-]

DC3.5V[+]

REC.SAFE

-29V

#

CN7001

GND

GND

GND

FRONT Y IN

#

CN7191

FRONT C IN

RCU5V

OPERATE_SW

28

SW/DISPLAY
(Page 4-25)

FW7001

#

GND

GND

GND
GND

GND

GND

FW7001

32

REC SAFETY
(Page 4-26)

JSA/SHUTTLE_A

CN3012

#

37

3

8

OPEN

JSB/SHUTTLE_B

GND

SHUTTL[L]/NC

J2/JOG_A

J1/JOG_B

JOG

CN7004

ADV.JOG

(Page 4-26)

GND

HP OUT[R]

HP OUT[L]

CN906

#

#

CN7005
#

OPEN

HEAD PHONE

ADV
GND
JSB
JSA

FW7192

7

4

p10357001a_rev0

4-3 4-4

HGFEDCBA

The Parts Number,value and rated voltage etc. in the Schematic Diagram are for references only.

Note :

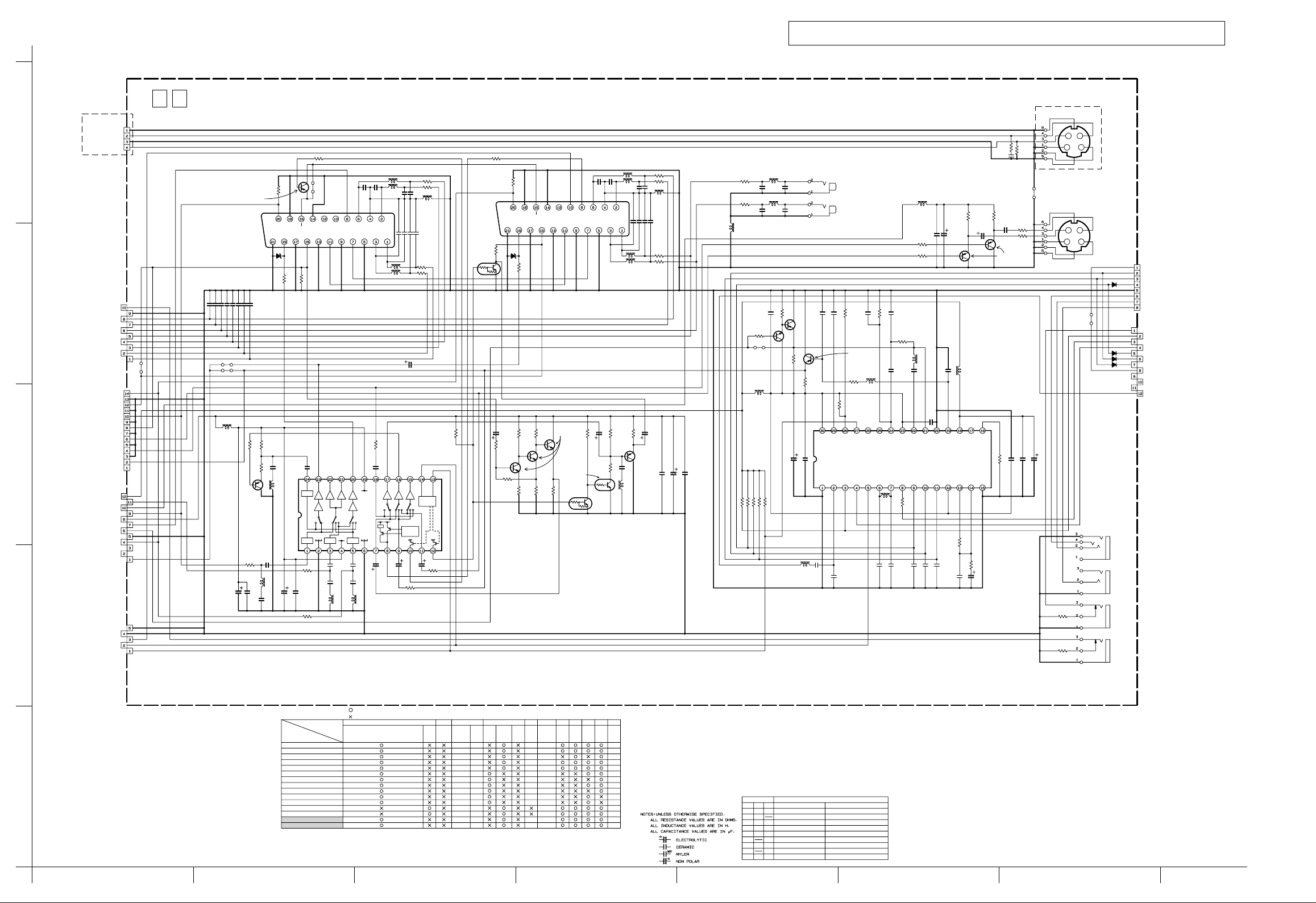

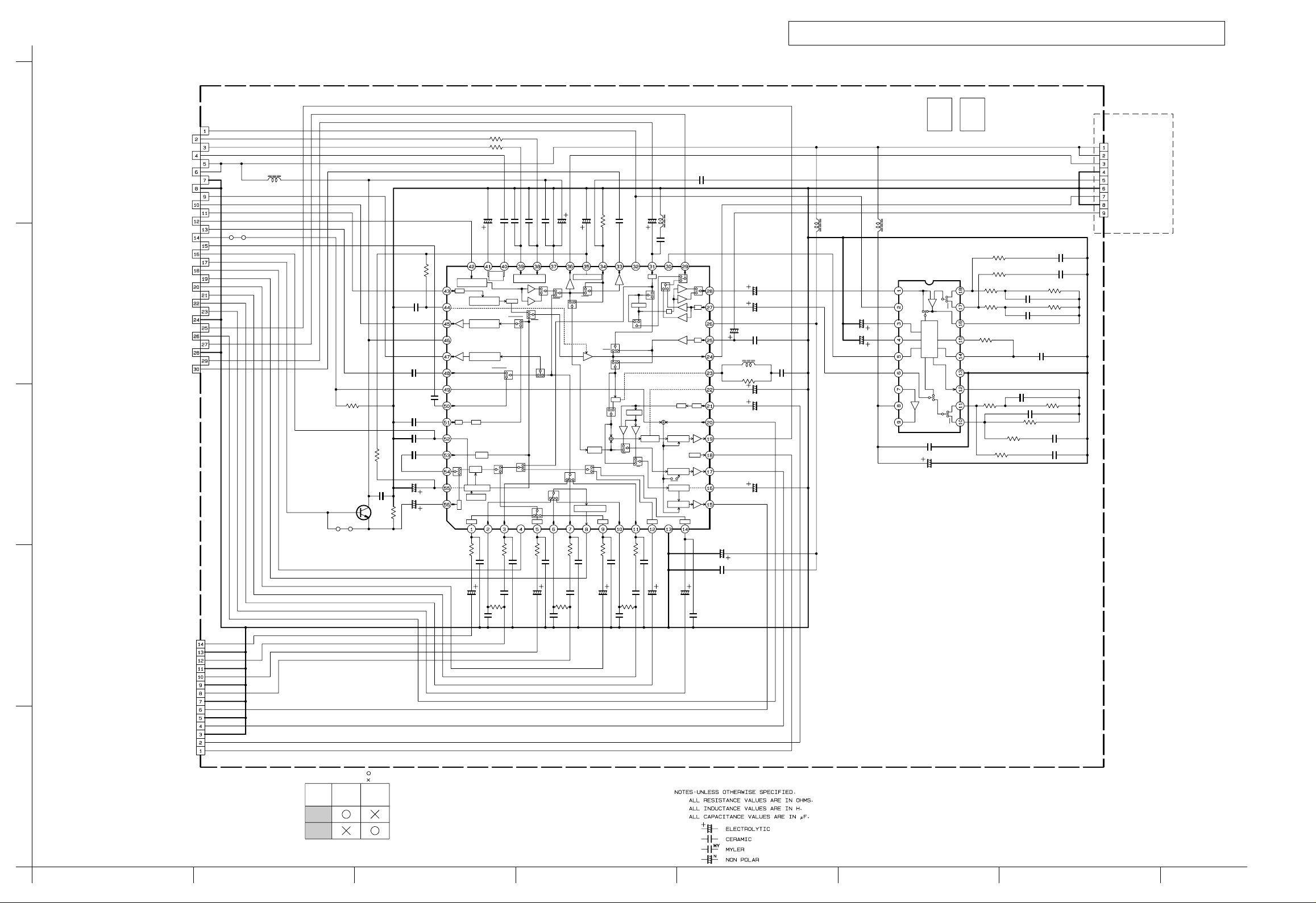

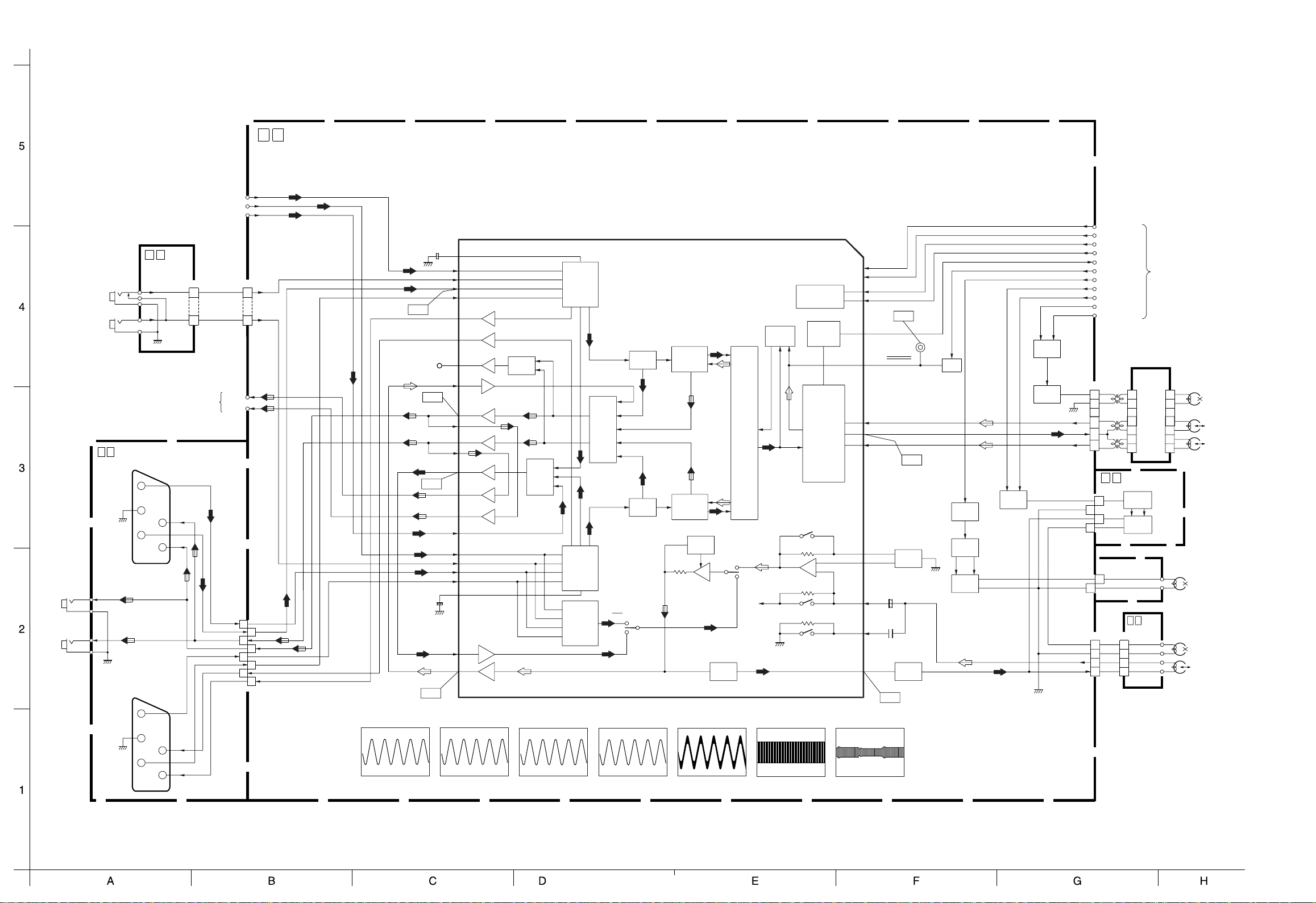

4.2 MAIN (VIDEO/AUDIO) SCHEMATIC DIAGRAM

When replacing the parts,refer to the Parts List.

0 3 MAIN (VIDEO/AUDIO)

C2238C2234

Vcc

OPENOPEN

L

5

TO CONNECTION

LINE_OUT[L]

LINE_OUT[R]

DEC_OUT[L]

DEC_OUT[R]
BS_AUDIO[L]
BS_AUDIO[R]

A.IN1[L]
A.IN1[R]
A.IN2[L]

A.IN2[R]
F.AUDIO[L]
F.AUDIO[R]

GND

TO TUNER

TU_AUDIO
RF_AUDIO
DEMOD[L]
DEMOD[R]

GND

TO CONNECTION

2Fsc

V_TO_OSD

GND

4

3

2

1

TO SYSCON

AL5V
A.FF

A.ENV/ND[L]

A.MUTE[H]

H.REC_ST[H]

PAL_PB[H]

TO SW.REG

GND

SW5V

SW12V

CN1

TO U.DRUM

FLY.E

FMA_CH2

FMA_CH1

SP_CH2

SP_CH1

LP/EP_CH2

LP/EP_CH1

TO A/C HEAD
CN1

CN2001

P/R

A.E

CTL

TO SYSCON

CTL[+]

CTL[-]
GND

TO FULL ERASE HEAD

CN2002
FE

TO SYSCON

FULL_E_ON[L]

N.REC[L]

N.REC_ST[H]

4 6 AUDIO ERASE

MY

C2052

0.033

T2051
PELN0860

TO SECAM
CN302

CN301

SECAM_DET

PB_FM

REC_COLOR

EE[L]

SECAM[H]

fsc

TO SECAM
CN301

CN302

GND

C.SYNC/CNR_OUT

SW5V

V_TO_SECAM/CNR_CTL

PB_COLR/CNR_IN

ONLY USED FOR HR-S9850MS

TO SYSCON

ANT_CTL[H]/S-P[H]

BS_PCTL[H]/FORCE[L]

P/S_SECAM[H]

TO CONNECTION

(P-S CONV./BS)

P/S_SECAM[H]

BS_PCTL[H]/FORCE[L]

ANT_CTL[H]/S-P[H]

NC

K2003

K2004

CN2051

A/E

A_BIAS

Q2051

2SC4081/QRS/

C2053

0.0033

R2054

15k

C2055

/16

10

#

#

#

Q31

C107

#

/6.3

22

B21

#

B20

OPEN

GND

A/E_VCC

CN2052

R2055

C2054

3.3

0.01

R61
1k

R60
1k

L26

OPEN

L25

10µ

#

#
B44

B47

#

# DIFFERENCE TABLE VIDEO

"B26,B44" "Q14,Q31"

B3

"R47,R60,R61,R84"

EURO

MS

S-P/P-S

"C76,C77,C78,C79,C107"

S-P

B2051
OPEN

C2051

R2052
OPEN

330p

R2051R2053
OPEN

4.7k

: Used
: Not used

IC2

D8

"L14,L25"

LP_SHORT[H]

R21 R22
OPEN

C69
OPEN

L15

IC2

#

MM1113XF

3D/TBC

C402

0.022

C401

C403

0.01

150p

SP_SHORT[H]

OPEN

Q2

Q1

OPEN

OPEN

Q4
OPEN

Q3
OPEN

C70
OPEN

MY

C2061

0.033

10µ

B4

OPEN

C77

#

C78

#

0.01

0.01

H

H

#

C75

C76

OPEN

0.01

B56 Q25

2D

EURO

MS

C405

R401 R402
220 1k

Q401

R403 R405

680

C404

18p

OPEN

B42
0Ω

C1

0.01

C2

0.01
C3

0.01

C4

0.01

T2052
PELN0861

0.01

C59
C60

47

EE[H]

R117Q13B21 B47 R4

X2

FLY_ON[H]

22p

R406

R404

OPEN

47k

C406
680p

68k

L401

Q402

Q403

15µ

C407

22p

D1

DA204

L1
10µ

C5
47

/6.3

R2056
100

Q2061

2SC4081/QRS/

C2062

0.0033

R2063

R2061

150

27k

C2064

R2062

C2063

/25

10

3.3

0.01

/6.3

TP106

Q14

#

R24

OPEN

L17
OPEN

C93
OPEN

EE[L]

1000p

0.1

C7

C8

2SA1576A/QR/

PB FM

B1

OPEN

C409
OPEN

FLY_REC[H]

TO SHEELD

C44
OPEN

Q2052

Q2062
2SA1576/QR/

R2234
OPEN

R2233
OPEN

R409
10k

Q405

L402
SHORT

R407

4.7k

Q404

TP111
D.FF

R2057

47k

R2059
47k

Q2054
2SA1576A/QR/

R2064
47k

R2065
18k

R65
OPEN

R23

1.8k
B5
OPEN

Q5

R68

2.2k

H
H
L

GND

C2237
OPEN

C2236
OPEN

R2236

R2235

OPEN

OPEN

B2204
0Ω

B2205
SHORT

R408
47k

Q2251

DTA144WUA

R2252

10k

C2256
OPEN

10µ

L2251
L2001

SHORT

R77
10k

C2017

4.7

/25

Q2053
DTC144WUA

D2001
1SS355

Q2004
DTC144WUA

R2022

R2023

Q2003

R2011

DTA144WUA

10k

R2020

1k

R2058
18k

R2060
18k

R113

100

VHS[H] VHS[H]

R25

R27

10k

220

R29
560

Q7

C71

0.01

C72 L18

C103

47p 22µ

OPEN

R26 R28

6.8k 220

VHS[H]

TO SYSCON

FRONT_V_IN

TO CONNECTION

IC2201
OPEN

C2233
OPEN

C2003
47 47 0.010.01

/6.3 /16

R2025

3.9k

Q2006
2SC4081/QRS/

56k

R2018

R2019

Q8

L19
12µ

C74
OPEN

BS_VIDEO

REAR1_V_IN

V_TO_OSD_2

TUNER_VIDEO

C2232
OPEN

L2252
150µ

C2255
180p

Q2252
DTC114EUA

C2251 C2252C2004

4.7k

2SC4081/QRS/

4.7k

4.7k

2SC4081/QRS/

R30

SHORT

C2235

OPEN

BS_DEC[H]

R2001

680

#

R2003

100

R2206

100

100

R2208
R2209

R2226
12k

C2218

C2228

0.1

R2227

12k

/50

/25

C2219

4.7

10

INPUT_SEL INPUT_SEL [L][R]

NA EXT IN

NA INPUT SEL

SECAM

LPF

SECAM

D1*D18

2M LPF

P

R

629TRAP

P

R

LPF
MOD

CARR./DEV.ADJ

S-DET

FBC
ALC

Y

BDL

LPF

C136

OPEN

120µ

L2

OPEN

C14

C13

0.1

1.8k

R3

C110
82p

L28
68µ

R90
390

"R2001,""R2002," C2206

R2005
R2006
R2007
R2213

/50

0.47
100p

C2230

EVR

D1*D18

TRAP

ACC

HPF

ET

ET

ET

LPF

YNR

R

C15

0.01

OPEN

0.1

R75

C16

100

0Ω
39k
39k
39k

12k

12k

15k

R2009

R2010

R2215

/25

C2217

10

GND

REC LEV.

R

CTL

P

SECAM SECAM

CTL.P.TRAP

Fh TRAP

COMP

SEP

SUB LPF DE MOD D.LIM.

R
P

SQPB
EQ

N.L.

P
R

DO DO

&REC

P

CLAMPCLAMP

Y GND

C62

OPEN

C63

0.1

C2002

Y-LPF

-10dB

D5

R2002

2.7k

#

R2217

0Ω

R2218

39k

R2219

39k

R2220

39k

12k

12k

12k

15k

R2222

R2223

R2224

R2225

/50

/50

/50

/25

C2226

10

TP2253

R2251
1k

C2227

0.01

K2251

C2253

K2252

0.01

K2253

C2254

C2005

/50

4.7
R2014

220k

R2015 C2007

22

R2013

/16
R2026
OPEN

180

C2006

Q2005
OPEN

Q2001

0.012

4.7

0.001

/25

C2008

C2009

39k

R2016

0.0015

C2010

18k

R2017

4.7

/25

C2011

C2021

0.0068

Q2011

DTC144WUA

SEP_PB[H]

Q2002

#
B3

R32
470

C73
12p

Q9

R31

1.5k

OPEN

C51

R114

SHORT

Fsc

REC_COLOR

MAIN_ALC_DET

(NC) V_TO_OSD_2

TO CONNECTION

0.1

6.8k
K2002

C2016
330p

K2001

C65

Y_TO_AV

V_FROM_AV

C.SYNC/V.REF

SECAM_PB_COLOR

A.MUTE

ENV DET

A.FF

NOR DET

PRE/REC GND

0Ω

CH2

0Ω

COMMON

0Ω

CH1

PRE/REC VCC

A.Vcc

BDL GND

COMP

PRE/REC GND

SP2

COMMON

PRE/REC

C6

0.01

SP1

PRE/REC VCC

LP/EP2

LP/EP

COMMON

PRE/REC

LP/EP1

ENV OUT

D.FF

DET

A.GND

C2013
3p

REC

/50

1

TANK

DC PB

IC1

JCP8050-MSA

C61

C84
15k

L20

SHORT

Q16
OPEN

SP[H]

Q17

R34
47p

R92

1.5k

C109

0.22

GND

V.PULSE

Y_TO_SUB

PB_COLOR

KILLER_DET

C2221

C2224

0.01

0.01

C2225

C2223

C2222

C2220

4.7

0.47

0.47

FM MON

NR[L]NR[R]

+

REC/PB MON

HIFI FM

SP

AMP

VCA

MUTE
SP

SP

AMP

CARREA
OFFSET
MAIN
EMPHA.

INT

W.C./D.C

P

R
D17
CTL

EXT

42PIN[L]

42PIN[L]

MAIN

DE EMPH.

0.01

R1

0.5)

6.8k

C10

R35

150p

C12

OPEN

2)
8p

/25

C11

0.1

4.7
R33
OPEN

R2

1.5k

0.5)

C2012

R104

6.8k
Q38

R93

2.2k

L24
27µ

C106
820p

DIFFERENCE TABLE AUDIO

#

WITH RF OUT
W/O RF OUT

=

K2001 - K2004 NQL103K-R10X

12k

R2008

/25
10

P
R

SQPB

SQPB

OPEN

C91

C17

3.3
/50

SHORT

R70

C.K.

BPF

INPUT_SEL

FM AGC

D.E.
N.C.

OPEN

PILOT

DET

DO DET

R
P

CH4

-10dB -10dB

D4

OPEN

OPEN

C18

R2210
R2211
C2213
C2214

/50

C2216

0.47

1

2233441

GND

(TU)(TU) (FR)(FR) (L1)(L1)(L2) (L2)

EVR

MAIN

CONV.1

PP

LEVEL DET1 LEVEL DET2

BURST

EMPH./DE EMPH.

ADD

SQPB DL

SQPB SQPB

SB GAIN

P.C.

P

R

AGC

AGC DET
PB ALC

CH1

CH2CH3

C9

C19

2.2

2.2
/16

/50

OPEN

C52

4444444

4444444

4444444

4444444

10k
10k

10

/25

10

/25

100p

C2229

/25

C2215

4.7

Vcc/2

DEC OUT[R]

DEC OUT[L]

OUTPUT SEL

HIFI

DL

C-LPF

C-LPF

MAIN
CONV.2

RR

P EQ

G EQ

NT on PAL

C.K.

WHITE

LIM.
CLEAR
SYNC

ALC
FBC

-10dB

Y VCC

C23

0.1

C92

OPEN

L22

OPEN

C21

0.1

/50
1

C20

D8

#
SHORT

B9

OPEN

R2203

/50 /50

/50

C2209

0.1

LINE OUT[R]

NA PB

NA REC

C

BDL

Fh LOCK CTL

C-SQUELCH

6dB

D1*D24

0.01

C80

LINE OUT[L]

D5 D5

D1*D24

SB_GAIN

R2202

R2232

2.2k

2.2k
68

R2201
68

R2205

R2204

1k

1k

D2202

/50 /50

CLK

9V

B18

R80
OPEN

L14

C79

#

39p

MTZJ8.2C

/16

/25

47

10

#

C2207

C2206

C2205
1

/50

C2204

0.001

C2203

/25

10

C2201

R2228 R2229

0.1

10k 56k

C2202

0.033

SHORT

R9

SHORT

R8

4.7

C36

/50

C25

D3
OPEN

C104
OPEN

0Ω

B56

#

R48
1k

B35

OPEN

C95

OPEN

C2231
OPEN

R36

6p

R72

OPEN

Q21

R73

I2C_DATA
I2C_CLK

C120
OPEN

C32

0.01

L11

L12

QQR0967-001

C96

OPEN

R76

OPEN

SHORT

C108

OPEN

C114
180p

10

C40

R118

OPEN

R79
1µF

1.8K

C35

0.01

OPEN

0.1

C26

L4

10µ

C105
OPEN

R46
560

C94

L13

L27

33µ

33µ

C64
22p

68p

Q41

Q39
OPEN

C2212 C2211
11

DATA

DET

fsc IN

CR DET

BAND_GAP

BDL VCC

BDL DET

DATA

IIC LOGIC

CLK

LPF2FscVCO

C GND

2Fsc OUT

CR DET

X'tal
VCO/XO

ACC DET

REC AFC

PB APC

C VCC

R

REC APC

P

1/2/01

2FL VCO

KILLER

DET OUT

L3
10µ

C81

OPEN

#

B26

Q34
OPEN

#
100µ

820

R47
#

MESECAM[H]

V.PULSE

Q37

OPEN
R91
OPEN

B45
OPEN

C2208 C2001

4.7 4.7

/50

C2210

0.1

LOG

LOG

HIFI

P

VCA

R

CCD LPF

MESECAM

DET

1Π2Ҝ

PHASE SW.

DOWN CONV.

C.KILLER
ID DET

APC SW

DISCRI

CNV.

PULSE

GEN.

4PHASE GEN.

D4

SQUELCH

CLAMP

D4

6dB

SYNC SEP

SHORT

SHORT

R4

R5

#

C24

0.1

/6.3
47

C22

C.SYNC

SECAM[H]

2SC4081/QRS/ or 2SD1819A/QRS/ or 2PC4081/R/.
2SA1576A/QR/ or 2SB1218A/QR/ or 2PA1576/R/.

DTC144WUA or UN521E or PDTC144WU or RN1309.
DTA144WUA or UN511E or PDTA144WU or RN2309..

R2402

R2401

/16

C37
OPEN

X2

#

0.01µF

X1

QAX0576-001

OPEN

C2410

C2411

OPEN

HP_Vcc

6dB 6dB

HP_Amp

VR

MUTE_CTL

EVR_CTL

OPEN

C2401

OPEN

OPEN

OPEN

R2403

D2201
OPEN

EVR_CTL

C39

C38
47

0.1

/6.3

R39

OPEN

R37

OPEN

R38

1k

C34

R7

680

C31
R6
C29
C28
C27

C55

OPEN

100k

R117

#

C56

OPEN

R66
OPEN

C.SYNC/V.REF

Q32
OPEN

V.REF C.SYNC
C112
OPEN

3.58NTSC[H]

C2408

C2409

OPEN

OPEN

NCNCNC

NC

HP_GND

SP_Vcc

HP_Amp

VR

BIAS

C2403

OPEN

C2402

OPEN

OPEN

R2404

L5

QQR0521-012Z

C45

0.1

C54

OPEN

100p

C53

0.1
C33

47

/6.3

C30

27k

0.033

3.3

/50

0.022

#

Q13

Q25

#

C98
OPEN

Q35
OPEN

AGC_CTL

SP_GND

NC

SP_IN_1

SP_IN_2

SP_IN_CTL

SP_ON/OFF

OPEN

OPEN

C2404

C2405

2.2

/50

0.47

R40

2.2k

Q26

OPEN

M_TRICK[L]

R-Y_REV

EE[L]

OPEN

R82

10k

R84

#

OPEN

R85

C2407
OPEN

C2406
OPEN

IC2401

OPEN

D6
OPEN

R42R41

6803.9k

Q10

R81
OPEN

3.58NTSC[H]

ET_PB[H]/AGC_CTL

EE[L]
SP[H]

R2406R2405
OPENOPEN

CN906

TO FRONT

OPEN

C42

C41
OPEN

OPEN

R88
SHORT

Q24

2Fsc

R51

1.2k

Fsc

R44
OPEN

Q12

OPEN

R43

R45

OPEN

OPEN

Q11
OPEN

3.58NTSC[H]

TO SYSCON

HP_CTL
BS_DEC[H]
IND[R]
IND[L]
LP_SHORT[H]
SP_SHORT[H]
D.FF
VIDEO_ENV
HEAD_SEL
FLY_ON[H]
FLY_REC[H]
I2C_DATA_A/V
I2C_CLK_A/V

3.58NTSC[H]
TRICK[H]/M_TRICK[L]
EDS_CS/R-Y_REV/EXT
SECAM_DET/KILER_DET
V.PULSE
NORM/MESEC/S
C.SYNC/V.REF
SB_GAIN
SP[H]
EE[L]
SEP_PB[H]
EDS[H]/SECAM[H]
SLOW_P/CNR_CTL
ET_PB[H]/AGC_CTL
MESECAM[H]

4-5 4-6

p10365001a_rev0

HGFEDCBA

4.3 MAIN (SYSCON) SCHEMATIC DIAGRAM

The Parts Number,value and rated voltage etc. in the Schematic Diagram are for references only.

Note :

When replacing the parts,refer to the Parts List.

TO VIDEO/AUDIO,

CONNECTION

TO VIDEO/AUDIO,

CONNECTION

5

TO VIDEO/AUDIO, CONNECTION

TO VIDEO/AUDIO, TUNER

4

3

2

TO VIDEO/AUDIO

TO VIDEO/AUDIO

TO VIDEO/AUDIO

TO CONNECTION

TO VIDEO/AUDIO

TO VIDEO/AUDIO

BS_PCTL[H]/FORCE[L]

TRICK[H]/M_TRICK[L]

SECAM_DET/KILER_DET

SLOW_P/CNR_CTL

EDS_CS/R-Y_REV/EXT

ET_PB[H]/AGC_CTL

TO VIDEO/AUDIO

TO DRUM MOTOR
CON1

TO
LOADING MOTOR

TO
ROTARY ENCODER

TO ADV. JOG
CN7004

OPEN

TO CONNECTION

ANT_CTL[H]/S-P[H]

PS_SECAM[H]

HEAD_SEL

SEP_PB[H]

EDS[H]/SECAM[H]

3.58NTSC[H]

FLY_REC[H]

VHS[H]

MESECAM[H]

BS_DEC[H]

FLY_ON[H]

I2C_CLK_A/V

I2C_DATA_A/V

A.MUTE[H]
SP_SHORT[H]
LP_SHORT[H]

WIDE_DET

V.P_CTL

C.SYNC/V.REF

V.PULSE

HP_CTL

NORM/MESEC/S

VIDEO_ENV

SB_GAIN

CN3001

DRUM_12V

GND[M]

DRUM_CTL_V

D.PG
D.FG

CN3002

LDM1
LDM2

TO
CAP MDA

CN3003

GND[C]

CAP_FG

CAP_CTL_V

SW5V

GND[M]

CAP_REV[L]

M12/17V

CN3004

LSB
LSC
LSA

GND[C]

TO
SW. REG

DC3.5V[+]

DC3.5V[-]

M12/17/22V

DRUM_12V

P.SAVE[L]

P.CTL[H]

V_UP2[L]

V_UP[H]

CN3012

JSA/SHUTTLE_A
JSB/SHUTTLE_B

SHUTTLE[L]/NC

J2/JOG_A
J1/JOG_B

TO DISPLAY
CN7001

CN3011

RCU5V

OPERATE_SW

REC_SAFE

S.CLK
S.DATA_TOSYS
S.DATA_FRSYS

RC_IN

B.UP_GND

DC3.5V[-]

DC3.5V[+]

LI_5V

0 3 MAIN (SYSCON)

SP[H]

EE[L]

B3012

#

B3118

#

D.FF

AL5V

CTL[+]
CTL[-]

GND

drum_ctl_v

C3001

L3011

0.1
L3012

GND[M]

COMMON_USE_M12/DRUM12V

#

B3005

#

PLEASE_CHECK

LI_BATT_SERIES_RESISTOR

C3004

0.1

#

B3007

#

B3006

470k

R3243

#

EDL

#

C3010

C3011

QEZ0244-***

#

****

/6.3

#

D3006

RB721G-40

R3221[C]

1k

NC

AL5.8V

SW12V

GND

AL5V

GND

-29V

GND

-29V

M12V

SW5V

GND

48V

STB

dpg

dfg

IC3004

BA6956AN

VCC

GND

Vref

B3004 0Ω

R3201

10k

CP

ICP-N15

#

CP3002

R3205

R3206 R3207
18k 18k

180

1/4W

Q3002 Q3003
PTZ-NV16 PTZ-NV16

START
SENSOR SENSOR

C3007

D3001 R3213
LNB2301L01VI

R3214

10k

ICP-N25

CP

CP4001

#

D3011

1SS133

#

D3012
1SS133

B3002
B3001

[for_EDL]

10k

R3237

B3003

#

OPEN
OPEN

R3251

R3241

10k

100k

D3004 D3005
11ES2 11ES2

#

C3042

1000

470

/6.3

LDM1

LDM2

C3002

L3001

SHORT

0.01

C3003
10

/16

R3208 R3210

END

C3008

R3215 R3216

10k 10k

#

D3003 Q3004
RD39ES/B3

RD33ES/B2

R3218

4.7k

10k

10k

R3238

R3239

#

R3222

4.7k

open

#

100
open

LMC1

LMC2

Q3001
2SD1819A/QRS/
2SC4081/QRS/
2PC4081/R/

R3202

4.7k

PC3001 PC3002

GP3S123 GP3S123
SUPPLY TAKE UP
REEL SENSOR REEL SENSOR

0.001

2SD1819A/QRS/
2SC4081/QRS/
2PC4081/R/

R3219

4.7k

10k

R3244

JSA
JSB

STL[L]

JOG_B

#

Q3005
2SD1819A/QRS/
2SC4081/QRS/
2PC4081/R/

open

B4001

C3012

/6.3

D4001

1SS355

R4016

10k

0

R3089

R3090

#

TRICK[H]

OSD_CS

/M_TRICK[L]

HEAD_SEL

"R-Y_REV,EDS_CS,EXT[L]"

I2C_CLK_A/V

S.DATA_TOSYS

S.DATA_FRSYS

470

470

R3051

R3052

R3088

R3087

H.REC_ST[H]

TU_V_MUTE[H]
TU_A_MUTE[H]

S.CLK

47000

R3053

R3054

R3086

R3085

#

#

FLY_ON[H]

LP_SHORT[H]

REC_SAFETY

I2C_DATA2

I2C_CLK2

A.MUTE[H]

OSC2

OSC1

TU_DATA

JUST_CLK
SECAM[H]

N.REC_ST[H]

TU_FG

SP_FG

R3055

OPEN

C3039

Vss

SLOW_P
SP_SHORT[H]

Vcc

V.P.CTL

NC
NC

MODE

Vcc

[OUT]

Vss

[IN]

RES

X1
X2

NMI

FWE

TU_CLK

NC

NC

0

#

IC3003

AT24C16N-10SC-X

TP3906
C3017

C3018
C3019
C3020
C3021

R3235
R3236

C3038

OPEN

CNR_CTLSLOW_P/

R3083

0

C3034

R3081
R3080

TP3904

R3069

R3229

TP3905

#

X3001

#

R3063

TP3908
TP3907

#

R3256

OPEN
OPEN

100p
100p
100p

3.3k

3.3k

IC3005
OPEN

OPEN

R3079

4.7k

R3076

470

R3075

470
0

R3074
R3073

0

R3072

0

C3050

0.1

C3037

100

B3070
OPEN

12p

C3036

1M

X3002

QAX0527

18p

#

C3041

#

C3025

30p

OPEN

B3971

#

C3024

R3062

10k

#

#

C3028

4.7k

TP3903

OPEN

B3962

OPEN

#

R3061

1k

R3060

1k

#

R3059

1k

#

R3058

1k

#

R3257

10k

#

#

Q3901

A1

A2

C3022

VSS

0.1

SDA

SCLWPVCC A0

4.7k

R3223
R3224

4.7k

SCLWPVCC

A0A1A2

VSS SDA

C3032

C3035

0.1

OPEN

#

R3071

4.7k

R3066

R3230

4.7k

C3026

0.01

#

C3029

R3260

R3258

R3261

10k

10k

10k

S3002

#

R3225

10k

10k

OPEN

C3054

S-80727AN-DQ-X

OPEN

QSW0695-001

S.CASS

C3031

1k

0.1
C3030

T

/6.3

22

R3231

IC3002

10

/6.3

T

C3027

0Ω

B3063

B3966

OPEN

CN3901

OPEN

IC3601
BU2090FS

VCC

SP[H]

VHS[H]

FLY_REC

3.58NTSC
PAL_PB[H]

ET_PB/AGC

CONTROL

VSS

FULL_E_ON

CLK

DATA

EE[L]

N.REC

SEP_PB[H]

NRECST

P.MUTE

AUDIO/VIDEO

C3602

0.1

ver11/24

C3603

OPEN

C3604

OPEN OPEN

IC3651

B3651

BU2090FS

#

FORCE[L]

S-P[H]

NC

SW2

SW1

VCC

BS_DEC

BS_PCTL

BIL_SEL

TUNER/REG

C3652

CONTROL

0.1

C3654

C3653

ver10/4

VSS

DATA

CLK

V_UP2

GR_ON ANT_CTL

P_CTL

V_UP

P.SAVE

OPEN

10k

R3671

R4021
10K

R3217

5.6k

R3204

2.2k
LMC3

R3203

10k

LMC2
LMC1

R3211R3209

R3212
470k180 180

27k27k

D3002

1SS133

330k

R4001

4.7k

OPEN

C3014

TP4001

C4001

CTL.P

C4017

C4005

0.0022

C4010

0.022

Q4001

47

C4002
C4003

DTC114EUA

Q4003

T

C4004

22

/6.3

R4005

5.6k

1k

R4007

C3015

R3252

OPEN

#

R3245

0

#

R3018

6.8k

#

4.7K

R3242

OPEN

#

R3246

#

R3247

OPEN

DTC114EUA

C4016

R4020

/6.3
OPEN

0.1

0.001

0.1

560p

10K

560

#

Q4002

DTC114EUA

R4003

C4006

T

47

/6.3

C4007

R4006

0

0.001

1

C4008
C4009

0.056

R3011

0

R3012

0

R3013

0
R3014
R3015
R3016

0

0

R3017

R3019

0
R3020
R3021
R3022

0

R3025

0
R3026

0

0

R3027
R4008

1k

#

R3220
100k

R3233

#

R3234

#

B3665

OPEN

R4019

1k

R4018

1k

R4017

#

C4015

0.001
560

CTLREF

Vss

R4004

CTL[+]
SVss
CTL[-]
CTLBIAS
CTLFB
CTLAMPOUT
CTLSMTIN
CFG
SVcc
AVcc
NORM/MESEC/S
SECAM_DET[H]/ KILLER_DET
VIDEO_ENV
START_SENSOR
END_SENSOR
IND[L]
NC
SCR_ID/ WA_DET
IND[R]
BS_ANT/AFC
LED/RFAGC
A.ENV/ND[L]
AVss
CTL_GAIN
LSA
LSB
LSC

CAP_REV[L]

LOCK[L] /P.SAVE[0.1]

RC

4.7k

4.7k

C3049

OPEN

R3030

R3029

10k
10k

B3130

OPEN

D3008

1SS355

#

C3033

1k

R4013

V.PULSE

P50_IN

0

0

R3031

R3032

C4014

Vcc

R.PAUSE/COMPU_IN

R3033

#

C4013

1k

1k

R3105

R3106

#

###

DFG

DPG

SUB_CS

SUB_BUSY

HI_FF/REW[L]

/BIT_IN[H]

LMC1

LMC2

LMC3

P50_OUT

RAE_OUT/COMPUOUT

R3035

R3036

R3034

COMPU_OUT

D3007

1SS355

B3096

#

C4012

C4011

0

22k

R4015

R4014

4.7k1k1k00001k00000

1k

2.2k

1SS355

R4012

R4011

R4010

R4009

R3097

R3096

R3095

R3094

D4002

R3103

CAPPWM

DRUMPWM

SUB_RESET

IC3001

HD6432194SBD16F

POWER_DET

SB_G[PWM]

STB/TEST

1.5k00

R3038

R3039

R3040

0.1

C3040

Q3009

#

R3093

V.FF

A.FF

C.SYNC

JSA/STLA

JSB/STLB

SHTL[L]/JOGA

"JOGB,S_CASS[H]"

C3025
Timer clock

Vss

Vcc

PROTECT

HP_CTL

EXP2_DATA

RMO

EXP1_DATA

0

0

TP3901

TP3902

1k1k1k

R3042

R3041

R3044

0.1
R3046

R3047

R3048

C3016

C3043

OPEN

#

Q3007

DTC144WUA

DTC144WUA

#

R3092

R3091

MESECAM[H]

SYNC_DET[H]

I2C_DATA_A/V

EXP_CLK

330

330

R3049

R3050

100p

0.056

0.1

0.22

0.1

10k

TO CONNECTION

S.CLK
S.DATA_FRSYS
OSD_CS
SYNC_DET[H]
I2C_CLK2
I2C_DATA2
STB
S.DATA_TOSYS
EDS[H]/SECAM[H]

EDS_CS/R-Y_REV/EXT
P.MUTE[L]

(NC)

A.MUTE[H]
N.REC_ST[H]

TO VIDEO/AUDIO

I2C_CLK_A/V

TO CONNECTION

I2C_DATA_A/V
A.FF
H.REC_ST[H]
IND[R]

TO VIDEO/AUDIO

IND[L]
A.ENV/ND[L]
PAL_PB[H]
EE[L]

(NC)

12/0V

N.REC[L]

12/0V

[RMO]

#

B3056

#

B3030

10k

10k

R3673

R3672

FULL_E_ON[L]

TO CONNECTION

I2C_CLK2

(NC)

I2C_DATA2
EE[L]
AL5V
P50_I/O
PAUSE/COMPU_I/O
SCR[H]
RMO

TO CONNECTION

BS_ANT/AFC
BS_PCTL[H]/FORCE[L]
ANT_CTL[H]/S-P[H]
BIT_IN[H]

TO TUNER

I2C_CLK2
I2C_DATA2

TU_V_MUTE[H]
TU_A_MUTE[H]
TU_DATA
TU_CLK

SW_1
JUST_CLK
LOCK[L]
LED/RF_AGC
BS_ANT/AFC
SW_2
BIL_SEL

TO CONNECTION

GR_ON[H]

TO CONNECTION

S.CLK
S.DATA_FRSYS
S.DATA_TOSYS
SUB_RESET
SUB_BUSY
SUB_CS
PS_SECAM[H]

(NC)

S.CASS[H]

TO VIDEO/AUDIO

(NC)

3MIN

10MIN

60MIN

BATT

: Used
: Not used

C3010 C3011 C3042

3300

4700

-229

3300

JOG CTL TYPE

J/S

ADV.JOG

CN3012

B3003 D3011

D3012

B3005B3006

B3007

6Pin

4Pin

FEATURE TYPE

SVHS

TV-LINK[P50]

R.PAUSE

R.A.EDIT

VR1200/39

D3008
Q3007

D3007 Q3009 S3002

SHORT

SHORT

X3001 C3025 C3041 C3024SUB CLK ADJ

ADJ

QAX0445

FIX

QAX0444

22p

12p10p

R3242 R3247 B3012 B3030

JPN

"UM,K"

0Ω

LATIN

0Ω

PH EURO 4.7k

JVC EURO

4.7k

ARC

0Ω

B3056

B3096 B3118 B3651 B3665

B3130

MECHA TYPE

Y29-2

Y29-T

Y29-T+SEP

C4015 C4016 Q4002

0.001

0.001

330p

C4005 C4017 Q4003

p10358001a_rev0

4-7 4-8

HGFEDCBA

1

# DIFFERENCE TABLE

BACK UP TIME

The Parts Number,value and rated voltage etc. in the Schematic Diagram are for references only.

Note :

4.4 MAIN (SW.REG) SCHEMATIC DIAGRAM

3

0

5

F5001CN5001
T2AL

BRN

/250

LIVE

BLU

NEUTRAL

4

MAIN[SW.REG]

#

LF5001

PELN1204-01-01

#

C5003

100p
/250

QQR0977-001

MY

C5001

0.068
/250

#

B5001

#

B5002

#

VA5003

QAF0026-621

#

LF5002

MY

C5002

#

0.033
/250

IC5101

DS

D5001
S1WB(A)60F4102
S1WB(A)60F4062X
S1WB(A)60F4072X

STR-G6551

GND VCC OCP/FB

C5006

68

R5101

100k

#

R5301

#

2.2k 1k

R5314

#

Q5318
DTA114EUA
UN5111
RN2302
PDTA114EU

VCC2 VO2 STB GND #NAME?

##

C5301
220
/6.3

R5327

R5326

30k

##

C5302

#

100
/16

D5306
RD12ES/B1/
MTZJ12A

D5309
1SS133
1SS270A

IC5301

D5201

#

D5212

D5206
FMB-24
FSQ05A04B
YG801C04
MA7D49

##

D5207
AK04
11EQS04
1S4

#

D5202
FML-12S
FCF06A20
YG901C2
MA644

#

B5303

C5201
220

C5305

0.01
/50

RK14
21DQ04
SB240

C5213
220

/6.3

/6.3

#

C5203

/10

#

R5313 Q5310

#

Q5312
2SD2144S/UV/

#

R5307

1k

L5202

33µ

C5208

220

/10

T5001

#

#

R5334

#

10k

#

C5212

120
/35

#

C5101

0.0047
/1k

#

R5104

2W

#

C5102
27

D5101
AU01
1SR153-400
ERA18-04
10ELS4

D5102
AU01
1SR153-400
ERA18-04
10ELS4

D5103
AU01Z
ERA18-02
1SR153-400
10ELS2
PG104RS

/35

C5107

100p
/1k

#

R5102

K5102
SHORT

2W

#

D5214

ERA18-02
1SR153-400
10ELS2
PG104RS

When replacing the parts,refer to the Parts List.

#

UN5211
DTC114EUA
RN1302
PDTC114EU

LA5644

VO1

VO1 VCC1 SENSE NF VOERR

##

MY

C5310

R5306

68k

MY

MTZJ6.8A

C5304

0.27

/50

C5303 D5302

RD6.8ES/B1/

100
/16

##

R5310

4.7K

##

R5311

2.2K

##

#

B5302

CP5301
ICP-N38

CP5303
SHORT

##

D5308
1SS133
1SS270A

CP

CP

#

R5329

10k

B5301

Q5306
2SB1239

R5330

10k

0Ω

TO SYSCON

DC3.5V[+]

SW5V[2]
SW5V
SW12V
P .SAVE[L]
P .CTL[H]
DC3.5V[-]

DRUM_12V

M12V

AL5.8V

TO CONNECTION

TO VIDEO/AUDIO, SYSCON,

TUNER, CONNECTION

TO SYSCON

TO SYSCON

TO SYSCON

TO SYSCON,
CONNECTION

R5103

LF5001 LF5002

YES

NO

S1,S2,S35

S25,S36

680

PC5101

R5105

0.39
1W

2

QQR0978-001
QQR0608-001
QQR0609-001
QQR0610-001

QQR0532-001
QQR0533-001
QQR0516-001
QQR0627-001
QQR0816-001

7

Q5301
Q5302 R5308

C5206

YES

YES YES YESYES

YES YES YESYES QQS0057-001

R5309
R5332

C5002

YES

NO

D5305

SHORT

YES

PC123F2
PS2561L1-1/WL/
ON3171/R/

R5106

5.6k

GROUND POINT FOR

SECONDARY V OLT AGE

B5001

B5002

C5107

NO

YES

Q5320
Q5321

D5314 D5315

NONO NO

SHORT

11ES2
ERA15-02
1A3G

11ES2
ERA15-02
1A3G

Q5322
D5214

NO

R5305

470

YES

C5212
R5334
R5335
R5336 T5001

NO

NO

##

C5209

QQS0052-001

QQS0052-001
QQS0057-001

100p
/1k

#
#
#

R5102

AU01Z

D5203

ERA18-02

D5204

1SR153-400

D5205

10ELS2
PG104RS

#

D5209
ERA18-02
1SR153-400
10ELS2
PG104RS

##

D5208
FML-12S
FCF06A20
YG901C2
MA644

D5210
AU01Z
1SR153-400
ERA18-02
10ELS2
PG104RS

D5211
AU01Z
1SR153-400
ERA18-02
10ELS2
PG104RS

#

DIFFERENCE TABLE 3

CH+12V

B5302

YES

YES

NO

# DIFFERENCE TABLE 8

JVC

PHILIPS

4.7
DIFFERENCE TABLE 9

4.7

33

PHILIPS
/50 /61 /77

39

OTHER

B5306

0Ω

C5202

820
/16

#

C5206

C5204

4.7
/100

C5205
10

Q5304
D5310
R5321

VA5003

NOD5209

YES

180
/25

/50

R5304
220
1/4W

Q5303
R5319

L5201

33µ

1k

R5303

1.2k

#

R5317
27k

P.SAVE

YES

NO

C5207
220
/16

#

B5304

B5303
B5304

FF/REW

75s

OTHERNONO

#

Q5311
2SA1576A/RS/

#

R5318

27k

Q5305
Q5310
Q5311 R5317
Q5312

NO

YES

D5301
RD15ES/B1/
MTZJ15A

R5302

#

R5323
47k

D5304

1SS133
1SS270A

D5303
RD27EB/B3/
MTZJ27C

FR

R5322
C5308
C5309

YESNO

NO

C5306
C5307

NO

YES

C5103
33p
/1k

K5101
QQR0678-001
QQR0621-001

C5104

470p

3

GROUND POINT FOR

C5004

0.0022

2

/250

/50

PRIMARY VOLT A GE

DANGEROUS V OLTA GE

DIFFERENCE TABLE DIFFERENCE TABLE DIFFERENCE TABLE

# # #

D25

S1

1

S2,S35
S25

S36

DIFFERENCE TABLE

#

PHILIPS /75

OTHER

1 4

D5203
D5204

D5202

D5205 D5206 D5212#C5203

EU/EK/MS/A/M

EU/EK

MS YES YES NONO

A

UM/M/EN/K

EU/EK/MS

EU/EK/MS

R5104

68k

150k

YES

YES

NO

YES

YES

6

C5003

C5103

YES

33p

NO

33p

YES

NO

NO

YES

NO

NONO

YES

YES

YES

YES

YES

C5107 K5102

NO SHORT

100p SHORT

YES

NO

NO

NO

NO

NONO

1200

1200

2200

1200

1200

2200

2200

AC INPUT
220-240V

(CE)

AC INPUT
110-240V

(OTHER)

DIFFERENCE TABLE

#

HIGH SPEED

FF/REW

NO

100s

85s

75s

Q5318
D5307
D5309
R5307

#

R5319

220

#

C5307

YES

YES

47

NO

#

Q5303

/10

R5313
R5314

R5318

2SD2144S/UV/

C5306

100
/10

R5323
R5329

#

#

R5335

4.7k

#

#

D5307 Q5305

1SS133 UN5111

DTA114EUA
RN2302
PDTA114EU

#

Q5320
2SB1256

#

R5336

2.2k

#

Q5321
DTC114TUA
UN5215
RN1311
PDTC114TU

##

B5305

##

R5333

DIFFERENCE TABLE 5

#

LEVEL IND

LEVEL IND

2SD1450/ST/
2SD1302/ST/

#

R5321

220

#

R5322

47k

#

D5315
11ES2
ERA15-02
1A3G

YES

NO

#

Q5304

#

#

C5308

D5310

MTZJ11C

47

RD11ES/B3/

/25

#

Q5301
2SB1256

##

R5308 R5309

4.7k 2.2k

#

Q5322
DTA114EUA
UN5111
RN2302
PDTA114EU

R5301 D5201

EU/EK/MS

OTHER SHORT

1

SHORT

#

AK04

11EQS04

1S4

AU01Z

10ELS2

D5316

#

C5309

100
/16

D5314

SHORT

#

D5305
11ES2
ERA15-02
1A3G

CP5302
ICP-N25

#

Q5302
DTC114TUA
UN5215
RN1311
PDTC114TU

#

#

MARK ELEMENTS ARE NOT MOUNTED

CP

#

R5332

10k

CH+12V

TO VIDEO/AUDIO, SYSCON,

GND
RF5V

TO TUNER

TO CONNECTION

AL17V
M12/17/22V

TO SYSCON

V_UP[H]

TO SYSCON

V_UP2[L]

48V
BT2

-29V

TO CONNECTION

TUNER, CONNECTION

TO SYSCON
TO TUNER
TO SYSCON

p20208001a_rev0

4-9 4-10

HGFEDCBA

The Parts Number,value and rated voltage etc. in the Schematic Diagram are for references only.

Note :

4.5 MAIN(TUNER) SCHEMATIC DIAGRAM

When replacing the parts,refer to the Parts List.

0 3 MAIN [TUNER]

#

ANT IN ANT OUT

TU6001
MATSUSHITA

5

4

OPEN

3

2

TO
SYSCON

LOCK[L]

TU_DATA

TU_CLK

I2C_CLK2

I2C_DATA2

BS_ANT/AFC
TU_A_MUTE[H]
TU_V_MUTE[H]

BIL_SEL

LED/RF_AGC

JUST_CLK

SW_1
SW_2

PAL/MS

BB(AL5V)

AUDIO IN

MOD SDA

MOD B(AL5V)

MOD SCL

VIDEO IN

RF AGC

MB(SW5V)

LOCK(L)

TU(30V)

IF OUT

AUDIO OUT

SIF OUT

VIDEO OUT

MB(SW5V)

NTSC

NC(GND)

AUDIO IN

CH SW

MOD B(SW5V)

CONV.CTL(H)

VIDEO IN

NC

NC(GND)

(RF AGC)

(BT)

(BT)

AS

AS

SCL

SCL

SDA

SDA

NC(5V)

NC

MB(SW5V)

LOCK(L)

TU(30V)

IF OUT

IF IN

IF IN

NC

SW 1

NC

SW 2

AUDIO OUT

(SIF OUT)

AFT

AFT

VIDEO OUT

NC(OPEN)

ANT IN ANT OUT

TU6001

#

ALPS/LG

PAL/MS NTSC

BB(AL5V)

MOD SDA CH SW

MOD B(AL5V)

MOD SCL CONV.CTL(H)

VIDEO IN VIDEO IN

TU(30V)

RF AGC (RF AGC)

NC

MB(SW5V)

SW 1

SW 2

AUDIO OUT AUDIO OUT

SIF OUT SIF OUT

AFT AFT

AUDIO INAUDIO IN

MOD B(SW5V)

MB(SW5V)

LOCK(L)LOCK(L)

TU(30V)TU(30V)

IF OUTIF OUT

VIDEO OUTVIDEO OUT

B6001

#

NC

ASAS

SCLSCL

SDASDA

NCNC

TPTP

#

L6002

10µ

L6005

#

Q6551

#

L6004

10µ

C6551

#

47

#

R6508

#

R6053

1k

#

C6014

0.01

#

C6054

100

R6051

#

C6053

R6020

R6021

#

R6052

#

R6050

0

0

R6023

#

C6006

#

0.01

D6002

C6027

#

C6028

#

R6038

#

#

L6003
SHORT

L6001
SHORT

R6060

#

10k

R6061

#

10k

#

C6013

0.01

#

C6012

330

/16

100

#

C6052

100p

#

C6016

#

L6050
SHORT

0

#

C6055

22p

C6022

#

C6020

#

C6021

#

#

C6007

#

C6008

C6023

#

0

C6005

#

10

/50

HZ30-2L

5.6k

C6024

#

0.056

C6037

#

10

/6.3

#

R6510

L6032

R6031

0

SHORT

#

CF6031

B6034

5.07MHz
OPEN

R6032

#

0.047

R6033

#

1.8k
C6032

#

#

2SC3243/DE

R6551

#

/16

#

R6509

#

R6511

B6033

#

#

270

R6552

100

#

C6554

0.01

D6551C6552

##

0.01

MTZJ10B

#

Q6501

DTC143T

C6519

#

#

Q6502

DTC143T

#

C6520

R6080

#

10k

R6034

#

1M

C6033

#

0.001

Q6031

#

DTC144E

2SB1218A/QR
2SA1576A/QR
2PA1576/R

#

B6032

Q6032

#

DTC144E

#

B6511

#

B6510

#

R6030

B6030

#

Q6030

#

#

B6566

#

L6501

R6553

#

470

I2C_DATA

B6552

#

LED/RF_AGC

#

R6554

I2C_CLK

470

B6554

#

BIL_SEL

#

C6553

330

/6.3

GND
RF5V
SW5V

TO SW. REG

SW12V
BT2

TO SYSCON

AL5V

B6035

#

TO VIDEO/AUDIO

DEMOD[L]
GND
DEMOD[R]
TU_AUDIO
RF_AUDIO

TO DEMOD
CN6701

CN6701

#

PAL/MS

US JPN

/ARC/KR

NC

NC

JUST
_CLK

I2C

I2C

LED

_DATA

_DATA

I2C

I2C

BIL

_CLK

_CLK

_SEL

TU_A

TU

TU

_MUTE

_MUTE

_MUTE

DEMOD

DEMOD

DEMOD

_[R]

_[R]

_[R]

DEMOD

DEMOD

DEMOD

_[L]

_[L]

_[L]

SW5V

SW9V

GND

COMP

SIF

SW9V

GND

COMP

GND

COMP

C6555

#

OPEN

TO CONNECTION

TU_VIDEO
RF_VIDEO
GND

TO CONNECTION

SW_1

# DIFFERENCE TABLE

TUNER UNIT

RF CONVERTER

BB (RF 5V)

AUDIO IN

MOD SDA/CH SW

MOD B

MOD SCL/CONV.CTL

VIDEO IN

TU (30V)

FRONT END

RF AGC

AS

SCL

SDA

MB (SW5V)

LOCK

TU (30V)

IF

SW1

SW2

AUDIO OUT

AFT

VIDEO OUT

AUDIO MUTE

VIDEO MUTE Q6031

DEMOD REG "R6551,R6552,"

DEMOD OUT "R6508,R6510"

DEMOD OPTION R6553

DEMOD UNIT CN6701 LPA10094

OPTION B6035

"L6002,C6014"

C6054

R6051

R6053

C6053

L6003

L6004

C6012

C6013

R6052

C6052

L6050

R6050

C6055

C6016

R6080

C6022

R6020

C6020

R6021

C6021

L6001

C6007

C6008

R6023

C6005

C6006

R6060

C6027

R6061

C6028

R6038

C6037

B6034

R6032

R6033

C6032

C6024

B6001

Q6030

R6030

B6030

Q6032

R6034

C6033

B6032

B6033

"D6551,Q6551"

"C6551,C6552,"
C6554

B6566

C6553

C6555

L6501 SHORT SHORT SHORT3.3µ 3.3µ

"R6509,R6511"

"C6519,C6520"

"Q6501,Q6502"

"B6510,B6511"

B6552

R6554

B6554

"/02,/58" "EK,EU" "MS,/39" "/55,/75" "/50,/77" /61 JAPAN

ALPS MATSUSHITAALPS

QAU0209

QAU0208LGQAU0210 QAU0236

1k

1k

1k

1k

1k

1k

1k

1k

10µ

10µ

10µ

10µ SHORT SHORT SHORT

3.3k

3.3k

18k

1.5k

1.5k

0Ω0Ω0Ω0Ω0Ω0Ω0Ω

LPA10094

-04*

LPA10094 LPA10094 LPA10094

-04*

0Ω

18k

0Ω

-05* -07* -06*

: Used
: Not used

ALPS MATSUSHITA MATSUSHITA

QAU0207 QAU0238 QAU0224

1k 1k 1k

1k 1k 1k

12k 0Ω

3.3k 3.3k 3.3k1k 1k 1k 1k

0Ω 0Ω 0Ω

0Ω 0Ω

0Ω 0Ω

-* -*

PB11087APB11076A

1

p10364001a_rev1

4-11 4-12

HGFEDCBA

4.6 CONNECTION SCHEMATIC DIAGRAM

The Parts Number,value and rated voltage etc. in the Schematic Diagram are for references only.

Note :

When replacing the parts,refer to the Parts List.

LI_5V

TO TERMINAL

CN917

RF_VIDEO

_I/O

CN907

PAUSE/COMPU

GND

#

B7251

A.IN1[L]

LINE_OUT[L]

A.IN1[R]

A.IN2[R]

A.IN2[L]

LINE_OUT[R]

DEC_OUT[R]

DEC_OUT[L]

DEC_OUT[R]
DEC_OUT[L]
A.IN2[R]
A.IN2[L]
LINE_OUT[R]
LINE_OUT[L]
A.IN1[R]
A.IN1[L]
BS_AUDIO[L]
BS_AUDIO[R]
F.AUDIO[L]
F.AUDIO[R]
REAR1_V_IN
2Fsc
Fsc
KILLER_DET
C.SYNC/V.REF
PB_COLOR
SECAM_PB_COLOR
MAIN_ALC_DET
Y_TO_SUB
TUNER_VIDEO
V_TO_OSD
Y_TO_AV
BS_VIDEO
V_FROM_AV
REC_COLOR
FRONT_V_IN
GND

CH+12V

SW5V[2]
AL5.8V
SW5V
SW12V
AL17V
GND

RF_VIDEO
TU_VIDEO
SW_1

PAUSE/COMPU_I/O
LI_5V
EE[L]
SCR[H]
RMO
P.MUTE[L]
SYNC_DET[H]
OSD_CS
I2C_DATA2
I2C_CLK2
S.DATA_TOSYS
S.DATA_FRSYS
S.CLK
SUB_CS
SUB_RESET
SUB_BUSY
AL5V
V_TO_OSD_2
BS_ANT/AFC
ANT_CTL[H]/S-P[H]
BS_PCTL[H]/FORCE[L]
BIT_IN[H]
S.CASS[H]
GR_ON[H]
EDS_CS/R-Y_REV/EXT
STB
EDS[H]/SECAM[H]
P50_I/O
I2C_CLK_A/V
I2C_DATA_A/V
V.P_CTL
D.FF
TRICK[H]/M_TRICK[L]
SLOW_P/CNR_CTL
V.PULSE
P.MUTE[L]
WIDE_DET

TO SW.REG

TO TUNER

TO SYSCON

TO VIDEO/AUDIO

TO SYSCON

TO VIDEO/AUDIO

TO SYSCON

TO VIDEO/AUDIO

p20220001a_rev0

/SW1

Fsc

GND

C_TO_DIGI

SW5V[2]

Y/V_TO_DIGI

EE[L]

Y_FROM_DIGI

GND

C_FROM_DIGI

KILLER_DET

I2C_CLK_A/V

I2C_DATA_A/V

V.P.CTL

V.REF

D.FF

TRICK[H]

SLOW_PULSE

EE[L]

I2C_DATA_A/V

I2C_CLK_A/V

Fsc

SW5V

SW5V

GND

GND

C_TO_DIGI

Y/V_TO_DIGI

Y_FROM_DIGI

C_FORM_DIGI

PB_COLOR

V.PULSE

SECAM_PB_COLOR

MAIN_ALC_DET

Y_TO_SUB

P.MUTE[L]

WIDE_DET

FRONT_Y_IN

FRONT_C_IN

FRONT_V_IN

REAR2_V_IN

GND

V_TO_OSD

CHARA_DATA

Y_TO_AV

GND

V_FROM_AV

REC_COLOR

TO S-SUB

CN511

CN502

B7256

R7202

#

R7204

#

10

#

Q7201

2SC1317/RS/-T

L7201

#

100µ

C7202

#

/6.3

470

B7209

#

B7204
B7205
B7206

1/2W

#

B7255

#

220

#

B7254

R7202

B7209

R7203
R7204
Q7201
L7201
C7202

B7251

B7252 B7255 B7256 CN901

B7253

R7252
R7253
C7251

OPEN

5

4

OPEN

3

ONLY USED FOR HR-S9850MS

2

# DIFFERENCE TABLE

1

TO JACK
CN7192

#

TO BS

#

BS_VIDEO

BS_AUDIO[L]

BS_AUDIO[R]

TO DISPLAY
CN7191

F.AUDIO[L]

F.AUDIO[R]

FRONT Y IN

FRONT C IN

FROM/TO GR

CN1901

#

GR_VIDEO

TU_VIDEO

I2C_DATA

I2C_CLK

GR_ON[H]

TO P/S CONV./BS

CN6102

#

EE[L]/BS_P.CTL[H]

GND/AL6V

GND/SW12V

S-P[H]/I2C_DATA
SW12V/I2C_CLK

SW12V/BIT_IN[H]

FORCE[L]/ANT_CTL[H]

PS_SECAM[H]/BS_ANT

TO NAVI

CN7103

#

SD_TOSYS
SD_FRSYS

SUB_CS

SUB_RESET

SUB_BUSY

VSC_DATA

VSC_CLK

PS_SECAM[H]

S.CASS[H]

: Used
: Not used

VR1200/02,/58
HR-S9850EU/EK
VR1200/39
HR-S9850MS
HR-J880EU/EK/MS
VR1070/55./75
VR820/55,/75
VR1070/50,/61
VR820/77
HR-VFG1

CN901

F.Y_IN

GND

F.C_IN

GND

CN6103

GND

GND

CN902

GND

GND

F.VIDEO

GND
GND

GND

GND

GND

GND

SW12V

AL6V

AL17V

GND

S.CLK

AL5V

CVIN

GND

#

R7252

75

#

R7253

75

#

C7251

SHORT

#

R7251

75

NC
NC

C6101

#

0

#
#
#

#
#
#

#
#
#
#
#
#
#
#
#
#

3 MAIN [CONNECTION]

B6101

CN6102

B6108
C6101
CN6103

5-8pin

1-10pin

1-10pin

B6102
B7201
B6103

B6101
B7202
B7203

B6104
B6105
B7206
B6107
B6108
B7204
B7205
B7207
B6106
B7208

|

#

R7203

#

4.7k

B7201
B7202
B7203
B7207
B7208

TO 3D/TBC(2M)

R7251

CN501
#

CN1401

NAVI

GR

SVHS

YES

NO

YES

NO

YES

NO

CN7103

CN1901 B7254

CN501
CN502

GND

TO TERMINAL

CN915

CN905

GND

P50_I/O

I2C_CLK2

I2C_DATA2

#

B7253

#

TO TERMINAL

CN914

CN904

2Fsc

B7252

EDS[H]

STB

SD_TOSYS

EDS_CS

S.CLK

SD_FRSYS

CHARA_DATA

OSD_CS

TO TERMINAL

P.MUTE[L]

SYNC_DET[H]

SAT_CTL

CN913

CN903

SW5V

SW12V

TU_VIDEO

SCR[H]

CH+12V

LINE_VIDEO2

V_TO_OSD

GND

LINE_VIDEO1

4-13 4-14

HGFEDCBA

The Parts Number,value and rated voltage etc. in the Schematic Diagram are for references only.

Note :

4.7 3D/TBC(2M) SCHEMATIC DIAGRAM

When replacing the parts,refer to the Parts List.

0 5 3D/TBC(2M)

1k

LC1402

R1447

R1448

R1449

R1450

##

R1451

R1452

R1453

5

4

TO MAIN(VIDEO/AUDIO)
CN501

3

CN1401

SLOW_PULSE

TRICK[H]

V.REF

V.P_CTL

I2C_DATA

I2C_CLK

KILLER_DET

C_FROM_DIGI

Y_FROM_DIGI

V/Y_TO_DIGI

SW5V[2]

C_TO_DIGI

D.FF

GND

EE[L]

GND

Fsc

LC1401

QQR0657-013

2

R1454

1k

1k

1k

QQR0657-010

1k

470

470

##

1k

CH

C1459

OPEN

CH

C1460

OPEN

CH

OPEN

C1461

R1446

1k

CH

OPEN

C1462

CH

C1464

OPEN

CH

OPEN

C1465

Q1419
DTC124T

C1463
33

/6.3

R1460
27k

OPEN

C1466

OPEN

C1467

C1468

100p

##

OPEN

C1469

R1441

R1442

6.8k

Q1401

2SC1317(RS)

R1401

180

C1401 C1402
33

/16

D1401
RD4.3ESB3

##

D1403

1SS355

6.8k

##

B1409

Q1414

C1403

330

/6.3

L1401

10µ

R1402

100

0.01

##

D1404
1SS355

R1404

1.8k

##

R1405

2.2k

C1406

0.01

Q1422

##

DTC124T

C1410

4.7
/25

C1411

0.1

R1459

680

Q1420 Q1421

R1463

100

Q1418

Q1402

C1404

0.1

R1411

1.5k

Q1406

##

R1461 R1462

120 10K

CH

##

R1412

2.2k

CH

C1416

10

/16

R1416

##

100k

Q1417

R1458
680

C1405

0.1

470

R1413

C1415

0.1

2SC4081(S)

R1418

CH##CH

R1407

2.7k

Q1403

#

R1408

#

Q1404

R1414

820

Q1407

Q1408

C1417

0.1

470

C1421
33p

CH

Q1410

L1404

6.8µ

##

R1425

C1422

R1426

68p

560

#

R1410

L1405

100µ

C1423

0.1

C1433

R1415
220

C1429

330
/6.3

C1408

33p

CH

L1402

R1406

6.8µ

##

C1409

CH

C1407

39p

68p

C1413

33p

CH

#

L1403

##

CH

6.8µ

C1414
39p

C1412

68p

R1417

100

#

R1421

C1420

0.1

C1434

VR1401
D/A LEVEL ADJ.

0.1

C1430

C1432

1

##

0.1

R1434

15k

##

B1416

R1435

22k

R1436

6.8k

VR1401

0.1

C1455

TS1

MON3

MON2

DRAMTE
MON1
MON0
VDD33
SLOWP
TRICK
DFFI
VR
VPLS
VSS
SDATA
SCLK
KILLER
VDD25
COMP
AVDD1
COUT
AVSS1
YOUT
IREF

AVDD2

VREF

CLAMP

0.1

10k

C1436

0.1

C1435

C1424

0.01

VDD25

YVIN

0.1

C1437

VSS25

VRTY

0.1

C1472

MCO0

VRBY

0.1

C1473

R1427

33k

R1428
39k

MCO2

MCO1

JCP8026

VRTC

VRBC

0.1

C1438

VSS

MCO3

IC1401

AVSS2

CIN

CWE

FSCIN

C1439

0.1

0.1

C1453

C1454

VSS

MCO7

MCO6

MCO5

MCO4

VDD33

AVDD3

PFSC

0.1

C1440

1

C1425

0.01

TCPOUT

0.1

C1471

RSTW

VDD33

SWRCK

RSTR

MCI7
MCI6
MCI5
MCI4

CRE

MCI3
MCI2
MCI1
MCI0

MINTEST

TCLK

CKMODE

MTO

VDD25

RST

VDD33

VSS

VOUT

VDD33

AVSS3

PVREF

PIREF

PCOMP

RFSC

AVDD4

1

47k

R1438

C1442

3.9k

0.1

0.1

C1443

C1441

R1437

##

R1430

2.2k

##

C1427

CH

6p

Q1412

L1406

33µ

R1429

1.5k

1SS133

R1439

27k

D1402

C1445

0.1

C1444

0.1

B1412
0Ω

R1432

1.8k

R1431

Q1413

820

CHCH

C1428C1426
22p39p

0.1

C1452

C1451

4.7

/25

0.1

C1450

0.1

C1449

C1448

47

/6.3
R1440
47k

C1447

0.1

C1446
47

/6.3

L1407
100µ

R1433
51

#

C1470

#

L1409

1µ

33p

CH

R1455

680

1

## MARK ELEMENTS ARE NOT MOUNTED.
ALL SINGLE DIODE:1SS133 OR 1N4148.
ALL PNP TRANSISTOR:2SA1576A(QR) OR 2SB1218A(QR) OR 2PA1576(R)
ALL NPN TRANSISTOR:2SC4081(QRS) OR 2SD1819A(QRS) OR 2PC4081(R)
ALL NPN DIGITAL TRANSISTOR:DTC144WUA OR UN521E OR RN1309

4-15 4-16

# DIFFERENCE TABLE

Q1404 R1408 R1410 R1421

PAL/MS

1.2k 390 390

USED

NOT

NTSC

USED

R1413

C1470 L1409

330 33p 1u

330240OPEN

470

OPEN OPEN

p10354001a_rev0

HGFEDCBA

4.8 TERMINAL SCHEMATIC DIAGRAM

The Parts Number,value and rated voltage etc. in the Schematic Diagram are for references only.

Note :

When replacing the parts,refer to the Parts List.

0

TO MAIN

CN918

#

GND

REAR_C

5

TO MAIN (CONNECTION)
CN907

4

3

TO MAIN (CONNECTION)
CN903

TO MAIN (CONNECTION)
CN905

2

OPEN

PAUSE/COMPU_I/O

LINE_OUT[L]

LINE_OUT[R]

DEC_OUT[L]

DEC_OUT[R]

TO S-SUB
CN512

REAR1_Y_IN

REAR1_C_IN

REAR2_Y_IN

REAR2_C_IN

V_FROM_OSD

BIAS_FOR_C_OUT

TU_VIDEO

LINE_VIDEO2

SCR[H]/SW_1

V_TO_OSD

LINE_VIDEO1

RF_VIDEO

REAR_Y

A.IN1[L]
A.IN1[R]

A.IN2[L]
A.IN2[R]

#

Y_OUT

C_OUT

SW5V

SW12V

CH+12V

GND

LI_5V

P50_I/O

I2C_CLK2

I2C_DATA2

GND

CN917

GND

#

B905

CN911

GND

GND

GND

GND

GND

GND

CN913

NC

CN915

GND
GND

TERMINAL

6

OPEN

OPEN

OPEN

OPEN

OPEN

C959

C957

C958

C956

C955

#

B902

#

B901

L907

SHORT

C943

/16

47

2SB1218A/QR/
2SA1576A/QR/
2PA1576/R/

OPEN

OPEN

C954

C953

2SB1218A/QR/
2SA1576A/QR/
2PA1576/R/

R935
100

R909

OPEN

C952

R932

R931

100

470

R933

470

Q909

C916

0.022

L909
OPEN

C915

0.01
C920

OPEN

R916

1k

B903

75

V.IN V.GND SCRAMBLE

GND GND GND

V.OUT V.GND R/C GND

R910

75

C926
OPEN

L908
OPEN

C944
OPEN

OPEN

Q902

PEMC1177
PEMC1019
PU59592

GND

RAPID SW

AV2/DECODER

GB

#

R911

75

A.IN[L]
A.IN[R]
LINE_OUT[L]
LINE_OUT[R]
A.IN2[L]
A.IN2[R]
DEC_OUT[L]
DEC_OUT[R]

#

IC901

C925

BH763*S

0.022

DRIVER

BUFFER

CLAMP

6dB 6dB

CLAMP CLAMP CLAMP

R936

100

C919
OPEN

L910

1µ

R937

100

J902

BUFFER

C917

0.022

C921

33p

J904

#

QND0084-001

R925

#

R926

75

#

75

C932

R908

0Ω

L913

4.7µ

R904

100

R905

BG

[L]

C901 C902
330p 330p

GNDGNDGNDR/CV.GNDV.OUTGND

#

C951
47

/16

#

R952

5.6k

R953

#

5.6k

L914

A.INA.IN A.GND

[R]

A.OUT A.OUT

[L]

L916

C934 C933
330p 330p

[R]

L915

#

R949

330

1/2W

C929C924
OPEN

L912
OPEN

4.7µ

470p

470p

C904

C903

4.7µ

4.7µ

#

#

Q908
2SB1218A/QR/
2SA1576A/QR/
2PA1576/R/

100

L901

0.22µ

470p

470p

C936

C935

R906
10µH

R907
10µH

C931

47

/16

#

C928

C930

C948

0.01

OPEN

OPEN

R912

4.7µ

4.7µ

470p

470p

C907

C908

4.7µ

4.7µ
R915

C947

BUFFER

CURRENT
LIMITER

EXP1YEXP2

10

100

R913

100

L902

1µ

470p

470p

C939

C940

R914

10µH

10µH

470

/6.3

#

R940

10k

CLK

DATA

I2C-BUS
CONTROL

#

C946

#

R939

/16

100

R938
100

#

Q901
UN5211
DTC114EUA
RN1302
PDTC114EU

AV1_YCIN[H]

#

R903

#

3.3k

68

#

R941

#

R901

75

C927

47

/16

R944

2.7k

R902

75

R943

RAPID SW

D206D207
OPENOPEN

###

R942

R945

4.7k01k

#

Q907

#

Q906

#

Q905

##

R946 R947

560 6.8k

J901
PEMC1177
PEMC1019
PU59592

GNDV.GNDV.IN FUNC.SWP50

AV1 IN/OUT

2SD1819A/QRS/

2SD1819A/QRS/

2SD1819A/QRS/
2SC4081/QRS/

2SC4081/QRS/

2SC4081/QRS/
2PC4081/R/

2PC4081/R/

2PC4081/R/

#

UN5215
DTC114TUA
RN1311
PDTC114TU

#

UN521E
DTC144WUA
RN1309
PDTC144WU

R951

#

3.3k

Q912

Q911

L917
L918

C938 C937

C905 C906

330p 330p

330p 330p

A.INA.IN A.GND

[L]

[H]

[R]

A.OUT A.OUT

[L]

[R]

L919

L920

#

R934

100

#

0.01

DRIVER

L911
OPEN

BUFFER

BUFFER

C918

#

C923

0.022

C922
OPEN

C945

47

10

/16

/16

R917

0Ω

C909 C910
OPEN

R918

0Ω

C911
OPEN

L905

SHORT

R224
OPEN

B201

L201

10k

10k

OPEN

R214

R203

R202

#

L903

15µ

0.001

L904

C912

15µ

0.001

C225

R225
OPEN

0.1

Q202
OPEN

Q201
OPEN

0Ω

R226
OPEN

R212

C201 C202
220
/6.3

#
IC201
LC7477*-****

100

OPEN

L202
33µ

1µ

OPEN

OPEN

R205

R204

J913
A.OUT[R]

QNN00**-002
PEMC1***-02

#

J912
A.OUT[L]

QNN00**-003
PEMC1***-03

R216 C219

C224

Q207

VDD1

VSS1

C204

10p

C222

RST

XTAL_IN

C205
OPEN

1

10K

2SB1218A/QR/
2SA1576A/QR/
2PA1576/R/

R218

330

R217
OPEN

CPDT

MUTE

CS2

CHABLK

L205
SHORT

C220
OPEN

SEP_IN

LN21

R215
OPEN

SEO_OUT

OSC_IN

L203

#

R919

#

R920

OPENOPEN

R213

0Ω

L206

22µ

C218 C223

1

CDLR

SYN_IN

OSC_OUT

SYNC_DET

R208

22µ

2.2k

#

L906

SHORT

C913 C942

#

0.01 47
100

0Ω

C217

56p

VDD1

CV_IN

CS1

SCLK

OPEN

#

/16

#

Q903

L204

OPEN

C209

0.47

NCNCNC

VSS2

CVOUT

SDATA

VDD2NCNC

#

R209

C211C210C208C207C206
100p100p33p33p

#

0.01

B904
OPEN

#

J903

R923

#

R924

#

C214 C215

0.22 0.22

75
75

QND00**-001

C216R211

2205.6k
/6.3

#

#

R922

R921

390

390

1/2W

1/2W

#

C914

0.01

#

C941

/6.3

470

#

Q904

2SB1218A/QR/

2SB1218A/QR/
2SA1576A/QR/

2SA1576A/QR/
2PA1576/R/

2PA1576/R/

10µ

NC

R210

1.8k

C213C212

4.70.1
/25

OPEN

S-IN

C

43

21

S-OUT

C

Y

43

2

1

#

B215

100Ω
100Ω

TXD
RXD

R964

100

R965

#

100

J923

#

JLIP

PEMC1190

J924

#

LANC

QNS0150-001

J925

#

SAT.CTL

PU60659

J926

#

R.PAUSE

PU60659

#

D205

D201

1.5kΩ
D202

#

D203

#

TO NAVI
CN3402

CN912

#

SD_FROSD
SCLK_TOOSD
SD_TOOSD
CSOSD_SUB
GND
TXD
RXD
LANC_I/O

TO MAIN (CONNECTION)
CN904

CN914

"C,BOX/SAT"
P.MUTE[L]
SYNC_DET[H]
CHARA_DATA
OSD_CS
S.CLK
SD_FRSYS
SD_TOSYS
EDS_CS
STB
EDS[H]
2Fsc

# DIFFERENCE TABLE

MODELS

V13S36 EU/EK
V13S36 MS
V13S26 EU(PHILIPS)
V13S25 EU/EK
V13S25 MS
"V13S2/S22 EU/EK,S21 EU"
V13S2 EU/EK(PHILIPS) 5-9750

1

V13S2 MS
V13S2 MS(PHILIPS) 5-9750 5.1k 84 23/009
"V13S1 EU/EK,S11EU,S12EK"
V13S1 MS
V13D2 EU/EK
V13D2 MS
HR-S9850EU/EK 5-9750 5.1k 84 23/009 6
HR-S9850MS 5-9750 5.1k 84 23/009 6

SYMBOLS

: Used
: Not used

"R903,R911,R919-R924,R939-R947"
"R934,R949,R951-R953,C913,C914"
"C923,C924,C927,C930,C931,C941"
"C942,C946,C951,Q901,Q903-Q908"
"Q911,Q912,L906,J903,B902,CN911"

S-VHS S IN OSD LANGUAGE NAVIGATION S OUT

A.OUT

J904
R925

B901

R926

B905

C932

CN918

D202

D205

D203

12k

6-9791

5.1k

5-9750

12k

6-9791

12k

6-9791

5.1k

5-9750

12k

6-9791

5.1k 84 23/009

5.1k

5-9750

12k

6-9791

5.1k

5-9750

12k

6-9791

5.1k

5-9750

B215 J923 J924

JLIP LANC

J912

J903IC201 R209

J913

21/126

85

21/126

85

23/009

84

23/009

84

23/009

84

23/009

84

23/009

84

23/009

84

23/009

84

23/009
23/009

SAT.CTL.

J925

R.PAUSE

J926
R965CN912

CH+IC

IC901

6
6
6
6
6
6
6
6
6
6
6
5
5

LAST NO VACANT NO

R

226

965

"201,206,207,219-223"

C

225

959

"203,221"

D

207

204

Q

207

912

203-206

L

206

920

B

215

905

202-214

J

926

IC

201

901

CN

918

"927-930,948,950,954-963"
"949,950"

910

"905-911,914-922"

"901-910,916"

p10275001a_rev0

4-17 4-18

HGFEDCBA

The Parts Number,value and rated voltage etc. in the Schematic Diagram are for references only.

Note :

4.9 DEMODULATOR SCHEMATIC DIAGRAM

When replacing the parts,refer to the Parts List.

5

: Not used

1 4 DEMOD

##

R6713R6715

4

#

CAPL_M

AHVSS

AGNDC

NC

NC

NC

SC1_IN_L

SC1_IN_R

VREFTOP

MONO_IN

AVSS

K6701

#

600

R6716C6718

470.01

#

K6706

600

AHVSUP

AVSUP

K6702

#

#

R6707

NC

ANA_IN1+

600

C6707

#

C6719

R6720

/16

5.6k

10

C6720

/16

10

#

#

A GND
D GND

0.01

C6722
10

C6723

0.01

R6721

5.6k

/16

C6706

#

0.01

3

2

TO MAIN (TUNER)
CN6701

CN6701

I2C_DATA

I2C_CLK

TU_A_MUTE

DEMOD_[R]

DEMOD_[L]

SW5V

GND

COMP

NC

C6703

C6704

C6724

#

/50

2.2600

R6718

#

0.01

K6707

#

#

C6701

0.01

R6702

6.8k

R6701

3.9k

L6701

1µ

Q6701

2SC3936/BC

R6703

#

47

#

C6702

0.0022

R6704

1k

##

L6702

3.3µ

C6705

0.001

###

R6705

R6706

270

150

SIF

SC1_OUT_L

SC1_OUT_R

ANA_IN-

TESTEN

CH CHCH

47p

#

VREF1

IC6701

MSP3417D

XTAL_IN

C6708

#

8p

22k22k

#

C6714C6716 C6715C6717

0.00680.0068 2.22.2

R6712R6714

1k1k

TP

XTAL_OUTTPD_CTR_OUT1

X6701

18.432MHz

#

C6709

1p

DACM_L

R6719

10k

DACM_R

VREF2

D_CTR_OUT0

TP

ADR_SEL

/50/50

TP

RESETQ

DVSUP

I2C_DA

I2C_CL

STANDBYQ

DVSS

R6711

680k

C6713

0.22

TP

TP

TP

TP

TP

TP

D6701
1SS133
1N4148M

R6710C6721

#

K6705

#

600

C6712

#

0.01

C6711

#

100p

K6704

#

#

K6703

R6709

#

600

100

R6708

#

100

600

CH CH

C6710

#

100p

# DIFFERENCE TABLE

DEMOD PWB ASSY

R6703PRE AMP

R6705

R6706

C6702

C6703

C6705

L6701

L6702

MONO IN K6707

C6724

R6718

I2C-BUS R6708,R6709

K6703,K6704

C6710,C6711

ANALOG

R6707

Vcc

K6701

C6706

DIGITAL

R6710

Vcc

K6705

C6712

DAC Vcc R6716

K6706

C6718

C6708

X'TAL

C6709

DAC OUT R6713,R6715

C6714,C6716 0.0068 0.0068 0.0068 0.00680.0022 0.0022 0.0022 0.0022

VREF C6722

C6723 0.01 0.01 0.01 0.01 0.01 0.01 0.010.001

: Used

V13 V14

FRANCE

EU/EK ARC

MS

LPA10094 LPA10094 LPA10094 LPA10094 LPA10094 LPA10094 LPA10094

-01* -02* -03* -04* -05* -06* -07* -08*

47 47 47 47000

270 270 270 270 270 270 270100

150 150 100

0.0022 0.0022 0.0022

220p 220p 180p

0.001 0.001 0.001

1µ 1µ 1µ

3.3µ 3.3µ 3.3µ 3.3µ

FE 600 FE 600

0.22/50 0.22/50

100 100 100

FE 600 FE 600 FE 600

22 47 47 FE 600 FE 600 FE 600 FE 600 FE 600

FE 600 FE 600 FE 600 33 33 33 33 33

10

12 12

FE 600 FE 600 FE 600

47 47 47

FE 600 FE 600 FE 600

8p 8p 8p 7p 7p 7p 7p 7p

1p 1p 1p 3p 3p 3p 3p 3p

FRANCE

EU/EK

0.001

FE 600 FE 600 FE 600 FE 600 FE 600

FE 600 FE 600 FE 600 FE 600 FE 600

FE 600 FE 600 FE 600 FE 600 FE 600

MS

47

100

SHORT SHORT SHORT SHORT SHORT

3.3µ 3.3µ 3.3µ

1K 1K 1K 1K 1K

10 10 10 10 10

47 47 47 47 47

KOREA

ARC ARC

4SYSTEM

3SYSTEM

LPA10094

1

p20162001a_rev3

4-19 4-20

HGFEDCBA

The Parts Number,value and rated voltage etc. in the Schematic Diagram are for references only.

Note :

4.10 S-SUB SCHEMATIC DIAGRAM

TO MAIN (CONNECTION)
CN502

5

4

3

2

CN511

EE[L]

I2C_DATA_A/V

I2C_CLK_A/V

SW5V
SW5V

GND
GND

C_TO_DIGI

Y/V_TO_DIGI
Y_FROM_DIGI
C_FROM_DIGI

PB_COLOR

V.PULSE

SECAM_PB_COLOR

MAIM_ALC_DET

Y_TO_SUB

P.MUTE[L]

WIDE_DET

FRONT_Y_IN

FRONT_C_IN

FRONT_V_IN

REAR2_V_IN

GND

V_TO_OSD

CHARA_DATA

Y_TO_AV

GND

V_FROM_AV

REC_COLOR

TO TERMINAL
CN911

CN512

REAR1_Y_IN

REAR1_C_IN

REAR2_Y_IN

REAR2_C_IN

Y_OUT

C_OUT

V_FROM_OSD

BIAS_FOR_C_OUT

Fsc

GND

GND

GND

GND

GND

GND

B503
OPEN

L501

R516

SHORT

R517

SHORT

VHS

REC

A12

A13

A10

A11

A14

ATT8 CL6

D16

PB

VCC2

D7&D8
BIAS

OPEN

A1

A2

A3

CL4

CL5

C576

C564

#

0.01

C521

4.7

/25

C505

/25

4.7

#

1

/50

C563
OPEN

C507

C506

L502

R503
C503

C502

C501

2.2

/50

47

/6.3

0.01

OPEN

220

2.2

4.7

C504

0.01

/50

/25

10µ

#

R527 C535

C509

3.3K 0.01

10

/16

BAND GAP

CONV

BF2

CONV

PB*CONV

C3

C2

VCA

BF1

CONV

CONV

REC

PB*CONV

N.C.

PB

REC

+-

PB*D15

C.K.

V4

V3

S1/S2 DET

ATT3 ATT4 ATT5

R536

C572 C573C570 C571

68p 68p68p 68p

C559

C558

C508

0.47
/50

EE/PB SP/EP

N/S-LPF

PB

REC

TRAP

A4

A5

BB

BB

BB

BB

100

L505

OPEN

C575

OPEN

CL3

S-VHS

PB

PB

REC

EQ

V MUTEV FBC

C MUTE

Y FBC

Y MUTE

GND2

0Ω

R526

SHORT

Q501

R525

1.2M

OPENOPEN

C538

C512

C514

0.01

R501

OPEN

Pre LPF2

CL2

A7

C513

4.7
/25

Pre LPF1

Pre LPF1

0.01
OPEN

C537

CR

CLK D ATA

ADJ

IIC LOGIC

ATT9

DIGI/PB

EXT PB Y

EXT PB Y

OPEN

C536

A9

A8

/6.3

0.01

47

C511

C510

GND1

PB

DIGI/PB

REC

DIGI

REC REC

DIGI

VCC1

Pre LPF2

C515

0.01

#

C566 R511

0.01 470

0.01

C516

C517

OPEN

C518

0.1

C519

2.2
/50

C520

4.7

R518B501

IC501

OPEN

JCP8018

A6

EXT PB C

EXT PB C

CL1 ATT7

GCL

COMP IN

REC

AGC

Y/C IN

PB

AGC DET

S.SEP

ATT6

/25

ATT1 ATT2

R531 R534 R535

100 100 100

C568

C569

68p

68p

C553

0.01 0.01 0.01
R522 R523 R524

C551 C554 C557 C560 C561

OPEN OPEN OPEN

/50 /50 /50 /50 /50

11111

C552
OPEN OPEN OPEN

REC

PB

V5

V3/V4

Y1

R533R532

100100

C1

Y3

Y2

C556

C555

When replacing the parts,refer to the Parts List.

1 5 S-SUB

L503
10µ

C522C562

C523

L504
10µ

R504

3.3k

R505

1k

R510

R506

390

R508

150

±0.5

3.9k

VC2076DP

IC502

SP

SP

R

2.2

/50

2.2

/50

PP

NON LINEAR

PROCESS

R

C529

±0.5

R514

3.3k

R515

3.3k

±0.5

C534

C533

R

SP SP

0.01

47

/6.3

C526

C527

C530
R513

TO P/S CONVERTER
CN3502

#

CN513

SW5V
SW5V
TO_PS_C
GND
FROM_PS_C
GND
TO_PS_Y
GND
FROM_PS_Y

ONLY USED FOR HR-S9850MS

300p

C524

C525

R507

100p

R509

180p

CH CH

C528

CH

±2

82p

CH

R512

220p

CH

1.5k

±0.5

C531

C532

270p

±2

CH

300p

±2

CH

1.2k

1.6k

±2

1k

±0.5

±2

±0.5

300p

±2

CH

300p

±2

CH

: Used

C562
C564
C566

: Not used

R527

DIFFERENCE TABLE#

1

CN513

MS

OTHERS

p20222001a_rev0

4-21 4-22

HGFEDCBA

The Parts Number,value and rated voltage etc. in the Schematic Diagram are for references only.

Note :

4.11 NAVIGATION SCHEMATIC DIAGRAM

19

NAVI

#

IC3405

TC7W241FU

5

##

D3401

RB751V-40

#

R3475

B3401

##

10k

RB751V-40

D3402

##

D3403 D3404 D3405

OPEN OPEN OPEN

When replacing the parts,refer to the Parts List.

D3407

1SS355

10k

TO TERMINAL
CN912

CN3402

LANC_I/O
RXD
TXD
GND
CSOSD_SUB
SD_TOODSD
SCLK_TOOSD
SD_FROSD

0Ω

0Ω
0Ω

R3432

R3468

IC3401

74HC4053D

C
B
A
0X
1X
X-COMM
Y-COMM
VCC

C
B
A
0X
1X
X-COMM
Y-COMM
VCC

0Ω

OPEN

B3405

B3410

#

#

R3422

IC3403

C3403

C3404

C3405

SI
SCK

RESET

CS

C3415

IC3407

B3301

IC3402

74HC4053D

GND

VCC

RD/BUSY
RESET
WP
VCC
GND
SCK
SO

GND

VEE

Z-COMM

0.1

GND

VEE

Z-COMM

0.1

0Ω

0.1

SO

WP

OPEN

CS
NC
NC
NC
NC
NC

OPEN

INH

0Z

1Z
0Y
1Y

INH

0Z

1Z
0Y
1Y

SI

LC3301

OPEN

R3404
R3403
R3402

R3401

0Ω
0Ω
0Ω

0Ω

TO MAIN(CONNECTION)

OPEN

B3403

OPEN

B3404

OPEN

D3406

CN7103

CN3401

LANC_I/O
RXD
TXD
CSOSD_SUB
SD_TOOSD
SCLK_TOOSD
SD_FROSD
S.DATA_TOSYS
S.DATA_FRSYS
S.CLK
SUB_CS
SUB_RESET
SUB_BUSY
AL5V
CVIN
GND
VSC_DATA
VSC_CLK
PS_SECAM[H]
S.CASS[H]

OPEN

#

C3414

0.1

##

B3402

#

R3472

VSC DATA

AN3/PA3

AN4/PA4

AN5/PA5

4.7k

0Ω

0Ω

R3352

DEVICE_SEL

OSD_CS

SCLK_OUT

MEM_SIN

TM4IO/P16

SUB_BUZY

TM7IO/P14
TM3IO/P13
TM2IO/P12
TM1IO/P11
TM0IO/P10

RXD_IRPT

SD_FRSYS

SCLK_IN

0Ω0Ω0Ω

R3323

22p

C3323

R3351

JLIP[L]

MEM_CS

SD_OUT

SBT1

RXD

TXD

RESET

IRQ5/P25

SLICE

LN26

CS_IN

0Ω

R3350

0Ω

R3349

0Ω

R3348

0Ω

R3347

0Ω

R3346

0Ω

R3345

R3343
R3342

P17

C3333

#

R3333

#

P26

O/E

R3332
R3331
R3330
R3329
R3328

R3326

R3340
R3339

R3466

1k
1k

0Ω

22K
22k
0Ω
0Ω
0Ω

0Ω

R3363

R3364

0Ω

###

IOC

SLICE_CE

OSD_SEL

IC3301 C3413

MN101C49GCH OPEN

AN6/PA6

AN7/PA7

VREF+

VDD

OSC2

OSC1

VSSXIXO

MMOD

SD_TOSYS

0Ω

/6.3

R3322

R3321

22p

22p

C3322

C3321

X3301

QAX0584-001

C3314

0.1

R3312
OPEN

R3313
100

C3313C3312
20p20p

C3401
22

OPEN

CN3403

OPEN

22p

22p

B3407

#

#

R3462
10k

C3347

C3346

22p

C3345

Q3403

#

2SD1450(RS)

100

R3476

#

#

C3419

0.01

#

RD3.6ESB2

D3408

MTZJ3.6B-T2

B3406

#

#

C3417

VCC

GND

#

#

IC3408

#

GND

C3416

SN74LV08APW

0.1

B3408

#

IC3409

TC7WT125FU

B3409

0Ω
0Ω

4.7k

R3465

#

IC3406

TC7W241FU

4

0Ω

0Ω1K0Ω

OPEN

VSC CLK

PS SECAM(H)

TEST

DAVSS

DAVDD

FLASH RESET

VREF-

S.CASS[H]

R3302

AN2/PA2

AN1/PA1

R3371

R3372

R3373

R3374

R3386

3

TP3301
TP3302
TP3303
TP3304
TP3305

10k

C3402

0.1

2

VCC

#

0.1

R3477

C3418
OPEN

R3412

R3414
R3415

270

R3474

: Not used

C3419

: Used

AT45D011-SC AT45DB011-SCIC3403

1k 330

0.1µF 4.7kΩ

LANC

IC3405,C3414
IC3406,D3402
R3472,R3475

WITHOUT

WITH
LANC JLIP

LANC

JLIP

D3401

B3401
B3402

WITH

WITH JLIP

WITHOUT

LANC

4-23 4-24

p20167002a_rev0.1

HGFEDCBA

1

# DIFFERENCE TABLE

IC3408 IC3409 Q3403
D3408

R3476 R3477

C3416 C3417

B3406-B3410

R3333
C3333

The Parts Number,value and rated voltage etc. in the Schematic Diagram are for references only.

Note :

4.12 SW/DISPLAY, REC SAFETY, JACK AND ADV.JOG SCHEMATIC DIAGRAMS

DI7001

#

QLF0032-002
QLF0034-002

F+

P10
P11

P12
P13
P14
P15
P16

#

D7008

RB721Q-40

S7001

POWER

F+
NP
NC

P1

P2

P3

P4

P5

P6

P7

P8

P9

NC
NC
NC
NC
NC

1G
2G
3G
4G
5G
6G
NC
NP

F­F-

R7023

2.2k

S7002 S7007

#

PAUSE

R7024 R7025 R7026

2.7k 4.7k 6.8k

E.PROG. INSERTPLAY

5

4

3

(FRONT)SW/DISPLAY28

#

D7005

#

D7004

D7002
RD9.1ES/B2/
MTZJ9.1B
UZ9.1BSB

R7013

10k

G6

LED2

LED3

LED4

G5
G4
G3
G2
G1
S1
S2
S3
S4
S5
S6

S7S8S9

S10

R7027

R7028R7022R7021

#

15k

S7010

##

S7012S7005 S7014

STOP

/EJECT

C7022

39k1.8k1.2k

#

S7013

TIMER

LED1

S11

VEE

S12

1SS133

SLR-342VC3F

or SLR-342MC3F

1SS133

SLR-342MC3F

VEE

Sout

SCLK

##

C7020

0.1

##

C7021

0.1

S15

S14

S13

S7003S7011

#

#

#

Sin

RESET

S16

R7041

#

D7010

REC LINK

R7040

#

D7009

SVHS ET
D.TBC/NR

R7001
R7002
R7003
R7004

33p

33p

C7005

C7006

##

##

IC7001
M35500BFP
M35500BGP
M35500AGP

CS

AN0
AN1
AN2
AN3
AN4
AN5

C7010

0.1

Xin

VSS

Xout

C7009

15p

VDD

VDD

C7008

##

0.022

R7032R7031

R7033

2.2k 2.7k 4.7k 6.8k1.8k1.2k

S7004 S7015

REC

330

330

470
470
470
470

33p

33p

C7004

C7003

##

##

10k

10k

10k

R7020

R7030

R7005

C7015

##

C7013

##

R7034 R7035 R7036

#

R7006

C7016

##

C7014

##

TO MAIN
CN3011

CN7001

-29V
DC[+]
DC[-]
BUGND

C7011

GND
RC
STB
S_DATA_FRSYS
S_DATA_TOSYS
S_CLK
AL5V
REC SAFETY SW
OPE_SW
ADV.JOG/RCU5V

TO REC SAFETY

/6.3

FW7001

FW7001

REC SAFE
GND

/50

OPEN

10

0.1

C7002

C7001

C7023

10k

10k

10k

R7007

R7008

R7009

R7010

C7017

C7018

#

#

##

##

S7008

A.DUB

C7019

11ES2

##

D7001

L7001

##

1µ

#

B7001

B7003

##

/50

0.022

C7007

47

B7002

#

R7037

56k

S7009S7006

TPGND

TP7001

TEST

0.0033

C7012

#

D7003

1SS133

#

IC7002
GP1U281X
PNA4652M00XB

##

L7002

0Ω

R7014

0Ω

R7015

220

VCC

GND

V.OUT

When replacing the parts,refer to the Parts List.

PEMC1207

#

J7195

HEAD PHONE

PEMC1207

74

PHONE

HEAD

TO SW/DISPLAY
FW7001

REC SAFETY SW

D7199

##

RD6.2ES/B1

R7194

#

C7196

#

0.01

75

TO MAIN

#

FW7192

GND
HP_OUT[R]

HP_OUT[L]

FW7001

GND

TO MAIN
CN3012

CN7004

#

JSA
JSB

GND

ADV

OPEN

S7041

QSW0602-004

REC SAFETY SW

2

3

REC SAFETY

J7194

#

#

J7191

S IN

VIDEO IN AUDIO[L] IN AUDIO[R] IN

#

R7193

75

D7191

##

D7192

#
###

C7191

6

3

JACK

ADV.JOG38

A

C

B

UN7001

UN7001

UN7001

UN7001UN7001

UN7001

UN7001

#

QSW0905-001

C7192
680p

##

#

C7193

L7194

J7193

#

#

L7193

SHORT

C7194

#

680p

L7192L7191

##

C7195

##

TO MAIN

CN902

#

CN7191
FRONT AUDIO[L]

GND
FRONT AUDIO[R]
GND
FRONT VIDEO
GND
GND
FRONT Y
GND
FRONT C
GND

J7192

#

R7192

#

0Ω

#

R7191

#

75

1SS133
1SS133

: Not used

DI7001

32or34
32or34

D7001

FDP

: Used

S7002 S7003

S7012 S7013 S7014 S7015 R7009 R7010

DISPLAY

MARK

C7003
C7004
C7005
C7006

MARK

ERASE
ERASE

CH-

C7013
C7014

SAT TIMER

SVHS ET

SAT TIMER

CH+

BS TIMER

TBC 3D

ESD CE

C7015

C7008

D7191

C7016

C7020

D7192

C7017

C7021

C7191

C7018

OPTION IR DETECT

C.RESET

SYN.EDIT

C.RESET

SYN.EDIT

SP/EP/SEP

HEAD PH.

C7193

L7001

D7199

C7195

L7002

SHORTSHORT

R7015

B7003

C7012
D7003

LED

D7004

D7005
D7010 D7009
R7041 R7040

B7002
D7008

ADV.JOGDISP OFF HEAD PHONE
UN7001

C7022

CN7004

B7001

FW7192

J7195

FRONT RCA INPUT FRONT RCA IN/CE FRONT S INPUT

CN7191 R7191

7-11PIN32or34
1-11PIN
1-11PIN

J7191 J7192 J7193

418-004

418-003 419-002

371-004

371-003

371-004

371-003

372-002
372-002

L7191
L7192

L7193
L7194

SHORT

100

SHORT

100

SHORTSHORT

C7192

R7194 R7193 C7196 J7194

C7194

085-001
085-001

# DIFFERENCE TABLE

V14D25 EU/EK/MS
V14S35 EU/EK/MS
V14S78 D

## DIFFERENCE TABLE

2

V14D25 EU/EK/MS
V14S35 EU/EK/MS
V14S78 D

1

LAST NO VACANT NO

R

7194 7011, 7012, 7016-7019, 7029, 7038, 7039, 7042-7190,

C

7196 7024-7190,
7199 7006, 7007, 7011-7190, 7193-7198

D
J

7195

L

7194 7003-7190,
7041

S 7016-7040,
B 7003

4-25 4-26

p10367001a_rev0

HGFEDCBA

4.13 SECAM SCHEMATIC DIAGRAM 4.14 SECAM CIRCUIT BOARD

[

Only used for HR-S9850MS

]

The Parts Number,value and rated voltage etc. in the Schematic Diagram are for references only.

Note :

When replacing the parts,refer to the Parts List.

[

Only used for HR-S9850MS

<88> SECAM
LPB10069-001A

]

C314

R305

R309

C313

C311

C310

C317

C312

W302

C320

1

14

6

R308

CN302

15

R307

R311

5

SECAM PWB ASS'Y LPA10069 -01A

C319

1

R326

8

8 SECAM

IC301

28

R301

B301
OPEN

4

Q311
OPEN

Q312
OPEN

R321

OPEN

R301
27k

C301
150p

R302
120k

1

C302

C305

0.01

0.0068

C303

C306

0.0068

C304

1

L302 R303C307 R305

6.8µ 27k150p 47k

R306
27k

C309

0.1

R304

6.8k

Q301

C308

0.01

C310

0.01
R308

2.2k

R307

2.2k

C311

0.01

TO MAIN (VIDEO/AUDIO)
CN302

CN301

PB_COLOR
V_TO_SECAM
SW5V

5

CN301

R312

R313

C301

R321

W301

C318

C306

Q312

W304W305

R315 R316

C321

C302

R314

R329

C303

R302

R327

B301

1

W303

C322

C304

Q311

Q302

L303

C316

C305

R328

R304

R310

C308

L302

C307

R303

C315

R306

C309

Q301

C.SYNC

VCC

AFC

4.43MHZ

TO

REC MUTE

TO

PB MUTE

TO MUTE

VCO

B

SECAM

DET

FILT.
ADJ

SYNC GAIE
GEN./V-SEP

3

IC301
LA7358

Q302

MODE

R316
220k

CTL

BGP
GEN

PHASE

DET

FROM LIM

LOGIC

LIMITER

HOLD

DET SENSE

CONTROL

4.3MHZ

OSC

F0

ADJ.

F0

ADJ.

1.1MHZ

OSC

R

X2

P

GND

IREF

P

CA

VA

2.2M

X2

BPF

VA

CA

R

IREF

4.3M
BPF

1.1M
BPF

PB

MUTE

B

B

R/P

PB

MUTE

4.3MHZ
BPF

R

LIM

P

R

SYNC
GATE

P

REG

AGC

4.2V

AMP DET

1/4

AGC

SYNC
GATE

R
P

TO PHASE DET

GND

TO MAIN (VIDEO/AUDIO)
CN301

CN302

fsc
SECAM[H]
EE[L]
REC_COLOR
PB_FM
SECAM_DET

C315
1

R309

820

C314R310
470p22k

R328

R329

OPEN

L303 R311

C317

27µ 3.3k

680p

0

C316

0.01

R315
560k

R313
22k

R312

2.7k

C319
1

C318C320

0.0220.01

2

R327
OPEN

R314

24k

R326
OPEN

C322

0.47

C321
300p

C313

0.47

C312

0.001

1

p30054001a_rev0

4-27 4-28

HGFEDCBA

4.15 P/S CONVERTER SCHEMATIC DIAGRAMS

[

Only used for HR-S9850MS

]

The Parts Number,value and rated voltage etc. in the Schematic Diagram are for references only.

Note :

When replacing the parts,refer to the Parts List.

L3502

87

P/S CONVERTER

5

TO MAIN

CN6102

CN3501

SW5V[NC]

EE[L]

GND
GND
GND

S-P[H]/P-S[L]

SW12V
SW12V

FORCE[L]
PS_SECAM[H]
SECAM[H][NC]

GND[NC]

NC
NC
NC
NC
NC
NC
NC

4

3

OPEN

TO S-SUB

CN513

OPEN

CN3502

TO_PS_C

FROM_PS_C

TO_PS_Y

FROM_PS_Y

NC

NC
NC

NC
SW5V
SW5V

GND

GND

GND

R3607

100

R3608
18k

Q3525

R3609
22k

FL3506

R3610
390

R3619

2.2k

R3620

4.7k

C3616
100p

PELN1205

C3619

0.01

C3618
2p

C3625
47

C3617

0.01

L

H

OPEN

L3501
100µ

/16

#

IC3516
TC7W32F

#

B3502

B3503

TP3504

CONV'D COLOR

L3516
100µ

L3505
100µ

C3647

0.01

IC3515
MM1111XF

100µ

C3539
47

C3535
47

IC3517
BA7046F

H

C3628

/50

1

L

H

C3629

/50

1

NN

C3632

0.01

L

IC3508

2

1

R3533

R3536
330

1.2k

R3531
56k

/16

/16

R3532
47K

V.SEPA

R3678

470k

C3659

0.01

L

H

MM1233XF

Q3505

C3531

0.01

Q3504

R3534
680

H.OSC

PHASE

SYNC
SEPA

COMP

C3648

/50

1

Q3520

R3528

Q3506 Q3510

510

R3535

R3529

680

680

R3688
470k

R3687

10k

C3660

0.0022

R3689

C3662

/50

130k

1

C3658

0.001

R3677

330

FL3501
PELN1223

EQ

R3538
1k

R3537

1.8k

C3661

100p

C3649

0.01

Q3536
DTC144WU-X

L3504
330µ

SECAM
DECODE
ADJ.

R3526

D3502

DAN202

R3658
10k

#

C3579

#

C3580

VR3502

#

R3591
680

#

R3690

R3679

C3650

/16

47

C3543

C3544

C3545

C3546

#

B3504

10k

C3630

0.01

IC3502
TDA4650

#

#

470

L3513
QQR0660-001

C3554C3555

0.01100

/16

C3528

0.01

Q3507

R3540

1.5k

R3539

2.2k

R3612

180p

R3613

180p

0.1

0.1
C3547

C3548

27p

R3592
330

C3526
120p

R3593
330

27p

C3527

0.01

-(R-Y)OUT

-(R-Y)DE

-(B-Y)OUT

-(B-Y)DE

-(B-Y)CL

-(R-Y)CL

SEC_REF

SEC_REF

SEC_REF

SEC_REF

GND

C_D

VCC

C_DC C_IN

A_VCC

A_GND

C3558

C3559

/16

0.01

47

#

#

C3562

C3560

100

100

#

#

L3514

R3598

L3515

R3597

C3542

0.01

C3541

0.01

R-Y_OUT

B-Y_OUT

NC.

B-Y_IN D_GND

NC.

R-Y_IN D_VCC

#

#

R3543

R3542 R3551
18K 56k

C3536

/16

10
R3541

15k

C3634
10

IC3510
TC74HC4066AF

R3546 R3556
150 120

#

C3532

Q3509

0.01

#

Q3508 Q3512

#

R3545 R3555

#

R3544 R3554

3.3k 820

680 680

B3501

L

H

/16

PAL_ID

SECAM_ID

NT_ID

NT_ID

SSC_IN

P/S_IDENT

NT_IDENT

8.86_OSC

PLL_REF

7.15_OSC

PLL

HUE

ACC

IC.

IC.

NC.

SSC_IN

IC.

NC.

R3605

C3553

C3552

X3501
QAX0346-001Z

C3540

0.22

C3550

0.47

C3564

/25

4.7

IC3503
TDA4665T

C3556

0.01

FL3505

PELN1207

R3571
220

R3547

1.2k

C3639

/16

10

IC3509
MM1111XF

R3652
10k

Q3531

1M

0.022

0.022

C3551
18p

C3549

0.1

R3594

3.3k

C3561

/50

3.3

C3529

0.01

R3596
10k

R3595
10k

C3557
47

/16

L3507
100µ

C3633

0.01

Q3533
DTC144EU-X

L3506
100µ

R3572
1k

R3573

C3605

C3640
47

R3654

2.2k

C3611

/16

PAL
BURST ADJ.

VR3503
100k

CH

R3691

12k

C3608

15p

CH

R3692

1k

#

C3668

R3653

1.5k

C3565

Q3532
DTC144TU-XDTC144TU-X

0.01

R3602
100

R3599

1.2k

Q3541

R3601
680

C3612

0.01

R3600

R-Y LEVEL

1k

ADJ.

TP3501

B-Y

TP3502

R-Y

#

Q3529

Q3540

R3574
560

C3530
100p

C3606

0.01

C3607

0.22

R3669

1.2k

X3503

QAX0345-001Z

Q3542

C3657

/16

47

R3681

#

C3651

C3652

0.0022

R3682

3.3K

220

VR3505

R3548
1k

QQR0662-001

C3615

FL3502

0.01

EQ

Q3511 Q3515

R3549
1k

R3550 R3560

1k 1k

IC3506

0.022

TDA8501T/N1-X

C_OUT

FLT

CVBS

V_OFFSETVREF

BLUE

GREEN

/16

47

R3668
560

PAL/NTSC

NOTCH

Y+SYNC_OUT

U_OFFSET

Y+SYNC_IN

BURST_ADJ

R3660
150k

Y+SYNC_OUT

#NAME?

OSC

MCONTROL

SYNC_IN

C3609

0.022

C3613

0.01

Q3543

470

R3604
330

C3656

0.01

1A

0Ω

1B

1CLR

1Q

2Q

2Cx

CH

2R/C

GND

R3683
0Ω

-(R-Y)

R3671

1.2k

Q3544

R3672
1k

IC3514
74HC221D

VCC

R3686
33K

1R/C

CH

1Cx

C3655

0.0022

1Q

2Q

#

2CLR

2B

C3653

#

2A

R3552
22k

GND

VCC

RED

Y

H/2

R3674
100

Q3545

R3673
680

B-Y LEVEL
ADJ.

R3684
10k

C3654

R3553

1.2k

C3533

0.01

C3537

/16

10

#

#

Q3546

VR3506

470

FH
FREE RUN
ADJ.

Q3513

C3604

0.22

C3603

C3610

/16

47

0.01

C3602

0.22

R3616

C3601

/50

1

R3617

C3600

/50

1

L3508

100µ

L3503

100µ

R3676
330

C3575
47

/16

C3572

0.01

R3685

2.7k

R3628

3.3k

R3621

VR3501

12k

22k

R3622
120k

R3627

C3571

5.6k

C3573

4.7

/25

R3625

#

Q3514

R3557

1.5k

C3578

0.01

TP3503

FH ADJ.

0.0047

FL3503
QQR0661-001

EQ

R3558
1k

R3559
1k

VCC(D)

-(R-Y)

#

C3581

R3614

1

/50

C3582

/50

1

IC3505
TDA8505

MCONTR

#

R3615

#NAME?

FH/2

Y

COLOR_KILLRE

TEST

R

Y+SYNC_OUT

VCC(A)

G

C3593

C3594

/16

47

0.01

C3583

0.001

C3595

/50

1

C3596

0.47
/50

L3509

100µ

IC3512
74HC74D

C3567

0.22

C3568

0.22

C3569

0.01

R3623
100k

C3570

0.0047

R3624

5.6k

#

C3574

#

C3584

C3585

0.0068

R3635
100

C3586

0.22
R3636 R3637

1CLR

VCC

1D

2CLR

1CK

2D

1PR

2CK

1Q

2PR

2Q

1Q

2Q

GND

1SS355-X

V_IN

FSC_ADJ

CO_DET

FSC_ADJ

VCC

H_OSC

MY

LIM

R3626

V/F CTL_OUT

R3634
1k

0.01

22k 1.8k

VR3504

4.7k

R3633

390

D3504

V_OUTGEN

PROTECT

MUTE

SSC_OUT

GND

H_OUT

PH_DET

LFP_IN

GND(A)

B

Y/Y+SYNC

LPFDR

FADJ

LPFDB

FLT V_REF

SECAM
BELL ADJ.

R3631
20k

CH

C3577
560p

R3630

10k

C3566

0.022

IC3504
TDA2595

Y+SYNC_IN

LPF4.25

GND(D)

SYNC_IN

VCO4.25

XTAL/PLL

LPF4.4

NOTCH

CVBS

VCC_SSC

C_OUT

C3592

C3599

/16

0.01

47

C3665

0.0027

C3591

0.022

X3502
QAX0344-001Z

C3590
12p

C3589

0.1

MY

R3638

C3598

1.2k

4.7
/25

SSC

GND

C/R1

RE1

A1

B1

Q1

Q1

GND

R3694
10k

#

R3667

R3666

C3588

0Ω

0.01

C3587

0.01

C3597

/16

47

R3632

VCC

GND

C/R2

39K

CH

C3614

0.0022

RE2

A2

#

C3620

B2

C3576

0.01

Q2

R3629

Q2

0Ω

IC3513
74HC4538D

R3693
18k

R3695
1k

IC3518
TA75S393F

C3663

0.01

4-29 4-30

# MARK ELEMENTS ARE NOT MOUNTED.

p10206001a_rev0

HGFEDCBA

4.16 P/S CONVERTER CIRCUIT BOARD

B3501

B3503

B3504

C3531

C3537

C3541

C3542

C3543

C3544

C3545
C3546

C3547

C3548

C3549

C3551

C3552

C3553

C3554

C3555

C3558

C3559

C3560

C3561

C3562

C3564

C3566

C3567

C3568

C3569

C3570

C3571

C3573

C3574

C3576

C3577

C3578

C3581

C3582

C3583
C3584
C3585
C3586

C3589

C3590

C3591

C3592

C3593

C3595

C3596

C3597

C3599

C3600

C3601

C3602

C3604

C3606

C3607

C3608

C3610

C3625

C3628

C3629

C3630

C3632

C3633

C3634

D3504

FL3503

FL3502

L3504

L3505

L3506

L3507

L3508

L3509

Q3504

Q3505

Q3509

Q3510

Q3511

Q3512

Q3513

Q3514

Q3525

Q3533

R3532

R3533

R3534

R3536

R3537

R3539

R3540

R3545

R3551

R3558

R3592

R3593

R3596

R3598

R3601

R3605

R3604

R3607

R3609

R3610

R3612

R3613

R3614

R3615

R3621

R3622

R3623

R3624

R3625

R3627

R3628

R3633

R3634

R3652

R3658

R3660

L3501

R3619

R3620

R3693

C3579

C3580

C3527

C3528

C3650

C3649

C3614

C3620

C3657

R3691

VR3505

Q3520

R3528

R3571

R3572

R3573

C3530

Q3540

R3681

R3682

R3685

R3686

C3653

C3654

C3655

Q3545

Q3546

R3673

Q3541

Q3542

Q3543

C3618

C3619

C3617

R3694

R3695

R3668

C3665

C3668

1

2

14

2

1

1

17

1

12

13

16

8

7

8

8

1

16

9

16

9

18

4

1

8

5

1

12 7

1

28

8

14

8

4

1

4

P/S CONV PWB

14

5

19

32

9

9

1

8

8

10

1

6

16

1

9

7

1

8

11

12

8 7

20

15

4

85

24

1

PB11062

P/S CONV PWB ASS'Y

1

5

1

16

1

PB11062 -02-03

1

IC3512

IC3504

IC3502

IC3503

IC3506

IC3505

B3502

IC3509

C3532

C3533

C3535

C3539

C3550

C3556

C3557

C3565

C3572

C3575

C3587

C3588

C3594

C3598

C3603

C3605

C3609

C3611

C3639

C3640

CN3501

CN3502

TP3504

IC3516

FL3501

FL3505

IC3508

IC3510

IC3513

L3502

L3503

Q3506Q3507

Q3508

Q3515

Q3529

Q3532

Q3536

R3531

R3535

R3538

R3541

R3542

R3543

R3544

R3546

R3547

R3548

R3549

R3550

R3552

R3553

R3554

R3555

R3556

R3557

R3559

R3560

R3591

R3594

R3595

R3597R3599

R3600

R3602

R3608

R3616

R3617

R3626

VR3501

R3630

R3631

R3632

R3635

R3636

R3637

VR3504

VR3503

R3653

R3654

R3666

X3501

X3502

X3503

L3513

Q3531

IC3517

D3502

C3648

C3662

C3529

C3526

R3526

VR3502

C3540

L3514

L3515

C3612

C3613

C3659

C3660

TP3501

TP3502

TP3503

C3661

R3678

R3687

R3629

C3656

R3688

R3677

R3679

R3690

R3689

R3692

C3615

R3529

C3647

R3638

R3574

IC3514

L3516

R3683

R3684

C3651

C3652

Q3544

R3671

R3672

R3674

R3676

FL3506

IC3515

C3616

C3658

VR3506

IC3518

C3663

R3667

R3669

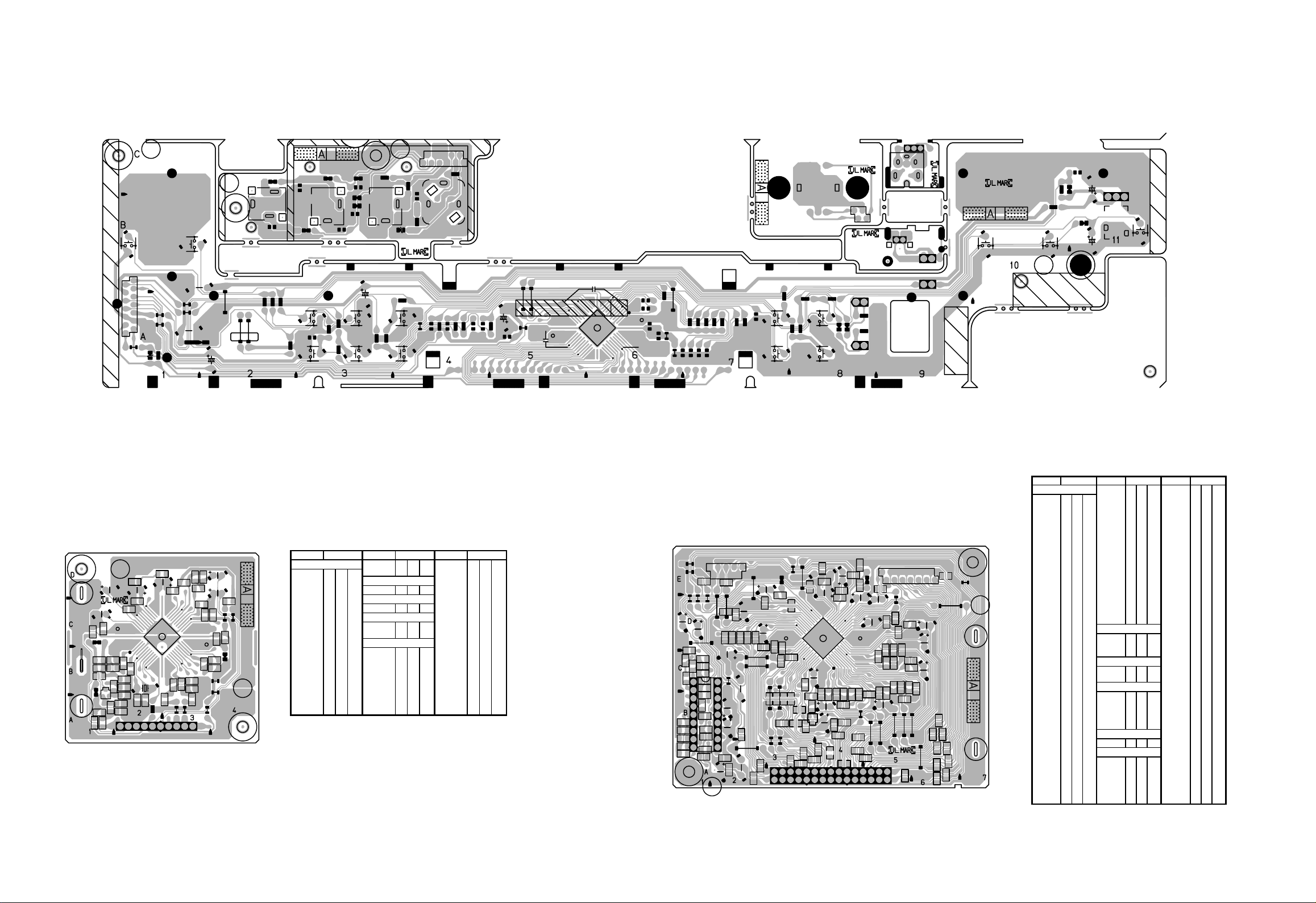

<87> P/S CONVERTER
PB11062-02-03

[

Only used for HR-S9850MS

]

COMPONENT PARTS LOCATION GUIDE <P/S CONVERTER>

REF.NO. LOCATION

CAPACITOR

C3521 A D 16C
C3522 A D 15C
C3523 A D 15D
C3524 A D 16E
C3525 A D 14D
C3526 B C 13A
C3527 B C 13B
C3528 B C 12B
C3529 B C 12B
C3530 B C 2C
C3531 B C 2E
C3532 B C 2D
C3533 B C 1C
C3535 A D 3E
C3536 A D 1E
C3537 A D 1D
C3538 A D 2D
C3539 A D 3E
C3540 B C 13B
C3541 B C 12A
C3542 B C 11A
C3543 B C 15B
C3544 B C 14B
C3545 B C 14B
C3546 B C 14B
C3547 B C 14A
C3548 B C 13A
C3549 B C 13B
C3550 B C 13B
C3551 B C 13C
C3552 B C 13B
C3553 B C 14B
C3554 B C 13B
C3555 A D 12B
C3556 B C 12B
C3557 A D 11B
C3558 B C 11A
C3559 A D 11B
C3560 B C 12A
C3561 A D 12B
C3562 B C 12A
C3564 A D 12B
C3565 B C 15B
C3566 B C 8A
C3567 B C 7A
C3568 B C 7A
C3569 B C 8A
C3570 A D 8B
C3571 B C 8B
C3572 B C 7B
C3573 A D 8B
C3574 A D 9B
C3575 A D 9B
C3576 B C 7A
C3577 B C 6A
C3578 B C 6B
C3579 B C 14B
C3580 B C 14B
C3581 A D 5A
C3582 A D 5A
C3583 B C 4B
C3584 B C 4B
C3585 B C 3B
C3586 B C 3B
C3587 B C 3B
C3588 B C 3C
C3589 A D 4C
C3590 B C 4C
C3591 B C 5C
C3592 B C 5B
C3593 B C 4B
C3594 A D 4A
C3595 A D 3B
C3596 A D 2B
C3597 A D 3C
C3598 A D 3C
C3599 A D 5C
C3600 A D 5C
C3601 A D 5C
C3602 B C 5C
C3603 B C 6C
C3604 B C 6C
C3605 B C 6E
C3606 B C 6E
C3607 B C 6E
C3608 B C 5E
C3609 B C 5E
C3610 A D 6D
C3611 A D 6E
C3612 B C 10B
C3613 B C 10B
C3614 B C 6B
C3615 B C 1E
C3616 B C 11C
C3617 B C 11D
C3618 B C 11C
C3619 B C 11C
C3620 B C 6B
C3625 A D 12D
C3626 A D 10C
C3627 A D 10C
C3628 A D 9C
C3629 A D 9D
C3630 B C 15B
C3632 B C 10D
C3633 B C 3D
C3634 A D 3D
C3635 A D 4D
C3636 A D 4D
C3637 A D 3D
C3638 A D 3D
C3639 A D 3C
C3640 A D 4D
C3643 A D 11E
C3644 A D 13E
C3645 A D 11E
C3646 A D 12E
C3647 B C 11D
C3648 A D 9C
C3649 B C 9B
C3650 A D 9B
C3651 B C 7C

REF.NO. LOCATION REF.NO. LOCATION

C3652 B C 7C
C3653 B C 7D
C3654 B C 7D
C3655 B C 7D
C3656 B C 6D
C3657 A D 5A
C3658 B C 9C
C3659 B C 8C
C3660 B C 8B
C3661 B C 8D
C3662 A D 8D
C3663 B C 14C
C3665 B C 4C
C3668 B C 5E

CONECTOR

CN3501 A D 13E
CN3502 A D 9E

DIODE

D3502 B C 8D
D3504 B C 7C

IC3501 A D 17D
IC3502 A D 15A
IC3503 B C 11A
IC3504 A D 9A
IC3505 A D 5B
IC3506 B C 5D
IC3508 B C 10D
IC3509 B C 3D
IC3510 B C 16B
IC3511 A D 11E
IC3512 B C 6B
IC3513 B C 6A
IC3514 B C 7D
IC3515 B C 11D
IC3516 B C 15A
IC3517 B C 8C
IC3518 B C 14C

L3501 A D 12D
L3502 A D 4E
L3503 A D 9C
L3504 A D 14C
L3505 A D 14D
L3506 A D 11C
L3507 A D 11C
L3508 A D 4A
L3509 A D 4A
L3510 A D 12E
L3511 A D 16C
L3512 A D 16E
L3513 A D 13A
L3514 A D 12A
L3515 A D 12A
L3516 A D 5A

Q3504 B C 3E
Q3505 B C 2E
Q3506 B C 2E
Q3507 B C 1E
Q3508 B C 2D
Q3509 B C 1D
Q3510 B C 2D
Q3511 B C 1D
Q3512 B C 1C
Q3513 B C 1C
Q3514 B C 1C
Q3515 B C 1B
Q3520 B C 2E
Q3525 B C 11C
Q3529 B C 7C
Q3531 B C 15B
Q3532 B C 15A
Q3533 B C 15B
Q3536 B C 16B
Q3540 B C 2C
Q3541 B C 10A
Q3542 B C 10A
Q3543 B C 10B
Q3544 B C 9A
Q3545 B C 9B
Q3546 B C 10B

R3526 B C 13A
R3528 B C 2E
R3529 B C 2E
R3531 B C 3D
R3532 B C 3E
R3533 B C 2D
R3534 B C 2E
R3535 B C 2E
R3536 B C 2D
R3537 B C 2E
R3538 B C 2E
R3539 B C 1E
R3540 B C 1E
R3541 B C 2E
R3542 B C 1E
R3543 B C 1D
R3544 B C 2E
R3545 B C 2D
R3546 B C 1D
R3547 B C 2D
R3548 B C 1E
R3549 B C 1D
R3550 B C 1D
R3551 B C 1D
R3552 B C 1C
R3553 B C 1C
R3554 B C 1C
R3555 B C 1C
R3556 B C 1C
R3557 B C 1C
R3558 B C 1B
R3559 B C 1B
R3560 B C 1B

IC

COIL

TRANSISTOR

RESISTOR

R3571 B C 2C
R3572 B C 2C
R3573 B C 2C
R3574 B C 2C
R3591 B C 13A
R3592 B C 14A
R3593 B C 13A
R3594 B C 13B
R3595 B C 11B
R3596 B C 11B
R3597 B C 12A
R3598 B C 12A
R3599 B C 10A
R3600 B C 10A
R3601 B C 10A
R3602 B C 10A
R3604 B C 10B
R3605 B C 14B
R3607 B C 10E
R3608 B C 10D
R3609 B C 10D
R3610 B C 11D
R3612 B C 14B
R3613 B C 14B
R3614 B C 5B
R3615 B C 5B
R3616 B C 5D
R3617 B C 5D
R3619 B C 11D
R3620 B C 11C
R3621 B C 8A
R3622 B C 8B
R3623 B C 8B
R3624 B C 8B
R3625 B C 9B
R3626 B C 9B
R3627 B C 8B
R3628 B C 8B
R3629 B C 6B
R3630 B C 5A
R3631 B C 5A
R3632 B C 6B
R3633 B C 7C
R3634 B C 4B
R3635 B C 3B
R3636 B C 3B
R3637 B C 3B
R3638 B C 4C
R3652 B C 15B
R3653 B C 15B
R3654 B C 15B
R3658 B C 16B
R3660 B C 5E
R3666 B C 3C
R3667 B C 3C
R3668 B C 6E
R3669 B C 6E
R3671 B C 9A
R3672 B C 9A
R3673 B C 9A
R3674 B C 10B
R3676 B C 9B
R3677 B C 9C
R3678 B C 8C
R3679 B C 8D
R3681 B C 7C
R3682 B C 7C
R3683 B C 7C
R3684 B C 7D
R3685 B C 7D
R3686 B C 7D
R3687 B C 8D
R3688 B C 8D
R3689 B C 8D
R3690 B C 9D
R3691 B C 8E
R3692 B C 8E
R3693 B C 14C
R3694 B C 14C
R3695 B C 14C

TEST POINT

TP3501 A D 10A
TP3502 A D 11A
TP3503 B C 7B
TP3504 A D 9D

OTHER

FL3501 A D 2E
FL3502 A D 1E
FL3503 A D 1C
FL3504 A D 1A
FL3505 A D 2C
FL3506 A D 11C
PC016 B C 7D
PC017 B C 6B
PC018 B C 6A
PC019 B C 16B
VR3501 A D 8B
VR3502 A D 14A
VR3503 A D 5E
VR3504 A D 3B
VR3505 A D 10B
VR3506 A D 9B
X3501 A D 13C
X3502 A D 4C
X3503 A D 5E

REF.NO.

4-31

COMPONENT PARTS LOCATION GUIDE <MAIN>

REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION

CAPACITOR

C1 B C 14I
C2 B C 14I
C3 B C 14I
C4 B C 15J
C5 A D 13J
C6 B C 12K
C7 B C 14J
C8 B C 15J
C9 A D 14M
C10 B C 14L
C11 B C 15L
C12 B C 15L
C13 B C 15L
C14 B C 15L
C15 B C 14M
C16 B C 14M
C17 A D 12M
C18 A D 13M
C19 A D 13M
C20 A D 13M
C21 B C 12M
C22 A D 12M
C23 B C 12M
C24 B C 12N
C25 B C 11M
C26 B C 11N
C27 B C 11N
C28 A D 11M
C29 B C 11N
C30 B C 11N
C31 A D 11N
C32 A D 11M
C33 A D 9N
C34 B C 9N
C35 B C 10M
C36 A D 10N
C37 B C 10M
C38 A D 9M
C39 B C 10M
C40 A D 9M
C41 B C 8M
C42 B C 7M
C44 B C 13G
C45 A D 10L
C51 A D 16N
C52 A D 13M
C53 B C 8N
C54 B C 8N
C55 B C 10N
C56 B C 9N
C59 B C 14L
C60 A D 14H
C61 B C 13L
C62 B C 15M
C63 B C 16M
C64 B C 11O
C65 A D 13K
C69 B C 13H
C70 B C 13H
C71 B C 14G
C72 B C 15G
C73 B C 15H
C74 B C 14H
C75 B C 15G
C76 B C 15H
C77 B C 16H
C78 B C 16H
C79 B C 12N
C80 B C 12N
C81 B C 13N
C84 B C 15L
C91 B C 12L
C92 B C 12N
C93 B C 14G
C94 B C 12O
C95 B C 12O
C96 B C 10O
C98 A D 13M
C103 B C 15G
C104 B C 12O
C105 B C 12O
C106 B C 15M
C107 B C 18H
C108 B C 11O
C109 B C 15M
C110 B C 15M
C112 B C 11N
C114 B C 11O
C120 A D 10M
C136 B C 14M
C145 B C 14N
C146 B C 11N
C401 B C 16I
C402 B C 16J
C403 B C 16K
C404 B C 16J
C405 B C 16I
C406 B C 16J
C407 B C 16J
C409 A D 16J
C2001 A D 8L
C2002 A D 10K
C2003 A D 12J
C2004 B C 12J
C2005 A D 14J
C2006 B C 13J

C2007 A D 14J
C2008 A D 13K
C2009 B C 14K
C2010 B C 13K
C2011 A D 14K
C2012 A D 13L
C2013 B C 13K
C2016 B C 13K
C2017 A D 14J
C2021 B C 14K
C2051 B C 18K
C2052 A D 7K
C2053 B C 6K
C2054 B C 7K
C2055 A D 6K
C2061 A D 21F
C2062 B C 21F
C2063 B C 21F
C2064 A D 21G
C2201 B C 9M
C2202 B C 10L
C2203 A D 8M
C2204 A D 9N
C2205 A D 8M
C2206 A D 9M
C2207 A D 8M
C2208 A D 9L
C2209 A D 9L
C2210 A D 10K
C2211 A D 8L
C2212 A D 8L
C2213 A D 9K
C2214 A D 8K
C2215 A D 10K
C2216 A D 10J
C2217 A D 10J
C2218 A D 11J
C2219 A D 10J
C2220 A D 10I
C2221 B C 11I
C2222 A D 11I
C2223 A D 11I
C2224 B C 11J
C2225 A D 11I
C2226 A D 11J
C2227 B C 12I
C2228 B C 9H
C2229 B C 10K
C2230 B C 10J
C2231 B C 9M
C2232 A D 9K
C2233 A D 9J
C2234 A D 9K
C2235 A D 12H
C2236 A D 12H
C2237 A D 9K
C2238 A D 8K
C2251 A D 12I
C2252 B C 12J
C2253 B C 12I
C2254 B C 12I
C2255 B C 11I
C2256 A D 13I
C2401 A D 19C
C2402 A D 19C
C2403 A D 20C
C2404 B C 19D
C2405 B C 19C
C2406 A D 20B
C2407 A D 20C
C2408 B C 20C
C2409 B C 20C
C2410 A D 19B
C2411 B C 20C
C3001 B C 8J
C3002 B C 7J
C3003 A D 7J
C3004 B C 7H
C3007 B C 5E
C3008 B C 21E
C3010 A D 1B
C3011 A D 1B
C3012 A D 4B
C3014 A D 6A
C3015 B C 8F
C3016 B C 9D
C3017 B C 8C
C3018 B C 8C
C3019 B C 8C
C3020 B C 9C
C3021 B C 9C
C3022 B C 17C
C3024 B C 11C
C3025 A D 11C
C3026 B C 11C
C3027 B C 12C
C3028 B C 10B
C3029 B C 11B
C3030 B C 13D
C3031 B C 12C
C3032 B C 11D
C3033 B C 10F
C3034 B C 12C
C3035 B C 12C
C3036 B C 12C
C3037 B C 12C
C3038 B C 13D
C3039 B C 13D

C3040 A D 8D
C3041 B C 11C
C3042 A D 5B
C3043 B C 8C
C3049 B C 3A
C3050 B C 11D
C3054 B C 12C
C3602 B C 15F
C3603 B C 15E
C3604 B C 15E
C3652 B C 17C
C3653 B C 16C
C3654 B C 16C
C4001 A D 6B
C4002 B C 9E
C4003 B C 9F
C4004 B C 10F
C4005 B C 9F
C4006 B C 9F
C4007 B C 9F
C4008 B C 9F
C4009 B C 9F
C4010 B C 7E
C4011 B C 11F
C4012 B C 11F
C4013 B C 10F
C4014 B C 10F
C4015 B C 10F
C4016 B C 10F
C4017 B C 9F
C5001 A D 2O
C5002 A D 4N
C5003 A D 4P
C5004 A D 1J
C5006 A D 3M
C5101 A D 2M
C5102 A D 3K
C5103 A D 2K
C5104 A D 3L
C5105 A D 4M
C5106 A D 3L
C5107 A D 1K
C5201 A D 1G
C5202 A D 2G
C5203 A D 1G
C5204 A D 4H
C5205 A D 2H
C5206 A D 3G
C5207 A D 2F
C5208 A D 1E
C5209 A D 3G
C5211 A D 5M
C5212 A D 4J
C5213 A D 1H
C5301 A D 1E
C5302 A D 2E
C5303 A D 3E
C5304 A D 3D
C5305 B C 1G
C5306 A D 3C
C5307 A D 2C
C5308 A D 2F
C5309 A D 2E
C5310 A D 3D
C6005 A D 21M
C6006 B C 22M
C6007 A D 20M
C6008 B C 21M
C6012 A D 21O
C6013 B C 22O
C6014 B C 22P
C6016 B C 21O
C6020 B C 22N
C6021 B C 22N
C6022 B C 22N
C6023 B C 20M
C6024 B C 22K
C6027 B C 21L
C6028 B C 22L
C6032 B C 21K
C6033 B C 22J
C6037 B C 22L
C6052 B C 22O
C6053 B C 22P
C6054 B C 22P
C6055 B C 22O
C6101 A D 21B
C6519 B C 19N
C6520 B C 18N
C6551 A D 22P
C6552 B C 22O
C6553 A D 19L
C6554 B C 22O
C6555 B C 19M
C7202 A D 19O
C7251 B C 21B

CONNECTOR

CN1 A D 15K
CN301 A D 20J
CN302 A D 18H
CN501 A D 7O
CN502 A D 18O
CN901 A D 22A
CN902 A D 20A
CN903 A D 14P
CN904 A D 19P
CN905 A D 16P

CN906 A D 20C
CN907 A D 8P
CN1901 A D 22C
CN2001 A D 14L
CN2002 A D 20G
CN2051 A D 18L
CN2052 A D 6K
CN3001 A D 6L
CN3002 A D 8J
CN3003 A D 8H
CN3004 A D 10A
CN3011 A D 3A
CN3012 A D 2C
CN3901 A D 14C
CN5001 A D 1P
CN6102 A D 21C
CN6103 A D 21H
CN6701 A D 18M
CN7103 A D 22E

DIODE

D1 B C 19L
D3 B C 10O
D4 A D 14M
D5 B C 14M
D6 A D 7N
D8 A D 12N
D2001 B C 18I
D2201 A D 8M
D2202 A D 7M
D3001 A D 13D
D3002 A D 5D
D3003 A D 3C
D3004 A D 4A
D3005 A D 4A
D3006 A D 5J
D3007 B C 7D
D3008 B C 7D
D3011 A D 2B
D3012 A D 1C
D4001 B C 11E
D4002 B C 11F
D5001 B C 3N
D5101 A D 1L
D5102 A D 2L
D5103 A D 2K
D5104 A D 4N
D5201 A D 1I
D5202 A D 4H
D5203 A D 4I
D5204 A D 3I
D5205 A D 3I
D5206 A D 2H
D5207 A D 2H
D5208 A D 3G
D5209 A D 3H
D5210 A D 4I
D5211 A D 1I
D5212 A D 2I
D5213 A D 5L
D5214 A D 4I
D5301 A D 3H
D5302 A D 2D
D5303 A D 1E
D5304 A D 1F
D5305 A D 4G
D5306 A D 2D
D5307 A D 3F
D5308 A D 2F
D5309 A D 3C
D5310 A D 2E
D5314 A D 3G
D5315 A D 5G
D5316 A D 3F
D5317 A D 7H
D6002 A D 22L
D6551 A D 22O

IC

IC1 B C 11L
IC2 B C 16H
IC2201 B C 9K
IC2401 B C 19C
IC3001 B C 10D
IC3002 B C 12C
IC3003 B C 16C
IC3004 A D 7J
IC3005 A D 17B
IC3601 B C 15F
IC3651 B C 17D
IC5101 A D 2L
IC5301 A D 1D

COIL

L1 A D 13I
L2 A D 15L
L3 A D 14N
L4 A D 11N
L5 A D 9M
L11 A D 11N
L12 A D 11M
L13 A D 11O
L14 A D 12N
L15 A D 13H
L17 A D 15G
L18 A D 15H
L19 A D 14H
L20 A D 16L
L22 A D 12M

L24 A D 15M
L25 A D 18H
L26 A D 18H
L27 A D 11O
L28 A D 15M
L401 A D 16J
L402 A D 19G
L2001 A D 13J
L2251 A D 13I
L2252 A D 11I
L3001 A D 6J
L3011 A D 7J
L3012 A D 7J
L5201 A D 2G
L5202 A D 1F
L6001 A D 20N
L6002 A D 21P
L6003 A D 21O
L6004 A D 21P
L6005 A D 20N
L6032 A D 22J
L6050 A D 22N
L6501 A D 19M
L7201 A D 19O

TRANSISTOR

Q1 B C 15I
Q2 B C 15I
Q3 B C 15J
Q4 B C 15J
Q5 B C 13L
Q7 B C 15G
Q8 B C 15H
Q9 B C 15H
Q10 B C 8N
Q11 B C 9N
Q12 B C 8N
Q13 B C 8N
Q14 B C 15G
Q16 B C 16L
Q17 B C 16L
Q21 B C 12O
Q24 B C 7N
Q25 B C 9N
Q26 B C 9N
Q31 B C 19I
Q32 B C 13M
Q34 B C 12N
Q35 B C 13M
Q37 B C 13N
Q38 B C 15M
Q39 B C 11O
Q41 B C 11O
Q401 B C 16J
Q402 B C 16J
Q403 B C 16I
Q404 B C 18G
Q405 B C 19G
Q2001 B C 14L
Q2002 B C 14K
Q2003 B C 14L
Q2004 B C 14K
Q2005 B C 14J
Q2006 B C 14K
Q2011 B C 14K
Q2051 B C 6K
Q2052 B C 18H
Q2053 B C 18H
Q2054 B C 19H
Q2061 B C 21G
Q2062 B C 19H
Q2251 B C 10I
Q2252 B C 10I
Q3001 B C 7J
Q3002 A D 5E
Q3003 A D 20E
Q3004 B C 3C
Q3005 B C 4B
Q3007 B C 7D
Q3009 B C 7D
Q3010 B C 14E
Q3011 B C 14F
Q3901 B C 14C
Q4001 B C 8E
Q4002 B C 10F
Q4003 B C 9F
Q5101 A D 3L
Q5102 B C 3L
Q5103 B C 4M
Q5301 A D 3F
Q5302 B C 3F
Q5303 A D 2C
Q5304 A D 2E
Q5305 B C 3E
Q5306 A D 3F
Q5310 B C 3C
Q5311 B C 4F
Q5312 A D 1C
Q5318 B C 2C
Q5320 A D 4G
Q5321 B C 4F
Q5322 B C 4D
Q6030 B C 22I
Q6031 B C 22J
Q6032 B C 21J
Q6501 B C 19N
Q6502 B C 19N
Q6551 A D 22O

Q7201 A D 20P

RESISTOR

R1 B C 14L
R2 B C 14L
R3 B C 15L
R4 B C 12N
R5 B C 12N
R6 B C 11M
R7 B C 10N
R8 B C 8N
R9 B C 8M
R21 B C 14H
R22 B C 14G
R23 B C 14L
R24 B C 14G
R25 B C 15G
R26 B C 14G
R27 B C 15G
R28 B C 14H
R29 B C 15G
R30 B C 15H
R31 B C 15H
R32 B C 15G
R33 B C 16L
R34 B C 16L
R35 B C 15L
R36 B C 8N
R37 B C 10N
R38 B C 10N
R39 B C 9N
R40 B C 8N
R41 B C 8N
R42 B C 8N
R43 B C 8N
R44 B C 7N
R45 B C 7N
R46 B C 12O
R47 B C 12N
R48 B C 12O
R51 B C 8N
R60 B C 19I
R61 B C 19I
R65 B C 13L
R66 B C 13M
R68 B C 17I
R70 B C 15N
R72 B C 12O
R73 B C 12O
R75 B C 14M
R76 B C 11O
R77 B C 14J
R79 B C 10M
R80 B C 12O
R81 B C 10N
R82 B C 16M
R84 B C 16N
R85 B C 16L
R88 B C 8N
R90 B C 14M
R91 B C 13N
R92 B C 15M
R93 B C 15M
R104 B C 16M
R113 B C 13L
R114 B C 16O
R117 B C 10N
R118 B C 10M
R401 B C 16J
R402 B C 16J
R403 B C 16J
R404 B C 16I
R405 B C 16I
R406 B C 16I
R407 B C 19F
R408 B C 19F
R409 B C 16F
R2001 B C 8M
R2002 B C 7M
R2003 A D 7L
R2005 A D 9I
R2006 A D 10I
R2007 B C 10J
R2008 B C 10K
R2009 B C 10K
R2010 B C 10K
R2011 B C 14K
R2013 B C 13J
R2014 B C 13J
R2015 B C 14J
R2016 B C 14K
R2017 B C 13K
R2018 B C 14K
R2019 B C 14K
R2020 B C 14K
R2022 B C 14K
R2023 B C 14J
R2025 B C 14J
R2026 B C 14J
R2051 B C 18L
R2052 B C 18L
R2053 B C 18L
R2054 B C 6K
R2055 B C 6K
R2056 B C 18L
R2057 B C 18H
R2058 B C 18H
R2059 B C 19H

R2060 B C 19H
R2061 B C 21F
R2062 B C 21F
R2063 B C 21G
R2064 B C 19H
R2065 B C 18G
R2201 B C 7M
R2202 B C 8L
R2203 B C 8L
R2204 B C 8L
R2205 B C 8L
R2206 A D 7L
R2208 A D 7K
R2209 A D 7K
R2210 B C 9L
R2211 B C 9K
R2213 B C 10J
R2215 B C 10J
R2217 B C 10I
R2218 B C 10I
R2219 A D 8J
R2220 B C 10J
R2222 B C 10J
R2223 B C 10J
R2224 B C 10J
R2225 B C 10J
R2226 B C 10H
R2227 B C 9H
R2228 B C 10L
R2229 A D 9L
R2232 B C 7L
R2233 B C 8K
R2234 B C 9K
R2235 B C 8K
R2236 B C 8J
R2251 B C 6L
R2252 B C 10I
R2401 B C 19D
R2402 B C 19D
R2403 B C 19D
R2404 B C 19D
R2405 B C 20C
R2406 B C 20C
R3011 A D 8G
R3012 B C 8F
R3013 B C 8F
R3014 B C 8F
R3015 B C 8E
R3016 A D 7G
R3017 A D 8F
R3018 A D 7G
R3019 A D 7G
R3020 B C 7F
R3021 B C 7F
R3022 B C 8E
R3025 B C 7E
R3026 B C 7E
R3027 B C 7E
R3029 B C 8E
R3030 B C 8E
R3031 B C 8D
R3032 B C 8D
R3033 B C 8D
R3034 B C 8D
R3035 B C 7D
R3036 B C 7D
R3038 B C 8D
R3039 B C 8D
R3040 B C 8D
R3041 B C 8D
R3042 B C 9D
R3044 A D 8C
R3046 A D 8C
R3047 A D 8C
R3048 A D 8C
R3049 B C 9C
R3050 B C 9C
R3051 B C 9C
R3052 B C 9C
R3053 B C 9C
R3054 B C 10C
R3055 B C 9C
R3058 B C 10C
R3059 B C 10C
R3060 B C 10C
R3061 B C 11C
R3062 B C 11C
R3063 B C 11C
R3066 A D 12C
R3069 B C 11D
R3071 B C 12C
R3072 B C 13C
R3073 B C 13C
R3074 A D 14D
R3075 B C 12D
R3076 B C 12D
R3079 B C 12D
R3080 B C 12D
R3081 B C 12D
R3083 B C 12D
R3085 B C 12D
R3086 B C 12E
R3087 B C 13D
R3088 B C 12E
R3089 B C 12E
R3090 B C 12E
R3091 B C 12E
R3092 B C 12E

R3093 B C 12E
R3094 A D 12E
R3095 A D 12G
R3096 A D 12G
R3097 B C 12F
R3103 B C 11F
R3105 B C 11E
R3106 B C 11F
R3107 B C 14E
R3201 B C 8J
R3202 B C 7I
R3203 B C 7J
R3204 B C 6H
R3205 A D 14C
R3206 A D 5C
R3207 B C 16A
R3208 B C 18A
R3209 B C 17A
R3210 B C 9B
R3211 B C 9C
R3212 B C 5D
R3213 B C 8D
R3214 B C 10A
R3215 B C 7A
R3216 B C 10A
R3217 B C 7D
R3218 A D 4C
R3219 B C 3C
R3220 B C 7C
R3222 B C 4A
R3223 B C 16C
R3224 B C 16C
R3225 B C 7A
R3229 B C 11D
R3230 B C 12C
R3231 B C 12C
R3233 B C 7D
R3234 B C 7D
R3235 B C 8C
R3236 B C 8C
R3237 A D 2B
R3238 A D 2B
R3239 B C 3B
R3241 B C 3A
R3242 B C 8F
R3243 B C 4A
R3244 B C 2B
R3245 B C 9F
R3246 B C 7E
R3247 B C 7E
R3251 B C 3A
R3252 B C 8F
R3256 B C 10C
R3257 B C 10B
R3258 B C 10B
R3260 B C 15C
R3261 B C 15C
R3671 B C 17C
R3672 B C 18D
R3673 B C 18C
R3674 B C 17D
R4001 B C 12F
R4003 B C 10F
R4004 B C 10F
R4005 B C 9F
R4006 B C 9F
R4007 B C 8F
R4008 B C 8E
R4009 B C 11E
R4010 B C 12F
R4011 B C 11F
R4012 B C 11F
R4013 B C 10F
R4014 B C 11F
R4015 B C 11F
R4016 B C 11E
R4017 B C 10F
R4018 B C 10F
R4019 B C 11F
R4020 B C 10G
R4021 B C 10G
R5001 A D 4P
R5101 A D 4N
R5102 A D 2K
R5103 B C 2L
R5104 A D 1L
R5105 A D 2L
R5106 B C 3K
R5107 A D 4M
R5108 A D 3M
R5109 A D 3L
R5110 B C 3L
R5301 A D 1C
R5302 B C 3F
R5303 B C 4E
R5304 A D 1G
R5305 B C 5L
R5306 B C 3D
R5307 B C 1G
R5308 B C 3F
R5309 A D 3F
R5310 B C 2F
R5311 B C 2F
R5313 A D 1C
R5314 B C 2C
R5317 B C 4E
R5318 B C 3F
R5319 A D 2D

R5321 A D 3E
R5322 B C 3E
R5323 B C 3F
R5326 B C 3D
R5327 B C 3D
R5328 B C 5M
R5329 B C 4D
R5330 B C 4D
R5332 B C 5C
R5333 A D 4H
R5334 A D 4I
R5335 B C 5G
R5336 B C 4F
R6020 B C 21N
R6021 B C 21N
R6023 B C 21M
R6030 B C 22J
R6031 B C 22J
R6032 B C 21L
R6033 B C 21J
R6034 B C 22J
R6038 B C 22L
R6050 B C 21O
R6051 B C 21O
R6052 B C 21O
R6053 B C 22N
R6060 B C 22N
R6061 B C 22N
R6080 B C 22N
R6508 B C 19N
R6509 B C 19N
R6510 B C 18M
R6511 B C 19N
R6551 A D 22O
R6552 B C 22O
R6553 A D 20O
R6554 A D 20N
R7202 B C 20O
R7203 B C 20O
R7204 A D 20P
R7251 B C 21A
R7252 B C 21B
R7253 B C 21B

SWITCH

S3002 A D 7A

TESTPOINT

TP106 A D 6M
TP111 A D 6M
TP2253 A D 6L
TP3901 B C 9C
TP3902 B C 8C
TP3903 B C 11C
TP3904 B C 12C
TP3905 B C 11C
TP3906 B C 10C
TP3907 B C 10C
TP3908 B C 10C
TP4001 A D 6M

OTHER

CF6031 A D 22J
CP3002 A D 6H
CP4001 A D 5K
CP5301 A D 3D
CP5302 A D 4H
CP5303 A D 4E
F5001 A D 1P
FC5001 A D 1P
FC5002 A D 1N
K2001 B C 13K
K2002 B C 13K
K2003 B C 15L
K2004 B C 14K
K2251 B C 12J
K2252 B C 12I
K2253 B C 12J
K5101 A D 2M
K5102 A D 1M
K5201 A D 3G
LF5001 A D 2P
LF5002 A D 5O
PC3001 A D 17A
PC3002 A D 9C
PC5101 A D 4L
PC5102 A D 5M
SG5001 A D 2P
T2051 A D 6K
T2052 A D 21F
T5001 A D 2J
TU6001 A D 21P
VA5001 A D 2P
VA5002 A D 4P
VA5003 A D 2P
WR11 A D 7E
WR12 A D 8L
WR15 A D 21J
WR16 A D 21J
WR17 A D 21P
WR18 A D 22P
WR901 A D 21A
WR3001 A D 12C
X1 A D 10N
X2 A D 10M
X3001 A D 11C
X3002 A D 11C

4-32

4.17 MAIN AND AUDIO ERASE CIRCUIT BOARD

<46> AUDIO ERASE

<03> MAIN, <46> AUDIO ERASE

DANGEROUS V OL T A GE

LPB10147-001B

CN5001

LIVE

BRN BLU

FC5001

F5001

FC5002

K5102

D5101

R5104

C5103

C5107

C5004

16

D5201

C5213

ZZ4 ZZ5

C5201

R5307

C5203

C5305

11

R5304

D5304

C5208

D5303

C5301

1

E

B5303

Q5312

B

R5301

D3012

W103

ZZ7

C3010

V2

NEUTRAL

C5001

C5101

D5102

1

D5211

D5206

C5205

Q5304

C5309

C5307

Q5303

R5313

B3001

D5310

6

5

B3002

C3011

R5105

L5202

C5308

IC5301

CN3012

B3003

VA5003

B

K5101

2

R5102

D5207

C5202

L5201

C5207

D5308

B

D5306

R5319

R3244

R3237

SG5001

IC5101

1

D5103

E

C5302

Q5318

B3007

R3238

R5103

R5310

D5307
R5321

D5302

2

13

VA5001

D5212

C5209

R5311

C5303

20N2500

E

R5314

Q3004

1

D3011

14

R3251

D5001

C5006

R5109

4

5

Q5306

ICP-N38

C5104

T5001

D5301

D5205

E

Q5305

R5327

C3049

B5002

B5001

D5204

D5209

C5206

B5305

B5302

R5306

CP5301

C5306

R3239

D5203

D5208

R5308

B5301

B

Q5302

R5322

C5304

R3219

CN3011

R3241
B3006

VA5002

C5105

C5106

B

Q5101

E

C5102

10

C5310
R5326

C5002

E

R5318

W102

LF5001

R5108

6

Q5301

R5323

20N1500

B6035

D5309

R5106

K5201

B5306

Q5310

B3005

Q5102

34

7

D5305

D5316

R5302

R5303
R5317

ICP-N25

D3003

2

R3243

R5101

Q5103

R5107

R5110

D5202

B

B5304

R5330
R5329

Q5322

1

C5003

W101

D5314

R5309

CP5303

R3218

3

D5214

4

C5212

D5210

C3012

R3222

LF5002

D5104

1

2

C5204

Q5311

W100

D3005

PC5102

PC5101

ICP-N25

20N1500

D5315

E

B

W99

1

2

R5305

ICP-N25

20N1500

D3006

R5334

CP5302

R5336

Q5321

C3007

R3206

R5332

Q3005

R5001

ZZ1

CP4001

R5333

CP3002

ICP-N15

20N1250

R5335

Q5320

D3004

C3042

C5211

D5213

W97

R5328

B3004

W98

D3002

TP111

TP4001
CTL.P

TP106
PB.FM

TP2253

Q3002

START

SENSOR

R3212

B3096

D.FF

A.FM

W96

W95

W94

1

CN2052

Q2051

4

W93

CN3001

R2055

C4001

C3014

5

6

1

R2054

1

R3204

W92

W91

4

C2053

T2051

R3217

2

L3001

W88
W87

D3007

B4001

R2251

W90

C2055

C2054

W89

R3215

3

4

IC3004

C3002

C3003

D3008

R2003

R3026

R3036

R3225

R45

R2206

C2052

R3035

4

3

W82

L3011

R3018

R3020

R3246

1

Q24

C42

R2002

Q3001

R3247

R3025

R3234

Q3007

W84

2

W81

W83

1

C2205

R2204

L3012

CN3003

R3016

R3027

R3032

Q3009

C3040

R42

R51

C41

R2201

WR12

5

R3017

R3022

R3040

W80

R40

R41

C2207

R3201

C3001

CN3002

R3013

R3242

R3033

R3038

C3043

R3044

Q10Q12

R88

R8
R9

C2203

C2001

R2202

C2211

8

R3011

R3012

TP3902

R3047

R3046

CN907

R36

R2001

Q4001

R3029R3030

R3041

C3018

10 1

W85

R44

D6

D2202

R2232

R2208
R2209

R3203

R3202

D5317

C3004

R3019

W86

R3021
C4010

WR11

R3233

B3008

R3220

S3002

R2235

1

R3252

R4008

R3048

Q13

D2201

R2205

C2214

C2238

R2236

R4007

R3014

R3015

R43

C53

4

R3031

R3034

R3213

R3049

CN501

Q11

C54

C2204

W79

C40

C2206

C2208

R2203

C2234

10

IC2201

R2233

R2234

15

C2237

B2205

1

2

C4017

W78
C4003

C3015

IC3001

R3039
R3042

TP3901

R3235 R3236

R3050

C3020

C3017

C3019

W77

R39

L5

C2212

R2210

R2219

C4009

28

29

R3053

C3021

C2201

R3052

C33

C2209

Q4003

C4005
R4005

C3016

R3051

R3210

Q26

C56

W76

R2227

C4008

C4002

W75

W104

C38

R2229

R2211

6

C2232

C2233

R2005

R3245

C4007
R4006

R3211

3

PC3002

TAKE UP

Q25

C34

C2231

C2213

B2204

C4006

R3055

2

WR13

W74

C55

R81

R117

C36

R118

X2

C37

R79

C39

R2228

C2210

C2229

R2008

R2009

R2213
R2007

C2230
R2222

R2006

C2220

Q2251

R2226

C2228

C4015

C4016

R4003

R4004

1

56

4

R3256

1

TP3906

ZZ8

TP3908

CN3004

14

R3216

R7

C2202

60

61

C2215

C2216
R2215

R2217

Q4002

C4004

R3214

W72

C35

C120

R2223

R2218

Q2252

C3033

TP3907

17

R37
R38

W71

C45

R2010

R2225

C2219

R4020
R4013

R3059

R3058

R3258

D3

C96

W73

57

C26

R6

R2224

R2220

R2252

R4017

R4018

C4013

C4014

112

R3105

R3060

R3257

C30

X1

C2002

C2223

R4021

R3106

R3061

C3028

R76

C146

C32

C2217

C2221

C2255

C4011

R4019

R4009

TP3905

X3001

C3029

C29

90

C3050

C3024

R3062

Q41

C64

L12

C2226

C2218

C2222

C4012

L13

L4

L11

31

R3103

85

84

R3229

C3041

C114

C112

C27

C2224

D4002
R4012

R3063
C3025

Q39

R4015

R3092

R3091

R3069

W70

L27

C108

L14

C31

W69

C28

C25

30

K2253

91

K2251

C2253

L2252

W68

C2225

C2235

R3096

R4014

R4011

R3097

D4001

R4016

R3093

R3085 R3086

C3032

X3002

B3070

C3037

C3036

C3026

B3063

3

TP3903

C3027

WR3001

R46

C79

R4

C94

C22

C2252

K2252

C2227

Q21

C105

C104

C80

R3095

R3090

R3083

R3066

C3031

IC3002

R72

R48

C23

C2251

C2254

R4001

R3081

R73

W67

C24
C92

L22

C91

C6

C2004

C2003

C2236

R3094

R3089

R3075

TP3904

C3035

R3231

1

Q34

B35

B26

IC1

120

W66

L2001

R4010

C3054

D8

W65

L2251

R3080

C3034

R3071
R3230

B45

C95

R80
R47

C21

C17

1

C5

R3088

C3039

R5

Q37

B3966

R91

C20

C2013

W64

R3079

R3076

ZZ2

12

C19

D3001

R3072

B56

B18

R66

C98

W62

C2010

K2001

K2002

W61

C2256

C70

W63

C3030

R3073

C61

B5

R2013

C2006

L1

C81

Q32

C18

R113

Q5

C69

R3087

CN903

B7256

W60

R65

C65

C2016

C2017

C3038

B3962

W59

C2011

R2016

R2014

L15

C44

B7255

Q35

C52

C2012

R2017

C2008

C2007

WR12

W58

R3205

TU6001

WR17

B6566

Q31
W15

C2401

20

1

C2403

C2406

W10

W13

WR14

1

B3012

C2408

B7253

B

L6005

C6007

C6023

2

Q3003

END

SENSOR

C2409

ZZ3

E

Q7201

W9

C2407

1

W11

L6002

Q6032

R2405

CN906

R2406

L6004

C6012

L6001

1

2

W1816

L6003

B7202

R6023

C3008

B7204

3

W8

R6052

R6050

R6020

C6005

C6027

R6032

B3651

R6033

B7254

Q2061

C2061
C2063

T2052

B7209

W5

B6101
B7201

R7251

CN902

R6021

W6

C6032

WR15

B6107

B6102

C6101

26

32

W1602

C6008

43

B6032

ZZ6

W42

W38

W36

B7251

1

W52

W56

W55

C145

W57

C9

C16

C136

R1

R23

Q2001

R2018

Q2002

C2009

Q2006

R2022

R2025

R2015

C2005

R21

R22

Q3011

B3971

C10

R2026

W54

Q3901

C15

Q2003

R2019

C3
C2

R3107

CN3901

B9

L3

R70

D4

C62

D5

R90

R75

L24

C110

L28

C13

C14

C59

R2

2

1

CN2001

R2011

6

R2020

7

K2004

Q2004

C2021

Q2011

R2023

Q2005

W53

C7

C8

R77

C4

Q1

Q2

C1

C73 C103

L18

C60

L19

C74

C72

R29

R28
R26

Q7

C71

R24
C93

L17

C3602

Q3010

R3074

6

5

R3261

2

1

R3260

W51

C11

K2003

1

R30

W50

2

R31

R25

1

C3604

C106

R3

16

CN905

5

R93

C109

R92

Q38

L2

C84

C12

R35

CN1

Q401

Q3

R401

L401

Q4

C405

R406

W48

B1

Q9

Q8

C76

R32
R27

W49

Q14

R409

IC3601

C3603

B3130

C51

Q16

R402

C402

B3

8

C75

9
8

C3653

R84

C63

R104

L20

R405

1

R3223

1

R114

29

30

W40

W39

W43

W44

B3056

R82

W45

R85

R33

W41

R34

Q17

13

C403

12

R403

Q402
C406

C404

R68

C407

R404

C401

Q403

W46

C77

C78

5

W37

4

IC2

W47

B3030

R3674

C3654

IC3003

1

4

C3652

R3224

5

8

5

4

IC3005

R3209

R3207

C409

W30

W31

C2051

L26

IC3651

PC3001

2

R2053

W1008

1

W29

L25

R3671

W813

CN302

9

8

R3673

CN904

W27

B6554

CN2051
W26

W1605

W2003

5

R3672

R3208

1

1

W28

1

B2051

R2065

R2051

R2052

B47

Q404

R6510

CN6701

B20

B21

C107

Q2053

W25

C6520

D2001

Q2052

R2057

R2058

R2404
C2404

B6511

Q6502

R2056

R407

IC2401

2

C6519

6

R2064
Q2062

W24

R2403

12

W32

CN502

W35

B3118

W34

W33

B4

16

1

C3022

8

1

B3665

SUPPLY

4

3

1

1

4

C2405

L7201

B6552

R6511

R6508

D1

W22

CN2002

R408

10

11

L6501

R60

R61

W21

C2410

W23

R6509

C6555

B42

W18

R2402

R7202

C6553

CN301

W1403

Q2054

R2060

L402

Q405

C7202

R2059

W20

Q6501

W19

R2401

R7204

R6553

R6554

C2402

ZZ9

B6510

10

W17

W14

W16

R7203

B44

W12

W1803

1
C2411

R6051

W603B7252

33

44

49 25

B6001

R2061
C2062

3461

B7207

1

B7203

C7251

R7253

11

10

B6033

2

4

R2062

9

1

7

8

19

Q6031

WR901

B6108

W4

R7252

WR901

C6014

C6013

C6052

C6055

C6016

C6037

R6034

1

B6104

B6105

W7

C6053

R6080

C6022
C6020

C6021

18

5

C2064

10

2

10

WR18

C6552

C6554

R6060
R6061

R6031

C6033

CN6103

R2063

2

CN901

4

3

C6054

C6006

W602

C6028

WR16

W3

R6030

B7208

D6551
C6551

B

R6053

R6038

C6024

B6030

Q6030

W2

13

CN7103

1

B6106

B7206

B7205

B6103

1

CN1901

11

Q6551

D6002

W1

L6032L6050

CF6031

CN6102

2

1

R6552

R6551

E

B6034

4-33 4-34

4.18 SW/DISPLAY, REC SAFETY, JACK, ADV.JOG, DEMODULATOR AND S-SUB CIRCUIT BOARDS

<28> SW/DISPLAY, <32> REC SAFETY, <36> JACK, <38> ADV.JOG
LPB10148-001B

LPA10148 -

FRONT PWB ASS'Y

LPA10148 -

DISPLAY PWB ASS'Y

S7006

PLAY

13 1

14

CN7001

2

D7002

82

R7013

S7007

E.PROG.

L7002

L7001

D7001

1

B7001
B7002

C7002

J7193

B7003

TP7001

TEST

1

AUDIO R!

TPGND

L7193

C7194

R7032

2

IN

R7033

3

R7023

R7037

JACK PWB ASS'Y

C7192

L7191

AUDIO
L! IN

J7192

L7192

S7005
PAUSE

C7013

S7003

CH+/ERASE

36

1

2

C7195

R7022

R7031

LPA10148

R7021

L7194 R7191

J7191

C7193

D7191

D7192

C7191

1

VIDEO IN

C7007

S7004

REC

R7036

S7002

CH­/MARK

R7035

2

R7034

S7008
A.DUB

2

R7192

D7199

S7009
INSERT

11

C7196

R7193

6

S IN

4

3
1

2

J7194

FRONT PWB
LPB10148

-001B

C7004

C7005

R7004

R7003

2

1

R7002

10

CN7191

5

R7194

35 34 32 25

C7003

C7006

R7001

C7023

C7001

DI7001

C7021

LPA10148

21

1

FW7001

1

-01A5

FW7192

3

J7195

-01A3

REC SAFE

PWB AY

FW7001

LPA10148

2

2

S7010
STOP/
EJECT

LPB10148 -001B
FRONT PWB

S7011

TIMER

R7014

R7015

C7012

D7003

D7008

C7022

C7011

IC7002

31

S7001
POWER

LPB10148 -001B
FRONT PWB

83

ADV.JOG ASS'Y
LPA10148-01A4

R7030

C7020

12

22

23

33

11

C7010

1

C7009

C7019

44

34

20 15 1030

C7008

R7020

54

R7005

R7006

R7007

C7017

C7018

2

R7008

C7015

C7016

R7010

1

R7009

C7014

S7014

SP/EP/SEP

/RESET

S7015
HP.VOL.
/SYNC EDIT

R7024

R7025

1

7

R7027

R7026

D.TBC/NR

/ET/DISP

UN7001

654

R7028

S7013

REC LINK

S7012

2

3

CN7004

4

LPB10148
FRONT PWB

REC LINK

D7004

D7005

/SVHS ET

23

D7010

R7041

R7040

D7009

D.TBC/NR

1

2

13

S7041

REC SAFE

-001B

<14> DEMODULATOR
LPB10094-001C

LPA10094

R6704
R6707

K6707

W6701

C6701

R6718

C6724

L6702
C6703

L6701

R6701

C6722

Q6701

41

IC6701

K6701
C6704

R6703

10

C6705

C6702

R6702

C6706
R6706
R6705

C6723

K6702

44

C6707

R6721

C6721

1

C6708

CN6701

34

11

C6709

R6720

C6720

X6701

R6719

K6706

R6708

12

K6703

C6719

C6718

33

R6712

DEMOD PWB ASS'Y

C6716

R6715

C6717

C6715

R6714

R6716

C6714

R6713

23

22

K6705

C6712
R6710

R6709

K6704

C6710

C6711

1

C6713

D6701

R6711

DEMOD PWB

LPB10094 -001B

COMPONENT PARTS LOCATION GUIDE
<DEMODULATOR>

REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION

CAPACITOR

C1501 A D 4C
C1502 A D 3D
C1503 A D 4D
C1504 A D 4C
C1505 A D 3D
C1506 A D 3C
C1507 A D 2C
C1508 A D 1D
C1509 A D 2C
C1510 A D 1B
C1511 A D 1A
C1512 A D 2A
C1513 A D 2B
C1514 A D 2A
C1515 A D 3B
C1516 A D 3C
C1517 A D 3B
C1518 A D 3A
C1519 A D 3B

C1520 A D 3A
C1521 A D 2C

CONNECTOR

CN1501 A D 3A

IC

IC1501 B C 2C

TRANSISTOR

Q1501 A D 3B
Q1502 A D 3B

RESISTOR

R1501 A D 4C
R1502 A D 2C
R1503 A D 2C
R1504 A D 2B
R1505 A D 2B
R1506 A D 2B
R1507 A D 2B
R1508 A D 3B

R1509 A D 3B
R1510 A D 4B
R1511 A D 3A
R1514 A D 2B
R1515 A D 2C
R1517 A D 2C

<15> S-SUB
LPB10103-001A

LPA10103

5

CN513

R516

C536

C534

IC502

W528

C510

1

W535

W536

C522

C523

C564

L504

9

8

C509

L501

W543

C533

W533

C524

R506
C526

R508
R509
C527

R514

1

R510

C528

C532

R515

C531

2

R507

R505

C529

R512

R511
R513
C530

W537

C505

1

C525

C521

R504

R517

W531

C515

W532

C537

W530

R525

2

C508

W534

C512

R526

C511

C575

C535
C513

1

C514

W529

L505

42

R501

W526

R527

IC501

43

W510

C566

C506

W541

C518

C538

B501

Q501
W527

29

56

R518

W524

W523

L503

W521

C507

28

1

C520

C568

R531

C553

C551 C554

R531

C519

C517

B503

W525

R522

W522W542

W540

C562

C563

C552

C516

W520

14

C569

C504

R503

15

W518

W519

C503

R536

C559

R532

C501

W516

CN511

S-SUB PWB ASS'Y

L502

CN512

1

2

W538

C502

W515

W513

C573

C558

R524

R533

C570

R533

W517

29

W514

C576

C572

W511

W512

C556

R535

C561

C555

W509

W508

C560

C557

R523

W505

W506

W507

13

14

S-SUB PWB

C571

R534

W539

LPB10103 -001A

W504

W502

W501

W503

COPMONENT PARTS LOCATION GUIDE <S-SUB>

REF.NO.

C501
C502

C504
C505
C506
C507
C508

C510
C511
C512
C513
C514

C516
C517
C518
C519
C520

C522
C523
C524
C525
C526

C528
C529
C530
C531
C532

C534
C535
C536
C537
C538

C552
C553
C554

LOCATION

CAPACITOR

A
A
AC503
B
A
B
A
A

A
B
B
A
B
BC515
B
B
B
A
A

A
A
B
B
B
BC527
B
B
B
B
B

A
B
B
B
B
AC551
B
B
A

REF.NO.

LOCATION

C555

B
C556
C557

C559
C560
C561
C562
C563

C566
C568
C569
C570
C571

C573
C575
C576

CONNECTOR

CN511
CN512
CN513

IC501
IC502

L501
L502
L503
L504
L505

TRANSISTOR

Q501

RESISTOR

R501
R503
R504
R505
R506
R507

IC

COIL

B

A

BC558

B

A

A

A

B

BC564

B

B

B

B

B

BC572

B

B

B

A

A

A

B

A

A

A

A

A

A

B

B

B

B

B

B

B

D

5D

D

5D
4D

D
C

4E
1D

D

4E

C

4E

D

2E

D

2DDAC509

D

2C
3C

C

2D

C

2D

D

3C

C

3B

C

4B

C

4B

C

3C

C

4B

D

3C

D

1DDAC521

D

2B

D

2B

C

1C

C

1C

C

1C

C

1B

C

1B

C

1B

C

1A

C

1A

C

1B
2ACBC533

D

2A

C

2D

C

2D

C

2D

C

3B

D

4B

C

4B

C

4B

D

5B

5CC
5B

DC6C

5C

DC6D

6DD
4E

CD4D

3B

CC4B

4BC
5B

CC5C

5C

CC3D

5DC

D3A

5E

DD1E

4D

DC1C

D5E2B
D
D

3E

D

2A

D

3E

C3B

C4E3C
C

1C

C
C

1C

C

1C

C1C

REF.NO.

R508
R509
R510
R5115CC
R512
R513
R514
R515
R516

R518
R522
R523
R524
R525
R5266CC
R527
R531
R532
R533
R534

R536 5CCB

LOCATION

CB

B

CCB

B

CCB
CB

B

CCB

B

CCB
CB

B

CCB

B

CCB
CB

B

CCB

1C
1C
1B
1BCB
1B
1A
1A
1B
2D
2DCBR5172DC
3B
4B
5C
5C
3B
3BCB
3D
4B
4B
5B
6C
5CCBR535

4-35 4-36

4.19 3D DIGITAL/2M CIRCUIT BOARD

<05> 3D DIGITAL/2M
LPB10105-001B

R1436

L1402

Q1407

LC1402

VR1401

LEVEL

ADJ

Q1404

C1405

R1407

C1407 C1408

Q1402

R1405
R1404

C1404

R1413

R1414

C1415

L1403

C1459

R1447

D/A

R1406

Q1403

C1414

C1460

R1448

17

R1435

R1408

C1409

L1406

C1412C1413

C1461

R1449

05

Q1412

R1429

R1410

C1425

C1426

Q1413

R1412

C1462

B1416

C1424

R1428

R1430

C1428

R1433

R1411

R1450

D1404

R1427

W1402

C1427

R1431

Q1406

C1463

Q1419

LPA10105

R1460

3D DIGI/2M

C1432

C1435

C1471

R1432

C1472

C1440

C1441

C1444

C1411

D1403

C1464

R1451

R1452

C1433

R1415

C1436

C1437

C1473

C1438

W1401

C1465

C1466

R1453

R1434

B1412

C1406

C1434

PWB Ass'Y

IC1401

20

21

C1429

C1439

C1442

C1410
R1416

R1418

C1467

Q1414

B1409

C1416

C1430

C1417

Q1408

1

40

R1438

R1437

C1443

Q1418

R1454

Q1422

R1417

R1441

R1442

C1468

C1445

R1439

R1463

80

41

C1449

C1450

R1459

CN1401

C1455

C1446

L1405

R1446

C1469

C1454

Q1420

Q1421

R1461

B

C1402

1

61

C1452

C1447

L1404

C1421

E

R1402

LC1401

LPB10105

60

C1420

L1407

R1462

R1401

R1455

Q1401

-001B
3D DIGI/2M PWB

C1453

C1451

C1448

R1440

R1425

R1426

Q1410

C1422
R1458

C1403

R1421

Q1417

D1401

C1470

D1402

C1423

L1401

C1401

L1409

COMPONENT PARTS LOCATION GUIDE <3D DIGITAL/2M>

REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION

CAPACITOR

C1401 A D 5A
C1402 B C 5A
C1403 A D 5B
C1404 B C 2B
C1405 A C 1C
C1406 B C 3A
C1407 B C 2B
C1408 B C 1B
C1409 B C 1B
C1410 A D 2B
C1411 A C 1B
C1412 B C 2B
C1413 A C 2B
C1414 A C 2C
C1415 B C 1C
C1416 A D 3B
C1417 A C 3B
C1420 A C 4B
C1421 A C 4B
C1422 A C 4B
C1423 B C 4B
C1424 B C 3B
C1425 A C 4C
C1426 B C 5B

C1427 B C 5B
C1428 A C 5C
C1429 A D 3B
C1430 A C 2D
C1431 A C 2D
C1432 B C 2C
C1433 A C 3C
C1434 B C 3B
C1435 B C 1E
C1436 B C 2E
C1437 A C 3C
C1438 B C 3C
C1439 A C 5A
C1440 B C 3C
C1441 A C 3C
C1442 B C 4C
C1443 B C 4C
C1444 A C 4C
C1445 A C 4C
C1446 A D 5C
C1447 B C 5B
C1448 A D 5C
C1449 A C 4D
C1450 A C 3D
C1451 A D 5D

C1452 A C 3D
C1453 A C 3D
C1454 A C 2D
C1455 B C 2D
C1456 A D 5D
C1457 A C 5E
C1458 A C 5D
C1459 A C 1A
C1460 A C 1B
C1461 A C 1B
C1462 A C 2A
C1463 A D 1D
C1464 A C 3A
C1465 A C 3A
C1466 A C 3A
C1467 B C 3A
C1468 B C 4A
C1469 B C 4A
C1470 B C 6A
C1471 B C 5B
C1472 A C 3C
C1473 A C 3C

CONNECTOR

CN1401 A D 5A

DIODE

D1401 A D 6B
D1402 A D 5D
D1403 A C 1C

IC

IC1401 B C 3D
IC1402 A C 4D

COIL

L1401 A D 4B
L1402 A D 1B
L1403 A D 2B
L1404 A D 4C
L1405 A D 4B
L1406 A D 5B
L1407 A D 6B
L1408 A D 6C
L1409 A D 5A

TRANSISTOR

Q1401 A D 5B
Q1402 B C 2B
Q1403 A C 2C
Q1404 A C 2C
Q1406 A C 2B

Q1407 B C 2C
Q1408 A C 3B
Q1410 B C 4B
Q1412 A C 5B
Q1413 A C 5C
Q1414 A C 3A
Q1415 B C 5D
Q1416 A C 4D
Q1417 A C 4B
Q1418 B C 4A
Q1419 A C 2B
Q1420 A C 4A
Q1421 A C 4B
Q1422 A C 1C

RESISTOR

R1401 B C 5B
R1402 B C 5A
R1404 B C 2B
R1405 B C 2B
R1406 B C 1B
R1407 A C 2C
R1408 A C 2C
R1410 A C 2C
R1411 A C 2B

R1412 A C 2B
R1413 A C 2C
R1414 A C 2C
R1415 B C 2C
R1416 B C 3B
R1417 B C 3B
R1418 A C 3B
R1421 A C 4B
R1425 A C 4B
R1426 B C 3C
R1427 B C 3B
R1428 A C 3B
R1429 A C 4B
R1430 A C 5B
R1431 B C 5C
R1432 A C 5C
R1433 A C 5C
R1434 B C 2B
R1435 B C 1E
R1436 B C 1E
R1437 B C 4C
R1438 A C 3C
R1439 A C 4C
R1440 B C 5C
R1441 A C 3A

R1442 A C 3A
R1446 A C 2A
R1447 B C 1A
R1448 B C 1A
R1449 B C 2A
R1450 B C 2A
R1451 B C 3A
R1452 B C 3A
R1453 B C 3A
R1454 B C 4A
R1455 B C 5A
R1456 B C 5C
R1457 A C 4C
R1458 A C 4B
R1459 A C 4B
R1460 A C 2B
R1461 A C 3B
R1462 A C 3B
R1463 A C 4A
VR1401 A D 1E

OTHER

LC1401 A D 4A
LC1402 A D 2A

4-37

4.20 TERMINAL CIRCUIT BOARD

<06> TERMINAL
LPB10100-001C

LPB10100 -001C

TERMINAL PWB

C932

R925

C928

Q912

CN918

C930

C931

WR901

CN911

B201

Q202

R224

Q207

W911 W910

CN912

C948

1

W909

C219

Q201

R225

3

1

C929

13

1

R922

R212

7

C218

4

R940

14

2

R213

C224

2

R215

R226
R218

C223

2

L204

R919

L916

R953

W907

W908

C220

C217

8

C216

R921

L912

C941

Q911

R903

C201

C935

R924

C914

R920

W913

R949

R951 R952

6

Q904

6

R907

Q908

Q901

R217

L206

L205

C215

R211

R204

1

L915

C903

D206

C947

C202

R923

C913

L201

2

W912

30

J924

4

Q903

C222

LANC

43

W906

16

3

C942

R906

C936

R202

R203

B215

B904

C904

R216

C209

3

12

21

15

21 15

R938

C225

W905

C206
C207
C208
C210
C211

15

1020

R205

D205

5

5

C945

R209

R926

L914

R901R902

1

R908

R942

W914

J901

C902

C927

IC201

3

J903 J904

L906

C901

C934

R210

4

S-IN

S-OUT

C933

L913

Q902

C205

2

L901

Q906

R935

C204

L203

C214

C212

R914

C951

L910

1

R939

R904

R936

R905

R916

R214

R208

C213

1

J912

R915

R945

Q905

B903

L911

C919

L904

A.OUT L!

C940

C939

Q907

R946

R944

R943

R941

D207

C946

R937

C922

C921

C917

C944

J923

JLIP

B216

WR902

2

R910

C918

1

C907

12

R918

L905

L920

R947

C923

C916

3

L919

J926

W904

R964

C911

IC901

R933

L909

L202

2

R.PAUSE

C909

L903

C908

15

C905

15

R911

21

Q909

1

C906

1020

W902

W903

R932

13

R931

J925

1

3

C910C912

SAT.CTL

2

J913

J902

L918

C925

R965

C956

C955

A.OUT R!

C954

L917

R909

WR901

24

D202

2

C937

W901

L908

D203

C924

C915

C920

C938

B902

C926

1

C957

R917

C952

R913

L902

R912

L907

C943

R934

D201

C959

C958

C953

CN913 CN917

51112 112 110

CN915

WR902

CN914

COMPONENT PARTS LOCATION GUIDE <TERMINAL>

REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION REF.NO. LOCATION

CAPACITOR

C201 A D 4E
C202 B C 4D
C204 B C 3C
C205 B C 3C
C206 B C 3D
C207 B C 3D
C208 B C 3D
C209 B C 2D
C210 B C 2D
C211 B C 2D
C212 B C 2C
C213 A D 2C
C214 B C 2C
C215 B C 2D
C216 A D 2E
C217 B C 3E
C218 B C 3E
C219 B C 3E
C220 B C 4E
C222 B C 3D
C223 B C 2E
C224 B C 2E
C225 B C 4D
C901 B C 8D
C902 B C 9D
C903 B C 9D
C904 B C 9D
C905 B C 8B
C906 B C 9B
C907 B C 9C
C908 B C 9B
C909 B C 13B
C910 B C 12B
C911 B C 12B
C912 B C 12C
C913 B C 11D
C914 B C 12E
C915 B C 4B
C916 B C 3B
C917 B C 4C
C918 B C 4C
C919 B C 3B
C920 B C 3B
C921 B C 4C
C922 B C 4C
C923 A D 5B
C924 B C 4B
C925 B C 3B
C926 B C 3B
C927 A D 7C
C928 B C 9E
C929 B C 9E
C930 B C 9E
C931 A D 8E
C932 B C 14D
C933 B C 9C
C934 B C 9C

C935 B C 10E
C936 B C 9D
C937 B C 8B
C938 B C 9B
C939 B C 9C
C940 B C 9C
C941 A D 11E
C942 A D 11D
C943 A D 4B
C944 A D 3B
C945 A D 5D
C946 A D 5C
C947 A D 5D
C948 A D 9E
C951 A D 5C
C952 B C 11A
C953 B C 12A
C954 A D 11A
C955 A D 11A
C956 B C 13A
C957 B C 13A
C958 B C 13A
C959 B C 13A

CONNECTOR

CN911 A D 5E
CN912 A D 2E
CN913 A D 6A
CN914 A D 2A
CN915 A D 5A
CN917 A D 12A
CN918 A D 13E

DIODE

D201 A D 1A
D202 A D 1B
D203 A D 1B
D205 A D 1D
D206 A D 7D
D207 A D 7C

IC

IC201 A D 3D
IC901 A D 4B

JACK

J901 A D 8D
J902 A D 8B
J903 A D 12D
J904 A D 13D
J912 A D 12C
J913 A D 12B
J923 A D 1C
J924 A D 1D
J925 A D 1B
J926 A D 13B

COIL

L201 A D 4D
L202 A D 2B

L203 A D 3C
L204 A D 2E
L205 A D 3E
L206 A D 3E
L901 A D 9C
L902 A D 9B
L903 A D 12A
L904 A D 12B
L905 A D 12B
L906 A D 11C
L907 A D 5B
L908 A D 3B
L909 A D 3B
L910 A D 4C
L911 A D 5C
L912 A D 9E
L913 A D 8C
L914 A D 9C
L915 A D 10D
L916 A D 10D
L917 A D 8A
L918 A D 9A
L919 A D 9B
L920 A D 9B

TRANSISTOR

Q201 B C 3E
Q202 B C 4E
Q207 B C 2E
Q901 B C 7D
Q902 B C 7C
Q903 B C 11D
Q904 B C 12D
Q905 B C 7C
Q906 B C 7C
Q907 B C 8C
Q908 B C 8D
Q909 B C 4B
Q911 B C 8E
Q912 B C 8E

RESISTOR

R202 B C 1D
R203 B C 1D
R204 B C 1D
R205 B C 4D
R208 B C 2C
R209 B C 2D
R210 B C 2C
R211 B C 2D
R212 B C 3E
R213 B C 3E
R214 B C 2C
R215 B C 3E
R216 B C 3D
R217 B C 3D
R218 B C 2E
R224 B C 3E
R225 B C 4E

R226 B C 3E
R901 B C 6D
R902 B C 6D
R903 B C 7D
R904 B C 9C
R905 B C 9C
R906 B C 10D
R907 B C 10D
R908 B C 8C
R909 B C 7B
R910 B C 7C
R911 B C 7C
R912 B C 8A
R913 B C 9A
R914 B C 9C
R915 B C 9C
R916 B C 6C
R917 B C 13A
R918 B C 13B
R919 B C 12E
R920 B C 11E
R921 A D 11E
R922 A D 11E
R923 B C 12D
R924 B C 12D
R925 B C 14D
R926 B C 13D
R931 B C 4B
R932 B C 4B
R933 B C 3B
R934 B C 4B
R935 A D 5C
R936 B C 4C
R937 A D 5C
R938 A D 4D
R939 A D 5C
R940 B C 6E
R941 B C 7C
R942 B C 7C
R943 B C 7C
R944 B C 7C
R945 B C 8C
R946 B C 7C
R947 B C 8C
R949 A D 9E
R951 B C 8D
R952 B C 9E
R953 B C 9E
R964 B C 1B
R965 B C 13B

OTHER

WR901 A D 5B
WR902 A D 4A

4-38

4.21 NAVIGATION CIRCUIT BOARD

<19> NAVIGATION
LPB10145-001A

COMPONENT SIDE(A) FOIL SIDE(B)

IC3401

IC3402

1

8

8

9

25

LC3301

CN3401

1

16

51

50

26

100

IC3406

IC3405

1

4

4

5

5

8

IC3301

75

76

1

X3301

C3401

1

4.22 FDP GRID ASSIGNMENT AND ANODE CONNECTION

[A] (FDP with audio level indicator)

6G 4G 3G 2G

R3404

R3352

R3414

R3348

R3313

LC3301

C3414

R3351

R3363

R3364

R3340

C3314

R3468

R3349

C3321

B3301

R3472

R3465

D3407

R3321

CN3401

D3403

R3475

R3342

R3343

TP3303
TP3304
TP3305

R3312

C3312C3313

B3402

B3401

R3374

X3301

CN3403

3

TP3301

TP3302

C3401

1

D3401

R3373

R3372

C3402

1

R3371

R3386

R3302

D3402

1

B10

B1

[B] (FDP without audio level indicator)

R3402

R3350

R3330

R3412

R3322

R3415

R3474

R3333

R3329

R3328

R3323

C3333
R3332
R3331

R3326

D3404 D3405

R3403

C3403

NAVIGATION PWBLPB10145 -001A

R3401

B3404

B3406

CN3402

B3403

C3405

B3408

C3416

D3408

20

B3405

7

B3409

C3419

R3422
8

C3415

C3417

Q3403

B

C3418

B3410

B3407

E

R3477
R3476

C3404

C3347
C3345

R3462

R3432

C3323
C3322

R3347
R3345

R3346

R3466

R3339

C3413

13

7

8

1

8

CN3402

9

16

4

5

4

5

8

IC3409

1

8

14

8

14

E

C3418

B

13

Q3403

1

8

7
1

1

IC3403

7

D3408

IC3407

IC3408

20

1

2

1
2

D3406

1 9

LPA10145

PWB ASS'Y

NAVIGATION

5G

+8

4
0

6

–15dB

NORM

1
h

1
h

2a 1a

col2

1a

VPS/PDC

2

S4

+8

VCR

B10

VN LD
SP

S

1a

1
h

1
h

col1

4

0

S3

S2

6

–15dB

(6G, 5G)

5G 4G 3G 2G 1G

B1

(4G)

2a 1a 2a 1a

VPS/PDC

VN LD

SP

S

VCR

2

h

2
h

col2

1
h

1
h

col1

1G

REVIEW

2a 1a

1

f

1

e

1d

S1

REVIEW

2a 1a

1h

1
f

1
e

1d

1

1h

b

1g

1

c

1
b

1a

1

c

COMPONENT PART LOCATION GUIDE <NAVIGATION>

REF.NO. REF.NO. REF.NO. REF.NO. REF.NO.LOCATION LOCATION LOCATION LOCATION LOCATION

CAPACITOR

C3312 B C 4A
C3313 B C 4A
C3314 B C 4B
C3321 B C 4C
C3322 B C 2A
C3323 B C 2B
C3333 B C 4C
C3345 B C 2C
C3346 B C 2C
C3347 B C 2C
C3401 A D 5A
C3402 B C 5B
C3403 B C 3D
C3404 B C 2D
C3405 B C 1D
C3413 B C 2B
C3414 B C 4E
C3415 B C 2C
C3416 B C 2B
C3417 B C 2C
C3418 A D 2A
C3419 B C 2A

CONNECTOR

CN3401 A D 4A
CN3402 A D 1E

DIODE

D3401 B C 5D
D3402 B C 5D
D3403 B C 4E
D3404 B C 3E
D3405 B C 4E
D3406 B C 1D
D3407 B C 4D
D3408 A D 1A

IC

IC3301 A C 4C
IC3401 A C 3D
IC3402 A C 2D
IC3403 A C 2D
IC3405 A C 4D
IC3406 A C 4D
IC3407 A C 2B
IC3408 A C 2B
IC3409 A C 2C

TRANSISTOR

Q3403 A D 2B

RESISTOR

R3302 B C 5B
R3312 B C 4B
R3313 B C 4A

R3321 B C 4C
R3322 B C 3A
R3323 B C 3A
R3326 B C 3B
R3328 B C 3B
R3329 B C 3B
R3330 B C 3B
R3331 B C 4B
R3332 B C 4C
R3333 B C 3C
R3339 B C 3C
R3340 B C 4C
R3342 B C 4D
R3343 B C 4C
R3345 B C 3C
R3346 B C 3C
R3347 B C 3C
R3348 B C 3C
R3349 B C 4C
R3350 B C 3C
R3351 B C 4D
R3352 B C 3D
R3363 B C 4D
R3364 B C 4C
R3371 B C 5C
R3372 B C 5C

R3373 B C 5C
R3374 B C 4D
R3386 B C 5B
R3401 B C 2E
R3402 B C 3E
R3403 B C 3E
R3404 B C 3E
R3412 B C 3D
R3414 B C 3D
R3415 B C 3D
R3422 B C 2E
R3432 B C 2D
R3462 B C 2C
R3465 B C 4D
R3466 B C 2C
R3468 B C 4D
R3472 B C 4E
R3474 B C 3D
R3475 B C 4D
R3476 B C 2A
R3477 B C 2B

OTHER

LC3301 A D 3A
TP3301 B C 4C
TP3302 B C 4C
TP3303 B C 5C

TP3304 B C 5C
TP3305 B C 5C
X3301 A D 4A

B9

B1

ANODE CONNECTION
[A]

P 1
P 2
P 3
P 4
P 5
P 6
P 7
P 8
P 9
P10
P11
P12
P13
P14
P15
P16

6G
—

—
—

S4

NORM

—

12

B10

B10

B9

B9

B8

B8

B7

B7

B6

B6

B5

B5

B4

B4

B3

B3

B2

B2

B1

B1

4G
S2

S1
S3

VPS/PDC

VCR

1a
1b

1f
1g
1c
1e
1d
1h

S3

3G 2G 1G5G
1a

1b

1g

1e
1d

col2

2a
2b

2g

2e
2d

S2

S1

(5G)

ANODE CONNECTION
[B]

4G

3G 2G 1G5G

1a

1a

1b

1b

1f

1c

1g
1c
1e
1d
1h

col1

1f

1f
1g
1c
1e
1d
1h
2a
2b

2f

VN

LD

2c

SP

S

(SEP)

(SEP)

(SEP)

2f
2g
2c
2e
2d

REVIEW

P 1
P 2
P 3
P 4
P 5
P 6
P 7
P 8
P 9
P10
P11
P12
P13
P14
P15
P16

S2
S1
S3

VPS/PDC

—

—
B9
B8
B7
B6
B5
B4
B3
B2
B1

VCR

VN
LD
SP

S

(SEP)

(SEP)

(SEP)

1a
1b

1g

1e
1d

col2

2a
2b

2g

2e
2d
2h

1a
1b

1f

1g

1c

1c
1e
1d
1h
2a
2b

2f

2g

2c

2c
2e
2d

col1

1a
1b

1f

1f
1g
1c
1e
1d
1h
2a
2b

2f

2f
2g
2c
2e
2d

REVIEW

4-39 4-40

SCO

4.23 REMOTE CONTROLLER SCHEMATIC DIAGRAM

4.24 CPU PIN FUNCTION

(

(

(

OPEN

OPEN

OPEN

<SY

(

R6

R5

C4

(

)

R3

C2

C8

R9

)

(

)

OPEN

R10

)

C9

C10
(

(

OPEN

OPEN

2

IC2

4

)

Q2

1

)

)

C6

R4

C7

9

17

1

10

18

11

19

3

20

4

12

21

5

13

14

22

6

7

15

23

24

8

16

OPEN

C5

(

)

OPEN

R8

X2

17

XO

18

XI

19

VSS

20

RST/WDT

21

TC12/P30

SBD/P32

23

SBT/P33

24

BZ/P00

25

TCO/P01

26

P02

27

P03

28

P10

29
30

P11

31

P12
P13

32

33

41

25

26

34

42

27

35

43

28

36

44

37

45

29

30

38

46

47

31

32

40

48

X1

OSC1

OSC2

P20

P21

33 34 35

VDD

P22

36 37 38

R7

VLCD1

P23

R2

VLCD2

IRO/P40

Q1

10

COM0

VLCD3

RMO/P50

SEG32/P63

39

COM1

COM2

IC1

SEG31/P62

SEG30/P61

J3

J2

D1

)

SEG1

SEG0

(

COM3/

SEG29/P60

SEG28/P73

43 44 4540 41 42

J1

R1

C1

4658971213 111516 14

SEG3

SEG2

SEG27/P72

SEG26/P71

46 47 48

2

SEG5

SEG4

SEG24

SEG25/P70

3V

13

SEG6

SEG7
SEG8

SEG9
SEG10
SEG11
SEG12SYNC/P31
SEG13
SEG14
SEG15
SEG16
SEG17
SEG18
SEG19
SEG20
SEG21
SEG22

SEG23

COM0
COM1
COM2
COM3

64
63
62
61
60
5922
58
57
56
55
54
53
52
51
50
49

SEG1
SEG2
SEG3
SEG4
SEG5
SEG6
SEG7
SEG8

SEG9
SEG10
SEG11
SEG12
SEG13
SEG14
SEG15
SEG16
SEG17
SEG18
SEG19
SEG20
SEG21
SEG22
SEG23
SEG24

LCD

LP20667-004*/008*

KEY NAMEKEY No.

DATE

(FF)
TV PROG
START

(

REW

(

PLAY
STOP
9/WEEKLY

/(SP/LP

(

TIMER
MENU
X10000 (CANCEL
7/VPS
0/AUX
8/DAILY
DATE

DATEDATEDATEDATEDATE

DATE
NAVIGATION
TV PROG

OK/(ENTER

PROG
START

?(PROG CHECK

STOP

(

TRANS
30 SEC

+

/TV

(

PAUSE

(

)

REC

-

/TV

(

STOP

CABLE/SAT

- - : - -/(ENTER

(

/

POWER
TV/VCR
LCD PROG
VCR
AUDIO/
TV
REC START
REC PAUSE

)

)

)

)

)

)

)

)

)

)

)

)

)

(

)

/

MUTE

N IC3001>

PIN NO. LABEL IN/OUT FUNCTION

1 CTL(+) IN/OUT CTL(+) SIGNAL
2 SVSS - GND
3 CTL(-) IN/OUT CTL(-) SIGNAL
4 CTLBIAS - CTL BIAS VOLTAGE
5 CTLFB IN CTL PULSE FEED BACK
6 CTLAMPOUT OUT CTL PULSE OUTPUT
7 CTLSMTIN IN CTL PULSE INPUT
8 CFG IN CAPSTAN FG PULSE INPUT
9 SVCC - SYSTEM POWER
10 AVCC - SYSTEM POWER FOR ANALOG CIRCUIT
11 NORM/MESEC/S IN SVHS MODE:H
12

SECAM_DET(H)/KILLER_DET/BIT_IN(H)
13 VIDEO_ENV IN
14 START_SENSOR IN STATR SENSOR
15 END_SENSOR IN END SENSOR
16 IND(L) IN AUDIO INPUT (LCH) FOR THE FDP AUDIO INDICATOR
17 NC - NC
18 SCR_ID/WA_DET IN SCRAMBLE CONTROL INPUT (SCRAMBLE:H) / NC
19 IND(R) IN
20 BS_ANT/AFC IN NC / TUNING CHECK
21 LED/RF AGC IN
22 A.ENV/ND(L) IN AUDIO PB FM ENV.INPUT/NON HiFi MODEL:L
23 AVSS - GND FOR ANALOG CIRCUIT
24 CTL_GAIN OUT CONTROL AMP OUT FREQUENCY RESPONSE SWITCHING
25 LSA IN MECHANISM MODE DETECT(A)
26 LSB IN MECHANISM MODE DETECT(B)
27 LSC IN
28 CAP_REV(L) OUT CAPSTAN MOTOR REVERSE CONTROL (FWD:H/REV:L)
29 RC IN REMOTE CONTROL DATA INPUT
30 LOCK(L)/P.SAVE[0.1] IN TUNING PLL LOCK DETECT:L / NC
31 P50_IN ININCONTROL SIGANAL FOR TV LINK
32 R.PAUSE/COMPU_IN REMOTE PAUSE CONTROL / NC
33 RAE_OUT/COMPUOUT - NC
34 P50_OUT OUT
35 LMC1 OUT LOADING MOTOR DRIVE(1)
36 LMC2 OUT
37 LMC3 OUT
38 SB_G(PWM) OUT
39 STB/TEST OUT STROBE SIGNAL (FOR FDP DRIVER)
40 POWER_DET IN DETECTION SIGNAL FOR POWER DOWN OF AC POWER SUPPLY
41 HP_CTL - NC
42 PROTECT IN
43 VSS - GND
44 RMO OUT REMOTE CONTORL OUTPUT FOR SATELLITE RECEIVER
45 VCC - SYSTEM POWER
46 EXP2_DATA IN/OUT SERIAL DATA TRANSFER OUTPUT FOR TUNER/REG CONTORL
47 EXP1_DATA IN/OUT
48 EXP_CLK OUT
49 I2C_DATA_A/V IN/OUT
50 I2C_CLK_A/V OUT
51 S.DATA_TOSYS
52 OUT

S.DATA_FRSYS
53 S.CLK OUT
54 SP_FG IN DETECTION SIGNAL FOR SUPPLY REEL ROTATION/TAPE REMAIN
55 TU_FG IN
56 NC - NC

NC/COLOR KILLER DETECT / NC [HR-S9850EU/EK]

IN

DETECTION SIGNAL FOR SECAM ON PB MODE(SECAM: H) / NC / NC [HR-S9850MS]

AUTO TRACKING DETECT/INPUT THE AVERAGE OF PLAYBACK VIDEO SIGNAL

AUDIO INPUT (RCH) FOR THE FDP AUDIO INDICATOR

NC / CHANGES IN ATS+IC OUTPUT AS CAUSED BY CHANGES IN RECEIVER SENSITIVITY
WHEN THE SAME CHANNEL IS RECEIVED MORE THAN ONCE ARE INPUT

MECHANISM MODE DETECT(C)

CONTROL SIGANAL FOR TV LINK

LOADING MOTOR DRIVE(2)
LOADING MOTOR DRIVE(3)
VOLTAGE CONTROL SIGNAL FOR VIDEO FREQUENCY RESPONSE

DETECTION SIGNAL FOR SW POWER SUPPLY

SERIAL DATA TRANSFER OUTPUT FOR AUDIO/VIDEO CONTORL
SERIAL DATA TRANSFER CLOCK FOR AUDIO/VIDEO AND TUNER/REG CONTORL
SERIAL DATA TRANSFER OUTPUT FOR VIDEO/AUDIO IC
SERIAL DATA TRANSFER CLOCK FOR VIDEO/AUDIO IC

IN

SERIAL DATA TRANSFER OUTPUT FROM THE ON-SCREEN IC TO THE FDP DRIVER
SERIAL DATA TRANSFER OUTPUT FROM THE FDP DRIVER TO THE ON-SCREEN IC
SERIAL DATA TRANSMISSION CLOCK FROM THE FDP DRIVER TO THE ON-SCREEN IC

DETECTION SIGNAL FOR TAKE-UP REEL ROTATION/TAPE REMAIN

PIN NO. LABEL IN/OUT FUNCTION

PIN NO. LABEL IN/OUT FUNCTION

57 NC - NC
58 N.REC_ST(H) OUT
59 JUST_CLK/SECAM(H)

NORMAL AUDIO SOUND RECORDING START

NC [HR-S9850EU/EK]

OUT

NC / COLOUR SYSTEM SECAM:H [HR-S9850MS]

60 TU_CLK OUT CLOCK FOR DATA TRANSFER T O THE TUNER UNIT
61 TU_DATA OUT TUNING DATA
62 FWE - NC
63 NMI(L) - NC
64 X2 - TIMER CLOCK (32.768KHz)
65 X1 -

TIMER CLOCK (32.768KHz)
66 RES(L) - RESET TERMINAL (RESET ON:L)
67 OSC1(IN) - MAIN SYSTEM CLOCK (10MHz)
68 VSS - GND
69 OSC2(OUT) -

MAIN SYSTEM CLOCK (10MHz)
70 VCC - SYSTEM POWER
71 MODE - NC
72 TU_A_MUTE(H) OUT TUNER AUDIO MUTE CONTROL (MUTE:H)
73 TU_V_MUTE(H) OUT
74 A.MUTE(H) OUT

TUNER VIDEO CONTROL (MUTE:H)

AUDIO MUTE CONTROL (MUTE:H)
75 I2C_CLK2 OUT SERIAL DATA TRANSFER CLOCK FOR MEMORY IC
76 I2C_DATA2 IN/OUT

SERIAL DATA TRANSFER OUTPUT FOR MEMORY IC
77 NC - NC
78 NC - NC
79 REC_SAFETY IN REC SAFETY SWITCH DETECT (SW ON:L)
80 V.P.CTL
81 R-Y_REV/EDS_CS/EXT(L) OUT
82 VCC -

OUT

V.PULSE CONTROL, V COMPENSATION DURING SPECIAL PLAYBACK

PAL EP MODE CONTROL / NC / NC

SYSTEM POWER
83 SLOW_P - NC

.

84 VSS - GND
85 SP_SHORT(H) - NC
86 LP_SHORT(H) - NC
87 FLY_ON(H) OUT FLY REC START:H
88 H.REC_ST(H) OUT
89 TRICK(H)/M_TRICK(L)

HIFI AUDIO SOUND RECORDING START

SPECIAL PLAYBACK: H/REC AFC FILTER, PB APC FILTER, BURST

OUT

ACC FILTER, COLOR KILLER DET FILTER
90 HEAD_SEL OUT HEAD SELECT (LP HEAD:H, SP HEAD:L)

91 OSD_CS OUT CHIP SELECT FOR THE ON-SCREEN IC
92 SYNC_DET(H) IN DETECTION OF VIDEO SYNC SIGNAL (DETECTED:H)
93 MESECAM(H) OUT MESECAM:H
94 JSB/STLB IN INPUT FOR THE ADV. JOG
95 SHTL(L)/JOGA NC
96 JOGB/S_CASS(H)
97 JSA/STLA IN

-

-

NC

INPUT FOR THE ADV. JOG
98 C.SYNC IN COMPOSITE SYNC
99 A.FF OUT AUDIO FF OUTPUT
100 V.FF OUT

ROTATION DETECTION SIGNAL FOR DRUM MOTOR/TIMING CONTROL SIGNAL FOR REC
101 CAPPWM OUT CAPSTAN MOTOR CONTROL
102 DRUMPWM OUT
103 SUB_RESET RESET SIGNAL FOR THE SUB CPU (NAVI)
104 HI_FF/REW(L) OUT

DRUM MOTOR CONTROL

OUT

HIGH SPEED FF/REW:L
105 SUB_BUSY SUB CPU (NAVI) BUSY
106 SUB_CS CHIP SELECT FOR THE SUB CPU (NAVI)

OUT
107 DPG ININDRUM PICKUP PULSE INPUT (SWITCHING PULSE)
108 DFG IN DRUM FG PULSE INPUT
109 VCC - SYSTEM POWER
110 V.PULSE OUT V.PULSE ADDITION TIMING CONTROL
111 VSS - GND
112 CTLREF - CTL REFFERENCE VOLTAGE

4-41 4-42

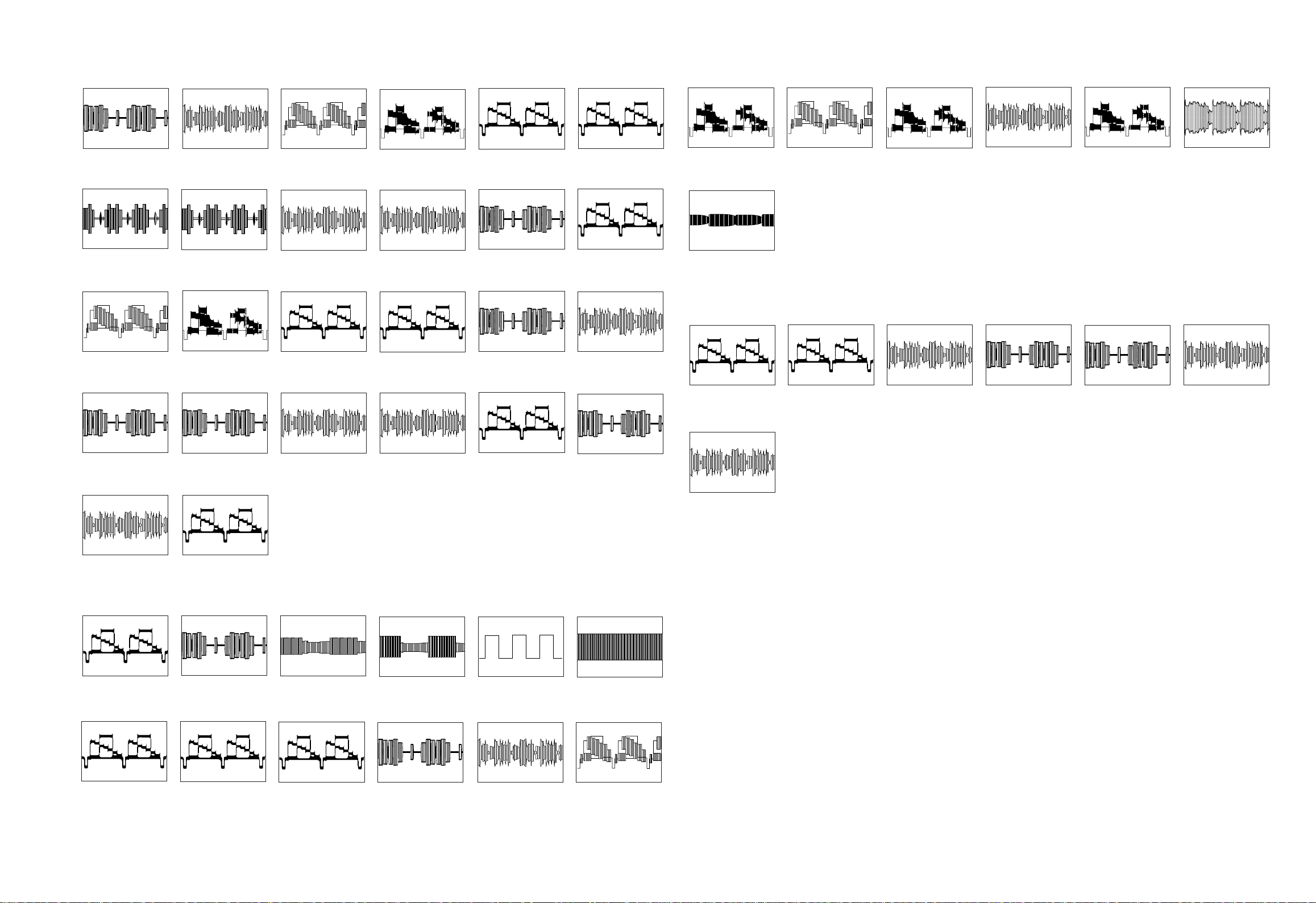

4.25 WAVEFORMS

< S-SUB > # : Only used for HR-S9850MS

WF1-1

CN511-9

# WF1-2

CN511-9

WF2-1

CN511-10

# WF2-2

CN511-10

WF2-3

CN511-10

WF3

CN511-11

WF11-2

IC201-21

CV_IN

WF12-1

IC201-19

CVOUT

# WF12-2

IC201-19

CVOUT

# WF13

CN302-1

# WF14

CN302-2

# WF15

CN301-4

PAL PB 1.3 Vp-p

50 mV/20 µsec/DIV

WF4-1

PAL REC 0.48 Vp-p

20 mV/20 µsec/DIV

WF7-1

PAL REC/PB 2.2 Vp-p

50 mV/20 µsec/DIV

WF11-1

PAL REC 1.2 Vp-p
50 mV/20 µsec/DIV

CN511-12

CN511-25

CN512-4

SECAM PB 0.9 Vp-p

50 mV/20 µsec/DIV

WF4-2

PAL PB 0.7 Vp-p

20 mV/20 µsec/DIV

# WF7-2

SECAM REC/PB 2.4 Vp-p

50 mV/20 µsec/DIV

WF11-2

PAL PB 1.3 Vp-p

50 mV/20 µsec/DIV

CN511-12

CN511-25

CN512-4

PAL REC 1.7 Vp-p
50 mV/20 µsec/DIV

# WF4-3

SECAM REC 0.36 Vp-p

10 mV/20 µsec/DIV

WF8

REC/PB 0.52 Vp-p
20 mV/20 µsec/DIV

# WF11-3

SECAM REC 0.92 Vp-p

20 mV/20 µsec/DIV

CN511-12

CN511-27

CN512-4

SECAM REC 1.8 Vp-p

50 mV/20 µsec/DIV

# WF4-4

SECAM PB 0.46 Vp-p

10 mV/20 µsec/DIV

WF9

20 mV/20 µsec/DIV

# WF11-4

SECAM PB 0.84 Vp-p

20 mV/20 µsec/DIV

CN511-12

CN511-29

PB 0.5 Vp-p

CN512-4

PB 1.7 Vp-p

50 mV/20 µsec/DIV

WF5

PAL PB 0.6 Vp-p

20 mV/20 µsec/DIV

WF10-1

PAL REC 0.6 Vp-p
20 mV/20 µsec/DIV

WF12

REC/PB 2.2 Vp-p

50 mV/20 µsec/DIV

CN511-13

CN511-30

CN512-6

REC/PB 0.76 Vp-p
20 mV/20 µsec/DIV

WF6

50 mV/20 µsec/DIV

# WF10-2

SECAM REC 0.46 Vp-p

10 mV/20 µsec/DIV

WF13-1

PAL REC 0.7 Vp-p
20 mV/20 µsec/DIV

CN511-17

PB 2.2 Vp-p

CN511-30

CN512-12

SECAM REC/PB 2.3 Vp-p

50 mV/20 µsec/DIV

# WF16

SECAM PB 0.36 Vp-p

20 mV/1 msec/DIV

CN301-5

< P/S CONVERTER>
[HR-S9850MS]

WF1

REC/PB 0.25 Vp-p
10 mV/20

WF4-3

CN3502-1

FROM_PS_Y

µsec/DIV

CN3502-7
TO_PS_C

PAL REC/PB 2.2 Vp-p

50 mV/20 µsec/DIV

WF2

REC/PB 1.0 Vp-p

50 mV/20

CN3502-3
TO_PS_Y

µsec/DIV µsec/DIV µsec/DIV µsec/DIV µsec/DIV

SECAM REC/PB 2.3 Vp-p

50 mV/20 µsec/DIV

WF3-1

PAL REC/PB 0.46 Vp-p

10 mV/20

CN3502-5

FROM_PS_C

SECAM PB 0.44 Vp-p

20 mV/20 µsec/DIV

WF3-2

SECAM REC/PB 0.64 Vp-p

20 mV/20

CN3502-5

FROM_PS_C

SECAM REC/PB 2.4 Vp-p

50 mV/20 µsec/DIV

WF4-1

PAL REC/PB 0.65 Vp-p

20 mV/20

CN3502-7
TO_PS_C

SECAM REC 0.44 Vp-p

10 mV/20 µsec/DIV

WF4-2

SECAM REC 0.52 Vp-p

20 mV/20

CN3502-7
TO_PS_C

# WF13-2

SECAM REC 0.54 Vp-p

10 mV/20 µsec/DIV

CN512-12

WF14

20 mV/20 µsec/DIV

CN512-14

REC 1.0 Vp-p

< VIDEO > # : Only used for HR-S9850MS

WF1

PB 2.1 Vp-p

50 mV/20 µsec/DIV

WF7

PB 0.5 Vp-p

20 mV/20 µsec/DIV

IC1-27

IC1-14

WF2

PAL PB 0.5 Vp-p

20 mV/20 µsec/DIV

WF8

REC/PB 0.5 Vp-p

20 mV/20 µsec/DIV

IC1-30

IC1-13

WF3

PB 0.25 Vp-p

20 mV/5 msec/DIV

WF9

REC/PB 0.5 Vp-p

20 mV/20 µsec/DIV

IC1-1

IC1-11

WF4

PB 0.3 Vp-p

20 mV/5 msec/DIV

WF10-1

PAL REC 0.58 Vp-p

20 mV/20 µsec/DIV

TP106
PB.FM

IC1-16

WF5

REC/PB 3.4 Vp-p

0.1 V/10 msec/DIV

# WF10-2

SECAM REC 0.46 Vp-p

10 mV/20 µsec/DIV

TP111

D.FF

IC1-16

WF6

REC 1.8 Vp-p

0.1 V/1 msec/DIV

WF11-1

PAL REC/PB 2.2 Vp-p

50 mV/20 µsec/DIV

IC1-105

IC201-21

CV_IN

SECAM PB 0.34 Vp-p

10 mV/20

µsec/DIV

4-43 4-44

4.26 VOLTAGE CHARTS

<MAIN>

MODE

REC PLAY

PIN NO.

IC1

1 4.2 2.2
2 2.8 2.9
3 2.6 2.6
4 1.9 1.4
5 1.9 1.4
6 2.4 2.1
7 1.6 0.7
800
9 2.6 3
10 1.9 2
11 3.1 3.1
12 2.8 2.4
13 3.1 3.1
14 3.5 2.4
15 0 0
16 2.8 2.8
17 1.5 1.5
18 2.8 2.8
19 0 4.8
20 2.8 2.8
21 1.5 2
22 2.8 2.8
23 3.1 2.9
24 4.9 4.9
25 0.3 0.3
26 0 0
27 1.3 2.3
28 2.8 2.5
29 1.9 1.9
30 2.1 2.1
31 0 0
32 2.6 2.6
33 4.9 4.9
34 2.7 2.4
35 4.9 4.9
36 2.6 2.6
37 3.3 2.3
38 2.2 2.2
39 1.3 1.3
40 1.7 1.7
41 2.7 2.7
42 2.2 2.2
43 0 0
44 2.1 2.1
45 4.6 4.6
46 4.1 4.1
47 2.9 2.9
48 2.6 2.6
49 5 5
50 2.4 2.5
51 2.8 2.8
52 2.3 2.3
53 2.3 2.3
54 2.6 2.6
55 2.2 2.2
56 0.5 0.5
57 2.3 2.3
58 8.3 8.3
59 4.6 4.6
60 4.1 4.1
61 4.2 4.2
62 4.2 4.2
63 2.3 2.3
64 2.3 2.3
65 0.6 0.6
66 3.1 3.1
67 4.2 4.2
68 4.2 4.2
69 2.3 2.3
70 0 0
71 0.2 0.2
72 0.2 0.2
73 0.3 0.3
74 2.3 2.3
75 2.5 2.5
76 0 0
77 2.6 2.6
78 0.3 0.3
79 0.3 0.3
80 0.2 0.2
81 2.3 2.3
82 0 0.7
83 0 0
84 2.3 2.3
85 2.3 2.3
86 2.3 2.3
87 1.6 1.8
88 2.3 2.3
89 2.3 2.3
90 2.3 2.3
91 0.1 0
92 0 0
93 0 2.4
94 0 1.8
95 0 0
96 2.6 2.3
97 2.6 2.3
98 2.6 2.3
99 4.9 4.9
100 0 4.9

MODE

REC PLAY

PIN NO.

101 0 0
102 0 0
103 0 0
104 2.3 2.3
105 2.3 2.3
106 2.4 2.4
107 4.9 4.9
108 0 0
109 0 0
110 0 0
111 0 1.8
112 2.5 2.5
113 0.7 0.7
114 0 0
115 2.5 2.5
116 2.5 2.5
117 2.5 2.5
118 0 0
119 2.5 2.5
120 4.5 4.5

IC3001

1 2.0 2.4
200
3 0 2.4
4 2.4 0
5 0.1 0
6 2.4 0
7 0 2.3
800
9 4.8 4.8
10 4.8 4.8
11 0 0.2
12 0.5 1
13 0 1.8
14 4.6 4.5
15 4.5 0
16 0.5 0.5
17 0 0
18 0 0
19 0.6 0.6
20 4.4 4.3
21 0 3.8
22 1.9 1.7
23 0 0
24 4.7 4.8
25 0 0
26 4.8 0
27 4.8 4.8
28 4.8 4.8
29 4.8 4.8
30 0 0
31 4.8 4.8
32 0.5 0.5
33 0 0
34 0 0
35 0 0
36 0 0
37 0 0
38 0 4.8
39 4.1 4.2
40 0 0
41 0 0
42 4.3 4.3
43 0 0
44 0 0
45 4.8 4.8
46 0 0
47 0 0
48 0.2 0.1
49 4.0 4.0
50 4.5 4.5
51 4.8 4.8
52 1.0 1.0
53 4.2 0
54 2.4 2.4
55 2.4 2.4
56 4.8 4.8
57 4.8 4.8
58 4.8 0
59 0 0
60 4.8 4.8
61 4.8 0
62 0 0
63 0 0
64 1.4 1.4
65 0.8 0.7
66 4.8 0
67 0 2.3
68 0 0
69 2.3 2.3
70 4.8 4.8
71 0 4.8
72 4.7 4.8
73 4.7 4.8
74 0 0
75 0 4.4
76 0 4.5
77 0 0
78 0 0
79 4.8 4.8
80 0 0

MODE

REC PLAY

PIN NO.

81 0 0
82 4.8 4.8
83 2.4 2.4
84 0 0
85 0 0
86 0 4.8
87 4.8 0
88 4.8 0
89 0 0
90 0 0
91 2.7 2.6
92 4.8 4.8
93 0 0
94 0 0
95 0 0.8
96 0 0
97 0 0
98 0.3 0.4
99 0 0
100 2.4 2.4
101 2.6 2.6
102 1.2 1.2
103 4.8 4.8
104 0 0
105 4.7 4.7
106 0 4.6
107 0 0
108 0 1.2
109 0 4.8
110 0 0
111 0 0
112 0 0

IC3002

1 4.9 4.9
2 4.9 4.9
300

IC3003

100
200
300
400
5 4.6 4.6
6 4.5 4.5
700
8 4.9 4.9

IC3004

1 11.4 11.4
2 0.2 0.2
300
4 0.2 0.2
5 11.4 11.4
6 11.4 11.4
700
800
900

IC3601

100
200
300
4 0 3.9
5 4.5 4.5
600
700
800
900
10 0 0
11 0 0
12 0 0
13 4.8 4.8
14 3.6 3.6
15 0 0
16 4.9 4.9

IC3651

100
200
300
400
5 3.1 3.1
6 4.5 4.5
700
800
90
10 0 0
11 0 0
12 0 0
13 0 0
14 0 0
15 0 0
16 4.9 4.9

IC5101

1 64.6 62.7
2-­300
4-­5--

IC5301

1 5.6 5.6
2 5.1 5.1
3 4.5 4.5
400
5 11.9 11.9

MODE

REC PLAY

PIN NO.

6 11.2 11.2
7 12.0 12.0
8 5.6 5.6
9 1.3 1.3
10 4.0 4.0

CN1

100
200
300
400
5 2.4 2.2
6 2.4 2.2
7 2.4 2.2
8 2.4 2.2
9 2.7 2.2
10 2.7 2.2
11 2.7 2.2
12 0 0
13 0 0

CN301[HR-S9850M]

1 2.4 2.4
200
3 0 5.1
4 2.5 0
5 4.9 2.7
600

CN302[HR-S9850MS]

1 0 2.5
2 2.3 2.3
3 4.9 4.9
4 0.4 0.4
500

CN501

1 2.4 2.4
200
3 2.1 2.3
4 4.9 4.9
5 2.0 2.1
6 0 4.4
7 3.3 3.3
800
9 0 2.8
10 0 0
11 0 4.6
12 4.0 4.0
13 0 0
14 0.7 0
15 2.4 2.4
16 0 0
17 2.4 2.4

CN502

1 0.2 4.4
2 4.0 4.0
3 4.6 4.6
400
5 4.8 4.8
6 4.8 4.8
700
800
900
10 0 2.1
11 3.3 3.3
12 0 0
13 2.7 2.7
14 0 0
15 0 0
16 2.4 0
17 1.3 2.3
18 4.5 4.5
19 0 0
20 0 0
21 0 0
22 0 0
23 0 0
24 0 0
25 2.3 2.4
26 0 0
27 2.4 2.3
28 0 0
29 0 2.4
30 2.7 2.8

CN902

1 0.2 0.2
200
3 0.2 0.2
400
500
600
700
800
900
10 0 0
11 0 0

CN903

1 3.0 3.0
200
300
4 0.1 0.1
500
6 2.3 2.3
700

MODE

REC PLAY

PIN NO.

8 10.6 10.6
900
10 10.6 10.6
11 0.7 0.5
12 4.8 4.8

CN904

100
2 4.5 4.5
3 4.8 4.8
400
5 2.8 2.8
6 4.2 4.2
7 1.0 1.0
800
900
10 4.1 4.1
11 0 0
12 2.7 2.7

CN905

1 4.5 4.5
2 4.5 4.4
3 4.7 4.7
400
500

CN907

100
200
300
400
500
600
700
800
900
10 0 0

CN2001

100
200
300
400
500
6 2.1 2.4
7 2.1 2.4

CN2002

100
200

CN2051

1 7.2 0.2
200
300
400

CN3001

1 11.9 12
200
3 1.3 1.3
400
5 1.2 1.2

CN3002

1 0.3 0.3
2 0.3 0.3

CN3003

100
2 2.4 2.4
3 2.5 2.5
4 4.9 4.9
500
6 4.8 4.8
700
8 11.1 11.2

CN3004

1 4.8 4.8
2 4.8 4.8
300
400

CN3011

1 4.8 4.8
200
3 4.7 4.8
4 4.8 4.8
5 4.2 4.2
6 4.8 4.8
7 1.1 1.1
8 4.1 4.1
9 4.8 4.8
10 0 0
11 0 0
12 -18 -18
13 -14.4 -14.4
14 -26.9 -26.9

CN3012

100
200
300
4 4.8 4.8

CN6102[HR-S9850MS]

100
2 0.3 4.9
300
400
500
600

MODE

REC PLAY

PIN NO.

7 11.4 11.4
8 11.4 11.4
9 4.9 0
10 0.3 0.3

CN6701

100
2 4.5 4.5
3 4.5 4.5
4 4.8 4.8
5 0.2 0.2
6 0.2 0.2
7 4.8 4.8
800
900
10 0 0

CN7103

100
200
300
400
500
6 2.3 2.3
7 5.0 5.0
8 4.8 4.8
9 5.0 5.0
10 4.8 4.8
11 4.4 4.4
12 3.9 3.9
13 5.0 5.0

<3D/TBC(2M)>

MODE

REC PLAY

PIN NO.

IC1401 - ­CN1201

1 2.4 2.4
200
3 2.1 2.3
4 4.9 4.9
5 2.0 2.1
6 0 4.4
7 3.3 3.3
800
9 0 2.8
10 0 0
11 0 4.6
12 4.0 4.0
13 0 0
14 0.7 0
15 2.4 2.4
16 0 0
17 2.4 2.4

<TERMINAL>

MODE

REC PLAY

PIN NO.

IC201

100
2 2.5 2.5
3 4.9 4.9
400
5 4.4 4.4
6 2.4 2.4
7 2.4 2.4
8 4.9 4.9
9 3.3 3.3
10 4.2 4.2
11 1.6 1.6
12 4.9 4.9
13 2.7 2.7
14 2.7 2.7
15 0 0
16 1.2 1.2
17 0 0
18 4.9 4.9
19 2.3 2.3
20 0 0
21 2.3 2.3
22 0.5 0.5
23 4.9 4.9
24 2.9 2.9
25 2.5 2.5
26 4.9 4.9
27 4.6 4.6
28 3.5 3.5
29 4.9 4.9

30 4.9 4.9
IC901 - ­CN911

100

2 3.0 3.1

300

4 2.4 2.4

500

6 2.4 2.3

700

800

900

10 0 0

11 0 0

12 5.4 5.4

13 0 0

14 0.1 0.1

CN912

1 5.0 5.0

2 4.4 4.4

3 4.0 4.0

4 5.0 5.0

500

6 0.3 0.3

7 5.0 5.0

8 5.0 5.0

CN913

1 3.0 3.0

200

300

4 0.1 0.1

500

6 2.3 2.3

700

8 10.6 10.6

900

10 10.6 10.6

11 0.7 0.5

12 4.8 4.8

CN914

100

2 4.5 4.5

3 4.8 4.8

400

5 2.8 2.8

6 4.2 4.2

7 1.0 1.0

800

900

10 4.1 4.1

11 0 0

12 2.7 2.7

CN915

1 4.5 4.5

2 4.5 4.4

3 4.7 4.7

400

500

CN917

100

200

300

400

500

600

700

800

900

10 0 0

<DEMOD>

MODE
PIN NO.

IC6701

1 4.3 4.3
2 1.5 1.5
3 1.5 1.5
400
5 2.0 2.0
6 1.9 1.9
7 0.2 0.2
800
900
10 3.6 3.6
11 3.6 3.6
12 4.5 4.5
13 4.5 4.5
14 2.2 2.2
15 2.1 2.1
16 0 0
17 0.3 0.3
18 0.3 0.3
19 4.5 4.5
20 0 0
21 0.3 0.3
22 4.7 4.7
23 0 0
24 0 0
25 0 0
26 0 0
27 0 0
28 0 0
29 0 0
30 2.4 2.4
31 2.4 2.4
32 0 0
33 4.7 4.7
34 3.8 3.8
35 0 0
36 2.4 2.4
37 0 0
38 0 0
39 0 0
40 0 0
41 0 0
42 2.5 2.5
43 2.4 2.4
44 0 0

CN6701

100
2 4.5 4.5
3 4.5 4.5
4 4.8 4.8
5 0.2 0.2
6 0.2 0.2
7 4.8 4.8
800
900
10 0 0

4-45 4-46

REC PLAY

<S-SUB>

MODE

REC PLAY

PIN NO.

IC501 - ­IC502 - ­CN511

1 0.2 4.4
2 4.0 4.0
3 4.6 4.6
400
5 4.8 4.8
6 4.8 4.8
700
800
900
10 0 2.1
11 3.3 3.3
12 0 0
13 2.7 2.7
14 0 0
15 0 0
16 2.4 0
17 1.3 2.3
18 4.5 4.5
19 0 0
20 0 0
21 0 0
22 0 0
23 0 0
24 0 0
25 2.3 2.4
26 0 0
27 2.4 2.3
28 0 0
29 0 2.4
30 2.7 2.8

CN512

100
2 3.0 3.1
300
4 2.4 2.4
500
6 2.4 2.3
700
800
900
10 0 0
11 0 0
12 5.4 5.4
13 0 0
14 0.1 0.1

CN513[HR-S9850MS]

1 4.9 4.9
2 4.9 4.9
3 2.8 2.8
400
5 5.6 5.6
600
7 2.3 2.3
800
9 1.2 1.2

<NAVIGATION>

MODE

REC PLAY

PIN NO.

IC3301 - ­IC3401

1 0.4 0.4
244
355
455
555
600
700
800
9 4.8 4.8
10 0 0
11 0 0
12 4.4 4.4
13 0 0.3
14 4.4 4.4
15 3.9 3.9
16 5.0 5.0

IC3402

1 0.1 0.3
2 5.0 5.0
3 0 0.3
4 0 0.3
5 0 0.3
600
700
800
900
10 0 0
11 0 0
12 5.0 5.0
13 0 0.3
14 5.0 5.0
15 5.0 5.0

16 5.0 5.0
IC3403 - ­IC3405

100

2 5.0 5.0

3 5.0 5.0

400

5 5.0 5.0

6 5.0 5.0

700

8 5.0 5.0
IC3406

100

2 5.0 5.0

3 5.0 5.0

400

5 5.0 5.0

6 5.0 5.0

700

8 5.0 5.0
CN3401

100

200

300

400

500

6 2.3 2.3

7 5.0 5.0

8 4.8 4.8

9 5.0 5.0

10 4.8 4.8

11 4.4 4.4

12 3.9 3.9

13 5.0 5.0
CN3402

1 5.0 5.0

2 5.0 5.0

3 0.3 0.3

400

5 5.0 5.0

6 4.0 4.0

7 4.4 4.4

8 5.0 5.0

<SW/DISPLAY>

MODE

REC PLAY

PIN NO.

IC7001

1 4.9 4.9
200
300
400
5 1.6 1.6
600
700
8 4.2 4.2
9 3.9 3.9
10 0 0
11 0 0
12 0 0
13 0 0
14 4.9 4.9
15 -8.3 -15.5
16 -13.3 -17.2
17 -13.3 -13.3
18 -21.1 -17.2
19 -13.3 -13.3
20 -13.3 -13.3
21 -18 -14

22-43 - -

44 2.7 2.7

IC7002

1 5.0 5.0
2 5.0 5.0
300

CN7001

1 -26.9 -26.9
2 -14.4 -14.4
3 -18 -18
400
500
6 4.8 4.8
7 4.1 4.1
8 1.1 1.1
9 4.8 4.8
10 4.2 4.2
11 4.8 4.8
12 4.7 4.8
13 0 0
14 4.8 4.8

FW7001

1 5.1 5.1
200

<REC. SAFETY>

MODE

REC PLAY

PIN NO.

FW7001

1 5.1 5.1
200

<JACK>

MODE

REC PLAY

PIN NO.

CN7191

100
200
300
400
500
600
700
800
9 0.2 0.2
10 0 0
11 0.2 0.2

<ADV. JOG>

MODE

REC PLAY

PIN NO.

CN7004

1 4.8 4.8
200
300
400

<AUDIO ERASE>

MODE

REC PLAY

PIN NO.

CN2052

1 7.2 0.2
200
300
400

<SECAM>[HR-S9850MS]

MODE

REC PLAY

PIN NO.

IC301 - ­CN301

100
2 2.3 2.3
3 4.9 4.9
4 0.4 0.4
500

CN302

1 2.4 2.4
200
300
4 2.5 2.5
5 4.9 4.9
600

<P/S CONVERTER>[HR-S9850MS]

MODE

REC PLAY

PIN NO.

IC3502

1 6.2 6.2
2 6.8 6.8
3 6.2 6.2
4 6.8 6.8
5 9.1 9.1
6 9.3 9.3
7 3.9 3.9
8 3.0 3.0
9 3.0 3.0
10 3.9 3.9
11 0 0
12 2.2 2.2
13 11.0 11.0
14 5.4 5.4
15 3.3 3.3
16 7.5 7.5
17 2.8 2.8
18 7.3 7.3
19 2.3 2.3
20 7.3 7.3
21 2.1 2.1
22 3.6 3.6
23 7.2 7.2
24 1.3 1.3
25 0 0
26 0 0
27 0 0
28 5.5 11.0

IC3503

1 4.9 4.9
200
300
400
5 0.6 0.6
600
700
800
9 4.9 4.9
10 0 0
11 2.9 2.9
12 2.9 2.9
13 0 0
14 1.4 1.4
15 0 0
16 1.4 1.4

IC3504

100
2 0.7 0.7
3 9.9 9.9
4 2.2 2.2
500
6 1.2 1.2
700
8 5.9 5.9
900
10 5.7 5.7
11 1.7 1.7
12 6.6 6.6
13 0 0
14 5.7 5.7
15 11.4 11.4
16 5.7 5.7
17 5.1 5.1
18 5.1 5.1

IC3505

1 2.5 2.5
200
3 2.5 2.5
4 2.4 2.4
5 2.3 2.3
6 4.7 4.7
7 2.4 2.4
8 4.7 4.7
9 2.2 2.2
10 0 0
11 2.2 2.2
12 0 0
13 2.4 2.4
14 2.2 2.2
15 2.3 2.3
16 0.9 0.9
17 2.5 2.5
18 2.6 2.6
19 0 0
20 0 0
21 0 0
22 0 0
23 0 0
24 2.4 2.4
25 0.4 0.4
26 4.7 4.7
27 1.9 1.9
28 0 0
29 2.2 2.2
30 0 0
31 2.5 2.5
32 4.8 4.8

IC3506

1 2.5 2.5
200

MODE
PIN NO.

IC3508

IC3509

IC3510

IC3512

IC3513

IC3514

REC PLAY

3 2.5 2.5
4 2.4 2.4
5 2.1 2.1
6 2.0 2.0
7 2.2 2.2
8 4.8 4.8
9 2.2 2.2
10 0 0
11 2.2 2.2
12 2.0 2.0
13 2.5 2.5
14 1.8 1.8
15 0.9 0.9
16 0.7 0.7
17 0 0
18 0 0
19 0 0
20 0 0
21 2.5 2.5
22 2.0 2.0
23 1.3 1.3
24 2.0 2.0

1 6.3 6.3
200
3 5.6 5.6
400
5 2.8 2.8
6 2.5 2.5
700
8 3.1 3.1
9 3.2 3.2
10 0 0
11 3.6 3.6
12 4.8 4.8
13 11.3 11.3
14 3.5 3.5
15 0 0
16 6.3 6.3

1 6.3 6.3
200
3 6.3 6.3
400
500
6 11.2 11.2
7 5.6 5.6
800

1 5.5 11.0
2 11.3 11.0
300
400
5 0 11.3
6 0 11.3
700
800
900
10 0 0
11 0 0
12 0 0
13 0 11.3
14 11.3 11.3

1 4.9 4.9
2 2.4 2.4
3 4.2 4.2
4 4.9 4.9
5 2.4 2.4
6 2.4 2.4
700
8 4.8 4.8
900
10 4.9 4.9
11 0.5 0.5
12 3.9 3.9
13 4.9 4.9
14 4.9 4.9

100
2 4.4 4.4
3 4.9 4.9
4 2.2 2.2
5 4.9 4.9
6 0.7 0.7
7 4.2 4.2
800
9 1.0 1.0
10 3.9 3.9
11 4.9 4.9
12 0.6 0.6
13 4.9 4.9
14 2.0 2.0
15 0 0
16 4.9 4.9

100
2 0.6 0.6
3 4.9 4.9
4 0.6 0.6
5 0.3 0.3

MODE
PIN NO.

600

CN3501

CN3502

REC PLAY

7 4.6 4.6
800
900
10 4.2 4.2
11 4.9 4.9
12 4.6 4.6
13 4.2 4.2
14 0 0
15 2.6 2.6
16 4.9 4.9

IC3515

1 6.3 6.3
200
3 6.3 6.3
400
500
6 11.3 11.3
7 5.6 5.6
800

IC3517

1 2.0 2.0
2 4.3 4.3
3 0.6 0.6
4 4.8 4.8
500
6 2.1 2.1
7 4.9 4.9
8 2.5 2.5

IC3518

1 3.9 3.9
200
300
4 0.3 0.3
5 11.0 11.0

11 0.3 0.3
12 4.9 0
13 11.4 11.4
14 11.4 11.4
15 0 0
16 0 0
17 0 0
18 0 0
19 0.3 4.9
20 0 0

1 1.2 1.2
200
3 2.3 2.3
400
5 5.6 5.6
600
7 2.8 2.8
8 4.9 4.9
9 4.9 4.9

4.27 SYSTEM BLOCK DIAGRAM

DRUM MOTOR

A/C HEAD

CTL

38

M

55

2

1

A/C HEAD

ADV. JOG

CAP MDA

M

CON1

3
2
1

LOADING

M

CN1

2

CTL HEAD

1

TO
VIDEO/
AUDIO

CAP_REV(L

CAP_CTL_V

CAP_FG

DRUM_CTL_V

D.PG
D.FG

MOTOR

ROTARY
ENCODER

CTL HEAD

(+)

VIDEO_

C.SYNC/V.REF

LDM2
LDM1

(-)

V.

)

CN3001

CN3002

CN3004
LSB
LSC
LSA

CN2001

D.FF

PULSE

ENV

6

2

3
4
5

1

1

3

6
7

CN3003

3

2

2

MAIN (SYSCON,CONNECTION

30

WF1

WF2

WF3

PC3001

IC3004
(

LOADING MOTOR

VOLTAGE CONTROL

2

LDM2

4

LDM1

LMC1
LMC2

Vref

SENSOR

)

9
7

1

TP3903 TP3904

SENSOR

DRIVE

CONTROL

)

PC3002

VOLT AGE

Q3001

Vcc

WF4

TP4001
CTL.P

WF5

WF6

IC3001
(

SYSTEM CONTROL MICRO PROCESSOR

28

CAP_REV (L

101

CAPPWM

8

CFG

102

DRUMPWM

107

DPG

108

DFG

54

SP_FG

55

TU_FG

35

LMC1

36

LMC2

37

LMC3

26

LSB

27

LSC

25

LSA

6

CTL AMP OUT

3

CTL(-

1

CTL(+

100

V. FF

110

V.PULSE

13

VIDEO

98

C. SYNC

71

MODE

62

FWE

)

REC_SAFETY

.

DATA_TOSYSS

S

.

DATA_FRSYS

JOGB,S_CASS(H

END_SENSOR

START_SENSOR

I2C_DATA_A/V

)

)

ENV

I2C_CLK_A/V

H.REC_ST(H
N.REC_ST(H

OSC2(OUT

OSC1(IN

S.CLK

OSD_CS

A.MUTE(H

A.FF

EXP1_DATA

EXP2_DATA

EXP_CLK

)

65

X1

64

X2

69

)

67

)

79
53
51
52

91

96

)

15

14

66

49

50

74

)

99

88

)

58

)

TP3902

47 2

TP3901

46

48

C3025

Timer clock

ONLY USED
EK/EU MODELS

X3001
TIMER

X3002
MAIN
CLOCK
(10MHz)

(32KHz)

SYSTEM

FOR

CLOCK

Vcc

TP3905

1

TP3908

DATA

3

CLK

(AUDIO/VIDEO CONTROL)

2

(TUNER/REG CONTROL)

WF1

REC/PB 2.2 Vp-p

50 mV/0.5 msec/DIV

WF4

PB 2.2 Vp-p

0.5 V/10 msec/DIV

END

SENSOR

START

SENSOR

3

IC3601

N.REC

FULL_E_ON

IC3651

SW2

DATA

CLK SW1

CN3003-2

S3002
S.CASS

Q3003

Q3002

D3004

2

IC3002
(

RESET

4
9

12
133

CAP_FG

TP4001

CTL.P

)

WF2

REC/PB 4.5 Vp-p

0.1 V/10 msec/DIV

WF5

0.1 V/10 msec/DIV

AL5.8VRESETRES

CN3001-4

IC3001-1

REC 3.5 Vp-p

D.PG

CTL(+)

WF3

REC/PB 4.5 Vp-p

0.1 V/10 msec/DIV

WF6

REC/PB 2.2 Vp-p

0.1 V/20 µsec/DIV

ADV

CN3001-5

D.FG

IC3001-98

C.SYNC

CN3011

1
3
5
6
7

CN904

5
6
7

CN905

1
2

CN501

11
12

I2C_DATA_A/V
I2C_CLK_A/V
A.MUTE(H
A.FF
H.REC_ST(H
N.REC_ST(H

N.REC_(L
FULL_E_ON(L

TO
DISPLAY
CN7001

ADV
REC.SAFE
S.

CLK
S.DATA_TOSYS
S.DATA_FRSYS

TO
TERMINAL

OSD_CS

S.CLK
S.DATA_FRSYS

TO

TERMINAL

I2C_DATA2
I2C_CLK2

TO

3D/TBC(2M)

I2C_CLK_A/V

I2C_DATA_A/V

TO
VIDEO/AUDIO

)

)
)

)

)

CN914

CN915

CN1401

ROT ARY
ENCODER

CN7004

4
3

1

JSA
JSB

ADV

CN3012

1
2

4

ADV

97

JSA/STLA

94

JSB/STLB

4-47 4-48

I2C_DATA2

I2C_CLK2

TU_A_MUTE(H
TU_V_MUTE(H

IC3003

(

76
75
72

)

73

)

SERIAL MEMORY

SDA
SCL

5
6

)

TO
TUNER

SW_2
SW_1
I2C_

DATA2

I2C_

CLK2

TU_A_MUTE(H
TU_V_MUTE(H

)
)

4.28 VIDEO BLOCK DIAGRAM

P/S CONVERTER

87

HS-P()/P-S

2

3

16

1

14

(

L

)

IC3508

IC3506

C OUT

PAL

ENCODER

TP3502

R-Y

TP3501

B-Y

IC3503

11

R-Y

12

B-Y

DL

IC3505

SYNC IN

C OUT

SECAM

ENCODER

VR3505

R-Y LEVEL

ADJ

1

3

VR3506

B-Y LEVEL

ADJ

R-Y
B-Y

1
3

Q3541­Q3543

AMP

AMP

Q3544­Q3546

29
18

R-Y

B-Y

1

16

R-Y

3

14

B-Y

EQ

FL3503

Q3512-Q3515

IC3509

1

3

2

7

S-P(H

IC3502

R-Y
B-Y

MUL

COLOR

DECODER

FL3502
Q3511

IC3508

)

/P-S

15

C IN

TI

EQ

(L)

IC3515

7

S-P H

Q3505-Q3507

11

5

12

SW5V

(

)

FL3501

14

2
/P-S

<ANTI-BELL|

3

1

(L)

EQ

FL3506

CONV'D

BUF

S-SUB15

C

C

Y

C

Y

IC501
(

Y/C

Y

Y

C

C

Y

SWITCH

PRE LPF

43

CLAMP

45

47

48

C

49

50

51

CLAMP

52

53

REC

54

ATT

56

Y

)

C

PB

AGC DET

42

PRE LPF

PRE LPF

PRE LPF

ATT

AGC

S.SEP

ATT

1

Y

GCL

EXT PB C

EXT PB C

NOT

USED

+

41

CR

ADJ

C

COMP IN

2

CLK40DATA

IIC LOGIC

ATT

DIGI/PB

EXT PB Y

EXT PB Y

V3/V4

Y/C IN

Y

34

C

Y3
Y2

REC

USED

DIGI/PB

DIGI

C

NOT

36

CONV

REC

PB*CONV

C

C3

C1

C2

S1/S2 DET

6

7

39

38

PB

REC

DIGI

PB

Y

V5

Y1

ATT

5

Note : For the waveforms in this block diagram, refer to page 4-43.

TP3504

Q3520

FL3505,Q3540

Q3508-Q3510

Y

CONV

Y

VCA

PB*D15

C.K.

V4

V3

8

NOT

USED

Q3525

COLOR

B

Q3504

LPF

C

CONV

REC

REC

ATT

BUF

UF

C

34 33

N.C.

PB

9

NOT

USED

Only used for HR-S9850MS

WF4

CN3502

TO_PS_C

7

FROM_PS_C

5

TO_PS_Y

3

FROM_PS_Y

1

WF2

WF1

C

EE/PB

N/S-LPF

PB

CONV

PB*CONV

TRAP

BB

BB

BB

10 11

32

CLAMP

PB

REC

REC

V FBC

BB

ATT

C

Y

31 30 29

)

SP/EP(LP

VHS

S-VHS

PB

REC

EQ

ATT

V MUTE

C MUTE

D16

Y FBC

Y MUTE

ATT

12

REC

14

D7&D8

BIAS

PB

CLAMP

CLAMP

CLAMP

WF3

3

(

IC1401

Y/C SEP & MIX

com/CNRPS

COMB3L

Y COMB

REC

PB

FSCIN

YVIN

CIN

29

31

24

BPF

9

5

7

Y

Y

(

Y

28

27

25

24

23

FILTERFILTER

21

20

19

18

NOT

USED

17

15

C

Y

1

2

5

6

EE(L

)

IC502

SVHS-ETS-VHS

&

PB

REC

NON LINEAR
PROCESSOR

PB

REC

REC

PB

BUF

SWITCH

SP

SP

SP

SP

REC

PB

Q1417

)

SDATA

SCLK

COUT

YOUT

DFFI

VR

VREF

LPF

)

18

17

16

12

11

10

7
8
11
12

17

19

21

EQ

EQ

EQ

EQ

05

BPF

Q1404

ES

Q1414

LPF

VR1401

D/A LEVEL ADJ

Q1418

BUF

3D/TBC(2M)

BUF

Q1402

BUF

Q1406

C

CN1401

15
14
12
11

C

Y

Y

9

7
6
5
3
1

WF1

CN511

Y

C

C

Y

C

C

Y

Y

Y

C

WF9

WF10

WF2

1
2
3
4

9
10
11
12
13
15
16
17
18
20
21
22
23
25
26
27
29
30

WF8

WF7

D.FF

V.REF

I2C_DATA

I2C_CLK
C_FROM_DIGI
Y_FROM_DIGI

EE(L)

V/Y_TO_DIGI

C_TO_DIGI

WF3

WF4

Fsc

WF5

WF6

SECAM_PB_COLOR

EE(L)

I2C_DATA_A/V

I2C_CLK_A/V

Fsc

C_TO_DIGI

Y/V_TO_DIGI

Y_FROM_DIGI

C_FROM_DIGI

PB_COLOR

MAIN_ALC_DET

Y_TO_SUB

P.MUTE(L
FRONT_Y_IN
FRONT_C_IN
FRONT_V_IN

REAR2_V_IN

V_TO_OSD

CHARA_DATA

Y_TO_AV
V_FROM_AV
REC_COLOR

1
2
3
4
5
6
7
8
9

10

11

12

13
14
15
16
17
18

19
20
21
22

)

23
24
25
26

27

28

29

30

31

32

WF11

WF12

CN512

2

C

Y

Y

4
6
8

10

C

12
14

WF14

WF13

V_FROM_OSD

C_OUT
Y_OUT

REAR2_C_IN

REAR2_Y_IN

REAR1_C_IN

REAR1_Y_IN

33

34

35
36
37
38
39

4-49 4-50

Only used for HR-S9850MS

J7191
FRONT
VIDEO

J7194

FRONT_S_IN

Y
C

CN302

CN301

88SECAM

CN301

1

2

4

IC301

(SECAM CHROMA
SIGNAL
PROCESSOR)

1

2

3

4

5

6

CN302

13

11

IC3401

(MULTIPLEXER/
DEMULTIPLEXER)

14

X-COMM

15

Y-COMM

4

Z-COMM

IC3402
(MULTIPLEXER/
DEMULTIPLEXER)

14

X-COMM

15

Y-COMM

C

CN1

1012 9 8

0X

1X
0Y
1Y

0Z

A
B
C

0X
1X
0Y
1Y

A
B

C

SECAM_DET
SECAM(H)
D.FF
VIDEO_ENV
HARD_SEL

8
7
6
5
4
3
2
1

12
13
2
1
5

11
10
9

12
13
2
1
11
10

27

SYNC GATE

GEN
/V-SEP

X2

R/P

16

1

IC3403
(1M-BIT
FLASH MEMORY)

2

SCK

1

SI

D3407

MUTE
SYNC
GEN

MUTE

2.2MHz

VCA

REC

MUTE

CS

SO

PB

BPF

6
5
4
3
2
1

8
7

4

8

1.1MHz

U.DRUM

23

22
39

21
33

52
26
45
47

48

46

50

51

VCA

X2

BPF

AGC
DET

14

AGC

FILTER

TO
SYSCON

S.DATA_TOSYS
S.DATA_FRSYS
S.CLK
SUB CS
SUB RESET
SUB BUSY
NORM/MESEC/S
P.MUTE(L
SYNC_DET(H
VHS(H
I2C_DATA2
I2C_CLK2
OSD_CS
S.CASS(H)

IC3301
(NAVIGATION
PROCESSER)

2

S.CASS(H)
SCLK IN

SD FRSYS

SUB BUSY

SD TOSYS
RESET

OSD SEL

CS IN
SD OUT
SCLK OUT

MEM CS

JLIP(L)

MEM SIN

DEVICE SEL

OSD CS

91

17

4.3MHz
BPF

REC

LIM

PB

4.3MHz
BPF

REC

SYNC
GATE

PB

REC/PB

MUTE

AGC
AMP

MODE

CTL

1

13

VIDEO
HEAD

8

SP

7

6

SP CH1

5
4

EP(LP

3
2

EP(LP

1

)

)

)

24942

TXD

5

1,7

43

3

RXD

6

1,7

NAVIGATION

15

SYNC
GATE

1/4

SECAM

DET

26112

CH2

)

)

TO
SYSCON

IC3405

IC3406

REC
PB

CH2

CH1

6

3

5

2

IC2
(

)

SWITCH

Q14

EE(L)

TO
TUNER

FRONT_VIDEO

FRONT_Y_IN

FRONT_C_IN

I2C_DATA_A/V

I2C_CLK_A/V

V.REF

P.MUTE(L

V.PLUSE

TU_VIDEO

RF_VIDEO

CN501

CN502

)

15
14
12
11

9
7
6
5
3
1

1

10
11
12
13
15
16
17
18
20
21
22
23
25
26
27
29
30

CN902

5

CN901

1
3

D.FF

C

Y

Y

C

C

2
3
4

C

9

Y

Y

C

C

C

Y

PB_COLOR

V_TO_OSD2

Y

C

CN903

CN913

Y

1

9

6

IC1
(

VIDEO

SIGNAL

11

TO
SYSCON

D.FF

1

V.REF

2

I2C_DATA_A/V

3

I2C_CLK_A/V

4

C_FROM_DIGI

5

Y_FROM_DIGI

6

EE(L)

7

Y/V_TO_DIGI

8

C_TO_DIGI

9

Fsc

10

EE(L)

11

I2C_DATA_A/V

12

I2C_CLK_A/V

13

Fsc

14

C_TO_DIGI

15

Y/V_TO_DIGI

16

Y_FROM_DIGI

17

C_FROM_DIGI

18

PB_COLOR

19

SECAM_PB_COLOR

20

MAIN_ALC_DET

21

Y_TO_SUB

22
23
24
25
26
27
28
29
30
31
32

)

P.MUTE(L
FRONT_Y_IN
FRONT_C_IN
FRONT_V_IN
REAR2_V_IN
V_TO_OSD
CHARA_DATA
Y_TO_AV
V_FROM_AV
REC_COLOR

36

JACK

IN

2

1

CN7191

7

4
2

Y

WF10

C

Y

26 29 27

C.SYNC

25

Fsc

21

22

20

NOT

USED

18

NOT

USED

16

C

46
45

AUDIO&

PROCESSOR

03

MAIN (VIDEO,CONNECTION

IC901

Q909

24

BUF

23

BUF

22

BUF

21

BUF

20

BUF

18

BUF

17
16

BUF

15

BUF

13

)

DATA

14

CLK

39

33
34
35
36
37
38

V_FROM_OSD
C_OUT
Y_OUT
REAR2_C_IN
REAR2_Y_IN
REAR1_C_IN
REAR1_Y_IN

J903
REAR
S-OUT

NOT

USED

1

Q903
3
4
2

CN911

10
12
14

BUF
BUF

Q904

2
4

Y

6
8

C

Y

C

Y

C

C

SW

Q908
Q911,Q912

USED

AV1
_YCIN(H

C

NOT

Y
C

BUF

WF1

AMP6dB

6dBAMP

C.SQUELCH

SQUELCH

LIMITER

CLEAR

SYNC

Sync.Sep.

L-SECAM

Clamp

P

ATT

)(

-10dB

R

ATT

)

(

-10dB

ATT

))(

-10dB

ATT

(

-10dB

I2C
LOGIC

DATA

CLK

)

Y

(VIDEO SWTCH)

6dB&

BUF

6dB&

BUF

CTLI2C BUS

EXP2EXP1

WHITE

4

7

Q21

BUF

C

WF2

21

30

C

C.K

PN

Y

B.E
B.D

C

EXT

INT

C.K

L-SECAM

MIX

LEVEL

ADJ

APT

CTL

Video

AGC

Y
BDL

C

BDL
LPF

10

FILTER

1

CLAMP

3

CLAMP

5

CLAMP

7
9

11

Y

12

AV1_YCIN(H

BDL
LPF

C

PILOT

ADD

REC

AGC Det

Clamp

11

Q905-Q907

ALCPB

D.E.
N.C.

Y

YNR

5
1

3

2

VHS(H

C

BDL

LEVEL
Det1

LEVEL
Det2

CLPF

Main
Conv2

P

RPR

C

BPF

R

P

SQPB

EQ

Y

DO

DO

/REC

R

612

)

AMP

)

Y

WF3

WF9

NOT

USED

R

R

)

VCA

CLPF

RP

Main

Conv1

C

De.Emph

SQPB

RP

Q31

BUF

BUF

EQ

&

TP106

PB.FM

BUF

Q5

P

P

N.L.

N.L.
Emph

SQPB

ET

FBC/ALC

Y

Y

P

Clamp

13

Y

WF4

2fsc VCO

LOCKfH CTL

Killer

Color

ID Det.

Delay

C

ET

LPF

ET

14

DO

Det

APC

SW

Pulse

TRAP

DLIM

DeMOD

Main

De.Emph

R

Y LPF

PR

WF7
WF8

Det

ACC

Gen.

TRAP

CTL

HPF

fH

P

R

SQPB

G

EQ

SQPB

LPFSub

P

VHS(H)

Q24

BUF

34

44

LPF

CR

2fsc

R

P

Phase

COMP

SQPB

DL

REC

REC

AFC

APC

1/2

DOWN
Conv.

SW.

4Phase

Gen.

P

ACC

R

HPF

LPF

.SEP

P

EQ

PB

APC

7

SWQ17

2Fsc

Det.

2M LPF

L-SECAM

L-SECAM

FM

DET

NOT

USED

42 40

PB/REC
Discri

1/2

2FL VCO

AGC

Main Emph

Carrier

Offset

.C/D.CW

TRAP

C

X-tal

VCO/OSC

REC

MUTE

629

fo/Dev

FM

P

R

REC
Filter

S-DET

REC_COLOR

PB_FM

TP111

WF5

X1

Q10

BUF

55

38

D.FF

INfsc

D.FF

COLORPB

_

__

OSD2TOV

C.SYNC

WF13

WF14

Fsc

EE(L)

REC_COLOR

PB_FM

WF15

WF16

WF6

TANC

Comp

112

CTL

111

DETENV

120

101

104

SP2

105

SP1

106

108

LP2

109

LP1

110

SW1

Head
Head

SP

EP
(LP)

YCA

MOD

Adj

D.FF

SW2

HPF

ME

SECAM

DET

DET

DET

+

SP2

-

CH2

CH1

-

SP1

+
+

LP2

-

CH2

CH1

-

LP1

+

8

2Fsc

BUF

Q207

WF11

WF12

CN904

CN914

35

24

8

3
21
19

5

27

(

ON SCREEN

60

12

IC201

CHABLK

SYNC_DET

XTAL_

IN

MUTE

CS1

CV_IN

SCLK

CVOUT

SDATA

LN21

CS2

DISPLAY

TERMINAL

D201

4

2
9

SCLK_TOOSD

SD_TOOSD

CSOSD_SUB

TXD
RXD

LANC_I/O

J924

LANC

CN3402

7
6
5

3
2
1

D205

CN912

2
3
4

6
7
8

10
11

)

2

1

J923

JLIP

2
4

3

CN905

1

2

CN915

J902

AV2 IN/DECODER

18

20

Y/V.IN

V.GND

C/R

V.GND

18

15

AV1 IN/OUT

C/R

11

15

BG
7

11

J901

BG
7

V.OUT

19

Y

20

Y/V.IN

V.OUT

19

Note : For the waveforms in this block diagram, refer to page 4-43.

4-51 4-52

4.29 AUDIO BLOCK DIAGRAM

3

JACK

2
3
1

2
1

TERMINAL

AV1 IN/OUT

6

)

(

A.IN L

4

A.GND

A.OUT

2

)

(

A.IN

R

A.OUT

R

L

J902

AV2 IN/DECODER

6

(

)

A.IN L

4

A.GND

A.OUT

2

(

)

A.IN

R

A.OUT

A.OUT(R

A.OUT(L

FRONT

J7193

AUDIO

J7192

AUDIO

J913
REAR

)

J912
REAR

)

(

(

IN

R

)

L

2
1

2
1

)

06

6

3

1

(3)

1

()

R

R

J901

)L(

)(

L

TO
TUNER

CN7191

9

11

TO
SYSCON

L

R

F.AUDIO(R

F.AUDIO(L

L

R

DEMOD(R
DEMOD(L

TU_AUDIO

)

IND(L
IND(R

CN917

)

)

CN902

)

)

)

8

6

4

2

3

1

CN907

7

5

3

1

MAIN (VIDEO/AUDIO, CONNECTION)03

R

L

77

+

TU

78

R

R

WF1

NOT

USED

L

R

R

L

R

WF2

R

L

WF3

L

R

L

L

FR

79

L1

80
81

L2

()

68

67

64

63

65

66

82

73
74

RDEC

()

LDEC

MIX

57

INNA

53

LINE OUT

62

LINE OUT

61

L

RECNA

52

()

L

LOG

()

RLOG

NA EXT

71

TU

72

FR
L1
L2

MIX

)

(

R

R

R

(

)

L

L

NORMAL

INPUT

SELECT

IN

75

+

50

48

WF4

WF1

REC 0.62 Vp-p

20 mV/0.5 msec/DIV

IC1-80

WF2

REC/PB 0.9 Vp-p

50 mV/0.5 msec/DIV

IC1-62

WF3

REC 0.35 Vp-p

10 mV/0.5 msec/DIV

IC1
(

INPUT

SELECT

(R-CH)

R

L

INPUT

SELECT

(L-CH)

INPUT

SELECT

IC1-52

VIDEO

R

OUTPUT

SELECT

L

HIFI

HIFI

WF4

PB 0.58 Vp-p

10 mV/0.5 msec/DIV

NA PB

RCH
RCH

LCH
LCH

L

EVR

EVR

R

L

IC1-48

PROCESSORSIGNALAUDIO&

NOISE

REDUCTION

)

(

R-CH

R

L

NOISE

REDUCTION

)

(

L-CH

DET

VCA

WF5

REC 0.7 Vp-p

50 mV/0.5 msec/DIV

R

L

REC

R

L

EQ

IC1-119

HIFI

FM

P

)

R

REC/PB

MON

WF6

REC 1.1 Vp-p

50 mV/5 msec/DIV

LOGIC

ENV
NOR DET

PRE/REC

ONSP

­+

AMP

PRE

ONREC

EP(LP)ON

IC1-97

A.MUTE

DATA

CLK

DET

+

AMP

CH1

COMMON

CH2

92
93

A.FF

60
59

94

87

98
97

96

115
116

117

118

119

WF7

PB 0.5 Vp-p

50 mV/5 msec/DIV

TP2253

A.FM

+

WF5

TP2253

A.FM

WF7

WF6

FILTER

FILTER

Q2062

Q2061

SW

Q2251

POWER

SW

OSC

TRANS

T2052

)

A.MUTE(H
A.FF

I2C_DATA_A/V
I2C_CLK_A/V

)

POWER

SW

AMP

A.ENV/ND(L
H.REC_ST(H
FULL_E_ON(L
N.REC_ST(H
N.REC(L
FLY_REC(H
FLY_ON(H)

Q403­Q405

Q401,

CN1

Q402

12 13

13

9

10
11

)

)

)

)

)

U.DRUM

13
14 14

9
10
11
12

TO
SYSCON

9
10
11
12

FLYING
ERASE

FLY.E

FMA_

FMA_

CH1

CH2

HEADAUDIO

Q2052­Q2054

POWER

SW

6
4

CN2051

2

4

CN2002

2

CN2001 CN1

CN2052

1

3

1

4
3
2
1

AUDIO ERASE

64

OSC

6
5

TRANS

ERASEFULL

HEAD

1

2

A/C

HEAD

4
5
6
7

Q2051

T2051

F.ERASE

A.ERASE

REC/PB

4-53 4-54

E & O.E. No.82888
E & O.E. No.82889

(VP)-V14S35
