CONTENTS
SAFETY FIRST 2
Safety Precautions.............................2
INSTALLING YOUR NEW RECORDER 3
Basic Connections ............................3
VIDEO CASSETTE RECORDER
S-VIDEO Connection........................ 4
INITIAL SETTINGS 6
Auto Set Up ......................................6
Language ..........................................9
Video Channel Set ..........................10
HR-S9400E/EH
SHOWVIEW Setup.............................12
PLAYBACK 14
Basic Playback................................14
Playback Features ...........................15
TimeScan........................................20
RECORDING 23
Basic Recording.............................. 23
Recording Features .........................24
On-Screen Displays ........................27
TIMER RECORDING 28
SHOWVIEW Timer Recording............28
Regular Timer Programming ...........30
EDITING 34
Preparation For Editing ................... 34
A
B
C.MEMORYDISPLAY
2
12453
ADD TIME
DAILY
807
AUX
C.RESET
CANCEL
DATESTOP
START
EXPRESS PROGRAMMING
AUDIO MONITOR
TV/VCR
(MONITOR)
R
E
D
N
I
F
E
N
E
C
S
U
3
N
E
M
/
G
O
R
P
O
V
L
.
V
T
1
PUSH JOG
E
D
I
I
L
U
L
G
U
I
M
MULTI BRAND
REMOTE CONTROL UNIT
6
WEEKLY
9
TIMER
4
TV
PROG
TV
VCR
SAT
P
R
O
G
C
H
E
C
K
O
K
STANDBY/ON
TIMER
+8
TIMER
4 0
REVIEW
M
6 10
SP LP
–20dB
VCR
R
L
REMAIN
NORM
SP/LP
8
S
L
W
O
O
W
L
S
FF
REW
TV PROG/
JOG
SHUTTLE
Edit To Or From Another Video
Recorder......................................... 36
Edit From A Camcorder ..................38
Audio Dubbing...............................39
Insert Editing................................... 40
Random Assemble Editing .............. 42
INFORMATION ON J TERMINAL 44 SYSTEM CONNECTIONS 45
Connecting/Using A Decoder .........45
Connecting/Using A Stereo System ...46
SPECIAL FEATURES 48
TV Multi-Brand Remote
625
Control ...........................................48
Satellite Tuner Multi-Brand
Remote Control .............................. 49
TUNER SET 50 CLOCK SET 55 TROUBLESHOOTING 57
INSTRUCTIONS
QUESTIONS AND ANSWERS 59 INDEX 60 SPECIFICATIONS 63
ENGLISH
LPT0002-070B
EN
2 EN
SAFETY FIRST
Safety Precautions
The rating plate and the safety caution are on the rear of the unit.
WARNING: DANGEROUS VOLTAGE INSIDE WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR
MOISTURE.
CAUTION
n When you are not using the recorder for a long period of
time, it is recommended that you disconnect the power cord from the mains outlet.
n Dangerous voltage inside. Refer internal servicing to
qualified service personnel. To prevent electric shock or fire hazard, remove the power cord from the mains outlet prior to connecting or disconnecting any signal lead or aerial.
WARNING
There are two different types of SECAM colour systems: SECAM-L, used in FRANCE (also called SECAM-West), and SECAM-B, used in Eastern European countries (also called SECAM-East).
1.This recorder can also receive SECAM-B colour television signals for recording and playback.
2.Recordings made of SECAM-B television signals produce monochrome pictures if played back on a video recorder of SECAM-L standard, or do not produce normal colour pictures if played back on a PAL video recorder with SECAM-B system incorporated (even if the TV set is SECAM-compatible).
3.SECAM-L prerecorded cassettes or recordings made with a SECAM-L video recorder produce monochrome pictures when played back with this recorder.
4.This recorder cannot be used for the SECAM-L standard. Use a SECAM-L recorder to record SECAM-L signals.
For Italy:
"It is declared that this product, brand JVC, conforms to the Ministry Decree n. 548 of 28 Aug.'95 published in the Official Gazette of the Italian Republic n. 301 of 28 Dec.'95"
625
IMPORTANT
n Please read the various precautions on this page before
installing or operating the recorder.
n It should be noted that it may be unlawful to re-record
pre-recorded tapes, records, or discs without the consent of the owner of copyright in the sound or video record­ing, broadcast or cable programme and in any literary, dramatic, musical, or artistic work embodied therein.
The STANDBY/ON button does not completely shut off mains power from the unit, but switches operating
current on and off. " and " " shows ON.
Video tapes recorded with this video recorder in the LP (Long Play) mode cannot be played back on a single-speed video recorder.
Failure to heed the following precautions may result in damage to the recorder, remote control or video cassette.
1. DO NOT place the recorder . . .
... in an environment prone to extreme temperatures or
humidity. ... in direct sunlight. ... in a dusty environment. ... in an environment where strong magnetic fields are
generated. ... on a surface that is unstable or subject to vibration.
2. DO NOT block the recorder’s ventilation openings.
3. DO NOT place heavy objects on the recorder or remote control.
4. DO NOT place anything which might spill on top of the recorder or remote control.
5. AVOID violent shocks to the recorder during transport.
" shows electrical power standby
n Cassettes marked "S-VHS" and "VHS" can be used with this
video cassette recorder. However, S-VHS recordings are possible only with cassettes marked "S-VHS".
n With this recorder, the G-Code system is identified as
"SHOWVIEW" and is operated using the "SHOWVIEW" on screen menu. SHOWVIEW is a registered trademark of Gemstar Development Corporation. The SHOWVIEW system is manufactured under licence from Gemstar Development Corporation. G-Code is a trademark of Gemstar Development Corporation. The G-Code system is manufactured under license from Gemstar Development Coporation.
n Certain audio features of this product manufactured under a
license from Desper Products, Inc. Spatializert is a trademark owned by Desper Products, Inc.
MOISTURE CONDENSATION
Moisture in the air will condense on the recorder when you move it from a cold place to a warm place, or under extremely humid conditions—just as water droplets form in the surface of a glass filled with cold liquid. Moisture condensation on the head drum will cause damage to the tape. In conditions where condensation may occur, keep the recorder turned on for a few hours to let the moisture dry.
ABOUT HEAD CLEANING
Accumulation of dirt and other particles on the video heads may cause the playback picture to become blurred or inter­rupted. Be sure to contact your nearest JVC dealer if such troubles occur.
INSTALLING YOUR NEW RECORDER
It's essential that your video recorder be properly connected. Follow these steps carefully . THESE STEPS MUST BE COMPLETED BEFORE ANY VIDEO OPERATION CAN BE PERFORMED.

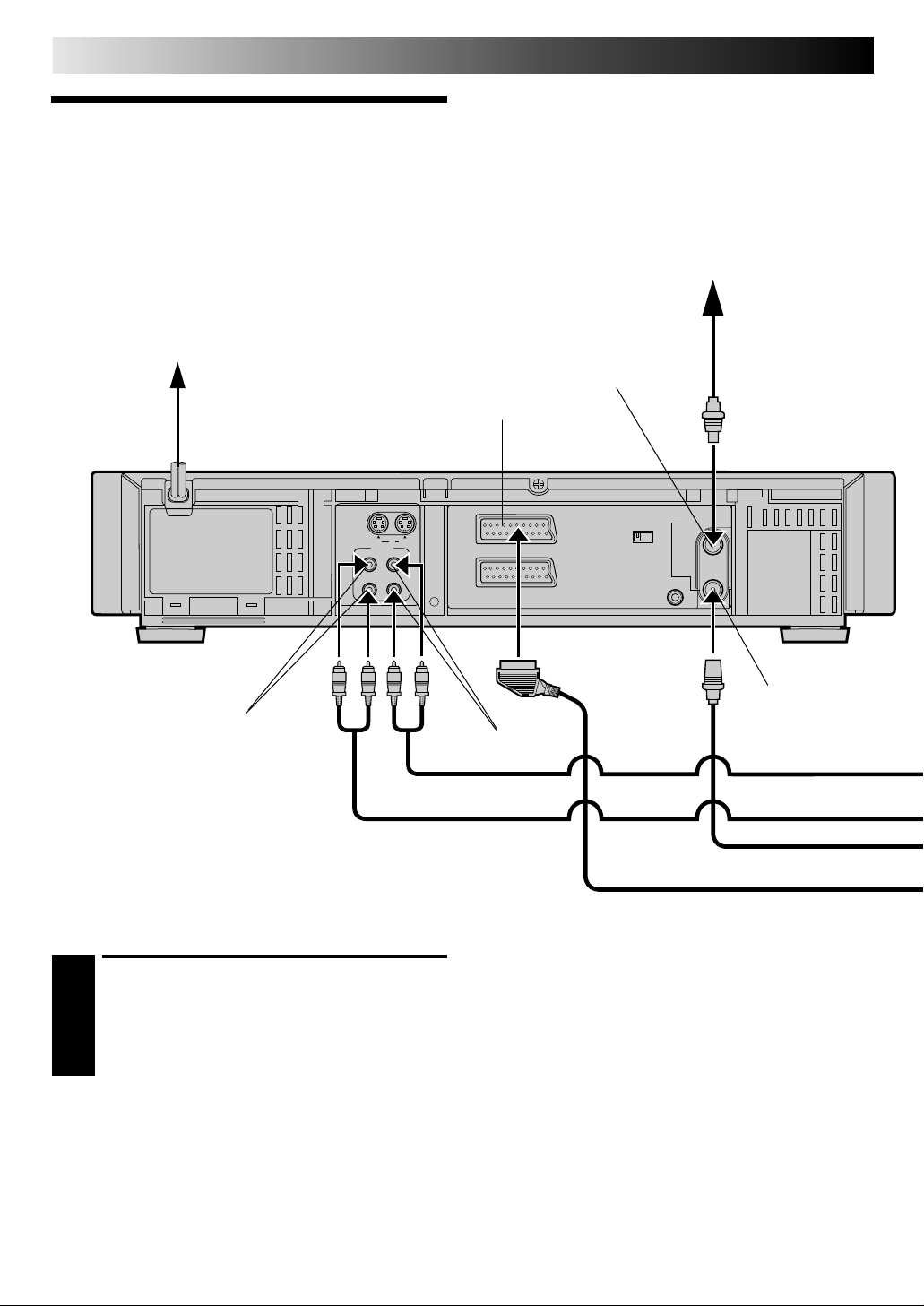

Basic Connections
Aerial terminal
Back of TV
1 2
21-pin SCART connector
RF Cable
(provided)
21-pin SCART Cable
Mains Power Cord
Mains outlet
AV1 OUTPUT SIGNAL SELECTION
The AV1 IN/OUT connector accepts only a composite signal (regular video signal), but can deliver either a composite video signal or a Y/C signal (a signal in which the luminance and chrominance signals are separated) according to the setting of the rear panel AV1 OUT switch.
If your TV's SCART connector is compatible only with the regular video signal, set this switch to COMP.
If your TV's SCART connector is compatible with the Y/C signal, set this switch to Y/C. You will better enjoy high­quality S-VHS pictures.
AV1 IN/OUT
TV Aerial Cable
AV1 OUT switch
Rear view
IMPORTANT:
Set your TV to the VIDEO (or AV), Y/C, or RGB mode according to the type of your TV's SCART connector.
For switching the TV's mode, refer to the instruction manual of your television.
3
4
EN 3
CHECK CONTENTS
Make sure the package contains all of the accessories listed in “Specifications” (
SITUATE RECORDER
Place the recorder on a stable, horizontal surface.
CONNECT RECORDER TO TV
The connection method you use depends on the type of TV you have.
RF CONNECTION
To Connect To A TV With NO AV Input Terminals . . .
a– Disconnect the TV aerial cable from the TV. b– Connect the TV aerial cable to the ANT. IN jack
on the rear panel of the recorder.
c– Connect the provided RF cable between the RF
OUT jack on the rear panel of the recorder and the TV’s aerial terminal.
Before operating the recorder, make sure the TV’s channel is set to the VIDEO channel (
AV CONNECTION
To Connect To A TV With AV Input Terminals . . .
a– Connect the aerial, recorder and TV as per “RF
CONNECTION”.
b– Connect an optional SCART cable between the
AV1 IN/OUT socket on the rear panel of the recorder and the TV’s 21-pin SCART connector. If you are using this recorder in Australia or New Zealand, see "For Customers in Australia and New Zealand" on this page.
c– Choose the appropriate AV1 output signal (
OUTPUT SIGNAL SELECTION" on this page).
S-VIDEO CONNECTION
If you have a TV with S-VIDEO input terminals, see "S-VIDEO Connection" on page 4.
CONNECT RECORDER TO MAINS
Plug the end of the mains power cord into a mains outlet.
After you plug the mains power cord into a mains outlet, the Country Set display appears on the TV screen and/or on the recorder's front display panel when the recorder/remote control is pressed for the first time to power on the recorder; go to page 6 to perform Auto Set Up.
Z pg. 63).
Z pg. 10).
Z "AV1
button on the
For Customers in Australia and New Zealand
Connect an optional AV cable between the TV's AV-IN terminals and the AV1 IN/OUT connector on the rear panel of the recorder via the provided output cable adapter as illustrated.
Output cable adapter (Provided)
Recorder
To AV1 IN/OUT connector
TV
AV cable (Not provided)
To AV-IN terminals
4 EN
AV1 IN/OUT
RF OUT
AV2 IN/DECODER
PAUSE/ R.A.EDIT
AV1 OUT
ANT.IN
COMP. Y/C
R
R
L
L
AUDIO
S
ININOUT
OUT
INSTALLING YOUR NEW RECORDER (cont.)
S-VIDEO Connection
Mains Power Cord
Mains outlet
AUDIO OUT
S OUT
ANT.IN
RF OUT
For TV sets with an S-VIDEO input terminal:
CONNECT RECORDER TO TV
a– Connect the aerial, recorder and TV as per "Basic
1
Connections" (Z pg. 3).
b–Connect the recorder's S OUT terminal to the TV's S-
VIDEO IN terminal.
c–Connect the recorder's AUDIO OUT terminals to the
TV's AUDIO IN terminals.
CONNECT RECORDER TO MAINS
Plug the end of the mains power cord into a mains outlet.
2
Audio cable (provided)
IMPORTANT:
To operate the recorder with your TV using the S-VIDEO connection, set your TV to the VIDEO (or AV mode).
NOTE:
If your television is not stereo-capable, use the recorder's AUDIO OUT connectors to connect to an audio amplifier for Hi-Fi stereo sound reproduction. (Z pg. 46)
After you plug the mains power cord into a mains outlet, the Country Set display appears on the TV screen and/or on the recorder's front display panel when the recorder/remote control is pressed for the first time to power on the recorder; go to page 6 to perform Auto Set Up.
button on the
Rear view
EN 5
Aerial or Cable
RF Cable (provided)
S-Video cable (provided)
Back of TV
6 EN
Auto Set Up
Auto Channel Set/Auto Clock Set/Auto Guide Program Number Set
INITIAL SETTINGS
When the button on the recorder/remote control is pressed for the first time to power on the recorder after you plug the mains power cord into a mains outlet, the Country Set display will appear on the TV screen and the recorder's front display panel. By simply selecting your country*, the Auto Set Up function sets the tuner channels, clock and Guide Program numbers automatically.
*If you live in Belgium or Switzerland, you also need to select the
language you use.
You can refer to the front display panel and/or the on-screen display to perform this procedure.
8
••
••
••
••
••
••
2
12 45 7
1
PUSH JOG
8 0
3
3 6 9
4
OK
International Telephone Country Code
SUOMI : 358 SUISSE : 41 PORTUGAL : 351 ITALIA : 39 DEUTSCHLAND : 49 ESPAÑA : 34 NORGE : 47 BELGIUM : 32 SVERIGE : 46 NEDERLAND : 31 DANMARK : 45 GREECE : 30 ÖSTERREICH :43 OTHERS : - -
* Depending on the model, the selectable codes
may be limited.
ATTENTION
Once you have performed Auto Set Up, even if the recorder's memory backup has expired, all the stored stations and their Guide Program numbers remain in the recorder's memory and the recorder will not perform Auto Set Up again. You only need to set the clock. (Z pg. 55)
If you have moved to a different area, perform each setting as required.
Tuner setting
Clock setting Z pg. 55
SHOWVIEW Guide Program number setting Z pg. 12
If a new station starts broadcasting in your area, perform both tuner setting (Z pg. 50) and SHOWVIEW Guide Program number setting (Z pg. 12).
Z pg. 50
Before starting, make sure of the following:
The TV aerial cable should be connected to the recorder.
The recorder's mains power cord should be connected to
a mains outlet. Z pg. 3
If you want to use the on-screen display, the TV should be set to its AV mode (with AV or S-VIDEO connection
Z pg. 3 or 4) or UHF channel 36 (with RF connection Z pg. 3).
TURN ON THE RECORDER
Press on the recorder or remote control. The Country Set display appears on the front display panel
1
and/or on the screen.
For HR-S9400E For HR-S9400EH
DEUTSCHLAND ÖSTERREICH SUISSE ITALIA NEDERLAND GREECE
OTHERS
[5∞] = [MENU] : EXIT
SUOMI NORGE SVERIGE DANMARK
OTHERS
[5∞] = [MENU] : EXIT
For HR-S9400EH
PORTUGAL ESPAÑA BELGIUM
OTHERS
* The on-screen display
differs for the HR­S9400EH depending upon the country in which the product was
[5∞] = [MENU] : EXIT
purchased.
NOTE:
If you have connected your TV to the recorder with RF connection and the on-screen display appearing on UHF channel 36 looks distorted, perform this procedure referring to the front display panel.
SELECT COUNTRY
If you are referring to the front display panel
Press PUSH JOG%fi to select your international
2
telephone country code of your country referring to the chart in the left column.
If you have selected a country code other than 32 (BELGIUM) or 41 (SUISSE), go to step 4.
If you have selected 32 (BELGIUM) or 41 (SUISSE), go to step 3.
CONTINUED ON NEXT PAGE.
EN 7
If you are referring to the on-screen display
Press PUSH JOG%fi to move the highlight bar (pointer) to your country's name.
If you have selected a country other than BELGIUM or SUISSE, go to step 4.
If you have selected BELGIUM or SUISSE, go to step 3.
SELECT LANGUAGE
Press OK. the Language Set display appears on the front display panel and/or on the screen.
3
If you are referring to the front display panel
Press PUSH JOG%fi to select your language code referring to the chart in the left column.
(Ex.) DEUTSCH is selected for SUISSE
International telephone country code
If you are referring to the on-screen display
Press PUSH JOG%fi to move the highlight bar (pointer) to the language of your choice.
For HR-S9400E For HR-S9400EH
NEDERLANDS ITALIANO FRANCAIS
DEUTSCH
ENGLISH
[5∞] = [MENU] : ENDE
NEDERLANDS CASTELLANO FRANCAIS
DEUTSCH
ENGLISH
[5∞] = [MENU] : ENDE
PERFORM AUTO SET UP
Press OK.
4
"Auto" appears on the display panel and blinks; do NOT press any button on the recorder or remote control until the display panel shows the current time or "CH1" or "--:--". (Refer to box on this page.)
Language Code for the HR-S9400E
ENGLISH :01 ITALIANO : 04 DEUTSCH : 02 NEDERLANDS : 05 FRANCAIS : 03
Language Code for the HR-S9400EH
ENGLISH : 01 CASTELLANO : 04 DEUTSCH : 02 NEDERLANDS : 05 FRANCAIS : 03
Auto Set Up results appear on the front display panel
Language code
When both auto channel set and auto clock set have been completed success­fully the correct current time will be displayed.
When auto channel set has been completed success­fully but auto clock set has not, "CH" will be displayed.
When neither auto channel set nor auto clock set has been completed successfully, "--:--" will be displayed.
If Auto Set Up is completed, go to page 8.
Auto channel set function takes place first; it assigns
automatically all receivable stations in your area.
Auto clock set function sets the clock automatically by reading the clock setting data from a station transmitting a PDC signal while auto channel set is being performed.
During auto channel set, the recorder recognizes each station name of the detected stations and stores them in the recorder's memory, then automatically sets SHOWVIEW assigned Guide Program number for those stations according to the broadcast area.
NOTE:
In the area where no TV station transmits a PDC signal, the recorder can perform neither auto clock set nor auto Guide Program number set.
NOTES:
If you are using the on­screen display, the AUTO SET screen will appear after pressing OK in step 4. As Auto Set Up progresses, the
" mark on the screen
" moves from left to right.
If there is a power cut, or if you press or MENU while Auto Set Up is in progress, Auto Set Up will be interrupted; be sure to turn off the recorder power once and try again from step 1.
0
[MENU] : EXIT
Beginning End
AUTO SET
PLEASE WAIT
+++
8 EN
If both auto channel set and auto clock set have been performed successfully:
Perform "Video Channel Set" on page 10.
1 2Turn on the TV and select its VIDEO channel or AV mode, then make sure that all necessary stations have been stored in the
recorder's memory by using the TV PROG button(s).
If station names (ID — Z pg. 54) have also been stored in the recorder's memory, the station name will be displayed at the top left corner of the screen for about 5 seconds when the recorder is tuned to a different station.
If you want to set the tuner manually such as to add or skip channels, to change channel positions, or to set or change station names, see pages 52 – 53.
3Perform "SHOWVIEW Setup" on page 12 to check if the Guide Program numbers have been set correctly.
If auto channel set has succeeded but auto clock set has not:
Perform "Video Channel Set" on page 10.
1 2Turn on the TV and select its VIDEO channel or AV mode, then make sure that all necessary stations have been stored in the
recorder's memory by using the TV PROG button(s).
If station names (ID — Z pg. 54) have also been stored in the recorder's memory, the station name will be displayed at the top left corner of the screen for about 5 seconds when the recorder is tuned to a different station.
If you want to set the tuner manually such as to add or skip channels, to change channel positions, or to set or change station names, see pages 52 – 53.
3Perform "Clock Set" on page 55, then "SHOWVIEW Setup" on page 12 to check if the Guide Program numbers have been set
correctly.
If both auto channel set and auto clock set have failed:
1Make sure the TV aerial cable is connected properly to the recorder and turn off the recorder power once, then turn the
recorder power back on again.
The Country Set display appears on the front display panel and/or on the screen; perform steps 2 and 4 on pages 6 – 7 again.
INITIAL SETTINGS (cont.)
IMPORTANT
Depending on the reception conditions, the station names may not be stored correctly, and auto Guide Program Number Set may not work properly. If the Guide Program numbers are not set properly, SHOWVIEW timer recording (Z pg. 28) will not work correctly; be sure to check if the Guide Program numbers have been set correctly (Z pg. 12, "SHOWVIEW Setup").
Since your video recorder memorizes all detected stations even if the reception condition is poor, some of those stored stations may produce a noisy picture. To delete those stations, Z "Delete A Channel" on page 52.
INFORMATION
Language for the on-screen display
Auto Set Up also selects the language automatically for the on-screen display depending on the Country setting you have made in step 2 on page 6 (unless you have selected BELGIUM or SUISSE), as shown below.
SUOMI [ SUOMI SVERIGE [ SVENSKA ESPAÑA [ CASTELLANO PORTUGAL [ ENGLISH DANMARK [ DANSK NEDERLAND [ NEDERLANDS DEUTSCHLAND [ DEUTSCH ÖSTERREICH [ DEUTSCH GREECE [ ENGLISH NORGE [ NORSK ITALIA [ ITALIANO OTHERS [ ENGLISH If you want to change the language setting manually, Z "Language" on page 9.
Just Clock
Your recorder is equipped with the Just Clock function which provides accurate time keeping through automatic adjustments at regular intervals, by reading data from a PDC signal. If you want to take advantage of this function, simply set it to "ON".
Z "Just Clock" on page 55.
Language
Be sure to set your Video Channel before performing Language setting (Z pg. 10).
Turn on the TV and select the VIDEO channel (or AV mode).
2
12 45 7
8 0
3 6 9
4
EN 9
This recorder offers you the choice to view on-screen messages in 10 different languages. Though Auto Set Up selects the language automatically (Z pg. 8), you can change the language setting manually using this procedure as required.
TURN ON THE RECORDER
Press .
1
ACCESS MAIN MENU
Press MENU twice.
2
ACCESS COUNTRY SET SCREEN
Press PUSH JOG move the highlight bar
3
(pointer) to "AUTO CH SET", then press OK.
SELECT COUNTRY
Press PUSH JOG to your country's name, then press OK. The Language
4
Set screen appears.
%
to
%
to move the highlight bar (pointer)
MAIN MENU
MODE SET
AUTO CH SET
MANUAL CH SET GUIDE PROG SETT CLOCK SET JLIP ID NO. SET R.A. EDIT
[5∞] = [MENU] : EXIT
MENU
PUSH JOG
1
3
OK
SELECT LANGUAGE
Press PUSH JOG%fi to move the highlight bar (pointer) to the language of your choice.
5
For HR-S9400EH For HR-S9400EH
DANSK SUOMI NORSK SVENSKA
ENGLISH
[5∞] = [MENU] : EXIT
For HR-S9400E
NEDERLANDS ITALIANO FRANCAIS DEUTSCH
ENGLISH
[5∞] = [MENU] : EXIT
You do not have to press OK; pressing OK starts Auto Channel Set.
NEDERLANDS CASTELLANO FRANCAIS DEUTSCH
ENGLISH
[5∞] = [MENU] : EXIT
* The on-screen display
differs for the HR­S9400EH depending upon the country in which the product was purchased.
RETURN TO NORMAL SCREEN
Press MENU.
6
10 EN
STOP
Video Channel Set
Video Channel (RF Output Channel) is the channel on which your TV receives picture and sound signals from the video recorder through the RF cable.
••
••
••
••
••
••
INITIAL SETTINGS (cont.)
If you have connected the video recorder to your TV via the provided RF cable only (RF connection) – Go to "With RF Connection" below.
If you have connected the video recorder to your TV via both the provided RF cable and a 21-pin SCART cable (AV connection) or via the provided RF cable, the provided S-Video cable and the provided audio cable (S-VIDEO connection) – Go to "With AV or S-VIDEO Connection" on next page.
IMPORTANT:
Before performing the following steps, make sure the recorder's power is off and there is no cassette inserted in the recorder.
With RF Connection
8
ACCESS VIDEO CHANNEL SET MODE
Hold down STOP on the recorder until the display panel shows the following.
1
TEST SIGNAL
2
12 45 7
1
The channel on which the screen to the left appear clearly in step 2 is your Video Channel.
8 0
3
3 6 9
4
TV PROG
OK
SET VIDEO CHANNEL
Set your TV to UHF channel 36.
If the two vertical white bars appear clearly on the
2
screen as shown in the illustration at bottom left, go to step 3.
If the two vertical white bars do not appear clearly, press TV PROG + or – to set the video recorder to a vacant channel between 22 and 69 which is not occupied by any local station in your area.
(Ex.) If channel 50 is available in your area
Then set your TV to UHF channel 50 and check if the two vertical white bars appear clearly on the screen; if so, go to step 3. If not, re-set the video recorder to another vacant channel and try again.
NOTES:
If you set the video recorder to a channel which is occupied by a local station or has neighbouring channels that are occupied by local stations, the picture reception quality will be affected and some interference noise will appear on the TV screen. Be sure to select a vacant channel which has no broadcast on neighbouring channels.
If you cannot obtain the two vertical white bars clearly with any channel between 22 and 69, consult your JVC dealer.
EXIT VIDEO CHANNEL SET MODE
Press OK.
3
To view picture signals from the video recorder, set your TV to the Video Channel.
EN 11
STOP
IMPORTANT:
Before performing the following steps, make sure the recorder's power is off and there is no cassette inserted in the recorder.
8
••
••
••
••
••
••
With AV Or S-VIDEO Connection
ACCESS VIDEO CHANNEL SET MODE
Hold down STOP on the recorder until the display panel shows the following.
1
SET VIDEO CHANNEL
2
12 45
8
7
0
3 6 9
4
Press TV PROG – until the display panel shows
– –
"–OUT
".
2
Now the video channel is set to off.
1
3
TV PROG
OK
EXIT VIDEO CHANNEL SET MODE
Press OK.
3
To view picture signals from the video recorder, set your TV to its AV mode.
12 EN
SHOWVIEW Setup
INITIAL SETTINGS (cont.)
With SHOWVIEW, timer programming is greatly simplified because each TV programme has a corresponding code number which your recorder is able to recognise.
NOTE:
“Guide Program (GUIDE PROG) Number” refers to the assigned TV station numbers, according to broadcast area, for S timer recording.
HOWVIEW
Turn on the TV and select the VIDEO channel (or AV mode).
* For Customers in Australia and New Zealand:
With this recorder, the G-Code system is identified as "SHOWVIEW".
2
NUMBER
CANCEL
MENU
PUSH JOG
12 45 7
1
8 0
3
3 6 9
4
OK
IMPORTANT
Perform the following procedure after Auto Set Up on page 6 and/or the channel setting steps on pages 50 – 53, and after the Clock Set procedure on page 55. After setting the Guide Program Numbers, the station names and channel positions may be incorrect if you stored or skipped channels. In this case, re-perform Guide Program Number setting.
Guide Program Number Set
MAKE LIST OF STORED STATION NAMES AND CHANNEL POSITIONS
(Ex.)
Channel position Station name
1
1 ARD 2 ZDF 3 WDR
ACCESS MAIN MENU SCREEN
Press MENU twice.
2
ACCESS GUIDE PROG SET SCREEN
Press PUSH JOG %fi to move the highlight bar (pointer) to "GUIDE PROG SET", then press OK.
3
The Guide Prog. Set screen appears.
MAIN MENU
MODE SET AUTO CH SET MANUAL CH SET
GUIDE PROG SET
CLOCK SET JLIP ID NO. SET R.A. EDIT
[5∞] = [MENU] : EXIT
GUIDE PROG TV PROG
: AUTO SET BY SHOWVIEW
5
[ ]: MANUAL SET [5∞] : ? [MENU] : EXIT
GUIDE PROG SET
11
EN 13
ENTER SHOWVIEW NUMBER
Press OK, and a cursor appears above “GUIDE
4
PROG”. Then, using the NUMBER keys, input the SHOWVIEW number (found in most TV listings) of a program scheduled to be broadcast on each station on the list from step 1, starting at the top. If you enter the wrong number, press CANCEL to backspace and input the correct number.
GUIDE PROG SET
12345
GUIDE PROG TV PROG
11
[0-9] = [MENU] : EXIT
When entering a S number for ZDF
HOWVIEW
CONFIRM CHANNEL POSITION NUMBER
Press OK and the display
4
under “TV PROG” begins
5
blinking.
If the blinking number under “TV PROG” agrees with the channel position . . .
. . . press OK.
If the numbers do not agree . . .
. . . input the channel position using PUSH JOG%fi or the NUMBER keys, then press OK.
If you input the SHOWVIEW number of a program that has already aired, “ERROR” appears on screen for a few seconds. Input the correct SHOWVIEW number.
Repeat steps 4 and 5 as necessary.
GUIDE PROG SET
GUIDE PROG TV PROG
22
[5∞] = [MENU] : EXIT
CLOSE MENU
Press MENU and selection is complete.
6
If you already know the Guide Program number for a station . . . 1– After step 3, press PUSH JOG .
The GUIDE PROG number begins blinking.
2– Enter the Guide Program number using the NUMBER keys
or PUSH JOG%fi, then press PUSH JOG .
The TV PROG number begins blinking.
3– Enter the channel position using the NUMBER keys or
PUSH JOG%fi, then press PUSH JOG .
Repeat 2 and 3 as necessary.
4– Press MENU.
%
%
%
When Using A Satellite Tuner
Satellite Antenna
Ex. 1
Satellite Tuner
AV2 IN/ DECODER
TV Receiver
Preparation 1– Connect the satellite tuner to the AV2 IN/DECODER
connector on the rear of your recorder.
2– Set "AV2 SELECT" to "AV2" (Z pg. 35). To Record Satellite Broadcasts . . .
1– Select the appropriate channel on the satellite tuner. 2– Set your recorder's input mode to "AUX2". ( 3– Start recording (Z pg. 23, steps 3 – 6).
To Record Satellite Broadcasts Using S Recording . . . 1– Set your recorder's input mode to "AUX2". (Z pg. 35) 2– Perform Guide Program Number setting.
In step 5 in the left column, press NUMBER key "0" to set "TV PROG" to "AUX2".
3– Perform SHOWVIEW Timer Recording (Z pg. 28). T o Record Satellite Broadcasts Using Regular Timer Recording . . .
1– In step 6 on page 31, press TV PROG +/– to set the channel
position to "AUX2".
Ex. 2
Satellite Tuner and Decoder
NOTES:
When timer-recording a satellite programme, first set the satellite tuner to the appropriate channel before the selected programme begins and then set the satellite tuner's timer . If your satellite tuner does not have a timer, leave it switched on.
If your recorder's front panel VIDEO and/or AUDIO connec­tors are being used, they take priority and "AUX2" cannot be selected. Make sure no cables are connected to the front panel connectors when performing this procedure.
Aerial or Cable
Rear view
For Customers in Australia and New Zealand:
When connecting the AV cable, use the input and/or output cable adapter.
Z pg. 35)
HOWVIEW Timer
14 EN
PLAY
STOP
PLAY
STOP/EJECT
REW
FF
TIME SCAN SHUTTLE
PAL/MESECAM
Basic
PLAYBACK
The easiest, most basic operation possible with your video recorder is tape playback. Already-recorded signals on a video tape are read by your video recorder and displayed on your TV just like a TV programme.
Playback
Turn on the TV and select the VIDEO channel (or AV mode).
Set the PAL/MESECAM switch to the appropriate position.
Z pg. 16
••
••
••
••
••
••
LOAD A CASSETTE
Make sure the window side is up, the rear label side is facing you and the arrow on the front of the cassette is
1
point toward the recorder. Don’t apply too much pressure when inserting.
The recorder power comes on automatically and the counter is reset to 0:00:00.
If the record safety tab has been removed, playback begins automatically.
FIND PROGRAMME START POINT
If the tape is advanced past the start point, press REW or
8
turn the TIME SCAN SHUTTLE ring to the left.
2
To go forward, press FF or turn the TIME SCAN SHUTTLE ring to the right.
START PLAYBACK
Press PLAY.
3
STOP PLAYBACK
Press STOP on the remote or STOP/EJECT on the recorder’s front panel. Then press STOP/EJECT to
4
remove the cassette.
REW
2
12 45
8
7
0
1
3
3 6 9
4
FF
Usable cassettes
Compact VHS camcorder recordings can be played on this video recorder. Simply place the recorded cassette into a VHS Cassette Adapter and it can be used just like any full-sized VHS cassette.
This video recorder can record on regular VHS and Super VHS cassettes. While only VHS signals can be recorded on regular VHS cassettes, both VHS and Super VHS signals can be recorded and played back using Super VHS cassettes.
EN 15
PLAY
TIME SCAN SHUTTLE
REW
FF
JOG
PAUSE
PLAY
Take advantage of special functions possible with the recorder’s controls or the remote control.
Playback Features
••
••
••
••
••
••
0
REW
4
TV PROG
FF
PAUSE
Still Picture/Frame-By-Frame Playback
PAUSE DURING PLAYBACK
Press PAUSE. If there is vertical jitter, use the TV PROG buttons to correct the picture.
1
During still picture, the sound from the previous 3 seconds (approx.) will be played back repeatedly (provided there was at least 6 seconds of normal
8
playback prior to engaging the still picture mode). However, the TIME SCAN indicator will not light.
"TIME SCAN AUDIO" must be set to "ON", or the sound will not be heard. (Z pg. 22)
ACTIVATE FRAME-BY-FRAME PLAYBACK
Turn the JOG dial to the right for forward frame-by­frame playback, or to the left for reverse frame-by-frame
2
playback.
OR
Press PAUSE.
OR
Press PUSH JOG or .
To resume normal playback, press PLAY.
Slow Motion
%
%
1
PUSH JOG
3
High-Speed (Turbo) Search
ACTIVATE HIGH-SPEED SEARCH
During playback or still picture, press FF for forward high-speed search, or REW for reverse high-speed
1
search.
To resume normal playback, press PLAY.
NOTES:
For short searches, press and hold FF or REW for over 2 seconds. When released, normal playback resumes.
Picture may not appear during search with an LP-recorded tape.
In the search, still, or frame by frame playback mode, the picture may be distorted, and there may be a loss of colour.
ACTIVATE SLOW-MOTION PLAYBACK
Turn the TIME SCAN SHUTTLE ring to the left or press PUSH JOG during playback to decrease speed in the
1
forward direction. To play in reverse slow-motion (and in reverse play mode), continue to turn the TIME SCAN SHUTTLE ring to the left or press PUSH JOG after selecting all the forward direction slow-motion modes.
OR
During still picture, turn the TIME SCAN SHUTTLE ring to the right for forward slow motion, or to the left for reverse slow motion.
OR
During still picture, press and hold PAUSE for 2 seconds, then release. Press and release again to return to still picture.
OR
During still picture, press and hold PUSH JOG or . Release to return to still picture.
To resume normal playback, press PLAY.
%
%
%
16 EN
REW
FF
PAL/MESECAM
••
••
••
••
••
••
REVIEW
REW
2
12 45
8
7
0
3 6 9
4
PLAYBACK (cont.)
Manual Tracking
Your video recorder is equipped with automatic tracking control. During playback, you can override this and adjust the tracking manually by pressing the TV PROG buttons.
8
OVERRIDE AUTOMATIC TRACKING
Press SP/LP ( ) on the remote to engage manual tracking.
1
ADJUST TRACKING MANUALLY
Press TV PROG + or – to adjust tracking.
2
RETURN TO AUTOMATIC TRACKING
Press SP/LP ( ) on the remote to re-engage auto­matic tracking.
3
TV PROG
NOTE:
When a new tape is inserted, the recorder enters the automatic tracking mode automatically.
FF
PUSH JOG
1
3
Colour System Selection
You can also record SECAM signals, or play back a MESECAM tape on this recorder. * MESECAM is the designation for tapes with SECAM signals
that have been recorded on a MESECAM-compatible PAL video recorder.
To record SECAM signals or play back a MESECAM tape, set the PAL/MESECAM switch to "MESECAM".
To record PAL signals or play back a PAL tape, set the PAL/ MESECAM switch to "PAL".
3R Picture
Your video recorder is equipped with the 3R Picture System. During playback, 3R(= Resolution and Response Recovery technology) maximises sense of resolution and sharpens image edges to make playback picture look better focused.
EN 17
Index Search
Your recorder automatically marks index codes at the beginning of each recording. This function gives you quick access to any one of 9 index codes in either direction.
NOTE:
Before starting, make sure the recorder is in the Stop mode.
ACTIVATE INDEX SEARCH
Press PUSH JOG or ( or £). “ 1” or “£ 1” is displayed on screen and search begins in
1
the corresponding direction.
To access index codes 2 through 9, press PUSH JOG
%
or repeatedly until the correct index number is displayed. Ex.: To locate the beginning of B from the current
position, press PUSH JOG twice. To locate the beginning of D from the current position, press PUSH JOG once.
%
%
Current position
AB C D E F
–2 –1 1 2 3
%
%
£ 2
Instant ReView
Simply by pressing a single button, the recorder power comes on, rewinds, and begins playback of the last timer-recorded programme. If you have several programmes recorded, you can easily access any of them.
NOTE:
Before starting, make sure that the recorder is off and that the Timer mode is disengaged.
ACTIVATE INSTANT REVIEW
Press REVIEW. The recorder power comes on and the recorder searches for the index code indicating the start
1
of the last timer-recorded programme. Once it’s found, playback begins automatically. The front display panel tells you how many programmes have been recorded. If you have, for example, 3 programmes, “REVIEW” and "3" appear and blink. To watch the first of the 3 programmes, press REVIEW three times. The recorder searches and begins playback automatically. You can access a programme as far as 9 index codes away from the current tape position.
NOTE:
Instant ReView is not possible while the recorder is in the Timer mode.
Index number
When the specified index code is located, playback begins automatically.
Tape Position Indicator
The tape position indicator appears on screen when, from the Stop mode, you press FF, REW or perform an Index Search. The position of “5” in relation to “0” (beginning) or “+” (end) shows you where you are on the tape.
”O.S.D.” ( set to “ON”, or the indicator will not appear.
Z pg. 27) must be
0
Beginning End
NOTE:
Depending on the type of tape used, there may be times when the indication is not correct.
3
1:23:45
REMAIN 2:35
+++
18 EN
FF
REW
SPATIALIZER
STOP
PLAYBACK (cont.)
••
••
••
••
••
••
A/B CODE
C.RESET
AUDIO MONITOR
REW
C. MEMORY
2
12 45
8
7
0
3 6 9
4
STOP
FF
Spatializer
W
This feature expands sound field when you play back any stereo source or view a stereo programme while recording it. *SpatializerW has no effect on recording quality.
8
ACTIVATE SPATIALIZER
W
Press SPATIALIZER; the current setting will be displayed on the screen for about 5 seconds. Pressing
1
SPATIALIZER while the screen shows the display
changes the setting.
To view a stereo programme such as movies or music, select "SPATIALIZER " to create more spacious sound.
To view a monaural programme, select "SPATIALIZER[ST" which simulates a stereo effect.
Select "SPATIALIZER OFF" to turn off SpatializerW if the sound becomes unnatural with either "SPATIALIZER " or "SPATIALIZER[ST" selected.
If your TV is equipped with 3D-PHONIC and if you use both SpatializerW and 3D-PHONIC at the same time, the sound may become unnatural; set either function to "OFF".
The setting will remain effective even though you turn on/off the recorder.
NOTES:
SpatializerWis effective only with a stereo TV.
The setting cannot be changed during search, still, frame-by-
frame playback or slow motion mode.
When this recorder is used as the player for editing, the
recorded audio will correspond to the SpatializerW setting.
SCENE FINDER
1
3
Soundtrack Selection
Y our video recorder is capable of recording three soundtracks (HI-FI L, HI-FI R and NORM) and will play back the one you select.
During Playback
Pressing AUDIO MONITOR on the remote control changes the soundtrack being played back as follows:
TRACK
Recorder's Front Panel On-Screen Display
L + R
L R
HI FI
LR
HI FI
L
HI FI
R
NORM NORM For audio-dubbed tapes
L + R + NORM
HI FI
NORM
USE
For Hi-Fi stereo tapes For main audio of Bilingual tapes For sub audio of Bilingual tapes
For audio-dubbed tapes
NOTES:
"L + R" should normally be selected. In this mode, Hi-Fi stereo tapes are played back in stereo, and the normal audio track is played back automatically for tapes with only normal audio.
For instructions on recording stereo and bilingual programmes, refer to page 25.
"O.S.D." must be set to "ON" or the on-screen displays will not appear (Z pg. 27).
EN 19
Scene Finder
This function helps you check contents of unlabeled recorded tapes at the touch of a single button.
Search Search Search
FF REW FF REW FF REW
5 seconds 5 seconds
on counter
5 seconds10 minutes
10 minutes on counter
NOTE:
Scene Finder cannot be used when the recorder is in the Record mode.
ACTIVATE SCENE FINDER
Press SCENE FINDER. The recorder starts forward search for 5 seconds and then fast-forwards 10 minutes
1
on the counter. This cycle is repeated until the end of the tape is reached.
To start Scene Finder in the reverse direction, press SCENE FINDER and then press the REW button within 2 seconds. This cycle is repeated until the beginning of the tape.
During Scene Finder, the following indications appear on the display panel:
STOP SCENE FINDER
Press STOP.
2
NOTES:
During Scene Finder search, you can also hear the tape sound. During fast forward or rewind, you hear the current TV sound instead.
During Scene Finder, the sound can be heard regardless of "TIME SCAN AUDIO" setting. Z pg. 22.
Scene Finder does not function during Index Search.
Next Function Memory
You can set your recorder's power to go off automatically after the tape is fully rewound. Before starting, make sure the recorder is in the Stop mode. For Automatic Power Off After Tape Rewind . . . . . . press REW, then press within 2 seconds.
NOTE:
If you want the power to be turned off automatically when the counter reads “0:00:00” (instead of at the beginning of the tape), press C.MEMORY so that the “M” mark appears before pressing REW.
Remote A/B Code Switching
The remote control is capable of controlling two JVC video recorders independently; one set to respond to the remote control’s A code control signals and another set to respond to B code control signals. The remote control is preset to send A code signals because your video recorder is initially set to respond to A code signals. You can easily modify your video recorder to respond to B code signals.
REMOVE POWER SUPPLY
Unplug the mains power cord from the mains outlet.
1
SET A/B CODE SWITCH
Set to B.
2
RE-SUPPLY POWER
Plug the mains power cord back into the mains outlet.
3
TURN THE RECORDER ON
Press on the remote control. The recorder will now only respond to B code signals.
4
NOTE:
Some TV sets may malfunction in response to the B mode. If this happens, switch back to the A mode.
Counter Memory
Returns to the counter reading of “0:00:00” to conveniently find a specific place on the tape automatically.
SET COUNTER MEMORY
Press C. RESET during playback at a point you wish to locate later. The counter reads “0:00:00”. Then press
1
C.MEMORY, and “M” appears in front of the counter
digits.
ACTIVATE COUNTER MEMORY
When you wish to return to the designated point, press
STOP and then REW or FF.
2
The tape rewinds or fast-forwards and stops at about 0:00:00 automatically.
To cancel Counter Memory, press C.MEMORY again.
20 EN
PLAY
PLAY
TIME SCAN SHUTTLE
TimeScan
PLAYBACK (cont.)
Your recorder is equipped with the TimeScan function. TimeScan allows noise free pictures to be displayed on your TV screen in the forward and reverse search modes. Audio will be played back at normal speed during any of the TimeScan modes (Z pg. 21). TimeScan allows you to view a program in search mode while listening to the audio.
TIME SCAN INDICATOR
••
••
••
••
••
••
PUSH JOG
2
12 45
8
7
0
1
3
3 6 9
4
NOTES:
"TIME SCAN AUDIO" must be set to "ON", or the sound will not be heard in TimeScan mode. (Z pg. 21)
The audio will not synchronize with the video in TimeScan
8
modes.
In Pause mode 3 seconds (approx.) of audio will be played back repeatedly . (Z pg. 15)
In TimeScan search modes some of the audio information will not be played so that the audio can keep up with the video.
Audio signal during TimeScan
Playback tape
Sound of 1, 3 and 5 is heard. Sound of 2 and 4 is not heard. Output audio signal is normal (monaural) sound.
1
2345
Variable-Speed Search/ Reverse Play
ACTIVATE VARIABLE-SPEED SEARCH
During playback or still, turn the recorder's TIME SCAN SHUTTLE ring. It remains at that position even after you
1
release it. Each time it passes a click position, the playback speed changes. (Refer to the chart on pg 21 for playback speeds).
OR
During playback, press PUSH JOG or .
The more times you press, the faster the playback picture moves.
To decrease speed, press the button for the opposite direction. (Refer to the chart on pg 21 for playback speeds).
To resume normal playback, press PLAY.
%
%
TimeScan
EN 21
Names of special-effects playback
Speed SP
Speed LP
Audio output
The recorder's TIME SCAN indicator lights during TimeScan.
The speed is shown during TimeScan in the upper right corner of the TV screen for approx. 5 seconds. (The display may be
distorted.)
To resume normal playback, press PLAY.
When using the recorder's TIME SCAN SHUTTLE ring, the playback speed may not change depending on how far it is turned.
Picture and audio may become distorted when the recording speed changes. When this happens, resume normal playback
once, and then try using TimeScan again.
The picture may be noisy or there may be a loss of colour when you change the playback speed. (More noise will appear with LP recordings.)
Noise may appear or the upper part of the picture may be distorted during still, frame-by-frame playback, 2x search of LP recordings, or depending on the tape being used.
Picture may appear distorted in comparison to normal playback.
In TimeScan mode there will be a time lag between the video and the audio and noise may appear in the audio signal.
TimeScan sound quality will differ in comparison to normal playback.
When the playback direction is reversed, it takes approximately 6 seconds until sound is heard.
Picture will be monochrome with an LP-recorded MESECAM tape during TimeScan.
Search Play Slow-Motion *Still Slow-Motion Play Search
-9x -7x -5x -3x -1x -1/6x -1/18x 0 1/18x 1/6x 1x 2x 3x 5x 7x 9x
-7x -3x -1/6x -1/18x 0 1/18x 1/6x 1x 2x 5x 9x
Audio is output.
* Still mode cannot be engaged using the remote control's PUSH JOG button. In the Still mode, the TIME
SCAN indicator does not light even though you can hear TimeScan audio.
Reverse Forward
Audio is not Audio is Audio is not
output. output. output.
Audio is output.
If you don't want to hear TimeScan audio, set "TIME SCAN AUDIO" to "OFF" (Z pg. 22).
22 EN
PLAYBACK (cont.)
TimeScan Audio
The audio output can be set ON/OFF during TimeScan. Select ON/OFF as required.
* The default setting is "ON".
MENU
PUSH JOG
2
12 45
8
7
0
1
3
3 6 9
4
OK
ACCESS MAIN MENU SCREEN
Press MENU twice.
1
ACCESS MODE SET SCREEN
Move the highlight bar (pointer) to "MODE SET"
2
by pressing PUSH JOG
%
, then press OK.
SELECT MODE
Move the highlight (pointer) to "TIME SCAN
3
AUDIO" by pressing PUSH
%
JOG JOG to select "ON" or
"OFF".
, then press PUSH
%
MAIN MENU
MODE SET
AUTO CH SET MANUAL CH SET GUIDE PROG SET CLOCK SET JLIP ID NO. SET R.A. EDIT
[5∞] = [MENU] : EXIT
MODE SET
AUTO TIMER : OFF O. S. D. : ON S-VHS :AUTO EDIT : OFF AV2 SELECT : AV2
TIME SCAN :ON
AUDIO
5
[5∞] = [ ] : ON/OFF [MENU] : EXIT
RETURN TO NORMAL SCREEN
Press MENU.
4
RECORDING
STOP
STOP/EJECT
PLAY
SP/LP
RECORD
PAUSE
PAL/MESECAM
TV PROG
Basic Recording
Turn on the TV and select the VIDEO channel (or AV mode).
Set the PAL/MESECAM switch to the appropriate position.
Z pg. 16
EN 23
TV signals being received by the recorder’s built-in tuner can be recorded onto a video tape. You can “capture” a TV programme using your video recorder.
LOAD A CASSETTE
Insert a cassette with the record safety tab intact.
The counter is reset to 0:00:00 and the recorder
1
power comes on automatically.
CHOOSE A PROGRAMME
Press TV PROG +/– or the NUMBER keys to select the channel you wish to record.
2
The TV PROG dial can also be used to select a channel.
••
••
••
••
••
••
NUMBER
SP/LP
8
Press SP/LP ( ). Check the SP/LP indicator on the recorder display panel to confirm the selected tape
3
speed.
START RECORDING
SET TAPE SPEED
Press and hold RECORD and PLAY on the remote control, or press RECORD on the recorder.
4
PAUSE/RESUME RECORDING
Press PAUSE. Press PLAY to resume recording.
2
12 45
8
7
0
3 6 9
4
TV PROG
PLAY
5
STOP RECORDING
Press STOP on the remote control or STOP/EJECT on the recorder. Then press STOP/EJECT to remove the
6
cassette.
Accidental erasure prevention
To prevent accidental recording on a recorded cassette, remove its safety tab. To record on it later, cover the hole with adhesive tape.
RECORD
1
PAUSE
3
Record safety tab
24 EN
TV/VCR
Recording Features
••
••
••
••
••
••
RECORD
RECORDING (cont.)
Record One Programme While Watching Another
If your recorder is connected to the TV via AV connection, . . .
. . . press TV/VCR. The recorder's VCR indicator and the TV broadcast being recorded disappear.
SELECT CHANNEL TO WATCH
Once recording is in progress, all you need to do is to
8
set the channel controls on the TV for the station you
1
wish to view.
The programme selected with the TV’s channel controls appears on the TV screen while the one selected with the recorder's TV PROG buttons is recorded on the tape.
If a decoder is connected to the recorder (Z pg. 45), you can select a scrambled channel as well with the TV channel controls.
DISPLAY
2
C.RESET
AUDIO MONITOR
MENU
PUSH JOG
12 45
7
1
8 0
3
3 6 9
4
TV PROG
OK
Tape Remaining Time
DISPLAY REMAINING TIME
Press DISPLAY until the time remaining on the tape appears.
1
By pressing the DISPLAY button, you can change the display to show the counter reading, channel position*, clock time or tape remaining time.
* channel position is not displayed during playback.
NOTE:
Depending on the type of tape used, there may be times when the tape remaining time reading may not appear right away, or is not correct. "- - : - -" may sometimes appear, or the display may blink on occasion.
Elapsed Recording Time Indication
You can check the exact time of a recording.
SET COUNTER DISPLAY
Press DISPLAY until a counter reading appears on the dispay panel.
1
RESET COUNTER
Press C. RESET before starting recording or playback.
The counter is reset to “0:00:00” and shows the exact
2
elapsed time as the tape runs.
Instant Timer Recording (ITR)
This easy method lets you record for from 30 minutes to 6 hours (selectable in 30-min. increments), and shuts the recorder off after recording is finished.
START RECORDING
Press RECORD on the recorder.
1
ENGAGE ITR MODE
Press RECORD again. " " blinks and 0:30 appears on the front display panel.
2
SET RECORDING DURATION
If you want to record for more than 30 minutes, press
RECORD to extend the time. Each press extends
3
recording time by 30 minutes.
NOTE:
You can only perform ITR using the RECORD button on the recorder's front panel.
EN 25
S-VHS (Super VHS) and VHS
Your recorder can record in either S-VHS or VHS.
To record in S-VHS;
insert a cassette marked "S-VHS", the "S" (S-VHS) indicator will light on the display panel.
then, perform the steps 14 below to set the "S-VHS" to "AUTO".
The S-VHS recording mode will be selected.
To record in VHS;
insert a cassette marked "VHS".
The VHS recording mode will be automatically selected regardless of the S-VHS mode setting.
To record in VHS on an S-VHS cassette;
insert the cassette marked "S-VHS", the "S" (S-VHS) indicator will light on the display panel.
then, perform the steps 14 below to set the "S-VHS" to "OFF"; the "S" (S-VHS) indicator will go out.
The VHS recording mode will be selected.
ACCESS MAIN MENU SCREEN
Press MENU twice.
1
ACCESS MODE SET SCREEN
Move the highlight bar (pointer) to "MODE SET"
2
by pressing PUSH JOG
%
, then press OK.
SELECT MODE
Move the highlight (pointer) to "S-VHS" by
3
pressing PUSH JOG %fi, then press PUSH JOG to select "AUTO" or "OFF".
%
MAIN MENU
MODE SET
AUTO CH SET MANUAL CH SET GUIDE PROG SET CLOCK SET JLIP ID NO. SET R.A. EDIT
[5∞] = [MENU] : EXIT
MODE SET
AUTO TIMER : OFF O. S. D. : ON
S-VHS :AUTO
EDIT : OFF AV2 SELECT :AV2 TIME SCAN :ON
AUDIO
5
[5∞] = [ ] : AUTO/OFF [MENU] : EXIT
Receiving Stereo And Bilin­gual Programmes
Your recorder is equipped with a Sound-Multiplex decoder (A2) and, if you own the HR-S9400EH, a Digital stereo sound decoder (NICAM) as well, making reception of stereo and bilingual broad­casts possible.
When the channel is changed, the type of broadcast being received will be displayed on the TV screen for a few seconds.
Type of Broadcast Being Received
A2 Stereo ST A2 Bilingual BIL Regular Monaural (none) *NICAM Stereo ST NICAM *NICAM Bilingual BIL NICAM *NICAM Monaural NICAM
*Available with HR-S9400EH only.
To listen to a stereo programme, press AUDIO MONITOR until "L" and "R" appear on the front display panel.
To listen to a bilingual programme, press AUDIO MONITOR until either "L" or "R" appears on the front display panel (as required).
To listen to the Standard (regular monaural) audio while receiving a NICAM broadcast, press AUDIO MONITOR until "NORM" appears on the front display panel. (HR-S9400EH only)
On-screen Display
NOTE:
"O.S.D." must be set to "ON" or the on-screen displays will not appear (Z pg. 27).
To Record Stereo And Bilin­gual Programmes (A2)
Stereo programmes are automatically recorded in stereo on the Hi-Fi audio track (with the normal audio track recording mixed L and R channel sound).
Bilingual programmes are automatically recorded in bilingual on the Hi-Fi audio track. The main soundtrack will be recorded on the normal audio track.
NOTES:
If the quality of stereo sound being received is poor, the broadcast will be received in monaural with better quality.
Before playing back a programme recorded in stereo, or a bilingual programme, refer to "Soundtrack Selection" (Z pg. 18).
RETURN TO NORMAL SCREEN
Press MENU.
4
To Record NICAM Stereo And Bilingual Programmes (HR-S9400EH only)
The NICAM audio programme will be recorded on the Hi-Fi audio track, and the Standard audio programme on the normal audio track.
26 EN
Hi-Fi REC LEVEL
FF
REW
PAUSE
PLAY
JOG
Hi-Fi Audio Recording LEVEL Control
In most cases, setting the Hi-Fi audio recording level control to the center position will provide satisfactory results. If necessary,
8
••
••
••
••
••
you can adjust the Hi-Fi audio recording level more precisely by reffering to the audio level indicator on the front panel.
1
NOTES:
Retake
You can cut out unnecessary parts of a TV programme while you're recording it.
RECORDING (cont.)
ADJUST AUDIO RECORDING LEVEL
Turn Hi-Fi REC LEVEL in either direction.
When the level indicator lights up to or near 0dB with the loudest signal being applied, the recording level is optimum.
Make sure that the "HI-FI L+R" position is selected with the AUDIO MONITOR button. Z p. 18 Noise will increase if the recording level is too low, while distortion will increase if the level is too high.
End of programme
Programme
ENGAGE RECORD-PAUSE MODE
Press PAUSE during recording.
1
LOCATE START POINT
Turn the JOG dial (or hold down REW or FF) and release it when you reach the point where you want
2
to resume recording. * Your recorder returns to the Record-Pause mode.
Beginning of programme
Unnecessary part
Recorded part
Go back to end of programme to cut out unnecessary part
Unnecessary part
RESUME RECORDING
Press PLAY when you wish to resume recording.
3
Programme
On-Screen Displays
EN 27
You can choose whether or not to have various operational indicators appear on screen, by setting this function ON or OFF. Messages appear in the selected language (Z pg. 8 or 9).
TURN ON THE RECORDER
Press .
1
Turn on the TV and select the VIDEO channel (or AV mode).
2
MENU
PUSH JOG
12 45 7
1
8 0
3
3 6 9
4
OK
ACCESS MAIN MENU SCREEN
Press MENU twice.
2
ACCESS MODE SET SCREEN
Move the highlight bar (pointer) to "MODE SET" by pressing PUSH JOG %fi, then press OK.
3
ENABLE/DISABLE ON-SCREEN DISPLAY
The default setting is “ON”, so if you want on-
4
screen displays, leave the setting as it is and go to step 5. If you don’t want the displays to appear, press PUSH JOG %fi to move the highlight bar (pointer) to "O.S.D." and press PUSH JOG to set “O.S.D.” to “OFF”.
%
RETURN TO NORMAL
Press MENU.
AUTO TIMER : OFF
O. S. D. : ON
S-VHS :AUTO EDIT : OFF AV2 SELECT : AV2 TIME SCAN :ON
[5∞] = [ ] : ON/OFF [MENU] : EXIT
MODE SET
AUDIO
5
5
NOTES:
When you use this recorder as the player for editing, be sure to set "O.S.D." to "OFF." before starting.
During playback, the operation mode indicators may be disturbed depending on the type of tape being used.
The superimposed indication on the TV screen tells you what the recorder is doing.
1– Operation mode indicators 2– Channel position number and station name/Aux. indicator
(AUX1, AUX2, (S) or F-AUX)
3– Cassette loaded mark 4– Tape speed SP/LP 5– Clock display 6– Current day/month/year 7– Type of Broadcast (Z pg. 25) 8– Tape direction 9– Tape position indicator (Z pg. 17) 10– Counter display (including Counter Memory indicator) 11– Audio mode display (Z pg. 18) 12– Tape remaining time indicator (Z pg. 24) 13– Timer warning display (Z pg. 33) 14– SpatializerW indicator (Z pg. 18)
2 5
6
14
7
9
11
13
PR. 12 ABCD ]SP 21 : 00
24. 12. 97 – WARNING– TIMER RECORDING TO START SOON SPATIALIZER [CANCEL]
ST
++
0
HI FI M –1 : 23 : 45
NORM REMAIN 1 : 00
13
q6
+
+
4
8 10 12
28 EN
DAILY
TIMER
PAL/MESECAM
PROG CHECK
SHOWVIEW Timer
TIMER RECORDING
During SHOWVIEW and regular timer programming, the Illumi­Guide feature tells you which button on the remote control must be pressed next by lighting it up. To use this feature, with the TV/SAT/VCR switch set to "VCR", press ILLUMI GUIDE before performing step 1. (PROG, REW, PLAY, FF light up at this time.)
If you aren't going to use the Illumi-Guide feature, go directly to step 1.
Recording
Before performing SHOWVIEW timer recording:
Be sure to read "SHOWVIEW Setup" (Z pg. 12).
Insert a cassette with the safety tab in place. The recorder
will come on automatically.
Turn on the TV and select the VIDEO channel (or AV mode).
Set the PAL/MESECAM switch to the appropriate position.
Z pg. 16
* For Customers in Australia and New Zealand:
With this recorder, the G-Code system is identified as "SHOWVIEW".
8
••
••
••
••
••
••
2
NUMBER
:PDC/VPS
CANCEL
SP/LP
12 45 7
8 0
3
ADD TIME
6 9
4
WEEKLY
TIMER
TV/SAT/VCR
ACCESS TIMER PROGRAM­MING SCREEN
Press PROG.
1
The front display panel looks like this:
If you are using the Illumi-Guide feature, the following buttons will light up: NUMBER keys (0–9), START +/–,
STOP +/–, DATE +/–, TV PROG +/–, MENU and CANCEL.
TIMER PROGRAMMING
[0 – 9] : SHOWVIEW [+/–] : EXPRESS PROGRAMMING [MENU] : MAIN MENU
ENTER SHOWVIEW NUMBER
Press the NUMBER keys to enter the SHOWVIEW
2
number of a programme you wish to record.
If you make a mistake, press CANCEL to backspace and then input the correct number.
The SHOWVIEW number you enter appears on the front display panel:
SHOWVIEW
12345678
[0 – 9] = [CANCEL] : DELETE [MENU] : EXIT
PROG/MENU
1
3
OK
ILLUMI GUIDE
When Using The Illumi-Guide Feature
Buttons light or blink on the remote control for approximately 10 seconds. If the button or buttons extinguish during timer programming, press ILLUMI GUIDE and the button or buttons previously lit or blinking come back on. If the button or buttons do not re-light or start blinking again, press MENU and re-perform the timer programming procedure from the beginning.
If for some reason the remote control's signal is not received by the video recorder , press MENU and re-perform the timer programming procedure from the beginning.
The display panel can only show 4 digits at a time.
If you are using the Illumi-Guide feature, OK blinks when the following buttons are lit: NUMBER keys (0–
9), CANCEL and MENU.
EN 29
ACCESS SHOWVIEW PROGRAM SCREEN
Press OK, and the SHOWVIEW Program screen
3
appears (if you’re just starting out, “P1” appears).
The display panel shows the programme start time. Pressing PROG CHECK changes the display to the programme stop time, then the date and channel position.
SP
IMPORTANT
Be sure to confirm the setting of PDC/VPS recording.
If " ON" is displayed on the screen or " " is lit on the display panel, PDC/VPS is set to ON.
If " OFF" is displayed on the screen or " " is not lit on the display panel, PDC/VPS is set to OFF.
To change the setting, press : PDC/VPS (NUMBER key "7").
Z "PDC/VPS Recording" on page 33.
Make sure the channel position number you wish to
record is displayed; if not, see "S page 12 and set the Guide Program number for that SHOWVIEW number correctly.
If the number you entered is invalid, "ERROR" appears on the screen and "Err" appears on the display panel. Press CANCEL to backspace and input a valid SHOWVIEW number.
If "ERROR=GUIDE PROG" appears on the screen, see "ATTENTION – Regarding Guide Program Number Set" in the right column.
If you are using the Illumi-Guide feature, OK blinks.
SHOWVIEW 123456789
START STOP 21:00 = 22:00
SP ON
DATE TV PROG
25.12 1
: OK
HOWVIEW Setup" on
SET TAPE SPEED
Press SP/LP ( ) to set the tape speed.
4
RETURN TO NORMAL SCREEN
Press OK.
Repeat steps 1 – 5 for each additional programme.
5
ENGAGE RECORDER’S TIMER MODE
Press TIMER. The recorder turns off automatically.
6
– P1 –
ARD
NOTE:
To Delay The Stop Time . . .
. . . press ADD TIME (NUMBER Key "5") after pressing OK in step 3. Each time you press, the Stop time is delayed by 5 minutes (meaning that 5 minutes of recording time is added). You can easily compensate for anticipated programme schedule delays this way.
To Timer-Record Weekly Or Daily Serials . . .
. . . after pressing OK in step 3, press WEEKLY (NUMBER key “9”) for weekly serials or DAILY (NUMBER key “8”) for daily serials (Monday–Friday). Either "WEEKLY" or "DAILY" appears on the screen. Pressing the button again makes the correspond­ing indication disappear.
You can programme this recorder to timer-record as many as 8 programmes. If you try to programme the recorder to record a ninth, "PROGRAM FULL" appears on screen and "FULL" appears on the front display panel. To record the extra programme, you must first cancel any unnecessary programmes (Z pg. 32).
Satellite Tuner Users
To timer-record a satellite broadcast using S HOWVIEW:
Before you start step 1, be sure to set the recorder's input mode to "AUX2" (Z pg. 35). Do NOT change the input mode until the selected programme has been timer­recorded.
Before the selected programme begins, select the appropriate channel on the satellite tuner, and then set the tuner's timer. If your satellite tuner does not have a timer, leave the unit's power on.
ATTENTION
Regarding Guide Program Number Set
"ERROR=GUIDE PROG" appears after performing step 3 on the previous page if the Guide Program number for the SHOWVIEW number you entered has not been set.
If the recorder is in the stop or rewind or fast-forward mode, the following screen will appear with "– –" under "TV PROG" blinking.
Press the NUMBER keys or PUSH JOG %fi to input the
channel position number you recorder receives that station on, then press OK.
GUIDE PROG SET
(Ex.) To timer-record a ZDF
GUIDE PROG TV PROG
2 – –
[5∞] = [MENU] : EXIT
Press MENU, then try again from step 1.
If the recorder is in a mode other than the above mentioned
modes, press MENU first and input the correct Guide Program number for that S "SHOWVIEW Setup"), then try again from step 1.
programme with SHOWVIEW * If your recorder receives
ZDF on the channel position 2, press OK after entering "2".
HOWVIEW number (Z pg. 12,
30 EN
8
7
9
STOP+/–
PAL/MESECAM
Regular Timer Programming
Remember, the clock must be set before you can programme the timer (Z pg. 55).
Before performing the following steps:
Insert a cassette with the safety tab in place. The recorder will come on automatically.
Turn on the TV and select the VIDEO channel (or AV mode).
Set the PAL/MESECAM switch to the appropriate position.
Z pg. 16
8
••
••
••
••
••
••
0
4
TIMER RECORDING(cont.)
If you don’t know the SHOWVIEW number for the programme you wish to record, use the following procedure to set your recorder to timer-record the programme. Or you can use the Illumi-Guide feature, where the remote control tells you which button to press next by lighting it up. To use the Illumi-Guide feature, with the TV/SAT/VCR switch set to "VCR", press
ILLUMI GUIDE before performing step 1. (PROG, REW, PLAY, FF light up at this time.)
If you aren't going to use the Illumi-Guide feature, go directly to step 1.
ACCESS TIMER PROGRAMMING SCREEN
Press PROG.
If you are using the Illumi-Guide feature, the following
1 2
buttons will light up: NUMBER keys (0–9), START +/–, STOP +/–, DATE +/–, TV PROG +/–, MENU and CANCEL.
ACCESS PROGRAMME SCREEN
Press START +/–. (If you’re just starting out, “P1” appears.)
[+/–] = [MENU] : EXIT
The front display panel looks like this:
SP
– P1 –
START STOP
–:– – = –:– –
SP
DATE TV PROG
25.12 – –
ON
START+/–
TV/SAT/VCR
3
ILLUMI GUIDE
PROG/MENU
1
When Using The Illumi-Guide Feature
Buttons light or blink on the remote control for approximately 10 seconds. If the button or buttons extinguish during timer programming, press ILLUMI GUIDE and the button or buttons previously lit or blinking come back on. If the button or buttons do not re-light or start blinking again, press MENU and re-perform the timer programming procedure from the beginning.
If for some reason the remote control's signal is not received by the video recorder , press MENU and re-perform the timer programming procedure from the beginning.
If you are using the Illumi-Guide feature, the following buttons will light up: START +/–, STOP +/–, DATE +/– , TV PROG +/– and MENU.
ENTER PROGRAMME START TIME
Press START +/– to enter the time you want recording to start.
3
Press and hold START +/– to move in 30-
minute increments, or press and release repeatedly to move 1 minute at a time.
The front display panel looks like this:
SP
If you are using the Illumi-Guide feature, the following buttons remain lit: ST ART +/–, STOP +/–, DATE +/–, TV PROG +/– and MENU.
START STOP
21:00 = –:– –
SP ON
DATE TV PROG
25.12 – –
[+/–] = [MENU] : EXIT
ENTER PROGRAMME STOP TIME
Press STOP +/– to enter the time you want recording to stop.
4
If you are using the Illumi-Guide feature, the following buttons remain lit: ST ART +/–, STOP +/–, DATE +/–, TV PROG +/– and MENU.
– P1 –
EN 31
DAILY
DATE+/–
TIMER
ENTER PROGRAMME DATE
Press DATE +/–. (The current date appears on screen. The date you enter appears in its place.)
5
8
••
••
••
••
••
••
If you are using the Illumi-Guide feature, the following buttons remain lit: ST ART +/–, STOP +/–, DATE +/–,
TV PROG +/– and MENU.
ENTER CHANNEL POSITION
Press TV PROG +/–.
6
SP
START STOP
21:00 = 22:00
SP
DATE TV PROG
25.12 1
[+/–] = [MENU] : EXIT
– P1 –
ON
ARD 1
:PDC/VPS
SP/LP
2
12 45
8
7
0
1
3
3 6 9
4
WEEKLY
TIMER
TV PROG+/–
OK
IMPORTANT
Be sure to confirm the setting of PDC/VPS recording.
If " ON" is displayed on the screen or " " is lit
on the display panel, PDC/VPS is set to ON.
If " OFF" is displayed on the screen or " " is
not lit on the display panel, PDC/VPS is set to OFF . To change the setting, press : PDC/VPS (NUMBER key "7").
Z "PDC/VPS Recording" on page 33.
If you are using the Illumi-Guide feature, OK blinks
when the following buttons are lit: START +/–, STOP +/–, DATE +/–, TV PROG +/– and MENU.
SET TAPE SPEED
Press SP/LP ( ) to set the tape speed.
7
RETURN TO NORMAL SCREEN
After confirming all information is correct, press OK and the normal screen appears.
8
Repeat steps 1–8 for each additional programme.
ENGAGE RECORDER’S TIMER MODE
Press TIMER. The recorder turns off automatically.
9
Satellite Tuner Users
To timer-record a satellite broadcast using Regular Timer Programming:
Before you start step 1, be sure to set the recorder's input mode to "AUX2" (Z pg. 35). Do NOT change the input mode until the selected programme has been timer­recorded. In step 6, you have to select "AUX2" as well.
Before the selected programme begins, select the appropriate channel on the satellite tuner, and then set the tuner's timer. If your satellite tuner does not have a timer, leave the unit's power on.
To Timer-Record Weekly Or Daily Serials . . .
. . . anytime during steps 2 through 8, press WEEKLY (NUMBER key “9”) for weekly serials or DAILY (NUMBER key “8”) for daily serials (Monday–Friday). Either "WEEKLY" or "DAILY" appears on the screen. Pressing the button again makes the corresponding indication disappear.
NOTE:
You can programme this recorder to timer-record as many as 8 programmes. If you try to programme the recorder to record a ninth, "PROGRAM FULL" appears on screen and "FULL" appears on the front display panel. To record the extra programme, you must first cancel any unnecessary programmes (Z pg. 32).
32 EN
DATE+/–
STOP+/–
PROG CHECK
TIMER RECORDING (cont.)
Auto Timer
When the Auto Timer is set to ON the timer is automatically engaged when the recorder power is turned off and automati­cally disengaged when the recorder is powered back on.
2
12 45
8
7
1
0
3
CANCEL
START+/–
MENU
PUSH JOG
Check And Cancel Programmes
3 6 9
4
TIMER
TV PROG+/–
OK
ACCESS MAIN MENU SCREEN
Press MENU twice.
1
ACCESS MODE SET SCREEN
Press PUSH JOG %fi to move the highlight bar
2
(pointer) to "MODE SET", then press OK.
SELECT MODE
Press PUSH JOG to select either "ON" or "OFF".
%
3
MAIN MENU
MODE SET
AUTO CH SET MANUAL CH SET GUIDE PROG SET CLOCK SET JLIP ID NO. SET R.A. EDIT
[5∞] = [MENU] : EXIT
MODE SET
AUTO TIMER : OFF
O. S. D. : ON S-VHS :AUTO EDIT : OFF AV2 SELECT : AV2 TIME SCAN :ON
AUDIO
5
[5∞] = [ ] : ON/OFF [MENU] : EXIT
1
2
ACCESS PROGRAMME DISPLAY AND/OR SCREEN
Press PROG CHECK.
The display panel shows the programme start time. Pressing OK changes the display to the programme stop time, then the date and channel position.
If the recorder is turned on and the TV is set to its VIDEO channel or AV mode, you can check program information on screen as well.
Each time you press PROG CHECK, the next programme's information appears.
If All Information Is Correct . . .
. . . programming is completed.
If You Wish To Revise Data . . .
. . . with the recorder's power turned on, go to step 2.
If You Wish To Cancel A Program . . .
. . . with the recorder's power turned on, press CANCEL.
All information you input is deleted.
REVISE PROGRAMME INFORMATION
Input the appropriate data using the START +/–, STOP +/–, DATE +/– and TV PROG +/– buttons on the
remote control.
RETURN TO NORMAL SCREEN
Press MENU.
4
NOTE:
For safety, when Auto timer is set to "OFF", all other recorder functions are disabled while the Timer mode is engaged. To disengage the timer, press TIMER.
8
AUTO SP/LP TIMER
••
••
••
••
••
••
AUTO SP/LP TIMER indicator
DISPLAY
2
12 45 7
CANCEL
START+
8 0
3 6 9
4
PDC/VPS Recording
Now available from some TV stations, PDC (Programme Delivery Control) and VPS (Video Programme System) are service designed to assure safe, accurate timer recording. With this system, special code signals are transmitted together with the audio/video signals. These code signals control your video recorder and have precedence over advertised times you preset in the timer. This means that your recorder will start and stop recording when the preset TV programmes actually start and end — even if the broadcast time of a preset TV programme is changed.
EN 33
Auto SP/LP Timer
If, when recording in SP mode, there is not enough tape to record the entire programme, the recorder automatically switches to LP mode to allow complete recording.
ENGAGE AUTO SP/LP TIMER
Press AUTO SP/LP TIMER on the recorder front panel. The AUTO SP/LP TIMER indicator lights up.
1
For Example . . .
Recording a programme of 210 minutes in length onto a 180-minute tape
Approximately 150 minutes Approximately 60 minutes
SP mode
Total 210 minutes
Make sure you press AUTO SP/LP TIMER before performing timer programming.
NOTES:
The Auto SP/LP Timer feature is not available during ITR (Instant Timer Recording), and the feature will not work properly with any tapes longer than E-180 as well as some tapes of shorter lenghs.
Even if, in step 1, you press AUTO SP/LP TIMER and the indicator lights up, that doesn’t mean that the recorder will automatically change from SP to LP mode during the course of the recording. Watch the tape later to confirm.
If you have programmed the recorder to timer-record 2 or more programs, the second programme and those thereafter may not fit on the tape if you engage the Auto SP/LP Timer mode. In this case, make sure the mode is not engaged, then set the tape speed manually during timer programming.
There may be some noise at the point on the tape where the recorder switches from SP to LP mode.
If you perform timer recording with both PDC/VPS and the Auto SP/LP Timer activated, and the programme goes beyond its originally scheduled length, there may be times when the programme cannot be recorded in its entirety.
LP mode
NOTES:
When you manually enter programmes (regular timer programming), set the start time (PDC or VPS time) exactly as advertised in the TV listing. A different time than advertised will result in no recording.
PDC/VPS recording is not possible in areas where no TV station transmits PDC or VPS signals.
PDC/VPS recording is also possible when a satellite tuner or a cable system is connected to the AV2 IN/DECODER connector on your recorder.
PDC/VPS recording is also possible via the AV1 IN/OUT connector and the front panel connectors.
How to check if the station being received transmits a PDC/VPS signal
1
Press DISPLAY until the channel position appears on the display panel.
2 Hold down START + for about 5 seconds.
" " appears blinking on the display panel.
If a PDC/VPS signal is detected from the station
stop blinking.
If no PDC/VPS signal is detected from the station
blink at a slower rate.
3 Press DISPLAY or START + again to return to normal display.
, " " will
, " " will
Timer Warning
If you have programmed your recorder to timer-record a programme or a series of programmes, a warning appears on screen to tell you that the record­ing is to start in 5 minutes.
NOTES:
The warning only appears if you’re not in the Timer mode at that time.
If this recorder is being used as the player for tape dubbing, the warning screen is recorded on the tape in the other video recorder.
The warning blinks for the entire 5 minutes leading up to the start of timer recording. To clear the display, press CANCEL.
– WARNING– TIMER RECORDING TO START SOON
[CANCEL]
34 EN
AV/S SELECT
PAL/MESECAM
NUMBER "0"
Preparation For Editing
EDITING
Editing Mode Setting
You can minimize picture degradation while editing.
ACCESS MAIN MENU SCREEN
Press MENU twice.
Turn on the TV and select the VIDEO channel (or AV mode).
Set the PAL/MESECAM switch to the appropriate position.
Z pg. 16
8
••
••
••
••
••
••
2
12 45 7
8 0
3 6 9
4
1
ACCESS MODE SET SCREEN
Move the highlight bar (pointer) to "MODE SET"
2
by pressing PUSH JOG
%
, then press OK.
SELECT MODE
Move the highlight (pointer) to "EDIT" by
3
pressing PUSH JOG %fi, then press PUSH JOG to select "ON".
%
RETURN TO NORMAL SCREEN
Press MENU.
4
MAIN MENU
MODE SET
AUTO CH SET MANUAL CH SET GUIDE PROG SET CLOCK SET JLIP ID NO. SET R.A. EDIT
[5∞] = [MENU] : EXIT
MODE SET
AUTO TIMER : OFF O. S. D. : ON S-VHS :AUTO
EDIT : ON
AV2 SELECT : AV2 TIME SCAN :ON
AUDIO
5
[5∞] = [ ] : ON/OFF [MENU] : EXIT
PUSH JOG
MENU
1
3
OK
NOTE:
After you finish editing, be sure to set "EDIT" back to "OFF".
Advantages Of S-VHS Video Recorders
You can edit from VHS to S-VHS, S-VHS to VHS, or, from S-VHS to S-VHS.
From VHS to S-VHS (VIDEO-VIDEO connection): Record VHS playback signals in the S-VHS mode. Although the picture quality is inherently limited by that of the original, the edited tape has better picture quality than those made by VHS-to-VHS editing.
From S-VHS to VHS (VIDEO-VIDEO connection): Because the picture quality of the source material is very high, the edited tape has better picture quality than those made by VHS-to-VHS editing.
From S-VHS to S-VHS (S-VIDEO connection): All signals will be transferred without degradation.
To Select The External Input Mode
To record external audio and video signals;
1 Press the remote control's NUMBER key "0". 2 Press AV/S SELECT on the front of the recorder to select the appropriate external input mode.
Pressing AV/S SELECT rotates the input mode as follows:
When using rear panel input connectors:
Mode
Connector
(on display panel)
(on screen)
EN 35
AV/S
SELECT
AV1 IN/OUT
AV2 IN/DECORDER
S IN, AUDIO IN L and R
AU-1
AU-2
[S]
AUX 1
AUX 2
(S)
When using front panel input connectors:
Mode
Connector
VIDEO, AUDIO
L and R
(on display panel)
F-AU
(on screen)
F-AUX
NOTES:
To record input signals from the AV2 IN/DECODER connector, set "AV2 SELECT to "AV2" (see below).
Connections made to the front panel Video and Audio inputs automatically override the rear panel AUDIO/VIDEO input
connection. If you wish to edit with another machine connected to the rear input connector, make sure that there is nothing connected to the front connectors.
Use the L connector for monaural connection.
AV2 SELECT Setting
1 Press MENU twice to access the Main Menu screen. 2 Press PUSH JOG %fi to move the highlight bar (pointer) to "MODE SET", then press OK. 3 Press PUSH JOG %fi to move the highlight bar (pointer) to "AV2 SELECT". 4 Press PUSH JOG to move the highlight bar (pointer) to your choice:
a–AV2 : To use this recorder as the recording deck with the player connected to the b–DECODER : To use a decoder connected to the AV2 IN/DECODER connector.
AV2 IN/DECODER connector.
5 Press MENU to return to normal screen.
If you have a decoder, be sure to set "AV2 SELECT" back to "DECODER" after editing.
If you're not using a decoder, leave "AV2 SELECT" set to "AV2".
The default setting is "AV2"; if the recorder's memory backup has expired due to a power cut or because the AC was
removed from the recorder, "AV2" will be automatically selected when the power is restored to the recorder. If you are using a decoder, be sure to set "AV2 SELECT" back to "DECODER".
MODE SET
AUTO TIMER : OFF O. S. D. : ON S-VHS :AUTO EDIT : OFF
AV2 SELECT : AV2
TIME SCAN :ON
AUDIO
5
[5∞] = [ ] : AV2/DECODER [MENU] : EXIT
36 EN
PLAY
EDITING (cont.)
You can use your video recorder as the source player or the recording deck.
Edit To Or From Another Video Recorder
Set the PAL/MESECAM switch to the appropriate position.
Z pg. 16
2
12 45 7
8 0
3 6 9
4
MAKE CONNECTIONS
Connect the player’s 21-pin SCART (AV) connector to the recorder’s 21-pin SCART (AV) connector as
1
illustrated on page 37.
When Using Your Video Recorder As The Source Player . . .
. . . connect its AV1 IN/OUT connector to the recording deck.
When Using Your Video Recorder As The Recording Deck . . .
. . . . connect its AV2 IN /DECODER or AV1 IN/OUT
connector to the source player.
If you are using another recorder with S-Video and Audio input/output connectors, you can connect them to this recorder's S-IN/S-OUT and AUDIO IN/ OUT connectors.
SET RECORDING DECK’S INPUT MODE
Set to AUX. When using this recorder as the recording deck, select the appropriate input mode. Z "To Select
2
The External Input Mode" on page 35.
When using the AV2 IN/DECODER connector, make sure "AV2 SELECT" is set to "AV2" (Z pg. 35).
SET EDIT MODE
See "Editing Mode Setting" on page 34.
RECORD
1
3
3
START SOURCE PLAYER
Engage its Play mode.
4
START RECORDING DECK
Engage its Record mode.
5
NOTES:
All necessary cables can be obtained from your dealer.
Be sure to set "EDIT" back to "OFF" when you finish editing. (Z pg. 34)
EN 37
Player Your recorder Recorder Your recorderTV Receiver TV Receiver
21-pin SCART Cable
VIDEO CHAN­NEL or AV mode
(not provided)
RF Cable (provided)
Another recorder
Recorder
21-pin SCART Cable (not provided)
Another recorder
Player
For Customers in Australia and New Zealand:
When connecting the AV cable, use the input and/or output cable adapter as illustrated below.
VIDEO CHAN­NEL or AV mode
Player Recorder Your recorderTV Receiver TV Receiver
Audio/Video Cable (not provided)
RF Cable (provided)
Your recorder
Output cable adapter (provided)
Input cable adapter (provided)
Audio/Video Cable (not provided)
Another recorderAnother recorder
Output cable adapter (provided)
RF Cable (provided)
RF Cable (provided)
VIDEO CHAN­NEL or AV mode
VIDEO CHAN­NEL or AV mode
Recorder
Player
38 EN
EDITING (cont.)
You can use a camcorder as the source player and your video recorder as the recorder.
Edit From A Camcorder
Set the PAL/MESECAM switch to the appropriate position.
Z pg. 16
2
12 45 7
NUMBER "0"
8 0
3 6 9
4
TV PROG
MAKE CONNECTIONS
Connect the camcorder’s AUDIO/VIDEO OUT connectors to the recorder’s front panel AUDIO/VIDEO
1
input connectors.
When using a monaural camcorder, connect its AUDIO OUT connector to the AUDIO IN L input connector on your recorder.
When a Master Edit Control-equipped JVC camcorder is used, the camcorder is capable of controlling the recorder. Refer to the camcorder’s instruction manual for operating procedure.
SET RECORDER’S INPUT MODE
Press NUMBER key “0” or TV PROG so that “F-AU” appears in place of a channel position number.
2
Refer to "To Select The External Input Mode" on page
35.
SET EDIT MODE
See "Editing Mode Setting" on page 34.
3
START CAMCORDER
Engage its Play mode.
VIDEO input
Camcorder
1
Recorder
••
••
••
••
••
••
AUDIO input
Audio Cable (provided) Video Cable (Not provided)
VIDEO OUT
AUDIO OUT
3
To rear panel PAUSE/ R.A.EDIT connector
8
Mini-Plug Cable (not provided) (JVC camcorder only)
4
START RECORDER
Engage its Record mode.
5
NOTE:
Be sure to set "EDIT" back to "OFF" when you finish editing. (Z pg. 34)
Player
EDIT
EN 39
A. DUB
PAUSE
STOP
PLAY
Audio dubbing replaces the normal audio sound of a previously recorded tape with a new soundtrack.
Audio Dubbing
8
••
••
••
••
••
••
CD Player etc.
CD Player etc.
Mixer output
Audio mixer
Normal audio track
Video/Hi-Fi audio track
Pre-recorded tape
Audio-dubbed tape
MAKE CONNECTIONS
Connect an audio component to the AUDIO IN L + R connectors on the recorder's front panel.
1
When connecting monaural equipment, use only the recorder's AUDIO IN L connector.
SET INPUT MODE
Press NUMBER key "0" or TV PROG so that "F-AU" appears in place of a channel number.
2
Refer to "To Select The External Input Mode" on page
35.
LOCATE START POINT
Press PLAY to start playback of the tape in your recorder, and press PAUSE when you find the point
3
where you want to start dubbing.
Original sound AUDIO OUT
••
••
••
••
••
••
NOTES:
When monitoring the sound during Audio Dubbing, the normal soundtrack is automatically selected. If you wish to hear the mixed sound (Hi-Fi + Normal soundtracks), press AUDIO MONITOR on the remote control to select "L+R+NORM" (Z pg. 18).
Audio dubbing stops automatically when the counter reaches "0:00:00", and the recorder enters the Play mode. Check the counter reading before dubbing.
Audio dubbing is also possible using the rear panel AV1 IN/ OUT or AV2 IN connector. When using these connectors, make sure to select the correct input mode in step 2.
Audio dubbing cannot be performed on a cassette that has had its record safety tab removed.
When playing back an audio-dubbed tape, press AUDIO MONITOR on the remote control to select the soundtrack
you wish to hear (Z pg. 18).
ENGAGE AUDIO DUBBING
Press A. DUB.
Your recorder enters the Audio Dubbing Pause mode.
4
8
(" " blinks, " " and " " light up on the front display panel.)
To perform audio dubbbing with audio mixing, press AUDIO MONITOR on the remote control to select "L + R" at this point. *Audio dubbing with audio mixing is not possible if you're using a monaural audio component, or if you don't have an audio mixer.
START DUBBING
Engage the audio component's Play mode, then press
PLAY to start the tape in your recorder. Audio dubbing
5
begins at this point.
" " blinks and " " is displayed on the front display panel.
To stop dubbing temporarily, press PAUSE. Press PLAY to resume dubbing.
END AUDIO DUBBING
Press STOP to stop the tape in your recorder, and engage the audio component's Stop mode.
6
40 EN
NUMBER "0"
PAUSE
JOG
PAL/MESECAM
Insert Editing
Set the PAL/MESECAM switch to the appropriate position.
Z pg. 16
Recorder Your recorder
EDITING (cont.)
Insert editing replaces part of the recorded scene with new material. Both the picture and Hi-Fi audio soundtrack are replaced with new ones, while the normal audio soundtrack remains unchanged. If you wish to change the normal audio track as well, use the audio dubbing function simultaneously. Use your video recorder as the recorder.
Source tape
••
••
••
••
••
••
Player
C.RESET
TIME SCAN SHUTTLE
Audio/Video signal
Another recorder
2
12 45
8
7
0
3 6 9
4
8
Recorded tape
Before insert editing
After insert editing
Normal audio track
Video/Hi-Fi audio track
MAKE CONNECTIONS
Connect the player's VIDEO OUT and AUDIO OUT connectors to your recorder's VIDEO IN and AUDIO IN
1
on the front panel.
SET INPUT MODE
Press NUMBER key "0" or TV PROG so that "F-AU" appears in place of a channel number.
2
Refer to "To Select The External Input Mode" on page
35.
LOCATE END POINT
Load the recording cassette into your recorder, and play it back to determine the edit-out point (the end of the
3
segment to be replaced) using the JOG/TIME SCAN SHUTTLE controls or PUSH JOG and PAUSE .
%
RESET THE COUNTER
Press C.RESET to change the counter display to "0:00:00".
4
LOCATE START POINT
Determine the edit-in point (the beginning of the segment to be replaced) using the JOG/TIME SCAN
5
SHUTTLE controls or PUSH JOG and PAUSE .
Be sure to engage the Still mode at the edit-in point.
%
PUSH JOG
1
PAUSE
3
PLAY
INSERT
A. DUB
PLAY
••
••
••
••
••
••
C.RESET
2
12 45
8
7
0
3 6 9
4
EN 41
ENGAGE INSERT EDITING
Press INSERT.
Your recorder enters the Insert-Pause mode. (" ", " "
8
6
and " " light up on the front display panel.)
The TV screen changes from the still picture to the input source you are going to record.
START EDITING
Load the source cassette and play back the segment that is to be inserted. When you reach the start of the
7
section of the source tape that you wish to insert, press PLAY to start the tape in your recorder; Insert Editing begins at this point.
" " and " " are displayed on the front display panel.
END INSERT EDITING
At counter "0:00:00", Insert Editing will stop automati­cally while the tape continues running in the Play
8
mode. if you wish to stop Insert Editing before the specified edit-out point, press C.RESET.
FOR AV INSERT EDITING
If you want to replace the picture, Hi-Fi audio soundtrack and normal audio soundtrack all at the same time... In step 6 above, after you press INSERT, press A. DUB also. (" " and " " blink and " " lights up on the front display panel.)
1
3
NOTES:
Suitable leads can be obtained from your dealer.
Insert editing is not possible with cassettes whose safety tab has been removed.
When insert editing is performed on a tape that has been recorded on another video recorder, the inserted portion may appear distorted.
In insert editing, the recording speed (SP/LP) is determined by the previous recording to be replaced. If the previous recording's speed changes within a single edit, the inserted picture will be distorted at the switching point.
A small portion of the recording which precedes an insert edit may become erased.
Insert Editing is also possible using the rear panel AV1 IN/ OUT or AV2 IN connector. When using these connectors, make sure to select the correct input mode in step 2.
42 EN
PLAY
JOG
IN/OUT
START
TIME SCAN SHUTTLE
STOP
Random As­semble Editing
EDITING (cont.)
This function makes it easier to create edited videos when your video recorder is used as the source player in combination with another JVC video recorder equipped with a Remote PAUSE Connector. You can pre-program up to 8 scenes or “cuts” for automatic editing in the sequence you have specified.
You can also perform Random Assemble Editing with a second non-JVC recorder. Z pg. 43
Set the PAL/MESECAM switch to the appropriate position.
Z pg. 16
PAUSE/
R.A. EDIT
Player
••
••
••
••
••
••
Audio signal Video signal
Another recorder
(w/PAUSE connector)
Recorder
REMOTE
PAUSE
Your recorder
8
Mini-plug Cable (Not provided)
MAKE CONNECTIONS
Connect your recorder’s AV1 IN/OUT connectors to the VIDEO IN and AUDIO IN connectors on the recording
1
deck, and connect your recorder’s PAUSE/R.A. EDIT connector to the PAUSE connector on the recording deck.
If the recording deck doesn’t have a PAUSE connec­tor, connect to the R.A. EDIT connector instead.
The Mini-plug cable is a mono 3.5 mm mini-plug to mono 3.5 mm mini-plug connector.
PREPARE FOR EDITING
Insert the cassette to be recorded on into the recorder and set the recorder's input mode.
2
LOAD SOURCE CASSETTE
Insert the source cassette into your recorder.
3
SET EDIT MODE
See "Editing Mode Setting" on page 34.
4
START SOURCE PLAYBACK
Press PLAY.
••
••
••
••
••
••
CANCEL
MENU
PUSH JOG
STOP
1
0
PLAY
3
4
OK
5
ACCESS MAIN MENU
8
SCREEN
Press MENU twice.
6
ACCESS R.A. EDIT SCREEN
Press PUSH JOG %fi to move the highlight bar (pointer) to "R.A.EDIT", then press OK.
7
The screen is superimposed on the video playback in step 8.
EN 43
LOCATE EDIT-IN POINT
Find the point on the source tape from where you want
8
the edited scene to begin by pressing PUSH JOG or using the TIME SCAN SHUTTLE ring or the JOG dial, then press IN/OUT.
The edit-in point is registered in memory and appears on the screen.
You can also perform an Index Search (if index marks have been previously recorded on the tape at the desired points) to find the points you want, but this will result in reduced accuracy.
%
=1
2 3 4 5 6 7 8
[MENU] : EXIT
LOCATE EDIT-OUT POINT
Find the point where you want the edited scene to
9
end by pressing PUSH
%
JOG or using the TIME SCAN SHUTTLE ring or the JOG dial, then press IN/OUT.
The edit-out point is registered in memory and appears on the screen.
The total time of the edited scenes is displayed to the right of "(+)".
Repeat steps 8 and 9 for each additional scene.
= 1 0:02:23
2 3 4 5 6 7 8
[MENU] : EXIT
=1 0:02:23 0:02:51
2 3 4 5 6 7 8
[MENU] : EXIT
PREPARE RECORDING DECK
Engage its Record-Standby mode.
10
START R.A. EDIT
Press START.
Automatic editing begins; all the specified scenes are
11
copied to the recording deck in the order they were registered.
The on-screen display remains while your recorder searches for each scene (blinking cursor indicates scene currently being searched for), but disappears during actual editing.
During scene search, the recording deck automati­cally enters its Record-Standby mode.
When all registered scenes have been edited, your recorder enters the Pause mode, the recording deck enters its Record-Standby mode, and the cursor blinks at the next available number.
0:00:00
(+) 0:00:00
0:02:23
(+) 0:00:00
0:02:51
(+) 0:00:28
NOTES:
You can also monitor the sound when searching for scenes you want to edit in steps 89. Since you can hear the soundtrack during selection, you can avoid abrupt or unnatural sounding scene-to-scene transitions. The sound that is heard, however, is not TimeScan Audio.
When editing, there may be a discrepancy of about 2 seconds on the source tape between the locations you chose as edit-in/-out points and the locations your recorder recognizes as those points.
For any scene, the edit-out point must have a counter reading that is at least 1 second after the corresponding edit-in point. Any less than 1 second and the edit-out point will not be registered.
Since the source recorder prerolls during Random Assemble Editing, there must be at least 15 seconds worth of recorded material prior to any edit-in point on the source tape.
If the search time for an edit-in point exceeds 5 minutes, the recording deck enters its Stop mode and editing will not take place.
During steps 8 and 9 — if you engage the Pause mode while registering edit-in and -out points in the R.A. Edit screen, the characters in the on-screen display may become distorted. This is normal.
To Make Corrections . . .
. . . during step 8 or 9, you can cancel registered in and out points by pressing CANCEL on the remote control. Each time you press, the preceding point is erased.
If, for example, you have registered 5 sets of in and out points and want to reset the first set, you have to press CANCEL until all points after the first set have been erased. Reenter them after you've repaired the first set of points.
Memory Capacity
Random Assemble Editing shares memory space with the recorder's timer. If there are programs occupied by timer-recording data, those spaces cannot be used to register edit-in and -out points — meaning you won't be able to edit 8 scenes.
When all 8 programs are full, "PROGRAM FULL" appears on the R.A. EDIT screen.
To cancel a program, see page 32.
RM-V704U Multi-Brand R.A. Edit Controller (Not provided)
By connecting this controller to your recorder's R.A. EDIT connector , you can perform Random Assemble Editing in combination with a second non-JVC video recorder . The controller is compatible with various major recorder brands. For compatible systems and availability, please consult your JVC dealer.
PROGRAM FULL
[MENU] : EXIT
0:00:00
(+) 0:00:00
NOTE:
Although the RM-V704U is designed to operate the recording deck, it may not work with some recorders, or may have limited function capability.
END R.A. EDIT
Press MENU to return to the normal screen, and engage the Stop mode for your recorder and for the recording
12
deck.
44 EN
••
••
••
••
••
••
J terminal
12 45 7
2
8 0
3 6 9
4
INFORMATION ON J TERMINAL
J T erminal (JLIP(Joint Level Interface Protocol) Connector)
The J Terminal is used to connect the recorder to a personal
8
computer or similar device to allow computerized control of the recorder during editing and certain other operations.
Examples:
Enables Random Assemble Editing of up to 99 segments with the optional JLIP PLAYER PACK HS-V1EG, using this recorder as the playback unit.
Allows you to capture still images from the recorder into a personal computer with the optional JLIP VIDEO CAPTURE BOX GV-CB1E.
For further details consult your nearest JVC dealer.
JLIP ID Number
Your recorder has its own JLIP ID number. This ID number must be unique when your recorder is connected to another device via its J terminal. The ID Number is preset to "1" at the factory. You can change this number to any number between "1" and "99". If it is necessary to change the JLIP ID number perform the following steps.
ACCESS MAIN MENU SCREEN
Press MENU twice.
1
MENU
PUSH JOG
1
3
OK
ATTENTION
After you change your recorder's JLIP ID number, control signal transmission may not work properly. If this happens, turn off the recorder's power off once, then turn it back on and try again.
ACCESS JLIP ID NO. SET SCREEN
Press PUSH JOG %fi and move the highlight bar
2
(pointer) to "JLIP ID NO. SET", then press OK.
SET JLIP ID NUMBER
Press PUSH JOG %fi to enter the desired ID
3
number.
RETURN TO NORMAL SCREEN
Press MENU or OK.
4
MAIN MENU
MODE SET AUTO CH SET MANUAL CH SET GUIDE PROG SET CLOCK SET
JLIP ID NO. SET
R.A. EDIT
[5∞] = [MENU] : EXIT
JLIP ID NO. SET
CLOCK SET
[5∞] : SELECT
: OK
[MENU] : EXIT
1
SYSTEM CONNECTIONS
Connecting/
EN 45
The AV2 IN/DECODER connector can be used as an input terminal for an external decoder (descrambler). Simply connect a decoder and you can enjoy the variety of programming that is available through scrambled channels.
Using A Decoder
TV Receiver
AV1 IN/OUT
Satellite antenna
RF Cable (provided)
AV2 IN/DECODER
TV Aerial Cable
SELECT INPUT MODE
Set "AV2 SELECT" to "DECODER". (Z pg. 35)
1
CONNECT DECODER
Connect your recorder's AV2 IN/DECODER connector to the decoder's Euroconnector using a 21-pin SCART
2
cable.
SET TUNER
Perform the procedure as described in "When Receiv­ing A Scrambled Broadcast" on page 52.
3
NOTE:
When Connecting A Satellite Tuner . . .
. . . if you don't have a decoder connect the satellite tuner directly to the video recorder's AV2 IN/DECODER connector. . . . if you have a decoder, first connect the decoder to the decoder input of the satellite tuner, then connect the satellite tuner's output to the recorder's AV2 IN/DECODER connector. Refer to the instruction book for the satellite tuner and decoder. . . . set "AV2 SELECT" to "AV2". (Z pg. 35) . . . to view a programme via the satellite tuner, select AU 2 mode by pressing NUMBER key "0" and AV/S SELECT so that "AU-2" appears on the display panel. (Z pg. 35)
Satellite tuner
Decoder
For Customers in Australia and New Zealand:
When connecting the AV cable, use the input and/or output cable adapter.
46 EN
AV1 IN/OUT
RF OUT
AV2 IN/DECODER
PAUSE/ R.A.EDIT
AV1 OUT
ANT.IN
COMP. Y/C
R
R
L
L
AUDIO
S
ININOUT
OUT
Connecting/ Using A Stereo
SYSTEM CONNECTIONS (cont.)
These instructions enable you to connect your video recorder to your Hi-Fi stereo system (if you have one) and listen to the soundtrack through the stereo.
System
Mains outlet
AUDIO IN
Aerial or Cable
ANT. IN
AV1 IN/OUT
Rear View
RF OUT
AUDIO OUT
MAKE CONNECTIONS
a– Connect the AUDIO IN L and R on your video recorder
1
to the audio output connectors on your amplifier.
b– Connect the AUDIO OUT L and R connectors on your
video recorder to the AUX IN or TAPE MONITOR terminals on your stereo system’s receiver or amplifier.
NOTES:
When connecting your recorder’s audio output connectors to a stereo amplifier, make sure you connect L and R correctly.
If stereo or bilingual TV broadcasts are receivable in your area, this recorder can record them independently of the TV set and play them back through the connected stereo system.
When listening to sound through the connected stereo system, turn the TV’s volume down completely.
CAUTIONS:
This recorder has a dynamic range of more than 80 dB with
Some speakers and televisions are specially shielded to
regards to its Hi-Fi audio capability. It is recommended that you check the maximum level if you are going to listen to the Hi-Fi audio signals through a stereo amplifier. A sudden surge in the input level to the speakers may damage them.
prevent television interference. If both are of the non-shielded type, do not place the speakers adjacent to the TV set as this can adversely affect the video playback picture.
FM Tuner
CD Player
EN 47
AUX IN or TAPE MONITOR
AUDIO OUT
Speaker
Television
Stereo Amplifier
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
Speaker
For customers in Australia and New Zealand:
When connecting the AV cable to your TV, use the input and output cable adapters.
48 EN
STOP
TV/VCR
TV Multi­Brand Remote Control
DISPLAY
2
NUMBER
12 45 7
8 0
3 6 9
4
TV PROG
TV/SAT/VCR
SPECIAL FEATURES
Y our remote control can operate the basic functions of your TV set. In addition to JVC TVs, other manufacturer’s TVs can also be controlled by setting the appropriate switch on the remote control.
Before you start . . .
Turn on the TV using its remote control.
Set the remote control’s TV/SAT/VCR switch to TV.
SET TV BRAND CODE
Refer to the chart below. While holding down , enter your TV’s brand code using the NUMBER keys,
1
then press STOP.
JVC has four codes. If the TV does not function with one code, try entering another.
You don’t have to repeat this step until you replace your remote control’ s batteries.
TRY OPERATING TV
Press on the remote to turn the TV off. If it goes off, try other operations.
2
The button, TV/VCR button, TV PROG +/– button, TV VOL %fi button and (Mute) button on the remote can all be used to operate the TV.
To return the remote to video recorder control, set its TV/SAT/VCR switch to VCR.
IMPORTANT
Although the provided remote control unit is compatible with JVC televisions, as well as many other models, it may not work with your TV, or in some instances, may have limited function capability.
TV VOL %fi
1
3
OK
PUSH JOG
Control Your TV Using Additional Buttons
The NUMBER keys on the remote can also be used to select the TV’s channel by setting the remote control to the TV mode.
1Set the TV/SAT/VCR switch to TV. 2Use the NUMBER keys, and the (Digit Entry)
button, the PUSH JOG button, the DISPLAY button or the OK button to select the TV’s channel.
With televisions under Code 01, 02, 03, 04, 06, 07, 09, 10, 13, 14 or 22, the button corresponds to the 1­digit/2-digit entry switching button (often labelled – /– –) of your TV’s remote control.
With televisions under Code 01, 11 or 12, the PUSH JOG
button corresponds to the 10 + button, and the PUSH
%
JOG button corresponds to the 20 + button of your TV’s remote control.
With televisions using Code 12, the DISPLAY button corresponds to the 30 + button.
With televisions using Code 09, the OK button corre- sponds to the ENTER button of your TV’s remote control.
NOTE:
The way these buttons are used is determined by your TV. Use these buttons as instructed for your TV’s remote control.
TV BRAND NAME CODE
JVC 01, 02, 03, 04 BRANDT 05 NORDMENDE 05 SABA 05 TELEAVIA 05 TELEFUNKEN 05 THOMSON 05 FERGUSON 06 PHILIPS 07 BLAUPUNKT 08 GRUNDIG 08 SONY 09 PANASONIC 10 GRAETZ 11 ITT 1 1 LUXOR 11 SALORA 11 SELECO 11 MIVAR 12 HITACHI 13 TOSHIBA 14 MITSUBISHI 15 FINLUX 16 NOKIA 17 SHARP 18 FUNAI 20 NEC 22
Satellite Tuner Multi-
EN 49
Y our remote control can operate the basic functions of your satellite tuner set. In addition to JVC satellite tuners, other manufacturer’s satellite tuners can also be controlled by setting the appropriate switch on the remote control.
Before you start . . .
Turn on the satellite tuner using its remote control.
Set the remote control’s TV/SAT/VCR switch to SAT.
Brand Remote Control
2
NUMBER
12 45
7
STOP
1
8 0
3
3 6 9
4
TV PROG
TV/SAT/VCR
SET SATELLITE TUNER BRAND CODE
Refer to the chart below. While holding down , enter your satellite tuner’s brand code using the
1
NUMBER keys, then press STOP.
Some satellite tuner brands have more than one code. If the satellite tuner does not function with one code, try entering another.
You don’t have to repeat this step until you replace your remote control’ s batteries.
TRY OPERATING SATELLITE TUNER
Press on the remote to turn the satellite tuner off. If it goes off, try other operations.
2
The button, TV PROG +/– button, NUMBER buttons on the remote can all be used to operate the satellite tuner.
The NUMBER buttons will not work with JVC satellite tuners using code 13.
With satellite tuners using Code 16, the corresponds to the ENTER button of your satellite tuner’s remote control.
To return the remote to video recorder control, set its TV/SAT/VCR switch to VCR.
IMPORTANT
Although the provided remote control unit is compatible with JVC satellite tuners, as well as many other models, it may not work with your satellite tuner, or in some instances, may have limited function capability.
button
SATELLITE TUNER BRAND CODE
JVC 13, 14 AMSTRAD 01, 02, 03, 04 SIEMENS 05 GRUNDIG 05, 06 KATHREIN 05, 11, 12 PACE 06, 08 PHILIPS 07 ITT 09 NOKIA 09 SKYMASTER 10 RFT 10 MASPRO 11 BT 13 PANASONIC 15 JERROLD 16
50 EN
TUNER SET
Turn on the TV and select the VIDEO channel (or AV mode).
2
MENU
PUSH JOG
12 45 7
1
8 0
3
3 6 9
4
TV PROG
OK
IMPORTANT
Perform the following steps only if auto channel set has not been set correctly by Auto Set Up function (Z pg. 6) or if you have moved to a different area or if a new station starts broadcasting in your area.
Your recorder needs to memorise all necessary stations in channel positions in order to record TV programmes. Auto Channel Set automatically assigns all receivable stations in your area so that you can call them up with the TV PROG buttons without going through any vacant channels.
Auto Channel Set
TURN ON THE RECORDER
Press .
1
ACCESS MAIN MENU SCREEN
Press MENU twice.
2
ACCESS COUNTRY SET SCREEN
Press PUSH JOG%fi to move the highlight bar
3
(pointer) to "AUTO CH SET", then press OK.
MAIN MENU
MODE SET
AUTO CH SET
MANUAL CH SET GUIDE PROG SETT CLOCK SET JLIP ID NO. SET R.A. EDIT
[5∞] = [MENU] : EXIT
SELECT COUNTRY
Press PUSH JOG to your country's name, then press OK. The Language
4
Set screen appears.
%
to move the highlight bar (pointer)
MENU
PUSH JOG
2
12 45
8
7
0
1
3
3 6 9
4
OK
PERFORM AUTO CHANNEL SET
Press PUSH JOG%fi to move the highlight bar
5
(pointer) to the language of your choice , then press OK to initiate Auto Channel Set.
The Auto Set screen appears, and remains on screen while the recorder searches for receivable stations. As Auto Channel Set progresses, the " screen moves from left to right. Wait until the screen as shown in step 6 appears.
0
[MENU] : EXIT
Beginning
AUTO SET
PLEASE WAIT
VIEW CONFIRMATION SCREEN
The stations your recorder located appear on a
6
Confirmation screen — channel positions (PR), channels (CH) and station names (ID– Z pg. 54). To view the next page of the listing, press PUSH JOG%fi . The blueback screen and the program currently being broadcast by the blinking station appear alternately for 5 seconds each.
The stations located in the selected country appear at
The Guide Program numbers will also be set
%
%
the top of the list. automatically during Auto Channel Set.
PR CH ID PR CH ID
01 25 ARD 08 C26 E-SP
02 C08 SKY1 09 55 03 10 ZDF 10 C24 SAT1 04 C65 RAI1 11 C23 OSF 05 C31 BBC1 12 C25 ESPN 06 C32 BBC2 13 C37 CNN 07 C33 3SAT 14 C35
5
5
[5∞ ]
5
5
=
: EDIT = [CANCEL] : DELETE [MENU] : EXIT
EN 51
+++
End
" mark on the
WEST
C: Cable
IMPORTANT
Depending on the reception conditions, the station names may not be stored correctly, and auto Guide Program Number Set may not work properly . If the Guide Program numbers are not set properly, SHOWVIEW timer recording (Z pg. 28) will not work correctly; be sure to check if the Guide Program numbers have been set correctly (Z pg. 12, "SHOWVIEW Setup").
Since your video recorder memorizes all detected stations even if the reception condition is poor, some of those stored stations may produce a noisy picture. To delete those stations, Z "Delete A Channel" on page 52.
RETURN TO NORMAL SCREEN
Press MENU.
Depending on the reception conditions, the stations
7
NOTE:
Fine tuning is performed automatically during Auto Channel Set. If you want to perform it manually, refer to page 53.
may not be stored in order, and the station names may not be stored correctly.
Using the Confirmation screen, you can skip or add channel positions, enter station names and perform other operations. Refer to pages 52 – 53 for the procedures.
For information on scrambled broadcasts, refer to page 52.
52 EN
TUNER SET (cont.)
Storing Channels Manually
Store channels that were not stored during Auto Set Up (Z pg. 6) or Auto Channel Set (Z pg. 50). * In Australia and New Zealand, channels cannot be stored
properly even though the following procedure is performed.
ACCESS MAIN MENU
Press MENU twice.
1
ACCESS CONFIRMATION SCREEN
Press PUSH JOG%fi to move the highlight bar (pointer) to “MANUAL CH SET”, then press OK. The Confirma-
2
tion screen appears.
SELECT POSITION
Press PUSH JOG%fi until an open position in which you want to store a channel begins blinking,
3
then press OK. The Manual Ch. Set screen appears.
INPUT CHANNEL
The number "01" appears blinking beneath "CH". Press the NUMBER keys to input the channel number
4
you want to store.
For fine tuning adjustment, press PUSH JOG until the item beneath "CH" begins blinking, then press
PUSH JOG%fi. While tuning, “F+” or “F–” appears.
If necessary, to change the band between CH(regular) and CC(cable), press PUSH JOG until CH or CC is blinking, then press PUSH JOG %fi to select the band.
When storing a channel that sends scrambled broadcasts, press PUSH JOG until "OFF" (Decoder setting) blinks, then press PUSH JOG%fi to set "DECODER" to "ON" ("OFF" is the default setting).
ENTER NEW CHANNEL INFORMATION
Press OK and the Confirmation screen appears.
Repeat steps 3 through 5 as necessary.
5
CLOSE CONFIRMATION SCREEN
Press MENU.
To input the station name, see page 53.
6
To change positions, see "Change Station Channel Position" (at right).
When Receiving A Scrambled Broadcast
Make sure that "AV2 SELECT" is set to "DECODER" (Z pg. 35).
1– Perform steps 1 and 2 above. 2– Press PUSH JOG%fi to select the position of the
channel broadcasting the scrambled programmes, then press OK three times.
3– Press PUSH JOG until "OFF (Decoder setting)" begins
blinking, and set it to "ON" by pressing PUSH JOG%fi.
4– Press OK to access the Confirmation screen.
Repeat steps 2 – 4 for each additional channel. 5– Press MENU.
%
%
%
%
%
%
%
Perform steps 1 and 2 of the previous procedure to access the Confirmation screen before continuing.
Delete A Channel
SELECT ITEM
Press PUSH JOG%fi until the item you want to delete begins blinking.
%
%
1
DELETE CHANNEL
Press CANCEL.
The item directly beneath the cancelled one moves
2
up one line.
Repeat steps 1 and 2 as necessary.
CLOSE CONFIRMATION SCREEN
Press MENU.
3
Change Station Channel Position
SELECT ITEM
Press PUSH JOG%fi until the item you want to move begins blinking. Then press OK and the station
1
name (ID) and its channel (CH) number begin blinking.
SELECT NEW POSITION
Press PUSH JOG%fi to move the station to the new channel position, then press OK.
2
Example: If you moved the station in position 3 to
position 7, the stations originally in positions 4–7 each move up one space.
Repeat steps 1 and 2 as necessary.
%
%
%
%
CLOSE CONFIRMATION SCREEN
Press MENU.
3
EN 53
Perform steps 1 and 2 of "Storing Channels Manually" on page 52 to access the Confirmation screen before continuing.
Set Stations (A)
SELECT ITEM
Press PUSH JOG%fi until the item you want begins blinking. Then press OK twice and the station’s name
1
(ID) begins blinking.
%
%
SELECT NEW STATION
Press PUSH JOG%fi until the new station’s name (ID) you want to store begins blinking.
2
Registered station names (Z pg. 54) appear as you press PUSH JOG%fi.
SWITCH STATIONS
Press OK.
Repeat steps 1 through 3 as necessary.
3
CLOSE CONFIRMATION SCREEN
Press MENU.
4
Fine-Tuning Channels Already Stored
SELECT CHANNEL TO FINE-TUNE
Press PUSH JOG%fi until the channel you want to tune begins blinking.
%
%
1
ACCESS MANUAL CH. SET SCREEN
Press OK three times. The Manual Ch. Set screen appears.
2
PERFORM TUNING
Press PUSH JOG%fi until the picture is its clearest. Then press OK.
3
The Confirmation screen appears.
Repeat steps 1 through 3 as necessary.
CLOSE CONFIRMATION SCREEN
Press MENU.
4
Set Stations (B)
NOTE:
First perform step 1 of the above procedure.
SELECT STATION NAME CHARACTER
Press PUSH JOG and the first letter of the station name begins blinking.
%
2
ENTER NEW CHARACTER
Press PUSH JOG%fi to cycle through the characters (A–Z, 0–9, –, *, +, (space)) and stop when the
3
desired one is indicated, then press PUSH JOG to enter. Enter the remaining characters the same way (maximum of 4). After entering all characters, press OK.
Repeat steps 1 through 3 as necessary.
If you make a mistake, press PUSH JOG until the
incorrect character begins blinking. Then enter the correct character by pressing PUSH JOG%fi .
CLOSE CONFIRMATION SCREEN
Press MENU.
]
%
%
4
54 EN
TV Station And ID List
ID* STATION NAME
1000 TV1000 3SAT 3SAT ADLT ADULT ANT3 ANTENA3 ARD ARD ARTE ARTE BBC BBC GROUP BBC1 BBC1 BBC2 BBC2 BR3 BAYERN3 C+ CANAL PLUS C1 PORTUGUSES CAN5 CANALE5 CH4 CHANNEL4 CH5 CHANNEL5 CHLD CHILD CINE CINEMA CLUB TELECLUB CMT CMT CNN CNN CSUR ANDALUCIA DISC DISCOVERY DR DR TV DRS DRS DSF DSF ETB1 ETB1 ETB2 ETB2 EURO EURONEWS EUSP EUROSPORTS FEMM FEMMAN FILM FILM FNET FILMNET FR2 France2 FR3 France3 GALA GALAVISION HR3 HESSEN3 INFO INFO-KANAL IT A1 ITALIA1 IT A7 ITALIA7 ITV ITV JSTV JSTV KA2 KA2 KAB1 KABEL1 KAN2 KANAL2 LOCA LOCAL M6 M6 MBC MBR MCM MCM MDR MDR MOVE MOVIE MTV MTV MTV3 MTV3 N3 NORD3 N-TV N-TV NBC NBC SUPER NDR3 NDR3 NED1 NED1 NED2 NED2 NED3 NED3 NEWS NICK NICKELODEON NRK NRK NRK2 NRK2 ODE ODEON ORF1 ORF1
TUNER SET (cont.)
ID* STATION NAME
ORF2 ORF2 ORF3 ORF3 OWL3 OWL3 PREM PREMIERE PRO7 PRO7 RAI1 RAI1 RAI2 RAI2 RAI3 RAI3 RET4 RETE4 21 TELE21 RTBF RTBF1 or 2 RTL RTL RTL2 RTL2 RTL4 RTL4 RTL5 RTL5 RTP RTP S4 SCHWEIZ4 SAT1 SAT1 SBS SBS SHOW SHOW SIC SOCIEDADE SKY SKY CHANNEL SKYN SKY NEWS SPRT SPORT SRTL SUPER RTL STAR STAR-TV SVT1 SVT1 SVT2 SVT2 SW3 SUEDWEST3 TCC TCC TELE TELE TEL5 TELE5 TF1 TF1 TM3 TM3 TMC TELEMONTECARLO TNT TNT INT TRT TRT INT TSI TSI TSR TSR TV1 BRTN TV1 TV2 BRTN TV2 TV3 TV3 TV4 TV4 TV5 TV5 TV6 TV6 TVE1 TVE1 TVE2 TVE2 TVG TV GALICIA TVI TV INDEPENDENT TVN TV NORGE VCR VIDEO VERO VERONICA VH-1 VH-1 VIVA VIVA VIV2 VIVA2 VMTV VIDEO MUSIC VOX VOX VT4 VT4 VTM VTM WDR1 West1 WDR3 West3 YLE1 YLE1 YLE2 YLE2 ZDF ZDF ZTV ZTV
* The "ID" abbreviation is what is shown on-screen in lieu of the
station name. The "ID" abbreviation is listed in the Confirma­tion screen and is displayed on the TV screen when the recorder is tuned to a different station.
CLOCK SET
EN 55
Turn on the TV and select the VIDEO channel (or AV mode).
2
MENU
PUSH JOG
12 45 7
1
8 0
3
3 6 9
4
OK
IMPORTANT
Perform the following steps only if auto clock set has not been set correctly by Auto Set Up function (Z pg. 6) or Auto Channel Set (Z pg. 50) or if the recorder's memory backup has expired.
If you performed Auto Set Up or Auto Channel Set without ever having set the clock previously, the recorder’s built-in clock is also set automatically. The Auto and Manual clock setting procedures are necessary when . . .
– a power outage of more than 60 minutes occurs. – the tuner has been set manually. – the user desires to set the clock slightly ahead of the actual
time.
– the clock was not set even after Auto Set Up or Auto
Channel Set was performed.
Whether you perform Auto or Manual clock setting, you can use the convenient Just Clock function.
Just Clock
The Just Clock function provides accurate time keeping through automatic adjustments at regular intervals, by reading data from a PDC signal. The Just Clock option appears in the Clock Set and Auto Clock screens, and can be set “ON” or “OFF” (the default setting is “OFF”). Press OK until the Just Clock setting begins blinking, then press PUSH JOG%fi to change the setting.
IMPORTANT: If you turn off Just Clock, the accuracy of
your recorder’s built-in clock may be reduced, which could adversely effect timer recording. We recommend you to keep Just Clock on. In cases where the clock setting data from a PDC signal is incorrect, however, you are advised to keep Just Clock set to "OFF".
* Just Clock does not work in areas where no TV station
transmits PDC signals.
Both Auto and Manual clock setting procedures begin from step 4.
Preparation
TURN THE RECORDER ON
Press .
1
ACCESS MAIN MENU SCREEN
Press MENU twice.
2
ACCESS CLOCK SET SCREEN
Move the highlight bar (pointer) to "CLOCK SET" by pressing PUSH JOG %fi, then press OK. The Clock Set
3
screen appears.
MAIN MENU
MODE SET AUTO CH SET MANUAL CH SET GUIDE PROG SET
CLOCK SET
JLIP ID NO. SET R.A. EDIT
[5∞] = [MENU] : EXIT
[ ] : AUTO CLOCK [5∞] = [MENU] : EXIT
CONTINUED ON NEXT PAGE.
CLOCK SET
TIME DATE YEAR 0: 00 01 . 01 00
JUST CLOCK : OFF TV PR. : 1
5
56 EN
MENU
PUSH JOG
2
12 45
8
7
0
1
3
3 6 9
4
OK
CLOCK SET (cont.)
Auto Clock Set
SET CLOCK AUTOMATICALLY
At the Clock Set screen, press PUSH JOG . The
4
Auto Clock screen appears and clock setting begins.
If "TV PR." isn't set to the channel position on which Auto Clock data is received, "ERROR" appears, and then the screen from step 3 reappears. To set "TV PR.", press OK to place the pointer next to it, then cycle through the numbers by pressing PUSH JOG%fi until the number representing the channel position in which the station transmitting clock setting data is stored appears.
%
JUST CLOCK : OFF TV. PR : 1
RETURN TO NORMAL SCREEN
Once clock setting is completed, press MENU to return to the normal screen.
5
AUTO CLOCK
PLEASE WAIT
NOTES:
Auto Clock and Just Clock require a PDC signal, and will not operate with a VPS signal.
Just Clock (when set to "ON") enables adjustment of the recorder's built-in clock every hour on the hour, except for 23:00, 0:00, 1:00 and 2:00.
Just Clock is not effective when . . . – the recorder’s power is on (unless the recorder is tuned to
the same channel position selected in the Clock Set screen). – the recorder is in the Timer mode. – a difference of more than 3 minutes exists between the
built-in clock’s time and the actual time.
If Just Clock is set to "ON", the recorder’s clock is automati­cally adjusted at the start/end of Summer Time.
Auto clock setting and Just Clock may not function properly depending on the reception condition.
During Manual clock setting, if the day and month data are invalid (such as 31st April), the month digits are cleared automatically and the day digits begin blinking. Input the correct data.
If, in step 4 of the Manual clock setting procedure, the year digits are automatically cleared and the day digits begin blinking, it is possible that you have input 29th February for a non-leap year. Input the correct data.
Manual Clock Set
SET DATE AND TIME
Press PUSH JOG%fi to set the hour, then press OK. The “minutes” display begins blinking. Repeat the proce-
4
dure to set the minutes, day, month and year.
SET JUST CLOCK
The default setting is “OFF”. Set as desired by pressing
PUSH JOG%fi, then press OK.
5
If you set to “OFF”, you can disregard the next step as you won’t be able to receive regular clock adjust­ments.
SET CLOCK DATA SOURCE CHANNEL POSITION
The recorder is preset to receive clock setting and adjustment data from channel position 1. Press PUSH
6
JOG%fi to set the channel position to the number
representing the station transmitting clock setting data, then press OK.
START CLOCK OPERATION
Press MENU.
7
TROUBLESHOOTING
Before requesting service for a problem, use this chart and see if you can repair the trouble yourself. Small problems are often easily corrected, and this can save you the trouble of sending your video recorder off for repair.
EN 57
POWER
SYMPTOM
1. No power is applied to the recorder.
2. The clock is functioning properly, but the recorder cannot be powered.
TAPE TRANSPORT
SYMPTOM
1. The tape does not run during recording.
2. The tape stops during rewind or fast-forward.
3. The tape will not rewind or fast­forward.
PLAYBACK
SYMPTOM
1. The playback picture does not appear while the tape is running.
2. Noise appears during normal playback.
3. Noise appears during slow-motion playback.
4. Noise appears during still play­back.
5. Breaks are noticeable in Hi-Fi soundtrack
6. The playback picture is blurred or interrupted while TV broadcasts are clear.
POSSIBLE CAUSE
The mains power cord is discon­nected.
“ is displayed on the display panel with Auto Timer set to "OFF".
POSSIBLE CAUSE
^“ is displayed on the display panel.
M“ is displayed on the display panel.
The tape is already fully rewound or fast-forwarded.
POSSIBLE CAUSE
If you’re using the RF OUT connec­tion . . . . . . the TV receiver’s channel selector is not set to the VIDEO channel. . . . the recorder's VIDEO channel has not been correctly set.
If you’re using the AV or S-VIDEO connection, the TV receiver is not set to the AV mode.
The automatic tracking mode is engaged.
The automatic tracking mode is engaged.
Automatic tracking is engaged.
The video heads may be dirty.
CORRECTIVE ACTION
Connect the mains power cord.
Press the TIMER button to turn the ““ indicator off.
CORRECTIVE ACTION
Press PLAY to turn the “^“ indicator off.
Press C.MEMORY to deactivate the Counter Memory function and turn the “M“ indicator off.
Check the cassette.
CORRECTIVE ACTION
If you are using the RF OUT connec­tion . . . . . . set the TV receiver to the VIDEO channel. (Z pg. 10) . . . Perform "Video Channel Set" (Z pg. 10) If you are using the AV or S-VIDEO connection, set the TV to its AV mode.
Try manual tracking. (Z pg. 16)
Try manual tracking. (Z pg. 16)
Press TV PROG + or – a few times to remove the noise bars from the screen.
Engage and adjust tracking manually. (Z pg. 16)
Consult your JVC dealer.
RECORDING
SYMPTOM
1. Recording cannot be started.
2. TV broadcasts cannot be recorded.
3. Tape-to-tape editing is not possible.
POSSIBLE CAUSE
There is no cassette loaded, or the cassette loaded has had its Record Safety tab removed.
“AU” has been selected as the input mode.
The source (another video recorder, camcorder) has not been properly connected.
All necessary power switches have not been turned on.
The input mode is not correct.
CORRECTIVE ACTION
Insert a cassette, or using adhesive tape, reseal the slot where the tab was removed.
Set to the desired channel.
Confirm that the source is properly connected.
Confirm that all units’ power switches are turned on. Set the input mode to “AU”.
CONTINUED ON NEXT PAGE.
58 EN
TROUBLESHOOTING (cont.)
4. Camcorder recording is not possible.
TIMER RECORDING
SYMPTOM
1. Timer recording won’t work.
2. On-screen timer programming is not possible.
3. ““ and “]“ on the display panel won’t stop blinking.
4. The cassette is automatically ejected, and ““ and “]“ on the display panel won’t stop blinking.
5. ““ blinks for 10 seconds and the Timer mode is disengaged.
6. The cassette is automatically ejected, the power shuts off and ““ and “]“ won’t stop blinking.
7. SHOWVIEW does not timer-record properly.
The camcorder has not been properly connected.
The input mode is not correct.
POSSIBLE CAUSE
The clock and/or the timer have been set incorrectly.
The timer is not engaged.
Timer recording is in progress.
The timer is engaged but there’s no
cassette loaded.
The loaded cassette has had its Record Safety tab removed.
TIMER has been pressed when there are no programs in memory, or the timer record information has been programmed incorrectly.
The end of the tape was reached during timer recording.
The recorder’s channel positions have been set incorrectly.
Confirm that the camcorder is properly connected.
Set the input mode to “AU”.
CORRECTIVE ACTION
Re-perform the clock and/or timer settings. Press TIMER and confirm that ““ is displayed on the display panel.
Timer programming can’t be performed while a timer recording is in progress. Wait until it finishes.
Load a cassette with the Record Safety tab intact, or cover the hole using adhesive tape.
Remove the cassette and cover the hole with adhesive tape, or insert a cassette with the Record Safety tab intact.
Check the programmed data and re­program as necessary, then press TIMER again.
The programme may not have been recorded in its entirety. Next time make sure you have enough time on the tape to record the entire programme.
Refer to "Guide Program Number Set" and re-perform the procedure (
Z pg. 12).
OTHER PROBLEMS
SYMPTOM
1. Whistling or howling is heard from the TV during camcorder record­ing.
2. When scanning channels, some of them are skipped over.
3. The channel cannot be changed.
4. The remote control won’t operate the TV or satellite tuner.
5. Channel settings that were made manually seem to have changed or disappeared.
6. No channels are stored in the recorder's memory.
POSSIBLE CAUSE
The camcorder’s microphone is too close to the TV.
The TV’s volume is too high.
Those channels have been desig-
nated to be skipped.
Recording is in progress.
The TV/SAT/VCR switch is in the
wrong position.
After the manual settings were made, Auto Channel Set was performed.
The TV aerial cable was not connected to the recorder when Auto Set Up was performed.
CORRECTIVE ACTION
Position the camcorder so its microphone is away from the TV. Turn the TV’s volume down.
If you need the skipped channels, restore them (
Press PAUSE to pause the recording, change channels, then press PLAY to resume recording.
Set the switch to the correct position.
Perform manual setting again.
Connect the TV aerial cable to the recorder properly and turn off the recorder power once, then turn the recorder power back on again. The recorder will try Auto Set Up again (
Z pg. 6).
Z pg. 52).
QUESTIONS AND ANSWERS
EN 59
PLAYBACK
Q. What happens if the end of the tape is reached
during playback or search?
A. The tape is automatically rewound to the beginning.
○○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. Can the video recorder indefinitely remain in the
still mode?
A. No. It stops automatically after 5 minutes to protect
the heads.
○○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. When returning from multi-speed search to normal
playback, the picture is disturbed. Should I be concerned about this?
A. No, it is normal.
○○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. Other than preventing further recording, what effect
does removing the Record Safety tab have?
A. It disables marking of index codes.
○○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. Sometimes, during Index Search, the video recorder
can’t find the programme I want to see. Why not?
A. There may be index codes too close together.
○○○○○○○○○○○○○○○○○○○○○○○○○○○
RECORDING
Q. When I pause and then resume a recording, the end
of the recording before the pause is overlapped by the beginning of the continuation of recording. Why does this happen?
A. This is normal. It reduces distortion at the pause and
resume points.
○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. Can the video recorder indefinitely remain in the
Record-Pause mode?
A. No. The video recorder goes to its Stop mode auto-
matically after 5 minutes to protect the heads.
○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. What happens if the tape runs out during recording? A. The video recorder automatically rewinds it to the
beginning.
○○○○○○○○○○○○○○○○○○○○○○○○○○
TIMER RECORDING
Q. " " and "" remain lit on the display panel. Is
there a problem?
A. No. This is a normal condition for a timer recording in
progress.
○○○○○○○○○○○○○○○○○○○○○○○○○○
Q. Can I program the timer while I’m watching a tape
or a TV broadcast?
A. You won’t see the picture as it is replaced by the on-
screen menu, but the audio from the program or tape you’re viewing can be heard.
○○○○○○○○○○○○○○○○○○○○○○○○○○
ATTENTION:
This recorder contains microcomputers. External electronic noise or interference could cause malfunctioning. In such cases, switch the recorder off and unplug the mains power cord. Then plug it in again and turn the recorder on. Take out the cassette. After checking the cassette, operate the unit as usual.
60 EN
FRONT VIEW
INDEX
4 5 72 3 6 8 0 @91
R.A.EDIT
A.DUB
START INSERT
IN/OUT
SPATIALIZER
TIMER
Hi-Fi REC
AV/S
HEAD PHONE VOLUME
$
%
Open the lid to access covered connectors and buttons.
LEVEL
••
••
••
••
••
010010
(MONO)
VIDEO
L–AUDIO–R
^
SELECT
PAL
MESECAM
JLIP
& *
AUTO SP/LP
TIMER
(
#!
8
S
L
W
O
O
W
L
S
REW
+8
4 0 6
10
SP LP
–20dB
VCR
R
L
REMAIN
NORM
e
REVIEW
M
r w q )
SP/LP
y i o
t
u
FF
TV PROG/
SHUTTLE
JOG
1STANDBY/ON Button Z pg. 6 2TIMER Button 3SPATIALIZER Button 4R.A. EDIT IN/OUT Button 5R.A. EDIT START Button
Z pg. 29, 31
Z pg. 18
Z pg. 43
Z pg. 43
6A. DUB [Audio Dubbing] Button 7INSERT Button
Z pg. 41
8Cassette Loading Slot 9STOP/EJECT Button 0PLAY Button !TIME SCAN Indicator @TIME SCAN SHUTTLE Ring #TV PROG Dial
JOG Dial
Z pg. 15
Z pg. 14
Z pg. 14
Z pg. 20
Z pg. 20
Z pg. 23
$Headphone Connector* % Headphone Volume control* ^VIDEO/AUDIO Input Connectors
Z pg. 39
Z pg. 38
&Hi-Fi Audio Recording Level Control ( *AV/S SELECT Button
Z pg. 35
Z pg. 26)
( J Terminal [JLIP (Joint Level Interface Protocol)
Connector]
) PAL/MESECAM Switch qAUTO SP/LP TIMER Button wAUTO SP/LP TIMER Indicator eDisplay Panel
Z pg. 44
Z pg. 16
Z pg. 33
Z pg. 33
Z pg. 61
rInfrared Beam Receiving Window tRECORD Button ySP/LP Button uPAUSE Button iRewind [REW] Button
Z pg. 23
Z pg. 23
Z pg. 15
Z pg. 14
oFast Forward [FF] Button Z pg. 14
* It is possible to listen to the audio using headphones.
Adjust the volume level using the Headphone Volume Control.
REAR VIEW
EN 61
1
1 Mains Power Cord 2 S-Video IN Connector 3 S-Video OUT Connector 4 AV1 IN/OUT Connector 5 AV1 OUT Switch 6 ANT. IN Connector
Z pg. 3
Z pg. 36
Z pg. 4
Z pg. 3, 36
Z pg. 3
Z pg. 3
DISPLAY PANEL
1
65432
RF OUT
ININOUT
S
AUDIO
OUT
L
L
R
R
8
2
AV1 IN/OUT
AV2 IN/DECODER
97 0
7 AUDIO IN (L/R) Connectors Z pg. 46 8 AUDIO OUT (L/R) Connectors 9 AV2 IN/DECODER Connector 0 Remote PAUSE Connector
R.A.EDIT Connector
! RF OUT Connector
4
AV1 OUT
COMP. Y/C
5 6
PAUSE/ R.A.EDIT
73
ANT.IN
!
Z pg. 46
Z pg. 36, 45
Z pg. 38
Z pg. 42
Z pg. 3
8
+8
4 0
6
10
L
–20dB NORM
9 $
1Audio Level Indicator Z pg. 26 2 Symbolic Mode Indicators
STILL: PLAY: FF/REW VARIABLE SHUTTLE SEARCH:
AUDIO DUBBING: AUDIO DUBBING PAUSE: INSERT: INSERT PAUSE: AUDIO DUBBING INSERT: AUDIO DUBBING INSERT PAUSE:
SLOW:
RECORD:
RECORD PAUSE:
R
0
SP LP
VCR
REMAIN
@
#!
M
3 S-VHS Indicator Z pg. 25 4"Timer" Indicator 5PDC/VPS Indicator 6Counter Memory Indicator 7Channel*/Mode Display
*Channel position 1 will be displayed as "CH 1".
Clock Display
8 Instant REVIEW Indicator 9Audio Mode Indicator 0"Cassette Loaded" Mark !VCR Indicator @Tape Speed Indicators # Tape Remaining Time Indicator $ Counter/Remain Display
Z pg. 7, 55
Z pg. 24
REVIEW
Z pg. 29, 31
Z pg. 33
Z pg. 19
Z pg. 23
Z pg. 17
Z pg. 18
Z pg. 23
Z pg. 24
Z pg. 24
62 EN
REMOTE CONTROL
INDEX (cont.)
1 2 3
4 5 6
A
B
C.MEMORY DISPLAY
2
12
ADD TIME
45
DAILY
8
7
C.RESET
CANCEL
AUX
0
3 6
WEEKLY
9
TIMER
4
& *
(
) q
w e
7 8
9
0 ! @ #
$ %
^
START
C
S
E
1
EXPRESS PROGRAMMING
AUDIO MONITOR
R
E
D
N
I
F
E
N
E
M
/
G
O
R
P
PUSH JOG
I
U
N
T
L
L
TV/VCR
(MONITOR)
V
U
TV
DATESTOP
PROG
TV
VCR
SAT
r t
y u
P
R
O
G
C
H
E
C
K
3
O
K
V
O
L
.
i o
p Q
W
E
D
I
U
G
I
M
E
MULTI BRAND
REMOTE CONTROL UNIT
Buttons with a small dot on the left side of the name can also be used to operate your TV with the TV/ SAT/VCR switch set to "TV".
Z pg. 48
R
1REVIEW Button 2A/B Code Switch 3C. MEMORY Button 4NUMBER Keys 5
(PDC/VPS) Button Z pg. 29, 31
6CANCEL Button
C. RESET Button
7START +/– Button 8STOP +/– Button 9SP/LP Button
Auto Tracking Button Digit Entry Button
0AUDIO MONITOR Button
Z pg. 17
Z pg. 19
Z pg. 19
Z pg. 23, 28
Z pg. 13
Z pg. 24
Z pg. 30
Z pg. 30
Z pg. 23
Z pg. 16
Z pg. 48
Z pg. 18
(TV Mute) Button Z pg. 48
!Rewind [REW] Button @ Play Button
Z pg. 14
#Record Button $SCENE FINDER Button % PROG/MENU Button ^ PUSH JOG %fi Button
PUSH JOG Button
%
&STANDBY/ON *DISPLAY Button (ADD TIME Button ) DAILY Button qWEEKLY Button wAUX Button
Z pg. 35
eTIMER Button rTV PROG +/– Button tDATE +/– Button yTV/SAT/VCR Switch uTV/VCR Button
Z pg. 14
Z pg. 23
Z pg. 19
Z pg. 9, 28
%
%
%
Z pg. 15, 17, 48
Button Z pg. 6
Z pg. 24
Z pg. 29
Z pg. 29, 31
Z pg. 29, 31
Z pg. 29, 31
Z pg. 23
Z pg. 31
Z pg. 48, 49
Z pg. 24, 48
Z pg. 9
iFast Forward [FF] Button Z pg. 14 o Pause Button pStop Button QPROG CHECK Button WOK Button ETV VOL %fi Button RILLUMI GUIDE Button
Z pg. 15
Z pg. 14
Z pg. 32
Z pg. 9
Z pg. 48
Z pg. 28
Installing Batteries
1 Open the battery compartment cover. 2 Insert 2 "R6"-size batteries (provided) in the correct
directions.
3 Replace the cover.
How To Use
The remote control can operate most of your video recorder's functions, as well as basic functions of TV sets and satellite tuners of JVC and other brands. Z pg. 48, 49.
Point the remote control toward the sensor window.
The maximum operating distance of the remote control is
about 8 m.
NOTE:
If the remote control doesn't work properly, remove its batteries, wait a short time and then try again.
SPECIFICATIONS
EN 63
GENERAL
Power requirement : AC 220 – 240 V`, 50/60 Hz Power consumption : 27 W (HR-S9400E)
29 W (HR-S9400EH) Temperature Operating : 5°C to 40°C Storage : –20°C to 60°C Operating position : Horizontal only Dimensions (WxHxD) : 465 x 105 x 353 mm Weight : 5.6 kg Format : S-VHS/VHS PAL standard Maximum recording time
(SP) : 240 min. with E-240 video
cassette (LP) : 480 min. with E-240 video
cassette
VIDEO/AUDIO
Signal system : PAL-type colour signal and
CCIR monochrome
signal,625 lines
50 fields Recording system : DA4 (Double Azimuth) head
helical scan system Signal-to-noise ratio : 45 dB Horizontal resolution : 250 lines (VHS)
: 400 lines (S-VHS)
Frequency range : 70 Hz to 10,000 Hz
(Normal audio)
20 Hz to 20,000 Hz
(Hi-Fi audio) Input/Output : 21-pin scart connectors : IN/
OUT x 1, IN/DECODER x 1
RCA connectors:
VIDEO IN x 1, AUDIO IN x 2,
AUDIO OUT x 1
S-Video connectors:
IN x 1, OUT x 1
TUNER/TIMER
TV channel storage capacity : 99 positions
(+AUX position "AU") Tuning system : Frequency synthesized tuner Channel coverage
(Europe) : VHF 47 – 89/104 – 300/
302 – 470MHz
UHF 470 – 862MHz
(Australia) : CH0 – 5, 5A, CATV
CH6 – 12, CATV
CH28 – 69
(New Zealand) : CH1 – 3, CATV
CH4 – 11, CATV
CH21 – 69 Aerial output : UHF channels 22 – 69
(Adjustable) Memory backup time : Approx. 60 min.
ACCESSORIES
Provided accessories : RF cable,
Infrared remote control unit,
"R6" battery x 2,
Input cable adapter*,
Output cable adapter*,
S-Video cable, Audio cable
* Provided in Australia and New Zealand only.
Specifications shown are for SP mode unless otherwise specified. E.& O.E. Design and specifications subject to change without notice.
EN
Auto Set Up – referring to the display panel
The Auto Set Up function sets the tuner channels, clock and Guide Program numbers automatically.
BEFORE YOU START PLEASE MAKE SURE THAT:
n The TV aerial cable is connected to the ANT.IN jack on the rear panel of the video recorder. n The video recorder's mains power cord is connected to a mains outlet. n The video recorder is turned off. n Load batteries into the remote control.
Press (recorder/remote).
1
Press PUSH JOG %fi (remote) to select the international
2
telephone country code.
(Ex.) DEUTSCHLAND is selected.
If you have selected a country code other than 32 (BELGIUM) or 41 (SUISSE), go to step 3.
If you have selected 32 (BELGIUM) or 41 (SUISSE), press OK (remote) and select the language code by pressing PUSH JOG %fi (remote), then go to step 3.
(Ex.) FRANCAIS is selected for BELGIUM
International Telephone Country Code
SUOMI : 358 SUISSE :41 PORTUGAL : 351 ITALIA : 39 DEUTSCHLAND : 49 ESPAÑA : 34 NORGE : 47 BELGIUM :32 SVERIGE : 46 NEDERLAND :31 DANMARK : 45 GREECE : 30 ÖSTERREICH : 43 OTHERS :- ­* Depending on the model, the selectable codes
may be limited.
Language Code for the HR-S9400E
ENGLISH : 01 ITALIANO : 04 DEUTSCH : 02 NEDERLANDS : 05 FRANCAIS : 03
HR-S9400E/EH
Language Code for the HR-S9400EH
ENGLISH : 01 CASTELLANO : 04
International Telephone Country Code
Press OK (remote). Do NOT press any button on the video recorder or remote control until the current
3
time appears.
During Auto Set Up
Once you have performed Auto Set Up, even if the recorder's memory backup has expired, the
*
recorder will not perform Auto Set Up again.
FOR MORE INFORMA TION SEE INSTRUCTIONS/P 6
COPYRIGHT © 1997 VICTOR COMPANY OF JAPAN, LTD.
Language Code
Auto Set Up completed
VICTOR COMPANY OF JAPAN, LIMITED
DEUTSCH : 02 NEDERLANDS : 05 FRANCAIS : 03
If "CH1" or "– –:– –" appears on the display panel, see page 7 of the instructions.
E/EH
Printed in Japan 0697HOV*UN*VP
Loading...
