INSTRUCTIONS

ENGLISH

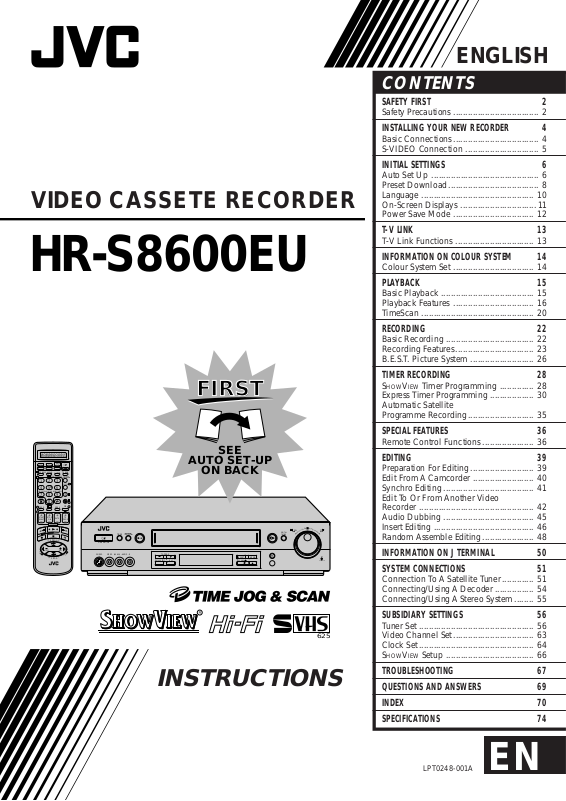

CONTENTS

SAFETY FIRST 2

Safety Precautions ................................... 2

INSTALLING YOUR NEW RECORDER 4

Basic Connections................................... 4

S-VIDEO Connection .............................. 5

INITIAL SETTINGS 6

Auto Set Up ............................................ 6

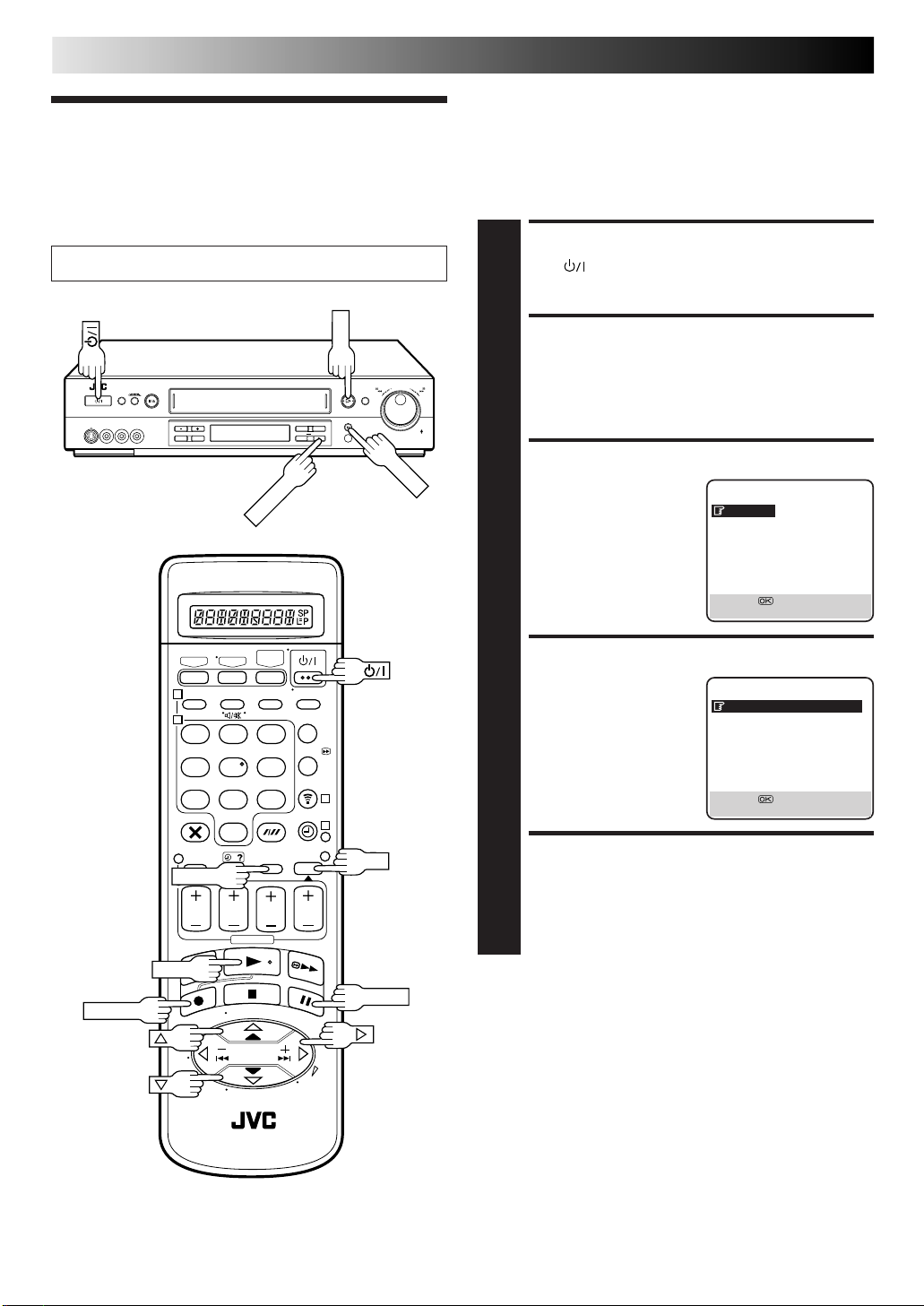

Preset Download..................................... 8

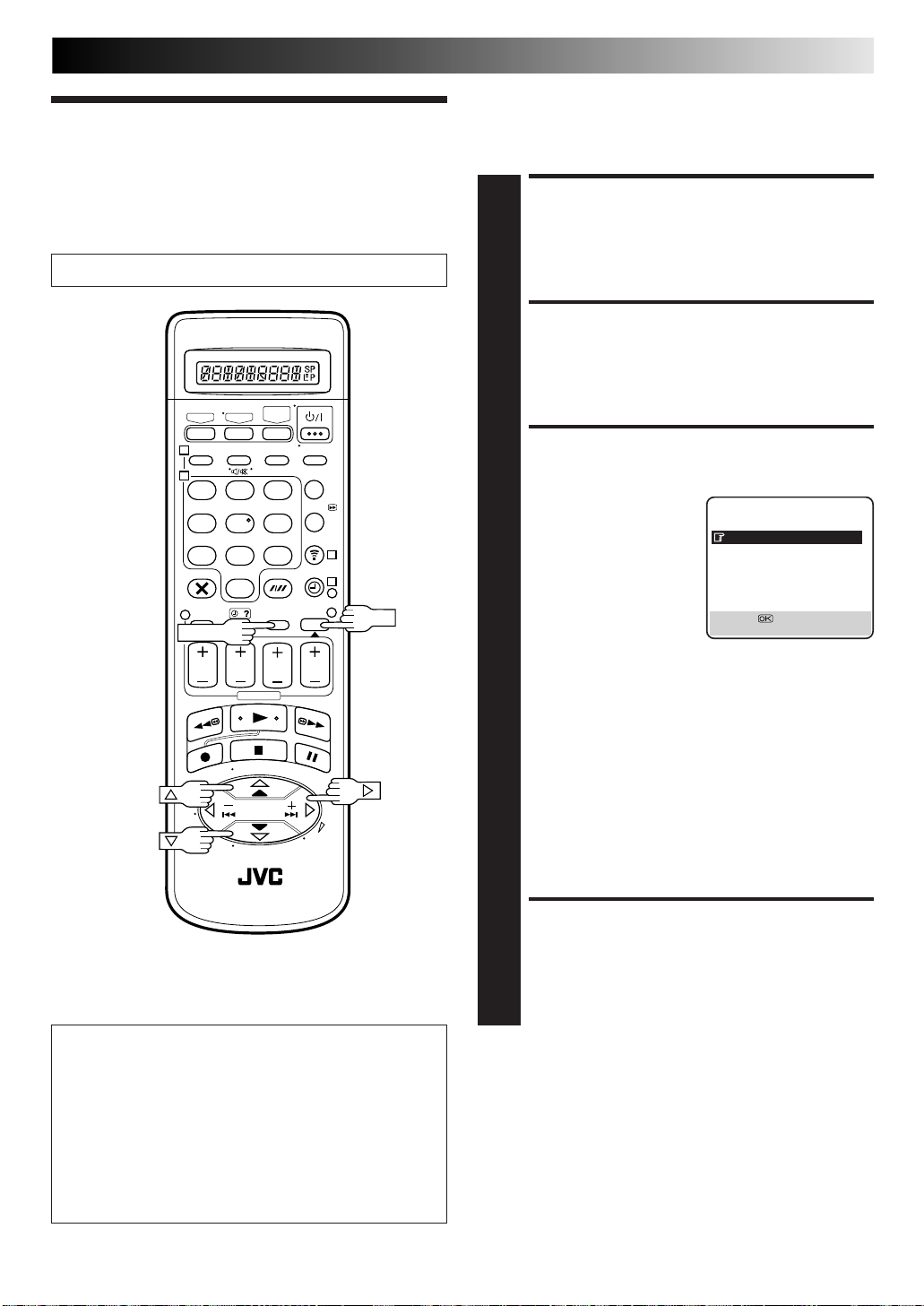

Language .............................................. 10

On-Screen Displays ...............................11

Power Save Mode ................................. 12

T-V LINK 13

T-V Link Functions ................................ 13

INFORMATION ON COLOUR SYSTEM 14

Colour System Set ................................. 14

PLAYBACK 15

Basic Playback ...................................... 15

Playback Features ................................. 16

TimeScan .............................................. 20

RECORDING 22

Basic Recording .................................... 22

Recording Features................................ 23

B.E.S.T. Picture System .......................... 26

TIMER RECORDING 28

SHOWVIEW Timer Programming .............. 28

Express Timer Programming .................. 30

Automatic Satellite

Programme Recording........................... 35

SPECIAL FEATURES 36

Remote Control Functions..................... 36

EDITING 39

Preparation For Editing.......................... 39

Edit From A Camcorder......................... 40

Synchro Editing ..................................... 41

Edit To Or From Another Video

Recorder ............................................... 42

Audio Dubbing ..................................... 45

Insert Editing ......................................... 46

Random Assemble Editing ..................... 48

INFORMATION ON J TERMINAL 50 SYSTEM CONNECTIONS 51

Connection To A Satellite Tuner ............. 51

Connecting/Using A Decoder................ 54

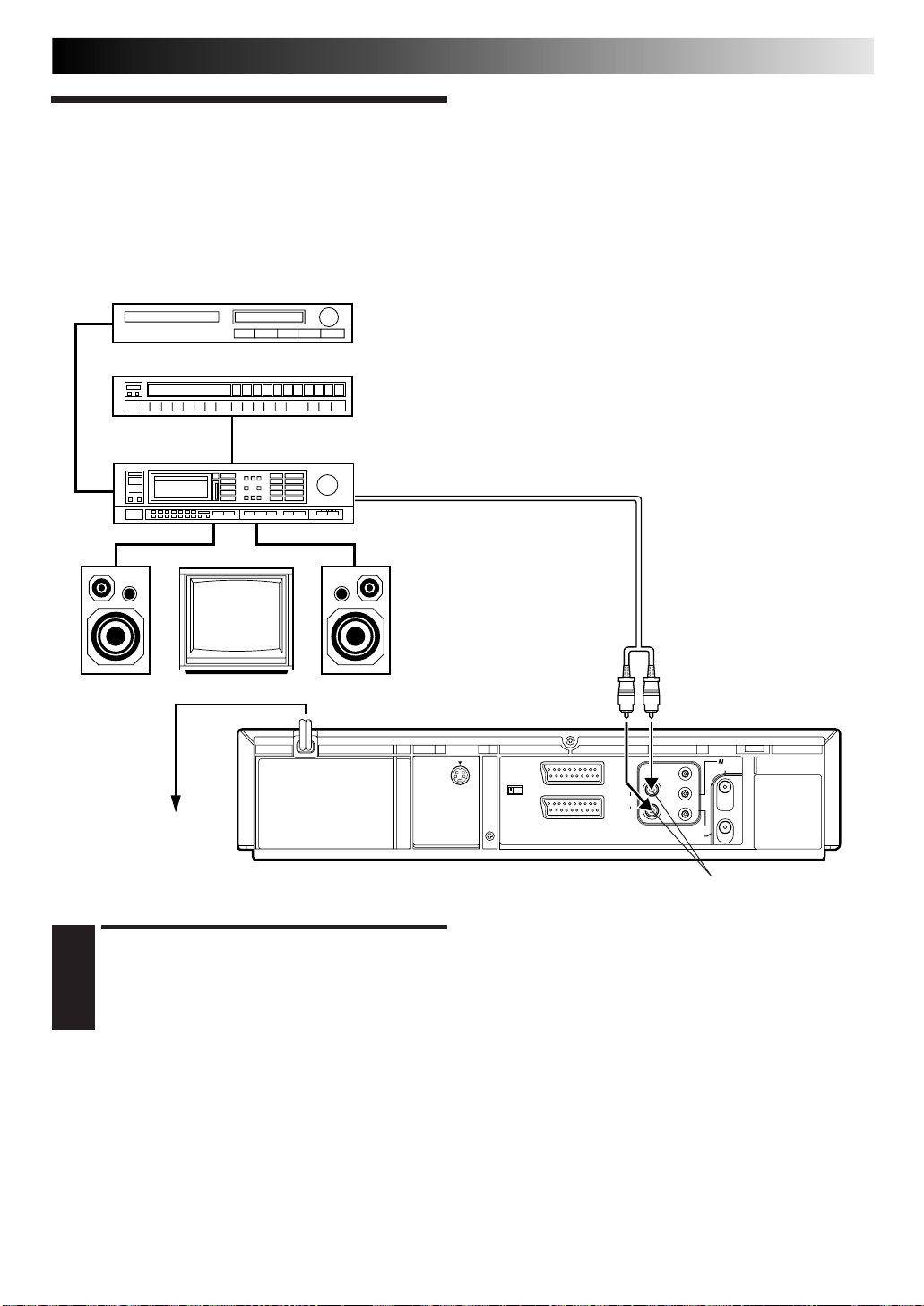

Connecting/Using A Stereo System........ 55

SUBSIDIARY SETTINGS 56

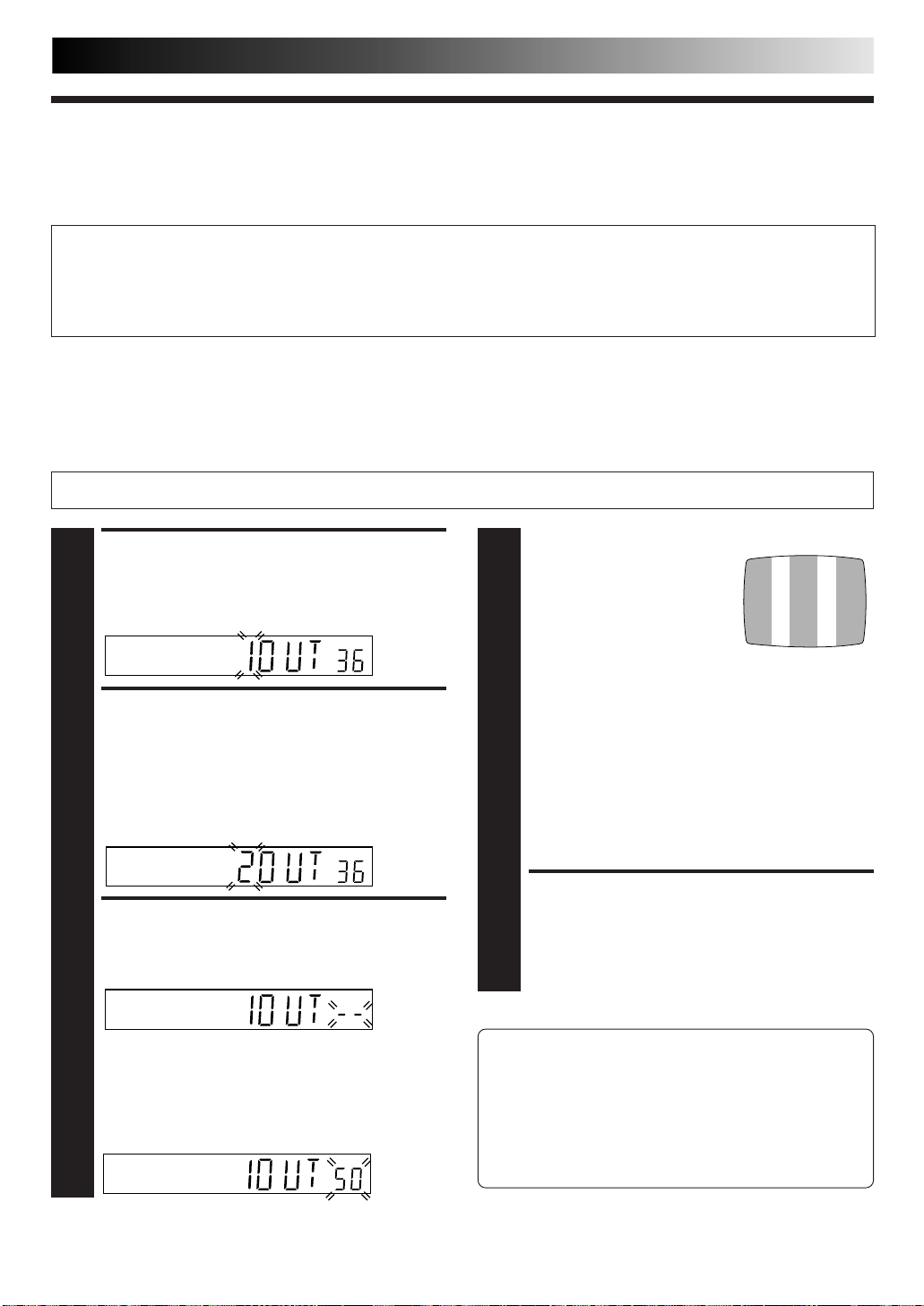

Tuner Set ............................................... 56

Video Channel Set................................. 63

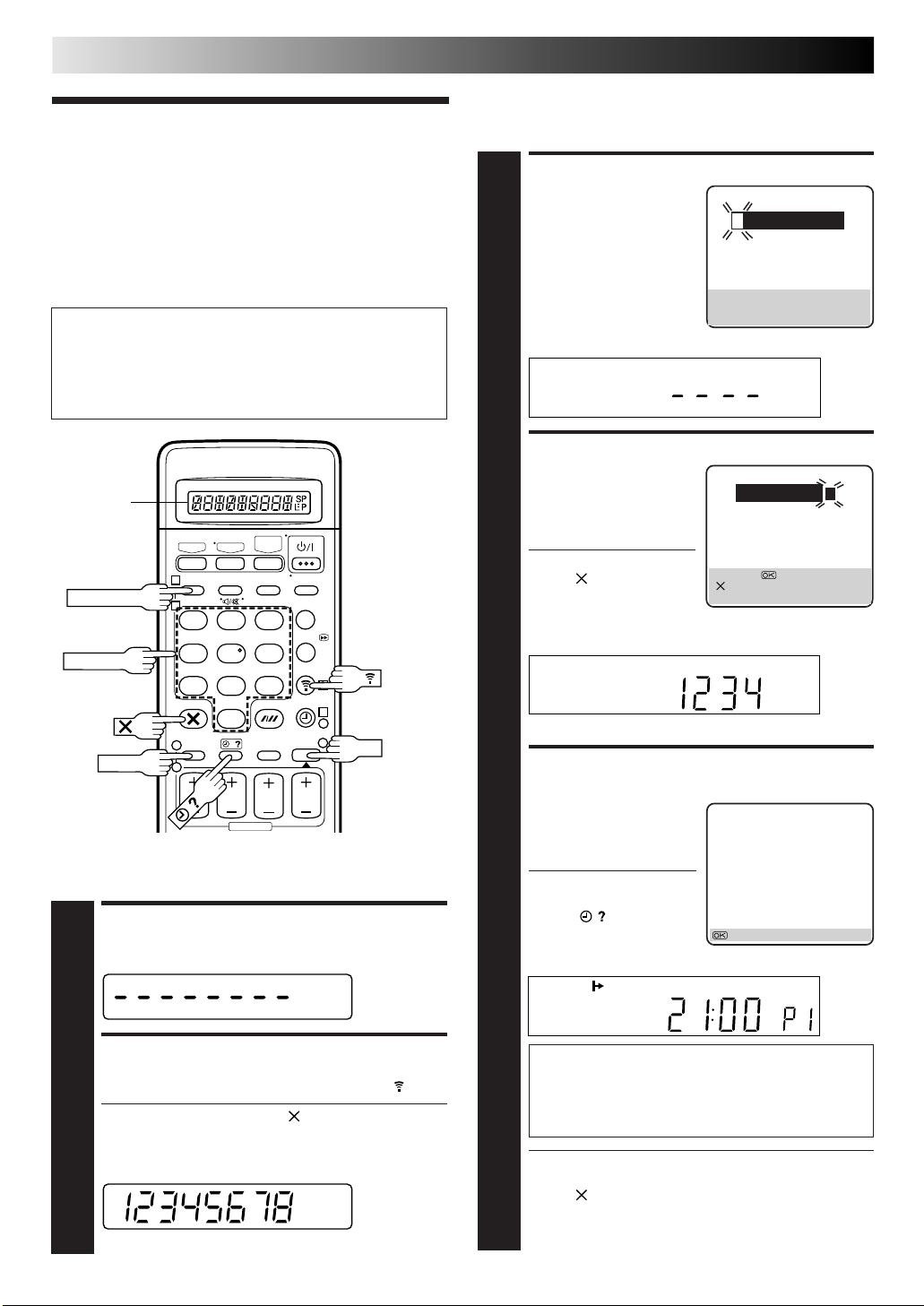

Clock Set............................................... 64

SHOWVIEW Setup .................................... 66

TROUBLESHOOTING 67 QUESTIONS AND ANSWERS 69 INDEX 70 SPECIFICATIONS 74

LPT0248-001A

2 EN

SAFETY FIRST

Safety Precautions

The rating plate and the safety caution are on the rear of the unit.

WARNING: DANGEROUS VOLTAGE INSIDE WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR

MOISTURE.

CAUTION

n When you are not using the recorder for a long period of time, it is recommended that you disconnect the

power cord from the mains outlet.

n Dangerous voltage inside. Refer internal servicing to qualified service personnel. To prevent electric shock or

fire hazard, remove the power cord from the mains outlet prior to connecting or disconnecting any signal lead or aerial.

WARNING

There are two different types of SECAM colour systems: SECAM-L, used in FRANCE (also called SECAM-West), and SECAM-B, used in Eastern European countries (also called SECAM-East).

1. This recorder can also receive SECAM-B colour television signals for recording and playback.

2. Recordings made of SECAM-B television signals produce monochrome pictures if played back on a video recorder of SECAM-L standard, or do not produce normal colour pictures if played back on a PAL video recorder with SECAM-B system incorporated (even if the TV set is SECAM-compatible).

3. SECAM-L prerecorded cassettes or recordings made with a SECAM-L video recorder produce monochrome pictures when played back with this recorder.

4. This recorder cannot be used for the SECAM-L standard. Use a SECAM-L recorder to record SECAM-L signals.

IMPORTANT

n Please read the various precautions on page 2 and 3 before installing or operating the recorder. n It should be noted that it may be unlawful to re-record pre-recorded tapes, records, or discs without the consent

of the owner of copyright in the sound or video recording, broadcast or cable programme and in any literary, dramatic, musical, or artistic work embodied therein.

625

n Cassettes marked "S-VHS" and "VHS" can be used with this video cassette recorder. However, S-VHS recordings are possible only

with cassettes marked "S-VHS".

n SHOWVIEW is a registered trademark of Gemstar Development Corporation. The SHOWVIEW system is manufactured under licence

from Gemstar Development Corporation.

For Italy:

"It is declared that this product, brand JVC, conforms to the Ministry Decree n. 548 of 28 Aug.'95 published in the Official Gazette of the Italian Republic n. 301 of 28 Dec.'95"

EN 3

The STANDBY/ON current on and off. "

Video tapes recorded with this video recorder in the LP (Long Play) mode cannot be played back on a singlespeed video recorder.

button does not completely shut off mains power from the unit, but switches operating

" shows electrical power standby and " " shows ON.

Failure to heed the following precautions may result in damage to the recorder, remote control or video cassette.

1. DO NOT place the recorder . . .

... in an environment prone to extreme temperatures or humidity. ... in direct sunlight. ... in a dusty environment. ... in an environment where strong magnetic fields are generated. ... on a surface that is unstable or subject to vibration.

DO NOT block the recorder’s ventilation openings.

2. DO NOT place heavy objects on the recorder or remote control.

3. DO NOT place anything which might spill on top of the recorder or remote control.

5. AVOID violent shocks to the recorder during transport.

MOISTURE CONDENSATION

Moisture in the air will condense on the recorder when you move it from a cold place to a warm place, or under extremely humid conditions—just as water droplets form in the surface of a glass filled with cold liquid. Moisture condensation on the head drum will cause damage to the tape. In conditions where condensation may occur, keep the recorder turned on for a few hours to let the moisture dry.

ABOUT HEAD CLEANING

Accumulation of dirt and other particles on the video heads may cause the playback picture to become blurred or interrupted. Be sure to contact your nearest JVC dealer if such troubles occur.

4 EN

Basic Connections

INSTALLING YOUR NEW RECORDER

It's essential that your video recorder be properly connected. Follow these steps carefully. THESE STEPS MUST BE COMPLETED BEFORE ANY VIDEO OPERATION CAN BE PERFORMED.

CHECK CONTENTS

Make sure the package contains all of the accessories listed in “Specifications” (Z pg. 74).

Aerial terminal

Back of TV

21-pin SCART Cable

Mains Power Cord

21-pin SCART connector

RF Cable (provided)

AV1 OUT

S OUT

COMP. Y/C

AV1 IN/OUT

AV2 IN/DECODER

SITUATE RECORDER

Place the recorder on a stable, horizontal surface.

CONNECT RECORDER TO TV

The connection method you use depends on the type of TV you have.

TV Aerial Cable

SYNCHRO EDIT

JLIP

PAUSE/R.A. EDIT

RF OUT

ANT. IN

AUDIO

OUT

RF CONNECTION

●

To Connect To A TV With NO AV Input Terminals . . .

a– Disconnect the TV aerial cable from the TV. b– Connect the TV aerial cable to the ANT. IN jack

on the rear panel of the recorder.

c– Connect the provided RF cable between the RF

OUT jack on the rear panel of the recorder and the TV’s aerial terminal.

AV CONNECTION

●

To Connect To A TV With AV Input Terminals . . .

a– Connect the aerial, recorder and TV as per “RF

CONNECTION”.

b– Connect an optional SCART cable between the

AV1 IN/OUT socket on the rear panel of the recorder and the TV’s 21-pin SCART connector.

c– Set the AV1 OUT switch to the appropriate position.

See "AV1 INPUT/OUTPUT SIGNAL SELECTION FOR AV CONNECTION" below.

CONNECT RECORDER TO

AV1 OUT

Mains outlet

Make AV connection if your TV has a 21-pin AV input connector (SCART) in order to reduce the possibility of interference. And if you are using a stereo TV, you will need this cable in order to enjoy stereo playback of videotapes.

AV1 INPUT/OUTPUT SIGNAL SELECTION FOR AV CONNECTION

The AV1 IN/OUT connector accepts and delivers either a composite signal (regular video signal) or a Y/C signal (a signal in which the luminance and chrominance signals are separated). For input signal selection, select "VIDEO" (regular video signal) or "S-VIDEO" (Y/C signal) for "AV1 SELECT" setting (Z pg. 44). For output signal selection, use AV1 OUT switch of the rear panel.

● If your TV's 21-pin AV input connector (SCART) is compatible only with the regular video signal, set this switch to COMP.

● If your TV's 21-pin AV input connector (SCART) is compatible with the Y/C signal, set this switch to Y/C. You can obtain high-

quality S-VHS pictures. (For connection, be sure to use a 21-pin SCART cable that is compatible with the Y/C signal.)

switch

AV1 IN/OUT

Rear view

MAINS

Plug the end of the mains power cord into a mains outlet.

After you plug the mains power cord into a mains outlet, the Country Set display appears on the TV screen and/or on the recorder's front display panel when the button on the recorder/remote control is pressed for the first time to power on the recorder; go to page 6 to perform Auto Set Up.

NOTES:

●

Set your TV to the VIDEO (or AV), Y/C, or RGB mode according to the type of your TV's SCART connector.

●

For switching the TV's mode, refer to the instruction manual of your television.

●

To obtain high-quality S-VHS pictures, you can also use the S-VIDEO CONNECTION described on page 5.

S-VIDEO Connection

EN 5

Back of TV

Back of Recorder

Aerial terminal

S-VIDEO IN connector

AUDIO IN connectors

Mains outlet

Mains Power Cord

S-Video cable (not provided)

Audio cable (not provided)

S-VIDEO OUT

S OUT

AV1 OUT

COMP. Y/C

AV1 IN/OUT

AV2 IN/DECODER

AUDIO

OUT

Aerial or Cable

ANT. IN

SYNCHRO EDIT

PAUSE/R.A. EDIT

RF OUT

ANT. IN

JLIP

RF Cable (provided)

●

To Connect to A TV With S-VIDEO/AUDIO IN Connectors . . .

CONNECT RECORDER TO TV

a– Connect the aerial, recorder and TV as per "RF

CONNECTION" (Z pg. 4).

b–Connect the recorder's S-VIDEO OUT connector to

the TV's S-VIDEO IN connector.

c– Connect the recorder's AUDIO OUT connectors to

the TV's AUDIO IN connectors.

AUDIO OUT

NOTES:

●

You can obtain high-quality S-VHS pictures.

●

If your television is not stereo-capable, use the recorder's AUDIO OUT connectors to connect to an audio amplifier for Hi-Fi stereo sound reproduction. (Z pg. 55)

●

To operate the recorder with your TV using the S-VIDEO connection, set your TV to the VIDEO (or AV mode).

●

For switching the TV's mode, refer to the instruction manual of your television.

RF OUT

CONNECT RECORDER TO MAINS

Plug the end of the mains power cord into a mains outlet.

6 EN

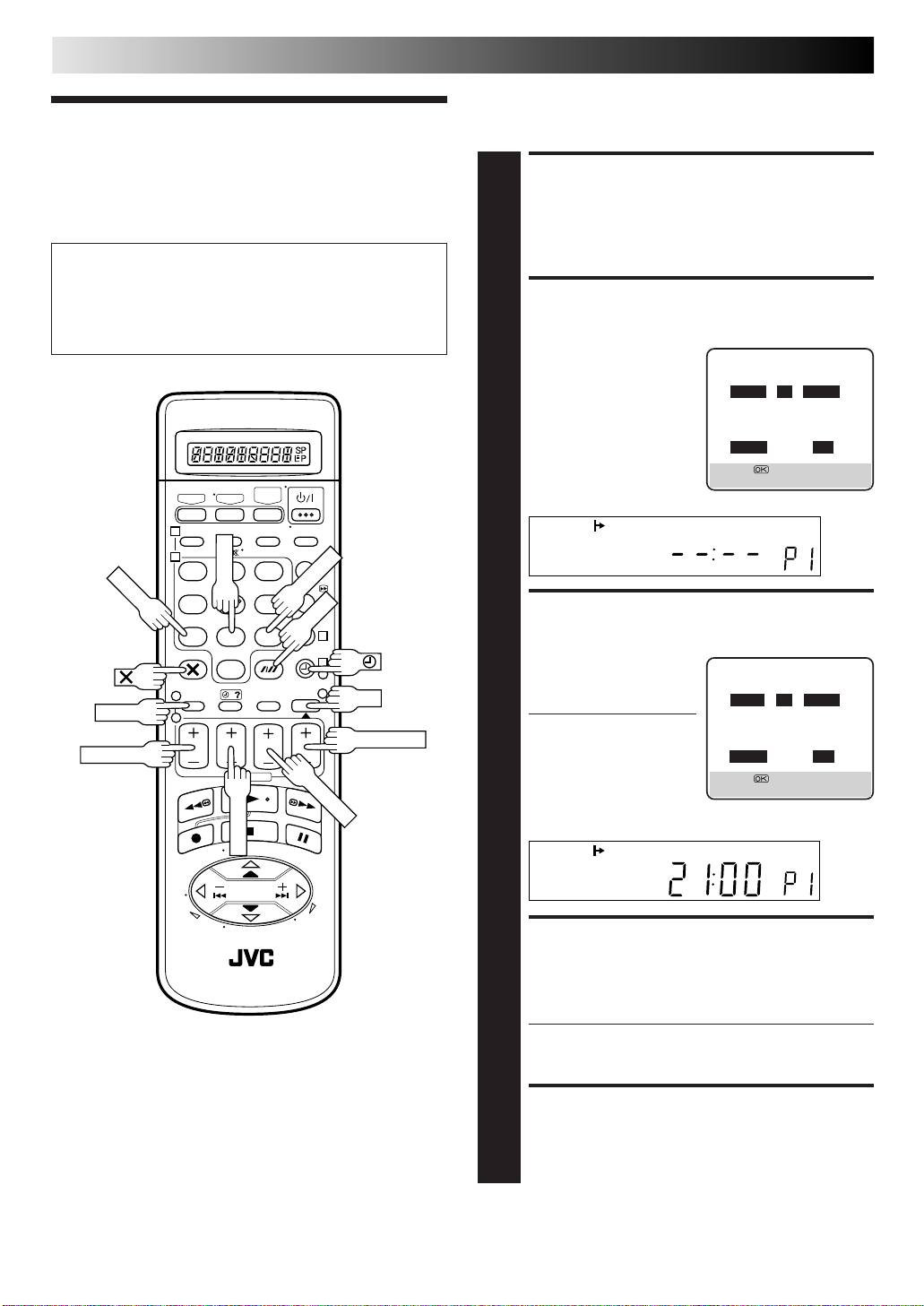

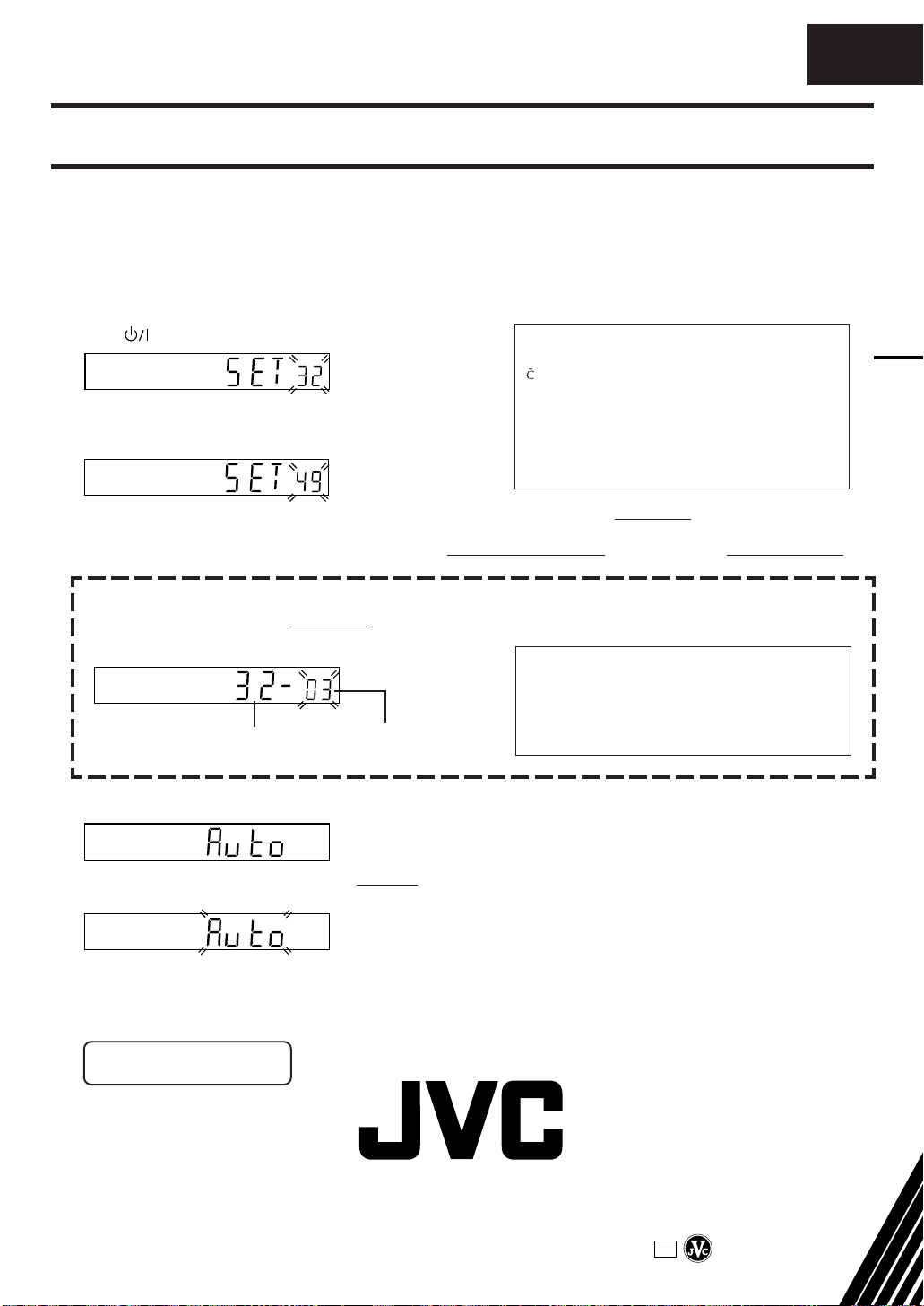

Auto Set Up

Auto Channel Set/Auto Clock Set/Auto Guide Program Number Set

INITIAL SETTINGS

When the button on the recorder/remote control is pressed for the first time to power on the recorder after you plug the mains power cord into a mains outlet, the Country Set display will appear on the TV screen and the recorder's front display panel. By simply selecting your country*, the Auto Set Up function sets the tuner channels, clock** and Guide Program numbers automatically.

* * If you live in Belgium (BELGIUM) or Switzerland (SUISSE), you also

need to select your language.

** If you live in Hungary (MAGYARORSZAG), Czech Republic (CESKA

REPUBLIKA), Poland (POLSKA) or other countries in Eastern Europe (OTHER EASTERN EUROPE), set the clock manually.

You can refer to the front display panel and/or the on-screen display to perform this procedure.

– –:– –

1 2 3 4 5 6 7 8 9

4 3



International Telephone Country Code

BELGIUM : 32 NORGE : 47

ESKÁ REPUBLIKA : 42 ÖSTERREICH : 43 DANMARK : 45 POLSKA : 48 DEUTSCHLAND : 49 PORTUGAL : 351 ESPAÑA : 34 SUISSE : 41 GREECE : 30 SUOMI : 358 ITALIA : 39 SVERIGE : 46 MAGYARORSZÁG : 36 NEDERLAND : 31

ATTENTION

Once you have performed Auto Set Up, even if the recorder's memory backup has expired, all the stored stations and their Guide Program numbers remain in the recorder's memory and the recorder will not perform Auto Set Up again. You only need to set the clock. (Z pg. 64)

If you have moved to a different area, perform each setting as required.

● Video Channel setting (for RF connection users) Z pg. 63

● Tuner setting Z pg. 56

● Clock setting Z pg. 64

If a new station starts broadcasting in your area, perform tuner setting (Z pg. 56) and, if necessary, video channel setting (Z pg. 63).

OTHER WESTERN EUROPE OTHER EASTERN EUROPE

:- :EE

Before starting, make sure of the following:

● The TV aerial cable should be connected to the recorder.

● The recorder's mains power cord should be connected to

a mains outlet.

● If you want to use the on-screen display, the TV should be set to its AV mode (with AV or S-VIDEO connection

Z pg. 4 or 5) or UHF channel 36 (with RF connection Z pg. 4).

TURN ON THE RECORDER

Press on the recorder or remote control. The Country Set display appears on the front display panel

and/or on the screen.

NOTE:

If you have connected your TV to the recorder with RF connection and the onscreen display appearing on UHF channel 36 looks distorted, perform "Video Channel Set" on page 63.

BELGIUM

ESKÁ REPUBLIKA DANMARK DEUTSCHLAND ESPAÑA GREECE ITALIA MAGYARORSZÁG NEXT PAGE

[

] =

∞

[MENU] : EXIT

SELECT COUNTRY

If you are referring to the front display panel

Press

to select your international telephone country code

ﬁ

of your country referring to the chart in the left column. (Ex.) DEUTSCHLAND is selected

If you are referring to the on-screen display

Press highlight bar (pointer) to your country's name.

NOTE:

If you have selected BELGIUM (32) or SUISSE (41), go to step 3. If you have selected MAGYARORSZAG (36), CESKA REPUBLIKA (42), POLSKA (48) or OTHER EASTERN EUROPE (EE), press OK. The Clock Set screen will appear. Set the clock manually (Z pg. 64 – 65), then go to step 4. If you have selected any other country name (code), go to step 4.

to move the

ﬁ

BELGIUM

ESKÁ REPUBLIKA DANMARK

DEUTSCHLAND

ESPAÑA GREECE ITALIA MAGYARORSZÁG NEXT PAGE

[

] =

∞

[MENU] : EXIT

EN 7

SELECT LANGUAGE

Press OK. The Language Set display appears on the front display panel and/or on the screen.

If you are referring to the front display panel

Press

(Ex.) DEUTSCH is selected for SUISSE

If you are referring to the on-screen display

Press highlight bar (pointer) to the language of your choice.

to select your language code.

ﬁ

Language Code

ENGLISH : 01 NEDERLANDS : 06 DEUTSCH : 02 SVENSKA : 07 FRANCAIS : 03 NORSK : 08 ITALIANO : 04 SUOMI : 09 CASTELLANO : 05 DANSK :10

International telephone country code

DANSK SUOMI NORSK

to move the

ﬁ

SVENSKA NEDERLANDS CASTELLANO ITALIANO FRANCAIS

DEUTSCH

ENGLISH

[ [MENU] : ENDE

(Ex.) DEUTSCH is selected

Language code

] =

∞

NOTES:

●

Auto channel set function takes place first; it assigns automatically all receivable stations in your area.

●

Auto clock set function sets the clock automatically by reading the clock setting data from a station transmitting a PDC signal while auto channel set is being performed.

●

During auto channel set, the recorder recognizes each station name of the detected stations and stores them in the recorder's memory, then automatically sets S assigned Guide Program number for those stations according to the broadcast area.

●

In the area where no TV station transmits a PDC signal, the recorder can perform neither auto clock set nor auto Guide Program number set.

●

If there is a power cut, or if you press or MENU while Auto Set Up is in progress, Auto Set Up will be interrupted; be sure to turn off the recorder power once and try again from step 1.

●

Auto clock may not function properly depending on the reception condition.

HOWVIEW

PERFORM AUTO SET UP

Press OK.

If you are referring to the front display panel

Press

to select "Auto" and press OK or #.

ﬁ

If you are referring to the on-screen display

Press highlight bar (pointer) to "AUTO SET" and press OK or #.

● If you are using the on-

to move the

ﬁ

AUTO SET

T-V LINK

[ [MENU] : EXIT

"Auto" blinks on the display panel; do NOT press any button on the recorder or remote control until the display panel shows either the display as illustrated on page 9 or "– –:– –".

screen display , the AUTO SET screen will appear. As Auto Set Up progresses, the " " mark on the screen moves from left to right.

[MENU] : EXIT

Beginning

] =

∞

AUTO SET

PLEASE WAIT

+++

End

● If "– –:– –" appears on the display panel, refer to page 9.

8 EN

Preset Download

You can use this function only with the TV offering T-V Link, etc.*

* Compatible with TVs offering T-V Link, EasyLink, Megalogic,

SMARTLINK, Q-Link, DATA LOGIC or NEXTVIEWLINK via fullywired 21-pin SCART cable. The degree of compatibility and available functions may differ by system.

1 2 3 4 5 6 7 8 9

– –:– –

4 3



INITIAL SETTINGS (cont.)

When you connect the recorder and your TV via fully-wired 21-pin SCART cable (Z pg. 4), you can set the recorder's tuner channels by downloading preset data from your TV instead of using the Auto Set Up function (Z pg. 6). After downloading is completed, the recorder sets the clock and Guide Program number automatically. For details, refer to the instruction manual for your TV.

Perform steps 1 to 3 of "Auto Set Up" on page 6 and 7 before continuing.

PERFORM PRESET DOWNLOAD

Press OK.

If you are referring to the front display panel

Press

to select "CH – –" and press OK or #.

ﬁ

If you are referring to the on-screen display

Press highlight bar (pointer) to "T-V LINK" and press OK or #.

● If "– –:– –" appears on the display panel, refer to page

● If you are using the on-

● If you press any button

to move the

ﬁ

AUTO SET

T-V LINK

[

] =

∞

[MENU] : EXIT

Preset position on the display panel increases from "CH1"; do NOT press any button on the recorder or remote control until the display panel shows either the display as illustrated on page 9 or "– –:– –".

9. screen display , the T-V

LINK screen will appear . Then the GUIDE PROG SET screen will appear during Guide Program number set.

on the recorder or remote control while downloading is in progress, it will be interrupted.

[MENU] : EXIT

T-V LINK

PLEASE WAIT

GUIDE PROG SET

PLEASE WAIT

NOTES:

●

In the area where no TV station transmits a PDC signal, the recorder can perform neither auto clock set nor auto Guide Program number set.

●

If there is a power cut, or if you press or MENU while downloading or set up is in progress, it will be interrupted; be sure to turn off the recorder power once and try again from the beginning.

●

Auto clock may not function properly depending on the reception condition.

●

When you perform T-V LINK function, be sure to use fullywired 21-pin SCART cable.

●

On this recorder, the characters available for station’s name (ID) are A–Z, 0–9, –, *, + and (space). Some downloaded station’s name may differ from those of your TV (Z pg. 60).

[MENU] : EXIT

SET VIDEO CHANNEL

Set the Video Channel to off manually. (Z pg. 63)

Results of Auto Set Up/Preset Download appear on the front display panel

EN 9

When both auto channel set and auto clock set have been completed successfully the correct current time will be displayed after the OK button is pressed in step 4 on page 7 or in step 1 on page 8.

You can check if the Guide Program numbers have been set correctly when you perform SHOWVIEW Timer Programming (Z pg. 28); if the correct channel position number is displayed in step 3, this confirms that the Guide Program number for the SHOWVIEW number you enter in step 2 has been set correctly.

If both auto channel set and auto clock set have been performed successfully:

Turn on the TV and select its VIDEO channel or AV mode, then make sure that all necessary stations have been stored in

the recorder's memory by using the TV PROG button(s).

● If station names (ID — Z pg. 61) have also been stored in the recorder's memory, the station name will be displayed at the top left corner of the screen for about 5 seconds when the recorder is tuned to a different station.

● If you want to set the tuner manually such as to add or skip channels, to change channel positions, or to set or change station names, see pages 58 – 62.

If auto channel set has succeeded but auto clock set has not:

When auto channel set has been completed successfully but auto clock set has not, "1" (channel position) will be displayed after the OK button is pressed in step 4 on page 7 or in step 1 on page 8.

When neither auto channel set nor auto clock set has been completed successfully, "– –:– –" will be displayed.

1 Turn on the TV and select its VIDEO channel or AV mode, then make sure that all necessary stations have been stored in

the recorder's memory by using the TV PROG button(s).

● If you want to set the tuner manually such as to add or skip channels, to change channel positions, or to set or change station names, see pages 58 – 62.

2 Perform "Clock Set" on page 64.

If both auto channel set and auto clock set have failed:

Make sure the TV aerial cable is connected properly to the recorder and turn off the recorder power once, then turn the

recorder power back on again.

● The Country Set display appears on the front display panel and/or on the screen; perform steps 2 – 4 on pages 6 – 7 again or perform the procedure on page 8.

IMPORTANT

n In certain reception conditions, station names may not be stored correctly, and auto Guide Program Number Set may not

work properly. If the Guide Program numbers are not set properly, when you timer-record a TV programme using SHOWVIEW, the recorder will record a TV programme of a different station. When programming the timer using SHOWVIEW, be sure to check whether the channel position on which your recorder receives the broadcasting station you wish to record is selected (Z pg. 28, "SHOWVIEW Timer Programming").

n Your video recorder memorizes all detected stations even if reception of some of them is poor. In these cases picture quality

may be poor. To delete those stations with an unacceptable picture Z "Delete A Channel" on page 59.

INFORMATION

Language for the on-screen display

Auto Set Up also selects the language automatically for the on-screen display depending on the Country setting you have made in step 2 on page 6 (unless you have selected BELGIUM or SUISSE), as shown below.

SUOMI [ SUOMI DANMARK [ DANSK NEDERLAND [ NEDERLANDS PORTUGAL [ ENGLISH ÖSTERREICH [ DEUTSCH GREECE [ ENGLISH DEUTSCHLAND [ DEUTSCH ESKÁ REPUBLIKA [ ENGLISH OTHER WESTERN EUROPE [ ENGLISH POLSKA [ ENGLISH ITALIA [ ITALIANO OTHER EASTERN EUROPE [ ENGLISH NORGE [ NORSK MAGYARORSZÁG [ ENGLISH SVERIGE [ SVENSKA ESPAÑA [ CASTELLANO If you want to change the language setting manually, Z "Language" on page 10.

Just Clock

Your recorder is equipped with the Just Clock function which provides accurate time keeping through automatic adjustments at regular intervals, by reading data from a PDC signal. If you want to take advantage of this function, simply set it to "ON".

Z "Just Clock" on page 64.

10 EN

Language

Turn on the TV and select the VIDEO channel (or AV mode).

1 2 3 4 5 6 7 8 9

– –:– –

INITIAL SETTINGS (cont.)

This recorder offers you the choice to view on-screen messages in 10 different languages. Though Auto Set Up selects the language automatically (Z pg. 9), you can change the language setting manually using this procedure as required.

TURN ON THE RECORDER

Press .

ACCESS MAIN MENU

Press MENU.

ACCESS COUNTRY SET SCREEN

Press highlight bar (pointer) to

"AUTO CH SET", then press OK or #.

to move the

ﬁ

MAIN MENU

MODE SET

AUTO CH SET

MANUAL CH SET INITIAL SET REC LEVEL CTL R.A. EDITT

[

] =

∞

[MENU] : EXIT

SELECT COUNTRY

Press country's name, then press OK or #.

to move the highlight bar (pointer) to your

ﬁ

SELECT LANGUAGE

Press



highlight bar (pointer) to

the language of your choice.

● You do not have to press

to move the

ﬁ

OK; pressing OK enters Auto Set/T-V LINK screen.

DANSK SUOMI NORSK SVENSKA NEDERLANDS CASTELLANO ITALIANO FRANCAIS DEUTSCH

ENGLISH

] =

[

∞

[MENU] : EXIT

RETURN TO NORMAL SCREEN

Press MENU.

On-Screen Displays

EN 11

You can choose whether or not to have various operational indicators appear on screen, by setting this function ON or OFF. Messages appear in the selected language (Z pg. 9 or 10).

TURN ON THE RECORDER

Press .

Turn on the TV and select the VIDEO channel (or AV mode).

– –:– –

1 2 3 4 5 6 7 8 9

4 3



ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS MODE SET SCREEN

Move the highlight bar (pointer) to "MODE SET" by pressing %ﬁ, then press OK or #.

ENABLE/DISABLE ON-SCREEN DISPLAY

The default setting is “ON”, so if you want on-screen

displays, leave the setting as it is and go to step 5. If you don’t want the displays to appear, press %ﬁ to move the highlight bar (pointer) to "O.S.D." and press OK or # to set “O.S.D.” to “OFF”.

RETURN TO NORMAL SCREEN

Press MENU.

B. E. S. T. ON PICTURE CONTROL AUTO AUTO TIMER OFF

O. S. D. ON

DIRECT REC ON AUTO SP=LP TIMER OFF DIGITAL 3R ON NEXT PAGE

[5∞] = [MENU] : EXIT

MODE SET

NOTES:

●

When you use this recorder as the player for editing, be sure to set "O.S.D." to "OFF" before starting.

●

During playback, the operation mode indicators may be disturbed depending on the type of tape being used.

The superimposed indication on the TV screen tells you what the recorder is doing.

1– Operation mode indicators 2– Tape speed SP/LP/EP (EP is for NTSC playback only) 3– Tape direction 4– Counter display 5– Tape remaining time indicator (Z pg. 23) 6– Audio mode display (Z pg. 19) 7– Tape position indicator (Z pg. 15) 8– Type of Broadcast (Z pg. 25) 9– Current day/month/year 10– Clock display 11– Channel position number and station name/Aux. indicator

(L-1, L-2, F-1 or S-1)

12– Timer warning display (Z pg. 29, 31) 13– Cassette loaded mark

11 10

[

]

3 4

PR. 12 ABCD 21 : 00

8 7

24. 12. 99 – WARNING– TIMER RECORDING TO START SOON

HI FI –1 : 23 : 45

NORM REMAIN 1 : 00

12 EN

INITIAL SETTINGS (cont.)

You can reduce the power consumption while the recorder is turned off.

Power Save Mode

Turn on the TV and select the VIDEO channel (or AV mode).

1 2 3 4 5 6 7 8 9

– –:– –

4 3



TURN ON THE RECORDER

Press .

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS MODE SET SCREEN

Press %ﬁ to move the highlight bar (pointer) to

"MODE SET", then press OK or #.

SELECT POWER SAVE MODE

Press %ﬁ to move the highlight bar (pointer) to "POWER SAVE", then press OK or # to set to "ON".

MODE SET

B. E. S. T. ON

PICTURE CONTROL AUTO AUTO TIMER OFF O. S. D. ON DIRECT REC ON AUTO SP=LP TIMER OFF DIGITAL 3R ON NEXT PAGE

[5∞] = [MENU] : EXIT

MODE SET

AUTO CH SET MANUAL CH SET INITIAL SET REC LEVEL CTL R.A. EDITT

] =

[

∞

[MENU] : EXIT

POWER SAVE ON

S-VHS AUTO AV1 SELECT VIDEO AV2 SELECT AV2 COLOUR SYSTEM PAL/NTSC TIME SCAN AUDIO ON

[5∞] = [MENU] : EXIT

MAIN MENU

RETURN TO NORMAL SCREEN

Press MENU.

NOTES:

●

During Power Save, the display panel will be turned off.

●

The Just Clock function (Z pg. 64) does not work while the Power Save mode is engaged.

●

While the recorder is in the Power Save mode, the picture may be distorted momentarily when you turn on/off the recorder.

●

Power Save does not work when ... ... the recorder is in the Timer mode. ... the recorder's power is turned off after timer-recording (or

Instant Timer Recording).

... the Auto Satellite Prog Recording mode is engaged

(Z pg. 35).

... "AV2 SELECT" is set to "DECODER" or "SAT" (Z pg. 44).

T-V LINK

T-V Link Functions

EN 13

Direct Rec

You can start recording the programme that you are watching on your TV with simple operation. Press and hold RECORD and press PLAY on the remote control, or press RECORD on the recorder. Follow the procedure below to use this function.

When you connect the recorder and your TV via fully-wired 21-pin SCART cable (Z pg. 4), the following functions are available. You can use these functions only with the TV offering T-V Link, etc.* For details, refer to the instruction manual for your TV.

* Compatible with TVs offering T-V Link, EasyLink, Megalogic,

SMARTLINK, Q-Link, DATA LOGIC or NEXTVIEWLINK via fullywired 21-pin SCART cable. The degree of compatibility and available functions may differ by system.

NexTView Link

You can download the EPG (Electronic Programme Guide) information from your TV for timer-programming on the recorder. For details, refer to the instruction manual for your TV.

TV Auto Power On

You can turn on the TV and set it to video mode automatically whenever you play a tape. For details, refer to the instruction manual for your TV.

VCR Auto Standby

You can use your TV's remote control to turn off the recorder. For details, refer to the instruction manual for your TV.

TURN ON THE RECORDER

Press .

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS MODE SET SCREEN

Press %ﬁ to move the highlight bar (pointer) to

"MODE SET", then press OK or #.

SELECT DIRECT REC MODE

Press %ﬁ to move the highlight bar (pointer) to

"DIRECT REC", then press OK or # to set to "ON".

MODE SET

AUTO CH SET MANUAL CH SET INITIAL SET REC LEVEL CTL R.A. EDITT

[

] =

∞

[MENU] : EXIT

B. E. S. T. ON PICTURE CONTROL AUTO AUTO TIMER OFF O. S. D. ON

DIRECT REC ON

AUTO SP=LP TIMER OFF DIGITAL 3R ON NEXT PAGE

[5∞] = [MENU] : EXIT

MAIN MENU

MODE SET

RETURN TO NORMAL SCREEN

Press MENU.

NOTES:

• If "DIRECT REC" is set to "OFF", the RECORD button functions

as described in "Basic Recording" (Z pg. 22).

• During the Direct Rec, "– –" appears on the display panel.

• When you perform T-V LINK functions, be sure to use the

fully-wired 21-pin SCART cable.

• Retake function does not work during Direct Rec (Z pg. 24).

14 EN

Colour System Set

1 2 3 4 5 6 7 8 9

– –:– –

INFORMATION ON COLOUR SYSTEM

You can play back PAL, NTSC and MESECAM tapes, or record PAL and SECAM* signals on this recorder. Follow the procedure below to select the appropriate colour system.

* SECAM signals will be recorded as MESECAM on this recorder;

MESECAM is the designation for tapes with SECAM signals that have

been recorded on a MESECAM-compatible PAL video cassette

recorder.

TURN ON THE RECORDER

Press .

ACCESS MAIN MENU SCREEN

Press MENU.

ACCESS MODE SET SCREEN

Press %ﬁ to move the

4 3

highlight bar (pointer) to

"MODE SET", then press OK or #.

MAIN MENU

MODE SET

AUTO CH SET MANUAL CH SET INITIAL SET REC LEVEL CTL R.A. EDITT

[

] =

∞

[MENU] : EXIT



NOTES:

About NTSC Playback

●

Some TVs shrink the picture vertically and place black bars at the top and bottom of the screen. This is not a malfunction on the part of either the video recorder or the TV.

●

The picture may roll up and down. This can be corrected using the V-HOLD control found on some TVs. (This cannot be corrected if the TV does not have a V-HOLD control.)

●

The counter and tape remaining time readings will be incorrect.

●

During search, still, or frame-by-frame playback, the picture will be distorted, and there may be a loss of colour.

●

Depending on the type of TV, the top and bottom portions of superimposed displays may be cut off during NTSC playback.

SELECT COLOUR SYSTEM MODE

Press %ﬁ to move the highlight bar (pointer) to "COLOUR SYSTEM", then press OK or # to select the

appropriate colour system.

MODE SET

B. E. S. T. ON

PICTURE CONTROL AUTO AUTO TIMER OFF O. S. D. ON DIRECT REC ON AUTO SP=LP TIMER OFF DIGITAL 3R ON NEXT PAGE

[5∞] = [MENU] : EXIT

a- PAL/NTSC: To record PAL signals, or play back a b-MESECAM: To record SECAM signals, or play back a

PAL or NTSC tape. MESECAM tape.

PREVIOUS PAGE POWER SAVE OFF S-VHS AUTO AV1 SELECT VIDEO AV2 SELECT AV2

COLOUR SYSTEM PAL/NTSC

TIME SCAN AUDIO ON

[5∞] = [MENU] : EXIT

RETURN TO NORMAL SCREEN

Press MENU.

PLAYBACK

Basic

EN 15

The easiest, most basic operation possible with your video recorder is tape playback. Already-recorded signals on a video tape are read by your video recorder and displayed on your TV just like a TV programme.

Playback

Turn on the TV and select the VIDEO channel (or AV mode).

PLAY

REW FF

DIGITAL

TIMER

STANDBY/ON

(

)

S-VIDEO

L – AUDIO – R

MONO

VIDEO

STOP/EJECT

TV PROG

SYNCHRO EDIT

SP / LP

1 2 3 4 5 6 7 8 9

PLAY

– –:– –

INSERT A.DUB

REC LINK

TBC/NR

4 3

JOG

SHUTTLE

TIME SCAN SHUTTLE

3 4

Usable cassettes

LOAD A CASSETTE

Make sure the window side is up, the rear label side is facing you and the arrow on the front of the cassette is pointed toward the recorder. Don’t apply too much pressure when inserting.

● The recorder power comes on automatically and the counter is reset to 0:00:00.

● If the record safety tab has been removed, playback begins automatically.

FIND PROGRAMME START POINT

If the tape is advanced past the start point, press REW or turn the TIME SCAN SHUTTLE ring to the left. To go forward, press FF or turn the TIME SCAN SHUTTLE ring to the right.

START PLAYBACK

Press PLAY. “BEST” appears blinking in the recorder's display panel during automatic tracking. (Z pg. 26)

STOP PLAYBACK

Press STOP on the remote or STOP/EJECT on the recorder’s front panel. Then press STOP/EJECT to remove the cassette.

REW



STOP

Tape Position Indicator

The tape position indicator appears on screen when, from the Stop mode, you press FF, REW or perform an Index Search. The position of “5” in relation to “0” (beginning) or “+” (end) shows you where you are on the tape.

”O.S.D.” (Z pg. 11) must be set to “ON”, or the indicator will not appear.

Beginning End

NOTE:

Depending on the type of tape used, there may be times when the indication is not correct.

1:23:45

REMAIN 2:35

+++

● Compact VHS camcorder recordings can be played on this video recorder. Simply place the recorded cassette into a VHS Cassette Adapter and it can be used just like any full-sized VHS cassette.

● This video recorder can record on regular VHS and Super VHS cassettes. While only VHS signals can be recorded on regular VHS cassettes, both VHS and Super VHS signals can be recorded and played back using Super VHS cassettes.

16 EN

Playback Features

TIMER

S-VIDEO

STANDBY/ON

(

)

L – AUDIO – R

VIDEO

MONO

SYNCHRO EDIT

TV PROG

SP / LP

PAUSE

INSERT A.DUB

REC LINK

JOG

PLAY

REW FF

DIGITAL TBC/NR

TIME SCAN SHUTTLE

PLAYBACK (cont.)

Still Picture/Frame-By-Frame Playback

PAUSE DURING PLAYBACK

Press PAUSE.

● During still picture, the sound from the previous

JOG

SHUTTLE

3 seconds (approx.) will be played back repeatedly (provided there was at least 6 seconds of normal playback prior to engaging the still picture mode).

● "TIME SCAN AUDIO" must be set to "ON", or the sound will not be heard. (Z pg. 21)

ACTIVA TE FRAME-BY-FRAME PLAYBACK

Turn the JOG dial to the right for forward frame-byframe playback, or to the left for reverse frame-by-frame

playback.

Press PAUSE.

Press @ or #.

To resume normal playback, press PLAY.

– –:– –

1 2 3

4 3

30 SEC

TV PROG

PAUSE

4 5 6 7 8 9

PLAY

REW



A TTENTION

● Picture may not appear during high-speed search with an LP-recorded tape.

● In the high-speed search, still, slow motion or frame by frame playback mode, the picture will be distorted, and there will be a loss of colour.

● When normal playback resumes from search, still, slow motion or frame-by-frame playback, the picture may jitter vertically momentarily depending on the type of TV being used.

Slow Motion

ACTIVATE SLOW-MOTION PLAYBACK

Turn the TIME SCAN SHUTTLE ring to the left or press @ during playback to decrease speed in the forward

direction. To play in reverse slow-motion (and in reverse play mode), continue to turn the TIME SCAN SHUTTLE ring to the left or press @ after selecting all the forward direction slow-motion modes.

During still picture, turn the TIME SCAN SHUTTLE ring to the right for forward slow motion, or to the left for reverse slow motion.

During still picture, press and hold PAUSE for 2 seconds, then release. Press and release again to return to still picture.

During still picture, press and hold @ or #. Release to return to still picture.

To resume normal playback, press PLAY.

NOTE:

For Time Jog, see page 21.

EN 17

AB C D E F

–2 –1 1 2 3

High-Speed (Turbo) Search

ACTIVATE HIGH-SPEED SEARCH

During playback or still, press FF for forward high-

speed search, or REW for reverse high-speed search.

To resume normal playback, press PLAY.

NOTE:

For short searches, press and hold FF or REW for over 2 seconds during playback or still picture. When released, normal playback resumes.

Manual Tracking

Your video recorder is equipped with automatic tracking control. During playback, you can override this and adjust the tracking manually by pressing the TV PROG buttons.

OVERRIDE AUTOMATIC TRACKING

Press on the remote to engage manual tracking.

Index Search

Your recorder automatically marks index codes at the beginning of each recording. This function gives you quick access to any one of 9 index codes in either direction.

NOTE:

Before starting, make sure the recorder is in the Stop mode.

ACTIVATE INDEX SEARCH

Press @ or # (™ or £). “™ 1” or “£ 1” is displayed on screen and search begins in the corre-

sponding direction.

● T o access index codes 2 through 9, press @ or repeatedly until the correct index number is displayed. Ex.: To locate the beginning of B from the current

position, press @ twice. To locate the beginning of D from the current position, press # once.

Current position

● When the specified index code is located, playback begins automatically.

£ 2

Index number

ADJUST TRACKING MANUALLY

Press TV PROG + or – to adjust tracking.

RETURN TO AUTOMATIC TRACKING

Press on the remote to re-engage automatic

tracking.

NOTE:

When a new tape is inserted, the recorder enters the automatic tracking mode automatically.

Skip Search

SKIP OVER UNWANTED SECTIONS

Press 30 SEC 1 to 4 times during playback. Each press initiates a 30-second period of fast-motion playback.

Normal playback resumes automatically.

NOTE:

To return to normal playback during a Skip Sear ch, press PLAY.

Next Function Memory

The Next Function Memory "tells" the recorder what to do after rewinding. Before continuing, make sure the recorder is in the Stop mode. a– For Automatic Start Of Playback After Tape Rewind . . . . . . press REW, then press PLAY within 2 seconds. b– For Automatic Power Off After Tape Rewind . . . . . . press REW, then press within 2 seconds. c– For Automatic Timer Standby After Tape Rewind . . . . . . press REW, then press (TIMER) within 2 seconds.

18 EN

REVIEW

TIMER

STANDBY/ON

(

)

S-VIDEO

VIDEO

L – AUDIO – R

MONO

SYNCHRO EDIT

STOP

TV PROG

SP / LP

PAUSE

INSERT A.DUB

REC LINK

PLAY

DIGITAL TBC/NR

REW FF

DIGITAL TBC/NR

JOG

SHUTTLE

PLAYBACK (cont.)

Digital 3R

Digital 3R picture system applies edge correction to the luminance signal to enhance detail.

ACCESS MAIN MENU SCREEN

Press MENU.

– –:– –

REVIEW

AUDIO

1 2 3 4 5 6

PLAY

PAUSE

REW

7 8 9

STOP



Digital TBC/NR

Your video recorder is equipped with the Digital TBC (Time Base Corrector) that removes jitter from fluctuating video signals to deliver a stable picture even with old tapes and rental cassettes. The on/off of Digital 3-DNR (Noise Reduction) which cuts noise and enables clear picture reproduction is also linked to this function. * The default setting is "ON".

We recommend that you use the Digital TBC feature when... ... playing back a tape recorded on a camcorder. ... playing back a tape repeatedly used. ... using this video recorder as the player for editing.

ACTIVATE DIGITAL TBC/NR

Press DIGITAL TBC/NR so that the button lights up.

● To turn off DIGITAL TBC/NR, press DIGITAL TBC/NR

again so that the light goes off.

ACCESS MODE SET SCREEN

Move the highlight bar (pointer) to "MODE SET" by

pressing %ﬁ, then press OK or #.

MAIN MENU

MODE SET

AUTO CH SET MANUAL CH SET INITIAL SET REC LEVEL CTL R.A. EDITT

[

] =

∞

[MENU] : EXIT

SELECT DIGITAL 3R SET MODE

Move the highlight bar (pointer) to "DIGITAL 3R"

by pressing %ﬁ, then press OK or # to set to "ON".

MODE SET

B. E. S. T. ON PICTURE CONTROL AUTO AUTO TIMER OFF O. S. D. ON DIRECT REC ON AUTO SP=LP TIMER OFF

DIGITAL 3R ON

[5∞] = [MENU] : EXIT

RETURN TO NORMAL SCREEN

Press MENU.

NOTES:

●

Normally it is recommendable to keep "DIGITAL 3R" set to "ON".

●

Depending on the type of tape being used, picture quality may be better with "DIGITAL 3R" set to "OFF".

NOTES:

●

If you play back a tape recorded under poor TV reception condition, there may be cases where the picture becomes more stable with Digital TBC/NR set to off.

●

When Digital TBC/NR is set to on, if you play back a tape where certain types of signals are recorded (using a PC or some character generators), the playback picture may be distorted. If this is the case, turn off Digital TBC/NR.

●

When playing back a MESECAM tape, Digital TBC/NR does not function even though the TBC/NR button is lit.

EN 19

Repeat Playback

Your video recorder can automatically play back the whole tape 50 times repeatedly.

START PLAYBACK

Press PLAY.

ACTIVA TE REPEAT PLAYBACK

Press PLAY and hold for over 5 seconds, then release.

● The Play indicator ( ) on the display panel blinks

slowly.

● The tape plays 50 times automatically, and then stops.

STOP PLAYBACK

Press STOP at any time to stop playback.

NOTE:

Pressing PLAY, REW, FF or PAUSE also stops Repeat Playback.

Instant ReView

Simply by pressing a single button, the recorder power comes on, rewinds, and begins playback of the last timer-recorded programme. If you have several programmes recorded, you can easily access any of them.

NOTE:

Before starting, make sure that the recorder is off and that the Timer mode is disengaged.

ACTIVATE INSTANT REVIEW

Press REVIEW. The recorder power comes on and the recorder searches for the index code indicating the start

of the last timer-recorded programme. Once it’s found, playback begins automatically.

● The front display panel tells you how many programmes have been timer-recorded. If you have, for example, 3 programmes, “REVIEW” and "3" appear and blink. To watch the first of the 3 programmes, press REVIEW three times. The recorder searches and begins playback automatically . You can access a programme as far as 9 index codes away from the current tape position.

NOTES:

●

Instant ReView is not possible while the recorder is in the Timer mode.

●

The number of recorded programmes will not be displayed on the front display panel after Auto Satellite Prog recording (Z pg. 35).

Soundtrack Selection

Y our video recorder is capable of recording three soundtracks (HI-FI L, HI-FI R and NORM) and will play back the one you select .

During Playback

Pressing AUDIO on the remote control changes the soundtrack being played back as follows:

TRACK

Recorder's Front Panel On-Screen Display

NORM NORM For audio-dubbed tapes

+ NORM

HI FI

NORM

USE

For Hi-Fi stereo tapes For main audio of Bilingual tapes For sub audio of Bilingual tapes

For audio-dubbed tapes

NOTES:

●

" + " should normally be selected. In this mode, Hi-Fi stereo tapes are played back in stereo, and the normal audio track is played back automatically for tapes with only normal audio.

●

For instructions on recording stereo and bilingual programmes, refer to page 25.

●

"O.S.D." must be set to "ON" or the on-screen displays will not appear (Z pg. 11).

20 EN

TimeScan

S-VIDEO

STANDBY/ON

TIMER

(

)

L – AUDIO – R

MONO

VIDEO

SYNCHRO EDIT

TV PROG

SP / LP

TV PROG

PAUSE

INSERT A.DUB

REC LINK

PLAY

DIGITAL TBC/NR

TIME SCAN SHUTTLE

REW FF

JOG

SHUTTLE

PLAYBACK (cont.)

Y our recorder is equipped with the TimeScan function. TimeScan allows noise free pictures to be displayed on your TV screen in the forward and reverse search modes. Audio will be played back at normal speed during the TimeScan modes (Z pg. 21). TimeScan also allows you to view a programme in search mode while listening to the audio.

NOTES:

●

"TIME SCAN AUDIO" must be set to "ON", or the sound will not be heard in TimeScan mode. (Z pg. 21)

●

The audio will not synchronize with the video in TimeScan modes.

●

During 1.5x speed TimeScan the audio playback speed will also be 1.5 times normal, so dialog will sound fast-talking.

●

In Pause mode 3 seconds (approx.) of audio will be played back repeatedly. (Z pg. 16)

●

In TimeScan search modes some of the audio information will not be played so that the audio can keep up with the video.

Audio signal during TimeScan

PLAY

1 2 3 4 5 6 7 8 9

– –:– –



4 3

TV PROG

PAUSE

Playback tape

2345

Sound of 1, 3 and 5 is heard. Sound of 2 and 4 is not heard. Output audio signal is normal (monaural) sound.

Variable-Speed Search

ACTIVATE VARIABLE-SPEED SEARCH

During playback, turn the recorder's TIME SCAN SHUTTLE ring. It remains at that position even after you

release it. Each time it passes a click position, the playback speed changes. (Refer to the chart on page 21 for playback speeds).

During playback, press @ or #.

● The more times you press, the faster the playback picture moves.

● To decrease speed, press the button for the opposite direction. (Refer to the chart on page 21 for playback speeds).

To resume normal playback, press PLAY.

If the picture jitters vertically during still or variablespeed search with a MESECAM tape:

1 Press PAUSE. 2 Press TV PROG + or – so that the vibration stops.

TimeScan

EN 21

Names of special-effects playback

Speed SP

Speed LP

Audio output

Search Play

-9x -7x -5x -3x -1x -1/2x -1/3x 0 1/3x 1/2x 1x 1.5x 2x 3x 5x 7x 9x

-7x -3x -1/2x 0 1/2x 1x 1.5x 2x 5x 9x

Audio is output.

**Still mode cannot be engaged using the remote control's

Reverse Forward

Slow-Motion

(Time Jog**) (Time Jog**)

*Still

Slow-Motion

Play Search

Audio is not Audio is Audio is

output. output. output.

button. Still mode can be engaged by

Audio is output.

pressing the PAUSE button.

**Smooth slow motion delivering an uninterrupted moving image without distortion.

● If the picture jitters vertically, noise appears or the upper or lower part of the picture is distorded at -1/2x, -1/3x, 1/3x, 1/2x or

1.5x normal speed, use TV PROG + or – to correct the picture.

● When noise appears or the upper or lower part of the picture is distorted during TimeScan search, press and adjust tracking with TV PROG + or – button.

● The speed is shown during TimeScan in the upper right corner of the TV screen for approx. 5 seconds. (The display may be distorted.)

● To resume normal playback, press PLAY.

● When using the recorder's TIME SCAN SHUTTLE ring, the playback speed may not change in the correct step if it is turned

too fast.

● Picture and audio may become distorted when the recording speed changes. When this happens, resume normal playback once, and then try using TimeScan again.

● The picture may be noisy or there may be a loss of colour when you change the playback speed. (More noise will appear with LP recordings.)

● Noise may appear or the upper part of the picture may be distorted during still, frame-by-frame playback, 2x search of LP recordings, or depending on the tape being used.

● Picture may appear distorted in comparison to normal playback.

● When normal playback resumes from search (including TimeScan), still, slow motion or frame-by-frame playback, the picture

may jitter vertically momentarily depending on the type of TV being used.

● Depending on the tape in use, noise may appear or the upper part of the picture may be distorted.

● In TimeScan mode there will be a time lag between the video and the audio and noise may appear in the audio signal.

● TimeScan sound quality will differ in comparison to normal playback.

● When material such as music videos where there is non-stop sound (very few breaks in the soundtrack) are viewed at 1.5x or

2x normal speed, the audio playback may be faster than normal.

● Depending on the type of tape contents, the sound may not be clear during forward slow-motion playback.

● Time Jog cannot be activated by pressing PAUSE for longer than 2 seconds.

● When the playback direction is reversed, it takes approximately 6 seconds until sound is heard.

● Picture will be monochrome with an LP-recorded MESECAM tape during TimeScan.

● TimeScan does not work with NTSC playback.

● TimeScan at -1/2x, 1/2x and 1.5x normal speed are not possible with a MESECAM tape.

If you don't want to hear TimeScan audio, set "TIME SCAN AUDIO" to "OFF" (See below).

TimeScan Audio

The audio output can be set ON/OFF during TimeScan. Select ON/OFF as required. * The default setting is "ON".

1 Press MENU to access the Main Menu screen. 2 Move the highlight bar (pointer) to "MODE SET" by pressing 3 Move the highlight bar (pointer) to "TIME SCAN AUDIO"

by pressing %ﬁ, then press OK or # to select "ON" or "OFF".

4 Press MENU to return to the normal screen.

ﬁ, then press OK or #.

MODE SET

B. E. S. T. ON

PICTURE CONTROL AUTO AUTO TIMER OFF O. S. D. ON DIRECT REC ON AUTO SP=LP TIMER OFF DIGITAL 3R ON NEXT PAGE

[5∞] = [MENU] : EXIT

PREVIOUS PAGE POWER SAVE OFF S-VHS AUTO AV1 SELECT VIDEO AV2 SELECT AV2 COLOUR SYSTEM PAL/NTSC

TIME SCAN AUDIO ON

[5∞] = [MENU] : EXIT

22 EN

Basic Recording

Turn on the TV and select the VIDEO channel (or AV mode).

PLAY

RECORDING

TV signals being received by the recorder’s built-in tuner can be recorded onto a video tape. You can “capture” a TV programme using your video recorder.

LOAD A CASSETTE

Insert a cassette with the record safety tab intact.

● The counter is reset to 0:00:00 and the recorder

power comes on automatically.

CHOOSE A PROGRAMME

Press TV PROG +/– or the NUMBER keys to select the channel you wish to record.

STANDBY/ON

S-VIDEO

VIDEO

STOP/EJECT

NUMBER

TIMER

(

)

L – AUDIO – R

MONO

TV PROG

SYNCHRO EDIT

SP / LP

SP/LP

1 2 3 4 5 6 7 8 9

– –:– –

INSERT A.DUB

REC LINK

RECORD

SP/LP

TV PROG

DIGITAL TBC/NR

REW FF

PAUSE

JOG

SHUTTLE

SET TAPE SPEED

Press SP/LP ( ). Check the SP/LP indicator on the recorder display panel to confirm the selected tape

speed.

START RECORDING

Press and hold RECORD and press PLAY on the remote control, or press RECORD on the recorder.

B.E.S.T. takes place at the beginning of both the first SP and the first LP recording after inserting the cassette (Z pg. 26).

If "DIRECT REC" is set to "ON", the programme that appears on the TV screen will be recorded (Z pg. 13).

PAUSE/RESUME RECORDING

Press PAUSE. Press PLAY to resume recording.

STOP RECORDING

Press STOP on the remote control or STOP/EJECT on the recorder. Then press STOP/EJECT to remove the

cassette.

PLAY

RECORD



STOP

PAUSE

Recording Resume Function

If there is a power outage during recording (or Instant Timer Recording or timer recording), the recording will resume automatically when power is restored to the recorder unless the recorder's memory backup has expired.

Accidental erasure prevention

● To prevent accidental recording on a recorded cassette, remove its safety tab. To record on it later, cover the hole with adhesive tape.

Record safety tab

Recording Features

TV PROG

TIMER

S-VIDEO

STANDBY/ON

(

VIDEO

MONO

0000

)

L – AUDIO – R

TV PROG

SYNCHRO EDIT

SP / LP

– –:– –

1 2 3 4 5 6 7 8 9

– –:– –

INSERT A.DUB

REC LINK

4 3

REW FF

DIGITAL TBC/NR

RECORD

TV/VCR

TV PROG

EN 23

Record One Programme While Watching Another

If your recorder is connected to the TV via AV connection, . . .

. . . press TV/VCR. The recorder's VCR indicator and the TV broadcast being recorded disappear.

SELECT CHANNEL TO WATCH

JOG

SHUTTLE

Once recording is in progress, all you need to do is to set the channel controls on the TV for the station you

wish to view.

● The programme selected with the TV’s channel controls appears on the TV screen while the one selected with the recorder's TV PROG buttons is recorded on the tape.

● If a decoder is connected to the recorder (Z pg. 54), you can select a scrambled channel as well with the TV channel controls.

Elapsed Recording Time Indication

You can check the exact time of a recording.

SET COUNTER DISPLAY

Press – –:– – until a counter reading appears on the display panel.

RESET COUNTER

Press 0000 before starting recording or playback.

● The counter is reset to “0:00:00” and shows the exact

elapsed time as the tape runs.

Instant Timer Recording (ITR)

This easy method lets you record for from 30 minutes to 6 hours (selectable in 30-min. increments), and shuts the recorder off after recording is finished.

START RECORDING

Press RECORD on the recorder.

ENGAGE ITR MODE

Press RECORD again. " " blinks and 0:30 appears on

the front display panel.

SET RECORDING DURATION

If you want to record for more than 30 minutes, press

RECORD to extend the time. Each press extends

recording time by 30 minutes.

NOTE:

You can only perform ITR using the RECORD button on the recorder's front panel.

Tape Remaining Time

DISPLAY REMAINING TIME

Press – –:– – until the time remaining on the tape appears.

● The display panel shows the tape remaining time with " " displayed.

● By pressing the – –:– – button, you can change the display to show the counter reading, channel position*, clock time or tape remaining time.

* channel position is not displayed during playback.

NOTE:

Depending on the type of tape used, there may be times when the tape remaining time reading may not appear right away, or is not correct. "– –:– –" may sometimes appear, or the display may blink on occasion.

+ 53 hidden pages
