Ideal as a work table and for
occasional stacking operations
Maintenance-free battery (no
need to top up with water)
On-board charger for
easy charging
1600 to 3000 mm lift height
Powerful lift motor
HC 110
Electric hand stacker (1,000 kg)
The electric hand stacker oers a
cost-eective option for carrying out
occasional stacking operations (1600 to
3000 mm lift height) and loading and
unloading commercial vehicles.
The manually operated HC 110 with its
electric lift is also used as a work bench
in many areas. The HC 110 draws the
energy it requires from a maintenancefree battery.
A built-in charger allows easy and reliable
charging of the integrated battery at any
standard 240 V mains socket. Automatic
guidance of the steered wheel ensures
easy manoeuvrability of the HC 110.
HC 110
h
1
h
14
max.
h
14
min.
951
b
1
h
4
h
l
3
c
s
Q
l
2
y
l
1
h
13
e
b
10
b11b
5
Wa
a
2
a
2
Ast
Issue: 08/2009
Technical data in line with VDI 2198
1.1 Manufacturer (short form) Jungheinrich
1.2 Model HC 110
1.3 Drive manual
1.4 Manual, pedestrian, stand-on, seated, order picker operation pedestrian
1.5 Load capacity/rated load Q t 1
1.6 Load centre distance c mm 600
Identification
1.9 Wheelbase y mm 1210
2.1.1 Net weight incl. battery (see row 6.5) kg 348 435 450
2.2 Axle load, w. load, front / rear kg 400 / 948 443 / 992 454 / 996
2.3 Axle load, w.o. load, front / rear kg 242 / 106 306 / 129 323 / 127
Weights
3.1 Tyres N/V
3.2 Tyre size, at front mm Ø 180 x 50
3.3 Tyre size, at rear mm Ø 74 x 93
3.5 Wheels, number front/rear (× = driven wheels) 2/2
3.6 Track width, front b
3.7 Track width, rear b
Wheels / chassis
4.2 Mast height (lowered) h1 mm 1980 1830 2080
4.4 Lift h
4.5 Extended mast height h
4.9 Height of tiller in drive position min. / max. h
4.15 Lowered height h
4.19 Overall length l
4.20 Length incl. back of forks l
4.21 Total width b
4.22 Fork dimensions s/e/l mm 60 / 180 / 1100
Basic dimensions
4.25 Width over forks b
4.33 Aisle width for pallets 1000 × 1200 sideways Ast mm 2145
4.34 Aisle width for pallets 800 × 1200 lengthways Ast mm 2175
4.35 Turning radius W
5.2 Lift speed, w. / w.o. load m/s 0.08 / 0.11
5.3 Lower speed, w. / w.o. load m/s 0.19 / 0.13
5.11 parking brake manual
Perform-
ance data
6.2 Lift motor rating at S3 10% kW 1.5
6.4 Battery voltage/nominal capacity K5 V/Ah 12 / 150
trics
Elec-
6.5 Battery weight kg 45
mm 680
10
mm 400
11
mm 1600 2500 3000
3
mm 1980 3070 3570
4
mm 790 / 1156
14
mm 85
13
mm 1720
1
mm 620
2
mm 777
1/b2
mm 570
5
mm 1335
a
In accordance with VDI Guideline 2198 this specification sheet provides details of the standard truck only. Non-standard tyres, different masts, optional equipment, etc. may
result in different values.

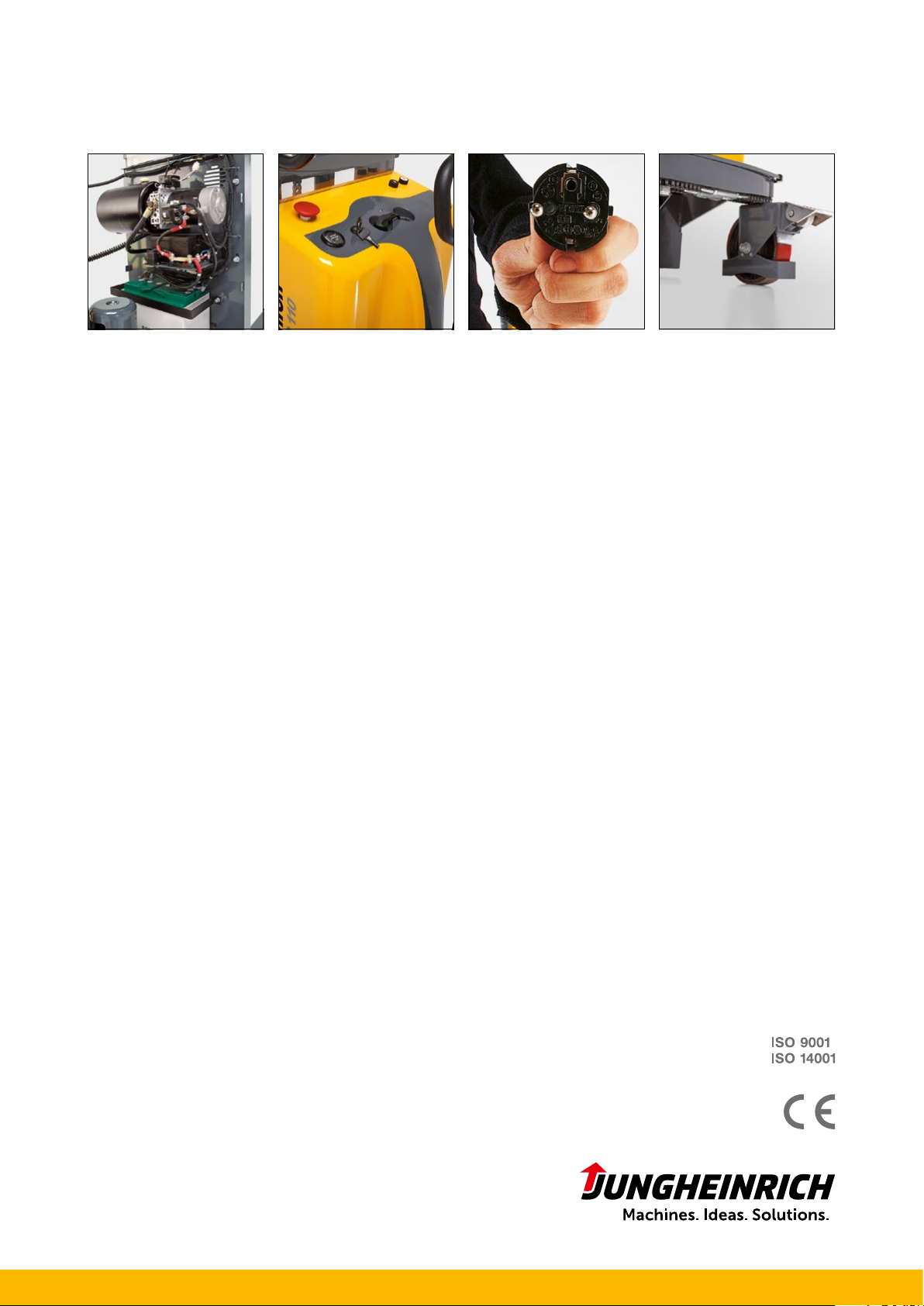

Benefit from the advantages
Good accessibility to all components
Clear arrangement of all operating
and display controls
Powerful performance on a budget
For occasional stacking and retrieval
up to a lift height of 3000 mm, the HC
110 oers a cost-eective alternative
to trucks with drive motors. The wide
variety of masts available (1600, 2500
and 3000 mm) and its powerful 1.5 kW
lift motor make it suitable for a wide
range of applications. For instance, with
the 1600 mm mast the HC 110 is suitable
for loading and unloading commercial
vehicles, for stacking one pallet on top of
another, and for use as a work bench.
Simply plug into a 13Amp plug
socket
Clear, precise operation
The electro-hydraulic lift control and
easy accessibility of the lift and lower
control buttons ensure precise fork
positioning. All controls and displays are
clearly arranged.
Easy battery charging
The maintenance-free battery eliminates
the tedious operation of topping up the
battery with water. The battery discharge
display provides a continuous indication
of the actual state of charge. The builtin high-frequency charger allows the
battery to be charged from any 13Amp
plug socket.
Steered wheel with parking brake
Safe ergonomic operation
• Easy handling using ergonomically arranged control handles.
• Long tiller allows eortless operation.
• Foot guards on the steered wheels give
additional operator protection.
• Safe parking in any situation via the
mechanical parking brake.
Especially easy to manoeuvre
Automatic control of the steered wheel
by means of a drive chain ensures the
electric hand stacker is particularly easy
to manoeuvre.
Jungheinrich UK Ltd.
Head Oce:
Sherbourne House
Sherbourne Drive
Tilbrook
Milton Keynes MK7 8HX
Telephone 01908 363100
Fax 01908 363180
info@jungheinrich.co.uk
www.jungheinrich.co.uk
The German production
facilities in Norderstedt and
Moosburg are certified.
Jungheinrich fork lift
trucks meet European
safety requirements.
