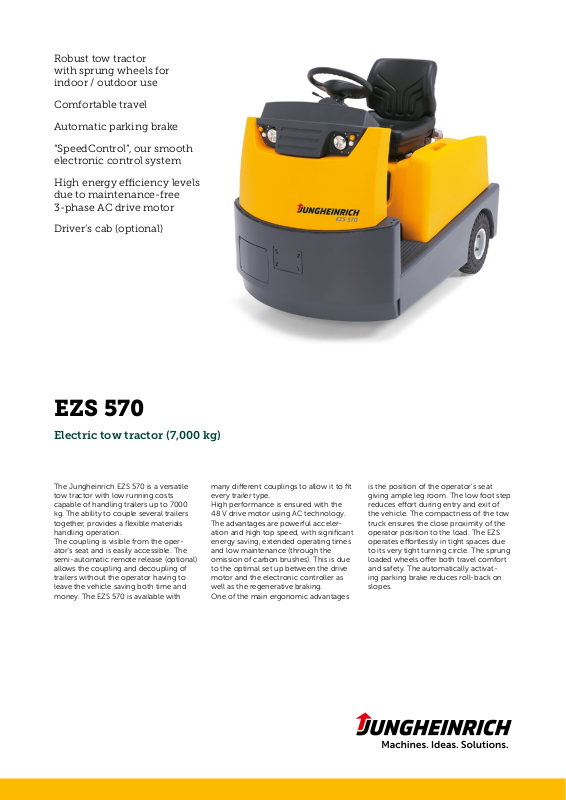

Jungheinrich EZS-570 User Manual

Robust tow tractor
with sprung wheels for
indoor / outdoor use

Comfortable travel

Automatic parking brake

“SpeedControl”, our smooth
electronic control system

High energy eciency levels
due to maintenance-free
3-phase AC drive motor

Driver’s cab (optional)

EZS 570

Electric tow tractor (7,000 kg)

The Jungheinrich EZS 570 is a versatile
tow tractor with low running costs
capable of handling trailers up to 7000
kg. The ability to couple several trailers
together, provides a flexible materials
handling operation.
The coupling is visible from the oper­ator’s seat and is easily accessible. The
semi-automatic remote release (optional)
allows the coupling and decoupling of
trailers without the operator having to
leave the vehicle saving both time and
money. The EZS 570 is available with

many dierent couplings to allow it to fit
every trailer type.
High performance is ensured with the
48 V drive motor using AC technology.
The advantages are powerful acceler­ation and high top speed, with significant
energy saving, extended operating times
and low maintenance (through the
omission of carbon brushes). This is due
to the optimal set up between the drive
motor and the electronic controller as
well as the regenerative braking.
One of the main ergonomic advantages

is the position of the operator’s seat
giving ample leg room. The low foot step
reduces eort during entry and exit of
the vehicle. The compactness of the tow
truck ensures the close proximity of the
operator position to the load. The EZS
operates eortlessly in tight spaces due
to its very tight turning circle. The sprung
loaded wheels oer both travel comfort
and safety. The automatically activat­ing parking brake reduces roll-back on
slopes.

EZS 570

l

3

1480

1370

h

7

h

6

h

11

h

10

m

2

Pulling ability

y l

l

1

Wa

5

b

13

b1b11b

9

Example:

The EZS 570 travels on a 10% incline with a 2
t load. The EZS requires 3400 N drawbar pull
and will
achieve a speed of approx. 6 km/h.

v=speed [km/h], m=incline [%], F=drawbar pull [N]

Note:

The EZS 570 is not suitable for continuous
operations over 1400 N.

For gradients / descents greater than 4%
it is recommended that braked trailers be
used.

Technical data in line with VDI 2198

1.1 Manufacturer (short form) Jungheinrich

1.2 Model EZS 570

1.3 Drive Electrics

1.4 Manual, pedestrian, stand-on, seated, order picker operation seat

1.5 Load capacity/rated load Q t 7

1.7 Rated tractive power F N 1400

Identification

1.9 Wheelbase y mm 1035

2.1 Service weight kg 1220

2.3 Axle load, w.o. load, front / rear kg 570 / 650

Weights

3.1 Tyres CSE

3.2 Tyre size, at front mm 4.00-8/6 PR

3.3 Tyre size, at rear mm 4.00-8/6 PR

3.5 Wheels, number front/rear (× = driven wheels) 1/2x

3.6 Track width, front b

3.7 Track width, rear b

Wheels / chassis

4.7 Height of overhead guard h6 mm 2120

4.8 Seat height/stand height h

4.12 Coupling height h

4.13 loading height without load h11 mm 630

4.16 loading area length l

4.17 overhang length l

4.18 loading area width b

4.19 Overall length l

4.21 Total width b

Basic dimensions

4.32 Floor clearance centre wheelbase m

4.35 Turning radius W

4.36 Smallest pivot point distance b

5.1 Travel speed, w. / w.o. load km/h 8.5 / 18

5.5 Drawbar pull w. / w.o. load N 1400

5.6 Max. drawbar pull, laden/unladen N 5500

5.7 Gradeability laden/unladen % - / -

data

5.8 Max. gradeability, laden/unladen % - / -

Performance

5.10 Service brake hydraulic/mechanical

6.1 Drive motor rating S2 60 min. kW 4.3

6.4 Battery voltage/nominal capacity K5 V/Ah 48 / 375

6.5 Battery weight kg 575

Electrics

6.6 Energy consumption according to VDI cycle kWh/h 1.93

8.1 Type of drive control Impuls/AC

8.4 Sound pressure level at operator’s ear according to EN 12053 dB (A) 57

Misc.

mm 0

10

mm 860

11

mm 1030

7

mm 240

10

mm 400

3

mm 387

5

mm 795

9

mm 1820

1

mm 996

1/b2

mm 138

2

mm 1650

a

mm 105

13

Issue: 08/2010

1)

2)

2)

1)

240 / 330 / 420 mm

2)

See diagram

In accordance with VDI Guideline 2198 this specification sheet provides details of the standard truck only. Non-standard tyres, different masts, optional equipment, etc. may
result in different values.

Benefit from the advantages

Running and parking lights, front
indicators

Ergonomic low step for effortless
entry and exit.

Innovative 3-phase AC technology

Jungheinrich 3-phase AC motors oer
you higher performance while simulta­neously reducing operating costs. Make
the most of these advantages:

• High level of eciency with excellent
energy management.

• Powerful acceleration.

• High top speed, even when laden.

• Rapid change in direction of travel

• No carbon brushes - maintenance-free
drive motor.

• Two-year warranty on the drive motor.

Comfortable and safe operation

The SpeedControl impulse electronic
management system and the auto­matic electrical braking system ensure
comfortable and safe operation of the
vehicle, with adjustment opportunities to
suit any application:

• The travel speed is automatically
maintained irrespective of the driving
conditions.

• 3 adjustable travel programs for indi­vidual adjustment to any requirements.

• Regenerative braking with energy re­covery when slowing down.

Clear layout of controls ensures
easy operation.

• Safe starting and stopping, also on
slopes with the electric parking brake
(which automatically engages when
stationary and automatically releases
on start-up).

• Crawl speed button for travelling at
adjustable restricted speed.

Optimised ergonomics

• Low step for eortless entry and exit to
and from the vehicle.

• Close proximity of operator position to
coupling and load.

• Highly visible and accessible coupling.

• Fast, easy coupling/decoupling of
trailers with semi-automatic remote
unlocking from the operator position
(optional).

• Inching controls for simple coupling
and decoupling (optional).

• Non-marking super-elastic wheels
(optional).

• Many storage areas for the operator.

Robust construction for the hardest
applications

• Chassis of 8 mm high quality steel.

• Extra-high chassis apron to the front.

• Robust high intensity, LED (light emit­ting diode) rear lights and indicators.

Cabin

Long operating times

Energy-ecient 3-phase AC technology
and high battery capacities allow for long
operating times. Standard version: 3 PzS
345 Ah.

Always informed

Easily read display and instruments al­ways allows a complete overview:

• Battery discharge indication, operation
hours, speed and fault diagnostics.

• PIN activation of the vehicle (optional).

• Choice of 3 travel programmes.

• Adjustable travel parameters.

Additional equipment

Extensive accessories for individual
tailoring to your requirements:

• Inching buttons for simple coupling
and decoupling.

• Semi-automatic remote coupling
release.

• Additional steel bumper.

• Holder for radio data components.

• Dierent couplings.

• Comfort charging: Charging the built­in battery with no need to open panels.

• Cabs with a variety of facilities for use
outside.

• Lateral battery exchange (optional) for
easy changing of batteries.
