John Deere st0524 User Manual

ST0524

Snow Thrower

OPERATOR’S

MANUAL

MTF-031072L

INTRODUCTION

Congratulations on your purchase of a Frontier Snowthrower. It has been designed, engineered and manufactured to give you
the best possible dependability and performance. However, like all mechanical products, your machine will occasionally re­quire adjustment and maintenance. This handbook should be read before operating or performing and adjustments on your
machine.

The instructions in this Owner’s Manual are written for a person with some mechanical ability. Like most service books, not
all the steps are described. Steps on how to loosen or tighten fasteners are steps anyone can follow with some mechanical
ability. Read and follow these instructions before you use the unit.

Know your product:: If you understand the unit and how the unit operates, you will get the best performance. As you read
this manual, compare the illustrations to the unit. Learn the location and the function of the controls. To help prevent an acci­dent, follow the operating instructions and the safety rules. Keep this manual for future reference.

IMPORTANT: Many units are not assembled and are sold in cartons. It is the responsibility of the owner to make sure the as-
sembly instructions in this manual are exactly followed. Other units are purchased in an assembled condition. On assembled
units, it is the responsibility of the owner to make sure the unit is correctly assembled. The owner must carefully check the unit
according to the instructions in this manual before it is first used.

The warranty, found in this manual, details the coverage and limitations of this product. Registration of the warranty is
necessary and must be preformed by the dealer within sixty (60) days from the date of retail sale or delivery. The
Warranty Registration Form is located on the Frontier website.

RESPONSIBILITY OF THE OWNER

The responsibility of the owners to follow the instructions below.

1. Carefully read and follow the rules for safe operation.

2. Follow all the assembly instructions.

3. Inspect the unit.

4. Make sure that the operator of the unit knows how to correctly use all standard and accessory equipment.

5. Operate the unit only with guards, shields, and other safety items in place and working correctly.

6. Correctly adjust the unit.

7. Service the unit only with authorized or approved replacement parts.

8. Complete all maintenance on the unit.

PRODUCT INFORMATION

The owner must be certain that all the product information is included with this unit.

This information includes the INSTRUCTION BOOKS, the REPLACEMENT PARTS

and the WARRANTIES. This information must be included to make

sure state laws and other laws are followed.

Read And Keep This Book For

Future Reference. This Book Contains Important Information On:

SAFETY, ASSEMBLY, OPERATION AND MAINTENANCE.

MTF-031072L

2

RULES FOR SAFE OPERATION

IMPORTANT

WARNING: Always disconnect the spark plug wire and place it where it cannot make contact with
spark plug to prevent accidental starting during: Preparation, Maintenance, or Storage of your
snowthrower.

Safe Operation Practices for Snowthrowers

As Recommended By: American National Standards Institute.

Engine Exhaust, some of its constituents, and
certain vehicle components contain or emit
chemicals known to the State of California to
cause cancer and birth defects or other repro­ductive harm.

Battery posts, terminals and related accesso­ries contain lead and lead compounds, chemi­cals known to the State of California to cause
cancer and birth defects or other reproductive
harm. WASH HANDS AFTER HANDLING.

IMPORTANT: Safety standards require operator presence

controls to minimize the risk of injury. Your snowthrower is
equipped with such controls. Do not attempt to defeat the
function of the operator presence control under any cir­cumstances.

Training

1. Read the operating and service instruction manual care­fully. Be thoroughly familiar with the controls and the
proper use of the equipment. Know how to stop the unit
and disengage the controls quickly.

2. Never allow children to operate the equipment. Never
allow adults to operate the equipment without proper
instruction.

3. Keep the area of operation clear of all persons, particu­larly small children and pets.

4. Exercise caution to avoid slipping or falling especially
when operating in reverse.

Preparation

1. Thoroughly inspect the area where the equipment is to
be used and remove all doormats, sleds, boards, wires,
and other foreign objects.

2. Disengage all clutches before starting the engine
(motor).

3. Do not operate the equipment without wearing adequate
winter outer garments. Wear footwear that will improve
footing on slippery surfaces.

4. Handle fuel with care; it is highly flammable.

MTF-031072L

a. Use an approved fuel container.
b. Never remove fuel tank cap or add fuel to a running en-

gine (motor) or hot engine (motor).

c. Fill fuel tank outdoors with extreme care. Never fill fuel

tank indoors.
d. Replace fuel cap securely and wipe up spilled fuel.
e. Never store fuel or snowthrower with fuel in the tank

inside of a building where fumes may reach an open

flame or spark.
f. Check fuel supply before each use, allowing space for

expansion as the heat of the engine (motor) and/or sun

can cause fuel to expand.

5. For all units with electric starting motors use electric
starting extension cords certified CSA/UL. Use only with
a receptacle that has been installed in accordance with
local inspection authorities.

6. Adjust the snowthrower height to clear gravel or crushed
rock surface.

7. Never attempt to make any adjustments while the en­gine (motor) is running (except when specifically recom­mended by manufacturer).

8. Let engine (motor) and snowthrower adjust to outdoor
temperatures before starting to clear snow.

9. Always wear safety glasses or eye shields during oper­ation or while performing an adjustment or repair to pro­tect eyes from foreign objects that may be thrown from
the snowthrower.

Operation

1. Do not operate this machine if you are taking drugs or
other medication which can cause drowsiness or affect
your ability to operate this machine.

2. Do not use this machine if you are mentally or physically
unable to operate this machine safely.

3. Do not put hands or feet near or under rotating parts.
Keep clear of the discharge opening at all times.

4. Exercise extreme caution when operating on or crossing
gravel drives, walks or roads. Stay alert for hidden haz­ards or traffic.

5. After striking a foreign object, stop the engine (motor),
remove the wire from the spark plug, thoroughly inspect
snowthrower for any damage, and repair the damage
before restarting and operating the snowthrower.

6. If the unit should start to vibrate abnormally, stop the
engine (motor) and check immediately for the cause.
Vibration is generally a warning of trouble.

3

RULES FOR SAFE OPERATION

7. Stop the engine (motor) whenever you leave the operat­ing position, before unclogging the auger/impeller hous­ing or discharge chute and when making any repairs,
adjustments, or inspections.

8. When cleaning, repairing, or inspecting, make certain
the auger/impeller and all moving parts have stopped
and all controls are disengaged. Disconnect the spark
plug wire and keep the wire away from the spark plug to
prevent accidental starting.

9. Take all possible precautions when leaving the snow­thrower unattended. Disengage the auger/ impeller, stop
engine (motor), and remove key.

10.Do not run the engine (motor) indoors, except when
starting the engine (motor) and for transporting the
snowthrower in or out of the building. Open the outside
doors; exhaust fumes are dangerous (containing CAR­BON MONOXIDE, an ODORLESS and DEADLY GAS).

11.Do not clear snow across the face of slopes. Exercise
extreme caution when changing direction on slopes. Do
not attempt to clear steep slopes.

12.Never operate the snowthrower without proper guards,
plates or other safety protective devices in place.

13.Never operate the snowthrower near enclosures, auto­mobiles, window wells, drop- offs, and the like without
proper adjustment of the snow discharge angle. Keep
children and pets away.

14.Do not overload the machine capacity by attempting to
clear snow at too fast a rate.

15.Never operate the machine at high transport speeds on
slippery surfaces. Look behind and use care when back­ing up.

16.Never direct discharge at bystanders or allow anyone in
front of the unit.

17.Disengage power to the collector/impeller when snow­thrower is transported or not in use.

18.Use only attachments and accessories approved by the
manufacturer of the snowthrower (such as tire chains,
electric start kits, ect.).

19.Never operate the snowthrower without good visibility or
light. Always be sure of your footing and keep a firm
hold on the handles. Walk;never run.

20.Do not over- reach. Keep proper footing and balance at
all times.

21.Exercise caution if operating on steep sloping surfaces.

22.This snowthrower is for use on sidewalks, driveways
and other ground level surfaces.

23.Do not use the snowthrower on surfaces above ground
level such as roofs of residences, garages, porches or
other such structures or buildings.

MTF-031072L

Maintenance And Storage

1. Check shear bolts and other bolts at frequent intervals
for proper tightness to be sure the equipment is in safe
working condition.

2. Never store the snowthrower with fuel in the tank inside
a building where ignition sources are present such as
hot water and space heaters, clothes dryers, and the
like. Allow the engine (motor) to cool before storing in
any enclosure.

3. Always refer to operator’s guide instructions for import­ant details if the snowthrower is to be stored for an ex­tended period.

4. Maintain or replace safety and instruction labels, as
necessary .

5. Run the snowthrower a few minutes after throwing
snow to prevent freeze- up of the auger/impeller.

WARNING: Avoid
injury from rotating
auger- keep hands,
feet, and clothing
away.

WARNING: Do not
use hands to un­clog discharge
chute.

• Stop engine/motor before removing debris.

• Do not walk in front of running machine.

• Do not discharge at bystanders.

• Keep people and pets a safe distance from the

machine.

• Before leaving machine, shut off engine/ motor
and remove key.

4

TABLE OF CONTENTS

SAFETY DECALS 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

WARRANTY 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

OWNER’S INFORMATION 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ASSEMBLY 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TOOLS REQUIRED FOR ASSEMBLY 8. . . . . . . . . . . . . . . . . . . . . . . . . . .

CONTENTS OF SHIPPING CARTON 8. . . . . . . . . . . . . . . . . . . . . . . . . . . .

PARTS BAGS CONTENTS: 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

UNPACKING 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

UPPER HANDLE AND CRANK ASSEMBLY 10. . . . . . . . . . . . . . . . . . . . . .

CHECK THE CABLES 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HOW TO SET THE LENGTH OF THE CABLES 10. . . . . . . . . . . . . . . . . . .

SHIFTER LEVER KNOB ASSEMBLY 11. . . . . . . . . . . . . . . . . . . . . . . . . . . .

OPERATION 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ENGINE AND SNOWTHROWER CONTROLS 12. . . . . . . . . . . . . . . . . . . .

SNOWTHROWER OPERATION 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

WHEEL LOCK OUT PIN 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HOW TO REMOVE SNOW FROM AUGER 15. . . . . . . . . . . . . . . . . . . . . . .

HOW TO SET THE DRIFT CUTTERS 15. . . . . . . . . . . . . . . . . . . . . . . . . . .

BEFORE STARTING ENGINE 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CHECK THE OIL 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

FILL GAS 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BEFORE STOPPING THE ENGINE 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TO START ENGINE 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

USE OF ELECTRIC STARTER 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

OPERATING TIPS 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SERVICE RECOMMENDATIONS 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MTF-031072L

MAINTENANCE 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

LUBRICATION 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ENGINE 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

AUGER HOUSING HEIGHT ADJUSTMENT 25. . . . . . . . . . . . . . . . . . . . . .

BELT ADJUSTMENT 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

HOW TO REPLACE THE BELTS 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BELT GUIDE ADJUSTMENT 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TRACTION DRIVE CABLE ADJUSTMENT 30. . . . . . . . . . . . . . . . . . . . . . .

HOW TO ADJUST OR REPLACE THE FRICTION WHEEL 31. . . . . . . . .

AUGER SHEAR BOLT REPLACEMENT 34. . . . . . . . . . . . . . . . . . . . . . . . .

TO ADJUST OR REPLACE THE SPARK PLUG 34. . . . . . . . . . . . . . . . . . .

STORAGE 35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TROUBLE SHOOTING CHART 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

REPLACEMENT PARTS 38. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PARTS SCHEMATICS 39. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SPECIFICATIONS 56. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5

SAFETY DECALS

WARNING: If safety decals are dam­aged or missing, replace immediately.

Look for this symbol to indicate important safe­ty precautions. This symbol indicates: “Atten­tion! Become Alert! Your Safety Is At Risk.”

Before operation of your snowthrower, read the safety de­cals as shown on your snowthrower. The cautions and
warnings are for your safety. To avoid a personal injury or
damage to your snowthrower, understand and follow all
safety decals. If you have any questions regarding the
meaning or how to comply with the instructions, do not op­erate until you understand the purpose for the warning or
danger given in the safety decal. If you do not understand

the meaning, then thoroughly read all safety and operation
instructions in this Owner’s Manual or contact your local
dealer.

If any safety decals become worn or damaged and cannot
be read, order replacement decals from your local dealer.

Identifying Your Snowthrower

The snowthrower has two (2) identifying numbers: (1) unit
model number: (2) unit serial number. The two preceding
numbers are required to insure that the proper replace­ment parts are obtained when required. If you have any
questions concerning parts, service, or technical data, con­tact the dealer where the unit was purchased.
For complete warranty information refer to the warranty in
the Owner’s Information section of this manual.

MTF-031072L

Figure 1

6

OWNER’S INFORMATION

THREE YEAR LIMITED WARRANTY

Murray warrants to the original purchaser of this Frontier Branded Snowthrower that this unit shall be free from defects in
material and workmanship under normal use and service for a period of Three (3) Year from the date of purchase; however,
this warranty does not cover accessories (such as electric starters) and Normal Wear Parts (except as noted below) as the
companies that manufacture these items furnish their own warranties and provide service through their authorized field
service facilities. For additional information, see the warranties covering these particular parts. If you are uncertain whether
your unit contains or is equipped with one or more of these parts, consult your dealer prior to purchase. Subject to the terms
and conditions noted in this Limited Warranty, we shall, at our option, repair or replace at no cost to the original purchaser
any part covered by this Limited Warranty during the applicable warranty period.

Normal Wear Parts are defined as drive belts, augers, shear pins, tires and headlights. These parts are warranted to be free
from defects in material and workmanship as delivered with the product. Any claim for repair or replacement of Normal Wear
Parts must be made within thirty (30) days of the date of purchase. No claims involving damage caused from material use,
abuse or misuse will be honored.

This Murray Three (3) Year Limited Warranty for your Frontier Branded Snowthrower is your exclusive remedy; however,
this warranty is void or does not apply to any unit that has been tampered with, altered, misused, abused. If used for
commercial and/or professional (non-homeowner) uses, the duration of this warranty is ninety (90) days after the date of
purchase. Your warranty does not cover minor mechanical adjustments which are not due to any defect in material or
workmanship. For assistance in making such adjustments, consult your Operator’s Manual.

The engine on this Frontier Branded Snowthrower is warranted to the original purchaser for only a Two (2) Year Limited
Warranty. See your engine manual for information regarding the warranty policy and items covered under warranty. See
your authorized John Deere/Frontier Dealer for service or replacement parts.

To make a claim under this Murray Three (3) Year Limited Warranty for your Frontier Branded Snowthrower, return the unit
(or if authorized in advance, the defective part) along with your proof of purchase to an Authorized John Deere/Frontier Dealer
near you. To locate the nearest Authorized John Deere/Frontier Dealer, check the Yellow Page listings in your local telephone
directory. If you return the entire unit, John Deere/Frontier will repair all warranty items. If authorize to return the defective
part only, John Deere/Frontier will either replace or repair the part. This Murray Three (3) Year Limited Warranty for your
Frontier Branded Snowthrower gives you specific legal rights, and you may also have other rights which vary from state to

state.

This Limited Warranty is given in lieu of all other expressed and implied warranties including the implied

warranty of merchantability and warranty of fitness for a particular purpose. If you need additional information on this
written warranty or assistance in obtaining service, contact you local John Deere/Frontier Dealer.

MT

FOR YOUR RECORDS

DATE PURCHASED:
MODEL NO:
SERIAL NO:

MTF-031072L

STORE WHERE PURCHASED:
ADDRESS:
CITY: STATE:
TELEPHONE :

Record this information about your unit so that you will
be able to provide it in case of loss or theft.

7

ASSEMBLY

TOOLS REQUIRED FOR ASSEMBLY

1 - Knife
2 - 1/2” wrenches (or adjustable wrenches)
2 - 9/16” wrenches (or adjustable wrenches)
2 - 3/4” wrenches (or adjustable wrenches)
1 - 3/8” wrenches (or adjustable wrenches)
1 - Pair pliers or screw driver (to spread cotter pin)

HOW TO MEASURE SCREW SIZE

LENGTH

DIAMETER

PARTS BAGS CONTENTS:

*2- Shear Bolt

CONTENTS OF SHIPPING CARTON

1- Snowthrower
1- Container of Fuel Stabilizer (Located in Parts Bag)
1- Crank Assembly
1- Parts Bag

WARNING: Always wear safety glasses or eye
shields while assembling snowthrower.

* 2-Spacer

1 - Shift Lever Knob

(not actual size)

* Non Assembly parts are found in toolbox located on top of belt cover.

*2- Nut

MTF-031072L

8

ASSEMBLY

Figure 2 shows the snowthrower in the shipping position.

Figure 3 shows the snowthrower completely assembled.

Reference to right and left hand side of the snowthrower is
from the operator’s position at the handle.

UNPACKING

1. Locate the two tear tabs at the bottom of the carton.

2. Pull the tear tape no more than twelve inches (30.48cm.)
at a time. Re-grasp tape next to the carton and pull
again. Repeat until all the tape is torn off.

3. After the tape has been completely removed from the
carton, remove the carton from the base. Cut all four cor­ners and fold the sides toward the center for easy dispos­al.

4. Remove the plastic bag that covers the unit.

5. Locate and remove the parts bag.

NOTE: Set the fuel stabilizer aside until adding
gasoline to the fuel tank. We recommend that fuel
stabilizer is added to the fuel each time that gasoline
is added to the fuel tank.

6. For shipping purposes, the height adjust skids are at-

tached to the pallet. Remove the screw that secures
each height adjust skid to the pallet. (See Figure 2).

Auger Drive
Lever

Screw

Height Adjust

Skid

Figure 2

Traction Drive Lever

Snow Chute Deflector

Auger Housing

Figure 3

7. Roll the snowthrower off the carton by pulling on the low­er handle.

CAUTION: DO NOT back over cables.

8. Remove the packing material from the handle assembly.

9. Cut ties securing the clutch control cables to the lower
handle.

NOTE: If the cables have become disconnected from the
clutch levers, reinstall the cables as shown in Figure 4.

MTF-031072L

Auger Drive Lever

9

Cable

Traction Drive Lever

Cable

”Z” Fitting

”Z” Fitting

Figure 4

ASSEMBLY

UPPER HANDLE AND CRANK ASSEMBLY

1. Loosen, but do not remove the screws, flatwashers, lock­washers and hex nuts in the upper holes of the lower han­dle.

2. Remove the fasteners and the crank assembly eyebolt
from the lower holes of the lower handle.

3. Raise upper handle into operating position. Upper han­dle should be to the outside of the lower handle.

NOTE: Make sure the cables are not caught between
the upper and lower handle.

4. Install the fasteners and the crank assembly eyebolt that
were removed in step 2. DO NOT tighten until all fasten­ers are in place.

5. Attach the crank rod to the universal joint assembly with
the hair pin (see Figure 6).

Crank

Eye Bolt

3/8” Nylon
Locknut

Flatwasher

Hair Pin

5/16-18”
Lockwasher

5/16-18”
Nut

5/16-18x2”

Bolt

11/32 “Flatwasher

Figure 5

6. Tighten nut on eye bolt. Make sure eye bolt is properly
aligned and the crank can freely rotate.

7. Tighten all handle bolts.

NOTE: Make sure crank does not touch carburetor
cover.

CHECK THE CABLES

1. If control cables have become unattached from motor
mount frame, reconnect cables as shown in Figure 7.

2. For cable adjustments, see “How To Check And Adjust
The Cables” in the MAINTENANCE section.

Traction Drive Cable

Crank Rod
Assembly

Universal Joint

Auger Drive Cable

Figure 6

HOW TO SET
THE LENGTH OF THE CABLES

The cables were adjusted at the factory and no adjustments
should be necessary. However, after the handles are put in
the operating position, the cables can be too tight or too
loose. If a n a d j u s t m ent is necessary, see “How T o Check And
Adjust The Cables” in the MAINTENANCE section.

MTF-031072L

Figure 7

10

ASSEMBLY

SHIFTER LEVER KNOB ASSEMBLY

1. Thread the shifter knob onto the threaded end of the
shifter lever until it is snug against the hex nut and the lip
is pointed away from the engine (See Figure 8). On
some models, the shifter knob is attached.

2. Tighten hex nut against the bottom of the shifter lever
knob.

CHECK THE TIRES

The tires were over inflated for shipment. Check the tire
pressure in the tires. See the sidewall of the tire for the
proper inflation.

Shifter

Knob

Hex Nut

Shifter Lever

Figure 8

IMPORTANT! BEFORE YOU START
OPERATING

r Check the fasteners. Make sure all fasteners are

tight.

r On electric start models, the unit was shipped with

the starter cord plugged into the engine. Before
operating, unplug the starter cord from the engine.

NOTE: This snowthrower was shipped WITH OIL in the engine. See “Before Starting Engine”
instructions in the Operation section of this manual before starting engine.

MTF-031072L

11

OPERATION

READ THIS OWNER’S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR SNOWTHROWER. Compare the
illustrations with your SNOWTHROWER to familiarize yourself with the location of various controls and adjustments. Save
this manual for future reference.

Choke Control

Ignition Key

Throttle Control

Lever

Electric

Start Button

Oil Drain

Auger Drive Clutch Lever

Gas Fill

Primer Button

Starter Handle

Height

Adjust Skid

Toolbox

Traction Drive Clutch Lever

Crank

Snow Chute

Deflector

Auger Housing

ENGINE AND SNOWTHROWER CONTROLS

ENGINE CONTROLS
Throttle Control Lever - Controls the engine speed.
Choke Control- Use to start a cold engine.
Electric Start Button - Used to start the engine using the

120 volt electric starter.
Prime Button - Used to inject fuel directly into carburetor

manifold to insure fast starts in cool weather.
Ignition Key - Must be inserted to start engine. Pull out to

stop. Do not turn ignition key.

Starter Handle - Starts the engine manually.

SNOWTHROWER CONTROLS
Speed Select Lever - Allows the operator to use one of six

(6) forward and two (2) reverse speeds. T o shift, move speed
select lever to desired position.

MTF-031072L

Figure 9

NOTE: Do not move speed select lever while Traction
Drive Clutch is engaged. This may result in severe
damage to drive system.

Auger Drive Clutch Lever - Used to engage and disengage

the auger and impeller. To engage push down, to disengage
release.

Traction Drive Clutch Lever - Used to propel snowthrower
forward or reverse. Push down to engage, release to
disengage.

Snow Chute Deflector - Changes the direction the snow is
blown.

Crank - Used to change direction of the snow discharge.
Turn handle clockwise to turn chute to right. Turn handle
counter clockwise to turn chute to left.

Height Adjust Skid - Used to adjust ground clearance of
auger housing.

Toolbox - Spare shear pins, shear bolt wrenches and
spacers are located in toolbox.

12

OPERATION

The operation of any snowthrower can result in foreign objects being thrown into the eyes,which can
result in severe eye damage. Always wear safety glasses or eye shields before beginning snowthrower
Operation. We recommend standard safety glasses or Wide Vision Safety Mask for over spectacles.

SNOWTHROWER OPERATION

The most effective use of the snowthrower will be established
by experience, taking into consideration the terrain, wind
conditions and building location which will determine the
direction of the discharge chute.

NOTE: Do not blow snow toward a building as hidden
objects could be blown with sufficient force to cause
damage.

TO STOP YOUR SNOWTHROWER

1. To stop throwing snow, release the auger drive lever.
(see Figure 10).

2. To stop the wheels, release the traction drive lever.

3. To stop the engine, push the throttle control lever to of f
and pull out the ignition key.

TO CONTROL SNOW DISCHARGE

1. Rotate the crank to set the direction (left to right) of the
discharge chute (see Figure 9).

2. Adjust the snow chute deflector. Loosen the wing nut
on the side of the snow chute deflector. Raise the
snow chute deflector for more distance or lower for less
distance. Tighten wing nut. (see Figure 11).

4. To stop forward motion, release the traction drive lever.

5. To move the snowthrower backwards, move the speed
select lever into either first or second reverse position
and engage the traction drive lever.

Traction Drive Lever

Auger Drive Lever

Figure 10

Chute Deflector

HOW TO MOVE FORWARD AND BACKWARD

1. Start the engine. See “To Start Engine” in the Operation
section.

NOTE: Always release the traction drive lever before
moving the speed select lever.

2. Ground speed is determined by snow conditions. Set the
speed select lever (see Figure 12) in one of the follow­ing positions.

1-2 Wet, Heavy, Slushy, Extra Deep
3 Moderate
4-5 Very Light
6 Transport Only
IMPORTANT: Before operating, make sure the area in

front of snowthrower is clear of bystanders or
obstacles.

3. Engage the traction drive lever (see Figure 10). As the
snowthrower starts to move, maintain a firm hold on the
handles and guide the snowthrower along the cutting
path. Do not attempt to push the snowthrower.

MTF-031072L

Wing Nuts

Figure 11

Speed Select Lever

Figure 12

13

OPERATION

TO THROW SNOW

1. Push down the auger driver lever (right hand). See
Figure 10.

2. To stop throwing snowl, release the auger drive lever.

NOTE: When clearing wet, heavy snow, it is
recommended that the ground speed of the unit be
reduced, maintain full throttle and do not attempt to
clear the full width of the unit.

For additional operating instructions see “Operating
Tips” in the Operation section.

WARNING: Read Owner’s Manual before oper­ating machine. This machine can be dangerous

if used carelessly.
Never operate the snowthrower without all guards,
covers, and shields in place.
Never direct discharge towards windows or allow by­standers near machine while engine is running.
Stop the engine whenever leaving the operating posi­tion.
Disconnect spark plug before unclogging the impeller
housing or the discharge chute and before making re­pairs or adjustments.
When leaving the machine, remove the ignition key.
To reduce the risk of fire, keep the machine clean and
free from spilled gas, oil and debris.

WARNING: Never run engine indoors or in an
enclosed, poor ventilated area. Engine exhaust

contains CARBON MONOXIDE, an OR­DERLESS and DEADLY GAS.
Keep hands, feet, hair and loose clothing away from
any moving parts on engine and snowthrower.
Temperature of muffler and nearby areas can exceed
150_ F (66_ C). Avoid these areas.
DO NOT allow children or young teenagers to operate
or be near snowthrower while it is operating.

WHEEL LOCK OUT PIN

1. The right wheel is secured to the axle with a klick pin. This
unit was shipped with this klick pin in the locked position.
(Figure 13).

Klik

Pin

Locked

Position

MTF-031072L

Figure 13

2. For ease of maneuverability when lighter conditions pre­vail, remove klick pin from wheel locked position and in­sert into single wheel drive (unlocked) position
(Figure 14). Make sure that the klick pin is in the single
wheel drive position of the axle only and not through the
locked position.

Single

Wheel Drive

Position

(Unlocked)

Klik

Pin

Figure 14

NOTE: Check tire pressure. See side of tire for maximum
inflation. Do not exceed listed maximum pressure.

14

OPERATION

HOW TO REMOVE SNOW FROM AUGER

WARNING: Do not attempt to remove snow or
debris that may become lodged in auger with­out taking the following precautions:

A cleaning stick is attached to the top of the auger housing.
Use the cleaning stick to remove snow from the auger
housing.

 Release auger drive lever.
 Move throttle lever to stop position.
 Remove (do not turn) ignition key.
 Disconnect spark plug wire.
 Do not place your hands in the auger or discharge

chute. Use the cleaning stick to remove snow.

HOW TO SET THE DRIFT CUTTERS

(OPTIONAL ACCESSORY ON SOME MODELS)

Drift cutters are used to cut a path through snow deeper than
the auger housing.

1. Loosen the wingnuts that secure the drift cutters to the
auger housing (see Figure 15).

2. Raise the drift cutters to the desired height.

3. Tighten the wingnuts.

Drift Cutter

Wingnut

Figure 15

MTF-031072L

15

OPERATION

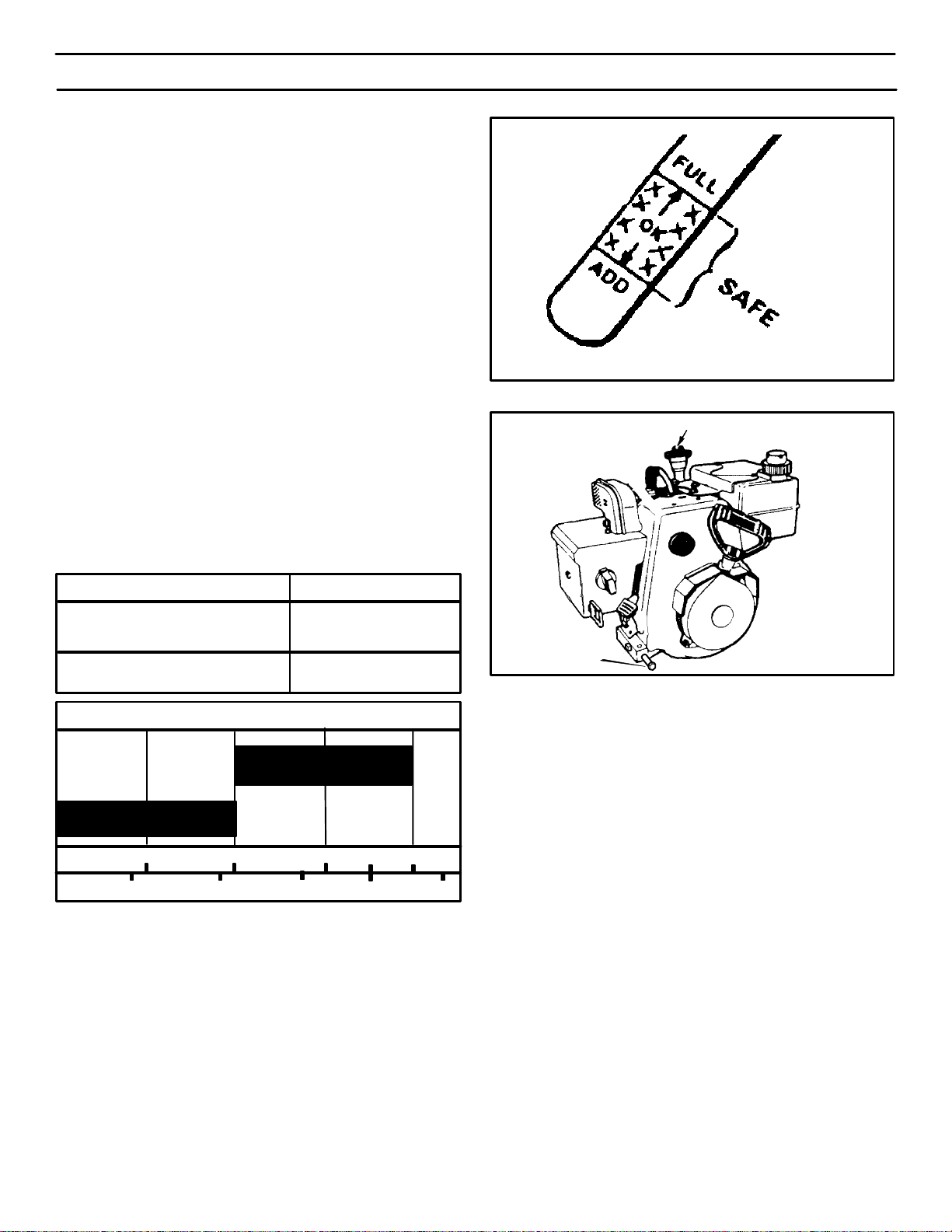

BEFORE STARTING ENGINE

Check the oil

NOTE: The engine was shipped from the factory filled
with oil. Check the level of the oil. Add oil as needed.

1. Make sure the unit is level.

2. Remove the oil fill cap/dipstick. Check the oil.

NOTE: Do not check the level of the oil while the
engine runs.

3. If necessary , add oil until the oil reaches the FULL mark
on the oil fill/cap dipstick (see Figure 16). Do not add too
much oil.

NOTE: For extreme cold operating conditions of 0F
(-18  C) and below, use a synthetic 0W30 motor oil for
easier starting.

NOTE: S.A.E. 5W30 motor oil may be used to make
starting easier in areas where the temperature is 20 F.
(-7  C) to 0F (-18 C).

NOTE: SEE CHART FOR OIL RECOMMENDATION

TYPE OF OILTEMPERATURE

0F (-18 C) and above

0F (-18 C) and below

S.A.E. 5W30

synthetic 0W30

WARNING: Gasoline is flammable. Always use
caution when handling or storing gasoline. Do

not add gasoline to the fuel tank while snow­thrower is running, hot, or when snowthrower is in an
enclosed area. Keep away from open flame, electrical
sparks and DO NOT SMOKE while filling the fuel tank.
Never fill the fuel tank completely; but fill the fuel tank
to within 1/4-1/2 inch (6.5-12.5 mm) from the top to pro­vide space f o r t h e e x p a n s ion of the fuel. Always fill fuel
tank outdoors and use a funnel or spout to prevent spil­ling. Make sure to wipe up any spilled fuel before start­ing the engine.
Store gasoline in a clean, approved container , and keep
the cap in place on the container. Keep gasoline in a
cool well ventilated place; never in the house. Never
buy more than a 30 day supply of gasoline to assure
volatility. Gasoline Is intended to be used as a fuel for
internal combustion engines; therefore, do not use
gasoline for any other purpose. Since many children
like the smell of gasoline, keep it out of their reach be­cause the fumes are dangerous to inhale, as well as be­ing explosive.

Oil Fill
Cap/Dipstick

SAE VISCOSITY GRADES

5W30

synthetic 0W30

F - 20 0 20 32 40

C -30 -20 -10 0 10

FILL GAS

1. Fill the fuel tank with a fresh, clean, unleaded regular , u n ­leaded premium, or reformulated automotive gasoline
only. DO NOT use leaded gasoline.

NOTE: Winter grade gasoline has higher volatility to
improve starting. Be certain container is clean and
free from rust or other foreign particles. Never use
gasoline that may be stale from long periods of
storage in the container.

CAUTION: DO NOT use gasoline containing any
amount of alcohol as it can cause serious damage to
the engine or significantly reduce the performance.

2. Check to make sure that spark plug is tightened securely
into engine and spark plug wire is attached to spark plug.
If torque wrench is available, torque plug to 18-23 ft-lbs.

MTF-031072L

Figure 16

BEFORE STOPPING THE ENGINE

Run the engine for a few minutes to help dry off any moisture
on the engine.

To help avoid possible freeze-up of the starter, proceed as
follows:

Recoil Starter

With the engine running, pull the starter rope with a rapid
continuous full arm stroke three or four times.

NOTE: The normal sound made by pulling the starter
rope will not harm the engine or the starter.

Electric Starter

1. Connect the power cord to the switchbox and then to a
wall outlet.

2. With the engine running, push the starter button and spin
the starter for several seconds.

16

OPERATION

NOTE: The normal sound made by spinning the
starter will not harm the engine or the starter.

3. Disconnect the power cord from the receptacle first and
then from the switchbox.

TO START ENGINE

Be sure that engine has sufficient oil.
The snowthrower engine is equipped with a recoil starter.

Oil Fill Cap/Dipstick

Primer Button

Carburetor
Cover

Starter Handle

Choke

Ignition
Key

Throttle Control Lever

Figure 17

COLD ENGINE START (RECOIL STARTER)
(SEE FIGURE 17)

(Engine has not been run recently.)

1. Be sure auger drive clutch lever and traction drive clutch
lever are in the disengaged (RELEASED) position.

2. IN TEMPERATURES ABOVE 0°F (-18°C)
Move throttle control to “FAST” position.
IN TEMPERATURES BELOW 0°F (-18°C)
Move throttle control to “1/2 THROTTLE” position. Be­fore engaging auger drive clutch lever allow engine to
idle for five minutes to allow engine oil to warm . Failure
to allow engine oil to warm can cause damage to engine.

3. Insert key into ignition slot. Make sure it snaps into place
(Figure 17). Do not turn key.

4. Rotate choke knob to the on position.

5. Push the primer button as follows:
Above 50° F (10° C), DO NOT PRIME.
From 50 ° F (10° C) to 15°F (-10° C), PUSH TWO TIMES.
Below 15° F (-10° C), PUSH FOUR TIMES.

NOTE: Cover the vent hole when as you push the
primer. Remove your finger from the primer vent
hole between pushes.

6. Pull starter handle (Figure 17) rapidly, and allow to re­wind slowly while maintaining firm grip on handle.

7. As engine warms up move choke lever to “1/2 choke”
position. When engine does not run smoothly, move
choke lever to the off position.

MTF-031072L

NOTE: Allow the engine to warm up for several
minutes before blowing snow in temperatures below
0°F (-18 C).

8. Run engine at or near top speed.

9. To stop engine, move throttle control lever to stop posi­tion. Remove key. Do not turn key.

WARM ENGINE START (RECOIL STARTER)

(Engine still warm from recent running.)

1. Be sure auger drive clutch lever and traction drive clutch
lever are in the disengaged (RELEASED) position.

2. IN TEMPERATURES ABOVE 0°F (-18°C)
Move throttle control to “FAST” position.
IN TEMPERATURES BELOW 0°F (-18°C)
Move throttle control to “1/2 THROTTLE” position. Allow
engine to idle at “1/2 Throttle” for five minutes to allow en­gine oil to warm before engaging auger drive clutch lever.
Failure to allow engine oil to warm can cause damage to
engine.

3. Insert key into ignition slot. Make sure it snaps into place
(Figure 17). Do not turn key.

4. CHOKE KNOB must be in the off position. Do not use
primer button.

5. Pull starter handle (Figure 17) rapidly, and allow to re­wind slowly while maintaining firm grip on handle.

6. If engine fails to start after a reasonable number of start­ing attempts, rotate choke knob to the on position and re­peat instruction number 5.

7. As engine warms up, move the choke lever to the ”1/2
choke” position. When engine does not run smoothly,
move choke lever to the off position.

NOTE: Allow the engine to warm up for several
minutes before blowing snow in temperatures below
0°F (-18 C).

8. Run engine at or near top speed.

9. To stop engine, move throttle control lever to stop posi­tion. Remove ignition key. Do not turn the ignition key.

To help prevent possible freeze-up of recoil starter and
engine controls, proceed as follows after each snow removal
job.

1. With engin e r u n n i n g , p u l l s ta r t e r rope hard with a continu­ous full arm stroke three or four times. Pulling of starter
rope will produce a loud clattering sound. This is not
harmful to the engine or starter.

2. With engine not running, wipe all snow and moisture from
carburetor cover in area of control levers. Also move
control levers backward and forward several times.

IMPORTANT: After each use of the snowthrower, stop
the engine, remove the ignition key, remove all
accumulated snow from the snowthrower and wipe
clean. Store the snowthrower in a protected area.

NOTE: Never cover snowthrower while engine and
exhaust area are still warm.

17

USE OF ELECTRIC STARTER

OPERATION

On models so equipped

WARNING: The electric starter is equipped with
a three-wire power cord and plug designed to

operate on 120 volt AC house hold current. The
power cord must be properly grounded at all times to
avoid the possibility of electric shock which can cause
injury to the operator. Follow all instructions carefully
as set forth below:
Make sure your house has a three-wire grounded sys­tem. If you are not sure, ask a licensed electrician. If
your house does not have a three-wire grounded sys­tem, do not use this electric starter under any condi­tion.
If your house has a three-wire grounded system but a
three hole receptacle is not available to connect the
electric starter, have a three-hole receptacle installed
by a licensed electrician.

WARNING: To connect a 120 volt power cord,

always connect the power cord first to the

switch box located on the engine and then plug
the other end into a three-hole grounded receptacle.

Starter Button

Switch Box

Power cord

Figure 19

COLD ENGINE START (ELECTRIC STARTER)
(SEE FIGURE 18 AND FIGURE 19)

(Engine has not been run recently.)

NOTE: When using the 120 volt electric starter, do not
push the primer button.

1. Be sure auger drive clutch lever and traction drive clutch
lever are in the disengaged (RELEASED) position.

WARNING: To disconnect the power cord, al­ways unplug the end connected to the three­hole grounded receptacle first.

Oil Fill Cap/Dipstick

Primer Button

Carburetor
Cover

Starter Handle

Choke

Ignition
Key

Throttle Control Lever

Figure 18

2. IN TEMPERATURES ABOVE 0°F (-18°C)
Move throttle control to”FAST” position.
IN TEMPERATURES BELOW 0°F (-18°C)
Move throttle control to “1/2 THROTTLE” position. Allow
engine to idle at “1/2 Throttle” for five minutes to allow en­gine oil to warm before engaging auger drive clutch lever.
Failure to allow engine oil to warm can cause damage to
engine.

3. Insert key into ignition slot. Make sure it snaps into place
(Figure 18). Do not turn key.

4. CHOKE KNOB must be in the off position.

5. Connect POWER CORD to SWITCH BOX (Figure 19).

6. Plug other end of POWER CORD into a three-hole,
GROUNDED 120 VOLT, AC receptacle. (See W ARNING
at beginning of these instructions).

NOTE: Cover vent hole when pushing primer.
Remove finger from primer vent hole between
pushes.

7. Push the primer button as follows:
Above 50° F (10° C), DO NOT PRIME.
From 50 ° F (10° C) to 15°F (-10° C), PUSH TWO TIMES.
Below 15° F (-10° C), PUSH FOUR TIMES.

MTF-031072L

8. START ENGINE:

18

OPERATION

a. Push STARTER BUTTON (Figure 19) to engage

starter motor and crank engine.

b. Rotate CHOKE KNOB to the on position while crank-

ing engine.

NOTE: The electric starter is thermally protected. If
overheated, the electric starter will stop
automatically and can only be restarted when it has
cooled to a safe temperature. A wait of
approximately five to ten minutes is required.

c. When engine starts, release the STARTER BUT-

TON and rotate the CHOKE KNOB gradually to the
off position.

d. If engine falters, rotate the CHOKE KNOB immedi-

ately to the on position and then gradually to the off
position.

e. Disconnect the POWER CORD from receptacle first,

and then from the SWITCH BOX.

9. When the engine starts, release the starter button and
move choke lever to “1/2 choke” position. When engine
does not run smoothly , move choke lever to the off posi­tion.

NOTE: Allow the engine to warm up for several
minutes before blowing snow in temperatures below
0°F.

10. Run engine at or near top speed.

11. To stop engine, move throttle control lever to stop posi­tion. Remove key. Do not turn key.

If, after following the preceding instructions, your engine fails
to start, have it checked by a John Deere/Frontier dealer.

WARM ENGINE START (ELECTRIC STARTER)

(Engine still warm from recent running.) Proceed with the
following instructions.

NOTE: Warm engine may start without choking.

1. Be sure auger drive clutch lever and traction drive clutch
lever are in the disengaged position, “RELEASED”.

2. IN TEMPERATURES ABOVE 0°F (-18°C)
Move throttle control to”FAST” position.
IN TEMPERATURES BELOW 0°F (-18°C)
Move throttle control to “1/2 THROTTLE” position. Allow
engine to idle at “1/2 Throttle” for five minutes to allow en­gine oil to warm before engaging auger drive clutch lever.
Failure to allow engine oil to warm can cause damage to
engine.

3. Insert key into ignition slot. Make sure it snaps into place
(Figure 17). Do not turn key.

4. CHOKE KNOB must be in the off position.

5. Connect the POWER CORD to the SWITCH BOX
(Figure 19).

6. Plug other end of POWER CORD into a three hole,
GROUNDED 120VOLT, AC receptacle (See “WARN­ING” at beginning of these instructions).

7. START ENGINE:
a. Push STARTER BUTTON (Figure 19) to engage

starter motor and crank engine.

b. While cranking, rotate the CHOKE KNOB on the en-

gine to the on position.

NOTE: The electric starter is thermally protected. If
overheated, the electric starter will stop
automatically and can only be restarted when it has
cooled to a safe temperature. A wait of
approximately five to ten minutes is required.

c. When the engine starts, release the STARTER BUT-

TON and rotate the CHOKE KNOB gradually to the
off position.

d. If the engine falters, rotate CHOKE KNOB immedi-

ately to the on position and then gradually to the off
position.

e. Disconnect the POWER CORD from the receptacle

first and then from the SWITCH BOX.

8. Run the engine at or near top speed.

9. To stop the engine, move the throttle control lever to the
“Stop” position. Remove the ignition key. Do not turn key .

If after following the preceding instructions, your engine fails
to start, have the engine checked by a John Deere/Frontier
dealer.

NOTE: Do not lose the ignition key . Key the ignition key
is a safe place. The engine will not start without the
ignition key .

MTF-031072L

19

OPERATION

OPERATING TIPS

1. For optimum snowthrower efficiency, adjust ground
speed, not the throttle. REMEMBER - if the wheels slip,
forward speed will be reduced. The engine is designed
to deliver optimum performance at full throttle and must
be run at this power setting at all times.

2. Most efficient snowblowing is accomplished when snow
is removed immediately after it falls.

3. For complete snow removal, slightly overlap each swath
previously taken.

4. Snow should be discharged downwind whenever pos­sible.

5. For normal usage, set the skids one-eighth inch (3 mm)
below the scraper bar . For extremely hard-packed snow
surfaces, the skids may be adjusted upward to insure
cleaning efficiency.

6. On gravel or crushed rock surfaces, the skids should be
set at 1-1/4 inch (32 mm) below the scraper bar (see To
Adjust Skid Height, in the MAINTENANCE section in this
manual). Rocks and gravel must not be picked up and
thrown by the machine.

7. After the snowblowing job has been completed, allow the
engine to idle for a few minutes, to melt snow and ice ac­cumulated on the engine.

8. Remove ice and snow accumulation from the entire
snowthrower to prevent obstructions and possible dam­age when snowthrower is subsequently operated.

9. Before starting snowthrower, always inspect augers and
impeller for ice accumulation and/or debris, which could
result in snowthrower damage.

10. Check oil level before every start. fill to “SAFE” indication
prior to operating snowthrower.

To help avoid possible freeze-up of starter, proceed as
follows:

Recoil Starter:

With engine running, pull starter rope with a rapid continuous
full arm stroke three (3) or four (4) times.

NOTE: The unusual sound made by pulling starter rope
will not harm the engine or the starter.

Electric Starter:

1. Connect the “POWER CORD” to the “SWITCH BOX” and
then to a 120 volt AC receptacle.

2. With engine running, push the “STARTER BUTTON”
and spin the starter for several seconds.

NOTE: The unusual sound made by spinning the
starter rope will not harm the engine or the starter.

3. Disconnect the “POWER CORD” from the receptacle
first and then from the “SWITCH BOX”.

MTF-031072L

20

SERVICE RECOMMENDATIONS

H

G

SERVICE RECOMMENDATIONS

PROCEDURE

S

Tighten all screws and nuts

N
O

Check Traction Clutch

W

Cable Adjustment
(See Cable Adjustment)

T

R

Check Auger clutch Cable
Adjustment

O

(See Cable Adjustment)

W

E
R

Lubricate Chains and
Hex Shaft

E

Oil, Check

N
G

I

N

Oil, Change

E

FIRST

2

HOUR

BEFORE

EACH

USE

OFTEN

EVERY

5

HOURS

EVERY

10

HOURS

EVERY

25

HOURS

√ √

√ √

√ √

√ √

√

√ √

BEGINNING

EACH

SEASON

√

√

√

BEFORE

STORAGE

√

The warranty on this snowthrower does not cover items that
have been subjected to operator abuse or negligence. To re­ceive full value from the warranty, operator must maintain
snowthrower as instructed in this manual. The following Ser-
vice Recommendations is supplied to assist operator to
properly maintain snowthrower. This is a check list only . Ad ­justment referred to will be found in the MAINTENANCE sec­tion of this manual.

MTF-031072L

AFTER EACH USE

1. Check for any loose or damaged parts.

2. Tighten any loose fasteners.

3. Check and maintain the auger.

4. After each use, remove all snow and slush off the snow­thrower to prevent freezing of auger or controls.

5. Check controls to make sure they are functioning proper­ly.

6. If any parts are worn or damaged, replace immediately.

21

MAINTENANCE

Some adjustments will need to be made periodically to
properly maintain your snowthrower.

All adjustments in the MAINTENANCE section of this manual
should be checked at least once each season.

SNOW BLOWER

Auger and T raction Drive Belts should be adjusted after t h e

first 2 to 4 hours of use, again about mid-season and twice
each season thereafter (See To Adjust Belts paragraph in the
MAINTENANCE section).

AS REQUIRED

Auger Gear Box

The auger gear box is lubricated at the factory and should not
require additional lubrication.
If for some reason the lubricant should leak out, or if the auger
gear box has been serviced, add Lubriplate GR132 Grease
or equivalent. Maximum 3-1/4 ounces, (92 grams) should be
used.

Remove filler plug (Figure 20), once a year. If grease is
visible, do not a dd. If grease is not visible, use a piece of fine
wire, like a dipstick to check if there is grease in the gear box.
Mobilux EP1 and Shell Aldania EP1 are suitable equivalents.

Filler

Plug

Figure 20

LUBRICATION AT STORAGE

Bearings and bushings

All bearings and bushings are lifetime lubricated and require
no maintenance.

Hex shaft and chains

For storage, the hex shaft should be wiped with a cloth lightly
moistened with motor oil to prevent rusting (see Figure 22).

For storage, the chains should be lubricated with a chain type
lube. (see Figure 22).

NOTE: Any greasing or oiling of the above mentioned
components can cause contamination of the rubber
friction wheel. If the disc drive plate or friction wheel
come in contact with grease or oil damage to rubber
friction wheel will result .

If grease or oil comes into contact with the disc drive plate or
friction wheel, make sure to clean plate and wheel thoroughly
with a alcohol base solvent.

MTF-031072L

22

MAINTENANCE

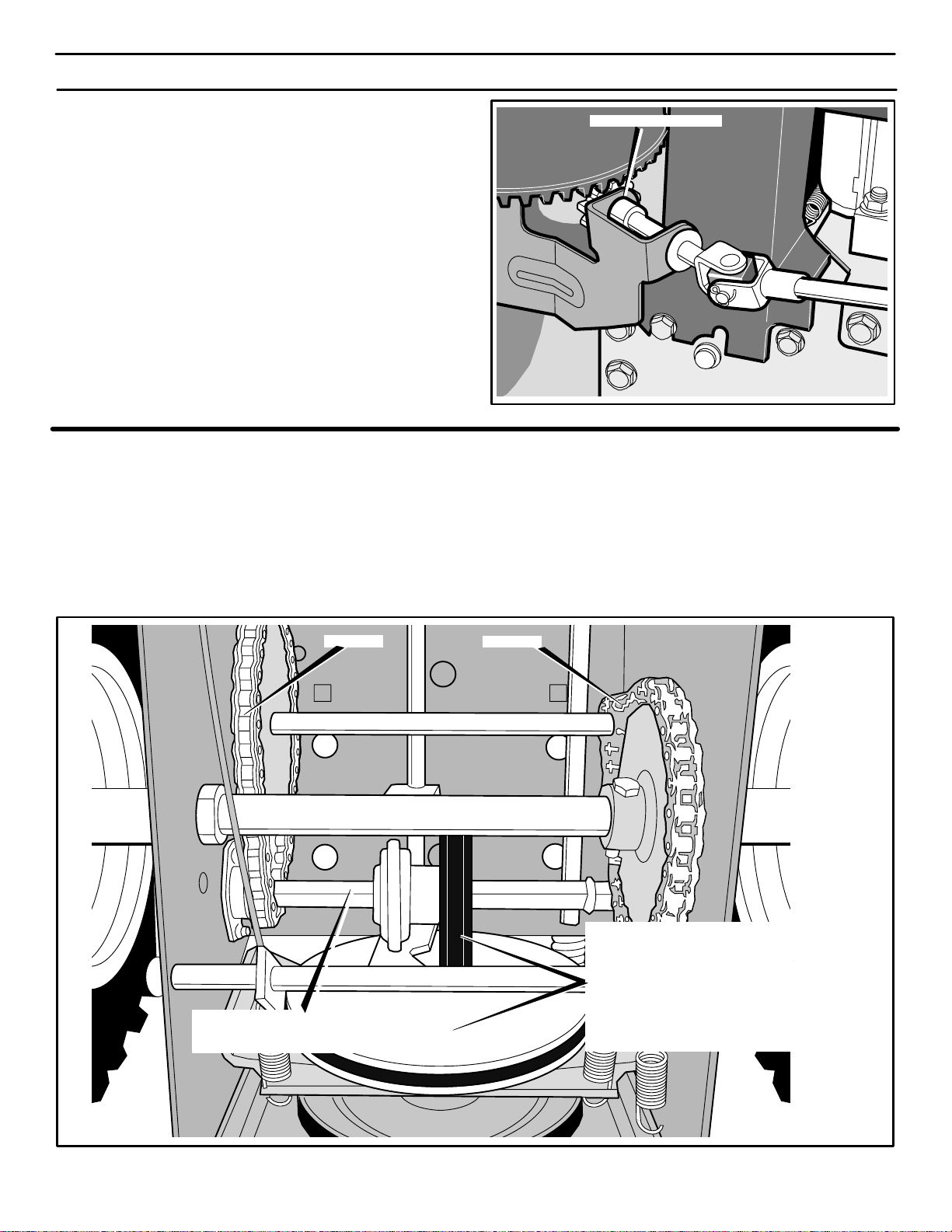

LUBRICATION - EVERY 25 HOURS

Chute Rotation Gear

Lubricate the chute rotation gear with automotive type oil.
(see Figure 21).

Chains

1. Position speed selector lever in first (1) forward gear.

2. Stand the snowthrower up on the auger housing end.

NOTE: When the crank case if filled with oil, do not
leave the snowthrower standing up on the auger
housing for an extended period of time.

3. Remove the bottom panel.

Chute Rotation Gear

Figure 21

4. Lubricate the chains with a chain type lubricant.

5. Wipe the hexshaft and sprockets with 5W30 motor oil.

NOTE: Clean all excess grease or oil found on the
rubber friction wheel or the disc drive plate.

CAUTION: Do not allow grease or oil to contact the
rubber friction wheel or the disc drive plate.

6. Install the bottom panel.

Chain

Hexshaft- wipe with 5W30 motor oil be­fore storage and at the beginning of each
season

Chain

WARNING: If the disc drive plate
or rubber friction wheel come in
contact with grease or oil
damage to rubber friction wheel
will result .

If grease or oil come in contact with
the disc drive plate or friction wheel,
make sure to clean the plate and
wheel thoroughly with a alcohol base
solvent.

MTF-031072L

Figure 22

23

MAINTENANCE

ENGINE

Check Crankcase Oil Level before starting engine and after

each 5 hours of continuous use (see Figure 23). Add proper
motor oil as required.

NOTE: Overfilling the engine can affect performance.
Tighten the oil fill cap securely to prevent leakage.

Change Oil every 25 hours of operation or at least once a

year, even if the snowthrower is not used for twenty-five
hours. Use a clean, high quality detergent oil. Fill the crank
case to FULL line on dipstick (see Figure 23). Be sure original
container is marked: A.P.I. service “SF” or higher. Do not use
SAE10W40 oil (as it may not provide proper lubrication). See
Chart for oil recommendations.

To Drain Oil - Position snowthrower so that the oil drain plug
is lowest point on engine. Remove oil drain plug and oil fill cap
and drain oil into a suitable container (Figure 24).

NOTE: Oil will drain more freely when warm.

Replace oil drain plug and tighten securely . Refill crank case
with proper motor oil or as indicated in the preceding
paragraphs of this section.

NOTE: Oil level
must be between
full and add mark.

Figure 23

Oil Fill cap/Dipstick

TYPE OF OILTEMPERATURE

0F (-18 C) and above

0F (-18 C) and below

S.A.E. 5W30

synthetic 0W30

SAE VISCOSITY GRADES

5W30

synthetic 0W30

F - 20 0 20 32 40

C -30 -20 -10 0 10

Oil Drain Plug

Figure 24

MTF-031072L

24

MAINTENANCE

WARNING: Always turn unit off, remove igni­tion key and disconnect the spark plug wire be­fore making any repairs or adjustments.

AUGER HOUSING HEIGHT ADJUSTMENT
TO ADJUST SCRAPER BAR

After considerable use, the metal scraper bar will have a
definite wear pattern. The scraper bar in conjunction with the
skids should always be adjusted to allow one-eighth of an
inch (3 mm) between the scraper bar and the sidewalk or
area to be cleaned.

To adjust the scraper bar, proceed as follows:

1. Position the snowthrower on a level surface.

2. Loosen the carriage bolts and nuts securing the scraper
bar to the auger housing.

3. Adjust the scraper bar to the proper position. Tighten the
carriage bolts and nuts, insuring that the scraper bar is
parallel with the working surface.

4. For extended operation, the scraper bar may be re­versed. If the scraper bar must be replaced because of
wear, remove the carriage bolts and nuts and install a
new scraper bar.

TO ADJUST SKID HEIGHT

This snowthrower is equipped with two height adjust skids,
secured to the outside of the auger housing. These elevate
the front of the snowthrower.

When removing snow from a hard surface area such as a
paved driveway or walk, adjust the skids up to bring the front
of the snowthrower down.

When removing snow from rock or uneven construction,
raise the front of the snowthrower by moving the skids down.
This will help to prevent rocks and other debris from being
picked up and thrown by the augers.

To adjust skids, proceed as follows:

1. Place a block (equal to height from ground desired) un­der scraper bar near but not under skid.

2. Loosen skid mounting nuts (Figure 25) and push the skid
down until it touches the ground. Retighten mounting
nuts.

3. Set skid on other side at same height.

NOTE: Make sure that snowthrower is set at same height
on both sides.

WARNING: Be certain to maintain proper
ground clearance for your particular area to be

cleared. Objects such as gravel, rocks or other
debris, if struck by the impeller, may be thrown with
sufficient force to cause personal injury, property dam­age or damage to the snowthrower.

Height Adjust Skid

Skid Mounting Nuts

Figure 25

MTF-031072L

25

MAINTENANCE

BELT ADJUSTMENT

Traction Drive Belt

The traction drive belt has constant spring pressure and does
not require an adjustment. If the traction drive belt is slipping,
replace the belt. See “How To Replace The Belts” in the
Maintenance section.

Auger Drive Belt

If your snowthrower will not discharge snow, check the
control cable adjustment. If it is correct, then check the
condition of the auger drive belt. If it is damaged or loose,
replace it (see Belt Replacement in this section of the
manual).

1. Disconnect spark plug wire.

2. Remove screw from belt cover. Remove belt cover
(see Figure 26).

3. Loosen nut on auger idler pulley and move auger idler
pulley towards belt about 1/8 inch (3 mm) (see
Figure 29).

4. Tighten nut.

5. Have someone engage auger drive clutch. Check ten­sion on belt (opposite idler pulley). Belt should deflect
about 1/2 inch (12.5 mm) with moderate pressure
Figure 27). You may have to move idler pulley more than
once to obtain the correct tension.

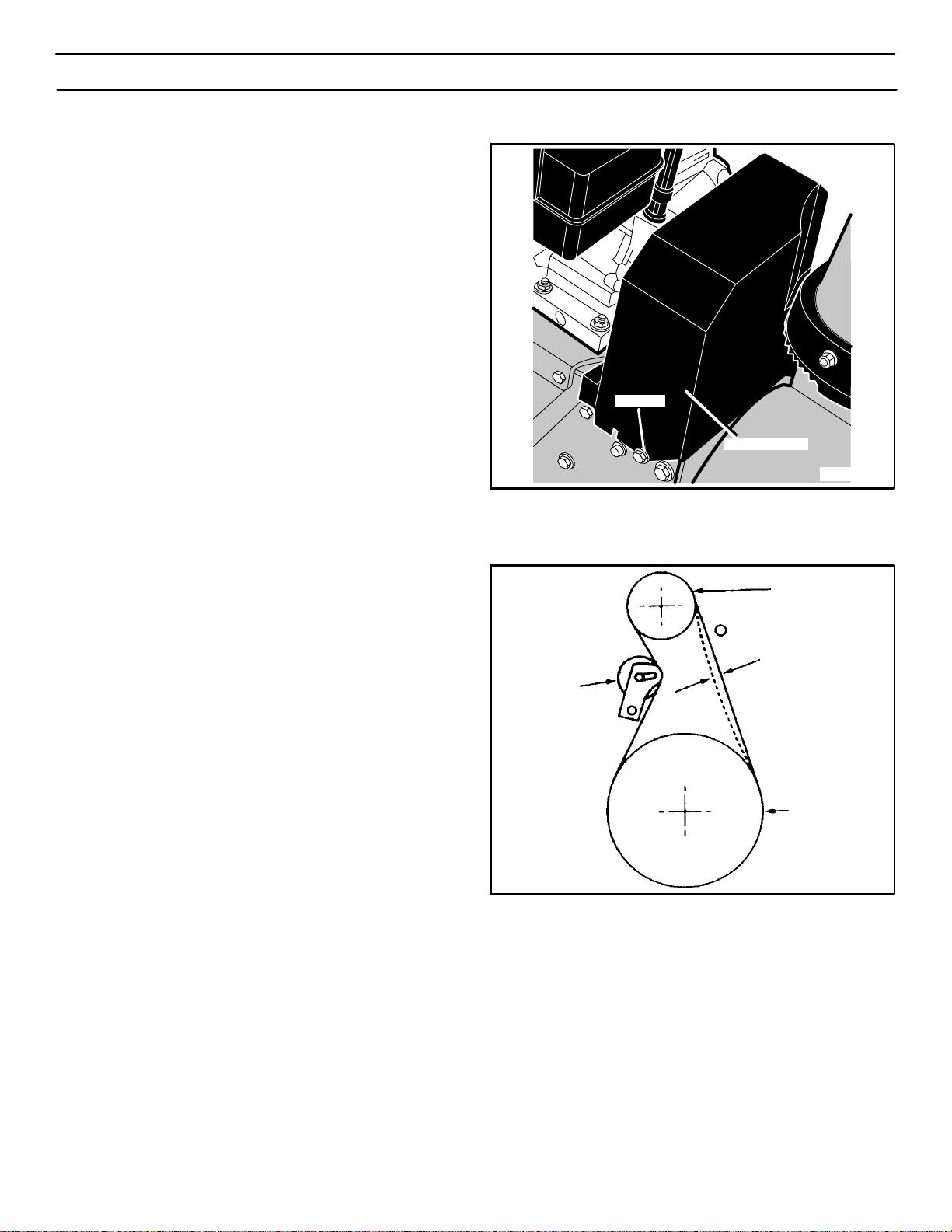

Idler

Pulley

Engaged

Screw

Belt Cover

Figure 26

Auger

Drive

Engine

Pulley

1/2 inch

(12.5mm)

Deflection

6. Reinstall belt cover.

7. Whenever belts are adjusted or replaced, the cables will
need to be adjusted. (See Cable Adjustment in this sec­tion of the manual).

8. Attach the spark plug wire.

MTF-031072L

Impeller

Pulley

Figure 27

26

MAINTENANCE

HOW TO REPLACE THE BELTS

The drive belts are of special construction and must be
replaced with original factory replacement belts available
from your nearest authorized service center.

Some steps require the assistance of a second person.

How To Remove the Auger Drive Belt

If the auger drive belt is damaged, the snow thrower will not
discharge snow. Replace the damaged belt as follows.

1. Disconnect the spark plug wire.

2. Loosen the bolts on each side of the bottom panel (see
Figure 28).

3. Remove the bottom panel.

4. Remove screw from belt cover. Remove the belt cover
(see Figure 26).

5. Loosen the belt guide. Pull the belt guide away from the
auger drive pulley (see Figure 29).

6. Pull the idler pulley away from the auger drive belt.

7. Remove the old auger drive belt from the auger drive

pulley and from the engine pulley. Replace the auger
drive belt with an original factory replacement belt avail-

able from an authorized service center.

8. Install the new auger drive belt onto the auger drive
pulley and onto pulley.

9. Adjust the auger drive belt. See “How To Adjust The Au­ger Drive Belt” in the Maintenance section.

10. Adjust the belt guide. See “How To Adjust The Belt
Guide” in the Maintenance section.

11. Install the belt cover. Tighten screw (See Figure 26).

12. Check the adjustment of the cables. See “How To Check
And Adjust The Cables” in the Maintenance section.

13. Install the bottom panel (see Figure 28).

14. Tighten the bolts on each side of the bottom panel.

15. Connect the spark plug wire.

Bolt

Bolt

Bottom Panel

Auger Housing

Figure 28

E-Ring

Swing Plate Axle Rod

Engine Pulley

Traction Drive Idler Pulley

Idler Pulley

Traction Drive Belt

Belt Guide

Auger Drive Pulley

Auger Drive Belt

Traction Drive Spring

Traction Drive Belt

Traction Drive Pulley

Engine Pulley

Figure 29

MTF-031072L

27

How To Remove the Traction Drive Belt

MAINTENANCE

If the snow thrower will not move forward, check the traction
drive belt for wear or damage. If the traction drive belt is worn
or damaged, replace the belt as follows.

1. Disconnect the spark plug wire.

2. Remove the auger drive belt. See “How To Remove The
Auger Drive Belt” in the Maintenance section.

3. Remove the e-ring from one end of the swing plate
axle rod. Remove the swing plate axle rod to allow the
the swing plate to pivot forward (see Figure 29).

4. Remove the traction drive spring.

5. Remove the old traction drive belt from the traction

drive pulley and from the engine pulley. Replace the
traction drive belt with an original factory replacement

belt available from an authorized service center.

6. Install the new traction drive belt onto the traction
drive pulley and onto engine pulley.

1 1. Install and adjust the auger drive belt. See “How To Re-

move The Auger Drive Belt” in the Maintenance section.

12. Adjust the belt guide. See “How To Adjust The Belt
Guide” in the Maintenance section.

13. Install the bottom panel (see Figure 28).

14. Tighten the bolts on each side of the bottom panel.

15. Install the belt cover. Tighten screw (see Figure 26).

16. Check the adjustment of the cables. See “How To Check
And Adjust The Cables” in the Maintenance section.

17. Connect the spark plug wire.

7. Make sure the traction drive idler pulley is properly
aligned with the traction drive belt.

8. Attach the traction drive spring.

9. Install the swing plate axle rod and secure with the e-
ring removed earlier.

10. The bottom of the swing plate must be positioned be­tween the alignment tabs. Make sure the swing plate
is properly secured (see Figure 30).

NOTE: If the drive will not engage after the traction
drive belt has been replaced, then check to make
sure that the swing plate is positioned between the
alignment tabs.

Alignment Tabs

Swing Plate

Figure 30

MTF-031072L

28

BELT GUIDE ADJUSTMENT

1. Remove spark plug wire.

MAINTENANCE

2. Have someone engage auger drive.

3. Measure the distance between the belt guide and belt.
The distance should be 1/8 inch (3.175 mm) for guide.
See Figure 31.

4. If adjustment is necessary, loosen belt guide mounting
bolt. Move belt guide to the correct position. Tighten
mounting bolt.

5. Reinstall belt cover.

6. Reconnect spark plug wire.

HOW TO CHECK AND ADJUST THE CABLES

The cables are adjusted at the factory and no adjustment
should be necessary. If the cables have become stretched
or are sagging adjustment will be necessary.

Whenever belts are adjusted or replaced, the cables will
need to be adjusted.

Auger Idler
Pulley Engaged

Belt Guide

1/8 Inch (3.175 mm)

Figure 31

To check for correct adjustment, unhook “Z” fitting at
clutch lever

(see Figure 32).

1. Move clutch lever to the full forward position. Holding
cable tight, note position of fitting to hole in clutch lever.

2. The center of the “Z” fitting should be between the centre
and top of the hole in the clutch lever. Adjust either the
auger drive cable or the traction drive cable as follows.

Auger Drive Cable Adjustment

WARNING: Drain the gasoline outdoors, away
from fire or flame.

1. Remove the gas from the gas tank. Stand the snow
thrower up on the front end of the auger housing.

2. Push cable through spring to expose the threaded por­tion of the cable (see Figure 33).

Square
End

Control lever
must be in full
forward position
when checking
cable length.

Figure 32

Cable
Spring

Locknut

3. Hold square end of threaded portion with pliers and ad­just locknut in or out until correct adjustment is reached.
Pull cable back through spring and connect cable.

MTF-031072L

Figure 33

29

Traction Drive Cable Adjustment

MAINTENANCE

WARNING: Drain the gasoline outdoors, away
from fire or flame.

1. Remove the gas from the gas tank. Stand the snow
thrower up on the front end of the auger housing.

2. Loosen the bolts on each side of the bottom panel (see
Figure 34).

3. Remove the bottom panel.

4. Disconnect the “Z” fitting from the drive lever (see
Figure 32).

5. Slide the cable boot off the cable adjustment bracket
(see Figure 35).

6. Push the bottom of the traction drive cable through the
cable adjustment bracket until the “Z” hook can be re­moved.

7. Remove the “Z” hook from the cable adjustment
bracket. Move the “Z” hook down to the next adjust­ment hole.

Bolt

Bolt

Traction Drive Cable

Cable Boot

Bottom Panel

Auger Housing

Figure 34

8. Pull the traction drive cable up through the cable ad-

justment bracket.

9. Put the cable boot over the cable adjustment bracket.

10. Install the “Z” hook to the traction drive lever (see
Figure 32).

11. To check the adjustment, depress the drive lever and
check the length of the drive spring (see Figure 36). In
correct adjustment, the length of the drive spring is
minimum 3 inches (76 mm.)
maximum 3-3/8 inches (85 mm.).

12. Install the bottom panel (see Figure 34).

13. Tighten the bolts on each side of the bottom panel.

Cable Adjustment Bracket

“A”

Drive Spring

“Z” Hook

Figure 35

Figure 36

MTF-031072L

30

MAINTENANCE

HOW TO ADJUST OR REPLACE
THE FRICTION WHEEL

How To Check The Friction Wheel

If the snow thrower will not move forward, check the traction
drive belt, the traction drive cable or the friction wheel. If the
friction wheel is worn or damaged, it must be replaced. See
“How To Replace the Friction Wheel” in this section. If the
friction wheel is not worn or damaged, check as follows.

1. Remove the gas from the gas tank. Stand the snow
thrower up on the front end of the auger housing (see
Figure 37).

WARNING: Drain the gasoline outdoors, away

from fire or flame.

2. Disconnect the spark plug wire.

3. Loosen the bolts on each side of the bottom panel (see
Figure 37).

5. Install the bottom panel (see Figure 37).

6. Tighten the bolts on each side of the bottom panel.

Bolt

Bolt

Bottom Panel

Auger Housing

Figure 37

4. Remove the bottom panel.

5. Position the shift speed lever in the lowest forward
speed.

6. Note the position of the friction wheel (see Figure 38).
The correct distance “A” from the right side of the fric-

tion wheel to the outside of the motorbox is as follows:
Tire Size Distance “A”

12 and 13 inch 4-1/8” (10.5 cm.)
16 inch 4-5/16” (10.95 cm.)
If the friction wheel is not in the correct position, adjust
as follows.

How To Adjust The Friction Wheel

1. Position the shift speed lever in the lowest forward
speed.

2. Loosen the bolts on the speed control rod (see
Figure 39).

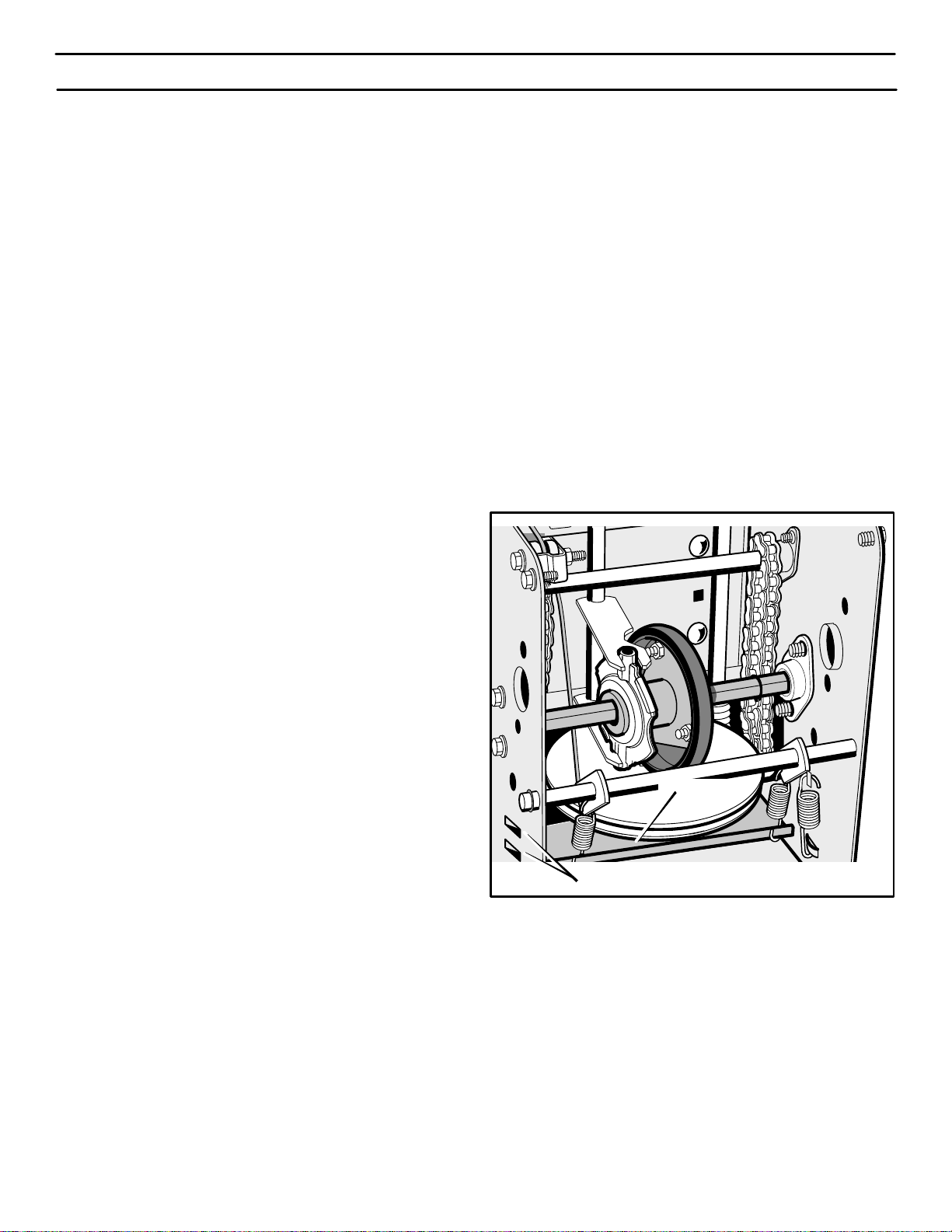

“A”

Figure 38

Speed Control Rod

Loosen Bolts

3. Move the friction wheel to the correct position (see
Figure 38).

4. Tighten the bolts on the speed control rod (see
Figure 39).

MTF-031072L

Figure 39

31

MAINTENANCE

How To Replace The Friction Wheel

If the friction wheel is worn or damaged, the snow thrower will
not move forward. The friction wheel must be replaced as
follows.

1. Remove the gas from the gas tank. Stand the snow
thrower up on the front end of the auger housing (4).
(see Figure 37).

WARNING: Drain the gasoline outdoors, away

from fire or flame.

2. Disconnect the spark plug wire.

Axle

Drive

Sprocket

Chain

3. Remove the fasteners that secure the left wheel. Re-
move the left wheel from the axle (see Figure 40)

4. Loosen the bolts on each side of the bottom panel.

5. Remove the bottom panel.

Axle Bolt

Bottom
Panel

Bolt

Wheel

Figure 40

Figure 41

8. Remove the four bolts that hold the bearings on each
side of the hex shaft (see Figure 42).

9. Remove the hex shaft and bearings.

NOTE: Take special note of the position of the
washers on the hex shaft.

Bearings

Hex Shaft

Bolts

Bolts

6. Remove the fasteners that secure the drive sprocket to
the axle (see Figure 41).

7. Remove the right wheel, axle, and drive sprocket.

MTF-031072L

Figure 42

32

MAINTENANCE

10. Remove the three fasteners that hold the friction wheel
to the hub (see Figure 43).

11. Remove the friction wheel from the hub. Slip the fric-
tion wheel off the hex shaft.

12. Assemble the new friction wheel onto hub with the fas­teners removed earlier.

Washer

Bearings

Fasteners

Hub

Hex Shaft

Friction
Wheel

Fasteners

Figure 43

13. Install the hex shaft and bearings with the four bolts re­moved earlier (see Figure 44).

Make sure the washers are properly installed in the
original position. Also, make sure the two washers
are properly aligned with the actuator arms.

Actuator Arms

Bearings

Hex Shaft

Washer

Washer

Washer

Figure 44

15. Install the right wheel, axle, and drive sprocket with the
fasteners removed earlier. Install the chain onto the
drive sprocket (see Figure 41).

16. Check the adjustment of the friction wheel. See “How To
Adjust The Friction Wheel” in this section.

17. Make sure the friction wheel and the disc drive plate are
free from grease or oil.

18. Install the bottom panel (see Figure 40).

19. Tighten the bolts on each side of the bottom panel.

20. Install the left wheel to the axle with the fasteners re-
moved earlier.

14. Make sure the hex shaft turns freely.

MTF-031072L

21. Connect the spark plug wire.

33

MAINTENANCE

AUGER SHEAR BOLT REPLACEMENT

The augers are secured to the auger shaft with special bolts
that are designed to break if an object becomes lodged in the
auger housing. Use of a harder bolt will reduce the protection
provided by the shear bolt. To replace a broken shear bolt,
proceed as follows:

WARNING: To insure safety and performance
levels, only original replacement shear bolts
should be used.

1. Move throttle to STOP, disengage all controls, discon­nect the spark plug lead wire, and insure all moving parts
have stopped.

Shear Pin

Spacer

2. Align the hole in the auger with the hole in the auger shaft.
Install new shear bolt, spacer and locknut found in the
toolbox located on the belt cover (See Figure 45).

NOTE: The spacer fits into the larger hole in the auger
tube.

TO ADJUST OR REPLACE THE SPARK PLUG

Check the spark plug every twenty-five (25) hours. Re-
place the spark plug if the electrodes are pitted or burned
or if the porcelain is cracked.

1. Clean spark plug and reset gap periodically.

2. Clean area around spark plug base before removal, to
prevent dirt from entering engine.

3. Replace spark plug if electrodes are pitted or burned or
if porcelain is cracked.

Locknut

Figure 45

7. Tighten plug firmly into engine. If torque wrench is avail­able, torque plug to 18-23 ft-lbs.

.030” (0.76 mm) Gap

4. Clean spark plug by carefully scraping electrodes (do not
sandblast or use wire brush).

5. Be sure spark plug is clean and free of foreign material.
Check electrodes gap with a wire feeler gauge and reset
gap to 0.030” (0.76 mm) if necessary. If a new spark plug
is needed, refer to Engine Repair Parts section of this
manual for proper replacement spark plug.

6. Before installing spark plug, coat threads lightly with
graphite grease to insure easy removal.

MTF-031072L

Figure 46

34

STORAGE

OFF SEASON STORAGE

WARNING: Never store the engine, with fuel i n
the tank, indoors or in a poor ventilated enclo-

sure where fuel fumes could reach an open
flame, spark or pilot light as on a furnace, water heater ,
clothes dryer, etc.
Handle gasoline carefully. It is highly flammable and
careless use could result In serious fire damage to your
person and /or property.
Drain fuel into approved containers outdoors, away
from open flame.

If the snowthrower is to be stored for thirty (30) days or more
at the end of the snow season, the following steps are
recommended to prepare your snowthrower for storage.

NOTE: Gasoline must be removed or treated to prevent
gum deposits from forming in the tank, filter, hose, and
carburetor during storage.

1. To remove gasoline, run engine until tank is empty and
engine stops.

If you do not want to remove the gasoline, add fuel stabilizer
to any gasoline left in the tank to minimize gum deposits and
acids. If the tank is almost empty, mix stabilizer with fresh
gasoline in a separate container and add some to the tank.
ALWAYS FOLLOW INSTRUCTIONS ON STABILIZER
CONTAINER. THEN RUN ENGINE AT LEAST 10 MINUTES
AFTER STABILIZER IS ADDED TO ALLOW MIXTURE TO
REACH CARBURETOR. STORE SNOWTHROWER IN
SAFE PLACE.

2. You can help keep your engine (4-cycles only) in good
operating condition by changing oil before storage.

3. Lubricating the piston/cylinder area. This can be done by
first removing the spark plug and squirting clean engine
oil into the spark plug hole. Then cover the spark plug
hole with a rag to absorb oil spray. Next, rotate the engine
by pulling the starter two or three times. Finally, reinstall
spark plug and attach spark plug wire.

4. Thoroughly clean the snowthrower.

5. Lubricate all lubrication points (see “Lubrication“ in the
Maintenance section).

6. Insure that all nuts, bolts, and screws are securely fas­tened. Inspect all visible moving parts for damage,
breakage, and wear. Replace if necessary.

7. Touch up all rusted or chipped paint surfaces; sand lightly
before painting.

8. Cover the bare metal parts of the snowthrower housing
auger, and the impeller with rust preventative.

9. If possible, store your snowthrower indoors and cover it
to give protection from dust and dirt.

10. On models with folding handles, loosen the knobs that
secure the upper handle. Rotate the upper handle back.

11. If the machine must be stored outdoors, block up the s­nowthrower and insure the entire machine is off the
ground. Cover the snowthrower with a heavy tarpaulin.

REMOVING THE SNOWTHROWER FROM
STORAGE

When removing the snowthrower from storage, follow the
steps below.

1. Put the upper handle in the operating position, tighten the
knobs that secure the upper handle.

2. Fill the fuel tank with a fresh fuel.

3. Check the spark plug. Make sure the gap is correct. If the
spark plug is worn or damaged, replace before using.

4. Make sure all fasteners are tight.

5. Make sure all guards, shields, and covers are in place.

6. Make sure all adjustments are correct.

MTF-031072L

35

TROUBLE SHOOTING CHART

PROBLEM LOOK FOR REMEDY

Difficult starting Defective spark plug. Replace defective spark plug.
Engine runs erratically Blocked fuel line. Clean fuel line.

Empty gas tank. Check fuel supply,
Stale gasoline. Add fresh gasoline with fuel stabilizer.
Water or dirt in fuel system. Remove carburetor bowl to drain fuel tank. Refill

with fresh fuel.

carburetor bowl when the engine is hot.

Engine stalls Unit running on CHOKE. Set choke lever to RUN position.
Loss of power Gas cap vent hole is plugged. Remove ice and snow from cap. Be sure vent

hole is clear.

Excessive vibration Loose parts or damaged impeller. Stop engine immediately and remove spark plug

wire. Tighten all bolts and make all necessary
repairs. If vibration continues, have the unit
serviced by a competent repairman.

Unit fails to propel
itself

Drive belt loose or damaged. Replace drive belt. Refer to Drive Belt

Replacement in the Maintenance section of this

manual.

CAUTION: Do not remove

Unit fails to discharge
snow

Incorrect adjustment of traction drive
cable.

Worn or damaged friction disc. Replace friction disc. Refer to Friction Wheel

Auger drive belt loose or damaged. Replace or adjust auger drive belt. Refer to Drive

Auger control cable not adjusted
correctly.

Broken shear bolt. Replace shear bolt. Refer to Auger Shear Bolt

Discharge chute clogged. Stop engine immediately and disconnect spark

Foreign object lodged in auger. Stop engine immediately and disconnect spark

Adjust traction drive cable. Refer to Cable
Adjustment in the Maintenance section of this
manual.

Replacement in the Maintenance section of this
manual.

Belt Replacement and Drive Belt Adjustment in
the Maintenance section of this manual.

Adjust auger control cable. Refer to Cable
Adjustment in the Maintenance section of this
manual.

Replacement in the Maintenance section of this
manual.

plug wire. Refer to the first Warning in
Snowthrower Operation in the Operation
section of this manual. Clean discharge chute
and inside of auger housing.

plug wire. Refer to the third Warning in
Snowthrower Operation in the Operation
section of this manual. Remove object from
auger.

Identifying Your Snowthrower

Your new Snow blower has two (2) identifying numbers: (1) unit model number: (2) unit serial number. The two preceding
numbers are required to insure that the proper replacement parts are obtained when required. If you have any questions
concerning parts, service, or technical data, contact your nearest John Deere/Frontier dealer.
For complete warranty information refer to the warranty in the Owner’s Information section of this manual.

MTF-031072L

36

REPLACEMENT PARTS

WE RECOMMEND JOHN DEERE/FRONTIER quality

parts and lubricants available at your John Deere/Frontier
dealer.

PART NUMBERS MAY CHANGE. When you order re­placement parts, use the part numbers listed below and on
the following pages. If a part number changes, your John
Deere/Frontier dealer will have the latest part number.

WHEN YOU ORDER PARTS, your John Deere/Frontier
dealer must have your snowthrower model and serial num­ber and your engine model number. This is the model and
serial number that you recorded in the “Owner’s Informa­tion” section of this Owner’s Manual.

QUICK REFERENCE PART NUMBERS

The following is a list of replacement parts that you may
need for routine service and maintenance. If you do not
see the replacement part you need in the following chart,
then check the full list of replacement part illustrations fol­lowing this page.

ITEM

Belt, Drive MT579932
Belt, Auger MT585416
Scraper Blade

Spark Plug Champion RC12YC

* Part Numbers are subject to change without notice.

PART NUMBER *

MT581397E701

MTF-031072L

37

FRONTIER MODEL ST0524 FACTORY MODEL 624504x16A

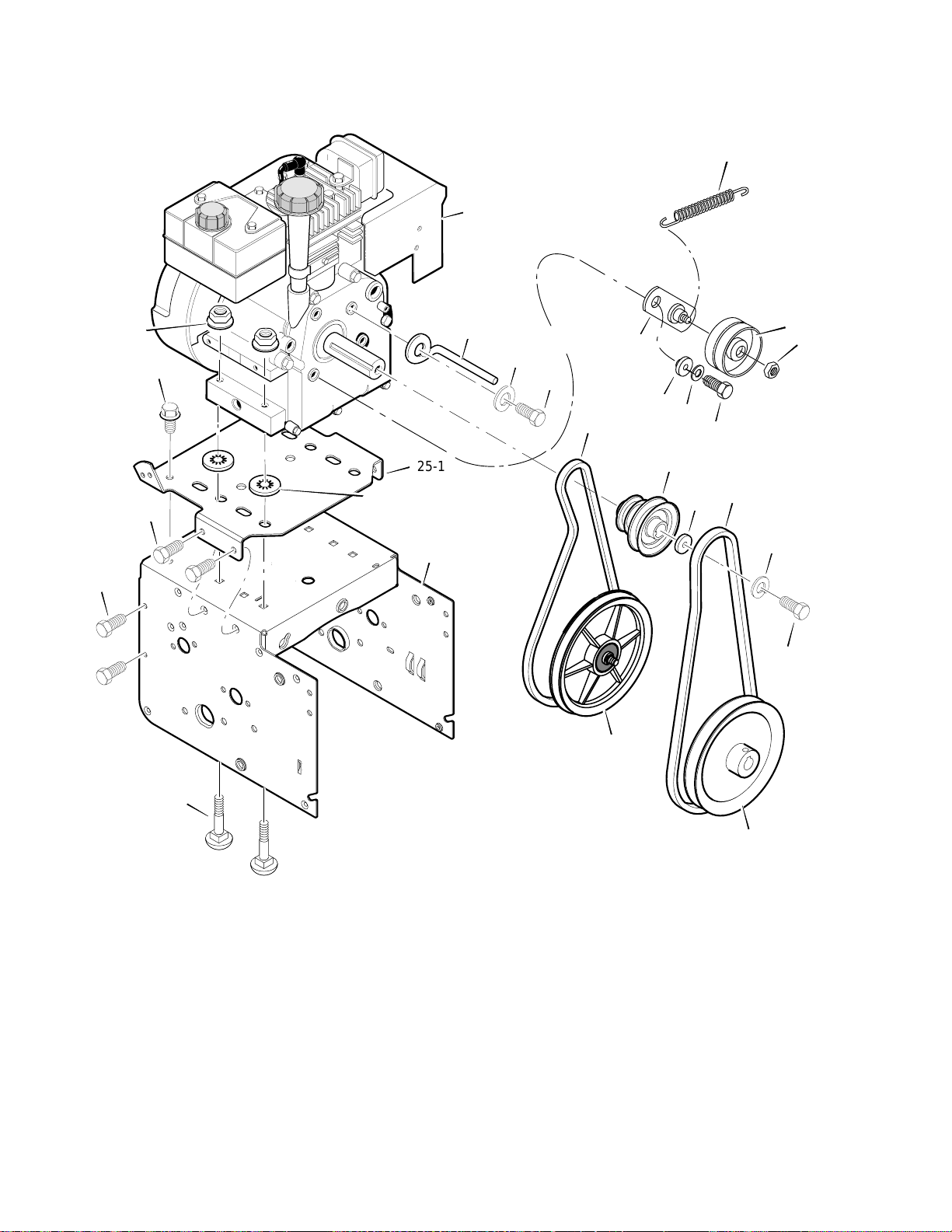

ENGINE

16

2

25-2

5

25-2

25-3

20

12

17

18

22

24

13

10

25-1

4

25-4

14

15

6

11

7

8

9

Ref. Drive Page

3

Ref. Auger Housing Page

Key No. Part No. Description Key No. Part No. Description

2 ------ ENGINE
3 MT002x97 BOLT, CARRIAGE 5/16-18
4 MT028x76 RETAINER, PUSH
5 MT710026 NUT 5/16-18
6 MT1501109 PULLEY, ENGINE
7 MT710247 WASHER
8 MT71063 WASHER .38ID

9 MT71015 SCREW, 3/8-24X1.00
10 MT579932 BELT, DRIVE V 3L
11 MT585416 BELT, AUGER V 4L
12 MT1501112 YZ BRACKET ASSEMBLY, IDLER
13 MT1501065 BUSHING, IDLER BRACKET
14 MT71060 WASHER, SPLIT

MTF-031072L

15 MT710097 SCREW 5/16-24 X 0.75
16 MT53704 SPRING, IDLER TRACTION DRIVE
17 MT50793 PULLEY, IDLER
18 MT590 NUT, JAM 3/8-16
20 MT1501201 GUIDE, BELT
22 MT71060 WASHER .31X.58X.08
24 MT710097 SCREW, 5/16-24X .75

25 ------ FRAME, MOTORBOX (5-11HP)
25-1 MT1501062E511 PLATE, ENGINE MOUNT
25-2 MT310169 SCREW, TAP 1/4-20 X .63
25-3 MT25x020 SCREW, TAP 5/16-18 X .50
25-4 MT1501049E511 FRAME, MOTOR BOX

-- MTF-031072L OWNER’S MANUAL

38

FRONTIER MODEL ST0524 FACTORY MODEL 624504x16A

ELECTRIC START ASSEMBLY

8

9

7

6

Key

No. Part No. Description

6 MT330783 MOTOR, STARTER
7 MT762226 SCREW
8 MT6217 SCREW
9 MT6219 CORD, STARTER

MTF-031072L

39

FRONTIER MODEL ST0524 FACTORY MODEL 624504x16A

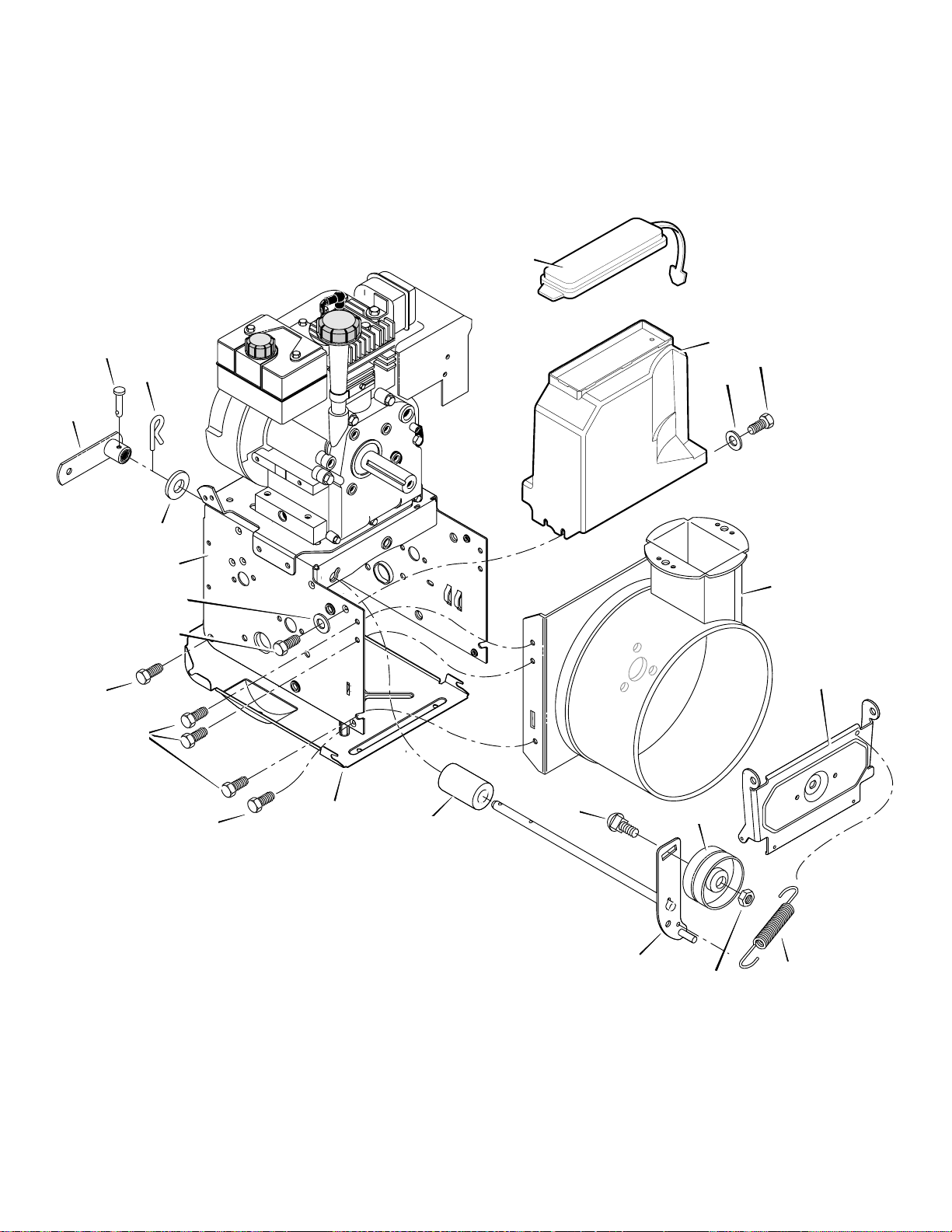

FRAME

169

106

105

108

111

Ref. Engine Page

167

162

91

122

160

162

167

Ref. Auger
Housing Page

Ref. Drive
Page

MTF-031072L

91

90

168

40

110

103

148

107

149

FRONTIER MODEL ST0524 FACTORY MODEL 624504x16A

FRAME

Key No. Part No. Description

90 MT1501055E701 COVER, BOTTOM

91 MT310169 SCREW, 1/4-20X .63

103 MT1501111 YZ IDLER ASSEMBLY, AUGER

105 MT711682 PIN, HAIR .38DIAX1.64LG

106 MT761761 PIN, CLEVIS 3/16” DIA

107 MT165x160 SPRING, TENSION

108 MT761675 YZ ASSY., SPRING ATTACH

110 MT585781 BOLT, 3/8-16X1.25 CARR.

111 MT711617 WASHER, FLAT

122 MT780055 SCREW, TAP 5/16-18 X .50

148 MT50793 PULLEY, IDLER

149 MT590 NUT, JAM 3/8-16

160 MT1501052 COVER, BELT

162 MT26X306 SCREW, TAP

167 MT71067 WASHER, FLAT

168 MT1501200 SPACER, AUGER BRACKET

169 MT760539 LID, TOOL BOX

MTF-031072L

41

FRONTIER MODEL ST0524 FACTORY MODEL 624504x16A

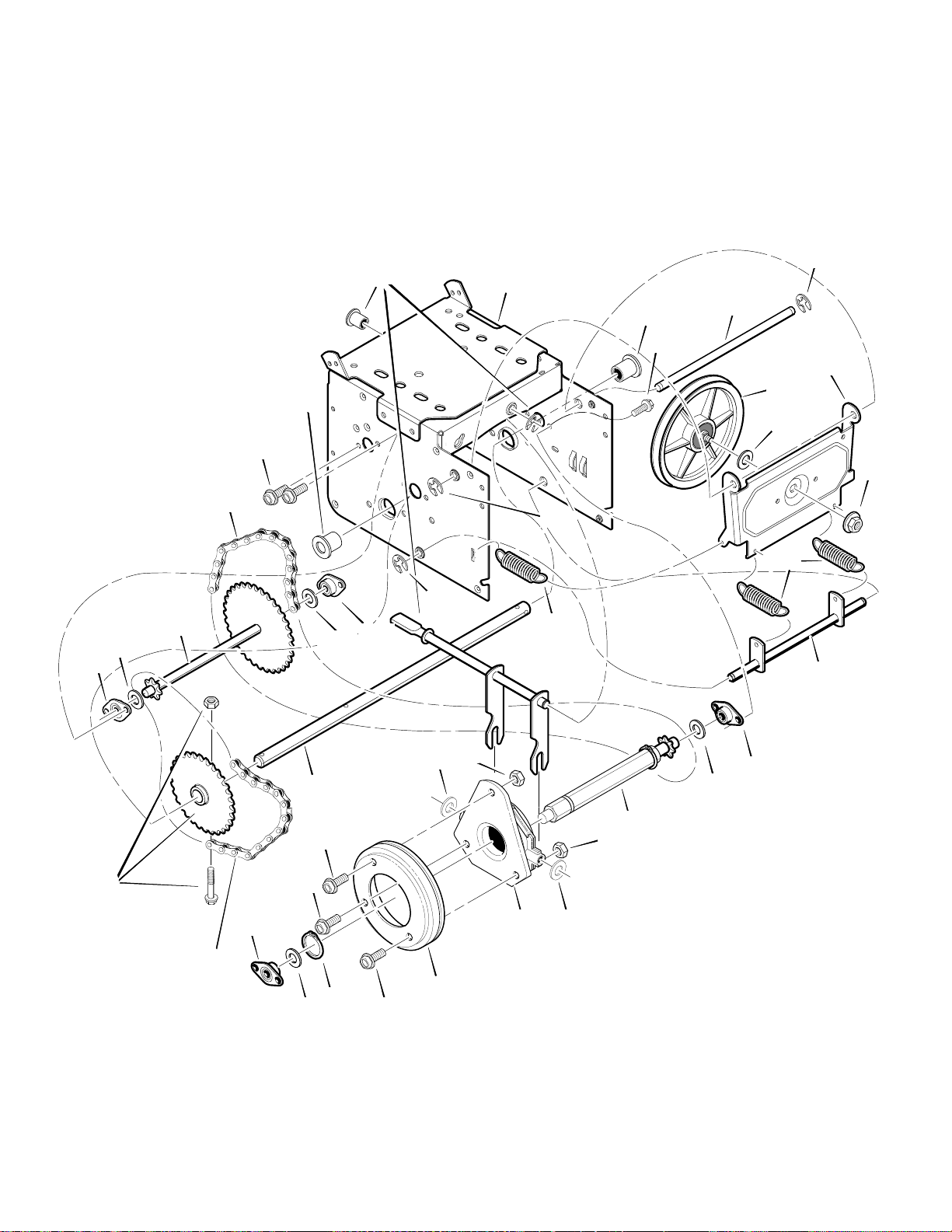

DRIVE

203

204

236

Ref. Wheel Page

206

201

Ref. Shift Yoke Page

203

204

Ref. Frame Page

232

229

234

Ref. Wheel

Page

221

229

200

225

223

226

227

234

230

Ref.

Wheel Page

MTF-031072L

208

220

Ref. Wheel

Page

213

213

217

218

213

238

212

215

42

210

220

218

207

215

238

FRONTIER MODEL ST0524 FACTORY MODEL 624504x16A

DRIVE

Key No. Part No. Description

200 MT1501092 YZ LF AXLE, SWING PLATE YZ

201 MT579851 CHAIN, ROLLER #420x19.00

203 MT334163 BEARING AND RETAINER, ASSY

204 MT579858 WASHER

206 MT780055 SCREW, TAP 5/16-18x0.5

207 MT1501100 ASSY, HEX SHAFT

208 MT579868 CHAIN, ROLLER #420x18.00 LG

210 MT337029 BEARING, TRUNION CLUTCH R

212 MT1501435 WHEEL, FRICTION DISC

213 MT001x38 BOLT

215 MT303008 NUT, KEPS HEX 1/4-20

217 MT579859 RING, RETEXT

218 MT579858 WASHER

220 MT334163 BEARING AND RETAINER, ASSY

221 MT780055 SCREW, TAP 5/16-18 x .5

223 MT1501115 FRICTION PULLY

225 MT1501057 YZ LF PLATE, SWINGING YZ

226 MT1501158 SPACER, FRICTION PULLEY

227 MT15X114 NUT, FLANGE LOCK 3/8-24

229 MT11X30 RETAINER, RING

230 MT1501107 YZ LF ASSY, SPRING LINK YZ

232 MT11X30 RETAINER, RING

234 MT165X112 SPRING, EXTENSION

MTF-031072L

236 MT1501090 SPROCKET 33/7

238 MT71074 WASHER, FLAT

43

FRONTIER MODEL ST0524 FACTORY MODEL 624504x16A

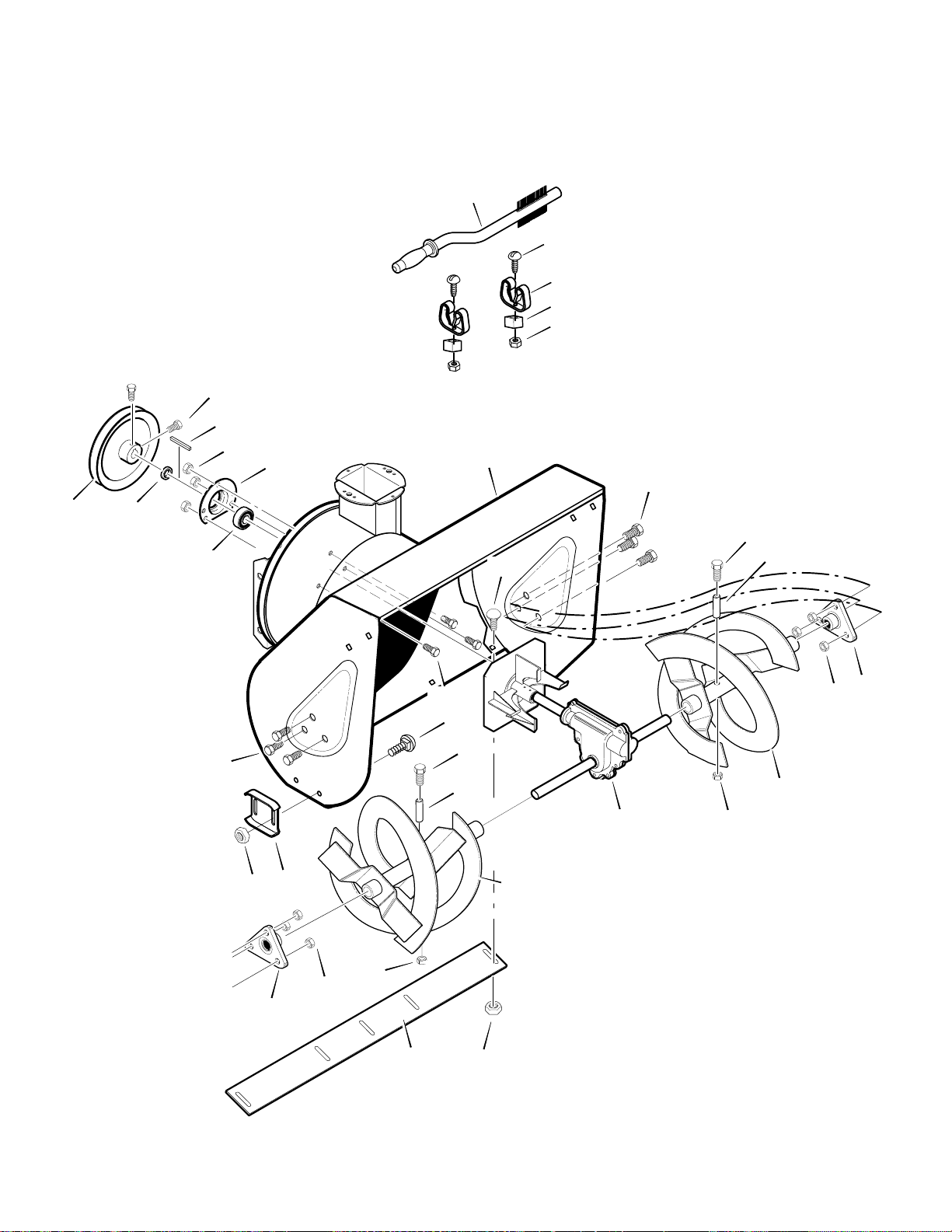

AUGER HOUSING

550

552

551

554

553

481

482

499

490

500

527

480

485

491

527

544

540

493

514

522

523

511

Ref. Gear Case Page

521

524

522

523

520

526

525

MTF-031072L

525

526

524

510

541

44

FRONTIER MODEL ST0524 FACTORY MODEL 624504x16A

AUGER HOUSING

Key No. Part No. Description

480 MT762146 PULLEY, 4L 6.12X .67

481 MT577400 SCREW, 5/16-18X.63

482 MT2001022 KEY, SQUARE 3/16 X 3/4

485 MT1501158 SPACER, FRICTION PULLEY

490 MT582957 YZ RETAINER, BALL BRNG

491 MT43846 BEARING, BALL

493 MT001X92 BOLT, HEX 5/16-18X .50

499 MT710026 NUT, 5/16-18 HEXWDFLLK

500 MT1501585E511 HOUSING, ASSY

510 MT581397E701 BLADE, SCRAPER

511 MT340714 BOLT, 1/4-20X.75

514 MT780285 NUT, 1/4-20

520 MT1501209E701 AUGER, ASSY, LH

521 MT1501210E701 AUGER, ASSY, RH

522 MT9524 SCREW, 1/4-20X1.75

523 MT3943 SPACER, SLEEVE

524 MT73826 NUT, 1/4-20

525 MT9517 BEARING,FLANGE

526 MT711862 NUT, 5/16-18

527 MT9357 SCREW, 5/16-18X .75

540 MT1501609E701 SKID, HEIGHT ADJUST

541 MT340720 BOLT, 5/16-18 X .75

544 MT710026 NUT, 5/16-18

MTF-031072L

550 MT1501576 BRUSH, CLEANOUT

551 MT1501672 CLIP, RETAINER

552 MT06x115 SCREW

553 MT15x146 NUT

554 MT578063 BLOCK

- - MT1501216 Kit, Shear Bolt

45

FRONTIER MODEL ST0524 FACTORY MODEL 624504x16A

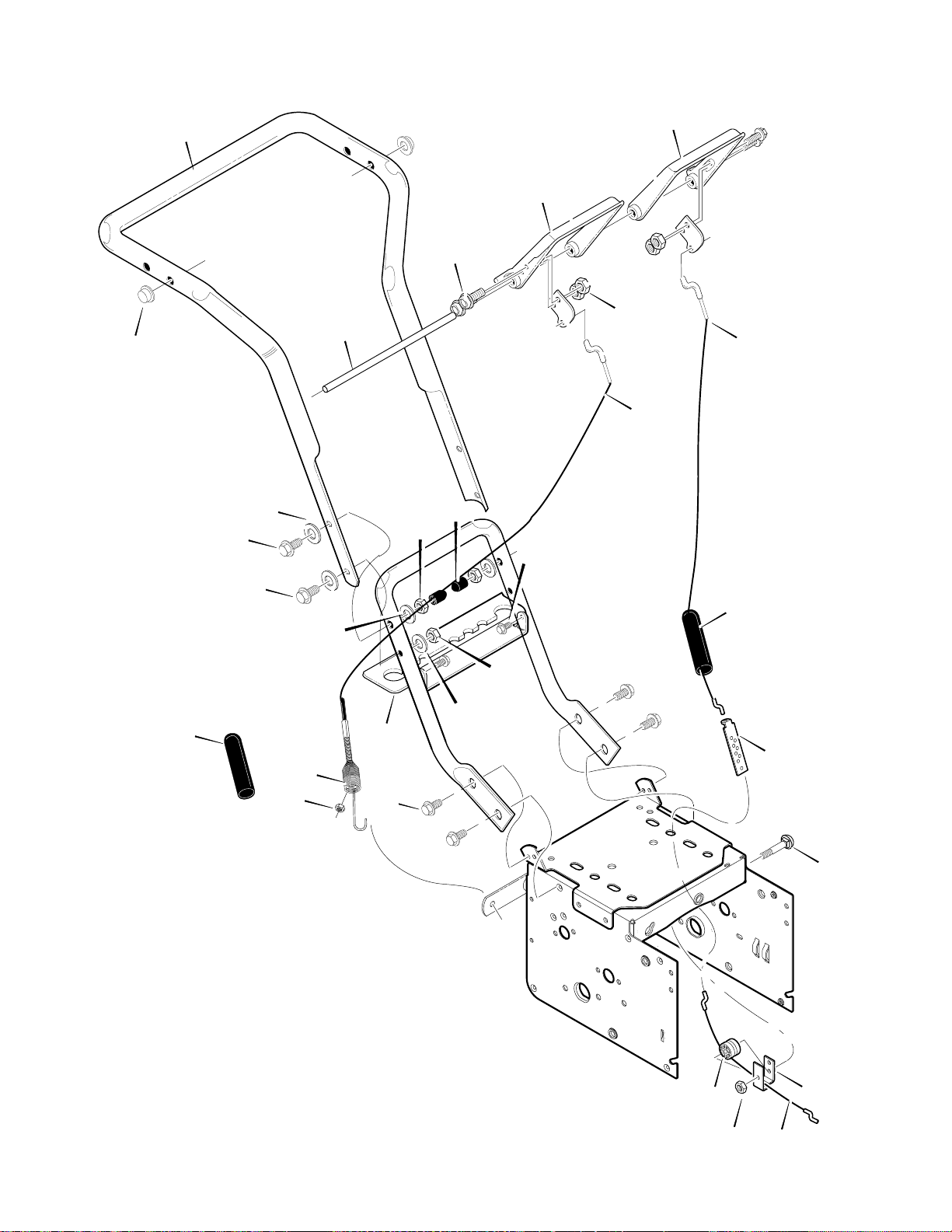

HANDLE ASSEMBLY

720

731

736

730

734

746

724

726

756

745

744

726

733

737

740

741

728

727

757

746

727

726

755

743

751

MTF-031072L

46

759

745

763

760

762

FRONTIER MODEL ST0524 FACTORY MODEL 624504x16A

HANDLE ASSEMBLY

Key No. Part No. Description

720 MT9552E701 HANDLE
724 MT11234 SCREW
725 MT71071 WASHER, FLAT
726 MT71060 WASHER
727 MT15x144 NUT
728 MT11261 PLASTIC-STOP
730 MT302557 CLUTCH, LEFT HANDLE CONTROL
731 MT302558 CLUTCH, RIGHT HANDLE CONTROL
733 MT12621 ROD, PIVOT HANDLE
734 MT3535 PUSH ON CAP
735 MT302620E701 PLATE, CABLE PIVOT
736 MT303108 SCREW
737 MT73826 NUT
740 MT1501123 CABLE, CLUTCH
741 MT761589 CABLE, AUGER CLUTCH
743 MT313441 BRKT, CABLE ADJUST
744 MT1673 SPRING, AUGER CLUTCH
745 MT15x145 LOCKNUT
746 MT308146 BOOT, CLUTCH SPRING

755 MT337407E701 BRACKET, GEAR SELECTOR
757 MT310169 SCREW, 1/4-20 X 0.63
750 MT339541E701 HANDLE, LOWER
751 MT70984 SCREW
752 MT71060 WASHER
759 MT579860 SPOOL-CABLE, AUGRT CLUTCH
760 MT1501059 YZ BRACKET, CABLE SPOOL YZ
762 MT1501122 CABLE, LOWER DRIVE 12”

MTF-031072L

763 MT001798 BOLT, HEX 1/4-20 X 1.50 YZ

47

FRONTIER MODEL ST0524 FACTORY MODEL 624504x16A

SHIFT YOKE

796

793

790

792

801

791

800

MTF-031072L

814

813

802

812

Key No. Part No. Description

790 MT581631E701 ROD, SHIFT
791 MT302628 SCREW, 1/4-20X.75
792 MT73826 NUT, 1/4-20
793 MT318486 NUT, JAM
796 MT304438 KNOB
800 MT760564 LEVER, SPRING
801 MT302628 SCREW, 1/4-20X.75
802 MT73826 NUT, 1/4-20
811 MT579944 BEARING, FLANGED
812 MT1501085 YZ ROD ASSY., SPEED SELECT
813 MT11x30 RETAINER, RING

48

FRONTIER MODEL ST0524 FACTORY MODEL 624504x16A

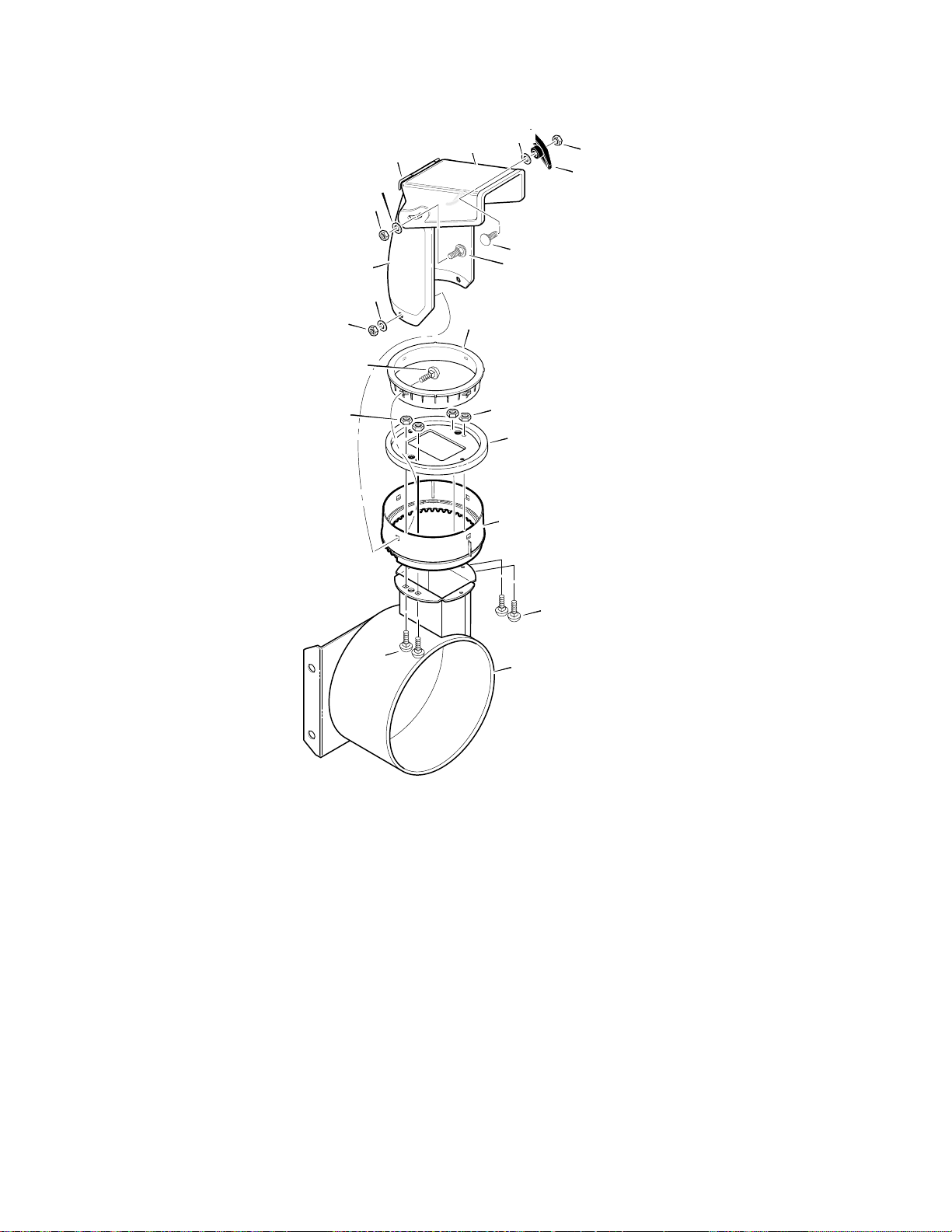

DISCHARGE CHUTE

603

609

600

601

584

602

583

600

600

610

596

598

597

599

582

609

606

611

MTF-031072L

607

607

Ref. Auger Housing Page

Key No. Part No. Description

582 MT2x100 SCREW, 5/16-18 X 1.00
583 MT71071 WASHER, FLAT
584 MT71038 NUT, 5/16-18
596 MT71071 WASHER
597 MT57171 KNOB, T 3.00
598 MT15X144 NUT, 5/16-18
599 MT2x100 BOLT, 5/16-18X1..00
600 MT762222 CHUTE ASSEMBLY
601 MT002x97 BOLT, 5/16-18
602 MT71071 WASHER, FLAT
603 MT71038 NUT, 5/16-18
606 MT585214 YZ CHUTE COLLAR
607 MT02x101 SCREW, 1/4-20 X 0.75
609 MT15X145 NUT, 1/4-20 HEX NYLOCK
610 MT337227 RETAINER RING INNER
611 MT1501282 RETAINER RING OUTER

49

FRONTIER MODEL ST0524 FACTORY MODEL 624504x16A

CHUTE ROD

856

855

854

855

Ref. Handle Assy

864

867

868

863

864

860

Ref. Auger Housing Assy

861

870

852-8

852-11

852-9

852-5

852-13

852-1

852-2

852-10

852-6

869

852-4

852-7

852-3

Key No. Part No. Description Key No. Part No. Description

852-1 MT1501309 YZ ASSEMBLY, YOKE & ROD
852-2 MT313431 WASHER, CURVED SPRING
852-3 MT1501067 GEAR, CHUTE ROTATION 9T
852-4 MT17X170 WASHER
852-5 MT579493 PIN, COTTER
852-6 MT1501306E701 BRACKET, GEAR MOUNT
852-7 MT1501293 PIN, HAIR
852-8 MT1501075 YZ ASSEMBLY, YOKE ADAPTER YZ

852-9 MT711682 PIN, HAIR
852-10 MT578060 PIN, UNIVERSAL JOINT
852-11 MT578309 PIN, CLEVIS
852-13 MT578063 HOUSING, UNIVERSAL

MTF-031072L

854 MT51443 KNOB, SLEEVE
855 MT309312 FLATWASHER
856 MT73664 NUT, PUSH ON 3/8”
860 MT581618 EYE BOLT 3/8-16X6.00
861 MT148 GROMMET, EYE BOLT
863 MT71045 NUT, 3/8-16 HEXJAM
864 MT71072 FLATWASHER .406X.81X.066
867 MT71046 NUT, 3/8-16 HEXNYL
868 MT002X98 BOLT, CARRIAGE 1/4-20 X 1.00
869 MT15X145 NUT
870 MT1501074 YZ CRANK, ASSY CHUTE

50

FRONTIER MODEL ST0524 FACTORY MODEL 624504x16A

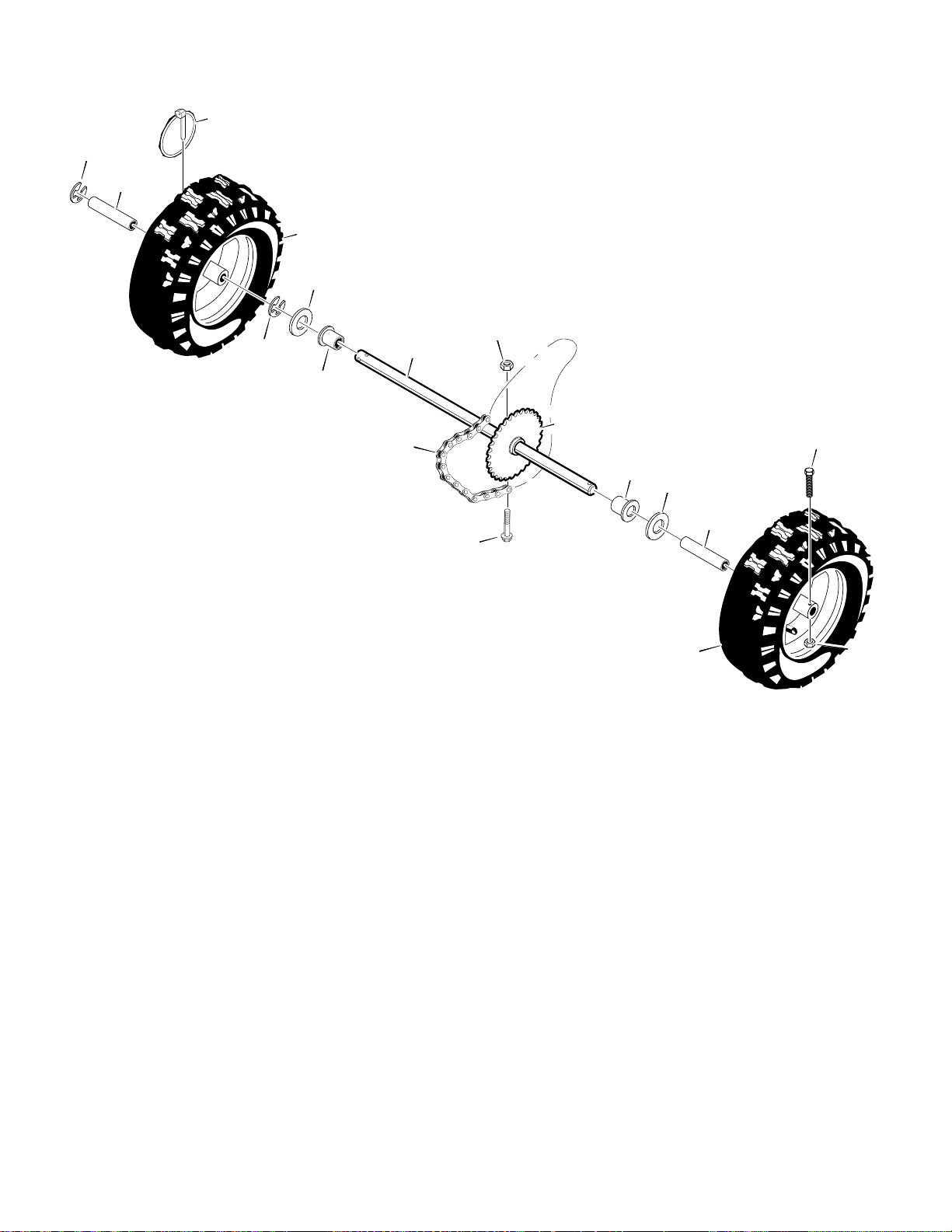

WHEELS

679

678

673

675

671

654

678

655

Ref. Drive Page

650

652

655

676

671

653

Key No. Part No. Description

650 MT1501562 SHAFT, AXLE
652 MT1501089 SPRKT & HUB
653 MT01x193 SCREW, 1/4-20 x 1.75
654 MT15x145 NUT, 1/4-20 HEX NYLOCK
655 MT1501114 BEARING, AXLE
671 MT712120 FLATWASHER
673 MT1501139 BUSHING, WHEEL
675 MT1501656 TIRE & RIM, RIGHT
676 MT577015 SCREW, 1/4-20X1.75 HH
677 MT15X145 NUT, 1/4-20 HEX NYLOCK
678 MT239 RING, RET
679 MT73842 PIN, KLIK .25 X 1.38 DIA
680 MT1501656 TIRE & RIM, LEFT

680

673

677

MTF-031072L

51

FRONTIER MODEL ST0524 FACTORY MODEL 624504x16A

GEAR CASE

341

340

303

327

300

326

324

310

324

325

316

312

323

322

315

314

321

313

312

304

306

311

304

301

310

320

303

311

Key No. Part No. Description

300 MT10577 CASE, GEAR, RH
301 MT10576 CASE, GEAR, LH
303 MT710025 SCREW,1/4-20X.75
304 MT15X143 NUT,1/4-20
306 MT9344 SCREW, 3/8-16X.50
310 MT9566 SEAL, OIL
311 MT50304 BEARING, FL
312 MT48275 WASHER, FLAT
313 MT340286 SHAFT, AUGER OUTPUT
314 MT51279 GASKET, GEAR BOX
315 MT51405 GEAR, WORM
316 MT431787 KEY, WOODRUFF #61
320 MT50221 BRNG, FL
321 MT1501128 SHAFT, AUGER INPUT (IMPELLER)
322 MT580295 COLLAR, THRUST
323 MT454565 PIN, SPRING
324 MT48275 WASHER, FLAT
325 MT50684 BRNG, ROLL
326 MT50304 BRNG, FL
327 MT9566 SEAL, OIL
340 MT760194E701 IMPELLER
341 MT454565 PIN, SPRING

* MT333431 10oz TUBE LUBRIPLATE

MTF-031072L

* (NOT ILLUSTRATED)

52

FRONTIER MODEL ST0524 FACTORY MODEL 624504x16A

DECALS

1

3

2

13

7

5

9

12

6

MTF-031072L

4

11

10

Key No. Part No. Description

1 MT48x5283 DECAL, AUGER CONTROL
2 MT7390 DECAL, V-BELTS
3 MT7859 DECAL, OVER ADJUSTMENT
4 MT48x5286 DECAL, ROTATING AUGER
5 MT761078 DECAL, DANGER
6 MT48x5285 DECAL, UNCLOGGING CHUTE
7 MT48x5284 DECAL, SPEED CONTROL

9 MT760983 DECAL, SHEAR BOLTS
10 MT48x5287 LOGO, FRONTIER
11 MT48x5288 DECAL, ST0524
12 MT48x5254 DECAL, CLEAN & CLEAR BRUSH
13 MT586402 DECAL, TRACTON CONTROL

-- MTF-031071L OPERATOR’S MANUAL

53

NOTES

MTF-031072L

54

NOTES

MTF-031072L

55

SPECIFICATIONS ST0524

Engine Tecumseh Snow King

Horsepower 5 hp

Starter Electric / Recoil

Fuel Capacity 2 quarts

Drive System Friction Disc

Speeds 6 Forward / 2 Reverse

Tire Diameter 13”

Traction Control Pin Lock

Clearing Width 24”

Housing Height 17.5”

Auger Diameter 10”

Auger Type Steel / Notched

Impeller Diameter 9”

Chute Rotation Remote

Chute Turning Radius

Deflector Control Manual

Weight 160 lbs

Warranty - Engine 2 years

Warranty - Machine 3 years

190

MTF-031072L

56
